Acer
Aspire 4710/4310
Service Guide
Service guide files and updates are available
on the ACER/CSD web; for more information,
please refer to http://csd.acer.com.tw
PRINTED IN TAIWAN
СТРАНИЦА PDF
Страница 2

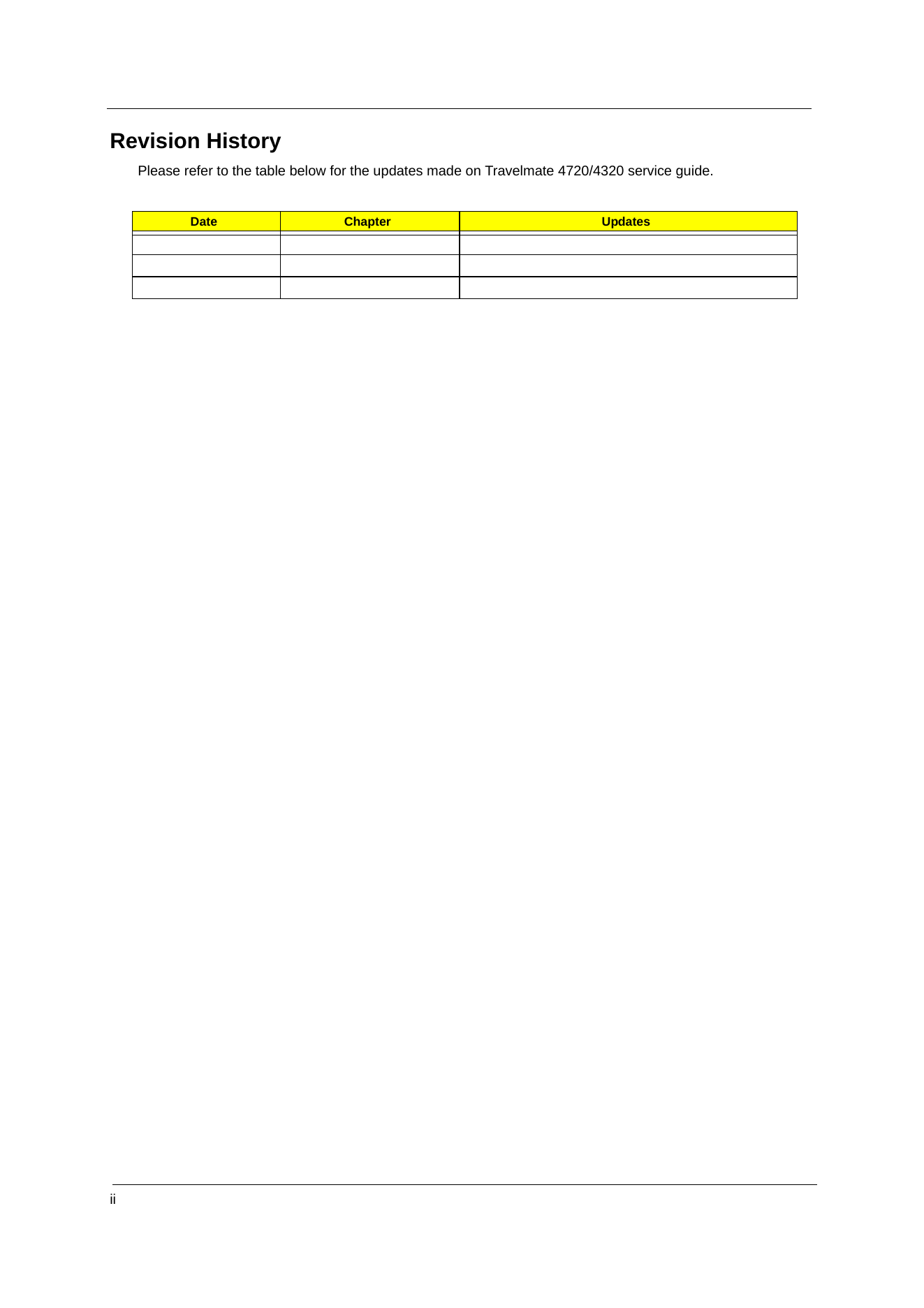

Revision History
Please refer to the table below for the updates made on Travelmate 4720/4320 service guide.
Date Chapter Updates
ii
СТРАНИЦА PDF
Страница 3

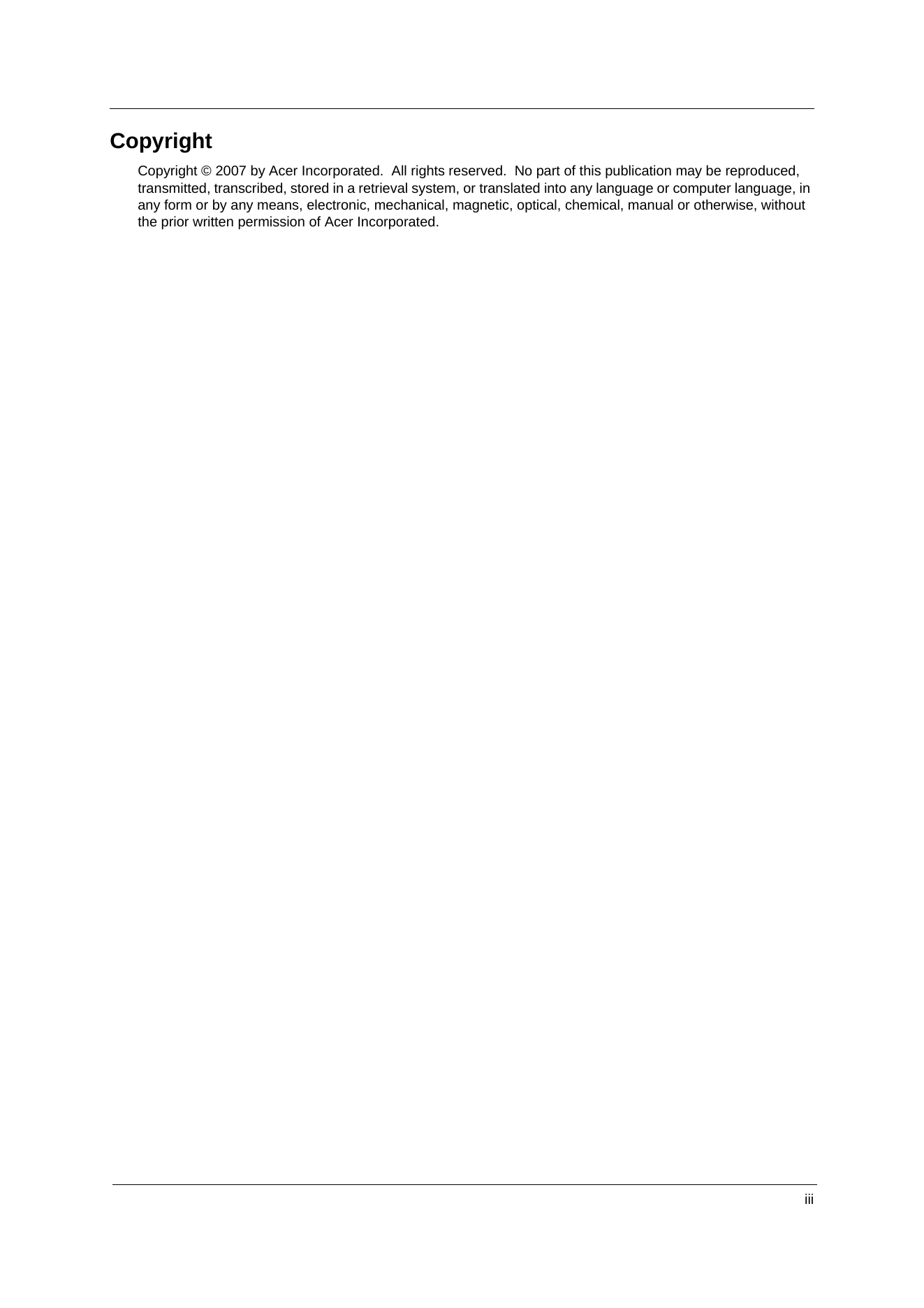

Copyright
Copyright © 2007 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in
any form or by an...
СТРАНИЦА PDF
Страница 4

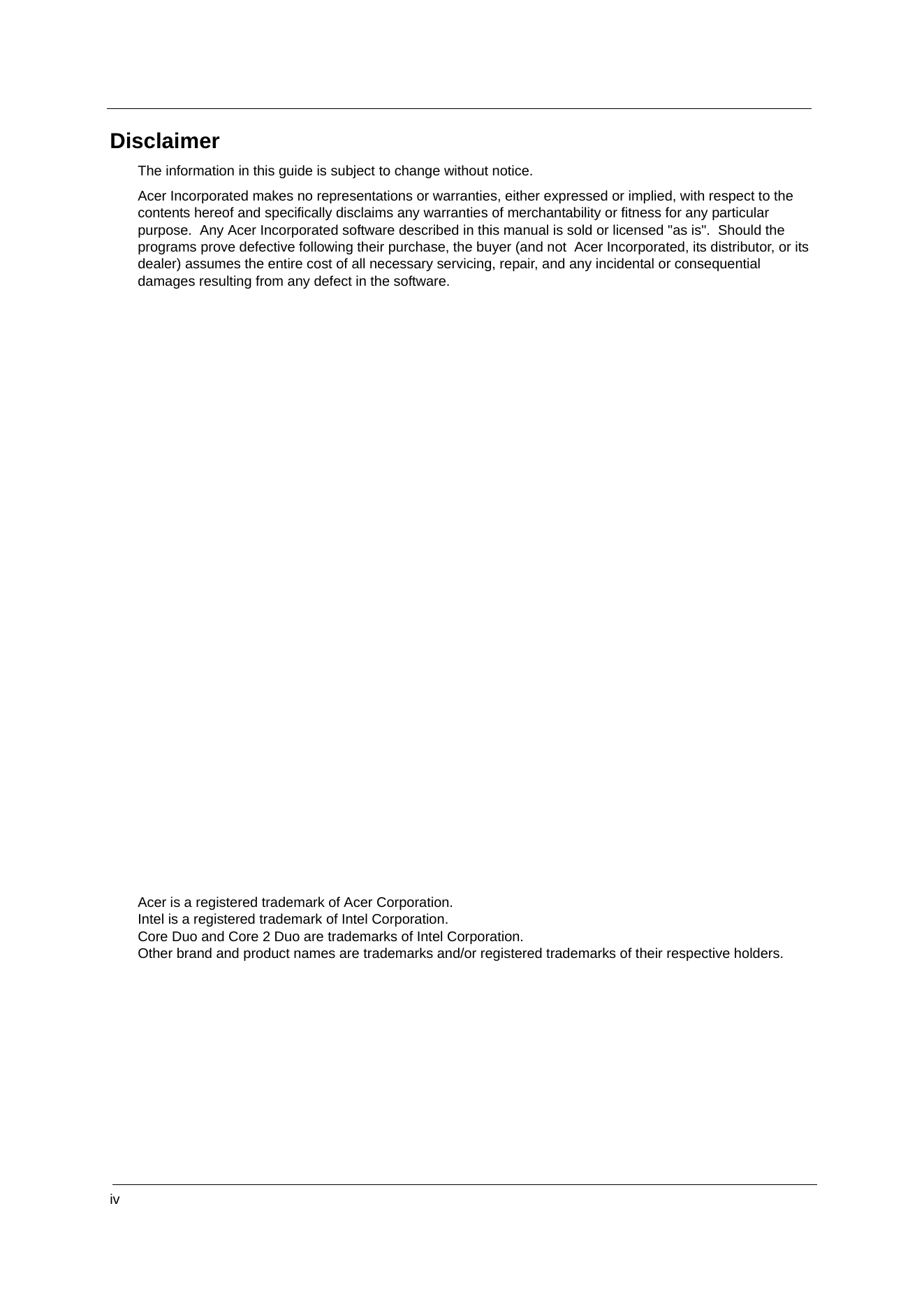

Disclaimer
The information in this guide is subject to change without notice.
Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the
contents hereof and specifically disclaims any warranties of m...
СТРАНИЦА PDF
Страница 5

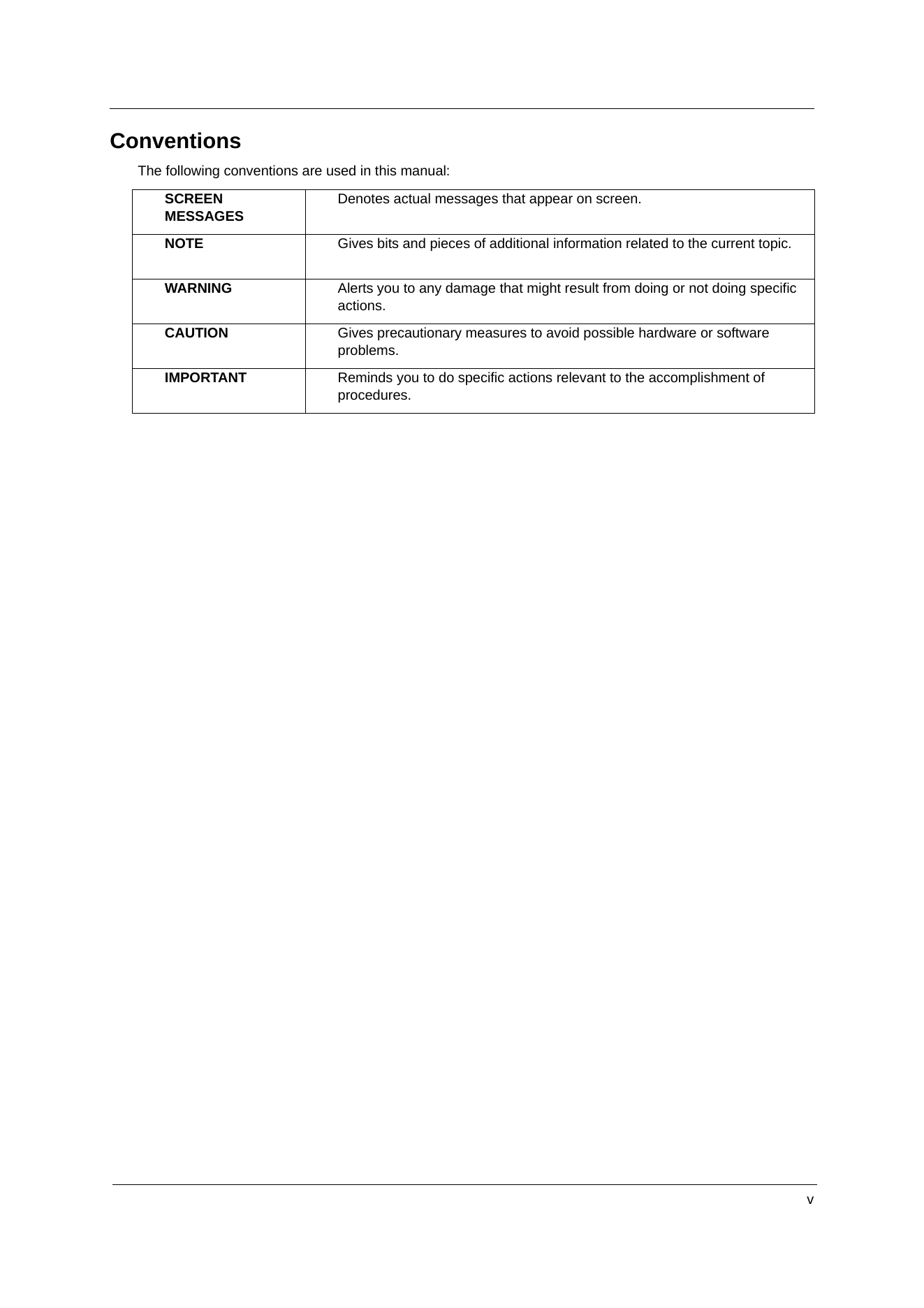

Conventions
The following conventions are used in this manual:
SCREEN Denotes actual messages that appear on screen.
MESSAGES
NOTE Gives bits and pieces of additional information related to the current topic.
WARNING Alerts you to any damage t...
СТРАНИЦА PDF
Страница 6

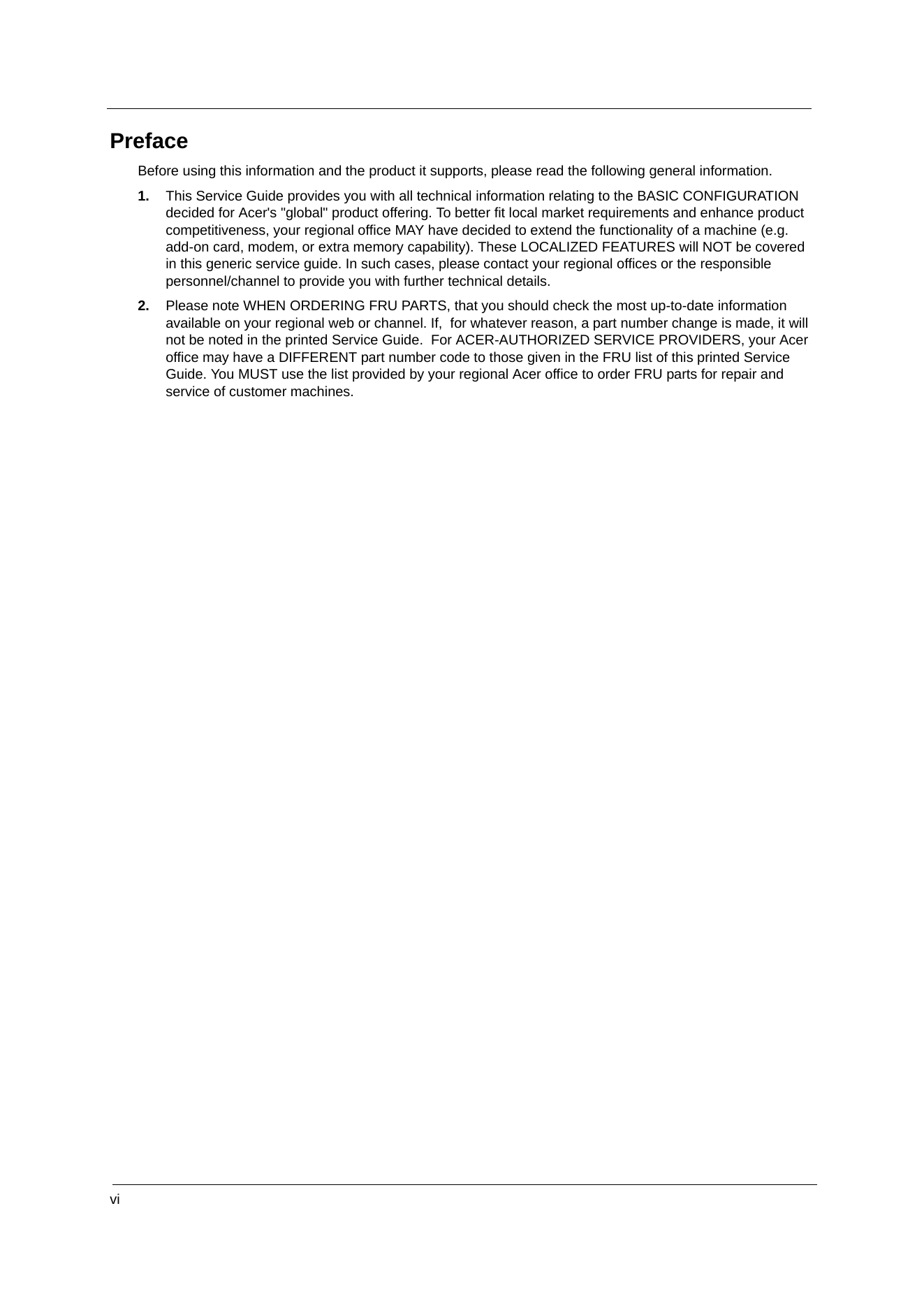

Preface
Before using this information and the product it supports, please read the following general information.
1. This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION
decided for Acer's "global" pro...
СТРАНИЦА PDF
Страница 7

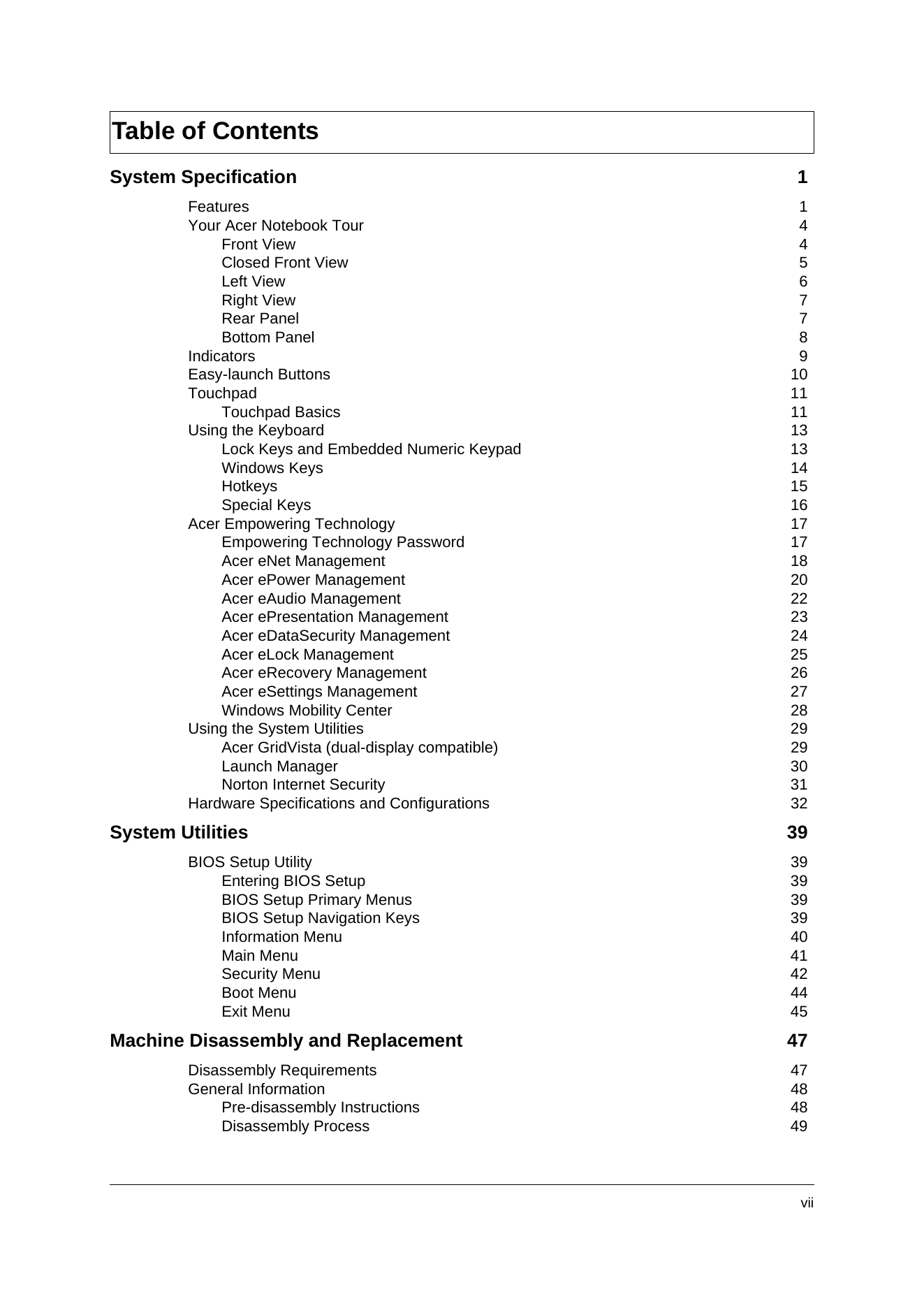

Table of Contents
System Specification 1
Features 1
Your Acer Notebook Tour 4
Front View 4

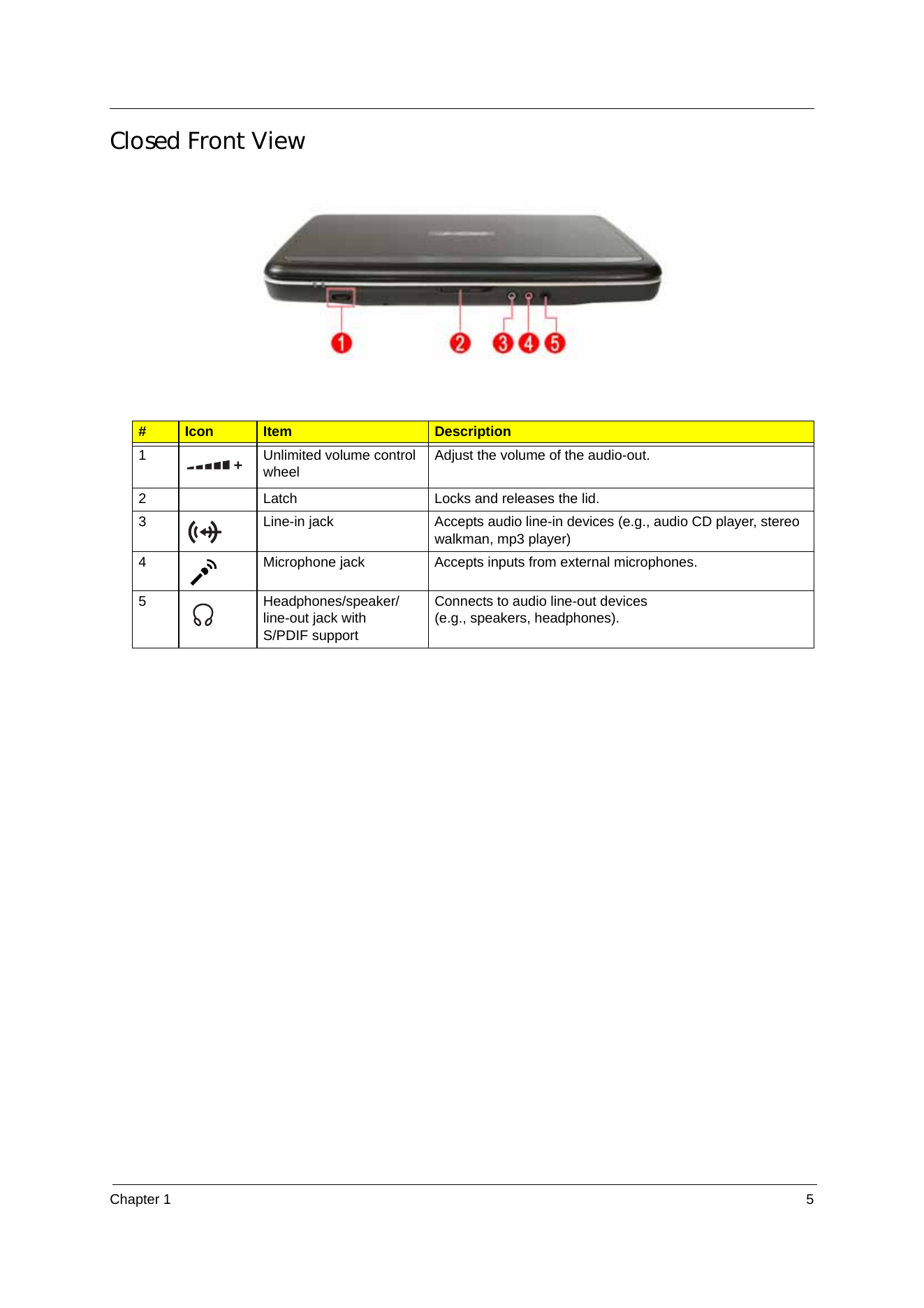

Closed Front View 5

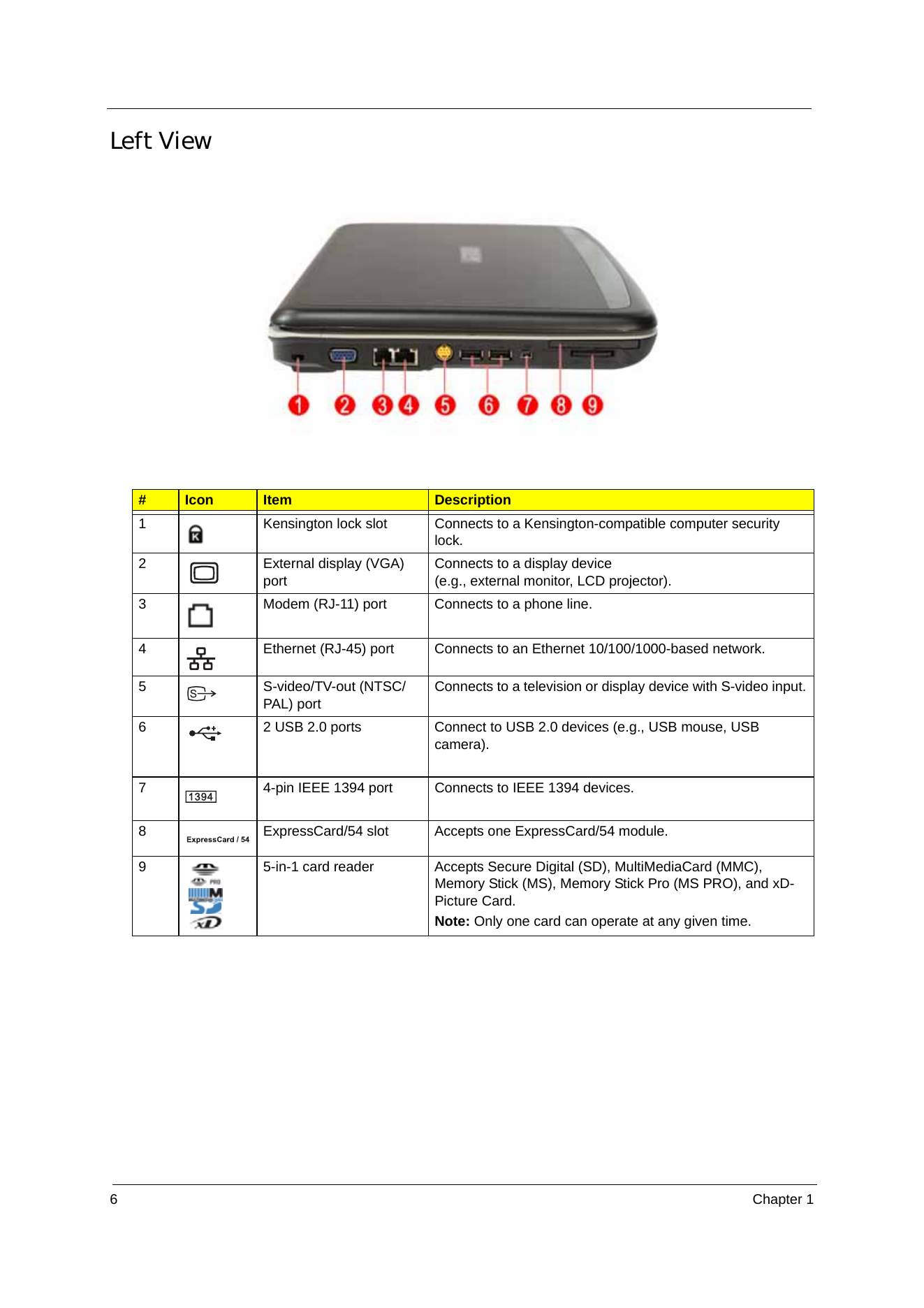

Left View 6

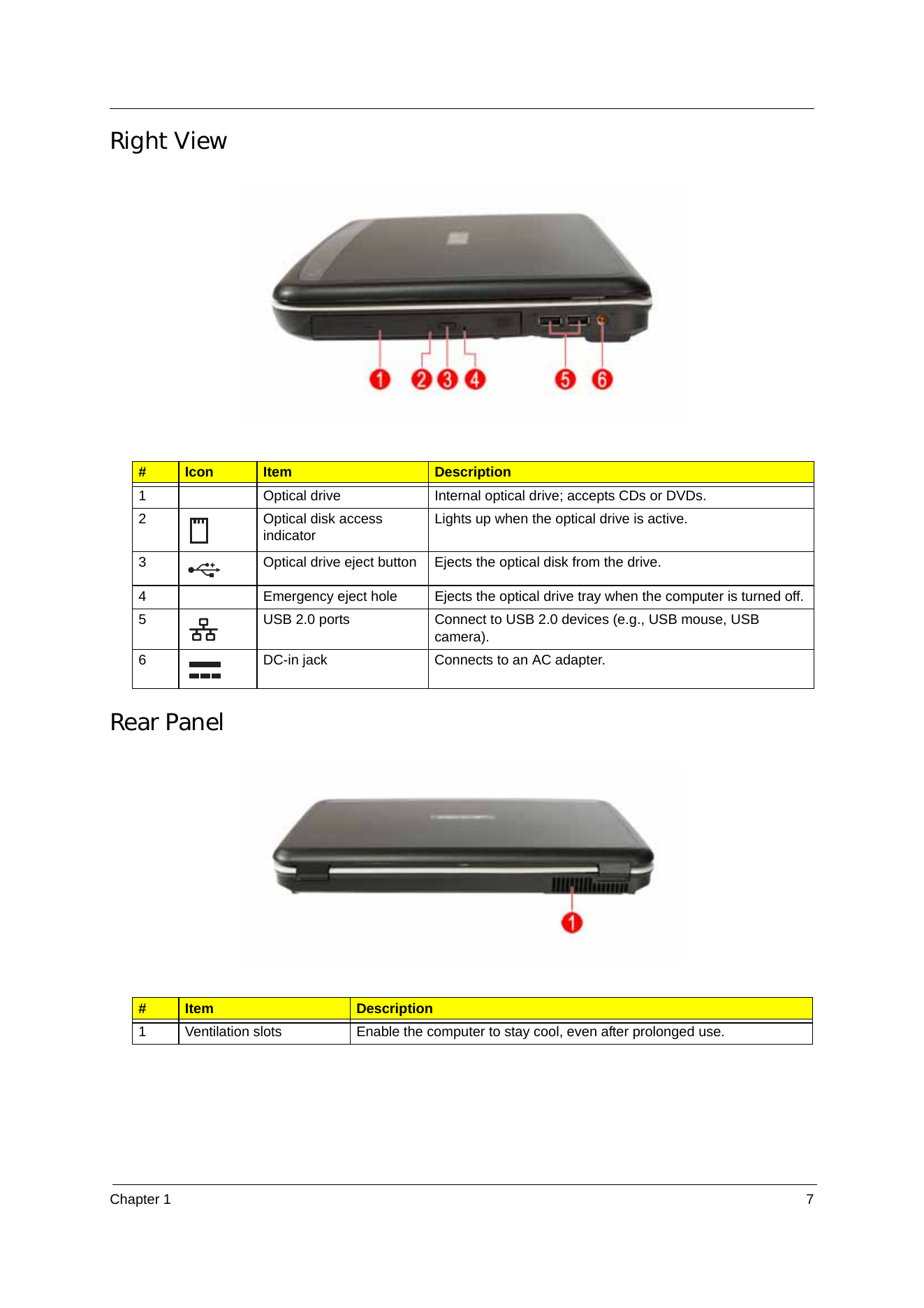

Right View 7
Rear Panel 7

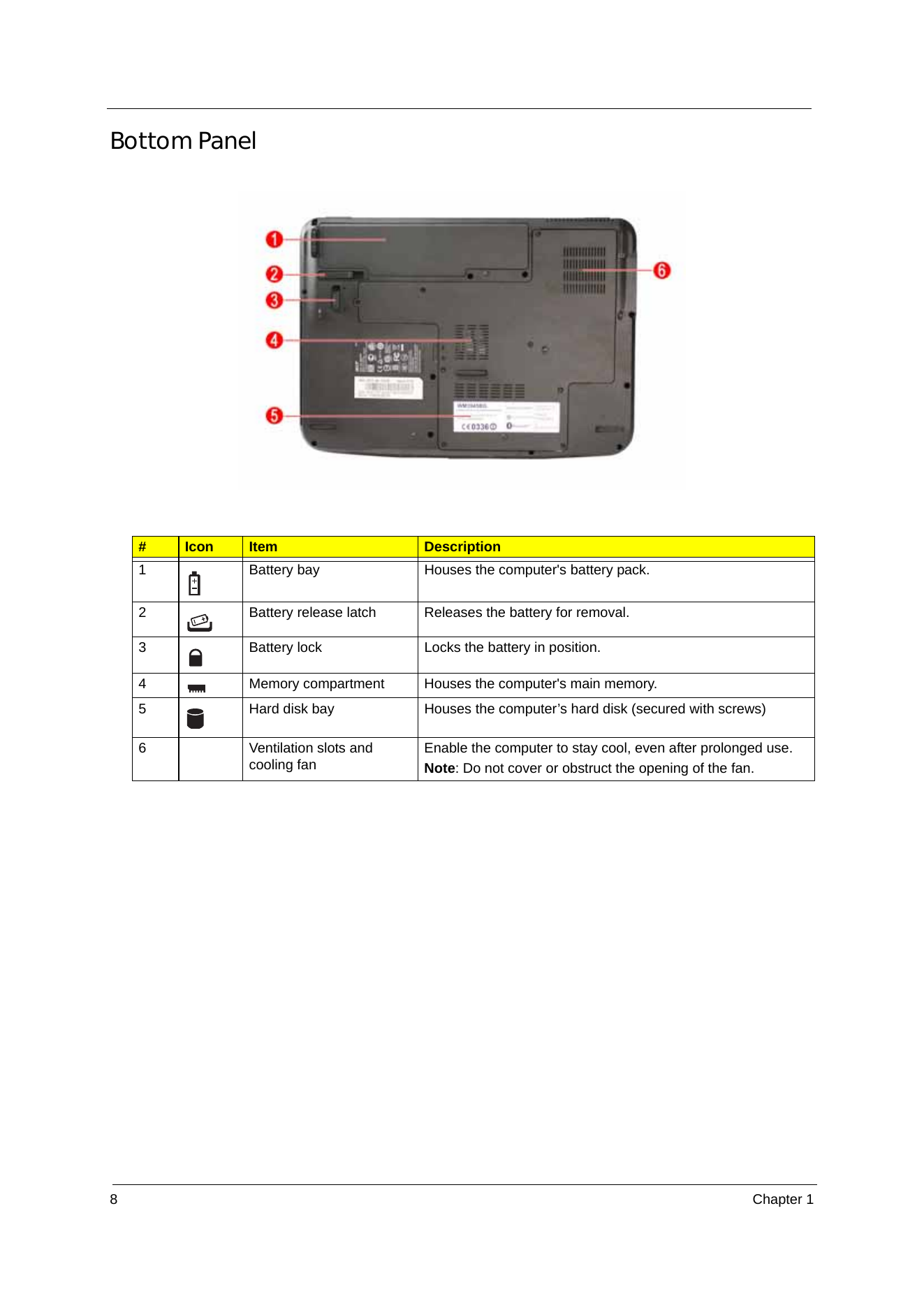

Bottom Panel 8

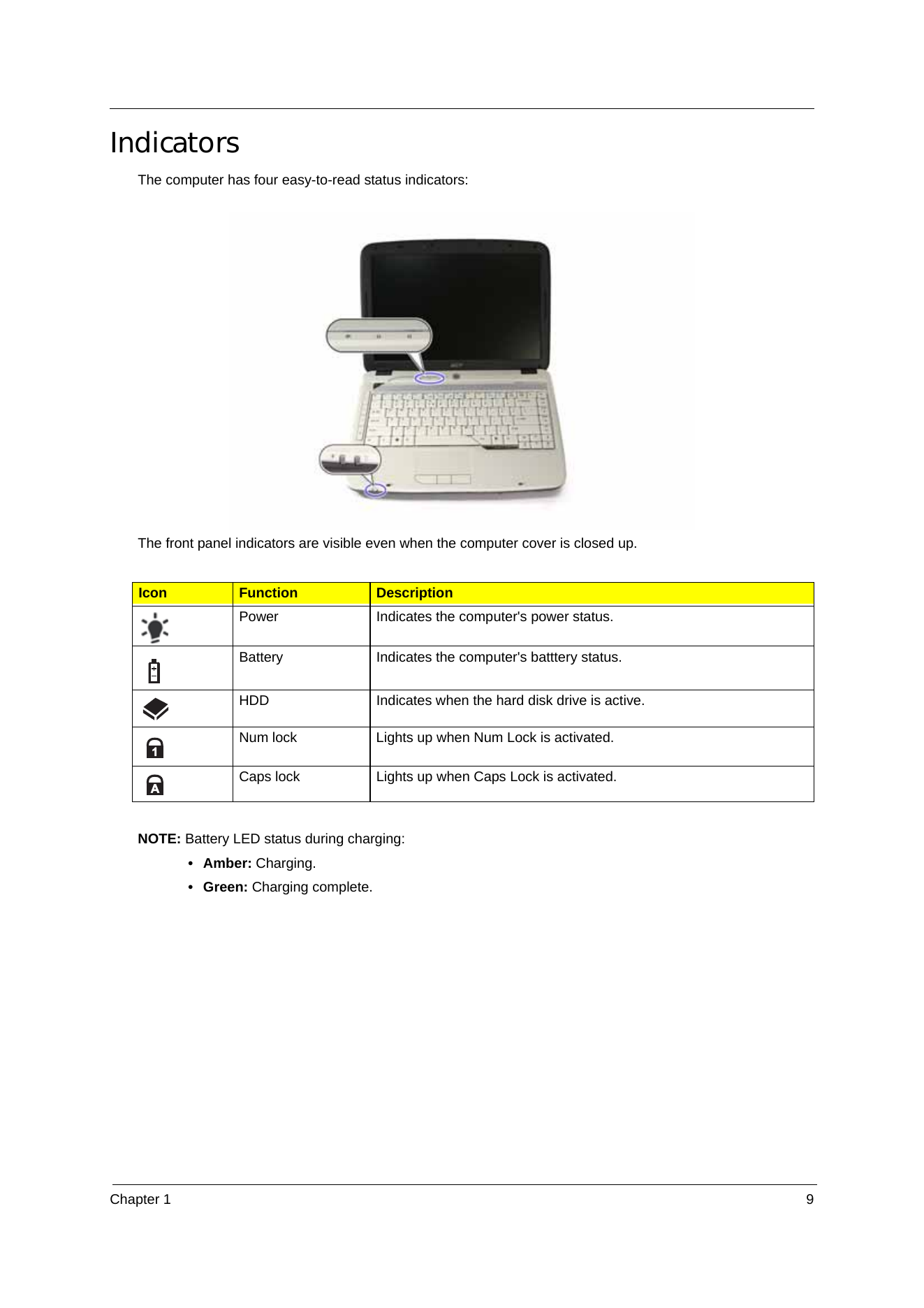

Indicators 9

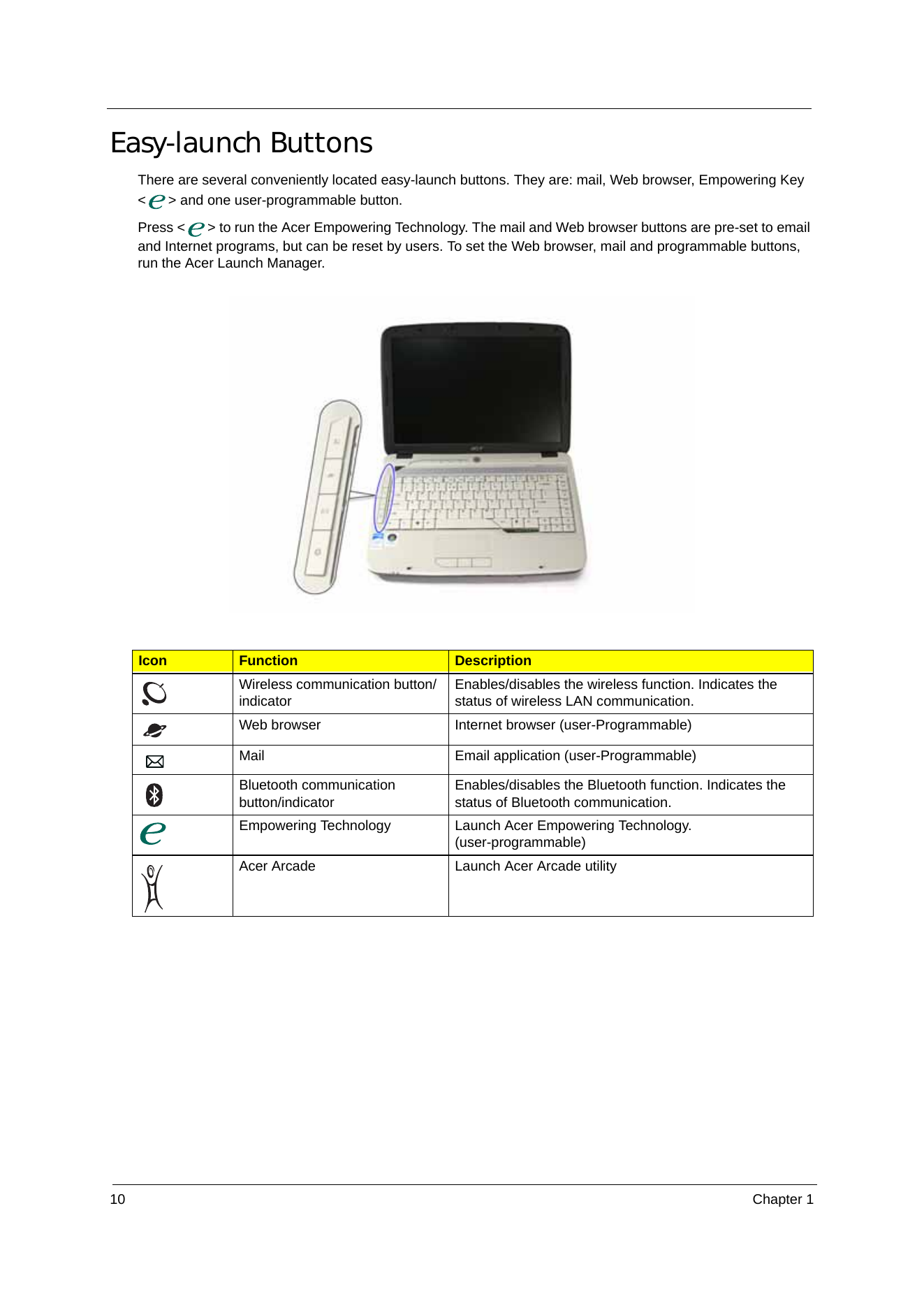

Easy-launch Buttons 10

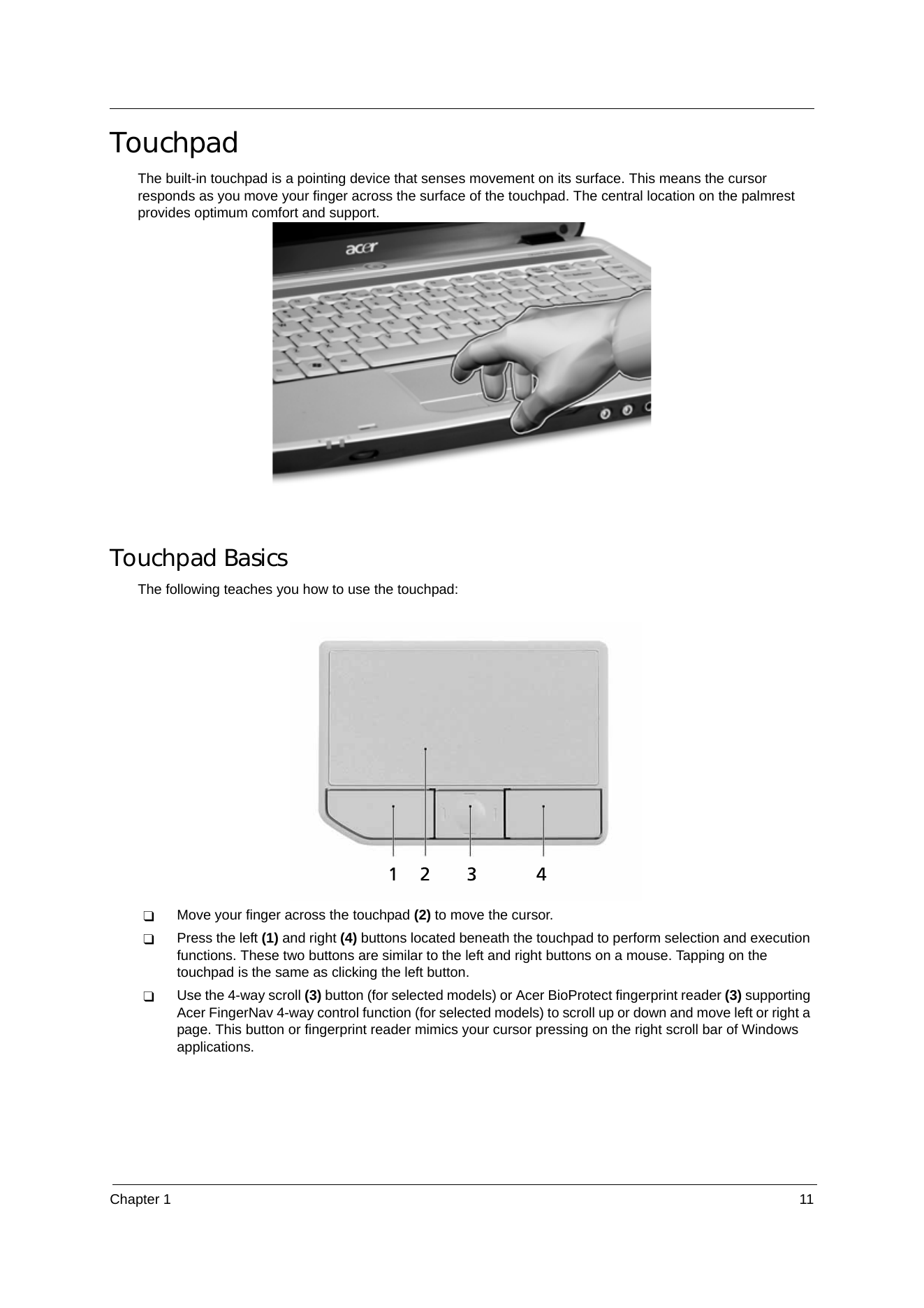

Touchpad 11

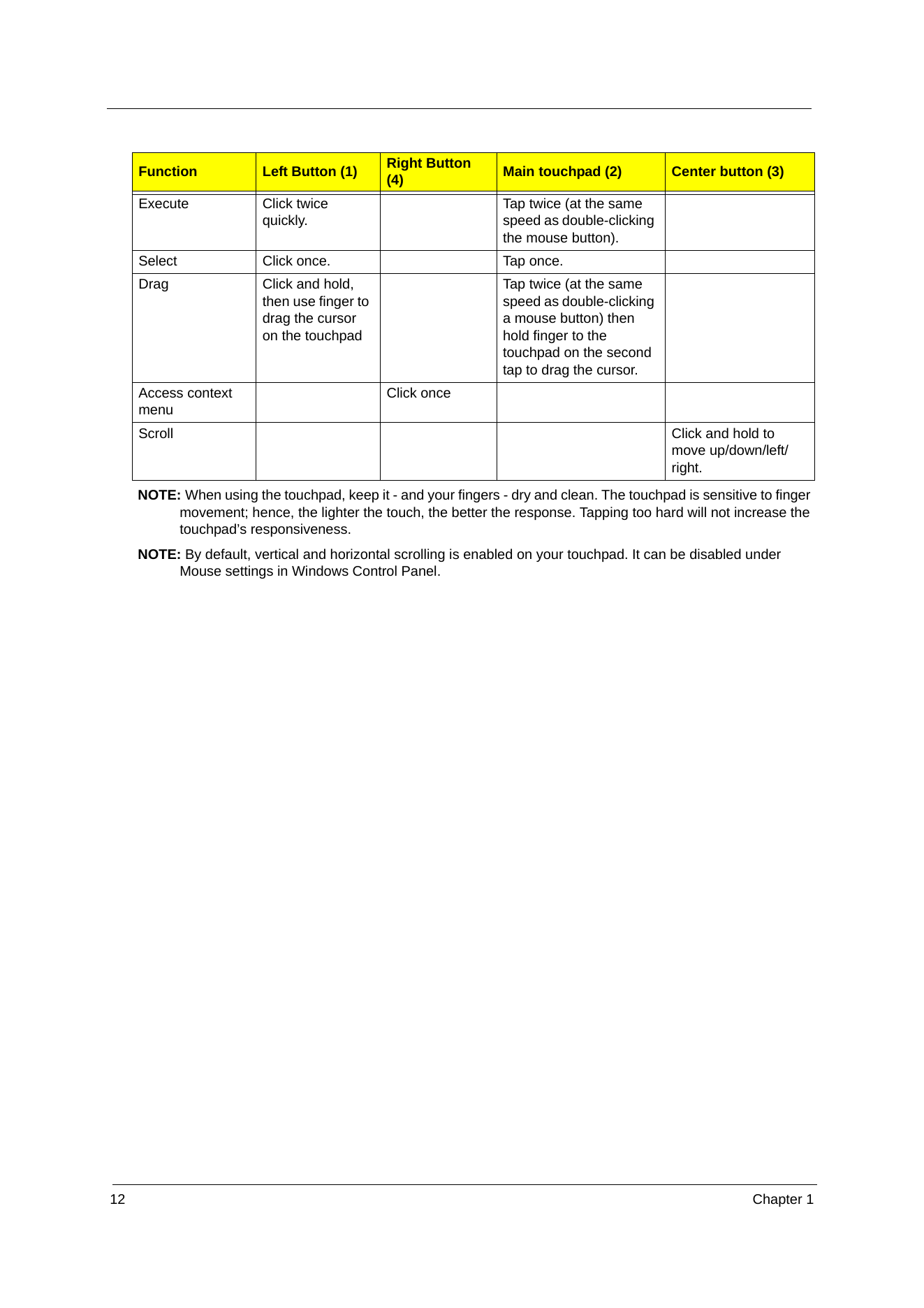

Touchpad Basics 11

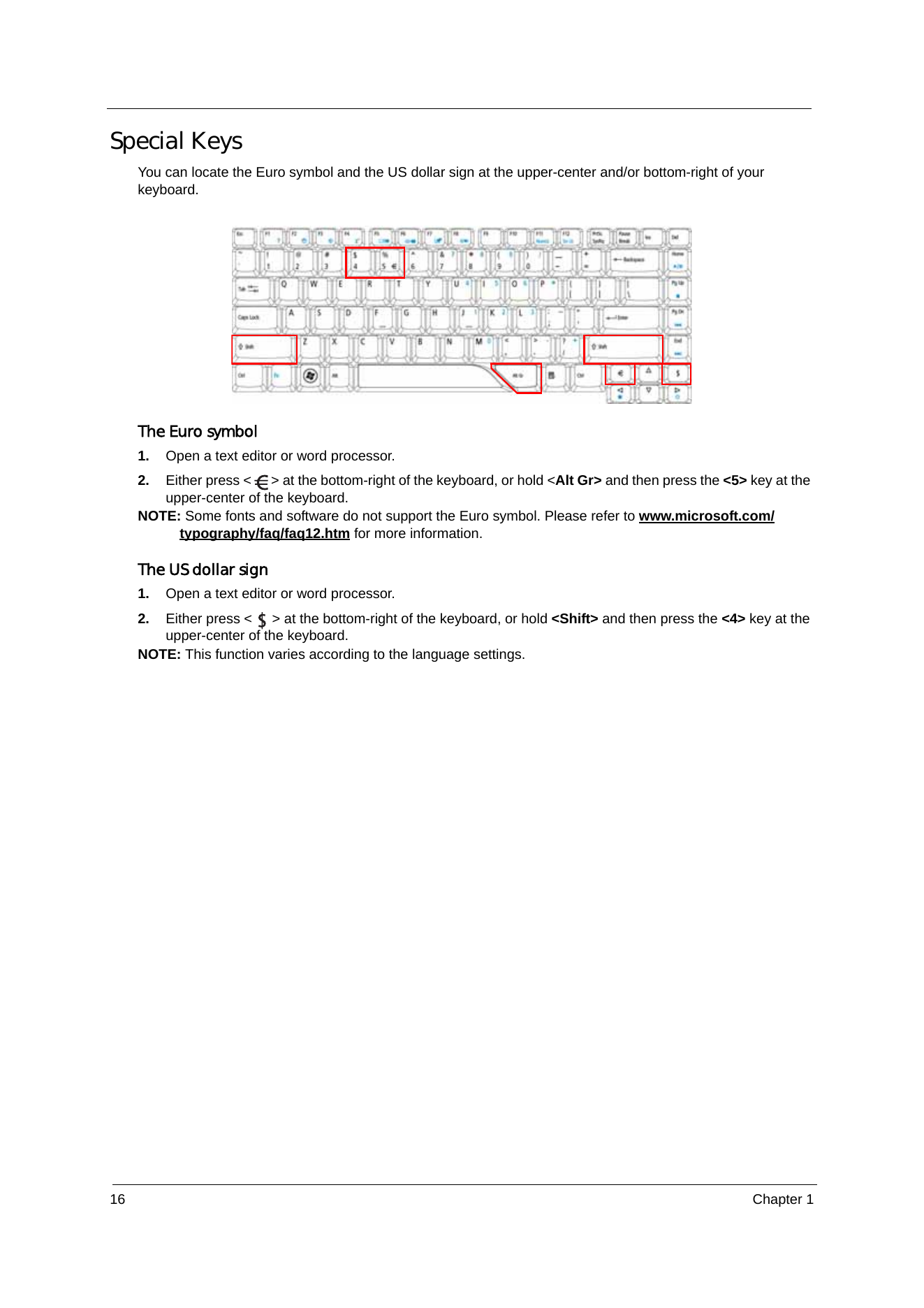

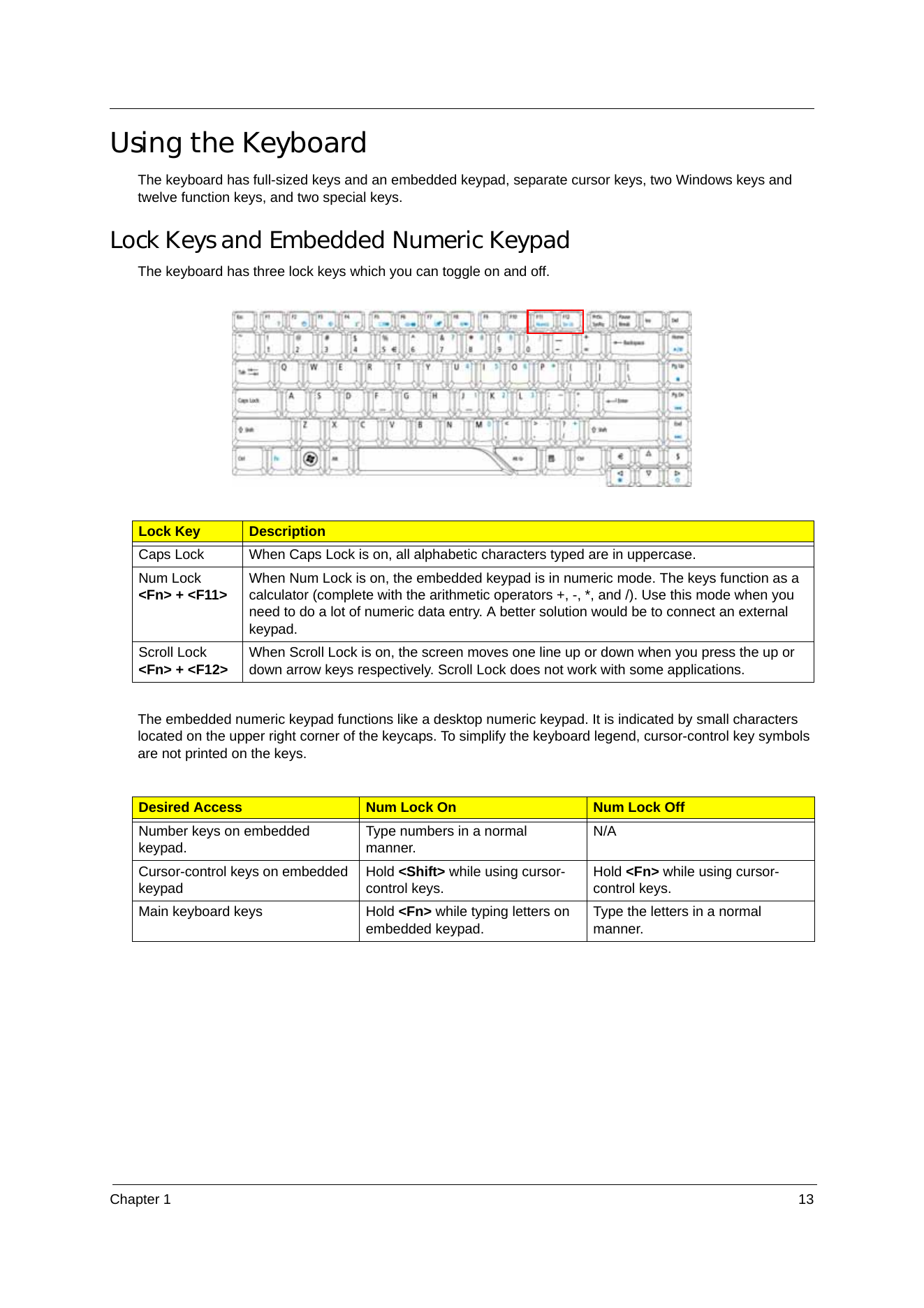

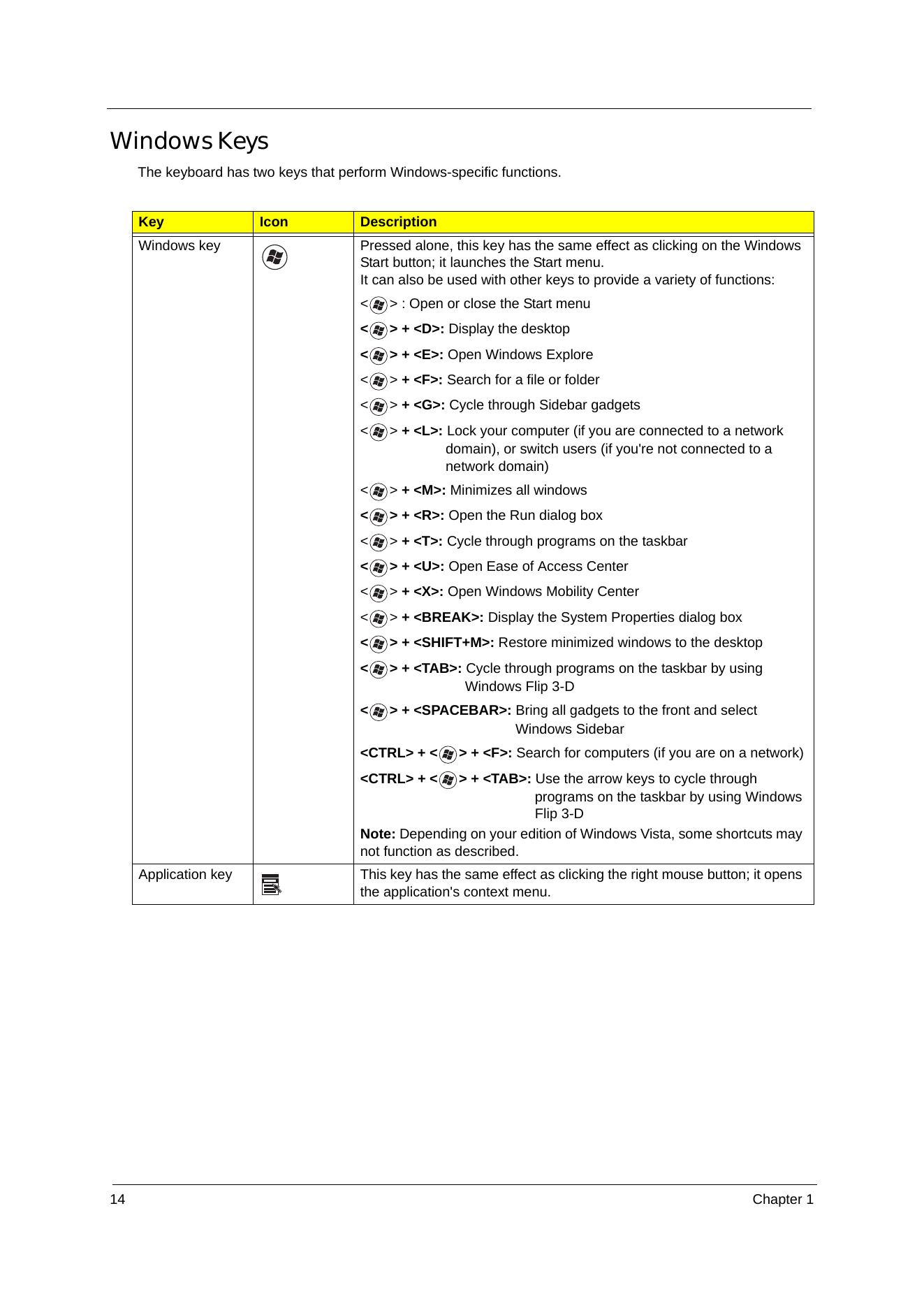

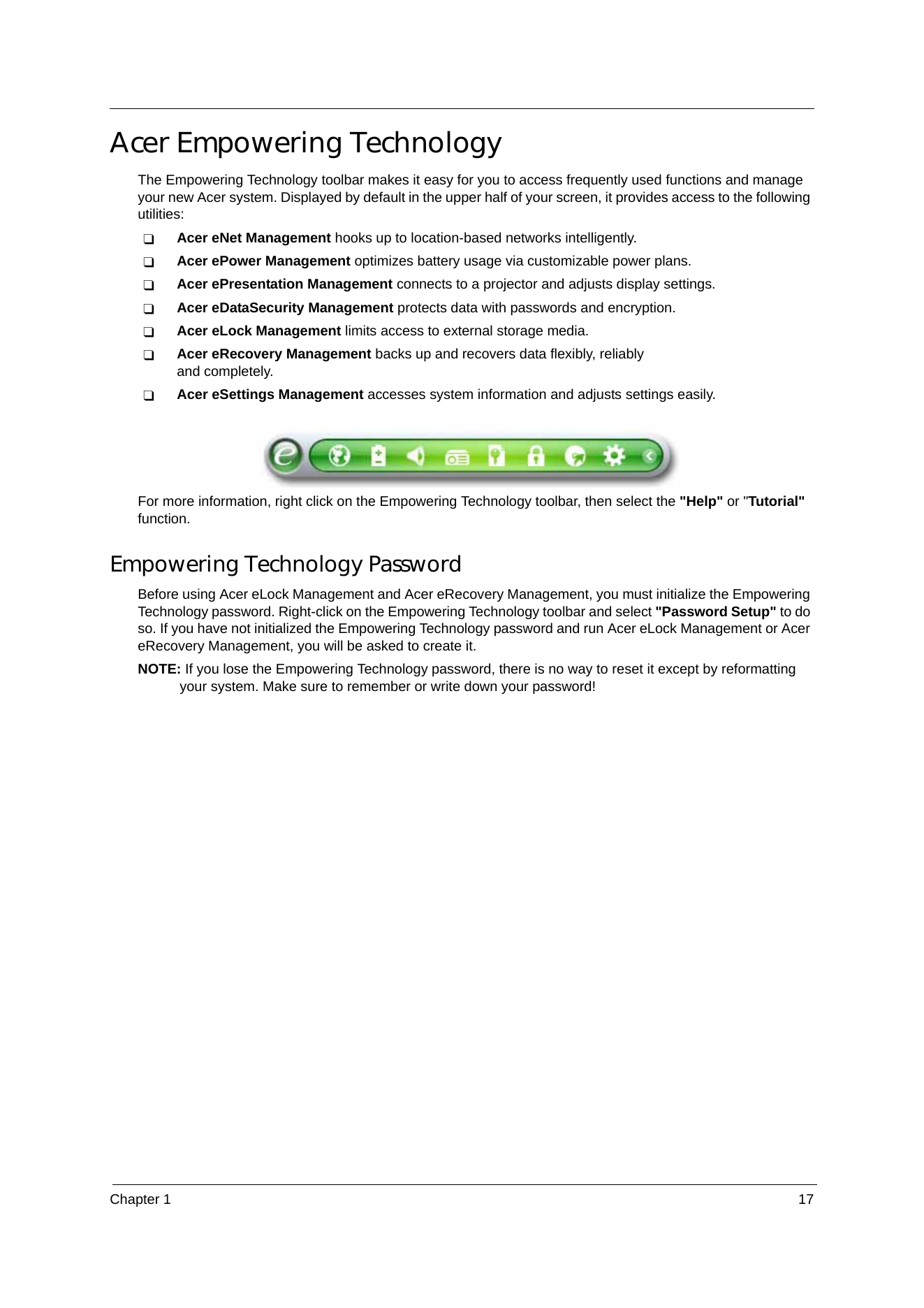

Using ...
СТРАНИЦА PDF

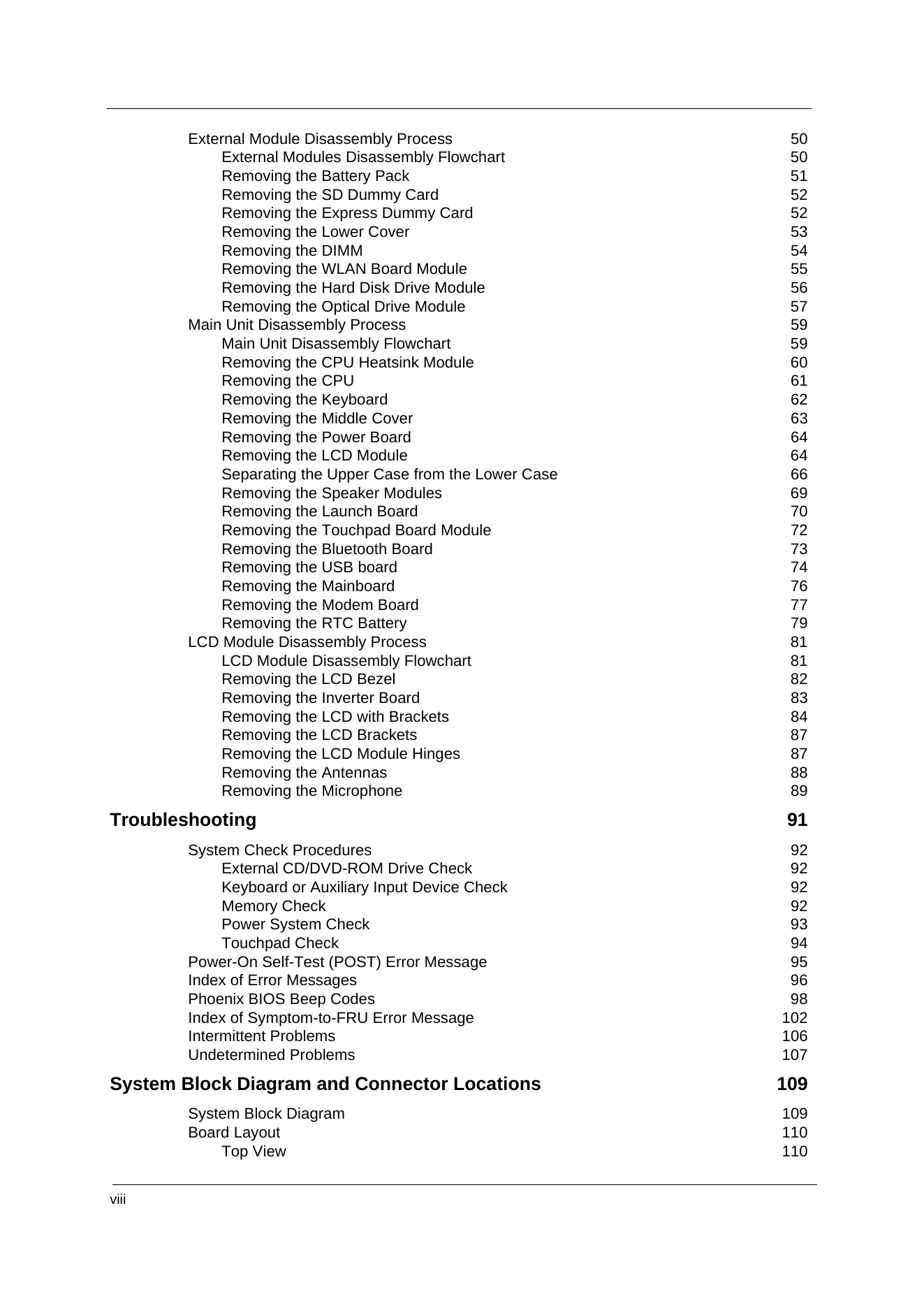

Страница 8
External Module Disassembly Process 50
External Modules Disassembly Flowchart 50
Removing the Battery Pack 51
Removing the SD Dummy Card 52
Removing the Express Dummy Card 52
Removing the Lower Cover 53
Removing the DIMM 54
Removing the WLAN B...
СТРАНИЦА PDF

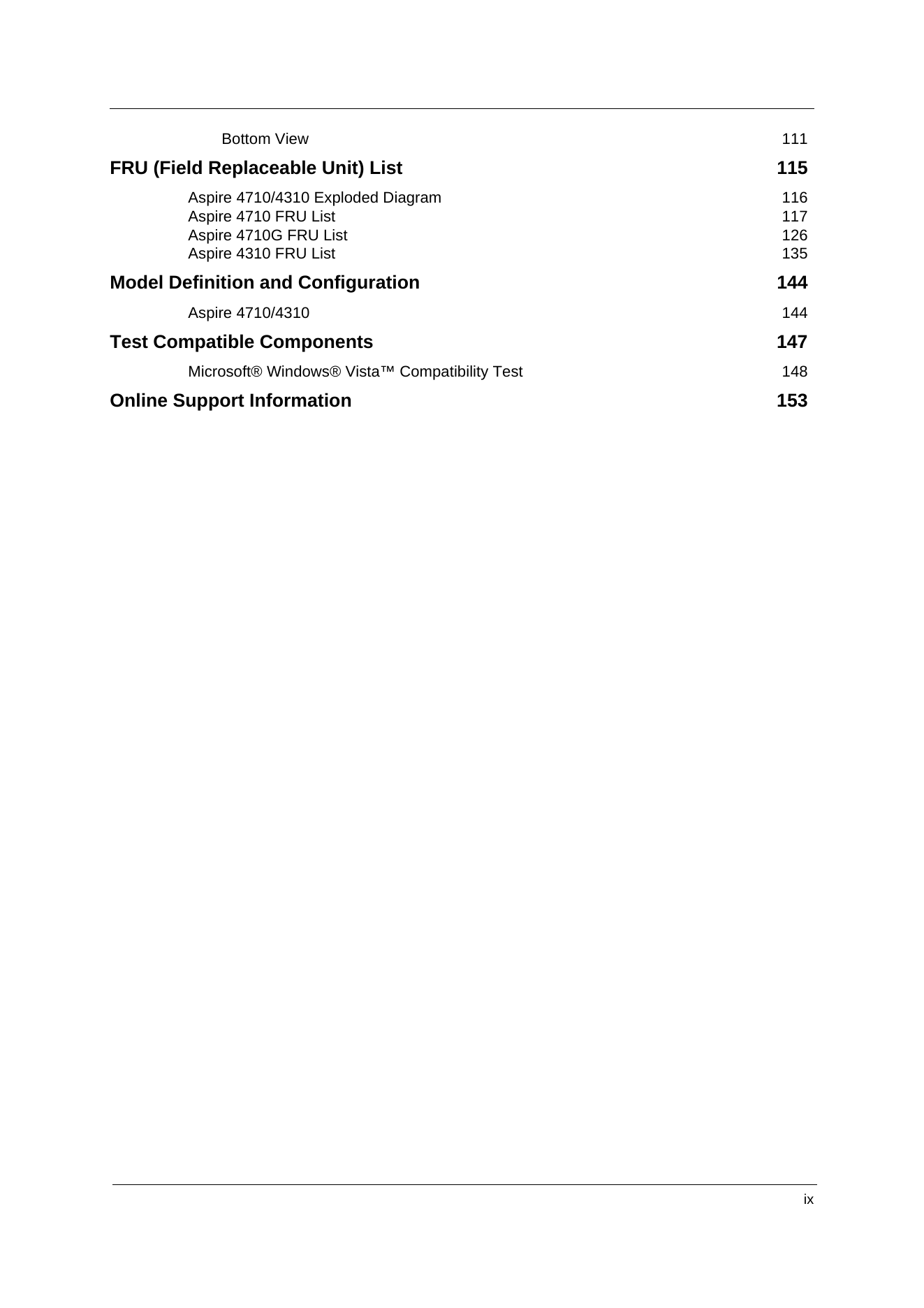

Страница 9
Bottom View 111
FRU (Field Replaceable Unit) List 115
Aspire 4710/4310 Exploded Diagram 116
Aspire 4710 FRU List 117
Aspire 4710G FRU List 126
Aspire 4310 FRU List 135
Model Definition and Configuration 144
Aspire 4710/4310 144
Test Compatible C...
СТРАНИЦА PDF
Страница 10
x
СТРАНИЦА PDF
Страница 11

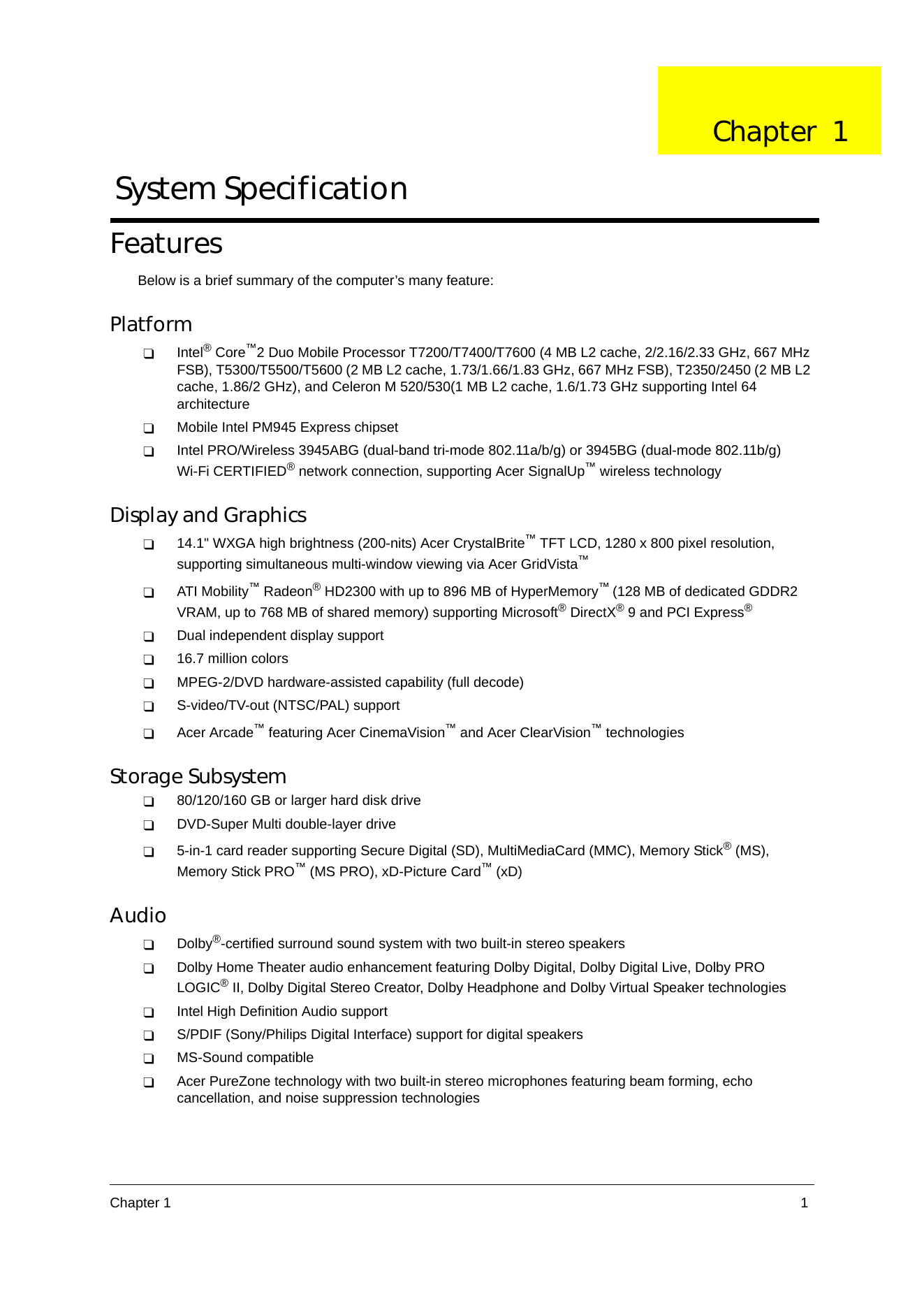

Chapter 1
System Specification
Features
Below is a brief summary of the computer’s many feature:
Platform
T Intel® Core™2 Duo Mobile Processor T7200/T7400/T7600 (4 MB L2 cache, 2/2.16/2.33 GHz, 667 MHz
FSB), T5300/T5500/T5600 (2 MB L2 cache, 1.7...
СТРАНИЦА PDF

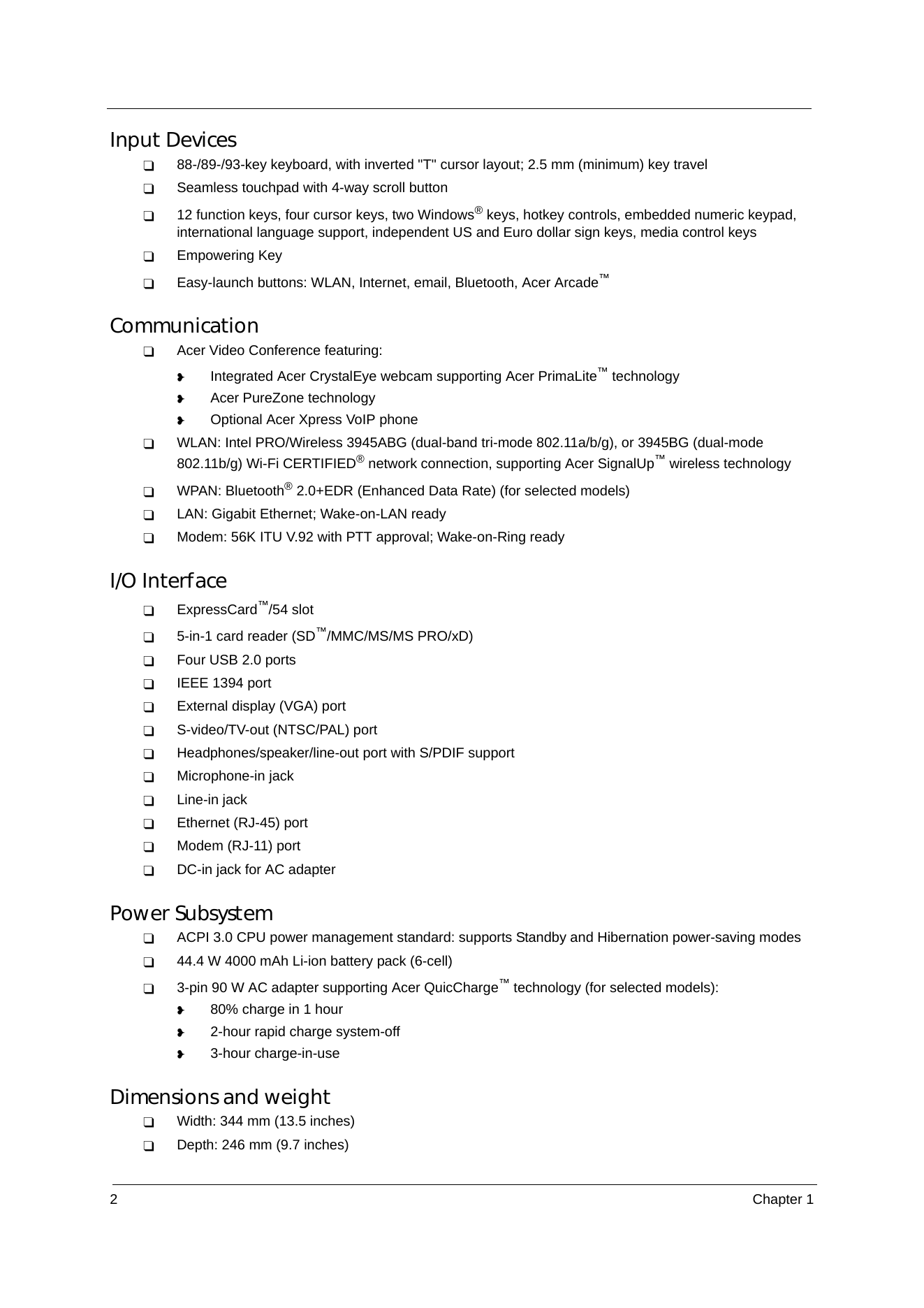

Страница 12
Input Devices
T 88-/89-/93-key keyboard, with inverted "T" cursor layout; 2.5 mm (minimum) key travel
T Seamless touchpad with 4-way scroll button

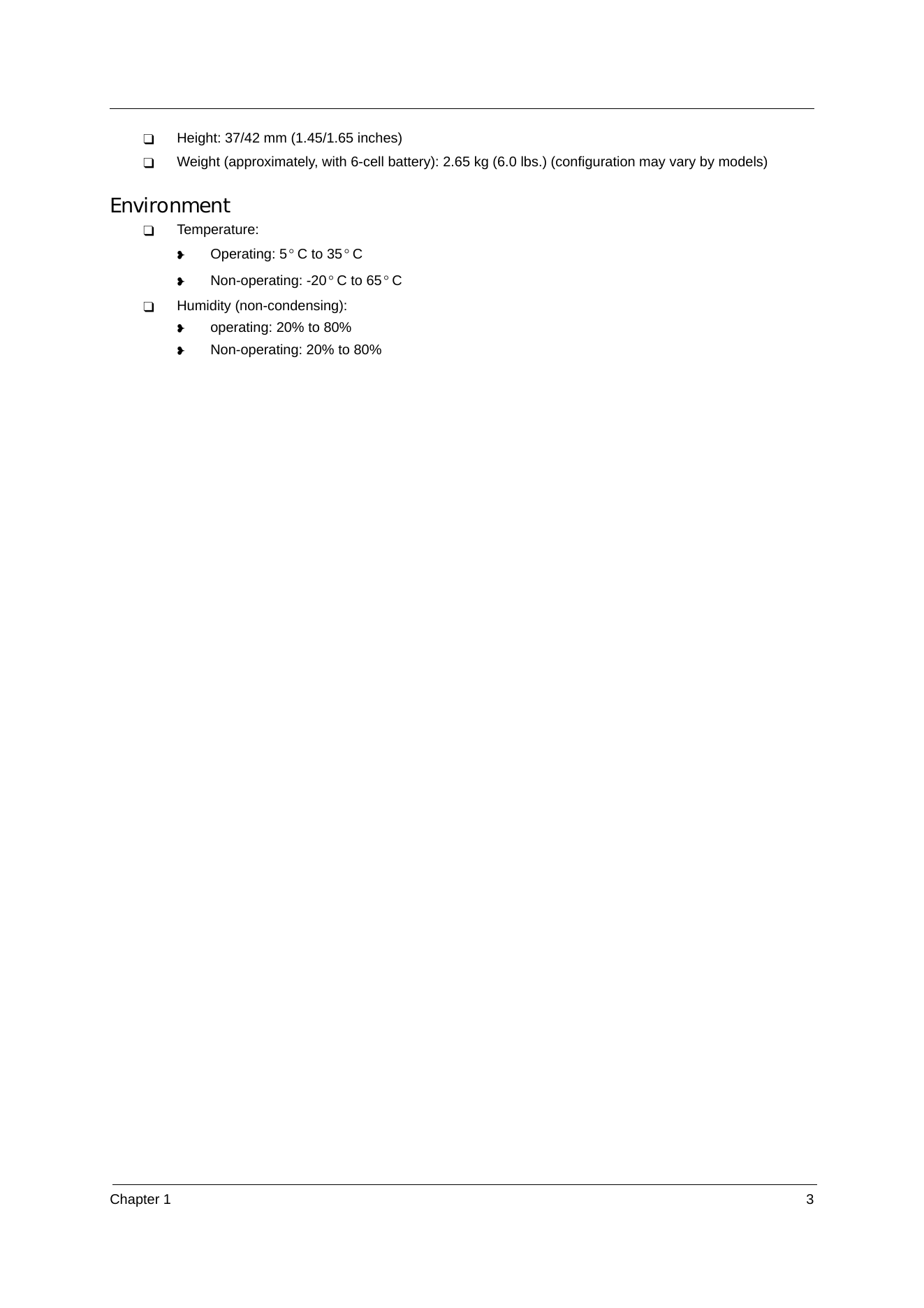

T 12 function keys, four cursor keys, two Windows® keys, hotkey controls, embedded numeric keypad,
...
