Aspire 5520/5220 Series
Service Guide
Service guide files and updates are available
on the ACER/CSD web; for more information,
please refer to http://csd.acer.com.tw
PRINTED IN TAIWAN
СТРАНИЦА PDF
Страница 2

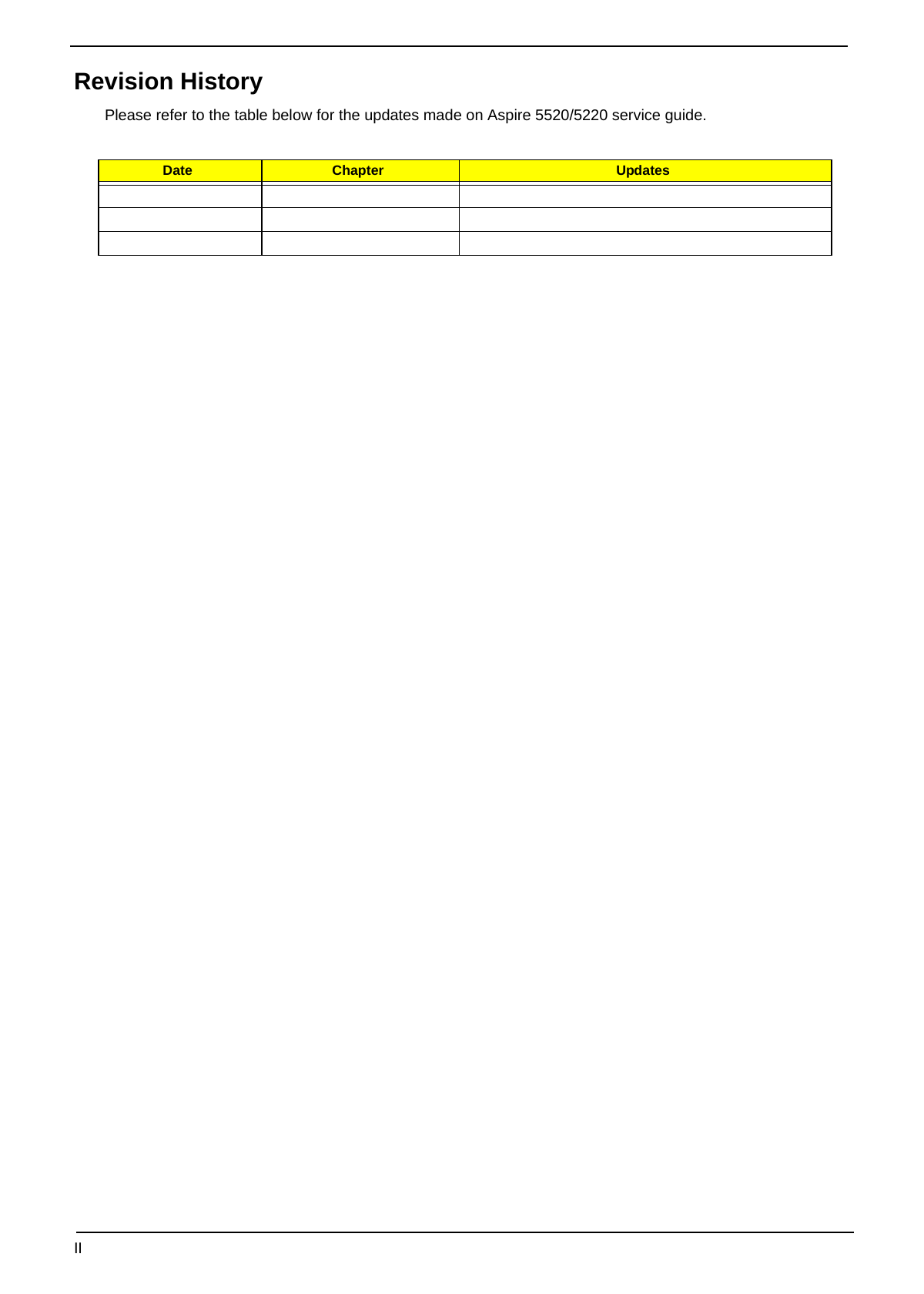

Revision History
Please refer to the table below for the updates made on Aspire 5520/5220 service guide.
Date Chapter Updates
II
СТРАНИЦА PDF
Страница 3

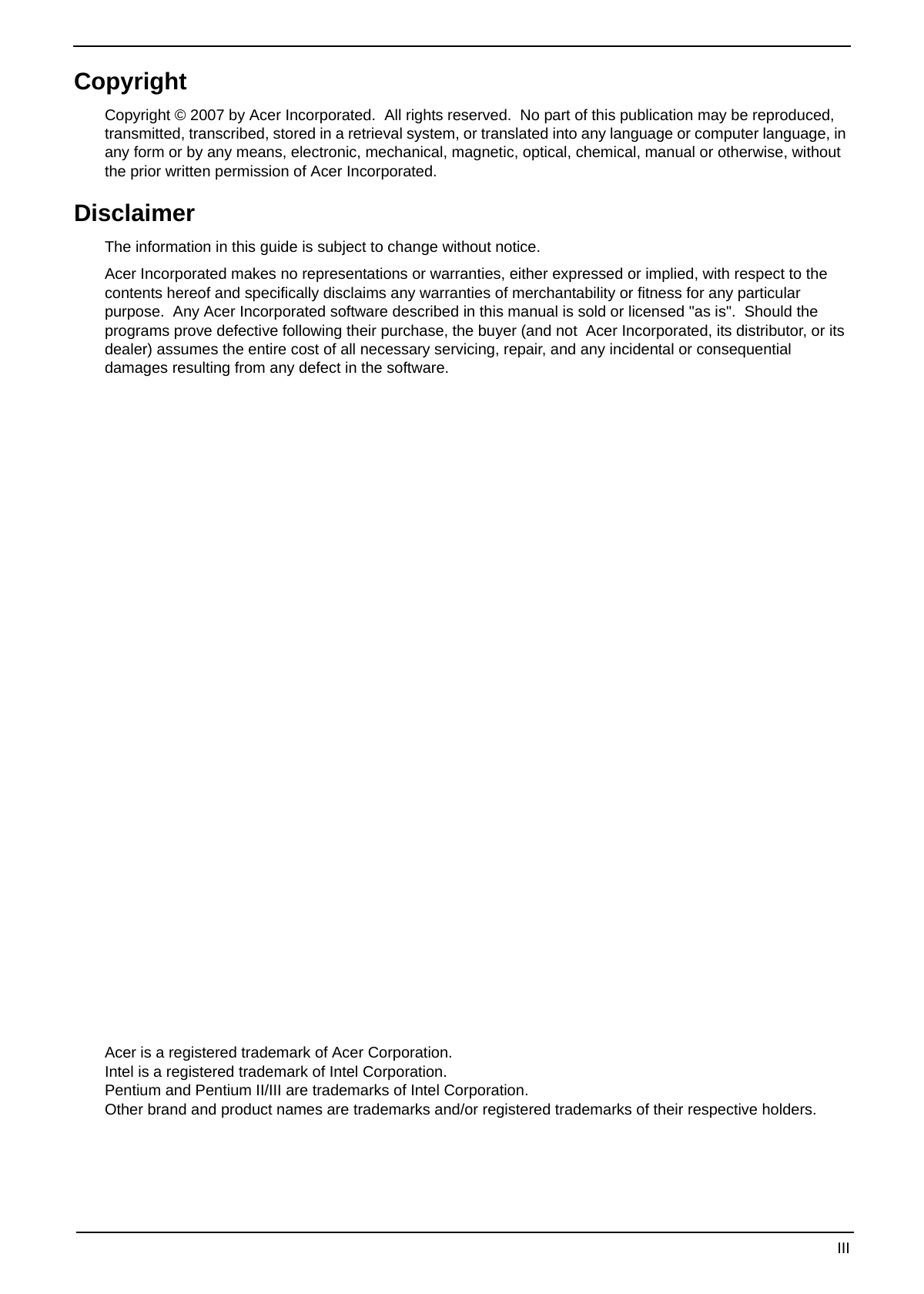

Copyright
Copyright © 2007 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in
any form or by an...
СТРАНИЦА PDF
Страница 4

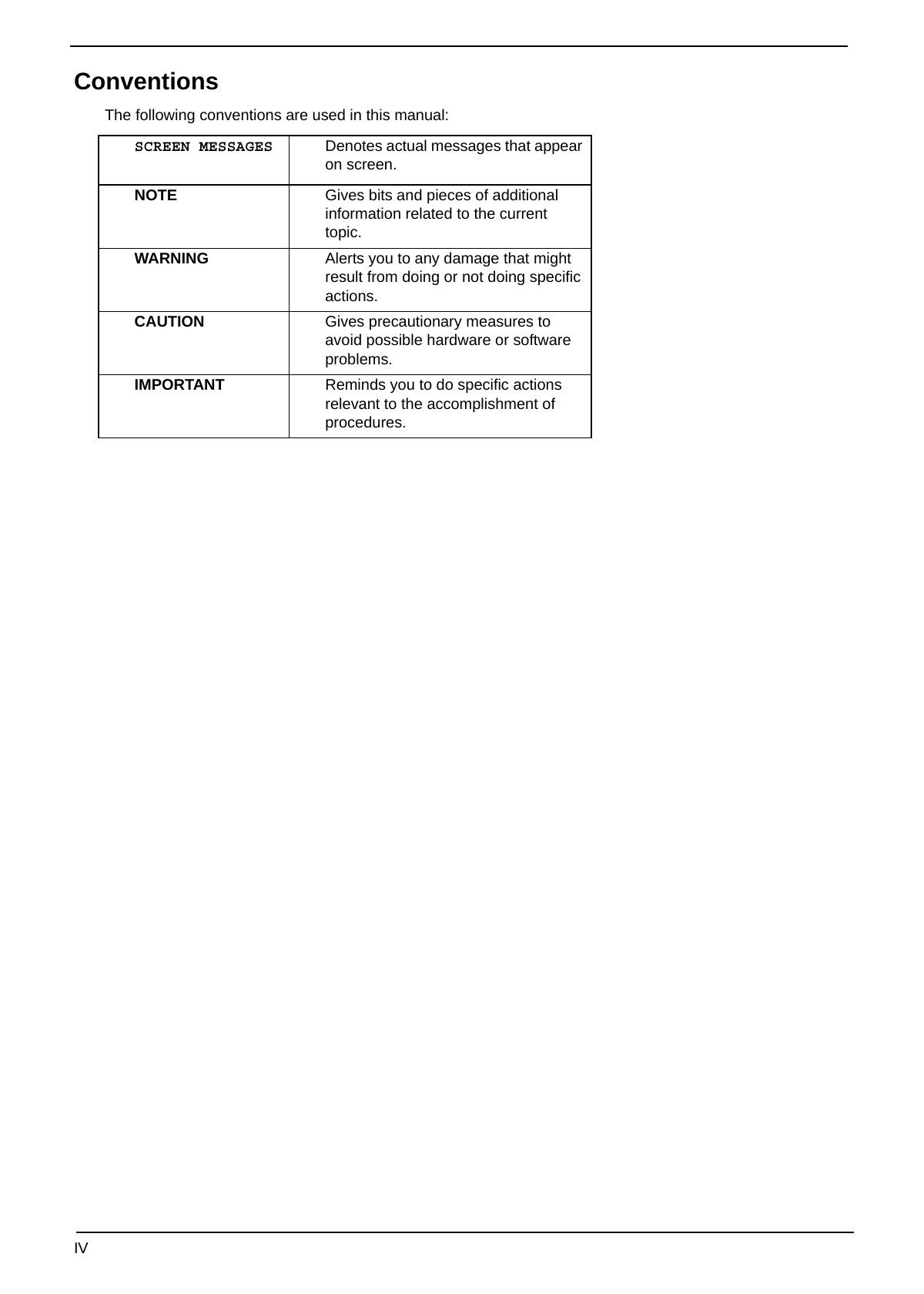

Conventions
The following conventions are used in this manual:
SCREEN MESSAGES Denotes actual messages that appear
on screen.
NOTE Gives bits and pieces of additional
information related to the current
topic.
WARNING Alerts you to any damage ...
СТРАНИЦА PDF
Страница 5

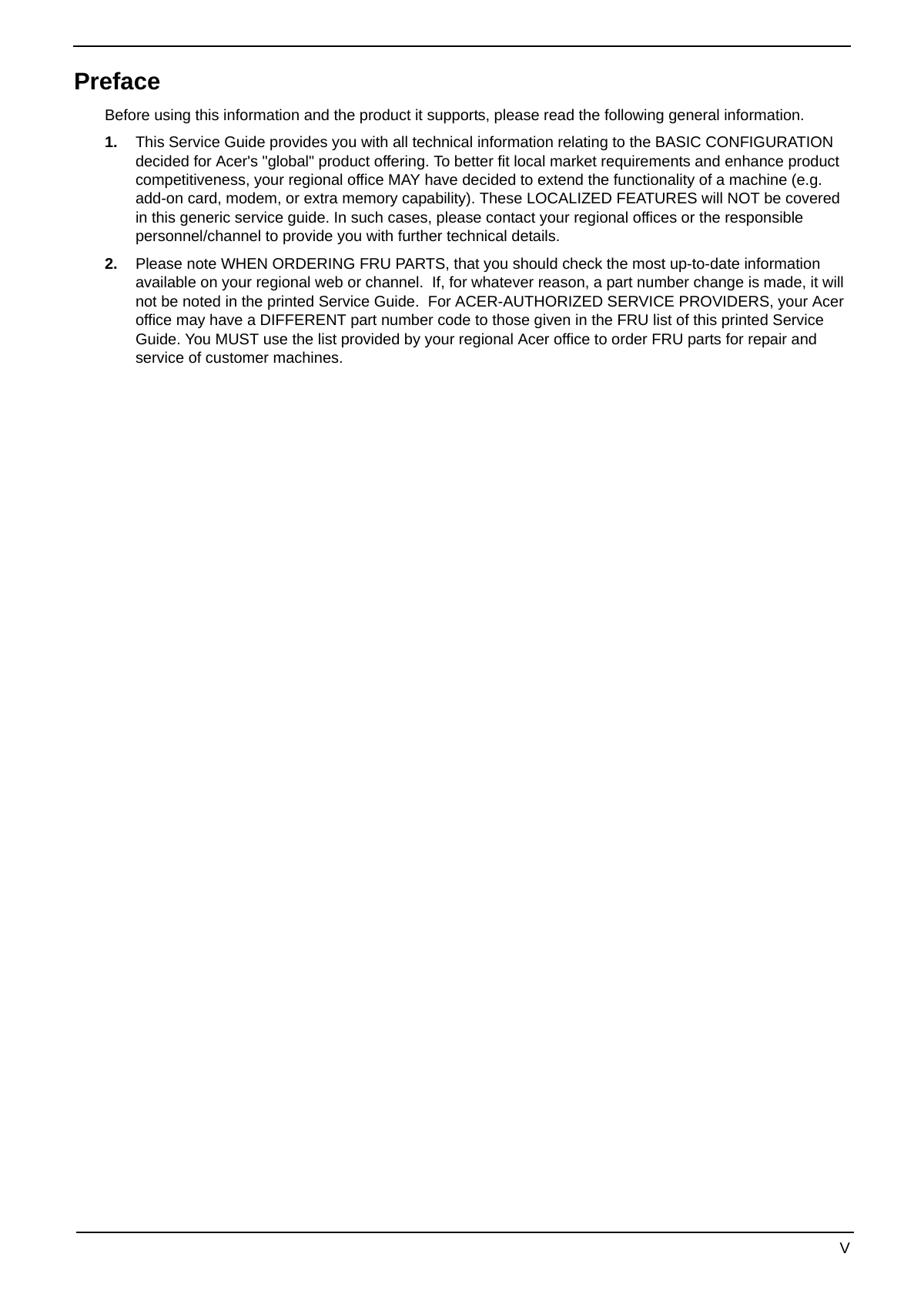

Preface
Before using this information and the product it supports, please read the following general information.
1. This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION
decided for Acer's "global" pro...
СТРАНИЦА PDF
Страница 7

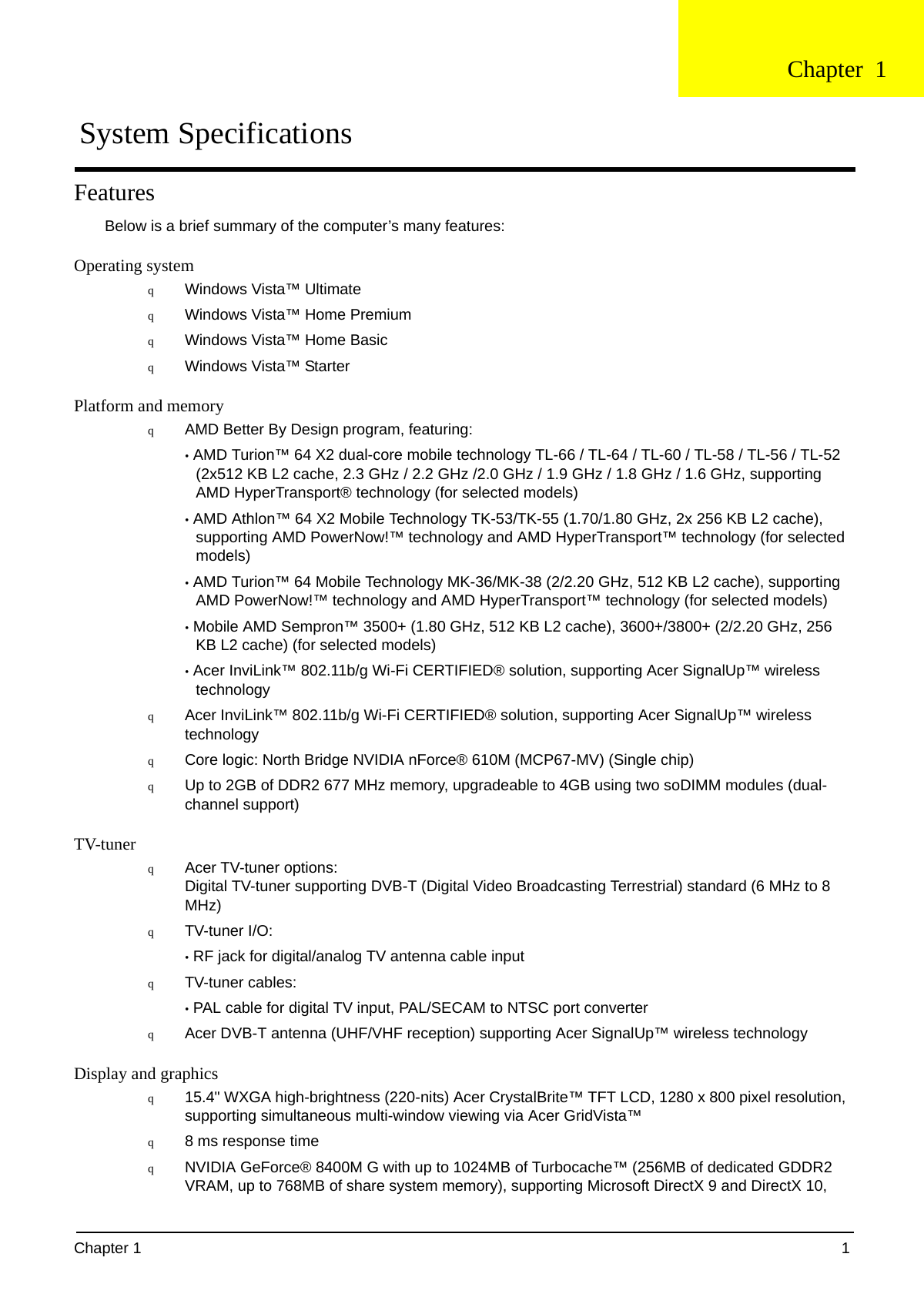

Chapter 1
System Specifications
Features
Below is a brief summary of the computer’s many features:
Operating system
q Windows Vista™ Ultimate
q Windows Vista™ Home Premium
q Windows Vista™ Home Basic
q Windows Vista™ Starter
Platform and memo...
СТРАНИЦА PDF
Страница 8

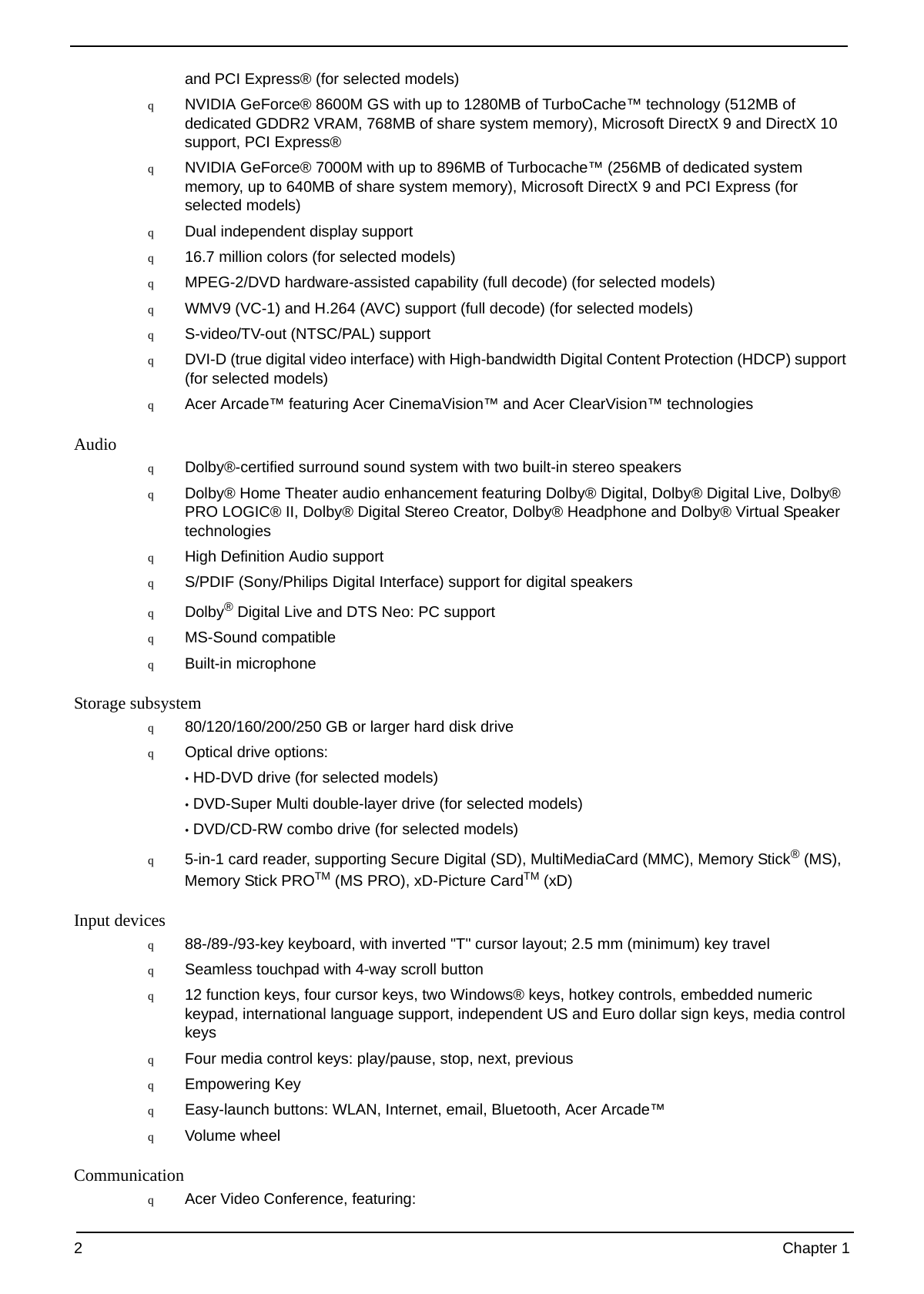

and PCI Express® (for selected models)
q NVIDIA GeForce® 8600M GS with up to 1280MB of TurboCache™ technology (512MB of
dedicated GDDR2 VRAM, 768MB of share system memory), Microsoft DirectX 9 and DirectX 10
support, PCI Express®
q NVIDIA GeForce...
СТРАНИЦА PDF
Страница 9

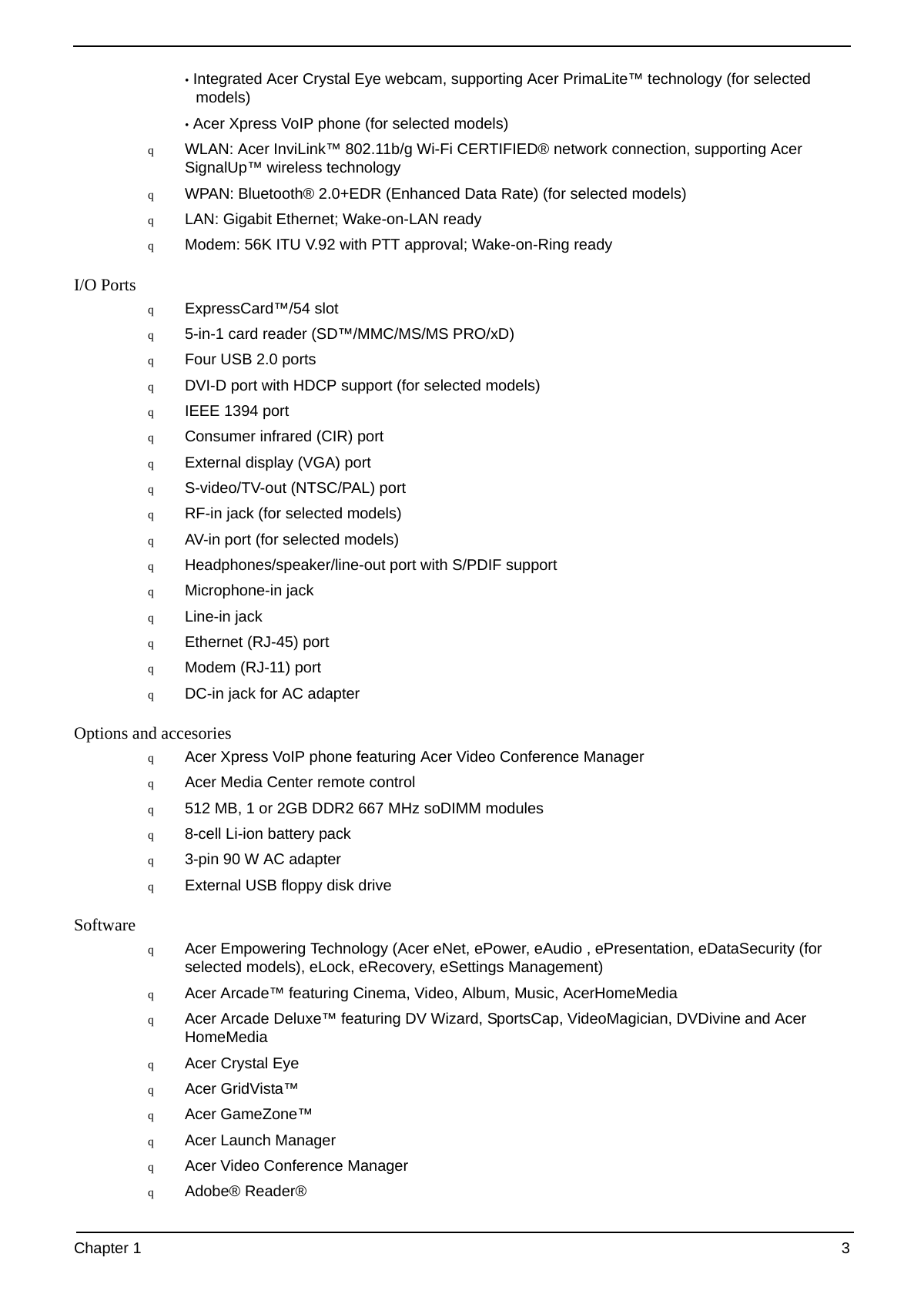

• Integrated Acer Crystal Eye webcam, supporting Acer PrimaLite™ technology (for selected
models)
• Acer Xpress VoIP phone (for selected models)
q WLAN: Acer InviLink™ 802.11b/g Wi-Fi CERTIFIED® network connection, supporting Acer
SignalUp™ wire...
СТРАНИЦА PDF
Страница 10

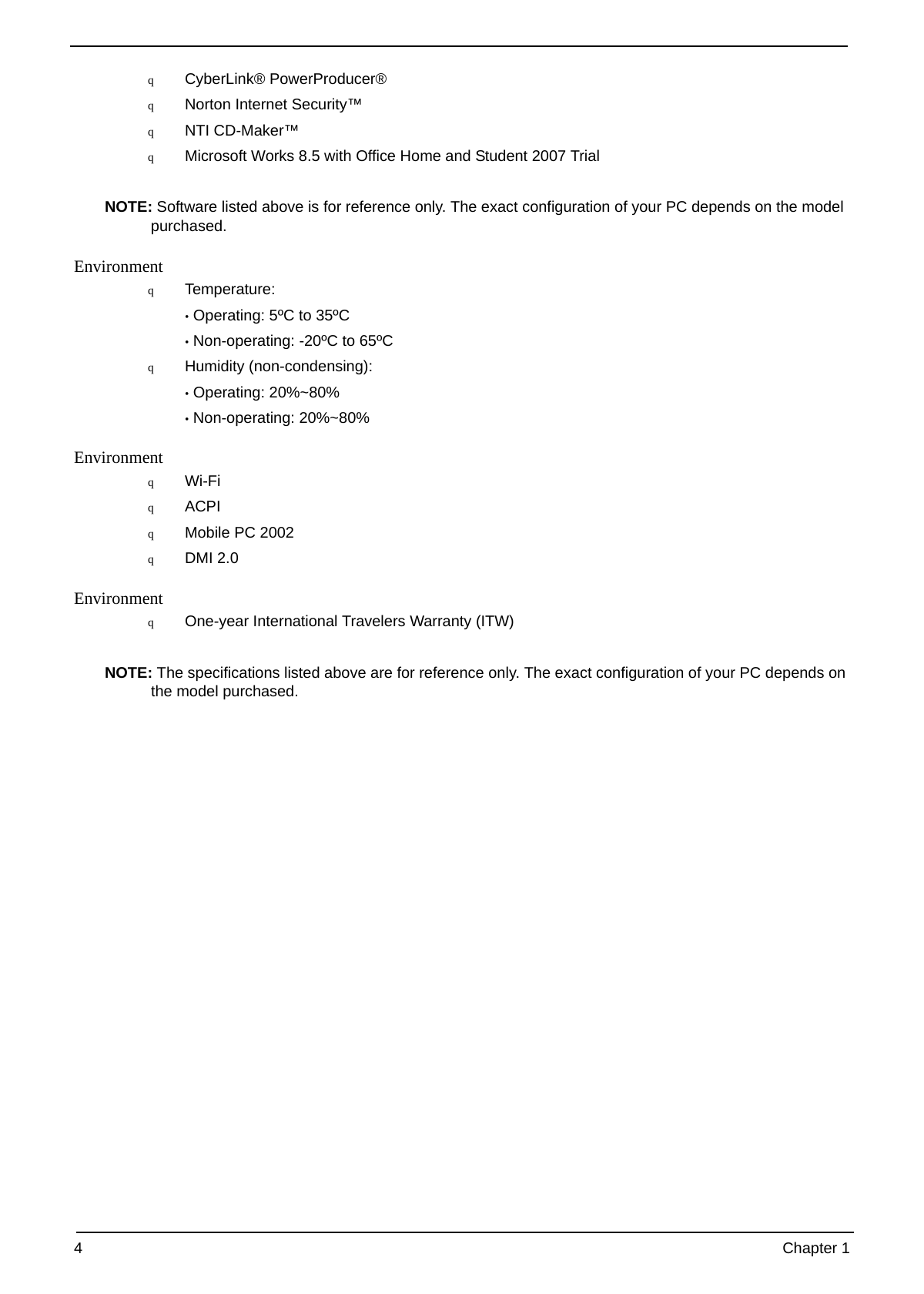

q CyberLink® PowerProducer®
q Norton Internet Security™
q NTI CD-Maker™
q Microsoft Works 8.5 with Office Home and Student 2007 Trial
NOTE: Software listed above is for reference only. The exact configuration of your PC depends on the model
pur...
СТРАНИЦА PDF
Страница 11

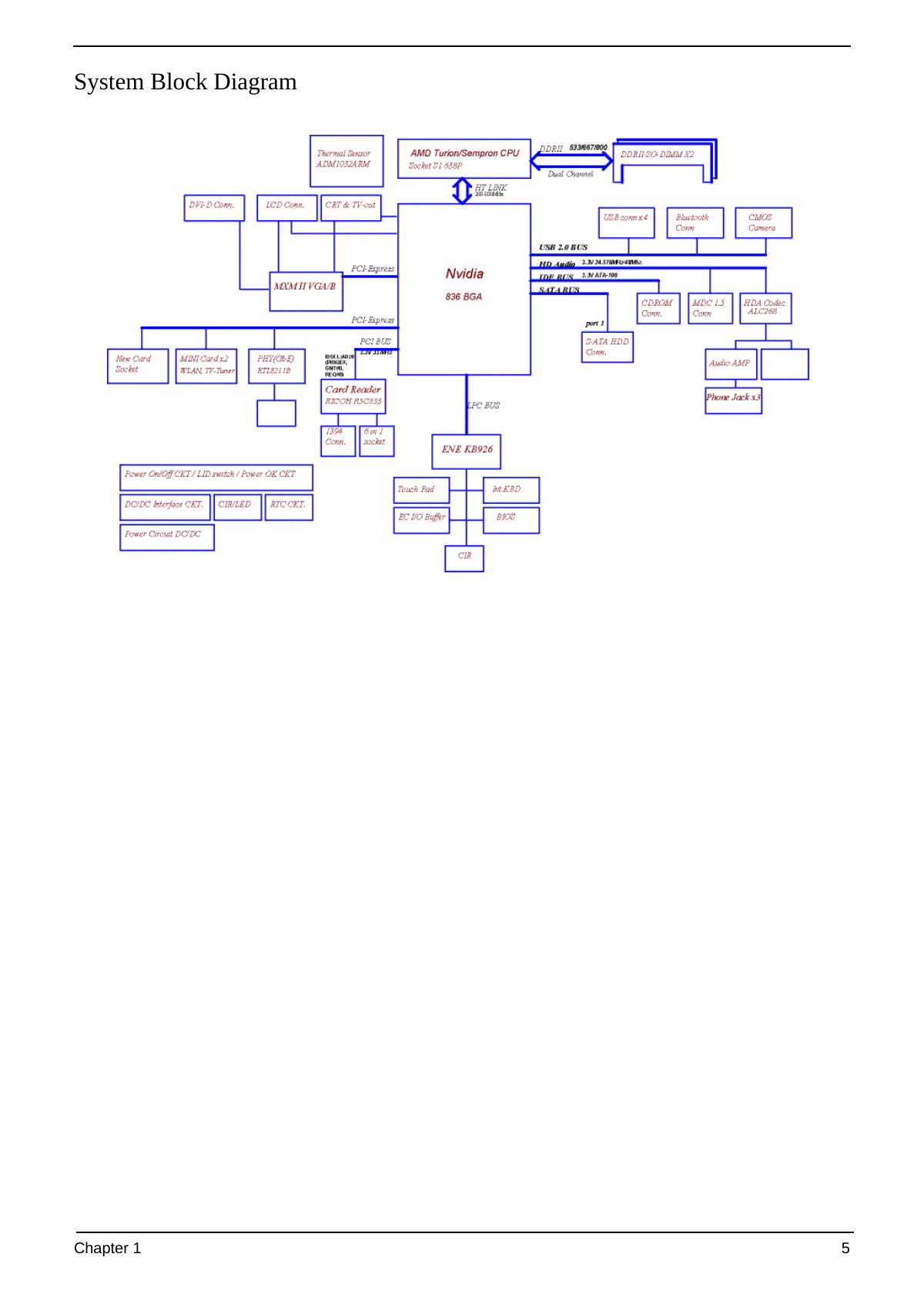

System Block Diagram
Chapter 1 5
СТРАНИЦА PDF
Страница 12

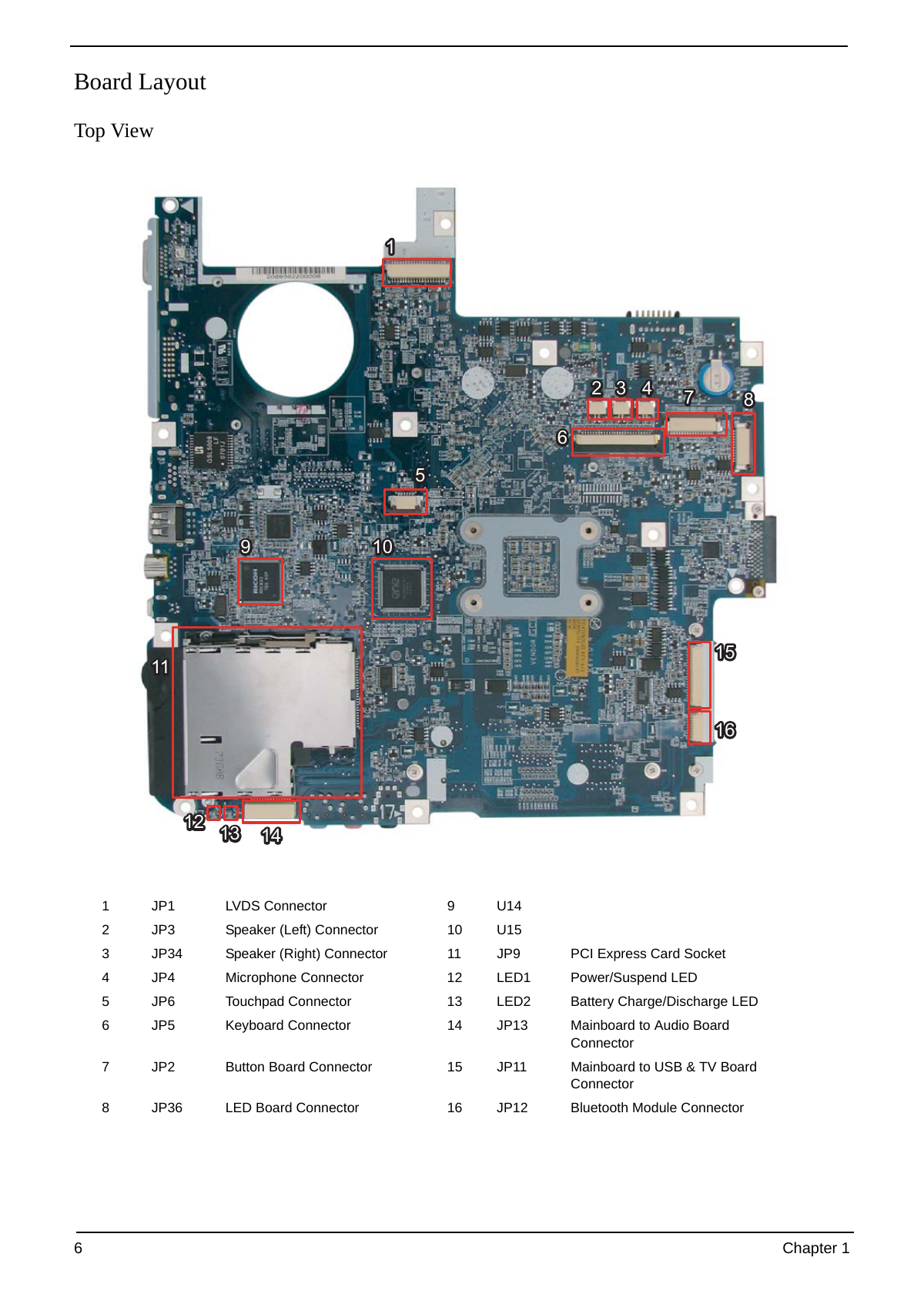

Board Layout
Top View
2 3 4 7 8
9 10
13 14
1 JP1 LVDS Connector 9 U14
2 JP3 Speaker (Left) Connector 10 U15
3 JP34 Speaker (Right) Connector 11 JP9 PCI Express Card Socket
4 JP4 Microphone Connector 12 LED1 Power/Suspend LED
5 JP6 Touchpa...
