Asprire Poyang Series
Service Guide
Service guide files and updates are available
on the ACER/CSD web; for more information,
please refer to http://csd.acer.com.tw
PRINTED IN TAIWAN
СТРАНИЦА PDF
Страница 2

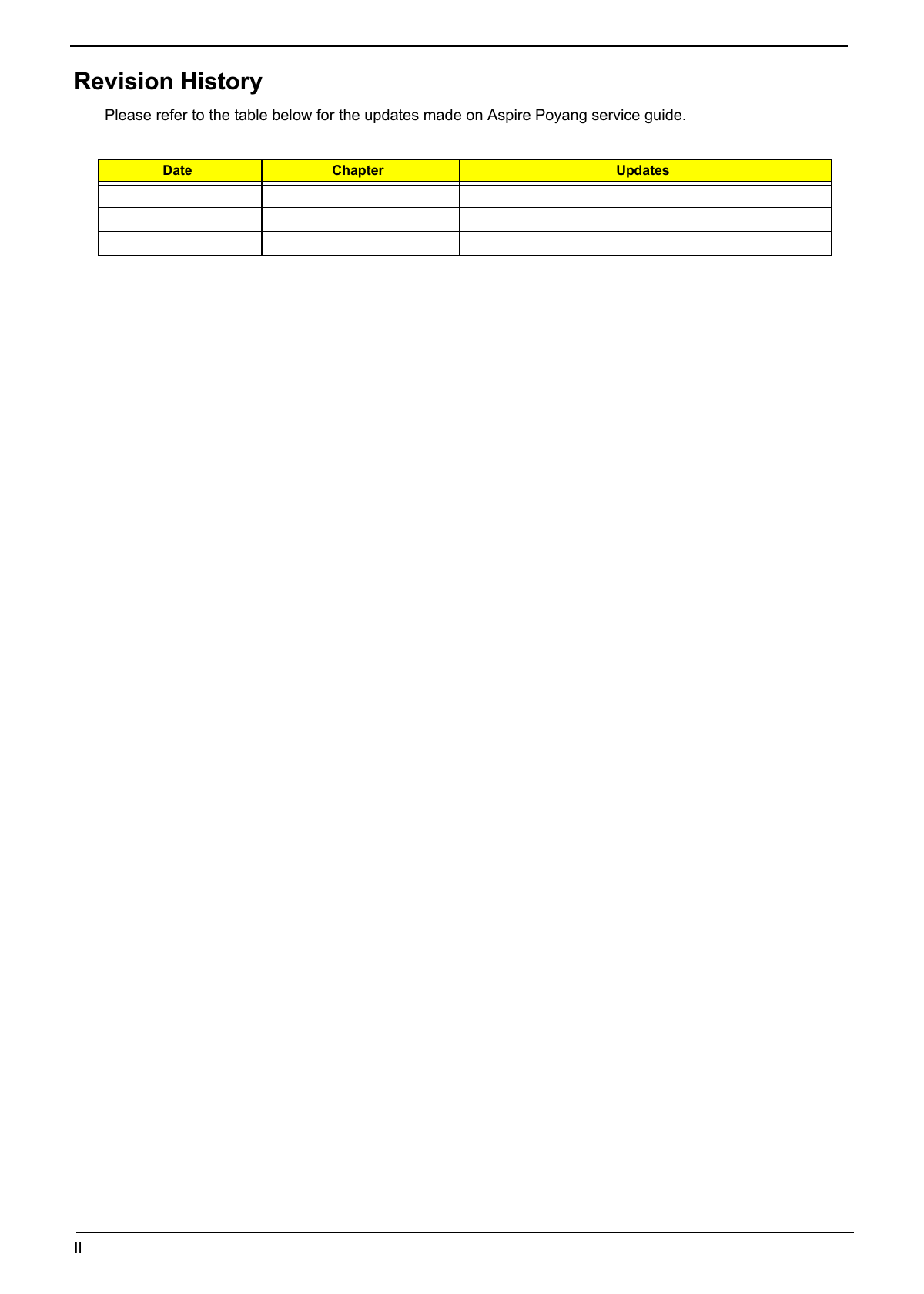

Revision History
Please refer to the table below for the updates made on Aspire Poyang service guide.
Date Chapter Updates
II
СТРАНИЦА PDF
Страница 3

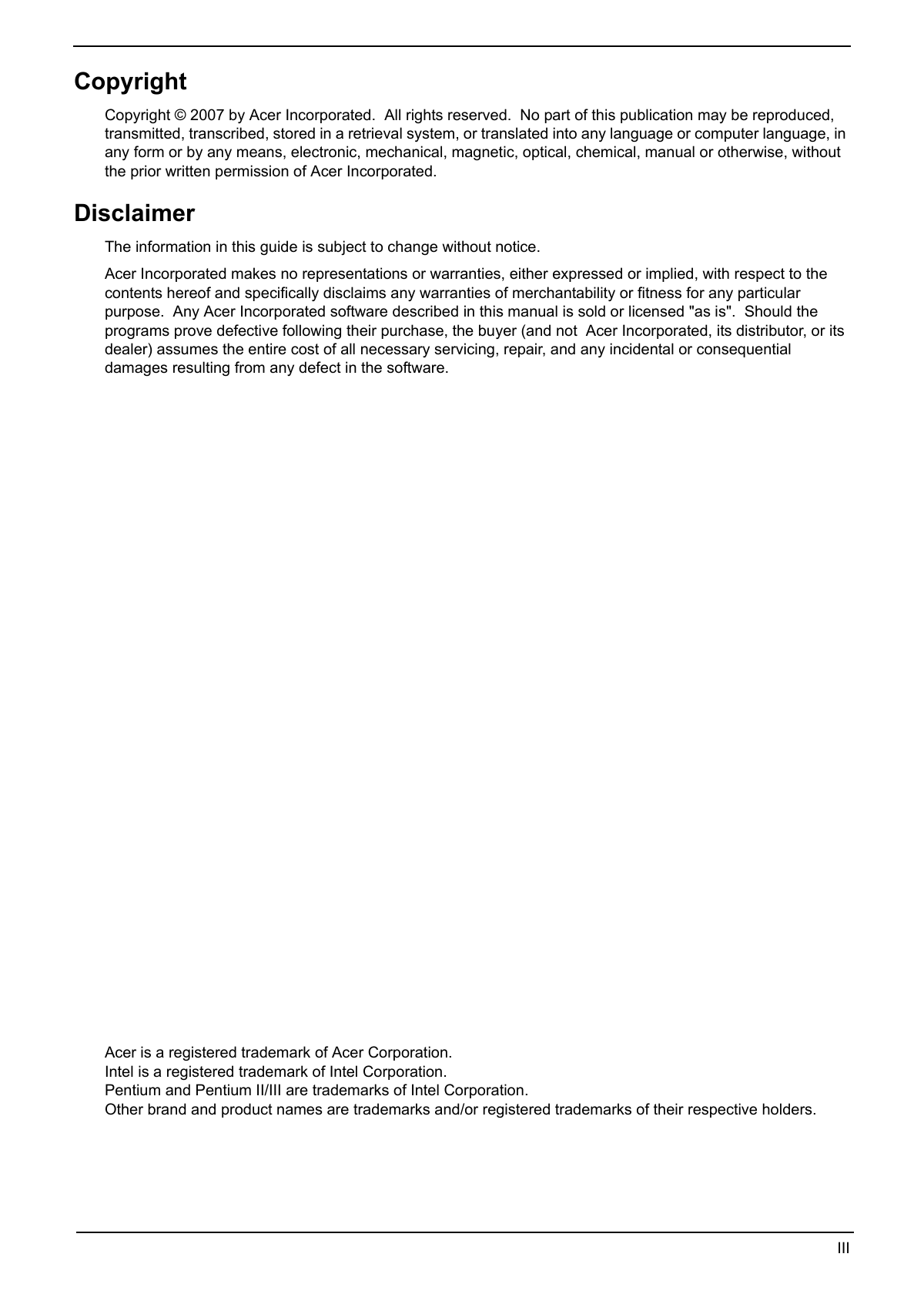

Copyright
Copyright © 2007 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in
any form or by an...
СТРАНИЦА PDF
Страница 4

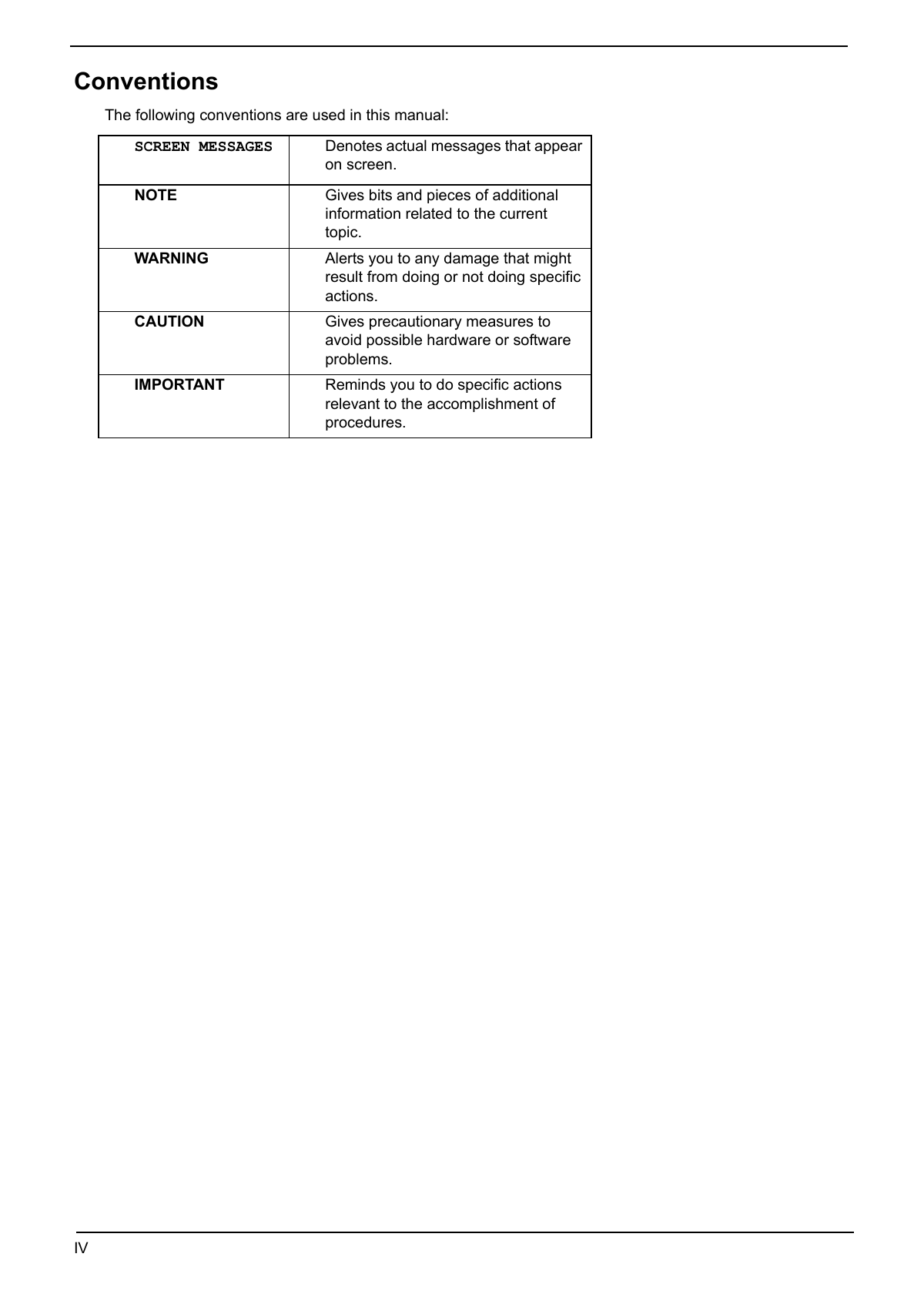

Conventions
The following conventions are used in this manual:
SCREEN MESSAGES Denotes actual messages that appear
on screen.
NOTE Gives bits and pieces of additional
information related to the current
topic.
WARNING Alerts you to any damage ...
СТРАНИЦА PDF
Страница 5

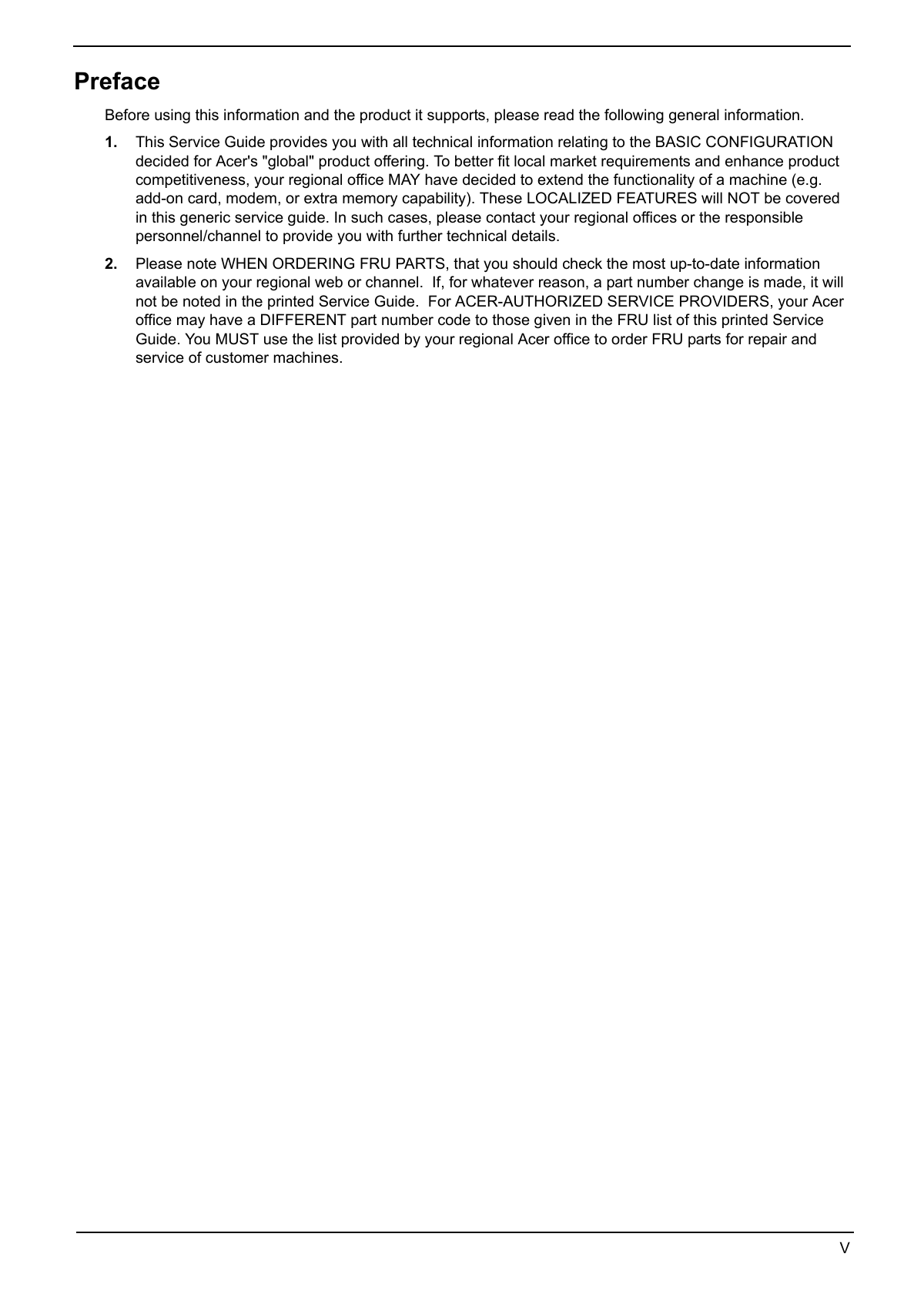

Preface
Before using this information and the product it supports, please read the following general information.
1. This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION
decided for Acer's "global" pro...
СТРАНИЦА PDF
Страница 6
VI
СТРАНИЦА PDF
Страница 7

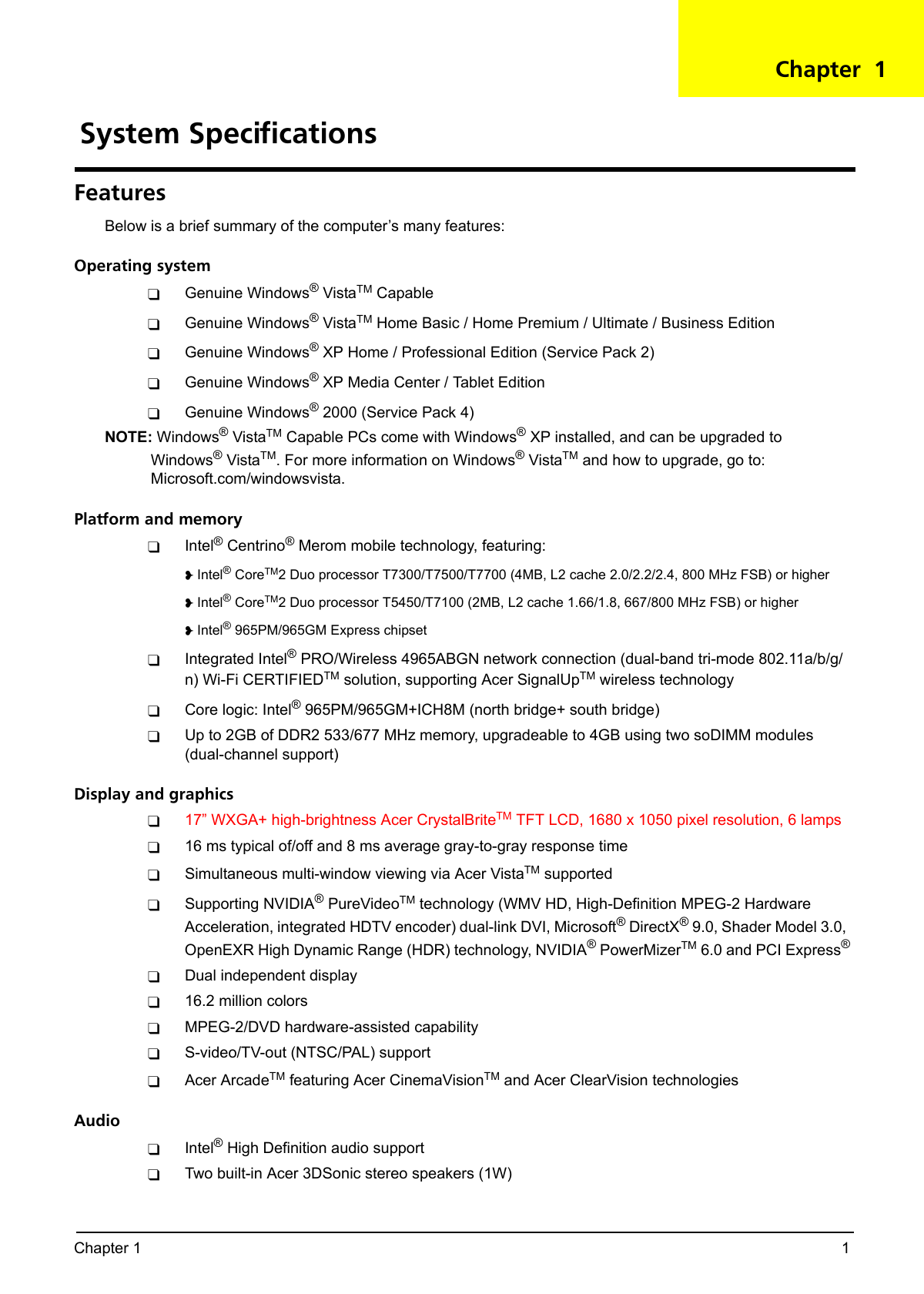

Chapter 1
System Specifications
Features
Below is a brief summary of the computer’s many features:
Operating system
T Genuine Windows® VistaTM Capable
T Genuine Windows® VistaTM Home Basic / Home Premium / Ultimate / Business Edition
T Genuine ...
СТРАНИЦА PDF
Страница 8

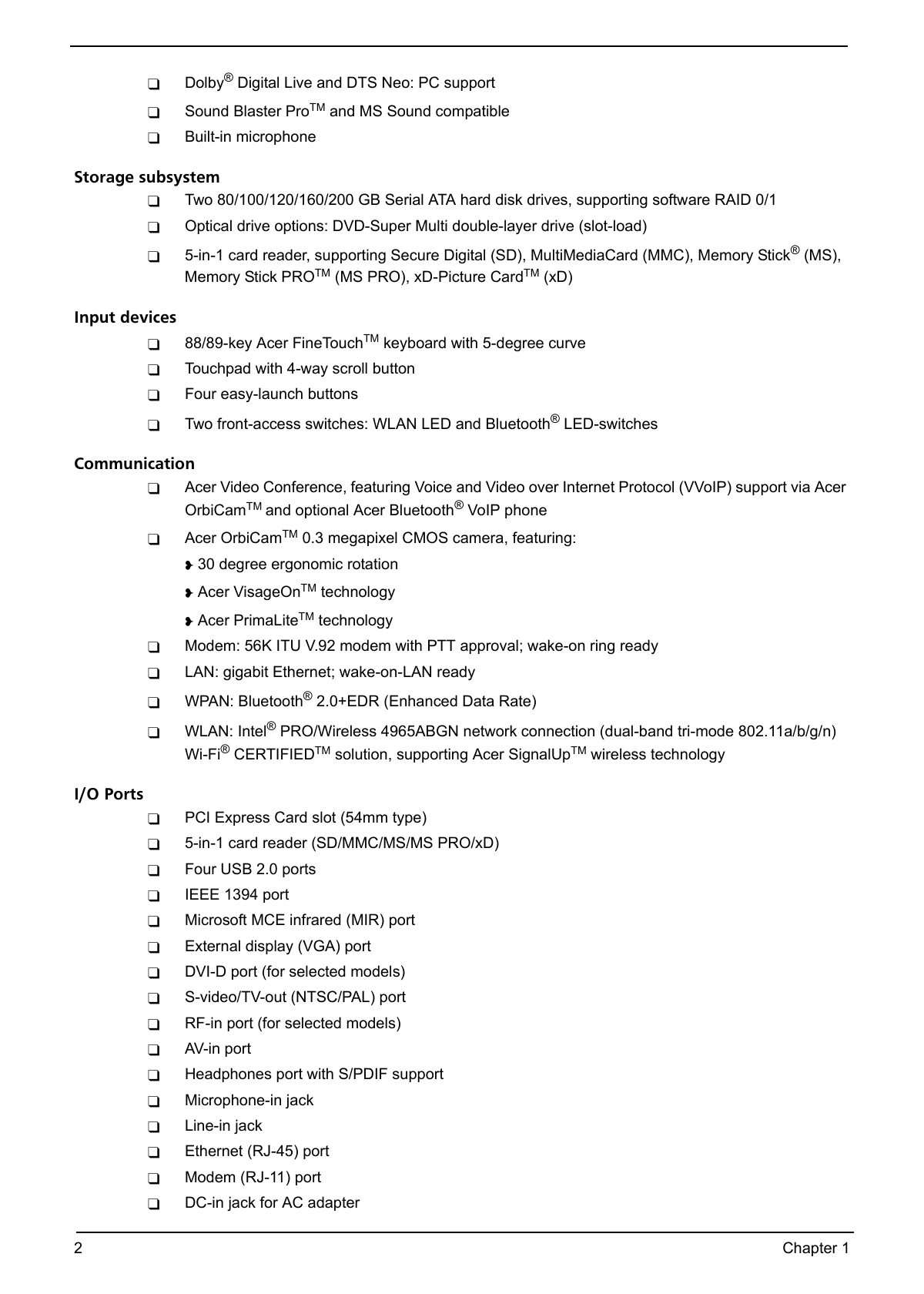

T Dolby® Digital Live and DTS Neo: PC support
T Sound Blaster ProTM and MS Sound compatible
T Built-in microphone
Storage subsystem
T Two 80/100/120/160/200 GB Serial ATA hard disk drives, supporting software RAID 0/1
T Optical drive options: DV...
СТРАНИЦА PDF
Страница 9

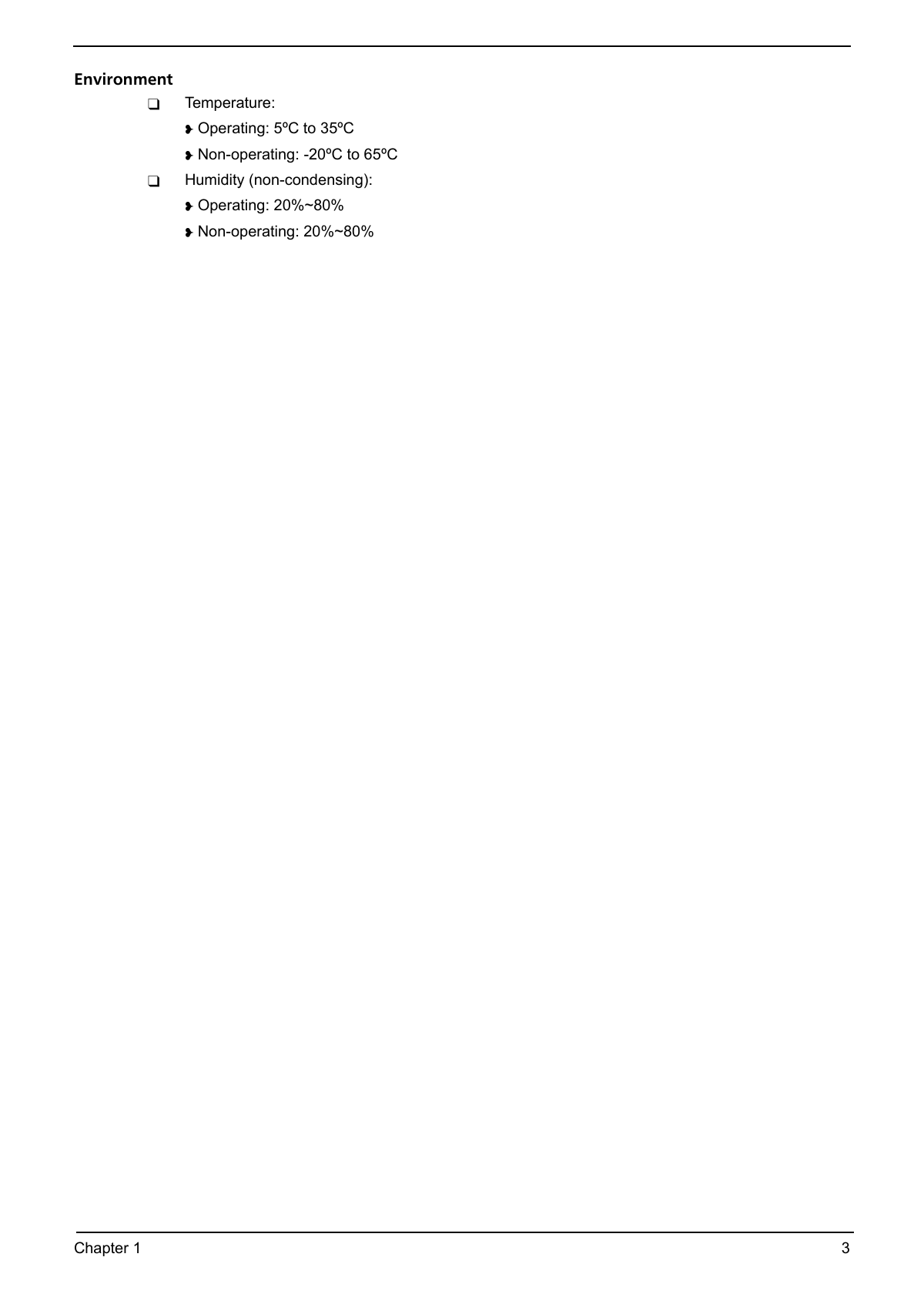

Environment
T Temperature:
t Operating: 5ºC to 35ºC
t Non-operating: -20ºC to 65ºC
T Humidity (non-condensing):
t Operating: 20%~80%
t Non-operating: 20%~80%
Chapter 1 3
СТРАНИЦА PDF
Страница 10

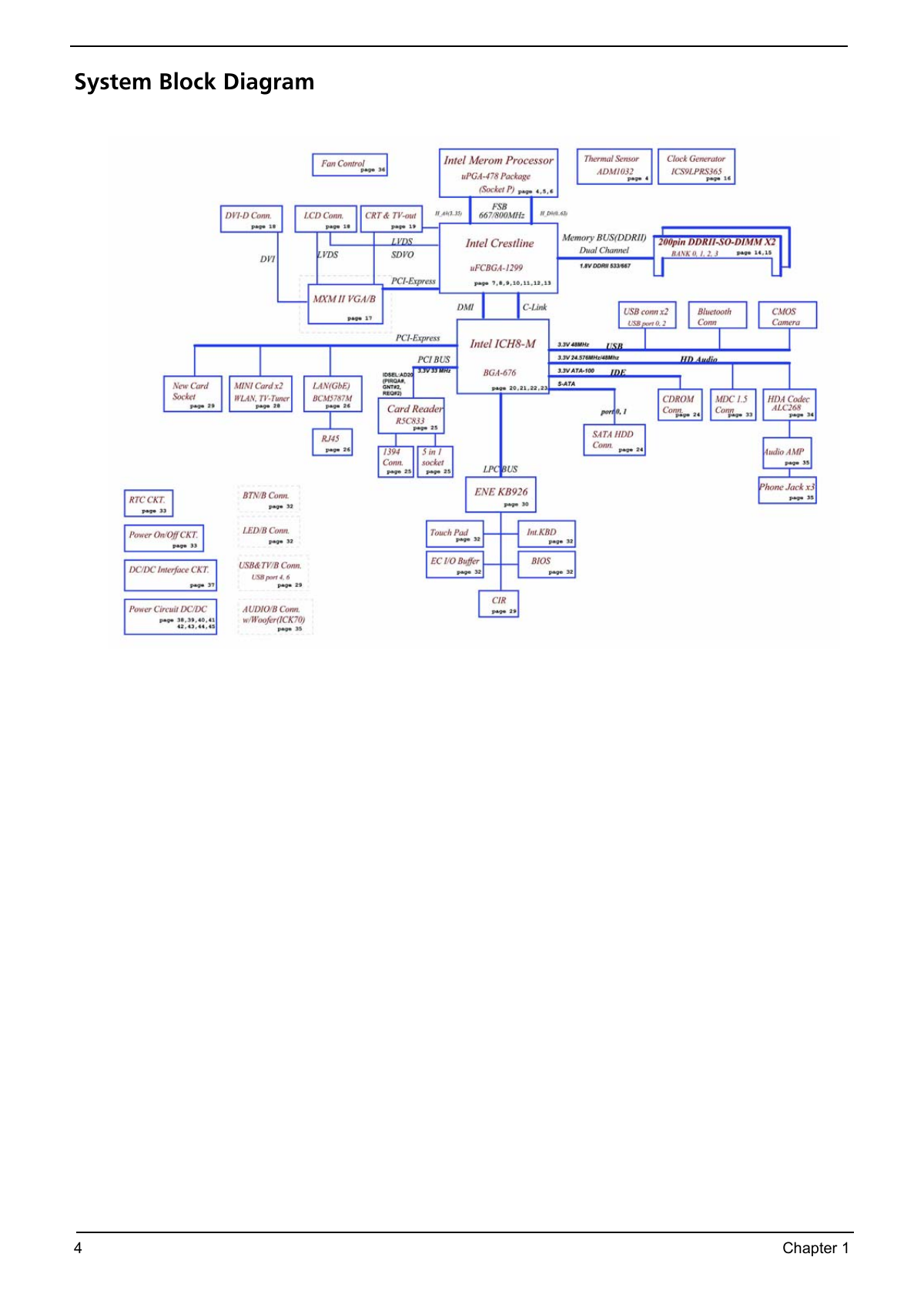

System Block Diagram
4 Chapter 1
СТРАНИЦА PDF
Страница 11

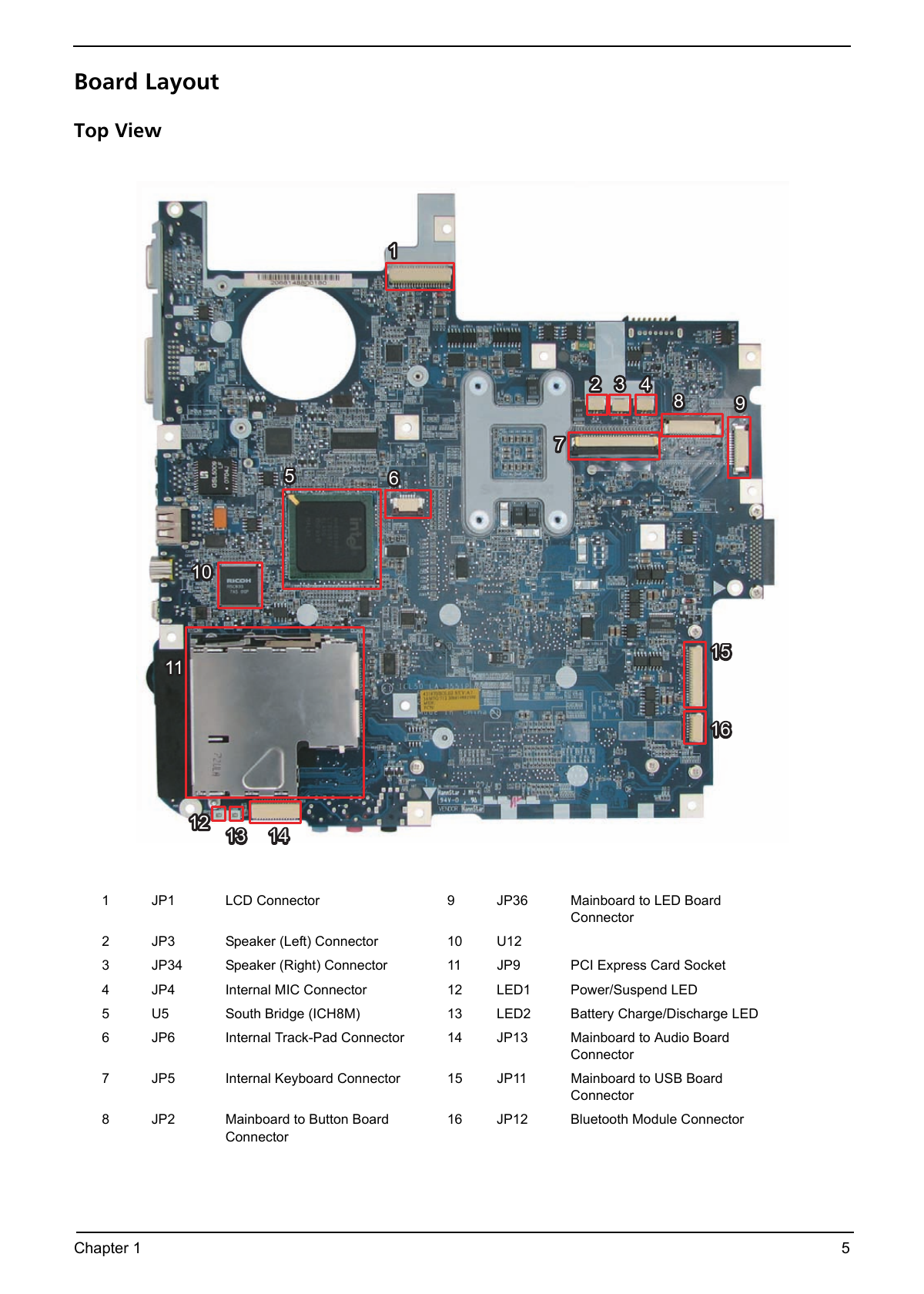

Board Layout
Top View
2 3 4
8 9
5 6
13 14
1 JP1 LCD Connector 9 JP36 Mainboard to LED Board
Connector
2 JP3 Speaker (Left) Connector 10 U12
3 JP34 Speaker (Right) Connector 11 JP9 PCI Express Card Socket
4 JP4 Internal MIC Connector 12 L...
СТРАНИЦА PDF
Страница 12

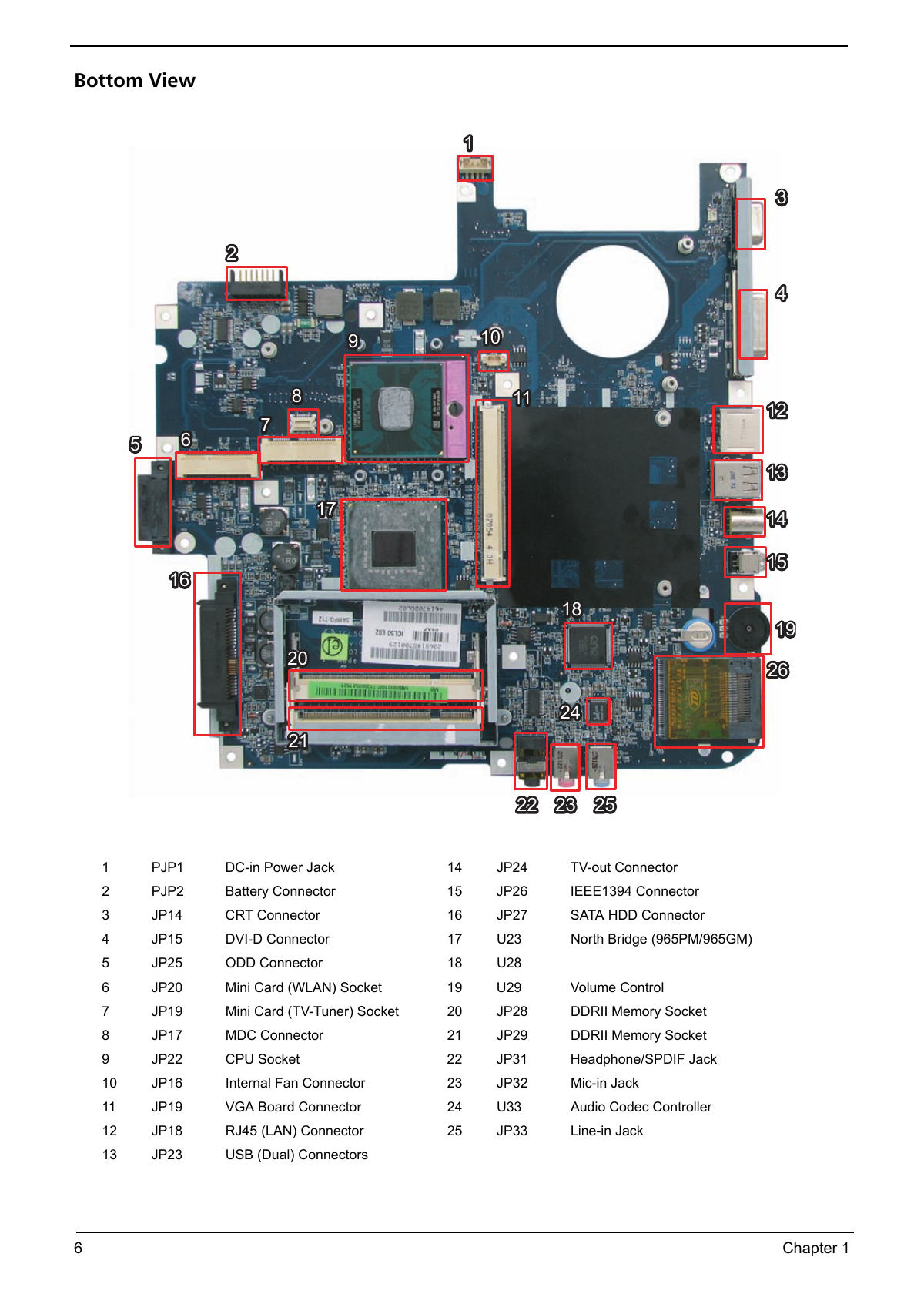

Bottom View
9 10
8 11
5 6
22 23 25
1 PJP1 DC-in Power Jack 14 JP24 TV-out Connector
2 PJP2 Battery Connector 15 JP26 IEEE1394 Connector
3 JP14 CRT Connector 16 JP27 SATA HDD Connector
4 JP15 DVI-D Connector 17 U23 North Bridge (965PM/965...
