Epson L200

- руководство по ремонту (сервис-мануал)

Epson L200


Сервис мануал для Epson L200

Размер файла: (26.57 mb)
Производитель: Epson
Просмотров: 71
📸

Первые 12 страниц

Извлечено автоматически
СТРАНИЦА PDF
Страница 1
SERVICE MANUAL




Color Inkjet Printer



L200/L201
L100/L101




CONFIDENTIAL
SEMF10-001
Перейти на страницу
СТРАНИЦА PDF
Страница 2

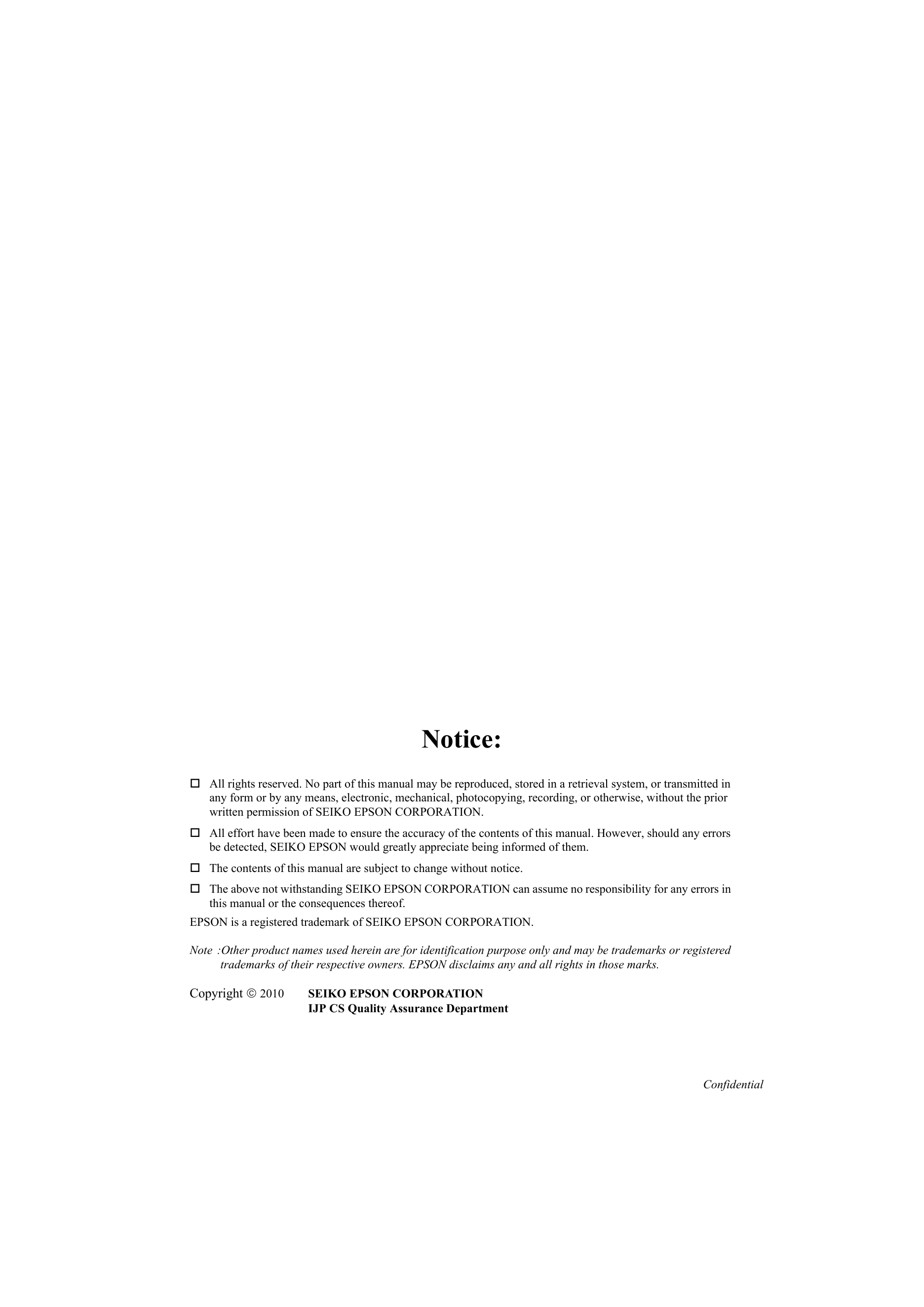

Notice:
All rights reserved. No part of this manual may be reproduced, stored in a retrieval system, or transmitted in
any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior
written permissi...
Перейти на страницу
СТРАНИЦА PDF
Страница 3

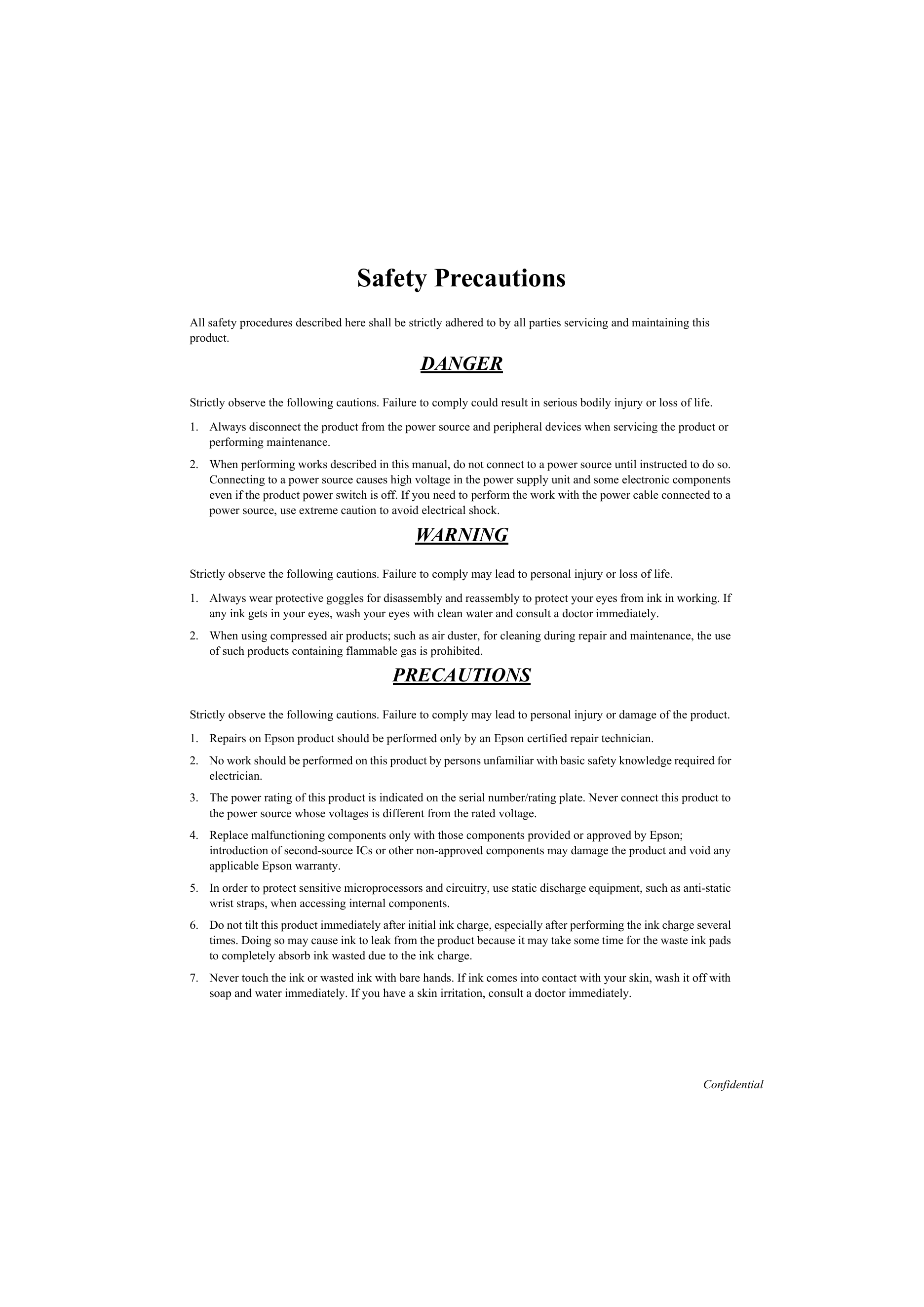

Safety Precautions
All safety procedures described here shall be strictly adhered to by all parties servicing and maintaining this
product.

DANGER
Strictly observe the following cautions. Failure...
Перейти на страницу
СТРАНИЦА PDF
Страница 4

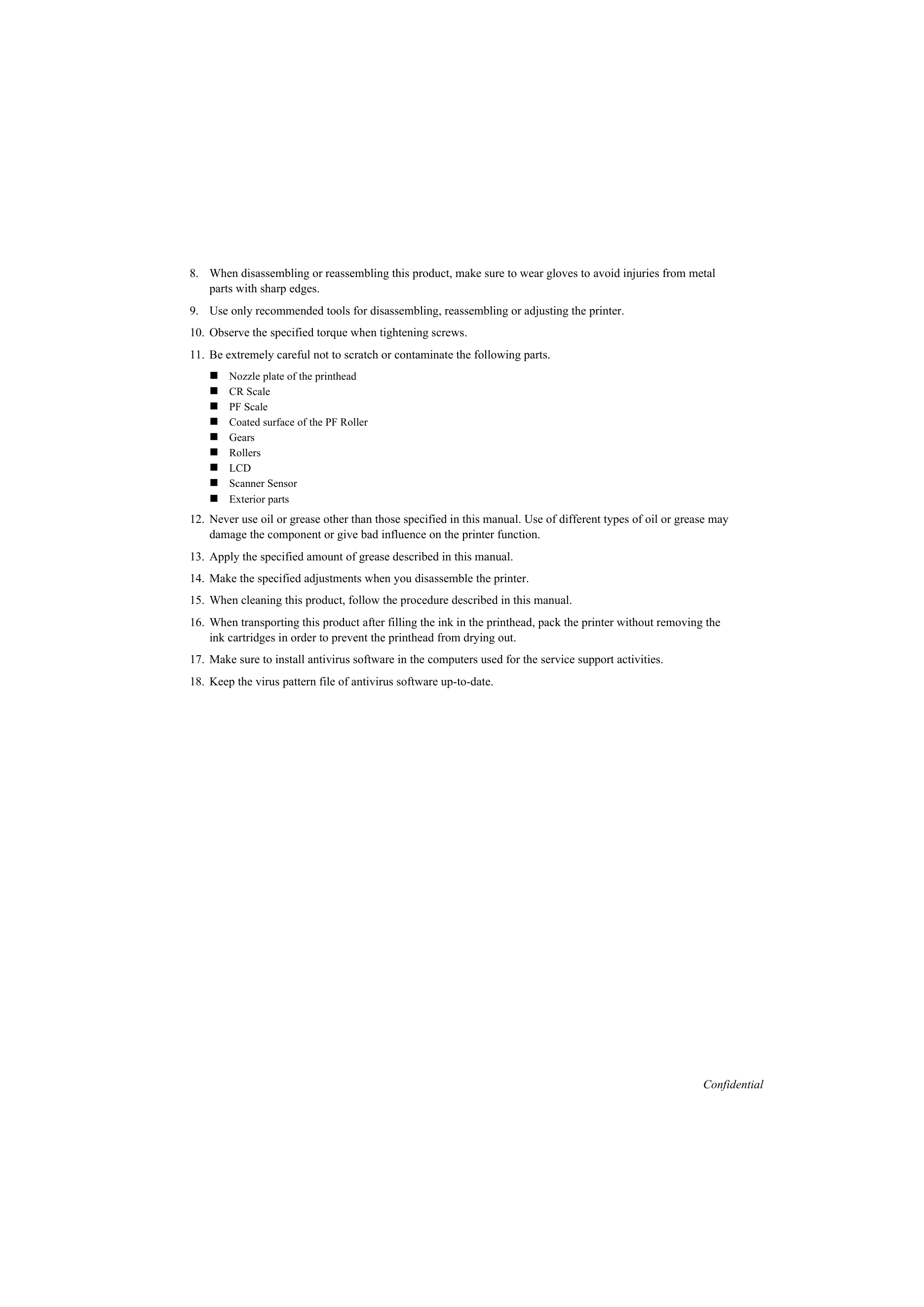

8. When disassembling or reassembling this product, make sure to wear gloves to avoid injuries from metal
parts with sharp edges.
9. Use only recommended tools for disassembling, reassembling or adjusting the printer.
10. Observe the specified ...
Перейти на страницу
СТРАНИЦА PDF
Страница 5

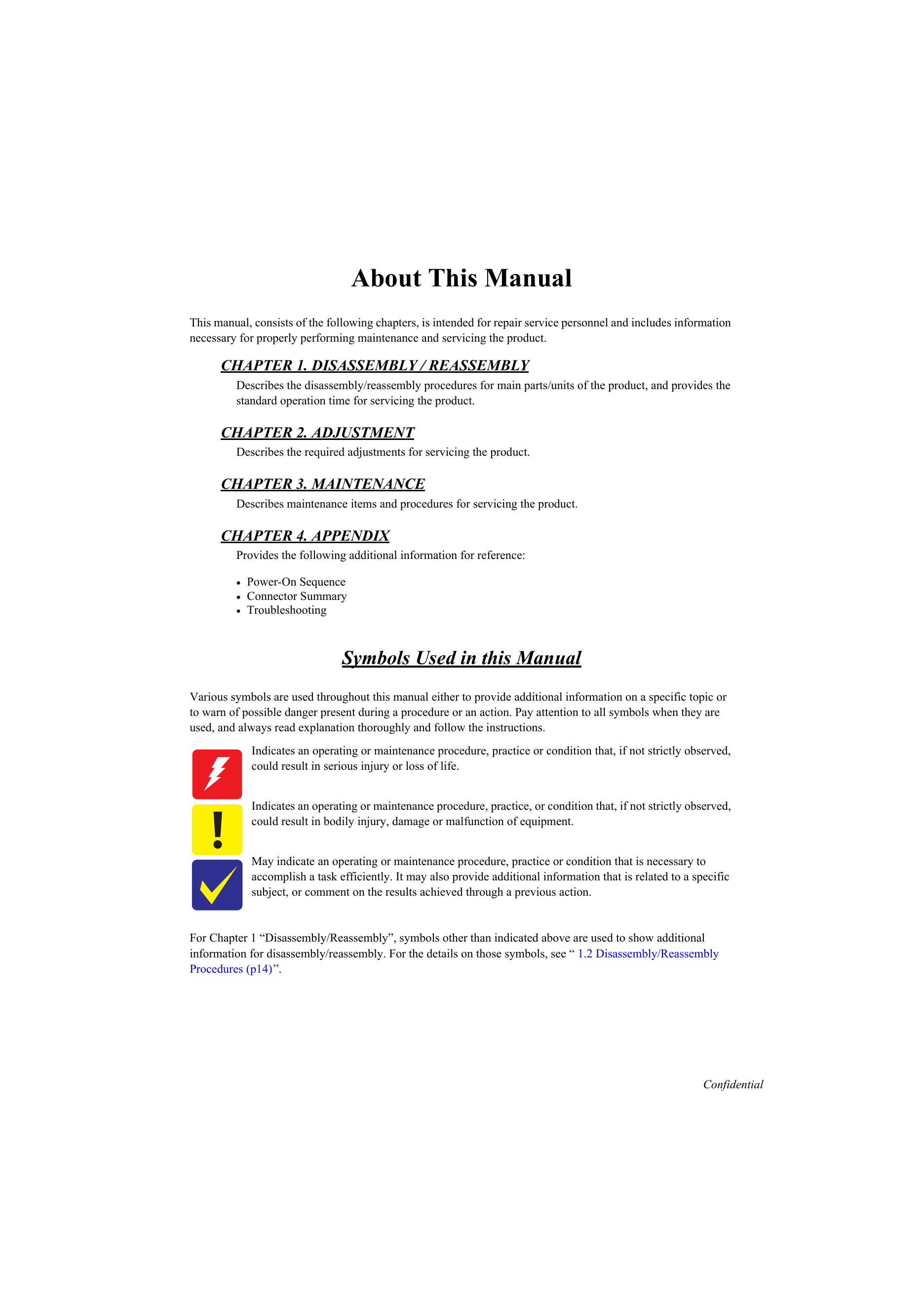

About This Manual
This manual, consists of the following chapters, is intended for repair service personnel and includes information
necessary for properly performing maintenance and servicing the product.

CHAPTER 1. DISASSEMBLY / REASSEMB...
Перейти на страницу
СТРАНИЦА PDF
Страница 6

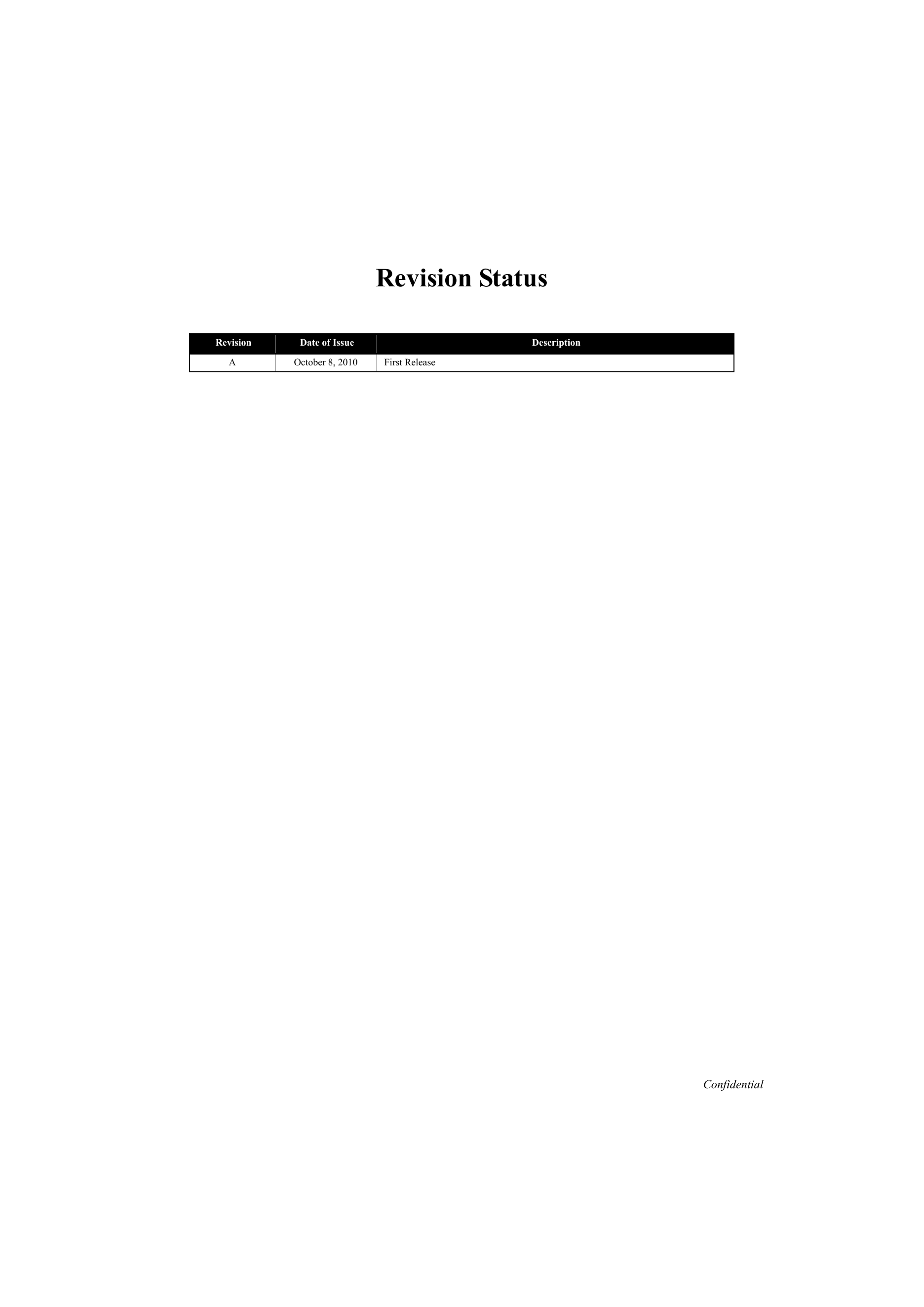

Revision Status

Revision Date of Issue Description

A October 8, 2010 First Release




Confidential
Перейти на страницу
СТРАНИЦА PDF
Страница 7
L200/L201/L100/L101 Revision A


...
Перейти на страницу
СТРАНИЦА PDF

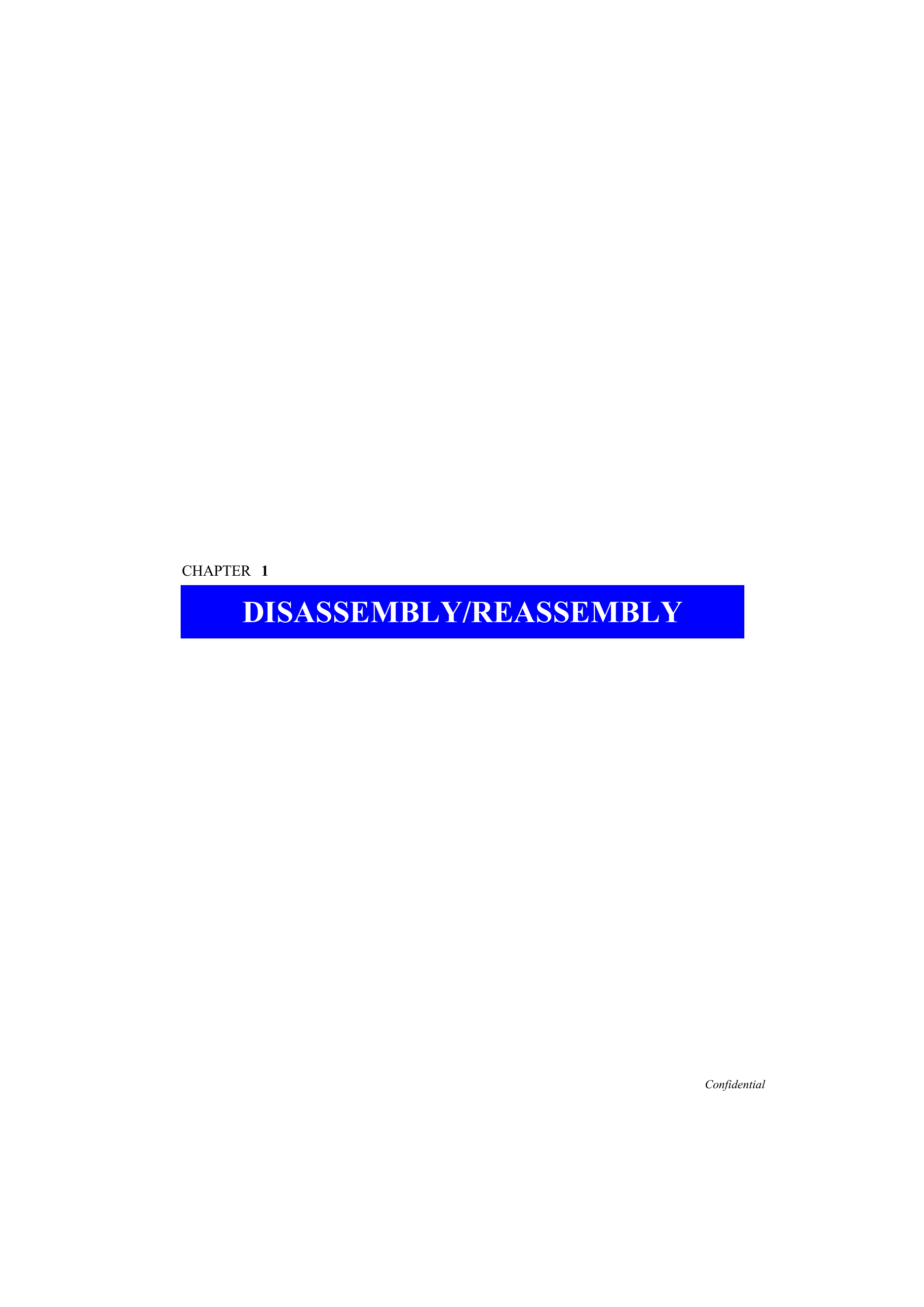

Страница 8

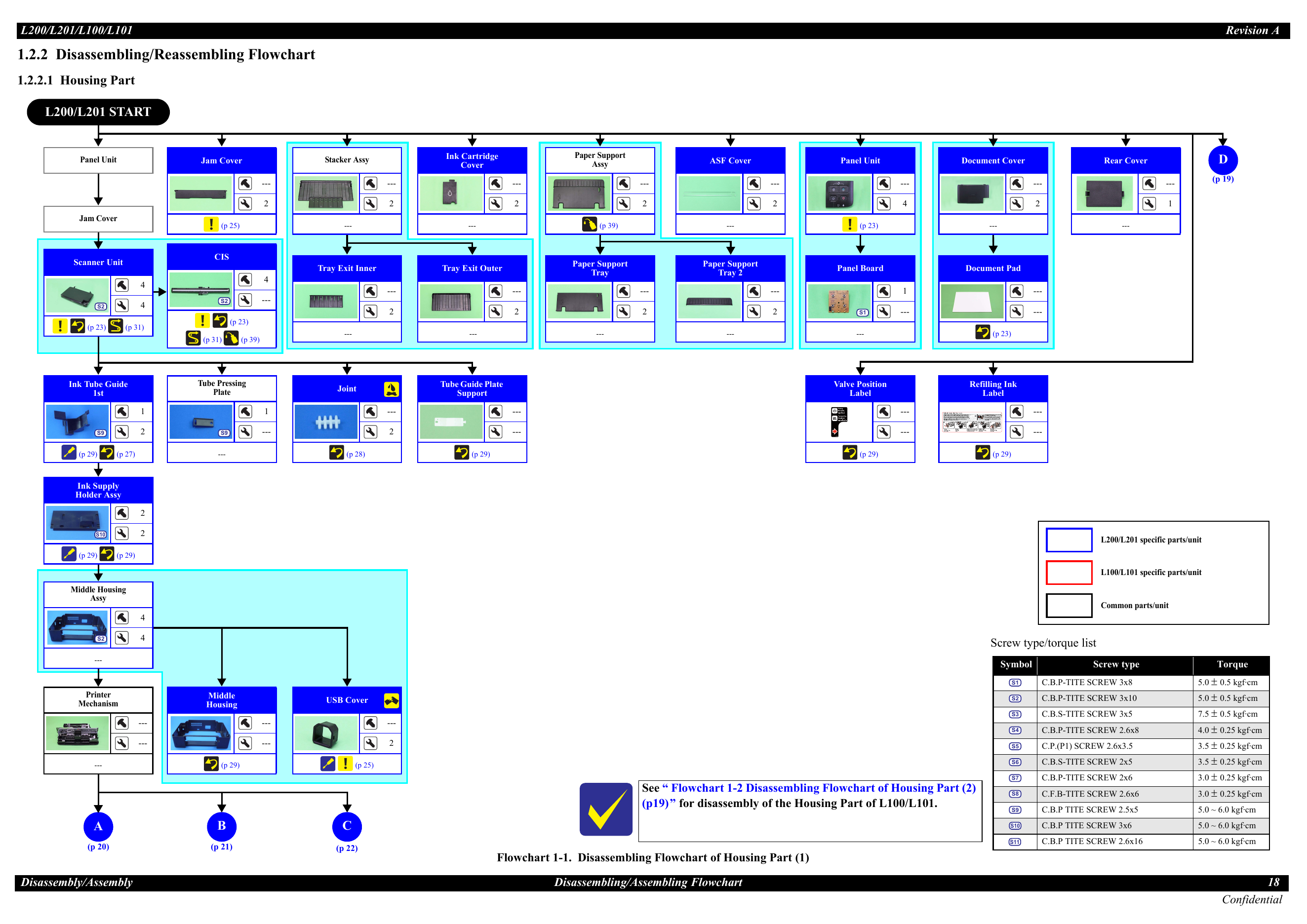

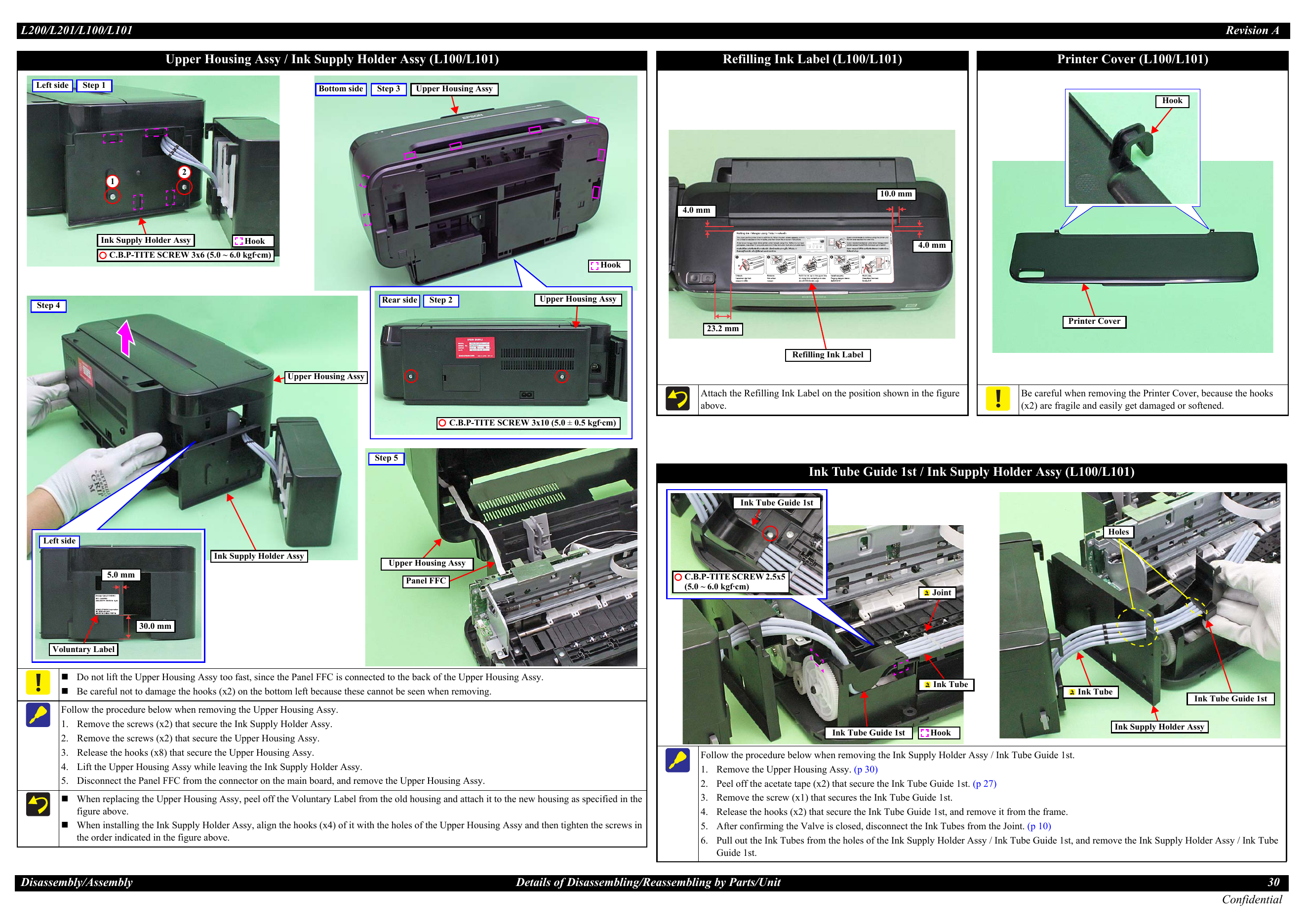

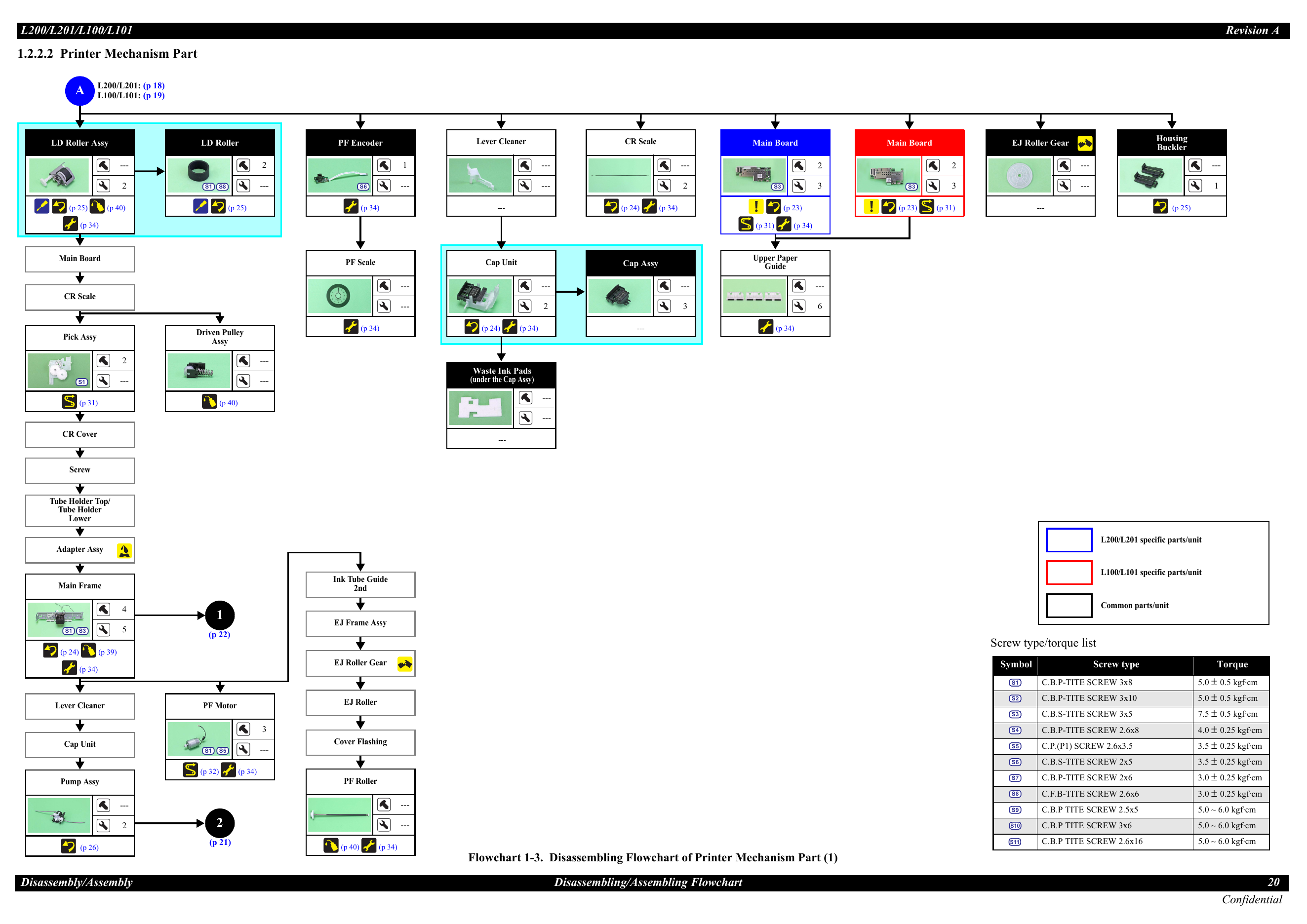

CHAPTER 1


DISASSEMBLY/REASSEMBLY




Confidential
Перейти на страницу
СТРАНИЦА PDF
Страница 9
L200/L201/L100/L101 Revision A

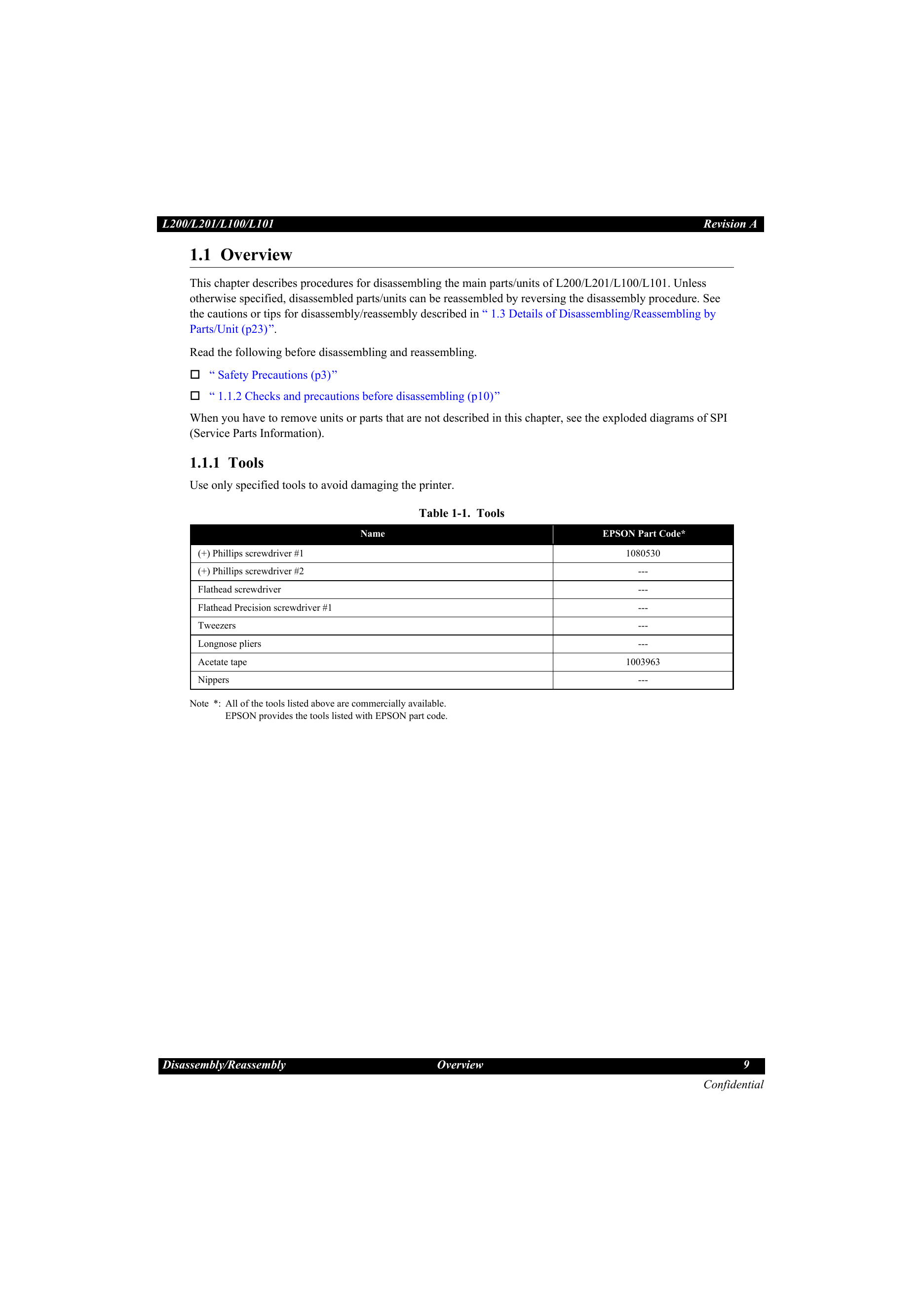

1.1 Overview
This chapter describes procedures for disassembling the main parts/units of L200/L201/L100/L101. Unless
...
Перейти на страницу
СТРАНИЦА PDF
Страница 10
L200/L201/L100/L101 Revision A

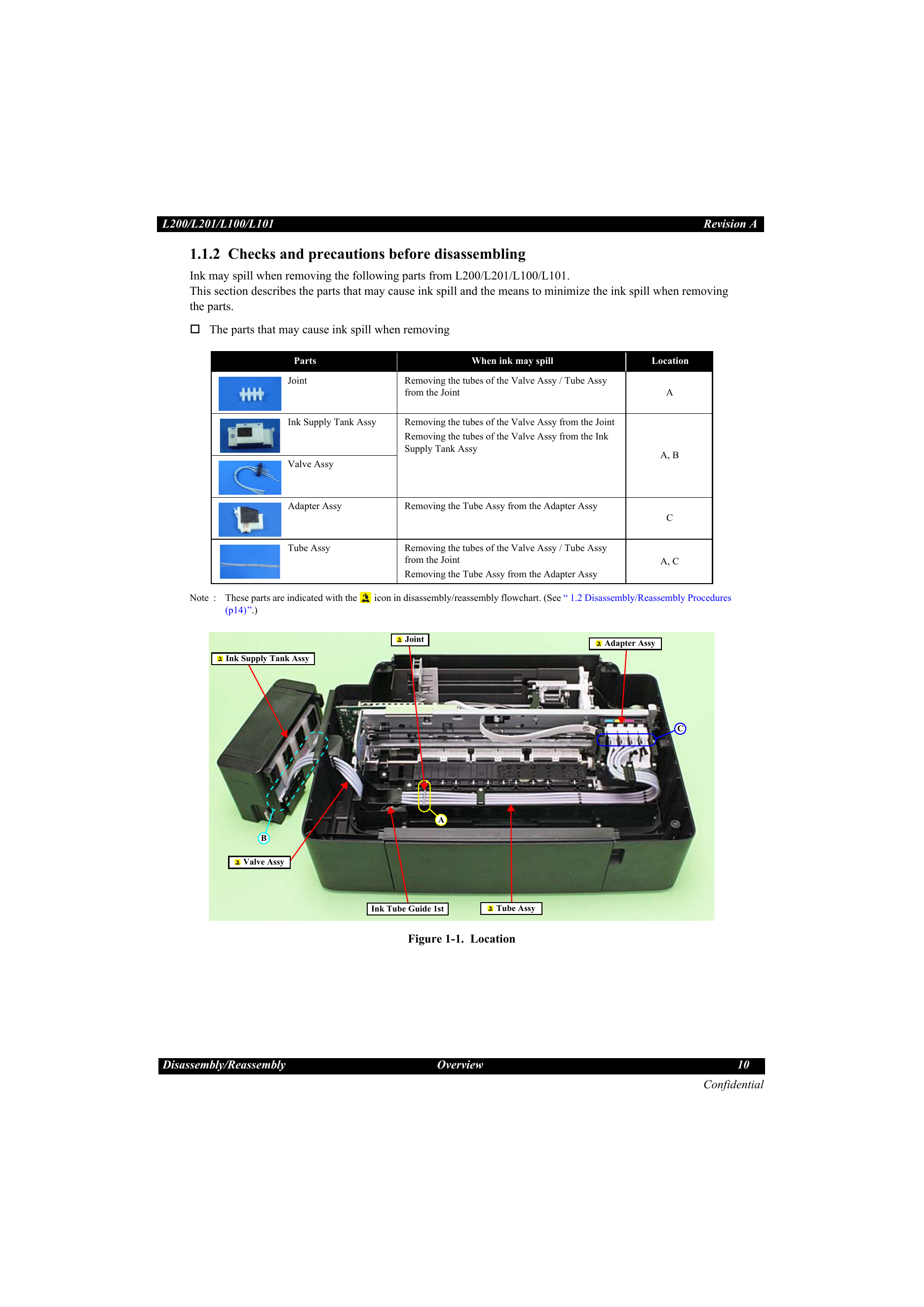

1.1.2 Checks and precautions before disassembling
Ink may spill when removing the following parts f...
Перейти на страницу
СТРАНИЦА PDF
Страница 11
L200/L201/L100/L101 Revision A

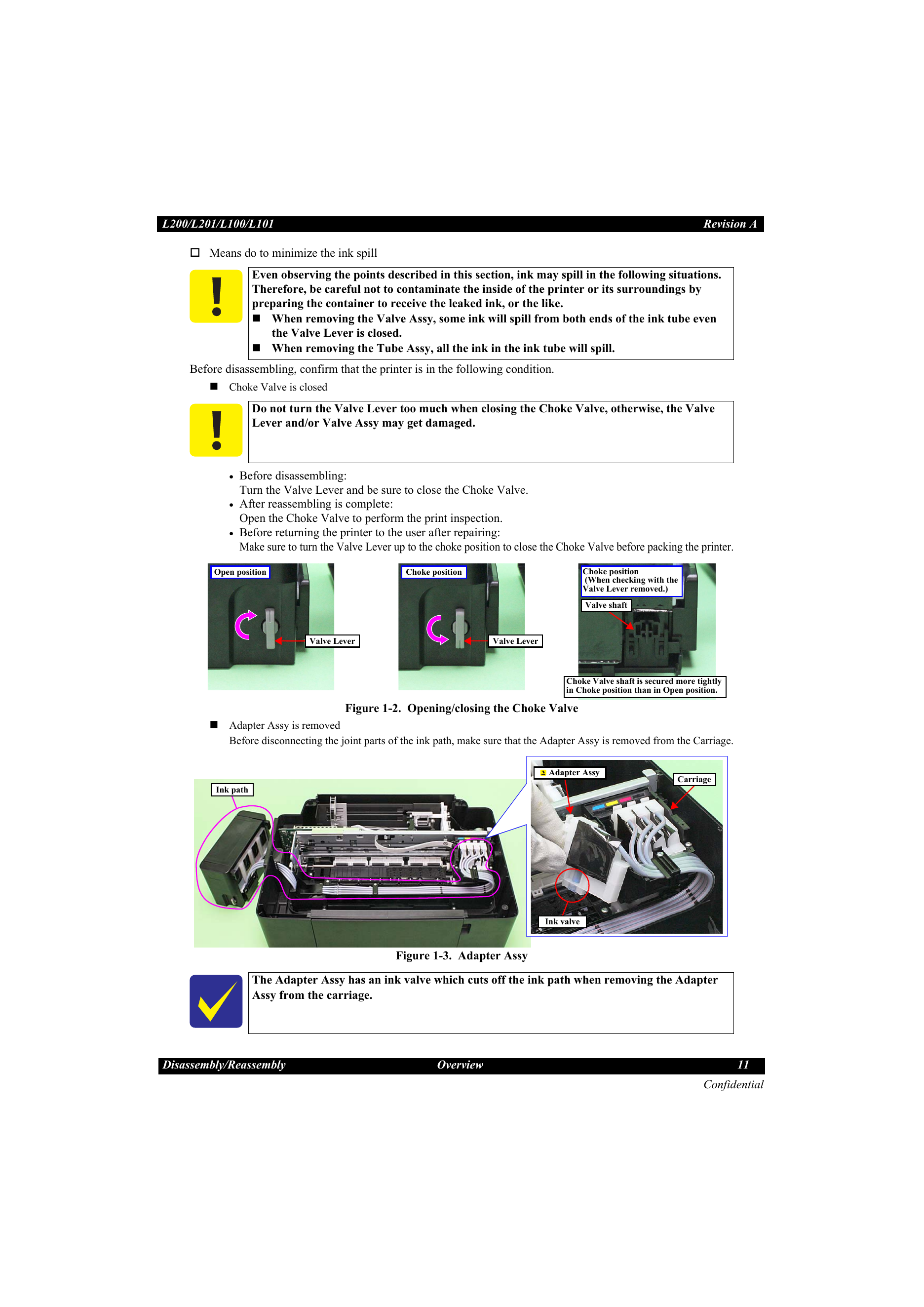

Means do to minimize the ink spill
Even observing the points described in this sect...
Перейти на страницу
СТРАНИЦА PDF
Страница 12
L200/L201/L100/L101 Revision A

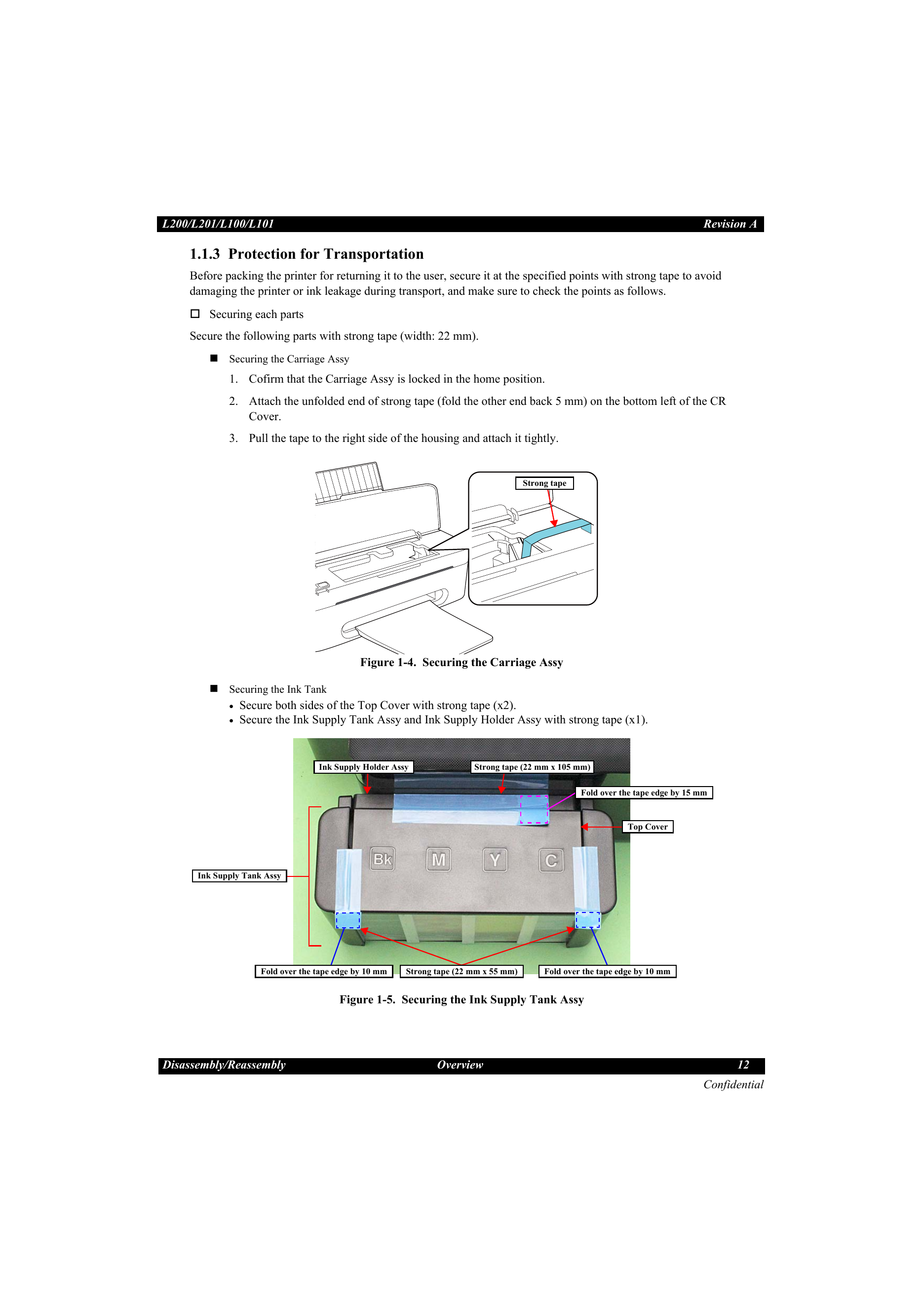

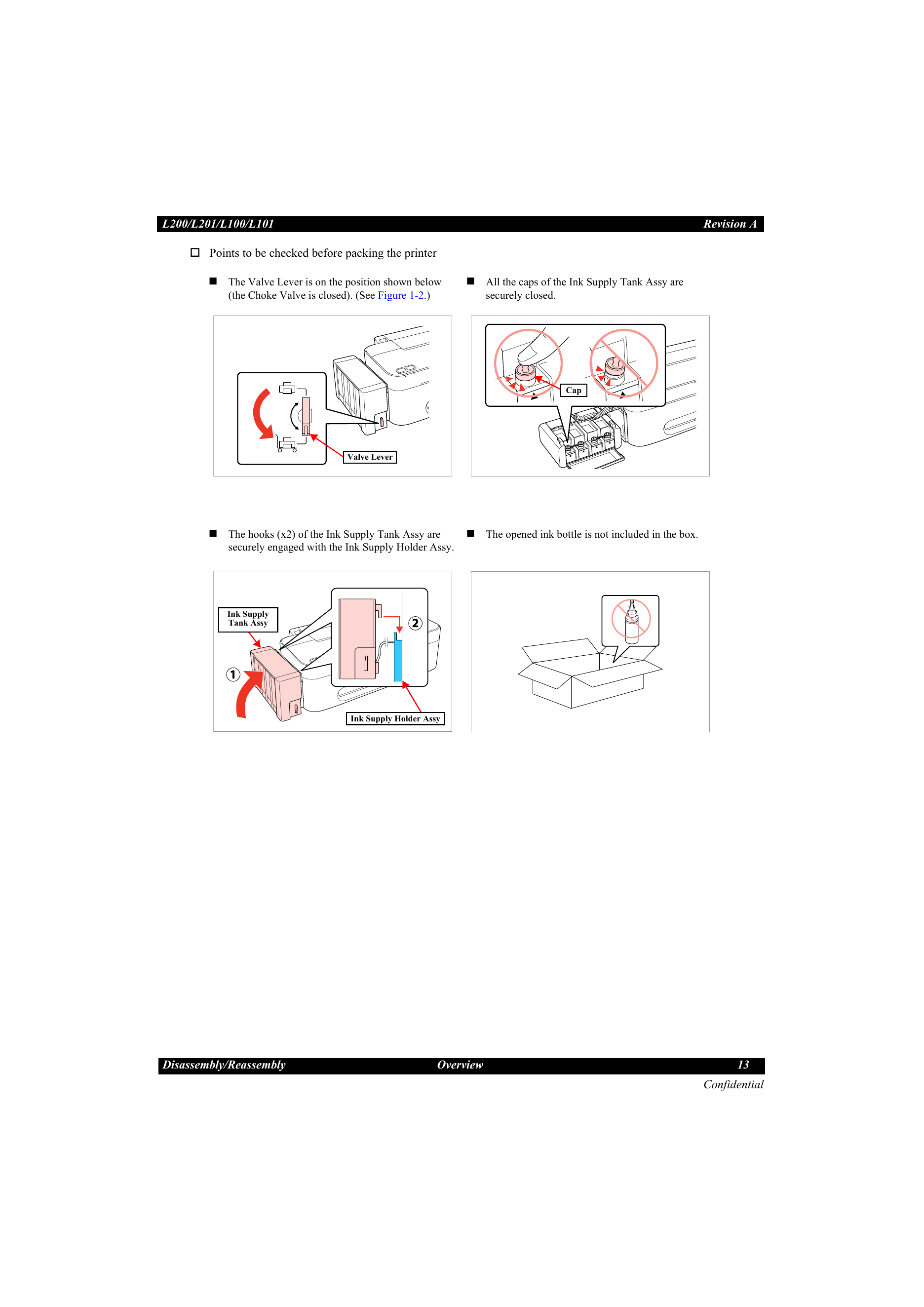

1.1.3 Protection for Transportation
Before packing the printer for returning it to the user, sec...
Перейти на страницу
