WASHING MACHINE
SERVICE MANUAL
CAUTION
READ THIS MANUAL CAREFULLY TO DIAGNOSE TROUBLE
CORRECTLY BEFORE OFFERING SERVICE.
MODEL : F * N/D(P)(1~9)
JUN. 2011 PRINTED IN CH INA P/No.:MFL4261722

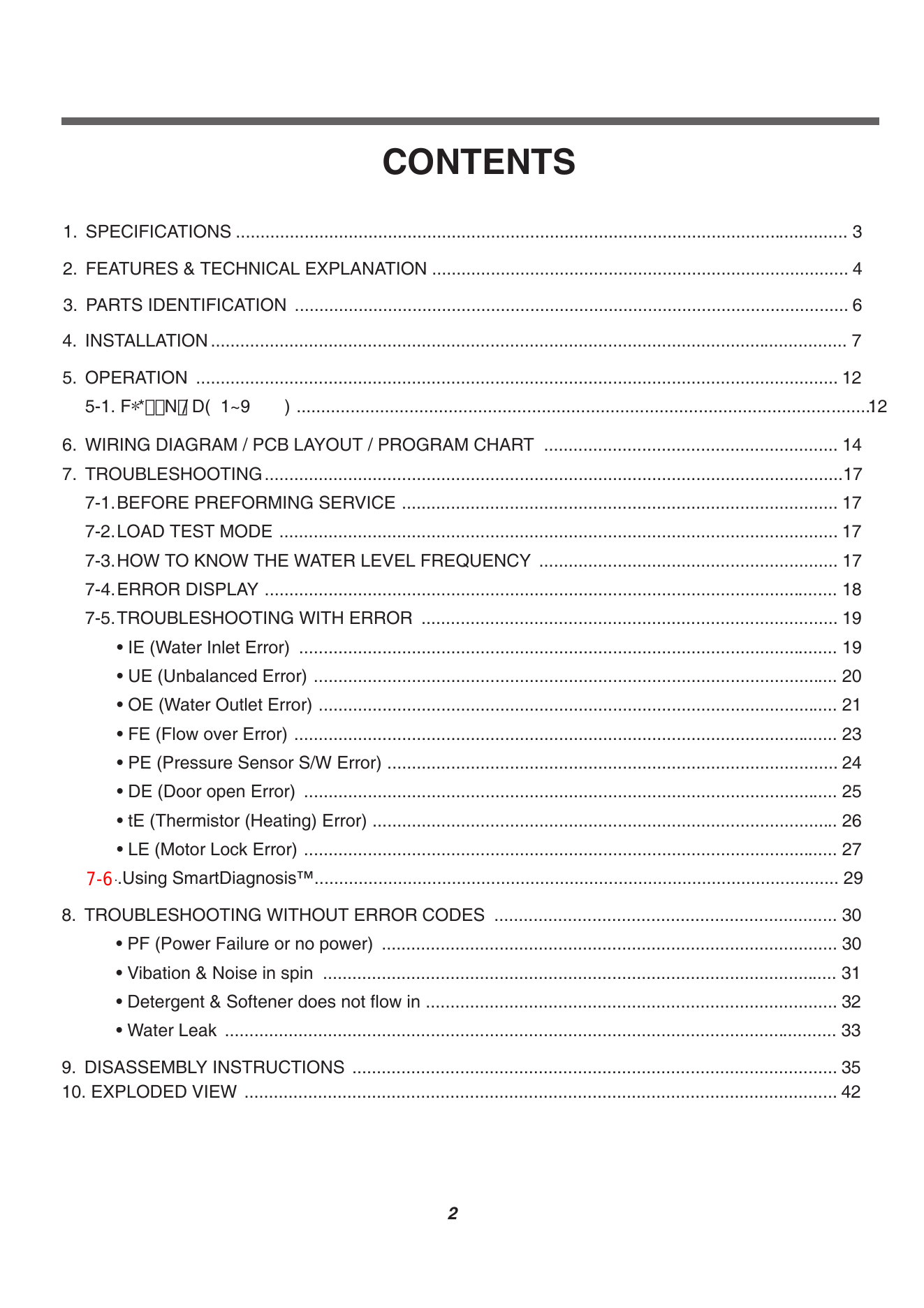

CONTENTS
1. SPECIFICATIONS ............................................................................................................................. 3
2. FEATURES & TECHNICAL EXPLANATION ..................................................................................... 4
3. PARTS IDENTIFICATION ................................................................................................................. 6
4. INSTALLATION .................................................................................................................................. 7
5. OPERATION ................................................................................................................................... 12
5-1. F** N/D( 1~9 ) ......................................................................................................................12

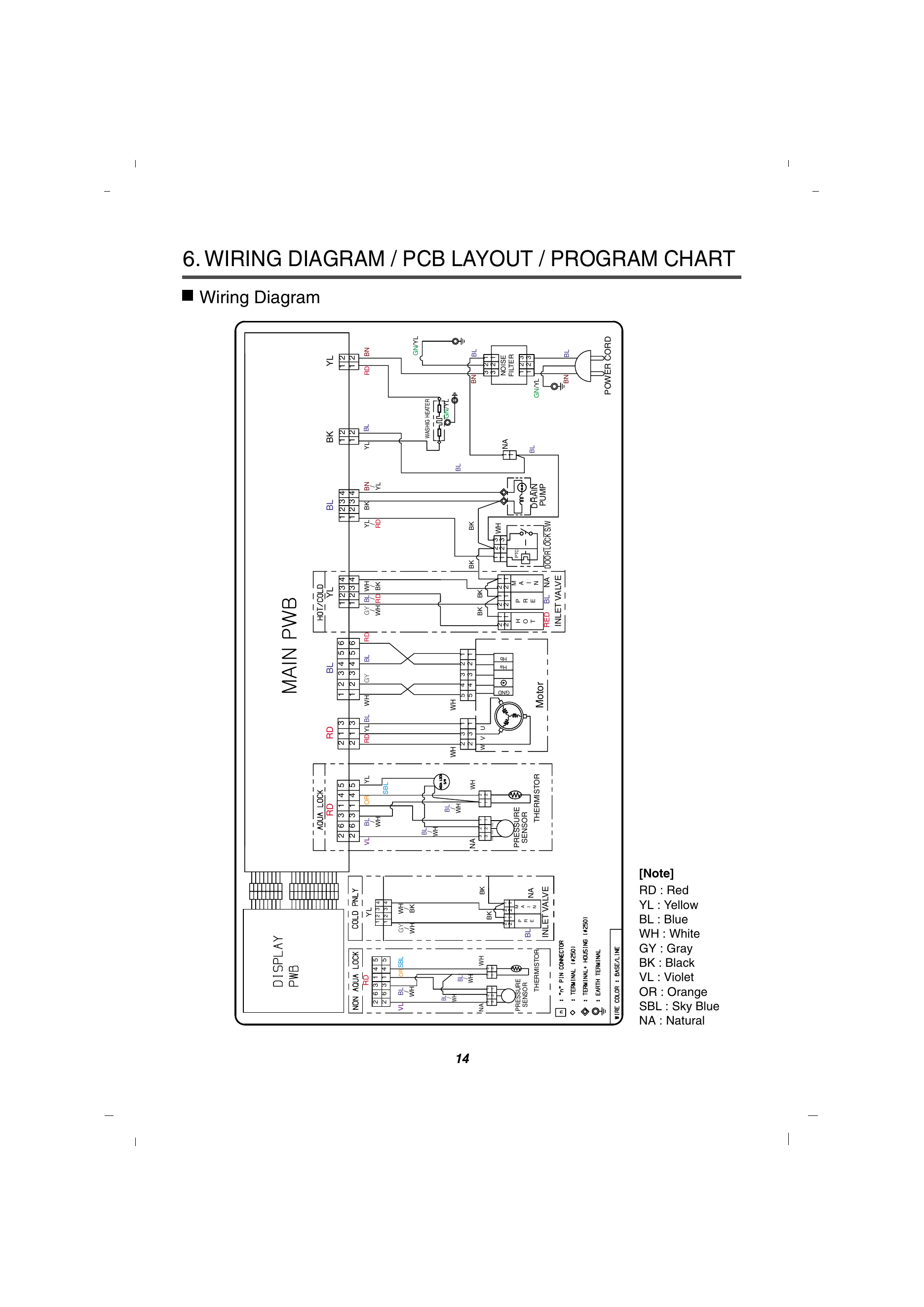

6. WIRING DIAGRAM / PCB LAYOUT / PROGRAM CHART ............................................................ 14
7. TROUBLESHOOTING ......................................................................................................................17
7-1.BEFORE PREFORMING SERVICE ......................................................................................... 17
7-2.LOAD TEST MODE .................................................................................................................. 17
7-3.HOW TO KNOW THE WATER LEVEL FREQUENCY ............................................................. 17

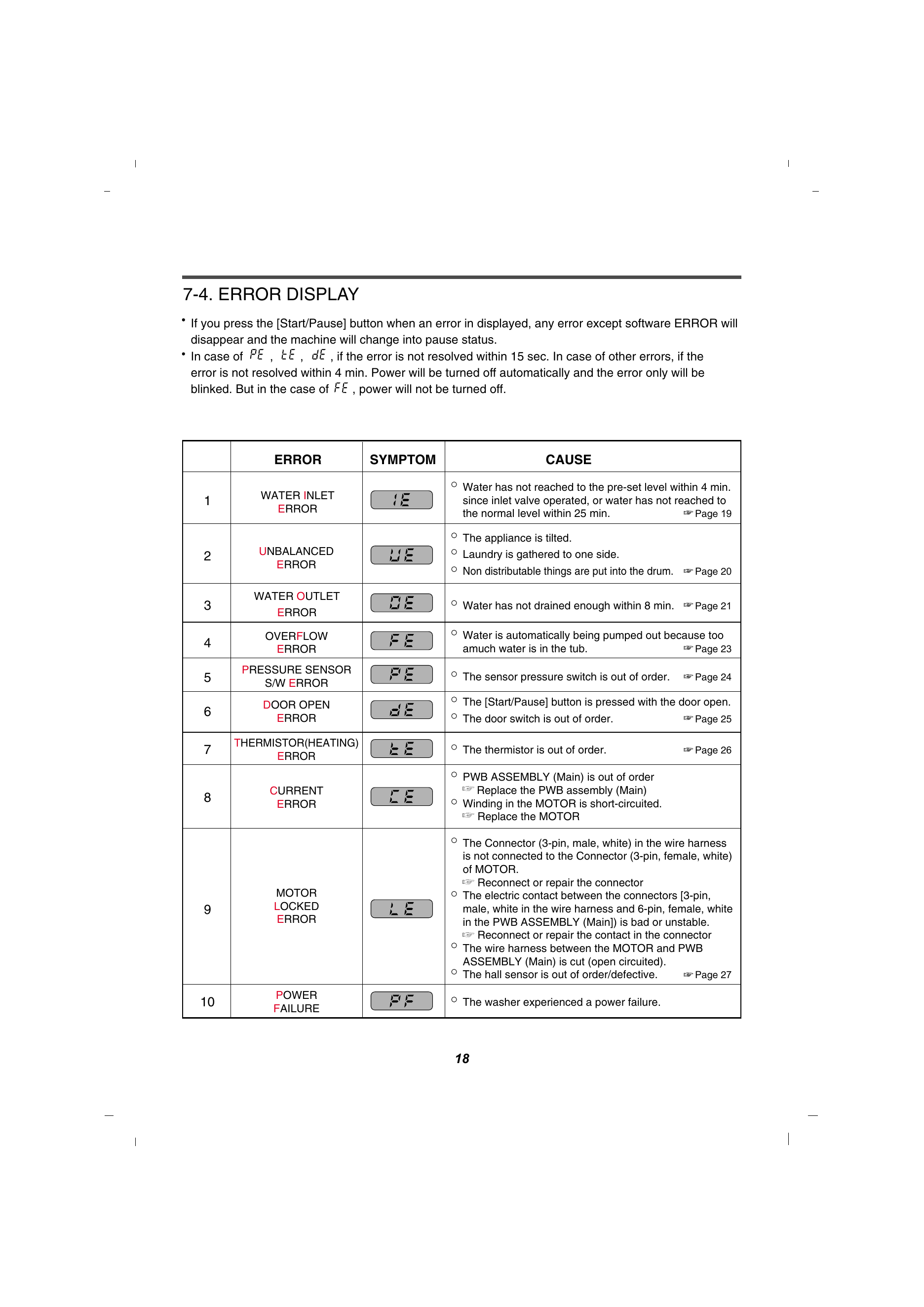

7-4.ERROR DISPLAY ..................................................................................................................... 18
7-5.TROUBLESHOOTING WITH ERROR ..................................................................................... 19
• IE (Water Inlet Error) .............................................................................................................. 19
• UE (Unbalanced Error) ........................................................................................................... 20
• OE (Water Outlet Error) .......................................................................................................... 21
• FE (Flow over Error) ............................................................................................................... 23
• PE (Pressure Sensor S/W Error) ............................................................................................ 24

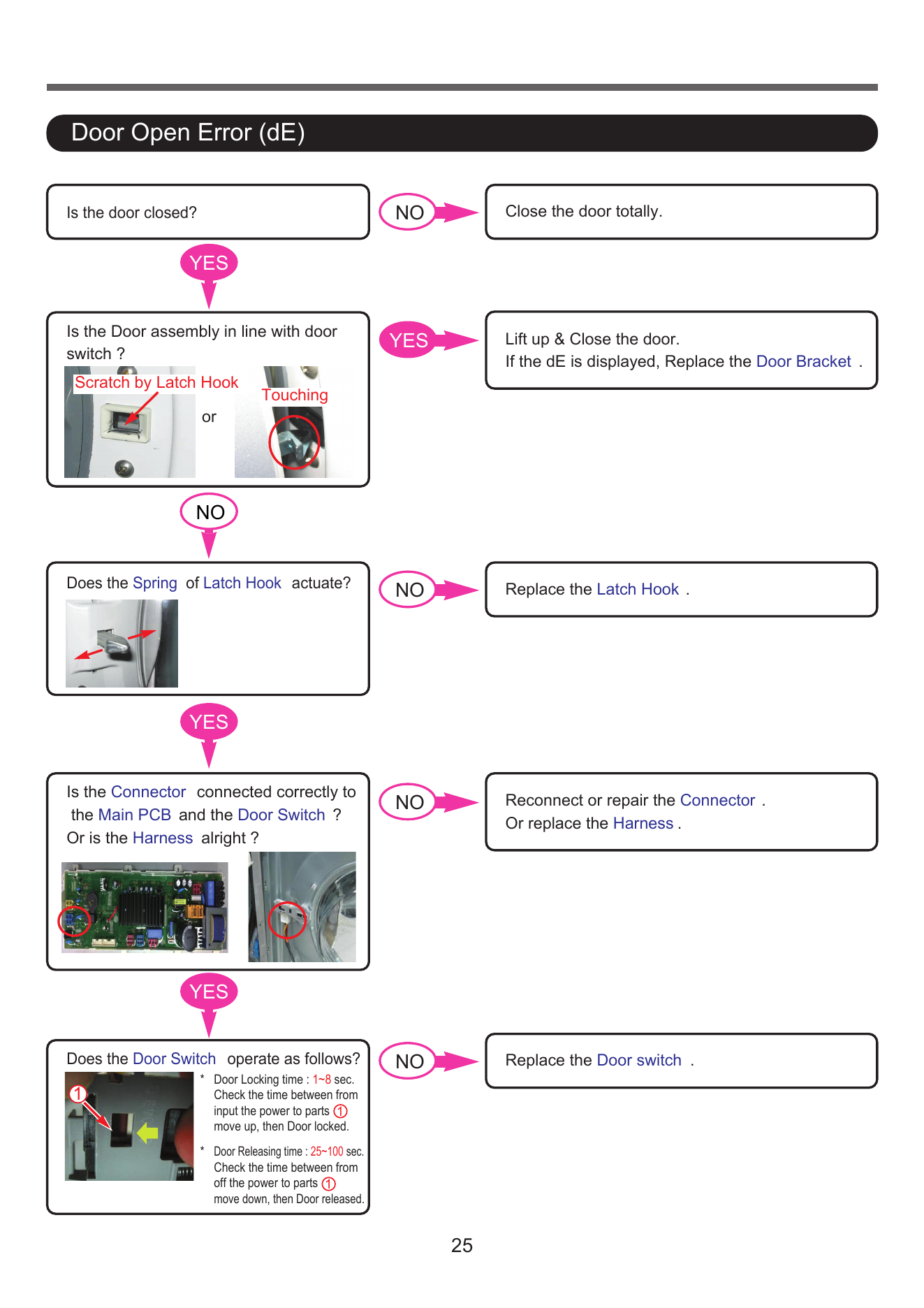

• DE (Door open Error) ............................................................................................................. 25
• tE (Thermistor (Heating) Error) ............................................................................................... 26

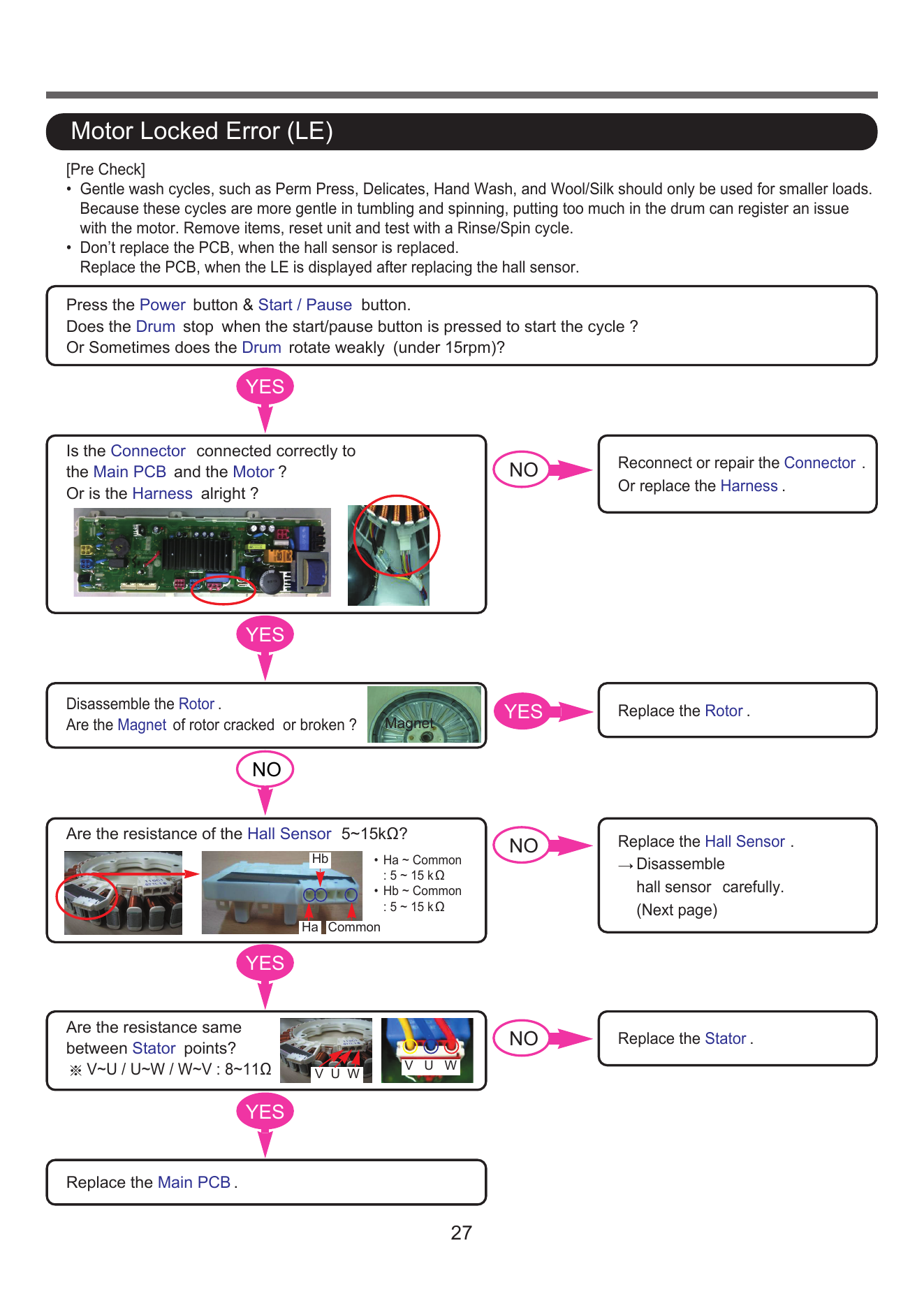

• LE (Motor Lock Error) ............................................................................................................. 27

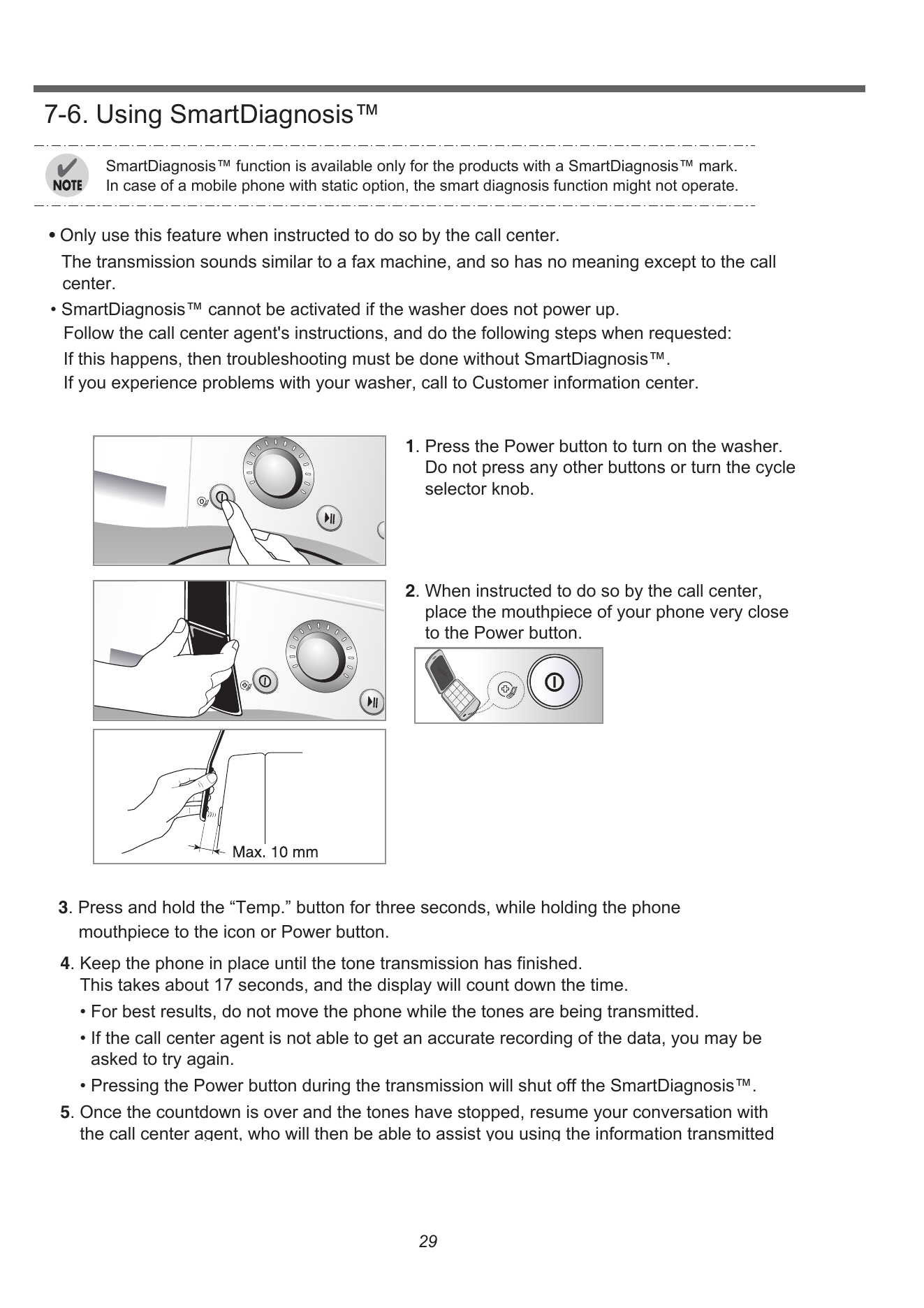

7-4.Using SmartDiagnosis™........................................................................................................... 29
7-6
8. TROUBLESHOOTING WITHOUT ERROR CODES ...................................................................... 30
• PF (Power Failure or no power) ............................................................................................. 30
• Vibation & Noise in spin ......................................................................................................... 31
• Detergent & Softener does not flow in .................................................................................... 32
• Water Leak ............................................................................................................................. 33
9. DISASSEMBLY INSTRUCTIONS ................................................................................................... 35
10. EXPLODED VIEW ......................................................................................................................... 42
2

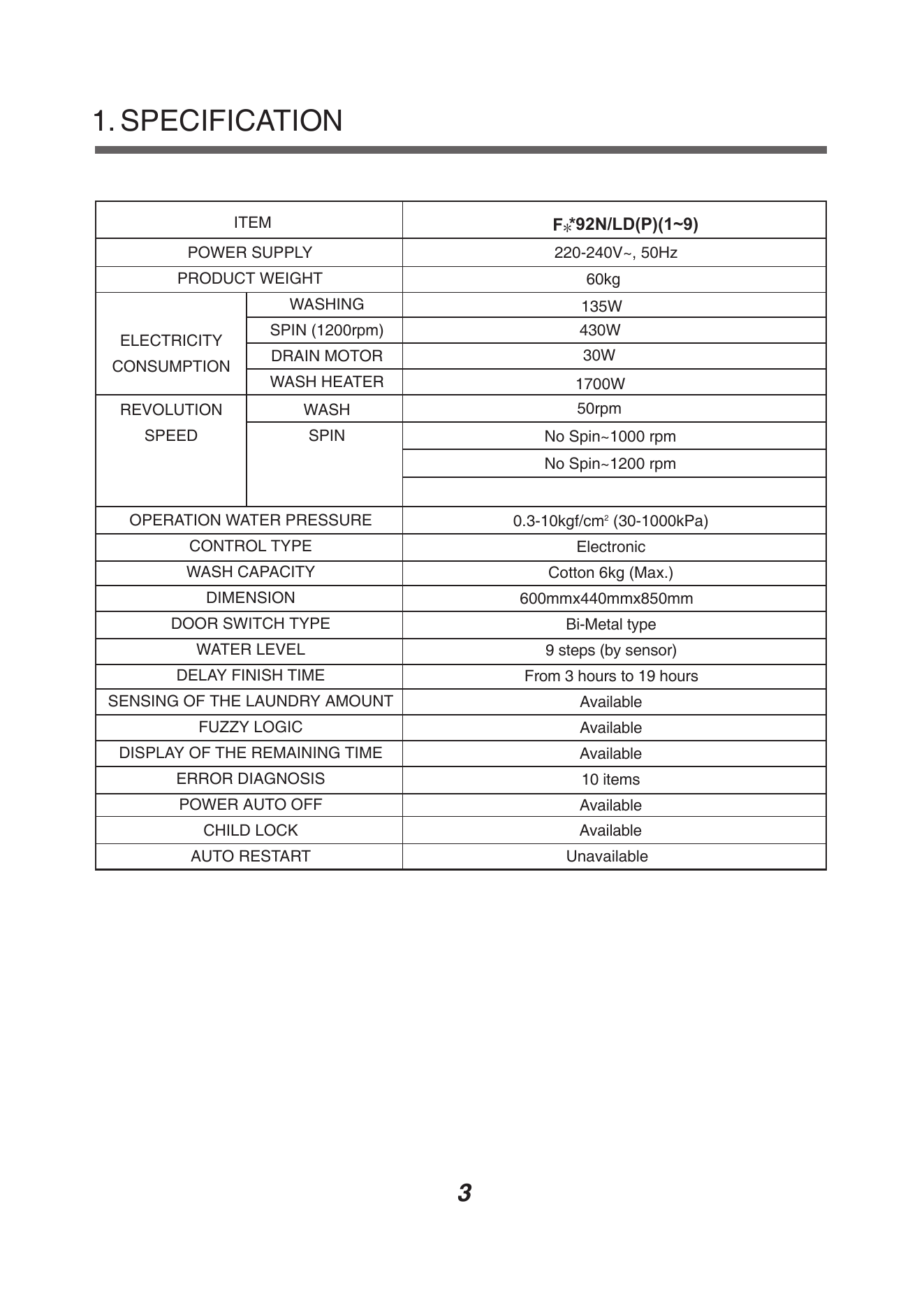

1. SPECIFICATION
ITEM F**92N/LD(P)(1~9)
POWER SUPPLY 220-240V~, 50Hz
PRODUCT WEIGHT 60kg
WASHING 135W
SPIN (1200rpm) 430W
ELECTRICITY
DRAIN MOTOR 30W
CONSUMPTION
WASH HEATER 1700W
REVOLUTION WASH 50rpm
SPEED SPIN No Spin~1000 rpm
No Spin~1200 rpm
OPERATION WATER PRESSURE 0.3-10kgf/cm2 (30-1000kPa)
CONTROL TYPE Electronic
WASH CAPACITY Cotton 6kg (Max.)
DIMENSION 600mmx440mmx850mm
DOOR SWITCH TYPE Bi-Metal type
WATER LEVEL 9 steps (by sensor)
DELAY FINISH TIME From 3 hours to 19 hours
SENSING OF THE LAUNDRY AMOUNT Available
FUZZY LOGIC Available
DISPLAY OF THE REMAINING TIME Available
ERROR DIAGNOSIS 10 items
POWER AUTO OFF Available
CHILD LOCK Available
AUTO RESTART Unavailable
3

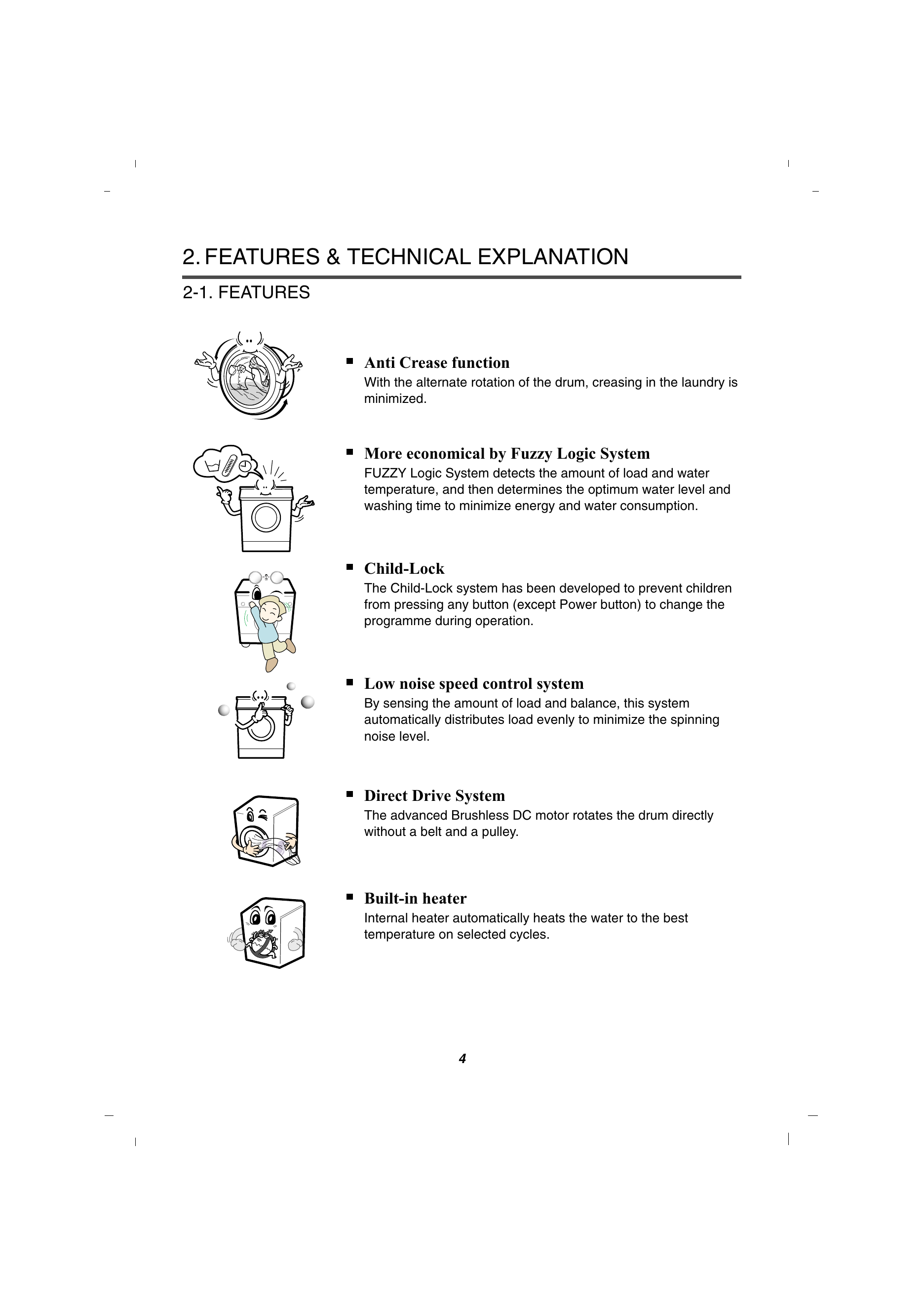

2. FEATURES & TECHNICAL EXPLANATION
2-1. FEATURES
Anti Crease function
With the alternate rotation of the drum, creasing in the laundry is
minimized.
More economical by Fuzzy Logic System
FUZZY Logic System detects the amount of load and water
temperature, and then determines the optimum water level and
washing time to minimize energy and water consumption.
Child-Lock
The Child-Lock system has been developed to prevent children
from pressing any button (except Power button) to change the
programme during operation.
Low noise speed control system
By sensing the amount of load and balance, this system
automatically distributes load evenly to minimize the spinning
noise level.
Direct Drive System
The advanced Brushless DC motor rotates the drum directly
without a belt and a pulley.
Built-in heater
Internal heater automatically heats the water to the best
temperature on selected cycles.
4

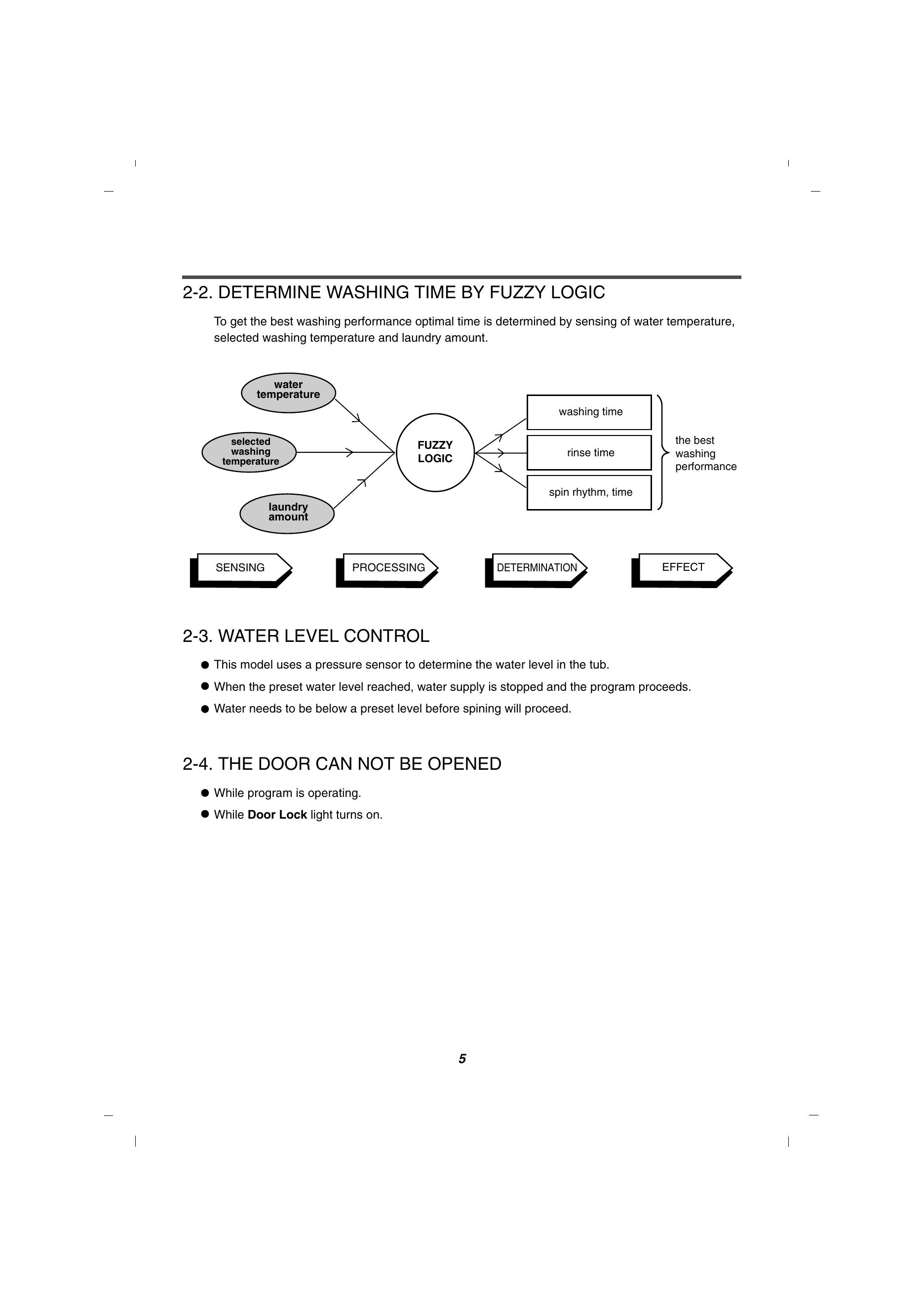

2-2. DETERMINE WASHING TIME BY FUZZY LOGIC
To get the best washing performance optimal time is determined by sensing of water temperature,
selected washing temperature and laundry amount.
water
temperature
washing time
selected FUZZY the best
washing rinse time washing
temperature LOGIC
performance
spin rhythm, time
laundry
amount
SENSING PROCESSING DETERMINATION EFFECT
2-3. WATER LEVEL CONTROL
This model uses a pressure sensor to determine the water level in the tub.
When the preset water level reached, water supply is stopped and the program proceeds.
Water needs to be below a preset level before spining will proceed.
2-4. THE DOOR CAN NOT BE OPENED
While program is operating.
While Door Lock light turns on.
5

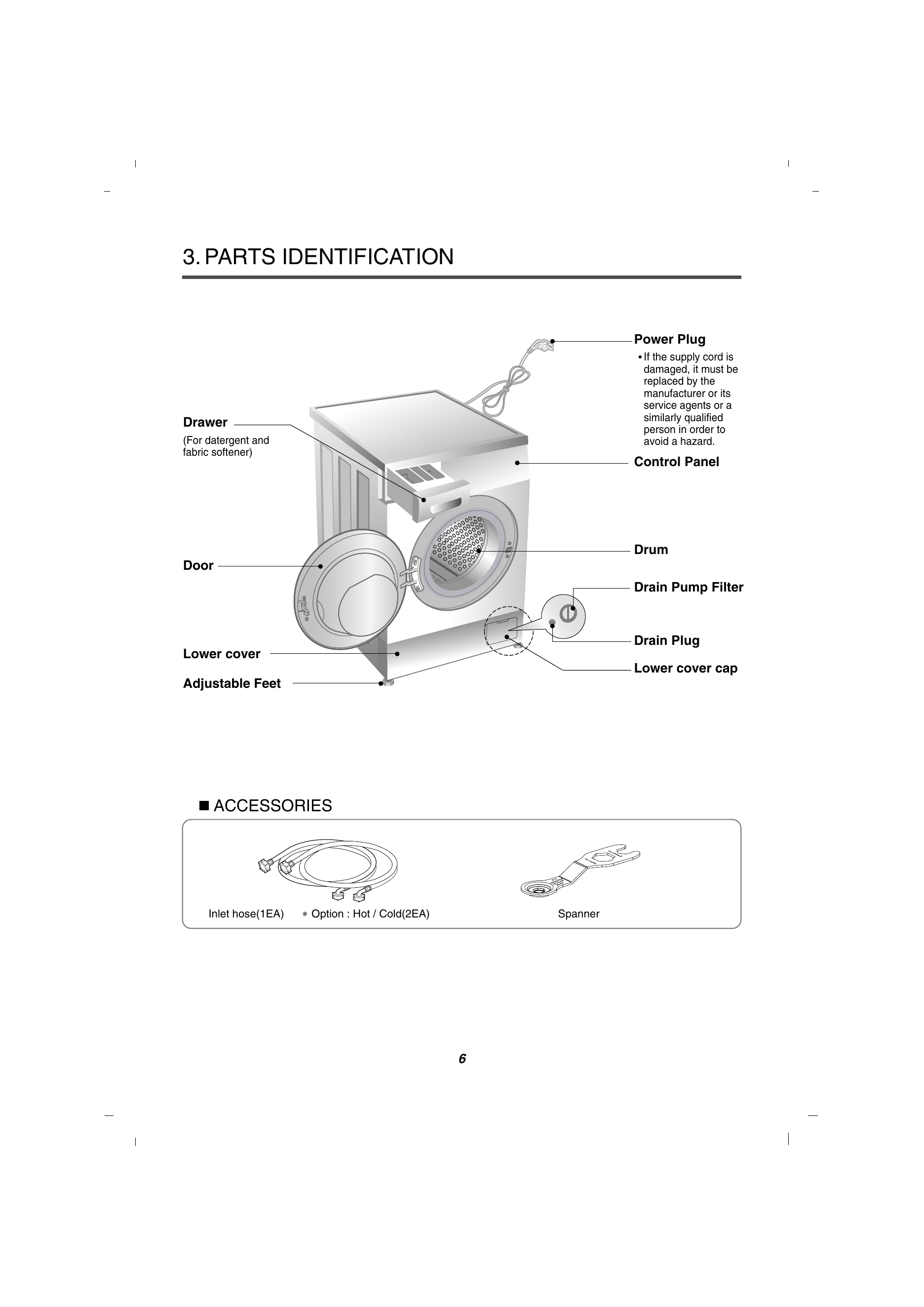

3. PARTS IDENTIFICATION
Power Plug
If the supply cord is
damaged, it must be
replaced by the
manufacturer or its
service agents or a
similarly qualified
Drawer person in order to
(For datergent and avoid a hazard.
fabric softener)
Control Panel
Drum
Door
Drain Pump Filter
Drain Plug
Lower cover
Lower cover cap
Adjustable Feet
ACCESSORIES
Inlet hose(1EA) Option : Hot / Cold(2EA) Spanner
6

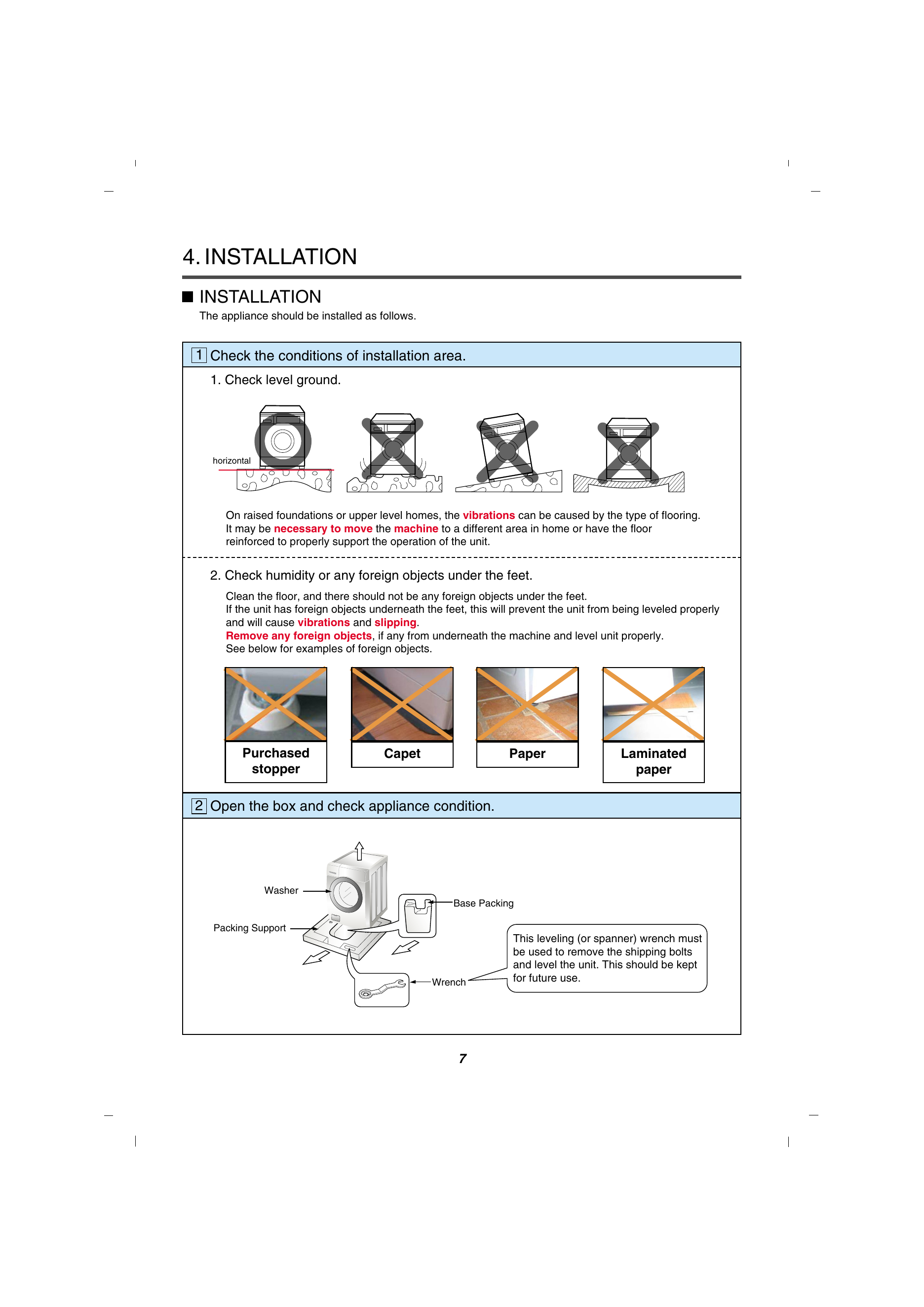

4. INSTALLATION
INSTALLATION
The appliance should be installed as follows.
1 Check the conditions of installation area.
1. Check level ground.
horizontal
On raised foundations or upper level homes, the vibrations can be caused by the type of flooring.
It may be necessary to move the machine to a different area in home or have the floor
reinforced to properly support the operation of the unit.
2. Check humidity or any foreign objects under the feet.
Clean the floor, and there should not be any foreign objects under the feet.
If the unit has foreign objects underneath the feet, this will prevent the unit from being leveled properly
and will cause vibrations and slipping.
Remove any foreign objects, if any from underneath the machine and level unit properly.
See below for examples of foreign objects.
Purchased Capet Paper Laminated
stopper paper
2 Open the box and check appliance condition.
Washer
Base Packing
Packing Support
This leveling (or spanner) wrench must
be used to remove the shipping bolts
and level the unit. This should be kept
Wrench for future use.
7

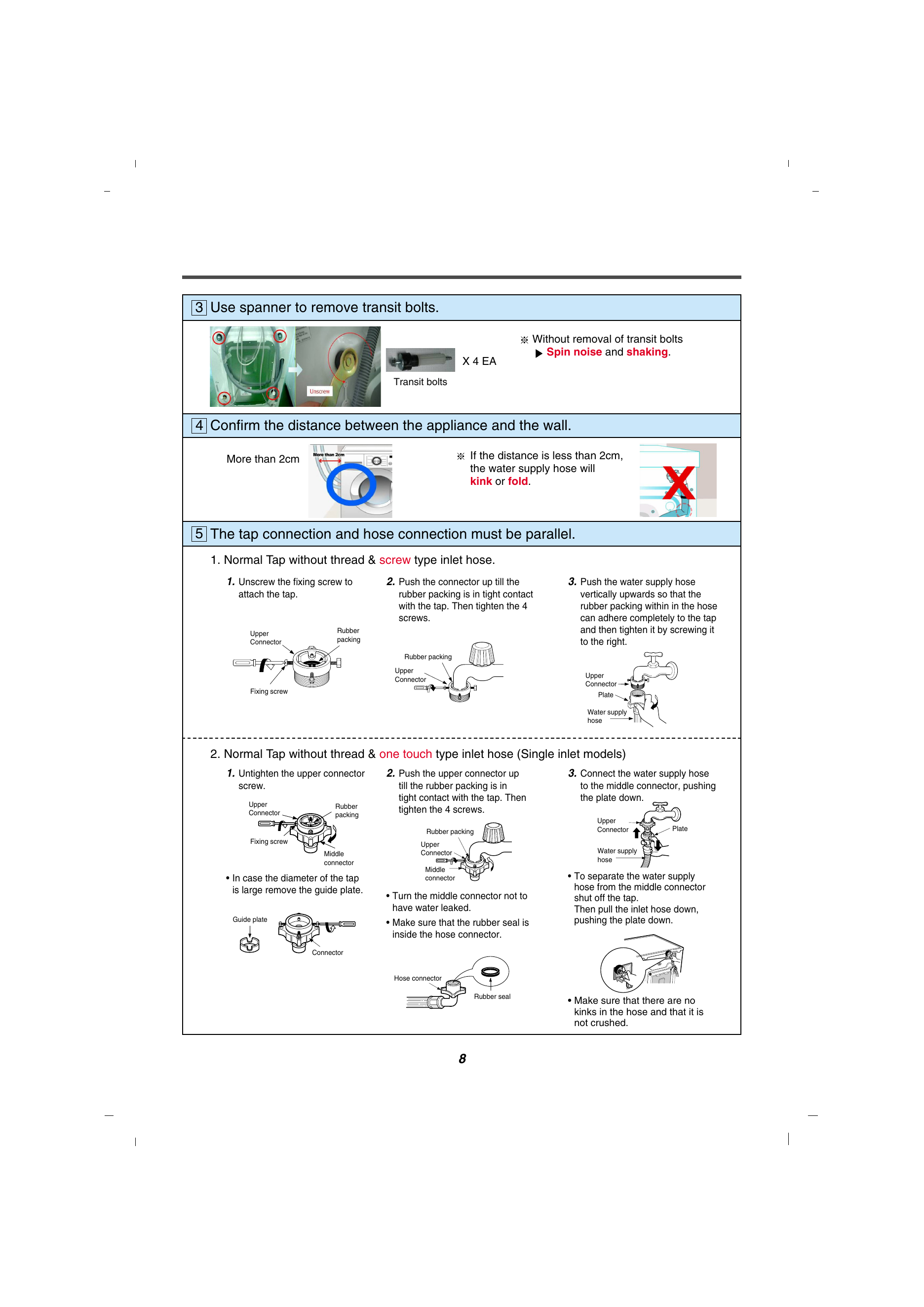

3 Use spanner to remove transit bolts.
Without removal of transit bolts
Spin noise and shaking.
X 4 EA
Transit bolts
4 Confirm the distance between the appliance and the wall.
More than 2cm If the distance is less than 2cm,
the water supply hose will
kink or fold.
5 The tap connection and hose connection must be parallel.
1. Normal Tap without thread & screw type inlet hose.
1. Unscrew the fixing screw to 2. Push the connector up till the 3. Push the water supply hose
attach the tap. rubber packing is in tight contact vertically upwards so that the
with the tap. Then tighten the 4 rubber packing within in the hose
screws. can adhere completely to the tap
Upper Rubber and then tighten it by screwing it
Connector packing to the right.
Rubber packing
Upper
Upper
Connector
Connector
Fixing screw Plate
Water supply
hose
2. Normal Tap without thread & one touch type inlet hose (Single inlet models)
1. Untighten the upper connector 2. Push the upper connector up 3. Connect the water supply hose
screw. till the rubber packing is in to the middle connector, pushing
tight contact with the tap. Then the plate down.
Upper Rubber
Connector packing
tighten the 4 screws.
Upper
Rubber packing Connector Plate
Fixing screw Upper
Middle Connector Water supply
connector hose
Middle
• In case the diameter of the tap connector • To separate the water supply
is large remove the guide plate. hose from the middle connector
• Turn the middle connector not to shut off the tap.
have water leaked. Then pull the inlet hose down,
Guide plate
• Make sure that the rubber seal is pushing the plate down.
inside the hose connector.
Connector
Hose connector
Rubber seal
• Make sure that there are no
kinks in the hose and that it is
not crushed.
8

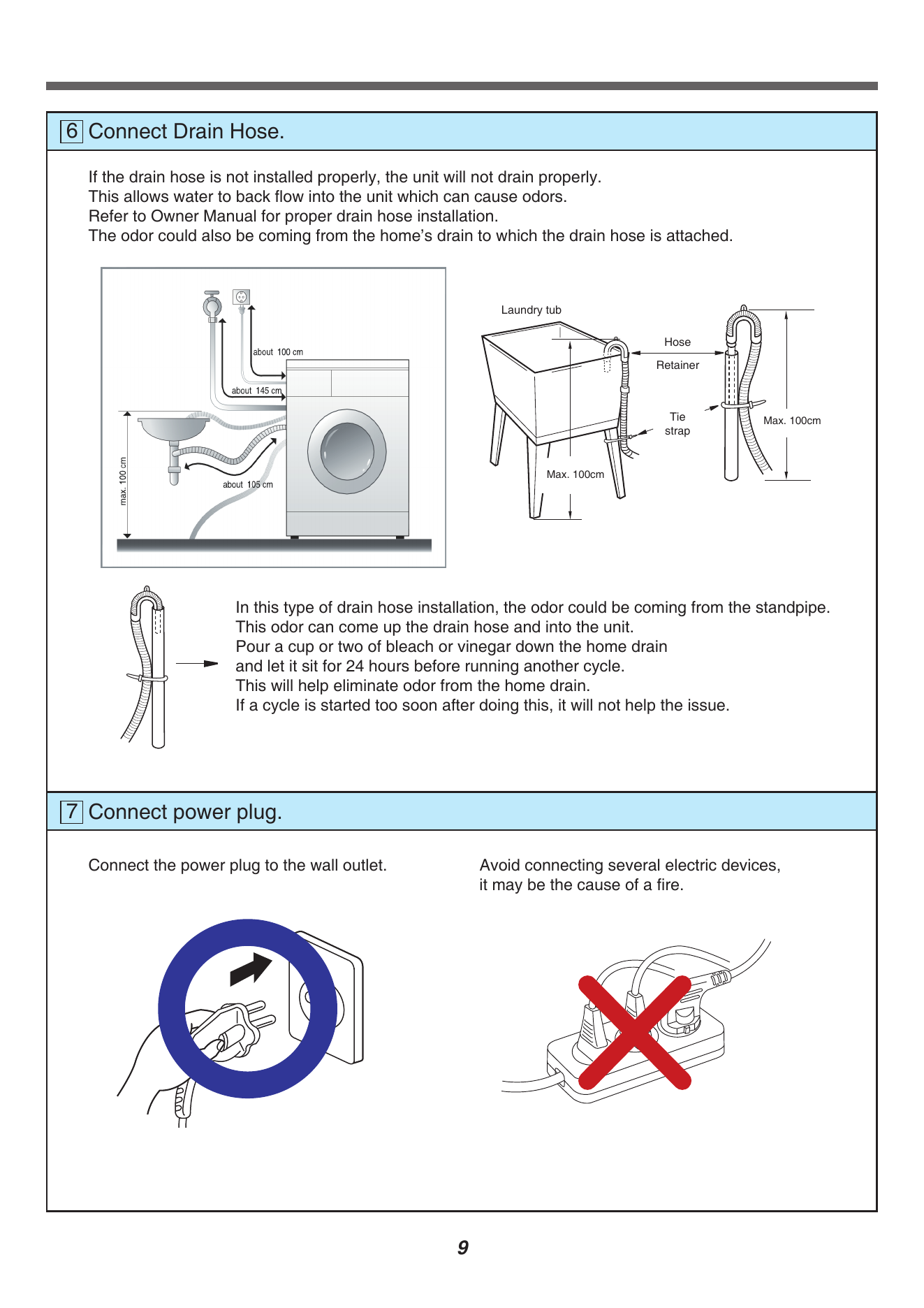

6 Connect Drain Hose.
If the drain hose is not installed properly, the unit will not drain properly.
This allows water to back flow into the unit which can cause odors.
Refer to Owner Manual for proper drain hose installation.
The odor could also be coming from the home’s drain to which the drain hose is attached.
Laundry tub
Hose
Retainer
Tie Max. 100cm
strap
Max. 100cm
In this type of drain hose installation, the odor could be coming from the standpipe.
This odor can come up the drain hose and into the unit.
Pour a cup or two of bleach or vinegar down the home drain
and let it sit for 24 hours before running another cycle.
This will help eliminate odor from the home drain.
If a cycle is started too soon after doing this, it will not help the issue.
7 Connect power plug.
Connect the power plug to the wall outlet. Avoid connecting several electric devices,
it may be the cause of a fire.
9

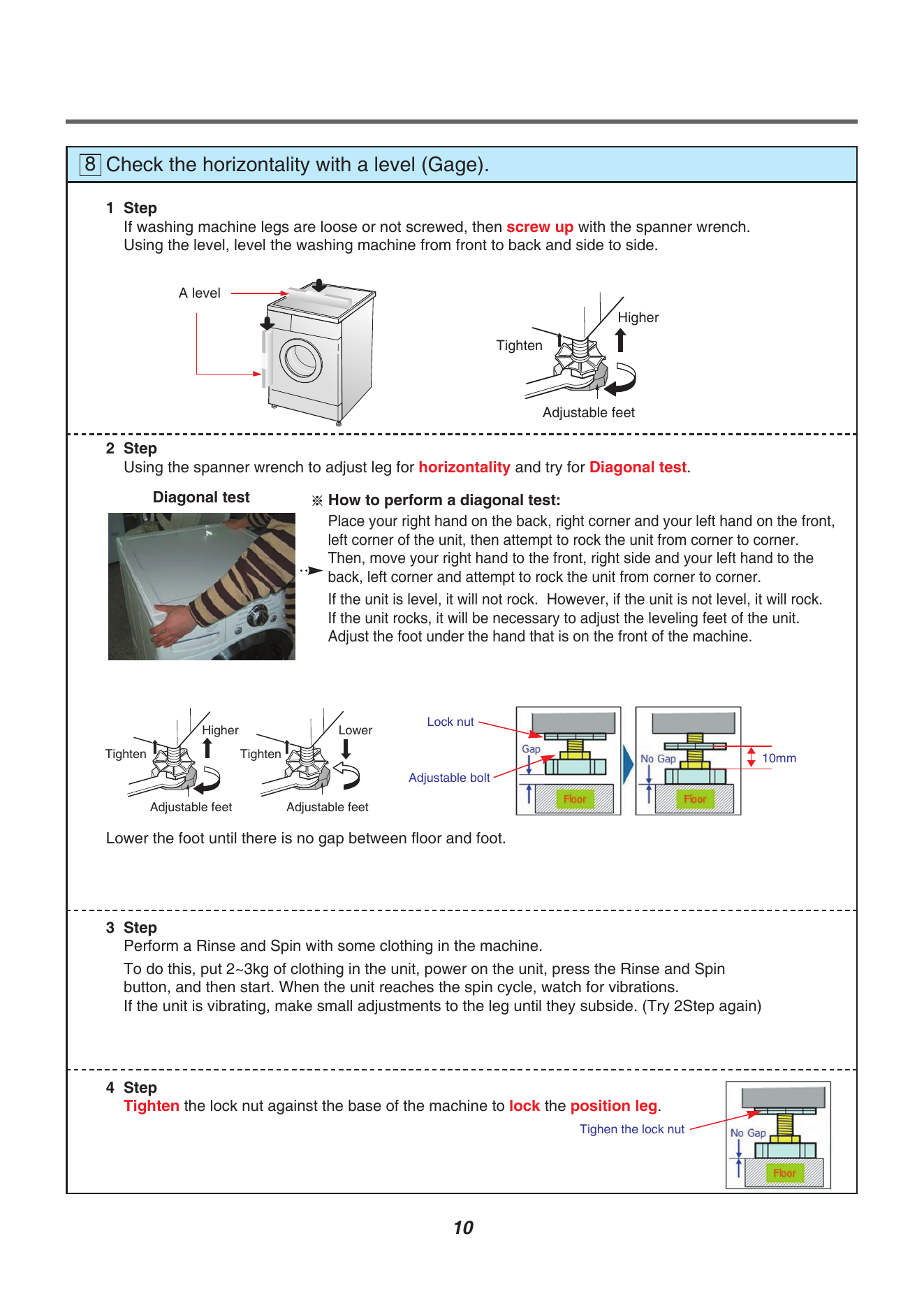

8 Check the horizontality with a level (Gage).
1 Step
If washing machine legs are loose or not screwed, then screw up with the spanner wrench.
Using the level, level the washing machine from front to back and side to side.
A level
Higher
Tighten
Adjustable feet
2 Step
Using the spanner wrench to adjust leg for horizontality and try for Diagonal test.
Diagonal test How to perform a diagonal test:
Place your right hand on the back, right corner and your left hand on the front,
left corner of the unit, then attempt to rock the unit from corner to corner.
Then, move your right hand to the front, right side and your left hand to the
back, left corner and attempt to rock the unit from corner to corner.
If the unit is level, it will not rock. However, if the unit is not level, it will rock.
If the unit rocks, it will be necessary to adjust the leveling feet of the unit.
Adjust the foot under the hand that is on the front of the machine.
Lock nut
Higher Lower
Tighten Tighten 10mm
Adjustable bolt
Adjustable feet Adjustable feet
Lower the foot until there is no gap between floor and foot.
3 Step
Perform a Rinse and Spin with some clothing in the machine.
To do this, put 2~3kg of clothing in the unit, power on the unit, press the Rinse and Spin
button, and then start. When the unit reaches the spin cycle, watch for vibrations.
If the unit is vibrating, make small adjustments to the leg until they subside. (Try 2Step again)
4 Step
Tighten the lock nut against the base of the machine to lock the position leg.
Tighen the lock nut
10

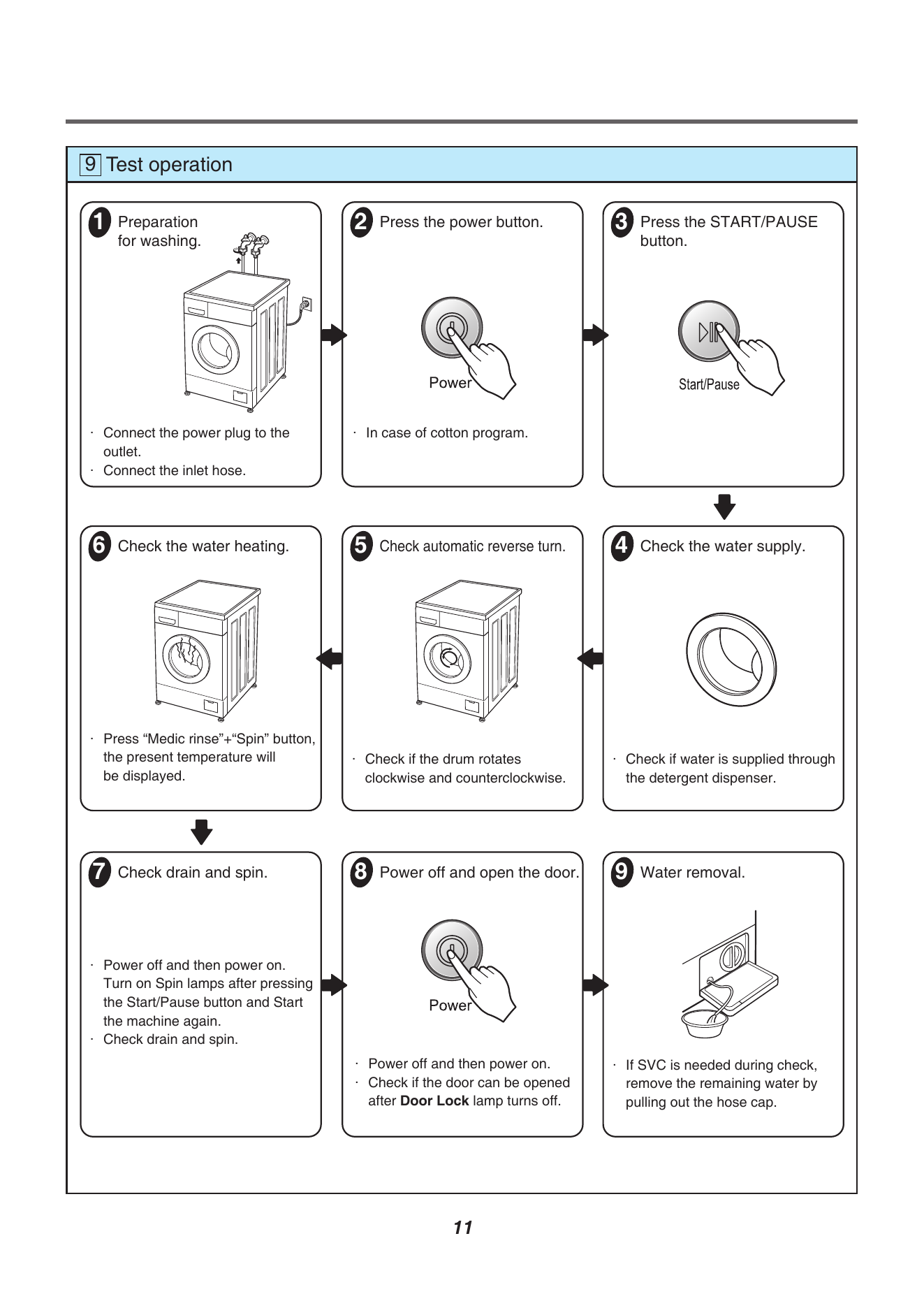

9 Test operation
1 Preparation 2 Press the power button. 3 Press the START/PAUSE
for washing. button.
· Connect the power plug to the · In case of cotton program.
outlet.
· Connect the inlet hose.
6 Check the water heating. 5 Check automatic reverse turn. 4 Check the water supply.
· Press “Medic rinse”+“Spin” button,
the present temperature will · Check if the drum rotates · Check if water is supplied through
be displayed. clockwise and counterclockwise. the detergent dispenser.
7 Check drain and spin. 8 Power off and open the door. 9 Water removal.
· Power off and then power on.
Turn on Spin lamps after pressing
the Start/Pause button and Start
the machine again.
· Check drain and spin.
· Power off and then power on. · If SVC is needed during check,
· Check if the door can be opened remove the remaining water by
after Door Lock lamp turns off. pulling out the hose cap.
11

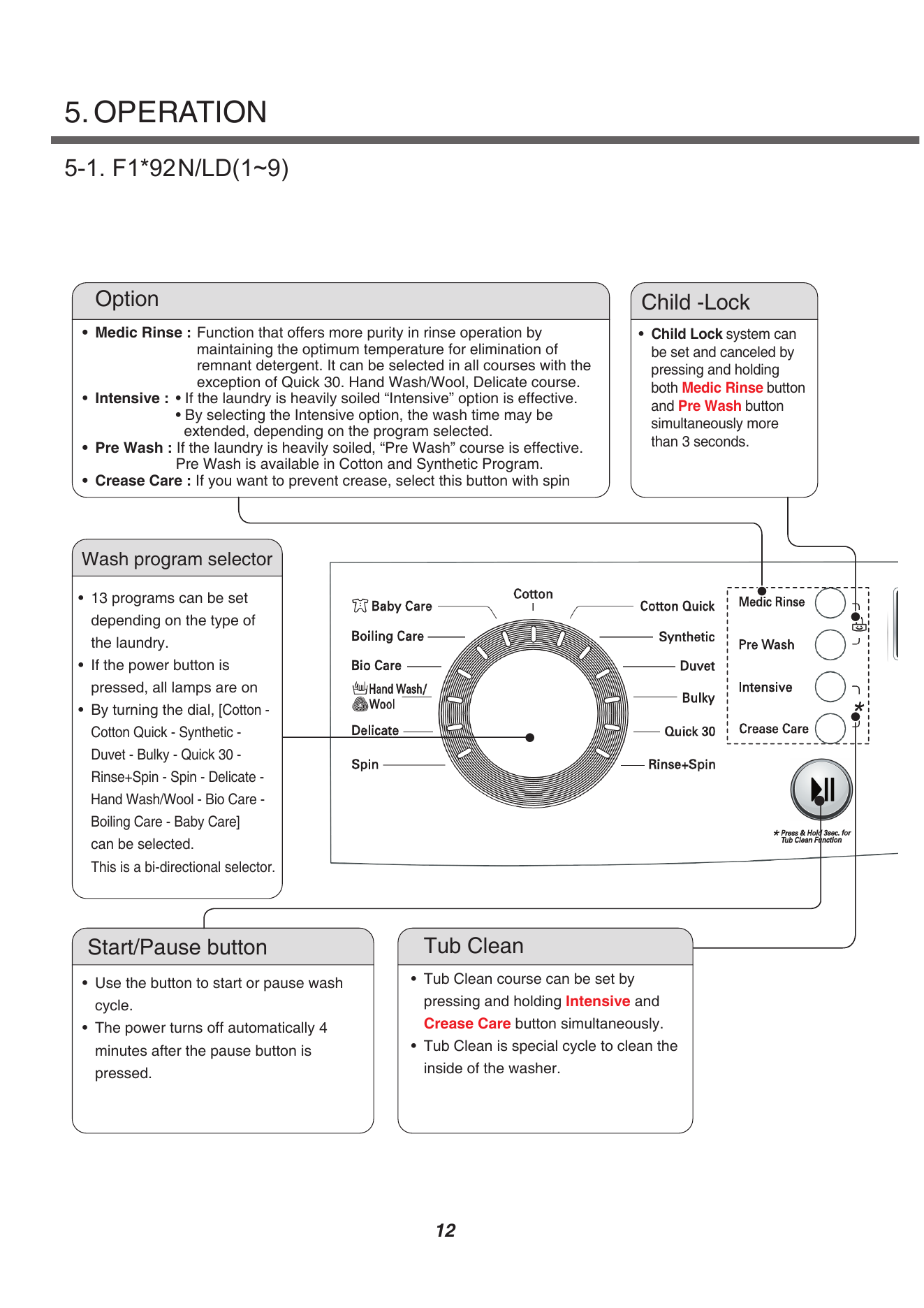

5. OPERATION
5-1. F1*92N/LD(1~9)
Option
Option Child-Lock
Child -Lock
• Medic Rinse : Function that offers more purity in rinse operation by • Child Lock system can
maintaining the optimum temperature for elimination of be set and canceled by
remnant detergent. It can be selected in all courses with the pressing and holding
exception of Quick 30. Hand Wash/Wool, Delicate course. both Medic Rinse button
• Intensive : • If the laundry is heavily soiled “Intensive” option is effective. and Pre Wash button
• By selecting the Intensive option, the wash time may be
simultaneously more
extended, depending on the program selected.
• Pre Wash : If the laundry is heavily soiled, “Pre Wash” course is effective. than 3 seconds.
Pre Wash is available in Cotton and Synthetic Program.
• Crease Care : If you want to prevent crease, select this button with spin
Wash
Washprogram
programselector
selector
• 13 programs can be set
depending on the type of
the laundry.
• If the power button is
pressed, all lamps are on
• By turning the dial, [Cotton -
Cotton Quick - Synthetic -
Duvet - Bulky - Quick 30 -
Rinse+Spin - Spin - Delicate -
Hand Wash/Wool - Bio Care -
Boiling Care - Baby Care]
can be selected.
This is a bi-directional selector.
Start/Pause
Start/Pause button
button Tub
Tub Clean
Clean
• Use the button to start or pause wash • Tub Clean course can be set by
cycle. pressing and holding Intensive and
• The power turns off automatically 4 Crease Care button simultaneously.
minutes after the pause button is • Tub Clean is special cycle to clean the
pressed. inside of the washer.
12
F1*92N/LD(1~9)

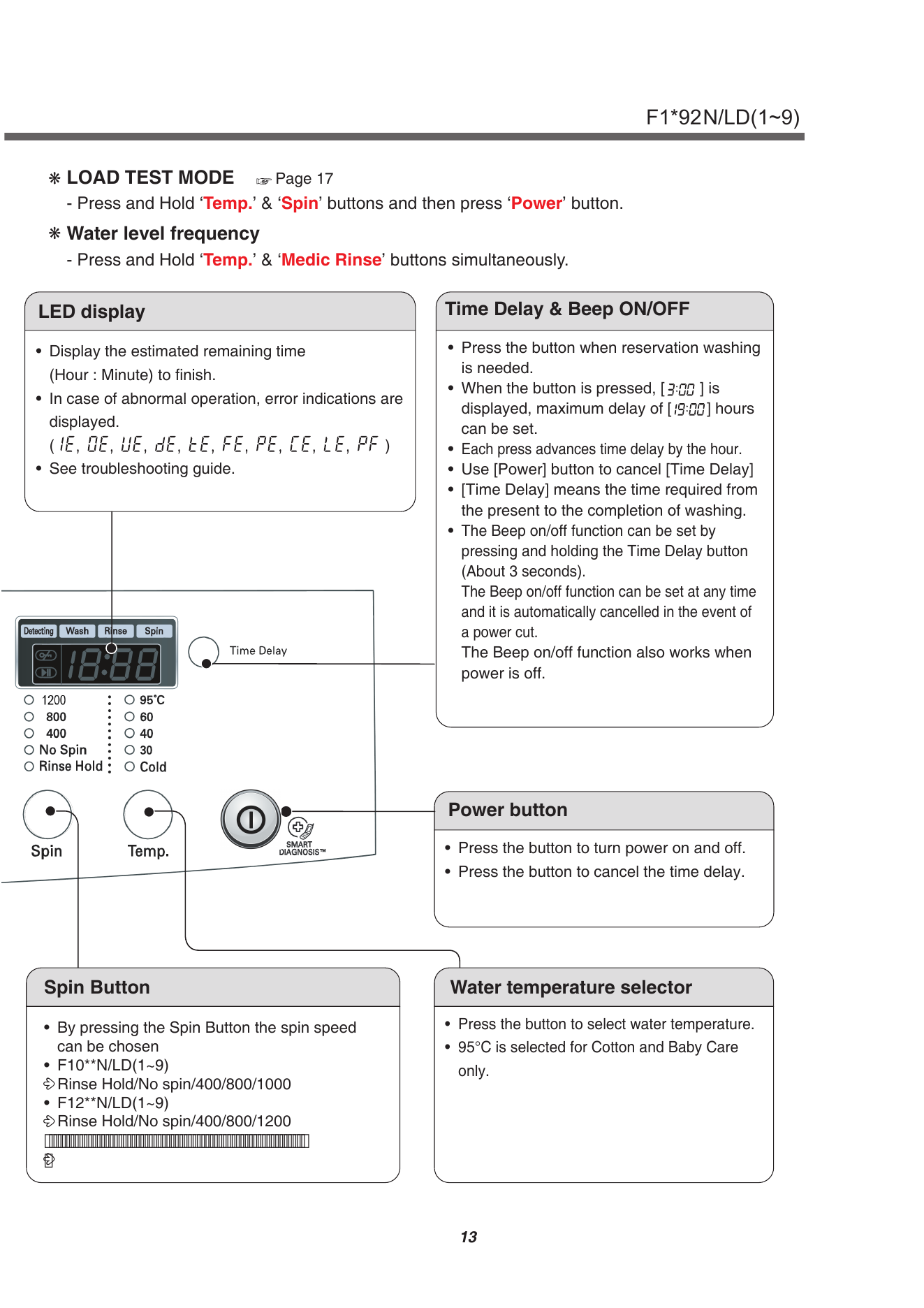

LOAD TEST MODE Page 17
- Press and Hold ‘Temp.’ & ‘Spin’ buttons and then press ‘Power’ button.
Water level frequency
- Press and Hold ‘Temp.’ & ‘Medic Rinse’ buttons simultaneously.
LED display Time Delay & Beep ON/OFF
• Display the estimated remaining time • Press the button when reservation washing
(Hour : Minute) to finish. is needed.
• When the button is pressed, [ ] is
• In case of abnormal operation, error indications are
displayed, maximum delay of [ ] hours
displayed. can be set.
( ) • Each press advances time delay by the hour.
• See troubleshooting guide. • Use [Power] button to cancel [Time Delay]
• [Time Delay] means the time required from
the present to the completion of washing.
• The Beep on/off function can be set by
pressing and holding the Time Delay button
(About 3 seconds).
The Beep on/off function can be set at any time
and it is automatically cancelled in the event of
a power cut.
The Beep on/off function also works when
power is off.
Power button
• Press the button to turn power on and off.
• Press the button to cancel the time delay.
Spin Button Water temperature selector
• By pressing the Spin Button the spin speed • Press the button to select water temperature.
can be chosen • 95°C is selected for Cotton and Baby Care
• F10**N/LD(1~9) only.
Rinse Hold/No spin/400/800/1000
• F12**N/LD(1~9)
Rinse Hold/No spin/400/800/1200
13
Wiring Diagram
RD RD BL YL BL BK YL
2 6 3 1 4 5 2 1 3 1 2 3 4 5 6 1 23 4 1 23 4 1 2 1 2
2 6 3 1 4 5 2 1 3 1 2 3 4 5 6 1 23 4 1 23 4 1 2 1 2
RD YL VL BL OR YL RD YL BL WH GY BL RD GY BL WH YL BK BN YL BL RD BN
2 6 3 1 4 5 / / / / / /
1 2 3 4 WH WH RD BK RD YL
2 6 3 1 4 5 1 2 3 4 SBL
VL BL OR SBL GY WH
/ / /
WH WH BK
GN/YL
BL WASHIG HEATER
/
WH
BL GN/YL
/ BL
WH / WH WH
BL WH BL
2 3 1 5 4 3 2 1
14
/
WH NA WH 2 3 1 5 4 3 2 1 BK BK BN BL
NA WH 3 2 1 1 2 BK BK
BK 3 2 1 1 2
W V U
3 2 1 1 2 3 2 1
3 2 1 1 2
BK (S) (G) (S)
1 2 3 WH 3 2 1
2 1 2 1 2 1 1 2 3
Ha
Hb
2 1 2 1 2 1 2 1 2 1 1 NA NOISE
GND
2 1 2 1 1 FILTER
M
M PTC
PRESSURE P
PRESSURE H P
A A 1 2 3
SENSOR R SENSOR O R
BL I I 1 2 3
E NA T E BL
N N DRAIN
THERMISTOR THERMISTOR GN/YL
INLET VALVE
Motor PUMP
RED BL NA DOOR LOCK S/W
INLET VALVE
BN BL
POWER CORD
[Note]
BL : Blue
RD : Red
GY : Gray
VL : Violet
BK : Black
YL : Yellow
WH : White
NA : Natural
OR : Orange
SBL : Sky Blue
6. WIRING DIAGRAM / PCB LAYOUT / PROGRAM CHART

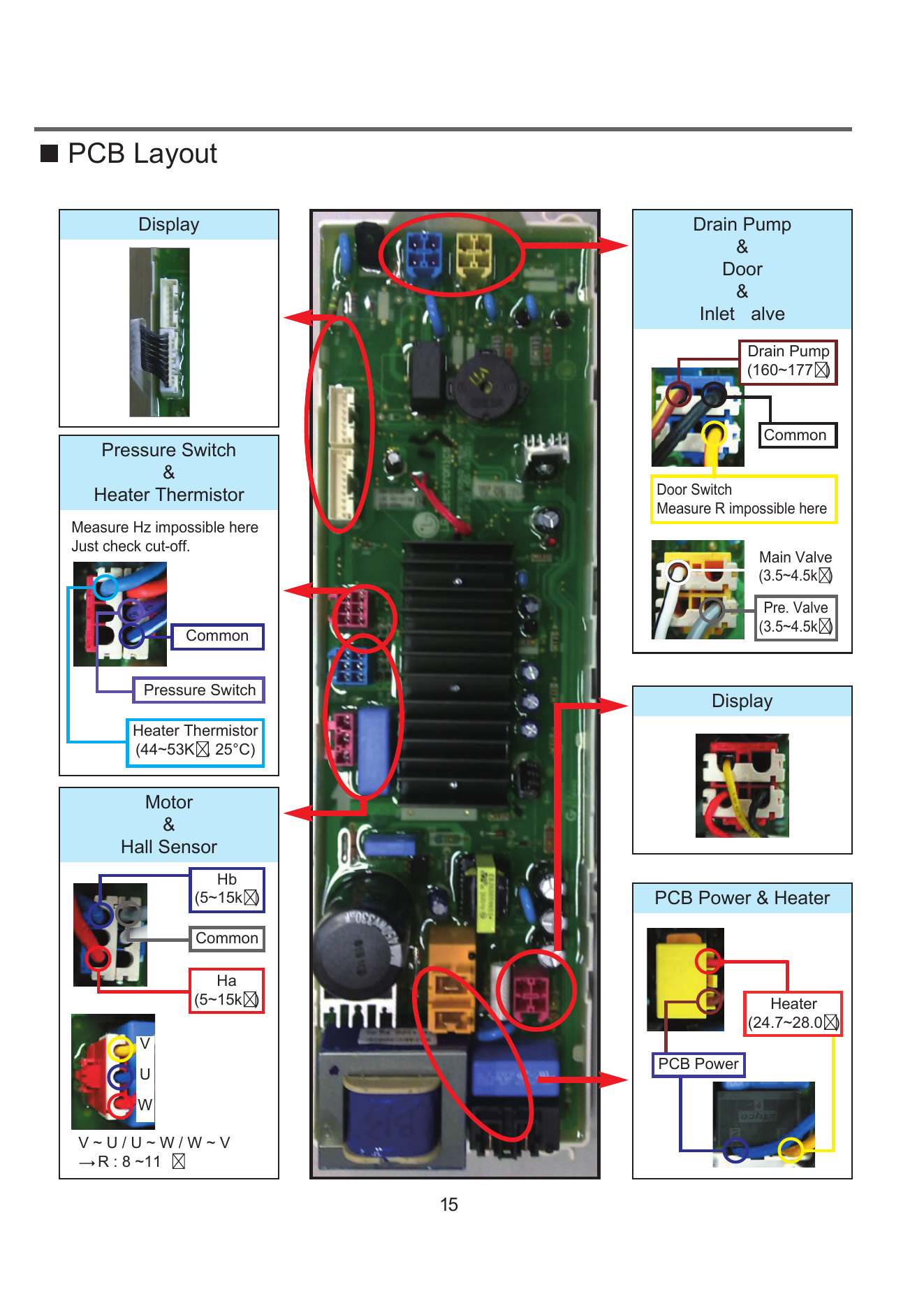

PCB Layout
Display Drain Pump
&
Door
&
Inlet alve
Drain Pump
(160~177 )
Common
Pressure Switch
&
Heater Thermistor Door Switch
Measure R impossible here
Measure Hz impossible here
Just check cut-off.
Main Valve
(3.5~4.5k )
Pre. Valve
(3.5~4.5k )
Common
Pressure Switch
Display
Heater Thermistor
(44~53K , 25°C)
Motor
&
Hall Sensor
Hb
(5~15k ) PCB Power & Heater
Common
Ha
(5~15k ) Heater
(24.7~28.0 )
V
PCB Power
U
W
V~U/U~W/W~V
R : 8 ~11
15

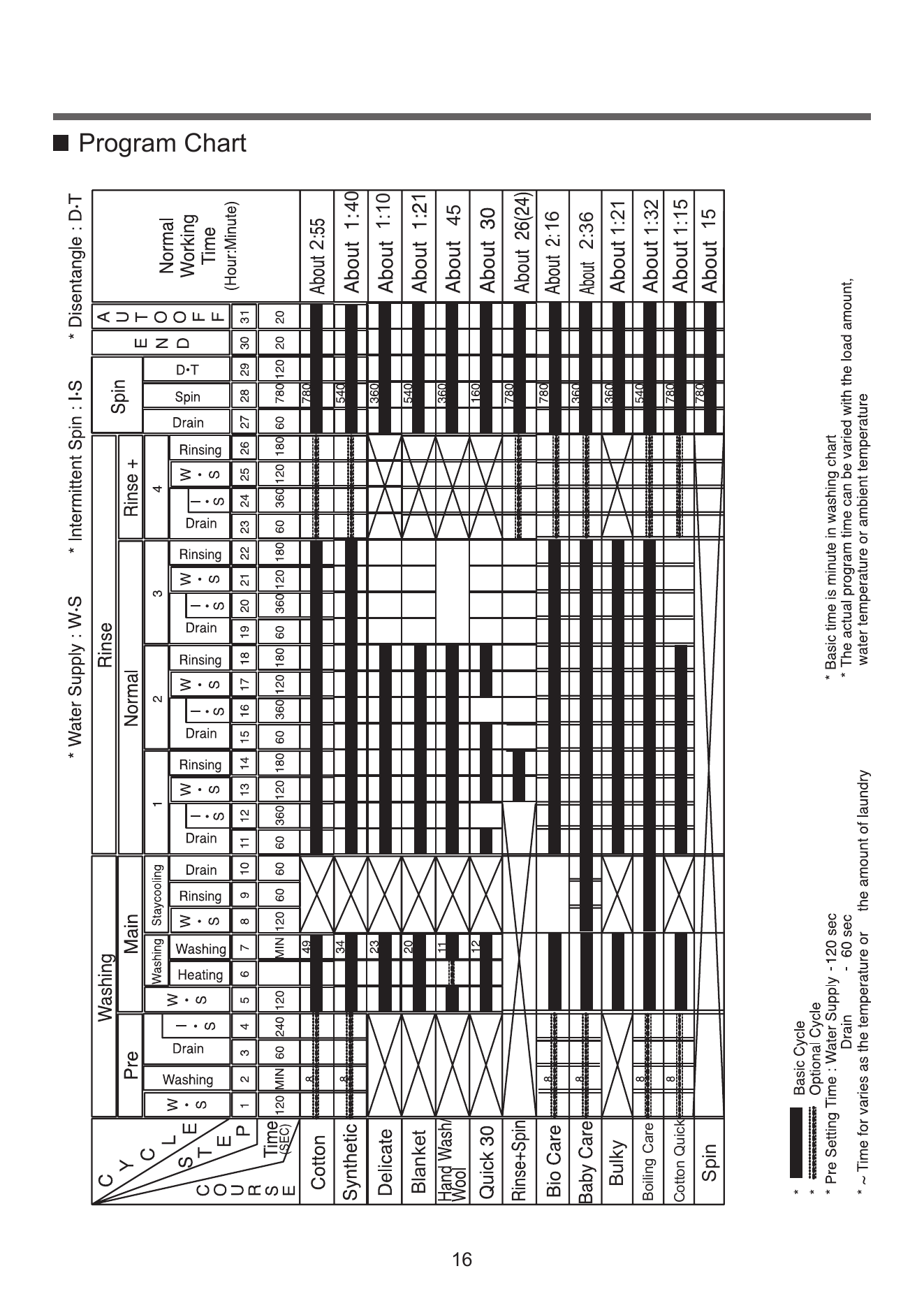

Program Chart
2
40
1:10
Blanket 1
45
16
16
2:36
Bulky 1:21
Boiling Care 1:32
Cotton Quick 1:15
Spin 15

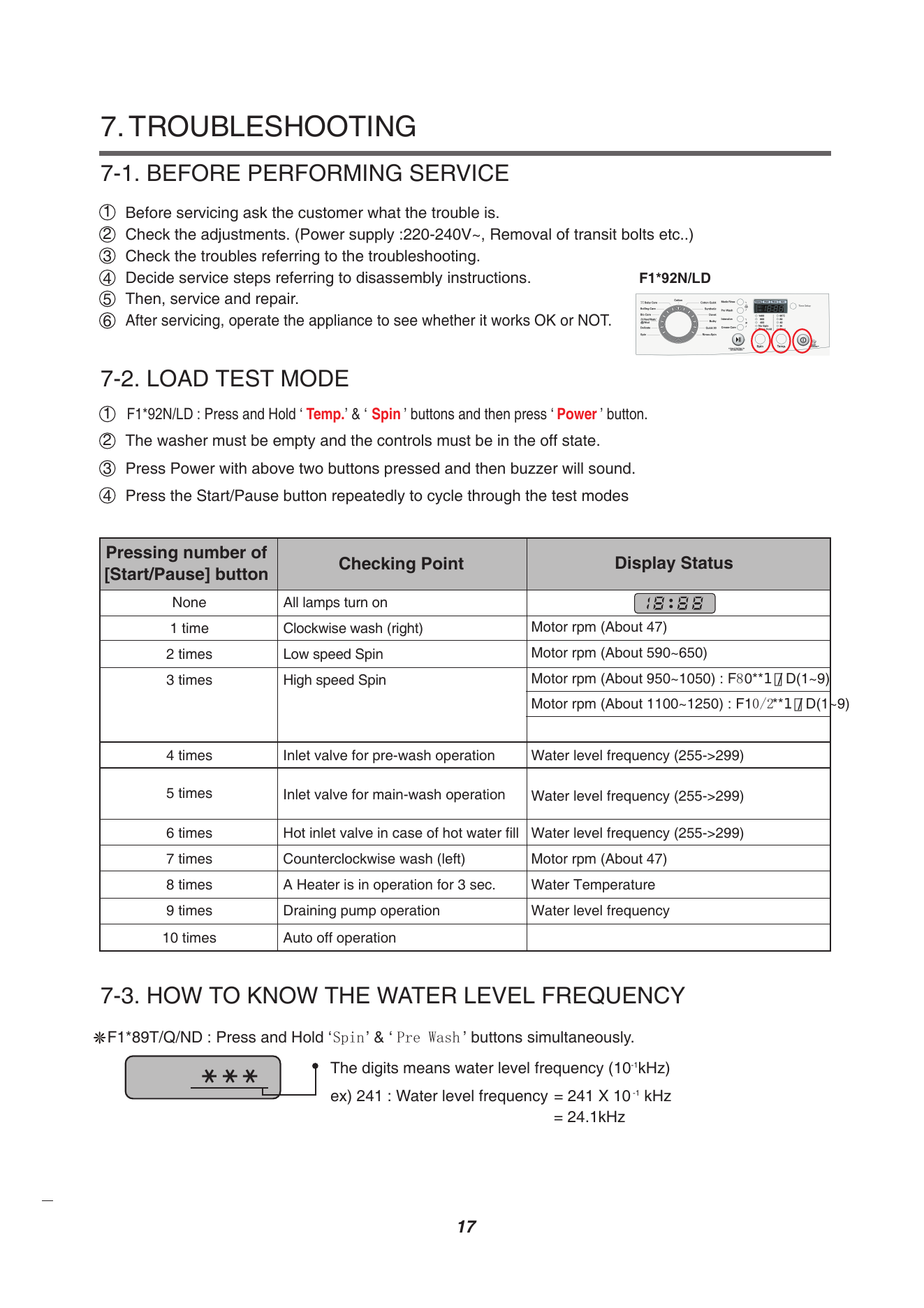

7. TROUBLESHOOTING
7-1. BEFORE PERFORMING SERVICE
1 Before servicing ask the customer what the trouble is.
2 Check the adjustments. (Power supply :220-240V~, Removal of transit bolts etc..)
3 Check the troubles referring to the troubleshooting.
4 Decide service steps referring to disassembly instructions. F1*92N/LD
5 Then, service and repair.
6 After servicing, operate the appliance to see whether it works OK or NOT.
7-2. LOAD TEST MODE
1 F1*92N/LD : Press and Hold ‘ Temp.’ & ‘ Spin ’ buttons and then press ‘ Power ’ button.
2 The washer must be empty and the controls must be in the off state.
3 Press Power with above two buttons pressed and then buzzer will sound.
4 Press the Start/Pause button repeatedly to cycle through the test modes
Pressing number of
Checking Point Display Status
[Start/Pause] button
None All lamps turn on
1 time Clockwise wash (right) Motor rpm (About 47)
2 times Low speed Spin Motor rpm (About 590~650)
3 times High speed Spin Motor rpm (About 950~1050) : F80**1/D(1~9)
Motor rpm (About 1100~1250) : F10/2**1/D(1~9)
4 times Inlet valve for pre-wash operation Water level frequency (255->299)
5 times Inlet valve for main-wash operation Water level frequency (255->299)
6 times Hot inlet valve in case of hot water fill Water level frequency (255->299)
7 times Counterclockwise wash (left) Motor rpm (About 47)
8 times A Heater is in operation for 3 sec. Water Temperature
9 times Draining pump operation Water level frequency
10 times Auto off operation
7-3. HOW TO KNOW THE WATER LEVEL FREQUENCY
F1*89T/Q/ND : Press and Hold ‘Spin’ & ‘ Pre Wash ’ buttons simultaneously.
The digits means water level frequency (10-1kHz)
ex) 241 : Water level frequency = 241 X 10 -1 kHz
= 24.1kHz
17
7-4. ERROR DISPLAY
If you press the [Start/Pause] button when an error in displayed, any error except software ERROR will
disappear and the machine will change into pause status.
In case of , , , if the error is not resolved within 15 sec. In case of other errors, if the
error is not resolved within 4 min. Power will be turned off automatically and the error only will be
blinked. But in the case of , power will not be turned off.
ERROR SYMPTOM CAUSE
Water has not reached to the pre-set level within 4 min.
WATER INLET
1 since inlet valve operated, or water has not reached to
ERROR the normal level within 25 min. Page 19
The appliance is tilted.
2 UNBALANCED Laundry is gathered to one side.
ERROR
Non distributable things are put into the drum. Page 20
WATER OUTLET
3 ERROR
Water has not drained enough within 8 min. Page 21
OVERFLOW Water is automatically being pumped out because too
4 ERROR amuch water is in the tub. Page 23

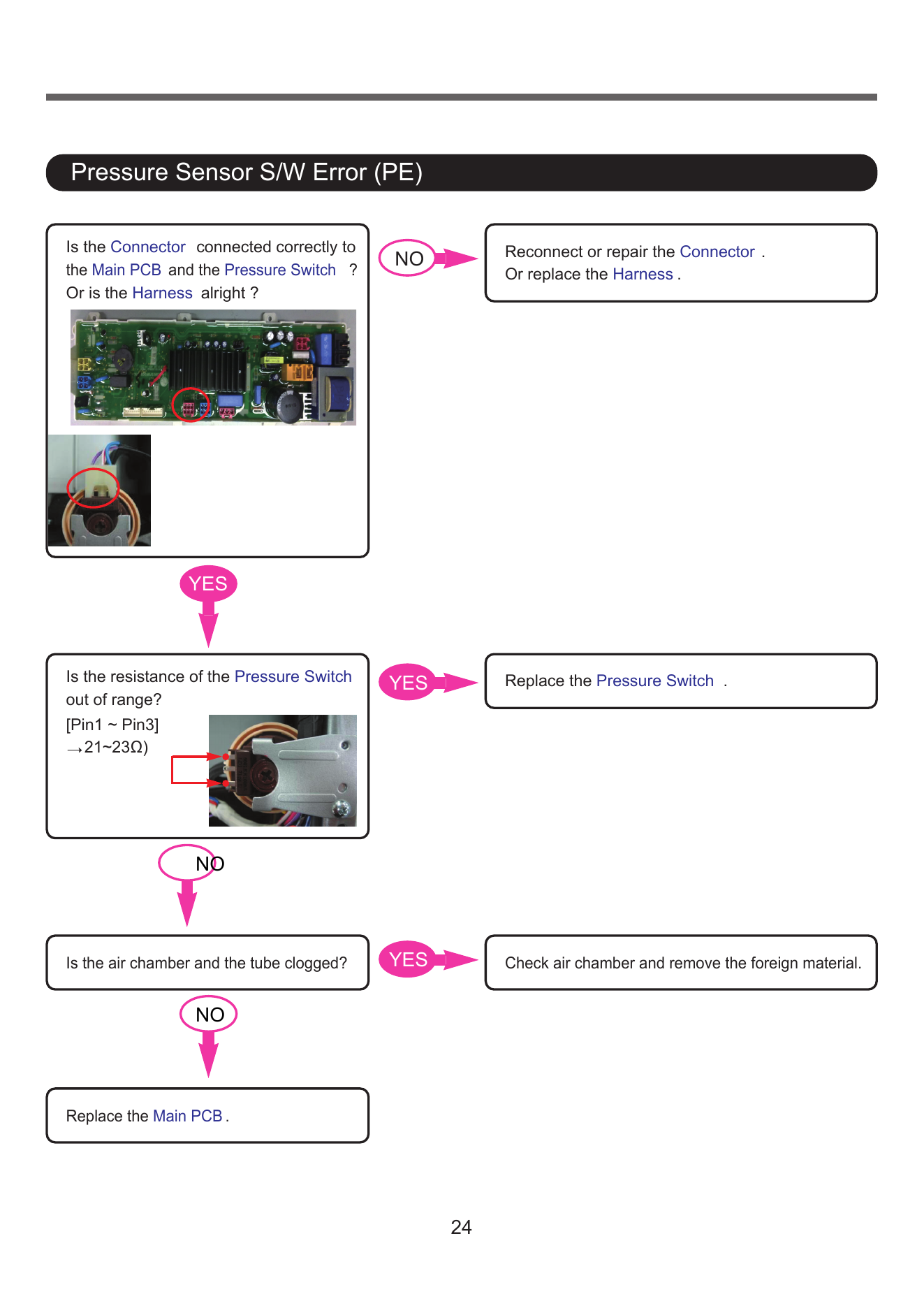

PRESSURE SENSOR
5 S/W ERROR
The sensor pressure switch is out of order. Page 24
DOOR OPEN The [Start/Pause] button is pressed with the door open.
6 ERROR The door switch is out of order. Page 25

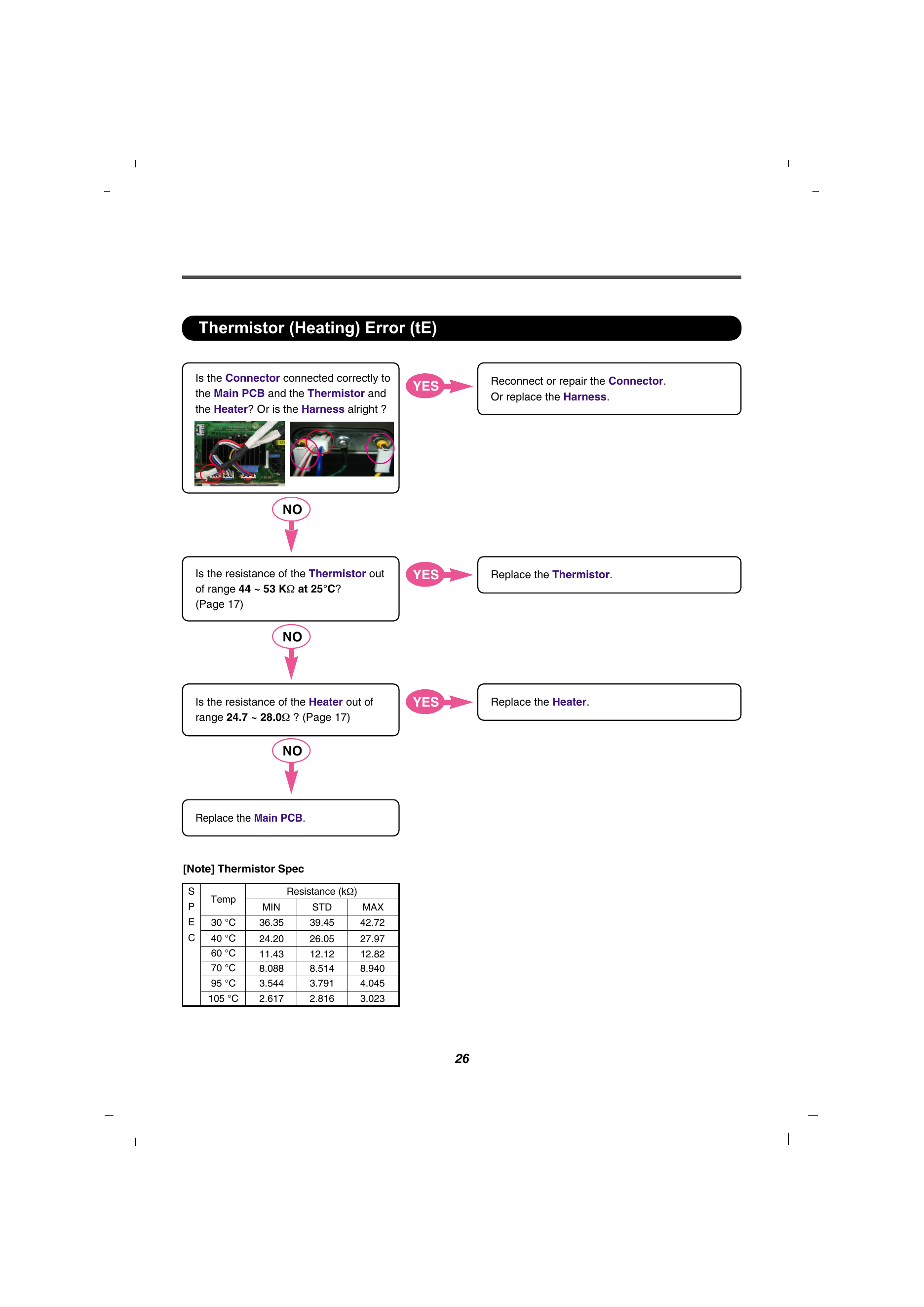

THERMISTOR(HEATING)
7 ERROR
The thermistor is out of order. Page 26
PWB ASSEMBLY (Main) is out of order
CURRENT Replace the PWB assembly (Main)
8 ERROR Winding in the MOTOR is short-circuited.
Replace the MOTOR
The Connector (3-pin, male, white) in the wire harness
is not connected to the Connector (3-pin, female, white)
of MOTOR.
Reconnect or repair the connector
MOTOR The electric contact between the connectors [3-pin,
9 LOCKED male, white in the wire harness and 6-pin, female, white
ERROR in the PWB ASSEMBLY (Main]) is bad or unstable.
Reconnect or repair the contact in the connector
The wire harness between the MOTOR and PWB
ASSEMBLY (Main) is cut (open circuited).

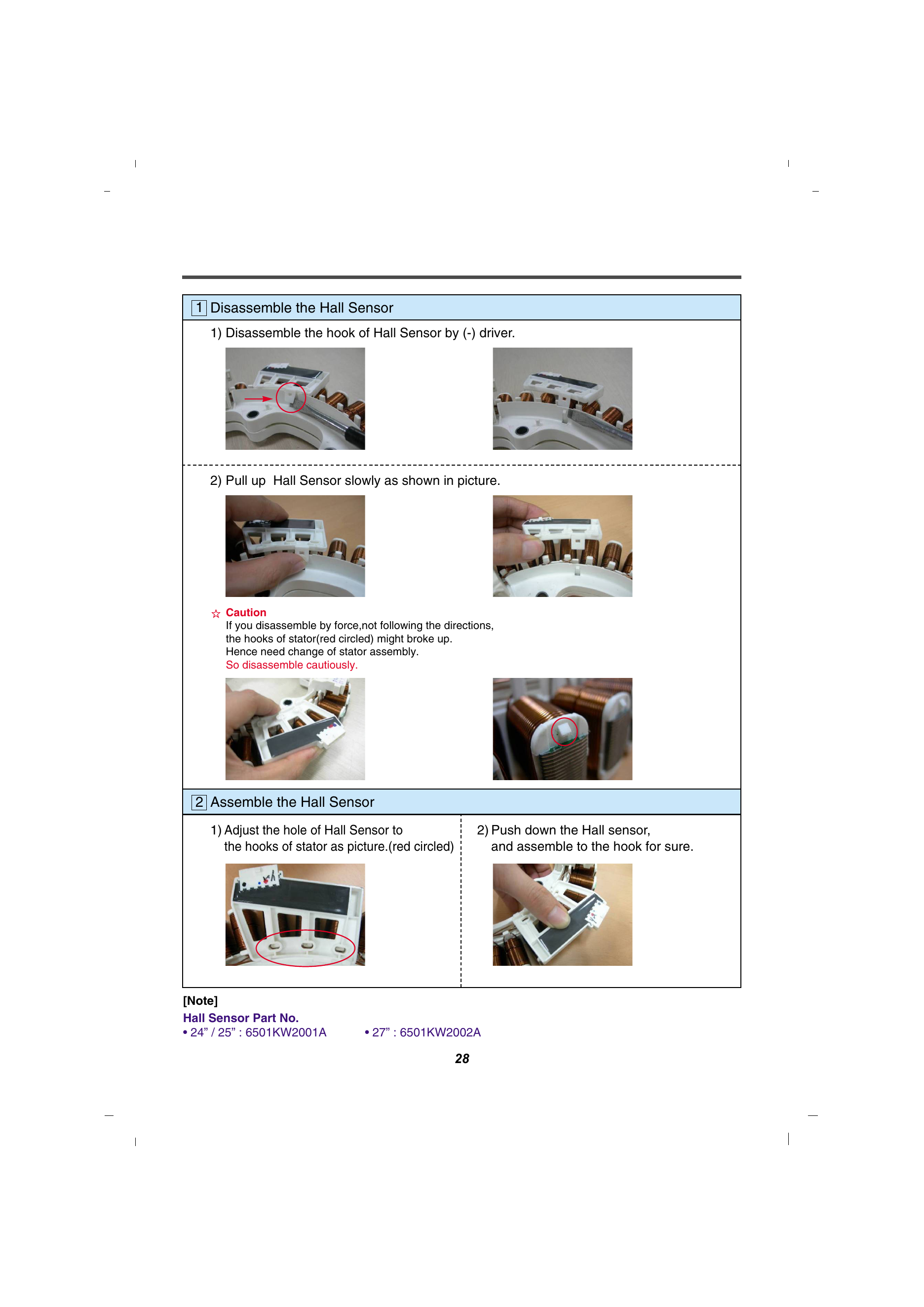

The hall sensor is out of order/defective. Page 27
POWER
10 FAILURE
The washer experienced a power failure.
18

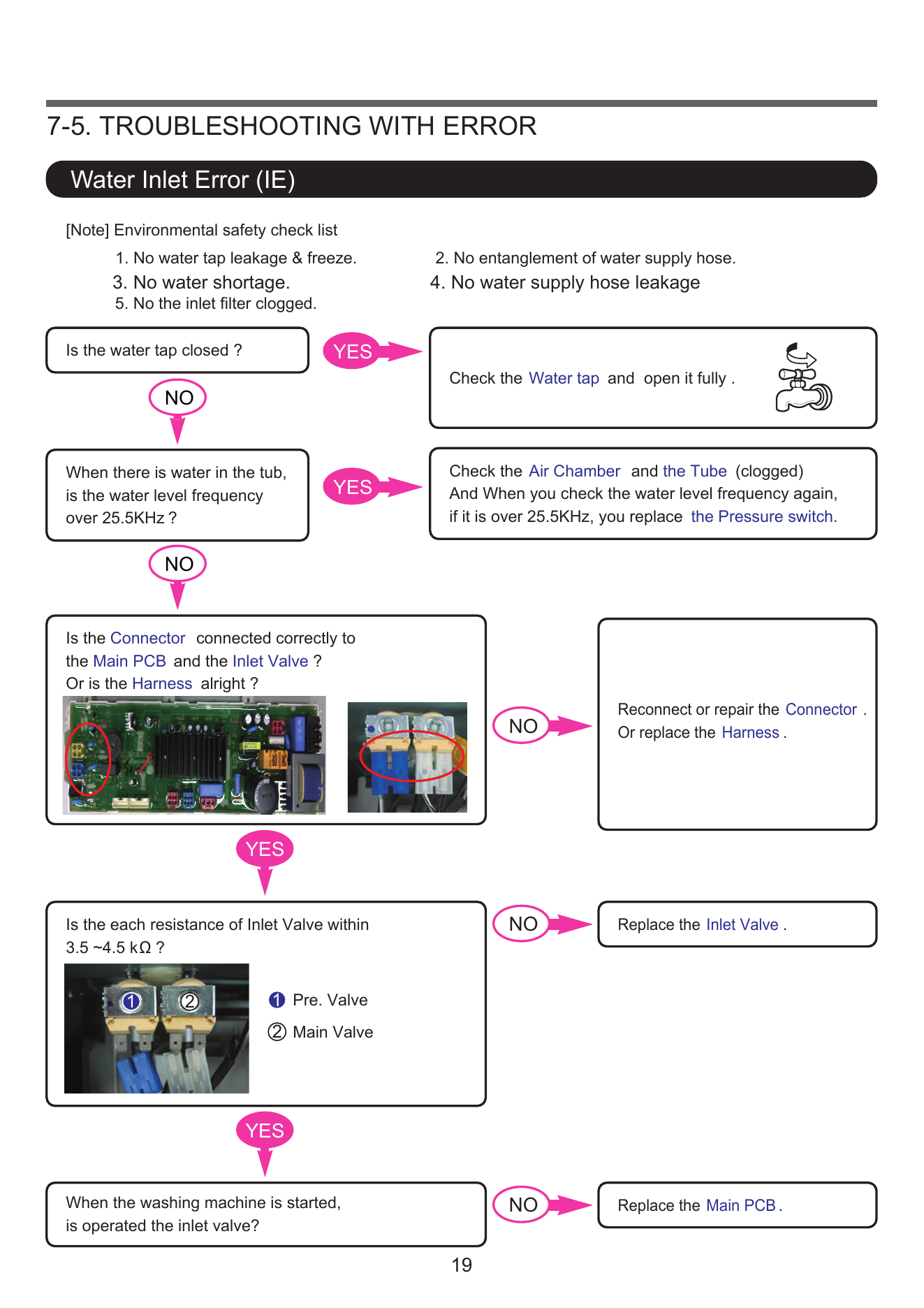

7-5. TROUBLESHOOTING WITH ERROR
Water Inlet Error (IE)
[Note] Environmental safety check list
1. No water tap leakage & freeze. 2. No entanglement of water supply hose.
3. No water shortage. 4. No water supply hose leakage
5. No the inlet filter clogged.
Is the water tap closed ? YES
Check the Water tap and open it fully .
NO
When there is water in the tub, Check the Air Chamber and the Tube (clogged)
is the water level frequency YES And When you check the water level frequency again,
over 25.5KHz ? if it is over 25.5KHz, you replace the Pressure switch.
NO
Is the Connector connected correctly to
the Main PCB and the Inlet Valve ?
Or is the Harness alright ?
Reconnect or repair the Connector .
NO Or replace the Harness .
YES
Is the each resistance of Inlet Valve within NO Replace the Inlet Valve .
3.5 ~4.5 kΩ ?
1 2 1 Pre. Valve
2 Main Valve
YES
When the washing machine is started, NO Replace the Main PCB .
is operated the inlet valve?
19

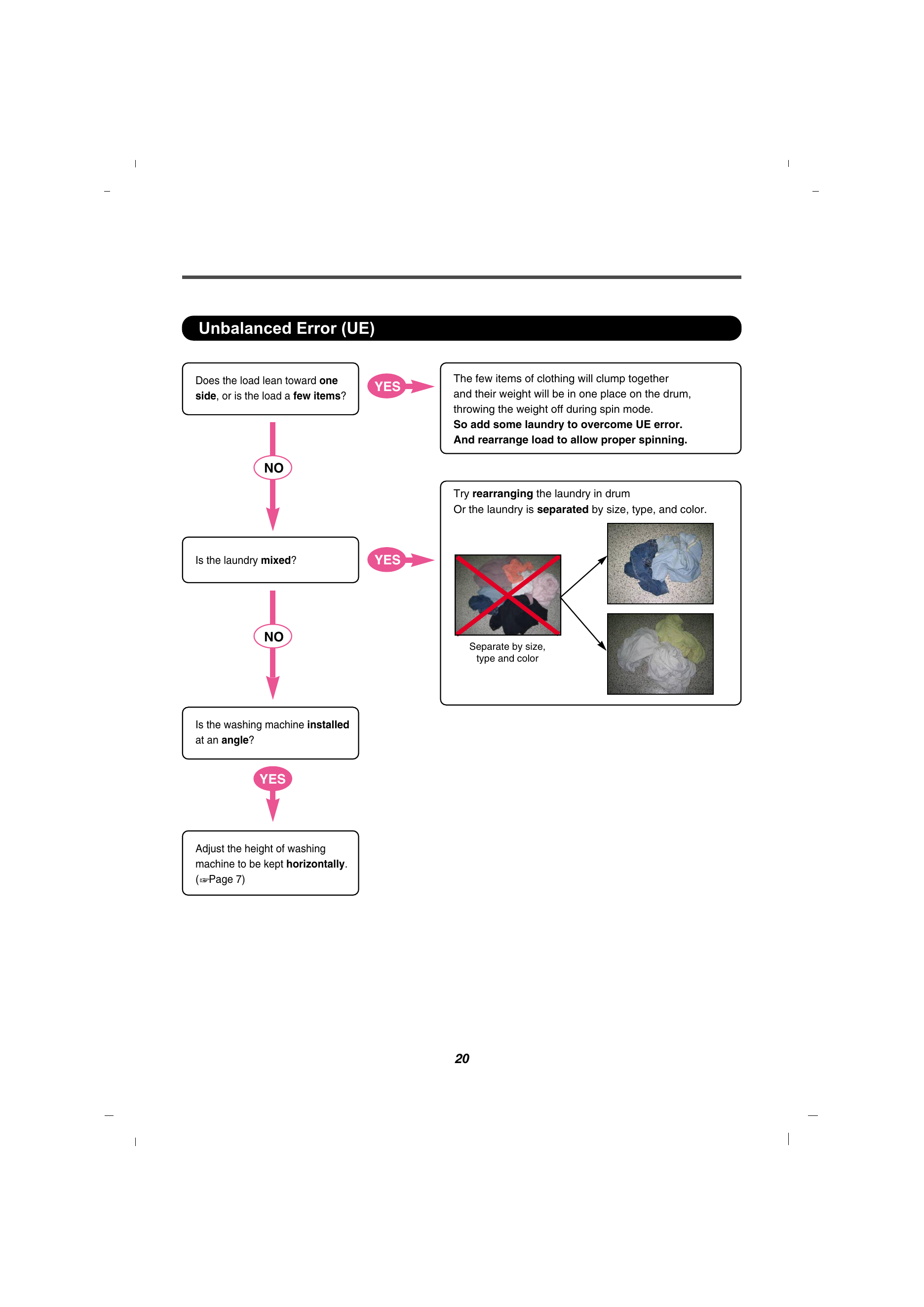

Unbalanced Error (UE)
Does the load lean toward one The few items of clothing will clump together
YES and their weight will be in one place on the drum,
side, or is the load a few items?
throwing the weight off during spin mode.
So add some laundry to overcome UE error.
And rearrange load to allow proper spinning.
NO
Try rearranging the laundry in drum
Or the laundry is separated by size, type, and color.
Is the laundry mixed? YES
NO
Separate by size,
type and color
Is the washing machine installed
at an angle?
YES
Adjust the height of washing
machine to be kept horizontally.
( Page 7)
20

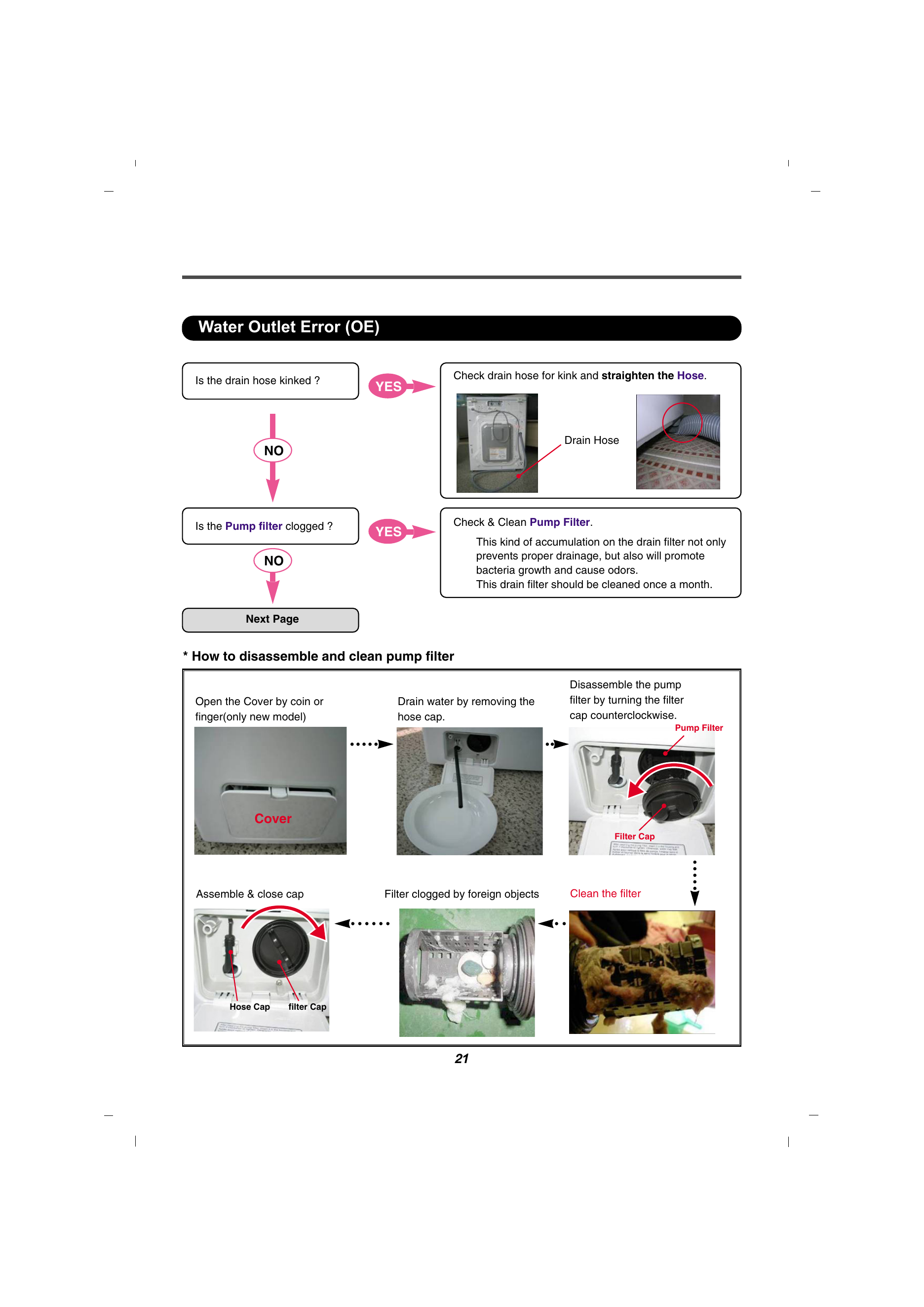

Water Outlet Error (OE)
Is the drain hose kinked ? Check drain hose for kink and straighten the Hose.
YES
Drain Hose
NO
Is the Pump filter clogged ? Check & Clean Pump Filter.
YES
This kind of accumulation on the drain filter not only
prevents proper drainage, but also will promote
NO
bacteria growth and cause odors.
This drain filter should be cleaned once a month.
Next Page
* How to disassemble and clean pump filter
Disassemble the pump
Open the Cover by coin or Drain water by removing the filter by turning the filter
finger(only new model) hose cap. cap counterclockwise.
Pump Filter
Cover
Filter Cap
Assemble & close cap Filter clogged by foreign objects Clean the filter
Hose Cap filter Cap
21

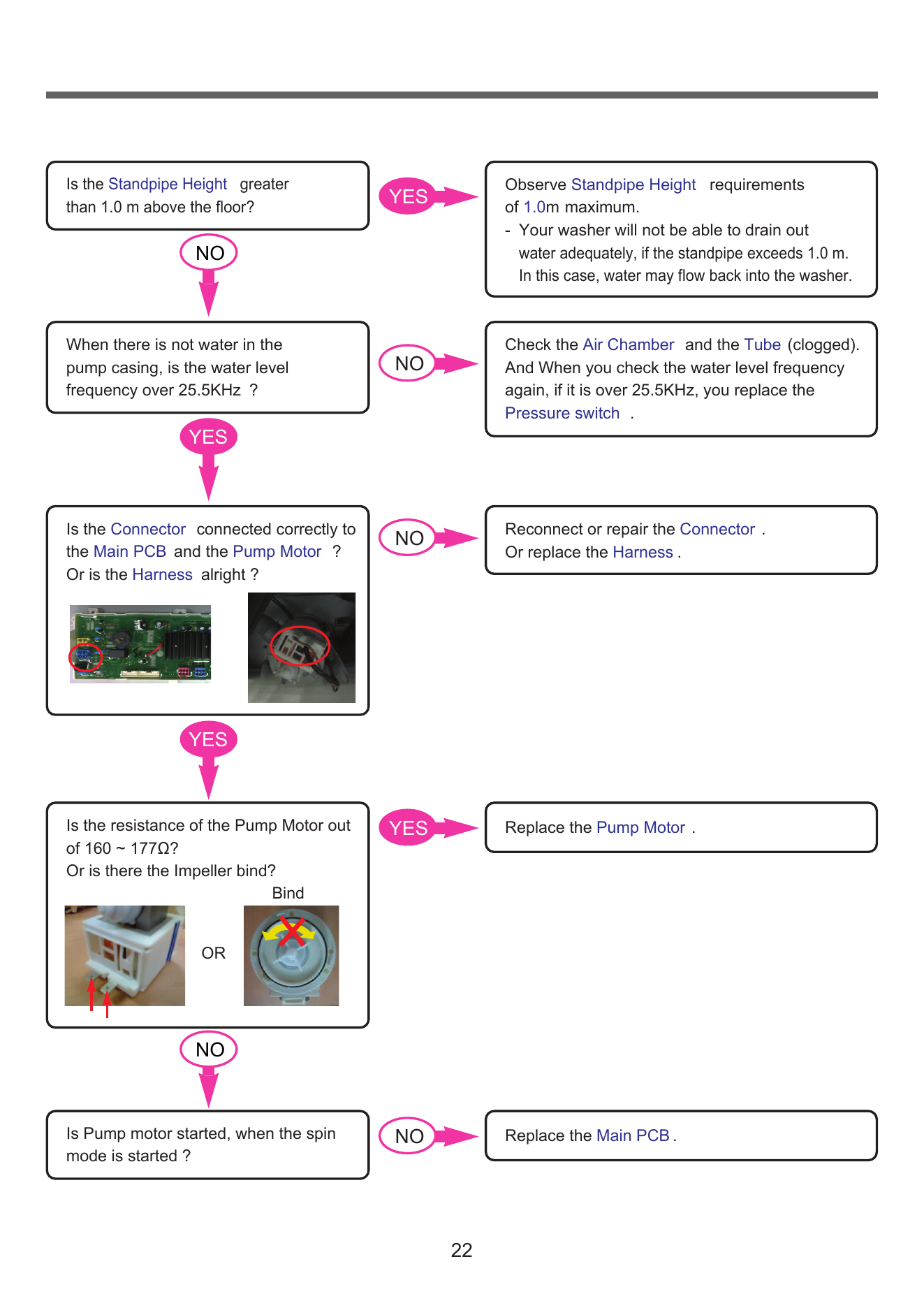

Is the Standpipe Height greater Observe Standpipe Height requirements
than 1.0 m above the floor?
YES of 1.0m maximum.
- Your washer will not be able to drain out
NO water adequately, if the standpipe exceeds 1.0 m.
In this case, water may flow back into the washer.
When there is not water in the Check the Air Chamber and the Tube (clogged).
pump casing, is the water level NO And When you check the water level frequency
frequency over 25.5KHz ? again, if it is over 25.5KHz, you replace the
Pressure switch .
YES
Is the Connector connected correctly to Reconnect or repair the Connector .
NO
the Main PCB and the Pump Motor ? Or replace the Harness .
Or is the Harness alright ?
YES
Is the resistance of the Pump Motor out YES Replace the Pump Motor .
of 160 ~ 177Ω?
Or is there the Impeller bind?
Bind
OR
NO
Is Pump motor started, when the spin NO Replace the Main PCB .
mode is started ?
22

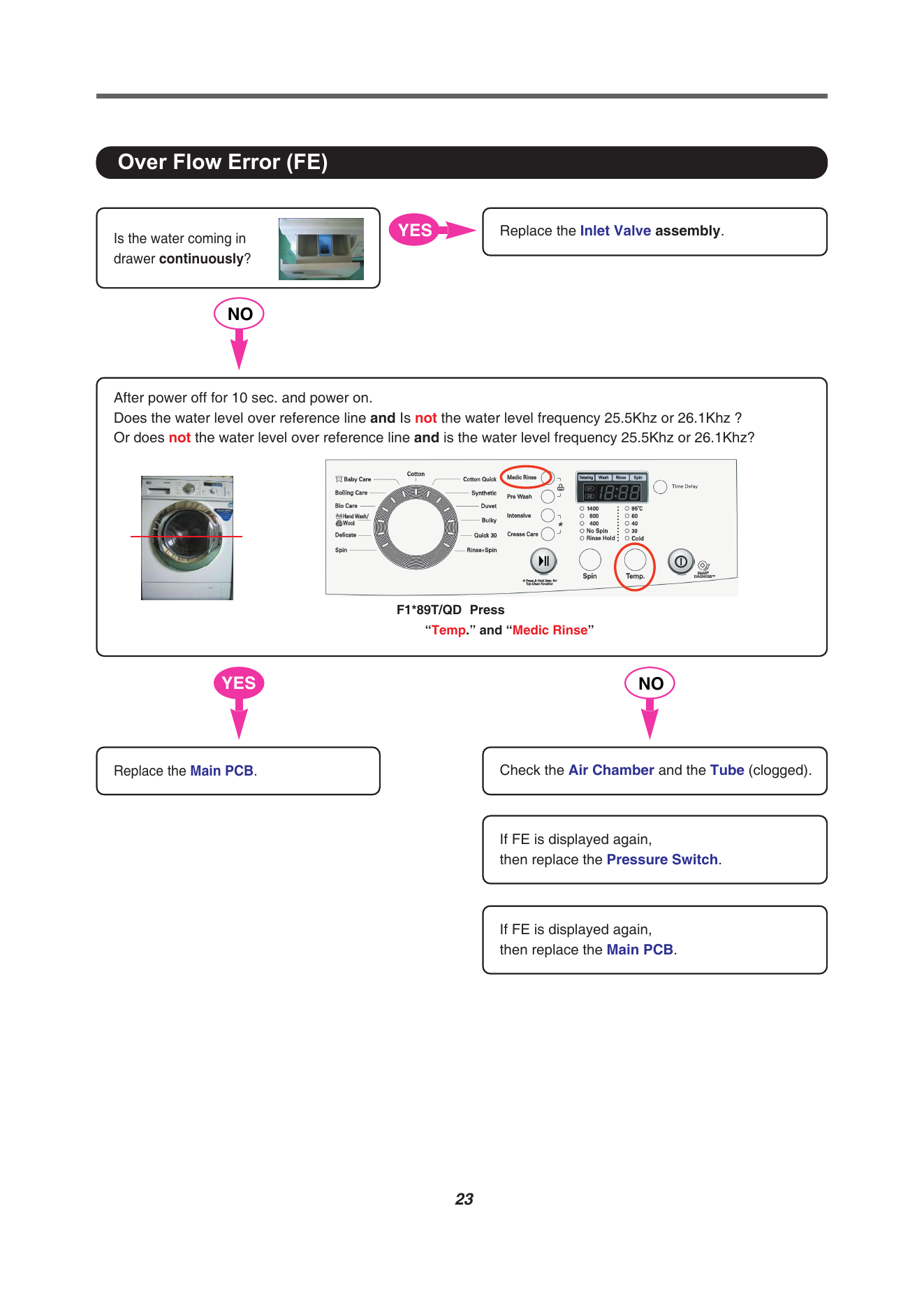

Over Flow Error (FE)
Is the water coming in YES Replace the Inlet Valve assembly.
drawer continuously?
NO
After power off for 10 sec. and power on.
Does the water level over reference line and Is not the water level frequency 25.5Khz or 26.1Khz ?
Or does not the water level over reference line and is the water level frequency 25.5Khz or 26.1Khz?
F1*89T/QD Press
“Temp.” and “Medic Rinse”
YES NO
Replace the Main PCB. Check the Air Chamber and the Tube (clogged).
If FE is displayed again,
then replace the Pressure Switch.
If FE is displayed again,
then replace the Main PCB.
23
Pressure Sensor S/W Error (PE)
Is the Connector connected correctly to Reconnect or repair the Connector .
NO
the Main PCB and the Pressure Switch ? Or replace the Harness .
Or is the Harness alright ?
YES
Is the resistance of the Pressure Switch YES Replace the Pressure Switch .
out of range?
[Pin1 ~ Pin3]
21~23Ω)
NO
Is the air chamber and the tube clogged? YES Check air chamber and remove the foreign material.
NO
Replace the Main PCB .
24
Door Open Error (dE)
Is the door closed? NO Close the door totally.
YES
Is the Door assembly in line with door
YES Lift up & Close the door.
switch ? If the dE is displayed, Replace the Door Bracket .
Scratch by Latch Hook
Touching
or
NO
Does the Spring of Latch Hook actuate?
NO Replace the Latch Hook .
YES
Is the Connector connected correctly to
NO Reconnect or repair the Connector .
the Main PCB and the Door Switch ?
Or replace the Harness .
Or is the Harness alright ?
YES
Does the Door Switch operate as follows? NO Replace the Door switch .
* Door Locking time : 1~8 sec.
1 Check the time between from
input the power to parts 1
move up, then Door locked.
* Door Releasing time : 25~100 sec.
Check the time between from
off the power to parts 1
move down, then Door released.
25
Thermistor (Heating) Error (tE)
Is the Connector connected correctly to Reconnect or repair the Connector.
the Main PCB and the Thermistor and
YES
Or replace the Harness.
the Heater? Or is the Harness alright ?
NO
Is the resistance of the Thermistor out YES Replace the Thermistor.
of range 44 ~ 53 KΩ at 25°C?
(Page 17)
NO
Is the resistance of the Heater out of YES Replace the Heater.
range 24.7 ~ 28.0Ω ? (Page 17)
NO
Replace the Main PCB.
[Note] Thermistor Spec
S Resistance (kΩ)
Temp
P MIN STD MAX
E 30 °C 36.35 39.45 42.72
C 40 °C 24.20 26.05 27.97
60 °C 11.43 12.12 12.82
70 °C 8.088 8.514 8.940
95 °C 3.544 3.791 4.045
105 °C 2.617 2.816 3.023
26
Motor Locked Error (LE)
[Pre Check]
• Gentle wash cycles, such as Perm Press, Delicates, Hand Wash, and Wool/Silk should only be used for smaller loads.
Because these cycles are more gentle in tumbling and spinning, putting too much in the drum can register an issue
with the motor. Remove items, reset unit and test with a Rinse/Spin cycle.
• Don’t replace the PCB, when the hall sensor is replaced.
Replace the PCB, when the LE is displayed after replacing the hall sensor.
Press the Power button & Start / Pause button.
Does the Drum stop when the start/pause button is pressed to start the cycle ?
Or Sometimes does the Drum rotate weakly (under 15rpm)?
YES
Is the Connector connected correctly to
Reconnect or repair the Connector .
the Main PCB and the Motor ? NO
Or is the Harness alright ? Or replace the Harness .
YES
Disassemble the Rotor .
Magnet
YES Replace the Rotor .
Are the Magnet of rotor cracked or broken ?
NO
Are the resistance of the Hall Sensor 5~15kΩ? Replace the Hall Sensor .
NO
Hb • Ha ~ Common Disassemble
: 5 ~ 15 k Ω
• Hb ~ Common hall sensor carefully.
: 5 ~ 15 k Ω (Next page)
Ha Common
YES
Are the resistance same
between Stator points? NO Replace the Stator .
V~U / U~W / W~V : 8~11Ω V U W
V U W
YES
Replace the Main PCB .
27
1 Disassemble the Hall Sensor
1) Disassemble the hook of Hall Sensor by (-) driver.
2) Pull up Hall Sensor slowly as shown in picture.
Caution
If you disassemble by force,not following the directions,
the hooks of stator(red circled) might broke up.
Hence need change of stator assembly.
So disassemble cautiously.
2 Assemble the Hall Sensor
1) Adjust the hole of Hall Sensor to 2) Push down the Hall sensor,
the hooks of stator as picture.(red circled) and assemble to the hook for sure.
[Note]
Hall Sensor Part No.
• 24” / 25” : 6501KW2001A • 27” : 6501KW2002A
28
7-6. Using SmartDiagnosis™
SmartDiagnosis™ function is available only for the products with a SmartDiagnosis™ mark.
In case of a mobile phone with static option, the smart diagnosis function might not operate.
• Only use this feature when instructed to do so by the call center.
The transmission sounds similar to a fax machine, and so has no meaning except to the call
center.
• SmartDiagnosis™ cannot be activated if the washer does not power up.
Follow the call center agent's instructions, and do the following steps when requested:
If this happens, then troubleshooting must be done without SmartDiagnosis™.
If you experience problems with your washer, call to Customer information center.
1. Press the Power button to turn on the washer.
Do not press any other buttons or turn the cycle
selector knob.
2. When instructed to do so by the call center,
place the mouthpiece of your phone very close
to the Power button.
3. Press and hold the “Temp.” button for three seconds, while holding the phone
mouthpiece to the icon or Power button.
4. Keep the phone in place until the tone transmission has finished.
This takes about 17 seconds, and the display will count down the time.
• For best results, do not move the phone while the tones are being transmitted.
• If the call center agent is not able to get an accurate recording of the data, you may be
asked to try again.
• Pressing the Power button during the transmission will shut off the SmartDiagnosis™.
5. Once the countdown is over and the tones have stopped, resume your conversation with
the call center agent, who will then be able to assist you using the information transmitted
for analysis at the call to Customer information center.
33
29
8. TROUBLESHOOTING WITHOUT ERROR CODES
No Power
Is the Power Plug connected Reconnect Power Plug firmly.
NO
firmly to the power outlet? Check the fuse or
And is the supply voltage reset the circuit breaker.
220~240V AC?
YES
Is Multi-plug socket used ? Don’t use Multi-plug socket.
YES Use Single Plug socket for
washing machine.
NO
Is the Connector connected correctly to NO Reconnect or repair the Connector .
the Main PCB and the Noise Filter ? Or replace the Harness .
Or is the Harness alright ?
noise filter PCB
YES
NO Check and replace Main PCB .
Is Red LED ON while power supplied ?
YES
Is the connectors connected YES Check connectors otherwise.
Correctly to the Display Replace Display PCB .
PCB?
30
Vibration & Noise In Spin
Have all the Transit Bolts and the Base Packing Remove the Transit Bolts and
NO
been removed? the Base Packing.
Washer
Base Packing
Packing Support
YES
Refer to INSTALLATION. (Page 7)
31
Detergent & Softener does not flow in
Is water supplied? NO Refer to [Water Inlet Error (IE)]
(page 19)
YES
Is detergent & softener put in
the correct compartment of the drawer?
NO Put it in the Correct Position.
Main Wash Only Pre Wash
(Powder) softener (Powder)
Reference (Amount of Detergent & Softener)
Detergent Softener
YES
NO!!
Is the Detergent caked or hardened?
OK!!
YES
Clean the drawer and dispenser. Check point
32
Water Leak
1. Water Leak from Dispenser
Is the Dispenser Tray Damaged or warped? YES Replace the Dispenser Tray.
NO
Is detergent & softener put in
NO Put it in the Correct Position.
the correct compartment of the drawer?
Reference (Amount of Detergent & Softener)
Main Wash Only Pre Wash
(Powder) softener (Powder) Detergent Softener
NO!!
YES
OK!!
Is the Detergent caked or hardened?
YES
Clean the drawer and dispenser. Check point
33
2. Water Leak from Dispenser
Are the gasket (seal) Clean the periphery of Gasket and Door regularly.
NO
and door cleaned regularly?
YES
Is the door or gasket damaged? YES Replace the damaged parts.
3. Unknown – Water on Floor
Are the inlet hoses loose or cracked/split? Replace the Inlet Hoses.
YES
Check!!
NO
Is the washer horizontal ? NO Adjust the height of washing machine to be kept
horizontally. (Page 7)
YES
Are the drain filter and manual NO Turn the filter cap clockwise to close.
drain hose open?
34
9. DISASSEMBLY INSTRUCTIONS
Be sure to unplug the machine out of the outlet before disassembling and repairing the parts.
CONTROL PANEL
PLATE ASSEMBLY (TOP) 1 Unscrew 2 screws on the back of the top plate.
2 Pull the top plate backward and upward as
shown.
1 Disconnect the PWB assembly connector from
Hook Main lead wire assembly.
2 Pull out the drawer and unscrew 2 screws.
3 Push upper hooks down on the top and pull
the control panel.
PANEL ASSEMBLY
(CONTROL)
1 Disconnect the PWB assembly (Main & Display)
from control panel by unscrewing 7 screws.
35
DISPENSER ASSEMBLY
1 Disassemble the top plate assembly.
2 Pull out the drawer to arrow direction.
3 Unscrew 2 screws.
PUSH
DRAWER
1 The hose clamps and the hose are
disassembled.
Option
DISPENSER ASSEMBLY
1 The ventilation bellows and the water inlet
bellows are disassembled on the tub.
36
INLET VALVE
1 Disconnect the wiring receptacle.
3
2 Unscrew 2 screws from the back.
2
1
When reconnecting the connector
VALVE #1 (MAIN) White / Black - Black
VALVE #2 (PRE) Gray / White - Black
VALVE #3 (HOT) Blue / Red - Black
• Rating : 220/240V 50/60Hz
• Resistant : 3.5~4.5kΩ
LOWER COVER
Open the lower cover cap by using coin and
pull out the lower cover to the arrow direction
after a screw is unscrewed.
DOOR
1 Open the door completely.
2 Remove the two screws from the hinge.
When removing the door assembly, it is
necessary to hold the bracket that is inner
of the cabinet cover.
37
GASKET ASSEMBLY
1 Take apart the cabinet gasket clamp.
2 Unscrew 2 screws from the cabinet cover.
3 Open the lower cover cap and unscrew 1
screw inside.
4 Take apart the lower cover.
1 Disassemble the control panel. (page 24)
2 Unscrew all the screws on the upper and lower
sides of the cabinet cover.
1 Take apart the tub gasket clamp.
2 Make sure that the drain hole of the gasket is
put beneath when reassembling the gasket.
efer to the arrow mark on the tub cover.
38
ROTOR ASSEMBLY, STATOR ASSEMBLY, FRICTION DAMPER ASSEMBLY
1 Remove the BACK COVER.
Rotor 2 Unscrew the bolt to pull out the ROTOR
assembly.
Bolt
(ROTOR ASSEMBLY)
1 Disconnect the wiring connector.
2 Unscrew 6 bolts from the STATOR.
3 Remove the STATOR.
Note : Hook of connector (1) is on the backside
(1)
(STATOR ASSEMBLY) 1 Pull out the hinge, pressing its snap.
2 Do not use the pulled-out hinge again. It may
Damper be taken off during operation.
Hinge,
Damper
(DAMPER)
Motor Stator Hall Sensor
Hb
• V ~ U (8~11Ω) • Common ~ Ha (5~15kΩ)
• U ~ W (8~11Ω) • Common ~ Hb (5~15kΩ)
• W ~ V (8~11Ω)
Ha
U VW
Common
39
PUMP
Pump Outlet Hose 1 Remove pump outlet hose.
2 Remove tub pump bellows.
3 Remove cap (Remaining Hose.)
4 Disconnect the wiring.
5 Unscrew 2 screws.
6 Remove the pump.
Tub Pump
• Rating : 220~240V 50HZ 30W
Bellows
• Resistant : 160~177Ω
HEATER
1 Loosen the M6 heater nut to pull out the
heater.
CAUTION
M6 heater nut When mounting the heater, be sure to insert
the heater into the heater clip on the bottom
of the tub.
• Rating : 220~240V 2000W
• Resistant : 24.7~28.0Ω
40
SWITCH ASSEMBLY, DOOR LOCK
1 Take apart the cabinet cover clamp and
release the gasket.
2 Unscrew 2 screws holding the door lock.
3 Disconnect the door lock from the wiring
connector.
• Just check cut-off.
• Check the operating time.
* Door Locking time : 1~8 sec.
1
Check the time between from
input the power to parts 1
move up, then Door locked.
* Door Releasing time : 25~100 sec.
Check the time between from off
the power to parts 1
move down, then Door released.
WHEN FOREIGN MATERIAL IS STUCK BETWEEN DRUM AND TUB
1 Remove the heater.
2 Remove the foreign material (wire, coin and
others) by inserting a long bar through the
hole.
41
A154
A153
A110
A140
A151 A152
A150
A101
A141
A131
A100
A102
A104
A430
A103
A130
A485
A134
A440
A410
A133
A300
A303 A310 A220
C OLD (B LUE )
A276
F462 F321
F300
F160
F432
F225
F430
F220
F441
F120
F110
F215
F210
K350 K360 K143
K123
F140
K411
K121 K122
K410
K125
F320
K320
K111
F464 F466
K110
F310 K141
K105
K140
K115 K150
K135
K610
K510
K130
K611
K131
K530
F468
F467
K520
K550
F461 K540
K349
