LG 28MN30D

Internal Use Only North/Latin America http://aic.lgservice.com Europe/Africa http://eic.lgservice.com Asia/Oceania http://biz.lgservice.com LED TV SERVICE MANUAL CHASSIS : LD31U MODEL : 28MN30D 28MN30D-PZ(R)P CAUTION BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL. P/NO : MFL67714476 (1306-REV00) Printed in Korea

---

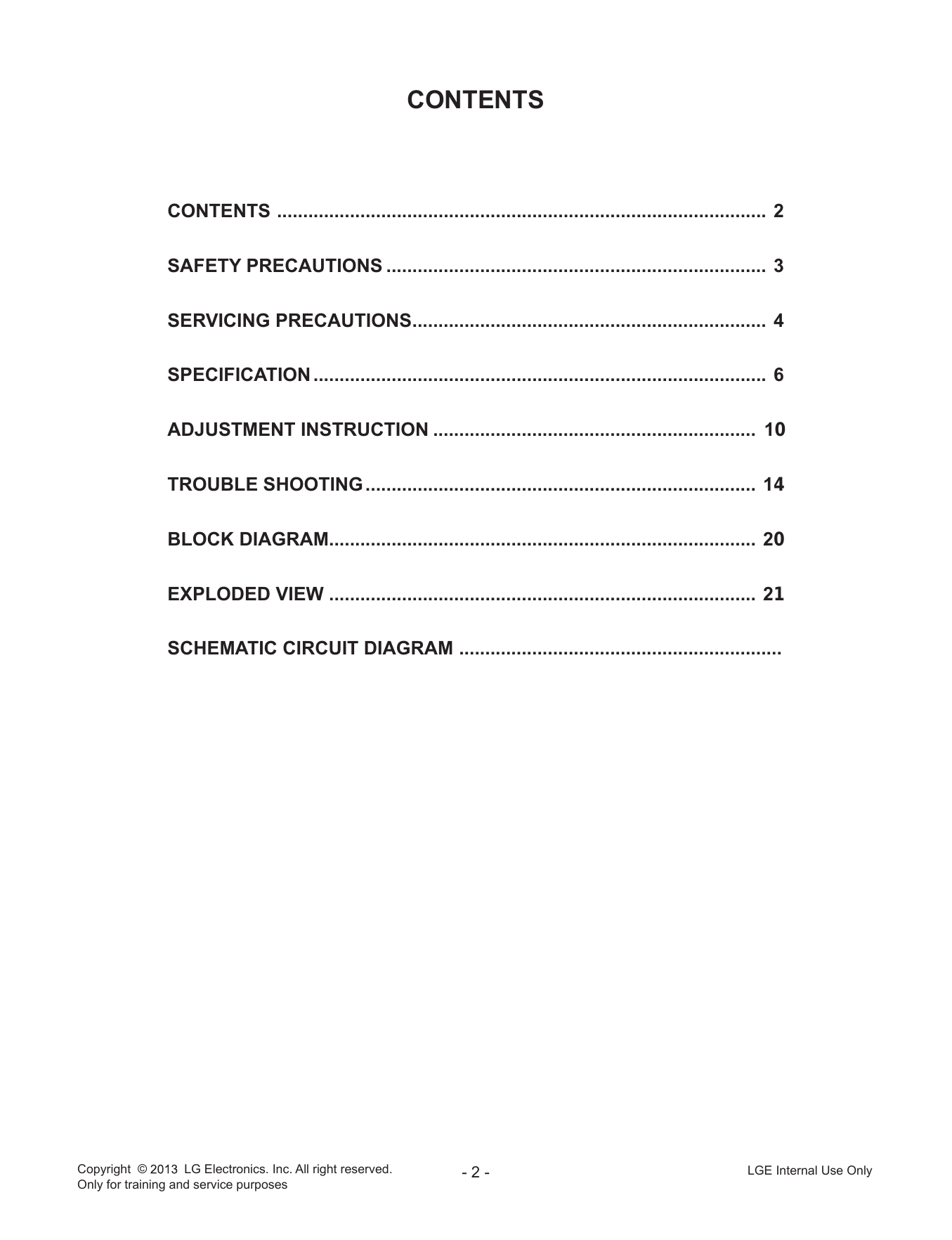

CONTENTS CONTENTS . ............................................................................................. 2 SAFETY PRECAUTIONS.......................................................................... 3 SERVICING PRECAUTIONS..................................................................... 4 SPECIFICATION........................................................................................ 6 ADJUSTMENT INSTRUCTION............................................................... 10 TROUBLE SHOOTING............................................................................ 14 BLOCK DIAGRAM................................................................................... 20 EXPLODED VIEW .................................................................................. 21 SCHEMATIC CIRCUIT DIAGRAM .............................................................. Copyright © LG Electronics. Inc. All right reserved. -2- LGE Internal Use Only Only for training and service purposes

---

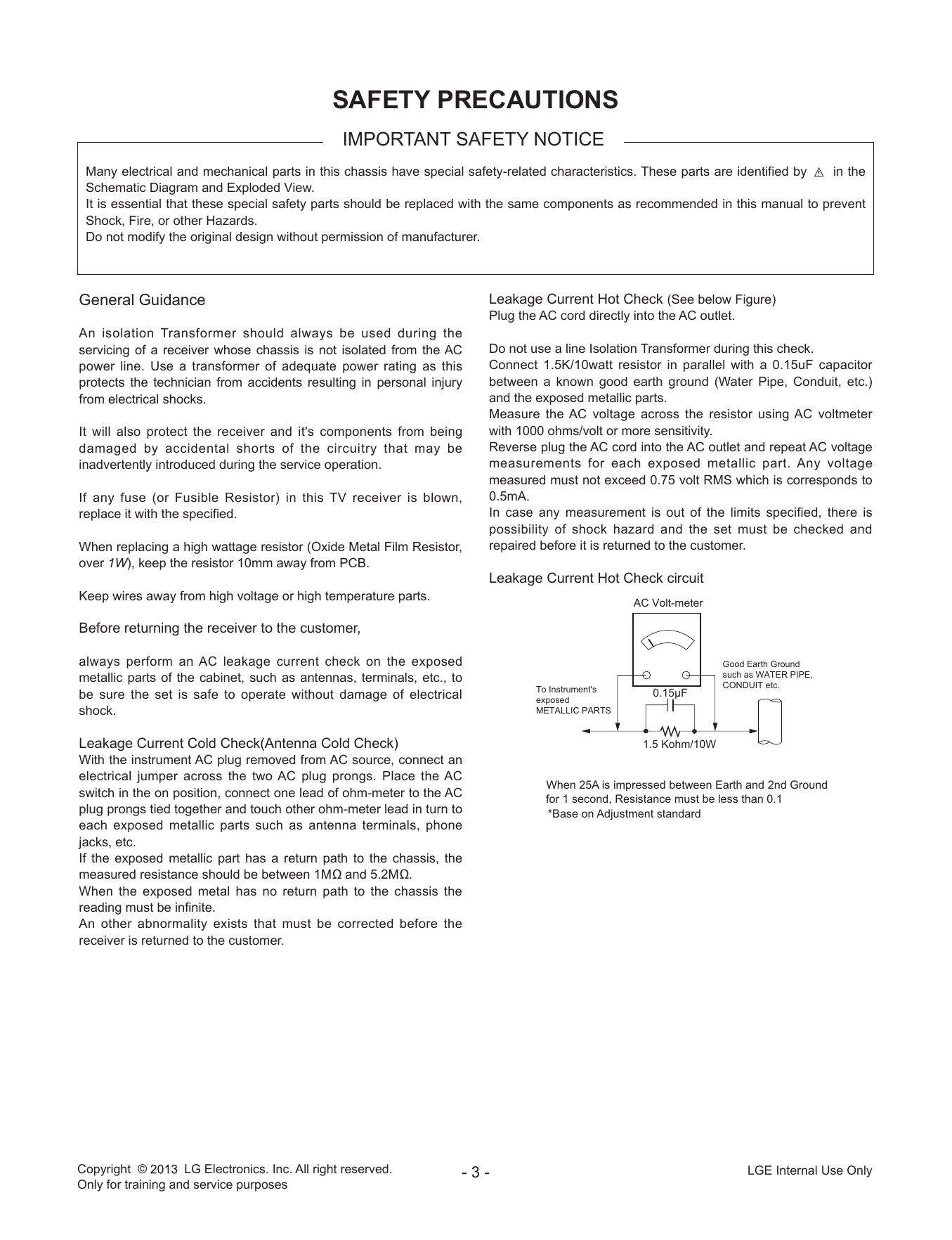

SAFETY PRECAUTIONS IMPORTANT SAFETY NOTICE Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Exploded View. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer. General Guidance Leakage Current Hot Check (See below Figure) Plug the AC cord directly into the AC outlet. An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC Do not use a line Isolation Transformer during this check. power line. Use a transformer of adequate power rating as this Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor protects the technician from accidents resulting in personal injury between a known good earth ground (Water Pipe, Conduit, etc.) from electrical shocks. and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter It will also protect the receiver and it's components from being with 1000 ohms/volt or more sensitivity. damaged by accidental shorts of the circuitry that may be Reverse plug the AC cord into the AC outlet and repeat AC voltage inadvertently introduced during the service operation. measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to If any fuse (or Fusible Resistor) in this TV receiver is blown, 0.5mA. replace it with the specified. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and When replacing a high wattage resistor (Oxide Metal Film Resistor, repaired before it is returned to the customer. over 1W), keep the resistor 10mm away from PCB. Leakage Current Hot Check circuit Keep wires away from high voltage or high temperature parts. AC Volt-meter Before returning the receiver to the customer, always perform an AC leakage current check on the exposed Good Earth Ground such as WATER PIPE, metallic parts of the cabinet, such as antennas, terminals, etc., to CONDUIT etc. To Instrument's be sure the set is safe to operate without damage of electrical exposed 0.15µF shock. METALLIC PARTS Leakage Current Cold Check(Antenna Cold Check) 1.5 Kohm/10W With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC When 25A is impressed between Earth and 2nd Ground switch in the on position, connect one lead of ohm-meter to the AC for 1 second, Resistance must be less than 0.1 plug prongs tied together and touch other ohm-meter lead in turn to *Base on Adjustment standard each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1MΩ and 5.2MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer. Copyright © LG Electronics. Inc. All right reserved. -3- LGE Internal Use Only Only for training and service purposes

---

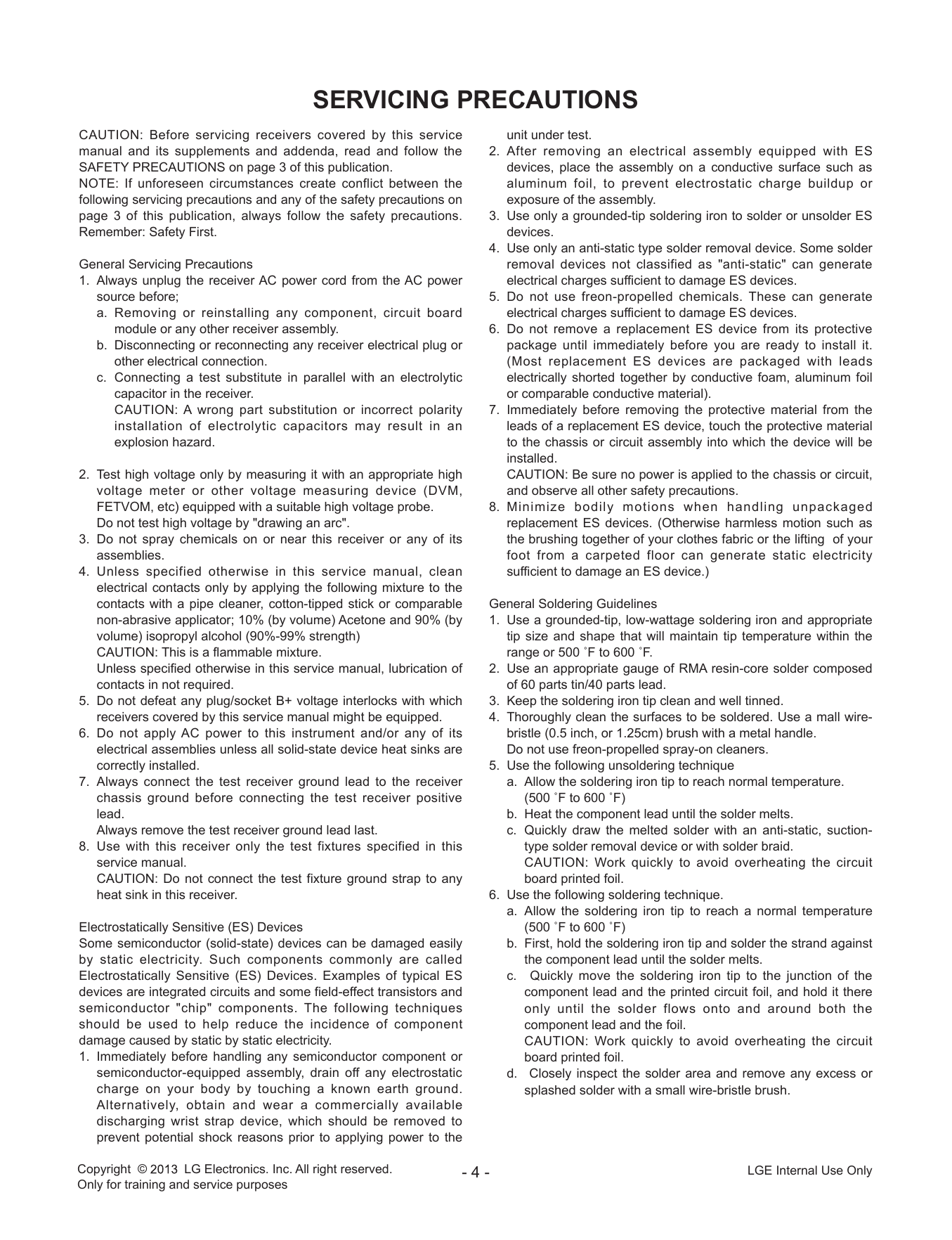

SERVICING PRECAUTIONS CAUTION: Before servicing receivers covered by this service unit under test. manual and its supplements and addenda, read and follow the 2. After removing an electrical assembly equipped with ES SAFETY PRECAUTIONS on page 3 of this publication. devices, place the assembly on a conductive surface such as NOTE: If unforeseen circumstances create conflict between the aluminum foil, to prevent electrostatic charge buildup or following servicing precautions and any of the safety precautions on exposure of the assembly. page 3 of this publication, always follow the safety precautions. 3. Use only a grounded-tip soldering iron to solder or unsolder ES Remember: Safety First. devices. 4. Use only an anti-static type solder removal device. Some solder General Servicing Precautions removal devices not classified as "anti-static" can generate 1. Always unplug the receiver AC power cord from the AC power electrical charges sufficient to damage ES devices. source before; 5. Do not use freon-propelled chemicals. These can generate a. Removing or reinstalling any component, circuit board electrical charges sufficient to damage ES devices. module or any other receiver assembly. 6. Do not remove a replacement ES device from its protective b. Disconnecting or reconnecting any receiver electrical plug or package until immediately before you are ready to install it. other electrical connection. (Most replacement ES devices are packaged with leads c. Connecting a test substitute in parallel with an electrolytic electrically shorted together by conductive foam, aluminum foil capacitor in the receiver. or comparable conductive material). CAUTION: A wrong part substitution or incorrect polarity 7. Immediately before removing the protective material from the installation of electrolytic capacitors may result in an leads of a replacement ES device, touch the protective material explosion hazard. to the chassis or circuit assembly into which the device will be installed. 2. Test high voltage only by measuring it with an appropriate high CAUTION: Be sure no power is applied to the chassis or circuit, voltage meter or other voltage measuring device (DVM, and observe all other safety precautions. FETVOM, etc) equipped with a suitable high voltage probe. 8. Minimize bodily motions when handling unpackaged Do not test high voltage by "drawing an arc". replacement ES devices. (Otherwise harmless motion such as 3. Do not spray chemicals on or near this receiver or any of its the brushing together of your clothes fabric or the lifting of your assemblies. foot from a carpeted floor can generate static electricity 4. Unless specified otherwise in this service manual, clean sufficient to damage an ES device.) electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable General Soldering Guidelines non-abrasive applicator; 10% (by volume) Acetone and 90% (by 1. Use a grounded-tip, low-wattage soldering iron and appropriate volume) isopropyl alcohol (90%-99% strength) tip size and shape that will maintain tip temperature within the CAUTION: This is a flammable mixture. range or 500 ˚F to 600 ˚F. Unless specified otherwise in this service manual, lubrication of 2. Use an appropriate gauge of RMA resin-core solder composed contacts in not required. of 60 parts tin/40 parts lead. 5. Do not defeat any plug/socket B+ voltage interlocks with which 3. Keep the soldering iron tip clean and well tinned. receivers covered by this service manual might be equipped. 4. Thoroughly clean the surfaces to be soldered. Use a mall wire- 6. Do not apply AC power to this instrument and/or any of its bristle (0.5 inch, or 1.25cm) brush with a metal handle. electrical assemblies unless all solid-state device heat sinks are Do not use freon-propelled spray-on cleaners. correctly installed. 5. Use the following unsoldering technique 7. Always connect the test receiver ground lead to the receiver a. Allow the soldering iron tip to reach normal temperature. chassis ground before connecting the test receiver positive (500 ˚F to 600 ˚F) lead. b. Heat the component lead until the solder melts. Always remove the test receiver ground lead last. c. Quickly draw the melted solder with an anti-static, suction- 8. Use with this receiver only the test fixtures specified in this type solder removal device or with solder braid. service manual. CAUTION: Work quickly to avoid overheating the circuit CAUTION: Do not connect the test fixture ground strap to any board printed foil. heat sink in this receiver. 6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature Electrostatically Sensitive (ES) Devices (500 ˚F to 600 ˚F) Some semiconductor (solid-state) devices can be damaged easily b. First, hold the soldering iron tip and solder the strand against by static electricity. Such components commonly are called the component lead until the solder melts. Electrostatically Sensitive (ES) Devices. Examples of typical ES c. Quickly move the soldering iron tip to the junction of the devices are integrated circuits and some field-effect transistors and component lead and the printed circuit foil, and hold it there semiconductor "chip" components. The following techniques only until the solder flows onto and around both the should be used to help reduce the incidence of component component lead and the foil. damage caused by static by static electricity. CAUTION: Work quickly to avoid overheating the circuit 1. Immediately before handling any semiconductor component or board printed foil. semiconductor-equipped assembly, drain off any electrostatic d. Closely inspect the solder area and remove any excess or charge on your body by touching a known earth ground. splashed solder with a small wire-bristle brush. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the Copyright © LG Electronics. Inc. All right reserved. -4- LGE Internal Use Only Only for training and service purposes

---

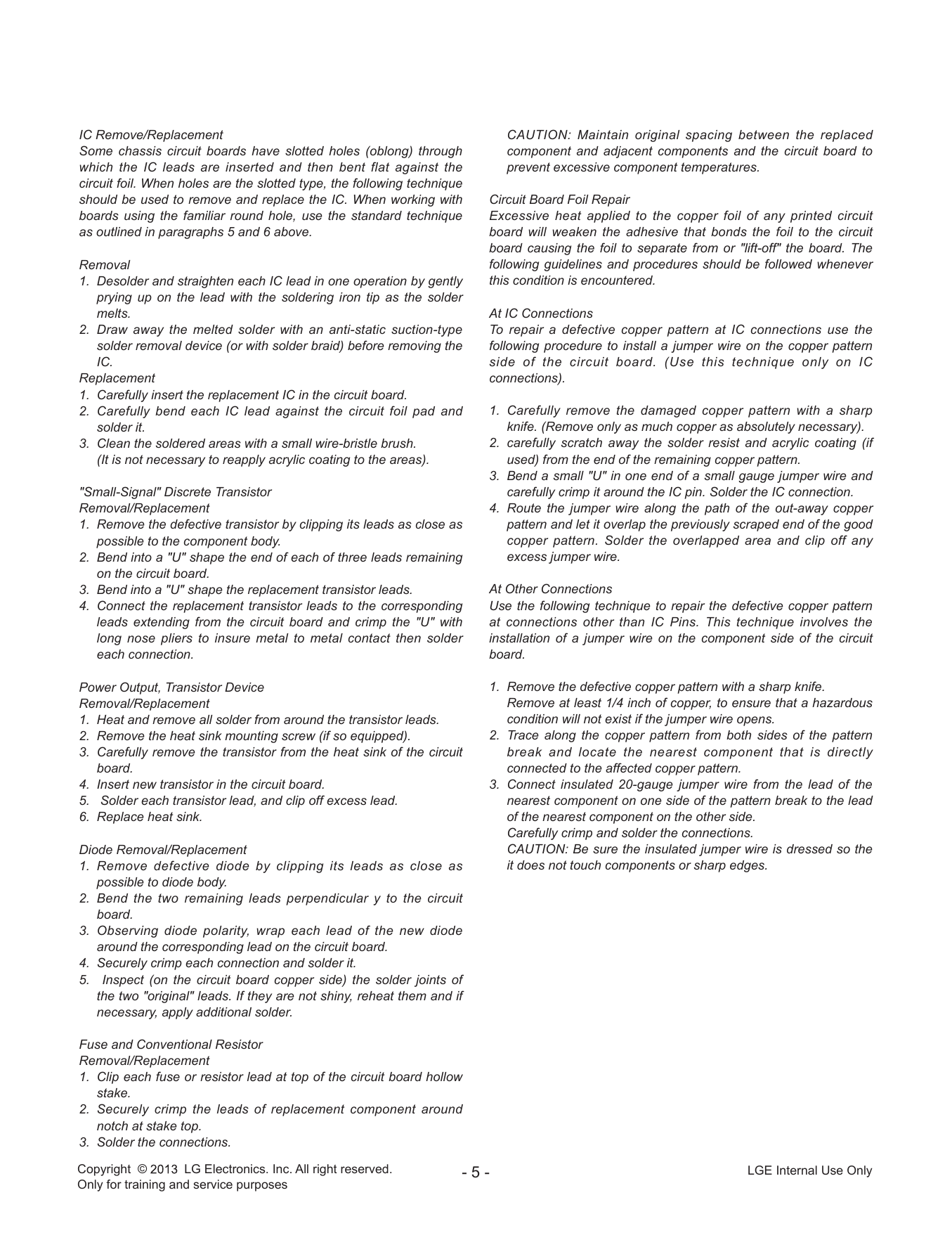

IC Remove/Replacement CAUTION: Maintain original spacing between the replaced Some chassis circuit boards have slotted holes (oblong) through component and adjacent components and the circuit board to which the IC leads are inserted and then bent flat against the prevent excessive component temperatures. circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with Circuit Board Foil Repair boards using the familiar round hole, use the standard technique Excessive heat applied to the copper foil of any printed circuit as outlined in paragraphs 5 and 6 above. board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The Removal following guidelines and procedures should be followed whenever 1. Desolder and straighten each IC lead in one operation by gently this condition is encountered. prying up on the lead with the soldering iron tip as the solder melts. At IC Connections 2. Draw away the melted solder with an anti-static suction-type To repair a defective copper pattern at IC connections use the solder removal device (or with solder braid) before removing the following procedure to install a jumper wire on the copper pattern IC. side of the circuit board. (Use this technique only on IC Replacement connections). 1. Carefully insert the replacement IC in the circuit board. 2. Carefully bend each IC lead against the circuit foil pad and 1. Carefully remove the damaged copper pattern with a sharp solder it. knife. (Remove only as much copper as absolutely necessary). 3. Clean the soldered areas with a small wire-bristle brush. 2. carefully scratch away the solder resist and acrylic coating (if (It is not necessary to reapply acrylic coating to the areas). used) from the end of the remaining copper pattern. 3. Bend a small "U" in one end of a small gauge jumper wire and "Small-Signal" Discrete Transistor carefully crimp it around the IC pin. Solder the IC connection. Removal/Replacement 4. Route the jumper wire along the path of the out-away copper 1. Remove the defective transistor by clipping its leads as close as pattern and let it overlap the previously scraped end of the good possible to the component body. copper pattern. Solder the overlapped area and clip off any 2. Bend into a "U" shape the end of each of three leads remaining excess jumper wire. on the circuit board. 3. Bend into a "U" shape the replacement transistor leads. At Other Connections 4. Connect the replacement transistor leads to the corresponding Use the following technique to repair the defective copper pattern leads extending from the circuit board and crimp the "U" with at connections other than IC Pins. This technique involves the long nose pliers to insure metal to metal contact then solder installation of a jumper wire on the component side of the circuit each connection. board. Power Output, Transistor Device 1. Remove the defective copper pattern with a sharp knife. Removal/Replacement Remove at least 1/4 inch of copper, to ensure that a hazardous 1. Heat and remove all solder from around the transistor leads. condition will not exist if the jumper wire opens. 2. Remove the heat sink mounting screw (if so equipped). 2. Trace along the copper pattern from both sides of the pattern 3. Carefully remove the transistor from the heat sink of the circuit break and locate the nearest component that is directly board. connected to the affected copper pattern. 4. Insert new transistor in the circuit board. 3. Connect insulated 20-gauge jumper wire from the lead of the 5. Solder each transistor lead, and clip off excess lead. nearest component on one side of the pattern break to the lead 6. Replace heat sink. of the nearest component on the other side. Carefully crimp and solder the connections. Diode Removal/Replacement CAUTION: Be sure the insulated jumper wire is dressed so the 1. Remove defective diode by clipping its leads as close as it does not touch components or sharp edges. possible to diode body. 2. Bend the two remaining leads perpendicular y to the circuit board. 3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board. 4. Securely crimp each connection and solder it. 5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder. Fuse and Conventional Resistor Removal/Replacement 1. Clip each fuse or resistor lead at top of the circuit board hollow stake. 2. Securely crimp the leads of replacement component around notch at stake top. 3. Solder the connections. Copyright © LG Electronics. Inc. All right reserved. -5- LGE Internal Use Only Only for training and service purposes

---

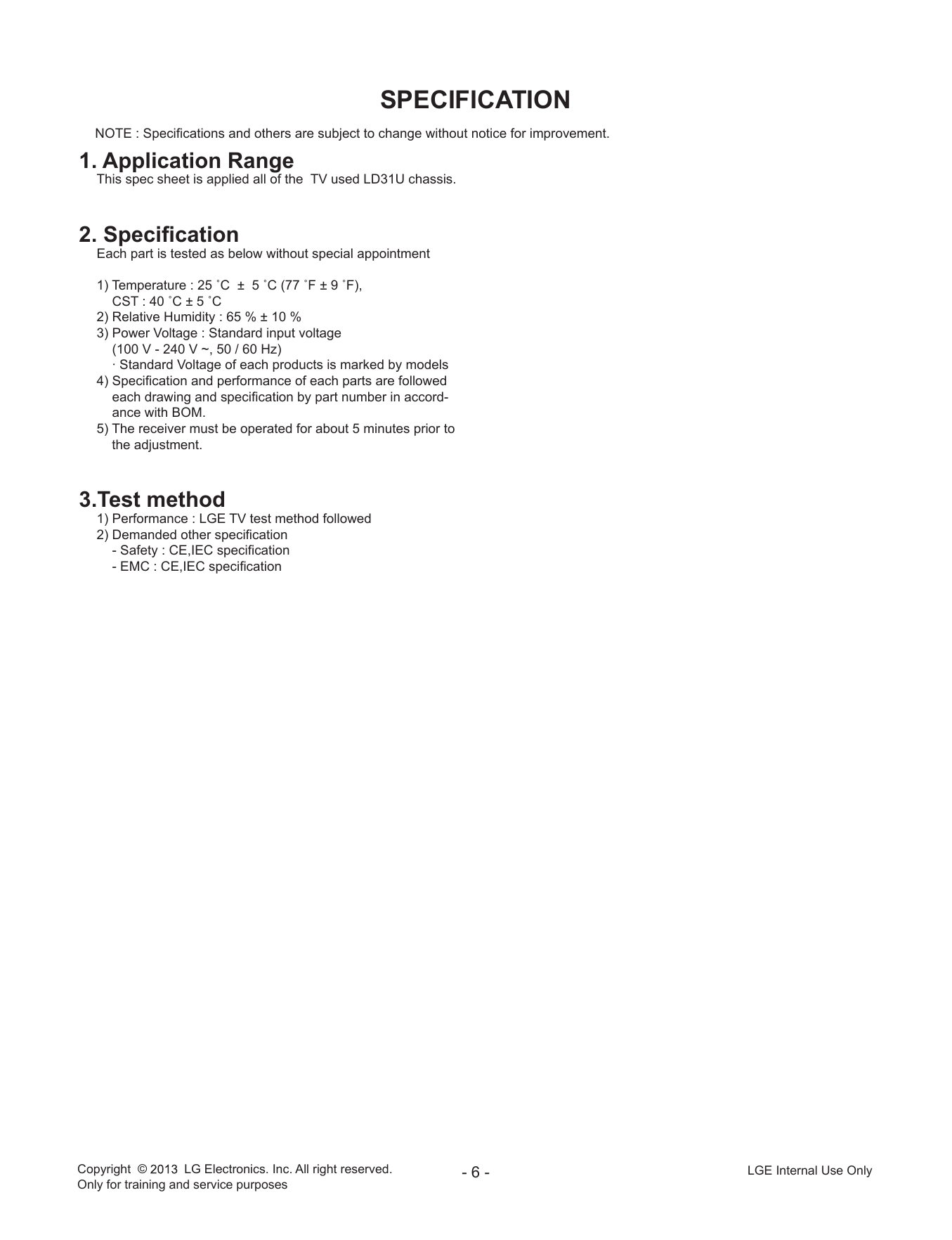

SPECIFICATION NOTE : Specifications and others are subject to change without notice for improvement. 1. Application Range This spec sheet is applied all of the TV used LD31U chassis. 2. Specification Each part is tested as below without special appointment 1) Temperature : 25 ˚C ± 5 ˚C (77 ˚F ± 9 ˚F), CST : 40 ˚C ± 5 ˚C 2) Relative Humidity : 65 % ± 10 % 3) Power Voltage : Standard input voltage (100 V - 240 ­V ~, 50 / 60 Hz) · Standard Voltage of each products is marked by models 4) Specification and performance of each parts are followed each drawing and specification by part number in accord- ance with BOM. 5) The receiver must be operated for about 5 minutes prior to the adjustment. 3.Test method 1) Performance : LGE TV test method followed 2) Demanded other specification - Safety : CE,IEC specification - EMC : CE,IEC specification Copyright © LG Electronics. Inc. All right reserved. -6- LGE Internal Use Only Only for training and service purposes

---

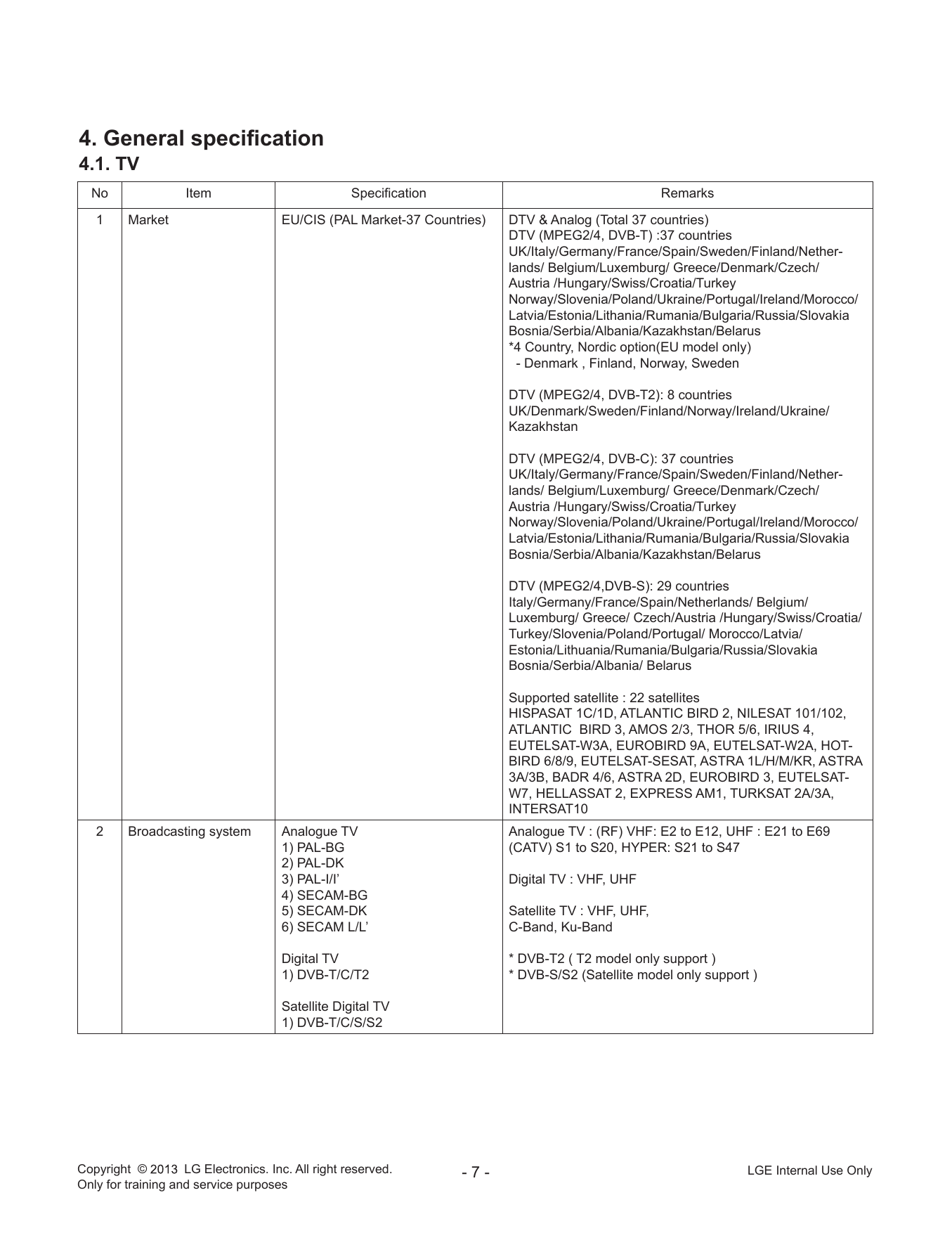

4. General specification 4.1. TV No Item Specification Remarks 1 Market EU/CIS (PAL Market-37 Countries) DTV & Analog (Total 37 countries) DTV (MPEG2/4, DVB-T) :37 countries UK/Italy/Germany/France/Spain/Sweden/Finland/Nether- lands/ Belgium/Luxemburg/ Greece/Denmark/Czech/ Austria /Hungary/Swiss/Croatia/Turkey Norway/Slovenia/Poland/Ukraine/Portugal/Ireland/Morocco/ Latvia/Estonia/Lithania/Rumania/Bulgaria/Russia/Slovakia Bosnia/Serbia/Albania/Kazakhstan/Belarus *4 Country, Nordic option(EU model only) - Denmark , Finland, Norway, Sweden DTV (MPEG2/4, DVB-T2): 8 countries UK/Denmark/Sweden/Finland/Norway/Ireland/Ukraine/ Kazakhstan DTV (MPEG2/4, DVB-C): 37 countries UK/Italy/Germany/France/Spain/Sweden/Finland/Nether- lands/ Belgium/Luxemburg/ Greece/Denmark/Czech/ Austria /Hungary/Swiss/Croatia/Turkey Norway/Slovenia/Poland/Ukraine/Portugal/Ireland/Morocco/ Latvia/Estonia/Lithania/Rumania/Bulgaria/Russia/Slovakia Bosnia/Serbia/Albania/Kazakhstan/Belarus DTV (MPEG2/4,DVB-S): 29 countries Italy/Germany/France/Spain/Netherlands/ Belgium/ Luxemburg/ Greece/ Czech/Austria /Hungary/Swiss/Croatia/ Turkey/Slovenia/Poland/Portugal/ Morocco/Latvia/ Estonia/Lithuania/Rumania/Bulgaria/Russia/Slovakia Bosnia/Serbia/Albania/ Belarus Supported satellite : 22 satellites HISPASAT 1C/1D, ATLANTIC BIRD 2, NILESAT 101/102, ATLANTIC BIRD 3, AMOS 2/3, THOR 5/6, IRIUS 4, EUTELSAT-W3A, EUROBIRD 9A, EUTELSAT-W2A, HOT- BIRD 6/8/9, EUTELSAT-SESAT, ASTRA 1L/H/M/KR, ASTRA 3A/3B, BADR 4/6, ASTRA 2D, EUROBIRD 3, EUTELSAT- W7, HELLASSAT 2, EXPRESS AM1, TURKSAT 2A/3A, INTERSAT10 2 Broadcasting system Analogue TV Analogue TV : (RF) VHF: E2 to E12, UHF : E21 to E69 1) PAL-BG (CATV) S1 to S20, HYPER: S21 to S47 2) PAL-DK 3) PAL-I/I’ Digital TV : VHF, UHF 4) SECAM-BG 5) SECAM-DK Satellite TV : VHF, UHF, 6) SECAM L/L’ C-Band, Ku-Band Digital TV * DVB-T2 ( T2 model only support ) 1) DVB-T/C/T2 * DVB-S/S2 (Satellite model only support ) Satellite Digital TV 1) DVB-T/C/S/S2 Copyright © LG Electronics. Inc. All right reserved. -7- LGE Internal Use Only Only for training and service purposes

---

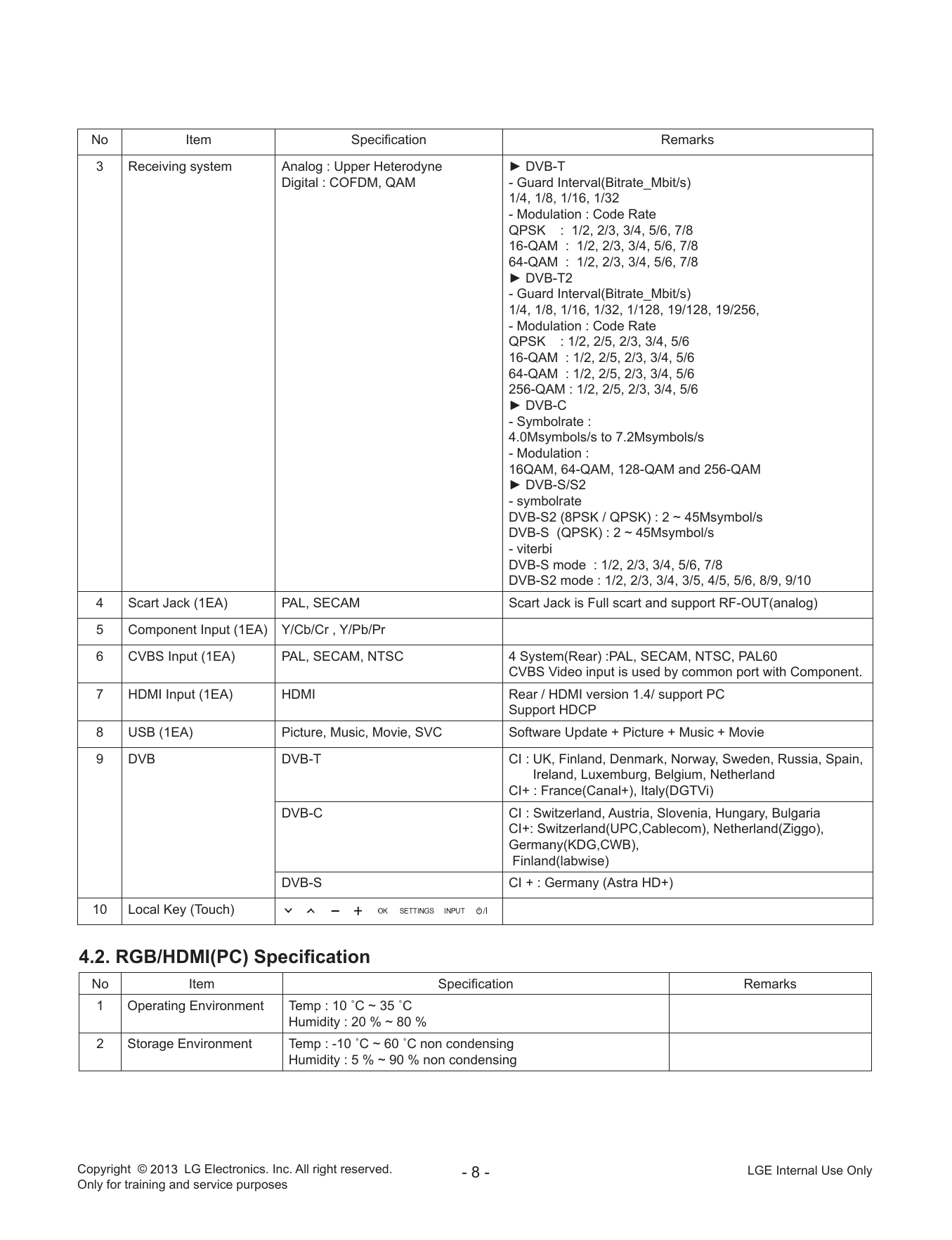

No Item Specification Remarks 3 Receiving system Analog : Upper Heterodyne ► DVB-T Digital : COFDM, QAM - Guard Interval(Bitrate_Mbit/s) 1/4, 1/8, 1/16, 1/32 - Modulation : Code Rate QPSK : 1/2, 2/3, 3/4, 5/6, 7/8 16-QAM : 1/2, 2/3, 3/4, 5/6, 7/8 64-QAM : 1/2, 2/3, 3/4, 5/6, 7/8 ► DVB-T2 - Guard Interval(Bitrate_Mbit/s) 1/4, 1/8, 1/16, 1/32, 1/128, 19/128, 19/256, - Modulation : Code Rate QPSK : 1/2, 2/5, 2/3, 3/4, 5/6 16-QAM : 1/2, 2/5, 2/3, 3/4, 5/6 64-QAM : 1/2, 2/5, 2/3, 3/4, 5/6 256-QAM : 1/2, 2/5, 2/3, 3/4, 5/6 ► DVB-C - Symbolrate : 4.0Msymbols/s to 7.2Msymbols/s - Modulation : 16QAM, 64-QAM, 128-QAM and 256-QAM ► DVB-S/S2 - symbolrate DVB-S2 (8PSK / QPSK) : 2 ~ 45Msymbol/s DVB-S (QPSK) : 2 ~ 45Msymbol/s - viterbi DVB-S mode : 1/2, 2/3, 3/4, 5/6, 7/8 DVB-S2 mode : 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10 4 Scart Jack (1EA) PAL, SECAM Scart Jack is Full scart and support RF-OUT(analog) 5 Component Input (1EA) Y/Cb/Cr , Y/Pb/Pr 6 CVBS Input (1EA) PAL, SECAM, NTSC 4 System(Rear) :PAL, SECAM, NTSC, PAL60 CVBS Video input is used by common port with Component. 7 HDMI Input (1EA) HDMI Rear / HDMI version 1.4/ support PC Support HDCP 8 USB (1EA) Picture, Music, Movie, SVC Software Update + Picture + Music + Movie 9 DVB DVB-T CI : U  K, Finland, Denmark, Norway, Sweden, Russia, Spain, Ireland, Luxemburg, Belgium, Netherland CI+ : France(Canal+), Italy(DGTVi) DVB-C CI : Switzerland, Austria, Slovenia, Hungary, Bulgaria CI+: Switzerland(UPC,Cablecom), Netherland(Ziggo), Germany(KDG,CWB), Finland(labwise) DVB-S CI + : Germany (Astra HD+) 10 Local Key (Touch) G 4.2. RGB/HDMI(PC) Specification No Item Specification Remarks 1 Operating Environment Temp : 10 ˚C ~ 35 ˚C Humidity : 20 % ~ 80 % 2 Storage Environment Temp : -10 ˚C ~ 60 ˚C non condensing Humidity : 5 % ~ 90 % non condensing Copyright © LG Electronics. Inc. All right reserved. -8- LGE Internal Use Only Only for training and service purposes

---

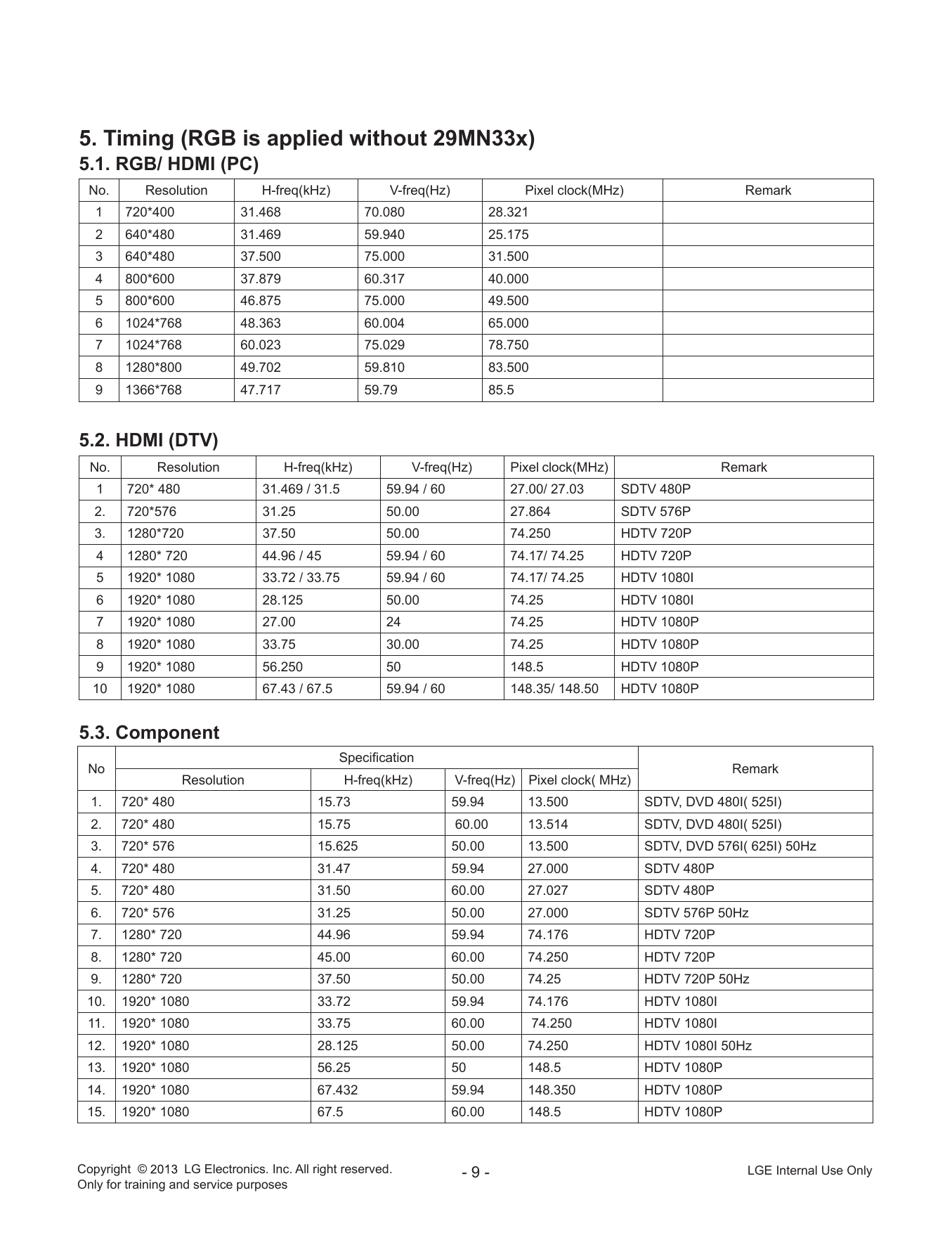

5. Timing (RGB is applied without 29MN33x) 5.1. RGB/ HDMI (PC) No. Resolution H-freq(kHz) V-freq(Hz) Pixel clock(MHz) Remark 1 720*400 31.468 70.080 28.321 2 640*480 31.469 59.940 25.175 3 640*480 37.500 75.000 31.500 4 800*600 37.879 60.317 40.000 5 800*600 46.875 75.000 49.500 6 1024*768 48.363 60.004 65.000 7 1024*768 60.023 75.029 78.750 8 1280*800 49.702 59.810 83.500 9 1366*768 47.717 59.79 85.5 5.2. HDMI (DTV) No. Resolution H-freq(kHz) V-freq(Hz) Pixel clock(MHz) Remark 1 720* 480 31.469 / 31.5 59.94 / 60 27.00/ 27.03 SDTV 480P 2. 720*576 31.25 50.00 27.864 SDTV 576P 3. 1280*720 37.50 50.00 74.250 HDTV 720P 4 1280* 720 44.96 / 45 59.94 / 60 74.17/ 74.25 HDTV 720P 5 1920* 1080 33.72 / 33.75 59.94 / 60 74.17/ 74.25 HDTV 1080I 6 1920* 1080 28.125 50.00 74.25 HDTV 1080I 7 1920* 1080 27.00 24 74.25 HDTV 1080P 8 1920* 1080 33.75 30.00 74.25 HDTV 1080P 9 1920* 1080 56.250 50 148.5 HDTV 1080P 10 1920* 1080 67.43 / 67.5 59.94 / 60 148.35/ 148.50 HDTV 1080P 5.3. Component Specification No Remark Resolution H-freq(kHz) V-freq(Hz) Pixel clock( MHz) 1. 720* 480 15.73 59.94 13.500 SDTV, DVD 480I( 525I) 2. 720* 480 15.75 60.00 13.514 SDTV, DVD 480I( 525I) 3. 720* 576 15.625 50.00 13.500 SDTV, DVD 576I( 625I) 50Hz 4. 720* 480 31.47 59.94 27.000 SDTV 480P 5. 720* 480 31.50 60.00 27.027 SDTV 480P 6. 720* 576 31.25 50.00 27.000 SDTV 576P 50Hz 7. 1280* 720 44.96 59.94 74.176 HDTV 720P 8. 1280* 720 45.00 60.00 74.250 HDTV 720P 9. 1280* 720 37.50 50.00 74.25 HDTV 720P 50Hz 10. 1920* 1080 33.72 59.94 74.176 HDTV 1080I 11. 1920* 1080 33.75 60.00 74.250 HDTV 1080I 12. 1920* 1080 28.125 50.00 74.250 HDTV 1080I 50Hz 13. 1920* 1080 56.25 50 148.5 HDTV 1080P 14. 1920* 1080 67.432 59.94 148.350 HDTV 1080P 15. 1920* 1080 67.5 60.00 148.5 HDTV 1080P Copyright © LG Electronics. Inc. All right reserved. -9- LGE Internal Use Only Only for training and service purposes

---

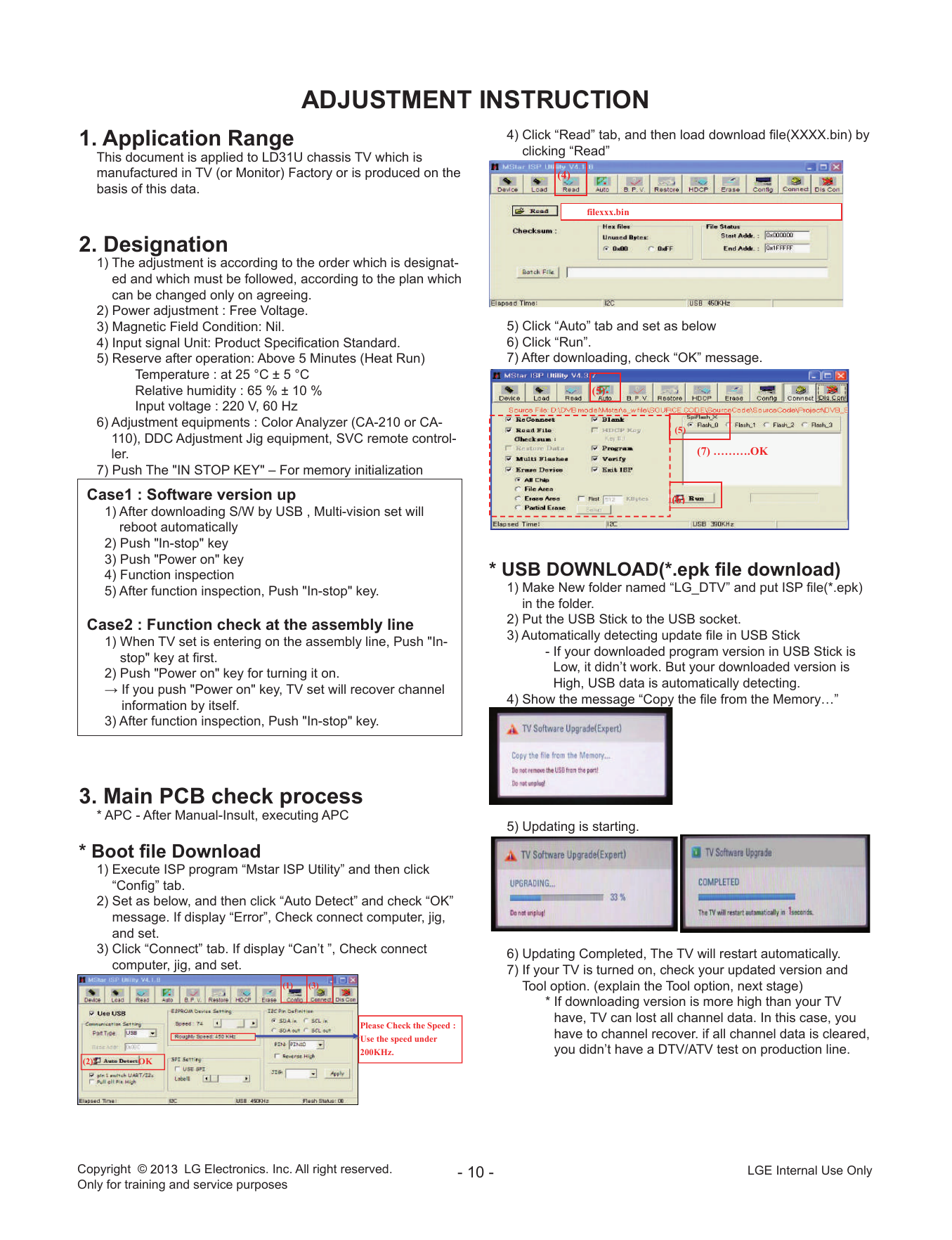

ADJUSTMENT INSTRUCTION 1. Application Range 4) Click “Read” tab, and then load download file(XXXX.bin) by clicking “Read” This document is applied to LD31U chassis TV which is manufactured in TV (or Monitor) Factory or is produced on the (4) basis of this data. filexxx.bin 2. Designation 1) The adjustment is according to the order which is designat- ed and which must be followed, according to the plan which can be changed only on agreeing. 2) Power adjustment : Free Voltage. 3) Magnetic Field Condition: Nil. 5) Click “Auto” tab and set as below 4) Input signal Unit: Product Specification Standard. 6) Click “Run”. 5) Reserve after operation: Above 5 Minutes (Heat Run) 7) After downloading, check “OK” message. Temperature : at 25 °C ± 5 °C Relative humidity : 65 % ± 10 % (5) Input voltage : 220 V, 60 Hz 6) Adjustment equipments : Color Analyzer (CA-210 or CA- (5) 110), DDC Adjustment Jig equipment, SVC remote control- ler. (7) ……….OK 7) Push The "IN STOP KEY" – For memory initialization Case1 : Software version up (6) 1) After downloading S/W by USB , Multi-vision set will reboot automatically 2) Push "In-stop" key 3) Push "Power on" key 4) Function inspection * USB DOWNLOAD(*.epk file download) 5) After function inspection, Push "In-stop" key. 1) Make New folder named “LG_DTV” and put ISP file(*.epk) in the folder. Case2 : Function check at the assembly line 2) Put the USB Stick to the USB socket. 1) When TV set is entering on the assembly line, Push "In- 3) Automatically detecting update file in USB Stick stop" key at first. - If your downloaded program version in USB Stick is 2) Push "Power on" key for turning it on. Low, it didn’t work. But your downloaded version is → If you push "Power on" key, TV set will recover channel High, USB data is automatically detecting. information by itself. 4) Show the message “Copy the file from the Memory…” 3) After function inspection, Push "In-stop" key. 3. Main PCB check process * APC - After Manual-Insult, executing APC 5) Updating is starting. * Boot file Download 1) Execute ISP program “Mstar ISP Utility” and then click “Config” tab. 2) Set as below, and then click “Auto Detect” and check “OK” message. If display “Error”, Check connect computer, jig, and set. 3) Click “Connect” tab. If display “Can’t ”, Check connect 6) Updating Completed, The TV will restart automatically. computer, jig, and set. 7) If your TV is turned on, check your updated version and (1) (3) Tool option. (explain the Tool option, next stage) * If downloading version is more high than your TV Please Check the Speed : have, TV can lost all channel data. In this case, you Use the speed under have to channel recover. if all channel data is cleared, 200KHz. you didn’t have a DTV/ATV test on production line. (2) OK Copyright © LG Electronics. Inc. All right reserved. - 10 - LGE Internal Use Only Only for training and service purposes

---

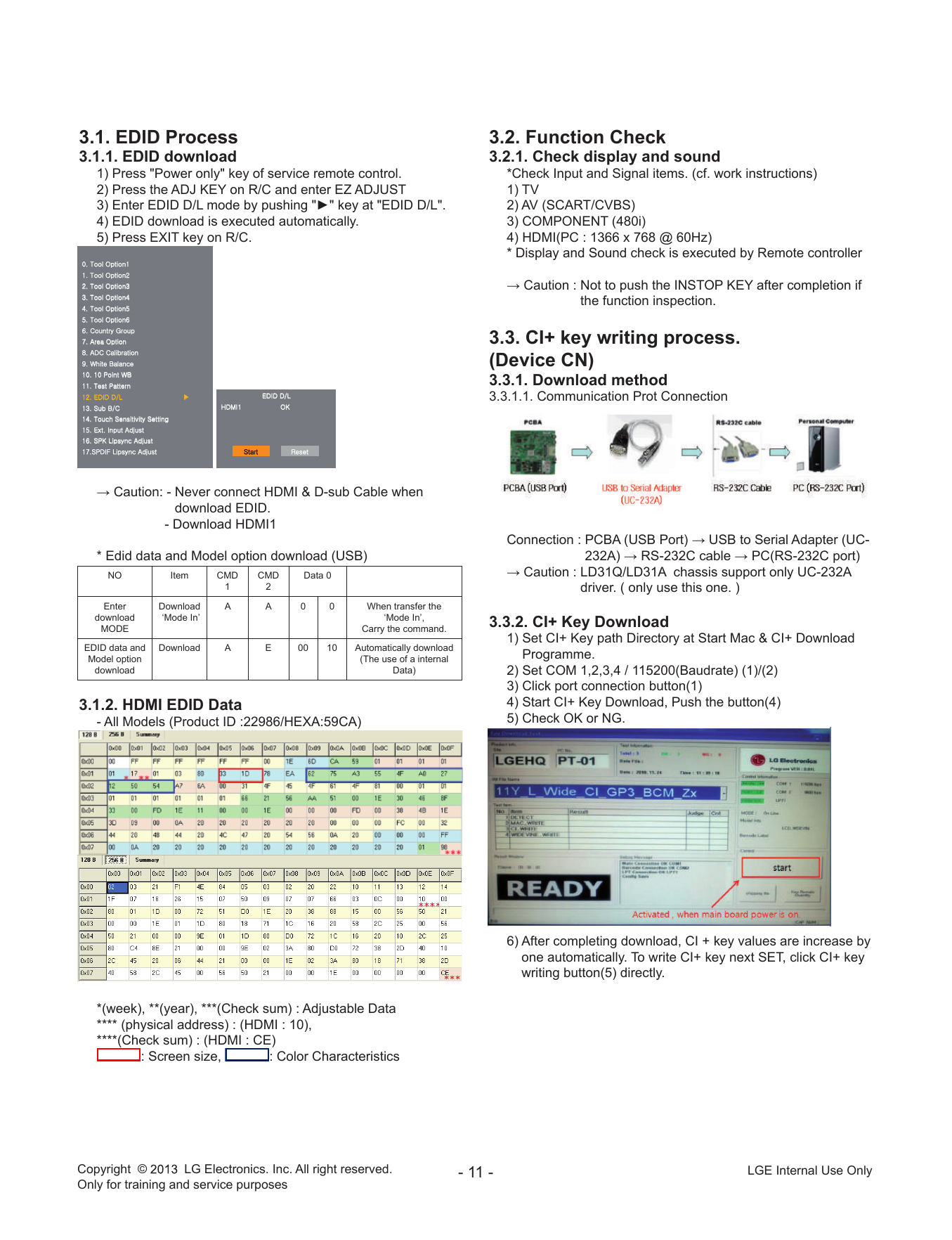

3.1. EDID Process 3.2. Function Check 3.1.1. EDID download 3.2.1. Check display and sound 1) Press "Power only" key of service remote control. *Check Input and Signal items. (cf. work instructions) 2) Press the ADJ KEY on R/C and enter EZ ADJUST 1) TV 3) Enter EDID D/L mode by pushing "►" key at "EDID D/L". 2) AV (SCART/CVBS) 4) EDID download is executed automatically. 3) COMPONENT (480i) 5) Press EXIT key on R/C. 4) HDMI(PC : 1366 x 768 @ 60Hz) GG * Display and Sound check is executed by Remote controller WUG{––“Gv—›–•XG WUG{––“Gv—›–•XG GG GG XUG{––“Gv—›–•YG XUG{––“Gv—›–•YG GG GG YUG{––“Gv—›–•ZG YUG{––“Gv—›–•ZG GG GG → Caution : Not to push the INSTOP KEY after completion if ZUG{––“Gv—›–•[G ZUG{––“Gv—›–•[G [UG{––“Gv—›–•\G [UG{––“Gv—›–•\G GG GG GG GG the function inspection. \UG{––“Gv—›–•]G \UG{––“Gv—›–•]G GG GG 3.3. CI+ key writing process. ]UGj–œ•›™ ]UGj–œ•›™ Gn™–œ—G Gn™–œ—G ^UGh™ŒˆGv—›–•G ^UGh™ŒˆGv—›–•G GG GG (Device CN) _UGhkjGjˆ“‰™ˆ›–•G _UGhkjGjˆ“‰™ˆ›–•G `UG~›ŒGiˆ“ˆ•ŠŒG `UG~›ŒGiˆ“ˆ•ŠŒG GG GG 3.3.1. Download method XWUGXWGw–•›G~iG XWUGXWGw–•›G~iGGG GG GG XXUG{Œš›Gwˆ››Œ™•G XXUG{Œš›Gwˆ››Œ™•GGGGG GG GG XYUGlkpkGkVsG XYUGlkpkGkVsG ඖG ඖG GG lkpkGkVsG lkpkGkVsG 3.3.1.1. Communication Prot Connection XZUGzœ‰GiVjG XZUGzœ‰GiVjG GG GG oktpXG oktpXGGGGGGGGGGGGGGGGGGGGGGGvrG vrG GG GG X[UG{–œŠGzŒ•š›› X[UG{–œŠGzŒ•š›› GzŒ››•ŽG GzŒ››•ŽG yniG G G G G G G G G G G G G G vrGG GG GG X\UGlŸ›UGp•—œ›Gh‹‘œš›G X\UGlŸ›UGp•—œ›Gh‹‘œš›G GG GG GG X]UGzwrGs—š X]UGzwrGs—š •ŠGh‹‘œš›G •ŠGh‹‘œš›G GG X^UzwkpmGs—š X^UzwkpmGs—š •ŠGh‹‘œš›G •ŠGh‹‘œš›G GG z›ˆ™›G z›ˆ™›G GG yŒšŒ›G yŒšŒ›G GG GG GG GG GG → Caution: - Never connect HDMI & D-sub Cable when download EDID. -D ownload HDMI1 Connection : PCBA (USB Port) → USB to Serial Adapter (UC- * Edid data and Model option download (USB) 232A) → RS-232C cable → PC(RS-232C port) NO Item CMD CMD Data 0 → Caution : LD31Q/LD31A chassis support only UC-232A 1 2 driver. ( only use this one. ) Enter Download A A 0 0 When transfer the download ‘Mode In’ ‘Mode In’, MODE Carry the command. 3.3.2. CI+ Key Download 1) Set CI+ Key path Directory at Start Mac & CI+ Download EDID data and Download A E 00 10 Automatically download Model option (The use of a internal Programme. download Data) 2) Set COM 1,2,3,4 / 115200(Baudrate) (1)/(2) 3) Click port connection button(1) 3.1.2. HDMI EDID Data 4) Start CI+ Key Download, Push the button(4) - All Models (Product ID :22986/HEXA:59CA) 5) Check OK or NG. 6) After completing download, CI + key values are increase by one automatically. To write CI+ key next SET, click CI+ key writing button(5) directly. *(week), **(year), ***(Check sum) : Adjustable Data **** (physical address) : (HDMI : 10), ****(Check sum) : (HDMI : CE) : Screen size, : Color Characteristics Copyright © LG Electronics. Inc. All right reserved. - 11 - LGE Internal Use Only Only for training and service purposes

---

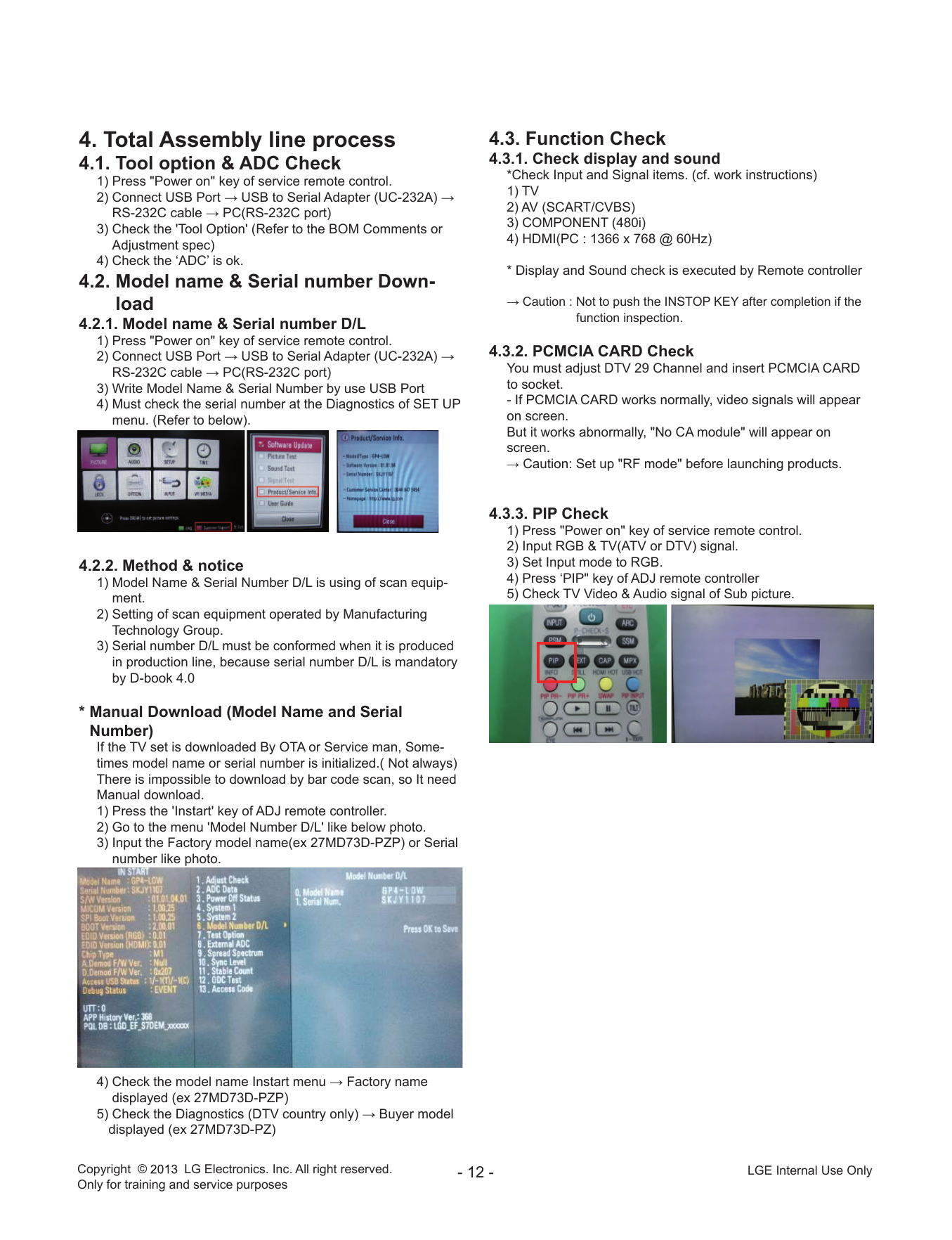

4. Total Assembly line process 4.3. Function Check 4.1. Tool option & ADC Check 4.3.1. Check display and sound 1) Press "Power on" key of service remote control. *Check Input and Signal items. (cf. work instructions) 2) Connect USB Port → USB to Serial Adapter (UC-232A) → 1) TV RS-232C cable → PC(RS-232C port) 2) AV (SCART/CVBS) 3) Check the 'Tool Option' (Refer to the BOM Comments or 3) COMPONENT (480i) Adjustment spec) 4) HDMI(PC : 1366 x 768 @ 60Hz) 4) Check the ‘ADC’ is ok. * Display and Sound check is executed by Remote controller 4.2. Model name & Serial number Down- load → Caution : Not to push the INSTOP KEY after completion if the function inspection. 4.2.1. Model name & Serial number D/L 1) Press "Power on" key of service remote control. 2) Connect USB Port → USB to Serial Adapter (UC-232A) → 4.3.2. PCMCIA CARD Check RS-232C cable → PC(RS-232C port) You must adjust DTV 29 Channel and insert PCMCIA CARD 3) Write Model Name & Serial Number by use USB Port to socket. 4) Must check the serial number at the Diagnostics of SET UP - If PCMCIA CARD works normally, video signals will appear menu. (Refer to below). on screen. But it works abnormally, "No CA module" will appear on screen. → Caution: Set up "RF mode" before launching products. 4.3.3. PIP Check 1) Press "Power on" key of service remote control. 2) Input RGB & TV(ATV or DTV) signal. 4.2.2. Method & notice 3) Set Input mode to RGB. 1) Model Name & Serial Number D/L is using of scan equip- 4) Press ‘PIP" key of ADJ remote controller ment. 5) Check TV Video & Audio signal of Sub picture. 2) Setting of scan equipment operated by Manufacturing Technology Group. 3) Serial number D/L must be conformed when it is produced in production line, because serial number D/L is mandatory by D-book 4.0 * Manual Download (Model Name and Serial Number) If the TV set is downloaded By OTA or Service man, Some- times model name or serial number is initialized.( Not always) There is impossible to download by bar code scan, so It need Manual download. 1) Press the 'Instart' key of ADJ remote controller. 2) Go to the menu 'Model Number D/L' like below photo. 3) Input the Factory model name(ex 27MD73D-PZP) or Serial number like photo. 4) Check the model name Instart menu → Factory name displayed (ex 27MD73D-PZP) 5)Check the Diagnostics (DTV country only) → Buyer model displayed (ex 27MD73D-PZ) Copyright © LG Electronics. Inc. All right reserved. - 12 - LGE Internal Use Only Only for training and service purposes

---

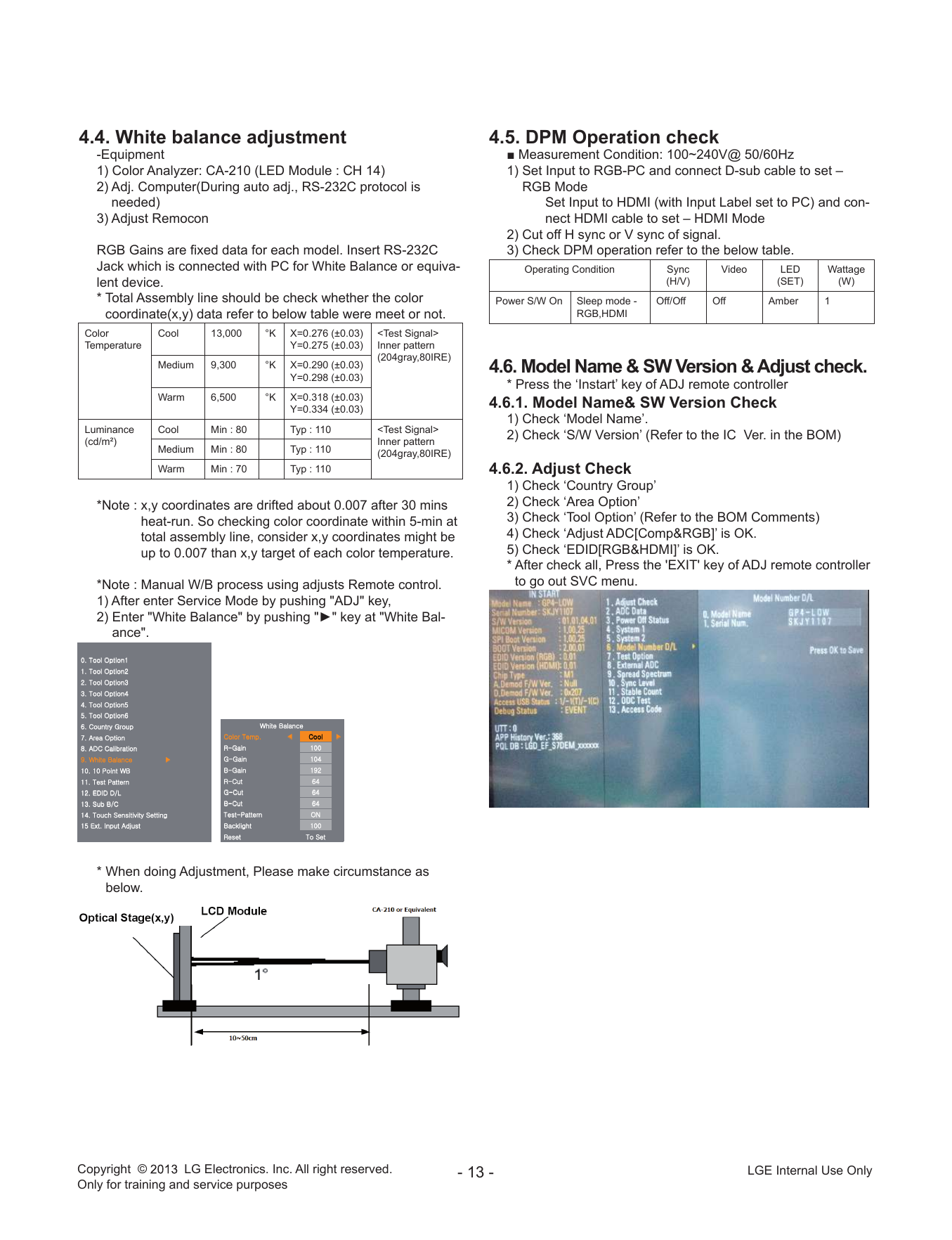

4.4. White balance adjustment 4.5. DPM Operation check -Equipment ■ Measurement Condition: 100~240V@ 50/60Hz 1) Color Analyzer: CA-210 (LED Module : CH 14) 1) Set Input to RGB-PC and connect D-sub cable to set – 2) Adj. Computer(During auto adj., RS-232C protocol is RGB Mode needed) Set Input to HDMI (with Input Label set to PC) and con- 3) Adjust Remocon nect HDMI cable to set – HDMI Mode 2) Cut off H sync or V sync of signal. RGB Gains are fixed data for each model. Insert RS-232C 3) Check DPM operation refer to the below table. Jack which is connected with PC for White Balance or equiva- Operating Condition Sync Video LED Wattage lent device. (H/V) (SET) (W) * Total Assembly line should be check whether the color Power S/W On Sleep mode - Off/Off Off Amber 1 coordinate(x,y) data refer to below table were meet or not. RGB,HDMI Color Cool 13,000 °K X=0.276 (±0.03) Temperature Y=0.275 (±0.03) Inner pattern (204gray,80IRE) Medium 9,300 °K X=0.290 (±0.03) Y=0.298 (±0.03) 4.6. Model Name & SW Version & Adjust check. * Press the ‘Instart’ key of ADJ remote controller Warm 6,500 °K X=0.318 (±0.03) Y=0.334 (±0.03) 4.6.1. Model Name& SW Version Check 1) Check ‘Model Name’. Luminance Cool Min : 80 Typ : 110 (cd/m²) Inner pattern 2) Check ‘S/W Version’ (Refer to the IC Ver. in the BOM) Medium Min : 80 Typ : 110 (204gray,80IRE) Warm Min : 70 Typ : 110 4.6.2. Adjust Check 1) Check ‘Country Group’ *Note : x ,y coordinates are drifted about 0.007 after 30 mins 2) Check ‘Area Option’ heat-run. So checking color coordinate within 5-min at 3) Check ‘Tool Option’ (Refer to the BOM Comments) total assembly line, consider x,y coordinates might be 4) Check ‘Adjust ADC[Comp&RGB]’ is OK. up to 0.007 than x,y target of each color temperature. 5) Check ‘EDID[RGB&HDMI]’ is OK. * After check all, Press the 'EXIT' key of ADJ remote controller *Note : Manual W/B process using adjusts Remote control. to go out SVC menu. 1) After enter Service Mode by pushing "ADJ" key, 2) Enter "White Balance" by pushing "►" key at "White Bal- ance". G WUG{––“Gv—›–•XG G G XUG{––“Gv—›–•YG G G YUG{––“Gv—›–•ZG G G ZUG{––“Gv—›–•[G G G [UG{––“Gv—›–•\G G G \UG{––“Gv—›–•]G ]UGj–œ•›™ Gn™–œ—G G G ~›ŒGiˆ“ˆ•ŠŒG ^UGh™ŒˆGv—›–•G G G j–“–™G{Œ”—UG ඔG j––“G ඖG _UGhkjGjˆ“‰™ˆ›–•G G G G G G G G G yTnˆ•G G XWWG G `UG~›ŒGiˆ“ˆ•ŠŒG G G G G G G G G G ඖG G G nTnˆ•G G XW[G G XWUGXWGw–•›G~iG G G G iTnˆ•G G X`YG G XXUG{Œš›Gwˆ››Œ™•G G G G G yTjœ›G G ][G G XYUGlkpkGkVsG G G G G G G G G G G G G G G G nTjœ›G G ][G G XZUGzœ‰GiVjG G G iTjœ›G G ][G G X[UG{–œŠGzŒ•š›› GzŒ››•ŽG {Œš›Twˆ››Œ™•G G vuG G X\GlŸ›UGp•—œ›Gh‹‘œš›G iˆŠ’“Ž›G G XWWG G G G G yŒšŒ›G G {–GzŒ›G G * When doing Adjustment, Please make circumstance as below. Copyright © LG Electronics. Inc. All right reserved. - 13 - LGE Internal Use Only Only for training and service purposes

---

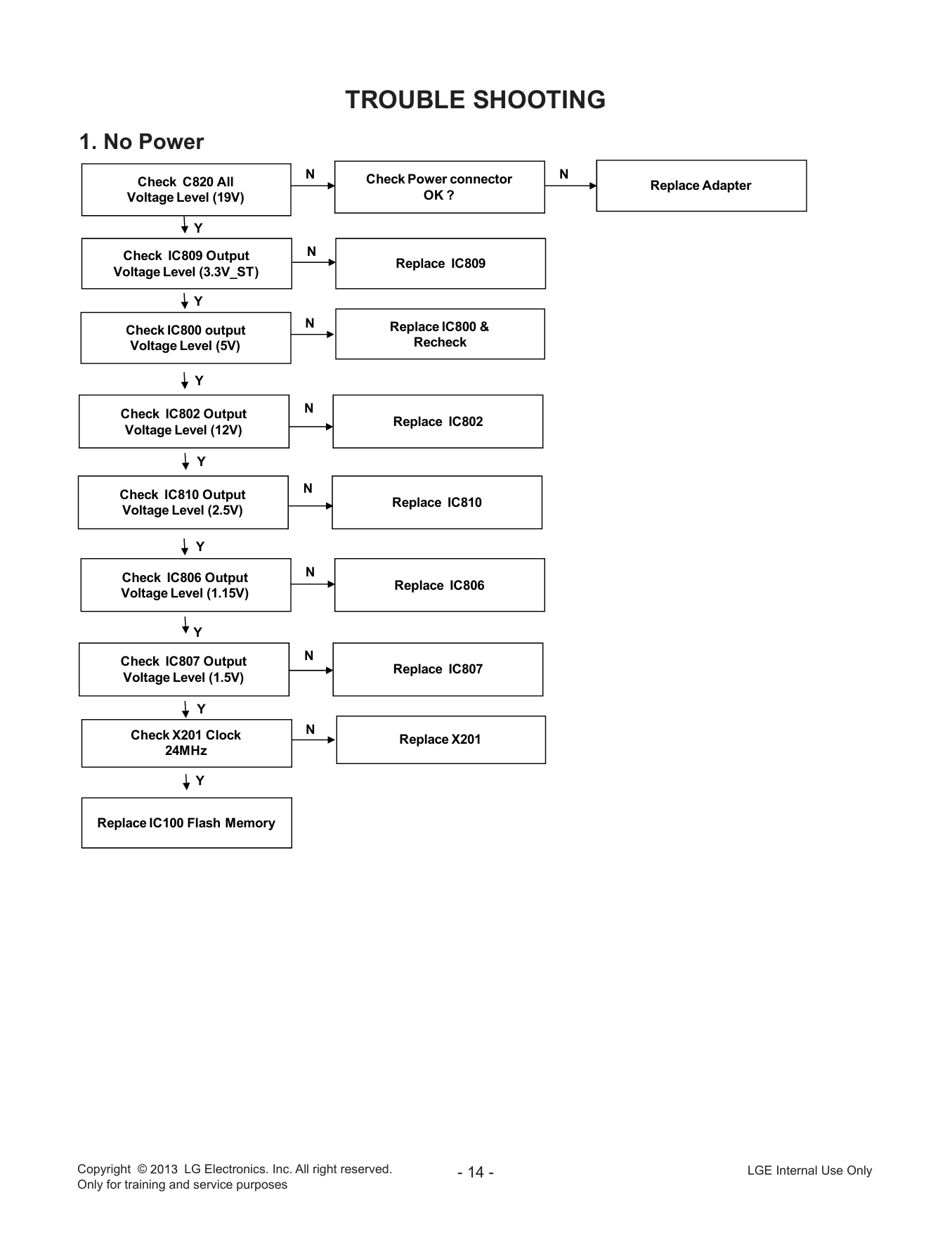

TROUBLE SHOOTING 1. No Power N Check Power connector N Check C820 All Replace Adapter Voltage Level (19V) OK ? Y Check IC809 Output N Replace IC809 Voltage Level (3.3V_ST) Y N Replace IC800 & Check IC800 output Voltage Level (5V) Recheck Y Check IC802 Output N Replace IC802 Voltage Level (12V) Y Check IC810 Output N Replace IC810 Voltage Level (2.5V) Y Check IC806 Output N Replace IC806 Voltage Level (1.15V) Y Check IC807 Output N Replace IC807 Voltage Level (1.5V) Y Check X201 Clock N Replace X201 24MHz Y Replace IC100 Flash Memory Copyright © LG Electronics. Inc. All right reserved. - 14 - LGE Internal Use Only Only for training and service purposes

---

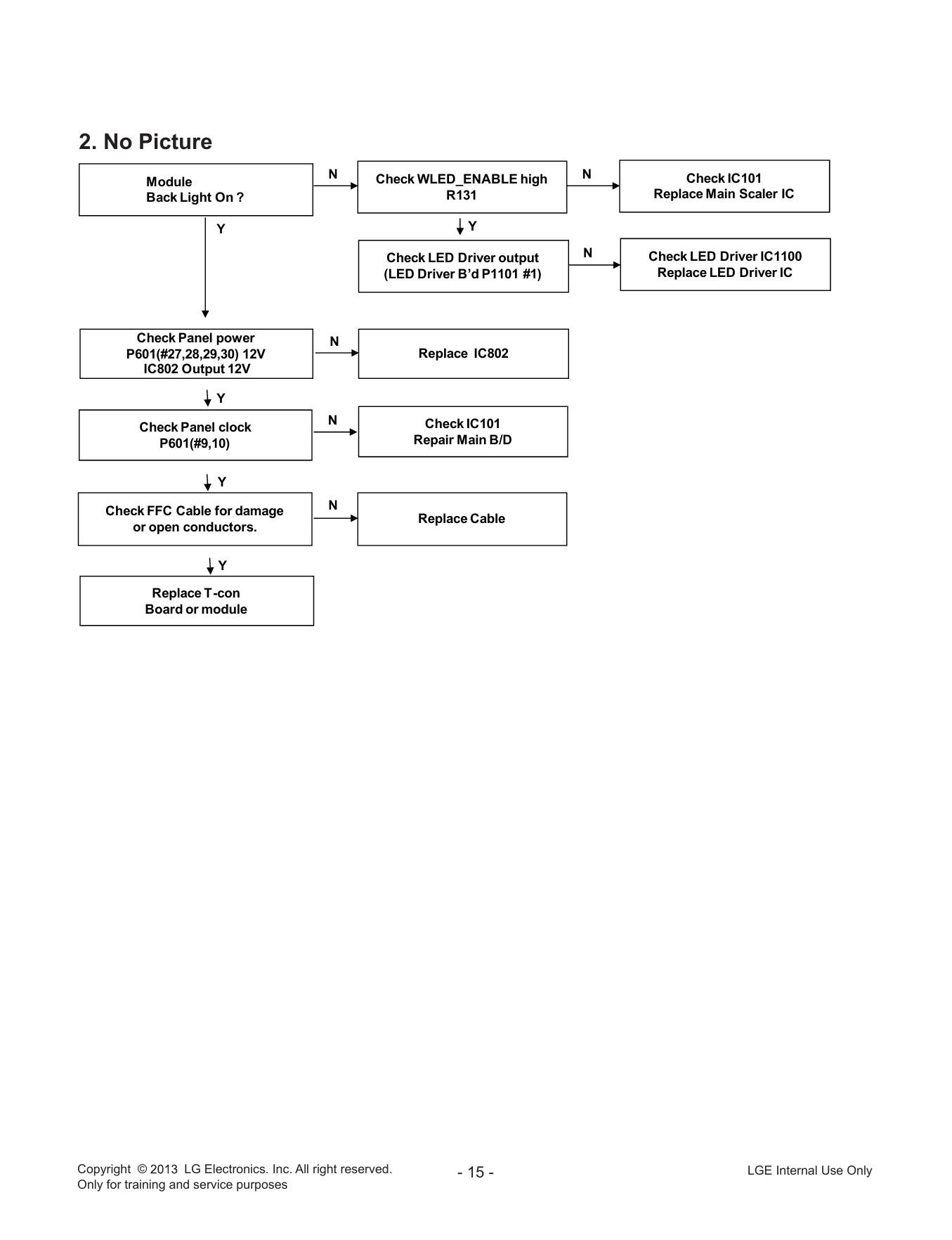

2. No Picture N Check WLED_ENABLE high N Check IC101 Module Back Light On ? R131 Replace Main Scaler IC Y Y Check LED Driver output N Check LED Driver IC1100 (LED Driver B’d P1101 #1) Replace LED Driver IC Check Panel power N P601(#27,28,29,30) 12V Replace IC802 IC802 Output 12V Y N Check IC101 Check Panel clock P601(#9,10) Repair Main B/D Y Check FFC Cable for damage N Replace Cable or open conductors. Y Replace T-con Board or module Copyright © LG Electronics. Inc. All right reserved. - 15 - LGE Internal Use Only Only for training and service purposes

---

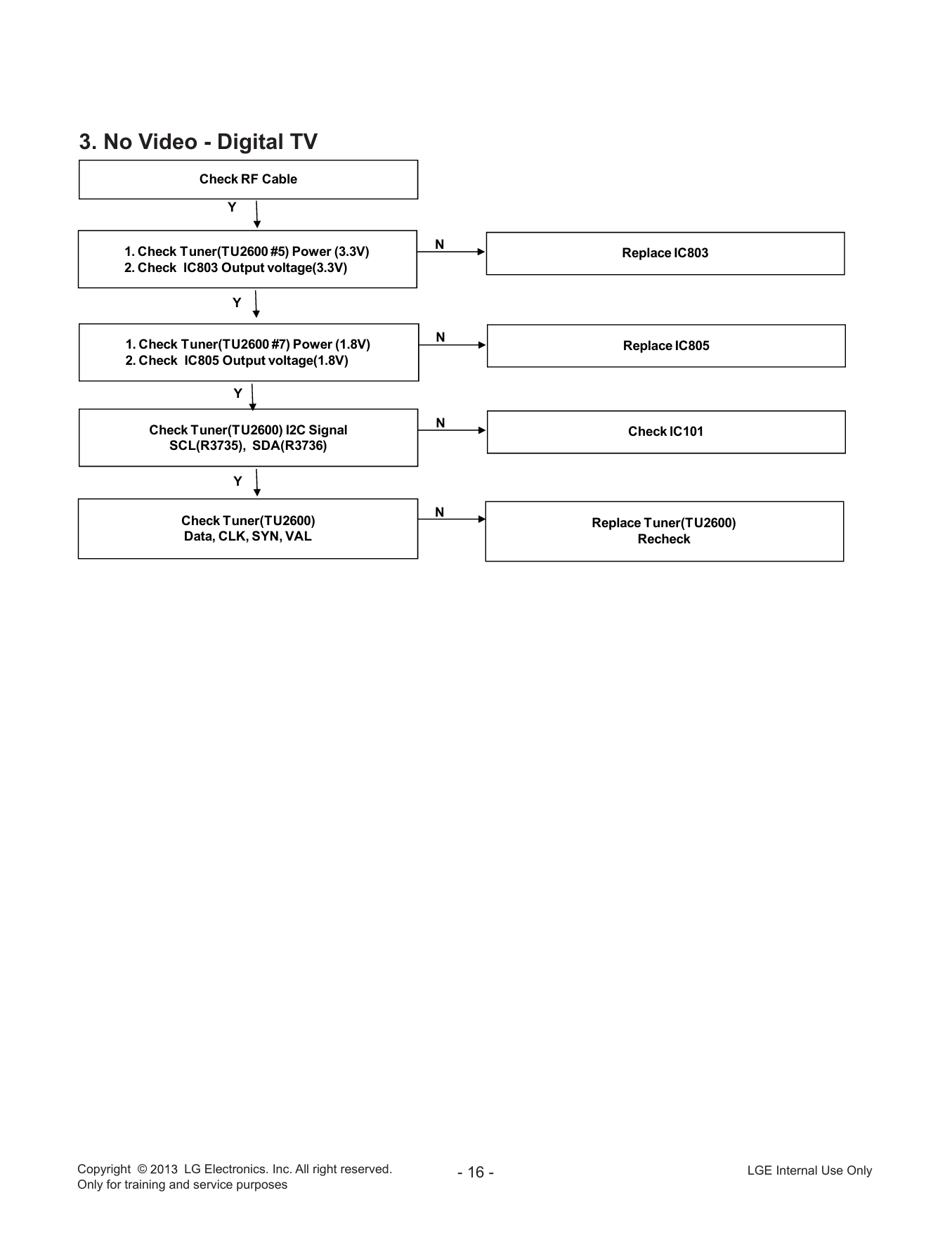

3. No Video - Digital TV Check RF Cable Y N 1. Check Tuner(TU2600 #5) Power (3.3V) Replace IC803 2. Check IC803 Output voltage(3.3V) Y N 1. Check Tuner(TU2600 #7) Power (1.8V) Replace IC805 2. Check IC805 Output voltage(1.8V) Y N Check Tuner(TU2600) I2C Signal Check IC101 SCL(R3735), SDA(R3736) Y N Check Tuner(TU2600) Replace Tuner(TU2600) Data, CLK, SYN, VAL Recheck Copyright © LG Electronics. Inc. All right reserved. - 16 - LGE Internal Use Only Only for training and service purposes

---

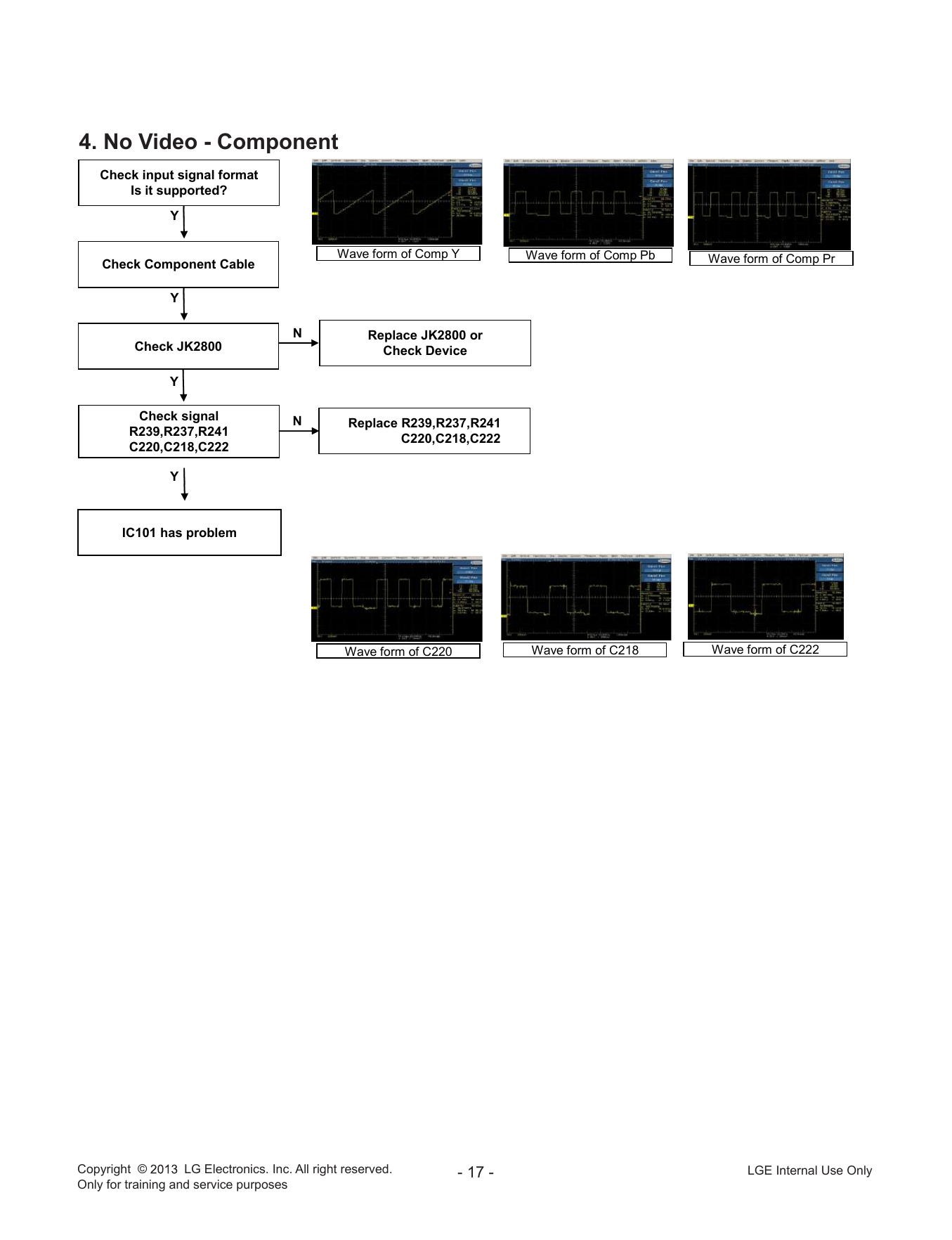

4. No Video - Component Check input signal format Is it supported? Y Wave form of Comp Y Wave form of Comp Pb Wave form of Comp Pr Check Component Cable Y N Replace JK2800 or Check JK2800 Check Device Y Check signal N Replace R239,R237,R241 R239,R237,R241 C220,C218,C222 C220,C218,C222 Y IC101 has problem Wave form of C220 Wave form of C218 Wave form of C222 Copyright © LG Electronics. Inc. All right reserved. - 17 - LGE Internal Use Only Only for training and service purposes

---

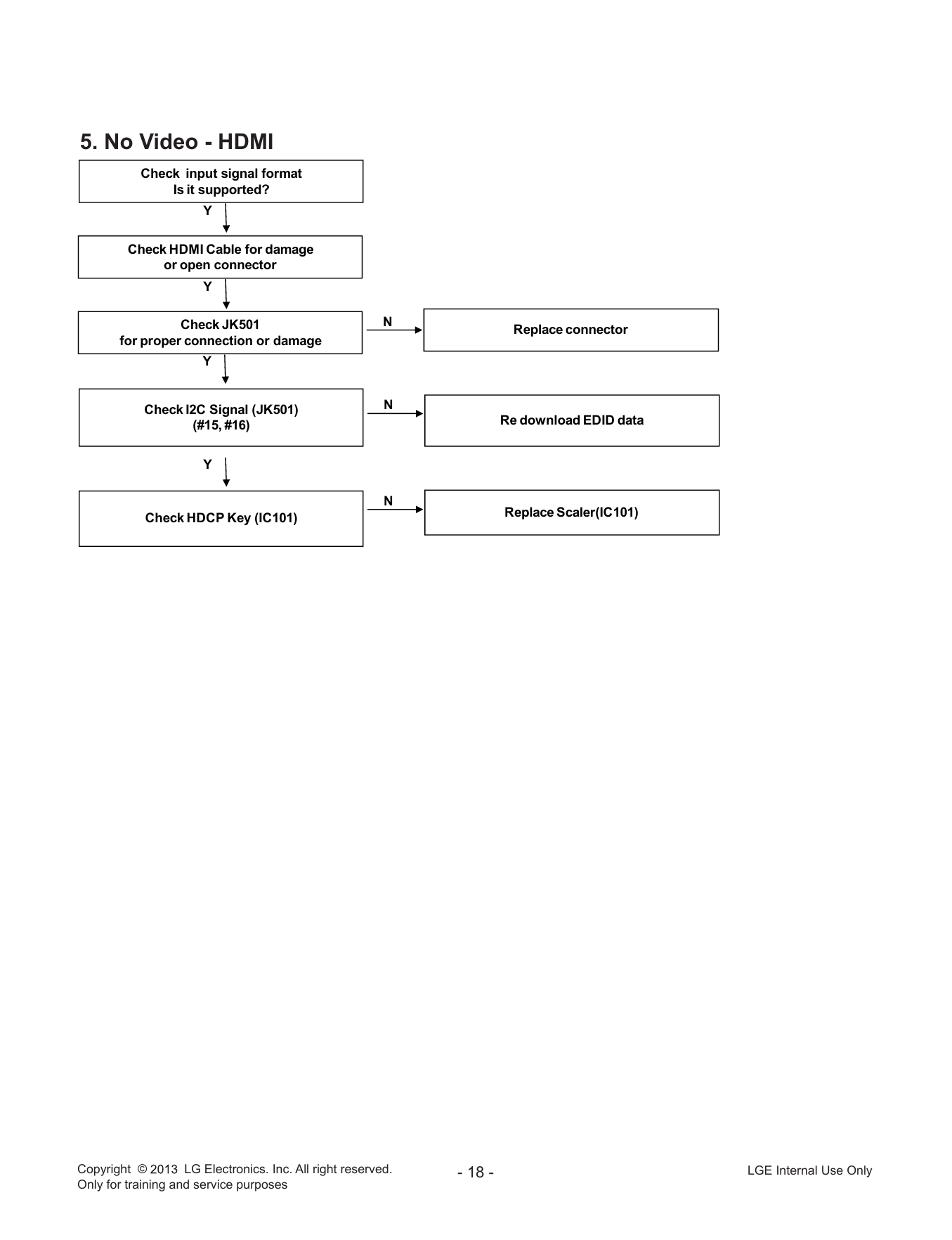

5. No Video - HDMI Check input signal format Is it supported? Y Check HDMI Cable for damage or open connector Y Check JK501 N Replace connector for proper connection or damage Y Check I2C Signal (JK501) N (#15, #16) Re download EDID data Y N Check HDCP Key (IC101) Replace Scaler(IC101) Copyright © LG Electronics. Inc. All right reserved. - 18 - LGE Internal Use Only Only for training and service purposes

---

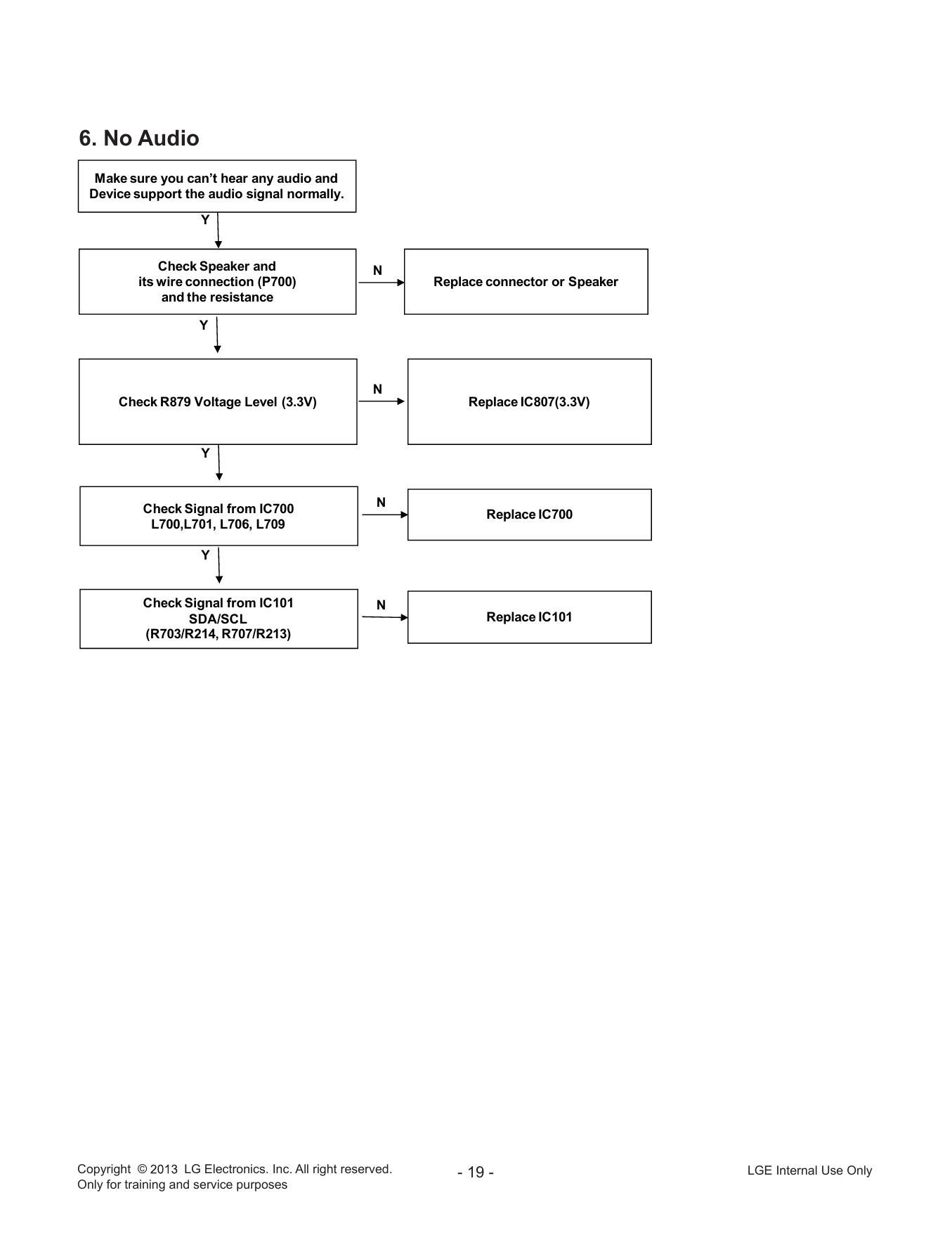

6. No Audio Make sure you can’t hear any audio and Device support the audio signal normally. Y Check Speaker and N its wire connection (P700) Replace connector or Speaker and the resistance Y N Check R879 Voltage Level (3.3V) Replace IC807(3.3V) Y Check Signal from IC700 N Replace IC700 L700,L701, L706, L709 Y Check Signal from IC101 N SDA/SCL Replace IC101 (R703/R214, R707/R213) Copyright © LG Electronics. Inc. All right reserved. - 19 - LGE Internal Use Only Only for training and service purposes

---

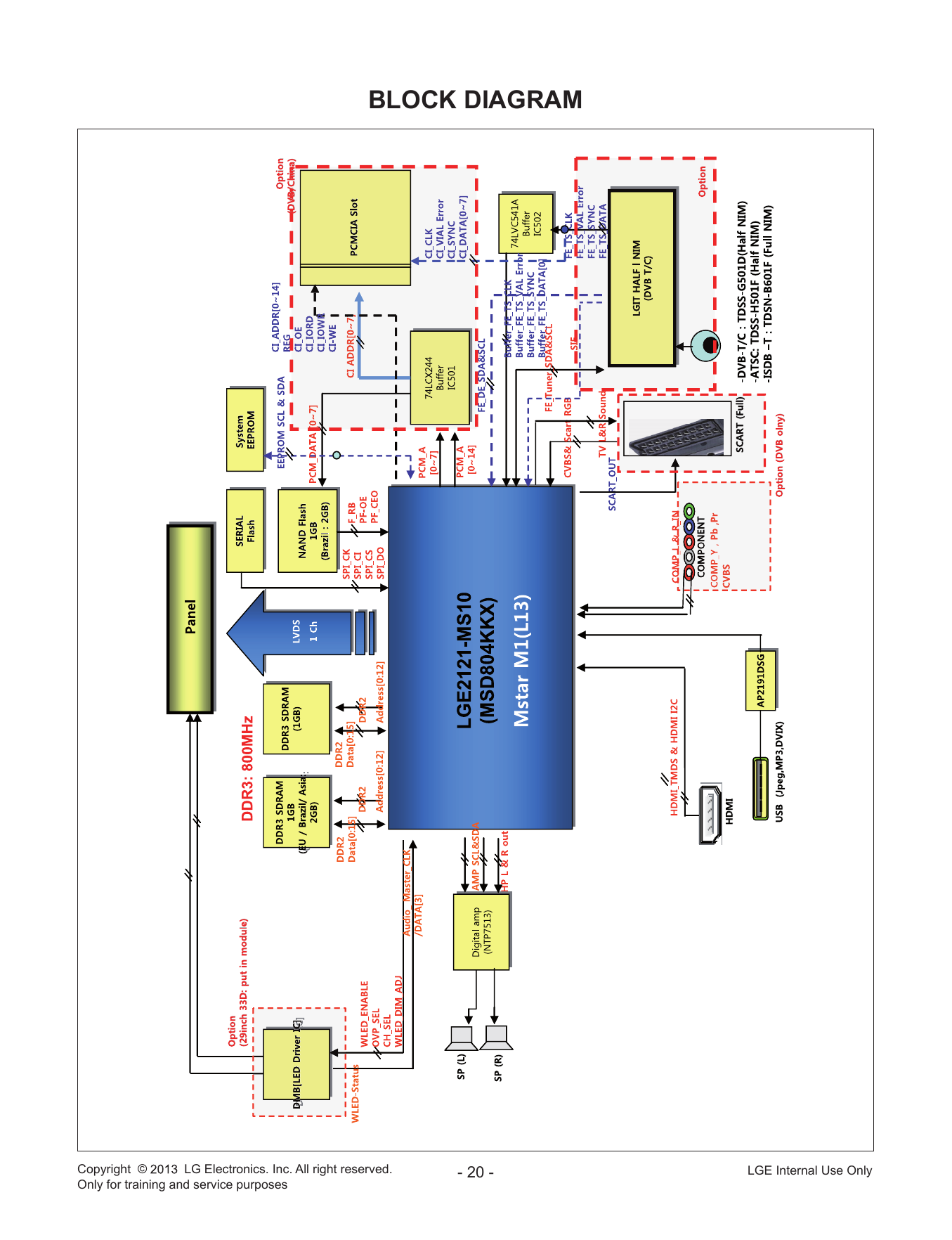

BLOCK DIAGRAM Copyright © LG Electronics. Inc. All right reserved. - 20 - LGE Internal Use Only Only for training and service purposes

---

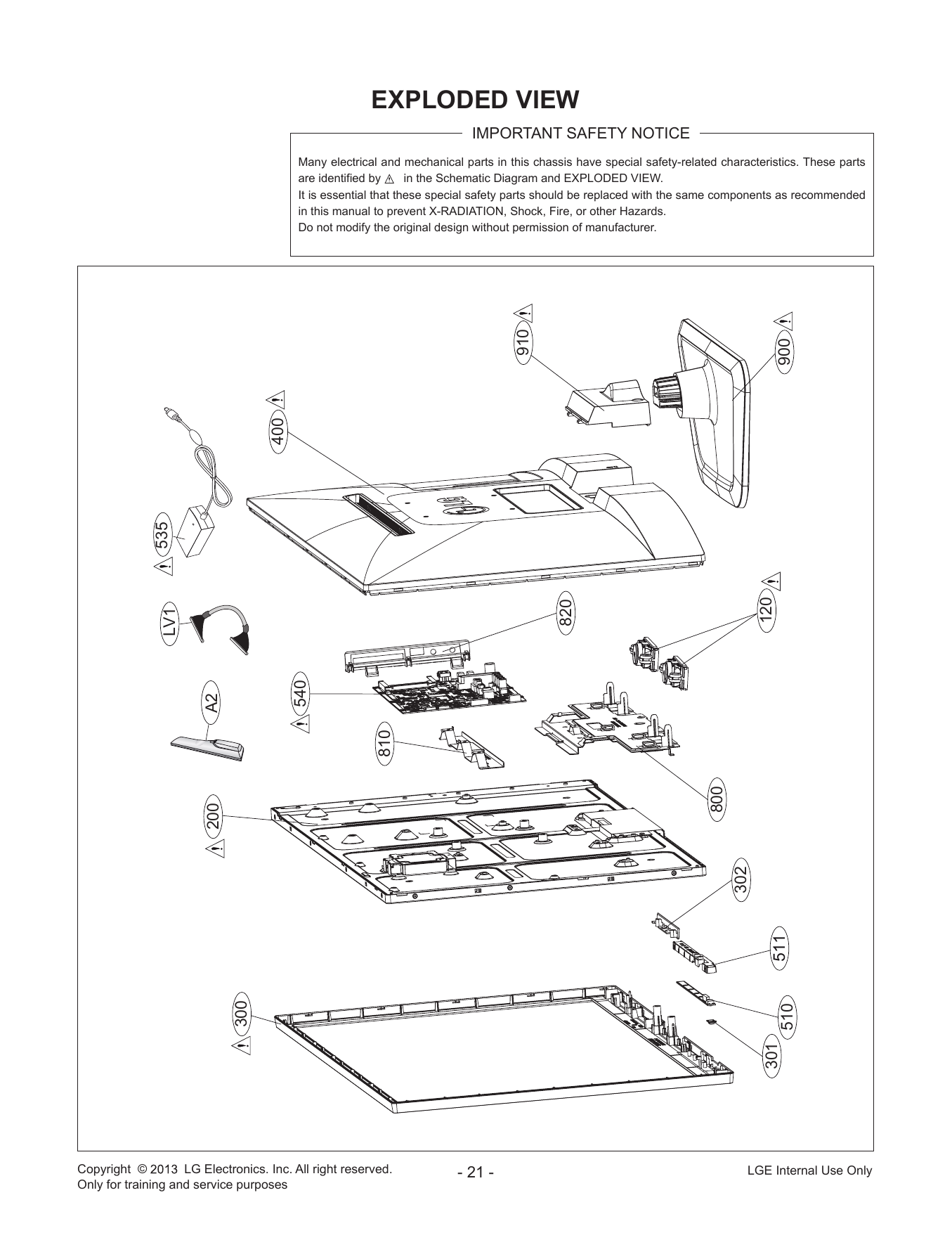

EXPLODED VIEW IMPORTANT SAFETY NOTICE Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and EXPLODED VIEW. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer. 910 900 400 535 120 820 LV1 540 A2 810 800 200 302 511 300 510 301 Copyright © LG Electronics. Inc. All right reserved. - 21 - LGE Internal Use Only Only for training and service purposes

---

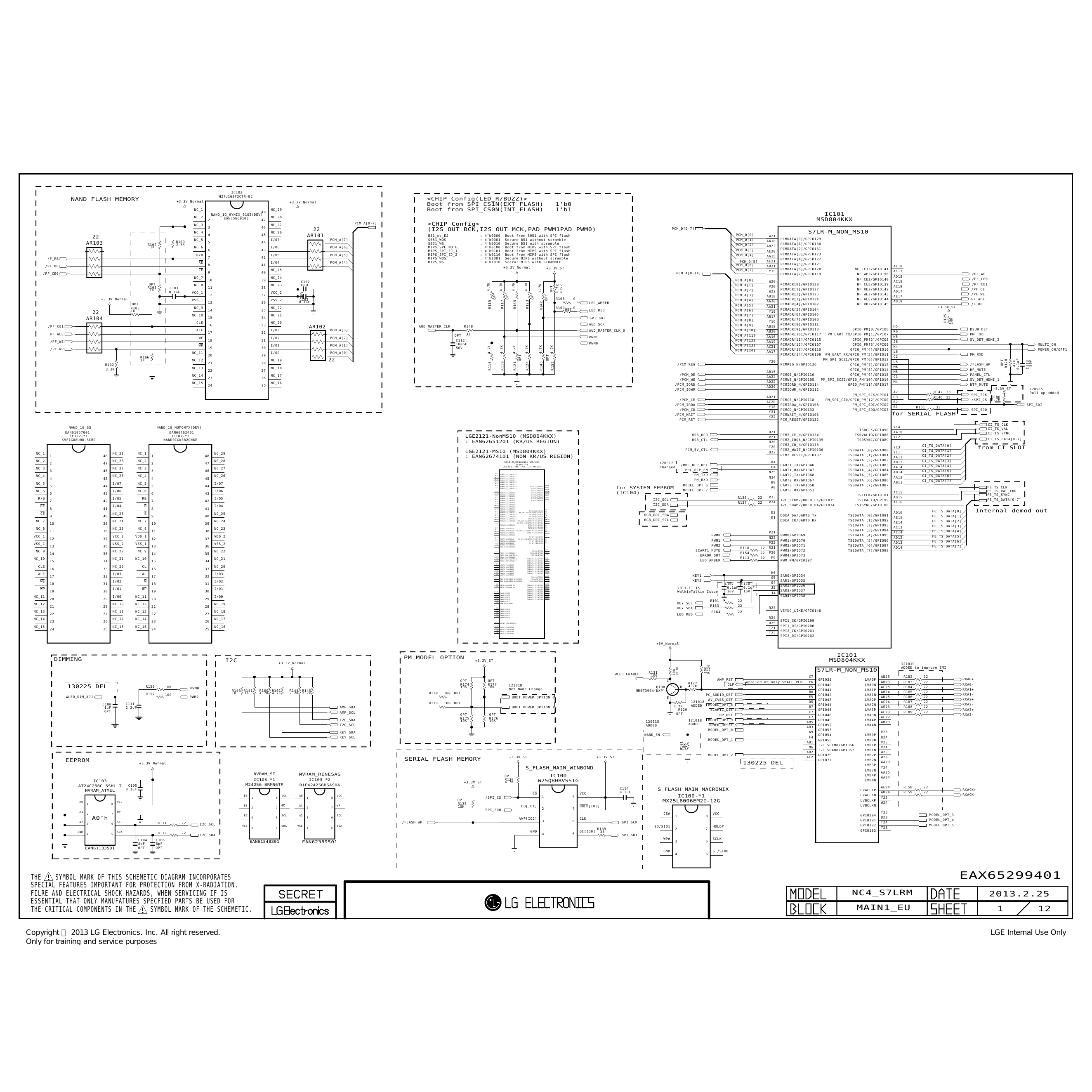

IC102 H27U1G8F2CTR-BC NAND FLASH MEMORY +3.3V_Normal +3.3V_Normal Boot from SPI CS1N(EXT_FLASH) 1’b0 NC_1 1 48 NC_29 Boot from SPI_CS0N(INT_FLASH) 1’b1 NAND_1G_HYNIX_9103(DEV) IC101 NC_2 EAN35669103 NC_28 2 47 MSD804KKX NC_3 NC_27 PCM_A[0-7] 3 46 PCM_D[0-7] 22 (I2S_OUT_BCK,I2S_OUT_MCK,PAD_PWM1PAD_PWM0) NC_4 NC_26 S7LR-M_NON_MS10 4 45 AR101 B51_no_EJ : 4’b0000 Boot from 8051 with SPI flash PCM_D[0] W21 22 SB51_WOS : 4’b0001 Secure B51 without scramble PCMDATA[0]/GPIO129 NC_5 I/O7 PCM_A[7] PCM_D[1] AA18 R109 5 44 AR103 R107 3.9K SB51_WS : 4’b0010 Secure B51 with scramble PCM_D[2] PCMDATA[1]/GPIO130 1K NC_6 I/O6 PCM_A[6] MIPS_SPE_NO_EJ : 4’b0100 Boot from MIPS with SPI flash AB22 6 43 PCM_D[3] PCMDATA[2]/GPIO131 MIPS_SPI_EJ_1 : 4’b0101 Boot from MIPS with SPI flash AE20 R/B I/O5 PCM_A[5] MIPS_SPI_EJ_2 : 4’b0110 Boot from MIPS with SPI flash PCM_D[4] PCMDATA[3]/GPIO123 7 42 AA15 /F_RB MIPS_WOS : 4’b1001 Secure MIPS without scramble PCMDATA[4]/GPIO122 RE I/O4 PCM_A[4] MIPS_WS : 4’b1010 Scerur MIPS with SCRAMBLE PCM_D[5] AE21 8 41 PCM_D[6] PCMDATA[5]/GPIO121 /PF_OE +3.3V_Normal AB21 AE18 +3.3V_ST PCMDATA[6]/GPIO120 NF_CE1Z/GPIO141 CE NC_25 PCM_D[7] Y15 AC17 /PF_CE0 9 40 PCM_A[0-14] PCMDATA[7]/GPIO119 NF_WPZ/GPIO196 /PF_WP NC_7 NC_24 AD18 10 39 PCM_A[0] NF_CEZ/GPIO140 /PF_CE0 C102 W20 AC18 4.7K 4.7K 4.7K 4.7K OPT PCMADR[0]/GPIO128 NF_CLE/GPIO139 /PF_CE1 4.7K NC_8 NC_23 10uF PCM_A[1] 4.7K R152 V20 AC19 OPT R108 C101 11 38 1K PCM_A[2] PCMADR[1]/GPIO127 NF_REZ/GPIO142 /PF_OE 0.1uF VCC_1 VCC_2 W22 AD17 10V OPT OPT OPT 12 37 PCM_A[3] PCMADR[2]/GPIO125 NF_WEZ/GPIO143 /PF_WE OPT AB18 AE17 +3.3V_Normal VSS_1 VSS_2 C103 R103 0 PCM_A[4] PCMADR[3]/GPIO124 NF_ALE/GPIO144 PF_ALE R115 R117 R165 R123 0.1uF AA20 AD19 R142 13 36 LED_AMBER OPT PCM_A[5] PCMADR[4]/GPIO102 NF_RBZ/GPIO145 /F_RB NC_9 NC_22 R100 OPT 0 AA21 +3.3V_ST R105 PCMADR[5]/GPIO104 1K 14 35 LED_RED PCM_A[6] Y19 22 PCMADR[6]/GPIO105 R125 NC_10 NC_21 PCM_A[7] AB17 AR104 15 34 SPI_SDI 10K PCM_A[8] PCMADR[7]/GPIO106 CLE NC_20 Y16 16 33 AUD_SCK PCM_A[9] PCMADR[8]/GPIO111 /PF_CE1 AR102 AUD_MASTER_CLK R148 AB19 PCMADR[9]/GPIO113 GPIO_PM[0]/GPIO6 H5 DSUB_DET ALE I/O3 PCM_A[3] AUD_MASTER_CLK_0 PCM_A[10] AB20 K6 PF_ALE 17 32 33 OPT PCM_A[11] PCMADR[10]/GPIO117 PM_UART_TX/GPIO_PM[1]/GPIO7 PM_TXD WE I/O2 PCM_A[2] PWM1 AA16 K5 18 31 C112 PCM_A[12] PCMADR[11]/GPIO115 GPIO_PM[2]/GPIO8 5V_DET_HDMI_2 /PF_WE PWM0 AA19 J6 WP I/O1 PCM_A[1] 100pF PCM_A[13] PCMADR[12]/GPIO107 GPIO_PM[3]/GPIO9 MULTI_ON 4.7K 4.7K 4.7K 4.7K 4.7K 4.7K 19 30 50V AC21 K4 /PF_WP PCM_A[14] PCMADR[13]/GPIO110 GPIO_PM[4]/GPIO10 POWER_ON/OFF1 NC_11 I/O0 PCM_A[0] AA17 L6 20 29 PCMADR[14]/GPIO109 PM_UART_RX/GPIO_PM[5]/GPIO11 PM_RXD OPT OPT R106 C2 22 PM_SPI_SCZ1/GPIO_PM[6]/GPIO12 0.1uF R128 1K NC_12 NC_19 OPT 50V 47K C113 Y20 L5 R116 R118 R121 R124 R143 R153 21 28 R102 /PCM_REG PCMREG_N/GPIO126 GPIO_PM[7]/GPIO13 /FLASH_WP NC_13 NC_18 M6 3.3K 22 27 GPIO_PM[8]/GPIO14 HP_MUTE AB15 M5 NC_14 NC_17 /PCM_OE PCMOE_N/GPIO116 GPIO_PM[9]/GPIO15 PANEL_CTL 23 26 AA22 C1 /PCM_WE PCMWE_N/GPIO195 PM_SPI_SCZ2/GPIO_PM[10]/GPIO16 5V_DET_HDMI_1 NC_15 NC_16 AD22 M4 24 25 /PCM_IORD PCMIORD_N/GPIO114 GPIO_PM[11]/GPIO17 NTP_MUTE AD20 /PCM_IOWR PCMIOWR_N/GPIO112 +3.3V_ST 120915 A2 R147 33 Pull up added PM_SPI_SCK/GPIO1 SPI_SCK AD21 D3 R146 33 R180 /PCM_CE PCMCE_N/GPIO118 PM_SPI_CZ0/GPIO_PM[12]/GPIO0 /SPI_CS 4.7K AC20 B2 /PCM_IRQA PCMIRQA_N/GPIO108 PM_SPI_SDI/GPIO2 SPI_SDI Y18 B1 R151 33 /PCM_CD PCMCD_N/GPIO133 PM_SPI_SDO/GPIO3 SPI_SDO Y21 /PCM_WAIT PCMWAIT_N/GPIO103 for SERIAL FLASH Y22 PCM_RST PCM_RESET/GPIO132 CI_TS_CLK NAND_1G_SS NAND_1G_NUMONYX(DEV) Y14 TS0CLK/GPIO90 CI_TS_VAL EAN61857001 EAN60762401 U21 AA10 CI_TS_SYNC USB_OCD PCM2_CE_N/GPIO134 TS0VALID/GPIO88 IC102-*1 IC102-*2 LGE2121-NonMS10 (MSD804KKX) V21 Y12 CI_TS_DATA[0-7] K9F1G08U0D-SCB0 NAND01GW3B2CN6E USB_CTL PCM2_IRQA_N/GPIO135 TS0SYNC/GPIO89 : EAN62651201 (KR/US REGION) R20 PCM2_CD_N/GPIO138 CI_TS_DATA[0] T20 Y13 from CI SLOT PCM_5V_CTL PCM2_WAIT_N/GPIO136 TS0DATA_[0]/GPIO80 CI_TS_DATA[1] NC_1 NC_29 NC_1 NC_29 LGE2121-MS10 (MSD804KKX) U22 Y11 1 48 1 48 PCM2_RESET/GPIO137 TS0DATA_[1]/GPIO81 CI_TS_DATA[2] : EAN62674101 (NON_KR/US REGION) AA12 NC_2 NC_28 NC_2 NC_28 TS0DATA_[2]/GPIO82 CI_TS_DATA[3] 2 47 2 47 S7LR-M_MS10(NON KR/US) 120917 D4 AB12 IC101-*1 /MHL_OCP_DET UART1_TX/GPIO46 TS0DATA_[3]/GPIO83 CI_TS_DATA[4] NC_3 NC_27 NC_3 NC_27 LGE2121-MS (M1_L13_MS10) Changed E4 AA14 3 46 3 46 MHL_OCP_EN UART1_RX/GPIO47 TS0DATA_[4]/GPIO84 CI_TS_DATA[5] W21 N25 AB14 NC_4 NC_26 NC_4 NC_26 AA18 PCMDATA[0]/GPIO129 PM_TXD UART2_TX/GPIO68 TS0DATA_[5]/GPIO85 CI_TS_DATA[6] 4 45 4 45 AB22 PCMDATA[1]/GPIO130 PCMDATA[2]/GPIO131 N24 AA13 AE20 AA15 PCMDATA[3]/GPIO123 PM_RXD UART2_RX/GPIO67 TS0DATA_[6]/GPIO86 CI_TS_DATA[7] NC_5 I/O7 NC_5 I/O7 AE21 PCMDATA[4]/GPIO122 B8 AB11 5 44 5 44 AB21 PCMDATA[5]/GPIO121 AE18 MODEL_OPT_6 UART3_TX/GPIO50 TS0DATA_[7]/GPIO87 Y15 PCMDATA[6]/GPIO120 PCMDATA[7]/GPIO119 NF_CE1Z/GPIO141 NF_WPZ/GPIO196 AC17 for SYSTEM EEPROM A8 FE_TS_CLK NC_6 I/O6 NC_6 I/O6 W20 NF_CEZ/GPIO140 AD18 AC18 MODEL_OPT_7 UART3_RX/GPIO51 FE_TS_VAL_ERR 6 43 6 43 V20 PCMADR[0]/GPIO128 NF_CLE/GPIO139 AC19 (IC104) AC15 W22 PCMADR[1]/GPIO127 NF_REZ/GPIO142 AD17 TS1CLK/GPIO101 FE_TS_SYNC R/B I/O5 RB I/O5 AB18 PCMADR[2]/GPIO125 PCMADR[3]/GPIO124 NF_WEZ/GPIO143 NF_ALE/GPIO144 AE17 R136 22 P23 AD15 7 42 7 42 AA20 AA21 PCMADR[4]/GPIO102 NF_RBZ/GPIO145 AD19 I2C_SCL I2C_SCKM2/DDCR_CK/GPIO75 TS1VALID/GPI99 FE_TS_DATA[0-7] Y19 PCMADR[5]/GPIO104 R137 22 P24 AC16 RE I/O4 R I/O4 AB17 PCMADR[6]/GPIO105 PCMADR[7]/GPIO106 I2C_SDA I2C_SDAM2/DDCR_DA/GPIO74 TS1SYNC/GPIO100 Y16 8 41 8 41 PCMADR[8]/GPIO111 CE AB19 AB20 PCMADR[9]/GPIO113 PCMADR[10]/GPIO117 GPIO_PM[0]/GPIO6 PM_UART_TX/GPIO_PM[1]/GPIO7 H5 K6 D2 AD16 FE_TS_DATA[0] Internal demod out NC_25 E NC_25 AA16 K5 RGB_DDC_SDA 9 40 9 40 AA19 PCMADR[11]/GPIO115 GPIO_PM[2]/GPIO8 J6 DDCA_DA/UART0_TX TS1DATA_[0]/GPIO91 FE_TS_DATA[1] AC21 PCMADR[12]/GPIO107 PCMADR[13]/GPIO110 GPIO_PM[3]/GPIO9 GPIO_PM[4]/GPIO10 K4 D1 AE15 NC_7 NC_24 NC_7 NC_24 AA17 PCMADR[14]/GPIO109 PM_UART_RX/GPIO_PM[5]/GPIO11 L6 C2 RGB_DDC_SCL DDCA_CK/UART0_RX TS1DATA_[1]/GPIO92 FE_TS_DATA[2] 10 39 10 39 Y20 PM_SPI_SCZ1/GPIO_PM[6]/GPIO12 L5 AE14 PCMREG_N/GPIO126 GPIO_PM[7]/GPIO13 M6 TS1DATA_[2]/GPIO93 FE_TS_DATA[3] NC_8 NC_23 NC_8 NC_23 AB15 PCMOE_N/GPIO116 GPIO_PM[8]/GPIO14 GPIO_PM[9]/GPIO15 M5 AC13 11 38 11 38 AA22 AD22 PCMWE_N/GPIO195 PM_SPI_SCZ2/GPIO_PM[10]/GPIO16 C1 M4 TS1DATA_[3]/GPIO94 FE_TS_DATA[4] AD20 PCMIORD_N/GPIO114 GPIO_PM[11]/GPIO17 P21 AC14 VCC_1 VCC_2 VDD_1 VDD_2 PCMIOWR_N/GPIO112 A2 PWM0 PWM0/GPIO69 TS1DATA_[4]/GPIO95 FE_TS_DATA[5] 12 37 12 37 AD21 PCMCE_N/GPIO118 PM_SPI_SCK/GPIO1 PM_SPI_CZ0/GPIO_PM[12]/GPIO0 D3 N23 AD12 AC20 Y18 PCMIRQA_N/GPIO108 PM_SPI_SDI/GPIO2 B2 B1 PWM1 PWM1/GPIO70 TS1DATA_[5]/GPIO96 FE_TS_DATA[6] VSS_1 VSS_2 VSS_1 VSS_2 Y21 PCMCD_N/GPIO133 PM_SPI_SDO/GPIO3 P22 AD13 13 36 13 36 Y22 PCMWAIT_N/GPIO103 PWM2 PWM2/GPIO71 TS1DATA_[6]/GPIO97 FE_TS_DATA[7] PCM_RESET/GPIO132 R110 22 R21 AD14 NC_9 NC_22 NC_9 NC_22 U21 TS0CLK/GPIO90 Y14 AA10 SCART1_MUTE PWM3/GPIO72 TS1DATA_[7]/GPIO98 14 35 14 35 V21 PCM2_CE_N/GPIO134 TS0VALID/GPIO88 Y12 R154 22 P20 R20 PCM2_IRQA_N/GPIO135 TS0SYNC/GPIO89 ERROR_OUT PWM4/GPIO73 NC_10 NC_21 NC_10 NC_21 T20 PCM2_CD_N/GPIO138 PCM2_WAIT_N/GPIO136 TS0DATA_[0]/GPIO80 Y13 R113 22 F6 15 34 15 34 U22 PCM2_RESET/GPIO137 TS0DATA_[1]/GPIO81 Y11 AA12 LED_AMBER PWM_PM/GPIO197 TS0DATA_[2]/GPIO82 D4 AB12 UART1_TX/GPIO46 TS0DATA_[3]/GPIO83 CLE NC_20 CL NC_20 N25 E4 UART1_RX/GPIO47 TS0DATA_[4]/GPIO84 AA14 AB14 16 33 16 33 N24 UART2_TX/GPIO68 TS0DATA_[5]/GPIO85 AA13 UART2_RX/GPIO67 TS0DATA_[6]/GPIO86 B8 AB11 ALE I/O3 AL I/O3 A8 UART3_TX/GPIO50 TS0DATA_[7]/GPIO87 H6 17 32 17 32 UART3_RX/GPIO51 AC15 KEY1 SAR0/GPIO34 P23 I2C_SCKM2/DDCR_CK/GPIO75 TS1CLK/GPIO101 TS1VALID/GPI99 AD15 G5 WE I/O2 W I/O2 P24 I2C_SDAM2/DDCR_DA/GPIO74 TS1SYNC/GPIO100 AC16 KEY2 SAR1/GPIO35 18 31 18 31 D2 AD16 C107 C110 G4 D1 DDCA_DA/UART0_TX TS1DATA_[0]/GPIO91 AE15 SAR2/GPIO36 WP I/O1 WP I/O1 DDCA_CK/UART0_RX TS1DATA_[1]/GPIO92 TS1DATA_[2]/GPIO93 AE14 2011.11.15 0.1uF 0.1uF J5 19 30 19 30 P21 TS1DATA_[3]/GPIO94 AC13 AC14 WalkieTalkie Issue 16V 16V SAR3/GPIO37 N23 PWM0/GPIO69 TS1DATA_[4]/GPIO95 AD12 J4 NC_11 I/O0 NC_11 I/O0 P22 PWM1/GPIO70 PWM2/GPIO71 TS1DATA_[5]/GPIO96 TS1DATA_[6]/GPIO97 AD13 SAR4/GPIO38 R21 AD14 20 29 20 29 P20 PWM3/GPIO72 TS1DATA_[7]/GPIO98 R101 22 PWM4/GPIO73 F6 NC_12 NC_19 NC_12 NC_19 PWM_PM/GPIO197 KEY_SCL 21 28 21 28 R163 22 H6 SAR0/GPIO34 KEY_SDA R23 NC_13 NC_18 NC_13 NC_18 G5 G4 SAR1/GPIO35 R164 22 VSYNC_LIKE/GPIO146 SAR2/GPIO36 22 27 22 27 J5 J4 SAR3/GPIO37 LED_RED NC_14 NC_17 NC_14 NC_17 SAR4/GPIO38 R24 23 26 23 26 R23 SPI1_CK/GPIO199 VSYNC_LIKE/GPIO146 R25 NC_15 NC_16 NC_15 NC_16 R24 SPI1_DI/GPIO200 24 25 24 25 R25 SPI1_CK/GPIO199 SPI1_DI/GPIO200 T21 T21 T22 SPI2_CK/GPIO201 SPI2_CK/GPIO201 SPI2_DI/GPIO202 T22 SPI2_DI/GPIO202 +5V_Normal IC101 DIMMING PM MODEL OPTION MSD804KKX I2C +3.3V_Normal +3.3V_ST 121019 R126 R130 ADDED to improve EMI 10K S7LR-M_NON_MS10 WLED_ENABLE R131 10K 100 C7 AB25 R182 22 OPT OPT C AMP_RST GPIO39 LVA0P RXA0+ R127 applied on only SMALL PCB E6 AB23 R183 22 R174 R177 121018 OLP GPIO40 LVA0N RXA0- 130225 DEL R156 10K PWM0 10K 10K Net Name Change Q100 B 4.7K F5 AC25 R184 22 RXA1+ R140 R141 R160 R161 R144 R145 MMBT3904(NXP) GPIO41 LVA1P 1K 1K 4.7K 4.7K 2.2K 2.2K R178 100 OPT B6 AB24 R185 22 R157 100 PC_AUDIO_DET GPIO42 LVA1N RXA1- WLED_DIM_ADJ PWM2 BOOT_POWER_OPTION_0 E E5 AD25 R186 22 AV_CVBS_DET GPIO43 LVA2P RXA2+ R179 100 OPT 121018 D5 AC24 R187 22 C100 C111 MODEL_OPT_8 GPIO44 LVA2N RXA2- 4.7K ADDED B7 AE23 R188 22 1uF 2.2uF AMP_SDA BOOT_POWER_OPTION_1 R129 SCART1_DET GPIO45 LVA3P RXA3+ OPT AMP_SCL E7 AC23 R189 22 OPT OPT OPT HP_DET GPIO48 LVA3N RXA3- R175 R176 F7 AC22 I2C_SDA 10K 10K 121018 MODEL_OPT_9 GPIO49 LVA4P 120915 AB5 AD23 I2C_SCL ADDED ADDED TUNER_RESET GPIO52 LVA4N AB3 MODEL_OPT_0 GPIO53 KEY_SDA A9 V23 NAND_EN GPIO54 LVB0P KEY_SCL F4 U24 MODEL_OPT_1 GPIO55 LVB0N AB1 V25 R181 10K I2C_SCKM0/GPIO56 LVB1P N6 V24 I2C_SDAM0/GPIO57 LVB1N AB2 W25 MODEL_OPT_2 GPIO76 LVB2P +3.3V_ST +3.3V_ST AC2 W23 EEPROM SERIAL FLASH MEMORY GPIO77 LVB2N +3.3V_Normal 130225 DEL AA23 LVB3P S_FLASH_MAIN_WINBOND Y24 LVB3N AA25 NVRAM_ST NVRAM_RENESAS OPT IC100 LVB4P AA24 IC103-*1 IC103-*2 R138 LVB4N IC103 +3.3V_ST 4.7K W25Q80BVSSIG AT24C256C-SSHL-T C105 M24256-BRMN6TP R1EX24256BSAS0A C114 AE24 R158 22 NVRAM_ATMEL 0.1uF S_FLASH_MAIN_MACRONIX LVACLKP RXACK+ CS VCC 0.1uF AD24 R159 22 E0 VCC A0 VCC 1 8 IC100-*1 LVACLKN RXACK- 1 8 1 8 /SPI_CS Y23 A0 VCC OPT MX25L8006EM2I-12G LVBCLKP 1 8 R135 W24 E1 WC A1 WP 10K DO[IO1] HOLD[IO3] LVBCLKN 2 7 2 7 2 7 SPI_SDO A1 WP T25 2 7 CS# VCC MODEL_OPT_3 E2 SCL A2 SCL 1 8 GPIO194 A0’h 3 6 3 6 %WP[IO2] CLK U23 3 6 GPIO191 MODEL_OPT_4 A2 SCL /FLASH_WP SPI_SCK T24 3 6 R111 22 I2C_SCL VSS SDA VSS SDA SO/SIO1 HOLD# GPIO192 MODEL_OPT_5 4 5 4 5 R139 2 7 T23 GND SDA GND DI[IO0] 33 GPIO193 4 5 R112 22 4 5 I2C_SDA SPI_SDI C104 C106 WP# SCLK EAN61548301 EAN62389501 3 6 8pF 8pF EAN61133501 OPT OPT GND SI/SIO0 4 5 THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES EAX65299401 SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS NC4_S7LRM 2013.2.25 ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. MAIN1_EU 1 12 Copyright ⓒ 2013 LG Electronics. Inc. All right reserved. LGE Internal Use Only Only for training and service purposes

---

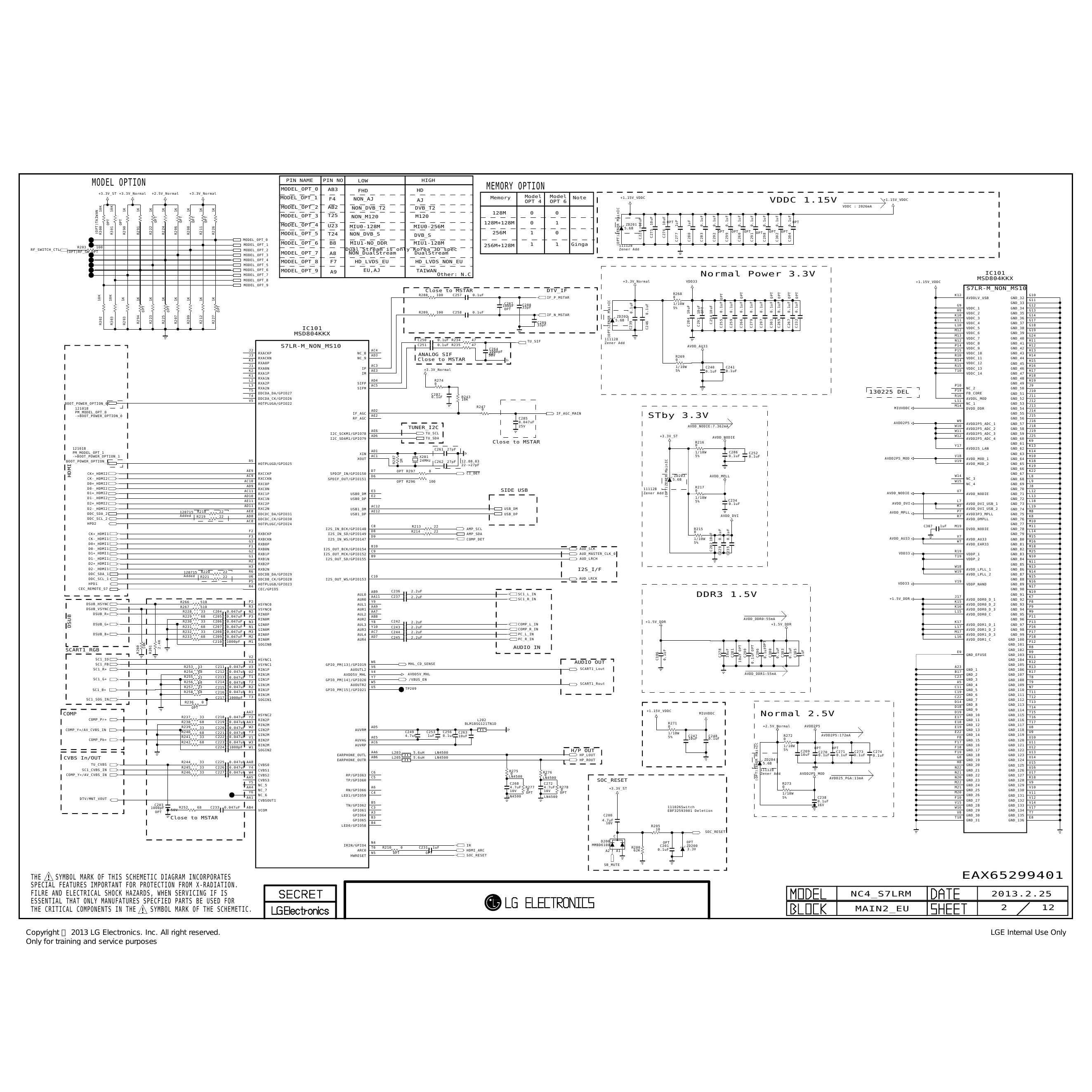

PIN NAME PIN NO. LOW HIGH MODEL OPTION MODEL_OPT_0 MEMORY OPTION AB3 FHD HD +3.3V_ST +3.3V_Normal +2.5V_Normal +3.3V_Normal MODEL_OPT_1 Memory Model Model Note +1.15V_VDDC F4 NON_AJ AJ OPT 4 OPT 6 VDDC 1.15V +1.15V_VDDC 10K 10K MODEL_OPT_2 AB2 VDDC : 2026mA NON_DVB_T2 DVB_T2 (OPT)ZENER MainIC 1K 1K 1K 1K 1K 1K 1K 1K (OPT)TAIWAN 128M 0 0 MODEL_OPT_3 T25 NON_M120 M120 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF OPT OPT OPT OPT 10uF 10uF 10uF OPT OPT 1uF 1uF 128M+128M 0 1 OPT OPT MODEL_OPT_4 U23 MIU0-128M MIU0-256M ZD201 R300 R301 R290 R291 R222 R224 R206 R208 R211 R226 5.6B C275 C276 C228 OPT OPT OPT OPT OPT MODEL_OPT_5 256M 1 0 OPT C283 C277 C280 C292 C299 C260 C291 C298 C302 C304 T24 NON_DVB_S DVB_S MODEL_OPT_0 MODEL_OPT_1 MODEL_OPT_6 B8 MIU1-NO_DDR MIU1-128M 1 1 Ginga R203 100 256M+128M 111128 RF_SWITCH_CTL (OPT)RF_SW_OPT MODEL_OPT_2 Dual Stream is only Korea 3D spec Zener Add MODEL_OPT_3 MODEL_OPT_7 A8 NON_DualStream DualStream MODEL_OPT_4 MODEL_OPT_8 F7 HD_LVDS_EU HD_LVDS_NON_EU MODEL_OPT_5 MODEL_OPT_6 MODEL_OPT_9 A9 EU,AJ TAIWAN MODEL_OPT_7 Other: N.C Normal Power 3.3V IC101 MSD804KKX MODEL_OPT_8 +3.3V_Normal VDD33 +1.15V_VDDC MODEL_OPT_9 Close to MSTAR DTV_IF S7LR-M_NON_MS10 OPT OPT OPT OPT OPT R268 0.1uF OPT R288 100 C257 0.1uF K12 G10 10K 10K IF_P_MSTAR 0 1K 1K 1K 1K 1K 1K 1K 1K AVDDLV_USB GND_32 G11 (OPT)ZENER MainIC 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF GND_33 0.1uF C287 1/10W 0.1uF 100pF C288 G9 G12 10uF 10uF C254 10uF OPT OPT OPT 33pF 5% OPT OPT VDDC_1 GND_34 H9 G13 R289 100 C258 0.1uF VDDC_2 GND_35 IF_N_MSTAR K10 G14 R294 R223 R225 R207 R209 R212 R227 ZD202 R302 R303 R293 VDDC_3 GND_36 C293 C284 C255 C259 C266 C279 C297 C301 C265 C267 C232 5.6B K11 G17 C239 C246 C289 VDDC_4 GND_37 33pF L10 G18 IC101 M12 VDDC_5 GND_38 G19 MSD804KKX M13 VDDC_6 GND_39 G24 111128 VDDC_7 GND_40 C250 0.1uF R234 47 TU_SIF N12 H11 Zener Add VDDC_8 GND_41 S7LR-M_NON_MS10 C251 0.1uF R235 47 AVDD_AU33 P14 H12 C264 VDDC_9 GND_42 J2 AC4 1000pF P15 H13 RXACKP NC_8 VDDC_10 GND_43 J3 AD3 ANALOG SIF OPT 50V R269 R10 H14 RXACKN NC_9 VDDC_11 GND_44 K3 Close to MSTAR 0 R14 H15 RXA0P VDDC_12 GND_45 J1 AC3 1/10W R15 H16 RXA0N IP C240 C241 VDDC_13 GND_46 K2 AE3 +3.3V_Normal 5% 0.1uF T10 H17 0.1uF RXA1P IM VDDC_14 GND_47 K1 H18 RXA1N GND_48 L2 AD4 R274 H19 RXA2P SIFP 0 GND_49 L3 AC5 P10 J9 RXA2N SIFM NC_2 GND_50 T5 P19 J10 DDCDA_DA/GPIO27 C282 130225 DEL FB_CORE GND_51 T4 0.1uF R243 R16 J11 DDCDA_CK/GPIO26 10K AVDDL_MOD GND_52 V5 L11 J12 BOOT_POWER_OPTION_0 HOTPLUGA/GPIO22 NC_1 GND_53 R247 M14 J13 121018 0 MIUVDDC DVDD_DDR GND_54 PM_MODEL_OPT_0 AD2 J14 IF_AGC IF_AGC_MAIN GND_55 ->BOOT_POWER_OPTION_0 RF_AGC AE2 C285 STby 3.3V GND_56 J15 0.047uF W9 J16 AVDD2P5 AVDD2P5_ADC_1 GND_57 25V AVDD_NODIE:7.362mA W10 J18 TUNER_I2C AVDD2P5_ADC_2 GND_58 AE6 W11 J19 I2C_SCKM1/GPIO78 TU_SCL AVDD2P5_ADC_3 GND_59 AD6 +3.3V_ST AVDD_NODIE W12 J25 I2C_SDAM1/GPIO79 TU_SDA AVDD2P5_ADC_4 GND_60 Close to MSTAR R216 K9 GND_61 0 Y17 K13 121018 C261 27pF AVDD25_LAN GND_62 PM_MODEL_OPT_1 AD1 1/10W C286 K14 XIN C252 GND_63 ->BOOT_POWER_OPTION_1 AC1 5% 0.1uF 0.1uF V18 H10 R287 X201 AVDD2P5_MOD XOUT AVDD_MOD_1 GND_64 1M (OPT)ZENER MainIC BOOT_POWER_OPTION_1 R5 24MHz C262 27pF 12.08.03 U19 K18 HOTPLUGD/GPIO25 AVDD_MOD_2 GND_65 HDMI 22->27pF K19 GND_66 AE9 D7 OPT R297 0 K22 CK+_HDMI2 RXCCKP SPDIF_IN/GPIO150 CI_DET GND_67 AC9 D6 ZD203 AVDD_MPLL W14 L8 CK-_HDMI2 RXCCKN SPDIF_OUT/GPIO151 5.6B NC_3 GND_68 AC10 OPT R296 100 W15 L9 D0+_HDMI2 RXC0P NC_4 GND_69 AD9 R217 J8 D0-_HDMI2 RXC0N 111128 GND_70 AC11 E3 SIDE USB Zener Add 0 U7 L12 D1+_HDMI2 RXC1P USB0_DM AVDD_NODIE AVDD_NODIE GND_71 AD10 E2 1/10W L13 D1-_HDMI2 RXC1N USB0_DP GND_72 AE11 5% C234 L7 L18 D2+_HDMI2 RXC2P 0.1uF AVDD_DVI AVDD_DVI_USB_1 GND_73 AD11 AC12 M7 L19 D2-_HDMI2 RXC2N USB1_DM USB_DM AVDD_DVI_USB_2 GND_74 120715 R218 22 AE8 AE12 AVDD_MPLL P7 M8 DDC_SDA_2 DDCDC_DA/GPIO31 USB1_DP USB_DP AVDD3P3_MPLL GND_75 Added R219 22 AD8 AVDD_DVI R7 K8 DDC_SCL_2 DDCDC_CK/GPIO30 AVDD_DMPLL GND_76 AC8 M10 HPD2 HOTPLUGC/GPIO24 GND_77 C8 R213 22 C307 1uF M19 M11 I2S_IN_BCK/GPIO148 AMP_SCL R215 DVDD_NODIE GND_78 0.1uF 0.1uF F2 D8 R214 22 0 L14 C202 10uF CK+_HDMI1 RXBCKP I2S_IN_SD/GPIO149 AMP_SDA GND_79 F3 D9 V7 M15 CK-_HDMI1 RXBCKN I2S_IN_WS/GPIO147 COMP_DET 1/10W AVDD_AU33 AVDD_AU33 GND_80 G3 5% W7 M16 D0+_HDMI1 RXB0P AVDD_EAR33 GND_81 F1 B10 M18 C229 C235 D0-_HDMI1 RXB0N I2S_OUT_BCK/GPIO154 AUD_SCK GND_82 G2 C9 R19 M25 D1+_HDMI1 RXB1P I2S_OUT_MCK/GPIO152 AUD_MASTER_CLK_0 VDD33 VDDP_1 GND_83 G1 B9 T19 N10 D1-_HDMI1 RXB1N I2S_OUT_SD/GPIO155 AUD_LRCH VDDP_2 GND_84 H2 N11 D2+_HDMI1 RXB2P GND_85 H3 W18 N13 D2-_HDMI1 RXB2N I2S_I/F AVDD_LPLL_1 GND_86 120715 R220 22 R6 W19 N14 DDC_SDA_1 DDCDB_DA/GPIO29 AVDD_LPLL_2 GND_87 Added R221 22 U6 C10 N15 DDC_SCL_1 DDCDB_CK/GPIO28 I2S_OUT_WS/GPIO153 AUD_LRCK GND_88 P5 V19 N16 HPD1 HOTPLUGB/GPIO23 VDD33 VDDP_NAND GND_89 R4 N17 CEC_REMOTE_S7 CEC/GPIO5 GND_90 AB9 C236 2.2uF N19 AUL0 AUR0 AA11 C237 2.2uF SC1_L_IN SC1_R_IN DDR3 1.5V +1.5V_DDR J17 AVDD_DDR0_D_1 GND_91 GND_92 K7 R266 510 P2 Y9 K15 P8 DSUB_HSYNC HSYNC0 AUL1 AVDD_DDR0_D_2 GND_93 R267 510 R3 AA9 K16 P9 DSUB_VSYNC VSYNC0 AUR1 AVDD_DDR0_D_3 GND_94 R228 33 C204 0.047uF N2 AA7 L15 M9 DSUB_R+ RIN0P AUL2 AVDD_DDR0_C GND_95 DSUB R229 68 C205 0.047uF P3 AB8 P11 RIN0M AUR2 AVDD_DDR0:55mA GND_96 R230 33 C206 0.047uF N3 Y8 C242 2.2uF +1.5V_DDR K17 P13 DSUB_G+ GIN0P AUL3 COMP_L_IN +1.5V_DDR AVDD_DDR1_D_1 GND_97 R231 68 C207 0.047uF N1 Y10 C243 2.2uF L17 P16 GIN0M AUR3 COMP_R_IN AVDD_DDR1_D_2 GND_98 R232 33 C208 0.047uF M3 AC7 C244 2.2uF M17 P17 DSUB_B+ BIN0P AUL4 PC_L_IN AVDD_DDR1_D_3 GND_99 R233 68 C209 0.047uF M2 AD7 C245 2.2uF L16 P18 BIN0M AUR4 PC_R_IN AVDD_DDR1_C GND_100 2.4K M1 0.1uFOPT C210 1000pF P12 10K SOGIN0 GND_101 10uF OPT 0.1uF OPT R260 R261 AUDIO IN R8 0.1uF 0.1uF SCART1_RGB C278 10uF C281 C290 C296 C300 C303 C305 GND_102 0.1uF 1uF E9 R9 C306 GND_EFUSE GND_103 V2 R11 SC1_ID HSYNC1 GND_104 V3 W6 AUDIO OUT R12 SC1_FB VSYNC1 GPIO_PM[13]/GPIO19 MHL_CD_SENSE GND_105 R253 33 C211 0.047uF U3 V6 A23 R13 SC1_R+ RIN1P AUOUTL2 SCART1_Lout GND_1 GND_106 R254 68 C212 0.047uF U2 V4 B17 R17 RIN1M AVDD5V_MHL AVDD5V_MHL AVDD_DDR1:55mA GND_2 GND_107 R255 33 C213 0.047uF T1 Y7 C23 T8 SC1_G+ GIN1P GPIO_PM[14]/GPIO20 /VBUS_EN GND_3 GND_108 R256 68 C214 0.047uF T2 W5 A5 T9 GIN1M AUOUTR2 SCART1_Rout GND_4 GND_109 R257 33 C215 0.047uF R2 U5 C11 N7 SC1_B+ BIN1P GPIO_PM[15]/GPIO21 TP209 GND_5 GND_110 R258 68 C216 0.047uF R1 C19 T11 BIN1M GND_6 GND_111 C217 1000pF T3 C22 T12 SC1_SOG_IN SOGIN1 GND_7 GND_112 R236 0 D14 T13 GND_8 GND_113 OPT D18 T14 +1.15V_VDDC GND_9 GND_114 AA2 D19 T15 COMP R237 33 C218 0.047uF Y2 HSYNC2 MIUVDDC Normal 2.5V E17 GND_10 GND_115 T16 COMP_Pr+ RIN2P L202 GND_11 GND_116 R238 68 C219 0.047uF AA3 BLM18SG121TN1D R271 E18 T17 RIN2M 0 +2.5V_Normal AVDD2P5 GND_12 GND_117 R239 33 C220 0.047uF W2 AD5 E19 U8 COMP_Y+/AV_CVBS_IN GIN2P AUVRM GND_13 GND_118 R240 68 C221 0.047uF Y3 C249 C253 C256 C263 1/10W E22 U9 GIN2M 4.7uF 1uF 0.1uF 10uF C247 C248 R272 AVDD2P5:172mA GND_14 GND_119 R241 33 C222 0.047uF V1 AE5 5% 10uF 0.1uF F8 U10 COMP_Pb+ BIN2P AUVAG 0 GND_15 GND_120 R242 68 C223 0.047uF W3 AC6 F17 U11 (OPT)ZENER MainIC BIN2M AUVRP 1/10W GND_16 GND_121 C224 1000pF W1 OPT OPT F18 U12 SOGIN2 H/P OUT 5% GND_17 GND_122 AA6 L203 5.6uH LN4500 C269 C270 C271 C273 C274 F19 U13 EARPHONE_OUTL HP_LOUT 10uF 0.1uF 0.1uF 0.1uF 0.1uF GND_18 GND_123 CVBS In/OUT AB6 L205 5.6uH LN4500 G8 U14 EARPHONE_OUTR HP_ROUT ZD204 GND_19 GND_124 R244 33 C225 0.047uF AA8 5.6B H8 U15 TU_CVBS CVBS0 GND_20 GND_125 R245 33 C226 0.047uF Y4 N22 U16 SC1_CVBS_IN CVBS1 R275 111128 GND_21 GND_126 R246 33 C227 0.047uF W4 C6 0 R276 Zener Add AVDD2P5_MOD N21 U17 COMP_Y+/AV_CVBS_IN CVBS2 RP/GPIO63 LN4500 0 GND_22 GND_127 AA5 C5 LN4500 AVDD25_PGA:13mA N20 R18 Y5 CVBS3 TP/GPIO60 SOC_RESET M22 GND_23 GND_128 V9 C268 C272 R273 NC_5 0 GND_24 GND_129 AA4 A6 4.7uF R277 4.7uF R278 +3.3V_ST M21 V10 NC_7 RN/GPIO66 10V 0 10V 0 GND_25 GND_130 Y6 C4 OPT OPT 1/10W M20 V11 NC_6 LED1/GPIO59 LN4500 LN4500 GND_26 GND_131 DTV/MNT_VOUT AA1 5% C238 F10 V12 CVBSOUT1 0.1uF GND_27 GND_132 B5 V15 V14 C203 TN/GPIO62 16V GND_28 GND_133 1000pF R252 68 C233 0.047uF AB4 C3 111026Switch W16 V17 50V VCOM GPIO61 EBF32593901 Deletion GND_29 GND_134 OPT A3 V8 T7 GPIO64 C200 GND_30 GND_135 Close to MSTAR GPIO65 B3 4.7uF T18 GND_31 GND_136 E8 B4 10V LED0/GPIO58 R205 10 SOC_RESET C N4 D200 OPT OPT IRIN/GPIO4 IR MMBD6100 C201 ZD200 T6 R210 0 C231 1uF R200 ARC0 HDMI_ARC A2 A1 62K 0.1uF 3.3V N5 OPT OPT HWRESET SOC_RESET SB_MUTE THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES EAX65299401 SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS NC4_S7LRM 2013.2.25 ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. MAIN2_EU 2 12 Copyright ⓒ 2013 LG Electronics. Inc. All right reserved. LGE Internal Use Only Only for training and service purposes

---

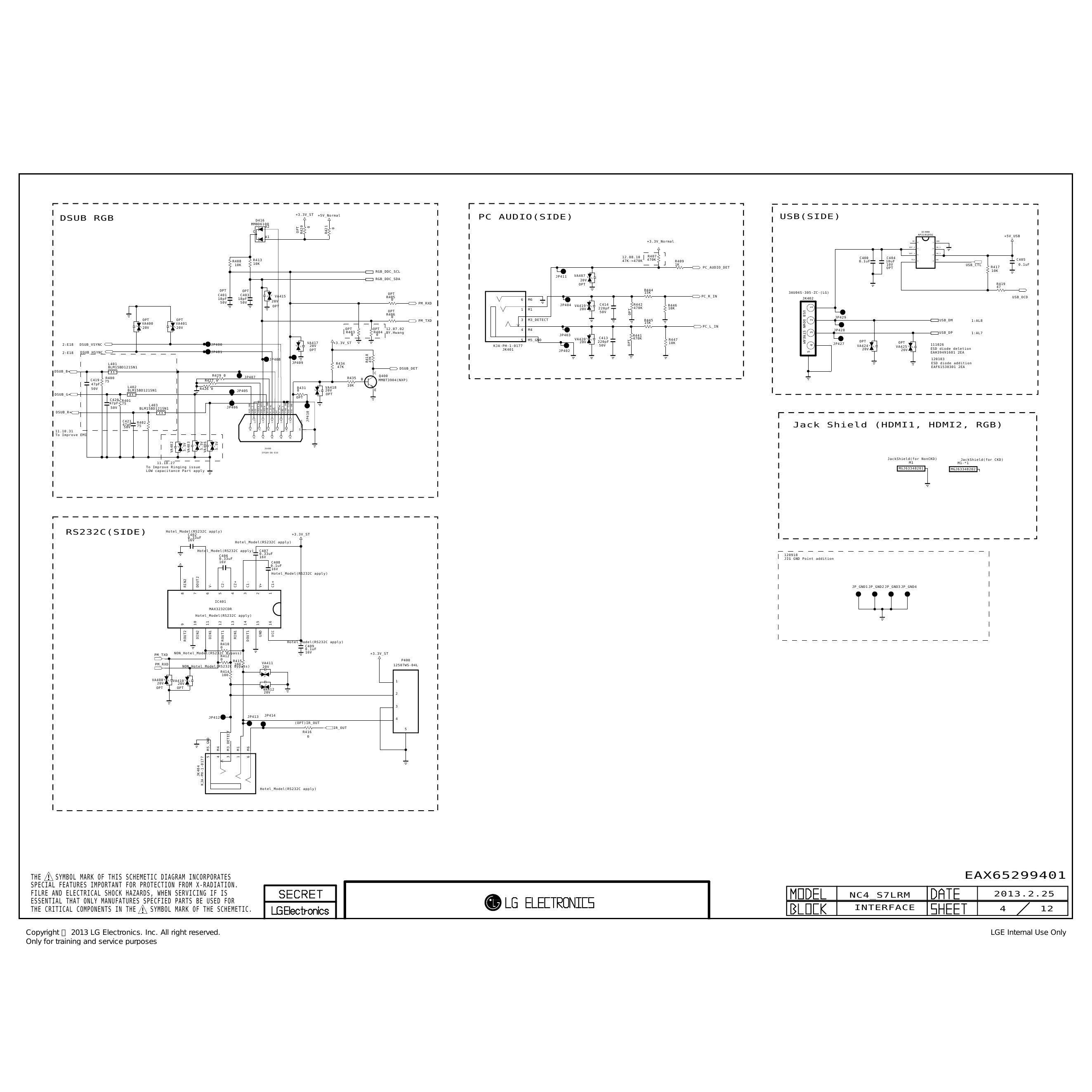

+3.3V_ST DSUB RGB D416 +5V_Normal PC AUDIO(SIDE) USB(SIDE) MMBD6100 R420 R421 A2 0 OPT 0 C IC400 AP2191DSG A1 +5V_USB NC GND +3.3V_Normal 8 1 OUT_2 IN_1 7 2 OUT_1 IN_2 6 3 12.08.10 R407 470K C400 C404 C405 R408 R413 47K->470K R409 0.1uF 10uF FLG 5 4 EN 10K 10K 1K 10V USB_CTL 0.1uF PC_AUDIO_DET OPT R417 RGB_DDC_SCL 10K JP411 VA407 RGB_DDC_SDA 20V OPT R419 47 OPT OPT R444 OPT 15K 3AU04S-305-ZC-(LG) C401 C403 VA415 PC_R_IN R405 JK402 USB_OCD 18pF 18pF 0 6 M6 50V 50V 20V PM_RXD C414 R442 OPT JP404 VA419 R446 1 20V 220pF 470K 10K OPT 1 M1 USB DOWN STREAM OPT 50V R406 0 JP429 3 M3_DETECT 2 OPT OPT PM_TXD R445 USB_DM 1:AL8 VA400 VA401 15K 20V 20V PC_L_IN OPT OPT 12.07.02 4 M4 JP428 R403 R404 3 BY.Hwang USB_DP 1:AL7 0 0 JP403 R441 VA420 C413 470K 5 M5_GND R447 OPT VA417 +3.3V_ST 20V 220pF 10K OPT OPT 2:E18 DSUB_VSYNC JP400 JP427 111026 4 20V KJA-PH-1-0177 50V VA424 VA425 OPT JK401 20V 20V ESD diode deletion JP402 5 2:E18 DSUB_HSYNC JP401 EAH39491601 2EA R418 47K JP408 120103 L401 JP409 R434 ESD diode addition BLM15BD121SN1 47K EAF61530301 2EA DSUB_DET DSUB_B+ C R429 0 JP407 Q400 R400 R435 B C419 75 R427 0 MMBT3904(NXP) 47pF 10K 50V L402 R426 0 R431 VA418 BLM15BD121SN1 JP405 0 20V E DSUB_G+ OPT OPT C420 R401 GREEN_GND DDC_CLOCK DDC_DATA BLUE_GND SYNC_GND 47pF 75 RED_GND DDC_GND L403 H_SYNC V_SYNC GND_2 GREEN GND_1 50V JP406 BLUE BLM15BD121SN1 RED NC JP410 DSUB_R+ SHILED C421 11 12 13 14 15 R402 47pF 50V 75 Jack Shield (HDMI1, HDMI2, RGB) 16 10 6 7 8 9 11.10.31 To Improve EMI 1 2 3 4 5 5.5V 5.5V VA402 VA403 VA406 5.5V JK400 SPG09-DB-010 JackShield(for NonCKD) JackShield(for CKD) 11.10.27 M1 M1-*1 To Improve Ringing issue MGJ63348201 LOW capacitance Part apply MGJ63348202 RS232C(SIDE) Hotel_Model(RS232C apply) C402 +3.3V_ST 0.33uF 16V Hotel_Model(RS232C apply) Hotel_Model(RS232C apply) C407 0.33uF 120918 C406 16V 0.33uF JIG GND Point addition 16V C408 0.1uF 16V Hotel_Model(RS232C apply) DOUT2 RIN2 C2- C2+ C1- C1+ V- V+ JP_GND1 JP_GND2 JP_GND3 JP_GND4 8 7 6 5 4 3 2 1 IC401 MAX3232CDR Hotel_Model(RS232C apply) 10 11 12 13 14 15 16 9 ROUT2 DIN2 DIN1 ROUT1 RIN1 DOUT1 GND VCC Hotel_Model(RS232C apply) R410 0 C409 0.1uF NON_Hotel_Model(RS232C Bypass) 16V +3.3V_ST PM_TXD R412 0 P400 R415 PM_RXD 100 VA411 NON_Hotel_Model(RS232C Bypass) 20V 12507WS-04L R414 100 VA408 VA410 1 20V 20V OPT OPT VA412 20V 2 3 JP413 JP414 JP412 4 (OPT)IR_OUT IR_OUT 5 M3_DETECT R416 0 M5_GND M4 M1 M6 5 4 3 1 6 KJA-PH-1-0177 JK404 Hotel_Model(RS232C apply) THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES EAX65299401 SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS NC4_S7LRM 2013.2.25 ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. INTERFACE 4 12 Copyright ⓒ 2013 LG Electronics. Inc. All right reserved. LGE Internal Use Only Only for training and service purposes

---

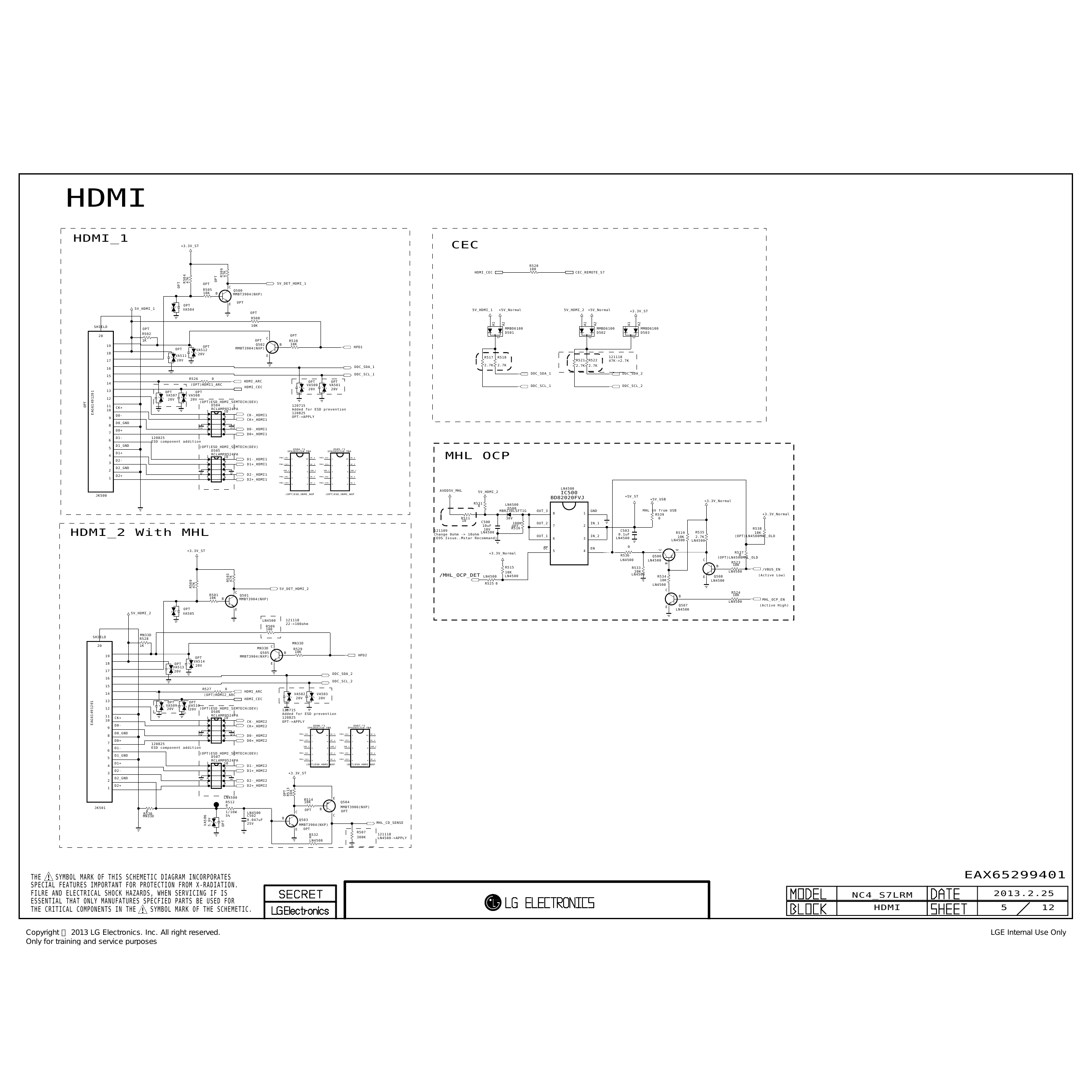

HDMI HDMI_1 +3.3V_ST CEC R520 100 R506 47K HDMI_CEC CEC_REMOTE_S7 R504 OPT 47K OPT OPT 5V_DET_HDMI_1 C R505 Q500 10K B MMBT3904(NXP) E OPT OPT 5V_HDMI_1 VA504 5V_HDMI_1 +5V_Normal 5V_HDMI_2 +5V_Normal OPT +3.3V_ST R508 A1 A2 A1 A2 A1 A2 SHIELD 10K OPT MMBD6100 MMBD6100 MMBD6100 R502 D501 D502 D503 20 OPT C C C C 1K OPT R510 Q502 B 10K 19 OPT HPD1 OPT VA512 MMBT3904(NXP) 18 20V VA511 E 121118 R517 R518 17 20V R521 R522 47K->2.7K 2.7K 2.7K 2.7K 2.7K 16 DDC_SDA_1 DDC_SCL_1 DDC_SDA_1 DDC_SDA_2 15 R526 0 HDMI_ARC OPT OPT 14 (OPT)HDMI1_ARC VA500 VA501 DDC_SCL_1 DDC_SCL_2 HDMI_CEC 20V 20V 13 EAG61491201 OPT OPT VA507 VA508 12 20V 20V (OPT)ESD_HDMI_SEMTECH(DEV) OPT 11 D504 120715 CK+ RCLAMP0524PA Added for ESD prevention 10 1 10 120825 D0- 2 9 CK-_HDMI1 OPT->APPLY 9 CK+_HDMI1 D0_GND 3 8 8 4 7 D0+ D0-_HDMI1 7 5 6 D0+_HDMI1 D1- 120825 6 ESD component addition D1_GND (OPT)ESD_HDMI_SEMTECH(DEV) 5 D504-*1 D505-*1 D505 IP4283CZ10-TBA IP4283CZ10-TBA D1+ 4 D2- 1 2 RCLAMP0524PA 10 9 D1-_HDMI1 TMDS_CH1- 1 10 NC_4 TMDS_CH1- 1 10 NC_4 MHL OCP 3 D1+_HDMI1 TMDS_CH1+ NC_3 TMDS_CH1+ NC_3 2 9 2 9 D2_GND 3 8 2 4 7 GND_1 3 8 GND_2 GND_1 3 8 GND_2 D2+ D2-_HDMI1 1 5 6 TMDS_CH2- 4 7 NC_2 TMDS_CH2- 4 7 NC_2 D2+_HDMI1 TMDS_CH2+ NC_1 TMDS_CH2+ NC_1 5 6 5 6 LN4500 AVDD5V_MHL 5V_HDMI_2 (OPT)ESD_HDMI_NXP (OPT)ESD_HDMI_NXP IC500 JK500 +5V_ST BD82020FVJ +5V_USB +3.3V_Normal R531 LN4500 0 D500 MBR230LSFT1G OUT_3 GND MHL 5V from USB 8 1 R539 +3.3V_Normal R511 30V 0 10 C500 100K OUT_2 IN_1 10uF OPT 7 2 10V R516 R538 HDMI_2 With MHL 121109 Change 0ohm -> 10ohm LN4500 (EOS Issue..Mstar Recommand) OUT_1 6 3 IN_2 C503 0.1uF LN4500 R519 10K R535 2.7K 10K (OPT)LN4500MHL_OLD LN4500 LN4500 0 OC EN C E +3.3V_ST 5 4 R537 +3.3V_Normal 0 R536 Q506 (OPT)LN4500MHL_OLD LN4500 LN4500 C R523 B B 10K R515 R533 /VBUS_EN 10K 20K LN4500 R503 /MHL_OCP_DET LN4500 (Active Low) LN4500 LN4500 R534 Q508 47K E 10K LN4500 R500 47K R525 0 LN4500 5V_DET_HDMI_2 C C R524 R501 Q501 B 10K 10K B MMBT3904(NXP) MHL_OCP_EN LN4500 Q507 (Active High) E OPT E LN4500 5V_HDMI_2 VA505 LN4500 121118 22->100ohm R509 100 MN33D SHIELD R528 MN33D 20 1K C MN33D R529 Q505 B 10K 19 MMBT3904(NXP) HPD2 OPT VA514 18 OPT E 20V VA513 17 20V DDC_SDA_2 16 DDC_SCL_2 15 R527 0 HDMI_ARC 14 (OPT)HDMI2_ARC VA502 VA503 HDMI_CEC 20V 20V 13 EAG61491201 OPT OPT VA509 VA510 12 20V 20V (OPT)ESD_HDMI_SEMTECH(DEV) 120715 D506 RCLAMP0524PA Added for ESD prevention 11 120825 CK+ 1 10 10 CK-_HDMI2 OPT->APPLY 2 9 D0- CK+_HDMI2 D506-*1 D507-*1 9 3 8 IP4283CZ10-TBA IP4283CZ10-TBA D0_GND 4 7 TMDS_CH1- NC_4 TMDS_CH1- NC_4 8 D0-_HDMI2 1 10 1 10 5 6 D0+ D0+_HDMI2 TMDS_CH1+ 2 9 NC_3 TMDS_CH1+ 2 9 NC_3 7 120825 GND_1 GND_2 GND_1 GND_2 D1- ESD component addition 3 8 3 8 6 (OPT)ESD_HDMI_SEMTECH(DEV) TMDS_CH2- 4 7 NC_2 TMDS_CH2- 4 7 NC_2 D1_GND D507 5 TMDS_CH2+ NC_1 TMDS_CH2+ NC_1 RCLAMP0524PA 5 6 5 6 D1+ 1 10 (OPT)ESD_HDMI_NXP (OPT)ESD_HDMI_NXP 4 D1-_HDMI2 2 9 D2- D1+_HDMI2 3 3 8 +3.3V_ST D2_GND 4 7 2 D2-_HDMI2 5 6 D2+ D2+_HDMI2 1 R513 10K OPT LN4500 E R514 R512 10K Q504 0 JK501 MMBT3906(NXP) OPT B 0 1/16W LN4500 C OPT R530 C VA506 MN33D 5% C502 B 5.6V 0.047uF Q503 OPT 25V MHL_CD_SENSE MMBT3904(NXP) E OPT R507 R532 121118 0 300K LN4500->APPLY LN4500 THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES EAX65299401 SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS NC4_S7LRM 2013.2.25 ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. HDMI 5 12 Copyright ⓒ 2013 LG Electronics. Inc. All right reserved. LGE Internal Use Only Only for training and service purposes

---

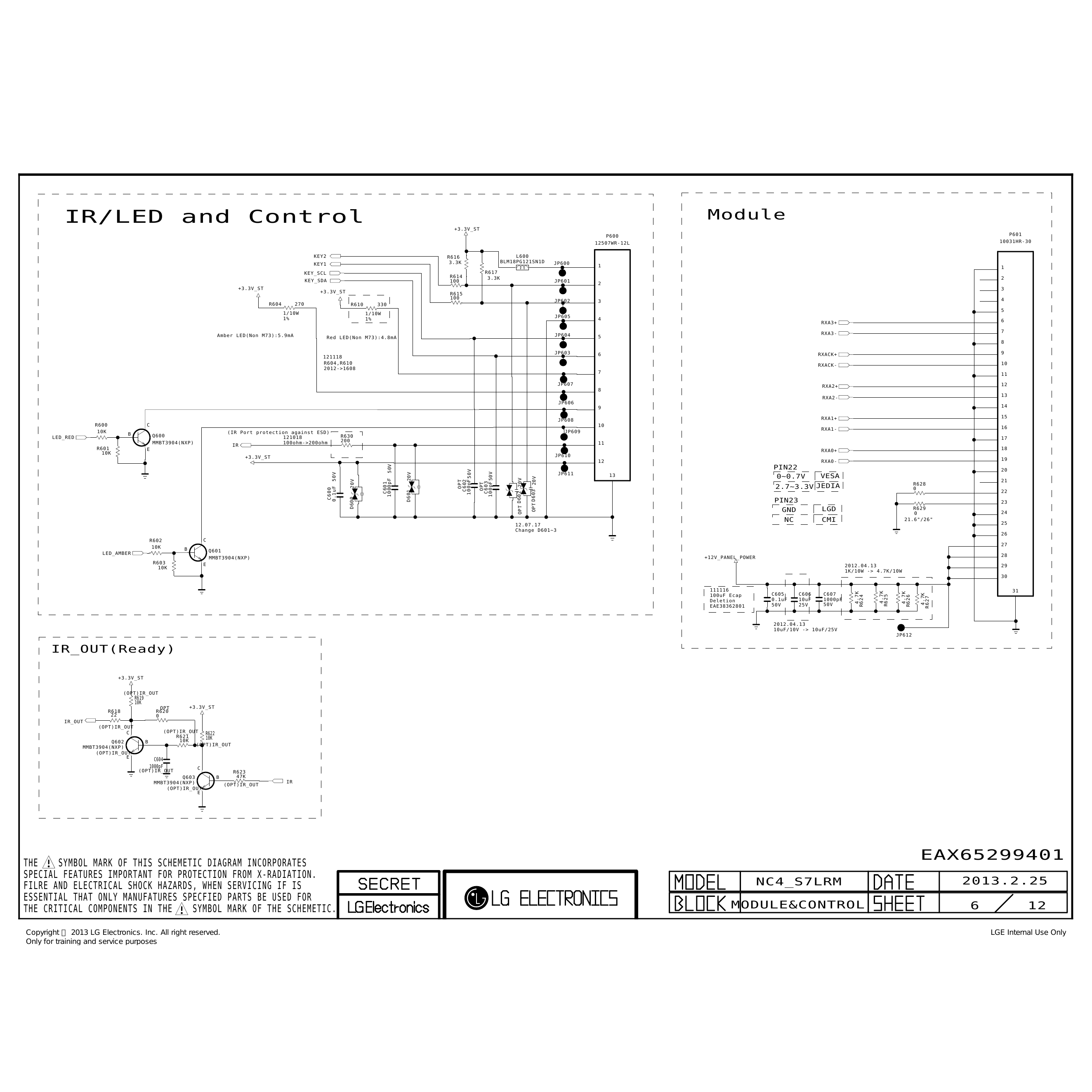

IR/LED and Control Module +3.3V_ST P600 P601 12507WR-12L 10031HR-30 KEY2 R616 L600 3.3K BLM18PG121SN1D JP600 KEY1 1 1 KEY_SCL R617 R614 3.3K 2 KEY_SDA 100 JP601 2 +3.3V_ST 3 +3.3V_ST R615 100 4 JP602 3 R604 270 R610 330 5 1/10W 1/10W 1% JP605 1% 4 6 RXA3+ RXA3- 7 Amber LED(Non M73):5.9mA JP604 5 Red LED(Non M73):4.8mA 8 JP603 6 RXACK+ 9 121118 R604,R610 RXACK- 10 2012->1608 7 11 JP607 RXA2+ 12 8 RXA2- 13 JP606 9 14 RXA1+ 15 JP608 R600 C 10 RXA1- 16 10K (IR Port protection against ESD) JP609 B Q600 R630 LED_RED 121018 17 MMBT3904(NXP) 100ohm->200ohm 200 IR 11 R601 E RXA0+ 18 10K +3.3V_ST JP610 12 RXA0- 19 50V 100pF 50V PIN22 20 100pF 50V 20V 50V JP611 13 0~0.7V VESA OPT D603 20V OPT D602 20V 1000pF 20V C602 21 OPT C603 C601 OPT R628 2.7~3.3V JEDIA 0.1uF 0 C600 D601 22 D600 PIN23 23 LGD R629 GND 0 24 NC CMI 21.6"/26" 25 12.07.17 Change D601~3 26 R602 C 27 10K B Q601 LED_AMBER 28 MMBT3904(NXP) +12V_PANEL_POWER R603 E 10K 2012.04.13 29 1K/10W -> 4.7K/10W 30 111116 31 4.7K 4.7K 4.7K C605 C607 4.7K 100uF Ecap C606 R625 R624 R626 R627 Deletion 0.1uF 10uF 1000pF EAE38362801 50V 25V 50V 2012.04.13 10uF/10V -> 10uF/25V JP612 IR_OUT(Ready) +3.3V_ST (OPT)IR_OUT R619 10K OPT +3.3V_ST R618 R620 22 0 IR_OUT (OPT)IR_OUT C (OPT)IR_OUT R622 R621 10K Q602 B 10K MMBT3904(NXP) (OPT)IR_OUT (OPT)IR_OUT E C604 1000pF C (OPT)IR_OUT R623 Q603 B 47K MMBT3904(NXP) IR (OPT)IR_OUT (OPT)IR_OUT E THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES EAX65299401 SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS NC4_S7LRM 2013.2.25 ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. MODULE&CONTROL 6 12 Copyright ⓒ 2013 LG Electronics. Inc. All right reserved. LGE Internal Use Only Only for training and service purposes

---

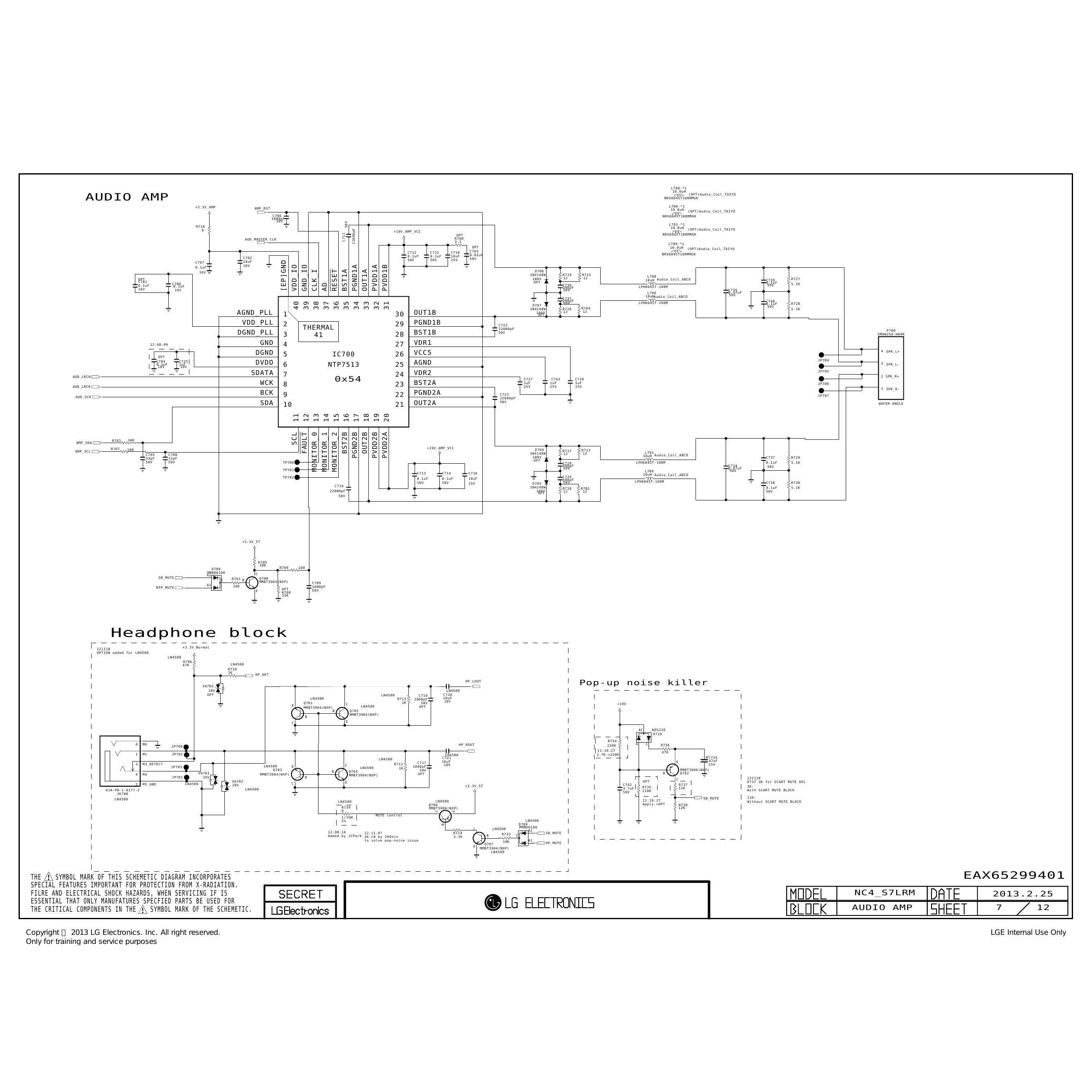

L700-*1 10.0uH (OPT)Audio_Coil_TAIYO AUDIO AMP NRS6045T100MMGK +3.3V_AMP L706-*1 AMP_RST 10.0uH (OPT)Audio_Coil_TAIYO C706 NRS6045T100MMGK 1000pF 50V 50V L701-*1 R716 10.0uH 22000pF 0 (OPT)Audio_Coil_TAIYO +19V_AMP_VCC C711 OPT NRS6045T100MMGK AUD_MASTER_CLK R700 3.3 L709-*1 OPT 10.0uH (OPT)Audio_Coil_TAIYO C712 C715 C718 C703 0.01uF NRS6045T100MMGK 0.1uF 0.1uF 10uF C702 50V 50V 50V 25V [EP]GND C707 10uF VDD_IO GND_IO PGND1A PVDD1A PVDD1B 10V 0.1uF CLK_I RESET BST1A OUT1A 16V D706 1N4148W R719 R715 L700 OPT 100V 12 12 R727 10uH Audio_Coil_ABCO C739 C701 OPT 0.1uF AD C700 C730 50V 5.1K 0.1uF 0.1uF LPH6045T-100M 390pF 16V 16V 50V C735 L706 0.47uF 10uHAudio_Coil_ABCO 50V C731 390pF C740 40 39 38 37 36 35 34 33 32 31 50V LPH6045T-100M 0.1uF R728 D707 50V 1N4148W R720 R704 5.1K AGND_PLL 1 30 OUT1B 100V OPT 12 12 VDD_PLL 2 29 PGND1B C722 THERMAL 22000pF P700 DGND_PLL 3 41 28 BST1B 50V SMAW250-H04R 12.08.09 GND 4 27 VDR1 4 SPK_L+ DGND 5 IC700 26 VCC5 OPT JP704 C704 0.1uF 16V C725 1uF 10V DVDD 6 NTP7513 25 AGND 3 SPK_L- JP705 AUD_LRCH SDATA 7 24 VDR2 2 SPK_R+ WCK 0x54 BST2A C727 1uF C743 1uF C726 1uF AUD_LRCK 8 23 25V 25V 25V JP706 1 SPK_R- AUD_SCK BCK 9 22 PGND2A C723 JP707 22000pF SDA 10 21 OUT2A 50V WAFER-ANGLE 11 12 13 14 15 16 17 18 19 20 SCL FAULT MONITOR_0 MONITOR_1 MONITOR_2 BST2B PGND2B OUT2B PVDD2B PVDD2A R703 100 AMP_SDA R707 100 +19V_AMP_VCC D704 AMP_SCL R717 R712 1N4148W 12 12 L701 C705 C708 10uH Audio_Coil_ABCO 33pF 33pF 100V C737 R729 50V 50V OPT TP700 C728 LPH6045T-100M 0.1uF 5.1K 390pF C734 50V TP701 50V 0.47uF L709 50V C713 C714 C716 10uH Audio_Coil_ABCO TP702 0.1uF 0.1uF 10uF C729 390pF LPH6045T-100M 50V 50V 25V D705 50V C738 R730 C710 1N4148W R718 R702 0.1uF 5.1K 22000pF 100V 12 12 50V OPT 50V +3.3V_ST R705 10K D700 R709 100 MMBD6100 C A2 SB_MUTE R701 B Q700 C MMBT3904(NXP) C709 A1 10K 1000pF NTP_MUTE OPT E 50V R708 33K Headphone block +3.3V_Normal 121118 OPTION added for LN4500 LN4500 R706 47K LN4500 R710 1K HP_DET HP_LOUT VA703 Pop-up noise killer 20V LN4500 OPT LN4500 C719 C720 LN4500 R713 1000pF 10uF 1K 10V Q701 C 50V +19V E LN4500 OPT MMBT3904(NXP) B Q705 MMBT3904(NXP) B C E AC KDS226 D710 R734 6 M6 HP_ROUT A C R736 JP700 220K 11.10.27 470 1 M1 JP702 LN4500 2.7K->220K C721 C724 LN4500 10uF E 47uF 3 M3_DETECT R711 C717 25V LN4500 C 10V JP703 E LN4500 1000pF Q703 1K MMBT3906(NXP) B Q704 50V 4 M4 VA701 MMBT3904(NXP) OPT B Q702 MMBT3904(NXP) JP701 20V B 121118 C VA702 E OPT R737 3K for SCART MUTE DEL 5 M5_GND LN4500 20V C C742 R737 +3.3V_ST R735 3K: LN4500 4.7uF 12K KJA-PH-1-0177-2 220K With SCART MUTE BLOCK 50V JK700 LN4500 SB_MUTE 12K: LN4500 LN4500 11.10.27 Without SCART MUTE BLOCK Q706 Apply->OPT R738 R739 MMBT3906(NXP) 12K 0 C E MUTE control 1/16W 5% LN4500 D709 B MMBD6100 C LN4500 A2 12.08.16 12.11.07 R714 SB_MUTE B R733 C Added by JCPark 1K->0 by JHShin 3.3K to solve pop-noise issue 10K A1 Q707 HP_MUTE E MMBT3904(NXP) LN4500 THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES EAX65299401 SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS NC4_S7LRM 2013.2.25 ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. AUDIO AMP 7 12 Copyright ⓒ 2013 LG Electronics. Inc. All right reserved. LGE Internal Use Only Only for training and service purposes

---

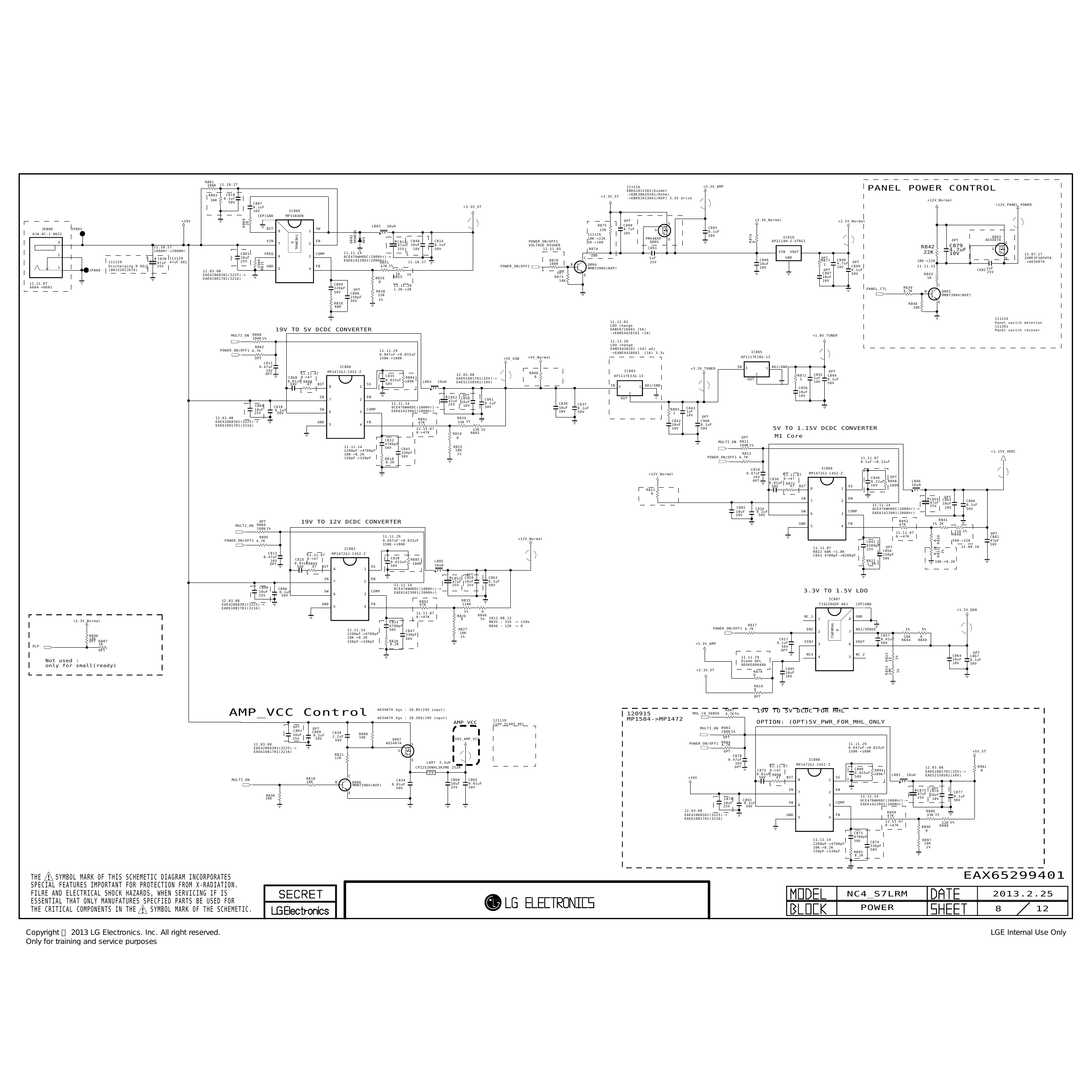

R801 100K 11.10.27 111116 +3.3V_AMP EBK61011501(Diode) PANEL POWER CONTROL R803 C818 ->EBK38029201(Rohm) +3.3V_ST ->EBK61913601(NXP) 3.3V drive 0.1uF 36K +12V_Normal 50V C807 +12V_PANEL_POWER 0.1uF +3.3V_ST 16V IC809 [EP]GND MP1584EN R809 +19V OPT +3.3V_Normal +2.5V_Normal 10 S L802 10uH R875 C890 JK800 JP801 BST SW 4.7uF C895 8 1 22K G SMAB34 10V 0.1uF KJA-DC-1-0032 111116 R876 THERMAL 50V D802 IC810 Q803 40V 10K->22K PMV48XP D AO3407A VIN EN C840 C814 POWER_ON/OFF1 Q805 AP2114H-2.5TRG1 OPT 0 C812 1K->100 9 4 7 2 S 47uF 10uF 0.1uF VOLTAGE HIGHER C879 11.10.27 25V 10V 50V 11.11.05 R874 C891 R842 G 1000Hr->2000Hr 4.7uF C803 FREQ COMP 11.11.14 VIN VOUT 22K 10V 12.07.17 2 6 3 0CE476WH6DC(1000hr)-> 100 C820 111129 10uF C 1uF GND OPT D ZXMP3F30FHTA 25V 300K EAE61423901(2000hr) R870 C896 R877 C898 10K->22K 111129 47uF 47uF DEL R815 R851 11.10.27 25V 4.7uF OPT ->AO3407A 100K B Q804 10uF 1 1 Discharging R DEL 25V GND FB 47K 1% POWER_ON/OFF1 10V 10V C899 11.11.15 5 4 MMBT3904(NXP) 1uF JP800 (0RJ2201J674) 12.03.08 OPT 0.1uF C882 OPT C897 25V EAE42868301(3225)-> 2K 1% E 50V R843 R819 R855 R873 10uF 1K EAE61081701(3216) 0 10K 10V 11.11.07 C869 C 11.11.28 6604->6601 220pF PANEL_CTL R839 OPT 1.2K->2K 4.7K 50V R838 B Q802 C808 15K MMBT3904(NXP) 150pF 50V 1% R816 R840 E 68K 10K 111116 11.12.01 Panel switch deletion LDO change 111201 19V TO 5V DCDC CONVERTER EAN56716601 (5A) Panel switch recover R800 ->EAN54428101 (1A) MULTI_ON +1.8V_TUNER 100K 1% 11.12.20 LDO change R802 POWER_ON/OFF1 4.7K EAN54428101 (1A) adj 11.11.29 IC805 ->EAN54428601 (1A) 3.3v 0.047uF->0.033uF OPT 150K->180K +5V_USB +5V_Normal AP1117E18G-13 C811 0.47uF IC800 IN 3 1 ADJ/GND +3.3V_TUNER 16V MP1472GJ-C452-Z IC803 OPT OPT 11.11.07 12.03.08 R808 2 C835 AP1117E33G-13 R872 C892 C894 C868 0->47 R884 EAE61081701(25V)-> 0 1uF 0.033uF OUT 1 0.1uF 0.01uF R888 180K L803 10uH EAE52158501(10V) 10V 50V 47 BST SS 50V 50V 8 1 IN 3 1 ADJ/GND C856 2 10uF IN EN OPT 10V C852 C858 OUT 7 2 47uF C861 10uF 0.1uF 11.11.14 25V C836 C837 C804 C810 0CE476WH6DC(1000hr)-> 10V 50V 10uF 0.1uF C843 10uF 0.1uF SW COMP EAE61423901(2000hr) R865 6 3 10V 50V 1uF 25V 50V 1 10V 12.03.08 R834 OPT R891 C842 C906 EAE42868301(3225)-> GND FB 47K 33K 1% EAE61081701(3216) 5 4 10uF 0.1uF 11.11.07 12K 1% 10V 50V 5V TO 1.15V DCDC CONVERTER 0->47K R824 R845 0 OPT M1 Core C832 R811 MULTI_ON 4700pF 100K 1% 11.11.14 50V R825 2200pF->4700pF C845 10K 330pF +1.15V_VDDC 10K->8.2K 1% R812 150pF->330pF 50V POWER_ON/OFF1 4.7K 11.11.07 R818 8.2K 0.1uF->0.22uF C819 IC806 +12V_Normal 0.47uF 11.11.07 MP1472GJ-C452-Z 16V C846 OPT C830 0->47 OPT 0.22uF R898 L806 0.01uF R871 50V 47 BST SS 16V 180K 10uH R813 8 1 0 IN EN OPT C855 C862 7 2 47uF C866 10uF 0.1uF 11.11.14 25V C802 C816 0CE476WH6DC(1000hr)-> 10V 50V 10uF 0.1uF SW COMP EAE61423901(2000hr) 10V 50V 6 3 R893 R841 OPT 19V TO 12V DCDC CONVERTER GND FB 47K 1% 2K MULTI_ON R804 5 4 100K 1% 11.11.07 220 1% R848 OPT R831 R830 R805 11.11.29 0->47K C881 0.047uF->0.033uF +12V_Normal 560->220 POWER_ON/OFF1 4.7K 47pF 8.2K 0 C841 150K->180K 8200pF 50V 11.11.07 OPT 12.08.10 IC802 25V 1% R822 68K->1.8K C850 C813 MP1472GJ-C452-Z 150pF 11.11.07 C841 4700pF->8200pF 0.47uF C838 50V 16V C825 0->47 R885 R822 0.033uF L805 10K->8.2K OPT 0.01uF R869 180K 1.8K 50V 47 BST SS 50V 10uH 8 1 OPT IN EN C853 C859 C863 7 2 47uF 10uF 0.1uF 11.11.14 25V 25V 50V C800 C806 0CE476WH6DC(1000hr)-> 10uF 0.1uF SW COMP EAE61423901(2000hr) 3.3V TO 1.5V LDO 25V 50V 6 3 R835 IC807 12.03.08 R892 EAE42868301(3225)-> GND FB 47K 120K TJ4220GDP-ADJ [EP]GND 5 4 EAE61081701(3216) +1.5V_DDR 11.11.07 1% 0 0->47K R826 R846 NC_1 GND 0 5% 2012.08.12 1 8 +3.3V_Normal C833 R835 : 33k -> 120k THERMAL 4700pF R846 : 12K -> 0 R817 50V R827 POWER_ON/OFF1 4.7K EN2 ADJ/SENSE 1% 5% 11.11.14 9 C847 2 7 2200pF->4700pF 10K R806 330pF C857 10K->8.2K 1% 10K 0 10K 50V C817 0.01uF R844 R849 OPT R807 150pF->330pF R820 VIN3 VOUT 1K 8.2K +3.3V_AMP 0.1uF 3 6 50V OLP 50V OPT OPT OPT R832 NC4 NC_2 C864 C867 1% 11.11.29 4 5 1K Not used : Diode DEL 10uF 0.1uF 0DSKE00048A 10V 50V only for small(ready) R833 C805 10K 1% +3.3V_ST R879 10uF 0 10V R814 0 OPT AO3407A Vgs : 10.8V(24V input) R887 AMP_VCC Control AO3407A Vgs : 10.36V(19V input) 120915 MHL_CD_SENSE 4.7K 5% 19V TO 5V DCDC FOR MHL 121118 MP1584->MP1472 AMP_VCC +19V_SCART DEL OPTION: (OPT)5V_PWR_FOR_MHL_ONLY OPT MULTI_ON R903 OPT C801 C809 100K 1% C839 R880 10uF 0.1uF 2.2uF 25V 50V 10K OPT 50V Q807 +19V_AMP_VCC 12.03.08 AO3407A S POWER_ON/OFF1 R904 4.7K 11.11.29 EAE42868301(3225)-> 0.047uF->0.033uF EAE61081701(3216) G OPT 150K->180K +5V_ST R821 C878 12K D 0.47uF IC808 L807 3.3uH 16V 11.11.07 MP1472GJ-C452-Z CPI2520NHL3R3ME 2520 OPT 12.03.08 R901 C872 0->47 C889 R894 0 0.033uF EAE61081701(25V)-> 0.01uF R890 180K L801 10uH EAE52158501(10V) C 50V 47 BST SS 50V R810 +19V MULTI_ON C834 C860 C865 8 1 10K B Q806 MMBT3904(NXP) 0.01uF 10uF 0.01uF 50V 25V 50V OPT IN EN C875 C876 E 7 2 47uF C877 R836 11.11.14 10uF 0.1uF 10K C870 25V 10V C893 0CE476WH6DC(1000hr)-> 50V 10uF 0.1uF SW COMP EAE61423901(2000hr) 25V 50V 6 3 12.03.08 R899 R889 EAE42868301(3225)-> GND FB 47K 33K 1% EAE61081701(3216) 5 4 11.11.07 12K 1% 0->47K R896 R900 0 C873 4700pF 11.11.14 50V R897 2200pF->4700pF C874 10K 10K->8.2K 330pF 1% 150pF->330pF 50V R895 8.2K THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES EAX65299401 SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS NC4_S7LRM 2013.2.25 ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. POWER 8 12 Copyright ⓒ 2013 LG Electronics. Inc. All right reserved. LGE Internal Use Only Only for training and service purposes

---

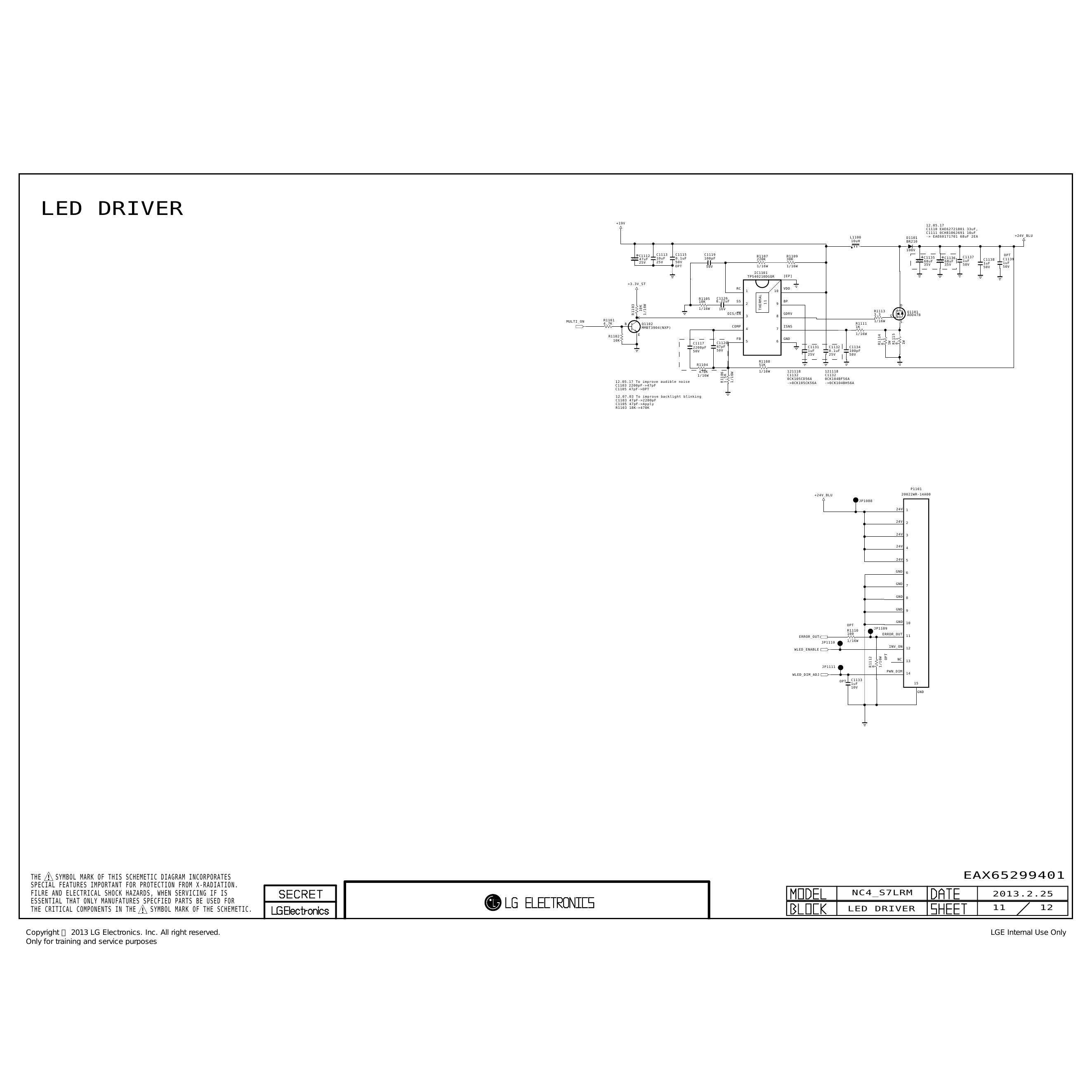

LED DRIVER +19V 12.05.17 C1110 EAE62721801 33uF, C1111 0CH8106J691 10uF -> EAE60171701 68uF 2EA +24V_BLU L1100 D1101 10uH BR210 100V C1112 C1113 C1115 C1119 OPT R1107 R1109 C1135 C1137 47uF 10uF 0.1uF 100pF 220K 30K C1136 C1139 68uF 1uF C1138 25V 25V 50V 68uF 35V 50V 1uF 1uF OPT 1/16W 1/16W 35V 50V 50V 50V IC1101 TPS40210DGQR [EP] +3.3V_ST RC VDD 1 10 THERMAL R1105 C1126 11 10K 0.22uF SS BP 2 9 R1103 1/16W D 10K 1/16W 16V R1113 Q1101 DIS/EN GDRV 3.3 AOD478 3 8 G C MULTI_ON R1101 1/16W S 4.7K B Q1102 R1111 MMBT3904(NXP) COMP ISNS 1K 4 7 1/16W R1115 E R1114 R1102 FB GND 0.1 0.1 10K 1W 5 6 1W C1117 C1120 2200pF 47pF C1131 C1132 C1134 50V 50V 1uF 0.1uF 100pF 25V 25V 50V R1108 R1104 51K 470K 1/16W 121118 121118 R1106 1/16W 1.5K 1/16W C1132 C1132 0CK105CD56A 0CK104BF56A 12.05.17 To improve audible noise ->0CK105CK56A ->0CK104BH56A C1103 2200pF->47pF C1105 47pF->OPT 12.07.03 To improve backlight blinking C1103 47pF->2200pF C1105 47pF->Apply R1103 18K->470K P1101 +24V_BLU 20022WR-14A00 JP1088 24V 1 24V 2 24V 3 24V 4 24V 5 GND 6 GND 7 GND 8 GND 9 GND 10 OPT JP1109 R1110 100 ERROR_OUT ERROR_OUT 11 1/16W JP1110 INV_ON WLED_ENABLE 12 OPT R1112 1/16W NC 13 0 JP1111 PWN_DIM WLED_DIM_ADJ 14 OPT C1133 1uF 15 10V GND THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES EAX65299401 SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS NC4_S7LRM 2013.2.25 ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. LED DRIVER 11 12 Copyright ⓒ 2013 LG Electronics. Inc. All right reserved. LGE Internal Use Only Only for training and service purposes

---

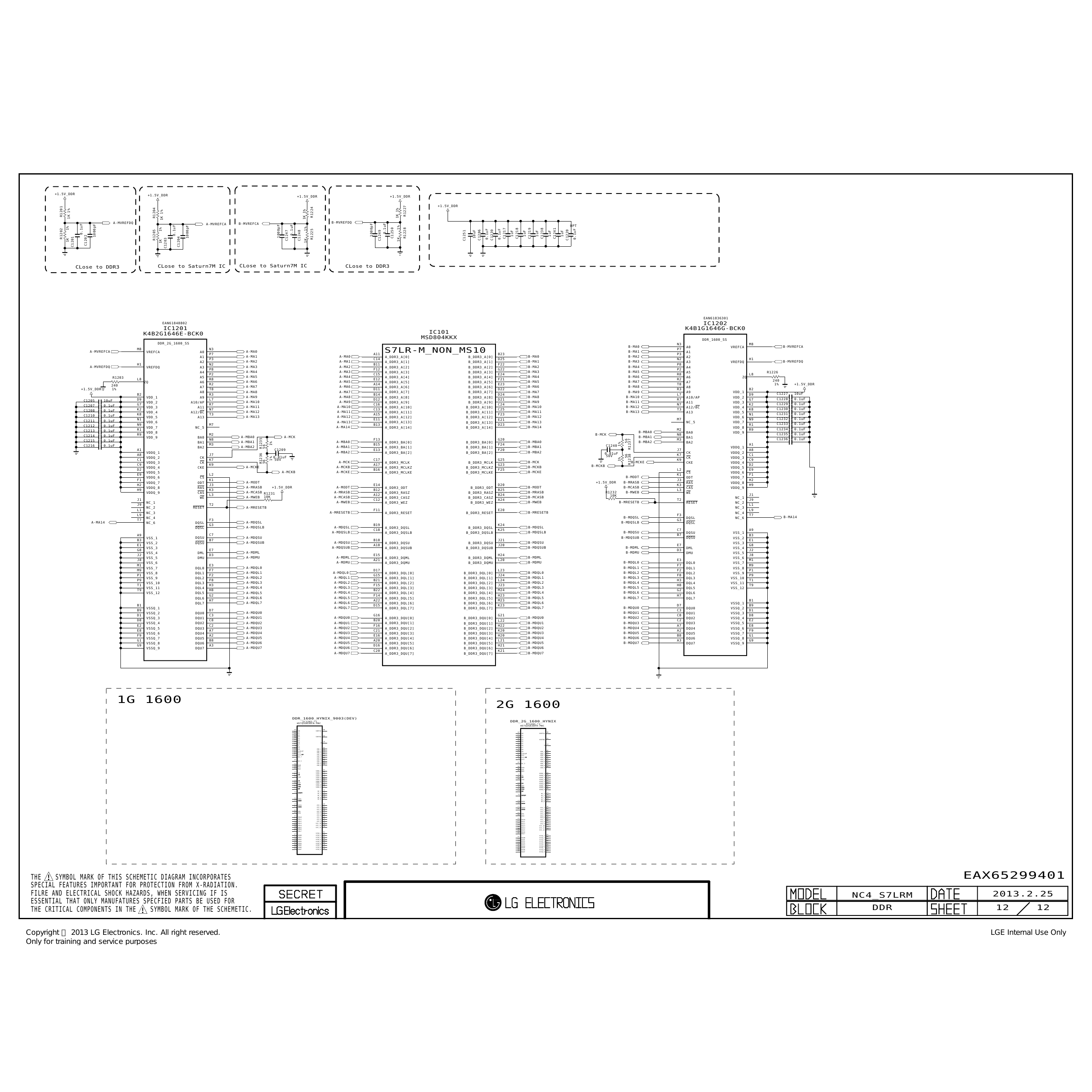

+1.5V_DDR +1.5V_DDR +1.5V_DDR +1.5V_DDR +1.5V_DDR R1227 R1201 R1224 R1204 1K 1% 1K 1% 1K 1% 1K 1% A-MVREFDQ B-MVREFCA B-MVREFDQ 0.1uF A-MVREFCA 1000pF 0.1uF 1000pF 0.1uF 1000pF OPT 0.1uF 1000pF 1% 1% 1% 1% C1250 R1228 C1217 C1218 C1219 C1238 C1241 R1202 R1225 0.1uF 0.1uF 0.1uF R1205 C1206 C1239 C1220 10uF C1247 C1248 C1249 C1251 1uF 1uF 1uF 1uF 1uF C1202 C1201 C1204 1K C1203 1K 1K 1K CLose to DDR3 CLose to Saturn7M IC CLose to Saturn7M IC CLose to DDR3 EAN61836301 EAN61848802 IC1202 IC1201 K4B1G1646G-BCK0 K4B2G1646E-BCK0 IC101 MSD804KKX DDR_1600_SS DDR_2G_1600_SS N3 M8 B-MA0 A0 VREFCA B-MVREFCA A-MVREFCA M8 VREFCA A0 N3 P7 A-MA0 A11 S7LR-M_NON_MS10 B23 B-MA1 P7 P3 A1 A1 A-MA1 A-MA0 A_DDR3_A[0] B_DDR3_A[0] B-MA0 B-MA2 A2 P3 C14 D25 N2 H1 A2 A-MA2 A-MA1 A_DDR3_A[1] B_DDR3_A[1] B-MA1 B-MA3 A3 VREFDQ B-MVREFDQ H1 N2 B11 F22 P8 A-MVREFDQ VREFDQ A3 A-MA3 A-MA2 A_DDR3_A[2] B_DDR3_A[2] B-MA2 B-MA4 A4 P8 F12 G22 P2 A4 A-MA4 A-MA3 A_DDR3_A[3] B_DDR3_A[3] B-MA3 B-MA5 A5 R1226 P2 C15 E24 R8 L8 R1203 A5 A-MA5 A-MA4 A_DDR3_A[4] B_DDR3_A[4] B-MA4 B-MA6 A6 ZQ L8 R8 E12 F21 R2 240 ZQ A6 A-MA6 A-MA5 A_DDR3_A[5] B_DDR3_A[5] B-MA5 B-MA7 A7 240 R2 A14 E23 T8 1% +1.5V_DDR A7 A-MA7 A-MA6 A_DDR3_A[6] B_DDR3_A[6] B-MA6 B-MA8 A8 +1.5V_DDR 1% T8 D11 D22 R3 B2 A8 A-MA8 A-MA7 A_DDR3_A[7] B_DDR3_A[7] B-MA7 B-MA9 A9 VDD_1 B2 R3 B14 D24 L7 D9 C1227 10uF VDD_1 A9 A-MA9 A-MA8 A_DDR3_A[8] B_DDR3_A[8] B-MA8 B-MA10 A10/AP VDD_2 D9 L7 D12 D21 R7 G7 C1228 0.1uF C1205 10uF VDD_2 A10/AP A-MA10 A-MA9 A_DDR3_A[9] B_DDR3_A[9] B-MA9 B-MA11 A11 VDD_3 G7 R7 C16 C24 N7 K2 C1229 0.1uF C1207 0.1uF VDD_3 A11 A-MA11 A-MA10 A_DDR3_A[10] B_DDR3_A[10] B-MA10 B-MA12 A12/BC VDD_4 K2 N7 C13 C25 T3 K8 C1230 0.1uF C1208 0.1uF A-MA12 A-MA11 B-MA11 B-MA13 VDD_4 A12/BC A_DDR3_A[11] B_DDR3_A[11] A13 VDD_5 C1231 0.1uF C1210 0.1uF K8 T3 A15 F23 N1 VDD_5 A13 A-MA13 A-MA12 A_DDR3_A[12] B_DDR3_A[12] B-MA12 VDD_6 N1 E11 E21 M7 N9 C1232 0.1uF C1211 0.1uF A-MA13 B-MA13 VDD_6 A_DDR3_A[13] B_DDR3_A[13] NC_5 VDD_7 C1233 0.1uF C1212 0.1uF N9 M7 B13 D23 R1 VDD_7 NC_5 A-MA14 A_DDR3_A[14] B_DDR3_A[14] B-MA14 VDD_8 R1 M2 R9 C1234 0.1uF C1213 0.1uF B-MBA0 VDD_8 BA0 VDD_9 C1235 0.1uF C1214 0.1uF R9 M2 B-MCK N8 VDD_9 BA0 A-MBA0 A-MCK B-MBA1 BA1 R1235 N8 F13 G20 M3 C1236 0.1uF 56 R1237 C1215 0.1uF A-MBA1 A-MBA0 B-MBA0 B-MBA2 1% BA1 A_DDR3_BA[0] B_DDR3_BA[0] BA2 1% M3 B15 F24 A1 56 C1216 0.1uF A-MBA2 A-MBA1 B-MBA1 C1240 BA2 A_DDR3_BA[1] B_DDR3_BA[1] VDDQ_1 A1 C1209 E13 F20 J7 A8 VDDQ_1 A-MBA2 A_DDR3_BA[2] B_DDR3_BA[2] B-MBA2 0.01uF CK VDDQ_2 R1236 A8 J7 K7 C1 56 R1238 0.01uF 50V 1% VDDQ_2 CK CK VDDQ_3 1% C1 K7 50V C17 G25 K9 C9 56 VDDQ_3 CK A-MCK A_DDR3_MCLK B_DDR3_MCLK B-MCK B-MCKE CKE VDDQ_4 C9 K9 A17 G23 B-MCKB D2 VDDQ_4 CKE A-MCKE A-MCKB A_DDR3_MCLKZ B_DDR3_MCLKZ B-MCKB VDDQ_5 D2 B16 F25 L2 E9 VDDQ_5 A-MCKB A-MCKE A_DDR3_MCLKE B_DDR3_MCLKE B-MCKE CS VDDQ_6 E9 L2 K1 F1 VDDQ_6 CS B-MODT ODT VDDQ_7 F1 K1 J3 H2 VDDQ_7 ODT A-MODT +1.5V_DDR B-MRASB RAS VDDQ_8 H2 J3 E14 D20 K3 H9 VDDQ_8 RAS A-MRASB +1.5V_DDR A-MODT A_DDR3_ODT B_DDR3_ODT B-MODT B-MCASB CAS VDDQ_9 H9 K3 B12 B25 L3 VDDQ_9 CAS A-MCASB R1231 A-MRASB A_DDR3_RASZ B_DDR3_RASZ B-MRASB R1232 B-MWEB WE L3 A12 B24 10K J1 WE A-MWEB 10K A-MCASB A_DDR3_CASZ B_DDR3_CASZ B-MCASB NC_1 J1 C12 A24 T2 J9 NC_1 A-MWEB A_DDR3_WEZ B_DDR3_WEZ B-MWEB B-MRESETB RESET NC_2 J9 T2 L1 NC_2 RESET A-MRESETB NC_3 L1 F11 E20 L9 NC_3 A-MRESETB A_DDR3_RESET B_DDR3_RESET B-MRESETB NC_4 L9 F3 T7 NC_4 B-MDQSL DQSL NC_6 B-MA14 T7 F3 G3 A-MA14 NC_6 DQSL A-MDQSL B-MDQSLB DQSL G3 B19 K24 DQSL A-MDQSLB A-MDQSL A_DDR3_DQSL B_DDR3_DQSL B-MDQSL C18 K25 C7 A9 A-MDQSLB A_DDR3_DQSLB B_DDR3_DQSLB B-MDQSLB B-MDQSU DQSU VSS_1 A9 C7 B7 B3 VSS_1 DQSU A-MDQSU B-MDQSUB DQSU VSS_2 B3 B7 B18 J21 E1 VSS_2 DQSU A-MDQSUB A-MDQSU A_DDR3_DQSU B_DDR3_DQSU B-MDQSU VSS_3 E1 A18 J20 E7 G8 VSS_3 A-MDQSUB A_DDR3_DQSUB B_DDR3_DQSUB B-MDQSUB B-MDML DML VSS_4 G8 E7 D3 J2 VSS_4 DML A-MDML B-MDMU DMU VSS_5 J2 D3 E15 H24 J8 VSS_5 DMU A-MDMU A-MDML A_DDR3_DQML B_DDR3_DQML B-MDML VSS_6 J8 A21 L20 E3 M1 VSS_6 A-MDMU A_DDR3_DQMU B_DDR3_DQMU B-MDMU B-MDQL0 DQL0 VSS_7 M1 E3 F7 M9 VSS_7 DQL0 A-MDQL0 B-MDQL1 DQL1 VSS_8 M9 F7 D17 L23 F2 P1 VSS_8 DQL1 A-MDQL1 A-MDQL0 A_DDR3_DQL[0] B_DDR3_DQL[0] B-MDQL0 B-MDQL2 DQL2 VSS_9 P1 F2 G15 J24 F8 P9 VSS_9 DQL2 A-MDQL2 A-MDQL1 A_DDR3_DQL[1] B_DDR3_DQL[1] B-MDQL1 B-MDQL3 DQL3 VSS_10 P9 F8 B21 L24 H3 T1 VSS_10 DQL3 A-MDQL3 A-MDQL2 A_DDR3_DQL[2] B_DDR3_DQL[2] B-MDQL2 B-MDQL4 DQL4 VSS_11 T1 H3 F15 J23 H8 T9 VSS_11 DQL4 A-MDQL4 A-MDQL3 A_DDR3_DQL[3] B_DDR3_DQL[3] B-MDQL3 B-MDQL5 DQL5 VSS_12 T9 H8 B22 M24 G2 VSS_12 DQL5 A-MDQL5 A-MDQL4 A_DDR3_DQL[4] B_DDR3_DQL[4] B-MDQL4 B-MDQL6 DQL6 G2 F14 H23 H7 DQL6 A-MDQL6 A-MDQL5 A_DDR3_DQL[5] B_DDR3_DQL[5] B-MDQL5 B-MDQL7 DQL7 H7 A22 M23 B1 DQL7 A-MDQL7 A-MDQL6 A_DDR3_DQL[6] B_DDR3_DQL[6] B-MDQL6 VSSQ_1 B1 D15 K23 D7 B9 VSSQ_1 A-MDQL7 A_DDR3_DQL[7] B_DDR3_DQL[7] B-MDQL7 B-MDQU0 DQU0 VSSQ_2 B9 D7 C3 D1 VSSQ_2 DQU0 A-MDQU0 B-MDQU1 DQU1 VSSQ_3 D1 C3 G16 G21 C8 D8 VSSQ_3 DQU1 A-MDQU1 A-MDQU0 A_DDR3_DQU[0] B_DDR3_DQU[0] B-MDQU0 B-MDQU2 DQU2 VSSQ_4 D8 C8 B20 L22 C2 E2 VSSQ_4 DQU2 A-MDQU2 A-MDQU1 A_DDR3_DQU[1] B_DDR3_DQU[1] B-MDQU1 B-MDQU3 DQU3 VSSQ_5 E2 C2 F16 H22 A7 E8 VSSQ_5 DQU3 A-MDQU3 A-MDQU2 A_DDR3_DQU[2] B_DDR3_DQU[2] B-MDQU2 B-MDQU4 DQU4 VSSQ_6 E8 A7 C21 K20 A2 F9 VSSQ_6 DQU4 A-MDQU4 A-MDQU3 A_DDR3_DQU[3] B_DDR3_DQU[3] B-MDQU3 B-MDQU5 DQU5 VSSQ_7 F9 A2 E16 H20 B8 G1 VSSQ_7 DQU5 A-MDQU5 A-MDQU4 A_DDR3_DQU[4] B_DDR3_DQU[4] B-MDQU4 B-MDQU6 DQU6 VSSQ_8 G1 B8 A20 L21 A3 G9 VSSQ_8 DQU6 A-MDQU6 A-MDQU5 A_DDR3_DQU[5] B_DDR3_DQU[5] B-MDQU5 B-MDQU7 DQU7 VSSQ_9 G9 A3 D16 H21 VSSQ_9 DQU7 A-MDQU7 A-MDQU6 A_DDR3_DQU[6] B_DDR3_DQU[6] B-MDQU6 C20 K21 A-MDQU7 A_DDR3_DQU[7] B_DDR3_DQU[7] B-MDQU7 1G 1600 2G 1600 DDR_1600_HYNIX_9003(DEV) IC1202-*1 DDR_2G_1600_HYNIX H5TQ1G63EFR-PBC IC1201-*1 H5TQ2G63DFR-PBC N3 M8 A0 VREFCA P7 N3 M8 A1 A0 VREFCA P3 P7 A2 A1 N2 H1 P3 A3 VREFDQ A2 P8 N2 H1 A4 A3 VREFDQ P2 P8 A5 A4 R8 L8 P2 A6 ZQ A5 R2 R8 L8 A7 A6 ZQ T8 R2 A8 A7 R3 B2 T8 A9 VDD_1 A8 L7 D9 R3 B2 A10/AP VDD_2 A9 VDD_1 R7 G7 L7 D9 A11 VDD_3 A10/AP VDD_2 N7 K2 R7 G7 A12/BC VDD_4 A11 VDD_3 T3 K8 N7 K2 NC_7 VDD_5 A12/BC VDD_4 N1 T3 K8 VDD_6 A13 VDD_5 M7 N9 N1 NC_5 VDD_7 VDD_6 R1 M7 N9 VDD_8 NC_5 VDD_7 M2 R9 R1 BA0 VDD_9 VDD_8 N8 M2 R9 BA1 BA0 VDD_9 M3 N8 BA2 BA1 A1 M3 VDDQ_1 BA2 J7 A8 A1 CK VDDQ_2 VDDQ_1 K7 C1 J7 A8 CK VDDQ_3 CK VDDQ_2 K9 C9 K7 C1 CKE VDDQ_4 CK VDDQ_3 D2 K9 C9 VDDQ_5 CKE VDDQ_4 L2 E9 D2 CS VDDQ_6 VDDQ_5 K1 F1 L2 E9 ODT VDDQ_7 CS VDDQ_6 J3 H2 K1 F1 RAS VDDQ_8 ODT VDDQ_7 K3 H9 J3 H2 CAS VDDQ_9 RAS VDDQ_8 L3 K3 H9 WE CAS VDDQ_9 J1 L3 NC_1 WE T2 J9 J1 RESET NC_2 NC_1 L1 T2 J9 NC_3 RESET NC_2 L9 L1 NC_4 NC_3 F3 T7 L9 DQSL NC_6 NC_4 G3 F3 T7 DQSL DQSL NC_6 G3 C7 A9 DQSL DQSU VSS_1 B7 B3 C7 A9 DQSU VSS_2 DQSU VSS_1 E1 B7 B3 VSS_3 DQSU VSS_2 E7 G8 E1 DML VSS_4 VSS_3 D3 J2 E7 G8 DMU VSS_5 DML VSS_4 J8 D3 J2 VSS_6 DMU VSS_5 E3 M1 J8 DQL0 VSS_7 VSS_6 F7 M9 E3 M1 DQL1 VSS_8 DQL0 VSS_7 F2 P1 F7 M9 DQL2 VSS_9 DQL1 VSS_8 F8 P9 F2 P1 DQL3 VSS_10 DQL2 VSS_9 H3 T1 F8 P9 DQL4 VSS_11 DQL3 VSS_10 H8 T9 H3 T1 DQL5 VSS_12 DQL4 VSS_11 G2 H8 T9 DQL6 DQL5 VSS_12 H7 G2 DQL7 DQL6 B1 H7 VSSQ_1 DQL7 D7 B9 B1 DQU0 VSSQ_2 VSSQ_1 C3 D1 D7 B9 DQU1 VSSQ_3 DQU0 VSSQ_2 C8 D8 C3 D1 DQU2 VSSQ_4 DQU1 VSSQ_3 C2 E2 C8 D8 DQU3 VSSQ_5 DQU2 VSSQ_4 A7 E8 C2 E2 DQU4 VSSQ_6 DQU3 VSSQ_5 A2 F9 A7 E8 DQU5 VSSQ_7 DQU4 VSSQ_6 B8 G1 A2 F9 DQU6 VSSQ_8 DQU5 VSSQ_7 A3 G9 B8 G1 DQU7 VSSQ_9 DQU6 VSSQ_8 A3 G9 DQU7 VSSQ_9 THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES EAX65299401 SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS NC4_S7LRM 2013.2.25 ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. DDR 12 12 Copyright ⓒ 2013 LG Electronics. Inc. All right reserved. LGE Internal Use Only Only for training and service purposes

---

* Option name of this page : CI_SLOT (because of Hong Kong) CI Region CI SLOT +5V_CI_ON CI_DATA[0-7] CI TS INPUT AR1905 33 CI_DATA[0-7] FE_TS_DATA[7] +5V_Normal CI_MDI[7] C1906 FE_TS_DATA[6] FE_TS_DATA[0-7] CI_MDI[6] 10uF FE_TS_DATA[5] 10V P1900 CI_MDI[5] FE_TS_DATA[4] R1903 EAG41860102 CI_MDI[4] 10K 10067972-000LF /CI_CD1 CI_SLOT AR1906 33 FE_TS_DATA[3] C1903 CI_MDI[3] 0.1uF FE_TS_DATA[2] R1908 CI_MDI[2] 16V 35 FE_TS_DATA[1] 100 CI_MDI[1] 36 CI_DATA[3] FE_TS_DATA[0] AR1901 CI_MDI[0] CI_DATA[0-7] 37 3 CI_DATA[4] 33 R1921 38 4 CI_DATA[5] 10K FE_TS_DATA[0-7] CI_TS_DATA[4] 39 5 CI_DATA[6] CI_TS_DATA[5] R1929 33 40 6 CI_DATA[7] CI_MISTRT FE_TS_SYNC CI_TS_DATA[6] R1930 33 CI_TS_DATA[7] 41 7 R1919 47 FE_TS_VAL_ERR /PCM_CE CI_MIVAL_ERR 42 8 CI_ADDR[10] R1931 100 R1905 10K 43 9 FE_TS_CLK CI_OE CI_MCLKI 44 10 CI_ADDR[11] CI_IORD CI_ADDR[9] +5V_Normal CI_IOWR 45 11 46 12 CI_ADDR[8] 120915 47 13 CI_ADDR[13] R1911 Array->normal resistor CI_MDI[0] 10K 120915 48 14 CI_ADDR[14] ADDED CI_MDI[1] CI_MDI[2] 49 15 CI_WE 50 16 R1920 100 CI_MDI[3] /PCM_IRQA 51 17 OPT OPT C1915 120915 BufferIC change 121022 BufferIC change C1905 52 18 C1909 GND 0.1uF R1910 0 R1916 0 0.1uF 0.1uF 120915 0ITO742440D 0ISTLPH048A 120915 CI_MDI[4] 53 19 16V ADDED ADDED GND ->0ISTLPH048A ->0ITO742440D CI_MDI[5] 54 20 +5V_Normal CI_ADDR[12] CI_MDI[6] 55 21 CLOSE TO MSTAR CI_ADDR[7] GND R1928 10K CI_MDI[7] R1906 10K 56 57 22 23 CI_ADDR[6] CI HOST I/F R1902 47 58 24 CI_ADDR[5] PCM_RST R1901 47 59 25 CI_ADDR[4] /PCM_WAIT CLOSE TO MSTAR 60 26 CI_ADDR[3] +3.3V_Normal REG R1925 100 61 27 CI_ADDR[2] CI_TS_CLK R1926 33 CI_ADDR[1] NAND_EN CI_TS_VAL 62 28 R1927 33 63 29 CI_ADDR[0] CI_TS_SYNC CI_DET CI_DATA[0] IC1902 64 30 AR1903 33 CI_DATA[1] C1913 65 31 CI_ADDR[0-14] CI_TS_DATA[0] CI_DATA[2] 0.1uF 66 32 1OE VCC 16V CI_TS_DATA[1] 67 33 1 20 TOSHIBA CI_TS_DATA[2] 68 34 CI_TS_DATA[3] 1A1 2OE OPT G2 2 69 G1 1 PCM_A[0] 2 19 R1909 AR1915 R1907 0 0ITO742440D AR1914 100 33 33 2Y4 1Y1 /CI_CD2 3 18 CI_ADDR[7] CI_ADDR[0] +5V_Normal GND CI_ADDR[6] CI_ADDR[1] CI_ADDR[5] 1A2 2A4 CI_ADDR[2] GND PCM_A[1] 4 17 PCM_A[7] C1914 CI_ADDR[4] CI_ADDR[3] 2pF R1904 2Y3 1Y2 TC74LCX244FT 50V 5 16 10K GND CLOSE TO MSTAR C1904 1A3 2A3 0.1uF 6 15 PCM_A[2] PCM_A[6] 16V 2Y2 1Y3 7 14 CI_MISTRT CI_MIVAL_ERR 1A4 2A2 PCM_A[3] 8 13 PCM_A[5] CI_MCLKI 2Y1 1Y4 9 12 GND 2A1 10 11 PCM_A[4] CI DETECT +3.3V_CI +3.3V_CI +3.3V_Normal +3.3V_CI IC1901 74LVC1G32GW B 1 5 VCC /CI_CD2 L1901 A 2 /CI_CD1 C1908 R1917 0 0.1uF GND 3 4 Y 10K 16V GND R1915 AR1907 33 OPT 47 CI_DATA[0] PCM_D[0] C1901 C1902 CI_DET CI_DATA[1] PCM_D[1] 0.1uF 0.1uF R1918 CI_DATA[0-7] 47 CI_DATA[2] PCM_D[2] /PCM_CD CI_DATA[3] PCM_D[3] PCM_D[0-7] AR1908 33 CI_DATA[4] PCM_D[4] CI_DATA[5] PCM_D[5] CI_DATA[6] PCM_D[6] CI_DATA[7] PCM_D[7] 121022 Swich block change PCM_D[0-7] FET->IC CI_DATA[0-7] CI POWER ENABLE CONTROL AR1912 33 CI_ADDR[8] PCM_A[8] CI_ADDR[9] PCM_A[9] CI_ADDR[10] PCM_A[10] +5V_Normal IC1903 CI_ADDR[11] PCM_A[11] AP2151WG-7 +5V_CI_ON L1902 BLM18PG121SN1D IN OUT AR1913 33 5 1 CI_ADDR[12] PCM_A[12] GND CI_ADDR[13] PCM_A[13] 2 CI_ADDR[14] PCM_A[14] R1922 C1910 100K REG /PCM_REG R1914 1uF 100 EN FLG 25V PCM_5V_CTL 4 3 R1913 10K AR1909 33 CI_OE /PCM_OE CI_WE /PCM_WE CI_IORD /PCM_IORD CI_IOWR /PCM_IOWR THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES EAX65299401 SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS NC4_S7LRM 2013.2.25 ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. PCMCI 19 12 Copyright ⓒ 2013 LG Electronics. Inc. All right reserved. LGE Internal Use Only Only for training and service purposes

---

NETCAST4.0 EU(DVB-T/C)_TUNER_BLOCK (OPT)RF_SW_OPT R2603 121118 0 Change Tuner RF_SWITCH_CTL Tuner ->Tuner(with bushing) +3.3V_TU C2603 Close to TUNER 0.1uF TU2600 16V (OPT)RF_SW_OPT R2614 TDSS-G501D(B) R2611 100K 12.08.14 diagonal noise improve 100 TUNER_RESET OPT C2624 C2622 0.1uF 0.1uF 16V (OPT)TU_I2C_FILTER 16V R2609-*1 MLG1005SR27JT (EU)TDSS-G501D(B) +3.3V_TU NC_1 (OPT)TU_I2C_FILTER 1 R2610-*1 MLG1005SR27JT RESET R2870 R2871 2 1K 1K TU_I2C_NON_FILTER +3.3V_TU SCL R2609 33 3 TU_SCL +3.3V_TU +3.3V_TU SDA TU_I2C_NON_FILTER 4 R2610 33 TU_SDA OPT OPT C2607 C2612 C2651 C2652 R2618 20pF 20pF 470 R2619 3.3V 20pF 20pF 121212 82 5 50V 50V 50V 50V close to TUNER TU_SIF C2621 C2623 C2628 Diagonal noise improve E R2624 R2625 NC_2 +1.8V_TUNER 100pF 0.1uF 100uF OPT->APPLY 220 220 C2626 OPT 6 50V 16V 16V N.K PARK OPT OPT Q2600 0.1uF OPT B MMBT3906(NXP) 1.8V 16V R2616 7 OPT 4.7K C TU_CVBS C2602 C2604 C2627 E NC_3 100pF 0.1uF 100uF R2638 0 8 50V 16V 16V Q2601 OPT OPT B MMBT3906(NXP) IF_AGC OPT 9 IF_AGC_MAIN C R2635 R2637 680 680 DLIF_[P] R2608 OPT R2636 OPT 10 C2600 0 should be guarded by ground 2K 0.1uF OPT DLIF_[N] 16V R2602 11 10 IF_P_MSTAR B1 A1 B1 A1 IF_N_MSTAR R2601 10 12 121118 0->10ohm SHIELD 130225 DEL +3.3V_TU +3.3V_TUNER 121118 SS BEAD->SUNLORD BEAD L2606 UBW2012-121F C2643 C2644 C2646 C2648 22uF 0.1uF 22uF 0.1uF 10V 16V 10V 16V THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES EAX65299401 SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS NC4_S7LRM 2013.2.25 ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. TUNER_EU 26 12 Copyright ⓒ 2013 LG Electronics. Inc. All right reserved. LGE Internal Use Only Only for training and service purposes

---

SCART / COMPONENT&CVBS COMPONENT&CVBS COMP_NON_ADC_FILTER (OPT)COMP_ADC_FILTER_L L2807-*1 SCART AMP L2807 0 +12V_Normal +5V_USB CM2012FR10KT COMP_Y+/AV_CVBS_IN 121118 (OPT)COMP_ADC_FILTER (OPT)COMP_ADC_FILTER SCART AMP IC change OPT 130219 BJ.KIM 121017 5.6B C2829 +3.3V_Normal R2800 R2801 R2822 C2830 Change ZD2806 75 47pF 0 0 47pF 5.6B 50V 50V ZD2807 R2837 10K R2838 1K C2817 AV_CVBS_DET 0.1uF OPT IC2800 50V D2817 C2813 AZ4580MTR-E1 5.6V COMP_NON_ADC_FILTER 0.1uF L2806-*1 16V R2847 130114 0 2.2K 33K->5.1K OUT1 8 VCC (OPT)COMP_ADC_FILTER_L 1 L2806 DTV/MNT_L_OUT 121128 CM2012FR10KT [GN]E-LUG Change C2821 R2852 130114 R2846 COMP_Pb+ 5.1K IN1- 7 OUT2 33K->5.1K 2.2K 10uF R2851 2 6A (OPT)COMP_ADC_FILTER 16V DTV/MNT_R_OUT [GN]O-SPRING (OPT)COMP_ADC_FILTER 470K 5.6B R2824 ZD2802 C2827 C2828 R2853 75 IN1+ IN2- 5.1K C2822 5A JP2810 47pF 47pF 3 6 10uF 5.6B R2854 [GN]CONTACT 50V 50V C2823 10K R2850 16V ZD2803 33pF 470K R2855 4A JP2811 VEE IN2+ 10K [BL]E-LUG-S COMP_NON_ADC_FILTER 4 5 (OPT)COMP_ADC_FILTER_L L2805-*1 L2805 C2824 7B 0 33pF 121017 CM2012FR10KT [BL]O-SPRING R2848 Change COMP_Pr+ 5.6B 5.6K 5B ZD2804 (OPT)COMP_ADC_FILTER +3.3V_Normal SCART1_Lout R2849 [RD]E-LUG-S JP2814 (OPT)COMP_ADC_FILTER 5.6K 5.6B R2823 C2825 C2826 SCART1_Rout ZD2805 75 47pF 330pF 220K 7C 47pF C2820 R2845 [RD]O-SPRING_1 50V 50V R2841 R2843 C2819 5C 10K 220K 330pF JP2815 R2842 [RD]CONTACT_1 1K (OPT)COMP_ADC_FILTER_L(AUDIO) COMP_DET 4C L2811 R2832 CM2012FR10KT 10K OPT COMP_L_IN D2818 CLOSE TO MSTAR 5D [WH]O-SPRING C2837 C2810 R2834 JP2812 D2815 R2825 5.6V 470K 1000pF 47pF 12K 20V 50V CLOSE TO MSTAR 50V 4E (OPT)COMP_ADC_FILTER(AUDIO)COMP_NON_ADC_FILTER(AUDIO) [RD]CONTACT_2 L2811-*1 (OPT)COMP_ADC_FILTER_L(AUDIO) 0 L2812 R2831 5E [RD]O-SPRING_2 CM2012FR10KT 10K JP2813 COMP_R_IN 6E [RD]E-LUG D2816 C2838 C2811 R2833 20V R2826 1000pF 47pF 12K PPJ234-05 470K 50V 50V JK2800 (OPT)COMP_ADC_FILTER(AUDIO) COMP_NON_ADC_FILTER(AUDIO) L2812-*1 0 121229 121019 OPT -> APPLY for ESD ADC_FILTER(AUDIO) ADD 121118 +3.3V_Normal FULL SCART Change +3.3V_Normal [SCART AUDIO MUTE] +3.3V_ST R2808 (OPT)EU_SCART mute 4.7K R2844 R2810 DTV/MNT_L_OUT (OPT)EU_SCART mute 1K 10K SCART1_DET R2839 (OPT)EU_SCART mute 2K (OPT)EU_SCART mute OPT Q2802 D2819 IC2801 C2812 (OPT)EU_SCART mute MMBD6100 D2810 MMBT3904(NXP) Q2804 20V MM1756DURE 0.1uF MMBT3906(NXP) A2 C2814 SCART1_MUTE R2809 C 0 0.1uF SC1_SOG_IN VCC IN (OPT)EU_SCART mute A1 6 1 3 1 SB_MUTE DTV/MNT_VOUT DTV/MNT_R_OUT R2840 (OPT)EU_SCART mute 2K C2816 2 PS GND 0.1uF SC1_CVBS_IN 5 2 Q2803 OPT MMBT3904(NXP) (OPT)EU_SCART mute C2802 R2807 C2800 220pF OUT BIAS 75 47pF 4 3 AV_DET 5.6B 50V 50V 22 ZD2800 COM_GND 5.6B C2815 ZD2801 4.7uF 21 SYNC_IN JP2802 20 R2816 SYNC_OUT JP2803 75 19 121219 SYNC_GND2 R2815 OPT->APPLY D2802 OPT 22 18 20V D2809 SYNC_GND1 20V SC1_FB 17 (OPT)SCART_ADC_FILTER_L JP2804 RGB_IO L2808 R2811 16 CM2012FR10KT 75 R_OUT JP2805 15 (OPT)SCART_ADC_FILTER (OPT)SCART_ADC_FILTER SC1_R+ RGB_GND 120927 D2803 R2806 C2831 C2832 14 OPT->APPLY 20V 75 47pF 47pF SCART_NON_ADC_FILTER R_GND 50V 50V L2808-*1 13 (OPT)SCART_ADC_FILTER_L 0 D2B_OUT L2809 12 CM2012FR10KT G_OUT 11 (OPT)SCART_ADC_FILTER (OPT)SCART_ADC_FILTER SC1_G+ D2B_IN 120927 D2804 C2833 C2834 R2802 SCART_NON_ADC_FILTER 10 OPT->APPLY 20V 47pF 47pF G_GND 75 50V 50V L2809-*1 0 R2814 9 (OPT)SCART_ADC_FILTER_L ID JP2800 L2810 15K 8 CM2012FR10KT SC1_ID B_OUT JP2801 7 SC1_B+ D2811 (OPT)SCART_ADC_FILTER (OPT)SCART_ADC_FILTER R2817 AUDIO_L_IN JP2806 D2805 20V R2803 C2835 C2836 3.9K 6 20V SCART_NON_ADC_FILTER B_GND 75 47pF 47pF L2810-*1 50V 50V 0 5 AUDIO_GND 120927 4 OPT->APPLY (OPT)SCART_ADC_FILTER_L(AUDIO) AUDIO_L_OUT JP2807 L2813 SCART_NON_ADC_FILTER(AUDIO)R2812 3 CM2012FR10KT L2813-*1 10K AUDIO_R_IN JP2808 0 SC1_L_IN 2 OPT AUDIO_R_OUT JP2809 R2804 C2839 C2840 C2805 R2818 D2806 470K 1000pF 47pF 330pF 12K 1 20V 50V 50V 50V 121128 (OPT)SCART_ADC_FILTER(AUDIO) JK2801 (OPT)ESD SCART Audio IN (OPT)SCART_ADC_FILTER_L(AUDIO) L2814 R2813 PSC008-01 CM2012FR10KT SCART_NON_ADC_FILTER(AUDIO)10K L2814-*1 0 OPT SC1_R_IN C2842 C2806 D2808 R2805 C2841 470K 47pF 330pF R2819 20V 1000pF 12K 50V 50V 50V 121128 (OPT)SCART_ADC_FILTER(AUDIO) (OPT)ESD SCART Audio IN 121019 ADC_FILTER(AUDIO) ADD DTV/MNT_L_OUT OPT OPT D2807 C2803 C2807 5.6V 1000pF 4700pF 130124 50V Apply DTV/MNT_R_OUT OPT OPT D2800 C2808 C2804 4700pF 5.6V 1000pF 130124 50V Apply THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES EAX65299401 SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS GP4L_S7LR2 2013.2.25 ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. SCART&COMP 28 12 Copyright ⓒ 2013 LG Electronics. Inc. All right reserved. LGE Internal Use Only Only for training and service purposes

---
