Internal Use Only North/Latin America http://aic.lgservice.com Europe/Africa http://eic.lgservice.com Asia/Oceania http://biz.lgservice.com LED TV SERVICE MANUAL CHASSIS : LA49B MODEL : 32LB560B 32LB560B-UZ CAUTION BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL. P/NO : MFL68259701(1406-REV00) Printed in Korea

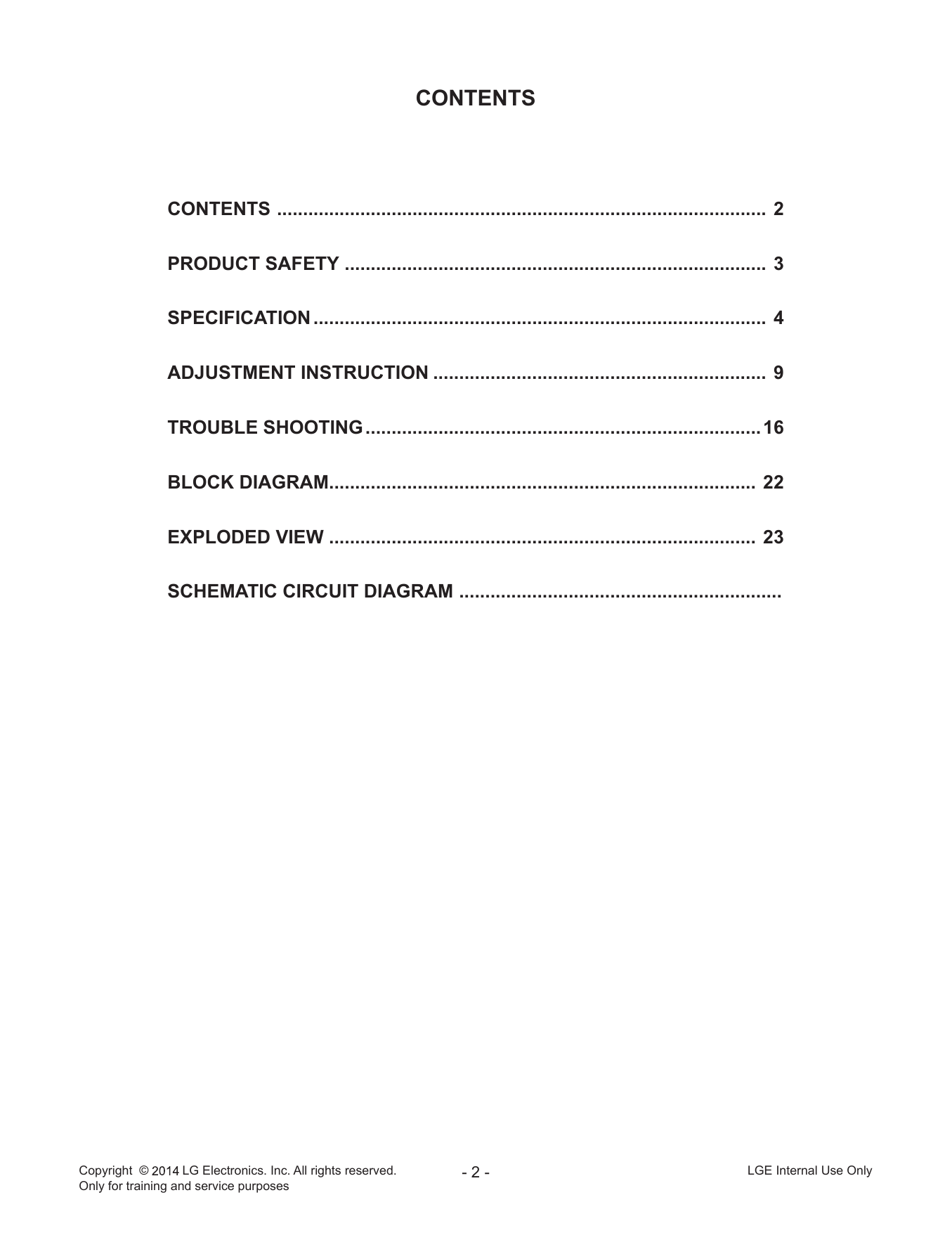

CONTENTS CONTENTS . ............................................................................................. 2 PRODUCT SAFETY ................................................................................. 3 SPECIFICATION........................................................................................ 4 ADJUSTMENT INSTRUCTION................................................................. 9 TROUBLE SHOOTING............................................................................. 16 BLOCK DIAGRAM................................................................................... 22 EXPLODED VIEW .................................................................................. 23 SCHEMATIC CIRCUIT DIAGRAM .............................................................. Copyright © LG Electronics. Inc. All rights reserved. -2- LGE Internal Use Only Only for training and service purposes

SAFETY PRECAUTIONS IMPORTANT SAFETY NOTICE Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Exploded View. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer. General Guidance Leakage Current Hot Check (See below Figure) Plug the AC cord directly into the AC outlet. An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC Do not use a line Isolation Transformer during this check. power line. Use a transformer of adequate power rating as this Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor protects the technician from accidents resulting in personal injury between a known good earth ground (Water Pipe, Conduit, etc.) from electrical shocks. and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter It will also protect the receiver and it's components from being with 1000 ohms/volt or more sensitivity. damaged by accidental shorts of the circuitry that may be Reverse plug the AC cord into the AC outlet and repeat AC voltage inadvertently introduced during the service operation. measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to If any fuse (or Fusible Resistor) in this TV receiver is blown, 0.5 mA. replace it with the specified. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and When replacing a high wattage resistor (Oxide Metal Film Resistor, repaired before it is returned to the customer. over 1 W), keep the resistor 10 mm away from PCB. Leakage Current Hot Check circuit Keep wires away from high voltage or high temperature parts. Before returning the receiver to the customer, always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock. Leakage Current Cold Check(Antenna Cold Check) With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1 MΩ and 5.2 MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer. Copyright © LG Electronics. Inc. All rights reserved. -3- LGE Internal Use Only Only for training and service purposes

SERVICING PRECAUTIONS CAUTION: Before servicing receivers covered by this service 2. After removing an electrical assembly equipped with ES manual and its supplements and addenda, read and follow the devices, place the assembly on a conductive surface such as SAFETY PRECAUTIONS on page 3 of this publication. aluminum foil, to prevent electrostatic charge buildup or expo- NOTE: If unforeseen circumstances create conflict between the sure of the assembly. following servicing precautions and any of the safety precautions 3. Use only a grounded-tip soldering iron to solder or unsolder ES on page 3 of this publication, always follow the safety precautions. devices. Remember: Safety First. 4. Use only an anti-static type solder removal device. Some solder removal devices not classified as “anti-static” can generate General Servicing Precautions electrical charges sufficient to damage ES devices. 1. Always unplug the receiver AC power cord from the AC power 5. Do not use freon-propelled chemicals. These can generate source before; electrical charges sufficient to damage ES devices. a. Removing or reinstalling any component, circuit board mod- 6. Do not remove a replacement ES device from its protective ule or any other receiver assembly. package until immediately before you are ready to install it. b. Disconnecting or reconnecting any receiver electrical plug or (Most replacement ES devices are packaged with leads electri- other electrical connection. cally shorted together by conductive foam, aluminum foil or c. Connecting a test substitute in parallel with an electrolytic comparable conductive material). capacitor in the receiver. 7. Immediately before removing the protective material from the CAUTION: A wrong part substitution or incorrect polarity leads of a replacement ES device, touch the protective material installation of electrolytic capacitors may result in an explo- to the chassis or circuit assembly into which the device will be sion hazard. installed. 2. Test high voltage only by measuring it with an appropriate CAUTION: Be sure no power is applied to the chassis or circuit, high voltage meter or other voltage measuring device (DVM, and observe all other safety precautions. FETVOM, etc) equipped with a suitable high voltage probe. 8. Minimize bodily motions when handling unpackaged replace- Do not test high voltage by "drawing an arc". ment ES devices. (Otherwise harmless motion such as the 3. Do not spray chemicals on or near this receiver or any of its brushing together of your clothes fabric or the lifting of your assemblies. foot from a carpeted floor can generate static electricity suf- 4. Unless specified otherwise in this service manual, clean ficient to damage an ES device.) electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable General Soldering Guidelines non-abrasive applicator; 10 % (by volume) Acetone and 90 % 1. Use a grounded-tip, low-wattage soldering iron and appropriate (by volume) isopropyl alcohol (90 % - 99 % strength) tip size and shape that will maintain tip temperature within the CAUTION: This is a flammable mixture. range or 500 °F to 600 °F. Unless specified otherwise in this service manual, lubrication of 2. Use an appropriate gauge of RMA resin-core solder composed contacts in not required. of 60 parts tin/40 parts lead. 5. Do not defeat any plug/socket B+ voltage interlocks with which 3. Keep the soldering iron tip clean and well tinned. receivers covered by this service manual might be equipped. 4. Thoroughly clean the surfaces to be soldered. Use a mall wire- 6. Do not apply AC power to this instrument and/or any of its bristle (0.5 inch, or 1.25 cm) brush with a metal handle. electrical assemblies unless all solid-state device heat sinks are Do not use freon-propelled spray-on cleaners. correctly installed. 5. Use the following unsoldering technique 7. Always connect the test receiver ground lead to the receiver a. Allow the soldering iron tip to reach normal temperature. chassis ground before connecting the test receiver positive (500 °F to 600 °F) lead. b. Heat the component lead until the solder melts. Always remove the test receiver ground lead last. c. Quickly draw the melted solder with an anti-static, suction- 8. Use with this receiver only the test fixtures specified in this type solder removal device or with solder braid. service manual. CAUTION: Work quickly to avoid overheating the circuit CAUTION: Do not connect the test fixture ground strap to any board printed foil. heat sink in this receiver. 6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature Electrostatically Sensitive (ES) Devices (500 °F to 600 °F) Some semiconductor (solid-state) devices can be damaged eas- b. First, hold the soldering iron tip and solder the strand against ily by static electricity. Such components commonly are called the component lead until the solder melts. Electrostatically Sensitive (ES) Devices. Examples of typical ES c. Quickly move the soldering iron tip to the junction of the devices are integrated circuits and some field-effect transistors component lead and the printed circuit foil, and hold it there and semiconductor “chip” components. The following techniques only until the solder flows onto and around both the compo- should be used to help reduce the incidence of component dam- nent lead and the foil. age caused by static by static electricity. CAUTION: Work quickly to avoid overheating the circuit 1. Immediately before handling any semiconductor component or board printed foil. semiconductor-equipped assembly, drain off any electrostatic d. Closely inspect the solder area and remove any excess or charge on your body by touching a known earth ground. Alter- splashed solder with a small wire-bristle brush. natively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent poten- tial shock reasons prior to applying power to the unit under test. Copyright © LG Electronics. Inc. All rights reserved. -4- LGE Internal Use Only Only for training and service purposes

IC Remove/Replacement 3. Solder the connections. Some chassis circuit boards have slotted holes (oblong) through CAUTION: Maintain original spacing between the replaced which the IC leads are inserted and then bent flat against the cir- component and adjacent components and the circuit board to cuit foil. When holes are the slotted type, the following technique prevent excessive component temperatures. should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique Circuit Board Foil Repair as outlined in paragraphs 5 and 6 above. Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit Removal board causing the foil to separate from or "lift-off" the board. The 1. Desolder and straighten each IC lead in one operation by following guidelines and procedures should be followed whenever gently prying up on the lead with the soldering iron tip as the this condition is encountered. solder melts. 2. Draw away the melted solder with an anti-static suction-type At IC Connections solder removal device (or with solder braid) before removing To repair a defective copper pattern at IC connections use the the IC. following procedure to install a jumper wire on the copper pattern Replacement side of the circuit board. (Use this technique only on IC connec- 1. Carefully insert the replacement IC in the circuit board. tions). 2. Carefully bend each IC lead against the circuit foil pad and solder it. 1. Carefully remove the damaged copper pattern with a sharp 3. Clean the soldered areas with a small wire-bristle brush. knife. (Remove only as much copper as absolutely necessary). (It is not necessary to reapply acrylic coating to the areas). 2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern. "Small-Signal" Discrete Transistor 3. Bend a small "U" in one end of a small gauge jumper wire and Removal/Replacement carefully crimp it around the IC pin. Solder the IC connection. 1. Remove the defective transistor by clipping its leads as close 4. Route the jumper wire along the path of the out-away copper as possible to the component body. pattern and let it overlap the previously scraped end of the 2. Bend into a "U" shape the end of each of three leads remaining good copper pattern. Solder the overlapped area and clip off on the circuit board. any excess jumper wire. 3. Bend into a "U" shape the replacement transistor leads. 4. Connect the replacement transistor leads to the corresponding At Other Connections leads extending from the circuit board and crimp the "U" with Use the following technique to repair the defective copper pattern long nose pliers to insure metal to metal contact then solder at connections other than IC Pins. This technique involves the each connection. installation of a jumper wire on the component side of the circuit board. Power Output, Transistor Device Removal/Replacement 1. Remove the defective copper pattern with a sharp knife. 1. Heat and remove all solder from around the transistor leads. Remove at least 1/4 inch of copper, to ensure that a hazardous 2. Remove the heat sink mounting screw (if so equipped). condition will not exist if the jumper wire opens. 3. Carefully remove the transistor from the heat sink of the circuit 2. Trace along the copper pattern from both sides of the pattern board. break and locate the nearest component that is directly con- 4. Insert new transistor in the circuit board. nected to the affected copper pattern. 5. Solder each transistor lead, and clip off excess lead. 3. Connect insulated 20-gauge jumper wire from the lead of the 6. Replace heat sink. nearest component on one side of the pattern break to the lead of the nearest component on the other side. Diode Removal/Replacement Carefully crimp and solder the connections. 1. Remove defective diode by clipping its leads as close as pos- CAUTION: Be sure the insulated jumper wire is dressed so the sible to diode body. it does not touch components or sharp edges. 2. Bend the two remaining leads perpendicular y to the circuit board. 3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board. 4. Securely crimp each connection and solder it. 5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder. Fuse and Conventional Resistor Removal/Replacement 1. Clip each fuse or resistor lead at top of the circuit board hollow stake. 2. Securely crimp the leads of replacement component around notch at stake top. Copyright © LG Electronics. Inc. All rights reserved. -5- LGE Internal Use Only Only for training and service purposes

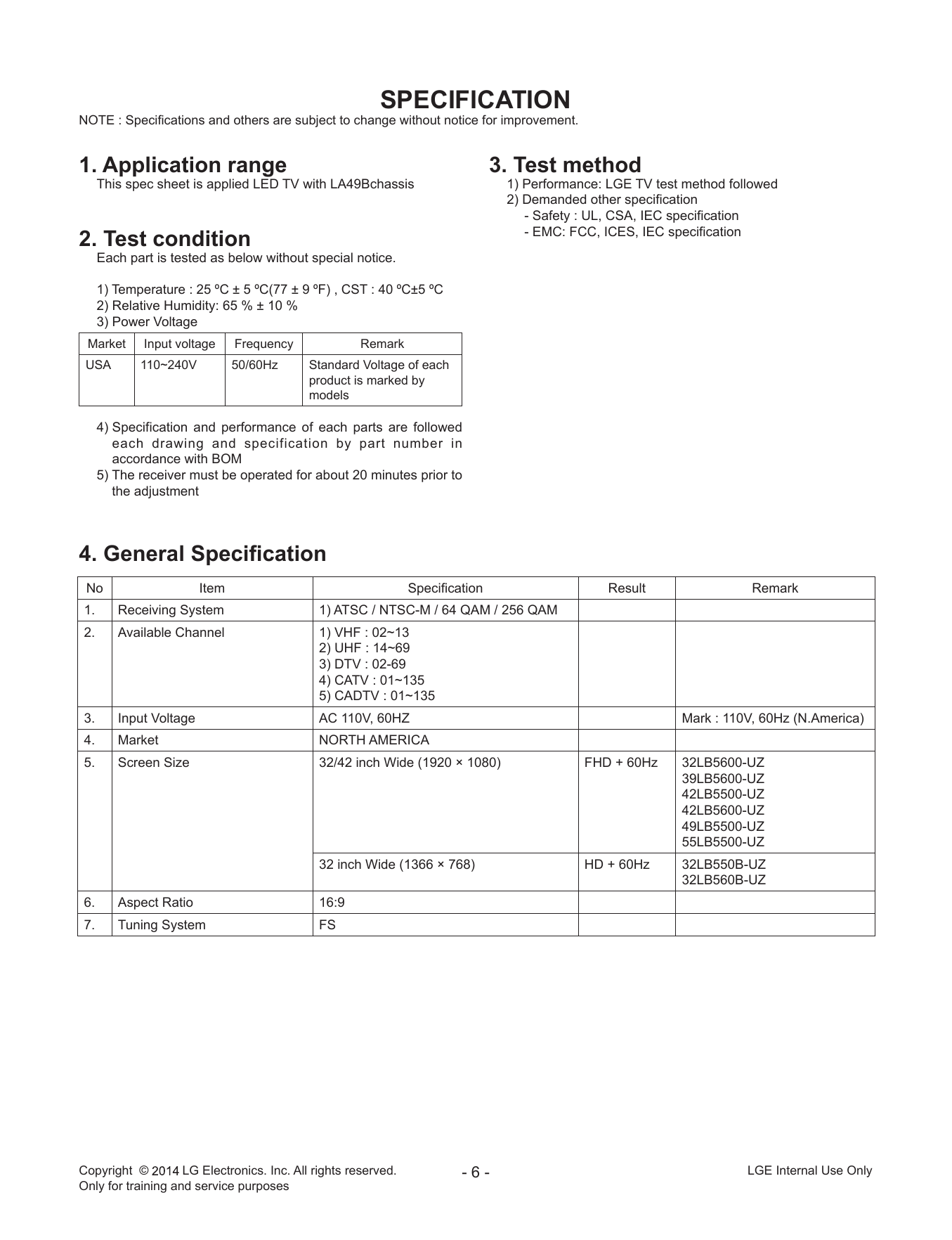

SPECIFICATION NOTE : Specifications and others are subject to change without notice for improvement. 1. Application range 3. Test method This spec sheet is applied LED TV with LA49Bchassis 1) Performance: LGE TV test method followed 2) Demanded other specification - Safety : UL, CSA, IEC specification - EMC: FCC, ICES, IEC specification 2. Test condition Each part is tested as below without special notice. 1) Temperature : 25 ºC ± 5 ºC(77 ± 9 ºF) , CST : 40 ºC±5 ºC 2) Relative Humidity: 65 % ± 10 % 3) Power Voltage Market Input voltage Frequency Remark USA 110~240V 50/60Hz Standard Voltage of each product is marked by models 4) Specification and performance of each parts are followed each drawing and specification by part number in accordance with BOM 5) The receiver must be operated for about 20 minutes prior to the adjustment 4. General Specification No Item Specification Result Remark 1. Receiving System 1) ATSC / NTSC-M / 64 QAM / 256 QAM 2. Available Channel 1) VHF : 02~13 2) UHF : 14~69 3) DTV : 02-69 4) CATV : 01~135 5) CADTV : 01~135 3. Input Voltage AC 110V, 60HZ Mark : 110V, 60Hz (N.America) 4. Market NORTH AMERICA 5. Screen Size 32/42 inch Wide (1920 × 1080) FHD + 60Hz 32LB5600-UZ 39LB5600-UZ 42LB5500-UZ 42LB5600-UZ 49LB5500-UZ 55LB5500-UZ 32 inch Wide (1366 × 768) HD + 60Hz 32LB550B-UZ 32LB560B-UZ 6. Aspect Ratio 16:9 7. Tuning System FS Copyright © LG Electronics. Inc. All rights reserved. -6- LGE Internal Use Only Only for training and service purposes

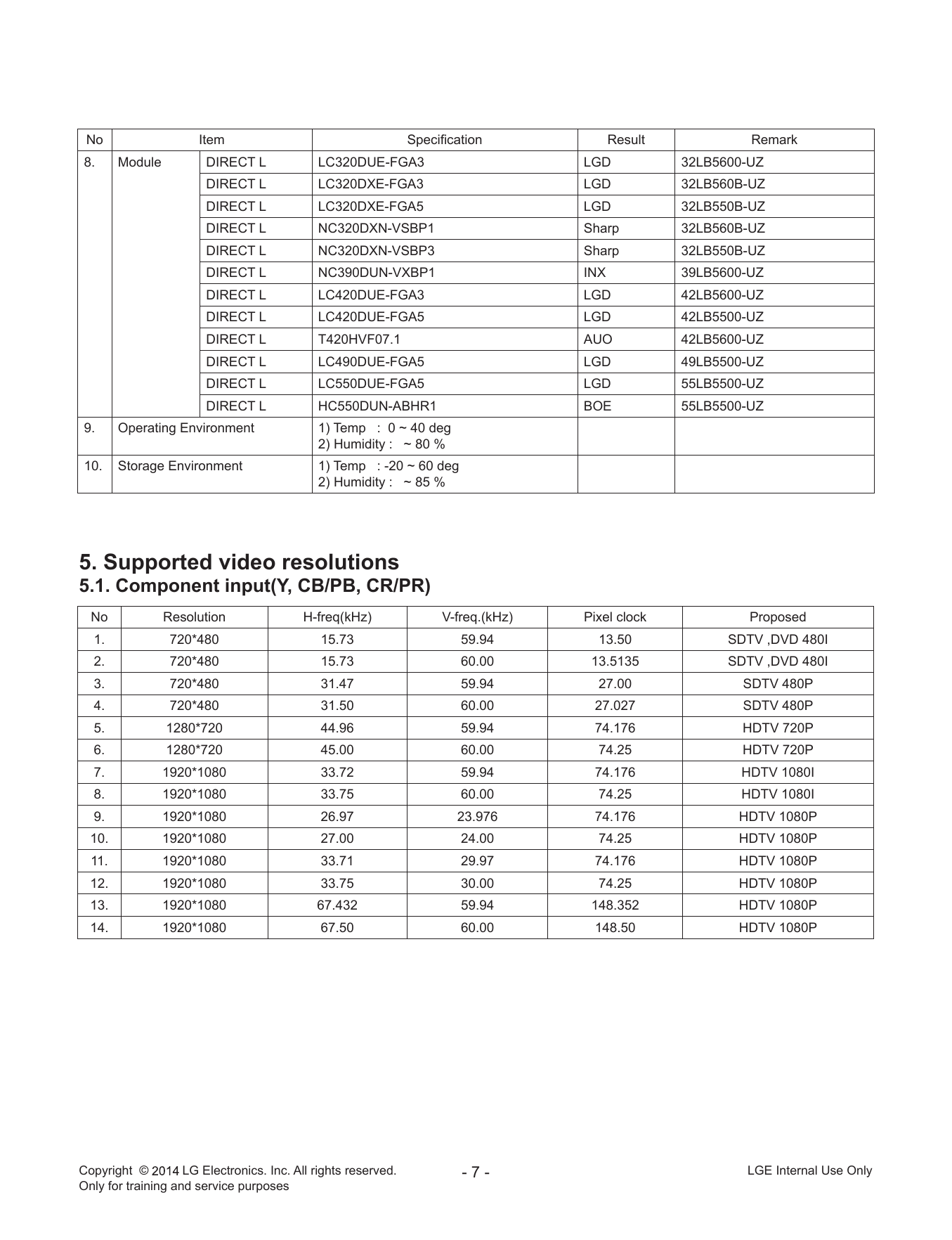

No Item Specification Result Remark 8. Module DIRECT L LC320DUE-FGA3 LGD 32LB5600-UZ DIRECT L LC320DXE-FGA3 LGD 32LB560B-UZ DIRECT L LC320DXE-FGA5 LGD 32LB550B-UZ DIRECT L NC320DXN-VSBP1 Sharp 32LB560B-UZ DIRECT L NC320DXN-VSBP3 Sharp 32LB550B-UZ DIRECT L NC390DUN-VXBP1 INX 39LB5600-UZ DIRECT L LC420DUE-FGA3 LGD 42LB5600-UZ DIRECT L LC420DUE-FGA5 LGD 42LB5500-UZ DIRECT L T420HVF07.1 AUO 42LB5600-UZ DIRECT L LC490DUE-FGA5 LGD 49LB5500-UZ DIRECT L LC550DUE-FGA5 LGD 55LB5500-UZ DIRECT L HC550DUN-ABHR1 BOE 55LB5500-UZ 9. Operating Environment 1) Temp : 0 ~ 40 deg 2) Humidity : ~ 80 % 10. Storage Environment 1) Temp : -20 ~ 60 deg 2) Humidity : ~ 85 % 5. Supported video resolutions 5.1. Component input(Y, CB/PB, CR/PR) No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed 1. 720*480 15.73 59.94 13.50 SDTV ,DVD 480I 2. 720*480 15.73 60.00 13.5135 SDTV ,DVD 480I 3. 720*480 31.47 59.94 27.00 SDTV 480P 4. 720*480 31.50 60.00 27.027 SDTV 480P 5. 1280*720 44.96 59.94 74.176 HDTV 720P 6. 1280*720 45.00 60.00 74.25 HDTV 720P 7. 1920*1080 33.72 59.94 74.176 HDTV 1080I 8. 1920*1080 33.75 60.00 74.25 HDTV 1080I 9. 1920*1080 26.97 23.976 74.176 HDTV 1080P 10. 1920*1080 27.00 24.00 74.25 HDTV 1080P 11. 1920*1080 33.71 29.97 74.176 HDTV 1080P 12. 1920*1080 33.75 30.00 74.25 HDTV 1080P 13. 1920*1080 67.432 59.94 148.352 HDTV 1080P 14. 1920*1080 67.50 60.00 148.50 HDTV 1080P Copyright © LG Electronics. Inc. All rights reserved. -7- LGE Internal Use Only Only for training and service purposes

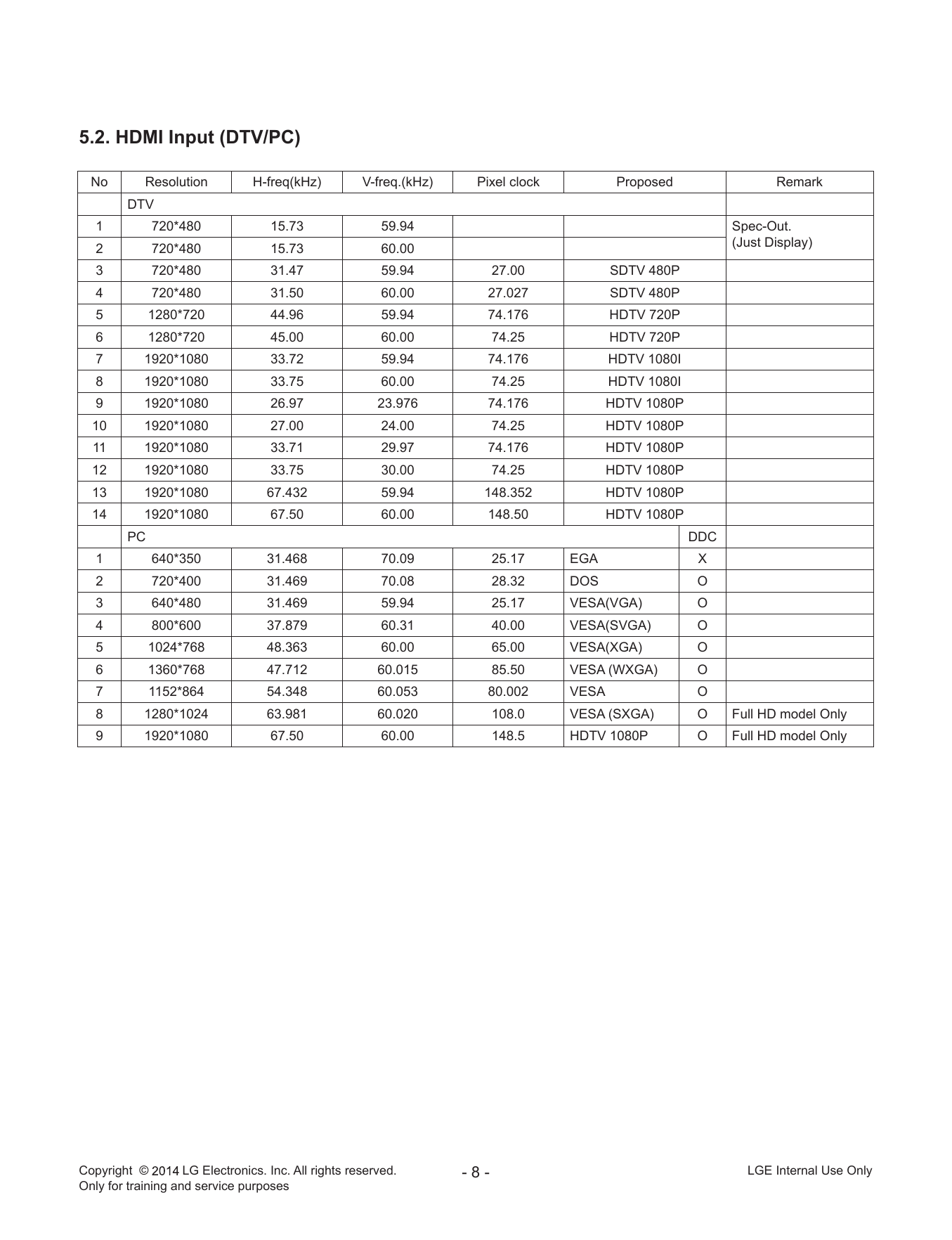

5.2. HDMI Input (DTV/PC) No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed Remark DTV 1 720*480 15.73 59.94 Spec-Out. 2 720*480 15.73 60.00 (Just Display) 3 720*480 31.47 59.94 27.00 SDTV 480P 4 720*480 31.50 60.00 27.027 SDTV 480P 5 1280*720 44.96 59.94 74.176 HDTV 720P 6 1280*720 45.00 60.00 74.25 HDTV 720P 7 1920*1080 33.72 59.94 74.176 HDTV 1080I 8 1920*1080 33.75 60.00 74.25 HDTV 1080I 9 1920*1080 26.97 23.976 74.176 HDTV 1080P 10 1920*1080 27.00 24.00 74.25 HDTV 1080P 11 1920*1080 33.71 29.97 74.176 HDTV 1080P 12 1920*1080 33.75 30.00 74.25 HDTV 1080P 13 1920*1080 67.432 59.94 148.352 HDTV 1080P 14 1920*1080 67.50 60.00 148.50 HDTV 1080P PC DDC 1 640*350 31.468 70.09 25.17 EGA X 2 720*400 31.469 70.08 28.32 DOS O 3 640*480 31.469 59.94 25.17 VESA(VGA) O 4 800*600 37.879 60.31 40.00 VESA(SVGA) O 5 1024*768 48.363 60.00 65.00 VESA(XGA) O 6 1360*768 47.712 60.015 85.50 VESA (WXGA) O 7 1152*864 54.348 60.053 80.002 VESA O 8 1280*1024 63.981 60.020 108.0 VESA (SXGA) O Full HD model Only 9 1920*1080 67.50 60.00 148.5 HDTV 1080P O Full HD model Only Copyright © LG Electronics. Inc. All rights reserved. -8- LGE Internal Use Only Only for training and service purposes

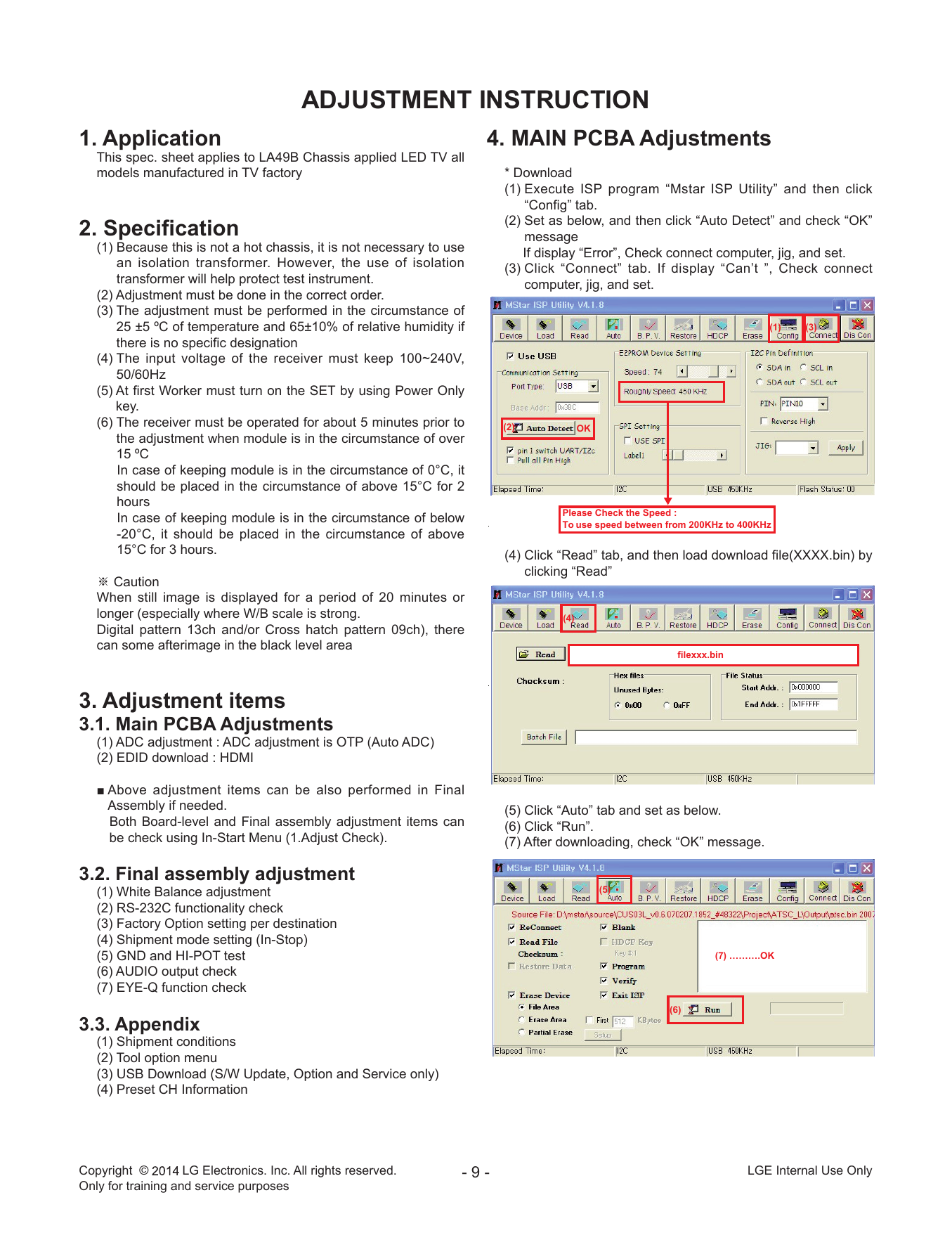

ADJUSTMENT INSTRUCTION 1. Application 4. MAIN PCBA Adjustments This spec. sheet applies to LA49B Chassis applied LED TV all models manufactured in TV factory * Download (1) Execute ISP program “Mstar ISP Utility” and then click “Config” tab. (2) Set as below, and then click “Auto Detect” and check “OK” 2. Specification message (1) Because this is not a hot chassis, it is not necessary to use If display “Error”, Check connect computer, jig, and set. an isolation transformer. However, the use of isolation (3) Click “Connect” tab. If display “Can’t ”, Check connect transformer will help protect test instrument. computer, jig, and set. (2) Adjustment must be done in the correct order. (3) The adjustment must be performed in the circumstance of 25 ±5 ºC of temperature and 65±10% of relative humidity if (1) (3) there is no specific designation (4) The input voltage of the receiver must keep 100~240V, 50/60Hz (5) At first Worker must turn on the SET by using Power Only key. (6) The receiver must be operated for about 5 minutes prior to (2) OK the adjustment when module is in the circumstance of over 15 ºC In case of keeping module is in the circumstance of 0°C, it should be placed in the circumstance of above 15°C for 2 hours Please Check the Speed : In case of keeping module is in the circumstance of below To use speed between from 200KHz to 400KHz -20°C, it should be placed in the circumstance of above 15°C for 3 hours. (4) Click “Read” tab, and then load download file(XXXX.bin) by clicking “Read” ※ Caution When still image is displayed for a period of 20 minutes or longer (especially where W/B scale is strong. (4) Digital pattern 13ch and/or Cross hatch pattern 09ch), there can some afterimage in the black level area filexxx.bin 3. Adjustment items 3.1. Main PCBA Adjustments (1) ADC adjustment : ADC adjustment is OTP (Auto ADC) (2) EDID download : HDMI ■ Above adjustment items can be also performed in Final Assembly if needed. (5) Click “Auto” tab and set as below. Both Board-level and Final assembly adjustment items can (6) Click “Run”. be check using In-Start Menu (1.Adjust Check). (7) After downloading, check “OK” message. 3.2. Final assembly adjustment (1) White Balance adjustment (5) (2) RS-232C functionality check (3) Factory Option setting per destination (4) Shipment mode setting (In-Stop) (5) GND and HI-POT test (7) ……….OK (6) AUDIO output check (7) EYE-Q function check (6) 3.3. Appendix (1) Shipment conditions (2) Tool option menu (3) USB Download (S/W Update, Option and Service only) (4) Preset CH Information Copyright © LG Electronics. Inc. All rights reserved. -9- LGE Internal Use Only Only for training and service purposes

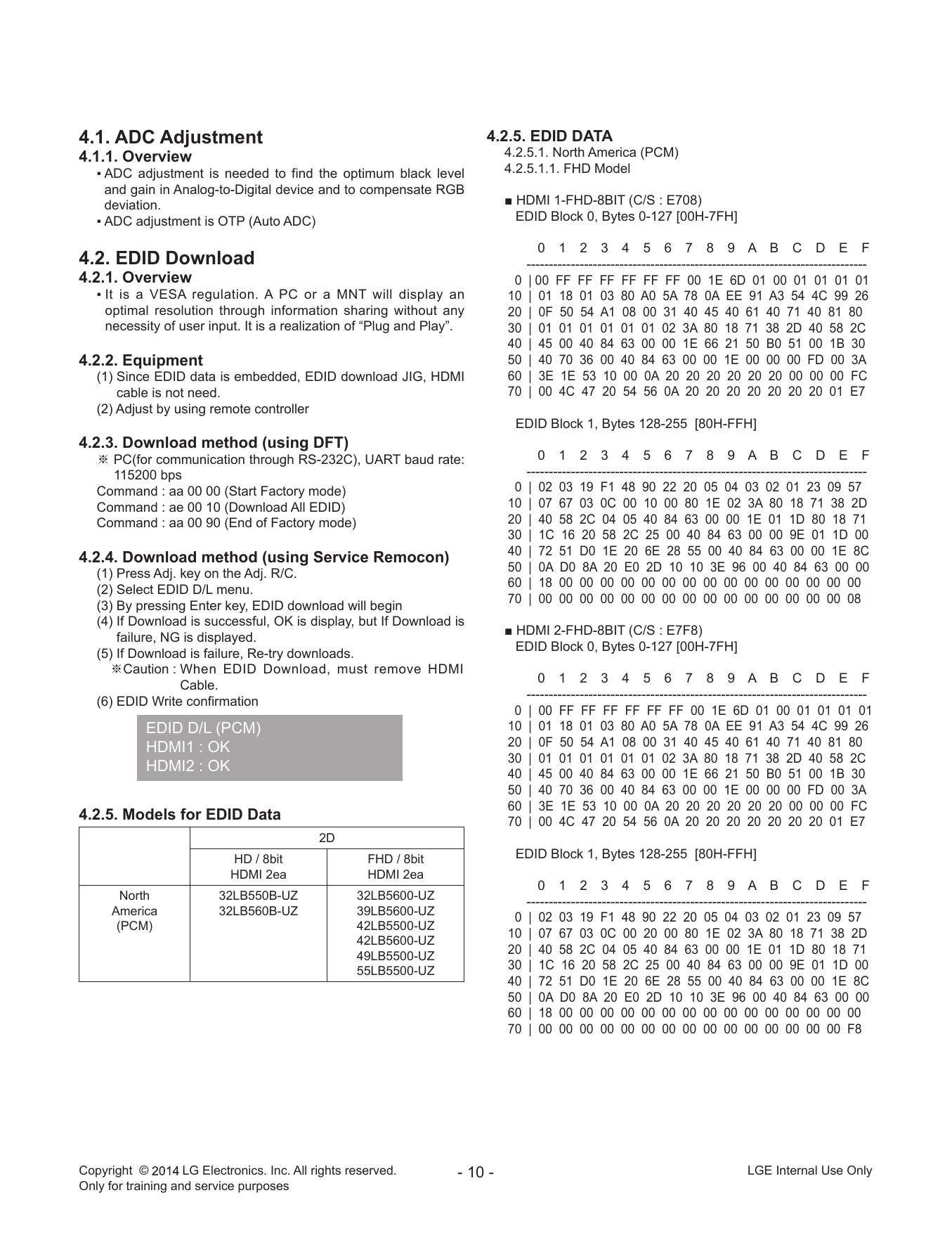

4.1. ADC Adjustment 4.2.5. EDID DATA 4.1.1. Overview 4.2.5.1. North America (PCM) ▪ ADC adjustment is needed to find the optimum black level 4.2.5.1.1. FHD Model and gain in Analog-to-Digital device and to compensate RGB deviation. ■ HDMI 1-FHD-8BIT (C/S : E708) ▪ ADC adjustment is OTP (Auto ADC) EDID Block 0, Bytes 0-127 [00H-7FH] 0 1 2 3 4 5 6 7 8 9 A B C D E F 4.2. EDID Download ----------------------------------------------------------------------------- 4.2.1. Overview 0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 ▪ I t is a VESA regulation. A PC or a MNT will display an 10 | 01 18 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 optimal resolution through information sharing without any 20 | 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 necessity of user input. It is a realization of “Plug and Play”. 30 | 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C 40 | 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30 4.2.2. Equipment 50 | 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A (1) Since EDID data is embedded, EDID download JIG, HDMI 60 | 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC cable is not need. 70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 E7 (2) Adjust by using remote controller EDID Block 1, Bytes 128-255 [80H-FFH] 4.2.3. Download method (using DFT) ※ PC(for communication through RS-232C), UART baud rate: 0 1 2 3 4 5 6 7 8 9 A B C D E F 115200 bps ----------------------------------------------------------------------------- Command : aa 00 00 (Start Factory mode) 0 | 02 03 19 F1 48 90 22 20 05 04 03 02 01 23 09 57 Command : ae 00 10 (Download All EDID) 10 | 07 67 03 0C 00 10 00 80 1E 02 3A 80 18 71 38 2D Command : aa 00 90 (End of Factory mode) 20 | 40 58 2C 04 05 40 84 63 00 00 1E 01 1D 80 18 71 30 | 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 01 1D 00 40 | 72 51 D0 1E 20 6E 28 55 00 40 84 63 00 00 1E 8C 4.2.4. Download method (using Service Remocon) 50 | 0A D0 8A 20 E0 2D 10 10 3E 96 00 40 84 63 00 00 (1) Press Adj. key on the Adj. R/C. 60 | 18 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 (2) Select EDID D/L menu. 70 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 08 (3) By pressing Enter key, EDID download will begin (4) If Download is successful, OK is display, but If Download is ■ HDMI 2-FHD-8BIT (C/S : E7F8) failure, NG is displayed. EDID Block 0, Bytes 0-127 [00H-7FH] (5) If Download is failure, Re-try downloads. ※Caution : W hen EDID Download, must remove HDMI 0 1 2 3 4 5 6 7 8 9 A B C D E F Cable. ----------------------------------------------------------------------------- (6) EDID Write confirmation 0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 EDID D/L (PCM) 10 | 01 18 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 HDMI1 : OK 20 | 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 | 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C HDMI2 : OK 40 | 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30 50 | 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 | 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC 4.2.5. Models for EDID Data 70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 E7 2D HD / 8bit FHD / 8bit EDID Block 1, Bytes 128-255 [80H-FFH] HDMI 2ea HDMI 2ea 0 1 2 3 4 5 6 7 8 9 A B C D E F North 32LB550B-UZ 32LB5600-UZ ----------------------------------------------------------------------------- America 32LB560B-UZ 39LB5600-UZ 0 | 02 03 19 F1 48 90 22 20 05 04 03 02 01 23 09 57 (PCM) 42LB5500-UZ 10 | 07 67 03 0C 00 20 00 80 1E 02 3A 80 18 71 38 2D 42LB5600-UZ 49LB5500-UZ 20 | 40 58 2C 04 05 40 84 63 00 00 1E 01 1D 80 18 71 55LB5500-UZ 30 | 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 01 1D 00 40 | 72 51 D0 1E 20 6E 28 55 00 40 84 63 00 00 1E 8C 50 | 0A D0 8A 20 E0 2D 10 10 3E 96 00 40 84 63 00 00 60 | 18 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F8 Copyright © LG Electronics. Inc. All rights reserved. - 10 - LGE Internal Use Only Only for training and service purposes

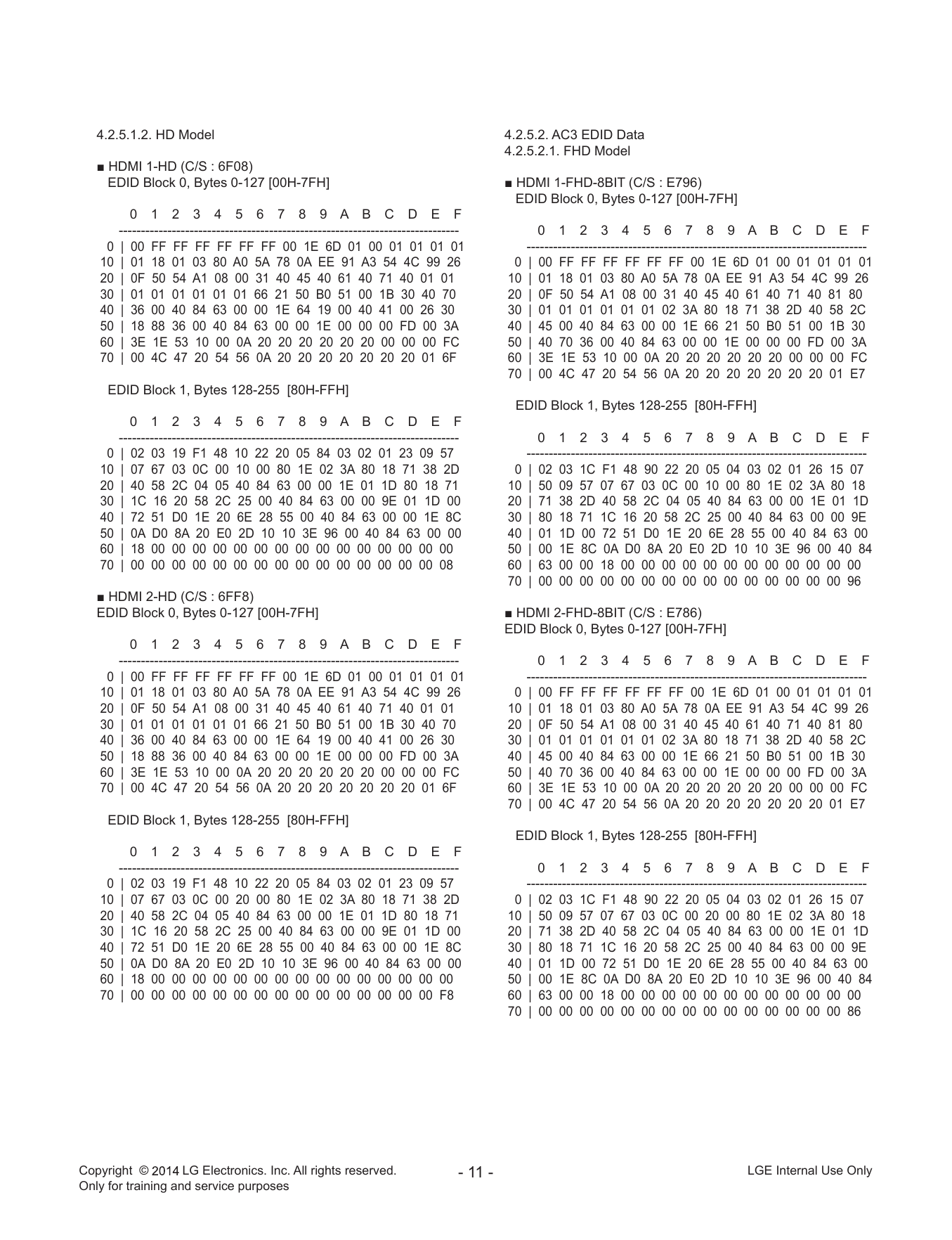

4.2.5.1.2. HD Model 4.2.5.2. AC3 EDID Data 4.2.5.2.1. FHD Model ■ HDMI 1-HD (C/S : 6F08) EDID Block 0, Bytes 0-127 [00H-7FH] ■ HDMI 1-FHD-8BIT (C/S : E796) EDID Block 0, Bytes 0-127 [00H-7FH] 0 1 2 3 4 5 6 7 8 9 A B C D E F ----------------------------------------------------------------------------- 0 1 2 3 4 5 6 7 8 9 A B C D E F 0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 ----------------------------------------------------------------------------- 10 | 01 18 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 20 | 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 01 01 10 | 01 18 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 30 | 01 01 01 01 01 01 66 21 50 B0 51 00 1B 30 40 70 20 | 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 40 | 36 00 40 84 63 00 00 1E 64 19 00 40 41 00 26 30 30 | 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C 50 | 18 88 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 40 | 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30 60 | 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC 50 | 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 6F 60 | 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC 70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 E7 EDID Block 1, Bytes 128-255 [80H-FFH] EDID Block 1, Bytes 128-255 [80H-FFH] 0 1 2 3 4 5 6 7 8 9 A B C D E F ----------------------------------------------------------------------------- 0 1 2 3 4 5 6 7 8 9 A B C D E F 0 | 02 03 19 F1 48 10 22 20 05 84 03 02 01 23 09 57 ----------------------------------------------------------------------------- 10 | 07 67 03 0C 00 10 00 80 1E 02 3A 80 18 71 38 2D 0 | 02 03 1C F1 48 90 22 20 05 04 03 02 01 26 15 07 20 | 40 58 2C 04 05 40 84 63 00 00 1E 01 1D 80 18 71 10 | 50 09 57 07 67 03 0C 00 10 00 80 1E 02 3A 80 18 30 | 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 01 1D 00 20 | 71 38 2D 40 58 2C 04 05 40 84 63 00 00 1E 01 1D 40 | 72 51 D0 1E 20 6E 28 55 00 40 84 63 00 00 1E 8C 30 | 80 18 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 50 | 0A D0 8A 20 E0 2D 10 10 3E 96 00 40 84 63 00 00 40 | 01 1D 00 72 51 D0 1E 20 6E 28 55 00 40 84 63 00 60 | 18 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 50 | 00 1E 8C 0A D0 8A 20 E0 2D 10 10 3E 96 00 40 84 70 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 08 60 | 63 00 00 18 00 00 00 00 00 00 00 00 00 00 00 00 70 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 96 ■ HDMI 2-HD (C/S : 6FF8) EDID Block 0, Bytes 0-127 [00H-7FH] ■ HDMI 2-FHD-8BIT (C/S : E786) EDID Block 0, Bytes 0-127 [00H-7FH] 0 1 2 3 4 5 6 7 8 9 A B C D E F ----------------------------------------------------------------------------- 0 1 2 3 4 5 6 7 8 9 A B C D E F 0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 ----------------------------------------------------------------------------- 10 | 01 18 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 20 | 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 01 01 10 | 01 18 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 30 | 01 01 01 01 01 01 66 21 50 B0 51 00 1B 30 40 70 20 | 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 40 | 36 00 40 84 63 00 00 1E 64 19 00 40 41 00 26 30 30 | 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C 50 | 18 88 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 40 | 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30 60 | 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC 50 | 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 6F 60 | 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC 70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 E7 EDID Block 1, Bytes 128-255 [80H-FFH] EDID Block 1, Bytes 128-255 [80H-FFH] 0 1 2 3 4 5 6 7 8 9 A B C D E F ----------------------------------------------------------------------------- 0 1 2 3 4 5 6 7 8 9 A B C D E F 0 | 02 03 19 F1 48 10 22 20 05 84 03 02 01 23 09 57 ----------------------------------------------------------------------------- 10 | 07 67 03 0C 00 20 00 80 1E 02 3A 80 18 71 38 2D 0 | 02 03 1C F1 48 90 22 20 05 04 03 02 01 26 15 07 20 | 40 58 2C 04 05 40 84 63 00 00 1E 01 1D 80 18 71 10 | 50 09 57 07 67 03 0C 00 20 00 80 1E 02 3A 80 18 30 | 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 01 1D 00 20 | 71 38 2D 40 58 2C 04 05 40 84 63 00 00 1E 01 1D 40 | 72 51 D0 1E 20 6E 28 55 00 40 84 63 00 00 1E 8C 30 | 80 18 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 50 | 0A D0 8A 20 E0 2D 10 10 3E 96 00 40 84 63 00 00 40 | 01 1D 00 72 51 D0 1E 20 6E 28 55 00 40 84 63 00 60 | 18 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 50 | 00 1E 8C 0A D0 8A 20 E0 2D 10 10 3E 96 00 40 84 70 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F8 60 | 63 00 00 18 00 00 00 00 00 00 00 00 00 00 00 00 70 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 86 Copyright © LG Electronics. Inc. All rights reserved. - 11 - LGE Internal Use Only Only for training and service purposes

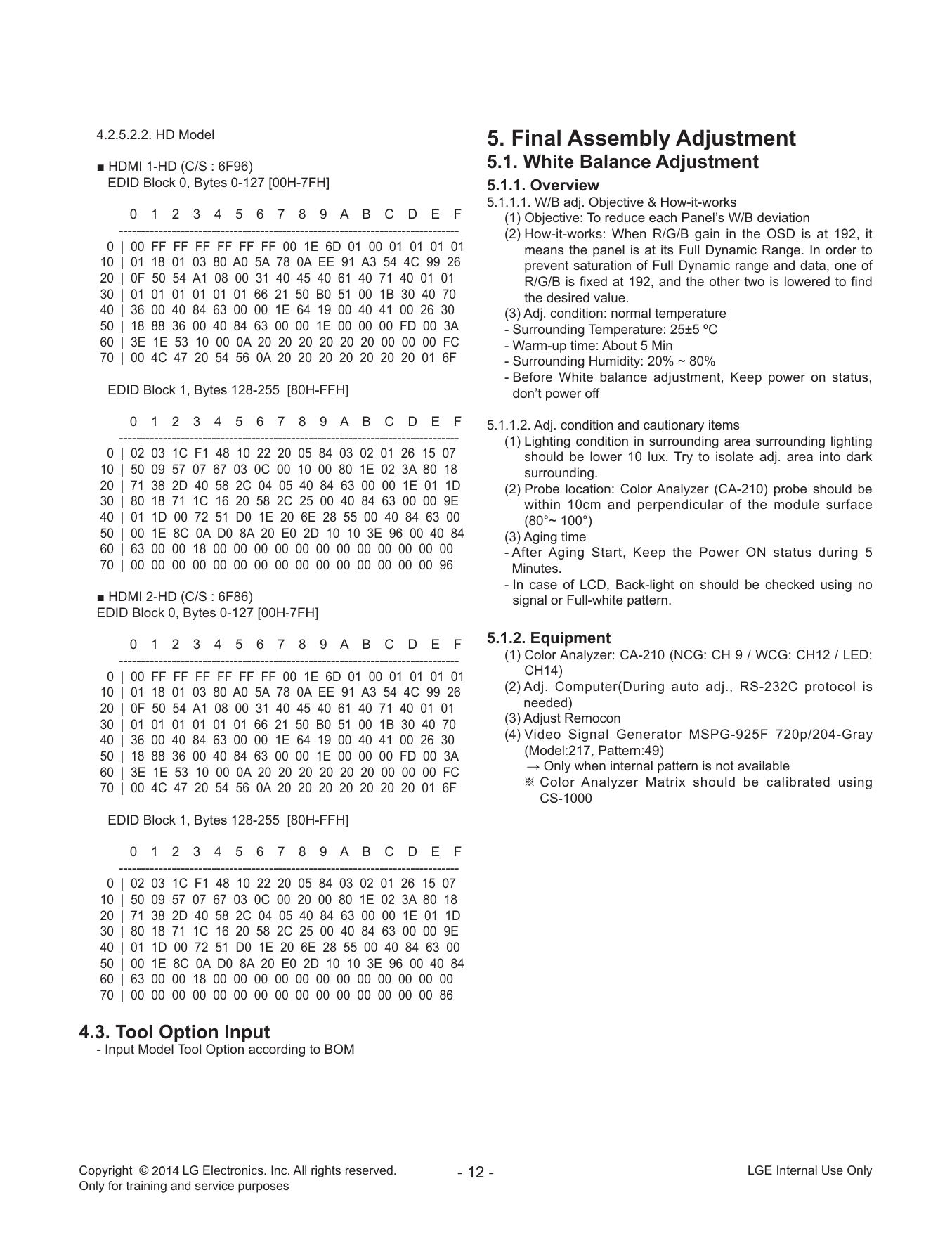

4.2.5.2.2. HD Model 5. Final Assembly Adjustment ■ HDMI 1-HD (C/S : 6F96) 5.1. White Balance Adjustment EDID Block 0, Bytes 0-127 [00H-7FH] 5.1.1. Overview 5.1.1.1. W/B adj. Objective & How-it-works 0 1 2 3 4 5 6 7 8 9 A B C D E F (1) Objective: To reduce each Panel’s W/B deviation ----------------------------------------------------------------------------- (2) How-it-works: When R/G/B gain in the OSD is at 192, it 0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 means the panel is at its Full Dynamic Range. In order to 10 | 01 18 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 prevent saturation of Full Dynamic range and data, one of 20 | 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 01 01 R/G/B is fixed at 192, and the other two is lowered to find 30 | 01 01 01 01 01 01 66 21 50 B0 51 00 1B 30 40 70 the desired value. 40 | 36 00 40 84 63 00 00 1E 64 19 00 40 41 00 26 30 (3) Adj. condition: normal temperature 50 | 18 88 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A - Surrounding Temperature: 25±5 ºC 60 | 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC - Warm-up time: About 5 Min 70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 6F - Surrounding Humidity: 20% ~ 80% - Before White balance adjustment, Keep power on status, EDID Block 1, Bytes 128-255 [80H-FFH] don’t power off 0 1 2 3 4 5 6 7 8 9 A B C D E F 5.1.1.2. Adj. condition and cautionary items ----------------------------------------------------------------------------- (1) Lighting condition in surrounding area surrounding lighting 0 | 02 03 1C F1 48 10 22 20 05 84 03 02 01 26 15 07 should be lower 10 lux. Try to isolate adj. area into dark 10 | 50 09 57 07 67 03 0C 00 10 00 80 1E 02 3A 80 18 surrounding. 20 | 71 38 2D 40 58 2C 04 05 40 84 63 00 00 1E 01 1D (2) Probe location: Color Analyzer (CA-210) probe should be 30 | 80 18 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E within 10cm and perpendicular of the module surface 40 | 01 1D 00 72 51 D0 1E 20 6E 28 55 00 40 84 63 00 (80°~ 100°) 50 | 00 1E 8C 0A D0 8A 20 E0 2D 10 10 3E 96 00 40 84 (3) Aging time 60 | 63 00 00 18 00 00 00 00 00 00 00 00 00 00 00 00 - A fter Aging Start, Keep the Power ON status during 5 70 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 96 Minutes. - In case of LCD, Back-light on should be checked using no ■ HDMI 2-HD (C/S : 6F86) signal or Full-white pattern. EDID Block 0, Bytes 0-127 [00H-7FH] 0 1 2 3 4 5 6 7 8 9 A B C D E F 5.1.2. Equipment ----------------------------------------------------------------------------- (1) Color Analyzer: CA-210 (NCG: CH 9 / WCG: CH12 / LED: 0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 CH14) 10 | 01 18 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 (2) A dj. Computer(During auto adj., RS-232C protocol is 20 | 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 01 01 needed) 30 | 01 01 01 01 01 01 66 21 50 B0 51 00 1B 30 40 70 (3) Adjust Remocon 40 | 36 00 40 84 63 00 00 1E 64 19 00 40 41 00 26 30 (4) V ideo Signal Generator MSPG-925F 720p/204-Gray 50 | 18 88 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A (Model:217, Pattern:49) 60 | 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC → Only when internal pattern is not available 70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 6F ※ C olor Analyzer Matrix should be calibrated using CS-1000 EDID Block 1, Bytes 128-255 [80H-FFH] 0 1 2 3 4 5 6 7 8 9 A B C D E F ----------------------------------------------------------------------------- 0 | 02 03 1C F1 48 10 22 20 05 84 03 02 01 26 15 07 10 | 50 09 57 07 67 03 0C 00 20 00 80 1E 02 3A 80 18 20 | 71 38 2D 40 58 2C 04 05 40 84 63 00 00 1E 01 1D 30 | 80 18 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 40 | 01 1D 00 72 51 D0 1E 20 6E 28 55 00 40 84 63 00 50 | 00 1E 8C 0A D0 8A 20 E0 2D 10 10 3E 96 00 40 84 60 | 63 00 00 18 00 00 00 00 00 00 00 00 00 00 00 00 70 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 86 4.3. Tool Option Input - Input Model Tool Option according to BOM Copyright © LG Electronics. Inc. All rights reserved. - 12 - LGE Internal Use Only Only for training and service purposes

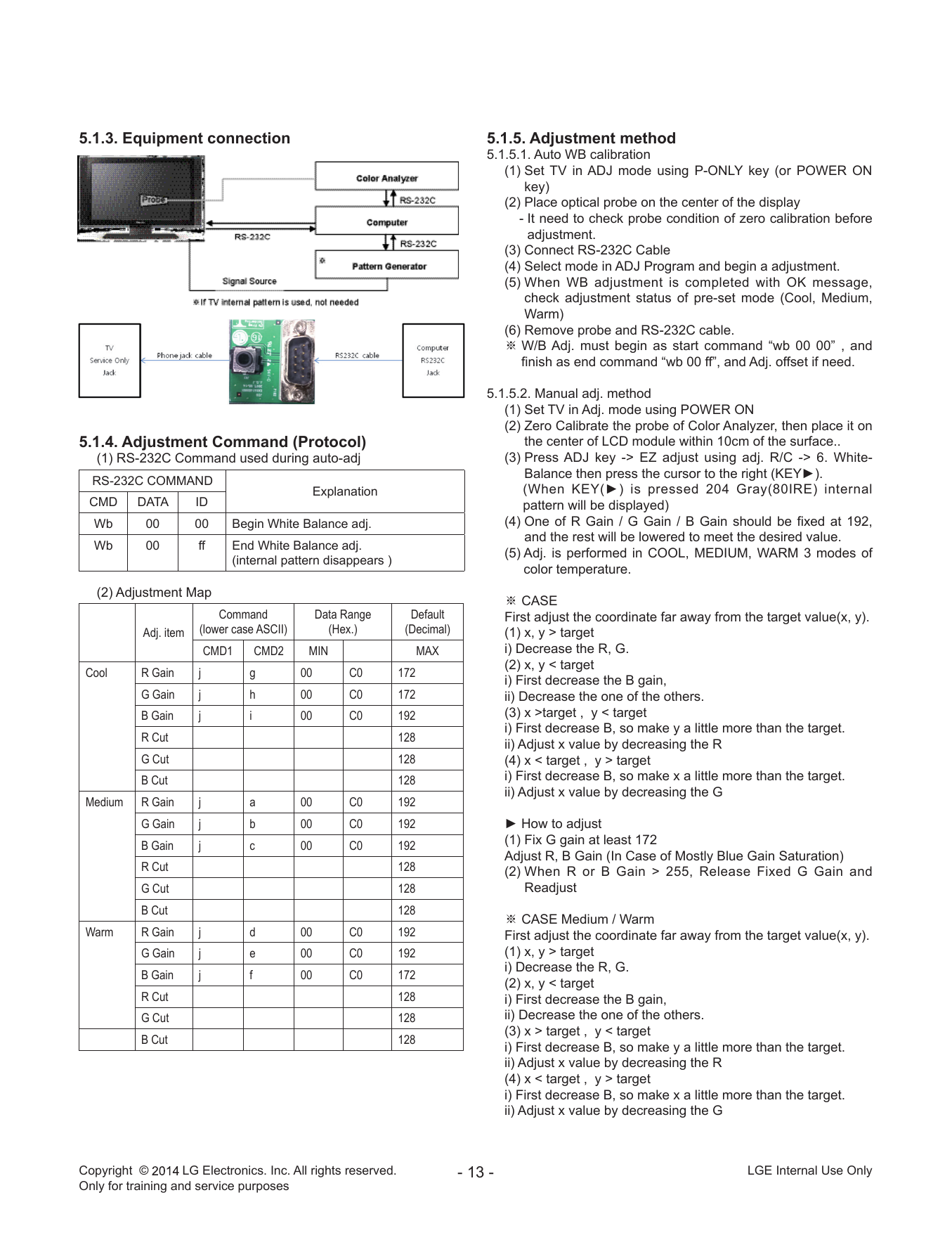

5.1.3. Equipment connection 5.1.5. Adjustment method 5.1.5.1. Auto WB calibration (1) Set TV in ADJ mode using P-ONLY key (or POWER ON key) (2) Place optical probe on the center of the display - It need to check probe condition of zero calibration before adjustment. (3) Connect RS-232C Cable (4) Select mode in ADJ Program and begin a adjustment. (5) When WB adjustment is completed with OK message, check adjustment status of pre-set mode (Cool, Medium, Warm) (6) Remove probe and RS-232C cable. ※ W/B Adj. must begin as start command “wb 00 00” , and finish as end command “wb 00 ff”, and Adj. offset if need. 5.1.5.2. Manual adj. method (1) Set TV in Adj. mode using POWER ON (2) Zero Calibrate the probe of Color Analyzer, then place it on 5.1.4. Adjustment Command (Protocol) the center of LCD module within 10cm of the surface.. (1) RS-232C Command used during auto-adj (3) Press ADJ key -> EZ adjust using adj. R/C -> 6. White- Balance then press the cursor to the right (KEY►). RS-232C COMMAND Explanation ( When KEY(►) is pressed 204 Gray(80IRE) internal CMD DATA ID pattern will be displayed) Wb 00 00 Begin White Balance adj. (4) One of R Gain / G Gain / B Gain should be fixed at 192, and the rest will be lowered to meet the desired value. Wb 00 ff End White Balance adj. (5) Adj. is performed in COOL, MEDIUM, WARM 3 modes of (internal pattern disappears ) color temperature. (2) Adjustment Map ※ CASE Command Data Range Default First adjust the coordinate far away from the target value(x, y). Adj. item (lower case ASCII) (Hex.) (Decimal) (1) x, y > target CMD1 CMD2 MIN MAX i) Decrease the R, G. (2) x, y < target Cool R Gain j g 00 C0 172 i) First decrease the B gain, G Gain j h 00 C0 172 ii) Decrease the one of the others. B Gain j i 00 C0 192 (3) x >target , y < target i) First decrease B, so make y a little more than the target. R Cut 128 ii) Adjust x value by decreasing the R G Cut 128 (4) x < target , y > target B Cut 128 i) First decrease B, so make x a little more than the target. ii) Adjust x value by decreasing the G Medium R Gain j a 00 C0 192 G Gain j b 00 C0 192 ► How to adjust B Gain j c 00 C0 192 (1) Fix G gain at least 172 Adjust R, B Gain (In Case of Mostly Blue Gain Saturation) R Cut 128 (2) When R or B Gain > 255, Release Fixed G Gain and G Cut 128 Readjust B Cut 128 ※ CASE Medium / Warm Warm R Gain j d 00 C0 192 First adjust the coordinate far away from the target value(x, y). G Gain j e 00 C0 192 (1) x, y > target i) Decrease the R, G. B Gain j f 00 C0 172 (2) x, y < target R Cut 128 i) First decrease the B gain, G Cut 128 ii) Decrease the one of the others. (3) x > target , y < target B Cut 128 i) First decrease B, so make y a little more than the target. ii) Adjust x value by decreasing the R (4) x < target , y > target i) First decrease B, so make x a little more than the target. ii) Adjust x value by decreasing the G Copyright © LG Electronics. Inc. All rights reserved. - 13 - LGE Internal Use Only Only for training and service purposes

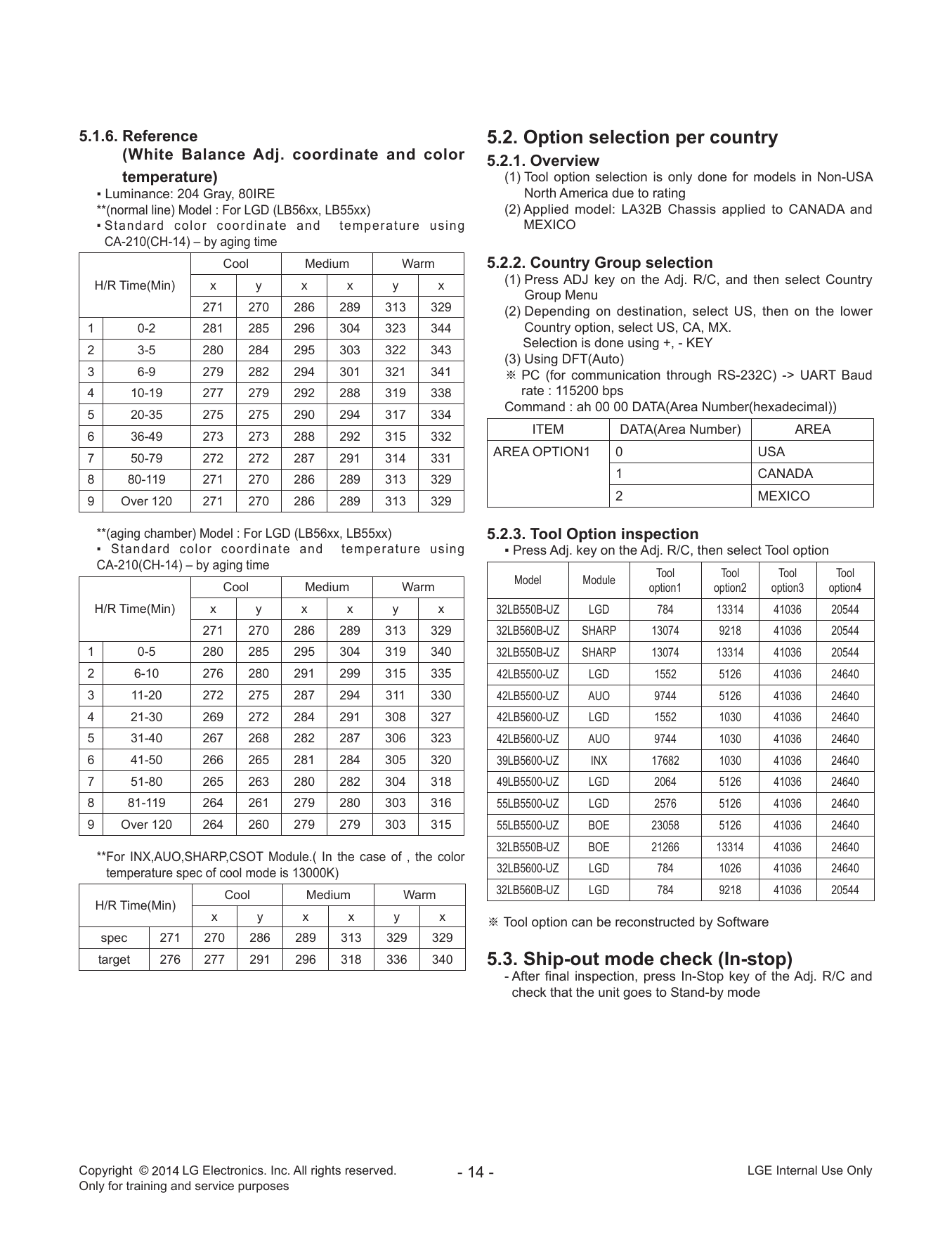

5.1.6. Reference 5.2. Option selection per country ( White Balance Adj. coordinate and color 5.2.1. Overview temperature) (1) Tool option selection is only done for models in Non-USA ▪ Luminance: 204 Gray, 80IRE North America due to rating **(normal line) Model : For LGD (LB56xx, LB55xx) (2) Applied model: LA32B Chassis applied to CANADA and ▪ S tandard color coordinate and temperature using MEXICO CA-210(CH-14) – by aging time Cool Medium Warm 5.2.2. Country Group selection H/R Time(Min) x y x x y x (1) Press ADJ key on the Adj. R/C, and then select Country Group Menu 271 270 286 289 313 329 (2) Depending on destination, select US, then on the lower 1 0-2 281 285 296 304 323 344 Country option, select US, CA, MX. Selection is done using +, - KEY 2 3-5 280 284 295 303 322 343 (3) Using DFT(Auto) 3 6-9 279 282 294 301 321 341 ※ PC (for communication through RS-232C) -> UART Baud 4 10-19 277 279 292 288 319 338 rate : 115200 bps Command : ah 00 00 DATA(Area Number(hexadecimal)) 5 20-35 275 275 290 294 317 334 ITEM DATA(Area Number) AREA 6 36-49 273 273 288 292 315 332 7 50-79 272 272 287 291 314 331 AREA OPTION1 0 USA 8 80-119 271 270 286 289 313 329 1 CANADA 9 Over 120 271 270 286 289 313 329 2 MEXICO **(aging chamber) Model : For LGD (LB56xx, LB55xx) 5.2.3. Tool Option inspection ▪ Standard color coordinate and temperature using ▪ Press Adj. key on the Adj. R/C, then select Tool option CA-210(CH-14) – by aging time Tool Tool Tool Tool Model Module Cool Medium Warm option1 option2 option3 option4 H/R Time(Min) x y x x y x 32LB550B-UZ LGD 784 13314 41036 20544 271 270 286 289 313 329 32LB560B-UZ SHARP 13074 9218 41036 20544 1 0-5 280 285 295 304 319 340 32LB550B-UZ SHARP 13074 13314 41036 20544 2 6-10 276 280 291 299 315 335 42LB5500-UZ LGD 1552 5126 41036 24640 3 11-20 272 275 287 294 311 330 42LB5500-UZ AUO 9744 5126 41036 24640 4 21-30 269 272 284 291 308 327 42LB5600-UZ LGD 1552 1030 41036 24640 5 31-40 267 268 282 287 306 323 42LB5600-UZ AUO 9744 1030 41036 24640 6 41-50 266 265 281 284 305 320 39LB5600-UZ INX 17682 1030 41036 24640 7 51-80 265 263 280 282 304 318 49LB5500-UZ LGD 2064 5126 41036 24640 8 81-119 264 261 279 280 303 316 55LB5500-UZ LGD 2576 5126 41036 24640 9 Over 120 264 260 279 279 303 315 55LB5500-UZ BOE 23058 5126 41036 24640 32LB550B-UZ BOE 21266 13314 41036 24640 **For INX,AUO,SHARP,CSOT Module.( In the case of , the color temperature spec of cool mode is 13000K) 32LB5600-UZ LGD 784 1026 41036 24640 Cool Medium Warm 32LB560B-UZ LGD 784 9218 41036 20544 H/R Time(Min) x y x x y x ※ Tool option can be reconstructed by Software spec 271 270 286 289 313 329 329 target 276 277 291 296 318 336 340 5.3. Ship-out mode check (In-stop) - After final inspection, press In-Stop key of the Adj. R/C and check that the unit goes to Stand-by mode Copyright © LG Electronics. Inc. All rights reserved. - 14 - LGE Internal Use Only Only for training and service purposes

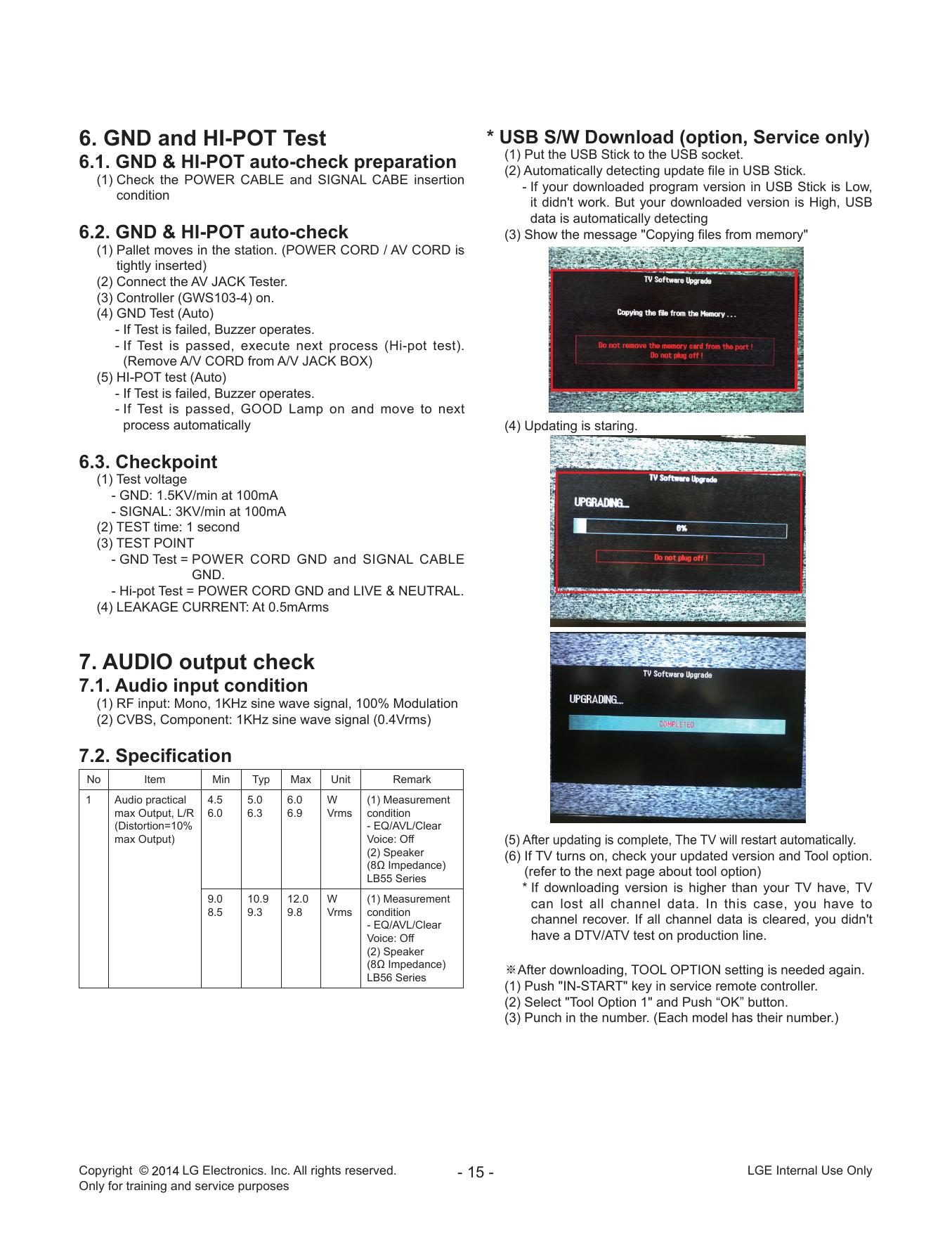

6. GND and HI-POT Test * USB S/W Download (option, Service only) (1) Put the USB Stick to the USB socket. 6.1. GND & HI-POT auto-check preparation (2) Automatically detecting update file in USB Stick. (1) Check the POWER CABLE and SIGNAL CABE insertion - If your downloaded program version in USB Stick is Low, condition it didn't work. But your downloaded version is High, USB data is automatically detecting 6.2. GND & HI-POT auto-check (3) Show the message "Copying files from memory" (1) Pallet moves in the station. (POWER CORD / AV CORD is tightly inserted) (2) Connect the AV JACK Tester. (3) Controller (GWS103-4) on. (4) GND Test (Auto) - If Test is failed, Buzzer operates. - If Test is passed, execute next process (Hi-pot test). (Remove A/V CORD from A/V JACK BOX) (5) HI-POT test (Auto) - If Test is failed, Buzzer operates. - If Test is passed, GOOD Lamp on and move to next process automatically (4) Updating is staring. 6.3. Checkpoint (1) Test voltage - GND: 1.5KV/min at 100mA - SIGNAL: 3KV/min at 100mA (2) TEST time: 1 second (3) TEST POINT - GND Test = P OWER CORD GND and SIGNAL CABLE GND. - Hi-pot Test = POWER CORD GND and LIVE & NEUTRAL. (4) LEAKAGE CURRENT: At 0.5mArms 7. AUDIO output check 7.1. Audio input condition (1) RF input: Mono, 1KHz sine wave signal, 100% Modulation (2) CVBS, Component: 1KHz sine wave signal (0.4Vrms) 7.2. Specification No Item Min Typ Max Unit Remark 1 Audio practical 4.5 5.0 6.0 W (1) Measurement max Output, L/R 6.0 6.3 6.9 Vrms condition (Distortion=10% - EQ/AVL/Clear max Output) Voice: Off (5) After updating is complete, The TV will restart automatically. (2) Speaker (6) If TV turns on, check your updated version and Tool option. (8Ω Impedance) LB55 Series (refer to the next page about tool option) * If downloading version is higher than your TV have, TV 9.0 10.9 12.0 W (1) Measurement can lost all channel data. In this case, you have to 8.5 9.3 9.8 Vrms condition - EQ/AVL/Clear channel recover. If all channel data is cleared, you didn't Voice: Off have a DTV/ATV test on production line. (2) Speaker (8Ω Impedance) ※After downloading, TOOL OPTION setting is needed again. LB56 Series (1) Push "IN-START" key in service remote controller. (2) Select "Tool Option 1" and Push “OK” button. (3) Punch in the number. (Each model has their number.) Copyright © LG Electronics. Inc. All rights reserved. - 15 - LGE Internal Use Only Only for training and service purposes

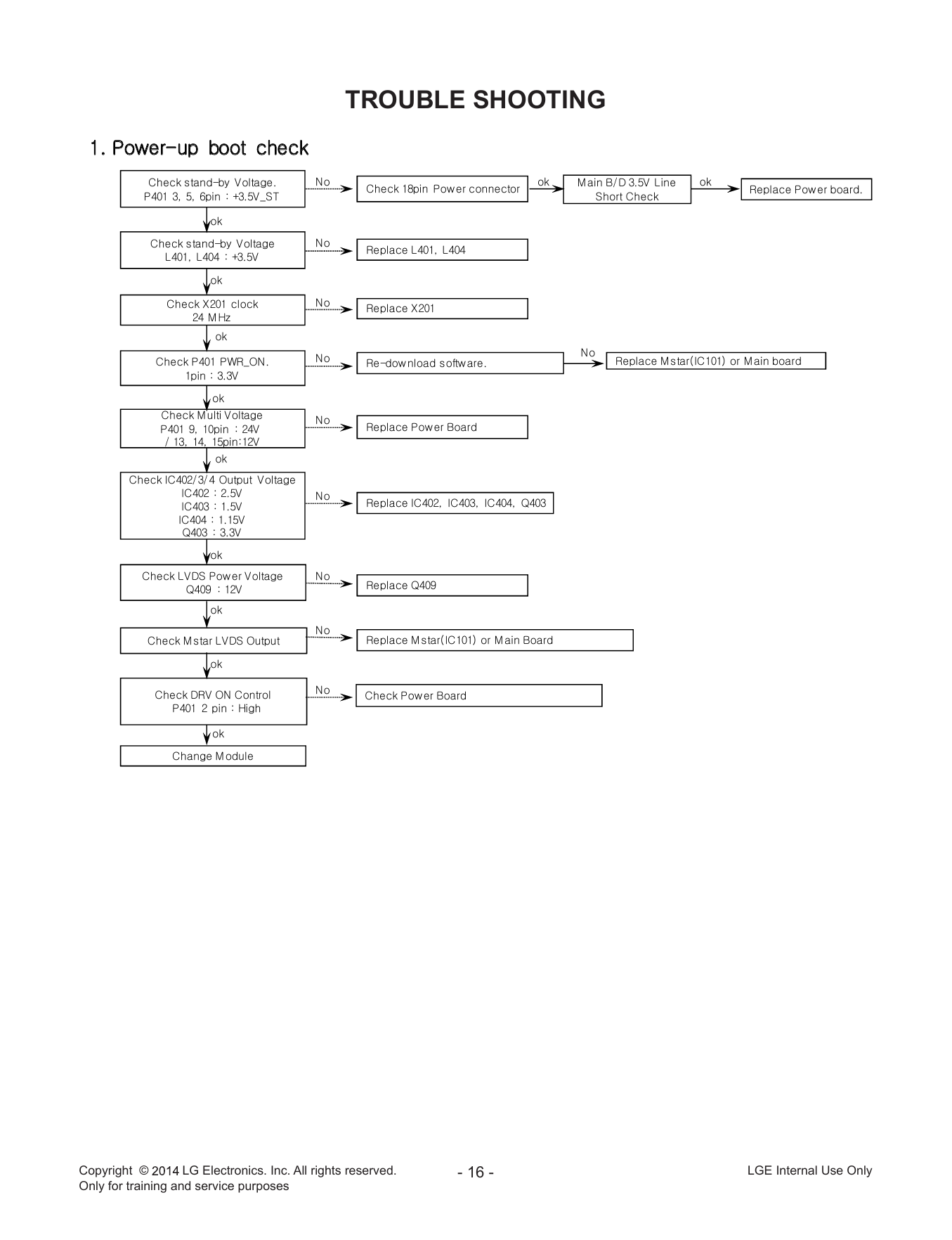

TROUBLE SHOOTING 1. Power-up boot check Check stand-by Voltage. No ok M ain B/D 3.5V Line ok Check 18pin Power connector Replace Power board. P401 3, 5, 6pin : +3.5V_ST Short Check ok Check stand-by Voltage No Replace L401, L404 L401, L404 : +3.5V ok Check X201 clock No Replace X201 24 M Hz ok No Check P401 PWR_ON. No Re-download software. Replace M star(IC101) or M ain board 1pin : 3.3V ok Check M ulti Voltage No P401 9, 10pin : 24V Replace Power Board / 13, 14, 15pin:12V ok Check IC402/3/4 Output Voltage IC402 : 2.5V No IC403 : 1.5V Replace IC402, IC403, IC404, Q403 IC404 : 1.15V Q403 : 3.3V ok Check LVDS Power Voltage No Q409 : 12V Replace Q409 ok No Check M star LVDS Output Replace M star(IC101) or M ain Board ok Check DRV ON Control No Check Power Board P401 2 pin : High ok Change M odule Copyright © LG Electronics. Inc. All rights reserved. - 16 - LGE Internal Use Only Only for training and service purposes

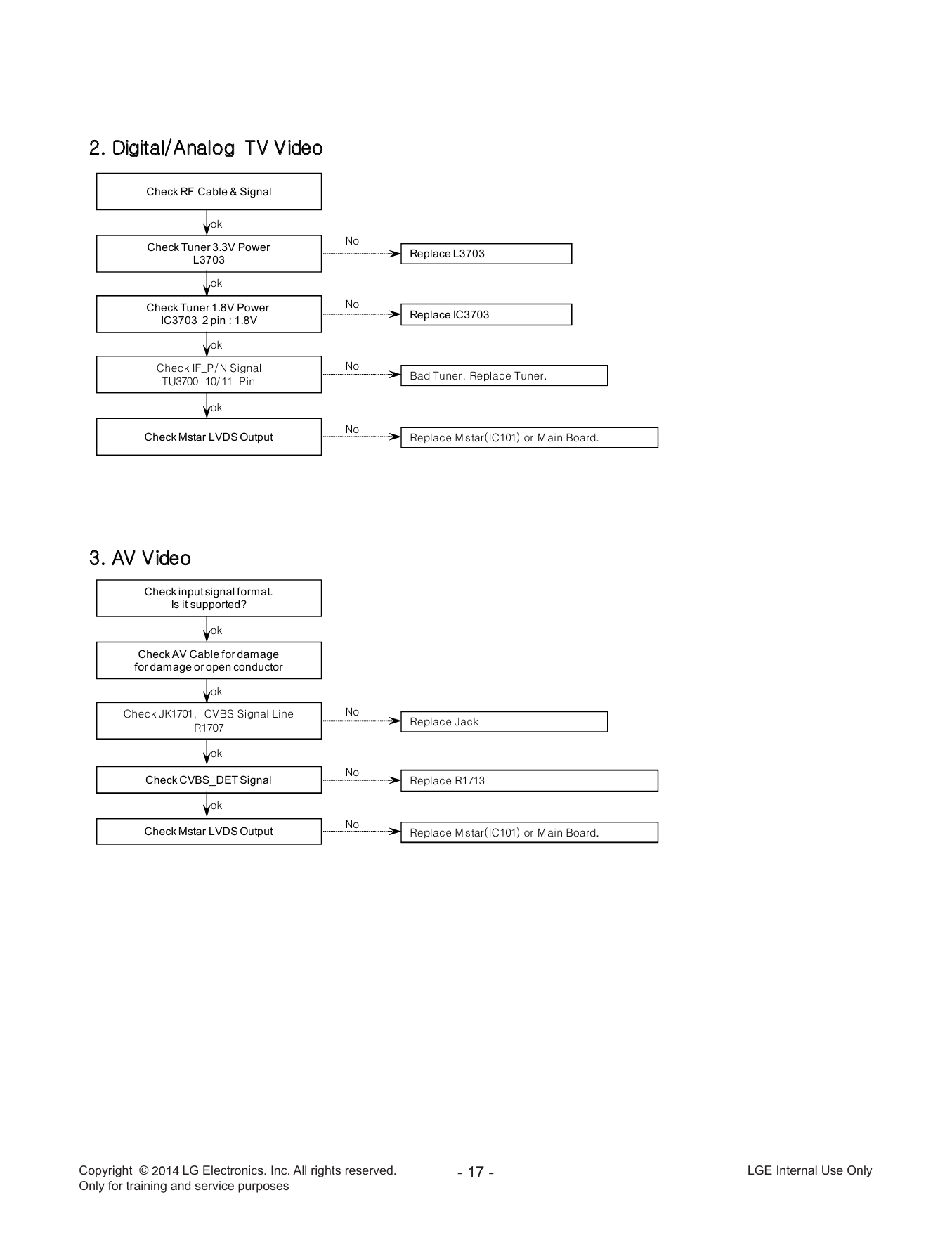

2. Digital/Analog TV Video Check RF Cable & Signal ok No Check Tuner 3.3V Power Replace L3703 L3703 ok Check Tuner 1.8V Power No Replace IC3703 IC3703 2 pin : 1.8V ok Check IF_P/N Signal No Bad Tuner. Replace Tuner. TU3700 10/11 Pin ok No Check Mstar LVDS Output Replace M star(IC101) or M ain Board. 3. AV Video Check input signal format. Is it supported? ok Check AV Cable for damage for damage or open conductor ok Check JK1701, CVBS Signal Line No Replace Jack R1707 ok No Check CVBS_DET Signal Replace R1713 ok No Check Mstar LVDS Output Replace M star(IC101) or M ain Board. Copyright © LG Electronics. Inc. All rights reserved. - 17 - LGE Internal Use Only Only for training and service purposes

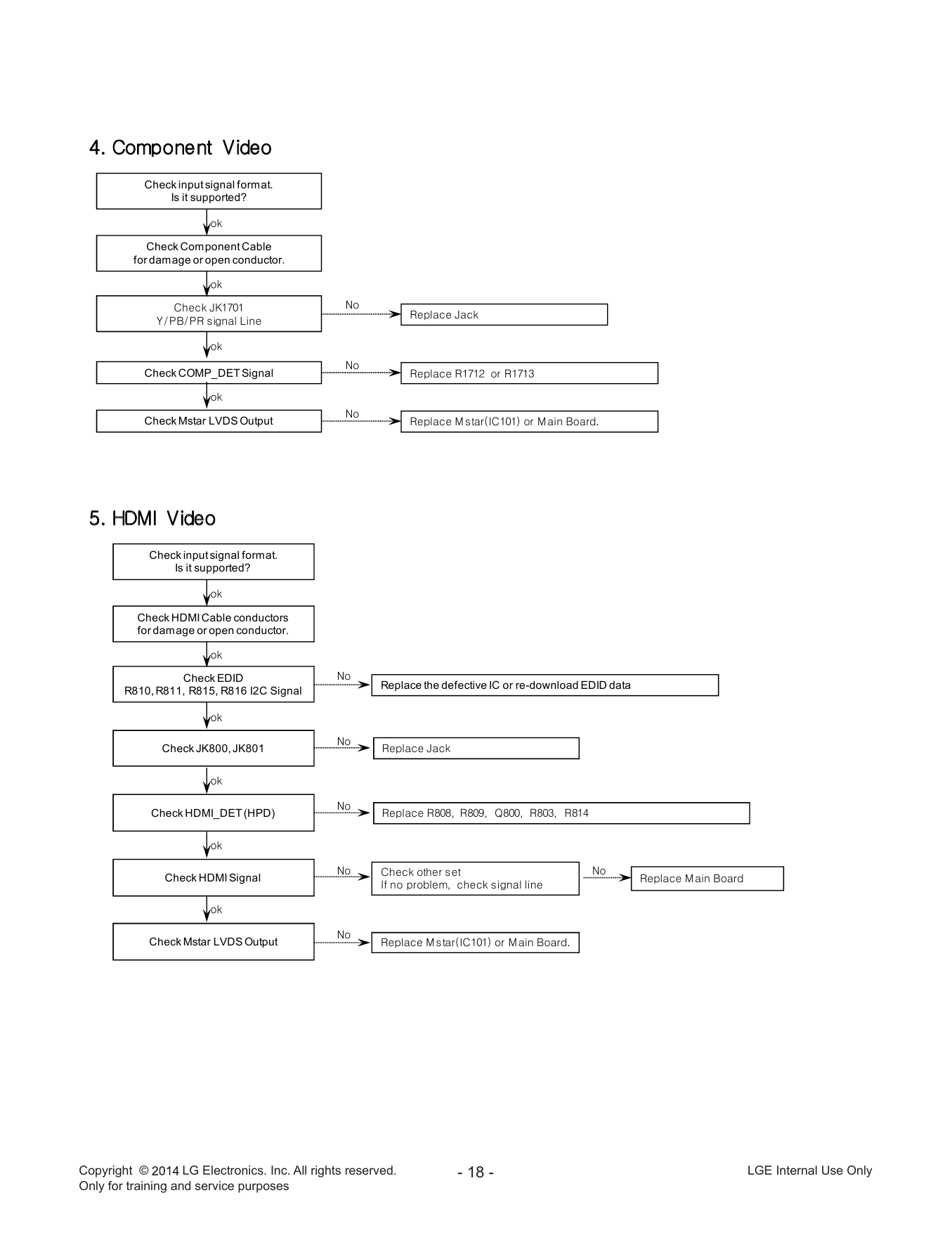

4. Component Video Check input signal format. Is it supported? ok Check Component Cable for damage or open conductor. ok Check JK1701 No Replace Jack Y/PB/PR signal Line ok No Check COMP_DET Signal Replace R1712 or R1713 ok No Check Mstar LVDS Output Replace M star(IC101) or M ain Board. 5. HDMI Video Check input signal format. Is it supported? ok Check HDMI Cable conductors for damage or open conductor. ok Check EDID No R810, R811, R815, R816 I2C Signal Replace the defective IC or re-download EDID data ok No Check JK800, JK801 Replace Jack ok No Check HDMI_DET (HPD) Replace R808, R809, Q800, R803, R814 ok No Check other set No Check HDMI Signal Replace M ain Board If no problem, check signal line ok No Check Mstar LVDS Output Replace M star(IC101) or M ain Board. Copyright © LG Electronics. Inc. All rights reserved. - 18 - LGE Internal Use Only Only for training and service purposes

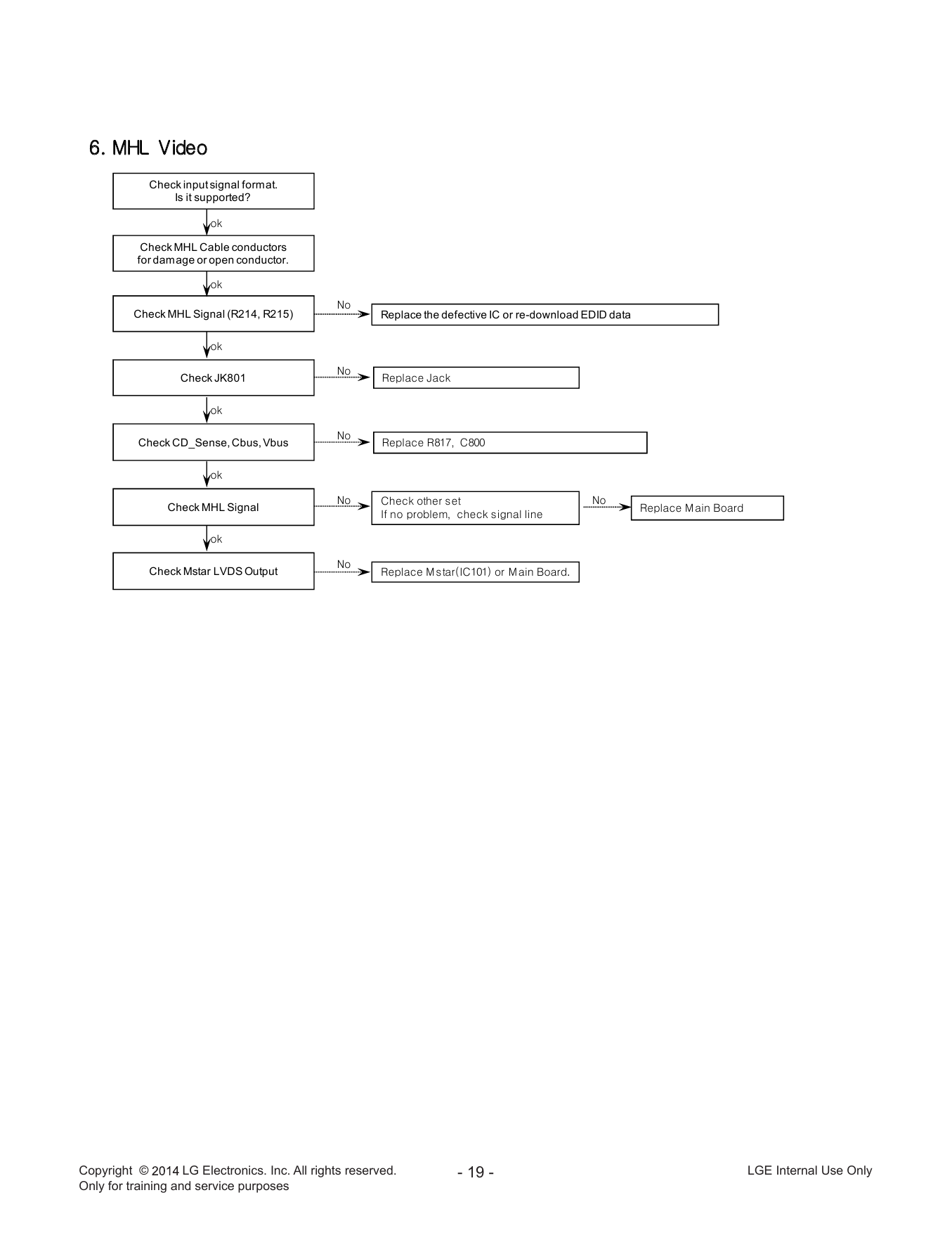

6. MHL Video Check input signal format. Is it supported? ok Check MHL Cable conductors for damage or open conductor. ok No Check MHL Signal (R214, R215) Replace the defective IC or re-download EDID data ok No Check JK801 Replace Jack ok No Check CD_Sense, Cbus, Vbus Replace R817, C800 ok No Check other set No Check MHL Signal Replace M ain Board If no problem, check signal line ok No Check Mstar LVDS Output Replace M star(IC101) or M ain Board. Copyright © LG Electronics. Inc. All rights reserved. - 19 - LGE Internal Use Only Only for training and service purposes

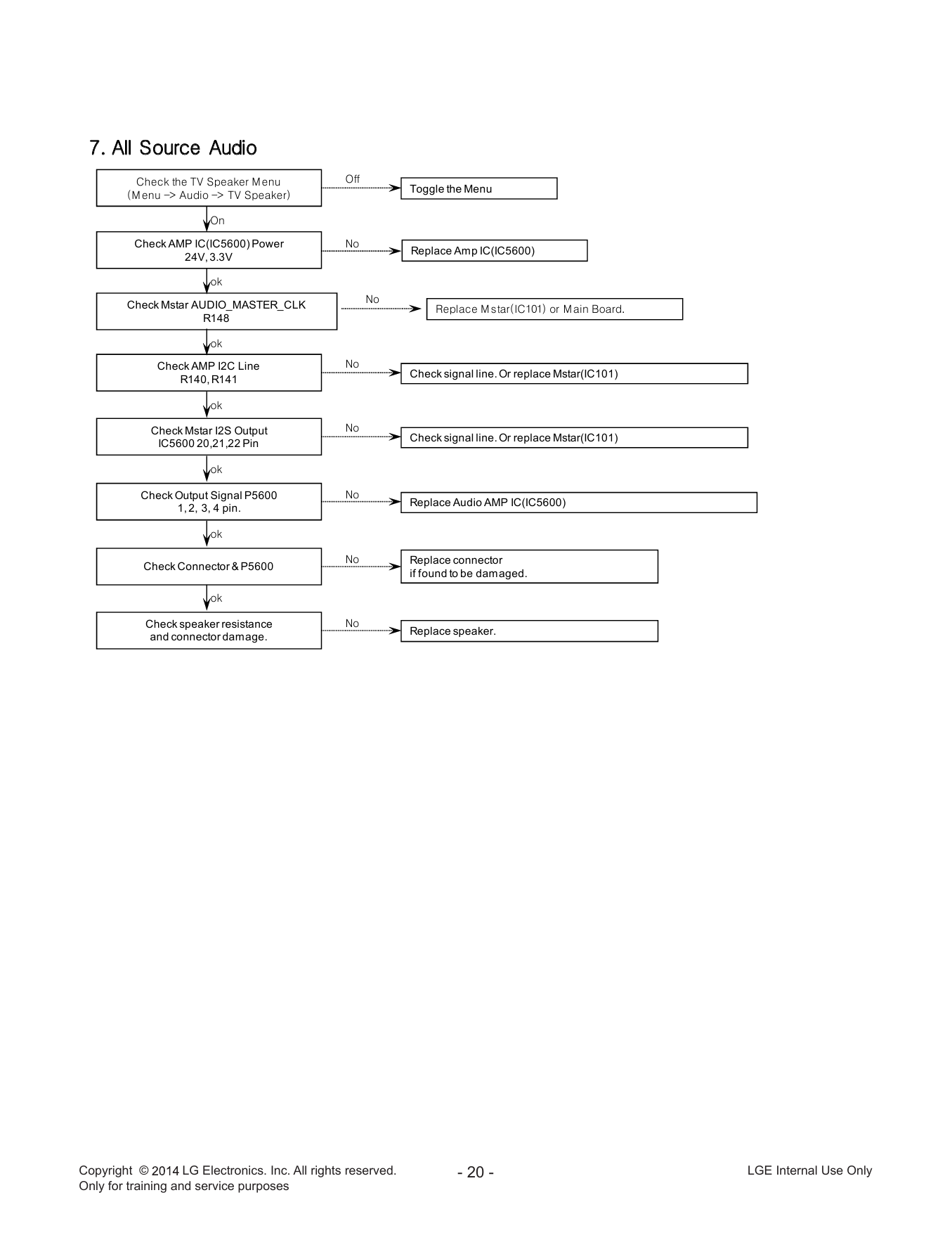

7. All Source Audio Check the TV Speaker M enu Off Toggle the Menu (M enu -> Audio -> TV Speaker) On Check AMP IC(IC5600) Power No Replace Amp IC(IC5600) 24V, 3.3V ok No Check Mstar AUDIO_MASTER_CLK Replace M star(IC101) or M ain Board. R148 ok Check AMP I2C Line No R140, R141 Check signal line. Or replace Mstar(IC101) ok Check Mstar I2S Output No IC5600 20,21,22 Pin Check signal line. Or replace Mstar(IC101) ok Check Output Signal P5600 No 1, 2, 3, 4 pin. Replace Audio AMP IC(IC5600) ok No Replace connector Check Connector & P5600 if found to be damaged. ok Check speaker resistance No and connector damage. Replace speaker. Copyright © LG Electronics. Inc. All rights reserved. - 20 - LGE Internal Use Only Only for training and service purposes

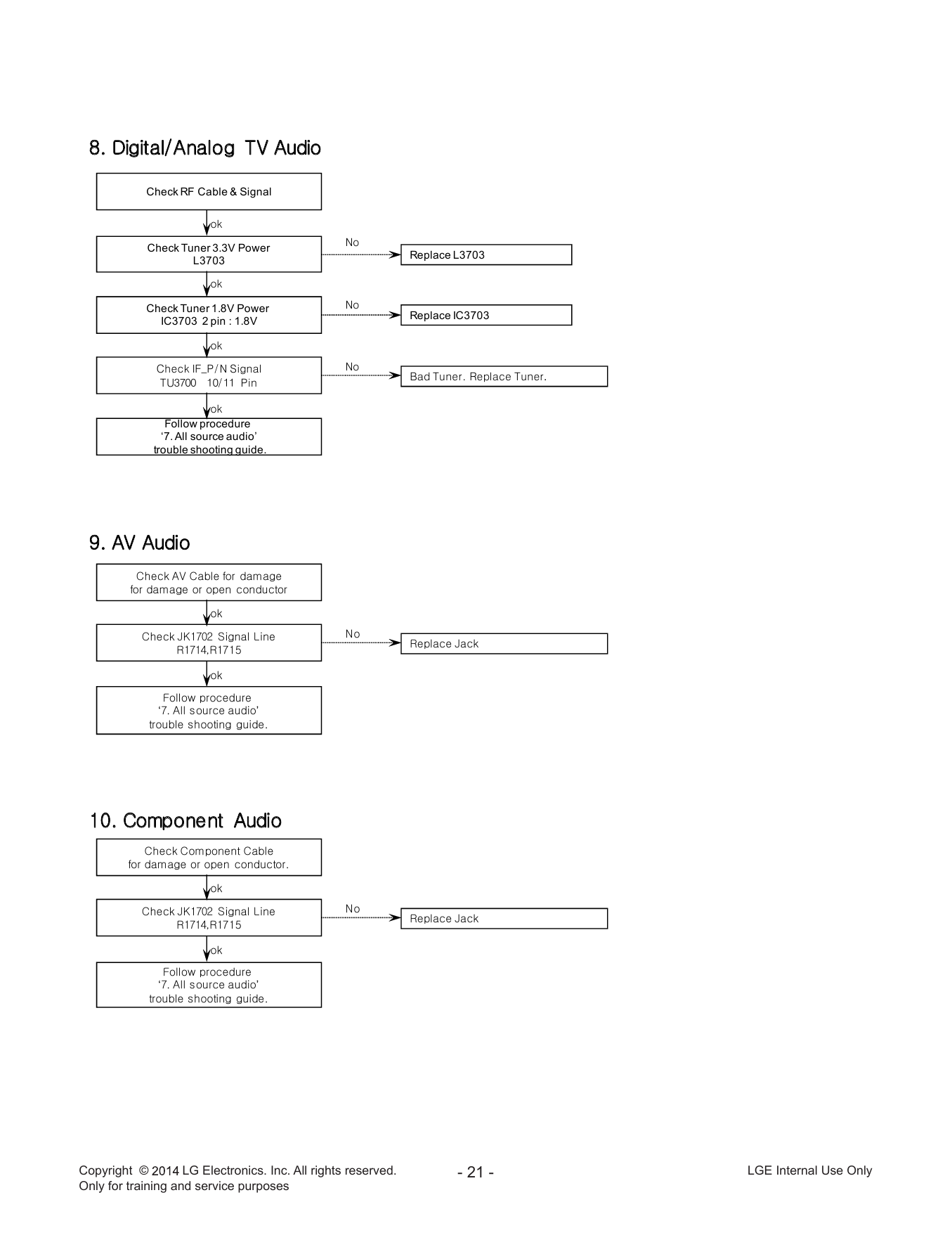

8. Digital/Analog TV Audio Check RF Cable & Signal ok No Check Tuner 3.3V Power Replace L3703 L3703 ok Check Tuner 1.8V Power No Replace IC3703 IC3703 2 pin : 1.8V ok Check IF_P/N Signal No Bad Tuner. Replace Tuner. TU3700 10/11 Pin ok Follow procedure ‘7. All source audio’ trouble shooting guide. 9. AV Audio Check AV Cable for damage for damage or open conductor ok Check JK1702 Signal Line No Replace Jack R1714,R1715 ok Follow procedure ‘7. All source audio’ trouble shooting guide. 10. Component Audio Check Component Cable for damage or open conductor. ok Check JK1702 Signal Line No Replace Jack R1714,R1715 ok Follow procedure ‘7. All source audio’ trouble shooting guide. Copyright © LG Electronics. Inc. All rights reserved. - 21 - LGE Internal Use Only Only for training and service purposes

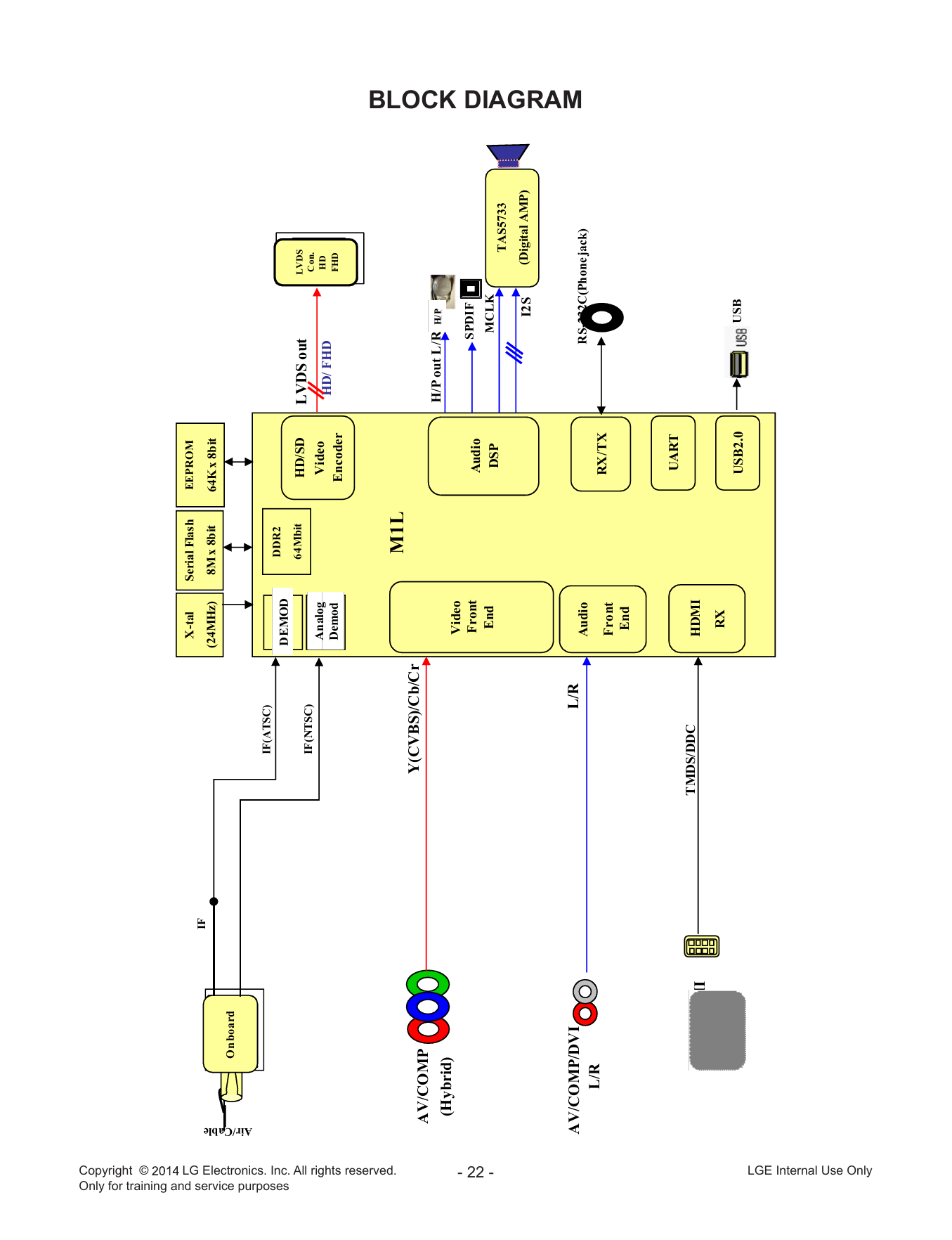

Copyright © X-tal Serial Flash EEPROM IF (24MHz) 8M x 8bit 64K x 8bit On board Air/Cable IF(ATSC) DDR2 Only for training and service purposes DEMOD 64Mbit HD/SD LVDS out LVDS IF(NTSC) Con. Analog Video HD Demod HD/ FHD FHD Encoder LG Electronics. Inc. All rights reserved. M1L Y(CVBS)/Cb/Cr AV/COMP H/P out L/R H/P (Hybrid) Video Front 172mV SPDIF Audio - 22 - End DSP MCLK TAS5733 I2S (Digital AMP) BLOCK DIAGRAM AV/COMP/DVI L/R RS-232C(Phone jack) Audio L/R RX/TX Front End UART TMDS/DDC HDMI HDMI RX 540mV USB2.0 USB LGE Internal Use Only

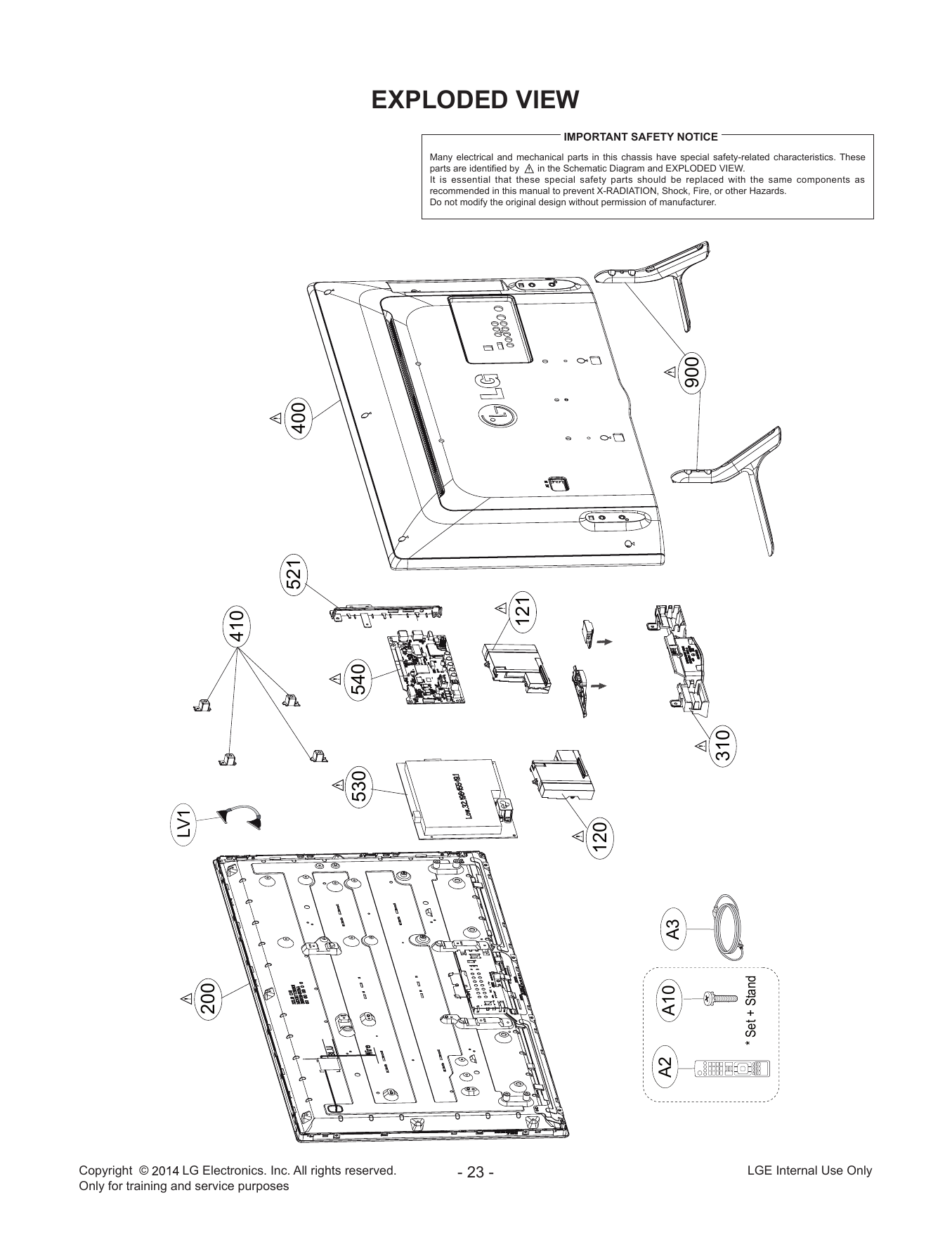

EXPLODED VIEW IMPORTANT SAFETY NOTICE Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and EXPLODED VIEW. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer. 900 400 521 121 410 540 310 530 LV1 120 A3 * Set + Stand 200 A10 A2 Copyright © LG Electronics. Inc. All rights reserved. - 23 - LGE Internal Use Only Only for training and service purposes

POWER_ON/OFF /MHL_OCP_DET SIDE_USB_DP SIDE_USB_DM MHL_OCP_EN

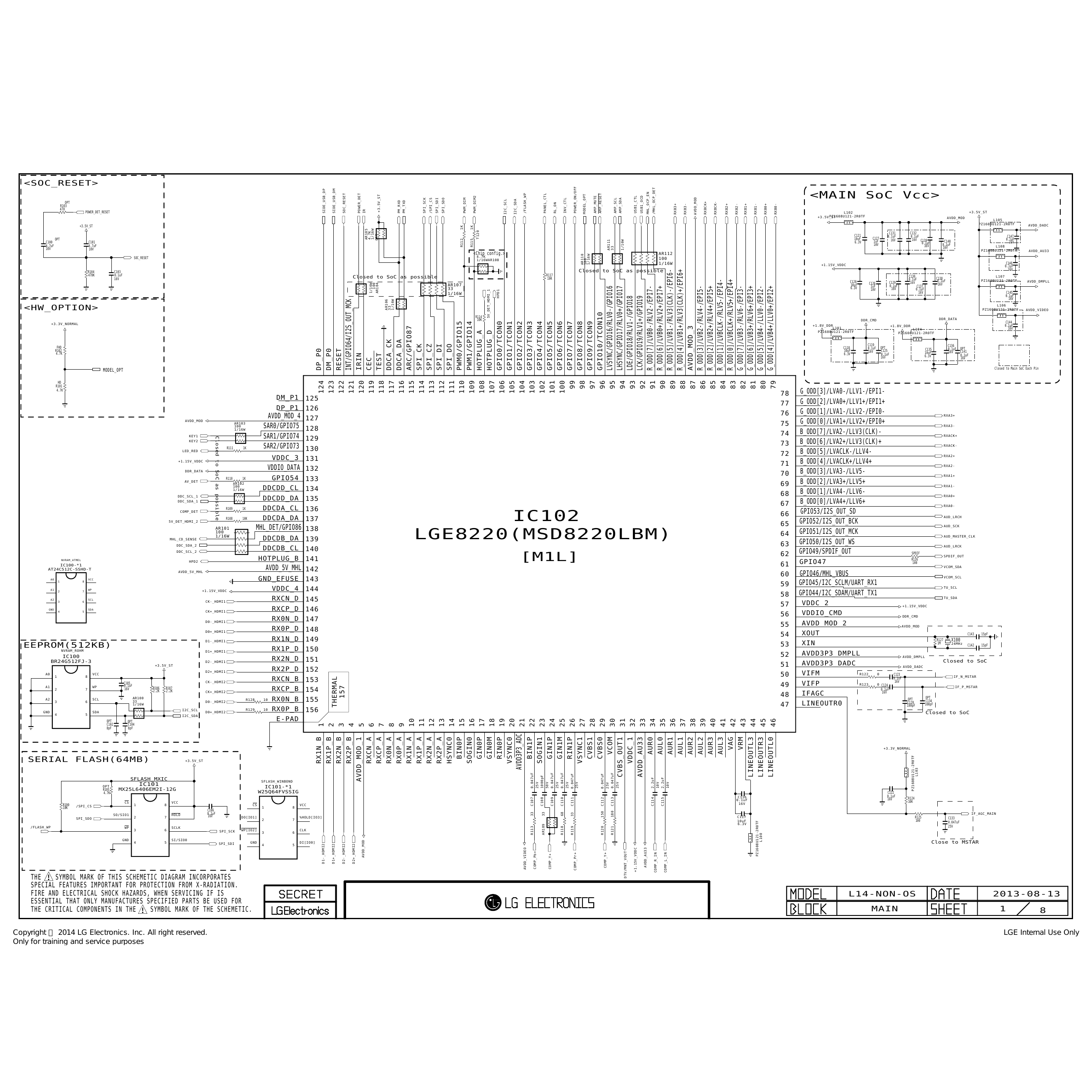

SOC_RESET POWER_DET /FLASH_WP PANEL_CTL AMP_RESET MODEL_OPT +3.5V_ST PWM_DIM2 AMP_MUTE USB1_CTL USB1_OCD AVDD_MOD SPI_SCK SPI_SDO PWM_DIM /SPI_CS SPI_SDI INV_CTL AMP_SCL AMP_SDA I2C_SCL I2C_SDA PM_RXD PM_TXD OPT RXBCK- RXBCK+ RL_ON RXB3+ RXB3- RXB2+ RXB2- RXB1+ RXB1- RXB0+ RXB0- R103 470 IR POWER_DET_RESET L102 +3.5V_ST PZ1608U121-2R0TF +3.5V_ST AVDD_MOD L105 PZ1608U121-2R0TF AVDD_DADC +3.5V_ST 1K 1K AR105 1/16W T120 4.7K C131 C132 OPT C121 0.1uF 0.1uF C147 OPT 10uF C127 16V C139 0.1uF R112 R115 16V AR111 1/16W C100 C101 6.3V 1uF 0.1uF C140 16V 4.7uF 4.7uF 10V 16V 0.1uF L108 33 10V 10V 16V PZ1608U121-2R0TF AVDD_AU33 AR112 AR110 1/16W SOC_RESET 4.7K 100 100 1/16W AR108 1/16W +1.15V_VDDC C146 0.1uF Closed to SoC as possible 16V R_ODD[5]/LVB1-/RLV3(CLK)-/EPI6- R_ODD[4]/LVB1+/RLV3(CLK)+/EPI6+ R104 C103 470K 0.1uF R117 C130 16V Closed to SoC as possible 10K C138 L107 0.1uF R_ODD[1]/LVBCLK-/RLV5-/EPI4- R_ODD[0]/LVBCLK+/RLV5+/EPI4+ C120 0.1uF PZ1608U121-2R0TF AVDD_DMPLL C126 C129 16V 1/16W 100 AR104 AR107 10uF 0.1uF 16V 1uF C137 LVSYNC/GPIO16/RLV0-/GPIO16 LHSYNC/GPIO17/RLV0+/GPIO17 R_ODD[7]/LVB0-/RLV2-/EPI7- R_ODD[6]/LVB0+/RLV2+/EPI7+ R_ODD[3]/LVB2-/RLV4-/EPI5- R_ODD[2]/LVB2+/RLV4+/EPI5+ G_ODD[7]/LVB3-/RLV6-/EPI3- G_ODD[6]/LVB3+/RLV6+/EPI3+ G_ODD[5]/LVB4-/LLV0-/EPI2- G_ODD[4]/LVB4+/LLV0+/EPI2+ 33 6.3V 10V 16V 0.1uF 5V_DET_HDMI_1 HPD1 1/16W 16V C145 0.1uF LDE/GPIO18/RLV1-/GPIO18 LCK/GPIO19/RLV1+/GPIO19 16V INT/GPIO64/I2S_OUT_MCK AR106 1/16W L106 33 PZ1608U121-2R0TF AVDD_VIDEO GPIO10/TCON10 R114 10K DDR_CMD DDR_DATA PWM0/GPIO15 PWM1/GPIO14 GPIO0/TCON0 GPIO1/TCON1 GPIO2/TCON2 GPIO3/TCON3 GPIO4/TCON4 GPIO5/TCON5 GPIO6/TCON6 GPIO7/TCON7 GPIO8/TCON8 GPIO9/TCON9 +3.3V_NORMAL C144 +1.8V_DDR +1.8V_DDR 0.1uF ARC/GPIO87 AVDD_MOD_3 L101 L104 16V HOTPLUG_A HOTPLUG_D PZ1608U121-2R0TF PZ1608U121-2R0TF DDCA_CK DDCA_DA SPI_CK SPI_CZ SPI_DI SPI_DO C119 C136 FHD C118 0.1uF OPT 0.1uF OPT DP_P0 DM_P0 RESET R102 10uF 16V C125 C135 10uF 16V C141 4.7K 6.3V IRIN TEST 0.1uF 6.3V 0.1uF 16V 16V MODEL_OPT CEC Closed to Main SoC Each Pin 124 123 122 121 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105 104 103 102 101 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 HD R101 4.7K 78 G_ODD[3]/LVA0-/LLV1-/EPI1- DM_P1 125 77 G_ODD[2]/LVA0+/LLV1+/EPI1+ DP_P1 126 76 G_ODD[1]/LVA1-/LLV2-/EPI0- AVDD_MOD_4 127 RXA3+ AVDD_MOD AR103 75 G_ODD[0]/LVA1+/LLV2+/EPI0+ 100 1/16W SAR0/GPIO75 128 RXA3- 74 B_ODD[7]/LVA2-/LLV3(CLK)- KEY1 SAR1/GPIO74 129 RXACK+ Closed to SoC as possible KEY2 73 B_ODD[6]/LVA2+/LLV3(CLK)+ R111 1K SAR2/GPIO73 130 RXACK- LED_RED 72 B_ODD[5]/LVACLK-/LLV4- RXA2+ VDDC_3 131 +1.15V_VDDC 71 B_ODD[4]/LVACLK+/LLV4+ RXA2- VDDIO_DATA 132 DDR_DATA 70 B_ODD[3]/LVA3-/LLV5- RXA1+ R110 1K GPIO54 133 AV_DET AR102 69 B_ODD[2]/LVA3+/LLV5+ RXA1- 100 1/16W DDCDD_CL 134 DDC_SCL_1 68 B_ODD[1]/LVA4-/LLV6- RXA0+ DDCDD_DA 135 DDC_SDA_1 67 B_ODD[0]/LVA4+/LLV6+ RXA0- COMP_DET R109 1K DDCDA_CL 136 GPIO53/I2S_OUT_SD 5V_DET_HDMI_2 R108 10K DDCDA_DA 137 IC102 66 65 GPIO52/I2S_OUT_BCK AUD_LRCH AR101 MHL_DET/GPIO86 138 AUD_SCK GPIO51/I2S_OUT_MCK MHL_CD_SENSE DDC_SDA_2 100 1/16W DDCDB_DA 139 LGE8220(MSD8220LBM) 64 63 GPIO50/I2S_OUT_WS AUD_MASTER_CLK AUD_LRCK DDC_SCL_2 DDCDB_CL 140 GPIO49/SPDIF_OUT 62 SPDIF IC100-*1 NVRAM_ATMEL HPD2 HOTPLUG_B 141 [M1L] 61 GPIO47 R126 100 SPDIF_OUT AT24C512C-SSHD-T AVDD_5V_MHL AVDD_5V_MHL 142 VCOM_SDA 60 GPIO46/MHL_VBUS VCOM_SCL A0 VCC GND_EFUSE 143 1 8 59 GPIO45/I2C_SCLM/UART_RX1 A1 WP +1.15V_VDDC VDDC_4 144 TU_SCL 2 7 58 GPIO44/I2C_SDAM/UART_TX1 A2 3 6 SCL CK-_HDMI1 RXCN_D 145 TU_SDA 57 VDDC_2 +1.15V_VDDC GND 4 5 SDA CK+_HDMI1 RXCP_D 146 56 VDDIO_CMD DDR_CMD D0-_HDMI1 RX0N_D 147 55 AVDD_MOD_2 AVDD_MOD D0+_HDMI1 RX0P_D 148 54 XOUT C143 15pF D1-_HDMI1 RX1N_D 149 R127 X100 EEPROM(512KB) 53 XIN 1M 24MHz C142 15pF NVRAM_ROHM D1+_HDMI1 RX1P_D 150 IC100 52 AVDD3P3_DMPLL AVDD_DMPLL BR24G512FJ-3 D2-_HDMI1 RX2N_D 151 Closed to SoC +3.5V_ST 51 AVDD3P3_DADC AVDD_DADC D2+_HDMI1 RX2P_D 152 A0 1 8 VCC 50 VIFM R122 0 C123 IF_N_MSTAR THERMAL CK-_HDMI2 RXCN_B 153 0.1uF 16V C105 0.1uF 49 VIFP R123 0 C124 157 A1 WP R106 R107 IF_P_MSTAR 2 7 16V 2.2K 2.2K CK+_HDMI2 RXCP_B 154 0.1uF 16V 48 IFAGC OPT A2 3 6 SCL AR100 33 D0-_HDMI2 R128 10 RX0N_B 155 OPT C128 C134 1/16W 47 LINEOUTR0 100pF 100pF GND SDA I2C_SCL D0+_HDMI2 R129 10 RX0P_B 156 Closed to SoC 4 5 I2C_SDA E-PAD 10 11 12 13 14 15 16 17 18 19 20 AVDD3P3_ADC 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 OPT OPT 1 2 3 4 5 6 7 8 9 C102 C104 8pF 8pF RX1N_B RX1P_B RX2N_B RX2P_B AVDD_MOD_1 RXCN_A RXCP_A RX0N_A RX0P_A RX1N_A RX1P_A RX2N_A RX2P_A HSYNC0 BIN0P SOGIN0 GIN0P GIN0M RIN0P VSYNC0 BIN1P SOGIN1 GIN1P GIN1M RIN1P VSYNC1 CVBS1 CVBS0 VCOM CVBS_OUT1 VDDC_1 AVDD_AU33 AUR0 AUL0 AUR1 AUL1 AUR2 AUL2 AUR3 AUL3 VAG VRM LINEOUTL3 LINEOUTR3 LINEOUTL0 +3.3V_NORMAL PZ1608U121-2R0TF SERIAL FLASH(64MB) +3.5V_ST L103 0.047uF 0.047uF 0.047uF 0.047uF 0.047uF 0.047uF 1000pF 2.2uF 2.2uF SFLASH_MXIC SFLASH_WINBOND 25V 50V 25V 25V 25V 10V 10V 25V 25V OPT IC101 IC101-*1 R105 MX25L6406EM2I-12G 4.7K W25Q64FVSSIG C122 C116 0.1uF C107 C108 C109 C111 C112 C113 C114 C115 C110 0.1uF 16V R124 CS VCC 10K R100 1 8 CS VCC 16V /SPI_CS 1 8 10K C106 180 150 33 33 68 0.1uF 33 SO/SIO1 HOLD IF_AGC_MAIN 2 7 16V DO[IO1] %HOLD[IO3] C117 R125 SPI_SDO 2 7 C133 10uF 100 PZ1608U121-2R0TF 6.3V 0.047uF AR109 25V R113 R118 R120 R121 R119 /FLASH_WP WP SCLK 3 6 SPI_SCK WP[IO2] CLK 3 6 L100 GND SI/SIO0 AVDD_MOD 4 5 SPI_SDI GND DI[IO0] Close to MSTAR D1-_HDMI2 D1+_HDMI2 D2-_HDMI2 D2+_HDMI2 4 5 AVDD_VIDEO +1.15V_VDDC AVDD_AU33 COMP_Pb+ DTV/MNT_VOUT COMP_Pr+ COMP_Y+ COMP_R_IN COMP_L_IN COMP_Y+ THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS L14-NON-OS 2013-08-13 ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. MAIN 1 8 Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only Only for training and service purposes

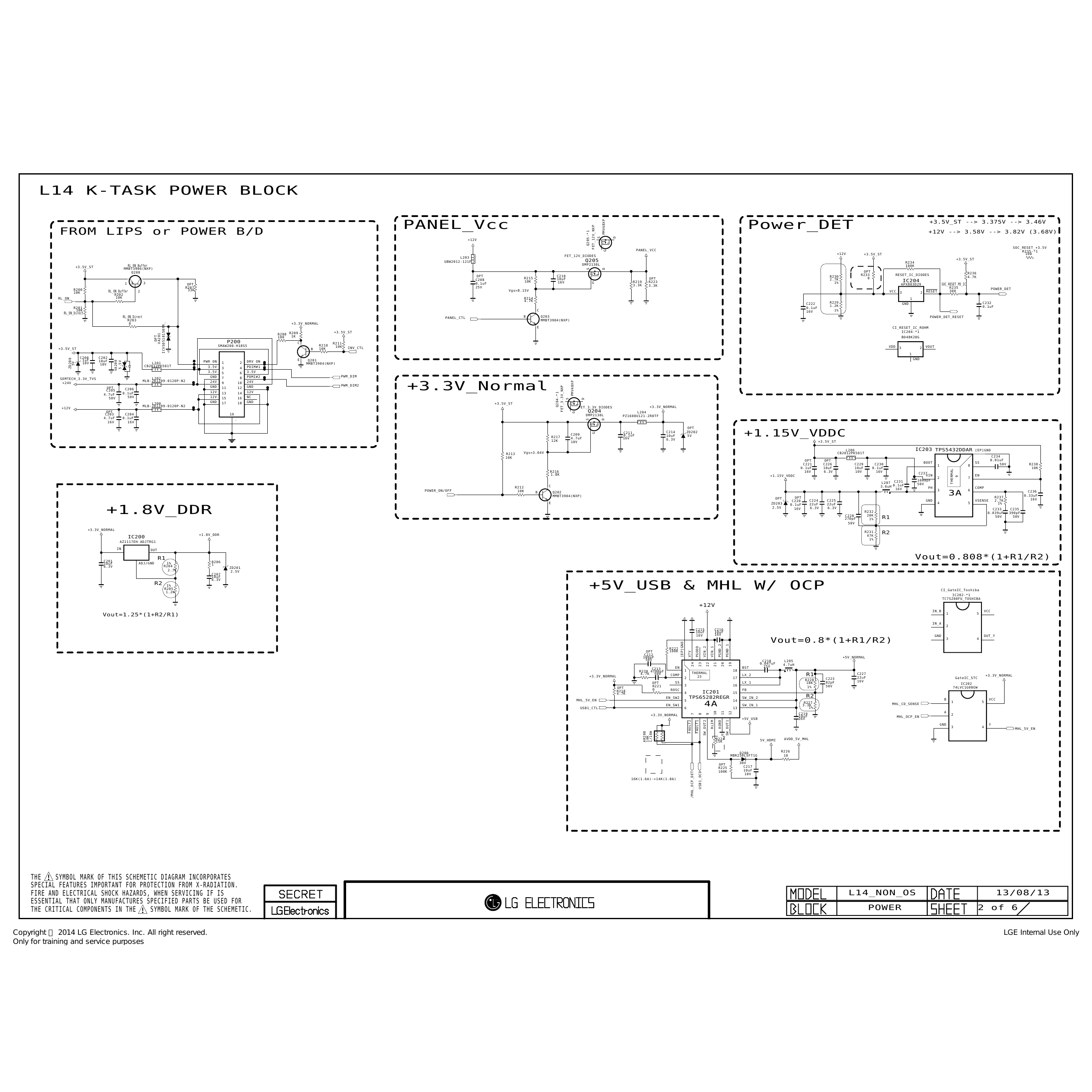

L14 K-TASK POWER BLOCK PMV48XP +3.5V_ST --> 3.375V --> 3.46V PANEL_Vcc Power_DET FET_12V_NXP FROM LIPS or POWER B/D +12V --> 3.58V --> 3.82V (3.68V) Q205-*1 S D +12V SOC_RESET_+3.5V PANEL_VCC G R235-*1 +12V +3.5V_ST 100 L203 FET_12V_DIODES Q205 +3.5V_ST UBW2012-121F R234 RL_ON_Buffer DMP2130L 100K +3.5V_ST MMBT3906(NXP) S D Q200 OPT R236 OPT C210 R230 R233 RESET_IC_DIODES R215 OPT 0 4.7K C208 10uF 2.7K 3 10K 16V G R219 R223 1% IC204 1 OPT 0.1uF APX803D29 SOC_RESET_PD_IC 3.3K 3.3K R207 25V R235 R200 33K Vgs=8.15V POWER_DET RL_ON_Buffer 2 VCC RESET 300 10K 3 2 R202 RL_ON 10K R214 1 4.7K C222 R229 GND C232 1.2K 0.1uF R201 0.1uF 10K C 16V 1% RL_ON_Direct RL_ON_Direct PANEL_CTL B Q203 POWER_DET_RESET R203 MMBT3904(NXP) ICVS0518150FR_ 0 +3.3V_NORMAL E CI_RESET_IC_ROHM +3.5V_ST IC204-*1 R208 R209 VA201 OPT 100 1K BD48K28G P200 C R211 SMAW200-H18S5 R210 10K VDD VOUT +3.5V_ST B 10K INV_CTL 3 2 1 C200 C202 ZD200 1uF E Q201 GND VA200 10uF 5.5V PWR ON DRV ON 5V 10V 10V L201 1 2 MMBT3904(NXP) CB2012PK501T 3.5V PDIM#1 3 4 3.5V 5 6 3.5V GND 7 8 PDMI#2 PWM_DIM SEMTECH_3.3V_TVS L202 MLB-201209-0120P-N2 PMV48XP +24V 24V 9 10 24V PWM_DIM2 +3.3V_Normal FET_3.3V_NXP OPT GND 11 12 GND C205 C206 12V 12V Q204-*1 4.7uF 0.1uF 13 14 50V 50V 12V 15 16 NC S D GND 17 18 GND L200 +3.5V_ST MLB-201209-0120P-N2 FET_3.3V_DIODES +3.3V_NORMAL +12V OPT Q204 G L204 C203 C204 19 DMP2130L PZ1608U121-2R0TF 4.7uF 0.1uF S D . 16V 16V OPT C211 C214 ZD202 +1.15V_VDDC G C209 0.1uF 10uF 5V R217 4.7uF 16V 12K 6.3V 10V +3.5V_ST L206 IC203 TPS5432DDAR [EP]GND R213 Vgs=3.04V CB2012PK501T 10K C234 OPT OPT 0.01uF C221 C226 C229 C230 BOOT SS 50V R238 1 8 0.1uF 10uF 10uF 0.1uF 10K THERMAL R216 16V 6.3V 10V 16V 1.8K C237 +1.15V_VDDC VIN EN 9 2 7 1000pF L207 C231 50V R212 C 3.6uH 0.1uF PH COMP POWER_ON/OFF 16V 3 6 10K B Q202 MMBT3904(NXP) OPT 3A R237 C236 0.33uF OPT 16V C220 C224 C225 GND VSENSE 2.7K E ZD203 22uF 22uF 4 5 1% 0.1uF +1.8V_DDR 2.5V 16V 6.3V 6.3V C228 270pF R232 20K 1% R1 C233 0.039uF 50V C235 390pF 50V 50V +3.3V_NORMAL R231 R2 +1.8V_DDR 47K IC200 1% AZ1117EH-ADJTRG1 IN OUT C201 R1 Vout=0.808*(1+R1/R2) ADJ/GND 1% R206 10uF 1 6.3V R204 ZD201 2.7K 2.5V C207 10uF 6.3V R2 1% R205 1.2K +5V_USB & MHL W/ OCP CI_GateIC_Toshiba IC202-*1 TC7SZ08FU_TOSHIBA +12V IN_B VCC 1 5 Vout=1.25*(1+R2/R1) IN_A 2 C215 C216 10uF 10uF 16V 16V GND OUT_Y 3 4 Vout=0.8*(1+R1/R2) [EP]GND PGND_2 PGND_1 PGOOD VIN_2 VIN_1 R222 OPT 100K V7V C212 100pF +5V_NORMAL 50V C218 L205 24 23 22 21 20 19 0.047uF 4.7uH EN BST 25V C213 1 18 R220 4700pF 4.7K 50V THERMAL C227 +3.3V_NORMAL COMP 25 LX_2 R1 +3.3V_NORMAL 2 17 C223 22uF GateIC_STC R228 16V OPT SS LX_1 18K 82pF IC202 R221 3 16 1% 50V OPT 74LVC1G08GW 0 ROSC FB R218 IC201 4.7K 4 15 EN_SW2 TPS65282REGR SW_IN_2 R2 MHL_5V_EN 5 14 B VCC 1 5 USB1_CTL EN_SW1 6 4A 13 SW_IN_1 R227 3.3K 1% MHL_CD_SENSE 10 11 12 A C219 7 8 9 +3.3V_NORMAL 2 10uF MHL_OCP_EN +5V_USB 16V FAULT2 FAULT1 SW_OUT2 RLIM AGND SW_OUT1 GND Y 3 4 MHL_5V_EN AR200 1/16W 10K R224 5V_HDMI AVDD_5V_MHL 15K D200 R226 MBR230LSFT1G 10 OPT 30V R225 C217 100K 10uF /MHL_OCP_DET USB1_OCD 10V 16K(1.6A)->14K(1.8A) THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS L14_NON_OS 13/08/13 ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. POWER 2 of 6 Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only Only for training and service purposes

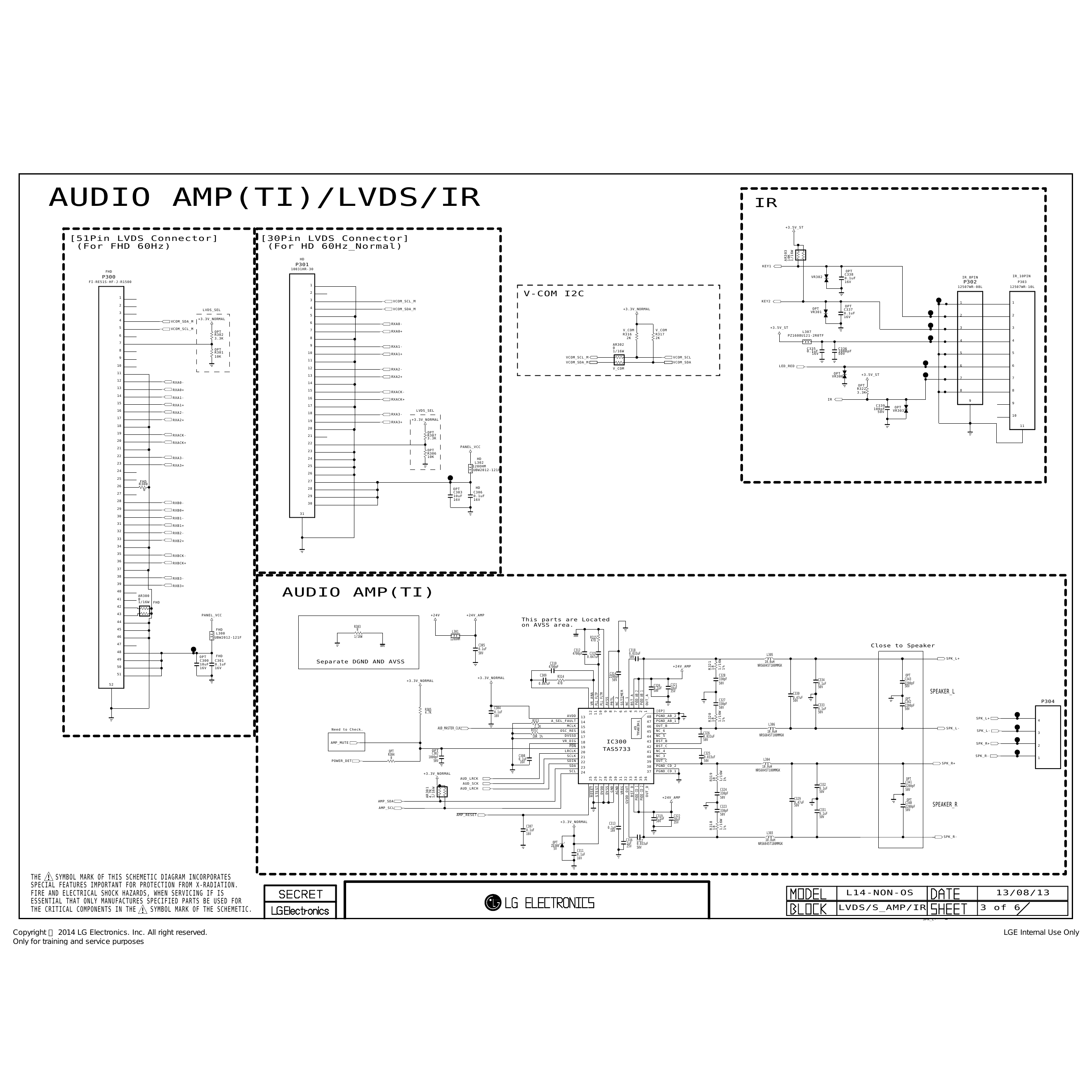

AUDIO AMP(TI)/LVDS/IR IR +3.5V_ST [51Pin LVDS Connector] [30Pin LVDS Connector] (For FHD 60Hz) (For HD 60Hz_Normal) AR303 1/16W 10K HD P301 KEY1 10031HR-30 FHD OPT C338 IR_10PIN P300 VR302 0.1uF IR_8PIN FI-RE51S-HF-J-R1500 16V P302 P303 1 12507WR-08L 12507WR-10L 1 2 V-COM I2C 3 VCOM_SCL_M KEY2 1 1 2 OPT 4 VCOM_SDA_M +3.3V_NORMAL OPT LVDS_SEL C337 3 VR301 0.1uF 5 2 2 16V 4 +3.3V_NORMAL VCOM_SDA_M 6 RXA0- 5 VCOM_SCL_M +3.5V_ST 3 3 7 RXA0+ V_COM V_COM OPT L307 6 R302 R316 R317 PZ1608U121-2R0TF 3.3K 8 2K 2K 4 4 7 9 AR302 RXA1- 0 OPT C335 C336 8 1/16W 0.1uF 1000pF R301 10 16V 50V 5 5 RXA1+ 9 10K VCOM_SCL_M VCOM_SCL 11 VCOM_SDA_M VCOM_SDA 10 LED_RED 6 6 12 RXA2- V_COM 11 OPT 13 VR300 +3.5V_ST RXA2+ 7 7 12 RXA0- 14 OPT 13 R322 RXA0+ 15 8 8 RXACK- 3.3K 14 RXA1- 16 RXACK+ IR 9 15 9 RXA1+ 17 C339 100pF OPT 16 LVDS_SEL 50V VR303 RXA2- 18 RXA3- 10 17 +3.3V_NORMAL RXA2+ 19 RXA3+ 18 11 20 19 OPT RXACK- 21 R307 3.3K 20 RXACK+ 22 21 PANEL_VCC 23 OPT R306 22 10K RXA3- 24 HD 23 L302 RXA3+ 25 120OHM 24 UBW2012-121F 26 25 FHD 27 R300 26 28 OPT HD 0 27 C303 C306 29 10uF 0.1uF 28 16V 16V RXB0- 30 29 RXB0+ 31 30 RXB1- 31 RXB1+ 32 RXB2- 33 RXB2+ 34 35 RXBCK- 36 RXBCK+ 37 38 RXB3- 39 RXB3+ 40 41 AR300 0 AUDIO AMP(TI) 1/16W FHD 42 43 PANEL_VCC +24V +24V_AMP 44 This parts are Located R303 on AVSS area. 45 FHD 0 L300 L301 46 UBW2012-121F 1/16W R315 120OHM 470 47 C305 Close to Speaker 0.1uF C312 C318 48 50V 4700pF C315 0.033uF L305 OPT FHD 0.047uF 50V 49 SPK_L+ 1/16W C300 C301 Separate DGND AND AVSS 10.0uH R321 10uF 0.1uF C310 NRS6045T100MMGK +24V_AMP 18 1% 50 16V 16V 4700pF 51 C314 C309 R314 2200pF C328 OPT +3.3V_NORMAL 330pF C343 +3.3V_NORMAL 50V C334 52 0.047uF 470 50V 0.1uF 2200pF C320 C321 50V 50V 0.1uF 10uF 50V SPEAKER_L SSTIMER 35V PVDD_AB_2 PVDD_AB_1 VR_ANA PLL_FLTP PLL_FLTM C330 BST_A OUT_A 0.47uF AVSS PBTL NC_2 NC_1 C327 OPT 50V C342 P304 330pF C333 2200pF R305 C304 50V 0.1uF 50V [EP] 12 11 10 9 8 7 6 5 4 3 2 1 0.1uF 50V 1/16W 4.7K R320 16V AVDD 13 48 PGND_AB_2 SPK_L+ 18 1% R313 A_SEL_FAULT PGND_AB_1 4 THERMAL 14 47 MCLK OUT_B L306 2.2K 46 49 AUD_MASTER_CLK 15 SPK_L- Need to Check. R312 OSC_RES NC_6 SPK_L- 16 45 10.0uH 3 C326 NRS6045T100MMGK 18K 1% DVSSO 17 44 NC_5 0.033uF VR_DIG BST_B 50V AMP_MUTE 18 IC300 43 SPK_R+ PDN 42 BST_C 2 19 OPT OPT LRCLK TAS5733 41 NC_4 C302 20 C325 R304 C308 SCLK NC_3 SPK_R- 0 1000pF 21 40 0.033uF 1 0.1uF L304 POWER_DET 50V 16V SDIN 22 39 OUT_C 50V SPK_R+ SDA 23 38 PGND_CD_2 10.0uH SCL PGND_CD_1 NRS6045T100MMGK 1/16W 24 37 +3.3V_NORMAL R319 25 26 27 28 29 30 31 32 33 34 35 36 18 1% AUD_LRCK OPT AUD_SCK C341 C332 2200pF PVDD_CD_1 PVDD_CD_2 RESET STEST DVDD DVSS GND AGND VREG GVDD_OUT BST_D OUT_D AR301 1/16W AUD_LRCH C324 0.1uF 50V 4.7K 330pF 50V +24V_AMP 50V C329 AMP_SDA OPT 0.47uF C340 AMP_SCL C323 50V 2200pF SPEAKER_R 330pF C331 50V AMP_RESET 50V 0.1uF C319 C322 50V 0.1uF 10uF 1/16W +3.3V_NORMAL 50V R318 C313 35V C307 18 1% 0.1uF 0.1uF 16V 16V L303 SPK_R- C316 C317 10.0uH OPT 1uF 0.033uF NRS6045T100MMGK ZD300 25V 50V 5V C311 0.1uF 16V THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS L14-NON-OS 13/08/13 ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. LVDS/S_AMP/IR 3 of 6 SPK_L- Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only Only for training and service purposes

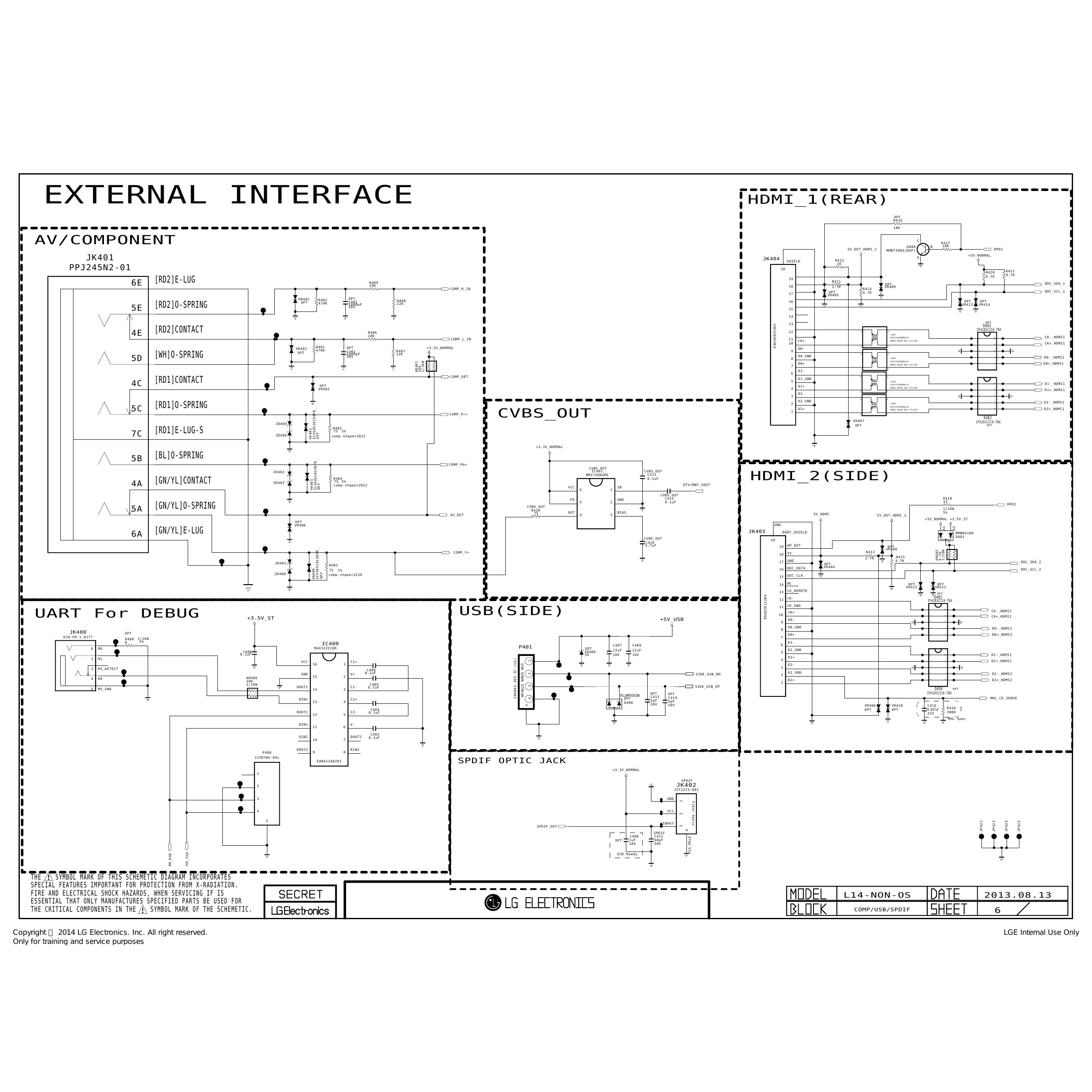

EXTERNAL INTERFACE HDMI_1(REAR) OPT R416 10K AV/COMPONENT Q400 C B R417 10K 5V_DET_HDMI_1 MMBT3904(NXP) HPD1 +5V_NORMAL JK401 JK404 SHIELD R412 E 1K PPJ245N2-01 20 R420 R421 4.7K 4.7K 6E [RD2]E-LUG R409 10K 19 R411 OPT DDC_SDA_1 18 2.7K VR409 COMP_R_IN R414 OPT 4.7K DDC_SCL_1 17 VR405 VR403 R402 OPT C402 R408 16 OPT OPT OPT 5E [RD2]O-SPRING 470K 1000pF 50V 12K 15 VR413 VR414 14 OPT 13 EAG59023302 D403 4E [RD2]CONTACT R406 10K 12 4 3 L401 IP4283CZ10-TBA DLP11SA900HL2L 1 10 CK-_HDMI1 COMP_L_IN 11 CK+ HDMI_REAR_EMI_FILTER 10 2 9 CK+_HDMI1 1 2 R401 OPT +3.3V_NORMAL D0- VR401 470K C401 R407 9 3 8 OPT 5D [WH]O-SPRING 1000pF 50V 12K 8 D0_GND 4 3 L402 DLP11SA900HL2L 4 7 D0-_HDMI1 AR401 1/16W D0+ HDMI_REAR_EMI_FILTER 5 6 D0+_HDMI1 7 10K 1 2 D1- 6 COMP_DET 4 3 4C [RD1]CONTACT OPT 5 D1_GND D1+ L403 DLP11SA900HL2L 1 10 D1-_HDMI1 HDMI_REAR_EMI_FILTER VR402 4 2 9 D1+_HDMI1 1 2 D2- 3 3 8 4 3 D2_GND 4 7 D2-_HDMI1 5C [RD1]O-SPRING 2 D2+ L404 DLP11SA900HL2L D2+_HDMI1 ICVS0518150FR_ 5 6 HDMI_REAR_EMI_FILTER COMP_Pr+ CVBS_OUT 1 1 VR407 2 D402 IP4283CZ10-TBA ZD404 OPT OPT [RD1]E-LUG-S R405 VA402 75 5% 7C OPT ZD405 comp-shape=2012 +3.3V_NORMAL 5B [BL]O-SPRING ICVS0518150FR_ COMP_Pb+ CVBS_OUT ZD402 IC401 CVBS_OUT [GN/YL]CONTACT R404 MM1756DURE C411 0.1uF HDMI_2(SIDE) VA401 75 5% 4A ZD403 OPT comp-shape=2012 DTV/MNT_VOUT VCC IN 6 1 CVBS_OUT PS GND C415 R419 5 2 0.1uF 33 5A [GN/YL]O-SPRING CVBS_OUT R410 1/16W HPD2 75 OUT BIAS 5% AV_DET 4 3 5V_HDMI 5V_DET_HDMI_2 +5V_NORMAL +3.5V_ST OPT VR400 GND A1 A2 6A [GN/YL]E-LUG JK403 BODY_SHIELD MMBD6100 D401 CVBS_OUT 20 C C410 4.7uF 19 HP_DET OPT ICVS0518150FR_ VR408 AR402 1/16W COMP_Y+ R413 4.7K 18 5V 2.7K R415 17 GND 4.7K DDC_SDA_2 ZD401 OPT R403 DDC_DATA VR404 VA400 75 1% 16 DDC_SCL_2 OPT ZD400 comp-shape=3216 15 DDC_CLK 14 NC OPT OPT VR411 VR412 13 CE_REMOTE OPT EAG62611204 12 CK- D405 IP4283CZ10-TBA 11 CK_GND UART For DEBUG +3.5V_ST USB(SIDE) +5V_USB 10 CK+ D0- 1 2 10 9 CK-_HDMI2 CK+_HDMI2 9 3 8 D0_GND 4 7 D0-_HDMI2 8 JK400 OPT D0+ 5 6 D0+_HDMI2 KJA-PH-1-0177 1/16W 7 R400 0 5% D1- IC400 C407 C409 6 6 M6 MAX3232CDR P401 OPT 22uF 22uF D1_GND C400 ZD406 5 0.1uF 5V 10V 10V 1 10 D1-_HDMI2 1 M1 D1+ 3AU04S-305-ZC-(LG) 4 1 VCC C1+ 2 9 D1+_HDMI2 16 1 USB DOWN STREAM D2- 3 M3_DETECT 3 3 8 C406 0.1uF D2_GND 2 GND V+ SIDE_USB_DM 2 4 7 D2-_HDMI2 AR400 15 2 4 M4 D2+ 5 6 D2+_HDMI2 100 1 1/16W C405 3 DOUT1 C1- 0.1uF SIDE_USB_DP 5 M5_GND 14 3 D404 OPT OPT OPT IP4283CZ10-TBA RCLAMP0502BA C413 C414 MHL_CD_SENSE 4 RIN1 C2+ OPT 13 4 5pF 5pF D400 50V 50V 5 VR406 VR410 C416 C404 OPT OPT 0.047uF R418 ROUT1 C2- 0.1uF 25V 300K 12 5 MHL Spec DIN1 V- 11 6 C403 DIN2 DOUT2 0.1uF 10 7 ROUT2 RIN2 P400 9 8 12507WS-04L EAN41348201 SPDIF OPTIC JACK +3.3V_NORMAL 1 SPDIF 2 JK402 JST1223-001 3 GND 1 Fiber Optic 4 VCC 2 5 JP422 JP423 JP424 JP425 VINPUT 3 SPDIF_OUT 4 SPDIF C408 C412 FIX_POLE OPT 1uF 68pF 10V 50V PM_TXD PM_RXD ESD Ready THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS L14-NON-OS 2013.08.13 ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. COMP/USB/SPDIF 6 Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only Only for training and service purposes

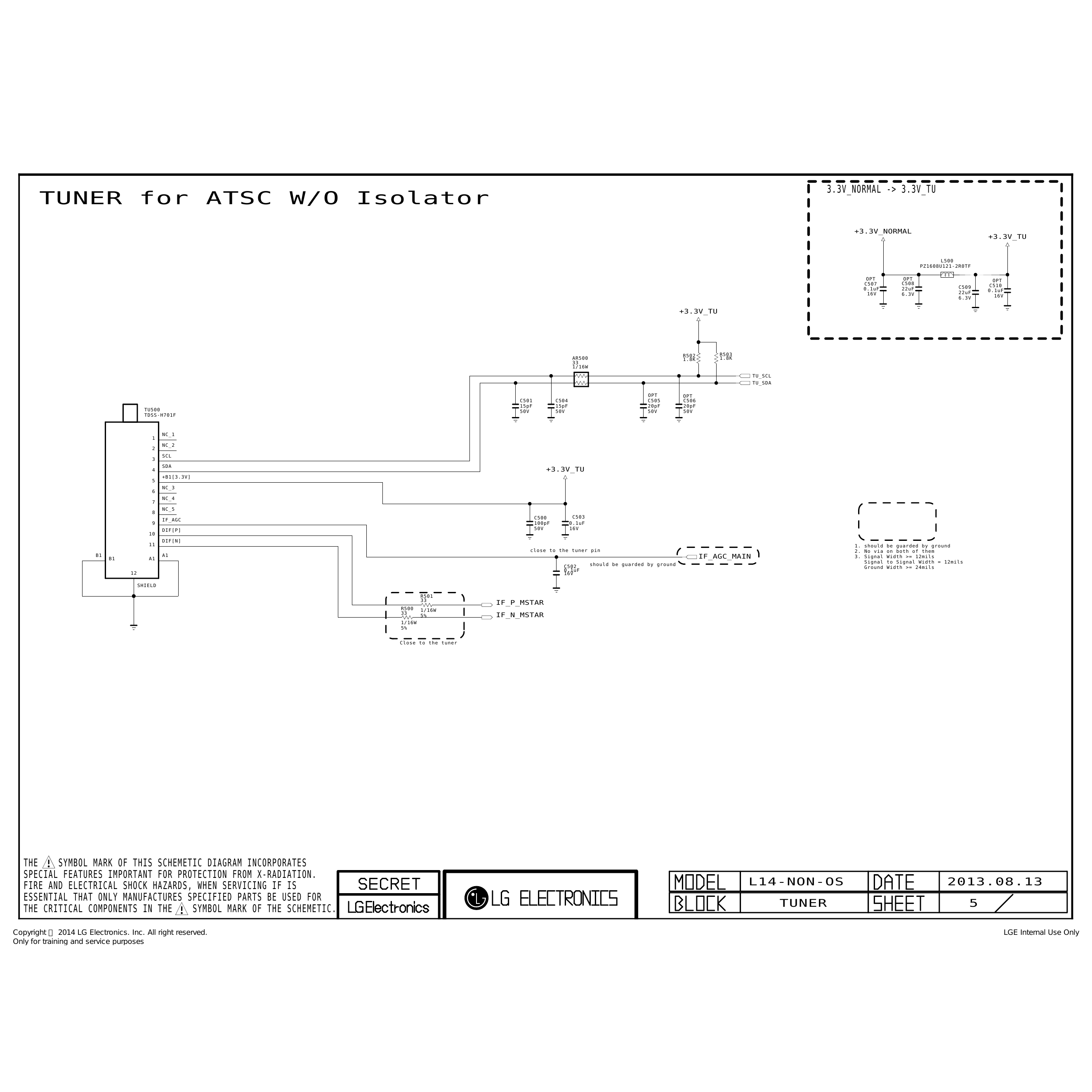

3.3V_NORMAL -> 3.3V_TU TUNER for ATSC W/O Isolator +3.3V_NORMAL +3.3V_TU L500 PZ1608U121-2R0TF OPT OPT OPT C507 C508 C510 0.1uF 22uF C509 22uF 0.1uF 16V 6.3V 6.3V 16V +3.3V_TU R502 R503 AR500 1.8K 1.8K 33 1/16W TU_SCL TU_SDA OPT OPT C501 C504 C505 C506 15pF 15pF 20pF 20pF TU500 50V 50V 50V 50V TDSS-H701F NC_1 1 NC_2 2 SCL 3 SDA 4 +3.3V_TU +B1[3.3V] 5 NC_3 6 NC_4 7 NC_5 8 C500 C503 IF_AGC 9 100pF 0.1uF DIF[P] 50V 16V 10 DIF[N] 11 1. should be guarded by ground close to the tuner pin 2. No via on both of them B1 A1 IF_AGC_MAIN 3. Signal Width >= 12mils B1 A1 Signal to Signal Width = 12mils C502 should be guarded by ground Ground Width >= 24mils 0.1uF 12 16V SHIELD R501 33 IF_P_MSTAR R500 1/16W 33 5% IF_N_MSTAR 1/16W 5% Close to the tuner THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS L14-NON-OS 2013.08.13 ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR TUNER 5 THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only Only for training and service purposes
