LG 55LB6000 сервис-мануал и руководство по ремонту

LG 55LB6000

Сервис мануал для LG 55LB6000

Размер файла: (4.29 mb)
Производитель: LG
Просмотров: 1

📸

Первые 12 страниц

Извлечено автоматически

СТРАНИЦА PDF

Страница 1

Internal Use Only
North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/O...

Перейти на страницу

СТРАНИЦА PDF

Страница 2

Перейти на страницу

СТРАНИЦА PDF

Страница 3

Перейти на страницу

СТРАНИЦА PDF

Страница 4

Перейти на страницу

СТРАНИЦА PDF

Страница 5

IC Remove/Replacement 3. Solder the connections.
Some chassis circuit boards have slotted holes (oblong) through CAUTION: Maintain original spacing between the replaced
which the IC l...

Перейти на страницу

СТРАНИЦА PDF

Страница 6

SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement.

1. Application range 3. Test method
This spec sheet is applied LCD TV with LA43B/M chassi...

Перейти на страницу

СТРАНИЦА PDF

Страница 7

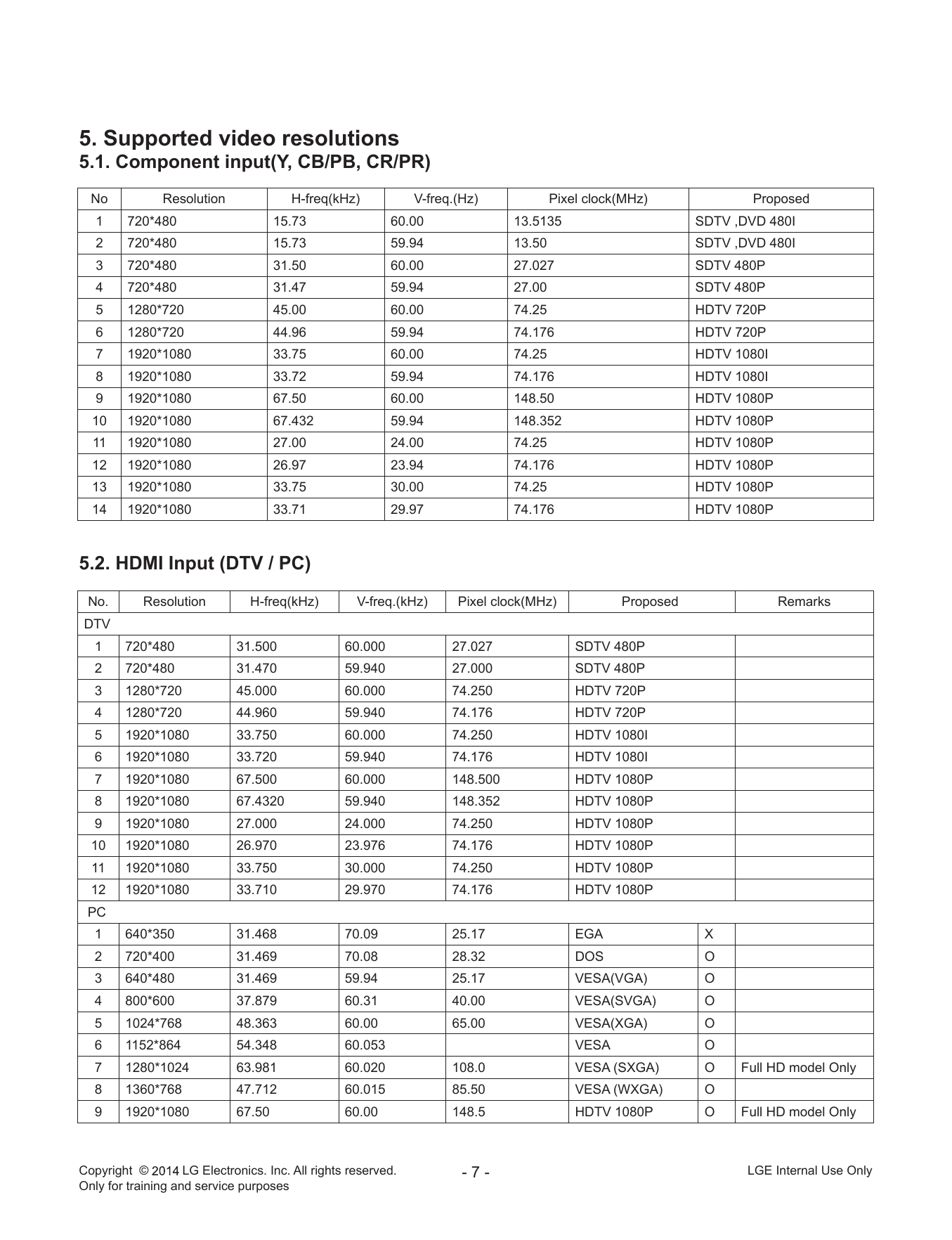

5. Supported video resolutions
5.1. Component input(Y, CB/PB, CR/PR)
No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed
1 720*480 15.73 ...

Перейти на страницу

СТРАНИЦА PDF

Страница 8

6. 3D Mode ('LB6200' models)
6.1. RF Input(DTV)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark
1 1920*1080 45.00 60.00 74.25 ...

Перейти на страницу

СТРАНИЦА PDF

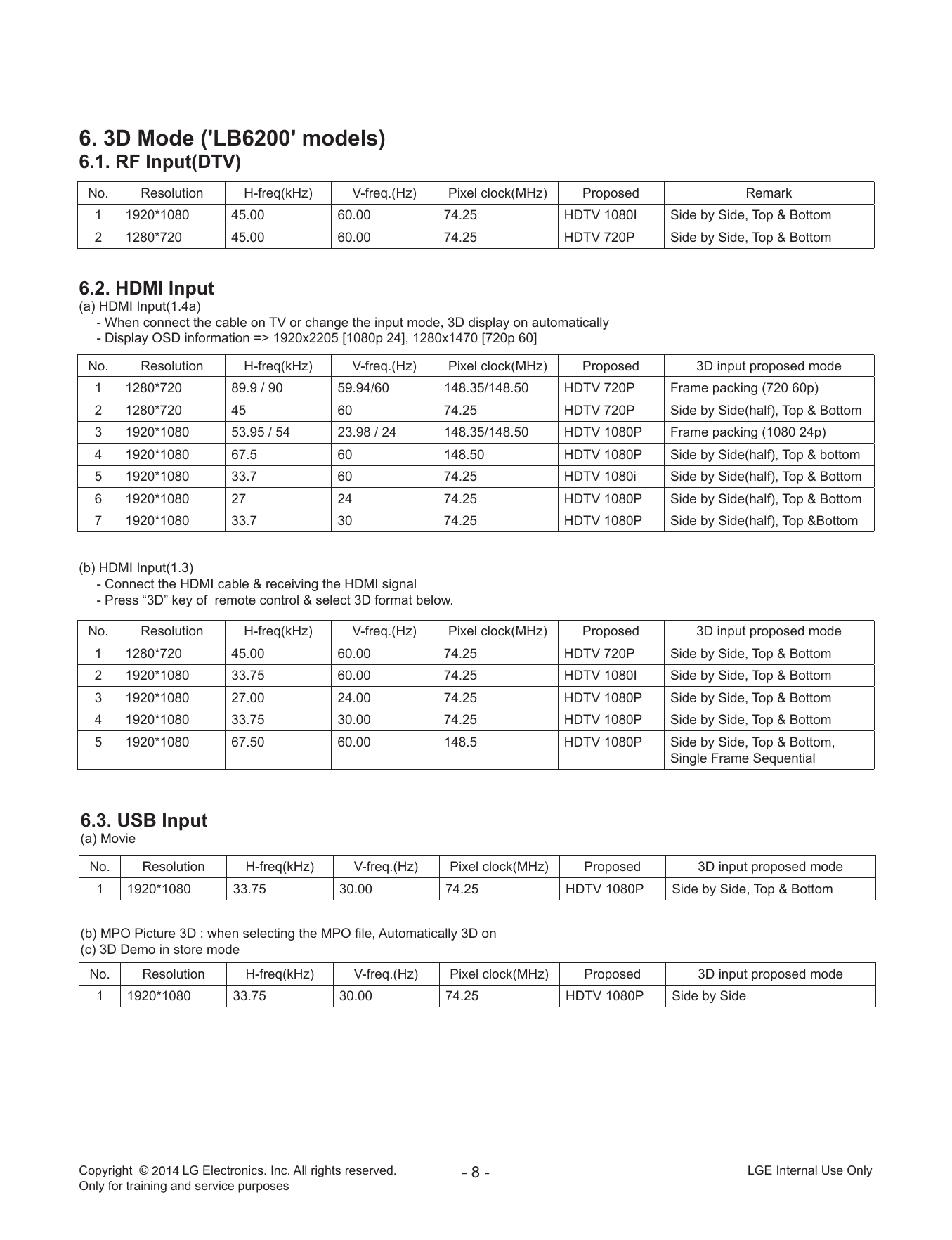

Страница 9

6.4. 2D to 3D Mode

6.5. DLNA
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode
1 1920*1080 33.75 30.00 74.25 HDTV 1...

Перейти на страницу

СТРАНИЦА PDF

Страница 10

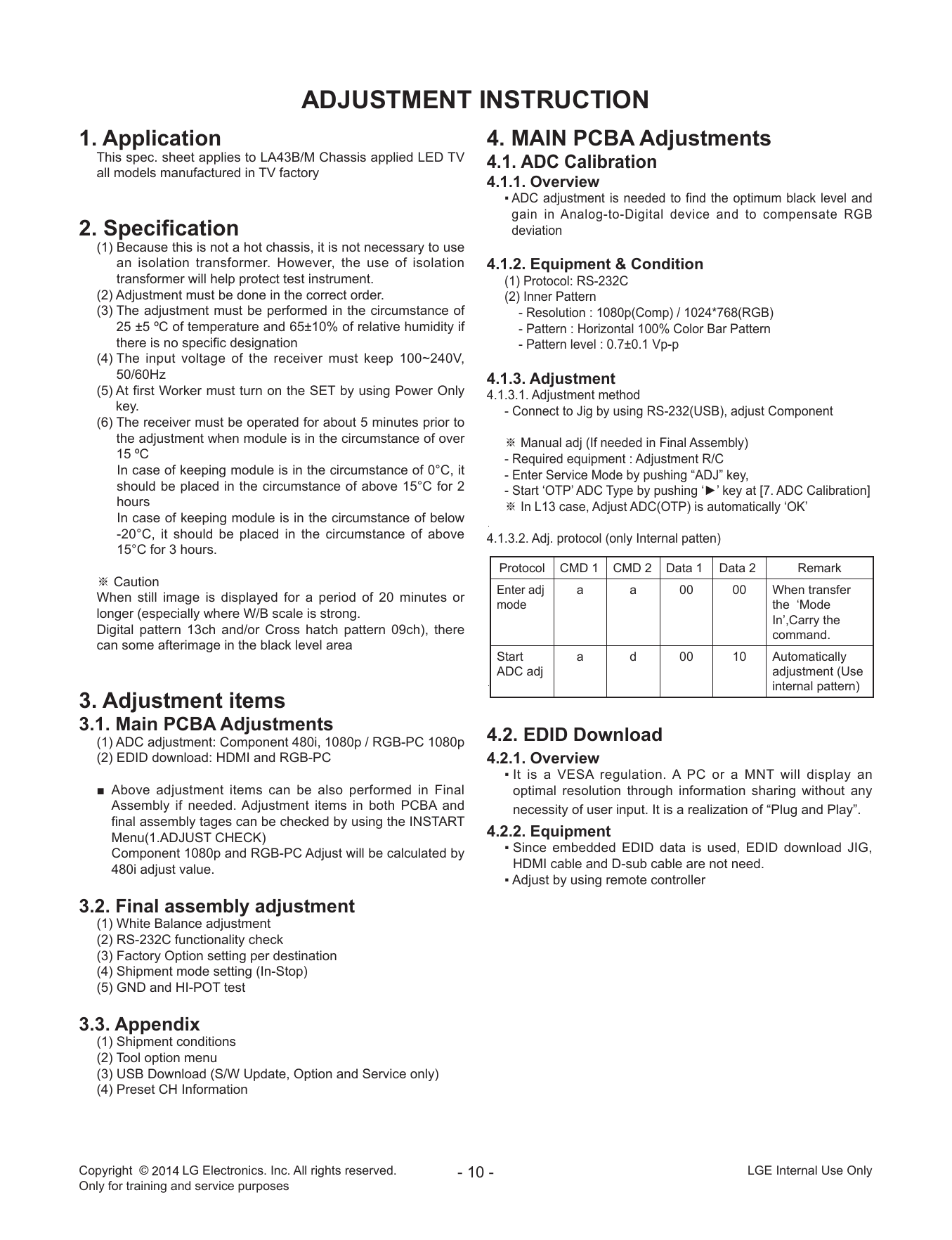

ADJUSTMENT INSTRUCTION
1. Application 4. MAIN PCBA Adjustments
This spec. sheet applies to LA43B/M Chassis applied LED TV 4.1. ADC Calibration
all models manufactured in TV fact...

Перейти на страницу

СТРАНИЦА PDF

Страница 11

Перейти на страницу

СТРАНИЦА PDF

Страница 12

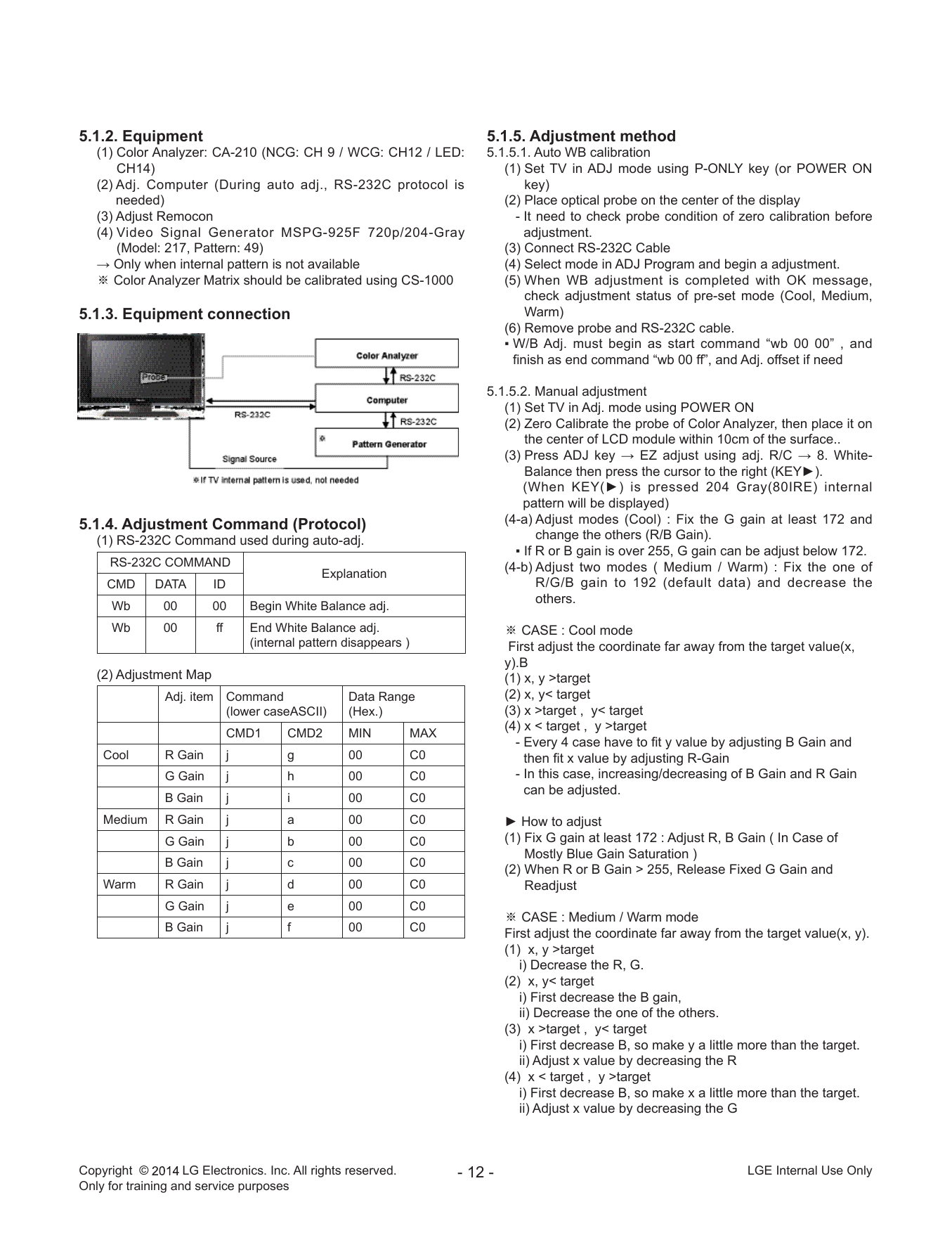

5.1.2. Equipment 5.1.5. Adjustment method
(1) Color Analyzer: CA-210 (NCG: CH 9 / WCG: CH12 / LED: 5.1.5.1. Auto WB calibration
CH14) ...

Перейти на страницу

Скриншоты страниц PDF

Internal Use Only North/Latin America http://aic.lgservice.com Europe/Africa http://eic.lgservice.com Asia/Oceania http://biz.lgservice.com LED TV SERVICE MANUAL CHASSIS : LA43B MODEL : 55LB6000 55LB6000-UH CAUTION BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL. P/NO : MFL67988310(1402-REV00) Printed in Korea

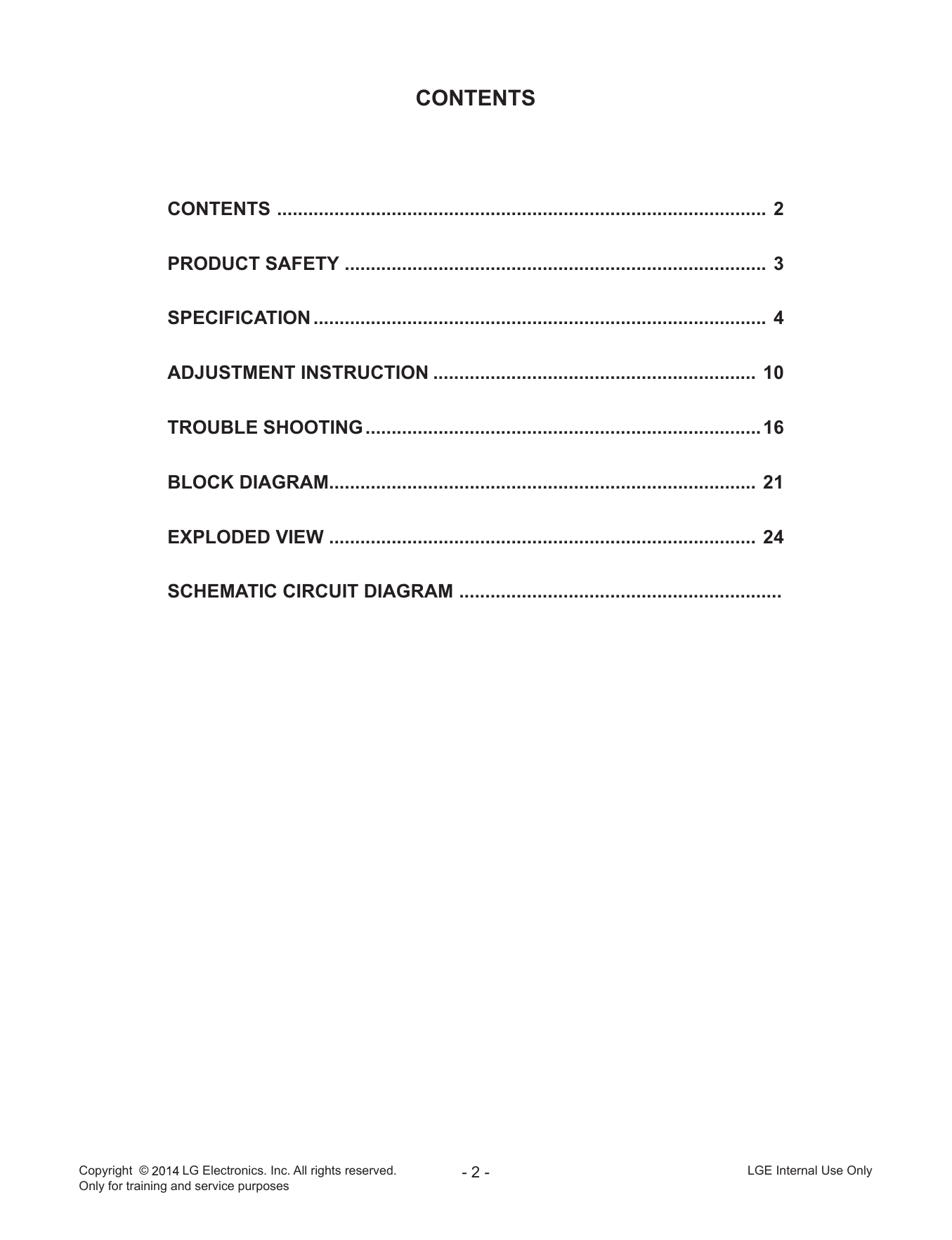

CONTENTS CONTENTS . ............................................................................................. 2 PRODUCT SAFETY ................................................................................. 3 SPECIFICATION........................................................................................ 4 ADJUSTMENT INSTRUCTION............................................................... 10 TROUBLE SHOOTING............................................................................. 16 BLOCK DIAGRAM................................................................................... 21 EXPLODED VIEW .................................................................................. 24 SCHEMATIC CIRCUIT DIAGRAM .............................................................. Copyright © LG Electronics. Inc. All rights reserved. -2- LGE Internal Use Only Only for training and service purposes

SAFETY PRECAUTIONS IMPORTANT SAFETY NOTICE Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Exploded View. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer. General Guidance Leakage Current Hot Check (See below Figure) Plug the AC cord directly into the AC outlet. An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC Do not use a line Isolation Transformer during this check. power line. Use a transformer of adequate power rating as this Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor protects the technician from accidents resulting in personal injury between a known good earth ground (Water Pipe, Conduit, etc.) from electrical shocks. and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter It will also protect the receiver and it's components from being with 1000 ohms/volt or more sensitivity. damaged by accidental shorts of the circuitry that may be Reverse plug the AC cord into the AC outlet and repeat AC voltage inadvertently introduced during the service operation. measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to If any fuse (or Fusible Resistor) in this TV receiver is blown, 0.5 mA. replace it with the specified. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and When replacing a high wattage resistor (Oxide Metal Film Resistor, repaired before it is returned to the customer. over 1 W), keep the resistor 10 mm away from PCB. Leakage Current Hot Check circuit Keep wires away from high voltage or high temperature parts. Before returning the receiver to the customer, always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock. Leakage Current Cold Check(Antenna Cold Check) With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1 MΩ and 5.2 MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer. Copyright © LG Electronics. Inc. All rights reserved. -3- LGE Internal Use Only Only for training and service purposes

SERVICING PRECAUTIONS CAUTION: Before servicing receivers covered by this service 2. After removing an electrical assembly equipped with ES manual and its supplements and addenda, read and follow the devices, place the assembly on a conductive surface such as SAFETY PRECAUTIONS on page 3 of this publication. aluminum foil, to prevent electrostatic charge buildup or expo- NOTE: If unforeseen circumstances create conflict between the sure of the assembly. following servicing precautions and any of the safety precautions 3. Use only a grounded-tip soldering iron to solder or unsolder ES on page 3 of this publication, always follow the safety precautions. devices. Remember: Safety First. 4. Use only an anti-static type solder removal device. Some solder removal devices not classified as “anti-static” can generate General Servicing Precautions electrical charges sufficient to damage ES devices. 1. Always unplug the receiver AC power cord from the AC power 5. Do not use freon-propelled chemicals. These can generate source before; electrical charges sufficient to damage ES devices. a. Removing or reinstalling any component, circuit board mod- 6. Do not remove a replacement ES device from its protective ule or any other receiver assembly. package until immediately before you are ready to install it. b. Disconnecting or reconnecting any receiver electrical plug or (Most replacement ES devices are packaged with leads electri- other electrical connection. cally shorted together by conductive foam, aluminum foil or c. Connecting a test substitute in parallel with an electrolytic comparable conductive material). capacitor in the receiver. 7. Immediately before removing the protective material from the CAUTION: A wrong part substitution or incorrect polarity leads of a replacement ES device, touch the protective material installation of electrolytic capacitors may result in an explo- to the chassis or circuit assembly into which the device will be sion hazard. installed. 2. Test high voltage only by measuring it with an appropriate CAUTION: Be sure no power is applied to the chassis or circuit, high voltage meter or other voltage measuring device (DVM, and observe all other safety precautions. FETVOM, etc) equipped with a suitable high voltage probe. 8. Minimize bodily motions when handling unpackaged replace- Do not test high voltage by "drawing an arc". ment ES devices. (Otherwise harmless motion such as the 3. Do not spray chemicals on or near this receiver or any of its brushing together of your clothes fabric or the lifting of your assemblies. foot from a carpeted floor can generate static electricity suf- 4. Unless specified otherwise in this service manual, clean ficient to damage an ES device.) electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable General Soldering Guidelines non-abrasive applicator; 10 % (by volume) Acetone and 90 % 1. Use a grounded-tip, low-wattage soldering iron and appropriate (by volume) isopropyl alcohol (90 % - 99 % strength) tip size and shape that will maintain tip temperature within the CAUTION: This is a flammable mixture. range or 500 °F to 600 °F. Unless specified otherwise in this service manual, lubrication of 2. Use an appropriate gauge of RMA resin-core solder composed contacts in not required. of 60 parts tin/40 parts lead. 5. Do not defeat any plug/socket B+ voltage interlocks with which 3. Keep the soldering iron tip clean and well tinned. receivers covered by this service manual might be equipped. 4. Thoroughly clean the surfaces to be soldered. Use a mall wire- 6. Do not apply AC power to this instrument and/or any of its bristle (0.5 inch, or 1.25 cm) brush with a metal handle. electrical assemblies unless all solid-state device heat sinks are Do not use freon-propelled spray-on cleaners. correctly installed. 5. Use the following unsoldering technique 7. Always connect the test receiver ground lead to the receiver a. Allow the soldering iron tip to reach normal temperature. chassis ground before connecting the test receiver positive (500 °F to 600 °F) lead. b. Heat the component lead until the solder melts. Always remove the test receiver ground lead last. c. Quickly draw the melted solder with an anti-static, suction- 8. Use with this receiver only the test fixtures specified in this type solder removal device or with solder braid. service manual. CAUTION: Work quickly to avoid overheating the circuit CAUTION: Do not connect the test fixture ground strap to any board printed foil. heat sink in this receiver. 6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature Electrostatically Sensitive (ES) Devices (500 °F to 600 °F) Some semiconductor (solid-state) devices can be damaged eas- b. First, hold the soldering iron tip and solder the strand against ily by static electricity. Such components commonly are called the component lead until the solder melts. Electrostatically Sensitive (ES) Devices. Examples of typical ES c. Quickly move the soldering iron tip to the junction of the devices are integrated circuits and some field-effect transistors component lead and the printed circuit foil, and hold it there and semiconductor “chip” components. The following techniques only until the solder flows onto and around both the compo- should be used to help reduce the incidence of component dam- nent lead and the foil. age caused by static by static electricity. CAUTION: Work quickly to avoid overheating the circuit 1. Immediately before handling any semiconductor component or board printed foil. semiconductor-equipped assembly, drain off any electrostatic d. Closely inspect the solder area and remove any excess or charge on your body by touching a known earth ground. Alter- splashed solder with a small wire-bristle brush. natively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent poten- tial shock reasons prior to applying power to the unit under test. Copyright © LG Electronics. Inc. All rights reserved. -4- LGE Internal Use Only Only for training and service purposes

IC Remove/Replacement 3. Solder the connections. Some chassis circuit boards have slotted holes (oblong) through CAUTION: Maintain original spacing between the replaced which the IC leads are inserted and then bent flat against the cir- component and adjacent components and the circuit board to cuit foil. When holes are the slotted type, the following technique prevent excessive component temperatures. should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique Circuit Board Foil Repair as outlined in paragraphs 5 and 6 above. Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit Removal board causing the foil to separate from or "lift-off" the board. The 1. Desolder and straighten each IC lead in one operation by following guidelines and procedures should be followed whenever gently prying up on the lead with the soldering iron tip as the this condition is encountered. solder melts. 2. Draw away the melted solder with an anti-static suction-type At IC Connections solder removal device (or with solder braid) before removing To repair a defective copper pattern at IC connections use the the IC. following procedure to install a jumper wire on the copper pattern Replacement side of the circuit board. (Use this technique only on IC connec- 1. Carefully insert the replacement IC in the circuit board. tions). 2. Carefully bend each IC lead against the circuit foil pad and solder it. 1. Carefully remove the damaged copper pattern with a sharp 3. Clean the soldered areas with a small wire-bristle brush. knife. (Remove only as much copper as absolutely necessary). (It is not necessary to reapply acrylic coating to the areas). 2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern. "Small-Signal" Discrete Transistor 3. Bend a small "U" in one end of a small gauge jumper wire and Removal/Replacement carefully crimp it around the IC pin. Solder the IC connection. 1. Remove the defective transistor by clipping its leads as close 4. Route the jumper wire along the path of the out-away copper as possible to the component body. pattern and let it overlap the previously scraped end of the 2. Bend into a "U" shape the end of each of three leads remaining good copper pattern. Solder the overlapped area and clip off on the circuit board. any excess jumper wire. 3. Bend into a "U" shape the replacement transistor leads. 4. Connect the replacement transistor leads to the corresponding At Other Connections leads extending from the circuit board and crimp the "U" with Use the following technique to repair the defective copper pattern long nose pliers to insure metal to metal contact then solder at connections other than IC Pins. This technique involves the each connection. installation of a jumper wire on the component side of the circuit board. Power Output, Transistor Device Removal/Replacement 1. Remove the defective copper pattern with a sharp knife. 1. Heat and remove all solder from around the transistor leads. Remove at least 1/4 inch of copper, to ensure that a hazardous 2. Remove the heat sink mounting screw (if so equipped). condition will not exist if the jumper wire opens. 3. Carefully remove the transistor from the heat sink of the circuit 2. Trace along the copper pattern from both sides of the pattern board. break and locate the nearest component that is directly con- 4. Insert new transistor in the circuit board. nected to the affected copper pattern. 5. Solder each transistor lead, and clip off excess lead. 3. Connect insulated 20-gauge jumper wire from the lead of the 6. Replace heat sink. nearest component on one side of the pattern break to the lead of the nearest component on the other side. Diode Removal/Replacement Carefully crimp and solder the connections. 1. Remove defective diode by clipping its leads as close as pos- CAUTION: Be sure the insulated jumper wire is dressed so the sible to diode body. it does not touch components or sharp edges. 2. Bend the two remaining leads perpendicular y to the circuit board. 3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board. 4. Securely crimp each connection and solder it. 5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder. Fuse and Conventional Resistor Removal/Replacement 1. Clip each fuse or resistor lead at top of the circuit board hollow stake. 2. Securely crimp the leads of replacement component around notch at stake top. Copyright © LG Electronics. Inc. All rights reserved. -5- LGE Internal Use Only Only for training and service purposes

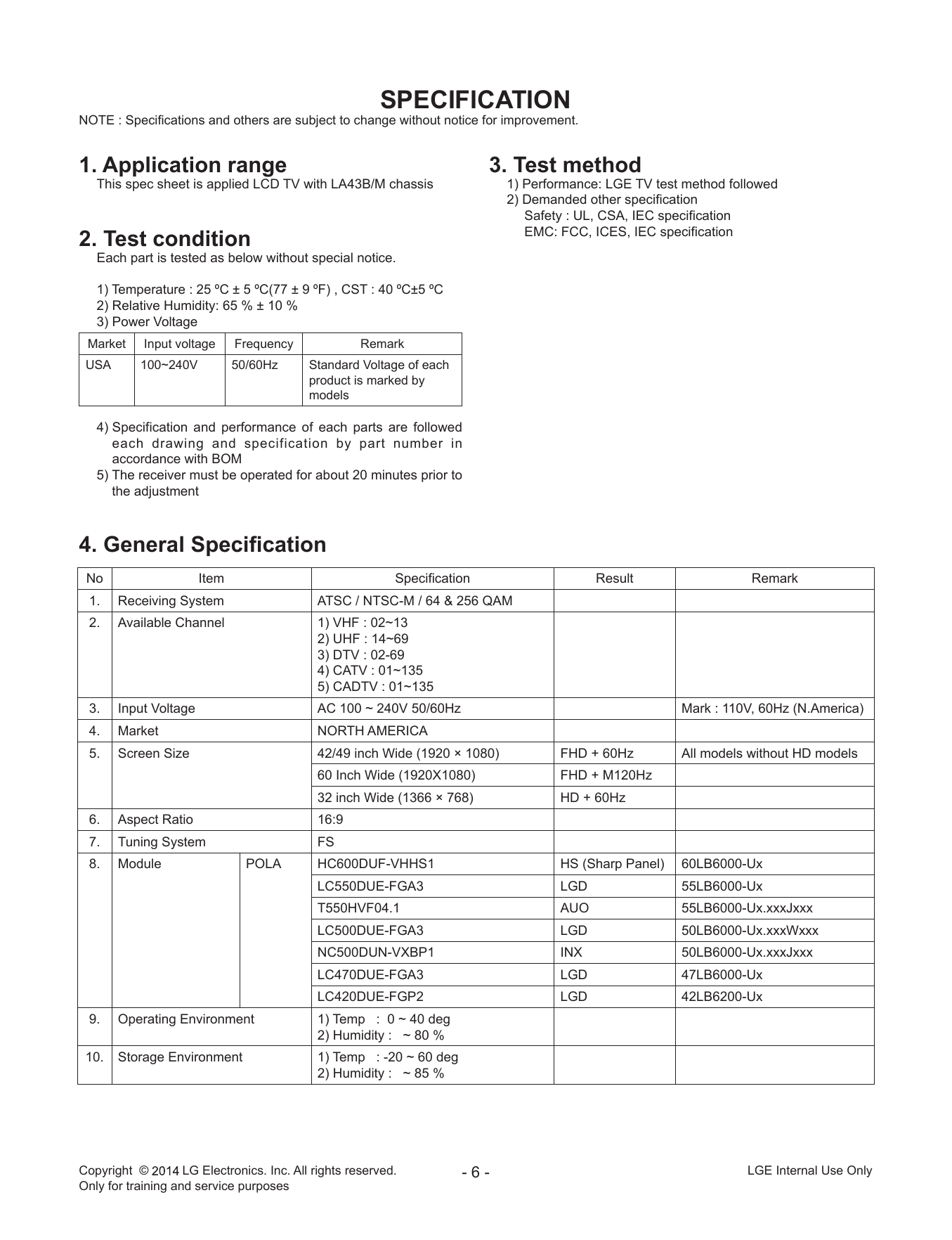

SPECIFICATION NOTE : Specifications and others are subject to change without notice for improvement. 1. Application range 3. Test method This spec sheet is applied LCD TV with LA43B/M chassis 1) Performance: LGE TV test method followed 2) Demanded other specification Safety : UL, CSA, IEC specification EMC: FCC, ICES, IEC specification 2. Test condition Each part is tested as below without special notice. 1) Temperature : 25 ºC ± 5 ºC(77 ± 9 ºF) , CST : 40 ºC±5 ºC 2) Relative Humidity: 65 % ± 10 % 3) Power Voltage Market Input voltage Frequency Remark USA 100~240V 50/60Hz Standard Voltage of each product is marked by models 4) Specification and performance of each parts are followed each drawing and specification by part number in accordance with BOM 5) The receiver must be operated for about 20 minutes prior to the adjustment 4. General Specification No Item Specification Result Remark 1. Receiving System ATSC / NTSC-M / 64 & 256 QAM 2. Available Channel 1) VHF : 02~13 2) UHF : 14~69 3) DTV : 02-69 4) CATV : 01~135 5) CADTV : 01~135 3. Input Voltage AC 100 ~ 240V 50/60Hz Mark : 110V, 60Hz (N.America) 4. Market NORTH AMERICA 5. Screen Size 42/49 inch Wide (1920 × 1080) FHD + 60Hz All models without HD models 60 Inch Wide (1920X1080) FHD + M120Hz 32 inch Wide (1366 × 768) HD + 60Hz 6. Aspect Ratio 16:9 7. Tuning System FS 8. Module POLA HC600DUF-VHHS1 HS (Sharp Panel) 60LB6000-Ux LC550DUE-FGA3 LGD 55LB6000-Ux T550HVF04.1 AUO 55LB6000-Ux.xxxJxxx LC500DUE-FGA3 LGD 50LB6000-Ux.xxxWxxx NC500DUN-VXBP1 INX 50LB6000-Ux.xxxJxxx LC470DUE-FGA3 LGD 47LB6000-Ux LC420DUE-FGP2 LGD 42LB6200-Ux 9. Operating Environment 1) Temp : 0 ~ 40 deg 2) Humidity : ~ 80 % 10. Storage Environment 1) Temp : -20 ~ 60 deg 2) Humidity : ~ 85 % Copyright © LG Electronics. Inc. All rights reserved. -6- LGE Internal Use Only Only for training and service purposes

5. Supported video resolutions 5.1. Component input(Y, CB/PB, CR/PR) No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 1 720*480 15.73 60.00 13.5135 SDTV ,DVD 480I 2 720*480 15.73 59.94 13.50 SDTV ,DVD 480I 3 720*480 31.50 60.00 27.027 SDTV 480P 4 720*480 31.47 59.94 27.00 SDTV 480P 5 1280*720 45.00 60.00 74.25 HDTV 720P 6 1280*720 44.96 59.94 74.176 HDTV 720P 7 1920*1080 33.75 60.00 74.25 HDTV 1080I 8 1920*1080 33.72 59.94 74.176 HDTV 1080I 9 1920*1080 67.50 60.00 148.50 HDTV 1080P 10 1920*1080 67.432 59.94 148.352 HDTV 1080P 11 1920*1080 27.00 24.00 74.25 HDTV 1080P 12 1920*1080 26.97 23.94 74.176 HDTV 1080P 13 1920*1080 33.75 30.00 74.25 HDTV 1080P 14 1920*1080 33.71 29.97 74.176 HDTV 1080P 5.2. HDMI Input (DTV / PC) No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed Remarks DTV 1 720*480 31.500 60.000 27.027 SDTV 480P 2 720*480 31.470 59.940 27.000 SDTV 480P 3 1280*720 45.000 60.000 74.250 HDTV 720P 4 1280*720 44.960 59.940 74.176 HDTV 720P 5 1920*1080 33.750 60.000 74.250 HDTV 1080I 6 1920*1080 33.720 59.940 74.176 HDTV 1080I 7 1920*1080 67.500 60.000 148.500 HDTV 1080P 8 1920*1080 67.4320 59.940 148.352 HDTV 1080P 9 1920*1080 27.000 24.000 74.250 HDTV 1080P 10 1920*1080 26.970 23.976 74.176 HDTV 1080P 11 1920*1080 33.750 30.000 74.250 HDTV 1080P 12 1920*1080 33.710 29.970 74.176 HDTV 1080P PC 1 640*350 31.468 70.09 25.17 EGA X 2 720*400 31.469 70.08 28.32 DOS O 3 640*480 31.469 59.94 25.17 VESA(VGA) O 4 800*600 37.879 60.31 40.00 VESA(SVGA) O 5 1024*768 48.363 60.00 65.00 VESA(XGA) O 6 1152*864 54.348 60.053 VESA O 7 1280*1024 63.981 60.020 108.0 VESA (SXGA) O Full HD model Only 8 1360*768 47.712 60.015 85.50 VESA (WXGA) O 9 1920*1080 67.50 60.00 148.5 HDTV 1080P O Full HD model Only Copyright © LG Electronics. Inc. All rights reserved. -7- LGE Internal Use Only Only for training and service purposes

6. 3D Mode ('LB6200' models) 6.1. RF Input(DTV) No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark 1 1920*1080 45.00 60.00 74.25 HDTV 1080I Side by Side, Top & Bottom 2 1280*720 45.00 60.00 74.25 HDTV 720P Side by Side, Top & Bottom 6.2. HDMI Input (a) HDMI Input(1.4a) - When connect the cable on TV or change the input mode, 3D display on automatically - Display OSD information => 1920x2205 [1080p 24], 1280x1470 [720p 60] No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode 1 1280*720 89.9 / 90 59.94/60 148.35/148.50 HDTV 720P Frame packing (720 60p) 2 1280*720 45 60 74.25 HDTV 720P Side by Side(half), Top & Bottom 3 1920*1080 53.95 / 54 23.98 / 24 148.35/148.50 HDTV 1080P Frame packing (1080 24p) 4 1920*1080 67.5 60 148.50 HDTV 1080P Side by Side(half), Top & bottom 5 1920*1080 33.7 60 74.25 HDTV 1080i Side by Side(half), Top & Bottom 6 1920*1080 27 24 74.25 HDTV 1080P Side by Side(half), Top & Bottom 7 1920*1080 33.7 30 74.25 HDTV 1080P Side by Side(half), Top &Bottom (b) HDMI Input(1.3) - Connect the HDMI cable & receiving the HDMI signal - Press “3D” key of remote control & select 3D format below. No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode 1 1280*720 45.00 60.00 74.25 HDTV 720P Side by Side, Top & Bottom 2 1920*1080 33.75 60.00 74.25 HDTV 1080I Side by Side, Top & Bottom 3 1920*1080 27.00 24.00 74.25 HDTV 1080P Side by Side, Top & Bottom 4 1920*1080 33.75 30.00 74.25 HDTV 1080P Side by Side, Top & Bottom 5 1920*1080 67.50 60.00 148.5 HDTV 1080P Side by Side, Top & Bottom, Single Frame Sequential 6.3. USB Input (a) Movie No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode 1 1920*1080 33.75 30.00 74.25 HDTV 1080P Side by Side, Top & Bottom (b) MPO Picture 3D : when selecting the MPO file, Automatically 3D on (c) 3D Demo in store mode No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode 1 1920*1080 33.75 30.00 74.25 HDTV 1080P Side by Side Copyright © LG Electronics. Inc. All rights reserved. -8- LGE Internal Use Only Only for training and service purposes

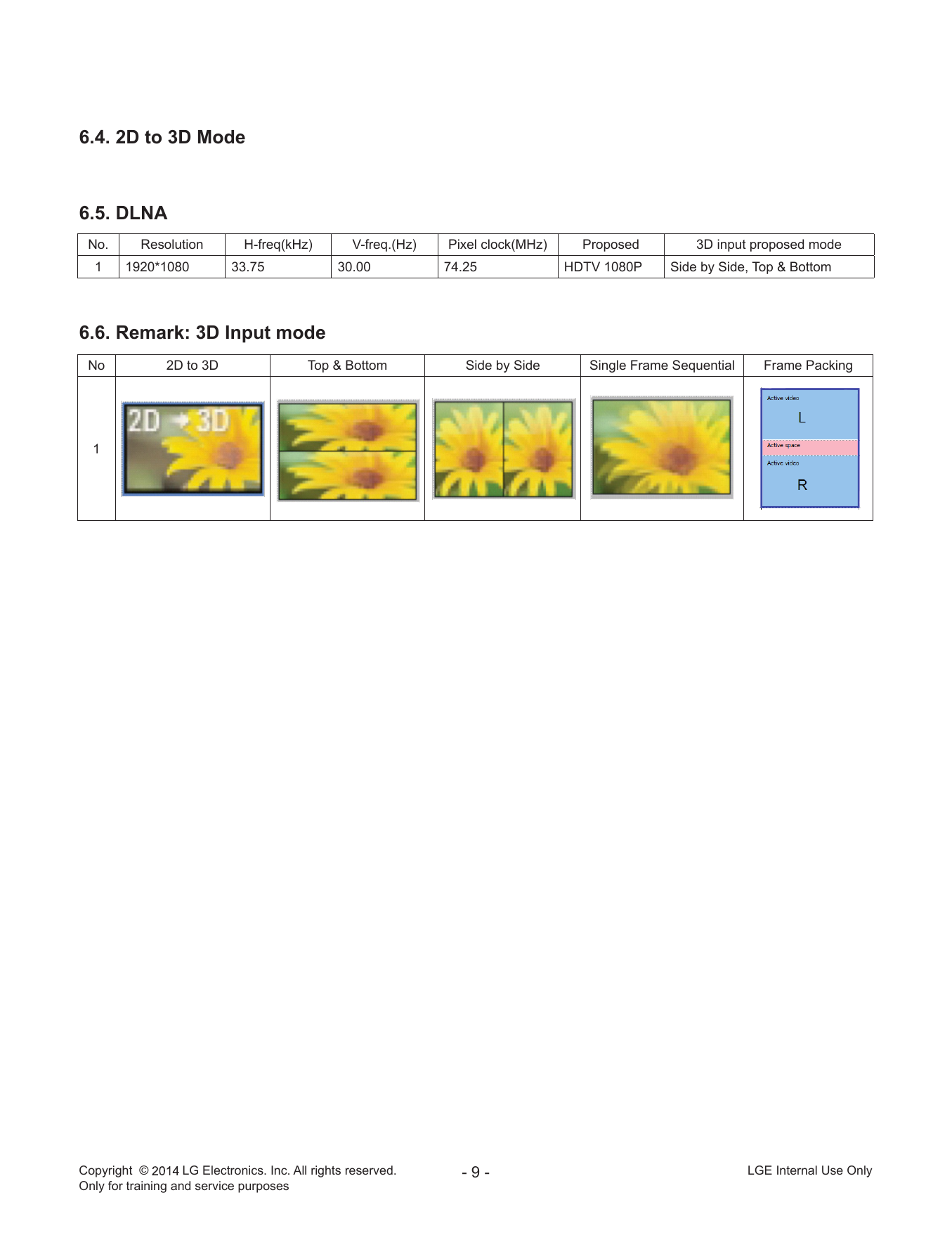

6.4. 2D to 3D Mode 6.5. DLNA No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode 1 1920*1080 33.75 30.00 74.25 HDTV 1080P Side by Side, Top & Bottom 6.6. Remark: 3D Input mode No 2D to 3D Top & Bottom Side by Side Single Frame Sequential Frame Packing 1 Copyright © LG Electronics. Inc. All rights reserved. -9- LGE Internal Use Only Only for training and service purposes

ADJUSTMENT INSTRUCTION 1. Application 4. MAIN PCBA Adjustments This spec. sheet applies to LA43B/M Chassis applied LED TV 4.1. ADC Calibration all models manufactured in TV factory 4.1.1. Overview ▪ ADC adjustment is needed to find the optimum black level and gain in Analog-to-Digital device and to compensate RGB 2. Specification deviation (1) Because this is not a hot chassis, it is not necessary to use an isolation transformer. However, the use of isolation 4.1.2. Equipment & Condition transformer will help protect test instrument. (1) Protocol: RS-232C (2) Adjustment must be done in the correct order. (2) Inner Pattern (3) The adjustment must be performed in the circumstance of - Resolution : 1080p(Comp) / 1024*768(RGB) 25 ±5 ºC of temperature and 65±10% of relative humidity if - Pattern : Horizontal 100% Color Bar Pattern there is no specific designation - Pattern level : 0.7±0.1 Vp-p (4) The input voltage of the receiver must keep 100~240V, 50/60Hz 4.1.3. Adjustment (5) At first Worker must turn on the SET by using Power Only 4.1.3.1. Adjustment method key. - Connect to Jig by using RS-232(USB), adjust Component (6) The receiver must be operated for about 5 minutes prior to the adjustment when module is in the circumstance of over ※ Manual adj (If needed in Final Assembly) 15 ºC - Required equipment : Adjustment R/C In case of keeping module is in the circumstance of 0°C, it - Enter Service Mode by pushing “ADJ” key, should be placed in the circumstance of above 15°C for 2 - Start ‘OTP’ ADC Type by pushing ‘►’ key at [7. ADC Calibration] hours ※ In L13 case, Adjust ADC(OTP) is automatically ‘OK’ In case of keeping module is in the circumstance of below -20°C, it should be placed in the circumstance of above 4.1.3.2. Adj. protocol (only Internal patten) 15°C for 3 hours. Protocol CMD 1 CMD 2 Data 1 Data 2 Remark ※ Caution Enter adj a a 00 00 When transfer When still image is displayed for a period of 20 minutes or mode the ‘Mode longer (especially where W/B scale is strong. In’,Carry the Digital pattern 13ch and/or Cross hatch pattern 09ch), there command. can some afterimage in the black level area Start a d 00 10 Automatically ADC adj adjustment (Use internal pattern) 3. Adjustment items 3.1. Main PCBA Adjustments (1) ADC adjustment: Component 480i, 1080p / RGB-PC 1080p 4.2. EDID Download (2) EDID download: HDMI and RGB-PC 4.2.1. Overview ▪ I t is a VESA regulation. A PC or a MNT will display an ■ Above adjustment items can be also performed in Final optimal resolution through information sharing without any Assembly if needed. Adjustment items in both PCBA and necessity of user input. It is a realization of “Plug and Play”. final assembly tages can be checked by using the INSTART Menu(1.ADJUST CHECK) 4.2.2. Equipment C omponent 1080p and RGB-PC Adjust will be calculated by ▪ Since embedded EDID data is used, EDID download JIG, 480i adjust value. HDMI cable and D-sub cable are not need. ▪ Adjust by using remote controller 3.2. Final assembly adjustment (1) White Balance adjustment (2) RS-232C functionality check (3) Factory Option setting per destination (4) Shipment mode setting (In-Stop) (5) GND and HI-POT test 3.3. Appendix (1) Shipment conditions (2) Tool option menu (3) USB Download (S/W Update, Option and Service only) (4) Preset CH Information Copyright © LG Electronics. Inc. All rights reserved. - 10 - LGE Internal Use Only Only for training and service purposes

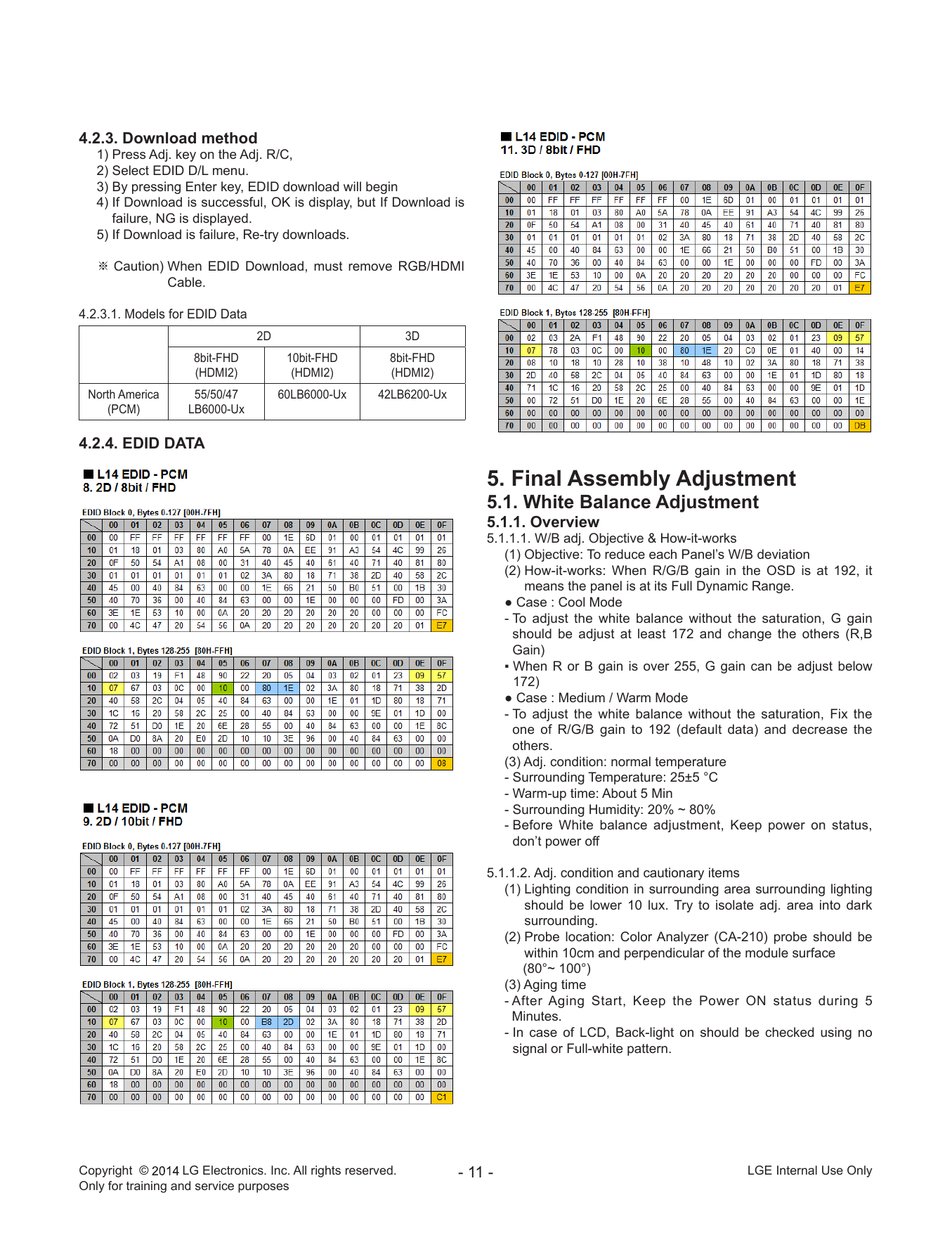

4.2.3. Download method 1) Press Adj. key on the Adj. R/C, 2) Select EDID D/L menu. 3) By pressing Enter key, EDID download will begin 4) If Download is successful, OK is display, but If Download is failure, NG is displayed. 5) If Download is failure, Re-try downloads. ※ Caution) When EDID Download, must remove RGB/HDMI Cable. 4.2.3.1. Models for EDID Data 2D 3D 8bit-FHD 10bit-FHD 8bit-FHD (HDMI2) (HDMI2) (HDMI2) North America 55/50/47 60LB6000-Ux 42LB6200-Ux (PCM) LB6000-Ux 4.2.4. EDID DATA 5. Final Assembly Adjustment 5.1. White Balance Adjustment 5.1.1. Overview 5.1.1.1. W/B adj. Objective & How-it-works (1) Objective: To reduce each Panel’s W/B deviation (2) How-it-works: When R/G/B gain in the OSD is at 192, it means the panel is at its Full Dynamic Range. ● Case : Cool Mode - To adjust the white balance without the saturation, G gain should be adjust at least 172 and change the others (R,B Gain) ▪ When R or B gain is over 255, G gain can be adjust below 172) ● Case : Medium / Warm Mode - To adjust the white balance without the saturation, Fix the one of R/G/B gain to 192 (default data) and decrease the others. (3) Adj. condition: normal temperature - Surrounding Temperature: 25±5 °C - Warm-up time: About 5 Min - Surrounding Humidity: 20% ~ 80% - Before White balance adjustment, Keep power on status, don’t power off 5.1.1.2. Adj. condition and cautionary items (1) Lighting condition in surrounding area surrounding lighting should be lower 10 lux. Try to isolate adj. area into dark surrounding. (2) Probe location: Color Analyzer (CA-210) probe should be within 10cm and perpendicular of the module surface (80°~ 100°) (3) Aging time - A fter Aging Start, Keep the Power ON status during 5 Minutes. - In case of LCD, Back-light on should be checked using no signal or Full-white pattern. Copyright © LG Electronics. Inc. All rights reserved. - 11 - LGE Internal Use Only Only for training and service purposes

5.1.2. Equipment 5.1.5. Adjustment method (1) Color Analyzer: CA-210 (NCG: CH 9 / WCG: CH12 / LED: 5.1.5.1. Auto WB calibration CH14) (1) Set TV in ADJ mode using P-ONLY key (or POWER ON (2) A dj. Computer (During auto adj., RS-232C protocol is key) needed) (2) Place optical probe on the center of the display (3) Adjust Remocon - It need to check probe condition of zero calibration before (4) V ideo Signal Generator MSPG-925F 720p/204-Gray adjustment. (Model: 217, Pattern: 49) (3) Connect RS-232C Cable → Only when internal pattern is not available (4) Select mode in ADJ Program and begin a adjustment. ※ Color Analyzer Matrix should be calibrated using CS-1000 (5) When WB adjustment is completed with OK message, check adjustment status of pre-set mode (Cool, Medium, 5.1.3. Equipment connection Warm) (6) Remove probe and RS-232C cable. ▪ W/B Adj. must begin as start command “wb 00 00” , and finish as end command “wb 00 ff”, and Adj. offset if need 5.1.5.2. Manual adjustment (1) Set TV in Adj. mode using POWER ON (2) Zero Calibrate the probe of Color Analyzer, then place it on the center of LCD module within 10cm of the surface.. (3) Press ADJ key → EZ adjust using adj. R/C → 8. White- Balance then press the cursor to the right (KEY►). ( When KEY(►) is pressed 204 Gray(80IRE) internal pattern will be displayed) 5.1.4. Adjustment Command (Protocol) (4-a) Adjust modes (Cool) : Fix the G gain at least 172 and (1) RS-232C Command used during auto-adj. change the others (R/B Gain). ▪ If R or B gain is over 255, G gain can be adjust below 172. RS-232C COMMAND (4-b) Adjust two modes ( Medium / Warm) : Fix the one of Explanation CMD DATA ID R/G/B gain to 192 (default data) and decrease the others. Wb 00 00 Begin White Balance adj. Wb 00 ff End White Balance adj. ※ CASE : Cool mode (internal pattern disappears ) First adjust the coordinate far away from the target value(x, y).B (2) Adjustment Map (1) x, y >target Adj. item Command Data Range (2) x, y< target (lower caseASCII) (Hex.) (3) x >target , y< target (4) x < target , y >target CMD1 CMD2 MIN MAX -E very 4 case have to fit y value by adjusting B Gain and Cool R Gain j g 00 C0 then fit x value by adjusting R-Gain G Gain j h 00 C0 - In this case, increasing/decreasing of B Gain and R Gain can be adjusted. B Gain j i 00 C0 Medium R Gain j a 00 C0 ► How to adjust G Gain j b 00 C0 (1) Fix G gain at least 172 : Adjust R, B Gain ( In Case of Mostly Blue Gain Saturation ) B Gain j c 00 C0 (2) When R or B Gain > 255, Release Fixed G Gain and Warm R Gain j d 00 C0 Readjust G Gain j e 00 C0 ※ CASE : Medium / Warm mode B Gain j f 00 C0 First adjust the coordinate far away from the target value(x, y). (1) x, y >target i) Decrease the R, G. (2) x, y< target i) First decrease the B gain, ii) Decrease the one of the others. (3) x >target , y< target i) First decrease B, so make y a little more than the target. ii) Adjust x value by decreasing the R (4) x < target , y >target i) First decrease B, so make x a little more than the target. ii) Adjust x value by decreasing the G Copyright © LG Electronics. Inc. All rights reserved. - 12 - LGE Internal Use Only Only for training and service purposes

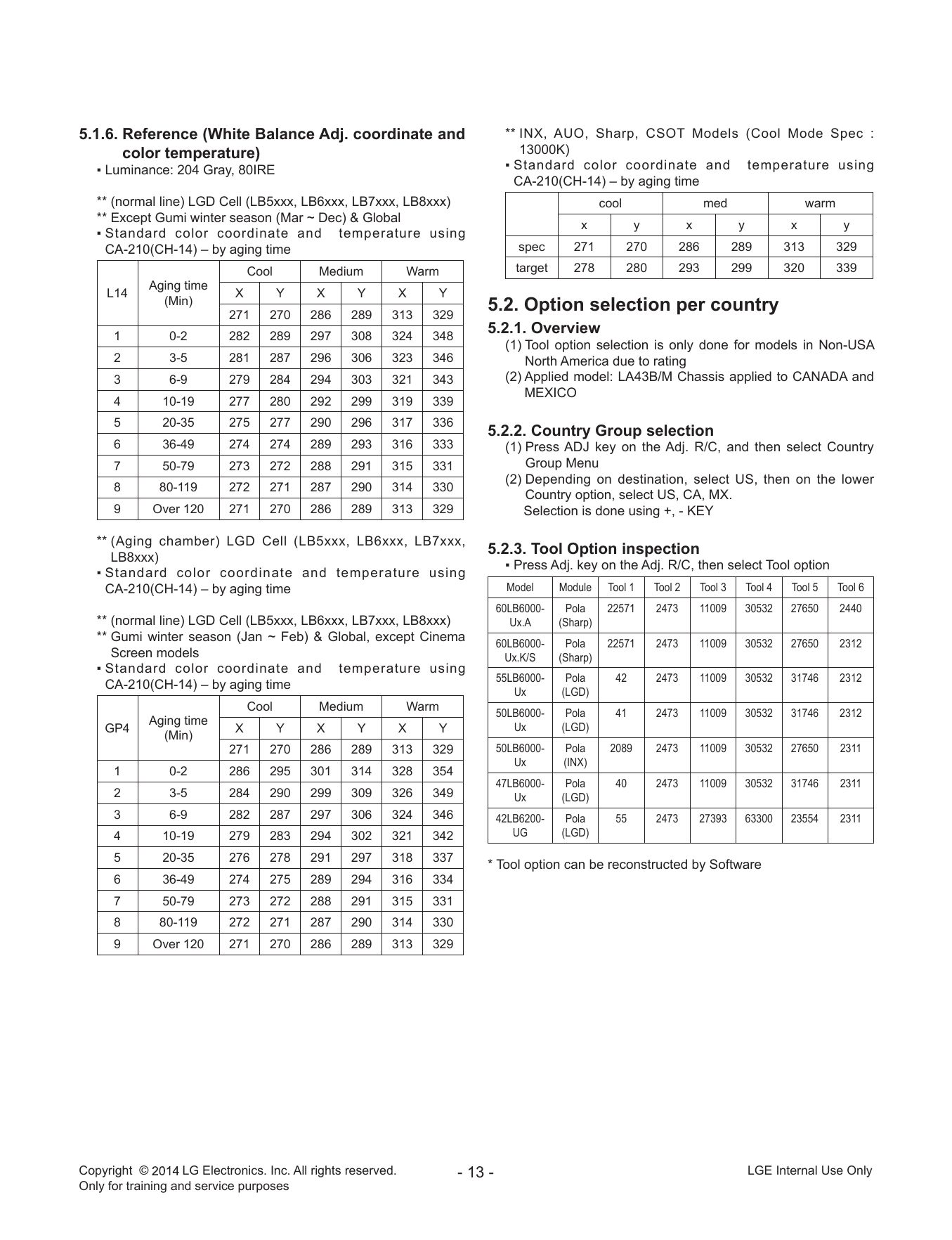

5.1.6. Reference (White Balance Adj. coordinate and ** I NX, AUO, Sharp, CSOT Models (Cool Mode Spec : color temperature) 13000K) ▪ Luminance: 204 Gray, 80IRE ▪ S tandard color coordinate and temperature using CA-210(CH-14) – by aging time ** (normal line) LGD Cell (LB5xxx, LB6xxx, LB7xxx, LB8xxx) cool med warm ** Except Gumi winter season (Mar ~ Dec) & Global x y x y x y ▪ S tandard color coordinate and temperature using CA-210(CH-14) – by aging time spec 271 270 286 289 313 329 Cool Medium Warm target 278 280 293 299 320 339 Aging time L14 X Y X Y X Y (Min) 271 270 286 289 313 329 5.2. Option selection per country 1 0-2 282 289 297 308 324 348 5.2.1. Overview (1) Tool option selection is only done for models in Non-USA 2 3-5 281 287 296 306 323 346 North America due to rating 3 6-9 279 284 294 303 321 343 (2) Applied model: LA43B/M Chassis applied to CANADA and MEXICO 4 10-19 277 280 292 299 319 339 5 20-35 275 277 290 296 317 336 5.2.2. Country Group selection 6 36-49 274 274 289 293 316 333 (1) Press ADJ key on the Adj. R/C, and then select Country 7 50-79 273 272 288 291 315 331 Group Menu (2) Depending on destination, select US, then on the lower 8 80-119 272 271 287 290 314 330 Country option, select US, CA, MX. 9 Over 120 271 270 286 289 313 329 Selection is done using +, - KEY ** ( Aging chamber) LGD Cell (LB5xxx, LB6xxx, LB7xxx, LB8xxx) 5.2.3. Tool Option inspection ▪ Press Adj. key on the Adj. R/C, then select Tool option ▪ S tandard color coordinate and temperature using CA-210(CH-14) – by aging time Model Module Tool 1 Tool 2 Tool 3 Tool 4 Tool 5 Tool 6 60LB6000- Pola 22571 2473 11009 30532 27650 2440 ** (normal line) LGD Cell (LB5xxx, LB6xxx, LB7xxx, LB8xxx) Ux.A (Sharp) ** Gumi winter season (Jan ~ Feb) & Global, except Cinema 60LB6000- Pola 22571 2473 11009 30532 27650 2312 Screen models Ux.K/S (Sharp) ▪ S tandard color coordinate and temperature using 55LB6000- Pola 42 2473 11009 30532 31746 2312 CA-210(CH-14) – by aging time Ux (LGD) Cool Medium Warm 50LB6000- Pola 41 2473 11009 30532 31746 2312 Aging time GP4 X Y X Y X Y Ux (LGD) (Min) 271 270 286 289 313 329 50LB6000- Pola 2089 2473 11009 30532 27650 2311 Ux (INX) 1 0-2 286 295 301 314 328 354 47LB6000- Pola 40 2473 11009 30532 31746 2311 2 3-5 284 290 299 309 326 349 Ux (LGD) 3 6-9 282 287 297 306 324 346 42LB6200- Pola 55 2473 27393 63300 23554 2311 4 10-19 279 283 294 302 321 342 UG (LGD) 5 20-35 276 278 291 297 318 337 * Tool option can be reconstructed by Software 6 36-49 274 275 289 294 316 334 7 50-79 273 272 288 291 315 331 8 80-119 272 271 287 290 314 330 9 Over 120 271 270 286 289 313 329 Copyright © LG Electronics. Inc. All rights reserved. - 13 - LGE Internal Use Only Only for training and service purposes

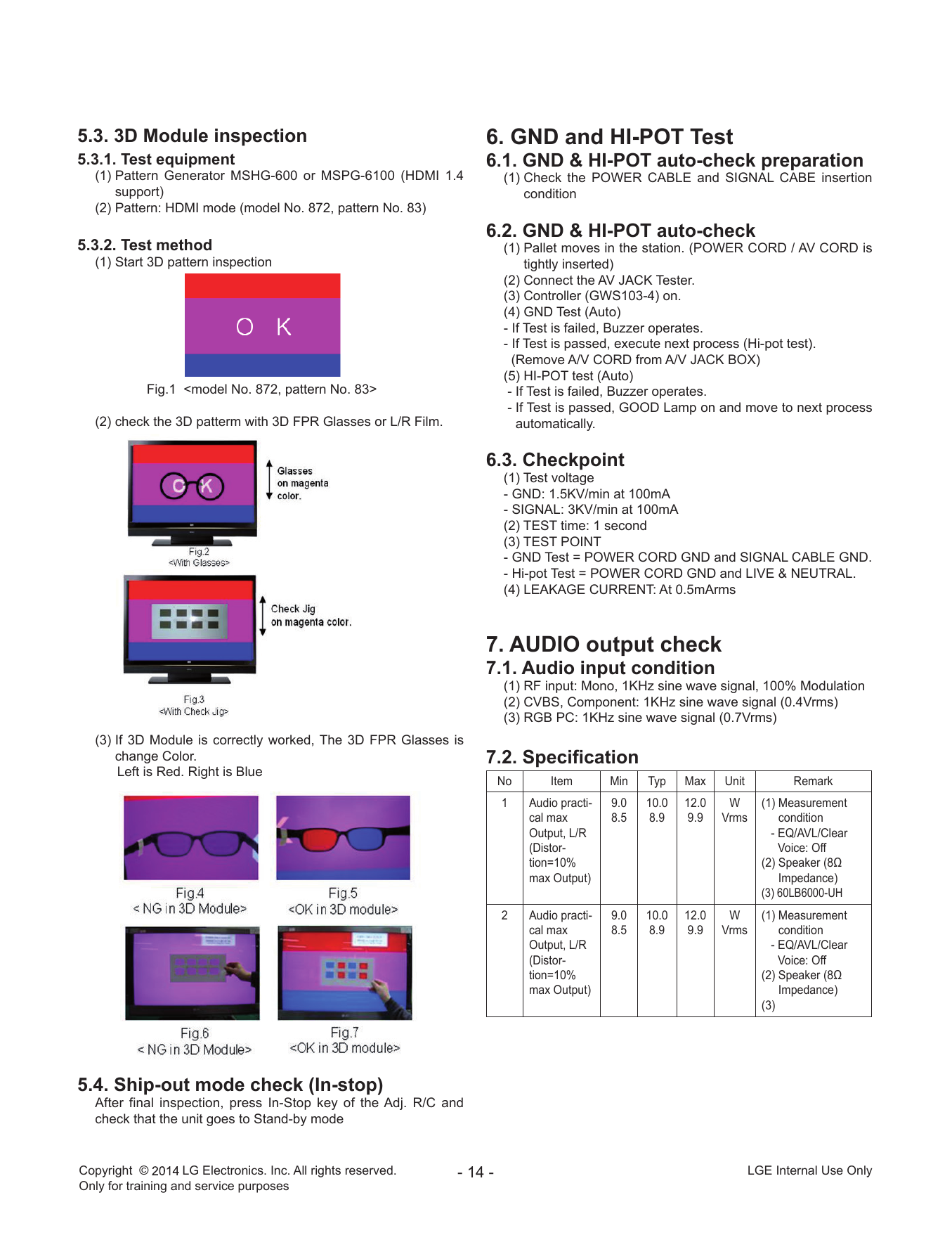

5.3. 3D Module inspection 6. GND and HI-POT Test 5.3.1. Test equipment 6.1. GND & HI-POT auto-check preparation (1) P attern Generator MSHG-600 or MSPG-6100 (HDMI 1.4 (1) Check the POWER CABLE and SIGNAL CABE insertion support) condition (2) Pattern: HDMI mode (model No. 872, pattern No. 83) 6.2. GND & HI-POT auto-check 5.3.2. Test method (1) Pallet moves in the station. (POWER CORD / AV CORD is (1) Start 3D pattern inspection tightly inserted) (2) Connect the AV JACK Tester. (3) Controller (GWS103-4) on. (4) GND Test (Auto) - If Test is failed, Buzzer operates. - If Test is passed, execute next process (Hi-pot test). (Remove A/V CORD from A/V JACK BOX) (5) HI-POT test (Auto) Fig.1 - If Test is failed, Buzzer operates. - If Test is passed, GOOD Lamp on and move to next process (2) check the 3D patterm with 3D FPR Glasses or L/R Film. automatically. 6.3. Checkpoint (1) Test voltage - GND: 1.5KV/min at 100mA - SIGNAL: 3KV/min at 100mA (2) TEST time: 1 second (3) TEST POINT - GND Test = POWER CORD GND and SIGNAL CABLE GND. - Hi-pot Test = POWER CORD GND and LIVE & NEUTRAL. (4) LEAKAGE CURRENT: At 0.5mArms 7. AUDIO output check 7.1. Audio input condition (1) RF input: Mono, 1KHz sine wave signal, 100% Modulation (2) CVBS, Component: 1KHz sine wave signal (0.4Vrms) (3) RGB PC: 1KHz sine wave signal (0.7Vrms) (3) If 3D Module is correctly worked, The 3D FPR Glasses is change Color. 7.2. Specification Left is Red. Right is Blue No Item Min Typ Max Unit Remark 1 Audio practi- 9.0 10.0 12.0 W (1) Measurement cal max 8.5 8.9 9.9 Vrms condition Output, L/R -E Q/AVL/Clear (Distor- Voice: Off tion=10% (2) Speaker (8Ω max Output) Impedance) (3) 60LB6000-UH 2 Audio practi- 9.0 10.0 12.0 W (1) Measurement cal max 8.5 8.9 9.9 Vrms condition Output, L/R -E Q/AVL/Clear (Distor- Voice: Off tion=10% (2) Speaker (8Ω max Output) Impedance) (3) 5.4. Ship-out mode check (In-stop) After final inspection, press In-Stop key of the Adj. R/C and check that the unit goes to Stand-by mode Copyright © LG Electronics. Inc. All rights reserved. - 14 - LGE Internal Use Only Only for training and service purposes

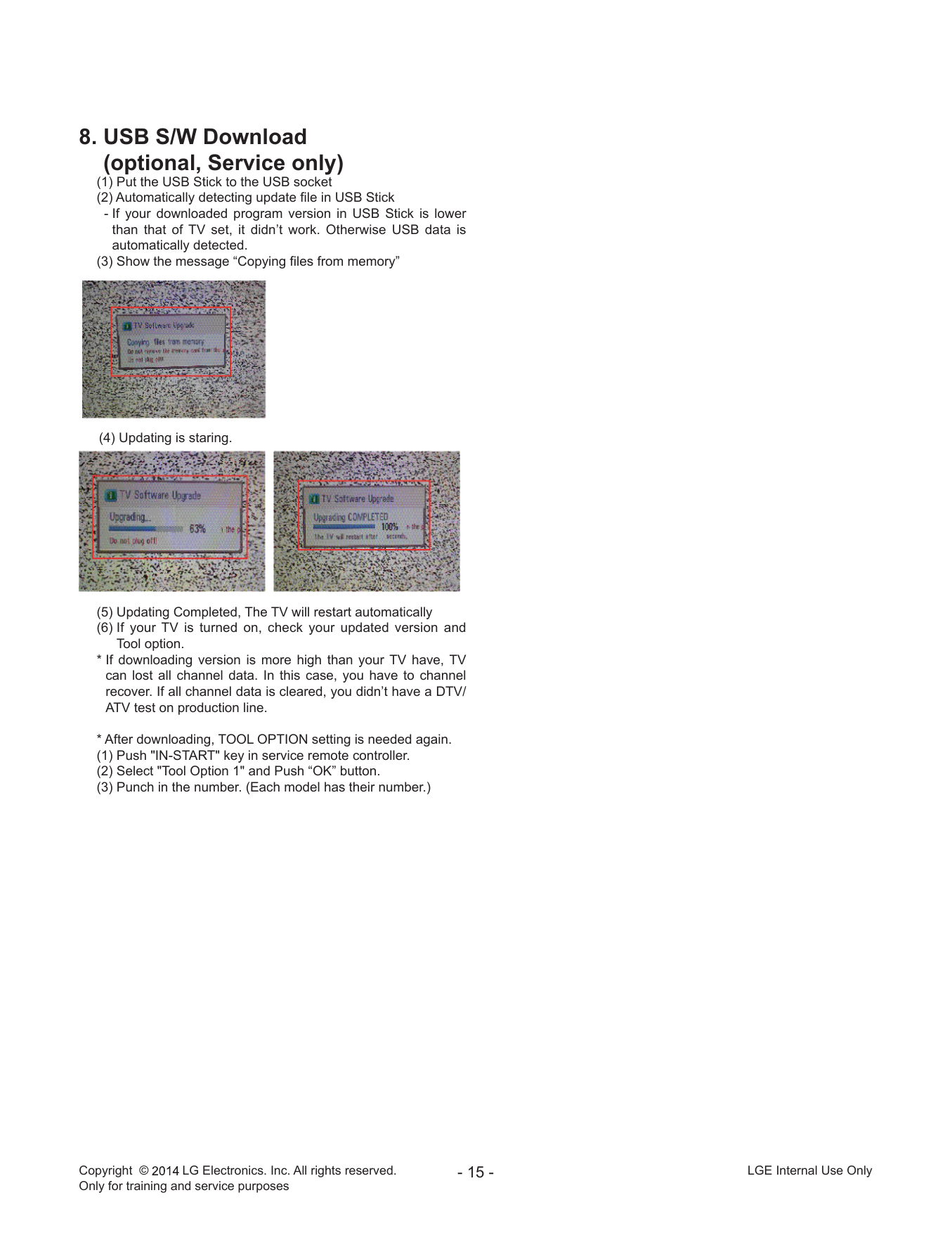

8. USB S/W Download (optional, Service only) (1) Put the USB Stick to the USB socket (2) Automatically detecting update file in USB Stick - If your downloaded program version in USB Stick is lower than that of TV set, it didn’t work. Otherwise USB data is automatically detected. (3) Show the message “Copying files from memory” (4) Updating is staring. (5) Updating Completed, The TV will restart automatically (6) If your TV is turned on, check your updated version and Tool option. * If downloading version is more high than your TV have, TV can lost all channel data. In this case, you have to channel recover. If all channel data is cleared, you didn’t have a DTV/ ATV test on production line. * After downloading, TOOL OPTION setting is needed again. (1) Push "IN-START" key in service remote controller. (2) Select "Tool Option 1" and Push “OK” button. (3) Punch in the number. (Each model has their number.) Copyright © LG Electronics. Inc. All rights reserved. - 15 - LGE Internal Use Only Only for training and service purposes

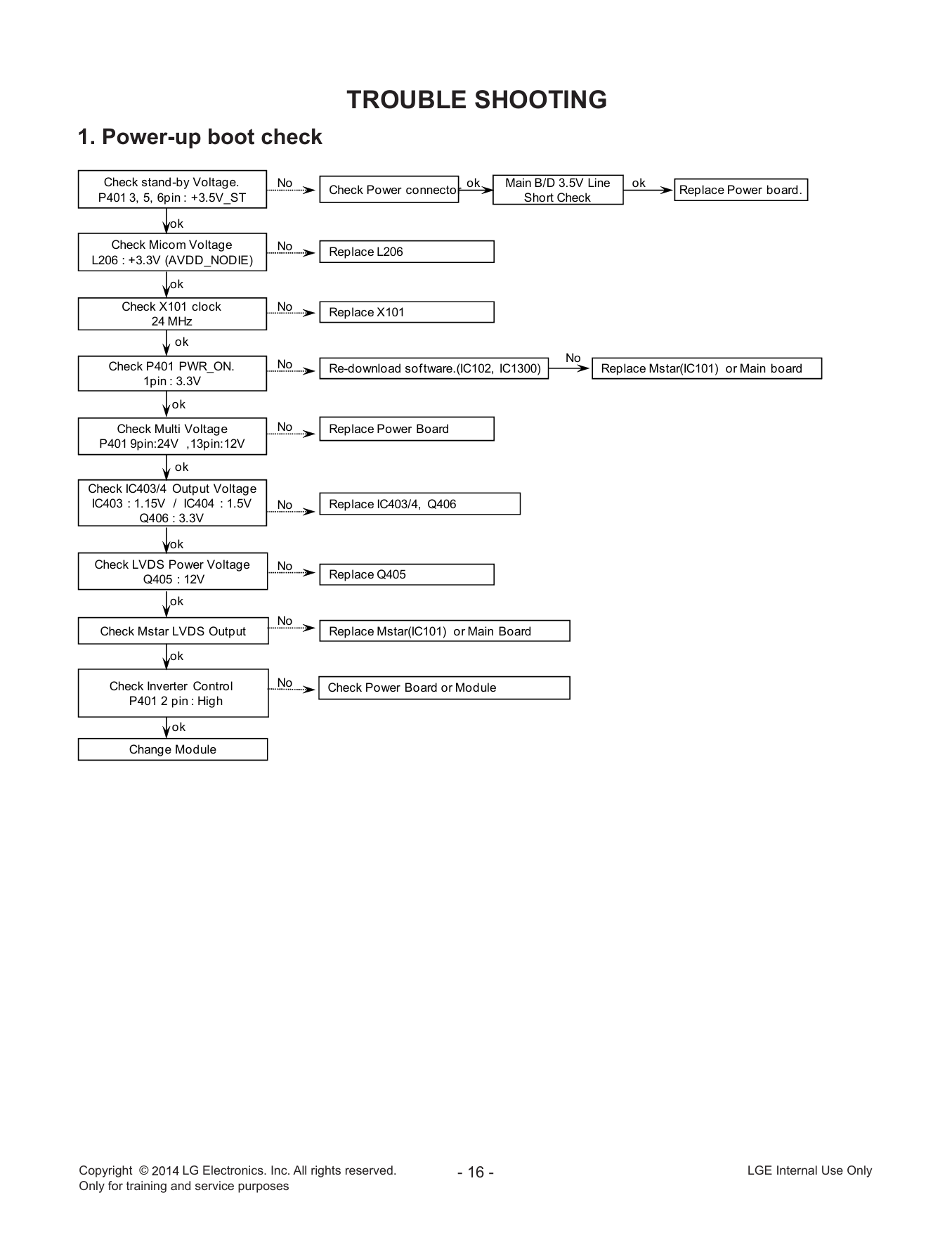

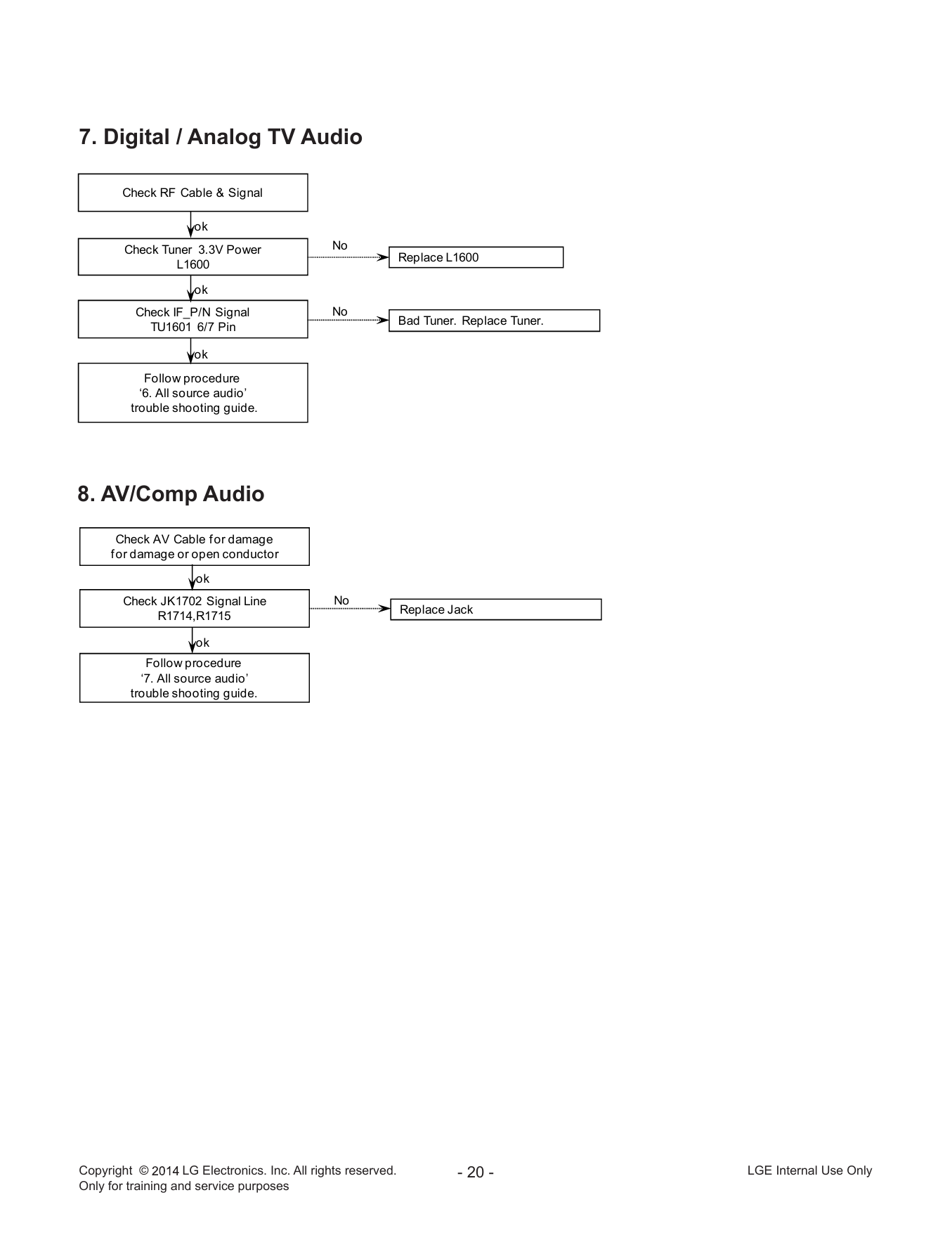

TROUBLE SHOOTING 1. Power-up boot check Check stand-by Voltage. No ok Main B/D 3.5V Line ok Check Power connector Replace Power board. P401 3, 5, 6pin : +3.5V_ST Short Check ok Check Micom Voltage No Replace L206 L206 : +3.3V (AVDD_NODIE) ok Check X101 clock No Replace X101 24 MHz ok No Check P401 PWR_ON. No Re-download sof tware.(IC102, IC1300) Replace Mstar(IC101) or Main board 1pin : 3.3V ok Check Multi Voltage No Replace Power Board P401 9pin:24V ,13pin:12V ok Check IC403/4 Output Voltage IC403 : 1.15V / IC404 : 1.5V No Replace IC403/4, Q406 Q406 : 3.3V ok Check LVDS Power Voltage No Q405 : 12V Replace Q405 ok No Check Mstar LVDS Output Replace Mstar(IC101) or Main Board ok Check Inverter Control No Check Power Board or Module P401 2 pin : High ok Change Module Copyright © LG Electronics. Inc. All rights reserved. - 16 - LGE Internal Use Only Only for training and service purposes

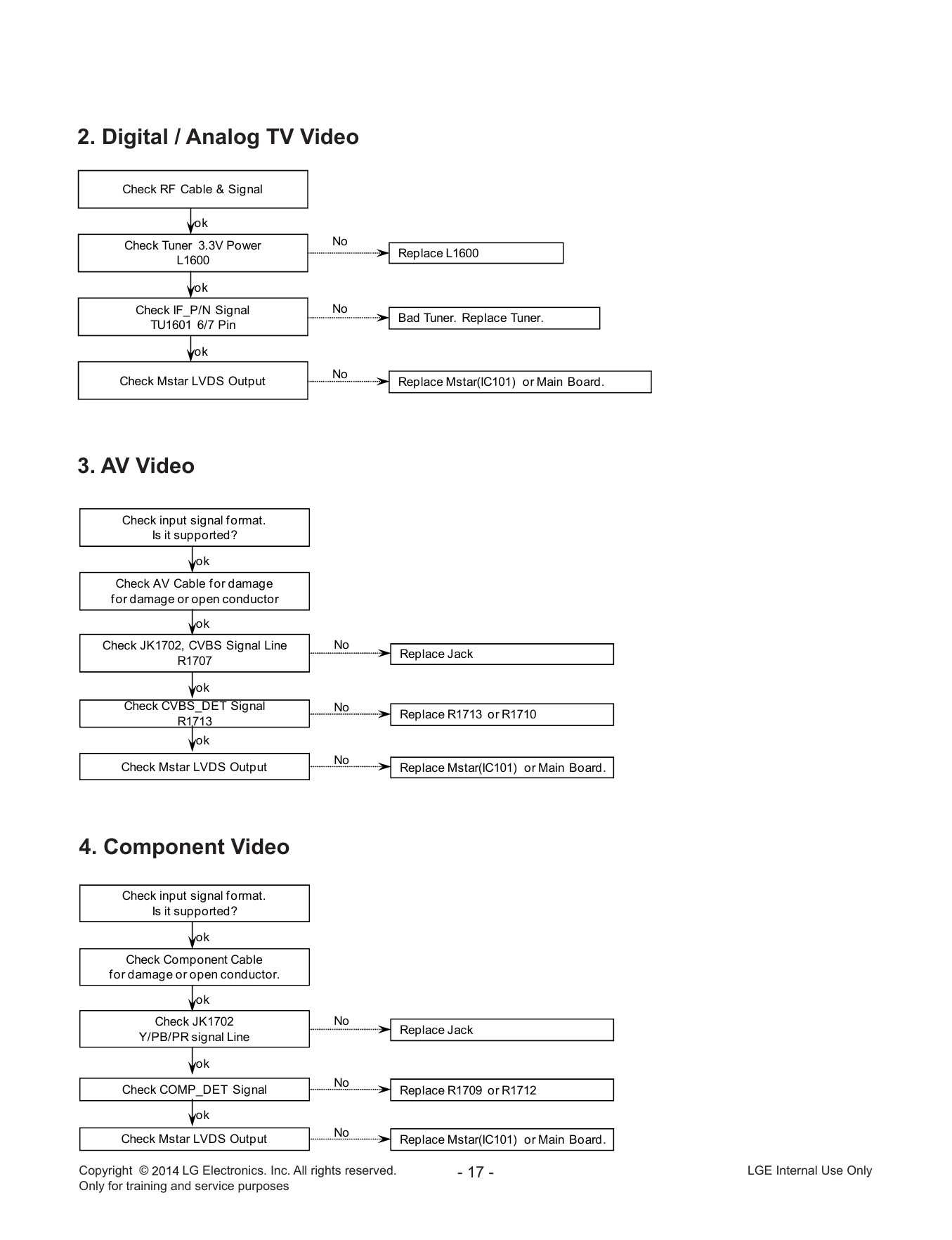

2. Digital / Analog TV Video Check RF Cable & Signal ok Check Tuner 3.3V Power No Replace L1600 L1600 ok Check IF_P/N Signal No Bad Tuner. Replace Tuner. TU1601 6/7 Pin ok No Check Mstar LVDS Output Replace Mstar(IC101) or Main Board. 3. AV Video Check input signal f ormat. Is it supported? ok Check AV Cable f or damage f or damage or open conductor ok Check JK1702, CVBS Signal Line No Replace Jack R1707 ok Check CVBS_DET Signal No Replace R1713 or R1710 R1713 ok No Check Mstar LVDS Output Replace Mstar(IC101) or Main Board. 4. Component Video Check input signal f ormat. Is it supported? ok Check Component Cable f or damage or open conductor. ok Check JK1702 No Replace Jack Y/PB/PR signal Line ok No Check COMP_DET Signal Replace R1709 or R1712 ok No Check Mstar LVDS Output Replace Mstar(IC101) or Main Board. Copyright © LG Electronics. Inc. All rights reserved. - 17 - LGE Internal Use Only Only for training and service purposes

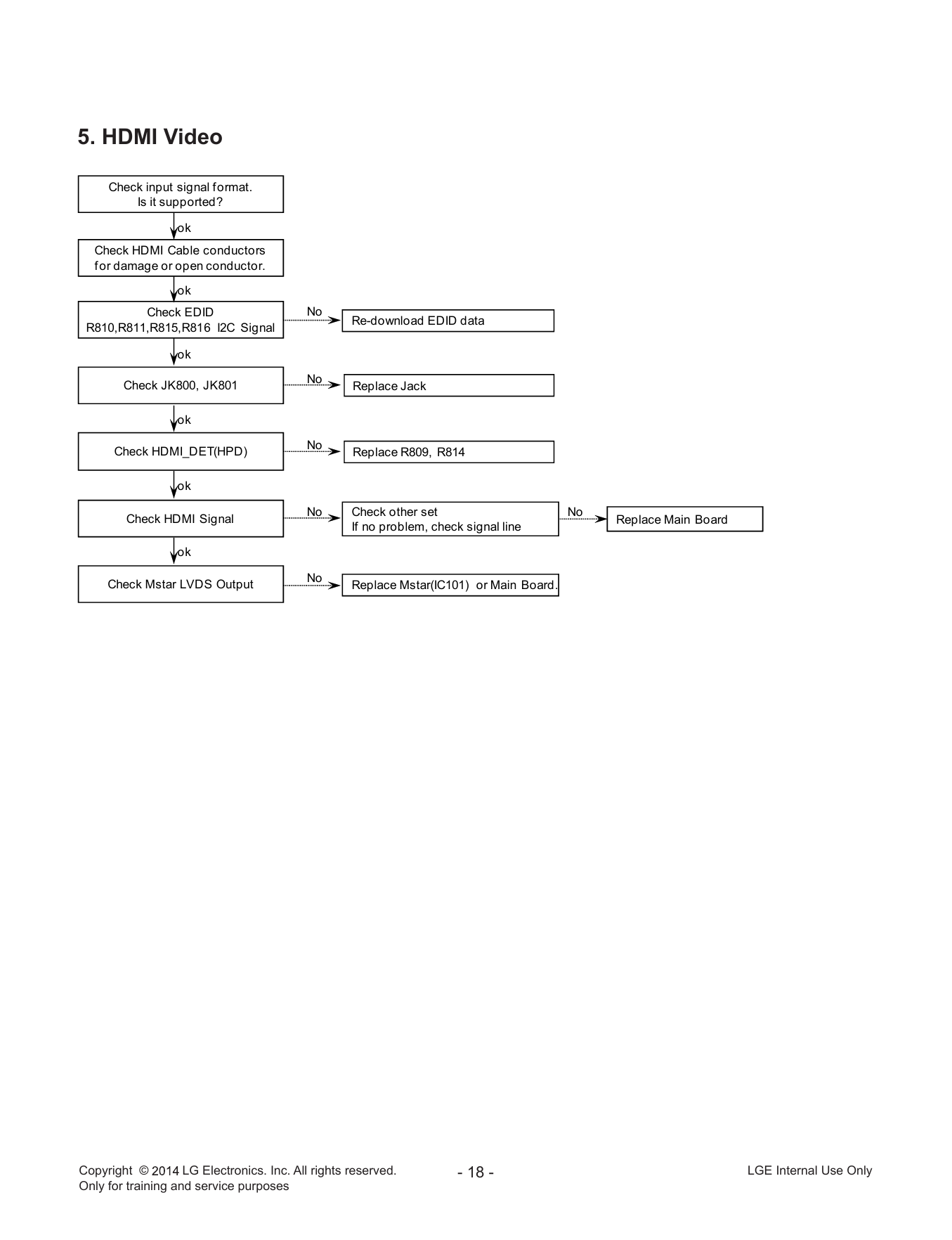

5. HDMI Video Check input signal f ormat. Is it supported? ok Check HDMI Cable conductors f or damage or open conductor. ok Check EDID No Re-download EDID data R810,R811,R815,R816 I2C Signal ok No Check JK800, JK801 Replace Jack ok No Check HDMI_DET(HPD) Replace R809, R814 ok No Check other set No Check HDMI Signal Replace Main Board If no problem, check signal line ok No Check Mstar LVDS Output Replace Mstar(IC101) or Main Board. Copyright © LG Electronics. Inc. All rights reserved. - 18 - LGE Internal Use Only Only for training and service purposes

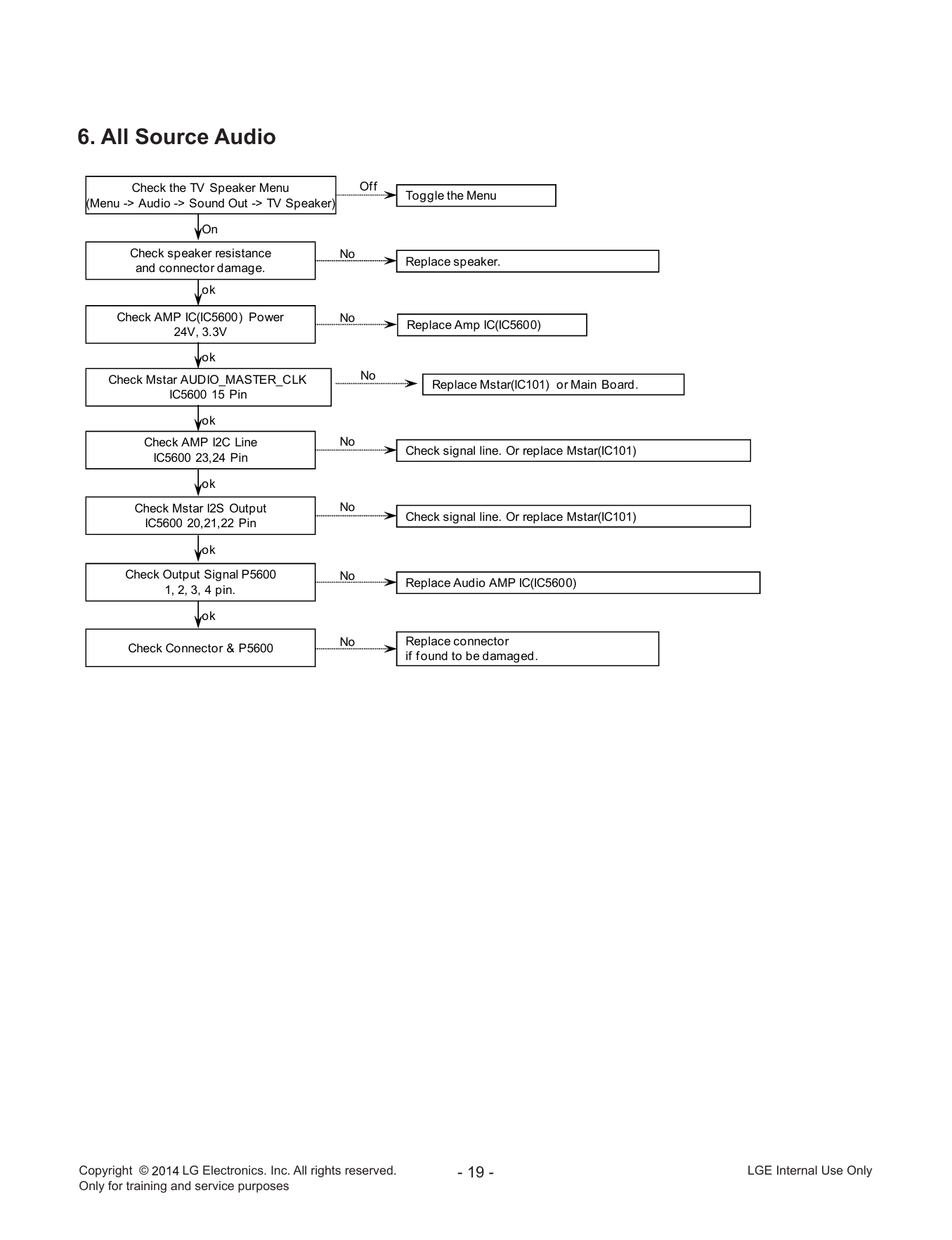

6. All Source Audio Check the TV Speaker Menu Of f Toggle the Menu (Menu -> Audio -> Sound Out -> TV Speaker) On Check speaker resistance No Replace speaker. and connector damage. ok Check AMP IC(IC5600) Power No Replace Amp IC(IC5600) 24V, 3.3V ok Check Mstar AUDIO_MASTER_CLK No Replace Mstar(IC101) or Main Board. IC5600 15 Pin ok Check AMP I2C Line No Check signal line. Or replace Mstar(IC101) IC5600 23,24 Pin ok Check Mstar I2S Output No Check signal line. Or replace Mstar(IC101) IC5600 20,21,22 Pin ok Check Output Signal P5600 No Replace Audio AMP IC(IC5600) 1, 2, 3, 4 pin. ok No Replace connector Check Connector & P5600 if f ound to be damaged. Copyright © LG Electronics. Inc. All rights reserved. - 19 - LGE Internal Use Only Only for training and service purposes

7. Digital / Analog TV Audio Check RF Cable & Signal ok Check Tuner 3.3V Power No Replace L1600 L1600 ok Check IF_P/N Signal No Bad Tuner. Replace Tuner. TU1601 6/7 Pin ok Follow procedure ‘6. All source audio’ trouble shooting guide. 8. AV/Comp Audio Check AV Cable f or damage f or damage or open conductor ok Check JK1702 Signal Line No Replace Jack R1714,R1715 ok Follow procedure ‘7. All source audio’ trouble shooting guide. Copyright © LG Electronics. Inc. All rights reserved. - 20 - LGE Internal Use Only Only for training and service purposes

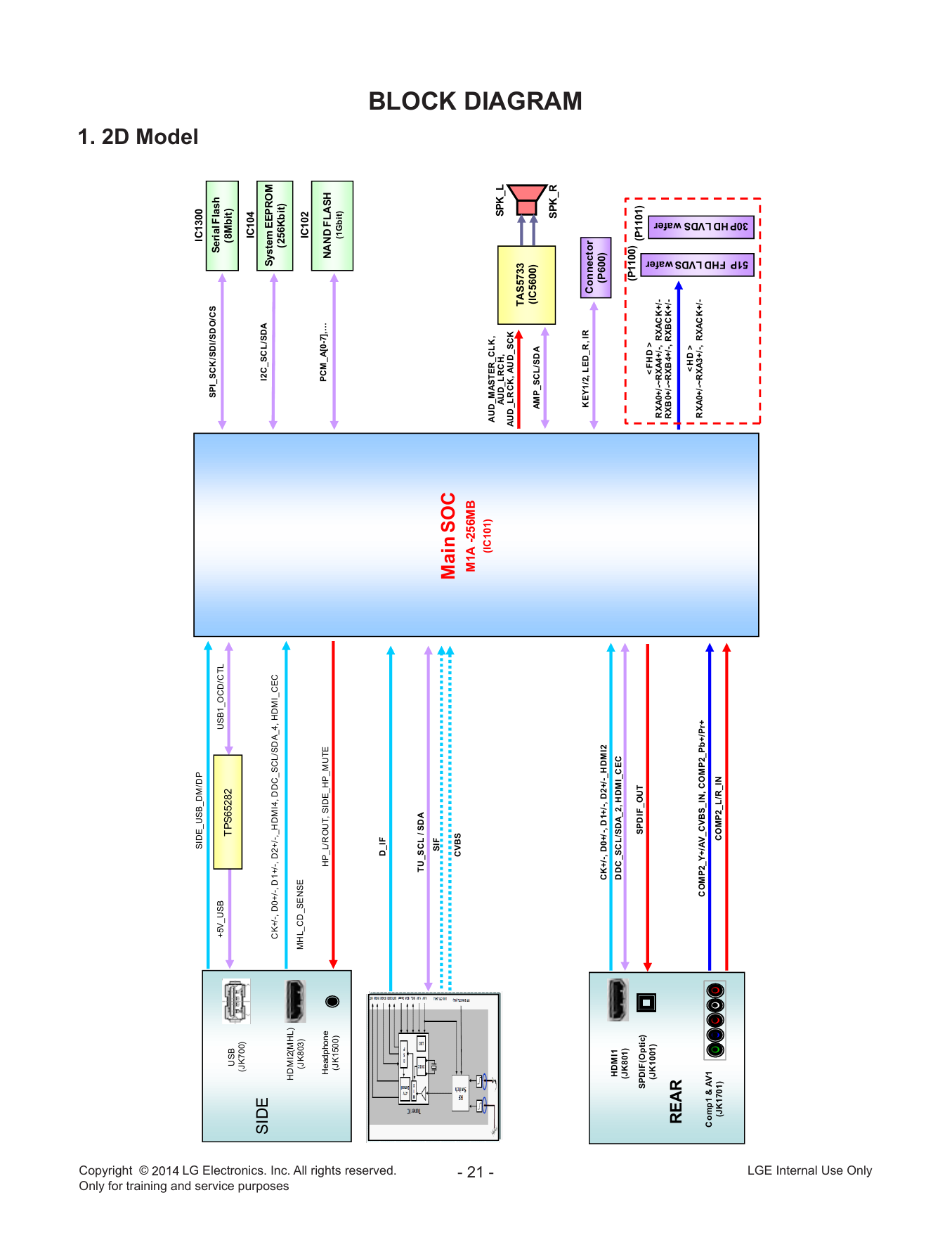

Copyright © 1. 2D Model SIDE_USB_DM/DP IC1300 SPI_SCK/SDI/SDO/CS Serial Flash +5V_USB USB1_OCD/CTL USB TPS65282 (8Mbit) (JK700) IC104 SIDE I2C_SCL/SDA CK+/-, D0+/-, D1+/-, D2+/-,_HDMI4, DDC_SCL/SDA_4, HDMI_CEC System EEPROM (256Kbit) Only for training and service purposes HDMI2(MHL) (JK803) MHL_CD_SENSE IC102 Headphone HP_L/ROUT, SIDE_HP_MUTE PCM_A[0-7],… NAND FLASH (JK1500) (1Gbit) D_IF LG Electronics. Inc. All rights reserved. TU_SCL / SDA SIF CVBS Main SOC M1A -256MB - 21 - (IC101) AUD_MASTER_CLK, AUD_LRCH, SPK_L AUD_LRCK, AUD_SCK TAS5733 AMP_SCL/SDA (IC5600) SPK_R BLOCK DIAGRAM KEY1/2, LED_R, IR Connector CK+/-, D0+/-, D1+/-, D2+/-_HDMI2 (P600) HDMI1 DDC_SCL/SDA_2, HDMI_CEC (JK801) (P1100) SPDIF(Optic) SPDIF_OUT (P1101) (JK1001) < FHD > RXA0+/-~RXA4+/-, RXACK+/- RXB0+/-~RXB4+/-, RXBCK+/- REAR < HD > COMP2_Y+/AV_CVBS_IN, COMP2_Pb+/Pr+ RXA0+/-~RXA3+/-, RXACK+/- Comp1 & AV1 (JK1701) COMP2_L/R_IN 30P HD LVDS wafer 51P FHD LVDS wafer LGE Internal Use Only

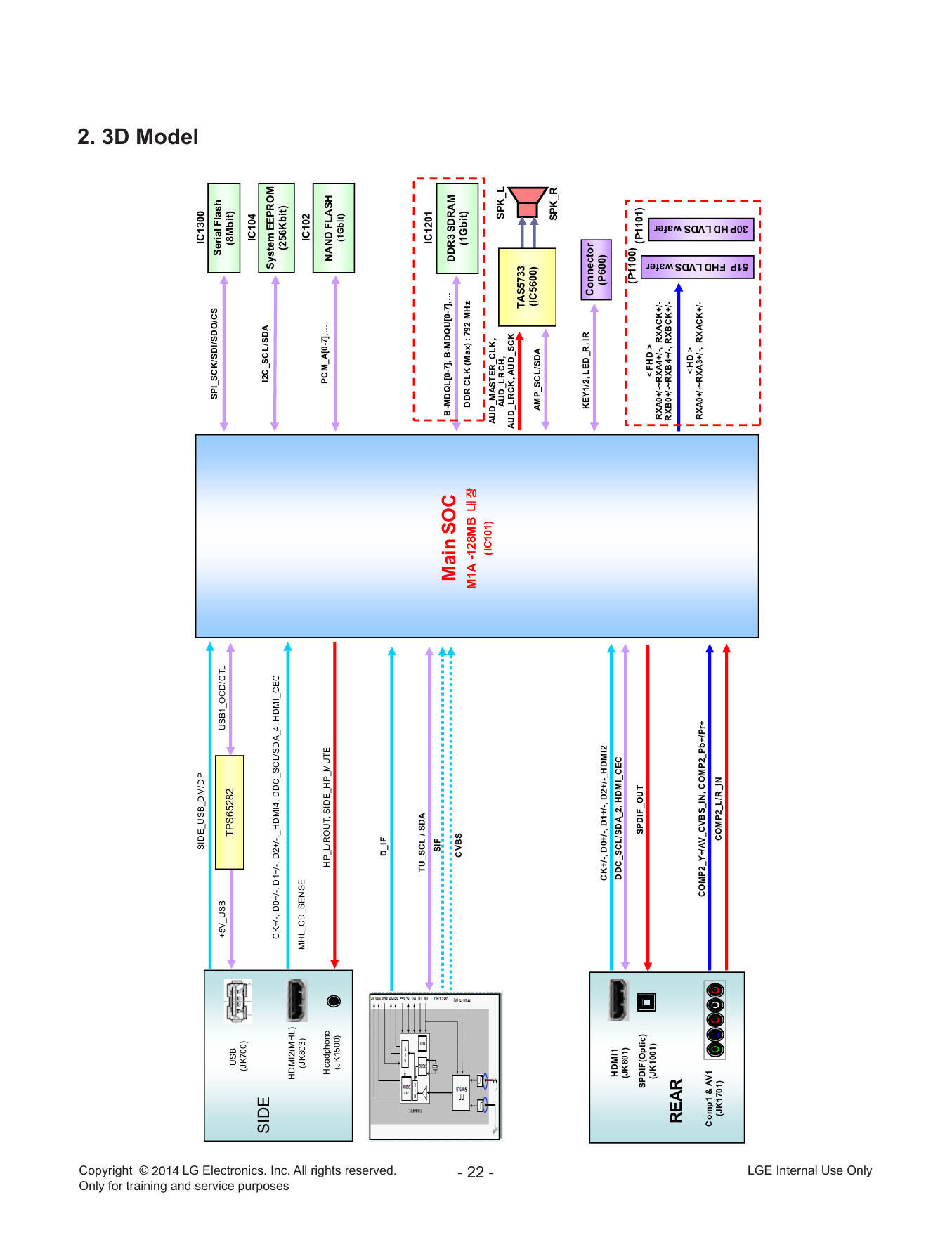

Copyright © 2. 3D Model SIDE_USB_DM/DP IC1300 SPI_SCK/SDI/SDO/CS Serial Flash +5V_USB USB1_OCD/CTL USB TPS65282 (8Mbit) (JK700) IC104 SIDE I2C_SCL/SDA CK+/-, D0+/-, D1+/-, D2+/-,_HDMI4, DDC_SCL/SDA_4, HDMI_CEC System EEPROM Only for training and service purposes (256Kbit) HDMI2(MHL) (JK803) MHL_CD_SENSE IC102 Headphone HP_L/ROUT, SIDE_HP_MUTE PCM_A[0-7],… NAND FLASH (JK1500) (1Gbit) D_IF LG Electronics. Inc. All rights reserved. TU_SCL / SDA IC1201 SIF B-MDQL[0-7], B-MDQU[0-7],… Main SOC DDR3 SDRAM CVBS DDR CLK (Max) : 792 MHz (1Gbit) M1A -128MB 내장 - 22 - (IC101) AUD_MASTER_CLK, AUD_LRCH, SPK_L AUD_LRCK, AUD_SCK TAS5733 AMP_SCL/SDA (IC5600) SPK_R KEY1/2, LED_R, IR Connector CK+/-, D0+/-, D1+/-, D2+/-_HDMI2 (P600) HDMI1 DDC_SCL/SDA_2, HDMI_CEC (JK801) (P1100) SPDIF(Optic) SPDIF_OUT (P1101) (JK1001) < FHD > RXA0+/-~RXA4+/-, RXACK+/- RXB0+/-~RXB4+/-, RXBCK+/- REAR < HD > COMP2_Y+/AV_CVBS_IN, COMP2_Pb+/Pr+ RXA0+/-~RXA3+/-, RXACK+/- Comp1 & AV1 (JK1701) COMP2_L/R_IN 30P HD LVDS wafer 51P FHD LVDS wafer LGE Internal Use Only

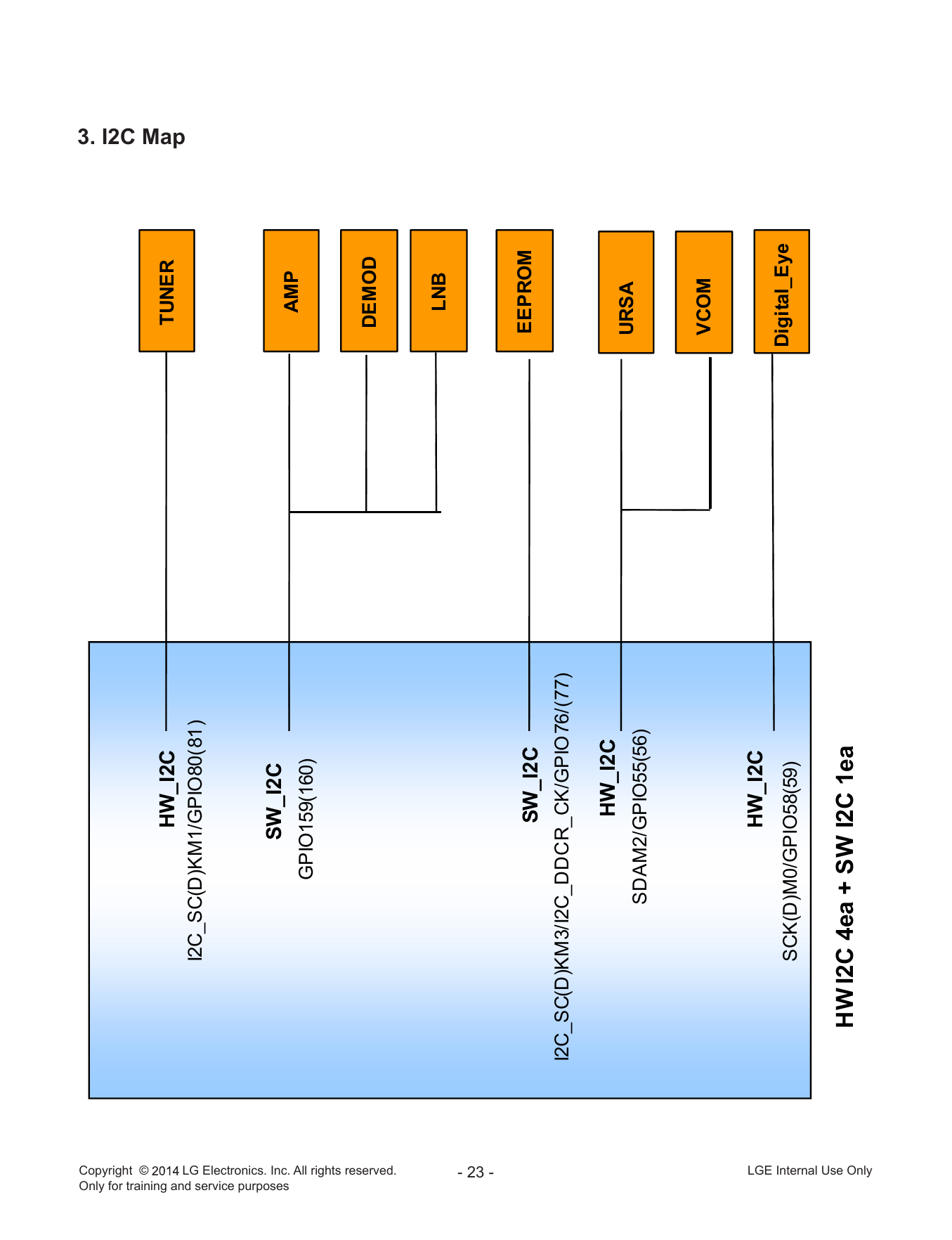

Copyright © HW_I2C TUNER 3. I2C Map I2C_SC(D)KM1/GPIO80(81) SW_I2C Only for training and service purposes AMP GPIO159(160) DEMOD LG Electronics. Inc. All rights reserved. LNB - 23 - SW_I2C EEPROM I2C_SC(D)KM3/I2C_DDCR_CK/GPIO76/(77) HW_I2C URSA SDAM2/GPIO55(56) VCOM HW_I2C SCK(D)M0/GPIO58(59) Digital_Eye HW I2C 4ea + SW I2C 1ea LGE Internal Use Only

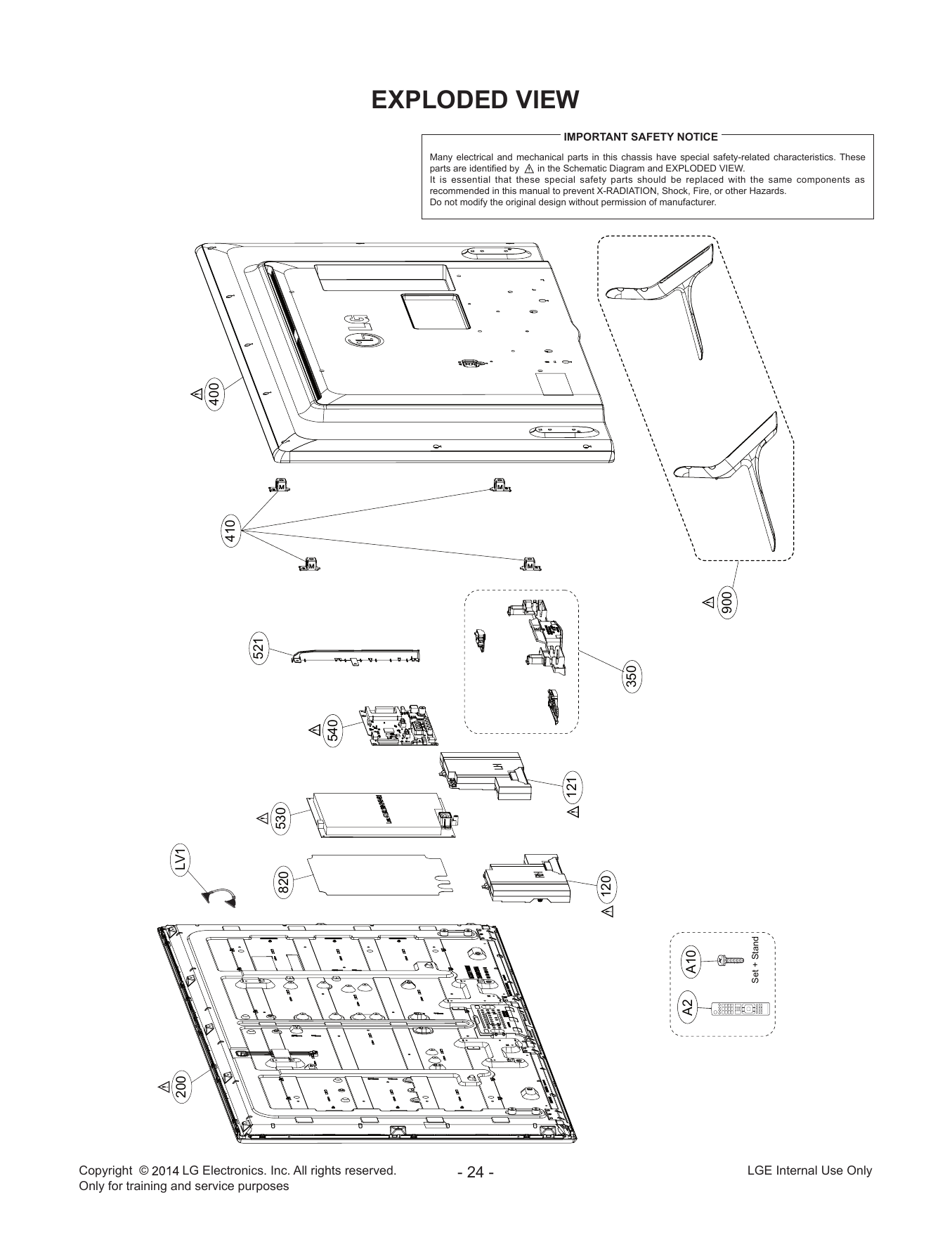

EXPLODED VIEW IMPORTANT SAFETY NOTICE Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and EXPLODED VIEW. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer. 400 410 900 521 350 540 121 530 LV1 820 120 Set + Stand A10 A2 200 Copyright © LG Electronics. Inc. All rights reserved. - 24 - LGE Internal Use Only Only for training and service purposes

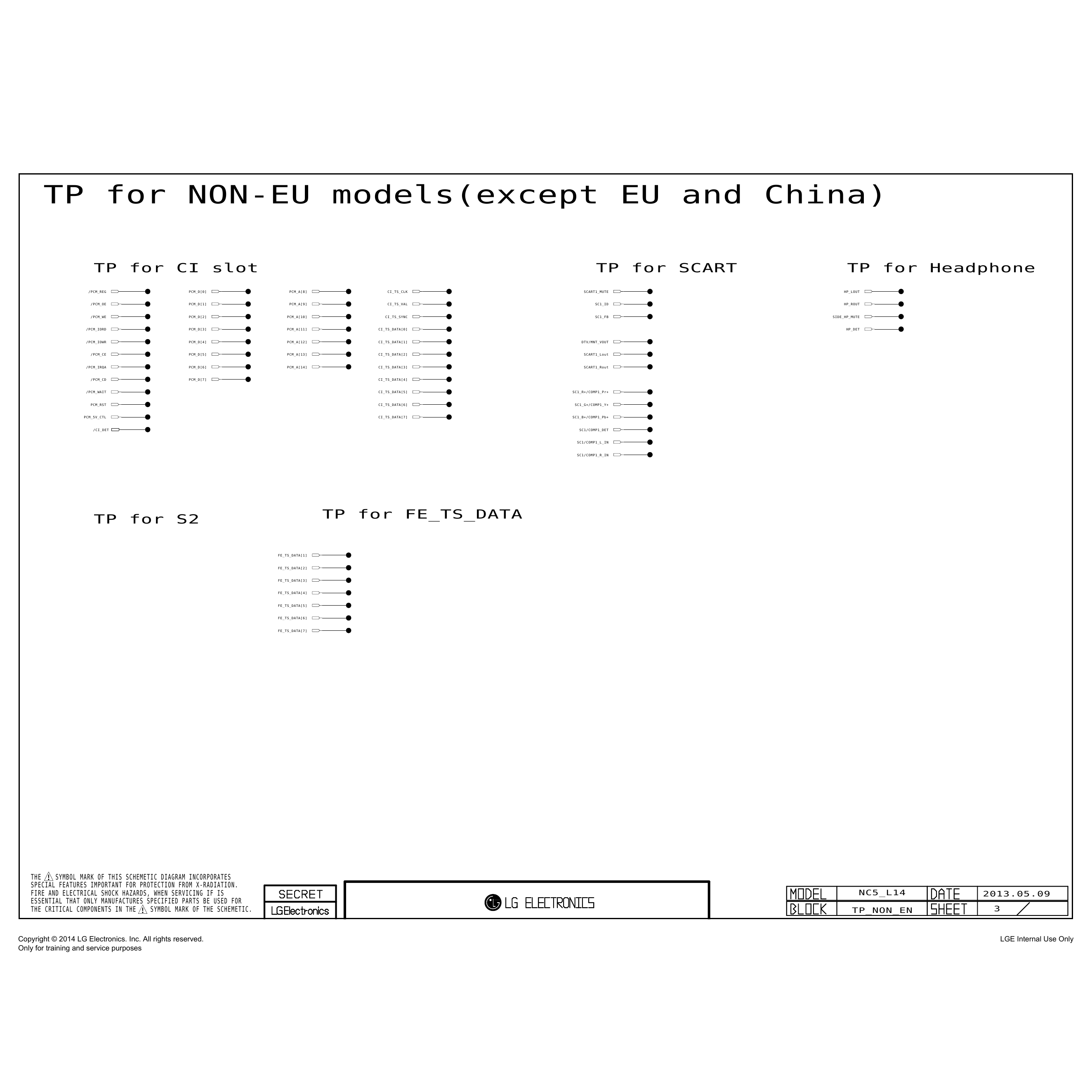

TP for NON-EU models(except EU and China) TP for CI slot TP for SCART TP for Headphone /PCM_REG PCM_D[0] PCM_A[8] CI_TS_CLK SCART1_MUTE HP_LOUT /PCM_OE PCM_D[1] PCM_A[9] CI_TS_VAL SC1_ID HP_ROUT /PCM_WE PCM_D[2] PCM_A[10] CI_TS_SYNC SC1_FB SIDE_HP_MUTE /PCM_IORD PCM_D[3] PCM_A[11] CI_TS_DATA[0] HP_DET /PCM_IOWR PCM_D[4] PCM_A[12] CI_TS_DATA[1] DTV/MNT_VOUT /PCM_CE PCM_D[5] PCM_A[13] CI_TS_DATA[2] SCART1_Lout /PCM_IRQA PCM_D[6] PCM_A[14] CI_TS_DATA[3] SCART1_Rout /PCM_CD PCM_D[7] CI_TS_DATA[4] /PCM_WAIT CI_TS_DATA[5] SC1_R+/COMP1_Pr+ PCM_RST CI_TS_DATA[6] SC1_G+/COMP1_Y+ PCM_5V_CTL CI_TS_DATA[7] SC1_B+/COMP1_Pb+ /CI_DET SC1/COMP1_DET SC1/COMP1_L_IN SC1/COMP1_R_IN TP for S2 TP for FE_TS_DATA FE_TS_DATA[1] FE_TS_DATA[2] FE_TS_DATA[3] FE_TS_DATA[4] FE_TS_DATA[5] FE_TS_DATA[6] FE_TS_DATA[7] THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS NC5_L14 2013.05.09 ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. TP_NON_EN 3 Copyright © 2014 LG Electronics. Inc. All rights reserved. LGE Internal Use Only Only for training and service purposes

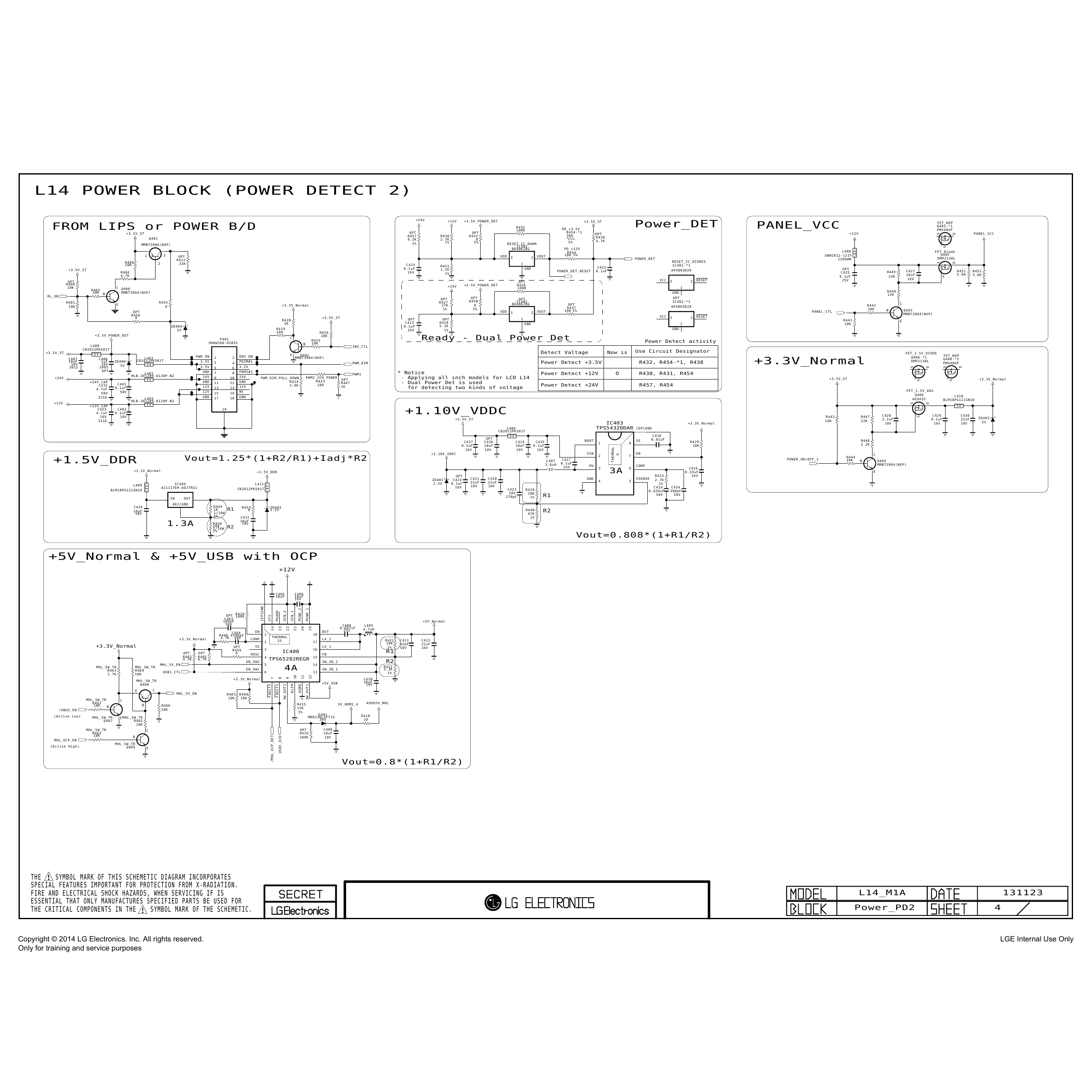

L14 POWER BLOCK (POWER DETECT 2) +24V +12V +3.5V_POWER_DET +3.5V_ST FROM LIPS or POWER B/D R435 100K PD_+3.5V Power_DET PANEL_VCC FET_NXP Q405-*1 PMV48XP +3.5V_ST OPT OPT R454-*1 +12V PANEL_VCC S D 300 OPT R457 R430 R432 R438 Q401 8.2K 2.7K 0 1% 5% 5% 4.7K MMBT3906(NXP) 1% RESET_IC_ROHM IC401 G BD48K28G PD_+12V R454 L408 FET_Diode 1 3 100 5% UBW2012-121F Q405 OPT VDD 3 2 VOUT POWER_DET 120OHM DMP2130L R412 RESET_IC_DIODES R406 S D 10K 2 33K C415 1 IC401-*1 R431 C422 +3.5V_ST 0.1uF 1.2K GND APX803D29 OPT R404 16V POWER_DET_RESET 0.1uF C425 R445 C427 R451 R452 1% 10uF 5.6K 5.6K 4.7K 0.1uF 33K G VCC RESET 25V 16V OPT OPT 3 2 R400 +3.5V_POWER_DET R436 10K C Q400 +24V 1 100K R402 R446 10K B MMBT3904(NXP) GND 12K RL_ON OPT OPT OPT OPT R401 R455 R427 R458 IC402 IC402-*1 E +3.3V_Normal 27K 0 BD48K28G OPT R442 C 10K 0 R437 APX803D29 1% 5% 100 5% 10K B Q403 OPT VDD 3 2 VOUT PANEL_CTL R456 MMBT3904(NXP) 0 +3.5V_ST VCC 3 2 RESET R420 OPT OPT 1 R441 E 1K C413 R428 GND 1 10K ZD404 0.1uF 5.1K 5V R419 16V 1% GND 100 R426 +3.5V_POWER_DET 10K P401 SMAW200-H18S5 C R425 Ready - Dual Power Det Power Detect activity B 10K L400 INV_CTL CB2012PK501T +3.5V_ST Detect Valtage Now is Use Circuit Designator FET_2.5V_DIODE E Q402 FET_NXP PWR ON 1 2 DRV ON MMBT3904(NXP) Q406-*1 L401 C407 10uF 10V C400 1uF 10V ZD400 5V CB2012PK501T 3.5V 3.5V 3 4 PDIM#1 3.5V PWM_DIM Power Detect +3.5V R432, R454-*1, R438 +3.3V_Normal DMP2130L Q406-*2 PMV48XP S D S D 2012 1005 5 6 OPT GND PDMI#2 L402 7 8 PWM1 * Notice Power Detect +12V O R430, R431, R454 MLB-201209-0120P-N2 24V 24V +24V 9 10 PWM_DIM_PULL_DOWN PWM2_2CH_POWER OPT - Applying all inch models for LCD L14 +3.5V_ST +3.3V_Normal G G +24V_CAP GND GND R424 R423 C401 11 12 100 R467 - Dual Power Det is used Power Detect +24V R457, R454 C432 12V 12V 3.9K 1K 4.7uF 0.1uF 13 14 for detecting two kinds of voltage 50V 12V NC FET_2.5V_AOS 50V 15 16 Q406 L410 3216 GND 17 18 GND L403 AO3435 BLM18PG121SN1D MLB-201209-0120P-N2 +12V S D +12V_CAP C433 4.7uF C402 0.1uF 19 +1.10V_VDDC . C428 C429 C430 G 16V 16V R443 R447 ZD402 +3.5V_ST 10K 22K 2.2uF 0.1uF 22uF 3216 5V IC403 +3.3V_Normal 10V 16V 10V L406 TPS5432DDAR [EP]GND CB2012PK501T C418 OPT 0.01uF C437 C436 C414 C435 BOOT SS R429 R448 1 8 2.2K 0.1uF 10uF 10uF 0.1uF 10K THERMAL 16V 10V 10V 16V +1.10V_VDDC VIN EN 9 2 7 C +1.5V_DDR Vout=1.25*(1+R2/R1)+Iadj*R2 L407 C417 POWER_ON/OFF_1 R444 10K B Q404 3.6uH 0.1uF MMBT3904(NXP) 16V PH COMP 3 6 C416 +3.3V_Normal +1.5V_DDR 3A 0.33uF E OPT R433 16V ZD401 C424 C421 C420 GND VSENSE 2.7K 22uF 22uF 4 5 L409 IC404 L411 2.5V 0.1uF 1% AZ1117EH-ADJTRG1 16V 10V 10V C419 C434 BLM18PG121SN1D CB2012PK501T C423 R439 0.039uF 390pF 50V 20K R1 50V 50V 270pF 1% IN OUT ADJ/GND C426 R449 R453 ZD403 10uF 1K R1 0 2.5V R440 R2 10V 1/16W 47K 1% C431 1% 10uF 1.3A R450 200 1/16W R2 10V 1% Vout=0.808*(1+R1/R2) +5V_Normal & +5V_USB with OCP +12V C405 C406 10uF 10uF 16V [EP]GND PGND_2 PGND_1 PGOOD VIN_2 VIN_1 OPT R410 V7V 100K C403 100pF +5V_Normal 50V C409 L405 24 23 22 21 20 19 0.047uF 4.7uH EN BST 25V C404 R408 4700pF 1 18 4.7K 50V THERMAL +3.3V_Normal COMP 25 LX_2 R421 C411 C412 2 17 18K 82pF 22uF +3.3V_Normal OPT SS LX_1 1% 50V 16V R459 3 16 OPT OPT 0 IC400 R1 ROSC FB R403 R405 4 15 4.7K 4.7K TPS65282REGR EN_SW2 SW_IN_2 R2 MHL_5V_EN 5 14 MHL_SW_TR R463 MHL_SW_TR R464 USB1_CTL EN_SW1 6 4A 13 SW_IN_1 R422 3.3K 2.7K 10K 1% 10 11 12 7 8 9 MHL_SW_TR +3.3V_Normal C410 +5V_USB 10uF Q408 10V FAULT2 FAULT1 SW_OUT2 RLIM AGND SW_OUT1 E C MHL_5V_EN R407 R409 MHL_SW_TR 10K 10K C R461 R415 5V_HDMI_4 AVDD5V_MHL 10K B R466 B 15K /VBUS_EN 20K 5% D401 R418 (Active Low) MHL_SW_TR MBR230LSFT1G E MHL_SW_TR Q407 R465 30V 10 10K MHL_SW_TR C OPT C408 R462 R416 10uF 10K /MHL_OCP_DET USB1_OCD B 100K 10V MHL_OCP_EN MHL_SW_TR (Active High) Q409 E Vout=0.8*(1+R1/R2) THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS L14_M1A 131123 ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. Power_PD2 4 Copyright © 2014 LG Electronics. Inc. All rights reserved. LGE Internal Use Only Only for training and service purposes

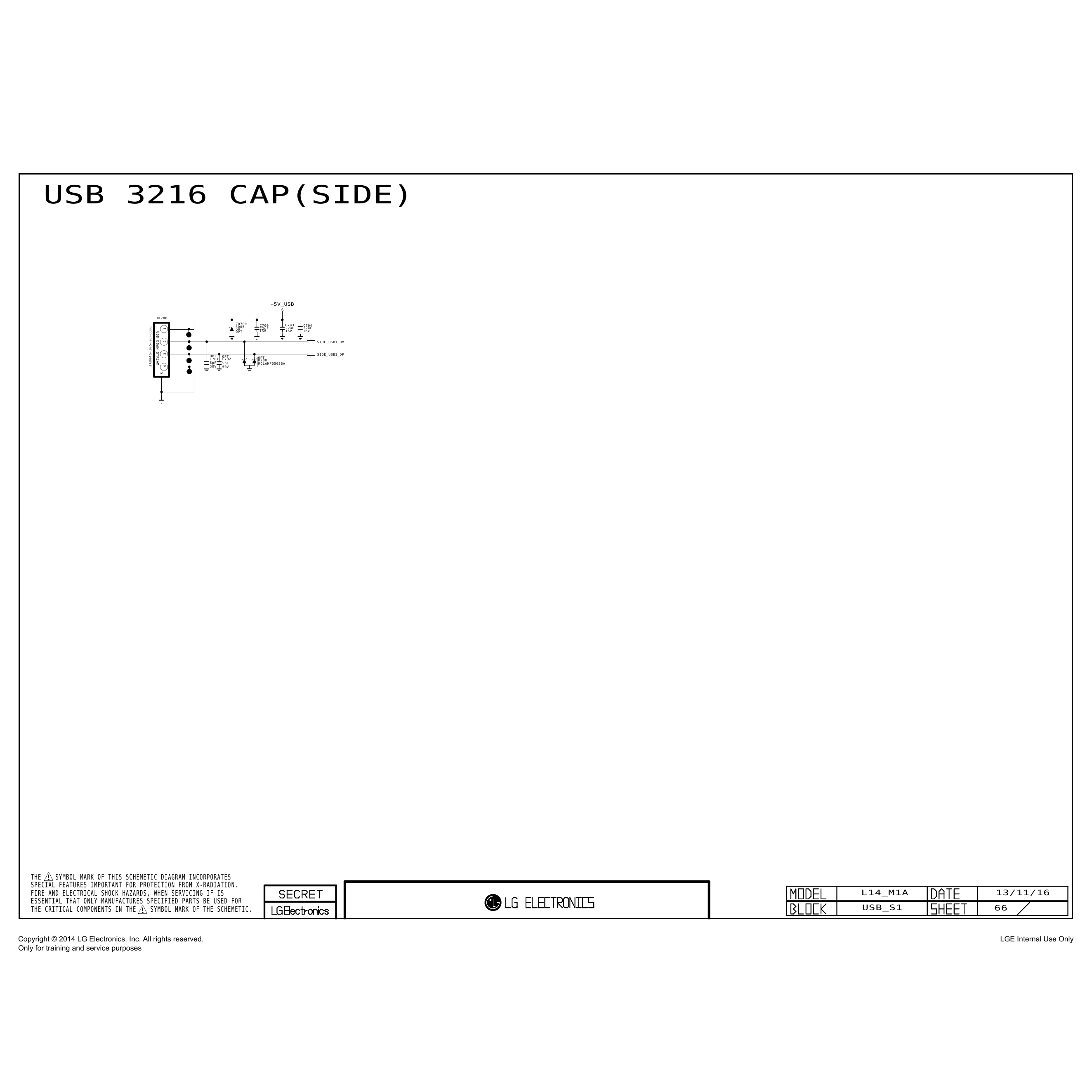

USB 3216 CAP(SIDE) +5V_USB JK700 ZD700 C703 C704 SD05 C700 3AU04S-305-ZC-(LG) 22uF 22uF 22uF 1 5V OPT 16V 16V 16V USB DOWN STREAM 2 SIDE_USB1_DM 3 SIDE_USB1_DP OPT OPT OPT C701 C702 D700 5pF 5pF RCLAMP0502BA 4 50V 50V 5 THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS L14_M1A 13/11/16 ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. USB_S1 66 Copyright © 2014 LG Electronics. Inc. All rights reserved. LGE Internal Use Only Only for training and service purposes

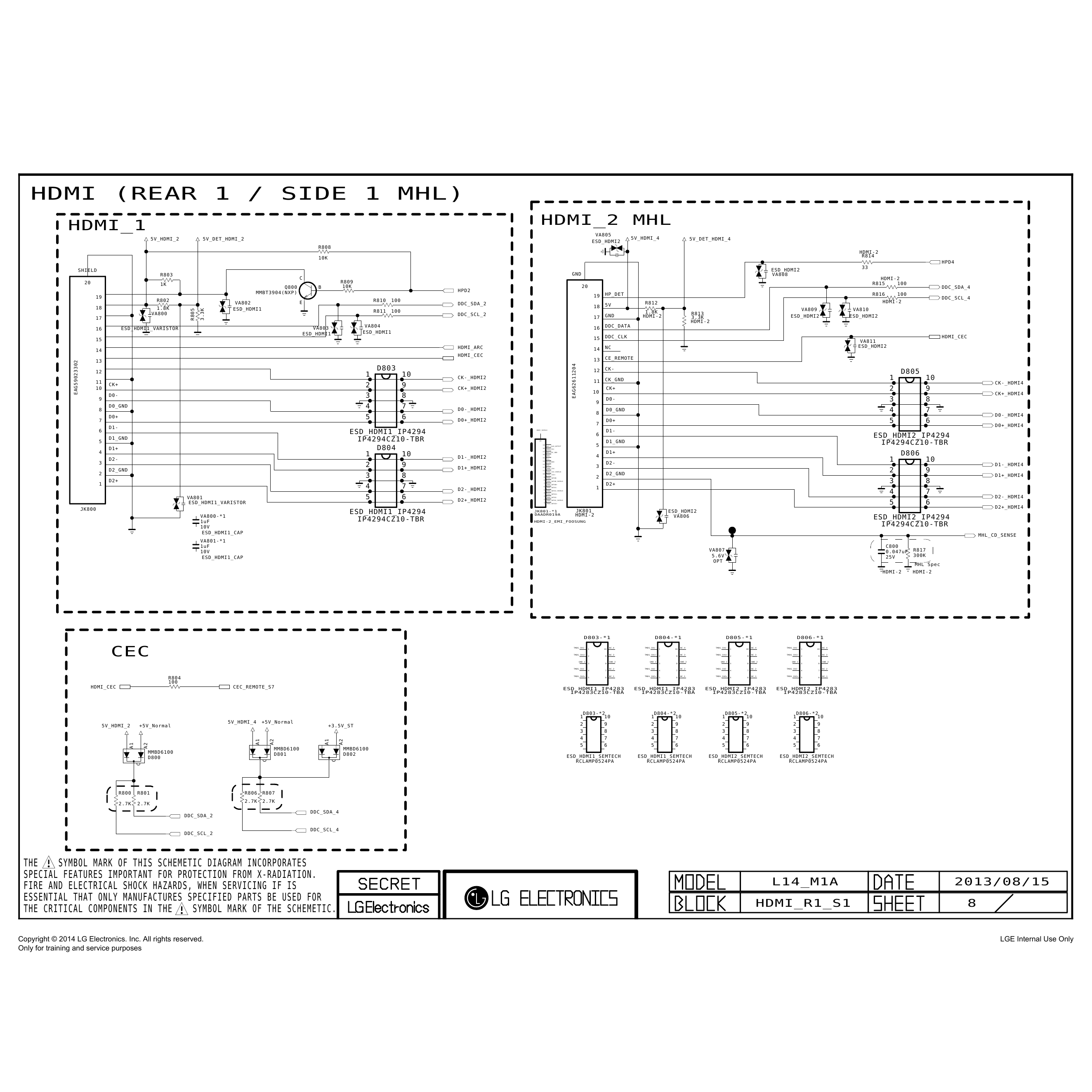

HDMI (REAR 1 / SIDE 1 MHL) HDMI_1 HDMI_2 MHL VA805 5V_HDMI_2 5V_DET_HDMI_2 5V_HDMI_4 5V_DET_HDMI_4 ESD_HDMI2 R808 HDMI-2 10K R814 HPD4 33 SHIELD ESD_HDMI2 R803 GND VA808 C HDMI-2 20 R809 R815 100 1K 10K 20 Q800 B DDC_SDA_4 MMBT3904(NXP) HPD2 19 HP_DET R816 100 19 DDC_SCL_4 R802 E R810 100 HDMI-2 VA802 DDC_SDA_2 5V R812 18 1.8K 18 ESD_HDMI1 VA809 VA810 R805 3.3K R811 100 1.8K VA800 DDC_SCL_2 GND HDMI-2 R813 ESD_HDMI2 ESD_HDMI2 17 17 3.3K HDMI-2 VA803 VA804 16 DDC_DATA 16 ESD_HDMI1_VARISTOR ESD_HDMI1 ESD_HDMI1 15 DDC_CLK HDMI_CEC 15 VA811 HDMI_ARC NC ESD_HDMI2 14 14 HDMI_CEC 13 CE_REMOTE 13 EAG59023302 EAG62611204 D803 12 CK- 12 1 10 D805 CK-_HDMI2 11 CK_GND 1 10 11 CK-_HDMI4 CK+ 2 9 10 CK+_HDMI2 10 CK+ 2 9 CK+_HDMI4 D0- 3 8 9 9 D0- 3 8 D0_GND 4 7 8 D0-_HDMI2 8 D0_GND 4 7 D0-_HDMI4 D0+ 5 6 7 D0+_HDMI2 7 D0+ 5 6 D1- D0+_HDMI4 6 ESD_HDMI1_IP4294 BODY_SHIELD D1- 6 ESD_HDMI2_IP4294 D1_GND IP4294CZ10-TBR 5 20 D1_GND IP4294CZ10-TBR 19 HOT_PLUG_DETECT 5 D1+ D804 18 VDD[+5V] 4 17 D1+ D806 1 10 D1-_HDMI2 16 DDC/CEC_GND SDA 4 3 D2- 15 14 SCL RESERVED D2- 1 10 2 9 D1+_HDMI2 13 12 CEC 3 D1-_HDMI4 2 D2_GND 11 TMDS_CLK- TMDS_CLK_SHIELD D2_GND 2 9 3 8 10 9 TMDS_CLK+ TMDS_DATA0- 2 D1+_HDMI4 1 D2+ 8 7 TMDS_DATA0_SHIELD D2+ 3 8 4 7 D2-_HDMI2 6 TMDS_DATA0+ TMDS_DATA1- 1 5 4 TMDS_DATA1_SHIELD TMDS_DATA1+ 4 7 VA801 5 6 D2+_HDMI2 3 2 TMDS_DATA2- D2-_HDMI4 ESD_HDMI1_VARISTOR 1 TMDS_DATA2_SHIELD TMDS_DATA2+ 5 6 JK800 D2+_HDMI4 ESD_HDMI1_IP4294 JK801-*1 JK801 ESD_HDMI2 VA800-*1 DAADR019A HDMI-2 VA806 IP4294CZ10-TBR ESD_HDMI2_IP4294 1uF HDMI-2_EMI_FOOSUNG 10V IP4294CZ10-TBR ESD_HDMI1_CAP MHL_CD_SENSE VA801-*1 1uF C800 10V VA807 0.047uF R817 5.6V 25V 300K ESD_HDMI1_CAP OPT MHL Spec HDMI-2 HDMI-2 D803-*1 D804-*1 D805-*1 D806-*1 TMDS_CH1- NC_4 TMDS_CH1- NC_4 TMDS_CH1- NC_4 TMDS_CH1- NC_4 CEC TMDS_CH1+ GND_1 1 2 10 9 NC_3 GND_2 TMDS_CH1+ GND_1 1 2 10 9 NC_3 GND_2 TMDS_CH1+ GND_1 1 2 10 9 NC_3 GND_2 TMDS_CH1+ GND_1 1 2 10 9 NC_3 GND_2 3 8 3 8 3 8 3 8 TMDS_CH2- NC_2 TMDS_CH2- NC_2 TMDS_CH2- NC_2 TMDS_CH2- NC_2 4 7 4 7 4 7 4 7 TMDS_CH2+ NC_1 TMDS_CH2+ NC_1 TMDS_CH2+ NC_1 TMDS_CH2+ NC_1 R804 5 6 5 6 5 6 5 6 100 HDMI_CEC CEC_REMOTE_S7 ESD_HDMI1_IP4283 ESD_HDMI1_IP4283 ESD_HDMI2_IP4283 ESD_HDMI2_IP4283 IP4283CZ10-TBA IP4283CZ10-TBA IP4283CZ10-TBA IP4283CZ10-TBA D803-*2 D804-*2 D805-*2 D806-*2 1 10 1 10 1 10 1 10 5V_HDMI_4 +5V_Normal 2 9 2 9 2 9 2 9 5V_HDMI_2 +5V_Normal +3.5V_ST 3 8 3 8 3 8 3 8 4 7 4 7 4 7 4 7 A1 A2 A1 A2 A1 A2 5 6 5 6 5 6 5 6 MMBD6100 MMBD6100 MMBD6100 D801 D802 D800 ESD_HDMI1_SEMTECH ESD_HDMI1_SEMTECH ESD_HDMI2_SEMTECH ESD_HDMI2_SEMTECH C C RCLAMP0524PA RCLAMP0524PA RCLAMP0524PA RCLAMP0524PA C R800 R801 R806 R807 2.7K 2.7K 2.7K 2.7K DDC_SDA_4 DDC_SDA_2 DDC_SCL_4 DDC_SCL_2 THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS L14_M1A 2013/08/15 ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR HDMI_R1_S1 8 THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. Copyright © 2014 LG Electronics. Inc. All rights reserved. LGE Internal Use Only Only for training and service purposes

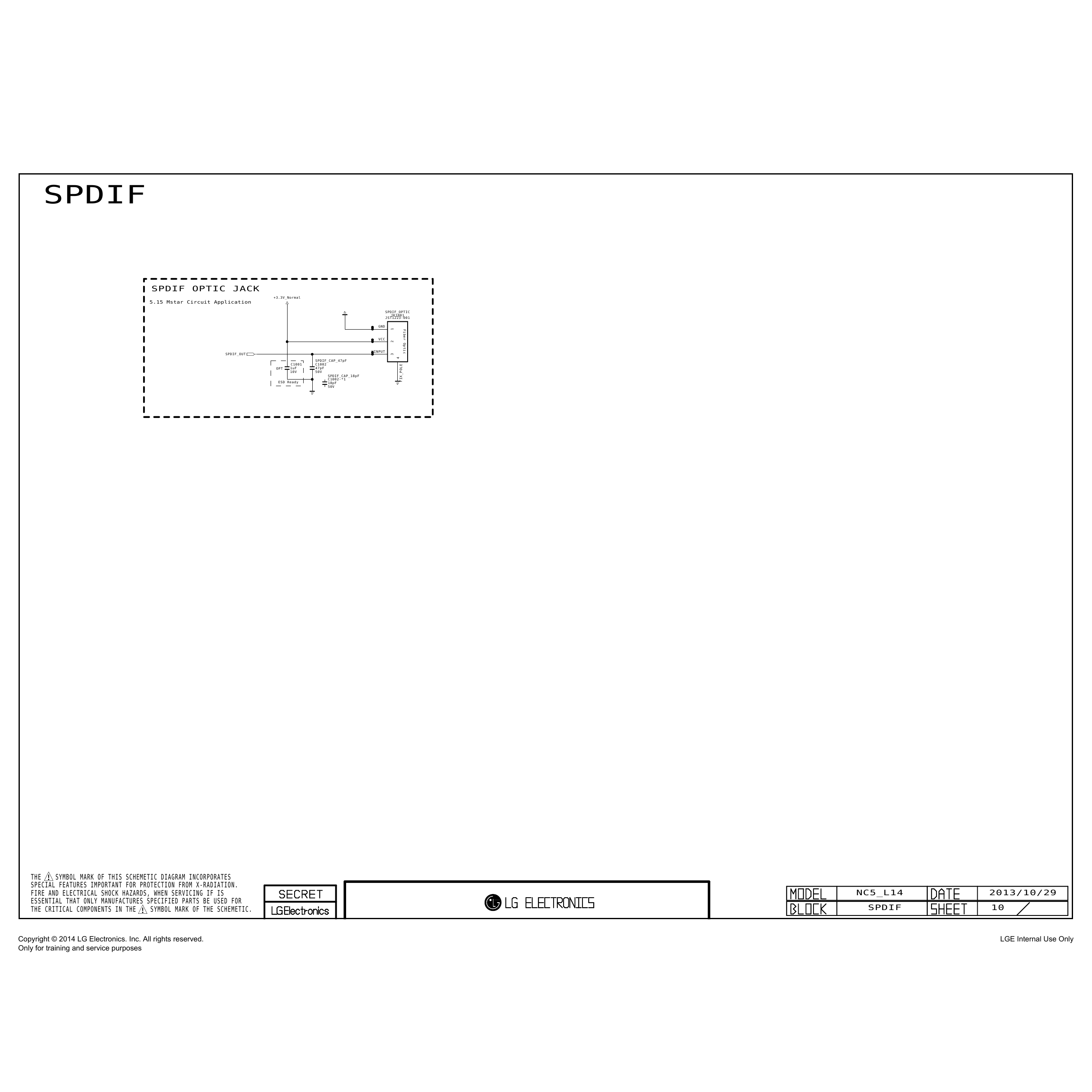

SPDIF SPDIF OPTIC JACK +3.3V_Normal 5.15 Mstar Circuit Application SPDIF_OPTIC JK1001 JST1223-001 GND 1 Fiber Optic VCC 2 VINPUT 3 SPDIF_OUT 4 SPDIF_CAP_47pF C1001 C1002 FIX_POLE OPT 1uF 47pF 10V 50V SPDIF_CAP_18pF C1002-*1 ESD Ready 18pF 50V THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS NC5_L14 2013/10/29 ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. SPDIF 10 Copyright © 2014 LG Electronics. Inc. All rights reserved. LGE Internal Use Only Only for training and service purposes

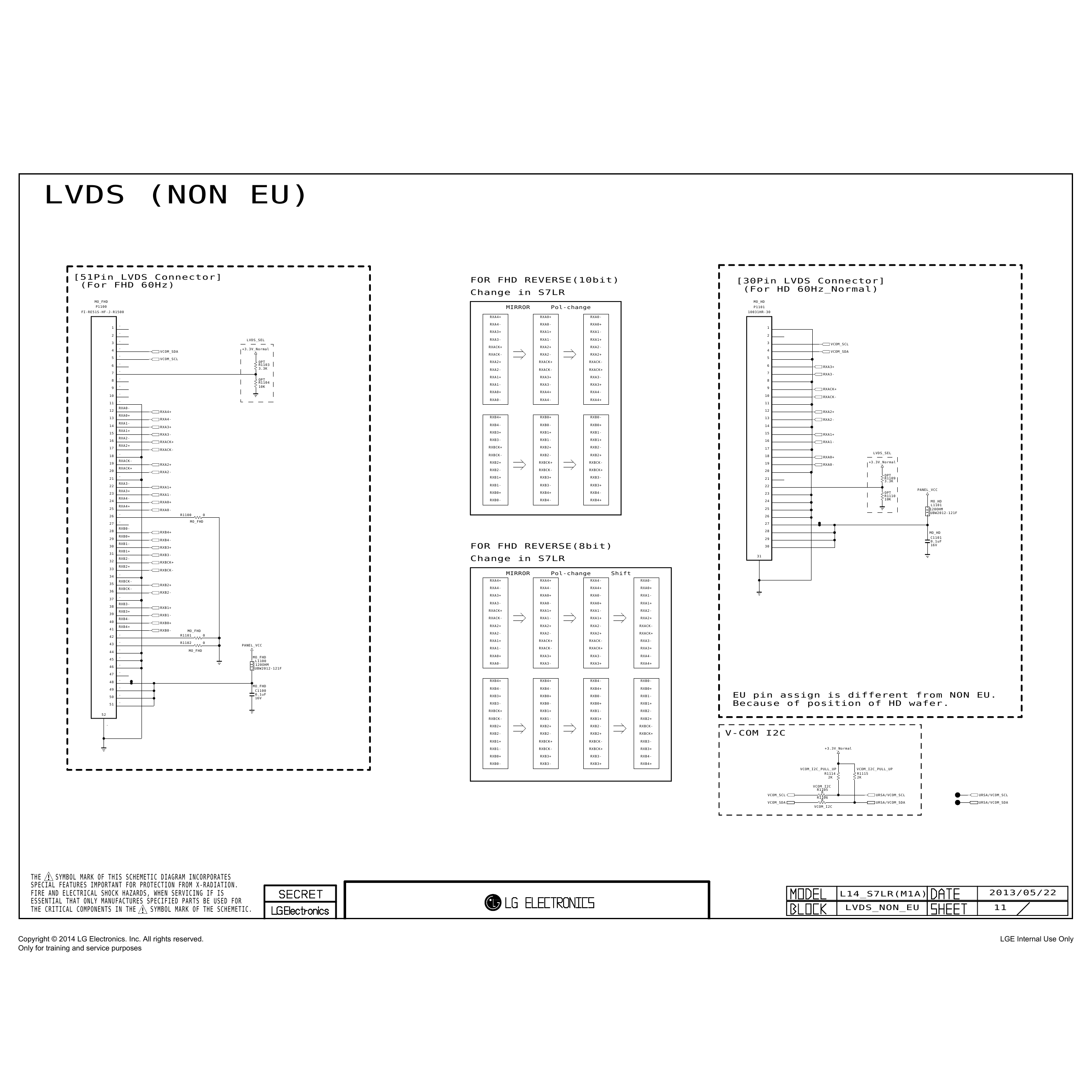

LVDS (NON EU) [51Pin LVDS Connector] FOR FHD REVERSE(10bit) [30Pin LVDS Connector] (For FHD 60Hz) (For HD 60Hz_Normal) Change in S7LR MO_FHD MO_HD P1100 MIRROR Pol-change P1101 FI-RE51S-HF-J-R1500 10031HR-30 RXA4+ RXA0+ RXA0- . RXA4- RXA0- RXA0+ 1 1 . RXA3+ RXA1+ RXA1- 2 2 . LVDS_SEL RXA3- RXA1- RXA1+ 3 3 VCOM_SCL . RXACK+ RXA2+ RXA2- 4 +3.3V_Normal 4 VCOM_SDA VCOM_SDA . RXACK- RXA2- RXA2+ 5 VCOM_SCL 5 . OPT RXA2+ RXACK+ RXACK- 6 R1103 6 RXA3+ 3.3K RXA2- RXACK- RXACK+ . 7 7 RXA3- . RXA1+ RXA3+ RXA3- 8 OPT 8 R1104 . RXA1- RXA3- RXA3+ 9 10K 9 RXACK+ . RXA0+ RXA4+ RXA4- 10 10 RXACK- . RXA0- RXA4- RXA4+ 11 11 RXA0- 12 RXA4+ 12 RXA2+ RXA0+ RXB4+ RXB0+ RXB0- 13 RXA4- 13 RXA2- RXA1- RXB4- RXB0- RXB0+ 14 RXA3+ 14 RXA1+ RXB3+ RXB1+ RXB1- 15 RXA3- 15 RXA1+ RXA2- RXB3- RXB1- RXB1+ 16 RXACK+ 16 RXA1- RXA2+ RXBCK+ RXB2+ RXB2- 17 RXACK- 17 . LVDS_SEL 18 RXBCK- RXB2- RXB2+ 18 RXA0+ RXACK- RXB2+ RXBCK+ RXBCK- +3.3V_Normal 19 RXA2+ 19 RXA0- RXACK+ RXB2- RXBCK- RXBCK+ 20 RXA2- 20 . OPT 21 RXB1+ RXB3+ RXB3- 21 R1109 3.3K RXA3- RXB1- RXB3- RXB3+ 22 RXA1+ 22 RXA3+ PANEL_VCC 23 RXB0+ RXB4+ RXB4- 23 OPT RXA1- R1110 RXA4- RXB0- RXB4- RXB4+ 10K 24 RXA0+ 24 MO_HD RXA4+ L1101 25 RXA0- 25 120OHM . UBW2012-121F 26 R1100 0 26 . MO_FHD 27 27 RXB0- 28 RXB4+ 28 MO_HD RXB0+ C1101 29 RXB4- 29 0.1uF RXB1- 30 RXB3+ FOR FHD REVERSE(8bit) 30 16V RXB1+ 31 RXB3- 31 32 RXB2- RXBCK+ Change in S7LR RXB2+ 33 RXBCK- . MIRROR Pol-change Shift 34 RXBCK- RXA4+ RXA4+ RXA4- RXA0- 35 RXB2+ RXBCK- RXA4- RXA4- RXA4+ RXA0+ 36 RXB2- . RXA3+ RXA0+ RXA0- RXA1- 37 RXB3- RXA3- RXA0- RXA0+ RXA1+ 38 RXB1+ RXB3+ RXACK+ RXA1+ RXA1- RXA2- 39 RXB1- RXB4- RXACK- RXA1- RXA1+ RXA2+ 40 RXB0+ RXB4+ RXA2+ RXA2+ RXA2- RXACK- 41 RXB0- MO_FHD . RXA2- RXA2- RXA2+ RXACK+ 42 R1101 0 . RXA1+ RXACK+ RXACK- RXA3- 43 R1102 0 PANEL_VCC . RXA1- RXACK- RXACK+ RXA3+ 44 MO_FHD . MO_FHD RXA0+ RXA3+ RXA3- RXA4- 45 L1100 . 120OHM RXA0- RXA3- RXA3+ RXA4+ 46 UBW2012-121F . 47 . RXB4+ RXB4+ RXB4- RXB0- 48 . MO_FHD 49 RXB4- RXB4- RXB4+ RXB0+ C1100 50 . 0.1uF 16V RXB3+ RXB0+ RXB0- RXB1- EU pin assign is different from NON EU. . 51 RXB3- RXB0- RXB0+ RXB1+ Because of position of HD wafer. RXBCK+ RXB1+ RXB1- RXB2- 52 RXBCK- RXB1- RXB1+ RXB2+ . RXB2+ RXB2+ RXB2- RXBCK- RXB2- RXB2- RXB2+ RXBCK+ V-COM I2C RXB1+ RXBCK+ RXBCK- RXB3- RXB1- RXBCK- RXBCK+ RXB3+ +3.3V_Normal RXB0+ RXB3+ RXB3- RXB4- RXB0- RXB3- RXB3+ RXB4+ VCOM_I2C_PULL_UP VCOM_I2C_PULL_UP R1114 R1115 2K 2K VCOM_I2C R1105 0 VCOM_SCL URSA/VCOM_SCL URSA/VCOM_SCL R1106 0 VCOM_SDA URSA/VCOM_SDA URSA/VCOM_SDA VCOM_I2C THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS L14_S7LR(M1A) 2013/05/22 ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. LVDS_NON_EU 11 Copyright © 2014 LG Electronics. Inc. All rights reserved. LGE Internal Use Only Only for training and service purposes

+1.5V_DDR +1.5V_DDR Option : Ripple Check !!! R12011K1% R1205 1K 1% R1204 1K 1% +1.5V_DDR +1.5V_DDR DDR_EXT DDR_EXT C1202 1000pF A-MVREFDQ A-MVREFCA 1K1% C1201 0.1uF C1213 0.1uF C12141000pF 10uF 10V C1219 C1220 C1221 C1222 C1223 DDR_EXT DDR_EXT DDR_EXT DDR_EXT 0.1uF 0.1uF 0.1uF C1217 C1218 C1224 DDR_EXT DDR_EXT C1216 1uF 1uF 1uF 1uF 1uF R1202 OPT OPT OPT OPT OPT OPT OPT OPT OPT CLose to DDR3 CLose to Saturn7M IC DDR_1600_1G_HYNIX IC1201 M1A_256M M1A_128M H5TQ1G63EFR-PBC IC101 IC101-*1 DDR_1600_1G_SS DDR_1600_2G_HYNIX_OLD DDR_1600_2G_HYNIX_NEW DDR_1600_2G_SS LGE2132(M1A_256M) LGE2131(M1A_128M) EAN61829003 IC1201-*1 IC1201-*2 IC1201-*3 IC1201-*4 M8 N3 K4B1G1646G-BCK0 H5TQ2G63DFR-PBC H5TQ2G63FFR-PBC K4B2G1646Q-BCK0 A-MVREFCA VREFCA A0 A-MA0 EAN61836301 EAN61829203 EAN61829204 EAN61848803 P7 A1 A-MA1 E11 E11 N3 A0 VREFCA M8 N3 A0 VREFCA M8 N3 A0 VREFCA M8 N3 A0 VREFCA M8 P3 A-MA0 B_DDR3_A[0] B_DDR3_A[0] P7 A1 P7 A1 P7 A1 P7 A1 A2 A-MA2 F12 F12 P3 A2 P3 A2 P3 A2 P3 A2 H1 N2 A-MA1 B_DDR3_A[1] B_DDR3_A[1] N2 A3 VREFDQ H1 N2 A3 VREFDQ H1 N2 A3 VREFDQ H1 N2 A3 VREFDQ H1 A-MVREFDQ VREFDQ A3 A-MA3 D10 D10 P8 A4 P8 A4 P8 A4 P8 A4 P8 A-MA2 B_DDR3_A[2] B_DDR3_A[2] P2 A5 P2 A5 P2 A5 P2 A5 A4 A-MA4 B10 B10 R8 A6 ZQ L8 R8 A6 ZQ L8 R8 A6 ZQ L8 R8 A6 ZQ L8 DDR_EXT P2 A-MA3 B_DDR3_A[3] B_DDR3_A[3] R2 A7 R2 A7 R2 A7 R2 A7 R1203 A5 A-MA5 E15 E15 T8 A8 T8 A8 T8 A8 T8 A8 L8 R8 A-MA4 B_DDR3_A[4] B_DDR3_A[4] R3 A9 VDD_1 B2 R3 A9 VDD_1 B2 R3 A9 VDD_1 B2 R3 A9 VDD_1 B2 ZQ A6 A-MA6 B11 B11 L7 A10/AP VDD_2 D9 L7 A10/AP VDD_2 D9 L7 A10/AP VDD_2 D9 L7 A10/AP VDD_2 D9 240 R2 A-MA5 B_DDR3_A[5] B_DDR3_A[5] R7 A11 VDD_3 G7 R7 A11 VDD_3 G7 R7 A11 VDD_3 G7 R7 A11 VDD_3 G7 +1.5V_DDR A7 A-MA7 F14 F14 N7 A12/BC VDD_4 K2 N7 A12/BC VDD_4 K2 N7 A12/BC VDD_4 K2 N7 A12/BC VDD_4 K2 1% T8 A-MA6 B_DDR3_A[6] B_DDR3_A[6] T3 A13 VDD_5 K8 T3 A13 VDD_5 K8 T3 A13 VDD_5 K8 T3 A13 VDD_5 K8 A8 A-MA8 C11 C11 VDD_6 N1 VDD_6 N1 VDD_6 N1 VDD_6 N1 B2 R3 A-MA7 B_DDR3_A[7] B_DDR3_A[7] M7 NC_5 VDD_7 N9 M7 NC_5 VDD_7 N9 M7 NC_5 VDD_7 N9 M7 NC_5 VDD_7 N9 VDD_1 A9 A-MA9 D14 D14 DDR_EXT 10V C1203 D9 L7 A-MA8 B_DDR3_A[8] B_DDR3_A[8] R1 R1 R1 R1 VDD_8 VDD_8 VDD_8 VDD_8 10uF A-MA10 A12 A12 M2 BA0 VDD_9 R9 M2 BA0 VDD_9 R9 M2 BA0 VDD_9 R9 M2 BA0 VDD_9 R9 VDD_2 A10/AP N8 BA1 N8 BA1 N8 BA1 N8 BA1 DDR_EXT C1204 0.1uF G7 R7 A-MA9 B_DDR3_A[9] B_DDR3_A[9] M3 BA2 M3 BA2 M3 BA2 M3 BA2 VDD_3 A11 A-MA11 F16 F16 VDDQ_1 A1 VDDQ_1 A1 VDDQ_1 A1 VDDQ_1 A1 DDR_EXT C1205 0.1uF K2 N7 A-MA10 B_DDR3_A[10] B_DDR3_A[10] J7 CK VDDQ_2 A8 J7 CK VDDQ_2 A8 J7 CK VDDQ_2 A8 J7 CK VDDQ_2 A8 VDD_4 A12/BC A-MA12 D13 D13 K7 CK VDDQ_3 C1 K7 CK VDDQ_3 C1 K7 CK VDDQ_3 C1 K7 CK VDDQ_3 C1 DDR_EXT C1206 0.1uF K8 T3 A-MA11 B_DDR3_A[11] B_DDR3_A[11] K9 CKE VDDQ_4 C9 K9 CKE VDDQ_4 C9 K9 CKE VDDQ_4 C9 K9 CKE VDDQ_4 C9 VDD_5 NC_7 A-MA13 D15 D15 VDDQ_5 D2 VDDQ_5 D2 VDDQ_5 D2 VDDQ_5 D2 DDR_EXT C1207 0.1uF N1 A-MA12 B_DDR3_A[12] B_DDR3_A[12] L2 CS VDDQ_6 E9 L2 CS VDDQ_6 E9 L2 CS VDDQ_6 E9 L2 CS VDDQ_6 E9 VDD_6 C12 C12 K1 ODT VDDQ_7 F1 K1 ODT VDDQ_7 F1 K1 ODT VDDQ_7 F1 K1 ODT VDDQ_7 F1 DDR_EXT C1208 0.1uF N9 M7 A-MA13 B_DDR3_A[13] B_DDR3_A[13] J3 RAS VDDQ_8 H2 J3 RAS VDDQ_8 H2 J3 RAS VDDQ_8 H2 J3 RAS VDDQ_8 H2 VDD_7 NC_5 E13 E13 K3 CAS VDDQ_9 H9 K3 CAS VDDQ_9 H9 K3 CAS VDDQ_9 H9 K3 CAS VDDQ_9 H9 DDR_EXT C1209 0.1uF R1 A-MA14 B_DDR3_A[14] B_DDR3_A[14] L3 WE L3 WE L3 WE L3 WE VDD_8 NC_1 J1 NC_1 J1 NC_1 J1 NC_1 J1 DDR_EXT C1210 0.1uF R9 M2 T2 J9 T2 J9 T2 J9 T2 J9 VDD_9 BA0 A-MBA0 A-MCK A9 A9 1% DDR_EXT DDR_EXT RESET NC_2 RESET NC_2 RESET NC_2 RESET NC_2 R1207 NC_3 L1 NC_3 L1 NC_3 L1 NC_3 L1 DDR_EXT C1211 0.1uF N8 A-MBA0 B_DDR3_BA[0] B_DDR3_BA[0] NC_4 L9 NC_4 L9 NC_4 L9 NC_4 L9 BA1 A-MBA1 D16 D16 F3 T7 F3 T7 F3 T7 F3 T7 C1212 0.1uF M3 A-MBA1 B_DDR3_BA[1] B_DDR3_BA[1] 56 G3 DQSL NC_6 G3 DQSL NC_6 G3 DQSL NC_6 G3 DQSL NC_6 DDR_EXT BA2 A-MBA2 DDR_EXT A10 A10 DQSL DQSL DQSL DQSL A1 C1215 A-MBA2 B_DDR3_BA[2] B_DDR3_BA[2] C7 DQSU VSS_1 A9 C7 DQSU VSS_1 A9 C7 DQSU VSS_1 A9 C7 DQSU VSS_1 A9 VDDQ_1 A8 J7 1% B7 B3 B7 B3 B7 B3 B7 B3 R1208 DQSU VSS_2 DQSU VSS_2 DQSU VSS_2 DQSU VSS_2 VSS_3 E1 VSS_3 E1 VSS_3 E1 VSS_3 E1 VDDQ_2 CK 0.01uF C13 C13 E7 DML VSS_4 G8 E7 DML VSS_4 G8 E7 DML VSS_4 G8 E7 DML VSS_4 G8 C1 K7 50V A-MCK B_DDR3_MCLK B_DDR3_MCLK B13 B13 56 D3 J2 D3 J2 D3 J2 D3 J2 DMU VSS_5 DMU VSS_5 DMU VSS_5 DMU VSS_5 VDDQ_3 CK VSS_6 J8 VSS_6 J8 VSS_6 J8 VSS_6 J8 C9 K9 A-MCKB B_DDR3_MCLKZ B_DDR3_MCLKZ E3 DQL0 VSS_7 M1 E3 DQL0 VSS_7 M1 E3 DQL0 VSS_7 M1 E3 DQL0 VSS_7 M1 VDDQ_4 CKE A-MCKE E17 E17 F7 DQL1 VSS_8 M9 F7 DQL1 VSS_8 M9 F7 DQL1 VSS_8 M9 F7 DQL1 VSS_8 M9 D2 A-MCKE B_DDR3_MCLKE B_DDR3_MCLKE F2 DQL2 VSS_9 P1 F2 DQL2 VSS_9 P1 F2 DQL2 VSS_9 P1 F2 DQL2 VSS_9 P1 VDDQ_5 A-MCKB F8 DQL3 VSS_10 P9 F8 DQL3 VSS_10 P9 F8 DQL3 VSS_10 P9 F8 DQL3 VSS_10 P9 E9 L2 H3 DQL4 VSS_11 T1 H3 DQL4 VSS_11 T1 H3 DQL4 VSS_11 T1 H3 DQL4 VSS_11 T1 VDDQ_6 CS A/B_DDR3_CS B8 B8 H8 DQL5 VSS_12 T9 H8 DQL5 VSS_12 T9 H8 DQL5 VSS_12 T9 H8 DQL5 VSS_12 T9 F1 K1 A-MODT B_DDR3_ODT B_DDR3_ODT G2 DQL6 G2 DQL6 G2 DQL6 G2 DQL6 VDDQ_7 ODT A-MODT C8 C8 H7 DQL7 H7 DQL7 H7 DQL7 H7 DQL7 H2 J3 A-MRASB B_DDR3_RASZ B_DDR3_RASZ VSSQ_1 B1 VSSQ_1 B1 VSSQ_1 B1 VSSQ_1 B1 VDDQ_8 RAS A-MRASB +1.5V_DDR B9 B9 D7 DQU0 VSSQ_2 B9 D7 DQU0 VSSQ_2 B9 D7 DQU0 VSSQ_2 B9 D7 DQU0 VSSQ_2 B9 H9 K3 A-MCASB B_DDR3_CASZ B_DDR3_CASZ C3 DQU1 VSSQ_3 D1 C3 DQU1 VSSQ_3 D1 C3 DQU1 VSSQ_3 D1 C3 DQU1 VSSQ_3 D1 VDDQ_9 CAS A-MCASB DDR_EXT D11 D11 L3 A-MWEB A-MDQSU A-MDQSL C8 D8 C8 D8 C8 D8 C8 D8 B_DDR3_WEZ B_DDR3_WEZ A-MWEB R1206 DQU2 VSSQ_4 DQU2 VSSQ_4 DQU2 VSSQ_4 DQU2 VSSQ_4 C2 DQU3 VSSQ_5 E2 C2 DQU3 VSSQ_5 E2 C2 DQU3 VSSQ_5 E2 C2 DQU3 VSSQ_5 E2 WE A7 DQU4 VSSQ_6 E8 A7 DQU4 VSSQ_6 E8 A7 DQU4 VSSQ_6 E8 A7 DQU4 VSSQ_6 E8 J1 A2 DQU5 VSSQ_7 F9 A2 DQU5 VSSQ_7 F9 A2 DQU5 VSSQ_7 F9 A2 DQU5 VSSQ_7 F9 NC_1 10K F10 F10 B8 G1 B8 G1 B8 G1 B8 G1 J9 T2 A-MRESETB B_RESET B_RESET A-MDQSUB A-MDQSLB DQU6 VSSQ_8 DQU6 VSSQ_8 DQU6 VSSQ_8 DQU6 VSSQ_8 A3 DQU7 VSSQ_9 G9 A3 DQU7 VSSQ_9 G9 A3 DQU7 VSSQ_9 G9 A3 DQU7 VSSQ_9 G9 NC_2 RESET A-MRESETB L1 NC_3 D12 D12 L9 A/B_DDR3_CS B_DDR3_CS0 B_DDR3_CS0 NC_4 T7 F3 A-MA14 NC_6 DQSL A-MDQSL A19 A19 G3 B_DDR3_DQSL B_DDR3_DQSL DQSL A-MDQSLB B18 B18 B_DDR3_DQSU B_DDR3_DQSU A9 C7 VSS_1 DQSU A-MDQSU C16 C16 B3 B7 A-MDML B_DDR3_DQML B_DDR3_DQML VSS_2 DQSU A-MDQSUB D21 D21 E1 A-MDMU B_DDR3_DQMU B_DDR3_DQMU VSS_3 G8 E7 VSS_4 DML A-MDML C18 C18 J2 D3 B_DDR3_DQSBL B_DDR3_DQSBL VSS_5 DMU A-MDMU C17 C17 J8 B_DDR3_DQSBU B_DDR3_DQSBU VSS_6 M1 E3 VSS_7 DQL0 A-MDQL0 A20 A20 M9 F7 A-MDQL0 B_DDR3_DQL[0] B_DDR3_DQL[0] VSS_8 DQL1 A-MDQL1 A16 A16 P1 F2 A-MDQL1 B_DDR3_DQL[1] B_DDR3_DQL[1] VSS_9 DQL2 A-MDQL2 C19 C19 P9 F8 A-MDQL2 B_DDR3_DQL[2] B_DDR3_DQL[2] VSS_10 DQL3 A-MDQL3 C15 C15 T1 H3 A-MDQL3 B_DDR3_DQL[3] B_DDR3_DQL[3] VSS_11 DQL4 A-MDQL4 C20 C20 T9 H8 A-MDQL4 B_DDR3_DQL[4] B_DDR3_DQL[4] VSS_12 DQL5 A-MDQL5 C14 C14 G2 A-MDQL5 B_DDR3_DQL[5] B_DDR3_DQL[5] DQL6 A-MDQL6 B21 B21 H7 A-MDQL6 B_DDR3_DQL[6] B_DDR3_DQL[6] DQL7 A-MDQL7 B15 B15 B1 A-MDQL7 B_DDR3_DQL[7] B_DDR3_DQL[7] VSSQ_1 F18 F18 B9 D7 A-MDQU0 B_DDR3_DQU[0] B_DDR3_DQU[0] VSSQ_2 DQU0 A-MDQU0 D19 D19 D1 C3 A-MDQU1 B_DDR3_DQU[1] B_DDR3_DQU[1] VSSQ_3 DQU1 A-MDQU1 D17 D17 D8 C8 A-MDQU2 B_DDR3_DQU[2] B_DDR3_DQU[2] VSSQ_4 DQU2 A-MDQU2 E21 E21 E2 C2 A-MDQU3 B_DDR3_DQU[3] B_DDR3_DQU[3] VSSQ_5 DQU3 A-MDQU3 E19 E19 E8 A7 A-MDQU4 B_DDR3_DQU[4] B_DDR3_DQU[4] VSSQ_6 DQU4 A-MDQU4 D20 D20 F9 A2 A-MDQU5 B_DDR3_DQU[5] B_DDR3_DQU[5] VSSQ_7 DQU5 A-MDQU5 D18 D18 G1 B8 A-MDQU6 B_DDR3_DQU[6] B_DDR3_DQU[6] VSSQ_8 DQU6 A-MDQU6 F20 F20 G9 A3 A-MDQU7 B_DDR3_DQU[7] B_DDR3_DQU[7] VSSQ_9 DQU7 A-MDQU7 R1209 E9 E9 ZQ ZQ 240 1% THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS NC5_S7LR(M1A) 2013/05/20 ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. 1_DDR 12 Copyright © 2014 LG Electronics. Inc. All rights reserved. LGE Internal Use Only Only for training and service purposes

Serial Flash for SPI boot +3.5V_ST +3.5V_ST SPI_FLASH_MACRONIX OPT IC1300 R1301 +3.5V_ST 4.7K MX25L8006EM2I-12G C1300 CS# VCC 0.1uF /SPI_CS 1 8 OPT R1300 10K SO/SIO1 HOLD# SPI_SDO 2 7 WP# SCLK /FLASH_WP 3 6 SPI_SCK R1302 GND SI/SIO0 33 4 5 SPI_SDI SPI_FLASH_WINBOND IC1300-*1 W25Q80BVSSIG CS VCC 1 8 DO[IO1] HOLD[IO3] 2 7 %WP[IO2] CLK 3 6 GND DI[IO0] 4 5 THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS NC5_S7LR(M1A) 2013/04/29 ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. S_FLASH 13 Copyright © 2014 LG Electronics. Inc. All rights reserved. LGE Internal Use Only Only for training and service purposes

GLOBAL tuner block KR & AJ FE_TS_SYNC FE_TS_VAL_ERR FE_AGC_SPEED_CTL IF_AGC_SEL TUNER_RESET RF_SWITCH_CTL FE_TS_CLK FE_TS_DATA[0] TU_ATSC TU1601 R1609 100 +3.3V_Normal IF_AGC_MAIN +3.3V_TU +3.3V_TU TDJH-H101F should be guarded by ground C1611 Size change,0929 0.1uF 16V L1600 UBW2012-121F R1610-*1 1K B1[+3.3V] TU_IIC_NON_ATSC_1K C1602 C1603 C1605 C1607 1 +3.3V_TU 22uF 0.1uF 22uF 0.1uF R1611-*1 6.3V 16V 6.3V 16V 1K NC_1 C1615 C1616 TU_IIC_NON_ATSC_1K 2 100pF 0.1uF 50V 16V CHANGE TO CHANGE TO IF_AGC 6.3V 2012 X5R 6.3V 2012 X5R 3 close to the tuner pin, add,09029 R1610 R1611 1.8K 1.8K TU_IIC_ATSC_1.8K TU_IIC_ATSC_1.8K SCL 4 R1607 33 TU_SCL SDA 5 R1608 33 TU_SDA C1610 OPT OPT IF[P] R1605 0 C1609 18pF 18pF 50V C1613 20pF C1614 20pF 6 IF_FILTER_AJ R1605-*1 50V 50V 50V IF_NON_FILTER_KR 10 IF[N] R1606 0 7 IF_FILTER_AJ IF_NON_FILTER_KR R1606-*1 10 NC_2 Close to the tuner 8 NC_3 9 IF_P_MSTAR A1 B1 A1 B1 IF_N_MSTAR 47 1. should be guarded by ground 2. No via on both of them 3. Signal Width >= 12mils Signal to Signal Width = 12mils SHIELD TU_GND_A Ground Width >= 24mils GND seperation for ASIS tuner TU_AJ_T/C TU1601-*1 TDJH-G101D B1[+3.3V] 1 NC_1 2 IF_AGC 3 SCL 4 SDA 5 IF[P] 6 IF[N] 7 NC_2 8 NC_3 9 A1 B1 A1 B1 47 SHIELD THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS L14_M1A 2013/06/05 ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. TUNER_KR_AJ 16 Copyright © 2014 LG Electronics. Inc. All rights reserved. LGE Internal Use Only Only for training and service purposes

COMPONENT & AV1(COMMON), AV2 COMP_AV1/2_YG JK1701 PPJ248-21 6C [RD3]E-LUG R1716 10K AV2_R_IN AV2 VA1706 5.6V R1700 C1701 R1718 AV2_LR_ZENER 470K 330pF 12K 5C [RD3]O-SPRING AV2 50V OPT AV2 4C [RD3]CONTACT R1717 10K AV2_L_IN AV2 VA1704 R1701 C1702 R1719 5.6V 470K 330pF 12K AV2 5B [WH2]O-SPRING AV2_LR_ZENER AV2 50V OPT AV2 +3.3V_Normal R1708 10K 4A [YL]CONTACT AV2 R1711 1K AV2_CVBS_DET AV2 VA1705 5.6V OPT 5A [YL]O-SPRING SC1/AV2_CVBS_IN ZD1706-*1 COMP_AV1_YG ZD1706 AV2_CVBS_ZENER_ROHM AV2 R1702 C1703 47pF AV2_CVBS_ZENER_KEC 75 R1725 3216 ZD1707-*1 JK1702 6A [YL]E-LUG ZD1707 AV2_CVBS_ZENER_ROHM 1608 1% 75 OPT 1% 1/4W 50V AV2 AV2_CVBS_ZENER_KEC PPJ245N2-01 Size Check !!! 6E [RD2]E-LUG 6H [RD2]E-LUG R1714 10K COMP2_R_IN VA1700 5.6V C1704 R1720 COMP_LR_ZENER R1703 330pF 5E [RD2]O-SPRING 5H [RD2]O-SPRING 470K 50V OPT 12K R1715 10K COMP2_L_IN 4E [RD2]CONTACT 4H [RD2]CONTACT VA1701 5.6V C1705 R1721 COMP_LR_ZENER R1704 330pF 470K 50V 12K OPT +3.3V_Normal 5D [WH]O-SPRING 5G [WH1]O-SPRING R1709 10K COMP2_DET 4C [RD1]CONTACT 4F [RD1]CONTACT VA1702 R1712 1K 5.6V OPT COMPONENT 5C [RD1]O-SPRING 5F [RD1]O-SPRING COMP2_Pr+ & ZD1700 COMP_Pr_ZENER_ROHM ZD1700-*1 COMP_Pr_ZENER_KEC AV1 7C [RD1]E-LUG-S 7F [RD1]E-LUG-S ZD1701 COMP_Pr_ZENER_ROHM R1705 75 ZD1701-*1 COMP_Pr_ZENER_KEC 5B [BL]O-SPRING 5E [BL]O-SPRING COMP2_Pb+ ZD1702 ZD1702-*1 COMP_Pb_ZENER_ROHM COMP_Pb_ZENER_KEC R1706 4A [GN/YL]CONTACT 4D [YL/GN]CONTACT ZD1703 COMP_Pb_ZENER_ROHM 75 ZD1703-*1 COMP_Pb_ZENER_KEC +3.3V_Normal R1710 5A [GN/YL]O-SPRING 5D [YL/GN]O-SPRING 10K AV_CVBS_DET R1713 1K VA1703 5.6V 6A [GN/YL]E-LUG 6D [YL/GN]E-LUG OPT COMP2_Y+/AV_CVBS_IN ZD1704 ZD1704-*1 COMP_Y_ZENER_ROHM COMP_Y_ZENER_KEC * One Ton Color Jack - Yellow/Green R1707 R1722 3216 ZD1705 75 75 1% ZD1705-*1 1/4W COMP_Y_ZENER_ROHM 1608 COMP_Y_ZENER_KEC JK1702-*1 JK1701-*1 1% OPT CVBS_OUT_TEST PPJ248-01 R1724 PPJ245-01 COMP_AV1/2_G Size Check !!! 0 [RD3]E-LUG DTV/MNT_VOUT CVBS_OUT_TEST 7C COMP_AV1_G [RD3]C-SPRING 7E [RD2]E-LUG 6C 4C [RD3]CONTACT R1723 75 6E [RD2]C-SPRING 5B [WH2]C-SPRING 4E [RD2]CONTACT 4A [YL]CONTACT 6A [YL]C-SPRING 5D [WH]C-SPRING 7A [YL]E-LUG 4C [RD1]CONTACT [RD2]E-LUG 7H 6H [RD2]C-SPRING 6C [RD1]C-SPRING 4H [RD2]CONTACT 8C [RD1]E-LUG-S 5G [WH1]C-SPRING [RD1]CONTACT 5B [BL]C-SPRING 4F 6F [RD1]C-SPRING 4A [GN]CONTACT 8F [RD1]E-LUG-S 6A [GN]C-SPRING 5E [BL]C-SPRING 4D [GN]CONTACT 7A [GN]E-LUG 6D [GN]C-SPRING 7D [GN]E-LUG THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS L14_S7LR(M1A) 2013.08.15 ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. REAR_JACK_NON_EU 17 Copyright © 2014 LG Electronics. Inc. All rights reserved. LGE Internal Use Only Only for training and service purposes

Headphone *Option : HEAD_PHONE_EU Close to the Main IC HEAD_PHONE L3000 5.6uH HEAD_PHONE HP_LOUT HEAD_PHONE C3000 OPT C C3004 HEAD_PHONE E 10uF C3002 R3002 4.7uF 16V 1000pF Q3002 B Q3004 1K MMBT3904(NXP) 10V 50V MMBT3904(NXP) B OPT HEAD_PHONE_6pie HEAD_PHONE_5pie OPT JK3000 JK3000-*1 +3.5V_ST E +3.3V_Normal PEJ038-3B6 C KJA-PH-0-0177 GND 5 GND 5 E OPT OPT HEAD_PHONE Q3001 R3005 10K L 4 L 4 OPT MMBT3906(NXP) C R3001 B R3000 3.3K 1K B C DETECT 3 DETECT 3 SIDE_HP_MUTE HP_DET Q3000 R3004 MMBT3904(NXP) 1K E HEAD_PHONE R 1 R 1 OPT HEAD_PHONE L3001 HEAD_PHONE 5.6uH HP_ROUT HEAD_PHONE C3001 OPT HEAD_PHONE C E C3005 10uF C3003 R3003 4.7uF 16V 1000pF Q3003 B Q3005 1K MMBT3904(NXP) MMBT3904(NXP) 10V 50V B OPT OPT E C Close to the Main IC THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS NC5_M1A 2013.04.29 ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. HEAD_PHONE_EU 30 Copyright © 2014 LG Electronics. Inc. All rights reserved. LGE Internal Use Only Only for training and service purposes

RS-232C 4PIN & MSTAR DEBUG 4PIN RS-232C 4PIN RS232C_DEBUG_4P +3.5V_ST P4000 12507WS-04L R4001 100 VCC 1 PM_TXD R4000 100 PM_RXD 2 PM_RXD GND 3 RM_TXD 4 5 GND MSTAR DEBUG 4PIN MSTAR_DEBUG_4P P4001 JP_GND1 JP_GND2 JP_GND3 JP_GND4 12505WS-04A00 1 2 3 RGB_DDC_SCL 4 RGB_DDC_SDA 5 THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS L14_S7LR(M1A) 2013/04/30 ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. RS232C_MSTAR_DEBUG_4P 40 Copyright © 2014 LG Electronics. Inc. All rights reserved. LGE Internal Use Only Only for training and service purposes

IR/LED + Digital Eye + Control +3.5V_ST R4603 R4604 10K 10K 1% 1% R4601 100 P4600 OPT KEY1 KEY_CAP 12507WR-10L P4601 C4602 12507WR-08L 0.1uF 16V R4602 1 100 1 KEY2 KEY_CAP C4603 2 0.1uF 2 +3.5V_ST 16V 3 L4600 3 BLM18PG121SN1D 4 4 R4606 +3.5V_ST C4600 C4601 1.8K 0.1uF 1000pF LED_R/BUZZ 5 16V 50V 5 VA4600 LED_R_Zener R4600 6 3.3K 6 IR 7 C4604 7 VA4601 100pF IR_Zener 50V 8 8 9 9 +3.3V_Normal 10 Digital Eye Digital Eye Digital Eye 11 R4605 R4607 C4605 1K 1K 18pF 50V R4608 100 SENSOR_SCL Digital Eye R4609 100 SENSOR_SDA Digital Eye Digital Eye C4606 18pF 50V THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS L14_M1A 2013/09/03 ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. IR_EYE_SENSOR 46 Copyright © 2014 LG Electronics. Inc. All rights reserved. LGE Internal Use Only Only for training and service purposes

IC102 H27U1G8F2CTR-BC NAND FLASH MEMORY +3.3V_Normal +3.3V_Normal NC_1 NC_29 1 48 IC101 NAND_FLASH_1G_HYNIX NC_2 NC_28 LGE2132(M1A_256M) 2 EAN35669103 47 NC_3 NC_27 PCM_A[0-7] 3 46 EEPROM CI_TS_CLK 22 (IC104) M1A_256M NC_4 NC_26 CI_TS_DATA[0-7] 4 45 AR101 Y1 V10 R106 NC_5 I/O7 PCM_A[7] (SPI_SDI, PM_LED, PWM_PM) TUNER_RESET W4 GPIO78 TS0CLK/GPIO92 T14 CI_TS_DATA[0] CI_TS_SYNC R110 LG-NonOS SB51_ExtSPI 3’b000 51boot from SPI 1K 3.9K 5 44 5V_DET_HDMI_4 GPIO79 TS0DATA[0]/GPIO82 CI_TS_DATA[1] CI_TS_VAL LG-OS HEMCU_ExtSPI 3’b001 MIPS boot from SPI T13 NC_6 I/O6 PCM_A[6] TS0DATA[1]/GPIO83 CI_TS_DATA[2] AR103 6 43 R129 22 K17 U13 22 R/B I/O5 PCM_A[5] I2C_SCL J15 I2C_SCKM3/I2C_DDCR_CK/GPIO77 TS0DATA[2]/GPIO84 CI_TS_DATA[3] from CI SLOT R128 22 V15 7 42 I2C_SDA I2C_SDAM3/I2C_DDCR_DA/GPIO76 TS0DATA[3]/GPIO85 CI_TS_DATA[4] U8 U12 /F_RB RE I/O4 PCM_A[4] +3.5V_ST URSA/VCOM_SDA SDAM2/GPIO55 TS0DATA[4]/GPIO86 CI_TS_DATA[5] 8 41 T7 V13 /PF_OE URSA/VCOM_SCL SCKM2/GPIO56 TS0DATA[5]/GPIO87 CI_TS_DATA[6] CE NC_25 U7 U14 9 40 DEMOD_SCL SENSOR_SCL SENSOR_SCL SCKM0/GPIO58 TS0DATA[6]/GPIO88 /PF_CE0 AUD_MASTER_CLK R123 V7 T11 CI_TS_DATA[7] NC_7 NC_24 AUD_MASTER_CLK_0 DEMOD_SDA SENSOR_SDA SENSOR_SDA SDAM0/GPIO59 TS0DATA[7]/GPIO89 10 39 C102 56 R126 22 DVB_T2 F6 T12 4.7K OPT DEMOD_SCL I2S_IN_BCK/GPIO159 TS0SYNC/GPIO91 FE_TS_CLK 4.7K 2.7K OPT NC_8 NC_23 10uF 10V G6 V12 R127 22 DVB_T2 FE_TS_DATA[0-7] +3.3V_Normal R107 C101 11 38 C112 DEMOD_SDA I2S_IN_SD/GPIO160 TS0VALID/GPIO90 1K AA4 Y14 OPT OPT 0.1uF VCC_1 VCC_2 100pF AMP_SCL TU_SCL FE_TS_SYNC I2C_SCKM1/GPIO80 TS1CLK/GPIO103 FE_TS_DATA[0] OPT 12 37 50V Y4 Y16 R115 R117 R121 AMP_SDA TU_SDA I2C_SDAM1/GPIO81 TS1DATA[0]/GPIO93 FE_TS_DATA[1] FE_TS_VAL_ERR R104 VSS_1 VSS_2 C103 AA15 13 36 0.1uF 1K J6 TS1DATA[1]/GPIO94 Y13 FE_TS_DATA[2] Internal demod out NC_9 NC_22 AV_CVBS_DET ET_TXD[0]/GPIO62 TS1DATA[2]/GPIO95 FE_TS_DATA[3] 14 35 K6 AA16 AV2_CVBS_DET AV2_CVBS_DET EXT_TX_CLK/GPIO64 TS1DATA[3]/GPIO96 FE_TS_DATA[4] FE_TS_DATA[0] NC_10 NC_21 W12 15 34 TS1DATA[4]/GPIO97 FE_TS_DATA[0] G7 AA13 FE_TS_DATA[5] CLE NC_20 LED_R/BUZZ COMP2_DET I2S_IN_WS/GPIO158 TS1DATA[5]/GPIO98 FE_TS_DATA[6] 16 33 W14 AR102 TS1DATA[6]/GPIO99 FE_TS_DATA[7] /PF_CE1 ALE I/O3 PCM_A[3] PM_LED J4 W13 17 32 DEMOD_RESET DEMOD_RESET ET_COL/GPIO60 TS1DATA[7]/GPIO100 PF_ALE J5 Y15 WE I/O2 PCM_A[2] SPI_SDI MODEL_OPT_0 ET_TXD[1]/GPIO61 TS1SYNC/GPIO102 /PF_WE 18 31 W15 4.7K 4.7K 2.7K MODEL_OPT_1 TS1VALID/GPIO101 /PF_WP WP I/O1 PCM_A[1] H19 19 30 MODEL_OPT_2 LCK/GPIO194 G20 OPT B3 R133 33 AR104 NC_11 I/O0 PCM_A[0] LDE/GPIO195 PM_SPI_SCZ1/GPIO_PM[6]/GPIO13 /SPI_CS 22 R105 20 29 /MHL_OCP_DET G19 A3R134 33 R116 R118 R122 R101 1K LHSYNC/GPIO196 PM_SPI_SCK/GPIO1 SPI_SCK NC_12 NC_19 22 G21 A4 3.3K 21 28 FRC_RESET FRC_RESET LVSYNC/GPIO197 PM_SPI_SCZ0/GPIO0 SIDE_HP_MUTE 33 R125 C3 NC_13 NC_18 PM_SPI_SDI/GPIO2 SPI_SDI 22 27 J17 A2 R135 33 HP_DET UART2_RX/GPIO69 PM_SPI_SDO/GPIO3 SPI_SDO NC_14 NC_17 J16 23 26 SC1/COMP1_DET UART2_TX/GPIO70 for SERIAL FLASH E8 B1 NC_15 NC_16 MHL_OCP_EN UART3_TX/GPIO52 RP EPHY_RP EPHY_RP 24 25 D7 C2 AMP_RESET UART3_RX/GPIO53 TN EPHY_TN EPHY_TN U6 C1 MODEL_OPT_4 GPIO46[CTS] TP EPHY_TP EPHY_TP V6 B2 RF_SWITCH_CTL GPIO47[RTS] RN EPHY_RN EPHY_RN /CI_CD1 33 R124 K15 /CI_CD1 UART1_TX/GPIO48 L16 D2 /CI_CD2 /CI_CD2 UART1_RX/GPIO49 SPDIF_IN/GPIO161 5V_DET_HDMI_2 D1 R132 100 SPDIF_OUT SPDIF_OUT/GPIO162 SPDIF_OUT H5 SPDIF_OPTIC USB1_CTL ET_TX_EN/GPIO63 K5 D8 5V_DET_HDMI_2 MODEL_OPT_5 ET_RXD[0]/GPIO65 HWRESET SOC_RESET NAND_FLASH_1G_TOSHIBA NAND_FLASH_2G_TOSHIBA NAND_FLASH_1G_SS NAND_FLASH_4G_HYNIX K4 E5 MODEL_OPT_6 ET_MDC/GPIO66 IRIN/GPIO5 IR EAN61508002 EAN60991002 EAN61857001 EAN61950603 H6 G4 USB1_OCD ET_MDIO/GPIO67 DDCA_CK/UART0_RX RGB_DDC_SCL IC102-*3 IC102-*4 IC102-*5 IC102-*6 L5 G5 NAND_FLASH_2G_HYNIX_OLD EAN60708702 TC58NVG0S3HTA00 TC58NVG1S3HTA00 K9F1G08U0D-SCB0 H27U4G8F2ETR-BC /CI_DET ET_RXD[1]/GPIO68 DDCA_DA/UART0_TX RGB_DDC_SDA IC102-*1 PCM_A[0-14] H27U2G8F2CTR PCM_A[0] U17 J18 IC101-*1 NC_1 1 48 NC_29 LGE2131(M1A_128M) PCM_A[1] PCMADR[0]/NF_AD[0]/GPIO130 PWM0/GPIO71 PWM0 NC_2 NC_28 R18 K18 NC_3 2 47 NC_27 NC_1 NC_29 NC_1 NC_29 NC_1 NC_29 NC_1 NC_29 PCM_A[2] PCMADR[1]/NF_AD[1]/GPIO129 PWM1/GPIO72 PWM1 3 46 1 48 1 48 1 48 1 48 M1A_128M V17 K16 NC_4 4 45 NC_26 Y1 GPIO78 TS0CLK/GPIO92 V10 PCM_A[3] PCMADR[2]/NF_AD[2]/GPIO127 PWM2/GPIO73 PWM2 NC_5 5 44 I/O7 NC_2 NC_28 NC_2 NC_28 NC_2 NC_28 NC_2 NC_28 W4 GPIO79 TS0DATA[0]/GPIO82 T14 R16 L18 NC_6 6 43 I/O6 2 47 2 47 2 47 2 47 TS0DATA[1]/GPIO83 T13 PCM_A[4] PCMADR[3]/NF_AD[3]/GPIO126 PWM3/GPIO74 PWM3 R/B I/O5 K17 I2C_SCKM3/I2C_DDCR_CK/GPIO77 TS0DATA[2]/GPIO84 U13 U16 L17 RE 7 42 I/O4 NC_3 NC_27 NC_3 NC_27 NC_3 NC_27 NC_3 NC_27 J15 I2C_SDAM3/I2C_DDCR_DA/GPIO76 TS0DATA[3]/GPIO85 V15 PCM_A[5] PCMADR[4]/NF_AD[4]/GPIO104 PWM4/GPIO75 PCM_5V_CTL 8 41 3 46 3 46 3 46 3 46 U8 SDAM2/GPIO55 TS0DATA[4]/GPIO86 U12 T17 T7 V13 CE 9 40 NC_25 SCKM2/GPIO56 TS0DATA[5]/GPIO87 PCM_A[6] PCMADR[5]/NF_AD[5]/GPIO106 NC_7 NC_24 NC_4 NC_26 NC_4 NC_26 NC_4 NC_26 NC_4 NC_26 U7 SCKM0/GPIO58 TS0DATA[6]/GPIO88 U14 W18 T8 10 39 4 45 4 45 4 45 4 45 V7 T11 PCMADR[6]/NF_AD[6]/GPIO107 NF_ALE/GPIO146 PF_ALE +3.3V_Normal NC_8 11 38 NC_23 F6 SDAM0/GPIO59 TS0DATA[7]/GPIO89 T12 PCM_A[7] U20 T9 VCC_1 VCC_2 I2S_IN_BCK/GPIO159 TS0SYNC/GPIO91 VSS_1 12 37 VSS_2 NC_5 I/O8 NC_5 I/O8 NC_5 I/O7 NC_5 I/O7 G6 I2S_IN_SD/GPIO160 TS0VALID/GPIO90 V12 PCM_A[8] PCMADR[7]/NF_AD[7]/GPIO108 NF_CEZ/GPIO142 /PF_CE0 L101 13 36 5 44 5 44 5 44 5 44 AA4 I2C_SCKM1/GPIO80 TS1CLK/GPIO103 Y14 Y19 U9 BLM18PG121SN1D NC_9 14 35 NC_22 Y4 I2C_SDAM1/GPIO81 TS1DATA[0]/GPIO93 Y16 PCM_A[9] PCMADR[8]/GPIO113 NF_CLE/GPIO141 /PF_CE1 HALF_NIM/EU_NON_T2 NC_10 15 34 NC_21 NC_6 I/O7 NC_6 I/O7 NC_6 I/O6 NC_6 I/O6 TS1DATA[1]/GPIO94 AA15 AA19 U11 CLE 16 33 NC_20 6 43 6 43 6 43 6 43 J6 ET_TXD[0]/GPIO62 TS1DATA[2]/GPIO95 Y13 PCM_A[10] PCMADR[9]/GPIO115 NF_RBZ/GPIO147 /F_RB ALE I/O3 K6 EXT_TX_CLK/GPIO64 TS1DATA[3]/GPIO96 AA16 AA20 V9 WE 17 32 I/O2 RY/BY I/O6 RY/BY I/O6 R/B I/O5 R/B I/O5 TS1DATA[4]/GPIO97 W12 PCM_A[11] PCMADR[10]/GPIO119 NF_REZ/GPIO144 /PF_OE HALF_NIM/EU_NON_T2 HALF_NIM/EU_NON_T2 18 31 7 42 7 42 7 42 7 42 G7 I2S_IN_WS/GPIO158 TS1DATA[5]/GPIO98 AA13 W21 U10 C119 WP 19 30 I/O1 TS1DATA[6]/GPIO99 W14 PCM_A[12] PCMADR[11]/GPIO117 NF_WEZ/GPIO145 /PF_WE R137 0.1uF NC_11 20 29 I/O0 RE I/O5 RE I/O5 RE I/O4 RE I/O4 J4 ET_COL/GPIO60 TS1DATA[7]/GPIO100 W13 V20 T10 10K NC_12 21 28 NC_19 8 41 8 41 8 41 8 41 J5 ET_TXD[1]/GPIO61 TS1SYNC/GPIO102 Y15 PCM_A[13] PCMADR[12]/GPIO109 NF_WPZ/GPIO199 /PF_WP NC_13 NC_18 TS1VALID/GPIO101 W15 Y17 R140 NC_14 22 27 NC_17 CE NC_25 CE NC_25 CE NC_25 CE NC_25 H19 LCK/GPIO194 PCM_A[14] PCMADR[13]/GPIO112 0 23 26 9 40 9 40 9 40 9 40 G20 LDE/GPIO195 PM_SPI_SCZ1/GPIO_PM[6]/GPIO13 B3 /PCM_CD V18 W2 NC_15 24 25 NC_16 G19 LHSYNC/GPIO196 PM_SPI_SCK/GPIO1 A3 /PCM_CE PCMADR[14]/GPIO111 IF_AGC IF_AGC_MAIN NC_7 NC_24 NC_7 NC_24 NC_7 NC_24 NC_7 NC_24 G21 LVSYNC/GPIO197 PM_SPI_SCZ0/GPIO0 A4 V19 W1 HALF_NIM/EU_NON_T2 10 39 10 39 10 39 10 39 PM_SPI_SDI/GPIO2 C3 PCM_D[0-7] PCMCD_N/GPIO135 SIFM J17 UART2_RX/GPIO69 PM_SPI_SDO/GPIO3 A2 W19 W3 C120 NC_8 NC_23 NC_8 NC_23 NC_8 NC_23 NC_8 NC_23 J16 UART2_TX/GPIO70 PCMCE_N/GPIO120 SIFP 0.047uF 11 38 11 38 11 38 11 38 E8 UART3_TX/GPIO52 RP B1 PCM_D[0] U18 V2 D7 UART3_RX/GPIO53 TN C2 PCMDATA[0]/GPIO131 IM 25V VCC_1 VCC_2 VCC_1 VCC_2 VCC_1 VCC_2 VCC_1 VCC_2 U6 GPIO46[CTS] TP C1 PCM_D[1] V16 V1 HALF_NIM/EU_NON_T2 12 37 12 37 12 37 12 37 V6 GPIO47[RTS] RN B2 PCMDATA[1]/GPIO132 IP K15 UART1_TX/GPIO48 PCM_D[2] W17 VSS_1 VSS_2 VSS_1 VSS_2 VSS_1 VSS_2 VSS_1 VSS_2 L16 UART1_RX/GPIO49 SPDIF_IN/GPIO161 D2 PCMDATA[2]/GPIO133 13 36 13 36 13 36 13 36 SPDIF_OUT/GPIO162 D1 PCM_D[3] Y20 AA2 H5 ET_TX_EN/GPIO63 PCMDATA[3]/GPIO125 XIN NC_9 NC_22 NC_9 NC_22 NC_9 NC_22 NC_9 NC_22 K5 ET_RXD[0]/GPIO65 HWRESET D8 PCM_D[4] R15 Y2 14 35 14 35 14 35 14 35 K4 ET_MDC/GPIO66 IRIN/GPIO5 E5 PCMDATA[4]/GPIO124 XOUT NAND_FLASH_2G_HYNIX_NEW H6 ET_MDIO/GPIO67 DDCA_CK/UART0_RX G4 PCM_D[5] AA18 EAN60708703 IC102-*2 NC_10 NC_21 NC_10 NC_21 NC_10 NC_21 NC_10 NC_21 L5 ET_RXD[1]/GPIO68 DDCA_DA/UART0_TX G5 PCMDATA[5]/GPIO123 H27U2G8F2DTR-BD 15 34 15 34 15 34 15 34 PCM_D[6] T15 U17 J18 PCMADR[0]/NF_AD[0]/GPIO130 PWM0/GPIO71 PCMDATA[6]/GPIO122 NC_1 1 48 NC_29 CLE NC_20 CLE NC_20 CLE NC_20 CLE NC_20 R18 PCMADR[1]/NF_AD[1]/GPIO129 PWM1/GPIO72 K18 PCM_D[7] Y21 NC_2 NC_28 16 33 16 33 16 33 16 33 V17 PCMADR[2]/NF_AD[2]/GPIO127 PWM2/GPIO73 K16 PCMDATA[7]/GPIO121 NC_3 2 47 NC_27 R16 PCMADR[3]/NF_AD[3]/GPIO126 PWM3/GPIO74 L18 W20 3 46 ALE I/O4 ALE I/O4 ALE I/O3 ALE I/O3 U16 PCMADR[4]/NF_AD[4]/GPIO104 PWM4/GPIO75 L17 /PCM_IORD PCMIORD_N/GPIO116 NC_4 4 45 NC_26 17 32 17 32 17 32 17 32 T17 PCMADR[5]/NF_AD[5]/GPIO106 V21 NC_5 5 44 I/O7 W18 PCMADR[6]/NF_AD[6]/GPIO107 NF_ALE/GPIO146 T8 /PCM_IOWR PCMIOWR_N/GPIO114 NC_6 6 43 I/O6 WE I/O3 WE I/O3 WE I/O2 WE I/O2 U20 PCMADR[7]/NF_AD[7]/GPIO108 NF_CEZ/GPIO142 T9 Y18 R/B I/O5 18 31 18 31 18 31 18 31 Y19 PCMADR[8]/GPIO113 NF_CLE/GPIO141 U9 /PCM_IRQA PCMIRQA_N/GPIO110 Close to MSTAR RE 7 42 I/O4 AA19 PCMADR[9]/GPIO115 NF_RBZ/GPIO147 U11 T16 8 41 WP I/O2 WP I/O2 WP I/O1 WP I/O1 AA20 PCMADR[10]/GPIO119 NF_REZ/GPIO144 V9 /PCM_OE PCMOE_N/GPIO118 TUNER_IF_0_ohm HALF_NIM/EU_NON_T2 CE 9 40 NC_25 19 30 19 30 19 30 19 30 W21 PCMADR[11]/GPIO117 NF_WEZ/GPIO145 U10 R17 IF_N_MSTAR NC_7 10 39 NC_24 V20 PCMADR[12]/GPIO109 NF_WPZ/GPIO199 T10 /PCM_REG PCMREG_N/GPIO128 0 0.1uF C121 NC_8 NC_23 NC_11 I/O1 NC_11 I/O1 NC_11 I/O0 NC_11 I/O0 Y17 T18 R138 C117 11 38 20 29 20 29 20 29 20 29 PCMADR[13]/GPIO112 OPT VCC_1 12 37 VCC_2 V18 V19 PCMADR[14]/GPIO111 IF_AGC W2 W1 PCM_RST W16 PCM_RESET/GPIO134 100pF DTV_IF VSS_1 VSS_2 PCMCD_N/GPIO135 SIFM 13 36 NC_12 NC_19 NC_12 NC_19 NC_12 NC_19 NC_12 NC_19 W19 PCMCE_N/GPIO120 SIFP W3 /PCM_WAIT PCMWAIT_N/GPIO105 NC_9 14 35 NC_22 21 28 21 28 21 28 21 28 U18 PCMDATA[0]/GPIO131 IM V2 U15 TUNER_IF_0_ohm HALF_NIM/EU_NON_T2 NC_10 15 34 NC_21 V16 PCMDATA[1]/GPIO132 IP V1 /PCM_WE PCMWE_N/GPIO198 IF_P_MSTAR CLE 16 33 NC_20 NC_13 NC_18 NC_13 NC_18 NC_13 NC_18 NC_13 NC_18 W17 PCMDATA[2]/GPIO133 0 0.1uF IF_FILTER_AJ/CSA ALE I/O3 22 27 22 27 22 27 22 27 Y20 PCMDATA[3]/GPIO125 XIN AA2 R139 C118 C122 WE 17 32 I/O2 R15 PCMDATA[4]/GPIO124 XOUT Y2 33pF IF_FILTER_AJ/CSA 18 31 NC_14 NC_17 NC_14 NC_17 NC_14 NC_17 NC_14 NC_17 AA18 PCMDATA[5]/GPIO123 C124 WP 19 30 I/O1 23 26 23 26 23 26 23 26 T15 PCMDATA[6]/GPIO122 33pF NC_11 I/O0 Y21 20 29 PCMDATA[7]/GPIO121 NC_12 21 28 NC_19 NC_15 NC_16 NC_15 NC_16 NC_15 NC_16 NC_15 NC_16 W20 PCMIORD_N/GPIO116 NC_13 NC_18 24 25 24 25 24 25 24 25 V21 PCMIOWR_N/GPIO114 XTAL_LOAD_15pF 22 27 Y18 NC_14 23 26 NC_17 T16 PCMIRQA_N/GPIO110 C113 15pF PCMOE_N/GPIO118 NC_15 NC_16 R17 24 25 PCMREG_N/GPIO128 T18 R136 W16 PCM_RESET/GPIO134 X101 XTAL_LOAD_18pF XTAL_LOAD_22pF XTAL_LOAD_27pF 1M PCMWAIT_N/GPIO105 U15 PCMWE_N/GPIO198 24MHz C114 15pF C113-*1 18pF C113-*2 22pF C113-*3 27pF XTAL_LOAD_15pF XTAL_LOAD_18pF XTAL_LOAD_22pF XTAL_LOAD_27pF C114-*1 18pF C114-*2 22pF C114-*3 27pF TUNER_IF_100_ohm DIMMING I2C R138-*1 100 XTAL_LOAD_30pF +3.3V_Normal PM MODEL OPTION PM_MODEL_OPT_0 C113-*4 30pF - HIGH : LCD +3.5V_ST - LOW :: PDP IC101 TUNER_IF_100_ohm XTAL_LOAD_30pF R139-*1 C114-*4 30pF R103 100 LGE2132(M1A_256M) 100 IC101-*1 PWM_DIM PWM2 LGE2131(M1A_128M) R102 10K R111 R112 R113 R114 M1A_256M U19 M1A_128M D5 PWM0 1K 1K 2.2K 2.2K U19 D5 T20 LVA4P/TTL_B[0]/HCONV/GPIO170 SAR0/GPIO35 F8 R119 RXA4+ LVA4M/TTL_B[1]/E_O/GPIO171 SAR1/GPIO36 10K LVA4P/TTL_B[0]/HCONV/GPIO170 SAR0/GPIO35 KEY1 T21 LVA3P/TTL_B[2]/FB/GPIO172 SAR2/GPIO37 E7 LCD T20 F8 T19 LVA3M/TTL_B[3]/OPT_P/GPIO173 SAR3/GPIO38 E6 R143 10K RXA4- LVA4M/TTL_B[1]/E_O/GPIO171 SAR1/GPIO36 KEY2 R21 LVACKP/TTL_B[4]/MCLK/GPIO174 SAR4/GPIO39 D6 PWM3 T21 E7 R20 LVACKM/TTL_B[5]/GCLK/GPIO175 AMP_SDA PM_MODEL_OPT_0 RXA3+ LVA3P/TTL_B[2]/FB/GPIO172 SAR2/GPIO37 PM_MODEL_OPT_0 R19 LVA2P/TTL_B[6]/GST/GPIO176 GPIO_PM[13]/GPIO20 W10 T19 E6 P20 LVA2M/TTL_B[7]/POL/GPIO177 GPIO_PM[14]/GPIO21 Y10 AMP_SCL RXA3- LVA3M/TTL_B[3]/OPT_P/GPIO173 SAR3/GPIO38 PANEL_CTL PM_LED/GPIO4 P3 R21 D6 P19 LVA1P/TTL_G[0]/EPI0+/GPIO178 GPIO_PM[0]/GPIO7 Y3 RXACK+ LVACKP/TTL_B[4]/MCLK/GPIO174 SAR4/GPIO39 SCART1_MUTE N20 LVA1M/TTL_G[1]/EPI0-/GPIO179 PM_SPI_SCZ2/GPIO_PM[10]/GPIO17 Y5 I2C_SDA R20 N21 LVA0P/TTL_G[2]/EPI1+/GPIO180 GPIO_PM[15]/GPIO22 W11 RXACK- LVACKM/TTL_B[5]/GCLK/GPIO175 N19 LVA0M/TTL_G[3]/EPI1-/GPIO181 GPIO_PM[4]/GPIO11 D3 I2C_SCL R120 R19 W10 M21 LVB4P/TTL_G[4]/EPI2+/GPIO182 GPIO_PM[7]/GPIO14 AA3 10K RXA2+ LVA2P/TTL_B[6]/GST/GPIO176 GPIO_PM[13]/GPIO20 MHL_CD_SENSE M20 LVB4M/TTL_G[5]/EPI2-/GPIO183 GPIO_PM[8]/GPIO15 W5 PDP P20 Y10 M19 LVB3P/TTL_G[6]/EPI3+/GPIO184 PWM_PM/GPIO200 D4 RXA2- LVA2M/TTL_B[7]/POL/GPIO177 GPIO_PM[14]/GPIO21 /VBUS_EN L20 LVB3M/TTL_G[7]/EPI3-/GPIO185 PM_UART_TX/GPIO_PM[1]/GPIO8 L15 P3 PM_UART_RX/GPIO_PM[5]/GPIO12 Y11 PM_LED/GPIO4 PM_LED L19 LVBCKP/TTL_R[0]/EPI4+/GPIO186 P19 Y3 K20 LVBCKM/TTL_R[1]/EPI4-/GPIO187 RXA1+ LVA1P/TTL_G[0]/EPI0+/GPIO178 GPIO_PM[0]/GPIO7 POWER_DET K21 LVB2P/TTL_R[2]/EPI5+/GPIO188 N20 Y5 K19 LVB2M/TTL_R[3]/EPI5-/GPIO189 RXA1- LVA1M/TTL_G[1]/EPI0-/GPIO179 PM_SPI_SCZ2/GPIO_PM[10]/GPIO17 AMP_MUTE J21 LVB1P/TTL_R[4]/EPI6+/GPIO190 N21 W11 J20 LVB1M/TTL_R[5]/EPI6-/GPIO191 RXA0+ LVA0P/TTL_G[2]/EPI1+/GPIO180 GPIO_PM[15]/GPIO22 INV_CTL J19 LVB0P/TTL_R[6]/EPI7+/GPIO192 N19 D3 H20 LVB0M/TTL_R[7]/EPI7-/GPIO193 RXA0- LVA0M/TTL_G[3]/EPI1-/GPIO181 GPIO_PM[4]/GPIO11 POWER_ON/OFF_1 EEPROM M21 AA3 +3.3V_Normal RXB4+ LVB4P/TTL_G[4]/EPI2+/GPIO182 GPIO_PM[7]/GPIO14 RL_ON M20 W5 RXB4- LVB4M/TTL_G[5]/EPI2-/GPIO183 GPIO_PM[8]/GPIO15 /FLASH_WP M19 D4 RXB3+ LVB3P/TTL_G[6]/EPI3+/GPIO184 PWM_PM/GPIO200 LED_R/BUZZ L20 L15 RXB3- LVB3M/TTL_G[7]/EPI3-/GPIO185 PM_UART_TX/GPIO_PM[1]/GPIO8 PM_TXD Y11 NVRAM_ST NVRAM_RENESAS NVRAM_ATMEL NVRAM_ROHM L19 PM_UART_RX/GPIO_PM[5]/GPIO12 PM_RXD C105 IC104 IC104-*1 RXBCK+ LVBCKP/TTL_R[0]/EPI4+/GPIO186 0.1uF IC104-*2 IC104-*3 K20 M24256-BRMN6TP RXBCK- LVBCKM/TTL_R[1]/EPI4-/GPIO187 R1EX24256BSAS0A AT24C256C-SSHL-T BR24G256FJ-3 K21 RXB2+ LVB2P/TTL_R[2]/EPI5+/GPIO188 K19 E0 VCC RXB2- LVB2M/TTL_R[3]/EPI5-/GPIO189 1 8 A0 VCC A0 VCC A0 VCC J21 1 8 1 8 1 8 RXB1+ LVB1P/TTL_R[4]/EPI6+/GPIO190 J20 E1 WC RXB1- LVB1M/TTL_R[5]/EPI6-/GPIO191 2 7 A1 WP A1 WP A1 WP J19 2 7 2 7 2 7 RXB0+ A0’h H20 LVB0P/TTL_R[6]/EPI7+/GPIO192 E2 SCL RXB0- LVB0M/TTL_R[7]/EPI7-/GPIO193 3 6 R108 22 I2C_SCL A2 SCL A2 SCL A2 SCL 3 6 3 6 3 6 VSS SDA 4 5 R109 22 VSS SDA GND SDA GND SDA I2C_SDA 4 5 4 5 4 5 C104 C106 8pF 8pF EAN61548301 OPT OPT EAN62389501 EAN61133501 EAN62389502 THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS M1A_L14 2013/09/16 ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. MAIN1_NON_EU 51 Copyright © 2014 LG Electronics. Inc. All rights reserved. LGE Internal Use Only Only for training and service purposes

MODEL OPTION ("MO") +3.3V_Normal PIN NAME PIN NO. LOW HIGH +1.10V_VDDC MODEL OPTION VDDC 1.05V +1.10V_VDDC MODEL_OPT_0 J5 MO_FHD MO_HD VDDC : 2026mA MO_DVB_T2/C/S2 MO_DUALSTREAM MO_S/W_EU/AJ DDR_EXT:256 DDR_EXT:128 1K 1K 1K 1K 1K 1K 1K 1K MO_S/W_AJ MODEL_OPT_1 H19 MO_S/W_AJ 0.1uF MO_S/W_NON_AJ MO_M120 MO_HD 10V 10V 1uF 1uF MODEL_OPT_2 G20 MO_DVB_T/C MO_DVB_T2/C/S2 C237 R212 R214 R216 R218 R219 R221 R224 C235 R210 G19 10uF 10uF MODEL_OPT_3 MO_M120_NON MO_M120 C240 C244 C247 IF_AGC_SEL R205 OPT 100 MODEL_OPT_0 MODEL_OPT_4 U6 DDR_EXT:256 or NON DDR_EXT : 128 R206 OPT100 MODEL_OPT_1 R207 OPT100 MODEL_OPT_5 K5 MO_S/W_TW MO_S/W_EU/AJ MODEL_OPT_2 AUD_LRCH MODEL_OPT_6 K4 DDR_EXT:128 or NON R201 OPT 100 DDR_EXT : 256 MODEL_OPT_4 R202 OPT 100 MODEL_OPT_5 MODEL_OPT_7 L5 MO_DUALSTREAM_NON MO_DUALSTREAM R203 OPT 100 MODEL_OPT_6 DDR_EXT:128 or NON DDR_EXT:256 or NON AUD_LRCK * Dual Stream is only Korea 3D spec M1A_256M MO_DUALSTREAM_NON MO_S/W_NON_AJ Normal Power 3.3V IC101 1K MO_M120_NON 1K 1K 1K 1K 1K 1K 1K MO_DVB_T/C Memory OPTION MO_S/W_TW +3.3V_Normal VDD33 LGE2132(M1A_256M) MO_FHD R222 Memory Auto L204 R211 R209 R217 R213 R215 R220 R223 MODEL_OPT_4 MODEL_OPT_6 BLM18PG121SN1D R4 U3 INT+EXT Det AVDD_AU33 AVDD_AU33 AUVRM AUVRM 0.1uF 0.1uF 0.1uF L11 A6 0.1uF 0.1uF AVDD_DDR0_CLK GND_1 10uF C236 10uF L13 A13 10V 10V 128M Only 0 0 0 AVDD_DDR1_CLK GND_2 M11 A15 AVDD_DDR0_CMD GND_3 K13 A18 C233 C241 C238 C245 AVDD_DDR1_CMD GND_4 C231 C232 256M Only 1 0 0 +1.5V_DDR C5 B12 AVDD_DDR0_D_1 GND_5 K12 B14 AVDD_DDR0_D_2 GND_6 0 1 L12 B16 128M+128M 0 AVDD_DDR0_D_3 GND_7 C6 B17 AVDD_DDR1_D_1 GND_8 K14 B19 128M+256M 0 0 1 AVDD_DDR1_D_2 GND_9 L14 B20 AVDD_DDR1_D_3 GND_10 B5 C9 M1A_128M 256M+256M 1 0 1 AVDD_DRAM_1 GND_11 B6 C10 AVDD_DRAM_2 GND_12 R8 C21 IC101-*1 AVDD_NODIE AVDD_DVI_USB_MPLL_1 GND_13 R9 D9 LGE2131(M1A_128M) AVDD_DVI_USB_MPLL_2 GND_14 L7 E20 VDD33 AVDD_MOD_1 GND_15 L8 F9 AVDD_MOD_2 GND_16 P8 F11 AVDD_NODIE AVDD_NODIE GND_17 M4 T6 K9 F13 ARC0 CVBSOUT1 VDD33 AVDD_PLL GND_18 W7 V5 R5 F15 RXC0N CVBS0 AVDD_DMPLL AVDD3P3_DMPLL GND_19 Y8 U5 P11 F17 RXC0P CVBS1 +1.10V_VDDC W8 T5 AVDDL_MOD GND_20 RXC1N C7 F19 CVBS2 +1.10V_VDDC DVDD_DDR_1 GND_21 Y9 V4 M13 F21 RXC1P VCOM DVDD_DDR_2 GND_22 AA9 1uFC250 R6 G8 RXC2N DVDD_NODIE GND_23 W9 E4 A7 G9 RXC2P I2S_OUT_BCK/GPIO165 DVDD_RX_1_1 GND_24 AA7 F4 Y7 RXCCKN I2S_OUT_MCK/GPIO163 F7 Normal 2.5V M12 B7 DVDD_RX_1_2 GND_25 G10 G11 RXCCKP I2S_OUT_SD/GPIO166 DVDD_RX_2_1 GND_26 N2 F5 M14 G12 CEC/GPIO6 I2S_OUT_WS/GPIO164 DVDD_RX_2_2 GND_27 E3 E2 DDCDA_CK/GPIO27 DDCDA_DA/GPIO28 USB0_DM C4 ฀ 2.5V embedded M1A +1.10V_VDDC N11 N12 VDDC_1 GND_28 G13 G14 W6 Y12 VDDC_2 GND_29 DDCDC_CK/GPIO31 N13 G15 USB1_DM VDDC_3 GND_30 AA6 B4 N14 G16 DDCDC_DA/GPIO32 USB0_DP VDDC_4 GND_31 L4 AA12 N15 G17 HOTPLUGA/GPIO23 USB1_DP VDDC_5 GND_32 Y6 P12 G18 HOTPLUGC/GPIO25 VDDC_6 GND_33 F1 J2 P13 H7 RXA0N BIN0M VDDC_7 GND_34 G3 J3 P14 H8 RXA0P BIN0P VDDC_8 GND_35 G1 K3 L9 H9 RXA1N GIN0M VDD33 VDDP GND_36 G2 J1 H10 RXA1P GIN0P GND_37 H3 K2 AA10 H11 RXA2N RIN0M AVDD5V_MHL AVDD5V_MHL GND_38 H2 K1 H12 RXA2P RIN0P F3 RXACKN HSYNC0 M6 DDR3 1.5V GND_39 GND_40 H13 F2 L6 M1A_128M H14 RXACKP VSYNC0 GND_41 IC101-*1 LGE2131(M1A_128M) H15 U4 L2 GND_42 EAR_OUTL H16 BIN1M GND_43 T4 L3 U3 R4 H17 EAR_OUTR BIN1P A6 AUVRM AVDD_AU33 L11 GND_44 P2 M1 AVDD_DDR0:55mA A13 GND_1 AVDD_DDR0_CLK L13 H18 AUL1 GIN1M A15 GND_2 AVDD_DDR1_CLK M11 GND_45 R2 M2 +1.5V_DDR GND_3 AVDD_DDR0_CMD AUL2 A18 K13 J7 GIN1P B12 GND_4 AVDD_DDR1_CMD C5 GND_46 T1 N1 B14 GND_5 AVDD_DDR0_D_1 K12 J8 AUL3 RIN1M B16 GND_6 AVDD_DDR0_D_2 L12 GND_47 R3 N3 B17 GND_7 AVDD_DDR0_D_3 C6 J9 AUR1 RIN1P B19 GND_8 AVDD_DDR1_D_1 K14 GND_48 R1 M3 B20 GND_9 AVDD_DDR1_D_2 L14 J10 AUR2 SOGIN1 C9 GND_10 AVDD_DDR1_D_3 B5 GND_49 T3 C10 GND_11 AVDD_DRAM_1 B6 J11 AUR3 C21 GND_12 AVDD_DRAM_2 R8 GND_50 U2 GND_13 AVDD_DVI_USB_MPLL_1 0.1uF 0.1uF D9 R9 J12 10uF 10V C239 C246 C242 AUOUTL0 GND_14 AVDD_DVI_USB_MPLL_2 0.1uF 1uF E20 L7 V3 GND_51 C230 GND_15 AVDD_MOD_1 AUOUTR0 F9 GND_16 AVDD_MOD_2 L8 J13 F11 P8 GND_52 C234 T2 F13 GND_17 AVDD_NODIE K9 J14 AUVAG F15 GND_18 AVDD_PLL R5 GND_53 GND_19 AVDD3P3_DMPLL F17 GND_20 AVDDL_MOD P11 K8 F19 C7 GND_21 DVDD_DDR_1 GND_54 F21 GND_22 DVDD_DDR_2 M13 K10 G8 R6 GND_23 DVDD_NODIE GND_55 AVDD_DDR1:55mA G9 GND_24 DVDD_RX_1_1 A7 K11 G10 M12 GND_25 DVDD_RX_1_2 GND_56 G11 GND_26 DVDD_RX_2_1 B7 L10 G12 M14 GND_57 M1A_256M G13 G14 GND_27 GND_28 GND_29 DVDD_RX_2_2 VDDC_1 VDDC_2 N11 N12 GND_58 M5 G15 GND_30 VDDC_3 N13 M7 IC101 G16 G17 G18 GND_31 GND_32 GND_33 VDDC_4 VDDC_5 VDDC_6 N14 N15 P12 GND_59 GND_60 M8 LGE2132(M1A_256M) H7 P13 M9 HDMI GND_34 VDDC_7 H8 P14 GND_35 VDDC_8 GND_61 H9 GND_36 VDDP L9 M10 H10 GND_37 GND_62 H11 GND_38 AVDD5V_MHL AA10 N4 H12 GND_39 GND_63 C205 H13 GND_40 N5 H14 HDMI1_ARC HDMI1_ARC M4 T6 GND_41 GND_64 HDMI_ARC ARC0 CVBSOUT1 DTV/MNT_VOUT H15 GND_42 N6 H16 1uF 0 R227 W7 V5 GND_43 GND_65 RXC0N CVBS0 H17 GND_44 N7 D0-_HDMI4 H18 GND_66 10 R225 Y8 U50.047uF C226 33 R241 J7 GND_45 N8 D0+_HDMI4 RXC0P CVBS1 SC1/AV2_CVBS_IN J8 GND_46 10 R226 W8 T50.047uF C227 33 R242 GND_47 GND_67 RXC1N CVBS2 COMP2_Y+/AV_CVBS_IN J9 GND_48 N9 D1-_HDMI4 Y9 V4 0.047uF C228 R243 +3.3V_Normal J10 GND_49 GND_68 RXC1P VCOM J11 GND_50 N10 D1+_HDMI4 AA9 Close to MSTAR J12 GND_51 GND_69 68 J13 P4 D2-_HDMI4 W9 RXC2N E4 I2S_I/F J14 GND_52 GND_53 GND_70 RXC2P I2S_OUT_BCK/GPIO165 K8 GND_54 P5 D2+_HDMI4 R244 R246 K10 GND_71 10K AA7 F4 10K GND_55 P6 OPT OPT K11 CK-_HDMI4 RXCCKN I2S_OUT_MCK/GPIO163 L10 GND_56 GND_72 Y7 F7 M5 GND_57 P7 CK+_HDMI4 RXCCKP I2S_OUT_SD/GPIO166 AUD_SCK M7 GND_58 GND_73 N2 F5 M8 GND_59 P9 CEC_REMOTE_S7 CEC/GPIO6 I2S_OUT_WS/GPIO164 AUD_MASTER_CLK_0 M9 GND_60 GND_74 E3 M10 GND_61 P10 DDC_SCL_2 DDCDA_CK/GPIO27 AUD_LRCH N4 GND_62 E2 C4 GND_63 GND_75 DDC_SDA_2 DDCDA_DA/GPIO28 USB0_DM N5 GND_64 P15 AUD_LRCK N6 GND_76 W6 Y12 N7 GND_65 P16 DDC_SCL_4 DDCDC_CK/GPIO31 USB1_DM WIFI_DM N8 GND_66 GND_77 R247 AA6 B4 GND_67 R245 N9 P17 10K 10K DDC_SDA_4 DDCDC_DA/GPIO32 USB0_DP GND_68 OPT OPT L4 AA12 SIDE_USB1_DM N10 GND_69 GND_78 HOTPLUGA/GPIO23 USB1_DP P4 GND_70 P18 HPD2 WIFI_DP P5 GND_79 Y6 P6 GND_71 R10 HPD4 HOTPLUGC/GPIO25 SIDE_USB1_DP P7 GND_72 F1 J2 GND_73 GND_80 RXA0N BIN0M P9 GND_74 R11 D0-_HDMI2 0.047uF P10 GND_81 G3 J3 C212 68 R228 P15 GND_75 R12 D0+_HDMI2 RXA0P BIN0P 0.047uF SC1_B+/COMP1_Pb+ P16 GND_76 G1 K3 C213 33 R229 GND_77 GND_82 RXA1N GIN0M WIFI_DM P17 GND_78 R13 D1-_HDMI2 G2 J1 C2140.047uF 68 P18 GND_79 GND_83 R230 R10 R14 D1+_HDMI2 RXA1P GIN0P SC1_G+/COMP1_Y+ GND_80 C2150.047uF 33 WIFI_DP R11 H3 K2 R231 GND_81 GND_84 RXA2N RIN0M R12 GND_82 K7 D2-_HDMI2 0.047uF R13 GND_EFUSE H2 K1 C216 68 R232 R14 GND_83 D2+_HDMI2 RXA2P RIN0P 0.047uF SC1_R+/COMP1_Pr+ K7 GND_84 F3 M6 C217 33 R233 GND_EFUSE CK-_HDMI2 RXACKN HSYNC0 SC1_ID F2 L6 CK+_HDMI2 RXACKP VSYNC0 SC1_FB H/P OUT U4 L2 HP_LOUT EAR_OUTL BIN1M T4 L3 C2180.047uF 68 R234 HP_ROUT EAR_OUTR BIN1P COMP2_Pb+ P2 M1 C2190.047uF 33 R235 SC1/COMP1_L_IN AUL1 GIN1M R2 M2 C2200.047uF 68 R236 AV2_L_IN 2.2uF C206 AV2 T1 AUL2 GIN1P N1 C2210.047uF 33 R237 COMP2_Y+/AV_CVBS_IN STby 3.5V COMP2_L_IN 2.2uF C209 AUL3 RIN1M SOC_RESET SWITCH_POSTEC +3.5V_ST R3 N3 C2220.047uF 68 R238 AVDD_NODIE SC1/COMP1_R_IN AUR1 RIN1P COMP2_Pr+ SW200-*1 R1 M3 C2230.047uF 33 R239 TMSV153BRA L206 2 BLM18PG121SN1D 4 AV2_R_IN 2.2uF C207 AV2 AUR2 SOGIN1 AUDIO OUT T3 C2241000pF POWER_DET_RESET COMP2_R_IN AUR3 +3.5V_ST SWITCH_NAMAE C257 2.2uF C211 U2 SW200 AVDD_DMPLL C253 C255 SCART1_Lout 0.1uF AUOUTL0 JTP-1127WEM 10uF 0.1uF V3 2 4 SCART1_Rout AUOUTR0 L207 1 3 T2 PD_+3.5V AUVAG R248 BLM18PG121SN1D 1uF 4.7uF 470 SWITCH +1.10V_VDDC +1.10V_VDDC R250 C251 C203 C204 100 C252 1 3 AUVRM PD_+3.5V PD_+12V 10uF 0.1uF C243 C248 BLM18PG121SN1D 4.7uF 4.7uF L201 10V 10V AVDD_AU33 C259 C260 C261 SOC_RESET L205 0.1uF 0.1uF 10uF BLM18PG121SN1D 10V R249 C249 C258 470K 0.1uF C256 0.1uF C254 10uF 0.1uF THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS NC5_L14 2013.08.15 ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. MAIN2_NON_EU 52 Copyright © 2014 LG Electronics. Inc. All rights reserved. LGE Internal Use Only Only for training and service purposes

AUDIO AMP(TI) AMP_COIL_GET AMP_COIL_GET AMP_COIL_GET AMP_COIL_GET L5603-*1 L5604-*1 L5605-*1 L5606-*1 10.0uH 10.0uH 10.0uH 10.0uH AMP_COIL_TAIYO AMP_COIL_TAIYO AMP_COIL_TAIYOAMP_COIL_TAIYO L5603-*2 L5604-*2 L5605-*2 L5606-*2 10.0uH 10.0uH 10.0uH 10.0uH This parts are Located +24V +24V_AMP on AVSS area. R5610 L5600 470 UBW2012-121F C5611 4700pF AMP_COIL_ABCO Close to Speaker 0.047uF C5612 L5605 C5601 10uH 0.1uF C5613 2200pF SPK_L+ 50V C5616 0.033uF 50V R5611 C5609 4700pF +24V_AMP 18 50V C5608 R5609 C5626 OPT 330pF C5632 C5636 +24V_AMP_CAP 0.047uF 470 C5640 50V 0.1uF 2200pF C5618 C5620 PVDD_AB_2 PVDD_AB_1 0.1uF 10uF 4.7uF 50V 50V PLL_FLTP PLL_FLTM +3.3V_Normal 50V 35V 50V AMP_LC_0.33uF AMP_LC_0.47uF SSTIMER VR_ANA 3216 C5630-*1 C5630 BST_A OUT_A 0.33uF 0.47uF AVSS PBTL NC_2 NC_1 OPT C5627 50V 50V C5637 SPEAKER_L C5633 2200pF 330pF 50V 0.1uF [EP] 50V 12 11 10 9 8 7 6 5 4 3 2 1 50V AVDD 13 48 PGND_AB_2 R5612 +3.5V_ST 18 C5604 R5608 2K A_SEL_FAULT PGND_AB_1 THERMAL 14 47 0.1uF MCLK OUT_B 46 49 16V 15 SPK_L- 18K OSC_RES NC_6 16 45 50V L5606 TAS5733 IC5600 R5601 R5607 1% DVSSO 17 44 NC_5 0.033uF 10uH 10K VR_DIG BST_B C5624 AUD_MASTER_CLK 18 43 AMP_COIL_ABCO R5603 PDN BST_C 19 42 C 100 LRCLK 20 41 NC_4 AMP_COIL_ABCO OPT C5602 50V OPT SCLK 40 NC_3 L5604 R5600 B 1000pF C5607 21 0.033uF 10uH AMP_MUTE Q5600 50V SDIN OUT_C 0.1uF 22 39 C5625 10K MMBT3904(NXP) SPK_R+ SDA 23 38 PGND_CD_2 E SCL PGND_CD_1 OPT SPEAKER_R R5613 1/16W 24 37 AMP_LC_0.33uF AMP_LC_0.47uF C5634 C5638 C5631-*1 C5631 25 26 27 28 29 30 31 32 33 34 35 36 0.1uF 2200pF 18 AUD_LRCK 0.33uF OPT 0.47uF 50V AUD_SCK 50V 50V 50V R3405 RESET STEST DVDD DVSS GND AGND VREG GVDD_OUT BST_D PVDD_CD_1 PVDD_CD_2 OUT_D 0 AUD_LRCH C5628 OPT POWER_DET AMP_SDA 330pF C5639 +24V_AMP 50V 2200pF AMP_SCL C5635 0.1uF 50V C5629 50V C5614 C56151uF 25V 0.1uF +24V_AMP_CAP 330pF AMP_RESET C5641 50V +3.3V_Normal C5619 C5621 0.1uF 10uF 4.7uF R5614 1/16W 50V 35V 50V 3216 18 C5606 SPK_R- ZD5600 0.1uF C5617 0.033uF L5603 16V 50V 5V 10uH OPT C5610 AMP_COIL_ABCO 0.1uF 16V WAFER-ANGLE SPK_L+ 4 SPK_L- 3 SPK_R+ 2 SPK_R- 1 P5600 THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. L14 131116 FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR AUDIO[TI] 56 THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. Copyright © 2014 LG Electronics. Inc. All rights reserved. LGE Internal Use Only Only for training and service purposes

L14 MHL SW AND GATE +3.3V_Normal MHL_SW_AND_GATE IC5801 74LVC1G08GW B VCC 1 5 MHL_CD_SENSE A 2 MHL_OCP_EN GND Y 3 4 MHL_5V_EN THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS L14_M1A 2013.09.01 ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. MHL_SW_AND 58 Copyright © 2014 LG Electronics. Inc. All rights reserved. LGE Internal Use Only Only for training and service purposes
