Internal Use Only
North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com
LED TV
SERVICE MANUAL
CHASSIS : LA42B
MODEL : 65LB6300 65LB6300-UE
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
P/NO : MFL68045252(1404-REV00) Printed in Korea

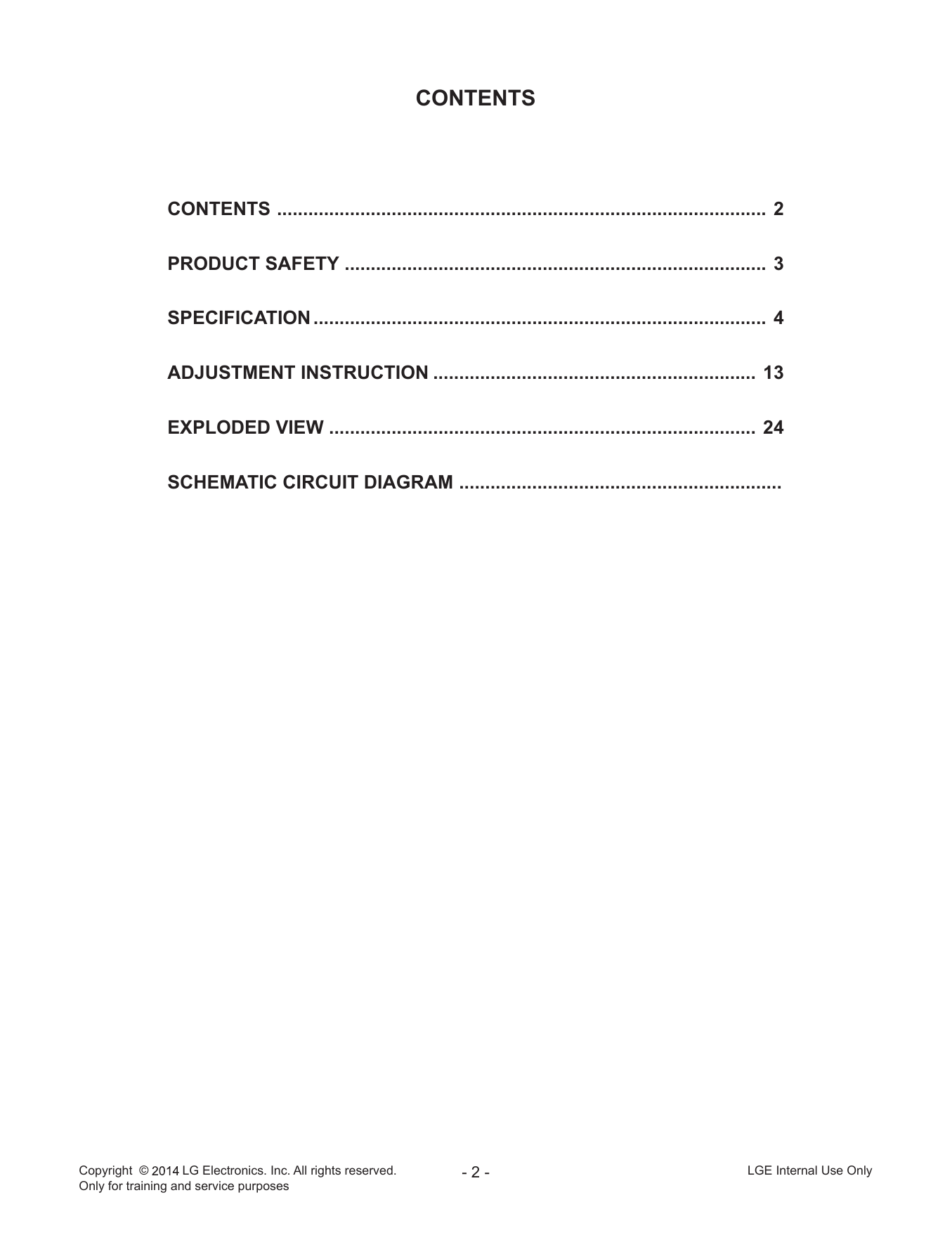

CONTENTS
CONTENTS . ............................................................................................. 2
PRODUCT SAFETY ................................................................................. 3

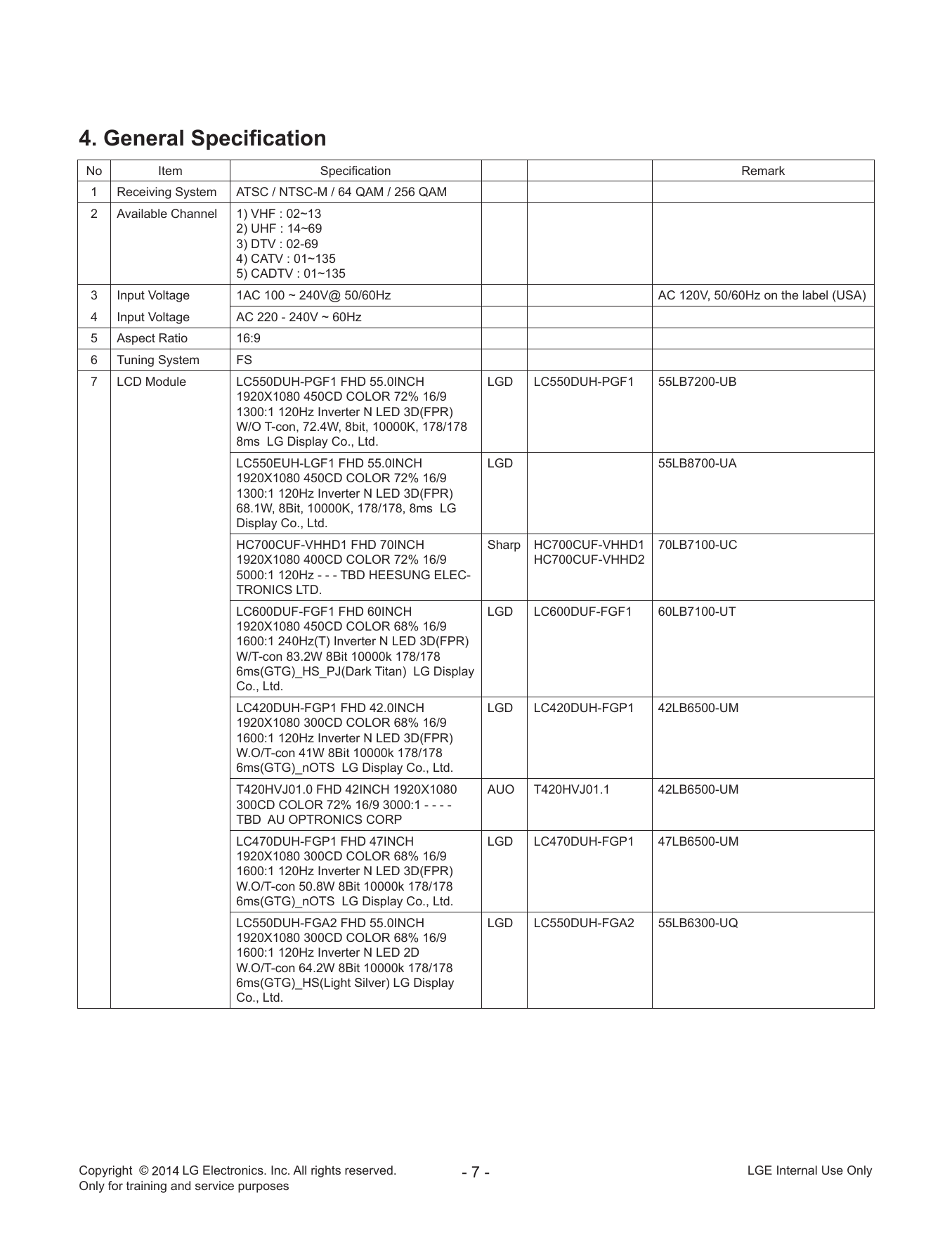

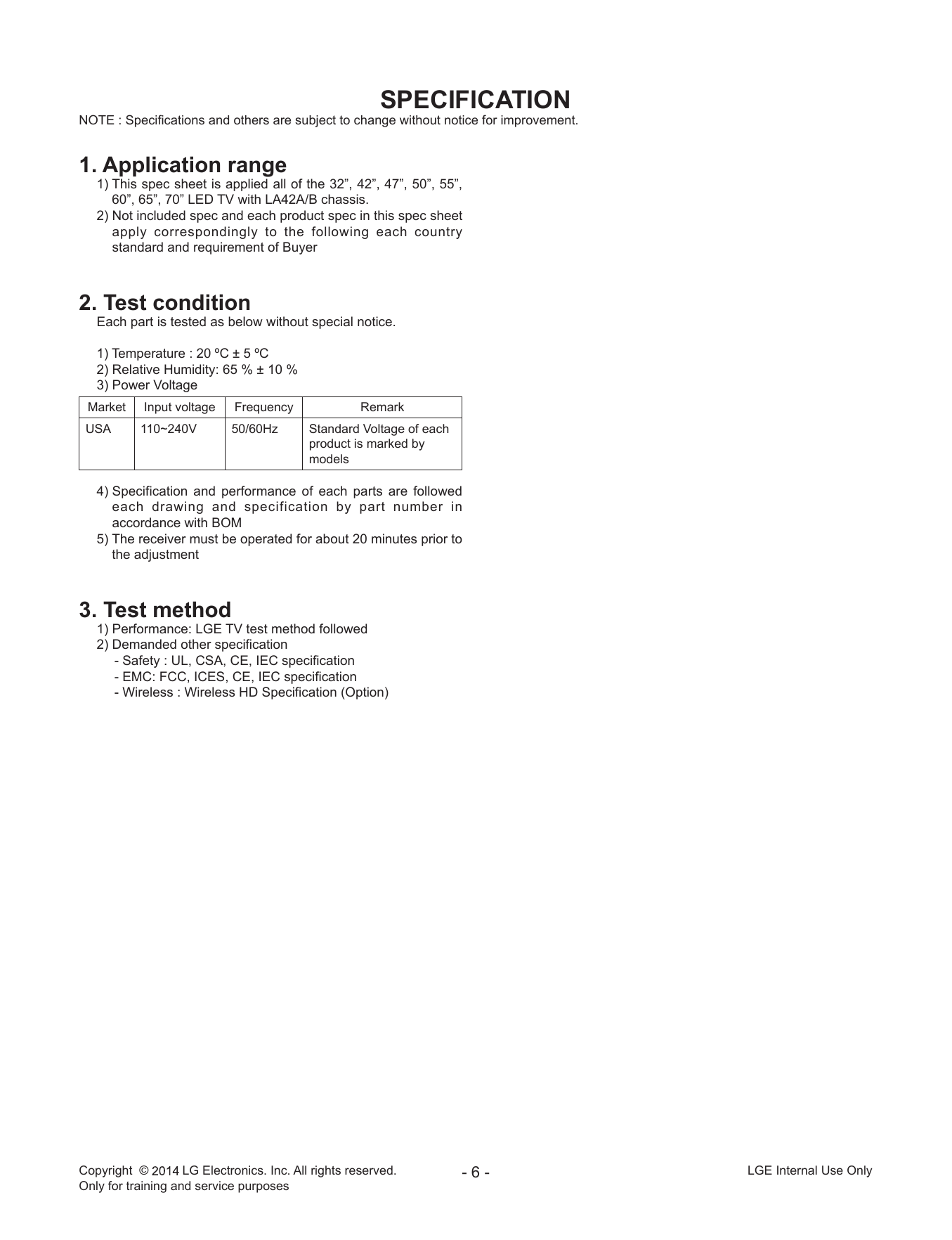

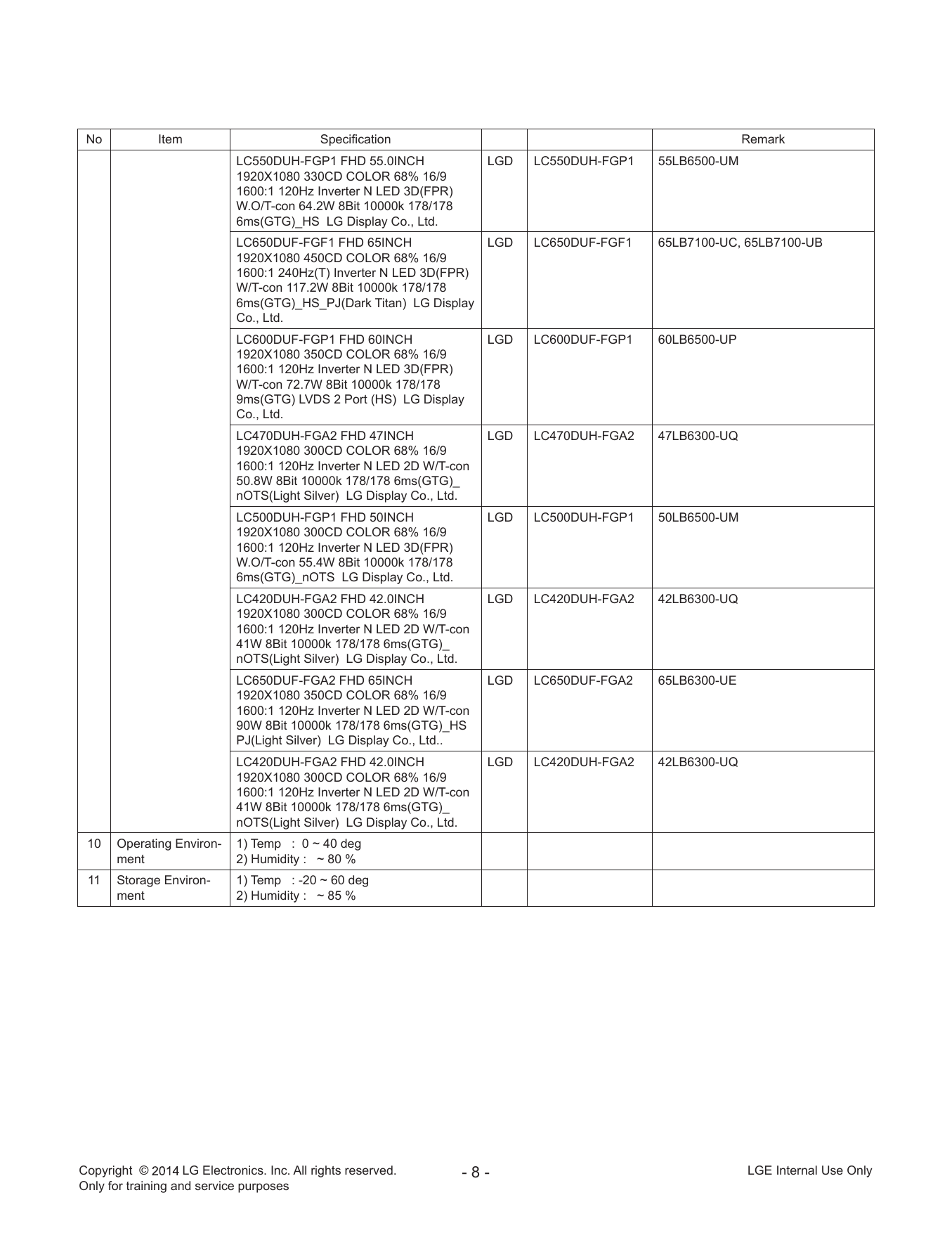

SPECIFICATION........................................................................................ 4

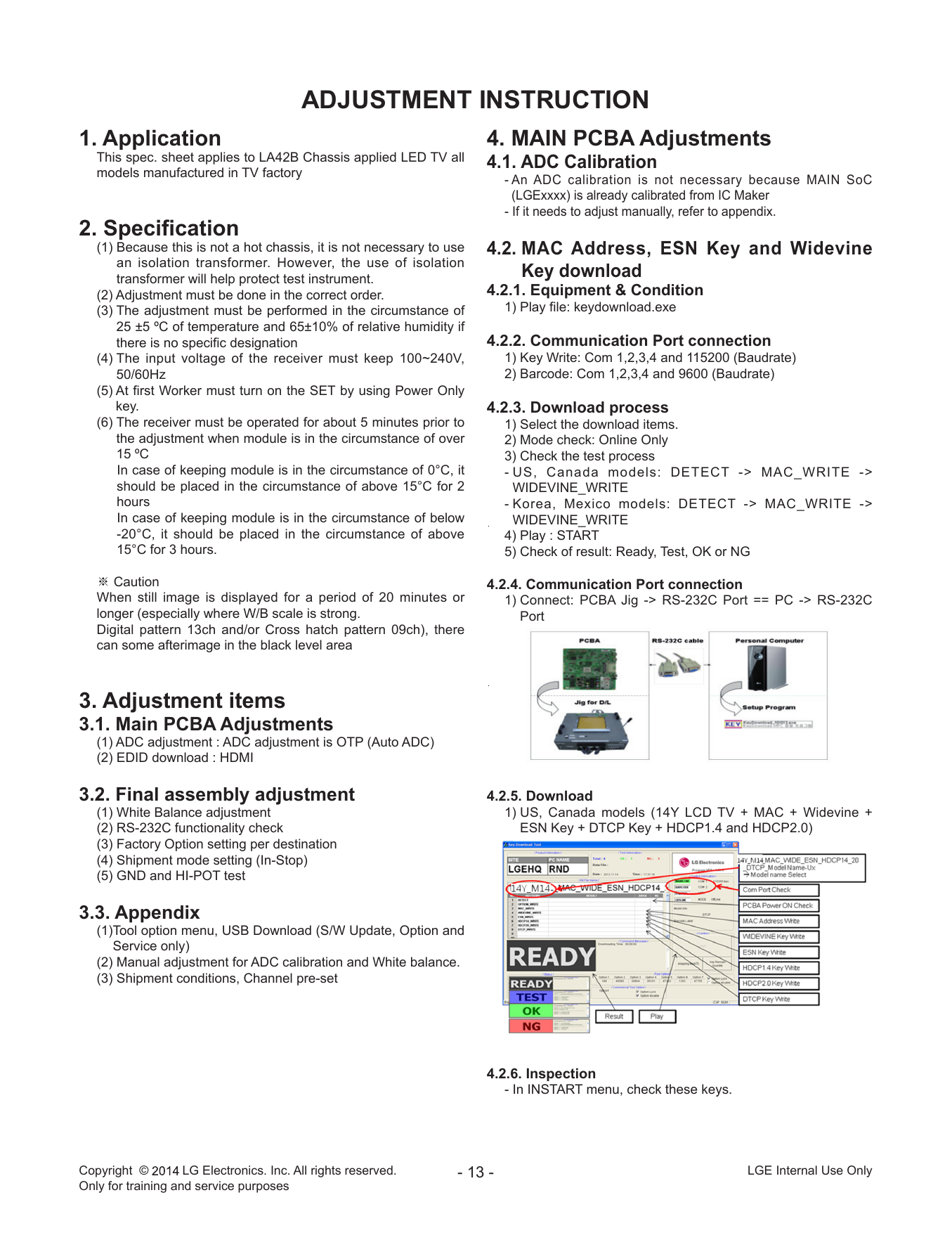

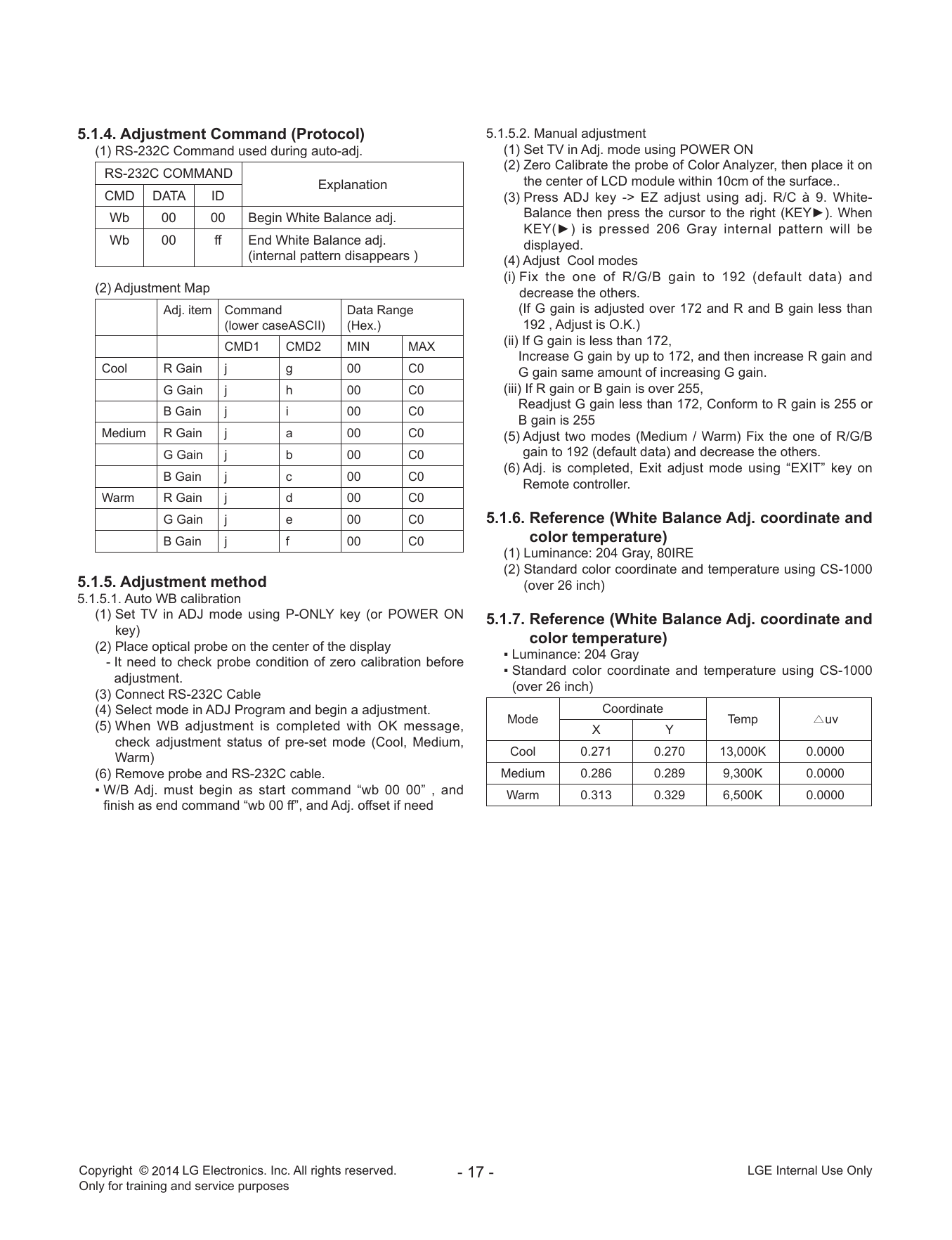

ADJUSTMENT INSTRUCTION............................................................... 13

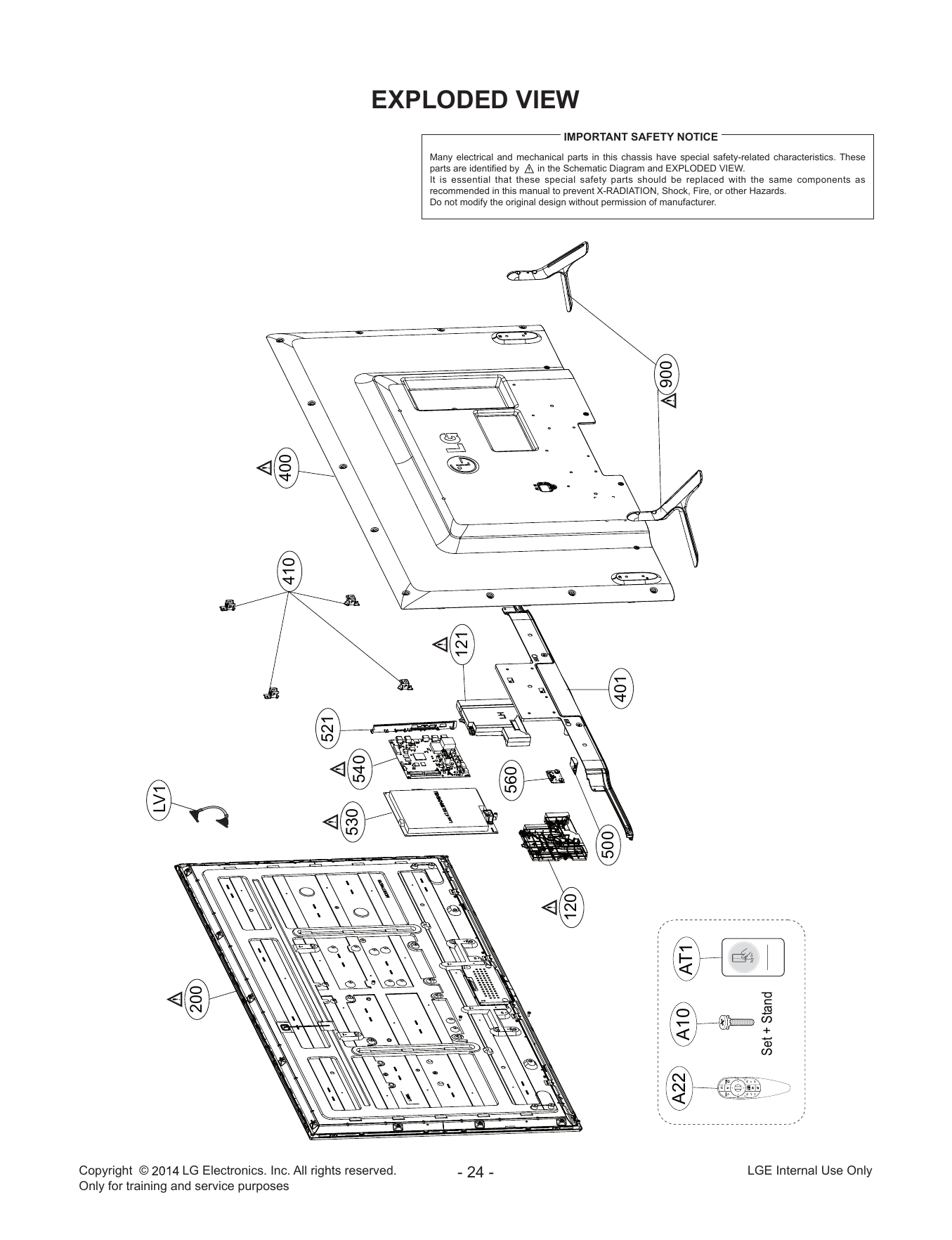

EXPLODED VIEW .................................................................................. 24

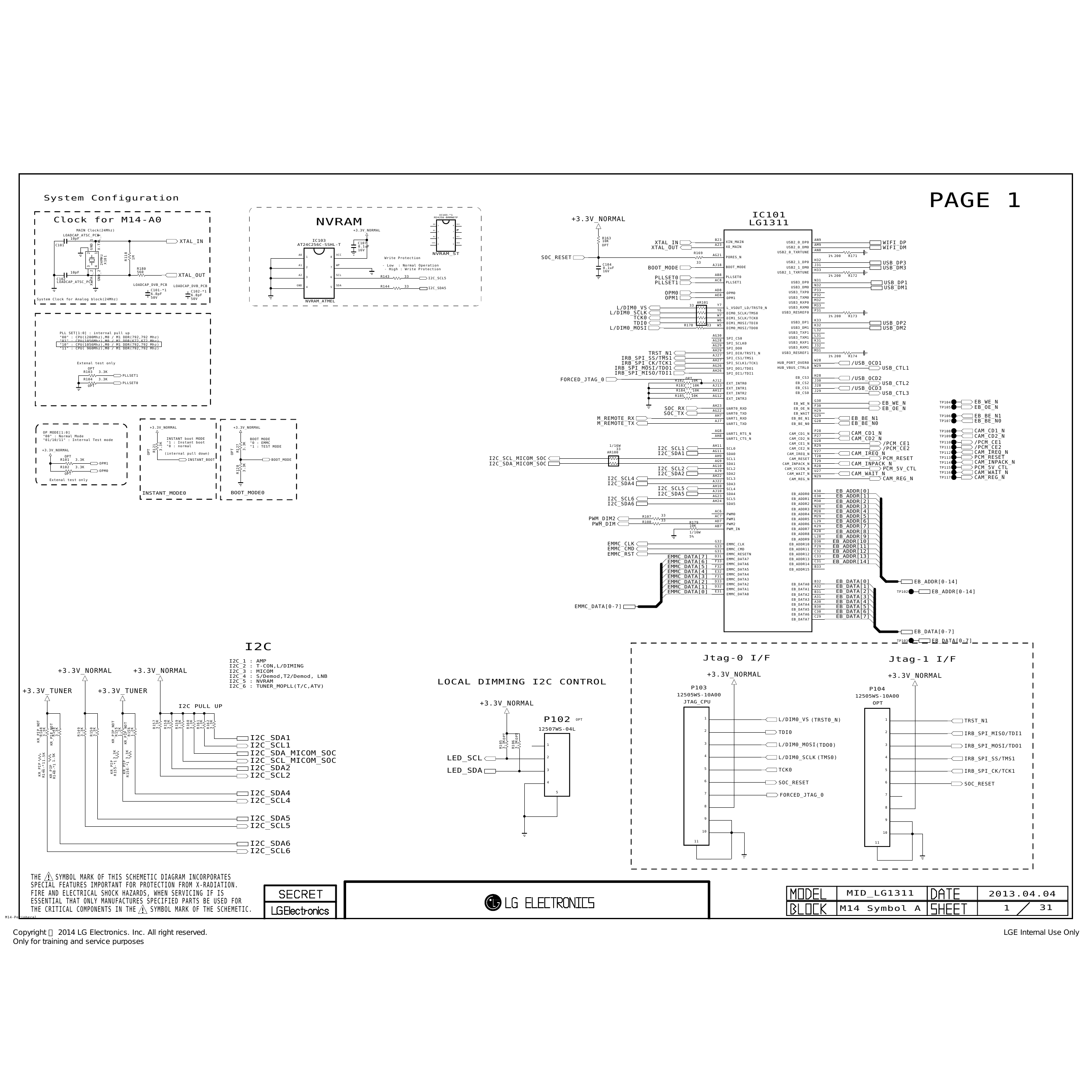

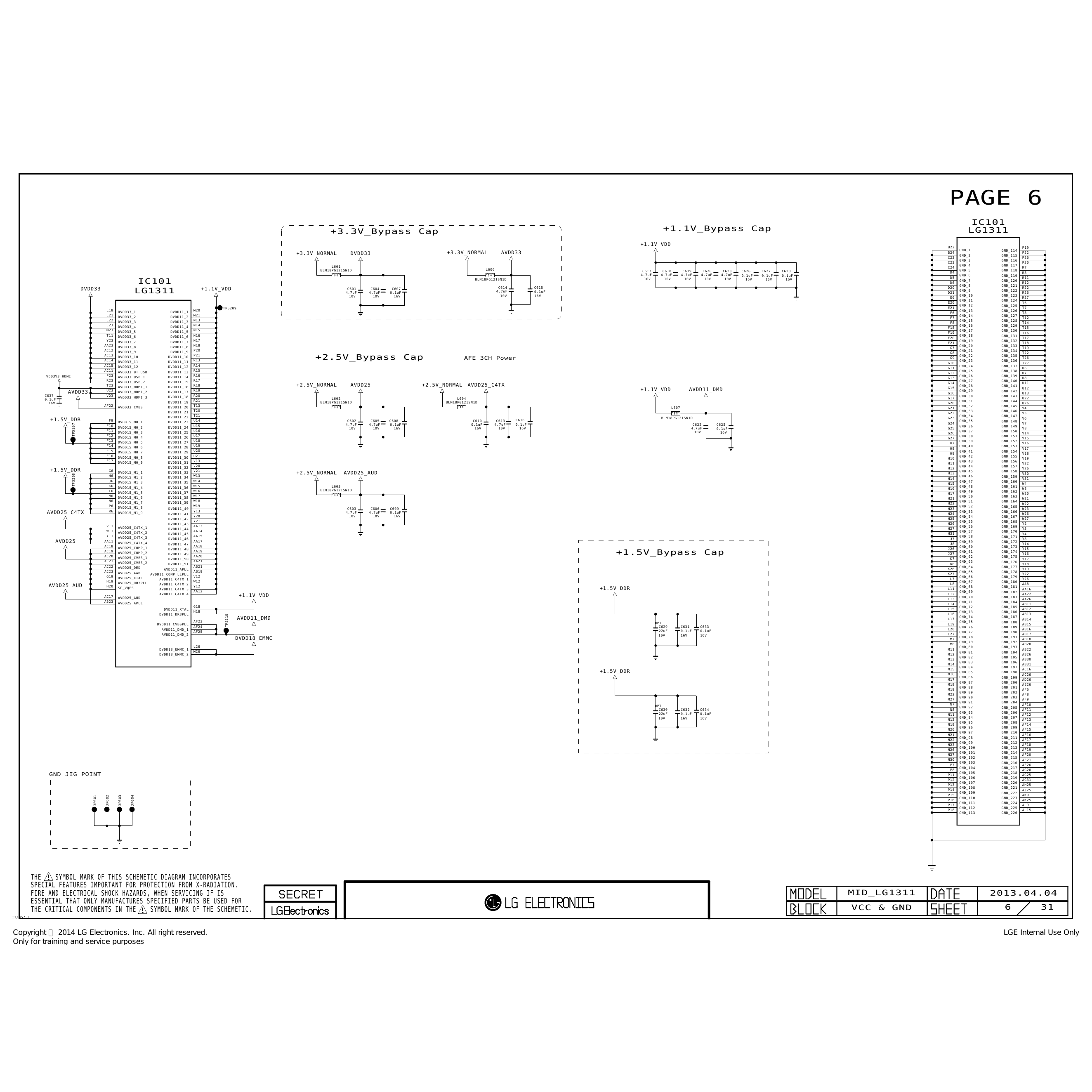

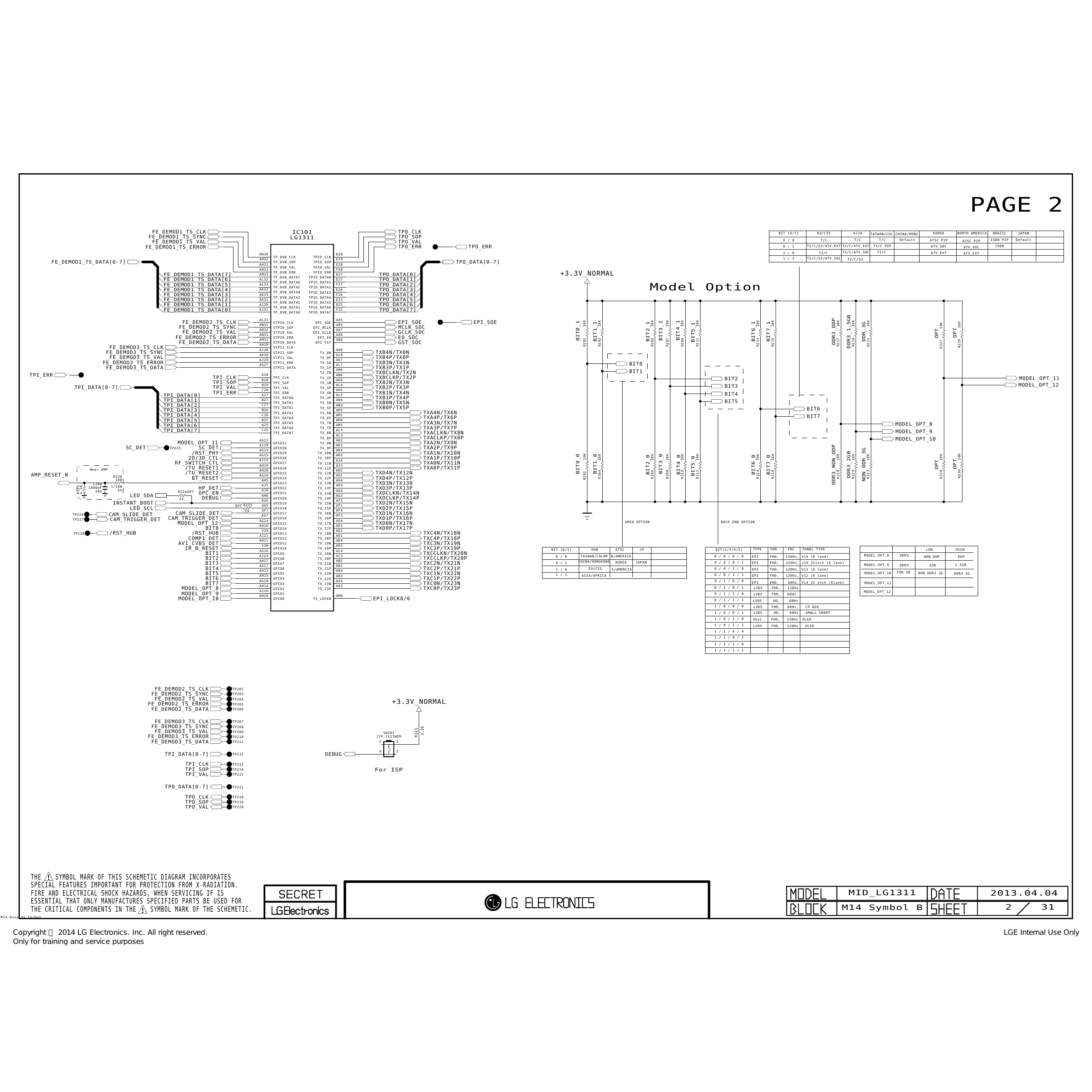

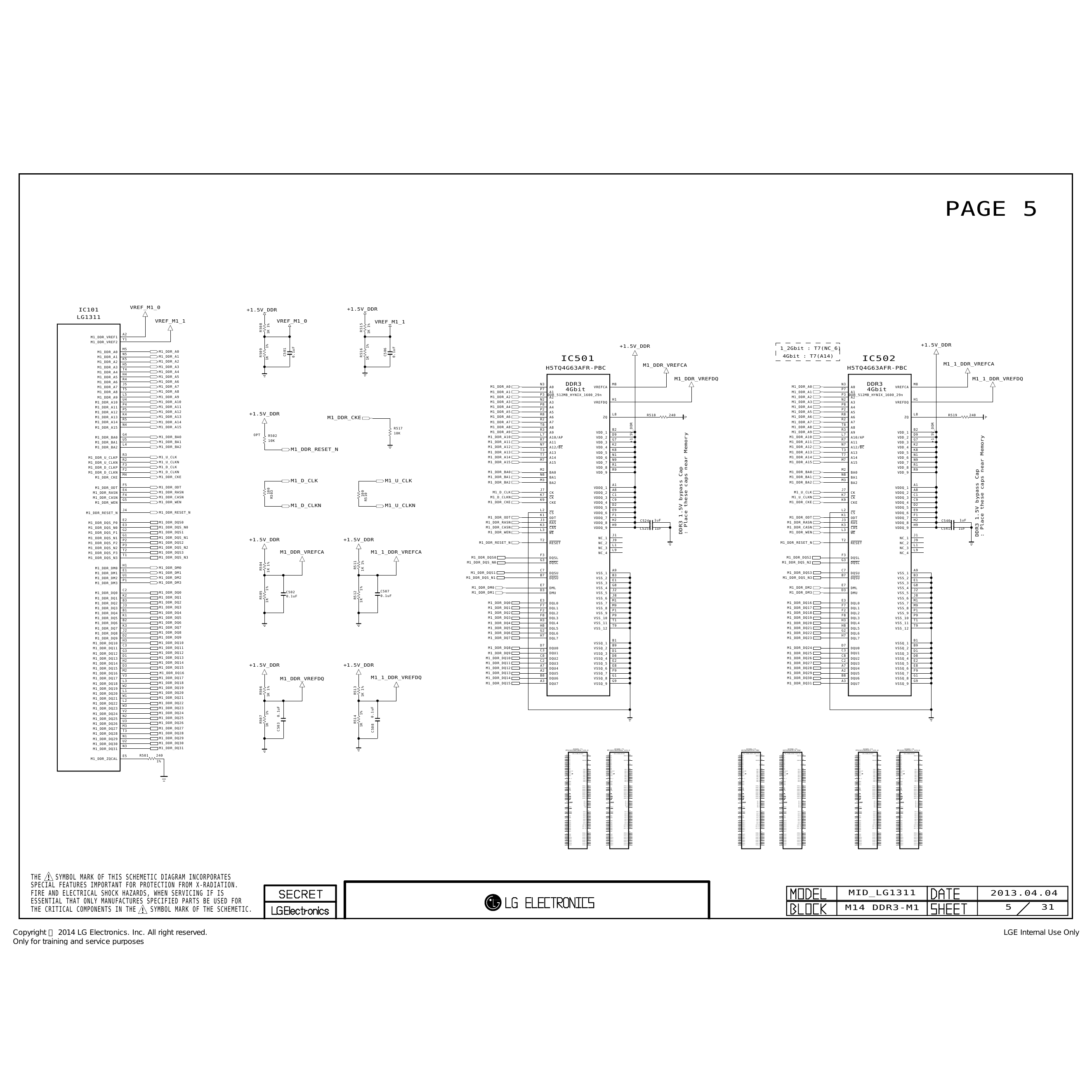

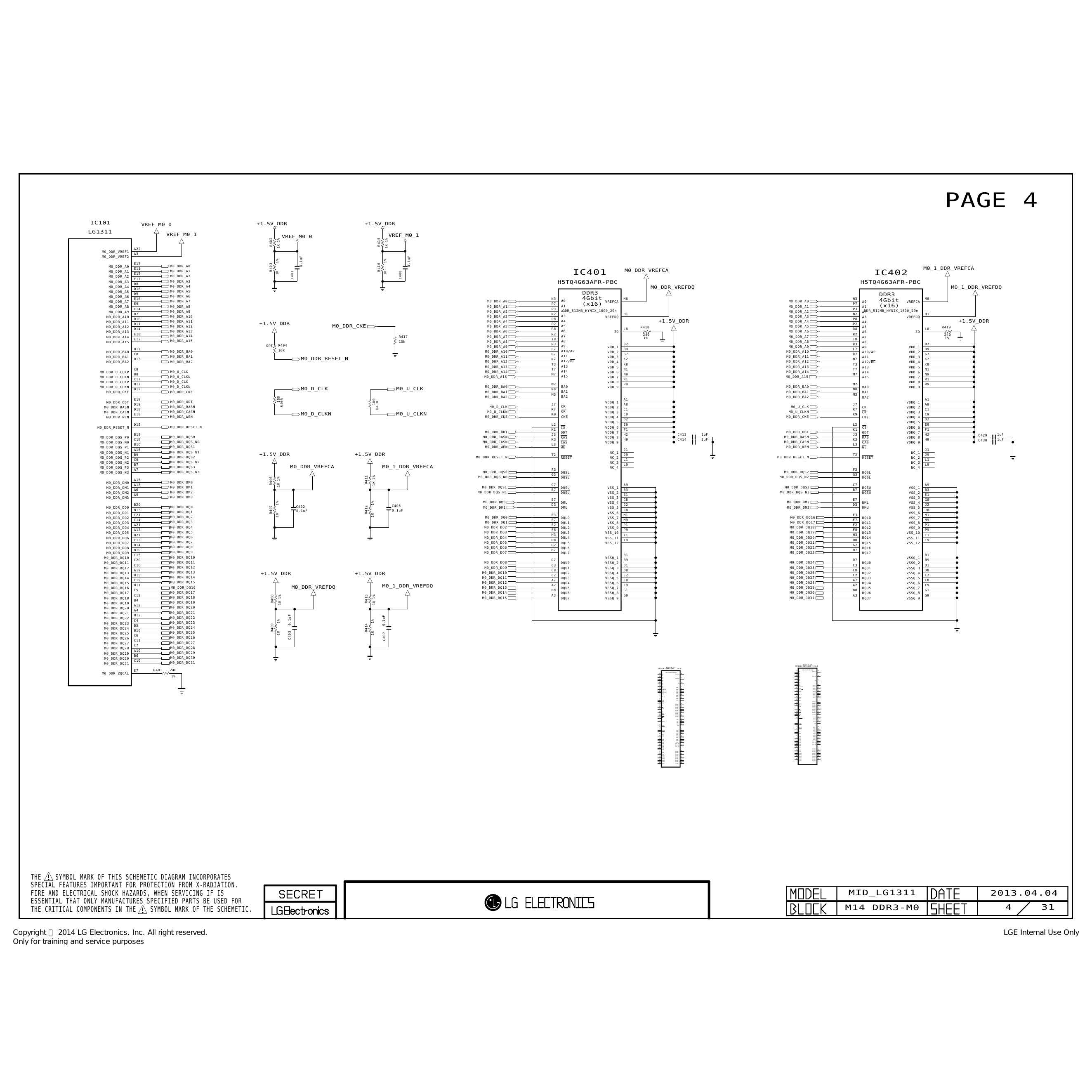

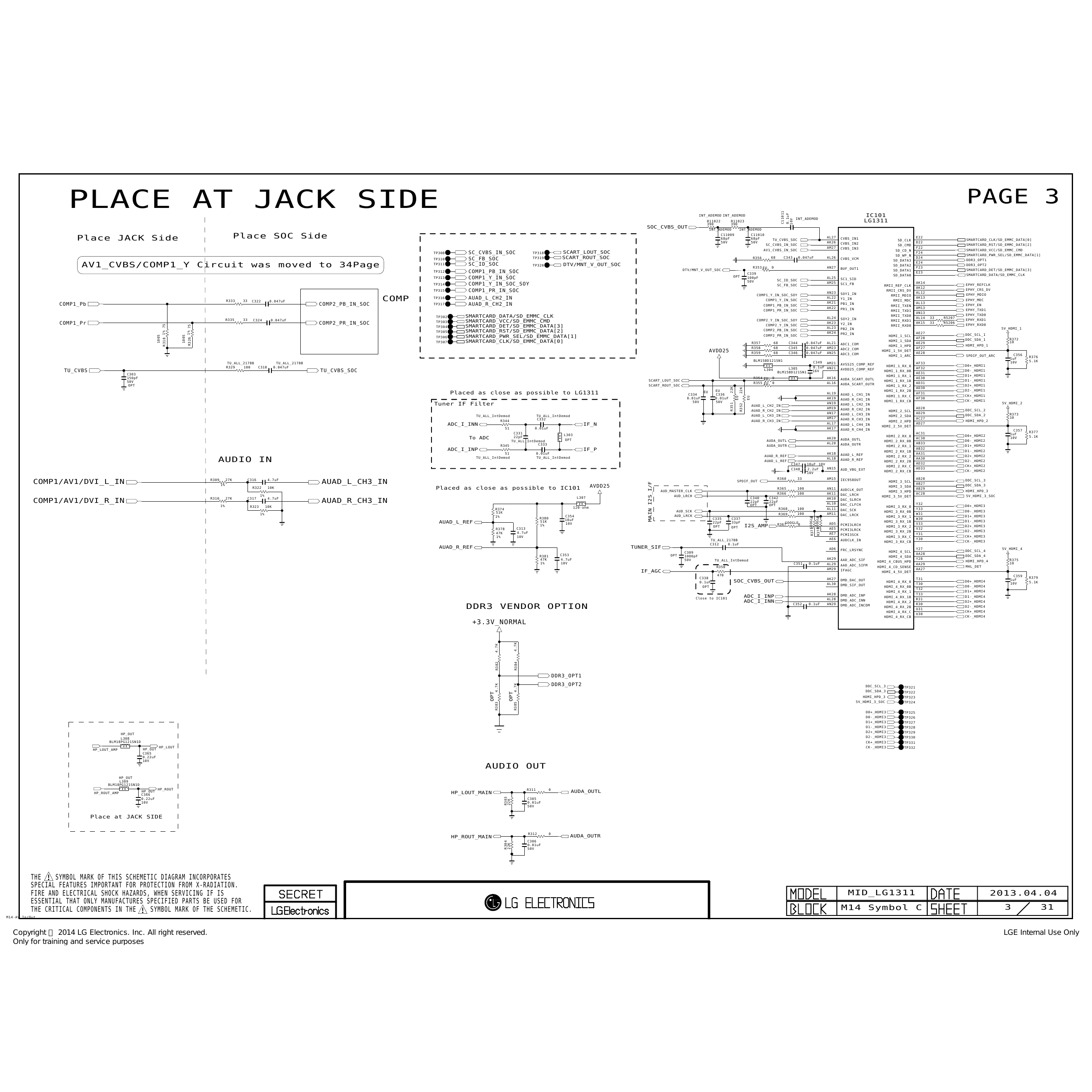

SCHEMATIC CIRCUIT DIAGRAM ..............................................................
Copyright © LG Electronics. Inc. All rights reserved. -2- LGE Internal Use Only
Only for training and service purposes
SAFETY PRECAUTIONS
IMPORTANT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC Do not use a line Isolation Transformer during this check.
power line. Use a transformer of adequate power rating as this Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
protects the technician from accidents resulting in personal injury between a known good earth ground (Water Pipe, Conduit, etc.)
from electrical shocks. and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
It will also protect the receiver and it's components from being with 1000 ohms/volt or more sensitivity.
damaged by accidental shorts of the circuitry that may be Reverse plug the AC cord into the AC outlet and repeat AC voltage
inadvertently introduced during the service operation. measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
If any fuse (or Fusible Resistor) in this TV receiver is blown, 0.5 mA.
replace it with the specified. In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
When replacing a high wattage resistor (Oxide Metal Film Resistor, repaired before it is returned to the customer.
over 1 W), keep the resistor 10 mm away from PCB.
Leakage Current Hot Check circuit
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Copyright © LG Electronics. Inc. All rights reserved. -3- LGE Internal Use Only
Only for training and service purposes
SERVICING PRECAUTIONS
CAUTION: Before servicing receivers covered by this service 2. After removing an electrical assembly equipped with ES
manual and its supplements and addenda, read and follow the devices, place the assembly on a conductive surface such as
SAFETY PRECAUTIONS on page 3 of this publication. aluminum foil, to prevent electrostatic charge buildup or expo-
NOTE: If unforeseen circumstances create conflict between the sure of the assembly.
following servicing precautions and any of the safety precautions 3. Use only a grounded-tip soldering iron to solder or unsolder ES
on page 3 of this publication, always follow the safety precautions. devices.
Remember: Safety First. 4. Use only an anti-static type solder removal device. Some solder
removal devices not classified as “anti-static” can generate
General Servicing Precautions electrical charges sufficient to damage ES devices.
1. Always unplug the receiver AC power cord from the AC power 5. Do not use freon-propelled chemicals. These can generate
source before; electrical charges sufficient to damage ES devices.
a. Removing or reinstalling any component, circuit board mod- 6. Do not remove a replacement ES device from its protective
ule or any other receiver assembly. package until immediately before you are ready to install it.
b. Disconnecting or reconnecting any receiver electrical plug or (Most replacement ES devices are packaged with leads electri-
other electrical connection. cally shorted together by conductive foam, aluminum foil or
c. Connecting a test substitute in parallel with an electrolytic comparable conductive material).
capacitor in the receiver. 7. Immediately before removing the protective material from the
CAUTION: A wrong part substitution or incorrect polarity leads of a replacement ES device, touch the protective material
installation of electrolytic capacitors may result in an explo- to the chassis or circuit assembly into which the device will be
sion hazard. installed.
2. Test high voltage only by measuring it with an appropriate CAUTION: Be sure no power is applied to the chassis or circuit,
high voltage meter or other voltage measuring device (DVM, and observe all other safety precautions.
FETVOM, etc) equipped with a suitable high voltage probe. 8. Minimize bodily motions when handling unpackaged replace-
Do not test high voltage by "drawing an arc". ment ES devices. (Otherwise harmless motion such as the
3. Do not spray chemicals on or near this receiver or any of its brushing together of your clothes fabric or the lifting of your
assemblies. foot from a carpeted floor can generate static electricity suf-
4. Unless specified otherwise in this service manual, clean ficient to damage an ES device.)
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable General Soldering Guidelines
non-abrasive applicator; 10 % (by volume) Acetone and 90 % 1. Use a grounded-tip, low-wattage soldering iron and appropriate
(by volume) isopropyl alcohol (90 % - 99 % strength) tip size and shape that will maintain tip temperature within the
CAUTION: This is a flammable mixture. range or 500 °F to 600 °F.
Unless specified otherwise in this service manual, lubrication of 2. Use an appropriate gauge of RMA resin-core solder composed
contacts in not required. of 60 parts tin/40 parts lead.
5. Do not defeat any plug/socket B+ voltage interlocks with which 3. Keep the soldering iron tip clean and well tinned.
receivers covered by this service manual might be equipped. 4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
6. Do not apply AC power to this instrument and/or any of its bristle (0.5 inch, or 1.25 cm) brush with a metal handle.
electrical assemblies unless all solid-state device heat sinks are Do not use freon-propelled spray-on cleaners.
correctly installed. 5. Use the following unsoldering technique
7. Always connect the test receiver ground lead to the receiver a. Allow the soldering iron tip to reach normal temperature.
chassis ground before connecting the test receiver positive (500 °F to 600 °F)
lead. b. Heat the component lead until the solder melts.
Always remove the test receiver ground lead last. c. Quickly draw the melted solder with an anti-static, suction-
8. Use with this receiver only the test fixtures specified in this type solder removal device or with solder braid.
service manual. CAUTION: Work quickly to avoid overheating the circuit
CAUTION: Do not connect the test fixture ground strap to any board printed foil.
heat sink in this receiver. 6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
Electrostatically Sensitive (ES) Devices (500 °F to 600 °F)
Some semiconductor (solid-state) devices can be damaged eas- b. First, hold the soldering iron tip and solder the strand against
ily by static electricity. Such components commonly are called the component lead until the solder melts.
Electrostatically Sensitive (ES) Devices. Examples of typical ES c. Quickly move the soldering iron tip to the junction of the
devices are integrated circuits and some field-effect transistors component lead and the printed circuit foil, and hold it there
and semiconductor “chip” components. The following techniques only until the solder flows onto and around both the compo-
should be used to help reduce the incidence of component dam- nent lead and the foil.
age caused by static by static electricity. CAUTION: Work quickly to avoid overheating the circuit
1. Immediately before handling any semiconductor component or board printed foil.
semiconductor-equipped assembly, drain off any electrostatic d. Closely inspect the solder area and remove any excess or
charge on your body by touching a known earth ground. Alter- splashed solder with a small wire-bristle brush.
natively, obtain and wear a commercially available discharging
wrist strap device, which should be removed to prevent poten-
tial shock reasons prior to applying power to the unit under test.
Copyright © LG Electronics. Inc. All rights reserved. -4- LGE Internal Use Only
Only for training and service purposes
IC Remove/Replacement 3. Solder the connections.
Some chassis circuit boards have slotted holes (oblong) through CAUTION: Maintain original spacing between the replaced
which the IC leads are inserted and then bent flat against the cir- component and adjacent components and the circuit board to
cuit foil. When holes are the slotted type, the following technique prevent excessive component temperatures.
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique Circuit Board Foil Repair
as outlined in paragraphs 5 and 6 above. Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
Removal board causing the foil to separate from or "lift-off" the board. The
1. Desolder and straighten each IC lead in one operation by following guidelines and procedures should be followed whenever
gently prying up on the lead with the soldering iron tip as the this condition is encountered.
solder melts.
2. Draw away the melted solder with an anti-static suction-type At IC Connections
solder removal device (or with solder braid) before removing To repair a defective copper pattern at IC connections use the
the IC. following procedure to install a jumper wire on the copper pattern
Replacement side of the circuit board. (Use this technique only on IC connec-
1. Carefully insert the replacement IC in the circuit board. tions).
2. Carefully bend each IC lead against the circuit foil pad and
solder it. 1. Carefully remove the damaged copper pattern with a sharp
3. Clean the soldered areas with a small wire-bristle brush. knife. (Remove only as much copper as absolutely necessary).
(It is not necessary to reapply acrylic coating to the areas). 2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
"Small-Signal" Discrete Transistor 3. Bend a small "U" in one end of a small gauge jumper wire and
Removal/Replacement carefully crimp it around the IC pin. Solder the IC connection.
1. Remove the defective transistor by clipping its leads as close 4. Route the jumper wire along the path of the out-away copper
as possible to the component body. pattern and let it overlap the previously scraped end of the
2. Bend into a "U" shape the end of each of three leads remaining good copper pattern. Solder the overlapped area and clip off
on the circuit board. any excess jumper wire.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding At Other Connections
leads extending from the circuit board and crimp the "U" with Use the following technique to repair the defective copper pattern
long nose pliers to insure metal to metal contact then solder at connections other than IC Pins. This technique involves the
each connection. installation of a jumper wire on the component side of the circuit
board.
Power Output, Transistor Device
Removal/Replacement 1. Remove the defective copper pattern with a sharp knife.
1. Heat and remove all solder from around the transistor leads. Remove at least 1/4 inch of copper, to ensure that a hazardous
2. Remove the heat sink mounting screw (if so equipped). condition will not exist if the jumper wire opens.
3. Carefully remove the transistor from the heat sink of the circuit 2. Trace along the copper pattern from both sides of the pattern
board. break and locate the nearest component that is directly con-
4. Insert new transistor in the circuit board. nected to the affected copper pattern.
5. Solder each transistor lead, and clip off excess lead. 3. Connect insulated 20-gauge jumper wire from the lead of the
6. Replace heat sink. nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Diode Removal/Replacement Carefully crimp and solder the connections.
1. Remove defective diode by clipping its leads as close as pos- CAUTION: Be sure the insulated jumper wire is dressed so the
sible to diode body. it does not touch components or sharp edges.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
Copyright © LG Electronics. Inc. All rights reserved. -5- LGE Internal Use Only
Only for training and service purposes
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement.
1. Application range
1) This spec sheet is applied all of the 32”, 42”, 47”, 50”, 55”,
60”, 65”, 70” LED TV with LA42A/B chassis.
2) Not included spec and each product spec in this spec sheet
apply correspondingly to the following each country
standard and requirement of Buyer
2. Test condition
Each part is tested as below without special notice.
1) Temperature : 20 ºC ± 5 ºC
2) Relative Humidity: 65 % ± 10 %
3) Power Voltage
Market Input voltage Frequency Remark
USA 110~240V 50/60Hz Standard Voltage of each
product is marked by
models
4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM
5) The receiver must be operated for about 20 minutes prior to
the adjustment
3. Test method
1) Performance: LGE TV test method followed
2) Demanded other specification
- Safety : UL, CSA, CE, IEC specification
- EMC: FCC, ICES, CE, IEC specification
- Wireless : Wireless HD Specification (Option)
Copyright © LG Electronics. Inc. All rights reserved. -6- LGE Internal Use Only
Only for training and service purposes
4. General Specification
No Item Specification Remark
1 Receiving System ATSC / NTSC-M / 64 QAM / 256 QAM
2 Available Channel 1) VHF : 02~13
2) UHF : 14~69
3) DTV : 02-69
4) CATV : 01~135
5) CADTV : 01~135
3 Input Voltage 1AC 100 ~ 240V@ 50/60Hz AC 120V, 50/60Hz on the label (USA)
4 Input Voltage AC 220 - 240V ~ 60Hz
5 Aspect Ratio 16:9
6 Tuning System FS
7 LCD Module LC550DUH-PGF1 FHD 55.0INCH LGD LC550DUH-PGF1 55LB7200-UB
1920X1080 450CD COLOR 72% 16/9
1300:1 120Hz Inverter N LED 3D(FPR)
W/O T-con, 72.4W, 8bit, 10000K, 178/178
8ms LG Display Co., Ltd.
LC550EUH-LGF1 FHD 55.0INCH LGD 55LB8700-UA
1920X1080 450CD COLOR 72% 16/9
1300:1 120Hz Inverter N LED 3D(FPR)
68.1W, 8Bit, 10000K, 178/178, 8ms LG
Display Co., Ltd.
HC700CUF-VHHD1 FHD 70INCH Sharp HC700CUF-VHHD1 70LB7100-UC
1920X1080 400CD COLOR 72% 16/9 HC700CUF-VHHD2
5000:1 120Hz - - - TBD HEESUNG ELEC-
TRONICS LTD.
LC600DUF-FGF1 FHD 60INCH LGD LC600DUF-FGF1 60LB7100-UT
1920X1080 450CD COLOR 68% 16/9
1600:1 240Hz(T) Inverter N LED 3D(FPR)
W/T-con 83.2W 8Bit 10000k 178/178
6ms(GTG)_HS_PJ(Dark Titan) LG Display
Co., Ltd.
LC420DUH-FGP1 FHD 42.0INCH LGD LC420DUH-FGP1 42LB6500-UM
1920X1080 300CD COLOR 68% 16/9
1600:1 120Hz Inverter N LED 3D(FPR)
W.O/T-con 41W 8Bit 10000k 178/178
6ms(GTG)_nOTS LG Display Co., Ltd.
T420HVJ01.0 FHD 42INCH 1920X1080 AUO T420HVJ01.1 42LB6500-UM
300CD COLOR 72% 16/9 3000:1 - - - -
TBD AU OPTRONICS CORP
LC470DUH-FGP1 FHD 47INCH LGD LC470DUH-FGP1 47LB6500-UM
1920X1080 300CD COLOR 68% 16/9
1600:1 120Hz Inverter N LED 3D(FPR)
W.O/T-con 50.8W 8Bit 10000k 178/178
6ms(GTG)_nOTS LG Display Co., Ltd.
LC550DUH-FGA2 FHD 55.0INCH LGD LC550DUH-FGA2 55LB6300-UQ
1920X1080 300CD COLOR 68% 16/9
1600:1 120Hz Inverter N LED 2D
W.O/T-con 64.2W 8Bit 10000k 178/178
6ms(GTG)_HS(Light Silver) LG Display
Co., Ltd.
Copyright © LG Electronics. Inc. All rights reserved. -7- LGE Internal Use Only
Only for training and service purposes
No Item Specification Remark
LC550DUH-FGP1 FHD 55.0INCH LGD LC550DUH-FGP1 55LB6500-UM
1920X1080 330CD COLOR 68% 16/9
1600:1 120Hz Inverter N LED 3D(FPR)
W.O/T-con 64.2W 8Bit 10000k 178/178
6ms(GTG)_HS LG Display Co., Ltd.
LC650DUF-FGF1 FHD 65INCH LGD LC650DUF-FGF1 65LB7100-UC, 65LB7100-UB
1920X1080 450CD COLOR 68% 16/9
1600:1 240Hz(T) Inverter N LED 3D(FPR)
W/T-con 117.2W 8Bit 10000k 178/178
6ms(GTG)_HS_PJ(Dark Titan) LG Display
Co., Ltd.
LC600DUF-FGP1 FHD 60INCH LGD LC600DUF-FGP1 60LB6500-UP
1920X1080 350CD COLOR 68% 16/9
1600:1 120Hz Inverter N LED 3D(FPR)
W/T-con 72.7W 8Bit 10000k 178/178
9ms(GTG) LVDS 2 Port (HS) LG Display
Co., Ltd.
LC470DUH-FGA2 FHD 47INCH LGD LC470DUH-FGA2 47LB6300-UQ
1920X1080 300CD COLOR 68% 16/9
1600:1 120Hz Inverter N LED 2D W/T-con
50.8W 8Bit 10000k 178/178 6ms(GTG)_
nOTS(Light Silver) LG Display Co., Ltd.
LC500DUH-FGP1 FHD 50INCH LGD LC500DUH-FGP1 50LB6500-UM
1920X1080 300CD COLOR 68% 16/9
1600:1 120Hz Inverter N LED 3D(FPR)
W.O/T-con 55.4W 8Bit 10000k 178/178
6ms(GTG)_nOTS LG Display Co., Ltd.
LC420DUH-FGA2 FHD 42.0INCH LGD LC420DUH-FGA2 42LB6300-UQ
1920X1080 300CD COLOR 68% 16/9
1600:1 120Hz Inverter N LED 2D W/T-con
41W 8Bit 10000k 178/178 6ms(GTG)_
nOTS(Light Silver) LG Display Co., Ltd.
LC650DUF-FGA2 FHD 65INCH LGD LC650DUF-FGA2 65LB6300-UE
1920X1080 350CD COLOR 68% 16/9
1600:1 120Hz Inverter N LED 2D W/T-con
90W 8Bit 10000k 178/178 6ms(GTG)_HS
PJ(Light Silver) LG Display Co., Ltd..
LC420DUH-FGA2 FHD 42.0INCH LGD LC420DUH-FGA2 42LB6300-UQ
1920X1080 300CD COLOR 68% 16/9
1600:1 120Hz Inverter N LED 2D W/T-con
41W 8Bit 10000k 178/178 6ms(GTG)_
nOTS(Light Silver) LG Display Co., Ltd.
10 Operating Environ- 1) Temp : 0 ~ 40 deg
ment 2) Humidity : ~ 80 %
11 Storage Environ- 1) Temp : -20 ~ 60 deg
ment 2) Humidity : ~ 85 %
Copyright © LG Electronics. Inc. All rights reserved. -8- LGE Internal Use Only
Only for training and service purposes

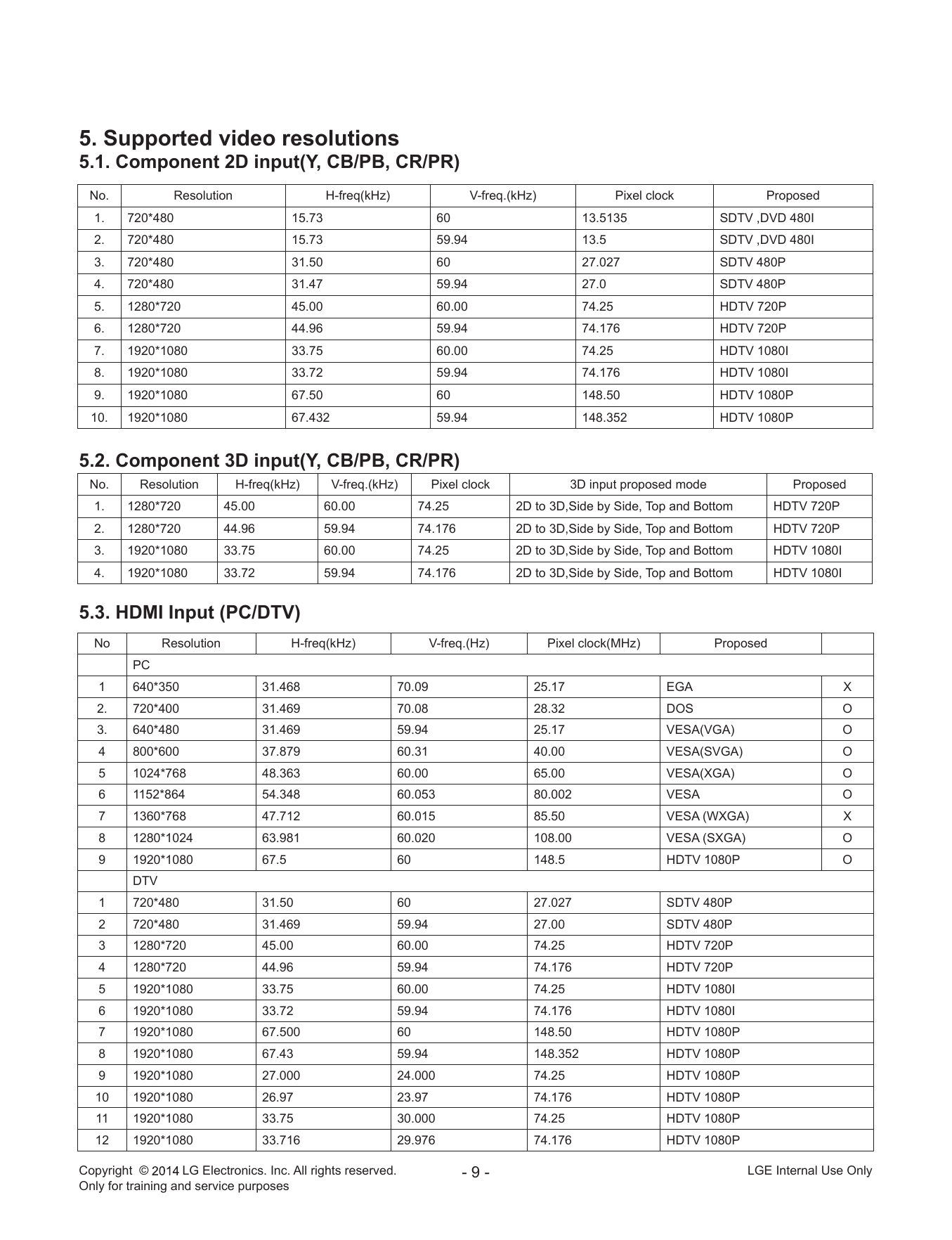

5. Supported video resolutions
5.1. Component 2D input(Y, CB/PB, CR/PR)
No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed
1. 720*480 15.73 60 13.5135 SDTV ,DVD 480I
2. 720*480 15.73 59.94 13.5 SDTV ,DVD 480I
3. 720*480 31.50 60 27.027 SDTV 480P
4. 720*480 31.47 59.94 27.0 SDTV 480P
5. 1280*720 45.00 60.00 74.25 HDTV 720P
6. 1280*720 44.96 59.94 74.176 HDTV 720P
7. 1920*1080 33.75 60.00 74.25 HDTV 1080I
8. 1920*1080 33.72 59.94 74.176 HDTV 1080I
9. 1920*1080 67.50 60 148.50 HDTV 1080P
10. 1920*1080 67.432 59.94 148.352 HDTV 1080P
5.2. Component 3D input(Y, CB/PB, CR/PR)
No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock 3D input proposed mode Proposed
1. 1280*720 45.00 60.00 74.25 2D to 3D,Side by Side, Top and Bottom HDTV 720P
2. 1280*720 44.96 59.94 74.176 2D to 3D,Side by Side, Top and Bottom HDTV 720P
3. 1920*1080 33.75 60.00 74.25 2D to 3D,Side by Side, Top and Bottom HDTV 1080I
4. 1920*1080 33.72 59.94 74.176 2D to 3D,Side by Side, Top and Bottom HDTV 1080I
5.3. HDMI Input (PC/DTV)
No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed
PC
1 640*350 31.468 70.09 25.17 EGA X
2. 720*400 31.469 70.08 28.32 DOS O
3. 640*480 31.469 59.94 25.17 VESA(VGA) O
4 800*600 37.879 60.31 40.00 VESA(SVGA) O
5 1024*768 48.363 60.00 65.00 VESA(XGA) O
6 1152*864 54.348 60.053 80.002 VESA O
7 1360*768 47.712 60.015 85.50 VESA (WXGA) X
8 1280*1024 63.981 60.020 108.00 VESA (SXGA) O
9 1920*1080 67.5 60 148.5 HDTV 1080P O
DTV
1 720*480 31.50 60 27.027 SDTV 480P
2 720*480 31.469 59.94 27.00 SDTV 480P
3 1280*720 45.00 60.00 74.25 HDTV 720P
4 1280*720 44.96 59.94 74.176 HDTV 720P
5 1920*1080 33.75 60.00 74.25 HDTV 1080I
6 1920*1080 33.72 59.94 74.176 HDTV 1080I
7 1920*1080 67.500 60 148.50 HDTV 1080P
8 1920*1080 67.43 59.94 148.352 HDTV 1080P
9 1920*1080 27.000 24.000 74.25 HDTV 1080P
10 1920*1080 26.97 23.97 74.176 HDTV 1080P
11 1920*1080 33.75 30.000 74.25 HDTV 1080P
12 1920*1080 33.716 29.976 74.176 HDTV 1080P
Copyright © LG Electronics. Inc. All rights reserved. -9- LGE Internal Use Only
Only for training and service purposes

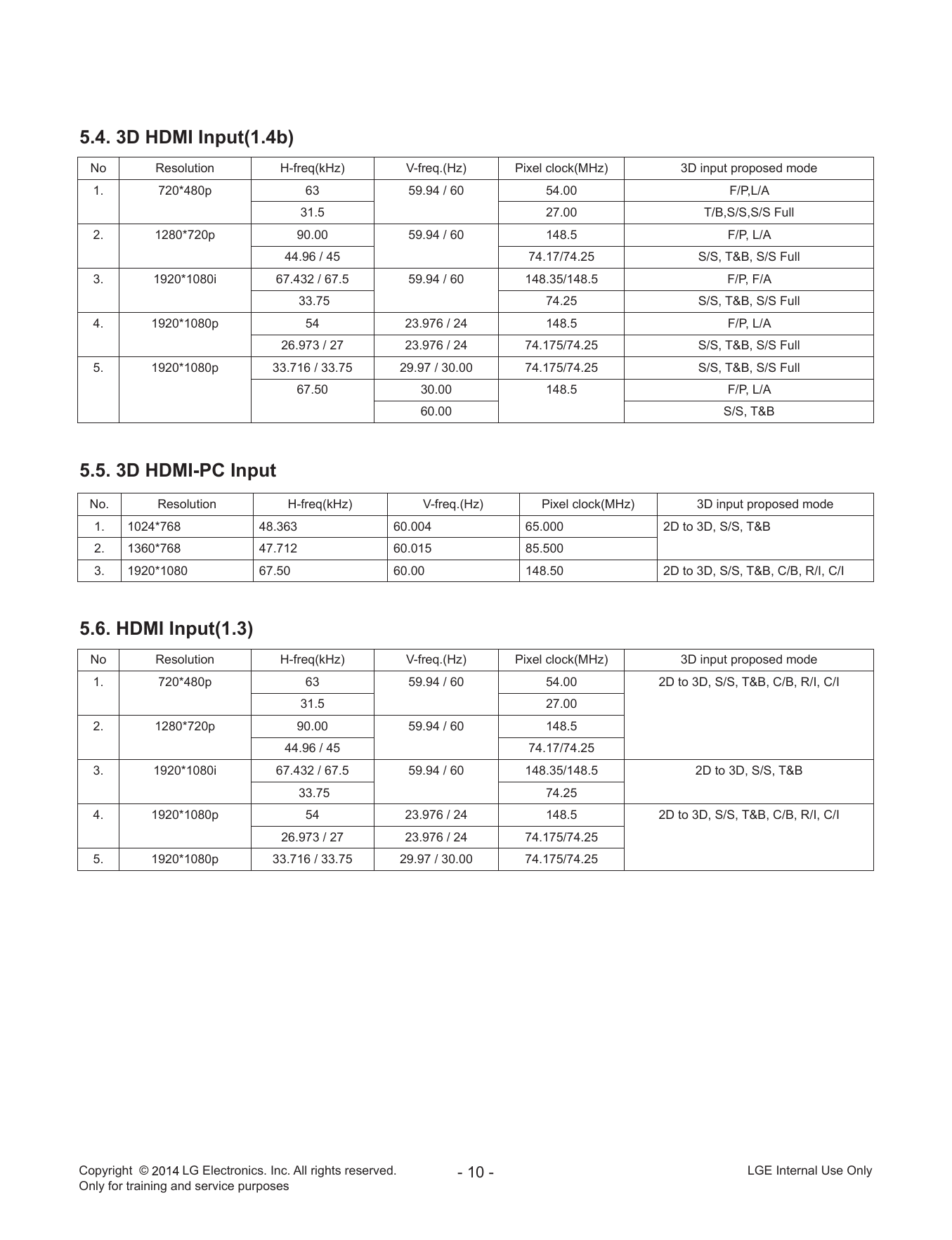

5.4. 3D HDMI Input(1.4b)
No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode
1. 720*480p 63 59.94 / 60 54.00 F/P,L/A
31.5 27.00 T/B,S/S,S/S Full
2. 1280*720p 90.00 59.94 / 60 148.5 F/P, L/A
44.96 / 45 74.17/74.25 S/S, T&B, S/S Full
3. 1920*1080i 67.432 / 67.5 59.94 / 60 148.35/148.5 F/P, F/A
33.75 74.25 S/S, T&B, S/S Full
4. 1920*1080p 54 23.976 / 24 148.5 F/P, L/A
26.973 / 27 23.976 / 24 74.175/74.25 S/S, T&B, S/S Full
5. 1920*1080p 33.716 / 33.75 29.97 / 30.00 74.175/74.25 S/S, T&B, S/S Full
67.50 30.00 148.5 F/P, L/A
60.00 S/S, T&B
5.5. 3D HDMI-PC Input
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode
1. 1024*768 48.363 60.004 65.000 2D to 3D, S/S, T&B
2. 1360*768 47.712 60.015 85.500
3. 1920*1080 67.50 60.00 148.50 2D to 3D, S/S, T&B, C/B, R/I, C/I
5.6. HDMI Input(1.3)
No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode
1. 720*480p 63 59.94 / 60 54.00 2D to 3D, S/S, T&B, C/B, R/I, C/I
31.5 27.00
2. 1280*720p 90.00 59.94 / 60 148.5
44.96 / 45 74.17/74.25
3. 1920*1080i 67.432 / 67.5 59.94 / 60 148.35/148.5 2D to 3D, S/S, T&B
33.75 74.25
4. 1920*1080p 54 23.976 / 24 148.5 2D to 3D, S/S, T&B, C/B, R/I, C/I
26.973 / 27 23.976 / 24 74.175/74.25
5. 1920*1080p 33.716 / 33.75 29.97 / 30.00 74.175/74.25
Copyright © LG Electronics. Inc. All rights reserved. - 10 - LGE Internal Use Only
Only for training and service purposes

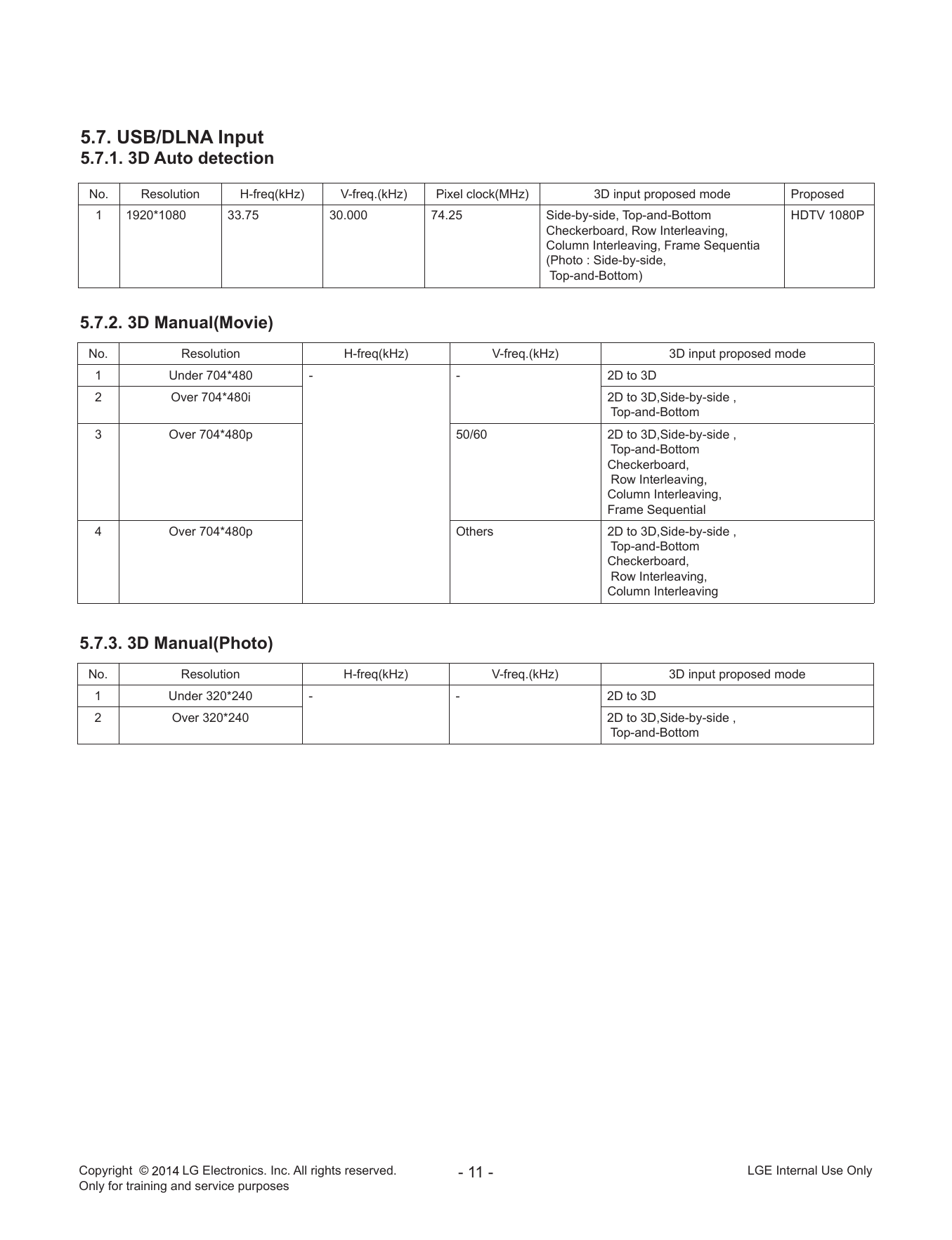

5.7. USB/DLNA Input
5.7.1. 3D Auto detection
No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) 3D input proposed mode Proposed
1 1920*1080 33.75 30.000 74.25 Side-by-side, Top-and-Bottom HDTV 1080P
Checkerboard, Row Interleaving,
Column Interleaving, Frame Sequentia
(Photo : Side-by-side,
Top-and-Bottom)
5.7.2. 3D Manual(Movie)
No. Resolution H-freq(kHz) V-freq.(kHz) 3D input proposed mode
1 Under 704*480 - - 2D to 3D
2 Over 704*480i 2D to 3D,Side-by-side ,
Top-and-Bottom
3 Over 704*480p 50/60 2D to 3D,Side-by-side ,
Top-and-Bottom
Checkerboard,
Row Interleaving,
Column Interleaving,
Frame Sequential
4 Over 704*480p Others 2D to 3D,Side-by-side ,
Top-and-Bottom
Checkerboard,
Row Interleaving,
Column Interleaving
5.7.3. 3D Manual(Photo)
No. Resolution H-freq(kHz) V-freq.(kHz) 3D input proposed mode
1 Under 320*240 - - 2D to 3D
2 Over 320*240 2D to 3D,Side-by-side ,
Top-and-Bottom
Copyright © LG Electronics. Inc. All rights reserved. - 11 - LGE Internal Use Only
Only for training and service purposes

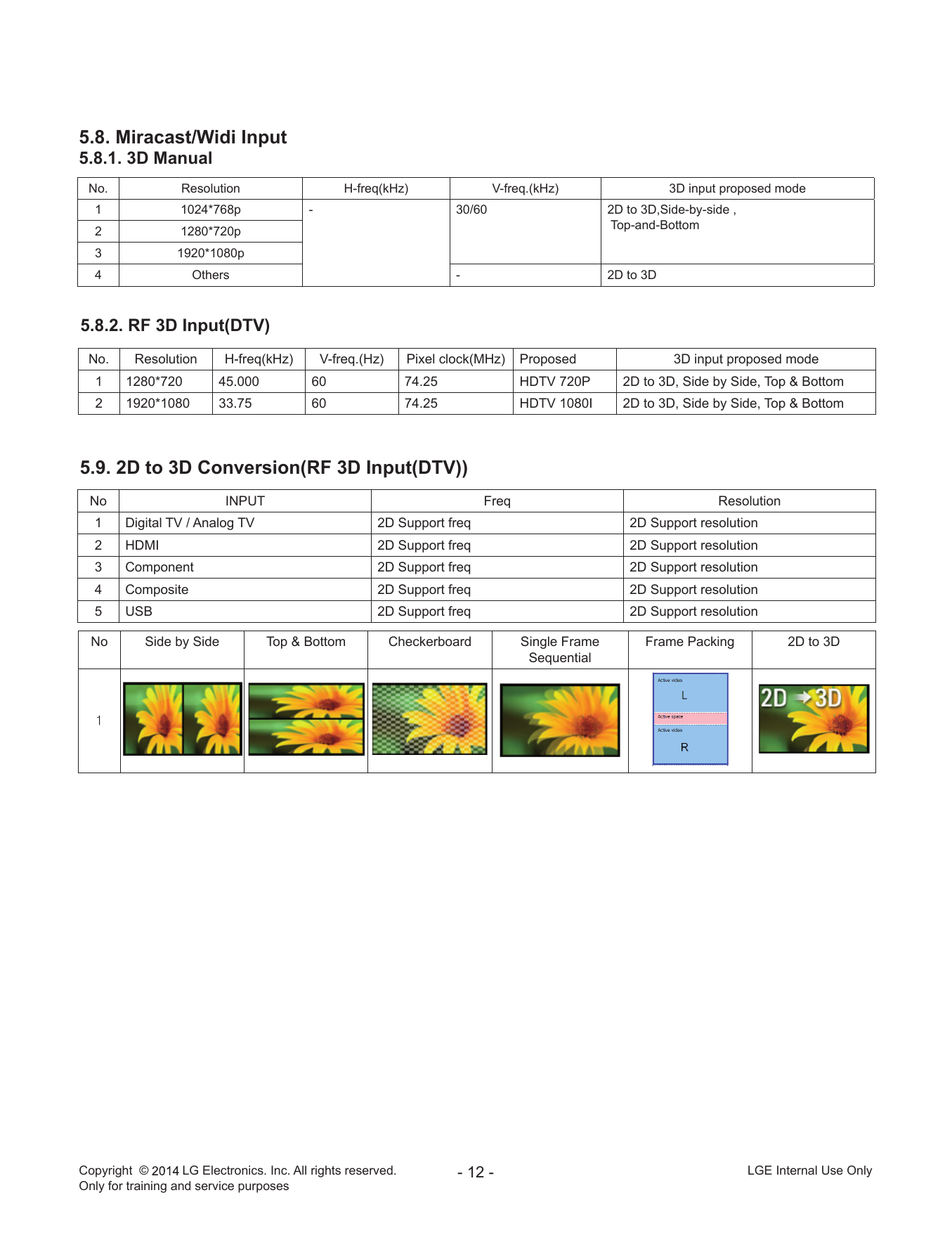

5.8. Miracast/Widi Input
5.8.1. 3D Manual
No. Resolution H-freq(kHz) V-freq.(kHz) 3D input proposed mode
1 1024*768p - 30/60 2D to 3D,Side-by-side ,
Top-and-Bottom
2 1280*720p
3 1920*1080p
4 Others - 2D to 3D
5.8.2. RF 3D Input(DTV)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode
1 1280*720 45.000 60 74.25 HDTV 720P 2D to 3D, Side by Side, Top & Bottom
2 1920*1080 33.75 60 74.25 HDTV 1080I 2D to 3D, Side by Side, Top & Bottom
5.9. 2D to 3D Conversion(RF 3D Input(DTV))
No INPUT Freq Resolution
1 Digital TV / Analog TV 2D Support freq 2D Support resolution
2 HDMI 2D Support freq 2D Support resolution
3 Component 2D Support freq 2D Support resolution
4 Composite 2D Support freq 2D Support resolution
5 USB 2D Support freq 2D Support resolution
No Side by Side Top & Bottom Checkerboard Single Frame Frame Packing 2D to 3D
Sequential
1
Copyright © LG Electronics. Inc. All rights reserved. - 12 - LGE Internal Use Only
Only for training and service purposes
ADJUSTMENT INSTRUCTION
1. Application 4. MAIN PCBA Adjustments
This spec. sheet applies to LA42B Chassis applied LED TV all 4.1. ADC Calibration
models manufactured in TV factory - A n ADC calibration is not necessary because MAIN SoC
(LGExxxx) is already calibrated from IC Maker
- If it needs to adjust manually, refer to appendix.
2. Specification
(1) Because this is not a hot chassis, it is not necessary to use 4.2. M AC Address, ESN Key and Widevine
an isolation transformer. However, the use of isolation
transformer will help protect test instrument. Key download
(2) Adjustment must be done in the correct order. 4.2.1. Equipment & Condition
(3) The adjustment must be performed in the circumstance of 1) Play file: keydownload.exe
25 ±5 ºC of temperature and 65±10% of relative humidity if
there is no specific designation 4.2.2. Communication Port connection
(4) The input voltage of the receiver must keep 100~240V, 1) Key Write: Com 1,2,3,4 and 115200 (Baudrate)
50/60Hz 2) Barcode: Com 1,2,3,4 and 9600 (Baudrate)
(5) At first Worker must turn on the SET by using Power Only
key. 4.2.3. Download process
(6) The receiver must be operated for about 5 minutes prior to 1) Select the download items.
the adjustment when module is in the circumstance of over 2) Mode check: Online Only
15 ºC 3) Check the test process
In case of keeping module is in the circumstance of 0°C, it - U S, Canada models: DETECT -> MAC_WRITE ->
should be placed in the circumstance of above 15°C for 2 WIDEVINE_WRITE
hours - K orea, Mexico models: DETECT -> MAC_WRITE ->
In case of keeping module is in the circumstance of below WIDEVINE_WRITE
-20°C, it should be placed in the circumstance of above 4) Play : START
15°C for 3 hours. 5) Check of result: Ready, Test, OK or NG
※ Caution 4.2.4. Communication Port connection
When still image is displayed for a period of 20 minutes or 1) Connect: PCBA Jig -> RS-232C Port == PC -> RS-232C
longer (especially where W/B scale is strong. Port
Digital pattern 13ch and/or Cross hatch pattern 09ch), there
can some afterimage in the black level area
3. Adjustment items
3.1. Main PCBA Adjustments
(1) ADC adjustment : ADC adjustment is OTP (Auto ADC)
(2) EDID download : HDMI
3.2. Final assembly adjustment 4.2.5. Download
(1) White Balance adjustment 1) US, Canada models (14Y LCD TV + MAC + Widevine +
(2) RS-232C functionality check ESN Key + DTCP Key + HDCP1.4 and HDCP2.0)
(3) Factory Option setting per destination
(4) Shipment mode setting (In-Stop)
(5) GND and HI-POT test
3.3. Appendix
(1)Tool option menu, USB Download (S/W Update, Option and
Service only)
(2) Manual adjustment for ADC calibration and White balance.
(3) Shipment conditions, Channel pre-set
4.2.6. Inspection
- In INSTART menu, check these keys.
Copyright © LG Electronics. Inc. All rights reserved. - 13 - LGE Internal Use Only
Only for training and service purposes

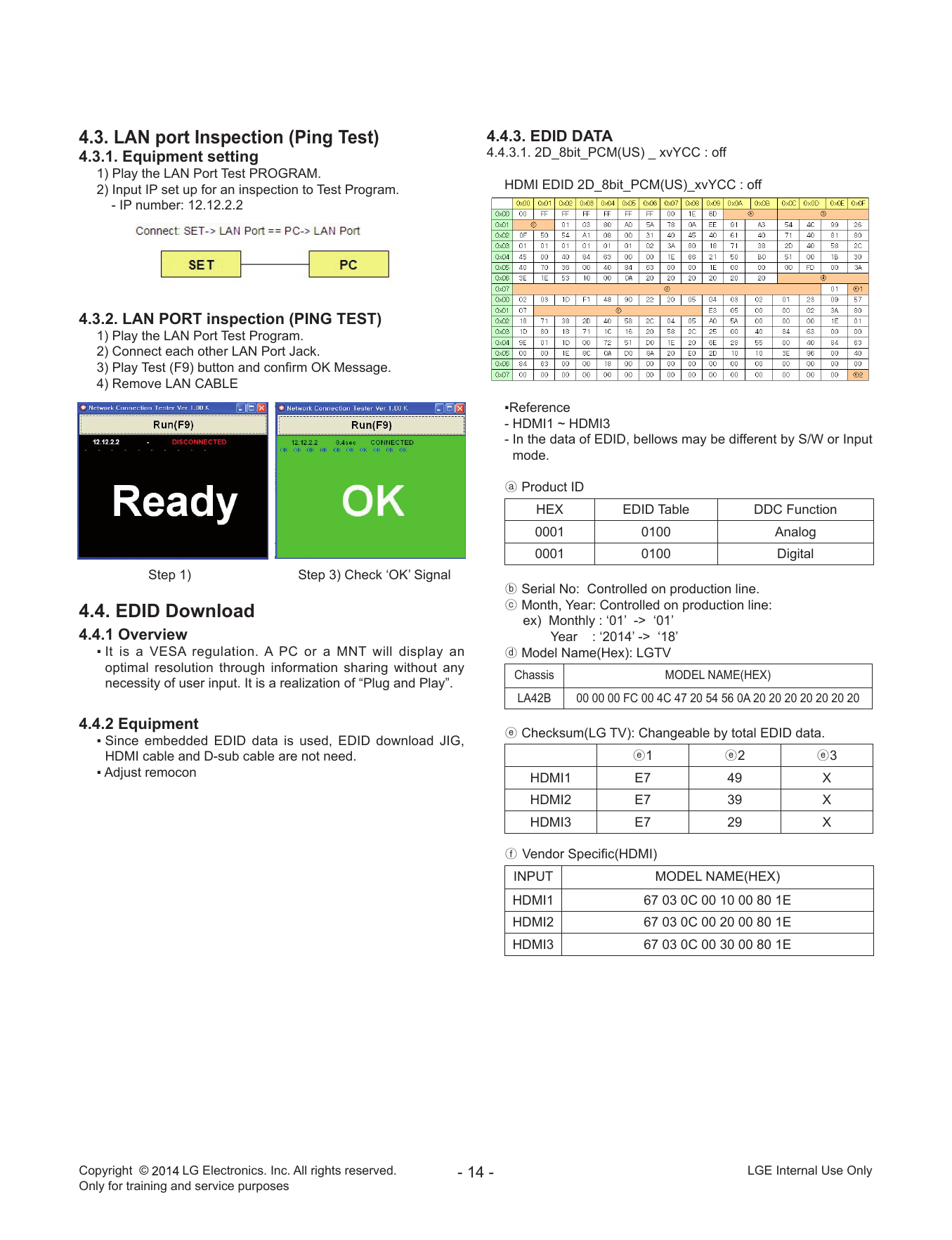

4.3. LAN port Inspection (Ping Test) 4.4.3. EDID DATA
4.3.1. Equipment setting 4.4.3.1. 2D_8bit_PCM(US) _ xvYCC : off
1) Play the LAN Port Test PROGRAM.
2) Input IP set up for an inspection to Test Program. HDMI EDID 2D_8bit_PCM(US)_xvYCC : off
- IP number: 12.12.2.2
4.3.2. LAN PORT inspection (PING TEST)
1) Play the LAN Port Test Program.
2) Connect each other LAN Port Jack.
3) Play Test (F9) button and confirm OK Message.
4) Remove LAN CABLE
▪Reference
- HDMI1 ~ HDMI3
- In the data of EDID, bellows may be different by S/W or Input
mode.
ⓐ Product ID
HEX EDID Table DDC Function
0001 0100 Analog
0001 0100 Digital
Step 1) Step 3) Check ‘OK’ Signal
ⓑ Serial No: Controlled on production line.
ⓒ Month, Year: Controlled on production line:
4.4. EDID Download ex) Monthly : ‘01’ -> ‘01’
4.4.1 Overview Year : ‘2014’ -> ‘18’
▪ I t is a VESA regulation. A PC or a MNT will display an ⓓ Model Name(Hex): LGTV
optimal resolution through information sharing without any
Chassis MODEL NAME(HEX)
necessity of user input. It is a realization of “Plug and Play”.
LA42B 00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20
4.4.2 Equipment
ⓔ Checksum(LG TV): Changeable by total EDID data.
▪ Since embedded EDID data is used, EDID download JIG,
HDMI cable and D-sub cable are not need. ⓔ1 ⓔ2 ⓔ3
▪ Adjust remocon HDMI1 E7 49 X
HDMI2 E7 39 X
HDMI3 E7 29 X
ⓕ Vendor Specific(HDMI)
INPUT MODEL NAME(HEX)
HDMI1 67 03 0C 00 10 00 80 1E
HDMI2 67 03 0C 00 20 00 80 1E
HDMI3 67 03 0C 00 30 00 80 1E
Copyright © LG Electronics. Inc. All rights reserved. - 14 - LGE Internal Use Only
Only for training and service purposes

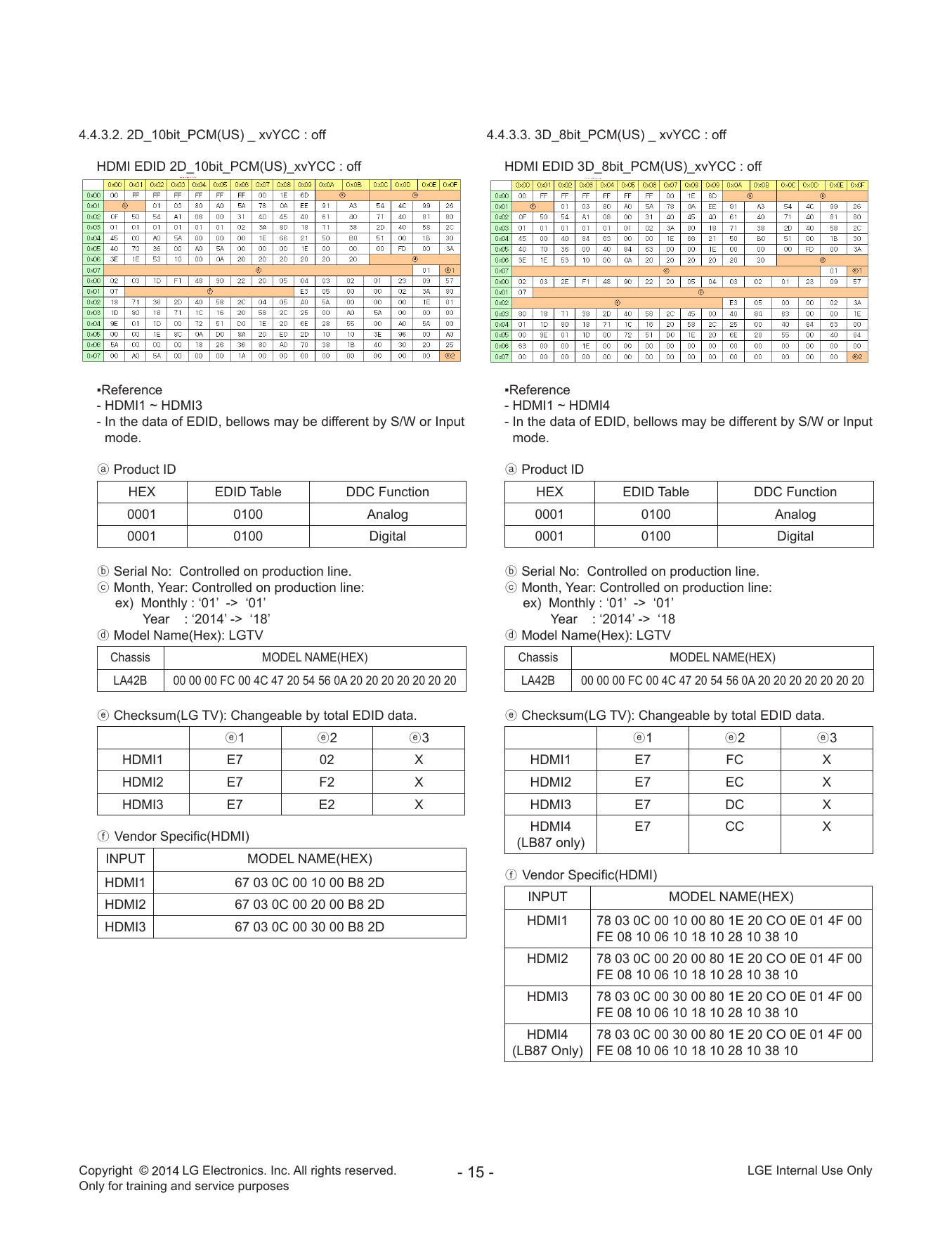

4.4.3.2. 2D_10bit_PCM(US) _ xvYCC : off 4.4.3.3. 3D_8bit_PCM(US) _ xvYCC : off
HDMI EDID 2D_10bit_PCM(US)_xvYCC : off HDMI EDID 3D_8bit_PCM(US)_xvYCC : off
▪Reference ▪Reference
- HDMI1 ~ HDMI3 - HDMI1 ~ HDMI4
- In the data of EDID, bellows may be different by S/W or Input - In the data of EDID, bellows may be different by S/W or Input
mode. mode.
ⓐ Product ID ⓐ Product ID
HEX EDID Table DDC Function HEX EDID Table DDC Function
0001 0100 Analog 0001 0100 Analog
0001 0100 Digital 0001 0100 Digital
ⓑ Serial No: Controlled on production line. ⓑ Serial No: Controlled on production line.
ⓒ Month, Year: Controlled on production line: ⓒ Month, Year: Controlled on production line:
ex) Monthly : ‘01’ -> ‘01’ ex) Monthly : ‘01’ -> ‘01’
Year : ‘2014’ -> ‘18’ Year : ‘2014’ -> ‘18
ⓓ Model Name(Hex): LGTV ⓓ Model Name(Hex): LGTV
Chassis MODEL NAME(HEX) Chassis MODEL NAME(HEX)
LA42B 00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 LA42B 00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20
ⓔ Checksum(LG TV): Changeable by total EDID data. ⓔ Checksum(LG TV): Changeable by total EDID data.
ⓔ1 ⓔ2 ⓔ3 ⓔ1 ⓔ2 ⓔ3
HDMI1 E7 02 X HDMI1 E7 FC X
HDMI2 E7 F2 X HDMI2 E7 EC X
HDMI3 E7 E2 X HDMI3 E7 DC X
HDMI4 E7 CC X
ⓕ Vendor Specific(HDMI) (LB87 only)
INPUT MODEL NAME(HEX)
ⓕ Vendor Specific(HDMI)
HDMI1 67 03 0C 00 10 00 B8 2D
INPUT MODEL NAME(HEX)
HDMI2 67 03 0C 00 20 00 B8 2D
HDMI3 67 03 0C 00 30 00 B8 2D HDMI1 78 03 0C 00 10 00 80 1E 20 CO 0E 01 4F 00
FE 08 10 06 10 18 10 28 10 38 10
HDMI2 78 03 0C 00 20 00 80 1E 20 CO 0E 01 4F 00
FE 08 10 06 10 18 10 28 10 38 10
HDMI3 78 03 0C 00 30 00 80 1E 20 CO 0E 01 4F 00
FE 08 10 06 10 18 10 28 10 38 10
HDMI4 78 03 0C 00 30 00 80 1E 20 CO 0E 01 4F 00
(LB87 Only) FE 08 10 06 10 18 10 28 10 38 10
Copyright © LG Electronics. Inc. All rights reserved. - 15 - LGE Internal Use Only
Only for training and service purposes

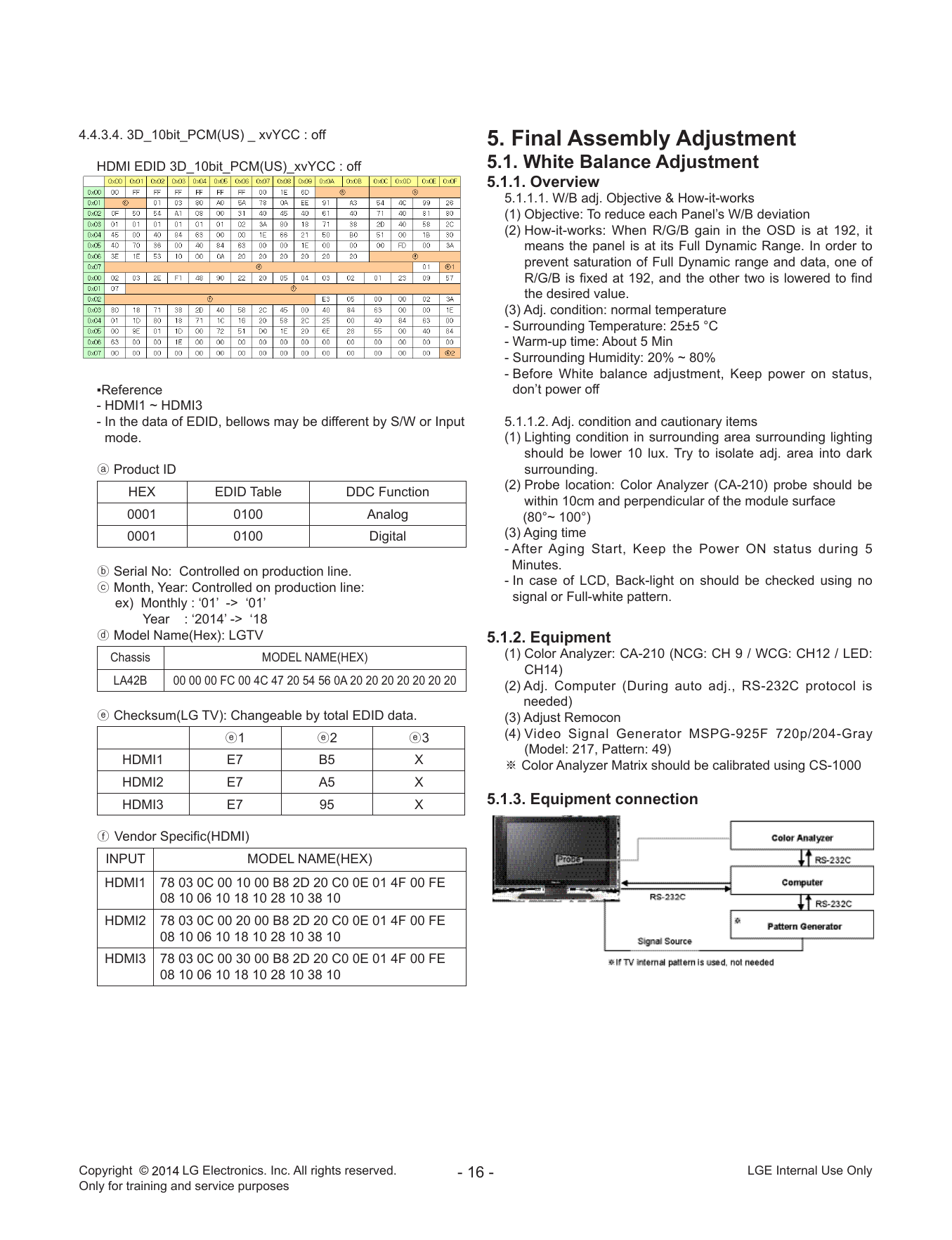

4.4.3.4. 3D_10bit_PCM(US) _ xvYCC : off 5. Final Assembly Adjustment
HDMI EDID 3D_10bit_PCM(US)_xvYCC : off 5.1. White Balance Adjustment
5.1.1. Overview
5.1.1.1. W/B adj. Objective & How-it-works
(1) Objective: To reduce each Panel’s W/B deviation
(2) How-it-works: When R/G/B gain in the OSD is at 192, it
means the panel is at its Full Dynamic Range. In order to
prevent saturation of Full Dynamic range and data, one of
R/G/B is fixed at 192, and the other two is lowered to find
the desired value.
(3) Adj. condition: normal temperature
- Surrounding Temperature: 25±5 °C
- Warm-up time: About 5 Min
- Surrounding Humidity: 20% ~ 80%
- Before White balance adjustment, Keep power on status,
▪Reference don’t power off
- HDMI1 ~ HDMI3
- In the data of EDID, bellows may be different by S/W or Input 5.1.1.2. Adj. condition and cautionary items
mode. (1) Lighting condition in surrounding area surrounding lighting
should be lower 10 lux. Try to isolate adj. area into dark
ⓐ Product ID surrounding.
(2) Probe location: Color Analyzer (CA-210) probe should be
HEX EDID Table DDC Function
within 10cm and perpendicular of the module surface
0001 0100 Analog (80°~ 100°)
0001 0100 Digital (3) Aging time
- A fter Aging Start, Keep the Power ON status during 5
ⓑ Serial No: Controlled on production line. Minutes.
ⓒ Month, Year: Controlled on production line: - In case of LCD, Back-light on should be checked using no
ex) Monthly : ‘01’ -> ‘01’ signal or Full-white pattern.
Year : ‘2014’ -> ‘18
ⓓ Model Name(Hex): LGTV 5.1.2. Equipment
Chassis MODEL NAME(HEX) (1) Color Analyzer: CA-210 (NCG: CH 9 / WCG: CH12 / LED:
CH14)
LA42B 00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 (2) A dj. Computer (During auto adj., RS-232C protocol is
needed)
ⓔ Checksum(LG TV): Changeable by total EDID data. (3) Adjust Remocon
ⓔ1 ⓔ2 ⓔ3 (4) V ideo Signal Generator MSPG-925F 720p/204-Gray
(Model: 217, Pattern: 49)
HDMI1 E7 B5 X ※ Color Analyzer Matrix should be calibrated using CS-1000
HDMI2 E7 A5 X
HDMI3 E7 95 X 5.1.3. Equipment connection
ⓕ Vendor Specific(HDMI)
INPUT MODEL NAME(HEX)
HDMI1 78 03 0C 00 10 00 B8 2D 20 C0 0E 01 4F 00 FE
08 10 06 10 18 10 28 10 38 10
HDMI2 78 03 0C 00 20 00 B8 2D 20 C0 0E 01 4F 00 FE
08 10 06 10 18 10 28 10 38 10
HDMI3 78 03 0C 00 30 00 B8 2D 20 C0 0E 01 4F 00 FE
08 10 06 10 18 10 28 10 38 10
Copyright © LG Electronics. Inc. All rights reserved. - 16 - LGE Internal Use Only
Only for training and service purposes
5.1.4. Adjustment Command (Protocol) 5.1.5.2. Manual adjustment
(1) RS-232C Command used during auto-adj. (1) Set TV in Adj. mode using POWER ON
(2) Zero Calibrate the probe of Color Analyzer, then place it on
RS-232C COMMAND
Explanation the center of LCD module within 10cm of the surface..
CMD DATA ID (3) Press ADJ key -> EZ adjust using adj. R/C à 9. White-
Wb 00 00 Begin White Balance adj. Balance then press the cursor to the right (KEY►). When
KEY(►) is pressed 206 Gray internal pattern will be
Wb 00 ff End White Balance adj. displayed.
(internal pattern disappears ) (4) Adjust Cool modes
(i) F ix the one of R/G/B gain to 192 (default data) and
(2) Adjustment Map decrease the others.
Adj. item Command Data Range (If G gain is adjusted over 172 and R and B gain less than
(lower caseASCII) (Hex.) 192 , Adjust is O.K.)
CMD1 CMD2 MIN MAX (ii) If G gain is less than 172,
Increase G gain by up to 172, and then increase R gain and
Cool R Gain j g 00 C0 G gain same amount of increasing G gain.
G Gain j h 00 C0 (iii) If R gain or B gain is over 255,
R eadjust G gain less than 172, Conform to R gain is 255 or
B Gain j i 00 C0
B gain is 255
Medium R Gain j a 00 C0 (5) Adjust two modes (Medium / Warm) Fix the one of R/G/B
G Gain j b 00 C0 gain to 192 (default data) and decrease the others.
(6) Adj. is completed, Exit adjust mode using “EXIT” key on
B Gain j c 00 C0
Remote controller.
Warm R Gain j d 00 C0
G Gain j e 00 C0 5.1.6. Reference (White Balance Adj. coordinate and
B Gain j f 00 C0 color temperature)
(1) Luminance: 204 Gray, 80IRE
(2) Standard color coordinate and temperature using CS-1000
5.1.5. Adjustment method (over 26 inch)
5.1.5.1. Auto WB calibration
(1) S et TV in ADJ mode using P-ONLY key (or POWER ON 5.1.7. Reference (White Balance Adj. coordinate and
key)
(2) Place optical probe on the center of the display
color temperature)
▪ Luminance: 204 Gray
- It need to check probe condition of zero calibration before
▪ Standard color coordinate and temperature using CS-1000
adjustment.
(over 26 inch)
(3) Connect RS-232C Cable
(4) Select mode in ADJ Program and begin a adjustment. Coordinate
Mode Temp △uv
(5) W hen WB adjustment is completed with OK message, X Y
check adjustment status of pre-set mode (Cool, Medium,
Cool 0.271 0.270 13,000K 0.0000
Warm)
(6) Remove probe and RS-232C cable. Medium 0.286 0.289 9,300K 0.0000
▪ W/B Adj. must begin as start command “wb 00 00” , and Warm 0.313 0.329 6,500K 0.0000
finish as end command “wb 00 ff”, and Adj. offset if need
Copyright © LG Electronics. Inc. All rights reserved. - 17 - LGE Internal Use Only
Only for training and service purposes

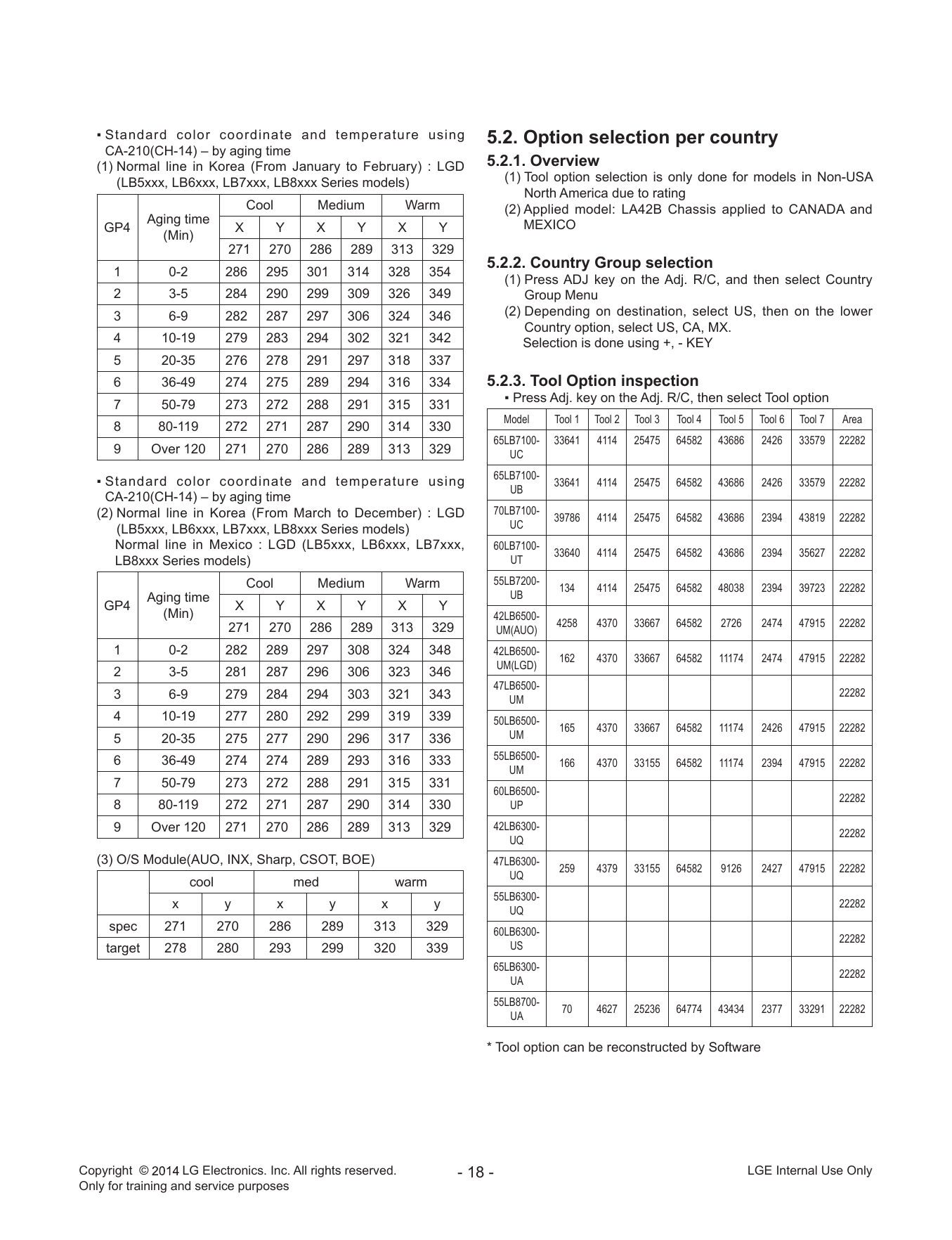

▪ S tandard color coordinate and temperature using 5.2. Option selection per country
CA-210(CH-14) – by aging time
(1) Normal line in Korea (From January to February) : LGD 5.2.1. Overview
(LB5xxx, LB6xxx, LB7xxx, LB8xxx Series models) (1) Tool option selection is only done for models in Non-USA
North America due to rating
Cool Medium Warm (2) Applied model: LA42B Chassis applied to CANADA and
Aging time MEXICO
GP4 X Y X Y X Y
(Min)
271 270 286 289 313 329
5.2.2. Country Group selection
1 0-2 286 295 301 314 328 354
(1) Press ADJ key on the Adj. R/C, and then select Country
2 3-5 284 290 299 309 326 349 Group Menu
3 6-9 282 287 297 306 324 346 (2) Depending on destination, select US, then on the lower
Country option, select US, CA, MX.
4 10-19 279 283 294 302 321 342 Selection is done using +, - KEY
5 20-35 276 278 291 297 318 337
6 36-49 274 275 289 294 316 334 5.2.3. Tool Option inspection
▪ Press Adj. key on the Adj. R/C, then select Tool option
7 50-79 273 272 288 291 315 331
Model Tool 1 Tool 2 Tool 3 Tool 4 Tool 5 Tool 6 Tool 7 Area
8 80-119 272 271 287 290 314 330
65LB7100- 33641 4114 25475 64582 43686 2426 33579 22282
9 Over 120 271 270 286 289 313 329 UC
65LB7100-
▪ S tandard color coordinate and temperature using 33641 4114 25475 64582 43686 2426 33579 22282
UB
CA-210(CH-14) – by aging time
(2) Normal line in Korea (From March to December) : LGD 70LB7100-
39786 4114 25475 64582 43686 2394 43819 22282
(LB5xxx, LB6xxx, LB7xxx, LB8xxx Series models) UC
N
ormal line in Mexico : LGD (LB5xxx, LB6xxx, LB7xxx, 60LB7100-
33640 4114 25475 64582 43686 2394 35627 22282
LB8xxx Series models) UT
Cool Medium Warm 55LB7200-
134 4114 25475 64582 48038 2394 39723 22282
Aging time UB
GP4 X Y X Y X Y
(Min) 42LB6500-
271 270 286 289 313 329 4258 4370 33667 64582 2726 2474 47915 22282
UM(AUO)
1 0-2 282 289 297 308 324 348 42LB6500-
162 4370 33667 64582 11174 2474 47915 22282
UM(LGD)
2 3-5 281 287 296 306 323 346
47LB6500-
3 6-9 279 284 294 303 321 343 UM
22282
4 10-19 277 280 292 299 319 339 50LB6500-
165 4370 33667 64582 11174 2426 47915 22282
5 20-35 275 277 290 296 317 336 UM
6 36-49 274 274 289 293 316 333 55LB6500-
166 4370 33155 64582 11174 2394 47915 22282
UM
7 50-79 273 272 288 291 315 331
60LB6500-
22282
8 80-119 272 271 287 290 314 330 UP
9 Over 120 271 270 286 289 313 329 42LB6300-
22282
UQ
(3) O/S Module(AUO, INX, Sharp, CSOT, BOE) 47LB6300-
259 4379 33155 64582 9126 2427 47915 22282
UQ
cool med warm
55LB6300-
x y x y x y UQ
22282
spec 271 270 286 289 313 329 60LB6300-
22282
target 278 280 293 299 320 339 US
65LB6300-
22282
UA
55LB8700-
70 4627 25236 64774 43434 2377 33291 22282
UA
* Tool option can be reconstructed by Software
Copyright © LG Electronics. Inc. All rights reserved. - 18 - LGE Internal Use Only
Only for training and service purposes

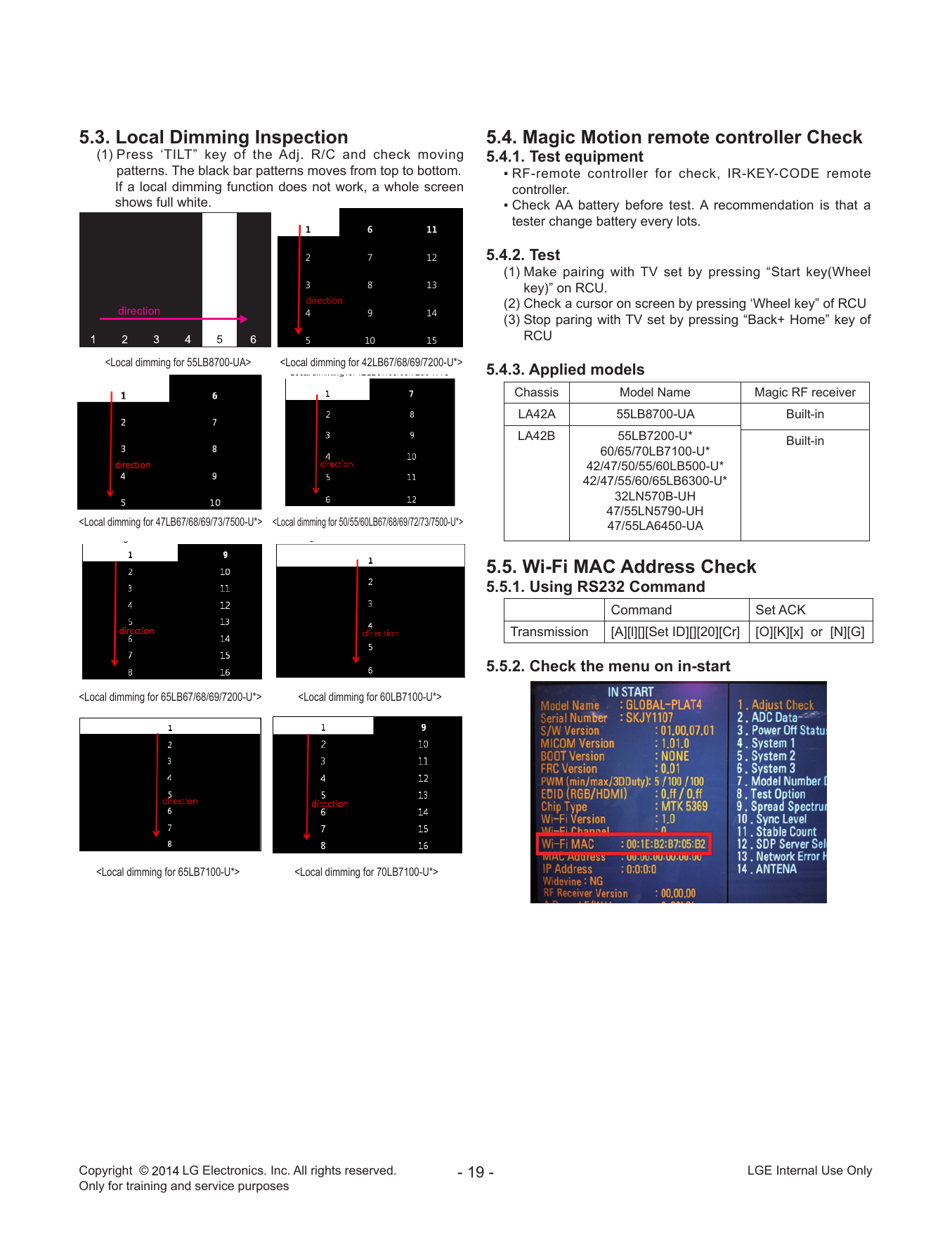

5.3. Local Dimming Inspection 5.4. Magic Motion remote controller Check
(1) P ress ‘TILT” key of the Adj. R/C and check moving 5.4.1. Test equipment
patterns. The black bar patterns moves from top to bottom. ▪ R F-remote controller for check, IR-KEY-CODE remote
If a local dimming function does not work, a whole screen controller.
shows full white. ▪ Check AA battery before test. A recommendation is that a
tester change battery every lots.
1 6 11
2 7 12 5.4.2. Test
(1) Make pairing with TV set by pressing “Start key(Wheel
3 8 13 key)” on RCU.
direction
(2) Check a cursor on screen by pressing ‘Wheel key” of RCU
4 9 14
(3) Stop paring with TV set by pressing “Back+ Home” key of
5 10 15 RCU
5.4.3. Applied models
Chassis Model Name Magic RF receiver
LA42A 55LB8700-UA Built-in
LA42B 55LB7200-U* Built-in
60/65/70LB7100-U*
42/47/50/55/60LB500-U*
42/47/55/60/65LB6300-U*
32LN570B-UH
47/55LN5790-UH
47/55LA6450-UA
5.5. Wi-Fi MAC Address Check
5.5.1. Using RS232 Command
Command Set ACK
Transmission [A][l][][Set ID][][20][Cr] [O][K][x] or [N][G]
5.5.2. Check the menu on in-start
Copyright © LG Electronics. Inc. All rights reserved. - 19 - LGE Internal Use Only
Only for training and service purposes

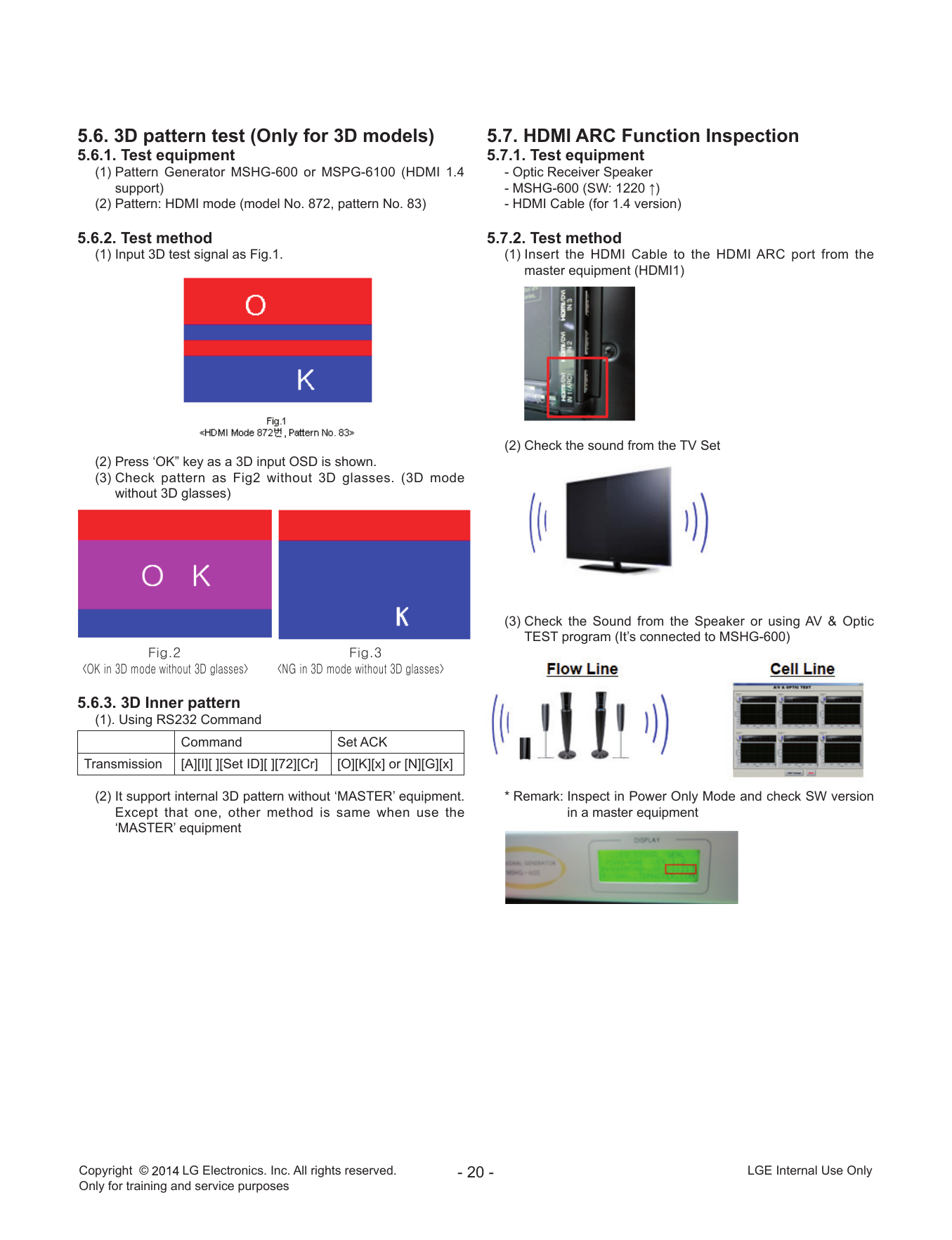

5.6. 3D pattern test (Only for 3D models) 5.7. HDMI ARC Function Inspection
5.6.1. Test equipment 5.7.1. Test equipment
(1) P
attern Generator MSHG-600 or MSPG-6100 (HDMI 1.4 - Optic Receiver Speaker
support) - MSHG-600 (SW: 1220 ↑)
(2) Pattern: HDMI mode (model No. 872, pattern No. 83) - HDMI Cable (for 1.4 version)
5.6.2. Test method 5.7.2. Test method
(1) Input 3D test signal as Fig.1. (1) Insert the HDMI Cable to the HDMI ARC port from the
master equipment (HDMI1)
(2) Check the sound from the TV Set
(2) Press ‘OK” key as a 3D input OSD is shown.
(3) C
heck pattern as Fig2 without 3D glasses. (3D mode
without 3D glasses)
(3) Check the Sound from the Speaker or using AV & Optic
TEST program (It’s connected to MSHG-600)
Fig.2 Fig.3
5.6.3. 3D Inner pattern
(1). Using RS232 Command
Command Set ACK
Transmission [A][I][ ][Set ID][ ][72][Cr] [O][K][x] or [N][G][x]
(2) It support internal 3D pattern without ‘MASTER’ equipment. * Remark: Inspect in Power Only Mode and check SW version
Except that one, other method is same when use the in a master equipment
‘MASTER’ equipment
Copyright © LG Electronics. Inc. All rights reserved. - 20 - LGE Internal Use Only
Only for training and service purposes

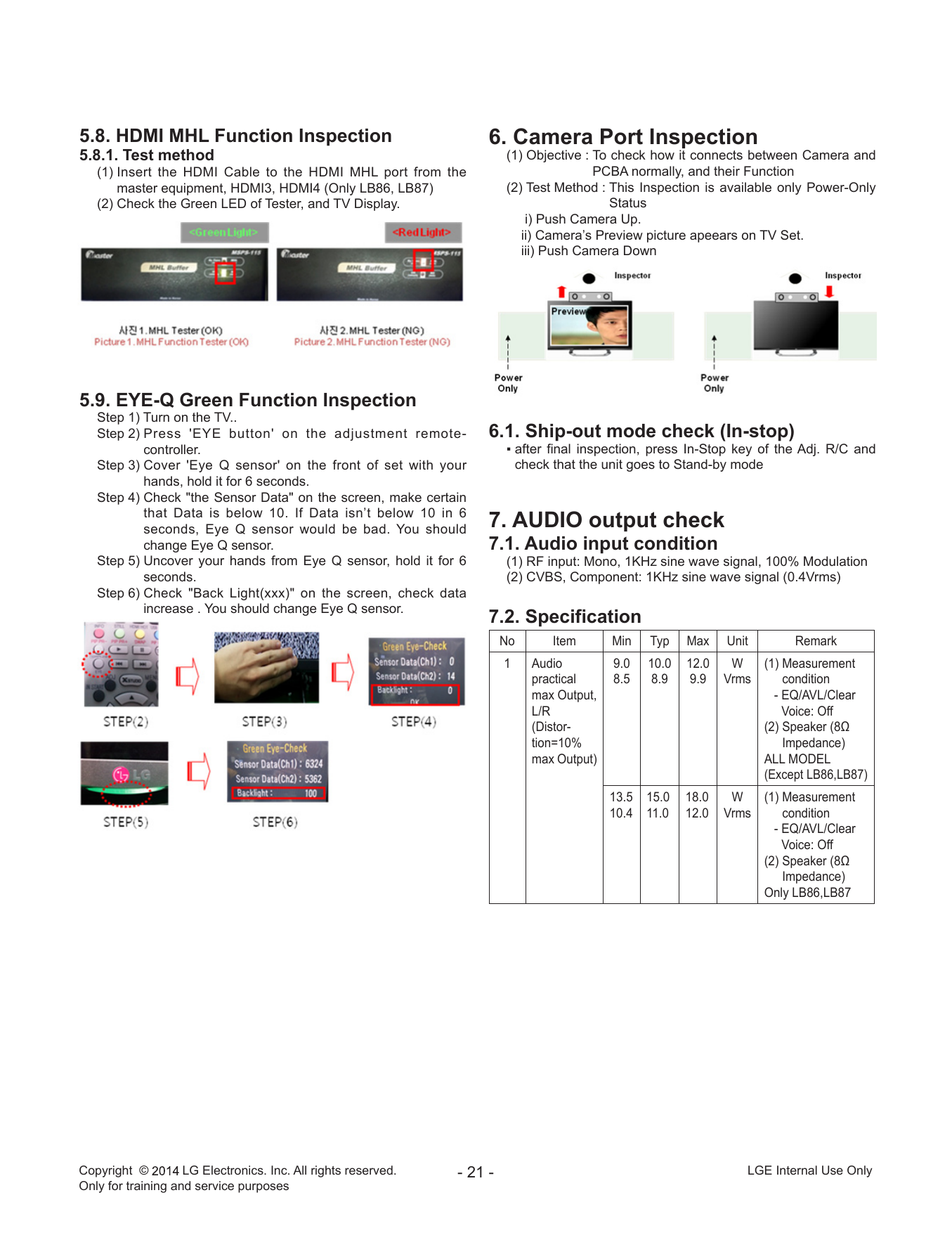

5.8. HDMI MHL Function Inspection 6. Camera Port Inspection
5.8.1. Test method (1) Objective : To check how it connects between Camera and
(1) Insert the HDMI Cable to the HDMI MHL port from the PCBA normally, and their Function
master equipment, HDMI3, HDMI4 (Only LB86, LB87) (2) Test Method : This Inspection is available only Power-Only
(2) Check the Green LED of Tester, and TV Display. Status
i) Push Camera Up.
ii) Camera’s Preview picture apeears on TV Set.
iii) Push Camera Down
5.9. EYE-Q Green Function Inspection
Step 1) Turn on the TV..
Step 2) P ress 'EYE button' on the adjustment remote- 6.1. Ship-out mode check (In-stop)
controller. ▪ after final inspection, press In-Stop key of the Adj. R/C and
Step 3) Cover 'Eye Q sensor' on the front of set with your check that the unit goes to Stand-by mode
hands, hold it for 6 seconds.
Step 4) Check "the Sensor Data" on the screen, make certain
that Data is below 10. If Data isn’t below 10 in 6
seconds, Eye Q sensor would be bad. You should 7. AUDIO output check
change Eye Q sensor. 7.1. Audio input condition
Step 5) Uncover your hands from Eye Q sensor, hold it for 6 (1) RF input: Mono, 1KHz sine wave signal, 100% Modulation
seconds. (2) CVBS, Component: 1KHz sine wave signal (0.4Vrms)
Step 6) Check "Back Light(xxx)" on the screen, check data
increase . You should change Eye Q sensor.
7.2. Specification
No Item Min Typ Max Unit Remark
1 Audio 9.0 10.0 12.0 W (1) M
easurement
practical 8.5 8.9 9.9 Vrms condition
max Output, -E Q/AVL/Clear
L/R Voice: Off
(Distor- (2) S
peaker (8Ω
tion=10% Impedance)
max Output) ALL MODEL
(Except LB86,LB87)
13.5 15.0 18.0 W (1) M
easurement
10.4 11.0 12.0 Vrms condition
-E Q/AVL/Clear
Voice: Off
(2) S
peaker (8Ω
Impedance)
Only LB86,LB87
Copyright © LG Electronics. Inc. All rights reserved. - 21 - LGE Internal Use Only
Only for training and service purposes

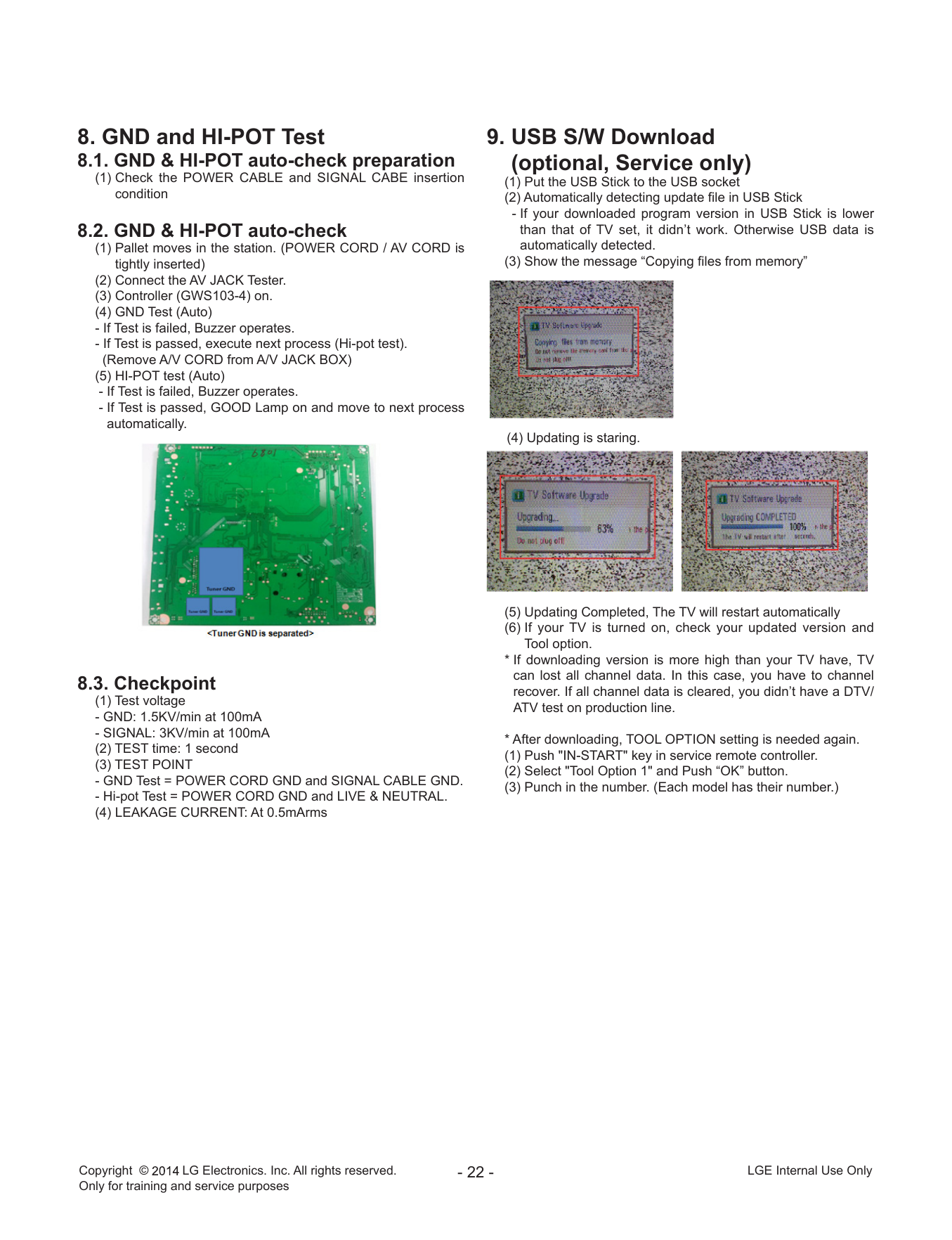

8. GND and HI-POT Test 9. USB S/W Download
8.1. GND & HI-POT auto-check preparation (optional, Service only)
(1) C
heck the POWER CABLE and SIGNAL CABE insertion (1) Put the USB Stick to the USB socket
condition (2) Automatically detecting update file in USB Stick
- If your downloaded program version in USB Stick is lower
8.2. GND & HI-POT auto-check than that of TV set, it didn’t work. Otherwise USB data is
(1) P allet moves in the station. (POWER CORD / AV CORD is automatically detected.
tightly inserted) (3) Show the message “Copying files from memory”
(2) Connect the AV JACK Tester.
(3) Controller (GWS103-4) on.
(4) GND Test (Auto)
- If Test is failed, Buzzer operates.
- If Test is passed, execute next process (Hi-pot test).
(Remove A/V CORD from A/V JACK BOX)
(5) HI-POT test (Auto)
- If Test is failed, Buzzer operates.
- If Test is passed, GOOD Lamp on and move to next process
automatically.
(4) Updating is staring.
(5) Updating Completed, The TV will restart automatically
(6) If your TV is turned on, check your updated version and
Tool option.
* If downloading version is more high than your TV have, TV
can lost all channel data. In this case, you have to channel
8.3. Checkpoint recover. If all channel data is cleared, you didn’t have a DTV/
(1) Test voltage ATV test on production line.
- GND: 1.5KV/min at 100mA
- SIGNAL: 3KV/min at 100mA * After downloading, TOOL OPTION setting is needed again.
(2) TEST time: 1 second (1) Push "IN-START" key in service remote controller.
(3) TEST POINT (2) Select "Tool Option 1" and Push “OK” button.
- GND Test = POWER CORD GND and SIGNAL CABLE GND. (3) Punch in the number. (Each model has their number.)
- Hi-pot Test = POWER CORD GND and LIVE & NEUTRAL.
(4) LEAKAGE CURRENT: At 0.5mArms
Copyright © LG Electronics. Inc. All rights reserved. - 22 - LGE Internal Use Only
Only for training and service purposes

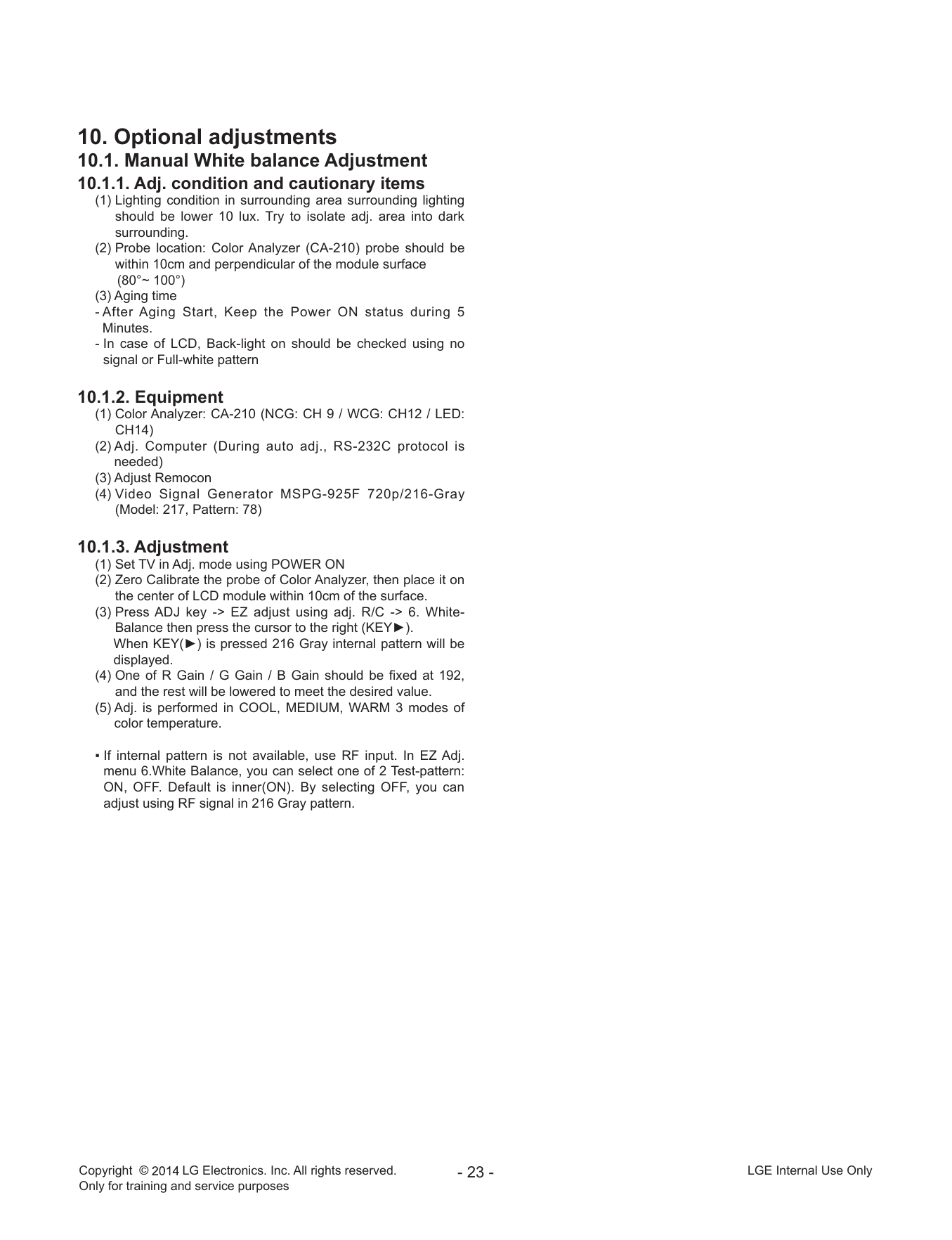

10. Optional adjustments
10.1. Manual White balance Adjustment
10.1.1. Adj. condition and cautionary items
(1) L ighting condition in surrounding area surrounding lighting
should be lower 10 lux. Try to isolate adj. area into dark
surrounding.
(2) P robe location: Color Analyzer (CA-210) probe should be
within 10cm and perpendicular of the module surface
(80°~ 100°)
(3) Aging time
- A fter Aging Start, Keep the Power ON status during 5
Minutes.
- In case of LCD, Back-light on should be checked using no
signal or Full-white pattern
10.1.2. Equipment
(1) C olor Analyzer: CA-210 (NCG: CH 9 / WCG: CH12 / LED:
CH14)
(2) A dj. Computer (During auto adj., RS-232C protocol is
needed)
(3) Adjust Remocon
(4) V ideo Signal Generator MSPG-925F 720p/216-Gray
(Model: 217, Pattern: 78)
10.1.3. Adjustment
(1) Set TV in Adj. mode using POWER ON
(2) Z ero Calibrate the probe of Color Analyzer, then place it on
the center of LCD module within 10cm of the surface.
(3) P ress ADJ key -> EZ adjust using adj. R/C -> 6. White-
Balance then press the cursor to the right (KEY►).
W
hen KEY(►) is pressed 216 Gray internal pattern will be
displayed.
(4) O ne of R Gain / G Gain / B Gain should be fixed at 192,
and the rest will be lowered to meet the desired value.
(5) Adj. is performed in COOL, MEDIUM, WARM 3 modes of
color temperature.
▪ If internal pattern is not available, use RF input. In EZ Adj.
menu 6.White Balance, you can select one of 2 Test-pattern:
ON, OFF. Default is inner(ON). By selecting OFF, you can
adjust using RF signal in 216 Gray pattern.
Copyright © LG Electronics. Inc. All rights reserved. - 23 - LGE Internal Use Only
Only for training and service purposes
EXPLODED VIEW
IMPORTANT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
900
400
410
121
401
521
540
560
LV1
530
500
120
AT1
200
Set + Stand
A10
A22
Copyright © LG Electronics. Inc. All rights reserved. - 24 - LGE Internal Use Only
Only for training and service purposes
System Configuration
PAGE 1
IC103-*1
M24256-BRMN6TP
+3.3V_NORMAL
IC101
Clock for M14-A0 NVRAM E0
1 8
VCC LG1311
MAIN Clock(24Mhz) +3.3V_NORMAL E1
2 7
WC
X-TAL_1
LOADCAP_ATSC_PCB E2 SCL
10pF 3 6 R163
GND_1
IC103 B23 AN9
XTAL_IN C107 VSS SDA
10K
XTAL_IN XIN_MAIN USB2_0_DP0 WIFI_DP
C101 AT24C256C-SSHL-T 0.1uF
4 5
OPT A23 AM9
XTAL_OUT XO_MAIN USB2_0_DM0 WIFI_DM
16V AN8
R169 USB2_0_TXRTUNE
2
1
R118
NVRAM_ST AG21
24MHz
A0 VCC 1% 200 R171
X101
1M
1 8 Write Protection SOC_RESET PORES_N
H32
A1 WP - Low : Normal Operation C104
33
AJ18
USB2_1_DP0
J31
USB_DP3
3
4
2 7 0.1uF BOOT_MODE BOOT_MODE USB2_1_DM0 USB_DM3
R180 - High : Write Protection H33
X-TAL_2
GND_2
10pF 560 16V USB2_1_TXRTUNE
XTAL_OUT A2 SCL
R143 33 AB8
PLLSET0 1% 200 R172
C102
3 6 I2C_SCL5 PLLSET0 AC8 N31
LOADCAP_ATSC_PCB PLLSET1 PLLSET1 USB3_DP0 USB_DP1
LOADCAP_DVB_PCB LOADCAP_DVB_PCB GND SDA
R144 33 N32
C101-*1
4 5 I2C_SDA5
AD8
USB3_DM0
P33
USB_DM1
C102-*1
6.8pF 6.8pF
OPM0 AE8
OPM0 USB3_TXP0
P32
System Clock for Analog block(24Mhz) 50V 50V OPM1 OPM1 USB3_TXM0
M32
NVRAM_ATMEL AR101 USB3_RXP0
33 Y7 M33
L/DIM0_VS Y6
L_VSOUT_LD/TRST0_N USB3_RXM0
P31
L/DIM0_SCLK W7
DIM0_SCLK/TMS0 USB3_RESREF0
1% 200 R173
TCK0 W6
DIM1_SCLK/TCK0
K33
TDI0 R178 33 W5
DIM1_MOSI/TDI0 USB3_DP1
K32
USB_DP2
L/DIM0_MOSI DIM0_MOSI/TDO0 USB3_DM1
L32
USB_DM2
PLL SET[1:0] : internal pull up USB3_TXP1
AG30 L31
"00" : CPU(1200Mhz),M0 / M1 DDR(792,792 Mhz) SPI_CS0 USB3_TXM1
"01" : CPU(1056Mhz),M0 / M1 DDR(672,672 Mhz) AG28 K31
SPI_SCLK0 USB3_RXP1
"10" : CPU(1056Mhz),M0 / M1 DDR(792,792 Mhz) AG29 J32
"11" : CPU( 960Mhz),M0 / M1 DDR(792,792 Mhz) SPI_DO0 USB3_RXM1
AH29 M31
TRST_N1 AJ27
SPI_DI0/TRST1_N USB3_RESREF1
1% 200 R174
IRB_SPI_SS/TMS1 AH27
SPI_CS1/TMS1
W28
Extenal test only IRB_SPI_CK/TCK1 AG26
SPI_SCLK1/TCK1 HUB_PORT_OVER0
W29
/USB_OCD1
OPT IRB_SPI_MOSI/TDO1 AH26
SPI_DO1/TDO1 HUB_VBUS_CTRL0 USB_CTL1
R103 3.3K
PLLSET1
IRB_SPI_MISO/TDI1 SPI_DI1/TDI1
H28
R104 3.3K FORCED_JTAG_0 R182
OPT
10K AJ12
EB_CS3
J30
/USB_OCD2
OPT
PLLSET0
R183 10K AJ13
EXT_INTR0 EB_CS2
J28
USB_CTL2
R184 10K AH12
EXT_INTR1 EB_CS1
J29
/USB_OCD3
R185 10K AG12
EXT_INTR2 EB_CS0 USB_CTL3
EXT_INTR3
G30
EB_WE_N EB_WE_N TP104 EB_WE_N
AH23 F30
SOC_RX UART0_RXD EB_OE_N EB_OE_N TP105 EB_OE_N
AG22 H29
SOC_TX UART0_TXD EB_WAIT
AH7 G29 TP106 EB_BE_N1
M_REMOTE_RX UART1_RXD EB_BE_N1 EB_BE_N1
AJ7 G28 TP107 EB_BE_N0
M_REMOTE_TX UART1_TXD EB_BE_N0 EB_BE_N0
+3.3V_NORMAL +3.3V_NORMAL
OP MODE[1:0] AG8 P28 TP108 CAM_CD1_N
UART1_RTS_N CAM_CD1_N CAM_CD1_N
"00" : Normal Mode AH8 P27 TP109 CAM_CD2_N
"01/10/11" : Internal Test mode INSTANT boot MODE BOOT MODE UART1_CTS_N CAM_CD2_N
U28
CAM_CD2_N
"1 : Instant boot TP110 /PCM_CE1
3.3K
3.3K
"0 : EMMC CAM_CE1_N /PCM_CE1
R127
R121
"0 : normal "1 : TEST MODE 1/16W AH11 R29
33 I2C_SCL1 SCL0 CAM_CE2_N /PCM_CE2 TP111 /PCM_CE2
OPT
OPT
+3.3V_NORMAL AG11 V27
(internal pull down) AR100
I2C_SDA1 SDA0 CAM_IREQ_N CAM_IREQ_N TP112 CAM_IREQ_N
OPT AH9 T28
R101 3.3K INSTANT_BOOT BOOT_MODE I2C_SCL_MICOM_SOC SCL1 CAM_RESET PCM_RESET TP113 PCM_RESET
AG9 T29
OPM1 I2C_SDA_MICOM_SOC SDA1 CAM_INPACK_N CAM_INPACK_N TP114 CAM_INPACK_N
3.3K
AG10 R28
R128
R102 3.3K
I2C_SCL2 SCL2 CAM_VCCEN_N PCM_5V_CTL TP115 PCM_5V_CTL
OPM0 AJ9 U27
OPT I2C_SDA2 SDA2 CAM_WAIT_N CAM_WAIT_N TP116 CAM_WAIT_N
AH22 N29
Extenal test only I2C_SCL4 SCL3 CAM_REG_N CAM_REG_N TP117 CAM_REG_N
AJ22
I2C_SDA4 AH10
SDA3
I2C_SCL5 AJ10
SCL4
K30 EB_ADDR[0]
INSTANT_MODE0 BOOT_MODE0 I2C_SDA5 SDA4 EB_ADDR0
AG23 E30 EB_ADDR[1]
I2C_SCL6 AH24
SCL5 EB_ADDR1
M30 EB_ADDR[2]
I2C_SDA6 SDA5 EB_ADDR2
N28 EB_ADDR[3]
EB_ADDR3
AC6 M28 EB_ADDR[4]
33 PWM0 EB_ADDR4
R107 AC7 M29 EB_ADDR[5]
PWM_DIM2 33 AD7
PWM1 EB_ADDR5
L29 EB_ADDR[6]
R108 R179
PWM_DIM 10K AB7
PWM2 EB_ADDR6
K29 EB_ADDR[7]
PWM_IN EB_ADDR7
1/16W K28 EB_ADDR[8]
EB_ADDR8
5% L28 EB_ADDR[9]
EB_ADDR9
G32 D30 EB_ADDR[10]
EMMC_CLK G33
EMMC_CLK EB_ADDR10
F29 EB_ADDR[11]
EMMC_CMD G31
EMMC_CMD EB_ADDR11
C32 EB_ADDR[12]
EMMC_RST EMMC_RESETN EB_ADDR12
EB_ADDR[13]
EMMC_DATA[7] D31 C33
EMMC_DATA7 EB_ADDR13
EMMC_DATA[6] F33 C31 EB_ADDR[14]
EMMC_DATA6 EB_ADDR14
EMMC_DATA[5] F32 B33
EMMC_DATA5 EB_ADDR15
EMMC_DATA[4] E32
EMMC_DATA4
EMMC_DATA[3] F31
EMMC_DATA3
EMMC_DATA[2] D33
EMMC_DATA2 EB_DATA0
B32 EB_DATA[0] EB_ADDR[0-14]
EMMC_DATA[1] D32 A32 EB_DATA[1]
EMMC_DATA1 EB_DATA1
EMMC_DATA[0] E31
EMMC_DATA0 EB_DATA2
B31 EB_DATA[2] TP102 EB_ADDR[0-14]
A31 EB_DATA[3]
EB_DATA3
A30 EB_DATA[4]
EB_DATA4
EMMC_DATA[0-7] EB_DATA5
B30 EB_DATA[5]
C30 EB_DATA[6]
EB_DATA6
C29 EB_DATA[7]
EB_DATA7
EB_DATA[0-7]
TP103 EB_DATA[0-7]
I2C
I2C_1 : AMP Jtag-0 I/F Jtag-1 I/F
I2C_2 : T-CON,L/DIMING
+3.3V_NORMAL +3.3V_NORMAL I2C_3 : MICOM
I2C_4 : S/Demod,T2/Demod, LNB +3.3V_NORMAL +3.3V_NORMAL
I2C_5
I2C_6
:
:
NVRAM
TUNER_MOPLL(T/C,ATV)
LOCAL DIMMING I2C CONTROL
P103 P104
+3.3V_TUNER +3.3V_TUNER
12505WS-10A00 12505WS-10A00
+3.3V_NORMAL JTAG_CPU OPT
I2C PULL UP
P102 OPT 1
L/DIM0_VS (TRST0_N) 1
TRST_N1
R157
3.3K
R158
3.3K
R159
3.3K
R160
3.3K
R161
3.3K
R162
3.3K
KR_PIP_NOT
KR_PIP_NOT
KR_PIP_NOT
KR_PIP_NOT
R146
3.3K
R148
3.3K
R149
3.3K
R150
3.3K
R155
1.2K
R156
1.2K
12507WS-04L 2
TDI0 2
IRB_SPI_MISO/TDI1
3.3K OPT
3.3K OPT
I2C_SDA1
R105
R106
3
I2C_SCL1 1 L/DIM0_MOSI(TDO0) 3
IRB_SPI_MOSI/TDO1
R155-*1 3.3K
R156-*1 3.3K
I2C_SDA_MICOM_SOC
R146-*1 1.5K
R148-*1 1.5K
4
LED_SCL 2 L/DIM0_SCLK (TMS0) 4
IRB_SPI_SS/TMS1
I2C_SCL_MICOM_SOC
KR_PIP
KR_PIP
KR_PIP
KR_PIP
I2C_SDA2 LED_SDA 3 5
TCK0 5
IRB_SPI_CK/TCK1
I2C_SCL2
6
4 SOC_RESET 6
SOC_RESET
I2C_SDA4 5 7
FORCED_JTAG_0 7
I2C_SCL4
8 8
I2C_SDA5 9 9
I2C_SCL5
10 10
11
I2C_SDA6 11
I2C_SCL6
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS MID_LG1311 2013.04.04
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. M14 Symbol A 1 31
M14-Peripheral
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
PAGE 2
FE_DEMOD1_TS_CLK IC101 TPO_CLK BIT [6/7] EU/CIS AJJA TAIWAN/COL CHINA/HONG KOREA NORTH AMERICA BRAZIL JAPAN
FE_DEMOD1_TS_SYNC LG1311 TPO_SOP T/C T/C Default ISDB PIP Default
0 / 0 T/C ATSC PIP ATSC PIP
FE_DEMOD1_TS_VAL TPO_VAL
FE_DEMOD1_TS_ERROR TPO_ERR TPO_ERR 0 / 1 T2/C/S2/ATV_EXT T2/C/ATV_EXT T2/C PIP ATV_SOC ATV_SOC ISDB
1 / 0 T2/C T2/C/ATV_SOC T2/C ATV_EXT ATV_EXT
AH30 D28
TP_DVB_CLK TPIO_CLK 1 / 1 T2/C/S2/ATV_SOC
AH32 E29 T2/C/S2
FE_DEMOD1_TS_DATA[0-7] AH31
TP_DVB_SOP TPIO_SOP
E28
TPO_DATA[0-7]
TP_DVB_VAL TPIO_VAL
AH33 F28
TP_DVB_ERR TPIO_ERR
FE_DEMOD1_TS_DATA[7] AM33
TP_DVB_DATA7 TPIO_DATA0
D27 TPO_DATA[0] +3.3V_NORMAL
FE_DEMOD1_TS_DATA[6] AL32 E27 TPO_DATA[1]
TP_DVB_DATA6 TPIO_DATA1
FE_DEMOD1_TS_DATA[5] AL33 F27 TPO_DATA[2]
FE_DEMOD1_TS_DATA[4] AK32
TP_DVB_DATA5
TP_DVB_DATA4
TPIO_DATA2
TPIO_DATA3
E26 TPO_DATA[3] Model Option
FE_DEMOD1_TS_DATA[3] AK33 F26 TPO_DATA[4]
TP_DVB_DATA3 TPIO_DATA4
FE_DEMOD1_TS_DATA[2] AK31 E25 TPO_DATA[5]
TP_DVB_DATA2 TPIO_DATA5
FE_DEMOD1_TS_DATA[1] AJ30 D25 TPO_DATA[6]
TP_DVB_DATA1 TPIO_DATA6
FE_DEMOD1_TS_DATA[0] AJ31 F25 TPO_DATA[7]
TP_DVB_DATA0 TPIO_DATA7
DDR3_1.5GB
DDR3_DDP
AL31 AA5
BIT4_1
10K
10K
10K
10K
10K
10K
10K
10K
10K
10K
10K
BIT0_1
BIT3_1
FE_DEMOD2_TS_CLK EPI_SOE EPI_SOE
BIT1_1
BIT2_1
BIT6_1
BIT7_1
DDR_3G
10K
STPI0_CLK EPI_SOE
BIT5_1
10K
AN32 AB5
FE_DEMOD2_TS_SYNC STPI0_SOP EPI_MCLK MCLK_SOC
OPT
OPT
AM32 AA7
FE_DEMOD2_TS_VAL AN31
STPI0_VAL EPI_GCLK
AA6
GCLK_SOC
FE_DEMOD2_TS_ERROR STPI0_ERR EPI_EO EO_SOC
R201
R203
R205
R207
R209
R211
R213
R215
R217
R219
R221
AM31 AB6
R229
R227
FE_DEMOD2_TS_DATA AH28
STPI0_DATA EPI_VST GST_SOC
FE_DEMOD3_TS_CLK AJ28
STPI1_CLK
AK8
FE_DEMOD3_TS_SYNC AK30
STPI1_SOP TX_0N
AL8
TXB4N/TX0N
FE_DEMOD3_TS_VAL AJ29
STPI1_VAL TX_0P
AK7
TXB4P/TX0P
FE_DEMOD3_TS_ERROR AG27
STPI1_ERR TX_1N
AL7
TXB3N/TX1N BIT0
FE_DEMOD3_TS_DATA STPI1_DATA TX_1P
AM6
TXB3P/TX1P
TX_2N TXBCLKN/TX2N BIT1
TPI_ERR A28 AN6
TPI_CLK B28
TPI_CLK TX_2P
AK6
TXBCLKP/TX2P BIT2 MODEL_OPT_11
TPI_SOP TPI_SOP TX_3N TXB2N/TX3N
B29 AL6
BIT3 MODEL_OPT_12
TPI_DATA[0-7] TPI_VAL C28
TPI_VAL TX_3P
AK5
TXB2P/TX3P
TPI_ERR TPI_ERR TX_4N TXB1N/TX4N BIT4
TPI_DATA[0] A27 AL5
TPI_DATA0 TX_4P TXB1P/TX4P
TPI_DATA[1] B27 AN4
BIT5
TPI_DATA1 TX_5N TXB0N/TX5N
TPI_DATA[2] C27 AN3
TPI_DATA2 TX_5P TXB0P/TX5P BIT6
TPI_DATA[3] B26 AM2
TPI_DATA3 TX_6N TXA4N/TX6N
TPI_DATA[4] C26 AM1
BIT7
TPI_DATA4 TX_6P TXA4P/TX6P
TPI_DATA[5] B25 AM4
TPI_DATA5 TX_7N TXA3N/TX7N MODEL_OPT_8
TPI_DATA[6] A25 AM3
TPI_DATA6 TX_7P TXA3P/TX7P
TPI_DATA[7] C25 AL4
MODEL_OPT_9
TPI_DATA7 TX_8N
AL3
TXACLKN/TX8N
AG13
TX_8P
AK2
TXACLKP/TX8P MODEL_OPT_10
MODEL_OPT_11 AJ19
GPIO31 TX_9N
AK1
TXA2N/TX9N
DDR3_NON_DDP
SC_DET TP225 SC_DET GPIO30 TX_9P TXA2P/TX9P
NON_DDR_3G
AG14 AK4
DDR3_2GB
/RST_PHY GPIO29 TX_10N TXA1N/TX10N
10K
10K
BIT0_0
BIT3_0
BIT1_0
10K
10K
10K
10K
10K
10K
10K
10K
10K
10K
10K
AG15 AK3
BIT2_0
BIT4_0
BIT6_0
BIT7_0
BIT5_0
2D/3D_CTL GPIO28 TX_10P TXA1P/TX10P
OPT
AJ15 AJ4
OPT
RF_SWITCH_CTL AH19
GPIO27 TX_11N
AJ3
TXA0N/TX11N
Near AMP /TU_RESET1 AH18
GPIO26 TX_11P
AH2
TXA0P/TX11P
R230
R204
R206
R208
R210
R212
R214
R216
R218
R220
R222
R228
R202
AMP_RESET_N /TU_RESET2 AG19
GPIO25 TX_12N
AH1
TXD4N/TX12N
R226
100 BT_RESET AH5
GPIO24 TX_12P
AH4
TXD4P/TX12P
C200 AJ5
GPIO23 TX_13N
AH3
TXD3N/TX13N
R231
4.7K
1/16W
1000pF
5%
HP_DET AJ6
GPIO22 TX_13P
AG4
TXD3P/TX13P
50V R224 OPT
OPC_EN GPIO21 TX_14N TXDCLKN/TX14N
LED_SDA AH6 AG3
33 DEBUG AG6
GPIO20 TX_14P
AF2
TXDCLKP/TX14P
INSTANT_BOOT OPT R225 AG5
GPIO19 TX_15N
AF1
TXD2N/TX15N
LED_SCL 33 AF7
GPIO18 TX_15P
AF4
TXD2P/TX15P
TP226 CAM_SLIDE_DET CAM_SLIDE_DET AG7
GPIO17 TX_16N
AF3
TXD1N/TX16N
TP227 CAM_TRIGGER_DET CAM_TRIGGER_DET AG24
GPIO16 TX_16P
AE4
TXD1P/TX16P
MODEL_OPT_12 GPIO15 TX_17N TXD0N/TX17N AREA OPTION BACK-END OPTION
AH16 AE3
BIT0 V29
GPIO14 TX_17P
AD2
TXD0P/TX17P
TP228 /RST_HUB /RST_HUB AJ21
GPIO13 TX_18N
AD1
TXC4N/TX18N
COMP1_DET AH21
GPIO12 TX_18P
AD4
TXC4P/TX18P
AV1_CVBS_DET V28
GPIO11 TX_19N
AD3
TXC3N/TX19N
IR_B_RESET AG16
GPIO10 TX_19P
AC4
TXC3P/TX19P BIT [0/1] DVB ATSC JP BIT[2/3/4/5] TYPE FHD FRC PANEL TYPE LOW HIGH
BIT1 AJ24
GPIO9 TX_20N
AC3
TXCCLKN/TX20N TAIWAN/COLOM N/AMERICA 0 / 0 / 0 / 0 MODEL_OPT_8 DDR3
0 / 0 EPI FHD, 120Hz, V14 (8 lane) NON_DDP DDP
BIT2 AH17
GPIO8 TX_20P
AB2
TXCCLKP/TX20P
CHINA/HONGKONG KOREA JAPAN 0 / 0 / 0 / 1
BIT3 AG17
GPIO7 TX_21N
AB1
TXC2N/TX21N 0 / 1 EPI FHD, 120Hz, v14_32inch (6 lane)
MODEL_OPT_9 DDR3 2GB 1.5GB
BIT4 AH13
GPIO6 TX_21P
AB4
TXC2P/TX21P 1 / 0 EU/CIS S/AMERCIA 0 / 0 / 1 / 0 EPI FHD, 120Hz, V13 (6 lane)
BIT5 GPIO5 TX_22N TXC1N/TX22N MODEL_OPT_10 FOR UD NON_DDR3 3G DDR3 3G
AH15 AB3 1 / 1 ASIA/AFRICA 0 / 0 / 1 / 1 EPI FHD, 120Hz, V12 (6 lane)
BIT6 AG18
GPIO4 TX_22P
AA4
TXC1P/TX22P 0 / 1 / 0 / 0
BIT7 GPIO3 TX_23N TXC0N/TX23N EPI FHD, 60Hz, V14_32 inch (6lane) MODEL_OPT_11
AH14 AA3 0 / 1 / 0 / 1
MODEL_OPT_8 AJ16
GPIO2 TX_23P TXC0P/TX23P LVDS FHD, 120Hz
MODEL_OPT_12
MODEL_OPT_9 AH20
GPIO1
AM8
0 / 1 / 1 / 0 LVDS FHD, 60Hz
MODEL_OPT_10 GPIO0 TX_LOCKN EPI_LOCK8/6 0 / 1 / 1 / 1 LVDS HD, 60Hz
1 / 0 / 0 / 0 LVDS FHD, 60Hz, CP BOX
1 / 0 / 0 / 1 LVDS HD, 60Hz SMALL SMART
1 / 0 / 1 / 0 Vby1 FHD, 120Hz OLED
1 / 0 / 1 / 1 LVDS FHD, 120Hz OLED
1 / 1 / 0 / 0
1 / 1 / 0 / 1
1 / 1 / 1 / 0
1 / 1 / 1 / 1
FE_DEMOD2_TS_CLK TP202
FE_DEMOD2_TS_SYNC TP203
FE_DEMOD2_TS_VAL TP204
FE_DEMOD2_TS_ERROR TP205 +3.3V_NORMAL
FE_DEMOD2_TS_DATA TP206
FE_DEMOD3_TS_CLK TP207
FE_DEMOD3_TS_SYNC TP208
3.3K
R223
FE_DEMOD3_TS_VAL TP209 SW201
FE_DEMOD3_TS_ERROR TP210 JTP-1127WEM
FE_DEMOD3_TS_DATA TP211 2 1
4 3
TPI_DATA[0-7] TP212 DEBUG
TPI_CLK TP213
TPI_SOP TP214 For ISP
TPI_VAL TP215
TPO_DATA[0-7] TP221
TPO_CLK TP218
TPO_SOP TP219
TPO_VAL TP220
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS MID_LG1311 2013.04.04
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. M14 Symbol B 2 31
M14-Display In/Out
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
PLACE AT JACK SIDE PAGE 3
C11011
0.1uF
INT_ADEMOD INT_ADEMOD IC101
INT_ADEMOD
16V
R11022 R11023 LG1311
390 390
SOC_CVBS_OUT INT_ADEMOD INT_ADEMOD
Place JACK Side Place SOC Side C11009
68pF
C11010
68pF TU_CVBS_SOC
AL27 CVBS_IN1
SD_CLK
E22
SMARTCARD_CLK/SD_EMMC_DATA[0]
50V 50V AK26 CVBS_IN2 D22
SC_CVBS_IN_SOC SD_CMD SMARTCARD_RST/SD_EMMC_DATA[2]
AM27 CVBS_IN3 F22
AV1_CVBS_IN_SOC SD_CD_N SMARTCARD_VCC/SD_EMMC_CMD
TP308 SC_CVBS_IN_SOC TP318 SCART_LOUT_SOC F24
SD_WP_N SMARTCARD_PWR_SEL/SD_EMMC_DATA[1]
TP310 SC_FB_SOC TP319 SCART_ROUT_SOC R356 68 C343 0.047uF AL26 CVBS_VCM D24
DDR3_OPT1
SD_DATA3
E24
AV1_CVBS/COMP1_Y Circuit was moved to 34Page TP311 SC_ID_SOC TP320 DTV/MNT_V_OUT_SOC SD_DATA2 DDR3_OPT2
R353 EU 0 AN27 BUF_OUT1 F23
DTV/MNT_V_OUT_SOC SD_DATA1 SMARTCARD_DET/SD_EMMC_DATA[3]
TP312 COMP1_PB_IN_SOC C339 E23
SD_DATA0 SMARTCARD_DATA/SD_EMMC_CLK
TP313 COMP1_Y_IN_SOC OPT 100pF AL25
SC_ID_SOC SC1_SID
50V AM25 AK14
TP314 COMP1_Y_IN_SOC_SOY SC_FB_SOC SC1_FB
RMII_REF_CLK EPHY_REFCLK
AK12
TP315 COMP1_PR_IN_SOC AN23
RMII_CRS_DV
AL12
EPHY_CRS_DV
COMP1_Y_IN_SOC_SOY SOY1_IN EPHY_MDIO
RMII_MDIO
COMP TP316 AUAD_L_CH2_IN COMP1_Y_IN_SOC
AL22 Y1_IN
RMII_MDC
AK13
EPHY_MDC
R333 33 C322 0.047uF AK21 AL13
COMP1_Pb COMP2_PB_IN_SOC TP317 AUAD_R_CH2_IN COMP1_PB_IN_SOC PB1_IN
RMII_TXEN EPHY_EN
AK22 PR1_IN AM13
COMP1_PR_IN_SOC RMII_TXD1 EPHY_TXD1
AN13
SMARTCARD_DATA/SD_EMMC_CLK RMII_TXD0 EPHY_TXD0
TP302 AL24 AL14 33 R5207
R335 33 C324 0.047uF COMP2_Y_IN_SOC_SOY SOY2_IN EPHY_RXD1
TP303 SMARTCARD_VCC/SD_EMMC_CMD RMII_RXD1
COMP1_Pr COMP2_PR_IN_SOC AK23 Y2_IN AK15 33 R5206
R318 1% 75
EPHY_RXD0
R326 1% 75
TP304 SMARTCARD_DET/SD_EMMC_DATA[3] COMP2_Y_IN_SOC RMII_RXD0
AL23 PB2_IN 5V_HDMI_1
TP305 SMARTCARD_RST/SD_EMMC_DATA[2] COMP2_PB_IN_SOC
AK24 PR2_IN AE27
COMP2_PR_IN_SOC DDC_SCL_1
1005
1005
TP306 SMARTCARD_PWR_SEL/SD_EMMC_DATA[1] HDMI_1_SCL
AF28 R372
HDMI_1_SDA DDC_SDA_1
TP307 SMARTCARD_CLK/SD_EMMC_DATA[0] R357 68 C344 0.047uF AL21 AE29 10
ADC1_COM HDMI_HPD_1
HDMI_1_HPD
R358 68 C345 0.047uF AM23 ADC2_COM AF27
AVDD25 R359 68 C346 0.047uF AN25
HDMI_1_5V_DET
AE28
ADC3_COM SPDIF_OUT_ARC C356
HDMI_1_ARC R376
1uF
BLM15BD121SN1 C349 10V 5.1K
TU_ALL_2178B TU_ALL_2178B AM21 AVSS25_COMP_REF AF33
HDMI_1_RX_0 D0+_HDMI1
R329 100 C318 0.047uF L305 0.1uF AN21 AF32
L304 AVDD25_COMP_REF
TU_CVBS TU_CVBS_SOC BLM15BD121SN1 16V HDMI_1_RX_0B
AE31
D0-_HDMI1
C303 D1+_HDMI1
HDMI_1_RX_1
150pF R354 EU 0 AK16 AUDA_SCART_OUTL AE30
50V SCART_LOUT_SOC HDMI_1_RX_1B D1-_HDMI1
R355 EU 0 AL16 AUDA_SCART_OUTR AD31
OPT SCART_ROUT_SOC HDMI_1_RX_2 D2+_HDMI1
22K
22K
AD30
EU HDMI_1_RX_2B D2-_HDMI1
Placed as close as possible to LG1311 C334
EU
C336 AL19 AUAD_L_CH1_IN AF31
HDMI_1_RX_C CK+_HDMI1
EU
EU
0.01uF 0.01uF AK19 AUAD_R_CH1_IN AF30
50V 50V HDMI_1_RX_CB CK-_HDMI1
Tuner IF Filter AN19 5V_HDMI_2
R351
R352
AUAD_L_CH2_IN AUAD_L_CH2_IN
AM19 AUAD_R_CH2_IN AD28
AUAD_R_CH2_IN HDMI_2_SCL DDC_SCL_2
AN17 AUAD_L_CH3_IN AD29 R373
TU_ALL_IntDemod TU_ALL_IntDemod AUAD_L_CH3_IN HDMI_2_SDA DDC_SDA_2
AM17 AC27 10
R344 C332 AUAD_R_CH3_IN AUAD_R_CH3_IN HDMI_HPD_2
HDMI_2_HPD
ADC_I_INN IF_N AL17 AUAD_L_CH4_IN AD27
HDMI_2_5V_DET
51 0.01uF AK17 AUAD_R_CH4_IN C357
C331 AC31 R377
L303 1uF
22pF HDMI_2_RX_0 D0+_HDMI2 5.1K
To ADC OPT AK20 AUDA_OUTL AC30 10V
TU_ALL_IntDemod AUDA_OUTL HDMI_2_RX_0B D0-_HDMI2
C333 AL20 AUDA_OUTR AB33
R345 AUDA_OUTR HDMI_2_RX_1 D1+_HDMI2
ADC_I_INP IF_P AB32
HDMI_2_RX_1B D1-_HDMI2
51 0.01uF AK18 AUAD_L_REF AA31
TU_ALL_IntDemod TU_ALL_IntDemod AUAD_R_REF HDMI_2_RX_2 D2+_HDMI2
AUDIO IN AUAD_L_REF
C347 10uF 10V
AL18 AUAD_R_REF
HDMI_2_RX_2B
AA30
AD32
D2-_HDMI2
HDMI_2_RX_C CK+_HDMI2
C348 2.2uF AN15 AUD_VBG_EXT AD33
HDMI_2_RX_CB CK-_HDMI2
10V
R309 27K C316 4.7uF R360 33 AM15 IEC958OUT AB28
DDC_SCL_3
COMP1/AV1/DVI_L_IN AUAD_L_CH3_IN SPDIF_OUT HDMI_3_SCL
MAIN I2S_I/F
1% AB27
AVDD25 HDMI_3_SDA DDC_SDA_3
R322 10K Placed as close as possible to IC101 AUD_MASTER_CLK
R365 100 AN11 AUDCLK_OUT AB29
HDMI_HPD_3
HDMI_3_HPD
R366 100 AK11 DAC_LRCH AC28
1% AUD_LRCH HDMI_3_5V_DET 5V_HDMI_3_SOC
R310 27K C317 4.7uF L307 C340 C342 AK10
COMP1/AV1/DVI_R_IN AUAD_R_CH3_IN 22pF 22pF
AL10
DAC_SLRCH
DAC_CLFCH Y32
1% R323 10K OPT OPT HDMI_3_RX_0 D0+_HDMI3
R374 120-ohm R368 100 AL11 Y33
AUD_SCK DAC_SCK D0-_HDMI3
51K HDMI_3_RX_0B
1% R369 100 AM11 DAC_LRCK W31
C354 AUD_LRCK D1+_HDMI3
R371GOOGLE
R370GOOGLE
1% HDMI_3_RX_1
0
0
R380 10uF C335 C337 W30
AUAD_L_REF 51K 22pF 33pF HDMI_3_RX_1B D1-_HDMI3
10V R367GOOGLE0 AD5 PCMI3LRCH V33
1% OPT OPT I2S_AMP HDMI_3_RX_2 D2+_HDMI3
R378 C313 AE5 PCMI3LRCK V32
4.7uF HDMI_3_RX_2B D2-_HDMI3
47K AE7 Y31
PCMI3SCK CK+_HDMI3
1% 10V HDMI_3_RX_C
TU_ALL_2178B AE6 AUDCLK_IN Y30
HDMI_3_RX_CB CK-_HDMI3
C312 0.1uF
AUAD_R_REF TUNER_SIF AD6 Y27 5V_HDMI_4
FRC_LRSYNC DDC_SCL_4
C309 HDMI_4_SCL
C353 OPT AA28
R381 1000pF HDMI_4_SDA DDC_SDA_4
47K 4.7uF 50V TU_ALL_IntDemod AK29 AAD_ADC_SIF Y28 R375
HDMI_4_CBUS_HPD HDMI_HPD_4
1% 10V C351 0.1uF AL29 AA29 10
AAD_ADC_SIFM MHL_DET
R350 HDMI_4_CD_SENSE
AM29 IFAGC AA27
IF_AGC HDMI_4_5V_DET
470 C359
C338 AK27 T31 R379
DMD_DAC_OUT 1uF
0.1uF SOC_CVBS_OUT HDMI_4_RX_0 D0+_HDMI4
10V 5.1K
AL30 DMD_SIF_OUT T30
OPT HDMI_4_RX_0B D0-_HDMI4
T32
HDMI_4_RX_1 D1+_HDMI4
AK28 DMD_ADC_INP T33
Close to IC101
ADC_I_INP HDMI_4_RX_1B D1-_HDMI4
AL28 DMD_ADC_INN R31
ADC_I_INN HDMI_4_RX_2 D2+_HDMI4
C352 0.1uF AN29 R30
DDR3 VENDOR OPTION DMD_ADC_INCOM
HDMI_4_RX_2B
U31
D2-_HDMI4
CK+_HDMI4
HDMI_4_RX_C
U30
HDMI_4_RX_CB CK-_HDMI4
+3.3V_NORMAL
4.7K
4.7K
R382
R384
DDR3_OPT1
DDR3_OPT2
4.7K
4.7K
DDC_SCL_3 TP321
DDC_SDA_3
OPT
OPT
TP322
HDMI_HPD_3 TP323
5V_HDMI_3_SOC TP324
R383
R385
D0+_HDMI3 TP325
D0-_HDMI3 TP326
D1+_HDMI3 TP327
D1-_HDMI3 TP328
D2+_HDMI3 TP329
HP_OUT
D2-_HDMI3 TP330
L308
BLM18PG121SN1D CK+_HDMI3 TP331
HP_LOUT CK-_HDMI3 TP332
HP_LOUT_AMP HP_OUT
C365
0.22uF
10V
AUDIO OUT
HP_OUT
L309
BLM18PG121SN1D
HP_ROUT R311 0
HP_ROUT_AMP HP_OUT HP_LOUT_MAIN AUDA_OUTL
C366
R303
0.22uF C305
22K
10V 0.01uF
50V
Place at JACK SIDE
R312 0
HP_ROUT_MAIN AUDA_OUTR
C306
R304
22K
0.01uF
50V
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS MID_LG1311 2013.04.04
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. M14 Symbol C 3 31
M14-AV In/Out
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
PAGE 4
IC101 VREF_M0_0 +1.5V_DDR +1.5V_DDR
LG1311
VREF_M0_1 VREF_M0_0 VREF_M0_1
R402
R415
1K 1%
1K 1%
A22
M0_DDR_VREF1
A3
M0_DDR_VREF2
0.1uF
0.1uF
1%
1%
E13
R403
R416
M0_DDR_A0 M0_DDR_A0
E11
M0_DDR_VREFCA M0_1_DDR_VREFCA
M0_DDR_A1
IC401 IC402
C401
C408
1K
1K
M0_DDR_A1
E15
M0_DDR_A2 M0_DDR_A2
E17
M0_DDR_A3 M0_DDR_A3 H5TQ4G63AFR-PBC H5TQ4G63AFR-PBC
D8
M0_DDR_A4 M0_DDR_A4 M0_DDR_VREFDQ M0_1_DDR_VREFDQ
D16
M0_DDR_A5 M0_DDR_A5
D9 DDR3 DDR3
M0_DDR_A6 M0_DDR_A6
E16
M0_DDR_A7
N3
A0
4Gbit M8 N3
4Gbit M8
M0_DDR_A7 M0_DDR_A0 VREFCA M0_DDR_A0 A0 VREFCA
M0_DDR_A8
E9
M0_DDR_A8 M0_DDR_A1
P7
A1 (x16) M0_DDR_A1
P7
A1 (x16)
E14 P3 DDR_512MB_HYNIX_1600_29n P3 DDR_512MB_HYNIX_1600_29n
M0_DDR_A9 M0_DDR_A9 M0_DDR_A2 A2 M0_DDR_A2 A2
D7 N2 H1 N2 H1
M0_DDR_A10 M0_DDR_A10 M0_DDR_A3 A3 VREFDQ M0_DDR_A3 A3 VREFDQ
D10 P8 P8
M0_DDR_A11 M0_DDR_A11 M0_DDR_A4 A4 +1.5V_DDR M0_DDR_A4 A4 +1.5V_DDR
D11 +1.5V_DDR P2 P2
M0_DDR_A12 M0_DDR_A12 M0_DDR_CKE M0_DDR_A5 A5 R418 M0_DDR_A5 A5 R419
D14 R8 L8 R8 L8
M0_DDR_A13 M0_DDR_A13 M0_DDR_A6 A6 ZQ M0_DDR_A6 A6 ZQ
E10 R2 240 R2 240
M0_DDR_A14 M0_DDR_A14 R417 M0_DDR_A7 A7 M0_DDR_A7 A7
E12 T8 1% T8 1%
M0_DDR_A15 M0_DDR_A15 10K M0_DDR_A8 A8 M0_DDR_A8 A8
OPT R404 R3 B2 R3 B2
M0_DDR_A9 A9 VDD_1 M0_DDR_A9 A9 VDD_1
D17 10K L7 D9 L7 D9
M0_DDR_BA0 M0_DDR_BA0 M0_DDR_A10 A10/AP VDD_2 M0_DDR_A10 A10/AP VDD_2
E8 R7 G7 R7 G7
M0_DDR_BA1 M0_DDR_BA1 M0_DDR_A11 A11 VDD_3 M0_DDR_A11 A11 VDD_3
D13 M0_DDR_RESET_N N7
A12/BC
K2 N7 K2
M0_DDR_BA2 M0_DDR_BA2 M0_DDR_A12 VDD_4 M0_DDR_A12 A12/BC VDD_4
T3 K8 T3 K8
M0_DDR_A13 A13 VDD_5 M0_DDR_A13 A13 VDD_5
C8 T7 N1 T7 N1
M0_DDR_U_CLKP M0_U_CLK M0_DDR_A14 A14 VDD_6 M0_DDR_A14 A14 VDD_6
B8 M7 N9 M7 N9
M0_DDR_U_CLKN M0_U_CLKN M0_DDR_A15 A15 VDD_7 M0_DDR_A15 A15 VDD_7
C17 R1 R1
M0_DDR_D_CLKP M0_D_CLK VDD_8 VDD_8
B17 M2 R9 M2 R9
M0_DDR_D_CLKN M0_D_CLKN M0_DDR_BA0 BA0 VDD_9 M0_DDR_BA0 BA0 VDD_9
D12 M0_D_CLK M0_U_CLK N8
BA1
N8
M0_DDR_CKE M0_DDR_CKE M0_DDR_BA1 M0_DDR_BA1 BA1
M3 M3
M0_DDR_BA2 BA2 M0_DDR_BA2
100
BA2
R405
E19 A1 A1
100
R410
M0_DDR_ODT M0_DDR_ODT VDDQ_1 VDDQ_1
D19 J7 A8 J7 A8
M0_DDR_RASN M0_DDR_RASN M0_D_CLK CK VDDQ_2 M0_U_CLK CK VDDQ_2
D18 K7 C1 K7 C1
M0_DDR_CASN M0_DDR_CASN M0_D_CLKN CK VDDQ_3 M0_U_CLKN CK VDDQ_3
E18 M0_D_CLKN M0_U_CLKN K9
CKE
C9 K9 C9
M0_DDR_WEN M0_DDR_WEN M0_DDR_CKE VDDQ_4 M0_DDR_CKE CKE VDDQ_4
D2 D2
VDDQ_5 VDDQ_5
D15 L2 E9 L2 E9
M0_DDR_RESET_N M0_DDR_RESET_N CS VDDQ_6 CS VDDQ_6
K1 F1 K1 F1
M0_DDR_ODT ODT VDDQ_7 M0_DDR_ODT ODT VDDQ_7
B18 J3 H2 C413 1uF J3 H2 C429 1uF
M0_DDR_DQS_P0 M0_DDR_DQS0 M0_DDR_RASN RAS VDDQ_8 M0_DDR_RASN RAS VDDQ_8
C18 K3 H9 C414 1uF K3 H9 C430 1uF
M0_DDR_DQS_N0 M0_DDR_DQS_N0 M0_DDR_CASN CAS VDDQ_9 M0_DDR_CASN CAS VDDQ_9
B16 L3 L3
M0_DDR_DQS_P1 M0_DDR_DQS1 M0_DDR_WEN WE M0_DDR_WEN WE
A16 J1 J1
M0_DDR_DQS_N1 M0_DDR_DQS_N1 NC_1 NC_1
B9 +1.5V_DDR +1.5V_DDR T2 J9 T2 J9
M0_DDR_DQS_P2 M0_DDR_DQS2 M0_DDR_RESET_N RESET NC_2 M0_DDR_RESET_N RESET NC_2
C9 L1 L1
M0_DDR_DQS_N2 M0_DDR_DQS_N2 NC_3 NC_3
B7 L9 L9
M0_DDR_DQS_P3 M0_DDR_DQS3 M0_DDR_VREFCA M0_1_DDR_VREFCA NC_4 NC_4
A7 F3 F3
M0_DDR_DQS_N3 M0_DDR_DQS_N3 M0_DDR_DQS0 DQSL M0_DDR_DQS2 DQSL
G3 G3
R411
1K 1%
M0_DDR_DQS_N0 M0_DDR_DQS_N2
R406
1K 1%
DQSL DQSL
A15
M0_DDR_DM0 M0_DDR_DM0
A18 C7 A9 C7 A9
M0_DDR_DM1 M0_DDR_DM1 M0_DDR_DQS1 DQSU VSS_1 M0_DDR_DQS3 DQSU VSS_1
A6 B7 B3 B7 B3
M0_DDR_DM2 M0_DDR_DM2 M0_DDR_DQS_N1 DQSU VSS_2 M0_DDR_DQS_N3 DQSU VSS_2
A9 E1 E1
M0_DDR_DM3 M0_DDR_DM3 VSS_3 VSS_3
E7 G8 E7 G8
1%
1%
M0_DDR_DM0 DML VSS_4 M0_DDR_DM2 DML VSS_4
B20 C406 D3 J2 D3 J2
R407
R412
M0_DDR_DQ0 M0_DDR_DQ0 C402 M0_DDR_DM1 DMU VSS_5 M0_DDR_DM3 DMU VSS_5
B13 0.1uF 0.1uF J8 J8
M0_DDR_DQ1 M0_DDR_DQ1 VSS_6 VSS_6
1K
1K
C21 E3 M1 E3 M1
M0_DDR_DQ2 M0_DDR_DQ2 M0_DDR_DQ0 DQL0 VSS_7 M0_DDR_DQ16 DQL0 VSS_7
C14 F7 M9 F7 M9
M0_DDR_DQ3 M0_DDR_DQ3 M0_DDR_DQ1 DQL1 VSS_8 M0_DDR_DQ17 DQL1 VSS_8
A21 F2 P1 F2 P1
M0_DDR_DQ4 M0_DDR_DQ4 M0_DDR_DQ2 DQL2 VSS_9 M0_DDR_DQ18 DQL2 VSS_9
A13 F8 P9 F8 P9
M0_DDR_DQ5 M0_DDR_DQ5 M0_DDR_DQ3 DQL3 VSS_10 M0_DDR_DQ19 DQL3 VSS_10
B21 H3 T1 H3 T1
M0_DDR_DQ6 M0_DDR_DQ6 M0_DDR_DQ4 DQL4 VSS_11 M0_DDR_DQ20 DQL4 VSS_11
C13 H8 T9 H8 T9
M0_DDR_DQ7 M0_DDR_DQ7 M0_DDR_DQ5 DQL5 VSS_12 M0_DDR_DQ21 DQL5 VSS_12
B14 G2 G2
M0_DDR_DQ8 M0_DDR_DQ8 M0_DDR_DQ6 DQL6 M0_DDR_DQ22 DQL6
B19 H7 H7
M0_DDR_DQ9 M0_DDR_DQ9 M0_DDR_DQ7 DQL7 M0_DDR_DQ23 DQL7
C15 B1 B1
M0_DDR_DQ10 M0_DDR_DQ10 VSSQ_1 VSSQ_1
C20 D7 B9 D7 B9
M0_DDR_DQ11 M0_DDR_DQ11 M0_DDR_DQ8 DQU0 VSSQ_2 M0_DDR_DQ24 DQU0 VSSQ_2
C16 C3 D1 C3 D1
M0_DDR_DQ12 M0_DDR_DQ12 M0_DDR_DQ9 DQU1 VSSQ_3 M0_DDR_DQ25 DQU1 VSSQ_3
A19 C8 D8 C8 D8
M0_DDR_DQ13 M0_DDR_DQ13 +1.5V_DDR +1.5V_DDR M0_DDR_DQ10 DQU2 VSSQ_4 M0_DDR_DQ26 DQU2 VSSQ_4
B15 C2 E2 C2 E2
M0_DDR_DQ14 M0_DDR_DQ14 M0_DDR_DQ11 DQU3 VSSQ_5 M0_DDR_DQ27 DQU3 VSSQ_5
C19 A7 E8 A7 E8
M0_DDR_DQ15 M0_DDR_DQ15 M0_DDR_DQ12 DQU4 VSSQ_6 M0_DDR_DQ28 DQU4 VSSQ_6
B11 M0_1_DDR_VREFDQ A2 F9 A2 F9
M0_DDR_DQ16 M0_DDR_DQ16 M0_DDR_VREFDQ M0_DDR_DQ13 DQU5 VSSQ_7 M0_DDR_DQ29 DQU5 VSSQ_7
C5 B8 G1 B8 G1
M0_DDR_DQ17 M0_DDR_DQ17 M0_DDR_DQ14 DQU6 VSSQ_8 M0_DDR_DQ30 DQU6 VSSQ_8
C12 A3 G9 A3 G9
R408
R413
1K 1%
1K 1%
M0_DDR_DQ18 M0_DDR_DQ18 M0_DDR_DQ15 DQU7 VSSQ_9 M0_DDR_DQ31 DQU7 VSSQ_9
B4
M0_DDR_DQ19 M0_DDR_DQ19
A12
M0_DDR_DQ20 M0_DDR_DQ20
A4
M0_DDR_DQ21 M0_DDR_DQ21
B12
0.1uF
0.1uF
M0_DDR_DQ22 M0_DDR_DQ22
1%
1%
C4
M0_DDR_DQ23 M0_DDR_DQ23
R409
R414
B5
M0_DDR_DQ24 M0_DDR_DQ24
B10
C403
1K
1K
M0_DDR_DQ25
C407
M0_DDR_DQ25
C6
M0_DDR_DQ26 M0_DDR_DQ26
C11
M0_DDR_DQ27 M0_DDR_DQ27
C7
M0_DDR_DQ28 M0_DDR_DQ28
A10
M0_DDR_DQ29 M0_DDR_DQ29
B6
M0_DDR_DQ30 M0_DDR_DQ30
C10
M0_DDR_DQ31 M0_DDR_DQ31 IC402-*1
MT41K256M16HA-125:E
IC401-*1
MT41K256M16HA-125:E
E7 R401 240 N3
P7
A0
DDR_512MB_MICRON
VREFCA
M8
DDR_512MB_MICRON
M0_DDR_ZQCAL N3
P7
A0 VREFCA
M8
P3
A1
A2
1% P3
N2
A1
A2
H1
N2
P8
P2
A3
A4
VREFDQ
H1
A3 VREFDQ
P8 A5
A4 R8 L8
P2 A6 ZQ
A5 R2
R8 L8 A7
A6 ZQ T8
R2 A8
A7 R3 B2
T8 A9 VDD_1
A8 L7 D9
R3 B2 A10/AP VDD_2
A9 VDD_1 R7 G7
L7 D9 A11 VDD_3
A10/AP VDD_2 N7 K2
R7 G7 A12/BC VDD_4
A11 VDD_3 T3 K8
N7 K2 A13 VDD_5
A12/BC VDD_4 N1
T3 K8 VDD_6
A13 VDD_5 M7 N9
N1 NC_5 VDD_7
VDD_6 R1
M7 N9 VDD_8
NC_5 VDD_7 M2 R9
R1 BA0 VDD_9
VDD_8 N8
M2 R9 BA1
BA0 VDD_9 M3
N8 BA2
BA1 A1
M3 VDDQ_1
BA2 J7 A8
A1 CK VDDQ_2
VDDQ_1 K7 C1
J7 A8 CK VDDQ_3
CK VDDQ_2 K9 C9
K7 C1 CKE VDDQ_4
CK VDDQ_3 D2
K9 C9 VDDQ_5
CKE VDDQ_4 L2 E9
D2 CS VDDQ_6
VDDQ_5 K1 F1
L2 E9 ODT VDDQ_7
CS VDDQ_6 J3 H2
K1 F1 RAS VDDQ_8
ODT VDDQ_7 K3 H9
J3 H2 CAS VDDQ_9
RAS VDDQ_8 L3
K3 H9 WE
CAS VDDQ_9 J1
L3 NC_1
WE T2 J9
J1 RESET NC_2
NC_1 L1
T2 J9 NC_3
RESET NC_2 L9
L1 NC_4
NC_3 F3 T7
L9 DQSL A14
NC_4 G3
F3 T7 DQSL
DQSL A14
G3
DQSL C7 A9
DQSU VSS_1
B7 B3
C7 A9 DQSU VSS_2
DQSU VSS_1 E1
B7 B3 VSS_3
DQSU VSS_2 E7 G8
E1 DML VSS_4
VSS_3 D3 J2
E7 G8 DMU VSS_5
DML VSS_4 J8
D3 J2 VSS_6
DMU VSS_5 E3 M1
J8 DQ0 VSS_7
VSS_6 F7 M9
E3 M1 DQ1 VSS_8
DQ0 VSS_7 F2 P1
F7 M9 DQ2 VSS_9
DQ1 VSS_8 F8 P9
F2 P1 DQ3 VSS_10
DQ2 VSS_9 H3 T1
F8 P9 DQ4 VSS_11
DQ3 VSS_10 H8 T9
H3 T1 DQ5 VSS_12
DQ4 VSS_11 G2
H8 T9 DQ6
DQ5 VSS_12 H7
G2 DQ7
DQ6 B1
H7 VSSQ_1
DQ7 D7 B9
B1 DQ8 VSSQ_2
VSSQ_1 C3 D1
D7 B9 DQ9 VSSQ_3
DQ8 VSSQ_2 C8 D8
C3 D1 DQ10 VSSQ_4
DQ9 VSSQ_3 C2 E2
C8 D8 DQ11 VSSQ_5
DQ10 VSSQ_4 A7 E8
C2 E2 DQ12 VSSQ_6
DQ11 VSSQ_5 A2 F9
A7 E8 DQ13 VSSQ_7
DQ12 VSSQ_6 B8 G1
A2 F9 DQ14 VSSQ_8
DQ13 VSSQ_7 A3 G9
B8 G1 DQ15 VSSQ_9
DQ14 VSSQ_8
A3 G9
DQ15 VSSQ_9
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS MID_LG1311 2013.04.04
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. M14 DDR3-M0 4 31
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
PAGE 5
VREF_M1_0 +1.5V_DDR
IC101 +1.5V_DDR
LG1311
VREF_M1_1 VREF_M1_0 VREF_M1_1
R508
R515
1K 1%
1K 1%
A2
M1_DDR_VREF1
Y1
M1_DDR_VREF2
+1.5V_DDR
1%
1%
+1.5V_DDR
0.1uF
0.1uF
1_2Gbit : T7(NC_6)
C501
C506
M5
R509
R516
M1_DDR_A0 M1_DDR_A0
N5
M1_DDR_A1 4Gbit : T7(A14)
1K
1K
M1_DDR_A1
M1_DDR_A2
K5
M1_DDR_A2
IC501 IC502
H5 M1_DDR_VREFCA M1_1_DDR_VREFCA
M1_DDR_A3 M1_DDR_A3
T4 H5TQ4G63AFR-PBC H5TQ4G63AFR-PBC
M1_DDR_A4 M1_DDR_A4
H4
M1_DDR_A5 M1_DDR_A5
R4 M1_DDR_VREFDQ M1_1_DDR_VREFDQ
M1_DDR_A6 M1_DDR_A6
J5
M1_DDR_A7 M1_DDR_A0
N3 DDR3 M8
M1_DDR_A0
N3 DDR3 M8
M1_DDR_A7 A0 VREFCA A0 VREFCA
M1_DDR_A8
T5
M1_DDR_A8 M1_DDR_A1
P7
A1
4Gbit M1_DDR_A1
P7
A1
4Gbit
L5 P3 DDR_512MB_HYNIX_1600_29n P3 DDR_512MB_HYNIX_1600_29n
M1_DDR_A9 M1_DDR_A9 M1_DDR_A2 A2 M1_DDR_A2 A2
U4 N2 H1 N2 H1
M1_DDR_A10 M1_DDR_A10 M1_DDR_A3 A3 VREFDQ M1_DDR_A3 A3 VREFDQ
P4 P8 P8
M1_DDR_A11 M1_DDR_A11 M1_DDR_A4 A4 M1_DDR_A4 A4
P5 P2 P2
M1_DDR_A12 M1_DDR_A12 M1_DDR_A5 A5 M1_DDR_A5 A5
K4 +1.5V_DDR R8 L8 R518 240 R8 L8 R519 240
M1_DDR_A13 M1_DDR_A13 M1_DDR_CKE M1_DDR_A6 A6 ZQ M1_DDR_A6 A6 ZQ
R5 R2 R2
M1_DDR_A14 M1_DDR_A14 M1_DDR_A7 A7 M1_DDR_A7 A7
+1.5V_DDR
+1.5V_DDR
N4 T8 T8
M1_DDR_A15 M1_DDR_A15 R517 M1_DDR_A8 A8 M1_DDR_A8 A8
R3 B2 R3 B2
10K M1_DDR_A9 A9 VDD_1 M1_DDR_A9 A9 VDD_1
: Place these caps near Memory
G4 OPT R502 L7 D9 L7 D9
: Place these caps near Memory
M1_DDR_BA0 M1_DDR_BA0 M1_DDR_A10 A10/AP VDD_2 M1_DDR_A10 A10/AP VDD_2
U5 10K R7 G7 R7 G7
M1_DDR_BA1 M1_DDR_BA1 M1_DDR_A11 A11 VDD_3 M1_DDR_A11 A11 VDD_3
L4 N7 K2 N7 K2
M1_DDR_BA2 M1_DDR_BA2 M1_DDR_A12 A12/BC VDD_4 M1_DDR_A12 A12/BC VDD_4
M1_DDR_RESET_N T3 K8 T3 K8
M1_DDR_A13 A13 VDD_5 M1_DDR_A13 A13 VDD_5
R3 T7 N1 T7 N1
M1_DDR_U_CLKP M1_U_CLK M1_DDR_A14 A14 VDD_6 M1_DDR_A14 A14 VDD_6
R2 M7 N9 M7 N9
M1_DDR_U_CLKN M1_U_CLKN M1_DDR_A15 A15 VDD_7 M1_DDR_A15 A15 VDD_7
F3 R1 R1
M1_D_CLK
DDR3 1.5V bypass Cap
M1_DDR_D_CLKP VDD_8 VDD_8
F2 M2 R9 M2 R9
DDR3 1.5V bypass Cap
M1_DDR_D_CLKN M1_D_CLKN M1_DDR_BA0 BA0 VDD_9 M1_DDR_BA0 BA0 VDD_9
M4 N8 N8
M1_DDR_CKE M1_DDR_CKE M1_DDR_BA1 BA1 M1_DDR_BA1 BA1
M1_D_CLK M1_U_CLK M3 M3
M1_DDR_BA2 BA2 M1_DDR_BA2 BA2
F5 A1 A1
M1_DDR_ODT M1_DDR_ODT VDDQ_1 VDDQ_1
100
E4 J7 A8 J7 A8
R503
100
M1_DDR_RASN M1_DDR_RASN M1_D_CLK CK VDDQ_2 M1_U_CLK CK VDDQ_2
R510
F4 K7 C1 K7 C1
M1_DDR_CASN M1_DDR_CASN M1_D_CLKN CK VDDQ_3 M1_U_CLKN CK VDDQ_3
G5 K9 C9 K9 C9
M1_DDR_WEN M1_DDR_WEN M1_DDR_CKE CKE VDDQ_4 M1_DDR_CKE CKE VDDQ_4
M1_D_CLKN M1_U_CLKN D2 D2
VDDQ_5 VDDQ_5
J4 L2 E9 L2 E9
M1_DDR_RESET_N M1_DDR_RESET_N CS VDDQ_6 CS VDDQ_6
K1 F1 K1 F1
M1_DDR_ODT ODT VDDQ_7 M1_DDR_ODT ODT VDDQ_7
E2 J3 H2 C524 1uF J3 H2 C540 1uF
M1_DDR_DQS_P0 M1_DDR_DQS0 M1_DDR_RASN RAS VDDQ_8 M1_DDR_RASN RAS VDDQ_8
E3 K3 H9 K3 H9
M1_DDR_DQS_N0 M1_DDR_DQS_N0 M1_DDR_CASN CAS VDDQ_9 C525 1uF M1_DDR_CASN CAS VDDQ_9 C541 1uF
G2 L3 L3
M1_DDR_DQS_P1 M1_DDR_DQS1 M1_DDR_WEN WE M1_DDR_WEN WE
G1 J1 J1
M1_DDR_DQS_N1 M1_DDR_DQS_N1 NC_1 NC_1
P2 +1.5V_DDR +1.5V_DDR T2 J9 T2 J9
M1_DDR_DQS_P2 M1_DDR_DQS2 M1_DDR_RESET_N RESET NC_2 M1_DDR_RESET_N RESET NC_2
P3 L1 L1
M1_DDR_DQS_N2 M1_DDR_DQS_N2 NC_3 NC_3
T2 L9 L9
M1_DDR_DQS_P3 M1_DDR_DQS3 M1_DDR_VREFCA M1_1_DDR_VREFCA NC_4 NC_4
T1 F3 F3
M1_DDR_DQS_N3 M1_DDR_DQS_N3 M1_DDR_DQS0 DQSL M1_DDR_DQS2 DQSL
G3 G3
R511
1K 1%
M1_DDR_DQS_N0 M1_DDR_DQS_N2
R504
1K 1%
DQSL DQSL
H1
M1_DDR_DM0 M1_DDR_DM0
E1 C7 A9 C7 A9
M1_DDR_DM1 M1_DDR_DM1 M1_DDR_DQS1 DQSU VSS_1 M1_DDR_DQS3 DQSU VSS_1
U1 B7 B3 B7 B3
M1_DDR_DM2 M1_DDR_DM2 M1_DDR_DQS_N1 DQSU VSS_2 M1_DDR_DQS_N3 DQSU VSS_2
P1 E1 E1
M1_DDR_DM3 M1_DDR_DM3 VSS_3 VSS_3
E7 G8 E7 G8
1%
1%
M1_DDR_DM0 DML VSS_4 M1_DDR_DM2 DML VSS_4
C2 C507 D3 J2 D3 J2
R505
R512
M1_DDR_DQ0 M1_DDR_DQ0 C502 M1_DDR_DM1 DMU VSS_5 M1_DDR_DM3 DMU VSS_5
K2 0.1uF 0.1uF J8 J8
M1_DDR_DQ1 M1_DDR_DQ1 VSS_6 VSS_6
1K
1K
B3 E3 M1 E3 M1
M1_DDR_DQ2 M1_DDR_DQ2 M1_DDR_DQ0 DQL0 VSS_7 M1_DDR_DQ16 DQL0 VSS_7
J3 F7 M9 F7 M9
M1_DDR_DQ3 M1_DDR_DQ3 M1_DDR_DQ1 DQL1 VSS_8 M1_DDR_DQ17 DQL1 VSS_8
B1 F2 P1 F2 P1
M1_DDR_DQ4 M1_DDR_DQ4 M1_DDR_DQ2 DQL2 VSS_9 M1_DDR_DQ18 DQL2 VSS_9
K1 F8 P9 F8 P9
M1_DDR_DQ5 M1_DDR_DQ5 M1_DDR_DQ3 DQL3 VSS_10 M1_DDR_DQ19 DQL3 VSS_10
B2 H3 T1 H3 T1
M1_DDR_DQ6 M1_DDR_DQ6 M1_DDR_DQ4 DQL4 VSS_11 M1_DDR_DQ20 DQL4 VSS_11
K3 H8 T9 H8 T9
M1_DDR_DQ7 M1_DDR_DQ7 M1_DDR_DQ5 DQL5 VSS_12 M1_DDR_DQ21 DQL5 VSS_12
J2 G2 G2
M1_DDR_DQ8 M1_DDR_DQ8 M1_DDR_DQ6 DQL6 M1_DDR_DQ22 DQL6
D2 H7 H7
M1_DDR_DQ9 M1_DDR_DQ9 M1_DDR_DQ7 DQL7 M1_DDR_DQ23 DQL7
H3 B1 B1
M1_DDR_DQ10 M1_DDR_DQ10 VSSQ_1 VSSQ_1
C3 D7 B9 D7 B9
M1_DDR_DQ11 M1_DDR_DQ11 M1_DDR_DQ8 DQU0 VSSQ_2 M1_DDR_DQ24 DQU0 VSSQ_2
G3 C3 D1 C3 D1
M1_DDR_DQ12 M1_DDR_DQ12 M1_DDR_DQ9 DQU1 VSSQ_3 M1_DDR_DQ25 DQU1 VSSQ_3
D1 C8 D8 C8 D8
M1_DDR_DQ13 M1_DDR_DQ13 M1_DDR_DQ10 DQU2 VSSQ_4 M1_DDR_DQ26 DQU2 VSSQ_4
H2 C2 E2 C2 E2
M1_DDR_DQ14 M1_DDR_DQ14 M1_DDR_DQ11 DQU3 VSSQ_5 M1_DDR_DQ27 DQU3 VSSQ_5
D3
M1_DDR_DQ15
+1.5V_DDR +1.5V_DDR A7 E8 A7 E8
M1_DDR_DQ15 M1_DDR_DQ12 DQU4 VSSQ_6 M1_DDR_DQ28 DQU4 VSSQ_6
M2 A2 F9 A2 F9
M1_DDR_DQ16 M1_DDR_DQ16 M1_DDR_DQ13 DQU5 VSSQ_7 M1_DDR_DQ29 DQU5 VSSQ_7
V3 B8 G1 B8 G1
M1_DDR_DQ17 M1_DDR_DQ17 M1_DDR_VREFDQ M1_1_DDR_VREFDQ M1_DDR_DQ14 DQU6 VSSQ_8 M1_DDR_DQ30 DQU6 VSSQ_8
L3 A3 G9 A3 G9
M1_DDR_DQ18 M1_DDR_DQ18 M1_DDR_DQ15 DQU7 VSSQ_9 M1_DDR_DQ31 DQU7 VSSQ_9
W2
R506
R513
1K 1%
1K 1%
M1_DDR_DQ19 M1_DDR_DQ19
L1
M1_DDR_DQ20 M1_DDR_DQ20
W1
M1_DDR_DQ21 M1_DDR_DQ21
L2
M1_DDR_DQ22 M1_DDR_DQ22
W3
0.1uF
0.1uF
M1_DDR_DQ23 M1_DDR_DQ23
V2
1%
1%
M1_DDR_DQ24 M1_DDR_DQ24
N2
R507
R514
M1_DDR_DQ25 M1_DDR_DQ25
U3
M1_DDR_DQ26
C503
1K
1K
M1_DDR_DQ26
C508
M3
M1_DDR_DQ27 M1_DDR_DQ27
T3
M1_DDR_DQ28 M1_DDR_DQ28
N1
M1_DDR_DQ29 M1_DDR_DQ29
U2
M1_DDR_DQ30 M1_DDR_DQ30
N3
M1_DDR_DQ31 M1_DDR_DQ31 IC501-*1 IC502-*1 IC501-*2 IC502-*2 IC501-*3 IC502-*3
MT41K256M16HA-125:E MT41K256M16HA-125:E H5TQ2G63FFR-PBC H5TQ2G63FFR-PBC MT41K128M16JT-125:K MT41K128M16JT-125:K
DDR_512MB_MICRON DDR_512MB_MICRON DDR_256MB_HYNIX_1600_29n DDR_256MB_HYNIX_1600_29n DDR_256MB_MICRON DDR_256MB_MICRON
E5 R501 240 N3
P7
A0
A1
VREFCA
M8 N3
P7
A0
A1
VREFCA
M8 N3
P7
A0
A1
VREFCA
M8 N3
P7
A0
A1
VREFCA
M8 N3
P7
A0
A1
VREFCA
M8 N3
P7
A0
A1
VREFCA
M8
P3 P3 P3 P3 P3 P3
M1_DDR_ZQCAL N2
A2
A3 VREFDQ
H1 N2
A2
A3 VREFDQ
H1 N2
A2
A3 VREFDQ
H1 N2
A2
A3 VREFDQ
H1 N2
A2
A3 VREFDQ
H1 N2
A2
A3 VREFDQ
H1
1% P8
P2
A4
A5
P8
P2
A4
A5
P8
P2
A4
A5
P8
P2
A4
A5
P8
P2
A4
A5
P8
P2
A4
A5
R8 L8 R8 L8 R8 L8 R8 L8 R8 L8 R8 L8
A6 ZQ A6 ZQ A6 ZQ A6 ZQ A6 ZQ A6 ZQ
R2 R2 R2 R2 R2 R2
A7 A7 A7 A7 A7 A7
T8 T8 T8 T8 T8 T8
A8 A8 A8 A8 A8 A8
R3 B2 R3 B2 R3 B2 R3 B2 R3 B2 R3 B2
A9 VDD_1 A9 VDD_1 A9 VDD_1 A9 VDD_1 A9 VDD_1 A9 VDD_1
L7 D9 L7 D9 L7 D9 L7 D9 L7 D9 L7 D9
A10/AP VDD_2 A10/AP VDD_2 A10/AP VDD_2 A10/AP VDD_2 A10/AP VDD_2 A10/AP VDD_2
R7 G7 R7 G7 R7 G7 R7 G7 R7 G7 R7 G7
A11 VDD_3 A11 VDD_3 A11 VDD_3 A11 VDD_3 A11 VDD_3 A11 VDD_3
N7 K2 N7 K2 N7 K2 N7 K2 N7 K2 N7 K2
A12/BC VDD_4 A12/BC VDD_4 A12/BC VDD_4 A12/BC VDD_4 A12/BC VDD_4 A12/BC VDD_4
T3 K8 T3 K8 T3 K8 T3 K8 T3 K8 T3 K8
A13 VDD_5 A13 VDD_5 A13 VDD_5 A13 VDD_5 A13 VDD_5 A13 VDD_5
N1 N1 N1 N1 N1 N1
VDD_6 VDD_6 VDD_6 VDD_6 VDD_6 VDD_6
M7 N9 M7 N9 M7 N9 M7 N9 M7 N9 M7 N9
NC_5 VDD_7 NC_5 VDD_7 NC_5 VDD_7 NC_5 VDD_7 NC_5 VDD_7 NC_5 VDD_7
R1 R1 R1 R1 R1 R1
VDD_8 VDD_8 VDD_8 VDD_8 VDD_8 VDD_8
M2 R9 M2 R9 M2 R9 M2 R9 M2 R9 M2 R9
BA0 VDD_9 BA0 VDD_9 BA0 VDD_9 BA0 VDD_9 BA0 VDD_9 BA0 VDD_9
N8 N8 N8 N8 N8 N8
BA1 BA1 BA1 BA1 BA1 BA1
M3 M3 M3 M3 M3 M3
BA2 BA2 BA2 BA2 BA2 BA2
A1 A1 A1 A1 A1 A1
VDDQ_1 VDDQ_1 VDDQ_1 VDDQ_1 VDDQ_1 VDDQ_1
J7 A8 J7 A8 J7 A8 J7 A8 J7 A8 J7 A8
CK VDDQ_2 CK VDDQ_2 CK VDDQ_2 CK VDDQ_2 CK VDDQ_2 CK VDDQ_2
K7 C1 K7 C1 K7 C1 K7 C1 K7 C1 K7 C1
CK VDDQ_3 CK VDDQ_3 CK VDDQ_3 CK VDDQ_3 CK VDDQ_3 CK VDDQ_3
K9 C9 K9 C9 K9 C9 K9 C9 K9 C9 K9 C9
CKE VDDQ_4 CKE VDDQ_4 CKE VDDQ_4 CKE VDDQ_4 CKE VDDQ_4 CKE VDDQ_4
D2 D2 D2 D2 D2 D2
VDDQ_5 VDDQ_5 VDDQ_5 VDDQ_5 VDDQ_5 VDDQ_5
L2 E9 L2 E9 L2 E9 L2 E9 L2 E9 L2 E9
CS VDDQ_6 CS VDDQ_6 CS VDDQ_6 CS VDDQ_6 CS VDDQ_6 CS VDDQ_6
K1 F1 K1 F1 K1 F1 K1 F1 K1 F1 K1 F1
ODT VDDQ_7 ODT VDDQ_7 ODT VDDQ_7 ODT VDDQ_7 ODT VDDQ_7 ODT VDDQ_7
J3 H2 J3 H2 J3 H2 J3 H2 J3 H2 J3 H2
RAS VDDQ_8 RAS VDDQ_8 RAS VDDQ_8 RAS VDDQ_8 RAS VDDQ_8 RAS VDDQ_8
K3 H9 K3 H9 K3 H9 K3 H9 K3 H9 K3 H9
CAS VDDQ_9 CAS VDDQ_9 CAS VDDQ_9 CAS VDDQ_9 CAS VDDQ_9 CAS VDDQ_9
L3 L3 L3 L3 L3 L3
WE WE WE WE WE WE
J1 J1 J1 J1 J1 J1
NC_1 NC_1 NC_1 NC_1 NC_1 NC_1
T2 J9 T2 J9 T2 J9 T2 J9 T2 J9 T2 J9
RESET NC_2 RESET NC_2 RESET NC_2 RESET NC_2 RESET NC_2 RESET NC_2
L1 L1 L1 L1 L1 L1
NC_3 NC_3 NC_3 NC_3 NC_3 NC_3
L9 L9 L9 L9 L9 L9
NC_4 NC_4 NC_4 NC_4 NC_4 NC_4
F3 T7 F3 T7 F3 T7 F3 T7 F3 T7 F3 T7
DQSL A14 DQSL A14 DQSL NC_6 DQSL NC_6 DQSL NC_6 DQSL NC_6
G3 G3 G3 G3 G3 G3
DQSL DQSL DQSL DQSL DQSL DQSL
C7 A9 C7 A9 C7 A9 C7 A9 C7 A9 C7 A9
DQSU VSS_1 DQSU VSS_1 DQSU VSS_1 DQSU VSS_1 DQSU VSS_1 DQSU VSS_1
B7 B3 B7 B3 B7 B3 B7 B3 B7 B3 B7 B3
DQSU VSS_2 DQSU VSS_2 DQSU VSS_2 DQSU VSS_2 DQSU VSS_2 DQSU VSS_2
E1 E1 E1 E1 E1 E1
VSS_3 VSS_3 VSS_3 VSS_3 VSS_3 VSS_3
E7 G8 E7 G8 E7 G8 E7 G8 E7 G8 E7 G8
DML VSS_4 DML VSS_4 DML VSS_4 DML VSS_4 DML VSS_4 DML VSS_4
D3 J2 D3 J2 D3 J2 D3 J2 D3 J2 D3 J2
DMU VSS_5 DMU VSS_5 DMU VSS_5 DMU VSS_5 DMU VSS_5 DMU VSS_5
J8 J8 J8 J8 J8 J8
VSS_6 VSS_6 VSS_6 VSS_6 VSS_6 VSS_6
E3 M1 E3 M1 E3 M1 E3 M1 E3 M1 E3 M1
DQ0 VSS_7 DQ0 VSS_7 DQL0 VSS_7 DQL0 VSS_7 DQ0 VSS_7 DQ0 VSS_7
F7 M9 F7 M9 F7 M9 F7 M9 F7 M9 F7 M9
DQ1 VSS_8 DQ1 VSS_8 DQL1 VSS_8 DQL1 VSS_8 DQ1 VSS_8 DQ1 VSS_8
F2 P1 F2 P1 F2 P1 F2 P1 F2 P1 F2 P1
DQ2 VSS_9 DQ2 VSS_9 DQL2 VSS_9 DQL2 VSS_9 DQ2 VSS_9 DQ2 VSS_9
F8 P9 F8 P9 F8 P9 F8 P9 F8 P9 F8 P9
DQ3 VSS_10 DQ3 VSS_10 DQL3 VSS_10 DQL3 VSS_10 DQ3 VSS_10 DQ3 VSS_10
H3 T1 H3 T1 H3 T1 H3 T1 H3 T1 H3 T1
DQ4 VSS_11 DQ4 VSS_11 DQL4 VSS_11 DQL4 VSS_11 DQ4 VSS_11 DQ4 VSS_11
H8 T9 H8 T9 H8 T9 H8 T9 H8 T9 H8 T9
DQ5 VSS_12 DQ5 VSS_12 DQL5 VSS_12 DQL5 VSS_12 DQ5 VSS_12 DQ5 VSS_12
G2 G2 G2 G2 G2 G2
DQ6 DQ6 DQL6 DQL6 DQ6 DQ6
H7 H7 H7 H7 H7 H7
DQ7 DQ7 DQL7 DQL7 DQ7 DQ7
B1 B1 B1 B1 B1 B1
VSSQ_1 VSSQ_1 VSSQ_1 VSSQ_1 VSSQ_1 VSSQ_1
D7 B9 D7 B9 D7 B9 D7 B9 D7 B9 D7 B9
DQ8 VSSQ_2 DQ8 VSSQ_2 DQU0 VSSQ_2 DQU0 VSSQ_2 DQ8 VSSQ_2 DQ8 VSSQ_2
C3 D1 C3 D1 C3 D1 C3 D1 C3 D1 C3 D1
DQ9 VSSQ_3 DQ9 VSSQ_3 DQU1 VSSQ_3 DQU1 VSSQ_3 DQ9 VSSQ_3 DQ9 VSSQ_3
C8 D8 C8 D8 C8 D8 C8 D8 C8 D8 C8 D8
DQ10 VSSQ_4 DQ10 VSSQ_4 DQU2 VSSQ_4 DQU2 VSSQ_4 DQ10 VSSQ_4 DQ10 VSSQ_4
C2 E2 C2 E2 C2 E2 C2 E2 C2 E2 C2 E2
DQ11 VSSQ_5 DQ11 VSSQ_5 DQU3 VSSQ_5 DQU3 VSSQ_5 DQ11 VSSQ_5 DQ11 VSSQ_5
A7 E8 A7 E8 A7 E8 A7 E8 A7 E8 A7 E8
DQ12 VSSQ_6 DQ12 VSSQ_6 DQU4 VSSQ_6 DQU4 VSSQ_6 DQ12 VSSQ_6 DQ12 VSSQ_6
A2 F9 A2 F9 A2 F9 A2 F9 A2 F9 A2 F9
DQ13 VSSQ_7 DQ13 VSSQ_7 DQU5 VSSQ_7 DQU5 VSSQ_7 DQ13 VSSQ_7 DQ13 VSSQ_7
B8 G1 B8 G1 B8 G1 B8 G1 B8 G1 B8 G1
DQ14 VSSQ_8 DQ14 VSSQ_8 DQU6 VSSQ_8 DQU6 VSSQ_8 DQ14 VSSQ_8 DQ14 VSSQ_8
A3 G9 A3 G9 A3 G9 A3 G9 A3 G9 A3 G9
DQ15 VSSQ_9 DQ15 VSSQ_9 DQU7 VSSQ_9 DQU7 VSSQ_9 DQ15 VSSQ_9 DQ15 VSSQ_9
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS MID_LG1311 2013.04.04
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. M14 DDR3-M1 5 31
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
PAGE 6
IC101
+3.3V_Bypass Cap +1.1V_Bypass Cap LG1311
+1.1V_VDD
B22 P19
GND_1 GND_114
+3.3V_NORMAL DVDD33 +3.3V_NORMAL AVDD33 B24
GND_2 GND_115
P22
C22 P26
GND_3 GND_116
C23 P30
L601 GND_4 GND_117
C24 R7
BLM18PG121SN1D L606 GND_5 GND_118
C617 C618 C619 C620 C623 C626 C627 C628 D4 R8
4.7uF 4.7uF 4.7uF 4.7uF 4.7uF 0.1uF 0.1uF 0.1uF GND_6 GND_119
10V 10V 10V 10V 10V D5 R11
BLM18PG121SN1D 16V 16V 16V
IC101 D6
GND_7
GND_8
GND_120
GND_121
R12
C614 C615 D20 R22
DVDD33 +1.1V_VDD C601 C604 C607
LG1311 4.7uF 4.7uF 0.1uF 4.7uF
10V
0.1uF D21
GND_9
GND_10
GND_122
GND_123
R26
10V 10V 16V 16V
E6 R27
GND_11 GND_124
E20 T6
GND_12 GND_125
TP5209 E21 T7
L18 DVDD33_1 DVDD11_1 M20 GND_13 GND_126
F6 T8
L21 DVDD33_2 DVDD11_2 M21 GND_14 GND_127
F7 T12
L22 DVDD33_3 DVDD11_3 N13 GND_15 GND_128
F8 T14
L23 DVDD33_4 DVDD11_4 N14 GND_16 GND_129
F18 T15
M23 DVDD33_5 DVDD11_5 N15 GND_17 GND_130
F19 T16
T11 DVDD33_6 DVDD11_6 N16 GND_18 GND_131
F20 T17
Y23 DVDD33_7 DVDD11_7 N17 GND_19 GND_132
F21 T18
AA23 DVDD33_8 DVDD11_8 N18 GND_20 GND_133
G7 T19
AC12 DVDD33_9 DVDD11_9 P20 GND_21 GND_134
G8 T22
AC13 P21 GND_22 GND_135
AC14
DVDD33_10
DVDD33_11
DVDD11_10
DVDD11_11 R13
+2.5V_Bypass Cap AFE 3CH Power G9
GND_23 GND_136
T26
G10 T27
AC15 DVDD33_12 DVDD11_12 R14 GND_24 GND_137
G11 U6
AC11 AVDD33_BT_USB DVDD11_13 R15 GND_25 GND_138
G12 U7
VDD3V3_HDMI P23 AVDD33_USB_1 DVDD11_14 R16 GND_26 GND_139
G13 U8
R23 AVDD33_USB_2 DVDD11_15 R17 GND_27 GND_140
G14 U11
T23 AVDD33_HDMI_1 DVDD11_16 R18 +2.5V_NORMAL AVDD25 +2.5V_NORMAL AVDD25_C4TX GND_28 GND_141
G15 U12
U23 R19 +1.1V_VDD AVDD11_DMD GND_29 GND_142
AVDD33 AVDD33_HDMI_2 DVDD11_17 G16 U13
C637 V23 AVDD33_HDMI_3 DVDD11_18 R20 GND_30 GND_143
0.1uF L602 L604 G17 U22
DVDD11_19 R21 GND_31 GND_144
16V BLM18PG121SN1D BLM18PG121SN1D G20 U26
AF22 AVDD33_CVBS DVDD11_20 T13 GND_32 GND_145
L607 G21 V4
DVDD11_21 T20 GND_33 GND_146
G22 V5
DVDD11_22 T21 GND_34 GND_147
BLM18PG121SN1D G23 V6
+1.5V_DDR F9 DVDD15_M0_1 DVDD11_23 U14 C602 C605 C608 C610 C613 C616 GND_35 GND_148
G24 V7
TP5207
F10 U15 4.7uF 4.7uF 0.1uF 0.1uF 4.7uF 0.1uF C622 C625
DVDD15_M0_2 DVDD11_24 GND_36 GND_149
10V 10V 16V 16V 10V 16V 4.7uF 0.1uF G25 V8
F11 DVDD15_M0_3 DVDD11_25 U16 10V GND_37 GND_150
16V G26 V14
F12 DVDD15_M0_4 DVDD11_26 U17 GND_38 GND_151
G27 V15
F13 DVDD15_M0_5 DVDD11_27 U18 GND_39 GND_152
H7 V16
F14 DVDD15_M0_6 DVDD11_28 U19 GND_40 GND_153
H8 V17
F15 DVDD15_M0_7 DVDD11_29 U20 GND_41 GND_154
H9 V18
F16 DVDD15_M0_8 DVDD11_30 U21 GND_42 GND_155
H10 V19
F17 DVDD15_M0_9 DVDD11_31 V13 GND_43 GND_156
H11 V22
DVDD11_32 V20 GND_44 GND_157
H12 V26
+1.5V_DDR G6 V21 GND_45 GND_158
DVDD15_M1_1 DVDD11_33 +2.5V_NORMAL AVDD25_AUD H13 V30
TP5208
H6 DVDD15_M1_2 DVDD11_34 W13 GND_46 GND_159
H14 V31
J6 DVDD15_M1_3 DVDD11_35 W14 GND_47 GND_160
H15 W4
K6 DVDD15_M1_4 DVDD11_36 W15 L603 GND_48 GND_161
BLM18PG121SN1D H16 W8
L6 DVDD15_M1_5 DVDD11_37 W16 GND_49 GND_162
H17 W20
M6 DVDD15_M1_6 DVDD11_38 W17 GND_50 GND_163
H21 W21
N6 DVDD15_M1_7 DVDD11_39 W18 GND_51 GND_164
H22 W22
P6 DVDD15_M1_8 W19 GND_52 GND_165
DVDD11_40 C603 C606 C609 H23 W23
R6 Y13 GND_53 GND_166
AVDD25_C4TX DVDD15_M1_9 DVDD11_41 4.7uF 4.7uF 0.1uF H24 W26
Y20 10V 10V 16V GND_54 GND_167
DVDD11_42 H25 W27
Y21 GND_55 GND_168
DVDD11_43 H26 Y2
V11 AVDD25_C4TX_1 AA13 GND_56 GND_169
DVDD11_44 H27 Y3
W11 AVDD25_C4TX_2 AA14 GND_57 GND_170
DVDD11_45 H31 Y4
Y11 AVDD25_C4TX_3 AA15 GND_58 GND_171
DVDD11_46 J7 Y8
AVDD25 AA11 AVDD25_C4TX_4 DVDD11_47
AA17
J8
GND_59 GND_172
Y14
AC18 AVDD25_COMP_1 AA18 GND_60 GND_173
DVDD11_48 J26 Y15
AC19
AC20
AVDD25_COMP_2 DVDD11_49
AA19
AA20
+1.5V_Bypass Cap J27
GND_61
GND_62
GND_174
GND_175
Y16
AVDD25_CVBS_1 DVDD11_50 K7 Y17
AC21 AVDD25_CVBS_2 AA21 GND_63 GND_176
DVDD11_51 K8 Y18
AC22 AVDD25_DMD AB21 GND_64 GND_177
AVDD11_APLL K26 Y19
AC23 AVDD25_AAD AB19 GND_65 GND_178
AVDD11_COMP_LLPLL K27 Y22
G19 DVDD25_XTAL V12 GND_66 GND_179
AVDD11_C4TX_1 L7 Y26
H19 AVDD25_DR3PLL W12 GND_67 GND_180
AVDD11_C4TX_2 L8 AA8
AVDD25_AUD H20 Y12 GND_68 GND_181
SP_VQPS AVDD11_C4TX_3 +1.5V_DDR L11 AA16
AA12 GND_69 GND_182
AVDD11_C4TX_4 L12 AA22
AC17 AVDD25_AUD
+1.1V_VDD GND_70 GND_183
L13 AA26
AB23 AVDD25_APLL GND_71 GND_184
L14 AB11
G18 GND_72 GND_185
DVDD11_XTAL L15 AB12
H18 GND_73 GND_186
DVDD11_DR3PLL L16 AB13
TP5210
AVDD11_DMD GND_74 GND_187
L17 AB14
AF23 GND_75 GND_188
DVDD11_CVBSPLL OPT L19 AB15
AF24 C629 C631 C633 GND_76 GND_189
AVDD11_DMD_1 L20 AB16
AF25 22uF 0.1uF 0.1uF GND_77 GND_190
AVDD11_DMD_2 10V 16V 16V L27 AB17
DVDD18_EMMC GND_78 GND_191
M7 AB18
GND_79 GND_192
M8 AB20
L26 GND_80 GND_193
DVDD18_EMMC_1 M11 AB22
M26 GND_81 GND_194
DVDD18_EMMC_2 M12 AB26
GND_82 GND_195
M13 AB30
GND_83 GND_196
M14 AB31
GND_84 GND_197
M15 AC16
+1.5V_DDR GND_85 GND_198
M16 AC26
GND_86 GND_199
M17 AD26
GND_87 GND_200
M18 AE26
GND_88 GND_201
M19 AF6
GND_89 GND_202
M22 AF8
GND_90 GND_203
M27 AF9
GND_91 GND_204
OPT N7 AF10
GND_92 GND_205
C630 C632 C634 N8 AF11
22uF 0.1uF 0.1uF GND_93 GND_206
N11 AF12
10V 16V 16V GND_94 GND_207
N12 AF13
GND_95 GND_208
N19 AF14
GND_96 GND_209
N20 AF15
GND_97 GND_210
N21 AF16
GND_98 GND_211
N22 AF17
GND_99 GND_212
N23 AF18
GND_100 GND_213
N26 AF19
GND_101 GND_214
N27 AF20
GND_102 GND_215
N30 AF21
GND_103 GND_216
P7 AF26
GND_104 GND_217
P8 AG20
GND_105 GND_218
GND JIG POINT P11 AG25
GND_106 GND_219
P12 AG31
GND_107 GND_220
P13 AH25
GND_108 GND_221
P14 AJ25
GND_109 GND_222
P15 AK9
JP601
JP602
JP603
JP604
GND_110 GND_223
P16 AK25
GND_111 GND_224
P17 AL9
GND_112 GND_225
P18 AL15
GND_113 GND_226
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS MID_LG1311 2013.04.04
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. VCC & GND 6 31
11/05/31
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
+3.5V_ST
PANEL_POWER
PAGE 8
+3.3V_NORMAL
R2327-*1
Q2302 Change: Diodes --> NXP, 131118 8.2K
R2301 P_DET_BOTH_12_24V
PANEL_VCC
1
R2300
10K R2310
1K
+12V R2328-*1
1.5K P_DET_BOTH_12_24V
RL_ON P_DET_BOTH_12_24V 1% R2336-*2
2
10K Q2302 R2349-*1 100K
Q2300 POWER_WAFER_18PIN R2309
PMV48XP 100
3
100 P_DET_BOTH_12_24V
R2325-*2
MMBT3906(NXP) P2300 INV_CTL L2313 2.7K
+3.5V_ST SMAW200-H18S5 P_DET_BOTH_24_3.5V C2356-*1 1% R2349-*2 C2356-*2
S
D
VA23001 100 0.1uF
5.6V 0.1uF
R2336-*1 50V P_DET_BOTH_12_24V 50V
AMOTECH CO., LTD. UBW2012-121F
L2304 C2333 100K P_DET_BOTH_24_3.5V R2326-*2 P_DET_BOTH_12_24V P_DET_BOTH_12_24V
PWR ON INV ON C2331 R2317
UBW2012-121F 1 2 0.1uF 10uF G 1.2K
3.5V PDIM#1 30K C2347 P_DET_BOTH_24_3.5V
LVDS_DISCHARGE
3 4 50V 16V 1%
PWM_DIM 0.1uF
R2346
3.5V 3.5V
ZD2303
5 6 50V
3.3K
C2307
+12V
5V
0.1uF GND 7 8 PDIM#2
R2354
PWM_DIM2
16V 24V 9 10 24V R2355
+24V 4.7K 4.7K R2318
UBW2012-121F
GND
12V
12V
11
13
15
12
14
16
GND
12V
24V
L2306
UBW2012-121F
OPT OPT 5.1K
Power_DET RESET IC_DIODES
IC2307-*1
L2303 C APX803D29
C2306 GND 17 18 GND
0.1uF GND GND B Q2301
50V
19 20 PANEL_CTL MMBT3904(NXP)
+12V +3.5V_ST R2337 VCC 3 2 RESET
GND L/DIMO_VS 100K +3.5V_ST
21 19 22 L/DIM0_VS R2314
L/DIM0_MOSI L/DIM0_SCLK 10K E 1
23 24 L/DIM0_SCLK P_DET_ONLY_12V R2338
OPT R2325-*1 RESET IC_ROHM GND
R2356 P_DET_BOTH_12_3.5V R2325 R2330 10K
2.7K 0 IC2307
C2316 1K 1% 2.7K OPT
25 0.1uF 1% 5% BD48K28G
50V P_DET_BOTH_24_3.5V
.
SMAW200-H24S5 R2350 POWER_DET
P2301 VDD VOUT 100
3 2
POWER_WAFER_24PIN
L/DIM0_MOSI C2355 1
P_DET_ONLY_12V 0.1uF
P_DET_BOTH_12_3.5V GND
R2326-*1 R2326 16V
1.2K 1.2K
1% 1% C2365
0.1uF
16V
+2.5V +3.5V_ST
P_DET_BOTH_12_3.5V
R2336
+2.5V_NORMAL +24V
100K
IC2302
AP7173-SPG-13 HF(DIODES)
On-semi R2327
R2348
0
P_DET_BOTH_12_3.5V_ROHM
IC2308
not to RESET at 8kV ESD
8.2K P_DET_BOTH_12_3.5V BD48K28G
P_DET_BOTH_12_3.5V_DIODES R2349
+3.3V - eMMC 4.41(LG1311-A0) +3.3V_NORMAL [EP] IC2308-*1
P_DET_BOTH_24_3.5V
VDD 3 2 VOUT 100
APX803D29
R2328 1 P_DET_BOTH_12_3.5V
IN OUT 1.5K C2356 24V-->3.48V
1 8 GND
+3.3V_NORMAL 3.3V_EMMC VCC 3 2 RESET 1% 0.1uF 12V-->3.58V
THERMAL
50V
+5V_NORMAL
1%
1/16W
4.3K
R2322
1
P_DET_BOTH_24_3.5V
P_DET_BOTH_12_3.5V ST_3.5V-->3.5V
PG FB R1
9
2 7 GND
C2346 C2357
ZD2304
1.5A 6
OPT
10uF
5V
VCC SS 0.1uF
L2302 3 10V 16V
C2337
1%
1/16W
2K
R2321
R2312 EN GND 2200pF R2
BLM18PG121SN1D 4 5 50V
C2305 C2300 POWER_ON/OFF2_1
0.1uF 22uF 10K
16V 10V C2327
10uF
10V DDR MAIN 1.5V
R2324
POWER_ON/OFF2_2
10K
1.5V_DCDC_TI
C2353
Vout=0.8*(1+R1/R2) 0.1uF
+3.5V_ST 16V C2341 +1.5V_DDR
0.1uF
+1.8V - eMMC 4.51(LG1311-B0)
[EP]FIN
16V
AVIN
BOOT
L2308
PGD
EN
+1.1V_CORE NR5040T2R2N
L2309
16
15
14
13
2.2uH
PVIN_1 1 12 SW_3
DVDD18_EMMC PVIN_2 2
THERMAL
11 SW_2
C2339 C2340 17
3A
ZD2302
+3.3V_NORMAL 10uF 0.1uF C2345 C2349
2.5V
PGND_1 3 IC2303 10 SW_1
R2311 10V 16V 22uF 22uF
10K BD9A300MUV C2342 10V 10V
OPT
PGND_2 4 9 SS
R2316 1.5V_DCDC_ROHM 0.01uF
R2319
1/16W
39K
5
6
7
8
50V C2354
1%
1/16W
16K
R2332
9.1K
R1 100pF
1%
1/16W R1
AGND
FB
ITH
MODE
IC2306 50V
AZ1117EH-ADJTRG1 5% 1.5V_DCDC_TI R2331
1%
1/16W
91K
1.5V_DCDC_TI
1.5V_DCDC_TI
EP[GND]
1/16W 330K 5%
R2315
R2329-*1
VIN_3
PWRGD
BOOT
C2321 15K
EN
[EP]
GND2
GND1
NC_3
TRIP
R2320
10.7K
1/16W
IN OUT 1000pF +12V R2329
C2344
16
15
14
13
VO
R2347 1/16W 8.2K
50V R2 VIN_1 PH_3
1%
1/16W
27K
1 12
ADJ/GND 1% 5%
R2313
THERMAL
1 VIN_2 2 17 11 PH_2
1% 1/16W
1%
1/16W
20K
R2323
D2302
50V 2700pF
1%
1/16W
75
2.5V
R2
OPT
28
27
26
25
24
GND_1 3 IC2303-*1 10 PH_1
R2357
GND_2
TPS54319TRE
SS/TR C2344-*1 1.5V_DCDC_RHOM 1.5V_DCDC_RHOM
RF 1 23 FB 4 9
5
6
7
8
C2301 C2308 THERMAL
PGOOD GND L2307
AGND
VSENSE
COMP
RT/CLK
1%
1/16W
18K
R2333
2 29 22 50V 4700pF
10uF 10uF 1.5V_DCDC_TI
1%
1/16W
33
R2358
10V 10V R2307 1K EN MODE
POWER_ON/OFF2_3 16V
0.1uF
VBST
3
4
IC2301
21
20 VREG
3A
TPS53513RVER
R2351
C2323 NC_1 VDD
5 19
Vout=0.8*(1+R1/R2)
4.7
C2320 R2306
2K SW_1 NC_2
6 18
0.1uF 1/16W C2326 C2332
SW_2 7 17 VIN_3 C2328
16V 5% 1uF 10uF
10uF
10V
+1.1V_VDD
SW_3 VIN_2 16V 16V
L2305 8 16
8A
1uH
SW_4 9 15 VIN_1
+5.0V normal & USB
10
11
12
13
14
R2308
1/10W
1%
R2341150K 1%
3.3
R2
R2335 16K 1%
C2334 OPT
5%
C2325
PGND_1
PGND_2
PGND_3
PGND_4
PGND_5
2200pF 2200pF C2335 C2336
R2340 16K
C2317 C2319 +24V 50V
1%
1/16W
ZD2301
+12V C2318 50V 100pF 0.047uF
+3.3V_NORMAL
6.8K
R2345
2.5V
22uF 22uF
OPT
22uF R2342 50V 25V
10V 10V C2322
10V 10K
+3.3V_NORMAL 470pF
50V
L2300 C2348 C2351 C2352
RSET2
RSET1
BLM18PG121SN1D 22uF 22uF 10uF
[EP]
AGND
RLIM
COMP
C2343 R1 10V 10V 10V
FB
SS
L2310
Vout=0.6*(1+R1/R2) 120-ohm 82pF
1%
1/16W
51K
50V
R2352
28
27
26
25
24
23
22
C2302 C2303 VIN_1 1 21 LX_3 L2311
10uF 0.1uF THERMAL 4.7uH
16V 16V VIN_2 2 29 20 LX_2
IC2300
BD9D320EFJ [EP]FIN C2329 VIN_3 LX_1 C2338
ZD2300
C2309 C2311 3 19
10uF 10uF 0.1uF
IC2304
0.047uF L2311 Change, 131120 +5V_NORMAL
5V
50V PGND_1 BST 25V for Currnet UP
R2304 35V 35V 4 18
OPT
POWER_ON/OFF1 SN1302001(TPS65286RHDR)
10K EN VIN OPT
1 8 PGND_2 SW_IN2
16V POWER UP SEQUENCE 5 17
THERMAL
C2350
R2344
1/16W
0.1uF
100K
100K
R2353
R2302 R2303 R1 PGND_3 SW_IN1
1/16W
C2313 6 16 1uF
5%
5%
5.1K 68K FB BOOT
6A
9
2 7 10V
1/16W 1/16W L2301 3.3V->5V->1.5V->1.1V->2.5V V7V 7 15 NFAULT1
/USB_OCD3
1% 1% 2uH
25V
1uF
C2324
10
11
12
13
14
VREG SW
8
9
33.3V_DCDC_ROHM6
C2304
100pF
MODE/SYNC
EN
SW_OUT2
SW_OUT1
SW_EN2
SW_EN1
NFAULT2
50V
SS GND
3.3V_DCDC_TI
IC2300-*1
R2 4
3A 5 C2314
22uF
C2315
22uF
1/16W
R2305
TPS54327DDAR [EP]GND 10V
3.3V_DCDC_RHOM 10V
22K
C2310 C2312
1%
EN VIN
1 8
1uF 2200pF Vout=0.6*(1+R1/R2)
THERMAL
/USB_OCD2
VFB VBST
10V 50V C2330
9
+5V_USB_2
+5V_USB_3
2 7
3.3V_DCDC_TI
POWER_ON/OFF2_4
USB_CTL2
USB_CTL3
R2339
10K
VREG5 SW
3.3V_DCDC_RHOM 0.0068uF
3 6 C2312-*1 50V
SS GND
3300pF
4 5
50V
Vout=0.765*(1+R1/R2) 5.1V:R1-51K, R2-6.8K
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS MID_LG1311 2013.03.22
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. POWER 8 31
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Renesas MICOM PAGE 9
For Debug
+3.5V_ST
MICOM_DEBUG
R3016 1K
R3014 10K
MICOM_DEBUG Don’t remove R3016,
P3000
12507WS-04L
not making float P40 50V 50V
10pF 12pF
C3002 C3003 LOGO_LIGHT
MICOM_DEBUG
1
LOGO_LIGHT
MICOM_RESET
2
MICOM_DEBUG
X3000
3
4
MICOM_RESET 32.768KHz +3.5V_ST
5
HDMI_WAUP:HDMI_INIT R3028
4.7M
MHL_DET OPT
MHL_DET
10K
MODULE_20V_DET
CAM_PWR_ON_CMD
CAM_PWR_ON_CMD
R3032
10K
R3030
MICOM_RESET_SW
GND
MICOM_RESET_22OHM
SW3000
JTP-1127WEM
2 1
33
R3031
270K
OPT
C3004
P124/XT2/EXCLKS
0.47uF
0.1uF
+3.5V_ST 4 3
16V
R3029
P122/X2/EXCLK
P41/TI07/TO07
C3001
P137/INTP0
P120/ANI19
P40/TOOL0
TP3009
CAM_RESET CAM_RESET
P123/XT1
C3000
P121/X1
0.1uF MODULE_20V_DET
RESET
+3.5V_ST
REGC
VDD
VSS
M14 Power SEQUENCE
R3021
10K
48
47
46
45
44
43
42
41
40
39
38
37
POWER_ON/OFF1
P60/SCLA0 1 36 P140/PCLBUZ0/INTP6 RL_ON
SCART_MUTE
I2C_SCL_MICOM_SOC
P61/SDAA0 2 35 P00/TI00/TXD1 POWER_ON/OFF2_4
I2C_SDA_MICOM_SOC SCART_MUTE
POWER_ON/OFF2_4
P62 3 34 P01/TO00/RXD1
MODEL1_OPT_4 POWER_ON/OFF2_4
P63 4 33 P130
POWER_ON/OFF2_2
PANEL_CTL
P31/TI03/TO03/INTP4 IC3000 P20/ANI0/AVREFP
POWER_ON/OFF2_1
WOL/WIFI_POWER_ON 5 32 KEY2
IR
P75/KR5/INTP9/SCK01/SCL01 6 R5F100GEAFB#30 31 P21/ANI1/AVREFM
KEY1
POWER_ON/OFF2_3
P74/KR4/INTP8/SI01/SDA01 7 30 P22/ANI2
HDMI_CEC EPI_CTL
POWER_ON/OFF2_2
P73/KR3/SO01 8 29 P23/ANI3
MODEL1_OPT_3
POWER_ON/OFF2_1 P72/KR2/SO21 P24/ANI4
POWER_ON/OFF2_3 9 28 MODEL1_OPT_0
P71/KR1/SI21/SDA21 10 27 P25/ANI5
EYE_SDA SIDE_HP_MUTE
SOC_RESET P70/KR0/SCK21/SCL21 11 26 P26/ANI6
EYE_SCL MODEL1_OPT_2
CAM_SLEEP CAM_SLEEP
P30/INTP3/RTC1HZ/SCK11/SCL11 12 25 P27/ANI7
TP3002 MODEL1_OPT_1
13
14
15
16
17
18
19
20
21
22
23
24
AR3000
1/16W
3.3K
+3.5V_ST
MICOM MODEL OPTION
P50/INTP1/SI11/SDA11
P51/INTP2/SO11
P17/TI02/TO02
P16/TI01/TO01/INTP5
P15/PCLBUZ1/SCK20/SCL20
P14/RXD2/SI20/SDA20
P13/TXD2/SO20
P12/SO00/TXD0/TOOLTXD
P11/SI00/RXD0/TOOLRXD/SDA00
P10/SCK00/SCL00
P146
P147/ANI18
MICOM MODEL OPTION
0 1
+3.5V_ST
MODEL_OPT_0 NON LOGO LOGO
LCD/UHD
MICOM_H13/H14
MODEL_OPT_1 OLED
MICOM_LOGO_LIGHT
10K
10K
10K
MICOM_GED
MICOM_EPI
10K
10K
MICOM_OLED
R3002
R3003
R3006
MODEL_OPT_2 NON_EPI EPI
R3007
R3013
MODEL_OPT_3 M14 H13/H14
MODEL_OPT_4 NON_GED GED
MODEL1_OPT_0
MODEL1_OPT_1
MODEL1_OPT_2
MODEL1_OPT_3
MODEL1_OPT_4
SOC_RX
POWER_DET
AMP_MUTE
CAM_CTL
WOL/ETH_POWER_ON
SOC_RESET
INV_CTL
EDID_WP
WOL_CTL
POWER_ON/OFF1
MICOM_NON_LOGO_LIGHT
SOC_TX
LED_R
MICOM_NON_GED
MICOM_NON_EPI
10K
10K
10K
MICOM_M14
MICOM_LCD/UHD
10K
10K
R3000
R3001
R3004
For CEC
R3005
R3012
+3.5V_ST
LED_R
CAM_CTL
EDID_WP
R3033 R3034
27K 120K
G
D3000
BAT54_SUZHO
CEC_REMOTE HDMI_CEC
D
S
Q3001
RUE003N02
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS MID_LG1311 2013.03.22
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. MICOM 9 31
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
PAGE 10
HDMI_HPD_4
R3261
0
5V_HDMI_1
R3250 33
HDMI_HPD_1
VA3215 +12V 5V_HDMI_4
ESD_HDMI
R3265
+5V_NORMAL
VA3208
ESD_HDMI
R3263
IC3201
100K
820
AR3200
33 BD2242G
BODY_SHIELD
1/16W
BODY_SHIELD D3202
R3262 D
DDC_SCL_1 VIN VOUT MBR230LSFT1G
GND 5V_HDMI_4 1K
20 DDC_SDA_1 Q3205 1 6
HP_DET G PMBFJ177 30V
20 C3201
D3201
19 S GND ILIM C3203
5V VA3207 ARC 2 5
C3228
R3267
VA3206
R3248
HP_DET 0.1uF R3204 10uF
100K
ESD_HDMI 22uF
OPT
ESD_HDMI 100K 10V
ESD_HDMI
18
OPT
19 10V
ESD_HDMI
VA3216
1K
GND
VA3212
5V OPT
1%
R3201 EN OC
16K
17 18 A1 3 4
DDC_DATA C3202 GND AR3202
1uF SPDIF_OUT_ARC 33 C 10K
16 1/16W MHL_DET
R3200
DDC_CLK 17 A2
10V OPT DDC_DATA
R3202
R3249
15 C3226 DDC_SCL_4
3.9K
VA3213 16 330K
DDC_CLK
OPT
ARC ESD_HDMI 0.1uF DDC_SDA_4
14 16V 15
CE_REMOTE
NC VA3210 VA3211
CEC_REMOTE ESD_HDMI
13 14 ESD_HDMI
CK- CE_REMOTE
12 CEC_REMOTE
CK_GND D3210 13
CK- D3215
IP4294CZ10-TBR
EAG63530101
11 1 10 12
IP4294CZ10-TBR
CK+ CK-_HDMI1 CK_GND 1 10
10 CK-_HDMI4
2 9
EAG63530101
D0- CK+_HDMI1 11
CK+ 2 9
9 3 8 10 CK+_HDMI4
3 8
D0_GND D0-
8 4 7 9 4 7
D0-_HDMI1
D0+ 5 6 D0_GND D0-_HDMI4 +3.5V_ST
7 D0+_HDMI1 8 5 6
D0+_HDMI4
D1- D0+
6 ESD_HDMI_TMDS 7 ESD_HDMI_TMDS
R3246
D1_GND D1-
5
10K
6
D1+ D1_GND
D3214
4 D3211 5 IP4294CZ10-TBR E MMBT3906(NXP)
IP4294CZ10-TBR 1 10 R3247
D2- 10K Q3201
3 1 10 D1+ D1-_HDMI4
D1-_HDMI1 4 2 9
D2_GND 2 9 D1+_HDMI4 B
D1+_HDMI1 D2-
2 3 3 8 C
D2+ 3 8
D2_GND 4 7
1 2
4 7 D2-_HDMI4 MHL_DET
D2-_HDMI1 D2+ 5 6 C
5 6 1 D2+_HDMI4 R3243
D2+_HDMI1 1K B
ESD_HDMI_TMDS
JK3202 ESD_HDMI_TMDS 1/16W Q3200
VA3217
DAADR019A 5% C3223 MMBT3904(NXP) E
5.6V
DAADR019A 0.047uF
HDMI1 With ARC JK3203
25V
HDMI3 With MHL
HDMI_EXT_EDID
MMBT3904(NXP)
5V_HDMI_2
Q3206
HDMI_EXT_EDID
C
E
1K
HDMI_EXT_EDID
R3268
B
+5V_NORMAL
1K
5V_HDMI_1
R3269
+5V_NORMAL +3.5V_ST
R3251 5V_HDMI_4
33
A1
A2
HDMI_HPD_2
ESD_HDMI
VA3205
HDMI_INT_EDID
A1
A2
A1
A2
BODY_SHIELD HDMI_EXT_EDID HDMI LEAKAGE Workaround in MTK A2(A0) (Default= with HDMI_LEAKAGE)
D3200
R3266
100K
R3270
+3.3V_NORMAL
C
20 4.7K D3203 D3205
AR3201
HP_DET
C
C
33
19 1/16W R3255
5V 0 OPT
AR3204
1/16W
DDC_SCL_2
AR3205
18
1/16W
47K
GND DDC_SDA_2 1/16W
47K
VA3209 5%
17 ESD_HDMI
DDC_DATA
VA3203 DDC_SDA_1 DDC_SDA_4 PANEL_VCC
16
DDC_CLK ESD_HDMI VA3204 DDC_SCL_1 DDC_SCL_4
15 ESD_HDMI
NC R3254
10K
14 VDD3V3_HDMI
CE_REMOTE
D3212
G
CEC_REMOTE IP4294CZ10-TBR
13
CK- 1 10
CK-_HDMI2
12 2 9
CK_GND
S
D
CK+_HDMI2
EAG63530101
11
CK+ 3 8 NTR4501NT1G
10 Q3202
4 7 HDMI_EXT_EDID 5V_HDMI_2
D0- D0-_HDMI2 +5V_NORMAL
9 5 6 E C3227
D0+_HDMI2 0.1uF
D0_GND
8 MMBT3904(NXP) EDID_WP 16V
ESD_HDMI_TMDS Q3203 B
D0+
7 +3.5V_ST
A1
A2
C
D1- IC3203 IC3203-*1
6 MMBD6100
M24C02-RMN6T D3216 AT24C02C-SSHM-T
D1_GND D3213 HDMI_EXT_EDID
IP4294CZ10-TBR R3271
C
5
1 10 4.7K
D1+ D1-_HDMI2
4 E0 VCC A0 VCC
2 9 1 8 1 8
D2- D1+_HDMI2
3 3 8
AR3206
D2_GND E1 WC A1 WP
1/16W
2 4 7 2 7 2 7
D2-_HDMI2
47K
D2+ 5 6
1 R3258
D2+_HDMI2 E2 SCL 33 A2 SCL
3 6 3 6
DDC_SCL_2
ESN_HDMI_TMDS HDMI_EXT_EDID
R3259
VSS SDA 33 GND SDA
4 5 DDC_SDA_2 4 5
JK3200
HDMI_EXT_EDID
DAADR019A
HDMI2
HDMI_EXT_EDID_ST HDMI_EXT_EDID_ATMEL
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS MID_LG1311 2013.03.22
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. HDMI 32
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
SPDIF OUT HP OUT JK3403
+3.3V_NORMAL E_SPRING
PEJ034-01
DDTS TEST ONLY
3 OPT
+3.3V_NORMAL RIN1 TP3400 RIN1 +3.5V_ST P3401
12507WS-04L
GND
DOUT1 TP3401 DOUT1
R3406
1
Fiber Optic
JST1223-001
R3825 10K
JK3401
HP_OUT R_SPRING
VCC HP_OUT 150 4 OPT 1
HP_ROUT R3827
2
R3826 10K
T_SPRING
HP_OUT 150 5
VINPUT HP_LOUT M_REMOTE_RX 2
SPDIF_OUT
3
R3409
C3400 B_TERMINAL2
C3402 HP_OUT 100 7B
4
47pF 0.1uF HP_DET
16V 3
FIX_POLE
50V T_TERMINAL2 6B
VA3405
IR_Bla 4
5.6V M_REMOTE_TX
R3823 HP_OUT
0
IR_Bla 5
IRB_DATA
R3824
0
IRB_3.3V
+3.5V_ST P3400
12507WS-04L
1
R3401
10K
SOC_RX 2
3
SOC_TX 4
5
UART for Debug
AV/COMPONENT REAR
Place JACK Side Place SOC Side
R327 100 C325 0.047uF
AV1_CVBS_IN_SOC
+3.3V_NORMAL C310 3216
R314
VA3806 150pF 75 R334 33
OPT C323 0.047uF
5.5V COMP2_Y_IN_SOC
PPJ245N2-01
JK3802 R3806 C328 1000pF
10K COMP2_Y_IN_SOC_SOY
[ GN/YL]E-LUG
6A
R3801
1K
5A AV1_CVBS_DET
[GN/YL]O-SPRING
4A
[GN/YL]CONTACT VA3803
5.6V
5B [BL]O-SPRING
COMP1_Pb +3.3V_NORMAL
7C [RD1]E-LUG-S VA3804
5.5V
5C R3810
[RD1]O-SPRING 10K
COMP1_Pr
VA3805 R3802
4C [RD1]CONTACT 1K
5.5V
COMP1_DET
5D [WH]O-SPRING VA3800
COMP1/AV1/DVI_L_IN 5.6V
4E [RD2]CONTACT
VA3801
5.6V
5E [RD2]O-SPRING
6E [RD2]E-LUG
COMP1/AV1/DVI_R_IN
VA3802
5.6V
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS MID_LG1311 2013.04.03
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. AV JACK 11 31
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
PAGE 12
P4000
SMAW200-H18S5 L4000 Delete for voltage drop, 131120 +3.5V_WOL
C4006
C4005 22uF
0.1uF
GND 1 2 +3.5V_WOL 10V
R4001 R4018
BT_RESET
100 BT_RESET 3 4 USB_DM 10
WIFI_DM
RCLAMP0502BA
C4003 R4019
0.1uF NC 5 6 USB_DP 10
Place Near Wafer WIFI_DP
R4002 +3.5V_ST
WOL GND
D4000
WOL/WIFI_POWER_ON
100
7 8 C4016
5pF
C4015
5pF
R4010
100
C4004
0.1uF
SDA 9 10 GND OPT
50V
OPT
50V
OPT R4008 R4009
EYE_SDA 10K 10K
R4011 R4006
EYE_SCL
100 SCL 11 12 KEY1 5% 5%
100
KEY1
+3.5V_ST R4007
R4005 GND 13 14 KEY2 100
10K KEY2
5%
IR 15 16 +3.5V_ST +3.5V_ST
IR
C4007 C4001 C4002
100pF LED_R 17 18 GND C4008
1000pF
0.1uF 0.1uF
50V 50V OPT OPT
OPT
R4015
1.8K
LED_R
OPT 19
GND
C4009
0.1uF
16V
IR
+3.5V_ST
IC4000
AO-R123C7G-LG
R4017
1/16W
R4016
1/10W
IR_PROTO
IR_PROTO
IR_PROTO
330
5%
47
5%
GND
G
VS
V
OUT
O
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS MID_LG1311 2013.03.22
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. IR / KEY 12 31
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
PAGE 13
+5V_USB_2
USB2
MAX 1.5A
3AU04S-305-ZC-(LG)
JK4302
1
USB DOWN STREAM
2
USB_DM2
USB_ESD_0582B
RCLAMP0582B
3
USB_DP2
USB_ESD_SD05
C4322 C4323
D4301
D4302
4
22uF
5V
10uF
10V
10V
5
USB_ESD_0502BA
D4302-*1
RCLAMP0502BA
+5V_USB_3
USB3
MAX 1.5A
3AU04S-305-ZC-(LG)
JK4300
1
USB DOWN STREAM
2
USB_DM3
USB_ESD_0582B
RCLAMP0582B
3
USB_DP3
USB_ESD_SD05
D4300
C4310
4
C4311
D4303
5V
10uF 22uF
5
10V 10V
USB_ESD_0502BA
D4300-*1
RCLAMP0502BA
EAX6536390* : Use RClamp0582B, SD05
EAX6538400* : Use RClamp0502BA
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS MID_LG1311 2013.04.03
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR 1
USB 2 & 3
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
PAGE 14
+5V_USB_1
OCP USB1 USB1 (2.0)
MAX 1.5A
USB_ESD_SD05
OPT
C4502 C4501
10uF
D4501
22uF
5V
10V 10V
+5V_USB_1 3AU04S-305-ZC-(LG)
+3.3V_NORMAL JK4500
+5V_NORMAL
IC4500
1
BD2242G
USB DOWN STREAM
2
VIN VOUT USB_DM1
R4501
4.7K 1 6
value change
3
C4500 GND ILIM USB_DP1
0.1uF 2 5
10K(2.63V) --> 4.7K(2.97V) 16V
14K
R4502
1%
4
EN OC
USB_ESD_0582B
/USB_OCD1 3 4
RCLAMP0582B
5
D4500
USB_CTL1
R4500
10K
USB_ESD_0502BA
D4500-*1
RCLAMP0502BA
EAX6536390* : Use RClamp0582B, SD05
EAX6538400* : Use RClamp0502BA
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS MID_LG1311 2013.04.03
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
USB 1(DVR) 1
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
PAGE 16
Ethernet Block
C5000 C5001
0.1uF 0.01uF
16V 50V
JK5000
RJ45VT-01SN002
1
1
EPHY_TDP
2
2
3
3
EPHY_TDN
4
4
EPHY_RDP
5
5
6
6
EPHY_RDN
7
7
D5000 D5001 D5002 D5003
8 5.5V 5.5V 5.5V 5.5V
8
LAN_ESD LAN_ESD LAN_ESD LAN_ESD
9
9
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
PAGE 17
Ethernet Block
+3.5V_WOL
3.3K
R5215
EPHY_ACTIVITY
ET_RXER
R5217 3.3K
LAN_JACK_POWER
Place this cap. near IC
+3.5V_WOL
C5208
ET_COL/SNI 0.1uF
C5200 C5201 C5203 16V
4.7uF 0.1uF 0.1uF
10V 16V 16V
EPHY_ACTIVITY
EPHY_CRS_DV
Place 0.1uF close to each power pins
ET_COL/SNI
ET_RXER
XTAL_1
GND_1
C5206
8pF +3.5V_WOL
50V
1M R5202
R5218
2
1
25MHz
X5200
R5210
0
OPT
3
4
XTAL_2
GND_2
33
+3.5V_WOL
LED1/PHYAD[1]
Place this cap. near IC C5207
CRS/CRS_DV
DVDD10OUT
RXER/FXEN
8pF
AVDD33_2
50V
CKXTAL2
CKXTAL1
R5212
1/16W
R5219
1/16W
R5205
[EP]
3.3K
1.5K
C5205
COL
10K
Place this Res. near IC
1%
5%
0.1uF
16V
32
31
30
29
28
27
26
25
R5204
2.49K 1% WOL/ETH_POWER_ON
RSET 1 24 LED0/PHYAD[0]/PMEB
THERMAL
AVDD10OUT 2 33 23 MDIO EPHY_MDIO
Route Single 50 Ohm, Differential 100 Ohm MDI+[0] 3 22 MDC EPHY_MDC
EPHY_RDP
MDI-[0] IC5200 PHYRSTB
4 21 /RST_PHY (from SOC)
EPHY_RDN RTL8201F-VB-CG
MDI+[1] 5 20 TXEN
EPHY_TDP EPHY_EN
+3.5V_WOL MDI-[1] 6 19 TXD[3]
EPHY_TDN
AVDD33_1 7 18 TXD[2]
ETHERNET INTERFACE
- CROSS CONNECTION R5203 RXDV TXD[1]
8 17 EPHY_TXD1
(PATTERN ISSUE)
3.3K
10
11
12
13
14
15
16
9
RXD[0]
RXD[1]
RXD[2]/INTB
RXD[3]/CLK_CTL
RXC
DVDD33
TXC
TXD[0]
+3.5V_WOL
+3.5V_WOL
R5200
3.3K
C5211
0.1uF
C5209 16V
R5209
33pF
51
EPHY_TXD0
C5202
3.3K
EPHY_RXD0
EPHY_RXD1
Place near IC
5pF
R5208
WOL POWER ENABLE CONTROL
+3.5V_WOL
+3.5V_ST IC5201
AP2191WG-7
EPHY_REFCLK
IN OUT
5 1
C5204
0.1uF GND
2
WOL_CTL R5223 33 EN FLG
4 3
R5222
10K
OPT
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-NC4_H052-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS 2012-09-12
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. ETHERNET
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
PAGE 18
AUDIO AMP(NTP7514)
+3.3V_NORMAL
+24V +24V_AMP AMP_RESET_N
L5601 L5604
10.0uH
BLM18PG121SN1D SPK_L+
L5600
UBW2012-121F NRS6045T100MMGK
AUD_MASTER_CLK
50V
+24V_AMP
22000pF
R5603
C5604
3.3
1/10W R5607
C5618
C5603 0.1uF 4.7K
50V
[EP]GND
0.1uF C5611
C5606 390pF
VDD_IO
GND_IO
PGND1A
PVDD1A
PVDD1B
16V 10uF 50V
CLK_I
RESET
BST1A
OUT1A
35V
C5616
0.47uF
50V
AD
C5612
390pF
50V C5619 R5608
R5604
3.3
0.1uF
50V 4.7K
SPEAKER_L
40
39
38
37
36
35
34
33
32
31
1/10W
L5605
NC_1 1 30 OUT1B 10.0uH
SPK_L-
NRS6045T100MMGK
VDD_PLL 2 29 PGND1B C5608
THERMAL 22000pF
NC_2 3 41 28 BST1B 50V
C5601
1uF
10V GND 4 27 VDR1
NC_3 5 IC5600 26 NC_4
C5602
1uF
10V
DVDD 6 NTP7514 25 AGND
AUD_LRCH
SDATA 7 24 VDR2
WCK
0x54 BST2A
C5610
1uF
C5615
1uF
AUD_LRCK 8 23 10V 10V
AUD_SCK
BCK 9 22 PGND2A C5609
22000pF
R5611
I2C_SDA1
100 SDA 10 21 OUT2A 50V
R5612
100
11
12
13
14
15
16
17
18
19
20
I2C_SCL1
C5622 C5623
33pF 33pF
L5602
50V 50V 10.0uH
SCL
FAULT
MONITOR_0
MONITOR_1
MONITOR_2
BST2B
PGND2B
OUT2B
PVDD2B
PVDD2A
SPK_R+
NRS6045T100MMGK
+3.3V_NORMAL +24V_AMP
R5605
3.3
1/10W C5620 R5609
R5601 0.1uF 4.7K
10K AMP_MUTE_MICOM C5613 C5617 50V
390pF 0.47uF
AMP_MUTE_MICOM R5602 C5607 50V
C5614
50V
SPEAKER_R
C 100 10uF 390pF
35V 50V
R5600 C5600 C5621 R5610
B Q5600 C5605
AMP_MUTE 1000pF 0.1uF 4.7K
MMBT3904(NXP) AMP_MUTE_MICOM R5606
10K 50V 22000pF 3.3 50V
AMP_MUTE_MICOM L5603
WOOFER_MUTE
AMP_MUTE_MICOM E 50V 1/10W
I2S_AMP
10.0uH
SPK_R-
NRS6045T100MMGK
AMP_MUTE_PWR_DET
R5690
100
POWER_DET
WAFER-ANGLE
TP5601 WOOFER_MUTE SPK_L+
4
SPK_L-
3
SPK_R+
2
SPK_R-
1
P5600
SPK_NON_LB8700
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
GP4_MT5369 2011.11.21
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR AUDIO[ST] 58
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
PAGE 20
EARPHONE AMP
IC6100
TPA6138A2
HP_OUT HP_OUT
+INR +INL
C6104 1 HP_OUT 14 C6109
HP_OUT
C6100 18pF HP_OUT HP_OUT 18pF HP_OUT C6101
1uF R6100 R6106 R6104 R6101 1uF
-INR -INL HP_OUT
HP_OUT 10K
10V 43K HP_OUT 2 13
43K 10K 10V
HP_OUT
HP_ROUT_MAIN HP_LOUT_MAIN
HP_OUT
R6103
HP_OUT
R6102
1% C6108 C6106 1%
43K
43K
10pF
1%
1%
OUTR OUTL 10pF
50V 3 12 50V
HP_LOUT_AMP
HP_ROUT_AMP
+3.3V_NORMAL GND_1 UVP
4 11
MUTE GND_2 +3.3V_NORMAL
4.7K
HP_OUT
5 10
R6105
SIDE_HP_MUTE VSS VDD
6 9
HP_OUT HP_OUT
HP_OUT
C6105 C6107
C6102 CN CP 1uF 0.1uF
1uF 7 8
10V 16V
10V
C6103
1uF
10V
HP_OUT
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. 2011.09.29
HEADPHONE AMP
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR 61
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
TU_H_US
TU_K_TW TU_M_KR
TU_H_AJ TU_M_BR TU_M_CO TU_M_AJ
TU6401-*1
TDJH-G101D
TU6402-*1
TDJM-B101F
TU6402-*2
TDJM-K101F
TU6402-*3
TDJM-G105D
TU6401 TU6403 TU6402
1
2
B1[+3.3V]
NC_1
1
2
B1[+3.3V]
RF_SW_CTL
1
2
B1[+3.3V]
RF_SW_CTL
1
2
B1[+3.3V]
NC_1
TDJH-H101F TDJK-T101F TDJM-H101F
IF_AGC AIF_AGC AIF_AGC AIF_AGC
3 3 3 3
SCL SCL_RF SCL_RF SCL_RF
4 4 4 4
SDA SDA_RF SDA_RF SDA_RF
5 5 5 5
6
IF[P]
6
AIF[P]
6
AIF[P]
6
AIF[P]
B1[+3.3V] B1[+3.3V] B1[+3.3V]
7
IF[N]
NC_2
7
AIF[N]
NC_1
7
AIF[N]
NC_1
7
AIF[N]
NC_2
1 1 1 +3.3V_LNA_TU 1
8 8 8 8
9
NC_3
9
NC_2
9
NC_2
9
NC_3
NC_1 RF_S/W_CTL NC_1
A1 B1
10
NC_3
NC_4
10
NC_3
NC_4
10
NC_4
B2[+3.3V]
2 2 2 RF_SWITCH_CTL_TU 2
A1 B1 11 11 11
47
12
ERROR
12
ERROR
12
ERROR
IF_AGC IF_AGC M_DIF_AGC
SHIELD 13
GND_1
MCLK
13
GND_1
MCLK
13
GND_1
MCLK
3 3 3 IF_AGC_TU 3
14 14 14
15
SYNC
15
SYNC
15
SYNC
SCL SCL SCL_RF
16
VAILD
D0
16
VAILD
D0
16
VAILD
D0
4 4 4 I2C_SCL6_TU 4
17 17 17
18
D1
18
D1
18
D1
SDA SDA SDA_RF
19
D2
D3
19
D2
D3
19
D2
D3
5 5 5 I2C_SDA6_TU 5
20 20 20
21
D4
21
D4
21
D4
IF[P] IF[P] M_DIF[P]
22
D5
D6
22
D5
D6
22
D5
D6
6 6 6 IF_P_TU 6
23 23 23
24
D7
24
D7
24
D7
IF[N] IF[N] M_DIF[N]
25
RESET_DEMOD
B2[+3.3V]
25
RESET_DEMOD
B2[+3.3V]
25
RESET_DEMOD
B3[+3.3V]
7 7 7 IF_N_TU 7
26 26 26
27
SCL_DEMOD
27
SCL_DEMOD
27
SCL_DEMOD
NC_2 NC_1 S_SIF
28
B3[+1.1V]
NC_5
28
B3[+1.1V]
NC_5
28
B4[+1.1V]
F22_OUTPUT
8 8 8 TU_SIF_TU 8
29 29 29
30
SDA_DEMOD
30
SDA_DEMOD
30
SDA_DEMOD
NC_3 NC_2 S_CVBS
A1 B1 A1 B1 A1 B1
9 9 9 TU_CVBS_TU 9
A1 B1 A1 B1 A1 B1
47 47 47
NC_2
SHIELD SHIELD SHIELD 10 10
A1 B1 A1 B1 B2[+3.3V]
A1 B1 A1 B1 11 +3.3V_TU 11
47 47 S_ERROR
12 FE_DEMOD1_TS_ERROR 12
TU_GND_B
TU_GND_A
GND_1
SHIELD SHIELD 13 13
TU_GND_A
TU_GND_B
S_MCLK
14 FE_DEMOD1_TS_CLK 14
S_SYNC
15 FE_DEMOD1_TS_SYNC 15
S_VALID
16 FE_DEMOD1_TS_VAL 16
S_DATA
17 FE_DEMOD1_TS_DATA[0] 17
NC_3
18 FE_DEMOD1_TS_DATA[1] 18
NC_4
19 FE_DEMOD1_TS_DATA[2] 19
NC_5
20 FE_DEMOD1_TS_DATA[3] 20
NC_6
21 FE_DEMOD1_TS_DATA[4] 21
NC_7
22 FE_DEMOD1_TS_DATA[5] 22
NC_8
23 FE_DEMOD1_TS_DATA[6] 23
NC_9
24 FE_DEMOD1_TS_DATA[7] 24
S_RESET_DEMOD
25 /TU_RESET1_TU 25
B3[+3.3V]
26 +3.3V_DEMOD_TU 26
SCL_DEMOD
27 I2C_SCL4_TU 27
B4[+1.1V]
28 D_Demod_Core 28
NC_10
29 LNB_TX
29
SDA_DEMOD
30 I2C_SDA4_TU 30
A1 B1
A1 B1
47
SHIELD
TU_GND_A
TU_GND_B
TU_GND_B
TU_GND_A
TU_H/M_BR/TW/CO TU_H/M_KR/US/AJ/BR/TW/CO
R6403
R6404
R6405
R6406
C6401 C6402
1000pF 1000pF
TU_H/M_KR/US
630V 630V
TU_H/M_KR/US/AJ 0
TU_H/M_KR/US/AJ 0
TU_H/M_KR/US/AJ 0
TU_H/M_KR/US/AJ 0
TU_H/M_AJ/BR/TW/CO
R6401
R6402
TU_H/M_BR/TW/CO
R6402-*1
22
0
0
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS TUNER 2012.03.08
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. 65
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
/TU_RESET2_TU /TU_RESET2
FE_DEMOD1_TS_ERROR
1. should be guarded by ground
2. No via on both of them
3. Signal Width >= 12mils
close to Tuner Signal to Signal Width = 12mils
+3.3V_TUNER Ground Width >= 24mils
L6500
BLM18PG121SN1D close to TUNER
1 +3.3V_LNA_TU C6501
0.1uF TU_K/M/W_TW/BR/CO/CN R6507 1K
TU_K/M/W_TW/BR/CO/CN TU_K/M/W_TW/BR/CO/CN
2 RF_SWITCH_CTL_TU RF_SWITCH_CTL
C6504 R6503
0.1uF 10K
TU_ALL_IntDemod
R6506 1K
3 IF_AGC_TU IF_AGC
C6502 close to Tuner TU_ALL_IntDemod
0.1uF
16V
AR6500 AR6500-*1
33 200
1/16W 1/16W
4 +3.3V_NORMAL
BLM18PG121SN1D
I2C_SCL6_TU I2C_SCL6
C6505
I2C_SDA6 +3.3V_TUNER
47pF
L6504
5 50V TU_ALL
I2C_SDA6_TU TU_W_BR/TW +3.3V_TUNER 1608 perallel
C6503 OPT
because of derating
47pF
50V
OPT TU_ALL_2178B TUNER_SIF TU_ALL_2178B
TU_ALL_2178B
R6513 0 R6516 R6517
R6504 200 200
10
6 IF_P_TU C6519 IF_P C6517
TU_ALL_IntDemod 33pF 22uF
should be guarded by ground,Match GND VIA TU_CVBS
R6505 10V
10 TU_H/M_EU/BR/TW/CO E
7 IF_N_TU C6520 IF_N 85C
TU_ALL_IntDemod 33pF TU_ALL_2178B
TU_H/M_EU/BR/TW/CO B Q6502
8 TU_SIF_TU MMBT3906(NXP)
C
TU_M_KR/EU // W_ALL
9 TU_CVBS_TU
L6501 +3.3V_TUNER
Global F/E Option Name BLM18PG121SN1D
1. TU 10
2. Tuner Name = TDJ’H’,TDj’M’... C6510
3. Country Name = KR,US,BR,EU ... 0.1uF
11 +3.3V_TU
TU_M_KR/EU // W_ALL
T2 : Max 1.7A
Example of Option name else : Max 0.7A
12 close to Tuner
TU_ALL_IntDemod = All Tuner type for Internal demod FE_DEMOD1_TS_ERROR
TU_M/W = apply TDSM&TDSW Type Tuner FE_DEMOD1_TS_ERROR
TU_M/W_1.2V
14 FE_DEMOD1_TS_CLK FE_DEMOD1_TS_CLK TU_M/W Demod_Core
POWER_ON/OFF2_1
R6519-*1 R6521-*1
IC6500
TU_M/W_1.1V TU_M/W_1.1V
14’ Tuner Type for Global
15 AP2132MP-2.5TRG1
[EP]
TDJ’H’-G101D : Half NIM for EU,AJJA FE_DEMOD1_TS_SYNC FE_DEMOD1_TS_SYNC TU_M/W
18K
10K
R6521
TDJ’H’-H101F : Half NIM for US, KR 10K TU_M/W
TDJ’K’-T101F : Half NIM for TW FE_DEMOD1_TS_VAL FE_DEMOD1_TS_VAL C6516 PG GND R2
16 R6500 1 8
TDJ’M’-C301D,F : FULL NIM for China 0.1uF
THERMAL
+3.5V_ST
10.5K
R6519
TU_M/W_1.2V
TDJ’M’-B101F : Brazil NIM with Isolater Type
16K
EN ADJ
9
17 FE_DEMOD1_TS_DATA[0] 2 7
TDJ’M’-K101F : colombia NIM R1
TDJ’M’-G101D,G105D,G151D : EU Combo&Full NIM VIN VOUT
18 FE_DEMOD1_TS_DATA[1] FE_DEMOD1_TS_DATA[0-7]
TDJ’M’-H101F,H151F : Korea PIP tuner 3 6
TDJ’W’-A151D : AJJA T2 PIP FE_DEMOD1_TS_DATA[0]
19 FE_DEMOD1_TS_DATA[2] FE_DEMOD1_TS_DATA[1] +5V_NORMAL
VCTRL
4 2A 5
NC
FE_DEMOD1_TS_DATA[2]
TU_M/W TU_M/W
FE_DEMOD1_TS_DATA[3]
20 FE_DEMOD1_TS_DATA[3] C6500 C6518
10uF 10uF
FE_DEMOD1_TS_DATA[4] 10V 10V
21 FE_DEMOD1_TS_DATA[4] TU_M/W
FE_DEMOD1_TS_DATA[5]
C6515
FE_DEMOD1_TS_DATA[6] 1uF
FE_DEMOD1_TS_DATA[5] FE_DEMOD1_TS_DATA[7] 10V
22
23 FE_DEMOD1_TS_DATA[6]
Vout=0.6*(1+R1/R2)
24 FE_DEMOD1_TS_DATA[7]
TU_M/W
R6501
TU_M/W 100 /TU_RESET1 +3.3V_TUNER
25 /TU_RESET1_TU
C6507
TU_M/W
L6503
16V BLM18PG121SN1D
0.1uF
26 +3.3V_DEMOD_TU
C6511 TU_M/W
0.1uF
R6510 33
27 I2C_SCL4_TU TU_M/W I2C_SCL4
L6505 Demod_Core TU_M/W
BLM18PG121SN1D OPT
C6513
28 D_Demod_Core
TU_M/W 18pF
C6506 50V
0.1uF OPT R6509 33
29 LNB_TX LNB_TX I2C_SDA4
C6512 TU_M/W
18pF
50V
30 I2C_SDA4_TU
31 LNB_OUT LNB_OUT
34 FE_DEMOD2_TS_ERROR FE_DEMOD2_TS_ERROR
36 FE_DEMOD2_TS_SYNC FE_DEMOD2_TS_SYNC
37 FE_DEMOD2_TS_CLK FE_DEMOD2_TS_CLK
38
39 FE_DEMOD2_TS_VAL FE_DEMOD2_TS_VAL
40 FE_DEMOD2_TS_DATA FE_DEMOD2_TS_DATA
R6502
TU_W 100 /TU_RESET2
45 /TU_RESET2_TU
C6509 TU_W
16V
0.1uF
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS TUNER 2012.07.10
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. 65
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
LVDS
PAGE 27
[51Pin LVDS OUTPUT Connector] [41Pin LVDS OUTPUT Connector]
P7201 P7202
FI-RE51S-HF-J-R1500 FI-RE41S-HF-J-R1500
LVDS LVDS
NC R7210 33 2D/3D_CTL
1 2D/3D_CTL 1
NC LGD_2D/3D_CTRL 2D/3D_CTL
2 2 R7221 33
LVDS_SEL
NC AUO_2D/3D_CTRL
3 3
NC CP_BOX R7200 0 +3.3V_NORMAL
4 I2C_SDA1 4
NC CP_BOX R7201 0
5 I2C_SCL1 5
NC OPT R7204 0 R7217
6 6
3.3K
LVDS_SEL LVDS_SEL_HIGH
7 7
NC R7218 33
8 PWM_DIM R7215 8
NC LGD_T-Con_Scanning 10K
9 LVDS_SEL_LOW 9
R7220 33
L/DIM_ENABLE
10 AUO_L/D_EN 10 TXC0N/TX23N
R7219 33
GND OPC_EN
11 11 TXC0P/TX23P
OPC_EN
RA0N
12 TXA0N/TX11N 12 TXC1N/TX22N
RA0P
13 TXA0P/TX11P 13 TXC1P/TX22P
RA1N
14 TXA1N/TX10N 14 TXC2N/TX21N
RA1P
15 TXA1P/TX10P 15 TXC2P/TX21P
RA2N
16 TXA2N/TX9N 16
RA2P
17 TXA2P/TX9P 17 TXCCLKN/TX20N
GND
18 18 TXCCLKP/TX20P
RACLKN
19 TXACLKN/TX8N 19
RACLKP
20 TXACLKP/TX8P 20 TXC3N/TX19N
GND
21 21 TXC3P/TX19P
RA3N
22 TXA3N/TX7N 22 TXC4N/TX18N
RA3P
23 TXA3P/TX7P 23 TXC4P/TX18P
RA4N
24 TXA4N/TX6N 24
RA4P H or FLOAT : 10-bit
25 TXA4P/TX6P 25
L : 8-bit
GND
26 26 TXD0N/TX17N
BIT_SEL BIT_SEL
27 27 TXD0P/TX17P
RB0N
28 TXB0N/TX5N 28 TXD1N/TX16N
RB0P R7214
29 TXB0P/TX5P 10K 29 TXD1P/TX16P
RB1N BIT_SEL_LOW
30 TXB1N/TX4N 30 TXD2N/TX15N
RB1P
31 TXB1P/TX4P 31 TXD2P/TX15P EPI_CH8
RB2N
32 TXB2N/TX3N 32
RB2P
33 TXB2P/TX3P EPI_CH4 33 TXDCLKN/TX14N
GND
34 34 TXDCLKP/TX14P EPI_CH7
RBCLKN
35 TXBCLKN/TX2N 35
RBCLKP
36 TXBCLKP/TX2P EPI_CH3 36 TXD3N/TX13N
GND
37 37 TXD3P/TX13P EPI_CH6
RB3N
38 TXB3N/TX1N 38 TXD4N/TX12N
39
RB3P
TXB3P/TX1P EPI_CH2 39 TXD4P/TX12P
EPI_CH5
RB4N
40 TXB4N/TX0N 40
41
RB4P
TXB4P/TX0P
EPI_CH1 41
GND
42
42
GND
43
GND
44
GND PANEL_VCC
45
GND L7200
46
UBW2012-121F
NC
47
VLCD AUO_SHARP
48
VLCD
49
VLCD
50
VLCD
51
52
GND
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-NC4_H072-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS MID_LG1311 2013.04.03
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. LVDS INTERFACE
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
PAGE 28
LOCAL DIMMING
[To LED DRIVER]
P7400
12507WR-08L
L/DIM_OUT_8P
1
R7401
10K
2 L/DIM_OUT_8P
3 L/DIM0_SCLK
4
5
L/DIM0_MOSI
33
1/16W
6 I2C_SCL2
7 AR7400
I2C_SDA2
L/DIM_OUT_8P
8 L/DIM0_VS
9
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-NC4_H074-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LOCAL DIMMING 2012.09.14
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
GIP_RST
V14_32INCH OPTION
EPI_V14(32)_V12_V13
VGH_EVEN
PAGE 29
VGH_ODD
CLK6
CLK5
CLK1
CLK2
CLK3
CLK4
VST
VGH
R7759 R7760
RE
0 0 INSTEAD OF AMCC0208
1/16W 1/16W
Q7700
CLK6 MMBT3904(NXP)
R7724
CLK5 R7728 100K
E
C
0
CLK4 1/16W 5% D7703
CLK3 1N4148W
VGL
CTRLN
[EP]AGND
B
VGH_E/O
CLK2
100V
RESET
CLK1
CKL1
CLK2
CLK3
CLK4
CLK5
CLK6
NC_2
EVEN
ODD
VST
VGH
C7745 C7747
RE
C7704 C7707 C7708 C7709 SWN
C7716 C7721
560pF 560pF 560pF 560pF 1uF 10V 1uF 10V
560pF 560pF D7705
50V 50V 50V 50V C7727 R7739 C7756
56
55
54
53
52
51
50
49
48
47
46
45
44
43
50V 50V 1N4148W 1.5K C7733
0.1uF 1/16W 1uF 10uF
REVERSE SWP 100V 50V 5%
1 42 10V 10V
REVERSE SWP OPT
GCLK 2 THERMAL 41 CTRLP
GCLK CTRLP
VCC18 MCLK 57 VCOMFB R7774
Improve the Vertical dot noise MCLK 3 40 VCOM_FB2
GST 4 39 VCOM 1K
GST VCOM_TOP
E/O 5 38 VCOM_DAC
EO PVCOM
R7701 GND 6 37 VGND
10K IC7703
VGL 7 36 GMA6
1/16W VGL TPS65175B GMA15_18
SWN 8 35 GMA5
SWN GMA14
CTRLN GMA4
CTRLN
9 34 GMA12_10 INSTEAD OF AMCC0209 VGH
RST 10 33 GMA3
VCC18 GMA7_9
For EMI OUTB 11 32 GMA2
GMA5 D7704
SWB 12 31 GMA1 1N4148W
L7702 GMA4_1 C7746 C7748
R7737
R7736
AGND COMP
13 30 SWP
OPT
COMP
OPT
4.7
4.7
PVINB 14 29 SS 1uF 25V 1uF 25V 100V
R7700 C7710 C7711 C7712 22uH SS C7755 C7757 R7744 R7750
2K 10uF 10uF 1uF D7700 1uF 1uF 20K 20K
CTRLP
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1/10W 1/10W
B
1/16W 10V 10V 10V SX34 C7722 50V 50V
V14-LGD PANEL 40V OPT 4700pF VDD D7706
1N4148W
AVIN
PVINH
SWH
OUTH
PGNDH
SCL
SDA
VL
TCOMP
PGND
SW
NC_1
SWI
SWO
50V 100V
C7725
E
C
OPT 2200pF C7754
50V R7727 100K Q7701 0.1uF
PANEL_VCC MMBT3906(NXP) 50V
1/16W 5%
EPI 8-Lane (LEFT) EPI 8-Lane (RIGHT) C7713 C7714 I2C_SCL2
AR7700
C7724
10uF 10uF 1uF I2C_SDA2
25V 25V VL
25V
1/16W
33 VDD
P7703
TCOMP
P7702 C7742
1uF
VCC18
10V
FL11S050HA1 FL11S050HA1 H_VDD L7703
NR6020T6R8NC C7737 C7705 R7718 R7761
6.8uH 0.1uF 68uF 10K
50V 9.1K
EPI_V12_V13 35V
R7715
NC 0 GMA1 R7729 C7715 R7755
1 Z_OUT 1
CLK1 NC
GMA1 2.7K 10uF
16V
EPI_LOCK8/6_SOURCE EPI_LOCK8/6
2 2 VL 33
CLK2
CLK1 GMA4 PANEL_VCC
For EMI R7713
2.2
C7729
470pF
C7726
470pF
3 CLK2 3 GMA4 1/16W 50V 50V
CLK3 GMA5 R7720
4 CLK3 4 OPT OPT OPT
CLK4 GMA7
GMA5 L7704
22uH
47K
5 CLK4 5
CLK5 GMA9
GMA7 D7701
SX34 TCOMP
6 CLK5 6
CLK6 GMA10
GMA9 C7723 C7734 C7706 TH7700 R7722
7 7 10uF 40V 0.1uF 68uF 120K
VGH
CLK6 GMA12
GMA10 25V 50V 35V
47k-ohm
1%
8 8 VCC18 COMP SS
VGH_ODD
VGH GMA14
GMA12 RE
9 9
VGH_ODD GMA14 R7717 C7731
10
VGH_EVEN
VGH_EVEN 10
GMA15
GMA15 VCORE R7748
1K
22K OPT
C7740
0.1uF
16V
11
VSS
VGL
VDD H_VDD 11
NC
C7736
10pF
50V
REVERSE
12
VST (+16V) (+8V) 12
GMA18 1000pF R7751
30K
VST GMA18 50V 1/16W
13
NC(GIP_RST)
VCOM_L_BOT
GIP_RST 13
GND
LOCK_O
VCC18 R7749
1K
14 14 OPT
VCOM_FB(Z_OUT)
VCOM_L_BOT LOCK_I
EPI_LOCK8/6_SOURCE
15 15
VCOM_L_TOP
VCOM_L_FB VCC12
EPI_LOCK4/3
16 VCOM_TOP 16
GND VCC18 VCORE
17 17 ** 42/47/55INCH OPTION **
VDD GND +1.1V_VDD
18 18
VDD EPI8- AO3438
19 19 C7702 C7703 Q7702 R7708 EPI_NON_32inch
TXD2N/TX15N 0.1uF 0.01uF VCOM_L_FB VCOM_FB_PANEL
S
D
H_VDD EPI8+ 50V 50V 0
20 20 ** 32INCH OPTION **
GND GND
TXD2P/TX15P VCOM_R_FB
R7709 EPI_NON_32inch
21 21 6-Lane case
C7730 0
G
1uF C7732 C7728 R7707 EPI_32inch
EPI4- EPI7-
22 TXB2N/TX3N 22 10V 1uF VCOMR_FB VCOM_R_BOT VCOM_FB2
23
EPI4+
23
EPI7+
TXDCLKN/TX14N H_VDD OPT 10V
0.1uF
50V
VCOM_FB_PANEL
R7710 OPT
VCOM_FB1
0
GND
TXB2P/TX3P GND
TXDCLKP/TX14P (+8V)
OPT 0
Z_OUT
R7702 EPI_32inch
VCOM_L_FB
0
24 6-Lane case 24 +3.3V_NORMAL
R7716 EPI_NON_32inch
EPI3- EPI6- R7711
25 25 TXD3N/TX13N VCOM_TOP EPI_32inch
EPI3+
TXBCLKN/TX2N EPI6+
0
0 VCOM_R_FB
26 26 TXD3P/TX13P R7712 OPT
GND
TXBCLKP/TX2P GND
R7741
1K VCOM_R_BOT 0
VCOM_FB1
27 27 R7766 EPI_NON_32inch R7714 OPT
28
EPI2-
TXB3N/TX1N VCORE VCC18 28
EPI5-
TXD4N/TX12N VDD EPI_CTL VCOM_FB_PANEL 0
VCOM_FB2 VCOM_BOT 0 VCOM_L_BOT VCOML_FB
EPI2+ EPI5+
29
TXB3P/TX1P 29 TXD4P/TX12P (+16V) R7767
GND GND VCOM_BOT
30 30 0 OPT
EPI1- H_VDD
31 TXB4N/TX0N 31
EPI1+ VDD EPI_NON_32inch R7719 < VCOM OPTION TABLE >
32 32
GND
TXB4P/TX0P VDD
VCOM_BOT
0 VCOM_L_BOT
33 33 V14 42~55INCH V14 32INCH
VCC18 GND EPI_NON_32inch R7721
34 34 VCOM_R_BOT
0 EXT.OP AMP NOT USE EXT.OP AMP USE EXT.OP AMP NOT USE EXT.OP AMP USE
VCC12 VCOM_R_TOP
35 35
LOCK_I VCOM_FB(Z_OUT)
VCOM_TOP R7703 47 IC7702 NC R7716 0 ohm IC7702 USE R7710 0 ohm IC7702 NC IC7702 USE
36 C7700 C7701 36 EO_SOC EO
LOCK_O
EPI_LOCK4/3 0.01uF 0.1uF
VCOM_R_BOT
VCOM_R_FB FROM SOC
1/16W
C7760 NC R7766 0 ohm C7760 USE R7716 NC C7760 NC
C7760
50V 50V USE
37 37
GND NC(GIP_RST)
VCOM_R_BOT C7717 R7766 0 ohm
L7706 R7767 NC L7706 USE L7706
38 38 15pF NC NC L7706 USE
GMA18 VST
GIP_RST 50V
39 39 VDD R7770 0 ohm R7719 0 ohm R7770 1Kohm R7767 NC R7770 NC R7770
NC
GMA18 VSS
VST 1kohm
40 40 VGL R7771 0 ohm R7719 0 ohm R7771 R7771
R7772 0 ohm R7721 0 ohm NC 0 ohm
GMA15 VGH_EVEN
41 41
GMA14
GMA15 VGH_ODD
VGH_EVEN R7704 47 R7708 0 ohm R7771 NC
R7772 30Kohm R7721 0 ohm R7772 NC R7772 30Kohm
42 42 GST_SOC GST
GMA12
GMA14 VGH
VGH_ODD 1/16W R7709 0 ohm R7708 0 ohm R7702 0 ohm R7702 0 ohm
FROM SOC R7772 0 5%
43 GMA12 43 VGH C7718 EPI R7709 R7707 0 ohm R7707 0 ohm
GMA10 CLK6 0 ohm
44 44 15pF R7710 NC
GMA9
GMA10 CLK5
CLK6 50V OPT R7711 0 ohm R7711 0 ohm
45 45 IC7702
GMA7
GMA9 CLK4
CLK5 C7760
1uF
R7712 NC R7712 0 ohm
46 GMA7 46 RT9148GJ5 R7714 R7714
GMA5 CLK3
CLK4 25V NC 0 ohm
47 47
GMA4
GMA5 CLK2
CLK3 VOUT 1 5 VS+
48 48 R7705 47
OPT
NC
GMA4 CLK1
CLK2 MCLK_SOC
1/16W
MCLK VCOM_BOT
49 49 EPI_V14(32)_V12_V13
GMA1 NC
R7723 CLK1 FROM SOC
C7719 VS- 2
EPI_V14(32)_V12_V13
R7725 R7733
50 50 0 15pF GMA15_18 GMA15 GMA7_9 GMA7
GMA1 EPI_V12_V13
Z_OUT 50V OPT
0 0
R7771 VIN+ 3 4 VIN- R7770 R7726 R7732
51 51 PVCOM VCOM_FB1 GMA18 GMA9
0 0 0 0
EPI_V14 EPI_V14
1/16W
R7706 EPI_V14(32)_V12_V13
47
GCLK_SOC GCLK EPI_V14(32)_V12_V13 R7734
1/16W R7730 GMA4_1 GMA4
FROM SOC 0
GMA12_10 GMA12
0
C7720 R7735
15pF R7731 GMA1
50V 0
0 GMA10 EPI_V14
EPI_V14
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES 29 31
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS MID_LG1311 2013.04.03
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. T-Con 77
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
eMMC I/F * A0 / A1 : Use EMMC_4.41
DVDD18_EMMC 3.3v power delete, 131120
* B0 : Use EMMC_4.5
PAGE 30
(130923_Jihwan Hyun)
R8117
R8116
1/16W
10K
AR8104
1/16W
10K
AR8103
10K
10K
IC8100
THGBMAG6A2JBAIR
EMMC_DATA[0-7] AR8100
22
IC8100-*1 IC8100-*2 IC8100-*5
1/16W MTFC4GMCDM-1M WT MTFC8GLCDM-1M WT H26M31003GMR
EMMC_DATA[0] A3 C8
DAT0 NC_23 A3 C8 A3 C8 A3 C8
EMMC_DATA[1] A4 C9 A4
DAT0
DAT1
NC_23
NC_24
C9 A4
DAT0
DAT1
NC_23
NC_24
C9 A4
DAT0
DAT1
NC_23
NC_24
C9
DAT1 NC_24 A5
DAT2 NC_25
C10 A5
DAT2 NC_25
C10 A5
DAT2 NC_25
C10
EMMC_DATA[2] A5 C10 B2
B3
DAT3 NC_26
C11
C12
B2
B3
DAT3 NC_26
C11
C12
B2
B3
DAT3 NC_26
C11
C12
DAT2 NC_25 B4
DAT4 NC_27
C13 B4
DAT4 NC_27
C13 B4
DAT4 NC_27
C13
EMMC_DATA[3] B2 C11 B5
DAT5
DAT6
NC_28
NC_29
C14 B5
DAT5
DAT6
NC_28
NC_29
C14 B5
DAT5
DAT6
NC_28
NC_29
C14
EMMC_DATA[4] DAT3 NC_26 B6
DAT7 NC_30
D1 B6
DAT7 NC_30
D1 B6
DAT7 NC_30
D1
B3 C12 NC_31
D2
D3
NC_31
D2
D3
NC_31
D2
D3
EMMC_DATA[5] DAT4 NC_27 M6
NC_32
D4 M6
NC_32
D4 M6
NC_32
D4
B4 C13 M5
CLK
CMD
NC_33
NC_34
D12 M5
CLK
CMD
NC_33
NC_34
D12 M5
CLK
CMD
NC_33
NC_34
D12
EMMC_DATA[6] DAT5 NC_28 NC_35
D13
NC_35
D13
NC_35
D13
B5 C14 A6
NC_36
D14
E1 A6
NC_36
D14
E1 A6
NC_36
D14
E1
EMMC_DATA[7] AR8101 DAT6 NC_29 A7
RFU_1 NC_37
E2 A7
RFU_1 NC_37
E2 A7
RFU_1 NC_37
E2
22 B6 D1 C5
RFU_2 NC_38
E3 C5
RFU_2 NC_38
E3 C5
RFU_2 NC_38
E3
1/16W DAT7 NC_30 DAT5 E5
NC_21
RFU_3
NC_39
NC_40
E12 E5
NC_21
RFU_3
NC_39
NC_40
E12 E5
NC_21
RFU_3
NC_39
NC_40
E12
D2 E8
E9
RFU_4 NC_41
E13
E14
E8
E9
RFU_4 NC_41
E13
E14
E8
E9
RFU_4 NC_41
E13
E14
NC_31 E10
RFU_5 NC_42
F1 E10
RFU_5 NC_42
F1 E10
RFU_5 NC_42
F1
D3 F10
RFU_6
RFU_7
NC_43
NC_44
F2 F10
RFU_6
RFU_7
NC_43
NC_44
F2 F10
RFU_6
RFU_7
NC_43
NC_44
F2
NC_32 G3
RFU_8 NC_45
F3 G3
RFU_8 NC_45
F3 G3
RFU_8 NC_45
F3
M6 D4 G10
H5
RFU_9 NC_46
F12
F13
G10
H5
RFU_9 NC_46
F12
F13
G10
H5
RFU_9 NC_46
F12
F13
CLK NC_33 J5
RFU_10 NC_47
F14 J5
RFU_10 NC_47
F14 J5
RFU_10 NC_47
F14
M5 D12 K6
RFU_11
RFU_12
NC_48
NC_49
G1 K6
RFU_11
RFU_12
NC_48
NC_49
G1 K6
RFU_11
RFU_12
NC_48
NC_49
G1
CMD NC_34 K7
RFU_13 NC_50
G2 K7
RFU_13 NC_50
G2 K7
RFU_13 NC_50
G2
D13 K10 G12 K10 G12 K10 G12
EMMC4.5_4G_SKHynix
RFU_14 NC_51 RFU_14 NC_51 RFU_14 NC_51
P7 G13 P7 G13 P7 G13
NC_35 RFU_15 NC_52 RFU_15 NC_52 RFU_15 NC_52
EMMC4.5_4G_MICRON
EMMC4.5_8G_MICRON
P10 G14 P10 G14 P10 G14
D14 RFU_16 NC_53
NC_54
H1
RFU_16 NC_53
NC_54
H1
RFU_16 NC_53
NC_54
H1
NC_36 NC_55
H2
NC_55
H2
NC_55
H2
A6 E1 K5
RST_N NC_56
H3
H12
K5
RST_N NC_56
H3
H12
K5
RST_N NC_56
H3
H12
RFU_1 NC_37 NC_57
H13
NC_57
H13
NC_57
H13
A7 E2 C6
VCCQ_1
NC_58
NC_59
H14 C6
VCCQ_1
NC_58
NC_59
H14 C6
VCCQ_1
NC_58
NC_59
H14
RFU_2 NC_38 M4
VCCQ_2 NC_60
J1 M4
VCCQ_2 NC_60
J1 M4
VCCQ_2 NC_60
J1
C5 E3 N4
P3
VCCQ_3 NC_61
J2
J3
N4
P3
VCCQ_3 NC_61
J2
J3
N4
P3
VCCQ_3 NC_61
J2
J3
NC_21 NC_39 P5
VCCQ_4 NC_62
J12 P5
VCCQ_4 NC_62
J12 P5
VCCQ_4 NC_62
J12
E5 E12 VCCQ_5 NC_63
NC_64
J13
VCCQ_5 NC_63
NC_64
J13
VCCQ_5 NC_63
NC_64
J13
RFU_3 NC_40 NC_65
J14
NC_65
J14
NC_65
J14
E8 E13 E6
F5
VCC_1 NC_66
K1
K2
E6
F5
VCC_1 NC_66
K1
K2
E6
F5
VCC_1 NC_66
K1
K2
RFU_4 NC_41 J10
VCC_2 NC_67
K3 J10
VCC_2 NC_67
K3 J10
VCC_2 NC_67
K3
AR8102 22 E9 E14 K9
VCC_3 NC_68
K12 K9
VCC_3 NC_68
K12 K9
VCC_3 NC_68
K12
EMMC_CLK RFU_5 NC_42 VCC_4 NC_69
NC_70
K13
VCC_4 NC_69
NC_70
K13
VCC_4 NC_69
NC_70
K13
E10 F1 NC_71
K14
NC_71
K14
NC_71
K14
DAT7
C2 C2 C2
EMMC_CMD RFU_6 NC_43 DAT6 VDDI NC_72
L1
L2
VDDI NC_72
L1
L2
VDDI NC_72
L1
L2
F10 F2 NC_73
L3
NC_73
L3
NC_73
L3
EMMC_RST RFU_7 NC_44 E7
VSS_1
NC_74
NC_75
L12 E7
VSS_1
NC_74
NC_75
L12 E7
VSS_1
NC_74
NC_75
L12
G3 F3 G5
H10
VSS_2 NC_76
L13
L14
G5
H10
VSS_2 NC_76
L13
L14
G5
H10
VSS_2 NC_76
L13
L14
RFU_8 NC_45 K8
VSS_3 NC_77
M1 K8
VSS_3 NC_77
M1 K8
VSS_3 NC_77
M1
G10 F12 C4
VSS_4
VSSQ_1
NC_78
NC_79
M2 C4
VSS_4
VSSQ_1
NC_78
NC_79
M2 C4
VSS_4
VSSQ_1
NC_78
NC_79
M2
RFU_9 NC_46 N2
VSSQ_2 NC_80
M3 N2
VSSQ_2 NC_80
M3 N2
VSSQ_2 NC_80
M3
H5 F13 N5
P4
VSSQ_3 NC_81
M7
M8
N5
P4
VSSQ_3 NC_81
M7
M8
N5
P4
VSSQ_3 NC_81
M7
M8
RFU_10 NC_47 P6
VSSQ_4 NC_82
M9 P6
VSSQ_4 NC_82
M9 P6
VSSQ_4 NC_82
M9
J5 F14 VSSQ_5 NC_83
M10
VSSQ_5 NC_83
M10
VSSQ_5 NC_83
M10
C8107 RFU_11 NC_48 NC_84
NC_85
M11
NC_84
NC_85
M11
NC_84
NC_85
M11
OPT 10pF K6 G1 A1
NC_86
M12
M13 A1
NC_86
M12
M13 A1
NC_86
M12
M13
RFU_12 NC_49 A2
NC_1 NC_87
M14 A2
NC_1 NC_87
M14 A2
NC_1 NC_87
M14
50V K7 G2 A8
NC_2
NC_3
NC_88
NC_89
N1 A8
NC_2
NC_3
NC_88
NC_89
N1 A8
NC_2
NC_3
NC_88
NC_89
N1
RFU_13 NC_50 A9
NC_4 NC_90
N3 A9
NC_4 NC_90
N3 A9
NC_4 NC_90
N3
K10 G12 A10
A11
NC_5 NC_91
N6
N7
A10
A11
NC_5 NC_91
N6
N7
A10
A11
NC_5 NC_91
N6
N7
RFU_14 NC_51 A12
NC_6 NC_92
N8 A12
NC_6 NC_92
N8 A12
NC_6 NC_92
N8
P7 G13 A13
NC_7
NC_8
NC_93
NC_94
N9 A13
NC_7
NC_8
NC_93
NC_94
N9 A13
NC_7
NC_8
NC_93
NC_94
N9
RFU_15 NC_52 A14
NC_9 NC_95
N10 A14
NC_9 NC_95
N10 A14
NC_9 NC_95
N10
P10 G14 B1
B7
NC_10 NC_96
N11
N12
B1
B7
NC_10 NC_96
N11
N12
B1
B7
NC_10 NC_96
N11
N12
RFU_16 NC_53 B8
NC_11 NC_97
N13 B8
NC_11 NC_97
N13 B8
NC_11 NC_97
N13
H1 B9
NC_12
NC_13
NC_98
NC_99
N14 B9
NC_12
NC_13
NC_98
NC_99
N14 B9
NC_12
NC_13
NC_98
NC_99
N14
NC_54 B10
NC_14 NC_100
P1 B10
NC_14 NC_100
P1 B10
NC_14 NC_100
P1
H2 B11
B12
NC_15 NC_101
P2
P8
B11
B12
NC_15 NC_101
P2
P8
B11
B12
NC_15 NC_101
P2
P8
NC_55 B13
NC_16 NC_102
P9 B13
NC_16 NC_102
P9 B13
NC_16 NC_102
P9
K5 H3 B14
NC_17
NC_18
NC_103
NC_104
P11 B14
NC_17
NC_18
NC_103
NC_104
P11 B14
NC_17
NC_18
NC_103
NC_104
P11
RST_N NC_56 C1
NC_19 NC_105
P12 C1
NC_19 NC_105
P12 C1
NC_19 NC_105
P12
H12 C3
NC_20 NC_106
P13 C3
NC_20 NC_106
P13 C3
NC_20 NC_106
P13
C8100 DVDD18_EMMC C7 P14 C7 P14 C7 P14
EMMC4.5_8G_TOSHIBA
NC_57 NC_22 NC_107 NC_22 NC_107 NC_22 NC_107
OPT 0.1uF H13
NC_58
16V C6 H14
VCCQ_1 NC_59
3.3V_EMMC M4 J1
VCCQ_2 NC_60
N4 J2
VCCQ_3 NC_61
P3 J3
VCCQ_4 NC_62
P5 J12
VCCQ_5 NC_63
DAT3
DAT4
DAT5
DAT6
EMMC_CLK_BALL
EMMC_CMD_BALL
EMMC_RESET_BALL
J13
C8105 C8106 NC_64
0.1uF 2.2uF J14 EMMC_RESET_BALL
NC_65
16V 10V E6 K1
VCC_1 NC_66
F5 K2 IC8100-*3 IC8100-*4
VCC_2 NC_67 THGBMAG7A2JBAIR THGBMAG5A1JBAIR
J10 K3
VCC_3 NC_68 A3 C8 A3 C8
K9 K12 A4
DAT0
DAT1
NC_23
NC_24
C9 A4
DAT0
DAT1
NC_23
NC_24
C9
VCC_4 NC_69 A5
DAT2 NC_25
C10 A5
DAT2 NC_25
C10
K13 B2
B3
DAT3 NC_26
C11
C12
B2
B3
DAT3 NC_26
C11
C12
NC_70 B4
DAT4 NC_27
C13 B4
DAT4 NC_27
C13
EMMC_VDDI K14 B5
DAT5
DAT6
NC_28
NC_29
C14 B5
DAT5
DAT6
NC_28
NC_29
C14
pattern 0.2mm NC_71 B6
DAT7 NC_30
D1 B6
DAT7 NC_30
D1
C2 L1 NC_31
D2
D3
NC_31
D2
D3
VDDI NC_72 M6
NC_32
D4 M6
NC_32
D4
L2 M5
CLK NC_33
D12 M5
CLK NC_33
D12
C8104 NC_73 CMD NC_34
NC_35
D13
CMD NC_34
NC_35
D13
1uF L3 A6
NC_36
D14
E1 A6
NC_36
D14
E1
NC_74 A7
RFU_1 NC_37
E2 A7
RFU_1 NC_37
E2
10V E7 L12 C5
RFU_2
NC_21
NC_38
NC_39
E3 C5
RFU_2
NC_21
NC_38
NC_39
E3
VSS_1 NC_75 E5
RFU_3 NC_40
E12 E5
RFU_3 NC_40
E12
G5 L13 E8
E9
RFU_4 NC_41
E13
E14
E8
E9
RFU_4 NC_41
E13
E14
VSS_2 NC_76 E10
RFU_5 NC_42
F1 E10
RFU_5 NC_42
F1
H10 L14 F10
RFU_6
RFU_7
NC_43
NC_44
F2 F10
RFU_6
RFU_7
NC_43
NC_44
F2
EMMC4.5_16G_TOSHIBA
VSS_3 NC_77 G3
RFU_8 NC_45
F3 G3
RFU_8 NC_45
F3
K8 M1
EMMC4.5_4G_TOSHIBA
G10 F12 G10 F12
RFU_9 NC_46 RFU_9 NC_46
H5 F13 H5 F13
VSS_4 NC_78 J5
RFU_10 NC_47
F14 J5
RFU_10 NC_47
F14
C8102 C8103 C4 M2 K6
RFU_11
RFU_12
NC_48
NC_49
G1 K6
RFU_11
RFU_12
NC_48
NC_49
G1
0.1uF 2.2uF VSSQ_1 NC_79 K7
RFU_13 NC_50
G2 K7
RFU_13 NC_50
G2
N2 M3 EMMC_CLK_BALL
K10
P7
RFU_14 NC_51
G12 K10
P7
RFU_14 NC_51
G12
16V 10V VSSQ_2 NC_80 P10
RFU_15 NC_52
G13
G14 P10
RFU_15 NC_52
G13
G14
N5 M7 RFU_16 NC_53
NC_54
H1
RFU_16 NC_53
NC_54
H1
VSSQ_3 NC_81 NC_55
H2
NC_55
H2
P4 M8 K5
RST_N NC_56
H3
H12
K5
RST_N NC_56
H3
H12
VSSQ_4 NC_82 NC_57
H13
NC_57
H13
P6 M9 C6
VCCQ_1
NC_58
NC_59
H14 C6
VCCQ_1
NC_58
NC_59
H14
VSSQ_5 NC_83 M4
VCCQ_2 NC_60
J1 M4
VCCQ_2 NC_60
J1
M10 N4
P3
VCCQ_3 NC_61
J2
J3
N4
P3
VCCQ_3 NC_61
J2
J3
NC_84 P5
VCCQ_4 NC_62
J12 P5
VCCQ_4 NC_62
J12
M11 VCCQ_5 NC_63
NC_64
J13
VCCQ_5 NC_63
NC_64
J13
NC_85 NC_65
J14
NC_65
J14
M12 E6
F5
VCC_1 NC_66
K1
K2
E6
F5
VCC_1 NC_66
K1
K2
NC_86 J10
VCC_2 NC_67
K3 J10
VCC_2 NC_67
K3
A1 M13 K9
VCC_3 NC_68
K12 K9
VCC_3 NC_68
K12
DAT3 NC_1 NC_87 VCC_4 NC_69
NC_70
K13
VCC_4 NC_69
NC_70
K13
A2 M14 C2
NC_71
K14
C2
NC_71
K14
DAT4 NC_2 NC_88 VDDI NC_72
L1
L2
VDDI NC_72
L1
L2
A8 N1 NC_73
L3
NC_73
L3
DAT7 NC_3 NC_89 E7
VSS_1
NC_74
NC_75
L12 E7
VSS_1
NC_74
NC_75
L12
A9 N3 EMMC_CMD_BALL
G5
H10
VSS_2 NC_76
L13
L14
G5
H10
VSS_2 NC_76
L13
L14
NC_4 NC_90 K8
VSS_3 NC_77
M1 K8
VSS_3 NC_77
M1
A10 N6 C4
VSS_4
VSSQ_1
NC_78
NC_79
M2 C4
VSS_4
VSSQ_1
NC_78
NC_79
M2
NC_5 NC_91 N2
VSSQ_2 NC_80
M3 N2
VSSQ_2 NC_80
M3
A11 N7 N5
P4
VSSQ_3 NC_81
M7
M8
N5
P4
VSSQ_3 NC_81
M7
M8
NC_6 NC_92 P6
VSSQ_4 NC_82
M9 P6
VSSQ_4 NC_82
M9
A12 N8 VSSQ_5 NC_83
NC_84
M10
VSSQ_5 NC_83
NC_84
M10
NC_7 NC_93 NC_85
M11
NC_85
M11
A13 N9 A1
NC_86
M12
M13 A1
NC_86
M12
M13
NC_8 NC_94 A2
NC_1 NC_87
M14 A2
NC_1 NC_87
M14
A14 N10 A8
NC_2
NC_3
NC_88
NC_89
N1 A8
NC_2
NC_3
NC_88
NC_89
N1
NC_9 NC_95 A9
NC_4 NC_90
N3 A9
NC_4 NC_90
N3
B1 N11 A10
A11
NC_5 NC_91
N6
N7
A10
A11
NC_5 NC_91
N6
N7
NC_10 NC_96 A12
NC_6 NC_92
N8 A12
NC_6 NC_92
N8
B7 N12 A13
NC_7
NC_8
NC_93
NC_94
N9 A13
NC_7
NC_8
NC_93
NC_94
N9
NC_11 NC_97 A14
NC_9 NC_95
N10 A14
NC_9 NC_95
N10
B8 N13 B1
B7
NC_10 NC_96
N11
N12
B1
B7
NC_10 NC_96
N11
N12
NC_12 NC_98 B8
NC_11 NC_97
N13 B8
NC_11 NC_97
N13
B9 N14 B9
NC_12
NC_13
NC_98
NC_99
N14 B9
NC_12
NC_13
NC_98
NC_99
N14
NC_13 NC_99 B10
NC_14 NC_100
P1 B10
NC_14 NC_100
P1
B10 P1 B11
B12
NC_15 NC_101
P2
P8
B11
B12
NC_15 NC_101
P2
P8
NC_14 NC_100 B13
NC_16 NC_102
P9 B13
NC_16 NC_102
P9
B11 P2 B14
NC_17
NC_18
NC_103
NC_104
P11 B14
NC_17
NC_18
NC_103
NC_104
P11
NC_15 NC_101 C1
NC_19 NC_105
P12 C1
NC_19 NC_105
P12
B12 P8 C3
C7
NC_20 NC_106
P13
P14
C3
C7
NC_20 NC_106
P13
P14
NC_16 NC_102 NC_22 NC_107 NC_22 NC_107
Don’t Connect Power At VDDI EMMC_VDDI B13
B14
NC_17
NC_18
NC_103
NC_104
P9
P11
C1 P12
NC_19 NC_105
(Just Interal LDO Capacitor) DAT5
C3
C7
NC_20 NC_106
P13
P14
NC_22 NC_107
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS eMMC 11.09.29
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
81
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
IR BLASTER PAGE 31
IR_Bla
JP11002
Pattern Width : 0.5mm R11020 Pattern Width : 0.5mm
IRB_DATA
+3.3V_NORMAL +3.3V_IR_Bla 10
D11001
+3.3V_IR_Bla
IR_Bla
IR_Bla C L11001
IR_Bla JP11001
R11015 120 B Q11001 IRB_3.3V
S
D
SBT2222A_AUK
IR_Bla BLM18PG121SN1D
IR_Bla
C11012 IR_Bla
D11002
AO3438 E
0.1uF R11019
Q11002
G
+5V_NORMAL 16V
0
OPT IR_Bla
IR_Bla C11004 C11008 C11006
R11021 10uF 10uF 0.1uF
10V 16V
10K IR_Bla IR_Bla OPT
+3.3V_IR_Bla
+3.3V_IR_Bla
C11003
8pF
50V
P11001
12507WS-04L
IR_Bla
XTAL_1
GND_1
1
IC11002
MC96FR3128R IR_Bla
DEV_8M_XTAL
2
R11030
2
1
VSS VDD
DSCL
X11002
1 28
IR_Bla 3
8MHz
OPT
XIN REMOUT
DSDA 4
1M
2 27
C11005
XOUT P22/INT3/DSDA
3
4
3 26 5
IR_Bla
XTAL_2
GND_2
P20/RESETB P21/INT2/DSCL
8pF
50V
4 25
+3.3V_IR_Bla
P10/KS8/MOSI1 P07/KS7
5 24
P11/KS9/MISO1 P06/KS6
6 23
R11026 P12/KS10/INT0 P05/KS5/EC3
4.7K 7 22
IR_Bla P13/KS11/INT1 P04/KS4/EC0
8 21
P14/KS12/SS1/INT2 P03/KS3/T3/PWM3
IR_B Micom Download Close to JK11001
9 20
C
IR_Bla P15/KS13/XCK1/INT3
10 19
P02/KS2/T2
R11001 1K B Q11003 C11013
IR_B_RESET P16/KS14/MOSI0
11 18
P01/KS1/T1/PWM1
MMBT3904(NXP) 0.1uF
IR_Bla IR_Bla 16V P17/KS15/MISO0
12 17
P00/KS0/T0
E
P30/SS0/EC2/EXTREF P37/INT1/SS0
13 16
P31/XCK0/SENSOR P36/INT0/XCK0
14 15
R11006 33 IR_Bla
IRB_SPI_MOSI/TDO1
R11007 33 IR_Bla
IRB_SPI_MISO/TDI1
R11008 33 IR_Bla
IRB_SPI_SS/TMS1
R11009 33 IR_Bla
IRB_SPI_CK/TCK1
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS MID_LG1311 2013.04.02
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR IR Blaster/Boost
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. 110
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
PAGE 32
RS-232C Control INTERFACE
RS232C
R6820
100
+3.5V_ST DOUT1
RS232C
R6821
100
RIN1
OPT OPT
ZD6802 ZD6803
ADUC 20S 02 010L ADUC 20S 02 010L
RS232C 20V 20V
RS232C C6813
0.1uF
IC6801
MAX3232CDR
C1+ VCC
RS232C 1 16
C6808
0.1uF V+ GND
RS232C 2 15
C6809
0.1uF C1- DOUT1
3 14
C2+ RIN1
RS232C 4 13
C6810
0.1uF C2- ROUT1
5 12
SOC_RX
V- DIN1
RS232C 6 11
SOC_TX
C6811
0.1uF DOUT2 DIN2
7 10
RIN2 ROUT2
8 9
EAN41348201
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
2014 LED/LCD TV
Engineering guide
< Applicable Model – Mid end >
55LB7200
70/65/60LB7100
60/55/50/47/42LB6500
65/60/55/47/42LB6300
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
◈ CONTENT ◈
1. ‘2014
1 2014 Product line-up and features
2. Model naming and tool option
3. New features
4. Main PCBs
5. Block Diagrams, IIC Map
6 Structure of TV set and connection of sub assy’s
6. assy s
7. New sub assy’s
- Instruction of new sub assy’s
- How to use tool
- Download
8 Repair guide
8.
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
◈ CONTENT ◈
1. ‘2014 Product line-up and features
2. Model naming and tool option
3 New features
3.
4. Main PCBs
5. Block Diagrams, IIC Map
6. Structure of TV set and connection of sub assy’s
7. New sub assy’s
- Instruction of new sub assy’s
- How to use tool
- Download
8. Repair guide
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
US
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
◈ CONTENT ◈
1 ‘2014
1. 2014 Product line-up and features
2. Model naming and tool option
3. New features
4. Main PCBs
5. Block Diagrams, IIC Map
6. Structure
S off TV set and connection off sub assy’s
7. New sub assy’s
- Instruction of new sub assy’s
y
- How to use tool
- Download
8. Repair guide
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Model naming and Tool option
Standard of 2014 Model Name
Model Name
Description of Tool Options
Tool option info
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes
- 6/83 - LGE Internal Use Only
◈ CONTENT ◈
1. ‘2014
1 2014 Product line-up and features
2. Model naming and tool option
3. New features
4. Main PCBs
5. Block Diagrams, IIC Map
6. Structure
S off TV set and connection off sub assy’s
7. New sub assy’s
- Instruction of new sub assy’s
y
- How to use tool
- Download
8. Repair guide
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
webOS Architecture
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
◈ CONTENT ◈
1. ‘2014
1 2014 Product line-up and features
2. Model naming and tool option
3. New features
4. Main PCBs
5. Block Diagrams, IIC Map
6. Structure
S off TV set and connection off sub assy’s
7. New sub assy’s
- Instruction of new sub assy’s
y
- How to use tool
- Download
8. Repair guide
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Main PCB for Broadband
xxLB7200 UB
xxLB7200-UB Chassis : LA42B
PCB P/No : EAX65363904
To PSU 5
4
To module 1
Main processor, DDR Memory
1
eMMC Memory
Micom for Key/IR sensing
2
WiFi + BT(Magic Remocon receiver)
Tuner
3 Audio AMP (12W+12W)
2
4 LVDS or EPI Wafer
3
5 PSU
F
Front
t Spk
S k 1. Key + IR
1
2. WIFI + BT
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Main PCB for Broadband
xxLB7100 xx
xxLB7100-xx Chassis : LA42B
PCB P/No : EAX65363904
To PSU 5
4
To module 1
Main processor, DDR Memory
1
eMMC Memory
Micom for Key/IR sensing
2
WiFi + BT(Magic Remocon receiver)
Tuner
3 Audio AMP (12W+12W)
2
4 LVDS or EPI Wafer
3
5 PSU
F
Front
t Spk
S k 1. Key + IR
1
2. WIFI + BT
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Main PCB for Broadband
xxLB65/6300 xx
xxLB65/6300-xx Chassis : LA42B
PCB P/No : EAX65363904
To PSU 5
4
To module 1
Main processor, DDR Memory
1
eMMC Memory
Micom for Key/IR sensing
2
WiFi + BT(Magic Remocon receiver)
Tuner
3 Audio AMP (12W+12W)
2
4 LVDS or EPI Wafer
3
5 PSU
F
Front
t Spk
S k 1. Key + IR
1
2. WIFI + BT
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
◈ CONTENT ◈
1. ‘2014
1 2014 Product line-up and features
2. Model naming and tool option
3. New features
4. Main PCBs
5. Block Diagrams, IIC Map
6. Structure of TV set and connection of sub assy’s
7. New sub assy’s
- Instruction of new sub assy’s
- How to use tool
- Download
8. Repair guide
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
1. M14 Block Diagram
KOREA PIP TUNER X_TAL DDR3 1600 X 16
24MHz
24MH (512MB X 2EA)
Tuner : I2C 6 IF (+/-)
Digital Demod DDR3 1600 X 16
Analog Demod A B (256MB X 2EA)
D-Demod : I2C 4 P_TS
R
E CVBS/SIF
A SYSTEM EEPROM
R I2C 5
S USB1 OCP (256Kb)
(H)
I 1.5A
D USB eMMC
E
USB2
USB3
OCP
1.5A
IC101 (8GB)
M14 51P
HDMI1 LVDS 41P
S
I (ARC) PM
HDMI EPI 50P
D HDMI2 MUX I2C 2 50P IC
E HDMI3 OCP
(MHL) 1A I2S Out
I2C 1 Audio AMP
H/P (Line Out) AMP
(IR Bla Ready)
CVBS/YPbPr I2C 2 LOCAL DIMMING
AV/COMP
R BLUTOOTH
E USB_WIFI-BT
A WIFI
R OPTIC SPDIF OUT
SUB
LAN LAN ASSY
ETHERNET IR / KEY/EYE
PHY
X_TAL IR
#EPI & LVDS Diagram 25MHz
I2C
KEY
I2C 3 Sub Micom
(RENESAS
R5F1000G)
X TAL
X_TAL
32.768KHz
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
2. M14 I2C Block Diagram
+3.3V_NORMAL
IC101 +3.3V_TUNER
M14
33Ω IC6900
3.3KΩ LNB
3 3KΩ
3.3KΩ
I2C_SDA0 I2C_SDA3
IC5600 0Ω 22Ω TUNER
NTP7514(AMP) I2C_SCL0 I2C_SCL3
+3 3V NORMAL
+3.3V_NORMAL
+3.3V_NORMAL
3.3KΩ
3.3KΩ
IC7700 I2C_SDA1 I2C_SDA4
33Ω 33Ω IC103
PMIC I2C_SCL1 I2C_SCL4 NVRAM
P7400 33Ω
Local dimming
+3.3V_TUNER
+3.3V_NORMAL
3.3KΩ
3.3KΩ
IC3000 I2C_SDA2 I2C_SDA5
33Ω 33Ω TUNER (Demod)
Renesas MICOM I2C_SCL2 I2C_SCL5
EYE_I2C_SDA 3.3KΩ +3.5V_ST
EYE_I2C_SCL 100Ω
IR / KEY/EYE
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
3. Power Block Diagram
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
4. Tuner Block Diagram (US 1 Tuner)
+3.3V_TU
Tuner
[+3.3V_TUNER] 1, 11
[+.1.1V_TUNER] 28
3.3K Ω
+3.3V_TU
IC101
M14
1.5K Ω
[SLC] 4 AG23[SCL5]
33Ω
[SDA] 5 IC2_SDA6 AH24 [SDA5]
IC2_SCL6
IF_P AK28 [DMD_ADC_INP]
[M_DIF_P] 6
IF_N AL28 [DMD
[DMD_ADC_INN]
ADC INN]
[M DIF N] 7
[M_DIF_N]
M_DIF_IFAGC 3 IF_AGC
AM29[IFAGC]
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
5. Video/Audio In Block Diagram
Jack Side SoC Side
AV1_CVBS_IN_SOC
JK3802 COMP2_Y_IN_SOC
COMP1_Y/AV1_CVBS COMP2_Y_IN_S0C_S0Y
[CVBS_IN3/Y2_IN/SOY2_IN]
COMP1_Pb COMP2_Pb__IN_SOC
[PB2_IN]
COMP1_Pr COMP2_PR_IN_SOC
[PR2_IN]
COMP1/AV1/DVI_L_IN AUAD_L_CH3_IN
[AUDA_L_CH3_IN]
COMP1/AV1/DVI_R_IN AUAD_R_CH3_IN
[AUDA_R_CH3_IN]
SCART (EU Only)
IC101
SC_CVBS_IN SC_CVBS_IN_SOC
[CVBS_IN2]
M14
SC_ID_SOC
SC_ID/FB
SC_FB_SOC
[SC1_SID, SC1_FB]
COMP1_PB_IN_SOC
COMP1_Y_IN_SOC
SC_R/G/B COMP1_Y_IN_SOC_SOY
SC_CVBS_IN_SOY COMP1_PR_IN_SOC
[PB1_IN/Y1_IN/SOY1_IN/PR1_IN]
AUAD_L_CH2_IN
SC_L/R_IN AUAD_R_CH2_IN [AUDA_L_CH2_IN/AUDA_R_CH2_IN]
JK4600
Tuner
TU_CVBS TU_CVBS_SOC
[CVBS_IN1]
TUNER_SIF
ADC_I_INP
TUNER_SIF/IF_P/N ADC_I_INN [AAD_ADC-SIF]
[DMD_ADC_INP/DMD_ADC_INN]
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
6. Audio Out Block Diagram
SCART
SCART_L/Rout IC6000 DTV/MNT_L/R_OUT
[AUDA_SCART_OUTL]
AZ4580MTR LPF
[AUDA_SCART_OUTR]
AUAD_L_CH3_IN OP AMP
AUAD_R_CH3_IN
AUAD R CH3 IN [AUDA L CH3 IN]
[AUDA_L_CH3_IN]
Mute CTRL
[AUDA_R_CH3_IN] JK4600
(TR)
JK3802 DVB only
SCART (EU Only)
AUD_MASTER_CLK
[AUDCLK_OUT]
SC_L/R_IN [AUDA_L_CH2_IN] AUD_LRCH
[DAC_LRCH]
[AUDA_R_CH2_IN] AUD_LRCK
[DAC_SCK]
AUD_SCK 4P WAFER
[DAC_LRCK]
IC5600 LPF SPEAKER_L
DVB only
JK4600
[SDA0]
I2C_SDA1 Audio AMP
LPF SPEAKER R
SPEAKER_R
I2C SCL1
I2C_SCL1
[SCL0]
AMP_RESET_N
[GPIO21] WOOFER
IC101 AMP_MUTE
M14 IC3000
MICOM
TUNER_SIF
Tuner
[AAD_ADC-SIF]
SIDE_HP_MUTE
[AUDA_OUTL] HP L/ROUT MAIN
HP_L/ROUT_MAIN IC6100 HP L/ROUT AMP
HP_L/ROUT_AMP
TPA6138A2PWR LPF HEAD PHONE
[AUDA-OUTR]
HP AMP JK3403
SPDIF_OUT
[IEC9580UT]
JK3401
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
7. HDMI
DDC_SCL_1
DDC_SDA_1
SPDIF_OUT_ARC
TMDS Link 8bits
HDMI_HPD
HDMI1
DDC_SCL_2
CEC_REMOTE
C
DDC_SDA_2
IC101 TMDS Link 8bits
HDMI_HPD
M14 HDMI2
DDC_SCL_4
DDC_SDA_4
TMDS Link 8bits TMDS Link or MHL Link
HDMI HPD
HDMI_HPD
HDMI3
with MHL
5V_NORMAL 5V_HDMI_4 Q3001
OCP
HDMI_CEC
MHL_DET X-tal RENESAS WOL_CTL
32.768kHz MICOM
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
8. Panel Interface Block Diagram
PANEL_VCC (+12V)
I2C
VGH
PMIC+L/S VGL
4 EO/GST/GCLK/MCLK TPS65175
PVCOM
IC101
M14
VCC1.8
VDD
H_VDD
SWP
TR/
CTRLP
Diode
SWN
4
6
6
CTRLN TR/
Diode
50Pin X 2
8 EPI CH1/2/3/4+/-
EPI Tx 6
Block
GM
L
LEFT
MA1/GMA3/GAM9/G
6 GMA4/GMA5/GAM7/GMA12/GMA14/GMA15
4 VGH_ODD/EVEN,VST,GIP_RST
VCOM 1/2 - Top/Bottom 6 CLK1~CLK6
VCOMLFB
EPI_
2CH
_LOCK4
GMA10/GMA16/GM
OP AMP
VCOMRFB
6 CLK1~CLK6
4 VGH_ODD/EVEN,VST,GIP_RST
6 GMA4/GMA5/GAM7/GMA12/GMA14/GMA15
RIG
MA18
GHT
8 EPI CH5/6/7/8+/-
EPI_LOCK8 EPI_LOCK8
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
9. USB 2.0 / WIFI-BT / IR-KEY-EYE
USB3_DM USB1
[USB3_DM0] +5V_USB_1
USB3_DP
[USB3_DP0] IC 4500
[HUB_PORT_OVER0]
/USB_OCD1 OCP
[HUB_VBUS_CTRL0] USB_CTL1
USB_DM2 USB2
[USB3_DM1] +5V_USB_2
USB_DP2
[USB3_DP1]
/USB OCD2
/USB_OCD2
[EB_CS3]
USB_CTL2
[EB_CS2]
IC 4306
USB3 OCP
USB_DM3 +5V_USB_3
[USB2_1_DM0]
USB_DP3
[USB2_1_DP0]
/USB OCD3
/USB_OCD3
[EB_CS1]
[EB_CS0] USB_CTL3
WIFI-BT_DM
[USB2 0 DP0]
[USB2_0_DP0]
WIFI-BT_DP WIFI-BT
[USB2_0_DM0]
EYY_SCL
EYE_SDA
_
LED
IR-KEY
Micom IR
KEY1 -EYE
KEY2
IC101
M14
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
◈ CONTENT ◈
1. ‘2014
1 2014 Product line-up and features
2. Model naming and tool option
3. New features
4. Main PCBs
5. Block Diagrams, IIC Map
6. Structure of TV set and connection of sub assy’s
7. New sub assy’s
- Instruction of new sub assy’s
- How to use tool
- Download
8. Repair guide
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Interconnection
[[PCBs]]
55LB7200-UB
1 Main PCB
2 Power Board
3 IR / Key Assy
3 4 WIFI/BT Assy
2 1
1
[[Cables]]
2
1 Main / LPB 24Pin cable
2 Main / Module LVDS Cable
6 4 5
3 LED driver / PSU
6
4 10Pin IR+key Cable
4 5 8Pi WIFI/BT Assy
8Pin A Cable
C bl
3
6 SPK Cable
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Interconnection
[[PCBs]]
70LB7100-UC
1 Main PCB
2 Power Board
3 IR / Key Assy
3
4 WIFI/BT Assy
2 1
1
[[Cables]]
2
1 Main / LPB 24Pin cable
6 4 5 2 Main / Module LVDS Cable
6
3 LED driver / PSU
4 3
4 10Pin IR+key Cable
5 8Pin
8Pi WIFI/BT Assy
A Cable
C bl
6 SPK Cable
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Interconnection
[[PCBs]]
60LB7100-UT
1 Main PCB
2 Power Board
3 IR / Key Assy
3
4 WIFI/BT Assy
1
2
1
[[Cables]]
2
1 Main / LPB 24Pin cable
4 5
2 Main / Module LVDS Cable
6 6
3 LED driver / PSU
4 3
4 10Pin IR+key Cable
5 8Pin
8Pi WIFI/BT Assy
A Cable
C bl
6 SPK Cable
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Interconnection
[[PCBs]]
55LB6500-UM
1 Main PCB
2 Power Board
3 IR / Key Assy
3 4 WIFI/BT Assy
1
2 1
[[Cables]]
2
1 Main / LPB 24Pin cable
4 5
2 Main / Module LVDS Cable
6 6
3 LED driver / PSU
4 3
4 10Pin IR+key Cable
5 8Pi WIFI/BT Assy
8Pin A Cable
C bl
6 SPK Cable
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Interconnection
[[PCBs]]
42LB6500-UM(AUO)
1 Main PCB
2 Power Board
3 IR / Key Assy
3
4 WIFI/BT Assy
1
1
2
[[Cables]]
2 1 Main / LPB 24Pin cable
4 5
2 Main / Module LVDS Cable
6 6
3 LED driver / PSU
4 3
4 10Pin IR+key Cable
5 8Pi WIFI/BT Assy
8Pin A Cable
C bl
6 SPK Cable
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
◈ CONTENT ◈
1. ‘2014
1 2014 Product line-up and features
2. Model naming and tool option
3. New features
4. Main PCBs
5. Block Diagrams, IIC Map
6. Structure
S off TV set and connection off sub ass’ys
7. New sub assy’s
- Instruction of new sub assy’s
- How to use tool
- Download
8. Repair guide
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Introductions of 14Y WIFI / BT built in assy + Magic Remote control
Table of Contents
1. System
2. Block diagram
3. Paring method
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
1. System
RF USB
RF Receiver
Remote TV
Pairing Information Transmission (Send to TV after Paired)
• Static Calibration Data (Bypass only)
• Remote FW ver. (Save also in Receiver)
• BD_ADDR
BD ADDR (Save also in Receiver)
• Pairing Information Transmission Sequence
• When it is paired, the remote sends packets(pairing success, F/W version, BD_ADDR) to the receiver.
• The receiver sends the pairing success packet to TV directly.
• F/W
/ version
e so aandd BD_ADDR pac packets
esa are
e jus
just saved
sa ed o
on the
e receiver.
ece e
• The receiver sends F/W version or BD_ADDR packet to TV when it is required.
Motion Data Transmission
• Period : 7.5msec
• Motion Data : gy
gyro,, accelerometer
Voice Data Transmission
• Period : 10msec
• Voice sampling : 16khz 16bit
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
2. MR14 Block Diagram
Antenna
BCM43242
(BROADCOM)
Bluetooth 4.0
SPI
1Mbit
(Serial Flash)
X-tal
37 4 MHz
37.4
USB 2.0
Connector
WiFi / Bluetooth
C
Combo
b Module
M d l
Bluetooth Remote control
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
3. RF Pairing / Un-pairing Method
M th d
Method D
Description
i ti
• When do pairing, the remote
should make pairing request IR
signal(0x29) to TV.
TV
Method1 • When TV receive the IR signal, it
– If unpaired, just press Wheel key. should send "pairing request
packet" to the RF receiver.
– If paired,
paired press Wheel key after
RF Pairing • After pairing success, the remote
unpairing.
should blink LED for some time and
Method 2 (Repairing) TV send "pairing success packet"
– Press “BACK" button for 5 sec. back to TV.
• When remote try to unpairing, it
doesn’t care about state of
receiver(stand alone).
• When remote try to unpairing,
unpairing it
doesn’t care about state of
receiver(stand alone).
• After unpairing, all pairing
Press “HOME"
HOME button and “BACK"
BACK button at i f
information
ti should
h ld b be erased.
d
RF Unpairing
the same time for 5 sec.
• After unpairing, LED should be
blinked for 3sec.
• The remote jjust becomes to IR
mode.
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
WIFI Built in assy feature
Block diagram
34
54
GND
BT_REG_ON
3DG
Wafer WL_HOST_Wake
GND
USB DP, DN
VCC 3.3V 1.2V
8pin 1.25mm
RX/TX Switch Antenna
RTC6603 2.4G/5G
USB DP, DN
BCM43232
RX/TX
Crystal Switch Antenna
RTC6608O 2.4G/5G
37.4MHz
TX BT TX
RFLPF1608 Antenna
2.4G
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
WIFI Built in ass’y Specification
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
◈ CONTENT ◈
1. ‘2014
1 2014 Product line-up and features
2. Model naming and tool option
3. New features
4. Main PCBs
5. Block Diagrams, IIC Map
6. Structure
S off TV set and connection off sub ass’ys
7. New sub ass’ys
- Instruction of new sub ass’ys
y
- How to use tool
- Download
8. Repair guide
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Contents of LCD TV Standard Repair Process
No. Error symptom (High
( category)) Error symptom (Mid
( category)) Page Remarks
1 No video/Normal audio 1
2 No video/No audio 2
3 A. Video error Video error, video lag/stop, fail tunning 3, 4
4 Color error 5
Vertical/Horizontal bar
bar, residual image
image, light
5 6
spot, external device color error
6 No power 7
B. Power error Off when on, off while viewing,
g power auto
7 8
on/off
8 No audio/Normal video 9
C. Audio error
9 Wrecked audio/discontinuation/noise 10
No response in remote controller, key error,
10 11
D. Function error recording error, memory error
11 External device recognition error 12
12 E. Noise Circuit noise, mechanical noise 13
13 F. Exterior error Exterior defect 14
Fi t off all,
First ll Ch
Check
k whether
h th ththere iis SVC B
Bulletin
ll ti iin GCSC S
System
t ffor th
these model.
d l
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Contents of LCD TV Standard Repair Process Detail Technical Manual
No. Error symptom Content Page Remarks
1 Check LCD back light with naked eye A1
2 LED driver B+ 24V measuring method
A. Video error_ No video/Normal audio
3 Check White Balance value A4
4 Power Board voltage measuring method A5
6 TUNER input signal strength checking method A6
A. Video error_ No video/Video lag/stop
7 LCD-TV Version checking method A7
9 LCD TV connection
ti didiagram A8
10 Tuner Checking Part A9
A. Video error_Color error
11 Check Link Cable (LVDS) reconnection condition
12 Adjustment Test pattern - ADJ Key A12
13 LCD TV connection diagram A8
A. Video error_Vertical/Horizontal bar,
14 Check Link Cable (LVDS) reconnection condition
residual image
image, light spot
15 Adjustment Test pattern - ADJ Key A12
16 Exchange T-Con Board (1) A-1/5
17 Exchange T-Con
T Con Board (2) A-2/5
A 2/5
18 Defected Type caused by T-Con/ Inverter/ Exchange LED driver Board (PSU) A-3/5
Module
19 Exchange Module itself (1) A-4/5
20 Exchange Module itself (2) A-5/5
Continue to the next page
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error A. Video error date 2013. 11 .30
LCD TV symptom
No video/ Normal audio Revised date 1/13
First of all, Check whether all of cables between board is inserted properly or not.
(Main B/D↔ Power B/D, LVDS Cable,Speaker Cable,IR B/D Cable,,,)
☞A1 ☞A4
No video Normal Y Check Back Light Y Check Power Board Normal Y Replace T-con Board
Normal audio On or module
audio On with naked eye 12v,3.5v etc. voltage
And Adjust VCOM
N N N ☞A28
Move to No Ch k P
Check Power B
Board
d 24
24v output
t t R
Repair
i PPower B
Board
d
video/No audio or parts
Replace Inverter
Normal Y
or module
o tage
voltage
End
N
Repair Power
Board or parts
※Precaution ☞A7
Always check & record S/W Version and White
Replace Main Board Re-enter White Balance value
Balance value before replacing the Main Board
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error A. Video error date 2013. 11 .30
LCD TV symptom
No video/ No audio Revised date 2/13
☞A4
Check various voltages Check and
Normal Y
No Video/ of Power Board replace
No audio ( 3.5V,12V,20V
, , or 24V…)) voltage?
MAIN B/D
N End
Replace Power
Board and repair
parts
t
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error A. Picture Problem date 2013. 11 .30
LCD TV symptom
Picture broken/ Freezing Revised date 3/13
. By using Digital signal level meter
☞ A6
. Byy using
g Diagnostics
g menu on OSD
Check RF Signal level ( Menu→ Set up→ Support → Signal Test )
- Signal strength (Normal : over 50%)
- Signal Quality (Normal: over 50%)
Y Check whether other equipments have problem or not.
Normal
(By connecting RF Cable at other equipment)
Signal?
→ DVD Player ,Set-Top-Box, Different maker TV etc`
N
p →Booster
■ Menu→Setup
☞ A7
Check RF Cable Booster menu
Normal Y Check SVC N Normal Y
Connection On→Off: Check Close
1. Reconnection Picture? S/W Version Bulletin? Picture?
Off→On: Check
2. Install Booster
N Y N
S/W Upgrade Check
Normal N Contact with signal distributor Tuner soldering
Picture? or broadcaster (Cable or Air)
Normal N
Y Picture? Replace
Main B/D
Y
Close
Close
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error A. Picture Problem (DVB-S/S2) date 2013. 11 .30
LCD TV symptom
Tuning fail, Picture broken/ Freezing Revised date 3/13
☞ A6 Check RF signal cable (DVB satellite signal or not)
Check whether other equipments have problem or not.
Check RF Signal level
(By connecting RF Cable at other equipment)
→ Set
Set-Top-Box
Top Box, Different maker TV etc
Check satellite setting. ☞ A7
- Check LNB frequency. Y N
Normal Y Normal Check SVC Check Replace
- Check satellite
Si
Signal?
l? setting?
tti ? S/W V
Version
i B ll ti ?
Bulletin? Tuner soldering
T ld i Main
M i B/D
- Check Satellite connection
(DiSEqC, motor, etc…) Y
N N
S/W Upgrade
Contact with
Change satellite setting N
signal distributor Normal
(match with installed ANT)
or broadcaster Picture?
(Cable or Air)
Y
N
Normal
Picture? Close
Close
Y
Close
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error A. Video error date 2013. 11 .30
LCD TV symptom
Color error Revised date 4/13
A8
☞A8
※ Check and Y
Check color by input
replace Link
-External Input Y Y
Color Cable Color Color
-COMPONENT Replace Main B/D Replace module
error? (LVDS) and error? error?
-RGB
contact
-HDMI/DVI
HDMI/DVI N N N
condition
Check error color End
input mode
☞A12 Check
External Input/ External device Y
external
Check Test pattern Component /Cable Replace Main B/D
device and
error normal
cable
N
Request repair
for external
device/cable
N
RGB/ Check external External device Y
HDMI/DVI device and /Cable Replace Main B/D
error cable normal
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Error
A. Video error Established
2013. 11 .30
date
LCD TV symptom Vertical / Horizontal bar, residual image,
light spot, external device color error Revised date 5/13
Vertical/Horizontal bar, residual image, light spot Replace
Module
A8
☞A8
N
Check color condition by input Check external ☞ A28
Check and
-External Input Screen Y device Y Screen N Screen
-Component Normal? replace Link Replace Main B/D
normal? connection normal? normal?
-RGB Cable (adjust VCOM)
condition
-HDMI/DVI
N N For LGD panel Y
Y
Replace Main B/D
Replace Request repair End End
for external
☞A12 module
device
Check Test pattern
For other panel
External device screen error-Color error
Check screen
condition by input
N -External Input External
Check S/W Version Check
-Component Input Connect other external N
version
-RGB error device and cable Screen Replace
-HDMI/DVI (Check normal operation of normal? Main B/D
Y External Input, Component,
Component RGB and HDMI/DVI by
error Y
S/W Upgrade
pg connecting Jig, pattern
Generator ,Set-top Box etc.
Request repair for
external device
RGB
Y
error Connect other external
Normal N
device and cable N
screen? (Check normal operation of Screen Replace
p
External Input, Component, normal? Main B/D
Y HDMI/ RGB and HDMI/DVI by
DVI connecting Jig, pattern
Generator ,Set-top Box etc.
End
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error B. Power error date 2013. 11 .30
LCD TV symptom
No power Revised date 6/13
☞A17
DC Power on Replace
Check Power LED Y Normal N Check Power Y
yp
by pressing
g Power Key
y OK? Power
Power LED On? operation? On ‘”High”
On Remote control B/D
. Stand-By: Red N Y
. Operating: white
Check Power cord Replace Main B/D
was inserted properly
☞A4
N Measure voltage of each output of Power B/D
Normal?
Y
Y Y
Normal
※ voltage?
Replace Main B/D
Close Normal
Check ST-BY 3.5V
Y
voltage? N
☞A18 Replace Power B/D
N
Replace Power
B/D
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error B. Power error date 2013. 11 .30
LCD TV symptom
Off when on, off while viewing, power auto on/off Revised date 7/13
Check outlet
☞A22
N Y
Ch k A/C cord
Check d E
Error?
? Check Power Off CPU End
Replace Main B/D Normal?
Mode Abnormal
N
Check for all 3- phase
power out Y Abnormal Replace Power B/D
1
Fix A/C cord & Outlet
and check each 3
(If Power Off mode is
phase out
not displayed) Normal Y
Replace Main B/D
Check Power B/D voltage?
voltage
lt
N
※ Caution
Check and fix exterior Replace Power B/D
of Power B/D Part
* Please refer to the all cases which Status Power off List Explanation
"POWEROFF_REMOTEKEY" Power off by REMOTE CONTROL
can be displayed on power off mode.
"POWEROFF_OFFTIMER" Power off by OFF TIMER
"POWEROFF_SLEEPTIMER" Power off by SLEEP TIMER
"POWEROFF_INSTOP" Power off by INSTOP KEY
"POWEROFF_AUTOOFF" Power off by AUTO OFF
Normal "POWEROFF_ONTIMER" Power off by ON TIMER
"POWEROFF_RS232C" Power off by RS232C
"POWEROFF_RESREC" Power off by Reservated Record
"POWEROFF_RECEND" Power off by End of Recording
"POWEROFF
POWEROFF_SWDOWN
SWDOWN" Power off by S/W Download
"POWEROFF_UNKNOWN" Power off by unknown status except listed case
"POWEROFF_ABNORMAL1" Power off by abnormal status except CPU trouble
Abnormal
"POWEROFF_CPUABNORMAL" Power off by CPU Abnormal
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error C. Audio error date 2013. 11 .30
LCD TV symptom
No audio/ Normal video Revised date 8/13
☞A24 ☞A25
Check user N Check audio B+ 24V Y
No audio Normal
menu > Off of Power Board
Screen normal voltage
Speaker off
Y N
Cancel OFF Replace Power Board and repair parts
Check Speaker N
Disconnection Replace MAIN Board End
disconnection
Y
Replace Speaker
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error C. Audio error date 2013. 11 .30
LCD TV symptom
Wrecked audio/ discontinuation/noise Revised date 9/13
→ abnormal audio/discontinuation/noise is same after “Check input signal” compared to No audio
☞A25
Wrecked audio/
Check and replace
Discontinuation/ Check audio
speaker and
Noise for B+ Voltage (24V)
connector
Check input all audio
signal Y Y
Signal
-RF
normal? Wrecked audio/
-External Input Normal
signal Discontinuation/
N Replace Main B/D voltage?
Noise only
for D-TV
N
Wrecked audio/
Discontinuation/
Replace Power B/D
Noise
o se o
only
y
for Analog
(When RF signal is not
received)
Request repair to external Wrecked audio/ Replace Main B/D End
cable/ANT provider Discontinuation/
Noise only
(In case of External for External Input
N
Input signal error) Connect and check Normal
Check and fix other external device audio?
external device
Y
Check and fix external device
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Error
D. General Function Problem Established
2013. 11 .30
date
LCD TV symptom
Remote control & Local switch checking Revised date 10/13
1. Remote control(R/C) operating error Replace
Main B/D
☞A27 ☞A27 ☞A27
Check & Repair N Y Y
Check R/C itself Normal Y Normal Check B+ 3
3.5V
5V Normal Check IR Normal
operating? Cable connection operating? Voltage? Signal?
Operation On Main B/D Output signal
Connector solder
N
Y N N
☞A4
Check R/C Operating Check & Replace Close Check 3.5v on Power B/D Repair/Replace
When turn off light Baterry of R/C Replace Power B/D or IR B/D
in room Replace Main B/D
(Power B/D don’t have problem)
If R/C operate, Normal
operating? Close
Explain the customer
cause is interference
from light in room. N
Replace R/C
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error D. Function error date 2013. 11 .30
LCD TV symptom
External device recognition error Revised date 11/13
Y Check technical
Check External Input and
Signal information Technical N
input Component Replace Main B/D
input? - Fix information information?
Recognition error
signal
g
- S/W Version
N Y
RGB,HDMI/
Check and fix DVI, Optical
Fix in Replace Main B/D
external device/cable Recognition error
accordance
with
ith ttechnical
h i l
information
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error E. Noise date 2013. 11 .30
LCD TV symptom
Circuit noise, mechanical noise Revised date 12/13
Replace PSU(with LED driver)
Identify Check location
Circuit OR
nose type of noise
noise
Replace LED driver
Mechanical Check location of
noise noise
※ When the nose is severe
severe, replace the module
(For models with fix information, upgrade the S/W or
provide the description)
※ Mechanical noise is a natural OR
phenomenon, and apply the 1st level ※ If there is a “Tak Tak” noise from the cabinet,
description. When the customer does not refer to the KMS fix information and then proceed
agree apply the process by stage
agree, stage. as shown in the solution manual
※ Describe the basis of the description in OR
(For models without any fix information, provide
“Part related to nose” in the Owner’s Manual. the description)
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error F. Exterior defect date 2013. 11 .30
LCD TV symptom
Exterior defect Revised date 13/13
Zoom part with Module
Replace module Adjust VCOM
exterior damage damage
☞A28
Cabinet
Replace cabinet
damage
Remote
controller Replace remote controller
damage
Stand
Replace stand
dent
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Contents of LCD TV Standard Repair Process Detail Technical Manual
Continued from p
previous page
p g
No. Error symptom Content Page Remarks
21 Check front display LED A17
22 Check power input Voltage & ST-BY 5V A18
23 B. Power error_No power Checking method when power is ON A18
24 POWER BOARD voltage measuring method A5
25
B. Power error_Off when on, off while
26 POWER OFF MODE checking method A22
viewing
B. Power error_Off when on, off while
27 POWER BOARD PIN voltage checking method A18
viewing
Checking method in menu when there is no
28 A24
audio
C. Audio error_No audio/Normal video
Voltage and speaker checking method when
29 A25
there is no audio
C. Audio error_Wrecked Voltage and speaker checking method in case of
30 A25
audio/discontinuation audio error
D. Function error_ No response in remote
31 Remote controller operation checking method A27
controller key error
controller,
32 D. VCOM Adjustment Sequence of the Vcom adjustment A28
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_No video/Normal audio date
2013. 11 .30
LCD TV Revised
Content Check White Balance value A4
date
Entry method
1. Press the ADJ button on the remote controller for adjustment.
2. Enter into White Balance of item 9.
3 Aft
3. After recording
di the
th R,
R G G, B (GAIN,
(GAIN Cut)
C t) value
l off Color
C l Temp
T (Cool/Medium/Warm),
(C l/M di /W ) re-
enter the value after replacing the MAIN BOARD.
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_No video/ Audio date
2013. 11 .30
LCD TV Revised
Content Power Board voltage
g measuring
g method A5
date
Direct LED
Check the DC 24V
24V, 12V
12V, 3
3.5V.
5V
24 Pin (Power Board ↔ Main Board) - Common
SMAW200-H24S5
1 Power on 2 INV_ON
3 3.5V 4 PDIM #1
5 3.5V 6 3.5V
7 GND 8 PDIM #2
9 24V 10 24V
11 GND 12 GND
13 12V 14 12V
15 12V 16 24V
17 GND 18 GND
19 GND 20 GND
21 GND 22 L/DIM0_VS
23 L/DIM0_MOSI 24 L/DIM0_SCLK
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_Video error, video lag/stop date
2013. 11 .30
LCD TV Revised
Content TUNER input signal strength checking method A6
date
MENU Æ Channel Æ Manual Æ select channel
When the signal is strong, use the
attenuator (-10dB, -15dB, -20dB etc.)
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_Video error, video lag/stop date
2013. 11 .30
LCD TV Revised
Content LCD-TV Version checking method A7
date
1. Checking method for remote controller for adjustment
Version
ess the
Press t e IN-START
S t the
with t e remote
e ote
controller for adjustment
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error A. Video error _Vertical/Horizontal bar, residual Established
symptom 2013. 11 .30
LCD TV image, light spot date
Revised
Content LCD TV connection diagram
g (1)
( ) A8
date
As the part connecting to the external input, check the
screen condition by signal
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom
A. Video error_Video error, video lag/stop 2013. 11 .30
LCD TV date
TUNER checking part Revised
Content A9
date
Checking method:
1 Check the signal strength or check whether the screen is normal when the external device is connected
1. connected.
2. After measuring each voltage from power supply, finally replace the MAIN BOARD.
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom
A. Video error_Color error 2013. 11 .30
LCD TV date
Adjustment Test pattern - ADJ Key Revised
Content A12
date
You can view 6 types of patterns using the ADJ Key
Checking item : 1. Defective pixel 2. Residual image 3. MODULE error (ADD-BAR,SCAN BAR..)
4.Video error (Classification of MODULE or Main-B/D!)
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Appendix : Exchange T-Con Board (1) A-1/5
Solder defect, CNT Broken Solder defect, CNT Broken Solder defect, CNT Broken
S ld d
Solder defect,
f t CNT B
Broken
k TT-Con
T-Con
TSolder
SCon
Con Defect
Defect,
Defect
Defect,
ld Defect,
T-Con d
defect,CNT
CNT
f tCNTCNTBroken
Broken
B
Broken
k
Broken Abnormal Power Section
Solder defect, Short/Crack Abnormal Power Section Solder defect, Short/Crack
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Appendix : Exchange T-Con Board (2) A-2/5
Abnormal Power Section Abnormal Power Section Solder defect, Short/Crack
Solder defect, Short/Crack Fuse Open,
p , Abnormal p
power section Abnormal Display
GRADATION Noise GRADATION
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Appendix : Exchange PSU(LED driver) A-3/5
No Light Dim Light
Dim Light Dim Light
No picture/Sound Ok
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Appendix : Exchange the Module (1) A-4/5
Panel Mura, Light leakage Panel Mura, Light leakage Press damage
Crosstalk Press damage Crosstalk
Un-repairable Cases
In this case please exchange the module.
Press damage
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Appendix : Exchange the Module (2) A-5/5
Vertical Block Vertical Line Vertical Block
Source TAB IC Defect Source TAB IC Defect Source TAB IC Defect
Horizontal Block Horizontal Block Horizontal line
Gate TAB IC Defect Gate TAB IC Defect
Gate TAB IC Defect Gate TAB IC Defect Gate TAB IC Defect
Un-repairable Cases
In this case please exchange the module.
Horizontal Block
Gate TAB IC Defect
Gate TAB IC Defect
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom B. Power error _No power date
2013. 11 .30
LCD TV Revised
Content Check front display
p y LED A17
date
ST-BY condition: On
Power ON condition: Off
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom B. Power error _No power date
2013. 11 .30
LCD TV Revised
Content Check power input voltage and ST-BY 3.5V A18
date
Checking method when power is ON
When st-by, only 3.5V is normally on.
Direct LED
Check the DC 24V, 12V, 3.5V.
24 Pin (Power Board ↔ Main Board) - Common
SMAW200-H24S5
1 Power on 2 INV_ON
3 3.5V 4 PDIM #1
5 3.5V 6 3.5V
7 GND 8 PDIM #2
9 24V 10 24V
11 GND 12 GND
13 12V 14 12V
15 12V 16 24V
17 GND 18 GND
19 GND 20 GND
21 GND 22 L/DIM0_VS
23 L/DIM0_MOSI 24 L/DIM0_SCLK
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom B. Power error _Off when on, off whiling viewing date
2013. 11 .30
LCD TV Revised
Content POWER OFF MODE checking
g method A22
date
Entry method
1. Press the IN-START button of the remote controller
for adjustment
2. Check the entry into adjustment item 3
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom C. Audio error_No audio/Normal video 2013. 11 .30
LCD TV date
Revised
Content Checking
g method in menu when there is no audio A24
date
Checking method
1. Press the MENU button on the remote controller
2 Select the AUDIO function of the Menu
2.
3. Select TV Speaker Or Other
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom C. Audio error_No audio/Normal video date
2013. 11 .30
LCD TV Revised
Content Voltage and speaker checking method A25
when there is no audio date
24 Pin (Power Board ↔ Main Board) - 공통
①
SMAW200-H24S5
1 Power on 2 INV ON
INV_ON
3 3.5V 4 PDIM #1
5 3.5V 6 3.5V
7 GND 8 PDIM #2
②
9 24V 10 24V
11 GND 12 GND
13 12V 14 12V
15 12V 16 24V
17 GND 18 GND
19 GND 20 GND
21 GND 22 L/DIM0_VS
23 L/DIM0_MOSI 24 L/DIM0_SCLK
③
Checking order when there is no audio
① Check the contact condition of or 24V connector of Main Board
② Measure the 24V input voltage supplied from Power Board
(If there is no input voltage, remove and check the connector)
③ Connect the tester RX1 to the speaker terminal and if you hear the “Chik Chik” sound when you touch the GND
and output terminal, the speaker is normal.
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error D. Function error_ No response in remote controller, Established
symptom 2013. 11 .30
LCD TV key error date
Revised
Content Remote controller operation checking method A27
date
P4000
1 GND
2 3 5V WOL
3.5V_WOL
3 BT_RESET
4 USB_DM
5 NC
6 USB_DP
7 WOL
8 GND
9 EYE_SDA
10 GND
11 EYE_SCL
12 KEY1
① 13 GND
14 KEY2
② ④ 15 IR
③ 16 3.5V_ST
17 LED_R
18 GND
Checking order
1, 2. Check IR cable condition between IR & Main board.
3. Check the st-by 3.5V on the terminal 16.
4. When checking the Pre-Amp when the power is in ON condition, it is normal when the Analog
Tester needle moves slowly, and defective when it does not move at all.
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom D. VCOM Adjustment date
2013. 11 .30
LCD TV Revised
Content Sequence
q of the Vcom adjustment
j A28
date
1. Case
■ LCD module change
■ T-Con board change
2. Equipment
■ Service Remote controller
3. Adjust sequence
■ Press the ‘adj’ key
■ select V-COM
■ As pushing the right or the left button on the remote controller, And find the V-COM
V COM value Which is no or
minimized the Flicker.
(If there is no flicker at default value, Press the exit key and finish the VCOM adjustment.)
■ Push the OK key to store the value. Then the message “Saving OK” is pop.
■ Press the exit key to finish V-COM adjustment.
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
