LED TV
SERVICE MANUAL
CHASSIS : LD55T
MODEL : 49LF550V 49LF550V-ZA
49LF551C 49LF551C-ZA
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
P/NO : MFL68646109 (1503-REV00) Printed in Korea

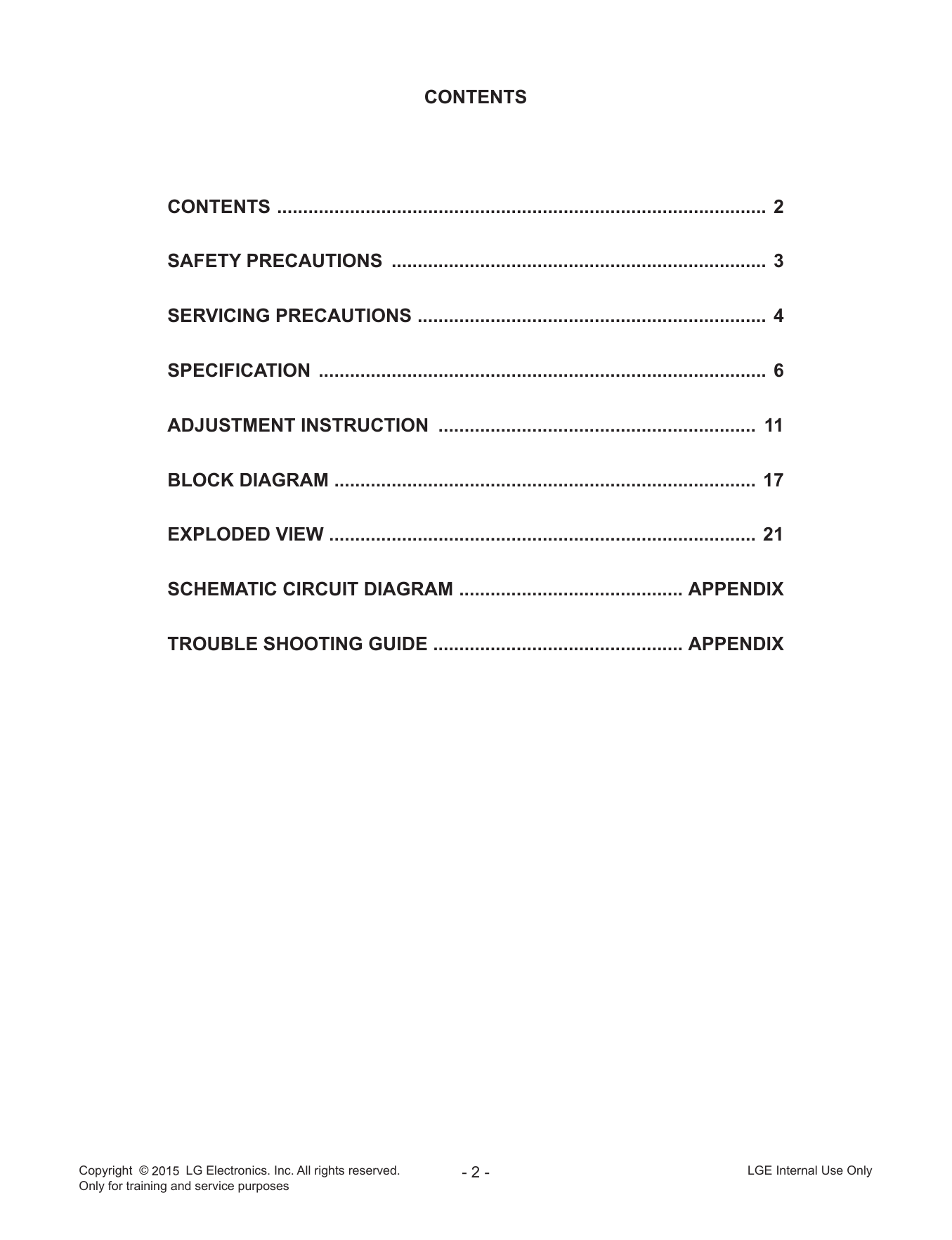

CONTENTS
CONTENTS ............................................................................................... 2
SAFETY PRECAUTIONS ......................................................................... 3
SERVICING PRECAUTIONS .................................................................... 4
SPECIFICATION ....................................................................................... 6
ADJUSTMENT INSTRUCTION .............................................................. 11
BLOCK DIAGRAM .................................................................................. 17
EXPLODED VIEW ................................................................................... 21
SCHEMATIC CIRCUIT DIAGRAM ............................................ APPENDIX
TROUBLE SHOOTING GUIDE ................................................. APPENDIX
Copyright © LG Electronics. Inc. All rights reserved. -2- LGE Internal Use Only
Only for training and service purposes
SAFETY PRECAUTIONS
IMPORTANT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC Do not use a line Isolation Transformer during this check.
power line. Use a transformer of adequate power rating as this Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
protects the technician from accidents resulting in personal injury between a known good earth ground (Water Pipe, Conduit, etc.)
from electrical shocks. and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
It will also protect the receiver and it's components from being with 1000 ohms/volt or more sensitivity.
damaged by accidental shorts of the circuitry that may be Reverse plug the AC cord into the AC outlet and repeat AC voltage
inadvertently introduced during the service operation. measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
If any fuse (or Fusible Resistor) in this TV receiver is blown, 0.5 mA.
replace it with the specified. In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
When replacing a high wattage resistor (Oxide Metal Film Resistor, repaired before it is returned to the customer.
over 1 W), keep the resistor 10 mm away from PCB.
Leakage Current Hot Check circuit
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
Always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Copyright © LG Electronics. Inc. All rights reserved. -3- LGE Internal Use Only
Only for training and service purposes
SERVICING PRECAUTIONS
CAUTION: Before servicing receivers covered by this service 2. After removing an electrical assembly equipped with ES
manual and its supplements and addenda, read and follow the devices, place the assembly on a conductive surface such as
SAFETY PRECAUTIONS on page 3 of this publication. aluminum foil, to prevent electrostatic charge buildup or expo-
NOTE: If unforeseen circumstances create conflict between the sure of the assembly.
following servicing precautions and any of the safety precautions 3. Use only a grounded-tip soldering iron to solder or unsolder
on page 3 of this publication, always follow the safety precau- ES devices.
tions. Remember: Safety First. 4. Use only an anti-static type solder removal device. Some sol-
der removal devices not classified as “anti-static” can generate
General Servicing Precautions electrical charges sufficient to damage ES devices.
1. Always unplug the receiver AC power cord from the AC power 5. Do not use freon-propelled chemicals. These can generate
source before; electrical charges sufficient to damage ES devices.
a. Removing or reinstalling any component, circuit board 6. Do not remove a replacement ES device from its protective
module or any other receiver assembly. package until immediately before you are ready to install it.
b. Disconnecting or reconnecting any receiver electrical plug (Most replacement ES devices are packaged with leads elec-
or other electrical connection. trically shorted together by conductive foam, aluminum foil or
c. Connecting a test substitute in parallel with an electrolytic comparable conductive material).
capacitor in the receiver. 7. Immediately before removing the protective material from the
CAUTION: A wrong part substitution or incorrect polarity leads of a replacement ES device, touch the protective mate-
installation of electrolytic capacitors may result in an explo- rial to the chassis or circuit assembly into which the device will
sion hazard. be installed.
2. Test high voltage only by measuring it with an appropriate CAUTION: Be sure no power is applied to the chassis or cir-
high voltage meter or other voltage measuring device (DVM, cuit, and observe all other safety precautions.
FETVOM, etc) equipped with a suitable high voltage probe. 8. Minimize bodily motions when handling unpackaged replace-
Do not test high voltage by "drawing an arc". ment ES devices. (Otherwise harmless motion such as the
3. Do not spray chemicals on or near this receiver or any of its brushing together of your clothes fabric or the lifting of your
assemblies. foot from a carpeted floor can generate static electricity suf-
4. Unless specified otherwise in this service manual, clean ficient to damage an ES device.)
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable General Soldering Guidelines
non-abrasive applicator; 10 % (by volume) Acetone and 90 % 1. Use a grounded-tip, low-wattage soldering iron and appropri-
(by volume) isopropyl alcohol (90 % - 99 % strength) ate tip size and shape that will maintain tip temperature within
CAUTION: This is a flammable mixture. the range or 500 °F to 600 °F.
Unless specified otherwise in this service manual, lubrication 2. Use an appropriate gauge of RMA resin-core solder composed
of contacts in not required. of 60 parts tin/40 parts lead.
5. Do not defeat any plug/socket B+ voltage interlocks with which 3. Keep the soldering iron tip clean and well tinned.
receivers covered by this service manual might be equipped. 4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
6. Do not apply AC power to this instrument and/or any of its bristle (0.5 inch, or 1.25 cm) brush with a metal handle.
electrical assemblies unless all solid-state device heat sinks Do not use freon-propelled spray-on cleaners.
are correctly installed. 5. Use the following unsoldering technique
7. Always connect the test receiver ground lead to the receiver a. Allow the soldering iron tip to reach normal temperature.
chassis ground before connecting the test receiver positive (500 °F to 600 °F)
lead. b. Heat the component lead until the solder melts.
Always remove the test receiver ground lead last. c. Quickly draw the melted solder with an anti-static, suction-
8. Use with this receiver only the test fixtures specified in this type solder removal device or with solder braid.
service manual. CAUTION: Work quickly to avoid overheating the circuit
CAUTION: Do not connect the test fixture ground strap to any board printed foil.
heat sink in this receiver. 6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
Electrostatically Sensitive (ES) Devices (500 °F to 600 °F)
Some semiconductor (solid-state) devices can be damaged eas- b. First, hold the soldering iron tip and solder the strand
ily by static electricity. Such components commonly are called against the component lead until the solder melts.
Electrostatically Sensitive (ES) Devices. Examples of typical ES c. Quickly move the soldering iron tip to the junction of the
devices are integrated circuits and some field-effect transistors component lead and the printed circuit foil, and hold it there
and semiconductor “chip” components. The following techniques only until the solder flows onto and around both the compo-
should be used to help reduce the incidence of component dam- nent lead and the foil.
age caused by static by static electricity. CAUTION: Work quickly to avoid overheating the circuit
1. Immediately before handling any semiconductor component or board printed foil.
semiconductor-equipped assembly, drain off any electrostatic d. Closely inspect the solder area and remove any excess or
charge on your body by touching a known earth ground. Alter- splashed solder with a small wire-bristle brush.
natively, obtain and wear a commercially available discharg-
ing wrist strap device, which should be removed to prevent
potential shock reasons prior to applying power to the unit
under test.
Copyright © LG Electronics. Inc. All rights reserved. -4- LGE Internal Use Only
Only for training and service purposes
IC Remove/Replacement 3. Solder the connections.
Some chassis circuit boards have slotted holes (oblong) through CAUTION: Maintain original spacing between the replaced
which the IC leads are inserted and then bent flat against the cir- component and adjacent components and the circuit board to
cuit foil. When holes are the slotted type, the following technique prevent excessive component temperatures.
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique Circuit Board Foil Repair
as outlined in paragraphs 5 and 6 above. Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
Removal board causing the foil to separate from or "lift-off" the board. The
1. Desolder and straighten each IC lead in one operation by following guidelines and procedures should be followed when-
gently prying up on the lead with the soldering iron tip as the ever this condition is encountered.
solder melts.
2. Draw away the melted solder with an anti-static suction-type At IC Connections
solder removal device (or with solder braid) before removing To repair a defective copper pattern at IC connections use the
the IC. following procedure to install a jumper wire on the copper pattern
Replacement side of the circuit board. (Use this technique only on IC connec-
1. Carefully insert the replacement IC in the circuit board. tions).
2. Carefully bend each IC lead against the circuit foil pad and
solder it. 1. Carefully remove the damaged copper pattern with a sharp
3. Clean the soldered areas with a small wire-bristle brush. knife. (Remove only as much copper as absolutely necessary).
(It is not necessary to reapply acrylic coating to the areas). 2. Carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
"Small-Signal" Discrete Transistor 3. Bend a small "U" in one end of a small gauge jumper wire and
Removal/Replacement carefully crimp it around the IC pin. Solder the IC connection.
1. Remove the defective transistor by clipping its leads as close 4. Route the jumper wire along the path of the out-away copper
as possible to the component body. pattern and let it overlap the previously scraped end of the
2. Bend into a "U" shape the end of each of three leads remain- good copper pattern. Solder the overlapped area and clip off
ing on the circuit board. any excess jumper wire.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding At Other Connections
leads extending from the circuit board and crimp the "U" with Use the following technique to repair the defective copper pattern
long nose pliers to insure metal to metal contact then solder at connections other than IC Pins. This technique involves the
each connection. installation of a jumper wire on the component side of the circuit
board.
Power Output, Transistor Device
Removal/Replacement 1. Remove the defective copper pattern with a sharp knife.
1. Heat and remove all solder from around the transistor leads. Remove at least 1/4 inch of copper, to ensure that a hazardous
2. Remove the heat sink mounting screw (if so equipped). condition will not exist if the jumper wire opens.
3. Carefully remove the transistor from the heat sink of the circuit 2. Trace along the copper pattern from both sides of the pattern
board. break and locate the nearest component that is directly con-
4. Insert new transistor in the circuit board. nected to the affected copper pattern.
5. Solder each transistor lead, and clip off excess lead. 3. Connect insulated 20-gauge jumper wire from the lead of the
6. Replace heat sink. nearest component on one side of the pattern break to the
lead of the nearest component on the other side.
Diode Removal/Replacement Carefully crimp and solder the connections.
1. Remove defective diode by clipping its leads as close as pos- CAUTION: Be sure the insulated jumper wire is dressed so the
sible to diode body. it does not touch components or sharp edges.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and
if necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
Copyright © LG Electronics. Inc. All rights reserved. -5- LGE Internal Use Only
Only for training and service purposes

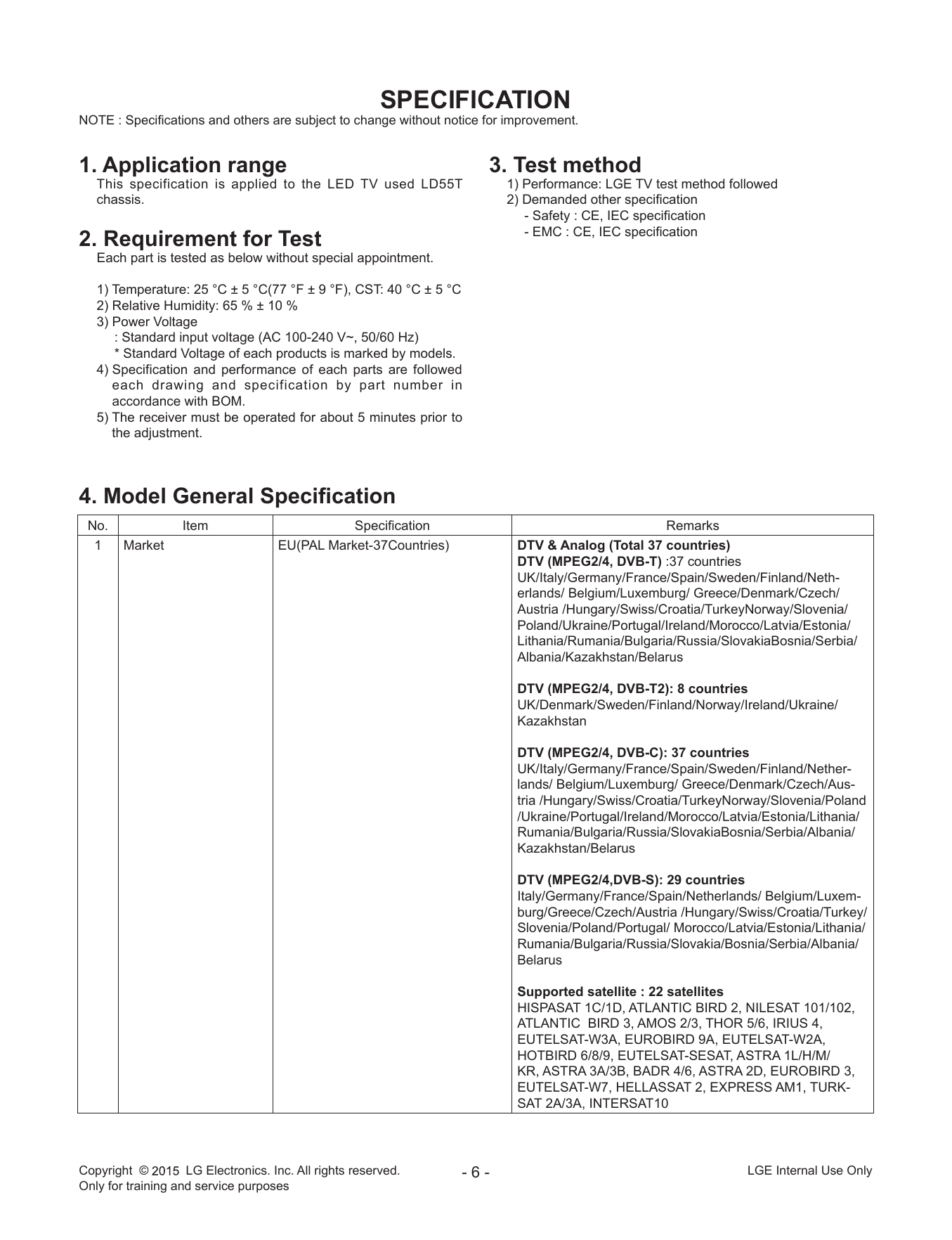

SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement.
1. Application range 3. Test method
This specification is applied to the LED TV used LD55T 1) Performance: LGE TV test method followed
chassis. 2) Demanded other specification
- Safety : CE, IEC specification
- EMC : CE, IEC specification
2. Requirement for Test
Each part is tested as below without special appointment.
1) Temperature: 25 °C ± 5 °C(77 °F ± 9 °F), CST: 40 °C ± 5 °C
2) Relative Humidity: 65 % ± 10 %
3) Power Voltage
: Standard input voltage (AC 100-240 V~, 50/60 Hz)
* Standard Voltage of each products is marked by models.
4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
5) The receiver must be operated for about 5 minutes prior to
the adjustment.
4. Model General Specification
No. Item Specification Remarks
1 Market EU(PAL Market-37Countries) DTV & Analog (Total 37 countries)
DTV (MPEG2/4, DVB-T) :37 countries
UK/Italy/Germany/France/Spain/Sweden/Finland/Neth-
erlands/ Belgium/Luxemburg/ Greece/Denmark/Czech/
Austria /Hungary/Swiss/Croatia/TurkeyNorway/Slovenia/
Poland/Ukraine/Portugal/Ireland/Morocco/Latvia/Estonia/
Lithania/Rumania/Bulgaria/Russia/SlovakiaBosnia/Serbia/
Albania/Kazakhstan/Belarus
DTV (MPEG2/4, DVB-T2): 8 countries
UK/Denmark/Sweden/Finland/Norway/Ireland/Ukraine/
Kazakhstan
DTV (MPEG2/4, DVB-C): 37 countries
UK/Italy/Germany/France/Spain/Sweden/Finland/Nether-
lands/ Belgium/Luxemburg/ Greece/Denmark/Czech/Aus-
tria /Hungary/Swiss/Croatia/TurkeyNorway/Slovenia/Poland
/Ukraine/Portugal/Ireland/Morocco/Latvia/Estonia/Lithania/
Rumania/Bulgaria/Russia/SlovakiaBosnia/Serbia/Albania/
Kazakhstan/Belarus
DTV (MPEG2/4,DVB-S): 29 countries
Italy/Germany/France/Spain/Netherlands/ Belgium/Luxem-
burg/Greece/Czech/Austria /Hungary/Swiss/Croatia/Turkey/
Slovenia/Poland/Portugal/ Morocco/Latvia/Estonia/Lithania/
Rumania/Bulgaria/Russia/Slovakia/Bosnia/Serbia/Albania/
Belarus
Supported satellite : 22 satellites
HISPASAT 1C/1D, ATLANTIC BIRD 2, NILESAT 101/102,
ATLANTIC BIRD 3, AMOS 2/3, THOR 5/6, IRIUS 4,
EUTELSAT-W3A, EUROBIRD 9A, EUTELSAT-W2A,
HOTBIRD 6/8/9, EUTELSAT-SESAT, ASTRA 1L/H/M/
KR, ASTRA 3A/3B, BADR 4/6, ASTRA 2D, EUROBIRD 3,
EUTELSAT-W7, HELLASSAT 2, EXPRESS AM1, TURK-
SAT 2A/3A, INTERSAT10
Copyright © LG Electronics. Inc. All rights reserved. -6- LGE Internal Use Only
Only for training and service purposes

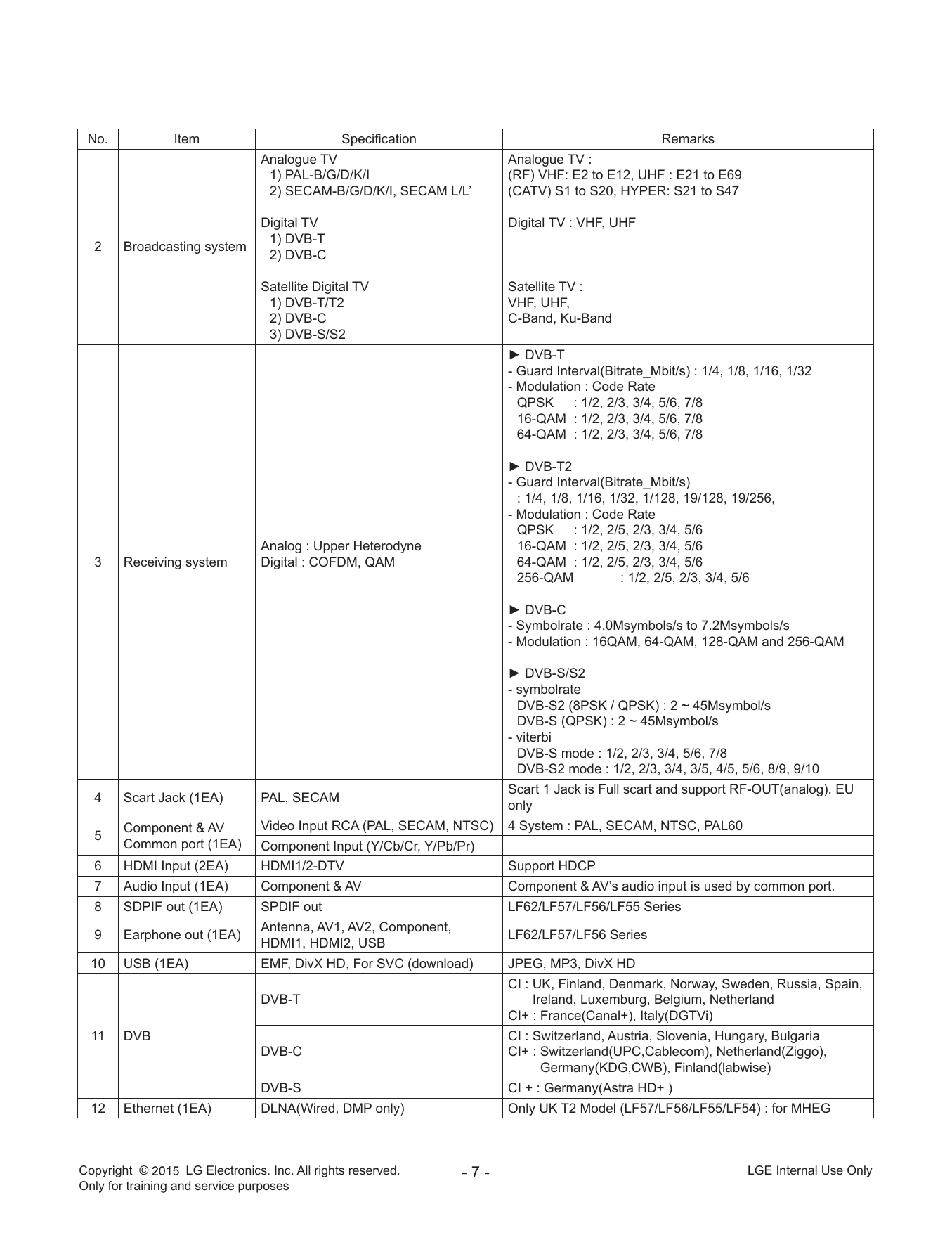

No. Item Specification Remarks
Analogue TV Analogue TV :
1) PAL-B/G/D/K/I (RF) VHF: E2 to E12, UHF : E21 to E69
2) SECAM-B/G/D/K/I, SECAM L/L’ (CATV) S1 to S20, HYPER: S21 to S47
Digital TV Digital TV : VHF, UHF
1) DVB-T
2 Broadcasting system
2) DVB-C
Satellite Digital TV Satellite TV :
1) DVB-T/T2 VHF, UHF,
2) DVB-C C-Band, Ku-Band
3) DVB-S/S2
► DVB-T
- Guard Interval(Bitrate_Mbit/s) : 1/4, 1/8, 1/16, 1/32
- Modulation : Code Rate
QPSK : 1/2, 2/3, 3/4, 5/6, 7/8
16-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
64-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
► DVB-T2
- Guard Interval(Bitrate_Mbit/s)
: 1/4, 1/8, 1/16, 1/32, 1/128, 19/128, 19/256,
- Modulation : Code Rate
QPSK : 1/2, 2/5, 2/3, 3/4, 5/6
Analog : Upper Heterodyne 16-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
3 Receiving system Digital : COFDM, QAM 64-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
256-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
► DVB-C
- Symbolrate : 4.0Msymbols/s to 7.2Msymbols/s
- Modulation : 16QAM, 64-QAM, 128-QAM and 256-QAM
► DVB-S/S2
- symbolrate
DVB-S2 (8PSK / QPSK) : 2 ~ 45Msymbol/s
DVB-S (QPSK) : 2 ~ 45Msymbol/s
- viterbi
DVB-S mode : 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2 mode : 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10
Scart 1 Jack is Full scart and support RF-OUT(analog). EU
4 Scart Jack (1EA) PAL, SECAM
only
Component & AV Video Input RCA (PAL, SECAM, NTSC) 4 System : PAL, SECAM, NTSC, PAL60
5
Common port (1EA) Component Input (Y/Cb/Cr, Y/Pb/Pr)
6 HDMI Input (2EA) HDMI1/2-DTV Support HDCP
7 Audio Input (1EA) Component & AV Component & AV’s audio input is used by common port.
8 SDPIF out (1EA) SPDIF out LF62/LF57/LF56/LF55 Series
Antenna, AV1, AV2, Component,
9 Earphone out (1EA) LF62/LF57/LF56 Series
HDMI1, HDMI2, USB
10 USB (1EA) EMF, DivX HD, For SVC (download) JPEG, MP3, DivX HD
CI : U
K, Finland, Denmark, Norway, Sweden, Russia, Spain,
DVB-T Ireland, Luxemburg, Belgium, Netherland
CI+ : France(Canal+), Italy(DGTVi)
11 DVB CI : Switzerland, Austria, Slovenia, Hungary, Bulgaria
DVB-C CI+ : S
witzerland(UPC,Cablecom), Netherland(Ziggo),
Germany(KDG,CWB), Finland(labwise)
DVB-S CI + : Germany(Astra HD+ )
12 Ethernet (1EA) DLNA(Wired, DMP only) Only UK T2 Model (LF57/LF56/LF55/LF54) : for MHEG
Copyright © LG Electronics. Inc. All rights reserved. -7- LGE Internal Use Only
Only for training and service purposes

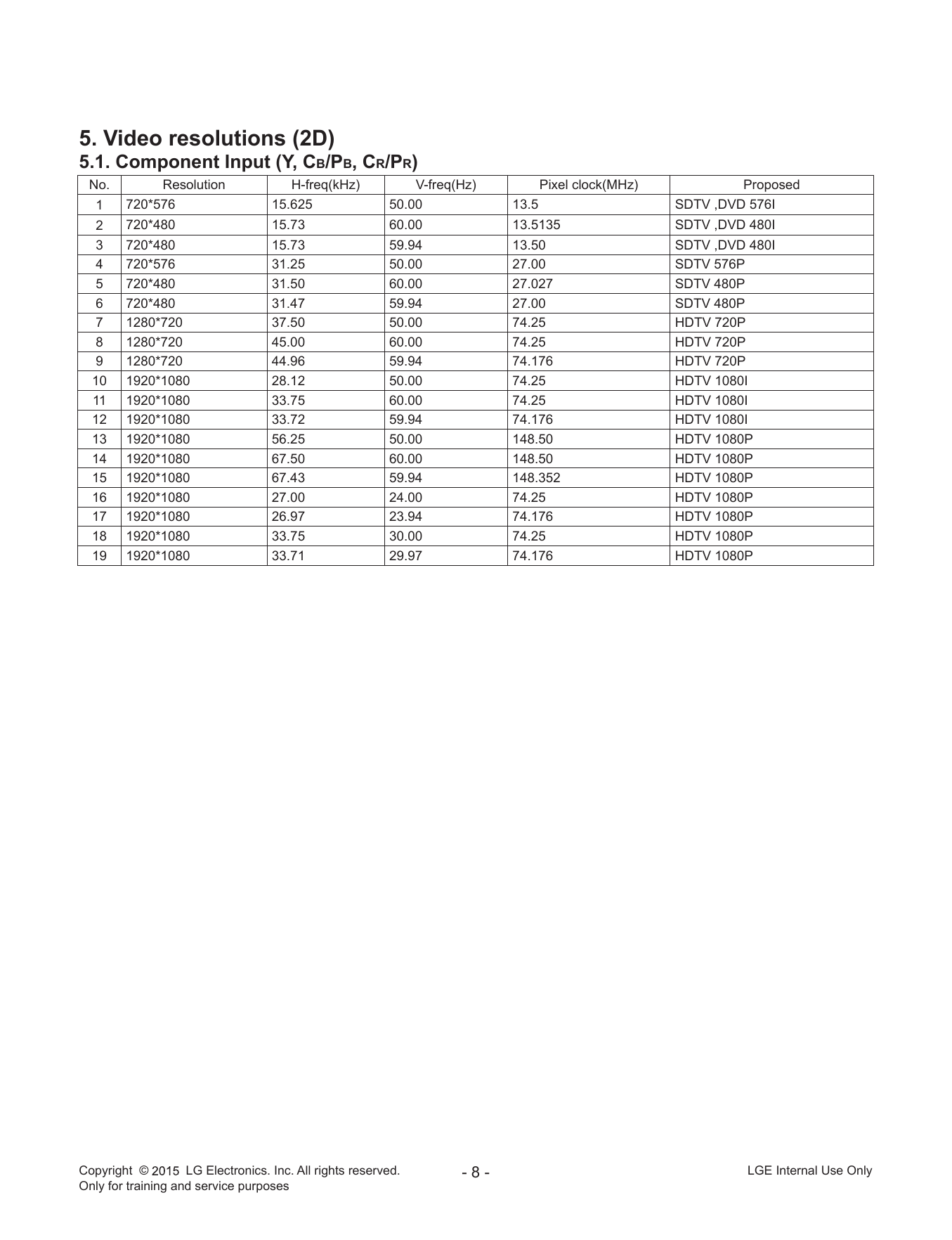

5. Video resolutions (2D)
5.1. Component Input (Y, CB/PB, CR/PR)
No. Resolution H-freq(kHz) V-freq(Hz) Pixel clock(MHz) Proposed
1 720*576 15.625 50.00 13.5 SDTV ,DVD 576I
2 720*480 15.73 60.00 13.5135 SDTV ,DVD 480I
3 720*480 15.73 59.94 13.50 SDTV ,DVD 480I
4 720*576 31.25 50.00 27.00 SDTV 576P
5 720*480 31.50 60.00 27.027 SDTV 480P
6 720*480 31.47 59.94 27.00 SDTV 480P
7 1280*720 37.50 50.00 74.25 HDTV 720P
8 1280*720 45.00 60.00 74.25 HDTV 720P
9 1280*720 44.96 59.94 74.176 HDTV 720P
10 1920*1080 28.12 50.00 74.25 HDTV 1080I
11 1920*1080 33.75 60.00 74.25 HDTV 1080I
12 1920*1080 33.72 59.94 74.176 HDTV 1080I
13 1920*1080 56.25 50.00 148.50 HDTV 1080P
14 1920*1080 67.50 60.00 148.50 HDTV 1080P
15 1920*1080 67.43 59.94 148.352 HDTV 1080P
16 1920*1080 27.00 24.00 74.25 HDTV 1080P
17 1920*1080 26.97 23.94 74.176 HDTV 1080P
18 1920*1080 33.75 30.00 74.25 HDTV 1080P
19 1920*1080 33.71 29.97 74.176 HDTV 1080P
Copyright © LG Electronics. Inc. All rights reserved. -8- LGE Internal Use Only
Only for training and service purposes

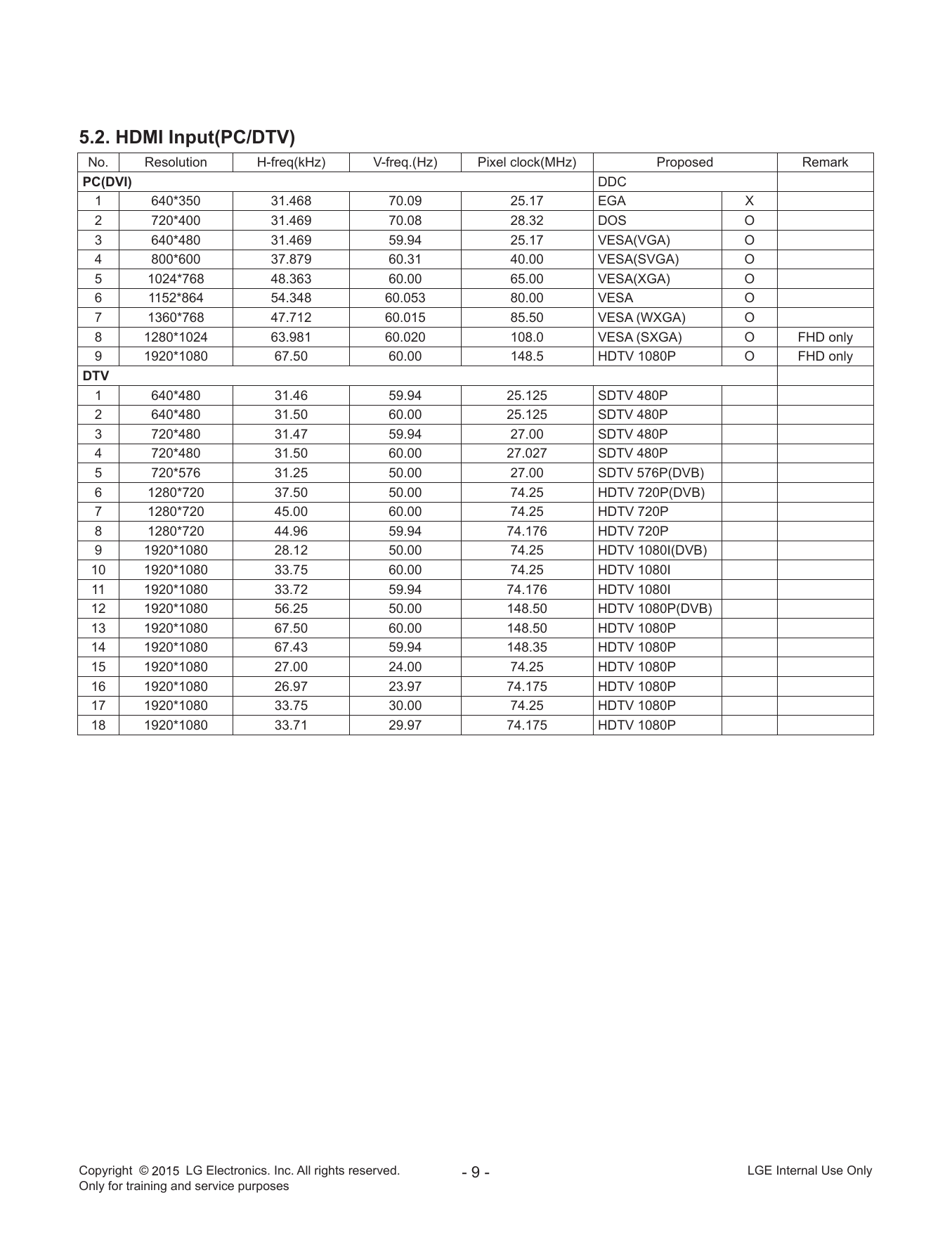

5.2. HDMI Input(PC/DTV)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark
PC(DVI) DDC
1 640*350 31.468 70.09 25.17 EGA X
2 720*400 31.469 70.08 28.32 DOS O
3 640*480 31.469 59.94 25.17 VESA(VGA) O
4 800*600 37.879 60.31 40.00 VESA(SVGA) O
5 1024*768 48.363 60.00 65.00 VESA(XGA) O
6 1152*864 54.348 60.053 80.00 VESA O
7 1360*768 47.712 60.015 85.50 VESA (WXGA) O
8 1280*1024 63.981 60.020 108.0 VESA (SXGA) O FHD only
9 1920*1080 67.50 60.00 148.5 HDTV 1080P O FHD only
DTV
1 640*480 31.46 59.94 25.125 SDTV 480P
2 640*480 31.50 60.00 25.125 SDTV 480P
3 720*480 31.47 59.94 27.00 SDTV 480P
4 720*480 31.50 60.00 27.027 SDTV 480P
5 720*576 31.25 50.00 27.00 SDTV 576P(DVB)
6 1280*720 37.50 50.00 74.25 HDTV 720P(DVB)
7 1280*720 45.00 60.00 74.25 HDTV 720P
8 1280*720 44.96 59.94 74.176 HDTV 720P
9 1920*1080 28.12 50.00 74.25 HDTV 1080I(DVB)
10 1920*1080 33.75 60.00 74.25 HDTV 1080I
11 1920*1080 33.72 59.94 74.176 HDTV 1080I
12 1920*1080 56.25 50.00 148.50 HDTV 1080P(DVB)
13 1920*1080 67.50 60.00 148.50 HDTV 1080P
14 1920*1080 67.43 59.94 148.35 HDTV 1080P
15 1920*1080 27.00 24.00 74.25 HDTV 1080P
16 1920*1080 26.97 23.97 74.175 HDTV 1080P
17 1920*1080 33.75 30.00 74.25 HDTV 1080P
18 1920*1080 33.71 29.97 74.175 HDTV 1080P
Copyright © LG Electronics. Inc. All rights reserved. -9- LGE Internal Use Only
Only for training and service purposes

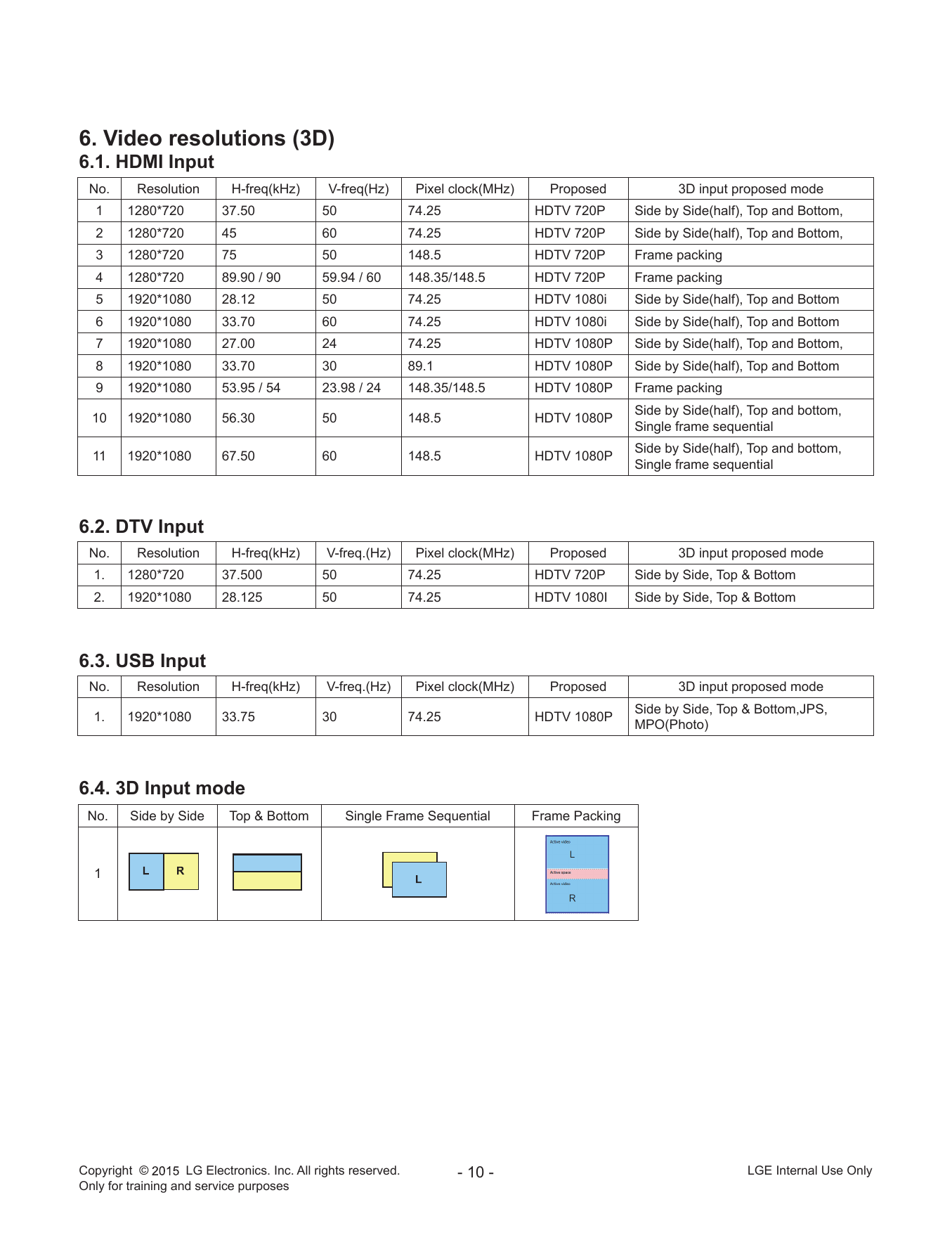

6. Video resolutions (3D)
6.1. HDMI Input
No. Resolution H-freq(kHz) V-freq(Hz) Pixel clock(MHz) Proposed 3D input proposed mode
1 1280*720 37.50 50 74.25 HDTV 720P Side by Side(half), Top and Bottom,
2 1280*720 45 60 74.25 HDTV 720P Side by Side(half), Top and Bottom,
3 1280*720 75 50 148.5 HDTV 720P Frame packing
4 1280*720 89.90 / 90 59.94 / 60 148.35/148.5 HDTV 720P Frame packing
5 1920*1080 28.12 50 74.25 HDTV 1080i Side by Side(half), Top and Bottom
6 1920*1080 33.70 60 74.25 HDTV 1080i Side by Side(half), Top and Bottom
7 1920*1080 27.00 24 74.25 HDTV 1080P Side by Side(half), Top and Bottom,
8 1920*1080 33.70 30 89.1 HDTV 1080P Side by Side(half), Top and Bottom
9 1920*1080 53.95 / 54 23.98 / 24 148.35/148.5 HDTV 1080P Frame packing
Side by Side(half), Top and bottom,
10 1920*1080 56.30 50 148.5 HDTV 1080P
Single frame sequential
Side by Side(half), Top and bottom,
11 1920*1080 67.50 60 148.5 HDTV 1080P
Single frame sequential
6.2. DTV Input
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode
1. 1280*720 37.500 50 74.25 HDTV 720P Side by Side, Top & Bottom
2. 1920*1080 28.125 50 74.25 HDTV 1080I Side by Side, Top & Bottom
6.3. USB Input
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode
Side by Side, Top & Bottom,JPS,
1. 1920*1080 33.75 30 74.25 HDTV 1080P
MPO(Photo)
6.4. 3D Input mode
No. Side by Side Top & Bottom Single Frame Sequential Frame Packing
1
Copyright © LG Electronics. Inc. All rights reserved. - 10 - LGE Internal Use Only
Only for training and service purposes

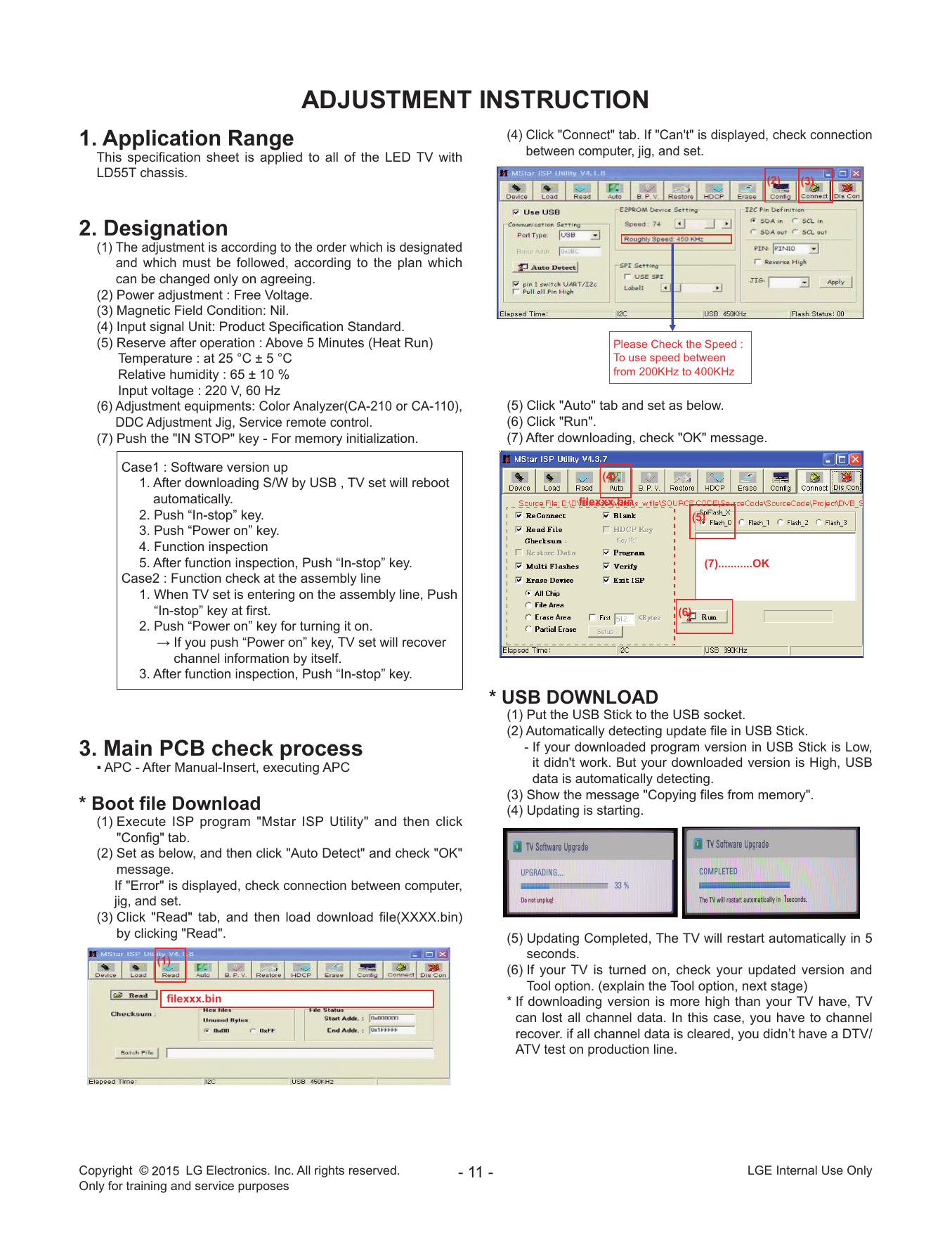

ADJUSTMENT INSTRUCTION
1. Application Range (4) Click "Connect" tab. If "Can't" is displayed, check connection
between computer, jig, and set.
This specification sheet is applied to all of the LED TV with
LD55T chassis.
(2) (3)
2. Designation
(1) The adjustment is according to the order which is designated
and which must be followed, according to the plan which
can be changed only on agreeing.
(2) Power adjustment : Free Voltage.
(3) Magnetic Field Condition: Nil.
(4) Input signal Unit: Product Specification Standard.
(5) Reserve after operation : Above 5 Minutes (Heat Run) Please Check the Speed :
Temperature : at 25 °C ± 5 °C To use speed between
Relative humidity : 65 ± 10 % from 200KHz to 400KHz
Input voltage : 220 V, 60 Hz
(6) Adjustment equipments: Color Analyzer(CA-210 or CA-110), (5) Click "Auto" tab and set as below.
DDC Adjustment Jig, Service remote control. (6) Click "Run".
(7) Push the "IN STOP" key - For memory initialization. (7) After downloading, check "OK" message.
Case1 : Software version up
(4)
1. After downloading S/W by USB , TV set will reboot
automatically. filexxx.bin
2. Push “In-stop” key. (5)
3. Push “Power on” key.
4. Function inspection
5. After function inspection, Push “In-stop” key. (7)...........OK
Case2 : Function check at the assembly line
1. When TV set is entering on the assembly line, Push
“In-stop” key at first. (6)
2. Push “Power on” key for turning it on.
→ If you push “Power on” key, TV set will recover
channel information by itself.
3. After function inspection, Push “In-stop” key.
* USB DOWNLOAD
(1) Put the USB Stick to the USB socket.
(2) Automatically detecting update file in USB Stick.
3. Main PCB check process - If your downloaded program version in USB Stick is Low,
▪ APC - After Manual-Insert, executing APC it didn't work. But your downloaded version is High, USB
data is automatically detecting.
(3) Show the message "Copying files from memory".
* Boot file Download (4) Updating is starting.
(1) Execute ISP program "Mstar ISP Utility" and then click
"Config" tab.
(2) Set as below, and then click "Auto Detect" and check "OK"
message.
If "Error" is displayed, check connection between computer,
jig, and set.
(3) Click "Read" tab, and then load download file(XXXX.bin)
by clicking "Read". (5) Updating Completed, The TV will restart automatically in 5
(1)
seconds.
(6) If your TV is turned on, check your updated version and
Tool option. (explain the Tool option, next stage)
filexxx.bin * If downloading version is more high than your TV have, TV
can lost all channel data. In this case, you have to channel
recover. if all channel data is cleared, you didn’t have a DTV/
ATV test on production line.
Copyright © LG Electronics. Inc. All rights reserved. - 11 - LGE Internal Use Only
Only for training and service purposes

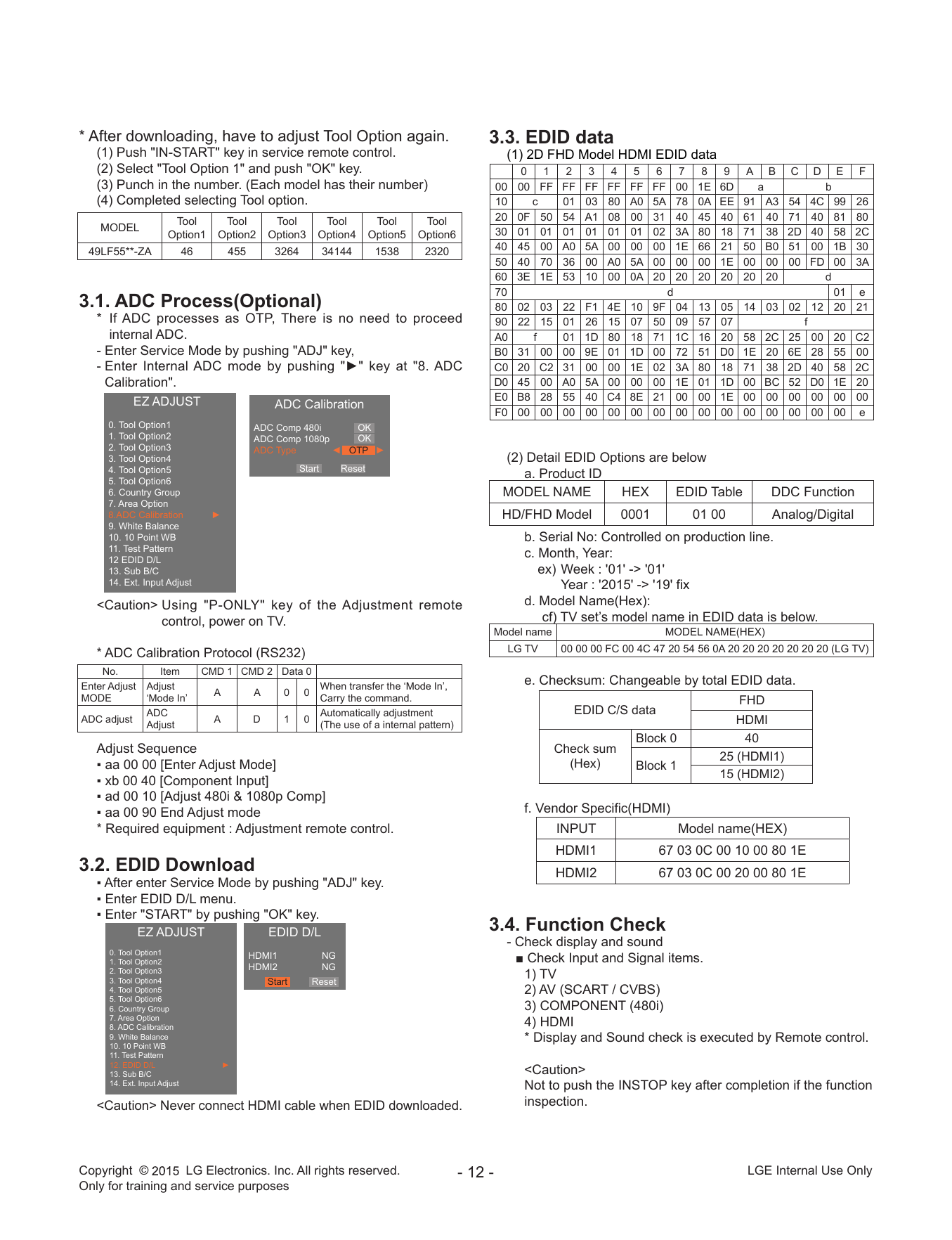

* After downloading, have to adjust Tool Option again. 3.3. EDID data
(1) Push "IN-START" key in service remote control. (1) 2D FHD Model HDMI EDID data
(2) Select "Tool Option 1" and push "OK" key. 0 1 2 3 4 5 6 7 8 9 A B C D E F
(3) Punch in the number. (Each model has their number) 00 00 FF FF FF FF FF FF 00 1E 6D a b
(4) Completed selecting Tool option. 10 c 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
Tool Tool Tool Tool Tool Tool 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
MODEL 30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
Option1 Option2 Option3 Option4 Option5 Option6
49LF55**-ZA 46 455 3264 34144 1538 2320 40 45 00 A0 5A 00 00 00 1E 66 21 50 B0 51 00 1B 30
50 40 70 36 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 53 10 00 0A 20 20 20 20 20 20 d
70 d 01 e
3.1. ADC Process(Optional) 80 02 03 22 F1 4E 10 9F 04 13 05 14 03 02 12 20 21
* If ADC processes as OTP, There is no need to proceed 90 22 15 01 26 15 07 50 09 57 07 f
internal ADC. A0 f 01 1D 80 18 71 1C 16 20 58 2C 25 00 20 C2
- Enter Service Mode by pushing "ADJ" key, B0 31 00 00 9E 01 1D 00 72 51 D0 1E 20 6E 28 55 00
- Enter Internal ADC mode by pushing "►" key at "8. ADC C0 20 C2 31 00 00 1E 02 3A 80 18 71 38 2D 40 58 2C
Calibration". D0 45 00 A0 5A 00 00 00 1E 01 1D 00 BC 52 D0 1E 20
EZ ADJUST E0 B8 28 55 40 C4 8E 21 00 00 1E 00 00 00 00 00 00
ADC Calibration
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 e
0. Tool Option1 ADC Comp 480i OK
1. Tool Option2 ADC Comp 1080p OK
2. Tool Option3 ADC Type ◄ OTP ►
3. Tool Option4 (2) Detail EDID Options are below
4. Tool Option5 Start Reset
a. Product ID
5. Tool Option6
6. Country Group MODEL NAME HEX EDID Table DDC Function
7. Area Option
8.ADC Calibration ► HD/FHD Model 0001 01 00 Analog/Digital
9. White Balance
10. 10 Point WB b. Serial No: Controlled on production line.
11. Test Pattern
12 EDID D/L
c. Month, Year:
13. Sub B/C ex) Week : '01' -> '01'
14. Ext. Input Adjust Year : '2015' -> '19' fix
U sing "P-ONLY" key of the Adjustment remote d. Model Name(Hex):
control, power on TV. cf) TV set’s model name in EDID data is below.
Model name MODEL NAME(HEX)
* ADC Calibration Protocol (RS232) LG TV 00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 (LG TV)
No. Item CMD 1 CMD 2 Data 0
Enter Adjust Adjust When transfer the ‘Mode In’, e. Checksum: Changeable by total EDID data.
A A 0 0
MODE ‘Mode In’ Carry the command. FHD
ADC Automatically adjustment EDID C/S data
ADC adjust
Adjust
A D 1 0
(The use of a internal pattern) HDMI
Block 0 40
Adjust Sequence Check sum
25 (HDMI1)
▪ aa 00 00 [Enter Adjust Mode] (Hex) Block 1
15 (HDMI2)
▪ xb 00 40 [Component Input]
▪ ad 00 10 [Adjust 480i & 1080p Comp]
▪ aa 00 90 End Adjust mode f. Vendor Specific(HDMI)
* Required equipment : Adjustment remote control. INPUT Model name(HEX)
HDMI1 67 03 0C 00 10 00 80 1E
3.2. EDID Download HDMI2 67 03 0C 00 20 00 80 1E
▪ After enter Service Mode by pushing "ADJ" key.
▪ Enter EDID D/L menu.
▪ Enter "START" by pushing "OK" key.
EZ ADJUST EDID D/L 3.4. Function Check
- Check display and sound
0. Tool Option1
1. Tool Option2
HDMI1 NG ■ Check Input and Signal items.
HDMI2 NG
2. Tool Option3
3. Tool Option4
1) TV
Start Reset
4. Tool Option5 2) AV (SCART / CVBS)
5. Tool Option6
6. Country Group 3) COMPONENT (480i)
7. Area Option
8. ADC Calibration 4) HDMI
9. White Balance * Display and Sound check is executed by Remote control.
10. 10 Point WB
11. Test Pattern
12. EDID D/L ►
13. Sub B/C
14. Ext. Input Adjust Not to push the INSTOP key after completion if the function
Never connect HDMI cable when EDID downloaded. inspection.
Copyright © LG Electronics. Inc. All rights reserved. - 12 - LGE Internal Use Only
Only for training and service purposes
4. Total Assembly line process ▪ Use only AUO/Sharp/CSOT(Cool temp Spec is 13000 K)
Cool Medium Warm

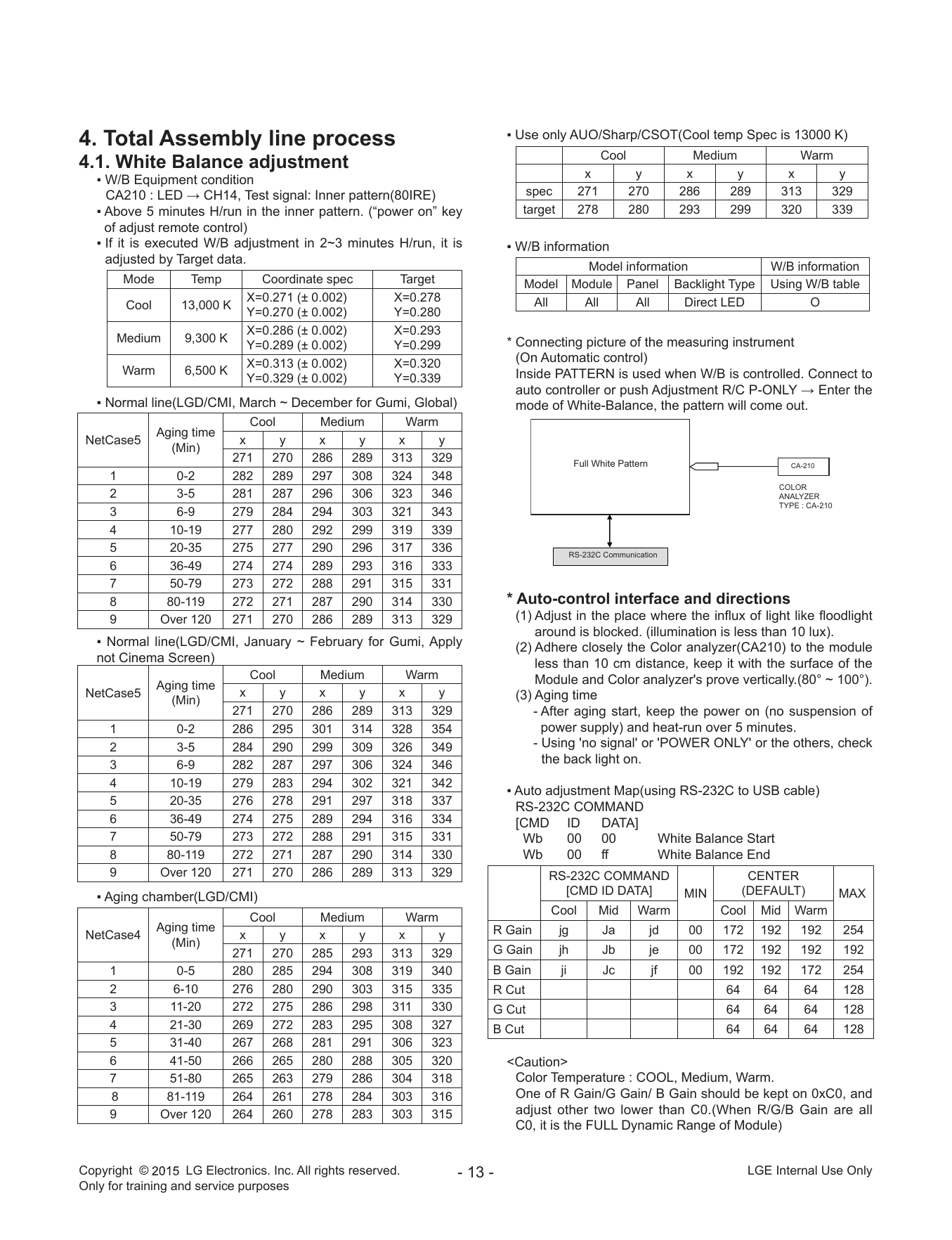

4.1. White Balance adjustment
x y x y x y
▪ W/B Equipment condition
CA210 : LED → CH14, Test signal: Inner pattern(80IRE) spec 271 270 286 289 313 329
▪ Above 5 minutes H/run in the inner pattern. (“power on” key target 278 280 293 299 320 339
of adjust remote control)
▪ If it is executed W/B adjustment in 2~3 minutes H/run, it is ▪ W/B information
adjusted by Target data.
Model information W/B information
Mode Temp Coordinate spec Target Model Module Panel Backlight Type Using W/B table
X=0.271 (± 0.002) X=0.278 All All All Direct LED O
Cool 13,000 K
Y=0.270 (± 0.002) Y=0.280
X=0.286 (± 0.002) X=0.293
Medium 9,300 K * Connecting picture of the measuring instrument
Y=0.289 (± 0.002) Y=0.299
X=0.313 (± 0.002) X=0.320 (On Automatic control)
Warm 6,500 K Inside PATTERN is used when W/B is controlled. Connect to
Y=0.329 (± 0.002) Y=0.339
auto controller or push Adjustment R/C P-ONLY → Enter the
▪ Normal line(LGD/CMI, March ~ December for Gumi, Global) mode of White-Balance, the pattern will come out.
Cool Medium Warm
Aging time
NetCase5 x y x y x y
(Min)
271 270 286 289 313 329 Full White Pattern CA-210
1 0-2 282 289 297 308 324 348
COLOR
2 3-5 281 287 296 306 323 346 ANALYZER
TYPE : CA-210
3 6-9 279 284 294 303 321 343
4 10-19 277 280 292 299 319 339
5 20-35 275 277 290 296 317 336 RS-232C Communication
6 36-49 274 274 289 293 316 333
7 50-79 273 272 288 291 315 331
8 80-119 272 271 287 290 314 330 * Auto-control interface and directions
9 Over 120 271 270 286 289 313 329 (1) Adjust in the place where the influx of light like floodlight
around is blocked. (illumination is less than 10 lux).
▪ Normal line(LGD/CMI, January ~ February for Gumi, Apply (2) Adhere closely the Color analyzer(CA210) to the module
not Cinema Screen) less than 10 cm distance, keep it with the surface of the
Cool Medium Warm Module and Color analyzer's prove vertically.(80° ~ 100°).
Aging time
NetCase5 x y x y x y (3) Aging time
(Min)
271 270 286 289 313 329 - After aging start, keep the power on (no suspension of
1 0-2 286 295 301 314 328 354 power supply) and heat-run over 5 minutes.
2 3-5 284 290 299 309 326 349 - Using 'no signal' or 'POWER ONLY' or the others, check
3 6-9 282 287 297 306 324 346 the back light on.
4 10-19 279 283 294 302 321 342
▪ Auto adjustment Map(using RS-232C to USB cable)
5 20-35 276 278 291 297 318 337
RS-232C COMMAND
6 36-49 274 275 289 294 316 334 [CMD ID DATA]
7 50-79 273 272 288 291 315 331 Wb 00 00 White Balance Start
8 80-119 272 271 287 290 314 330 Wb 00 ff White Balance End
9 Over 120 271 270 286 289 313 329 RS-232C COMMAND CENTER
▪ Aging chamber(LGD/CMI) [CMD ID DATA] MIN (DEFAULT) MAX
Cool Mid Warm Cool Mid Warm
Cool Medium Warm
Aging time R Gain jg Ja jd 00 172 192 192 254
NetCase4 x y x y x y
(Min)
271 270 285 293 313 329 G Gain jh Jb je 00 172 192 192 192
1 0-5 280 285 294 308 319 340 B Gain ji Jc jf 00 192 192 172 254
2 6-10 276 280 290 303 315 335 R Cut 64 64 64 128
3 11-20 272 275 286 298 311 330 G Cut 64 64 64 128
4 21-30 269 272 283 295 308 327 B Cut 64 64 64 128
5 31-40 267 268 281 291 306 323
6 41-50 266 265 280 288 305 320
7 51-80 265 263 279 286 304 318 Color Temperature : COOL, Medium, Warm.
8 81-119 264 261 278 284 303 316 One of R Gain/G Gain/ B Gain should be kept on 0xC0, and
9 Over 120 264 260 278 283 303 315 adjust other two lower than C0.(When R/G/B Gain are all
C0, it is the FULL Dynamic Range of Module)
Copyright © LG Electronics. Inc. All rights reserved. - 13 - LGE Internal Use Only
Only for training and service purposes

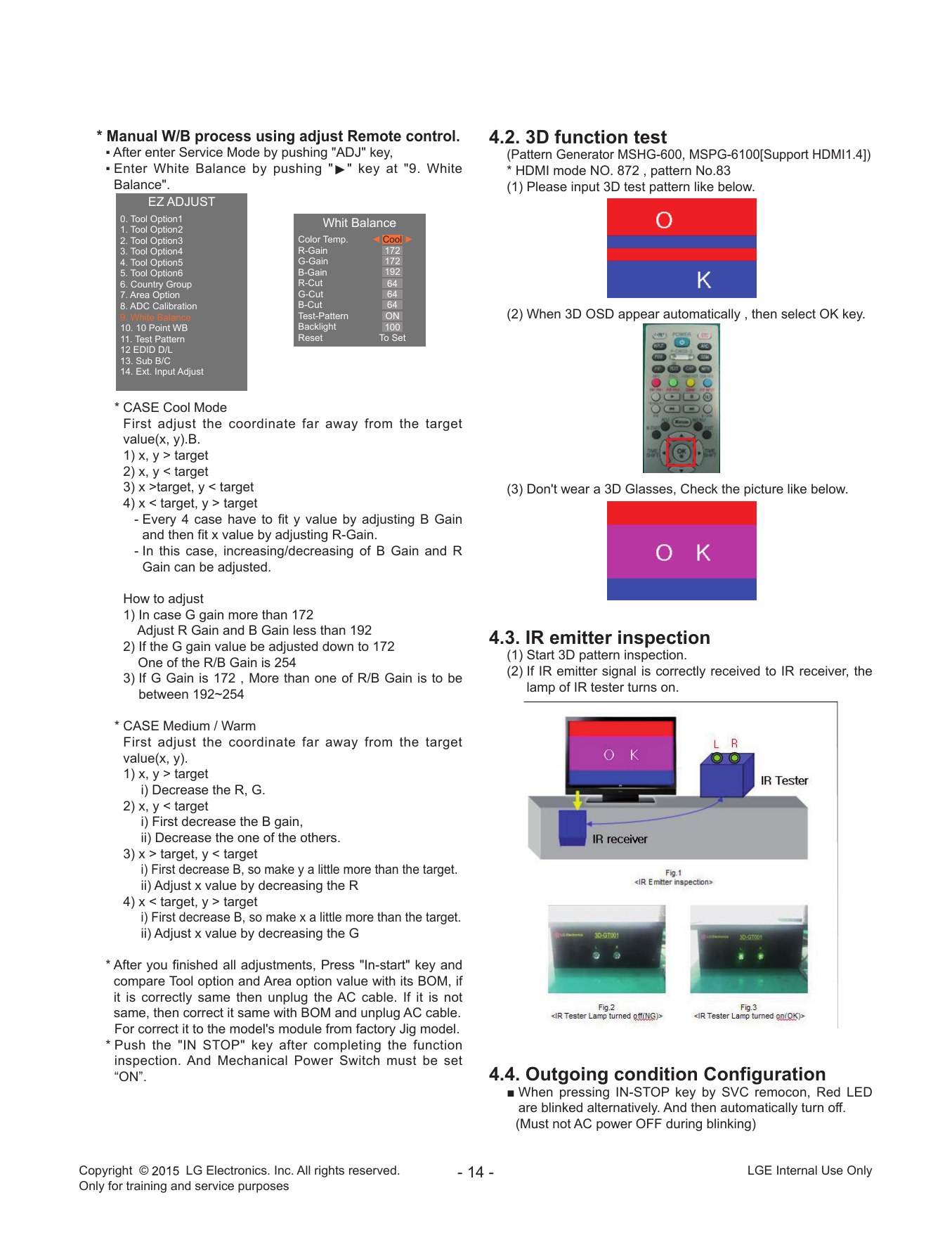

* Manual W/B process using adjust Remote control. 4.2. 3D function test
▪ After enter Service Mode by pushing "ADJ" key, (Pattern Generator MSHG-600, MSPG-6100[Support HDMI1.4])
▪ E nter White Balance by pushing " ► " key at "9. White * HDMI mode NO. 872 , pattern No.83
Balance". (1) Please input 3D test pattern like below.
EZ ADJUST
0. Tool Option1
1. Tool Option2
Whit Balance
2. Tool Option3 Color Temp. ◄ Cool ►
3. Tool Option4 R-Gain 172
4. Tool Option5 G-Gain 172
5. Tool Option6 B-Gain 192
6. Country Group R-Cut 64
7. Area Option G-Cut 64
8. ADC Calibration B-Cut 64
9. White Balance Test-Pattern ON (2) When 3D OSD appear automatically , then select OK key.
10. 10 Point WB Backlight 100
11. Test Pattern Reset To Set
12 EDID D/L
13. Sub B/C
14. Ext. Input Adjust
* CASE Cool Mode
First adjust the coordinate far away from the target
value(x, y).B.
1) x, y > target
2) x, y < target
3) x >target, y < target (3) Don't wear a 3D Glasses, Check the picture like below.
4) x < target, y > target
- Every 4 case have to fit y value by adjusting B Gain
and then fit x value by adjusting R-Gain.
- In this case, increasing/decreasing of B Gain and R
Gain can be adjusted.
How to adjust
1) In case G gain more than 172
Adjust R Gain and B Gain less than 192
2) If the G gain value be adjusted down to 172
4.3. IR emitter inspection
(1) Start 3D pattern inspection.
One of the R/B Gain is 254
(2) If IR emitter signal is correctly received to IR receiver, the
3) If G Gain is 172 , More than one of R/B Gain is to be
lamp of IR tester turns on.
between 192~254
* CASE Medium / Warm
First adjust the coordinate far away from the target
value(x, y).
1) x, y > target
i) Decrease the R, G.
2) x, y < target
i) First decrease the B gain,
ii) Decrease the one of the others.
3) x > target, y < target
i) First decrease B, so make y a little more than the target.
ii) Adjust x value by decreasing the R
4) x < target, y > target
i) First decrease B, so make x a little more than the target.
ii) Adjust x value by decreasing the G
* After you finished all adjustments, Press "In-start" key and
compare Tool option and Area option value with its BOM, if
it is correctly same then unplug the AC cable. If it is not
same, then correct it same with BOM and unplug AC cable.
For correct it to the model's module from factory Jig model.
* Push the "IN STOP" key after completing the function
inspection. And Mechanical Power Switch must be set
“ON”. 4.4. Outgoing condition Configuration
■ When pressing IN-STOP key by SVC remocon, Red LED
are blinked alternatively. And then automatically turn off.
(Must not AC power OFF during blinking)
Copyright © LG Electronics. Inc. All rights reserved. - 14 - LGE Internal Use Only
Only for training and service purposes

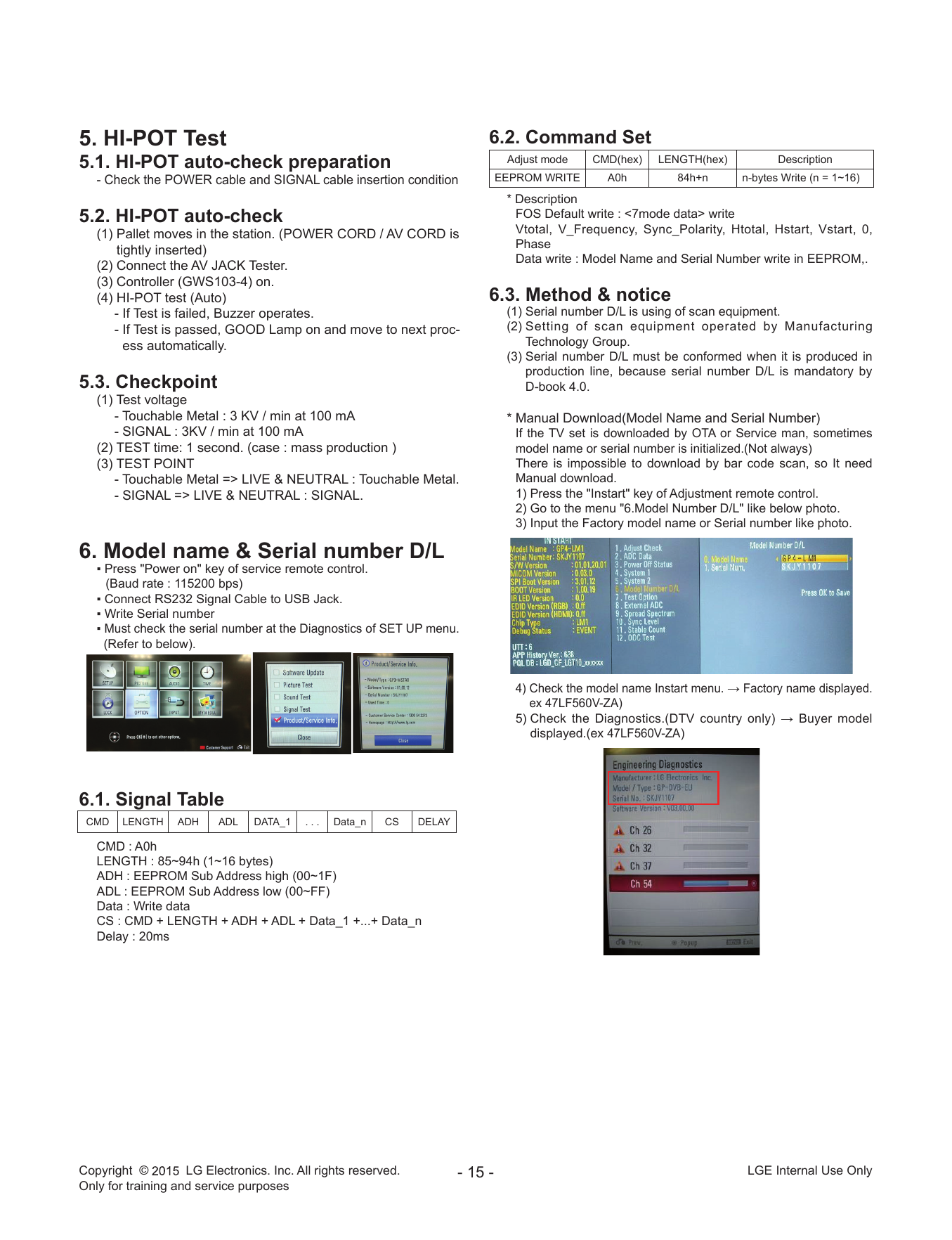

5. HI-POT Test 6.2. Command Set
5.1. HI-POT auto-check preparation Adjust mode CMD(hex) LENGTH(hex) Description
- Check the POWER cable and SIGNAL cable insertion condition EEPROM WRITE A0h 84h+n n-bytes Write (n = 1~16)
* Description
5.2. HI-POT auto-check FOS Default write : <7mode data> write
(1) Pallet moves in the station. (POWER CORD / AV CORD is Vtotal, V_Frequency, Sync_Polarity, Htotal, Hstart, Vstart, 0,
tightly inserted) Phase
Data write : Model Name and Serial Number write in EEPROM,.
(2) Connect the AV JACK Tester.
(3) Controller (GWS103-4) on.
(4) HI-POT test (Auto) 6.3. Method & notice
- If Test is failed, Buzzer operates. (1) Serial number D/L is using of scan equipment.
- If Test is passed, GOOD Lamp on and move to next proc- (2) S etting of scan equipment operated by Manufacturing
ess automatically. Technology Group.
(3) Serial number D/L must be conformed when it is produced in
production line, because serial number D/L is mandatory by
5.3. Checkpoint D-book 4.0.
(1) Test voltage
- Touchable Metal : 3 KV / min at 100 mA * Manual Download(Model Name and Serial Number)
- SIGNAL : 3KV / min at 100 mA If the TV set is downloaded by OTA or Service man, sometimes
(2) TEST time: 1 second. (case : mass production ) model name or serial number is initialized.(Not always)
(3) TEST POINT There is impossible to download by bar code scan, so It need
- Touchable Metal => LIVE & NEUTRAL : Touchable Metal. Manual download.
- SIGNAL => LIVE & NEUTRAL : SIGNAL. 1) Press the "Instart" key of Adjustment remote control.
2) Go to the menu "6.Model Number D/L" like below photo.
3) Input the Factory model name or Serial number like photo.
6. Model name & Serial number D/L
▪ Press "Power on" key of service remote control.
(Baud rate : 115200 bps)
▪ Connect RS232 Signal Cable to USB Jack.
▪ Write Serial number
▪ Must check the serial number at the Diagnostics of SET UP menu.
(Refer to below).
4) Check the model name Instart menu. → Factory name displayed.
ex 47LF560V-ZA)
5) Check the Diagnostics.(DTV country only) → Buyer model
displayed.(ex 47LF560V-ZA)
6.1. Signal Table
CMD LENGTH ADH ADL DATA_1 ... Data_n CS DELAY
CMD : A0h
LENGTH : 85~94h (1~16 bytes)
ADH : EEPROM Sub Address high (00~1F)
ADL : EEPROM Sub Address low (00~FF)
Data : Write data
CS : CMD + LENGTH + ADH + ADL + Data_1 +...+ Data_n
Delay : 20ms
Copyright © LG Electronics. Inc. All rights reserved. - 15 - LGE Internal Use Only
Only for training and service purposes

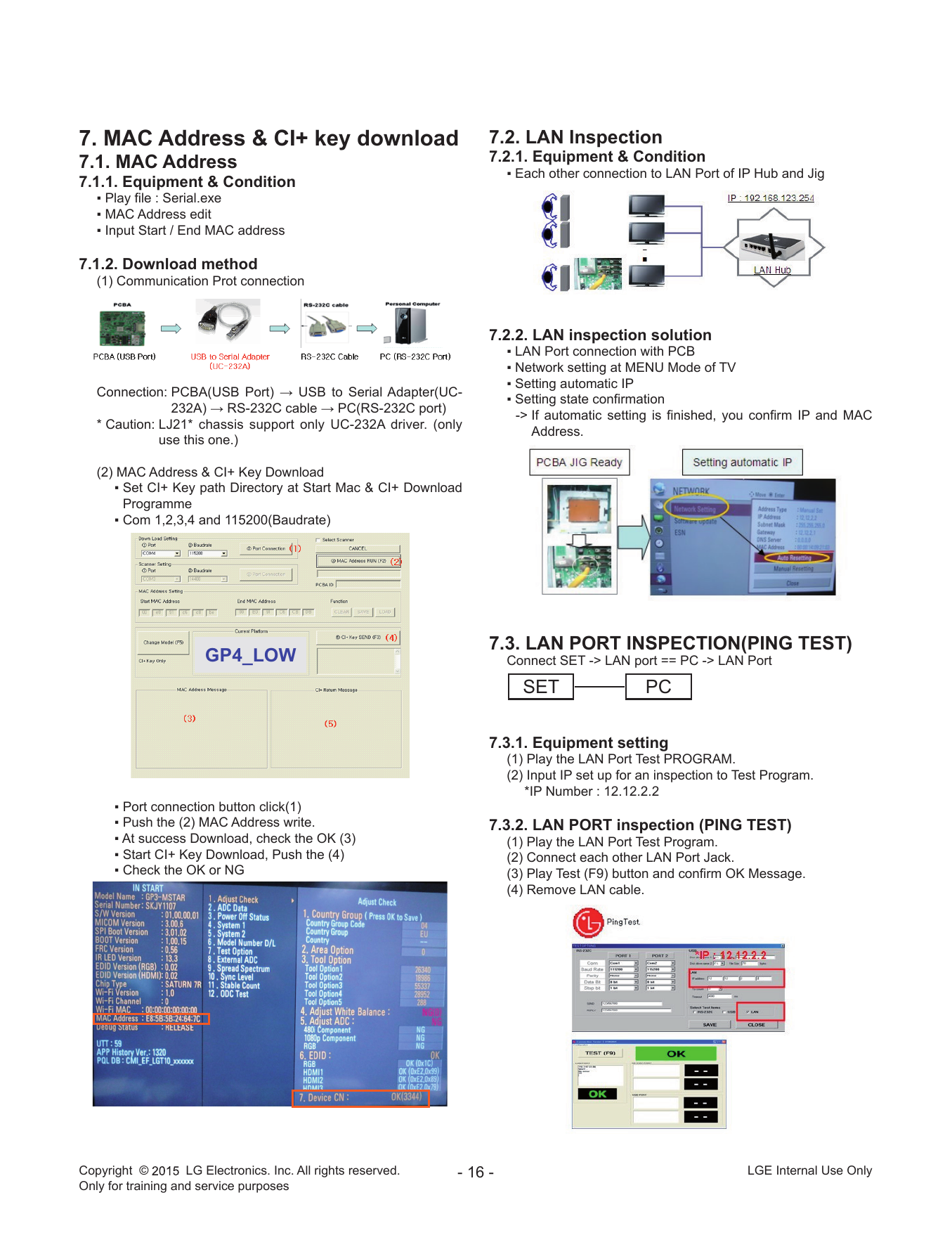

7. MAC Address & CI+ key download 7.2. LAN Inspection
7.1. MAC Address 7.2.1. Equipment & Condition
▪ Each other connection to LAN Port of IP Hub and Jig
7.1.1. Equipment & Condition
▪ Play file : Serial.exe
▪ MAC Address edit
▪ Input Start / End MAC address
7.1.2. Download method
(1) Communication Prot connection
7.2.2. LAN inspection solution
▪ LAN Port connection with PCB
▪ Network setting at MENU Mode of TV
▪ Setting automatic IP
Connection: PCBA(USB Port) → USB to Serial Adapter(UC-
▪ Setting state confirmation
232A) → RS-232C cable → PC(RS-232C port)
-> If automatic setting is finished, you confirm IP and MAC
* Caution: LJ21* chassis support only UC-232A driver. (only
Address.
use this one.)
(2) MAC Address & CI+ Key Download
▪ Set CI+ Key path Directory at Start Mac & CI+ Download
Programme
▪ Com 1,2,3,4 and 115200(Baudrate)
7.3. LAN PORT INSPECTION(PING TEST)
GP4_LOW Connect SET -> LAN port == PC -> LAN Port
SET PC
7.3.1. Equipment setting
(1) Play the LAN Port Test PROGRAM.
(2) Input IP set up for an inspection to Test Program.
*IP Number : 12.12.2.2
▪ Port connection button click(1)
▪ Push the (2) MAC Address write. 7.3.2. LAN PORT inspection (PING TEST)
▪ At success Download, check the OK (3) (1) Play the LAN Port Test Program.
▪ Start CI+ Key Download, Push the (4) (2) Connect each other LAN Port Jack.
▪ Check the OK or NG (3) Play Test (F9) button and confirm OK Message.
(4) Remove LAN cable.
Copyright © LG Electronics. Inc. All rights reserved. - 16 - LGE Internal Use Only
Only for training and service purposes
Copyright ©
DM/DP
USB SPI_SCK/SDI/SDO/CS Serial Flash
OCP
(JK700) +5V_USB USB1_OCP/CTL (IC1300, 8Mbit)
SN1406035RGER
CK+/-, D0+/-, D1+/-, D2+/-,_HDMI4
HDMI2 I2C_SCL/SDA System EEPROM
(JK801) DDC_SCL/SDA_4, HDMI_CEC
Only for training and service purposes
(IC104, 256Kbit)
Headphone HP_L/ROUT
(JK3000)
1. CIS T2/C/S2 3D Model
SIDE Only LF62/57/56 NAND FLASH
IC102 (1Gbit) X-tal
H27U1G8F2CTR -BC 24MHZ
PCM_A[0:7]
T4LCX244FT Buffer
CI SLOT
LG Electronics. Inc. All rights reserved.
(P1900) PCM_A[8:14]
PCM_DATA[0:7]
TS_DATA[0:7] B-MDQL[0 -7], B-MDQU[0 -7],… DDR3 SDRAM
(IC1201, 128MB)
FE_TS_DATA[0:7] Main SOC
LNB_OUT, DEMOD_RESET M1A-LGE2133
- 17 -
LNB_TX AUD_MASTER_CLK,
(IC101, DDR3 128MB) AUD_LRCH, SPK_L
Tuner DEMOD_SCL/SDA AUD_LRCK, AUD_SCK
(TU3701) TAS5733
AMP_SCL/SDA
F/NIM IF_N/P (IC5600)
TU_SCL / SDA
SPK_R
IF_AGC

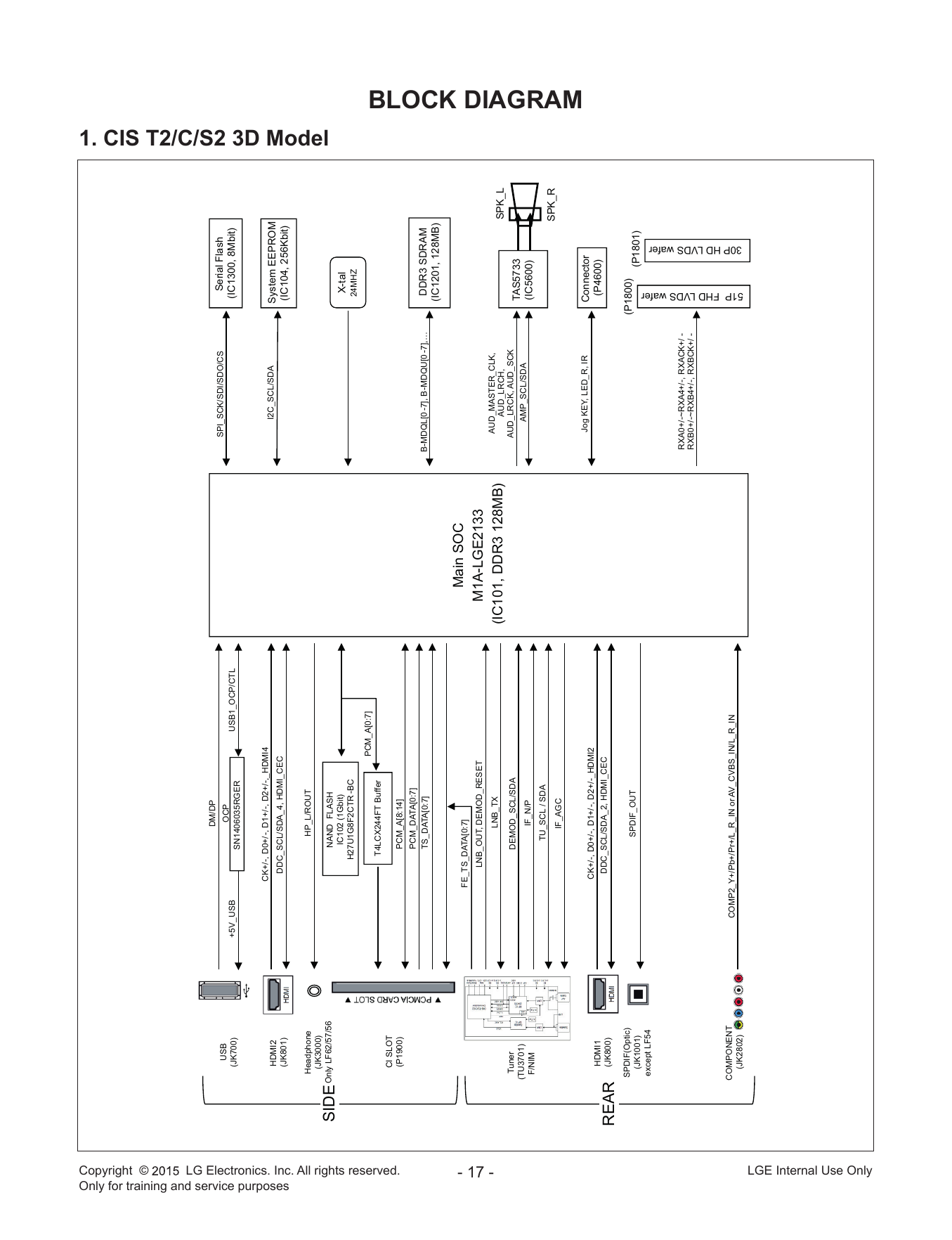

BLOCK DIAGRAM
Jog KEY, LED_R, IR Connector
CK+/-, D0+/-, D1+/-, D2+/-_HDMI2
HDMI1 (P4600)
(JK800) DDC_SCL/SDA_2, HDMI_CEC
REAR
SPDIF(Optic) (P1800)
SPDIF_OUT (P1801)
(JK1001)
except LF54
RXA0+/-~RXA4+/-, RXACK+/ -
RXB0+/-~RXB4+/-, RXBCK+/ -
COMPONENT COMP2_Y+/Pb+/Pr+/L_R_IN or AV_CVBS_IN/L_R_IN
30P HD LVDS wafer
51P FHD LVDS wafer
(JK2802)
LGE Internal Use Only
Copyright ©
DM/DP
USB SPI_SCK/SDI/SDO/CS Serial Flash
OCP
(JK700) +5V_USB USB1_OCP/CTL (IC1300, 8Mbit)
SN1406035RGER
CK+/-, D0+/-, D1+/-, D2+/-,_HDMI4
HDMI2 I2C_SCL/SDA System EEPROM
(JK801) DDC_SCL/SDA_4, HDMI_CEC
(IC104, 256Kbit)
Only for training and service purposes
Headphone HP_L/ROUT
(JK3000)

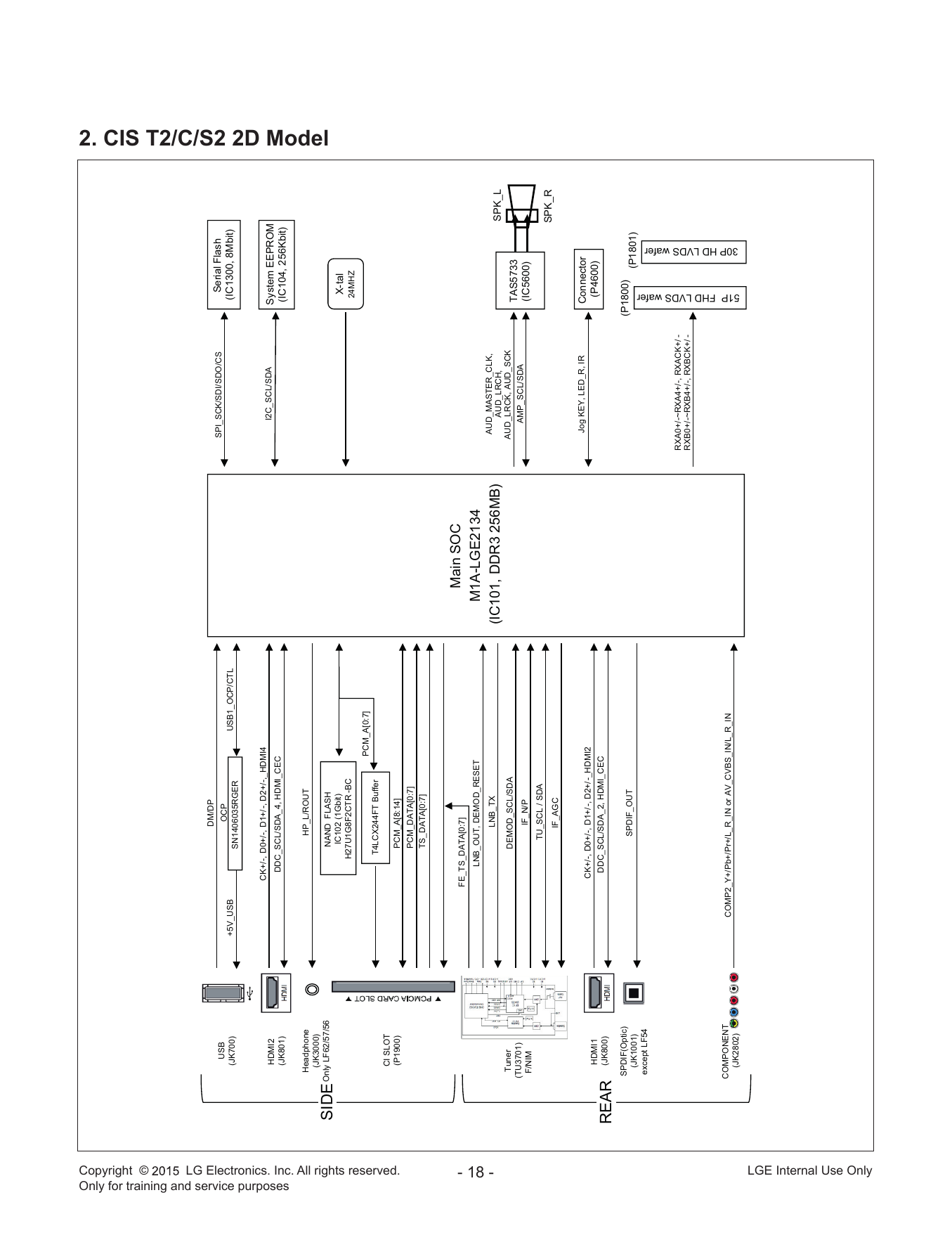

2. CIS T2/C/S2 2D Model
SIDE Only LF62/57/56 NAND FLASH
IC102 (1Gbit) X-tal
H27U1G8F2CTR -BC 24MHZ
PCM_A[0:7]
T4LCX244FT Buffer
CI SLOT
LG Electronics. Inc. All rights reserved.
(P1900) PCM_A[8:14]
PCM_DATA[0:7]
TS_DATA[0:7]
FE_TS_DATA[0:7] Main SOC
LNB_OUT, DEMOD_RESET M1A-LGE2134
- 18 -
LNB_TX AUD_MASTER_CLK,
(IC101, DDR3 256MB) AUD_LRCH, SPK_L
Tuner DEMOD_SCL/SDA AUD_LRCK, AUD_SCK
(TU3701) TAS5733
AMP_SCL/SDA
F/NIM IF_N/P (IC5600)
TU_SCL / SDA
SPK_R
IF_AGC
Jog KEY, LED_R, IR Connector
CK+/-, D0+/-, D1+/-, D2+/-_HDMI2
HDMI1 (P4600)
(JK800) DDC_SCL/SDA_2, HDMI_CEC
REAR
SPDIF(Optic) (P1800)
SPDIF_OUT (P1801)
(JK1001)
except LF54
RXA0+/-~RXA4+/-, RXACK+/ -
RXB0+/-~RXB4+/-, RXBCK+/ -
COMPONENT COMP2_Y+/Pb+/Pr+/L_R_IN or AV_CVBS_IN/L_R_IN
30P HD LVDS wafer
51P FHD LVDS wafer
(JK2802)
LGE Internal Use Only
Copyright ©
DM/DP
USB SPI_SCK/SDI/SDO/CS Serial Flash
OCP
(JK700) +5V_USB USB1_OCP/CTL (IC1300, 8Mbit)
SN1406035RGER
CK+/-, D0+/-, D1+/-, D2+/-,_HDMI4
HDMI2 I2C_SCL/SDA System EEPROM
(JK801) DDC_SCL/SDA_4, HDMI_CEC
(IC104, 256Kbit)
Only for training and service purposes
Headphone HP_L/ROUT
(JK3000)

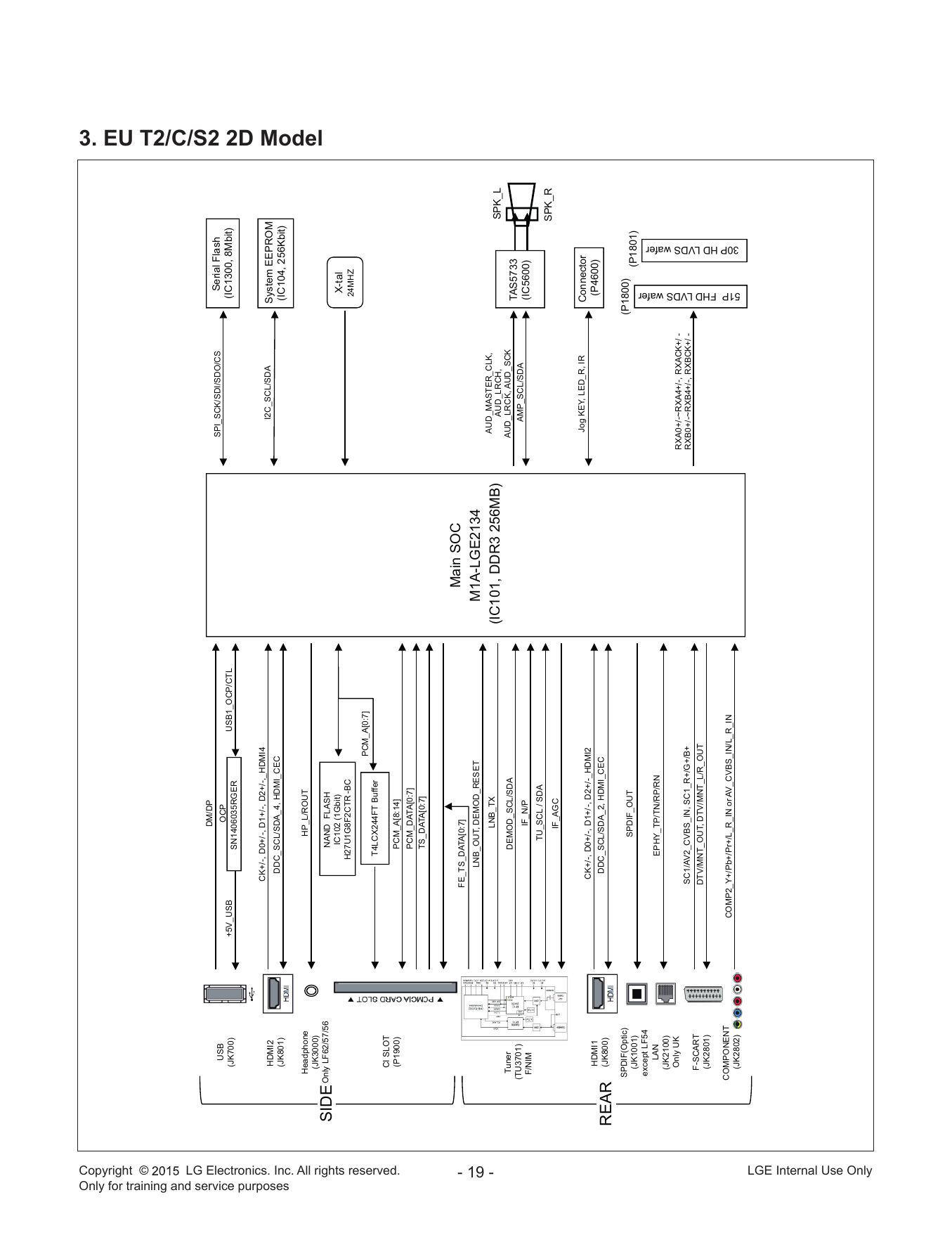

3. EU T2/C/S2 2D Model
SIDE Only LF62/57/56 NAND FLASH
IC102 (1Gbit) X-tal
H27U1G8F2CTR -BC 24MHZ
PCM_A[0:7]
T4LCX244FT Buffer
CI SLOT
LG Electronics. Inc. All rights reserved.
(P1900) PCM_A[8:14]
PCM_DATA[0:7]
TS_DATA[0:7]
FE_TS_DATA[0:7] Main SOC
LNB_OUT, DEMOD_RESET M1A-LGE2134
- 19 -
LNB_TX AUD_MASTER_CLK,
(IC101, DDR3 256MB) AUD_LRCH, SPK_L
Tuner DEMOD_SCL/SDA AUD_LRCK, AUD_SCK
(TU3701) TAS5733
AMP_SCL/SDA
F/NIM IF_N/P (IC5600)
TU_SCL / SDA
SPK_R
IF_AGC
Jog KEY, LED_R, IR Connector
CK+/-, D0+/-, D1+/-, D2+/-_HDMI2
HDMI1 (P4600)
(JK800) DDC_SCL/SDA_2, HDMI_CEC
REAR
SPDIF(Optic) (P1800)
SPDIF_OUT (P1801)
(JK1001)
except LF54
LAN EPHY_TP/TN/RP/RN
(JK2100)
Only UK RXA0+/-~RXA4+/-, RXACK+/ -
SC1/AV2_CVBS_IN, SC1_R+/G+/B+ RXB0+/-~RXB4+/-, RXBCK+/ -
F-SCART DTV/MNT_OUT, DTV/MNT_L/R_OUT
(JK2801)
COMPONENT COMP2_Y+/Pb+/Pr+/L_R_IN or AV_CVBS_IN/L_R_IN
30P HD LVDS wafer
51P FHD LVDS wafer
(JK2802)
LGE Internal Use Only
Copyright ©
DM/DP
USB SPI_SCK/SDI/SDO/CS Serial Flash
OCP
(JK700) +5V_USB USB1_OCP/CTL (IC1300, 8Mbit)
SN1406035RGER
Headphone HP_L/ROUT I2C_SCL/SDA System EEPROM

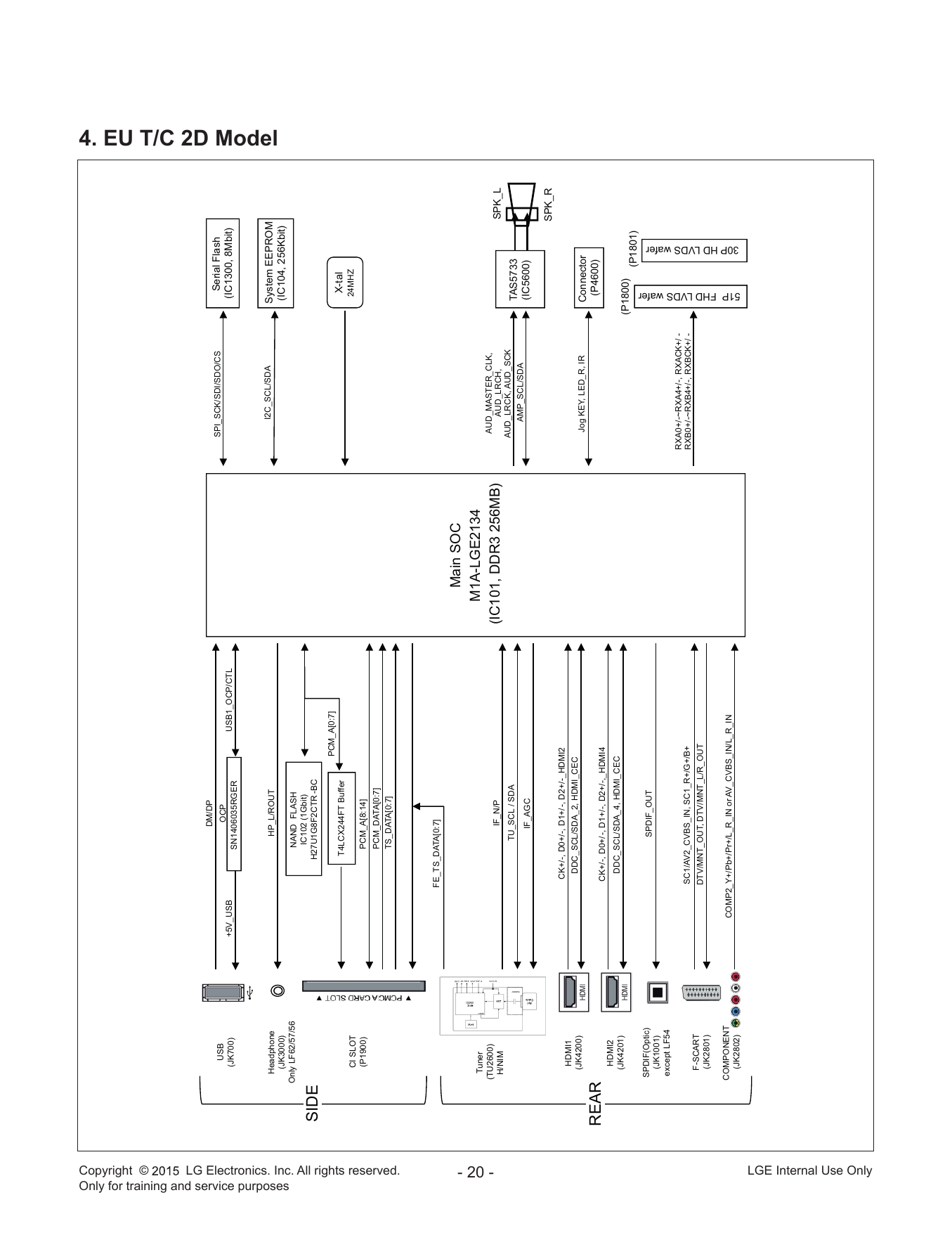

4. EU T/C 2D Model
(JK3000) (IC104, 256Kbit)
Only for training and service purposes
Only LF62/57/56 NAND FLASH
IC102 (1Gbit)
SIDE H27U1G8F2CTR -BC
PCM_A[0:7]
T4LCX244FT Buffer X-tal
CI SLOT 24MHZ
(P1900) PCM_A[8:14]
PCM_DATA[0:7]
TS_DATA[0:7]
LG Electronics. Inc. All rights reserved.
FE_TS_DATA[0:7]
Main SOC
Tuner M1A-LGE2134
- 20 -
(TU2600) AUD_MASTER_CLK,
H/NIM IF_N/P (IC101, DDR3 256MB) AUD_LRCH, SPK_L
TU_SCL / SDA AUD_LRCK, AUD_SCK
TAS5733
AMP_SCL/SDA
IF_AGC (IC5600)
SPK_R
CK+/-, D0+/-, D1+/-, D2+/-_HDMI2
HDMI1
(JK4200) DDC_SCL/SDA_2, HDMI_CEC
Jog KEY, LED_R, IR Connector
REAR (P4600)
CK+/-, D0+/-, D1+/-, D2+/-,_HDMI4
HDMI2
(JK4201) DDC_SCL/SDA_4, HDMI_CEC
(P1800)
(P1801)
SPDIF(Optic) SPDIF_OUT
(JK1001)
except LF54
RXA0+/-~RXA4+/-, RXACK+/ -
SC1/AV2_CVBS_IN, SC1_R+/G+/B+ RXB0+/-~RXB4+/-, RXBCK+/ -
F-SCART DTV/MNT_OUT, DTV/MNT_L/R_OUT
(JK2801)
COMPONENT COMP2_Y+/Pb+/Pr+/L_R_IN or AV_CVBS_IN/L_R_IN
30P HD LVDS wafer
51P FHD LVDS wafer
(JK2802)
LGE Internal Use Only

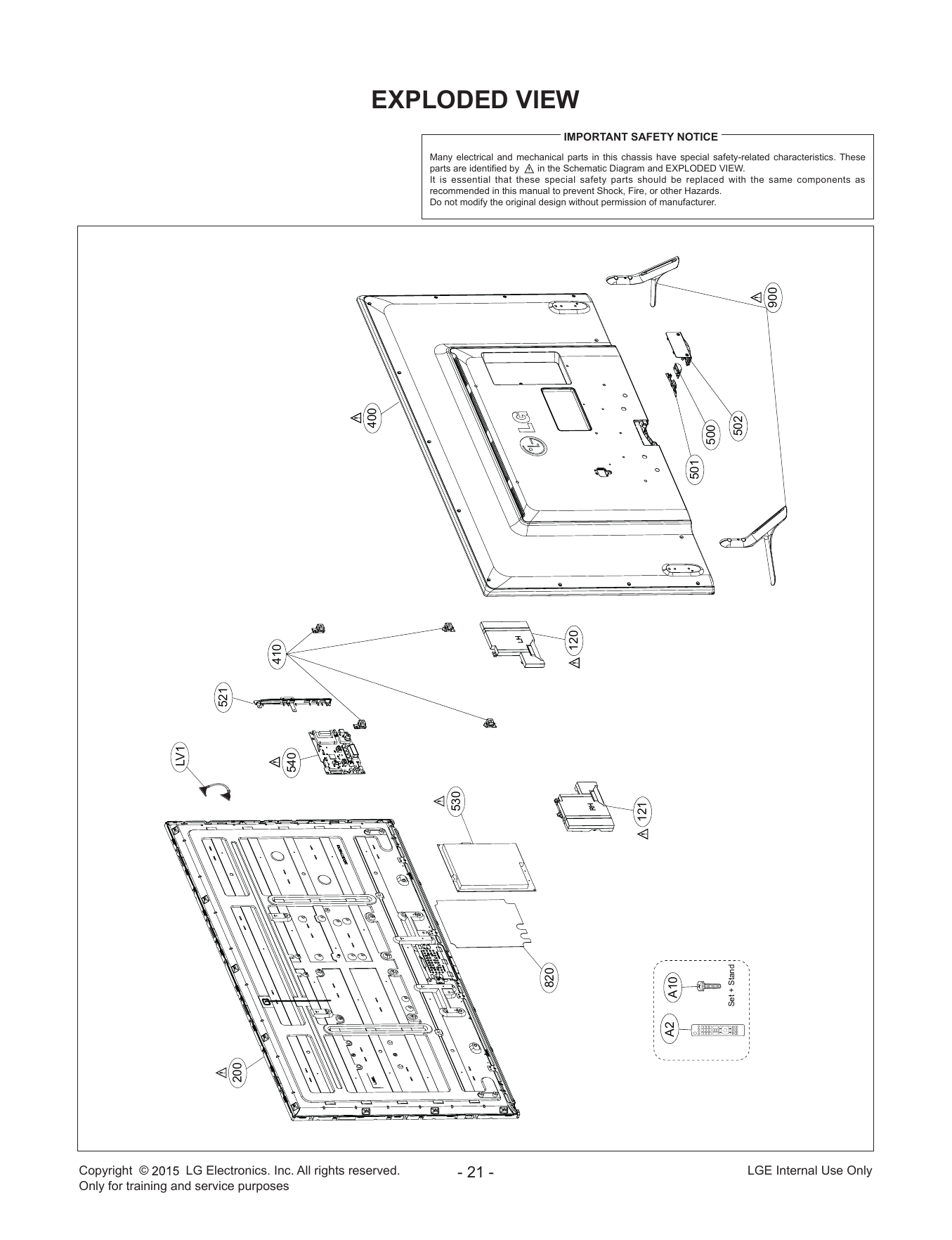

EXPLODED VIEW
IMPORTANT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
900
400
502
500
501
120
410
521
LV1
540
530
121
Set + Stand
820
A10
A2
200
Copyright © LG Electronics. Inc. All rights reserved. - 21 - LGE Internal Use Only
Only for training and service purposes

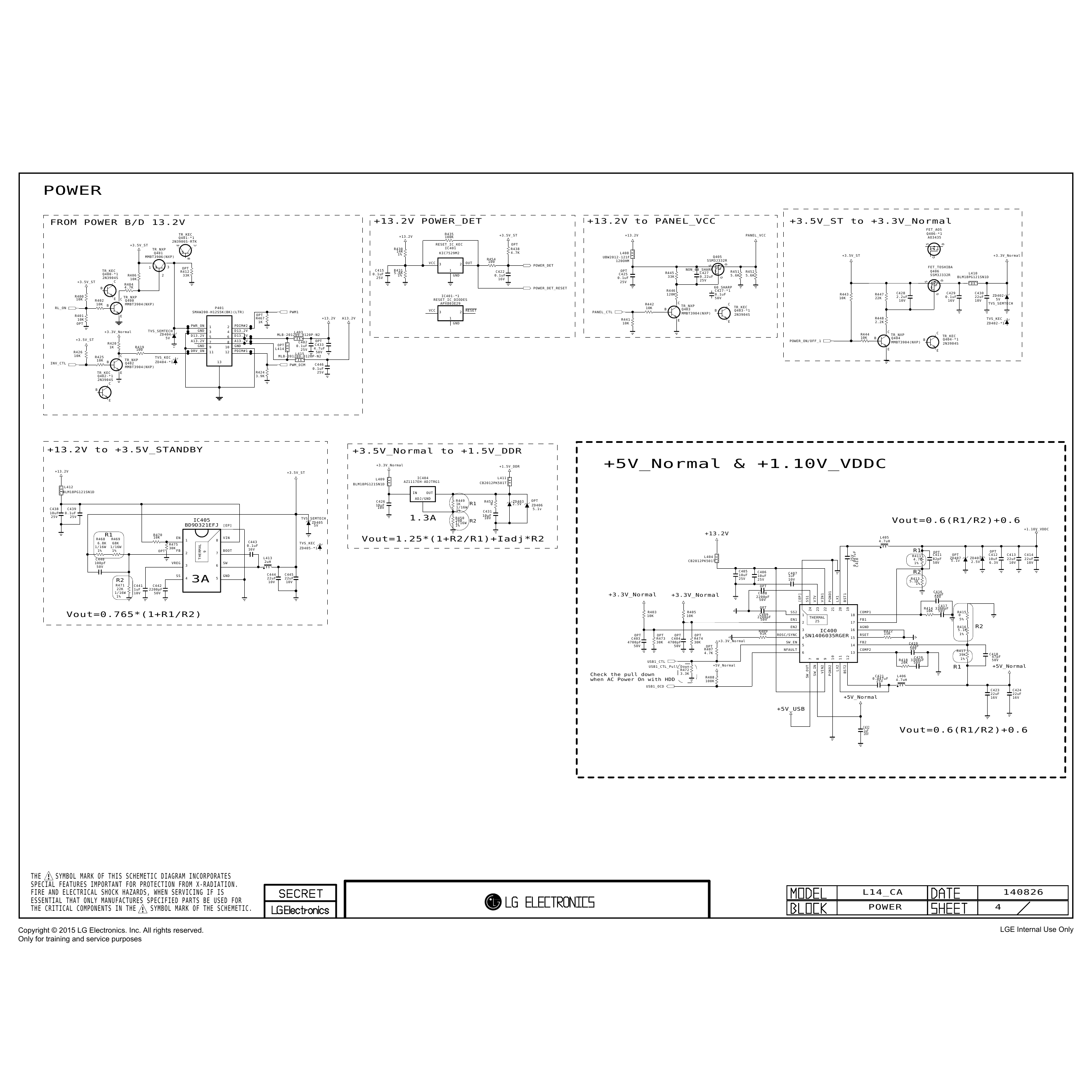

POWER
FROM POWER B/D 13.2V +13.2V POWER_DET +13.2V to PANEL_VCC +3.5V_ST to +3.3V_Normal
FET_AOS
TR_KEC R435 Q406-*1
+13.2V +3.5V_ST +13.2V PANEL_VCC
Q401-*1 100K AO3435
2N3906S-RTK
S
D
+3.5V_ST RESET_IC_KEC OPT
E
C
TR_NXP R430 IC401 R438
Q401 14K KIC7529M2 4.7K L408
1% +3.5V_ST +3.3V_Normal
MMBT3906(NXP) UBW2012-121F Q405
G
B
R454 SSM3J332R
100 120OHM
VCC 3 2 OUT
D
POWER_DET
S
1 3 OPT FET_TOSHIBA
TR_KEC C415 R431 1 OPT NON_60_SHARP Q406
R412 5.6K C422 R445 C427 R451 R452 L410
Q400-*1 R406 2 33K 0.1uF 1% GND 0.1uF C425 5.6K 5.6K SSM3J332R
33K 0.22uF BLM18PG121SN1D
G
2N3904S 10K 25V 16V 0.1uF
25V
D
+3.5V_ST C 25V
S
R404
B 4.7K POWER_DET_RESET 60_SHARP
R446 C427-*1
C428 C429 C430
G
IC401-*1 120K 0.1uF R443 R447 ZD402
R400 TR_NXP 2.2uF 0.1uF 22uF
10K E C Q400 50V 10K 22K 5V
R402 RESET_IC_DIODES 10V 16V 10V
10K B MMBT3904(NXP) APX803E29 R442 C C TVS_SEMTECH
TR_NXP TR_KEC
RL_ON P401 10K B Q403
SMAW200-H12S5K(BK)(LTR) VCC 3 2 RESET PANEL_CTL B Q403-*1
PWM1 MMBT3904(NXP)
R401 OPT 2N3904S
E
10K R467 +13.2V A13.2V 1 R441 R448 TVS_KEC
E E
OPT 1K GND 10K 2.2K ZD402-*1
PWR_ON 1 2 PDIM#2
+3.3V_Normal TVS_SEMTECH GND 3 4 D13.2V C
L403 C
ZD404 D13.2V D13.2V MLB-201209-0120P-N2 R444 TR_NXP TR_KEC
5V 5 6 10K B Q404
+3.5V_ST A13.2V A13.2V OPT POWER_ON/OFF_1 B Q404-*1
R420 7 8 C402 MMBT3904(NXP) 2N3904S
GND GND OPT 0.1uF C433
1K R419 9 10 4.7uF
100 L414 25V E E
R426 DRV_ON 11 12 PDIM#1 50V
L415
10K R425 C TVS_KEC MLB-201209-0120P-N2
10K TR_NXP
INV_CTL B Q402 ZD404-*1 13
PWM_DIM C446
MMBT3904(NXP) 0.1uF
TR_KEC E R424 25V
Q402-*1 3.9K
2N3904S
C
B
E
+13.2V to +3.5V_STANDBY +3.5V_Normal to +1.5V_DDR
+13.2V +3.5V_ST
+3.3V_Normal +1.5V_DDR +5V_Normal & +1.10V_VDDC
L409 IC404 L411
AZ1117EH-ADJTRG1 CB2012PK501T
BLM18PG121SN1D
L412
BLM18PG121SN1D IN OUT
ADJ/GND
C426 R449 R453 ZD403 OPT
10uF 1K R1 0 2.5V ZD406
10V 1/16W
C438 C439 1% 5.1v
10uF 0.1uF C431
10uF
25V 25V
IC405 TVS_SEMTECH
ZD405
1.3A R450
200 R2
10V
Vout=0.6(R1/R2)+0.6
1/16W
BD9D321EFJ [EP] 5V 1%
+1.10V_VDDC
R1 R470 +13.2V
10K L405
R468
6.8K
R469
68K R475
EN
1 8
VIN
C443 TVS_KEC
Vout=1.25*(1+R2/R1)+Iadj*R2 4.7uH
THERMAL
1/16W 1/16W 0.1uF
30K 16V ZD405-*1
1% 1% OPT FB BOOT R1 OPT
9
0.047uF
2 7 OPT
C411 OPT C412 C413 C414
25V
L404 R411
L413 82pF ZD407 ZD401 10uF 22uF 22uF
C410
C440 4.7K 5.1v
2uH CB2012PK501T 50V 2.5V 6.3V 10V 10V
100pF VREG SW 1%
50V 3 6
C405 C406 R2
C444 C445 C407
SS GND 10uF 10uF 1uF
R471
R2
C441 C442
4
3A 5 22uF
10V
22uF
10V
25V 25V
OPT
10V R413
5.1K
1%
22K 1uF 2200pF
PGND1
1/16W 10V 50V C408 C416
+3.3V_Normal
[EP]
VIN1
BST1
+3.3V_Normal 22pF
SS1
V7V
LX1
1% 2200pF 50V
50V
C417
OPT
24
23
22
21
20
19
R414 3300pF
R403 R405 SS2 COMP1 10K 50V R415
Vout=0.765*(1+R1/R2) 10K 10K C409
2200pF
1
THERMAL
18 0
5%
50V EN1 25
FB1
2 17
EN2 AGND R416
5.1K
R2
R409 3 IC400 16 R422
91K ROSC/SYNC RSET 15K 1%
OPT OPT OPT OPT
C403 R473 C404 R474 4 SN1406035RGER 15
4700pF 30K 4700pF 30K +3.3V_Normal SW_EN FB2
5 14 C419
50V 50V OPT 22pF
R407 NFAULT COMP2 50V
R417
4.7K 6 13 C418
39K
10
11
12
C420 47pF
1%
7
8
9
R418 3300pF 50V
USB1_CTL 20K 50V
+5V_Normal
SW_OUT
SW_IN
VIN2
PGND2
LX2
BST2
USB1_CTL_Pull_Down R1 +5V_Normal
R472
Check the pull down 3.3K
R408 C421 L406
when AC Power On with HDD 0.047uF 4.7uH
100K 25V
USB1_OCD
C423 C424
22uF 22uF
+5V_Normal 16V 16V
+5V_USB
C432
1uF
16V
Vout=0.6(R1/R2)+0.6
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS L14_CA 140826
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. POWER 4
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes

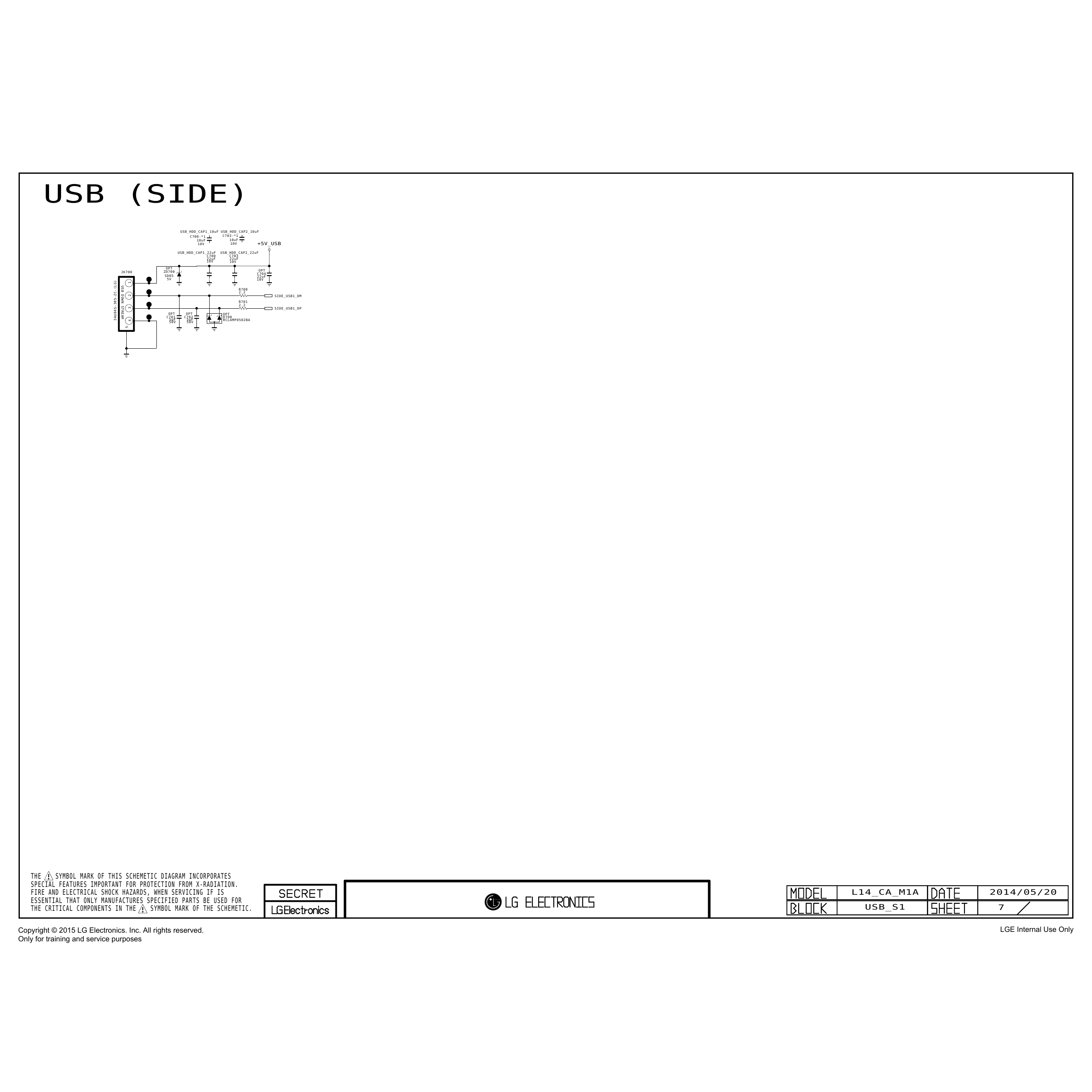

USB (SIDE)
USB_HDD_CAP1_10uF USB_HDD_CAP2_10uF
C700-*1 C703-*1
10uF 10uF
10V 10V +5V_USB
USB_HDD_CAP1_22uF USB_HDD_CAP2_22uF
C700 C703
22uF 22uF
10V 10V
OPT
ZD700 OPT
JK700
C704
SD05 22uF
5V 10V
3AU04S-305-ZC-(LG)
1
USB DOWN STREAM
R700
2.2
2
SIDE_USB1_DM
R701
2.2
3
SIDE_USB1_DP
OPT OPT OPT
C701 C702 D700
5pF 5pF RCLAMP0502BA
4
50V 50V
5
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS L14_CA_M1A 2014/05/20
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. USB_S1 7
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes

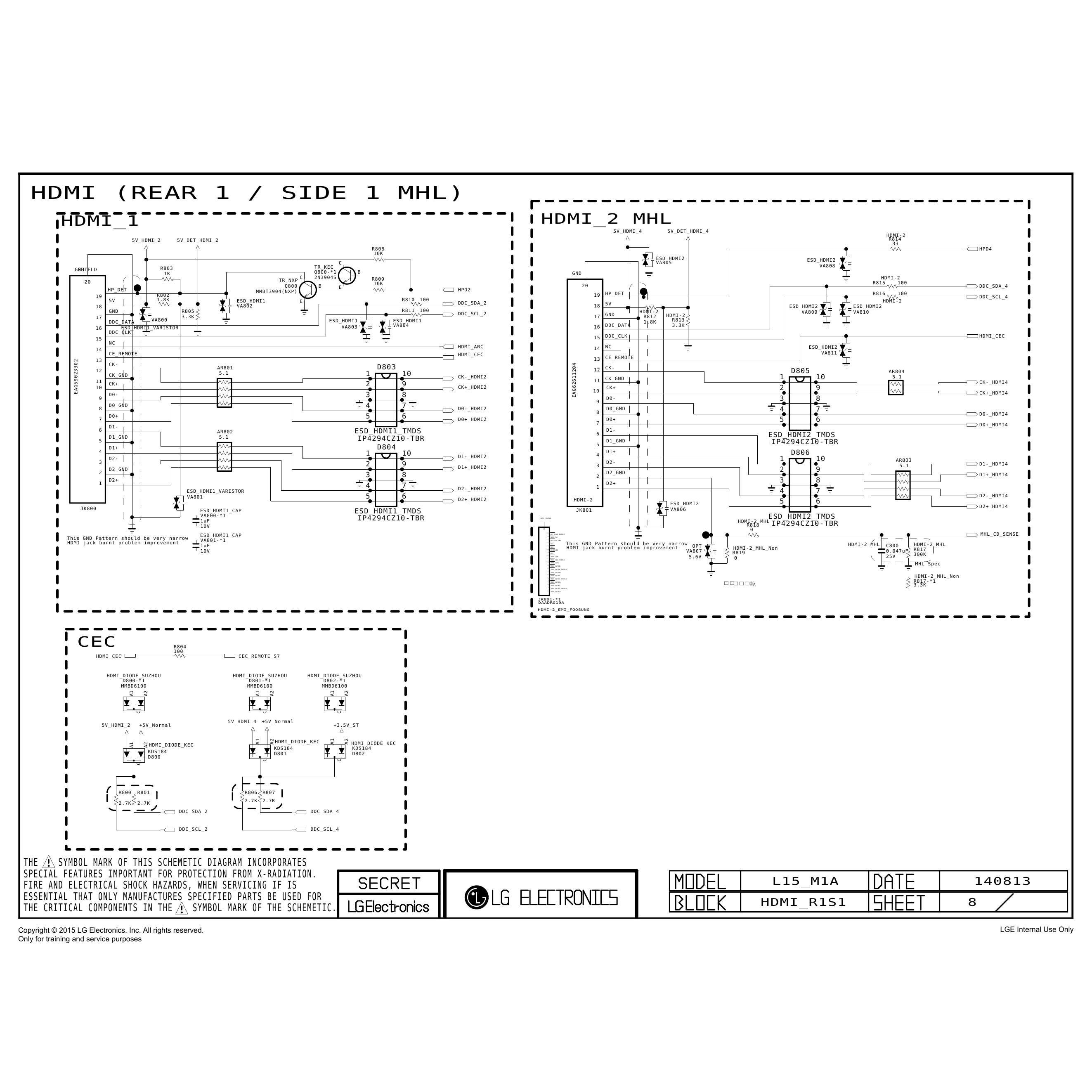

HDMI (REAR 1 / SIDE 1 MHL)
HDMI_1 HDMI_2 MHL
5V_HDMI_4 5V_DET_HDMI_4
HDMI-2
5V_HDMI_2 5V_DET_HDMI_2 R814
33
R808 HPD4
10K
ESD_HDMI2 ESD_HDMI2
C VA805
TR_KEC VA808
GND
SHIELD R803
1K Q800-*1 B GND
C 2N3904S R809 HDMI-2
20 TR_NXP
10K R815 100
Q800 B E 20 DDC_SDA_4
HP_DET MMBT3904(NXP) HPD2
R802 19 HP_DET R816 100
19 DDC_SCL_4
5V 1.8K ESD_HDMI1 E R810 100 HDMI-2
DDC_SDA_2 5V
18 VA802 18 ESD_HDMI2 ESD_HDMI2
GND R805 R811 100 HDMI-2 VA809 VA810
DDC_SCL_2 GND HDMI-2
17 3.3K 17 R812
DDC_DATA VA800 ESD_HDMI1 ESD_HDMI1 1.8K R813
VA803 VA804 16 DDC_DATA 3.3K
16 ESD_HDMI1_VARISTOR
DDC_CLK
15 DDC_CLK HDMI_CEC
15
NC
HDMI_ARC 14 NC ESD_HDMI2
14
CE_REMOTE HDMI_CEC VA811
13 CE_REMOTE
13
EAG59023302
EAG62611204
CK-
AR801 D803 12 CK-
12
5.1 1 10 D805 AR804
CK_GND CK-_HDMI2
11 CK_GND 1 10 5.1
11 CK-_HDMI4
CK+ 2 9
10 CK+_HDMI2
10
CK+ 2 9
CK+_HDMI4
D0- 3 8
9
9
D0- 3 8
D0_GND 4 7
8 D0-_HDMI2
8
D0_GND 4 7
D0-_HDMI4
D0+ 5 6
7 D0+_HDMI2
7
D0+ 5 6
D1- D0+_HDMI4
6 AR802 ESD_HDMI1_TMDS D1-
6 ESD_HDMI2_TMDS
D1_GND 5.1 IP4294CZ10-TBR
5 D1_GND IP4294CZ10-TBR
5
D1+ D804
4 D1+ D806
1 10 D1-_HDMI2 4
3
D2-
D2-
1 10 AR803
2 9 D1+_HDMI2 3 5.1 D1-_HDMI4
2
D2_GND
D2_GND
2 9
3 8 2 D1+_HDMI4
1
D2+
D2+
3 8
4 7 D2-_HDMI2 1
ESD_HDMI1_VARISTOR 4 7
VA801 5 6 D2+_HDMI2 HDMI-2
D2-_HDMI4
ESD_HDMI2 5 6
JK800 D2+_HDMI4
JK801 VA806
ESD_HDMI1_CAP ESD_HDMI1_TMDS
VA800-*1 ESD_HDMI2_TMDS
1uF IP4294CZ10-TBR BODY_SHIELD
HDMI-2_MHL
10V R818 IP4294CZ10-TBR
20
0
19
ESD_HDMI1_CAP 18
HOT_PLUG_DETECT
MHL_CD_SENSE
This GND Pattern should be very narrow VA801-*1 17
VDD[+5V]
DDC/CEC_GND
HDMI jack burnt problem improvement 16
SDA
This GND Pattern should be very narrow HDMI-2_MHL HDMI-2_MHL
1uF 15
HDMI jack burnt problem improvement OPT C800
14
SCL
HDMI-2_MHL_Non R817
10V 13
RESERVED
CEC
VA807 R819 0.047uF
12
TMDS_CLK-
5.6V 25V 300K
11
TMDS_CLK_SHIELD 0
10
9
TMDS_CLK+
TMDS_DATA0-
MHL Spec
8
TMDS_DATA0_SHIELD
7
TMDS_DATA0+
6
5
TMDS_DATA1-
TMDS_DATA1_SHIELD
HDMI-2_MHL_Non
4
TMDS_DATA1+ R817-*1
3
2
TMDS_DATA2- 3.3K
TMDS_DATA2_SHIELD
1
TMDS_DATA2+
JK801-*1
DAADR019A
HDMI-2_EMI_FOOSUNG
CEC R804
100
HDMI_CEC CEC_REMOTE_S7
HDMI_DIODE_SUZHOU HDMI_DIODE_SUZHOU HDMI_DIODE_SUZHOU
D800-*1 D801-*1 D802-*1
MMBD6100 MMBD6100 MMBD6100
A1
A2
A1
A2
A1
A2
C
C
C
5V_HDMI_4 +5V_Normal
5V_HDMI_2 +5V_Normal +3.5V_ST
A1
A2
A1
A2
HDMI_DIODE_KEC
A1
A2
HDMI_DIODE_KEC HDMI_DIODE_KEC
KDS184 KDS184
KDS184 D801 D802
D800
C
C
C
R800 R801 R806 R807
2.7K 2.7K
2.7K 2.7K
DDC_SDA_2 DDC_SDA_4
DDC_SCL_2 DDC_SCL_4
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS L15_M1A 140813
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
HDMI_R1S1 8
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes

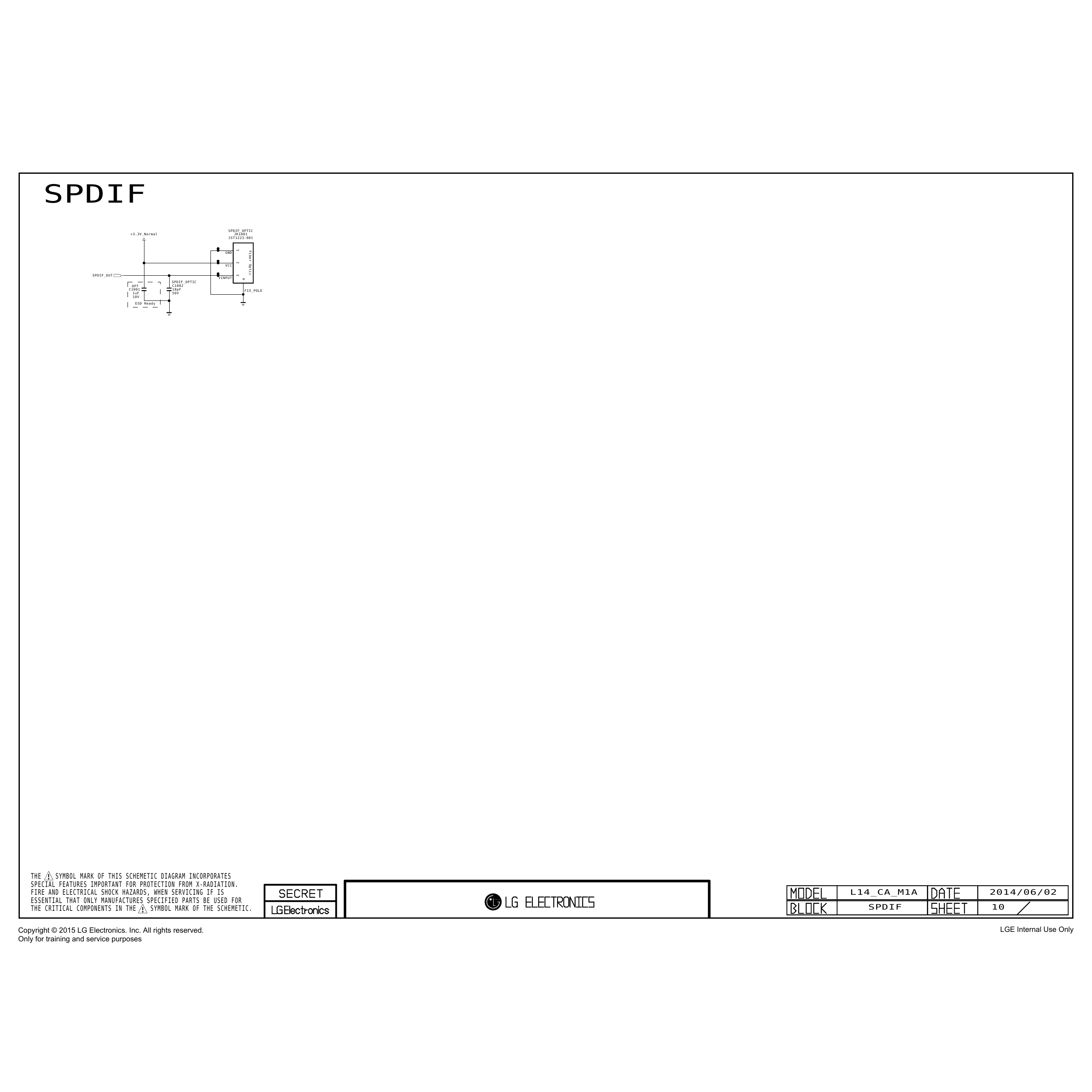

SPDIF
SPDIF_OPTIC
+3.3V_Normal JK1001
JST1223-001
1
Fiber Optic
GND
2
VCC
3
SPDIF_OUT
VINPUT
4
SPDIF_OPTIC
OPT C1002
C1001 18pF FIX_POLE
1uF 50V
10V
ESD Ready
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS L14_CA_M1A 2014/06/02
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. SPDIF 10
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes

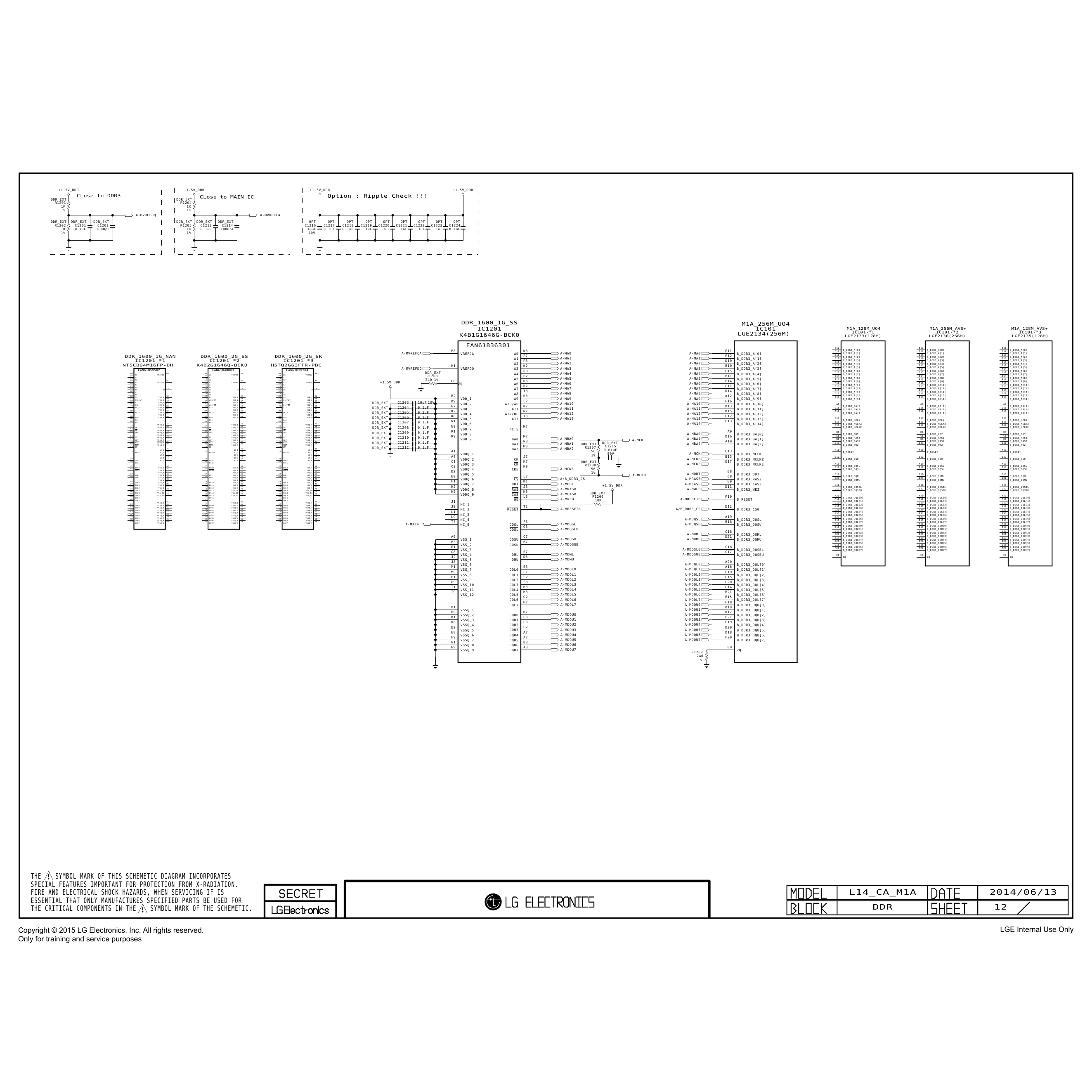

+1.5V_DDR +1.5V_DDR +1.5V_DDR +1.5V_DDR
CLose to DDR3 CLose to MAIN IC Option : Ripple Check !!!
DDR_EXT DDR_EXT
R1201 R1204
1K 1K
1% 1%
A-MVREFDQ A-MVREFCA
DDR_EXT DDR_EXT DDR_EXT DDR_EXT DDR_EXT DDR_EXT OPT OPT OPT OPT OPT OPT OPT OPT OPT
R1202 C1201 C1202 R1205 C1213 C1214 C1216 C1217 C1218 C1219 C1220 C1221 C1222 C1223 C1224
1K 0.1uF 1000pF 1K 0.1uF 1000pF 10uF 0.1uF 0.1uF 1uF 1uF 1uF 1uF 1uF 0.1uF
1% 1% 10V
DDR_1600_1G_SS M1A_256M_UO4
IC1201 IC101 M1A_128M_UO4 M1A_256M_AVS+ M1A_128M_AVS+
IC101-*1 IC101-*2 IC101-*3
K4B1G1646G-BCK0 LGE2134(256M) LGE2133(128M) LGE2136(256M) LGE2135(128M)
EAN61836301 E11 E11 E11
B_DDR3_A[0] B_DDR3_A[0] B_DDR3_A[0]
M8 N3 E11 F12 F12 F12
A-MVREFCA VREFCA A0 A-MA0 A-MA0 B_DDR3_A[0] D10
B_DDR3_A[1]
D10
B_DDR3_A[1]
D10
B_DDR3_A[1]
DDR_1600_1G_NAN DDR_1600_2G_SS DDR_1600_2G_SK P7 F12 B_DDR3_A[2] B_DDR3_A[2] B_DDR3_A[2]
A1 A-MA1 A-MA1 B_DDR3_A[1] B10 B10 B10
IC1201-*1 IC1201-*2 IC1201-*3 P3 D10 E15
B_DDR3_A[3]
E15
B_DDR3_A[3]
E15
B_DDR3_A[3]
A2 A-MA2 A-MA2 B_DDR3_A[2] B_DDR3_A[4] B_DDR3_A[4] B_DDR3_A[4]
NT5CB64M16FP-DH K4B2G1646Q-BCK0 H5TQ2G63FFR-PBC H1 N2 B10 B11
B_DDR3_A[5]
B11
B_DDR3_A[5]
B11
B_DDR3_A[5]
EAN61859502 EAN61848803 EAN61829204
A-MVREFDQ VREFDQ A3 A-MA3 A-MA3 B_DDR3_A[3] F14 F14 F14
DDR_EXT P8 E15 C11
B_DDR3_A[6]
C11
B_DDR3_A[6]
C11
B_DDR3_A[6]
N3
A0 VREFCA
M8 N3
A0 VREFCA
M8 N3
A0 VREFCA
M8
A4 A-MA4 A-MA4 B_DDR3_A[4] B_DDR3_A[7] B_DDR3_A[7] B_DDR3_A[7]
P7
A1
P7
A1
P7
A1 R1203 P2 B11 D14 D14 D14
A-MA5 A-MA5 B_DDR3_A[8] B_DDR3_A[8] B_DDR3_A[8]
P3
A2
P3
A2
P3
A2 240 1% A5 B_DDR3_A[5] A12 A12 A12
N2
A3 VREFDQ
H1 N2
A3 VREFDQ
H1 N2
A3 VREFDQ
H1
+1.5V_DDR L8 R8 F14 F16
B_DDR3_A[9]
F16
B_DDR3_A[9]
F16
B_DDR3_A[9]
P8
A4
P8
A4
P8
A4 ZQ A6 A-MA6 A-MA6 B_DDR3_A[6] B_DDR3_A[10] B_DDR3_A[10] B_DDR3_A[10]
P2
A5
P2
A5
P2
A5 R2 C11 D13 D13 D13
R8
A6 ZQ
L8 R8
A6 ZQ
L8 R8
A6 ZQ
L8
A7 A-MA7 A-MA7 B_DDR3_A[7] D15
B_DDR3_A[11]
D15
B_DDR3_A[11]
D15
B_DDR3_A[11]
R2
A7
R2
A7
R2
A7 T8 D14 B_DDR3_A[12] B_DDR3_A[12] B_DDR3_A[12]
T8
A8
T8
A8
T8
A8 A8 A-MA8 A-MA8 B_DDR3_A[8] C12 C12 C12
R3 B2 R3 B2 R3 B2 B2 R3 A12 B_DDR3_A[13] B_DDR3_A[13] B_DDR3_A[13]
A9 VDD_1 A9 VDD_1 A9 VDD_1 E13 E13 E13
L7
A10/AP VDD_2
D9 L7
A10/AP VDD_2
D9 L7
A10/AP VDD_2
D9
VDD_1 A9 A-MA9 A-MA9 B_DDR3_A[9] B_DDR3_A[14] B_DDR3_A[14] B_DDR3_A[14]
R7
A11 VDD_3
G7 R7
A11 VDD_3
G7 R7
A11 VDD_3
G7
DDR_EXT C1203 10uF 10V D9 L7 F16
N7
A12 VDD_4
K2 N7
A12/BC VDD_4
K2 N7
A12/BC VDD_4
K2
VDD_2 A10/AP A-MA10 A-MA10 B_DDR3_A[10] A9 A9 A9
T3
NC_6 VDD_5
K8 T3
A13 VDD_5
K8 T3
A13 VDD_5
K8
DDR_EXT C1204 0.1uF G7 R7 D13 D16
B_DDR3_BA[0]
D16
B_DDR3_BA[0]
D16
B_DDR3_BA[0]
VDD_6
N1
VDD_6
N1
VDD_6
N1
VDD_3 A11 A-MA11 A-MA11 B_DDR3_A[11] B_DDR3_BA[1] B_DDR3_BA[1] B_DDR3_BA[1]
M7
NC_5 VDD_7
N9 M7
NC_5 VDD_7
N9 M7
NC_5 VDD_7
N9
DDR_EXT C1205 0.1uF K2 N7 D15 A10 A10 A10
A-MA12 A-MA12 B_DDR3_BA[2] B_DDR3_BA[2] B_DDR3_BA[2]
VDD_8
R1
VDD_8
R1
VDD_8
R1
VDD_4 A12/BC B_DDR3_A[12]
M2
BA0 VDD_9
R9 M2
BA0 VDD_9
R9 M2
BA0 VDD_9
R9
DDR_EXT C1206 0.1uF K8 T3 C12 C13 C13 C13
N8
BA1
N8
BA1
N8
BA1 VDD_5 A13 A-MA13 A-MA13 B_DDR3_A[13] B_DDR3_MCLK B_DDR3_MCLK B_DDR3_MCLK
M3
BA2
M3
BA2
M3
BA2 DDR_EXT C1207 0.1uF N1 E13 B13 B13 B13
VDDQ_1
A1
VDDQ_1
A1
VDDQ_1
A1
VDD_6 A-MA14 B_DDR3_A[14] E17
B_DDR3_MCLKZ
E17
B_DDR3_MCLKZ
E17
B_DDR3_MCLKZ
J7 A8 J7 A8 J7 A8
C1208 0.1uF N9 M7 B_DDR3_MCLKE B_DDR3_MCLKE B_DDR3_MCLKE
K7
CK VDDQ_2
C1 K7
CK VDDQ_2
C1 K7
CK VDDQ_2
C1 DDR_EXT VDD_7 NC_5
CK VDDQ_3 CK VDDQ_3 CK VDDQ_3
K9
CKE VDDQ_4
C9 K9
CKE VDDQ_4
C9 K9
CKE VDDQ_4
C9
DDR_EXT C1209 0.1uF R1 A9 B8 B8 B8
VDDQ_5
D2
VDDQ_5
D2
VDDQ_5
D2
VDD_8 A-MBA0 B_DDR3_BA[0] B_DDR3_ODT B_DDR3_ODT B_DDR3_ODT
L2 E9 L2 E9 L2 E9 R9 M2 D16 C8 C8 C8
CS VDDQ_6 CS VDDQ_6 CS VDDQ_6
DDR_EXT C1210 0.1uF A-MBA0 A-MBA1 B_DDR3_RASZ B_DDR3_RASZ B_DDR3_RASZ
K1
ODT VDDQ_7
F1 K1
ODT VDDQ_7
F1 K1
ODT VDDQ_7
F1
VDD_9 BA0 A-MCK B_DDR3_BA[1] B9 B9 B9
J3
RAS VDDQ_8
H2 J3
RAS VDDQ_8
H2 J3
RAS VDDQ_8
H2
DDR_EXT C1211 0.1uF N8 DDR_EXT A10 D11
B_DDR3_CASZ
D11
B_DDR3_CASZ
D11
B_DDR3_CASZ
K3
CAS VDDQ_9
H9 K3
CAS VDDQ_9
H9 K3
CAS VDDQ_9
H9
BA1 A-MBA1 DDR_EXT A-MBA2 B_DDR3_BA[2] B_DDR3_WEZ B_DDR3_WEZ B_DDR3_WEZ
L3
WE
L3
WE
L3
WE
DDR_EXT C1212 0.1uF M3 R1207 C1215
NC_1
J1
NC_1
J1
NC_1
J1
BA2 A-MBA2 0.01uF F10 F10 F10
T2
RESET NC_2
J9 T2
RESET NC_2
J9 T2
RESET NC_2
J9 A1 56 C13 B_RESET B_RESET B_RESET
NC_3
L1
NC_3
L1
NC_3
L1
VDDQ_1 1% 50V A-MCK B_DDR3_MCLK
NC_4
L9
NC_4
L9
NC_4
L9 A8 J7 B13 D12 D12 D12
F3
DQSL NC_7
T7 F3
DQSL NC_6
T7 F3
DQSL NC_6
T7
VDDQ_2 CK A-MCKB B_DDR3_MCLKZ B_DDR3_CS0 B_DDR3_CS0 B_DDR3_CS0
G3
DQSL
G3
DQSL
G3
DQSL C1 K7 DDR_EXT E17
VDDQ_3 CK R1208 A-MCKE B_DDR3_MCLKE A19 A19 A19
C7 A9 C7 A9 C7 A9 C9 K9 B_DDR3_DQSL B_DDR3_DQSL B_DDR3_DQSL
DQSU VSS_1 DQSU VSS_1 DQSU VSS_1 B18 B18 B18
B7
DQSU VSS_2
B3 B7
DQSU VSS_2
B3 B7
DQSU VSS_2
B3
VDDQ_4 CKE A-MCKE 56 B_DDR3_DQSU B_DDR3_DQSU B_DDR3_DQSU
VSS_3
E1
VSS_3
E1
VSS_3
E1 D2 1% B8
E7
DML VSS_4
G8 E7
DML VSS_4
G8 E7
DML VSS_4
G8
VDDQ_5 A-MCKB A-MODT B_DDR3_ODT C16 C16 C16
D3
DMU VSS_5
J2 D3
DMU VSS_5
J2 D3
DMU VSS_5
J2 E9 L2 C8 D21
B_DDR3_DQML
D21
B_DDR3_DQML
D21
B_DDR3_DQML
VSS_6
J8
VSS_6
J8
VSS_6
J8
VDDQ_6 CS A/B_DDR3_CS A-MRASB B_DDR3_RASZ B_DDR3_DQMU B_DDR3_DQMU B_DDR3_DQMU
E3
DQL0 VSS_7
M1 E3
DQL0 VSS_7
M1 E3
DQL0 VSS_7
M1 F1 K1 B9
F7
DQL1 VSS_8
M9 F7
DQL1 VSS_8
M9 F7
DQL1 VSS_8
M9
VDDQ_7 ODT A-MODT +1.5V_DDR A-MCASB B_DDR3_CASZ C18 C18 C18
F2
DQL2 VSS_9
P1 F2
DQL2 VSS_9
P1 F2
DQL2 VSS_9
P1 H2 J3 D11 B_DDR3_DQSBL B_DDR3_DQSBL B_DDR3_DQSBL
A-MRASB A-MWEB C17 C17 C17
F8
DQL3 VSS_10
P9 F8
DQL3 VSS_10
P9 F8
DQL3 VSS_10
P9
VDDQ_8 RAS B_DDR3_WEZ B_DDR3_DQSBU B_DDR3_DQSBU B_DDR3_DQSBU
H3 T1 H3 T1 H3 T1 H9 K3
H8
DQL4 VSS_11
T9 H8
DQL4 VSS_11
T9 H8
DQL4 VSS_11
T9
VDDQ_9 CAS A-MCASB DDR_EXT
DQL5 VSS_12 DQL5 VSS_12 DQL5 VSS_12 A20 A20 A20
G2
DQL6
G2
DQL6
G2
DQL6
L3 R1206 F10 B_DDR3_DQL[0] B_DDR3_DQL[0] B_DDR3_DQL[0]
H7
DQL7
H7
DQL7
H7
DQL7 WE A-MWEB 10K A-MRESETB B_RESET A16 A16 A16
B1 B1 B1 J1 B_DDR3_DQL[1] B_DDR3_DQL[1] B_DDR3_DQL[1]
VSSQ_1 VSSQ_1 VSSQ_1 C19 C19 C19
D7 B9 D7 B9 D7 B9
DQU0 VSSQ_2 DQU0 VSSQ_2 DQU0 VSSQ_2 NC_1 C15
B_DDR3_DQL[2]
C15
B_DDR3_DQL[2]
C15
B_DDR3_DQL[2]
C3
DQU1 VSSQ_3
D1 C3
DQU1 VSSQ_3
D1 C3
DQU1 VSSQ_3
D1 J9 T2 D12 B_DDR3_DQL[3] B_DDR3_DQL[3] B_DDR3_DQL[3]
C8
DQU2 VSSQ_4
D8 C8
DQU2 VSSQ_4
D8 C8
DQU2 VSSQ_4
D8
NC_2 RESET A-MRESETB A/B_DDR3_CS B_DDR3_CS0 C20 C20 C20
C2
DQU3 VSSQ_5
E2 C2
DQU3 VSSQ_5
E2 C2
DQU3 VSSQ_5
E2 L1 C14
B_DDR3_DQL[4]
C14
B_DDR3_DQL[4]
C14
B_DDR3_DQL[4]
A7 E8 A7 E8 A7 E8
DQU4 VSSQ_6 DQU4 VSSQ_6 DQU4 VSSQ_6 NC_3 B_DDR3_DQL[5] B_DDR3_DQL[5] B_DDR3_DQL[5]
A2
DQU5 VSSQ_7
F9 A2
DQU5 VSSQ_7
F9 A2
DQU5 VSSQ_7
F9 L9 A19 B21 B21 B21
A-MDQSL B_DDR3_DQL[6] B_DDR3_DQL[6] B_DDR3_DQL[6]
B8
DQU6 VSSQ_8
G1 B8
DQU6 VSSQ_8
G1 B8
DQU6 VSSQ_8
G1
NC_4 B_DDR3_DQSL B15 B15 B15
A3
DQU7 VSSQ_9
G9 A3
DQU7 VSSQ_9
G9 A3
DQU7 VSSQ_9
G9 T7 F3 B18 B_DDR3_DQL[7] B_DDR3_DQL[7] B_DDR3_DQL[7]
A-MA14 A-MDQSL A-MDQSU F18 F18 F18
NC_6 DQSL B_DDR3_DQSU B_DDR3_DQU[0] B_DDR3_DQU[0] B_DDR3_DQU[0]
G3 D19 D19 D19
DQSL A-MDQSLB D17
B_DDR3_DQU[1]
D17
B_DDR3_DQU[1]
D17
B_DDR3_DQU[1]
C16 B_DDR3_DQU[2] B_DDR3_DQU[2] B_DDR3_DQU[2]
A-MDML B_DDR3_DQML E21 E21 E21
A9 C7 D21 B_DDR3_DQU[3] B_DDR3_DQU[3] B_DDR3_DQU[3]
E19 E19 E19
VSS_1 DQSU A-MDQSU A-MDMU B_DDR3_DQMU B_DDR3_DQU[4] B_DDR3_DQU[4] B_DDR3_DQU[4]
B3 B7 D20 D20 D20
B_DDR3_DQU[5] B_DDR3_DQU[5] B_DDR3_DQU[5]
VSS_2 DQSU A-MDQSUB D18 D18 D18
E1 C18 F20
B_DDR3_DQU[6]
F20
B_DDR3_DQU[6]
F20
B_DDR3_DQU[6]
VSS_3 A-MDQSLB B_DDR3_DQSBL B_DDR3_DQU[7] B_DDR3_DQU[7] B_DDR3_DQU[7]
G8 E7 C17
VSS_4 DML A-MDML A-MDQSUB B_DDR3_DQSBU E9 E9 E9
J2 D3 ZQ ZQ ZQ
VSS_5 DMU A-MDMU
J8 A20
VSS_6 A-MDQL0 B_DDR3_DQL[0]
M1 E3 A16
VSS_7 DQL0 A-MDQL0 A-MDQL1 B_DDR3_DQL[1]
M9 F7 C19
VSS_8 DQL1 A-MDQL1 A-MDQL2 B_DDR3_DQL[2]
P1 F2 C15
VSS_9 DQL2 A-MDQL2 A-MDQL3 B_DDR3_DQL[3]
P9 F8 C20
VSS_10 DQL3 A-MDQL3 A-MDQL4 B_DDR3_DQL[4]
T1 H3 C14
VSS_11 DQL4 A-MDQL4 A-MDQL5 B_DDR3_DQL[5]
T9 H8 B21
VSS_12 DQL5 A-MDQL5 A-MDQL6 B_DDR3_DQL[6]
G2 B15
DQL6 A-MDQL6 A-MDQL7 B_DDR3_DQL[7]
H7 F18
DQL7 A-MDQL7 A-MDQU0 B_DDR3_DQU[0]
B1 D19
VSSQ_1 A-MDQU1 B_DDR3_DQU[1]
B9 D7 D17
VSSQ_2 DQU0 A-MDQU0 A-MDQU2 B_DDR3_DQU[2]
D1 C3 E21
VSSQ_3 DQU1 A-MDQU1 A-MDQU3 B_DDR3_DQU[3]
D8 C8 E19
VSSQ_4 DQU2 A-MDQU2 A-MDQU4 B_DDR3_DQU[4]
E2 C2 D20
VSSQ_5 DQU3 A-MDQU3 A-MDQU5 B_DDR3_DQU[5]
E8 A7 D18
VSSQ_6 DQU4 A-MDQU4 A-MDQU6 B_DDR3_DQU[6]
F9 A2 F20
VSSQ_7 DQU5 A-MDQU5 A-MDQU7 B_DDR3_DQU[7]
G1 B8
VSSQ_8 DQU6 A-MDQU6
G9 A3 E9
VSSQ_9 DQU7 A-MDQU7 ZQ
R1209
240
1%
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS L14_CA_M1A 2014/06/13
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. DDR 12
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes

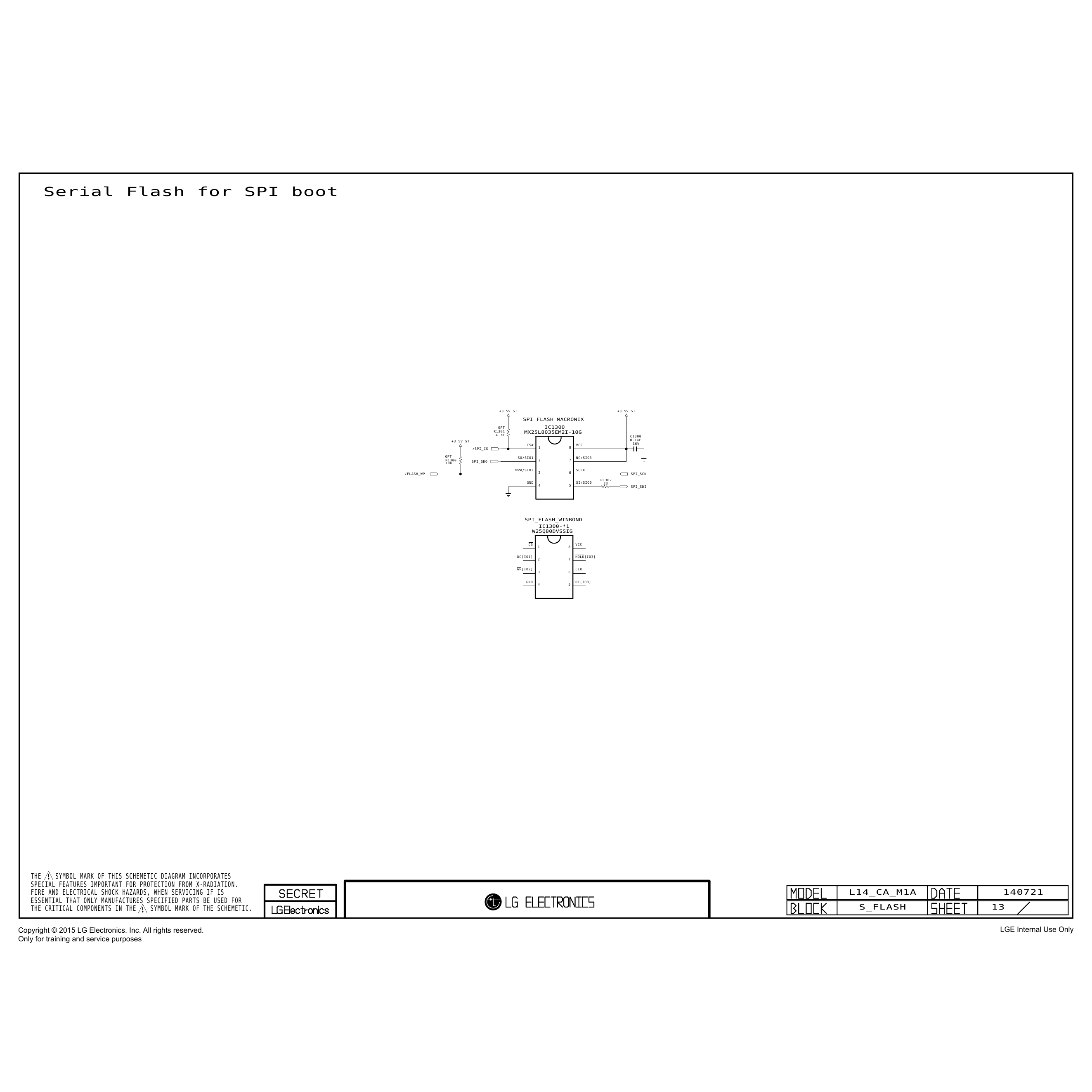

Serial Flash for SPI boot
+3.5V_ST +3.5V_ST
SPI_FLASH_MACRONIX
OPT IC1300
R1301 MX25L8035EM2I-10G
4.7K C1300
+3.5V_ST 0.1uF
CS# VCC 16V
/SPI_CS 1 8
OPT SO/SIO1 NC/SIO3
R1300 SPI_SDO 2 7
10K
WP#/SIO2 SCLK
/FLASH_WP 3 6 SPI_SCK
R1302
GND SI/SIO0 33
4 5 SPI_SDI
SPI_FLASH_WINBOND
IC1300-*1
W25Q80DVSSIG
CS VCC
1 8
DO[IO1] HOLD[IO3]
2 7
WP[IO2] CLK
3 6
GND DI[IO0]
4 5
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS L14_CA_M1A 140721
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. S_FLASH 13
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes

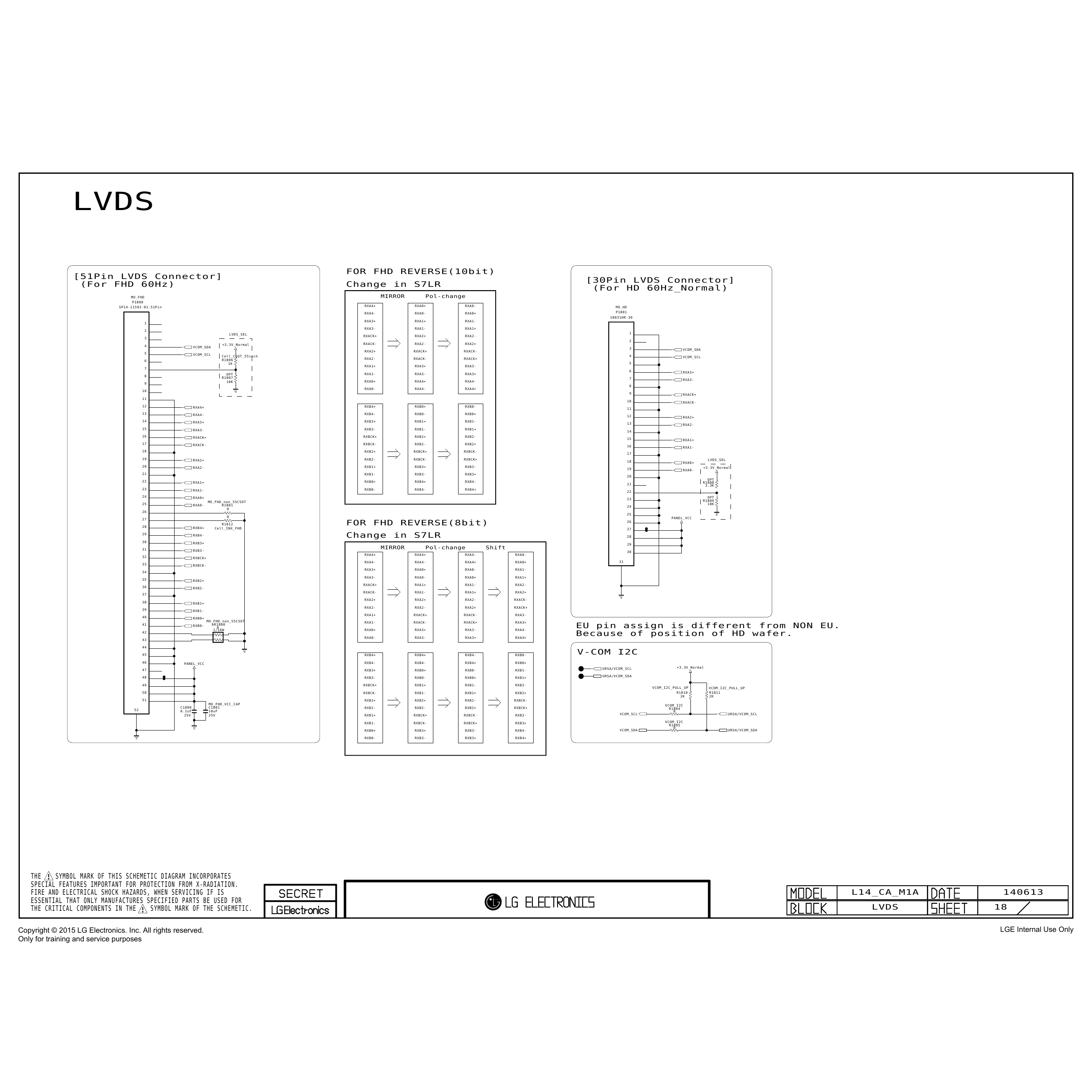

LVDS
FOR FHD REVERSE(10bit)
[51Pin LVDS Connector] [30Pin LVDS Connector]
(For FHD 60Hz) Change in S7LR
(For HD 60Hz_Normal)
MO_FHD MIRROR Pol-change
P1800
SP14-11592-01-51Pin RXA4+ RXA0+ RXA0- MO_HD
RXA4- RXA0- RXA0+ P1801
10031HR-30
RXA3+ RXA1+ RXA1-
1
RXA3- RXA1- RXA1+
2
LVDS_SEL 1
RXACK+ RXA2+ RXA2-
3
2
+3.3V_Normal RXACK- RXA2- RXA2+
4 VCOM_SDA 3 VCOM_SDA
RXA2+ RXACK+ RXACK-
5 VCOM_SCL Cell_CSOT_55inch 4 VCOM_SCL
R1806 RXA2- RXACK- RXACK+
6
1K 5
RXA1+ RXA3+ RXA3-
7
6 RXA3+
OPT RXA1- RXA3- RXA3+
8 R1807 7 RXA3-
10K RXA0+ RXA4+ RXA4-
9
8
RXA0- RXA4- RXA4+
10
9 RXACK+
11
10 RXACK-
12 RXA4+ RXB4+ RXB0+ RXB0-
11
13 RXA4- RXB4- RXB0- RXB0+
12 RXA2+
14 RXA3+ RXB3+ RXB1+ RXB1-
13 RXA2-
15 RXA3- RXB3- RXB1- RXB1+
14
16 RXACK+ RXBCK+ RXB2+ RXB2-
15 RXA1+
17 RXACK- RXBCK- RXB2- RXB2+
16 RXA1-
18 RXB2+ RXBCK+ RXBCK-
17
19 RXA2+ RXB2- RXBCK- RXBCK+ LVDS_SEL
18 RXA0+
20 RXA2- RXB1+ RXB3+ RXB3- +3.3V_Normal
19 RXA0-
21 RXB1- RXB3- RXB3+
20
OPT
22 RXA1+ RXB0+ RXB4+ RXB4- R1808
21 3.3K
23 RXA1- RXB0- RXB4- RXB4+
22
24 RXA0+ OPT
23 R1809
MO_FHD_non_55CSOT
25 RXA0- R1801 10K
24
0
26
25
0 PANEL_VCC
27
28 RXB4+
R1812 FOR FHD REVERSE(8bit) 26
Cell_INX_FHD 27
29 RXB4- Change in S7LR 28
30 RXB3+ 29
31 RXB3-
MIRROR Pol-change Shift
30
RXA4+ RXA4+ RXA4- RXA0-
32 RXBCK+
RXA4- RXA4- RXA4+ RXA0+ 31
33 RXBCK-
RXA3+ RXA0+ RXA0- RXA1-
34
RXA3- RXA0- RXA0+ RXA1+
35 RXB2+
RXACK+ RXA1+ RXA1- RXA2-
36 RXB2-
RXACK- RXA1- RXA1+ RXA2+
37
RXA2+ RXA2+ RXA2- RXACK-
38 RXB1+
RXA2- RXA2- RXA2+ RXACK+
39 RXB1-
RXA1+ RXACK+ RXACK- RXA3-
40 RXB0+
MO_FHD_non_55CSOT RXA1- RXACK- RXACK+ RXA3+
41 RXB0- AR1800
0
1/16W RXA0+ RXA3+ RXA3- RXA4-
EU pin assign is different from NON EU.
42
RXA0- RXA3- RXA3+ RXA4+
Because of position of HD wafer.
43
44
45 RXB4+ RXB4+ RXB4- RXB0-
V-COM I2C
46 PANEL_VCC RXB4- RXB4- RXB4+ RXB0+
URSA/VCOM_SCL +3.3V_Normal
47 RXB3+ RXB0+ RXB0- RXB1-
48 RXB3- RXB0- RXB0+ RXB1+ URSA/VCOM_SDA
49 RXBCK+ RXB1+ RXB1- RXB2-
VCOM_I2C_PULL_UP VCOM_I2C_PULL_UP
50 RXBCK- RXB1- RXB1+ RXB2+ R1810 R1811
2K 2K
51 RXB2+ RXB2+ RXB2- RXBCK-
MO_FHD_VCC_CAP VCOM_I2C
C1800 C1801 RXB2- RXB2- RXB2+ RXBCK+ R1804
52 0.1uF 10uF 0
25V 25V RXB1+ RXBCK+ RXBCK- RXB3- VCOM_SCL URSA/VCOM_SCL
RXB1- RXBCK- RXBCK+ RXB3+ VCOM_I2C
R1805
0
RXB0+ RXB3+ RXB3- RXB4- VCOM_SDA URSA/VCOM_SDA
RXB0- RXB3- RXB3+ RXB4+
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS L14_CA_M1A 140613
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. LVDS 18
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes

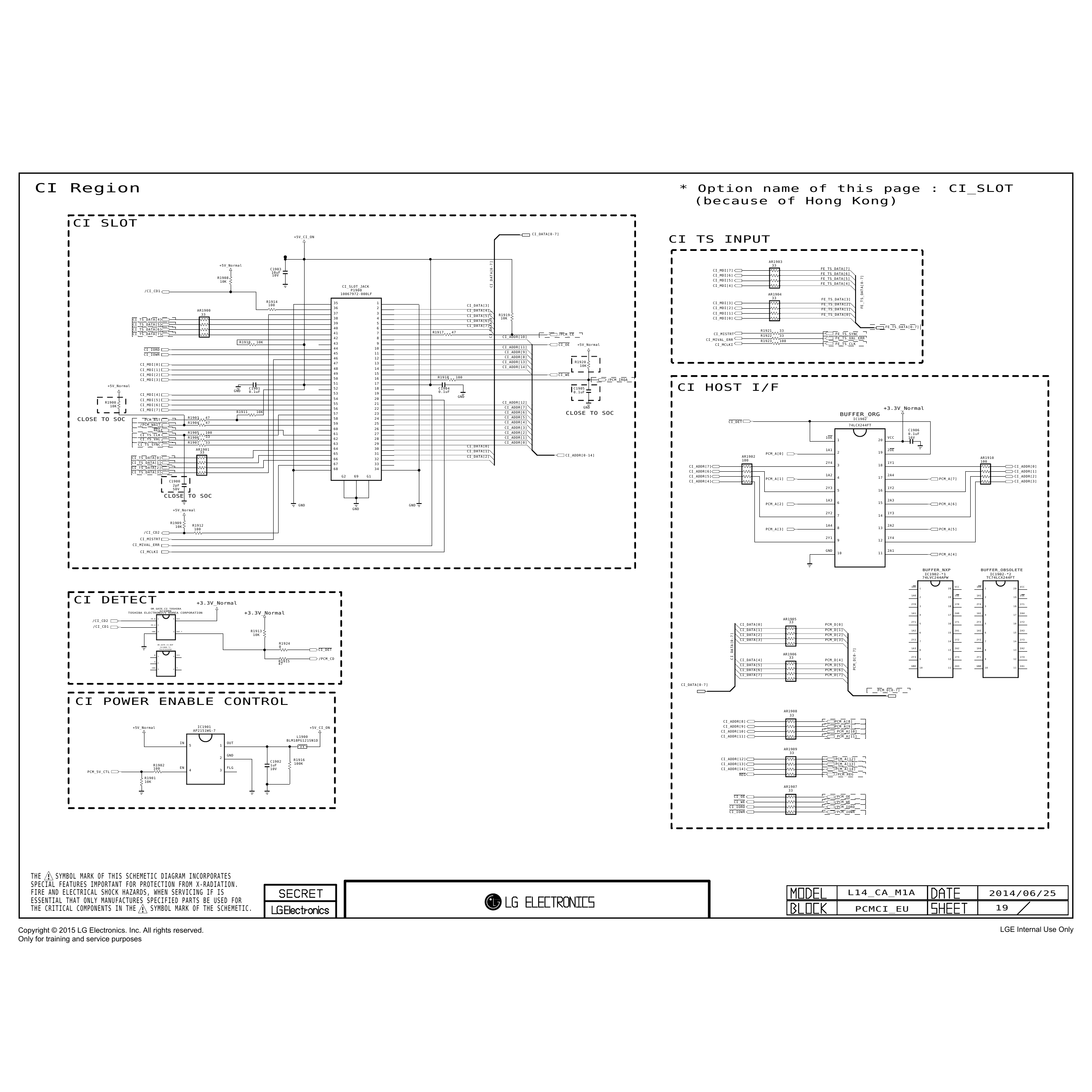

CI Region * Option name of this page : CI_SLOT
(because of Hong Kong)
CI SLOT
CI_DATA[0-7]
+5V_CI_ON
CI TS INPUT
AR1903
CI_DATA[0-7]
+5V_Normal 33
C1903 FE_TS_DATA[7]
CI_MDI[7]
10uF FE_TS_DATA[6]
10V CI_MDI[6]
FE_TS_DATA[0-7]
R1908 FE_TS_DATA[5]
10K CI_MDI[5]
FE_TS_DATA[4]
CI_SLOT_JACK CI_MDI[4]
/CI_CD1 P1900
10067972-000LF AR1904
33 FE_TS_DATA[3]
R1914 35 1 CI_MDI[3]
100 CI_DATA[3] FE_TS_DATA[2]
36 2 CI_MDI[2] FE_TS_DATA[1]
AR1900 CI_DATA[4]
CI_DATA[0-7]
33 37 3 CI_MDI[1] FE_TS_DATA[0]
CI_DATA[5] R1919
CI_TS_DATA[4] 38 4 10K CI_MDI[0]
CI_DATA[6]
CI_TS_DATA[5] 39 5
CI_DATA[7] FE_TS_DATA[0-7]
CI_TS_DATA[6] 40 6
R1917 R1921 33
CI_TS_DATA[7] 41 7 47 CI_MISTRT FE_TS_SYNC
/PCM_CE R1922 33
42 8 CI_ADDR[10] FE_TS_VAL_ERR
CI_MIVAL_ERR R1923 100
R1910 10K 43 9 CI_OE +5V_Normal CI_MCLKI FE_TS_CLK
44 10 CI_ADDR[11]
CI_IORD
45 11 CI_ADDR[9]
CI_IOWR
46 12 CI_ADDR[8]
47 13 CI_ADDR[13] R1920
CI_MDI[0] 10K
48 14 CI_ADDR[14]
CI_MDI[1]
CI_MDI[2] 49 15 CI_WE
50 16 R1918 100
CI_MDI[3] /PCM_IRQA
51 17
+5V_Normal
GND
C1901
0.1uF
52
53
18
19
C1904
0.1uF
C1905
0.1uF
CI HOST I/F
CI_MDI[4]
GND
CI_MDI[5] 54 20
R1900 55 21 CI_ADDR[12]
10K CI_MDI[6]
56 22 CI_ADDR[7] GND +3.3V_Normal
CI_MDI[7]
R1911 10K CI_ADDR[6]
57 23 CLOSE TO SOC BUFFER_ORG
R1903 47 58 24 CI_ADDR[5]
CLOSE TO SOC PCM_RST
CI_ADDR[4] CI_DET
IC1902
R1904 47 59 25
/PCM_WAIT 74LCX244FT
60 26 CI_ADDR[3]
REG C1906
R1905 100 61 27 CI_ADDR[2] 0.1uF
CI_TS_CLK
R1906 33 CI_ADDR[1] 1OE VCC 16V
CI_TS_VAL 62 28 1 20
R1907 33 63 29 CI_ADDR[0]
CI_TS_SYNC
CI_DATA[0]
AR1901 64 30 1A1 2OE
33 CI_DATA[1] 2 19
65 31 CI_ADDR[0-14] PCM_A[0]
CI_TS_DATA[0] CI_DATA[2] AR1902 AR1910
66 32 100
CI_TS_DATA[1] 2Y4 1Y1 100
67 33 3 18
CI_TS_DATA[2] CI_ADDR[7] CI_ADDR[0]
68 34
CI_TS_DATA[3] CI_ADDR[6] CI_ADDR[1]
G2 69 G1 CI_ADDR[5] 1A2 2A4 CI_ADDR[2]
PCM_A[1] 4 17 PCM_A[7]
C1900 CI_ADDR[4] CI_ADDR[3]
2pF
50V 2Y3 1Y2
5 16
CLOSE TO SOC
1A3 2A3
PCM_A[2] 6 15 PCM_A[6]
GND GND
+5V_Normal GND
2Y2 1Y3
7 14
R1909
10K R1912 1A4 2A2
100 PCM_A[3] 8 13 PCM_A[5]
/CI_CD2
CI_MISTRT 2Y1 1Y4
9 12
CI_MIVAL_ERR
CI_MCLKI GND 2A1
10 11 PCM_A[4]
BUFFER_NXP BUFFER_OBSOLETE
IC1902-*1 IC1902-*2
74LVC244APW TC74LCX244FT
1OE VCC 1OE VCC
1 20 1 20
1A0 2OE 1A1 2OE
2 19 2 19
CI DETECT +3.3V_Normal 2Y0
3 18
1Y0 2Y4
3 18
1Y1
OR_GATE_CI_TOSHIBA
IC1900
TOSHIBA ELECTRONICS KOREA CORPORATION +3.3V_Normal 1A1
4 17
2A0 1A2
4 17
2A4
IN_B 1 5 VCC AR1905
/CI_CD2 33 2Y1 1Y1 2Y3 1Y2
5 16 5 16
IN_A 2 CI_DATA[0] PCM_D[0]
/CI_CD1
GND 3 4 OUT_Y R1913 CI_DATA[1] PCM_D[1] 1A2 2A1 1A3 2A3
6 15 6 15
CI_DATA[0-7]
10K CI_DATA[2] PCM_D[2]
CI_DATA[3] PCM_D[3] 2Y2
7 14
1Y2 2Y2
7 14
1Y3
OR_GATE_CI_NXP R1924
IC1900-*1 0 1A3 2A2 1A4 2A2
PCM_D[0-7]
74LVC1G32GW
CI_DET 8 13 8 13
B VCC AR1906
1 5
/PCM_CD 33 2Y3
9 12
1Y3 2Y1
9 12
1Y4
A R1915 CI_DATA[4] PCM_D[4]
2
47 CI_DATA[5] PCM_D[5] GND 2A3 GND 2A1
GND Y 10 11 10 11
3 4
CI_DATA[6] PCM_D[6]
CI_DATA[7] PCM_D[7]
CI_DATA[0-7]
PCM_D[0-7]
CI POWER ENABLE CONTROL
AR1908
33
CI_ADDR[8] PCM_A[8]
+5V_Normal IC1901 +5V_CI_ON CI_ADDR[9] PCM_A[9]
AP2151WG-7 CI_ADDR[10] PCM_A[10]
L1900 CI_ADDR[11] PCM_A[11]
BLM18PG121SN1D
IN OUT
5 1
AR1909
33
GND
2 CI_ADDR[12] PCM_A[12]
R1916
C1902
100K CI_ADDR[13] PCM_A[13]
R1902 1uF
100 EN FLG 10V CI_ADDR[14] PCM_A[14]
PCM_5V_CTL 4 3
REG /PCM_REG
R1901
10K
AR1907
33
CI_OE /PCM_OE
CI_WE /PCM_WE
CI_IORD /PCM_IORD
CI_IOWR /PCM_IOWR
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS L14_CA_M1A 2014/06/25
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. PCMCI_EU 19
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes

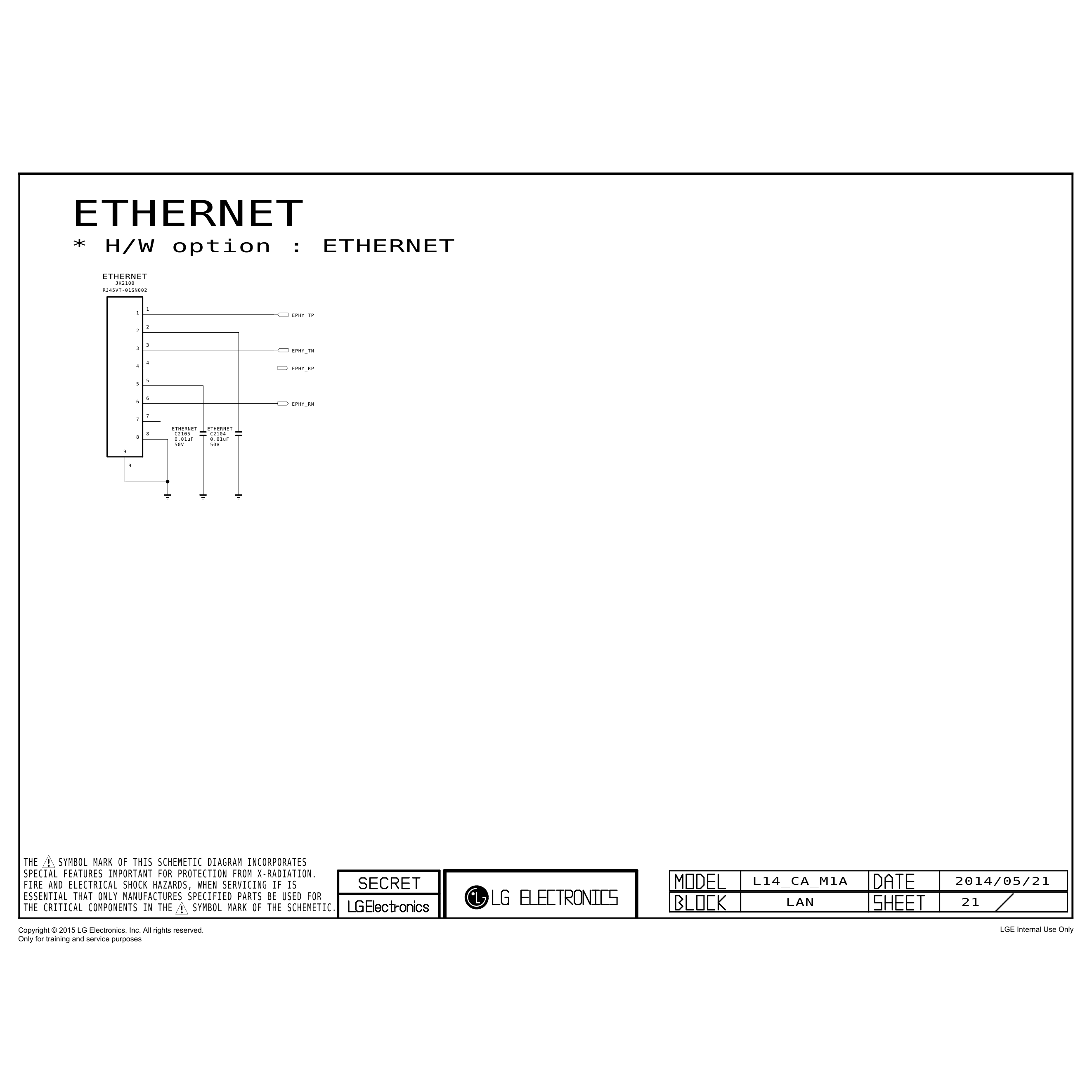

ETHERNET
* H/W option : ETHERNET
ETHERNET
JK2100
RJ45VT-01SN002
1
1
EPHY_TP
2
2
3
3 EPHY_TN
4
4 EPHY_RP
5
5
6
6 EPHY_RN
7
7
ETHERNET ETHERNET
8 C2105 C2104
8 0.01uF 0.01uF
50V 50V
9
9
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS L14_CA_M1A 2014/05/21
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
LAN 21
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
DVB-S2 LNB Part Allegro
(Option:LNB)
Input trace widths should be sized to conduct at least 3A
Caution!! need isolated GND Ouput trace widths should be sized to conduct at least 2A
R2701
0
3A
+13.2V_LNB
A_GND
2A LNB_SX34
D2705-*1
40V
Max 1.3A LNB
L2702
LNB LPH6050T-150M-R
D2705 15uH
D2703 LNB_SMAB34
M13.2V +13.2V_LNB SS23L 30V 40V 3.5A
LNB
L2701
BLM18PG121SN1D LNB
C2708
LNB LNB 10uF
LNB LNB
C2703 C2704 C2705 C2706 25V
0.01uF 10uF 10uF 10uF
50V 25V 25V 25V
A_GND
close to Boost pin(#1)
A_GND
close to VIN pin(#15)
A_GND
LNB
[EP]GND
C2709
LNB
BOOST
GNDLX
0.1uF
NC_3
NC_2
C2707
50V
LX
0.1uF
50V
20
19
18
17
16
LNB VCP VIN
D2702 1 15
close to TUNER SS23L 30V THERMAL
LNB 2 14 GND
LNB_OUT 21
NC_1 LNB VREG
3 13
IC2701
LNB LNB LNB TDI ISET
R2702 LNB_SMAB34 LNB_SX34 4 12
A8303SESTR-T(4M)
LNB LNB LNB LNB C2713 C2712 D2704 D2704-*1
2.2K 0.22uF
C2714 C2701 C2702 D2701 1W 25V 0.1uF 40V 40V TDO 5 11 TCAP
18pF 18pF 33pF 50V
10
50V 50V 50V LNB LNB LNB
6
7
8
9
C2710 R2703 C2711
0.1uF 36K 0.22uF
IRQ
SCL
SDA
ADD
TONECTRL 50V 1/16W 25V
1%
Close to Tuner
Surge protectioin
A_GND A_GND
R2706
0
LNB LNB
R2704 R2705
33 33
DEMOD_SCL
DEMOD_SDA
LNB_TX
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS L14_CA_M1A 2014/05/22
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
LNB 27
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
SCART_COMPONENT
COMPONENT SCART AMP
M13.2V
SCART_JACK
IC2801
SCART_JACK AZ4580MTR-E1
C2804
10uF SCART_JACK
16V R2831
2.2K OUT1 8 VCC
JK2802 DTV/MNT_L_OUT 1 SCART_JACK SCART_JACK
PPJ245N2-01 SCART_JACK C2808 SCART_JACK C2812
OPT R2834 0.1uF R2844 10uF
R2811 33K IN1- OUT2 16V
[RD2]E-LUG 10K R2832 7 50V 2.2K
6E 470K 2
COMP2_R_IN DTV/MNT_R_OUT
OPT R2803 ATV_330P R2816 SCART_JACK
[RD2]O-SPRING VA2804 470K 330pF 12K SCART_JACK R2841
5E 5.6V C2802 IN1+ 6 IN2- 33K OPT
SCART_JACK R2836 3
R2843
R2810 C2807 10K SCART_JACK 470K
4E [RD2]CONTACT 10K 33pF R2839
ATV_330P COMP2_L_IN +3.3V_Normal 50V VEE 5 IN2+ 10K
OPT R2802 R2815 4
330pF 12K SCART_JACK
5D [WH]O-SPRING VA2803 470K C2810
5.6V C2803 SCART_JACK SCART_JACK
R2817 33pF R2840
10K R2818 R2835 50V
[RD1]CONTACT 1K 5.6K 5.6K
4C SCART1_Rout
COMP2_DET SCART1_Lout
OPT SCART_JACK SCART_JACK SCART_JACK SCART_JACK
5C [RD1]O-SPRING C2806 R2833
COMP2_Pr+ VA2816 R2842 C2811
5.6V 330pF 220K 220K 330pF
ESD_COMP R2801 50V
7C [RD1]E-LUG-S VA2802 75 50V
5.5V
5B [BL]O-SPRING
COMP2_Pb+
R2800 +3.3V_Normal
ESD_COMP
4A [GN/YL]CONTACT VA2801 75 CLOSE TO MSTAR
5.5V CLOSE TO MSTAR
R2812 R2814
5A [GN/YL]O-SPRING 10K 1K
AV_CVBS_DET
OPT OPT
[GN/YL]E-LUG VA2800 C2800
6A 5.6V 0.1uF
COMP2_Y+/AV_CVBS_IN
16V
M13.2V FET
FET_AOS_M13.2V
+13.2V Q2805-*1 M13.2V
D2800-*1 D2800 R2859 AO3435
75
ESD_COMP_ZENER_KEC ESD_COMP_ZENER_ROHM 3216
S
D
D2801-*1 D2801 Switch_M13.2V
ESD_COMP_ZENER_KEC ESD_COMP_ZENER_ROHM L2801 FET_TOSHIBA_M13.2V
UBW2012-121F Q2805
G
120OHM SSM3J332R
Switch_M13.2V
D
S
Switch_M13.2V Switch_M13.2V OPT
R2865 C2821 C2822
C2820 10uF
33K 10uF
G
0.1uF 25V
25V 25V
Switch_M13.2V
+3.3V_Normal R2864
12K
Switch_M13.2V
R2863 C C
TR_NXP_M13.2V TR_KEC_M13.2V
10K B Q2804 Q2804-*1 B
MMBT3904(NXP) 2N3904S
E E
FULL SCART +3.3V_Normal [SCART AUDIO MUTE]
R2819 DTV/MNT_L_OUT SCART_MUTE
10K +3.5V_ST
SCART_JACK R2837 C
R2820 2K SCART_MUTE_KEC
1K SCART_MUTE_NXP B Q2802-*1
SC1/COMP1_DET Q2802 SCART_MUTE 2N3904S
OPT MMBT3904(NXP) R2845
VA2815 AV2 10K E
5.6V R2850
1K
AV2_CVBS_DET SCART1_MUTE
SCART_MUTE C
DTV/MNT_R_OUT R2838 SCART_MUTE SCART_MUTE_KEC
SCART_JACK 2K C2809 B Q2803-*1
SCART_MUTE_NXP 0.1uF
JK2801 Q2803 16V 2N3904S
SC1/AV2_CVBS_IN
PSC008-01 MMBT3904(NXP)
SCART_JACK OPT E
R2813 C2801
75 47pF
50V
AV_DET ESD_SCART
22 VA2807
COM_GND 5.5V
21
SYNC_IN SCART_JACK
AV2 AV2
20 R2861
SYNC_OUT 10 JK2803
OPT OPT DTV/MNT_VOUT
19 PPJ231-02
SYNC_GND2 ESD_SCART SCART_JACK SCART_JACK C2815 C2816 AV2 AV2
VA2808 VA2814 R2821 68pF 68pF R2846 R2851
18 75 4
SYNC_GND1 5.6V 5.6V 50VSCART_JACK 50V AV2_R_IN_A 0 10K
R2827 AV2_R_IN_A AV2_R_IN
17 22
RGB_IO 5 OPT AV2
SC1_FB AV2_L_IN_A AV2_LR_ZENER AV2 C2817
16 R2853
R_OUT VA2818 R2854 1000pF
7 5.6V 470K 12K
15 SC1_R+/COMP1_Pr+ 50V
RGB_GND ESD_SCART SCART_JACK SCART_JACK
R2807 AV2 AV2
14 VA2810 R2822 8 R2849
75 R2852
R_GND 20V 75 0 10K
13 EU AV2_L_IN_A AV2_L_IN
D2B_OUT 6 R2848 OPT AV2
12 0 AV2_LR_ZENER AV2
G_OUT C2818
VA2819 R2856 R2855
SC1_G+/COMP1_Y+ 1000pF
11 ESD_SCART SCART_JACK 5.6V 470K 12K
D2B_IN R2808 50V
VA2811
10 20V 75
G_GND SCART_JACK
9 R2824 AV2
ID 15K R2847
8 SC1_ID 0
B_OUT AV2_CVBS_DET
SC1_B+/COMP1_Pb+ ESD_SCART SCART_JACK
7 ESD_SCART SCART_JACK R2828 OPT
AUDIO_L_IN VA2817
VA2812 R2805 20V 3.9K VA2820
6 75 5.6V
B_GND 20V
5
AUDIO_GND
SCART_JACK SCART_JACK
4
AUDIO_L_OUT R2823 R2826
0 10K
3 SC1/AV2_CVBS_IN
SC1/COMP1_L_IN
AUDIO_R_IN
SCART_JACK SCART_JACK AV2_CVBS_ZENER_ROHM AV2 OPT AV2
2 R2806
AUDIO_R_OUT ESD_SCART 470K R2829 ZD2800 R2857 R2860 C2819
VA2813 12K 75 75 47pF
1 AV2_CVBS_ZENER_ROHM
5.6V 1608 3216 50V
ZD2801
1%
AV2_L_IN_A
SCART_JACK SCART_JACK AV2_CVBS_ZENER_KEC Size Check !!!
R2858 R2825 ZD2800-*1
0 10K
SC1/COMP1_R_IN AV2_CVBS_ZENER_KEC
ESD_SCART SCART_JACK ZD2801-*1
VA2809 SCART_JACK
R2809 R2830
5.6V 12K
470K
AV2_R_IN_A
DTV/MNT_L_OUT
SCART_JACK
OPT C2813
VA2806 1000pF
5.6V 50V
DTV/MNT_R_OUT
SCART_JACK
OPT C2814
VA2805 1000pF
5.6V 50V
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS L14_CA_M1A 2014/11/21
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. SCART_ COMPONENT 28
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Headphone
*Option : HEAD_PHONE_EU
Close to the Main IC
HEAD_PHONE
HEAD_PHONE C3000
L3000 10uF
5.6uH 16V
HP_LOUT
HEAD_PHONE OPT HEAD_PHONE C E OPT
C3004 C3002 R3002
1000pF OPT B Q3004
4.7uF 1K MMBT3904(NXP)
50V Q3002 HEAD_PHONE
10V B
MMBT3904(NXP) JK3000
+3.5V_ST E +3.3V_Normal PEJ038-3B6
C
OPT GND 5
R3001 E
3.3K OPT HEAD_PHONE
OPT R3005
Q3000 Q3001 10K L 4
OPT MMBT3904(NXP) C B MMBT3906(NXP)
R3000
1K B C DETECT 3
SIDE_HP_MUTE HP_DET
HEAD_PHONE
R3004 R 1
E HEAD_PHONE 1K
C3001
HEAD_PHONE 10uF
L3001 16V
5.6uH
HP_ROUT
HEAD_PHONE OPT HEAD_PHONE C E OPT
C3005 C3003 R3003
4.7uF 1000pF OPT B Q3005
1K MMBT3904(NXP)
10V 50V Q3003
B
MMBT3904(NXP)
E C
Close to the Main IC
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS L14_CA_M1A 2014/05/22
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. HEAD_PHONE 30
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
L14 TUNER_EU T/C_T2/C/S2_CHINA
TUNER_T/C TUNER_AJ_T2 TUNER_CHINA TUNER_T2/C/S2 TU_I2C Multi option
TU3700 TU3702 TU3703 TU3701
TU_I2C_FILTER
TDJH-G301D TDJM-G305D TDJM-C401D TDJM-G301D RF_SW_OPT
R2603
0
TU_ATSC
C3705-*1
18pF
TU_ATSC R3738-*1
R3716-*1 MLG1005SR27JT
1.8K
RF_SWITCH_CTL TU_ATSC
+3.3V_LNA TU_ATSC R3717-*1 TU_I2C_FILTER
1.8K R3739-*1
RF_SW_OPT C3707-*1 MLG1005SR27JT
C2603 18pF
+3.3V +3.3V +3.3V +3.3V 0.1uF
1 1 1 1 16V
C3708 C3714
NC_1 Close to TUNER
NC_1 NC_1 NC_1 100pF
50V
0.1uF
16V
2 2 2 2 +3.3V_TU
IF_AGC
IF_AGC NC_2 NC_2 AIF_AGC R3714 should be guarded by ground
0
3 3 3 3 IF_AGC_MAIN
TU_NON_ATSC TU_NON_ATSC
IF_AGC
C3703 TU_I2C_NON_FILTER R3716 R3717
SCL_RF SCL_RF SCL_RF SCL_RF 0.1uF
16V
R3738
33
1K 1K
4 4 4 4 TU_SCL
TU_I2C_NON_FILTER
SDA_RF SDA_RF SDA_RF SDA_RF R3739
33 OPT
5 5 5 5 TU_SDA R3726
0
TU_NON_ATSC_NON_CHINA TU_NON_ATSC TU_NON_ATSC TU_NON_ATSC TU_NON_ATSC +3.3V_TU
C3705 C3707 C3710 C3711
IF[P] NC_3 NC_3 AIF[P] R3709
10 20pF 20pF 20pF 20pF +3.3V_TU
6 6 6 6 IF_P_MSTAR CHINA
R3732
CHINA
TU_ATSC R3735
CHINA 220 220
R3709-*1 CHINA
IF[N] NC_4 NC_4 AIF[N] R3725
470 R3728
7 7 7 7 0
IF_N_MSTAR
82
TU_SIF TU_CVBS
TU_NON_ATSC_NON_CHINA E
R3710 CHINA_NXP
SIF SIF SIF SIF 10
CHINA
C3726
E
CHINA_NXP Q3701
8 8 8 8 Q3700 B MMBT3906(NXP)
TU_ATSC 0.1uF CHINA B MMBT3906(NXP) C
R3710-*1 R3724
CVBS CVBS CVBS CVBS 16V 4.7K C
9 9 9 9 0
OPT
close to TUNER R3731
NC_5 NC_5 NC_2 0
10 10 10 +3.3V_TU CHINA
C
CHINA_KEC
C
CHINA_KEC
AR3700-*1 47 B Q3700-*1 B Q3701-*1
A1 B1 +3.3V_RF +3.3V_RF +3.3V_RF 2N3906S-RTK 2N3906S-RTK
A1 B1 11 11 11 T2_OR_CHINA T2_OR_CHINA
T2 E E
AR3700
C3718 C3722 0
47 ERROR ERROR ERROR 100pF 0.1uF 1/16W
12 12 12 50V 16V
TU_GND_B
FE_TS_ERR
CHINA
FE_TS_CLK AR3701-*1 47
GND_1 GND_1 GND_1 FE_TS_SYNC
SHIELD 13 13 13 FE_TS_VAL
MCLK MCLK MCLK
14 14 14
CHINA
AR3702-*1 47
SYNC SYNC SYNC
15 15 15
VAILD VAILD VALID
16 16 16 T2
TUNER_NTSC AR3701
0 FE_TS_DATA[0-7]
D0 D0 D0 1/16W
TU3700-*1 17 17 17 FE_TS_DATA[0]
FE_TS_DATA[1]
D1 D1 D1 FE_TS_DATA[2]
TDJH-H101F 18 18 18 FE_TS_DATA[3]
D2 D2 D2
19 19 19
B1[+3.3V] D3 D3 D3
1 20 20 20 T2 +3.3V_LNA +3.3V_TU +3.3V_Normal
AR3702
0
NC_1 D4 D4 D4 1/16W
2 21 21 21 FE_TS_DATA[4]
FE_TS_DATA[5]
IF_AGC D5 D5 D5 FE_TS_DATA[6] L3701
UBW2012-121F
L3704
UBW2012-121F
3 22 22 22 FE_TS_DATA[7]
C3739 C3706 C3730 C3733 C3738
C3731
22uF 0.1uF
SCL D6 D6 D6 10V 16V
22uF
10V
0.1uF
16V
22uF
10V
0.1uF
16V
4 23 23 23
SDA D7 D7 D7
5 24 24 24
T2_OR_CHINA T2_OR_CHINA
IF[P] RESET_DEMOD RESET_DEMOD RESET_DEMOD R3719 IC3701
6 25 25 25 10
DEMOD_RESET
+3.3V_TU AP7361-Y-13
+1.2V_DEMOD
T2_OR_CHINA T2_OR_CHINA
IF[N] +3.3V_DEMOD +3.3V_DEMOD +3.3V_DEMOD C3716
0.1uF
+3.3V_DEMOD R3723
3.3K EN OUT
7 26 26 26 16V 1 5
T2_OR_CHINA
T2_OR_CHINA T2_OR_CHINA T2_OR_CHINA
C3721 C3723 C3725 R3737
NC_2 SCL_DEMOD SCL_DEMOD SCL_DEMOD T2_OR_CHINA 100pF 0.1uF 1uF
10V
GND
2 T2_OR_CHINA 1
T2_OR_CHINA
8 27 27 27 R3711 22
DEMOD_SCL
50V 16V
C3732
0.1uF C3737
T2_OR_CHINA 16V 10uF
ADJ/NC IN
NC_3 +1.2V_DEMOD +1.2V_DEMOD +1.2V_DEMOD C3702
20pF +1.2V_DEMOD 3 4
T2_OR_CHINA
10V
9 28 28 28 50V
R3733
12K
T2_OR_CHINA T2_OR_CHINA 1%
LNB
NC_6 NC_6 NC_3 R3707 C3713
100pF
C3729
0.1uF R1
29 29 29 0
LNB_TX
50V 16V
T2_OR_CHINA T2_OR_CHINA
A1 B1 SDA_DEMOD SDA_DEMOD SDA_DEMOD R3712 R3734
A1 B1 30 30 30 22 Vo=0.8*(1+R1/R2) 22K
DEMOD_SDA 1%
T2_OR_CHINA
47 C3704 R2
LNB 20pF
50V
31 LNB_OUT
LNB
C3709
A1 B1 A1 B1 GND 0.1uF GND seperation
SHIELD A1 B1 A1 B1 32 50V
TU_GND_B
C3701
1000pF
47 47 630V
TU_GND_B
TU_GND_B
TU_GND_B TU_GND_B
R3740
0
A1 B1
SHIELD SHIELD A1 B1
47
TU_GND_B
+3.3V_TU +3.3V_DEMOD
T2_OR_CHINA
L3702
BLM18PG121SN1D
SHIELD
T2_OR_CHINA T2_OR_CHINA T2_OR_CHINA
C3724 C3734 C3727
0.1uF 10uF 0.1uF
16V 10V 16V
ERROR & VALID PIN
T2_OR_CHINA
R3736
FE_TS_VAL 0
FE_TS_VAL_ERR
FE_TS_ERR
GPIO must be added.
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS L14_CA_M1A 2014/05/22
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. TUNER_T2CS2 37
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
RS-232C 4PIN
RS-232C 4PIN
RS232C_DEBUG_4P
+3.5V_ST P4000
12507WS-04L
VCC
1
AR4000 PM_RXD
2
PM_RXD 100
1/16W
GND
3
RM_TXD
4
PM_TXD
5
GND
MSTAR DEBUG 4PIN
JP_GND1
JP_GND2
JP_GND3
JP_GND4
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS L14_CA_M1A 2014/05/22
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. RS232C_MSTAR_DEBUG_4P 40
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
TP for EU
RF_SWITCH_CTL HDMI_ARC HP_ROUT CI_DET EPHY_RP SENSOR_SCL FRC_RESET /VBUS_EN
IF_AGC_SEL CK+_HDMI2 HP_LOUT /CI_CD1 EPHY_TN SENSOR_SDA DEMOD_RESET
CK-_HDMI2 SIDE_HP_MUTE /CI_CD2 EPHY_TP
SPDIF_OUT D0+_HDMI2 HP_DET EPHY_RN UART_RX
AV2_CVBS_DET D0-_HDMI2 UART_TX
5V_DET_HDMI_2 D1+_HDMI2
D1-_HDMI2
D2+_HDMI2
D2-_HDMI2
DDC_SDA_2
DDC_SCL_2
HPD2
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS L14_CA_M1A 2014/05/22
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
TP_EU 41
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
IR + LED + Digital Eye + Control Key
+3.5V_ST
R4603 R4604
10K 10K
1% 1% IR_10p
R4601 IR_8p
100 P4600
KEY1 12507WR-10L P4601
12507WR-08L
C4602
0.1uF
R4602 16V 1
100 1
KEY2
+3.5V_ST 2
C4603
0.1uF 2
16V
L4600 For EMI 3
BLM18PG121SN1D 3
4
C4600 C4601 4
0.1uF 1000pF
50V 5
5
R4606
1.8K
LED_R/BUZZ 6
6
+3.5V_ST OPT
VA4600 7
5.6V 7
R4600
3.3K 8
8
IR
9 9
C4604 OPT
100pF ZD4601
+3.3V_Normal 50V 5V
10
11
IR_Eye_Sensor IR_Eye_Sensor
R4605 R4607 IR_Eye_Sensor
1K 1K R4608
100
SENSOR_SCL IR_Eye_Sensor
IR_Eye_Sensor C4605
R4609 18pF
100 50V
SENSOR_SDA
IR_Eye_Sensor
C4606
18pF
50V
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS L14_CA_M1A 2014/06/02
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. IR_EYE_SENSOR 46
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
NAND FLASH MEMORY PM MODEL OPTION DIMMING
NAND_FLASH_1G_HYNIX R157
IC102 (SPI_SDI, PM_LED, PWM_PM) +3.5V_ST PM_MODEL_OPT_0 100 M1A_128M_UO4
IC101-*1
H27U1G8F2CTR-BC
LG-NonOS SB51_ExtSPI 3’b000 51boot from SPI - HIGH : LCD PWM_DIM PWM2 M1A_256M_UO4 LGE2133(128M)
EAN35669103 R156
LG-OS HEMCU_ExtSPI 3’b001 MIPS boot from SPI - LOW :: PDP IC101
+3.3V_Normal +3.3V_Normal LCD 10K
R177
10K PM_MODEL_OPT_1 PWM0 LGE2134(256M) U19
T20
LVA4P/TTL_B[0]/HCONV/GPIO170
LVA4M/TTL_B[1]/E_O/GPIO171
SAR0/GPIO35
SAR1/GPIO36
D5
F8
+3.5V_ST R103
T21 E7
NC_1 NC_29 - Not Use (Ready) T19
LVA3P/TTL_B[2]/FB/GPIO172
LVA3M/TTL_B[3]/OPT_P/GPIO173
SAR2/GPIO37
SAR3/GPIO38
E6
1 48 10K R21 D6
PM_MODEL_OPT_0 R20
LVACKP/TTL_B[4]/MCLK/GPIO174 SAR4/GPIO39
NC_2 NC_28 PWM3 R19
LVACKM/TTL_B[5]/GCLK/GPIO175
W10
2 47 PDP U19 D5 P20
LVA2P/TTL_B[6]/GST/GPIO176 GPIO_PM[13]/GPIO20
Y10
R176 RXA4+ LVA4P/TTL_B[0]/HCONV/GPIO170 KEY1
LVA2M/TTL_B[7]/POL/GPIO177 GPIO_PM[14]/GPIO21
PCM_A[0-7] 10K SAR0/GPIO35 PM_LED/GPIO4
P3
NC_3 NC_27 T20 F8 P19
LVA1P/TTL_G[0]/EPI0+/GPIO178 GPIO_PM[0]/GPIO7
Y3
3 46 RXA4- LVA4M/TTL_B[1]/E_O/GPIO171 SAR1/GPIO36 KEY2 N20 Y5
22 OPT OPT T21 E7 N21
LVA1M/TTL_G[1]/EPI0-/GPIO179 PM_SPI_SCZ2/GPIO_PM[10]/GPIO17
LVA0P/TTL_G[2]/EPI1+/GPIO180 GPIO_PM[15]/GPIO22
W11
NC_4 NC_26
R115 R117 R165 RXA3+ LVA3P/TTL_B[2]/FB/GPIO172 SAR2/GPIO37 PM_MODEL_OPT_0 N19
LVA0M/TTL_G[3]/EPI1-/GPIO181 GPIO_PM[4]/GPIO11
D3
4 45 AR101 T19 E6 M21
LVB4P/TTL_G[4]/EPI2+/GPIO182 GPIO_PM[7]/GPIO14
AA3
4.7K 4.7K 2.7K RXA3- LVA3M/TTL_B[3]/OPT_P/GPIO173 SAR3/GPIO38 PANEL_CTL M20
LVB4M/TTL_G[5]/EPI2-/GPIO183 GPIO_PM[8]/GPIO15
W5
NC_5 I/O7 PCM_A[7] R21 D6 M19
LVB3P/TTL_G[6]/EPI3+/GPIO184 PWM_PM/GPIO200
D4
5 44
LED_R/BUZZ I2C +3.3V_Normal RXACK+ LVACKP/TTL_B[4]/MCLK/GPIO174 SAR4/GPIO39 SCART1_MUTE L20
LVB3M/TTL_G[7]/EPI3-/GPIO185 PM_UART_TX/GPIO_PM[1]/GPIO8
L15
R20 PM_UART_RX/GPIO_PM[5]/GPIO12
Y11
NC_6 I/O6 PCM_A[6] RXACK- LVACKM/TTL_B[5]/GCLK/GPIO175 L19
LVBCKP/TTL_R[0]/EPI4+/GPIO186
AR103 R107 6 43
PM_LED R19 W10 K20
LVBCKM/TTL_R[1]/EPI4-/GPIO187
22 R109 RXA2+ LVA2P/TTL_B[6]/GST/GPIO176 GPIO_PM[13]/GPIO20 MHL_CD_SENSE K21
LVB2P/TTL_R[2]/EPI5+/GPIO188
1K 3.9K R/B I/O5 PCM_A[5] P20 Y10 K19
LVB2M/TTL_R[3]/EPI5-/GPIO189
7 42
SPI_SDI RXA2- LVA2M/TTL_B[7]/POL/GPIO177 GPIO_PM[14]/GPIO21 /VBUS_EN J21
LVB1P/TTL_R[4]/EPI6+/GPIO190
P3 J20
LVB1M/TTL_R[5]/EPI6-/GPIO191
/F_RB RE I/O4 PCM_A[4] OPT R140 R141 R144 R145 PM_LED/GPIO4 PM_LED J19
LVB0P/TTL_R[6]/EPI7+/GPIO192
8 41 1K 1K 2.2K 2.2K P19 Y3 H20
LVB0M/TTL_R[7]/EPI7-/GPIO193
/PF_OE R116 R118 R121 RXA1+ LVA1P/TTL_G[0]/EPI0+/GPIO178 GPIO_PM[0]/GPIO7 POWER_DET
CE NC_25 4.7K 4.7K N20 Y5
9 40 2.7K RXA1- LVA1M/TTL_G[1]/EPI0-/GPIO179 PM_SPI_SCZ2/GPIO_PM[10]/GPIO17 AMP_MUTE
/PF_CE0 I2C_SDA N21 W11
NC_7 NC_24 RXA0+ LVA0P/TTL_G[2]/EPI1+/GPIO180 GPIO_PM[15]/GPIO22 INV_CTL
OPT 10 39 C102 I2C_SCL N19 D3
R108 10uF RXA0- LVA0M/TTL_G[3]/EPI1-/GPIO181 GPIO_PM[4]/GPIO11 POWER_ON/OFF_1 M1A_128M_AVS+
NC_8 NC_23 10V AMP_SDA M21 AA3 M1A_256M_AVS+
IC101-*3
IC101-*2
1K C101 11 38 RXB4+ LVB4P/TTL_G[4]/EPI2+/GPIO182 GPIO_PM[7]/GPIO14 RL_ON LGE2135(128M)
AMP_SCL M20 W5 LGE2136(256M)
0.1uF VCC_1 VCC_2 RXB4- LVB4M/TTL_G[5]/EPI2-/GPIO183 GPIO_PM[8]/GPIO15 /FLASH_WP
12 37 M19 D4 U19 D5
RXB3+ LVB3P/TTL_G[6]/EPI3+/GPIO184 PWM_PM/GPIO200 LED_R/BUZZ U19
LVA4P/TTL_B[0]/HCONV/GPIO170 SAR0/GPIO35
D5
T20
LVA4P/TTL_B[0]/HCONV/GPIO170 SAR0/GPIO35
F8
VSS_1 VSS_2 C103 L20 L15 T20
LVA4M/TTL_B[1]/E_O/GPIO171 SAR1/GPIO36
F8
T21
LVA4M/TTL_B[1]/E_O/GPIO171 SAR1/GPIO36
E7
13 36 0.1uF RXB3- LVB3M/TTL_G[7]/EPI3-/GPIO185 PM_UART_TX/GPIO_PM[1]/GPIO8 PM_TXD T21
LVA3P/TTL_B[2]/FB/GPIO172 SAR2/GPIO37
E7
T19
LVA3P/TTL_B[2]/FB/GPIO172 SAR2/GPIO37
E6
Y11 T19
LVA3M/TTL_B[3]/OPT_P/GPIO173 SAR3/GPIO38
E6
R21
LVA3M/TTL_B[3]/OPT_P/GPIO173 SAR3/GPIO38
D6
NC_9 NC_22 EEPROM PM_UART_RX/GPIO_PM[5]/GPIO12 PM_RXD R21
LVACKP/TTL_B[4]/MCLK/GPIO174 SAR4/GPIO39
D6
R20
LVACKP/TTL_B[4]/MCLK/GPIO174 SAR4/GPIO39
+3.3V_Normal 14 35 L19 R20
LVACKM/TTL_B[5]/GCLK/GPIO175 R19
LVACKM/TTL_B[5]/GCLK/GPIO175
W10
RXBCK+ LVBCKP/TTL_R[0]/EPI4+/GPIO186 R19 W10 LVA2P/TTL_B[6]/GST/GPIO176 GPIO_PM[13]/GPIO20
OPT
NC_10 NC_21 NVRAM_RHOM K20 P20
LVA2P/TTL_B[6]/GST/GPIO176
LVA2M/TTL_B[7]/POL/GPIO177
GPIO_PM[13]/GPIO20
GPIO_PM[14]/GPIO21
Y10
P20
LVA2M/TTL_B[7]/POL/GPIO177 GPIO_PM[14]/GPIO21
Y10
P3
15 34 IC104 RXBCK- LVBCKM/TTL_R[1]/EPI4-/GPIO187 PM_LED/GPIO4
P3
P19
PM_LED/GPIO4
Y3
R105 K21 P19 Y3 LVA1P/TTL_G[0]/EPI0+/GPIO178 GPIO_PM[0]/GPIO7
1K CLE NC_20 AR102 BR24G256FJ-3 RXB2+ LVB2P/TTL_R[2]/EPI5+/GPIO188 N20
LVA1P/TTL_G[0]/EPI0+/GPIO178 GPIO_PM[0]/GPIO7
LVA1M/TTL_G[1]/EPI0-/GPIO179 PM_SPI_SCZ2/GPIO_PM[10]/GPIO17
Y5
N20
N21
LVA1M/TTL_G[1]/EPI0-/GPIO179 PM_SPI_SCZ2/GPIO_PM[10]/GPIO17
Y5
W11
AR104 16 33 K19 N21 W11 LVA0P/TTL_G[2]/EPI1+/GPIO180 GPIO_PM[15]/GPIO22
22 22 EAN62389502 RXB2- LVB2M/TTL_R[3]/EPI5-/GPIO189 N19
LVA0P/TTL_G[2]/EPI1+/GPIO180
LVA0M/TTL_G[3]/EPI1-/GPIO181
GPIO_PM[15]/GPIO22
GPIO_PM[4]/GPIO11
D3
N19
M21
LVA0M/TTL_G[3]/EPI1-/GPIO181 GPIO_PM[4]/GPIO11
D3
AA3
ALE I/O3 PCM_A[3] +3.3V_Normal J21 M21
LVB4P/TTL_G[4]/EPI2+/GPIO182 GPIO_PM[7]/GPIO14
AA3
M20
LVB4P/TTL_G[4]/EPI2+/GPIO182 GPIO_PM[7]/GPIO14
W5
/PF_CE1 17 32 NVRAM_ATMEL RXB1+ LVB1P/TTL_R[4]/EPI6+/GPIO190 M20
LVB4M/TTL_G[5]/EPI2-/GPIO183 GPIO_PM[8]/GPIO15
W5
M19
LVB4M/TTL_G[5]/EPI2-/GPIO183 GPIO_PM[8]/GPIO15
D4
J20 M19
LVB3P/TTL_G[6]/EPI3+/GPIO184 PWM_PM/GPIO200
D4
L20
LVB3P/TTL_G[6]/EPI3+/GPIO184 PWM_PM/GPIO200
L15
PF_ALE WE I/O2 PCM_A[2] IC104-*1 RXB1- LVB1M/TTL_R[5]/EPI6-/GPIO191 L20
LVB3M/TTL_G[7]/EPI3-/GPIO185 PM_UART_TX/GPIO_PM[1]/GPIO8
L15 LVB3M/TTL_G[7]/EPI3-/GPIO185 PM_UART_TX/GPIO_PM[1]/GPIO8
Y11
18 31 A0 VCC J19 Y11 PM_UART_RX/GPIO_PM[5]/GPIO12
AT24C256C-SSHL-T RXB0+ LVB0P/TTL_R[6]/EPI7+/GPIO192 L19
PM_UART_RX/GPIO_PM[5]/GPIO12 L19
LVBCKP/TTL_R[0]/EPI4+/GPIO186
/PF_WE WP I/O1 PCM_A[1] 1 8 H20 K20
LVBCKP/TTL_R[0]/EPI4+/GPIO186 K20
LVBCKM/TTL_R[1]/EPI4-/GPIO187
LVBCKM/TTL_R[1]/EPI4-/GPIO187 K21
/PF_WP 19 30 C105 RXB0- LVB0M/TTL_R[7]/EPI7-/GPIO193 K21
LVB2P/TTL_R[2]/EPI5+/GPIO188 K19
LVB2P/TTL_R[2]/EPI5+/GPIO188
K19 LVB2M/TTL_R[3]/EPI5-/GPIO189
NC_11 I/O0 PCM_A[0] 0.1uF A0 VCC J21
LVB2M/TTL_R[3]/EPI5-/GPIO189 J21
LVB1P/TTL_R[4]/EPI6+/GPIO190
R102 R106 20 29 A1 WP 1 8 J20
LVB1P/TTL_R[4]/EPI6+/GPIO190 J20
LVB1M/TTL_R[5]/EPI6-/GPIO191
3.3K 1K 2 7 J19
LVB1M/TTL_R[5]/EPI6-/GPIO191 J19
LVB0P/TTL_R[6]/EPI7+/GPIO192
LVB0P/TTL_R[6]/EPI7+/GPIO192 H20
NC_12 NC_19 H20
LVB0M/TTL_R[7]/EPI7-/GPIO193
LVB0M/TTL_R[7]/EPI7-/GPIO193
21 28 R111 A1 WP
2 7
NC_13 NC_18 A2 A0’h SCL 22
22 27 3 6 I2C_SCL
A2 SCL
NC_14 NC_17 R112 3 6
23 26 GND SDA 22
NC_15 NC_16 4 5 I2C_SDA GND SDA
24 25 4 5
OPT OPT
C104 C106
8pF 8pF M1A_256M_UO4
EAN61133501 IC101 M1A_128M_UO4
LGE2134(256M) from CI SLOT IC101-*1
LGE2133(128M)
CI_TS_CLK Y1
GPIO78 TS0CLK/GPIO92
V10
W4 T14
CI_TS_DATA[0-7] GPIO79 TS0DATA[0]/GPIO82
T13
Y1 V10 K17
TS0DATA[1]/GPIO83
U13
GPIO78 TS0CLK/GPIO92 CI_TS_DATA[0] CI_TS_SYNC J15
I2C_SCKM3/I2C_DDCR_CK/GPIO77 TS0DATA[2]/GPIO84
V15
NAND_FLASH_2G_HYNIX NAND_FLASH_1G_TOSHIBA_24n W4 T14 U8
I2C_SDAM3/I2C_DDCR_DA/GPIO76 TS0DATA[3]/GPIO85
U12
EAN61508002 5V_DET_HDMI_4 GPIO79 TS0DATA[0]/GPIO82 CI_TS_DATA[1] CI_TS_VAL T7
SDAM2/GPIO55 TS0DATA[4]/GPIO86
V13
EAN60708703 T13 U7
SCKM2/GPIO56 TS0DATA[5]/GPIO87
U14
IC102-*1 IC102-*2 TS0DATA[1]/GPIO83 CI_TS_DATA[2] V7
SCKM0/GPIO58 TS0DATA[6]/GPIO88
T11
R184 22 K17 U13 F6
SDAM0/GPIO59 TS0DATA[7]/GPIO89
T12
H27U2G8F2DTR-BD TC58NVG0S3HTA00 I2C_SCL I2C_SCKM3/I2C_DDCR_CK/GPIO77 TS0DATA[2]/GPIO84 CI_TS_DATA[3] G6
I2S_IN_BCK/GPIO159 TS0SYNC/GPIO91
V12
R183 22 J15 V15 AA4
I2S_IN_SD/GPIO160 TS0VALID/GPIO90
Y14
I2C_SDA I2C_SDAM3/I2C_DDCR_DA/GPIO76 TS0DATA[3]/GPIO85 CI_TS_DATA[4] Y4
I2C_SCKM1/GPIO80 TS1CLK/GPIO103
Y16
U8 U12 I2C_SDAM1/GPIO81 TS1DATA[0]/GPIO93
AA15
URSA/VCOM_SDA SDAM2/GPIO55 TS0DATA[4]/GPIO86 CI_TS_DATA[5] J6
TS1DATA[1]/GPIO94
Y13
NC_1 NC_29 NC_1 NC_29 T7 V13 K6
ET_TXD[0]/GPIO62 TS1DATA[2]/GPIO95
AA16
1 48 1 48 URSA/VCOM_SCL SCKM2/GPIO56 TS0DATA[5]/GPIO87 CI_TS_DATA[6]
EXT_TX_CLK/GPIO64 TS1DATA[3]/GPIO96
W12
U7 U14 G7
TS1DATA[4]/GPIO97
AA13
NC_2 NC_28 NC_2 NC_28 SENSOR_SCL SCKM0/GPIO58 TS0DATA[6]/GPIO88 CI_TS_DATA[7]
I2S_IN_WS/GPIO158 TS1DATA[5]/GPIO98
2 47 2 47 V7 T11 Internal demod out J4
TS1DATA[6]/GPIO99
W14
W13
SENSOR_SDA SDAM0/GPIO59 TS0DATA[7]/GPIO89 J5
ET_COL/GPIO60 TS1DATA[7]/GPIO100
Y15
NC_3 NC_27 NC_3 NC_27 T2_OR_CHINA F6 T12 ET_TXD[1]/GPIO61 TS1SYNC/GPIO102
W15
3 46 3 46 R113 22 AMP_SCL I2S_IN_BCK/GPIO159 TS0SYNC/GPIO91 FE_TS_CLK H19
TS1VALID/GPIO101
DEMOD_SCL G6 V12 G20
LCK/GPIO194
B3
R114 22 AMP_SDA I2S_IN_SD/GPIO160 TS0VALID/GPIO90 FE_TS_DATA[0-7] LDE/GPIO195 PM_SPI_SCZ1/GPIO_PM[6]/GPIO13
NC_4 NC_26 NC_4 NC_26 AA4 Y14
G19 A3
4 45 4 45 DEMOD_SDA G21
LHSYNC/GPIO196 PM_SPI_SCK/GPIO1
A4
T2_OR_CHINA TU_SCL I2C_SCKM1/GPIO80 TS1CLK/GPIO103 FE_TS_DATA[0] FE_TS_SYNC LVSYNC/GPIO197 PM_SPI_SCZ0/GPIO0
C3
NC_5 I/O7 NC_5 I/O8 Y4 Y16 J17
PM_SPI_SDI/GPIO2
A2
5 44 5 44 TU_SDA I2C_SDAM1/GPIO81 TS1DATA[0]/GPIO93 FE_TS_DATA[1] FE_TS_VAL_ERR J16
UART2_RX/GPIO69 PM_SPI_SDO/GPIO3
AA15 E8
UART2_TX/GPIO70
B1
NC_6 I/O6 NC_6 I/O7 TS1DATA[1]/GPIO94 FE_TS_DATA[2] D7
UART3_TX/GPIO52 RP
C2
6 43 6 43 J6 Y13 U6
UART3_RX/GPIO53 TN
C1
AV_CVBS_DET ET_TXD[0]/GPIO62 TS1DATA[2]/GPIO95 FE_TS_DATA[3] V6
GPIO46[CTS] TP
B2
R/B I/O5 RY/BY I/O6 K6 AA16 FE_TS_DATA[0] K15
GPIO47[RTS] RN
7 42 7 42 AV2_CVBS_DET EXT_TX_CLK/GPIO64 TS1DATA[3]/GPIO96 FE_TS_DATA[4] L16
UART1_TX/GPIO48
D2
W12 FE_TS_DATA[0] UART1_RX/GPIO49 SPDIF_IN/GPIO161
D1
RE I/O4 RE I/O5 TS1DATA[4]/GPIO97 FE_TS_DATA[5] H5
SPDIF_OUT/GPIO162
8 41 8 41 G7 AA13 K5
ET_TX_EN/GPIO63
D8
COMP2_DET I2S_IN_WS/GPIO158 TS1DATA[5]/GPIO98 FE_TS_DATA[6] K4
ET_RXD[0]/GPIO65 HWRESET
E5
CE NC_25 CE NC_25 W14 H6
ET_MDC/GPIO66 IRIN/GPIO5
G4
9 40 9 40 TS1DATA[6]/GPIO99 FE_TS_DATA[7] L5
ET_MDIO/GPIO67 DDCA_CK/UART0_RX
G5
J4 W13 ET_RXD[1]/GPIO68 DDCA_DA/UART0_TX
NC_7 NC_24 NC_7 NC_24 DEMOD_RESET ET_COL/GPIO60 TS1DATA[7]/GPIO100 U17 J18
10 39 10 39 J5 Y15 R18
PCMADR[0]/NF_AD[0]/GPIO130 PWM0/GPIO71
K18
MODEL_OPT_0 ET_TXD[1]/GPIO61 TS1SYNC/GPIO102 V17
PCMADR[1]/NF_AD[1]/GPIO129 PWM1/GPIO72
K16
NC_8 NC_23 NC_8 NC_23 W15 R16
PCMADR[2]/NF_AD[2]/GPIO127 PWM2/GPIO73
L18
11 38 11 38 TS1VALID/GPIO101 U16
PCMADR[3]/NF_AD[3]/GPIO126 PWM3/GPIO74
L17
H19 T17
PCMADR[4]/NF_AD[4]/GPIO104 PWM4/GPIO75
VCC_1 VCC_2 VCC_1 VCC_2 MODEL_OPT_1 LCK/GPIO194 W18
PCMADR[5]/NF_AD[5]/GPIO106
T8
12 37 12 37 G20 B3 R189 33 U20
PCMADR[6]/NF_AD[6]/GPIO107 NF_ALE/GPIO146
T9
MODEL_OPT_2 LDE/GPIO195 PM_SPI_SCZ1/GPIO_PM[6]/GPIO13 /SPI_CS Y19
PCMADR[7]/NF_AD[7]/GPIO108 NF_CEZ/GPIO142
U9
VSS_1 VSS_2 VSS_1 VSS_2 G19 A3 R188 33 AA19
PCMADR[8]/GPIO113 NF_CLE/GPIO141
U11
13 36 13 36 /MHL_OCP_DET LHSYNC/GPIO196 PM_SPI_SCK/GPIO1 SPI_SCK AA20
PCMADR[9]/GPIO115 NF_RBZ/GPIO147
V9
G21 A4 W21
PCMADR[10]/GPIO119 NF_REZ/GPIO144
U10
NC_9 NC_22 NC_9 NC_22 FRC_RESET LVSYNC/GPIO197 PM_SPI_SCZ0/GPIO0 SIDE_HP_MUTE V20
PCMADR[11]/GPIO117 NF_WEZ/GPIO145
T10
14 35 14 35 33 R182 C3 Y17
PCMADR[12]/GPIO109 NF_WPZ/GPIO199
PM_SPI_SDI/GPIO2 SPI_SDI V18
PCMADR[13]/GPIO112
W2
NC_10 NC_21 NC_10 NC_21 J17 A2 R190 33 V19
PCMADR[14]/GPIO111 IF_AGC
W1
15 34 15 34 HP_DET UART2_RX/GPIO69 PM_SPI_SDO/GPIO3 SPI_SDO W19
PCMCD_N/GPIO135 SIFM
W3
J16 U18
PCMCE_N/GPIO120 SIFP
V2
CLE NC_20 CLE NC_20 SC1/COMP1_DET UART2_TX/GPIO70 V16
PCMDATA[0]/GPIO131 IM
V1
16 33 16 33 E8 B1 W17
PCMDATA[1]/GPIO132 IP
MHL_OCP_EN UART3_TX/GPIO52 RP EPHY_RP Y20
PCMDATA[2]/GPIO133
AA2
ALE I/O3 ALE I/O4 D7 C2 R15
PCMDATA[3]/GPIO125 XIN
Y2
17 32 17 32 AMP_RESET UART3_RX/GPIO53 TN EPHY_TN AA18
PCMDATA[4]/GPIO124 XOUT
U6 C1 T15
PCMDATA[5]/GPIO123
WE I/O2 WE I/O3 MODEL_OPT_4 GPIO46[CTS] TP EPHY_TP Y21
PCMDATA[6]/GPIO122
18 31 18 31 V6 B2 W20
PCMDATA[7]/GPIO121
RF_SWITCH_CTL GPIO47[RTS] RN EPHY_RN V21
PCMIORD_N/GPIO116
WP I/O1 WP I/O2 33 R181 K15 Y18
PCMIOWR_N/GPIO114
19 30 19 30 /CI_CD1 UART1_TX/GPIO48 T16
PCMIRQA_N/GPIO110
L16 D2 R17
PCMOE_N/GPIO118
NC_11 I/O0 NC_11 I/O1 /CI_CD2 UART1_RX/GPIO49 SPDIF_IN/GPIO161 5V_DET_HDMI_2 T18
PCMREG_N/GPIO128
20 29 20 29 D1 R192 100 W16
PCM_RESET/GPIO134
+3.3V_Normal SPDIF_OUT/GPIO162 SPDIF_OUT U15
PCMWAIT_N/GPIO105
NC_12 NC_19 NC_12 NC_19 H5 SPDIF_OPTIC PCMWE_N/GPIO198
21 28 21 28 USB1_CTL ET_TX_EN/GPIO63
R180 K5 D8
NC_13 NC_18 NC_13 NC_18 10K MODEL_OPT_5 ET_RXD[0]/GPIO65 HWRESET SOC_RESET
22 27 22 27 K4 E5
R197 0 MODEL_OPT_6 ET_MDC/GPIO66 IRIN/GPIO5 IR
NC_14 NC_17 NC_14 NC_17 CI_DET H6 G4 M1A_128M_AVS+
23 26 23 26 R178 22 USB1_OCD ET_MDIO/GPIO67 DDCA_CK/UART0_RX RGB_DDC_SCL M1A_256M_AVS+ IC101-*3
/PCM_CD L5 G5 IC101-*2 LGE2135(128M)
PCM_A[0-14] ET_RXD[1]/GPIO68 DDCA_DA/UART0_TX RGB_DDC_SDA LGE2136(256M)
NC_15 NC_16 NC_15 NC_16
24 25 24 25
PCM_A[0] U17 J18
Y1
GPIO78 TS0CLK/GPIO92
V10
Y1 V10 W4 T14
PCM_A[1] PCMADR[0]/NF_AD[0]/GPIO130 PWM0/GPIO71 PWM0 W4
GPIO78 TS0CLK/GPIO92
T14
GPIO79 TS0DATA[0]/GPIO82
T13
R18 K18 GPIO79 TS0DATA[0]/GPIO82
T13 K17
TS0DATA[1]/GPIO83
U13
PCM_A[2] PCMADR[1]/NF_AD[1]/GPIO129 PWM1/GPIO72 PWM1 K17
TS0DATA[1]/GPIO83
U13 J15
I2C_SCKM3/I2C_DDCR_CK/GPIO77 TS0DATA[2]/GPIO84
V15
V17 K16 J15
I2C_SCKM3/I2C_DDCR_CK/GPIO77 TS0DATA[2]/GPIO84
V15 U8
I2C_SDAM3/I2C_DDCR_DA/GPIO76 TS0DATA[3]/GPIO85
U12
PCM_A[3] PCMADR[2]/NF_AD[2]/GPIO127 PWM2/GPIO73 PWM2 U8
I2C_SDAM3/I2C_DDCR_DA/GPIO76 TS0DATA[3]/GPIO85
U12 T7
SDAM2/GPIO55 TS0DATA[4]/GPIO86
V13
NAND_FLASH_2G_TOSHIBA NAND_FLASH_1G_SS R16 L18 T7
SDAM2/GPIO55 TS0DATA[4]/GPIO86
V13 U7
SCKM2/GPIO56 TS0DATA[5]/GPIO87
U14
PCM_A[4] PCMADR[3]/NF_AD[3]/GPIO126 PWM3/GPIO74 PWM3 U7
SCKM2/GPIO56 TS0DATA[5]/GPIO87
U14 V7
SCKM0/GPIO58 TS0DATA[6]/GPIO88
T11
EAN60991002 EAN61857001 U16 L17 V7
SCKM0/GPIO58 TS0DATA[6]/GPIO88
T11 F6
SDAM0/GPIO59 TS0DATA[7]/GPIO89
T12
IC102-*4 PCM_A[5] PCMADR[4]/NF_AD[4]/GPIO104 PWM4/GPIO75 PCM_5V_CTL +3.3V_Normal SDAM0/GPIO59 TS0DATA[7]/GPIO89 I2S_IN_BCK/GPIO159 TS0SYNC/GPIO91
IC102-*3 T17
F6
G6
I2S_IN_BCK/GPIO159 TS0SYNC/GPIO91
T12
V12
G6
AA4
I2S_IN_SD/GPIO160 TS0VALID/GPIO90
V12
Y14
TC58NVG1S3HTA00 K9F1G08U0D-SCB0 PCM_A[6] PCMADR[5]/NF_AD[5]/GPIO106 AA4
I2S_IN_SD/GPIO160 TS0VALID/GPIO90
Y14 Y4
I2C_SCKM1/GPIO80 TS1CLK/GPIO103
Y16
W18 T8 Y4
I2C_SCKM1/GPIO80 TS1CLK/GPIO103
Y16
I2C_SDAM1/GPIO81 TS1DATA[0]/GPIO93
AA15
PCM_A[7] PCMADR[6]/NF_AD[6]/GPIO107 NF_ALE/GPIO146 PF_ALE IF_AGC
I2C_SDAM1/GPIO81 TS1DATA[0]/GPIO93
AA15 J6
TS1DATA[1]/GPIO94
Y13
U20 T9 L101 J6
TS1DATA[1]/GPIO94
Y13 K6
ET_TXD[0]/GPIO62 TS1DATA[2]/GPIO95
AA16
PCM_A[8] PCMADR[7]/NF_AD[7]/GPIO108 NF_CEZ/GPIO142 /PF_CE0 BLM18PG121SN1D K6
ET_TXD[0]/GPIO62 TS1DATA[2]/GPIO95
AA16
EXT_TX_CLK/GPIO64 TS1DATA[3]/GPIO96
W12
NC_1 NC_29 NC_1 NC_29 Y19 U9 EXT_TX_CLK/GPIO64 TS1DATA[3]/GPIO96
W12 G7
TS1DATA[4]/GPIO97
AA13
1 48 1 48 PCM_A[9] PCMADR[8]/GPIO113 NF_CLE/GPIO141 /PF_CE1 G7
TS1DATA[4]/GPIO97
AA13
I2S_IN_WS/GPIO158 TS1DATA[5]/GPIO98
W14
AA19 U11 I2S_IN_WS/GPIO158 TS1DATA[5]/GPIO98
W14 J4
TS1DATA[6]/GPIO99
W13
NC_2 NC_28 NC_2 NC_28 PCM_A[10] PCMADR[9]/GPIO115 NF_RBZ/GPIO147 /F_RB IF_AGC IF_AGC J4
TS1DATA[6]/GPIO99
W13 J5
ET_COL/GPIO60 TS1DATA[7]/GPIO100
Y15
2 47 2 47 AA20 V9 R193 C119 J5
ET_COL/GPIO60 TS1DATA[7]/GPIO100
Y15
ET_TXD[1]/GPIO61 TS1SYNC/GPIO102
W15
PCM_A[11] PCMADR[10]/GPIO119 NF_REZ/GPIO144 /PF_OE 10K 0.1uF ET_TXD[1]/GPIO61 TS1SYNC/GPIO102
W15 H19
TS1VALID/GPIO101
NC_3 NC_27 NC_3 NC_27 W21 U10 H19
TS1VALID/GPIO101
G20
LCK/GPIO194
B3
3 46 3 46 PCM_A[12] PCMADR[11]/GPIO117 NF_WEZ/GPIO145 /PF_WE G20
LCK/GPIO194
B3 G19
LDE/GPIO195 PM_SPI_SCZ1/GPIO_PM[6]/GPIO13
A3
V20 T10 IF_AGC G19
LDE/GPIO195 PM_SPI_SCZ1/GPIO_PM[6]/GPIO13
A3 G21
LHSYNC/GPIO196 PM_SPI_SCK/GPIO1
A4
NC_4 NC_26 NC_4 NC_26 PCM_A[13] PCMADR[12]/GPIO109 NF_WPZ/GPIO199 /PF_WP R196 G21
LHSYNC/GPIO196 PM_SPI_SCK/GPIO1
A4
LVSYNC/GPIO197 PM_SPI_SCZ0/GPIO0
C3
4 45 4 45 Y17 0 LVSYNC/GPIO197 PM_SPI_SCZ0/GPIO0
C3 J17
PM_SPI_SDI/GPIO2
A2
PCM_A[14] PCMADR[13]/GPIO112 IF_AGC_MAIN J17
PM_SPI_SDI/GPIO2
A2 J16
UART2_RX/GPIO69 PM_SPI_SDO/GPIO3
NC_5 I/O8 NC_5 I/O7 V18 W2 IF_AGC J16
UART2_RX/GPIO69 PM_SPI_SDO/GPIO3
E8
UART2_TX/GPIO70
B1
5 44 5 44 PCMADR[14]/GPIO111 IF_AGC TU_SIF UART2_TX/GPIO70 UART3_TX/GPIO52 RP
0.1uF R198TU_SIF
E8 B1 D7 C2
V19 W1 C115 47 C120 D7
UART3_TX/GPIO52 RP
C2 U6
UART3_RX/GPIO53 TN
C1
NC_6 I/O7 NC_6 I/O6 PCM_D[0-7] /PCM_CD PCMCD_N/GPIO135 SIFM 0.047uF U6
UART3_RX/GPIO53 TN
C1 V6
GPIO46[CTS] TP
B2
6 43 6 43 W19 W3 C116 0.1uF R199 47 TU_SIF V6
GPIO46[CTS] TP
B2 K15
GPIO47[RTS] RN
/PCM_CE PCMCE_N/GPIO120 SIFP C123 25V K15
GPIO47[RTS] RN
L16
UART1_TX/GPIO48
D2
RY/BY I/O6 R/B I/O5 PCM_D[0] U18 V2 TU_SIF TU_SIF 1000pF L16
UART1_TX/GPIO48
D2
UART1_RX/GPIO49 SPDIF_IN/GPIO161
D1
7 42 7 42 PCMDATA[0]/GPIO131 IM UART1_RX/GPIO49 SPDIF_IN/GPIO161 SPDIF_OUT/GPIO162
PCM_D[1] V16 V1 ANALOG SIF H5
SPDIF_OUT/GPIO162
D1 H5
K5
ET_TX_EN/GPIO63
D8
RE I/O5 RE I/O4 PCMDATA[1]/GPIO132 IP ET_TX_EN/GPIO63 ET_RXD[0]/GPIO65 HWRESET
8 41 8 41 PCM_D[2] W17 Close to MSTAR TU_SIF
K5
K4
ET_RXD[0]/GPIO65 HWRESET
D8
E5
K4
H6
ET_MDC/GPIO66 IRIN/GPIO5
E5
G4
PCMDATA[2]/GPIO133 H6
ET_MDC/GPIO66 IRIN/GPIO5
G4 L5
ET_MDIO/GPIO67 DDCA_CK/UART0_RX
G5
CE NC_25 CE NC_25 PCM_D[3] Y20 AA2 R194 0 TUNER_IF_100_ohm L5
ET_MDIO/GPIO67 DDCA_CK/UART0_RX
G5
ET_RXD[1]/GPIO68 DDCA_DA/UART0_TX
9 40 9 40 PCMDATA[3]/GPIO125 XIN IF_N_MSTAR R194-*1
ET_RXD[1]/GPIO68 DDCA_DA/UART0_TX
U17 J18
PCM_D[4] R15 Y2 TUNER_IF_0_ohm IF OPT U17 J18 R18
PCMADR[0]/NF_AD[0]/GPIO130 PWM0/GPIO71
K18
NC_7 NC_24 NC_7 NC_24 PCMDATA[4]/GPIO124 XOUT C117 C121 100 R18
PCMADR[0]/NF_AD[0]/GPIO130 PWM0/GPIO71
K18 V17
PCMADR[1]/NF_AD[1]/GPIO129 PWM1/GPIO72
K16
10 39 10 39 PCM_D[5] AA18 0.1uF 100pF DTV_IF V17
PCMADR[1]/NF_AD[1]/GPIO129 PWM1/GPIO72
K16 R16
PCMADR[2]/NF_AD[2]/GPIO127 PWM2/GPIO73
L18
PCMDATA[5]/GPIO123 R195 0 PCMADR[2]/NF_AD[2]/GPIO127 PWM2/GPIO73 PCMADR[3]/NF_AD[3]/GPIO126 PWM3/GPIO74
T15 TUNER_IF_100_ohm R16
PCMADR[3]/NF_AD[3]/GPIO126 PWM3/GPIO74
L18 U16
PCMADR[4]/NF_AD[4]/GPIO104 PWM4/GPIO75
L17
NC_8 NC_23 NC_8 NC_23 PCM_D[6] IF IF_P_MSTAR U16 L17 T17
11 38 11 38 PCMDATA[6]/GPIO122 TUNER_IF_0_ohm C118 C122 R195-*1 T17
PCMADR[4]/NF_AD[4]/GPIO104 PWM4/GPIO75
W18
PCMADR[5]/NF_AD[5]/GPIO106
T8
PCM_D[7] Y21 0.1uF 33pF TU_IF_CAP 100 W18
PCMADR[5]/NF_AD[5]/GPIO106
T8 U20
PCMADR[6]/NF_AD[6]/GPIO107 NF_ALE/GPIO146
T9
VCC_1 VCC_2 VCC_1 VCC_2 PCMDATA[7]/GPIO121 TU_IF_CAP C124 U20
PCMADR[6]/NF_AD[6]/GPIO107 NF_ALE/GPIO146
T9 Y19
PCMADR[7]/NF_AD[7]/GPIO108 NF_CEZ/GPIO142
U9
12 37 12 37 W20 33pF Y19
PCMADR[7]/NF_AD[7]/GPIO108 NF_CEZ/GPIO142
U9 AA19
PCMADR[8]/GPIO113 NF_CLE/GPIO141
U11
/PCM_IORD PCMIORD_N/GPIO116 For KR/US models AA19
PCMADR[8]/GPIO113 NF_CLE/GPIO141
U11 AA20
PCMADR[9]/GPIO115 NF_RBZ/GPIO147
V9
VSS_1 VSS_2 VSS_1 VSS_2 V21 Close to MSTAR AA20
PCMADR[9]/GPIO115 NF_RBZ/GPIO147
V9 W21
PCMADR[10]/GPIO119 NF_REZ/GPIO144
U10
13 36 13 36 /PCM_IOWR PCMIOWR_N/GPIO114 W21
PCMADR[10]/GPIO119 NF_REZ/GPIO144
U10 V20
PCMADR[11]/GPIO117 NF_WEZ/GPIO145
T10
Y18 V20
PCMADR[11]/GPIO117 NF_WEZ/GPIO145
T10 Y17
PCMADR[12]/GPIO109 NF_WPZ/GPIO199
NC_9 NC_22 NC_9 NC_22 /PCM_IRQA PCMIRQA_N/GPIO110 XTAL_LOAD_22pF Y17
PCMADR[12]/GPIO109 NF_WPZ/GPIO199
V18
PCMADR[13]/GPIO112
W2
14 35 14 35 T16 V18
PCMADR[13]/GPIO112
W2 V19
PCMADR[14]/GPIO111 IF_AGC
W1
/PCM_OE PCMOE_N/GPIO118 V19
PCMADR[14]/GPIO111 IF_AGC
W1 W19
PCMCD_N/GPIO135 SIFM
W3
NC_10 NC_21 NC_10 NC_21 R17 X101 C113 22pF W19
PCMCD_N/GPIO135 SIFM
W3 U18
PCMCE_N/GPIO120 SIFP
V2
15 34 15 34 /PCM_REG PCMREG_N/GPIO128 R187 U18
PCMCE_N/GPIO120 SIFP
V2 V16
PCMDATA[0]/GPIO131 IM
V1
T18 1M 24MHz C114 22pF V16
PCMDATA[0]/GPIO131 IM
V1 W17
PCMDATA[1]/GPIO132 IP
CLE NC_20 CLE NC_20 PCM_RST PCM_RESET/GPIO134 W17
PCMDATA[1]/GPIO132 IP
Y20
PCMDATA[2]/GPIO133
AA2
16 33 16 33 W16 Y20
PCMDATA[2]/GPIO133
AA2 R15
PCMDATA[3]/GPIO125 XIN
Y2
/PCM_WAIT PCMWAIT_N/GPIO105 XTAL_LOAD_22pF R15
PCMDATA[3]/GPIO125 XIN
Y2 AA18
PCMDATA[4]/GPIO124 XOUT
ALE I/O4 ALE I/O3 U15 AA18
PCMDATA[4]/GPIO124 XOUT
T15
PCMDATA[5]/GPIO123
17 32 17 32 /PCM_WE PCMWE_N/GPIO198 T15
PCMDATA[5]/GPIO123
Y21
PCMDATA[6]/GPIO122
PCMDATA[6]/GPIO122 PCMDATA[7]/GPIO121
Y21 W20
WE I/O3 WE I/O2 XTAL_LOAD_30pF XTAL_LOAD_27pF XTAL_LOAD_18pF XTAL_LOAD_20pF XTAL_LOAD_24pF W20
PCMDATA[7]/GPIO121
V21
PCMIORD_N/GPIO116
18 31 18 31 C113-*1 30pF C113-*2 27pF C113-*3 18pF C113-*4 20pF C113-*5 24pF V21
PCMIORD_N/GPIO116
PCMIOWR_N/GPIO114
Y18
PCMIOWR_N/GPIO114
PCMIRQA_N/GPIO110
Y18 T16
PCMIRQA_N/GPIO110 PCMOE_N/GPIO118
WP I/O2 WP I/O1 T16
PCMOE_N/GPIO118
R17
PCMREG_N/GPIO128
19 30 19 30 XTAL_LOAD_30pF XTAL_LOAD_27pF XTAL_LOAD_18pF XTAL_LOAD_20pF XTAL_LOAD_24pF
R17
PCMREG_N/GPIO128
T18
PCM_RESET/GPIO134
T18 W16
PCM_RESET/GPIO134 PCMWAIT_N/GPIO105
NC_11 I/O1 NC_11 I/O0 C114-*1 30pF C114-*2 27pF C114-*3 18pF C114-*4 20pF C114-*5 24pF W16
PCMWAIT_N/GPIO105
U15
PCMWE_N/GPIO198
20 29 20 29 U15
PCMWE_N/GPIO198
NC_12 NC_19 NC_12 NC_19
21 28 21 28
NC_13 NC_18 NC_13 NC_18
22 27 22 27
NC_14 NC_17 NC_14 NC_17
23 26 23 26
NC_15 NC_16 NC_15 NC_16
24 25 24 25
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS L14_CA_M1A 2014/05/20
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. MAIN1_EU 1
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
MODEL OPTION +3.3V_Normal SOC_RESET STby 3.5V Normal Power 3.3V DDR3 1.5V VDDC 1.05V
+3.5V_ST AVDD_NODIE +3.3V_Normal VDD33 +1.5V_DDR AVDD_DDR1:55mA +1.10V_VDDC +1.10V_VDDC +1.10V_VDDC +1.10V_VDDC
+3.5V_ST AVDD_DDR0:55mA
L206 L204
MO_DVB_T2/C/S2
BLM18PG121SN1D VDDC : 2026mA
MO_DUALSTREAM
MO_S/W_EU/AJ
BLM18PG121SN1D
DDR_EXT:256
DDR_EXT:128
1K
1K
1K
1K
1K
1K
1K
1K
MO_S/W_AJ
OPT
MO_M120
MO_HD C202 C200 C255 C259 C284 C204 C209 C235 C245 C266 C278 C248 C207 C254
OPT 4.7uF 0.1uF 0.1uF C228 C275 C277 C280 C283 C296 C210 C279
R266 4.7uF 10V R217 C289 C286 C252 10uF 10uF 0.1uF 0.1uF 0.1uF 0.1uF 10uF 0.1uF 0.1uF 1uF 10uF 10uF 1uF 1uF 0.1uF 10uF 0.1uF 0.1uF
10V 10uF 0.1uF 0.1uF 16V 16V 10V 10V 16V 16V 16V 16V 10V 16V 16V 10V
470 0 SOC_RESET 10V 10V 10V 10V 16V 10V 16V 16V
10V 16V 16V
R291
R222
R221
R206
R208
R211
R226
R290
POWER_DET_RESET R200 C201 AVDD_DMPLL
R201 OPT 100 470K 0.1uF
IF_AGC_SEL MODEL_OPT_0 L207
R202 OPT 100 16V
MODEL_OPT_1 BLM18PG121SN1D
R203 OPT 100
MODEL_OPT_2
R204 OPT 100
AUD_LRCH C288 C205
R225 OPT 100 10uF 0.1uF
MODEL_OPT_4 10V 16V
R228 OPT 100
MODEL_OPT_5
R230 OPT 100 AVDD_AU33
MODEL_OPT_6 L208
OPT 100
DDR_EXT:128 or NON
DDR_EXT:256 or NON
R229 AUD_LRCK BLM18PG121SN1D
MO_DUALSTREAM_NON
MO_S/W_NON_AJ
1K
C240 C287 C241
MO_S/W_TW/CN
1K
1K
1K
1K
1K
1K
1K
MO_DVB_T/C
MO_M120_NON
0.1uF 10uF 0.1uF
16V 10V 16V
MO_FHD
R212
R294
R293
R224
R223
R207
R209
R227
MODEL OPTION
PIN NAME PIN NO. LOW HIGH M1A_256M_UO4 M1A_256M_UO4
IC101 IC101 M1A_128M_UO4
MODEL_OPT_0 J5 MO_FHD MO_HD LGE2134(256M) LGE2134(256M) IC101-*1
LGE2133(128M)
MODEL_OPT_1 H19 MO_S/W_NON_AJ MO_S/W_AJ
HDMI HDMI1_ARC HDMI1_ARC
R4
AVDD_AU33 AUVRM
U3
MODEL_OPT_2 G20 MO_DVB_T/C C212 1uF R231 0 M4 T6 Close to MSTAR R4 U3
L11
AVDD_DDR0_CLK GND_1
A6
MO_DVB_T2/C/S2 HDMI_ARC ARC0 CVBSOUT1 DTV/MNT_VOUT
AVDD_AU33 AVDD_AU33 AUVRM AUVRM
L13
M11
AVDD_DDR1_CLK GND_2
A13
A15
R214 10 W7 V5 0.047uF C236 TU_CVBS 33 R244 TU_CVBS L11 A6 K13
AVDD_DDR0_CMD GND_3
A18
RXC0N CVBS0 TU_CVBS +3.3V_Normal AVDD_DDR0_CLK GND_1 C5
AVDD_DDR1_CMD GND_4
B12
AUD_LRCH G19 MO_M120_NON MO_M120 D0-_HDMI4
R215 10 Y8 U5 0.047uF C237SCART/AV2 33 R245 SCART/AV2 L13 A13 K12
AVDD_DDR0_D_1 GND_5
B14
D0+_HDMI4 RXC0P CVBS1 SC1/AV2_CVBS_IN AVDD_DDR1_CLK GND_2 L12
AVDD_DDR0_D_2 GND_6
B16
W8 T5 0.047uF C238 33 R246 M11 A15 C6
AVDD_DDR0_D_3 GND_7
B17
MODEL_OPT_4 COMP2_Y+/AV_CVBS_IN AVDD_DDR0_CMD GND_3 AVDD_DDR1_D_1 GND_8
U6 DDR_EXT:256 or NON DDR_EXT : 128 D1-_HDMI4 Y9
RXC1N CVBS2
V4 0.047uF C239 68 R247 OPT K13 A18
K14
L14
AVDD_DDR1_D_2 GND_9
B19
B20
RXC1P VCOM C242 OPT OPT AVDD_DDR1_CMD GND_4 B5
AVDD_DDR1_D_3 GND_10
C9
D1+_HDMI4 AA9 +1.5V_DDR C5 B12 AVDD_DRAM_1 GND_11
MODEL_OPT_5 K5 1000pF R213 R210 I2S_I/F AVDD_DDR0_D_1 GND_5
B6
AVDD_DRAM_2 GND_12
C10
MO_S/W_TW/CN MO_S/W_EU/AJ D2-_HDMI4
W9
RXC2N
E4 50V 10K 10K K12 B14
R8
R9
AVDD_DVI_USB_MPLL_1 GND_13
C21
D9
D2+_HDMI4 RXC2P I2S_OUT_BCK/GPIO165 AUD_SCK AVDD_DDR0_D_2 GND_6 L7
AVDD_DVI_USB_MPLL_2 GND_14
E20
AA7 F4 R295 0 L12 B16 AVDD_MOD_1 GND_15
MODEL_OPT_6 K4 DDR_EXT:128 or NON DDR_EXT : 256 CK-_HDMI4 RXCCKN I2S_OUT_MCK/GPIO163 AUD_MASTER_CLK AVDD_DDR0_D_3 GND_7
L8
P8
AVDD_MOD_2 GND_16
F9
F11
Y7 F7 C6 B17 K9
AVDD_NODIE GND_17
F13
CK+_HDMI4 RXCCKP I2S_OUT_SD/GPIO166 AUD_LRCH AVDD_DDR1_D_1 GND_8 R5
AVDD_PLL GND_18
F15
N2 F5 K14 B19 AVDD3P3_DMPLL GND_19
AUD_LRCK L5 MO_DUALSTREAM_NON MO_DUALSTREAM CEC_REMOTE_S7 CEC/GPIO6 I2S_OUT_WS/GPIO164 AUD_LRCK AVDD_DDR1_D_2 GND_9
P11
C7
AVDDL_MOD GND_20
F17
F19
E3 OPT OPT L14 B20 M13
DVDD_DDR_1 GND_21
F21
DDC_SCL_2 DDCDA_CK/GPIO27 OPT AVDD_DDR1_D_3 GND_10 R6
DVDD_DDR_2 GND_22
G8
E2 C4 R216 R218 C208 B5 C9 DVDD_NODIE GND_23
* Dual Stream is only Korea 3D spec DDC_SDA_2 DDCDA_DA/GPIO28 USB0_DM WIFI_DM 10K 10K AVDD_DRAM_1 GND_11
A7
M12
DVDD_RX_1_1 GND_24
G9
G10
W6 Y12 15pF B6 C10 B7
DVDD_RX_1_2 GND_25
G11
DDC_SCL_4 DDCDC_CK/GPIO31 USB1_DM SIDE_USB1_DM 50V AVDD_DRAM_2 GND_12 M14
DVDD_RX_2_1 GND_26
G12
Memory OPTION DDC_SDA_4
AA6
L4
DDCDC_DA/GPIO32 USB0_DP
B4
AA12
WIFI_DP
AVDD_NODIE
R8
R9
AVDD_DVI_USB_MPLL_1
AVDD_DVI_USB_MPLL_2
GND_13
GND_14
C21
D9
N11
N12
N13
DVDD_RX_2_2
VDDC_1
VDDC_2
VDDC_3
GND_27
GND_28
GND_29
GND_30
G13
G14
G15
HPD2 HOTPLUGA/GPIO23 USB1_DP SIDE_USB1_DP L7 E20
N14 G16
Memory Auto Y6 *CAPTION OPT:SCART_JACK/COMM_RGB VDD33 N15
VDDC_4 GND_31
G17
MODEL_OPT_4 MODEL_OPT_6 HPD4 HOTPLUGC/GPIO25 L8
AVDD_MOD_1 GND_15
F9
P12
VDDC_5 GND_32
G18
INT+EXT Det F1 J2 C221 0.047uF R232 68
AVDD_MOD_2 GND_16
P13
VDDC_6
VDDC_7
GND_33
GND_34
H7
D0-_HDMI2 RXA0N BIN0M P8 F11
P14
VDDC_8 GND_35
H8
G3 J3 C222 0.047uF R233 33 AVDD_NODIE L9 H9
128M Only 0 0 0 D0+_HDMI2 RXA0P BIN0P SC1_B+/COMP1_Pb+ K9
AVDD_NODIE GND_17
F13
VDDP GND_36
GND_37
H10
G1 K3 C223 0.047uF R234 68 WIFI_DM VDD33 AA10 H11
RXA1N GIN0M AVDD_PLL GND_18 AVDD5V_MHL GND_38
H12
D1-_HDMI2 G2 J1 C224 0.047uF R235 33 R5 F15 GND_39
H13
256M Only 1 0 0 WIFI_DP AVDD_DMPLL AVDD3P3_DMPLL GND_19 GND_40
D1+_HDMI2 RXA1P GIN0P SC1_G+/COMP1_Y+ P11 F17 GND_41
H14
H3 K2 C225 0.047uF R236 68 +1.10V_VDDC H15
D2-_HDMI2 RXA2N RIN0M AVDDL_MOD GND_20 GND_42
H16
H2 K1 C226 0.047uF R237 33 C7 F19 GND_43
H17
128M+128M 0 1 0 SC1_R+/COMP1_Pr+ +1.10V_VDDC DVDD_DDR_1 GND_21 GND_44
D2+_HDMI2 RXA2P RIN0P M13 F21 GND_45
H18
F3 M6 J7
CK-_HDMI2 RXACKN HSYNC0 SC1_ID DVDD_DDR_2 GND_22 GND_46
J8
F2 L6 R6 G8 GND_47
J9
128M+256M 0 0 1 CK+_HDMI2 RXACKP VSYNC0 SC1_FB C260 A7
DVDD_NODIE GND_23
G9
GND_48
GND_49
J10
J11
1uF DVDD_RX_1_1 GND_24 GND_50
J12
U4 L2 C227 0.047uF R238 68 M12 G10 GND_51
256M+256M 1 0 1 H/P OUT HP_LOUT EAR_OUTL BIN1M
10V DVDD_RX_1_2 GND_25 GND_52
J13
J14
T4 L3 C229 0.047uF R239 33 B7 G11 GND_53
K8
HP_ROUT EAR_OUTR BIN1P COMP2_Pb+ DVDD_RX_2_1 GND_26 GND_54
K10
C214 2.2uF SCART_JACK P2 M1 C230 0.047uF R240 68 M14 G12 GND_55
K11
SC1/COMP1_L_IN AUL1 GIN1M DVDD_RX_2_2 GND_27 GND_56
L10
C203 2.2uF AV2 R2 M2 C231 0.047uF R241 33 N11 G13 GND_57
M5
Country Option COMP2_L_IN
AV2_L_IN
C216
C217
2.2uF
2.2uF SCART_JACK
T1
AUL2
AUL3
GIN1P
RIN1M
N1 C232 0.047uF R242 68
COMP2_Y+/AV_CVBS_IN
+1.10V_VDDC
N12
N13
VDDC_1
VDDC_2
GND_28
GND_29
G14
G15
GND_58
GND_59
GND_60
GND_61
M7
M8
M9
R3 N3 C233 0.047uF R243 33 M10
SC1/COMP1_R_IN AUR1 RIN1P COMP2_Pr+ VDDC_3 GND_30 GND_62
N4
MODEL_OPT_1 MODEL_OPT_5 C206 2.2uF AV2 R1 M3 C234 1000pF N14 G16 GND_63
N5
AV2_R_IN AUR2 SOGIN1 VDDC_4 GND_31 GND_64
N6
C219 2.2uF T3 N15 G17 GND_65
N7
COMP2_R_IN OPT VDDC_5 GND_32 GND_66
AUR3 P12 G18 GND_67
N8
TW 0 0 ATV_1000P ATV_1000P U2 N9
SCART1_Lout AUOUTL0 VDDC_6 GND_33 GND_68
N10
C211 C215 V3 P13 H7 GND_69
P4
1000pF 1000pF SCART1_Rout AUOUTR0 VDDC_7 GND_34 GND_70
P5
T2 P14 H8 GND_71
P6
50V 50V VDDC_8 GND_35 GND_72
EU 0 1 AUVAG L9 H9 GND_73
P7
AUDIO OUT C213 C220
VDD33 VDDP GND_36 GND_74
P9
P10
H10 GND_75
P15
1uF 4.7uF GND_37 GND_76
P16
AA10 H11 GND_77
CN 1 0 AUVRM AVDD5V_MHL AVDD5V_MHL GND_38 GND_78
P17
P18
H12 GND_79
R10
GND_39 GND_80
R11
L214 H13 GND_81
R12
GND_40 GND_82
AJ 1 1 BLM18PG121SN1D H14 GND_83
R13
R14
GND_41 GND_84
K7
H15 GND_EFUSE
GND_42
H16
GND_43
H17
GND_44
H18 M1A_256M_AVS+ M1A_128M_AVS+
GND_45 IC101-*2 IC101-*3
J7 LGE2136(256M) LGE2135(128M)
GND_46
J8
M1A_128M_UO4 M1A_256M_AVS+ M1A_128M_AVS+ GND_47 R4 U3 R4 U3
J9 L11
AVDD_AU33 AUVRM
A6 L11
AVDD_AU33 AUVRM
A6
IC101-*1 IC101-*2 IC101-*3 GND_48 L13
AVDD_DDR0_CLK GND_1
A13 L13
AVDD_DDR0_CLK GND_1
A13
LGE2133(128M) LGE2136(256M) LGE2135(128M) J10 M11
AVDD_DDR1_CLK GND_2
A15 M11
AVDD_DDR1_CLK GND_2
A15
GND_49 K13
AVDD_DDR0_CMD GND_3
A18 K13
AVDD_DDR0_CMD GND_3
A18
J11 C5
AVDD_DDR1_CMD GND_4
B12 C5
AVDD_DDR1_CMD GND_4
B12
GND_50 K12
AVDD_DDR0_D_1 GND_5
B14 K12
AVDD_DDR0_D_1 GND_5
B14
J12 L12
AVDD_DDR0_D_2 GND_6
B16 L12
AVDD_DDR0_D_2 GND_6
B16
M4 T6 M4 T6 M4 T6 GND_51 C6
AVDD_DDR0_D_3 GND_7
B17 C6
AVDD_DDR0_D_3 GND_7
B17
W7
ARC0 CVBSOUT1
V5 W7
ARC0 CVBSOUT1
V5 W7
ARC0 CVBSOUT1
V5
J13 K14
AVDD_DDR1_D_1 GND_8
B19 K14
AVDD_DDR1_D_1 GND_8
B19
RXC0N CVBS0 RXC0N CVBS0 RXC0N CVBS0 GND_52 L14
AVDD_DDR1_D_2 GND_9
B20 L14
AVDD_DDR1_D_2 GND_9
B20
Y8 U5 Y8 U5 Y8 U5 J14 B5
AVDD_DDR1_D_3 GND_10
C9 B5
AVDD_DDR1_D_3 GND_10
C9
RXC0P CVBS1 RXC0P CVBS1 RXC0P CVBS1 GND_53 AVDD_DRAM_1 GND_11 AVDD_DRAM_1 GND_11
W8 T5 W8 T5 W8 T5 B6 C10 B6 C10
RXC1N CVBS2 RXC1N CVBS2 RXC1N CVBS2 K8 R8
AVDD_DRAM_2 GND_12
C21 R8
AVDD_DRAM_2 GND_12
C21
Y9 V4 Y9 V4 Y9 V4 GND_54 AVDD_DVI_USB_MPLL_1 GND_13 AVDD_DVI_USB_MPLL_1 GND_13
RXC1P VCOM RXC1P VCOM RXC1P VCOM R9 D9 R9 D9
AA9 AA9 AA9 K10 L7
AVDD_DVI_USB_MPLL_2 GND_14
E20 L7
AVDD_DVI_USB_MPLL_2 GND_14
E20
W9
RXC2N
E4 W9
RXC2N
E4 W9
RXC2N
E4 GND_55 L8
AVDD_MOD_1 GND_15
F9 L8
AVDD_MOD_1 GND_15
F9
RXC2P I2S_OUT_BCK/GPIO165 RXC2P I2S_OUT_BCK/GPIO165 RXC2P I2S_OUT_BCK/GPIO165 K11 P8
AVDD_MOD_2 GND_16
F11 P8
AVDD_MOD_2 GND_16
F11
AA7
RXCCKN I2S_OUT_MCK/GPIO163
F4 AA7
RXCCKN I2S_OUT_MCK/GPIO163
F4 AA7
RXCCKN I2S_OUT_MCK/GPIO163
F4 GND_56 K9
AVDD_NODIE GND_17
F13 K9
AVDD_NODIE GND_17
F13
Y7 F7 Y7 F7 Y7 F7 L10 R5
AVDD_PLL GND_18
F15 R5
AVDD_PLL GND_18
F15
N2
RXCCKP I2S_OUT_SD/GPIO166
F5 N2
RXCCKP I2S_OUT_SD/GPIO166
F5 N2
RXCCKP I2S_OUT_SD/GPIO166
F5
GND_57 P11
AVDD3P3_DMPLL GND_19
F17 P11
AVDD3P3_DMPLL GND_19
F17
CEC/GPIO6 I2S_OUT_WS/GPIO164 CEC/GPIO6 I2S_OUT_WS/GPIO164 CEC/GPIO6 I2S_OUT_WS/GPIO164
M5 C7
AVDDL_MOD GND_20
F19 C7
AVDDL_MOD GND_20
F19
E3 E3 E3 GND_58 M13
DVDD_DDR_1 GND_21
F21 M13
DVDD_DDR_1 GND_21
F21
E2
DDCDA_CK/GPIO27
C4 E2
DDCDA_CK/GPIO27
C4 E2
DDCDA_CK/GPIO27
C4
M7 R6
DVDD_DDR_2 GND_22
G8 R6
DVDD_DDR_2 GND_22
G8
DDCDA_DA/GPIO28 USB0_DM DDCDA_DA/GPIO28 USB0_DM DDCDA_DA/GPIO28 USB0_DM GND_59 A7
DVDD_NODIE GND_23
G9 A7
DVDD_NODIE GND_23
G9
W6 Y12 W6 Y12 W6 Y12 M8 M12
DVDD_RX_1_1 GND_24
G10 M12
DVDD_RX_1_1 GND_24
G10
DDCDC_CK/GPIO31 USB1_DM DDCDC_CK/GPIO31 USB1_DM DDCDC_CK/GPIO31 USB1_DM GND_60 DVDD_RX_1_2 GND_25 DVDD_RX_1_2 GND_25
AA6 B4 AA6 B4 AA6 B4 B7 G11 B7 G11
DDCDC_DA/GPIO32 USB0_DP DDCDC_DA/GPIO32 USB0_DP DDCDC_DA/GPIO32 USB0_DP M9 M14
DVDD_RX_2_1 GND_26
G12 M14
DVDD_RX_2_1 GND_26
G12
L4 AA12 L4 AA12 L4 AA12 GND_61 DVDD_RX_2_2 GND_27 DVDD_RX_2_2 GND_27
HOTPLUGA/GPIO23 USB1_DP HOTPLUGA/GPIO23 USB1_DP HOTPLUGA/GPIO23 USB1_DP N11 G13 N11 G13
Y6 Y6 Y6 M10 N12
VDDC_1 GND_28
G14 N12
VDDC_1 GND_28
G14
F1
HOTPLUGC/GPIO25
J2 F1
HOTPLUGC/GPIO25
J2 F1
HOTPLUGC/GPIO25
J2 GND_62 N13
VDDC_2 GND_29
G15 N13
VDDC_2 GND_29
G15
RXA0N BIN0M RXA0N BIN0M RXA0N BIN0M N4 N14
VDDC_3 GND_30
G16 N14
VDDC_3 GND_30
G16
G3
RXA0P BIN0P
J3 G3
RXA0P BIN0P
J3 G3
RXA0P BIN0P
J3 GND_63 N15
VDDC_4 GND_31
G17 N15
VDDC_4 GND_31
G17
G1 K3 G1 K3 G1 K3 N5 P12
VDDC_5 GND_32
G18 P12
VDDC_5 GND_32
G18
G2
RXA1N GIN0M
J1 G2
RXA1N GIN0M
J1 G2
RXA1N GIN0M
J1
GND_64 P13
VDDC_6 GND_33
H7 P13
VDDC_6 GND_33
H7
RXA1P GIN0P RXA1P GIN0P RXA1P GIN0P
N6 P14
VDDC_7 GND_34
H8 P14
VDDC_7 GND_34
H8
H3 K2 H3 K2 H3 K2 GND_65 L9
VDDC_8 GND_35
H9 L9
VDDC_8 GND_35
H9
H2
RXA2N RIN0M
K1 H2
RXA2N RIN0M
K1 H2
RXA2N RIN0M
K1
N7 VDDP GND_36
H10
VDDP GND_36
H10
RXA2P RIN0P RXA2P RIN0P RXA2P RIN0P GND_66 AA10
GND_37
H11 AA10
GND_37
H11
F3 M6 F3 M6 F3 M6 N8 AVDD5V_MHL GND_38
H12
AVDD5V_MHL GND_38
H12
RXACKN HSYNC0 RXACKN HSYNC0 RXACKN HSYNC0 GND_67 GND_39 GND_39
F2 L6 F2 L6 F2 L6 H13 H13
RXACKP VSYNC0 RXACKP VSYNC0 RXACKP VSYNC0 N9 GND_40
H14
GND_40
H14
GND_68 GND_41
H15
GND_41
H15
U4 L2 U4 L2 U4 L2 N10 GND_42
H16
GND_42
H16
T4
EAR_OUTL BIN1M
L3 T4
EAR_OUTL BIN1M
L3 T4
EAR_OUTL BIN1M
L3 GND_69 GND_43
H17
GND_43
H17
EAR_OUTR BIN1P EAR_OUTR BIN1P EAR_OUTR BIN1P P4 GND_44
H18
GND_44
H18
P2
AUL1 GIN1M
M1 P2
AUL1 GIN1M
M1 P2
AUL1 GIN1M
M1 GND_70 GND_45
J7
GND_45
J7
R2 M2 R2 M2 R2 M2 P5 GND_46
J8
GND_46
J8
T1
AUL2 GIN1P
N1 T1
AUL2 GIN1P
N1 T1
AUL2 GIN1P
N1
GND_71 GND_47
J9
GND_47
J9
AUL3 RIN1M AUL3 RIN1M AUL3 RIN1M
P6 GND_48
J10
GND_48
J10
R3 N3 R3 N3 R3 N3 GND_72 GND_49
J11
GND_49
J11
R1
AUR1 RIN1P
M3 R1
AUR1 RIN1P
M3 R1
AUR1 RIN1P
M3
P7 GND_50
J12
GND_50
J12
AUR2 SOGIN1 AUR2 SOGIN1 AUR2 SOGIN1 GND_73 GND_51
J13
GND_51
J13
T3 T3 T3 P9 GND_52
J14
GND_52
J14
AUR3 AUR3 AUR3 GND_74 GND_53 GND_53
U2 U2 U2 K8 K8
AUOUTL0 AUOUTL0 AUOUTL0 P10 GND_54
K10
GND_54
K10
V3 V3 V3 GND_75 GND_55 GND_55
AUOUTR0 AUOUTR0 AUOUTR0 K11 K11
T2 T2 T2 P15 GND_56
L10
GND_56
L10
AUVAG AUVAG AUVAG GND_76 GND_57
M5
GND_57
M5
P16 GND_58
M7
GND_58
M7
GND_77 GND_59
M8
GND_59
M8
P17 GND_60
M9
GND_60
M9
GND_78 GND_61
M10
GND_61
M10
P18 GND_62
N4
GND_62
N4
GND_79 GND_63
N5
GND_63
N5
R10 GND_64
N6
GND_64
N6
GND_80 GND_65
N7
GND_65
N7
R11 GND_66
N8
GND_66
N8
GND_81 GND_67
N9
GND_67
N9
R12 GND_68
N10
GND_68
N10
GND_82 GND_69
P4
GND_69
P4
R13 GND_70
P5
GND_70
P5
GND_83 GND_71
P6
GND_71
P6
R14 GND_72
P7
GND_72
P7
GND_84 GND_73
P9
GND_73
P9
K7 GND_74
P10
GND_74
P10
GND_EFUSE GND_75
P15
GND_75
P15
GND_76 GND_76
P16 P16
GND_77 GND_77
P17 P17
GND_78 GND_78
P18 P18
GND_79 GND_79
R10 R10
GND_80 GND_80
R11 R11
GND_81 GND_81
R12 R12
GND_82 GND_82
R13 R13
GND_83 GND_83
R14 R14
GND_84 GND_84
K7 K7
GND_EFUSE GND_EFUSE
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS L14_CA_M1A 2014/11/18
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. MAIN2_EU 2
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
AUDIO AMP(TI) AMP_COIL_GET
L5603-*1
10.0uH
AMP_COIL_GET
L5604-*1
10.0uH
AMP_COIL_GET
L5605-*1
10.0uH
AMP_COIL_GET
L5606-*1
10.0uH
AMP_COIL_TAIYO AMP_COIL_TAIYO AMP_COIL_TAIYOAMP_COIL_TAIYO
L5603-*2 L5604-*2 L5605-*2 L5606-*2
10.0uH 10.0uH 10.0uH 10.0uH
This parts are Located
A13.2V +13.2V_AMP on AVSS area.
L5600 R5610
A13.2V
UBW2012-121F 470
C5611 C5612 C5616 AMP_COIL_ABCO Close to Speaker
OPT 4700pF 0.047uF 0.033uF L5605
C5600 C5601 25V 50V 10uH
0.1uF 0.1uF C5609 SPK_L+
50V
50V 50V 4700pF
50V +13.2V_AMP R5611
18
1% OPT
2200pF
C5608 R5609 C5632
C5613
C5636
0.047uF 470 C5626 0.1uF 2200pF
25V 50V
OPT 330pF 50V
C5640 50V
C5618 C5620
PVDD_AB_2
PVDD_AB_1
0.1uF 10uF 4.7uF
PLL_FLTP
PLL_FLTM
50V 25V 50V
SSTIMER
C5630
VR_ANA
3216
BST_A
OUT_A
0.33uF
AVSS
PBTL
NC_2
NC_1
C5627 50V SPEAKER_L
330pF OPT
+3.3V_Normal C5633 C5637
50V
[EP] 0.1uF 2200pF
12
11
10
9
8
7
6
5
4
3
2
1
50V 50V
AVDD 13 48 PGND_AB_2 R5612 AMP_COIL_ABCO
+3.5V_ST R5608 2K 18
A_SEL_FAULT PGND_AB_1 L5606
THERMAL
14 47 1%
MCLK OUT_B 10uH
46
49
AUD_MASTER_CLK 15 SPK_L-
C5604 R5607 18K 1% OSC_RES 45 NC_6
R5601 16 C5624
0.1uF 0.033uF
10K DVSSO 17 44 NC_5
16V 50V
R5603 VR_DIG 18 43 BST_B
100 TAS5733
PDN 19 42 BST_C
OPT C C5602 C5607 LRCLK 20 IC5600 41 NC_4
C5625
AMP_COIL_ABCO
R5600 OPT 0.1uF SCLK NC_3 L5604
10K 1000pF 21 40 0.033uF
B Q5600 16V 50V 10uH
AMP_MUTE 50V SDIN 22 39 OUT_C
MMBT3904(NXP) SPK_R+
SDA 23 38 PGND_CD_2
E OPT
SCL 24 37 PGND_CD_1 R5613 C5634 C5638
18 0.1uF 2200pF
25
26
27
28
29
30
31
32
33
34
35
36
AUD_LRCK 1% 50V 50V
OPT AUD_SCK C5628
RESET
STEST
DVDD
DVSS
GND
AGND
VREG
GVDD_OUT
BST_D
PVDD_CD_1
PVDD_CD_2
OUT_D
R3405 AUD_LRCH 330pF
0 50V
POWER_DET AMP_SDA
+13.2V_AMP C5631
AMP_SCL 0.33uF
50V
OPT
SPEAKER_R
C5629
C5614 C5615 OPT 330pF C5635 C5639
AMP_RESET 0.1uF 1uF C5619 C5621 C5641 50V 0.1uF 2200pF
16V 25V 0.1uF 10uF 4.7uF 50V 50V
C5606 +3.3V_Normal 50V 25V 50V
0.1uF 3216 R5614
18 AMP_COIL_ABCO
16V 1% L5603
10uH
OPT SPK_R-
C5610
ZD5600 C5617
0.1uF 0.033uF
5V
16V 50V
250A1-WR-H04M
WAFER-ANGLE
SPK_L+
4
SPK_L-
3
SPK_R+
2
SPK_R-
1
P5600
Box Type SPK Wafer
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS L14_CA_AMP 140818
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR 56
1AMP_TAS
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
MHL SW AND GATE
MHL_AND_GATE_TOSHIBA
+3.3V_Normal MHL OCP MHL_ONSEMI
IC5801
TC7SZ08FU_TOSHIBA D5801-*1 MHL_OCP
MBR230LSFT1G
AVDD5V_MHL 5V_HDMI_4 30V IC5802
MHL_SUZHOU BD82020FVJ
IN_B VCC +5V_Normal
1 5 D5801
MHL_CD_SENSE 40V
R5802 SS2040LL-LG
10 OUT_3 GND
IN_A 8 1
2
MHL_OCP_EN MHL_OCP OPT
C5801 R5805
100K OUT_2 IN_1
GND OUT_Y 10uF 7 2
3 4 MHL_OCP
MHL_5V_EN 10V
OPT C5802
R5801 OUT_1 IN_2 0.1uF
10K 6 3
OC EN
5 4
+3.3V_Normal MHL_5V_EN
MHL_AND_GATE_NXP
IC5801-*1 MHL_OCP
74LVC1G08GW MHL_OCP R5806
MHL_OCP R5804 10K
R5803 10K
/MHL_OCP_DET 0
1 5
2
3 4
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS L14_CA_M1A 140815
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. MHL_SW_AND 58
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
L15 Repair Process
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes LGE Internal Use Only
Contents of Standard Repair Process
* First of all, Check whether there is SVC Bulletin in GCSC System for these model.
No. Error symptom (High category) Error symptom (Mid category) Page Remarks
1 No video/Normal audio 1
2 No video/No audio 2
3 Tuning fail, Picture broken/ Freezing 3, 4
A. Video error
4 Color error 5
Vertical/Horizontal bar, residual image, light spot,
5 6
external device color error
6 No power 7
B. Power error
7 Off when on, off while viewing, power auto on/off 8
8 No audio/Normal video 9
C. Audio error
9 Wrecked audio/discontinuation/noise 10
10 Remote control & Local switch checking 11
D. Function error
11 External device recognition error 12
12 E. Noise Circuit noise, mechanical noise 13
13 F. Exterior error Exterior defect 14
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes LGE Internal Use Only
Standard Repair Process
Established
A. Video error date
Error symptom
No video / Normal audio Revised date 1/14
First of all, Check whether all of cables between board is inserted properly or not.
(Main B/D ↔ Power B/D, LVDS Cable, Speaker Cable, IR B/D Cable…)
☞A1 ☞A4
Y Y Y
No video Normal Check Back Light Check Power Normal Replace T-con
Normal audio On with naked eye On Board 13.2V etc. Board or module
Audio Voltage
N N N
☞A2
Move to Check Power Board to LED Back light Voltage Repair Power
No video/No audio Board or parts
Y
Normal Change module
Voltage
N
End
Repair Power
Board or parts
※Precaution ☞A6 & A3
Always check & record S/W Version and White
Replace Main Board Re-enter White Balance value
Balance value before replacing the Main Board
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes LGE Internal Use Only
Standard Repair Process
Established
A. Video error date
Error symptom
No video / No audio Revised date 2/14
☞A4
Check various Check and
No video / Normal Y
voltages of Power replace
No audio Voltage
Board ( 13.2V) MAIN B/D
N End
Replace Power
Board and repair
parts
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes LGE Internal Use Only
Standard Repair Process
Established
A. Video error date
Error symptom
Tuning fail, Picture broken/ Freezing Revised date 3/14
. By using Digital signal level meter
☞ A5
. By using Diagnostics menu on OSD
Check RF Signal level ( Menu → Customer Support(red button on remote control) → Signal Test )
- Signal strength (Normal : over 50%)
- Signal quality (Normal : over 50%)
Y Check whether other equipments have problem or not.
Normal
(By connecting RF Cable at other equipment)
Signal
→ DVD Player ,Set-Top-Box, Different maker TV etc`
N
Check RF Cable
☞ A6
Connection Normal Y Check SVC N Check Normal Y
Tuner soldering End
1. Reconnection Picture S/W Version Bulletin Picture
2. Install Booster
N Y N
Normal N Contact with signal distributor S/W Upgrade Replace
Picture or broadcaster (Cable or Air) Main B/D
Y
Normal N
End
Y
End
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes LGE Internal Use Only
Standard Repair Process
Established
A. Video error date
Error symptom
Tuning fail, Picture broken/ Freezing Revised date 4/14
☞ A5 Check RF signal cable (DVB satellite signal or not)
Check whether other equipments have problem or not.
Check RF Signal level
(By connecting RF Cable at other equipment)
→ Set-Top-Box, Different maker TV etc
Check satellite setting. ☞ A6
- Check LNB frequency.
Normal Y Normal Y Check SVC N Check Replace
- Check satellite
Signal Setting S/W Version Bulletin Tuner soldering Main B/D
- Check Satellite connection
(DiSEqC, motor, etc…) Y
N N
Contact with signal Change satellite setting S/W Upgrade
distributor (match with installed ANT)
or broadcaster
(Cable or Air)
Normal N Normal N
Picture Picture
End Y Y
End End
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes LGE Internal Use Only
Standard Repair Process
Established
A. Video error date
Error symptom
Color error Revised date 5/14
☞ A8 / A9
☞A7
※ Check and
Check color by input replace Link Y Y
- External Input Color Y Cable Color Color
Replace Main B/D Replace module
- COMPONENT error (LVDS) and error error
- HDMI/DVI contact
N N N
condition
Check error End
color input
mode
☞A10 Check External Y
External
external device/Cable
Check Test pattern Input/Component Replace Main B/D
device and Normal
error
cable
N
Request repair
for external
device/cable
N
Check external External Y
HDMI
device and device/Cable Replace Main B/D
error
cable Normal
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes LGE Internal Use Only
Standard Repair Process
A. Video error Established
date
Error symptom
Vertical / Horizontal bar, residual image,
light spot, external device color error Revised date 6/14
Vertical/Horizontal bar, residual image, light spot Replace
Module
☞A7
☞ A8/ A9 N
Check color condition by input Check external
Check and
- External Input Screen Y device Screen Y Screen N Screen
replace Link Replace Main B/D
- Component/AV normal connection normal normal normal
Cable
- HDMI condition
N N Y Y
☞A10 Replace Request repair End End
module for external
Check Test pattern
device
External device screen error-Color error
Connect other external
Check screen device and cable
condition by input External (Check normal operation of
Check Y Screen N Replace
Check S/W Version -External Input Input External Input, Component
Version normal Main B/D
-Component error and HDMI by connecting
HDMI/DVI Jig, pattern Generator,
N Set-top Box etc. Y
Compo
S/W Upgrade nent
error
Request repair for
external device
Normal N Connect other external
Screen device and cable Y
(Check normal operation
Y HDMI of External Input, Screen N Replace
error Component, HDMI by normal Main B/D
connecting Jig, pattern
End Generator ,Set-top Box
etc.
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes LGE Internal Use Only
Standard Repair Process
Established
B. Power error date
Error symptom
No power Revised date 7/14
☞A11 ☞A13
DC Power on Normal
Check Power Y N Check Power Y Replace
by pressing Power Key Operati OK
Power LED LED On On ‘”High” Power B/D
On Remote control on
Stand-By : Red N Y
Replace Main B/D
Check Power cord
was inserted properly
☞A4
Measure voltage of each output of Power B/D
N
Normal Y
☞A12
※ Normal Normal Y
Y Check ST-BY 3.5V Replace Main B/D
Voltage Voltage
N N
End
Replace Power B/D Replace Power B/D
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes LGE Internal Use Only
Standard Repair Process
Established
B. Power error date
Error symptom
Off when on, off while viewing, power auto on/off Revised date 8/14
Check outlet
☞A14
CPU Y
N Check Power Off
Check A/C cord Error Abnorm Replace Main B/D Normal End
Mode
al
Y N
Check for all 3- phase Abnorm
power out al1 Replace Power B/D
☞A13
Fix A/C cord & Outlet (If Power Off mode
and check each 3 is not displayed) Normal Y
Replace Main B/D
phase out Check Power B/D Voltage
voltage
N
※ Caution
Check and fix exterior Replace Power B/D
of Power B/D Part
* Please refer to the all cases which Status Power off List Explanation
can be displayed on power off mode. "POWEROFF_REMOTEKEY" Power off by REMOTE CONTROL
"POWEROFF_OFFTIMER" Power off by OFF TIMER
"POWEROFF_SLEEPTIMER" Power off by SLEEP TIMER
"POWEROFF_INSTOP" Power off by INSTOP KEY
"POWEROFF_AUTOOFF" Power off by AUTO OFF
Normal "POWEROFF_ONTIMER" Power off by ON TIMER
"POWEROFF_RS232C" Power off by RS232C
"POWEROFF_RESREC" Power off by Reservated Record
"POWEROFF_RECEND" Power off by End of Recording
"POWEROFF_SWDOWN" Power off by S/W Download
"POWEROFF_UNKNOWN" Power off by unknown status except listed case
"POWEROFF_ABNORMAL1" Power off by abnormal status except CPU trouble
Abnormal
"POWEROFF_CPUABNORMAL" Power off by CPU Abnormal
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes LGE Internal Use Only
Standard Repair Process
Established
C. Audio error date
Error symptom
No audio/ Normal video Revised date 9/14
☞A15
☞A16
Check user Y
No audio TV Check audio 13.2V Normal Y
Menu Audio
Screen normal Speaker of Power Board Voltage
Sound Out
N N
Select TV Speaker Replace Power Board and repair parts
Check
Disconn N
Speaker Replace Main Board End
ection
connection
Y
Replace Speaker
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes LGE Internal Use Only
Standard Repair Process
Established
C. Audio error date
Error symptom
Wrecked audio / discontinuation / noise Revised date 10/14
→ abnormal audio/discontinuation/noise is same after “Check input signal” compared to No audio
Check input ☞A16
signal Y Wrecked Audio/ Check and replace
Signal Check audio
-RF Discontinuation/Noise speaker and
Normal Voltage (13.2V)
-External Input for all audio connector
signal
N
Wrecked Audio/ Y
Discontinuation/Noise Normal
Replace Main B/D
only for D-TV Voltage
N
Wrecked Audio/
Discontinuation/Noise Replace Power B/D
only for Analog
Wrecked Audio/ Connect and check
Discontinuation/Noise other external Replace Main B/D End
only for External Input device
(When RF signal is not
received) N
Normal
Request repair to external Audio
cable/ANT provider
Y
(In case of
External Input
signal error) Check and fix external device
Check and fix
external device
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes LGE Internal Use Only
Standard Repair Process
D. Function error Established
date
Error symptom
Remote control & Local switch checking Revised date 11/14
Remote control(R/C) operating error
Replace
Main B/D
☞A17 Y
☞A17 ☞A17
Y Check & Repair
Check R/C itself Normal Normal N Check 3.5V Normal Y Check IR Normal
Cable connection
Operation Operating Operating On Main B/D Voltage Output signal Signal
Connector solder
N Y N N
☞A4
Check R/C Operating Check & Replace Repair/Replace
End Check 13.2V on Power B/D
When turn off light Baterry of R/C IR B/D
in room Replace Main B/D
(Power B/D don’t have problem)
If R/C operate, Normal Y
Explain the customer End
Operating
cause is interference
from light in room. N
Replace R/C
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes LGE Internal Use Only
Standard Repair Process
Established
D. Function error date
Error symptom
External device recognition error Revised date 12/14
N
Check technical External Input
Check Y Technical
Signal information And Component
input information Replace Main B/D
Input - Fix information Recognition error
signal
- S/W Version
N Y
Fix in
Check and fix accordance HDMI, Optical
with technical Recognition error Replace Main B/D
external device/cable
information
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes LGE Internal Use Only
Standard Repair Process
Established
E. Noise date
Error symptom
Circuit noise, mechanical noise Revised date 13/14
Identify Circuit Check location
Replace Power B/D
nose type noise of noise
Mechanical Check location of
noise noise
※ When the nose is severe, replace the module
※ Mechanical noise is a natural (For models with fix information, upgrade the S/W or
phenomenon, and apply the 1st level provide the description)
description. When the customer does not
OR
agree, apply the process by stage. ※ If there is a “Tak Tak” noise from the cabinet,
※ Describe the basis of the description in refer to the KMS fix information and then proceed
“Part related to nose” in the Owner’s Manual. as shown in the solution manual
(For models without any fix information, provide
the description)
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes LGE Internal Use Only
Standard Repair Process
Established
F. Exterior defect date
Error symptom
Exterior defect Revised date 14/14
Zoom part with Module
Replace module
exterior damage damage
Cabinet
Replace cabinet
damage
Remote
Controller Replace remote controller
damage
Stand
Replace stand
damage
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes LGE Internal Use Only
Contents of Standard Repair Process Detail Technical Manual
No. Error symptom Content Page Remarks
1 Check LCD back light with naked eye A1
2 LED driver B+ 24V measuring method A2
A. Video error_ No video/Normal audio
3 Check White Balance value A3
4 Power Board voltage measuring method A4
6 TUNER input signal strength checking method A5
A. Video error_ No video/Video lag/stop
7 Version checking method A6
9 Connection diagram A7
10 A8
A. Video error_Color error Check Link Cable (LVDS) reconnection condition
11 A9
12 Adjustment Test pattern - ADJ Key A10
13 Connection diagram A8
A. Video error_Vertical/Horizontal bar, A8
14 Check Link Cable (LVDS) reconnection condition
residual image, light spot A9
15 Adjustment Test pattern - ADJ Key A10
16 Exchange T-Con Board (1) A-1/5
17 Exchange T-Con Board (2) A-2/5
18 Defected Type caused by T-Con/ Inverter/ Exchange LED driver Board (PSU) A-3/5
Module
19 Exchange Module itself (1) A-4/5
20 Exchange Module itself (2) A-5/5
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes LGE Internal Use Only
Contents of Standard Repair Process Detail Technical Manual
No. Error symptom Content Page Remarks
21 Check front display LED A11
22 Check power input Voltage & ST-BY 3.5V A12
B. Power error_No power
23 Checking method when power is ON A13
24 POWER BOARD voltage measuring method A4
B. Power error_Off when on, off while
26 POWER OFF MODE checking method A14
viewing
28 Checking method in menu when there is no audio A15
C. Audio error_No audio/Normal video Voltage and speaker checking method when there
29 A16
is no audio
C. Audio error_Wrecked Voltage and speaker checking method in case of
30 A16
audio/discontinuation audio error
D. Function error_ No response in remote
31 Remote controller operation checking method A17
controller, key error
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes LGE Internal Use Only
Standard Repair Process Detail Technical Manual
Established
Error symptom A. Video error_No video/Normal audio date
Revised
Content Check Back Light On with naked eye date A1
Power On -> disjoint back case -> check lighting
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes LGE Internal Use Only
Standard Repair Process Detail Technical Manual
Established
Error symptom A. Video error_No video/Normal audio date
Revised
Content Power Board to LED back light Voltage date A2
1. Measure DC Voltage applying to LED backlight from Power Board.
2. Output DC Voltage from Power Board -> supply to LED backlight.
Check Pin contacting statement and connection statement.
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes LGE Internal Use Only
Standard Repair Process Detail Technical Manual
Established
Error symptom A. Video error_No video/Normal audio date
Revised
Content Check White Balance value date A3
Entry method
1. Press the ADJ button on the remote controller for adjustment.
2. Enter into White Balance of item 9.
3. After recording the R, G, B (GAIN, Cut) value of Color Temp (Cool/Medium/Warm),
re-enter the value after replacing the MAIN BOARD.
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes LGE Internal Use Only
Standard Repair Process Detail Technical Manual
Established
Error symptom A. Video error_No video/ Audio date
Revised
Content Power Board voltage measuring method date A4
Check D.13.2V , A13.2V (4 ~8 PIN)
12 Pin (Power Board ↔ Main Board)
SMH200-H12S4
1 Power on 2 PDIM#2
3 GND 4 D.13.2V
5 D.13.2V 6 D.13.2V
7 A.13.2V 8 A.13.2V
9 GND 10 GND
11 DRV_ON 12 PDIM#1
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes LGE Internal Use Only
Standard Repair Process Detail Technical Manual
Established
Error symptom A. Video error_Video error, video lag/stop date
Revised
Content TUNER input signal strength checking method date A5
MENU Press red key Remote controller signal test
Select channel
When the signal is strong, use the
attenuator (-10dB, -15dB, -20dB etc.)
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes LGE Internal Use Only
Standard Repair Process Detail Technical Manual
Established
Error symptom A. Video error_Video error, video lag/stop date
LCD-TV Version checking method Revised
Content date A6
Checking SW version method for remote controller for adjustment
Press the IN-START with the remote
controller for adjustment
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes LGE Internal Use Only
Standard Repair Process Detail Technical Manual
Error symptom
A. Video error _Vertical/Horizontal bar, residual Established
image, light spot date
Revised
Content LCD TV connection diagram (1) date A7
As the part connecting to the external input, check the
screen condition by signal
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes LGE Internal Use Only
Standard Repair Process Detail Technical Manual
Error symptom A. Video error_Color error Established
date
Revised
Content Check and replace Link Cable(LVDS) and contact condition date A8/A9
1. Check and replace LVDS Cable
2. Check LVDS connection condition
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes LGE Internal Use Only
Standard Repair Process Detail Technical Manual
A. Video error_Color error Established
Error symptom
date
Adjustment Test pattern - ADJ Key Revised
Content date A10
You can view 6 types of patterns using the ADJ Key
Checking item : 1. Defective pixel 2. Residual image 3. MODULE error (ADD-BAR,SCAN BAR..)
4.Video error (Classification of MODULE or Main-B/D)
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes LGE Internal Use Only
Appendix : Exchange T-Con Board (1)
Solder defect, CNT Broken Solder defect, CNT Broken Solder defect, CNT Broken
Solder defect, CNT Broken T-Con
T-Con Defect,
Defect,
Solder
T-Con CNT
defect,
Defect, CNT
CNT
CNT Broken
Broken
Broken
Broken Abnormal Power Section
Solder defect, Short/Crack Abnormal Power Section Solder defect, Short/Crack
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes LGE Internal Use Only
Appendix : Exchange T-Con Board (2)
Abnormal Power Section Abnormal Power Section Solder defect, Short/Crack
Solder defect, Short/Crack Fuse Open, Abnormal power section Abnormal Display
GRADATION Noise GRADATION
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes LGE Internal Use Only
Appendix : Exchange the Module (1)
Panel Mura, Light leakage Panel Mura, Light leakage Press damage
Crosstalk Press damage Crosstalk
Un-repairable Cases
In this case please exchange the module.
Press damage
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes LGE Internal Use Only
Appendix : Exchange the Module (2)
Vertical Block Vertical Line Vertical Block
Source TAB IC Defect Source TAB IC Defect Source TAB IC Defect
Horizontal Block Horizontal Block Horizontal line
Gate TAB IC Defect Gate TAB IC Defect
Gate TAB IC Defect Gate TAB IC Defect Gate TAB IC Defect
Un-repairable Cases
In this case please exchange the module.
Horizontal Block
Gate TAB IC Defect
Gate TAB IC Defect
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes LGE Internal Use Only
Standard Repair Process Detail Technical Manual
Established
Error symptom B. Power error _No power date
Revised
Content Check front display LED date A11
ST-BY condition: Red
Front LED control :
Menu Option Standby Light On/Off
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes LGE Internal Use Only
Standard Repair Process Detail Technical Manual
Established
Error symptom B. Power error _No power date
Revised
Content Check power input voltage and ST-BY 3.5V A12
date
Check D.13.2V (4,5,6 PIN)
12 Pin (Power Board ↔ Main Board)
SMH200-H12S4
1 Power on 2 PDIM#2
3 GND 4 D.13.2V
5 D.13.2V 6 D.13.2V
7 A.13.2V 8 A.13.2V
9 GND 10 GND
11 DRV_ON 12 PDIM#1
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes LGE Internal Use Only
Standard Repair Process Detail Technical Manual
Established
Error symptom B. Power error _No power date
Revised
Content Checking method when power is ON date A13
Check “power on(Pin 1)” pin is high(about 3.3V)
12 Pin (Power Board ↔ Main Board)
SMH200-H12S4
1 Power on 2 PDIM#2
3 GND 4 D.13.2V
5 D.13.2V 6 D.13.2V
7 A.13.2V 8 A.13.2V
9 GND 10 GND
11 DRV_ON 12 PDIM#1
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes LGE Internal Use Only
Standard Repair Process Detail Technical Manual
Established
Error symptom B. Power error _Off when on, off whiling viewing date
Revised
Content POWER OFF MODE checking method date A14
Checking order
1. Press the IN-START button of the remote controller for adjustment
2. Check the entry into adjustment item 3.
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes LGE Internal Use Only
Standard Repair Process Detail Technical Manual
C. Audio error_No audio/Normal video Established
Error symptom
date
Revised
Content Checking method in menu when there is no audio date A15
Checking order
1. Press the MENU button on the remote controller
2. Select the AUDIO function of the Menu
3. Select TV Speaker Check
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes LGE Internal Use Only
Standard Repair Process Detail Technical Manual
Established
Error symptom C. Audio error_No audio/Normal video date
Voltage and speaker checking method Revised
Content date A16
when there is no audio
①
12 Pin (Power Board ↔ Main Board)
② SMH200-H12S4
1 Power on 2 PDIM#2
3 GND 4 D.13.2V
5 D.13.2V 6 D.13.2V
7 A.13.2V 8 A.13.2V
9 GND 10 GND
11 DRV_ON 12 PDIM#1 ③
< Main Ass’y>
Checking order
1. Check the contact condition of or 13.2V connector of Main Board
2. Measure the 13.2V input voltage supplied from Power Board
(If there is no input voltage, remove and check the connector)
3. Connect the tester RX1 to the speaker terminal and if you hear the Chik Chik sound
when you touch the GND and output terminal, the speaker is normal.
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes LGE Internal Use Only
Standard Repair Process Detail Technical Manual
D. Function error_ No response in remote controller, Established
Error symptom key error date
Revised
Content Remote controller operation checking method date A17
P4600
1 GND
2 KEY1
3 KEY2
③
4 3.5V_ST
5 GND
6 LED_R
④ 7 IR
② 8 GND
① < Sub Ass’y>
9 SCL
10 SDA
< Main Ass’y>
Checking order
1, 2. Check IR cable condition between IR & Main board.
3. Check the st-by 3.5V on the terminal 4.
4. When checking the Pre-Amp when the power is in ON condition, it is normal when the Analog
Tester needle moves slowly, and defective when it does not move at all.
Copyright © 2015 LG Electronics. Inc. All rights reserved.
Only for training and service purposes LGE Internal Use Only
