LED TV
SERVICE MANUAL
CHASSIS : LD51H
MODEL : 32LF63** 32LF63**-Z*
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
P/NO : MFL68679810 (1503-REV00) Printed in Korea

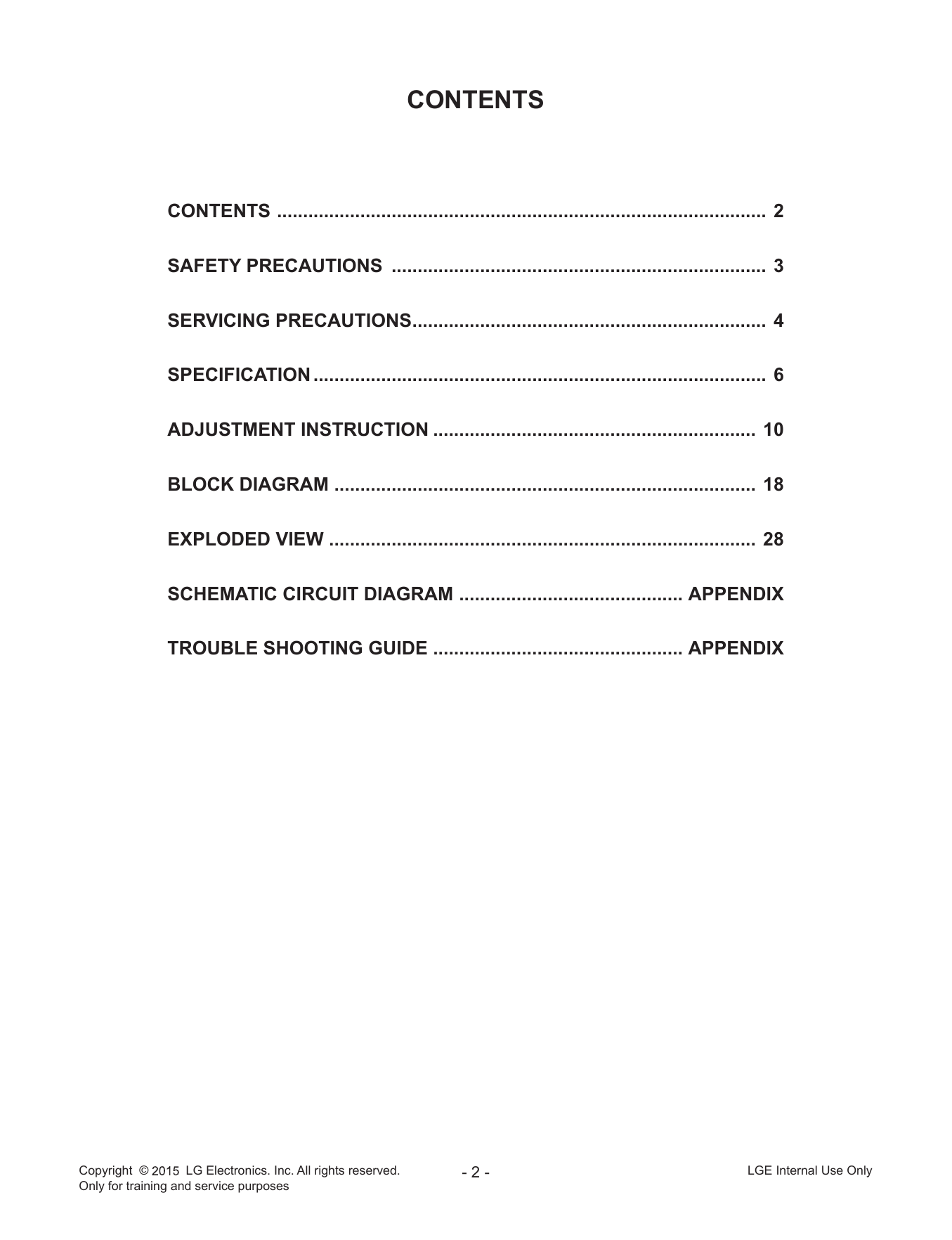

CONTENTS
CONTENTS ............................................................................................... 2
SAFETY PRECAUTIONS ......................................................................... 3
SERVICING PRECAUTIONS..................................................................... 4
SPECIFICATION........................................................................................ 6
ADJUSTMENT INSTRUCTION............................................................... 10
BLOCK DIAGRAM .................................................................................. 18
EXPLODED VIEW ................................................................................... 28
SCHEMATIC CIRCUIT DIAGRAM ............................................ APPENDIX
TROUBLE SHOOTING GUIDE ................................................. APPENDIX
Copyright © LG Electronics. Inc. All rights reserved. -2- LGE Internal Use Only
Only for training and service purposes
SAFETY PRECAUTIONS
IMPORTANT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC Do not use a line Isolation Transformer during this check.
power line. Use a transformer of adequate power rating as this Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
protects the technician from accidents resulting in personal injury between a known good earth ground (Water Pipe, Conduit, etc.)
from electrical shocks. and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
It will also protect the receiver and it's components from being with 1000 ohms/volt or more sensitivity.
damaged by accidental shorts of the circuitry that may be Reverse plug the AC cord into the AC outlet and repeat AC voltage
inadvertently introduced during the service operation. measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
If any fuse (or Fusible Resistor) in this TV receiver is blown, 0.5 mA.
replace it with the specified. In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
When replacing a high wattage resistor (Oxide Metal Film Resistor, repaired before it is returned to the customer.
over 1 W), keep the resistor 10 mm away from PCB.
Leakage Current Hot Check circuit
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Copyright © LG Electronics. Inc. All rights reserved. -3- LGE Internal Use Only
Only for training and service purposes
SERVICING PRECAUTIONS
CAUTION: Before servicing receivers covered by this service 2. After removing an electrical assembly equipped with ES
manual and its supplements and addenda, read and follow the devices, place the assembly on a conductive surface such as
SAFETY PRECAUTIONS on page 3 of this publication. aluminum foil, to prevent electrostatic charge buildup or expo-
NOTE: If unforeseen circumstances create conflict between the sure of the assembly.
following servicing precautions and any of the safety precautions 3. Use only a grounded-tip soldering iron to solder or unsolder
on page 3 of this publication, always follow the safety precau- ES devices.
tions. Remember: Safety First. 4. Use only an anti-static type solder removal device. Some sol-
der removal devices not classified as “anti-static” can generate
General Servicing Precautions electrical charges sufficient to damage ES devices.
1. Always unplug the receiver AC power cord from the AC power 5. Do not use freon-propelled chemicals. These can generate
source before; electrical charges sufficient to damage ES devices.
a. Removing or reinstalling any component, circuit board 6. Do not remove a replacement ES device from its protective
module or any other receiver assembly. package until immediately before you are ready to install it.
b. Disconnecting or reconnecting any receiver electrical plug (Most replacement ES devices are packaged with leads elec-
or other electrical connection. trically shorted together by conductive foam, aluminum foil or
c. Connecting a test substitute in parallel with an electrolytic comparable conductive material).
capacitor in the receiver. 7. Immediately before removing the protective material from the
CAUTION: A wrong part substitution or incorrect polarity leads of a replacement ES device, touch the protective mate-
installation of electrolytic capacitors may result in an explo- rial to the chassis or circuit assembly into which the device will
sion hazard. be installed.
2. Test high voltage only by measuring it with an appropriate CAUTION: Be sure no power is applied to the chassis or cir-
high voltage meter or other voltage measuring device (DVM, cuit, and observe all other safety precautions.
FETVOM, etc) equipped with a suitable high voltage probe. 8. Minimize bodily motions when handling unpackaged replace-
Do not test high voltage by "drawing an arc". ment ES devices. (Otherwise harmless motion such as the
3. Do not spray chemicals on or near this receiver or any of its brushing together of your clothes fabric or the lifting of your
assemblies. foot from a carpeted floor can generate static electricity suf-
4. Unless specified otherwise in this service manual, clean ficient to damage an ES device.)
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable General Soldering Guidelines
non-abrasive applicator; 10 % (by volume) Acetone and 90 % 1. Use a grounded-tip, low-wattage soldering iron and appropri-
(by volume) isopropyl alcohol (90 % - 99 % strength) ate tip size and shape that will maintain tip temperature within
CAUTION: This is a flammable mixture. the range or 500 °F to 600 °F.
Unless specified otherwise in this service manual, lubrication 2. Use an appropriate gauge of RMA resin-core solder composed
of contacts in not required. of 60 parts tin/40 parts lead.
5. Do not defeat any plug/socket B+ voltage interlocks with which 3. Keep the soldering iron tip clean and well tinned.
receivers covered by this service manual might be equipped. 4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
6. Do not apply AC power to this instrument and/or any of its bristle (0.5 inch, or 1.25 cm) brush with a metal handle.
electrical assemblies unless all solid-state device heat sinks Do not use freon-propelled spray-on cleaners.
are correctly installed. 5. Use the following unsoldering technique
7. Always connect the test receiver ground lead to the receiver a. Allow the soldering iron tip to reach normal temperature.
chassis ground before connecting the test receiver positive (500 °F to 600 °F)
lead. b. Heat the component lead until the solder melts.
Always remove the test receiver ground lead last. c. Quickly draw the melted solder with an anti-static, suction-
8. Use with this receiver only the test fixtures specified in this type solder removal device or with solder braid.
service manual. CAUTION: Work quickly to avoid overheating the circuit
CAUTION: Do not connect the test fixture ground strap to any board printed foil.
heat sink in this receiver. 6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
Electrostatically Sensitive (ES) Devices (500 °F to 600 °F)
Some semiconductor (solid-state) devices can be damaged eas- b. First, hold the soldering iron tip and solder the strand
ily by static electricity. Such components commonly are called against the component lead until the solder melts.
Electrostatically Sensitive (ES) Devices. Examples of typical ES c. Quickly move the soldering iron tip to the junction of the
devices are integrated circuits and some field-effect transistors component lead and the printed circuit foil, and hold it there
and semiconductor “chip” components. The following techniques only until the solder flows onto and around both the compo-
should be used to help reduce the incidence of component dam- nent lead and the foil.
age caused by static by static electricity. CAUTION: Work quickly to avoid overheating the circuit
1. Immediately before handling any semiconductor component or board printed foil.
semiconductor-equipped assembly, drain off any electrostatic d. Closely inspect the solder area and remove any excess or
charge on your body by touching a known earth ground. Alter- splashed solder with a small wire-bristle brush.
natively, obtain and wear a commercially available discharg-
ing wrist strap device, which should be removed to prevent
potential shock reasons prior to applying power to the unit
under test.
Copyright © LG Electronics. Inc. All rights reserved. -4- LGE Internal Use Only
Only for training and service purposes
IC Remove/Replacement 3. Solder the connections.
Some chassis circuit boards have slotted holes (oblong) through CAUTION: Maintain original spacing between the replaced
which the IC leads are inserted and then bent flat against the cir- component and adjacent components and the circuit board to
cuit foil. When holes are the slotted type, the following technique prevent excessive component temperatures.
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique Circuit Board Foil Repair
as outlined in paragraphs 5 and 6 above. Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
Removal board causing the foil to separate from or "lift-off" the board. The
1. Desolder and straighten each IC lead in one operation by following guidelines and procedures should be followed when-
gently prying up on the lead with the soldering iron tip as the ever this condition is encountered.
solder melts.
2. Draw away the melted solder with an anti-static suction-type At IC Connections
solder removal device (or with solder braid) before removing To repair a defective copper pattern at IC connections use the
the IC. following procedure to install a jumper wire on the copper pattern
Replacement side of the circuit board. (Use this technique only on IC connec-
1. Carefully insert the replacement IC in the circuit board. tions).
2. Carefully bend each IC lead against the circuit foil pad and
solder it. 1. Carefully remove the damaged copper pattern with a sharp
3. Clean the soldered areas with a small wire-bristle brush. knife. (Remove only as much copper as absolutely necessary).
(It is not necessary to reapply acrylic coating to the areas). 2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
"Small-Signal" Discrete Transistor 3. Bend a small "U" in one end of a small gauge jumper wire and
Removal/Replacement carefully crimp it around the IC pin. Solder the IC connection.
1. Remove the defective transistor by clipping its leads as close 4. Route the jumper wire along the path of the out-away copper
as possible to the component body. pattern and let it overlap the previously scraped end of the
2. Bend into a "U" shape the end of each of three leads remain- good copper pattern. Solder the overlapped area and clip off
ing on the circuit board. any excess jumper wire.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding At Other Connections
leads extending from the circuit board and crimp the "U" with Use the following technique to repair the defective copper pattern
long nose pliers to insure metal to metal contact then solder at connections other than IC Pins. This technique involves the
each connection. installation of a jumper wire on the component side of the circuit
board.
Power Output, Transistor Device
Removal/Replacement 1. Remove the defective copper pattern with a sharp knife.
1. Heat and remove all solder from around the transistor leads. Remove at least 1/4 inch of copper, to ensure that a hazardous
2. Remove the heat sink mounting screw (if so equipped). condition will not exist if the jumper wire opens.
3. Carefully remove the transistor from the heat sink of the circuit 2. Trace along the copper pattern from both sides of the pattern
board. break and locate the nearest component that is directly con-
4. Insert new transistor in the circuit board. nected to the affected copper pattern.
5. Solder each transistor lead, and clip off excess lead. 3. Connect insulated 20-gauge jumper wire from the lead of the
6. Replace heat sink. nearest component on one side of the pattern break to the
lead of the nearest component on the other side.
Diode Removal/Replacement Carefully crimp and solder the connections.
1. Remove defective diode by clipping its leads as close as pos- CAUTION: Be sure the insulated jumper wire is dressed so the
sible to diode body. it does not touch components or sharp edges.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and
if necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
Copyright © LG Electronics. Inc. All rights reserved. -5- LGE Internal Use Only
Only for training and service purposes

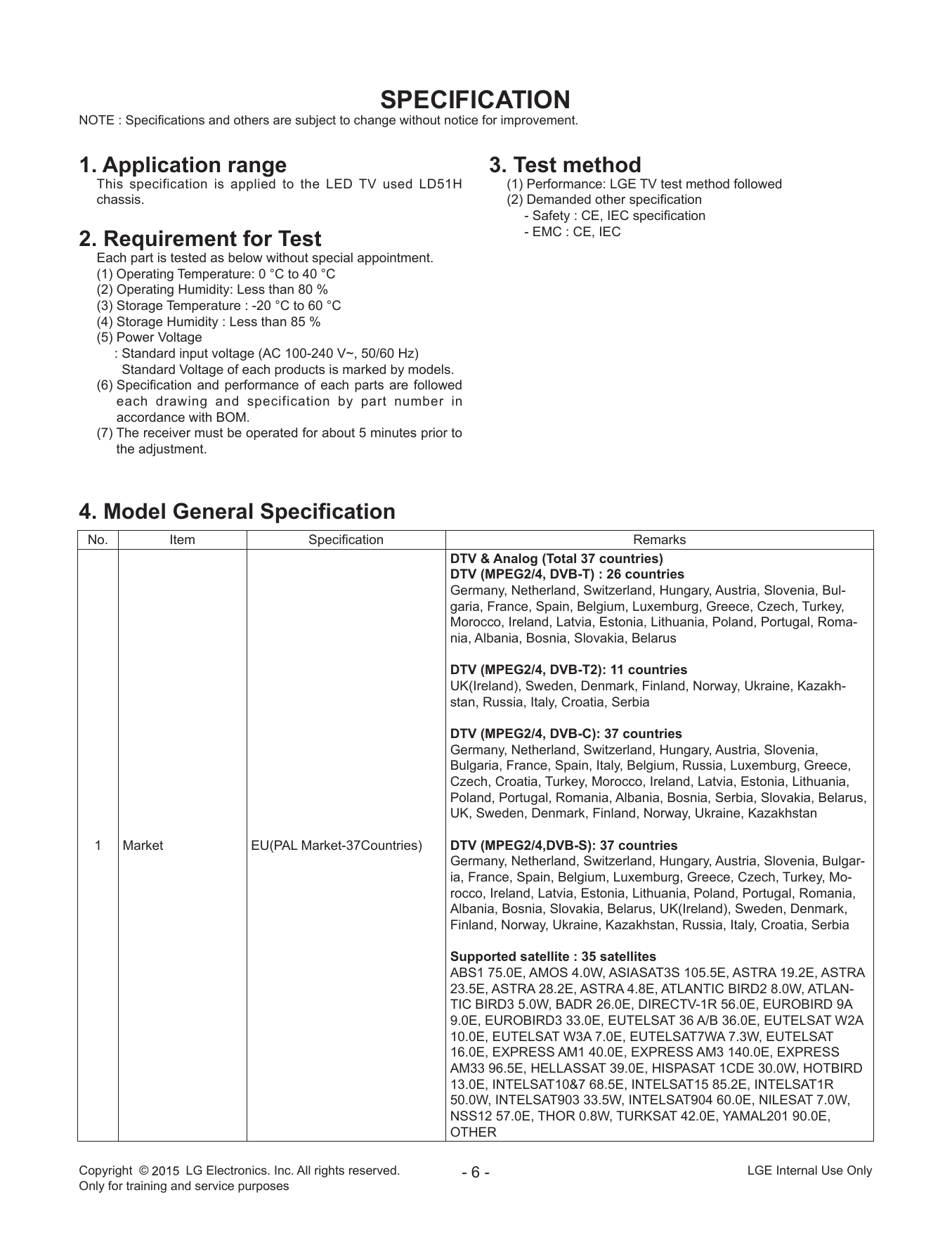

SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement.
1. Application range 3. Test method
This specification is applied to the LED TV used LD51H (1) Performance: LGE TV test method followed
chassis. (2) Demanded other specification
- Safety : CE, IEC specification
- EMC : CE, IEC
2. Requirement for Test
Each part is tested as below without special appointment.
(1) Operating Temperature: 0 °C to 40 °C
(2) Operating Humidity: Less than 80 %
(3) Storage Temperature : -20 °C to 60 °C
(4) Storage Humidity : Less than 85 %
(5) Power Voltage
: Standard input voltage (AC 100-240 V~, 50/60 Hz)
Standard Voltage of each products is marked by models.
(6) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
(7) The receiver must be operated for about 5 minutes prior to
the adjustment.
4. Model General Specification
No. Item Specification Remarks
DTV & Analog (Total 37 countries)
DTV (MPEG2/4, DVB-T) : 26 countries
Germany, Netherland, Switzerland, Hungary, Austria, Slovenia, Bul-
garia, France, Spain, Belgium, Luxemburg, Greece, Czech, Turkey,
Morocco, Ireland, Latvia, Estonia, Lithuania, Poland, Portugal, Roma-
nia, Albania, Bosnia, Slovakia, Belarus
DTV (MPEG2/4, DVB-T2): 11 countries
UK(Ireland), Sweden, Denmark, Finland, Norway, Ukraine, Kazakh-
stan, Russia, Italy, Croatia, Serbia
DTV (MPEG2/4, DVB-C): 37 countries
Germany, Netherland, Switzerland, Hungary, Austria, Slovenia,
Bulgaria, France, Spain, Italy, Belgium, Russia, Luxemburg, Greece,
Czech, Croatia, Turkey, Morocco, Ireland, Latvia, Estonia, Lithuania,
Poland, Portugal, Romania, Albania, Bosnia, Serbia, Slovakia, Belarus,
UK, Sweden, Denmark, Finland, Norway, Ukraine, Kazakhstan
1 Market EU(PAL Market-37Countries) DTV (MPEG2/4,DVB-S): 37 countries
Germany, Netherland, Switzerland, Hungary, Austria, Slovenia, Bulgar-
ia, France, Spain, Belgium, Luxemburg, Greece, Czech, Turkey, Mo-
rocco, Ireland, Latvia, Estonia, Lithuania, Poland, Portugal, Romania,
Albania, Bosnia, Slovakia, Belarus, UK(Ireland), Sweden, Denmark,
Finland, Norway, Ukraine, Kazakhstan, Russia, Italy, Croatia, Serbia
Supported satellite : 35 satellites
ABS1 75.0E, AMOS 4.0W, ASIASAT3S 105.5E, ASTRA 19.2E, ASTRA
23.5E, ASTRA 28.2E, ASTRA 4.8E, ATLANTIC BIRD2 8.0W, ATLAN-
TIC BIRD3 5.0W, BADR 26.0E, DIRECTV-1R 56.0E, EUROBIRD 9A
9.0E, EUROBIRD3 33.0E, EUTELSAT 36 A/B 36.0E, EUTELSAT W2A
10.0E, EUTELSAT W3A 7.0E, EUTELSAT7WA 7.3W, EUTELSAT
16.0E, EXPRESS AM1 40.0E, EXPRESS AM3 140.0E, EXPRESS
AM33 96.5E, HELLASSAT 39.0E, HISPASAT 1CDE 30.0W, HOTBIRD
13.0E, INTELSAT10&7 68.5E, INTELSAT15 85.2E, INTELSAT1R
50.0W, INTELSAT903 33.5W, INTELSAT904 60.0E, NILESAT 7.0W,
NSS12 57.0E, THOR 0.8W, TURKSAT 42.0E, YAMAL201 90.0E,
OTHER
Copyright © LG Electronics. Inc. All rights reserved. -6- LGE Internal Use Only
Only for training and service purposes

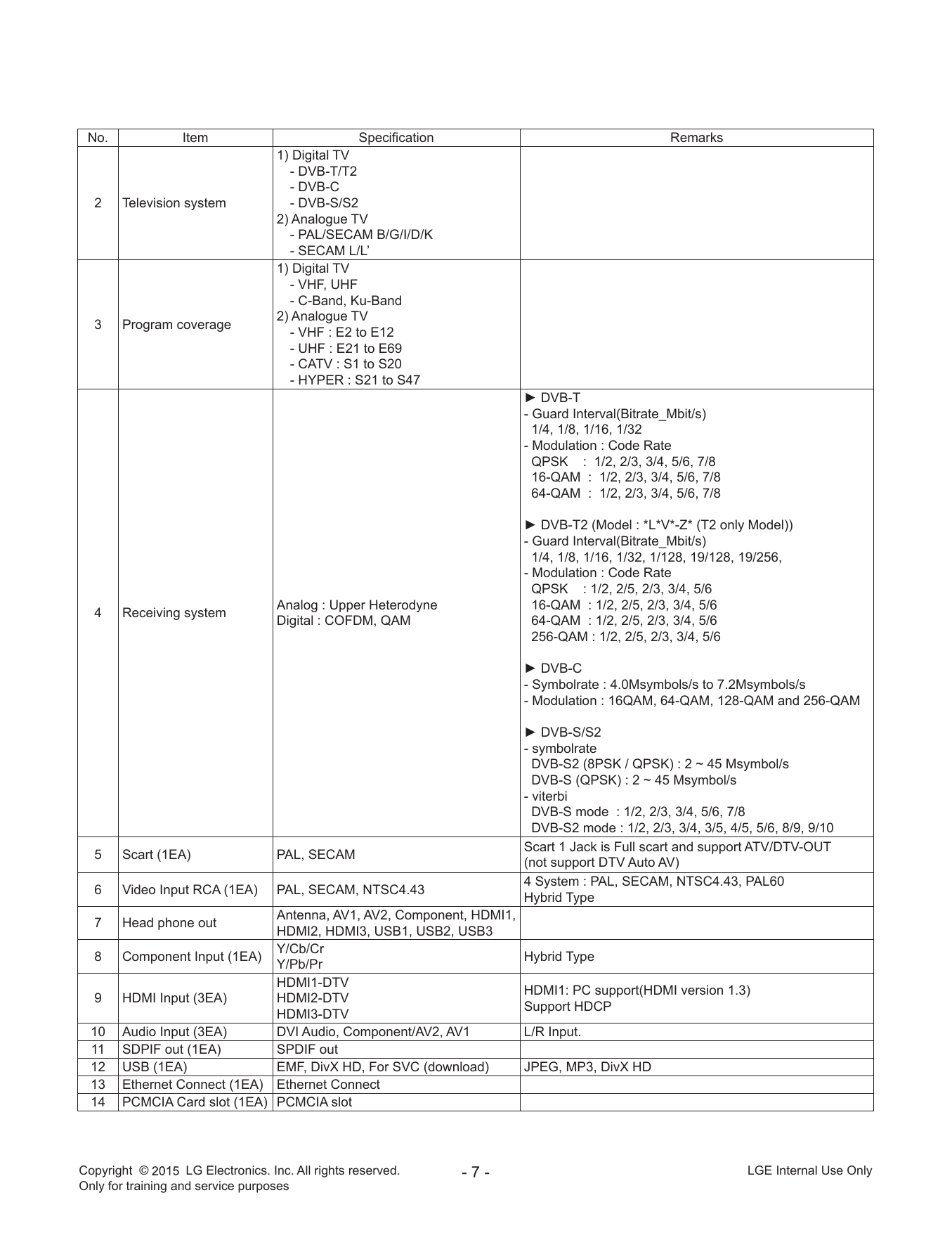

No. Item Specification Remarks
1) Digital TV
- DVB-T/T2
- DVB-C
2 Television system - DVB-S/S2
2) Analogue TV
- PAL/SECAM B/G/I/D/K
- SECAM L/L’
1) Digital TV
- VHF, UHF
- C-Band, Ku-Band
2) Analogue TV
3 Program coverage
- VHF : E2 to E12
- UHF : E21 to E69
- CATV : S1 to S20
- HYPER : S21 to S47
► DVB-T
- Guard Interval(Bitrate_Mbit/s)
1/4, 1/8, 1/16, 1/32
- Modulation : Code Rate
QPSK : 1/2, 2/3, 3/4, 5/6, 7/8
16-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
64-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
► DVB-T2 (Model : *L*V*-Z* (T2 only Model))
- Guard Interval(Bitrate_Mbit/s)
1/4, 1/8, 1/16, 1/32, 1/128, 19/128, 19/256,
- Modulation : Code Rate
QPSK : 1/2, 2/5, 2/3, 3/4, 5/6
Analog : Upper Heterodyne 16-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
4 Receiving system
Digital : COFDM, QAM 64-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
256-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
► DVB-C
- Symbolrate : 4.0Msymbols/s to 7.2Msymbols/s
- Modulation : 16QAM, 64-QAM, 128-QAM and 256-QAM
► DVB-S/S2
- symbolrate
DVB-S2 (8PSK / QPSK) : 2 ~ 45 Msymbol/s
DVB-S (QPSK) : 2 ~ 45 Msymbol/s
- viterbi
DVB-S mode : 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2 mode : 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10
Scart 1 Jack is Full scart and support ATV/DTV-OUT
5 Scart (1EA) PAL, SECAM
(not support DTV Auto AV)
4 System : PAL, SECAM, NTSC4.43, PAL60
6 Video Input RCA (1EA) PAL, SECAM, NTSC4.43
Hybrid Type
Antenna, AV1, AV2, Component, HDMI1,
7 Head phone out
HDMI2, HDMI3, USB1, USB2, USB3
Y/Cb/Cr
8 Component Input (1EA) Hybrid Type
Y/Pb/Pr
HDMI1-DTV
HDMI1: PC support(HDMI version 1.3)
9 HDMI Input (3EA) HDMI2-DTV
Support HDCP
HDMI3-DTV
10 Audio Input (3EA) DVI Audio, Component/AV2, AV1 L/R Input.
11 SDPIF out (1EA) SPDIF out
12 USB (1EA) EMF, DivX HD, For SVC (download) JPEG, MP3, DivX HD
13 Ethernet Connect (1EA) Ethernet Connect
14 PCMCIA Card slot (1EA) PCMCIA slot
Copyright © LG Electronics. Inc. All rights reserved. -7- LGE Internal Use Only
Only for training and service purposes

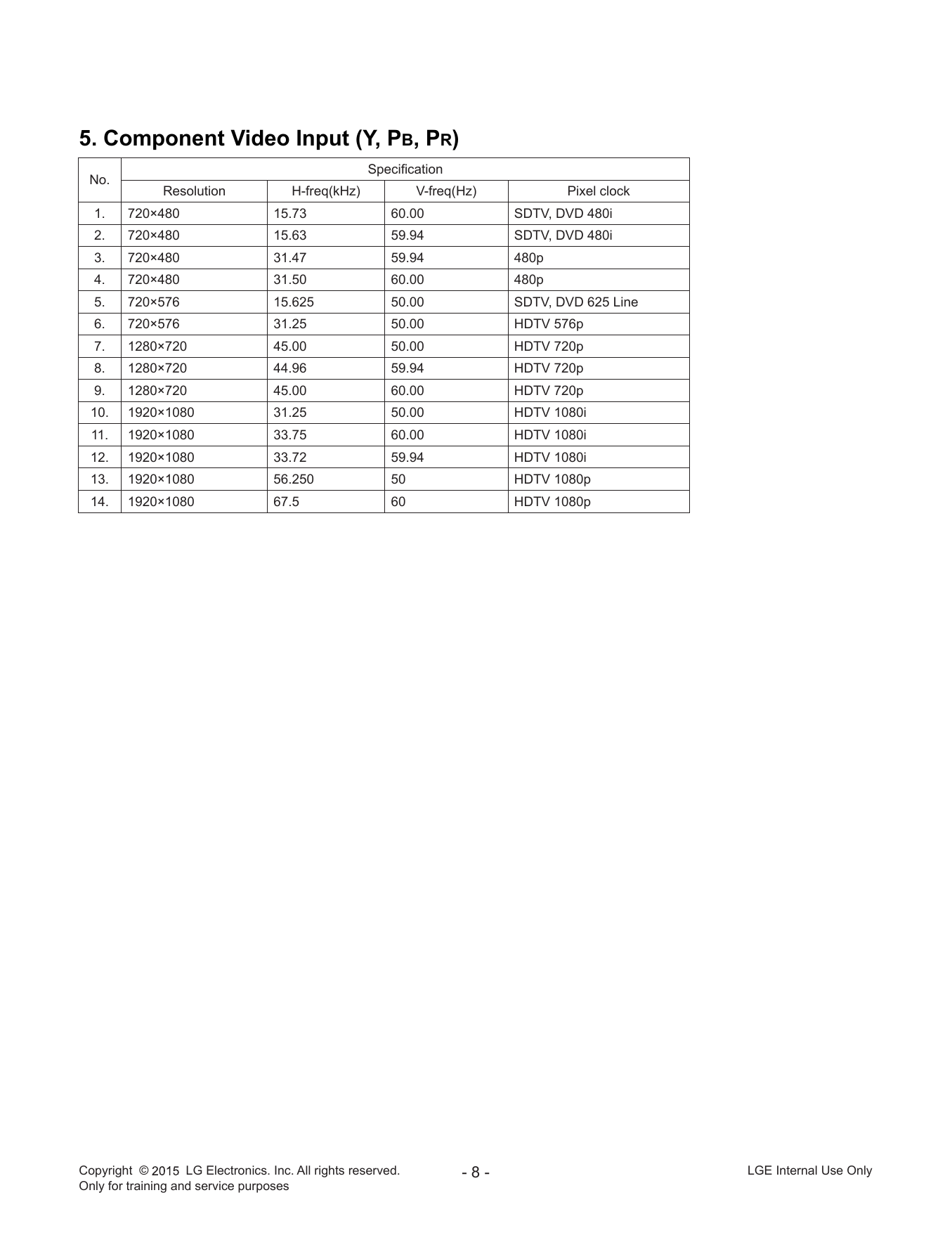

5. Component Video Input (Y, Pb, Pr)
Specification
No.
Resolution H-freq(kHz) V-freq(Hz) Pixel clock
1. 720×480 15.73 60.00 SDTV, DVD 480i
2. 720×480 15.63 59.94 SDTV, DVD 480i
3. 720×480 31.47 59.94 480p
4. 720×480 31.50 60.00 480p
5. 720×576 15.625 50.00 SDTV, DVD 625 Line
6. 720×576 31.25 50.00 HDTV 576p
7. 1280×720 45.00 50.00 HDTV 720p
8. 1280×720 44.96 59.94 HDTV 720p
9. 1280×720 45.00 60.00 HDTV 720p
10. 1920×1080 31.25 50.00 HDTV 1080i
11. 1920×1080 33.75 60.00 HDTV 1080i
12. 1920×1080 33.72 59.94 HDTV 1080i
13. 1920×1080 56.250 50 HDTV 1080p
14. 1920×1080 67.5 60 HDTV 1080p
Copyright © LG Electronics. Inc. All rights reserved. -8- LGE Internal Use Only
Only for training and service purposes

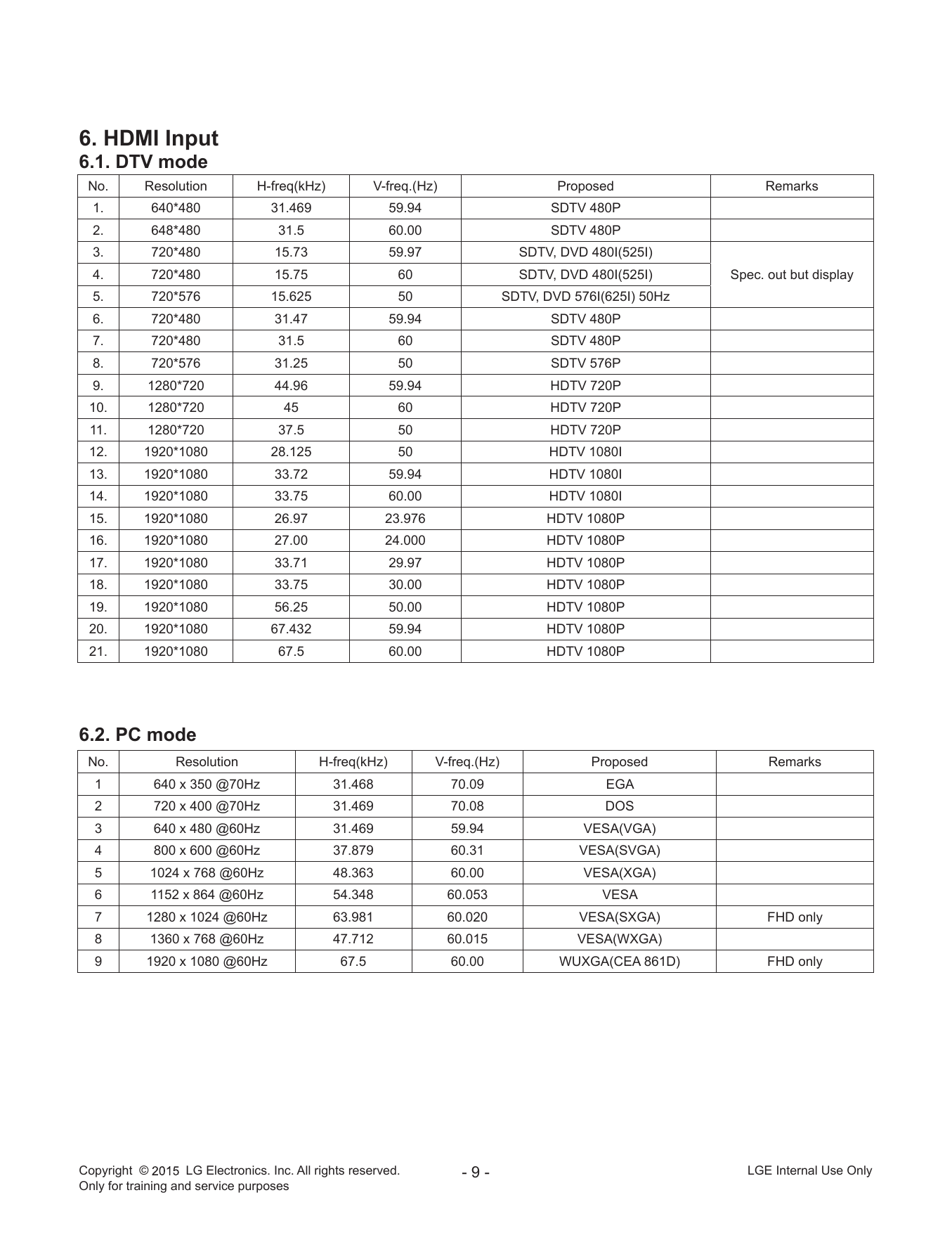

6. HDMI Input
6.1. DTV mode
No. Resolution H-freq(kHz) V-freq.(Hz) Proposed Remarks
1. 640*480 31.469 59.94 SDTV 480P
2. 648*480 31.5 60.00 SDTV 480P
3. 720*480 15.73 59.97 SDTV, DVD 480I(525I)
4. 720*480 15.75 60 SDTV, DVD 480I(525I) Spec. out but display
5. 720*576 15.625 50 SDTV, DVD 576I(625I) 50Hz
6. 720*480 31.47 59.94 SDTV 480P
7. 720*480 31.5 60 SDTV 480P
8. 720*576 31.25 50 SDTV 576P
9. 1280*720 44.96 59.94 HDTV 720P
10. 1280*720 45 60 HDTV 720P
11. 1280*720 37.5 50 HDTV 720P
12. 1920*1080 28.125 50 HDTV 1080I
13. 1920*1080 33.72 59.94 HDTV 1080I
14. 1920*1080 33.75 60.00 HDTV 1080I
15. 1920*1080 26.97 23.976 HDTV 1080P
16. 1920*1080 27.00 24.000 HDTV 1080P
17. 1920*1080 33.71 29.97 HDTV 1080P
18. 1920*1080 33.75 30.00 HDTV 1080P
19. 1920*1080 56.25 50.00 HDTV 1080P
20. 1920*1080 67.432 59.94 HDTV 1080P
21. 1920*1080 67.5 60.00 HDTV 1080P
6.2. PC mode
No. Resolution H-freq(kHz) V-freq.(Hz) Proposed Remarks
1 640 x 350 @70Hz 31.468 70.09 EGA
2 720 x 400 @70Hz 31.469 70.08 DOS
3 640 x 480 @60Hz 31.469 59.94 VESA(VGA)
4 800 x 600 @60Hz 37.879 60.31 VESA(SVGA)
5 1024 x 768 @60Hz 48.363 60.00 VESA(XGA)
6 1152 x 864 @60Hz 54.348 60.053 VESA
7 1280 x 1024 @60Hz 63.981 60.020 VESA(SXGA) FHD only
8 1360 x 768 @60Hz 47.712 60.015 VESA(WXGA)
9 1920 x 1080 @60Hz 67.5 60.00 WUXGA(CEA 861D) FHD only
Copyright © LG Electronics. Inc. All rights reserved. -9- LGE Internal Use Only
Only for training and service purposes

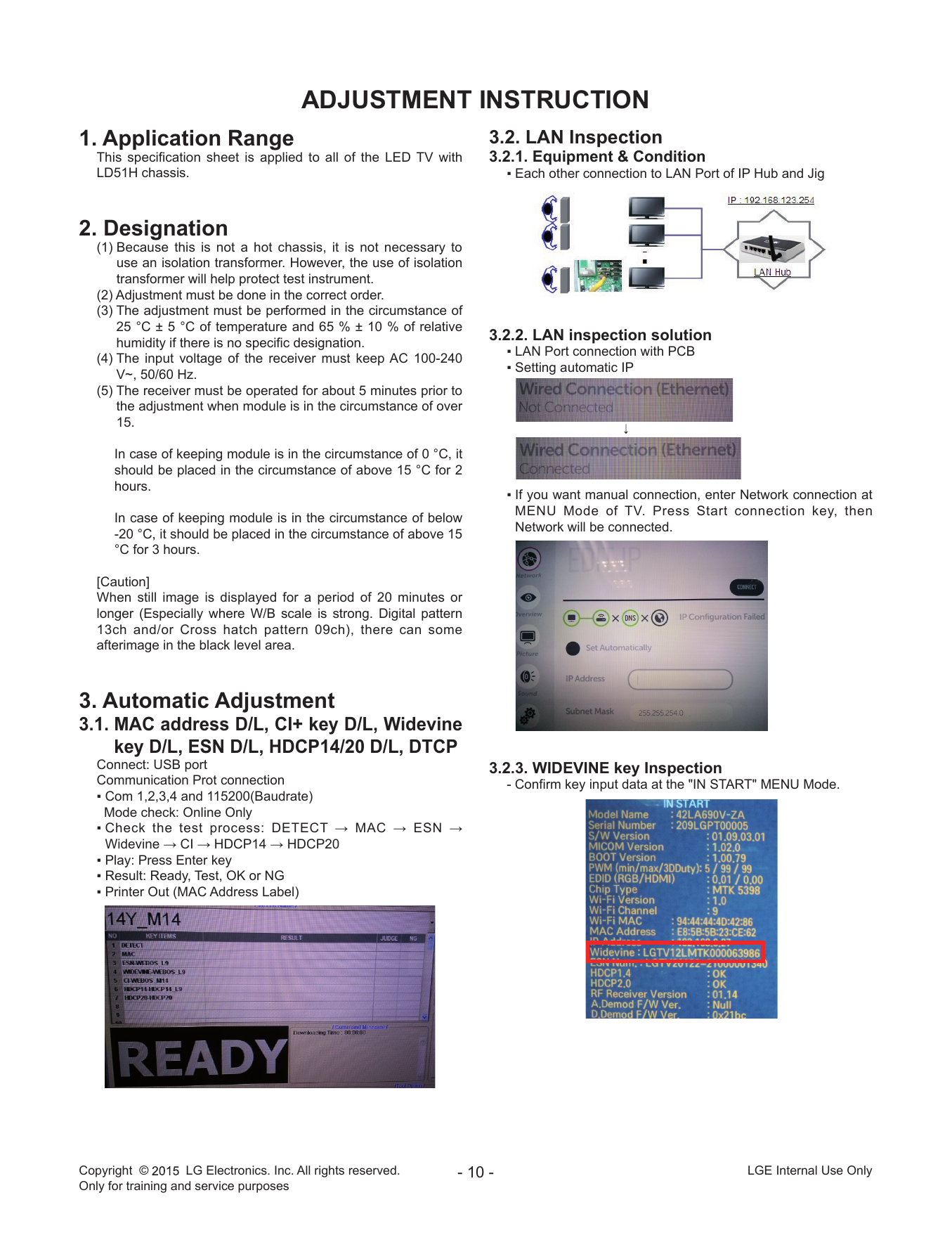

ADJUSTMENT INSTRUCTION
1. Application Range 3.2. LAN Inspection
This specification sheet is applied to all of the LED TV with 3.2.1. Equipment & Condition
LD51H chassis. ▪ Each other connection to LAN Port of IP Hub and Jig
2. Designation
(1) Because this is not a hot chassis, it is not necessary to
use an isolation transformer. However, the use of isolation
transformer will help protect test instrument.
(2) Adjustment must be done in the correct order.
(3) The adjustment must be performed in the circumstance of
25 °C ± 5 °C of temperature and 65 % ± 10 % of relative
humidity if there is no specific designation.
3.2.2. LAN inspection solution
▪ LAN Port connection with PCB
(4) The input voltage of the receiver must keep AC 100-240
▪ Setting automatic IP
V~, 50/60 Hz.
(5) The receiver must be operated for about 5 minutes prior to
the adjustment when module is in the circumstance of over
15.
In case of keeping module is in the circumstance of 0 °C, it
should be placed in the circumstance of above 15 °C for 2
hours.
▪ If you want manual connection, enter Network connection at
MENU Mode of TV. Press Start connection key, then
In case of keeping module is in the circumstance of below
Network will be connected.
-20 °C, it should be placed in the circumstance of above 15
°C for 3 hours.
[Caution]
When still image is displayed for a period of 20 minutes or
longer (Especially where W/B scale is strong. Digital pattern
13ch and/or Cross hatch pattern 09ch), there can some
afterimage in the black level area.
3. Automatic Adjustment
3.1. MAC address D/L, CI+ key D/L, Widevine
key D/L, ESN D/L, HDCP14/20 D/L, DTCP
Connect: USB port 3.2.3. WIDEVINE key Inspection
Communication Prot connection - Confirm key input data at the "IN START" MENU Mode.
▪ Com 1,2,3,4 and 115200(Baudrate)
Mode check: Online Only
▪ C heck the test process: DETECT → MAC → ESN →
Widevine → CI → HDCP14 → HDCP20
▪ Play: Press Enter key
▪ Result: Ready, Test, OK or NG
▪ Printer Out (MAC Address Label)
Copyright © LG Electronics. Inc. All rights reserved. - 10 - LGE Internal Use Only
Only for training and service purposes

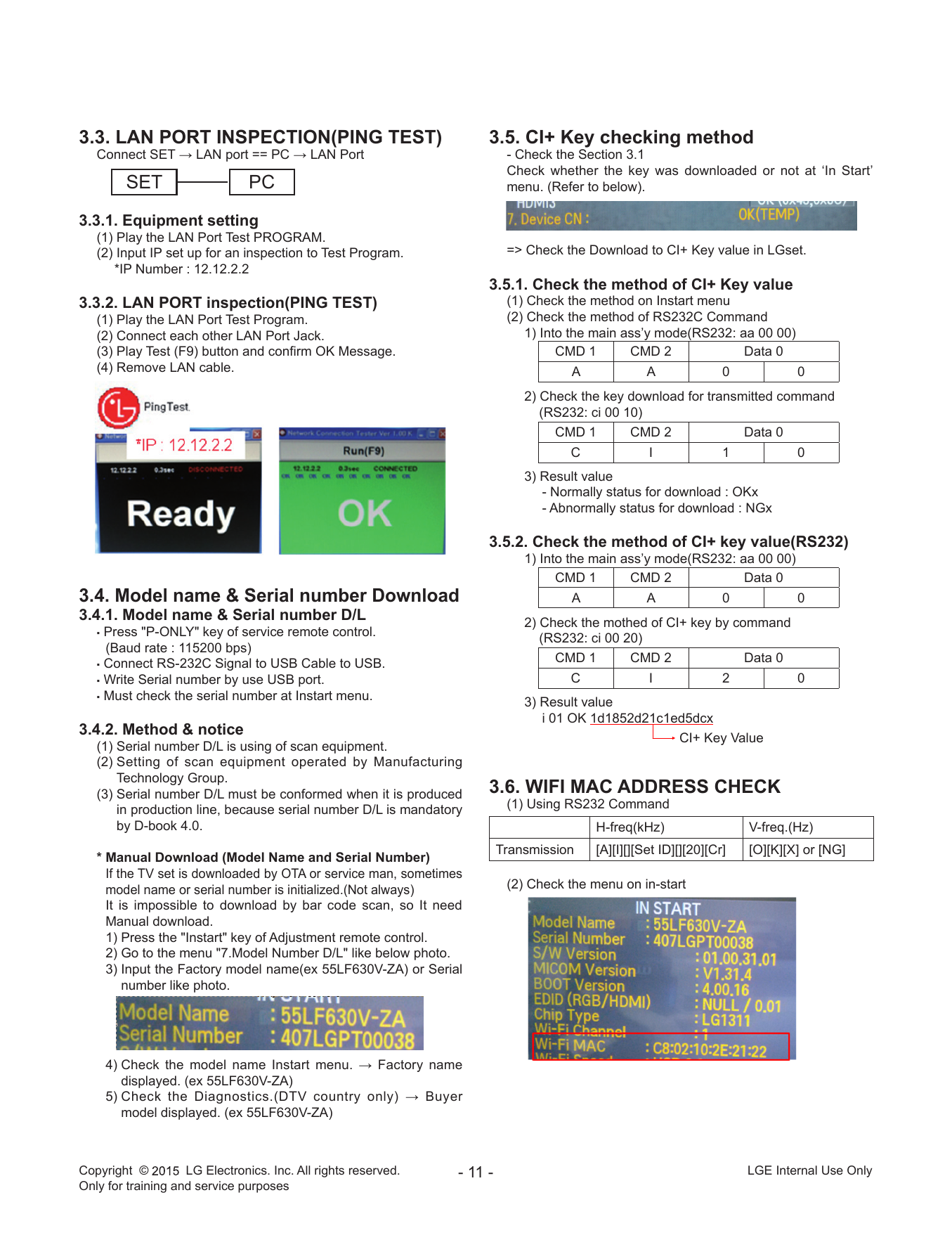

3.3. LAN PORT INSPECTION(PING TEST) 3.5. CI+ Key checking method
Connect SET → LAN port == PC → LAN Port - Check the Section 3.1
Check whether the key was downloaded or not at ‘In Start’
SET PC menu. (Refer to below).
3.3.1. Equipment setting
(1) Play the LAN Port Test PROGRAM.
(2) Input IP set up for an inspection to Test Program. => Check the Download to CI+ Key value in LGset.
*IP Number : 12.12.2.2
3.5.1. Check the method of CI+ Key value
3.3.2. LAN PORT inspection(PING TEST) (1) Check the method on Instart menu
(1) Play the LAN Port Test Program. (2) Check the method of RS232C Command
(2) Connect each other LAN Port Jack. 1) Into the main ass’y mode(RS232: aa 00 00)
(3) Play Test (F9) button and confirm OK Message. CMD 1 CMD 2 Data 0
(4) Remove LAN cable. A A 0 0
2) Check the key download for transmitted command
(RS232: ci 00 10)
CMD 1 CMD 2 Data 0
C I 1 0
3) Result value
- Normally status for download : OKx
- Abnormally status for download : NGx
3.5.2. Check the method of CI+ key value(RS232)
1) Into the main ass’y mode(RS232: aa 00 00)
CMD 1 CMD 2 Data 0
3.4. Model name & Serial number Download A A 0 0
3.4.1. Model name & Serial number D/L 2) Check the mothed of CI+ key by command
▪ Press "P-ONLY" key of service remote control.
(RS232: ci 00 20)
(Baud rate : 115200 bps)
▪ Connect RS-232C Signal to USB Cable to USB.
CMD 1 CMD 2 Data 0
▪ Write Serial number by use USB port. C I 2 0
▪ Must check the serial number at Instart menu.
3) Result value
i 01 OK 1d1852d21c1ed5dcx
3.4.2. Method & notice CI+ Key Value
(1) Serial number D/L is using of scan equipment.
(2) Setting of scan equipment operated by Manufacturing
Technology Group.
(3) Serial number D/L must be conformed when it is produced 3.6. WIFI MAC ADDRESS CHECK
in production line, because serial number D/L is mandatory (1) Using RS232 Command
by D-book 4.0. H-freq(kHz) V-freq.(Hz)
Transmission [A][I][][Set ID][][20][Cr] [O][K][X] or [NG]
* Manual Download (Model Name and Serial Number)
If the TV set is downloaded by OTA or service man, sometimes
model name or serial number is initialized.(Not always) (2) Check the menu on in-start
It is impossible to download by bar code scan, so It need
Manual download.
1) Press the "Instart" key of Adjustment remote control.
2) Go to the menu "7.Model Number D/L" like below photo.
3) Input the Factory model name(ex 55LF630V-ZA) or Serial
number like photo.
4) Check the model name Instart menu. → Factory name
displayed. (ex 55LF630V-ZA)
5) C heck the Diagnostics.(DTV country only) → Buyer
model displayed. (ex 55LF630V-ZA)
Copyright © LG Electronics. Inc. All rights reserved. - 11 - LGE Internal Use Only
Only for training and service purposes

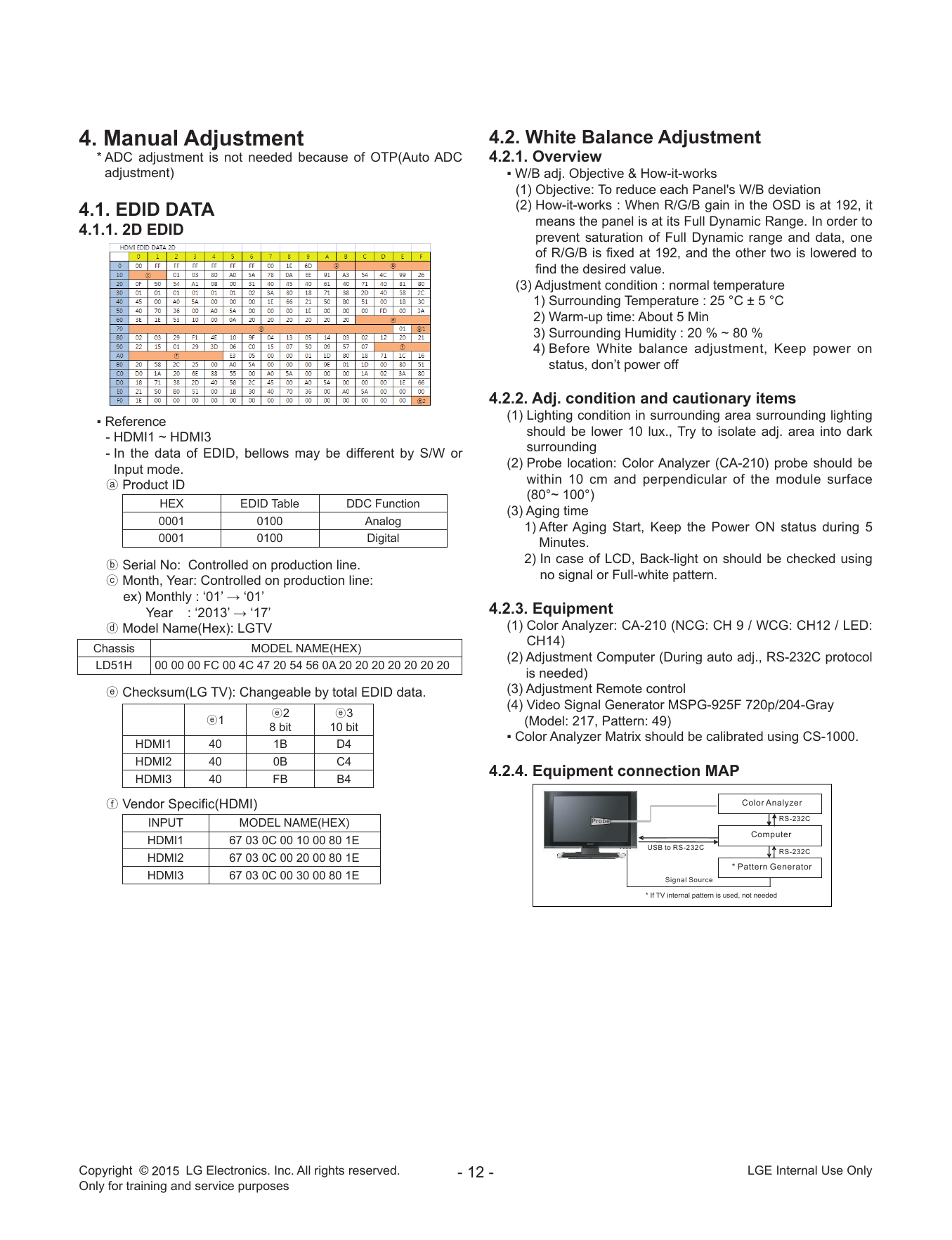

4. Manual Adjustment 4.2. White Balance Adjustment
* ADC adjustment is not needed because of OTP(Auto ADC 4.2.1. Overview
adjustment) ▪ W/B adj. Objective & How-it-works
(1) Objective: To reduce each Panel's W/B deviation
4.1. EDID DATA (2) How-it-works : When R/G/B gain in the OSD is at 192, it
means the panel is at its Full Dynamic Range. In order to
4.1.1. 2D EDID prevent saturation of Full Dynamic range and data, one
of R/G/B is fixed at 192, and the other two is lowered to
find the desired value.
(3) Adjustment condition : normal temperature
1) Surrounding Temperature : 25 °C ± 5 °C
2) Warm-up time: About 5 Min
3) Surrounding Humidity : 20 % ~ 80 %
4) B efore White balance adjustment, Keep power on
status, don’t power off
4.2.2. Adj. condition and cautionary items
▪ Reference (1) Lighting condition in surrounding area surrounding lighting
- HDMI1 ~ HDMI3 should be lower 10 lux., Try to isolate adj. area into dark
- In the data of EDID, bellows may be different by S/W or surrounding
Input mode. (2) Probe location: Color Analyzer (CA-210) probe should be
ⓐ Product ID within 10 cm and perpendicular of the module surface
(80°~ 100°)
HEX EDID Table DDC Function
(3) Aging time
0001 0100 Analog
1) After Aging Start, Keep the Power ON status during 5
0001 0100 Digital Minutes.
ⓑ Serial No: Controlled on production line. 2) In case of LCD, Back-light on should be checked using
ⓒ Month, Year: Controlled on production line: no signal or Full-white pattern.
ex) Monthly : ‘01’ → ‘01’
Year : ‘2013’ → ‘17’ 4.2.3. Equipment
ⓓ Model Name(Hex): LGTV (1) Color Analyzer: CA-210 (NCG: CH 9 / WCG: CH12 / LED:
Chassis MODEL NAME(HEX)
CH14)
(2) Adjustment Computer (During auto adj., RS-232C protocol
LD51H 00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20
is needed)
ⓔ Checksum(LG TV): Changeable by total EDID data. (3) Adjustment Remote control
(4) Video Signal Generator MSPG-925F 720p/204-Gray
ⓔ2 ⓔ3
ⓔ1
8 bit 10 bit (Model: 217, Pattern: 49)
▪ Color Analyzer Matrix should be calibrated using CS-1000.
HDMI1 40 1B D4
HDMI2 40 0B C4
HDMI3 40 FB B4
4.2.4. Equipment connection MAP
ⓕ Vendor Specific(HDMI) Color Analyzer
RS-232C
INPUT MODEL NAME(HEX) Probe
Computer
HDMI1 67 03 0C 00 10 00 80 1E USB to RS-232C
RS-232C
HDMI2 67 03 0C 00 20 00 80 1E
* Pattern Generator
HDMI3 67 03 0C 00 30 00 80 1E Signal Source
* If TV internal pattern is used, not needed
Copyright © LG Electronics. Inc. All rights reserved. - 12 - LGE Internal Use Only
Only for training and service purposes

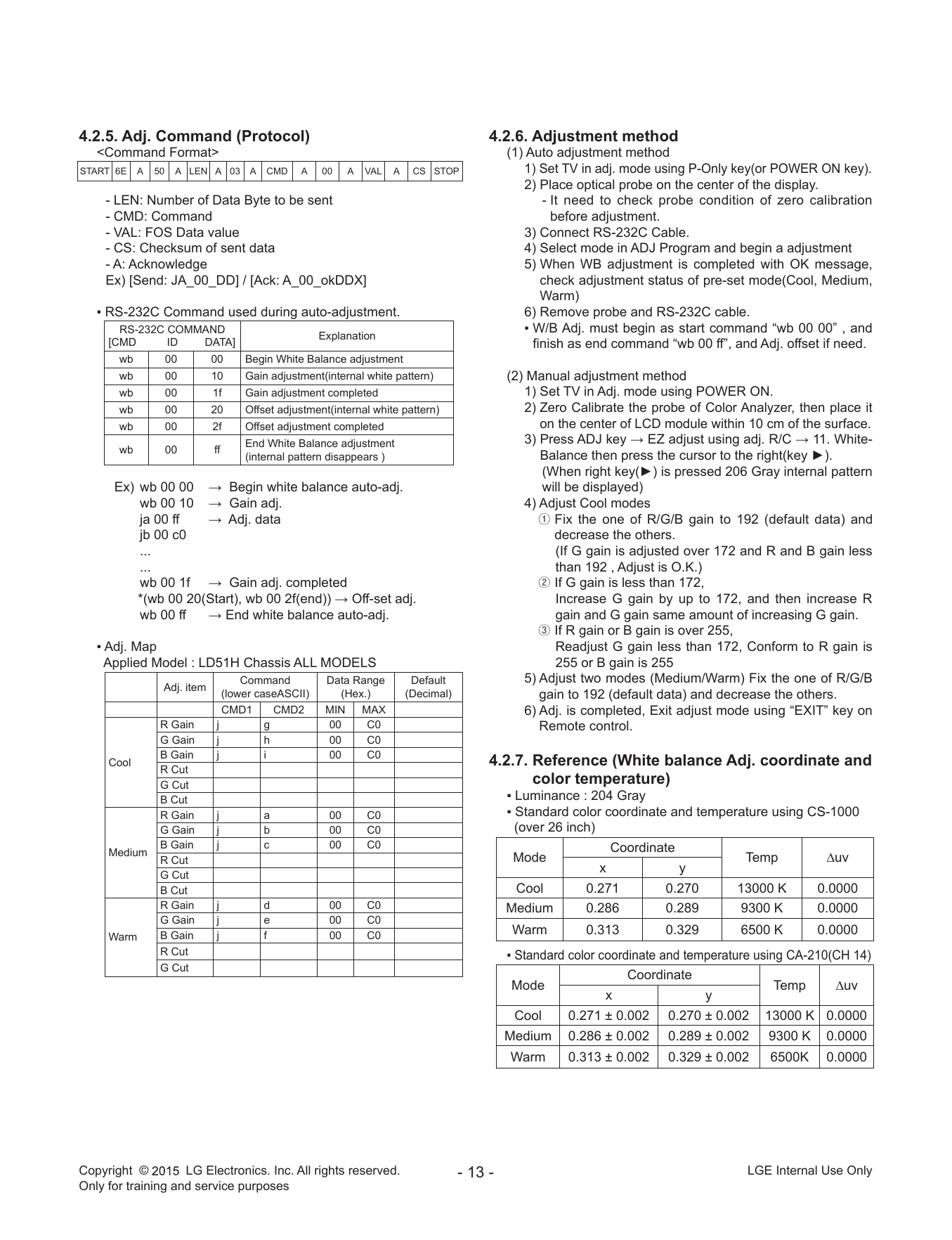

4.2.5. Adj. Command (Protocol) 4.2.6. Adjustment method
(1) Auto adjustment method
START 6E A 50 A LEN A 03 A CMD A 00 A VAL A CS STOP 1) Set TV in adj. mode using P-Only key(or POWER ON key).
2) Place optical probe on the center of the display.
- LEN: Number of Data Byte to be sent - It need to check probe condition of zero calibration
- CMD: Command before adjustment.
- VAL: FOS Data value 3) Connect RS-232C Cable.
- CS: Checksum of sent data 4) Select mode in ADJ Program and begin a adjustment
- A: Acknowledge 5) When WB adjustment is completed with OK message,
Ex) [Send: JA_00_DD] / [Ack: A_00_okDDX] check adjustment status of pre-set mode(Cool, Medium,
Warm)
▪ RS-232C Command used during auto-adjustment. 6) Remove probe and RS-232C cable.
RS-232C COMMAND ▪ W/B Adj. must begin as start command “wb 00 00” , and
Explanation
[CMD ID DATA] finish as end command “wb 00 ff”, and Adj. offset if need.
wb 00 00 Begin White Balance adjustment
wb 00 10 Gain adjustment(internal white pattern) (2) Manual adjustment method
wb 00 1f Gain adjustment completed 1) Set TV in Adj. mode using POWER ON.
wb 00 20 Offset adjustment(internal white pattern) 2) Zero Calibrate the probe of Color Analyzer, then place it
wb 00 2f Offset adjustment completed on the center of LCD module within 10 cm of the surface.
End White Balance adjustment 3) Press ADJ key → EZ adjust using adj. R/C → 11. White-
wb 00 ff
(internal pattern disappears ) Balance then press the cursor to the right(key ►).
(When right key(►) is pressed 206 Gray internal pattern
Ex) wb 00 00 → Begin white balance auto-adj. will be displayed)
wb 00 10 → Gain adj. 4) Adjust Cool modes
ja 00 ff → Adj. data ① Fix the one of R/G/B gain to 192 (default data) and
jb 00 c0 decrease the others.
... (If G gain is adjusted over 172 and R and B gain less
... than 192 , Adjust is O.K.)
wb 00 1f → Gain adj. completed ② If G gain is less than 172,
*(wb 00 20(Start), wb 00 2f(end)) → Off-set adj. Increase G gain by up to 172, and then increase R
wb 00 ff → End white balance auto-adj. gain and G gain same amount of increasing G gain.
③ If R gain or B gain is over 255,
▪ Adj. Map Readjust G gain less than 172, Conform to R gain is
Applied Model : LD51H Chassis ALL MODELS 255 or B gain is 255
Command Data Range Default 5) Adjust two modes (Medium/Warm) Fix the one of R/G/B
Adj. item
(lower caseASCII) (Hex.) (Decimal) gain to 192 (default data) and decrease the others.
CMD1 CMD2 MIN MAX 6) Adj. is completed, Exit adjust mode using “EXIT” key on
R Gain j g 00 C0 Remote control.
G Gain j h 00 C0
B Gain j i 00 C0
Cool 4.2.7. Reference (White balance Adj. coordinate and
R Cut
G Cut color temperature)
B Cut ▪ Luminance : 204 Gray
R Gain j a 00 C0 ▪ Standard color coordinate and temperature using CS-1000
G Gain j b 00 C0 (over 26 inch)
B Gain j c 00 C0 Coordinate
Medium
R Cut Mode Temp ∆uv
x y
G Cut
B Cut Cool 0.271 0.270 13000 K 0.0000
R Gain j d 00 C0 Medium 0.286 0.289 9300 K 0.0000
G Gain j e 00 C0
B Gain j f 00 C0 Warm 0.313 0.329 6500 K 0.0000
Warm
R Cut ▪ Standard color coordinate and temperature using CA-210(CH 14)
G Cut
Coordinate
Mode Temp ∆uv
x y
Cool 0.271 ± 0.002 0.270 ± 0.002 13000 K 0.0000
Medium 0.286 ± 0.002 0.289 ± 0.002 9300 K 0.0000
Warm 0.313 ± 0.002 0.329 ± 0.002 6500K 0.0000
Copyright © LG Electronics. Inc. All rights reserved. - 13 - LGE Internal Use Only
Only for training and service purposes

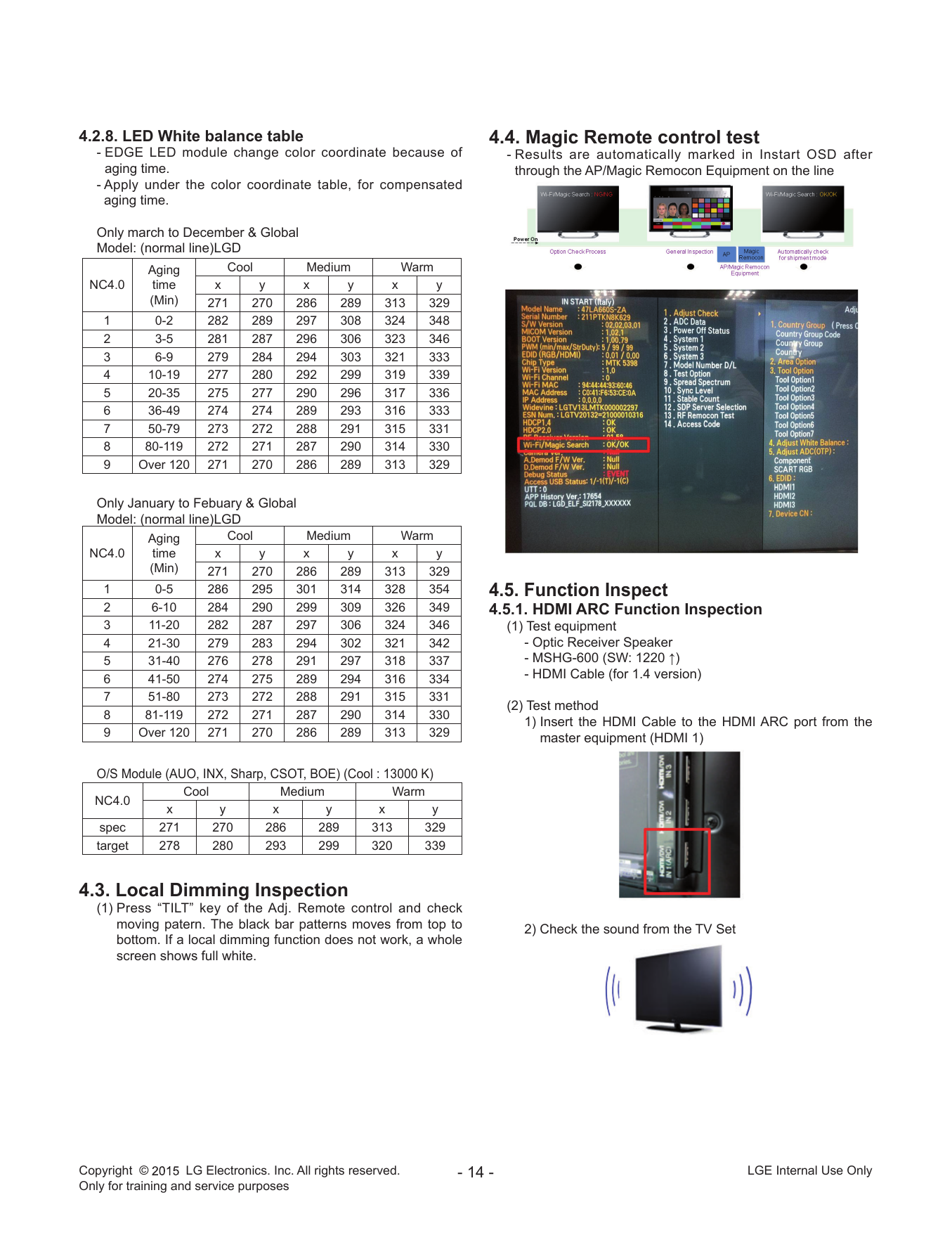

4.2.8. LED White balance table 4.4. Magic Remote control test
- EDGE LED module change color coordinate because of - R esults are automatically marked in Instart OSD after
aging time. through the AP/Magic Remocon Equipment on the line
- Apply under the color coordinate table, for compensated
aging time.
Only march to December & Global
Model: (normal line)LGD
Aging Cool Medium Warm
NC4.0 time x y x y x y
(Min) 271 270 286 289 313 329
1 0-2 282 289 297 308 324 348
2 3-5 281 287 296 306 323 346
3 6-9 279 284 294 303 321 333
4 10-19 277 280 292 299 319 339
5 20-35 275 277 290 296 317 336
6 36-49 274 274 289 293 316 333
7 50-79 273 272 288 291 315 331
8 80-119 272 271 287 290 314 330
9 Over 120 271 270 286 289 313 329
Only January to Febuary & Global
Model: (normal line)LGD
Aging Cool Medium Warm
NC4.0 time x y x y x y
(Min) 271 270 286 289 313 329
1 0-5 286 295 301 314 328 354 4.5. Function Inspect
2 6-10 284 290 299 309 326 349 4.5.1. HDMI ARC Function Inspection
3 11-20 282 287 297 306 324 346 (1) Test equipment
4 21-30 279 283 294 302 321 342 - Optic Receiver Speaker
5 31-40 276 278 291 297 318 337 - MSHG-600 (SW: 1220 ↑)
6 41-50 274 275 289 294 316 334 - HDMI Cable (for 1.4 version)
7 51-80 273 272 288 291 315 331
(2) Test method
8 81-119 272 271 287 290 314 330
1) Insert the HDMI Cable to the HDMI ARC port from the
9 Over 120 271 270 286 289 313 329 master equipment (HDMI 1)
O/S Module (AUO, INX, Sharp, CSOT, BOE) (Cool : 13000 K)
Cool Medium Warm
NC4.0
x y x y x y
spec 271 270 286 289 313 329
target 278 280 293 299 320 339
4.3. Local Dimming Inspection
(1) Press “TILT” key of the Adj. Remote control and check
moving patern. The black bar patterns moves from top to 2) Check the sound from the TV Set
bottom. If a local dimming function does not work, a whole
screen shows full white.
Copyright © LG Electronics. Inc. All rights reserved. - 14 - LGE Internal Use Only
Only for training and service purposes

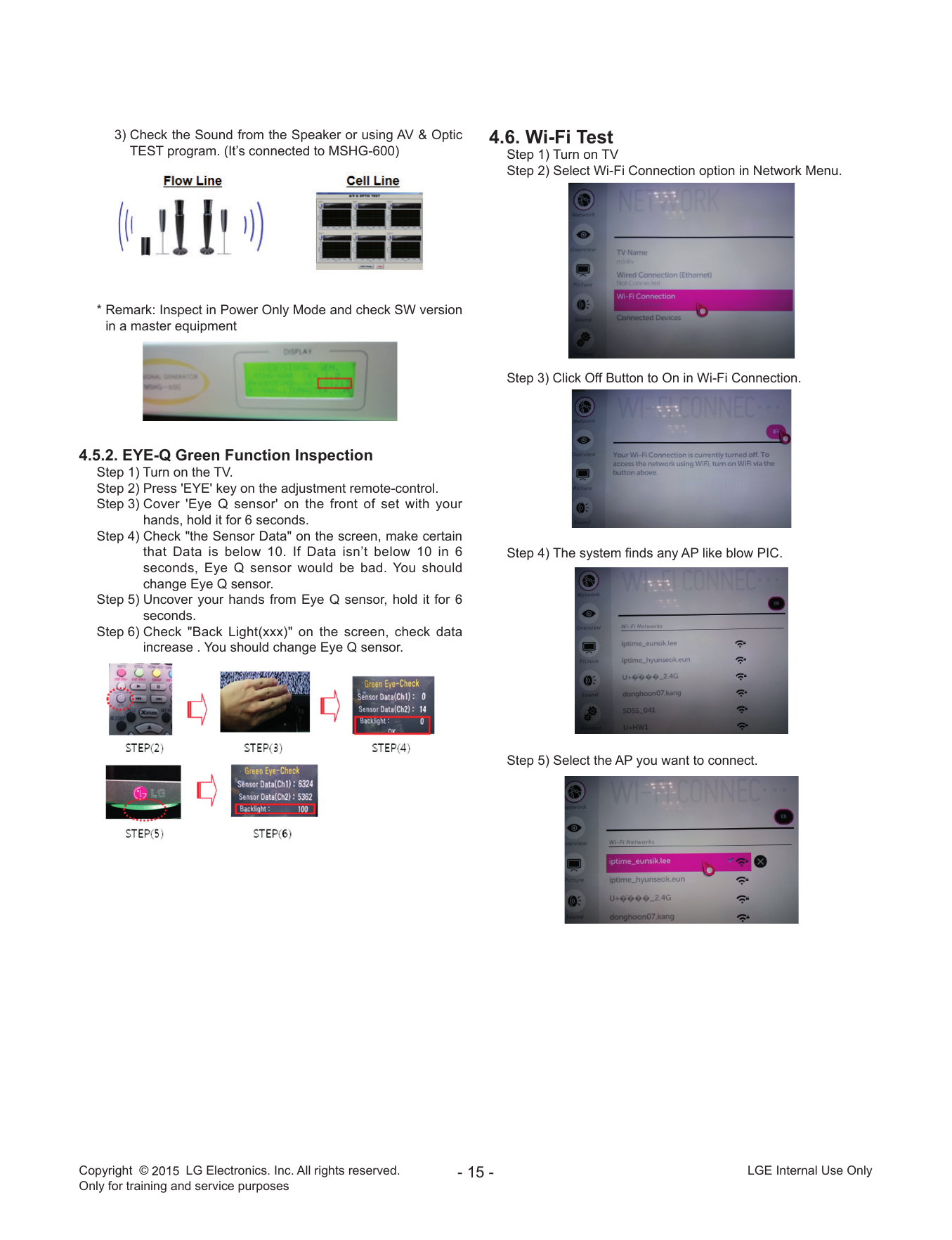

3) Check the Sound from the Speaker or using AV & Optic 4.6. Wi-Fi Test
TEST program. (It’s connected to MSHG-600) Step 1) Turn on TV
Step 2) Select Wi-Fi Connection option in Network Menu.
* Remark: Inspect in Power Only Mode and check SW version
in a master equipment
Step 3) Click Off Button to On in Wi-Fi Connection.
4.5.2. EYE-Q Green Function Inspection
Step 1) Turn on the TV.
Step 2) Press 'EYE' key on the adjustment remote-control.
Step 3) Cover 'Eye Q sensor' on the front of set with your
hands, hold it for 6 seconds.
Step 4) Check "the Sensor Data" on the screen, make certain
that Data is below 10. If Data isn’t below 10 in 6 Step 4) The system finds any AP like blow PIC.
seconds, Eye Q sensor would be bad. You should
change Eye Q sensor.
Step 5) Uncover your hands from Eye Q sensor, hold it for 6
seconds.
Step 6) Check "Back Light(xxx)" on the screen, check data
increase . You should change Eye Q sensor.
Step 5) Select the AP you want to connect.
Copyright © LG Electronics. Inc. All rights reserved. - 15 - LGE Internal Use Only
Only for training and service purposes

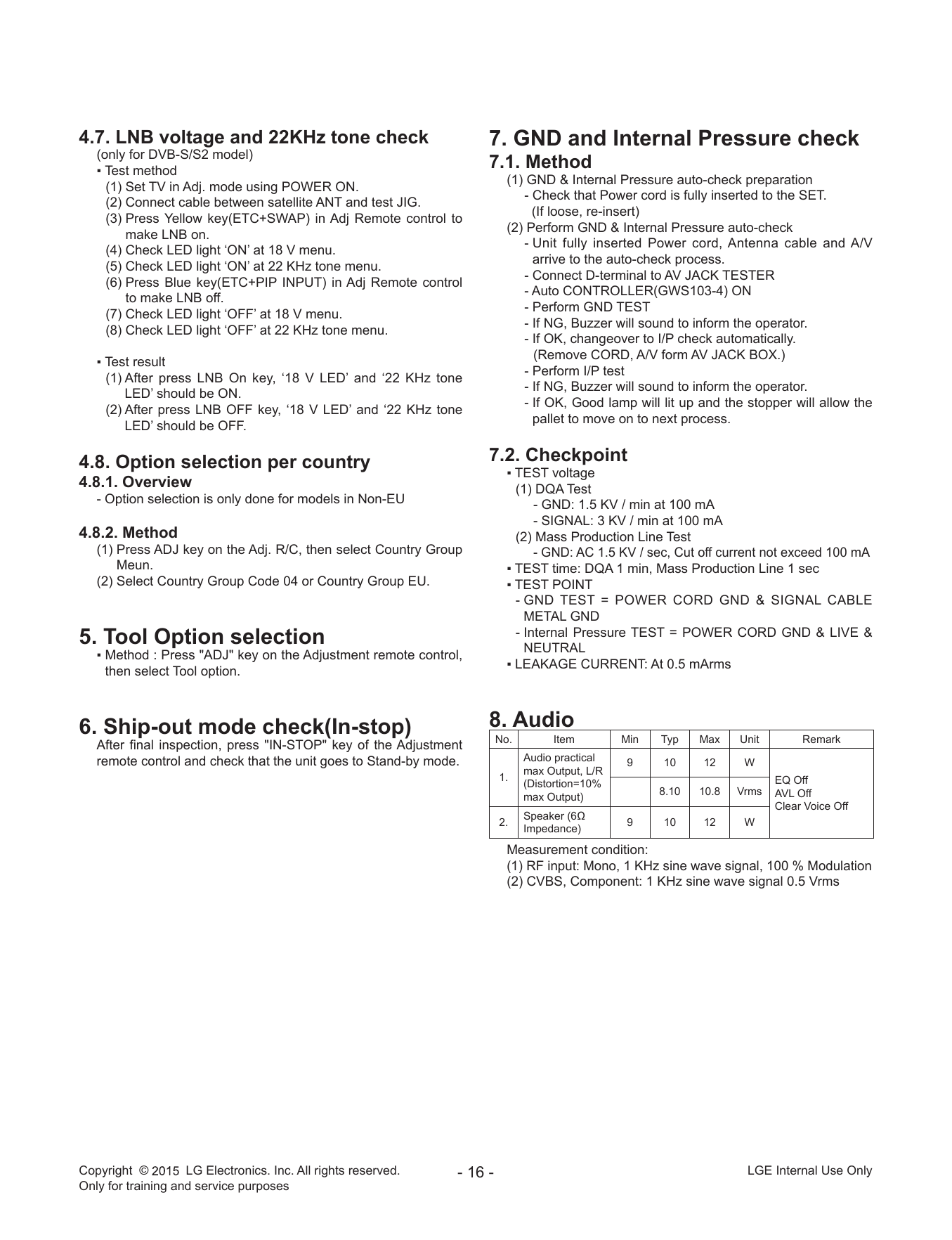

4.7. LNB voltage and 22KHz tone check 7. GND and Internal Pressure check
(only for DVB-S/S2 model)
▪ Test method
7.1. Method
(1) GND & Internal Pressure auto-check preparation
(1) Set TV in Adj. mode using POWER ON.
- Check that Power cord is fully inserted to the SET.
(2) Connect cable between satellite ANT and test JIG.
(If loose, re-insert)
(3) Press Yellow key(ETC+SWAP) in Adj Remote control to
(2) Perform GND & Internal Pressure auto-check
make LNB on.
- Unit fully inserted Power cord, Antenna cable and A/V
(4) Check LED light ‘ON’ at 18 V menu.
arrive to the auto-check process.
(5) Check LED light ‘ON’ at 22 KHz tone menu.
- Connect D-terminal to AV JACK TESTER
(6) Press Blue key(ETC+PIP INPUT) in Adj Remote control
- Auto CONTROLLER(GWS103-4) ON
to make LNB off.
- Perform GND TEST
(7) Check LED light ‘OFF’ at 18 V menu.
- If NG, Buzzer will sound to inform the operator.
(8) Check LED light ‘OFF’ at 22 KHz tone menu.
- If OK, changeover to I/P check automatically.
(Remove CORD, A/V form AV JACK BOX.)
▪ Test result
- Perform I/P test
(1) After press LNB On key, ‘18 V LED’ and ‘22 KHz tone
- If NG, Buzzer will sound to inform the operator.
LED’ should be ON.
- If OK, Good lamp will lit up and the stopper will allow the
(2) After press LNB OFF key, ‘18 V LED’ and ‘22 KHz tone
pallet to move on to next process.
LED’ should be OFF.
4.8. Option selection per country 7.2. Checkpoint
▪ TEST voltage
4.8.1. Overview (1) DQA Test
- Option selection is only done for models in Non-EU - GND: 1.5 KV / min at 100 mA
- SIGNAL: 3 KV / min at 100 mA
4.8.2. Method (2) Mass Production Line Test
(1) Press ADJ key on the Adj. R/C, then select Country Group - GND: AC 1.5 KV / sec, Cut off current not exceed 100 mA
Meun. ▪ TEST time: DQA 1 min, Mass Production Line 1 sec
(2) Select Country Group Code 04 or Country Group EU. ▪ TEST POINT
- GND TEST = POWER CORD GND & SIGNAL CABLE
METAL GND
5. Tool Option selection - Internal Pressure TEST = POWER CORD GND & LIVE &
NEUTRAL
▪ Method : Press "ADJ" key on the Adjustment remote control,
▪ LEAKAGE CURRENT: At 0.5 mArms
then select Tool option.
6. Ship-out mode check(In-stop) 8. Audio
No. Item Min Typ Max Unit Remark
After final inspection, press "IN-STOP" key of the Adjustment
remote control and check that the unit goes to Stand-by mode. Audio practical 9 10 12 W
max Output, L/R
1. EQ Off
(Distortion=10%
8.10 10.8 Vrms AVL Off
max Output)
Clear Voice Off
Speaker (6Ω
2. 9 10 12 W
Impedance)
Measurement condition:
(1) RF input: Mono, 1 KHz sine wave signal, 100 % Modulation
(2) CVBS, Component: 1 KHz sine wave signal 0.5 Vrms
Copyright © LG Electronics. Inc. All rights reserved. - 16 - LGE Internal Use Only
Only for training and service purposes

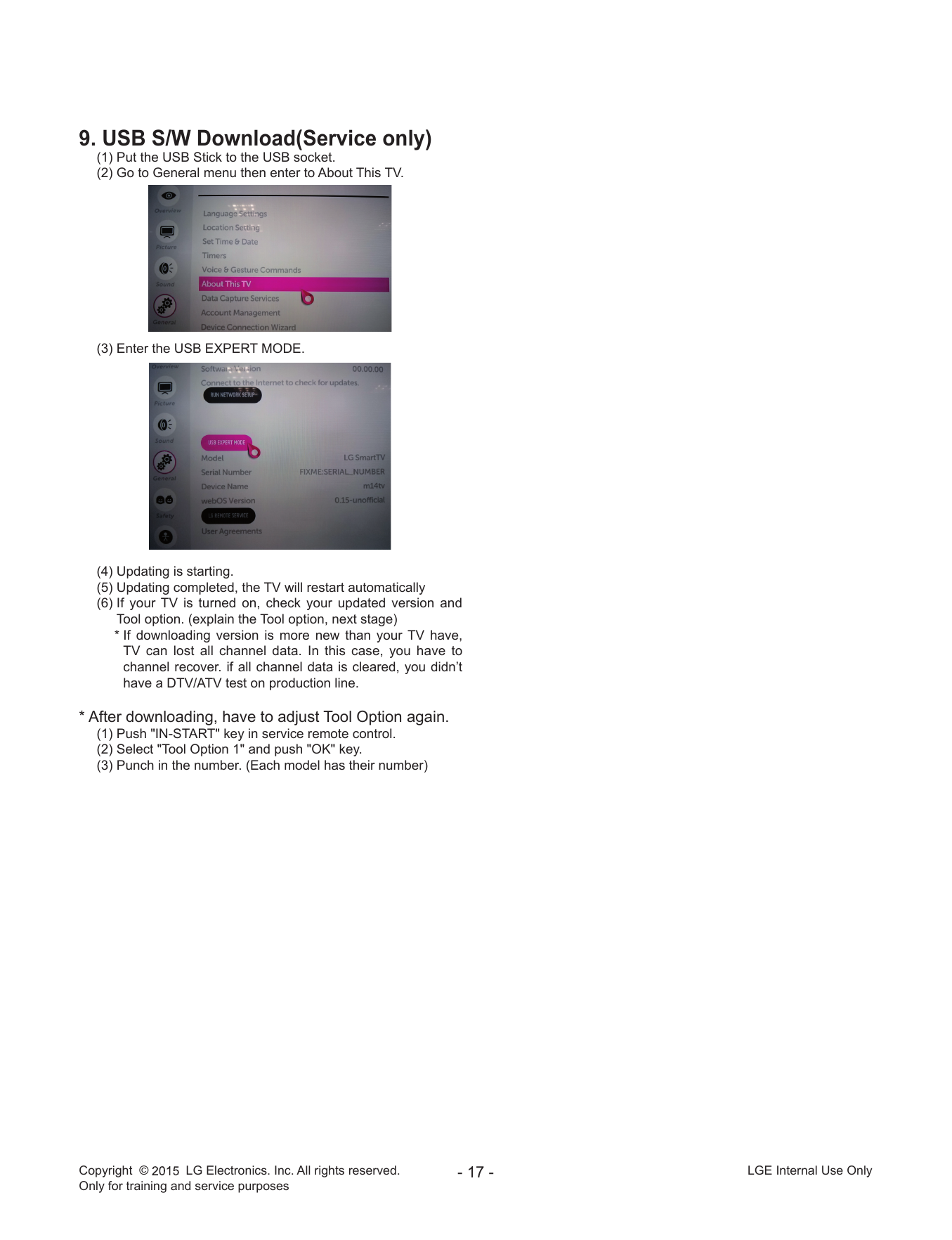

9. USB S/W Download(Service only)
(1) Put the USB Stick to the USB socket.
(2) Go to General menu then enter to About This TV.
(3) Enter the USB EXPERT MODE.
(4) Updating is starting.
(5) Updating completed, the TV will restart automatically
(6) If your TV is turned on, check your updated version and
Tool option. (explain the Tool option, next stage)
* If downloading version is more new than your TV have,
TV can lost all channel data. In this case, you have to
channel recover. if all channel data is cleared, you didn’t
have a DTV/ATV test on production line.
* After downloading, have to adjust Tool Option again.
(1) Push "IN-START" key in service remote control.
(2) Select "Tool Option 1" and push "OK" key.
(3) Punch in the number. (Each model has their number)
Copyright © LG Electronics. Inc. All rights reserved. - 17 - LGE Internal Use Only
Only for training and service purposes
Copyright ©
1. Over all
X_TAL DDR3 1600 X 16
24MHz (512MB X 2EA)
DVB T/C TUNER P_TS
CI Slot DDR3 1600 X 16
ATV / P_TS
SIF/CVBS (512MB X 2EA)
Only for training and service purposes
DVB-T/C A B
Si2178B
IF P_TS P_TS
CVBS / SIF SYSTEM EEPROM
I2C 5 (256Kb)
R Tuner : I2C 6 IF (+/-)
E Digital Demod(T/C)
A D-Demod : I2C 4 P_TS
DVB T2/C/S2 TUNER eMMC
R (4GB)
(H) ATV / SIF/CVBS
S
LG Electronics. Inc. All rights reserved.
DVB-T/C Si2178B USB1 OCP USB 2.0 51P
DIF I 1.5A LVDS 41P
DVB-S IQ TS_ [0:7] D USB2
RDA E OCP USB 2.0
Si2169C USB3 EPI 50P PM
5815M 1.5A
I2C 2 50P IC
HDMI1
S I2S Out Audio AMP
I (ARC) HDMI Rx. IC101 I2C 1 NTP7515
- 18 -
DVB-S : I2C 4 D HDMI2
M14+
E OCP HDMI / MHL Rx.
HDMI3 1A I2C 2 LOCAL DIMMING
LNB
H/P (Line Out) AMP UART_BT BLUETOOTH
(IR Bla Ready) TI USB_WIFI
AV/COMP CVBS/YPbPr WIFI

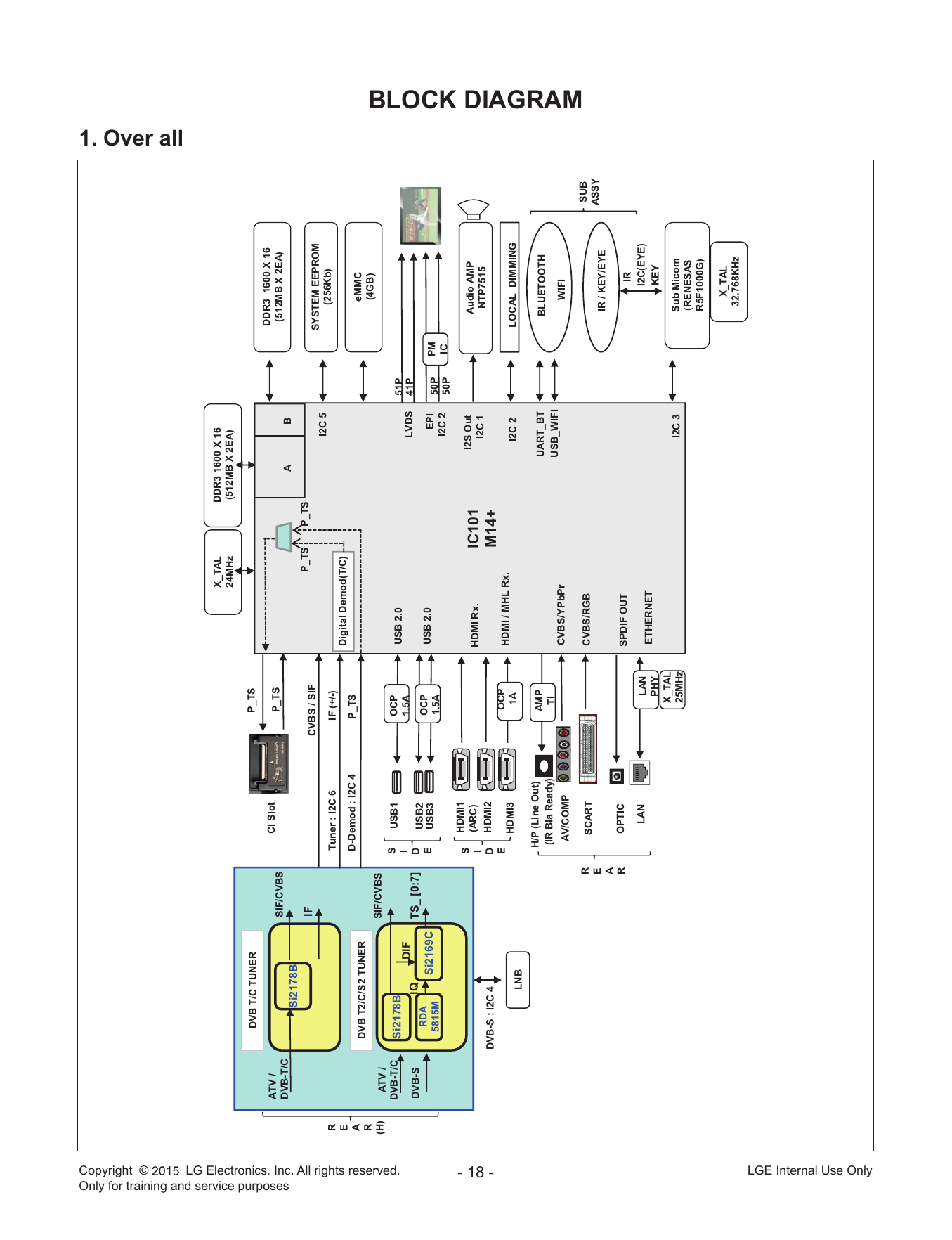

BLOCK DIAGRAM
R CVBS/RGB SUB
SCART
E ASSY
IR / KEY/EYE
A
R OPTIC SPDIF OUT IR
LAN LAN I2C(EYE)
ETHERNET
PHY KEY
X_TAL
25MHz I2C 3 Sub Micom
(RENESAS
R5F1000G)
X_TAL
32.768KHz
LGE Internal Use Only

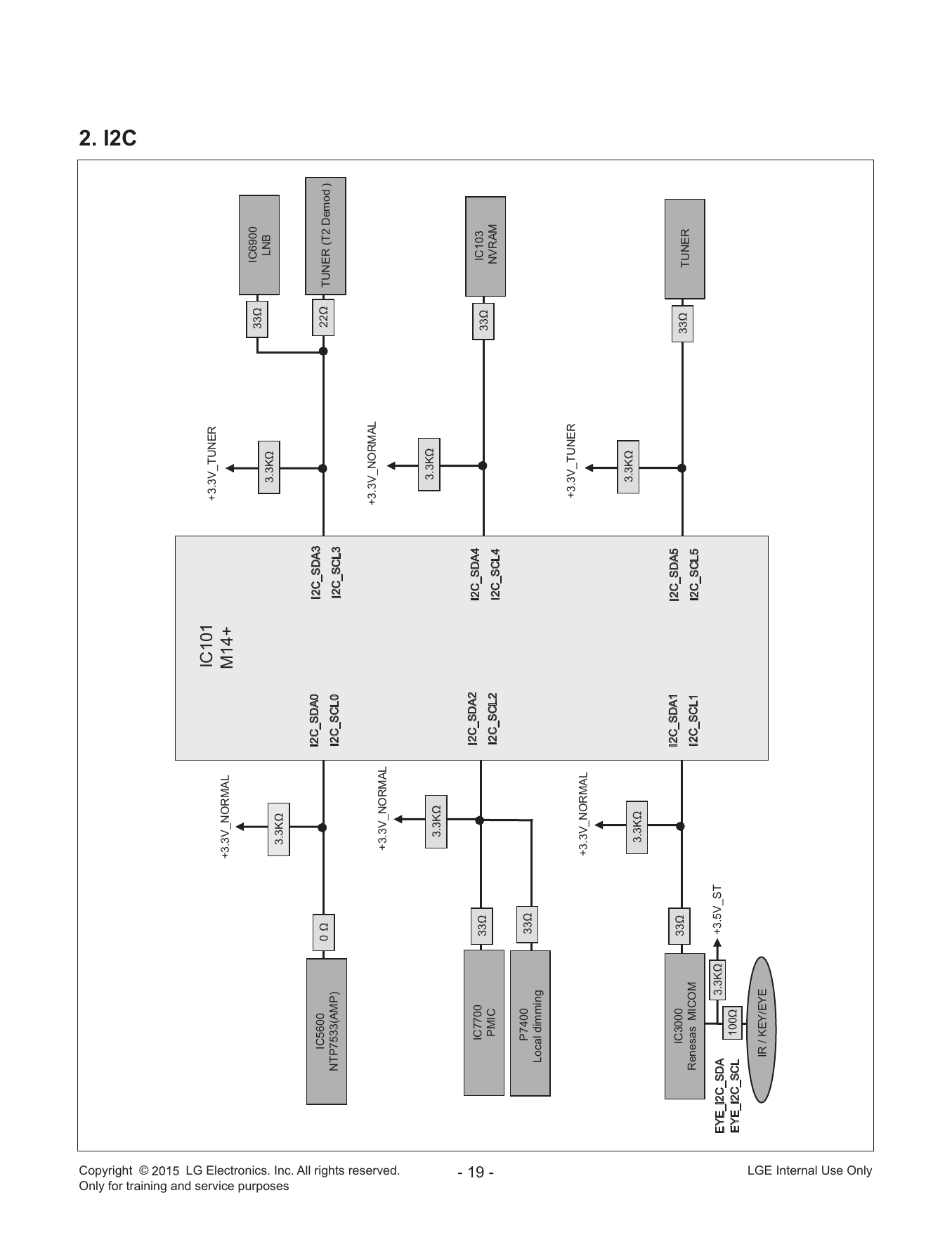

2. I2C
Copyright ©
IC101 +3.3V_TUNER
+3.3V_NORMAL M14+
33Ω IC6900
3.3KΩ LNB
3.3KΩ
Only for training and service purposes
I2C_SDA0 I2C_SDA3
IC5600 0Ω 22Ω TUNER (T2 Demod )
NTP7533(AMP) I2C_SCL0 I2C_SCL3
+3.3V_NORMAL
+3.3V_NORMAL
LG Electronics. Inc. All rights reserved.
3.3KΩ
3.3KΩ
IC7700 I2C_SDA2 I2C_SDA4
33Ω 33Ω IC103
- 19 -
PMIC I2C_SCL2 I2C_SCL4 NVRAM
P7400 33Ω
Local dimming
+3.3V_TUNER
+3.3V_NORMAL
3.3KΩ
3.3KΩ
IC3000 I2C_SDA1 I2C_SDA5
33Ω 33Ω TUNER
Renesas MICOM I2C_SCL1 I2C_SCL5
EYE_I2C_SDA 3.3KΩ +3.5V_ST
EYE_I2C_SCL 100Ω
IR / KEY/EYE
LGE Internal Use Only

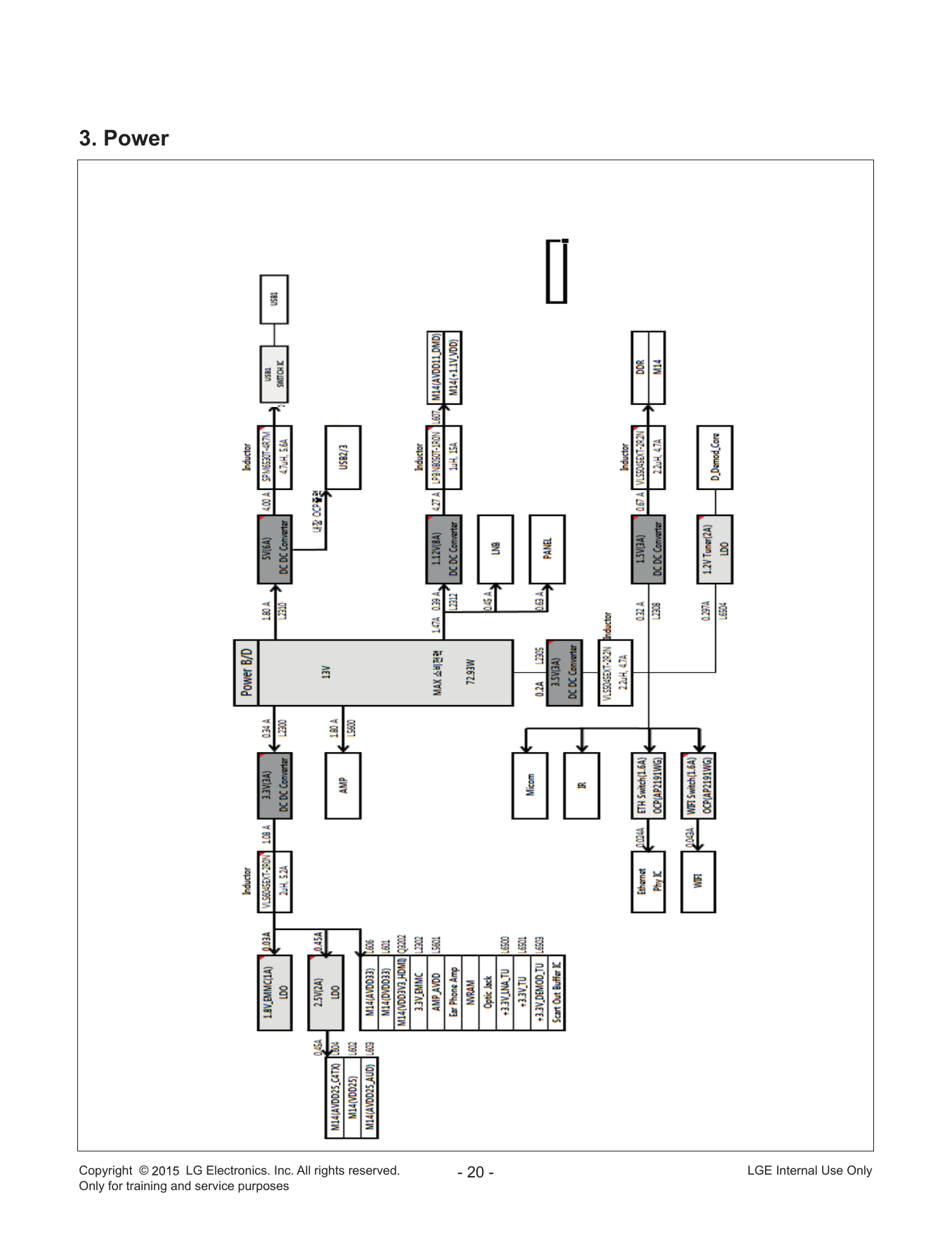

3. Power
Copyright © LG Electronics. Inc. All rights reserved. - 20 - LGE Internal Use Only
Only for training and service purposes
Copyright ©

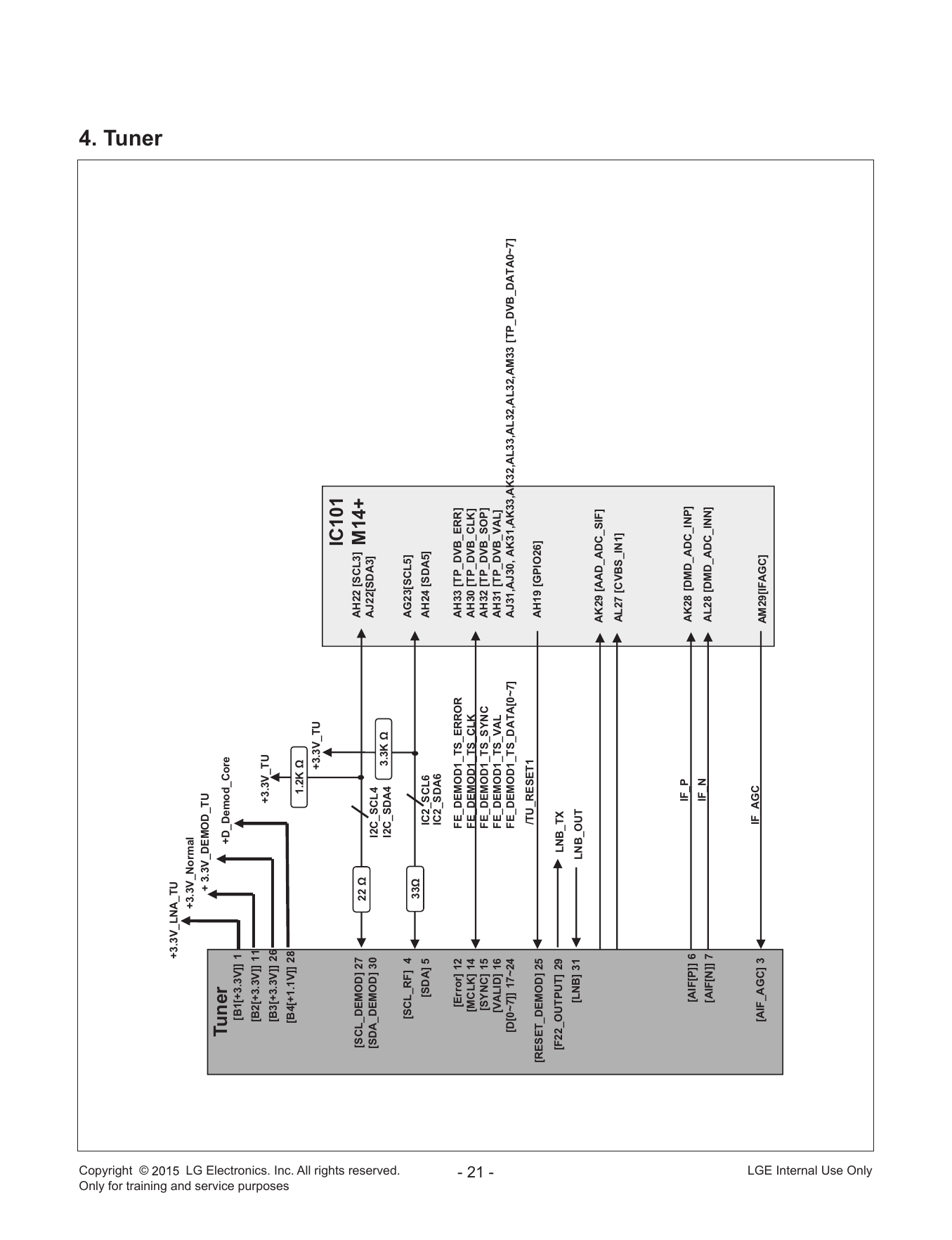

4. Tuner
+3.3V_LNA_TU
+3.3V_Normal
+ 3.3V_DEMOD_TU
Tuner +D_Demod_Core
[B1[+3.3V]] 1
[B2[+3.3V]] 11
+3.3V_TU
[B3[+3.3V]] 26
Only for training and service purposes
[B4[+1.1V]] 28
1.2K Ω
+3.3V_TU
IC101
[SCL_DEMOD] 27 22 Ω AH22 [SCL3]
AJ22[SDA3]
M14+
[SDA_DEMOD] 30 I2C_SCL4
I2C_SDA4 3.3K Ω
LG Electronics. Inc. All rights reserved.
[SCL_RF] 4 AG23[SCL5]
33Ω
[SDA] 5 IC2_SCL6 AH24 [SDA5]
IC2_SDA6
[Error] 12 FE_DEMOD1_TS_ERROR AH33 [TP_DVB_ERR]
[MCLK] 14 FE_DEMOD1_TS_CLK AH30 [TP_DVB_CLK]
[SYNC] 15 FE_DEMOD1_TS_SYNC AH32 [TP_DVB_SOP]
- 21 -
[VALID] 16 FE_DEMOD1_TS_VAL AH31 [TP_DVB_VAL]
[D[0~7]] 17~24 FE_DEMOD1_TS_DATA[0~7] AJ31,AJ30, AK31,AK33,AK32,AL33,AL32,AL32,AM33 [TP_DVB_DATA0~7]
/TU_RESET1
[RESET_DEMOD] 25 AH19 [GPIO26]
[F22_OUTPUT] 29 LNB_TX
[LNB] 31 LNB_OUT
AK29 [AAD_ADC_SIF]
AL27 [CVBS_IN1]
IF_P AK28 [DMD_ADC_INP]
[AIF[P]] 6
IF_N
[AIF[N]] 7 AL28 [DMD_ADC_INN]
[AIF_AGC] 3 IF_AGC
AM29[IFAGC]
LGE Internal Use Only

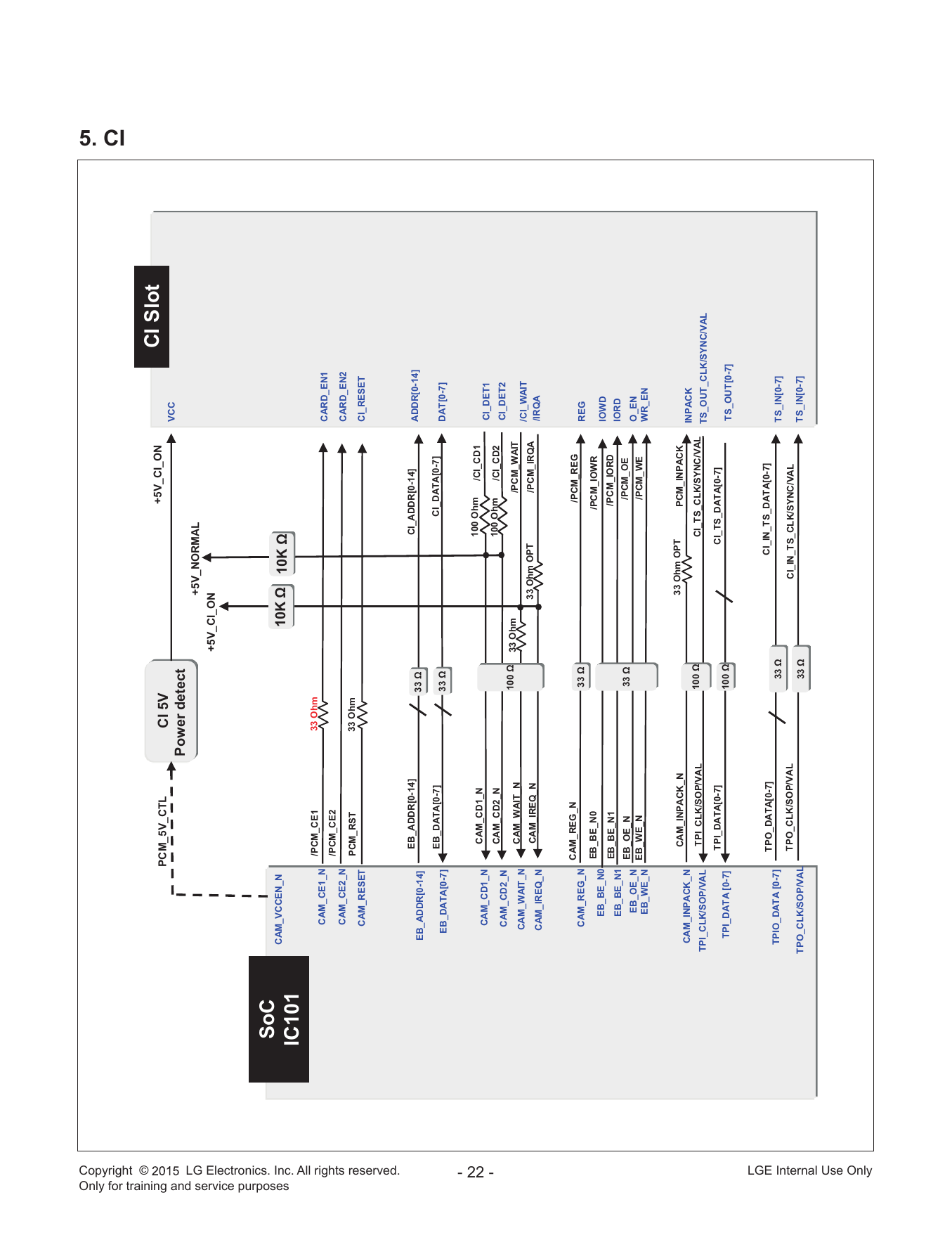

5. CI
Copyright ©
PCM_5V_CTL +5V_CI_ON CI Slot
CI 5V VCC
Power detect
+5V_NORMAL
+5V_CI_ON
SoC CAM_VCCEN_N
Only for training and service purposes
10K Ω 10K Ω
IC101
/PCM_CE1 33 Ohm
CAM_CE1_N CARD_EN1
/PCM_CE2
CAM_CE2_N CARD_EN2
PCM_RST 33 Ohm
CAM_RESET CI_RESET
LG Electronics. Inc. All rights reserved.
EB_ADDR[0-14] CI_ADDR[0-14] ADDR[0-14]
EB_ADDR[0-14] 33 Ω
EB_DATA[0-7] CI_DATA[0-7]
EB_DATA[0-7] 33 Ω DAT[0-7]
CAM_CD1_N 100 Ohm /CI_CD1
CAM_CD1_N CI_DET1
- 22 -
CAM_CD2_N 100 Ohm /CI_CD2
CAM_CD2_N CI_DET2
100 Ω 33 Ohm /PCM_WAIT
CAM_WAIT_N
CAM_WAIT_N /CI_WAIT
CAM_IREQ_N 33 Ohm OPT /PCM_IRQA
CAM_IREQ_N /IRQA
CAM_REG_N /PCM_REG
CAM_REG_N 33 Ω REG
EB_BE_N0 /PCM_IOWR
EB_BE_N0 IOWD
EB_BE_N1 /PCM_IORD
EB_BE_N1 IORD
EB_OE_N 33 Ω /PCM_OE
EB_OE_N O_EN
EB_WE_N /PCM_WE
EB_WE_N WR_EN
CAM_INPACK_N 33 Ohm OPT PCM_INPACK
CAM_INPACK_N INPACK
TPI_CLK/SOP/VAL 100 Ω CI_TS_CLK/SYNC/VAL
TPI_CLK/SOP/VAL TS_OUT_CLK/SYNC/VAL
TPI_DATA[0-7] CI_TS_DATA[0-7]
TPI_DATA [0-7] 100 Ω TS_OUT[0-7]
TPO_DATA[0-7] CI_IN_TS_DATA[0-7]
TPIO_DATA [0-7] 33 Ω TS_IN[0-7]
TPO_CLK/SOP/VAL CI_IN_TS_CLK/SYNC/VAL
TPO_CLK/SOP/VAL 33 Ω TS_IN[0-7]
LGE Internal Use Only
Copyright ©
Jack Side SoC Side
AV1_CVBS_IN_SOC
JK3802 COMP2_Y_IN_SOC
COMP1_Y/AV1_CVBS COMP2_Y_IN_S0C_S0Y

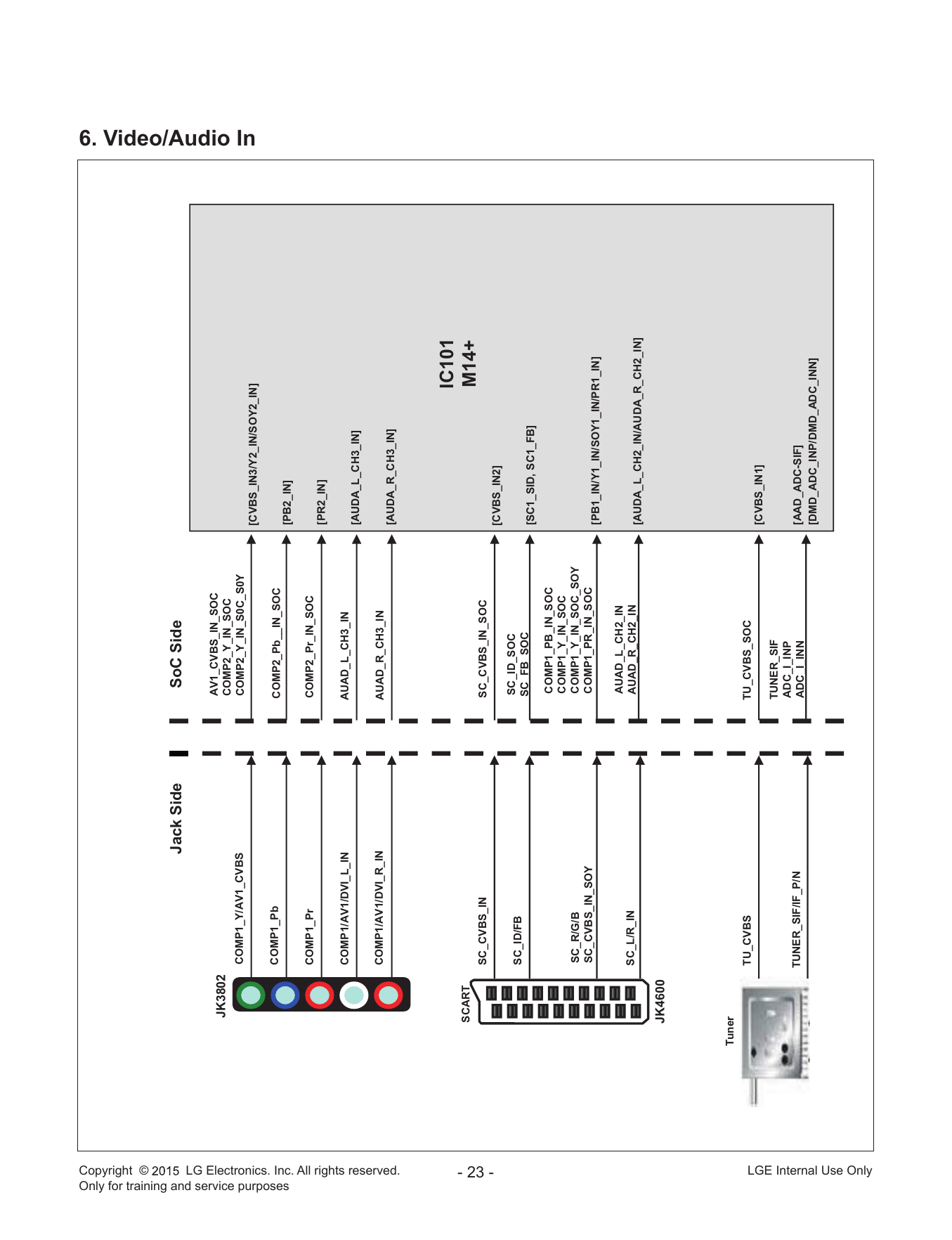

6. Video/Audio In
[CVBS_IN3/Y2_IN/SOY2_IN]
COMP1_Pb COMP2_Pb__IN_SOC
Only for training and service purposes
[PB2_IN]
COMP1_Pr COMP2_Pr_IN_SOC
[PR2_IN]
COMP1/AV1/DVI_L_IN AUAD_L_CH3_IN
[AUDA_L_CH3_IN]
COMP1/AV1/DVI_R_IN AUAD_R_CH3_IN
[AUDA_R_CH3_IN]
LG Electronics. Inc. All rights reserved.
IC101
SCART
M14+
SC_CVBS_IN SC_CVBS_IN_SOC
- 23 -
[CVBS_IN2]
SC_ID_SOC
SC_ID/FB
SC_FB_SOC
[SC1_SID, SC1_FB]
COMP1_PB_IN_SOC
COMP1_Y_IN_SOC
SC_R/G/B COMP1_Y_IN_SOC_SOY
SC_CVBS_IN_SOY COMP1_PR_IN_SOC
[PB1_IN/Y1_IN/SOY1_IN/PR1_IN]
AUAD_L_CH2_IN
SC_L/R_IN AUAD_R_CH2_IN
[AUDA_L_CH2_IN/AUDA_R_CH2_IN]
JK4600
Tuner
TU_CVBS TU_CVBS_SOC
[CVBS_IN1]
TUNER_SIF
ADC_I_INP
TUNER_SIF/IF_P/N ADC_I_INN [AAD_ADC-SIF]
[DMD_ADC_INP/DMD_ADC_INN]
LGE Internal Use Only
Copyright ©

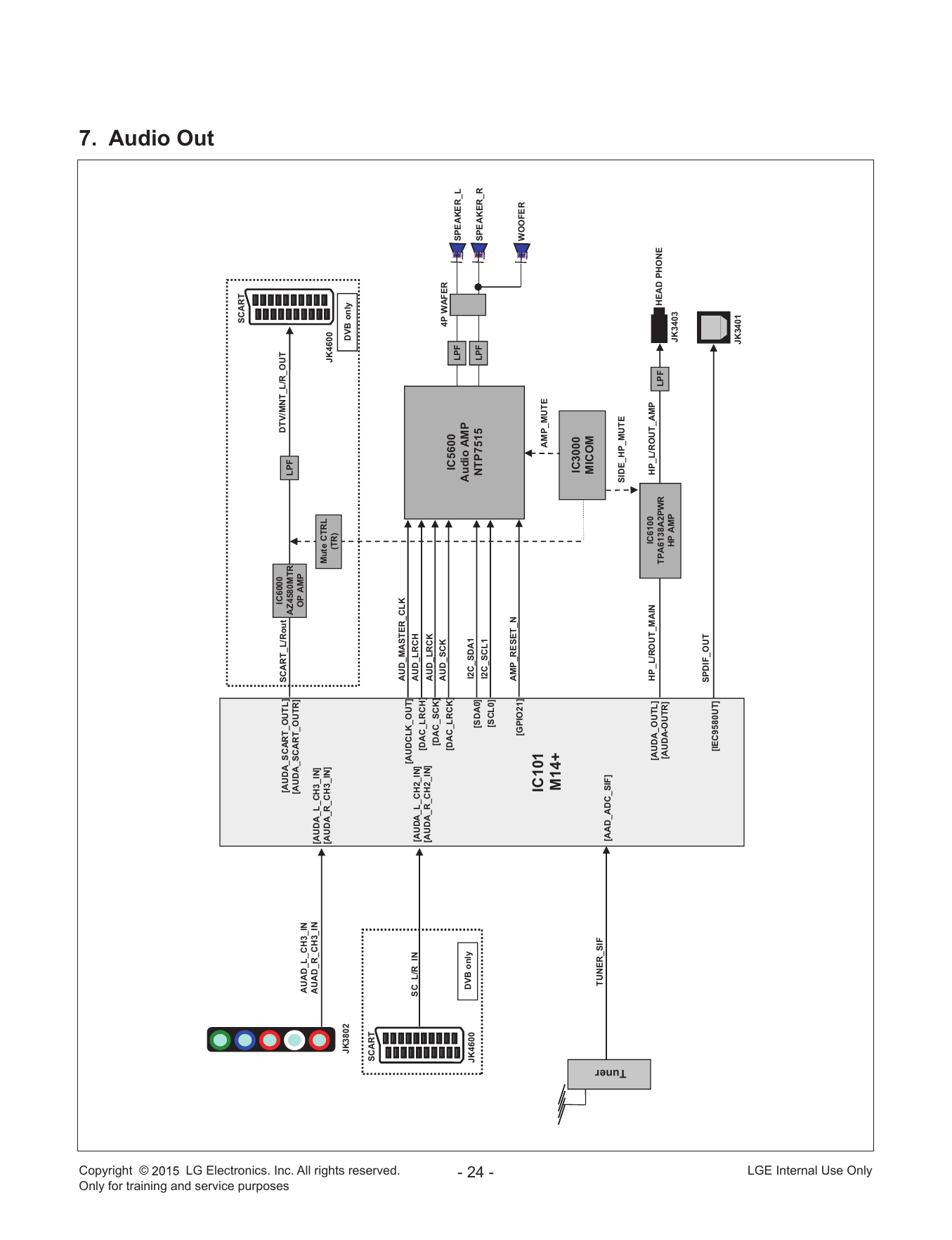

7. Audio Out
SCART
IC6000 DTV/MNT_L/R_OUT
Only for training and service purposes
[AUDA_SCART_OUTL] SCART_L/Rout
AZ4580MTR LPF
[AUDA_SCART_OUTR]
AUAD_L_CH3_IN OP AMP
AUAD_R_CH3_IN [AUDA_L_CH3_IN]
[AUDA_R_CH3_IN] Mute CTRL
JK4600
(TR)
JK3802 DVB only
SCART
LG Electronics. Inc. All rights reserved.
AUD_MASTER_CLK
[AUDCLK_OUT]
SC_L/R_IN [AUDA_L_CH2_IN] AUD_LRCH
[DAC_LRCH]
[AUDA_R_CH2_IN] AUD_LRCK
[DAC_SCK]
AUD_SCK 4P WAFER
[DAC_LRCK] IC5600 LPF SPEAKER_L
DVB only I2C_SDA1
Audio AMP
JK4600
[SDA0] NTP7515 LPF SPEAKER_R
I2C_SCL1
- 24 -
[SCL0]
AMP_RESET_N
[GPIO21] WOOFER
IC101 AMP_MUTE
M14+
IC3000
MICOM
TUNER_SIF
[AAD_ADC_SIF]
Tuner
SIDE_HP_MUTE
[AUDA_OUTL] HP_L/ROUT_MAIN IC6100 HP_L/ROUT_AMP
TPA6138A2PWR LPF HEAD PHONE
[AUDA-OUTR]
HP AMP JK3403
SPDIF_OUT
[IEC9580UT]
JK3401
LGE Internal Use Only
Copyright ©

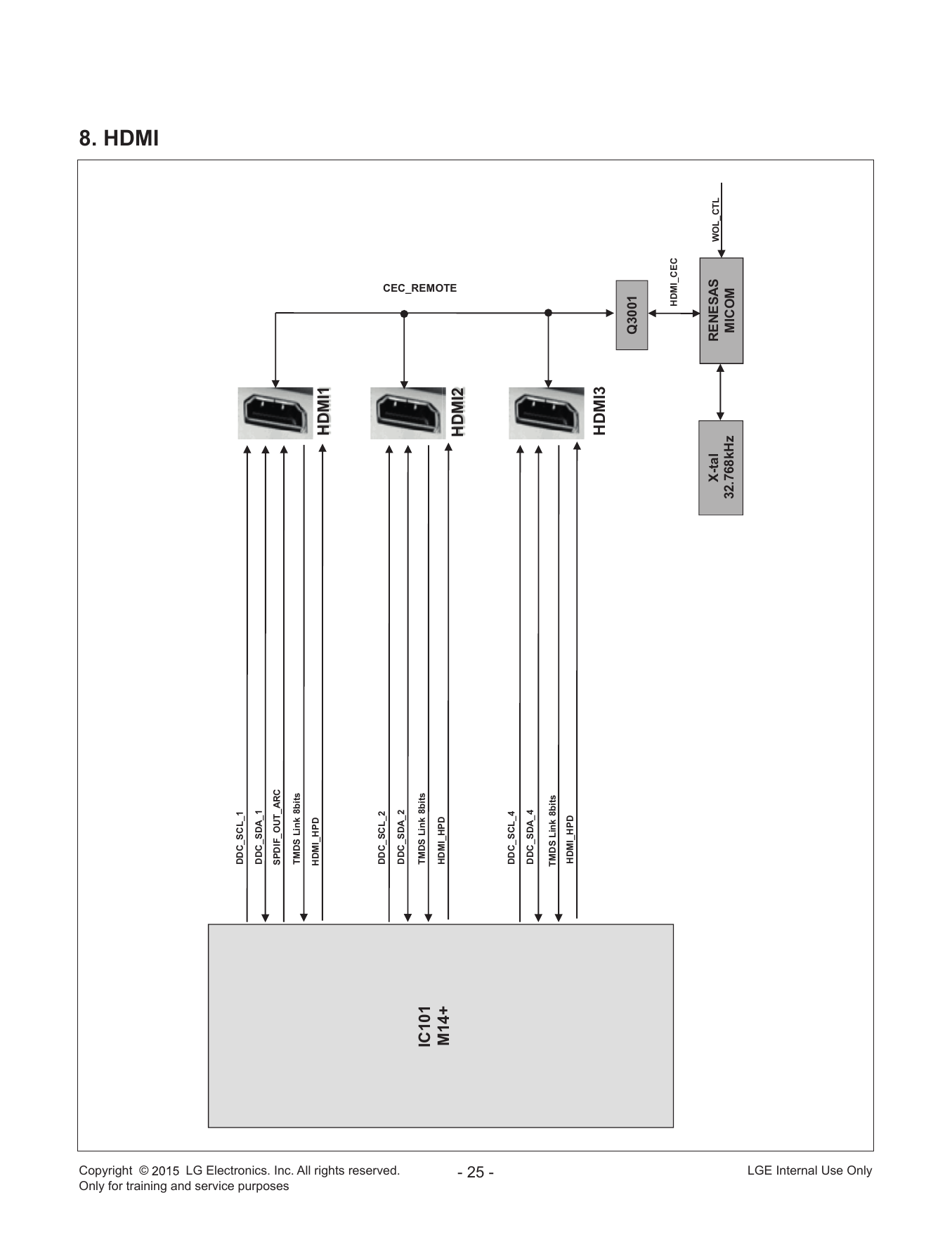

8. HDMI
DDC_SCL_1
DDC_SDA_1
SPDIF_OUT_ARC
Only for training and service purposes
TMDS Link 8bits
HDMI_HPD
HDMI1
DDC_SCL_2
LG Electronics. Inc. All rights reserved.
DDC_SDA_2
TMDS Link 8bits
IC101
HDMI_HPD
M14+
CEC_REMOTE
HDMI2
- 25 -
DDC_SCL_4
DDC_SDA_4
TMDS Link 8bits
HDMI_HPD
HDMI3
Q3001
HDMI_CEC
X-tal RENESAS WOL_CTL
32.768kHz MICOM
LGE Internal Use Only
Copyright ©
PANEL_VCC (+12V)
I2C
VGH

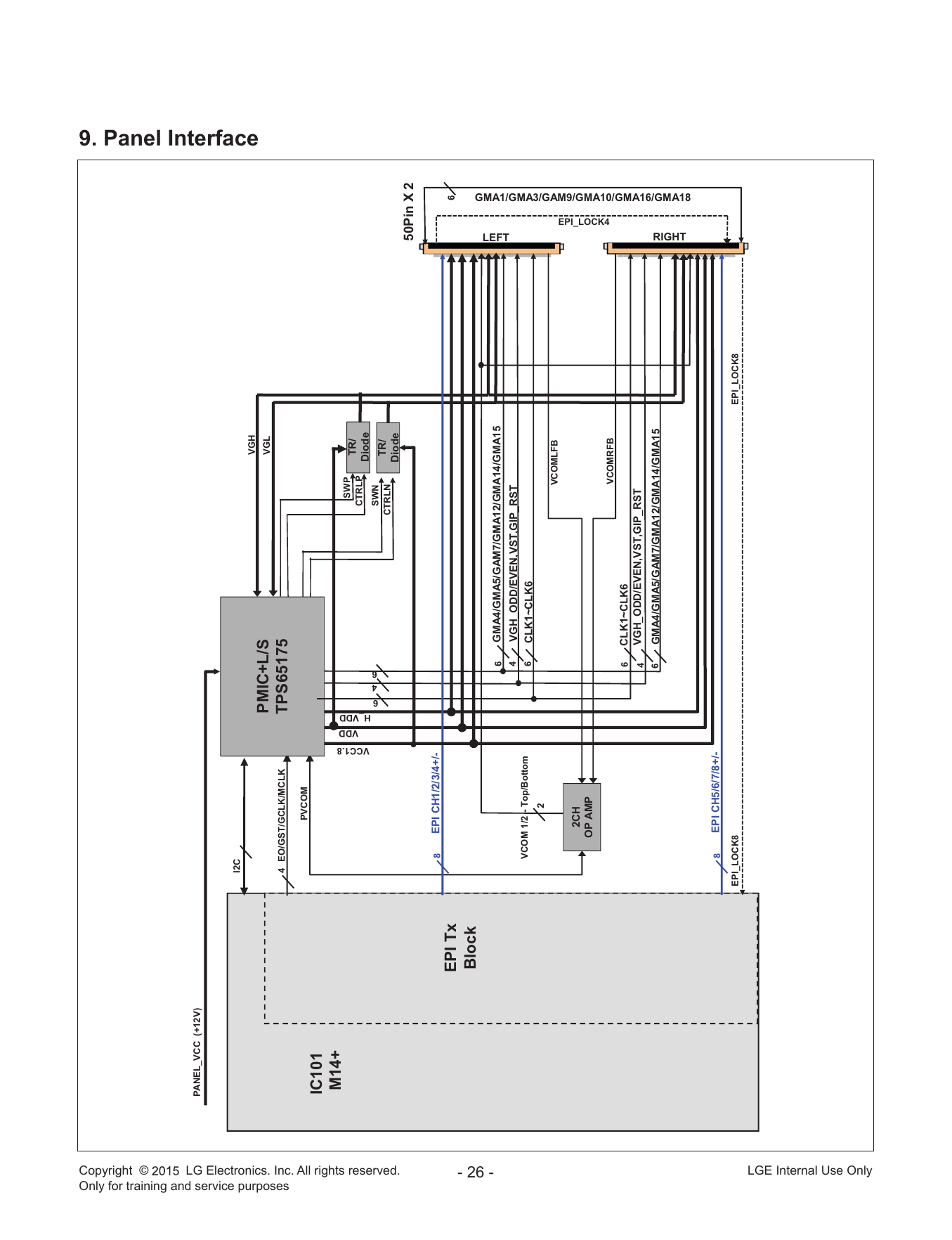

9. Panel Interface
PMIC+L/S VGL
4 EO/GST/GCLK/MCLK
Only for training and service purposes
TPS65175
PVCOM
IC101
M14+
SWP
VDD
TR/
CTRLP
VCC1.8
H_VDD
Diode
4
6
6
SWN
CTRLN TR/
LG Electronics. Inc. All rights reserved.
Diode
50Pin X 2
8 EPI CH1/2/3/4+/-
EPI Tx 6
Block
- 26 -
6 GMA4/GMA5/GAM7/GMA12/GMA14/GMA15
LEFT
4 VGH_ODD/EVEN,VST,GIP_RST
VCOM 1/2 - Top/Bottom 6 CLK1~CLK6
VCOMLFB
2CH
OP AMP
EPI_LOCK4
VCOMRFB
6 CLK1~CLK6
4 VGH_ODD/EVEN,VST,GIP_RST
6 GMA4/GMA5/GAM7/GMA12/GMA14/GMA15
RIGHT
GMA1/GMA3/GAM9/GMA10/GMA16/GMA18
8 EPI CH5/6/7/8+/-
EPI_LOCK8 EPI_LOCK8
LGE Internal Use Only

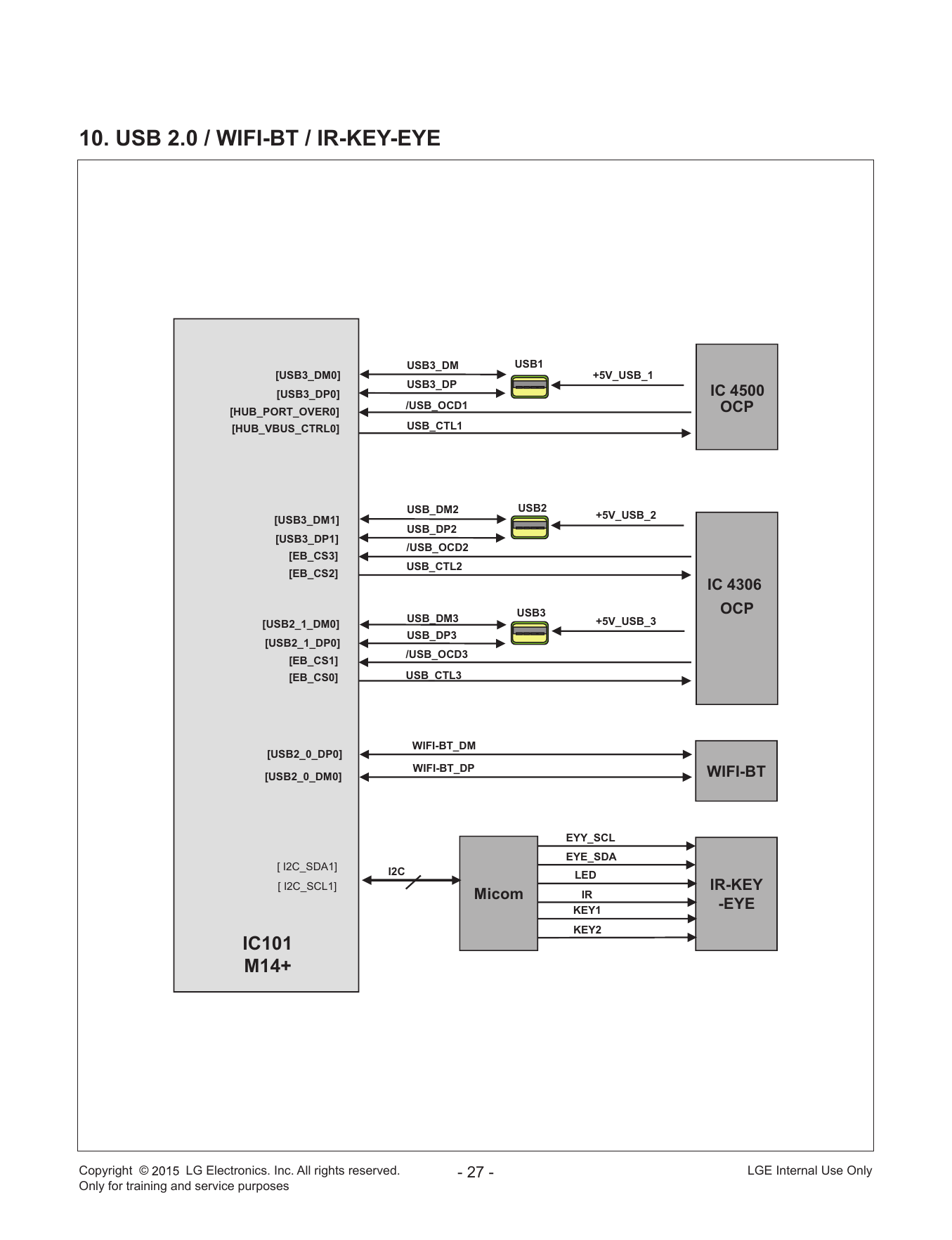

10. USB 2.0 / WIFI-BT / IR-KEY-EYE
USB3_DM USB1
[USB3_DM0] +5V_USB_1
USB3_DP
[USB3_DP0] IC 4500
[HUB_PORT_OVER0]
/USB_OCD1 OCP
[HUB_VBUS_CTRL0] USB_CTL1
USB_DM2 USB2
[USB3_DM1] +5V_USB_2
USB_DP2
[USB3_DP1]
/USB_OCD2
[EB_CS3]
USB_CTL2
[EB_CS2]
IC 4306
USB3 OCP
USB_DM3 +5V_USB_3
[USB2_1_DM0]
USB_DP3
[USB2_1_DP0]
/USB_OCD3
[EB_CS1]
[EB_CS0] USB_CTL3
WIFI-BT_DM
[USB2_0_DP0]
[USB2_0_DM0]
WIFI-BT_DP WIFI-BT
EYY_SCL
EYE_SDA
[ I2C_SDA1] I2C LED
[ I2C_SCL1] IR-KEY
Micom IR
KEY1 -EYE
KEY2
IC101
M14+
Copyright © LG Electronics. Inc. All rights reserved. - 27 - LGE Internal Use Only
Only for training and service purposes

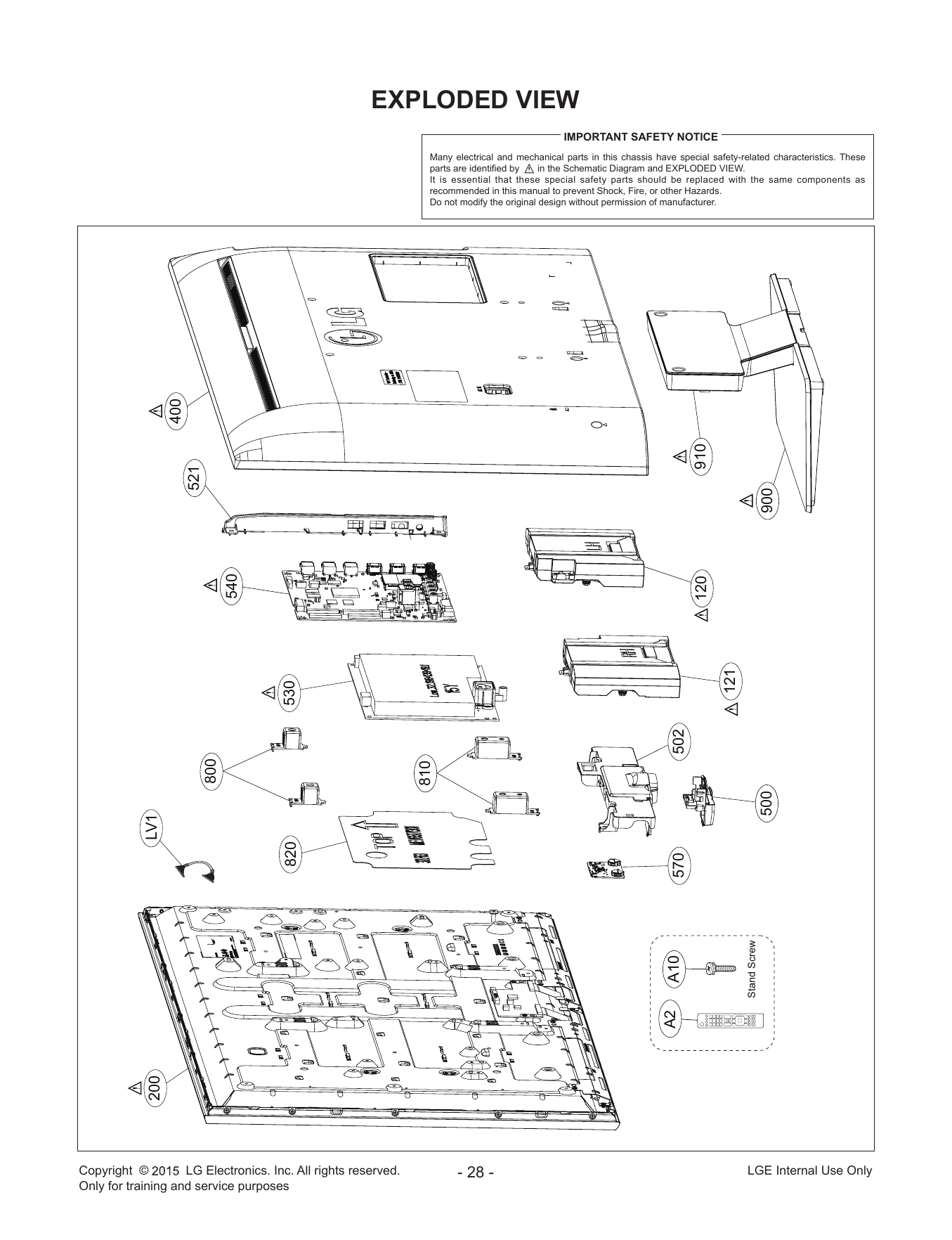

EXPLODED VIEW
IMPORTANT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
400
910
521
900
540
120
121
530
502
800
810
500
LV1
820
570
Stand Screw
A10
A2
200
Copyright © LG Electronics. Inc. All rights reserved. - 28 - LGE Internal Use Only
Only for training and service purposes

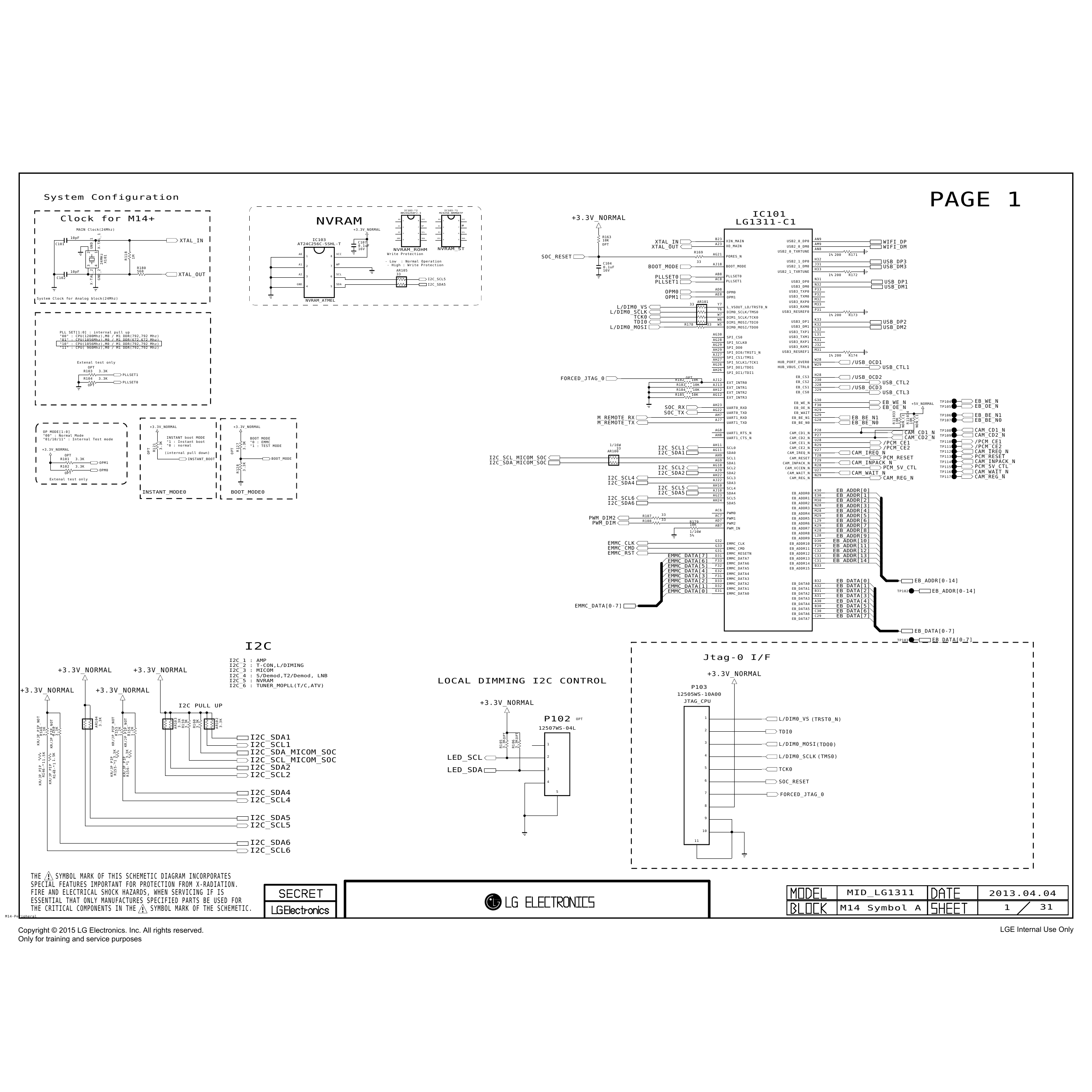

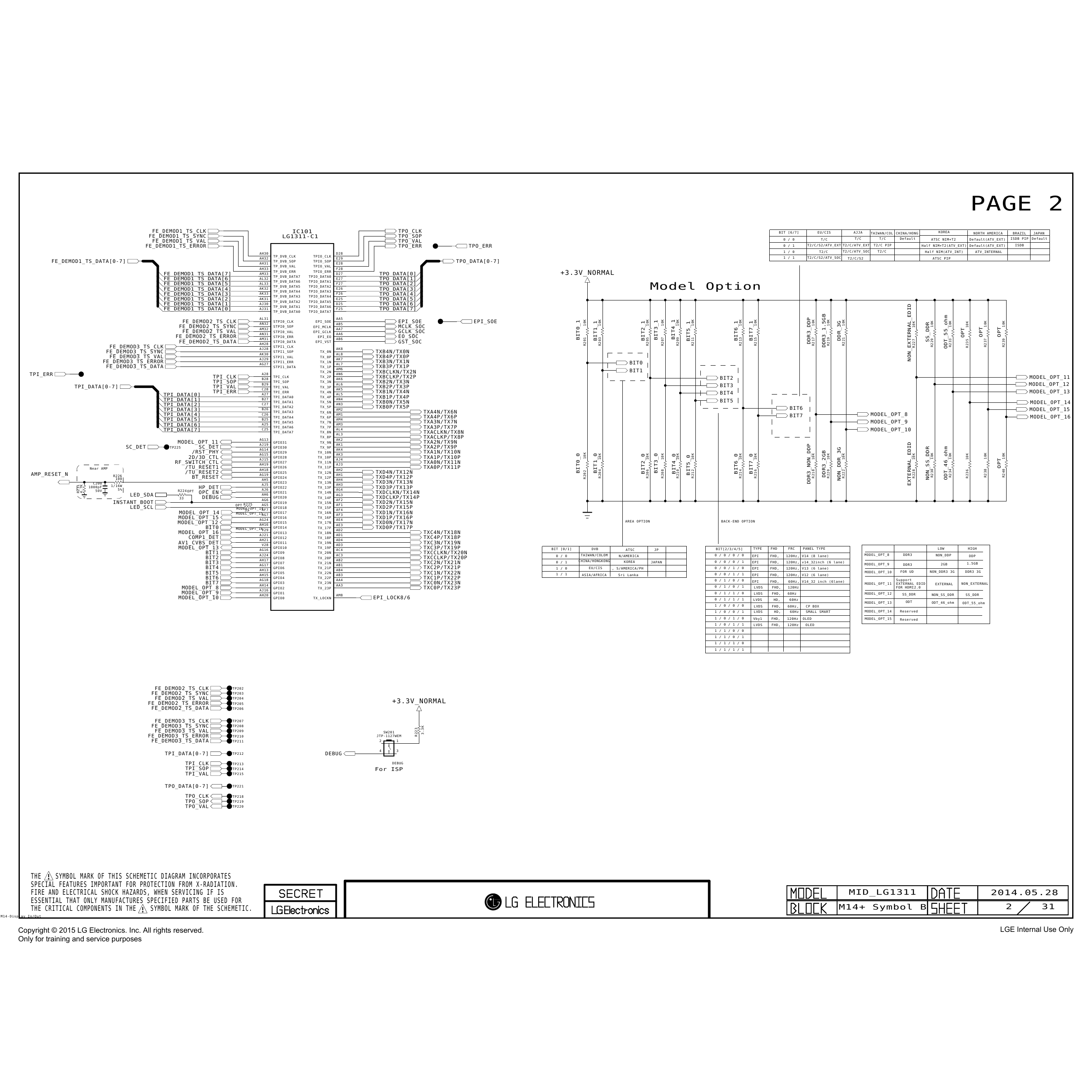

System Configuration
IC103-*2 IC103-*1
PAGE 1
BR24G256FJ-3 M24256-BRMN6TP
+3.3V_NORMAL
IC101
Clock for M14+ NVRAM A0
1 8
VCC E0
1 8
VCC
LG1311-C1
A1 WP E1 WC
2 7 2 7
MAIN Clock(24Mhz) +3.3V_NORMAL
A2 SCL E2 SCL
3 6 3 6
X-TAL_1
10pF GND SDA VSS SDA R163
GND_1
IC103 B23 AN9
XTAL_IN C107
4 5 4 5
10K
XTAL_IN XIN_MAIN USB2_0_DP0 WIFI_DP
C101 AT24C256C-SSHL-T 0.1uF OPT A23 AM9
XTAL_OUT XO_MAIN USB2_0_DM0 WIFI_DM
16V NVRAM_ROHM NVRAM_ST AN8
R169 USB2_0_TXRTUNE
2
1
R118
Write Protection AG21
24MHz
A0 VCC 1% 200 R171
X101
1M
1 8 SOC_RESET PORES_N
H32
A1 WP
- Low : Normal Operation
C104
33
AJ18
USB2_1_DP0
J31
USB_DP3
- High : Write Protection
3
4
2 7 0.1uF BOOT_MODE BOOT_MODE USB2_1_DM0 USB_DM3
R180 H33
X-TAL_2
GND_2
10pF 560 AR105 16V USB2_1_TXRTUNE
XTAL_OUT A2 SCL 33 AB8
PLLSET0 1% 200 R172
C102
3 6
I2C_SCL5
PLLSET0 AC8 N31
PLLSET1 PLLSET1 USB3_DP0 USB_DP1
GND SDA I2C_SDA5 N32
4 5
AD8
USB3_DM0
P33
USB_DM1
OPM0 AE8
OPM0 USB3_TXP0
P32
System Clock for Analog block(24Mhz) OPM1 OPM1 USB3_TXM0
M32
NVRAM_ATMEL AR101 USB3_RXP0
33 Y7 M33
L/DIM0_VS Y6
L_VSOUT_LD/TRST0_N USB3_RXM0
P31
L/DIM0_SCLK W7
DIM0_SCLK/TMS0 USB3_RESREF0
1% 200 R173
TCK0 W6
DIM1_SCLK/TCK0
K33
TDI0 R178 33 W5
DIM1_MOSI/TDI0 USB3_DP1
K32
USB_DP2
L/DIM0_MOSI DIM0_MOSI/TDO0 USB3_DM1
L32
USB_DM2
PLL SET[1:0] : internal pull up USB3_TXP1
AG30 L31
"00" : CPU(1200Mhz),M0 / M1 DDR(792,792 Mhz) SPI_CS0 USB3_TXM1
"01" : CPU(1056Mhz),M0 / M1 DDR(672,672 Mhz) AG28 K31
SPI_SCLK0 USB3_RXP1
"10" : CPU(1056Mhz),M0 / M1 DDR(792,792 Mhz) AG29 J32
"11" : CPU( 960Mhz),M0 / M1 DDR(792,792 Mhz) SPI_DO0 USB3_RXM1
AH29 M31
SPI_DI0/TRST1_N USB3_RESREF1
AJ27 1% 200 R174
SPI_CS1/TMS1
AH27 W28
Extenal test only
AG26
SPI_SCLK1/TCK1 HUB_PORT_OVER0
W29
/USB_OCD1
OPT
AH26
SPI_DO1/TDO1 HUB_VBUS_CTRL0 USB_CTL1
R103 3.3K
SPI_DI1/TDI1
PLLSET1 H28
R104 3.3K FORCED_JTAG_0 R182
OPT
10K AJ12
EB_CS3
J30
/USB_OCD2
OPT
PLLSET0
R183 10K AJ13
EXT_INTR0 EB_CS2
J28
USB_CTL2
R184 10K AH12
EXT_INTR1 EB_CS1
J29
/USB_OCD3
R185 10K AG12
EXT_INTR2 EB_CS0 USB_CTL3
EXT_INTR3
G30
EB_WE_N EB_WE_N +5V_NORMAL
TP104 EB_WE_N
AH23 F30
SOC_RX UART0_RXD EB_OE_N EB_OE_N TP105 EB_OE_N
AG22 H29
R11033
R11034
SOC_TX UART0_TXD EB_WAIT
AH7 G29 TP106 EB_BE_N1
NON_CI
NON_CI
M_REMOTE_RX UART1_RXD EB_BE_N1 EB_BE_N1
10K
10K
AJ7 G28 TP107 EB_BE_N0
M_REMOTE_TX UART1_TXD EB_BE_N0 EB_BE_N0
+3.3V_NORMAL +3.3V_NORMAL
OP MODE[1:0] AG8 P28 TP108 CAM_CD1_N
UART1_RTS_N CAM_CD1_N CAM_CD1_N
"00" : Normal Mode AH8 P27 TP109 CAM_CD2_N
"01/10/11" : Internal Test mode INSTANT boot MODE BOOT MODE UART1_CTS_N CAM_CD2_N
U28
CAM_CD2_N
"1 : Instant boot TP110 /PCM_CE1
3.3K
3.3K
"0 : EMMC CAM_CE1_N /PCM_CE1
R127
R121
"0 : normal "1 : TEST MODE 1/16W AH11 R29
33 I2C_SCL1 SCL0 CAM_CE2_N /PCM_CE2 TP111 /PCM_CE2
OPT
OPT
+3.3V_NORMAL AG11 V27
(internal pull down) AR100
I2C_SDA1 SDA0 CAM_IREQ_N CAM_IREQ_N TP112 CAM_IREQ_N
OPT AH9 T28
R101 3.3K INSTANT_BOOT BOOT_MODE I2C_SCL_MICOM_SOC SCL1 CAM_RESET PCM_RESET TP113 PCM_RESET
AG9 T29
OPM1 I2C_SDA_MICOM_SOC SDA1 CAM_INPACK_N CAM_INPACK_N TP114 CAM_INPACK_N
3.3K
AG10 R28
R128
R102 3.3K
I2C_SCL2 SCL2 CAM_VCCEN_N PCM_5V_CTL TP115 PCM_5V_CTL
OPM0 AJ9 U27
OPT I2C_SDA2 SDA2 CAM_WAIT_N CAM_WAIT_N TP116 CAM_WAIT_N
AH22 N29
Extenal test only I2C_SCL4 SCL3 CAM_REG_N CAM_REG_N TP117 CAM_REG_N
AJ22
I2C_SDA4 AH10
SDA3
I2C_SCL5 AJ10
SCL4
K30 EB_ADDR[0]
INSTANT_MODE0 BOOT_MODE0 I2C_SDA5 SDA4 EB_ADDR0
AG23 E30 EB_ADDR[1]
I2C_SCL6 AH24
SCL5 EB_ADDR1
M30 EB_ADDR[2]
I2C_SDA6 SDA5 EB_ADDR2
N28 EB_ADDR[3]
EB_ADDR3
AC6 M28 EB_ADDR[4]
33 PWM0 EB_ADDR4
R107 AC7 M29 EB_ADDR[5]
PWM_DIM2 33 AD7
PWM1 EB_ADDR5
L29 EB_ADDR[6]
R108 R179
PWM_DIM 10K AB7
PWM2 EB_ADDR6
K29 EB_ADDR[7]
PWM_IN EB_ADDR7
1/16W K28 EB_ADDR[8]
EB_ADDR8
5% L28 EB_ADDR[9]
EB_ADDR9
G32 D30 EB_ADDR[10]
EMMC_CLK G33
EMMC_CLK EB_ADDR10
F29 EB_ADDR[11]
EMMC_CMD G31
EMMC_CMD EB_ADDR11
C32 EB_ADDR[12]
EMMC_RST EMMC_RESETN EB_ADDR12
EB_ADDR[13]
EMMC_DATA[7] D31 C33
EMMC_DATA7 EB_ADDR13
EMMC_DATA[6] F33 C31 EB_ADDR[14]
EMMC_DATA6 EB_ADDR14
EMMC_DATA[5] F32 B33
EMMC_DATA5 EB_ADDR15
EMMC_DATA[4] E32
EMMC_DATA4
EMMC_DATA[3] F31
EMMC_DATA3
EMMC_DATA[2] D33
EMMC_DATA2 EB_DATA0
B32 EB_DATA[0] EB_ADDR[0-14]
EMMC_DATA[1] D32 A32 EB_DATA[1]
EMMC_DATA1 EB_DATA1
EMMC_DATA[0] E31
EMMC_DATA0 EB_DATA2
B31 EB_DATA[2] TP102 EB_ADDR[0-14]
A31 EB_DATA[3]
EB_DATA3
A30 EB_DATA[4]
EB_DATA4
EMMC_DATA[0-7] EB_DATA5
B30 EB_DATA[5]
C30 EB_DATA[6]
EB_DATA6
C29 EB_DATA[7]
EB_DATA7
EB_DATA[0-7]
TP103 EB_DATA[0-7]
I2C
I2C_1 : AMP Jtag-0 I/F
I2C_2 : T-CON,L/DIMING
+3.3V_NORMAL +3.3V_NORMAL I2C_3 : MICOM
I2C_4 : S/Demod,T2/Demod, LNB +3.3V_NORMAL
I2C_5
I2C_6
:
:
NVRAM
TUNER_MOPLL(T/C,ATV)
LOCAL DIMMING I2C CONTROL
P103
+3.3V_NORMAL +3.3V_NORMAL
12505WS-10A00
+3.3V_NORMAL JTAG_CPU
I2C PULL UP
KR/JP_PIP_NOT
AR104
P102 1
KR/JP_PIP_NOT
3.3K
L/DIM0_VS (TRST0_N)
AR103
AR102
OPT
KR/JP_PIP_NOT
3.3K
3.3K
KR/JP_PIP_NOT
R159
3.3K
R160
3.3K
R146
3.3K
R148
3.3K
R155
1.2K
R156
1.2K
12507WS-04L 2
TDI0
3.3K OPT
3.3K OPT
I2C_SDA1
R105
R106
3
I2C_SCL1 1 L/DIM0_MOSI(TDO0)
R155-*1 3.3K
3.3K
I2C_SDA_MICOM_SOC
R146-*1 1.5K
R148-*1 1.5K
4
LED_SCL 2 L/DIM0_SCLK (TMS0)
KR/JP_PIP
KR/JP_PIP
I2C_SCL_MICOM_SOC
R156-*1
KR/JP_PIP
KR/JP_PIP
I2C_SDA2 LED_SDA 3 5
TCK0
I2C_SCL2
6
4 SOC_RESET
I2C_SDA4 5 7
FORCED_JTAG_0
I2C_SCL4
8
I2C_SDA5 9
I2C_SCL5
10
11
I2C_SDA6
I2C_SCL6
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS MID_LG1311 2013.04.04
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. M14 Symbol A 1 31
M14-Peripheral
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
PAGE 2
FE_DEMOD1_TS_CLK IC101 TPO_CLK BIT [6/7] EU/CIS AJJA TAIWAN/COL CHINA/HONG KOREA NORTH AMERICA BRAZIL JAPAN
FE_DEMOD1_TS_SYNC LG1311-C1 TPO_SOP T/C T/C Default ISDB PIP Default
0 / 0 T/C ATSC NIM+T2 Default(ATV_EXT)
FE_DEMOD1_TS_VAL TPO_VAL
FE_DEMOD1_TS_ERROR TPO_ERR TPO_ERR 0 / 1 T2/C/S2/ATV_EXT T2/C/ATV_EXT T2/C PIP Half NIM+T2(ATV_EXT) Default(ATV_EXT) ISDB
1 / 0 T2/C T2/C/ATV_SOC T2/C Half NIM(ATV_INT) ATV_INTERNAL
AH30 D28
TP_DVB_CLK TPIO_CLK 1 / 1 T2/C/S2/ATV_SOC
AH32 E29 T2/C/S2 ATSC PIP
FE_DEMOD1_TS_DATA[0-7] AH31
TP_DVB_SOP TPIO_SOP
E28
TPO_DATA[0-7]
TP_DVB_VAL TPIO_VAL
AH33 F28
TP_DVB_ERR TPIO_ERR
FE_DEMOD1_TS_DATA[7] AM33
TP_DVB_DATA7 TPIO_DATA0
D27 TPO_DATA[0] +3.3V_NORMAL
FE_DEMOD1_TS_DATA[6] AL32 E27 TPO_DATA[1]
TP_DVB_DATA6 TPIO_DATA1
FE_DEMOD1_TS_DATA[5] AL33 F27 TPO_DATA[2]
FE_DEMOD1_TS_DATA[4] AK32
TP_DVB_DATA5
TP_DVB_DATA4
TPIO_DATA2
TPIO_DATA3
E26 TPO_DATA[3] Model Option
FE_DEMOD1_TS_DATA[3] AK33 F26 TPO_DATA[4]
TP_DVB_DATA3 TPIO_DATA4
FE_DEMOD1_TS_DATA[2] AK31 E25 TPO_DATA[5]
TP_DVB_DATA2 TPIO_DATA5
FE_DEMOD1_TS_DATA[1] AJ30 D25 TPO_DATA[6]
NON_EXTERNAL_EDID
TP_DVB_DATA1 TPIO_DATA6
FE_DEMOD1_TS_DATA[0] AJ31 F25 TPO_DATA[7]
TP_DVB_DATA0 TPIO_DATA7
DDR3_1.5GB
ODT_55_ohm
DDR3_DDP
AL31 AA5
BIT4_1
10K
10K
10K
10K
10K
10K
10K
10K
10K
10K
10K
BIT0_1
BIT3_1
FE_DEMOD2_TS_CLK EPI_SOE EPI_SOE
BIT1_1
BIT2_1
BIT6_1
BIT7_1
DDR_3G
10K
10K
10K
10K
STPI0_CLK EPI_SOE
BIT5_1
10K
10K
SS_DDR
AN32 AB5
FE_DEMOD2_TS_SYNC STPI0_SOP EPI_MCLK MCLK_SOC
OPT
OPT
OPT
AM32 AA7
FE_DEMOD2_TS_VAL AN31
STPI0_VAL EPI_GCLK
AA6
GCLK_SOC
FE_DEMOD2_TS_ERROR STPI0_ERR EPI_EO EO_SOC
R201
R203
R205
R207
R209
R211
R213
R215
R217
R219
R221
AM31 AB6
R229
R233
R237
R239
R227
R235
FE_DEMOD2_TS_DATA AH28
STPI0_DATA EPI_VST GST_SOC
FE_DEMOD3_TS_CLK AJ28
STPI1_CLK
AK8
FE_DEMOD3_TS_SYNC AK30
STPI1_SOP TX_0N
AL8
TXB4N/TX0N
FE_DEMOD3_TS_VAL AJ29
STPI1_VAL TX_0P
AK7
TXB4P/TX0P
FE_DEMOD3_TS_ERROR AG27
STPI1_ERR TX_1N
AL7
TXB3N/TX1N BIT0
FE_DEMOD3_TS_DATA STPI1_DATA TX_1P
AM6
TXB3P/TX1P
TX_2N TXBCLKN/TX2N BIT1
TPI_ERR A28 AN6
TPI_CLK B28
TPI_CLK TX_2P
AK6
TXBCLKP/TX2P BIT2 MODEL_OPT_11
TPI_SOP TPI_SOP TX_3N TXB2N/TX3N
B29 AL6
BIT3 MODEL_OPT_12
TPI_DATA[0-7] TPI_VAL C28
TPI_VAL TX_3P
AK5
TXB2P/TX3P
TPI_ERR TPI_ERR TX_4N TXB1N/TX4N BIT4 MODEL_OPT_13
TPI_DATA[0] A27 AL5
TPI_DATA0 TX_4P TXB1P/TX4P
TPI_DATA[1] B27 AN4
BIT5
TPI_DATA1 TX_5N TXB0N/TX5N MODEL_OPT_14
TPI_DATA[2] C27 AN3
TPI_DATA2 TX_5P TXB0P/TX5P BIT6
TPI_DATA[3] B26 AM2 MODEL_OPT_15
TPI_DATA3 TX_6N TXA4N/TX6N
TPI_DATA[4] C26 AM1
BIT7 MODEL_OPT_8
TPI_DATA4 TX_6P TXA4P/TX6P MODEL_OPT_16
TPI_DATA[5] B25 AM4
TPI_DATA5 TX_7N TXA3N/TX7N MODEL_OPT_9
TPI_DATA[6] A25 AM3
TPI_DATA6 TX_7P TXA3P/TX7P
TPI_DATA[7] C25 AL4 MODEL_OPT_10
TPI_DATA7 TX_8N
AL3
TXACLKN/TX8N
AG13
TX_8P
AK2
TXACLKP/TX8P
MODEL_OPT_11 GPIO31 TX_9N TXA2N/TX9N
EXTERNAL_EDID
AJ19 AK1
DDR3_NON_DDP
SC_DET SC_DET TXA2P/TX9P
NON_SS_DDR
ODT_46_ohm
TP225 GPIO30 TX_9P
NON_DDR_3G
AG14 AK4
DDR3_2GB
/RST_PHY GPIO29 TX_10N TXA1N/TX10N
10K
10K
10K
10K
10K
BIT0_0
BIT3_0
BIT1_0
10K
10K
10K
10K
10K
10K
10K
10K
10K
10K
10K
10K
AG15 AK3
BIT2_0
BIT4_0
BIT6_0
BIT7_0
BIT5_0
2D/3D_CTL GPIO28 TX_10P TXA1P/TX10P
OPT
AJ15 AJ4
RF_SWITCH_CTL AH19
GPIO27 TX_11N
AJ3
TXA0N/TX11N
Near AMP /TU_RESET1 AH18
GPIO26 TX_11P
AH2
TXA0P/TX11P
R230
R234
R238
R240
R204
R206
R208
R210
R212
R214
R216
R218
R220
R222
R228
R236
R202
AMP_RESET_N /TU_RESET2 AG19
GPIO25 TX_12N
AH1
TXD4N/TX12N
R226
100 BT_RESET AH5
GPIO24 TX_12P
AH4
TXD4P/TX12P
C200 AJ5
GPIO23 TX_13N
AH3
TXD3N/TX13N
R231
4.7K
1/16W
1000pF
5%
HP_DET AJ6
GPIO22 TX_13P
AG4
TXD3P/TX13P
50V R224 OPT
OPC_EN GPIO21 TX_14N TXDCLKN/TX14N
LED_SDA AH6 AG3
33 DEBUG AG6
GPIO20 TX_14P
AF2
TXDCLKP/TX14P
INSTANT_BOOT OPT R225 AG5
GPIO19 TX_15N
AF1
TXD2N/TX15N
LED_SCL MODEL_OPT_14AF7
33
GPIO18 TX_15P
AF4
TXD2P/TX15P
MODEL_OPT_14 MODEL_OPT_15AG7 GPIO17 TX_16N
AF3
TXD1N/TX16N
MODEL_OPT_15 AG24
GPIO16 TX_16P
AE4
TXD1P/TX16P
MODEL_OPT_12 GPIO15 TX_17N TXD0N/TX17N AREA OPTION BACK-END OPTION
AH16 AE3
BIT0 MODEL_OPT_16V29 GPIO14 TX_17P
AD2
TXD0P/TX17P
MODEL_OPT_16 AJ21
GPIO13 TX_18N
AD1
TXC4N/TX18N
COMP1_DET AH21
GPIO12 TX_18P
AD4
TXC4P/TX18P
AV1_CVBS_DET V28
GPIO11 TX_19N
AD3
TXC3N/TX19N
MODEL_OPT_13 AG16
GPIO10 TX_19P
AC4
TXC3P/TX19P BIT [0/1] DVB ATSC JP BIT[2/3/4/5] TYPE FHD FRC PANEL TYPE LOW HIGH
BIT1 AJ24
GPIO9 TX_20N
AC3
TXCCLKN/TX20N TAIWAN/COLOM 0 / 0 / 0 / 0 MODEL_OPT_8 DDR3 NON_DDP
0 / 0 N/AMERICA EPI FHD, 120Hz, V14 (8 lane) DDP
BIT2 AH17
GPIO8 TX_20P
AB2
TXCCLKP/TX20P
CHINA/HONGKONG KOREA 0 / 0 / 0 / 1
BIT3 AG17
GPIO7 TX_21N
AB1
TXC2N/TX21N 0 / 1 JAPAN EPI FHD, 120Hz, v14_32inch (6 lane)
MODEL_OPT_9 DDR3 2GB 1.5GB
BIT4 AH13
GPIO6 TX_21P
AB4
TXC2P/TX21P 1 / 0 EU/CIS , S/AMERICA/PH 0 / 0 / 1 / 0 EPI FHD, 120Hz, V13 (6 lane)
BIT5 GPIO5 TX_22N TXC1N/TX22N MODEL_OPT_10 FOR UD NON_DDR3 3G DDR3 3G
AH15 AB3 1 / 1 ASIA/AFRICA Sri Lanka 0 / 0 / 1 / 1 EPI FHD, 120Hz, V12 (6 lane)
BIT6 AG18
GPIO4 TX_22P
AA4
TXC1P/TX22P 0 / 1 / 0 / 0 Support
BIT7 GPIO3 TX_23N TXC0N/TX23N EPI FHD, 60Hz, V14_32 inch (6lane)
AH14 AA3 MODEL_OPT_11 EXTERNAL EDID EXTERNAL NON_EXTERNAL
MODEL_OPT_8 GPIO2 TX_23P TXC0P/TX23P 0 / 1 / 0 / 1 LVDS FHD, 120Hz FOR HDMI2.0
AJ16
MODEL_OPT_9 AH20
GPIO1
AM8
0 / 1 / 1 / 0 LVDS FHD, 60Hz MODEL_OPT_12 SS_DDR NON_SS_DDR SS_DDR
MODEL_OPT_10 GPIO0 TX_LOCKN EPI_LOCK8/6 0 / 1 / 1 / 1 LVDS HD, 60Hz
MODEL_OPT_13 ODT ODT_46_ohm ODT_55_ohm
1 / 0 / 0 / 0 LVDS FHD, 60Hz, CP BOX
1 / 0 / 0 / 1 LVDS HD, 60Hz SMALL SMART MODEL_OPT_14 Reserved
1 / 0 / 1 / 0 Vby1 FHD, 120Hz OLED MODEL_OPT_15 Reserved
1 / 0 / 1 / 1 LVDS FHD, 120Hz OLED
1 / 1 / 0 / 0
1 / 1 / 0 / 1
1 / 1 / 1 / 0
1 / 1 / 1 / 1
FE_DEMOD2_TS_CLK TP202
FE_DEMOD2_TS_SYNC TP203
FE_DEMOD2_TS_VAL TP204
FE_DEMOD2_TS_ERROR TP205 +3.3V_NORMAL
FE_DEMOD2_TS_DATA TP206
FE_DEMOD3_TS_CLK TP207
FE_DEMOD3_TS_SYNC TP208
3.3K
R223
FE_DEMOD3_TS_VAL TP209 SW201
FE_DEMOD3_TS_ERROR TP210 JTP-1127WEM
FE_DEMOD3_TS_DATA TP211 2 1
4 3
TPI_DATA[0-7] TP212 DEBUG
TPI_CLK TP213 DEBUG
TPI_SOP TP214 For ISP
TPI_VAL TP215
TPO_DATA[0-7] TP221
TPO_CLK TP218
TPO_SOP TP219
TPO_VAL TP220
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS MID_LG1311 2014.05.28
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. M14+ Symbol B 2 31
M14-Display In/Out
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
PLACE AT JACK SIDE PAGE 3
IC101
LG1311-C1
Place JACK Side Place SOC Side TU_CVBS_SOC
AL27 CVBS_IN1
SD_CLK
E22
SMARTCARD_CLK/SD_EMMC_DATA[0]
AK26 CVBS_IN2 D22
SC_CVBS_IN_SOC SD_CMD SMARTCARD_RST/SD_EMMC_DATA[2]
AM27 CVBS_IN3 F22
AV1_CVBS_IN_SOC SD_CD_N SMARTCARD_VCC/SD_EMMC_CMD
TP308 SC_CVBS_IN_SOC TP318 SCART_LOUT_SOC F24
SD_WP_N SMARTCARD_PWR_SEL/SD_EMMC_DATA[1]
TP310 SC_FB_SOC TP319 SCART_ROUT_SOC R356 68 C343 0.047uF AL26 CVBS_VCM D24
DDR3_OPT1
SD_DATA3
E24
AV1_CVBS/COMP1_Y Circuit was moved to 34Page TP311 SC_ID_SOC TP320 DTV/MNT_V_OUT_SOC SD_DATA2 DDR3_OPT2
R353 EU 0 AN27 BUF_OUT1 F23
DTV/MNT_V_OUT_SOC SD_DATA1 SMARTCARD_DET/SD_EMMC_DATA[3]
TP312 COMP1_PB_IN_SOC C339 OPT R11031 E23
10K SD_DATA0 SMARTCARD_DATA/SD_EMMC_CLK
TP313 COMP1_Y_IN_SOC OPT 100pF AL25
SC_ID_SOC SC1_SID
50V AM25 AK14
TP314 COMP1_Y_IN_SOC_SOY SC_FB_SOC SC1_FB
RMII_REF_CLK EPHY_REFCLK
R11032 AK12
TP315 COMP1_PR_IN_SOC OPT 10K AN23
RMII_CRS_DV
AL12
EPHY_CRS_DV
COMP1_Y_IN_SOC_SOY SOY1_IN EPHY_MDIO
RMII_MDIO
COMP TP316 AUAD_L_CH2_IN COMP1_Y_IN_SOC
AL22 Y1_IN
RMII_MDC
AK13
EPHY_MDC
R333 33 C322 0.047uF AK21 AL13
COMP1_Pb COMP2_PB_IN_SOC TP317 AUAD_R_CH2_IN COMP1_PB_IN_SOC PB1_IN
RMII_TXEN EPHY_EN
AK22 PR1_IN AM13
COMP1_PR_IN_SOC RMII_TXD1 EPHY_TXD1
AN13
SMARTCARD_DATA/SD_EMMC_CLK RMII_TXD0 EPHY_TXD0
TP302 AL24 AL14 33 R5207
R335 33 C324 0.047uF COMP2_Y_IN_SOC_SOY SOY2_IN EPHY_RXD1
TP303 SMARTCARD_VCC/SD_EMMC_CMD RMII_RXD1
COMP1_Pr COMP2_PR_IN_SOC AK23 Y2_IN AK15 33 R5206
R318 1% 75
EPHY_RXD0
R326 1% 75
TP304 SMARTCARD_DET/SD_EMMC_DATA[3] COMP2_Y_IN_SOC RMII_RXD0
AL23 PB2_IN 5V_HDMI_1
TP305 SMARTCARD_RST/SD_EMMC_DATA[2] COMP2_PB_IN_SOC
AK24 PR2_IN AE27
COMP2_PR_IN_SOC DDC_SCL_1
1005
1005
TP306 SMARTCARD_PWR_SEL/SD_EMMC_DATA[1] HDMI_1_SCL
AF28 R372
HDMI_1_SDA DDC_SDA_1
TP307 SMARTCARD_CLK/SD_EMMC_DATA[0] R357 68 C344 0.047uF AL21 AE29 10
ADC1_COM HDMI_HPD_1
HDMI_1_HPD
R358 68 C345 0.047uF AM23 ADC2_COM AF27
AVDD25 R359 68 C346 0.047uF AN25
HDMI_1_5V_DET
AE28
ADC3_COM SPDIF_OUT_ARC C356
HDMI_1_ARC R376
1uF
BLM15BD121SN1 C349 10V 5.1K
TU_ALL_2178B TU_ALL_2178B AM21 AVSS25_COMP_REF AF33
HDMI_1_RX_0 D0+_HDMI1
R329 100 C318 0.047uF L305 0.1uF AN21 AF32
L304 AVDD25_COMP_REF
TU_CVBS TU_CVBS_SOC Placed as close as possible to LG1311 BLM15BD121SN1 16V HDMI_1_RX_0B
AE31
D0-_HDMI1
C303 D1+_HDMI1
HDMI_1_RX_1
150pF AK16 AUDA_SCART_OUTL AE30
50V SCART_LOUT_SOC HDMI_1_RX_1B D1-_HDMI1
Tuner IF Filter TU_IntDemod_IF_15p AL16 AUDA_SCART_OUTR AD31
OPT SCART_ROUT_SOC HDMI_1_RX_2 D2+_HDMI1
22K
22K
C331-*1 AD30
EU AR301 HDMI_1_RX_2B D2-_HDMI1
15pF EU AL19 AF31
C334 C336 0 AUAD_L_CH1_IN CK+_HDMI1
TU_ALL_IntDemod TU_ALL_IntDemod HDMI_1_RX_C
EU
EU
50V 0.01uF 0.01uF EU AK19 AF30
R344 C332 AUAD_R_CH1_IN CK-_HDMI1
50V 50V HDMI_1_RX_CB
AN19 5V_HDMI_2
R351
ADC_I_INN IF_N
R352
AUAD_L_CH2_IN AUAD_L_CH2_IN
51 0.01uF AM19 AUAD_R_CH2_IN AD28
AUAD_R_CH2_IN HDMI_2_SCL DDC_SCL_2
C331 L303 AN17 AUAD_L_CH3_IN AD29 R373
AUAD_L_CH3_IN HDMI_2_SDA DDC_SDA_2
To ADC 22pF AM17 AC27 10
OPT AUAD_R_CH3_IN AUAD_R_CH3_IN HDMI_HPD_2
TU_IntDemod_IF_22p HDMI_2_HPD
C333 AL17 AUAD_L_CH4_IN AD27
R345 HDMI_2_5V_DET
ADC_I_INP IF_P AK17 AUAD_R_CH4_IN C357
51 0.01uF AC31 R377
1uF
HDMI_2_RX_0 D0+_HDMI2 5.1K
TU_ALL_IntDemod TU_ALL_IntDemod AK20 AC30 10V
AUDA_OUTL AUDA_OUTL D0-_HDMI2
HDMI_2_RX_0B
AL20 AUDA_OUTR AB33
AUDA_OUTR HDMI_2_RX_1 D1+_HDMI2
C331 option AB32
HDMI_2_RX_1B D1-_HDMI2
- TU_IntDemod_IF_22p -> US/KR/BR/TW/CO 2tuner All AK18 AUAD_L_REF AA31
- TU_IntDemod_IF_15p -> EU/AJ/US/KR/BR/TW/CO 1tuner All AUAD_R_REF HDMI_2_RX_2 D2+_HDMI2
AUDIO IN AUAD_L_REF
C347 10uF 10V
AL18 AUAD_R_REF
HDMI_2_RX_2B
AA30
AD32
D2-_HDMI2
HDMI_2_RX_C CK+_HDMI2
C348 2.2uF AN15 AUD_VBG_EXT AD33
HDMI_2_RX_CB CK-_HDMI2
10V
R309 27K C316 4.7uF R360 33 AM15 IEC958OUT AB28
DDC_SCL_3
COMP1/AV1/DVI_L_IN AUAD_L_CH3_IN SPDIF_OUT HDMI_3_SCL
MAIN I2S_I/F
1% AB27
AVDD25 HDMI_3_SDA DDC_SDA_3
R322 10K Placed as close as possible to IC101 R365 OPT 100 AN11 AUDCLK_OUT AB29
HDMI_HPD_3
HDMI_3_HPD
R366 100 AK11 DAC_LRCH AC28
1% AUD_LRCH HDMI_3_5V_DET 5V_HDMI_3_SOC
R310 27K C317 4.7uF L307 C342 AK10
COMP1/AV1/DVI_R_IN AUAD_R_CH3_IN 22pF
AL10
DAC_SLRCH
DAC_CLFCH Y32
1% R323 10K OPT HDMI_3_RX_0 D0+_HDMI3
R374 120-ohm R368 100 AL11 Y33
AUD_SCK DAC_SCK D0-_HDMI3
51K HDMI_3_RX_0B
1% R369 100 AM11 DAC_LRCK W31
C354 AUD_LRCK D1+_HDMI3
R371GOOGLE
R370GOOGLE
1% HDMI_3_RX_1
0
0
R380 10uF C335 C337 W30
AUAD_L_REF 51K 22pF 33pF HDMI_3_RX_1B D1-_HDMI3
10V R367GOOGLE0 AD5 PCMI3LRCH V33
1% OPT OPT I2S_AMP HDMI_3_RX_2 D2+_HDMI3
R378 C313 AE5 PCMI3LRCK V32
4.7uF HDMI_3_RX_2B D2-_HDMI3
47K AE7 Y31
PCMI3SCK CK+_HDMI3
1% 10V HDMI_3_RX_C
TU_ALL_2178B AE6 AUDCLK_IN Y30
HDMI_3_RX_CB CK-_HDMI3
C312 0.1uF
AUAD_R_REF TU_SIF_TU AD6 Y27 5V_HDMI_4
FRC_LRSYNC DDC_SCL_4
C309 HDMI_4_SCL
C353 OPT AA28
R381 1000pF HDMI_4_SDA DDC_SDA_4
47K 4.7uF 50V TU_ALL_IntDemod AK29 AAD_ADC_SIF Y28 R375
HDMI_4_CBUS_HPD HDMI_HPD_4
1% 10V C351 0.1uF AL29 AA29 10
AAD_ADC_SIFM MHL_DET
R350 HDMI_4_CD_SENSE
AM29 IFAGC AA27
IF_AGC HDMI_4_5V_DET
470 R386 C359
C338 0 AK27 T31 R379
DMD_DAC_OUT 1uF
0.47uF HDMI_4_RX_0 D0+_HDMI4 5.1K
AL30 T30 10V
6.3V OPT DMD_SIF_OUT D0-_HDMI4
HDMI_4_RX_0B
T32
HDMI_4_RX_1 D1+_HDMI4
AK28 DMD_ADC_INP T33
Close to IC101
ADC_I_INP HDMI_4_RX_1B D1-_HDMI4
AL28 DMD_ADC_INN R31
ADC_I_INN HDMI_4_RX_2 D2+_HDMI4
C352 0.1uF AN29 R30
DDR3 VENDOR OPTION DMD_ADC_INCOM
HDMI_4_RX_2B
U31
D2-_HDMI4
CK+_HDMI4
HDMI_4_RX_C
U30
HDMI_4_RX_CB CK-_HDMI4
+3.3V_NORMAL
4.7K
4.7K
R382
R384
DDR3_OPT1
DDR3_OPT2
4.7K
4.7K
DDC_SCL_3 TP321
DDC_SDA_3
OPT
OPT
TP322
HDMI_HPD_3 TP323
5V_HDMI_3_SOC TP324
R383
R385
D0+_HDMI3 TP325
D0-_HDMI3 TP326
D1+_HDMI3 TP327
D1-_HDMI3 TP328
D2+_HDMI3 TP329
HP_OUT
D2-_HDMI3 TP330
L308
BLM18PG121SN1D CK+_HDMI3 TP331
HP_LOUT CK-_HDMI3 TP332
HP_LOUT_AMP HP_OUT
C365
0.22uF
10V
AUDIO OUT
HP_OUT
L309
BLM18PG121SN1D
HP_ROUT R311 0
HP_ROUT_AMP HP_OUT HP_LOUT_MAIN AUDA_OUTL
C366
R303
0.22uF C305
22K
10V 0.01uF
50V
Place at JACK SIDE
R312 0
HP_ROUT_MAIN AUDA_OUTR
C306
R304
22K
0.01uF
50V
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS MID_LG1311 2014.05.28
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. M14+ Symbol C 3 31
M14-AV In/Out
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
PAGE 4
IC101 VREF_M0_0 +1.5V_DDR +1.5V_DDR
LG1311-C1
VREF_M0_1 VREF_M0_0 VREF_M0_1
R402
R415
1K 1%
1K 1%
A22
M0_DDR_VREF1
A3
M0_DDR_VREF2
0.1uF
0.1uF
1%
1%
E13
R403
R416
M0_DDR_A0 M0_DDR_A0
E11
M0_DDR_VREFCA M0_1_DDR_VREFCA
M0_DDR_A1
IC401 IC402
C401
C408
1K
1K
M0_DDR_A1
E15
M0_DDR_A2 M0_DDR_A2
E17
M0_DDR_A3 M0_DDR_A3 H5TQ4G63AFR-PBC H5TQ4G63AFR-PBC
D8
M0_DDR_A4 M0_DDR_A4 M0_DDR_VREFDQ M0_1_DDR_VREFDQ
D16
M0_DDR_A5 M0_DDR_A5
D9 DDR3 DDR3
M0_DDR_A6 M0_DDR_A6
E16
M0_DDR_A7
N3
A0
4Gbit M8 N3
4Gbit M8
M0_DDR_A7 M0_DDR_A0 VREFCA M0_DDR_A0 A0 VREFCA
M0_DDR_A8
E9
M0_DDR_A8 M0_DDR_A1
P7
A1 (x16) M0_DDR_A1
P7
A1 (x16)
E14 P3 DDR_512MB_HYNIX_1600_29n P3 DDR_512MB_HYNIX_1600_29n
M0_DDR_A9 M0_DDR_A9 M0_DDR_A2 A2 M0_DDR_A2 A2
D7 N2 H1 N2 H1
M0_DDR_A10 M0_DDR_A10 M0_DDR_A3 A3 VREFDQ M0_DDR_A3 A3 VREFDQ
D10 P8 P8
M0_DDR_A11 M0_DDR_A11 M0_DDR_A4 A4 +1.5V_DDR M0_DDR_A4 A4 +1.5V_DDR
D11 +1.5V_DDR P2 P2
M0_DDR_A12 M0_DDR_A12 M0_DDR_CKE M0_DDR_A5 A5 R418 M0_DDR_A5 A5 R419
D14 R8 L8 R8 L8
M0_DDR_A13 M0_DDR_A13 M0_DDR_A6 A6 ZQ M0_DDR_A6 A6 ZQ
E10 R2 240 R2 240
M0_DDR_A14 M0_DDR_A14 R417 M0_DDR_A7 A7 M0_DDR_A7 A7
E12 T8 1% T8 1%
M0_DDR_A15 M0_DDR_A15 10K M0_DDR_A8 A8 M0_DDR_A8 A8
OPT R404 R3 B2 R3 B2
M0_DDR_A9 A9 VDD_1 M0_DDR_A9 A9 VDD_1
D17 10K L7 D9 L7 D9
M0_DDR_BA0 M0_DDR_BA0 M0_DDR_A10 A10/AP VDD_2 M0_DDR_A10 A10/AP VDD_2
E8 R7 G7 R7 G7
M0_DDR_BA1 M0_DDR_BA1 M0_DDR_A11 A11 VDD_3 M0_DDR_A11 A11 VDD_3
D13 M0_DDR_RESET_N N7
A12/BC
K2 N7 K2
M0_DDR_BA2 M0_DDR_BA2 M0_DDR_A12 VDD_4 M0_DDR_A12 A12/BC VDD_4
T3 K8 T3 K8
M0_DDR_A13 A13 VDD_5 M0_DDR_A13 A13 VDD_5
C8 T7 N1 T7 N1
M0_DDR_U_CLKP M0_U_CLK M0_DDR_A14 A14 VDD_6 M0_DDR_A14 A14 VDD_6
B8 M7 N9 M7 N9
M0_DDR_U_CLKN M0_U_CLKN M0_DDR_A15 A15 VDD_7 M0_DDR_A15 A15 VDD_7
C17 R1 R1
M0_DDR_D_CLKP M0_D_CLK VDD_8 VDD_8
B17 M2 R9 M2 R9
M0_DDR_D_CLKN M0_D_CLKN M0_DDR_BA0 BA0 VDD_9 M0_DDR_BA0 BA0 VDD_9
D12 M0_D_CLK M0_U_CLK N8
BA1
N8
M0_DDR_CKE M0_DDR_CKE M0_DDR_BA1 M0_DDR_BA1 BA1
M3 M3
M0_DDR_BA2 BA2 M0_DDR_BA2
100
BA2
R405
E19 A1 A1
100
R410
M0_DDR_ODT M0_DDR_ODT VDDQ_1 VDDQ_1
D19 J7 A8 J7 A8
M0_DDR_RASN M0_DDR_RASN M0_D_CLK CK VDDQ_2 M0_U_CLK CK VDDQ_2
D18 K7 C1 K7 C1
M0_DDR_CASN M0_DDR_CASN M0_D_CLKN CK VDDQ_3 M0_U_CLKN CK VDDQ_3
E18 M0_D_CLKN M0_U_CLKN K9
CKE
C9 K9 C9
M0_DDR_WEN M0_DDR_WEN M0_DDR_CKE VDDQ_4 M0_DDR_CKE CKE VDDQ_4
D2 D2
VDDQ_5 VDDQ_5
D15 L2 E9 L2 E9
M0_DDR_RESET_N M0_DDR_RESET_N CS VDDQ_6 CS VDDQ_6
K1 F1 K1 F1
M0_DDR_ODT ODT VDDQ_7 M0_DDR_ODT ODT VDDQ_7
B18 J3 H2 C413 1uF J3 H2 C429 1uF
M0_DDR_DQS_P0 M0_DDR_DQS0 M0_DDR_RASN RAS VDDQ_8 M0_DDR_RASN RAS VDDQ_8
C18 K3 H9 C414 1uF K3 H9 C430 1uF
M0_DDR_DQS_N0 M0_DDR_DQS_N0 M0_DDR_CASN CAS VDDQ_9 M0_DDR_CASN CAS VDDQ_9
B16 L3 L3
M0_DDR_DQS_P1 M0_DDR_DQS1 M0_DDR_WEN WE M0_DDR_WEN WE
A16 J1 J1
M0_DDR_DQS_N1 M0_DDR_DQS_N1 NC_1 NC_1
B9 +1.5V_DDR +1.5V_DDR T2 J9 T2 J9
M0_DDR_DQS_P2 M0_DDR_DQS2 M0_DDR_RESET_N RESET NC_2 M0_DDR_RESET_N RESET NC_2
C9 L1 L1
M0_DDR_DQS_N2 M0_DDR_DQS_N2 NC_3 NC_3
B7 L9 L9
M0_DDR_DQS_P3 M0_DDR_DQS3 M0_DDR_VREFCA M0_1_DDR_VREFCA NC_4 NC_4
A7 F3 F3
M0_DDR_DQS_N3 M0_DDR_DQS_N3 M0_DDR_DQS0 DQSL M0_DDR_DQS2 DQSL
G3 G3
R411
1K 1%
M0_DDR_DQS_N0 M0_DDR_DQS_N2
R406
1K 1%
DQSL DQSL
A15
M0_DDR_DM0 M0_DDR_DM0
A18 C7 A9 C7 A9
M0_DDR_DM1 M0_DDR_DM1 M0_DDR_DQS1 DQSU VSS_1 M0_DDR_DQS3 DQSU VSS_1
A6 B7 B3 B7 B3
M0_DDR_DM2 M0_DDR_DM2 M0_DDR_DQS_N1 DQSU VSS_2 M0_DDR_DQS_N3 DQSU VSS_2
A9 E1 E1
M0_DDR_DM3 M0_DDR_DM3 VSS_3 VSS_3
E7 G8 E7 G8
1%
1%
M0_DDR_DM0 DML VSS_4 M0_DDR_DM2 DML VSS_4
B20 C406 D3 J2 D3 J2
R407
R412
M0_DDR_DQ0 M0_DDR_DQ0 C402 M0_DDR_DM1 DMU VSS_5 M0_DDR_DM3 DMU VSS_5
B13 0.1uF 0.1uF J8 J8
M0_DDR_DQ1 M0_DDR_DQ1 VSS_6 VSS_6
1K
1K
C21 E3 M1 E3 M1
M0_DDR_DQ2 M0_DDR_DQ2 M0_DDR_DQ0 DQL0 VSS_7 M0_DDR_DQ16 DQL0 VSS_7
C14 F7 M9 F7 M9
M0_DDR_DQ3 M0_DDR_DQ3 M0_DDR_DQ1 DQL1 VSS_8 M0_DDR_DQ17 DQL1 VSS_8
A21 F2 P1 F2 P1
M0_DDR_DQ4 M0_DDR_DQ4 M0_DDR_DQ2 DQL2 VSS_9 M0_DDR_DQ18 DQL2 VSS_9
A13 F8 P9 F8 P9
M0_DDR_DQ5 M0_DDR_DQ5 M0_DDR_DQ3 DQL3 VSS_10 M0_DDR_DQ19 DQL3 VSS_10
B21 H3 T1 H3 T1
M0_DDR_DQ6 M0_DDR_DQ6 M0_DDR_DQ4 DQL4 VSS_11 M0_DDR_DQ20 DQL4 VSS_11
C13 H8 T9 H8 T9
M0_DDR_DQ7 M0_DDR_DQ7 M0_DDR_DQ5 DQL5 VSS_12 M0_DDR_DQ21 DQL5 VSS_12
B14 G2 G2
M0_DDR_DQ8 M0_DDR_DQ8 M0_DDR_DQ6 DQL6 M0_DDR_DQ22 DQL6
B19 H7 H7
M0_DDR_DQ9 M0_DDR_DQ9 M0_DDR_DQ7 DQL7 M0_DDR_DQ23 DQL7
C15 B1 B1
M0_DDR_DQ10 M0_DDR_DQ10 VSSQ_1 VSSQ_1
C20 D7 B9 D7 B9
M0_DDR_DQ11 M0_DDR_DQ11 M0_DDR_DQ8 DQU0 VSSQ_2 M0_DDR_DQ24 DQU0 VSSQ_2
C16 C3 D1 C3 D1
M0_DDR_DQ12 M0_DDR_DQ12 M0_DDR_DQ9 DQU1 VSSQ_3 M0_DDR_DQ25 DQU1 VSSQ_3
A19 C8 D8 C8 D8
M0_DDR_DQ13 M0_DDR_DQ13 +1.5V_DDR +1.5V_DDR M0_DDR_DQ10 DQU2 VSSQ_4 M0_DDR_DQ26 DQU2 VSSQ_4
B15 C2 E2 C2 E2
M0_DDR_DQ14 M0_DDR_DQ14 M0_DDR_DQ11 DQU3 VSSQ_5 M0_DDR_DQ27 DQU3 VSSQ_5
C19 A7 E8 A7 E8
M0_DDR_DQ15 M0_DDR_DQ15 M0_DDR_DQ12 DQU4 VSSQ_6 M0_DDR_DQ28 DQU4 VSSQ_6
B11 M0_1_DDR_VREFDQ A2 F9 A2 F9
M0_DDR_DQ16 M0_DDR_DQ16 M0_DDR_VREFDQ M0_DDR_DQ13 DQU5 VSSQ_7 M0_DDR_DQ29 DQU5 VSSQ_7
C5 B8 G1 B8 G1
M0_DDR_DQ17 M0_DDR_DQ17 M0_DDR_DQ14 DQU6 VSSQ_8 M0_DDR_DQ30 DQU6 VSSQ_8
C12 A3 G9 A3 G9
R408
R413
1K 1%
1K 1%
M0_DDR_DQ18 M0_DDR_DQ18 M0_DDR_DQ15 DQU7 VSSQ_9 M0_DDR_DQ31 DQU7 VSSQ_9
B4
M0_DDR_DQ19 M0_DDR_DQ19
A12
M0_DDR_DQ20 M0_DDR_DQ20
A4
M0_DDR_DQ21 M0_DDR_DQ21
B12
0.1uF
0.1uF
M0_DDR_DQ22 M0_DDR_DQ22
1%
1%
C4
M0_DDR_DQ23 M0_DDR_DQ23
R409
R414
B5
M0_DDR_DQ24 M0_DDR_DQ24
B10
C403
1K
1K
M0_DDR_DQ25
C407
M0_DDR_DQ25
C6
M0_DDR_DQ26 M0_DDR_DQ26
C11
M0_DDR_DQ27 M0_DDR_DQ27
C7
M0_DDR_DQ28 M0_DDR_DQ28
A10
M0_DDR_DQ29 M0_DDR_DQ29
B6
M0_DDR_DQ30 M0_DDR_DQ30
C10
M0_DDR_DQ31 M0_DDR_DQ31 DDR3_512MB_MICRON_29nm_1600_14Y DDR3_512MB_HYNIX_25nm_1866_15Y DDR3_512MB_SS_25nm_1600_15Y
E7 R401 240
M0_DDR_ZQCAL
1%
IC401-*2 IC402-*2 IC401-*3 IC402-*3
H5TQ4G63CFR_RDC H5TQ4G63CFR_RDC K4B4G1646D-BCK0 K4B4G1646D-BCK0
IC402-*1
IC401-*1 MT41K256M16HA-125:E DDR_512MB_HYNIX_1866_25n DDR_512MB_HYNIX_1866_25n DDR_512MB_SS_1600_25n DDR_512MB_SS_1600_25n
MT41K256M16HA-125:E N3 M8 N3 M8 N3 M8 N3 M8
A0 VREFCA A0 VREFCA A0 VREFCA A0 VREFCA
DDR_512MB_MICRON P7 P7 P7 P7
N3 M8 A1 A1 A1 A1
DDR_512MB_MICRON P3 P3 P3 P3
N3 M8 A0 VREFCA
P7 A2 A2 A2 A2
A0 VREFCA A1 N2 H1 N2 H1 N2 H1 N2 H1
P7 P3 A3 VREFDQ A3 VREFDQ A3 VREFDQ A3 VREFDQ
A1 A2 P8 P8 P8 P8
P3 N2 H1 A4 A4 A4 A4
A2 A3 VREFDQ P2 P2 P2 P2
N2 H1 P8 A5 A5 A5 A5
A3 VREFDQ A4 R8 L8 R8 L8 R8 L8 R8 L8
P8 P2 A6 ZQ A6 ZQ A6 ZQ A6 ZQ
A4 A5 R2 R2 R2 R2
P2 R8 L8 A7 A7 A7 A7
A5 A6 ZQ T8 T8 T8 T8
R8 L8 R2 A8 A8 A8 A8
A6 ZQ A7 R3 B2 R3 B2 R3 B2 R3 B2
R2 T8 A9 VDD_1 A9 VDD_1 A9 VDD_1 A9 VDD_1
A7 A8 L7 D9 L7 D9 L7 D9 L7 D9
T8 R3 B2 A10/AP VDD_2 A10/AP VDD_2 A10/AP VDD_2 A10/AP VDD_2
A8 A9 VDD_1 R7 G7 R7 G7 R7 G7 R7 G7
R3 B2 L7 D9 A11 VDD_3 A11 VDD_3 A11 VDD_3 A11 VDD_3
A9 VDD_1 A10/AP VDD_2 N7 K2 N7 K2 N7 K2 N7 K2
L7 D9 R7 G7 A12/BC VDD_4 A12/BC VDD_4 A12/BC VDD_4 A12/BC VDD_4
A10/AP VDD_2 A11 VDD_3 T3 K8 T3 K8 T3 K8 T3 K8
R7 G7 N7 K2 A13 VDD_5 A13 VDD_5 A13 VDD_5 A13 VDD_5
A11 VDD_3 A12/BC VDD_4 T7 N1 T7 N1 T7 N1 T7 N1
N7 K2 T3 K8 A14 VDD_6 A14 VDD_6 A14 VDD_6 A14 VDD_6
A12/BC VDD_4 A13 VDD_5 M7 N9 M7 N9 M7 N9 M7 N9
T3 K8 N1 NC_5 VDD_7 NC_5 VDD_7 A15 VDD_7 A15 VDD_7
A13 VDD_5 VDD_6 R1 R1 R1 R1
N1 M7 N9 VDD_8 VDD_8 VDD_8 VDD_8
VDD_6 NC_5 VDD_7 M2 R9 M2 R9 M2 R9 M2 R9
M7 N9 R1 BA0 VDD_9 BA0 VDD_9 BA0 VDD_9 BA0 VDD_9
NC_5 VDD_7 VDD_8 N8 N8 N8 N8
R1 M2 R9 BA1 BA1 BA1 BA1
VDD_8 BA0 VDD_9 M3 M3 M3 M3
M2 R9 N8 BA2 BA2 BA2 BA2
BA0 VDD_9 BA1 A1 A1 A1 A1
N8 M3 VDDQ_1 VDDQ_1 VDDQ_1 VDDQ_1
BA1 BA2 J7 A8 J7 A8 J7 A8 J7 A8
M3 A1 CK VDDQ_2 CK VDDQ_2 CK VDDQ_2 CK VDDQ_2
BA2 VDDQ_1 K7 C1 K7 C1 K7 C1 K7 C1
A1 J7 A8 CK VDDQ_3 CK VDDQ_3 CK VDDQ_3 CK VDDQ_3
VDDQ_1 CK VDDQ_2 K9 C9 K9 C9 K9 C9 K9 C9
J7 A8 K7 C1 CKE VDDQ_4 CKE VDDQ_4 CKE VDDQ_4 CKE VDDQ_4
CK VDDQ_2 CK VDDQ_3 D2 D2 D2 D2
K7 C1 K9 C9 VDDQ_5 VDDQ_5 VDDQ_5 VDDQ_5
CK VDDQ_3 CKE VDDQ_4 L2 E9 L2 E9 L2 E9 L2 E9
K9 C9 D2 CS VDDQ_6 CS VDDQ_6 CS VDDQ_6 CS VDDQ_6
CKE VDDQ_4 VDDQ_5 K1 F1 K1 F1 K1 F1 K1 F1
D2 L2 E9 ODT VDDQ_7 ODT VDDQ_7 ODT VDDQ_7 ODT VDDQ_7
VDDQ_5 CS VDDQ_6 J3 H2 J3 H2 J3 H2 J3 H2
L2 E9 K1 F1 RAS VDDQ_8 RAS VDDQ_8 RAS VDDQ_8 RAS VDDQ_8
CS VDDQ_6 ODT VDDQ_7 K3 H9 K3 H9 K3 H9 K3 H9
K1 F1 J3 H2 CAS VDDQ_9 CAS VDDQ_9 CAS VDDQ_9 CAS VDDQ_9
ODT VDDQ_7 RAS VDDQ_8 L3 L3 L3 L3
J3 H2 K3 H9 WE WE WE WE
RAS VDDQ_8 CAS VDDQ_9 J1 J1 J1 J1
K3 H9 L3 NC_1 NC_1 NC_1 NC_1
CAS VDDQ_9 WE T2 J9 T2 J9 T2 J9 T2 J9
L3 J1 RESET NC_2 RESET NC_2 RESET NC_2 RESET NC_2
WE NC_1 L1 L1 L1 L1
J1 T2 J9 NC_3 NC_3 NC_3 NC_3
NC_1 RESET NC_2 L9 L9 L9 L9
T2 J9 L1 NC_4 NC_4 NC_4 NC_4
RESET NC_2 NC_3 F3 F3 F3 F3
L1 L9 DQSL DQSL DQSL DQSL
NC_3 NC_4 G3 G3 G3 G3
L9 F3 T7 DQSL DQSL DQSL DQSL
NC_4 DQSL A14
F3 T7 G3
DQSL A14 DQSL C7 A9 C7 A9 C7 A9 C7 A9
G3 DQSU VSS_1 DQSU VSS_1 DQSU VSS_1 DQSU VSS_1
DQSL B7 B3 B7 B3 B7 B3 B7 B3
C7 A9 DQSU VSS_2 DQSU VSS_2 DQSU VSS_2 DQSU VSS_2
DQSU VSS_1 E1 E1 E1 E1
C7 A9 B7 B3 VSS_3 VSS_3 VSS_3 VSS_3
DQSU VSS_1 DQSU VSS_2 E7 G8 E7 G8 E7 G8 E7 G8
B7 B3 E1 DML VSS_4 DML VSS_4 DML VSS_4 DML VSS_4
DQSU VSS_2 VSS_3 D3 J2 D3 J2 D3 J2 D3 J2
E1 E7 G8 DMU VSS_5 DMU VSS_5 DMU VSS_5 DMU VSS_5
VSS_3 DML VSS_4 J8 J8 J8 J8
E7 G8 D3 J2 VSS_6 VSS_6 VSS_6 VSS_6
DML VSS_4 DMU VSS_5 E3 M1 E3 M1 E3 M1 E3 M1
D3 J2 J8 DQL0 VSS_7 DQL0 VSS_7 DQL0 VSS_7 DQL0 VSS_7
DMU VSS_5 VSS_6 F7 M9 F7 M9 F7 M9 F7 M9
J8 E3 M1 DQL1 VSS_8 DQL1 VSS_8 DQL1 VSS_8 DQL1 VSS_8
VSS_6 DQ0 VSS_7 F2 P1 F2 P1 F2 P1 F2 P1
E3 M1 F7 M9 DQL2 VSS_9 DQL2 VSS_9 DQL2 VSS_9 DQL2 VSS_9
DQ0 VSS_7 DQ1 VSS_8 F8 P9 F8 P9 F8 P9 F8 P9
F7 M9 F2 P1 DQL3 VSS_10 DQL3 VSS_10 DQL3 VSS_10 DQL3 VSS_10
DQ1 VSS_8 DQ2 VSS_9 H3 T1 H3 T1 H3 T1 H3 T1
F2 P1 F8 P9 DQL4 VSS_11 DQL4 VSS_11 DQL4 VSS_11 DQL4 VSS_11
DQ2 VSS_9 DQ3 VSS_10 H8 T9 H8 T9 H8 T9 H8 T9
F8 P9 H3 T1 DQL5 VSS_12 DQL5 VSS_12 DQL5 VSS_12 DQL5 VSS_12
DQ3 VSS_10 DQ4 VSS_11 G2 G2 G2 G2
H3 T1 H8 T9 DQL6 DQL6 DQL6 DQL6
DQ4 VSS_11 DQ5 VSS_12 H7 H7 H7 H7
H8 T9 G2 DQL7 DQL7 DQL7 DQL7
DQ5 VSS_12 DQ6 B1 B1 B1 B1
G2 H7 VSSQ_1 VSSQ_1 VSSQ_1 VSSQ_1
DQ6 DQ7 D7 B9 D7 B9 D7 B9 D7 B9
H7 B1 DQU0 VSSQ_2 DQU0 VSSQ_2 DQU0 VSSQ_2 DQU0 VSSQ_2
DQ7 VSSQ_1 C3 D1 C3 D1 C3 D1 C3 D1
B1 D7 B9 DQU1 VSSQ_3 DQU1 VSSQ_3 DQU1 VSSQ_3 DQU1 VSSQ_3
VSSQ_1 DQ8 VSSQ_2 C8 D8 C8 D8 C8 D8 C8 D8
D7 B9 C3 D1 DQU2 VSSQ_4 DQU2 VSSQ_4 DQU2 VSSQ_4 DQU2 VSSQ_4
DQ8 VSSQ_2 DQ9 VSSQ_3 C2 E2 C2 E2 C2 E2 C2 E2
C3 D1 C8 D8 DQU3 VSSQ_5 DQU3 VSSQ_5 DQU3 VSSQ_5 DQU3 VSSQ_5
DQ9 VSSQ_3 DQ10 VSSQ_4 A7 E8 A7 E8 A7 E8 A7 E8
C8 D8 C2 E2 DQU4 VSSQ_6 DQU4 VSSQ_6 DQU4 VSSQ_6 DQU4 VSSQ_6
DQ10 VSSQ_4 DQ11 VSSQ_5 A2 F9 A2 F9 A2 F9 A2 F9
C2 E2 A7 E8 DQU5 VSSQ_7 DQU5 VSSQ_7 DQU5 VSSQ_7 DQU5 VSSQ_7
DQ11 VSSQ_5 DQ12 VSSQ_6 B8 G1 B8 G1 B8 G1 B8 G1
A7 E8 A2 F9 DQU6 VSSQ_8 DQU6 VSSQ_8 DQU6 VSSQ_8 DQU6 VSSQ_8
DQ12 VSSQ_6 DQ13 VSSQ_7 A3 G9 A3 G9 A3 G9 A3 G9
A2 F9 B8 G1 DQU7 VSSQ_9 DQU7 VSSQ_9 DQU7 VSSQ_9 DQU7 VSSQ_9
DQ13 VSSQ_7 DQ14 VSSQ_8
B8 G1 A3 G9
DQ14 VSSQ_8 DQ15 VSSQ_9
A3 G9
DQ15 VSSQ_9
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS MID_LG1311 2014.05.28
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. M14+ DDR3-M0 4 31
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
PAGE 5
VREF_M1_0 +1.5V_DDR
IC101 +1.5V_DDR
LG1311-C1
VREF_M1_1 VREF_M1_0 VREF_M1_1
R508
R515
1K 1%
1K 1%
A2
M1_DDR_VREF1
Y1
M1_DDR_VREF2
+1.5V_DDR
1%
1%
+1.5V_DDR
0.1uF
0.1uF
1_2Gbit : T7(NC_6)
C501
C506
M5
R509
R516
M1_DDR_A0 M1_DDR_A0
N5
M1_DDR_A1 4Gbit : T7(A14)
1K
1K
M1_DDR_A1
M1_DDR_A2
K5
M1_DDR_A2
IC501 IC502
H5 M1_DDR_VREFCA M1_1_DDR_VREFCA
M1_DDR_A3 M1_DDR_A3
T4 H5TQ4G63AFR-PBC H5TQ4G63AFR-PBC
M1_DDR_A4 M1_DDR_A4
H4
M1_DDR_A5 M1_DDR_A5
R4 M1_DDR_VREFDQ M1_1_DDR_VREFDQ
M1_DDR_A6 M1_DDR_A6
J5
M1_DDR_A7 M1_DDR_A0
N3 DDR3 M8
M1_DDR_A0
N3 DDR3 M8
M1_DDR_A7 A0 VREFCA A0 VREFCA
M1_DDR_A8
T5
M1_DDR_A8 M1_DDR_A1
P7
A1
4Gbit M1_DDR_A1
P7
A1
4Gbit
L5 P3 DDR_512MB_HYNIX_1600_29n P3 DDR_512MB_HYNIX_1600_29n
M1_DDR_A9 M1_DDR_A9 M1_DDR_A2 A2 M1_DDR_A2 A2
U4 N2 H1 N2 H1
M1_DDR_A10 M1_DDR_A10 M1_DDR_A3 A3 VREFDQ M1_DDR_A3 A3 VREFDQ
P4 P8 P8
M1_DDR_A11 M1_DDR_A11 M1_DDR_A4 A4 M1_DDR_A4 A4
P5 P2 P2
M1_DDR_A12 M1_DDR_A12 M1_DDR_A5 A5 M1_DDR_A5 A5
K4 +1.5V_DDR R8 L8 R518 240 R8 L8 R519 240
M1_DDR_A13 M1_DDR_A13 M1_DDR_CKE M1_DDR_A6 A6 ZQ M1_DDR_A6 A6 ZQ
R5 R2 R2
M1_DDR_A14 M1_DDR_A14 M1_DDR_A7 A7 M1_DDR_A7 A7
+1.5V_DDR
+1.5V_DDR
N4 T8 T8
M1_DDR_A15 M1_DDR_A15 R517 M1_DDR_A8 A8 M1_DDR_A8 A8
R3 B2 R3 B2
10K M1_DDR_A9 A9 VDD_1 M1_DDR_A9 A9 VDD_1
: Place these caps near Memory
G4 OPT R502 L7 D9 L7 D9
: Place these caps near Memory
M1_DDR_BA0 M1_DDR_BA0 M1_DDR_A10 A10/AP VDD_2 M1_DDR_A10 A10/AP VDD_2
U5 10K R7 G7 R7 G7
M1_DDR_BA1 M1_DDR_BA1 M1_DDR_A11 A11 VDD_3 M1_DDR_A11 A11 VDD_3
L4 N7 K2 N7 K2
M1_DDR_BA2 M1_DDR_BA2 M1_DDR_A12 A12/BC VDD_4 M1_DDR_A12 A12/BC VDD_4
M1_DDR_RESET_N T3 K8 T3 K8
M1_DDR_A13 A13 VDD_5 M1_DDR_A13 A13 VDD_5
R3 T7 N1 T7 N1
M1_DDR_U_CLKP M1_U_CLK M1_DDR_A14 A14 VDD_6 M1_DDR_A14 A14 VDD_6
R2 M7 N9 M7 N9
M1_DDR_U_CLKN M1_U_CLKN M1_DDR_A15 A15 VDD_7 M1_DDR_A15 A15 VDD_7
F3 R1 R1
M1_D_CLK
DDR3 1.5V bypass Cap
M1_DDR_D_CLKP VDD_8 VDD_8
F2 M2 R9 M2 R9
DDR3 1.5V bypass Cap
M1_DDR_D_CLKN M1_D_CLKN M1_DDR_BA0 BA0 VDD_9 M1_DDR_BA0 BA0 VDD_9
M4 N8 N8
M1_DDR_CKE M1_DDR_CKE M1_DDR_BA1 BA1 M1_DDR_BA1 BA1
M1_D_CLK M1_U_CLK M3 M3
M1_DDR_BA2 BA2 M1_DDR_BA2 BA2
F5 A1 A1
M1_DDR_ODT M1_DDR_ODT VDDQ_1 VDDQ_1
100
E4 J7 A8 J7 A8
R503
100
M1_DDR_RASN M1_DDR_RASN M1_D_CLK CK VDDQ_2 M1_U_CLK CK VDDQ_2
R510
F4 K7 C1 K7 C1
M1_DDR_CASN M1_DDR_CASN M1_D_CLKN CK VDDQ_3 M1_U_CLKN CK VDDQ_3
G5 K9 C9 K9 C9
M1_DDR_WEN M1_DDR_WEN M1_DDR_CKE CKE VDDQ_4 M1_DDR_CKE CKE VDDQ_4
M1_D_CLKN M1_U_CLKN D2 D2
VDDQ_5 VDDQ_5
J4 L2 E9 L2 E9
M1_DDR_RESET_N M1_DDR_RESET_N CS VDDQ_6 CS VDDQ_6
K1 F1 K1 F1
M1_DDR_ODT ODT VDDQ_7 M1_DDR_ODT ODT VDDQ_7
E2 J3 H2 C524 1uF J3 H2 C540 1uF
M1_DDR_DQS_P0 M1_DDR_DQS0 M1_DDR_RASN RAS VDDQ_8 M1_DDR_RASN RAS VDDQ_8
E3 K3 H9 K3 H9
M1_DDR_DQS_N0 M1_DDR_DQS_N0 M1_DDR_CASN CAS VDDQ_9 C525 1uF M1_DDR_CASN CAS VDDQ_9 C541 1uF
G2 L3 L3
M1_DDR_DQS_P1 M1_DDR_DQS1 M1_DDR_WEN WE M1_DDR_WEN WE
G1 J1 J1
M1_DDR_DQS_N1 M1_DDR_DQS_N1 NC_1 NC_1
P2 +1.5V_DDR +1.5V_DDR T2 J9 T2 J9
M1_DDR_DQS_P2 M1_DDR_DQS2 M1_DDR_RESET_N RESET NC_2 M1_DDR_RESET_N RESET NC_2
P3 L1 L1
M1_DDR_DQS_N2 M1_DDR_DQS_N2 NC_3 NC_3
T2 L9 L9
M1_DDR_DQS_P3 M1_DDR_DQS3 M1_DDR_VREFCA M1_1_DDR_VREFCA NC_4 NC_4
T1 F3 F3
M1_DDR_DQS_N3 M1_DDR_DQS_N3 M1_DDR_DQS0 DQSL M1_DDR_DQS2 DQSL
G3 G3
R511
1K 1%
M1_DDR_DQS_N0 M1_DDR_DQS_N2
R504
1K 1%
DQSL DQSL
H1
M1_DDR_DM0 M1_DDR_DM0
E1 C7 A9 C7 A9
M1_DDR_DM1 M1_DDR_DM1 M1_DDR_DQS1 DQSU VSS_1 M1_DDR_DQS3 DQSU VSS_1
U1 B7 B3 B7 B3
M1_DDR_DM2 M1_DDR_DM2 M1_DDR_DQS_N1 DQSU VSS_2 M1_DDR_DQS_N3 DQSU VSS_2
P1 E1 E1
M1_DDR_DM3 M1_DDR_DM3 VSS_3 VSS_3
E7 G8 E7 G8
1%
1%
M1_DDR_DM0 DML VSS_4 M1_DDR_DM2 DML VSS_4
C2 C507 D3 J2 D3 J2
R505
R512
M1_DDR_DQ0 M1_DDR_DQ0 C502 M1_DDR_DM1 DMU VSS_5 M1_DDR_DM3 DMU VSS_5
K2 0.1uF 0.1uF J8 J8
M1_DDR_DQ1 M1_DDR_DQ1 VSS_6 VSS_6
1K
1K
B3 E3 M1 E3 M1
M1_DDR_DQ2 M1_DDR_DQ2 M1_DDR_DQ0 DQL0 VSS_7 M1_DDR_DQ16 DQL0 VSS_7
J3 F7 M9 F7 M9
M1_DDR_DQ3 M1_DDR_DQ3 M1_DDR_DQ1 DQL1 VSS_8 M1_DDR_DQ17 DQL1 VSS_8
B1 F2 P1 F2 P1
M1_DDR_DQ4 M1_DDR_DQ4 M1_DDR_DQ2 DQL2 VSS_9 M1_DDR_DQ18 DQL2 VSS_9
K1 F8 P9 F8 P9
M1_DDR_DQ5 M1_DDR_DQ5 M1_DDR_DQ3 DQL3 VSS_10 M1_DDR_DQ19 DQL3 VSS_10
B2 H3 T1 H3 T1
M1_DDR_DQ6 M1_DDR_DQ6 M1_DDR_DQ4 DQL4 VSS_11 M1_DDR_DQ20 DQL4 VSS_11
K3 H8 T9 H8 T9
M1_DDR_DQ7 M1_DDR_DQ7 M1_DDR_DQ5 DQL5 VSS_12 M1_DDR_DQ21 DQL5 VSS_12
J2 G2 G2
M1_DDR_DQ8 M1_DDR_DQ8 M1_DDR_DQ6 DQL6 M1_DDR_DQ22 DQL6
D2 H7 H7
M1_DDR_DQ9 M1_DDR_DQ9 M1_DDR_DQ7 DQL7 M1_DDR_DQ23 DQL7
H3 B1 B1
M1_DDR_DQ10 M1_DDR_DQ10 VSSQ_1 VSSQ_1
C3 D7 B9 D7 B9
M1_DDR_DQ11 M1_DDR_DQ11 M1_DDR_DQ8 DQU0 VSSQ_2 M1_DDR_DQ24 DQU0 VSSQ_2
G3 C3 D1 C3 D1
M1_DDR_DQ12 M1_DDR_DQ12 M1_DDR_DQ9 DQU1 VSSQ_3 M1_DDR_DQ25 DQU1 VSSQ_3
D1 C8 D8 C8 D8
M1_DDR_DQ13 M1_DDR_DQ13 M1_DDR_DQ10 DQU2 VSSQ_4 M1_DDR_DQ26 DQU2 VSSQ_4
H2 C2 E2 C2 E2
M1_DDR_DQ14 M1_DDR_DQ14 M1_DDR_DQ11 DQU3 VSSQ_5 M1_DDR_DQ27 DQU3 VSSQ_5
D3
M1_DDR_DQ15
+1.5V_DDR +1.5V_DDR A7 E8 A7 E8
M1_DDR_DQ15 M1_DDR_DQ12 DQU4 VSSQ_6 M1_DDR_DQ28 DQU4 VSSQ_6
M2 A2 F9 A2 F9
M1_DDR_DQ16 M1_DDR_DQ16 M1_DDR_DQ13 DQU5 VSSQ_7 M1_DDR_DQ29 DQU5 VSSQ_7
V3 B8 G1 B8 G1
M1_DDR_DQ17 M1_DDR_DQ17 M1_DDR_VREFDQ M1_1_DDR_VREFDQ M1_DDR_DQ14 DQU6 VSSQ_8 M1_DDR_DQ30 DQU6 VSSQ_8
L3 A3 G9 A3 G9
M1_DDR_DQ18 M1_DDR_DQ18 M1_DDR_DQ15 DQU7 VSSQ_9 M1_DDR_DQ31 DQU7 VSSQ_9
W2
R506
R513
1K 1%
1K 1%
M1_DDR_DQ19 M1_DDR_DQ19
L1
M1_DDR_DQ20 M1_DDR_DQ20
W1
M1_DDR_DQ21 M1_DDR_DQ21
L2
M1_DDR_DQ22 M1_DDR_DQ22
W3
0.1uF
0.1uF
M1_DDR_DQ23 M1_DDR_DQ23
V2
1%
1%
M1_DDR_DQ24 M1_DDR_DQ24
N2
R507
R514
M1_DDR_DQ25 M1_DDR_DQ25
U3
M1_DDR_DQ26
C503
1K
1K
M1_DDR_DQ26
C508
M3
M1_DDR_DQ27 M1_DDR_DQ27
T3
M1_DDR_DQ28 M1_DDR_DQ28
N1
M1_DDR_DQ29 M1_DDR_DQ29
U2 DDR3_512MB_SS_1600_25nm_15Y DDR3_512MB_HYNIX_1866_25nm_15Y DDR3_512MB_MICRON_1600_29nm_14Y DDR3_256MB_HYNIX_1600_29nm_14Y DDR3_256MB_MICRON_1600_29nm_14Y DDR3_256MB_SS_1600_35nm_15Y
M1_DDR_DQ30 M1_DDR_DQ30
N3
M1_DDR_DQ31 M1_DDR_DQ31
E5 R501 240 IC501-*6 IC502-*6 IC501-*4 IC502-*4 IC501-*1 IC502-*1 IC501-*2 IC502-*2 IC501-*3 IC502-*3 IC501-*5 IC502-*5
K4B4G1646D-BCK0 K4B4G1646D-BCK0 H5TQ4G63CFR_RDC H5TQ4G63CFR_RDC MT41K256M16HA-125:E MT41K256M16HA-125:E H5TQ2G63FFR-PBC H5TQ2G63FFR-PBC MT41K128M16JT-125:K MT41K128M16JT-125:K K4B2G1646Q-BCK0 K4B2G1646Q-BCK0
M1_DDR_ZQCAL
1% N3
DDR_512MB_SAMSUNG_1600_25n
A0 VREFCA
M8 N3
DDR_512MB_SAMSUNG_1600_25n
A0 VREFCA
M8 N3
DDR_512MB_HYNIX_1866_25n
A0 VREFCA
M8 N3
DDR_512MB_HYNIX_1866_25n
A0 VREFCA
M8 N3
A0
DDR_512MB_MICRON
VREFCA
M8 N3
A0
DDR_512MB_MICRON
VREFCA
M8 N3
DDR_256MB_HYNIX_1600_29n
A0 VREFCA
M8 N3
DDR_256MB_HYNIX_1600_29n
A0 VREFCA
M8 N3
A0
DDR_256MB_MICRON
VREFCA
M8 N3
A0
DDR_256MB_MICRON
VREFCA
M8 N3
DDR_256MB_SS_1600_35n
A0 VREFCA
M8 N3
DDR_256MB_SS_1600_35n
A0 VREFCA
M8
P7 P7 P7 P7 P7 P7 P7 P7 P7 P7 P7 P7
A1 A1 A1 A1 A1 A1 A1 A1 A1 A1 A1 A1
P3 P3 P3 P3 P3 P3 P3 P3 P3 P3 P3 P3
A2 A2 A2 A2 A2 A2 A2 A2 A2 A2 A2 A2
N2 H1 N2 H1 N2 H1 N2 H1 N2 H1 N2 H1 N2 H1 N2 H1 N2 H1 N2 H1 N2 H1 N2 H1
A3 VREFDQ A3 VREFDQ A3 VREFDQ A3 VREFDQ A3 VREFDQ A3 VREFDQ A3 VREFDQ A3 VREFDQ A3 VREFDQ A3 VREFDQ A3 VREFDQ A3 VREFDQ
P8 P8 P8 P8 P8 P8 P8 P8 P8 P8 P8 P8
A4 A4 A4 A4 A4 A4 A4 A4 A4 A4 A4 A4
P2 P2 P2 P2 P2 P2 P2 P2 P2 P2 P2 P2
A5 A5 A5 A5 A5 A5 A5 A5 A5 A5 A5 A5
R8 L8 R8 L8 R8 L8 R8 L8 R8 L8 R8 L8 R8 L8 R8 L8 R8 L8 R8 L8 R8 L8 R8 L8
A6 ZQ A6 ZQ A6 ZQ A6 ZQ A6 ZQ A6 ZQ A6 ZQ A6 ZQ A6 ZQ A6 ZQ A6 ZQ A6 ZQ
R2 R2 R2 R2 R2 R2 R2 R2 R2 R2 R2 R2
A7 A7 A7 A7 A7 A7 A7 A7 A7 A7 A7 A7
T8 T8 T8 T8 T8 T8 T8 T8 T8 T8 T8 T8
A8 A8 A8 A8 A8 A8 A8 A8 A8 A8 A8 A8
R3 B2 R3 B2 R3 B2 R3 B2 R3 B2 R3 B2 R3 B2 R3 B2 R3 B2 R3 B2 R3 B2 R3 B2
A9 VDD_1 A9 VDD_1 A9 VDD_1 A9 VDD_1 A9 VDD_1 A9 VDD_1 A9 VDD_1 A9 VDD_1 A9 VDD_1 A9 VDD_1 A9 VDD_1 A9 VDD_1
L7 D9 L7 D9 L7 D9 L7 D9 L7 D9 L7 D9 L7 D9 L7 D9 L7 D9 L7 D9 L7 D9 L7 D9
A10/AP VDD_2 A10/AP VDD_2 A10/AP VDD_2 A10/AP VDD_2 A10/AP VDD_2 A10/AP VDD_2 A10/AP VDD_2 A10/AP VDD_2 A10/AP VDD_2 A10/AP VDD_2 A10/AP VDD_2 A10/AP VDD_2
R7 G7 R7 G7 R7 G7 R7 G7 R7 G7 R7 G7 R7 G7 R7 G7 R7 G7 R7 G7 R7 G7 R7 G7
A11 VDD_3 A11 VDD_3 A11 VDD_3 A11 VDD_3 A11 VDD_3 A11 VDD_3 A11 VDD_3 A11 VDD_3 A11 VDD_3 A11 VDD_3 A11 VDD_3 A11 VDD_3
N7 K2 N7 K2 N7 K2 N7 K2 N7 K2 N7 K2 N7 K2 N7 K2 N7 K2 N7 K2 N7 K2 N7 K2
A12/BC VDD_4 A12/BC VDD_4 A12/BC VDD_4 A12/BC VDD_4 A12/BC VDD_4 A12/BC VDD_4 A12/BC VDD_4 A12/BC VDD_4 A12/BC VDD_4 A12/BC VDD_4 A12/BC VDD_4 A12/BC VDD_4
T3 K8 T3 K8 T3 K8 T3 K8 T3 K8 T3 K8 T3 K8 T3 K8 T3 K8 T3 K8 T3 K8 T3 K8
A13 VDD_5 A13 VDD_5 A13 VDD_5 A13 VDD_5 A13 VDD_5 A13 VDD_5 A13 VDD_5 A13 VDD_5 A13 VDD_5 A13 VDD_5 A13 VDD_5 A13 VDD_5
T7 N1 T7 N1 T7 N1 T7 N1 N1 N1 N1 N1 N1 N1 N1 N1
A14 VDD_6 A14 VDD_6 A14 VDD_6 A14 VDD_6 VDD_6 VDD_6 VDD_6 VDD_6 VDD_6 VDD_6 VDD_6 VDD_6
M7 N9 M7 N9 M7 N9 M7 N9 M7 N9 M7 N9 M7 N9 M7 N9 M7 N9 M7 N9 M7 N9 M7 N9
A15 VDD_7 A15 VDD_7 NC_5 VDD_7 NC_5 VDD_7 NC_5 VDD_7 NC_5 VDD_7 NC_5 VDD_7 NC_5 VDD_7 NC_5 VDD_7 NC_5 VDD_7 NC_5 VDD_7 NC_5 VDD_7
R1 R1 R1 R1 R1 R1 R1 R1 R1 R1 R1 R1
VDD_8 VDD_8 VDD_8 VDD_8 VDD_8 VDD_8 VDD_8 VDD_8 VDD_8 VDD_8 VDD_8 VDD_8
M2 R9 M2 R9 M2 R9 M2 R9 M2 R9 M2 R9 M2 R9 M2 R9 M2 R9 M2 R9 M2 R9 M2 R9
BA0 VDD_9 BA0 VDD_9 BA0 VDD_9 BA0 VDD_9 BA0 VDD_9 BA0 VDD_9 BA0 VDD_9 BA0 VDD_9 BA0 VDD_9 BA0 VDD_9 BA0 VDD_9 BA0 VDD_9
N8 N8 N8 N8 N8 N8 N8 N8 N8 N8 N8 N8
BA1 BA1 BA1 BA1 BA1 BA1 BA1 BA1 BA1 BA1 BA1 BA1
M3 M3 M3 M3 M3 M3 M3 M3 M3 M3 M3 M3
BA2 BA2 BA2 BA2 BA2 BA2 BA2 BA2 BA2 BA2 BA2 BA2
A1 A1 A1 A1 A1 A1 A1 A1 A1 A1 A1 A1
VDDQ_1 VDDQ_1 VDDQ_1 VDDQ_1 VDDQ_1 VDDQ_1 VDDQ_1 VDDQ_1 VDDQ_1 VDDQ_1 VDDQ_1 VDDQ_1
J7 A8 J7 A8 J7 A8 J7 A8 J7 A8 J7 A8 J7 A8 J7 A8 J7 A8 J7 A8 J7 A8 J7 A8
CK VDDQ_2 CK VDDQ_2 CK VDDQ_2 CK VDDQ_2 CK VDDQ_2 CK VDDQ_2 CK VDDQ_2 CK VDDQ_2 CK VDDQ_2 CK VDDQ_2 CK VDDQ_2 CK VDDQ_2
K7 C1 K7 C1 K7 C1 K7 C1 K7 C1 K7 C1 K7 C1 K7 C1 K7 C1 K7 C1 K7 C1 K7 C1
CK VDDQ_3 CK VDDQ_3 CK VDDQ_3 CK VDDQ_3 CK VDDQ_3 CK VDDQ_3 CK VDDQ_3 CK VDDQ_3 CK VDDQ_3 CK VDDQ_3 CK VDDQ_3 CK VDDQ_3
K9 C9 K9 C9 K9 C9 K9 C9 K9 C9 K9 C9 K9 C9 K9 C9 K9 C9 K9 C9 K9 C9 K9 C9
CKE VDDQ_4 CKE VDDQ_4 CKE VDDQ_4 CKE VDDQ_4 CKE VDDQ_4 CKE VDDQ_4 CKE VDDQ_4 CKE VDDQ_4 CKE VDDQ_4 CKE VDDQ_4 CKE VDDQ_4 CKE VDDQ_4
D2 D2 D2 D2 D2 D2 D2 D2 D2 D2 D2 D2
VDDQ_5 VDDQ_5 VDDQ_5 VDDQ_5 VDDQ_5 VDDQ_5 VDDQ_5 VDDQ_5 VDDQ_5 VDDQ_5 VDDQ_5 VDDQ_5
L2 E9 L2 E9 L2 E9 L2 E9 L2 E9 L2 E9 L2 E9 L2 E9 L2 E9 L2 E9 L2 E9 L2 E9
CS VDDQ_6 CS VDDQ_6 CS VDDQ_6 CS VDDQ_6 CS VDDQ_6 CS VDDQ_6 CS VDDQ_6 CS VDDQ_6 CS VDDQ_6 CS VDDQ_6 CS VDDQ_6 CS VDDQ_6
K1 F1 K1 F1 K1 F1 K1 F1 K1 F1 K1 F1 K1 F1 K1 F1 K1 F1 K1 F1 K1 F1 K1 F1
ODT VDDQ_7 ODT VDDQ_7 ODT VDDQ_7 ODT VDDQ_7 ODT VDDQ_7 ODT VDDQ_7 ODT VDDQ_7 ODT VDDQ_7 ODT VDDQ_7 ODT VDDQ_7 ODT VDDQ_7 ODT VDDQ_7
J3 H2 J3 H2 J3 H2 J3 H2 J3 H2 J3 H2 J3 H2 J3 H2 J3 H2 J3 H2 J3 H2 J3 H2
RAS VDDQ_8 RAS VDDQ_8 RAS VDDQ_8 RAS VDDQ_8 RAS VDDQ_8 RAS VDDQ_8 RAS VDDQ_8 RAS VDDQ_8 RAS VDDQ_8 RAS VDDQ_8 RAS VDDQ_8 RAS VDDQ_8
K3 H9 K3 H9 K3 H9 K3 H9 K3 H9 K3 H9 K3 H9 K3 H9 K3 H9 K3 H9 K3 H9 K3 H9
CAS VDDQ_9 CAS VDDQ_9 CAS VDDQ_9 CAS VDDQ_9 CAS VDDQ_9 CAS VDDQ_9 CAS VDDQ_9 CAS VDDQ_9 CAS VDDQ_9 CAS VDDQ_9 CAS VDDQ_9 CAS VDDQ_9
L3 L3 L3 L3 L3 L3 L3 L3 L3 L3 L3 L3
WE WE WE WE WE WE WE WE WE WE WE WE
J1 J1 J1 J1 J1 J1 J1 J1 J1 J1 J1 J1
NC_1 NC_1 NC_1 NC_1 NC_1 NC_1 NC_1 NC_1 NC_1 NC_1 NC_1 NC_1
T2 J9 T2 J9 T2 J9 T2 J9 T2 J9 T2 J9 T2 J9 T2 J9 T2 J9 T2 J9 T2 J9 T2 J9
RESET NC_2 RESET NC_2 RESET NC_2 RESET NC_2 RESET NC_2 RESET NC_2 RESET NC_2 RESET NC_2 RESET NC_2 RESET NC_2 RESET NC_2 RESET NC_2
L1 L1 L1 L1 L1 L1 L1 L1 L1 L1 L1 L1
NC_3 NC_3 NC_3 NC_3 NC_3 NC_3 NC_3 NC_3 NC_3 NC_3 NC_3 NC_3
L9 L9 L9 L9 L9 L9 L9 L9 L9 L9 L9 L9
NC_4 NC_4 NC_4 NC_4 NC_4 NC_4 NC_4 NC_4 NC_4 NC_4 NC_4 NC_4
F3 F3 F3 F3 F3 T7 F3 T7 F3 T7 F3 T7 F3 T7 F3 T7 F3 T7 F3 T7
DQSL DQSL DQSL DQSL DQSL A14 DQSL A14 DQSL NC_6 DQSL NC_6 DQSL NC_6 DQSL NC_6 DQSL NC_6 DQSL NC_6
G3 G3 G3 G3 G3 G3 G3 G3 G3 G3 G3 G3
DQSL DQSL DQSL DQSL DQSL DQSL DQSL DQSL DQSL DQSL DQSL DQSL
C7 A9 C7 A9 C7 A9 C7 A9 C7 A9 C7 A9 C7 A9 C7 A9 C7 A9 C7 A9 C7 A9 C7 A9
DQSU VSS_1 DQSU VSS_1 DQSU VSS_1 DQSU VSS_1 DQSU VSS_1 DQSU VSS_1 DQSU VSS_1 DQSU VSS_1 DQSU VSS_1 DQSU VSS_1 DQSU VSS_1 DQSU VSS_1
B7 B3 B7 B3 B7 B3 B7 B3 B7 B3 B7 B3 B7 B3 B7 B3 B7 B3 B7 B3 B7 B3 B7 B3
DQSU VSS_2 DQSU VSS_2 DQSU VSS_2 DQSU VSS_2 DQSU VSS_2 DQSU VSS_2 DQSU VSS_2 DQSU VSS_2 DQSU VSS_2 DQSU VSS_2 DQSU VSS_2 DQSU VSS_2
E1 E1 E1 E1 E1 E1 E1 E1 E1 E1 E1 E1
VSS_3 VSS_3 VSS_3 VSS_3 VSS_3 VSS_3 VSS_3 VSS_3 VSS_3 VSS_3 VSS_3 VSS_3
E7 G8 E7 G8 E7 G8 E7 G8 E7 G8 E7 G8 E7 G8 E7 G8 E7 G8 E7 G8 E7 G8 E7 G8
DML VSS_4 DML VSS_4 DML VSS_4 DML VSS_4 DML VSS_4 DML VSS_4 DML VSS_4 DML VSS_4 DML VSS_4 DML VSS_4 DML VSS_4 DML VSS_4
D3 J2 D3 J2 D3 J2 D3 J2 D3 J2 D3 J2 D3 J2 D3 J2 D3 J2 D3 J2 D3 J2 D3 J2
DMU VSS_5 DMU VSS_5 DMU VSS_5 DMU VSS_5 DMU VSS_5 DMU VSS_5 DMU VSS_5 DMU VSS_5 DMU VSS_5 DMU VSS_5 DMU VSS_5 DMU VSS_5
J8 J8 J8 J8 J8 J8 J8 J8 J8 J8 J8 J8
VSS_6 VSS_6 VSS_6 VSS_6 VSS_6 VSS_6 VSS_6 VSS_6 VSS_6 VSS_6 VSS_6 VSS_6
E3 M1 E3 M1 E3 M1 E3 M1 E3 M1 E3 M1 E3 M1 E3 M1 E3 M1 E3 M1 E3 M1 E3 M1
DQL0 VSS_7 DQL0 VSS_7 DQL0 VSS_7 DQL0 VSS_7 DQ0 VSS_7 DQ0 VSS_7 DQL0 VSS_7 DQL0 VSS_7 DQ0 VSS_7 DQ0 VSS_7 DQL0 VSS_7 DQL0 VSS_7
F7 M9 F7 M9 F7 M9 F7 M9 F7 M9 F7 M9 F7 M9 F7 M9 F7 M9 F7 M9 F7 M9 F7 M9
DQL1 VSS_8 DQL1 VSS_8 DQL1 VSS_8 DQL1 VSS_8 DQ1 VSS_8 DQ1 VSS_8 DQL1 VSS_8 DQL1 VSS_8 DQ1 VSS_8 DQ1 VSS_8 DQL1 VSS_8 DQL1 VSS_8
F2 P1 F2 P1 F2 P1 F2 P1 F2 P1 F2 P1 F2 P1 F2 P1 F2 P1 F2 P1 F2 P1 F2 P1
DQL2 VSS_9 DQL2 VSS_9 DQL2 VSS_9 DQL2 VSS_9 DQ2 VSS_9 DQ2 VSS_9 DQL2 VSS_9 DQL2 VSS_9 DQ2 VSS_9 DQ2 VSS_9 DQL2 VSS_9 DQL2 VSS_9
F8 P9 F8 P9 F8 P9 F8 P9 F8 P9 F8 P9 F8 P9 F8 P9 F8 P9 F8 P9 F8 P9 F8 P9
DQL3 VSS_10 DQL3 VSS_10 DQL3 VSS_10 DQL3 VSS_10 DQ3 VSS_10 DQ3 VSS_10 DQL3 VSS_10 DQL3 VSS_10 DQ3 VSS_10 DQ3 VSS_10 DQL3 VSS_10 DQL3 VSS_10
H3 T1 H3 T1 H3 T1 H3 T1 H3 T1 H3 T1 H3 T1 H3 T1 H3 T1 H3 T1 H3 T1 H3 T1
DQL4 VSS_11 DQL4 VSS_11 DQL4 VSS_11 DQL4 VSS_11 DQ4 VSS_11 DQ4 VSS_11 DQL4 VSS_11 DQL4 VSS_11 DQ4 VSS_11 DQ4 VSS_11 DQL4 VSS_11 DQL4 VSS_11
H8 T9 H8 T9 H8 T9 H8 T9 H8 T9 H8 T9 H8 T9 H8 T9 H8 T9 H8 T9 H8 T9 H8 T9
DQL5 VSS_12 DQL5 VSS_12 DQL5 VSS_12 DQL5 VSS_12 DQ5 VSS_12 DQ5 VSS_12 DQL5 VSS_12 DQL5 VSS_12 DQ5 VSS_12 DQ5 VSS_12 DQL5 VSS_12 DQL5 VSS_12
G2 G2 G2 G2 G2 G2 G2 G2 G2 G2 G2 G2
DQL6 DQL6 DQL6 DQL6 DQ6 DQ6 DQL6 DQL6 DQ6 DQ6 DQL6 DQL6
H7 H7 H7 H7 H7 H7 H7 H7 H7 H7 H7 H7
DQL7 DQL7 DQL7 DQL7 DQ7 DQ7 DQL7 DQL7 DQ7 DQ7 DQL7 DQL7
B1 B1 B1 B1 B1 B1 B1 B1 B1 B1 B1 B1
VSSQ_1 VSSQ_1 VSSQ_1 VSSQ_1 VSSQ_1 VSSQ_1 VSSQ_1 VSSQ_1 VSSQ_1 VSSQ_1 VSSQ_1 VSSQ_1
D7 B9 D7 B9 D7 B9 D7 B9 D7 B9 D7 B9 D7 B9 D7 B9 D7 B9 D7 B9 D7 B9 D7 B9
DQU0 VSSQ_2 DQU0 VSSQ_2 DQU0 VSSQ_2 DQU0 VSSQ_2 DQ8 VSSQ_2 DQ8 VSSQ_2 DQU0 VSSQ_2 DQU0 VSSQ_2 DQ8 VSSQ_2 DQ8 VSSQ_2 DQU0 VSSQ_2 DQU0 VSSQ_2
C3 D1 C3 D1 C3 D1 C3 D1 C3 D1 C3 D1 C3 D1 C3 D1 C3 D1 C3 D1 C3 D1 C3 D1
DQU1 VSSQ_3 DQU1 VSSQ_3 DQU1 VSSQ_3 DQU1 VSSQ_3 DQ9 VSSQ_3 DQ9 VSSQ_3 DQU1 VSSQ_3 DQU1 VSSQ_3 DQ9 VSSQ_3 DQ9 VSSQ_3 DQU1 VSSQ_3 DQU1 VSSQ_3
C8 D8 C8 D8 C8 D8 C8 D8 C8 D8 C8 D8 C8 D8 C8 D8 C8 D8 C8 D8 C8 D8 C8 D8
DQU2 VSSQ_4 DQU2 VSSQ_4 DQU2 VSSQ_4 DQU2 VSSQ_4 DQ10 VSSQ_4 DQ10 VSSQ_4 DQU2 VSSQ_4 DQU2 VSSQ_4 DQ10 VSSQ_4 DQ10 VSSQ_4 DQU2 VSSQ_4 DQU2 VSSQ_4
C2 E2 C2 E2 C2 E2 C2 E2 C2 E2 C2 E2 C2 E2 C2 E2 C2 E2 C2 E2 C2 E2 C2 E2
DQU3 VSSQ_5 DQU3 VSSQ_5 DQU3 VSSQ_5 DQU3 VSSQ_5 DQ11 VSSQ_5 DQ11 VSSQ_5 DQU3 VSSQ_5 DQU3 VSSQ_5 DQ11 VSSQ_5 DQ11 VSSQ_5 DQU3 VSSQ_5 DQU3 VSSQ_5
A7 E8 A7 E8 A7 E8 A7 E8 A7 E8 A7 E8 A7 E8 A7 E8 A7 E8 A7 E8 A7 E8 A7 E8
DQU4 VSSQ_6 DQU4 VSSQ_6 DQU4 VSSQ_6 DQU4 VSSQ_6 DQ12 VSSQ_6 DQ12 VSSQ_6 DQU4 VSSQ_6 DQU4 VSSQ_6 DQ12 VSSQ_6 DQ12 VSSQ_6 DQU4 VSSQ_6 DQU4 VSSQ_6
A2 F9 A2 F9 A2 F9 A2 F9 A2 F9 A2 F9 A2 F9 A2 F9 A2 F9 A2 F9 A2 F9 A2 F9
DQU5 VSSQ_7 DQU5 VSSQ_7 DQU5 VSSQ_7 DQU5 VSSQ_7 DQ13 VSSQ_7 DQ13 VSSQ_7 DQU5 VSSQ_7 DQU5 VSSQ_7 DQ13 VSSQ_7 DQ13 VSSQ_7 DQU5 VSSQ_7 DQU5 VSSQ_7
B8 G1 B8 G1 B8 G1 B8 G1 B8 G1 B8 G1 B8 G1 B8 G1 B8 G1 B8 G1 B8 G1 B8 G1
DQU6 VSSQ_8 DQU6 VSSQ_8 DQU6 VSSQ_8 DQU6 VSSQ_8 DQ14 VSSQ_8 DQ14 VSSQ_8 DQU6 VSSQ_8 DQU6 VSSQ_8 DQ14 VSSQ_8 DQ14 VSSQ_8 DQU6 VSSQ_8 DQU6 VSSQ_8
A3 G9 A3 G9 A3 G9 A3 G9 A3 G9 A3 G9 A3 G9 A3 G9 A3 G9 A3 G9 A3 G9 A3 G9
DQU7 VSSQ_9 DQU7 VSSQ_9 DQU7 VSSQ_9 DQU7 VSSQ_9 DQ15 VSSQ_9 DQ15 VSSQ_9 DQU7 VSSQ_9 DQU7 VSSQ_9 DQ15 VSSQ_9 DQ15 VSSQ_9 DQU7 VSSQ_9 DQU7 VSSQ_9
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS MID_LG1311 2014.05.28
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. M14+ DDR3-M1 5 31
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
PAGE 6
IC101
+3.3V_Bypass Cap +1.1V_Bypass Cap LG1311-C1
+1.1V_VDD
B22 P19
GND_1 GND_114
+3.3V_NORMAL DVDD33 +3.3V_NORMAL AVDD33 B24
GND_2 GND_115
P22
C22 P26
GND_3 GND_116
C23 P30
L601 GND_4 GND_117
C24 R7
BLM18PG121SN1D L606 GND_5 GND_118
C617 C618 C619 C620 C623 C626 C627 C628 D4 R8
4.7uF 4.7uF 4.7uF 4.7uF 4.7uF 0.1uF 0.1uF 0.1uF GND_6 GND_119
10V 10V 10V 10V 10V D5 R11
BLM18PG121SN1D 16V 16V 16V
IC101 D6
GND_7
GND_8
GND_120
GND_121
R12
C614 C615 D20 R22
DVDD33 +1.1V_VDD C601 C604 C607
LG1311-C1 4.7uF 4.7uF 0.1uF 4.7uF
10V
0.1uF D21
GND_9
GND_10
GND_122
GND_123
R26
10V 10V 16V 16V
E6 R27
GND_11 GND_124
E20 T6
GND_12 GND_125
TP5209 E21 T7
L18 DVDD33_1 DVDD11_1 M20 GND_13 GND_126
F6 T8
L21 DVDD33_2 DVDD11_2 M21 GND_14 GND_127
F7 T12
L22 DVDD33_3 DVDD11_3 N13 GND_15 GND_128
F8 T14
L23 DVDD33_4 DVDD11_4 N14 GND_16 GND_129
F18 T15
M23 DVDD33_5 DVDD11_5 N15 GND_17 GND_130
F19 T16
T11 DVDD33_6 DVDD11_6 N16 GND_18 GND_131
F20 T17
Y23 DVDD33_7 DVDD11_7 N17 GND_19 GND_132
F21 T18
AA23 DVDD33_8 DVDD11_8 N18 GND_20 GND_133
G7 T19
AC12 DVDD33_9 DVDD11_9 P20 GND_21 GND_134
G8 T22
AC13 P21 GND_22 GND_135
AC14
DVDD33_10
DVDD33_11
DVDD11_10
DVDD11_11 R13
+2.5V_Bypass Cap AFE 3CH Power G9
GND_23 GND_136
T26
G10 T27
AC15 DVDD33_12 DVDD11_12 R14 GND_24 GND_137
G11 U6
AC11 AVDD33_BT_USB DVDD11_13 R15 GND_25 GND_138
G12 U7
VDD3V3_HDMI P23 AVDD33_USB_1 DVDD11_14 R16 GND_26 GND_139
G13 U8
R23 AVDD33_USB_2 DVDD11_15 R17 GND_27 GND_140
G14 U11
T23 AVDD33_HDMI_1 DVDD11_16 R18 +2.5V_NORMAL AVDD25 +2.5V_NORMAL AVDD25_C4TX GND_28 GND_141
G15 U12
U23 R19 +1.1V_VDD AVDD11_DMD GND_29 GND_142
AVDD33 AVDD33_HDMI_2 DVDD11_17 G16 U13
C637 V23 AVDD33_HDMI_3 DVDD11_18 R20 GND_30 GND_143
0.1uF L602 L604 G17 U22
DVDD11_19 R21 GND_31 GND_144
16V BLM18PG121SN1D BLM18PG121SN1D G20 U26
AF22 AVDD33_CVBS DVDD11_20 T13 GND_32 GND_145
L607 G21 V4
DVDD11_21 T20 GND_33 GND_146
G22 V5
DVDD11_22 T21 GND_34 GND_147
BLM18PG121SN1D G23 V6
+1.5V_DDR F9 DVDD15_M0_1 DVDD11_23 U14 C602 C605 C608 C610 C613 C616 GND_35 GND_148
G24 V7
TP5207
F10 U15 4.7uF 4.7uF 0.1uF 0.1uF 4.7uF 0.1uF C622 C625
DVDD15_M0_2 DVDD11_24 GND_36 GND_149
10V 10V 16V 16V 10V 16V 4.7uF 0.1uF G25 V8
F11 DVDD15_M0_3 DVDD11_25 U16 10V GND_37 GND_150
16V G26 V14
F12 DVDD15_M0_4 DVDD11_26 U17 GND_38 GND_151
G27 V15
F13 DVDD15_M0_5 DVDD11_27 U18 GND_39 GND_152
H7 V16
F14 DVDD15_M0_6 DVDD11_28 U19 GND_40 GND_153
H8 V17
F15 DVDD15_M0_7 DVDD11_29 U20 GND_41 GND_154
H9 V18
F16 DVDD15_M0_8 DVDD11_30 U21 GND_42 GND_155
H10 V19
F17 DVDD15_M0_9 DVDD11_31 V13 GND_43 GND_156
H11 V22
DVDD11_32 V20 GND_44 GND_157
H12 V26
+1.5V_DDR G6 V21 GND_45 GND_158
DVDD15_M1_1 DVDD11_33 +2.5V_NORMAL AVDD25_AUD H13 V30
TP5208
H6 DVDD15_M1_2 DVDD11_34 W13 GND_46 GND_159
H14 V31
J6 DVDD15_M1_3 DVDD11_35 W14 GND_47 GND_160
H15 W4
K6 DVDD15_M1_4 DVDD11_36 W15 L603 GND_48 GND_161
BLM18PG121SN1D H16 W8
L6 DVDD15_M1_5 DVDD11_37 W16 GND_49 GND_162
H17 W20
M6 DVDD15_M1_6 DVDD11_38 W17 GND_50 GND_163
H21 W21
N6 DVDD15_M1_7 DVDD11_39 W18 GND_51 GND_164
H22 W22
P6 DVDD15_M1_8 W19 GND_52 GND_165
DVDD11_40 C603 C606 C609 H23 W23
R6 Y13 GND_53 GND_166
AVDD25_C4TX DVDD15_M1_9 DVDD11_41 4.7uF 4.7uF 0.1uF H24 W26
Y20 10V 10V 16V GND_54 GND_167
DVDD11_42 H25 W27
Y21 GND_55 GND_168
DVDD11_43 H26 Y2
V11 AVDD25_C4TX_1 AA13 GND_56 GND_169
DVDD11_44 H27 Y3
W11 AVDD25_C4TX_2 AA14 GND_57 GND_170
DVDD11_45 H31 Y4
Y11 AVDD25_C4TX_3 AA15 GND_58 GND_171
DVDD11_46 J7 Y8
AVDD25 AA11 AVDD25_C4TX_4 DVDD11_47
AA17
J8
GND_59 GND_172
Y14
AC18 AVDD25_COMP_1 AA18 GND_60 GND_173
DVDD11_48 J26 Y15
AC19
AC20
AVDD25_COMP_2 DVDD11_49
AA19
AA20
+1.5V_Bypass Cap J27
GND_61
GND_62
GND_174
GND_175
Y16
AVDD25_CVBS_1 DVDD11_50 K7 Y17
AC21 AVDD25_CVBS_2 AA21 GND_63 GND_176
DVDD11_51 K8 Y18
AC22 AVDD25_DMD AB21 GND_64 GND_177
AVDD11_APLL K26 Y19
AC23 AVDD25_AAD AB19 GND_65 GND_178
AVDD11_COMP_LLPLL K27 Y22
G19 DVDD25_XTAL V12 GND_66 GND_179
AVDD11_C4TX_1 L7 Y26
H19 AVDD25_DR3PLL W12 GND_67 GND_180
AVDD11_C4TX_2 L8 AA8
AVDD25_AUD H20 Y12 GND_68 GND_181
SP_VQPS AVDD11_C4TX_3 +1.5V_DDR L11 AA16
AA12 GND_69 GND_182
AVDD11_C4TX_4 L12 AA22
AC17 AVDD25_AUD
+1.1V_VDD GND_70 GND_183
L13 AA26
AB23 AVDD25_APLL GND_71 GND_184
L14 AB11
G18 GND_72 GND_185
DVDD11_XTAL L15 AB12
H18 GND_73 GND_186
DVDD11_DR3PLL L16 AB13
TP5210
AVDD11_DMD GND_74 GND_187
L17 AB14
AF23 GND_75 GND_188
DVDD11_CVBSPLL OPT L19 AB15
AF24 C629 C631 C633 GND_76 GND_189
AVDD11_DMD_1 L20 AB16
AF25 22uF 0.1uF 0.1uF GND_77 GND_190
AVDD11_DMD_2 10V 16V 16V L27 AB17
DVDD18_EMMC GND_78 GND_191
M7 AB18
GND_79 GND_192
M8 AB20
L26 GND_80 GND_193
DVDD18_EMMC_1 M11 AB22
M26 GND_81 GND_194
DVDD18_EMMC_2 M12 AB26
GND_82 GND_195
M13 AB30
GND_83 GND_196
M14 AB31
GND_84 GND_197
M15 AC16
+1.5V_DDR GND_85 GND_198
M16 AC26
GND_86 GND_199
M17 AD26
GND_87 GND_200
M18 AE26
GND_88 GND_201
M19 AF6
GND_89 GND_202
M22 AF8
GND_90 GND_203
M27 AF9
GND_91 GND_204
OPT N7 AF10
GND_92 GND_205
C630 C632 C634 N8 AF11
22uF 0.1uF 0.1uF GND_93 GND_206
N11 AF12
10V 16V 16V GND_94 GND_207
N12 AF13
GND_95 GND_208
N19 AF14
GND_96 GND_209
N20 AF15
GND_97 GND_210
N21 AF16
GND_98 GND_211
N22 AF17
GND_99 GND_212
N23 AF18
GND_100 GND_213
N26 AF19
GND_101 GND_214
N27 AF20
GND_102 GND_215
N30 AF21
GND_103 GND_216
P7 AF26
GND_104 GND_217
P8 AG20
GND_105 GND_218
GND JIG POINT P11 AG25
GND_106 GND_219
P12 AG31
GND_107 GND_220
P13 AH25
GND_108 GND_221
P14 AJ25
GND_109 GND_222
P15 AK9
JP601
JP602
JP603
JP604
GND_110 GND_223
P16 AK25
GND_111 GND_224
P17 AL9
GND_112 GND_225
P18 AL15
GND_113 GND_226
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS MID_LG1311 2014.05.28
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. VCC & GND 6 31
11/05/31
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
AR706 CI
CI_TS_DATA[7] TPI_DATA[7]
CI_TS_DATA[6]
CI_TS_DATA[5]
CI_TS_DATA[4]
100
TPI_DATA[6]
TPI_DATA[5]
TPI_DATA[4]
PAGE 7
CI
TPO_DATA[0-7]
CI
AR701
TPO_DATA[0] 33
CI_IN_TS_DATA[0] CI
TPO_DATA[1] CI_IN_TS_DATA[1] AR713
CI_DATA[0] 33 EB_DATA[0]
TPO_DATA[2] CI_IN_TS_DATA[2] +5V_CI_ON CI_DATA[1] EB_DATA[1]
TPO_DATA[3] CI_IN_TS_DATA[3] CI_DATA[2] EB_DATA[2]
TPO_DATA[4] CI_IN_TS_DATA[4] CI_DATA[3] EB_DATA[3]
TPO_DATA[5] CI_IN_TS_DATA[5]
EB_DATA[0-7]
TPO_DATA[6] CI_IN_TS_DATA[6]
TPO_DATA[7] CI
CI_IN_TS_DATA[7] C701 C702 CI_DATA[0-7] AR714
0.1uF 4.7uF CI_DATA[4] 33 EB_DATA[4]
CI
AR702 CI CI 10V CI_DATA[5] EB_DATA[5]
33 JK701
CI
10125901-015LF CI_DATA[6] EB_DATA[6]
CI_DATA[7] EB_DATA[7]
35 1 /PCM_CE1
R715 100 36 2 CI_DATA[3]
/CI_CD1
CI 37 3 CI_DATA[4]
CI_TS_DATA[3] EB_DATA[0-7]
CI_TS_DATA[4] 38 4 CI_DATA[5]
CI_TS_DATA[5] 39 5 CI_DATA[6]
CI_DATA[0-7]
CI_TS_DATA[6] 40 6 CI_DATA[7]
CI_TS_DATA[7] 41 7 CI R720 33
/PCM_CE2 42 8 CI_ADDR[10] CI_ADDR[10]
/PCM_IORD 43 9 /PCM_OE
/PCM_IOWR 44 10 CI_ADDR[11] CI_ADDR[11]
CI_IN_TS_DATA[0-7] 45 11 CI_ADDR[9] +5V_CI_ON
CI_ADDR[9]
46 12 CI_ADDR[8] CI_ADDR[8]
CI_IN_TS_DATA[0] 47 13 CI_ADDR[13] CI_ADDR[13] R722
CI_IN_TS_DATA[1] 48 14 CI_ADDR[14] 10K
CI_ADDR[14]
CI_IN_TS_DATA[2] 49 15 CI
/PCM_WE
CI_IN_TS_DATA[3] 50 16 R721 33
/PCM_IRQA
+5V_CI_ON 51 17 C704 0.1uF OPT
52 18 CI C705
CI
CI_IN_TS_DATA[4] 0.1uF
53 19 16V
CI_IN_TS_DATA[5] 54 20
R707 CI_IN_TS_DATA[6]
10K 55 21 CI_ADDR[12] CI_ADDR[12]
CI CI_IN_TS_DATA[7] 56 22 CI_ADDR[7] CI_ADDR[7]
CI_TS_CLK 57 23 CI_ADDR[6] CI_ADDR[6]
R702 33 CI 58 24 CI_ADDR[5]
PCM_RESET CI_ADDR[5]
R703 33 CI 59 25 CI_ADDR[4]
/PCM_WAIT CI_ADDR[4]
R701 33 OPT 60 26 CI_ADDR[3]
PCM_INPACK CI_ADDR[3]
/PCM_REG 61 27 CI_ADDR[2] CI_ADDR[2] CI
CI_TS_VAL 62 28 CI_ADDR[1] CI_ADDR[1] AR709
63 29 CI_ADDR[0] 33
CI_TS_SYNC CI_ADDR[0] CI_ADDR[0] EB_ADDR[0]
CI_TS_DATA[0] 64 30 CI_DATA[0] CI_ADDR[1] EB_ADDR[1]
CI_TS_DATA[1] 65 31 CI_DATA[1] CI_ADDR[2] EB_ADDR[2]
CI_TS_DATA[2] 66 32 CI_DATA[2] CI_ADDR[3] EB_ADDR[3]
CI R716 CI 100
AR703 /CI_CD2 67 33
33 68 34 CI
TPO_CLK CI_IN_TS_CLK
AR710
TPO_SOP CI_IN_TS_SYNC PCM_INPACK G2 69 G1 33
+5V_NORMAL CI_ADDR[4] EB_ADDR[4]
TPO_VAL CI_IN_TS_VAL
/PCM_CE2 CI_ADDR[5] EB_ADDR[5]
CI_ADDR[6] EB_ADDR[6]
CI_ADDR[7] EB_ADDR[7]
R725 CI
R726 CI
CI_IN_TS_VAL
CI_IN_TS_CLK CI
10K
10K
AR704 CI AR711
33
/PCM_WAIT CI_IN_TS_SYNC CI_ADDR[8] EB_ADDR[8]
CAM_WAIT_N
/PCM_IRQA CAM_IREQ_N CI_ADDR[9] EB_ADDR[9]
/CI_CD2 C703 CI_ADDR[10] EB_ADDR[10]
100 CAM_CD2_N
/CI_CD1 12pF CI_ADDR[11] EB_ADDR[11]
CI CAM_CD1_N 50V
CI
C706 C707 OPT
0.1uF 0.1uF
16V 16V
CI
AR705 CI
AR712
PCM_INPACK CAM_INPACK_N 33
CI_ADDR[12] EB_ADDR[12]
CI_TS_CLK TPI_CLK EB_ADDR[13]
CI_ADDR[13]
CI_TS_VAL TPI_VAL C708 CI_ADDR[14] EB_ADDR[14]
100
CI_TS_SYNC TPI_SOP 12pF /PCM_REG CAM_REG_N
50V
OPT
CI
AR708
AR707 CI 33
/PCM_OE EB_OE_N
CI_TS_DATA[3] TPI_DATA[3] EB_WE_N
/PCM_WE
CI_TS_DATA[2] TPI_DATA[2] EB_BE_N1
/PCM_IORD
CI_TS_DATA[1] TPI_DATA[1] EB_BE_N0
100 /PCM_IOWR
CI_TS_DATA[0] TPI_DATA[0]
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS 2014.05.28
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
CI for DVB
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
+3.5V_ST
PANEL_POWER PAGE 8
Q2302 Change: Diodes --> NXP, 131118
R2301 +13V
1
10K
PANEL_VCC
ADUC 20S 02 010L
R2300 +13V
RL_ON Default_NXP
2
10K L2303
Q2300 UBW2012-121F Q2302
3
ICVS0505201FR
MMBT3906(NXP) PMV48XP
Multi_Innochips
L2313
VA23001-*1
S
D
ZD2301
20V C2307
POWER_WAFER_12PIN 0.1uF UBW2012-121F
Default_Amotech P2300 C2333
ADUC 20S 02 010L
VA23002
C2331 R2317
OPT
50V
OPT
VA23001 SMAW200-H12S5K(BK)(LTR) 0.1uF 36K 0.1uF G
C2363 C2347
LVDS_DISCHARGE
5.6V 50V 50V
AMOTECH CO., LTD. 10uF 10uF
R2346
25V 25V
3.3K
+13V_A PWR ON PDIM2
ADUC 20S 02 010L
1 2 PWM_DIM2
GND 3 4 D13V
L2304 R2318
C2306
UBW2012-121F
D13V
A13V
GND
5
7
9
6
8
10
D13V
A13V
GND
150K
Power_DET
C
0.1uF DRV-ON PDIM1
11 12 PWM_DIM Q2301
ZD2303
50V B
GND 13 14 GND PANEL_CTL +13V
20V
GND SCLK R2354 MMBT3904(NXP) Multi_AOS
R2337
+3.5V_ST
15 13 16 R2355 R2314 100K
OPT
L/DIM0_VS 4.7K 4.7K
VSYNC SIN 10K E Q2302-*1
17 18 L/DIM0_SCLK OPT C2359 R2338
10K
R2361
OPT AO3435 RESET IC_ROHM
L/DIM0_MOSI 4.7uF R2325 10K
S
D
IC2307
10V 14K OPT
R2330 BD48K28G
1K OPT 1%
P2301
.
SMAW200-H18S5 R2350 POWER_DET
OPT
G
POWER_WAFER_18PIN VDD VOUT 100
3 2
+3.3V_NORMAL C2355 1
R2326 0.1uF GND
5.1K 25V
1%
C2365
R2306
0.1uF
1K
16V
INV_CTL R2307
100
+2.5V
RESET IC_DIODES_APX803D29 RESET_IC_DIODES_NEW_APX803E29
IC2302 IC2307-*1 IC2307-*2 not to RESET at 8kV ESD
TJ2132GDP APX803D29 APX803E29
POWER_ON/OFF2_1 [EP]GND
R1
8.2K
VCC 3 2 RESET VCC 3 2 RESET
1%
1/16W
R2321
+3.3V - eMMC 4.41/4.51 POK
1 8
GND
+2.5V_NORMAL 1 1
THERMAL
GND GND
+3.3V_NORMAL R2315 EN FB
9
2 7 R2
+3.3V_NORMAL 12V-->3.58V
26.1K
3.3V_EMMC C2328
1%
1/16W
R2322
10K
0.01uF ST_3.5V-->3.5V
+5V_NORMAL IN
3 6
OUT 50V
BIAS SS C2354 C2357
ZD2305
L2302 4 5
2A
OPT
10uF
5V
0.1uF
10V 16V
BLM18PG121SN1D C2332
C2305 C2300 2700pF
0.1uF 22uF 50V
16V 10V C2321
10uF
10V DDR MAIN 1.5V
R2324
POWER_ON/OFF2_2
10K
OPT
C2361
Vout=0.6*(1+R2/R1) 0.1uF
16V
+3.5V_ST C2341 +1.5V_DDR
0.1uF
+1.8V - eMMC 4.51
[EP]FIN
16V
R2316
AVIN
BOOT
+1.1V_CORE L2308
PGD
100
EN
1/16W VLS5045EXT-2R2N
L2309
1%
16
15
14
13
2.2uH
R2320 C2327 PVIN_1 1 12 SW_3
POWER_ON/OFF2_3
DVDD18_EMMC 560K
PVIN_2 2
THERMAL
11 SW_2
1/10W C2339 C2340 17
1%
1/16W
430K
330pF
ZD2302
+3.3V_NORMAL IC2301 C2345 C2349
R2319
10uF 0.1uF
2.5V
5% 50V PGND_1 SW_1
16V 3 IC2303 10 22uF 22uF
MP8762HGLE-Z 10V
BD9A300MUV
+1.1V_VDD C2342 10V 10V
OPT
LPBN8050T-1R0N PGND_2 4 9 SS
R2310
1K EN SW_2
L2307
1.0uH 3A 0.01uF
5
6
7
8
50V
1%
1/16W
16K
R2332
1 16
OPT
R1
AGND
FB
ITH
MODE
IC2306
AZ1117EH-ADJTRG1 C2366 R2331
ZD2304
FREQ SW_1
R2308
1/16W
R1
2.5V
0.1uF 2 15 C2337 C2356 1/16W 330K 5%
OPT
C2346
18K
16V 22uF 22uF
1%
22uF
IN OUT 10V 10V R2329
FB IN_2 10V 8.2K C2344
R2347 3 14
ADJ/GND
1 1% 1/16W
D2302
50V 2700pF
1%
1/16W
75
2.5V
R2
OPT
R2309
1/16W
R2357
R2 SS PGND_4
22K
4 13
1%
C2318
C2301 C2308
1%
1/16W
18K
R2333
0.033uF
10uF 10uF 50V AGND PGND_3
1%
1/16W
33
R2358
10V 10V 5 12
R2311
3A
100K PG PGND_2
6 11 +13V
C2316
1uF
1/16W
1%
Vout=0.8*(1+R1/R2)
VCC PGND_1
7 10
10V L2312
BST IN_1
8 9
C2325 C2326
+5.0V normal & USB
10uF 10uF
1%
R2341150K 1%
R2313 R2
R2335 16K 1%
C2319 25V 25V C2334 OPT
4.7
2200pF
+3.3V_NORMAL C2335 C2336
R2340 16K
Vout=0.611*(1+R1/R2) +13V 50V
1%
1/16W
6.8K
R2345
1/16W 0.1uF 100pF 0.047uF
+13V
5% 16V R2342 50V 25V
+3.3V_NORMAL 10K
C2348 C2351 C2352
L2300
RSET2
RSET1
22uF 22uF 10uF
[EP]
AGND
RLIM
COMP
BLM18PG121SN1D C2343 R1 10V 10V 10V
FB
SS
L2310
120-ohm 82pF
R2352
+3.5V_ST
1%
1/16W
51K
50V
28
27
26
25
24
23
22
VIN_1 1 21 LX_3 L2311
C2302 C2303 +3.5V_ST
10uF THERMAL 4.7uH
0.1uF VIN_2 2 29 20 LX_2
25V 25V IC2300
BD9D320EFJ [EP]FIN C2329 VIN_3 LX_1 C2338
ZD2300
C2309 C2311 3 19
IC2305 10uF 10uF 0.1uF 0.047uF L2311 Change, 131120 +5V_NORMAL
0.1uF
IC2304
5V
TPS563200 50V PGND_1 BST 25V for Currnet UP
R2304 25V 25V 4 18
C2353
16V
POWER_ON/OFF1 SN1302001(TPS65286RHDR)
10K EN VIN OPT
OPT 1 8 PGND_2 5 17 SW_IN2
16V
THERMAL
C2360 GND VBST C2350
R2344
1/16W
0.1uF
100K
100K
R2353
R2302 R2303 R1 +13V 1 6 PGND_3 SW_IN1
1/16W
0.1uF C2313 VLS5045EXT-2R2N 6 16 1uF
5%
5%
5.1K 68K FB BOOT
6A
9
16V 2 7 NR8040T2R0N L2306 10V
2.2uH V7V 7 15 NFAULT1
1/16W 1/16W L2301 SW EN R1
2 5
/USB_OCD3
1% 1% 2uH
25V
1uF
C2324
10
11
12
13
14
VREG SW
3A
8
9
3 6
C2304 1% 1%
100pF VIN VFB 1/16W 1/16W MODE/SYNC
EN
SW_OUT2
SW_OUT1
SW_EN2
SW_EN1
NFAULT2
50V 3 4
SS GND R2
R2
3A
BLM18PG121SN1D
L2305
4 5 C2314 C2315 24.9K 11K
22uF 22uF R2327 R2328
1/16W
R2305
C2323
1/16W
R2323
10V
R2312
10V C2317 C2320 C2322
22uF
22K
10K
10K
C2310 C2312 10uF 0.1uF 22uF
1%
/USB_OCD2
1%
25V 25V 10V 10V
1uF 2200pF
50V
10pF
R2360
C2358
OPT
4.7K
4.7K
R2359
10V 50V C2330
+5V_USB_2
+5V_USB_3
POWER_ON/OFF2_4
R2339
10K
0.0068uF
50V
OPT
OPT
Vout=0.765*(1+R1/R2)
USB_CTL2
USB_CTL3
Vout=0.765*(1+R1/R2) Vout=0.6*(1+R1/R2)
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES 5.1V:R1-51K, R2-6.8K
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS MID_LG1311 2014.05.28
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. POWER 8 31
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Renesas MICOM PAGE 9
For Debug
+3.5V_ST
MICOM_DEBUG
R3016 1K
R3014 10K
MICOM_DEBUG Don’t remove R3016,
P3000
12507WS-04L
not making float P40 50V 50V
10pF 12pF
C3002 C3003 LOGO_LIGHT
MICOM_DEBUG
1
LOGO_LIGHT
MICOM_RESET
2
MICOM_DEBUG
X3000
3
4
MICOM_RESET 32.768KHz +3.5V_ST
5
HDMI_WAUP:HDMI_INIT R3028
4.7M
MHL_DET OPT
MHL_DET
10K
R3032
10K
R3030
MICOM_RESET_SW
GND SW3000
JTP-1127WEM
2 1
33
R3031
270K
OPT
C3004
P124/XT2/EXCLKS
0.47uF
0.1uF
+3.5V_ST 4 3
16V
R3029
P122/X2/EXCLK
P41/TI07/TO07
C3001
P137/INTP0
P120/ANI19
P40/TOOL0
WIFI_EN
P123/XT1
C3000
P121/X1
0.1uF
RESET
+3.5V_ST
REGC
VDD
VSS
M14 Power SEQUENCE
R3021
10K
48
47
46
45
44
43
42
41
40
39
38
37
POWER_ON/OFF1
P60/SCLA0 1 36 P140/PCLBUZ0/INTP6 RL_ON
I2C_SCL_MICOM_SOC
P61/SDAA0 2 35 P00/TI00/TXD1
I2C_SDA_MICOM_SOC SCART_MUTE SCART_MUTE
POWER_ON/OFF2_4
P62 3 34 P01/TO00/RXD1
POWER_ON/OFF2_4
P63 4 33 P130
POWER_ON/OFF2_1
PANEL_CTL
P31/TI03/TO03/INTP4 IC3000 P20/ANI0/AVREFP
POWER_ON/OFF2_1
WOL/WIFI_POWER_ON 5 32 KEY2
IR
P75/KR5/INTP9/SCK01/SCL01 6 R5F100GEAFB#30 31 P21/ANI1/AVREFM
KEY1
POWER_ON/OFF2_2 R3035
100 P74/KR4/INTP8/SI01/SDA01 7 30 P22/ANI2
HDMI_CEC EPI_CTL
POWER_ON/OFF2_2
P73/KR3/SO01 8 29 P23/ANI3
POWER_ON/OFF2_3 P72/KR2/SO21 P24/ANI4
POWER_ON/OFF2_3 9 28 MODEL1_OPT_0
P71/KR1/SI21/SDA21 10 27 P25/ANI5
EYE_SDA SIDE_HP_MUTE
SOC_RESET P70/KR0/SCK21/SCL21 11 26 P26/ANI6
EYE_SCL MODEL1_OPT_1
P30/INTP3/RTC1HZ/SCK11/SCL11 12 25 P27/ANI7
13
14
15
16
17
18
19
20
21
22
23
24
AR3000
1/16W
3.3K
+3.5V_ST
MICOM MODEL OPTION
P50/INTP1/SI11/SDA11
P51/INTP2/SO11
P17/TI02/TO02
P16/TI01/TO01/INTP5
P15/PCLBUZ1/SCK20/SCL20
P14/RXD2/SI20/SDA20
P13/TXD2/SO20
P12/SO00/TXD0/TOOLTXD
P11/SI00/RXD0/TOOLRXD/SDA00
P10/SCK00/SCL00
P146
P147/ANI18
MICOM MODEL OPTION
0 1
+3.5V_ST
MODEL_OPT_0 RESERVED RESERVED
MODEL_OPT_1 NON_EPI EPI
10K
10K
MICOM_EPI
OPT
R3006
R3013
MODEL1_OPT_0
MODEL1_OPT_1
SOC_RX
POWER_DET
AMP_MUTE
WOL/ETH_POWER_ON
SOC_RESET
INV_CTL
EDID_WP
WOL_CTL
POWER_ON/OFF1
SOC_TX
LED_R
MICOM_NON_EPI
10K
10K
R3004
R3012
For CEC
+3.5V_ST
LED_R
R3033 R3034
27K 120K
G
D3000
BAT54_SUZHO
CEC_REMOTE HDMI_CEC
D
S
Q3001
RUE003N02
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS MID_LG1311 2014.05.28
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. MICOM 9 31
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
PAGE 10
HDMI_HPD_4
R3261-*1
NON_MHL
R3261
MHL
33
0
5V_HDMI_1 20 20
5V_HDMI_4
+5V_NORMAL
ESD_HDMI_Amotech ESD_HDMI_Amotech
MHL
R3250 33 19 19
HDMI_HPD_1 IC3201
VA3215 VA3208-*1 18 18
R3265
BD2242G MHL
VA3208
ESD_HDMI_Amotech ESD_HDMI_Innochips 17 17 +5V_NORMAL
D3202
100K
AR3200 16 16
33 VIN VOUT MBR230LSFT1G
R3275
VA3215-*1 15
BODY_SHIELD 1 6
1/16W 15
BODY_SHIELD
MHL
10K
ESD_HDMI_Innochips
14 14 30V MHL
DDC_SCL_1 VA3216-*1 C3201
D3201
13 GND 5V_HDMI_4 +3.3V_NORMAL D GND ILIM C3203 C3228
20 DDC_SDA_1 13 MHL
MHL
ESD_HDMI_Innochips 0.1uF 2 5 R3204 10uF
Q3207 22uF
MHL
ESD_HDMI_Amotech
HP_DET 12 12 G 100K 10V
R3276
SI1012CR-T1-GE3 10V
VA3206
20
VA3207
ESD_HDMI_Amotech
MHL
ESD_HDMI_Amotech
19 ARC 11 11 OPT
NON_MHL
VA3212-*1
14K
MHL
VA3206-*1
R3274
1/16W
5V R3201 EN OC
R3267
R3248
HP_DET A1 3 4
100K
10 ESD_HDMI_Innochips S
ESD_HDMI_Innochips
R3273
10
MHL
18
OPT
MHL
19
1K
5%
C
VA3216
C MHL_DET 10K
1K
GND
VA3212
5V
1K
9 9
MHL
17 MHL A2 MHL
DDC_DATA C3202 VA3207-*1 8 8 18 AR3202 B Q3208 R3202
1uF SPDIF_OUT_ARC GND
ESD_HDMI_Innochips 7
33 MMBT3904(NXP) 330K
7
16 17 1/16W
DDC_CLK 10V DDC_DATA
OPT 6 6 E
ESD_HDMI_Amotech
R3249
DDC_SCL_4
VA3213
15 C3226
3.9K
VA3213-*1 5 5 16
DDC_CLK
OPT
ARC 0.1uF DDC_SDA_4
ESD_HDMI_Amotech
ESD_HDMI_Innochips 4
ESD_HDMI_Amotech
14 16V 4
15
VA3210
CE_REMOTE
VA3211
3 3 NC VA3210-*1
CEC_REMOTE
13 14 ESD_HDMI_Innochips
CK- 2 2 CE_REMOTE
12 1 1
CEC_REMOTE
13 VA3211-*1
CK_GND CK-
EAG63530101
11 AR3207 12 ESD_HDMI_Innochips
CK+ CK_GND AR3211
10 5.1 5501-56219 5501-56219
5.1
EAG63530101
1/16W JK3202-*1 JK3203-*1 11
D0- CK+ 1/16W
9 HDMI_JACK_CNPLUS HDMI_JACK_CNPLUS
CK-_HDMI1 10
CK-_HDMI4
D0_GND CK+_HDMI1 D0-
8 9 CK+_HDMI4
D0+ D0-_HDMI1 +3.5V_ST
D0_GND D0-_HDMI4
7 D0+_HDMI1 8
D0+_HDMI4
D1- 20 D0+
6 EOS_HDMI_TMDS_5.1OHM 7 EOS_HDMI_TMDS_5.1OHM
R3246
D1_GND 19
D1-
5
10K
6
MHL
18
D1+ AR3208 MHL MHL
5.1 D1_GND
4 17 5 R3247 E MMBT3906(NXP)
1/16W AR3212 10K Q3201
D2- 16 D1+ 5.1
3 D1-_HDMI1 4
15 1/16W B
D2_GND D1+_HDMI1 D2-
2 14 3 D1-_HDMI4
D2-_HDMI1 C
D2+ 13 D2_GND D1+_HDMI4
1 D2+_HDMI1 2
12 D2-_HDMI4 MHL MHL_DET
D2+ MHL C
EOS_HDMI_TMDS_5.1OHM 11 1 D2+_HDMI4 R3243
EOS_HMDI_TMDS_5.1OHM 1K B
10
JK3202 9 1/16W MHL Q3200
VA3217
NON_MHL
5%
1/16W
0
R3277
DAADR019A 5% C3223 MMBT3904(NXP) E
5.6V
8
MHL
DAADR019A 0.047uF
HDMI_JACK_FOOSUNG
HDMI1 With ARC 7
6
JK3203
25V
HDMI_JACK_FOOSUNG
5 HDMI3 With MHL
4
3
2
1
5501-56219
HDMI_EXT_EDID
JK3200-*1
HDMI_JACK_CNPLUS
MMBT3904(NXP)
5V_HDMI_2
Q3206
HDMI_EXT_EDID
C
E
1K
HDMI_EXT_EDID
R3268
B
+5V_NORMAL
ESD_HDMI_Amotech
1K
5V_HDMI_1
R3269
+5V_NORMAL +3.5V_ST
R3251 5V_HDMI_4
33
A1
A2
HDMI_HPD_2
VA3205-*1
VA3205
HDMI_INT_EDID
A1
A2
A1
A2
BODY_SHIELD HDMI_EXT_EDID HDMI LEAKAGE Workaround in MTK A2(A0) (Default= with HDMI_LEAKAGE)
D3200
R3266
ESD_HDMI_Innochips
100K
R3270
+3.3V_NORMAL
C
20 4.7K D3203 D3205
AR3201
HP_DET VA3209-*1
C
C
33
19 1/16W ESD_HDMI_Innochips R3255
5V 0 OPT
AR3204
1/16W
DDC_SCL_2
AR3205
18
1/16W
47K
GND DDC_SDA_2 1/16W
47K
5%
ESD_HDMI_Amotech
VA3209
17
ESD_HDMI_Amotech
DDC_DATA ESD_HDMI_Amotech
VA3203
DDC_SDA_1 DDC_SDA_4
VA3204
VA3203-*1 PANEL_VCC
16
DDC_CLK ESD_HDMI_Innochips
DDC_SCL_1 DDC_SCL_4
15 R3254
NC
VA3204-*1 10K
14 AR3209 VDD3V3_HDMI
CE_REMOTE ESD_HDMI_Innochips
5.1
G
CEC_REMOTE 1/16W
13
CK- 5V_HDMI_2 +5V_NORMAL
CK-_HDMI2
12
CK_GND CK+_HDMI2
S
D
EAG63530101
11 D0-_HDMI2 NTR4501NT1G
CK+
10 D0+_HDMI2 Q3202
A1
A2
D0- HDMI_EXT_EDID
9 EOS_HDMI_TMDS_5.1OHM E MMBD6100 C3227
D0_GND D3216 0.1uF
8 MMBT3904(NXP) EDID_WP 16V
C
D0+ Q3203 B
7
C IC3203-*1
D1- IC3203
6 BR24G02FJ-3GTE2
M24C02-RMN6T
D1_GND HDMI_EXT_EDID
5
R3271
D1+ AR3210 4.7K
4 5.1 E0 VCC A0 VCC
1/16W 1 8 1 8
D2-
3 D1-_HDMI2
A1 WP
AR3206
D2_GND D1+_HDMI2 E1 WC
1/16W
2 2 7 2 7
47K
D2+ D2-_HDMI2
1 R3258
D2+_HDMI2 E2 SCL 33 A2 SCL
3 6 3 6
EOS_HDMI_TMDS_5.1OHM DDC_SCL_2
HDMI_EXT_EDID
R3259 GND SDA
VSS SDA 33 4 5
JK3200 4 5 DDC_SDA_2
HDMI_EXT_EDID
DAADR019A
HDMI_JACK_FOOSUNG HDMI2
HDMI_EXT_EDID_ROHM
HDMI_EXT_EDID_ST
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS MID_LG1311 2013.03.22
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. HDMI 32
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
SPDIF OUT HP OUT JK3403
+3.3V_NORMAL E_SPRING
PEJ034-01
DDTS TEST ONLY
3 OPT
RIN1 TP3400 RIN1 +3.5V_ST P3401
Default_Solteam Multi_Foxconn
12507WS-04L
+3.3V_NORMAL JK3401 JK3401-*1
2F01TC1-CLM97-4F DOUT1 TP3401 DOUT1
JST1223-001
R3406
GND 1 R3825 10K
GND HP_OUT R_SPRING
HP_OUT 150 OPT
1
Fiber Optic
4 1
Fiber Optic
HP_ROUT R3827
10K
VCC R3826
2 T_SPRING
VCC HP_OUT 150 5
2
HP_LOUT M_REMOTE_RX 2
R3409
SPDIF_OUT B_TERMINAL2
VIN 3 HP_OUT 100 7B
VINPUT HP_DET
3
3
C3402 C3400 4 T_TERMINAL2
4
Multi_Innochips Default_Amotech 6B
47pF 0.1uF
VA3405-*1
SHIELD
16V VA3405
FIX_POLE
50V 4
ICVS0505201FR 5.6V M_REMOTE_TX
5
+3.5V_ST P3400
12507WS-04L
1
R3401
10K
SOC_RX 2
3
SOC_TX 4
5
UART for Debug
AV/COMPONENT REAR
Place JACK Side Place SOC Side
R327 100 C325 0.047uF
AV1_CVBS_IN_SOC
+3.3V_NORMAL C310 3216
R314
VA3806 150pF 75 R334 33
OPT C323 0.047uF
5.5V COMP2_Y_IN_SOC
PPJ245N2-01
JK3802 R3806 C328 1000pF
10K COMP2_Y_IN_SOC_SOY
[ GN/YL]E-LUG
6A
R3801
1K
5A AV1_CVBS_DET
[GN/YL]O-SPRING
Default_Amotech
4A
[GN/YL]CONTACT VA3803 Multi_Innochips
5.6V VA3803-*1
5B [BL]O-SPRING +3.3V_NORMAL
COMP1_Pb ICVS0505201FR
7C [RD1]E-LUG-S VA3804
5.5V
5C R3810
[RD1]O-SPRING 10K
COMP1_Pr
VA3805 R3802
4C [RD1]CONTACT 1K
5.5V
COMP1_DET
Default_Amotech
5D [WH]O-SPRING VA3800
COMP1/AV1/DVI_L_IN 5.6V
Default_Amotech Multi_Innochips
4E [RD2]CONTACT
VA3801 Multi_Innochips VA3800-*1
5.6V VA3801-*1 ICVS0505201FR
5E [RD2]O-SPRING
ICVS0505201FR
6E [RD2]E-LUG
COMP1/AV1/DVI_R_IN
Default_Amotech
VA3802
5.6V Multi_Innochips
VA3802-*1
ICVS0505201FR
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS MID_LG1311 2014.05.28
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. AV JACK 11 31
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
PAGE 12
P4000
SMAW200-H18S5 L4000 Delete for voltage drop, 131120 +3.5V_WIFI
WIFI POWER ENABLE CONTROL
C4006
C4005 22uF +3.5V_WIFI
GND 1 2 +3.5V_WIFI
0.1uF 10V
+3.5V_ST IC4001
AP2191WG-7
R4001 R4018
BT_RESET
100 BT_RESET 3 4 USB_DM 10
WIFI_DM
RCLAMP0502BA
IN OUT
R4020
R4019
NC USB_DP 5 1
2K
5 6 10
WIFI_DP C4017
R4002 Place Near Wafer +3.5V_ST
WOL GND GND
D4000
0.1uF
WOL/WIFI_POWER_ON
100
7 8 C4016
5pF
C4015
5pF
2
30K
R4023
C4004 SDA GND 50V 50V
OPT
AR4001 R4009
100
0.1uF 9 10 OPT WIFI_DMDP_5pF WIFI_DMDP_5pF R4008
10K 10K AR4002
WIFI_EN R4021 33 EN
4 3
FLG
100
EYE_SDA
EYE_SCL
SCL 11 12 KEY1 5% 5%
R4022
C4003
0.1uF
KEY1 10K
+3.5V_ST 16V
R4005 GND 13 14 KEY2 KEY2 OPT
10K
5%
IR 15 16 +3.5V_ST +3.5V_ST
IR
C4007 C4001 C4002
100pF LED_R 17 18 GND C4008
1000pF
0.1uF 0.1uF
50V 50V OPT OPT
OPT
R4015
1.8K
LED_R
OPT 19
GND
C4009
0.1uF
16V
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS MID_LG1311 2014.05.28
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. IR / KEY 12 31
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
PAGE 13
+5V_USB_2
USB2
MAX 1.5A
3AU04S-305-ZC-(LG)
JK4302
1
USB DOWN STREAM
2
USB_DM2
USB_ESD_0582B
RCLAMP0582B
3
USB_DP2
USB_ESD_SD05
C4322 C4323
D4301
D4302
4
22uF
5V
10uF
10V
10V
5
Multi_Toshiba USB_ESD_0502BA
D4302-*2 D4302-*1
DF3D6.8MS RCLAMP0502BA
+5V_USB_3
USB3
MAX 1.5A
3AU04S-305-ZC-(LG)
JK4300
1
USB DOWN STREAM
2
USB_DM3
USB_ESD_0582B
RCLAMP0582B
3
USB_DP3
USB_ESD_SD05
D4300
C4310
4
C4311
D4303
5V
10uF 22uF
5
10V 10V
Multi_Toshiba USB_ESD_0502BA
D4300-*2 D4300-*1
DF3D6.8MS RCLAMP0502BA
EAX6536390* : Use RClamp0582B, SD05
EAX6538400* : Use RClamp0502BA
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS MID_LG1311 2014.05.28
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR 1
USB 2 & 3
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
PAGE 14
+5V_USB_1
OCP USB1 USB1 (2.0)
MAX 1.5A
USB_ESD_SD05
OPT
C4502 C4501
10uF
D4501
22uF
5V
10V 10V
+5V_USB_1 3AU04S-305-ZC-(LG)
+3.3V_NORMAL JK4500
+5V_NORMAL
IC4500
1
BD2242G
USB DOWN STREAM
2
VIN VOUT USB_DM1
R4501
4.7K 1 6
value change
3
C4500 GND ILIM USB_DP1
0.1uF 2 5
10K(2.63V) --> 4.7K(2.97V) 16V
14K
R4502
1%
4
EN OC
USB_ESD_0582B
/USB_OCD1 3 4
RCLAMP0582B
5
D4500
USB_CTL1
R4500
10K
Multi_Toshiba USB_ESD_0502BA
D4500-*2 D4500-*1
DF3D6.8MS RCLAMP0502BA
EAX6536390* : Use RClamp0582B, SD05
EAX6538400* : Use RClamp0502BA
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS MID_LG1311 2014.05.28
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
USB 1(DVR) 1
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
+3.3V_NORMAL
PAGE 15
EU
R4601 CLOSE TO JUNCTION
10K
EU
R4602
100
SC_DET
EU
VA4601 C4604
VA4601-*1 0.1uF
5.6V
EU_Innochips
EU_Amotech
SC_CVBS_IN
Full Scart VA4609
5.5V
EU
EU
EU
AV_DET 1/16W
22
COM_GND 75
VA4610 R8904 DTV/MNT_V_OUT
21 5.5V
SYNC_IN EU
20
SYNC_OUT
19
SYNC_GND2
18
SYNC_GND1
17
RGB_IO
16 SC_FB
R_OUT VA4602
VA4602-*1
15 5.6V
EU_Innochips
RGB_GND EU_Amotech
14
R_GND
13 SC_R
D2B_OUT
12 VA4603
G_OUT
5.5V
11 EU
D2B_IN
10
G_GND
9 SC_G
ID
8 VA4604
B_OUT
5.5V
7
AUDIO_L_IN
EU
6
B_GND
5
AUDIO_GND SC_B
4
AUDIO_L_OUT VA4605
3 5.5V
AUDIO_R_IN EU
2
AUDIO_R_OUT
1 SC_ID
VA4600 VA4600-*1
20V EU_Innochips
PSC008-01 EU_Amotech
JK4600
SC_L_IN
VA4611
VA4611-*1
5.6V
EU_Innochips
EU_Amotech
SC_R_IN
VA4606 VA4606-*1
5.6V EU_Innochips
EU_Amotech
BLM18PG121SN1D
L4600
DTV/MNT_L_OUT
VA4607 EU EU EU
5.6V C4600 C4602
EU_Amotech 1000pF 4700pF
50V
VA4607-*1
EU_Innochips
BLM18PG121SN1D
L4601
DTV/MNT_R_OUT
EU
VA4608 EU EU C4603
5.6V C4601 4700pF
EU_Amotech 1000pF
50V
VA4608-*1
EU_Innochips
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
PAGE 16
Ethernet Block
C5000 C5001
0.1uF 0.01uF
16V 50V
JK5000
RJ45VT-01SN002
1
1
EPHY_TDP
2
2
3
3
EPHY_TDN
4
4
EPHY_RDP
5
5
6
6
EPHY_RDN
7
7
D5000 D5001 D5002 D5003
8 5.5V 5.5V 5.5V 5.5V
8
LAN_ESD LAN_ESD LAN_ESD LAN_ESD
9
9
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
PAGE 17
Ethernet Block
+3.5V_WOL
3.3K
R5215
EPHY_ACTIVITY
ET_RXER
R5217 3.3K
LAN_JACK_POWER
Place this cap. near IC
+3.5V_WOL
C5208
ET_COL/SNI 0.1uF
C5200 C5201 C5203 16V
4.7uF 0.1uF 0.1uF
10V 16V 16V
EPHY_ACTIVITY
EPHY_CRS_DV
Place 0.1uF close to each power pins
ET_COL/SNI
ET_RXER
IN/OUT_1
FLOAT_1
C5206
5pF +3.5V_WOL
50V
1M R5202
R5218
2
1
X5200
R5210
0
OPT
3
IN/OUT_2
4
FLOAT_2
33
+3.5V_WOL
LED1/PHYAD[1]
Place this cap. near IC C5207
CRS/CRS_DV
DVDD10OUT
RXER/FXEN
8pF
AVDD33_2
50V
CKXTAL2
CKXTAL1
R5212
1/16W
R5219
1/16W
R5205
[EP]
3.3K
1.5K
C5205
COL
10K
Place this Res. near IC
1%
5%
0.1uF
16V
32
31
30
29
28
27
26
25
R5204
2.49K 1% WOL/ETH_POWER_ON
RSET 1 24 LED0/PHYAD[0]/PMEB
THERMAL
AVDD10OUT 2 33 23 MDIO EPHY_MDIO
Route Single 50 Ohm, Differential 100 Ohm MDI+[0] 3 22 MDC EPHY_MDC
EPHY_RDP
MDI-[0] IC5200 PHYRSTB
4 21 /RST_PHY (from SOC)
EPHY_RDN RTL8201F-VB-CG
MDI+[1] 5 20 TXEN
EPHY_TDP EPHY_EN
+3.5V_WOL MDI-[1] 6 19 TXD[3]
EPHY_TDN
AVDD33_1 7 18 TXD[2]
ETHERNET INTERFACE
- CROSS CONNECTION R5203 RXDV TXD[1]
8 17 EPHY_TXD1
(PATTERN ISSUE)
3.3K
10
11
12
13
14
15
16
9
RXD[0]
RXD[1]
RXD[2]/INTB
RXD[3]/CLK_CTL
RXC
DVDD33
TXC
TXD[0]
+3.5V_WOL
+3.5V_WOL
R5200
3.3K
C5211
0.1uF
C5209 16V
R5209
33pF
51
EPHY_TXD0
C5202
3.3K
EPHY_RXD0
EPHY_RXD1
Place near IC
5pF
R5208
WOL POWER ENABLE CONTROL
+3.5V_WOL
+3.5V_ST IC5201
AP2191WG-7
EPHY_REFCLK
IN OUT
5 1
C5204
0.1uF GND
2
WOL_CTL R5223 33 EN FLG
OPT 4 3
C52001
R5222 0.1uF
10K 16V
OPT
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-NC4_H052-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS 2012-09-12
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. ETHERNET
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
PAGE 18
AUDIO AMP(NTP7515)
+3.3V_NORMAL
+13V_A
+13V_AMP AMP_RESET_N
L5601 L5604
10.0uH
BLM18PG121SN1D SPK_L+
L5600
UBW2012-121F NRS6045T100MMGK
50V
AUD_SCK
+13V_AMP
22000pF
R5603
C5604
3.3
1/10W R5607
C5618
C5603 0.1uF 4.7K
50V
[EP]GND
0.1uF C5611
C5606 390pF
VDD_IO
GND_IO
PGND1A
PVDD1A
PVDD1B
16V 10uF 50V
CLK_I
RESET
BST1A
OUT1A
25V
C5616
0.47uF
50V
AD
C5612
390pF
50V C5619 R5608
R5604
3.3
0.1uF
50V 4.7K
SPEAKER_L
40
39
38
37
36
35
34
33
32
31
1/10W
L5605
NC_1 1 30 OUT1B 10.0uH
SPK_L-
NRS6045T100MMGK
VDD_PLL 2 29 PGND1B C5608
THERMAL 22000pF
NC_2 3 41 28 BST1B 50V
C5601
1uF
10V GND 4 27 VDR1
NC_3 5 IC5600 26 NC_5
C5602
1uF
10V
DVDD 6 NTP7515 25 AGND
AUD_LRCH
SDATA 7 24 VDR2
WCK
0x54 BST2A
C5610
1uF
C5615
1uF
AUD_LRCK 8 23 10V 10V
AR5601 NC_4 9 22 PGND2A C5609
100 22000pF
1/16W
I2C_SDA1
SDA 10 21 OUT2A 50V
I2C_SCL1
11
12
13
14
15
16
17
18
19
20
C5622 C5623
33pF 33pF
L5602
50V 50V 10.0uH
SCL
FAULT
MONITOR_0
MONITOR_1
MONITOR_2
BST2B
PGND2B
OUT2B
PVDD2B
PVDD2A
SPK_R+
NRS6045T100MMGK
+3.3V_NORMAL +13V_AMP
R5605
3.3
1/10W C5620 R5609
R5601 0.1uF 4.7K
10K AMP_MUTE_MICOM C5613 C5617 50V
390pF 0.47uF
AMP_MUTE_MICOM R5602 C5607 50V
C5614
50V
SPEAKER_R
C 100 10uF 390pF
25V 50V
R5600 C5600 C5621 R5610
B Q5600 C5605
AMP_MUTE 1000pF 0.1uF 4.7K
MMBT3904(NXP) AMP_MUTE_MICOM R5606
10K 50V 22000pF 3.3 50V
AMP_MUTE_MICOM L5603
WOOFER_MUTE
AMP_MUTE_MICOM E 50V 1/10W
I2S_AMP
10.0uH
SPK_R-
NRS6045T100MMGK
AMP_MUTE_PWR_DET
R5690
100
POWER_DET
WAFER-ANGLE
TP5601 WOOFER_MUTE SPK_L+
4
SPK_L-
3
SPK_R+
2
SPK_R-
1
P5600
Black : Box_Type
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
LG1311 2014.05.28
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR AUDIO[NTP7515] 58
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
PAGE 19
PANEL_VCC
EU
L6000
IC6000
AUD_OUT >> EU/CHINA_HOTEL_OPT AZ4580MTR-E1 EU
C6004
0.1uF
EU EU
C6000 R6000 OUT1 VCC 50V
1 8
DTV/MNT_L_OUT
2.2K EU EU
1uF EU
25V OPT OPT R6011 C6008
C6002 R6002 R6004 33K IN1- 7 OUT2 2.2K
2 DTV/MNT_R_OUT
6800pF 470K
C6003 33pF
IN1+ EU 6 IN2- R6008
EU
33K
OPT
R6010
OPT 1uF
SCART_LOUT 3 C6007 25V
EU 470K
6800pF
C6005 33pF
VEE 5 IN2+
R6001 EU 4 SCART_ROUT
10K EU
10K
EU
C6001 EU R6003
4.7uF
10V
EU 4.7uF
10V
C6006
[SCART AUDIO MUTE]
DTV/MNT_L_OUT
EU
C
R6013
Q6000 B 1K
MMBT3904(NXP) EU_SCART_MUTE_ISAHAYA
E EU Q6002
RT1P141C-T112
C
E
SCART_MUTE
B
DTV/MNT_R_OUT PDTA114ET 2N3906S-RTK MMBT3906(NXP)
Q6002-*1 Q6002-*2 Q6002-*3
C
E
C
E
C
E
EU
C
R6014
Q6001 B 1K
B
B
B
MMBT3904(NXP)
EU_SCART_MUTE_NXP EU_SCART_MUTE_KEC EU_SCART_MUTE_NXP_NEW
E EU
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
PAGE 20
EARPHONE AMP
IC6100
TPA6138A2
HP_OUT HP_OUT
+INR +INL
C6104 1 HP_OUT 14 C6109
HP_OUT
C6100 18pF HP_OUT HP_OUT 18pF HP_OUT C6101
1uF R6100 R6106 R6104 R6101 1uF
-INR -INL HP_OUT
HP_OUT 10K
10V 43K HP_OUT 2 13
43K 10K 10V
HP_OUT
HP_ROUT_MAIN HP_LOUT_MAIN
HP_OUT
R6103
HP_OUT
R6102
1% C6108 C6106 1%
43K
43K
10pF
1%
1%
OUTR OUTL 10pF
50V 3 12 50V
HP_LOUT_AMP
HP_ROUT_AMP
+3.3V_NORMAL GND_1 UVP
4 11
MUTE GND_2 +3.3V_NORMAL
4.7K
HP_OUT
5 10
R6105
SIDE_HP_MUTE VSS VDD
6 9
HP_OUT HP_OUT
HP_OUT
C6105 C6107
C6102 CN CP 1uF 0.1uF
1uF 7 8
10V 16V
10V
C6103
1uF
10V
HP_OUT
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. 2011.09.29
HEADPHONE AMP
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR 61
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
PAGE 21
CI POWER ENABLE CONTROL
IC6200
+5V_NORMAL AP2151WG-7 +5V_CI_ON
IN OUT
5 1
CI C6211 CI
0.1uF GND C6210
16V 2 1uF
CI R6219
25V
10K
R6217 CI
100 EN FLG CI
PCM_5V_CTL 4 3
R6218
10K
CI
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
PAGE 22
B-CAS (SMART CARD) INTERFACE
CLKDIV1 CLKDIV2 : F_CRD_CLK
-----------------------------
1 0 CLKIN
+3.3V_NORMAL INT CMDVCC : STATUS
---------------------------------
+3.3V_NORMAL HIGH HIGH CARD PRESENT
LOW HIGH CARD not PRESENT
IC6300
TDA8024TT
2.7K
2.7K
JAPAN
JAPAN
R6301
R6305
1.2K
1.2K
1.2K
1.2K
1.2K
CLKDIV1 AUX2UC
1 28
JAPAN
JAPAN
JAPAN
OPT
OPT
CLKDIV2 AUX1UC
2 27
JAPAN
R6317
R6318
R6315
R6319
R6316
JAPAN
R6300 22 5V/3V I/OUC AR6300
3 26 33
SMARTCARD_PWR_SEL/SD_EMMC_DATA[1] SMARTCARD_DATA/SD_EMMC_CLK
R6304
2.7K
JAPAN
R6306
PGND XTAL2
4 25 SMARTCARD_CLK/SD_EMMC_DATA[0]
OPT
+5V_NORMAL
S2 XTAL1
5 24 SMARTCARD_DET/SD_EMMC_DATA[3]
JAPAN
L6300
VDDP OFF
6 23 SMARTCARD_RST/SD_EMMC_DATA[2]
JAPAN BLM18PG121SN1D JAPAN
JAPAN JAPAN
C6300 C6301 C6303 S1 GND R6311 22
0.1uF 0.1uF 7 22 SMARTCARD_VCC/SD_EMMC_CMD
10uF
16V 10V 16V
JAPAN JAPAN
VUP VDD L6301
8 21
JAPAN BLM18PG121SN1D
C6302 PRES RSTIN
0.1uF 9 20 JAPAN JAPAN
16V C6305 C6306
0.1uF B-CAS SLOT
PRES CMDVCC 0.1uF
10 19 16V 16V
P6300
I/O PORADJ 10057542-1311FLF(B CAS Slot)
11 18
AUX2 VCC JAPAN VCC
12 17 C1
C6307
0.33uF
AUX1 RST 16V RST
13 16 C2
CGND CLK Place CLK C3 far from C2,C7,C4 and C8 CLK
14 15 C3
JAPAN
C6304 RESERVED_1
0.1uF C4
16V
GND
C5
VPP JAPAN
C6
JAPAN
R6313
75 I/O
C7
75 ohm in I/O is for short circuit Protection
RESERVED
C8
+3.3V_NORMAL SW1
S1
10K
R6312
JAPAN
R6314 1K SW2
S2
JAPAN
ZD6300JAPAN ZD6301
JAPAN
5V 5V
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
FE_DEMOD1_TS_ERROR
1. should be guarded by ground
2. No via on both of them
3. Signal Width >= 12mils
close to Tuner Signal to Signal Width = 12mils
+3.3V_NORMAL Ground Width >= 24mils
L6500
BLM18PG121SN1D close to TUNER
1 +3.3V_LNA_TU C6501
0.1uF
OPT
OPT OPT
2 RF_SWITCH_CTL_TU RF_SWITCH_CTL
C6504 R6503
R6507
0.1uF 10K
1K
TU_ALL_IntDemod_H15
R6506 1K
3 IF_AGC_TU IF_AGC
C6502 close to Tuner TU_ALL_IntDemod
0.1uF
16V +3.3V_NORMAL
AR6500 AR6500-*1
TU_ALL_2178B
33 200
1/16W 1/16W
4 I2C_SCL6_TU I2C_SCL6
L6506
C6505
47pF I2C_SDA6
5 50V TU_ALL 1608 perallel
I2C_SDA6_TU TU_W_BR/TW
C6503 OPT because of derating
47pF TU_ALL_2178B
50V C6521
TU_SIF_TU 0.1uF TU_ALL_2178B TU_ALL_2178B
OPT R6516 R6517
16V 200 200
R6504
10
6 IF_P_TU
TU_ALL_IntDemod C6519 IF_P TU_CVBS
33pF should be guarded by ground,Match GND VIA
R6505 E
10
7 IF_N_TU C6520 IF_N
TU_ALL_IntDemod 33pF TU_ALL_2178B
B Q6502
MMBT3906(NXP)
C
8 TU_SIF_TU
TU_M_KR/EU // W_ALL
9 TU_CVBS_TU
L6501 +3.3V_NORMAL
Global F/E Option Name BLM18PG121SN1D
1. TU 10
2. Tuner Name = TDJ’H’,TDj’M’... C6510
3. Country Name = KR,US,BR,EU ... 0.1uF
11 +3.3V_TU
TU_M_KR/EU // W_ALL
Example of Option name
12 close to Tuner
TU_ALL_IntDemod = All Tuner type for Internal demod FE_DEMOD1_TS_ERROR
TU_M/W = apply TDSM&TDSW Type Tuner FE_DEMOD1_TS_ERROR
14 FE_DEMOD1_TS_CLK FE_DEMOD1_TS_CLK
14’ Tuner Type for Global
TDJ’H’-G101D : Half NIM for EU,AJJA 15 FE_DEMOD1_TS_SYNC FE_DEMOD1_TS_SYNC
TDJ’H’-H101F : Half NIM for US, KR
TDJ’K’-T101F : Half NIM for TW 16 FE_DEMOD1_TS_VAL FE_DEMOD1_TS_VAL
TDJ’M’-C301D,F : FULL NIM for China
TDJ’M’-B101F : Brazil NIM with Isolater Type
17 FE_DEMOD1_TS_DATA[0]
TDJ’M’-K101F : colombia NIM
TDJ’M’-G101D,G105D,G151D : EU Combo&Full NIM
18 FE_DEMOD1_TS_DATA[1] FE_DEMOD1_TS_DATA[0-7]
TDJ’M’-H101F,H151F : Korea PIP tuner
TDJ’W’-A151D : AJJA T2 PIP FE_DEMOD1_TS_DATA[0]
19 FE_DEMOD1_TS_DATA[2] FE_DEMOD1_TS_DATA[1]
FE_DEMOD1_TS_DATA[2]
FE_DEMOD1_TS_DATA[3]
20 FE_DEMOD1_TS_DATA[3]
FE_DEMOD1_TS_DATA[4]
21 FE_DEMOD1_TS_DATA[4]
FE_DEMOD1_TS_DATA[5]
FE_DEMOD1_TS_DATA[6]
FE_DEMOD1_TS_DATA[5] FE_DEMOD1_TS_DATA[7]
22
23 FE_DEMOD1_TS_DATA[6]
24 FE_DEMOD1_TS_DATA[7]
TU_M/W
R6501
TU_M/W 100 /TU_RESET1 +3.3V_NORMAL
25 /TU_RESET1_TU
C6507
TU_M/W
L6503
16V BLM18PG121SN1D
0.1uF
26 +3.3V_DEMOD_TU
C6511 TU_M/W TU_M/W
0.1uF AR6501
33
27
I2C_SCL4_TU I2C_SCL4
OPT
C6513
I2C_SDA4
28 18pF
50V
29 LNB_TX LNB_TX
30 I2C_SDA4_TU
OPT
C6512
31 LNB_OUT LNB_OUT 18pF
50V
34 FE_DEMOD2_TS_ERROR FE_DEMOD2_TS_ERROR
36 FE_DEMOD2_TS_SYNC FE_DEMOD2_TS_SYNC
37 FE_DEMOD2_TS_CLK FE_DEMOD2_TS_CLK
38
39 FE_DEMOD2_TS_VAL FE_DEMOD2_TS_VAL
40 FE_DEMOD2_TS_DATA FE_DEMOD2_TS_DATA
TU_W
R6518
100
45 /TU_RESET2_TU /TU_RESET2
1/16W
TU_W 5%
C6522
0.1uF
16V
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS TUNER 2012.07.10
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. 65
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
TU_H_EU TU_M_EU TU_W_JP
TU6701 TU6702 TU6703
TDJH-G301D TDJM-G301D TDJW-J301F
+3.3V +3.3V +3.3V_LNA
1 1 1 +3.3V_LNA_TU 1
NC_1 NC_1 NC_1
2 2 2 RF_SWITCH_CTL_TU 2
IF_AGC AIF_AGC NC_2
3 3 3 IF_AGC_TU 3
SCL_RF SCL_RF SCL_RF
4 4 4 I2C_SCL6_TU 4
SDA_RF SDA_RF SDA_RF
5 5 5 I2C_SDA6_TU 5
IF[P] AIF[P] NC_3
6 6 6 IF_P_TU 6
IF[N] AIF[N] NC_4
7 7 7 IF_N_TU 7
SIF SIF NC_5
8 8 8 TU_SIF_TU 8
CVBS CVBS NC_6
9 9 9 TU_CVBS_TU 9
NC_2 NC_7
10 10 10
A1 B1 +3.3V_RF +3.3V_RF
A1 B1 11 11 +3.3V_TU 11
47 ERROR NC_8
12 12 FE_DEMOD1_TS_ERROR
TU_GND_B
12
GND_1 GND_1
SHIELD 13 13
13
MCLK
14 FE_DEMOD1_TS_CLK
14
SYNC
15 FE_DEMOD1_TS_SYNC
VALID
16 FE_DEMOD1_TS_VAL 16
D0
17 FE_DEMOD1_TS_DATA[0] 17
D1
+2.5V_NORMAL 18 FE_DEMOD1_TS_DATA[1] 18
D2
19 FE_DEMOD1_TS_DATA[2] 19
TU_W_JP
D3
20 FE_DEMOD1_TS_DATA[3]
L6702 20
BLM18PG121SN1D D4
21 FE_DEMOD1_TS_DATA[4] 21
+2.5V_DEMOD D5
TU_W_JP 22 FE_DEMOD1_TS_DATA[5]
C6709
22
0.1uF D6
16V 23 FE_DEMOD1_TS_DATA[6] 23
D7
24 FE_DEMOD1_TS_DATA[7] 24
RESET_DEMOD RESET_M_DEMOD
25 25 /TU_RESET1_TU
25
+3.3V_DEMOD +3.3V_DEMOD
26 26 +3.3V_DEMOD_TU
26
SCL_DEMOD SCL_DEMOD
27 27 I2C_SCL4_TU
27
+1.2V_DEMOD +1.2V_DEMOD
TU_GND_B
28 28 D_Demod_Core
NC_3 NC_9
29 29 LNB_TX
SDA_DEMOD SDA_DEMOD
30 30 I2C_SDA4_TU
30
LNB LNB
TU_H/W_EU/JP
TU_H/M_EU/CN TU_H/M_CN 31 31 LNB_OUT
TU_H/M_EU
C6701
TU_H/M_EU 31
C6710 C6702
0
R6701
GND GND_2
1/8W
R6706
0
1000pF 1000pF 1000pF
630V
32 32 32
630V 630V
NC_10
33 33
A1 B1 M_ERROR
A1 B1 34 FE_DEMOD2_TS_ERROR 34
47 GND_3
35
TU_GND_B
35
M_SYNC
SHIELD 36 FE_DEMOD2_TS_SYNC 36
M_MCLK
DVB-T GND DVB-S JACK GND 37 FE_DEMOD2_TS_CLK
+2.5V_DEMOD
38 +2.5V_DEMOD
M_VALID
39 FE_DEMOD2_TS_VAL
M_DATA
40 FE_DEMOD2_TS_DATA
40
S_ERROR
41 FE_DEMOD3_TS_ERROR 41
S_SYNC
42 FE_DEMOD3_TS_SYNC
42
S_MCLK
43 FE_DEMOD3_TS_CLK
D_Demod_Core 43
TU_M/W_1.2V
TU_M/W
POWER_ON/OFF2_1 S_VALID
R6703-*1 R6704-*1
IC6700
TU_M/W_1.1V TU_M/W_1.1V
44 FE_DEMOD3_TS_VAL 44
TJ2132GDP [EP]GND
10.5K
TU_M/W
10K
S_RESET_DEMOD
45
10K
R6703 R6704
/TU_RESET2_TU 45
+3.5V_ST POK GND R1
R6705 1 8 S_DATA
46
THERMAL
FE_DEMOD3_TS_DATA
10.5K
9.1K
46
TU_M/W_1.2V
EN FB R2
9
2 7
L6701 C6706
BLM18PG121SN1D 0.01uF 47
TU_M/W
IN
3 6
OUT 50V A1 B1
A1 B1
TU_M/W
TU_M/W
C6708
C6703 48
0.1uF
10uF BIAS 2A SS 47
10V +5V_NORMAL 4 5
49
TU_GND_B
TU_M/W
C6705 C6707 SHIELD
2700pF 10uF
50V 10V
TU_M/W
C6704
1uF
10V
Vout=0.6*(1+R2/R1)
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS TU_SYMBOL 2012.09.14
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
PAGE 26
DVB-S2 LNB Part Allegro Input trace widths should be sized to conduct at least 3A
Ouput trace widths should be sized to conduct at least 2A
(Option:LNB)
Q6901
+13V +13V_M
PMV48XP
S
D
C6913 R6908 C6914
0.1uF 36K 0.1uF
G
50V 50V
+13V_M
R6909
150K
2A D6904-*1
Max 1.3A +3.3V_NORMAL
C
R6910
40V 10K B Q6902
LNB_TSC LNB_SX34 MMBT3904(NXP)
1/16W OPT
D6902-*1 D6902
3.0A
SS23L LNB_ONSEMI D6904
3A 5% C6915
4.7uF
10V
E
30V 30V 40V
LNB
LPH6050T-150M-R
15uH
L6900
LNB_SMAB34
C6909
10uF
C6903 C6905 C6906 C6907 25V
0.01uF 10uF 10uF 10uF LNB
50V 25V 25V 25V
LNB LNB LNB LNB
C6908 0.1uF
close to Boost pin(#1)
LNB_Allegro
A_GND A_GND
30V close to VIN pin(#15) Caution!! need isolated GND
BOOST
R6904
[EP]
NC_4
NC_3
PGND
SS23L C6910 0
A_GND
LX
D6901-*1 0.1uF
LNB_TSC 50V
20
19
18
17
16
LNB
D6901 NC_1 1 15 VIN
MBR230LSFT1G THERMAL A_GND
LNB 2 14 GND
LNB_OUT 21
30V LNB
D6903 NC_2 3 13 VREG
LNB_ONSEMI C6904
0.1uF LNB_SMAB34 IC6900 R6903
C6900 C6901 R6900 TDI ISET 39K
2.2K LNB 50V 40V 4 DT1803 12
0.1uF 33pF LNB_DMBT
LNB LNB D6900 1W C6902 TDO TCAP C6912 1/16W
LNB LNB 0.22uF 5 11 1%
LNB 25V D6903-*1
10
LNB
LNB_SX34
6
7
8
9
0.1uF
40V
IRQ
SCL
SDA
ADD
TONECTRL
0.22uF
Close to Tuner A_GND
A_GND
Surge protectioin
LNB
C6911
LNB
33
AR6901
JAPAN
0
R6911
EU
0
R6912
LNB_TX
GND
LNB_TX
I2C_SCL4
I2C_SDA4
[EP]GND
BOOST
GNDLX
NC_3
NC_2
LX
20
19
18
17
16
LNB_Allegro
VCP 1 15 VIN
THERMAL
LNB 2 14 GND
21
NC_1 3 13 VREG
IC6900-*1
TDI A8303SESTR-T(4M)
4 12 ISET
TDO 5 11 TCAP
10
6
7
8
9
IRQ
SCL
SDA
ADD
TONECTRL
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
LNB 2012.03.08
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
69
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
LVDS
PAGE 27
[51Pin LVDS OUTPUT Connector] [41Pin LVDS OUTPUT Connector]
P7202
P7201
SP14-11592-01-41Pin
SP14-11592-01-51Pin
R7210 33 2D/3D_CTL
1 2D/3D_CTL 1
OPT 2D/3D_CTL
2 2 R7221 33
LVDS_SEL
CP_BOX OPT
3 AR7201 3
0
4 +3.3V_NORMAL 4
I2C_SDA1
5 I2C_SCL1 5
OPT R7204 0 R7217
6 6
3.3K
7 LVDS_SEL_HIGH 7
R7218 33
8 PWM_DIM R7215 8
LGD_T-Con_Scanning 10K
9 LVDS_SEL_LOW 9
R7220 33
10 OPT 10 TXC0N/TX23N
R7219 33
OPC_EN
11 11 TXC0P/TX23P
OPT
12 TXA0N/TX11N 12 TXC1N/TX22N
13 TXA0P/TX11P 13 TXC1P/TX22P
LVDS_41PIN_FLIP_TYPE
14 TXA1N/TX10N 14 TXC2N/TX21N
15 TXA1P/TX10P 15 TXC2P/TX21P
16 TXA2N/TX9N 16
17 TXA2P/TX9P 17 TXCCLKN/TX20N
18 18 TXCCLKP/TX20P
LVDS_51PIN_FLIP_TYPE
19 TXACLKN/TX8N 19
20 TXACLKP/TX8P 20 TXC3N/TX19N
21 21 TXC3P/TX19P
22 TXA3N/TX7N 22 TXC4N/TX18N
23 TXA3P/TX7P 23 TXC4P/TX18P
24 TXA4N/TX6N 24
H or FLOAT : 10-bit
25 TXA4P/TX6P 25
L : 8-bit
26 26 TXD0N/TX17N
BIT_SEL
27 27 TXD0P/TX17P
28 TXB0N/TX5N 28 TXD1N/TX16N
R7214
29 TXB0P/TX5P 10K 29 TXD1P/TX16P
BIT_SEL_LOW
30 TXB1N/TX4N 30 TXD2N/TX15N
31 TXB1P/TX4P 31 TXD2P/TX15P EPI_CH8
32 TXB2N/TX3N 32
33 TXB2P/TX3P EPI_CH4 33 TXDCLKN/TX14N
34 34 TXDCLKP/TX14P EPI_CH7
35 TXBCLKN/TX2N 35
36 TXBCLKP/TX2P EPI_CH3 36 TXD3N/TX13N
37 37 TXD3P/TX13P EPI_CH6
38 TXB3N/TX1N 38 TXD4N/TX12N
39 TXB3P/TX1P EPI_CH2 39 TXD4P/TX12P
EPI_CH5
40 TXB4N/TX0N 40
41 TXB4P/TX0P
EPI_CH1 41
42
42
43
44
45 PANEL_VCC
46 L7200
UBW2012-121F
47
AUO_SHARP
48
49
50
51
52
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-NC4_H072-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS MID_LG1311 2013.04.03
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. LVDS INTERFACE
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
GIP_RST
V14_32INCH OPTION
EPI_V14(32)_V12_V13
VGH_EVEN
PAGE 29
VGH_ODD
CLK6
CLK5
CLK1
CLK2
CLK3
CLK4
VST
VGH
R7759 R7760
RE
0 0 INSTEAD OF AMCC0208
1/16W 1/16W
Q7700
CLK6 MMBT3904(NXP)
R7724
VGH_E/O
RESET
CLK5 R7728 100K
E
C
[EP]
CLK1
CLK2
CLK3
CLK4
CLK5
CLK6
EVEN
0
ODD
VST
VGH
RE
NC
CLK4 1/16W 5% D7703
VGL
56
55
54
53
52
51
50
49
48
47
46
45
44
43
CLK3 CTRLN 1N4148W
[EP]AGND
REVERSE SWP
B
1 42
VGH_E/O
CLK2 GCLK 2 THERMAL 41 CTRLP
MCLK 57 VCOMFB 100V
RESET
CLK1 3 40
CKL1
CLK2
CLK3
CLK4
CLK5
CLK6
NC_2
EVEN
GST 4 39 VCOMDAC
ODD
VST
VGH
E/O 5 38 VCOM C7745 C7747
RE
C7704 C7707 C7708 C7709 GND GGND SWN
C7716 C7721 6 IC7703-*1 37
560pF 560pF 560pF 560pF VGL 7 36 GMA_N6
1uF 10V 1uF 10V
560pF 560pF SW5084B D7705
50V 50V 50V 50V
SWN 8 PMIC_SIW 35 GMA_N5
C7727 R7739 C7756
56
55
54
53
52
51
50
49
48
47
46
45
44
43
50V 50V CTRLN 9 34 GMA_N4 1N4148W 1.5K C7733
RST GMA_P3 0.1uF 1/16W 1uF 10uF
10 33
REVERSE SWP 100V 16V 5%
OUT1 11 32 GMA_P2
1 42 10V 10V
SWB1 12 31 GMA_P1 REVERSE SWP OPT
AGND COMP
GCLK 2 THERMAL 41 CTRLP
13 30 GCLK CTRLP
PVINB1 14 29 SS VCC18 MCLK 57 VCOMFB R7774
Improve the Vertical dot noise MCLK 3 40 VCOM_FB2
GST VCOM 1K
15
16
17
18
19
20
21
22
23
24
25
26
27
28
GST 4 39 VCOM_TOP
E/O VCOM_DAC
AVIN
PVINB3
SWB3
OUT3
PGND3
SCL
SDA
VL
TCOMP
PGND
SW_1
SW_2
SWI
SWO
EO 5 38 PVCOM
R7701 GND 6 37 VGND
10K IC7703
VGL 7 36 GMA6
1/16W VGL TPS65175B GMA15_18
SWN 8 35 GMA5
SWN GMA14
CTRLN GMA4
CTRLN
9 34 GMA12_10 INSTEAD OF AMCC0209 VGH
RST 10 33 GMA3
VCC18 GMA7_9
For EMI OUTB 11 32 GMA2
GMA5 D7704
SWB 12 31 GMA1 1N4148W
L7702 GMA4_1 C7746 C7748
R7737
R7736
AGND COMP
13 30 SWP
OPT
COMP
OPT
4.7
4.7
PVINB 14 29 SS 1uF 25V 1uF 25V 100V
R7700 C7710 C7711 C7712 22uH SS C7755 C7757 R7744 R7750
2K 10uF 10uF 1uF D7700 1uF 1uF 20K 20K
CTRLP
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1/10W 1/10W
B
1/16W 10V 10V 10V SX34 C7722 50V 50V
V14-LGD PANEL 40V OPT 4700pF VDD D7706
1N4148W
AVIN
PVINH
SWH
OUTH
PGNDH
SCL
SDA
VL
TCOMP
PGND
SW
NC_1
SWI
SWO
50V 100V
C7725
E
C
OPT 2200pF C7754
50V R7727 100K Q7701 0.1uF
PANEL_VCC MMBT3906(NXP) 50V
1/16W 5%
EPI 8-Lane (LEFT) EPI 8-Lane (RIGHT) C7713 C7714 I2C_SCL2
AR7700
C7724
10uF 10uF 1uF I2C_SDA2
25V 25V VL
25V
1/16W
33 VDD
P7703
TCOMP
P7702 C7742
1uF
VCC18
10V
FL11S050HA1 FL11S050HA1 H_VDD L7703
NR6020T6R8NC C7737 C7705 R7718 R7761
6.8uH 0.1uF 68uF 10K
50V 9.1K
EPI_V12_V13 35V
R7715
NC 0 GMA1 R7729 C7715 R7755
1 Z_OUT 1
CLK1 NC
GMA1 2.7K 10uF
16V
EPI_LOCK8/6_SOURCE EPI_LOCK8/6
2 2 VL 33
CLK2
CLK1 GMA4 PANEL_VCC
For EMI R7713
2.2
C7729
470pF
C7726
470pF
3 CLK2 3 GMA4 1/16W 50V 50V
CLK3 GMA5 R7720
4 CLK3 4 OPT OPT OPT
CLK4 GMA7
GMA5 L7704
22uH
47K
5 CLK4 5
CLK5 GMA9
GMA7 D7701
SX34 TCOMP
6 CLK5 6
CLK6 GMA10
GMA9 C7723 C7734 C7706 TH7700 R7722
7 7 10uF 40V 0.1uF 68uF 120K
VGH
CLK6 GMA12
GMA10 25V 50V 35V
47k-ohm
1% SS
8 8 VCC18 COMP RE
VGH_ODD
VGH GMA14
GMA12
9 9 C7731
VGH_ODD GMA14 R7717 0.1uF
10
VGH_EVEN
VGH_EVEN 10
GMA15
GMA15 VCORE R7748
1K
R7717-*1
68K
22K
C7740
16V
11
VSS
VGL
VDD H_VDD 11
NC PMIC_SIW
C7736
68pF
50V R7751
REVERSE C7736-*1
12
VST (+16V) (+8V) 12
GMA18 1000pF PMIC_SIW 30K
1/16W
VST GMA18 820pF
50V
50V
13
NC(GIP_RST)
VCOM_L_BOT
GIP_RST 13
GND
LOCK_O
VCC18 R7749
1K
PMIC_SIW
14 14 OPT
VCOM_FB(Z_OUT)
VCOM_L_BOT LOCK_I
EPI_LOCK8/6_SOURCE
15 15
VCOM_L_TOP
VCOM_L_FB VCC12
EPI_LOCK4/3
16 VCOM_TOP 16
GND VCC18 VCORE
17 17 +1.1V_VDD ** 42/47/55INCH OPTION **
VDD GND
18 18
AO3438
VDD EPI8- C7702 C7703
19 19 Q7702 R7708 EPI_NON_32inch
TXD2N/TX15N 0.1uF 0.01uF VCOM_L_FB VCOM_FB_PANEL
S
D
H_VDD EPI8+ 16V 50V 0
20 20 ** 32INCH OPTION **
GND GND
TXD2P/TX15P C7730
VCOM_R_FB
R7709 EPI_NON_32inch
21 21 1uF 0
6-Lane case
G
10V R7707 EPI_32inch
EPI4- EPI7- C7732 C7728
22 TXB2N/TX3N 22 OPT 1uF VCOMR_FB VCOM_R_BOT VCOM_FB2
23
EPI4+
23
EPI7+
TXDCLKN/TX14N H_VDD 10V
0.1uF
16V
VCOM_FB_PANEL
R7710 EPI_NON_32inch
VCOM_FB1
0
GND
TXB2P/TX3P GND
TXDCLKP/TX14P (+8V)
OPT 0
Z_OUT
R7702 EPI_32inch
VCOM_L_FB
0
24 6-Lane case 24 +3.3V_NORMAL
R7716
EPI3- EPI6- R7711
25 25 TXD3N/TX13N VCOM_TOP EPI_32inch
EPI3+
TXBCLKN/TX2N EPI6+
0 OPT 0 VCOM_R_FB
26 26 TXD3P/TX13P R7712 OPT
GND
TXBCLKP/TX2P GND
R7741
1K VCOM_R_BOT 0
VCOM_FB1
27 27 R7766 EPI_NON_32inch R7714 OPT
28
EPI2-
TXB3N/TX1N VCORE VCC18 28
EPI5-
TXD4N/TX12N VDD EPI_CTL VCOM_FB_PANEL 0
VCOM_FB2 VCOM_BOT 0 VCOM_L_BOT VCOML_FB
EPI2+ EPI5+
29
TXB3P/TX1P 29 TXD4P/TX12P (+16V) R7767
GND GND VCOM_BOT
30 30 0 OPT
EPI1- H_VDD
31 TXB4N/TX0N 31
EPI1+ VDD R7719 EPI_NON_32inch < VCOM OPTION TABLE >
32 32
GND
TXB4P/TX0P VDD
VCOM_BOT
0 VCOM_L_BOT
33 33 V14 42~55INCH V14 32INCH
VCC18 GND R7721 EPI_NON_32inch
34 34 VCOM_R_BOT
0 EXT.OP AMP NOT USE EXT.OP AMP USE EXT.OP AMP NOT USE EXT.OP AMP USE
VCC12 VCOM_R_TOP
35 35
LOCK_I VCOM_FB(Z_OUT)
VCOM_TOP R7703 47 IC7702 NC R7716 0 ohm IC7702 USE R7710 0 ohm IC7702 NC IC7702 USE
36 C7700 C7701 36 EO_SOC EO
LOCK_O
EPI_LOCK4/3 0.01uF 0.1uF
VCOM_R_BOT
VCOM_R_FB FROM SOC
1/16W
C7760 NC R7766 0 ohm C7760 USE R7716 NC C7760 NC
C7760
50V 16V USE
37 37
GND NC(GIP_RST)
VCOM_R_BOT C7717 R7766 0 ohm
L7706 R7767 NC L7706 USE L7706
38 38 15pF NC NC L7706 USE
GMA18 VST
GIP_RST 50V
39 39 VDD R7770 0 ohm R7719 0 ohm R7770 1Kohm R7767 NC R7770 NC R7770
NC
GMA18 VSS
VST 1kohm
40 40 VGL R7771 0 ohm R7719 0 ohm R7771 R7771
R7772 0 ohm R7721 0 ohm NC 0 ohm
GMA15 VGH_EVEN
41 41
GMA14
GMA15 VGH_ODD
VGH_EVEN R7704 47 R7708 0 ohm R7771 NC
R7772 30Kohm R7721 0 ohm R7772 NC R7772 30Kohm
42 42 GST_SOC GST
GMA12
GMA14 VGH
VGH_ODD 1/16W R7709 0 ohm R7708 0 ohm R7702 0 ohm R7702 0 ohm
FROM SOC R7772 30K 5%
43 GMA12 43 VGH C7718 EPI_NON_32inch R7709 R7707 0 ohm R7707 0 ohm
GMA10 CLK6 0 ohm
44 44 15pF R7710 NC
GMA9
GMA10 CLK5
CLK6 50V EPI_NON_32inch R7711 0 ohm R7711 0 ohm
45 45 IC7702
GMA7
GMA9 CLK4
CLK5 C7760
1uF
R7712 NC R7712 0 ohm
46 GMA7 46 RT9148GJ5 R7714 R7714
GMA5 CLK3
CLK4 25V NC 0 ohm
47 47
GMA4
GMA5 CLK2
CLK3 VOUT 1 5 VS+
48 48 R7705 47
NC
GMA4 CLK1
CLK2 MCLK_SOC
1/16W
MCLK VCOM_BOT EPI_NON_32inch
49 49 EPI_V14(32)_V12_V13
GMA1 NC
R7723 CLK1 FROM SOC
C7719 VS- 2
EPI_V14(32)_V12_V13
R7725 R7733
50 50 0 15pF GMA15_18 GMA15 GMA7_9 GMA7
GMA1 EPI_V12_V13
Z_OUT 50V EPI_NON_32inch EPI_NON_32inch
0 0
R7771 VIN+ 3 4 VIN- R7770 R7726 R7732
51 51 PVCOM VCOM_FB1 GMA18 GMA9
0 1K 0 0
EPI_V14 EPI_V14
1/16W
R7706 EPI_V14(32)_V12_V13
47
GCLK_SOC GCLK EPI_V14(32)_V12_V13 R7734
1/16W R7730 GMA4_1 GMA4
FROM SOC 0
GMA12_10 GMA12
0
C7720 R7735
15pF R7731 GMA1
50V 0
0 GMA10 EPI_V14
EPI_V14
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES 29 31
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS MID_LG1311 2013.04.03
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. T-Con 77
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
eMMC I/F
DVDD18_EMMC 3.3v power delete, 131120 PAGE 30
R8117
R8116
1/16W
10K
AR8104
1/16W
10K
AR8103
10K
10K
IC8100
THGBMBG5D1KBAIL
EMMC5.0 for 15Y
EMMC_DATA[0-7] AR8100
22
1/16W
EMMC_DATA[0] A3 C7
DAT0 NC_22
EMMC_DATA[1] A4 C8
DAT1 NC_23
EMMC_DATA[2] A5 C9 IC8100-*1 IC8100-*3 IC8100-*5
DAT2 NC_24 THGBMBG6D1KBAIL H26M41103HPR H26M31001HPR
EMMC_DATA[3] B2 C10
EMMC_DATA[4] DAT3 NC_25
B3 C11 A3
A4
DAT0 NC_23
C8
C9
A3
A4
DAT0 NC_22
C7
C8
A3
A4
DAT0 NC_22
C8
C9
EMMC_DATA[5] DAT4 NC_26 A5
DAT1 NC_24
C10 A5
DAT1 NC_23
C9 A5
DAT1 NC_23
C10
B4 C12 B2
DAT2 NC_25
C11 B2
DAT2 NC_24
C10 B2
DAT2 NC_24
C11
EMMC_DATA[6] DAT5 NC_27 B3
DAT3
DAT4
NC_26
NC_27
C12 B3
DAT3
DAT4
NC_25
NC_26
C11 B3
DAT3
DAT4
NC_25
NC_26
C12
B5 C13 B4
DAT5 NC_28
C13 B4
DAT5 NC_27
C12 B4
DAT5 NC_27
C13
EMMC_DATA[7] AR8101 DAT6 NC_28 B5
B6
DAT6 NC_29
C14
D1
B5
B6
DAT6 NC_28
C13
C14
B5
B6
DAT6 NC_28
C14
D1
22 B6 C14 DAT7 NC_30
D2
DAT7 NC_29
D1
DAT7 NC_29
D2
1/16W DAT7 NC_29 NC_31
NC_32
D3
NC_30
NC_31
D2
NC_30
NC_31
D3
D1 M6
CLK NC_33
D4 M6
CLK NC_32
D3 M6
CLK NC_32
D4
NC_30 DAT5 M5
CMD NC_34
D12
D13
M5
CMD NC_33
D4
D12
M5
CMD NC_33
D12
D13
D2 NC_35
D14
NC_34
D13
NC_34
D14
NC_31 A6
VSS_1
NC_36
NC_37
E1 A7
RFU_1
NC_35
NC_36
D14 A6
RFU_1
NC_35
NC_36
E1
M6 D3 A7
C5
RFU_2 NC_38
E2
E3
E5
E8
RFU_2 NC_37
E1
E2
A7
C5
RFU_2 NC_37
E2
E3
CLK NC_32 E5
NC_21 NC_39
E12
VSF_1 NC_38
E3 E5
RFU_3 NC_38
E12
M5 D4 E8
RFU_4 NC_40
E13 G3
NC_39
E12 E8
RFU_4 NC_39
E13
CMD NC_33 E9
RFU_5
VSF_1
NC_41
NC_42
E14 G10
RFU_3
VSF_5
NC_40
NC_41
E13 E9
RFU_5
RFU_6
NC_40
NC_41
E14
D12 E10
F10
VSF_2 NC_43
F1
F2
K6
K7
RFU_4 NC_42
E14
F1
E10
F10
RFU_7 NC_42
F1
F2
NC_34 G3
VSF_3 NC_44
F3 K10
RFU_5 NC_43
F2 G3
RFU_8 NC_43
F3
D13 G10
RFU_9 NC_45
F12 P7
VSF_6 NC_44
F3 G10
RFU_9 NC_44
F12
RFU_10 NC_102 RFU_10
NC_35 H5
DS
NC_46
NC_47
F13 P10
VSF_7
NC_45
NC_46
F12 H5
RFU_11
NC_45
NC_46
F13
A7 D14 J5
K6
VSS_5 NC_48
F14
G1 H5
NC_47
F13
F14
J5
K6
RFU_12 NC_47
F14
G1
RFU_2 NC_36 K7
RFU_13 NC_49
G2
DS NC_48
G1 K7
RFU_13 NC_48
G2
E5 E1 K10
RFU_14 NC_50
G12 E9
NC_49
G2 K10
RFU_14 NC_49
G12
RFU_4 NC_37 P7
RFU_15
RFU_16
NC_51
NC_52
G13 E10
VSF_2
VSF_3
NC_50
NC_51
G12 P7
RFU_15
RFU_16
NC_50
NC_51
G13
E8 E2 P10 G14 F10 G13 P10 G14
EMMC5.0_8G_TOSHIBA
EMMC5.0_8G_SKHYNIX
EMMC5.0_4G_SKHYNIX
RFU_17 NC_53 VSF_4 NC_52 RFU_17 NC_52
H1 G14 H1
RFU_5 NC_38 NC_54
H2
NC_53
H1
NC_53
H2
E3 K5
NC_55
H3 K5
NC_54
H2 K5
NC_54
H3
RSTN RSTN RSTN
NC_39 NC_56
NC_57
H12
NC_55
NC_56
H3
NC_55
NC_56
H12
G3 E12 C6
NC_58
H13
H14 C6
NC_57
H12
H13 C6
NC_57
H13
H14
RFU_9 NC_40 M4
VCCQ_1 NC_59
J1 M4
VCCQ_1 NC_58
H14 M4
VCCQ_1 NC_58
J1
AR8102 22 G10 E13 N4
VCCQ_2 NC_60
J2 N4
VCCQ_2 NC_59
J1 N4
VCCQ_2 NC_59
J2
EMMC_CLK RFU_10 NC_41 P3
VCCQ_3
VCCQ_4
NC_61
NC_62
J3 P3
VCCQ_3
VCCQ_4
NC_60
NC_61
J2 P3
VCCQ_3
VCCQ_4
NC_60
NC_61
J3
K6 E14 P5
VCCQ_5 NC_63
J12 P5
VCCQ_5 NC_62
J3 P5
VCCQ_5 NC_62
J12
DAT7
EMMC_CMD RFU_13 NC_42 NC_64
J13
J14
NC_63
J12
J13
NC_63
J13
J14
K7 F1 E6
NC_65
K1 E6
NC_64
J14 E6
NC_64
K1
EMMC_RST RFU_14 NC_43 DAT6 F5
VCC_1
VCC_2
NC_66
NC_67
K2 F5
VCC_1
VCC_2
NC_65
NC_66
K1 F5
VCC_1
VCC_2
NC_65
NC_66
K2
K10 F2 J10
K9
VCC_3 NC_68
K3
K12
J10
K9
VCC_3 NC_67
K2
K3
J10
K9
VCC_3 NC_67
K3
K12
EMMC5.0_4G_TOSHIBA
RFU_15 NC_44 VCC_4 NC_69
K13
VCC_4 NC_68
K12
VCC_4 NC_68
K13
P7 F3 NC_70
K14
NC_69
K13
NC_69
K14
RFU_16 NC_45 C2
VDDI
NC_71
NC_72
L1 C2
VDDI
NC_70
NC_71
K14 C2
VDDI
NC_70
NC_71
L1
P10 F12 NC_73
L2
L3
NC_72
L1
L2
NC_72
L2
L3
RFU_17 NC_46 E7
NC_74
L12 C4
NC_73
L3 C4
NC_73
L12
F13 G5
VSS_2 NC_75
L13 N2
VSSQ_1 NC_74
L12 E7
VSSQ_1 NC_74
L13
C8107 NC_47 H10
VSS_3
VSS_4
NC_76
NC_77
L14 N5
VSSQ_2
VSSQ_3
NC_75
NC_76
L13 G5
VSS_1
VSS_2
NC_75
NC_76
L14
OPT 10pF H5 F14 K8
C4
VSS_6 NC_78
M1
M2
P4
P6
VSSQ_4 NC_77
L14
M1
H10
K8
VSS_3 NC_77
M1
M2
DS NC_48 N2
VSSQ_1 NC_79
M3 A6
VSSQ_5 NC_78
M2 N2
VSS_4 NC_78
M3
50V G1 N5
VSSQ_2 NC_80
M7 E7
VSS_1 NC_79
M3 N5
VSSQ_2 NC_79
M7
VSSQ_3 VSS_2 VSSQ_3
NC_49 P4
VSSQ_4
NC_81
NC_82
M8 G5
VSS_3
NC_80
NC_81
M7 P4
VSSQ_4
NC_80
NC_81
M8
E9 G2 P6
VSSQ_5 NC_83
M9
M10
H10
J5
VSS_4 NC_82
M8
M9
P6
VSSQ_5 NC_82
M9
M10
VSF_1 NC_50 NC_84
M11 K8
VSS_5 NC_83
M10
NC_83
M11
E10 G12 NC_85
M12
VSS_6 NC_84
M11
NC_84
M12
VSF_2 NC_51 A1
NC_1
NC_86
NC_87
M13
NC_85
NC_86
M12 A1
NC_1
NC_85
NC_86
M13
F10 G13 A2
A8
NC_2 NC_88
M14
N1
A1
A2
NC_1 NC_87
M13
M14
A2
A8
NC_2 NC_87
M14
N1
VSF_3 NC_52 A9
NC_3 NC_89
N3 A8
NC_2 NC_88
N1 A9
NC_3 NC_88
N3
G14 A10
NC_4 NC_90
N6 A9
NC_3 NC_89
N3 A10
NC_4 NC_89
N6
NC_5 NC_4 NC_5
NC_53 A11
NC_6
NC_91
NC_92
N7 A10
NC_5
NC_90
NC_91
N6 A11
NC_6
NC_90
NC_91
N7
H1 A12
A13
NC_7 NC_93
N8
N9
A11
A12
NC_6 NC_92
N7
N8
A12
A13
NC_7 NC_92
N8
N9
NC_54 A14
NC_8 NC_94
N10 A13
NC_7 NC_93
N9 A14
NC_8 NC_93
N10
K5 H2 B1
NC_9 NC_95
N11 A14
NC_8 NC_94
N10 B1
NC_9 NC_94
N11
RSTN NC_55 B7
NC_10
NC_11
NC_96
NC_97
N12 B1
NC_9
NC_10
NC_95
NC_96
N11 B7
NC_10
NC_11
NC_95
NC_96
N12
H3 B8 N13 B7 N12 B8 N13
C8100 DVDD18_EMMC NC_56 B9
NC_12
NC_13
NC_98
NC_99
N14 B8
NC_11
NC_12
NC_97
NC_98
N13 B9
NC_12
NC_13
NC_97
NC_98
N14
B10 P1 B9 N14 B10 P1
OPT 0.1uF H12 B11
NC_14 NC_100
P2 B10
NC_13 NC_99
P1 B11
NC_14 NC_99
P2
NC_15 NC_14 NC_15
NC_57 B12
NC_16
NC_101
NC_102
P8 B11
NC_15
NC_100
NC_101
P2 B12
NC_16
NC_100
NC_101
P8
16V C6 H13 B13
B14
NC_17 NC_103
P9
P11
B12
B13
NC_16 NC_103
P8
P9
B13
B14
NC_17 NC_102
P9
P11
VCCQ_1 NC_58 C1
NC_18 NC_104
P12 B14
NC_17 NC_104
P11 C1
NC_18 NC_103
P12
3.3V_EMMC M4 H14 C3
NC_19 NC_105
P13 C1
NC_18 NC_105
P12 C3
NC_19 NC_104
P13
VCCQ_2 NC_59 C7
NC_20
NC_22
NC_106
NC_107
P14 C3
NC_19
NC_20
NC_106
NC_107
P13 C7
NC_20
NC_21
NC_105
NC_106
P14
N4 J1 C5
NC_21 NC_108
P14
VCCQ_3 NC_60
P3 J2
VCCQ_4 NC_61
P5 J3
VCCQ_5 NC_62
DAT3
DAT4
DAT5
DAT6
EMMC_CLK_BALL
EMMC_CMD_BALL
EMMC_RESET_BALL
J12
C8105 C8106 NC_63
0.1uF 2.2uF J13
NC_64
16V 10V E6 J14 EMMC_RESET_BALL
VCC_1 NC_65
F5 K1 IC8100-*2 IC8100-*4
VCC_2 NC_66 THGBMBG7D2KBAIL KLM4G1YEMD-B031
J10 K2
VCC_3 NC_67 A3 C7 A3 C7
K9 K3 A4
DAT0
DAT1
NC_22
NC_23
C8 A4
DAT0
DAT1
NC_22
NC_23
C8
VCC_4 NC_68 A5
DAT2 NC_24
C9 A5
DAT2 NC_24
C9
K12 B2
B3
DAT3 NC_25
C10
C11
B2
B3
DAT3 NC_25
C10
C11
NC_69 B4
DAT4 NC_26
C12 B4
DAT4 NC_26
C12
EMMC_VDDI K13 B5
DAT5
DAT6
NC_27
NC_28
C13 B5
DAT5
DAT6
NC_27
NC_28
C13
pattern 0.2mm NC_70 B6
DAT7 NC_29
C14 B6
DAT7 NC_29
C14
C2 K14 NC_30
D1
D2
NC_30
D1
D2
VDDI NC_71 M6
NC_31
D3 M6
NC_31
D3
L1 M5
CLK NC_32
D4 M5
CLK NC_32
D4
C8104 NC_72 CMD NC_33
NC_34
D12
CMD NC_33
NC_34
D12
1uF L2 A7
NC_35
D13
D14 A7
NC_35
D13
D14
NC_73 E5
RFU_2 NC_36
E1 E5
RFU_2 NC_36
E1
10V C4 L3 E8
RFU_4
RFU_5
NC_37
NC_38
E2 E8
RFU_3
RFU_4
NC_37
NC_38
E2
VSSQ_1 NC_74 NC_39
E3
NC_39
E3
N2 L12 G3
G10
RFU_9 NC_40
E12
E13
G3
G10
RFU_5 NC_40
E12
E13
VSSQ_2 NC_75 K6
RFU_10 NC_41
E14 K6
RFU_6 NC_41
E14
N5 L13 K7
RFU_13
RFU_14
NC_42
NC_43
F1 K7
RFU_7
RFU_8
NC_42
NC_43
F1
VSSQ_3 NC_76 K10
RFU_15 NC_44
F2 K10
RFU_9 NC_44
F2
P4 L14 P7
P10
RFU_16 NC_45
F3
F12
P7
P10
RFU_10 NC_45
F3
F12
VSSQ_4 NC_77 RFU_17 NC_46
F13
RFU_11 NC_46
F13
C8102 C8103 P6 M1 H5
DS
NC_47
NC_48
F14 H5
DATASTROBE
NC_47
NC_48
F14
0.1uF 2.2uF VSSQ_5 NC_78 NC_49
G1
NC_49
G1
A6 M2 E9
VSF_1 NC_50
G2 E9
RFU_12 NC_50
G2
16V 10V VSS_1 NC_79
E10
F10
VSF_2 NC_51
G12
G13
E10
F10
RFU_13 NC_51
G12
G13
E7 M3
EMMC5.0_16G_TOSHIBA
EMMC5.0_4G_SAMSUNG
VSF_3 NC_52 RFU_14 NC_52
EMMC_CLK_BALL NC_53
G14
NC_53
G14
VSS_2 NC_80 NC_54
H1
NC_54
H1
G5 M7 K5
RSTN NC_55
H2
H3
K5
RSTN NC_55
H2
H3
VSS_3 NC_81 NC_56
H12
NC_56
H12
H10 M8 C6
VCCQ_1
NC_57
NC_58
H13 C6
VDD_1
NC_57
NC_58
H13
VSS_4 NC_82 M4
VCCQ_2 NC_59
H14 M4
VDD_2 NC_59
H14
J5 M9 N4
P3
VCCQ_3 NC_60
J1
J2
N4
P3
VDD_3 NC_60
J1
J2
VSS_5 NC_83 P5
VCCQ_4 NC_61
J3 P5
VDD_4 NC_61
J3
K8 M10 VCCQ_5 NC_62
NC_63
J12
VDD_5 NC_62
NC_63
J12
VSS_6 NC_84 NC_64
J13
NC_64
J13
M11 E6
F5
VCC_1 NC_65
J14
K1
E6
F5
VDDF_1 NC_65
J14
K1
NC_85 J10
VCC_2 NC_66
K2 J10
VDDF_2 NC_66
K2
M12 K9
VCC_3
VCC_4
NC_67
NC_68
K3 K9
VDDF_3
VDDF_4
NC_67
NC_68
K3
NC_86 NC_69
K12
NC_69
K12
A1 M13 NC_70
K13
NC_70
K13
DAT3 NC_1 NC_87
C2
VDDI NC_71
K14
L1
C2
VDDI NC_71
K14
L1
A2 M14 NC_72
L2
NC_72
L2
DAT4 NC_2 NC_88 C4
VSSQ_1
NC_73
NC_74
L3 C4
VSS_1
NC_73
NC_74
L3
A8 N1 N2
VSSQ_2 NC_75
L12 N2
VSS_2 NC_75
L12
DAT7 NC_3 NC_89
N5
P4
VSSQ_3 NC_76
L13
L14
N5
P4
VSS_3 NC_76
L13
L14
A9 N3 EMMC_CMD_BALL P6
VSSQ_4
VSSQ_5
NC_77
NC_78
M1 P6
VSS_4
VSS_5
NC_77
NC_78
M1
NC_4 NC_90 A6
VSS_1 NC_79
M2 A6
VSS_6 NC_79
M2
A10 N6 E7
G5
VSS_2 NC_80
M3
M7
E7
G5
VSS_7 NC_80
M3
M7
NC_5 NC_91 H10
VSS_3 NC_81
M8 H10
VSS_8 NC_81
M8
A11 N7 J5
VSS_4
VSS_5
NC_82
NC_83
M9 J5
VSS_9
VSS_10
NC_82
NC_83
M9
NC_6 NC_92 K8
VSS_6 NC_84
M10 K8
VSS_11 NC_84
M10
A12 N8 NC_85
M11
M12
NC_85
M11
M12
NC_7 NC_93 A1
NC_86
M13 A1
NC_86
M13
A13 N9 A2
NC_1
NC_2
NC_87
NC_88
M14 A2
NC_1
NC_2
NC_87
NC_88
M14
NC_8 NC_94 A8
NC_3 NC_89
N1 A8
NC_3 NC_89
N1
A14 N10 A9
A10
NC_4 NC_90
N3
N6
A9
A10
NC_4 NC_90
N3
N6
NC_9 NC_95 A11
NC_5 NC_91
N7 A11
NC_5 NC_91
N7
B1 N11 A12
NC_6
NC_7
NC_92
NC_93
N8 A12
NC_6
NC_7
NC_92
NC_93
N8
NC_10 NC_96 A13
NC_8 NC_94
N9 A13
NC_8 NC_94
N9
B7 N12 A14
B1
NC_9 NC_95
N10
N11
A14
B1
NC_9 NC_95
N10
N11
NC_11 NC_97 B7
NC_10 NC_96
N12 B7
NC_10 NC_96
N12
B8 N13 B8
NC_11
NC_12
NC_97
NC_98
N13 B8
NC_11
NC_12
NC_97
NC_98
N13
NC_12 NC_98 B9
NC_13 NC_99
N14 B9
NC_13 NC_99
N14
B9 N14 B10
B11
NC_14 NC_100
P1
P2
B10
B11
NC_14 NC_100
P1
P2
NC_13 NC_99 B12
NC_15 NC_101
P8 B12
NC_15 NC_101
P8
B10 P1 B13
NC_16
NC_17
NC_102
NC_103
P9 B13
NC_16
NC_17
NC_102
NC_103
P9
NC_14 NC_100 B14
NC_18 NC_104
P11 B14
NC_18 NC_104
P11
B11 P2 C1
C3
NC_19 NC_105
P12
P13
C1
C3
NC_19 NC_105
P12
P13
NC_15 NC_101 C5
NC_20 NC_106
C5
NC_20 NC_106
Don’t Connect Power At VDDI
P14 P14
B12 P8 NC_21 NC_107 NC_21 NC_107
NC_16 NC_102
EMMC_VDDI B13 P9
NC_17 NC_103
B14 P11
NC_18 NC_104
(Just Interal LDO Capacitor) C1
C3
NC_19 NC_105
P12
P13
DAT5 NC_20 NC_106
C5 P14
NC_21 NC_107
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS eMMC 11.09.29
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. 81
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
PAGE 32
RS-232C Control INTERFACE
RS232C
R6820
100
+3.5V_ST DOUT1
RS232C
R6821
100
RIN1
OPT OPT
ZD6802 ZD6803
ADUC 20S 02 010L ADUC 20S 02 010L
RS232C 20V 20V
RS232C C6813
0.1uF
IC6801
MAX3232CDR
C1+ VCC
RS232C 1 16
C6808
0.1uF V+ GND
RS232C 2 15
C6809
0.1uF C1- DOUT1
3 14
C2+ RIN1
RS232C 4 13
C6810
0.1uF C2- ROUT1
5 12
SOC_RX
V- DIN1
RS232C 6 11
SOC_TX
C6811
0.1uF DOUT2 DIN2
7 10
RIN2 ROUT2
8 9
EAN41348201
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
PLACE AT JACK SIDE SCART SIGNAL
(Use only EU/CIS Model)
Place JACK Side Place SOC Side
+3.3V_NORMAL
IC300
EU NJM2561BF1
L302 1uH R328 EU C326 0.047uF
100
SC_CVBS_IN SC_CVBS_IN_SOC
C311 EU POWER_SAVE V+
C302 EU 1 6
150pF R315 EU EU
150pF
EU 75 SC_CVBS_IN_SOY
3216
50V C362
EU VOUT GND 0.1uF
DTV/MNT_V_OUT 2 5
VSAG VIN EU C363
3 4 DTV/MNT_V_OUT_SOC
0.1uF
EU
R305 100
SC_FB SC_FB_SOC
R306 10K
SC_ID SC_ID_SOC
EU
R302 EU
75 R316
2.7K
EU
EU
R330 EU 33 C319 0.047uF
SC_B COMP1_PB_IN_SOC
R331 EU 33 C320 EU 0.047uF
SC_G COMP1_Y_IN_SOC
C327 EU 1000pF
SC_CVBS_IN_SOY COMP1_Y_IN_SOC_SOY
R332 EU 33 C321 0.047uF
SC_R COMP1_PR_IN_SOC
OPT 50V 10pF
OPT 50V 10pF
OPT 50V 10pF
C304
C307
C308
EU
EU
1% 75
R317 1% 75
R319 1% 75
EU
EU
1005
1005
1005
R313
PANEL_VCC
AUDIO OUT
EU EU
AUDIO IN R336 R338
100K 100K
EU
R307 EU 27K C314 4.7uF
SC_L_IN 1%
AUAD_L_CH2_IN SCART_LOUT
C329 2.2uF
SCART_LOUT_SOC
R320 EU10K 10V
EU
R308 EU 27K 1% C330 2.2uF
C315 EU 4.7uF SCART_ROUT SCART_ROUT_SOC
SC_R_IN AUAD_R_CH2_IN EU
10V
100K
R339
1%
EU
R321 EU 10K
1%
100K
R337
EU
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
M14+ Trouble Shooting Guide
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Contents of Standard Repair Process
No. Error symptom (High category) Error symptom (Mid category) Page Remarks
1 No video/Normal audio 2
2 No video/No audio 3
3 A. Video error Picture Broken / Freezing 4
4 Color error 5
Vertical/Horizontal bar, residual image, light
5 6
spot, external device color error
6 No power 7
B. Power error Off when on, off while viewing, power auto
7 8
on/off
8 No audio/Normal video 9
C. Audio error
9 Wrecked audio/discontinuation/noise 10
No response in remote controller, key error,
10 11
D. Function error recording error, memory error
11 External device recognition error 12
12 E. Noise Circuit noise, mechanical noise 13
13 F. Exterior error Exterior defect 14
First of all, Check whether there is SVC Bulletin in GCSC System for these model.
1
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
A. Video error date
Error symptom
No video/ Normal audio Revised date 1/13
First of all, Check whether all of cables between board is inserted properly or not.
(Main B/D↔ Power B/D, LVDS or EPI Cable, Speaker Cable, IR B/D Cable,,,)
☞A1 ☞A4
No video Normal Y Check Back Light Y Check Power Board Normal Y Replace T-con Board
Normal audio On or module
audio On with naked eye 13.2V (pin no. 7/8) voltage
And Adjust VCOM
N N N
Move to No Check Power Board LED B+ voltage Repair Power Board
☞A2
video/No audio (LED B+ voltage depends on the Power BD spec) or parts
Replace Inverter
Normal Y
or module
voltage
End
N
Repair Power
Board or parts
※Precaution ☞A7 & A3
Always check & record S/W Version and White
Replace Main Board Re-enter White Balance value
Balance value before replacing the Main Board
2
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
A. Video error date
Error symptom
No video/ No audio Revised date 2/13
☞A4
Check various voltages Y Check and
No Video/ Normal
of Power Board (13.2V) replace
No audio voltage?
MAIN B/D
N End
Replace Power
Board and repair
parts
3
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
A. Picture Problem date
Error symptom
Picture broken/ Freezing Revised date 3/13
☞A6 . By using Digital signal level meter
. By using Diagnostics menu on OSD
Check RF Signal level ( Setting→ Set up→ Manual Tuning → Check the Signal )
- Signal strength (Normal : over 50%)
- Signal Quality (Normal: over 50%)
Y Check whether other equipments have problem or not.
Normal
(By connecting RF Cable at other equipment)
Signal?
→ DVD Player ,Set-Top-Box, Different maker TV etc`
N
Check RF Cable
☞A7
Y N Check Y
Connection Normal Check SVC
Tuner soldering Close
1. Reconnection Picture? S/W Version Bulletin?
2. Install Booster N
N Y
S/W Upgrade
Normal N Contact with signal distributor
Picture? or broadcaster (Cable or Air) N
Normal
Picture? Replace
Main B/D
Y Y
Close
Close
4
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
A. Video error date
Error symptom
Color error Revised date 4/13
☞A8 ☞ A10
※ Check and
Check color by input replace Link
-External Input Y Y Y
Color Cable Color Color
-COMPONENT Replace Main B/D Replace module
error? (LVDS) and error? error?
-HDMI/DVI contact
N N
condition N
End
Check error color
input mode
☞A12 Check
External Input/ External device Y
external
Check Test pattern Component /Cable Replace Main B/D
device and
error normal
cable
N
Request repair
for external
device/cable
N
Check external External device Y
HDMI/DVI
device and /Cable Replace Main B/D
error
cable normal
5
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
A. Video error Established
Error symptom date
Vertical / Horizontal bar, residual image,
light spot, external device color error Revised date 5/13
Vertical/Horizontal bar, residual image, light spot Replace
Module
☞A8
☞ A10 N
Check color condition by input Check external ☞ A28
Check and
-External Input Screen Y device Y Screen N Screen
-Component Normal? replace Link Replace Main B/D
normal? connection normal? normal?
-HDMI/DVI Cable (adjust VCOM)
condition
N N For LGD LF67/70/72/65 Y
Y Series panel
Replace Request repair End Replace Main B/D End
module for external
☞A12 device
Check Test pattern For other panel
External device screen error-Color error
Check screen External Connect other external device
Check N condition by input Input and cable
Check S/W Version (Check normal operation of N
version -External Input error
External Input, Component,
Screen Replace
-Component
Y and HDMI/DVI by connecting
normal? Main B/D
-HDMI/DVI
Component Jig, pattern Generator ,Set-
S/W Upgrade error top Box etc. Y
Request repair for
external device
RGB Connect other external
Normal N device and cable Y
error
screen? (Check normal operation of
External Input, Component, N Replace
Screen
and HDMI/DVI by connecting normal? Main B/D
Y HDMI/ Jig, pattern Generator ,Set-top
DVI Box etc.
End
6
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
B. Power error date
Error symptom
No power Revised date 6/13
☞A17 ☞A19
Y DC Power on N Y Replace
Check Power LED Normal Check Power
by pressing Power Key OK? Power
Power LED On? operation? On ‘”High”
On Remote control B/D
. Stand-By: Red
N Y
. Operating: Turn Off
Check Power cord Replace Main B/D
was inserted properly
☞A4
N Measure Main Power voltage of each output of Power B/D
Normal? (Voltage is different at each status - STBY : 8.8V, Power on : 13.2V)
Y
Y
Check ST-BY 3.5V at Main B/D Normal Y
Replace Main B/D
Close And Power output Voltage Normal voltage?
(Power output voltage to Main B/D Y
voltage?
is 8.8V at STBY Status) N
☞A18 N Replace Power B/D
Replace Power
B/D
7
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
B. Power error date
Error symptom
Off when on, off while viewing, power auto on/off Revised date 7/13
☞A22
N Y
Check A/C cord Error? Check Power Off CPU
Replace Main B/D Normal? End
Mode Abnormal
N
Y Abnormal Replace Power B/D
1
Fix A/C cord ☞A19
(If Power Off mode is
not displayed) Normal Y
Replace Main B/D
Check Power B/D voltage?
voltage
N
※ Caution
Check and fix exterior Replace Power B/D
of Power B/D Part
Status Power off List Explanation
* Please refer to the all cases which "POWEROFF_REMOTEKEY" Power off by REMOTE CONTROL
"POWEROFF_OFFTIMER" Power off by OFF TIMER
can be displayed on power off mode.
"POWEROFF_SLEEPTIMER" Power off by SLEEP TIMER
"POWEROFF_INSTOP" Power off by INSTOP KEY
"POWEROFF_AUTOOFF" Power off by AUTO OFF
Normal "POWEROFF_ONTIMER" Power off by ON TIMER
"POWEROFF_RS232C" Power off by RS232C
"POWEROFF_RESREC" Power off by Reservated Record
"POWEROFF_RECEND" Power off by End of Recording
"POWEROFF_SWDOWN" Power off by S/W Download
"POWEROFF_UNKNOWN" Power off by unknown status except listed case
"POWEROFF_ABNORMAL1" Power off by abnormal status except CPU trouble
Abnormal
"POWEROFF_CPUABNORMAL" Power off by CPU Abnormal
8
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
C. Audio error date
Error symptom
No audio/ Normal video Revised date 8/13
☞A24 ☞A25
No audio
Check user N Check 13.2V of
Normal Y
menu > Off Power Board
Screen normal voltage
Speaker Out (pin no. 7/8)
Y N
Cancel OFF Replace Power Board and repair parts
Check Speaker N
Disconnection Replace MAIN Board End
disconnection
Y
Replace Speaker
9
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
C. Audio error date
Error symptom
Wrecked audio/ discontinuation/noise Revised date 9/13
→ abnormal audio/discontinuation/noise is same after “Check input signal” compared to No audio
☞A25
Wrecked audio/
Check and replace
Discontinuation/ Check 13.2V Voltage
speaker and
Noise for (Pin no. 7/8)
connector
Check input all audio
signal Y Y
Signal
-RF
normal? Wrecked audio/
-External Input Normal
signal Discontinuation/
N Replace Main B/D voltage?
Noise only
for D-TV
N
Wrecked audio/
Discontinuation/
Replace Power B/D
Noise only
for Analog
(When RF signal is not
received)
Request repair to external Wrecked audio/ Replace Main B/D End
cable/ANT provider Discontinuation/
Noise only
(In case of External for External Input
N
Input signal error) Connect and check Normal
Check and fix other external device audio?
external device
Y
Check and fix external device
10
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
D. General Function Problem Established
Error symptom date
Remote control & Local switch checking Revised date 10/13
Replace
Main B/D
☞A27 ☞A27 ☞A27
Check & Repair N Y Y
Check R/C itself Normal Y Normal Check B+ 3.5V Normal Check IR Normal
operating? Cable connection operating? Voltage? Signal?
Operation On Main B/D Output signal
Connector solder
N
Y N N
☞A4
Check R/C Operating Check & Replace Close Check 13.2v on Power B/D Repair/Replace
When turn off light Baterry of R/C Replace Power B/D or IR B/D
in room Replace Main B/D
(Power B/D don’t have problem)
If R/C operate, Normal Y
operating? Close
Explain the customer
cause is interference
from light in room. N
Replace R/C
11
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
D. Function error date
Error symptom
External device recognition error Revised date 11/13
Check technical
Check Y N External Input and
Signal information Technical
Replace Main B/D
input input? information?
Component
- Fix information Recognition error
signal
- S/W Version
N Y
RGB,HDMI/
Check and fix DVI, Optical Replace Main B/D
Fix in
external device/cable accordance Recognition error
with technical
information
12
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
E. Noise date
Error symptom
Circuit noise, mechanical noise Revised date 12/13
Replace PSU(with LED driver)
Identify Check
Circuit OR
noise location of
noise
type noise Replace LED driver
Mechanical Check location of
noise noise
※ When the nose is severe, replace the module
※ Mechanical noise is a natural (For models with fix information, upgrade the S/W or
phenomenon, and apply the 1st level provide the description)
OR
description. When the customer does not
agree, apply the process by stage. ※ If there is a “Tak Tak” noise from the cabinet,
※ Describe the basis of the description in refer to the KMS fix information and then proceed
“Part related to nose” in the Owner’s Manual. as shown in the solution manual
(For models without any fix information, provide
the description)
13
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
F. Exterior defect date
Error symptom
Exterior defect Revised date 13/13
Zoom part Module
Replace module
damage
with exterior
damage
Cabinet
damage Replace cabinet
Remote
controller Replace remote controller
damage
Stand
dent Replace stand
14
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Contents of Standard Repair Process Detail Technical Manual
No. Error symptom Content Page Remarks
1 Check LCD back light with naked eye A1
2 LED driver B+ measuring method A2
A. Video error_ No video/Normal audio
3 Check White Balance value A3
4 Power Board voltage measuring method A4
6 TUNER input signal strength checking method A6
A. Video error_ No video/Video lag/stop
7 Version checking method A7
9 Connection diagram A8
11 A. Video error_Color error Check Link Cable (LVDS) reconnection condition A10
12 Adjustment Test pattern - ADJ Key A12
13 Connection diagram A8
A. Video error_Vertical/Horizontal bar, A10
14 Check Link Cable (LVDS) reconnection condition
residual image, light spot A11
15 Adjustment Test pattern - ADJ Key A12
16 Exchange Main Board or LVDS/EPI Cable A-1/5
17 Exchange Main Board or LVDS/EPI Cable A-2/5
18 Defected Type caused by Main/ Inverter/ Exchange LED driver Board (PSU) A-3/5
Module
19 Exchange Module itself (1) A-4/5
20 Exchange Module itself (2) A-5/5
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Contents of Standard Repair Process Detail Technical Manual
Continued from previous page
No. Error symptom Content Page Remarks
21 Check front display LED A17
Check power input Voltage & ST-BY 3.5V at Main
22 B. Power error_No power A18
B/D
23 Checking method when power is ON A19
B. Power error_Off when on, off while
24 POWER OFF MODE checking method A22
viewing
25 Checking method in menu when there is no audio A24
C. Audio error_No audio/Normal video Voltage and speaker checking method when there
26 A25
is no audio
C. Audio error_Wrecked Voltage and speaker checking method in case of
27 A25
audio/discontinuation audio error
D. Function error_ No response in remote
28 Remote controller operation checking method A27
controller, key error
29 Display has error especially color V-Com checking and adjust method A28
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Established
Error symptom A. Video error_No video/Normal audio date
Revised
Content Check LCD back light with naked eye A1
date
After turning on the power and disassembling the case, check with the naked eye, whether
you can see light from module holes.
A1
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Established
Error symptom A. Video error_No video/Normal audio date
Revised
Content LED driver B+ measuring method date A2
Check the Voltage between LED+ / LED-
The voltage spec is in Power B/D Spec sheet
Refer the Power B/D Spec sheet
(ex. 55LF63, 156.9V ~ 235.0V)
A2
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Established
Error symptom A. Video error_No video/Normal audio date
Revised
Content Check White Balance value date A3
Entry
Entry method
method
1.
1. Press
Press the
the ADJ
ADJ button
button on
on the
the remote
remote controller
controller for
for adjustment.
adjustment.
2.
2. Enter
Enter into
into White
White Balance
Balance of
of item
item 6.
10.
3. After
3. After recording
recording the
the R,
R, G,
G, B
B (GAIN,
(GAIN, Cut)
Cut) value
value of
of Color
Color Temp
Temp (Cool/Medium/Warm),
(Cool/Medium/Warm), re-
re-
enter the value after replacing the MAIN BOARD.
enter the value after replacing the MAIN BOARD.
A3
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Established
Error symptom A. Video error_No video/ Audio date
Revised
Content Power Board voltage measuring method date A4
Check the 13.2V for Audio
12 Pin (Power Board ↔ Main Board)
SMAW200-H12S5K(BK)
1 Power on 2 PWM#2
3 GND 4 D13V
5 D13V 6 D13V
7 A13V 8 A13V
9 GND 10 GND
11 DRV-ON(Inverter-ON) 12 PWM#1
A4
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Established
Error symptom A. Video error_Video error, video lag/stop date
Revised
Content TUNER input signal strength checking method date A6
Press Menu Key Advanced in Quick Settings Menu list Programmes
Programme Tuning
When the signal is strong, use the
attenuator (-10dB, -15dB, -20dB etc.)
A6
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Established
Error symptom A. Video error_Video error, video lag/stop date
Revised
Content Version checking method date A7
1. Checking method for remote controller for adjustment
Version
Press the IN-START with the remote
controller for adjustment
A7
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error symptom A. Video error _Vertical/Horizontal bar, residual Established
image, light spot date
Revised
Content Connection diagram date A8
As the part connecting to the external input, check the
screen condition by signal
A8
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Established
Error symptom A. Video error_Color error date
Revised
Content Check Link Cable (EPI) reconnection condition date A10
Check the contact condition of the Link Cable, especially dust or mis insertion.
A10
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error symptom A. Video error_Color error Established
date
Adjustment Test pattern - ADJ Key Revised
Content date A12
You can view 6 types of patterns using the ADJ Key
Checking item : 1. Defective pixel 2. Residual image 3. MODULE error (ADD-BAR,SCAN BAR..)
4.Video error (Classification of MODULE or Main-B/D!)
A12
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Appendix : Exchange LVDS or EPI Cable or Main B/D (1)
Solder defect, CNT Broken Solder defect, CNT Broken Solder defect, CNT Broken
Solder defect, CNT Broken T-Con
T-Con Defect,
Defect,
Solder
T-Con CNT
defect,
Defect, CNT
CNT
CNT Broken
Broken
Broken
Broken Abnormal Power Section
Solder defect, Short/Crack Abnormal Power Section Solder defect, Short/Crack
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Appendix : Exchange LVDS or EPI Cable or Main B/D (2)
Abnormal Power Section Abnormal Power Section Solder defect, Short/Crack
Solder defect, Short/Crack Fuse Open, Abnormal power section Abnormal Display
GRADATION Noise GRADATION
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Appendix : Exchange the Module (1)
Panel Mura, Light leakage Panel Mura, Light leakage Press damage
Crosstalk Press damage Crosstalk
Un-repairable Cases
In this case please exchange the module.
Press damage
A - 4/5
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Appendix : Exchange the Module (2)
Vertical Block Vertical Line Vertical Block
Source TAB IC Defect Source TAB IC Defect Source TAB IC Defect
Horizontal
Gate TAB Block
Horizontal Block Horizontal line
IC Defect Gate TAB IC Defect
Gate TAB IC Defect Gate TAB IC Defect Gate TAB IC Defect
Un-repairable Cases
In this case please exchange the module.
Horizontal Block
Gate TAB IC Defect
Gate TAB IC Defect
A - 5/5
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Established
Error symptom B. Power error _No power date
Revised
Content Check front display LED date A17
Front LED control :
Menu General
Standby Light
ON/ Off
ST-BY condition: Red
Power ON condition: Turn Off
A17
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Established
Error symptom B. Power error _No power date
Revised
Content Check power input voltage and ST-BY 3.5V date A18
Check the Main Power Voltage (4, 5, 6 Pin)
Power on (DC ON) status : 13.2V
STBY status : 8.8V
12 Pin (Power Board ↔ Main Board)
SMAW200-H12S5K(BK)
1 Power on 2 PWM#2
3 GND 4 D13V
5 D13V 6 D13V
7 A13V 8 A13V
9 GND 10 GND
11 DRV-ON(Inverter-ON) 12 PWM#1
A18
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Established
Error symptom B. Power error _No power date
Revised
Content Checking method when power is ON date A19
Check “power on” pin is high
12 Pin (Power Board ↔ Main Board)
SMAW200-H12S5K(BK)
1 Power on 2 PWM#2
3 GND 4 D13V
5 D13V 6 D13V
7 A13V 8 A13V
9 GND 10 GND
11 DRV-ON(Inverter-ON) 12 PWM#1
A19
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Established
Error symptom B. Power error _Off when on, off whiling viewing date
Revised
Content POWER OFF MODE checking method date A22
Entry method
1. Press the IN-START button of the remote controller
for adjustment
2. Check the entry into adjustment item 3
A22
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error symptom C. Audio error_No audio/Normal video Established
date
Revised
Content Checking method in menu when there is no audio date A24
Checking method
1. Press the Setting button on the remote controller
2. Select the Sound function of the Menu
3. Select the Sound Out
4. Select TV Speaker
A24
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Established
Error symptom C. Audio error_No audio/Normal video date
Voltage and speaker checking method Revised
Content date A25
when there is no audio
①
12 Pin (Power Board ↔ Main Board)
SMAW200-H12S5K(BK)
1 Power on 2 PWM#2
3 GND 4 D13V
5 D13V 6 D13V
7 A13V 8 A13V
9 GND 10 GND
11 DRV-ON(Inverter-ON) 12 PWM#1
Checking order when there is no audio ③
① Check the contact condition of 13V connector of Main Board
② Measure the 13V input voltage supplied from Power Board
(If there is no input voltage, remove and check the connector)
③ Connect the tester RX1 to the speaker terminal and if you hear the Chik Chik sound when you touch the GND
and output terminal, the speaker is normal.
A25
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
D. Function error_ No response in remote controller, Established
Error symptom
key error date
Revised
Content Remote controller operation checking method date A27
P4000
1 GND
2 +3.5V_WIFI
3 BT_RESET
4 WIFI_DM
5 NC
6 WIFI_DP
7 WOL/WIFI_POWER_ON
8 GND
9 EYE_SDA
10 GND
11 EYE_SCL
12 KEY1
13 GND
14 KEY2
③ 15 IR
② 16 +3.5V_ST
17 LED_R
① 18 GND
Checking order
1. Check IR cable condition between IR & Main board
2. Check the st-by 3.5V on the terminal 16.
4. When checking the Pre-Amp when the power is in ON condition, it is normal when the Analog
Tester needle moves slowly, and defective when it does not move at all.
A27
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error symptom Display has error especially color Established
date
Revised
Content V-Com checking and adjust method date A28
Entry method
1. Press the ADJ button on the remote controller for adjustment.
2. Enter into V-Com of item 14.
3. Check and adjust V-Com value.
A28
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
