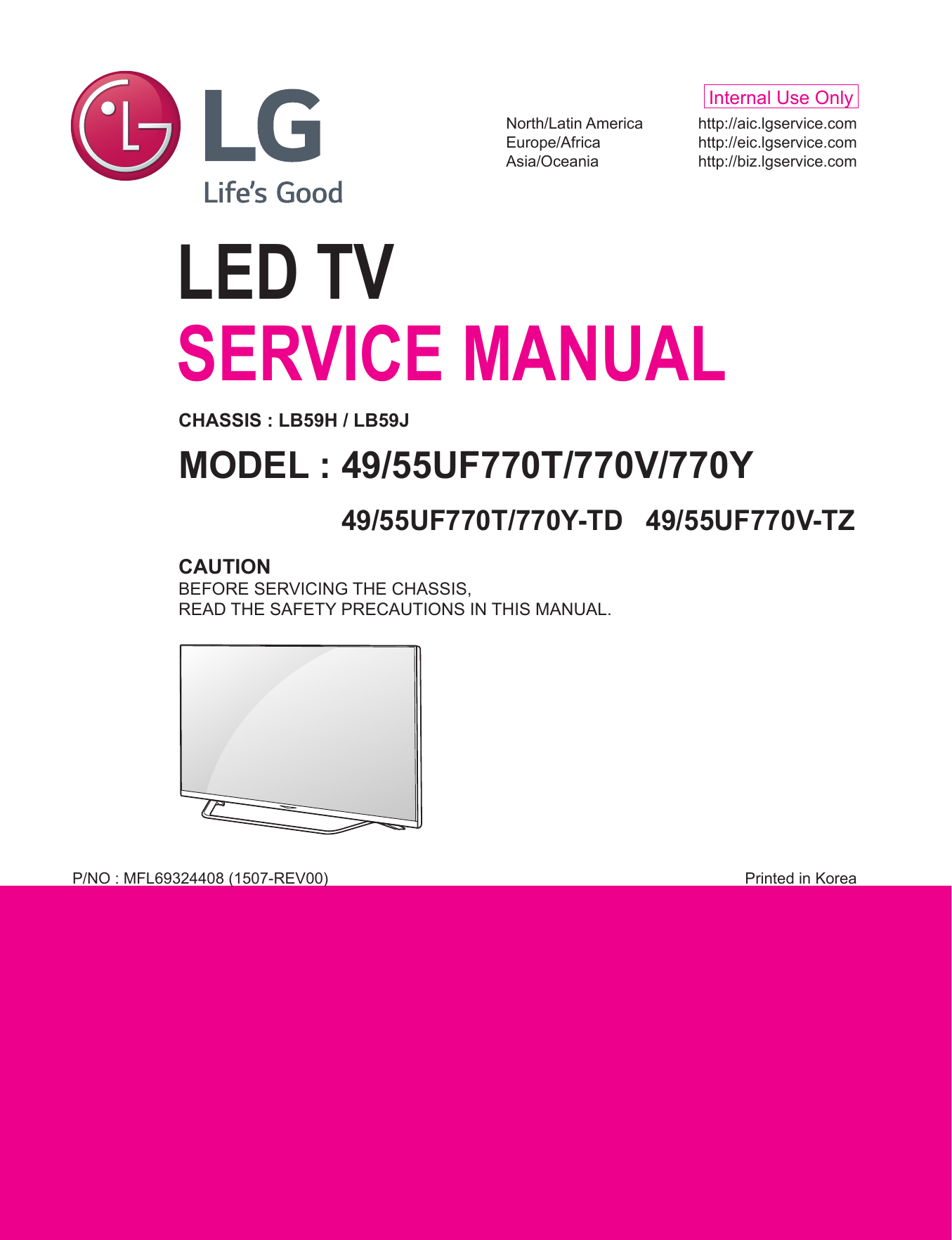

LED TV
SERVICE MANUAL
CHASSIS : LB59H / LB59J
MODEL : 49/55UF770T/770V/770Y
49/55UF770T/770Y-TD 49/55UF770V-TZ
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
P/NO : MFL69324408 (1507-REV00) Printed in Korea

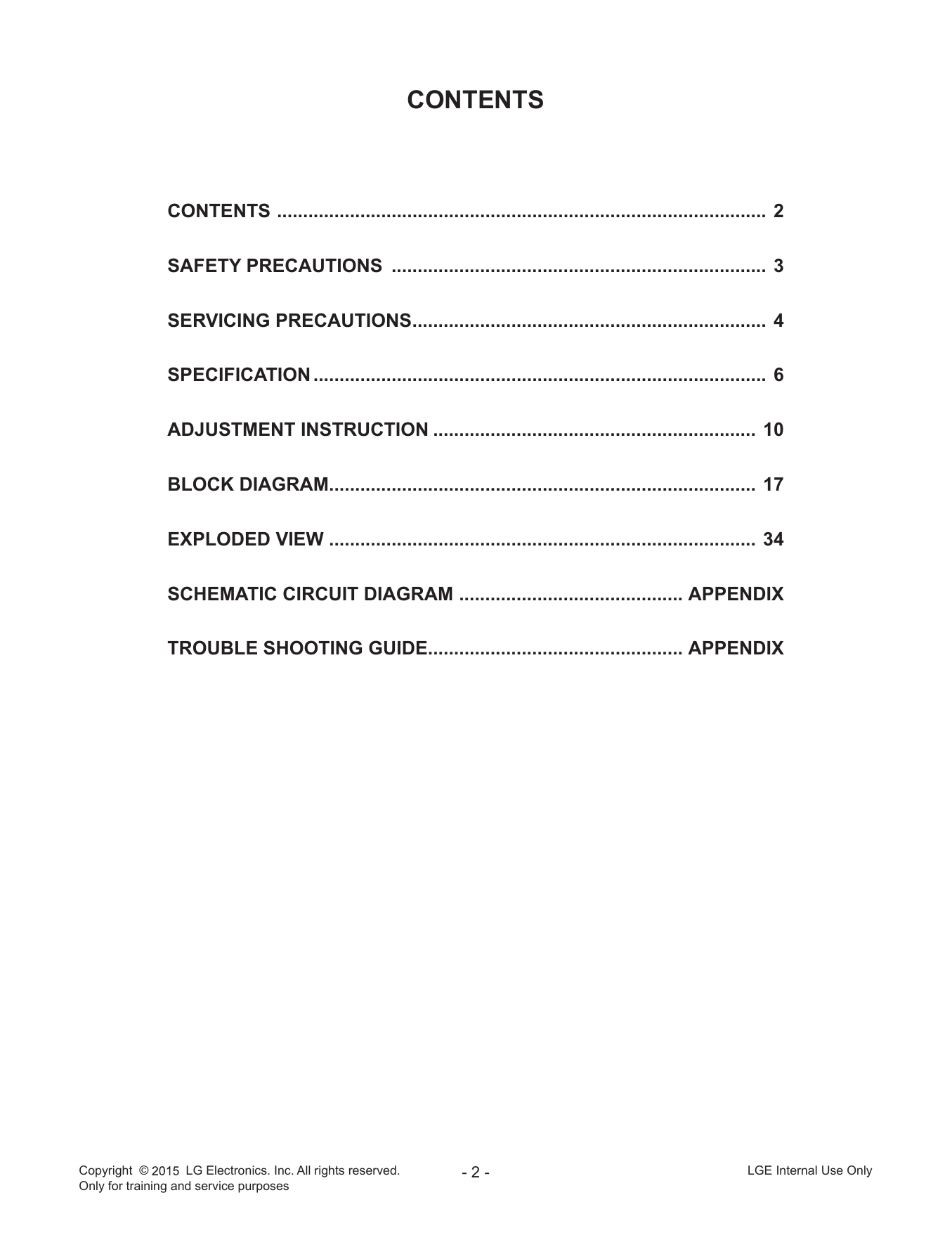

CONTENTS
CONTENTS ............................................................................................... 2
SAFETY PRECAUTIONS ......................................................................... 3
SERVICING PRECAUTIONS..................................................................... 4
SPECIFICATION........................................................................................ 6
ADJUSTMENT INSTRUCTION............................................................... 10
BLOCK DIAGRAM................................................................................... 17
EXPLODED VIEW ................................................................................... 34
SCHEMATIC CIRCUIT DIAGRAM ............................................ APPENDIX
TROUBLE SHOOTING GUIDE.................................................. APPENDIX
Copyright © LG Electronics. Inc. All rights reserved. -2- LGE Internal Use Only
Only for training and service purposes
SAFETY PRECAUTIONS
IMPORTANT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC Do not use a line Isolation Transformer during this check.
power line. Use a transformer of adequate power rating as this Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
protects the technician from accidents resulting in personal injury between a known good earth ground (Water Pipe, Conduit, etc.)
from electrical shocks. and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
It will also protect the receiver and it's components from being with 1000 ohms/volt or more sensitivity.
damaged by accidental shorts of the circuitry that may be Reverse plug the AC cord into the AC outlet and repeat AC voltage
inadvertently introduced during the service operation. measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
If any fuse (or Fusible Resistor) in this TV receiver is blown, 0.5 mA.
replace it with the specified. In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
When replacing a high wattage resistor (Oxide Metal Film Resistor, repaired before it is returned to the customer.
over 1 W), keep the resistor 10 mm away from PCB.
Leakage Current Hot Check circuit
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Copyright © LG Electronics. Inc. All rights reserved. -3- LGE Internal Use Only
Only for training and service purposes
SERVICING PRECAUTIONS
CAUTION: Before servicing receivers covered by this service 2. After removing an electrical assembly equipped with ES
manual and its supplements and addenda, read and follow the devices, place the assembly on a conductive surface such as
SAFETY PRECAUTIONS on page 3 of this publication. aluminum foil, to prevent electrostatic charge buildup or expo-
NOTE: If unforeseen circumstances create conflict between the sure of the assembly.
following servicing precautions and any of the safety precautions 3. Use only a grounded-tip soldering iron to solder or unsolder
on page 3 of this publication, always follow the safety precau- ES devices.
tions. Remember: Safety First. 4. Use only an anti-static type solder removal device. Some sol-
der removal devices not classified as “anti-static” can generate
General Servicing Precautions electrical charges sufficient to damage ES devices.
1. Always unplug the receiver AC power cord from the AC power 5. Do not use freon-propelled chemicals. These can generate
source before; electrical charges sufficient to damage ES devices.
a. Removing or reinstalling any component, circuit board 6. Do not remove a replacement ES device from its protective
module or any other receiver assembly. package until immediately before you are ready to install it.
b. Disconnecting or reconnecting any receiver electrical plug (Most replacement ES devices are packaged with leads elec-
or other electrical connection. trically shorted together by conductive foam, aluminum foil or
c. Connecting a test substitute in parallel with an electrolytic comparable conductive material).
capacitor in the receiver. 7. Immediately before removing the protective material from the
CAUTION: A wrong part substitution or incorrect polarity leads of a replacement ES device, touch the protective mate-
installation of electrolytic capacitors may result in an explo- rial to the chassis or circuit assembly into which the device will
sion hazard. be installed.
2. Test high voltage only by measuring it with an appropriate CAUTION: Be sure no power is applied to the chassis or cir-
high voltage meter or other voltage measuring device (DVM, cuit, and observe all other safety precautions.
FETVOM, etc) equipped with a suitable high voltage probe. 8. Minimize bodily motions when handling unpackaged replace-
Do not test high voltage by "drawing an arc". ment ES devices. (Otherwise harmless motion such as the
3. Do not spray chemicals on or near this receiver or any of its brushing together of your clothes fabric or the lifting of your
assemblies. foot from a carpeted floor can generate static electricity suf-
4. Unless specified otherwise in this service manual, clean ficient to damage an ES device.)
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable General Soldering Guidelines
non-abrasive applicator; 10 % (by volume) Acetone and 90 % 1. Use a grounded-tip, low-wattage soldering iron and appropri-
(by volume) isopropyl alcohol (90 % - 99 % strength) ate tip size and shape that will maintain tip temperature within
CAUTION: This is a flammable mixture. the range or 500 °F to 600 °F.
Unless specified otherwise in this service manual, lubrication 2. Use an appropriate gauge of RMA resin-core solder composed
of contacts in not required. of 60 parts tin/40 parts lead.
5. Do not defeat any plug/socket B+ voltage interlocks with which 3. Keep the soldering iron tip clean and well tinned.
receivers covered by this service manual might be equipped. 4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
6. Do not apply AC power to this instrument and/or any of its bristle (0.5 inch, or 1.25 cm) brush with a metal handle.
electrical assemblies unless all solid-state device heat sinks Do not use freon-propelled spray-on cleaners.
are correctly installed. 5. Use the following unsoldering technique
7. Always connect the test receiver ground lead to the receiver a. Allow the soldering iron tip to reach normal temperature.
chassis ground before connecting the test receiver positive (500 °F to 600 °F)
lead. b. Heat the component lead until the solder melts.
Always remove the test receiver ground lead last. c. Quickly draw the melted solder with an anti-static, suction-
8. Use with this receiver only the test fixtures specified in this type solder removal device or with solder braid.
service manual. CAUTION: Work quickly to avoid overheating the circuit
CAUTION: Do not connect the test fixture ground strap to any board printed foil.
heat sink in this receiver. 6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
Electrostatically Sensitive (ES) Devices (500 °F to 600 °F)
Some semiconductor (solid-state) devices can be damaged eas- b. First, hold the soldering iron tip and solder the strand
ily by static electricity. Such components commonly are called against the component lead until the solder melts.
Electrostatically Sensitive (ES) Devices. Examples of typical ES c. Quickly move the soldering iron tip to the junction of the
devices are integrated circuits and some field-effect transistors component lead and the printed circuit foil, and hold it there
and semiconductor “chip” components. The following techniques only until the solder flows onto and around both the compo-
should be used to help reduce the incidence of component dam- nent lead and the foil.
age caused by static by static electricity. CAUTION: Work quickly to avoid overheating the circuit
1. Immediately before handling any semiconductor component or board printed foil.
semiconductor-equipped assembly, drain off any electrostatic d. Closely inspect the solder area and remove any excess or
charge on your body by touching a known earth ground. Alter- splashed solder with a small wire-bristle brush.
natively, obtain and wear a commercially available discharg-
ing wrist strap device, which should be removed to prevent
potential shock reasons prior to applying power to the unit
under test.
Copyright © LG Electronics. Inc. All rights reserved. -4- LGE Internal Use Only
Only for training and service purposes
IC Remove/Replacement 3. Solder the connections.
Some chassis circuit boards have slotted holes (oblong) through CAUTION: Maintain original spacing between the replaced
which the IC leads are inserted and then bent flat against the cir- component and adjacent components and the circuit board to
cuit foil. When holes are the slotted type, the following technique prevent excessive component temperatures.
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique Circuit Board Foil Repair
as outlined in paragraphs 5 and 6 above. Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
Removal board causing the foil to separate from or "lift-off" the board. The
1. Desolder and straighten each IC lead in one operation by following guidelines and procedures should be followed when-
gently prying up on the lead with the soldering iron tip as the ever this condition is encountered.
solder melts.
2. Draw away the melted solder with an anti-static suction-type At IC Connections
solder removal device (or with solder braid) before removing To repair a defective copper pattern at IC connections use the
the IC. following procedure to install a jumper wire on the copper pattern
Replacement side of the circuit board. (Use this technique only on IC connec-
1. Carefully insert the replacement IC in the circuit board. tions).
2. Carefully bend each IC lead against the circuit foil pad and
solder it. 1. Carefully remove the damaged copper pattern with a sharp
3. Clean the soldered areas with a small wire-bristle brush. knife. (Remove only as much copper as absolutely necessary).
(It is not necessary to reapply acrylic coating to the areas). 2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
"Small-Signal" Discrete Transistor 3. Bend a small "U" in one end of a small gauge jumper wire and
Removal/Replacement carefully crimp it around the IC pin. Solder the IC connection.
1. Remove the defective transistor by clipping its leads as close 4. Route the jumper wire along the path of the out-away copper
as possible to the component body. pattern and let it overlap the previously scraped end of the
2. Bend into a "U" shape the end of each of three leads remain- good copper pattern. Solder the overlapped area and clip off
ing on the circuit board. any excess jumper wire.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding At Other Connections
leads extending from the circuit board and crimp the "U" with Use the following technique to repair the defective copper pattern
long nose pliers to insure metal to metal contact then solder at connections other than IC Pins. This technique involves the
each connection. installation of a jumper wire on the component side of the circuit
board.
Power Output, Transistor Device
Removal/Replacement 1. Remove the defective copper pattern with a sharp knife.
1. Heat and remove all solder from around the transistor leads. Remove at least 1/4 inch of copper, to ensure that a hazardous
2. Remove the heat sink mounting screw (if so equipped). condition will not exist if the jumper wire opens.
3. Carefully remove the transistor from the heat sink of the circuit 2. Trace along the copper pattern from both sides of the pattern
board. break and locate the nearest component that is directly con-
4. Insert new transistor in the circuit board. nected to the affected copper pattern.
5. Solder each transistor lead, and clip off excess lead. 3. Connect insulated 20-gauge jumper wire from the lead of the
6. Replace heat sink. nearest component on one side of the pattern break to the
lead of the nearest component on the other side.
Diode Removal/Replacement Carefully crimp and solder the connections.
1. Remove defective diode by clipping its leads as close as pos- CAUTION: Be sure the insulated jumper wire is dressed so the
sible to diode body. it does not touch components or sharp edges.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and
if necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
Copyright © LG Electronics. Inc. All rights reserved. -5- LGE Internal Use Only
Only for training and service purposes

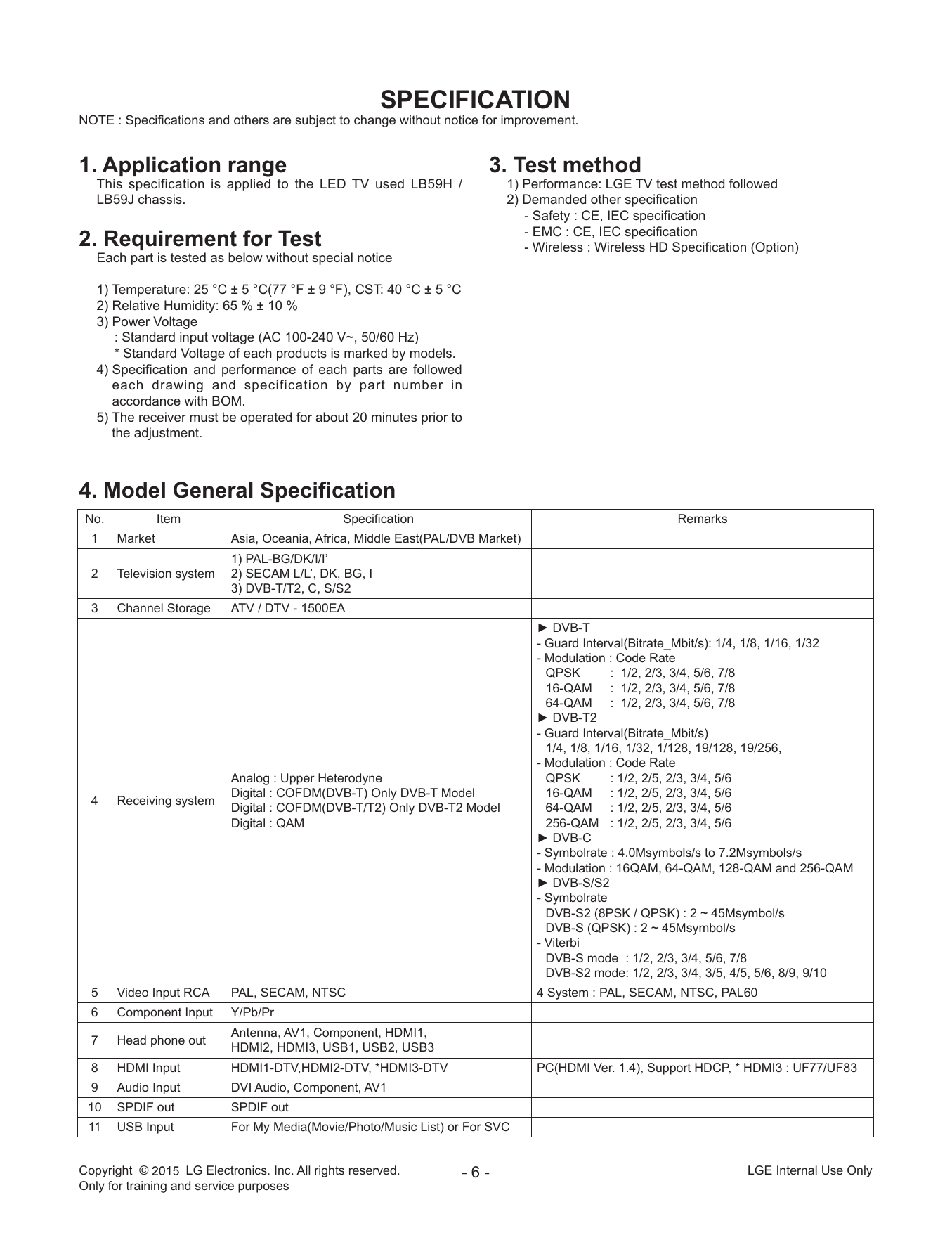

SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement.
1. Application range 3. Test method
This specification is applied to the LED TV used LB59H / 1) Performance: LGE TV test method followed
LB59J chassis. 2) Demanded other specification
- Safety : CE, IEC specification
- EMC : CE, IEC specification
2. Requirement for Test - Wireless : Wireless HD Specification (Option)
Each part is tested as below without special notice
1) Temperature: 25 °C ± 5 °C(77 °F ± 9 °F), CST: 40 °C ± 5 °C
2) Relative Humidity: 65 % ± 10 %
3) Power Voltage
: Standard input voltage (AC 100-240 V~, 50/60 Hz)
* Standard Voltage of each products is marked by models.
4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
5) The receiver must be operated for about 20 minutes prior to
the adjustment.
4. Model General Specification
No. Item Specification Remarks
1 Market Asia, Oceania, Africa, Middle East(PAL/DVB Market)
1) PAL-BG/DK/I/I’
2 Television system 2) SECAM L/L’, DK, BG, I
3) DVB-T/T2, C, S/S2
3 Channel Storage ATV / DTV - 1500EA
► DVB-T
- Guard Interval(Bitrate_Mbit/s): 1/4, 1/8, 1/16, 1/32
- Modulation : Code Rate
QPSK : 1/2, 2/3, 3/4, 5/6, 7/8
16-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
64-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
► DVB-T2
- Guard Interval(Bitrate_Mbit/s)
1/4, 1/8, 1/16, 1/32, 1/128, 19/128, 19/256,
- Modulation : Code Rate
Analog : Upper Heterodyne QPSK : 1/2, 2/5, 2/3, 3/4, 5/6
Digital : COFDM(DVB-T) Only DVB-T Model 16-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
4 Receiving system
Digital : COFDM(DVB-T/T2) Only DVB-T2 Model 64-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
Digital : QAM 256-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
► DVB-C
- Symbolrate : 4.0Msymbols/s to 7.2Msymbols/s
- Modulation : 16QAM, 64-QAM, 128-QAM and 256-QAM
► DVB-S/S2
- Symbolrate
DVB-S2 (8PSK / QPSK) : 2 ~ 45Msymbol/s
DVB-S (QPSK) : 2 ~ 45Msymbol/s
- Viterbi
DVB-S mode : 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2 mode: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10
5 Video Input RCA PAL, SECAM, NTSC 4 System : PAL, SECAM, NTSC, PAL60
6 Component Input Y/Pb/Pr
Antenna, AV1, Component, HDMI1,
7 Head phone out
HDMI2, HDMI3, USB1, USB2, USB3
8 HDMI Input HDMI1-DTV,HDMI2-DTV, *HDMI3-DTV PC(HDMI Ver. 1.4), Support HDCP, * HDMI3 : UF77/UF83
9 Audio Input DVI Audio, Component, AV1
10 SPDIF out SPDIF out
11 USB Input For My Media(Movie/Photo/Music List) or For SVC
Copyright © LG Electronics. Inc. All rights reserved. -6- LGE Internal Use Only
Only for training and service purposes

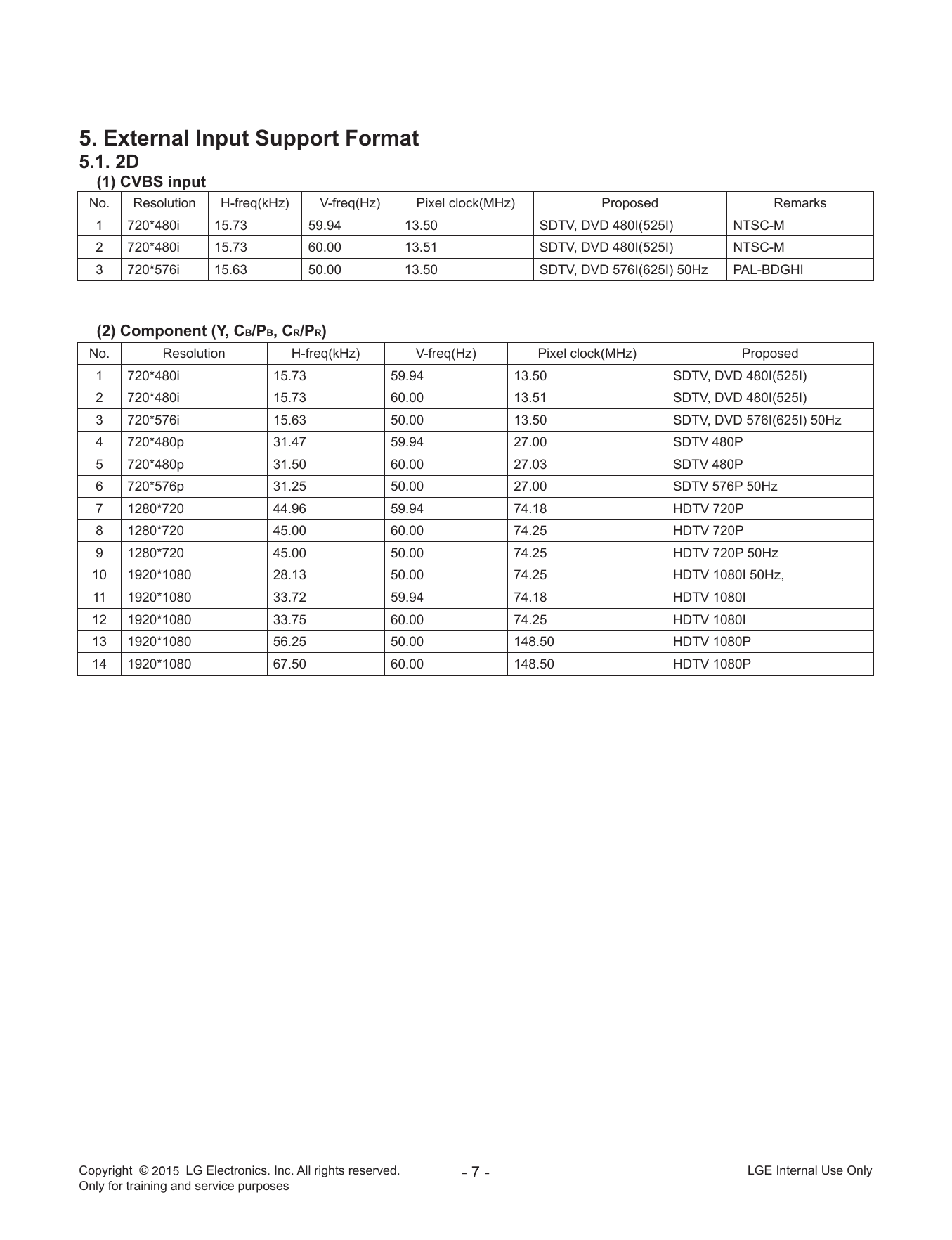

5. External Input Support Format
5.1. 2D
(1) CVBS input
No. Resolution H-freq(kHz) V-freq(Hz) Pixel clock(MHz) Proposed Remarks
1 720*480i 15.73 59.94 13.50 SDTV, DVD 480I(525I) NTSC-M
2 720*480i 15.73 60.00 13.51 SDTV, DVD 480I(525I) NTSC-M
3 720*576i 15.63 50.00 13.50 SDTV, DVD 576I(625I) 50Hz PAL-BDGHI
(2) Component (Y, CB/PB, CR/PR)
No. Resolution H-freq(kHz) V-freq(Hz) Pixel clock(MHz) Proposed
1 720*480i 15.73 59.94 13.50 SDTV, DVD 480I(525I)
2 720*480i 15.73 60.00 13.51 SDTV, DVD 480I(525I)
3 720*576i 15.63 50.00 13.50 SDTV, DVD 576I(625I) 50Hz
4 720*480p 31.47 59.94 27.00 SDTV 480P
5 720*480p 31.50 60.00 27.03 SDTV 480P
6 720*576p 31.25 50.00 27.00 SDTV 576P 50Hz
7 1280*720 44.96 59.94 74.18 HDTV 720P
8 1280*720 45.00 60.00 74.25 HDTV 720P
9 1280*720 45.00 50.00 74.25 HDTV 720P 50Hz
10 1920*1080 28.13 50.00 74.25 HDTV 1080I 50Hz,
11 1920*1080 33.72 59.94 74.18 HDTV 1080I
12 1920*1080 33.75 60.00 74.25 HDTV 1080I
13 1920*1080 56.25 50.00 148.50 HDTV 1080P
14 1920*1080 67.50 60.00 148.50 HDTV 1080P
Copyright © LG Electronics. Inc. All rights reserved. -7- LGE Internal Use Only
Only for training and service purposes

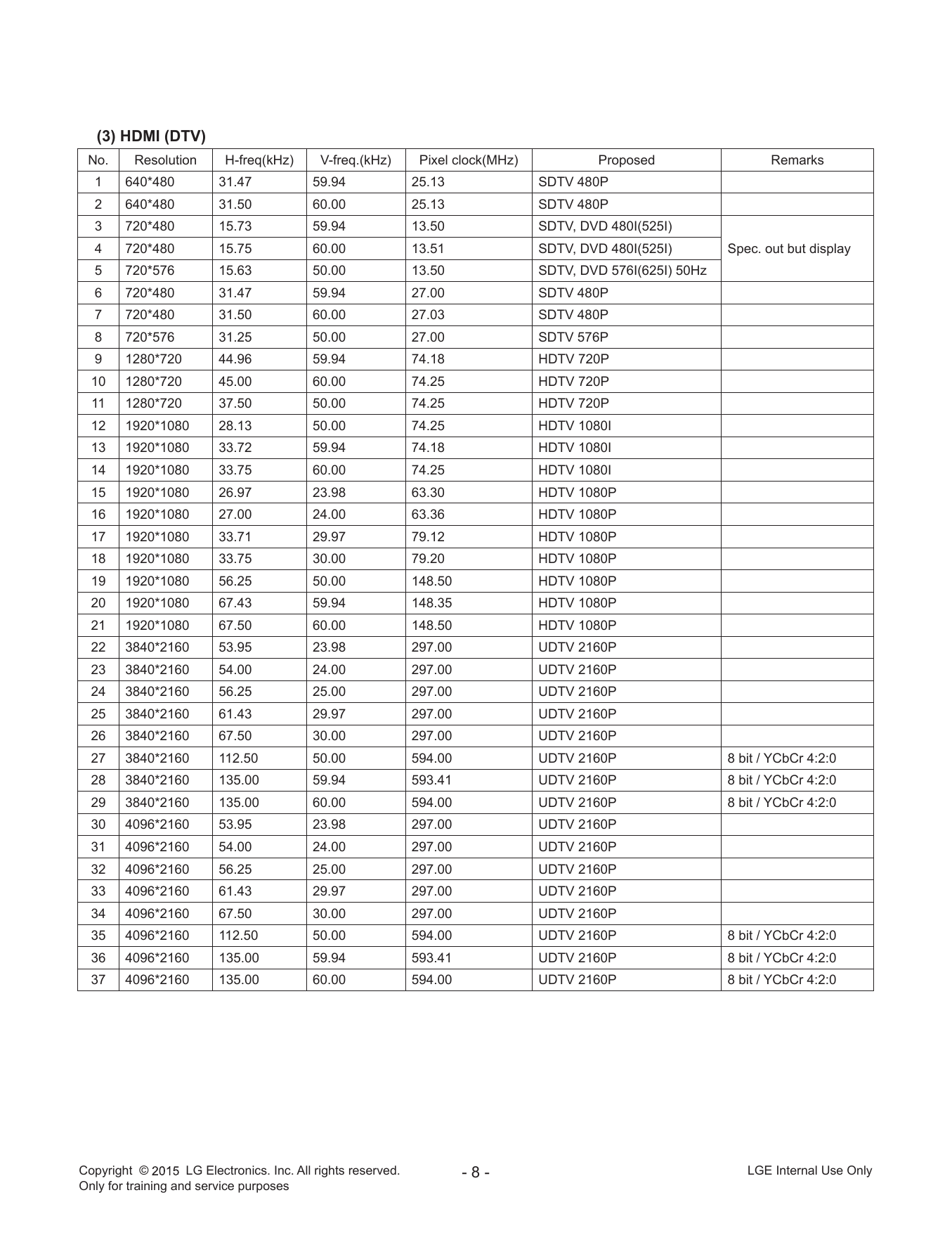

(3) HDMI (DTV)
No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed Remarks
1 640*480 31.47 59.94 25.13 SDTV 480P
2 640*480 31.50 60.00 25.13 SDTV 480P
3 720*480 15.73 59.94 13.50 SDTV, DVD 480I(525I)
4 720*480 15.75 60.00 13.51 SDTV, DVD 480I(525I) Spec. out but display
5 720*576 15.63 50.00 13.50 SDTV, DVD 576I(625I) 50Hz
6 720*480 31.47 59.94 27.00 SDTV 480P
7 720*480 31.50 60.00 27.03 SDTV 480P
8 720*576 31.25 50.00 27.00 SDTV 576P
9 1280*720 44.96 59.94 74.18 HDTV 720P
10 1280*720 45.00 60.00 74.25 HDTV 720P
11 1280*720 37.50 50.00 74.25 HDTV 720P
12 1920*1080 28.13 50.00 74.25 HDTV 1080I
13 1920*1080 33.72 59.94 74.18 HDTV 1080I
14 1920*1080 33.75 60.00 74.25 HDTV 1080I
15 1920*1080 26.97 23.98 63.30 HDTV 1080P
16 1920*1080 27.00 24.00 63.36 HDTV 1080P
17 1920*1080 33.71 29.97 79.12 HDTV 1080P
18 1920*1080 33.75 30.00 79.20 HDTV 1080P
19 1920*1080 56.25 50.00 148.50 HDTV 1080P
20 1920*1080 67.43 59.94 148.35 HDTV 1080P
21 1920*1080 67.50 60.00 148.50 HDTV 1080P
22 3840*2160 53.95 23.98 297.00 UDTV 2160P
23 3840*2160 54.00 24.00 297.00 UDTV 2160P
24 3840*2160 56.25 25.00 297.00 UDTV 2160P
25 3840*2160 61.43 29.97 297.00 UDTV 2160P
26 3840*2160 67.50 30.00 297.00 UDTV 2160P
27 3840*2160 112.50 50.00 594.00 UDTV 2160P 8 bit / YCbCr 4:2:0
28 3840*2160 135.00 59.94 593.41 UDTV 2160P 8 bit / YCbCr 4:2:0
29 3840*2160 135.00 60.00 594.00 UDTV 2160P 8 bit / YCbCr 4:2:0
30 4096*2160 53.95 23.98 297.00 UDTV 2160P
31 4096*2160 54.00 24.00 297.00 UDTV 2160P
32 4096*2160 56.25 25.00 297.00 UDTV 2160P
33 4096*2160 61.43 29.97 297.00 UDTV 2160P
34 4096*2160 67.50 30.00 297.00 UDTV 2160P
35 4096*2160 112.50 50.00 594.00 UDTV 2160P 8 bit / YCbCr 4:2:0
36 4096*2160 135.00 59.94 593.41 UDTV 2160P 8 bit / YCbCr 4:2:0
37 4096*2160 135.00 60.00 594.00 UDTV 2160P 8 bit / YCbCr 4:2:0
Copyright © LG Electronics. Inc. All rights reserved. -8- LGE Internal Use Only
Only for training and service purposes

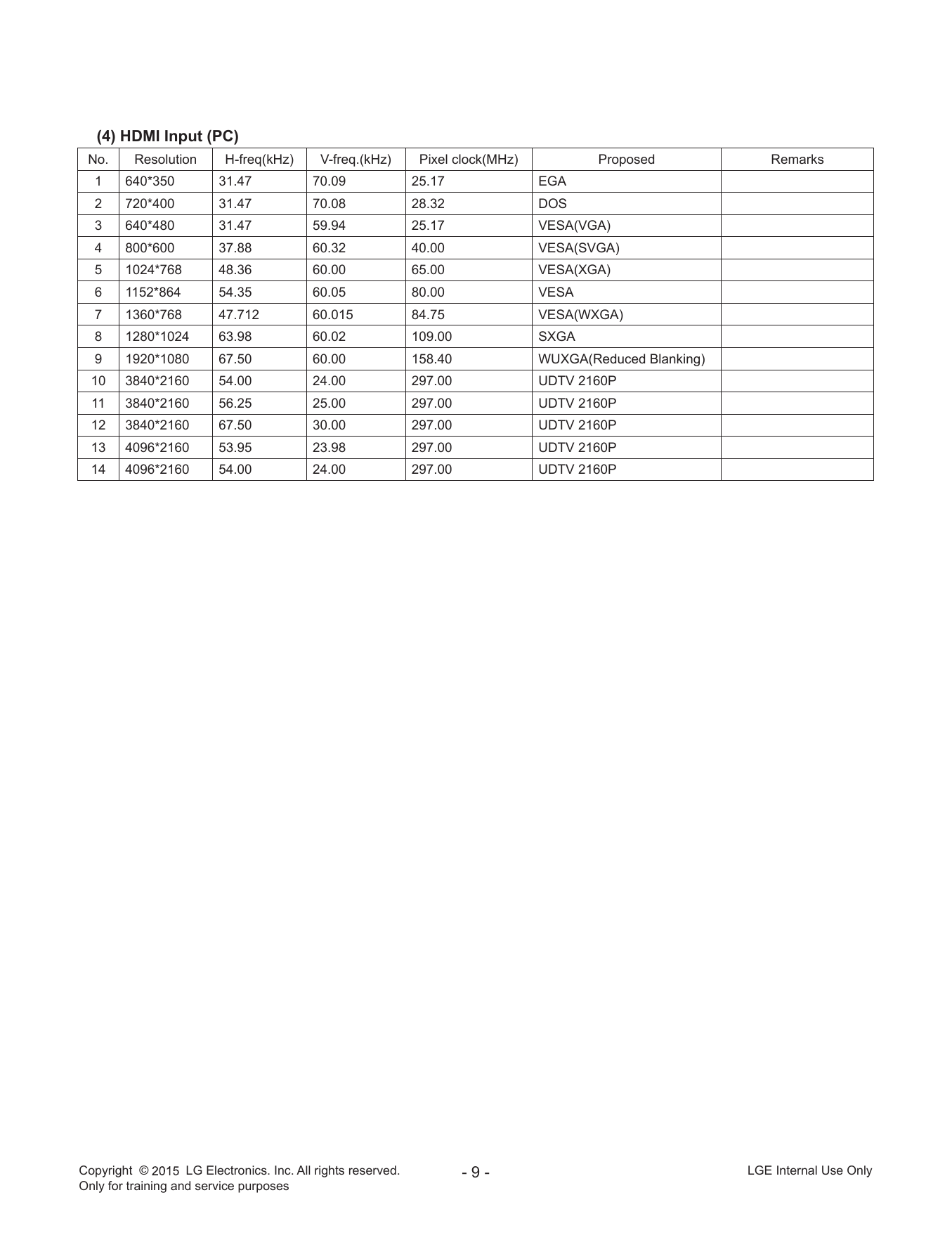

(4) HDMI Input (PC)
No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed Remarks
1 640*350 31.47 70.09 25.17 EGA
2 720*400 31.47 70.08 28.32 DOS
3 640*480 31.47 59.94 25.17 VESA(VGA)
4 800*600 37.88 60.32 40.00 VESA(SVGA)
5 1024*768 48.36 60.00 65.00 VESA(XGA)
6 1152*864 54.35 60.05 80.00 VESA
7 1360*768 47.712 60.015 84.75 VESA(WXGA)
8 1280*1024 63.98 60.02 109.00 SXGA
9 1920*1080 67.50 60.00 158.40 WUXGA(Reduced Blanking)
10 3840*2160 54.00 24.00 297.00 UDTV 2160P
11 3840*2160 56.25 25.00 297.00 UDTV 2160P
12 3840*2160 67.50 30.00 297.00 UDTV 2160P
13 4096*2160 53.95 23.98 297.00 UDTV 2160P
14 4096*2160 54.00 24.00 297.00 UDTV 2160P
Copyright © LG Electronics. Inc. All rights reserved. -9- LGE Internal Use Only
Only for training and service purposes

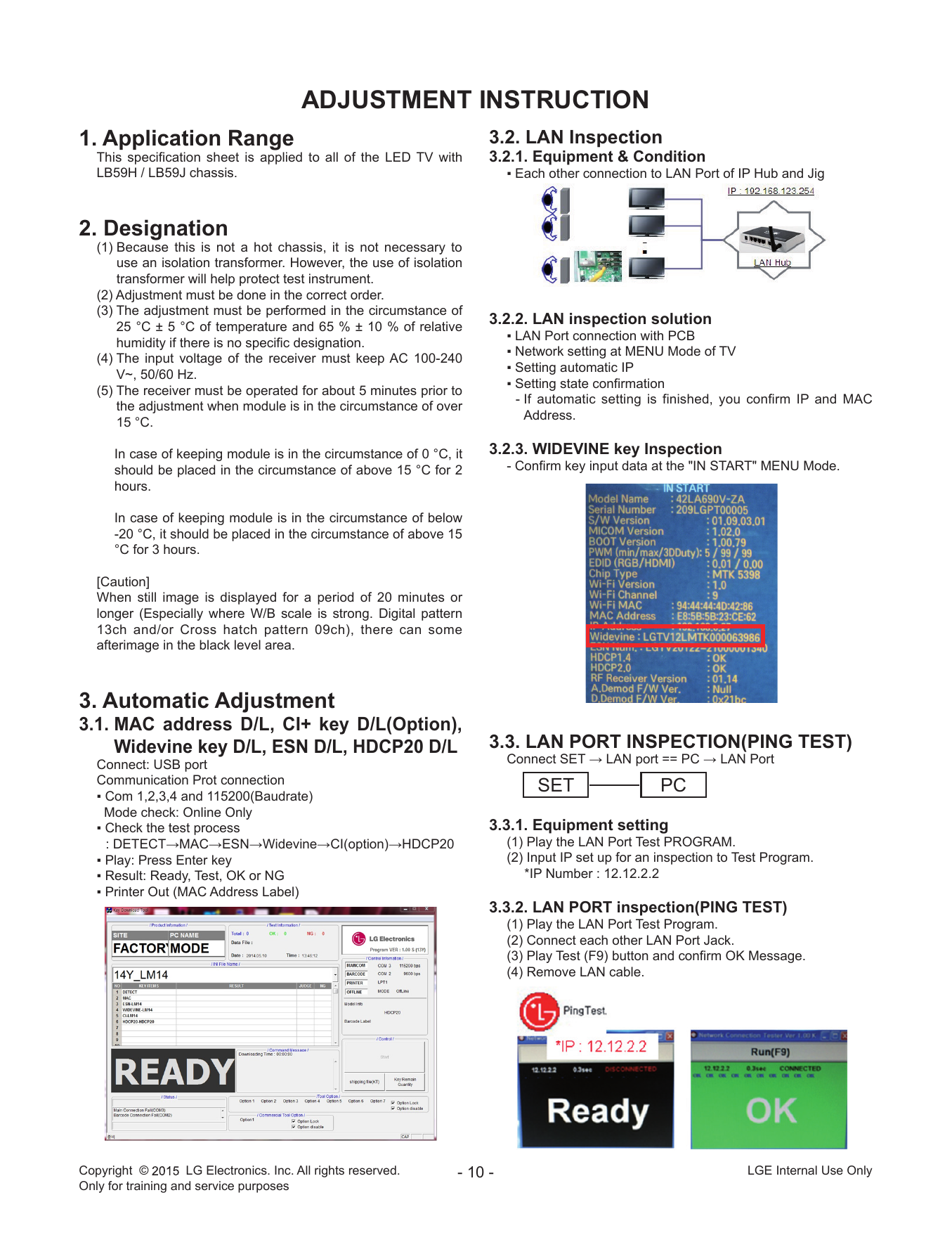

ADJUSTMENT INSTRUCTION
1. Application Range 3.2. LAN Inspection
This specification sheet is applied to all of the LED TV with 3.2.1. Equipment & Condition
LB59H / LB59J chassis. ▪ Each other connection to LAN Port of IP Hub and Jig
2. Designation
(1) Because this is not a hot chassis, it is not necessary to
use an isolation transformer. However, the use of isolation
transformer will help protect test instrument.
(2) Adjustment must be done in the correct order.
(3) The adjustment must be performed in the circumstance of
25 °C ± 5 °C of temperature and 65 % ± 10 % of relative
3.2.2. LAN inspection solution
▪ LAN Port connection with PCB
humidity if there is no specific designation.
▪ Network setting at MENU Mode of TV
(4) The input voltage of the receiver must keep AC 100-240
▪ Setting automatic IP
V~, 50/60 Hz.
▪ Setting state confirmation
(5) The receiver must be operated for about 5 minutes prior to
- If automatic setting is finished, you confirm IP and MAC
the adjustment when module is in the circumstance of over
Address.
15 °C.
In case of keeping module is in the circumstance of 0 °C, it 3.2.3. WIDEVINE key Inspection
should be placed in the circumstance of above 15 °C for 2 - Confirm key input data at the "IN START" MENU Mode.
hours.
In case of keeping module is in the circumstance of below
-20 °C, it should be placed in the circumstance of above 15
°C for 3 hours.
[Caution]
When still image is displayed for a period of 20 minutes or
longer (Especially where W/B scale is strong. Digital pattern
13ch and/or Cross hatch pattern 09ch), there can some
afterimage in the black level area.
3. Automatic Adjustment
3.1. MAC address D/L, CI+ key D/L(Option),
Widevine key D/L, ESN D/L, HDCP20 D/L 3.3. LAN PORT INSPECTION(PING TEST)
Connect: USB port Connect SET → LAN port == PC → LAN Port
Communication Prot connection SET PC
▪ Com 1,2,3,4 and 115200(Baudrate)
Mode check: Online Only
▪ Check the test process 3.3.1. Equipment setting
: DETECT→MAC→ESN→Widevine→CI(option)→HDCP20 (1) Play the LAN Port Test PROGRAM.
▪ Play: Press Enter key (2) Input IP set up for an inspection to Test Program.
▪ Result: Ready, Test, OK or NG *IP Number : 12.12.2.2
▪ Printer Out (MAC Address Label)
3.3.2. LAN PORT inspection(PING TEST)
(1) Play the LAN Port Test Program.
(2) Connect each other LAN Port Jack.
(3) Play Test (F9) button and confirm OK Message.
(4) Remove LAN cable.
Copyright © LG Electronics. Inc. All rights reserved. - 10 - LGE Internal Use Only
Only for training and service purposes
3.4. Model name & Serial number Download 3.5. CI+ Key checking method
3.4.1. Model name & Serial number D/L (Check the Section 3.1)

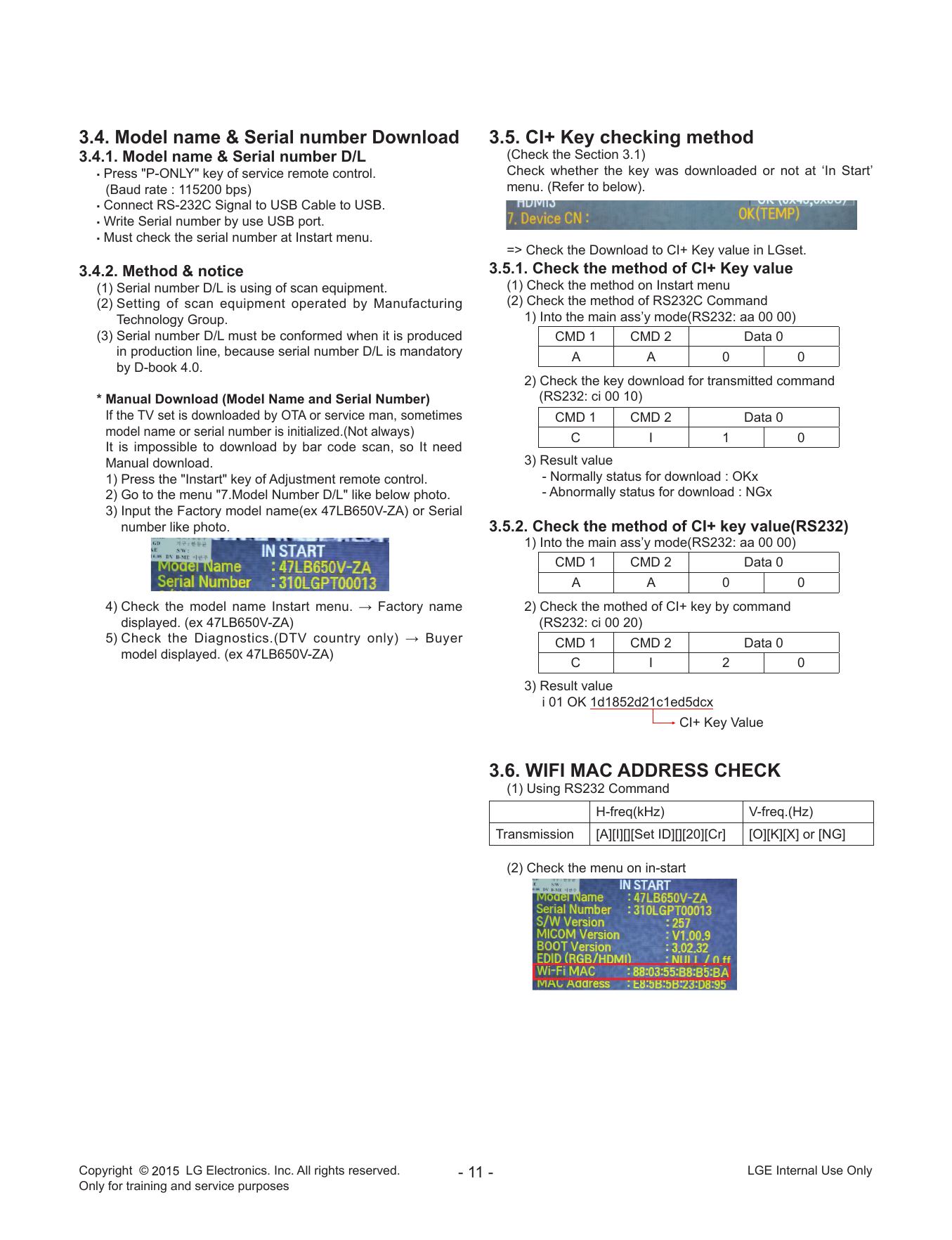

▪ Press "P-ONLY" key of service remote control. Check whether the key was downloaded or not at ‘In Start’
(Baud rate : 115200 bps) menu. (Refer to below).
▪ Connect RS-232C Signal to USB Cable to USB.
▪ Write Serial number by use USB port.
▪ Must check the serial number at Instart menu.
=> Check the Download to CI+ Key value in LGset.
3.4.2. Method & notice 3.5.1. Check the method of CI+ Key value
(1) Serial number D/L is using of scan equipment. (1) Check the method on Instart menu
(2) Setting of scan equipment operated by Manufacturing (2) Check the method of RS232C Command
Technology Group. 1) Into the main ass’y mode(RS232: aa 00 00)
(3) Serial number D/L must be conformed when it is produced CMD 1 CMD 2 Data 0
in production line, because serial number D/L is mandatory A A 0 0
by D-book 4.0.
2) Check the key download for transmitted command
* Manual Download (Model Name and Serial Number) (RS232: ci 00 10)
If the TV set is downloaded by OTA or service man, sometimes CMD 1 CMD 2 Data 0
model name or serial number is initialized.(Not always) C I 1 0
It is impossible to download by bar code scan, so It need
Manual download. 3) Result value
1) Press the "Instart" key of Adjustment remote control. - Normally status for download : OKx
2) Go to the menu "7.Model Number D/L" like below photo. - Abnormally status for download : NGx
3) Input the Factory model name(ex 47LB650V-ZA) or Serial
number like photo. 3.5.2. Check the method of CI+ key value(RS232)
1) Into the main ass’y mode(RS232: aa 00 00)
CMD 1 CMD 2 Data 0
A A 0 0
4) Check the model name Instart menu. → Factory name 2) Check the mothed of CI+ key by command
displayed. (ex 47LB650V-ZA) (RS232: ci 00 20)
5) C heck the Diagnostics.(DTV country only) → Buyer CMD 1 CMD 2 Data 0
model displayed. (ex 47LB650V-ZA)
C I 2 0
3) Result value
i 01 OK 1d1852d21c1ed5dcx
CI+ Key Value
3.6. WIFI MAC ADDRESS CHECK
(1) Using RS232 Command
H-freq(kHz) V-freq.(Hz)
Transmission [A][I][][Set ID][][20][Cr] [O][K][X] or [NG]
(2) Check the menu on in-start
Copyright © LG Electronics. Inc. All rights reserved. - 11 - LGE Internal Use Only
Only for training and service purposes
4. Manual Adjustment (1) HDMI Deep Color OFF
# HDMI 1(C/S: E6 1D)

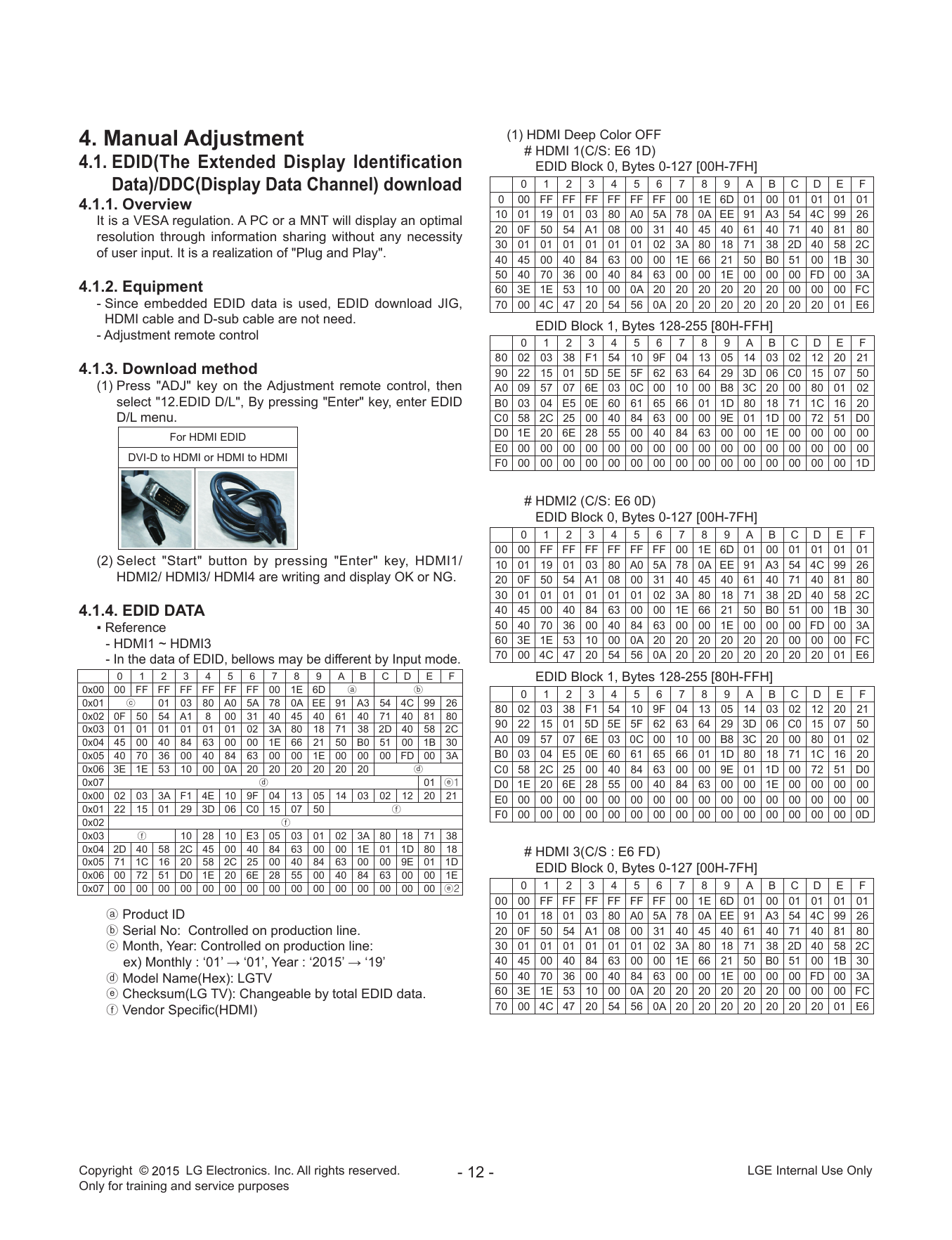

4.1. EDID(The
Extended Display Identification EDID Block 0, Bytes 0-127 [00H-7FH]
Data)/DDC(Display Data Channel) download 0 1 2 3 4 5 6 7 8 9 A B C D E F
0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
4.1.1. Overview
10 01 19 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
It is a VESA regulation. A PC or a MNT will display an optimal
20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
resolution through information sharing without any necessity
30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
of user input. It is a realization of "Plug and Play". 40 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30
50 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
4.1.2. Equipment 60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC
- Since embedded EDID data is used, EDID download JIG, 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 E6
HDMI cable and D-sub cable are not need.
EDID Block 1, Bytes 128-255 [80H-FFH]
- Adjustment remote control
0 1 2 3 4 5 6 7 8 9 A B C D E F
80 02 03 38 F1 54 10 9F 04 13 05 14 03 02 12 20 21
4.1.3. Download method 90 22 15 01 5D 5E 5F 62 63 64 29 3D 06 C0 15 07 50
(1) Press "ADJ" key on the Adjustment remote control, then A0 09 57 07 6E 03 0C 00 10 00 B8 3C 20 00 80 01 02
select "12.EDID D/L", By pressing "Enter" key, enter EDID B0 03 04 E5 0E 60 61 65 66 01 1D 80 18 71 1C 16 20
D/L menu. C0 58 2C 25 00 40 84 63 00 00 9E 01 1D 00 72 51 D0
For HDMI EDID D0 1E 20 6E 28 55 00 40 84 63 00 00 1E 00 00 00 00
E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
DVI-D to HDMI or HDMI to HDMI
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1D
# HDMI2 (C/S: E6 0D)
EDID Block 0, Bytes 0-127 [00H-7FH]
0 1 2 3 4 5 6 7 8 9 A B C D E F
00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
(2) S elect "Start" button by pressing "Enter" key, HDMI1/ 10 01 19 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
HDMI2/ HDMI3/ HDMI4 are writing and display OK or NG. 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
4.1.4. EDID DATA 40 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30
▪ Reference 50 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
- HDMI1 ~ HDMI3 60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC
- In the data of EDID, bellows may be different by Input mode. 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 E6
0 1 2 3 4 5 6 7 8 9 A B C D E F EDID Block 1, Bytes 128-255 [80H-FFH]
0x00 00 FF FF FF FF FF FF 00 1E 6D ⓐ ⓑ 0 1 2 3 4 5 6 7 8 9 A B C D E F
0x01 ⓒ 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
80 02 03 38 F1 54 10 9F 04 13 05 14 03 02 12 20 21
0x02 0F 50 54 A1 8 00 31 40 45 40 61 40 71 40 81 80
0x03 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C 90 22 15 01 5D 5E 5F 62 63 64 29 3D 06 C0 15 07 50
0x04 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30 A0 09 57 07 6E 03 0C 00 10 00 B8 3C 20 00 80 01 02
0x05 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A B0 03 04 E5 0E 60 61 65 66 01 1D 80 18 71 1C 16 20
0x06 3E 1E 53 10 00 0A 20 20 20 20 20 20 ⓓ C0 58 2C 25 00 40 84 63 00 00 9E 01 1D 00 72 51 D0
0x07 ⓓ 01 ⓔ1 D0 1E 20 6E 28 55 00 40 84 63 00 00 1E 00 00 00 00
0x00 02 03 3A F1 4E 10 9F 04 13 05 14 03 02 12 20 21 E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
0x01 22 15 01 29 3D 06 C0 15 07 50 ⓕ
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 0D
0x02 ⓕ
0x03 ⓕ 10 28 10 E3 05 03 01 02 3A 80 18 71 38
0x04 2D 40 58 2C 45 00 40 84 63 00 00 1E 01 1D 80 18 # HDMI 3(C/S : E6 FD)
0x05 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 01 1D
EDID Block 0, Bytes 0-127 [00H-7FH]
0x06 00 72 51 D0 1E 20 6E 28 55 00 40 84 63 00 00 1E
0x07 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ⓔ2 0 1 2 3 4 5 6 7 8 9 A B C D E F
00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
ⓐ Product ID 10 01 18 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
ⓑ Serial No: Controlled on production line. 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
ⓒ Month, Year: Controlled on production line: 30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
ex) Monthly : ‘01’ → ‘01’, Year : ‘2015’ → ‘19’ 40 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30
ⓓ Model Name(Hex): LGTV 50 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
ⓔ Checksum(LG TV): Changeable by total EDID data. 60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC
ⓕ Vendor Specific(HDMI) 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 E6
Copyright © LG Electronics. Inc. All rights reserved. - 12 - LGE Internal Use Only
Only for training and service purposes
EDID Block 1, Bytes 128-255 [80H-FFH] 4.3. White Balance Adjustment
0 1 2 3 4 5 6 7 8 9 A B C D E F

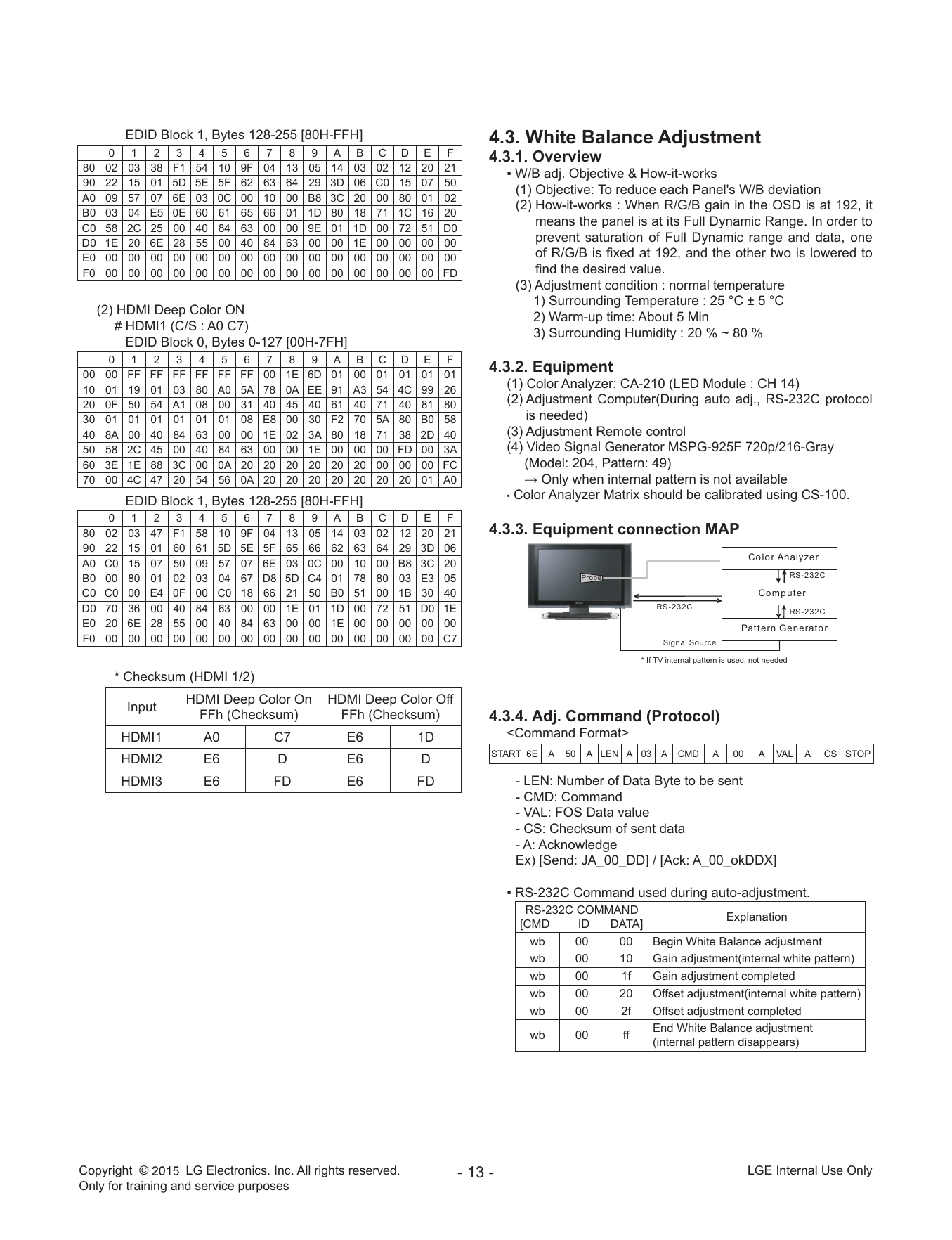

4.3.1. Overview
80 02 03 38 F1 54 10 9F 04 13 05 14 03 02 12 20 21
▪ W/B adj. Objective & How-it-works
90 22 15 01 5D 5E 5F 62 63 64 29 3D 06 C0 15 07 50
(1) Objective: To reduce each Panel's W/B deviation
A0 09 57 07 6E 03 0C 00 10 00 B8 3C 20 00 80 01 02
(2) How-it-works : When R/G/B gain in the OSD is at 192, it
B0 03 04 E5 0E 60 61 65 66 01 1D 80 18 71 1C 16 20
C0 58 2C 25 00 40 84 63 00 00 9E 01 1D 00 72 51 D0
means the panel is at its Full Dynamic Range. In order to
D0 1E 20 6E 28 55 00 40 84 63 00 00 1E 00 00 00 00 prevent saturation of Full Dynamic range and data, one
E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 of R/G/B is fixed at 192, and the other two is lowered to
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 FD find the desired value.
(3) Adjustment condition : normal temperature
1) Surrounding Temperature : 25 °C ± 5 °C
(2) HDMI Deep Color ON
2) Warm-up time: About 5 Min
# HDMI1 (C/S : A0 C7)
3) Surrounding Humidity : 20 % ~ 80 %
EDID Block 0, Bytes 0-127 [00H-7FH]
0 1 2 3 4 5 6 7 8 9 A B C D E F
00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
4.3.2. Equipment
10 01 19 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 (1) Color Analyzer: CA-210 (LED Module : CH 14)
20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 (2) Adjustment Computer(During auto adj., RS-232C protocol
30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 is needed)
40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 (3) Adjustment Remote control
50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A (4) Video Signal Generator MSPG-925F 720p/216-Gray
60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC (Model: 204, Pattern: 49)
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 A0 → Only when internal pattern is not available
• Color Analyzer Matrix should be calibrated using CS-100.
EDID Block 1, Bytes 128-255 [80H-FFH]
0 1 2 3 4 5 6 7 8 9 A B C D E F
80 02 03 47 F1 58 10 9F 04 13 05 14 03 02 12 20 21 4.3.3. Equipment connection MAP
90 22 15 01 60 61 5D 5E 5F 65 66 62 63 64 29 3D 06
Co lo r Analyzer
A0 C0 15 07 50 09 57 07 6E 03 0C 00 10 00 B8 3C 20
RS -232C
B0 00 80 01 02 03 04 67 D8 5D C4 01 78 80 03 E3 05 Probe
C0 C0 00 E4 0F 00 C0 18 66 21 50 B0 51 00 1B 30 40 Co m p ut er
D0 70 36 00 40 84 63 00 00 1E 01 1D 00 72 51 D0 1E RS -232C
RS -232C
E0 20 6E 28 55 00 40 84 63 00 00 1E 00 00 00 00 00 Pat t ern Generat o r
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 C7 Signal Source
* If TV internal pattern is used, not needed
* Checksum (HDMI 1/2)
HDMI Deep Color On HDMI Deep Color Off
Input
FFh (Checksum) FFh (Checksum) 4.3.4. Adj. Command (Protocol)
HDMI1 A0 C7 E6 1D
START 6E A 50 A LEN A 03 A CMD A 00 A VAL A CS STOP
HDMI2 E6 D E6 D
HDMI3 E6 FD E6 FD - LEN: Number of Data Byte to be sent
- CMD: Command
- VAL: FOS Data value
- CS: Checksum of sent data
- A: Acknowledge
Ex) [Send: JA_00_DD] / [Ack: A_00_okDDX]
▪ RS-232C Command used during auto-adjustment.
RS-232C COMMAND
Explanation
[CMD ID DATA]
wb 00 00 Begin White Balance adjustment
wb 00 10 Gain adjustment(internal white pattern)
wb 00 1f Gain adjustment completed
wb 00 20 Offset adjustment(internal white pattern)
wb 00 2f Offset adjustment completed
End White Balance adjustment
wb 00 ff
(internal pattern disappears)
Copyright © LG Electronics. Inc. All rights reserved. - 13 - LGE Internal Use Only
Only for training and service purposes

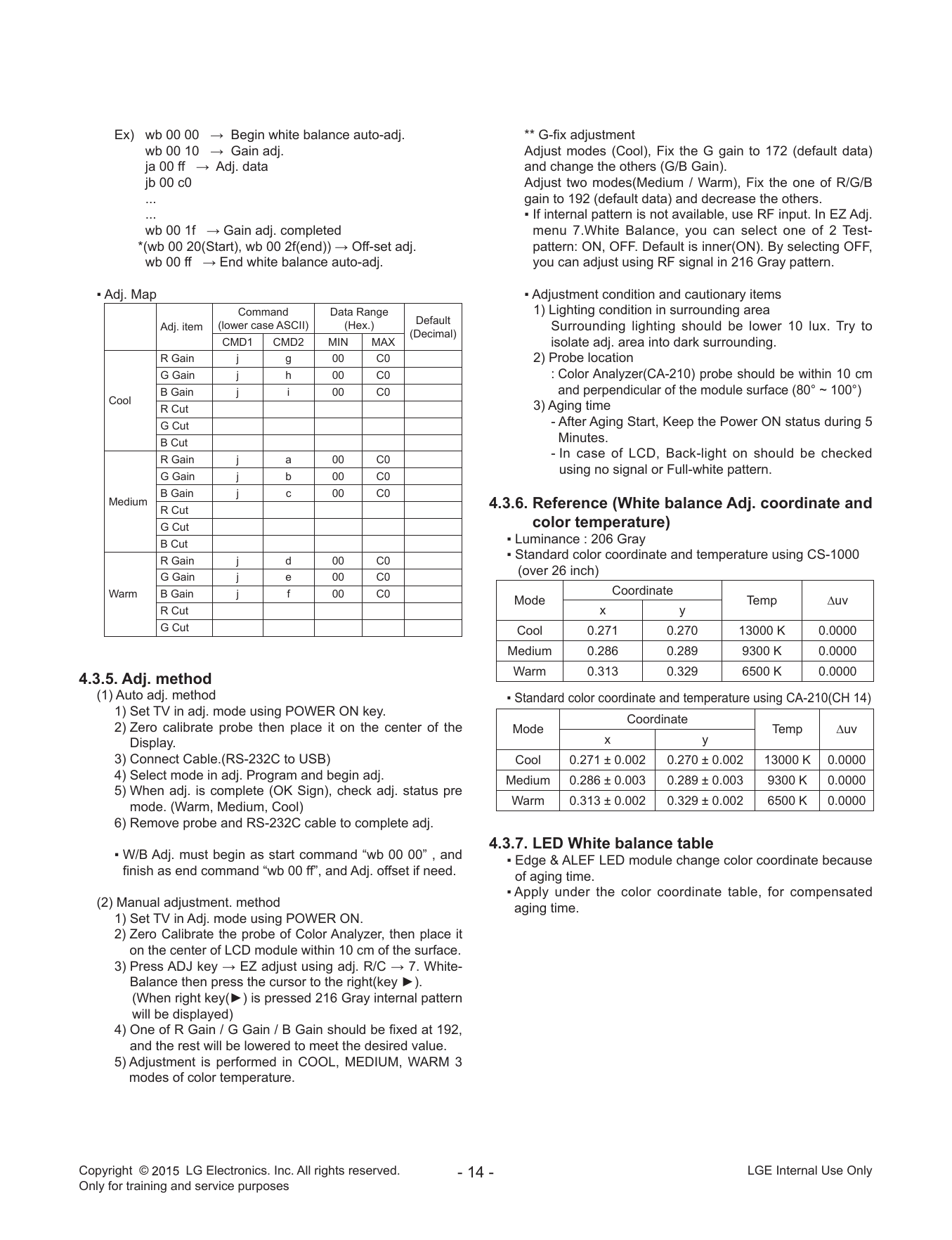

Ex) wb 00 00 → Begin white balance auto-adj. ** G-fix adjustment
wb 00 10 → Gain adj. Adjust modes (Cool), Fix the G gain to 172 (default data)
ja 00 ff → Adj. data and change the others (G/B Gain).
jb 00 c0 Adjust two modes(Medium / Warm), Fix the one of R/G/B
... gain to 192 (default data) and decrease the others.
... ▪ If internal pattern is not available, use RF input. In EZ Adj.
wb 00 1f → Gain adj. completed menu 7.White Balance, you can select one of 2 Test-
*(wb 00 20(Start), wb 00 2f(end)) → Off-set adj. pattern: ON, OFF. Default is inner(ON). By selecting OFF,
wb 00 ff → End white balance auto-adj. you can adjust using RF signal in 216 Gray pattern.
▪ Adj. Map ▪ Adjustment condition and cautionary items
Command Data Range 1) Lighting condition in surrounding area
Default
Adj. item (lower case ASCII) (Hex.) Surrounding lighting should be lower 10 lux. Try to
(Decimal)
CMD1 CMD2 MIN MAX isolate adj. area into dark surrounding.
R Gain j g 00 C0 2) Probe location
G Gain j h 00 C0 : Color Analyzer(CA-210) probe should be within 10 cm
B Gain j i 00 C0 and perpendicular of the module surface (80° ~ 100°)
Cool
R Cut 3) Aging time
G Cut - After Aging Start, Keep the Power ON status during 5
B Cut Minutes.
R Gain j a 00 C0 - In case of LCD, Back-light on should be checked
G Gain j b 00 C0
using no signal or Full-white pattern.
B Gain j c 00 C0
Medium
R Cut 4.3.6. Reference (White balance Adj. coordinate and
G Cut color temperature)
B Cut ▪ Luminance : 206 Gray
R Gain j d 00 C0 ▪ Standard color coordinate and temperature using CS-1000
G Gain j e 00 C0
(over 26 inch)
Warm B Gain j f 00 C0 Coordinate
Mode Temp ∆uv
R Cut x y
G Cut Cool 0.271 0.270 13000 K 0.0000
Medium 0.286 0.289 9300 K 0.0000
Warm 0.313 0.329 6500 K 0.0000
4.3.5. Adj. method
(1) Auto adj. method ▪ Standard color coordinate and temperature using CA-210(CH 14)
1) Set TV in adj. mode using POWER ON key.
Coordinate
2) Zero calibrate probe then place it on the center of the Mode Temp ∆uv
Display. x y
3) Connect Cable.(RS-232C to USB) Cool 0.271 ± 0.002 0.270 ± 0.002 13000 K 0.0000
4) Select mode in adj. Program and begin adj. Medium 0.286 ± 0.003 0.289 ± 0.003 9300 K 0.0000
5) When adj. is complete (OK Sign), check adj. status pre
Warm 0.313 ± 0.002 0.329 ± 0.002 6500 K 0.0000
mode. (Warm, Medium, Cool)
6) Remove probe and RS-232C cable to complete adj.
4.3.7. LED White balance table
▪ W/B Adj. must begin as start command “wb 00 00” , and ▪ Edge & ALEF LED module change color coordinate because
finish as end command “wb 00 ff”, and Adj. offset if need. of aging time.
▪ Apply under the color coordinate table, for compensated
(2) Manual adjustment. method aging time.
1) Set TV in Adj. mode using POWER ON.
2) Zero Calibrate the probe of Color Analyzer, then place it
on the center of LCD module within 10 cm of the surface.
3) Press ADJ key → EZ adjust using adj. R/C → 7. White-
Balance then press the cursor to the right(key ►).
(When right key(►) is pressed 216 Gray internal pattern
will be displayed)
4) One of R Gain / G Gain / B Gain should be fixed at 192,
and the rest will be lowered to meet the desired value.
5) Adjustment is performed in COOL, MEDIUM, WARM 3
modes of color temperature.
Copyright © LG Electronics. Inc. All rights reserved. - 14 - LGE Internal Use Only
Only for training and service purposes

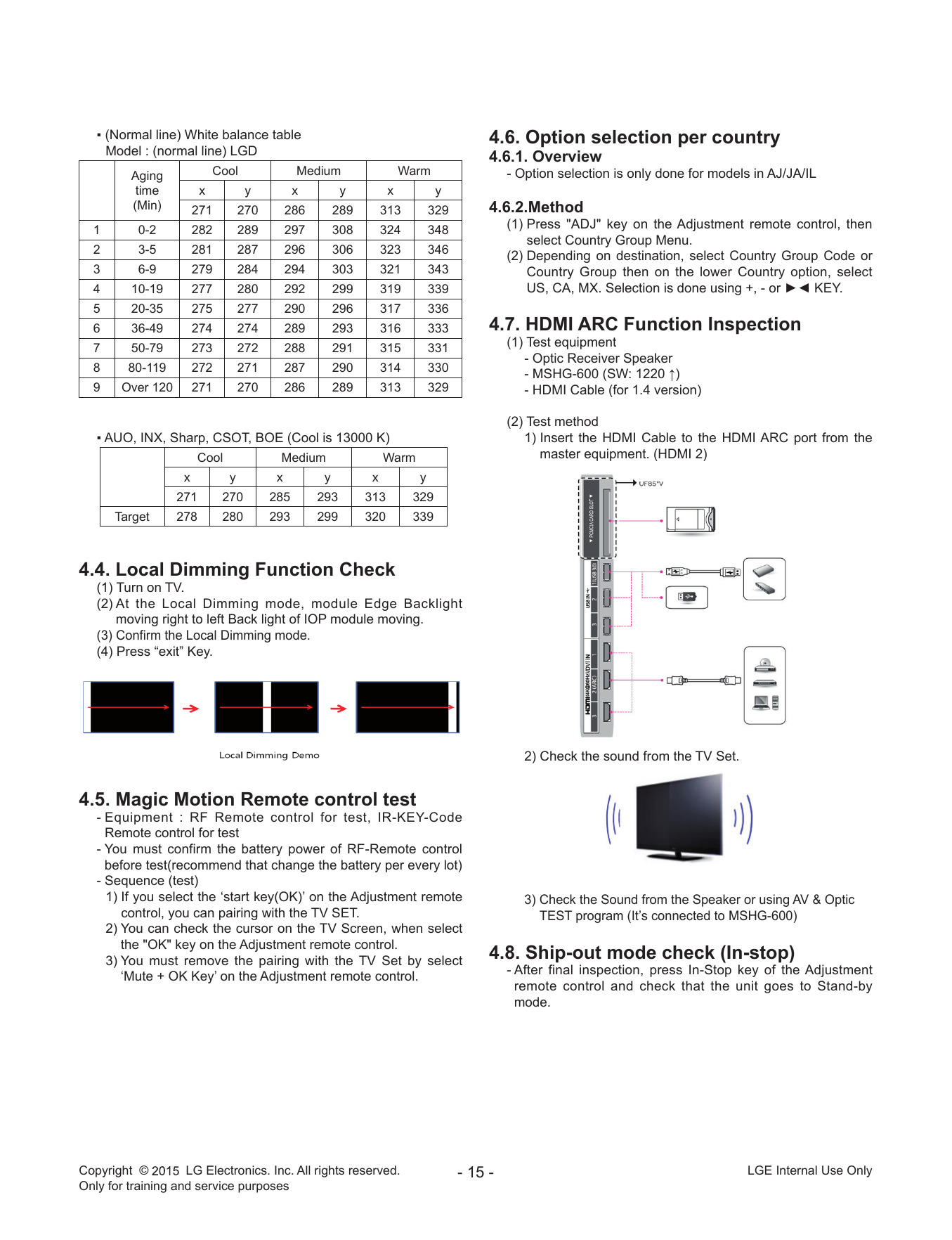

▪ (Normal line) White balance table 4.6. Option selection per country
Model : (normal line) LGD
4.6.1. Overview
Aging Cool Medium Warm - Option selection is only done for models in AJ/JA/IL
time x y x y x y
(Min) 271 270 286 289 313 329 4.6.2.Method
1 0-2 282 289 297 308 324 348 (1) Press "ADJ" key on the Adjustment remote control, then
select Country Group Menu.
2 3-5 281 287 296 306 323 346
(2) Depending on destination, select Country Group Code or
3 6-9 279 284 294 303 321 343 Country Group then on the lower Country option, select
4 10-19 277 280 292 299 319 339 US, CA, MX. Selection is done using +, - or ►◄ KEY.
5 20-35 275 277 290 296 317 336
6 36-49 274 274 289 293 316 333 4.7. HDMI ARC Function Inspection
7 50-79 273 272 288 291 315 331 (1) Test equipment
- Optic Receiver Speaker
8 80-119 272 271 287 290 314 330
- MSHG-600 (SW: 1220 ↑)
9 Over 120 271 270 286 289 313 329 - HDMI Cable (for 1.4 version)
(2) Test method
▪ AUO, INX, Sharp, CSOT, BOE (Cool is 13000 K) 1) Insert the HDMI Cable to the HDMI ARC port from the
Cool Medium Warm master equipment. (HDMI 2)
x y x y x y
271 270 285 293 313 329
Target 278 280 293 299 320 339
4.4. Local Dimming Function Check
(1) Turn on TV.
(2) A t the Local Dimming mode, module Edge Backlight
moving right to left Back light of IOP module moving.
(3) Confirm the Local Dimming mode.
(4) Press “exit” Key.
2) Check the sound from the TV Set.
4.5. Magic Motion Remote control test
- E quipment : RF Remote control for test, IR-KEY-Code
Remote control for test
- You must confirm the battery power of RF-Remote control
before test(recommend that change the battery per every lot)
- Sequence (test)
1) If you select the ‘start key(OK)’ on the Adjustment remote 3) Check the Sound from the Speaker or using AV & Optic
control, you can pairing with the TV SET. TEST program (It’s connected to MSHG-600)
2) You can check the cursor on the TV Screen, when select
the "OK" key on the Adjustment remote control.
3) You must remove the pairing with the TV Set by select 4.8. Ship-out mode check (In-stop)
‘Mute + OK Key’ on the Adjustment remote control. - After final inspection, press In-Stop key of the Adjustment
remote control and check that the unit goes to Stand-by
mode.
Copyright © LG Electronics. Inc. All rights reserved. - 15 - LGE Internal Use Only
Only for training and service purposes

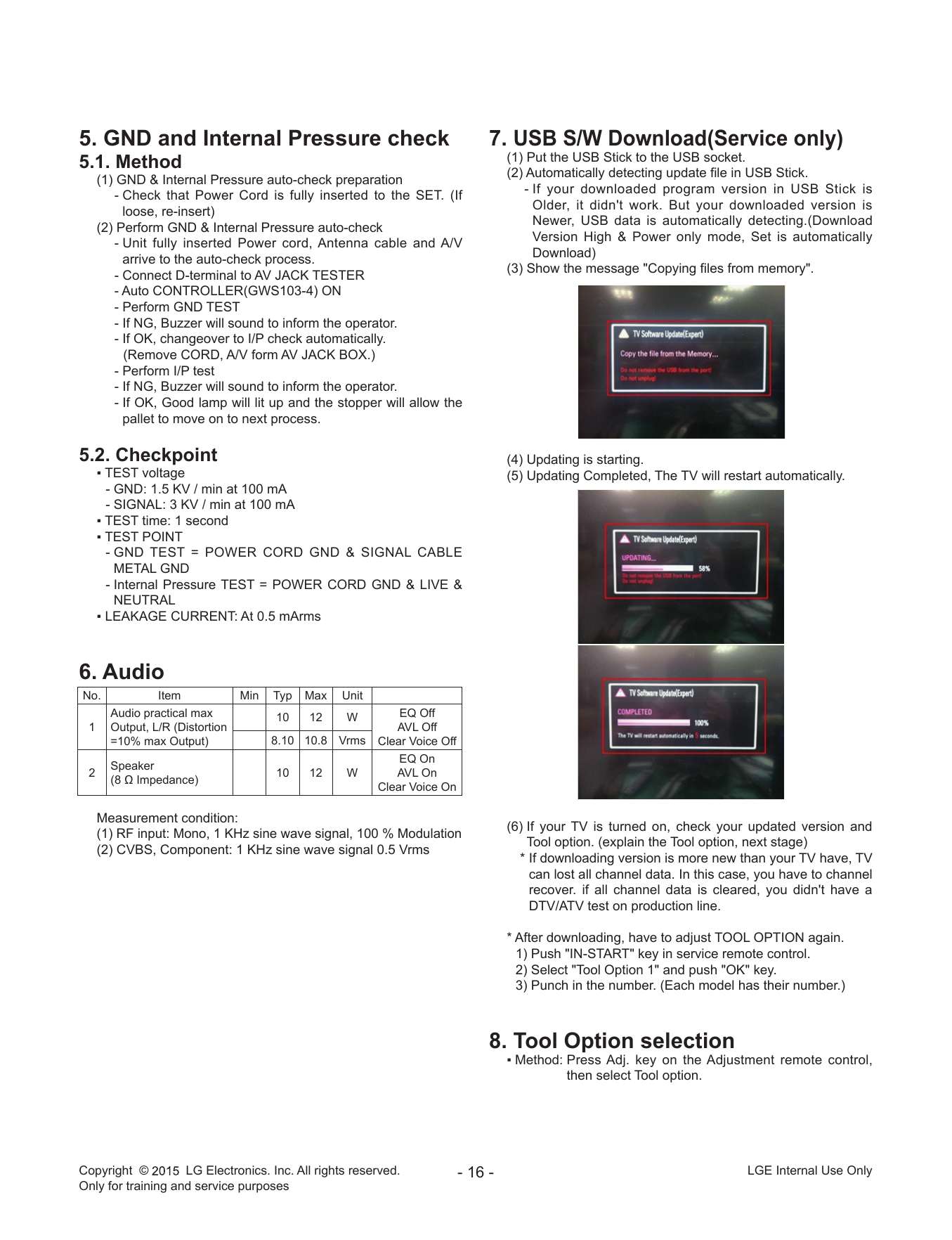

5. GND and Internal Pressure check 7. USB S/W Download(Service only)
5.1. Method (1) Put the USB Stick to the USB socket.
(1) GND & Internal Pressure auto-check preparation (2) Automatically detecting update file in USB Stick.
- Check that Power Cord is fully inserted to the SET. (If - If your downloaded program version in USB Stick is
loose, re-insert) Older, it didn't work. But your downloaded version is
(2) Perform GND & Internal Pressure auto-check Newer, USB data is automatically detecting.(Download
- Unit fully inserted Power cord, Antenna cable and A/V Version High & Power only mode, Set is automatically
arrive to the auto-check process. Download)
- Connect D-terminal to AV JACK TESTER (3) Show the message "Copying files from memory".
- Auto CONTROLLER(GWS103-4) ON
- Perform GND TEST
- If NG, Buzzer will sound to inform the operator.
- If OK, changeover to I/P check automatically.
(Remove CORD, A/V form AV JACK BOX.)
- Perform I/P test
- If NG, Buzzer will sound to inform the operator.
- If OK, Good lamp will lit up and the stopper will allow the
pallet to move on to next process.
5.2. Checkpoint (4) Updating is starting.
▪ TEST voltage (5) Updating Completed, The TV will restart automatically.
- GND: 1.5 KV / min at 100 mA
- SIGNAL: 3 KV / min at 100 mA
▪ TEST time: 1 second
▪ TEST POINT
- GND TEST = POWER CORD GND & SIGNAL CABLE
METAL GND
- Internal Pressure TEST = POWER CORD GND & LIVE &
NEUTRAL
▪ LEAKAGE CURRENT: At 0.5 mArms
6. Audio
No. Item Min Typ Max Unit
Audio practical max 10 12 W EQ Off
1 Output, L/R (Distortion AVL Off
=10% max Output) 8.10 10.8 Vrms Clear Voice Off
EQ On
Speaker
2 10 12 W AVL On
(8 Ω Impedance)
Clear Voice On
Measurement condition:
(6) If your TV is turned on, check your updated version and
(1) RF input: Mono, 1 KHz sine wave signal, 100 % Modulation
Tool option. (explain the Tool option, next stage)
(2) CVBS, Component: 1 KHz sine wave signal 0.5 Vrms
* If downloading version is more new than your TV have, TV
can lost all channel data. In this case, you have to channel
recover. if all channel data is cleared, you didn't have a
DTV/ATV test on production line.
* After downloading, have to adjust TOOL OPTION again.
1) Push "IN-START" key in service remote control.
2) Select "Tool Option 1" and push "OK" key.
3) Punch in the number. (Each model has their number.)
8. Tool Option selection
▪ Method: Press Adj. key on the Adjustment remote control,
then select Tool option.
Copyright © LG Electronics. Inc. All rights reserved. - 16 - LGE Internal Use Only
Only for training and service purposes
Copyright ©
X_TAL DDR3 1866 X 32
24MHz (512MB X 2EA)

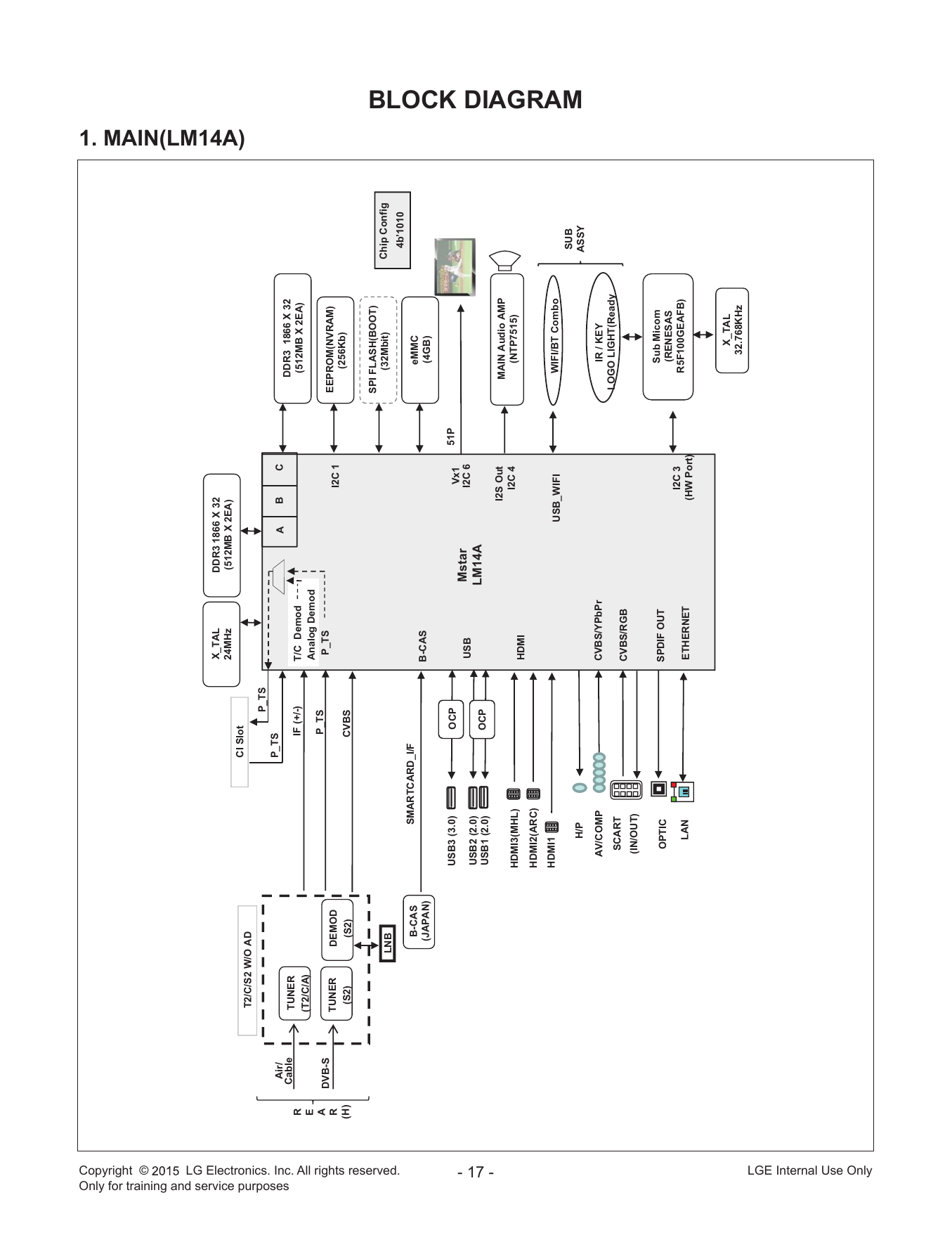

1. MAIN(LM14A)
CI Slot
T2/C/S2 W/O AD
P_TS
Air/ P_TS B C
A
Only for training and service purposes
Cable TUNER DDR3 1866 X 32
R IF (+/-) T/C Demod (512MB X 2EA)
E (T2/C/A)
Analog Demod
A P_TS
DVB-S P_TS EEPROM(NVRAM)
R TUNER DEMOD I2C 1
(H) (S2) CVBS (256Kb)
(S2)
SPI FLASH(BOOT)
LNB (32Mbit) Chip Config
LG Electronics. Inc. All rights reserved.
4b’1010
B-CAS SMARTCARD_I/F eMMC
(JAPAN) B-CAS (4GB)
USB3 (3.0) OCP Vx1 51P
USB Mstar I2C 6
USB2 (2.0) LM14A
USB1 (2.0) OCP
- 17 -
I2S Out MAIN Audio AMP
HDMI3(MHL) I2C 4 (NTP7515)
HDMI
HDMI2(ARC)
HDMI1 WIFI/BT Combo
USB_WIFI
SUB
BLOCK DIAGRAM
H/P ASSY
AV/COMP CVBS/YPbPr IR / KEY
LOGO LIGHT(Ready
SCART
CVBS/RGB
(IN/OUT)
SPDIF OUT Sub Micom
OPTIC
(RENESAS
I2C 3 R5F100GEAFB)
LAN ETHERNET (HW Port)
X_TAL
32.768KHz
LGE Internal Use Only
Copyright ©
X_TAL
24MHz
CI Slot DDR3 1866 X 32
T2/C/S2 W/O AD (512MB X 2EA)
P_TS
Only for training and service purposes
Air/ P_TS B
A
Cable TUNER DDR3 1866 X 32
R IF (+/-) (512MB X 2EA)
E (T2/C/A)
A P_TS
R DVB-S I2C 1 EEPROM(NVRAM)
TUNER DEMOD

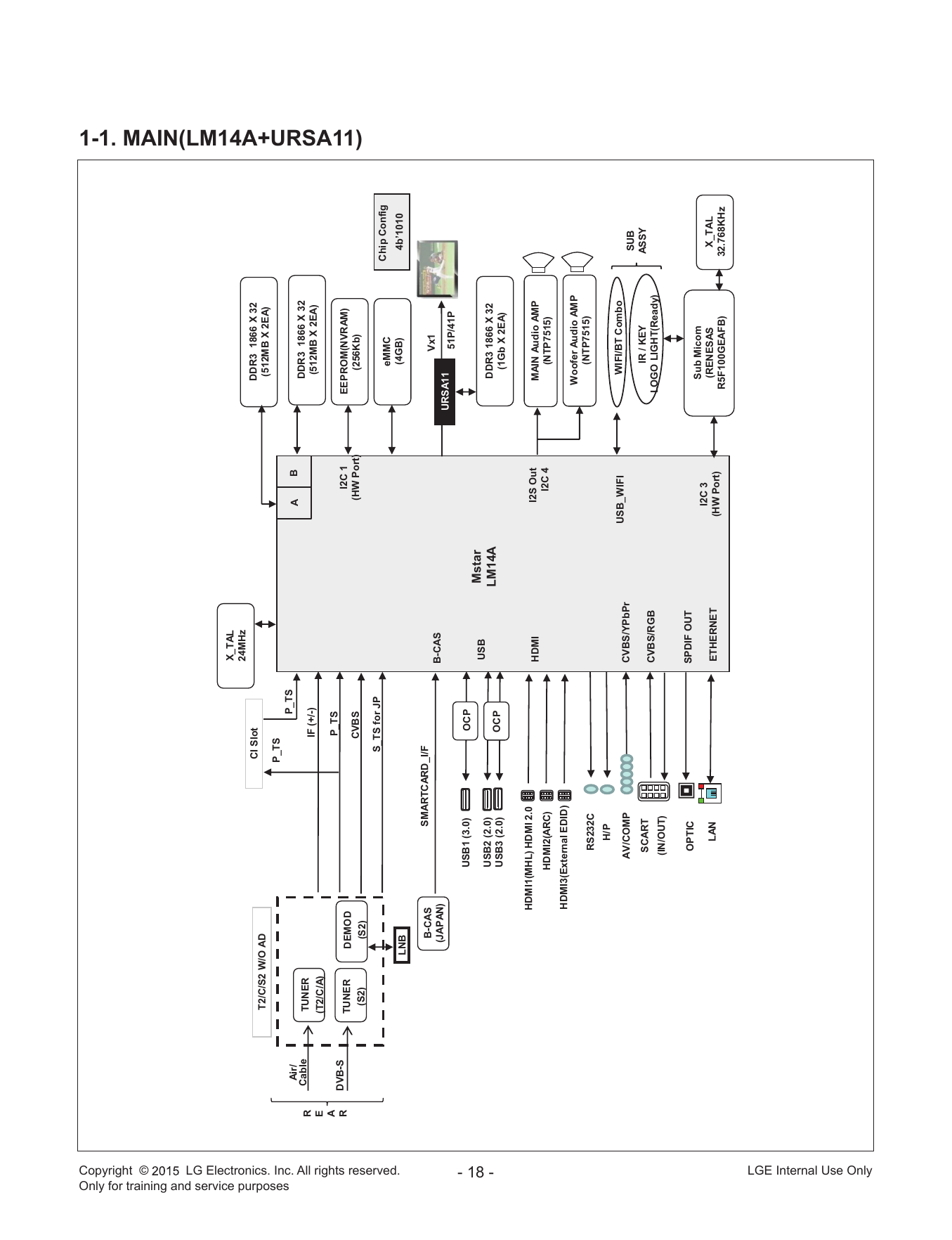

1-1. MAIN(LM14A+URSA11)
CVBS (HW Port) (256Kb)
(S2) (S2)
S_TS for JP
eMMC Chip Config
LG Electronics. Inc. All rights reserved.
LNB (4GB) 4b’1010
B-CAS SMARTCARD_I/F
Vx1
(JAPAN) B-CAS
URSA11
51P/41P
USB1 (3.0) OCP
USB Mstar
- 18 -
USB2 (2.0) LM14A DDR3 1866 X 32
USB3 (2.0) OCP (1Gb X 2EA)
HDMI1(MHL) HDMI 2.0 I2S Out
HDMI MAIN Audio AMP
HDMI2(ARC) I2C 4 (NTP7515)
HDMI3(External EDID)
Woofer Audio AMP
RS232C (NTP7515)
H/P
USB_WIFI WIFI/BT Combo
AV/COMP CVBS/YPbPr SUB
SCART IR / KEY ASSY
CVBS/RGB LOGO LIGHT(Ready)
(IN/OUT)
OPTIC SPDIF OUT
Sub Micom
I2C 3
LAN ETHERNET (RENESAS X_TAL
(HW Port)
R5F100GEAFB) 32.768KHz
LGE Internal Use Only
Copyright ©
+3.3V_NORMAL
MSTAR

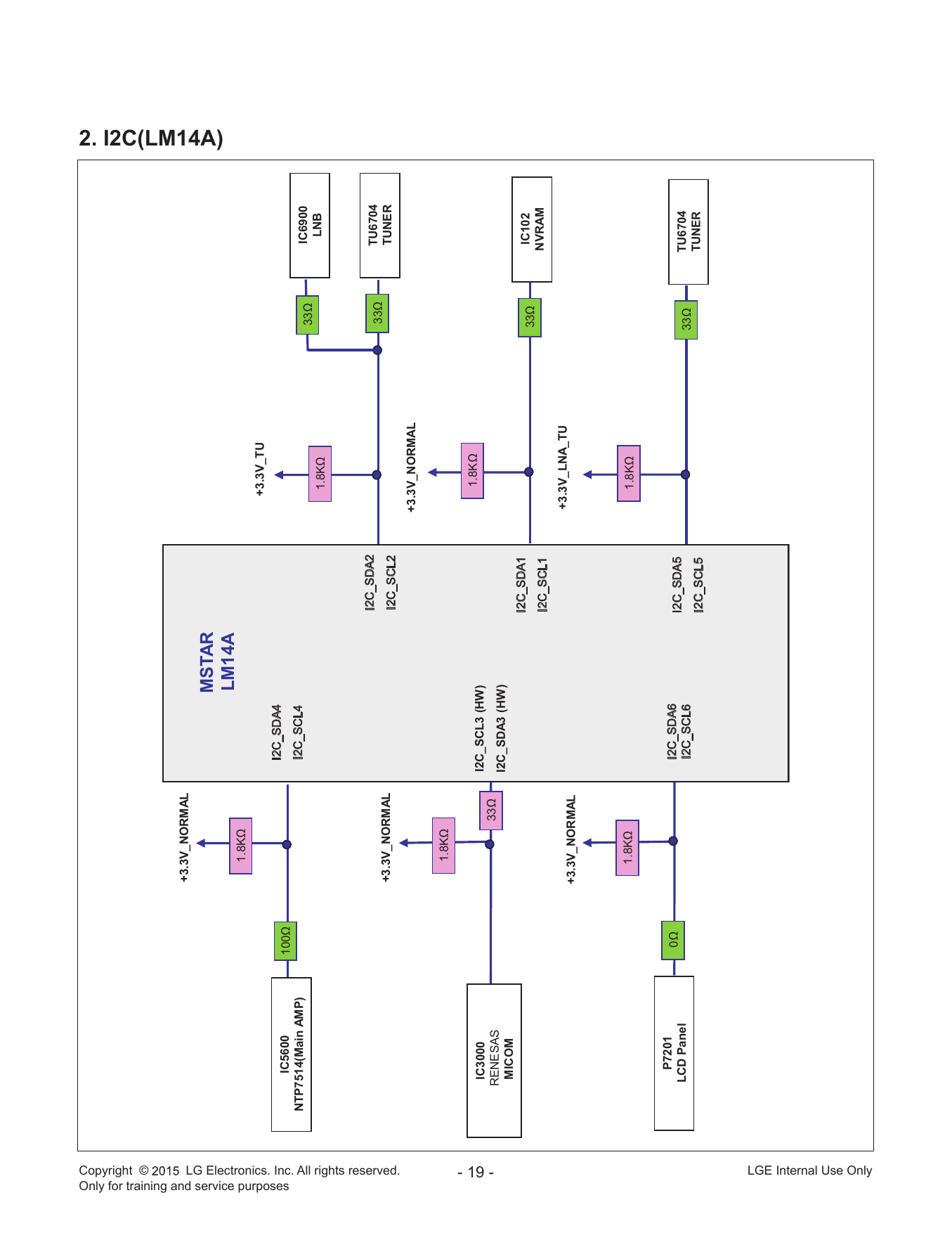

2. I2C(LM14A)
LM14A
1.8KΩ
+3.3V_TU
I2C_SDA4
Only for training and service purposes
IC5600 100Ω
NTP7514(Main AMP) I2C_SCL4 IC6900
33Ω
1.8KΩ LNB
I2C_SDA2 TU6704
33Ω
+3.3V_NORMAL I2C_SCL2 TUNER
LG Electronics. Inc. All rights reserved.
+3.3V_NORMAL
1.8KΩ
1.8KΩ
IC3000 I2C_SCL3 (HW)
- 19 -
RENESAS 33Ω
I2C_SDA3 (HW)
MICOM
I2C_SDA1 IC102
33Ω
I2C_SCL1 NVRAM
+3.3V_LNA_TU
+3.3V_NORMAL
1.8KΩ 1.8KΩ
P7201 I2C_SDA6
0Ω I2C_SDA5
LCD Panel I2C_SCL6 33Ω TU6704
I2C_SCL5 TUNER
LGE Internal Use Only
Copyright ©
IC5900
100Ω +3.3V_NORMAL
NTP7515(Woofer AMP)
MSTAR
LM14A
33pF 1.8KΩ
+3.3V_TU
I2C SCL/SDA4(SW)
Only for training and service purposes
GPIO19 / [LED0] / GPIO74
IC5800 100Ω IC6900
NTP7515(Main AMP) GPIO20 / [LED1] / GPIO75 33Ω
1.8KΩ LNB
2-1. I2C(LM14A+URSA11)
I2C_SCL/SDA2(HW)
33pF +3.3V_NORMAL
GPIO30 / SCK4
33Ω TU6704
GPIO31 / SDA4 TUNER
LG Electronics. Inc. All rights reserved.
1.8KΩ +3.3V_NORMAL
I2C SCL/SDA3(HW)
IC3000 GPIO28 / SCK0 / GPIO83
RENESAS 33Ω
GPIO29 / SDA0 /GPIO84 1.8KΩ
MICOM
- 20 -
I2C SCL/SDA1(HW)
DDCR_CK/ SCK3 / GPIO54
+3.3V_NORMAL 33Ω IC100
DDCR_DA / SDA3 / GPIO53 NVRAM
+3.3V_LNA_TU
1.8KΩ
I2C_SCL/SDA6(SW)
DIM2 / TX4 / GPIO112
P7201
0Ω DIM3 / RX4 / GPIO113 1.8KΩ
LCD Panel
I2C SCL/SDA5(HW)
+3.3V_NORMAL
GPIO32 / SCK5 / GPIO87 TU6704
33Ω
GPIO33 / SDA5 / GPIO88 TUNER
1.8KΩ
I2C SCL/SDA7(HW)
TGPIO2 / SCK1 / GPIO159
URSA11 (LGE5352) 33Ω
TGPIO3 / SDA1 / GPIO160
LGE Internal Use Only
Copyright ©

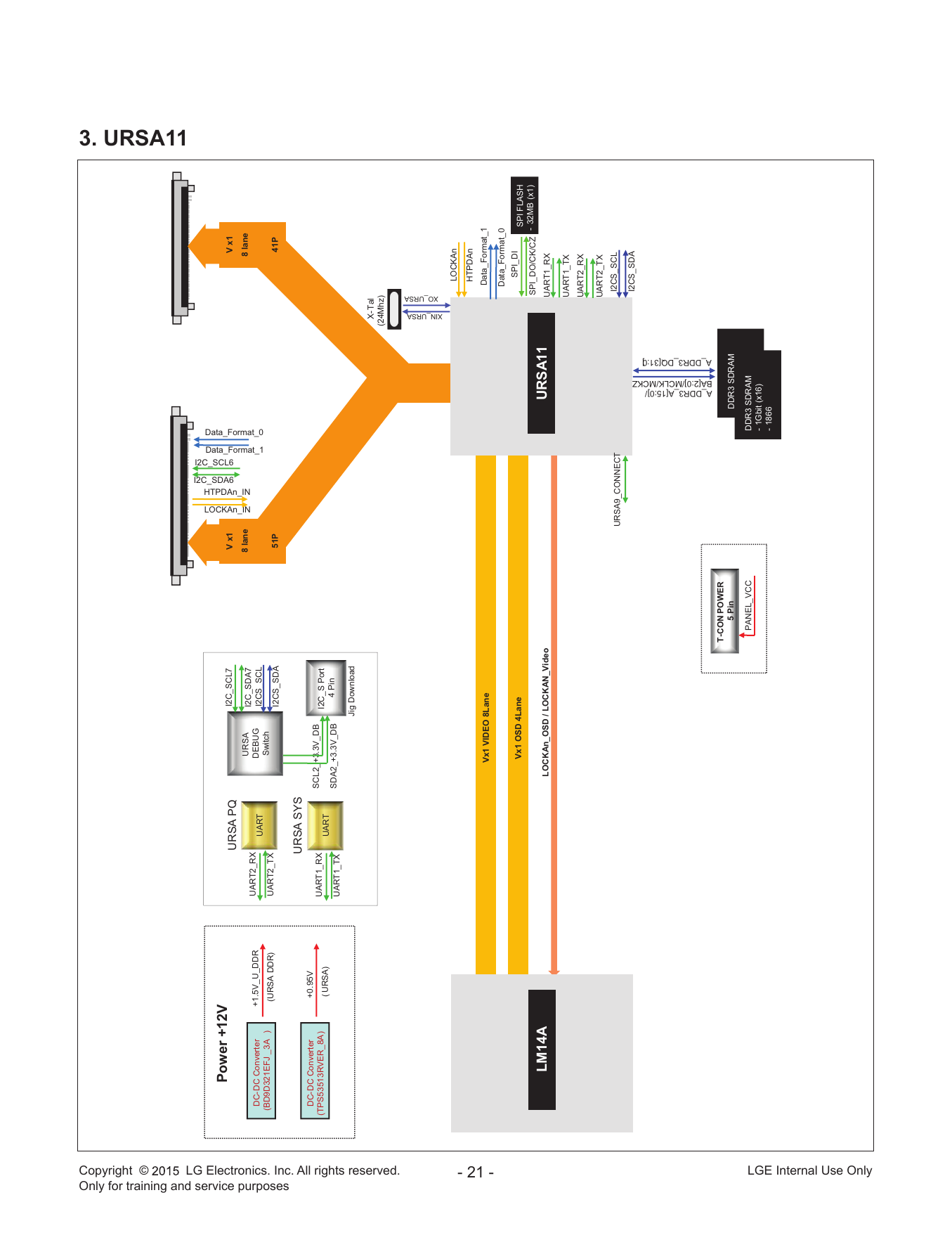

3. URSA11
Power +12V
I2C_SCL6
I2C_SDA6
I2C_SCL7 V x1 V x1
URSA PQ
HTPDAn_IN
LOCKAn_IN
URSA I2C_SDA7 8 lane 8 lane
DC- DC Converter +1.5V_U_DDR UART2_RX DEBUG
Data_Format_0
Data_Format_1
UART I2CS_SCL
(BD9D321EFJ _3A ) Switch
(URSA DDR) UART2_TX
I2CS_SDA 51P 41P
Only for training and service purposes
URSA SYS
DC- DC Converter +0.95V
UART1_RX SCL2_+3.3V_DB
(TPS53513RVER_8A) I2C_S Port
( URSA) UART
SDA2_+3.3V_DB 4 Pin
UART1_TX
Jig Download
X- Tal
(24Mhz)
LG Electronics. Inc. All rights reserved.
XO_URSA
XIN_URSA
LOCKAn
HTPDAn
Vx1 VIDEO 8Lane Data_Format_1
- 21 -
Data_Format_0
Vx1 OSD 4Lane SPI_DI
SPI FLASH
SPI_DO/CK/CZ - 32MB (x1)
LM14A LOCKAn_OSD / LOCKAN_Video URSA11 UART1_RX
UART1_TX
UART2_RX
UART2_TX
URSA9_CONNECT I2CS_SCL
I2CS_SDA
A_DDR3_DQ[31:0]
A_DDR3_A[15:0]/
BA[2:0]/MCLK/MCKZ
T-CON POWER
5 Pin DDR3 SDRAM
- 1Gbit (x16)
PANEL_VCC DDR3- SDRAM
1866
186 6
- 1Gbit (x16)
- 1866
LGE Internal Use Only
Copyright ©
▪ DCDC efficiency : 80% DCDC LDO
5.5mA
MICOM H/P AMP

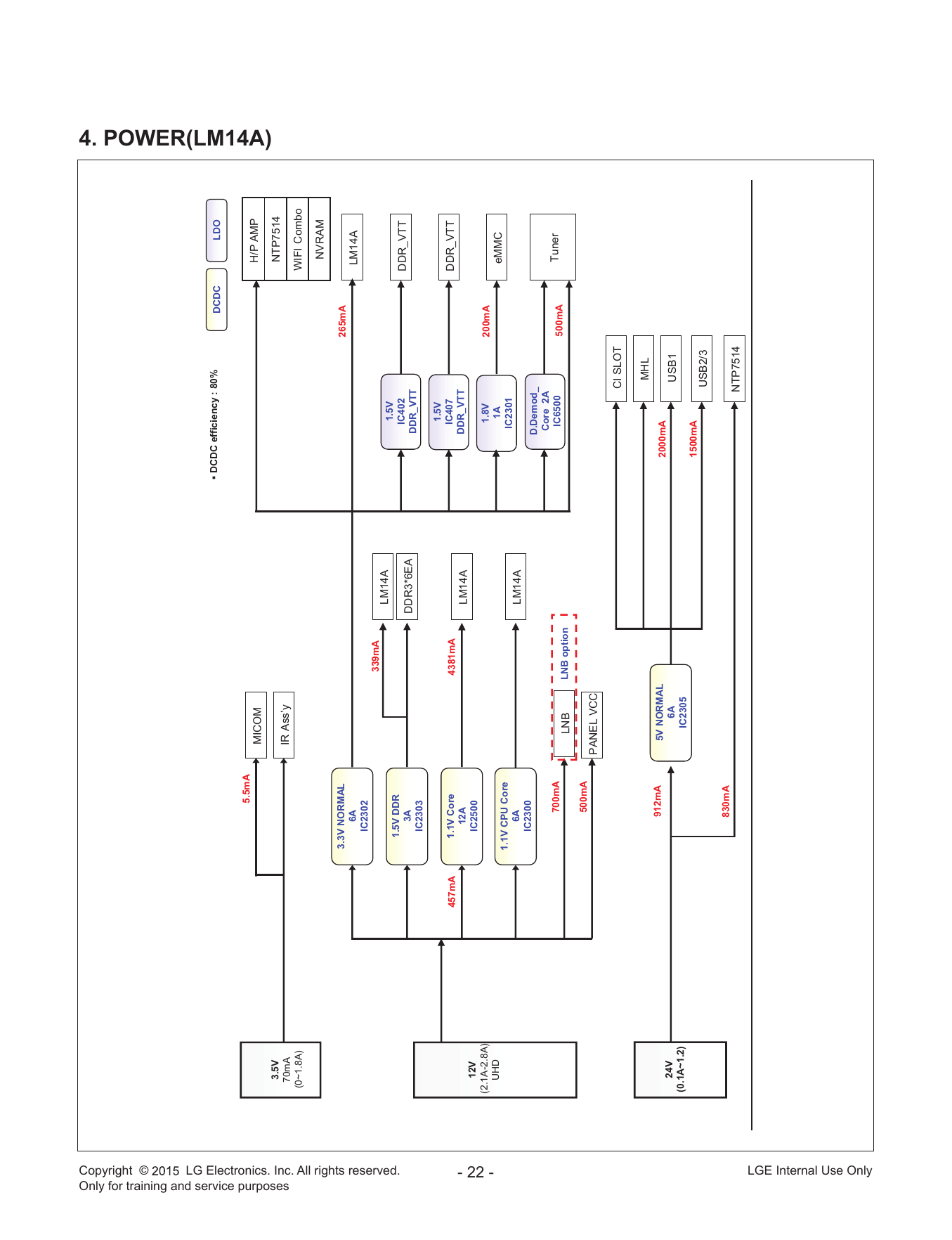

4. POWER(LM14A)
3.5V NTP7514
Only for training and service purposes
70mA IR Ass’y
(0~1.8A) WIFI Combo
NVRAM
3.3V NORMAL 265mA
6A LM14A
IC2302
339mA
LM14A 1.5V
LG Electronics. Inc. All rights reserved.
1.5V DDR
IC402 DDR_VTT
3A DDR3*6EA DDR_VTT
IC2303
1.5V
457mA 1.1V Core 4381mA IC407 DDR_VTT
12A LM14A DDR_VTT
12V IC2500
(2.1A-2.8A) 1.8V 200mA
- 22 -
UHD 1A eMMC
1.1V CPU Core IC2301
6A LM14A
IC2300
D.Demod_
Core 2A
700mA IC6500 500mA Tuner
LNB LNB option
500mA
PANEL VCC
CI SLOT
MHL
912mA 5V NORMAL 2000mA
24V 6A USB1
(0.1A~1.2) IC2305
1500mA
USB2/3
830mA
NTP7514
LGE Internal Use Only
Copyright ©
Measurement condition
SW: beehive-204
Video : USB4K movie
DCDC LDO
MICOM
0.09A
Only for training and service purposes
3.5V IR Assy
Wifi/MR connect 0.23A
3.3V
Stand_by : 0.0067A IC200 LM14A 0.321A
AVDD_DMPLL LM14A
0.617A 3.3V NORMAL / 6A 0.369A
Max(HDMI) : 0.776A IC2302 URSA11
LM14A

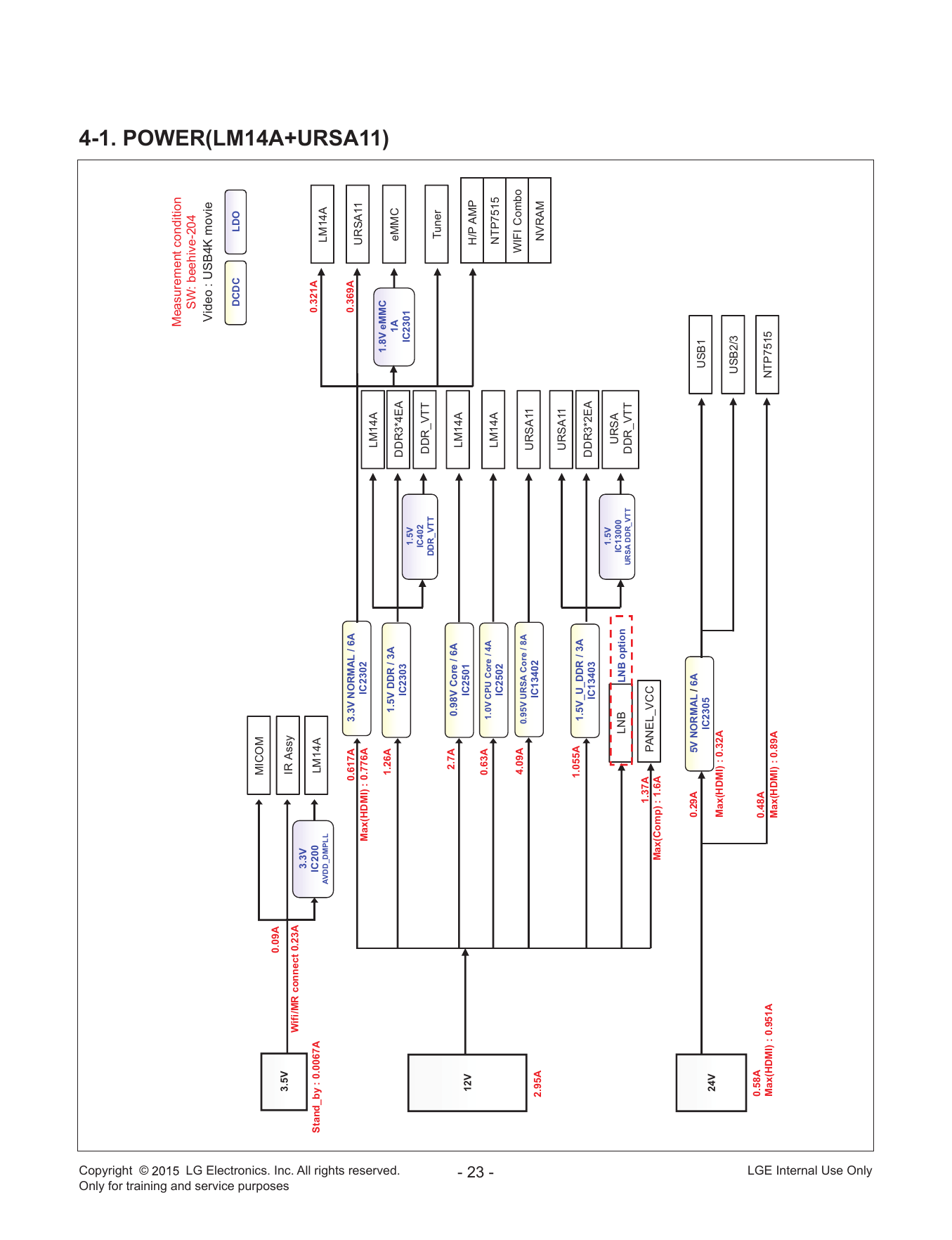

4-1. POWER(LM14A+URSA11)
1.26A 1.8V eMMC
1.5V DDR / 3A
LG Electronics. Inc. All rights reserved.
DDR3*4EA 1A eMMC
IC2303 IC2301
1.5V
IC402
DDR_VTT
DDR_VTT
Tuner
2.7A 0.98V Core / 6A
LM14A
12V IC2501
H/P AMP
0.63A
- 23 -
1.0V CPU Core / 4A
IC2502
LM14A NTP7515
4.09A 0.95V URSA Core / 8A
WIFI Combo
IC13402
URSA11
2.95A NVRAM
URSA11
1.055A 1.5V_U_DDR / 3A
IC13403 DDR3*2EA
1.5V
IC13000 URSA
LNB LNB option
URSA DDR_VTT DDR_VTT
1.37A PANEL_VCC
Max(Comp) : 1.6A
0.29A 5V NORMAL / 6A
IC2305 USB1
24V
Max(HDMI) : 0.32A
USB2/3
0.58A 0.48A
Max(HDMI) : 0.951A NTP7515
Max(HDMI) : 0.89A
LGE Internal Use Only
Copyright ©
TDJM-G251D +3.3V_NORMAL
[+3.3V_LNA_TU] 1
[+3.3V_TUNER] 11
[3.3V_Demod_TU] 26

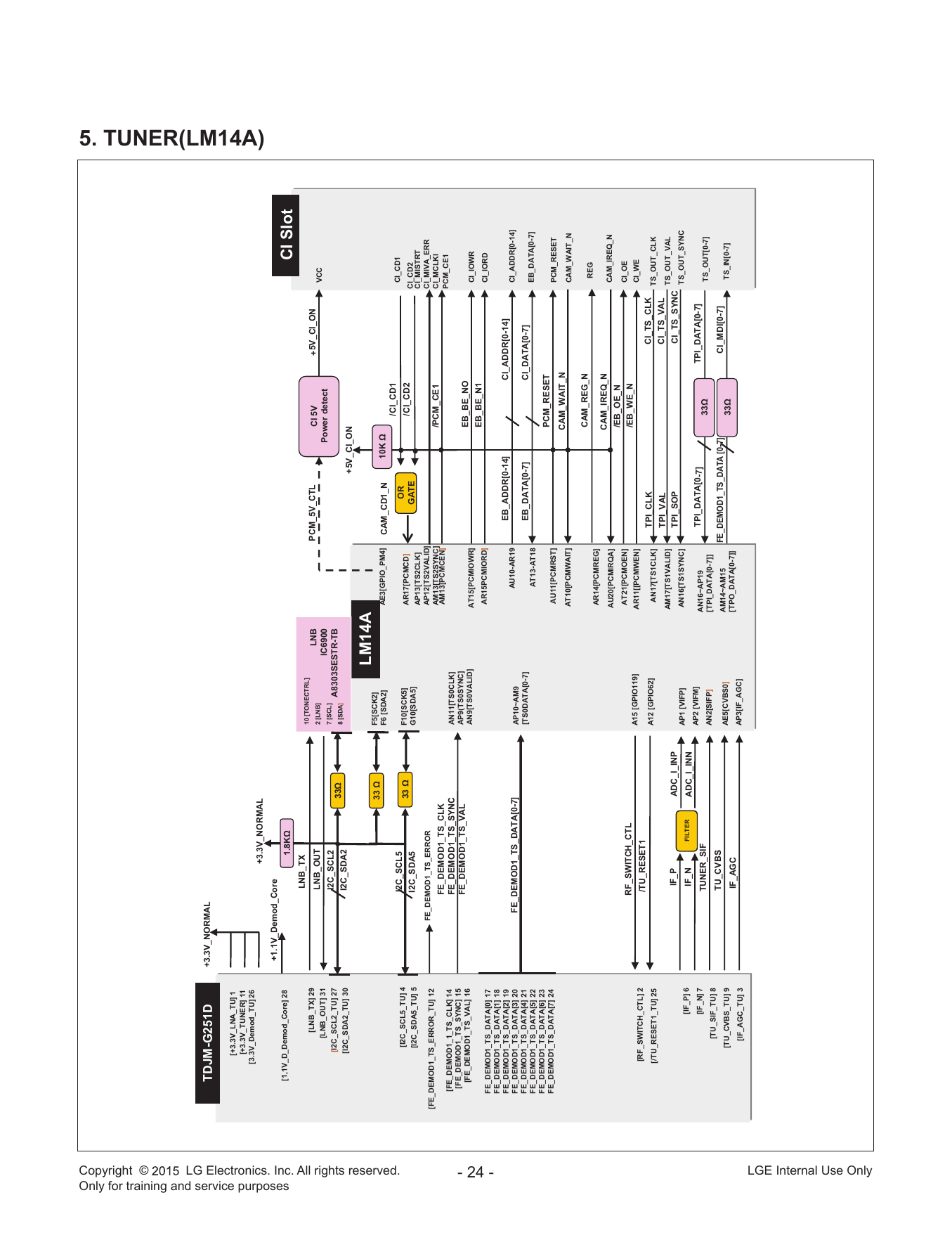

5. TUNER(LM14A)
+3.3V_NORMAL
+1.1V_Demod_Core
Only for training and service purposes
[1,1V_D_Demod_Core] 28 1.8KΩ CI Slot
LNB_TX 10 [TONECTRL]
[LNB_TX] 29 LNB PCM_5V_CTL CI 5V +5V_CI_ON
LNB_OUT 2 [LNB] VCC
[LNB_OUT] 31 IC6900 Power detect
I2C_SCL2 7 [SCL]
[I2C_SCL2_TU] 27 A8303SESTR-TB
33Ω 8 [SDA]
[I2C_SDA2_TU] 30 I2C_SDA2
+5V_CI_ON
F5[SCK2]
LM14A
33 Ω
F6 [SDA2] AE3[GPIO_PM4] CAM_CD1_N 10K Ω
/CI_CD1
LG Electronics. Inc. All rights reserved.
I2C_SCL5 CI_CD1
[I2C_SCL5_TU] 4 F10[SCK5] OR
33 Ω AR17[PCMCD] /CI_CD2
[I2C_SDA5_TU] 5 I2C_SDA5 G10[SDA5] GATE CI_CD2
AP13[TS2CLK] CI_MISTRT
FE_DEMOD1_TS_ERROR AP12[TS2VALID] CI_MIVA_ERR
[FE_DEMOD1_TS_ERROR_TU] 12
AM13[TS2SYNC] /PCM_CE1 CI_MCLKI
FE_DEMOD1_TS_CLK AM13[PCMCEN]
[FE_DEMOD1_1_TS_CLK] 14 PCM_CE1
FE_DEMOD1_TS_SYNC AN11[TS0CLK]
[FE_DEMOD1_TS_SYNC] 15 AP9(TS0SYNC]
FE_DEMOD1_TS_VAL EB_BE_NO
[FE_DEMOD1_TS_VAL] 16 AN9[TS0VALID] AT15[PCMIOWR] CI_IOWR
EB_BE_N1
AR15PCMIORD] CI_IORD
FE_DEMOD1_TS_DATA[0] 17
- 24 -
FE_DEMOD1_TS_DATA[1] 18
FE_DEMOD1_TS_DATA[2] 19 EB_ADDR[0-14] CI_ADDR[0-14]
FE_DEMOD1_TS_DATA[3] 20 FE_DEMOD1_TS_DATA[0-7] AU10-AR19 CI_ADDR[0-14]
AP10~AM9
FE_DEMOD1_TS_DATA[4] 21 [TS0DATA[0-7] EB_DATA[0-7] CI_DATA[0-7]
FE_DEMOD1_TS_DATA[5] 22 AT13-AT18 EB_DATA[0-7]
FE_DEMOD1_TS_DATA[6] 23
FE_DEMOD1_TS_DATA[7] 24
PCM_RESET
AU11[PCMRST] PCM_RESET
CAM_WAIT_N
AT10[PCMWAIT] CAM_WAIT_N
CAM_REG_N
REG
AR14[PCMREG]
CAM_IREQ_N
AU20[PCMIRQA] CAM_IREQ_N
/EB_OE_N
AT21[PCMOEN] CI_OE
RF_SWITCH_CTL /EB_WE_N
A15 [GPIO119] AR11[[PCMWEN] CI_WE
[RF_SWITCH_CTL] 2 /TU_RESET1
A12 [GPIO62] TPI_CLK CI_TS_CLK
[/TU_RESET1_TU] 25 AN17[TS1CLK] TS_OUT_CLK
TPI_VAL CI_TS_VAL
AM17[TS1VALID] TS_OUT_VAL
IF_P ADC_I_INP TPI_SOP CI_TS_SYNC
AP1 [VIFP] AN16[TS1SYNC] TS_OUT_SYNC
[IF_P] 6 IF_N FILTER ADC_I_INN
AP2 [VIFM] TPI_DATA[0-7] TPI_DATA[0-7]
[IF_N] 7 AN16~AP19
TUNER_SIF 33Ω TS_OUT[0-7]
AN2[SIFP] [TPI_DATA[0-7]]
[TU_SIF_TU] 8
TU_CVBS FE_DEMOD1_TS_DATA [0-7] CI_MDI[0-7]
AE5[CVBS0] AM14~AM15 TS_IN[0-7]
[TU_CVBS_TU] 9 33Ω
IF_AGC [TPO_DATA[0-7]]
[IF_AGC_TU] 3 AP3[IF_AGC]
LGE Internal Use Only
Copyright ©
TDJM-G301D +3.3V_TUNER
+2.5V_NORMAL
[+3.3V_LNA_TU] 1
[+3.3V_TUNER] 11
[3.3V_Demod_TU] 26
[+2.5V_DEMOD] 38 +3.3V_TU
Demod_Core
Only for training and service purposes
[1,1V_D_Demod_Core] 28 1.8KΩ CI Slot
LNB_TX 10 [TONECTRL]
[LNB_TX] 29 LNB PCM_5V_CTL
LNB_OUT 2 [LNB] CI 5V +5V_CI_ON
[LNB_OUT] 31 IC6900 VCC
7 [SCL] A8303SESTR-TB
Power detect
[I2C_SCL2_TU] 27 I2C_SCL2
33Ω 8 [SDA]
[I2C_SDA2_TU] 30 I2C_SDA2
+5V_CI_ON
+3.3V_LNA_TU LM14A
GPIO30/SCK4/GPIO85
5-1. TUNER(LM14A+URSA11)
33 Ω
GPIO31/SDA4/GPIO86 GPIO_PM[4]/GPIO14 CAM_CD1_N 10K Ω
1.8KΩ
/CI_CD1
LG Electronics. Inc. All rights reserved.
I2C_SCL5 CI_CD1
[I2C_SCL5_TU] 4 GPIO32/SCK5/GPIO87 OR
33 Ω PCM_CD_N/GPIO151 /CI_CD2
[I2C_SDA5_TU] 5 I2C_SDA5 GPIO33/SDA5/GPIO88 GATE CI_CD2
TS1_CLK/GPIO172 CI_MISTRT
FE_DEMOD1_TS_ERROR TS1_VLD/GPIO174 CI_MIVA_ERR
[FE_DEMOD1_TS_ERROR_TU] 12 TS1_SYNC/GPIO173 /PCM_CE1 CI_MCLKI
FE_DEMOD1_TS_CLK PCM_CE_N/GPIO124
[FE_DEMOD1_1_TS_CLK] 14 PCM_CE1
FE_DEMOD1_TS_SYNC TS1_CLK/GPIO172
[FE_DEMOD1_TS_SYNC] 15 TS1_SYNC/GPIO173
FE_DEMOD1_TS_VAL EB_BE_NO
[FE_DEMOD1_TS_VAL] 16 TS1_VLD/GPIO174 PCM_IOWR_N/GPIO130 CI_IOWR
EB_BE_N1
PCM_IORD_N/GPIO128 CI_IORD
FE_DEMOD1_TS_DATA[0] 17
- 25 -
FE_DEMOD1_TS_DATA[1] 18
FE_DEMOD1_TS_DATA[2] 19 EB_ADDR[0-14] CI_ADDR[0-14]
FE_DEMOD1_TS_DATA[3] 20 FE_DEMOD1_TS_DATA[0-7] PCM_A[0~14] CI_ADDR[0-14]
GPIO [175~182]
FE_DEMOD1_TS_DATA[4] 21 TS1_D[0-7] EB_DATA[0-7] CI_DATA[0-7]
FE_DEMOD1_TS_DATA[5] 22 PCM_D[0~7] EB_DATA[0-7]
FE_DEMOD1_TS_DATA[6] 23
FE_DEMOD1_TS_DATA[7] 24 PCM_RESET/GPIO150
PCM_RESET
PCM_RESET
PCM_WAIT_N/GPIO140 CAM_WAIT_N CAM_WAIT_N
CAM_REG_N
REG
PCM_REG_N/GPIO144]
CAM_IREQ_N
PCM_IRQA_N/GPIO135 CAM_IREQ_N
/EB_OE_N
PCM_OE_N/GPIO126 CI_OE
RF_SWITCH_CTL /EB_WE_N
SPI1_CK/GPIO106 PCM_WE_N/GPIO134 CI_WE
[RF_SWITCH_CTL] 2 /TU_RESET1
PM_SPI_CZ/GPIO0 TPI_CLK CI_TS_CLK
[/TU_RESET1_TU] 25 TS0_CLK/GPIO171 TS_OUT_CLK
TPI_VAL CI_TS_VAL
TS0_VLD/GPIO169 TS_OUT_VAL
IF_P ADC_I_INP TPI_SOP CI_TS_SYNC
AL2 [VIFP] TS0_SYNC/GPIO170 TS_OUT_SYNC
[IF_P] 6 IF_N FILTER ADC_I_INN
AM2 [VIFM] TPI_DATA[0-7] TPI_DATA[0-7]
[IF_N] 7
TUNER_SIF TS0_D[0~7] 33Ω TS_OUT[0-7]
AK1[SIFP]
[TU_SIF_TU] 8
TU_CVBS CI_MDI[0-7]
AC6[CVBS0] TS1_D[0~7] FE_DEMOD1_TS_DATA [0-7] TS_IN[0-7]
[TU_CVBS_TU] 9 33Ω
IF_AGC
[IF_AGC_TU] 3 AK3[IF_AGC]
LGE Internal Use Only
6. VIDEO AUDIO IN(LM14A)
Copyright © LG Electronics. Inc. All rights reserved. - 26 - LGE Internal Use Only
Only for training and service purposes
6-1. VIDEO AUDIO IN(LM14A+URSA11)
Copyright © LG Electronics. Inc. All rights reserved. - 27 - LGE Internal Use Only
Only for training and service purposes
Copyright ©
SCART
SCART_L/ Rout IC6000 DTV/MNT_L/R_OUT
[ LINE_OUT_0L]
COMP1/ AV1/ DVI_L_IN
Only for training and service purposes
[ LINE_OUT_0R] AZ4580MTR LPF
COMP1/ AV1/ DVI_R_IN [ LINE_IN_0L] OP AMP
[ LINE_IN_0R]
7. AUDIO OUT(LM14A)
Mute CTRL
(TR)
JK3802 JK4600
DVB only
SCART
SCART_MUTE
AUD_MASTER_CLK
LG Electronics. Inc. All rights reserved.
[ I2S_OUT_MCK]
SC_L_IN / SC_R_IN [ LINE_IN_2L] AUD_LRCH
[ I2S_OUT_WS]
[ LINE_IN_2R] AUD_LRCK
[ I2S_OUT_SD] 4P WAFER
AUD_SCK
[ I2S_OUT_BCK]
IC1200 LPF SPEAKER_L
DVB only I2C_SDA4 Audio AMP
JK4600 [ SDA4] NTP7515 LPF SPEAKER_R
I2C_SCL4
[ SCL4]
- 28 -
AMP_RESET_N
[ GPIO160]
LM14A AMP_MUTE
Tuner
TUNER_SIF
TR BUF [ SIFP]
IC3000
MICOM
SIDE_HP_MUTE
SPDIF_OUT
HEAD PHONE
[ SPDIF_OUT]
[EAR_OUT_L] HP_LOUT / HP_ROUT
[EAR_OUT_R] LPF
JK3401
JK3403
LGE Internal Use Only
Copyright ©
SCART
SCART_L/ Rout IC6000 DTV/MNT_L/R_OUT
[ LINEOUT_L2]
COMP1/ AV1/ DVI_L_IN AZ4580MTR LPF
[ LINEOUT_R2]
Only for training and service purposes
COMP1/ AV1/ DVI_R_IN [ LINEIN_L0] OP AMP
[ LINE_N_R0]
Mute CTRL
JK3802 (TR)
JK4600
DVB only
SCART
SCART_MUTE
4P WAFER
LG Electronics. Inc. All rights reserved.
SC_L_IN / SC_R_IN [ LINEIN_L1] AUD_LRCK
[ I2S_OUT_WS/ GPIO98] IC5800 LPF Front_L
[ LINE_N_R1]
AUD_LRCH I2S
7-1. AUDIO OUT(LM14A+URSA11)
[ I2S_OUT_SD/ GPIO101] Front AMP
AUD_SCK LPF Front_R
[ I2S_OUT_BCK/ GPIO100] NTP7515
2P/ 4P WAFER
JK4600 DVB only [ GPIO20/ [ LED1] / GPIO75]
I2C_SDA4 I2C
I2C_SCL4 IC5900 LPF Woofer_L
[ GPIO19/ [ LED0] / GPIO74]
- 29 -
Woofer AMP
NTP7515 LPF Woofer_R
[ PWM3/ GPIO155]
AMP_RESET_N
LM14A
Tuner
AMP_MUTE
TUNER_SIF
TR BUF [ SIFP]
IC3000
MICOM
SIDE_HP_MUTE
SPDIF_OUT
HEAD PHONE
[ SPDIF_OUT]
[EARPHONE_OUTL] HP_LOUT / HP_ROUT
[ EARPHONE_OUTR] LPF
JK3800
JK3803
LGE Internal Use Only
Copyright ©
DDC_SCL_1
DDC_SDA_1
TMDS Link 8bits
8. HDMI(LM14A)
HDMI1
Only for training and service purposes
DDC_SCL_2
DDC_SDA_2
LG Electronics. Inc. All rights reserved.
LM14A TMDS Link 8bits
HDMI_ARC
HDMI2&ARC
- 30 -
CEC_REMOTE
DDC_SCL_3
DDC_SDA_3
TMDS Link 8bits
MHL_DET_LM15
HDMI3&MHL
X-Tal(X3000) RENESAS
Q600
32.768kHz MICOM(IC3000)
HDMI_CEC_MICOM
* TMDS Link 8bits = TMDS DATA 6bits(DATA0,1,2)+ TMDS CLK 2bits
LGE Internal Use Only
Copyright ©
[DDCDD_CK/GPIO44] DDC_SCL_3
DDC_SDA_3
[DDCDD_DA/GPIO45]
TMDS Link 8bits
HDMI3&External EDID
Only for training and service purposes
IC3301 HDMI1.4
LM14A External EDID
DDC_SCL_2
8-1. HDMI(LM14A+URSA11)
[DDCDB_CK/GPIO40]
DDC_SDA_2
[DDCDB_DA/GPIO41]
LG Electronics. Inc. All rights reserved.
TMDS Link 8bits
HDMI_ARC
[ARC0/GPIO6]
HDMI2&ARC
HDMI1.4
- 31 -
CEC_REMOTE
DDC_SCL_1
[DDCDA_CK/GPIO38]
DDC_SDA_1
[DDCDA_DA/GPIO39]
TMDS Link 8bits
MHL_DET_LM15
[GPIO_PM[14]/GPIO24]
HDMI1&MHL
HDMI2.0
X-Tal(X3000) RENESAS
32.768kHz MICOM(IC3000) Q3001
HDMI_CEC_MICOM
* TMDS Link 8bits = TMDS DATA 6bits(DATA0,1,2)+ TMDS CLK 2bits
LGE Internal Use Only
Copyright ©
USB_DM1 USB1
[USB_DM] +5V_USB_1
[USB_DP] USB_DP1
[GPIO162] /USB_OCD1
[GPIO163]
USB_CTL1
6A
Only for training and service purposes
USB_DM2 USB2
+5V_USB_2 DCDC USB2.0
[USB2_DM]
[USB2_DP] USB_DP2
IC2305
[GPIO50]
/USB_OCD2
[GPIO51] USB_CTL2
LG Electronics. Inc. All rights reserved.
USB_DM3
[USB0_DM] USB3
[USB0_DP] USB_DP3 +5V_USB_3
LM14A SSUSB_RXP/SSUSB_RXN
[USB_SSRX]
[USB_SSTX] SSUSB_TXP/SSUSB_TXN
OCP
USB3.0
IC4500
- 32 -
/USB_OCD3
[GPIO14]
[GPIO18] USB_CTL3
9. USB / WIFI / M-REMOTE / UART (LM14A)
WIFI_DM
[USB1_DM]
[USB1_DP] WIFI_DP
WIFI Combo
M_RFModule_RESET
[GPIO57]
SOC_TX
[TX1]
SOC_RX
[RX1] RS232C_Debug(4P wafer)
RENESAS MICOM(IC3000)
LGE Internal Use Only
Copyright ©
USB_DM3 USB3
[DM_P2] +5V_USB_3
[DP_P2] USB_DP3
[TGPIO0/GPIO157] /USB_OCD3
[TGPIO1/GPIO158]
USB_CTL3
6A
Only for training and service purposes
USB_DM2 USB2
+5V_USB_2 DCDC USB2.0
[DM_PSS1]
[DP_PSS1] USB_DP2
IC2305
[SAR0/GPIO46]
/USB_OCD2
[SAR1/GPIO47] USB_CTL2
LG Electronics. Inc. All rights reserved.
USB_DM1
[DM_PSS] USB1
[DP_PSS] USB_DP1 +5V_USB_1
LM14A
SSUSB_RXP/SSUSB_RXN
[SSUSB_RXP/N]
[SSUSB_TXP/N] SSUSB_TXP/SSUSB_TXN OCP
USB3.0
IC4300
- 33 -
/USB_OCD1
[GPIO_PM[1]/PM_UART1/GPIO11]
[GPIO_PM[5]/PM_UART1/GPIO15] USB_CTL1
WIFI_DM
[DM_P0]
[DP_P0] WIFI_DP
WIFI Combo
9-1. USB / WIFI / M-REMOTE / UART(LM14A+URSA11)
M_RFModule_RESET
[GPIO_PM[10]/[SPI-CZ2N]/GPIO20]
SOC_TX
[GPIO3/TX1/GPIO58]
SOC_RX
[GPIO4/RX1] RS232C_Debug(4P wafer)
RENESAS MICOM(IC3000)
LGE Internal Use Only
EXPLODED VIEW
IMPORTANT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
400
120
800
910
521
900
121
540
500
401
LV1
530
570
Stand screw
A10
A22
820
200
Copyright © LG Electronics. Inc. All rights reserved. - 34 - LGE Internal Use Only
Only for training and service purposes
LB59H
(LM14A)
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
SPI_CK_SOC COMPENSATION_DONE OLED
LM14A+URSA9
SPI_DI_SOC TXVBY1_0N
FAN_ON LM14A UF68/64
+3.3V_NORMAL SPI_DO_SOC FRC_FLASH_SEL_SOC TXVBY1_0P
CHIP CONFIG NVRAM +3.3V_NORMAL
/SPI_CS TXVBY1_1N /TU_RESET2
Rohm_NVRAM
IC101-*1
FRC_FLASH_WP GST_A LM14A UF74
BR24G256FJ-3
EAN62389502 TXVBY1_1P
ROHM Semiconductor KOREA CORPORATION
TXOSD_3P LOCKAn_OSD GCLK_A
4.7K
4.7K
4.7K
Atmel_NVRAM WOL_WAKE_UP_SOC
4.7K
A0 VCC
IC101 1 8
TXOSD_3N URSA9_CONNECT MCLK_A PMIC_RESET 5V_DET_HDMI_1
AT24C256C-SSHL-T C100 A1
2 7
WP
Data_Format_1
OPT
EO_A
OPT
EAN61133501
ATMEL CORPORATION
0.1uF A2
3 6
SCL
TXOSD_2P DATA_FORMAT_1_SOC LM14A_ONLY LOCKOUT12 /USB_OCD3
GND
4 5
SDA
TXOSD_2N Data_Format_0
R108
R110
R115
DATA_FORMAT_0_SOC USB_CTL3
R122
TXOSD_1P URSA_RESET_SoC
A0 VCC HTPDAn_OSD
1 8 L/D_VSYNC_SOC
TXOSD_1N
HTPDAn_Video IC100
Write Protection L/D_CLK_SOC
LED1 A1 WP
TXOSD_0P LGE5332(LM14A)
2 7
TXOSD_0N L/D_DI_SOC
SPI_DI_SOC - Low : Normal Operation IC100
- High : Write Protection EB_DATA[0-7]
LED0 A2
3 A0’h 6 SCL LGE5332(LM14A)
EB_DATA[0]
PWM_PM I2C_SCL1
V-BY-ONE AH14
4.7K
4.7K
4.7K
FE_DEMOD1_TS_DATA[0-7]
4.7K
EB_DATA[1] PCM_D[0]/GPIO147 FE_DEMOD1_TS_DATA[0]
GND SDA I2C_SDA1 AG13 AH13
4 5 PCM_D[1]/GPIO148 TS1_D0/GPIO182
EB_DATA[2] FE_DEMOD1_TS_DATA[1]
OPT
OPT
33 D9 AF32 AG12 AG11
AR101 PWM_DIM TXVBY1_0N PCM_D[2]/GPIO149 TS1_D1/GPIO181
PWM0/GPIO152 LVSYNC/[VX1_0-] EB_DATA[3] AK22 AG10 FE_DEMOD1_TS_DATA[2]
F10 AF31
R109
TXVBY1_0P
R111
R116
PWM_DIM2
R123
PWM1/GPIO153 LHSYNC/[VX1_0+] EB_DATA[4] PCM_D[3]/GPIO119 TS1_D2/GPIO180 FE_DEMOD1_TS_DATA[3]
F8 AG32 AK21 AJ11
FAN_ON TXVBY1_1N PCM_D[4]/GPIO120 TS1_D3/GPIO179
PWM2/GPIO154 LDE/[VX1_1-] EB_DATA[5] AL21 AH10 FE_DEMOD1_TS_DATA[4]
E9 AG31 TXVBY1_1P
AMP_RESET_N PWM3/GPIO155 LCK/[VX1_1+] EB_DATA[6] PCM_D[5]/GPIO121 TS1_D4/GPIO178 FE_DEMOD1_TS_DATA[5]
AM23 AJ13
EB_DATA[7] PCM_D[6]/GPIO122 TS1_D5/GPIO177 FE_DEMOD1_TS_DATA[6]
N5 AH31 AH20 AG9
PWM_PM TXVBY1_2N EB_ADDR[0-14] PCM_D[7]/GPIO123 TS1_D6/GPIO176
PWM_PM/GPIO7 R_ODD[7]/LVB0N/[VX1_2-] AH9 FE_DEMOD1_TS_DATA[7]
AH30 TXVBY1_2P
R_ODD[6]/LVB0P/[VX1_2+] EB_ADDR[0] TS1_D7/GPIO175
F4 AJ31 AG14 AH11
TXVBY1_3N PCM_A[0]/GPIO146 TS1_CLK/GPIO172 FE_DEMOD1_TS_CLK
CHIP_CONFIG[3:0] /USB_OCD2 SAR0/GPIO46 R_ODD[5]/LVB1N/[VX1_3-] EB_ADDR[1] AL20 AJ10
G5 AJ32 TXVBY1_3P
{LED1, SPI_DI,LED0, PWM_PM} USB_CTL2 SAR1/GPIO47 R_ODD[4]/LVB1P/[VX1_3+] EB_ADDR[2] PCM_A[1]/GPIO145 TS1_VLD/GPIO174 FE_DEMOD1_TS_VAL
E5 AK32 AG15 AH12
FRC_FLASH_WP TXVBY1_4N PCM_A[2]/GPIO143 TS1_SYNC/GPIO173 FE_DEMOD1_TS_SYNC
Value Mode Description SAR2/GPIO48 R_ODD[3]/LVB2N/[VX1_4-] EB_ADDR[3] AH15
E4 AK31 TXVBY1_4P TPI_DATA[0-7]
4’b1000 SB51_ExtSPI 51 boot from SPI DDTS_TX SAR3/GPIO49 R_ODD[2]/LVB2P/[VX1_4+] EB_ADDR[4] PCM_A[3]/GPIO142 TPI_DATA[0]
4’b1001 HEMCU_ExtSPI ARM boot from SPI G4 AL32 AM19 AK17
TXVBY1_5N PCM_A[4]/GPIO141 TS0_D0/GPIO161
SAR5 R_ODD[1]/LVBCLKN/[VX1_5-] EB_ADDR[5] AJ17 AL18 TPI_DATA[1]
4’b1010 HEMCU_ROM_EMMC ARM boot from ROM; outer storage is eMMC AL31 TXVBY1_5P
4’b1011 HEMCU_ROM_NAND ARM boot from ROM; outer storage is NAND R_ODD[0]/LVBCLKP/[VX1_5+] EB_ADDR[6] PCM_A[5]/GPIO139 TS0_D1/GPIO162 TPI_DATA[2]
AK30 AJ16 AK18
4’b1100 DBUS for test only TXVBY1_6N PCM_A[6]/GPIO138 TS0_D2/GPIO163
G_ODD[7]/LVB3N/[VX1_6-] EB_ADDR[7] AH17 AL15 TPI_DATA[3]
4’b0000 SB51_ExtSPI + Authentication 51 boot from SPI with ARM authentication W5 AL30 TXVBY1_6P
SPI_CK_SOC PM_SPI_CK/GPIO1 G_ODD[6]/LVB3P/[VX1_6+] EB_ADDR[8] PCM_A[7]/GPIO137 TS0_D3 TPI_DATA[4]
4’b0001 SB51_ExtSPI + Authentication HEMCU_ExtSPI + Authentication V4 AK29 AM20 AL16
SPI_DI_SOC TXVBY1_7N PCM_A[8]/GPIO131 TS0_D4/GPIO165
4’b0011 HEMCU_ROM_NAND + Authentication ARM boot from ROM with authentication; PM_SPI_DI/GPIO2 G_ODD[5]/LVB4N/[VX1_7-] EB_ADDR[9] AH19 AK15 TPI_DATA[5]
V5 AL29 TXVBY1_7P
SPI_DO_SOC PM_SPI_DO/GPIO3 G_ODD[4]/LVB4P/[VX1_7+] EB_ADDR[10] PCM_A[9]/GPIO129 TS0_D5/GPIO166 TPI_DATA[6]
Y6 AJ20 AM16
/TU_RESET1 PM_SPI_CZ/GPIO0 EB_ADDR[11] PCM_A[10]/GPIO125 TS0_D6/GPIO167 TPI_DATA[7]
R167 0 Y4 AK28 TXOSD_0N
AK20 AK16
/SPI_CS GPIO_PM[6]/[SPI-CZ1N]/GPIO16 G_ODD[3]/LVA0N/[OSD_0-] EB_ADDR[12] PCM_A[11]/GPIO127 TS0_D7/GPIO168
OPT Y5 AM28 AG17 AL19
TXOSD_0P PCM_A[12]/GPIO136 TS0_CLK/GPIO171 TPI_CLK
GPIO_PM[10]/[SPI-CZ2N]/GPIO20 G_ODD[2]/LVA0P/[OSD_0+] EB_ADDR[13] AJ19 AM17
LM14 HW Option M_RFModule_RESET
G_ODD[0]/LVA1P/[OSD_1+]
AL28
AK27
TXOSD_1N
TXOSD_1P
EB_ADDR[14] AG18
PCM_A[13]/GPIO132 TS0_VLD/GPIO169
AL17
TPI_VAL
G_ODD[1]/LVA1N/[OSD_1-] PCM_A[14]/GPIO133 TS0_SYNC/GPIO170 TPI_SOP
AK26 TXOSD_2N
+3.3V_NORMAL B_ODD[7]/LVA2N/[OSD_2-] AH18 AH23
AL8 AL26 TXOSD_2P
DDCA_CK DDCA_CK/GPIO8 B_ODD[6]/LVA2P/[OSD_2+] SM_Vsel CAM_IREQ_N PCM_IRQA_N/GPIO135 TS3_D0/GPIO206 POL EPI
AK8 AM26 AM22 AH27
DDCA_DA TXOSD_3N SM_CLK EB_OE_N PCM_OE_N/GPIO126 TS3_D1/GPIO207 GST_A GST
DDCA_DA/GPIO9 B_ODD[5]/LVACLKN/[OSD_3-] AG20 AJ23
AK25 TXOSD_3P GCLK
B_ODD[4]/LVACLKP/[OSD_3+] SM_RST EB_BE_N1 PCM_IORD_N/GPIO128 TS3_D2/GPIO208 GCLK_A
AL25 AL22 AG27
B_ODD[3]/LVA3N/[LOCKN] LOCKAn_Video SM_IO /PCM_CE1 PCM_CE_N/GPIO124 TS3_D3/GPIO209 MCLK_A MCLK
AH28 AK24 AK19 AH24
10K
10K
10K
10K
10K
10K
10K
10K
EB_WE_N PCM_WE_N/GPIO134 OPT_P
10K
10K
TS3_D4/GPIO210
10K
10K
SOC_TX GPIO3/TX1/GPIO58 B_ODD[2]/LVA3P/[HTPDN] HTPDAn_Video SM_VCC
BIT2_1
BIT10_1
BIT11_1
BIT0_1
BIT1_1
BIT3_1
BIT4_1
BIT5_1
BIT6_1
BIT7_1
BIT8_1
AG21 AH26
BIT9_1
AH29 AL24
SOC_RX GPIO4/RX1 B_ODD[1]/LVA4N/[OSD_LOCKN] LOCKAn_OSD CAM_CD1_N PCM_CD_N/GPIO151 TS3_D5/GPIO211 SOE
AA4 AK23 AH16 AJ25
FRC_FLASH_SEL_SOC GPIO23/[TX3]/GPIO78 B_ODD[0]/LVA4P/[OSD_HTPDN] HTPDAn_OSD PCM_RESET PCM_RESET/GPIO150 TS3_D6/GPIO212 FB
W6 AJ14 AG26
R119
R112
R125
R128
R132
R135
R138
R140
R142
R146
R105
R148
/TU_RESET2 GPIO24/[RX3]/GPIO79 CAM_REG_N PCM_REG_N/GPIO144 TS3_D7/GPIO213 EO_A E/O
F14 AG19 AH25
I2C_SCL6 DIM2/TX4/GPIO112 SM_CD EB_BE_N0 PCM_IOWR_N/GPIO130 TS3_CLK/GPIO216 HCONV
F12 AG16 AJ26
BIT0 I2C_SDA6 DIM3/RX4/GPIO113 CAM_WAIT_N PCM_WAIT_N/GPIO140 TS3_VLD/GPIO214 DPM
AG24
BIT1 TS3_SYNC/GPIO215 LOCKOUT12 LOCK
AJ27
CPU_VID1 GPIO2/GPIO57
BIT2
C7
BIT3 BIT0 EMMC_IO15/[GPIO]/GPIO189
C6
BIT1 EMMC_IO17/[GPIO]/GPIO188
BIT4 AE2 C8 AJ28
GPIO_PM[0]/GPIO10 COMP1_DET EMMC_CMD EMMC_IO9/[EMMC_CMD]/GPIO183 GPIO8/[TS4_D[0]]/GPIO63 FE_DEMOD3_TS_DATA
B8 AG28
BIT2 EMMC_IO14/[GPIO]/GPIO185 GPIO5/[TS4_CLK]/GPIO60 FE_DEMOD3_TS_CLK
1K
R176
BIT5 U6 A9 AJ29
GPIO_PM[3]/GPIO13 DDTS_RX EMMC_CLK EMMC_IO10/[EMMC_CLK]/GPIO186 GPIO7/[TS4_VLD]/GPIO62 FE_DEMOD3_TS_VAL
P4 B7 AG29
BIT6 GPIO_PM[4]/GPIO14 PCM_5V_CTL R175 TCON_I2C_EN BIT3 EMMC_IO16/[GPIO]/GPIO187 GPIO6/[TS4_SYNC]/GPIO61 FE_DEMOD3_TS_SYNC
U5 22 B9
GPIO_PM[7]/GPIO17 EMMC_RST EMMC_IO11/[EMMC_RSTN]/GPIO190
AE5 A8
BIT7 PMIC_RESET BIT4 EMMC_IO12/[GPIO]/GPIO184
GPIO_PM[8]/GPIO18 C9
AJ7 AJ5
I2C_SCL3 GPIO28/SCK0/GPIO83 GPIO_PM[9]/GPIO19 COMPENSATION_DONE EMMC_STRB EMMC_IO8/[NAND-DQS]/GPIO191
BIT8 AH8 AG6 B6
I2C_SDA3 EMMC_DATA[0-7] BIT5 EMMC_IO13/[GPIO]/GPIO217
GPIO29/SDA0/GPIO84 GPIO_PM[13]/GPIO23 URSA9_CONNECT
E11
BIT9 I2C_SCL1 DDCR_CK/SCK3/GPIO54 EMMC_DATA[6] C10
E10
I2C_SDA1 DDCR_DA/SDA3/GPIO53 EMMC_DATA[7] EMMC_IO6/[EMMC_D6]/GPIO221
AJ6 B11
I2C_SCL2 GPIO30/SCK4/GPIO85 EMMC_DATA[2] EMMC_IO7/[EMMC_D7]/GPIO220
AG8 A11
I2C_SDA2 GPIO31/SDA4/GPIO86 EMMC_DATA[1] EMMC_IO2/[EMMC_D2]/GPIO219
BIT10 AH7 P5 C11
I2C_SCL5 GPIO32/SCK5/GPIO87 GPIO_PM[1]/PM_UART1/GPIO11 /USB_OCD1 EMMC_DATA[0] EMMC_IO1/[EMMC_D1]/GPIO218
AJ8 P6 A12 AL2
BIT11 I2C_SDA5 GPIO33/SDA5/GPIO88 GPIO_PM[5]/PM_UART1/GPIO15 USB_CTL1 EMMC_DATA[3] EMMC_IO0/[EMMC_D0]/GPIO194 VIFP
AJ4 B12 AM2
GPIO_PM[11]/PM_UART0/GPIO21 DATA_FORMAT_0_SOC EMMC_DATA[4] EMMC_IO3/[EMMC_D3]/GPIO193 VIFM
AH4 C12
GPIO_PM[12]/PM_UART0/GPIO22 DATA_FORMAT_1_SOC EMMC_DATA[5] EMMC_IO4/[EMMC_D4]/GPIO192
B13 AK1 Close to MSTAR DTV_IF
EMMC_IO5/[EMMC_D5]/GPIO222 SIFP
AK2
10K
10K
10K
10K
10K
10K
10K
10K
10K
SIFM
10K
10K
10K
L6 G7 R183 100 C103 0.1uF OPT IF_P
BIT10_0
BIT11_0
BIT2_0
BIT0_0
BIT1_0
BIT7_0
BIT8_0
BIT9_0
BIT4_0
BIT3_0
BIT5_0
BIT6_0
CPU_VID0 VID0/GPIO50 TESTPIN C107
M6 AK3 100pF
CORE_VID0 VID1/GPIO51 IFAGC
AD5
R126
LED0
R129
R106
R133
R136
R139
R141
LED0/GPIO29
R143
R147
R149
R113
R120
AD4
LED1 LED1/GPIO30 R184 100 C104 0.1uF OPT IF_N
AB5 AJ1 C109
WOL_WAKE_UP_SOC WOL_INT_OUT/[GPIO]/GPIO52 TGPIO0/GPIO157 /USB_OCD3 33pF OPT
E13 AJ2 C110
SPI1_DI/GPIO107 HP_DET TGPIO1/GPIO158 USB_CTL3 33pF
D12 R4
SPI1_CK/GPIO106 RF_SWITCH_CTL TGPIO2/SCK1/GPIO159 I2C_SCL7
F11 R5
SPI2_DI/GPIO109 L/D_DI_SOC TGPIO3/SDA1/GPIO160 I2C_SDA7
D11
SPI2_CK/GPIO108 L/D_CLK_SOC
E12
VSYNC_LIKE/GPIO105 L/D_VSYNC_SOC C101 0.1uF R185 47
D14 AM7 TU_SIF
DIM0/GPIO110 SC_DET NC_1 C102 0.1uF R186 47
E14 AL7 R188
DIM1/GPIO111 AV1_CVBS_DET NC_2 C105 300
AM8 1000pF
NC_3 ANALOG SIF OPT OPT
AK7
NC_4 Close to MSTAR
20150123 version AL5
NC_5
+3.3V_NORMAL
BIT(0/1) DVB ATSC JP AM5
GPIO34/GPIO89 CORE_VID1
M7 L100
00 TW/COL US NC_6 PZ1608U121-2R0TF
Low High
01 CN/HK KR JP
10 EU BR T-con I2C R182 C106
BIT8 16Kbit 32Kbit 0.1uF
BIT(2/3) EU/CIS AJJA TW/COL CN/HK KR North.AM BR JP Protocol 10K
11 AJJA CI BIT(6/7) B/E(FRC)
R187
00 T2/C/S2 PIP T2/C PIP T2/C PIP Default ATSC NIM+T2 Default ISDB PIP Default 0
00 LM14A only BIT9 Division NON_Division 4_Division IF_AGC
Low High
01 T2/C/S2 T2/C/S2 T2/C ATSC+T2 ISDB EXT
01 N/A C108
BIT4 Display LCD OLED 0.047uF
BIT10 Interface EPI Vx1
10 LM14A+URSA11 10 T/C T T/C ATSC 25V
ISDB INT
4K@60Hz
BIT5 Resolution FHD UHD 11 LM14A+URSA11 11 T2 BIT11 OS(DDR) WebOS Lite WebOS
ATSC PIP
4K@120Hz
+3.3V_TU
+3.3V_LNA_TU
+3.3V_NORMAL I2C PULL UP
GPIO PULL UP
Mstar Debug RS232C_Debug DDTS_Debug
+3.3V_NORMAL MSTAR_DEBUG_OLD
P101 +3.3V_NORMAL +3.3V_NORMAL
DDTS_Debug
R100
1.8K
R101
1.8K
R102
1.8K
R103
1.8K
R104
1.8K
R107
1.8K
R114
1.8K
R121
1.8K
R124
1.8K
R127
1.8K
R130
1.8K
R131
1.8K
R134
1.8K
R137
1.8K
MSTAR_DEBUG_NEW
12505WS-04A00
P100 P102 P103
12507WS-04L 12507WS-04L 12507WS-04L
10K
10K
10K
10K
10K
10K
10K
10K
10K
10K
I2C_SDA7
10K
10K
1
OPT
I2C for URSA9 (URSA9 Only)
OPT
I2C_SCL7
OPT
OPT
1 1
R152
1
R154
R164
I2C_SDA6
R156
R157
R161
R165
R170
R166
R168
I2C for LCD Module 2
R178
R180
I2C_SCL6
I2C_SDA1 2 SOC_RX 2
I2C for NAVRAM 2 DDTS_RX
I2C_SCL1
10K
10K
/TU_RESET1 DDCA_CK 3
I2C_SDA3
OPT
OPT
I2C for Micom RF_SWITCH_CTL 3 3
I2C_SCL3 3
AMP_RESET_N 4
R179
R181
I2C_SDA4 DDCA_DA
I2C for Main Amp / Woofer AMP TCON_I2C_EN
I2C_SCL4 4 4 SOC_TX 4
/USB_OCD3 5 DDTS_TX
I2C_SDA5
I2C for tuner USB_CTL3
I2C_SCL5 5 5 5
/USB_OCD2
I2C_SDA2 USB_CTL2
I2C for tuner&LNB M_RFModule_RESET
AR100 I2C_SCL2
33 PCM_5V_CTL
I2C_SDA_MICOM I2C_SDA3
I2C_SCL_MICOM I2C_SCL3
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-001_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A 2015-01-23
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. MAIN1_SYSTEM 01
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
IC100
LGE5332(LM14A)
WOL POWER ENABLE CONTROL +1.1V_VDDC_CPU
+1.1V_VDDC +1.1V_VDDC 1st layer 4th layer
+1.1V_Bypass Cap(CLOSE TO CHIP SIDE)
J9 AC17
VDDC_1 VDDC_24
J10 AC18
BOTTOM_CAP_FOR_RIPPLE
+1.1V_VDDC DVDD_DDR11
VDDC_2 VDDC_25 +3.5V_ST
0.1uF
0.1uF
J11 AC19 +3.5V_WOL BOTTOM_CAP_FOR_RIPPLE
0.1uF
10uF
VDDC_3 VDDC_26 IC201 4th layer
J12 AC20 C263 C323 L226
VDDC_4 VDDC_27 AP2151WG-7
J13 AC21 10uF C208 0.1uF PZ1608U121-2R0TF
VDDC_5 VDDC_28 10V 10uF 16V
C322
PZ1608U121-2R0TF
C276
C278
K9 AC22
C299
VDDC_6 VDDC_29 L203 10V
K10 AD17 IN OUT
K11
VDDC_7 VDDC_30
AD18
+3.3V_NORMAL
5 1
2A C324 C257
VDDC_8 VDDC_31 C242 R204
K12 AD19 0.47uF 0.47uF
VDDC_9 VDDC_32 0.1uF GND 10K
K13 AD20 2 6.3V 6.3V
VDDC_10 VDDC_33 R203 OPT
L9 AD21 Close to chip side
VDDC_11 VDDC_34 1K
L10 AD22 WOL_CTL 0 R202 OPT EN FLG
VDDC_12 VDDC_35 4 3
L11 AE19 Close to chip side
VDDC_13 VDDC_36
L12 AE20
VDDC_14 VDDC_37
R11 AE21
VDDC_15 VDDC_38
R12 AE22
VDDC_16 VDDC_39 Close to chip side
R13
VDDC_17 +1.1V_VDDC
T11 AE31
VDDC_18 VDD_SRAM_1
T12 AC24 1st layer 4th layer
VDDC_19 VDD_SRAM_2 AVDDL_MOD11
T13 AD23
VDDC_20 VDD_SRAM_3 4th layer
U11 AVDD_DMPLL
VDDC_21
BOTTOM_CAP_FOR_RIPPLE
U12 AE30 L202
BOTTOM_CAP_FOR_RIPPLE
0.1uF
0.1uF
0.1uF
VDDC_22 CTRL_SRAMLDO PZ1608U121-2R0TF
10uF
U13 1st layer 4th layer
VDDC_23 C205 C261
10uF 0.1uF
AVDDL_MOD11 A6 AVDD_DMPLL 10V 16V 2A
C250
C230
C234
C235
EMMC_CTRL C320
W21 C238
0.1uF
AVDDL_PREDRV_1 0.47uF 0.47uF
0.1uF
Y21 6.3V
AVDDL_PREDRV_2 6.3V
AD29 V7
AVDDL_PREDRV_3 AVDD_NODIE
0.1uF
AD30
DVDD_DDR11
C244
AVDDL_MOD_1
C245
W20
AVDD15_MOD AVDDL_MOD_2 Close to chip side
Y20 L7
AVDDL_MOD_3 AVDDL_MHL3_1 AVDDP3P3_MHL
U19 N12
C227
AVDD15_MOD_1 AVDDL_MHL3_2 Close to chip side
V19 R7
AVDD15_MOD_2 AVDD3P3_MHL3_1
DVDD_DDR11 AA13 T7
AVDDL_USB3_1 AVDD3P3_MHL3_2 Close to chip side
AF11 AVDD33_ADC
AVDDL_USB3_2 AVDD_DMPLL
U21 Y7
VDDC_CPU_1 AVDD3P3_ETH Close to chip side
U22 AB7
+1.1V_VDDC_CPU VDDC_CPU_2 AVDD3P3_DADC_1
U23 AB8
VDDC_CPU_3 AVDD3P3_DADC_2
U24 AA7 +3.5V_WOL
VDDC_CPU_4 AVDD3P3_ADC_1 AVDD_DMPLL
U25 AA8 IC200
VDDC_CPU_5 AVDD3P3_ADC_2
V23 G9 AP2121N-3.3TRE1
V24
VDDC_CPU_6 AVDD3P3_USB_1
G10
AVDD_DMPLL
+1.5V_Bypass Cap
VDDC_CPU_7 AVDD3P3_USB_2 +1.5V_DDR AVDD_DDR
V25 AB15 VIN 3 2 VOUT
VDDC_CPU_8 AVDD3P3_USB3_1
W23 AF13 AVDD_AU33
VDDC_CPU_9 AVDD3P3_USB3_2 AVDDP3P3 1
W24 AD7 L227
VDDC_CPU_10 AVDD_AU33 GND PZ1608U121-2R0TF
W25 AE7
VDDC_CPU_11 AVDD_EAR33 C246 1st layer 4th layer
Y23 AF8 C243 1uF
VDDC_CPU_12 AVDD3P3_DMPLL 0.1uF AVDD_DDR AVDD15_MOD
Y24 AE15 10V L200
VDDC_CPU_13 VDDP_1 16V
Y25 AF15
2A
0.47uF
VDDC_CPU_14 VDDP_2 PZ1608U121-2R0TF
0.1uF
0.1uF
0.1uF
0.1uF
AA22
0.1uF
0.1uF
0.1uF
VDDC_CPU_15 L224
AA23
AA24
VDDC_CPU_16
V17
4A C207
10uF
C201
10uF
C247
C316
10uF
C223
10uF
C248
0.47uF
C249
0.47uF
AVDD_DMPLL 0.47uF
VDDC_CPU_17 AVDD_MOD_1 10V 10V 6.3V PZ1608U121-2R0TF
C314
0.1uF
10V 10V 6.3V
0.1uF
AA25 V18
C209
C224
C225
C226
6.3V
C203
C204
C287
VDDC_CPU_18 AVDD_MOD_2
AB24 W19 WOL_WAKE_UP
VDDC_CPU_19 AVDD_LPLL_1 R205
AB25 Y19
VDDC_CPU_20 AVDD_LPLL_2 10K
C307
C308
0 R169
AE16 WOL_WAKE_UP WOL_WAKE_UP_SOC
MCP_VDDC_1 WOL_WAKE_UP
AF16 N15
MCP_VDDC_2 AVDD_PLL_A
N16 Close to chip side
AVDD_PLL_B Close to chip side
DVDD_NODIE VDDP_NAND_A VDDP_NAND_C
L13
DVDD_NODIE
DVDD_DDR11 H16
VDDP_3318_A/[3.3V/1.8V]
K21 K16
C200 DVDD_DDR_1 VDDP_3318_C/[3.3V/1.8V]
N21 AVDD_DDR
1uF DVDD_DDR_2
25V
M21 J21
DVDD_DDR_3 AVDD_DDR_A_1
L21 K17
DVDD_DDR_4 AVDD_DDR_A_2
K18
AVDD_DDR_A_3
K19
AVDD_DDR_A_4
L17
AVDD_DDR_A_5
L19
AVDD_DDR_A_6
L20
AVDD_DDR_A_7
AVDD_DDR_B_1
J23
K22 GND JIG POINT +3.3V_Bypass Cap
AVDD_DDR_B_2
K23
AVDD_DDR_B_3
M22
AVDD_DDR_B_4
N22
AVDD_DDR_B_5
4th layer
JP202
JP204
JP205
JP203
N23
AVDD_DDR_B_6 +3.3V_NORMAL AVDDP3P3
P23 +3.3V_NORMAL
AVDD_DDR_B_7
AVDD33_ADC
1st layer 4th layer
L215
L221 PZ1608U121-2R0TF
BOTTOM_CAP_FOR_RIPPLE
BOTTOM_CAP_FOR_RIPPLE
BOTTOM_CAP_FOR_RIPPLE
L18 PZ1608U121-2R0TF
0.1uF
AVDD_DDR_LDO_A
0.47uF
L22
0.1uF
AVDD_DDR_LDO_B C294 C295
AVDD5V_MHL 2A 1uF 1uF
C251
0.47uF
C252
0.47uF
C222
2A C256 C217
25V 25V 6.3V 6.3V 10uF
C268 10uF
10uF
C274
H7 10V 10V
C311
C253
10uF 10V
AVDD_HDMI_5V_PA 10V
R201
0 AVDD_DDR
G8
GND_EFUSE
0.1uF
Close to chip side
C14
C229
AVDD_DDR_VBP_A_1 0.47uF C210
B14 +3.3V_NORMAL VDDP_NAND_C
5V_HDMI_1 AVDD5V_MHL AVDD_DDR_VBP_A_2 0
J17 Close to chip side Close to chip side
AVDD_DDR_VBP_A_3 R207
J18 0.47uF C211 non_HDMI_LEAK
AVDD_DDR_VBP_A_4
0.1uF
R200 4th layer
L208
10 B15 PZ1608U121-2R0TF
AVDD_DDR_VBN_A_1 0.47uF C212
C15 AVDD_AU33
AVDD_DDR_VBN_A_2
C219
J19 +5V_NORMAL 4th layer
AVDD_DDR_VBN_A_3
J20 0.47uF C213 2A C260
C266
0.1uF L219 HDMI_LEAK
AVDD_DDR_VBN_A_4 10uF PZ1608U121-2R0TF R206
BOTTOM_CAP_FOR_RIPPLE 10K AVDDP3P3_MHL
10V
AC30 C292
G
AVDD_DDR_VBP_B_1 0.47uF C214
AVDD_DDR_VBP_B_2
AC31
K24
2A 0.47uF
6.3V
L201
PZ1608U121-2R0TF
BOTTOM_CAP_FOR_RIPPLE
AVDD_DDR_VBP_B_3 0.47uF C215
S
D
L24
AVDD_DDR_VBP_B_4
0.1uF
RUE003N02 C240 C241
0.1uF 0.47uF
AD31 Q200 D
VISHAY_HDMI_LEAK 6.3V
AVDD_DDR_VBN_B_1 ROHM_HDMI_LEAK BOTTOM_CAP_FOR_RIPPLE
AD32 C216 Q200-*1
AVDD_DDR_VBN_B_2 0.47uF VDDP_NAND_A G
C221
L23 SI1012CR-T1-GE3
AVDD_DDR_VBN_B_3 Close to chip side
M24 +1.8V S
AVDD_DDR_VBN_B_4 0.47uF C220
L209
PZ1608U121-2R0TF
Close to chip side
2A C236
C239
0.1uF
10uF
10V
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. BSD-15Y-LM14A-002_00-HD
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A 2014-12-21
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. MAIN2_POWER 2
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
DDR_VTT DDR_VTT
AR400 AR407
M0_DDR_VREFDQ 56 56
Hynix_DDR3_4Gb_29n Hynix_DDR3_4Gb_29n M0_1_DDR_VREFDQ 1/16W 1/16W
IC400 IC401 C424 0.1uF C453 0.1uF
M0_DDR_A14 M1_DDR_A14
H5TQ4G63AFR-RDC H5TQ4G63AFR-RDC M0_DDR_A8 M1_DDR_A8
M0_DDR_A11 M1_DDR_A11
EAN63053201 EAN63053201 C425 0.1uF C454 0.1uF
M0_DDR_A6 M1_DDR_A6
M0_DDR_A0
N3
A0 DDR3 VREFCA
M8
M0_DDR_A0
N3
A0
DDR3 VREFCA
M8
AR401 AR408
P7 P7 4Gbit 56 56
M0_DDR_A1 A1 4Gbit M0_DDR_A1 A1 1/16W 1/16W
P3 P3
M0_DDR_A2 A2 (x16) M0_DDR_A2 A2 (x16) C426 0.1uF C455 0.1uF
N2 H1 N2 H1 M0_DDR_A1 M1_DDR_A1
M0_DDR_A3 A3 VREFDQ M0_DDR_A3 A3 VREFDQ
P8 P8 M0_DDR_A4 M1_DDR_A4
M0_DDR_A4 A4 M0_DDR_A4 A4
P2 P2 M0_DDR_A12 M1_DDR_A12
M0_DDR_A5 A5 M0_DDR_A5 A5 C427 0.1uF C456 0.1uF
R8 L8 R400 240 R8 L8 R403 240 M0_DDR_BA1 M1_DDR_BA1
M0_DDR_A6 A6 ZQ M0_DDR_A6 A6 ZQ
R2 AVDD_DDR R2 AR402 AR409
M0_DDR_A7 A7 M0_DDR_A7 A7 AVDD_DDR
T8 T8 56 56
M0_DDR_A8 A8 M0_DDR_A8 A8 1/16W 1/16W
R3 B2 R3 B2 C428 0.1uF C457 0.1uF
M0_DDR_A9 A9 VDD_1 M0_DDR_A9 A9 VDD_1
L7 D9 L7 D9
M0_DDR_A10 A10/AP VDD_2 M0_DDR_A10 A10/AP VDD_2 M0_DDR_A13 M1_DDR_A13
R7 G7 R7 G7
DDR3 1.5V bypass Cap - Place these caps near Memory
DDR3 1.5V bypass Cap - Place these caps near Memory
M0_DDR_A11 A11 VDD_3 M0_DDR_A11 A11 VDD_3
N7 K2 N7 K2 M0_DDR_A9 M1_DDR_A9
M0_DDR_A12 A12/BC VDD_4 M0_DDR_A12 C429 0.1uF C458 0.1uF
A12/BC VDD_4 M0_DDR_A7 M1_DDR_A7
T3 K8 T3 K8
M0_DDR_A13 A13 VDD_5 M0_DDR_A13 A13 VDD_5
T7 N1 T7 N1 AR403 AR410
M0_DDR_A14 A14 VDD_6 M0_DDR_A14 A14 VDD_6 56 56
M7 N9 M7 N9 1/16W 1/16W
M0_DDR_A15 NC_5 VDD_7 M0_DDR_A15 NC_5 VDD_7
R1 R1 C430 0.1uF C459 0.1uF
VDD_8 VDD_8 M0_DDR_A2 M1_DDR_A2
M2 R9 M2 R9
M0_DDR_BA0 BA0 VDD_9 M0_DDR_BA0 BA0 VDD_9 M0_DDR_A5 M1_DDR_A5
N8 N8
M0_DDR_BA1 BA1 M0_DDR_BA1 BA1 M0_DDR_A3 M1_DDR_A3
M3 M3 C431 0.1uF C460 0.1uF
M0_DDR_BA2 BA2 M0_DDR_BA2 BA2 M0_DDR_A0 M1_DDR_A0
A1 A1
VDDQ_1 VDDQ_1 AR404 AR411
J7 A8 J7 A8
M0_D_CLK CK VDDQ_2 M0_D_CLK CK VDDQ_2 56 56
K7 C1 K7 C1 1/16W 1/16W
M0_D_CLKN CK VDDQ_3 M0_D_CLKN CK VDDQ_3 C432 0.1uF C461 0.1uF
K9 C9 K9 C9 M0_DDR_BA0 M1_DDR_BA0
M0_DDR_CKE CKE VDDQ_4 M0_DDR_CKE CKE VDDQ_4
D2 D2 M0_DDR_BA2 M1_DDR_BA2
VDDQ_5 VDDQ_5
L2 E9 L2 E9 M0_DDR_A15 M1_DDR_A15
M0_DDR_CS1 CS VDDQ_6 M0_DDR_CS2 CS VDDQ_6 C433 0.1uF C462 0.1uF
K1 F1 K1 F1 M0_DDR_A10 M1_DDR_A10
M0_DDR_ODT ODT VDDQ_7 M0_DDR_ODT ODT VDDQ_7
J3 H2 C410 0.1uF J3 H2 C440 0.1uF
M0_DDR_RASN RAS VDDQ_8 M0_DDR_RASN RAS VDDQ_8 AR405 AR412
K3 H9 C411 0.1uF K3 H9 C441 0.1uF 56 56
M0_DDR_CASN CAS VDDQ_9 M0_DDR_CASN CAS VDDQ_9 1/16W 1/16W
L3 L3
M0_DDR_WEN WE M0_DDR_WEN WE C434 0.1uF C463 0.1uF
J1 J1 M0_DDR_WEN M1_DDR_WEN
NC_1 NC_1
T2 J9 T2 J9 M0_DDR_CASN M1_DDR_CASN
M0_DDR_RESET_N RESET NC_2 M0_DDR_RESET_N RESET NC_2
IC100 L1 L1 M0_DDR_ODT M1_DDR_ODT
NC_3 NC_3 C435 0.1uF C464 0.1uF
LGE5332(LM14A) L9 L9 M0_DDR_RASN M1_DDR_RASN
NC_4 NC_4
F3 F3 AR406 AR413
M0_DDR_DQS0 DQSL SS_DDR3_4Gb_25n Hynix_DDR3_4Gb_25n M0_DDR_DQS2 DQSL SS_DDR3_4Gb_25n
Hynix_DDR3_4Gb_25n
G3 IC400-*1 IC400-*2 G3
IC401-*1
K4B4G1646D-BCMA IC401-*2 SS_DDR3_2Gb
IC401-*3
Hynix_DDR3_2Gb
IC401-*4
56 56
K4B4G1646D-BCMA H5TQ4G63CFR_RDC H5TQ4G63CFR_RDC
M0_DDR_DQS_N0 DQSL M0_DDR_DQS_N2 DQSL EAN63391401 K4B2G1646Q-BCMA H5TQ2G63FFR-RDC 1/16W 1/16W
EAN63391401 EAN63053202 N3 M8 EAN63053202
F17 H28 N3
P7
A0 VREFCA
M8 N3
P7
A0 VREFCA
M8 P7
A0
A1
VREFCA N3
P7
A0 VREFCA
M8
N3
EAN63667401
M8 N3
EAN63648701
M8
C436 0.1uF C465 0.1uF
M0_DDR_A0 IO[3]/A-A0[AB-A0]/A-A6 IO[75]/B-A0[CD-A0]/B-A6 M1_DDR_A0 C7 A9 P3
A1
A2
P3
A1
A2
C7 A9
P3
N2
A2
H1 P3
A1
A2
P7
A0
A1
VREFCA
P7
A0
A1
VREFCA
M0_DDR_CKE M1_DDR_CKE
C17 K31 M0_DDR_DQS1 DQSU
N2
A3 VREFDQ
H1 N2
A3 VREFDQ
H1
M0_DDR_DQS3
P8
A3
A4
VREFDQ N2
A3 VREFDQ
H1 P3
A2
P3
A2
M0_DDR_A1 IO[2]/A-A1[AB-A1]/A-A5 IO[80]/B-A1[CD-A1]/B-A5 M1_DDR_A1 VSS_1 P8
P2
A4
P8
P2
A4 DQSU VSS_1 P2
R8
A5
L8
P8
P2
A4
N2
P8
A3 VREFDQ
H1 N2
P8
A3 VREFDQ
H1
E17 J29 B7 B3 R8
A5
A6 ZQ
L8 R8
A5
A6 ZQ
L8 B7 B3 R2
A6
A7
ZQ R8
A5
A6 ZQ
L8 P2
A4
A5
P2
A4
A5
M0_DDR_A2 IO[8]/A-A2[AB-A2]/A-A8 M1_DDR_A2 M0_DDR_DQS_N1 DQSU VSS_2
R2
A7
R2
A7
M0_DDR_DQS_N3 DQSU VSS_2 T8
A8
R2
A7
R8
R2
A6 ZQ
L8 R8
R2
A6 ZQ
L8
M0_D_CLKN M1_D_CLKN
IO[83]/B-A2[CD-A2]/B-A8 E1
T8
R3
A8
B2
T8
R3
A8
B2
E1
R3
L7
A9 VDD_1
B2
D9
T8
R3
A8
B2 T8
A7
T8
A7
F18 K27 L7
A9 VDD_1
D9 L7
A9 VDD_1
D9 R7
A10/AP VDD_2
G7 L7
A9 VDD_1
D9 R3
A8
B2 R3
A8
B2
C437 0.1uF C466 0.1uF
M0_DDR_A3 IO[12]/A-A3[AB-A3]/A-A4 IO[79]/B-A3[CD-A3]/B-A4 M1_DDR_A3 VSS_3 R7
A10/AP
A11
VDD_2
VDD_3
G7 R7
A10/AP
A11
VDD_2
VDD_3
G7
VSS_3 N7
A11
A12/BC
VDD_3
VDD_4
K2 R7
A10/AP
A11
VDD_2
VDD_3
G7 L7
A9
A10/AP
VDD_1
VDD_2
D9 L7
A9
A10/AP
VDD_1
VDD_2
D9
M0_D_CLK M1_D_CLK
B18 K30 E7 G8 N7
T3
A12/BC VDD_4
K2
K8
N7
T3
A12/BC VDD_4
K2
K8 E7 G8 T3
A13 VDD_5
K8
N1
N7
T3
A12/BC VDD_4
K2
K8
R7
N7
A11
A12/BC
VDD_3
VDD_4
G7
K2
R7
N7
A11
A12/BC
VDD_3
VDD_4
G7
K2
M0_DDR_A4 M1_DDR_A4 M0_DDR_DM0 DML VSS_4
A13 VDD_5
VDD_6
N1 T7
A13
A14
VDD_5
VDD_6
N1
M0_DDR_DM2 DML VSS_4 M7
VDD_6
N9 T7
A13
A14
VDD_5
VDD_6
N1 T3
A13 VDD_5
K8 T3
A13 VDD_5
K8
IO[11]/A-A4[AB-A4]/A-BA1 IO[87]/B-A4[CD-A4]/B-BA1 D3 J2
M7
NC_5 VDD_7
N9
R1
M7
NC_5 VDD_7
N9
R1 D3 J2
NC_5 VDD_7
VDD_8
R1 M7
NC_5 VDD_7
N9
R1 M7
VDD_6
N1
N9
T7
M7
A14 VDD_6
N1
N9
E18 J28 M0_DDR_DM1 DMU
M2
VDD_8
R9 M2
VDD_8
R9
M0_DDR_DM3
M2
BA0 VDD_9
R9
M2
VDD_8
R9
NC_5 VDD_7
R1
NC_5 VDD_7
R1
M0_DDR_A5 IO[14]/A-A5[AB-A5]/A-A0 IO[86]/B-A5[CD-A5]/B-A0 M1_DDR_A5 VSS_5 N8
BA0 VDD_9
N8
BA0 VDD_9
DMU VSS_5 N8
M3
BA1 N8
BA0 VDD_9
M2
BA0
VDD_8
VDD_9
R9 M2
BA0
VDD_8
VDD_9
R9
A17 K32 J8 M3
BA1
BA2
A1
M3
BA1
BA2
A1
J8 J7
BA2
VDDQ_1
A1
A8
M3
BA1
BA2
A1
N8
M3
BA1
N8
M3
BA1
M0_DDR_A6 IO[10]/A-A6[AB-A6]/A-A1 IO[90]/B-A6[CD-A6]/B-A1 M1_DDR_A6 VSS_6 J7
CK
VDDQ_1
VDDQ_2
A8 J7
CK
VDDQ_1
VDDQ_2
A8
VSS_6 K7
CK
CK
VDDQ_2
VDDQ_3
C1 J7
CK
VDDQ_1
VDDQ_2
A8
BA2
VDDQ_1
A1
BA2
VDDQ_1
A1
D17 H31 E3 M1 K7
K9
CK VDDQ_3
C1
C9
K7
K9
CK VDDQ_3
C1
C9 E3 M1 K9
CKE VDDQ_4
C9
D2
K7
K9
CK VDDQ_3
C1
C9
J7
K7
CK
CK
VDDQ_2
VDDQ_3
A8
C1
J7
K7
CK
CK
VDDQ_2
VDDQ_3
A8
C1
M0_DDR_A7 M1_DDR_A7 M0_DDR_DQ0 DQL0 VSS_7
CKE VDDQ_4
VDDQ_5
D2
CKE VDDQ_4
VDDQ_5
D2
M0_DDR_DQ16 DQL0 VSS_7 L2
VDDQ_5
E9
CKE VDDQ_4
VDDQ_5
D2 K9
CKE VDDQ_4
C9 K9
CKE VDDQ_4
C9
IO[13]/A-A7[AB-A7]/A-A2 IO[78]/B-A7[CD-A7]/B-A2 F7 M9
L2
K1
CS VDDQ_6
E9
F1
L2
K1
CS VDDQ_6
E9
F1 F7 M9
K1
CS
ODT
VDDQ_6
VDDQ_7
F1 L2
K1
CS VDDQ_6
E9
F1 L2
VDDQ_5
D2
E9 L2
VDDQ_5
D2
E9
C16 J32 M0_DDR_DQ1 DQL1
J3
ODT VDDQ_7
H2 J3
ODT VDDQ_7
H2
M0_DDR_DQ17
J3
RAS VDDQ_8
H2
J3
ODT VDDQ_7
H2 K1
CS VDDQ_6
F1 K1
CS VDDQ_6
F1
M0_DDR_A8 IO[0]/A-A8[AB-A8]/A-A9 IO[77]/B-A8[CD-A8]/B-A9 M1_DDR_A8 VSS_8 K3
RAS VDDQ_8
H9 K3
RAS VDDQ_8
H9 DQL1 VSS_8 K3
L3
CAS VDDQ_9
H9
K3
RAS VDDQ_8
H9 J3
ODT VDDQ_7
H2 J3
ODT VDDQ_7
H2
AVDD_DDR
E16 G30 F2 P1 L3
CAS
WE
VDDQ_9
J1
L3
CAS
WE
VDDQ_9
J1
F2 P1 T2
WE
NC_1
J1
J9
L3
CAS
WE
VDDQ_9
J1
K3
L3
RAS
CAS
VDDQ_8
VDDQ_9
H9 K3
L3
RAS
CAS
VDDQ_8
VDDQ_9
H9
M0_DDR_CKE
M0_DDR_A9 M1_DDR_A9 M0_DDR_DQ2 DQL2 VSS_9 T2
NC_1
J9 T2
NC_1
J9 M0_DDR_DQ18 DQL2 VSS_9 RESET NC_2
L1 T2
NC_1
J9
WE
J1
WE
J1
IO[5]/A-A9[AB-A9]/A-A11 IO[73]/B-A9[CD-A9]/B-A11 F8 P9
RESET NC_2
NC_3
L1
RESET NC_2
NC_3
L1
F8 P9
NC_3
L9
RESET NC_2
NC_3
L1 T2
RESET
NC_1
NC_2
J9 T2
RESET
NC_1
NC_2
J9
B19 L30 M0_DDR_DQ3 DQL3
NC_4
L9
NC_4
L9
M0_DDR_DQ19
F3
DQSL
NC_4
NC_6
T7
NC_4
L9
NC_3
L1
NC_3
L1
M0_DDR_A10 IO[9]/A-A10[AB-A10]/A-RASZ IO[93]/B-A10[CD-A10]/B-RASZ M1_DDR_A10 VSS_10 F3
G3
DQSL NC_6
T7 F3
G3
DQSL DQL3 VSS_10 G3
DQSL
F3
G3
DQSL
F3
NC_4
L9
T7 F3
NC_4
L9
H3 T1
1K
R418
B17 J30
DQSL DQSL
H3 T1 C7
DQSU VSS_1
A9
DQSL
G3
DQSL
DQSL
NC_6
G3
DQSL
DQSL
M0_DDR_DQ4 AVDD_DDR
OPT
C7 A9 C7 A9
M0_DDR_DQ20 C7 A9
1K
R405
M0_DDR_A11 IO[6]/A-A11[AB-A11]/A-A7 IO[84]/B-A11[CD-A11]/B-A7 M1_DDR_A11 DQL4 VSS_11 B7
DQSU VSS_1
B3 B7
DQSU VSS_1
B3 DQL4 VSS_11 B7
DQSU VSS_2
B3
E1 B7
DQSU VSS_1
B3 C7
DQSU VSS_1
A9 C7
DQSU VSS_1
A9
AVDD_DDR
D20 L29 H8 T9 E7
DQSU VSS_2
VSS_3
E1
G8 E7
DQSU VSS_2
VSS_3
E1
G8
H8 T9 E7
D3
DML
VSS_3
VSS_4
G8
J2 E7
DQSU VSS_2
VSS_3
E1
G8
B7
DQSU VSS_2
B3
E1
B7
DQSU VSS_2
B3
E1
M0_DDR_A12 IO[26]/A-A12[AB-A12]/A-BG0 M1_DDR_A12 M0_DDR_DQ5 DQL5 VSS_12 D3
DML VSS_4
J2 D3
DML VSS_4
J2 M0_DDR_DQ21 DQL5 VSS_12 DMU VSS_5
J8 D3
DML VSS_4
J2 E7
VSS_3
G8 E7
VSS_3
G8
IO[85]/B-A12[CD-A12]/B-BG0 G2
DMU VSS_5
VSS_6
J8
DMU VSS_5
VSS_6
J8
G2 E3
VSS_6
M1
DMU VSS_5
VSS_6
J8 D3
DML
DMU
VSS_4
VSS_5
J2 D3
DML
DMU
VSS_4
VSS_5
J2
F16 G31 M0_DDR_DQ6 DQL6
E3
DQL0 VSS_7
M1 E3
DQL0 VSS_7
M1
M0_DDR_DQ22
F7
DQL0
DQL1
VSS_7
VSS_8
M9 E3
DQL0 VSS_7
M1
VSS_6
J8
VSS_6
J8
M0_1_DDR_VREFDQ
M0_DDR_A13 IO[4]/A-A13[AB-A13]/A-PARITY IO[74]/B-A13[CD-A13]/B-PARITY M1_DDR_A13
F7
F2
DQL1 VSS_8
M9
P1
F7
F2
DQL1 VSS_8
M9
P1 DQL6 F2
F8
DQL2 VSS_9
P1
P9
F7
F2
DQL1 VSS_8
M9
P1
E3
F7
DQL0 VSS_7
M1
M9
E3
F7
DQL0 VSS_7
M1
M9
B16 J31 H7 F8
DQL2
DQL3
VSS_9
VSS_10
P9 F8
DQL2
DQL3
VSS_9
VSS_10
P9 H7 H3
DQL3
DQL4
VSS_10
VSS_11
T1 F8
DQL2
DQL3
VSS_9
VSS_10
P9 F2
DQL1
DQL2
VSS_8
VSS_9
P1 F2
DQL1
DQL2
VSS_8
VSS_9
P1
M0_DDR_VREFDQ M0_DDR_RESET_N
M0_DDR_A14 IO[7]/A-A14[AB-A14]/A-A13 M1_DDR_A14 M0_DDR_DQ7 DQL7
H3
DQL4 VSS_11
T1 H3
DQL4 VSS_11
T1
M0_DDR_DQ23 DQL7 H8
DQL5 VSS_12
T9 H3
DQL4 VSS_11
T1 F8
H3
DQL3 VSS_10
P9
T1
F8
H3
DQL3 VSS_10
P9
T1
IO[81]/B-A14[CD-A14]/B-A13 B1
H8
G2
DQL5 VSS_12
T9 H8
G2
DQL5 VSS_12
T9
B1
G2
H7
DQL6
H8
G2
DQL5 VSS_12
T9
H8
DQL4 VSS_11
T9 H8
DQL4 VSS_11
T9
E20 M28 DQL5 VSS_12 DQL5 VSS_12
R416
DQL6 DQL6 DQL6
1K 1%
H7 H7 DQL7 H7 G2 G2
B1
M0_DDR_A15 VSSQ_1 DQL7 DQL7
VSSQ_1 VSSQ_1 DQL7 DQL6 DQL6
R410
1K 1%
B1 B1 B1 H7 H7
IO[19]/A-A15[AB-A15]/A-A3 IO[96]/B-A15[CD-A15]/B-A3 M1_DDR_A15 D7 B9 D7
DQU0
VSSQ_1
VSSQ_2
B9 D7
DQU0
VSSQ_1
VSSQ_2
B9
D7 B9
D7
C3
DQU0 VSSQ_2
B9
D1 D7
DQU0
VSSQ_1
VSSQ_2
B9
DQL7
VSSQ_1
B1
DQL7
VSSQ_1
B1 1%
E19 L28 M0_DDR_DQ8 DQU0
C3
DQU1 VSSQ_3
D1 C3
DQU1 VSSQ_3
D1
M0_DDR_DQ24
C8
DQU1
DQU2
VSSQ_3
VSSQ_4
D8 C3
DQU1 VSSQ_3
D1 D7
DQU0 VSSQ_2
B9 D7
DQU0 VSSQ_2
B9
10K
M0_DDR_BA0 IO[24]/A-BA0[AB-BA0]/A-A10 IO[88]/B-BA0[CD-BA0]/B-A10 M1_DDR_BA0 VSSQ_2 C8
C2
DQU2 VSSQ_4
D8
E2
C8
C2
DQU2 VSSQ_4
D8
E2 DQU0 VSSQ_2 C2
A7
DQU3 VSSQ_5
E2
E8
C8
C2
DQU2 VSSQ_4
D8
E2
C3
C8
DQU1 VSSQ_3
D1
D8
C3
C8
DQU1 VSSQ_3
D1
D8
C18 L31 C3 D1 A7
DQU3
DQU4
VSSQ_5
VSSQ_6
E8 A7
DQU3
DQU4
VSSQ_5
VSSQ_6
E8 C3 D1 A2
DQU4
DQU5
VSSQ_6
VSSQ_7
F9 A7
DQU3
DQU4
VSSQ_5
VSSQ_6
E8 C2
DQU2
DQU3
VSSQ_4
VSSQ_5
E2 C2
DQU2
DQU3
VSSQ_4
VSSQ_5
E2
R445
M0_DDR_BA1 M1_DDR_BA1 M0_DDR_DQ9 DQU1 VSSQ_3
A2
DQU5 VSSQ_7
F9 A2
DQU5 VSSQ_7
F9
M0_DDR_DQ25 DQU1 VSSQ_3 B8
DQU6 VSSQ_8
G1 A2
DQU5 VSSQ_7
F9 A7
A2
DQU4 VSSQ_6
E8
F9
A7
A2
DQU4 VSSQ_6
E8
F9
IO[20]/A-BA1[AB-BA1]/A-CASZ IO[92]/B-BA1[CD-BA1]/B-CASZ C8 D8
B8
A3
DQU6 VSSQ_8
G1
G9
B8
A3
DQU6 VSSQ_8
G1
G9
C8 D8
A3
DQU7 VSSQ_9
G9 B8
A3
DQU6 VSSQ_8
G1
G9 B8
DQU5 VSSQ_7
G1 B8
DQU5 VSSQ_7
G1
F19 K28 M0_DDR_DQ10 DQU2
DQU7 VSSQ_9 DQU7 VSSQ_9
M0_DDR_DQ26
DQU7 VSSQ_9
A3
DQU6 VSSQ_8
G9 A3
DQU6 VSSQ_8
G9
M0_DDR_BA2 IO[21]/A-BA2[AB-BA2]/A-BA0 IO[82]/B-BA2[CD-BA2]/B-BA0 M1_DDR_BA2 VSSQ_4 DQU2 VSSQ_4 DQU7 VSSQ_9 DQU7 VSSQ_9
C479
G22 N28 C2 E2 C2 E2 C472 M0_D_CLK
1%
M0_DDR_RASN M1_DDR_RASN M0_DDR_DQ11 DQU3 VSSQ_5 M0_DDR_DQ27 DQU3 VSSQ_5 0.1uF
1%
IO[15]/A-RASZ[AB-RASZ]/A-ODT IO[97]/B-RASZ[CD-RASZ]/B-ODT A7 E8 A7 E8 0.1uF C483 R412
F21 N27
R417
M0_DDR_DQ12 DQU4 VSSQ_6 M0_DDR_DQ28 DQU4 VSSQ_6 C474 56 C477
R411
M0_DDR_CASN IO[17]/A-CASZ[AB-CASZ]/A-WEZ IO[94]/B-CASZ[CD-CASZ]/B-WEZ M1_DDR_CASN A2 F9 A2 F9 1000pF 0.01uF
E21 L27 M0_DDR_DQ13 DQU5 M0_DDR_DQ29 1000pF 50V 1%
M0_DDR_WEN M1_DDR_WEN VSSQ_7 DQU5 VSSQ_7
1K
IO[16]/A-WEZ[AB-WEZ]/A-A12 IO[89]/B-WEZ[CD-WEZ]/B-A12 B8 G1 B8 G1 50V 50V
1K
F20 M27 M0_DDR_DQ14 DQU6 M0_DDR_DQ30
M0_DDR_ODT IO[25]/A-ODT[AB-ODT]/A-ACTZ IO[95]/B-ODT[CD-ODT]/B-ACTZ M1_DDR_ODT VSSQ_8 DQU6 VSSQ_8
C19 M31 A3 G9 A3 G9 R413
M0_DDR_CKE IO[18]/A-CKE[AB-CKE]/A-CKE M1_DDR_CKE M0_DDR_DQ15 DQU7 VSSQ_9 SS_DDR3_2Gb Hynix_DDR3_2Gb M0_DDR_DQ31 DQU7 VSSQ_9 56
IO[91]/B-CKE[CD-CKE]/B-CKE IC400-*3
K4B2G1646Q-BCMA
IC400-*4
H5TQ2G63FFR-RDC
F15 G32 1%
M0_DDR_RESET_N IO[1]/A-RST[AB-RST]/A-RST IO[76]/B-RST[CD-RST]/B-RST M1_DDR_RESET_N N3
EAN63667401
M8 N3
EAN63648701
M8
A20 N32 P7
A0
A1
VREFCA
P7
A0
A1
VREFCA
M0_D_CLK IO[28]/A-MCLK[AB-MCLK]/A-MCLKZ IO[101]/B-MCLK[CD-MCLK]/B-MCLKZ M1_D_CLK P3
N2
A2
H1
P3
N2
A2
H1
B20 M30 P8
P2
A3
A4
VREFDQ
P8
P2
A3
A4
VREFDQ
M0_D_CLKN
M0_D_CLKN IO[27]/A-MCLKZ[AB-MCLKZ]/A-MCLK IO[100]/B-MCLKZ[CD-MCLKZ]/B-MCLK M1_D_CLKN R8
A5
A6 ZQ
L8 R8
A5
A6 ZQ
L8
E15 G29 R2
T8
A7
R2
T8
A7
M0_DDR_CS1 IO[23]/A-CSB1[AB-CSB1]/A-CSB1 IO[99]/B-CSB1[CD-CSB1]/B-CSB1 M1_DDR_CS1 R3
L7
A8
A9 VDD_1
B2
D9
R3
L7
A8
A9 VDD_1
B2
D9
D15 F32 R7
A10/AP
A11
VDD_2
VDD_3
G7 R7
A10/AP
A11
VDD_2
VDD_3
G7
M0_DDR_CS2 IO[22]/A-CSB2[AB-CSB2]/A-CSB2 IO[98]/B-CSB2[CD-CSB2]/B-CSB2 M1_DDR_CS2 N7
T3
A12/BC VDD_4
K2
K8
N7
T3
A12/BC VDD_4
K2
K8
M7
A13
NC_5
VDD_5
VDD_6
VDD_7
N1
N9
T7
M7
A13
A14
NC_5
VDD_5
VDD_6
VDD_7
N1
N9 AVDD_DDR M1_DDR_CKE
R1 R1
VDD_8 VDD_8
M2 R9 M2 R9
BA0 VDD_9 BA0 VDD_9
N8 N8
BA1 BA1
M3 M3
BA2 BA2
A1 A1
C23 T31 J7
CK
VDDQ_1
VDDQ_2
A8 J7
CK
VDDQ_1
VDDQ_2
A8
M0_DDR_DQ0 M1_DDR_DQ0 K7 C1 K7 C1
AVDD_DDR
1K
R433
IO[47]/A-DQ[0][A-DQL0]/A-DQ[0] IO[120]/B-DQ[0][C-DQL0]/B-DQ[0] K9
CK VDDQ_3
C9 K9
CK VDDQ_3
C9 AVDD_DDR
B22 P30 CKE VDDQ_4
VDDQ_5
D2
CKE VDDQ_4
VDDQ_5
D2
M0_DDR_DQ1 IO[31]/A-DQ[1][A-DQL1]/A-DQ[1] IO[104]/B-DQ[1][C-DQL1]/B-DQ[1] M1_DDR_DQ1 L2 E9 L2 E9
+1.5V_Bypass Cap
CS VDDQ_6 CS VDDQ_6
K1 F1 K1 F1
OPT
1K
R422
+1.5V_Bypass Cap
ODT VDDQ_7 ODT VDDQ_7
B24 T30 J3
K3
RAS VDDQ_8
H2
H9
J3
K3
RAS VDDQ_8
H2
H9
M1_1_DDR_VREFDQ
M0_DDR_DQ2 IO[48]/A-DQ[2][A-DQL2]/A-DQ[2] IO[121]/B-DQ[2][C-DQL2]/B-DQ[2] M1_DDR_DQ2 L3
CAS
WE
VDDQ_9
L3
CAS
WE
VDDQ_9
C21 P31 NC_1
J1
NC_1
J1
M1_DDR_VREFDQ
M0_DDR_DQ3
B25
IO[29]/A-DQ[3][A-DQL3]/A-DQ[3] IO[102]/B-DQ[3][C-DQL3]/B-DQ[3]
U30
M1_DDR_DQ3 Close to DDR Power Pin T2
F3
RESET NC_2
NC_3
NC_4
J9
L1
L9
T7
T2
F3
RESET NC_2
NC_3
NC_4
J9
L1
L9
Close to DDR Power Pin
R414
1K 1%
DQSL NC_6 DQSL
R408
1K 1%
M0_DDR_DQ4 IO[50]/A-DQ[4][A-DQL4]/A-DQ[6] IO[123]/B-DQ[4][C-DQL4]/B-DQ[6] M1_DDR_DQ4 G3
DQSL
G3
DQSL
M1_DDR_RESET_N
C20 N31 C7
B7
DQSU VSS_1
A9
B3
C7
B7
DQSU VSS_1
A9
B3
M0_DDR_DQ5 IO[30]/A-DQ[5][A-DQL5]/A-DQ[7] IO[105]/B-DQ[5][C-DQL5]/B-DQ[7] M1_DDR_DQ5 E7
DQSU VSS_2
VSS_3
E1
G8 E7
DQSU VSS_2
VSS_3
E1
G8
C24 U31
R446
DML VSS_4 DML VSS_4
D3 J2 D3 J2
DMU VSS_5 DMU VSS_5
M0_DDR_DQ6 M1_DDR_DQ6
10K
J8 J8
IO[49]/A-DQ[6][A-DQL6]/A-DQ[4] IO[122]/B-DQ[6][C-DQL6]/B-DQ[4] E3
VSS_6
M1 E3
VSS_6
M1
1%
B21 N30 F7
DQL0
DQL1
VSS_7
VSS_8
M9 F7
DQL0
DQL1
VSS_7
VSS_8
M9
AVDD_DDR
M0_DDR_DQ7 IO[32]/A-DQ[7][A-DQL7]/A-DQ[5] IO[103]/B-DQ[7][C-DQL7]/B-DQ[5] M1_DDR_DQ7 AVDD_DDR
F2
F8
DQL2
DQL3
VSS_9
VSS_10
P1
P9
F2
F8
DQL2
DQL3
VSS_9
VSS_10
P1
P9
C22 R31 H3
H8
DQL4 VSS_11
T1
T9
H3
H8
DQL4 VSS_11
T1
T9 C516 C518
1%
M0_DDR_DM0 M1_DDR_DM0 DQL5 VSS_12 DQL5 VSS_12
1%
IO[33]/A-DQM[0][A-DML]/A-DQM[0] IO[106]/B-DQM[0][C-DML]/B-DQM[0] G2
H7
DQL6
G2
H7
DQL6
0.1uF 0.1uF
A23 T32 DQL7
B1
DQL7
B1 C519 M1_D_CLK
R415
C517
R409
VSSQ_1 VSSQ_1
M0_DDR_DQS0 IO[42]/A-DQS[0][A-DQSL]/A-DQS[0] IO[115]/B-DQS[0][C-DQSL]/B-DQS[0] M1_DDR_DQS0 D7
C3
DQU0 VSSQ_2
B9
D1
D7
C3
DQU0 VSSQ_2
B9
D1
1000pF R427
B23 R30 C8
C2
DQU1
DQU2
VSSQ_3
VSSQ_4
D8
E2
C8
C2
DQU1
DQU2
VSSQ_3
VSSQ_4
D8
E2
1000pF C497
M0_DDR_DQS_N0 IO[41]/A-DQSB[0][A-DQSLB]/A-DQSB[0] IO[114]/B-DQSB[0][C-DQSLB]/B-DQSB[0] M1_DDR_DQS_N0 A7
DQU3 VSSQ_5
E8 A7
DQU3 VSSQ_5
E8
50V 50V 56
1K
0.01uF
1K
DQU4 VSSQ_6 DQU4 VSSQ_6
A2 F9 A2 F9
DQU5 VSSQ_7 DQU5 VSSQ_7
B8
A3
DQU6
DQU7
VSSQ_8
VSSQ_9
G1
G9
B8
A3
DQU6
DQU7
VSSQ_8
VSSQ_9
G1
G9 1% 50V
0.1uF
0.1uF
0.1uF
0.1uF
0.1uF
0.1uF
D23 P27 R428
M0_DDR_DQ8 IO[35]/A-DQ[8][A-DQU0]/A-DQ[15] IO[109]/B-DQ[8][C-DQU0]/B-DQ[15] M1_DDR_DQ8 56
D26 U29 1%
M0_DDR_DQ9 IO[45]/A-DQ[9][A-DQU1]/A-DQ[10] IO[116]/B-DQ[9][C-DQU1]/B-DQ[10] M1_DDR_DQ9
E22 P28
C403
C404
C405
M0_DDR_DQ10 IO[38]/A-DQ[10][A-DQU2]/A-DQ[13] IO[107]/B-DQ[10][C-DQU2]/B-DQ[13] M1_DDR_DQ10
C400
C401
C402
D27 U27 M1_D_CLKN
M0_DDR_DQ11 IO[46]/A-DQ[11][A-DQU3]/A-DQM[1] IO[119]/B-DQ[11][C-DQU3]/B-DQM[1] M1_DDR_DQ11
F23 R28
M0_DDR_DQ12 IO[36]/A-DQ[12][A-DQU4]/A-DQ[9] IO[111]/B-DQ[12][C-DQU4]/B-DQ[9] M1_DDR_DQ12
E26 V28
M0_DDR_DQ13 IO[43]/A-DQ[13][A-DQU5]/A-DQ[12] IO[117]/B-DQ[13][C-DQU5]/B-DQ[12] M1_DDR_DQ13
D22 P29
M0_DDR_DQ14 IO[34]/A-DQ[14][A-DQU6]/A-DQ[11] IO[108]/B-DQ[14][C-DQU6]/B-DQ[11] M1_DDR_DQ14
E25 U28
M0_DDR_DQ15 IO[44]/A-DQ[15][A-DQU7]/A-DQ[8] IO[118]/B-DQ[15][C-DQU7]/B-DQ[8] M1_DDR_DQ15
E24 T28
M0_DDR_DM1 IO[37]/A-DQM[1][A-DMU]/A-DQ[14] IO[110]/B-DQM[1][C-DMU]/B-DQ[14] M1_DDR_DM1
D24 T27
M0_DDR_DQS1 IO[40]/A-DQS[1][A-DQSU]/A-DQS[1] IO[113]/B-DQS[1][C-DQSU]/B-DQS[1] M1_DDR_DQS1
E23 R27
M0_DDR_DQS_N1 IO[39]/A-DQSB[1][A-DQSUB]/A-DQSB[1] IO[112]/B-DQSB[1][C-DQSUB]/B-DQSB[1] M1_DDR_DQS_N1
M1_DDR_VREFDQ Hynix_DDR3_4Gb_29n
Hynix_DDR3_4Gb_29n M1_1_DDR_VREFDQ
C28 AA31 IC403 IC404
M0_DDR_DQ16 IO[69]/A-DQ[16][B-DQL0]/A-DQ[16] IO[145]/B-DQ[16][D-DQL0]/B-DQ[16] M1_DDR_DQ16 H5TQ4G63AFR-RDC H5TQ4G63AFR-RDC
C26 W31
M0_DDR_DQ17 IO[53]/A-DQ[17][B-DQL1]/A-DQ[17] IO[126]/B-DQ[17][D-DQL1]/B-DQ[17] M1_DDR_DQ17
B29 AA30
M0_DDR_DQ18 IO[70]/A-DQ[18][B-DQL2]/A-DQ[18] IO[143]/B-DQ[18][D-DQL2]/B-DQ[18] M1_DDR_DQ18 EAN63053201 EAN63053201
A26 W32
M0_DDR_DQ19 IO[54]/A-DQ[19][B-DQL3]/A-DQ[19] IO[127]/B-DQ[19][D-DQL3]/B-DQ[19] M1_DDR_DQ19
C29 AB31 M1_DDR_A0
N3
A0 DDR3 VREFCA
M8
M1_DDR_A0
N3
A0
DDR3 VREFCA
M8
M0_DDR_DQ20 IO[72]/A-DQ[20][B-DQL4]/A-DQ[22] IO[142]/B-DQ[20][D-DQL4]/B-DQ[22] M1_DDR_DQ20 P7 P7 4Gbit
M0_DDR_DQ21
C25
IO[52]/A-DQ[21][B-DQL5]/A-DQ[23] IO[124]/B-DQ[21][D-DQL5]/B-DQ[23]
V31
M1_DDR_DQ21 M1_DDR_A1 A1 4Gbit M1_DDR_A1 A1
P3 P3
M0_DDR_DQ22
A29
IO[71]/A-DQ[22][B-DQL6]/A-DQ[20] IO[144]/B-DQ[22][D-DQL6]/B-DQ[20]
AB32
M1_DDR_DQ22 M1_DDR_A2 A2 (x16) M1_DDR_A2 A2 (x16)
B26 V30 N2 H1 N2 H1
M0_DDR_DQ23 M1_DDR_DQ23 M1_DDR_A3 A3 VREFDQ M1_DDR_A3 A3 VREFDQ
IO[51]/A-DQ[23][B-DQL7]/A-DQ[21] IO[125]/B-DQ[23][D-DQL7]/B-DQ[21] P8 P8
B27 W30 M1_DDR_A4 A4 M1_DDR_A4
M0_DDR_DM2 IO[55]/A-DQM[2][B-DML]/A-DQM[2] IO[128]/B-DQM[2][D-DML]/B-DQM[2] M1_DDR_DM2 A4
B28 Y30 P2 P2
M0_DDR_DQS2 M1_DDR_DQS2 M1_DDR_A5 A5 M1_DDR_A5 A5
IO[64]/A-DQS[2][B-DQSL]/A-DQS[2] IO[137]/B-DQS[2][D-DQSL]/B-DQS[2] R8 L8 R404 R8 L8 R419
C27 Y31 M1_DDR_A6 240 M1_DDR_A6 240
M0_DDR_DQS_N2 IO[63]/A-DQSB[2]/[B-DQSLB]/A-DQSB[2] IO[136]/B-DQSB[2][D-DQSLB]/B-DQSB[2] M1_DDR_DQS_N2 A6 ZQ A6 ZQ
R2 AVDD_DDR R2
M1_DDR_A7 A7 M1_DDR_A7 A7
DDR3 1.5V bypass Cap - Place these caps near Memory
T8 T8 AVDD_DDR
M1_DDR_A8 A8 M1_DDR_A8 A8
E29 Y28 R3 B2 R3 B2
M0_DDR_DQ24 M1_DDR_DQ24 M1_DDR_A9 A9 VDD_1 M1_DDR_A9 A9 VDD_1
IO[58]/A-DQ[24][B-DQU0]/A-DQ[31] IO[131]/B-DQ[24][D-DQU0]/B-DQ[31] L7 D9 L7 D9
C31 AB27 M1_DDR_A10 A10/AP VDD_2 M1_DDR_A10
M0_DDR_DQ25 IO[67]/A-DQ[25][B-DQU1]/A-DQ[26] IO[141]/B-DQ[25][D-DQU1]/B-DQ[26] M1_DDR_DQ25 A10/AP VDD_2
R7 G7 R7 G7
DDR3 1.5V bypass Cap - Place these caps near Memory
E27 V27 M1_DDR_A11 A11 VDD_3 M1_DDR_A11
M0_DDR_DQ26 IO[56]/A-DQ[26][B-DQU2]/A-DQ[29] IO[130]_/B-DQ[26][D-DQU2]/B-DQ[29] M1_DDR_DQ26 A11 VDD_3
D31 AB29 N7 K2 N7 K2
M0_DDR_DQ27 M1_DDR_DQ27 M1_DDR_A12 A12/BC VDD_4 M1_DDR_A12 A12/BC VDD_4
IO[66]/A-DQ[27][B-DQU3]/A-DQM[3] IO[140]/B-DQ[27][D-DQU3]/B-DQM[3] T3 K8 T3 K8
D29 W28 M1_DDR_A13 A13 VDD_5 M1_DDR_A13
M0_DDR_DQ28 IO[59]/A-DQ[28][B-DQU4]/A-DQ[25] IO[129]/B-DQ[28][D-DQU4]/B-DQ[25] M1_DDR_DQ28 A13 VDD_5
D30 AB28 T7 N1 T7 N1
M0_DDR_DQ29 M1_DDR_DQ29 M1_DDR_A14 A14 VDD_6 M1_DDR_A14 A14 VDD_6
IO[65]/A-DQ[29][B-DQU5]/A-DQ[28] IO[139]/B-DQ[29][D-DQU5]/B-DQ[28] M7 N9 M7 N9
E28 W27 M1_DDR_A15 NC_5 VDD_7 M1_DDR_A15
M0_DDR_DQ30 IO[57]/A-DQ[30][B-DQU6]/A-DQ[27] IO[132]/B-DQ[30][D-DQU6]/B-DQ[27] M1_DDR_DQ30 NC_5 VDD_7
C30 AA27 R1 R1
M0_DDR_DQ31 IO[60]/A-DQ[31][B-DQU7]/A-DQ[24] IO[138]/B-DQ[31][D-DQU7]/B-DQ[24] M1_DDR_DQ31 VDD_8 VDD_8
B31 Y27 M2 R9 M2 R9
M0_DDR_DM3 M1_DDR_DM3 M1_DDR_BA0 BA0 VDD_9 M1_DDR_BA0 BA0 VDD_9
IO[68]/A-DQM[3][B-DMU]/A-DQ[30] IO[133]/B-DQM[3][D-DMU]/B-DQ[30] N8 N8
A31 AA28 M1_DDR_BA1 BA1 M1_DDR_BA1
M0_DDR_DQS3 IO[62]/A-DQS[3][B-DQSU]/A-DQS[3] IO[135]/B-DQS[3][D-DQSU]/B-DQS[3] M1_DDR_DQS3 BA1
B30 Y29 M3 M3
M0_DDR_DQS_N3 M1_DDR_DQS_N3 M1_DDR_BA2 BA2 M1_DDR_BA2 BA2
IO[61]/A-DQSB[3][B-DQSUB]/A-DQSB[3] IO[134]/B-DQSB[3][D-DQSUB]/B-DQSB[3] A1 A1
VDDQ_1 VDDQ_1
J7 A8 J7 A8
M1_D_CLK CK VDDQ_2 M1_D_CLK CK VDDQ_2
K7 C1 K7 C1
M1_D_CLKN CK VDDQ_3 M1_D_CLKN CK VDDQ_3
K9 C9 K9 C9
M1_DDR_CKE CKE VDDQ_4 M1_DDR_CKE CKE VDDQ_4
D2 D2
VDDQ_5 VDDQ_5
L2 E9 L2 E9
M1_DDR_CS1 CS VDDQ_6 M1_DDR_CS2 CS VDDQ_6
K1 F1 K1 F1
M1_DDR_ODT ODT VDDQ_7 M1_DDR_ODT ODT VDDQ_7
J3 H2 C468 0.1uF J3 H2 C490 0.1uF
M1_DDR_RASN RAS VDDQ_8 M1_DDR_RASN RAS VDDQ_8
K3 H9 C469 0.1uF K3 H9 C491 0.1uF
M1_DDR_CASN CAS VDDQ_9 M1_DDR_CASN CAS VDDQ_9
L3 L3
M1_DDR_WEN WE M1_DDR_WEN WE
J1 J1 * DDR_VTT
NC_1 NC_1
T2 J9 T2 J9
M1_DDR_RESET_N RESET NC_2 M1_DDR_RESET_N RESET NC_2
L1 L1
NC_3 NC_3
L9 L9 SS_DDR3_4Gb_25n
IC404-*1
Hynix_DDR3_4Gb_25n
IC404-*2
SS_DDR3_2Gb
IC404-*3
Hynix_DDR3_2Gb
IC404-*4
NC_4 NC_4 K4B4G1646D-BCMA H5TQ4G63CFR_RDC K4B2G1646Q-BCMA H5TQ2G63FFR-RDC
F3 F3 EAN63391401 EAN63053202 EAN63667401 EAN63648701
M1_DDR_DQS0 DQSL SS_DDR3_4Gb_25n
IC403-*1
Hynix_DDR3_4Gb_25n
IC403-*2
SS_DDR3_2Gb Hynix_DDR3_2Gb M1_DDR_DQS2 DQSL N3
A0 VREFCA
M8 N3
A0 VREFCA
M8 N3
A0 VREFCA
M8 N3
A0 VREFCA
M8
AVDD_DDR
G3 K4B4G1646D-BCMA H5TQ4G63CFR_RDC
IC403-*3
K4B2G1646Q-BCMA
IC403-*4
H5TQ2G63FFR-RDC G3 P7
P3
A1
A2
P7
P3
A1
A2
P7
P3
A1
A2
P7
P3
A1
A2
+3.3V_NORMAL
M1_DDR_DQS_N0 DQSL EAN63391401 EAN63053202 EAN63667401 EAN63648701 M1_DDR_DQS_N2 DQSL N2
P8
A3
A4
VREFDQ
H1 N2
P8
A3
A4
VREFDQ
H1 N2
P8
A3
A4
VREFDQ
H1 N2
P8
A3
A4
VREFDQ
H1
N3 M8 N3 M8 N3 M8 N3 M8 P2 P2 P2 P2
A0 VREFCA A0 VREFCA A0 VREFCA A0 VREFCA A5 A5 A5 A5
P7 P7 P7 P7 R8 L8 R8 L8 R8 L8 R8 L8
C7 A9
P3
N2
P8
A1
A2
A3 VREFDQ
H1
P3
N2
P8
A1
A2
A3 VREFDQ
H1
P3
N2
P8
A1
A2
A3 VREFDQ
H1
P3
N2
P8
A1
A2
A3 VREFDQ
H1
C7 A9
R2
T8
R3
A6
A7
A8
ZQ
B2
R2
T8
R3
A6
A7
A8
ZQ
B2
R2
T8
R3
A6
A7
A8
ZQ
B2
R2
T8
R3
A6
A7
A8
ZQ
B2
IC402
M1_DDR_DQS1 DQSU VSS_1 P2
R8
A4
A5
L8
P2
R8
A4
A5
L8
P2
A4
A5
P2
A4
A5 M1_DDR_DQS3 DQSU VSS_1 L7
A9
A10/AP
VDD_1
VDD_2
D9 L7
A9
A10/AP
VDD_1
VDD_2
D9 L7
A9
A10/AP
VDD_1
VDD_2
D9 L7
A9
A10/AP
VDD_1
VDD_2
D9
AP2303MPTR-G1 [EP]
B7 B3 R2
A6
A7
ZQ
R2
A6
A7
ZQ
R8
R2
A6
A7
ZQ
L8 R8
R2
A6
A7
ZQ
L8
B7 B3 R7
N7
A11
A12/BC
VDD_3
VDD_4
G7
K2
R7
N7
A11
A12/BC
VDD_3
VDD_4
G7
K2
R7
N7
A11
A12/BC
VDD_3
VDD_4
G7
K2
R7
N7
A11
A12/BC
VDD_3
VDD_4
G7
K2
M1_DDR_DQS_N1 DQSU VSS_2 T8 T8 T8 T8
M1_DDR_DQS_N3 DQSU VSS_2 T3 K8 T3 K8 T3 K8 T3 K8
CIS21J121
A8 A8 A8 A8 A13 VDD_5 A13 VDD_5 A13 VDD_5 A13 VDD_5
R3 B2 R3 B2 R3 B2 R3 B2 N1 T7 N1 N1 T7 N1
E1 L7
R7
A9
A10/AP
VDD_1
VDD_2
D9
G7
L7
R7
A9
A10/AP
VDD_1
VDD_2
D9
G7
L7
R7
A9
A10/AP
VDD_1
VDD_2
D9
G7
L7
R7
A9
A10/AP
VDD_1
VDD_2
D9
G7
E1 M7
NC_5
VDD_6
VDD_7
N9
R1
M7
A14
NC_5
VDD_6
VDD_7
N9
R1
M7
NC_5
VDD_6
VDD_7
N9
R1
M7
A14
NC_5
VDD_6
VDD_7
N9
R1
VSS_3 N7
A11 VDD_3
K2 N7
A11 VDD_3
K2 N7
A11 VDD_3
K2 N7
A11 VDD_3
K2 VSS_3 M2
VDD_8
R9 M2
VDD_8
R9 M2
VDD_8
R9 M2
VDD_8
R9
C544
L401
A12/BC VDD_4 A12/BC VDD_4 A12/BC VDD_4 A12/BC VDD_4 BA0 VDD_9 BA0 VDD_9 BA0 VDD_9 BA0 VDD_9
E7 G8 T3
A13 VDD_5
K8
N1
T3
T7
A13 VDD_5
K8
N1
T3
A13 VDD_5
K8
N1
T3
T7
A13 VDD_5
K8
N1
E7 G8 N8
M3
BA1
N8
M3
BA1
N8
M3
BA1
N8
M3
BA1
VIN NC_3
M1_DDR_DM0 DML VSS_4 M7
NC_5
VDD_6
VDD_7
N9
R1
M7
A14
NC_5
VDD_6
VDD_7
N9
R1
M7
NC_5
VDD_6
VDD_7
N9 M7
A14
NC_5
VDD_6
VDD_7
N9
M1_DDR_DM2 DML VSS_4 BA2
VDDQ_1
A1
BA2
VDDQ_1
A1
BA2
VDDQ_1
A1
BA2
VDDQ_1
A1
1 8 10uF
D3 J2 M2
BA0
VDD_8
VDD_9
R9 M2
BA0
VDD_8
VDD_9
R9 M2
BA0
VDD_8
VDD_9
R1
R9 M2
BA0
VDD_8
VDD_9
R1
R9 D3 J2 J7
K7
CK
CK
VDDQ_2
VDDQ_3
A8
C1
J7
K7
CK
CK
VDDQ_2
VDDQ_3
A8
C1
J7
K7
CK
CK
VDDQ_2
VDDQ_3
A8
C1
J7
K7
CK
CK
VDDQ_2
VDDQ_3
A8
C1
10V
M1_DDR_DM1 DMU VSS_5 N8 N8 N8 N8
M1_DDR_DM3 DMU VSS_5 K9 C9 K9 C9 K9 C9 K9 C9
C421
THERMAL
BA1 BA1 BA1 BA1 CKE VDDQ_4 CKE VDDQ_4 CKE VDDQ_4 CKE VDDQ_4
M3 M3 M3 M3 D2 D2 D2 D2
J8 J7
BA2
VDDQ_1
A1
A8 J7
BA2
VDDQ_1
A1
A8 J7
BA2
VDDQ_1
A1
A8 J7
BA2
VDDQ_1
A1
A8
J8 L2
K1
CS
VDDQ_5
VDDQ_6
E9
F1
L2
K1
CS
VDDQ_5
VDDQ_6
E9
F1
L2
K1
CS
VDDQ_5
VDDQ_6
E9
F1
L2
K1
CS
VDDQ_5
VDDQ_6
E9
F1 10uF
VSS_6 K7
CK
CK
VDDQ_2
VDDQ_3
C1 K7
CK
CK
VDDQ_2
VDDQ_3
C1 K7
CK
CK
VDDQ_2
VDDQ_3
C1 K7
CK
CK
VDDQ_2
VDDQ_3
C1 VSS_6 J3
ODT
RAS
VDDQ_7
VDDQ_8
H2 J3
ODT
RAS
VDDQ_7
VDDQ_8
H2 J3
ODT
RAS
VDDQ_7
VDDQ_8
H2 J3
ODT
RAS
VDDQ_7
VDDQ_8
H2
GND NC_2
9
E3 M1 K9
CKE VDDQ_4
C9
D2
K9
CKE VDDQ_4
C9
D2
K9
CKE VDDQ_4
C9
D2
K9
CKE VDDQ_4
C9
D2
E3 M1 K3
L3
CAS VDDQ_9
H9 K3
L3
CAS VDDQ_9
H9 K3
L3
CAS VDDQ_9
H9 K3
L3
CAS VDDQ_9
H9
10V 2 7
M1_DDR_DQ0 DQL0 VSS_7 L2
K1
CS
VDDQ_5
VDDQ_6
E9
F1
L2
K1
CS
VDDQ_5
VDDQ_6
E9
F1
L2
CS
VDDQ_5
VDDQ_6
E9 L2
CS
VDDQ_5
VDDQ_6
E9
M1_DDR_DQ16 DQL0 VSS_7 WE
NC_1
J1
WE
NC_1
J1
WE
NC_1
J1
WE
NC_1
J1
F7 M9 J3
ODT
RAS
VDDQ_7
VDDQ_8
H2 J3
ODT
RAS
VDDQ_7
VDDQ_8
H2
K1
J3
ODT
RAS
VDDQ_7
VDDQ_8
F1
H2
K1
J3
ODT
RAS
VDDQ_7
VDDQ_8
F1
H2 F7 M9 T2
RESET NC_2
NC_3
J9
L1
T2
RESET NC_2
NC_3
J9
L1
T2
RESET NC_2
NC_3
J9
L1
T2
RESET NC_2
NC_3
J9
L1 DDR_VTT
M1_DDR_DQ1 DQL1 VSS_8 K3
L3
CAS VDDQ_9
H9 K3
L3
CAS VDDQ_9
H9 K3
L3
CAS VDDQ_9
H9 K3
L3
CAS VDDQ_9
H9
M1_DDR_DQ17 DQL1 VSS_8 F3
NC_4
L9
T7 F3
NC_4
L9
F3
NC_4
L9
T7 F3
NC_4
L9
R443
F2 P1 WE
NC_1
J1
WE
NC_1
J1 WE
J1
WE
J1
F2 P1 G3
DQSL NC_6
G3
DQSL
G3
DQSL NC_6
G3
DQSL
VREFEN VCNTL
M1_DDR_DQ2 DQL2 VSS_9
T2
RESET NC_2
J9
L1
T2
RESET NC_2
J9
L1
T2
RESET
NC_1
NC_2
J9 T2
RESET
NC_1
NC_2
J9
M1_DDR_DQ18 DQL2 VSS_9
DQSL DQSL DQSL DQSL
10K
F8 P9
NC_3
L9
NC_3
L9 NC_3
L1
L9
NC_3
L1
L9
F8 P9
C7
B7
DQSU VSS_1
A9
B3
C7
B7
DQSU VSS_1
A9
B3
C7
B7
DQSU VSS_1
A9
B3
C7
B7
DQSU VSS_1
A9
B3 3 6
CIS21J121
NC_4 NC_4 NC_4 NC_4 DQSU VSS_2 DQSU VSS_2 DQSU VSS_2 DQSU VSS_2
F3 T7 F3 F3 T7 F3 E1 E1 E1 E1
M1_DDR_DQ3 DQL3 VSS_10 G3
DQSL
DQSL
NC_6
G3
DQSL
DQSL
G3
DQSL
DQSL
NC_6
G3
DQSL
DQSL M1_DDR_DQ19 DQL3 VSS_10 E7
DML
VSS_3
VSS_4
G8 E7
DML
VSS_3
VSS_4
G8 E7
DML
VSS_3
VSS_4
G8 E7
DML
VSS_3
VSS_4
G8
1/16W
H3 T1 C7 A9 C7 A9 H3 T1 D3
DMU VSS_5
J2 D3
DMU VSS_5
J2 D3
DMU VSS_5
J2 D3
DMU VSS_5
J2
L400
C7 A9 C7 A9 J8 J8 J8 J8
DQSU VSS_1 DQSU VSS_1 DQSU VSS_1 DQSU VSS_1 VSS_6 VSS_6 VSS_6 VSS_6
M1_DDR_DQ4 DQL4 VSS_11 B7
DQSU VSS_2
B3
E1
B7
DQSU VSS_2
B3
E1
B7
DQSU VSS_2
B3
E1
B7
DQSU VSS_2
B3
E1
M1_DDR_DQ20 DQL4 VSS_11 E3
F7
DQL0 VSS_7
M1
M9
E3
F7
DQL0 VSS_7
M1
M9
E3
F7
DQL0 VSS_7
M1
M9
E3
F7
DQL0 VSS_7
M1
M9
1% VOUT NC_1
H8 T9 E7
D3
DML
VSS_3
VSS_4
G8
J2
E7
D3
DML
VSS_3
VSS_4
G8
J2
E7
DML
VSS_3
VSS_4
G8 E7
DML
VSS_3
VSS_4
G8
H8 T9 F2
DQL1
DQL2
VSS_8
VSS_9
P1 F2
DQL1
DQL2
VSS_8
VSS_9
P1 F2
DQL1
DQL2
VSS_8
VSS_9
P1 F2
DQL1
DQL2
VSS_8
VSS_9
P1
4 5
M1_DDR_DQ5 DQL5 VSS_12 DMU VSS_5
VSS_6
J8
DMU VSS_5
VSS_6
J8
D3
DMU VSS_5
VSS_6
J2
J8
D3
DMU VSS_5
VSS_6
J2
J8 M1_DDR_DQ21 DQL5 VSS_12
F8
H3
DQL3
DQL4
VSS_10
VSS_11
P9
T1
F8
H3
DQL3
DQL4
VSS_10
VSS_11
P9
T1
F8
H3
DQL3
DQL4
VSS_10
VSS_11
P9
T1
F8
H3
DQL3
DQL4
VSS_10
VSS_11
P9
T1
G2 E3
F7
DQL0 VSS_7
M1
M9
E3
F7
DQL0 VSS_7
M1
M9
E3
F7
DQL0 VSS_7
M1
M9
E3
F7
DQL0 VSS_7
M1
M9 G2 H8
G2
DQL5 VSS_12
T9 H8
G2
DQL5 VSS_12
T9 H8
G2
DQL5 VSS_12
T9 H8
G2
DQL5 VSS_12
T9
M1_DDR_DQ6 DQL6 F2
F8
DQL1
DQL2
VSS_8
VSS_9
P1
P9
F2
F8
DQL1
DQL2
VSS_8
VSS_9
P1
P9
F2
DQL1
DQL2
VSS_8
VSS_9
P1 F2
DQL1
DQL2
VSS_8
VSS_9
P1
M1_DDR_DQ22 DQL6 H7
DQL6
DQL7
H7
DQL6
DQL7
H7
DQL6
DQL7
H7
DQL6
DQL7
H7 H3
DQL3
DQL4
VSS_10
VSS_11
T1 H3
DQL3
DQL4
VSS_10
VSS_11
T1
F8
H3
DQL3
DQL4
VSS_10
VSS_11
P9
T1
F8
H3
DQL3
DQL4
VSS_10
VSS_11
P9
T1 H7 D7
DQU0
VSSQ_1
VSSQ_2
B1
B9 D7
DQU0
VSSQ_1
VSSQ_2
B1
B9 D7
DQU0
VSSQ_1
VSSQ_2
B1
B9 D7
DQU0
VSSQ_1
VSSQ_2
B1
B9
M1_DDR_DQ7 DQL7 H8
G2
DQL5 VSS_12
T9 H8
G2
DQL5 VSS_12
T9 H8
G2
DQL5 VSS_12
T9 H8
G2
DQL5 VSS_12
T9
M1_DDR_DQ23 DQL7 C3
C8
DQU1 VSSQ_3
D1
D8
C3
C8
DQU1 VSSQ_3
D1
D8
C3
C8
DQU1 VSSQ_3
D1
D8
C3
C8
DQU1 VSSQ_3
D1
D8
B1 H7
DQL6
DQL7
B1
H7
DQL6
DQL7
B1
H7
DQL6
DQL7
B1
H7
DQL6
DQL7
B1
B1 C2
A7
DQU2
DQU3
VSSQ_4
VSSQ_5
E2
E8
C2
A7
DQU2
DQU3
VSSQ_4
VSSQ_5
E2
E8
C2
A7
DQU2
DQU3
VSSQ_4
VSSQ_5
E2
E8
C2
A7
DQU2
DQU3
VSSQ_4
VSSQ_5
E2
E8
VSSQ_1 D7
DQU0
VSSQ_1
VSSQ_2
B9 D7
DQU0
VSSQ_1
VSSQ_2
B9 D7
DQU0
VSSQ_1
VSSQ_2
B9 D7
DQU0
VSSQ_1
VSSQ_2
B9 VSSQ_1 A2
DQU4
DQU5
VSSQ_6
VSSQ_7
F9 A2
DQU4
DQU5
VSSQ_6
VSSQ_7
F9 A2
DQU4
DQU5
VSSQ_6
VSSQ_7
F9 A2
DQU4
DQU5
VSSQ_6
VSSQ_7
F9
D7 B9 C3
C8
DQU1 VSSQ_3
D1
D8
C3
C8
DQU1 VSSQ_3
D1
D8
C3
C8
DQU1 VSSQ_3
D1
D8
C3
C8
DQU1 VSSQ_3
D1
D8 D7 B9 B8
A3
DQU6 VSSQ_8
G1
G9
B8
A3
DQU6 VSSQ_8
G1
G9
B8
A3
DQU6 VSSQ_8
G1
G9
B8
A3
DQU6 VSSQ_8
G1
G9
M1_DDR_DQ8 DQU0 VSSQ_2 C2
A7
DQU2
DQU3
VSSQ_4
VSSQ_5
E2
E8
C2
A7
DQU2
DQU3
VSSQ_4
VSSQ_5
E2
E8
C2
DQU2
DQU3
VSSQ_4
VSSQ_5
E2 C2
DQU2
DQU3
VSSQ_4
VSSQ_5
E2
M1_DDR_DQ24 DQU0 VSSQ_2 DQU7 VSSQ_9 DQU7 VSSQ_9 DQU7 VSSQ_9 DQU7 VSSQ_9
C414 C417 C535
C3 D1 A2
DQU4
DQU5
VSSQ_6
VSSQ_7
F9 A2
DQU4
DQU5
VSSQ_6
VSSQ_7
F9
A7
A2
DQU4
DQU5
VSSQ_6
VSSQ_7
E8
F9
A7
A2
DQU4
DQU5
VSSQ_6
VSSQ_7
E8
F9 C3 D1
M1_DDR_DQ9 DQU1 VSSQ_3 B8
A3
DQU6 VSSQ_8
G1
G9
B8
A3
DQU6 VSSQ_8
G1
G9
B8
A3
DQU6 VSSQ_8
G1
G9
B8
A3
DQU6 VSSQ_8
G1
G9 M1_DDR_DQ25 DQU1 VSSQ_3 10uF 10uF 10uF
C8 D8 DQU7 VSSQ_9 DQU7 VSSQ_9 DQU7 VSSQ_9 DQU7 VSSQ_9
C8 D8 10V 10V 10V
M1_DDR_DQ10 DQU2 VSSQ_4 M1_DDR_DQ26 DQU2 VSSQ_4 C543
1%
1/16W
10K
R444
C2 E2 C2 E2
M1_DDR_DQ11 DQU3 VSSQ_5 M1_DDR_DQ27 DQU3 VSSQ_5 0.1uF
A7 E8 A7 E8 16V
M1_DDR_DQ12 DQU4 VSSQ_6 M1_DDR_DQ28 DQU4 VSSQ_6
A2 F9 A2 F9
M1_DDR_DQ13 DQU5 VSSQ_7 M1_DDR_DQ29 DQU5 VSSQ_7
B8 G1 B8 G1
M1_DDR_DQ14 DQU6 VSSQ_8 M1_DDR_DQ30 DQU6 VSSQ_8
A3 G9 A3 G9
M1_DDR_DQ15 DQU7 VSSQ_9 M1_DDR_DQ31 DQU7 VSSQ_9
+1.5V_Bypass Cap +1.5V_Bypass Cap
Close to DDR Power Pin Close to DDR Power Pin
AVDD_DDR
AVDD_DDR
0.1uF
0.1uF
0.1uF
0.1uF
0.1uF
0.1uF
C475
C480
C476
C444
C445
C446
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. BSD-15Y-LM14A-004_00-HD
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS 2014-12-30
LM14A
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. LM14A DDR 04
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
COMPENSATION_DONE_1
OLED Clock for MSD808KWD
DPC_CTRL
+3.3V_NORMAL
MAIN Clock(24Mhz)
Jtag I/F
X-TAL_1
12V_ON 5pF
GND_1
XIN_MAIN
C600 For Main C614
R612 JTAG
R614 JTAG
R616 JTAG
0.1uF
2
1
R635
JTAG
24MHz
X600
1M
1K
1K
1K
SW600
JS2235S P600
3
4
12505WS-10A00
X-TAL_2
GND_2
JTAG
1
5pF
TRST_N0 XOUT_MAIN
TDI0 1 6 TDO0
2
C615
R602 R604 TDI0
0 0
3
OPT OPT TDO0
TDI0_1 2 5 TDO0_1 System Clock for Analog block(24Mhz)
4
R603 JTAG R605 TMS0
0 0
OPT OPT 5
TCK0
3 4
6
SOC_RESET
7
JTAG
1K
R609
8
9
10
11
IC100
LGE5332(LM14A) IC100
LGE5332(LM14A)
R624 33 0.047uF C620
T2 AF6 SC_R
D0-_HDMI1 A_RX0N LINEIN_L0 COMP1/AV1/DVI_L_IN AA2 B1
T3 AE6 2.2uF C601 RIN0P TN EPHY_TDN
D0+_HDMI1 A_RX0P LINEIN_R0 COMP1/AV1/DVI_R_IN R625 68 0.047uF C621 AA1 C1
U1 AF2 2.2uF C602 GIN0M TP EPHY_TDP
D1-_HDMI1 A_RX1N LINEIN_L1 SC_L_IN Y3 A2
V2 AF1 2.2uF C603 R626 33 C622 GIN0P RN EPHY_RDN
D1+_HDMI1 A_RX1P LINEIN_R1 SC_R_IN 0.047uF B2
V3 AG5 2.2uF C604 SC_G
D2-_HDMI1 RP EPHY_RDP
A_RX2N LINEIN_L2 Y1
W2 AG4 BIN0P
D2+_HDMI1 A_RX2P LINEIN_R2 R628 33 0.047uF C624
R1 SC_B
CK-_HDMI1 A_RXCN AA6
R2 SC_ID HSYNC0
CK+_HDMI1 A_RXCP AA5 D4
R6 SC_FB VSYNC0 GPIO19/[LED0]/GPIO74 I2C_SCL4
DDC_SCL_1 DDCDA_CK/GPIO38 T6
T5 AF3 GPIO20/[LED1]/GPIO75 I2C_SDA4
HDMI 1.4b &2.0 DDC_SDA_1 DDCDA_DA/GPIO39 MICCM0
MHL OPT Y2 AG1
HDMI_HPD_1 HOTPLUGA MICIN0 R630 33 0.047uF C627 AA3
V6 AH2 COMP1_Pr 0.047uF RIN1P
CEC0/GPIO5 LINEOUT_L2 SCART_Lout R631 68 C628 AC1
URSA_RESET_SoC U4 AH3
5V_DET_HDMI_1 SCART_Rout R632 33 0.047uF C629 GIN1M
HOTPLUGA_HDMI20_5V/GPIO34 LINEOUT_R2 COMP1_Y AC2
GIN1P
L1 AF4
D0-_HDMI2 B_RX0N EARPHONE_OUTL HP_LOUT R634 33 0.047uF C631 AB2
M2 AF5 COMP1_Pb BIN1P
D0+_HDMI2 B_RX0P EARPHONE_OUTR HP_ROUT 1000pF C632 AB3
M3 SOGIN1
D1-_HDMI2 B_RX1N C605 1uF
N2 P3
D1+_HDMI2 B_RX1P ARC0/GPIO6 HDMI_ARC
P2
D2-_HDMI2 B_RX2N AD3 D5
P1 RIN2P RESET SOC_RESET
D2+_HDMI2 B_RX2P AD2
K2 AG3 GIN2M
CK-_HDMI2 B_RXCN VAG AD1 AM4
K3 AG2 C606 L600 GIN2P XTAL_IN XIN_MAIN
CK+_HDMI2 B_RXCP AVSS_VRM_ADC 1uF AK4
L4 10uF PZ1608U121-2R0TF
C609 XTAL_OUT XOUT_MAIN
DDC_SCL_2 DDCDB_CK/GPIO40 10V AC3
L5 BIN2P
DDC_SDA_2 DDCDB_DA/GPIO41 F5
M4 IRIN/GPIO4 BIT11
HDMI_HPD_2 HOTPLUGB/GPIO31
M5 D8
5V_DET_HDMI_2 HOTPLUGB_HDMI20_5V/GPIO35 I2S_IN_BCK/GPIO94 TRST_N0
D6 JTAG 0 R606
47K
+3.3V_NORMAL
JTAG
R615
I2S_IN_SD/GPIO95 TCK0 A4
D2 C5 JTAG 1K R608 DM_P0 WIFI_DM
C_RX0N I2S_IN_WS/GPIO93 B4
D3 R610 DP_P0 WIFI_DP
C_RX0P 22 C4
E2 G6 R619 68 DM_P1
C_RX1N I2S_OUT_BCK/GPIO100 AUD_SCK C613 0.047uF AD6 B3
E3 E6 R611 VCOM DP_P1
C_RX1P I2S_OUT_MCK/GPIO99 22 AL6
F2 F6 R618 DM_P2 USB_DM3
C_RX2N I2S_OUT_WS/GPIO98 AUD_LRCK R620 33 C616 0.047uF AC6 AK6
F1 E8 22 TU_CVBS USB_DP3
AUD_LRCH CVBS0 DP_P2 AC-coupling CAP
C_RX2P I2S_OUT_SD/GPIO101 R621 33 C617 0.047uF AC5 AM14 C633 0.1uF
C3 F9 AV1_CVBS_IN CVBS1 SSUSB_TXP SSUSB_TXP
C_RXCN I2S_OUT_SD1/GPIO102 BIT10 R622 33 C618 0.047uF AB6 AL14 C634 0.1uF Place near by MST
D1 E7 C607 SC_CVBS_IN CVBS2 SSUSB_TXN SSUSB_TXN
C_RXCP I2S_OUT_SD2/GPIO103 DPC_CTRL AM13
H6 F7 22pF DM_PSS USB_DM1
BIT6 DDCDC_CK/GPIO42 I2S_OUT_SD3/GPIO104 12V_ON AK13
H5 DP_PSS USB_DP1
BIT7 DDCDC_DA/GPIO43 C608 C611 C612 AK12
K6 AG7 0 R644 SSUSB_RXP
BIT8 MHL_DET_LM15 22pF 22pF 1000pF SSUSB_RXP
HOTPLUGC/GPIO32 GPIO_PM[14]/GPIO24 50V AL13
J6 AH6 OPT SSUSB_RXN SSUSB_RXN
BIT9 HOTPLUGC_HDMI20_5V/GPIO36 GPIO_PM[15]/GPIO25 COMPENSATION_DONE_1 AK9
AH5 SSUSB_TXP1
GPIO_PM[16]/GPIO26 /MHL_OCP AL10
G2 SSUSB_TXN1
D0-_HDMI3 D_RX0N AM10
G3 DM_PSS1 USB_DM2
D0+_HDMI3 D_RX0P AC4 AK10
H2 DTV/MNT_V_OUT CVBS_OUT1 DP_PSS1 USB_DP2
D1-_HDMI3 D_RX1N JTAG AM11
H3 SSUSB_RXP1
D1+_HDMI3 D_RX1P R613 AL11
J2 0 SSUSB_RXN1
D2-_HDMI3 D_RX2N
J1 TDO0_1
D2+_HDMI3 D_RX2P
F3
CK-_HDMI3 D_RXCN
G1
CK+_HDMI3 D_RXCP
J4
DDC_SCL_3 DDCDD_CK/GPIO44
K5
DDC_SDA_3 DDCDD_DA/GPIO45
H4
HDMI_HPD_3 HOTPLUGD/GPIO33
J5
5V_DET_HDMI_3 HOTPLUGD_HDMI20_5V/GPIO37
R600 JTAG
0
TMS0 B5
SPDIF_IN/GPIO96
A5
SPDIF_OUT SPDIF_OUT/GPIO97
JTAG
R601
0
TDI0_1
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-006_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A 2015-01-08
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. MAIN4_EXT_IN/OUTPUT 06
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
IC100
LGE5332(LM14A)
A15 T23
GND_1 GND_171
A18 T24
GND_2 GND_172
A21 T25
GND_3 GND_173
A24 T26
GND_4 GND_174
A27 U2
GND_5 GND_175
A30 U3
GND_6 GND_176
B10 U8
GND_7 GND_177
B32 U9
GND_8 GND_178
C2 U10
GND_9 GND_179
C13 U14
GND_10 GND_180
C32 U15
GND_11 GND_181
D18 U16
GND_12 GND_182
D21 U17
GND_13 GND_183
D25 U18
GND_14 GND_184
D28 U20
GND_15 GND_185
D32 U26
GND_16 GND_186
E30 V1
GND_17 GND_187
E31 V8
GND_18 GND_188
E32 V9
GND_19 GND_189
F22 V10
GND_20 GND_190
F24 V11
GND_21 GND_191
F25 V12
GND_22 GND_192
F26 V13
GND_23 GND_193
F27 V14
GND_24 GND_194
F28 V15
GND_25 GND_195
F29 V16
GND_26 GND_196
F30 V20
GND_27 GND_197
F31 V21
GND_28 GND_198
G11 V22
GND_29 GND_199
G12 V26
GND_30 GND_200
G13 V29
GND_31 GND_201
G14 V32
GND_32 GND_202
G15 W3
GND_33 GND_203
G16 W8
GND_34 GND_204
G17 W9
GND_35 GND_205
G18 W10
GND_36 GND_206
G19 W11
GND_37 GND_207
G20 W12
GND_38 GND_208
G21 W13
GND_39 GND_209
G23 W14
GND_40 GND_210
G24 W15
GND_41 GND_211
G25 W16
GND_42 GND_212
G26 W17
GND_43 GND_213
G27 W18
GND_44 GND_214
G28 W22
GND_45 GND_215
H8 W26
GND_46 GND_216
H9 Y8
GND_47 GND_217
H10 Y9
GND_48 GND_218
H11 Y10
GND_49 GND_219
H12 Y11
GND_50 GND_220
H13 Y12
GND_51 GND_221
H14 Y13
GND_52 GND_222
H15 Y14
GND_53 GND_223
H17 Y15
GND_54 GND_224
H18 Y16
GND_55 GND_225
H19 Y17
GND_56 GND_226
H20 Y18
GND_57 GND_227
H21 Y22
GND_58 GND_228
H22 Y26
GND_59 GND_229
H23 AA9
GND_60 GND_230
H24 AA10
GND_61 GND_231
H25 AA11
GND_62 GND_232
H26 AA12
GND_63 GND_233
H27 AA14
GND_64 GND_234
H30 AA15
GND_65 GND_235
J3 AA16
GND_66 GND_236
J7 AA17
GND_67 GND_237
J8 AA18
GND_68 GND_238
J14 AA21
GND_69 GND_239
J15 AA26
GND_70 GND_240
J16 AA29
GND_71 GND_241
J22 AA32
GND_72 GND_242
J24 AB9
GND_73 GND_243
J25 AB10
GND_74 GND_244
J26 AB11
GND_75 GND_245
J27 AB12
GND_76 GND_246
K7 AB13
GND_77 GND_247
K8 AB14
GND_78 GND_248
K14 AB16
GND_79 GND_249
K15 AB17
GND_80 GND_250
K25 AB18
GND_81 GND_251
K26 AB19
GND_82 GND_252
L2 AB20
GND_83 GND_253
L3 AB21
GND_84 GND_254
L8 AB22
GND_85 GND_255
L14 AB23
GND_86 GND_256
L15 AB26
GND_87 GND_257
L16 AB30
GND_88 GND_258
L25 AC7
GND_89 GND_259
L26 AC8
GND_90 GND_260
M1 AC9
GND_91 GND_261
M8 AC10
GND_92 GND_262
M9 AC11
GND_93 GND_263
M10 AC12
GND_94 GND_264
M11 AC13
GND_95 GND_265
M12 AC16
GND_96 GND_266
M13 AC23
GND_97 GND_267
M14 AC25
GND_98 GND_268
M15 AC26
GND_99 GND_269
M16 AC27
GND_100 GND_270
M17 AC28
GND_101 GND_271
M18 AD8
GND_102 GND_272
M19 AD9
GND_103 GND_273
M20 AD10
GND_104 GND_274
M25 AD11
GND_105 GND_275
M26 AD12
GND_106 GND_276
M29 AD13
GND_107 GND_277
M32 AD14
GND_108 GND_278
N3 AD15
GND_109 GND_279
N7 AD16
GND_110 GND_280
N8 AD24
GND_111 GND_281
N9 AD25
GND_112 GND_282
N10 AD26
GND_113 GND_283
N11 AD27
GND_114 GND_284
N13 AD28
GND_115 GND_285
N14 AE3
GND_116 GND_286
N17 AE8
GND_117 GND_287
N18 AE9
GND_118 GND_288
N19 AE10
GND_119 GND_289
N20 AE11
GND_120 GND_290
N24 AE12
GND_121 GND_291
N25 AE13
GND_122 GND_292
N26 AE14
GND_123 GND_293
P8 AE17
GND_124 GND_294
P9 AE18
GND_125 GND_295
P10 AE23
GND_126 GND_296
P11 AE24
GND_127 GND_297
P12 AE25
GND_128 GND_298
P13 AE26
GND_129 GND_299
P14 AE27
GND_130 GND_300
P15 AE28
GND_131 GND_301
P16 AE29
GND_132 GND_302
P17 AF9
GND_133 GND_303
P18 AF10
GND_134 GND_304
P19 AF17
GND_135 GND_305
P20 AF18
GND_136 GND_306
P24 AF19
GND_137 GND_307
P25 AF20
GND_138 GND_308
P26 AF21
GND_139 GND_309
R3 AF22
GND_140 GND_310
R8 AF23
GND_141 GND_311
R9 AF24
GND_142 GND_312
R10 AF25
GND_143 GND_313
R14 AF26
GND_144 GND_314
R15 AF27
GND_145 GND_315
R16 AF28
GND_146 GND_316
R17 AF29
GND_147 GND_317
R18 AF30
GND_148 GND_318
R19 AG22
GND_149 GND_319
R20 AG23
GND_150 GND_320
R21 AG30
GND_151 GND_321
R22 AH21
GND_152 GND_322
R23 AH22
GND_153 GND_323
R24 AJ3
GND_154 GND_324
R25 AJ22
GND_155 GND_325
R26 AJ30
GND_156 GND_326
R29 AK5
GND_157 GND_327
R32 AK11
GND_158 GND_328
T8 AK14
GND_159 GND_329
T9 AL1
GND_160 GND_330
T10 AL3
GND_161 GND_331
T14 AL4
GND_162 GND_332
T15 AL9
GND_163 GND_333
T16 AL12
GND_164 GND_334
T17 AL23
GND_165 GND_335
T18 AL27
GND_166 GND_336
T19 AM25
GND_167 GND_337
T20 AM29
GND_168 GND_338
T21 AM31
GND_169 GND_339
T22
GND_170
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. BSD-15Y-LM14A-007_00-HD
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A 2014-11-13
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. LM14A_GND 07
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
CI Region * Option name of this page : CI_SLOT
(because of Hong Kong)
CI SLOT
+5V_CI_ON
CI_DATA[0-7]
CI TS INPUT
CI_SLOT
FE_DEMOD1_TS_DATA[0-7]
+5V_NORMAL CI_SLOT AR903 33
C902 FE_DEMOD1_TS_DATA[7]
10uF CI_MDI[7] FE_DEMOD1_TS_DATA[6]
CI_SLOT 10V CI_MDI[6]
@netLa
FE_DEMOD1_TS_DATA[5]
R906
CI_MDI[5] FE_DEMOD1_TS_DATA[4]
10K
CI_SLOT CI_MDI[4]
/CI_CD1 JK900
10125901-115LF CI_SLOT
CI_SLOT AR902 33
R912 FE_DEMOD1_TS_DATA[3]
35 1 CI_MDI[3]
CI_SLOT 100 CI_DATA[3] FE_DEMOD1_TS_DATA[2]
36 2 CI_MDI[2]
AR901 CI_DATA[4] FE_DEMOD1_TS_DATA[1]
33 37 3 CI_MDI[1]
CI_DATA[5] R916 FE_DEMOD1_TS_DATA[0]
TPI_DATA[4] 38 4 10K CI_MDI[0]
CI_DATA[6]
TPI_DATA[5] 39 5
CI_DATA[7]
TPI_DATA[6] 40 6 FE_DEMOD1_TS_DATA[0-7]
TPI_DATA[7] 41 7 R914 47 CI_SLOT R918 33 CI_SLOT
CI_ADDR[10] /PCM_CE1 CI_MISTRT FE_DEMOD1_TS_SYNC
42 8 R919 33 CI_SLOT
CI_MIVAL_ERR FE_DEMOD1_TS_VAL
CI_SLOT R908 10K 43 9 R920 100 CI_SLOT
CI_ADDR[11] CI_OE CI_MCLKI FE_DEMOD1_TS_CLK
CI_IORD 44 10 +5V_NORMAL
CI_ADDR[9]
CI_IOWR 45 11
CI_ADDR[8]
46 12 R917
CI_ADDR[13] 10K
CI_MDI[0] 47 13
CI_ADDR[14]
CI_MDI[1] 48 14 CI_SLOT
CI_MDI[2] 49 15 CI_WE
50 16 R915 100
CI_MDI[3] CI_SLOT CAM_IREQ_N
51 17 CI_SLOT
GND
C901
0.1uF
52
53
18
19
C903
0.1uF
C904
0.1uF
CI HOST I/F
CI_MDI[4] CI_SLOT CI_SLOT
GND
CI_MDI[5] 54 20
+5V_NORMAL CI_ADDR[12]
CI_MDI[6] 55 21 CLOSE TO MSTAR
CI_ADDR[7]
R900 56 22 GND
CI_MDI[7] R909 10K CI_ADDR[6] CI_SLOT
10K CI_SLOT 57 23
CI_ADDR[5] AR906
CI_SLOT R901 47 CI_SLOT 58 24
PCM_RESET CI_ADDR[4] 33
R902 47 CI_SLOT 59 25
CAM_WAIT_N CI_ADDR[3] CI_ADDR[0] EB_ADDR[0]
CLOSE TO MSTAR 60 26
REG CI_ADDR[2] CI_ADDR[1] EB_ADDR[1]
R903 33 CI_SLOT 61 27
TPI_CLK CI_ADDR[1] CI_ADDR[2] EB_ADDR[2]
R904 33 CI_SLOT 62 28
TPI_VAL CI_ADDR[3] EB_ADDR[3]
R905 33 CI_SLOT CI_ADDR[0]
TPI_SOP 63 29
CI_DATA[0]
CI_SLOT 64 30
AR900 33 CI_DATA[1]
65 31 CI_ADDR[0-14]
TPI_DATA[0] CI_DATA[2]
66 32 OLED_CI_SLOT CI_SLOT
TPI_DATA[1] 67 33 JK900-*1
AR907
10125901-015LF
TPI_DATA[2] 68 34 35 1
33
TPI_DATA[3] 36 2
37 3 CI_ADDR[4] EB_ADDR[4]
G2 69 G1 38 4
R910 39 5 CI_ADDR[5] EB_ADDR[5]
40 6
100 41 7 CI_ADDR[6] EB_ADDR[6]
/CI_CD2 42 8
CI_SLOT 43 9 CI_ADDR[7] EB_ADDR[7]
+5V_NORMAL GND 44 10
45 11
46
47
12
13
CI_SLOT
CI_SLOT GND 48 14
AR908 33
C900 49 15
50 16
2pF 51 17
CI_ADDR[8] EB_ADDR[8]
R907
50V 52 18
CI_ADDR[9] EB_ADDR[9]
10K GND 53 19
54 20
CI_ADDR[10] EB_ADDR[10]
CLOSE TO MSTAR CI_SLOT
55
56
21
22
CI_ADDR[11] EB_ADDR[11]
57 23
58 24
59 25
60 26
61 27
62 28
CI_SLOT
63 29
CI_MISTRT 64 30
AR909 33
CI_MIVAL_ERR 65 31
CI_ADDR[12] EB_ADDR[12]
66 32
67 33
68 34
CI_ADDR[13] EB_ADDR[13]
CI_MCLKI G2 69 G1 CI_ADDR[14] EB_ADDR[14]
REG CAM_REG_N
CI_SLOT
AR913 33
CI_OE EB_OE_N
CI_WE EB_WE_N
CI_IORD EB_BE_N1
CI DETECT +3.3V_NORMAL
CI_IOWR EB_BE_N0
CI_SLOT
IC900
74LVC1G32GW +3.3V_NORMAL
B 1 5 VCC
/CI_CD2
CI_SLOT
A 2
/CI_CD1 AR904 33
GND 3 4 Y R911 CI_DATA[0] EB_DATA[0]
10K CI_DATA[1] EB_DATA[1]
CI_DATA[2] EB_DATA[2]
OR_GATE_CI_TI OR_GATE_CI_TOSHIBA CI_DATA[3] EB_DATA[3]
IC900-*1 IC900-*2
SN74LVC1G32DCKR TOSHIBA ELECTRONICS KOREA CORPORATION
EB_DATA[0-7]
@netLa
A VCC IN_B VCC
CI_SLOT
1 5 1 5
CAM_CD1_N AR905 33
B IN_A R913 CI_DATA[4] EB_DATA[4]
2 2
47 CI_DATA[5] EB_DATA[5]
GND Y GND OUT_Y
3 4 3 4
CI_DATA[6] EB_DATA[6]
CI_DATA[7] EB_DATA[7]
CI_DATA[0-7]
CI POWER ENABLE CONTROL EB_DATA[0-7]
IC901
+5V_NORMAL
AP2151WG-7 +5V_CI_ON
IN OUT
5 1
C905 CI_SLOT
0.1uF C906
50V GND
2 1uF
CI_SLOT R923
25V
CI_SLOT 10K
R922
100 EN FLG CI_SLOT
PCM_5V_CTL 4 3
R921
10K
CI_SLOT
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-009_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A 2014-11-13
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. PCMCI 9
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
M+ MODULE R2333
33 EBK61012701
1
PWM_TOUT Module_MPLUS & NON_UF84(M+) RESET_IC_DIODES(MAIN)
+12V
IC2307-*1
PWM_TIN
R2324
33
PANEL_POWER TYP 6000mA Power_DET APX803E29
2
+3.5V_ST
2N3906S-RTK
Module_MPLUS & NON_UF84(M+) Q2300-*1 VCC RESET
3
3 2
PWM_DIM 100 MMBT3906(NXP)
KEC_RL_ON_TR(MAIN)
NXP_RL_ON_TR(SUB) L2321 L2322 1
R2304 MLB-201209-0120P-N2 GND EAN61829902
Non_Module_MPLUS & UF84(M+)
0TR390609DC
R2301 PD_20_24V_DIODES
OS MODULE LGE MODULE MLB-201209-0120P-N2 PANEL_VCC
1
10K +12V +3.5V_ST +3.5V_ST IC2308-*1
R2300 SMAW200-H28S5K[MIRROR] SMAW200-H24S5[MIRROR] R2349
Q2300
RL_ON 10K 100K APX803D29
P2301 P2300
C2327 C2331 IC2309
PD_+12V PD_+3.5V
2
C2330 AOS_PANEL_POWER_FET(MAIN) RESET_IC_ROHM(SUB) R2354 RESET 2 3 VCC
10uF 0.1uF 0.01uF
AO4447A
R2335 R2343 10K
EBK61313102 IC2307
3
25V 50V OMEGA SEMICONDUCTOR
2.7K 0 1
+3.3V_NORMAL 16V OPT
OPT 1% 5% BD48K28G GND
S_1 D_4
1 8
C2361 R2314 OPT OPT OPT POWER_DET
0.1uF 1K R2329 C2335 C2367
S_2
2 7
D_3 VDD 3 2 VOUT
C2315
16V 10uF 10uF 1uF
10K S_3
3 6
D_2
1
25V 25V 25V R2359 R2360 C2369 C2350
R2311 100 INV_CTL 2K 2K C2370 PD_+12V 0.1uF
PWR_ON 1 2 INV_CTL G
4 5
D_1
10uF GND
L2301 OPT 0.1uF R2336 16V EAN62945801
+3.5V_ST PDIM#1 PDIM#2 R2313 100 OPT 25V
UBW2012-121F 3 4 PWM_DIM2 16V 1.2K
PWR_DET_MERGE
OPT 1% C2364
3.5V 5 6 GND R2331 0.1uF
R2355
C2302 3.5V 7 8 3.5V NON_DIGITAL_POWER_B/D 1.8K 16V
L2317 IC2309-*1
0.1uF GND 9 10 GND UBW2012-121F C2368 ROHM_PANEL_POWER_FET(SUB)
PD_20_24V not to RESET
0
RRH140P03TB
16V 12V 12V C 10uF R2348
11 12 R2328
EBK61232301
ROHM CO.,LTD. +24V at 8kV ESD
+12V 25V 100K
12V 13 14 12V 10K B Q2321
UBW2012-121F L2307 +24V PANEL_CTL OPT S_1 D_4 C2365
12V GND 2N3904S 1 8
15 16 UBW2012-121F PD_20_24V_ROHM 0.1uF PWR_DET_SEPARATE
GND 24V C2371 KEC_PANEL_CTL_TR
17 18 E
S_2
2 7
D_3
PD_20V PD_24V IC2308 16V
C2304 L2302 10uF C PD_UHD_24V
0.1uF 24V 19 20 24V 10V S_3 D_2 R2340-*2 R2340-*1 R2340 BD48K28G
L2308 C2319 3 6
5.6K 8.2K
50V UBW2012-121F 24V GND or 24V B Q2321-*1 9.1K
21 22 UBW2012-121F 0.1uF G D_1 1% 1% 1% R2356 POWER_DET_1
GND NC or GND 50V MMBT3904(NXP) 4 5
VDD VOUT 0
23 24 NXP_PANEL_CTL_TR 3 2
L2303 OS MODULE L/D_CLK GND
L/D_CLK 25 26 DIGITAL_POWER_B/D E PWR_DET_SEPARATE
PD_20V PD_24V 1
L/D_DI 27 28 L/D_VSYNC L2315 PD_UHD_24V C2351
L/D_DI 25 UBW2012-121F R2341-*1 R2341 GND
R2341-*2 0.1uF
1.6K 1.3K 1.5K 16V 24V-->3.48V
OS MODULE 1% 1% 1% 20V-->3.51V
29 PD_20_24V
Digital Power B/D INCH 24 PIN 22 PIN L/D_VSYNC 12V-->3.58V
.
O 40 ~ 65 NC L2316 +12V ST_3.5V-->3.5V
GND
UBW2012-121F
NON_DIGITAL_POWER_B/D
X 70 ~ 79 GND 24V
C2316 C2317 C2318
10uF 10uF 10uF
16V 16V 16V
’15 UHD POWER +5.0V normal & USB
+12V
1%
R2342150K 1%
DDR +1.5V R2
R2337 16K 1%
C2347 OPT
2200pF C2349 C2352
R2339 16K
+1.5V_DDR
+24V 50V
1%
1/16W
+3.3V - eMMC 100pF 0.047uF
6.8K
R2351
L2309 POWER_ON/OFF2_3 R2344 50V 25V
PZ1608U121-2R0TF 10K
TI_TPS54327_1.5V_DDR_DCDC
C2359 C2362 C2363
+3.3V_NORMAL IC2303-*1
RSET2
RSET1
+3.3V_NORMAL 3.3V_EMMC +1.8V DVDD18_EMMC TPS54327DDAR [EP]GND 22uF 22uF 10uF
[EP]
AGND
RLIM
COMP
C2324 C2357 R1 10V 10V 10V
+3.3V_LED
C2322
FB
SS
0.1uF ROHM_BD9D321_1.5V_DDR_DCDC EN
1 8
VIN L2314
10uF 120-ohm 82pF
THERMAL
1%
1/16W
51K
16V VFB VBST 50V
LD2300
9
R2352
2 7
IC2303
28
27
26
25
24
23
22
L2304 L2305 R2326 VREG5 SW VIN_1 LX_3
PZ1608U121-2R0TF PZ1608U121-2R0TF BD9D321EFJ [EP] 3 6 1 21 L2313
10K THERMAL 4.7uH
SS GND
4 5 VIN_2 2 29 20 LX_2
+3.3V_LED
R2315
DCDC_DIODE_0DTKE00018A(KEC)
EN VIN
3.3K
C2308 C2307 1 8 C2340 C2341 C2344 VIN_3 3 19 LX_1 C2355
0DTKE00018A
0.1uF
C2309
0.1uF
C2312
16V 10uF 10uF 0.1uF
IC2305
0.047uF +5V_NORMAL
THERMAL
22uF 22uF 50V PGND_1
ZD2304
16V 16V 0.1uF 35V 35V 4 18 BST 25V
10V 10V R2320 R2321 FB BOOT C2336 SN1302001(TPS65286RHDR)
9
2 7 OPT
PGND_2 5 17 SW_IN2
R1 18K 4.7K L2312 C2360
R2350
1/16W
1% 1%
100K
100K
R2353
2.2uH PGND_3 SW_IN1
1/16W
VREG SW 6 16 1uF
5%
5%
DCDC_DIODE_0DR050008AA(SEMTECH)
1.0V_DCDC_TI
C2325
100pF
50V
3 6
PS064T-2R2MS
DCDC_DIODE
V7V 7 6A 15 NFAULT1
10V 0DR050008AA
ZD2304-*1
/USB_OCD2
SS GND
25V
1uF
C2343
10
11
12
13
14
4
3A 5 C2339
8
9
C2332-*1 C2338 ZD2302
3300pF 22uF 22uF 2.5V
R2322 10V
MODE/SYNC
EN
SW_OUT2
SW_OUT1
SW_EN2
SW_EN1
NFAULT2
50V 22K 10V
C2328 C2332
1% 1uF 2200pF
+1.8V - LM15U, eMMC 10V 50V
1.0V_DCDC_ROHM
Switching freq: 700K R2
& Vx1 pull-up Vout=0.6*(1+R1/R2)
/USB_OCD3
C2346
+5V_USB_3
+5V_USB_2
Vout=0.765*(1+R1/R2)=1.554V
USB_CTL3
USB_CTL2
R2338
10K
0.0068uF
POWER_ON/OFF1
50V
5.1V:R1-51K, R2-6.8K
+1.8V
+3.3V_NORMAL
IC2301
AZ1117EH-ADJTRG1
+2.5V
IN OUT TU_JP
TU_JP +2.5V_Normal
DCDC_DIODE
ADJ/GND
R2309 IC2300
1 R2312
ZD2303
TJ4220GDP-ADJ [EP]GND
1%
1/16W
75
2.5V
R2307
POWER_ON/OFF2_3
10K TU_JP TU_JP
R2316
C2310 C2311 C2321 22K
R2
1 8
10uF 10uF 0.1uF 1%
1%
1/16W
33
THERMAL
+3.3V_NORMAL NC_1 GND
R2308
10V 10V
TU_JP
9
2 7 R2317
ADJ/SENSE 47K R1
EN2
1%
3 6
TU_JP
C2320
VIN3 VOUT LM15 Power SEQUENCE
0.1uF
16V
4 2A 5
NC4 NC_2 TU_JP
TU_JP
EAN62206201 C2323
ZD2301
POWER_ON/OFF1(5V)
10uF
10V
0DR050008AA
5V
0DTKE00018A
MAX A TU_JP_DCDC_DIODE(KEC)
+3.3V_NORMAL ZD2301-*1 POWER_ON/OFF2_1(3.3V)
+12V
+3.3V_NORMAL
Vout=0.6*(1+R1/R2)
POWER_ON/OFF2_3(1.5V, 2.5V)
L2300
BLM18PG121SN1D
POWER_ON/OFF2_4(1.1V)
DCDC_DIODE_0DTKE00018A(KEC)
Placed on SMD-TOP
C2300 C2301 C2303
+24V AUDIO AMP
10uF 10uF 0.1uF
16V 16V 16V
0DTKE00018A
OPT IC2302
ZD2300
TPS54427DDA [EP]GND
R2303 +24V +24V_AMP
10K EN VIN
1 8
16V L2310
THERMAL
POWER_ON/OFF2_1 0.1uF
1% C2314 UBW2012-121F
VFB VBST
9
2 7
PS064T-2R2MS
R2302 L2306
R1 2.2uH
51K VREG5 SW
3 6
C2305
100pF
50V
SS GND
R2305
4
4A 5 C2326
22uF
10V
C2329
22uF
10V
C2333
100uF
C2334
10uF
10V
15K C2306 C2313
1uF 0.015uF
10V 50V
1% DCDC_DIODE_0DR050008AA(SEMTECH)
Switching freq: 700K R2 0DR050008AA
ZD2300-*1
Vout=0.765*(1+R1/R2)
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-0023_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A(UF77) 2015-01-08
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. LM14A_PWR_1_UHD 23
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
MAX 3A
LM14A CPU +1.1V_VDDC_CPU LM14A CORE
+12V
L2502
PZ1608U121-2R0TF
+1.1V_VDDC
Placed on SMD-TOP +12V
DCDC_DIODE_0DTKE00018A(KEC)
UF64/68 UF64/68 UF77/83/84 UF77/83/84
C2510-*1 C2512-*1 C2510 C2512 C2513
10uF 10uF 10uF 0.1uF
10uF 16V 16V 16V R1 IC2502
IC2501 L2501
25V BD86106EFJ
R2521
25V OPT C2514 L2500
0DTKE00018A
TPS54427DDA [EP]GND 2uH
5.6K
EAN62653301 [EP]
100pF PZ1608U121-2R0TF
10K
ZD2501
1%
50V R2524 EN
1 8
VIN 16V PGND SW_2
0.1uF 1 8
THERMAL
C2517
THERMAL
DCDC_DIODE_0DTKE00018A(KEC)
POWER_ON/OFF2_4 VFB VBST Placed on SMD-TOP
9
2 7 L2503 VIN SW_1
OPT OPT OPT
9
2 7
2.2uH R2510
VREG5 SW OPT C2504 C2505 C2506 C2507 C2508 C2509 15K R1
R2 3 6
C2500 C2501 C2502
AGND
3 6
EN
0.0068uF 10uF 10uF 100uF 10uF 10uF 1%
PS064T-2R2MS R2500 50V
R2522
SS GND 10uF 10uF 0.1uF 6.8K 10V 10V 10V 10V C2511
4
4A
5 FB
4
6A 5
COMP
47pF
11K
R2519-*1 25V 25V 25V 50V
1%
C2518 C2519
0DTKE00018A
27K 22uF
22uF
ZD2500
10V 10V
R2523
CPU_VID_LM14_A0
1/16W
10K
POWER_ON/OFF2_4
1%
1%
R2-1.13V
R2511
1/16W
R2501
CPU_VID_LM14_A1
R2515
R2519
1/16W
56K
C2503 10K
1%
LM14A_A0_ONLY
22K
75K
0.1uF
1/16W
R2504
1%
1%
KEC_CPU_CORE_VID_FET(MAIN)
KEC_CPU_CORE_VID_FET(MAIN)
DCDC_DIODE_0DR050008AA(SEMTECH) 16V 15K
R2512
1/16W
0DR050008AA
6.2K
+3.3V_NORMAL +3.3V_NORMAL C2515 C2516 1%
ZD2501-*1 R2
KEC_CPU_CORE_VID_FET
R2516
1%
R2520
1uF 2200pF
1.6K
75K
10V 50V
1%
1%
LM14A_A0_ONLY
1/16W
+3.3V_NORMAL R2505
56K
R2513 D R2517 D 1%
2N7002KA
2N7002KA
10K 10K LM14A_A0_ONLY
R2502 D
R2514 R2518
2N7002KA
Q2502
Q2503
G G 10K DCDC_DIODE_0DR050008AA(SEMTECH)
CPU_VID0 CPU_VID1 0DR050008AA
S S R2503
Q2500
0 5% 0 5% G ZD2500-*1
CORE_VID0
D D 0 5% S
Q2502-*1 Q2503-*1 LM14A_A0_ONLY
G G
2N7002K 2N7002K
S S LM14_A1
DIODEDS_CPU_CORE_VID_FET(SUB) DIODEDS_CPU_CORE_VID_FET(SUB) R2-1 R2-2 LM14_A0 LM14_A1 LM14_A0
V_out V_out V_out V_out
Delete this part when LM14A0 used all.
Boot High High 1.06 1.163
Boot 0.98 1.15
Kernel High Low 1.01 1.013 D
Kernel Q2500-*1
0.98 0.98 G
Kernel Low Low 0.96 0.969 2N7002K
S
DIODEDS_CPU_CORE_VID_FET
LM14A1 CORE_VID1 NOT USE.
Vout=0.765*(1+R1/R2) Vout=0.8*(1+R1/R2) CORE_VID1
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-025_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A 2015-01-21
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. LM15U_PWR_2_ALL 25
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Renesas MICOM
For Debug
+3.5V_ST
MICOM_DEBUG
R3016 1K
R3014 10K
SEIKO EPSON CORPORATION
MICOM_DEBUG Don’t remove R3016,
P3000
12507WS-04L
not making float P40 C3002 C3003
18pF 15pF
50V 50V LOGO_LIGHT
MICOM_DEBUG
1
LOGO_LIGHT
MICOM_RESET
2
MICOM_DEBUG EAW30067102
X3000
WIFI_EN
3
4
MICOM_RESET 32.768KHz +3.5V_ST
5
HDMI_WAUP:HDMI_INIT R3028
4.7M
MHL_DET_LM15 OPT
0 R3037
MHL_DET_LM15
10K
POWER_DET_1
R3032
10K
R3030
MICOM_RESET_SW
GND
MICOM_RESET_22OHM
SW3000
JTP-1127WEM
2 1
33
R3031
1%
1/16W
270K
OPT
C3004
P124/XT2/EXCLKS
0.47uF
0.1uF
+3.5V_ST 4 3
16V
R3029
P122/X2/EXCLK
P41/TI07/TO07
C3001
P137/INTP0
P120/ANI19
P40/TOOL0
P123/XT1
C3000
P121/X1
0.1uF MICOM_RESET_33OHM
R3029-*1 33
RESET
+3.5V_ST
REGC
VDD
VSS
R3021-*1
LCD
OLED
R3021
LM14A Power SEQUENCE
1K
10K 5%
1/16W
48
47
46
45
44
43
42
41
40
39
38
37
POWER_ON/OFF1(5V) P60/SCLA0 1 36 P140/PCLBUZ0/INTP6 RL_ON
SCART_MUTE
I2C_SCL_MICOM
P61/SDAA0 2 35 P00/TI00/TXD1 POWER_ON/OFF2_4
I2C_SDA_MICOM SCART_MUTE
P62 3 34 P01/TO00/RXD1
3D&L_DIM_EN POWER_ON/OFF2_4
POWER_ON/OFF2_1(3.3V)
P63 4 33 P130
PANEL_CTL
P31/TI03/TO03/INTP4 IC3000 P20/ANI0/AVREFP
POWER_ON/OFF2_1
WOL/WIFI_POWER_ON 5 32 KEY2
POWER_ON/OFF2_3(1.5V)
IR
P75/KR5/INTP9/SCK01/SCL01 6 R5F100GEAFB#30 31 P21/ANI1/AVREFM
KEY1
R3000
100 P74/KR4/INTP8/SI01/SDA01 7 30 P22/ANI2
HDMI_CEC_MICOM
POWER_ON/OFF2_4(1.1V) P73/KR3/SO01 8 29 P23/ANI3
MODEL1_OPT_3
POWER_ON/OFF2_3
P72/KR2/SO21 9 28 P24/ANI4
MODEL1_OPT_0
P71/KR1/SI21/SDA21 10 27 P25/ANI5
SOC_RESET EYE_SDA SIDE_HP_MUTE
P70/KR0/SCK21/SCL21 11 26 P26/ANI6
EYE_SCL MHL_EN MHL_EN
P30/INTP3/RTC1HZ/SCK11/SCL11 12 25 P27/ANI7
MODEL1_OPT_1
13
14
15
16
17
18
19
20
21
22
23
24
AR3000
3.3K
EYE_Q
+3.5V_ST
P50/INTP1/SI11/SDA11
P51/INTP2/SO11
P17/TI02/TO02
P16/TI01/TO01/INTP5
P15/PCLBUZ1/SCK20/SCL20
P14/RXD2/SI20/SDA20
P13/TXD2/SO20
P12/SO00/TXD0/TOOLTXD
P11/SI00/RXD0/TOOLRXD/SDA00
P10/SCK00/SCL00
P146
P147/ANI18
MICOM MODEL OPTION
+3.5V_ST
MICOM MODEL OPTION
10K
10K
10K
MICOM_OLED
MICOM_LOGO
MICOM_H15
R3006
R3008
R3013
0 1
MODEL_OPT_0 NON LOGO LOGO
MODEL1_OPT_0 MODEL_OPT_1 LCD OLED
MODEL1_OPT_1
MODEL1_OPT_3
MODEL_OPT_3 LM15U/LM14A H15
SOC_RX
POWER_DET
EDID_WP
URSA_RESET_MICOM
URSA_RESET_MICOM
AMP_MUTE
WOL_WAKE_UP
INV_CTL
MICOM_LM15U/LM14A
POWER_ON/OFF1
WOL_CTL
SOC_TX
LED_R
MICOM_NON_LOGO
10K
10K
10K
MICOM_LCD
R3009
R3012
R3004
For CEC
R3015
10K +3.5V_ST
CEC_DIODE(SUB)
MICOM_LM14A
EAH62792701
LED_R
SOC_RESET
D3000-*1
30V
BAT54_TSC
R3033 R3034
27K 120K
LM14A : Active high reset
G
D3000
BAT54_SUZHO
CEC_REMOTE HDMI_CEC_MICOM
D
S
CEC_DIODE(MAIN)
EAH61433701 Q3001
RUE003N02
G
ROHM_CEC_FET(MAIN) Q3001-*1
EBK61731401 SI1012CR-T1-GE3
S
D
VISHAY_CEC_FET(SUB)
EBK61731301
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. BSD-15Y-LM14A-030_00-HD
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A 2015-01-21
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. MICOM 30
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
5V_HDMI_3
5V_DET_HDMI_3
R3309
1.8K
ESD_HDMI
R3312
R3302
VA3300
3.3K
EAG63530103 EAG63530103 EAG63530103
1K R3337 R3305 HDMI_JACK_CNPLUS(MAIN) HDMI_JACK_CNPLUS(MAIN) HDMI_JACK_CNPLUS(MAIN)
33 JK3300-*1 JK3301-*1 JK3302-*1
4.7K 5501-56219 5501-56219 5501-56219
C OPT NON_HDMI_EXT_EDID
Q3300 TMDS_DATA2+
B 1K 1 TMDS_DATA2+ TMDS_DATA2+
1 1
2N3904S HDMI_HPD_3 TMDS_DATA2_SHIELD
2 TMDS_DATA2_SHIELD
2 TMDS_DATA2_SHIELD
BODY_SHIELD R3300 R3303 TMDS_DATA2- TMDS_DATA2-
2
3 3 TMDS_DATA2-
3
100K R3339 TMDS_DATA1+
4 TMDS_DATA1+ TMDS_DATA1+
E 4.7K
4 4
20 TMDS_DATA1_SHIELD
5 TMDS_DATA1_SHIELD TMDS_DATA1_SHIELD
KEC_HDMI_HPD_3_TR HDMI_EXT_EDID TMDS_DATA1-
5 5
ESD_HDMI
6 TMDS_DATA1- TMDS_DATA1-
VA3302
6
C TMDS_DATA0+
7 TMDS_DATA0+ TMDS_DATA0+
6
7
19 AR3309 TMDS_DATA0_SHIELD TMDS_DATA0_SHIELD
7
HOT_PLUG_DETECT Q3300-*1 B 33 8 8 TMDS_DATA0_SHIELD
8
TMDS_DATA0- TMDS_DATA0-
18 MMBT3904(NXP) DDC_SDA_3 9 9 TMDS_DATA0-
9 5V_HDMI_1 5V_DET_HDMI_1
TMDS_CLK+
VDD[+5V] NXP_HDMI_HPD_3_TR 10 TMDS_CLK+
10 TMDS_CLK+
10
TMDS_CLK_SHIELD
E DDC_SCL_3 11 TMDS_CLK_SHIELD
11 TMDS_CLK_SHIELD
R3324
17 TMDS_CLK- TMDS_CLK-
11
DDC/CEC_GND 12 12 TMDS_CLK-
12
CEC CEC OPT 1.8K
ESD_HDMI
13 13 CEC
16 13
R3335
R3316
VA3308
SDA VA3304 VA3306 RESERVED
14 RESERVED RESERVED OPT
3.3K
14 14
1K R3336 R3319
ESD_HDMI ESD_HDMI SCL
15 SCL
15 SCL 33
15 SDA SDA
15
4.7K
SCL 16 16 SDA
16
DDC/CEC_GND DDC/CEC_GND
17 17 DDC/CEC_GND
14 VDD[+5V] VDD[+5V]
17
RESERVED 18 18 VDD[+5V]
18
OPT C OPT
HOT_PLUG_DETECT
CEC_REMOTE 19 HOT_PLUG_DETECT
19 HOT_PLUG_DETECT BODY_SHIELD Q3305 R3318
13 19
R3315
CEC AR3300 20 100K 2N3904S B 1K
20 20 HDMI_HPD_1
12 5.1 BODY_SHIELD BODY_SHIELD 20
BODY_SHIELD
TMDS_CLK- 1/16W OPT
ESD_HDMI
VA3312
E
11 CK-_HDMI3
TMDS_CLK_SHIELD 19
CK+_HDMI3 HOT_PLUG_DETECT
10
TMDS_CLK+ D0-_HDMI3 18
VDD[+5V]
9 D0+_HDMI3 AR3311
TMDS_DATA0- 17 33
DDC/CEC_GND
8 DDC_SDA_1
TMDS_DATA0_SHIELD 16
SDA DDC_SCL_1
7
TMDS_DATA0+ 15
SCL VA3311
6 ESD_HDMI
TMDS_DATA1- 14
RESERVED VA3309
5 CEC_REMOTE ESD_HDMI
TMDS_DATA1_SHIELD 13
CEC AR3307
4 AR3301
TMDS_DATA1+ 12 5.1
5.1 TMDS_CLK- 1/16W
3 1/16W
TMDS_DATA2- 11 CK-_HDMI1
D1-_HDMI3 TMDS_CLK_SHIELD
2 CK+_HDMI1
TMDS_DATA2_SHIELD D1+_HDMI3 10
TMDS_CLK+ D0-_HDMI1
1 D2-_HDMI3
TMDS_DATA2+ 9 D0+_HDMI1
D2+_HDMI3 TMDS_DATA0-
8
JK3301 TMDS_DATA0_SHIELD
HDMI_JACK_YEON(SUB) 7
TMDS_DATA0+ AR3308
05008WR-H19C
EAG63530104
HDMI3 6
TMDS_DATA1-
5.1
1/16W +3.5V_ST C
YEON HO ELECTRONICS CO., LTD EBK61012701
5 D1-_HDMI1
TMDS_DATA1_SHIELD B Q3304-*1
D1+_HDMI1 MMBT3906(NXP)
R3326
4 MHL_NXP_TR(MAIN)
TMDS_DATA1+
MHL
D2-_HDMI1
10K
E
5V_HDMI_2 3 D2+_HDMI1
TMDS_DATA2- MHL
5V_DET_HDMI_2 R3327 E
R3308 2 10K Q3304
TMDS_DATA2_SHIELD MHL_KEC_TR(SUB)
1.8K 0TR390609DC
ESD_HDMI
1 B
R3304 OPT
R3310
VA3301
TMDS_DATA2+ 2N3906S-RTK
3.3K
1K R3338 MHL C
R3307 C
33 MHL R3325
4.7K R3317 0
C JK3302 B
NON_MHL
R3306 MHL_DET_LM15
Q3301
R3328
HDMI_JACK_YEON(SUB) 1K
B 1K Q3303
R3314
NON_MHL
2N3904S HDMI_HPD_2 MHL
10K
BODY_SHIELD EAG63530104 VA3310 C3303 E
R3301 R3320 2N3904S
05008WR-H19C 5.6V 0.1uF
100K 300K KEC_MHL_TR
0
20 E YEON HO ELECTRONICS CO., LTD MHL 16V
KEC_HDMI_HPD_2_TR OPT MHL Spec C
ESD_HDMI
C AR3310
VA3303
19 33
HOT_PLUG_DETECT Q3301-*1 B DDC_SDA_2 B Q3303-*1
MMBT3904(NXP) MMBT3904(NXP)
18 NXP_MHL_TR
VDD[+5V] NXP_HDMI_HPD_2_TR DDC_SCL_2
E E
17
DDC/CEC_GND VA3305 VA3307
ESD_HDMI
HDMI1 with MHL
16 ESD_HDMI
SDA
15
SCL
HDMI_ARC
14
RESERVED
CEC_REMOTE
13
CEC
AR3303
12 5.1
TMDS_CLK- 1/16W
11
TMDS_CLK_SHIELD CK-_HDMI2
EDID external EEPROM +5V_NORMAL
10 CK+_HDMI2 E
TMDS_CLK+ 5V_HDMI_3
D0-_HDMI2
9 MMBT3904(NXP)
TMDS_DATA0- D0+_HDMI2 B
Q3302-*1
A1
A2
EAH61714301
8 C MMBD6100
TMDS_DATA0_SHIELD
NXP_HDMI_EXT_EDID_TR D3309
7 SUZHOU_DDC_DIODE(MAIN)
TMDS_DATA0+
C
AR3306
6 5.1
TMDS_DATA1- 1/16W E
KEC_HDMI_EXT_EDID_TR
ATMEL_HDMI_EXT_EDID
5 2N3904S
TMDS_DATA1_SHIELD D1-_HDMI2 ROHM_HDMI_EXT_EDID EDID_WP
4 D1+_HDMI2 IC3301 Q3302 B IC3301-*1
TMDS_DATA1+
D2-_HDMI2 BR24G02FJ-3GTE2 C AT24C02C-SSHM-T
KEC_DDC_DIODE(SUB)
3 EAH61714301
TMDS_DATA2- D2+_HDMI2
D3309-*1
2 A0 VCC HDMI_EXT_EDID MMBD6100 A0 VCC
TMDS_DATA2_SHIELD 1 8 A2 1 8
1 C
TMDS_DATA2+ R3323
A1 WP AR3305 A1 A1 WP
2 7 4.7K 1/16W 2 7
47K
JK3300
HDMI_JACK_YEON(SUB) A2 SCL A2 SCL
05008WR-H19C 3 6 3 6
EAG63530104
HDMI2 with ARC GND SDA GND SDA
YEON HO ELECTRONICS CO., LTD 4 5 4 5
R3321
22
DDC_SCL_3
HDMI_EXT_EDID
R3322
22
DDC_SDA_3
HDMI_EXT_EDID
MHL
Current Limit 5V_HDMI_1
MHL_DIODE(KEC) MHL
0DTKE00018A L3301
ZD3300-*1 IC3300 BLM31PG500SN1
5V_MHL TPS2553DBV 50-ohm DDC pull-up
IN OUT D3304
ESD_5V_HDMI_1
1 6
5V_HDMI_2 5V_HDMI_1
C3301 ZD3300 MHL 30V MHL +5V_NORMAL +3.5V_ST
MHL
VA3313
0.1uF 5V MHL 1% OPT C3302
16V GND ILIM R3313 +5V_NORMAL
2 5 10uF
+5V_NORMAL 5V_MHL 100K
MHL_DIODE(SD05) 10V
A1
A2
20K
A1
A2
0DR050008AA
A1
A2
R3311 MHL EAH61714301
EN FAULT MMBD6100
MHL_DET_LM15 3 4 EAH61714301
L3300 D3305 MMBD6100 EAH61714301
/MHL_OCP MMBD6100
C
PZ1608U121-2R0TF SUZHOU_DDC_DIODE(MAIN) D3308
C
C
D3310
SUZHOU_DDC_DIODE(MAIN)
MHL_SUZHOU_DDC_DIODE(MAIN)
MHL MHL
C3300
AR3302
0.1uF
AR3304
1/16W
/MHL_OCP
1/16W
16V
47K
47K
KEC_DDC_DIODE(SUB) KEC_DDC_DIODE(SUB) MHL_KEC_DDC_DIODE(SUB)
EAH61714301 DDC_SDA_2 EAH61714301 EAH61714301
D3305-*1 D3308-*1 DDC_SDA_1 D3310-*1
MMBD6100 DDC_SCL_2 MMBD6100 MMBD6100
A2 A2 DDC_SCL_1 A2
C C C
A1 A1 A1
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-033_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A 2015-01-08
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. HDMI 10
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
SPDIF OUT AV/COMPONENT REAR
Place JACK Side
1608 sizs For EMI/ESD
AV/COMP_DAMPING_3.3ohm
3.3 R3832 @netLa
AV1_CVBS_IN
R3808
C3822 C3805 C3806
1/4W
VA3806 150pF 27pF 100pF C3811 COMP1_Y
75
1%
5.5V OPT 50V 50V 47pF R3831
50V 0
OPT OPT
Foxconn_OPTIC_JAKC(SUB)
R3832-*1
0
JK3800-*1
2F01TC1-CLM97-4F AV/COMP_DAMPING_0ohm
GND +3.3V_NORMAL
1 AV/COMPONENT_REAR(DV)
AV/COMPONENT_REAR(PV)
Fiber Optic
EAG60968217 EAG60968213
JK3802-*1 JK3802
VCC 2 PPJ245N2-01
PPJ245-31
R3807
6E [RD2]E-LUG [ GN/YL]E-LUG
6A 10K
VIN 3 R3803
1K 1608 sizs For EMI/ESD
[RD2]O-SPRING 5A
+3.3V_NORMAL 4 5E [GN/YL]O-SPRING AV1_CVBS_DET
1608 sizs For EMI/ESD
Solteam_OPTIC_JACK(MAIN) AV/COMP_DAMPING_3.3ohm
SHIELD
[RD2]CONTACT 4A
[GN/YL]CONTACT
4E VA3803
3.3 R3811
GND 5.6V COMP1_Pb
1
5B +3.3V_NORMAL
Fiber Optic
JST1223-001
5D [WH]O-SPRING [BL]O-SPRING SIGN380006
R3811-*1 C3810 C3812
JK3800
0 27pF 27pF R3816 C3815
VCC [RD1]CONTACT 7C VA3804 75
[RD1]E-LUG-S 10pF
2
4C 50V 50V
5.5V R3810 AV/COMP_DAMPING_0ohm OPT 50V
OPT 1%
5C 10K
VINPUT 5C [RD1]O-SPRING [RD1]O-SPRING
SPDIF_OUT
3
R3802
4
C3800 VA3807 C3818 [RD1]E-LUG-S 4C VA3805
7C [RD1]CONTACT 1K
18pF 5.5V 0.1uF 5.5V AV/COMP_DAMPING_3.3ohm
COMP1_DET
FIX_POLE
1608 sizs For EMI/ESD
50V 16V 3.3 R3809
OPT [BL]O-SPRING 5D [WH]O-SPRING COMP1_Pr
5B VA3800
5.6V
[GN/YL]CONTACT 4E R3809-*1 C3809 C3813 C3814
4A [RD2]CONTACT R3800 0 R3817
VA3801 27pF 27pF 75 10pF
5.6V 470K 50V 50V 50V
5E AV/COMP_DAMPING_0ohm FOR EMI 1%
5A [GN/YL]O-SPRING [RD2]O-SPRING OPT OPT
[GN/YL]E-LUG 6E [RD2]E-LUG
6A
1608 sizs For EMI
R3812
R3805 10K
COMP1/AV1/DVI_L_IN
VA3802 R3801
0
5.6V 470K
C3801 C3803 C3807 R3814
560pF 100pF 1000pF 12K
50V
50V 50V OPT
OPT OPT
1608 sizs For EMI
R3813
R3806 10K
COMP1/AV1/DVI_R_IN
0
C3802 C3804 C3808 R3815
560pF 100pF 1000pF 12K
50V
50V 50V OPT
OPT OPT
HP OUT
JK3803
PEJ034-01
E_SPRING 3
HP_LOUT_MAIN
R3821
HP_OUT
OPTC3819 HP_OUT
22K
AR3800 L3801
100 0.01uF R3804
PZ1608U121-2R0TF
OPT
1/16W 150
HP_LOUT HP_LOUT_AMP HP_OUT 1/10W
C3817 5% +3.3V_NORMAL
HP_ROUT
0.22uF R_SPRING 4
25V
HP_ROUT_MAIN R3820
R3822
OPT T_SPRING 5
C3820 10K
22K
HP_OUT
0.01uF R3819 HP_OUT
OPT
100 B_TERMINAL2 7B
HP_DET
1/16W
HP_OUT 5% T_TERMINAL2 6B
HP_OUT
L3800 R3818
PZ1608U121-2R0TF 150
Close to Main soc HP_ROUT_AMP HP_OUT
C3816
1/10W
5%
0.22uF VA3808
25V 5.6V
HP_OUT
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-038_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM15U 2015-01-21
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. JACK_COMMON_H 38
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
WIFI POWER ENABLE CONTROL
+3.5V_ST +3.5V_WIFI
IC4100
AP2191WG-7
IN OUT
5 1
C4100 R4119
0.1uF GND 10K
2
OPT
WIFI_EN R4101 33 EN FLG
4 3
R4100 C4113 TOSHIBA_WIFI_DMDP_ESD(SUB)
10K 0.1uF EAH62735601
16V
OPT
P4100
SMAW200-H18S5 D4100-*1
DF3D6.8MS
+3.5V_WIFI
C4110
C4108 22uF
GND 1 2 +3.5V_WOL
0.1uF 10V
R4111 R4113
M_RFModule_RESET
100 BT_RESET 3 4 USB_DM 0
WIFI_DM
C4103 R4114 +3.5V_ST
0.1uF NC 5 6 USB_DP 0
Place Near Wafer WIFI_DP
R4112
WOL/WIFI_POWER_ON
100 WOL 7 8 GND C4107 C4109
5pF 5pF
AR4101 EAH61515101 R4106 R4107
100 C4104
0.1uF
SDA 9 10 GND D4100
50V 50V
10K 10K
EYE_SDA 1% 1%
RCLAMP0502BA
EYE_SCL
SCL 11 12 KEY1 SEMTECH_WIFI_DMDP_ESD(MAIN) AR4102
100
+3.5V_ST
R4110 GND 13 14 KEY2 KEY1
10K KEY2
5%
IR 15 16 +3.5V_ST +3.5V_ST
IR
C4105 C4111 C4112
100pF LED_R 17 18 GND C4106
1000pF
0.1uF 0.1uF
50V 50V OPT OPT
LOGO_LIGHT_WAFER
LED_R OPT
R4109
1.8K
LED_R
OPT 19
GND
C4102
0.1uF
16V
IR
+3.5V_ST
IC4101
AO-R123C7G-LG
R4103
1/16W
R4105
1/10W
IR_PROTO
IR_PROTO
IR_PROTO
330
5%
47
5%
GND
G
VS
V
O
OUT
SMD bottom for ESD 10.5T
OPT OPT OPT SMD_EMI4 OPT HDMI2 HDMI3
GASKET_8.0X6.0X10.5H GASKET_8.0X6.0X10.5H GASKET_8.0X6.0X10.5H GASKET_8.0X6.0X10.5H
HDMI1
GASKET_8.0X6.0X10.5H
M4102 M4103 M4106 M4110 M4114
MDS62110225 MDS62110225 MDS62110225 HDMI1_BOT_SMD_10.5T HDMI2_BOT_SMD_10.5T HDMI3_BOT_SMD_8.5T
MDS62110225 MDS62110225 HDMI3_BOT_SMD_10.5T
GASKET_8.0X6.0X10.5H GASKET_8.0X6.0X10.5H GASKET_8.0X6.0X8.5H GASKET_8.0X6.0X10.5H
M4100 M4108 M4115 M4115-*1
MDS62110225 MDS62110225 MDS62110209 MDS62110225
SMD_EMI2 SMD_EMI1 OPT
GASKET_8.0X6.0X10.5H GASKET_8.0X6.0X10.5H GASKET_8.0X6.0X10.5H
M4112 M4109 M4107
MDS62110225 MDS62110225 HDMI1_BOT_SMD_8.5T HDMI2_BOT_SMD_8.5T HDMI3_BOT_SMD_9T
MDS62110225
GASKET_8.0X6.0X8.5H GASKET_8.0X6.0X8.5H GASKET_8.0X6.0X9.0H
M4100-*1 M4108-*1 M4115-*2
70inch_EMI MDS62110209 MDS62110209 MDS62110226
79inch_EMI
GASKET_8.0X6.0X10.5H GASKET_8.0X6.0X12.5H
M4105 M4105-*1
MDS62110225 MDS62110217
USB3 USB2 USB1
70inch_EMI 79inch_EMI USB3_BOT_SMD_10.5T USB2_BOT_SMD_10.5T USB1_BOT_SMD_8.5T
USB1_BOT_SMD_6.5T
GASKET_8.0X6.0X10.5H GASKET_8.0X6.0X12.5H GASKET_8.0X6.0X10.5H GASKET_8.0X6.0X10.5H GASKET_8.0X6.0X8.5H SMR-T-6-6.5-8
M4104 M4104-*1 M4111 M4113 M4116 M4116-*2
MDS62110225 MDS62110217 MDS62110225 MDS62110225 MDS62110209 MDS62110206
LOGO_LIGHT USB3_BOT_SMD_8.5T USB2_BOT_SMD_8.5T USB1_BOT_SMD_10.5T
AR4100 SMD_EMI3_10.5T SMD_EMI3_8.5T GASKET_8.0X6.0X8.5H GASKET_8.0X6.0X10.5H
33 GASKET_8.0X6.0X8.5H
Place Near Micom 1/16W GASKET_8.0X6.0X10.5H GASKET_8.0X6.0X8.5H M4111-*1 M4113-*1 M4116-*1
M4101 M4101-*1 MDS62110209 MDS62110225
MDS62110209
LOGO_LIGHT_WAFER MDS62110225 MDS62110209
LOGO_LIGHT C
B
LOGO_LIGHT
LOGO_LIGHT
1K Q4100
LOGO_LIGHT
R4104
R4102
E
C4101 LOGO_LIGHT MMBT3904(NXP)
10K
0.1uF
16V
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-041_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A 2014-10-23
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. IR/KEY 12
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
+5V_USB FOR USB1
+5V_USB_3
USB3
OCP USB1 MAX 1.0A
1
JK4302
3AU04S-305-ZC-(LG)
+5V_USB_1
USB DOWN STREAM
+3.3V_NORMAL R4300
+5V_NORMAL 2.2
2
USB_DM3
IC4300
BD2242G R4301
2.2
3
USB_DP3
USB_ESD(SD05)
RCLAMP0502BA
0DR050008AA
R4305 VIN VOUT
4.7K 1 6 C4322 C4323
D4301
D4302
4
USB_ESD(KEC) 22uF
5V
10uF
C4300 GND ILIM 0DTKE00018A 10V
10V
5
0.1uF 2 5 D4301-*1
16V
14K
R4306
1%
EN OC
/USB_OCD1 3 4
EAH61515101
SEMTECH_USB_DMDP_ESD(MAIN)
USB_CTL1
D4302-*1
R4304 DF3D6.8MS
10K
EAH62735601
TOSHIBA_USB_DMDP_ESD(SUB)
+5V_USB_2
USB2
MAX 1.0A
1
JK4300
3AU04S-305-ZC-(LG)
USB DOWN STREAM
R4302
2.2
2
USB_DM2
R4303
2.2
3
USB_DP2
SEMTECH_USB_DMDP_ESD(MAIN)
RCLAMP0502BA
EAH61515101
USB_ESD(SD05)
0DR050008AA
D4300
C4310
4
C4311
D4303
5V
10uF 22uF
5
10V 10V
USB_ESD(KEC)
0DTKE00018A
D4303-*1
D4300-*1
DF3D6.8MS
EAH62735601
TOSHIBA_USB_DMDP_ESD(SUB)
+5V_USB_1
USB1 (3.0)
USB_ESD(SD05) MAX 1.2A
ZD4302
0DR050008AA
5V CNPLUS CO., LTD
C4312 C4313
22uF 10uF JK4301
USB_ESD(KEC)
10V 10V 0DTKE00018A 5205-56209
ZD4302-*1
EAG63374203
USB3.0_TVS VBUS
1
D4304
D-
USB_DM1 RCLAMP0544T.TCT 2
6.5VTO11.0V D+
USB_DP1 1 8 3
2 7 GND
4
3 6 STDA_SSRX-
SSUSB_RXP 5
4 5
STDA_SSRX+
SSUSB_RXN 6
9 GND_DRAIN
7
USB3.0_TVS
STDA_SSTX-
D4305 8
RCLAMP0544T.TCT STDA_SSTX+
9
6.5VTO11.0V
1 8 10
2 7 SHIELD
3 6
SSUSB_TXP 4 5
SSUSB_TXN
9
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-043_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A 2014-11-12
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. USB 43
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
+3.3V_NORMAL
EU
CLOSE TO JUNCTION
R4601
10K
EU
R4602
100
SC_DET
EU
VA4601 C4604
5.6V 0.1uF
EU
SC_CVBS_IN
Full Scart 1% EU
1/4W
75
R4607
VA4609
EU
C4605
5.5V 47pF
EU 50V
EU
EU R4615
AV_DET 0
22
COM_GND VA4610 DTV/MNT_V_OUT
21 5.5V
SYNC_IN EU EU EU OPT
75 C4606 C4607
20
SYNC_OUT R4604 68pF 68pF
19 50V 50V
SYNC_GND2
18
SYNC_GND1 EU
R4614
17 22
RGB_IO
16 SC_FB
R_OUT VA4602
15 5.6V
RGB_GND EU
EU
14 R4610
R_GND 75
13
D2B_OUT
12 VA4603 SC_R
G_OUT
5.5V EU
11 EU
D2B_IN R4608
75
10
G_GND
9
ID
8 VA4604 SC_G
B_OUT
5.5V EU
7
AUDIO_L_IN R4611
EU 75
6
B_GND
5
AUDIO_GND
4
SC_B
ICVL0518100Y500FR_
AUDIO_L_OUT VA4605
EU_ESD_SC_ID(SUB)
3 5.5V EU
AUDIO_R_IN EU R4609
2 75
AUDIO_R_OUT
1
VA4600-*1
VA4600 EU
20V R4616
EU_ESD_SC_ID(MAIN) SIGN460005 15K
PSC008-01 SC_ID
JK4600 EU
R4605
10K R4617
SC_L_IN 3.9K
VA4611 R4612
5.6V EU 12K
R4600 EU
EU 470K
EU
R4606
10K
SC_R_IN
VA4606
5.6V
R4613
EU EU 12K
R4603 EU
470K
EU
BLM18PG121SN1D
L4600
DTV/MNT_L_OUT
VA4607 EU EU
5.6V C4600 C4602
EU 1000pF 4700pF
50V
EU
BLM18PG121SN1D
L4601
DTV/MNT_R_OUT
VA4608
EU EU
5.6V C4603
EU C4601 4700pF
1000pF
50V
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
BSD-15Y-LM14A-046_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A 2015-01-21
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. SCART JACK_H 46
SCART_JACK_H
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Ethernet Block
C5000 C5001
0.1uF 0.01uF
16V 50V
T-36TM9G_30150_02HF EAG35781015 EAG35781010
NEW_LAN_JACK_3SIM NEW_LAN_JACK_ESD(1st) OLD_LAN_JACK
JK5000-*2 JK5000-*1 JK5000
36TM9G-30150-02HF BS-RV30330 RJ45VT-01SN002
FREEPORT RESOURCES ENTERPRISES CORP. U.D. ELECTRONIC CORP XML KOREA CO., LTD
1 1 1
1 1 1
EPHY_TDP
2 2 2
2 2 2
3 3 3
3 3 3
EPHY_TDN
4 4 4
4 4 4
EPHY_RDP
5 5 5
5 5 5
6 6 6
6 6 6
EPHY_RDN
7 7 7
7 7 7
VA5000 VA5001 VA5002 VA5003
8 8 8 5.5V 5.5V 5.5V 5.5V
8 8 8
LAN_ESD(MAIN)
9 9 9
LAN_ESD(MAIN) LAN_ESD(MAIN) LAN_ESD(MAIN)
SHIELD 9 9
ICVS0518150FR_
ICVS0518150FR_
ICVS0518150FR_
ICVS0518150FR_
LAN_ESD(SUB)
LAN_ESD(SUB)
LAN_ESD(SUB)
LAN_ESD(SUB)
VA5000-*1
VA5001-*1
VA5002-*1
VA5003-*1
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-050_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A 2015-01-21
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. LAN_H 50
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
AUDIO AMP(NTP7515) SM-6045-100
GET_AMP_COIL
L5802-*1
10.0uH
+3.3V_NORMAL
R5805
AMP_RESET_N 100
TAIYO_AMP_COIL
NRS6045T100MMGK
1/16W
R5806 C5806 L5802
L5801 10.0uH
4.7K 1000pF
PZ1608U121-2R0TF 50V SPK_L+
50V
AUD_SCK
+24V_AMP
22000pF
R5807
1/10W
C5807
3.3
R5811
5%
C5821
C5805 0.1uF 4.7K
50V
[EP]GND
0.1uF C5813
C5809 390pF
VDD_IO
GND_IO
PGND1A
PVDD1A
PVDD1B
16V 10uF 50V
CLK_I
RESET
BST1A
OUT1A
35V
C5819
0.47uF
50V
AD
C5814
390pF
50V C5822 R5812
R5808
1/10W
TAIYO_AMP_COIL
0.1uF SPEAKER_L
3.3
50V 4.7K
5%
NRS6045T100MMGK
40
39
38
37
36
35
34
33
32
31
L5805
NC_1 1 30 OUT1B 10.0uH
SPK_L-
VDD_PLL 2 29 PGND1B C5811
THERMAL 22000pF SM-6045-100
NC_2 3 41 28 BST1B 50V GET_AMP_COIL
C5800
1uF L5805-*1
10V GND 4 27 VDR1 10.0uH
NC_3 5 IC5800 26 NC_5
C5801
1uF
10V
DVDD 6 NTP7515 25 AGND
AUD_LRCH
SDATA 7 24 VDR2
WCK 0x54 BST2A
C5817
1uF
C5818
1uF SM-6045-100
AUD_LRCK 8 23 10V 10V GET_AMP_COIL
NC_4 9 22 PGND2A C5812 L5803-*1
10.0uH
22000pF
AR5800
100 SDA 10 21 OUT2A 50V
I2C_SDA4
11
12
13
14
15
16
17
18
19
I2C_SCL4
20
TAIYO_AMP_COIL
NRS6045T100MMGK
C5802 C5804
33pF 33pF L5803
50V 50V 10.0uH
SCL
FAULT
MONITOR_0
MONITOR_1
MONITOR_2
BST2B
PGND2B
OUT2B
PVDD2B
PVDD2A
SPK_R+
+3.3V_NORMAL
R5809
1/10W
+24V_AMP
3.3
5%
C5823 R5813
R5801 0.1uF 4.7K
10K C5815 C5820 50V
390pF 0.47uF
R5804 C5810 50V
C5816
50V
SPEAKER_R
C 100 10uF 390pF
35V 50V TAIYO_AMP_COIL
R5800 C5803 C5824 R5814
R5810
1/10W
B Q5800 C5808 NRS6045T100MMGK
AMP_MUTE 1000pF 0.1uF 4.7K
3.3
2N3904S 50V
5%
10K 22000pF L5804 50V
E KEC_AMP_MUTE_TR
WOOFER_MUTE
50V 10.0uH
I2S_AMP
SPK_R-
SM-6045-100
GET_AMP_COIL
L5804-*1
C 10.0uH 4P Box type
B WAFER-ANGLE
Q5800-*1
MMBT3904(NXP)
NXP_AMP_MUTE_TR
E
TP5801 WOOFER_MUTE SPK_L+
4
TP5802 I2S_AMP
SPK_L-
3
SPK_R+
2
SPK_R-
1
P5800
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-058_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A 2015-01-08
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
NTP_AMP 58
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
+12V
EU
L6000
IC6000
AUD_OUT >> EU/CHINA_HOTEL_OPT AZ4580MTR-E1 EU
C6004
EU EU 0.1uF
C6000 50V
DTV/MNT_L_OUT
R6000 OUT1
1 8 VCC
EU
[SCART AUDIO MUTE]
10uF 2.2K EU
OPT OPT EU R6011 C6008
C6002 R6002 R6004 33K IN1- 7 OUT2 SIGN600007 2.2K
2 DTV/MNT_R_OUT DTV/MNT_L_OUT
6800pF 470K
C6003 33pF 10uF
EU
IN1+ EU 6 IN2- R6008
EU
33K
OPT
R6010
OPT
3 C6007
470K EU
C6005 33pF 6800pF C
R6013
VEE 5 IN2+ Q6000 B 1K
4 EU
MMBT3904(NXP) EU_SCART_MUTE_ISAHAYA
SCART_AMP_L_FB
E EU Q6002
RT1P141C-T112
R6007
1/16W
C
E
100K
EU SCART_AMP_R_FB SCART_MUTE
OPT
5%
EU
R6012
1/16W
R6006 R6020
100K
5.6K 0
OPT
B
SCART_Lout
5%
EU
1/16W EU
R6009
1/16W
R6021 R6016
100K
330pF 220K 5% DTV/MNT_R_OUT PDTA114ET
OPT
C6009 R6005 0 5.6K
5%
Q6002-*1
EU EU SCART_Rout
C
E
EU
R6015
1/16W
1/16W
100K
5% EU EU C
OPT
R6017 C6012 R6014
5%
220K 330pF Q6001 B 1K
B
MMBT3904(NXP)
EU_SCART_MUTE_NXP
CLOSE TO MSTAR E EU
CLOSE TO MSTAR
Near Place Scart AMP
EU
R6019
0 EU
SCART_AMP_R_FB
1/16W 10K
5% R6003
EU
R6018
0 EU
SCART_AMP_L_FB
1/16W 10K
5% R6001
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-060_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. SCART AMP
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
EARPHONE AMP
HP_OUT_2.2uF(CN_DRA)
HP_OUT_2.2uF(CN_DRA) IC6100 C6101-*1
TPA6138A2 2.2uF
C6100-*1
2.2uF 10V
10V HP_OUT +INR +INL HP_OUT
HP_OUT_1uF C6104 1 14 C6109 HP_OUT_1uF
HP_OUT
C6100 HP_OUT 18pF HP_OUT HP_OUT 18pF HP_OUT C6101
1uF R6100 R6106 R6104 R6101 1uF
10V 10K 43K HP_OUT -INR -INL HP_OUT 43K 10K 10V
2 13
HP_ROUT_MAIN HP_LOUT_MAIN
HP_OUT
R6103
HP_OUT
R6102
HP_BYPASS 1% C6108 C6106 1% HP_BYPASS
43K
43K
R6107 10pF
1%
1%
OUTR OUTL 10pF 0
0 50V 3 12 50V R6108
HP_LOUT_AMP
HP_ROUT_AMP
+3.3V_NORMAL GND_1 UVP
4 11
HP_OUT MUTE GND_2 +3.3V_NORMAL
4.7K 5 10
R6105
SIDE_HP_MUTE VSS VDD
6 9
HP_OUT HP_OUT
HP_OUT
C6105 C6107
C6102 CN CP 1uF 0.1uF
1uF 7 8
10V 16V
10V
C6103
1uF
10V
HP_OUT
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-061_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
HEADPHONE AMP
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
B-CAS (SMART CARD) INTERFACE
+3.3V_NORMAL INT CMDVCC : STATUS
+3.3V_NORMAL ---------------------------------
HIGH HIGH CARD PRESENT
LOW HIGH CARD not PRESENT
SIGN630003
IC6300
TDA8024TT
2.7K
2.7K
R6301
R6303
R6305
JAPAN
JAPAN
CLKDIV1 CLKDIV2 : F_CRD_CLK
OPT
-----------------------------
1 0 CLKIN CLKDIV1 AUX2UC
1 28
JAPAN
JAPAN
JAPAN
R6317
R6318
R6315
R6319
R6316
OPT
OPT
1.2K
1.2K
1.2K
1.2K
1.2K
CLKDIV2 AUX1UC
2 27
R6300 33 5V/3V I/OUC
3 26
SMARTCARD_PWR_SEL CAM_IREQ_N
2.7K
JAPAN
R6302
R6304
R6306
JAPAN
OPT
OPT
PGND XTAL2
+5V_NORMAL 4 25
R6307 33 JAPAN
S2 XTAL1 /PCM_CE1 SMARTCARD_DATA
JAPAN 5 24 R6308 33 JAPAN
EB_OE_N SMARTCARD_CLK
L6300 R6309 33 JAPAN
EB_BE_N0 SMARTCARD_DET
BLM18PG121SN1D VDDP OFF R6310 33 JAPAN
JAPAN 6 23 EB_BE_N1 SMARTCARD_RST
JAPAN
C6301 C6303
10uF 0.1uF S1 GND JAPAN
10V 16V 7 22 R6311 33 EB_WE_N SMARTCARD_VCC
L6301 JAPAN
+3.3V_NORMAL
JAPAN
VUP VDD BLM18PG121SN1D
8 21
JAPAN
JAPAN JAPAN
C6302 PRES RSTIN C6305 C6306
0.1uF 9 20 0.1uF 0.1uF
16V 16V 16V
B-CAS SLOT
PRES CMDVCC
10 19
P6300
I/O PORADJ 10057542-1311FLF(B CAS Slot)
11 18
AUX2 VCC JAPAN VCC
12 17 C1
C6307
0.33uF
AUX1 RST 16V RST
13 16 C2
CGND CLK Place CLK C3 far from C2,C7,C4 and C8 CLK
14 15 C3
JAPAN
C6304 RESERVED_1
0.1uF C4
16V
GND
C5
VPP JAPAN
C6
JAPAN
R6313
75 I/O
C7
75 ohm in I/O is for short circuit Protection
RESERVED
C8
SW1
S1
+3.3V_NORMAL
JAPAN
JAPAN
10K
R6312
R6314
1K SW2
S2
JAPAN_DIODE(SD05) JAPAN_DIODE(SD05)
0DR050008AA 0DR050008AA
ZD6300 ZD6301
5V 5V
JAPAN_DIODE(KEC)
0DTKE00018A
ZD6300-*1
JAPAN_DIODE(KEC)
0DTKE00018A
ZD6301-*1
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. BSD-15Y-LM14A-063_00-HD
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS JAPAN B-CAS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. 63
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
FE_DEMOD1_TS_ERROR
FE_DEMOD2_TS_ERROR
FE_DEMOD3_TS_CLK
1. should be guarded by ground FE_DEMOD3_TS_SYNC
2. No via on both of them FE_DEMOD3_TS_VAL
3. Signal Width >= 12mils FE_DEMOD3_TS_ERROR
close to Tuner Signal to Signal Width = 12mils FE_DEMOD3_TS_DATA
+3.3V_TUNER Ground Width >= 24mils
L6500
PZ1608U121-2R0TF close to TUNER
1 +3.3V_LNA_TU C6501
0.1uF TU_K/M/W_TW/BR/CO R6507 1K
TU_K/M/W_TW/BR/CO TU_K/M/W_TW/BR/CO
2 RF_SWITCH_CTL_TU RF_SWITCH_CTL
C6504 R6503
0.1uF 10K
TU_ALL_IntDemod
R6506 1K
3 IF_AGC_TU IF_AGC
C6502 close to Tuner TU_ALL_IntDemod
0.1uF
16V TU_W_BR/TW
TU_ALL AR6500-*1
AR6500
33 200
1/16W +3.3V_NORMAL
PZ1608U121-2R0TF
4 I2C_SCL5_TU I2C_SCL5
C6505
I2C_SDA5 +3.3V_TUNER
47pF
L6504
5 50V
I2C_SDA5_TU +3.3V_TUNER 1608 perallel
C6503 OPT
because of derating
47pF
50V
OPT TU_ALL_2178B TU_SIF TU_ALL_2178B
TU_ALL_2178B
R6513 0 R6516 R6517
R6504 200 200
10
6 IF_P_TU
TU_ALL_IntDemod C6519 IF_P C6517 C6508
33pF L6502 TU_CVBS 22uF 0.1uF
should be guarded by ground,Match GND VIA R6505 OPT 10V 16V
10 TU_H/M_EU/BR/TW/CO/KR E
7 IF_N_TU C6520 IF_N
TU_ALL_IntDemod 33pF 0TR390609DC
KEC_TU_ALL_2178B_TR(SUB)
TU_H/M_EU/BR/TW/CO/KR B Q6502
2N3906S-RTK
8 TU_SIF_TU C
E
TU_M_KR/EU/CN // W_ALL
9 TU_CVBS_TU NXP_TU_ALL_2178B_TR(MAIN)
L6501 +3.3V_TUNER B Q6502-*1
Global F/E Option Name PZ1608U121-2R0TF MMBT3906(NXP)
1. TU C EBK61012701
10
2. Tuner Name = TDJ’H’,TDj’M’... C6510
3. Country Name = KR,US,BR,EU ... 0.1uF
11 +3.3V_TU
TU_M_KR/EU/CN // W_ALL
T2 : Max 1.7A
Example of Option name else : Max 0.7A
12 FE_DEMOD1_TS_ERROR close to Tuner
TU_ALL_IntDemod = All Tuner type for Internal demod
TU_M/W = apply TDSM&TDSW Type Tuner FE_DEMOD1_TS_ERROR TU_M/W_BCD_LDO(MAIN)
TU_M/W_1.2V
14 FE_DEMOD1_TS_CLK FE_DEMOD1_TS_CLK IC6500 Demod_Core
AP2132MP-2.5TRG1
R6519-*1 R6521-*1
TU_M/W_1.1V TU_M/W_1.1V
14’ Tuner Type for Global BCD
[EP]
TDJ’H’-G101D : Half NIM for EU,AJJA 15 FE_DEMOD1_TS_SYNC FE_DEMOD1_TS_SYNC
18K
10K
R6521
TDJ’H’-H101F : Half NIM for US, KR
TDJ’K’-T101F : Half NIM for TW FE_DEMOD1_TS_VAL FE_DEMOD1_TS_VAL TU_M/W PG GND R2
16 1 8
TDJ’M’-C301D,F : FULL NIM for China
THERMAL
+3.3V_NORMAL C6516
10.5K
R6519
TU_M/W_1.2V
TDJ’M’-B101F : Brazil NIM with Isolater Type 0.1uF
16K
EN ADJ
9
17 FE_DEMOD1_TS_DATA[0] 2 7
TDJ’M’-K101F : colombia NIM R1
R6500
TU_M/W
10K
TDJ’M’-G101D,G105D,G151D : EU Combo&Full NIM VIN VOUT
18 FE_DEMOD1_TS_DATA[1] FE_DEMOD1_TS_DATA[0-7]
TDJ’M’-H101F,H151F : Korea PIP tuner 3 6
TDJ’W’-A151D : AJJA T2 PIP
19 FE_DEMOD1_TS_DATA[2] +5V_NORMAL
VCTRL
4 2A 5
NC
ESD_TU_M/W TU_M/W TU_M/W
5V ZD6501 EAN61387601
20 FE_DEMOD1_TS_DATA[3] C6500 C6518
0.1uF 10uF
16V 10V
FE_DEMOD1_TS_DATA[4] TU_M/W
21
C6515
1uF
FE_DEMOD1_TS_DATA[5] 25V
22
TU_M/W_HTC_LDO(SUB)
23 FE_DEMOD1_TS_DATA[6]
Vout=0.6*(1+R1/R2) IC6500-*1
TJ2132GDP
TAEJIN TECHNOLOGY CO., LTD.
24 FE_DEMOD1_TS_DATA[7]
TU_M/W [EP]GND
R6501
TU_M/W 100 /TU_RESET1 +3.3V_TUNER
25 /TU_RESET1_TU
C6507
TU_M/W
L6503 POK GND
16V PZ1608U121-2R0TF 1 8
0.1uF
THERMAL
26 +3.3V_DEMOD_TU
C6511 TU_M/W EN FB
9
2 7
0.1uF
27 I2C_SCL2_TU TU_M/W TU_K/M/W_NON_JP 0 R6502
L6505 AR6501 FE_DEMOD1_TS_CLK_1 FE_DEMOD1_TS_CLK IN OUT
33 TU_M/W TU_K/M/W_NON_JP 0 R6511
PZ1608U121-2R0TF FE_DEMOD1_TS_SYNC_1 FE_DEMOD1_TS_SYNC 3 6
Demod_Core OPT TU_K/M/W_NON_JP 0 R6512
28 D_Demod_Core
C6513 I2C_SCL2 FE_DEMOD1_TS_VAL_1 FE_DEMOD1_TS_VAL
TU_M/W 18pF I2C_SDA2 TU_K/M/W_NON_JP 0 R6514 BIAS SS
C6506 50V FE_DEMOD1_TS_DATA0_1 FE_DEMOD1_TS_DATA[0] 4 5
0.1uF OPT
29 LNB_TX LNB_TX
C6512 EAN63492001
18pF
50V
30 I2C_SDA2_TU
31 LNB_OUT LNB_OUT TU_JP 0 R6515
FE_DEMOD2_TS_CLK TU_JP 0 R6518
FE_DEMOD2_TS_SYNC TU_JP 0 R6520
34 FE_DEMOD2_TS_ERROR FE_DEMOD2_TS_ERROR FE_DEMOD2_TS_VAL
TU_JP 0 R6522
FE_DEMOD2_TS_DATA
36 FE_DEMOD2_TS_SYNC FE_DEMOD2_TS_SYNC
37 FE_DEMOD2_TS_CLK FE_DEMOD2_TS_CLK
L6506 +2.5V_Normal
BLM18PG121SN1D Close to Tuner
38 +2.5V_DEMOD
C6509 TU_JP
0.1uF
39 FE_DEMOD2_TS_VAL FE_DEMOD2_TS_VAL
TU_JP
40 FE_DEMOD2_TS_DATA FE_DEMOD2_TS_DATA
R6527
100 /TU_RESET2
45 /TU_RESET2_TU
C6514 TU_JP
16V
0.1uF
TU_JP
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-065_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. TU_CIRCUIT
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
TU_H_US
TU_H_BR TU_H_T2_KR TU_M_EU TU_W_JP
TU6705 TU6701 TU6704 TU6702 TU6703
TDJH-H301F TDJK-T301F TDJM-H401F TDJM-G301D TDJW-J202F 1
2
+3.3V +3.3V +3.3V +3.3V B1[+3.3V]
1 1 1 1 1 +3.3V_LNA_TU 3
NC_1 NC NC_1 NC_1 NC_1
2 2 2 2 2 RF_SWITCH_CTL_TU 4
DIF_AGC DIF_AGC NC_2 AIF_AGC NC_2
3 3 3 3 3 IF_AGC_TU 5
SCL_RF SCL_RF SCL_RF SCL_RF SCL_RF
4 4 4 4 4 I2C_SCL5_TU 6
SDA_RF SDA_RF SDA_RF SDA_RF SDA_RF
5 5 5 5 5 I2C_SDA5_TU 7
DIF[P] DIF[P] NC_3 AIF[P] NC_3
6 6 6 6 6 IF_P_TU 8
DIF[N] DIF[N] NC_4 AIF[N] NC_4
7 7 7 7 7 IF_N_TU 9
SIF SIF SIF SIF NC_5
8 8 8 8 8 TU_SIF_TU 10
TDJH-G301D CVBS CVBS CVBS CVBS NC_6
9 9 9 9 9 TU_CVBS_TU
TU6705-*1 11
TDJH-G301D NC_5 NC_2 NC_7
10 10 10
12
A1 B1 A1 B1 +3.3V_RF +3.3V_RF B2[+3.3V]
1
+3.3V A1 B1 A1 B1 11 11 11 +3.3V_TU
13
2
NC_1 47 47 ERROR ERROR NC_8
12 12 12 FE_DEMOD1_TS_ERROR
TU_GND_B
TU_GND_B
IF_AGC 14
TU_GND_A
TU_GND_A
3
GND_1 GND_1 GND_1
4
SCL_RF SHIELD SHIELD 13 13 13
5
SDA_RF MCLK MCLK
14 14 FE_DEMOD1_TS_CLK_1
IF[P] 16
6
SYNC SYNC
7
IF[N] 15 15 FE_DEMOD1_TS_SYNC_1 17
8
SIF VAILD VALID
16 16 FE_DEMOD1_TS_VAL_1
CVBS 18
9
D0 D0
17 17 FE_DEMOD1_TS_DATA0_1 19
A1
A1 B1
B1 D1 D1
18 18 FE_DEMOD1_TS_DATA[1]
47 TU_H_T2_CO TU_H_T2_TW/PA 20
TU6704-*2 TU6704-*1 D2 D2
SHIELD
TDJM-K302F TDJM-K301F 19 19 FE_DEMOD1_TS_DATA[2]
+3.3V +3.3V
21
1
NC_1
1
NC_1
D3 D3
2 2
20 20 FE_DEMOD1_TS_DATA[3]
3
NC_2
SCL_RF
3
NC_2
SCL_RF
22
4
SDA_RF
4
SDA_RF
D4 D4
5 5
21 21 FE_DEMOD1_TS_DATA[4]
6
NC_3
NC_4
6
NC_3
NC_4
23
7
SIF
7
SIF
D5 D5
8 8
22 22 FE_DEMOD1_TS_DATA[5]
9
CVBS
NC_5
9
CVBS
NC_5
24
10
+3.3V_RF
10
+3.3V_RF
D6 D6
11 11
23 23 FE_DEMOD1_TS_DATA[6]
12
ERROR
GND_1
12
ERROR
GND_1
25
13
MCLK
13
MCLK
D7 D7
14 14
24 24 FE_DEMOD1_TS_DATA[7]
15
SYNC
VAILD
15
SYNC
VAILD
26
16
D0
16
D0
RESET_DEMOD RESET_DEMOD M_RESET_DEMOD
17 17
25 25 25 /TU_RESET1_TU
18
D1
D2
18
D1
D2
27
19
D3
19
D3
+3.3V_DEMOD +3.3V_DEMOD B3[+3.3V]
20
D4
20
D4
26 26 26 +3.3V_DEMOD_TU
21 21
D5 D5
22
D6
22
D6
SCL_DEMOD SCL_DEMOD SCL_DEMOD
23
D7
23
D7
27 27 27 I2C_SCL2_TU
24 24
RESET_DEMOD RESET_DEMOD
25
+3.3V_DEMOD
25
+3.3V_DEMOD
+1.2V_DEMOD +1.2V_DEMOD B4[+1.2V]
26 26
28 28 28 D_Demod_Core
27
SCL_DEMOD
+1.2V_DEMOD
27
SCL_DEMOD
+1.2V_DEMOD
30
28
NC_6
28
NC_6
NC_6 NC_3 NC_9
29
SDA_DEMOD
29
SDA_DEMOD
29 29 29 LNB_TX 31
30 30
A1 B1 A1 B1
SDA_DEMOD SDA_DEMOD SDA_DEMOD
A1
47
B1 A1
47
B1
30 30 30 I2C_SDA2_TU 32
SHIELD SHIELD
LNB LNB
31 31 LNB_OUT 33
A1 B1 GND GND_2
A1 B1 32 32 34
47 NC_10
TU_GND_A
33
TU_GND_B
35
A1 B1 M_ERROR
SHIELD A1 B1 34 FE_DEMOD2_TS_ERROR
36
47 GND_3
TU_GND_A
35
TU_GND_B
M_SYNC
SHIELD 36 FE_DEMOD2_TS_SYNC
M_MCLK
37 FE_DEMOD2_TS_CLK
TU_W_JP_RDA5817
TU6703-*1
B5[+2.5V]
TDJW-J301F
38 +2.5V_DEMOD 40
1
+3.3V_LNA M_VALID
NC_1 39 FE_DEMOD2_TS_VAL
2
3
NC_2
41
4
SCL_RF M_DATA
SDA_RF 40 FE_DEMOD2_TS_DATA
5
6
NC_3
42
7
NC_4 S_ERROR
NC_5 41 FE_DEMOD3_TS_ERROR
8
9
NC_6
43
10
NC_7 S_SYNC
11
+3.3V_RF 42 FE_DEMOD3_TS_SYNC 44
NC_8
12 TDJM-B301F
13
GND_1
TDJM-C401D
TU6702-*4 TU6702-*3
TU_M_AJ
TU6702-*2
TU_M_CN
TU6702-*1
S_MCLK
TDJM-C401D TDJM-B301F TDJM-G305D TDJM-C301D
43 FE_DEMOD3_TS_CLK 45
1
+3.3V
1
+3.3V
1
+3.3V
1
B1[+3.3V] S_VALID
NC_1 NC_1 NC_1 RF_SW_CTL 44 FE_DEMOD3_TS_VAL
2
3
NC_2
2
3
NC_2
2
3
NC_2
2
3
NC_1
46
4
SCL_RF
4
SCL_RF
4
SCL_RF
4
SCL_RF S_RESET_DEMOD
SDA_RF SDA_RF SDA_RF SDA_RF 45 /TU_RESET2_TU
5
6
NC_3
5
6
NC_3
5
6
NC_3
5
6
NC_2
47
7
NC_4
7
NC_4
7
NC_4
7
NC_3 S_DATA
SIF SIF SIF SIF 46 FE_DEMOD3_TS_DATA
8
9
CVBS
8
9
CVBS
8
9
CVBS
8
9
CVBS
48
RESET_M_DEMOD NC_5 NC_5 NC_5 NC_4
25 10 10 10 10
+3.3V_DEMOD +3.3V_RF +3.3V_RF +3.3V_RF NC_5
26
SCL_DEMOD
11
ERROR
11
ERROR
11
ERROR
11
ERROR
49
27 12 12 12 12
28
+1.2V_DEMOD
13
GND_1
13
GND_1
13
GND_1
13
GND_1 A1 B1
29
NC_9
14
MCLK
14
MCLK
14
MCLK
14
MCLK A1 B1
SDA_DEMOD SYNC SYNC SYNC SYNC
30 15 15 15 15
31
LNB
16
VAILD
16
VAILD
16
VAILD
16
VAILD 47
GND_2 D0 D0 D0 D0
32 17 17 17 17
TU_GND_A
NC_10 D1 D1 D1 D1
33 18 18 18 18
TU_GND_B
M_ERROR D2 D2 D2 D2
34 19 19 19 19
35
GND_3
20
D3
20
D3
20
D3
20
D3 SHIELD
M_SYNC D4 D4 D4 D4
36 21 21 21 21
M_MCLK D5 D5 D5 D5
37 22 22 22 22
+2.5V_DEMOD D6 D6 D6 D6
38 23 23 23 23
M_VALID D7 D7 D7 D7
39 24 24 24 24
M_DATA RESET_DEMOD RESET_DEMOD RESET_DEMOD RESET_DEMOD
40 25 25 25 25
S_ERROR +3.3V_DEMOD +3.3V_DEMOD +3.3V_DEMOD B2[+3.3V]
41 26 26 26 26
S_SYNC SCL_DEMOD SCL_DEMOD SCL_DEMOD SCL_DEMOD
42 27 27 27 27
S_MCLK +1.2V_DEMOD +1.2V_DEMOD +1.2V_DEMOD B3[+1.1V]
43 28 28 28 28
S_VALID NC_6 NC_6 NC_6 NC_6
44 29 29 29 29
S_RESET_DEMOD SDA_DEMOD SDA_DEMOD SDA_DEMOD SDA_DEMOD
45 30 30 30 30
S_DATA
46
A1 B1 A1 B1 A1 B1 A1 B1
A1 B1 A1 B1 A1 B1 A1 B1
A1 B1 47 47 47 47
A1 B1
47
SHIELD SHIELD SHIELD SHIELD
SHIELD
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-067_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. TU_SYMBOL_H
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
DVB-S2 LNB Part Allegro
(Option:LNB)
Input trace widths should be sized to conduct at least 3A
Ouput trace widths should be sized to conduct at least 2A
3A
+12V
2A
D6904-*1
Max 1.3A
LNB
40V
LPH6050T-150M-R
LNB_TSC LNB_SX34 L6900
D6902-*1 D6902
3.5A
SS23L LNB_ONSEMI D6904
30V 40V 15uH
30V
LNB_SMAB34
C6909
10uF
C6903 C6905 C6906 C6907 25V
0.01uF 10uF 10uF 10uF LNB
50V 25V 25V 25V
LNB LNB LNB LNB
C6908 0.1uF
close to Boost pin(#1) A_GND
A_GND
LNB
30V
[EP]GND
close to VIN pin(#15) Caution!! need isolated GND
BOOST
GNDLX
R6904
NC_3
NC_2
SS23L C6910 0
A_GND
LX
D6901-*1 0.1uF
LNB_TSC 50V
20
19
18
17
16
LNB
D6901 VCP 1 15 VIN
MBR230LSFT1G THERMAL A_GND
LNB 2 14 GND
LNB_OUT 21
30V LNB
D6903 NC_1 3 13 VREG
LNB_ONSEMI C6904
0.1uF LNB_SMAB34 IC6900 R6903
C6900 C6901 R6900 TDI A8303SESTR-T ISET 39K
LNB 50V 40V 4 12
0.1uF 33pF 2.2K
D6900 1W LNB 1/16W
LNB LNB C6902 TDO 5 11 TCAP C6912
LNB LNB 0.22uF 1%
LNB 25V D6903-*1
10
LNB
LNB_SX34
6
7
8
9
0.1uF
40V
BOOST
[EP]
NC_4
NC_3
PGND
IRQ
SCL
SDA
ADD
TONECTRL
0.22uF
LX
20
19
18
17
16
Close to Tuner A_GND NC_1 1 15 VIN +3.3V_NORMAL
A_GND THERMAL
Surge protectioin LNB 2 21 14 GND
NC_2 3 13 VREG
IC6900-*1
LNB
TDI 4 DT1803 12 ISET
R6907
LNB_DMBT
3.3K
TDO TCAP
C6911
5 11
OPT
10
6
7
8
9
IRQ
SCL
SDA
ADD
TONECTRL
R6906
LNB
0
AR6900
LNB
33
EU/CIS
R6905
R6908
JAPAN
0
0
I2C_SCL2
I2C_SDA2
LNB_TX
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-069_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR 69
LNB
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
+3.3V_NORMAL
LOCKAn_HTPDAn_3.3VPullup
LOCKAn_HTPDAn_3.3VPullup R7136
+1.8V R7132 10K
10K LOCKAn
LOCKAn_HTPDAn_3.3VPullup
R7134 C
10K
LOCKAn_HTPDAn_3.3VPullup B Q7105
R7128 2N3904S
KEC_LOCKAn_HTPDAn_3.3VPullup_TR
[51P Vx1 10K
E
HTPDAn_Video_Pull_down
HTPDAn_Video
LOCKAn_HTPDAn_3.3VPullup
HTPDAn_OSD_Pull_down
C C
output wafer] R173 R174
HTPDAn_OSD
R7130
100 B Q7103
2N3904S
B Q7105-*1
MMBT3904(NXP)
10K 10K LOCKAn_IN
KEC_LOCKAn_HTPDAn_3.3VPullup_TR NXP_LOCKAn_HTPDAn_3.3VPullup_TR
E E
51pin_Wafer
P7100 C
SP14-11592-01-51Pin
B Q7103-*1
MMBT3904(NXP)
NXP_LOCKAn_HTPDAn_3.3VPullup_TR
E
1 *moved from SHT1. +3.3V_NORMAL
2 TXDAP7_L
3 TXDAN7_L
4 LOCKAn_HTPDAn_3.3VPullup
LOCKAn_HTPDAn_3.3VPullup R7135
5 TXDAP6_L +1.8V R7131 10K
6 TXDAN6_L 10K HTPDAn
LOCKAn_HTPDAn_3.3VPullup
R7133 C
7
10K
LOCKAn_HTPDAn_3.3VPullup B Q7104
8 TXDAP5_L R7127 2N3904S
9 10K KEC_LOCKAn_HTPDAn_3.3VPullup_TR
TXDAN5_L E
LOCKAn_HTPDAn_3.3VPullup
10 C C
R7129
100 B Q7102 B Q7104-*1
11 TXDAP4_L 2N3904S MMBT3904(NXP)
HTPDAn_IN
12 TXDAN4_L KEC_LOCKAn_HTPDAn_3.3VPullup_TR NXP_LOCKAn_HTPDAn_3.3VPullup_TR
E E
13
14 TXDAP3_L
15 C
TXDAN3_L
B Q7102-*1
16
MMBT3904(NXP)
17 TXDAP2_L E NXP_LOCKAn_HTPDAn_3.3VPullup_TR
18 TXDAN2_L +3.3V_NORMAL
R7107-*1
10K 3D&L_DIM_EN_Micom
19 D DIODES_LGD/INX_Module_TCON_I2C_EN_FET(SUB)
R7106
20 Module_MPLUS&NON_UF84(M+) 1K G Q7100-*1
TXDAP1_L 2N7002K
+3.3V_NORMAL EBK42767801
21 R7125 0
TXDAN1_L 3D&L_DIM_EN S
3D&L_DIM_EN_Micom
22 R7104
L_DIM_EN_pulldown TCON_I2C_EN
10K
Module_LGD_MPLUS&UF84(M+)
23 OPT R7107
TXDAP0_L
1K
+3.3V_NORMAL
G
24 TXDAN0_L EBK62072501
Module_LGD_INX_CSHOT_MPLUS&UF84(M+)
R7105
1/16W
R7121 0
25
R7115 I2C_SCL6
S
D
M+ MODULE : low
1K
5%
26 4.7K Q7100
LOCKAn_IN *Pin30(DATA_FORMAT) 40_INCH_INX_I2C_PULL_UP 2N7002KA
27 HIGH : 2 DIVISION KEC_LGD/INX_Module_TCON_I2C_EN_FET(MAIN)
HTPDAn_IN LOW : NON DIVISION
Module_LGD_SHARP_CSHOT&UF84(M+) R7119
28
R7101 10K Module_LGD_INX_CSHOT_MPLUS&UF84(M+) 33 OPT
29 AR7101
0
30 1/16W
OPT TCON_I2C_EN
31 +3.3V_NORMAL
*Pin31(BIT_SEL)
G
R7102 10K HIGH or NC : 10Bit
32 Module_LGD_INX_CSHOT_MPLUS&UF84(M+)
LOW : 8Bit R7116 R7122 0
33 4.7K S I2C_SDA6
D
40_INCH_INX_I2C_PULL_UP
D
34 Q7101 DIODES_LGD/INX_Module_TCON_I2C_EN_FET(SUB)
2N7002KA Q7101-*1
EBK62072501 G
R7108 0 2N7002K
35 3D&L_DIM_EN EBK42767801
KEC_LGD/INX_Module_TCON_I2C_EN_FET(MAIN)
OPT S
36
R7120
37
33 OPT
38
39 +3.3V_NORMAL
M+ MODULE
40
*Pin36(GPLUS_MODE)
41 R7109 HIGH : High luminance
10K LOW or NC : Low Power
42 OPT LM14A : INTERNAL PULL-UP.
43 R7126 0
*Pin38 DATA_FORMAT_1_SOC
CSOT, LGD60Hz,INX: N/C Module_MPLUS&UF84(M+)
44 SHARP,LGD120Hz: GND
GPLUS : PWM_TIN
R7103
LGD_Module_120Hz Module_LGD120Hz
45
Module_LGD120Hz_SHARP AR7100
R7110 0
46 10K 1/16W
R7123 10K Data_Format_1
Data Input Format[1:0]
0
47
R7113 0
PWM_TIN
48 Module_MPLUS&NON_UF84(M+) *Mode 1 (NON Division)
Data_Format_0 - Data Format 0(Pin37) = Low
49 +3.3V_NORMAL Data Format 1(Pin36) = Low
50 *Mode 3 (4 Division)
- Data Format 0(Pin37) = Low
PANEL_VCC
51 Data Format 1(Pin36) = High
R7111
L7100 10K
52 MLB-201209-0120P-N2 OPT
51pin_12V
R7100 0
C7100 C7101
PWM_TOUT
10uF 10uF
Module_MPLUS&NON_UF84(M+)
25V 25V
51pin_12V 51pin_12V
Module_LGD120HZ_MPLUS&NON_UF84(M+)
R7112
10K
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-071_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A 2015-01-29
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. Vx1 51P 71
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
eMMC I/F
DVDD18_EMMC 3.3v power delete, 131120
R8116
R8117
1/16W
10K
AR8104
1/16W
10K
AR8103
10K
10K
SAMSUNG ELECTRONIC CO.,LTD
EAN63829501
IC8100 IC8100-*1 IC8100-*2
IC8100-*3
THGBMBG5D1KBAIL THGBMBG6D1KBAIL H26M41103HPR
EMMC_DATA[0-7] KLM4G1FEPD-B031
AR8100
EMMC_DATA[0] 0
1/16W
EMMC_DATA[1] A3 C8 A3 C8 A3 C7
EMMC_DATA[2] DAT0 NC_23 DAT6 DAT0 NC_23 DAT0 NC_22 A3 C7
A4 C9 A4 C9 A4 C8 DAT0 NC_22
DAT1 NC_24 DAT1 NC_24 DAT1 NC_23 A4 C8
EMMC_DATA[3] A5 C10 A5 C10 A5 C9 DAT1 NC_23
DAT2 NC_25 DAT2 NC_25 DAT2 NC_24 A5 C9
EMMC_DATA[4] B2 C11 B2 C11 B2 C10 DAT2 NC_24
DAT3 NC_26 DAT3 NC_26 DAT3 NC_25 B2 C10
EMMC_DATA[5] B3 C12 B3 C12 B3 C11 DAT3 NC_25
DAT4 NC_27 DAT4 NC_27 DAT4 NC_26 B3 C11
EMMC_DATA[6] B4 C13 B4 C13 B4 C12 DAT4 NC_26
DAT5 NC_28 DAT5 NC_28 DAT5 NC_27 B4 C12
B5 C14 B5 C14 B5 C13 DAT5 NC_27
EMMC_DATA[7] DAT6 NC_29 DAT6 NC_29 DAT6 NC_28 B5 C13
B6 D1 B6 D1 B6 C14 DAT6 NC_28
DAT7 NC_30 DAT5 DAT7 NC_30 DAT7 NC_29 B6 C14
D2 D2 D1 DAT7 NC_29
0 R8104 NC_31 NC_31 NC_30 D1
D3 D3 D2 NC_30
0 R8105 NC_32 NC_32 NC_31 D2
M6 D4 M6 D4 M6 D3 NC_31
0 R8106 CLK NC_33 CLK NC_33 CLK NC_32 M6 D3
M5 D12 M5 D12 M5 D4 CLK NC_32
0 R8107 CMD NC_34 CMD NC_34 CMD NC_33 M5 D4
D13 D13 D12 CMD NC_33
eMMC V5.0 GND NC_35 NC_35 NC_34 D12
D14 D14 D13 NC_34
NC_36 NC_36 NC_35 D13
A6 E1 A6 E1 A7 D14 NC_35
VSS_1 NC_37 VSS_1 NC_37 RFU_1 NC_36 A7 D14
A7 E2 A7 E2 E5 E1 RFU_1 NC_36
RFU_2 NC_38 RFU_2 NC_38 RFU_2 NC_37 E5 E1
C5 E3 C5 E3 G3 E2 RFU_2 NC_37
NC_21 NC_39 NC_21 NC_39 RFU_3 NC_38 G3 E2
AR8102 E5 E12 E5 E12 K6 E3 RFU_3 NC_38
RFU_4 NC_40 RFU_4 NC_40 RFU_4 NC_39 K6 E3
0 1/16W E8 E13 E8 E13 K7 E12 RFU_4 NC_39
RFU_5 NC_41 RFU_5 NC_41 RFU_5 NC_40 K7 E12
E9 E14 E9 E14 E8 E13 RFU_5 NC_40
EMMC_CLK VSF_1 NC_42 VSF_1 NC_42 VSF_1 NC_41 E8 E13
E10 F1 E10 F1 E9 E14 RFU_6 NC_41
DAT7
EMMC_CMD VSF_2 NC_43 VSF_2 NC_43 VSF_2 NC_42 E9 E14
F10 F2 F10 F2 E10 F1 RFU_7 NC_42
EMMC_RST VSF_3 NC_44 VSF_3 NC_44 VSF_3 NC_43 E10 F1
G3 F3 G3 F3 F10 F2 RFU_8 NC_43
RFU_9 NC_45 RFU_9 NC_45 VSF_4 NC_44 F10 F2
G10 F12 G10 F12 G10 F3 RFU_9 NC_44
RFU_10 NC_46 RFU_10 NC_46 VSF_5 NC_45 G10 F3
H5 F13 H5 F13 K10 F12 RFU_10 NC_45
DS NC_47 DS NC_47 VSF_6 NC_46 K10 F12
J5 F14 J5 F14 P10 F13 RFU_11 NC_46
C8107 VSS_5 NC_48 VSS_5 NC_48 VSF_7 NC_47 P10 F13
OPT 10pF K6 G1 K6 G1 H5 F14 RFU_13 NC_47
RFU_13 NC_49 RFU_13 NC_49 DS NC_48 H5 F14
50V K7 G2 K7 G2 G1 DS NC_48
RFU_14 NC_50 RFU_14 NC_50 NC_49 G1
EMMC_STRB K10 G12 K10 G12 G2 NC_49
RFU_15 NC_51 RFU_15 NC_51 NC_50 G2
P7 G13 P7 G13 G12 NC_50
R8103
RFU_16 NC_52 RFU_16 NC_52 NC_51 G12
P10 G14 P10 G14 G13 NC_51
10K
RFU_17 NC_53 RFU_17 NC_53 NC_52 G13
H1 H1 G14 NC_52
NC_54 EMMC_STRB NC_54 NC_53 G14
H2 H2 H1 NC_53
NC_55 NC_55 NC_54 H1
K5 H3 K5 H3 K5 H2 NC_54
RSTN NC_56 RSTN NC_56 RSTN NC_55 K5 H2
H12 H12 H3 RSTN NC_55
C8100 DVDD18_EMMC H3
EMMC5.0_4G_TOSHIBA
NC_57 NC_57 NC_56
H13 H13 H12
EMMC5.0_8G_TOSHIBA
OPT 0.1uF NC_56
NC_58 NC_58 NC_57 H12
16V C6 H14 C6 H14 C6 H13 NC_57
VCCQ_1 NC_59 VCCQ_1 NC_59 VCCQ_1 NC_58 C6 H13
3.3V_EMMC M4 J1 M4 J1 M4 H14 VDD_1 NC_58
VCCQ_2 NC_60 VCCQ_2 NC_60 VCCQ_2 NC_59 M4 H14
N4 J2 N4 J2 N4 J1 VDD_2 NC_59
EMMC5.0_8G_HYNIX
VCCQ_3 NC_61 VCCQ_3 NC_61 VCCQ_3 NC_60 N4 J1
P3 J3 P3 J3 P3 J2 VDD_3 NC_60
VCCQ_4 NC_62 VCCQ_4 NC_62 VCCQ_4 NC_61 P3 J2
Bottom P5 J12 P5 J12 P5 J3 VDD_4 NC_61
VCCQ_5 NC_63 VCCQ_5 NC_63 VCCQ_5 NC_62 P5 J3
DAT3
DAT4
DAT5
DAT6
EMMC_CLK_BALL
EMMC_CMD_BALL
EMMC_RESET_BALL
OPT OPT J13 J13 J12 VDD_5 NC_62
C8108 C8109 C8105 C8106 NC_64 NC_64 NC_63 J12
0.1uF 2.2uF 0.1uF 2.2uF J14 EMMC_RESET_BALL J14 J13 NC_63
EMMC5.0_4G_SAMSUNG
NC_65 NC_65 NC_64 J13
16V 10V 16V 10V E6 K1 E6 K1 E6 J14 NC_64
VCC_1 NC_66 VCC_1 NC_66 VCC_1 NC_65 E6 J14
F5 K2 F5 K2 F5 K1 VDDF_1 NC_65
VCC_2 NC_67 VCC_2 NC_67 VCC_2 NC_66 F5 K1
J10 K3 J10 K3 J10 K2 VDDF_2 NC_66
VCC_3 NC_68 VCC_3 NC_68 VCC_3 NC_67 J10 K2
K9 K12 K9 K12 K9 K3 VDDF_3 NC_67
VCC_4 NC_69 VCC_4 NC_69 VCC_4 NC_68 K9 K3
K13 K13 K12 VDDF_4 NC_68
NC_70 NC_70 NC_69 K12
EMMC_VDDI K14 K14 K13 NC_69
Bottom pattern 0.2mm NC_71 NC_71 NC_70 K13
C2 L1 C2 L1 C2 K14 NC_70
VDDI NC_72 VDDI NC_72 VDDI NC_71 C2 K14
OPT L2 L2 L1 VDDI NC_71
C8101 C8104 NC_73 NC_73 NC_72 L1
1uF 2.2uF L3 L3 L2 NC_72
NC_74 NC_74 NC_73 L2
10V 10V E7 L12 E7 L12 C4 L3 NC_73
VSS_2 NC_75 VSS_2 NC_75 VSSQ_1 NC_74 C4 L3
G5 L13 G5 L13 N2 L12 VSS_1 NC_74
VSS_3 NC_76 VSS_3 NC_76 VSSQ_2 NC_75 N2 L12
H10 L14 H10 L14 N5 L13 VSS_2 NC_75
VSS_4 NC_77 VSS_4 NC_77 VSSQ_3 NC_76 N5 L13
K8 M1 K8 M1 P4 L14 VSS_3 NC_76
VSS_6 NC_78 VSS_6 NC_78 VSSQ_4 NC_77 P4 L14
C8102 C8103 C8111 C4 M2 C4 M2 P6 M1 VSS_4 NC_77
0.1uF 2.2uF 4.7uF VSSQ_1 NC_79 VSSQ_1 NC_79 VSSQ_5 NC_78 P6 M1
N2 M3 EMMC_CLK_BALL N2 M3 A6 M2 VSS_5 NC_78
16V 10V 10V VSSQ_2 NC_80 VSSQ_2 NC_80 VSS_1 NC_79 A6 M2
OPT N5 M7 N5 M7 E7 M3 VSS_6 NC_79
VSSQ_3 NC_81 VSSQ_3 NC_81 VSS_2 NC_80 E7 M3
P4 M8 P4 M8 G5 M7 VSS_7 NC_80
VSSQ_4 NC_82 VSSQ_4 NC_82 VSS_3 NC_81 G5 M7
P6 M9 P6 M9 H10 M8 VSS_8 NC_81
VSSQ_5 NC_83 VSSQ_5 NC_83 VSS_4 NC_82 H10 M8
M10 M10 J5 M9 VSS_9 NC_82
NC_84 NC_84 VSS_5 NC_83 J5 M9
M11 M11 K8 M10 VSS_10 NC_83
NC_85 NC_85 VSS_6 NC_84 K8 M10
M12 M12 M11 VSS_11 NC_84
NC_86 NC_86 NC_85 M11
A1 M13 A1 M13 M12 NC_85
DAT3 NC_1 NC_87 NC_1 NC_87 NC_86 M12
A2 M14 A2 M14 A1 M13 NC_86
DAT4 NC_2 NC_88 NC_2 NC_88 NC_1 NC_87 A1 M13
A8 N1 A8 N1 A2 M14 NC_1 NC_87
DAT7 NC_3 NC_89 NC_3 NC_89 NC_2 NC_88 A2 M14
A9 N3 EMMC_CMD_BALL A9 N3 A8 N1 NC_2 NC_88
NC_4 NC_90 NC_4 NC_90 NC_3 NC_89 A8 N1
A10 N6 A10 N6 A9 N3 NC_3 NC_89
NC_5 NC_91 NC_5 NC_91 NC_4 NC_90 A9 N3
A11 N7 A11 N7 A10 N6 NC_4 NC_90
NC_6 NC_92 NC_6 NC_92 NC_5 NC_91 A10 N6
A12 N8 A12 N8 A11 N7 NC_5 NC_91
NC_7 NC_93 NC_7 NC_93 NC_6 NC_92 A11 N7
A13 N9 A13 N9 A12 N8 NC_6 NC_92
NC_8 NC_94 NC_8 NC_94 NC_7 NC_93 A12 N8
A14 N10 A14 N10 A13 N9 NC_7 NC_93
NC_9 NC_95 NC_9 NC_95 NC_8 NC_94 A13 N9
B1 N11 B1 N11 A14 N10 NC_8 NC_94
NC_10 NC_96 NC_10 NC_96 NC_9 NC_95 A14 N10
B7 N12 B7 N12 B1 N11 NC_9 NC_95
NC_11 NC_97 NC_11 NC_97 NC_10 NC_96 B1 N11
B8 N13 B8 N13 B7 N12 NC_10 NC_96
NC_12 NC_98 NC_12 NC_98 NC_11 NC_97 B7 N12
B9 N14 B9 N14 B8 N13 NC_11 NC_97
DAT6 NC_13 NC_99 NC_13 NC_99 NC_12 NC_98 B8 N13
B10 P1 B10 P1 B9 N14 NC_12 NC_98
NC_14 NC_100 NC_14 NC_100 NC_13 NC_99 B9 N14
B11 P2 B11 P2 B10 P1 NC_13 NC_99
NC_15 NC_101 NC_15 NC_101 NC_14 NC_100 B10 P1
B12 P8 B12 P8 B11 P2 NC_14 NC_100
Don’t Connect Power At VDDI EMMC_VDDI DVDD18_EMMC B13
B14
NC_16
NC_17
NC_102
NC_103
P9
P11
B13
B14
NC_16
NC_17
NC_102
NC_103
P9
P11
B12
B13
NC_15
NC_16
NC_101
NC_102
P7
P8
B11
B12
NC_15
NC_16
NC_101
RFU_12
P2
P7
NC_18 NC_104 NC_18 NC_104 NC_17 NC_103 B13 P8
C1 P12 C1 P12 B14 P9 NC_17 NC_102
(Just Interal LDO Capacitor) DAT5
C3
NC_19
NC_20
NC_105
NC_106
P13 C3
NC_19
NC_20
NC_105
NC_106
P13 C1
NC_18
NC_19
NC_104
NC_105
P11
B14
C1
NC_18 NC_103
P9
P11
C7 P14 C7 P14 C3 P12 NC_19 NC_104
NC_22 NC_107 NC_22 NC_107 NC_20 NC_106 C3 P12
C5 P13 NC_20 NC_105
NC_21 NC_107 C5 P13
P14 NC_21 NC_106
NC_108 P14
NC_107
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-081_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. eMMC
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
RS-232C Control INTERFACE
AR11200
100
RS232C
+3.5V_ST DOUT1
RIN1
OPT OPT
VA11200 VA11201
ADUC 20S 02 010L ADUC 20S 02 010L
RS232C 20V 20V
RS232C C11204
0.1uF
IC11200
MAX3232CDR
C1+ VCC
RS232C 1 16
C11200
0.1uF V+ GND
RS232C 2 15
C11201
0.1uF C1- DOUT1
3 14
C2+ RIN1
RS232C 4 13
C11202
0.1uF C2-
5 12
ROUT1
SOC_RX
RS232C
V- DIN1 JK11200
RS232C 6 11
SOC_TX PEJ034-01
C11203
0.1uF DOUT2 DIN2 E_SPRING
7 10 3 EAG60841811
RIN1 TP3800
RIN2 ROUT2
8 9
DOUT1 TP3801
EAN41348201
R_SPRING 4
DOUT1
T_SPRING 5
RIN1
B_TERMINAL2 7B
T_TERMINAL2 6B
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-112_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. RS232C
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
[LM14A_ONLY]
CLIP Top Side for Covershield To connect 28pin Wafer
M13500 M13502 M13504 M13508
OS_MODULE 0 R13500 L/D_VSYNC
EAG64250901 EAG64250901 EAG64250901 EAG64250901 L/D_VSYNC_SOC OS_MODULE 0 R13501 L/D_CLK
L/D_CLK_SOC OS_MODULE 0 R13502
L/D_DI_SOC L/D_DI
CLIP 1 - PUSH TYPE
SMD Top Side for Covershield To connect 51P wafer
0
0.1uF C13500 TXDAN0_L R13503 LOCKAn_Video
TXVBY1_0N LOCKAn 0
0.1uF C13501 TXDAP0_L R13504 HTPDAn_Video
OPT OPT OPT TOP_SMD_GASKET TXVBY1_0P HTPDAn
0.1uF C13502 TXDAN1_L
GASKET_8.0X6.0X8.5H GASKET_8.0X6.0X8.5H GASKET_8.0X6.0X8.5H GASKET_8.0X6.0X8.5H
TXVBY1_1N
19-21/R6C-FR1S1L/3T
M13501 M13503 M13505 M13507 0.1uF C13503 TXDAP1_L +3.3V_NORMAL
TXVBY1_1P
VBY1_LOCK_LED
MDS62110209 MDS62110209 MDS62110209 MDS62110209
0.1uF C13504 TXDAN2_L
TXVBY1_2N
LD100
0.1uF C13505 TXDAP2_L
VBY1_LOCK_LED
TXVBY1_2P
0.1uF C13506 TXDAN3_L
TXVBY1_3N
0.1uF C13507 TXDAP3_L
8.5T TXVBY1_3P
0.1uF C13508 TXDAN4_L
3.3K
R177
TXVBY1_4N
0.1uF C13509 TXDAP4_L
TXVBY1_4P
0.1uF C13510 TXDAN5_L
TXVBY1_5N E Q100
0.1uF C13511 TXDAP5_L
TXVBY1_5P 2N3906S-RTK
0.1uF C13512 TXDAN6_L
TXVBY1_6N KEC_VBY1_LOCK_LED_TR
0.1uF C13513 TXDAP6_L B
TXVBY1_6P
0.1uF C13514 TXDAN7_L C
TXVBY1_7N
0.1uF C13515 TXDAP7_L
TXVBY1_7P
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A 2014-09-16
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. LM14A_ONLY 135
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
LM14A ONLY, LM14A+URSA
TUNER EMS GND SEPERATION
TU_GND_B
TU_GND_A
TU_GND_A4_22nF
TU_GND_B1_22nF
C6700 C6703
TU_GND_A2_1nF TU_GND_A3_0ohm 0.022uF 0.022uF
TU_GND_A6_3.3nF TU_GND_A1_0ohm C6706 TU_GND_B3_1nF TU_GND_B4_1nF
C6710 R6700 630V 630V TU_EU
R6701 C6707 C6708 C6709
3300pF 1000pF 0 TU_GND_B2_22ohm
0 TU_GND_A5_22ohm 1000pF 1000pF 3300pF
630V 630V R6703 R6704 630V 630V 630V
22 22
TU_GND_A1_1nF TU_GND_A2_22nF TU_GND_B2_0ohm TU_GND_B3_22nF TU_GND_B4_22nF
TU_GND_A3_22nF
R6701-*1 C6706-*1 C6707-*1 C6708-*1
R6700-*1 TU_GND_A4_1nF 0 0.022uF 0.022uF
1000pF 0.022uF 0.022uF R6704-*1
630V C6700-*1 630V 630V
630V 630V
1000pF
630V
GND_A GND_B
TU_GND_A EU/CIS AJJA TW/COL CN/HK KR North.AM BR JP TU_GND_B EU/CIS AJJA TW/COL CN/HK KR North.AM BR JP
GND A_1 0 ohm 0 ohm 0 ohm X 0 ohm X 0 ohm GND B_1 X X X 22 nF X 22 nF X
GND A_2 X X X 22 nF 22 nF 1 nF
X
GND B_2
X X X 22 ohm X 22 ohm X
GND A_3 X 0 ohm 0 ohm X 0 ohm 22 nF 0 ohm
X 22 nF GND B_3 1 nF 1 nF 1 nF 22 nF 1 nF 22 nF 1 nF
GND A_4 X X X 22 nF 1 nF
22 ohm 22 ohm GND B_4 1 nF 22 nF
GND A_5 X X X 22 ohm X 1 nF 1 nF 1 nF 22 nF 1 nF
SMD_BOT
GASKET_8.0X6.0X10.5H 70&79inch_EMI
M13700 GASKET_8.0X6.0X10.5H
MDS62110225 M13707
MDS62110225
SMD_BOT_OPT
GASKET_8.0X6.0X10.5H SMD_BOT_EU
M13701 GASKET_8.0X6.0X10.5H
MDS62110225 M13703 EU/CIS AJJA TW/COL CN/HK KR North.AM BR JP
TU_BOT_SMD
MDS62110225
SMD_BOT_OPT SMD1
GASKET_8.0X6.0X10.5H SMD_BOT
M13702 GASKET_8.0X6.0X10.5H
M13705 SMD2
MDS62110225
MDS62110225
SMD3
SMD_BOT_OPT
GASKET_8.0X6.0X10.5H
M13704
MDS62110225
70inch_EMI 79inch_EMI
GASKET_8.0X6.0X10.5H GASKET_8.0X6.0X12.5H
M13706 M13706-*1
MDS62110225 MDS62110217
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-137_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
Tuner_GND
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
LB59J
(LM14A+URSA11)
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
SPI_CK_SOC COMPENSATION_DONE OLED
LM14A+URSA9
SPI_DI_SOC TXVBY1_0N
FAN_ON LM14A UF68/64
+3.3V_NORMAL SPI_DO_SOC FRC_FLASH_SEL_SOC TXVBY1_0P
CHIP CONFIG NVRAM +3.3V_NORMAL
/SPI_CS TXVBY1_1N /TU_RESET2
Rohm_NVRAM
IC101-*1
FRC_FLASH_WP GST_A LM14A UF74
BR24G256FJ-3
EAN62389502 TXVBY1_1P
ROHM Semiconductor KOREA CORPORATION
TXOSD_3P LOCKAn_OSD GCLK_A
4.7K
4.7K
4.7K
Atmel_NVRAM WOL_WAKE_UP_SOC
4.7K
A0 VCC
IC101 1 8
TXOSD_3N URSA9_CONNECT MCLK_A PMIC_RESET 5V_DET_HDMI_1
AT24C256C-SSHL-T C100 A1
2 7
WP
Data_Format_1
OPT
EO_A
OPT
EAN61133501
ATMEL CORPORATION
0.1uF A2
3 6
SCL
TXOSD_2P DATA_FORMAT_1_SOC LM14A_ONLY LOCKOUT12 /USB_OCD3
GND
4 5
SDA
TXOSD_2N Data_Format_0
R108
R110
R115
DATA_FORMAT_0_SOC USB_CTL3
R122
TXOSD_1P URSA_RESET_SoC
A0 VCC HTPDAn_OSD
1 8 L/D_VSYNC_SOC
TXOSD_1N
HTPDAn_Video IC100
Write Protection L/D_CLK_SOC
LED1 A1 WP
TXOSD_0P LGE5332(LM14A)
2 7
TXOSD_0N L/D_DI_SOC
SPI_DI_SOC - Low : Normal Operation IC100
- High : Write Protection EB_DATA[0-7]
LED0 A2
3 A0’h 6 SCL LGE5332(LM14A)
EB_DATA[0]
PWM_PM I2C_SCL1
V-BY-ONE AH14
4.7K
4.7K
4.7K
FE_DEMOD1_TS_DATA[0-7]
4.7K
EB_DATA[1] PCM_D[0]/GPIO147 FE_DEMOD1_TS_DATA[0]
GND SDA I2C_SDA1 AG13 AH13
4 5 PCM_D[1]/GPIO148 TS1_D0/GPIO182
EB_DATA[2] FE_DEMOD1_TS_DATA[1]
OPT
OPT
33 D9 AF32 AG12 AG11
AR101 PWM_DIM TXVBY1_0N PCM_D[2]/GPIO149 TS1_D1/GPIO181
PWM0/GPIO152 LVSYNC/[VX1_0-] EB_DATA[3] AK22 AG10 FE_DEMOD1_TS_DATA[2]
F10 AF31
R109
TXVBY1_0P
R111
R116
PWM_DIM2
R123
PWM1/GPIO153 LHSYNC/[VX1_0+] EB_DATA[4] PCM_D[3]/GPIO119 TS1_D2/GPIO180 FE_DEMOD1_TS_DATA[3]
F8 AG32 AK21 AJ11
FAN_ON TXVBY1_1N PCM_D[4]/GPIO120 TS1_D3/GPIO179
PWM2/GPIO154 LDE/[VX1_1-] EB_DATA[5] AL21 AH10 FE_DEMOD1_TS_DATA[4]
E9 AG31 TXVBY1_1P
AMP_RESET_N PWM3/GPIO155 LCK/[VX1_1+] EB_DATA[6] PCM_D[5]/GPIO121 TS1_D4/GPIO178 FE_DEMOD1_TS_DATA[5]
AM23 AJ13
EB_DATA[7] PCM_D[6]/GPIO122 TS1_D5/GPIO177 FE_DEMOD1_TS_DATA[6]
N5 AH31 AH20 AG9
PWM_PM TXVBY1_2N EB_ADDR[0-14] PCM_D[7]/GPIO123 TS1_D6/GPIO176
PWM_PM/GPIO7 R_ODD[7]/LVB0N/[VX1_2-] AH9 FE_DEMOD1_TS_DATA[7]
AH30 TXVBY1_2P
R_ODD[6]/LVB0P/[VX1_2+] EB_ADDR[0] TS1_D7/GPIO175
F4 AJ31 AG14 AH11
TXVBY1_3N PCM_A[0]/GPIO146 TS1_CLK/GPIO172 FE_DEMOD1_TS_CLK
CHIP_CONFIG[3:0] /USB_OCD2 SAR0/GPIO46 R_ODD[5]/LVB1N/[VX1_3-] EB_ADDR[1] AL20 AJ10
G5 AJ32 TXVBY1_3P
{LED1, SPI_DI,LED0, PWM_PM} USB_CTL2 SAR1/GPIO47 R_ODD[4]/LVB1P/[VX1_3+] EB_ADDR[2] PCM_A[1]/GPIO145 TS1_VLD/GPIO174 FE_DEMOD1_TS_VAL
E5 AK32 AG15 AH12
FRC_FLASH_WP TXVBY1_4N PCM_A[2]/GPIO143 TS1_SYNC/GPIO173 FE_DEMOD1_TS_SYNC
Value Mode Description SAR2/GPIO48 R_ODD[3]/LVB2N/[VX1_4-] EB_ADDR[3] AH15
E4 AK31 TXVBY1_4P TPI_DATA[0-7]
4’b1000 SB51_ExtSPI 51 boot from SPI DDTS_TX SAR3/GPIO49 R_ODD[2]/LVB2P/[VX1_4+] EB_ADDR[4] PCM_A[3]/GPIO142 TPI_DATA[0]
4’b1001 HEMCU_ExtSPI ARM boot from SPI G4 AL32 AM19 AK17
TXVBY1_5N PCM_A[4]/GPIO141 TS0_D0/GPIO161
SAR5 R_ODD[1]/LVBCLKN/[VX1_5-] EB_ADDR[5] AJ17 AL18 TPI_DATA[1]
4’b1010 HEMCU_ROM_EMMC ARM boot from ROM; outer storage is eMMC AL31 TXVBY1_5P
4’b1011 HEMCU_ROM_NAND ARM boot from ROM; outer storage is NAND R_ODD[0]/LVBCLKP/[VX1_5+] EB_ADDR[6] PCM_A[5]/GPIO139 TS0_D1/GPIO162 TPI_DATA[2]
AK30 AJ16 AK18
4’b1100 DBUS for test only TXVBY1_6N PCM_A[6]/GPIO138 TS0_D2/GPIO163
G_ODD[7]/LVB3N/[VX1_6-] EB_ADDR[7] AH17 AL15 TPI_DATA[3]
4’b0000 SB51_ExtSPI + Authentication 51 boot from SPI with ARM authentication W5 AL30 TXVBY1_6P
SPI_CK_SOC PM_SPI_CK/GPIO1 G_ODD[6]/LVB3P/[VX1_6+] EB_ADDR[8] PCM_A[7]/GPIO137 TS0_D3 TPI_DATA[4]
4’b0001 SB51_ExtSPI + Authentication HEMCU_ExtSPI + Authentication V4 AK29 AM20 AL16
SPI_DI_SOC TXVBY1_7N PCM_A[8]/GPIO131 TS0_D4/GPIO165
4’b0011 HEMCU_ROM_NAND + Authentication ARM boot from ROM with authentication; PM_SPI_DI/GPIO2 G_ODD[5]/LVB4N/[VX1_7-] EB_ADDR[9] AH19 AK15 TPI_DATA[5]
V5 AL29 TXVBY1_7P
SPI_DO_SOC PM_SPI_DO/GPIO3 G_ODD[4]/LVB4P/[VX1_7+] EB_ADDR[10] PCM_A[9]/GPIO129 TS0_D5/GPIO166 TPI_DATA[6]
Y6 AJ20 AM16
/TU_RESET1 PM_SPI_CZ/GPIO0 EB_ADDR[11] PCM_A[10]/GPIO125 TS0_D6/GPIO167 TPI_DATA[7]
R167 0 Y4 AK28 TXOSD_0N
AK20 AK16
/SPI_CS GPIO_PM[6]/[SPI-CZ1N]/GPIO16 G_ODD[3]/LVA0N/[OSD_0-] EB_ADDR[12] PCM_A[11]/GPIO127 TS0_D7/GPIO168
OPT Y5 AM28 AG17 AL19
TXOSD_0P PCM_A[12]/GPIO136 TS0_CLK/GPIO171 TPI_CLK
GPIO_PM[10]/[SPI-CZ2N]/GPIO20 G_ODD[2]/LVA0P/[OSD_0+] EB_ADDR[13] AJ19 AM17
LM14 HW Option M_RFModule_RESET
G_ODD[0]/LVA1P/[OSD_1+]
AL28
AK27
TXOSD_1N
TXOSD_1P
EB_ADDR[14] AG18
PCM_A[13]/GPIO132 TS0_VLD/GPIO169
AL17
TPI_VAL
G_ODD[1]/LVA1N/[OSD_1-] PCM_A[14]/GPIO133 TS0_SYNC/GPIO170 TPI_SOP
AK26 TXOSD_2N
+3.3V_NORMAL B_ODD[7]/LVA2N/[OSD_2-] AH18 AH23
AL8 AL26 TXOSD_2P
DDCA_CK DDCA_CK/GPIO8 B_ODD[6]/LVA2P/[OSD_2+] SM_Vsel CAM_IREQ_N PCM_IRQA_N/GPIO135 TS3_D0/GPIO206 POL EPI
AK8 AM26 AM22 AH27
DDCA_DA TXOSD_3N SM_CLK EB_OE_N PCM_OE_N/GPIO126 TS3_D1/GPIO207 GST_A GST
DDCA_DA/GPIO9 B_ODD[5]/LVACLKN/[OSD_3-] AG20 AJ23
AK25 TXOSD_3P GCLK
B_ODD[4]/LVACLKP/[OSD_3+] SM_RST EB_BE_N1 PCM_IORD_N/GPIO128 TS3_D2/GPIO208 GCLK_A
AL25 AL22 AG27
B_ODD[3]/LVA3N/[LOCKN] LOCKAn_Video SM_IO /PCM_CE1 PCM_CE_N/GPIO124 TS3_D3/GPIO209 MCLK_A MCLK
AH28 AK24 AK19 AH24
10K
10K
10K
10K
10K
10K
10K
10K
EB_WE_N PCM_WE_N/GPIO134 OPT_P
10K
10K
TS3_D4/GPIO210
10K
10K
SOC_TX GPIO3/TX1/GPIO58 B_ODD[2]/LVA3P/[HTPDN] HTPDAn_Video SM_VCC
BIT2_1
BIT10_1
BIT11_1
BIT0_1
BIT1_1
BIT3_1
BIT4_1
BIT5_1
BIT6_1
BIT7_1
BIT8_1
AG21 AH26
BIT9_1
AH29 AL24
SOC_RX GPIO4/RX1 B_ODD[1]/LVA4N/[OSD_LOCKN] LOCKAn_OSD CAM_CD1_N PCM_CD_N/GPIO151 TS3_D5/GPIO211 SOE
AA4 AK23 AH16 AJ25
FRC_FLASH_SEL_SOC GPIO23/[TX3]/GPIO78 B_ODD[0]/LVA4P/[OSD_HTPDN] HTPDAn_OSD PCM_RESET PCM_RESET/GPIO150 TS3_D6/GPIO212 FB
W6 AJ14 AG26
R119
R112
R125
R128
R132
R135
R138
R140
R142
R146
R105
R148
/TU_RESET2 GPIO24/[RX3]/GPIO79 CAM_REG_N PCM_REG_N/GPIO144 TS3_D7/GPIO213 EO_A E/O
F14 AG19 AH25
I2C_SCL6 DIM2/TX4/GPIO112 SM_CD EB_BE_N0 PCM_IOWR_N/GPIO130 TS3_CLK/GPIO216 HCONV
F12 AG16 AJ26
BIT0 I2C_SDA6 DIM3/RX4/GPIO113 CAM_WAIT_N PCM_WAIT_N/GPIO140 TS3_VLD/GPIO214 DPM
AG24
BIT1 TS3_SYNC/GPIO215 LOCKOUT12 LOCK
AJ27
CPU_VID1 GPIO2/GPIO57
BIT2
C7
BIT3 BIT0 EMMC_IO15/[GPIO]/GPIO189
C6
BIT1 EMMC_IO17/[GPIO]/GPIO188
BIT4 AE2 C8 AJ28
GPIO_PM[0]/GPIO10 COMP1_DET EMMC_CMD EMMC_IO9/[EMMC_CMD]/GPIO183 GPIO8/[TS4_D[0]]/GPIO63 FE_DEMOD3_TS_DATA
B8 AG28
BIT2 EMMC_IO14/[GPIO]/GPIO185 GPIO5/[TS4_CLK]/GPIO60 FE_DEMOD3_TS_CLK
1K
R176
BIT5 U6 A9 AJ29
GPIO_PM[3]/GPIO13 DDTS_RX EMMC_CLK EMMC_IO10/[EMMC_CLK]/GPIO186 GPIO7/[TS4_VLD]/GPIO62 FE_DEMOD3_TS_VAL
P4 B7 AG29
BIT6 GPIO_PM[4]/GPIO14 PCM_5V_CTL R175 TCON_I2C_EN BIT3 EMMC_IO16/[GPIO]/GPIO187 GPIO6/[TS4_SYNC]/GPIO61 FE_DEMOD3_TS_SYNC
U5 22 B9
GPIO_PM[7]/GPIO17 EMMC_RST EMMC_IO11/[EMMC_RSTN]/GPIO190
AE5 A8
BIT7 PMIC_RESET BIT4 EMMC_IO12/[GPIO]/GPIO184
GPIO_PM[8]/GPIO18 C9
AJ7 AJ5
I2C_SCL3 GPIO28/SCK0/GPIO83 GPIO_PM[9]/GPIO19 COMPENSATION_DONE EMMC_STRB EMMC_IO8/[NAND-DQS]/GPIO191
BIT8 AH8 AG6 B6
I2C_SDA3 EMMC_DATA[0-7] BIT5 EMMC_IO13/[GPIO]/GPIO217
GPIO29/SDA0/GPIO84 GPIO_PM[13]/GPIO23 URSA9_CONNECT
E11
BIT9 I2C_SCL1 DDCR_CK/SCK3/GPIO54 EMMC_DATA[6] C10
E10
I2C_SDA1 DDCR_DA/SDA3/GPIO53 EMMC_DATA[7] EMMC_IO6/[EMMC_D6]/GPIO221
AJ6 B11
I2C_SCL2 GPIO30/SCK4/GPIO85 EMMC_DATA[2] EMMC_IO7/[EMMC_D7]/GPIO220
AG8 A11
I2C_SDA2 GPIO31/SDA4/GPIO86 EMMC_DATA[1] EMMC_IO2/[EMMC_D2]/GPIO219
BIT10 AH7 P5 C11
I2C_SCL5 GPIO32/SCK5/GPIO87 GPIO_PM[1]/PM_UART1/GPIO11 /USB_OCD1 EMMC_DATA[0] EMMC_IO1/[EMMC_D1]/GPIO218
AJ8 P6 A12 AL2
BIT11 I2C_SDA5 GPIO33/SDA5/GPIO88 GPIO_PM[5]/PM_UART1/GPIO15 USB_CTL1 EMMC_DATA[3] EMMC_IO0/[EMMC_D0]/GPIO194 VIFP
AJ4 B12 AM2
GPIO_PM[11]/PM_UART0/GPIO21 DATA_FORMAT_0_SOC EMMC_DATA[4] EMMC_IO3/[EMMC_D3]/GPIO193 VIFM
AH4 C12
GPIO_PM[12]/PM_UART0/GPIO22 DATA_FORMAT_1_SOC EMMC_DATA[5] EMMC_IO4/[EMMC_D4]/GPIO192
B13 AK1 Close to MSTAR DTV_IF
EMMC_IO5/[EMMC_D5]/GPIO222 SIFP
AK2
10K
10K
10K
10K
10K
10K
10K
10K
10K
SIFM
10K
10K
10K
L6 G7 R183 100 C103 0.1uF OPT IF_P
BIT10_0
BIT11_0
BIT2_0
BIT0_0
BIT1_0
BIT7_0
BIT8_0
BIT9_0
BIT4_0
BIT3_0
BIT5_0
BIT6_0
CPU_VID0 VID0/GPIO50 TESTPIN C107
M6 AK3 100pF
CORE_VID0 VID1/GPIO51 IFAGC
AD5
R126
LED0
R129
R106
R133
R136
R139
R141
LED0/GPIO29
R143
R147
R149
R113
R120
AD4
LED1 LED1/GPIO30 R184 100 C104 0.1uF OPT IF_N
AB5 AJ1 C109
WOL_WAKE_UP_SOC WOL_INT_OUT/[GPIO]/GPIO52 TGPIO0/GPIO157 /USB_OCD3 33pF OPT
E13 AJ2 C110
SPI1_DI/GPIO107 HP_DET TGPIO1/GPIO158 USB_CTL3 33pF
D12 R4
SPI1_CK/GPIO106 RF_SWITCH_CTL TGPIO2/SCK1/GPIO159 I2C_SCL7
F11 R5
SPI2_DI/GPIO109 L/D_DI_SOC TGPIO3/SDA1/GPIO160 I2C_SDA7
D11
SPI2_CK/GPIO108 L/D_CLK_SOC
E12
VSYNC_LIKE/GPIO105 L/D_VSYNC_SOC C101 0.1uF R185 47
D14 AM7 TU_SIF
DIM0/GPIO110 SC_DET NC_1 C102 0.1uF R186 47
E14 AL7 R188
DIM1/GPIO111 AV1_CVBS_DET NC_2 C105 300
AM8 1000pF
NC_3 ANALOG SIF OPT OPT
AK7
NC_4 Close to MSTAR
20150123 version AL5
NC_5
+3.3V_NORMAL
BIT(0/1) DVB ATSC JP AM5
GPIO34/GPIO89 CORE_VID1
M7 L100
00 TW/COL US NC_6 PZ1608U121-2R0TF
Low High
01 CN/HK KR JP
10 EU BR T-con I2C R182 C106
BIT8 16Kbit 32Kbit 0.1uF
BIT(2/3) EU/CIS AJJA TW/COL CN/HK KR North.AM BR JP Protocol 10K
11 AJJA CI BIT(6/7) B/E(FRC)
R187
00 T2/C/S2 PIP T2/C PIP T2/C PIP Default ATSC NIM+T2 Default ISDB PIP Default 0
00 LM14A only BIT9 Division NON_Division 4_Division IF_AGC
Low High
01 T2/C/S2 T2/C/S2 T2/C ATSC+T2 ISDB EXT
01 N/A C108
BIT4 Display LCD OLED 0.047uF
BIT10 Interface EPI Vx1
10 LM14A+URSA11 10 T/C T T/C ATSC 25V
ISDB INT
4K@60Hz
BIT5 Resolution FHD UHD 11 LM14A+URSA11 11 T2 BIT11 OS(DDR) WebOS Lite WebOS
ATSC PIP
4K@120Hz
+3.3V_TU
+3.3V_LNA_TU
+3.3V_NORMAL I2C PULL UP
GPIO PULL UP
Mstar Debug RS232C_Debug DDTS_Debug
+3.3V_NORMAL MSTAR_DEBUG_OLD
P101 +3.3V_NORMAL +3.3V_NORMAL
DDTS_Debug
R100
1.8K
R101
1.8K
R102
1.8K
R103
1.8K
R104
1.8K
R107
1.8K
R114
1.8K
R121
1.8K
R124
1.8K
R127
1.8K
R130
1.8K
R131
1.8K
R134
1.8K
R137
1.8K
MSTAR_DEBUG_NEW
12505WS-04A00
P100 P102 P103
12507WS-04L 12507WS-04L 12507WS-04L
10K
10K
10K
10K
10K
10K
10K
10K
10K
10K
I2C_SDA7
10K
10K
1
OPT
I2C for URSA9 (URSA9 Only)
OPT
I2C_SCL7
OPT
OPT
1 1
R152
1
R154
R164
I2C_SDA6
R156
R157
R161
R165
R170
R166
R168
I2C for LCD Module 2
R178
R180
I2C_SCL6
I2C_SDA1 2 SOC_RX 2
I2C for NAVRAM 2 DDTS_RX
I2C_SCL1
10K
10K
/TU_RESET1 DDCA_CK 3
I2C_SDA3
OPT
OPT
I2C for Micom RF_SWITCH_CTL 3 3
I2C_SCL3 3
AMP_RESET_N 4
R179
R181
I2C_SDA4 DDCA_DA
I2C for Main Amp / Woofer AMP TCON_I2C_EN
I2C_SCL4 4 4 SOC_TX 4
/USB_OCD3 5 DDTS_TX
I2C_SDA5
I2C for tuner USB_CTL3
I2C_SCL5 5 5 5
/USB_OCD2
I2C_SDA2 USB_CTL2
I2C for tuner&LNB M_RFModule_RESET
AR100 I2C_SCL2
33 PCM_5V_CTL
I2C_SDA_MICOM I2C_SDA3
I2C_SCL_MICOM I2C_SCL3
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-001_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A 2015-01-23
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. MAIN1_SYSTEM 01
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
IC100
LGE5332(LM14A)
WOL POWER ENABLE CONTROL +1.1V_VDDC_CPU
+1.1V_VDDC +1.1V_VDDC 1st layer 4th layer
+1.1V_Bypass Cap(CLOSE TO CHIP SIDE)
J9 AC17
VDDC_1 VDDC_24
J10 AC18
BOTTOM_CAP_FOR_RIPPLE
+1.1V_VDDC DVDD_DDR11
VDDC_2 VDDC_25 +3.5V_ST
0.1uF
0.1uF
J11 AC19 +3.5V_WOL BOTTOM_CAP_FOR_RIPPLE
0.1uF
10uF
VDDC_3 VDDC_26 IC201 4th layer
J12 AC20 C263 C323 L226
VDDC_4 VDDC_27 AP2151WG-7
J13 AC21 10uF C208 0.1uF PZ1608U121-2R0TF
VDDC_5 VDDC_28 10V 10uF 16V
C322
PZ1608U121-2R0TF
C276
C278
K9 AC22
C299
VDDC_6 VDDC_29 L203 10V
K10 AD17 IN OUT
K11
VDDC_7 VDDC_30
AD18
+3.3V_NORMAL
5 1
2A C324 C257
VDDC_8 VDDC_31 C242 R204
K12 AD19 0.47uF 0.47uF
VDDC_9 VDDC_32 0.1uF GND 10K
K13 AD20 2 6.3V 6.3V
VDDC_10 VDDC_33 R203 OPT
L9 AD21 Close to chip side
VDDC_11 VDDC_34 1K
L10 AD22 WOL_CTL 0 R202 OPT EN FLG
VDDC_12 VDDC_35 4 3
L11 AE19 Close to chip side
VDDC_13 VDDC_36
L12 AE20
VDDC_14 VDDC_37
R11 AE21
VDDC_15 VDDC_38
R12 AE22
VDDC_16 VDDC_39 Close to chip side
R13
VDDC_17 +1.1V_VDDC
T11 AE31
VDDC_18 VDD_SRAM_1
T12 AC24 1st layer 4th layer
VDDC_19 VDD_SRAM_2 AVDDL_MOD11
T13 AD23
VDDC_20 VDD_SRAM_3 4th layer
U11 AVDD_DMPLL
VDDC_21
BOTTOM_CAP_FOR_RIPPLE
U12 AE30 L202
BOTTOM_CAP_FOR_RIPPLE
0.1uF
0.1uF
0.1uF
VDDC_22 CTRL_SRAMLDO PZ1608U121-2R0TF
10uF
U13 1st layer 4th layer
VDDC_23 C205 C261
10uF 0.1uF
AVDDL_MOD11 A6 AVDD_DMPLL 10V 16V 2A
C250
C230
C234
C235
EMMC_CTRL C320
W21 C238
0.1uF
AVDDL_PREDRV_1 0.47uF 0.47uF
0.1uF
Y21 6.3V
AVDDL_PREDRV_2 6.3V
AD29 V7
AVDDL_PREDRV_3 AVDD_NODIE
0.1uF
AD30
DVDD_DDR11
C244
AVDDL_MOD_1
C245
W20
AVDD15_MOD AVDDL_MOD_2 Close to chip side
Y20 L7
AVDDL_MOD_3 AVDDL_MHL3_1 AVDDP3P3_MHL
U19 N12
C227
AVDD15_MOD_1 AVDDL_MHL3_2 Close to chip side
V19 R7
AVDD15_MOD_2 AVDD3P3_MHL3_1
DVDD_DDR11 AA13 T7
AVDDL_USB3_1 AVDD3P3_MHL3_2 Close to chip side
AF11 AVDD33_ADC
AVDDL_USB3_2 AVDD_DMPLL
U21 Y7
VDDC_CPU_1 AVDD3P3_ETH Close to chip side
U22 AB7
+1.1V_VDDC_CPU VDDC_CPU_2 AVDD3P3_DADC_1
U23 AB8
VDDC_CPU_3 AVDD3P3_DADC_2
U24 AA7 +3.5V_WOL
VDDC_CPU_4 AVDD3P3_ADC_1 AVDD_DMPLL
U25 AA8 IC200
VDDC_CPU_5 AVDD3P3_ADC_2
V23 G9 AP2121N-3.3TRE1
V24
VDDC_CPU_6 AVDD3P3_USB_1
G10
AVDD_DMPLL
+1.5V_Bypass Cap
VDDC_CPU_7 AVDD3P3_USB_2 +1.5V_DDR AVDD_DDR
V25 AB15 VIN 3 2 VOUT
VDDC_CPU_8 AVDD3P3_USB3_1
W23 AF13 AVDD_AU33
VDDC_CPU_9 AVDD3P3_USB3_2 AVDDP3P3 1
W24 AD7 L227
VDDC_CPU_10 AVDD_AU33 GND PZ1608U121-2R0TF
W25 AE7
VDDC_CPU_11 AVDD_EAR33 C246 1st layer 4th layer
Y23 AF8 C243 1uF
VDDC_CPU_12 AVDD3P3_DMPLL 0.1uF AVDD_DDR AVDD15_MOD
Y24 AE15 10V L200
VDDC_CPU_13 VDDP_1 16V
Y25 AF15
2A
0.47uF
VDDC_CPU_14 VDDP_2 PZ1608U121-2R0TF
0.1uF
0.1uF
0.1uF
0.1uF
AA22
0.1uF
0.1uF
0.1uF
VDDC_CPU_15 L224
AA23
AA24
VDDC_CPU_16
V17
4A C207
10uF
C201
10uF
C247
C316
10uF
C223
10uF
C248
0.47uF
C249
0.47uF
AVDD_DMPLL 0.47uF
VDDC_CPU_17 AVDD_MOD_1 10V 10V 6.3V PZ1608U121-2R0TF
C314
0.1uF
10V 10V 6.3V
0.1uF
AA25 V18
C209
C224
C225
C226
6.3V
C203
C204
C287
VDDC_CPU_18 AVDD_MOD_2
AB24 W19 WOL_WAKE_UP
VDDC_CPU_19 AVDD_LPLL_1 R205
AB25 Y19
VDDC_CPU_20 AVDD_LPLL_2 10K
C307
C308
0 R169
AE16 WOL_WAKE_UP WOL_WAKE_UP_SOC
MCP_VDDC_1 WOL_WAKE_UP
AF16 N15
MCP_VDDC_2 AVDD_PLL_A
N16 Close to chip side
AVDD_PLL_B Close to chip side
DVDD_NODIE VDDP_NAND_A VDDP_NAND_C
L13
DVDD_NODIE
DVDD_DDR11 H16
VDDP_3318_A/[3.3V/1.8V]
K21 K16
C200 DVDD_DDR_1 VDDP_3318_C/[3.3V/1.8V]
N21 AVDD_DDR
1uF DVDD_DDR_2
25V
M21 J21
DVDD_DDR_3 AVDD_DDR_A_1
L21 K17
DVDD_DDR_4 AVDD_DDR_A_2
K18
AVDD_DDR_A_3
K19
AVDD_DDR_A_4
L17
AVDD_DDR_A_5
L19
AVDD_DDR_A_6
L20
AVDD_DDR_A_7
AVDD_DDR_B_1
J23
K22 GND JIG POINT +3.3V_Bypass Cap
AVDD_DDR_B_2
K23
AVDD_DDR_B_3
M22
AVDD_DDR_B_4
N22
AVDD_DDR_B_5
4th layer
JP202
JP204
JP205
JP203
N23
AVDD_DDR_B_6 +3.3V_NORMAL AVDDP3P3
P23 +3.3V_NORMAL
AVDD_DDR_B_7
AVDD33_ADC
1st layer 4th layer
L215
L221 PZ1608U121-2R0TF
BOTTOM_CAP_FOR_RIPPLE
BOTTOM_CAP_FOR_RIPPLE
BOTTOM_CAP_FOR_RIPPLE
L18 PZ1608U121-2R0TF
0.1uF
AVDD_DDR_LDO_A
0.47uF
L22
0.1uF
AVDD_DDR_LDO_B C294 C295
AVDD5V_MHL 2A 1uF 1uF
C251
0.47uF
C252
0.47uF
C222
2A C256 C217
25V 25V 6.3V 6.3V 10uF
C268 10uF
10uF
C274
H7 10V 10V
C311
C253
10uF 10V
AVDD_HDMI_5V_PA 10V
R201
0 AVDD_DDR
G8
GND_EFUSE
0.1uF
Close to chip side
C14
C229
AVDD_DDR_VBP_A_1 0.47uF C210
B14 +3.3V_NORMAL VDDP_NAND_C
5V_HDMI_1 AVDD5V_MHL AVDD_DDR_VBP_A_2 0
J17 Close to chip side Close to chip side
AVDD_DDR_VBP_A_3 R207
J18 0.47uF C211 non_HDMI_LEAK
AVDD_DDR_VBP_A_4
0.1uF
R200 4th layer
L208
10 B15 PZ1608U121-2R0TF
AVDD_DDR_VBN_A_1 0.47uF C212
C15 AVDD_AU33
AVDD_DDR_VBN_A_2
C219
J19 +5V_NORMAL 4th layer
AVDD_DDR_VBN_A_3
J20 0.47uF C213 2A C260
C266
0.1uF L219 HDMI_LEAK
AVDD_DDR_VBN_A_4 10uF PZ1608U121-2R0TF R206
BOTTOM_CAP_FOR_RIPPLE 10K AVDDP3P3_MHL
10V
AC30 C292
G
AVDD_DDR_VBP_B_1 0.47uF C214
AVDD_DDR_VBP_B_2
AC31
K24
2A 0.47uF
6.3V
L201
PZ1608U121-2R0TF
BOTTOM_CAP_FOR_RIPPLE
AVDD_DDR_VBP_B_3 0.47uF C215
S
D
L24
AVDD_DDR_VBP_B_4
0.1uF
RUE003N02 C240 C241
0.1uF 0.47uF
AD31 Q200 D
VISHAY_HDMI_LEAK 6.3V
AVDD_DDR_VBN_B_1 ROHM_HDMI_LEAK BOTTOM_CAP_FOR_RIPPLE
AD32 C216 Q200-*1
AVDD_DDR_VBN_B_2 0.47uF VDDP_NAND_A G
C221
L23 SI1012CR-T1-GE3
AVDD_DDR_VBN_B_3 Close to chip side
M24 +1.8V S
AVDD_DDR_VBN_B_4 0.47uF C220
L209
PZ1608U121-2R0TF
Close to chip side
2A C236
C239
0.1uF
10uF
10V
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. BSD-15Y-LM14A-002_00-HD
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A 2014-12-21
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. MAIN2_POWER 2
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
DDR_VTT DDR_VTT
AR400 AR407
M0_DDR_VREFDQ 56 56
Hynix_DDR3_4Gb_29n Hynix_DDR3_4Gb_29n M0_1_DDR_VREFDQ 1/16W 1/16W
IC400 IC401 C424 0.1uF C453 0.1uF
M0_DDR_A14 M1_DDR_A14
H5TQ4G63AFR-RDC H5TQ4G63AFR-RDC M0_DDR_A8 M1_DDR_A8
M0_DDR_A11 M1_DDR_A11
EAN63053201 EAN63053201 C425 0.1uF C454 0.1uF
M0_DDR_A6 M1_DDR_A6
M0_DDR_A0
N3
A0 DDR3 VREFCA
M8
M0_DDR_A0
N3
A0
DDR3 VREFCA
M8
AR401 AR408
P7 P7 4Gbit 56 56
M0_DDR_A1 A1 4Gbit M0_DDR_A1 A1 1/16W 1/16W
P3 P3
M0_DDR_A2 A2 (x16) M0_DDR_A2 A2 (x16) C426 0.1uF C455 0.1uF
N2 H1 N2 H1 M0_DDR_A1 M1_DDR_A1
M0_DDR_A3 A3 VREFDQ M0_DDR_A3 A3 VREFDQ
P8 P8 M0_DDR_A4 M1_DDR_A4
M0_DDR_A4 A4 M0_DDR_A4 A4
P2 P2 M0_DDR_A12 M1_DDR_A12
M0_DDR_A5 A5 M0_DDR_A5 A5 C427 0.1uF C456 0.1uF
R8 L8 R400 240 R8 L8 R403 240 M0_DDR_BA1 M1_DDR_BA1
M0_DDR_A6 A6 ZQ M0_DDR_A6 A6 ZQ
R2 AVDD_DDR R2 AR402 AR409
M0_DDR_A7 A7 M0_DDR_A7 A7 AVDD_DDR
T8 T8 56 56
M0_DDR_A8 A8 M0_DDR_A8 A8 1/16W 1/16W
R3 B2 R3 B2 C428 0.1uF C457 0.1uF
M0_DDR_A9 A9 VDD_1 M0_DDR_A9 A9 VDD_1
L7 D9 L7 D9
M0_DDR_A10 A10/AP VDD_2 M0_DDR_A10 A10/AP VDD_2 M0_DDR_A13 M1_DDR_A13
R7 G7 R7 G7
DDR3 1.5V bypass Cap - Place these caps near Memory
DDR3 1.5V bypass Cap - Place these caps near Memory
M0_DDR_A11 A11 VDD_3 M0_DDR_A11 A11 VDD_3
N7 K2 N7 K2 M0_DDR_A9 M1_DDR_A9
M0_DDR_A12 A12/BC VDD_4 M0_DDR_A12 C429 0.1uF C458 0.1uF
A12/BC VDD_4 M0_DDR_A7 M1_DDR_A7
T3 K8 T3 K8
M0_DDR_A13 A13 VDD_5 M0_DDR_A13 A13 VDD_5
T7 N1 T7 N1 AR403 AR410
M0_DDR_A14 A14 VDD_6 M0_DDR_A14 A14 VDD_6 56 56
M7 N9 M7 N9 1/16W 1/16W
M0_DDR_A15 NC_5 VDD_7 M0_DDR_A15 NC_5 VDD_7
R1 R1 C430 0.1uF C459 0.1uF
VDD_8 VDD_8 M0_DDR_A2 M1_DDR_A2
M2 R9 M2 R9
M0_DDR_BA0 BA0 VDD_9 M0_DDR_BA0 BA0 VDD_9 M0_DDR_A5 M1_DDR_A5
N8 N8
M0_DDR_BA1 BA1 M0_DDR_BA1 BA1 M0_DDR_A3 M1_DDR_A3
M3 M3 C431 0.1uF C460 0.1uF
M0_DDR_BA2 BA2 M0_DDR_BA2 BA2 M0_DDR_A0 M1_DDR_A0
A1 A1
VDDQ_1 VDDQ_1 AR404 AR411
J7 A8 J7 A8
M0_D_CLK CK VDDQ_2 M0_D_CLK CK VDDQ_2 56 56
K7 C1 K7 C1 1/16W 1/16W
M0_D_CLKN CK VDDQ_3 M0_D_CLKN CK VDDQ_3 C432 0.1uF C461 0.1uF
K9 C9 K9 C9 M0_DDR_BA0 M1_DDR_BA0
M0_DDR_CKE CKE VDDQ_4 M0_DDR_CKE CKE VDDQ_4
D2 D2 M0_DDR_BA2 M1_DDR_BA2
VDDQ_5 VDDQ_5
L2 E9 L2 E9 M0_DDR_A15 M1_DDR_A15
M0_DDR_CS1 CS VDDQ_6 M0_DDR_CS2 CS VDDQ_6 C433 0.1uF C462 0.1uF
K1 F1 K1 F1 M0_DDR_A10 M1_DDR_A10
M0_DDR_ODT ODT VDDQ_7 M0_DDR_ODT ODT VDDQ_7
J3 H2 C410 0.1uF J3 H2 C440 0.1uF
M0_DDR_RASN RAS VDDQ_8 M0_DDR_RASN RAS VDDQ_8 AR405 AR412
K3 H9 C411 0.1uF K3 H9 C441 0.1uF 56 56
M0_DDR_CASN CAS VDDQ_9 M0_DDR_CASN CAS VDDQ_9 1/16W 1/16W
L3 L3
M0_DDR_WEN WE M0_DDR_WEN WE C434 0.1uF C463 0.1uF
J1 J1 M0_DDR_WEN M1_DDR_WEN
NC_1 NC_1
T2 J9 T2 J9 M0_DDR_CASN M1_DDR_CASN
M0_DDR_RESET_N RESET NC_2 M0_DDR_RESET_N RESET NC_2
IC100 L1 L1 M0_DDR_ODT M1_DDR_ODT
NC_3 NC_3 C435 0.1uF C464 0.1uF
LGE5332(LM14A) L9 L9 M0_DDR_RASN M1_DDR_RASN
NC_4 NC_4
F3 F3 AR406 AR413
M0_DDR_DQS0 DQSL SS_DDR3_4Gb_25n Hynix_DDR3_4Gb_25n M0_DDR_DQS2 DQSL SS_DDR3_4Gb_25n
Hynix_DDR3_4Gb_25n
G3 IC400-*1 IC400-*2 G3
IC401-*1
K4B4G1646D-BCMA IC401-*2 SS_DDR3_2Gb
IC401-*3
Hynix_DDR3_2Gb
IC401-*4
56 56
K4B4G1646D-BCMA H5TQ4G63CFR_RDC H5TQ4G63CFR_RDC
M0_DDR_DQS_N0 DQSL M0_DDR_DQS_N2 DQSL EAN63391401 K4B2G1646Q-BCMA H5TQ2G63FFR-RDC 1/16W 1/16W
EAN63391401 EAN63053202 N3 M8 EAN63053202
F17 H28 N3
P7
A0 VREFCA
M8 N3
P7
A0 VREFCA
M8 P7
A0
A1
VREFCA N3
P7
A0 VREFCA
M8
N3
EAN63667401
M8 N3
EAN63648701
M8
C436 0.1uF C465 0.1uF
M0_DDR_A0 IO[3]/A-A0[AB-A0]/A-A6 IO[75]/B-A0[CD-A0]/B-A6 M1_DDR_A0 C7 A9 P3
A1
A2
P3
A1
A2
C7 A9
P3
N2
A2
H1 P3
A1
A2
P7
A0
A1
VREFCA
P7
A0
A1
VREFCA
M0_DDR_CKE M1_DDR_CKE
C17 K31 M0_DDR_DQS1 DQSU
N2
A3 VREFDQ
H1 N2
A3 VREFDQ
H1
M0_DDR_DQS3
P8
A3
A4
VREFDQ N2
A3 VREFDQ
H1 P3
A2
P3
A2
M0_DDR_A1 IO[2]/A-A1[AB-A1]/A-A5 IO[80]/B-A1[CD-A1]/B-A5 M1_DDR_A1 VSS_1 P8
P2
A4
P8
P2
A4 DQSU VSS_1 P2
R8
A5
L8
P8
P2
A4
N2
P8
A3 VREFDQ
H1 N2
P8
A3 VREFDQ
H1
E17 J29 B7 B3 R8
A5
A6 ZQ
L8 R8
A5
A6 ZQ
L8 B7 B3 R2
A6
A7
ZQ R8
A5
A6 ZQ
L8 P2
A4
A5
P2
A4
A5
M0_DDR_A2 IO[8]/A-A2[AB-A2]/A-A8 M1_DDR_A2 M0_DDR_DQS_N1 DQSU VSS_2
R2
A7
R2
A7
M0_DDR_DQS_N3 DQSU VSS_2 T8
A8
R2
A7
R8
R2
A6 ZQ
L8 R8
R2
A6 ZQ
L8
M0_D_CLKN M1_D_CLKN
IO[83]/B-A2[CD-A2]/B-A8 E1
T8
R3
A8
B2
T8
R3
A8
B2
E1
R3
L7
A9 VDD_1
B2
D9
T8
R3
A8
B2 T8
A7
T8
A7
F18 K27 L7
A9 VDD_1
D9 L7
A9 VDD_1
D9 R7
A10/AP VDD_2
G7 L7
A9 VDD_1
D9 R3
A8
B2 R3
A8
B2
C437 0.1uF C466 0.1uF
M0_DDR_A3 IO[12]/A-A3[AB-A3]/A-A4 IO[79]/B-A3[CD-A3]/B-A4 M1_DDR_A3 VSS_3 R7
A10/AP
A11
VDD_2
VDD_3
G7 R7
A10/AP
A11
VDD_2
VDD_3
G7
VSS_3 N7
A11
A12/BC
VDD_3
VDD_4
K2 R7
A10/AP
A11
VDD_2
VDD_3
G7 L7
A9
A10/AP
VDD_1
VDD_2
D9 L7
A9
A10/AP
VDD_1
VDD_2
D9
M0_D_CLK M1_D_CLK
B18 K30 E7 G8 N7
T3
A12/BC VDD_4
K2
K8
N7
T3
A12/BC VDD_4
K2
K8 E7 G8 T3
A13 VDD_5
K8
N1
N7
T3
A12/BC VDD_4
K2
K8
R7
N7
A11
A12/BC
VDD_3
VDD_4
G7
K2
R7
N7
A11
A12/BC
VDD_3
VDD_4
G7
K2
M0_DDR_A4 M1_DDR_A4 M0_DDR_DM0 DML VSS_4
A13 VDD_5
VDD_6
N1 T7
A13
A14
VDD_5
VDD_6
N1
M0_DDR_DM2 DML VSS_4 M7
VDD_6
N9 T7
A13
A14
VDD_5
VDD_6
N1 T3
A13 VDD_5
K8 T3
A13 VDD_5
K8
IO[11]/A-A4[AB-A4]/A-BA1 IO[87]/B-A4[CD-A4]/B-BA1 D3 J2
M7
NC_5 VDD_7
N9
R1
M7
NC_5 VDD_7
N9
R1 D3 J2
NC_5 VDD_7
VDD_8
R1 M7
NC_5 VDD_7
N9
R1 M7
VDD_6
N1
N9
T7
M7
A14 VDD_6
N1
N9
E18 J28 M0_DDR_DM1 DMU
M2
VDD_8
R9 M2
VDD_8
R9
M0_DDR_DM3
M2
BA0 VDD_9
R9
M2
VDD_8
R9
NC_5 VDD_7
R1
NC_5 VDD_7
R1
M0_DDR_A5 IO[14]/A-A5[AB-A5]/A-A0 IO[86]/B-A5[CD-A5]/B-A0 M1_DDR_A5 VSS_5 N8
BA0 VDD_9
N8
BA0 VDD_9
DMU VSS_5 N8
M3
BA1 N8
BA0 VDD_9
M2
BA0
VDD_8
VDD_9
R9 M2
BA0
VDD_8
VDD_9
R9
A17 K32 J8 M3
BA1
BA2
A1
M3
BA1
BA2
A1
J8 J7
BA2
VDDQ_1
A1
A8
M3
BA1
BA2
A1
N8
M3
BA1
N8
M3
BA1
M0_DDR_A6 IO[10]/A-A6[AB-A6]/A-A1 IO[90]/B-A6[CD-A6]/B-A1 M1_DDR_A6 VSS_6 J7
CK
VDDQ_1
VDDQ_2
A8 J7
CK
VDDQ_1
VDDQ_2
A8
VSS_6 K7
CK
CK
VDDQ_2
VDDQ_3
C1 J7
CK
VDDQ_1
VDDQ_2
A8
BA2
VDDQ_1
A1
BA2
VDDQ_1
A1
D17 H31 E3 M1 K7
K9
CK VDDQ_3
C1
C9
K7
K9
CK VDDQ_3
C1
C9 E3 M1 K9
CKE VDDQ_4
C9
D2
K7
K9
CK VDDQ_3
C1
C9
J7
K7
CK
CK
VDDQ_2
VDDQ_3
A8
C1
J7
K7
CK
CK
VDDQ_2
VDDQ_3
A8
C1
M0_DDR_A7 M1_DDR_A7 M0_DDR_DQ0 DQL0 VSS_7
CKE VDDQ_4
VDDQ_5
D2
CKE VDDQ_4
VDDQ_5
D2
M0_DDR_DQ16 DQL0 VSS_7 L2
VDDQ_5
E9
CKE VDDQ_4
VDDQ_5
D2 K9
CKE VDDQ_4
C9 K9
CKE VDDQ_4
C9
IO[13]/A-A7[AB-A7]/A-A2 IO[78]/B-A7[CD-A7]/B-A2 F7 M9
L2
K1
CS VDDQ_6
E9
F1
L2
K1
CS VDDQ_6
E9
F1 F7 M9
K1
CS
ODT
VDDQ_6
VDDQ_7
F1 L2
K1
CS VDDQ_6
E9
F1 L2
VDDQ_5
D2
E9 L2
VDDQ_5
D2
E9
C16 J32 M0_DDR_DQ1 DQL1
J3
ODT VDDQ_7
H2 J3
ODT VDDQ_7
H2
M0_DDR_DQ17
J3
RAS VDDQ_8
H2
J3
ODT VDDQ_7
H2 K1
CS VDDQ_6
F1 K1
CS VDDQ_6
F1
M0_DDR_A8 IO[0]/A-A8[AB-A8]/A-A9 IO[77]/B-A8[CD-A8]/B-A9 M1_DDR_A8 VSS_8 K3
RAS VDDQ_8
H9 K3
RAS VDDQ_8
H9 DQL1 VSS_8 K3
L3
CAS VDDQ_9
H9
K3
RAS VDDQ_8
H9 J3
ODT VDDQ_7
H2 J3
ODT VDDQ_7
H2
AVDD_DDR
E16 G30 F2 P1 L3
CAS
WE
VDDQ_9
J1
L3
CAS
WE
VDDQ_9
J1
F2 P1 T2
WE
NC_1
J1
J9
L3
CAS
WE
VDDQ_9
J1
K3
L3
RAS
CAS
VDDQ_8
VDDQ_9
H9 K3
L3
RAS
CAS
VDDQ_8
VDDQ_9
H9
M0_DDR_CKE
M0_DDR_A9 M1_DDR_A9 M0_DDR_DQ2 DQL2 VSS_9 T2
NC_1
J9 T2
NC_1
J9 M0_DDR_DQ18 DQL2 VSS_9 RESET NC_2
L1 T2
NC_1
J9
WE
J1
WE
J1
IO[5]/A-A9[AB-A9]/A-A11 IO[73]/B-A9[CD-A9]/B-A11 F8 P9
RESET NC_2
NC_3
L1
RESET NC_2
NC_3
L1
F8 P9
NC_3
L9
RESET NC_2
NC_3
L1 T2
RESET
NC_1
NC_2
J9 T2
RESET
NC_1
NC_2
J9
B19 L30 M0_DDR_DQ3 DQL3
NC_4
L9
NC_4
L9
M0_DDR_DQ19
F3
DQSL
NC_4
NC_6
T7
NC_4
L9
NC_3
L1
NC_3
L1
M0_DDR_A10 IO[9]/A-A10[AB-A10]/A-RASZ IO[93]/B-A10[CD-A10]/B-RASZ M1_DDR_A10 VSS_10 F3
G3
DQSL NC_6
T7 F3
G3
DQSL DQL3 VSS_10 G3
DQSL
F3
G3
DQSL
F3
NC_4
L9
T7 F3
NC_4
L9
H3 T1
1K
R418
B17 J30
DQSL DQSL
H3 T1 C7
DQSU VSS_1
A9
DQSL
G3
DQSL
DQSL
NC_6
G3
DQSL
DQSL
M0_DDR_DQ4 AVDD_DDR
OPT
C7 A9 C7 A9
M0_DDR_DQ20 C7 A9
1K
R405
M0_DDR_A11 IO[6]/A-A11[AB-A11]/A-A7 IO[84]/B-A11[CD-A11]/B-A7 M1_DDR_A11 DQL4 VSS_11 B7
DQSU VSS_1
B3 B7
DQSU VSS_1
B3 DQL4 VSS_11 B7
DQSU VSS_2
B3
E1 B7
DQSU VSS_1
B3 C7
DQSU VSS_1
A9 C7
DQSU VSS_1
A9
AVDD_DDR
D20 L29 H8 T9 E7
DQSU VSS_2
VSS_3
E1
G8 E7
DQSU VSS_2
VSS_3
E1
G8
H8 T9 E7
D3
DML
VSS_3
VSS_4
G8
J2 E7
DQSU VSS_2
VSS_3
E1
G8
B7
DQSU VSS_2
B3
E1
B7
DQSU VSS_2
B3
E1
M0_DDR_A12 IO[26]/A-A12[AB-A12]/A-BG0 M1_DDR_A12 M0_DDR_DQ5 DQL5 VSS_12 D3
DML VSS_4
J2 D3
DML VSS_4
J2 M0_DDR_DQ21 DQL5 VSS_12 DMU VSS_5
J8 D3
DML VSS_4
J2 E7
VSS_3
G8 E7
VSS_3
G8
IO[85]/B-A12[CD-A12]/B-BG0 G2
DMU VSS_5
VSS_6
J8
DMU VSS_5
VSS_6
J8
G2 E3
VSS_6
M1
DMU VSS_5
VSS_6
J8 D3
DML
DMU
VSS_4
VSS_5
J2 D3
DML
DMU
VSS_4
VSS_5
J2
F16 G31 M0_DDR_DQ6 DQL6
E3
DQL0 VSS_7
M1 E3
DQL0 VSS_7
M1
M0_DDR_DQ22
F7
DQL0
DQL1
VSS_7
VSS_8
M9 E3
DQL0 VSS_7
M1
VSS_6
J8
VSS_6
J8
M0_1_DDR_VREFDQ
M0_DDR_A13 IO[4]/A-A13[AB-A13]/A-PARITY IO[74]/B-A13[CD-A13]/B-PARITY M1_DDR_A13
F7
F2
DQL1 VSS_8
M9
P1
F7
F2
DQL1 VSS_8
M9
P1 DQL6 F2
F8
DQL2 VSS_9
P1
P9
F7
F2
DQL1 VSS_8
M9
P1
E3
F7
DQL0 VSS_7
M1
M9
E3
F7
DQL0 VSS_7
M1
M9
B16 J31 H7 F8
DQL2
DQL3
VSS_9
VSS_10
P9 F8
DQL2
DQL3
VSS_9
VSS_10
P9 H7 H3
DQL3
DQL4
VSS_10
VSS_11
T1 F8
DQL2
DQL3
VSS_9
VSS_10
P9 F2
DQL1
DQL2
VSS_8
VSS_9
P1 F2
DQL1
DQL2
VSS_8
VSS_9
P1
M0_DDR_VREFDQ M0_DDR_RESET_N
M0_DDR_A14 IO[7]/A-A14[AB-A14]/A-A13 M1_DDR_A14 M0_DDR_DQ7 DQL7
H3
DQL4 VSS_11
T1 H3
DQL4 VSS_11
T1
M0_DDR_DQ23 DQL7 H8
DQL5 VSS_12
T9 H3
DQL4 VSS_11
T1 F8
H3
DQL3 VSS_10
P9
T1
F8
H3
DQL3 VSS_10
P9
T1
IO[81]/B-A14[CD-A14]/B-A13 B1
H8
G2
DQL5 VSS_12
T9 H8
G2
DQL5 VSS_12
T9
B1
G2
H7
DQL6
H8
G2
DQL5 VSS_12
T9
H8
DQL4 VSS_11
T9 H8
DQL4 VSS_11
T9
E20 M28 DQL5 VSS_12 DQL5 VSS_12
R416
DQL6 DQL6 DQL6
1K 1%
H7 H7 DQL7 H7 G2 G2
B1
M0_DDR_A15 VSSQ_1 DQL7 DQL7
VSSQ_1 VSSQ_1 DQL7 DQL6 DQL6
R410
1K 1%
B1 B1 B1 H7 H7
IO[19]/A-A15[AB-A15]/A-A3 IO[96]/B-A15[CD-A15]/B-A3 M1_DDR_A15 D7 B9 D7
DQU0
VSSQ_1
VSSQ_2
B9 D7
DQU0
VSSQ_1
VSSQ_2
B9
D7 B9
D7
C3
DQU0 VSSQ_2
B9
D1 D7
DQU0
VSSQ_1
VSSQ_2
B9
DQL7
VSSQ_1
B1
DQL7
VSSQ_1
B1 1%
E19 L28 M0_DDR_DQ8 DQU0
C3
DQU1 VSSQ_3
D1 C3
DQU1 VSSQ_3
D1
M0_DDR_DQ24
C8
DQU1
DQU2
VSSQ_3
VSSQ_4
D8 C3
DQU1 VSSQ_3
D1 D7
DQU0 VSSQ_2
B9 D7
DQU0 VSSQ_2
B9
10K
M0_DDR_BA0 IO[24]/A-BA0[AB-BA0]/A-A10 IO[88]/B-BA0[CD-BA0]/B-A10 M1_DDR_BA0 VSSQ_2 C8
C2
DQU2 VSSQ_4
D8
E2
C8
C2
DQU2 VSSQ_4
D8
E2 DQU0 VSSQ_2 C2
A7
DQU3 VSSQ_5
E2
E8
C8
C2
DQU2 VSSQ_4
D8
E2
C3
C8
DQU1 VSSQ_3
D1
D8
C3
C8
DQU1 VSSQ_3
D1
D8
C18 L31 C3 D1 A7
DQU3
DQU4
VSSQ_5
VSSQ_6
E8 A7
DQU3
DQU4
VSSQ_5
VSSQ_6
E8 C3 D1 A2
DQU4
DQU5
VSSQ_6
VSSQ_7
F9 A7
DQU3
DQU4
VSSQ_5
VSSQ_6
E8 C2
DQU2
DQU3
VSSQ_4
VSSQ_5
E2 C2
DQU2
DQU3
VSSQ_4
VSSQ_5
E2
R445
M0_DDR_BA1 M1_DDR_BA1 M0_DDR_DQ9 DQU1 VSSQ_3
A2
DQU5 VSSQ_7
F9 A2
DQU5 VSSQ_7
F9
M0_DDR_DQ25 DQU1 VSSQ_3 B8
DQU6 VSSQ_8
G1 A2
DQU5 VSSQ_7
F9 A7
A2
DQU4 VSSQ_6
E8
F9
A7
A2
DQU4 VSSQ_6
E8
F9
IO[20]/A-BA1[AB-BA1]/A-CASZ IO[92]/B-BA1[CD-BA1]/B-CASZ C8 D8
B8
A3
DQU6 VSSQ_8
G1
G9
B8
A3
DQU6 VSSQ_8
G1
G9
C8 D8
A3
DQU7 VSSQ_9
G9 B8
A3
DQU6 VSSQ_8
G1
G9 B8
DQU5 VSSQ_7
G1 B8
DQU5 VSSQ_7
G1
F19 K28 M0_DDR_DQ10 DQU2
DQU7 VSSQ_9 DQU7 VSSQ_9
M0_DDR_DQ26
DQU7 VSSQ_9
A3
DQU6 VSSQ_8
G9 A3
DQU6 VSSQ_8
G9
M0_DDR_BA2 IO[21]/A-BA2[AB-BA2]/A-BA0 IO[82]/B-BA2[CD-BA2]/B-BA0 M1_DDR_BA2 VSSQ_4 DQU2 VSSQ_4 DQU7 VSSQ_9 DQU7 VSSQ_9
C479
G22 N28 C2 E2 C2 E2 C472 M0_D_CLK
1%
M0_DDR_RASN M1_DDR_RASN M0_DDR_DQ11 DQU3 VSSQ_5 M0_DDR_DQ27 DQU3 VSSQ_5 0.1uF
1%
IO[15]/A-RASZ[AB-RASZ]/A-ODT IO[97]/B-RASZ[CD-RASZ]/B-ODT A7 E8 A7 E8 0.1uF C483 R412
F21 N27
R417
M0_DDR_DQ12 DQU4 VSSQ_6 M0_DDR_DQ28 DQU4 VSSQ_6 C474 56 C477
R411
M0_DDR_CASN IO[17]/A-CASZ[AB-CASZ]/A-WEZ IO[94]/B-CASZ[CD-CASZ]/B-WEZ M1_DDR_CASN A2 F9 A2 F9 1000pF 0.01uF
E21 L27 M0_DDR_DQ13 DQU5 M0_DDR_DQ29 1000pF 50V 1%
M0_DDR_WEN M1_DDR_WEN VSSQ_7 DQU5 VSSQ_7
1K
IO[16]/A-WEZ[AB-WEZ]/A-A12 IO[89]/B-WEZ[CD-WEZ]/B-A12 B8 G1 B8 G1 50V 50V
1K
F20 M27 M0_DDR_DQ14 DQU6 M0_DDR_DQ30
M0_DDR_ODT IO[25]/A-ODT[AB-ODT]/A-ACTZ IO[95]/B-ODT[CD-ODT]/B-ACTZ M1_DDR_ODT VSSQ_8 DQU6 VSSQ_8
C19 M31 A3 G9 A3 G9 R413
M0_DDR_CKE IO[18]/A-CKE[AB-CKE]/A-CKE M1_DDR_CKE M0_DDR_DQ15 DQU7 VSSQ_9 SS_DDR3_2Gb Hynix_DDR3_2Gb M0_DDR_DQ31 DQU7 VSSQ_9 56
IO[91]/B-CKE[CD-CKE]/B-CKE IC400-*3
K4B2G1646Q-BCMA
IC400-*4
H5TQ2G63FFR-RDC
F15 G32 1%
M0_DDR_RESET_N IO[1]/A-RST[AB-RST]/A-RST IO[76]/B-RST[CD-RST]/B-RST M1_DDR_RESET_N N3
EAN63667401
M8 N3
EAN63648701
M8
A20 N32 P7
A0
A1
VREFCA
P7
A0
A1
VREFCA
M0_D_CLK IO[28]/A-MCLK[AB-MCLK]/A-MCLKZ IO[101]/B-MCLK[CD-MCLK]/B-MCLKZ M1_D_CLK P3
N2
A2
H1
P3
N2
A2
H1
B20 M30 P8
P2
A3
A4
VREFDQ
P8
P2
A3
A4
VREFDQ
M0_D_CLKN
M0_D_CLKN IO[27]/A-MCLKZ[AB-MCLKZ]/A-MCLK IO[100]/B-MCLKZ[CD-MCLKZ]/B-MCLK M1_D_CLKN R8
A5
A6 ZQ
L8 R8
A5
A6 ZQ
L8
E15 G29 R2
T8
A7
R2
T8
A7
M0_DDR_CS1 IO[23]/A-CSB1[AB-CSB1]/A-CSB1 IO[99]/B-CSB1[CD-CSB1]/B-CSB1 M1_DDR_CS1 R3
L7
A8
A9 VDD_1
B2
D9
R3
L7
A8
A9 VDD_1
B2
D9
D15 F32 R7
A10/AP
A11
VDD_2
VDD_3
G7 R7
A10/AP
A11
VDD_2
VDD_3
G7
M0_DDR_CS2 IO[22]/A-CSB2[AB-CSB2]/A-CSB2 IO[98]/B-CSB2[CD-CSB2]/B-CSB2 M1_DDR_CS2 N7
T3
A12/BC VDD_4
K2
K8
N7
T3
A12/BC VDD_4
K2
K8
M7
A13
NC_5
VDD_5
VDD_6
VDD_7
N1
N9
T7
M7
A13
A14
NC_5
VDD_5
VDD_6
VDD_7
N1
N9 AVDD_DDR M1_DDR_CKE
R1 R1
VDD_8 VDD_8
M2 R9 M2 R9
BA0 VDD_9 BA0 VDD_9
N8 N8
BA1 BA1
M3 M3
BA2 BA2
A1 A1
C23 T31 J7
CK
VDDQ_1
VDDQ_2
A8 J7
CK
VDDQ_1
VDDQ_2
A8
M0_DDR_DQ0 M1_DDR_DQ0 K7 C1 K7 C1
AVDD_DDR
1K
R433
IO[47]/A-DQ[0][A-DQL0]/A-DQ[0] IO[120]/B-DQ[0][C-DQL0]/B-DQ[0] K9
CK VDDQ_3
C9 K9
CK VDDQ_3
C9 AVDD_DDR
B22 P30 CKE VDDQ_4
VDDQ_5
D2
CKE VDDQ_4
VDDQ_5
D2
M0_DDR_DQ1 IO[31]/A-DQ[1][A-DQL1]/A-DQ[1] IO[104]/B-DQ[1][C-DQL1]/B-DQ[1] M1_DDR_DQ1 L2 E9 L2 E9
+1.5V_Bypass Cap
CS VDDQ_6 CS VDDQ_6
K1 F1 K1 F1
OPT
1K
R422
+1.5V_Bypass Cap
ODT VDDQ_7 ODT VDDQ_7
B24 T30 J3
K3
RAS VDDQ_8
H2
H9
J3
K3
RAS VDDQ_8
H2
H9
M1_1_DDR_VREFDQ
M0_DDR_DQ2 IO[48]/A-DQ[2][A-DQL2]/A-DQ[2] IO[121]/B-DQ[2][C-DQL2]/B-DQ[2] M1_DDR_DQ2 L3
CAS
WE
VDDQ_9
L3
CAS
WE
VDDQ_9
C21 P31 NC_1
J1
NC_1
J1
M1_DDR_VREFDQ
M0_DDR_DQ3
B25
IO[29]/A-DQ[3][A-DQL3]/A-DQ[3] IO[102]/B-DQ[3][C-DQL3]/B-DQ[3]
U30
M1_DDR_DQ3 Close to DDR Power Pin T2
F3
RESET NC_2
NC_3
NC_4
J9
L1
L9
T7
T2
F3
RESET NC_2
NC_3
NC_4
J9
L1
L9
Close to DDR Power Pin
R414
1K 1%
DQSL NC_6 DQSL
R408
1K 1%
M0_DDR_DQ4 IO[50]/A-DQ[4][A-DQL4]/A-DQ[6] IO[123]/B-DQ[4][C-DQL4]/B-DQ[6] M1_DDR_DQ4 G3
DQSL
G3
DQSL
M1_DDR_RESET_N
C20 N31 C7
B7
DQSU VSS_1
A9
B3
C7
B7
DQSU VSS_1
A9
B3
M0_DDR_DQ5 IO[30]/A-DQ[5][A-DQL5]/A-DQ[7] IO[105]/B-DQ[5][C-DQL5]/B-DQ[7] M1_DDR_DQ5 E7
DQSU VSS_2
VSS_3
E1
G8 E7
DQSU VSS_2
VSS_3
E1
G8
C24 U31
R446
DML VSS_4 DML VSS_4
D3 J2 D3 J2
DMU VSS_5 DMU VSS_5
M0_DDR_DQ6 M1_DDR_DQ6
10K
J8 J8
IO[49]/A-DQ[6][A-DQL6]/A-DQ[4] IO[122]/B-DQ[6][C-DQL6]/B-DQ[4] E3
VSS_6
M1 E3
VSS_6
M1
1%
B21 N30 F7
DQL0
DQL1
VSS_7
VSS_8
M9 F7
DQL0
DQL1
VSS_7
VSS_8
M9
AVDD_DDR
M0_DDR_DQ7 IO[32]/A-DQ[7][A-DQL7]/A-DQ[5] IO[103]/B-DQ[7][C-DQL7]/B-DQ[5] M1_DDR_DQ7 AVDD_DDR
F2
F8
DQL2
DQL3
VSS_9
VSS_10
P1
P9
F2
F8
DQL2
DQL3
VSS_9
VSS_10
P1
P9
C22 R31 H3
H8
DQL4 VSS_11
T1
T9
H3
H8
DQL4 VSS_11
T1
T9 C516 C518
1%
M0_DDR_DM0 M1_DDR_DM0 DQL5 VSS_12 DQL5 VSS_12
1%
IO[33]/A-DQM[0][A-DML]/A-DQM[0] IO[106]/B-DQM[0][C-DML]/B-DQM[0] G2
H7
DQL6
G2
H7
DQL6
0.1uF 0.1uF
A23 T32 DQL7
B1
DQL7
B1 C519 M1_D_CLK
R415
C517
R409
VSSQ_1 VSSQ_1
M0_DDR_DQS0 IO[42]/A-DQS[0][A-DQSL]/A-DQS[0] IO[115]/B-DQS[0][C-DQSL]/B-DQS[0] M1_DDR_DQS0 D7
C3
DQU0 VSSQ_2
B9
D1
D7
C3
DQU0 VSSQ_2
B9
D1
1000pF R427
B23 R30 C8
C2
DQU1
DQU2
VSSQ_3
VSSQ_4
D8
E2
C8
C2
DQU1
DQU2
VSSQ_3
VSSQ_4
D8
E2
1000pF C497
M0_DDR_DQS_N0 IO[41]/A-DQSB[0][A-DQSLB]/A-DQSB[0] IO[114]/B-DQSB[0][C-DQSLB]/B-DQSB[0] M1_DDR_DQS_N0 A7
DQU3 VSSQ_5
E8 A7
DQU3 VSSQ_5
E8
50V 50V 56
1K
0.01uF
1K
DQU4 VSSQ_6 DQU4 VSSQ_6
A2 F9 A2 F9
DQU5 VSSQ_7 DQU5 VSSQ_7
B8
A3
DQU6
DQU7
VSSQ_8
VSSQ_9
G1
G9
B8
A3
DQU6
DQU7
VSSQ_8
VSSQ_9
G1
G9 1% 50V
0.1uF
0.1uF
0.1uF
0.1uF
0.1uF
0.1uF
D23 P27 R428
M0_DDR_DQ8 IO[35]/A-DQ[8][A-DQU0]/A-DQ[15] IO[109]/B-DQ[8][C-DQU0]/B-DQ[15] M1_DDR_DQ8 56
D26 U29 1%
M0_DDR_DQ9 IO[45]/A-DQ[9][A-DQU1]/A-DQ[10] IO[116]/B-DQ[9][C-DQU1]/B-DQ[10] M1_DDR_DQ9
E22 P28
C403
C404
C405
M0_DDR_DQ10 IO[38]/A-DQ[10][A-DQU2]/A-DQ[13] IO[107]/B-DQ[10][C-DQU2]/B-DQ[13] M1_DDR_DQ10
C400
C401
C402
D27 U27 M1_D_CLKN
M0_DDR_DQ11 IO[46]/A-DQ[11][A-DQU3]/A-DQM[1] IO[119]/B-DQ[11][C-DQU3]/B-DQM[1] M1_DDR_DQ11
F23 R28
M0_DDR_DQ12 IO[36]/A-DQ[12][A-DQU4]/A-DQ[9] IO[111]/B-DQ[12][C-DQU4]/B-DQ[9] M1_DDR_DQ12
E26 V28
M0_DDR_DQ13 IO[43]/A-DQ[13][A-DQU5]/A-DQ[12] IO[117]/B-DQ[13][C-DQU5]/B-DQ[12] M1_DDR_DQ13
D22 P29
M0_DDR_DQ14 IO[34]/A-DQ[14][A-DQU6]/A-DQ[11] IO[108]/B-DQ[14][C-DQU6]/B-DQ[11] M1_DDR_DQ14
E25 U28
M0_DDR_DQ15 IO[44]/A-DQ[15][A-DQU7]/A-DQ[8] IO[118]/B-DQ[15][C-DQU7]/B-DQ[8] M1_DDR_DQ15
E24 T28
M0_DDR_DM1 IO[37]/A-DQM[1][A-DMU]/A-DQ[14] IO[110]/B-DQM[1][C-DMU]/B-DQ[14] M1_DDR_DM1
D24 T27
M0_DDR_DQS1 IO[40]/A-DQS[1][A-DQSU]/A-DQS[1] IO[113]/B-DQS[1][C-DQSU]/B-DQS[1] M1_DDR_DQS1
E23 R27
M0_DDR_DQS_N1 IO[39]/A-DQSB[1][A-DQSUB]/A-DQSB[1] IO[112]/B-DQSB[1][C-DQSUB]/B-DQSB[1] M1_DDR_DQS_N1
M1_DDR_VREFDQ Hynix_DDR3_4Gb_29n
Hynix_DDR3_4Gb_29n M1_1_DDR_VREFDQ
C28 AA31 IC403 IC404
M0_DDR_DQ16 IO[69]/A-DQ[16][B-DQL0]/A-DQ[16] IO[145]/B-DQ[16][D-DQL0]/B-DQ[16] M1_DDR_DQ16 H5TQ4G63AFR-RDC H5TQ4G63AFR-RDC
C26 W31
M0_DDR_DQ17 IO[53]/A-DQ[17][B-DQL1]/A-DQ[17] IO[126]/B-DQ[17][D-DQL1]/B-DQ[17] M1_DDR_DQ17
B29 AA30
M0_DDR_DQ18 IO[70]/A-DQ[18][B-DQL2]/A-DQ[18] IO[143]/B-DQ[18][D-DQL2]/B-DQ[18] M1_DDR_DQ18 EAN63053201 EAN63053201
A26 W32
M0_DDR_DQ19 IO[54]/A-DQ[19][B-DQL3]/A-DQ[19] IO[127]/B-DQ[19][D-DQL3]/B-DQ[19] M1_DDR_DQ19
C29 AB31 M1_DDR_A0
N3
A0 DDR3 VREFCA
M8
M1_DDR_A0
N3
A0
DDR3 VREFCA
M8
M0_DDR_DQ20 IO[72]/A-DQ[20][B-DQL4]/A-DQ[22] IO[142]/B-DQ[20][D-DQL4]/B-DQ[22] M1_DDR_DQ20 P7 P7 4Gbit
M0_DDR_DQ21
C25
IO[52]/A-DQ[21][B-DQL5]/A-DQ[23] IO[124]/B-DQ[21][D-DQL5]/B-DQ[23]
V31
M1_DDR_DQ21 M1_DDR_A1 A1 4Gbit M1_DDR_A1 A1
P3 P3
M0_DDR_DQ22
A29
IO[71]/A-DQ[22][B-DQL6]/A-DQ[20] IO[144]/B-DQ[22][D-DQL6]/B-DQ[20]
AB32
M1_DDR_DQ22 M1_DDR_A2 A2 (x16) M1_DDR_A2 A2 (x16)
B26 V30 N2 H1 N2 H1
M0_DDR_DQ23 M1_DDR_DQ23 M1_DDR_A3 A3 VREFDQ M1_DDR_A3 A3 VREFDQ
IO[51]/A-DQ[23][B-DQL7]/A-DQ[21] IO[125]/B-DQ[23][D-DQL7]/B-DQ[21] P8 P8
B27 W30 M1_DDR_A4 A4 M1_DDR_A4
M0_DDR_DM2 IO[55]/A-DQM[2][B-DML]/A-DQM[2] IO[128]/B-DQM[2][D-DML]/B-DQM[2] M1_DDR_DM2 A4
B28 Y30 P2 P2
M0_DDR_DQS2 M1_DDR_DQS2 M1_DDR_A5 A5 M1_DDR_A5 A5
IO[64]/A-DQS[2][B-DQSL]/A-DQS[2] IO[137]/B-DQS[2][D-DQSL]/B-DQS[2] R8 L8 R404 R8 L8 R419
C27 Y31 M1_DDR_A6 240 M1_DDR_A6 240
M0_DDR_DQS_N2 IO[63]/A-DQSB[2]/[B-DQSLB]/A-DQSB[2] IO[136]/B-DQSB[2][D-DQSLB]/B-DQSB[2] M1_DDR_DQS_N2 A6 ZQ A6 ZQ
R2 AVDD_DDR R2
M1_DDR_A7 A7 M1_DDR_A7 A7
DDR3 1.5V bypass Cap - Place these caps near Memory
T8 T8 AVDD_DDR
M1_DDR_A8 A8 M1_DDR_A8 A8
E29 Y28 R3 B2 R3 B2
M0_DDR_DQ24 M1_DDR_DQ24 M1_DDR_A9 A9 VDD_1 M1_DDR_A9 A9 VDD_1
IO[58]/A-DQ[24][B-DQU0]/A-DQ[31] IO[131]/B-DQ[24][D-DQU0]/B-DQ[31] L7 D9 L7 D9
C31 AB27 M1_DDR_A10 A10/AP VDD_2 M1_DDR_A10
M0_DDR_DQ25 IO[67]/A-DQ[25][B-DQU1]/A-DQ[26] IO[141]/B-DQ[25][D-DQU1]/B-DQ[26] M1_DDR_DQ25 A10/AP VDD_2
R7 G7 R7 G7
DDR3 1.5V bypass Cap - Place these caps near Memory
E27 V27 M1_DDR_A11 A11 VDD_3 M1_DDR_A11
M0_DDR_DQ26 IO[56]/A-DQ[26][B-DQU2]/A-DQ[29] IO[130]_/B-DQ[26][D-DQU2]/B-DQ[29] M1_DDR_DQ26 A11 VDD_3
D31 AB29 N7 K2 N7 K2
M0_DDR_DQ27 M1_DDR_DQ27 M1_DDR_A12 A12/BC VDD_4 M1_DDR_A12 A12/BC VDD_4
IO[66]/A-DQ[27][B-DQU3]/A-DQM[3] IO[140]/B-DQ[27][D-DQU3]/B-DQM[3] T3 K8 T3 K8
D29 W28 M1_DDR_A13 A13 VDD_5 M1_DDR_A13
M0_DDR_DQ28 IO[59]/A-DQ[28][B-DQU4]/A-DQ[25] IO[129]/B-DQ[28][D-DQU4]/B-DQ[25] M1_DDR_DQ28 A13 VDD_5
D30 AB28 T7 N1 T7 N1
M0_DDR_DQ29 M1_DDR_DQ29 M1_DDR_A14 A14 VDD_6 M1_DDR_A14 A14 VDD_6
IO[65]/A-DQ[29][B-DQU5]/A-DQ[28] IO[139]/B-DQ[29][D-DQU5]/B-DQ[28] M7 N9 M7 N9
E28 W27 M1_DDR_A15 NC_5 VDD_7 M1_DDR_A15
M0_DDR_DQ30 IO[57]/A-DQ[30][B-DQU6]/A-DQ[27] IO[132]/B-DQ[30][D-DQU6]/B-DQ[27] M1_DDR_DQ30 NC_5 VDD_7
C30 AA27 R1 R1
M0_DDR_DQ31 IO[60]/A-DQ[31][B-DQU7]/A-DQ[24] IO[138]/B-DQ[31][D-DQU7]/B-DQ[24] M1_DDR_DQ31 VDD_8 VDD_8
B31 Y27 M2 R9 M2 R9
M0_DDR_DM3 M1_DDR_DM3 M1_DDR_BA0 BA0 VDD_9 M1_DDR_BA0 BA0 VDD_9
IO[68]/A-DQM[3][B-DMU]/A-DQ[30] IO[133]/B-DQM[3][D-DMU]/B-DQ[30] N8 N8
A31 AA28 M1_DDR_BA1 BA1 M1_DDR_BA1
M0_DDR_DQS3 IO[62]/A-DQS[3][B-DQSU]/A-DQS[3] IO[135]/B-DQS[3][D-DQSU]/B-DQS[3] M1_DDR_DQS3 BA1
B30 Y29 M3 M3
M0_DDR_DQS_N3 M1_DDR_DQS_N3 M1_DDR_BA2 BA2 M1_DDR_BA2 BA2
IO[61]/A-DQSB[3][B-DQSUB]/A-DQSB[3] IO[134]/B-DQSB[3][D-DQSUB]/B-DQSB[3] A1 A1
VDDQ_1 VDDQ_1
J7 A8 J7 A8
M1_D_CLK CK VDDQ_2 M1_D_CLK CK VDDQ_2
K7 C1 K7 C1
M1_D_CLKN CK VDDQ_3 M1_D_CLKN CK VDDQ_3
K9 C9 K9 C9
M1_DDR_CKE CKE VDDQ_4 M1_DDR_CKE CKE VDDQ_4
D2 D2
VDDQ_5 VDDQ_5
L2 E9 L2 E9
M1_DDR_CS1 CS VDDQ_6 M1_DDR_CS2 CS VDDQ_6
K1 F1 K1 F1
M1_DDR_ODT ODT VDDQ_7 M1_DDR_ODT ODT VDDQ_7
J3 H2 C468 0.1uF J3 H2 C490 0.1uF
M1_DDR_RASN RAS VDDQ_8 M1_DDR_RASN RAS VDDQ_8
K3 H9 C469 0.1uF K3 H9 C491 0.1uF
M1_DDR_CASN CAS VDDQ_9 M1_DDR_CASN CAS VDDQ_9
L3 L3
M1_DDR_WEN WE M1_DDR_WEN WE
J1 J1 * DDR_VTT
NC_1 NC_1
T2 J9 T2 J9
M1_DDR_RESET_N RESET NC_2 M1_DDR_RESET_N RESET NC_2
L1 L1
NC_3 NC_3
L9 L9 SS_DDR3_4Gb_25n
IC404-*1
Hynix_DDR3_4Gb_25n
IC404-*2
SS_DDR3_2Gb
IC404-*3
Hynix_DDR3_2Gb
IC404-*4
NC_4 NC_4 K4B4G1646D-BCMA H5TQ4G63CFR_RDC K4B2G1646Q-BCMA H5TQ2G63FFR-RDC
F3 F3 EAN63391401 EAN63053202 EAN63667401 EAN63648701
M1_DDR_DQS0 DQSL SS_DDR3_4Gb_25n
IC403-*1
Hynix_DDR3_4Gb_25n
IC403-*2
SS_DDR3_2Gb Hynix_DDR3_2Gb M1_DDR_DQS2 DQSL N3
A0 VREFCA
M8 N3
A0 VREFCA
M8 N3
A0 VREFCA
M8 N3
A0 VREFCA
M8
AVDD_DDR
G3 K4B4G1646D-BCMA H5TQ4G63CFR_RDC
IC403-*3
K4B2G1646Q-BCMA
IC403-*4
H5TQ2G63FFR-RDC G3 P7
P3
A1
A2
P7
P3
A1
A2
P7
P3
A1
A2
P7
P3
A1
A2
+3.3V_NORMAL
M1_DDR_DQS_N0 DQSL EAN63391401 EAN63053202 EAN63667401 EAN63648701 M1_DDR_DQS_N2 DQSL N2
P8
A3
A4
VREFDQ
H1 N2
P8
A3
A4
VREFDQ
H1 N2
P8
A3
A4
VREFDQ
H1 N2
P8
A3
A4
VREFDQ
H1
N3 M8 N3 M8 N3 M8 N3 M8 P2 P2 P2 P2
A0 VREFCA A0 VREFCA A0 VREFCA A0 VREFCA A5 A5 A5 A5
P7 P7 P7 P7 R8 L8 R8 L8 R8 L8 R8 L8
C7 A9
P3
N2
P8
A1
A2
A3 VREFDQ
H1
P3
N2
P8
A1
A2
A3 VREFDQ
H1
P3
N2
P8
A1
A2
A3 VREFDQ
H1
P3
N2
P8
A1
A2
A3 VREFDQ
H1
C7 A9
R2
T8
R3
A6
A7
A8
ZQ
B2
R2
T8
R3
A6
A7
A8
ZQ
B2
R2
T8
R3
A6
A7
A8
ZQ
B2
R2
T8
R3
A6
A7
A8
ZQ
B2
IC402
M1_DDR_DQS1 DQSU VSS_1 P2
R8
A4
A5
L8
P2
R8
A4
A5
L8
P2
A4
A5
P2
A4
A5 M1_DDR_DQS3 DQSU VSS_1 L7
A9
A10/AP
VDD_1
VDD_2
D9 L7
A9
A10/AP
VDD_1
VDD_2
D9 L7
A9
A10/AP
VDD_1
VDD_2
D9 L7
A9
A10/AP
VDD_1
VDD_2
D9
AP2303MPTR-G1 [EP]
B7 B3 R2
A6
A7
ZQ
R2
A6
A7
ZQ
R8
R2
A6
A7
ZQ
L8 R8
R2
A6
A7
ZQ
L8
B7 B3 R7
N7
A11
A12/BC
VDD_3
VDD_4
G7
K2
R7
N7
A11
A12/BC
VDD_3
VDD_4
G7
K2
R7
N7
A11
A12/BC
VDD_3
VDD_4
G7
K2
R7
N7
A11
A12/BC
VDD_3
VDD_4
G7
K2
M1_DDR_DQS_N1 DQSU VSS_2 T8 T8 T8 T8
M1_DDR_DQS_N3 DQSU VSS_2 T3 K8 T3 K8 T3 K8 T3 K8
CIS21J121
A8 A8 A8 A8 A13 VDD_5 A13 VDD_5 A13 VDD_5 A13 VDD_5
R3 B2 R3 B2 R3 B2 R3 B2 N1 T7 N1 N1 T7 N1
E1 L7
R7
A9
A10/AP
VDD_1
VDD_2
D9
G7
L7
R7
A9
A10/AP
VDD_1
VDD_2
D9
G7
L7
R7
A9
A10/AP
VDD_1
VDD_2
D9
G7
L7
R7
A9
A10/AP
VDD_1
VDD_2
D9
G7
E1 M7
NC_5
VDD_6
VDD_7
N9
R1
M7
A14
NC_5
VDD_6
VDD_7
N9
R1
M7
NC_5
VDD_6
VDD_7
N9
R1
M7
A14
NC_5
VDD_6
VDD_7
N9
R1
VSS_3 N7
A11 VDD_3
K2 N7
A11 VDD_3
K2 N7
A11 VDD_3
K2 N7
A11 VDD_3
K2 VSS_3 M2
VDD_8
R9 M2
VDD_8
R9 M2
VDD_8
R9 M2
VDD_8
R9
C544
L401
A12/BC VDD_4 A12/BC VDD_4 A12/BC VDD_4 A12/BC VDD_4 BA0 VDD_9 BA0 VDD_9 BA0 VDD_9 BA0 VDD_9
E7 G8 T3
A13 VDD_5
K8
N1
T3
T7
A13 VDD_5
K8
N1
T3
A13 VDD_5
K8
N1
T3
T7
A13 VDD_5
K8
N1
E7 G8 N8
M3
BA1
N8
M3
BA1
N8
M3
BA1
N8
M3
BA1
VIN NC_3
M1_DDR_DM0 DML VSS_4 M7
NC_5
VDD_6
VDD_7
N9
R1
M7
A14
NC_5
VDD_6
VDD_7
N9
R1
M7
NC_5
VDD_6
VDD_7
N9 M7
A14
NC_5
VDD_6
VDD_7
N9
M1_DDR_DM2 DML VSS_4 BA2
VDDQ_1
A1
BA2
VDDQ_1
A1
BA2
VDDQ_1
A1
BA2
VDDQ_1
A1
1 8 10uF
D3 J2 M2
BA0
VDD_8
VDD_9
R9 M2
BA0
VDD_8
VDD_9
R9 M2
BA0
VDD_8
VDD_9
R1
R9 M2
BA0
VDD_8
VDD_9
R1
R9 D3 J2 J7
K7
CK
CK
VDDQ_2
VDDQ_3
A8
C1
J7
K7
CK
CK
VDDQ_2
VDDQ_3
A8
C1
J7
K7
CK
CK
VDDQ_2
VDDQ_3
A8
C1
J7
K7
CK
CK
VDDQ_2
VDDQ_3
A8
C1
10V
M1_DDR_DM1 DMU VSS_5 N8 N8 N8 N8
M1_DDR_DM3 DMU VSS_5 K9 C9 K9 C9 K9 C9 K9 C9
C421
THERMAL
BA1 BA1 BA1 BA1 CKE VDDQ_4 CKE VDDQ_4 CKE VDDQ_4 CKE VDDQ_4
M3 M3 M3 M3 D2 D2 D2 D2
J8 J7
BA2
VDDQ_1
A1
A8 J7
BA2
VDDQ_1
A1
A8 J7
BA2
VDDQ_1
A1
A8 J7
BA2
VDDQ_1
A1
A8
J8 L2
K1
CS
VDDQ_5
VDDQ_6
E9
F1
L2
K1
CS
VDDQ_5
VDDQ_6
E9
F1
L2
K1
CS
VDDQ_5
VDDQ_6
E9
F1
L2
K1
CS
VDDQ_5
VDDQ_6
E9
F1 10uF
VSS_6 K7
CK
CK
VDDQ_2
VDDQ_3
C1 K7
CK
CK
VDDQ_2
VDDQ_3
C1 K7
CK
CK
VDDQ_2
VDDQ_3
C1 K7
CK
CK
VDDQ_2
VDDQ_3
C1 VSS_6 J3
ODT
RAS
VDDQ_7
VDDQ_8
H2 J3
ODT
RAS
VDDQ_7
VDDQ_8
H2 J3
ODT
RAS
VDDQ_7
VDDQ_8
H2 J3
ODT
RAS
VDDQ_7
VDDQ_8
H2
GND NC_2
9
E3 M1 K9
CKE VDDQ_4
C9
D2
K9
CKE VDDQ_4
C9
D2
K9
CKE VDDQ_4
C9
D2
K9
CKE VDDQ_4
C9
D2
E3 M1 K3
L3
CAS VDDQ_9
H9 K3
L3
CAS VDDQ_9
H9 K3
L3
CAS VDDQ_9
H9 K3
L3
CAS VDDQ_9
H9
10V 2 7
M1_DDR_DQ0 DQL0 VSS_7 L2
K1
CS
VDDQ_5
VDDQ_6
E9
F1
L2
K1
CS
VDDQ_5
VDDQ_6
E9
F1
L2
CS
VDDQ_5
VDDQ_6
E9 L2
CS
VDDQ_5
VDDQ_6
E9
M1_DDR_DQ16 DQL0 VSS_7 WE
NC_1
J1
WE
NC_1
J1
WE
NC_1
J1
WE
NC_1
J1
F7 M9 J3
ODT
RAS
VDDQ_7
VDDQ_8
H2 J3
ODT
RAS
VDDQ_7
VDDQ_8
H2
K1
J3
ODT
RAS
VDDQ_7
VDDQ_8
F1
H2
K1
J3
ODT
RAS
VDDQ_7
VDDQ_8
F1
H2 F7 M9 T2
RESET NC_2
NC_3
J9
L1
T2
RESET NC_2
NC_3
J9
L1
T2
RESET NC_2
NC_3
J9
L1
T2
RESET NC_2
NC_3
J9
L1 DDR_VTT
M1_DDR_DQ1 DQL1 VSS_8 K3
L3
CAS VDDQ_9
H9 K3
L3
CAS VDDQ_9
H9 K3
L3
CAS VDDQ_9
H9 K3
L3
CAS VDDQ_9
H9
M1_DDR_DQ17 DQL1 VSS_8 F3
NC_4
L9
T7 F3
NC_4
L9
F3
NC_4
L9
T7 F3
NC_4
L9
R443
F2 P1 WE
NC_1
J1
WE
NC_1
J1 WE
J1
WE
J1
F2 P1 G3
DQSL NC_6
G3
DQSL
G3
DQSL NC_6
G3
DQSL
VREFEN VCNTL
M1_DDR_DQ2 DQL2 VSS_9
T2
RESET NC_2
J9
L1
T2
RESET NC_2
J9
L1
T2
RESET
NC_1
NC_2
J9 T2
RESET
NC_1
NC_2
J9
M1_DDR_DQ18 DQL2 VSS_9
DQSL DQSL DQSL DQSL
10K
F8 P9
NC_3
L9
NC_3
L9 NC_3
L1
L9
NC_3
L1
L9
F8 P9
C7
B7
DQSU VSS_1
A9
B3
C7
B7
DQSU VSS_1
A9
B3
C7
B7
DQSU VSS_1
A9
B3
C7
B7
DQSU VSS_1
A9
B3 3 6
CIS21J121
NC_4 NC_4 NC_4 NC_4 DQSU VSS_2 DQSU VSS_2 DQSU VSS_2 DQSU VSS_2
F3 T7 F3 F3 T7 F3 E1 E1 E1 E1
M1_DDR_DQ3 DQL3 VSS_10 G3
DQSL
DQSL
NC_6
G3
DQSL
DQSL
G3
DQSL
DQSL
NC_6
G3
DQSL
DQSL M1_DDR_DQ19 DQL3 VSS_10 E7
DML
VSS_3
VSS_4
G8 E7
DML
VSS_3
VSS_4
G8 E7
DML
VSS_3
VSS_4
G8 E7
DML
VSS_3
VSS_4
G8
1/16W
H3 T1 C7 A9 C7 A9 H3 T1 D3
DMU VSS_5
J2 D3
DMU VSS_5
J2 D3
DMU VSS_5
J2 D3
DMU VSS_5
J2
L400
C7 A9 C7 A9 J8 J8 J8 J8
DQSU VSS_1 DQSU VSS_1 DQSU VSS_1 DQSU VSS_1 VSS_6 VSS_6 VSS_6 VSS_6
M1_DDR_DQ4 DQL4 VSS_11 B7
DQSU VSS_2
B3
E1
B7
DQSU VSS_2
B3
E1
B7
DQSU VSS_2
B3
E1
B7
DQSU VSS_2
B3
E1
M1_DDR_DQ20 DQL4 VSS_11 E3
F7
DQL0 VSS_7
M1
M9
E3
F7
DQL0 VSS_7
M1
M9
E3
F7
DQL0 VSS_7
M1
M9
E3
F7
DQL0 VSS_7
M1
M9
1% VOUT NC_1
H8 T9 E7
D3
DML
VSS_3
VSS_4
G8
J2
E7
D3
DML
VSS_3
VSS_4
G8
J2
E7
DML
VSS_3
VSS_4
G8 E7
DML
VSS_3
VSS_4
G8
H8 T9 F2
DQL1
DQL2
VSS_8
VSS_9
P1 F2
DQL1
DQL2
VSS_8
VSS_9
P1 F2
DQL1
DQL2
VSS_8
VSS_9
P1 F2
DQL1
DQL2
VSS_8
VSS_9
P1
4 5
M1_DDR_DQ5 DQL5 VSS_12 DMU VSS_5
VSS_6
J8
DMU VSS_5
VSS_6
J8
D3
DMU VSS_5
VSS_6
J2
J8
D3
DMU VSS_5
VSS_6
J2
J8 M1_DDR_DQ21 DQL5 VSS_12
F8
H3
DQL3
DQL4
VSS_10
VSS_11
P9
T1
F8
H3
DQL3
DQL4
VSS_10
VSS_11
P9
T1
F8
H3
DQL3
DQL4
VSS_10
VSS_11
P9
T1
F8
H3
DQL3
DQL4
VSS_10
VSS_11
P9
T1
G2 E3
F7
DQL0 VSS_7
M1
M9
E3
F7
DQL0 VSS_7
M1
M9
E3
F7
DQL0 VSS_7
M1
M9
E3
F7
DQL0 VSS_7
M1
M9 G2 H8
G2
DQL5 VSS_12
T9 H8
G2
DQL5 VSS_12
T9 H8
G2
DQL5 VSS_12
T9 H8
G2
DQL5 VSS_12
T9
M1_DDR_DQ6 DQL6 F2
F8
DQL1
DQL2
VSS_8
VSS_9
P1
P9
F2
F8
DQL1
DQL2
VSS_8
VSS_9
P1
P9
F2
DQL1
DQL2
VSS_8
VSS_9
P1 F2
DQL1
DQL2
VSS_8
VSS_9
P1
M1_DDR_DQ22 DQL6 H7
DQL6
DQL7
H7
DQL6
DQL7
H7
DQL6
DQL7
H7
DQL6
DQL7
H7 H3
DQL3
DQL4
VSS_10
VSS_11
T1 H3
DQL3
DQL4
VSS_10
VSS_11
T1
F8
H3
DQL3
DQL4
VSS_10
VSS_11
P9
T1
F8
H3
DQL3
DQL4
VSS_10
VSS_11
P9
T1 H7 D7
DQU0
VSSQ_1
VSSQ_2
B1
B9 D7
DQU0
VSSQ_1
VSSQ_2
B1
B9 D7
DQU0
VSSQ_1
VSSQ_2
B1
B9 D7
DQU0
VSSQ_1
VSSQ_2
B1
B9
M1_DDR_DQ7 DQL7 H8
G2
DQL5 VSS_12
T9 H8
G2
DQL5 VSS_12
T9 H8
G2
DQL5 VSS_12
T9 H8
G2
DQL5 VSS_12
T9
M1_DDR_DQ23 DQL7 C3
C8
DQU1 VSSQ_3
D1
D8
C3
C8
DQU1 VSSQ_3
D1
D8
C3
C8
DQU1 VSSQ_3
D1
D8
C3
C8
DQU1 VSSQ_3
D1
D8
B1 H7
DQL6
DQL7
B1
H7
DQL6
DQL7
B1
H7
DQL6
DQL7
B1
H7
DQL6
DQL7
B1
B1 C2
A7
DQU2
DQU3
VSSQ_4
VSSQ_5
E2
E8
C2
A7
DQU2
DQU3
VSSQ_4
VSSQ_5
E2
E8
C2
A7
DQU2
DQU3
VSSQ_4
VSSQ_5
E2
E8
C2
A7
DQU2
DQU3
VSSQ_4
VSSQ_5
E2
E8
VSSQ_1 D7
DQU0
VSSQ_1
VSSQ_2
B9 D7
DQU0
VSSQ_1
VSSQ_2
B9 D7
DQU0
VSSQ_1
VSSQ_2
B9 D7
DQU0
VSSQ_1
VSSQ_2
B9 VSSQ_1 A2
DQU4
DQU5
VSSQ_6
VSSQ_7
F9 A2
DQU4
DQU5
VSSQ_6
VSSQ_7
F9 A2
DQU4
DQU5
VSSQ_6
VSSQ_7
F9 A2
DQU4
DQU5
VSSQ_6
VSSQ_7
F9
D7 B9 C3
C8
DQU1 VSSQ_3
D1
D8
C3
C8
DQU1 VSSQ_3
D1
D8
C3
C8
DQU1 VSSQ_3
D1
D8
C3
C8
DQU1 VSSQ_3
D1
D8 D7 B9 B8
A3
DQU6 VSSQ_8
G1
G9
B8
A3
DQU6 VSSQ_8
G1
G9
B8
A3
DQU6 VSSQ_8
G1
G9
B8
A3
DQU6 VSSQ_8
G1
G9
M1_DDR_DQ8 DQU0 VSSQ_2 C2
A7
DQU2
DQU3
VSSQ_4
VSSQ_5
E2
E8
C2
A7
DQU2
DQU3
VSSQ_4
VSSQ_5
E2
E8
C2
DQU2
DQU3
VSSQ_4
VSSQ_5
E2 C2
DQU2
DQU3
VSSQ_4
VSSQ_5
E2
M1_DDR_DQ24 DQU0 VSSQ_2 DQU7 VSSQ_9 DQU7 VSSQ_9 DQU7 VSSQ_9 DQU7 VSSQ_9
C414 C417 C535
C3 D1 A2
DQU4
DQU5
VSSQ_6
VSSQ_7
F9 A2
DQU4
DQU5
VSSQ_6
VSSQ_7
F9
A7
A2
DQU4
DQU5
VSSQ_6
VSSQ_7
E8
F9
A7
A2
DQU4
DQU5
VSSQ_6
VSSQ_7
E8
F9 C3 D1
M1_DDR_DQ9 DQU1 VSSQ_3 B8
A3
DQU6 VSSQ_8
G1
G9
B8
A3
DQU6 VSSQ_8
G1
G9
B8
A3
DQU6 VSSQ_8
G1
G9
B8
A3
DQU6 VSSQ_8
G1
G9 M1_DDR_DQ25 DQU1 VSSQ_3 10uF 10uF 10uF
C8 D8 DQU7 VSSQ_9 DQU7 VSSQ_9 DQU7 VSSQ_9 DQU7 VSSQ_9
C8 D8 10V 10V 10V
M1_DDR_DQ10 DQU2 VSSQ_4 M1_DDR_DQ26 DQU2 VSSQ_4 C543
1%
1/16W
10K
R444
C2 E2 C2 E2
M1_DDR_DQ11 DQU3 VSSQ_5 M1_DDR_DQ27 DQU3 VSSQ_5 0.1uF
A7 E8 A7 E8 16V
M1_DDR_DQ12 DQU4 VSSQ_6 M1_DDR_DQ28 DQU4 VSSQ_6
A2 F9 A2 F9
M1_DDR_DQ13 DQU5 VSSQ_7 M1_DDR_DQ29 DQU5 VSSQ_7
B8 G1 B8 G1
M1_DDR_DQ14 DQU6 VSSQ_8 M1_DDR_DQ30 DQU6 VSSQ_8
A3 G9 A3 G9
M1_DDR_DQ15 DQU7 VSSQ_9 M1_DDR_DQ31 DQU7 VSSQ_9
+1.5V_Bypass Cap +1.5V_Bypass Cap
Close to DDR Power Pin Close to DDR Power Pin
AVDD_DDR
AVDD_DDR
0.1uF
0.1uF
0.1uF
0.1uF
0.1uF
0.1uF
C475
C480
C476
C444
C445
C446
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. BSD-15Y-LM14A-004_00-HD
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS 2014-12-30
LM14A
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. LM14A DDR 04
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
COMPENSATION_DONE_1
OLED Clock for MSD808KWD
DPC_CTRL
+3.3V_NORMAL
MAIN Clock(24Mhz)
Jtag I/F
X-TAL_1
12V_ON 5pF
GND_1
XIN_MAIN
C600 For Main C614
R612 JTAG
R614 JTAG
R616 JTAG
0.1uF
2
1
R635
JTAG
24MHz
X600
1M
1K
1K
1K
SW600
JS2235S P600
3
4
12505WS-10A00
X-TAL_2
GND_2
JTAG
1
5pF
TRST_N0 XOUT_MAIN
TDI0 1 6 TDO0
2
C615
R602 R604 TDI0
0 0
3
OPT OPT TDO0
TDI0_1 2 5 TDO0_1 System Clock for Analog block(24Mhz)
4
R603 JTAG R605 TMS0
0 0
OPT OPT 5
TCK0
3 4
6
SOC_RESET
7
JTAG
1K
R609
8
9
10
11
IC100
LGE5332(LM14A) IC100
LGE5332(LM14A)
R624 33 0.047uF C620
T2 AF6 SC_R
D0-_HDMI1 A_RX0N LINEIN_L0 COMP1/AV1/DVI_L_IN AA2 B1
T3 AE6 2.2uF C601 RIN0P TN EPHY_TDN
D0+_HDMI1 A_RX0P LINEIN_R0 COMP1/AV1/DVI_R_IN R625 68 0.047uF C621 AA1 C1
U1 AF2 2.2uF C602 GIN0M TP EPHY_TDP
D1-_HDMI1 A_RX1N LINEIN_L1 SC_L_IN Y3 A2
V2 AF1 2.2uF C603 R626 33 C622 GIN0P RN EPHY_RDN
D1+_HDMI1 A_RX1P LINEIN_R1 SC_R_IN 0.047uF B2
V3 AG5 2.2uF C604 SC_G
D2-_HDMI1 RP EPHY_RDP
A_RX2N LINEIN_L2 Y1
W2 AG4 BIN0P
D2+_HDMI1 A_RX2P LINEIN_R2 R628 33 0.047uF C624
R1 SC_B
CK-_HDMI1 A_RXCN AA6
R2 SC_ID HSYNC0
CK+_HDMI1 A_RXCP AA5 D4
R6 SC_FB VSYNC0 GPIO19/[LED0]/GPIO74 I2C_SCL4
DDC_SCL_1 DDCDA_CK/GPIO38 T6
T5 AF3 GPIO20/[LED1]/GPIO75 I2C_SDA4
HDMI 1.4b &2.0 DDC_SDA_1 DDCDA_DA/GPIO39 MICCM0
MHL OPT Y2 AG1
HDMI_HPD_1 HOTPLUGA MICIN0 R630 33 0.047uF C627 AA3
V6 AH2 COMP1_Pr 0.047uF RIN1P
CEC0/GPIO5 LINEOUT_L2 SCART_Lout R631 68 C628 AC1
URSA_RESET_SoC U4 AH3
5V_DET_HDMI_1 SCART_Rout R632 33 0.047uF C629 GIN1M
HOTPLUGA_HDMI20_5V/GPIO34 LINEOUT_R2 COMP1_Y AC2
GIN1P
L1 AF4
D0-_HDMI2 B_RX0N EARPHONE_OUTL HP_LOUT R634 33 0.047uF C631 AB2
M2 AF5 COMP1_Pb BIN1P
D0+_HDMI2 B_RX0P EARPHONE_OUTR HP_ROUT 1000pF C632 AB3
M3 SOGIN1
D1-_HDMI2 B_RX1N C605 1uF
N2 P3
D1+_HDMI2 B_RX1P ARC0/GPIO6 HDMI_ARC
P2
D2-_HDMI2 B_RX2N AD3 D5
P1 RIN2P RESET SOC_RESET
D2+_HDMI2 B_RX2P AD2
K2 AG3 GIN2M
CK-_HDMI2 B_RXCN VAG AD1 AM4
K3 AG2 C606 L600 GIN2P XTAL_IN XIN_MAIN
CK+_HDMI2 B_RXCP AVSS_VRM_ADC 1uF AK4
L4 10uF PZ1608U121-2R0TF
C609 XTAL_OUT XOUT_MAIN
DDC_SCL_2 DDCDB_CK/GPIO40 10V AC3
L5 BIN2P
DDC_SDA_2 DDCDB_DA/GPIO41 F5
M4 IRIN/GPIO4 BIT11
HDMI_HPD_2 HOTPLUGB/GPIO31
M5 D8
5V_DET_HDMI_2 HOTPLUGB_HDMI20_5V/GPIO35 I2S_IN_BCK/GPIO94 TRST_N0
D6 JTAG 0 R606
47K
+3.3V_NORMAL
JTAG
R615
I2S_IN_SD/GPIO95 TCK0 A4
D2 C5 JTAG 1K R608 DM_P0 WIFI_DM
C_RX0N I2S_IN_WS/GPIO93 B4
D3 R610 DP_P0 WIFI_DP
C_RX0P 22 C4
E2 G6 R619 68 DM_P1
C_RX1N I2S_OUT_BCK/GPIO100 AUD_SCK C613 0.047uF AD6 B3
E3 E6 R611 VCOM DP_P1
C_RX1P I2S_OUT_MCK/GPIO99 22 AL6
F2 F6 R618 DM_P2 USB_DM3
C_RX2N I2S_OUT_WS/GPIO98 AUD_LRCK R620 33 C616 0.047uF AC6 AK6
F1 E8 22 TU_CVBS USB_DP3
AUD_LRCH CVBS0 DP_P2 AC-coupling CAP
C_RX2P I2S_OUT_SD/GPIO101 R621 33 C617 0.047uF AC5 AM14 C633 0.1uF
C3 F9 AV1_CVBS_IN CVBS1 SSUSB_TXP SSUSB_TXP
C_RXCN I2S_OUT_SD1/GPIO102 BIT10 R622 33 C618 0.047uF AB6 AL14 C634 0.1uF Place near by MST
D1 E7 C607 SC_CVBS_IN CVBS2 SSUSB_TXN SSUSB_TXN
C_RXCP I2S_OUT_SD2/GPIO103 DPC_CTRL AM13
H6 F7 22pF DM_PSS USB_DM1
BIT6 DDCDC_CK/GPIO42 I2S_OUT_SD3/GPIO104 12V_ON AK13
H5 DP_PSS USB_DP1
BIT7 DDCDC_DA/GPIO43 C608 C611 C612 AK12
K6 AG7 0 R644 SSUSB_RXP
BIT8 MHL_DET_LM15 22pF 22pF 1000pF SSUSB_RXP
HOTPLUGC/GPIO32 GPIO_PM[14]/GPIO24 50V AL13
J6 AH6 OPT SSUSB_RXN SSUSB_RXN
BIT9 HOTPLUGC_HDMI20_5V/GPIO36 GPIO_PM[15]/GPIO25 COMPENSATION_DONE_1 AK9
AH5 SSUSB_TXP1
GPIO_PM[16]/GPIO26 /MHL_OCP AL10
G2 SSUSB_TXN1
D0-_HDMI3 D_RX0N AM10
G3 DM_PSS1 USB_DM2
D0+_HDMI3 D_RX0P AC4 AK10
H2 DTV/MNT_V_OUT CVBS_OUT1 DP_PSS1 USB_DP2
D1-_HDMI3 D_RX1N JTAG AM11
H3 SSUSB_RXP1
D1+_HDMI3 D_RX1P R613 AL11
J2 0 SSUSB_RXN1
D2-_HDMI3 D_RX2N
J1 TDO0_1
D2+_HDMI3 D_RX2P
F3
CK-_HDMI3 D_RXCN
G1
CK+_HDMI3 D_RXCP
J4
DDC_SCL_3 DDCDD_CK/GPIO44
K5
DDC_SDA_3 DDCDD_DA/GPIO45
H4
HDMI_HPD_3 HOTPLUGD/GPIO33
J5
5V_DET_HDMI_3 HOTPLUGD_HDMI20_5V/GPIO37
R600 JTAG
0
TMS0 B5
SPDIF_IN/GPIO96
A5
SPDIF_OUT SPDIF_OUT/GPIO97
JTAG
R601
0
TDI0_1
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-006_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A 2015-01-08
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. MAIN4_EXT_IN/OUTPUT 06
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
IC100
LGE5332(LM14A)
A15 T23
GND_1 GND_171
A18 T24
GND_2 GND_172
A21 T25
GND_3 GND_173
A24 T26
GND_4 GND_174
A27 U2
GND_5 GND_175
A30 U3
GND_6 GND_176
B10 U8
GND_7 GND_177
B32 U9
GND_8 GND_178
C2 U10
GND_9 GND_179
C13 U14
GND_10 GND_180
C32 U15
GND_11 GND_181
D18 U16
GND_12 GND_182
D21 U17
GND_13 GND_183
D25 U18
GND_14 GND_184
D28 U20
GND_15 GND_185
D32 U26
GND_16 GND_186
E30 V1
GND_17 GND_187
E31 V8
GND_18 GND_188
E32 V9
GND_19 GND_189
F22 V10
GND_20 GND_190
F24 V11
GND_21 GND_191
F25 V12
GND_22 GND_192
F26 V13
GND_23 GND_193
F27 V14
GND_24 GND_194
F28 V15
GND_25 GND_195
F29 V16
GND_26 GND_196
F30 V20
GND_27 GND_197
F31 V21
GND_28 GND_198
G11 V22
GND_29 GND_199
G12 V26
GND_30 GND_200
G13 V29
GND_31 GND_201
G14 V32
GND_32 GND_202
G15 W3
GND_33 GND_203
G16 W8
GND_34 GND_204
G17 W9
GND_35 GND_205
G18 W10
GND_36 GND_206
G19 W11
GND_37 GND_207
G20 W12
GND_38 GND_208
G21 W13
GND_39 GND_209
G23 W14
GND_40 GND_210
G24 W15
GND_41 GND_211
G25 W16
GND_42 GND_212
G26 W17
GND_43 GND_213
G27 W18
GND_44 GND_214
G28 W22
GND_45 GND_215
H8 W26
GND_46 GND_216
H9 Y8
GND_47 GND_217
H10 Y9
GND_48 GND_218
H11 Y10
GND_49 GND_219
H12 Y11
GND_50 GND_220
H13 Y12
GND_51 GND_221
H14 Y13
GND_52 GND_222
H15 Y14
GND_53 GND_223
H17 Y15
GND_54 GND_224
H18 Y16
GND_55 GND_225
H19 Y17
GND_56 GND_226
H20 Y18
GND_57 GND_227
H21 Y22
GND_58 GND_228
H22 Y26
GND_59 GND_229
H23 AA9
GND_60 GND_230
H24 AA10
GND_61 GND_231
H25 AA11
GND_62 GND_232
H26 AA12
GND_63 GND_233
H27 AA14
GND_64 GND_234
H30 AA15
GND_65 GND_235
J3 AA16
GND_66 GND_236
J7 AA17
GND_67 GND_237
J8 AA18
GND_68 GND_238
J14 AA21
GND_69 GND_239
J15 AA26
GND_70 GND_240
J16 AA29
GND_71 GND_241
J22 AA32
GND_72 GND_242
J24 AB9
GND_73 GND_243
J25 AB10
GND_74 GND_244
J26 AB11
GND_75 GND_245
J27 AB12
GND_76 GND_246
K7 AB13
GND_77 GND_247
K8 AB14
GND_78 GND_248
K14 AB16
GND_79 GND_249
K15 AB17
GND_80 GND_250
K25 AB18
GND_81 GND_251
K26 AB19
GND_82 GND_252
L2 AB20
GND_83 GND_253
L3 AB21
GND_84 GND_254
L8 AB22
GND_85 GND_255
L14 AB23
GND_86 GND_256
L15 AB26
GND_87 GND_257
L16 AB30
GND_88 GND_258
L25 AC7
GND_89 GND_259
L26 AC8
GND_90 GND_260
M1 AC9
GND_91 GND_261
M8 AC10
GND_92 GND_262
M9 AC11
GND_93 GND_263
M10 AC12
GND_94 GND_264
M11 AC13
GND_95 GND_265
M12 AC16
GND_96 GND_266
M13 AC23
GND_97 GND_267
M14 AC25
GND_98 GND_268
M15 AC26
GND_99 GND_269
M16 AC27
GND_100 GND_270
M17 AC28
GND_101 GND_271
M18 AD8
GND_102 GND_272
M19 AD9
GND_103 GND_273
M20 AD10
GND_104 GND_274
M25 AD11
GND_105 GND_275
M26 AD12
GND_106 GND_276
M29 AD13
GND_107 GND_277
M32 AD14
GND_108 GND_278
N3 AD15
GND_109 GND_279
N7 AD16
GND_110 GND_280
N8 AD24
GND_111 GND_281
N9 AD25
GND_112 GND_282
N10 AD26
GND_113 GND_283
N11 AD27
GND_114 GND_284
N13 AD28
GND_115 GND_285
N14 AE3
GND_116 GND_286
N17 AE8
GND_117 GND_287
N18 AE9
GND_118 GND_288
N19 AE10
GND_119 GND_289
N20 AE11
GND_120 GND_290
N24 AE12
GND_121 GND_291
N25 AE13
GND_122 GND_292
N26 AE14
GND_123 GND_293
P8 AE17
GND_124 GND_294
P9 AE18
GND_125 GND_295
P10 AE23
GND_126 GND_296
P11 AE24
GND_127 GND_297
P12 AE25
GND_128 GND_298
P13 AE26
GND_129 GND_299
P14 AE27
GND_130 GND_300
P15 AE28
GND_131 GND_301
P16 AE29
GND_132 GND_302
P17 AF9
GND_133 GND_303
P18 AF10
GND_134 GND_304
P19 AF17
GND_135 GND_305
P20 AF18
GND_136 GND_306
P24 AF19
GND_137 GND_307
P25 AF20
GND_138 GND_308
P26 AF21
GND_139 GND_309
R3 AF22
GND_140 GND_310
R8 AF23
GND_141 GND_311
R9 AF24
GND_142 GND_312
R10 AF25
GND_143 GND_313
R14 AF26
GND_144 GND_314
R15 AF27
GND_145 GND_315
R16 AF28
GND_146 GND_316
R17 AF29
GND_147 GND_317
R18 AF30
GND_148 GND_318
R19 AG22
GND_149 GND_319
R20 AG23
GND_150 GND_320
R21 AG30
GND_151 GND_321
R22 AH21
GND_152 GND_322
R23 AH22
GND_153 GND_323
R24 AJ3
GND_154 GND_324
R25 AJ22
GND_155 GND_325
R26 AJ30
GND_156 GND_326
R29 AK5
GND_157 GND_327
R32 AK11
GND_158 GND_328
T8 AK14
GND_159 GND_329
T9 AL1
GND_160 GND_330
T10 AL3
GND_161 GND_331
T14 AL4
GND_162 GND_332
T15 AL9
GND_163 GND_333
T16 AL12
GND_164 GND_334
T17 AL23
GND_165 GND_335
T18 AL27
GND_166 GND_336
T19 AM25
GND_167 GND_337
T20 AM29
GND_168 GND_338
T21 AM31
GND_169 GND_339
T22
GND_170
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. BSD-15Y-LM14A-007_00-HD
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A 2014-11-13
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. LM14A_GND 07
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
CI Region * Option name of this page : CI_SLOT
(because of Hong Kong)
CI SLOT
+5V_CI_ON
CI_DATA[0-7]
CI TS INPUT
CI_SLOT
FE_DEMOD1_TS_DATA[0-7]
+5V_NORMAL CI_SLOT AR903 33
C902 FE_DEMOD1_TS_DATA[7]
10uF CI_MDI[7] FE_DEMOD1_TS_DATA[6]
CI_SLOT 10V CI_MDI[6]
@netLa
FE_DEMOD1_TS_DATA[5]
R906
CI_MDI[5] FE_DEMOD1_TS_DATA[4]
10K
CI_SLOT CI_MDI[4]
/CI_CD1 JK900
10125901-115LF CI_SLOT
CI_SLOT AR902 33
R912 FE_DEMOD1_TS_DATA[3]
35 1 CI_MDI[3]
CI_SLOT 100 CI_DATA[3] FE_DEMOD1_TS_DATA[2]
36 2 CI_MDI[2]
AR901 CI_DATA[4] FE_DEMOD1_TS_DATA[1]
33 37 3 CI_MDI[1]
CI_DATA[5] R916 FE_DEMOD1_TS_DATA[0]
TPI_DATA[4] 38 4 10K CI_MDI[0]
CI_DATA[6]
TPI_DATA[5] 39 5
CI_DATA[7]
TPI_DATA[6] 40 6 FE_DEMOD1_TS_DATA[0-7]
TPI_DATA[7] 41 7 R914 47 CI_SLOT R918 33 CI_SLOT
CI_ADDR[10] /PCM_CE1 CI_MISTRT FE_DEMOD1_TS_SYNC
42 8 R919 33 CI_SLOT
CI_MIVAL_ERR FE_DEMOD1_TS_VAL
CI_SLOT R908 10K 43 9 R920 100 CI_SLOT
CI_ADDR[11] CI_OE CI_MCLKI FE_DEMOD1_TS_CLK
CI_IORD 44 10 +5V_NORMAL
CI_ADDR[9]
CI_IOWR 45 11
CI_ADDR[8]
46 12 R917
CI_ADDR[13] 10K
CI_MDI[0] 47 13
CI_ADDR[14]
CI_MDI[1] 48 14 CI_SLOT
CI_MDI[2] 49 15 CI_WE
50 16 R915 100
CI_MDI[3] CI_SLOT CAM_IREQ_N
51 17 CI_SLOT
GND
C901
0.1uF
52
53
18
19
C903
0.1uF
C904
0.1uF
CI HOST I/F
CI_MDI[4] CI_SLOT CI_SLOT
GND
CI_MDI[5] 54 20
+5V_NORMAL CI_ADDR[12]
CI_MDI[6] 55 21 CLOSE TO MSTAR
CI_ADDR[7]
R900 56 22 GND
CI_MDI[7] R909 10K CI_ADDR[6] CI_SLOT
10K CI_SLOT 57 23
CI_ADDR[5] AR906
CI_SLOT R901 47 CI_SLOT 58 24
PCM_RESET CI_ADDR[4] 33
R902 47 CI_SLOT 59 25
CAM_WAIT_N CI_ADDR[3] CI_ADDR[0] EB_ADDR[0]
CLOSE TO MSTAR 60 26
REG CI_ADDR[2] CI_ADDR[1] EB_ADDR[1]
R903 33 CI_SLOT 61 27
TPI_CLK CI_ADDR[1] CI_ADDR[2] EB_ADDR[2]
R904 33 CI_SLOT 62 28
TPI_VAL CI_ADDR[3] EB_ADDR[3]
R905 33 CI_SLOT CI_ADDR[0]
TPI_SOP 63 29
CI_DATA[0]
CI_SLOT 64 30
AR900 33 CI_DATA[1]
65 31 CI_ADDR[0-14]
TPI_DATA[0] CI_DATA[2]
66 32 OLED_CI_SLOT CI_SLOT
TPI_DATA[1] 67 33 JK900-*1
AR907
10125901-015LF
TPI_DATA[2] 68 34 35 1
33
TPI_DATA[3] 36 2
37 3 CI_ADDR[4] EB_ADDR[4]
G2 69 G1 38 4
R910 39 5 CI_ADDR[5] EB_ADDR[5]
40 6
100 41 7 CI_ADDR[6] EB_ADDR[6]
/CI_CD2 42 8
CI_SLOT 43 9 CI_ADDR[7] EB_ADDR[7]
+5V_NORMAL GND 44 10
45 11
46
47
12
13
CI_SLOT
CI_SLOT GND 48 14
AR908 33
C900 49 15
50 16
2pF 51 17
CI_ADDR[8] EB_ADDR[8]
R907
50V 52 18
CI_ADDR[9] EB_ADDR[9]
10K GND 53 19
54 20
CI_ADDR[10] EB_ADDR[10]
CLOSE TO MSTAR CI_SLOT
55
56
21
22
CI_ADDR[11] EB_ADDR[11]
57 23
58 24
59 25
60 26
61 27
62 28
CI_SLOT
63 29
CI_MISTRT 64 30
AR909 33
CI_MIVAL_ERR 65 31
CI_ADDR[12] EB_ADDR[12]
66 32
67 33
68 34
CI_ADDR[13] EB_ADDR[13]
CI_MCLKI G2 69 G1 CI_ADDR[14] EB_ADDR[14]
REG CAM_REG_N
CI_SLOT
AR913 33
CI_OE EB_OE_N
CI_WE EB_WE_N
CI_IORD EB_BE_N1
CI DETECT +3.3V_NORMAL
CI_IOWR EB_BE_N0
CI_SLOT
IC900
74LVC1G32GW +3.3V_NORMAL
B 1 5 VCC
/CI_CD2
CI_SLOT
A 2
/CI_CD1 AR904 33
GND 3 4 Y R911 CI_DATA[0] EB_DATA[0]
10K CI_DATA[1] EB_DATA[1]
CI_DATA[2] EB_DATA[2]
OR_GATE_CI_TI OR_GATE_CI_TOSHIBA CI_DATA[3] EB_DATA[3]
IC900-*1 IC900-*2
SN74LVC1G32DCKR TOSHIBA ELECTRONICS KOREA CORPORATION
EB_DATA[0-7]
@netLa
A VCC IN_B VCC
CI_SLOT
1 5 1 5
CAM_CD1_N AR905 33
B IN_A R913 CI_DATA[4] EB_DATA[4]
2 2
47 CI_DATA[5] EB_DATA[5]
GND Y GND OUT_Y
3 4 3 4
CI_DATA[6] EB_DATA[6]
CI_DATA[7] EB_DATA[7]
CI_DATA[0-7]
CI POWER ENABLE CONTROL EB_DATA[0-7]
IC901
+5V_NORMAL
AP2151WG-7 +5V_CI_ON
IN OUT
5 1
C905 CI_SLOT
0.1uF C906
50V GND
2 1uF
CI_SLOT R923
25V
CI_SLOT 10K
R922
100 EN FLG CI_SLOT
PCM_5V_CTL 4 3
R921
10K
CI_SLOT
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-009_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A 2014-11-13
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. PCMCI 9
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
M+ MODULE R2333
33 EBK61012701
1
PWM_TOUT Module_MPLUS & NON_UF84(M+) RESET_IC_DIODES(MAIN)
+12V
IC2307-*1
PWM_TIN
R2324
33
PANEL_POWER TYP 6000mA Power_DET APX803E29
2
+3.5V_ST
2N3906S-RTK
Module_MPLUS & NON_UF84(M+) Q2300-*1 VCC RESET
3
3 2
PWM_DIM 100 MMBT3906(NXP)
KEC_RL_ON_TR(MAIN)
NXP_RL_ON_TR(SUB) L2321 L2322 1
R2304 MLB-201209-0120P-N2 GND EAN61829902
Non_Module_MPLUS & UF84(M+)
0TR390609DC
R2301 PD_20_24V_DIODES
OS MODULE LGE MODULE MLB-201209-0120P-N2 PANEL_VCC
1
10K +12V +3.5V_ST +3.5V_ST IC2308-*1
R2300 SMAW200-H28S5K[MIRROR] SMAW200-H24S5[MIRROR] R2349
Q2300
RL_ON 10K 100K APX803D29
P2301 P2300
C2327 C2331 IC2309
PD_+12V PD_+3.5V
2
C2330 AOS_PANEL_POWER_FET(MAIN) RESET_IC_ROHM(SUB) R2354 RESET 2 3 VCC
10uF 0.1uF 0.01uF
AO4447A
R2335 R2343 10K
EBK61313102 IC2307
3
25V 50V OMEGA SEMICONDUCTOR
2.7K 0 1
+3.3V_NORMAL 16V OPT
OPT 1% 5% BD48K28G GND
S_1 D_4
1 8
C2361 R2314 OPT OPT OPT POWER_DET
0.1uF 1K R2329 C2335 C2367
S_2
2 7
D_3 VDD 3 2 VOUT
C2315
16V 10uF 10uF 1uF
10K S_3
3 6
D_2
1
25V 25V 25V R2359 R2360 C2369 C2350
R2311 100 INV_CTL 2K 2K C2370 PD_+12V 0.1uF
PWR_ON 1 2 INV_CTL G
4 5
D_1
10uF GND
L2301 OPT 0.1uF R2336 16V EAN62945801
+3.5V_ST PDIM#1 PDIM#2 R2313 100 OPT 25V
UBW2012-121F 3 4 PWM_DIM2 16V 1.2K
PWR_DET_MERGE
OPT 1% C2364
3.5V 5 6 GND R2331 0.1uF
R2355
C2302 3.5V 7 8 3.5V NON_DIGITAL_POWER_B/D 1.8K 16V
L2317 IC2309-*1
0.1uF GND 9 10 GND UBW2012-121F C2368 ROHM_PANEL_POWER_FET(SUB)
PD_20_24V not to RESET
0
RRH140P03TB
16V 12V 12V C 10uF R2348
11 12 R2328
EBK61232301
ROHM CO.,LTD. +24V at 8kV ESD
+12V 25V 100K
12V 13 14 12V 10K B Q2321
UBW2012-121F L2307 +24V PANEL_CTL OPT S_1 D_4 C2365
12V GND 2N3904S 1 8
15 16 UBW2012-121F PD_20_24V_ROHM 0.1uF PWR_DET_SEPARATE
GND 24V C2371 KEC_PANEL_CTL_TR
17 18 E
S_2
2 7
D_3
PD_20V PD_24V IC2308 16V
C2304 L2302 10uF C PD_UHD_24V
0.1uF 24V 19 20 24V 10V S_3 D_2 R2340-*2 R2340-*1 R2340 BD48K28G
L2308 C2319 3 6
5.6K 8.2K
50V UBW2012-121F 24V GND or 24V B Q2321-*1 9.1K
21 22 UBW2012-121F 0.1uF G D_1 1% 1% 1% R2356 POWER_DET_1
GND NC or GND 50V MMBT3904(NXP) 4 5
VDD VOUT 0
23 24 NXP_PANEL_CTL_TR 3 2
L2303 OS MODULE L/D_CLK GND
L/D_CLK 25 26 DIGITAL_POWER_B/D E PWR_DET_SEPARATE
PD_20V PD_24V 1
L/D_DI 27 28 L/D_VSYNC L2315 PD_UHD_24V C2351
L/D_DI 25 UBW2012-121F R2341-*1 R2341 GND
R2341-*2 0.1uF
1.6K 1.3K 1.5K 16V 24V-->3.48V
OS MODULE 1% 1% 1% 20V-->3.51V
29 PD_20_24V
Digital Power B/D INCH 24 PIN 22 PIN L/D_VSYNC 12V-->3.58V
.
O 40 ~ 65 NC L2316 +12V ST_3.5V-->3.5V
GND
UBW2012-121F
NON_DIGITAL_POWER_B/D
X 70 ~ 79 GND 24V
C2316 C2317 C2318
10uF 10uF 10uF
16V 16V 16V
’15 UHD POWER +5.0V normal & USB
+12V
1%
R2342150K 1%
DDR +1.5V R2
R2337 16K 1%
C2347 OPT
2200pF C2349 C2352
R2339 16K
+1.5V_DDR
+24V 50V
1%
1/16W
+3.3V - eMMC 100pF 0.047uF
6.8K
R2351
L2309 POWER_ON/OFF2_3 R2344 50V 25V
PZ1608U121-2R0TF 10K
TI_TPS54327_1.5V_DDR_DCDC
C2359 C2362 C2363
+3.3V_NORMAL IC2303-*1
RSET2
RSET1
+3.3V_NORMAL 3.3V_EMMC +1.8V DVDD18_EMMC TPS54327DDAR [EP]GND 22uF 22uF 10uF
[EP]
AGND
RLIM
COMP
C2324 C2357 R1 10V 10V 10V
+3.3V_LED
C2322
FB
SS
0.1uF ROHM_BD9D321_1.5V_DDR_DCDC EN
1 8
VIN L2314
10uF 120-ohm 82pF
THERMAL
1%
1/16W
51K
16V VFB VBST 50V
LD2300
9
R2352
2 7
IC2303
28
27
26
25
24
23
22
L2304 L2305 R2326 VREG5 SW VIN_1 LX_3
PZ1608U121-2R0TF PZ1608U121-2R0TF BD9D321EFJ [EP] 3 6 1 21 L2313
10K THERMAL 4.7uH
SS GND
4 5 VIN_2 2 29 20 LX_2
+3.3V_LED
R2315
DCDC_DIODE_0DTKE00018A(KEC)
EN VIN
3.3K
C2308 C2307 1 8 C2340 C2341 C2344 VIN_3 3 19 LX_1 C2355
0DTKE00018A
0.1uF
C2309
0.1uF
C2312
16V 10uF 10uF 0.1uF
IC2305
0.047uF +5V_NORMAL
THERMAL
22uF 22uF 50V PGND_1
ZD2304
16V 16V 0.1uF 35V 35V 4 18 BST 25V
10V 10V R2320 R2321 FB BOOT C2336 SN1302001(TPS65286RHDR)
9
2 7 OPT
PGND_2 5 17 SW_IN2
R1 18K 4.7K L2312 C2360
R2350
1/16W
1% 1%
100K
100K
R2353
2.2uH PGND_3 SW_IN1
1/16W
VREG SW 6 16 1uF
5%
5%
DCDC_DIODE_0DR050008AA(SEMTECH)
1.0V_DCDC_TI
C2325
100pF
50V
3 6
PS064T-2R2MS
DCDC_DIODE
V7V 7 6A 15 NFAULT1
10V 0DR050008AA
ZD2304-*1
/USB_OCD2
SS GND
25V
1uF
C2343
10
11
12
13
14
4
3A 5 C2339
8
9
C2332-*1 C2338 ZD2302
3300pF 22uF 22uF 2.5V
R2322 10V
MODE/SYNC
EN
SW_OUT2
SW_OUT1
SW_EN2
SW_EN1
NFAULT2
50V 22K 10V
C2328 C2332
1% 1uF 2200pF
+1.8V - LM15U, eMMC 10V 50V
1.0V_DCDC_ROHM
Switching freq: 700K R2
& Vx1 pull-up Vout=0.6*(1+R1/R2)
/USB_OCD3
C2346
+5V_USB_3
+5V_USB_2
Vout=0.765*(1+R1/R2)=1.554V
USB_CTL3
USB_CTL2
R2338
10K
0.0068uF
POWER_ON/OFF1
50V
5.1V:R1-51K, R2-6.8K
+1.8V
+3.3V_NORMAL
IC2301
AZ1117EH-ADJTRG1
+2.5V
IN OUT TU_JP
TU_JP +2.5V_Normal
DCDC_DIODE
ADJ/GND
R2309 IC2300
1 R2312
ZD2303
TJ4220GDP-ADJ [EP]GND
1%
1/16W
75
2.5V
R2307
POWER_ON/OFF2_3
10K TU_JP TU_JP
R2316
C2310 C2311 C2321 22K
R2
1 8
10uF 10uF 0.1uF 1%
1%
1/16W
33
THERMAL
+3.3V_NORMAL NC_1 GND
R2308
10V 10V
TU_JP
9
2 7 R2317
ADJ/SENSE 47K R1
EN2
1%
3 6
TU_JP
C2320
VIN3 VOUT LM15 Power SEQUENCE
0.1uF
16V
4 2A 5
NC4 NC_2 TU_JP
TU_JP
EAN62206201 C2323
ZD2301
POWER_ON/OFF1(5V)
10uF
10V
0DR050008AA
5V
0DTKE00018A
MAX A TU_JP_DCDC_DIODE(KEC)
+3.3V_NORMAL ZD2301-*1 POWER_ON/OFF2_1(3.3V)
+12V
+3.3V_NORMAL
Vout=0.6*(1+R1/R2)
POWER_ON/OFF2_3(1.5V, 2.5V)
L2300
BLM18PG121SN1D
POWER_ON/OFF2_4(1.1V)
DCDC_DIODE_0DTKE00018A(KEC)
Placed on SMD-TOP
C2300 C2301 C2303
+24V AUDIO AMP
10uF 10uF 0.1uF
16V 16V 16V
0DTKE00018A
OPT IC2302
ZD2300
TPS54427DDA [EP]GND
R2303 +24V +24V_AMP
10K EN VIN
1 8
16V L2310
THERMAL
POWER_ON/OFF2_1 0.1uF
1% C2314 UBW2012-121F
VFB VBST
9
2 7
PS064T-2R2MS
R2302 L2306
R1 2.2uH
51K VREG5 SW
3 6
C2305
100pF
50V
SS GND
R2305
4
4A 5 C2326
22uF
10V
C2329
22uF
10V
C2333
100uF
C2334
10uF
10V
15K C2306 C2313
1uF 0.015uF
10V 50V
1% DCDC_DIODE_0DR050008AA(SEMTECH)
Switching freq: 700K R2 0DR050008AA
ZD2300-*1
Vout=0.765*(1+R1/R2)
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-0023_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A(UF77) 2015-01-08
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. LM14A_PWR_1_UHD 23
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
MAX 3A
LM14A CPU +1.1V_VDDC_CPU LM14A CORE
+12V
L2502
PZ1608U121-2R0TF
+1.1V_VDDC
Placed on SMD-TOP +12V
DCDC_DIODE_0DTKE00018A(KEC)
UF64/68 UF64/68 UF77/83/84 UF77/83/84
C2510-*1 C2512-*1 C2510 C2512 C2513
10uF 10uF 10uF 0.1uF
10uF 16V 16V 16V R1 IC2502
IC2501 L2501
25V BD86106EFJ
R2521
25V OPT C2514 L2500
0DTKE00018A
TPS54427DDA [EP]GND 2uH
5.6K
EAN62653301 [EP]
100pF PZ1608U121-2R0TF
10K
ZD2501
1%
50V R2524 EN
1 8
VIN 16V PGND SW_2
0.1uF 1 8
THERMAL
C2517
THERMAL
DCDC_DIODE_0DTKE00018A(KEC)
POWER_ON/OFF2_4 VFB VBST Placed on SMD-TOP
9
2 7 L2503 VIN SW_1
OPT OPT OPT
9
2 7
2.2uH R2510
VREG5 SW OPT C2504 C2505 C2506 C2507 C2508 C2509 15K R1
R2 3 6
C2500 C2501 C2502
AGND
3 6
EN
0.0068uF 10uF 10uF 100uF 10uF 10uF 1%
PS064T-2R2MS R2500 50V
R2522
SS GND 10uF 10uF 0.1uF 6.8K 10V 10V 10V 10V C2511
4
4A
5 FB
4
6A 5
COMP
47pF
11K
R2519-*1 25V 25V 25V 50V
1%
C2518 C2519
0DTKE00018A
27K 22uF
22uF
ZD2500
10V 10V
R2523
CPU_VID_LM14_A0
1/16W
10K
POWER_ON/OFF2_4
1%
1%
R2-1.13V
R2511
1/16W
R2501
CPU_VID_LM14_A1
R2515
R2519
1/16W
56K
C2503 10K
1%
LM14A_A0_ONLY
22K
75K
0.1uF
1/16W
R2504
1%
1%
KEC_CPU_CORE_VID_FET(MAIN)
KEC_CPU_CORE_VID_FET(MAIN)
DCDC_DIODE_0DR050008AA(SEMTECH) 16V 15K
R2512
1/16W
0DR050008AA
6.2K
+3.3V_NORMAL +3.3V_NORMAL C2515 C2516 1%
ZD2501-*1 R2
KEC_CPU_CORE_VID_FET
R2516
1%
R2520
1uF 2200pF
1.6K
75K
10V 50V
1%
1%
LM14A_A0_ONLY
1/16W
+3.3V_NORMAL R2505
56K
R2513 D R2517 D 1%
2N7002KA
2N7002KA
10K 10K LM14A_A0_ONLY
R2502 D
R2514 R2518
2N7002KA
Q2502
Q2503
G G 10K DCDC_DIODE_0DR050008AA(SEMTECH)
CPU_VID0 CPU_VID1 0DR050008AA
S S R2503
Q2500
0 5% 0 5% G ZD2500-*1
CORE_VID0
D D 0 5% S
Q2502-*1 Q2503-*1 LM14A_A0_ONLY
G G
2N7002K 2N7002K
S S LM14_A1
DIODEDS_CPU_CORE_VID_FET(SUB) DIODEDS_CPU_CORE_VID_FET(SUB) R2-1 R2-2 LM14_A0 LM14_A1 LM14_A0
V_out V_out V_out V_out
Delete this part when LM14A0 used all.
Boot High High 1.06 1.163
Boot 0.98 1.15
Kernel High Low 1.01 1.013 D
Kernel Q2500-*1
0.98 0.98 G
Kernel Low Low 0.96 0.969 2N7002K
S
DIODEDS_CPU_CORE_VID_FET
LM14A1 CORE_VID1 NOT USE.
Vout=0.765*(1+R1/R2) Vout=0.8*(1+R1/R2) CORE_VID1
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-025_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A 2015-01-21
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. LM15U_PWR_2_ALL 25
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Renesas MICOM
For Debug
+3.5V_ST
MICOM_DEBUG
R3016 1K
R3014 10K
SEIKO EPSON CORPORATION
MICOM_DEBUG Don’t remove R3016,
P3000
12507WS-04L
not making float P40 C3002 C3003
18pF 15pF
50V 50V LOGO_LIGHT
MICOM_DEBUG
1
LOGO_LIGHT
MICOM_RESET
2
MICOM_DEBUG EAW30067102
X3000
WIFI_EN
3
4
MICOM_RESET 32.768KHz +3.5V_ST
5
HDMI_WAUP:HDMI_INIT R3028
4.7M
MHL_DET_LM15 OPT
0 R3037
MHL_DET_LM15
10K
POWER_DET_1
R3032
10K
R3030
MICOM_RESET_SW
GND
MICOM_RESET_22OHM
SW3000
JTP-1127WEM
2 1
33
R3031
1%
1/16W
270K
OPT
C3004
P124/XT2/EXCLKS
0.47uF
0.1uF
+3.5V_ST 4 3
16V
R3029
P122/X2/EXCLK
P41/TI07/TO07
C3001
P137/INTP0
P120/ANI19
P40/TOOL0
P123/XT1
C3000
P121/X1
0.1uF MICOM_RESET_33OHM
R3029-*1 33
RESET
+3.5V_ST
REGC
VDD
VSS
R3021-*1
LCD
OLED
R3021
LM14A Power SEQUENCE
1K
10K 5%
1/16W
48
47
46
45
44
43
42
41
40
39
38
37
POWER_ON/OFF1(5V) P60/SCLA0 1 36 P140/PCLBUZ0/INTP6 RL_ON
SCART_MUTE
I2C_SCL_MICOM
P61/SDAA0 2 35 P00/TI00/TXD1 POWER_ON/OFF2_4
I2C_SDA_MICOM SCART_MUTE
P62 3 34 P01/TO00/RXD1
3D&L_DIM_EN POWER_ON/OFF2_4
POWER_ON/OFF2_1(3.3V)
P63 4 33 P130
PANEL_CTL
P31/TI03/TO03/INTP4 IC3000 P20/ANI0/AVREFP
POWER_ON/OFF2_1
WOL/WIFI_POWER_ON 5 32 KEY2
POWER_ON/OFF2_3(1.5V)
IR
P75/KR5/INTP9/SCK01/SCL01 6 R5F100GEAFB#30 31 P21/ANI1/AVREFM
KEY1
R3000
100 P74/KR4/INTP8/SI01/SDA01 7 30 P22/ANI2
HDMI_CEC_MICOM
POWER_ON/OFF2_4(1.1V) P73/KR3/SO01 8 29 P23/ANI3
MODEL1_OPT_3
POWER_ON/OFF2_3
P72/KR2/SO21 9 28 P24/ANI4
MODEL1_OPT_0
P71/KR1/SI21/SDA21 10 27 P25/ANI5
SOC_RESET EYE_SDA SIDE_HP_MUTE
P70/KR0/SCK21/SCL21 11 26 P26/ANI6
EYE_SCL MHL_EN MHL_EN
P30/INTP3/RTC1HZ/SCK11/SCL11 12 25 P27/ANI7
MODEL1_OPT_1
13
14
15
16
17
18
19
20
21
22
23
24
AR3000
3.3K
EYE_Q
+3.5V_ST
P50/INTP1/SI11/SDA11
P51/INTP2/SO11
P17/TI02/TO02
P16/TI01/TO01/INTP5
P15/PCLBUZ1/SCK20/SCL20
P14/RXD2/SI20/SDA20
P13/TXD2/SO20
P12/SO00/TXD0/TOOLTXD
P11/SI00/RXD0/TOOLRXD/SDA00
P10/SCK00/SCL00
P146
P147/ANI18
MICOM MODEL OPTION
+3.5V_ST
MICOM MODEL OPTION
10K
10K
10K
MICOM_OLED
MICOM_LOGO
MICOM_H15
R3006
R3008
R3013
0 1
MODEL_OPT_0 NON LOGO LOGO
MODEL1_OPT_0 MODEL_OPT_1 LCD OLED
MODEL1_OPT_1
MODEL1_OPT_3
MODEL_OPT_3 LM15U/LM14A H15
SOC_RX
POWER_DET
EDID_WP
URSA_RESET_MICOM
URSA_RESET_MICOM
AMP_MUTE
WOL_WAKE_UP
INV_CTL
MICOM_LM15U/LM14A
POWER_ON/OFF1
WOL_CTL
SOC_TX
LED_R
MICOM_NON_LOGO
10K
10K
10K
MICOM_LCD
R3009
R3012
R3004
For CEC
R3015
10K +3.5V_ST
CEC_DIODE(SUB)
MICOM_LM14A
EAH62792701
LED_R
SOC_RESET
D3000-*1
30V
BAT54_TSC
R3033 R3034
27K 120K
LM14A : Active high reset
G
D3000
BAT54_SUZHO
CEC_REMOTE HDMI_CEC_MICOM
D
S
CEC_DIODE(MAIN)
EAH61433701 Q3001
RUE003N02
G
ROHM_CEC_FET(MAIN) Q3001-*1
EBK61731401 SI1012CR-T1-GE3
S
D
VISHAY_CEC_FET(SUB)
EBK61731301
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. BSD-15Y-LM14A-030_00-HD
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A 2015-01-21
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. MICOM 30
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
5V_HDMI_3
5V_DET_HDMI_3
R3309
1.8K
ESD_HDMI
R3312
R3302
VA3300
3.3K
EAG63530103 EAG63530103 EAG63530103
1K R3337 R3305 HDMI_JACK_CNPLUS(MAIN) HDMI_JACK_CNPLUS(MAIN) HDMI_JACK_CNPLUS(MAIN)
33 JK3300-*1 JK3301-*1 JK3302-*1
4.7K 5501-56219 5501-56219 5501-56219
C OPT NON_HDMI_EXT_EDID
Q3300 TMDS_DATA2+
B 1K 1 TMDS_DATA2+ TMDS_DATA2+
1 1
2N3904S HDMI_HPD_3 TMDS_DATA2_SHIELD
2 TMDS_DATA2_SHIELD
2 TMDS_DATA2_SHIELD
BODY_SHIELD R3300 R3303 TMDS_DATA2- TMDS_DATA2-
2
3 3 TMDS_DATA2-
3
100K R3339 TMDS_DATA1+
4 TMDS_DATA1+ TMDS_DATA1+
E 4.7K
4 4
20 TMDS_DATA1_SHIELD
5 TMDS_DATA1_SHIELD TMDS_DATA1_SHIELD
KEC_HDMI_HPD_3_TR HDMI_EXT_EDID TMDS_DATA1-
5 5
ESD_HDMI
6 TMDS_DATA1- TMDS_DATA1-
VA3302
6
C TMDS_DATA0+
7 TMDS_DATA0+ TMDS_DATA0+
6
7
19 AR3309 TMDS_DATA0_SHIELD TMDS_DATA0_SHIELD
7
HOT_PLUG_DETECT Q3300-*1 B 33 8 8 TMDS_DATA0_SHIELD
8
TMDS_DATA0- TMDS_DATA0-
18 MMBT3904(NXP) DDC_SDA_3 9 9 TMDS_DATA0-
9 5V_HDMI_1 5V_DET_HDMI_1
TMDS_CLK+
VDD[+5V] NXP_HDMI_HPD_3_TR 10 TMDS_CLK+
10 TMDS_CLK+
10
TMDS_CLK_SHIELD
E DDC_SCL_3 11 TMDS_CLK_SHIELD
11 TMDS_CLK_SHIELD
R3324
17 TMDS_CLK- TMDS_CLK-
11
DDC/CEC_GND 12 12 TMDS_CLK-
12
CEC CEC OPT 1.8K
ESD_HDMI
13 13 CEC
16 13
R3335
R3316
VA3308
SDA VA3304 VA3306 RESERVED
14 RESERVED RESERVED OPT
3.3K
14 14
1K R3336 R3319
ESD_HDMI ESD_HDMI SCL
15 SCL
15 SCL 33
15 SDA SDA
15
4.7K
SCL 16 16 SDA
16
DDC/CEC_GND DDC/CEC_GND
17 17 DDC/CEC_GND
14 VDD[+5V] VDD[+5V]
17
RESERVED 18 18 VDD[+5V]
18
OPT C OPT
HOT_PLUG_DETECT
CEC_REMOTE 19 HOT_PLUG_DETECT
19 HOT_PLUG_DETECT BODY_SHIELD Q3305 R3318
13 19
R3315
CEC AR3300 20 100K 2N3904S B 1K
20 20 HDMI_HPD_1
12 5.1 BODY_SHIELD BODY_SHIELD 20
BODY_SHIELD
TMDS_CLK- 1/16W OPT
ESD_HDMI
VA3312
E
11 CK-_HDMI3
TMDS_CLK_SHIELD 19
CK+_HDMI3 HOT_PLUG_DETECT
10
TMDS_CLK+ D0-_HDMI3 18
VDD[+5V]
9 D0+_HDMI3 AR3311
TMDS_DATA0- 17 33
DDC/CEC_GND
8 DDC_SDA_1
TMDS_DATA0_SHIELD 16
SDA DDC_SCL_1
7
TMDS_DATA0+ 15
SCL VA3311
6 ESD_HDMI
TMDS_DATA1- 14
RESERVED VA3309
5 CEC_REMOTE ESD_HDMI
TMDS_DATA1_SHIELD 13
CEC AR3307
4 AR3301
TMDS_DATA1+ 12 5.1
5.1 TMDS_CLK- 1/16W
3 1/16W
TMDS_DATA2- 11 CK-_HDMI1
D1-_HDMI3 TMDS_CLK_SHIELD
2 CK+_HDMI1
TMDS_DATA2_SHIELD D1+_HDMI3 10
TMDS_CLK+ D0-_HDMI1
1 D2-_HDMI3
TMDS_DATA2+ 9 D0+_HDMI1
D2+_HDMI3 TMDS_DATA0-
8
JK3301 TMDS_DATA0_SHIELD
HDMI_JACK_YEON(SUB) 7
TMDS_DATA0+ AR3308
05008WR-H19C
EAG63530104
HDMI3 6
TMDS_DATA1-
5.1
1/16W +3.5V_ST C
YEON HO ELECTRONICS CO., LTD EBK61012701
5 D1-_HDMI1
TMDS_DATA1_SHIELD B Q3304-*1
D1+_HDMI1 MMBT3906(NXP)
R3326
4 MHL_NXP_TR(MAIN)
TMDS_DATA1+
MHL
D2-_HDMI1
10K
E
5V_HDMI_2 3 D2+_HDMI1
TMDS_DATA2- MHL
5V_DET_HDMI_2 R3327 E
R3308 2 10K Q3304
TMDS_DATA2_SHIELD MHL_KEC_TR(SUB)
1.8K 0TR390609DC
ESD_HDMI
1 B
R3304 OPT
R3310
VA3301
TMDS_DATA2+ 2N3906S-RTK
3.3K
1K R3338 MHL C
R3307 C
33 MHL R3325
4.7K R3317 0
C JK3302 B
NON_MHL
R3306 MHL_DET_LM15
Q3301
R3328
HDMI_JACK_YEON(SUB) 1K
B 1K Q3303
R3314
NON_MHL
2N3904S HDMI_HPD_2 MHL
10K
BODY_SHIELD EAG63530104 VA3310 C3303 E
R3301 R3320 2N3904S
05008WR-H19C 5.6V 0.1uF
100K 300K KEC_MHL_TR
0
20 E YEON HO ELECTRONICS CO., LTD MHL 16V
KEC_HDMI_HPD_2_TR OPT MHL Spec C
ESD_HDMI
C AR3310
VA3303
19 33
HOT_PLUG_DETECT Q3301-*1 B DDC_SDA_2 B Q3303-*1
MMBT3904(NXP) MMBT3904(NXP)
18 NXP_MHL_TR
VDD[+5V] NXP_HDMI_HPD_2_TR DDC_SCL_2
E E
17
DDC/CEC_GND VA3305 VA3307
ESD_HDMI
HDMI1 with MHL
16 ESD_HDMI
SDA
15
SCL
HDMI_ARC
14
RESERVED
CEC_REMOTE
13
CEC
AR3303
12 5.1
TMDS_CLK- 1/16W
11
TMDS_CLK_SHIELD CK-_HDMI2
EDID external EEPROM +5V_NORMAL
10 CK+_HDMI2 E
TMDS_CLK+ 5V_HDMI_3
D0-_HDMI2
9 MMBT3904(NXP)
TMDS_DATA0- D0+_HDMI2 B
Q3302-*1
A1
A2
EAH61714301
8 C MMBD6100
TMDS_DATA0_SHIELD
NXP_HDMI_EXT_EDID_TR D3309
7 SUZHOU_DDC_DIODE(MAIN)
TMDS_DATA0+
C
AR3306
6 5.1
TMDS_DATA1- 1/16W E
KEC_HDMI_EXT_EDID_TR
ATMEL_HDMI_EXT_EDID
5 2N3904S
TMDS_DATA1_SHIELD D1-_HDMI2 ROHM_HDMI_EXT_EDID EDID_WP
4 D1+_HDMI2 IC3301 Q3302 B IC3301-*1
TMDS_DATA1+
D2-_HDMI2 BR24G02FJ-3GTE2 C AT24C02C-SSHM-T
KEC_DDC_DIODE(SUB)
3 EAH61714301
TMDS_DATA2- D2+_HDMI2
D3309-*1
2 A0 VCC HDMI_EXT_EDID MMBD6100 A0 VCC
TMDS_DATA2_SHIELD 1 8 A2 1 8
1 C
TMDS_DATA2+ R3323
A1 WP AR3305 A1 A1 WP
2 7 4.7K 1/16W 2 7
47K
JK3300
HDMI_JACK_YEON(SUB) A2 SCL A2 SCL
05008WR-H19C 3 6 3 6
EAG63530104
HDMI2 with ARC GND SDA GND SDA
YEON HO ELECTRONICS CO., LTD 4 5 4 5
R3321
22
DDC_SCL_3
HDMI_EXT_EDID
R3322
22
DDC_SDA_3
HDMI_EXT_EDID
MHL
Current Limit 5V_HDMI_1
MHL_DIODE(KEC) MHL
0DTKE00018A L3301
ZD3300-*1 IC3300 BLM31PG500SN1
5V_MHL TPS2553DBV 50-ohm DDC pull-up
IN OUT D3304
ESD_5V_HDMI_1
1 6
5V_HDMI_2 5V_HDMI_1
C3301 ZD3300 MHL 30V MHL +5V_NORMAL +3.5V_ST
MHL
VA3313
0.1uF 5V MHL 1% OPT C3302
16V GND ILIM R3313 +5V_NORMAL
2 5 10uF
+5V_NORMAL 5V_MHL 100K
MHL_DIODE(SD05) 10V
A1
A2
20K
A1
A2
0DR050008AA
A1
A2
R3311 MHL EAH61714301
EN FAULT MMBD6100
MHL_DET_LM15 3 4 EAH61714301
L3300 D3305 MMBD6100 EAH61714301
/MHL_OCP MMBD6100
C
PZ1608U121-2R0TF SUZHOU_DDC_DIODE(MAIN) D3308
C
C
D3310
SUZHOU_DDC_DIODE(MAIN)
MHL_SUZHOU_DDC_DIODE(MAIN)
MHL MHL
C3300
AR3302
0.1uF
AR3304
1/16W
/MHL_OCP
1/16W
16V
47K
47K
KEC_DDC_DIODE(SUB) KEC_DDC_DIODE(SUB) MHL_KEC_DDC_DIODE(SUB)
EAH61714301 DDC_SDA_2 EAH61714301 EAH61714301
D3305-*1 D3308-*1 DDC_SDA_1 D3310-*1
MMBD6100 DDC_SCL_2 MMBD6100 MMBD6100
A2 A2 DDC_SCL_1 A2
C C C
A1 A1 A1
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-033_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A 2015-01-08
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. HDMI 10
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
SPDIF OUT AV/COMPONENT REAR
Place JACK Side
1608 sizs For EMI/ESD
AV/COMP_DAMPING_3.3ohm
3.3 R3832 @netLa
AV1_CVBS_IN
R3808
C3822 C3805 C3806
1/4W
VA3806 150pF 27pF 100pF C3811 COMP1_Y
75
1%
5.5V OPT 50V 50V 47pF R3831
50V 0
OPT OPT
Foxconn_OPTIC_JAKC(SUB)
R3832-*1
0
JK3800-*1
2F01TC1-CLM97-4F AV/COMP_DAMPING_0ohm
GND +3.3V_NORMAL
1 AV/COMPONENT_REAR(DV)
AV/COMPONENT_REAR(PV)
Fiber Optic
EAG60968217 EAG60968213
JK3802-*1 JK3802
VCC 2 PPJ245N2-01
PPJ245-31
R3807
6E [RD2]E-LUG [ GN/YL]E-LUG
6A 10K
VIN 3 R3803
1K 1608 sizs For EMI/ESD
[RD2]O-SPRING 5A
+3.3V_NORMAL 4 5E [GN/YL]O-SPRING AV1_CVBS_DET
1608 sizs For EMI/ESD
Solteam_OPTIC_JACK(MAIN) AV/COMP_DAMPING_3.3ohm
SHIELD
[RD2]CONTACT 4A
[GN/YL]CONTACT
4E VA3803
3.3 R3811
GND 5.6V COMP1_Pb
1
5B +3.3V_NORMAL
Fiber Optic
JST1223-001
5D [WH]O-SPRING [BL]O-SPRING SIGN380006
R3811-*1 C3810 C3812
JK3800
0 27pF 27pF R3816 C3815
VCC [RD1]CONTACT 7C VA3804 75
[RD1]E-LUG-S 10pF
2
4C 50V 50V
5.5V R3810 AV/COMP_DAMPING_0ohm OPT 50V
OPT 1%
5C 10K
VINPUT 5C [RD1]O-SPRING [RD1]O-SPRING
SPDIF_OUT
3
R3802
4
C3800 VA3807 C3818 [RD1]E-LUG-S 4C VA3805
7C [RD1]CONTACT 1K
18pF 5.5V 0.1uF 5.5V AV/COMP_DAMPING_3.3ohm
COMP1_DET
FIX_POLE
1608 sizs For EMI/ESD
50V 16V 3.3 R3809
OPT [BL]O-SPRING 5D [WH]O-SPRING COMP1_Pr
5B VA3800
5.6V
[GN/YL]CONTACT 4E R3809-*1 C3809 C3813 C3814
4A [RD2]CONTACT R3800 0 R3817
VA3801 27pF 27pF 75 10pF
5.6V 470K 50V 50V 50V
5E AV/COMP_DAMPING_0ohm FOR EMI 1%
5A [GN/YL]O-SPRING [RD2]O-SPRING OPT OPT
[GN/YL]E-LUG 6E [RD2]E-LUG
6A
1608 sizs For EMI
R3812
R3805 10K
COMP1/AV1/DVI_L_IN
VA3802 R3801
0
5.6V 470K
C3801 C3803 C3807 R3814
560pF 100pF 1000pF 12K
50V
50V 50V OPT
OPT OPT
1608 sizs For EMI
R3813
R3806 10K
COMP1/AV1/DVI_R_IN
0
C3802 C3804 C3808 R3815
560pF 100pF 1000pF 12K
50V
50V 50V OPT
OPT OPT
HP OUT
JK3803
PEJ034-01
E_SPRING 3
HP_LOUT_MAIN
R3821
HP_OUT
OPTC3819 HP_OUT
22K
AR3800 L3801
100 0.01uF R3804
PZ1608U121-2R0TF
OPT
1/16W 150
HP_LOUT HP_LOUT_AMP HP_OUT 1/10W
C3817 5% +3.3V_NORMAL
HP_ROUT
0.22uF R_SPRING 4
25V
HP_ROUT_MAIN R3820
R3822
OPT T_SPRING 5
C3820 10K
22K
HP_OUT
0.01uF R3819 HP_OUT
OPT
100 B_TERMINAL2 7B
HP_DET
1/16W
HP_OUT 5% T_TERMINAL2 6B
HP_OUT
L3800 R3818
PZ1608U121-2R0TF 150
Close to Main soc HP_ROUT_AMP HP_OUT
C3816
1/10W
5%
0.22uF VA3808
25V 5.6V
HP_OUT
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-038_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM15U 2015-01-21
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. JACK_COMMON_H 38
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
WIFI POWER ENABLE CONTROL
+3.5V_ST +3.5V_WIFI
IC4100
AP2191WG-7
IN OUT
5 1
C4100 R4119
0.1uF GND 10K
2
OPT
WIFI_EN R4101 33 EN FLG
4 3
R4100 C4113 TOSHIBA_WIFI_DMDP_ESD(SUB)
10K 0.1uF EAH62735601
16V
OPT
P4100
SMAW200-H18S5 D4100-*1
DF3D6.8MS
+3.5V_WIFI
C4110
C4108 22uF
GND 1 2 +3.5V_WOL
0.1uF 10V
R4111 R4113
M_RFModule_RESET
100 BT_RESET 3 4 USB_DM 0
WIFI_DM
C4103 R4114 +3.5V_ST
0.1uF NC 5 6 USB_DP 0
Place Near Wafer WIFI_DP
R4112
WOL/WIFI_POWER_ON
100 WOL 7 8 GND C4107 C4109
5pF 5pF
AR4101 EAH61515101 R4106 R4107
100 C4104
0.1uF
SDA 9 10 GND D4100
50V 50V
10K 10K
EYE_SDA 1% 1%
RCLAMP0502BA
EYE_SCL
SCL 11 12 KEY1 SEMTECH_WIFI_DMDP_ESD(MAIN) AR4102
100
+3.5V_ST
R4110 GND 13 14 KEY2 KEY1
10K KEY2
5%
IR 15 16 +3.5V_ST +3.5V_ST
IR
C4105 C4111 C4112
100pF LED_R 17 18 GND C4106
1000pF
0.1uF 0.1uF
50V 50V OPT OPT
LOGO_LIGHT_WAFER
LED_R OPT
R4109
1.8K
LED_R
OPT 19
GND
C4102
0.1uF
16V
IR
+3.5V_ST
IC4101
AO-R123C7G-LG
R4103
1/16W
R4105
1/10W
IR_PROTO
IR_PROTO
IR_PROTO
330
5%
47
5%
GND
G
VS
V
O
OUT
SMD bottom for ESD 10.5T
OPT OPT OPT SMD_EMI4 OPT HDMI2 HDMI3
GASKET_8.0X6.0X10.5H GASKET_8.0X6.0X10.5H GASKET_8.0X6.0X10.5H GASKET_8.0X6.0X10.5H
HDMI1
GASKET_8.0X6.0X10.5H
M4102 M4103 M4106 M4110 M4114
MDS62110225 MDS62110225 MDS62110225 HDMI1_BOT_SMD_10.5T HDMI2_BOT_SMD_10.5T HDMI3_BOT_SMD_8.5T
MDS62110225 MDS62110225 HDMI3_BOT_SMD_10.5T
GASKET_8.0X6.0X10.5H GASKET_8.0X6.0X10.5H GASKET_8.0X6.0X8.5H GASKET_8.0X6.0X10.5H
M4100 M4108 M4115 M4115-*1
MDS62110225 MDS62110225 MDS62110209 MDS62110225
SMD_EMI2 SMD_EMI1 OPT
GASKET_8.0X6.0X10.5H GASKET_8.0X6.0X10.5H GASKET_8.0X6.0X10.5H
M4112 M4109 M4107
MDS62110225 MDS62110225 HDMI1_BOT_SMD_8.5T HDMI2_BOT_SMD_8.5T HDMI3_BOT_SMD_9T
MDS62110225
GASKET_8.0X6.0X8.5H GASKET_8.0X6.0X8.5H GASKET_8.0X6.0X9.0H
M4100-*1 M4108-*1 M4115-*2
70inch_EMI MDS62110209 MDS62110209 MDS62110226
79inch_EMI
GASKET_8.0X6.0X10.5H GASKET_8.0X6.0X12.5H
M4105 M4105-*1
MDS62110225 MDS62110217
USB3 USB2 USB1
70inch_EMI 79inch_EMI USB3_BOT_SMD_10.5T USB2_BOT_SMD_10.5T USB1_BOT_SMD_8.5T
USB1_BOT_SMD_6.5T
GASKET_8.0X6.0X10.5H GASKET_8.0X6.0X12.5H GASKET_8.0X6.0X10.5H GASKET_8.0X6.0X10.5H GASKET_8.0X6.0X8.5H SMR-T-6-6.5-8
M4104 M4104-*1 M4111 M4113 M4116 M4116-*2
MDS62110225 MDS62110217 MDS62110225 MDS62110225 MDS62110209 MDS62110206
LOGO_LIGHT USB3_BOT_SMD_8.5T USB2_BOT_SMD_8.5T USB1_BOT_SMD_10.5T
AR4100 SMD_EMI3_10.5T SMD_EMI3_8.5T GASKET_8.0X6.0X8.5H GASKET_8.0X6.0X10.5H
33 GASKET_8.0X6.0X8.5H
Place Near Micom 1/16W GASKET_8.0X6.0X10.5H GASKET_8.0X6.0X8.5H M4111-*1 M4113-*1 M4116-*1
M4101 M4101-*1 MDS62110209 MDS62110225
MDS62110209
LOGO_LIGHT_WAFER MDS62110225 MDS62110209
LOGO_LIGHT C
B
LOGO_LIGHT
LOGO_LIGHT
1K Q4100
LOGO_LIGHT
R4104
R4102
E
C4101 LOGO_LIGHT MMBT3904(NXP)
10K
0.1uF
16V
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-041_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A 2014-10-23
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. IR/KEY 12
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
+5V_USB FOR USB1
+5V_USB_3
USB3
OCP USB1 MAX 1.0A
1
JK4302
3AU04S-305-ZC-(LG)
+5V_USB_1
USB DOWN STREAM
+3.3V_NORMAL R4300
+5V_NORMAL 2.2
2
USB_DM3
IC4300
BD2242G R4301
2.2
3
USB_DP3
USB_ESD(SD05)
RCLAMP0502BA
0DR050008AA
R4305 VIN VOUT
4.7K 1 6 C4322 C4323
D4301
D4302
4
USB_ESD(KEC) 22uF
5V
10uF
C4300 GND ILIM 0DTKE00018A 10V
10V
5
0.1uF 2 5 D4301-*1
16V
14K
R4306
1%
EN OC
/USB_OCD1 3 4
EAH61515101
SEMTECH_USB_DMDP_ESD(MAIN)
USB_CTL1
D4302-*1
R4304 DF3D6.8MS
10K
EAH62735601
TOSHIBA_USB_DMDP_ESD(SUB)
+5V_USB_2
USB2
MAX 1.0A
1
JK4300
3AU04S-305-ZC-(LG)
USB DOWN STREAM
R4302
2.2
2
USB_DM2
R4303
2.2
3
USB_DP2
SEMTECH_USB_DMDP_ESD(MAIN)
RCLAMP0502BA
EAH61515101
USB_ESD(SD05)
0DR050008AA
D4300
C4310
4
C4311
D4303
5V
10uF 22uF
5
10V 10V
USB_ESD(KEC)
0DTKE00018A
D4303-*1
D4300-*1
DF3D6.8MS
EAH62735601
TOSHIBA_USB_DMDP_ESD(SUB)
+5V_USB_1
USB1 (3.0)
USB_ESD(SD05) MAX 1.2A
ZD4302
0DR050008AA
5V CNPLUS CO., LTD
C4312 C4313
22uF 10uF JK4301
USB_ESD(KEC)
10V 10V 0DTKE00018A 5205-56209
ZD4302-*1
EAG63374203
USB3.0_TVS VBUS
1
D4304
D-
USB_DM1 RCLAMP0544T.TCT 2
6.5VTO11.0V D+
USB_DP1 1 8 3
2 7 GND
4
3 6 STDA_SSRX-
SSUSB_RXP 5
4 5
STDA_SSRX+
SSUSB_RXN 6
9 GND_DRAIN
7
USB3.0_TVS
STDA_SSTX-
D4305 8
RCLAMP0544T.TCT STDA_SSTX+
9
6.5VTO11.0V
1 8 10
2 7 SHIELD
3 6
SSUSB_TXP 4 5
SSUSB_TXN
9
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-043_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A 2014-11-12
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. USB 43
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
+3.3V_NORMAL
EU
CLOSE TO JUNCTION
R4601
10K
EU
R4602
100
SC_DET
EU
VA4601 C4604
5.6V 0.1uF
EU
SC_CVBS_IN
Full Scart 1% EU
1/4W
75
R4607
VA4609
EU
C4605
5.5V 47pF
EU 50V
EU
EU R4615
AV_DET 0
22
COM_GND VA4610 DTV/MNT_V_OUT
21 5.5V
SYNC_IN EU EU EU OPT
75 C4606 C4607
20
SYNC_OUT R4604 68pF 68pF
19 50V 50V
SYNC_GND2
18
SYNC_GND1 EU
R4614
17 22
RGB_IO
16 SC_FB
R_OUT VA4602
15 5.6V
RGB_GND EU
EU
14 R4610
R_GND 75
13
D2B_OUT
12 VA4603 SC_R
G_OUT
5.5V EU
11 EU
D2B_IN R4608
75
10
G_GND
9
ID
8 VA4604 SC_G
B_OUT
5.5V EU
7
AUDIO_L_IN R4611
EU 75
6
B_GND
5
AUDIO_GND
4
SC_B
ICVL0518100Y500FR_
AUDIO_L_OUT VA4605
EU_ESD_SC_ID(SUB)
3 5.5V EU
AUDIO_R_IN EU R4609
2 75
AUDIO_R_OUT
1
VA4600-*1
VA4600 EU
20V R4616
EU_ESD_SC_ID(MAIN) SIGN460005 15K
PSC008-01 SC_ID
JK4600 EU
R4605
10K R4617
SC_L_IN 3.9K
VA4611 R4612
5.6V EU 12K
R4600 EU
EU 470K
EU
R4606
10K
SC_R_IN
VA4606
5.6V
R4613
EU EU 12K
R4603 EU
470K
EU
BLM18PG121SN1D
L4600
DTV/MNT_L_OUT
VA4607 EU EU
5.6V C4600 C4602
EU 1000pF 4700pF
50V
EU
BLM18PG121SN1D
L4601
DTV/MNT_R_OUT
VA4608
EU EU
5.6V C4603
EU C4601 4700pF
1000pF
50V
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
BSD-15Y-LM14A-046_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A 2015-01-21
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. SCART JACK_H 46
SCART_JACK_H
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Ethernet Block
C5000 C5001
0.1uF 0.01uF
16V 50V
T-36TM9G_30150_02HF EAG35781015 EAG35781010
NEW_LAN_JACK_3SIM NEW_LAN_JACK_ESD(1st) OLD_LAN_JACK
JK5000-*2 JK5000-*1 JK5000
36TM9G-30150-02HF BS-RV30330 RJ45VT-01SN002
FREEPORT RESOURCES ENTERPRISES CORP. U.D. ELECTRONIC CORP XML KOREA CO., LTD
1 1 1
1 1 1
EPHY_TDP
2 2 2
2 2 2
3 3 3
3 3 3
EPHY_TDN
4 4 4
4 4 4
EPHY_RDP
5 5 5
5 5 5
6 6 6
6 6 6
EPHY_RDN
7 7 7
7 7 7
VA5000 VA5001 VA5002 VA5003
8 8 8 5.5V 5.5V 5.5V 5.5V
8 8 8
LAN_ESD(MAIN)
9 9 9
LAN_ESD(MAIN) LAN_ESD(MAIN) LAN_ESD(MAIN)
SHIELD 9 9
ICVS0518150FR_
ICVS0518150FR_
ICVS0518150FR_
ICVS0518150FR_
LAN_ESD(SUB)
LAN_ESD(SUB)
LAN_ESD(SUB)
LAN_ESD(SUB)
VA5000-*1
VA5001-*1
VA5002-*1
VA5003-*1
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-050_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A 2015-01-21
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. LAN_H 50
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
AUDIO AMP(NTP7515) SM-6045-100
GET_AMP_COIL
L5802-*1
10.0uH
+3.3V_NORMAL
R5805
AMP_RESET_N 100
TAIYO_AMP_COIL
NRS6045T100MMGK
1/16W
R5806 C5806 L5802
L5801 10.0uH
4.7K 1000pF
PZ1608U121-2R0TF 50V SPK_L+
50V
AUD_SCK
+24V_AMP
22000pF
R5807
1/10W
C5807
3.3
R5811
5%
C5821
C5805 0.1uF 4.7K
50V
[EP]GND
0.1uF C5813
C5809 390pF
VDD_IO
GND_IO
PGND1A
PVDD1A
PVDD1B
16V 10uF 50V
CLK_I
RESET
BST1A
OUT1A
35V
C5819
0.47uF
50V
AD
C5814
390pF
50V C5822 R5812
R5808
1/10W
TAIYO_AMP_COIL
0.1uF SPEAKER_L
3.3
50V 4.7K
5%
NRS6045T100MMGK
40
39
38
37
36
35
34
33
32
31
L5805
NC_1 1 30 OUT1B 10.0uH
SPK_L-
VDD_PLL 2 29 PGND1B C5811
THERMAL 22000pF SM-6045-100
NC_2 3 41 28 BST1B 50V GET_AMP_COIL
C5800
1uF L5805-*1
10V GND 4 27 VDR1 10.0uH
NC_3 5 IC5800 26 NC_5
C5801
1uF
10V
DVDD 6 NTP7515 25 AGND
AUD_LRCH
SDATA 7 24 VDR2
WCK 0x54 BST2A
C5817
1uF
C5818
1uF SM-6045-100
AUD_LRCK 8 23 10V 10V GET_AMP_COIL
NC_4 9 22 PGND2A C5812 L5803-*1
10.0uH
22000pF
AR5800
100 SDA 10 21 OUT2A 50V
I2C_SDA4
11
12
13
14
15
16
17
18
19
I2C_SCL4
20
TAIYO_AMP_COIL
NRS6045T100MMGK
C5802 C5804
33pF 33pF L5803
50V 50V 10.0uH
SCL
FAULT
MONITOR_0
MONITOR_1
MONITOR_2
BST2B
PGND2B
OUT2B
PVDD2B
PVDD2A
SPK_R+
+3.3V_NORMAL
R5809
1/10W
+24V_AMP
3.3
5%
C5823 R5813
R5801 0.1uF 4.7K
10K C5815 C5820 50V
390pF 0.47uF
R5804 C5810 50V
C5816
50V
SPEAKER_R
C 100 10uF 390pF
35V 50V TAIYO_AMP_COIL
R5800 C5803 C5824 R5814
R5810
1/10W
B Q5800 C5808 NRS6045T100MMGK
AMP_MUTE 1000pF 0.1uF 4.7K
3.3
2N3904S 50V
5%
10K 22000pF L5804 50V
E KEC_AMP_MUTE_TR
WOOFER_MUTE
50V 10.0uH
I2S_AMP
SPK_R-
SM-6045-100
GET_AMP_COIL
L5804-*1
C 10.0uH 4P Box type
B WAFER-ANGLE
Q5800-*1
MMBT3904(NXP)
NXP_AMP_MUTE_TR
E
TP5801 WOOFER_MUTE SPK_L+
4
TP5802 I2S_AMP
SPK_L-
3
SPK_R+
2
SPK_R-
1
P5800
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-058_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A 2015-01-08
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
NTP_AMP 58
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
AMP - Woofer
+3.3V_NORMAL
R5912
Woofer_AMP
4.7K SM-6045-100
+24V_AMP_WOOFER Woofer_AMP Woofer_GET_AMP_COIL
+24V
+3.3V_NORMAL R5910 L5902-*1
Woofer_AMP AMP_RESET_N 100 10.0uH
L5900
UBW2012-121F 1/16W Woofer_AMP
Woofer_AMP
R5911 C5923
L5901 Woofer_AMP L5902
4.7K 1000pF 10.0uH Woofer_TAIYO_AMP_COIL
BLM18PG121SN1D 50V SPK_L+_WF
NRS6045T100MMGK
Woofer_AMP
50V
AUD_SCK Woofer_AMP
Woofer_AMP
+24V_AMP_WOOFER
PGND1A 22000pF
R5902
C5905
3.3 Woofer_AMP
Woofer_AMP 1/10W R5906
C5919
C5904 Woofer_AMP 0.1uF 4.7K
Woofer_AMP 50V
[EP]GND
0.1uF C5913
C5907 390pF
VDD_IO
GND_IO
PVDD1A
PVDD1B
16V 10uF 50V
CLK_I
RESET
BST1A
OUT1A
Woofer_AMP
35V
C5917
0.47uF
50V
Woofer_AMP
Woofer_AMP
AD
C5914 Woofer_AMP
390pF
50V C5920 R5907
R5903
3.3
0.1uF
50V 4.7K
SPEAKER_L_WOOFER
40
39
38
37
36
35
34
33
32
31
1/10W
Woofer_AMP L5905
NC_1 1 30 OUT1B 10.0uH Woofer_TAIYO_AMP_COIL
SPK_L-_WF
NRS6045T100MMGK
VDD_PLL 2 29 PGND1B C5909
THERMAL 22000pF
Woofer_AMP NC_2 3 41 28 BST1B 50V SM-6045-100
Woofer_GET_AMP_COIL
C5902
1uF Woofer_AMP
10V GND 4 27 VDR1 L5905-*1
10.0uH
NC_3 5 IC5900 26 NC_5
Woofer_AMP
C5903
1uF
10V
DVDD 6 NTP7515 25 AGND
AUD_LRCH
SDATA 7 24 VDR2 Woofer_AMP Woofer_AMP
WCK 0x56 BST2A
C5911
1uF
C5912
1uF
AUD_LRCK 8 23 10V 10V
Woofer_AMP Woofer_AMP
Woofer_AMP
AR5900
NC_4 9 22 PGND2A C5910
22000pF
100
I2C_SDA4
1/16W SDA 10 21 OUT2A 50V
11
12
13
14
15
16
17
18
19
20
I2C_SCL4 Woofer_AMP Woofer_AMP
Woofer_AMP R5908
C5900 C5901
33pF 4.7K
33pF
50V 50V
SCL
FAULT
MONITOR_0
MONITOR_1
MONITOR_2
BST2B
PGND2B
OUT2B
PVDD2B
PVDD2A
+24V_AMP_WOOFER
Woofer_AMP
C5908
10uF
35V
C5906
22000pF
50V
Woofer_AMP
Woofer_AMP
WOOFER_MUTE
R5909
4.7K
I2S_WOOF_OUT
I2S_WOOF_OUT
SMAW250-04
Woofer_Wafer_4P
P5900
WAFER-ANGLE
4
3
SPK_L+_WF
2
SPK_L-_WF
1
FW25001-02(SPK 2P)
P5901
Woofer_Wafer_2P
WAFER-ANGLE
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. BSD-15Y-LM14A-059_00-HD
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
+12V
EU
L6000
IC6000
AUD_OUT >> EU/CHINA_HOTEL_OPT AZ4580MTR-E1 EU
C6004
EU EU 0.1uF
C6000 50V
DTV/MNT_L_OUT
R6000 OUT1
1 8 VCC
EU
[SCART AUDIO MUTE]
10uF 2.2K EU
OPT OPT EU R6011 C6008
C6002 R6002 R6004 33K IN1- 7 OUT2 SIGN600007 2.2K
2 DTV/MNT_R_OUT DTV/MNT_L_OUT
6800pF 470K
C6003 33pF 10uF
EU
IN1+ EU 6 IN2- R6008
EU
33K
OPT
R6010
OPT
3 C6007
470K EU
C6005 33pF 6800pF C
R6013
VEE 5 IN2+ Q6000 B 1K
4 EU
MMBT3904(NXP) EU_SCART_MUTE_ISAHAYA
SCART_AMP_L_FB
E EU Q6002
RT1P141C-T112
R6007
1/16W
C
E
100K
EU SCART_AMP_R_FB SCART_MUTE
OPT
5%
EU
R6012
1/16W
R6006 R6020
100K
5.6K 0
OPT
B
SCART_Lout
5%
EU
1/16W EU
R6009
1/16W
R6021 R6016
100K
330pF 220K 5% DTV/MNT_R_OUT PDTA114ET
OPT
C6009 R6005 0 5.6K
5%
Q6002-*1
EU EU SCART_Rout
C
E
EU
R6015
1/16W
1/16W
100K
5% EU EU C
OPT
R6017 C6012 R6014
5%
220K 330pF Q6001 B 1K
B
MMBT3904(NXP)
EU_SCART_MUTE_NXP
CLOSE TO MSTAR E EU
CLOSE TO MSTAR
Near Place Scart AMP
EU
R6019
0 EU
SCART_AMP_R_FB
1/16W 10K
5% R6003
EU
R6018
0 EU
SCART_AMP_L_FB
1/16W 10K
5% R6001
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-060_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. SCART AMP
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
EARPHONE AMP
HP_OUT_2.2uF(CN_DRA)
HP_OUT_2.2uF(CN_DRA) IC6100 C6101-*1
TPA6138A2 2.2uF
C6100-*1
2.2uF 10V
10V HP_OUT +INR +INL HP_OUT
HP_OUT_1uF C6104 1 14 C6109 HP_OUT_1uF
HP_OUT
C6100 HP_OUT 18pF HP_OUT HP_OUT 18pF HP_OUT C6101
1uF R6100 R6106 R6104 R6101 1uF
10V 10K 43K HP_OUT -INR -INL HP_OUT 43K 10K 10V
2 13
HP_ROUT_MAIN HP_LOUT_MAIN
HP_OUT
R6103
HP_OUT
R6102
HP_BYPASS 1% C6108 C6106 1% HP_BYPASS
43K
43K
R6107 10pF
1%
1%
OUTR OUTL 10pF 0
0 50V 3 12 50V R6108
HP_LOUT_AMP
HP_ROUT_AMP
+3.3V_NORMAL GND_1 UVP
4 11
HP_OUT MUTE GND_2 +3.3V_NORMAL
4.7K 5 10
R6105
SIDE_HP_MUTE VSS VDD
6 9
HP_OUT HP_OUT
HP_OUT
C6105 C6107
C6102 CN CP 1uF 0.1uF
1uF 7 8
10V 16V
10V
C6103
1uF
10V
HP_OUT
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-061_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
HEADPHONE AMP
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
B-CAS (SMART CARD) INTERFACE
+3.3V_NORMAL INT CMDVCC : STATUS
+3.3V_NORMAL ---------------------------------
HIGH HIGH CARD PRESENT
LOW HIGH CARD not PRESENT
SIGN630003
IC6300
TDA8024TT
2.7K
2.7K
R6301
R6303
R6305
JAPAN
JAPAN
CLKDIV1 CLKDIV2 : F_CRD_CLK
OPT
-----------------------------
1 0 CLKIN CLKDIV1 AUX2UC
1 28
JAPAN
JAPAN
JAPAN
R6317
R6318
R6315
R6319
R6316
OPT
OPT
1.2K
1.2K
1.2K
1.2K
1.2K
CLKDIV2 AUX1UC
2 27
R6300 33 5V/3V I/OUC
3 26
SMARTCARD_PWR_SEL CAM_IREQ_N
2.7K
JAPAN
R6302
R6304
R6306
JAPAN
OPT
OPT
PGND XTAL2
+5V_NORMAL 4 25
R6307 33 JAPAN
S2 XTAL1 /PCM_CE1 SMARTCARD_DATA
JAPAN 5 24 R6308 33 JAPAN
EB_OE_N SMARTCARD_CLK
L6300 R6309 33 JAPAN
EB_BE_N0 SMARTCARD_DET
BLM18PG121SN1D VDDP OFF R6310 33 JAPAN
JAPAN 6 23 EB_BE_N1 SMARTCARD_RST
JAPAN
C6301 C6303
10uF 0.1uF S1 GND JAPAN
10V 16V 7 22 R6311 33 EB_WE_N SMARTCARD_VCC
L6301 JAPAN
+3.3V_NORMAL
JAPAN
VUP VDD BLM18PG121SN1D
8 21
JAPAN
JAPAN JAPAN
C6302 PRES RSTIN C6305 C6306
0.1uF 9 20 0.1uF 0.1uF
16V 16V 16V
B-CAS SLOT
PRES CMDVCC
10 19
P6300
I/O PORADJ 10057542-1311FLF(B CAS Slot)
11 18
AUX2 VCC JAPAN VCC
12 17 C1
C6307
0.33uF
AUX1 RST 16V RST
13 16 C2
CGND CLK Place CLK C3 far from C2,C7,C4 and C8 CLK
14 15 C3
JAPAN
C6304 RESERVED_1
0.1uF C4
16V
GND
C5
VPP JAPAN
C6
JAPAN
R6313
75 I/O
C7
75 ohm in I/O is for short circuit Protection
RESERVED
C8
SW1
S1
+3.3V_NORMAL
JAPAN
JAPAN
10K
R6312
R6314
1K SW2
S2
JAPAN_DIODE(SD05) JAPAN_DIODE(SD05)
0DR050008AA 0DR050008AA
ZD6300 ZD6301
5V 5V
JAPAN_DIODE(KEC)
0DTKE00018A
ZD6300-*1
JAPAN_DIODE(KEC)
0DTKE00018A
ZD6301-*1
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. BSD-15Y-LM14A-063_00-HD
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS JAPAN B-CAS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. 63
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
FE_DEMOD1_TS_ERROR
FE_DEMOD2_TS_ERROR
FE_DEMOD3_TS_CLK
1. should be guarded by ground FE_DEMOD3_TS_SYNC
2. No via on both of them FE_DEMOD3_TS_VAL
3. Signal Width >= 12mils FE_DEMOD3_TS_ERROR
close to Tuner Signal to Signal Width = 12mils FE_DEMOD3_TS_DATA
+3.3V_TUNER Ground Width >= 24mils
L6500
PZ1608U121-2R0TF close to TUNER
1 +3.3V_LNA_TU C6501
0.1uF TU_K/M/W_TW/BR/CO R6507 1K
TU_K/M/W_TW/BR/CO TU_K/M/W_TW/BR/CO
2 RF_SWITCH_CTL_TU RF_SWITCH_CTL
C6504 R6503
0.1uF 10K
TU_ALL_IntDemod
R6506 1K
3 IF_AGC_TU IF_AGC
C6502 close to Tuner TU_ALL_IntDemod
0.1uF
16V TU_W_BR/TW
TU_ALL AR6500-*1
AR6500
33 200
1/16W +3.3V_NORMAL
PZ1608U121-2R0TF
4 I2C_SCL5_TU I2C_SCL5
C6505
I2C_SDA5 +3.3V_TUNER
47pF
L6504
5 50V
I2C_SDA5_TU +3.3V_TUNER 1608 perallel
C6503 OPT
because of derating
47pF
50V
OPT TU_ALL_2178B TU_SIF TU_ALL_2178B
TU_ALL_2178B
R6513 0 R6516 R6517
R6504 200 200
10
6 IF_P_TU
TU_ALL_IntDemod C6519 IF_P C6517 C6508
33pF L6502 TU_CVBS 22uF 0.1uF
should be guarded by ground,Match GND VIA R6505 OPT 10V 16V
10 TU_H/M_EU/BR/TW/CO/KR E
7 IF_N_TU C6520 IF_N
TU_ALL_IntDemod 33pF 0TR390609DC
KEC_TU_ALL_2178B_TR(SUB)
TU_H/M_EU/BR/TW/CO/KR B Q6502
2N3906S-RTK
8 TU_SIF_TU C
E
TU_M_KR/EU/CN // W_ALL
9 TU_CVBS_TU NXP_TU_ALL_2178B_TR(MAIN)
L6501 +3.3V_TUNER B Q6502-*1
Global F/E Option Name PZ1608U121-2R0TF MMBT3906(NXP)
1. TU C EBK61012701
10
2. Tuner Name = TDJ’H’,TDj’M’... C6510
3. Country Name = KR,US,BR,EU ... 0.1uF
11 +3.3V_TU
TU_M_KR/EU/CN // W_ALL
T2 : Max 1.7A
Example of Option name else : Max 0.7A
12 FE_DEMOD1_TS_ERROR close to Tuner
TU_ALL_IntDemod = All Tuner type for Internal demod
TU_M/W = apply TDSM&TDSW Type Tuner FE_DEMOD1_TS_ERROR TU_M/W_BCD_LDO(MAIN)
TU_M/W_1.2V
14 FE_DEMOD1_TS_CLK FE_DEMOD1_TS_CLK IC6500 Demod_Core
AP2132MP-2.5TRG1
R6519-*1 R6521-*1
TU_M/W_1.1V TU_M/W_1.1V
14’ Tuner Type for Global BCD
[EP]
TDJ’H’-G101D : Half NIM for EU,AJJA 15 FE_DEMOD1_TS_SYNC FE_DEMOD1_TS_SYNC
18K
10K
R6521
TDJ’H’-H101F : Half NIM for US, KR
TDJ’K’-T101F : Half NIM for TW FE_DEMOD1_TS_VAL FE_DEMOD1_TS_VAL TU_M/W PG GND R2
16 1 8
TDJ’M’-C301D,F : FULL NIM for China
THERMAL
+3.3V_NORMAL C6516
10.5K
R6519
TU_M/W_1.2V
TDJ’M’-B101F : Brazil NIM with Isolater Type 0.1uF
16K
EN ADJ
9
17 FE_DEMOD1_TS_DATA[0] 2 7
TDJ’M’-K101F : colombia NIM R1
R6500
TU_M/W
10K
TDJ’M’-G101D,G105D,G151D : EU Combo&Full NIM VIN VOUT
18 FE_DEMOD1_TS_DATA[1] FE_DEMOD1_TS_DATA[0-7]
TDJ’M’-H101F,H151F : Korea PIP tuner 3 6
TDJ’W’-A151D : AJJA T2 PIP
19 FE_DEMOD1_TS_DATA[2] +5V_NORMAL
VCTRL
4 2A 5
NC
ESD_TU_M/W TU_M/W TU_M/W
5V ZD6501 EAN61387601
20 FE_DEMOD1_TS_DATA[3] C6500 C6518
0.1uF 10uF
16V 10V
FE_DEMOD1_TS_DATA[4] TU_M/W
21
C6515
1uF
FE_DEMOD1_TS_DATA[5] 25V
22
TU_M/W_HTC_LDO(SUB)
23 FE_DEMOD1_TS_DATA[6]
Vout=0.6*(1+R1/R2) IC6500-*1
TJ2132GDP
TAEJIN TECHNOLOGY CO., LTD.
24 FE_DEMOD1_TS_DATA[7]
TU_M/W [EP]GND
R6501
TU_M/W 100 /TU_RESET1 +3.3V_TUNER
25 /TU_RESET1_TU
C6507
TU_M/W
L6503 POK GND
16V PZ1608U121-2R0TF 1 8
0.1uF
THERMAL
26 +3.3V_DEMOD_TU
C6511 TU_M/W EN FB
9
2 7
0.1uF
27 I2C_SCL2_TU TU_M/W TU_K/M/W_NON_JP 0 R6502
L6505 AR6501 FE_DEMOD1_TS_CLK_1 FE_DEMOD1_TS_CLK IN OUT
33 TU_M/W TU_K/M/W_NON_JP 0 R6511
PZ1608U121-2R0TF FE_DEMOD1_TS_SYNC_1 FE_DEMOD1_TS_SYNC 3 6
Demod_Core OPT TU_K/M/W_NON_JP 0 R6512
28 D_Demod_Core
C6513 I2C_SCL2 FE_DEMOD1_TS_VAL_1 FE_DEMOD1_TS_VAL
TU_M/W 18pF I2C_SDA2 TU_K/M/W_NON_JP 0 R6514 BIAS SS
C6506 50V FE_DEMOD1_TS_DATA0_1 FE_DEMOD1_TS_DATA[0] 4 5
0.1uF OPT
29 LNB_TX LNB_TX
C6512 EAN63492001
18pF
50V
30 I2C_SDA2_TU
31 LNB_OUT LNB_OUT TU_JP 0 R6515
FE_DEMOD2_TS_CLK TU_JP 0 R6518
FE_DEMOD2_TS_SYNC TU_JP 0 R6520
34 FE_DEMOD2_TS_ERROR FE_DEMOD2_TS_ERROR FE_DEMOD2_TS_VAL
TU_JP 0 R6522
FE_DEMOD2_TS_DATA
36 FE_DEMOD2_TS_SYNC FE_DEMOD2_TS_SYNC
37 FE_DEMOD2_TS_CLK FE_DEMOD2_TS_CLK
L6506 +2.5V_Normal
BLM18PG121SN1D Close to Tuner
38 +2.5V_DEMOD
C6509 TU_JP
0.1uF
39 FE_DEMOD2_TS_VAL FE_DEMOD2_TS_VAL
TU_JP
40 FE_DEMOD2_TS_DATA FE_DEMOD2_TS_DATA
R6527
100 /TU_RESET2
45 /TU_RESET2_TU
C6514 TU_JP
16V
0.1uF
TU_JP
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-065_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. TU_CIRCUIT
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
TU_H_US
TU_H_BR TU_H_T2_KR TU_M_EU TU_W_JP
TU6705 TU6701 TU6704 TU6702 TU6703
TDJH-H301F TDJK-T301F TDJM-H401F TDJM-G301D TDJW-J202F 1
2
+3.3V +3.3V +3.3V +3.3V B1[+3.3V]
1 1 1 1 1 +3.3V_LNA_TU 3
NC_1 NC NC_1 NC_1 NC_1
2 2 2 2 2 RF_SWITCH_CTL_TU 4
DIF_AGC DIF_AGC NC_2 AIF_AGC NC_2
3 3 3 3 3 IF_AGC_TU 5
SCL_RF SCL_RF SCL_RF SCL_RF SCL_RF
4 4 4 4 4 I2C_SCL5_TU 6
SDA_RF SDA_RF SDA_RF SDA_RF SDA_RF
5 5 5 5 5 I2C_SDA5_TU 7
DIF[P] DIF[P] NC_3 AIF[P] NC_3
6 6 6 6 6 IF_P_TU 8
DIF[N] DIF[N] NC_4 AIF[N] NC_4
7 7 7 7 7 IF_N_TU 9
SIF SIF SIF SIF NC_5
8 8 8 8 8 TU_SIF_TU 10
TDJH-G301D CVBS CVBS CVBS CVBS NC_6
9 9 9 9 9 TU_CVBS_TU
TU6705-*1 11
TDJH-G301D NC_5 NC_2 NC_7
10 10 10
12
A1 B1 A1 B1 +3.3V_RF +3.3V_RF B2[+3.3V]
1
+3.3V A1 B1 A1 B1 11 11 11 +3.3V_TU
13
2
NC_1 47 47 ERROR ERROR NC_8
12 12 12 FE_DEMOD1_TS_ERROR
TU_GND_B
TU_GND_B
IF_AGC 14
TU_GND_A
TU_GND_A
3
GND_1 GND_1 GND_1
4
SCL_RF SHIELD SHIELD 13 13 13
5
SDA_RF MCLK MCLK
14 14 FE_DEMOD1_TS_CLK_1
IF[P] 16
6
SYNC SYNC
7
IF[N] 15 15 FE_DEMOD1_TS_SYNC_1 17
8
SIF VAILD VALID
16 16 FE_DEMOD1_TS_VAL_1
CVBS 18
9
D0 D0
17 17 FE_DEMOD1_TS_DATA0_1 19
A1
A1 B1
B1 D1 D1
18 18 FE_DEMOD1_TS_DATA[1]
47 TU_H_T2_CO TU_H_T2_TW/PA 20
TU6704-*2 TU6704-*1 D2 D2
SHIELD
TDJM-K302F TDJM-K301F 19 19 FE_DEMOD1_TS_DATA[2]
+3.3V +3.3V
21
1
NC_1
1
NC_1
D3 D3
2 2
20 20 FE_DEMOD1_TS_DATA[3]
3
NC_2
SCL_RF
3
NC_2
SCL_RF
22
4
SDA_RF
4
SDA_RF
D4 D4
5 5
21 21 FE_DEMOD1_TS_DATA[4]
6
NC_3
NC_4
6
NC_3
NC_4
23
7
SIF
7
SIF
D5 D5
8 8
22 22 FE_DEMOD1_TS_DATA[5]
9
CVBS
NC_5
9
CVBS
NC_5
24
10
+3.3V_RF
10
+3.3V_RF
D6 D6
11 11
23 23 FE_DEMOD1_TS_DATA[6]
12
ERROR
GND_1
12
ERROR
GND_1
25
13
MCLK
13
MCLK
D7 D7
14 14
24 24 FE_DEMOD1_TS_DATA[7]
15
SYNC
VAILD
15
SYNC
VAILD
26
16
D0
16
D0
RESET_DEMOD RESET_DEMOD M_RESET_DEMOD
17 17
25 25 25 /TU_RESET1_TU
18
D1
D2
18
D1
D2
27
19
D3
19
D3
+3.3V_DEMOD +3.3V_DEMOD B3[+3.3V]
20
D4
20
D4
26 26 26 +3.3V_DEMOD_TU
21 21
D5 D5
22
D6
22
D6
SCL_DEMOD SCL_DEMOD SCL_DEMOD
23
D7
23
D7
27 27 27 I2C_SCL2_TU
24 24
RESET_DEMOD RESET_DEMOD
25
+3.3V_DEMOD
25
+3.3V_DEMOD
+1.2V_DEMOD +1.2V_DEMOD B4[+1.2V]
26 26
28 28 28 D_Demod_Core
27
SCL_DEMOD
+1.2V_DEMOD
27
SCL_DEMOD
+1.2V_DEMOD
30
28
NC_6
28
NC_6
NC_6 NC_3 NC_9
29
SDA_DEMOD
29
SDA_DEMOD
29 29 29 LNB_TX 31
30 30
A1 B1 A1 B1
SDA_DEMOD SDA_DEMOD SDA_DEMOD
A1
47
B1 A1
47
B1
30 30 30 I2C_SDA2_TU 32
SHIELD SHIELD
LNB LNB
31 31 LNB_OUT 33
A1 B1 GND GND_2
A1 B1 32 32 34
47 NC_10
TU_GND_A
33
TU_GND_B
35
A1 B1 M_ERROR
SHIELD A1 B1 34 FE_DEMOD2_TS_ERROR
36
47 GND_3
TU_GND_A
35
TU_GND_B
M_SYNC
SHIELD 36 FE_DEMOD2_TS_SYNC
M_MCLK
37 FE_DEMOD2_TS_CLK
TU_W_JP_RDA5817
TU6703-*1
B5[+2.5V]
TDJW-J301F
38 +2.5V_DEMOD 40
1
+3.3V_LNA M_VALID
NC_1 39 FE_DEMOD2_TS_VAL
2
3
NC_2
41
4
SCL_RF M_DATA
SDA_RF 40 FE_DEMOD2_TS_DATA
5
6
NC_3
42
7
NC_4 S_ERROR
NC_5 41 FE_DEMOD3_TS_ERROR
8
9
NC_6
43
10
NC_7 S_SYNC
11
+3.3V_RF 42 FE_DEMOD3_TS_SYNC 44
NC_8
12 TDJM-B301F
13
GND_1
TDJM-C401D
TU6702-*4 TU6702-*3
TU_M_AJ
TU6702-*2
TU_M_CN
TU6702-*1
S_MCLK
TDJM-C401D TDJM-B301F TDJM-G305D TDJM-C301D
43 FE_DEMOD3_TS_CLK 45
1
+3.3V
1
+3.3V
1
+3.3V
1
B1[+3.3V] S_VALID
NC_1 NC_1 NC_1 RF_SW_CTL 44 FE_DEMOD3_TS_VAL
2
3
NC_2
2
3
NC_2
2
3
NC_2
2
3
NC_1
46
4
SCL_RF
4
SCL_RF
4
SCL_RF
4
SCL_RF S_RESET_DEMOD
SDA_RF SDA_RF SDA_RF SDA_RF 45 /TU_RESET2_TU
5
6
NC_3
5
6
NC_3
5
6
NC_3
5
6
NC_2
47
7
NC_4
7
NC_4
7
NC_4
7
NC_3 S_DATA
SIF SIF SIF SIF 46 FE_DEMOD3_TS_DATA
8
9
CVBS
8
9
CVBS
8
9
CVBS
8
9
CVBS
48
RESET_M_DEMOD NC_5 NC_5 NC_5 NC_4
25 10 10 10 10
+3.3V_DEMOD +3.3V_RF +3.3V_RF +3.3V_RF NC_5
26
SCL_DEMOD
11
ERROR
11
ERROR
11
ERROR
11
ERROR
49
27 12 12 12 12
28
+1.2V_DEMOD
13
GND_1
13
GND_1
13
GND_1
13
GND_1 A1 B1
29
NC_9
14
MCLK
14
MCLK
14
MCLK
14
MCLK A1 B1
SDA_DEMOD SYNC SYNC SYNC SYNC
30 15 15 15 15
31
LNB
16
VAILD
16
VAILD
16
VAILD
16
VAILD 47
GND_2 D0 D0 D0 D0
32 17 17 17 17
TU_GND_A
NC_10 D1 D1 D1 D1
33 18 18 18 18
TU_GND_B
M_ERROR D2 D2 D2 D2
34 19 19 19 19
35
GND_3
20
D3
20
D3
20
D3
20
D3 SHIELD
M_SYNC D4 D4 D4 D4
36 21 21 21 21
M_MCLK D5 D5 D5 D5
37 22 22 22 22
+2.5V_DEMOD D6 D6 D6 D6
38 23 23 23 23
M_VALID D7 D7 D7 D7
39 24 24 24 24
M_DATA RESET_DEMOD RESET_DEMOD RESET_DEMOD RESET_DEMOD
40 25 25 25 25
S_ERROR +3.3V_DEMOD +3.3V_DEMOD +3.3V_DEMOD B2[+3.3V]
41 26 26 26 26
S_SYNC SCL_DEMOD SCL_DEMOD SCL_DEMOD SCL_DEMOD
42 27 27 27 27
S_MCLK +1.2V_DEMOD +1.2V_DEMOD +1.2V_DEMOD B3[+1.1V]
43 28 28 28 28
S_VALID NC_6 NC_6 NC_6 NC_6
44 29 29 29 29
S_RESET_DEMOD SDA_DEMOD SDA_DEMOD SDA_DEMOD SDA_DEMOD
45 30 30 30 30
S_DATA
46
A1 B1 A1 B1 A1 B1 A1 B1
A1 B1 A1 B1 A1 B1 A1 B1
A1 B1 47 47 47 47
A1 B1
47
SHIELD SHIELD SHIELD SHIELD
SHIELD
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-067_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. TU_SYMBOL_H
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
DVB-S2 LNB Part Allegro
(Option:LNB)
Input trace widths should be sized to conduct at least 3A
Ouput trace widths should be sized to conduct at least 2A
3A
+12V
2A
D6904-*1
Max 1.3A
LNB
40V
LPH6050T-150M-R
LNB_TSC LNB_SX34 L6900
D6902-*1 D6902
3.5A
SS23L LNB_ONSEMI D6904
30V 40V 15uH
30V
LNB_SMAB34
C6909
10uF
C6903 C6905 C6906 C6907 25V
0.01uF 10uF 10uF 10uF LNB
50V 25V 25V 25V
LNB LNB LNB LNB
C6908 0.1uF
close to Boost pin(#1) A_GND
A_GND
LNB
30V
[EP]GND
close to VIN pin(#15) Caution!! need isolated GND
BOOST
GNDLX
R6904
NC_3
NC_2
SS23L C6910 0
A_GND
LX
D6901-*1 0.1uF
LNB_TSC 50V
20
19
18
17
16
LNB
D6901 VCP 1 15 VIN
MBR230LSFT1G THERMAL A_GND
LNB 2 14 GND
LNB_OUT 21
30V LNB
D6903 NC_1 3 13 VREG
LNB_ONSEMI C6904
0.1uF LNB_SMAB34 IC6900 R6903
C6900 C6901 R6900 TDI A8303SESTR-T ISET 39K
LNB 50V 40V 4 12
0.1uF 33pF 2.2K
D6900 1W LNB 1/16W
LNB LNB C6902 TDO 5 11 TCAP C6912
LNB LNB 0.22uF 1%
LNB 25V D6903-*1
10
LNB
LNB_SX34
6
7
8
9
0.1uF
40V
BOOST
[EP]
NC_4
NC_3
PGND
IRQ
SCL
SDA
ADD
TONECTRL
0.22uF
LX
20
19
18
17
16
Close to Tuner A_GND NC_1 1 15 VIN +3.3V_NORMAL
A_GND THERMAL
Surge protectioin LNB 2 21 14 GND
NC_2 3 13 VREG
IC6900-*1
LNB
TDI 4 DT1803 12 ISET
R6907
LNB_DMBT
3.3K
TDO TCAP
C6911
5 11
OPT
10
6
7
8
9
IRQ
SCL
SDA
ADD
TONECTRL
R6906
LNB
0
AR6900
LNB
33
EU/CIS
R6905
R6908
JAPAN
0
0
I2C_SCL2
I2C_SDA2
LNB_TX
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-069_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR 69
LNB
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
+3.3V_NORMAL
LOCKAn_HTPDAn_3.3VPullup
LOCKAn_HTPDAn_3.3VPullup R7136
+1.8V R7132 10K
10K LOCKAn
LOCKAn_HTPDAn_3.3VPullup
R7134 C
10K
LOCKAn_HTPDAn_3.3VPullup B Q7105
R7128 2N3904S
KEC_LOCKAn_HTPDAn_3.3VPullup_TR
[51P Vx1 10K
E
HTPDAn_Video_Pull_down
HTPDAn_Video
LOCKAn_HTPDAn_3.3VPullup
HTPDAn_OSD_Pull_down
C C
output wafer] R173 R174
HTPDAn_OSD
R7130
100 B Q7103
2N3904S
B Q7105-*1
MMBT3904(NXP)
10K 10K LOCKAn_IN
KEC_LOCKAn_HTPDAn_3.3VPullup_TR NXP_LOCKAn_HTPDAn_3.3VPullup_TR
E E
51pin_Wafer
P7100 C
SP14-11592-01-51Pin
B Q7103-*1
MMBT3904(NXP)
NXP_LOCKAn_HTPDAn_3.3VPullup_TR
E
1 *moved from SHT1. +3.3V_NORMAL
2 TXDAP7_L
3 TXDAN7_L
4 LOCKAn_HTPDAn_3.3VPullup
LOCKAn_HTPDAn_3.3VPullup R7135
5 TXDAP6_L +1.8V R7131 10K
6 TXDAN6_L 10K HTPDAn
LOCKAn_HTPDAn_3.3VPullup
R7133 C
7
10K
LOCKAn_HTPDAn_3.3VPullup B Q7104
8 TXDAP5_L R7127 2N3904S
9 10K KEC_LOCKAn_HTPDAn_3.3VPullup_TR
TXDAN5_L E
LOCKAn_HTPDAn_3.3VPullup
10 C C
R7129
100 B Q7102 B Q7104-*1
11 TXDAP4_L 2N3904S MMBT3904(NXP)
HTPDAn_IN
12 TXDAN4_L KEC_LOCKAn_HTPDAn_3.3VPullup_TR NXP_LOCKAn_HTPDAn_3.3VPullup_TR
E E
13
14 TXDAP3_L
15 C
TXDAN3_L
B Q7102-*1
16
MMBT3904(NXP)
17 TXDAP2_L E NXP_LOCKAn_HTPDAn_3.3VPullup_TR
18 TXDAN2_L +3.3V_NORMAL
R7107-*1
10K 3D&L_DIM_EN_Micom
19 D DIODES_LGD/INX_Module_TCON_I2C_EN_FET(SUB)
R7106
20 Module_MPLUS&NON_UF84(M+) 1K G Q7100-*1
TXDAP1_L 2N7002K
+3.3V_NORMAL EBK42767801
21 R7125 0
TXDAN1_L 3D&L_DIM_EN S
3D&L_DIM_EN_Micom
22 R7104
L_DIM_EN_pulldown TCON_I2C_EN
10K
Module_LGD_MPLUS&UF84(M+)
23 OPT R7107
TXDAP0_L
1K
+3.3V_NORMAL
G
24 TXDAN0_L EBK62072501
Module_LGD_INX_CSHOT_MPLUS&UF84(M+)
R7105
1/16W
R7121 0
25
R7115 I2C_SCL6
S
D
M+ MODULE : low
1K
5%
26 4.7K Q7100
LOCKAn_IN *Pin30(DATA_FORMAT) 40_INCH_INX_I2C_PULL_UP 2N7002KA
27 HIGH : 2 DIVISION KEC_LGD/INX_Module_TCON_I2C_EN_FET(MAIN)
HTPDAn_IN LOW : NON DIVISION
Module_LGD_SHARP_CSHOT&UF84(M+) R7119
28
R7101 10K Module_LGD_INX_CSHOT_MPLUS&UF84(M+) 33 OPT
29 AR7101
0
30 1/16W
OPT TCON_I2C_EN
31 +3.3V_NORMAL
*Pin31(BIT_SEL)
G
R7102 10K HIGH or NC : 10Bit
32 Module_LGD_INX_CSHOT_MPLUS&UF84(M+)
LOW : 8Bit R7116 R7122 0
33 4.7K S I2C_SDA6
D
40_INCH_INX_I2C_PULL_UP
D
34 Q7101 DIODES_LGD/INX_Module_TCON_I2C_EN_FET(SUB)
2N7002KA Q7101-*1
EBK62072501 G
R7108 0 2N7002K
35 3D&L_DIM_EN EBK42767801
KEC_LGD/INX_Module_TCON_I2C_EN_FET(MAIN)
OPT S
36
R7120
37
33 OPT
38
39 +3.3V_NORMAL
M+ MODULE
40
*Pin36(GPLUS_MODE)
41 R7109 HIGH : High luminance
10K LOW or NC : Low Power
42 OPT LM14A : INTERNAL PULL-UP.
43 R7126 0
*Pin38 DATA_FORMAT_1_SOC
CSOT, LGD60Hz,INX: N/C Module_MPLUS&UF84(M+)
44 SHARP,LGD120Hz: GND
GPLUS : PWM_TIN
R7103
LGD_Module_120Hz Module_LGD120Hz
45
Module_LGD120Hz_SHARP AR7100
R7110 0
46 10K 1/16W
R7123 10K Data_Format_1
Data Input Format[1:0]
0
47
R7113 0
PWM_TIN
48 Module_MPLUS&NON_UF84(M+) *Mode 1 (NON Division)
Data_Format_0 - Data Format 0(Pin37) = Low
49 +3.3V_NORMAL Data Format 1(Pin36) = Low
50 *Mode 3 (4 Division)
- Data Format 0(Pin37) = Low
PANEL_VCC
51 Data Format 1(Pin36) = High
R7111
L7100 10K
52 MLB-201209-0120P-N2 OPT
51pin_12V
R7100 0
C7100 C7101
PWM_TOUT
10uF 10uF
Module_MPLUS&NON_UF84(M+)
25V 25V
51pin_12V 51pin_12V
Module_LGD120HZ_MPLUS&NON_UF84(M+)
R7112
10K
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-071_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A 2015-01-29
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. Vx1 51P 71
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
[41P Vx1
output wafer]
P7200
SP14-11592-01-41Pin
1 41pin_Wafer
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18 TXDBP7_L
19 TXDBN7_L
20
21 TXDBP6_L
22 TXDBN6_L
23
24 TXDBP5_L
25 TXDBN5_L
26
27 TXDBP4_L
28 TXDBN4_L
29
30 TXDBP3_L
31 TXDBN3_L
32
33 TXDBP2_L
34 TXDBN2_L
35
36 TXDBP1_L
37 TXDBN1_L
38
39 TXDBP0_L
40 TXDBN0_L
41
42
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-072_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. Vx1 41P
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
eMMC I/F
DVDD18_EMMC 3.3v power delete, 131120
R8116
R8117
1/16W
10K
AR8104
1/16W
10K
AR8103
10K
10K
SAMSUNG ELECTRONIC CO.,LTD
EAN63829501
IC8100 IC8100-*1 IC8100-*2
IC8100-*3
THGBMBG5D1KBAIL THGBMBG6D1KBAIL H26M41103HPR
EMMC_DATA[0-7] KLM4G1FEPD-B031
AR8100
EMMC_DATA[0] 0
1/16W
EMMC_DATA[1] A3 C8 A3 C8 A3 C7
EMMC_DATA[2] DAT0 NC_23 DAT6 DAT0 NC_23 DAT0 NC_22 A3 C7
A4 C9 A4 C9 A4 C8 DAT0 NC_22
DAT1 NC_24 DAT1 NC_24 DAT1 NC_23 A4 C8
EMMC_DATA[3] A5 C10 A5 C10 A5 C9 DAT1 NC_23
DAT2 NC_25 DAT2 NC_25 DAT2 NC_24 A5 C9
EMMC_DATA[4] B2 C11 B2 C11 B2 C10 DAT2 NC_24
DAT3 NC_26 DAT3 NC_26 DAT3 NC_25 B2 C10
EMMC_DATA[5] B3 C12 B3 C12 B3 C11 DAT3 NC_25
DAT4 NC_27 DAT4 NC_27 DAT4 NC_26 B3 C11
EMMC_DATA[6] B4 C13 B4 C13 B4 C12 DAT4 NC_26
DAT5 NC_28 DAT5 NC_28 DAT5 NC_27 B4 C12
B5 C14 B5 C14 B5 C13 DAT5 NC_27
EMMC_DATA[7] DAT6 NC_29 DAT6 NC_29 DAT6 NC_28 B5 C13
B6 D1 B6 D1 B6 C14 DAT6 NC_28
DAT7 NC_30 DAT5 DAT7 NC_30 DAT7 NC_29 B6 C14
D2 D2 D1 DAT7 NC_29
0 R8104 NC_31 NC_31 NC_30 D1
D3 D3 D2 NC_30
0 R8105 NC_32 NC_32 NC_31 D2
M6 D4 M6 D4 M6 D3 NC_31
0 R8106 CLK NC_33 CLK NC_33 CLK NC_32 M6 D3
M5 D12 M5 D12 M5 D4 CLK NC_32
0 R8107 CMD NC_34 CMD NC_34 CMD NC_33 M5 D4
D13 D13 D12 CMD NC_33
eMMC V5.0 GND NC_35 NC_35 NC_34 D12
D14 D14 D13 NC_34
NC_36 NC_36 NC_35 D13
A6 E1 A6 E1 A7 D14 NC_35
VSS_1 NC_37 VSS_1 NC_37 RFU_1 NC_36 A7 D14
A7 E2 A7 E2 E5 E1 RFU_1 NC_36
RFU_2 NC_38 RFU_2 NC_38 RFU_2 NC_37 E5 E1
C5 E3 C5 E3 G3 E2 RFU_2 NC_37
NC_21 NC_39 NC_21 NC_39 RFU_3 NC_38 G3 E2
AR8102 E5 E12 E5 E12 K6 E3 RFU_3 NC_38
RFU_4 NC_40 RFU_4 NC_40 RFU_4 NC_39 K6 E3
0 1/16W E8 E13 E8 E13 K7 E12 RFU_4 NC_39
RFU_5 NC_41 RFU_5 NC_41 RFU_5 NC_40 K7 E12
E9 E14 E9 E14 E8 E13 RFU_5 NC_40
EMMC_CLK VSF_1 NC_42 VSF_1 NC_42 VSF_1 NC_41 E8 E13
E10 F1 E10 F1 E9 E14 RFU_6 NC_41
DAT7
EMMC_CMD VSF_2 NC_43 VSF_2 NC_43 VSF_2 NC_42 E9 E14
F10 F2 F10 F2 E10 F1 RFU_7 NC_42
EMMC_RST VSF_3 NC_44 VSF_3 NC_44 VSF_3 NC_43 E10 F1
G3 F3 G3 F3 F10 F2 RFU_8 NC_43
RFU_9 NC_45 RFU_9 NC_45 VSF_4 NC_44 F10 F2
G10 F12 G10 F12 G10 F3 RFU_9 NC_44
RFU_10 NC_46 RFU_10 NC_46 VSF_5 NC_45 G10 F3
H5 F13 H5 F13 K10 F12 RFU_10 NC_45
DS NC_47 DS NC_47 VSF_6 NC_46 K10 F12
J5 F14 J5 F14 P10 F13 RFU_11 NC_46
C8107 VSS_5 NC_48 VSS_5 NC_48 VSF_7 NC_47 P10 F13
OPT 10pF K6 G1 K6 G1 H5 F14 RFU_13 NC_47
RFU_13 NC_49 RFU_13 NC_49 DS NC_48 H5 F14
50V K7 G2 K7 G2 G1 DS NC_48
RFU_14 NC_50 RFU_14 NC_50 NC_49 G1
EMMC_STRB K10 G12 K10 G12 G2 NC_49
RFU_15 NC_51 RFU_15 NC_51 NC_50 G2
P7 G13 P7 G13 G12 NC_50
R8103
RFU_16 NC_52 RFU_16 NC_52 NC_51 G12
P10 G14 P10 G14 G13 NC_51
10K
RFU_17 NC_53 RFU_17 NC_53 NC_52 G13
H1 H1 G14 NC_52
NC_54 EMMC_STRB NC_54 NC_53 G14
H2 H2 H1 NC_53
NC_55 NC_55 NC_54 H1
K5 H3 K5 H3 K5 H2 NC_54
RSTN NC_56 RSTN NC_56 RSTN NC_55 K5 H2
H12 H12 H3 RSTN NC_55
C8100 DVDD18_EMMC H3
EMMC5.0_4G_TOSHIBA
NC_57 NC_57 NC_56
H13 H13 H12
EMMC5.0_8G_TOSHIBA
OPT 0.1uF NC_56
NC_58 NC_58 NC_57 H12
16V C6 H14 C6 H14 C6 H13 NC_57
VCCQ_1 NC_59 VCCQ_1 NC_59 VCCQ_1 NC_58 C6 H13
3.3V_EMMC M4 J1 M4 J1 M4 H14 VDD_1 NC_58
VCCQ_2 NC_60 VCCQ_2 NC_60 VCCQ_2 NC_59 M4 H14
N4 J2 N4 J2 N4 J1 VDD_2 NC_59
EMMC5.0_8G_HYNIX
VCCQ_3 NC_61 VCCQ_3 NC_61 VCCQ_3 NC_60 N4 J1
P3 J3 P3 J3 P3 J2 VDD_3 NC_60
VCCQ_4 NC_62 VCCQ_4 NC_62 VCCQ_4 NC_61 P3 J2
Bottom P5 J12 P5 J12 P5 J3 VDD_4 NC_61
VCCQ_5 NC_63 VCCQ_5 NC_63 VCCQ_5 NC_62 P5 J3
DAT3
DAT4
DAT5
DAT6
EMMC_CLK_BALL
EMMC_CMD_BALL
EMMC_RESET_BALL
OPT OPT J13 J13 J12 VDD_5 NC_62
C8108 C8109 C8105 C8106 NC_64 NC_64 NC_63 J12
0.1uF 2.2uF 0.1uF 2.2uF J14 EMMC_RESET_BALL J14 J13 NC_63
EMMC5.0_4G_SAMSUNG
NC_65 NC_65 NC_64 J13
16V 10V 16V 10V E6 K1 E6 K1 E6 J14 NC_64
VCC_1 NC_66 VCC_1 NC_66 VCC_1 NC_65 E6 J14
F5 K2 F5 K2 F5 K1 VDDF_1 NC_65
VCC_2 NC_67 VCC_2 NC_67 VCC_2 NC_66 F5 K1
J10 K3 J10 K3 J10 K2 VDDF_2 NC_66
VCC_3 NC_68 VCC_3 NC_68 VCC_3 NC_67 J10 K2
K9 K12 K9 K12 K9 K3 VDDF_3 NC_67
VCC_4 NC_69 VCC_4 NC_69 VCC_4 NC_68 K9 K3
K13 K13 K12 VDDF_4 NC_68
NC_70 NC_70 NC_69 K12
EMMC_VDDI K14 K14 K13 NC_69
Bottom pattern 0.2mm NC_71 NC_71 NC_70 K13
C2 L1 C2 L1 C2 K14 NC_70
VDDI NC_72 VDDI NC_72 VDDI NC_71 C2 K14
OPT L2 L2 L1 VDDI NC_71
C8101 C8104 NC_73 NC_73 NC_72 L1
1uF 2.2uF L3 L3 L2 NC_72
NC_74 NC_74 NC_73 L2
10V 10V E7 L12 E7 L12 C4 L3 NC_73
VSS_2 NC_75 VSS_2 NC_75 VSSQ_1 NC_74 C4 L3
G5 L13 G5 L13 N2 L12 VSS_1 NC_74
VSS_3 NC_76 VSS_3 NC_76 VSSQ_2 NC_75 N2 L12
H10 L14 H10 L14 N5 L13 VSS_2 NC_75
VSS_4 NC_77 VSS_4 NC_77 VSSQ_3 NC_76 N5 L13
K8 M1 K8 M1 P4 L14 VSS_3 NC_76
VSS_6 NC_78 VSS_6 NC_78 VSSQ_4 NC_77 P4 L14
C8102 C8103 C8111 C4 M2 C4 M2 P6 M1 VSS_4 NC_77
0.1uF 2.2uF 4.7uF VSSQ_1 NC_79 VSSQ_1 NC_79 VSSQ_5 NC_78 P6 M1
N2 M3 EMMC_CLK_BALL N2 M3 A6 M2 VSS_5 NC_78
16V 10V 10V VSSQ_2 NC_80 VSSQ_2 NC_80 VSS_1 NC_79 A6 M2
OPT N5 M7 N5 M7 E7 M3 VSS_6 NC_79
VSSQ_3 NC_81 VSSQ_3 NC_81 VSS_2 NC_80 E7 M3
P4 M8 P4 M8 G5 M7 VSS_7 NC_80
VSSQ_4 NC_82 VSSQ_4 NC_82 VSS_3 NC_81 G5 M7
P6 M9 P6 M9 H10 M8 VSS_8 NC_81
VSSQ_5 NC_83 VSSQ_5 NC_83 VSS_4 NC_82 H10 M8
M10 M10 J5 M9 VSS_9 NC_82
NC_84 NC_84 VSS_5 NC_83 J5 M9
M11 M11 K8 M10 VSS_10 NC_83
NC_85 NC_85 VSS_6 NC_84 K8 M10
M12 M12 M11 VSS_11 NC_84
NC_86 NC_86 NC_85 M11
A1 M13 A1 M13 M12 NC_85
DAT3 NC_1 NC_87 NC_1 NC_87 NC_86 M12
A2 M14 A2 M14 A1 M13 NC_86
DAT4 NC_2 NC_88 NC_2 NC_88 NC_1 NC_87 A1 M13
A8 N1 A8 N1 A2 M14 NC_1 NC_87
DAT7 NC_3 NC_89 NC_3 NC_89 NC_2 NC_88 A2 M14
A9 N3 EMMC_CMD_BALL A9 N3 A8 N1 NC_2 NC_88
NC_4 NC_90 NC_4 NC_90 NC_3 NC_89 A8 N1
A10 N6 A10 N6 A9 N3 NC_3 NC_89
NC_5 NC_91 NC_5 NC_91 NC_4 NC_90 A9 N3
A11 N7 A11 N7 A10 N6 NC_4 NC_90
NC_6 NC_92 NC_6 NC_92 NC_5 NC_91 A10 N6
A12 N8 A12 N8 A11 N7 NC_5 NC_91
NC_7 NC_93 NC_7 NC_93 NC_6 NC_92 A11 N7
A13 N9 A13 N9 A12 N8 NC_6 NC_92
NC_8 NC_94 NC_8 NC_94 NC_7 NC_93 A12 N8
A14 N10 A14 N10 A13 N9 NC_7 NC_93
NC_9 NC_95 NC_9 NC_95 NC_8 NC_94 A13 N9
B1 N11 B1 N11 A14 N10 NC_8 NC_94
NC_10 NC_96 NC_10 NC_96 NC_9 NC_95 A14 N10
B7 N12 B7 N12 B1 N11 NC_9 NC_95
NC_11 NC_97 NC_11 NC_97 NC_10 NC_96 B1 N11
B8 N13 B8 N13 B7 N12 NC_10 NC_96
NC_12 NC_98 NC_12 NC_98 NC_11 NC_97 B7 N12
B9 N14 B9 N14 B8 N13 NC_11 NC_97
DAT6 NC_13 NC_99 NC_13 NC_99 NC_12 NC_98 B8 N13
B10 P1 B10 P1 B9 N14 NC_12 NC_98
NC_14 NC_100 NC_14 NC_100 NC_13 NC_99 B9 N14
B11 P2 B11 P2 B10 P1 NC_13 NC_99
NC_15 NC_101 NC_15 NC_101 NC_14 NC_100 B10 P1
B12 P8 B12 P8 B11 P2 NC_14 NC_100
Don’t Connect Power At VDDI EMMC_VDDI DVDD18_EMMC B13
B14
NC_16
NC_17
NC_102
NC_103
P9
P11
B13
B14
NC_16
NC_17
NC_102
NC_103
P9
P11
B12
B13
NC_15
NC_16
NC_101
NC_102
P7
P8
B11
B12
NC_15
NC_16
NC_101
RFU_12
P2
P7
NC_18 NC_104 NC_18 NC_104 NC_17 NC_103 B13 P8
C1 P12 C1 P12 B14 P9 NC_17 NC_102
(Just Interal LDO Capacitor) DAT5
C3
NC_19
NC_20
NC_105
NC_106
P13 C3
NC_19
NC_20
NC_105
NC_106
P13 C1
NC_18
NC_19
NC_104
NC_105
P11
B14
C1
NC_18 NC_103
P9
P11
C7 P14 C7 P14 C3 P12 NC_19 NC_104
NC_22 NC_107 NC_22 NC_107 NC_20 NC_106 C3 P12
C5 P13 NC_20 NC_105
NC_21 NC_107 C5 P13
P14 NC_21 NC_106
NC_108 P14
NC_107
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-081_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. eMMC
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
RS-232C Control INTERFACE
AR11200
100
RS232C
+3.5V_ST DOUT1
RIN1
OPT OPT
VA11200 VA11201
ADUC 20S 02 010L ADUC 20S 02 010L
RS232C 20V 20V
RS232C C11204
0.1uF
IC11200
MAX3232CDR
C1+ VCC
RS232C 1 16
C11200
0.1uF V+ GND
RS232C 2 15
C11201
0.1uF C1- DOUT1
3 14
C2+ RIN1
RS232C 4 13
C11202
0.1uF C2-
5 12
ROUT1
SOC_RX
RS232C
V- DIN1 JK11200
RS232C 6 11
SOC_TX PEJ034-01
C11203
0.1uF DOUT2 DIN2 E_SPRING
7 10 3 EAG60841811
RIN1 TP3800
RIN2 ROUT2
8 9
DOUT1 TP3801
EAN41348201
R_SPRING 4
DOUT1
T_SPRING 5
RIN1
B_TERMINAL2 7B
T_TERMINAL2 6B
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-112_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. RS232C
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
LM14A+URSA
CLIP Top Side for Covershield TCON_PWR_5pin_Wafer
P7203
20037WR-05A00
T-con power
1
2
PANEL_VCC
3 TCON_PWR_5pin_Wafer
L7201
MLB-201209-0120P-N2
4
M13502 CLIP
EAG64250901
5
TCON_PWR_5pin_Wafer L7202 TCON_PWR_5pin_Wafer
6 MLB-201209-0120P-N2
C7202 C7203 C7204 C7205
10uF 0.1uF 10uF 0.1uF
25V 16V 25V 16V
OPT
M13501 SMD_CLIP M13503 SMD_CLIP
MDS62110209 MDS62110209 TCON_PWR_5pin_Wafer
TCON_PWR_5pin_Wafer
CLIP 1 - PUSH TYPE
Heatsink guide cap
C13500 C13502 C13504
22uF 22uF 22uF
C13501
SMD Top Side for Covershield 22uF
8.5T 3.5T
M13511 SMD_EMI M13504 OPT M13507 OPT M13506 OPT
MDS62110209 MDS62110209 MDS62110209 MDS62110209 M13508 OPT
MDS62110213
SMD Bot side
79inch_EMI 79inch_EMI
GASKET_8.0X6.0X10.5H GASKET_8.0X6.0X10.5H
M13509 OPT M13510 OPT M13509-*1 M13510-*1
MDS62110209 MDS62110221 MDS62110225 MDS62110225
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-135_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. CLIP TYPE
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
LM14A ONLY, LM14A+URSA
TUNER EMS GND SEPERATION
TU_GND_B
TU_GND_A
TU_GND_A4_22nF
TU_GND_B1_22nF
C6700 C6703
TU_GND_A2_1nF TU_GND_A3_0ohm 0.022uF 0.022uF
TU_GND_A6_3.3nF TU_GND_A1_0ohm C6706 TU_GND_B3_1nF TU_GND_B4_1nF
C6710 R6700 630V 630V TU_EU
R6701 C6707 C6708 C6709
3300pF 1000pF 0 TU_GND_B2_22ohm
0 TU_GND_A5_22ohm 1000pF 1000pF 3300pF
630V 630V R6703 R6704 630V 630V 630V
22 22
TU_GND_A1_1nF TU_GND_A2_22nF TU_GND_B2_0ohm TU_GND_B3_22nF TU_GND_B4_22nF
TU_GND_A3_22nF
R6701-*1 C6706-*1 C6707-*1 C6708-*1
R6700-*1 TU_GND_A4_1nF 0 0.022uF 0.022uF
1000pF 0.022uF 0.022uF R6704-*1
630V C6700-*1 630V 630V
630V 630V
1000pF
630V
GND_A GND_B
TU_GND_A EU/CIS AJJA TW/COL CN/HK KR North.AM BR JP TU_GND_B EU/CIS AJJA TW/COL CN/HK KR North.AM BR JP
GND A_1 0 ohm 0 ohm 0 ohm X 0 ohm X 0 ohm GND B_1 X X X 22 nF X 22 nF X
GND A_2 X X X 22 nF 22 nF 1 nF
X
GND B_2
X X X 22 ohm X 22 ohm X
GND A_3 X 0 ohm 0 ohm X 0 ohm 22 nF 0 ohm
X 22 nF GND B_3 1 nF 1 nF 1 nF 22 nF 1 nF 22 nF 1 nF
GND A_4 X X X 22 nF 1 nF
22 ohm 22 ohm GND B_4 1 nF 22 nF
GND A_5 X X X 22 ohm X 1 nF 1 nF 1 nF 22 nF 1 nF
SMD_BOT
GASKET_8.0X6.0X10.5H 70&79inch_EMI
M13700 GASKET_8.0X6.0X10.5H
MDS62110225 M13707
MDS62110225
SMD_BOT_OPT
GASKET_8.0X6.0X10.5H SMD_BOT_EU
M13701 GASKET_8.0X6.0X10.5H
MDS62110225 M13703 EU/CIS AJJA TW/COL CN/HK KR North.AM BR JP
TU_BOT_SMD
MDS62110225
SMD_BOT_OPT SMD1
GASKET_8.0X6.0X10.5H SMD_BOT
M13702 GASKET_8.0X6.0X10.5H
M13705 SMD2
MDS62110225
MDS62110225
SMD3
SMD_BOT_OPT
GASKET_8.0X6.0X10.5H
M13704
MDS62110225
70inch_EMI 79inch_EMI
GASKET_8.0X6.0X10.5H GASKET_8.0X6.0X12.5H
M13706 M13706-*1
MDS62110225 MDS62110217
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-137_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS LM14A
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
Tuner_GND
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
IC12800 IC12800
LGE5352(URSA11) LGE5352(URSA11)
N3
AH5 PAD_RXCP_P0
PAD_RA0N M2
AG5 PAD_RXCN_P0
PAD_RA0P P1
AF5 PAD_RX0P_P0
PAD_RA1N N1
AG6 PAD_RX0N_P0
PAD_RA1P R2
AF6 PAD_RX1P_P0
PAD_RA2N R3
AG7 PAD_RX1N_P0
PAD_RA2P T1
AH7 PAD_RX2P_P0
PAD_RACKN T2
AF7 L1 PAD_RX2N_P0
PAD_RACKP PAD_A0P/VBY0-
AH8 L3
PAD_RA3N PAD_A0M/VBY0+
AG8 K2
PAD_RA3P PAD_A1P/VBY1-
AF8 K3
PAD_RA4N PAD_A1M/VBY1+
AG9 J3
PAD_RA4P PAD_A2P/VBY2- U2
H2 PAD_RXCP_P1
PAD_A2M/VBY2+ U1
H3 PAD_RXCN_P1
PAD_ACKP/VBY3- W3
AF9 G1 PAD_RX0P_P1
PAD_RB0N PAD_ACKM/VBY3+ V2
AG10 G3 0.1uF R12804 TXDAN0_L PAD_RX0N_P1
PAD_RB0P PAD_A3P/VBY4- Y1
AH10 F2 0.1uF R12805 TXDAP0_L PAD_RX1P_P1
PAD_RB1N PAD_A3M/VBY4+ W1
AF10 E2 0.1uF R12806 TXDAN1_L PAD_RX1N_P1
PAD_RB1P PAD_A4P/VBY5- AA2
AH11 E1 0.1uF R12807 TXDAP1_L PAD_RX2P_P1
PAD_RB2N PAD_A4M/VBY5+ AA3
AG11 D1 0.1uF R12808 TXDAN2_L PAD_RX2N_P1
PAD_RB2P PAD_B0P/VBY6-
AF11 D2 0.1uF R12809 TXDAP2_L
PAD_RBCKN PAD_B0M/VBY6+
AG12 C2 0.1uF R12810 TXDAN3_L
PAD_RBCKP PAD_B1P/VBY7- AA6
AF12 C3 0.1uF R12811 TXDAP3_L NC_9
PAD_RB3N PAD_B1M/VBY7+
AG13
PAD_RB3P
AH13
PAD_RB4N
AF13 K5
PAD_RB4P PAD_MOD_GPIO0
K4
PAD_MOD_GPIO1 AF4
L5 PAD_HDMI_SCL_P0/[TX]
PAD_B2P AE4
L6 PAD_HDMI_SDA_P0/[TX]
PAD_B2M AC1
J6 PAD_TXCP_P0
PAD_BCKP AB1
H6 PAD_TXCN_P0
PAD_BCKM AD2
J5 PAD_TX0P_P0
PAD_B3P AD3
J4 PAD_TX0N_P0
PAD_B3M AE1
G5 PAD_TX1P_P0
PAD_B4P AE2
G4 PAD_TX1N_P0
PAD_B4M AF2
H5 PAD_TX2P_P0
PAD_C0P AF1
G6 PAD_TX2N_P0
PAD_C0M
B3 0.1uF C12824 TXDAN4_L
PAD_E0P/VBY8-
A3 0.1uF C12825 TXDAP4_L
PAD_E0M/VBY8+
A4 0.1uF C12826 TXDAN5_L
PAD_E1P/VBY9-
B4 0.1uF C12827 TXDAP5_L
PAD_E1M/VBY9+
B5 0.1uF C12828 TXDAN6_L
PAD_E2P/VBY10-
0.1uF C12822 AH14 C5 0.1uF C12829 TXDAP6_L
TXVBY1_0N PADA_VBY1_RXM[0] PAD_E2M/VBY10+
0.1uF C12823 AG14 A6 0.1uF C12830 TXDAN7_L
TXVBY1_0P PADA_VBY1_RXP[0] PAD_ECKP/VBY11-
0.1uF C12820 AF14 C6 0.1uF C12831 TXDAP7_L
TXVBY1_1N PADA_VBY1_RXM[1] PAD_ECKM/VBY11+
0.1uF C12821 AG15 B7 TXDBN0_L_URSA11
TXVBY1_1P PADA_VBY1_RXP[1] PAD_E3P/VBY12- TXDBN0_L_URSA11
0.1uF C12818 AG16 C7 TXDBP0_L_URSA11 FOR 120Hz ONLY
VIDEO
TXVBY1_2N PADA_VBY1_RXM[2] PAD_E3M/VBY12+ TXDBP0_L_URSA11
0.1uF C12819 AH16 C8 TXDBN1_L_URSA11
TXVBY1_2P PADA_VBY1_RXP[2] PAD_E4P/VBY13- TXDBN1_L_URSA11
AF16 B9
TXVBY1_3N 0.1uF
0.1uF
C12816
C12817 AH17
PADA_VBY1_RXM[3] PAD_E4M/VBY13+
C9
TXDBP1_L_URSA11
TXDBN2_L_URSA11
TXDBP1_L_URSA11 CAP MOVE
TXVBY1_3P PADA_VBY1_RXP[3] PAD_F0P/VBY14- TXDBN2_L_URSA11
PAD_F0M/VBY14+
A10 TXDBP2_L_URSA11 TXDBP2_L_URSA11 TO SHT 143
0.1uF C12814 AF17 C10 TXDBN3_L_URSA11
TXVBY1_4N PADA_VBY1_RXM[4] PAD_F1P/VBY15- TXDBN3_L_URSA11
0.1uF C12815 AG18 B11 TXDBP3_L_URSA11
TXVBY1_4P PADA_VBY1_RXP[4] PAD_F1M/VBY15+ TXDBP3_L_URSA11
0.1uF C12812 AF18 B12 TXDBN4_L_URSA11
TXVBY1_5N PADA_VBY1_RXM[5] PAD_MOD_GPIO8/VBY16- TXDBN4_L_URSA11
0.1uF C12813 AG19 A12 TXDBP4_L_URSA11
TXVBY1_5P PADA_VBY1_RXP[5] PAD_MOD_GPIO9/VBY16+ TXDBP4_L_URSA11
0.1uF C12810 AF19 A13 TXDBN5_L_URSA11
TXVBY1_6N PADA_VBY1_RXM[6] PAD_F2P/VBY17- TXDBN5_L_URSA11
0.1uF C12811 AH20 B13 TXDBP5_L_URSA11
TXVBY1_6P PADA_VBY1_RXP[6] PAD_F2M/VBY17+ TXDBP5_L_URSA11
0.1uF C12808 AG20 B14 TXDBN6_L_URSA11
TXVBY1_7N PADA_VBY1_RXM[7] PAD_FCKP/VBY18- TXDBN6_L_URSA11
0.1uF C12809 AF20 C14 TXDBP6_L_URSA11
TXVBY1_7P PADA_VBY1_RXP[7] PAD_FCKM/VBY18+ TXDBP6_L_URSA11
A15 TXDBN7_L_URSA11
PAD_F3P/VBY19- TXDBN7_L_URSA11
0.1uF C12806 AF21 C15 TXDBP7_L_URSA11
TXOSD_0N PADA_VBY1_RXM[8] PAD_F3M/VBY19+ TXDBP7_L_URSA11
0.1uF C12807 AG22
TXOSD_0P PADA_VBY1_RXP[8]
AH22
OSD
TXOSD_1N 0.1uF C12804
PADA_VBY1_RXM[9]
0.1uF C12805 AF22 E9
TXOSD_1P PADA_VBY1_RXP[9] PAD_F4P
0.1uF C12802 AG23 D9
TXOSD_2N PADA_VBY1_RXM[10] PAD_F4M
0.1uF C12803 AF23 F8
TXOSD_2P PADA_VBY1_RXP[10] PAD_G0P
0.1uF C12800 AG24 F9
TXOSD_3N PADA_VBY1_RXM[11] PAD_G0M
0.1uF C12801 AF24
TXOSD_3P PADA_VBY1_RXP[11]
U11 ONLY, NC FOR U11P
AH25
PADA_VBY1_RXM[12]
AF25
RESERVED FOR U11P TEST
PADA_VBY1_RXP[12]
AG26 F10
AF26
PADA_VBY1_RXM[13] PAD_E0P/[TEST]
E11 URSA9 VIDEO/OSD LOCKn
PADA_VBY1_RXP[13] PAD_E0M/[TEST]
AF27 E10
PADA_VBY1_RXM[14] PAD_E1P
AF28 D10 (DELETE_MP)NXP_VBY1_LOCK_LED_TR
PADA_VBY1_RXP[14] PAD_E1M Q14000-*1
AE27 E12 C
PADA_VBY1_RXM[15] PAD_E2P/[TEST] MMBT3906(NXP)
AE28 D12
PADA_VBY1_RXP[15] PAD_E2M B
F11
(DELETE_MP)VBY1_LOCK_LED
PAD_ECKP/[TEST]
F12
PAD_ECKM E
19-21/R6C-FR1S1L/3T
(DELETE_MP)VBY1_LOCK_LED
+3.3V_NORMAL
LOCKAn_Video LOCKAn_Video
LD14000
10K
+3.3V_NORMAL
R12800
R14000
10K
E
B
Q14000
C 2N3906S-RTK
(DELETE_MP)KEC_VBY1_LOCK_LED_TR
LOCKAn_OSD LOCKAn_OSD
R12801 10K
(DELETE_MP)_VB1_LOCK_LED
+3.3V_NORMAL
(DELETE_MP)VBY1_LOCK_LED
R12802
(DELETE_MP)VBY1_LOCK_LED
22
SML-512UW
LD12800
R12803
10K
E
B
C C
Q12800 B Q12800-*1
2N3906S-RTK
MMBT3906(NXP)
(DELETE_MP)NXP_BY1_LOCK_LED E (DELETE_MP)KEC_VBY1_LOCK_LED
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-140_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. URSA11 INPUT
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
IC12800
LGE5352(URSA11)
E24
PAD_IO[78]/B-A0/[CD-A0] A_DDR3_A[0]
G27
PAD_IO[89]/B-A1/[CD-A1] A_DDR3_A[1]
F25
PAD_IO[80]/B-A2/[CD-A2] A_DDR3_A[2]
G23
PAD_IO[75]/B-A3/[CD-A3] A_DDR3_A[3]
G26
PAD_IO[86]/B-A4/[CD-A4] A_DDR3_A[4]
F24
PAD_IO[74]/B-A5/[CD-A5] A_DDR3_A[5]
G28
PAD_IO[96]/B-A6/[CD-A6] A_DDR3_A[6]
E27
PAD_IO[87]/B-A7/[CD-A7] A_DDR3_A[7]
F28
PAD_IO[92]/B-A8/[CD-A8] A_DDR3_A[8]
D26
PAD_IO[73]/B-A9/[CD-A9] A_DDR3_A[9]
H26
PAD_IO[90]/B-A10/[CD-A10] A_DDR3_A[10]
F26
PAD_IO[83]/B-A11/[CD-A11] A_DDR3_A[11]
H25
PAD_IO[84]/B-A12/[CD-A12] A_DDR3_A[12]
D27
PAD_IO[77]/B-A13/[CD-A13] A_DDR3_A[13]
F27
PAD_IO[82]/B-A14/[CD-A14] A_DDR3_A[14]
J24
PAD_IO[88]/B-A15/[CD-A15] A_DDR3_A[15]
H24
PAD_IO[85]/B-BA0/[CD-BA0] A_DDR3_BA[0]
H27
PAD_IO[93]/B-BA1/[CD-BA1] A_DDR3_BA[1]
G24
PAD_IO[81]/B-BA2/[CD-BA2] A_DDR3_BA[2]
K24
PAD_IO[97]/B-RASZ/[CD-RASZ] A_DDR3_RASZ
K23
PAD_IO[94]/B-CASZ/[CD-CASZ] A_DDR3_CASZ
H23
PAD_IO[79]/B-WEZ/[CD-WEZ] A_DDR3_WEZ
J23
PAD_IO[95]/B-ODT/[CD-ODT] A_DDR3_ODT
J27
PAD_IO[91]/B-CKE/[CD-CKE] A_DDR3_CKE
D28
PAD_IO[76]/B-RST/[CD-RST] A_DDR3_RESET
K28
PAD_IO[101]/B-MCLK/[CD-MCLK] A_DDR3_MCLK
MIU1 (U11 ONLY)
J26
PAD_IO[100]/B-MCLKZ/[CD-MCLKZ] A_DDR3_MCLKZ
D25
PAD_IO[99]/B-CSB1/[C-CSB1] A_DDR3_CSB1
C28
PAD_IO[98]/B-CSB2/[D-CSB2] A_DDR3_CSB2
A_DDR3_DQ[0-15]
N27 A_DDR3_DQ[0]
PAD_IO[121]/B-DQ[0]/[C-DQL0]
L26 A_DDR3_DQ[1]
PAD_IO[103]/B-DQ[1]/[C-DQL1]
N26 A_DDR3_DQ[2]
PAD_IO[120]/B-DQ[2]/[C-DQL2]
L27 A_DDR3_DQ[3]
PAD_IO[104]/B-DQ[3]/[C-DQL3]
P26 A_DDR3_DQ[4]
PAD_IO[123]/B-DQ[4]/[C-DQL4]
K27 A_DDR3_DQ[5]
PAD_IO[102]/B-DQ[5]/[C-DQL5]
P27 A_DDR3_DQ[6]
PAD_IO[122]/B-DQ[6]/[C-DQL6]
K26 A_DDR3_DQ[7]
PAD_IO[105]/B-DQ[7]/[C-DQL7]
L23 A_DDR3_DQ[8]
PAD_IO[110]/B-DQ[8]/[C-DQU0]
P25 A_DDR3_DQ[9]
PAD_IO[117]/B-DQ[9]/[C-DQU1] +1.5V_U_DDR
L24 A_DDR3_DQ[10] A-MVREFDQ_U
PAD_IO[107]/B-DQ[10]/[C-DQU2]
P23 A_DDR3_DQ[11]
PAD_IO[119]/B-DQ[11]/[C-DQU3]
M24 A_DDR3_DQ[12]
PAD_IO[111]/B-DQ[12]/[C-DQU4]
R24 A_DDR3_DQ[13]
R13007
PAD_IO[118]/B-DQ[13]/[C-DQU5]
L25 A_DDR3_DQ[14] 1K
PAD_IO[109]/B-DQ[14]/[C-DQU6] 1%
P24 A_DDR3_DQ[15]
PAD_IO[116]/B-DQ[15]/[C-DQU7]
M27
PAD_IO[106]/B-DQM[0]/[C-DML] A_DDR3_DM0
N24
A-MVREFDQ_U PAD_IO[108]/B-DQM[1]/[C-DMU] A_DDR3_DM1 R13008 C13054 C13058
1K 0.1uF 1000pF
N28 1%
PAD_IO[115]/B-DQS[0]/[C-DQSL] A_DDR3_DQS0
B19 M26
DRAM_VREF_A PAD_IO[114]/B-DQSB[0]/[C-DQSLB] A_DDR3_DQS0B
N23
PAD_IO[113]/B-DQS[1]/[C-DQSU] A_DDR3_DQS1
240 R13000 A19 M23
DRAM_ZQ_A PAD_IO[112]/B-DQSB[1]/[C-DQSUB] A_DDR3_DQS1B
1%
A_DDR3_DQ[16-31]
V27 A_DDR3_DQ[16] +1.5V_U_DDR B-MVREFDQ_U
PAD_IO[143]/B-DQ[16]/[D-DQL0]
T27 A_DDR3_DQ[17]
PAD_IO[126]/B-DQ[17]/[D-DQL1]
V26 A_DDR3_DQ[18]
PAD_IO[142]/B-DQ[18]/[D-DQL2]
T28 A_DDR3_DQ[19] URSA11P
PAD_IO[127]/B-DQ[19]/[D-DQL3] R13005
W27 A_DDR3_DQ[20]
1K
PAD_IO[144]/B-DQ[20]/[D-DQL4]
R27 A_DDR3_DQ[21] 1%
PAD_IO[125]/B-DQ[21]/[D-DQL5]
W28 A_DDR3_DQ[22]
PAD_IO[145]/B-DQ[22]/[D-DQL6]
R26 A_DDR3_DQ[23] URSA11P URSA11P URSA11P
PAD_IO[124]/B-DQ[23]/[D-DQL7] R13006 C13053 C13057
U24 A_DDR3_DQ[24]
PAD_IO[129]/B-DQ[24]/[D-DQU0] 1K 0.1uF 1000pF
W23 A_DDR3_DQ[25] 1%
PAD_IO[141]/B-DQ[25]/[D-DQU1]
R23 A_DDR3_DQ[26]
PAD_IO[139]_/B-DQ[26]/[D-DQU2]
W25 A_DDR3_DQ[27]
PAD_IO[138]/B-DQ[27]/[D-DQU3]
T24 A_DDR3_DQ[28]
NPAD_IO[130]/B-DQ[28]/[D-DQU4]
W24 A_DDR3_DQ[29]
PAD_IO[133]/B-DQ[29]/[D-DQU5]
T23 A_DDR3_DQ[30]
PAD_IO[132]/B-DQ[30]/[D-DQU6]
V23 A_DDR3_DQ[31]
PAD_IO[140]/B-DQ[31]/[D-DQU7]
T26
PAD_IO[128]/B-DQM[2]/[D-DML] A_DDR3_DM2
U23
PAD_IO[131]/B-DQM[3]/[D-DMU] A_DDR3_DM3
U26
PAD_IO[137]/B-DQS[2]/[D-DQSL] A_DDR3_DQS2
U27
PAD_IO[136]/B-DQSB[2]/[D-DQSLB] A_DDR3_DQS2B
V24
PAD_IO[135]/B-DQS[3]/[D-DQSU] A_DDR3_DQS3
U25
PAD_IO[134]/B-DQSB[3]/[D-DQSUB] A_DDR3_DQS3B
B-MVREFDQ_U
B25
DRAM_VREF_B
A25 R13003 240
DRAM_ZQ_B
1%
BSD-15Y-LM14A-142_00-HD
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
URSA11_DDR
15/01/21
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
DDR_VTT_URSA_1
URSA11_DDR_SAMSUNG (120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext
(120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext URSA11_DDR_SAMSUNG
AR13000 AR13001 AR13002 AR13003 AR13004 AR13005 AR13006
IC13001 56 56 56 56 56 56 56 URSA11_DDR_NANYA
K4B1G1646G-BCMA IC13002 URSA11_DDR_NANYA
U_MVREFCA_A0 K4B1G1646G-BCMA IC13001-*1 IC13002-*1
U_MVREFCA_A1
EAN63370001 NT5CB64M16FP-EK NT5CB64M16FP-EK
N3 M8
A_DDR3_A[0] A0 VREFCA N3 M8 EAN63511401 EAN63511401
P7 A_DDR3_A[0] A0 VREFCA
A_DDR3_A[1] A1 P7 N3 M8 N3 M8
P3 A_DDR3_A[1] A1 A0 VREFCA A0 VREFCA
A_DDR3_A[2] A2 P3 P7 P7
N2 H1 A_DDR3_A[2] A2 A1 A1
A_DDR3_A[3] A3 VREFDQ N2 H1 P3 P3
P8 A_DDR3_A[3] A3 VREFDQ A2 A2
A_DDR3_A[4] A4 P8 N2 H1 N2 H1
P2 (120Hz)DDR_Ext A_DDR3_A[4] A4 A3 VREFDQ A3 VREFDQ
A_DDR3_A[5] A5 P2 P8 P8
R8 L8 R13016 240
A_DDR3_A[5] A5 A4 A4
A_DDR3_A[6] A6 ZQ R8 L8 R13017 240 P2 P2
R2 1%
A_DDR3_A[6] A6 ZQ A5 A5
A_DDR3_A[7] A7 R2 1% +1.5V_U_DDR R8 L8 R8 L8
T8 +1.5V_U_DDR A_DDR3_A[7] A6 ZQ A6 ZQ
A_DDR3_A[8] A7
A8 T8 R2 R2
R3 B2 A_DDR3_A[8] A8 A7 A7
A_DDR3_A[9] A9 VDD_1 R3 B2 T8 T8
L7 D9 A_DDR3_A[9] A9 VDD_1 A8 A8
A_DDR3_A[10] A10/AP VDD_2 L7 D9 R3 B2 R3 B2
R7 G7 A_DDR3_A[10] A10/AP VDD_2 A9 VDD_1 A9 VDD_1
A_DDR3_A[11] A11 VDD_3 R7 G7 L7 D9 L7 D9
N7 K2 A_DDR3_A[11] A11 VDD_3 A10/AP VDD_2 A10/AP VDD_2
A_DDR3_A[12] A12/BC VDD_4 N7 K2 R7 G7 R7 G7
T3 K8 A_DDR3_A[12] A12/BC VDD_4 A11 VDD_3 A11 VDD_3
A_DDR3_A[13] A13 VDD_5 T3 K8 N7 K2 N7 K2
N1 A_DDR3_A[13] A13 VDD_5 A12/BC VDD_4 A12/BC VDD_4
VDD_6 N1 T3 K8 T3 K8
M7 N9 A_DDR3_A[14] VDD_6 NC_6 VDD_5 NC_6 VDD_5
A_DDR3_A[15] NC_5 VDD_7 M7 N9 N1 N1
R1 A_DDR3_A[15] NC_5 VDD_7 VDD_6 VDD_6
VDD_8 R1 M7 N9 M7 N9
M2 R9 VDD_8 NC_5 VDD_7 NC_5 VDD_7
A_DDR3_BA[0] BA0 VDD_9 M2 R9 R1 R1
R13014 N8 A_DDR3_BA[0] BA0 VDD_9 VDD_8 VDD_8
(120Hz)DDR_Ext A_DDR3_BA[1] BA1 M2 R9 M2 R9
+1.5V_U_DDR N8 +1.5V_U_DDR
A_DDR3_MCLK M3 A_DDR3_BA[1] BA1 BA0 VDD_9 BA0 VDD_9
56 A_DDR3_BA[2] BA2 M3 N8 N8
(120Hz)DDR_Ext C13062 A1 A_DDR3_BA[2] BA2 BA1 BA1
VDDQ_1 A1 M3 M3
0.01uF J7 A8 VDDQ_1 BA2 BA2
56
CK VDDQ_2 J7 A8 A1 A1
K7 C1 A_DDR3_MCLK CK VDDQ_2 VDDQ_1 VDDQ_1
A_DDR3_MCLKZ CK VDDQ_3 K7 C1 J7 A8 J7 A8
R13015
K9 C9 A_DDR3_MCLKZ CK VDDQ_3 CK VDDQ_2 CK VDDQ_2
(120Hz)DDR_Ext A_DDR3_CKE CKE VDDQ_4 K9 C9 K7 C1 K7 C1
D2 A_DDR3_CKE CKE VDDQ_4 CK VDDQ_3 CK VDDQ_3
VDDQ_5 D2 K9 C9 K9 C9
L2 E9 VDDQ_5 CKE VDDQ_4 CKE VDDQ_4
A_DDR3_CSB1 CS VDDQ_6 L2 E9 D2 D2
K1 F1 A_DDR3_CSB2 CS VDDQ_6 VDDQ_5 VDDQ_5
A_DDR3_ODT ODT VDDQ_7 K1 F1 L2 E9 L2 E9
J3 H2 A_DDR3_ODT ODT VDDQ_7 CS VDDQ_6 CS VDDQ_6
A_DDR3_RASZ RAS VDDQ_8 J3 H2 K1 F1 K1 F1
K3 H9 A_DDR3_RASZ RAS VDDQ_8 ODT VDDQ_7 ODT VDDQ_7
A_DDR3_CASZ CAS VDDQ_9 K3 H9 J3 H2 J3 H2
L3 A_DDR3_CASZ CAS VDDQ_9 RAS VDDQ_8 RAS VDDQ_8
A_DDR3_WEZ WE L3 K3 H9 K3 H9
J1 A_DDR3_WEZ WE CAS VDDQ_9 CAS VDDQ_9
NC_1 J1 L3 L3
T2 J9 NC_1 WE WE
A_DDR3_RESET RESET NC_2 T2 J9 J1 J1
L1 A_DDR3_RESET RESET NC_2 NC_1 NC_1
NC_3 L1 T2 J9 T2 J9
L9 NC_3 RESET NC_2 RESET NC_2
NC_4 L9 L1 L1
F3 T7 NC_4 NC_3 NC_3
A_DDR3_DQS0 DQSL NC_6 A_DDR3_A[14] F3 T7 L9 L9
G3 A_DDR3_DQS2 DQSL NC_6 A_DDR3_A[14] NC_4 NC_4
A_DDR3_DQS0B DQSL G3 F3 T7 F3 T7
A_DDR3_DQS2B DQSL DQSL NC_7 DQSL NC_7
G3 G3
C7 A9 DQSL DQSL
A_DDR3_DQS1 DQSU VSS_1 C7 A9
B7 B3 A_DDR3_DQS3 DQSU VSS_1
A_DDR3_DQS1B DQSU VSS_2 B7 B3 C7 A9 C7 A9
E1 A_DDR3_DQS3B DQSU VSS_2 DQSU VSS_1 DQSU VSS_1
VSS_3 E1 B7 B3 B7 B3
E7 G8 VSS_3 DQSU VSS_2 DQSU VSS_2
A_DDR3_DM0 DML VSS_4 E7 G8 E1 E1
D3 J2 A_DDR3_DM2 DML VSS_4 VSS_3 VSS_3
A_DDR3_DM1 DMU VSS_5 D3 J2 E7 G8 E7 G8
J8 A_DDR3_DM3 DMU VSS_5 DML VSS_4 DML VSS_4
A_DDR3_DQ[0-15] VSS_6 J8 D3 J2 D3 J2
A_DDR3_DQ[0] E3 M1 A_DDR3_DQ[16-31] VSS_6 DMU VSS_5 DMU VSS_5
DQL0 VSS_7 A_DDR3_DQ[16] E3 M1 J8 J8
A_DDR3_DQ[1] F7 M9 DQL0 VSS_7 VSS_6 VSS_6
DQL1 VSS_8 A_DDR3_DQ[17] F7 M9 E3 M1 E3 M1
A_DDR3_DQ[2] F2 P1 DQL1 VSS_8 DQL0 VSS_7 DQL0 VSS_7
DQL2 VSS_9 A_DDR3_DQ[18] F2 P1 F7 M9 F7 M9
A_DDR3_DQ[3] F8 P9 DQL2 VSS_9 DQL1 VSS_8 DQL1 VSS_8
DQL3 VSS_10 A_DDR3_DQ[19] F8 P9 F2 P1 F2 P1
A_DDR3_DQ[4] H3 T1 DQL3 VSS_10 DQL2 VSS_9 DQL2 VSS_9
DQL4 VSS_11 A_DDR3_DQ[20] H3 T1 F8 P9 F8 P9
A_DDR3_DQ[5] H8 T9 DQL4 VSS_11 DQL3 VSS_10 DQL3 VSS_10
DQL5 VSS_12 A_DDR3_DQ[21] H8 T9 H3 T1 H3 T1
A_DDR3_DQ[6] G2 DQL5 VSS_12 DQL4 VSS_11 DQL4 VSS_11
DQL6 A_DDR3_DQ[22] G2 H8 T9 H8 T9
A_DDR3_DQ[7] H7 DQL6 DQL5 VSS_12 DQL5 VSS_12
DQL7 A_DDR3_DQ[23] H7 G2 G2
B1 DQL7 DQL6 DQL6
VSSQ_1 B1 H7 H7
A_DDR3_DQ[8] D7 B9 VSSQ_1 DQL7 DQL7
DQU0 VSSQ_2 A_DDR3_DQ[24] D7 B9 B1 B1
A_DDR3_DQ[9] C3 D1 DQU0 VSSQ_2 VSSQ_1 VSSQ_1
DQU1 VSSQ_3 A_DDR3_DQ[25] C3 D1 D7 B9 D7 B9
A_DDR3_DQ[10] C8 D8 DQU1 VSSQ_3 DQU0 VSSQ_2 DQU0 VSSQ_2
DQU2 VSSQ_4 A_DDR3_DQ[26] C8 D8 C3 D1 C3 D1
A_DDR3_DQ[11] C2 E2 DQU2 VSSQ_4 DQU1 VSSQ_3 DQU1 VSSQ_3
DQU3 VSSQ_5 A_DDR3_DQ[27] C2 E2 C8 D8 C8 D8
A_DDR3_DQ[12] A7 E8 DQU3 VSSQ_5 DQU2 VSSQ_4 DQU2 VSSQ_4
DQU4 VSSQ_6 A_DDR3_DQ[28] A7 E8 C2 E2 C2 E2
A_DDR3_DQ[13] A2 F9 DQU4 VSSQ_6 DQU3 VSSQ_5 DQU3 VSSQ_5
DQU5 VSSQ_7 A_DDR3_DQ[29] A2 F9 A7 E8 A7 E8
A_DDR3_DQ[14] B8 G1 DQU5 VSSQ_7 DQU4 VSSQ_6 DQU4 VSSQ_6
DQU6 VSSQ_8 A_DDR3_DQ[30] B8 G1 A2 F9 A2 F9
A_DDR3_DQ[15] A3 G9 DQU6 VSSQ_8 DQU5 VSSQ_7 DQU5 VSSQ_7
DQU7 VSSQ_9 A_DDR3_DQ[31] A3 G9 B8 G1 B8 G1
DQU7 VSSQ_9 DQU6 VSSQ_8 DQU6 VSSQ_8
A3 G9 A3 G9
DQU7 VSSQ_9 DQU7 VSSQ_9
For 120Hz Vb1
(120Hz)DDR_Ext
TXDBN0_L_URSA11 0.1uF C12832 TXDBN0_L
(120Hz)DDR_Ext
TXDBP0_L_URSA11 0.1uF C12833 TXDBP0_L
DDR PHY VREF (120Hz)DDR_Ext
0.1uF C12834 TXDBN1_L
* DDR_VTT +1.5V_U_DDR TXDBN1_L_URSA11
+1.5V_U_DDR
U_MVREFCA_A0 U_MVREFCA_A1 (120Hz)DDR_Ext
TXDBP1_L_URSA11 0.1uF C12835 TXDBP1_L
+1.5V_U_DDR +3.3V_NORMAL
(120Hz)DDR_Ext (120Hz)DDR_Ext
(120Hz)DDR_Ext (120Hz)DDR_Ext 0.1uF C12836 TXDBN2_L
IC13000 TXDBN2_L_URSA11
AP2303MPTR-G1 [EP] (120Hz)DDR_Ext R13009 R13012
(120Hz)DDR_Ext
C13039 1K 1K 0.1uF C12837 TXDBP2_L
L13001 TXDBP2_L_URSA11
CIS21J121
10uF 1% 1%
VIN NC_3 10V
1 8 (120Hz)DDR_Ext (120Hz)DDR_Ext
(120Hz)DDR_Ext 0.1uF C12838 TXDBN3_L
THERMAL
C13019 TXDBN3_L_URSA11
DDR_VTT_URSA 10uF GND NC_2
9
10V 2 7 (120Hz)DDR_Ext
(120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext TXDBP3_L_URSA11 0.1uF C12839 TXDBP3_L
1% 100K
(120Hz)DDR_Ext
L13000 R13001 VREFEN VCNTL R13010 C13055 C13059 (120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext
3 6 (120Hz)DDR_Ext
CIS21J121 1K 0.1uF R13013 C13060 C13061 0.1uF C12840 TXDBN4_L
1000pF TXDBN4_L_URSA11
1% 1K 0.1uF
VOUT NC_1 1000pF
4 5 1% (120Hz)DDR_Ext
(120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext TXDBP4_L_URSA11 0.1uF C12841 TXDBP4_L
C13004 C13009 C13014 R13002 C13020
10uF 100K 0.1uF (120Hz)DDR_Ext
10uF 10uF 16V
10V 10V 10V 1% 0.1uF C12842 TXDBN5_L
TXDBN5_L_URSA11
(120Hz)DDR_Ext (120Hz)DDR_Ext
(120Hz)DDR_Ext
TXDBP5_L_URSA11 0.1uF C12843 TXDBP5_L
(120Hz)DDR_Ext
TXDBN6_L_URSA11 0.1uF C12844 TXDBN6_L
(120Hz)DDR_Ext
TXDBP6_L_URSA11 0.1uF C12845 TXDBP6_L
(120Hz)DDR_Ext
TXDBN7_L_URSA11 0.1uF C12846 TXDBN7_L
(120Hz)DDR_Ext
TXDBP7_L_URSA11 0.1uF C12847 TXDBP7_L
+1.5V_U_DDR
Decap removed
(120Hz)DDR_Ext
(120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext
A_DDR3_CKE
C13000 C13005 C13010 C13015 C13022 C13025 C13029 DDR_VTT_URSA DDR_VTT_URSA_1
0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF L13002 (120Hz)DDR_Ext
BLM18PG121SN1D
R13011
(120Hz)DDR_Ext
1K
(120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext
C13049 C13050 C13051 C13052 C13056
1uF 0.1uF 0.1uF 0.1uF 0.1uF
10V 16V 16V 16V 16V
Close to DDR POWER PIN
+1.5V_U_DDR
OPT
R13004
1K
+1.5V_U_DDR
A_DDR3_RESET
(120Hz)DDR_Ext
R14200
1/16W
10K
1%
(120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext
C13001 C13006 C13011 C13016 C13023 C13026 C13030 C13033 C13036
0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF
Close to DDR POWER PIN
+1.5V_U_DDR
(120Hz)DDR_Ext
(120Hz)DDR_Ext
(120Hz)DDR_Ext
(120Hz)DDR_Ext (120Hz)DDR_Ext
(120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext
C13003 C13007 C13012 C13017 C13021 C13027 C13031 C13034 C13037 C13040 C13042 C13044 C13046 C13048
0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF
16V 16V 16V 16V 16V 16V 16V 16V
Close to DDR POWER PIN
+1.5V_U_DDR
(120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext (120Hz)DDR_Ext
C13002 C13008 C13013 C13018 C13024 C13028 C13032 C13035 C13038 C13041 C13043 C13045 C13047
0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF
16V 16V 16V 16V 16V 16V 16V 16V 16V 16V 16V 16V 16V
Close to DDR POWER PIN
BSD-15Y-LM14A-143_00-HD
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
UF77 ONLY
URSA11_DDR
15/01/21
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
IC13200-*1
W25Q32FVSSIG +3.3V_NORMAL
URSA_PQ_DEBUG
WINBOND ELECTRONICS CORP.
URSA11_SERIAL_FLASH_MEMORY_WINBOND(SUB) P13201
EAN62459301
12507WS-04L
R13263
IC12800 URSA_PQ_DEBUG
LGE5352(URSA11) CS VCC 10K
SPI Flash 1 8
1
DO[IO1] HOLD_OR_RESET[IO3]
AD26 2 7
2 R13269 33 URSA_UART2_RX
URSA_RESET PAD_RESET
AD11
PAD_I2C_HSC_SDA/[VSYNC_LIKE_SPI2] WP[IO2] CLK URSA_PQ_DEBUG
AH4 AC10 3 6
XIN_URSA AH3
PAD_XOUT PAD_I2C_HSC_SCL/[VSYNC_LIKE_SPI3] URSA11_SERIAL_FLASH_MEMORY_MXIC(MAIN) 3
XO_URSA PAD_XIN
AE9
PAD_SPI1_CK/GPIO58
AC23
AD24
URSA_OPT_0 IC13200 GND
4 5
DI[IO0]
R13268 33
4 URSA_UART2_TX
I2CS_SDA AR13200 AD9
PAD_I2C_S_SDA PAD_SPI1_DI/GPIO59
AD23
Div_BIT0
Div_BIT1
MX25L3235E URSA_PQ_DEBUG
I2CS_SCL 33 PAD_I2C_S_SCL PAD_SPI2_CK/GPIO56
AC22
C13200 C13201 PAD_SPI2_DI/GPIO57 URSA_OPT_4 URSA_L/D_ctrl EAN62459501 +3.3V_NORMAL 5 C13212
AD10 AE24 R13228 33 0.1uF
56pF 56pF PAD_I2C_M_SDA PAD_SPI3_CK/GPIO54 L/D_CLK
50V 50V AE10 AE22 URSA_L/D_ctrl R13229 33 MACRONIX INTERNATIONAL CO., LTD. 16V
OPT PAD_I2C_M_SCL/[VSYNC_LIKE_SP1]PAD_SPI3_DI/GPIO55 L/D_DI URSA_PQ_DEBUG
OPT AD22
URSA_UART2_TX PAD_SPI4_CK/GPIO52 URSA_OPT_5
E8 AC21
PAD_GPIO00/[UART2_TX] PAD_SPI4_DI/GPIO53 URSA_OPT_6
F7 URSA_L/D_ctrl
PAD_GPIO01/[UART2_RX] R13215 33 CS VCC
AC24 C13209
URSA_UART2_RX PAD_VSYNC_LIKE/GPIO40 L/D_VSYNC 1 8 0.1uF
E7
PAD_GPIO02/[UART1_TX]
C13214
5pF
C13215
5pF C13216
SPI_CZ 16V
OPT OPT OPT F6
URSA_UART1_TX PAD_GPIO03/[CHIP_VDET] 50V 50V 5pF +3.3V_NORMAL
0.01uF 0.01uF 0.01uF AE13 DIM0 50V
25V 25V 25V PAD_DIM00/GPIO32
AD13 R13245 33 SO/SIO1 HOLD/SIO3 +3.3V_NORMAL
C13217 C13218 C13219 DIM1 OPT 2 7
AD27
PAD_DIM01/GPIO33
AC13 DIM2 R13226 SPI_DO URSA_SYS_DEBUG
SPI_CZ R14402 33 AC27
PAD_SPI_CZ PAD_DIM02/GPIO34
AE15
10K 10K R13255 P13202
PAD_SPI_CK PAD_DIM03/GPIO35 12507WS-04L
SPI_CK R14403 33 AC28 AC14 FLASH_WP_URSA 1K WP/SIO2 SCLK R13260
SPI_DI AC26
PAD_SPI_DI PAD_DIM04/GPIO36
AD14
URSA_OPT_1
R13227 R13244 3 6 SPI_CK 10K
PAD_SPI_DO PAD_DIM05/GPIO37 URSA_BIT0 10K +3.3V_NORMAL
SPI_DO AD15 URSA_SYS_DEBUG
PAD_DIM06/GPIO38 URSA_BIT1 U_SPI_WP_f_URSA
AE25 AC15 1
PAD_INTERUPT_R21 PAD_DIM07/GPIO39 URSA_BIT2
AD25 FRC_FLASH_WP R14400
10K
1K
GND SI/SIO0
PAD_INTERUPT_R20
OPT R13248 4 5 SPI_DI 2 R13267 33 URSA_UART1_RX
URSA_UART1_RX E4
OPT PAD_TCON0/STV2 R14401 URSA_SYS_DEBUG
0.01uF PAD_TCON1/OE
D5 10K
U_SPI_WP_f_SoC
U_SPI_WP_f_SoC R13250
D7 E6 3
25V PAD_IRE/[UART1_RX] PAD_TCON2/YV1C 10K
C13220 E5
PAD_TCON3/CPV
F5
OPT R13266 33
PAD_TCON4/STV1
4 URSA_UART1_TX
F4
R13211 0 PAD_TCON5/SFT URSA_SYS_DEBUG
AC25 D6 5
PAD_TESTPIN PAD_TCON6/TPV
AC9 D4
GND_EFUSE PAD_TCON7/POL C13211
R13212 0 0.1uF
AC4 16V
PAD_TCON8/[VX1T_HTPDN] HTPDAn URSA_SYS_DEBUG
OPT R13200 10K AC19 AD4
GPIO[09] PAD_TCON9/[VX1T_LOCKN]
OPT R13201 10K AD19 AA4
GPIO[08] PAD_TCON10/[HDMI_R_DDC_CLK3] R13243
AC18 AB5 10K
VID1 GPIO[07] PAD_TCON11/[HDMI_R_DDC_DAT3]
AB4
PAD_TCON12/[HDMI_R_HP3]
AE19 AA5
VID0 GPIO[06] PAD_TCON13/[HDMI_R_CEC3]
AD5
GPIO (RESERVED FOR U11)
PAD_TCON14/[HDMI_T_CEC]
AD7 AE5
U11 ONLY, NC FOR U11P
OPTR13202 33
GPIO[64] PAD_TCON15/[HDMI_T_HPD]
AE7 LOCKAn
OPTR13203 33
GPIO[65]
OPTR13204
OPTR13205
33
33
AC7
AD8
GPIO[66]
GPIO[67]
PAD_GPIO04
PAD_GPIO05
AD21
AD20
Data_Format_1
Data_Format_0
Clock for URSA11 URSA Reset
AC6 +3.3V_NORMAL +3.3V_NORMAL
GPIO[74] 0.01uF 0.01uF
AC8 AC5 25V 25V
C13207
NON_OLED
OPTR13206 33
GPIO[63] GPIO[75] C13202 C13205 DEBUG_SW_URSA
AB7
GPIO[76]
AB6
8pF
50V
GPIO[69] +3.3V_NORMAL
AE21 SW13200
PAD_GPIO10
AC20 22 1 2
X-TAL_1
PAD_GPIO11 URSA_RX_Vx1_HTPDn R13241
AE12 R13218 10K XIN_URSA C13210
(DELETE_MP)VBY1_LOCK_LED
GND_1
PAD_GPIO12/[VX1_RX_HTPD_O] (DELETE_MP)VBY1_LOCK_LED
AD12 URSA_RX_Vx1_HTPDn 1uF R13264
PAD_GPIO13/[VX1_RX_HTPD_V] R13219 10K
M4 AD18 3 4 10V 10K
OPTR13207 33
GPIO[70] PAD_GPIO14 URSA9_CONNECT OPT
M5 AC11
R13254
OPTR13208 33
GPIO[72] PAD_GPIO15/[VX1_RX_LOCK_O] LOCKAn_OSD OPT
N4 AC12
OPTR13209 33 LD13200 URSA_RESET
2
1
GPIO[73] PAD_GPIO16/[VX1_RX_LOCK_V] LOCKAn_Video
X13200
N5 AE18 SML-512UW
24MHz
OPTR13210 33 FLASH_WP_URSA R13238 0
NON_OLED
GPIO[71] PAD_GPIO17
1M
10K (DELETE_MP)VBY1_LOCK_LED
R13259
C13208
B1 D13200 DEBUG_SW_URSA URSA_RESET_MICOM
3
4
8pF
50V
NC_3
AG1 10K
R13242
1N4148W 0
NC_4
X-TAL_2
GND_2
AE6 AH2 (DELETE_MP)VBY1_LOCK_LED
100V R13258 R13265
NC_1 NC_5
AH27
XO_URSA OPT 470K URSA_RESET_SoC
NC_6
AD6 B28 C13204 C13203 C13213 C13206
E Q13200 OPT
NC_2 NC_7
AG28 0.01uF 0.01uF 0.01uF 0.01uF MMBT3906(NXP)
NC_8 25V 25V 25V 25V (DELETE_MP)NXP_LOCKAN_LED_TR
B
C
OLED_55EG9200
OLED_55EG9200
C13208-*1
C13207-*1
E
6.8pF
6.8pF
B
50V
50V
C
Q13200-*1
2N3906S-RTK
(DELETE_MP)KEC_LOCKAN_LED_TR
+3.3V_NORMAL
URSA Option
Debug Print OFF
URSA_OPT_0_1
URSA_RX_LVDS
URSA_OPT_1_1
URSA_OPT_6_1
URSA_OPT_5_1
URSA_BIT0_1
LGD_Module
URSA_BIT1_1
URSA_BIT2_1
Div_BIT1_1
Div_BIT0_1
R13233 10K
R13234 10K
R13236 10K
R13239 10K
R13224 10K
R13230 10K
R13216 10K
R13222 10K
R13213 10K
R13220 10K
Low High
Chip Config Debugging for URSA11
URSA_OPT_0 Rx_Vx1 Rx_LVDS
URSA_OPT_6
Reserved Debug/ISP ADDR
URSA_OPT_1 OS_Moudule LGD_Module Reserved Slave (Debug Port:0XB4,ISP:0X98)
URSA_OPT_5
CHIP_CONF:{DIM2,DIM1,DIM0}
URSA_OPT_4 PRINT_ON PRINT_OFF URSA_OPT_4 CHIP_CONF=3’d7:111:boot from SPI Flash I2C_S Port
URSA_DEBUG_WAFER
Div_BIT0 P13200
URSA_OPT_5 Reserverd Reserverd Division Type
12507WS-04L
Div_BIT1
WAFER-STRAIGHT
URSA_OPT_6 Reserverd Reserverd URSA_OPT_0
Rx Interface +3.3V_NORMAL SW13201
URSA_OPT_1
DIM0 1
JS2235S
Module Type
BIT [2/1/0] Tx Lane URSA_BIT0
Tx Lane OPT 10K 2
URSA_BIT1 I2C_SCL7 1 6 I2C_SDA7
0/0/0 4K@120 (4 DDR) 10K R13253 R13261 R13270
DIM1 R13257 33 0
0/0/1 URSA_BIT2 R13249 3 SCL2_+3.3V_DB 0
4k@60 (2 DDR) URSA_MP URSA_MP
URSA_DEBUG 2 5
I2CS_SCL I2CS_SDA
URSA_BIT1_0
URSA_BIT2_0
0/1/0 4K@120 8K(98UF8K 4DDR) OPT 10K
URSA_OPT_0_0
URSA_BIT0_0
10K
URSA_RX_Vx1
10K
R13262 URSA_DEBUG_SW R13271
R13231 10K
R13235 10K
R13256 33
Div_BIT1_0
URSA_OPT_1_0
URSA_OPT_6_0
URSA_OPT_5_0
0 0
Div_BIT0_0
R13225 10K
4
OS_Module
OLED 4K@120(4 DDR)
R13223 10K
0/1/1 SDA2_+3.3V_DB
R13217 10K
R13221 10K
10K
OPT OPT
R13214 10K
BIT [1/0] Module Division 10K R13252 URSA_DEBUG
SCL2_+3.3V_DB
3 4 SDA2_+3.3V_DB
FHD@120 (4 DDR)
OPT
R13237
1/0/0
R13240
R13247 DIM2 5
0/0 Non Division
R13232
1/0/1 FHD@60 (2 DDR)
0/1 2 Division
1/1/0 FHD@60 (4 DDR) OPT 10K
1/0 4 Division
Reserved
1/1/1
4K@60(4 DDR) 1/1 8 Division 10K R13251
R13246
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-144_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. URSA11_GPIO
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
MAX 4.7A
+12V
+1.5V URSA DDR +0.95V URSA11 Core
+1.5V_U_DDR
L13411 POWER_ON/OFF2_1
BLM18PG121SN1D
R13404
UF77 10K
C13443 C13617
10uF 0.1uF R13407
R13408
1/16W
25V 16V 39K
IC13403
10K
R13424 R1
1%
BD9D321EFJ [EP] 1/16W
UF64/68 10K 5%
1%
1/16W
91K
R13406
C13617-*1
0.1uF
C13403
VID_CTRL
R13411R13409
[EP]
GND2
GND1
NC_3
TRIP
25V EN VIN
1/16W 1/16W
1 8 1000pF
5.1K 12K
VO
16V 50V R2
1%
1/16W
27K
R13405
THERMAL
1%
R13410
0.1uF
1%
1/16W
20K
R13421 R13422 FB BOOT C13447
28
27
26
25
24
9
2 7
RF 1 23 FB
R1
1%
18K 3.6K L13412
1% 1% 2.2uH THERMAL
VREG SW PGOOD 2 29 22 GND
3 6 +12V
C13444 R13401 1K
100pF PS064T-2R2MS EN 3 21 MODE
50V POWER_ON/OFF2_3 16V
SS GND 0.1uF IC13402
4
3A 5 C13448
22uF
C13449
22uF
ZD13401 VBST 4
TPS53513RVER
20 VREG L13402
R13403
10V 10V 2.5V
R13423 C13405 NC_1 VDD
5 19
4.7
22K C13445 C13446 C13402 R13400
1uF 2200pF 2K SW_1 NC_2
1% 6 18
10V 50V
0.1uF 1/16W C13408 C13407 C13409
SW_2 7 17 VIN_3
R2 16V 5% 1uF 10uF 10uF
VDDC
25V 25V 25V
L13403 SW_3 8 16 VIN_2
Vout=0.765*(1+R1/R2)=1.516V 1.0uH
SW_4 9
8A 15 VIN_1
R13402
10
11
12
13
14
1/10W
C13451
ZD13400
3.3
C13450 C13400 C13401 C13411
5%
C13406
PGND_1
PGND_2
PGND_3
PGND_4
PGND_5
2.5V
0.1uF 22uF 22uF 22uF 2200pF
150uF 50V
6.3V
C13404
470pF
50V
Vout=0.6*(1+R1/R2)=0.98V_FOR 0.95V at URSA11 VIA
VID_CTRL
VID_CTRL
URSA11_VID URSA11_VID
+3.3V_NORMAL
URSA11_VID URSA11_VID
R13414
R13412
1/16W
1/16W
100K
D
100K
EBK62072501
1%
1%
Q13401-*1
G 2N7002KA
R13415
S URSA11_VID_FET_DIODES(SUB)
R13413
1/16W
1/16W
20K
20K
R13420
1%
R13418
1%
OPT
OPT
10K
10K
Q13401
D 2N7002KA
URSA11_VID_FET_KEC(MAIN)
G EBK62072501 R13416 0
VID0
S URSA11_VID
D EBK62072501
Q13400
2N7002KA
G URSA11_VID_FET_KEC(MAIN) R13417 0
VID1
S URSA11_VID
D
EBK62072501
Q13400-*1
G R13419 R13425
2N7002KA 10K 10K
S URSA11_VID_FET_DIODES(SUB)
R1:10K/R2:17.1K, V=0.95V(VID0=L,VID1=L) URSA11_VID_PULLDOWN URSA11_VID_PULLDOWN
R1:10K/R2:17.1K//120K, V=1.008V(VID0=H,VID1=L)
R1:10K/R2:17.1K//120K, V=1.008V(VID0=L,VID1=H)
R1:10K/R2:17.1K//120K//120K, V=1.05V(VID0=H,VID1=H)
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-146_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. URSA11_DCDC
15/01/21
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
VDDC VDDC
VDDC IC12800 IC12800
LGE5352(URSA11) LGE5352(URSA11)
N7 H1 C11
C14800 C14821 C14832 C14852 C14856 C14858 C14863 C14868 C14872 C14876 C14878 N8
VDDC_1 GND_1
K1 G11
GND_73
10uF 10uF 10uF 0.1uF 0.1uF 0.1uF 0.1uF 10uF 0.1uF 1uF 10uF P7
VDDC_2 GND_2
A2 H11
GND_74
C19
10V 10V VDDC_3 GND_3 GND_75 GND_199
10V 10V 10V 16V 16V 16V 16V 10V 16V P8 B2 J11 D19
VDDC_4 GND_4 GND_76 GND_200
P9 G2 K11 E19
VDDC_5 GND_5 GND_77 GND_201
R5 J2 L11 F19
VDDC_6 GND_6 GND_78 GND_202
R6 L2 M11 G19
AVDDL_DRV_MOD 4th Layer R7
VDDC_7 GND_7
N2 N11
GND_79 GND_203
H19
VDDC_8 GND_8 GND_80 GND_204
R8 P2 P11 J19
L14804
Close to Chip side R9
T5
VDDC_9
VDDC_10
GND_9
GND_10
W2
Y2
R11
T11
GND_81
GND_82
GND_205
GND_206
K19
L19
BLM18PG121SN1D VDDC_11 GND_11 GND_83 GND_207
T6 AB2 U11 M19
VDDC_12 GND_12 GND_84 GND_208
T7 AC2 V11 N19
VDDC_13 GND_13 GND_85 GND_209
C14807 C14827 C14835 C14857 T8 AG2 W11 AB19
C14818 C14843 C14850 C14904 VDDC_14 GND_14 GND_86 GND_210
T9 Y11 AH19
10uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.47uF VDDC_15 GND_87 GND_211
0.1uF T10 AA11
10V 16V 16V 16V 16V 16V 6.3V VDDC_16 GND_88
OPT 16V U4 AB11
VDDC_17 GND_89
U5 D3 C12 C20
VDDC_18 GND_15 GND_90 GND_212
U6 E3 G12 D20
4th Layer VDDC_19 GND_16 GND_91 GND_213
U7 F3 H12 E20
VDDC_20 GND_17 GND_92 GND_214
U8 T3 N12 F20
Close to Chip side AVDDL_DVI_RX U9
U10
VDDC_21
VDDC_22
GND_18
GND_19
U3
V3
P12
R12
GND_93
GND_94
GND_215
GND_216
G20
H20
VDDC_23 GND_20 GND_95 GND_217
Y3 T12 J20
GND_21 GND_96 GND_218
M3 AE3 U12 K20
AVDDL_HDMIRX_1 GND_22 GND_97 GND_219
W6 AF3 V12 L20
AVDDL_HDMIRX_2 GND_23 GND_98 GND_220
W7 AG3 AB12 M20
AVDDL_HDMIRX_3 GND_24 GND_99 GND_221
C14888 AVDDL_HDMITX W8
AVDDL_HDMIRX_4
C13
GND_100 GND_222
N20
0.1uF C4
GND_25
AB3 D13
16V AVDDL_HDMITX_4 GND_101
Y7 P4 E13
AVDDL_HDMITX_1 GND_26 GND_102
Y8 R4 F13 U20
AVDDL_HDMITX_2 GND_27 GND_103 GND_223
C14890 Y9
AVDDL_HDMITX_3 GND_28
T4 G13
GND_104 GND_224
V20
0.1uF H13 AB20
GND_105 GND_225
W9 J13
16V AVDDL_LVDSRX/AVDDL_VBY1RX_1 GND_106
DVDD_DDR W10 K13
AVDDL_LVDSRX/AVDDL_VBY1RX_2 GND_107
Y10 L13
AVDDL_DRV_MOD AVDDL_LVDSRX/AVDDL_VBY1RX_3 GND_108
M13 A21
L14805 GND_109 GND_226
BLM18PG121SN1D J8 V4 N13 B21
AVDDL_MOD_1 GND_29 GND_110 GND_227
J9 W4 T13 C21
AVDDL_MOD_2 GND_30 GND_111 GND_228
C14860 J10 U13 D21
C14808 C14816 C14824 C14830 C14839 C14848 C14854 C14864 K8
AVDDL_MOD_3
AG4 V13
GND_112 GND_229
E21
10uF 1uF AVDDL_MOD_4 GND_31 GND_113 GND_230
0.1uF 0.1uF 10uF 0.1uF 1uF 0.1uF 0.1uF K9 W13 F21
10V 10V AVDDL_MOD_5 GND_114 GND_231
16V 16V 10V 16V 10V 16V 16V K10 AB13 G21
OPT AVDDL_PREDRV_1 GND_115 GND_232
L8 H21
AVDDL_PREDRV_2 GND_233
L9 D14 J21
AVDDL_PREDRV_3 GND_116 GND_234
L10 P5 E14 K21
4th Layer AVDDL_PREDRV_4 GND_32 GND_117 GND_235
DVDD_DDR M10 V5 F14 L21
AVDDL_PREDRV_5 GND_33 GND_118 GND_236
W5 G14 M21
GND_34 GND_119 GND_237
T16 H14 N21
AVDDL_DVI_RX
Close to Chip side U16
U17
DVDD_DDR_1
DVDD_DDR_3
J14
K14
GND_120
GND_121
GND_238
GND_239
P21
R21
DVDD_DDR_4 GND_122 GND_240
L14807 T17 L14 T21
BLM18PG121SN1D DVDD_DDR_2 GND_123 GND_241
B6 M14 U21
GND_35 GND_124 GND_242
K6 N14 V21
GND_36 GND_125 GND_243
+1.5V_U_DDR M6 T14 W21
C14809 C14817 C14822 C14833 C14844 C14853 GND_37
N6 U14
GND_126 GND_244
Y21
0.1uF 0.1uF 10uF 0.1uF 0.1uF 0.47uF GND_38
P6 V14
GND_127 GND_245
AA21
16V GND_39 GND_128 GND_246
16V 16V 10V 16V 6.3V P15 V6 W14 AB21
OPT AVDD_DDR0_1 GND_40 GND_129 GND_247
P16 AB14 AG21
AVDD_DDR0_2 GND_130 GND_248
P17 A7
AVDD_DDR0_3 GND_41
4th Layer R15 G7 B15
AVDD_DDR0_4 GND_42 GND_131
R16 H7 D15 A22
AVDD_DDR0_5 GND_43 GND_132 GND_249
AVDDL_HDMITX Close to Chip side R17
P19
AVDD_DDR0_6 GND_44
J7
K7
E15
F15
GND_133 GND_250
B22
C22
AVDD_DDR1_1 GND_45 GND_134 GND_251
P20 L7 G15 D22
AVDD_DDR1_2 GND_46 GND_135 GND_252
L14806 R19 M7 H15 E22
BLM18PG121SN1D AVDD_DDR1_3 GND_47 GND_136 GND_253
R20 V7 J15 F22
AVDD_DDR1_4 GND_48 GND_137 GND_254
T19 K15 G22
AVDD_DDR1_5 GND_138 GND_255
T20 L15 H22
C14810 C14819 C14828 C14846 AVDD_DDR1_6
M15
GND_139 GND_256
J22
0.1uF 10uF 0.1uF 0.1uF AVDD_15_MOD GND_140 GND_257
NC FOR U11P
J12 B8 N15 K22
AVDD_15_MOD_1 GND_49 GND_141 GND_258
U11 ONLY
16V 10V 16V 16V K12 G8 T15 L22
OPT AVDD_15_MOD_2 GND_50 GND_142 GND_259
L12 H8 U15 M22
AVDD_15_MOD_3 GND_51 GND_143 GND_260
M12 M8 V15 N22
4th Layer AVDD_15_MOD_4 GND_52 GND_144 GND_261
V8 W15 P22
GND_53 GND_145 GND_262
AA8 AB15 R22
Close to Chip side AVDD_MOD
Y14
AVDD_MOD_1
GND_54
GND_55
AB8 AF15
GND_146
GND_147
GND_263
GND_264
T22
Y15 U22
AVDD_MOD_2 GND_265
AA14 C16 V22
VDDP_AVDD_PLL AVDD_MOD_3 GND_148 GND_266
AA15 A9 D16 W22
AVDD_MOD_4 GND_56 GND_149 GND_267
G9 E16 Y22
GND_57 GND_150 GND_268
W20 H9 F16 AA22
VDDP_1 GND_58 GND_151 GND_269
Y20 M9 G16 AB22
VDDP_2 GND_59 GND_152 GND_270
AA20 N9 H16
VDDP_3 GND_60 GND_153
V9 J16 A23
AVDD_HDMITX GND_61 GND_154 GND_271
AA9 K16 B23
GND_62 GND_155 GND_272
AC3 AB9 L16 C23
AVDD_HDMITX_1 GND_63 GND_156 GND_273
AVDD_DVI_ALLRX Y13 M16 D23
AVDD_HDMITX_2 GND_157 GND_274
AA13 N16 E23
AVDD_HDMITX_3 GND_158 GND_275
P3 V16 F23
AVDD_HDMIRX_1 GND_159 GND_276
C14885 W12
AVDD_HDMIRX_2 GND_64
B10 W16
GND_160 GND_277
Y23
0.1uF Y12 G10 AB16 AA23
AVDD_HDMIRX_3 GND_65 GND_161 GND_278
AA12 H10 AC16 AB23
16V AVDD_HDMIRX_4 GND_66 GND_162 GND_279
N10 AD16 AH23
C14889 AA19
GND_67
P10 AE16
GND_163 GND_280
+3.3V_NORMAL 0.1uF W19
AVDD_XTAL GND_68
R10 B17
GND_164
A24
VDDP_AVDD_PLL 16V AVDD_PLL_1 GND_69 GND_165 GND_281
Y19 V10 C17 B24
AVDD_PLL_2 GND_70 GND_166 GND_282
AA10 D17 C24
GND_71 GND_167 GND_283
L14800 AB10 E17 D24
GND_72 GND_168 GND_284
BLM18PG121SN1D Y16 F17 Y24
AVDD_LVDSRX/AVDD_VBY1RX_1 GND_169 GND_285
AA16 G17 AA24
AVDD_LVDSRX/AVDD_VBY1RX_2 GND_170 GND_286
AA17 H17 AB24
AVDD_LVDSRX/AVDD_VBY1RX_3 GND_171 GND_287
C14803 C14814 C14823 C14831 C14837 C14845 C14851 C14855 +1.5V_U_DDR J17
C14859 C14862 GND_172
10uF 10uF 10uF 1uF 0.1uF 0.1uF 0.1uF 0.47uF K17 C25
GND_173 GND_288
10V 10V 10V 10V 16V 16V 16V 6.3V 10uF 0.47uF +1.5V_U_DDR L17 J25
C14886 0.1uF 16V C14891 0.47uF 6.3V GND_174 GND_289
10V 6.3V A18
AVDD_DDR_VBP_A_1
M17
GND_175
M25
GND_290
B18 N17 R25
4th Layer C14892 0.22uF 16V OPT AVDD_DDR_VBP_A_2 GND_176 GND_291
R13 V17 V25
AVDD_DDR_VBP_A_3 C14899 0.1uF 16V GND_177 GND_292
R14 A20 W17 Y25
C14893 0.47uF 6.3V AVDD_DDR_VBP_A_4 DRAM_VDD_A_1 GND_178 GND_293
Close to Chip side A16 B20 Y17 AA25
U11 MIU POWER ONLY
4th Layer B16
AVDD_DDR_VBN_A_1 DRAM_VDD_A_2
AB17
GND_179 GND_294
AB25
4th Layer C14894 0.22uF 16V OPT AVDD_DDR_VBN_A_2 R14800 GND_180 GND_295
P13 AC17 AG25
AVDD_DDR_VBN_A_3 GND_181 GND_296
P14 URSA11P0 AD17
POWER ONLY
AVDD_DDR_VBN_A_4 GND_182
U11P MIU
A26 C14900 0.1uF 16V AG17
C14887 0.1uF 16V C14895 0.22uF 16V OPT DRAM_VDD_B_1 GND_183
U18 B26 C18 C26
AVDD_DDR_VBP_B_1 DRAM_VDD_B_2 URSA11P GND_184 GND_297
4th Layer U19 D18 E26
C14896 0.47uF 6.3V AVDD_DDR_VBP_B_2 GND_185 GND_298
Y27 E18 W26
AVDD_DDR_VBP_B_3 GND_186 GND_299
C14897 0.22uF 16V OPT
Y28
V18
AVDD_DDR_VBP_B_4 Close to Chip F18
G18
GND_187 GND_300
Y26
AA26
AVDD_DDR_VBN_B_1 GND_188 GND_301
4th Layer V19 H18 AB26
C14898 0.47uF 6.3V AVDD_DDR_VBN_B_2 GND_189 GND_302
AB27 J18 AE26
AVDD_DDR_VBN_B_3 GND_190 GND_303
AB28 K18
AVDD_DDR_VBN_B_4 GND_191
L18 A27
GND_192 GND_304
M18 B27
GND_193 GND_305
N18 C27
GND_194 GND_306
AA27
GND_307
AG27
GND_308
AVDD_MOD J28
GND_309
W18 M28
L14801 GND_195 GND_310
BLM18PG121SN1D Y18 R28
GND_196 GND_311
AA18 V28
GND_197 GND_312
AB18
GND_198
C14802 C14811 C14820 C14829 C14836 C14842 C14849
10uF 10uF 10uF 0.1uF 0.1uF 0.1uF 0.1uF
10V
10V 10V 16V 16V 16V 16V
+1.5V_U_DDR
AVDD_DVI_ALLRX
L14802
C14867 C14869 C14871 C14873 C14875 C14879 C14880
BLM18PG121SN1D 10uF 10uF 10uF 0.1uF 0.1uF 0.1uF 0.1uF
10V 10V 10V 16V 16V 16V 16V
C14804 C14812 C14825 C14834 C14840 C14905
10uF 0.1uF 0.1uF 0.1uF 0.1uF 0.47uF
10V 6.3V
16V 16V 16V 16V
4th Layer
Close to Chip side +1.5V_U_DDR AVDD_15_MOD
AVDD_HDMITX
L14803
BLM18PG121SN1D L14808
BLM18PG121SN1D
C14805 C14826 URSA11
C14813 C14841
10uF 0.1uF C14870 C14874
0.1uF 0.1uF C14877 C14881
10V 16V 10uF 0.1uF
16V 16V 0.1uF 0.1uF C14882 C14883 C14884
OPT 10V 16V
16V 16V 0.47uF 10uF 0.1uF
4th Layer 6.3V 10V 16V
Close to Chip side 4th Layer
Close to Chip side
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES BSD-15Y-LM14A-148_00-HD
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. URSA11_Power
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Trouble shooting guide
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Contents of Standard Repair Process
No. Error symptom (High category) Error symptom (Mid category) Page Remarks
1 No video/Normal audio 1
2 No video/No audio 2
3 A. Video error Picture broken/ Freezing 3
4 Color error 4
Vertical/Horizontal bar, residual image,
5 5
light spot, external device color error
6 No power 6
B. Power error Off when on, off while viewing, power
7 7
auto on/off
8 No audio/Normal video 8
C. Audio error
9 Wrecked audio/discontinuation/noise 9
10 Remote control & Local switch checking 10
11 MR15 operating checking 11
D. Function error
12 Wifi operating checking 12
14 External device recognition error 13
15 E. Noise Circuit noise, mechanical noise 14
16 F. Exterior error Exterior defect 15
First of all, Check whether there is SVC Bulletin in GCSC System for these model.
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error A. Video error date
symptom
No video/ Normal audio Revised date 1/16
First of all, Check whether all of cables between board is inserted properly or not.
(Main B/D↔ Power B/D, LVDS Cable, Speaker Cable, IR B/D Cable,,,)
☞A1 ☞A18
No video Normal Y Check Back Light Y Check Power Normal Y Replace T-con/Main
Normal audio On Board or module
audio On with naked eye Board voltage
(13V) And Adjust VCOM
N N N
Move to No Check Power Board 24V output Repair Power
☞A18
video/No audio Board or parts
Replace Inverter
Normal Y
or module
voltage
End
N
Repair Power
Board or parts
※Precaution ☞A4 & A2
Always check & record S/W Version and White
Replace Main Board Re-enter White Balance value
Balance value before replacing the Main Board
1
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error A. Video error date
symptom
No video/ No audio Revised date 2/16
☞A18
Check various Check and
Y
No Video/ voltages of Power Normal
replace
No audio Board ( 13V) voltage?
MAIN B/D
N End
Replace Power
Board and repair
parts
2
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error A. Video error date
symptom
Picture broken/ Freezing Revised date 3/16
. By using Digital signal level meter
☞ A3
. By using Diagnostics menu on OSD
Check RF Signal level ( Advanced→ Channels→ Channel Tuning→ Manual Tuning → Check the Signal )
- Signal strength (Normal : over 50%)
- Signal Quality (Normal: over 50%)
Y Check whether other equipments have problem or not.
Normal
(By connecting RF Cable at other equipment)
Signal?
→ DVD Player ,Set-Top-Box, Different maker TV etc`
N
☞ A4
Check RF Cable
Normal Y Check SVC N Check Tuner Y
Connection Close
1. Reconnection Picture? S/W Version Bulletin? soldering
2. Install Booster
Y N
N
S/W Upgrade
N Contact with signal distributor
Normal
Picture? or broadcaster (Cable or Air)
Normal N
Y Picture? Replace
Main B/D
Y
Close
Close
3
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error A. Video error date
symptom
Color error Revised date 4/16
☞A6 ☞ A7
※ Check Y
Check color by input
and replace
-External Input Y Y
Color Link Cable Color Color
-COMPONENT Replace Main B/D Replace module
error? (V by one) error? error?
-AV
and contact
-HDMI N N N
condition
Check error End
color input
mode
☞A8 Check
External Input/ External Y
external
Check Test pattern Component device/Cable Replace Main/T-con B/D
device and
error normal
cable
N
Request repair
for external
device/cable
N
Check external External Y
HDMI
device and device/Cable Replace Main/T-con B/D
error
cable normal
4
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
A. Video error Established
Error date
symptom Vertical / Horizontal bar, residual image,
light spot, external device color error Revised date 5/16
Vertical/Horizontal bar, residual image, light spot Replace
Module
☞A6
☞ A7 N
Check color condition by input Check external
Check and
-External Input Screen Y device Y Screen N Screen
-Component Normal? replace Link Replace Main/T-con B/D
normal? connection normal? (adjust VCOM) normal?
-HDMI Cable
condition
N N For LGD panel Y
Y
Replace Main B/D
Replace Request repair End End
module for external
☞A8 device
Check Test pattern
For other panel
External device screen error-Color error
Check screen
condition by input External
Check S/W Version Check N
-External Input Input Connect other external N
version
-Component error device and cable Screen Replace
-HDMI/DVI (Check normal operation of normal? Main/T-con
Y External Input, Component, B/D
Component RGB and HDMI/DVI by
Y
S/W Upgrade error connecting Jig, pattern
Generator ,Set-top Box etc.
Request repair for
external device
Y
Connect other external
Normal N HDMI/
device and cable N
screen? DVI
(Check normal operation of Screen Replace
External Input, Component, normal? Main /T-con
Y RGB and HDMI/DVI by B/D
connecting Jig, pattern
Generator ,Set-top Box etc.
End
5
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error B. Power error date
symptom
No power Revised date 6/16
☞A17 ☞A18
DC Power on Replace
Check Power Y Normal N Check Power Y
by pressing Power Key OK? Power
Logo LED LED On? operation? On ‘”High”
On Remote control B/D
. Stand-By: Red or Turn On
N Y
. Operating: Turn Off
Check Power cord Replace Main B/D
was inserted properly
☞A18
N Measure voltage of each output of Power B/D
Normal?
Y
Y Y
※ Normal
voltage?
Replace Main B/D
Close Normal
Check ST-BY 3.5V
Y
voltage? N
☞A18 Replace Power B/D
N
Replace Power
B/D
6
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error B. Power error date
symptom
Off when on, off while viewing, power auto on/off Revised date 7/16
Check outlet
☞A19
N Y
Check A/C cord Error? Check Power Off CPU
Replace Main B/D Normal? End
Mode Abnormal
N
Check for all 3- phase
power out Y Abnormal Replace Power B/D
1
Fix A/C cord & Outlet ☞A18
and check each 3
(If Power Off mode
phase out
is not displayed) Normal Y
Replace Main B/D
Check Power B/D voltage?
voltage
N
※ Caution
Check and fix exterior Replace Power B/D
of Power B/D Part
* Please refer to the all cases which Status Power off List Explanation
"POWEROFF_REMOTEKEY" Power off by REMOTE CONTROL
can be displayed on power off mode.
"POWEROFF_OFFTIMER" Power off by OFF TIMER
"POWEROFF_SLEEPTIMER" Power off by SLEEP TIMER
"POWEROFF_INSTOP" Power off by INSTOP KEY
"POWEROFF_AUTOOFF" Power off by AUTO OFF
Normal "POWEROFF_ONTIMER" Power off by ON TIMER
"POWEROFF_RS232C" Power off by RS232C
"POWEROFF_RESREC" Power off by Reservated Record
"POWEROFF_RECEND" Power off by End of Recording
"POWEROFF_SWDOWN" Power off by S/W Download
"POWEROFF_UNKNOWN" Power off by unknown status except listed case
"POWEROFF_ABNORMAL1" Power off by abnormal status except CPU trouble
Abnormal
"POWEROFF_CPUABNORMAL" Power off by CPU Abnormal
7
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error C. Audio error date
symptom
No audio/ Normal video Revised date 8/16
☞A20 ☞A21+A18
No audio
Check user N Check audio B+
Normal Y
menu > Off 13V of Power
Screen normal voltage
Speaker off Board
Y N
Cancel OFF Replace Power Board and repair parts
Check N
Disconnection Replace MAIN Board End
Speaker
disconnection
Y
Replace Speaker
8
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error C. Audio error date
symptom
Wrecked audio/ discontinuation/noise Revised date 9/16
→ abnormal audio/discontinuation/noise is same after “Check input signal” compared to No audio
Wrecked audio/
☞A21+A18
Check and replace
Discontinuation/ Check audio
speaker and
Noise for B+ Voltage (13V)
connector
Check input all audio
signal Y Y
Signal
-RF
normal? Wrecked audio/
-External Input Normal
signal Discontinuation/
N Replace Main B/D voltage?
Noise only
for D-TV
N
Wrecked audio/
Discontinuation/
Replace Power B/D
Noise only
for Analog
(When RF signal is not
received)
Request repair to external Wrecked audio/ Replace Main B/D End
cable/ANT provider Discontinuation/
Noise only
for External Input
(In case of N
External Input Connect and check Normal
signal error) other external audio?
Check and fix device
external device Y
Check and fix external device
9
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
D. Function error Established
Error date
symptom
Remote control & Local switch checking Revised date 10/16
1. Remote control(R/C) operating error Replace
Main B/D
☞A22 ☞A22 ☞A22
Check & Repair N Check B+ Y Y
Check R/C itself Normal Y Normal Normal Check IR Normal
operating? Cable connection operating? 3.5V Voltage? Signal?
Operation Output signal
Connector solder On Main B/D
N
Y N N
☞A18
Check R/C Operating Check & Replace Close Check 3.5v on Power B/D Repair/Replace
When turn off light Baterry of R/C Replace Power B/D or IR B/D
in room Replace Main B/D
(Power B/D don’t have problem)
If R/C operate, Normal Y
operating? Close
Explain the customer
cause is interference
from light in room. N
Replace R/C
10
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
D. Function error Established
Error date
symptom
MR15 operating checking Revised date 11/16
2. MR15(Magic Remocon) operating error
☞A4
Check the N Check MR15
RF Receiver ver Normal Y Press the Is show ok N Turn off/on the
INSTART menu is “00.00”? itself Operation operating? set and press
wheel message?
the wheel
N
Y
Y
☞A23
Check & Replace Close
Check & Repair Battery of MR15
RF assy
connection
Normal Y
☞A4 operating? Close
Is show ok N Press the back
RF Receiver ver N message? key about 5sec
Close N
is “00.00”?
Y
Replace
Y MR13
Close
Down load the Firmware
* If you conduct the loop at 3times, change the MR15.
* INSTART MENU14.RF
Remocon Test3. Firmware
download
11
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
D. Function error Established
Error date
symptom
Wifi operating checking Revised date 12/16
3.Wifi operating error
☞A4 ☞A24
Check the Wi-Fi Mac value N Check the Wifi wafer Normal N Replace
INSTART menu is “NG”? Voltage?
14pin Main B/D
Y
☞A24 Y
Check & Repair Close
Wifi cable
connection
☞A4
Wi-Fi Mac value N
is “NG”? Close
Y
Change the Wifi
assy
12
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error D. Function error date
symptom
External device recognition error Revised date 14/16
Y Check technical
Check External Input and
Signal information Technical N
input Component Replace Main B/D
input? - Fix information information?
Recognition error
signal
- S/W Version
N Y
HDMI/
Check and fix DVI, Optical
Fix in Replace Main B/D
external device/cable Recognition error
accordance
with technical
information
14
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error E. Noise date
symptom
Circuit noise, mechanical noise Revised date 15/16
Identify Check
Circuit
nose location of Replace PSU
noise
type noise
Mechanical Check location of
noise noise
※ When the nose is severe, replace the module
(For models with fix information, upgrade the
※ Mechanical noise is a natural S/W or provide the description)
phenomenon, and apply the 1st level OR
description. When the customer does not ※ If there is a “Tak Tak” noise from the
agree, apply the process by stage. cabinet, refer to the KMS fix information and
※ Describe the basis of the description then proceed as shown in the solution manual
in “Part related to nose” in the Owner’s (For models without any fix information,
Manual. provide the description)
15
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error F. Exterior defect date
symptom
Exterior defect Revised date 16/16
Zoom part with Module
Replace module
exterior damage damage
Cabinet
Replace cabinet
damage
Remote
control Replace remote control
damage
Stand
Replace stand
dent
16
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Contents of Standard Repair Process Detail Technical Manual
No. Error symptom Content Page Remarks
1 A. Video error_ No video/Normal Check LCD back light with naked eye A1
2 audio Check White Balance value A2
TUNER input signal strength checking
3 A3
method
A. Video error_ video error /Video
4 lag/stop TV Version checking method A4
5 Tuner Checking Part A5
A. Video error _Vertical/Horizontal bar,
6 Connection diagram A6
residual image, light spot
Check Link Cable (EPI) reconnection
7 A7
A. Video error_ Color error condition
8 Adjustment Test pattern - ADJ Key A8
9 Exchange Main Board (1) A-1/5
10 Exchange Main Board (2) A-2/5
11 Defected Type caused by T-Con/ Exchange Power Board (PSU) A-3/5
Inverter/ Module
12 Exchange Module (1) A-4/5
13 Exchange Module (2) A-5/5
Continue to the next page
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Contents of Standard Repair Process Detail Technical Manual
Continued from previous page
No. Error symptom Content Page Remarks
14 Check front display LED A17
B. Power error_ No power
15 Check power input Voltage & ST-BY 3.5V A18
B. Power error_Off when on, off
16 POWER OFF MODE checking method A19
while viewing
Checking method in menu when there is
17 A20
C. Audio error_ No audio/Normal no audio
video Voltage and speaker checking method
18 A21
when there is no audio
Remote control operation checking
19 A22
method
D. Function error Motion Remote operation checking
20 A23
method
21 Wifi operation checking method A24
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_No video/Normal audio date
Revised
Content Check LCD back light with naked eye A1
date
After turning on the power and disassembling the case, check with the naked eye,
whether you can see light from locations.
A1
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_No video/Normal audio date
Revised
Content Check White Balance value A2
date
Entry method
1. Press the ADJ button on the remote control for adjustment.
2. Enter into White Balance of item 10.
3. After recording the R, G, B (GAIN, Cut) value of Color Temp
(Cool/Medium/Warm), re-enter the value after replacing the MAIN BOARD.
A2
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_Video error, video lag/stop date
TUNER input signal strength checking method Revised
Content date A3
Advanced Channels Channel Tuning
Manual Tuning
When the signal is strong,
use the attenuator (-10dB, -
15dB, -20dB etc.)
A3
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_Video error, video lag/stop date
Revised
Content TV Version checking method date A4
1. Checking method for remote control for adjustment
Version
v
Press the IN-START with the remote
control for adjustment
A4
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom
A. Video error_Video error, video lag/stop
date
Revised
Content TUNER checking part A5
date
Checking method:
1. Check the signal strength or check whether the screen is normal when the external device is connected.
2. After measuring each voltage from power supply, finally replace the MAIN BOARD.
A5
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error A. Video error _Vertical/Horizontal bar, Established
symptom residual image, light spot date
Revised
Content Connection diagram (1) date A6
As the part connecting to the external input, check
the screen condition by signal
A6
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_Color error date
Revised
Content Check Link Cable(EPI) reconnection condition date A7
Check the contact condition of the Link Cable, especially dust or mis insertion.
A7
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom
A. Video error_Color error
date
Adjustment Test pattern - ADJ Key Revised
Content date A8
You can view 6 types of patterns using the ADJ Key
Checking item : 1. Defective pixel 2. Residual image 3. MODULE error (ADD-BAR,SCAN BAR..)
4.Video error (Classification of MODULE or Main-B/D!)
A8
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Appendix : Exchange Main Board (1)
Solder defect, CNT Broken Solder defect, CNT Broken Solder defect, CNT Broken
Solder defect, CNT Broken T-Con
T-Con Defect,
Defect,
Solder
T-Con CNT
CNT
defect,CNT
Defect, Broken
Broken
CNTBroken
Broken Abnormal Power Section
Solder defect, Short/Crack Abnormal Power Section Solder defect, Short/Crack
A - 1/5
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Appendix : Exchange Main Board (2)
Abnormal Power Section Abnormal Power Section Solder defect, Short/Crack
Solder defect, Short/Crack Fuse Open, Abnormal power section Abnormal Display
GRADATION Noise GRADATION
A - 2/5
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Appendix : Exchange Power Board (PSU)
No Light Dim Light
Dim Light Dim Light
No picture/Sound Ok
A - 3/5
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Appendix : Exchange the Module (1)
Panel Mura, Light leakage Panel Mura, Light leakage Press damage
Crosstalk Press damage Crosstalk
Un-repairable Cases
In this case please exchange the module.
Press damage
A - 4/5
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Appendix : Exchange the Module (2)
Vertical Block Vertical Line Vertical Block
Source TAB IC Defect Source TAB IC Defect Source TAB IC Defect
Horizontal
TAB ICBlock
Horizontal Block Horizontal line
Gate Defect Gate TAB IC Defect
Gate TAB IC Defect Gate TAB IC Defect Gate TAB IC Defect
Un-repairable Cases
In this case please exchange the module.
Horizontal Block
Gate TAB IC Defect
Gate TAB IC Defect
A - 5/5
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom B. Power error _No power date
Revised
Content Check front Power Indicator date A17
ST-BY condition: On or Off
Power ON condition: Turn Off
A17
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom
B. Power error _No power
date
Revised
Content Check power input voltage A18
date
Check the DC 13.2V.
A18
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error
symptom B. Power error _Off when on, off whiling viewing Established
date
Revised
Content POWER OFF MODE checking method date A19
Entry method
1. Press the IN-START button of the remote
control for adjustment
2. Check the entry into adjustment item 3
A19
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom C. Audio error_No audio/Normal video
date
Revised
Content Checking method in menu when there is no audio date A20
Checking method
1. Press the Setting button on the remote control
2. Select the Sound function of the Menu
3. Select the Sound Out
4. Select TV Speaker
A20
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom C. Audio error_No audio/Normal video date
Voltage and speaker checking method Revised
Content date A21
when there is no audio
①
②
②
③
1 SPK_R-
2 SPK_R+
Checking order when there is no audio 3 SPK_L-
4 SPK_L+
1.Check the contact condition of or 13.2V connector of Main Board
2. Measure the 13.2V input voltage supplied from Power Board
(If there is no input voltage, remove and check the connector)
3.Connect the tester RX1 to the speaker terminal and if you hear the Chik Chik sound when you touch the
GND and output terminal, the speaker is normal.
A21
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom D. Function error date
Revised
Content Remote control operation checking method date A22
1 GND
① 2 +3.3V_Normal
3 BT_RESET
IR & Jog Assy
4 USB_DM
5 NC
6 USB_DP
7 SDA
8 KEY1
9 SCL
10 KEY2
11 IR
12 +3.5V_ST
③ 13 LED_R
14 GND
②
Checking order to check remote control
Checking order
1.Check IR cable condition between IR & Main board.( Check picture number① and ②)
2.Check the standby 3.5V on the terminal 12 pin (③)
3.AS checking the Pre-Amp(IR LED light) , the power is in ON condition, an Analog Tester
needle should move slowly, otherwise, it’s defective.
A22
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom D. Function error date
Revised
Content Remote control operation checking method date A23/A24
① Wifi & BT Front
1 GND
2 +3.3V_Normal
3 BT_RESET
4 USB_DM
5 NC
6 USB_DP
7 SDA
Wifi & BT Rear 8 KEY1
9 SCL
10 KEY2
11 IR
12 +3.5V_ST
13 LED_R
②
14 GND
Checking order to check motion remote/wifi
Checking order
1.Check BT/Wifi cable condition between BT/Wifi assy & Main board.
2.Check the 3.5V on the terminal 16
A23/A24
Copyright © 2015 LG Electronics. Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
