Internal Use Only
LED TV
SERVICE MANUAL
CHASSIS : UD65S
MODEL : 43/49UH61** 43/49UH61**-ZB/ZC
43/49UH620* 43/49UH620*-ZA
CAUTION
BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
P/NO : MFL69506701 (1607-REV03)

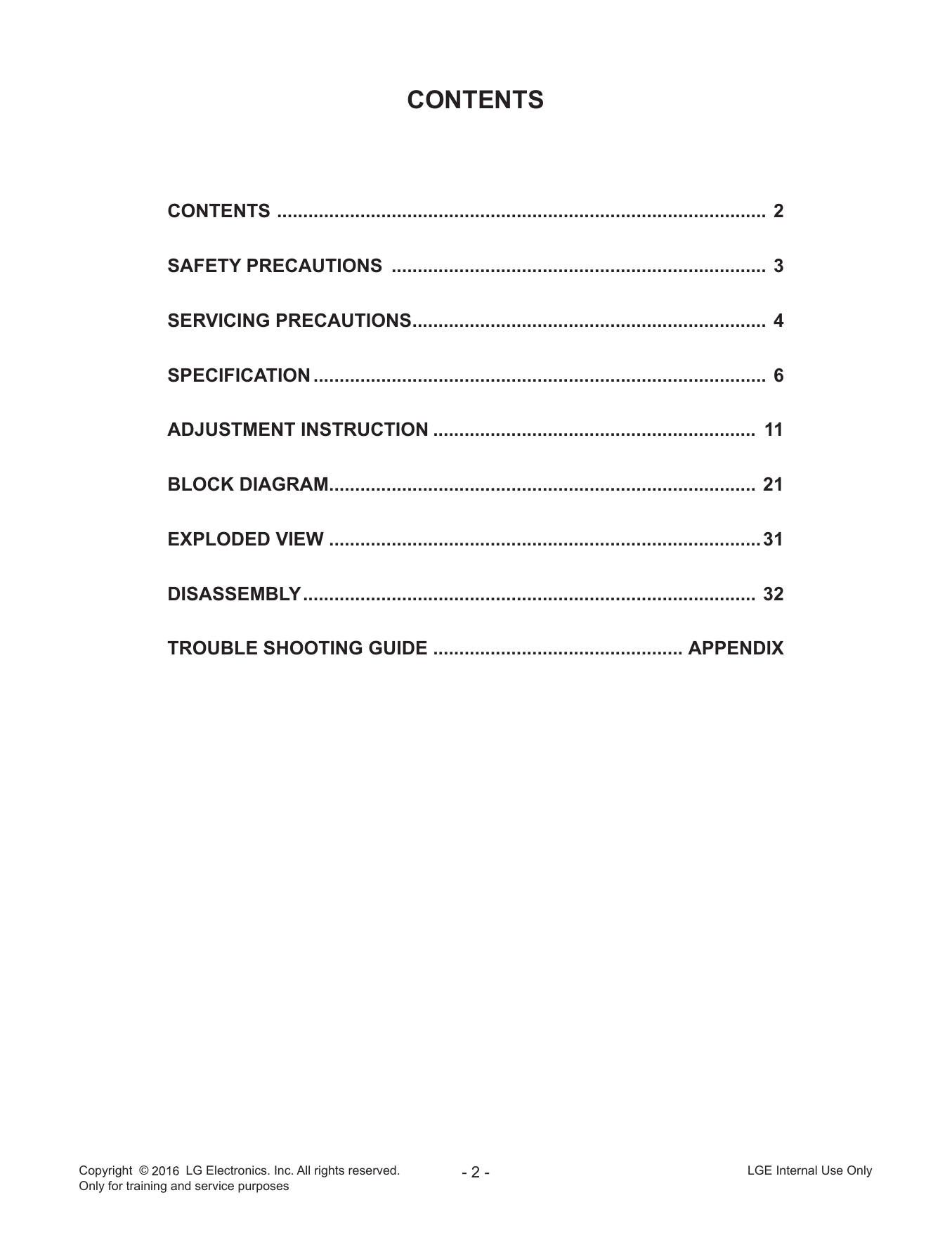

CONTENTS
CONTENTS .............................................................................................. 2
SAFETY PRECAUTIONS ........................................................................ 3
SERVICING PRECAUTIONS.................................................................... 4

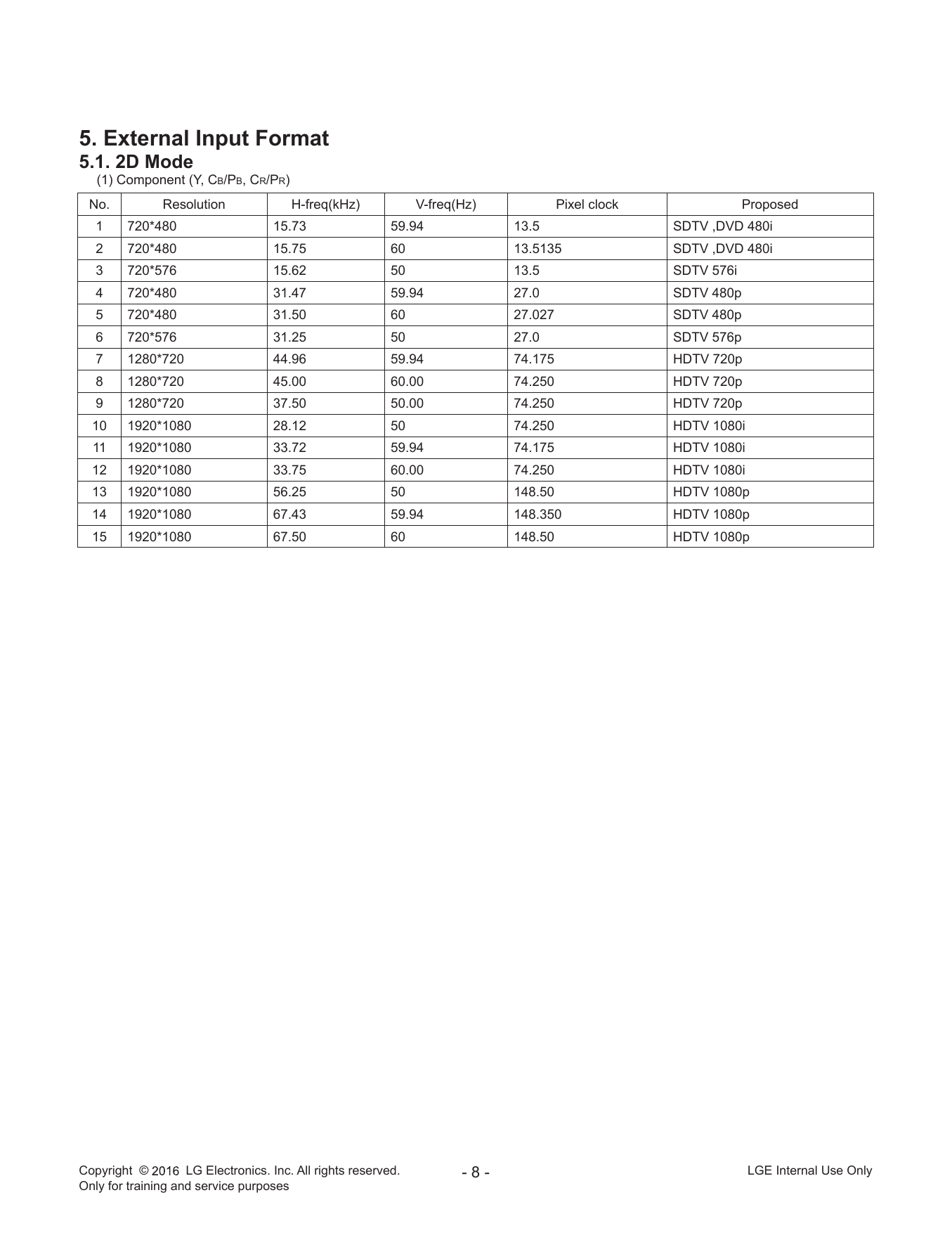

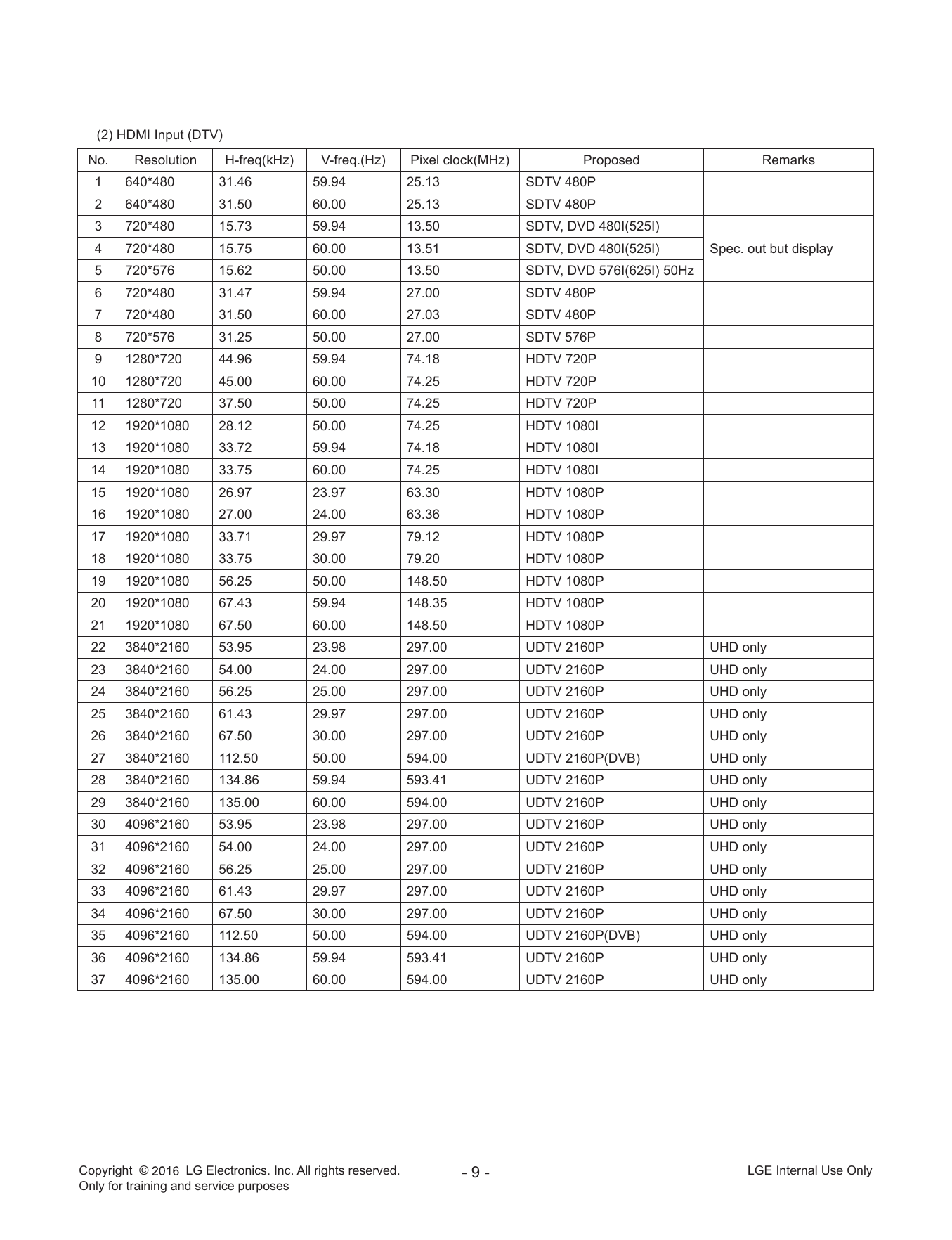

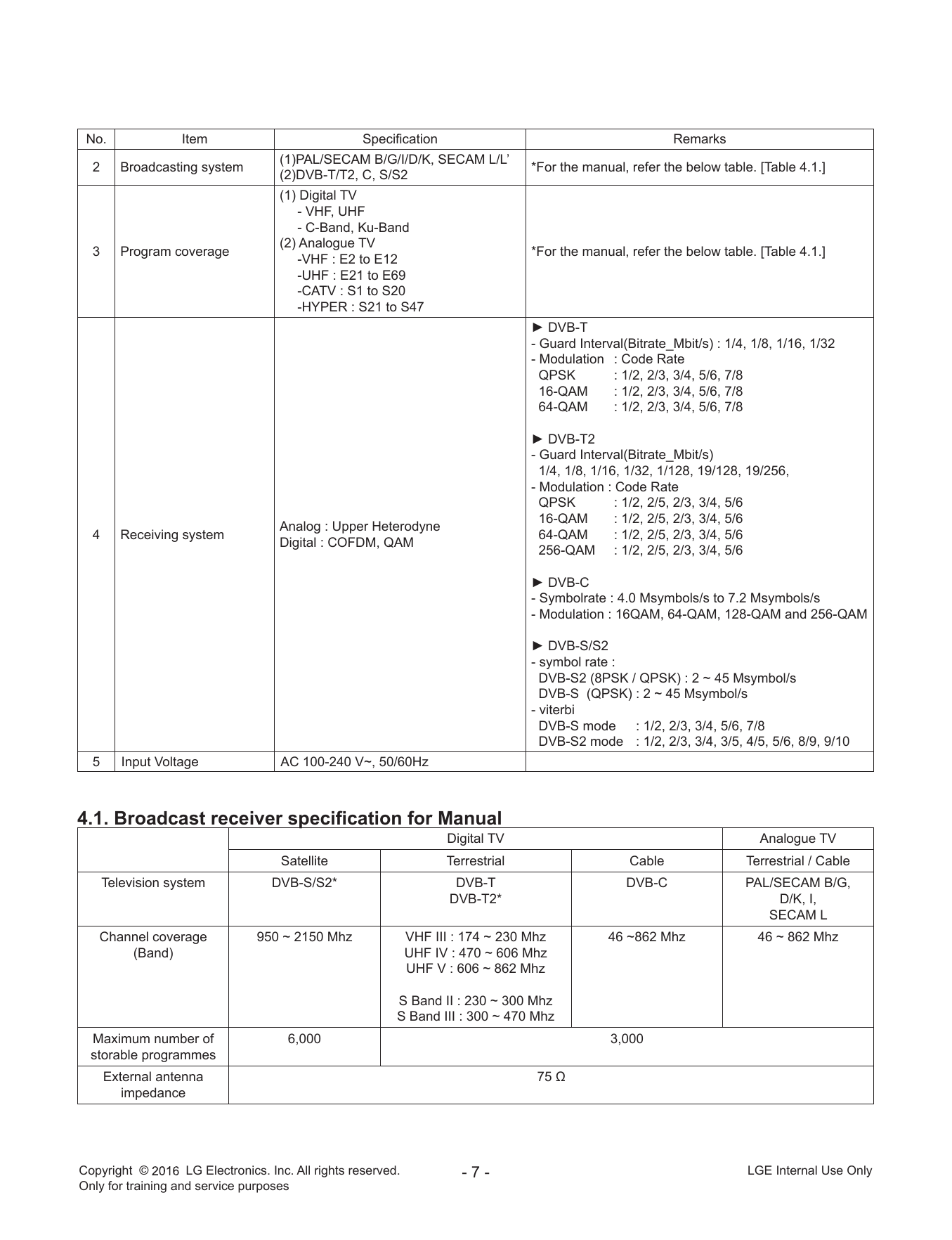

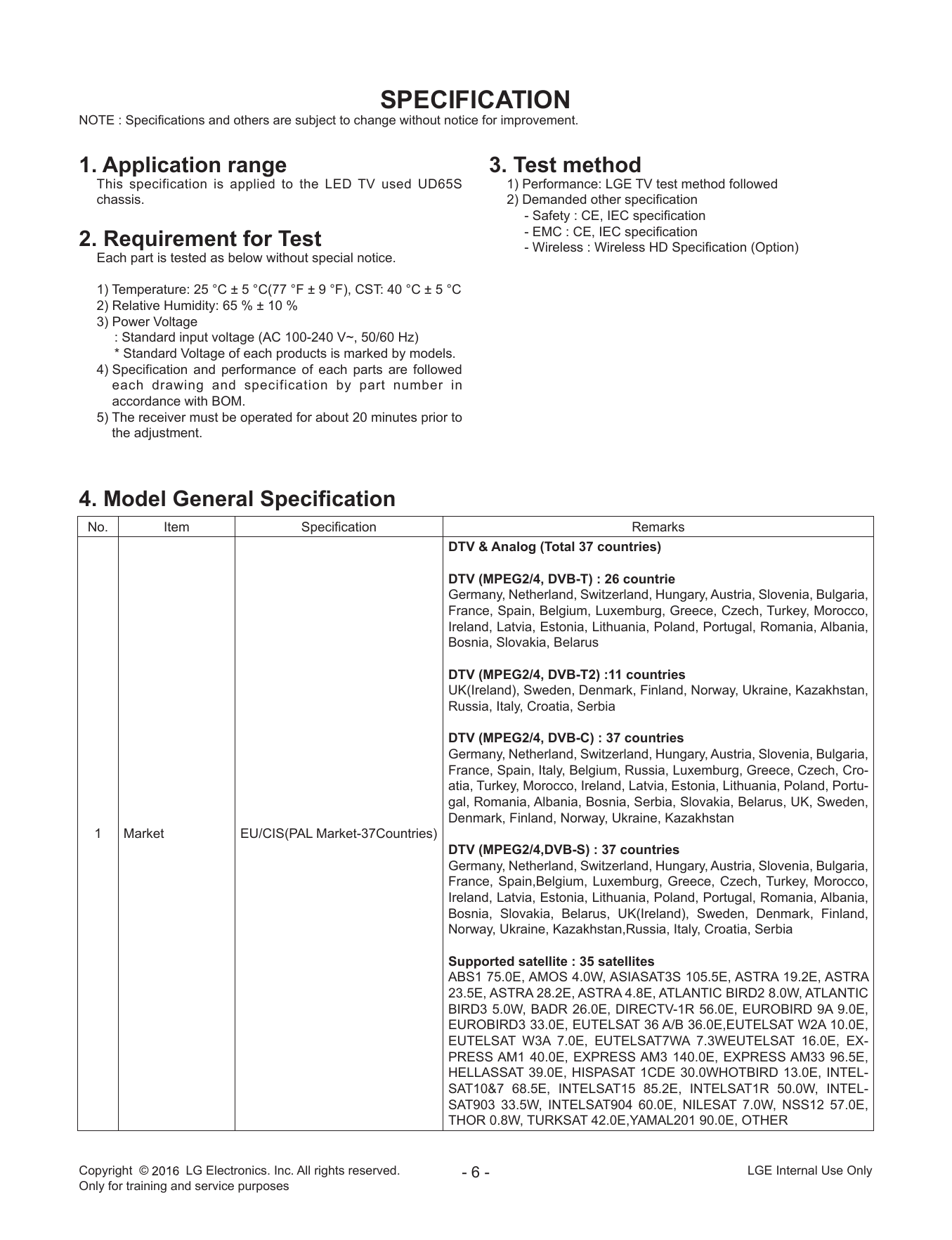

SPECIFICATION ....................................................................................... 6

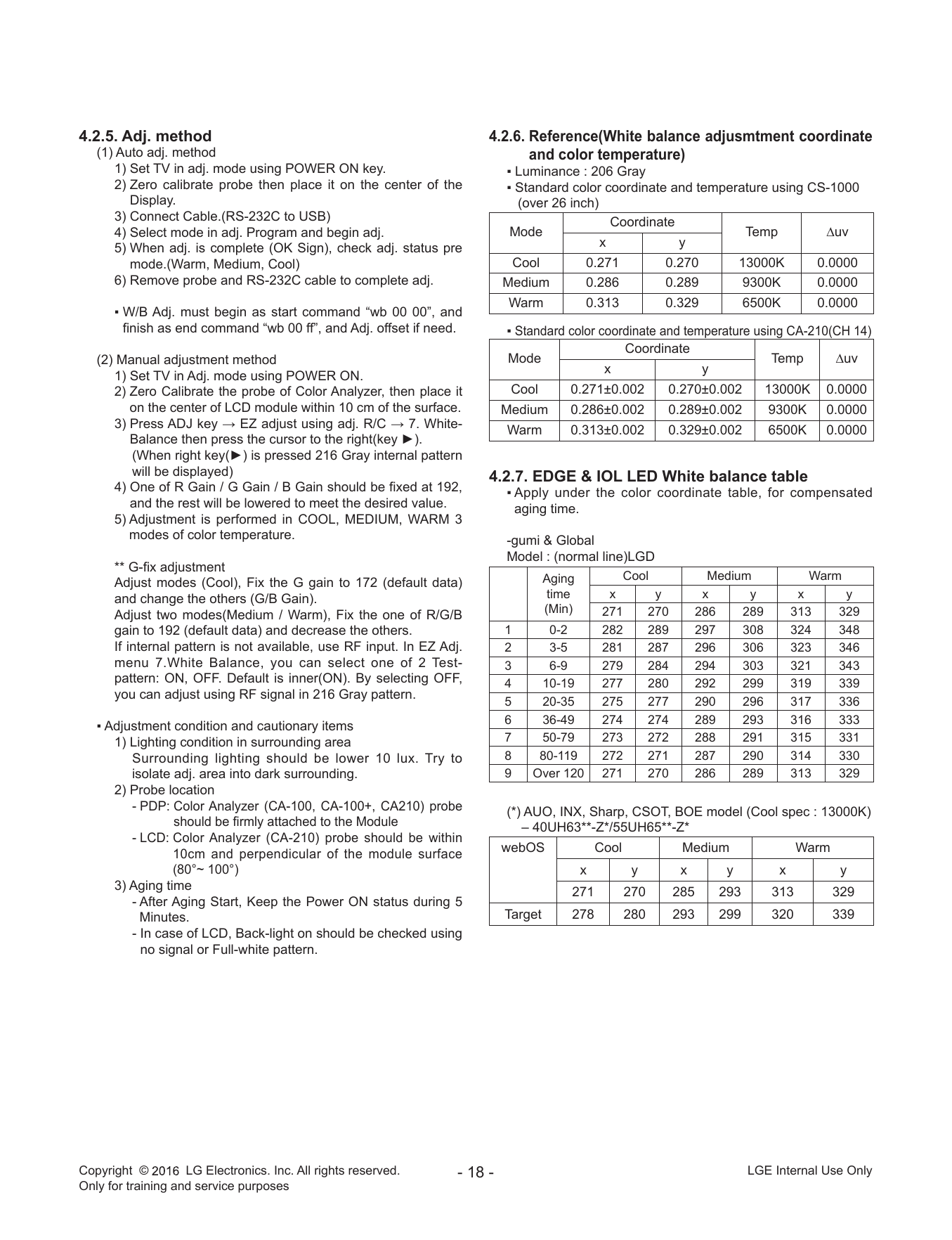

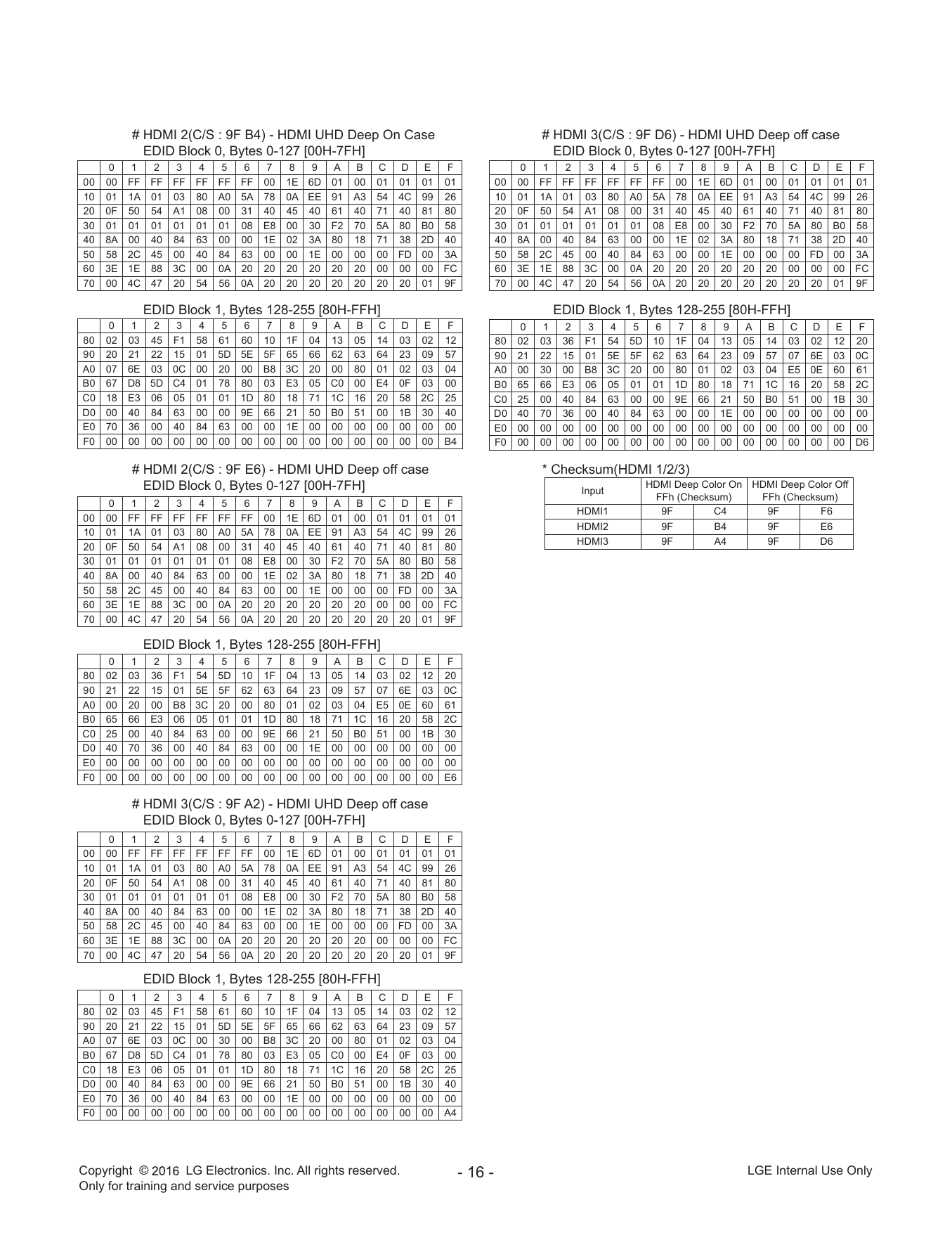

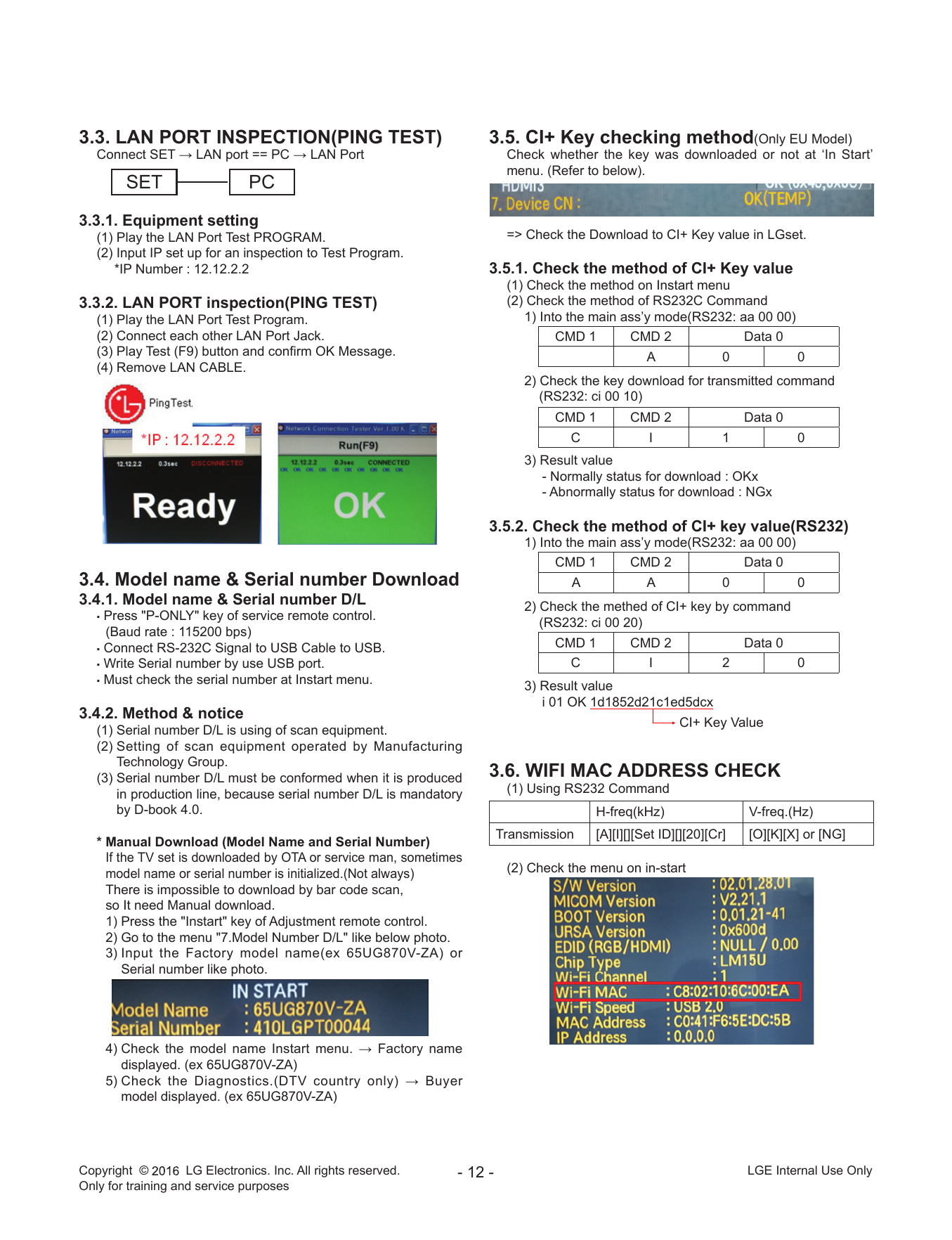

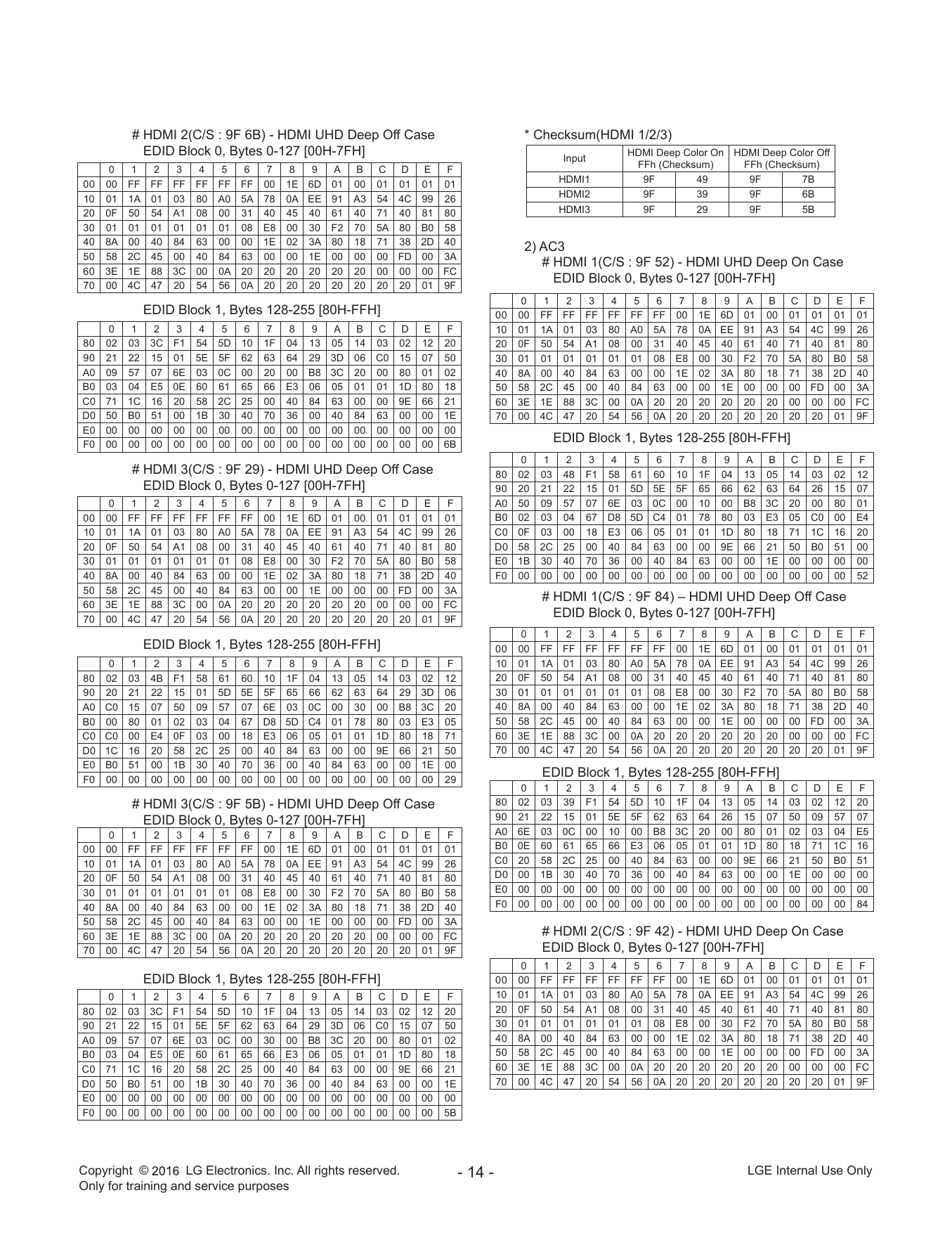

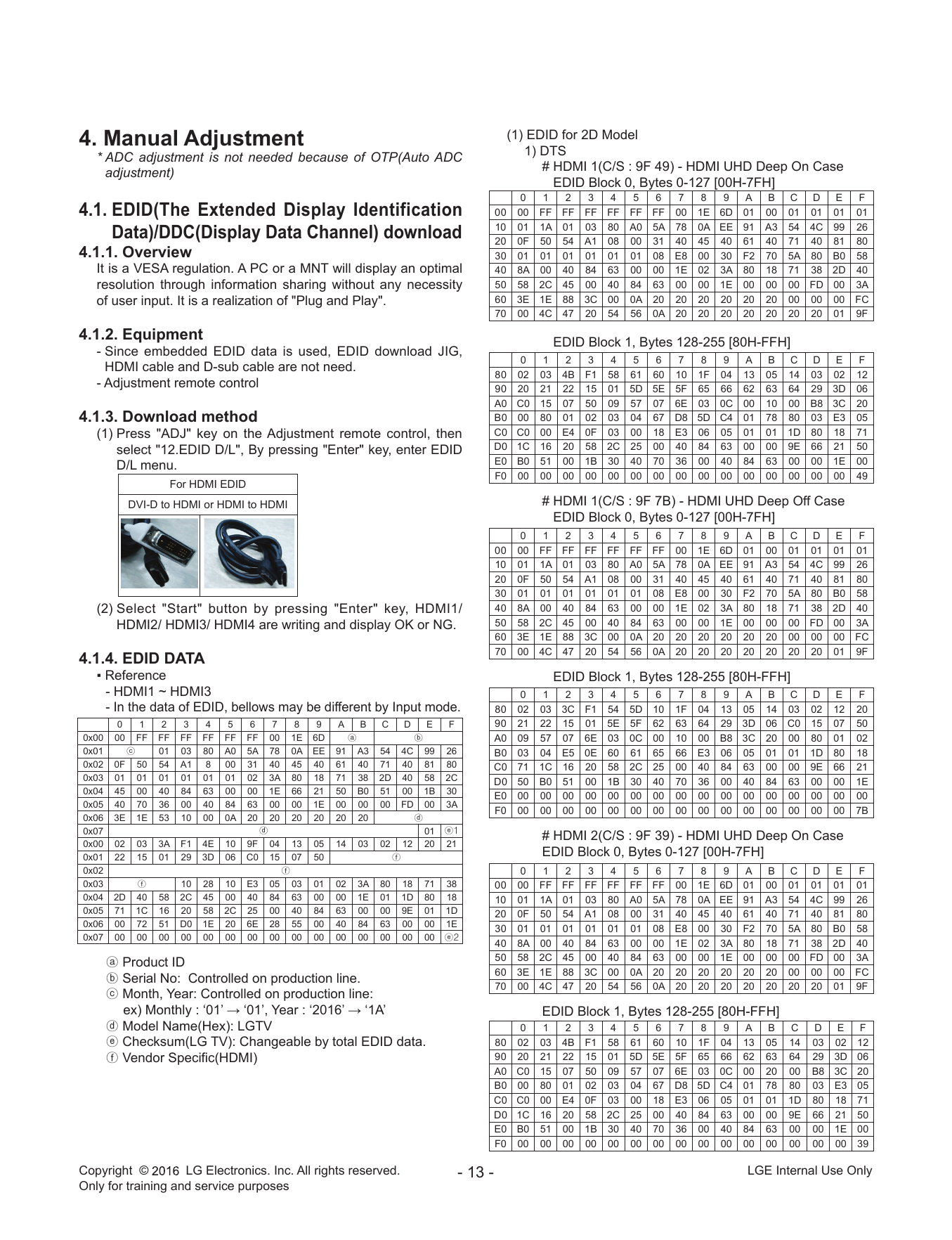

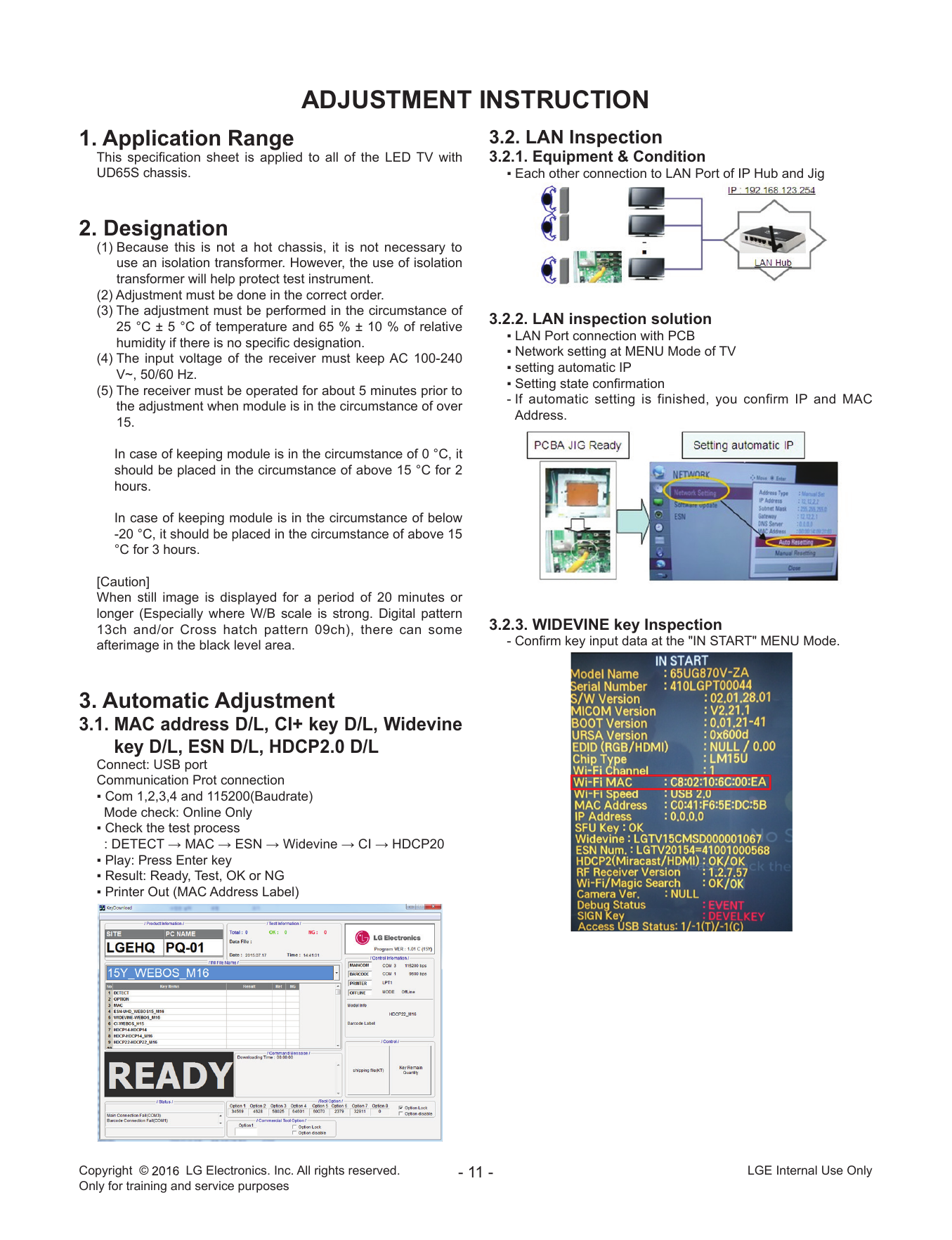

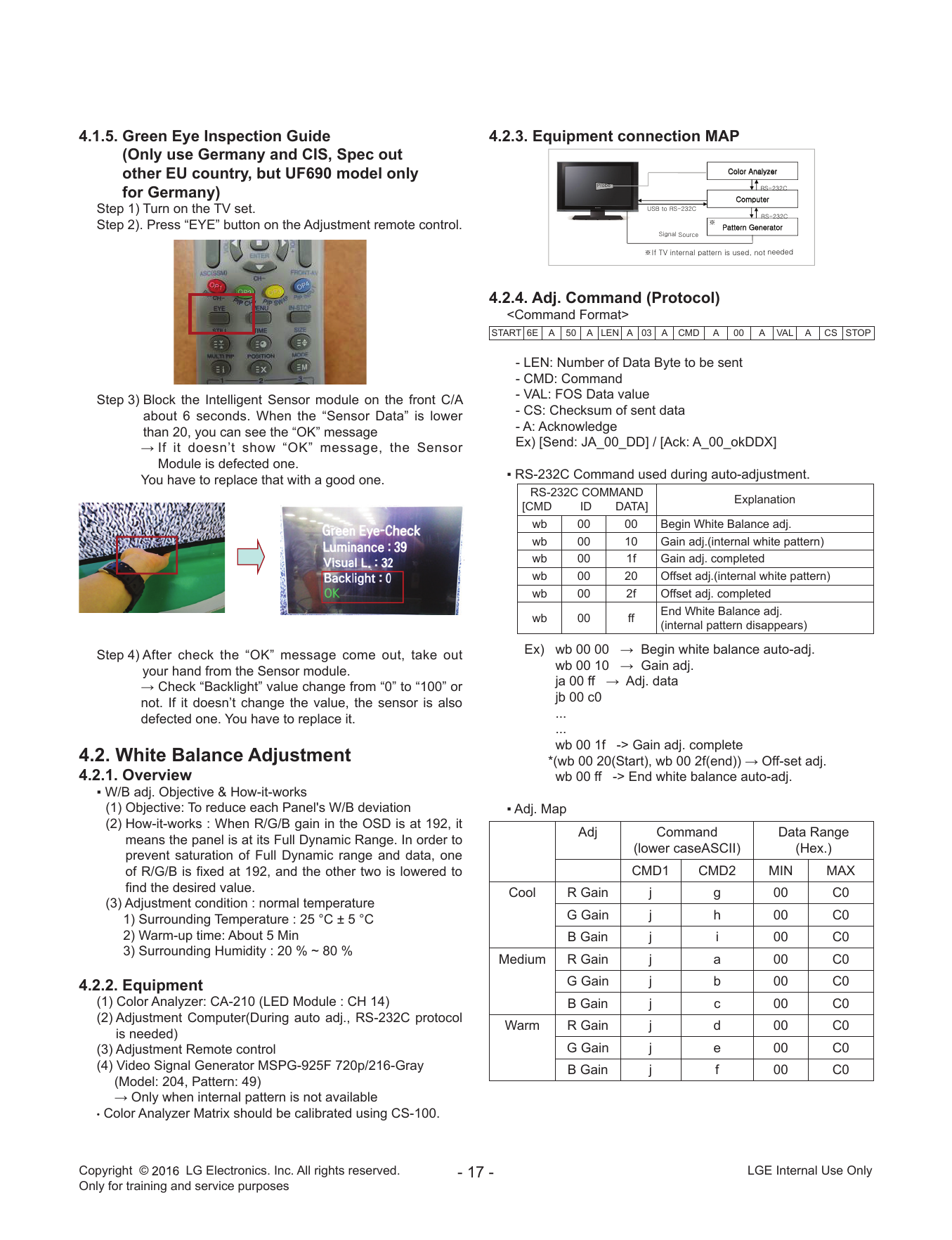

ADJUSTMENT INSTRUCTION .............................................................. 11

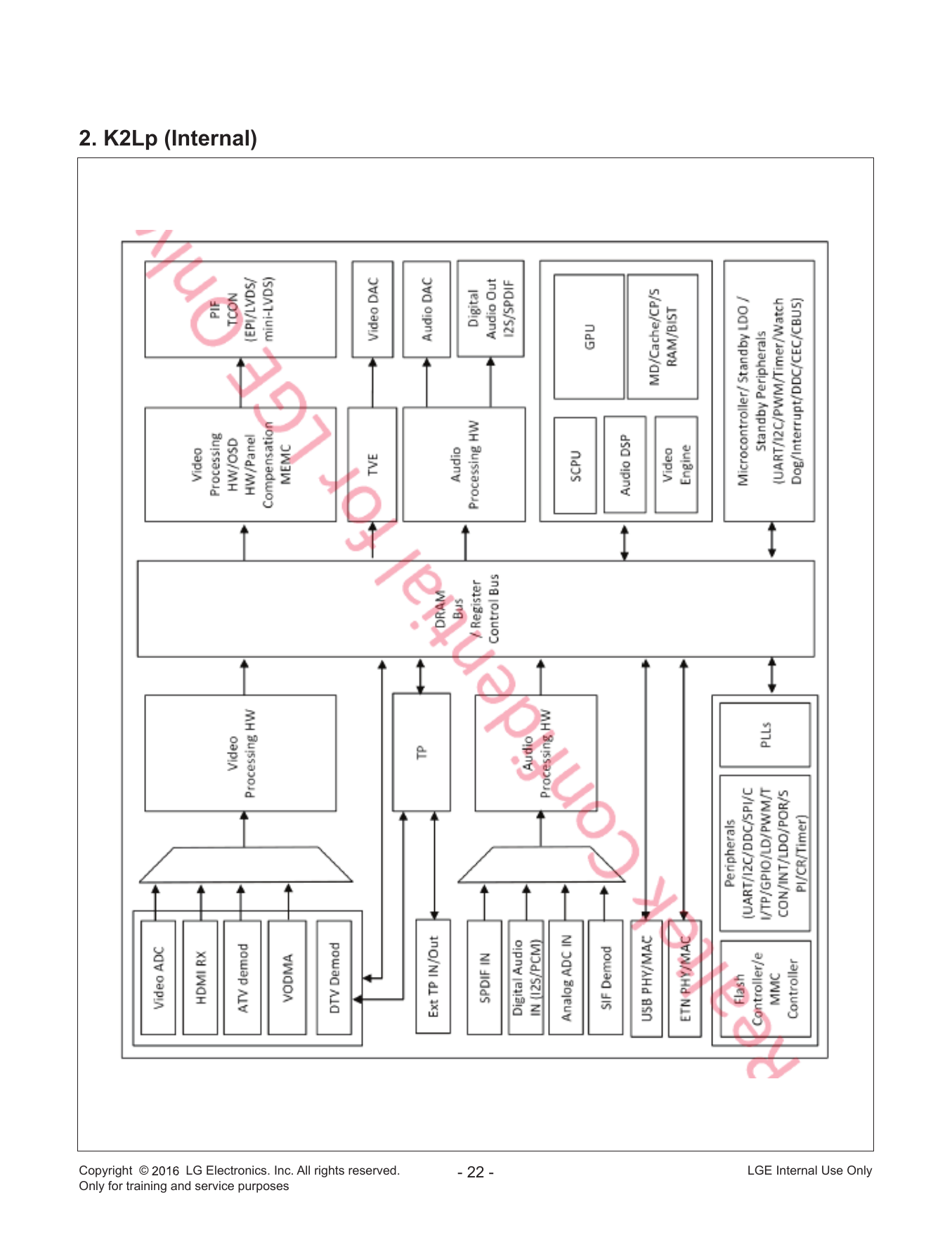

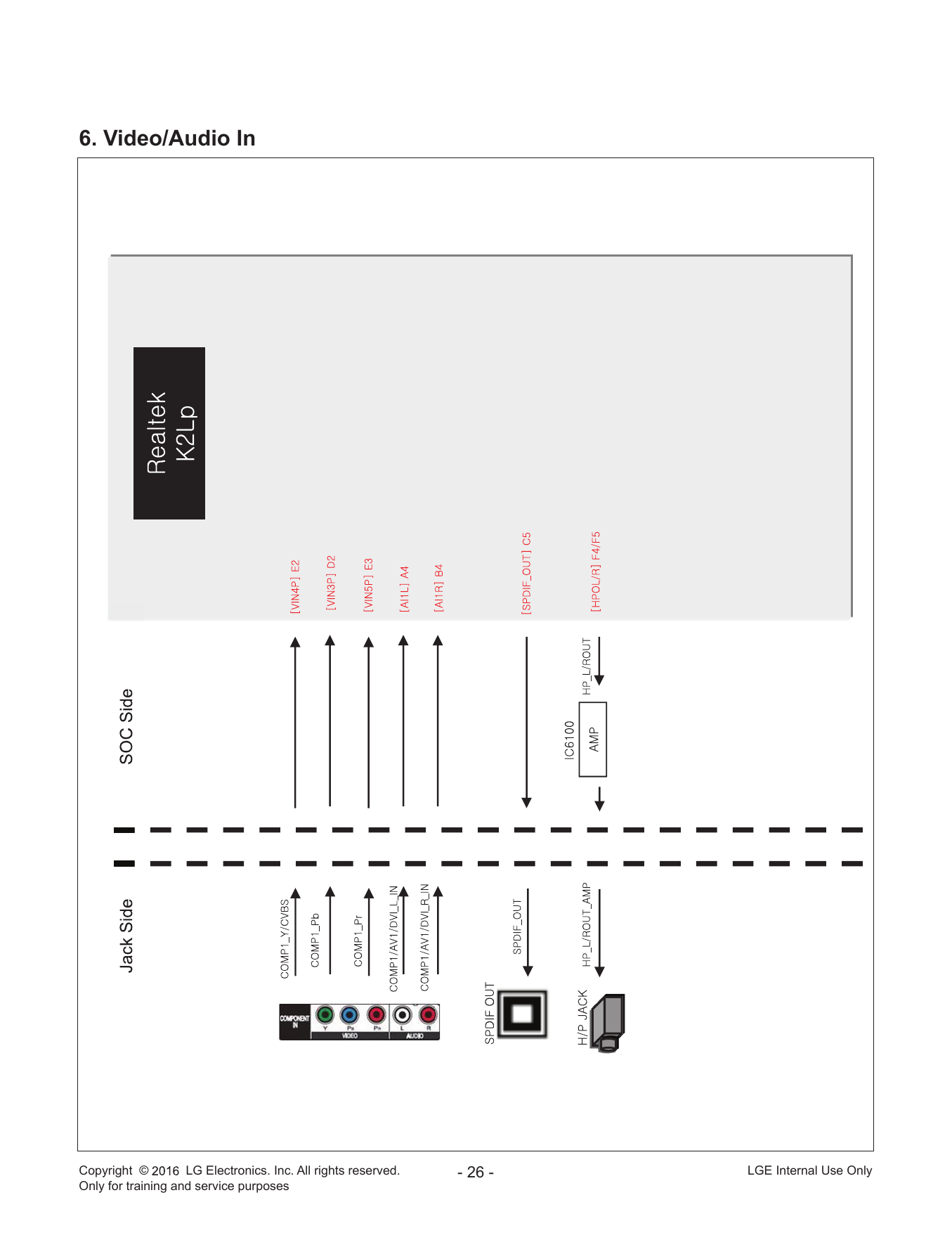

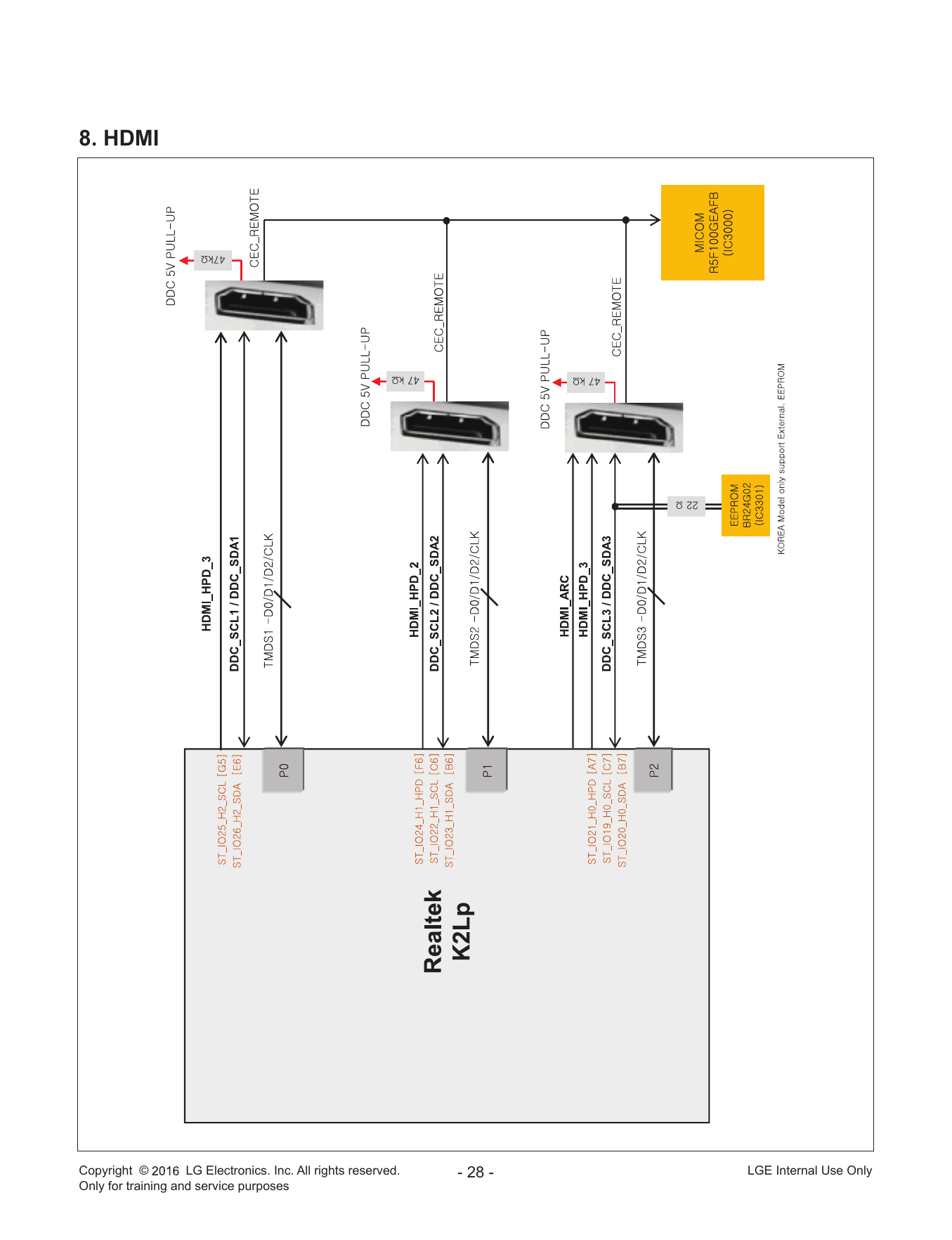

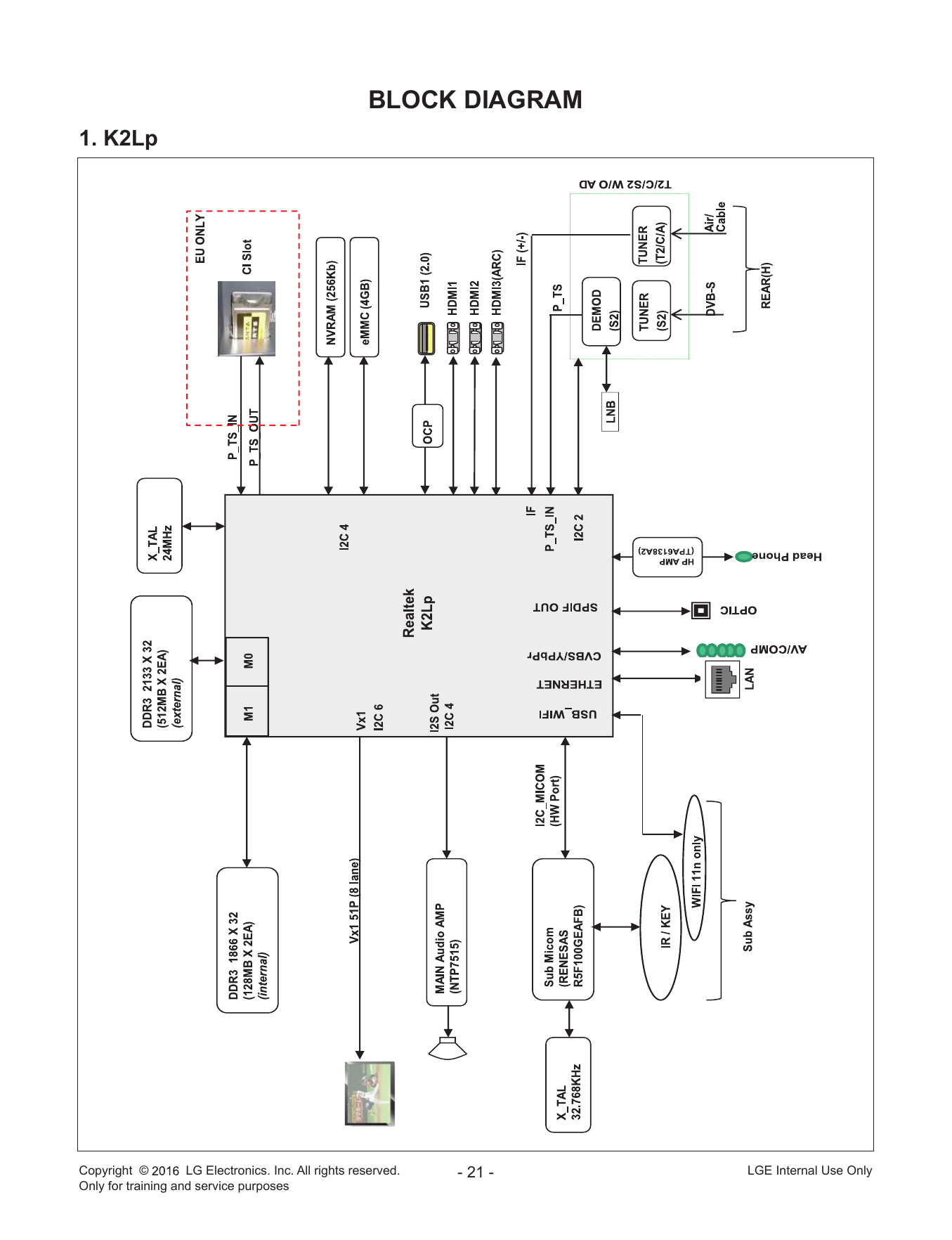

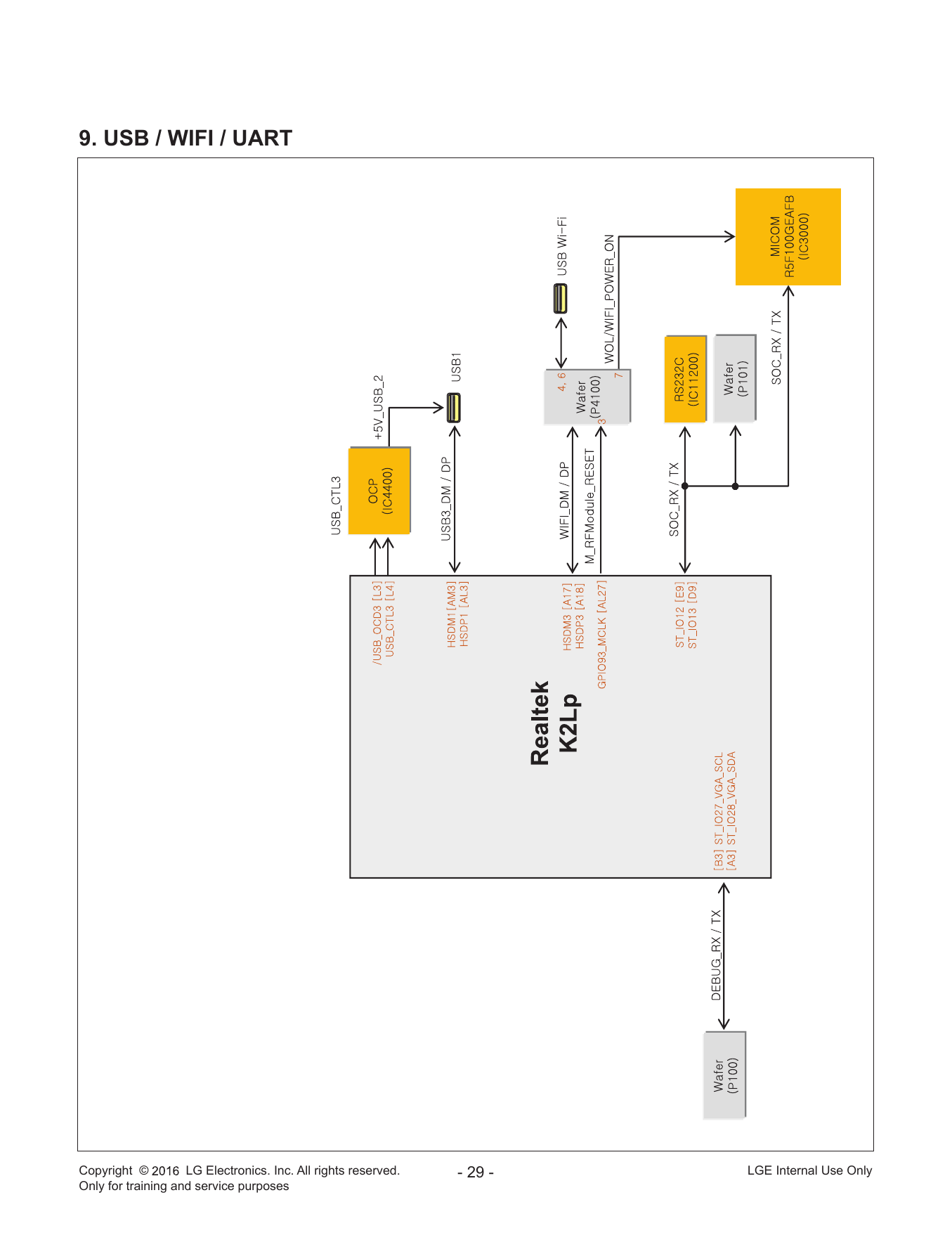

BLOCK DIAGRAM.................................................................................. 21
EXPLODED VIEW ................................................................................... 31
DISASSEMBLY ....................................................................................... 32

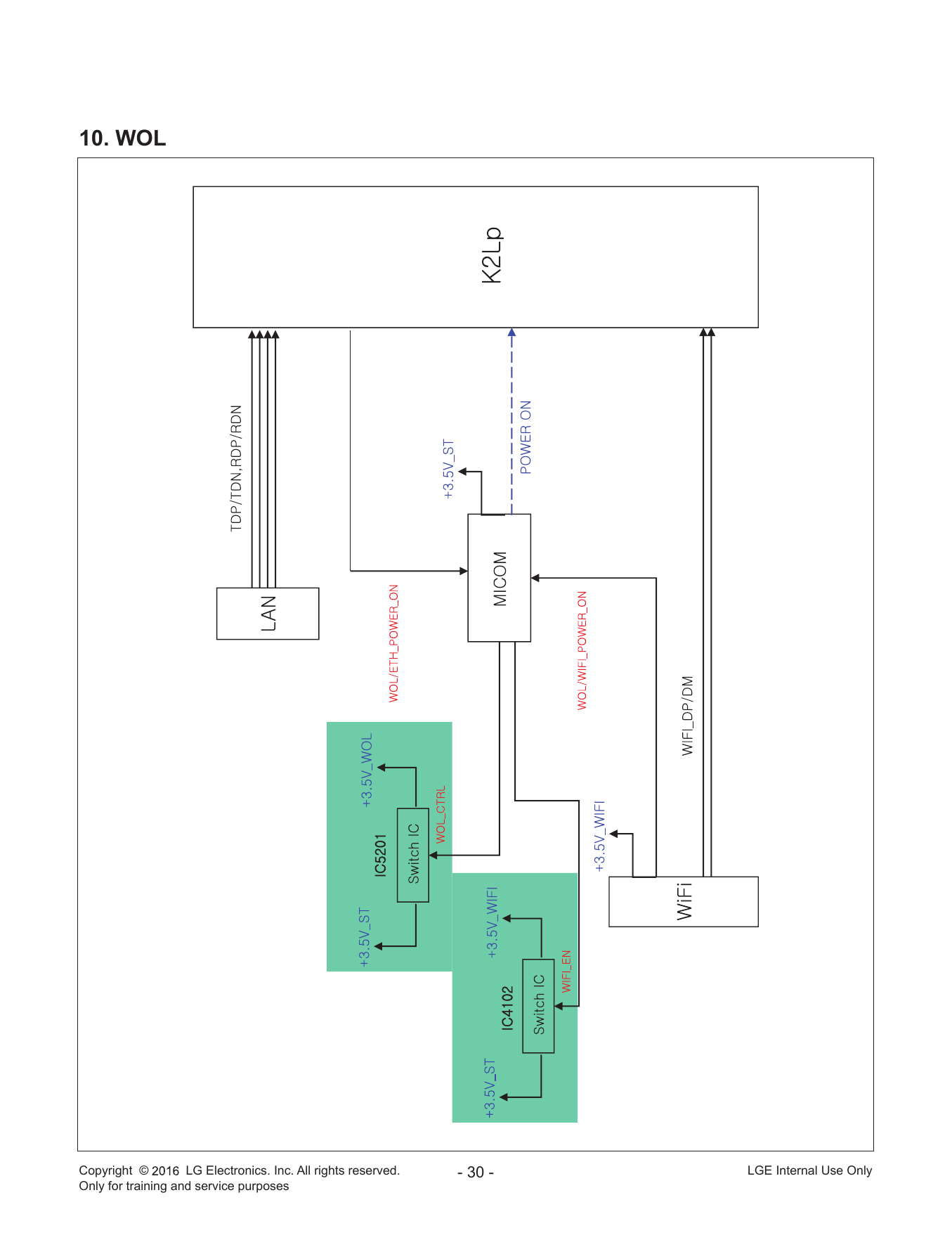

TROUBLE SHOOTING GUIDE ................................................ APPENDIX
Copyright © LG Electronics. Inc. All rights reserved. -2- LGE Internal Use Only
Only for training and service purposes
SAFETY PRECAUTIONS
IMPORTANT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC Do not use a line Isolation Transformer during this check.
power line. Use a transformer of adequate power rating as this Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
protects the technician from accidents resulting in personal injury between a known good earth ground (Water Pipe, Conduit, etc.)
from electrical shocks. and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
It will also protect the receiver and it's components from being with 1000 ohms/volt or more sensitivity.
damaged by accidental shorts of the circuitry that may be Reverse plug the AC cord into the AC outlet and repeat AC voltage
inadvertently introduced during the service operation. measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
If any fuse (or Fusible Resistor) in this TV receiver is blown, 0.5 mA.
replace it with the specified. In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
When replacing a high wattage resistor (Oxide Metal Film Resistor, repaired before it is returned to the customer.
over 1 W), keep the resistor 10 mm away from PCB.
Leakage Current Hot Check circuit
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Copyright © LG Electronics. Inc. All rights reserved. -3- LGE Internal Use Only
Only for training and service purposes
SERVICING PRECAUTIONS
CAUTION: Before servicing receivers covered by this service 2. After removing an electrical assembly equipped with ES
manual and its supplements and addenda, read and follow the devices, place the assembly on a conductive surface such as
SAFETY PRECAUTIONS on page 3 of this publication. aluminum foil, to prevent electrostatic charge buildup or expo-
NOTE: If unforeseen circumstances create conflict between the sure of the assembly.
following servicing precautions and any of the safety precautions 3. Use only a grounded-tip soldering iron to solder or unsolder
on page 3 of this publication, always follow the safety precau- ES devices.
tions. Remember: Safety First. 4. Use only an anti-static type solder removal device. Some sol-
der removal devices not classified as “anti-static” can generate
General Servicing Precautions electrical charges sufficient to damage ES devices.
1. Always unplug the receiver AC power cord from the AC power 5. Do not use freon-propelled chemicals. These can generate
source before; electrical charges sufficient to damage ES devices.
a. Removing or reinstalling any component, circuit board 6. Do not remove a replacement ES device from its protective
module or any other receiver assembly. package until immediately before you are ready to install it.
b. Disconnecting or reconnecting any receiver electrical plug (Most replacement ES devices are packaged with leads elec-
or other electrical connection. trically shorted together by conductive foam, aluminum foil or
c. Connecting a test substitute in parallel with an electrolytic comparable conductive material).
capacitor in the receiver. 7. Immediately before removing the protective material from the
CAUTION: A wrong part substitution or incorrect polarity leads of a replacement ES device, touch the protective mate-
installation of electrolytic capacitors may result in an explo- rial to the chassis or circuit assembly into which the device will
sion hazard. be installed.
2. Test high voltage only by measuring it with an appropriate CAUTION: Be sure no power is applied to the chassis or cir-
high voltage meter or other voltage measuring device (DVM, cuit, and observe all other safety precautions.
FETVOM, etc) equipped with a suitable high voltage probe. 8. Minimize bodily motions when handling unpackaged replace-
Do not test high voltage by "drawing an arc". ment ES devices. (Otherwise harmless motion such as the
3. Do not spray chemicals on or near this receiver or any of its brushing together of your clothes fabric or the lifting of your
assemblies. foot from a carpeted floor can generate static electricity suf-
4. Unless specified otherwise in this service manual, clean ficient to damage an ES device.)
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable General Soldering Guidelines
non-abrasive applicator; 10 % (by volume) Acetone and 90 % 1. Use a grounded-tip, low-wattage soldering iron and appropri-
(by volume) isopropyl alcohol (90 % - 99 % strength) ate tip size and shape that will maintain tip temperature within
CAUTION: This is a flammable mixture. the range or 500 °F to 600 °F.
Unless specified otherwise in this service manual, lubrication 2. Use an appropriate gauge of RMA resin-core solder composed
of contacts in not required. of 60 parts tin/40 parts lead.
5. Do not defeat any plug/socket B+ voltage interlocks with which 3. Keep the soldering iron tip clean and well tinned.
receivers covered by this service manual might be equipped. 4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
6. Do not apply AC power to this instrument and/or any of its bristle (0.5 inch, or 1.25 cm) brush with a metal handle.
electrical assemblies unless all solid-state device heat sinks Do not use freon-propelled spray-on cleaners.
are correctly installed. 5. Use the following unsoldering technique
7. Always connect the test receiver ground lead to the receiver a. Allow the soldering iron tip to reach normal temperature.
chassis ground before connecting the test receiver positive (500 °F to 600 °F)
lead. b. Heat the component lead until the solder melts.
Always remove the test receiver ground lead last. c. Quickly draw the melted solder with an anti-static, suction-
8. Use with this receiver only the test fixtures specified in this type solder removal device or with solder braid.
service manual. CAUTION: Work quickly to avoid overheating the circuit
CAUTION: Do not connect the test fixture ground strap to any board printed foil.
heat sink in this receiver. 6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
Electrostatically Sensitive (ES) Devices (500 °F to 600 °F)
Some semiconductor (solid-state) devices can be damaged eas- b. First, hold the soldering iron tip and solder the strand
ily by static electricity. Such components commonly are called against the component lead until the solder melts.
Electrostatically Sensitive (ES) Devices. Examples of typical ES c. Quickly move the soldering iron tip to the junction of the
devices are integrated circuits and some field-effect transistors component lead and the printed circuit foil, and hold it there
and semiconductor “chip” components. The following techniques only until the solder flows onto and around both the compo-
should be used to help reduce the incidence of component dam- nent lead and the foil.
age caused by static by static electricity. CAUTION: Work quickly to avoid overheating the circuit
1. Immediately before handling any semiconductor component or board printed foil.
semiconductor-equipped assembly, drain off any electrostatic d. Closely inspect the solder area and remove any excess or
charge on your body by touching a known earth ground. Alter- splashed solder with a small wire-bristle brush.
natively, obtain and wear a commercially available discharg-
ing wrist strap device, which should be removed to prevent
potential shock reasons prior to applying power to the unit
under test.
Copyright © LG Electronics. Inc. All rights reserved. -4- LGE Internal Use Only
Only for training and service purposes
IC Remove/Replacement 3. Solder the connections.
Some chassis circuit boards have slotted holes (oblong) through CAUTION: Maintain original spacing between the replaced
which the IC leads are inserted and then bent flat against the cir- component and adjacent components and the circuit board to
cuit foil. When holes are the slotted type, the following technique prevent excessive component temperatures.
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique Circuit Board Foil Repair
as outlined in paragraphs 5 and 6 above. Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
Removal board causing the foil to separate from or "lift-off" the board. The
1. Desolder and straighten each IC lead in one operation by following guidelines and procedures should be followed when-
gently prying up on the lead with the soldering iron tip as the ever this condition is encountered.
solder melts.
2. Draw away the melted solder with an anti-static suction-type At IC Connections
solder removal device (or with solder braid) before removing To repair a defective copper pattern at IC connections use the
the IC. following procedure to install a jumper wire on the copper pattern
Replacement side of the circuit board. (Use this technique only on IC connec-
1. Carefully insert the replacement IC in the circuit board. tions).
2. Carefully bend each IC lead against the circuit foil pad and
solder it. 1. Carefully remove the damaged copper pattern with a sharp
3. Clean the soldered areas with a small wire-bristle brush. knife. (Remove only as much copper as absolutely necessary).
(It is not necessary to reapply acrylic coating to the areas). 2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
"Small-Signal" Discrete Transistor 3. Bend a small "U" in one end of a small gauge jumper wire and
Removal/Replacement carefully crimp it around the IC pin. Solder the IC connection.
1. Remove the defective transistor by clipping its leads as close 4. Route the jumper wire along the path of the out-away copper
as possible to the component body. pattern and let it overlap the previously scraped end of the
2. Bend into a "U" shape the end of each of three leads remain- good copper pattern. Solder the overlapped area and clip off
ing on the circuit board. any excess jumper wire.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding At Other Connections
leads extending from the circuit board and crimp the "U" with Use the following technique to repair the defective copper pattern
long nose pliers to insure metal to metal contact then solder at connections other than IC Pins. This technique involves the
each connection. installation of a jumper wire on the component side of the circuit
board.
Power Output, Transistor Device
Removal/Replacement 1. Remove the defective copper pattern with a sharp knife.
1. Heat and remove all solder from around the transistor leads. Remove at least 1/4 inch of copper, to ensure that a hazardous
2. Remove the heat sink mounting screw (if so equipped). condition will not exist if the jumper wire opens.
3. Carefully remove the transistor from the heat sink of the circuit 2. Trace along the copper pattern from both sides of the pattern
board. break and locate the nearest component that is directly con-
4. Insert new transistor in the circuit board. nected to the affected copper pattern.
5. Solder each transistor lead, and clip off excess lead. 3. Connect insulated 20-gauge jumper wire from the lead of the
6. Replace heat sink. nearest component on one side of the pattern break to the
lead of the nearest component on the other side.
Diode Removal/Replacement Carefully crimp and solder the connections.
1. Remove defective diode by clipping its leads as close as pos- CAUTION: Be sure the insulated jumper wire is dressed so the
sible to diode body. it does not touch components or sharp edges.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and
if necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
Copyright © LG Electronics. Inc. All rights reserved. -5- LGE Internal Use Only
Only for training and service purposes
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement.
1. Application range 3. Test method
This specification is applied to the LED TV used UD65S 1) Performance: LGE TV test method followed
chassis. 2) Demanded other specification
- Safety : CE, IEC specification
- EMC : CE, IEC specification
2. Requirement for Test - Wireless : Wireless HD Specification (Option)
Each part is tested as below without special notice.
1) Temperature: 25 °C ± 5 °C(77 °F ± 9 °F), CST: 40 °C ± 5 °C
2) Relative Humidity: 65 % ± 10 %
3) Power Voltage
: Standard input voltage (AC 100-240 V~, 50/60 Hz)
* Standard Voltage of each products is marked by models.
4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
5) The receiver must be operated for about 20 minutes prior to
the adjustment.
4. Model General Specification
No. Item Specification Remarks
DTV & Analog (Total 37 countries)
DTV (MPEG2/4, DVB-T) : 26 countrie
Germany, Netherland, Switzerland, Hungary, Austria, Slovenia, Bulgaria,
France, Spain, Belgium, Luxemburg, Greece, Czech, Turkey, Morocco,
Ireland, Latvia, Estonia, Lithuania, Poland, Portugal, Romania, Albania,
Bosnia, Slovakia, Belarus
DTV (MPEG2/4, DVB-T2) :11 countries
UK(Ireland), Sweden, Denmark, Finland, Norway, Ukraine, Kazakhstan,
Russia, Italy, Croatia, Serbia
DTV (MPEG2/4, DVB-C) : 37 countries
Germany, Netherland, Switzerland, Hungary, Austria, Slovenia, Bulgaria,
France, Spain, Italy, Belgium, Russia, Luxemburg, Greece, Czech, Cro-
atia, Turkey, Morocco, Ireland, Latvia, Estonia, Lithuania, Poland, Portu-
gal, Romania, Albania, Bosnia, Serbia, Slovakia, Belarus, UK, Sweden,
Denmark, Finland, Norway, Ukraine, Kazakhstan
1 Market EU/CIS(PAL Market-37Countries)
DTV (MPEG2/4,DVB-S) : 37 countries
Germany, Netherland, Switzerland, Hungary, Austria, Slovenia, Bulgaria,
France, Spain,Belgium, Luxemburg, Greece, Czech, Turkey, Morocco,
Ireland, Latvia, Estonia, Lithuania, Poland, Portugal, Romania, Albania,
Bosnia, Slovakia, Belarus, UK(Ireland), Sweden, Denmark, Finland,
Norway, Ukraine, Kazakhstan,Russia, Italy, Croatia, Serbia
Supported satellite : 35 satellites
ABS1 75.0E, AMOS 4.0W, ASIASAT3S 105.5E, ASTRA 19.2E, ASTRA
23.5E, ASTRA 28.2E, ASTRA 4.8E, ATLANTIC BIRD2 8.0W, ATLANTIC
BIRD3 5.0W, BADR 26.0E, DIRECTV-1R 56.0E, EUROBIRD 9A 9.0E,
EUROBIRD3 33.0E, EUTELSAT 36 A/B 36.0E,EUTELSAT W2A 10.0E,
EUTELSAT W3A 7.0E, EUTELSAT7WA 7.3WEUTELSAT 16.0E, EX-
PRESS AM1 40.0E, EXPRESS AM3 140.0E, EXPRESS AM33 96.5E,
HELLASSAT 39.0E, HISPASAT 1CDE 30.0WHOTBIRD 13.0E, INTEL-
SAT10&7 68.5E, INTELSAT15 85.2E, INTELSAT1R 50.0W, INTEL-
SAT903 33.5W, INTELSAT904 60.0E, NILESAT 7.0W, NSS12 57.0E,
THOR 0.8W, TURKSAT 42.0E,YAMAL201 90.0E, OTHER
Copyright © LG Electronics. Inc. All rights reserved. -6- LGE Internal Use Only
Only for training and service purposes
No. Item Specification Remarks
(1)PAL/SECAM B/G/I/D/K, SECAM L/L’
2 Broadcasting system *For the manual, refer the below table. [Table 4.1.]
(2)DVB-T/T2, C, S/S2
(1) Digital TV
- VHF, UHF
- C-Band, Ku-Band
(2) Analogue TV
3 Program coverage *For the manual, refer the below table. [Table 4.1.]
-VHF : E2 to E12
-UHF : E21 to E69
-CATV : S1 to S20
-HYPER : S21 to S47
► DVB-T
- Guard Interval(Bitrate_Mbit/s) : 1/4, 1/8, 1/16, 1/32
- Modulation : Code Rate
QPSK : 1/2, 2/3, 3/4, 5/6, 7/8
16-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
64-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
► DVB-T2
- Guard Interval(Bitrate_Mbit/s)
1/4, 1/8, 1/16, 1/32, 1/128, 19/128, 19/256,
- Modulation : Code Rate
QPSK : 1/2, 2/5, 2/3, 3/4, 5/6
16-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
Analog : Upper Heterodyne
4 Receiving system 64-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
Digital : COFDM, QAM
256-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
► DVB-C
- Symbolrate : 4.0 Msymbols/s to 7.2 Msymbols/s
- Modulation : 16QAM, 64-QAM, 128-QAM and 256-QAM
► DVB-S/S2
- symbol rate :
DVB-S2 (8PSK / QPSK) : 2 ~ 45 Msymbol/s
DVB-S (QPSK) : 2 ~ 45 Msymbol/s
- viterbi
DVB-S mode : 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2 mode : 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10
5 Input Voltage AC 100-240 V~, 50/60Hz
4.1. Broadcast receiver specification for Manual
Digital TV Analogue TV
Satellite Terrestrial Cable Terrestrial / Cable
Television system DVB-S/S2* DVB-T DVB-C PAL/SECAM B/G,
DVB-T2* D/K, I,
SECAM L
Channel coverage 950 ~ 2150 Mhz VHF III : 174 ~ 230 Mhz 46 ~862 Mhz 46 ~ 862 Mhz
(Band) UHF IV : 470 ~ 606 Mhz
UHF V : 606 ~ 862 Mhz
S Band II : 230 ~ 300 Mhz
S Band III : 300 ~ 470 Mhz
Maximum number of 6,000 3,000
storable programmes
External antenna 75 Ω
impedance
Copyright © LG Electronics. Inc. All rights reserved. -7- LGE Internal Use Only
Only for training and service purposes
5. External Input Format
5.1. 2D Mode
(1) Component (Y, CB/PB, CR/PR)
No. Resolution H-freq(kHz) V-freq(Hz) Pixel clock Proposed
1 720*480 15.73 59.94 13.5 SDTV ,DVD 480i
2 720*480 15.75 60 13.5135 SDTV ,DVD 480i
3 720*576 15.62 50 13.5 SDTV 576i
4 720*480 31.47 59.94 27.0 SDTV 480p
5 720*480 31.50 60 27.027 SDTV 480p
6 720*576 31.25 50 27.0 SDTV 576p
7 1280*720 44.96 59.94 74.175 HDTV 720p
8 1280*720 45.00 60.00 74.250 HDTV 720p
9 1280*720 37.50 50.00 74.250 HDTV 720p
10 1920*1080 28.12 50 74.250 HDTV 1080i
11 1920*1080 33.72 59.94 74.175 HDTV 1080i
12 1920*1080 33.75 60.00 74.250 HDTV 1080i
13 1920*1080 56.25 50 148.50 HDTV 1080p
14 1920*1080 67.43 59.94 148.350 HDTV 1080p
15 1920*1080 67.50 60 148.50 HDTV 1080p
Copyright © LG Electronics. Inc. All rights reserved. -8- LGE Internal Use Only
Only for training and service purposes
(2) HDMI Input (DTV)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remarks
1 640*480 31.46 59.94 25.13 SDTV 480P
2 640*480 31.50 60.00 25.13 SDTV 480P
3 720*480 15.73 59.94 13.50 SDTV, DVD 480I(525I)
4 720*480 15.75 60.00 13.51 SDTV, DVD 480I(525I) Spec. out but display
5 720*576 15.62 50.00 13.50 SDTV, DVD 576I(625I) 50Hz
6 720*480 31.47 59.94 27.00 SDTV 480P
7 720*480 31.50 60.00 27.03 SDTV 480P
8 720*576 31.25 50.00 27.00 SDTV 576P
9 1280*720 44.96 59.94 74.18 HDTV 720P
10 1280*720 45.00 60.00 74.25 HDTV 720P
11 1280*720 37.50 50.00 74.25 HDTV 720P
12 1920*1080 28.12 50.00 74.25 HDTV 1080I
13 1920*1080 33.72 59.94 74.18 HDTV 1080I
14 1920*1080 33.75 60.00 74.25 HDTV 1080I
15 1920*1080 26.97 23.97 63.30 HDTV 1080P
16 1920*1080 27.00 24.00 63.36 HDTV 1080P
17 1920*1080 33.71 29.97 79.12 HDTV 1080P
18 1920*1080 33.75 30.00 79.20 HDTV 1080P
19 1920*1080 56.25 50.00 148.50 HDTV 1080P
20 1920*1080 67.43 59.94 148.35 HDTV 1080P
21 1920*1080 67.50 60.00 148.50 HDTV 1080P
22 3840*2160 53.95 23.98 297.00 UDTV 2160P UHD only
23 3840*2160 54.00 24.00 297.00 UDTV 2160P UHD only
24 3840*2160 56.25 25.00 297.00 UDTV 2160P UHD only
25 3840*2160 61.43 29.97 297.00 UDTV 2160P UHD only
26 3840*2160 67.50 30.00 297.00 UDTV 2160P UHD only
27 3840*2160 112.50 50.00 594.00 UDTV 2160P(DVB) UHD only
28 3840*2160 134.86 59.94 593.41 UDTV 2160P UHD only
29 3840*2160 135.00 60.00 594.00 UDTV 2160P UHD only
30 4096*2160 53.95 23.98 297.00 UDTV 2160P UHD only
31 4096*2160 54.00 24.00 297.00 UDTV 2160P UHD only
32 4096*2160 56.25 25.00 297.00 UDTV 2160P UHD only
33 4096*2160 61.43 29.97 297.00 UDTV 2160P UHD only
34 4096*2160 67.50 30.00 297.00 UDTV 2160P UHD only
35 4096*2160 112.50 50.00 594.00 UDTV 2160P(DVB) UHD only
36 4096*2160 134.86 59.94 593.41 UDTV 2160P UHD only
37 4096*2160 135.00 60.00 594.00 UDTV 2160P UHD only
Copyright © LG Electronics. Inc. All rights reserved. -9- LGE Internal Use Only
Only for training and service purposes

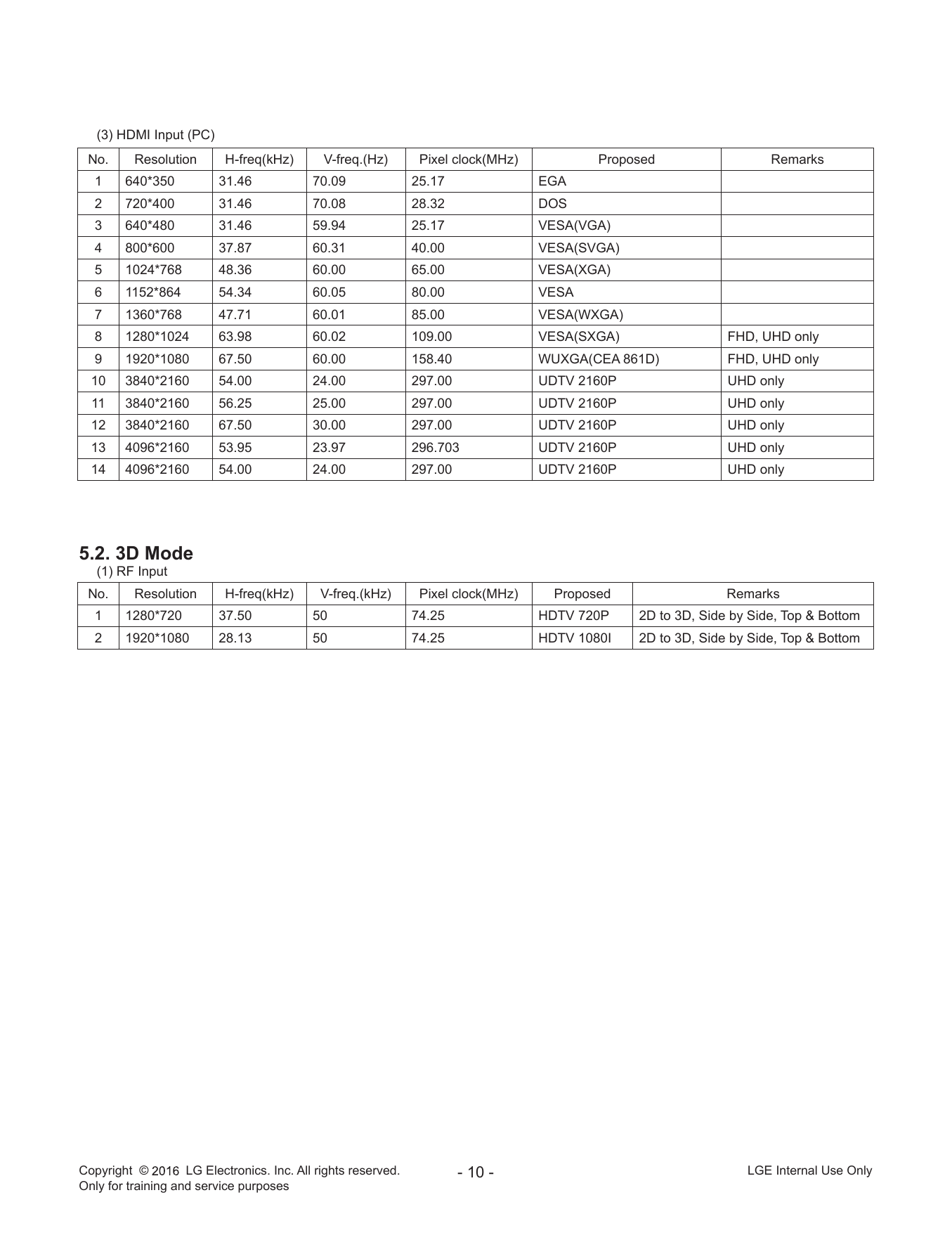

(3) HDMI Input (PC)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remarks
1 640*350 31.46 70.09 25.17 EGA
2 720*400 31.46 70.08 28.32 DOS
3 640*480 31.46 59.94 25.17 VESA(VGA)
4 800*600 37.87 60.31 40.00 VESA(SVGA)
5 1024*768 48.36 60.00 65.00 VESA(XGA)
6 1152*864 54.34 60.05 80.00 VESA
7 1360*768 47.71 60.01 85.00 VESA(WXGA)
8 1280*1024 63.98 60.02 109.00 VESA(SXGA) FHD, UHD only
9 1920*1080 67.50 60.00 158.40 WUXGA(CEA 861D) FHD, UHD only
10 3840*2160 54.00 24.00 297.00 UDTV 2160P UHD only
11 3840*2160 56.25 25.00 297.00 UDTV 2160P UHD only
12 3840*2160 67.50 30.00 297.00 UDTV 2160P UHD only
13 4096*2160 53.95 23.97 296.703 UDTV 2160P UHD only
14 4096*2160 54.00 24.00 297.00 UDTV 2160P UHD only
5.2. 3D Mode
(1) RF Input
No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed Remarks
1 1280*720 37.50 50 74.25 HDTV 720P 2D to 3D, Side by Side, Top & Bottom
2 1920*1080 28.13 50 74.25 HDTV 1080I 2D to 3D, Side by Side, Top & Bottom
Copyright © LG Electronics. Inc. All rights reserved. - 10 - LGE Internal Use Only
Only for training and service purposes
ADJUSTMENT INSTRUCTION
1. Application Range 3.2. LAN Inspection
This specification sheet is applied to all of the LED TV with 3.2.1. Equipment & Condition
UD65S chassis. ▪ Each other connection to LAN Port of IP Hub and Jig
2. Designation
(1) Because this is not a hot chassis, it is not necessary to
use an isolation transformer. However, the use of isolation
transformer will help protect test instrument.
(2) Adjustment must be done in the correct order.
(3) The adjustment must be performed in the circumstance of
25 °C ± 5 °C of temperature and 65 % ± 10 % of relative
3.2.2. LAN inspection solution
▪ LAN Port connection with PCB
humidity if there is no specific designation.
▪ Network setting at MENU Mode of TV
(4) The input voltage of the receiver must keep AC 100-240
▪ setting automatic IP
V~, 50/60 Hz.
▪ Setting state confirmation
(5) The receiver must be operated for about 5 minutes prior to
- If automatic setting is finished, you confirm IP and MAC
the adjustment when module is in the circumstance of over
Address.
15.
In case of keeping module is in the circumstance of 0 °C, it
should be placed in the circumstance of above 15 °C for 2
hours.
In case of keeping module is in the circumstance of below
-20 °C, it should be placed in the circumstance of above 15
°C for 3 hours.
[Caution]
When still image is displayed for a period of 20 minutes or
longer (Especially where W/B scale is strong. Digital pattern
13ch and/or Cross hatch pattern 09ch), there can some 3.2.3. WIDEVINE key Inspection
afterimage in the black level area. - Confirm key input data at the "IN START" MENU Mode.
3. Automatic Adjustment
3.1. MAC address D/L, CI+ key D/L, Widevine
key D/L, ESN D/L, HDCP2.0 D/L
Connect: USB port
Communication Prot connection
▪ Com 1,2,3,4 and 115200(Baudrate)
Mode check: Online Only
▪ Check the test process
: DETECT → MAC → ESN → Widevine → CI → HDCP20
▪ Play: Press Enter key
▪ Result: Ready, Test, OK or NG
▪ Printer Out (MAC Address Label)
Copyright © LG Electronics. Inc. All rights reserved. - 11 - LGE Internal Use Only
Only for training and service purposes
3.3. LAN PORT INSPECTION(PING TEST) 3.5. CI+ Key checking method(Only EU Model)
Connect SET → LAN port == PC → LAN Port Check whether the key was downloaded or not at ‘In Start’
menu. (Refer to below).
SET PC
3.3.1. Equipment setting
(1) Play the LAN Port Test PROGRAM. => Check the Download to CI+ Key value in LGset.
(2) Input IP set up for an inspection to Test Program.
*IP Number : 12.12.2.2 3.5.1. Check the method of CI+ Key value
(1) Check the method on Instart menu
3.3.2. LAN PORT inspection(PING TEST) (2) Check the method of RS232C Command
(1) Play the LAN Port Test Program. 1) Into the main ass’y mode(RS232: aa 00 00)
(2) Connect each other LAN Port Jack. CMD 1 CMD 2 Data 0
(3) Play Test (F9) button and confirm OK Message. A 0 0
(4) Remove LAN CABLE.
2) Check the key download for transmitted command
(RS232: ci 00 10)
CMD 1 CMD 2 Data 0
C I 1 0
3) Result value
- Normally status for download : OKx
- Abnormally status for download : NGx
3.5.2. Check the method of CI+ key value(RS232)
1) Into the main ass’y mode(RS232: aa 00 00)
CMD 1 CMD 2 Data 0
3.4. Model name & Serial number Download A A 0 0
3.4.1. Model name & Serial number D/L 2) Check the methed of CI+ key by command
▪ Press "P-ONLY" key of service remote control.
(RS232: ci 00 20)
(Baud rate : 115200 bps)
▪ Connect RS-232C Signal to USB Cable to USB.
CMD 1 CMD 2 Data 0
▪ Write Serial number by use USB port. C I 2 0
▪ Must check the serial number at Instart menu.
3) Result value
i 01 OK 1d1852d21c1ed5dcx
3.4.2. Method & notice
CI+ Key Value
(1) Serial number D/L is using of scan equipment.
(2) Setting of scan equipment operated by Manufacturing
Technology Group.
(3) Serial number D/L must be conformed when it is produced 3.6. WIFI MAC ADDRESS CHECK
in production line, because serial number D/L is mandatory (1) Using RS232 Command
by D-book 4.0. H-freq(kHz) V-freq.(Hz)
Transmission [A][I][][Set ID][][20][Cr] [O][K][X] or [NG]
* Manual Download (Model Name and Serial Number)
If the TV set is downloaded by OTA or service man, sometimes
model name or serial number is initialized.(Not always) (2) Check the menu on in-start
There is impossible to download by bar code scan,
so It need Manual download.
1) Press the "Instart" key of Adjustment remote control.
2) Go to the menu "7.Model Number D/L" like below photo.
3) Input the Factory model name(ex 65UG870V-ZA) or
Serial number like photo.
4) Check the model name Instart menu. → Factory name
displayed. (ex 65UG870V-ZA)
5) C heck the Diagnostics.(DTV country only) → Buyer
model displayed. (ex 65UG870V-ZA)
Copyright © LG Electronics. Inc. All rights reserved. - 12 - LGE Internal Use Only
Only for training and service purposes
4. Manual Adjustment (1) EDID for 2D Model
1) DTS
* ADC adjustment is not needed because of OTP(Auto ADC
adjustment) # HDMI 1(C/S : 9F 49) - HDMI UHD Deep On Case
EDID Block 0, Bytes 0-127 [00H-7FH]
0 1 2 3 4 5 6 7 8 9 A B C D E F
4.1. EDID(The
Extended Display Identification 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
Data)/DDC(Display Data Channel) download 10
20
01
0F
1A 01 03 80
50 54 A1 08
A0 5A 78
00 31 40
0A EE 91
45 40 61
A3
40
54 4C 99 26
71 40 81 80
4.1.1. Overview 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58
It is a VESA regulation. A PC or a MNT will display an optimal 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40
resolution through information sharing without any necessity 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
of user input. It is a realization of "Plug and Play". 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F
4.1.2. Equipment EDID Block 1, Bytes 128-255 [80H-FFH]
- Since embedded EDID data is used, EDID download JIG,
0 1 2 3 4 5 6 7 8 9 A B C D E F
HDMI cable and D-sub cable are not need. 80 02 03 4B F1 58 61 60 10 1F 04 13 05 14 03 02 12
- Adjustment remote control 90 20 21 22 15 01 5D 5E 5F 65 66 62 63 64 29 3D 06
A0 C0 15 07 50 09 57 07 6E 03 0C 00 10 00 B8 3C 20
4.1.3. Download method B0 00 80 01 02 03 04 67 D8 5D C4 01 78 80 03 E3 05
(1) Press "ADJ" key on the Adjustment remote control, then C0 C0 00 E4 0F 03 00 18 E3 06 05 01 01 1D 80 18 71
select "12.EDID D/L", By pressing "Enter" key, enter EDID D0 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 66 21 50
E0 B0 51 00 1B 30 40 70 36 00 40 84 63 00 00 1E 00
D/L menu.
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 49
For HDMI EDID
DVI-D to HDMI or HDMI to HDMI # HDMI 1(C/S : 9F 7B) - HDMI UHD Deep Off Case
EDID Block 0, Bytes 0-127 [00H-7FH]
0 1 2 3 4 5 6 7 8 9 A B C D E F
00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58
(2) S elect "Start" button by pressing "Enter" key, HDMI1/ 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40
HDMI2/ HDMI3/ HDMI4 are writing and display OK or NG. 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F
4.1.4. EDID DATA
▪ Reference EDID Block 1, Bytes 128-255 [80H-FFH]
- HDMI1 ~ HDMI3 0 1 2 3 4 5 6 7 8 9 A B C D E F
- In the data of EDID, bellows may be different by Input mode. 80 02 03 3C F1 54 5D 10 1F 04 13 05 14 03 02 12 20
0 1 2 3 4 5 6 7 8 9 A B C D E F 90 21 22 15 01 5E 5F 62 63 64 29 3D 06 C0 15 07 50
0x00 00 FF FF FF FF FF FF 00 1E 6D ⓐ ⓑ A0 09 57 07 6E 03 0C 00 10 00 B8 3C 20 00 80 01 02
0x01 ⓒ 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 B0 03 04 E5 0E 60 61 65 66 E3 06 05 01 01 1D 80 18
0x02 0F 50 54 A1 8 00 31 40 45 40 61 40 71 40 81 80 C0 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 66 21
0x03 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C D0 50 B0 51 00 1B 30 40 70 36 00 40 84 63 00 00 1E
0x04 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30
E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
0x05 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 7B
0x06 3E 1E 53 10 00 0A 20 20 20 20 20 20 ⓓ
0x07 ⓓ 01 ⓔ1
# HDMI 2(C/S : 9F 39) - HDMI UHD Deep On Case
0x00 02 03 3A F1 4E 10 9F 04 13 05 14 03 02 12 20 21
0x01 22 15 01 29 3D 06 C0 15 07 50 ⓕ EDID Block 0, Bytes 0-127 [00H-7FH]
0x02 ⓕ 0 1 2 3 4 5 6 7 8 9 A B C D E F
0x03 ⓕ 10 28 10 E3 05 03 01 02 3A 80 18 71 38 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
0x04 2D 40 58 2C 45 00 40 84 63 00 00 1E 01 1D 80 18 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
0x05 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 01 1D 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
0x06 00 72 51 D0 1E 20 6E 28 55 00 40 84 63 00 00 1E
30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58
0x07 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ⓔ2
40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40
50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
ⓐ Product ID
60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC
ⓑ Serial No: Controlled on production line.
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F
ⓒ Month, Year: Controlled on production line:
ex) Monthly : ‘01’ → ‘01’, Year : ‘2016’ → ‘1A’ EDID Block 1, Bytes 128-255 [80H-FFH]
ⓓ Model Name(Hex): LGTV 0 1 2 3 4 5 6 7 8 9 A B C D E F
ⓔ Checksum(LG TV): Changeable by total EDID data. 80 02 03 4B F1 58 61 60 10 1F 04 13 05 14 03 02 12
ⓕ Vendor Specific(HDMI) 90 20 21 22 15 01 5D 5E 5F 65 66 62 63 64 29 3D 06
A0 C0 15 07 50 09 57 07 6E 03 0C 00 20 00 B8 3C 20
B0 00 80 01 02 03 04 67 D8 5D C4 01 78 80 03 E3 05
C0 C0 00 E4 0F 03 00 18 E3 06 05 01 01 1D 80 18 71
D0 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 66 21 50
E0 B0 51 00 1B 30 40 70 36 00 40 84 63 00 00 1E 00
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 39
Copyright © LG Electronics. Inc. All rights reserved. - 13 - LGE Internal Use Only
Only for training and service purposes
# HDMI 2(C/S : 9F 6B) - HDMI UHD Deep Off Case * Checksum(HDMI 1/2/3)
EDID Block 0, Bytes 0-127 [00H-7FH] HDMI Deep Color On HDMI Deep Color Off
Input
FFh (Checksum) FFh (Checksum)
0 1 2 3 4 5 6 7 8 9 A B C D E F
HDMI1 9F 49 9F 7B
00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 HDMI2 9F 39 9F 6B
20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 HDMI3 9F 29 9F 5B
30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58
40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40
2) AC3
50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
# HDMI 1(C/S : 9F 52) - HDMI UHD Deep On Case
60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F
EDID Block 0, Bytes 0-127 [00H-7FH]
0 1 2 3 4 5 6 7 8 9 A B C D E F
EDID Block 1, Bytes 128-255 [80H-FFH] 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
0 1 2 3 4 5 6 7 8 9 A B C D E F 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
80 02 03 3C F1 54 5D 10 1F 04 13 05 14 03 02 12 20 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
90 21 22 15 01 5E 5F 62 63 64 29 3D 06 C0 15 07 50 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58
A0 09 57 07 6E 03 0C 00 20 00 B8 3C 20 00 80 01 02 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40
B0 03 04 E5 0E 60 61 65 66 E3 06 05 01 01 1D 80 18 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
C0 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 66 21 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC
D0 50 B0 51 00 1B 30 40 70 36 00 40 84 63 00 00 1E 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F
E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 6B
EDID Block 1, Bytes 128-255 [80H-FFH]
0 1 2 3 4 5 6 7 8 9 A B C D E F
# HDMI 3(C/S : 9F 29) - HDMI UHD Deep Off Case 80 02 03 48 F1 58 61 60 10 1F 04 13 05 14 03 02 12
EDID Block 0, Bytes 0-127 [00H-7FH] 90 20 21 22 15 01 5D 5E 5F 65 66 62 63 64 26 15 07
0 1 2 3 4 5 6 7 8 9 A B C D E F A0 50 09 57 07 6E 03 0C 00 10 00 B8 3C 20 00 80 01
00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 B0 02 03 04 67 D8 5D C4 01 78 80 03 E3 05 C0 00 E4
10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 C0 0F 03 00 18 E3 06 05 01 01 1D 80 18 71 1C 16 20
20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 D0 58 2C 25 00 40 84 63 00 00 9E 66 21 50 B0 51 00
30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 E0 1B 30 40 70 36 00 40 84 63 00 00 1E 00 00 00 00
40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 52
50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
# HDMI 1(C/S : 9F 84) – HDMI UHD Deep Off Case
60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F
EDID Block 0, Bytes 0-127 [00H-7FH]
0 1 2 3 4 5 6 7 8 9 A B C D E F
EDID Block 1, Bytes 128-255 [80H-FFH] 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
0 1 2 3 4 5 6 7 8 9 A B C D E F 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
80 02 03 4B F1 58 61 60 10 1F 04 13 05 14 03 02 12 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
90 20 21 22 15 01 5D 5E 5F 65 66 62 63 64 29 3D 06 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58
A0 C0 15 07 50 09 57 07 6E 03 0C 00 30 00 B8 3C 20 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40
B0 00 80 01 02 03 04 67 D8 5D C4 01 78 80 03 E3 05 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
C0 C0 00 E4 0F 03 00 18 E3 06 05 01 01 1D 80 18 71 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC
D0 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 66 21 50 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F
E0 B0 51 00 1B 30 40 70 36 00 40 84 63 00 00 1E 00
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 29
EDID Block 1, Bytes 128-255 [80H-FFH]
0 1 2 3 4 5 6 7 8 9 A B C D E F
# HDMI 3(C/S : 9F 5B) - HDMI UHD Deep Off Case 80 02 03 39 F1 54 5D 10 1F 04 13 05 14 03 02 12 20
EDID Block 0, Bytes 0-127 [00H-7FH] 90 21 22 15 01 5E 5F 62 63 64 26 15 07 50 09 57 07
0 1 2 3 4 5 6 7 8 9 A B C D E F A0 6E 03 0C 00 10 00 B8 3C 20 00 80 01 02 03 04 E5
00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 B0 0E 60 61 65 66 E3 06 05 01 01 1D 80 18 71 1C 16
10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 C0 20 58 2C 25 00 40 84 63 00 00 9E 66 21 50 B0 51
20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 D0 00 1B 30 40 70 36 00 40 84 63 00 00 1E 00 00 00
30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 84
50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC # HDMI 2(C/S : 9F 42) - HDMI UHD Deep On Case
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F EDID Block 0, Bytes 0-127 [00H-7FH]
0 1 2 3 4 5 6 7 8 9 A B C D E F
EDID Block 1, Bytes 128-255 [80H-FFH] 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
0 1 2 3 4 5 6 7 8 9 A B C D E F 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
80 02 03 3C F1 54 5D 10 1F 04 13 05 14 03 02 12 20 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
90 21 22 15 01 5E 5F 62 63 64 29 3D 06 C0 15 07 50 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58
A0 09 57 07 6E 03 0C 00 30 00 B8 3C 20 00 80 01 02 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40
B0 03 04 E5 0E 60 61 65 66 E3 06 05 01 01 1D 80 18 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
C0 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 66 21 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC
D0 50 B0 51 00 1B 30 40 70 36 00 40 84 63 00 00 1E 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F
E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 5B
Copyright © LG Electronics. Inc. All rights reserved. - 14 - LGE Internal Use Only
Only for training and service purposes

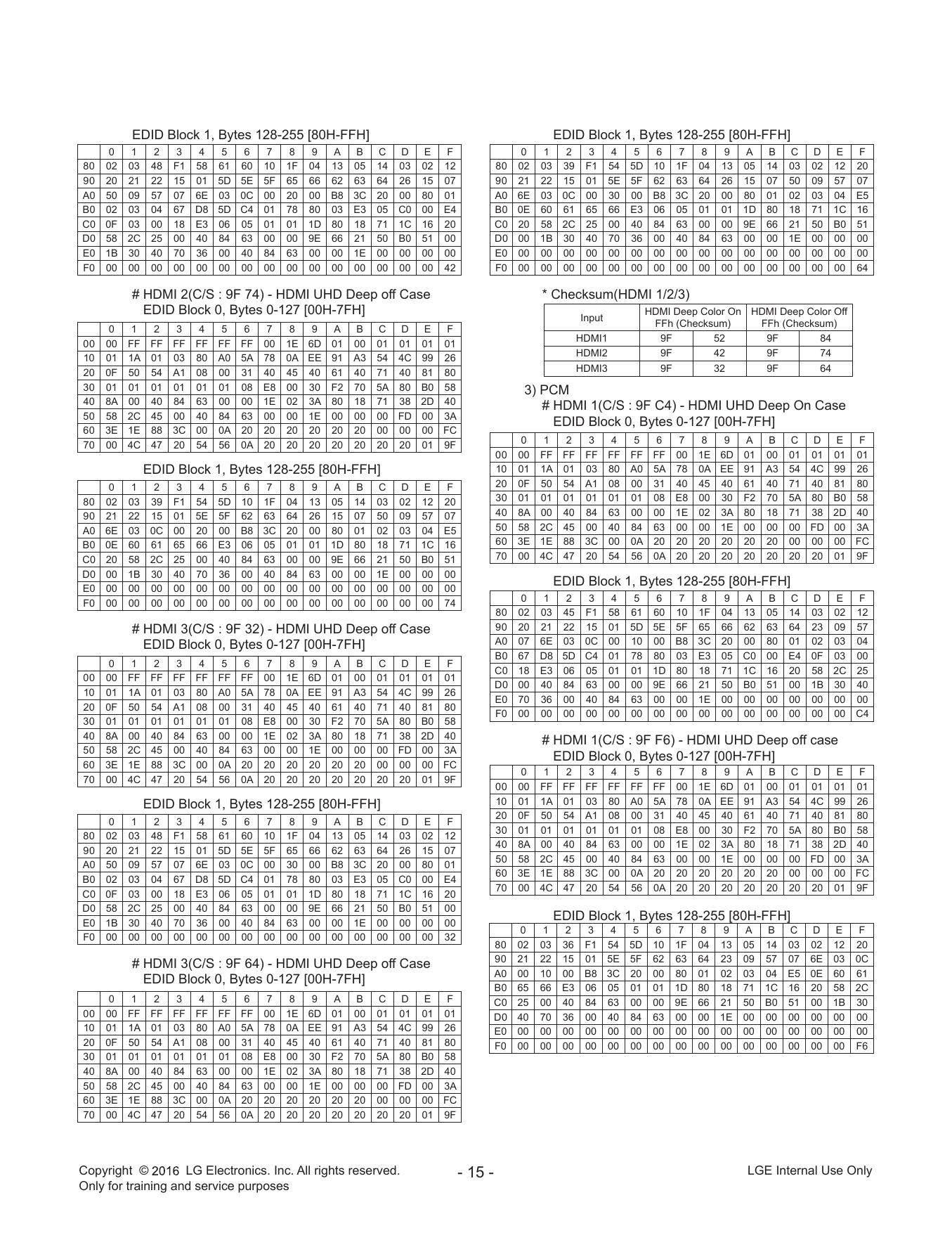

EDID Block 1, Bytes 128-255 [80H-FFH] EDID Block 1, Bytes 128-255 [80H-FFH]
0 1 2 3 4 5 6 7 8 9 A B C D E F 0 1 2 3 4 5 6 7 8 9 A B C D E F
80 02 03 48 F1 58 61 60 10 1F 04 13 05 14 03 02 12 80 02 03 39 F1 54 5D 10 1F 04 13 05 14 03 02 12 20
90 20 21 22 15 01 5D 5E 5F 65 66 62 63 64 26 15 07 90 21 22 15 01 5E 5F 62 63 64 26 15 07 50 09 57 07
A0 50 09 57 07 6E 03 0C 00 20 00 B8 3C 20 00 80 01 A0 6E 03 0C 00 30 00 B8 3C 20 00 80 01 02 03 04 E5
B0 02 03 04 67 D8 5D C4 01 78 80 03 E3 05 C0 00 E4 B0 0E 60 61 65 66 E3 06 05 01 01 1D 80 18 71 1C 16
C0 0F 03 00 18 E3 06 05 01 01 1D 80 18 71 1C 16 20 C0 20 58 2C 25 00 40 84 63 00 00 9E 66 21 50 B0 51
D0 58 2C 25 00 40 84 63 00 00 9E 66 21 50 B0 51 00 D0 00 1B 30 40 70 36 00 40 84 63 00 00 1E 00 00 00
E0 1B 30 40 70 36 00 40 84 63 00 00 1E 00 00 00 00 E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 42 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 64
# HDMI 2(C/S : 9F 74) - HDMI UHD Deep off Case * Checksum(HDMI 1/2/3)
EDID Block 0, Bytes 0-127 [00H-7FH] Input
HDMI Deep Color On HDMI Deep Color Off
FFh (Checksum) FFh (Checksum)
0 1 2 3 4 5 6 7 8 9 A B C D E F
HDMI1 9F 52 9F 84
00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 HDMI2 9F 42 9F 74
20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 HDMI3 9F 32 9F 64
30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 3) PCM
40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40
# HDMI 1(C/S : 9F C4) - HDMI UHD Deep On Case
50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
EDID Block 0, Bytes 0-127 [00H-7FH]
60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F 0 1 2 3 4 5 6 7 8 9 A B C D E F
00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
EDID Block 1, Bytes 128-255 [80H-FFH] 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
0 1 2 3 4 5 6 7 8 9 A B C D E F 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
80 02 03 39 F1 54 5D 10 1F 04 13 05 14 03 02 12 20 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58
90 21 22 15 01 5E 5F 62 63 64 26 15 07 50 09 57 07 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40
A0 6E 03 0C 00 20 00 B8 3C 20 00 80 01 02 03 04 E5 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
B0 0E 60 61 65 66 E3 06 05 01 01 1D 80 18 71 1C 16 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC
C0 20 58 2C 25 00 40 84 63 00 00 9E 66 21 50 B0 51 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F
D0 00 1B 30 40 70 36 00 40 84 63 00 00 1E 00 00 00
E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
EDID Block 1, Bytes 128-255 [80H-FFH]
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 74 0 1 2 3 4 5 6 7 8 9 A B C D E F
80 02 03 45 F1 58 61 60 10 1F 04 13 05 14 03 02 12
# HDMI 3(C/S : 9F 32) - HDMI UHD Deep off Case 90 20 21 22 15 01 5D 5E 5F 65 66 62 63 64 23 09 57
EDID Block 0, Bytes 0-127 [00H-7FH] A0 07 6E 03 0C 00 10 00 B8 3C 20 00 80 01 02 03 04
B0 67 D8 5D C4 01 78 80 03 E3 05 C0 00 E4 0F 03 00
0 1 2 3 4 5 6 7 8 9 A B C D E F
C0 18 E3 06 05 01 01 1D 80 18 71 1C 16 20 58 2C 25
00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
D0 00 40 84 63 00 00 9E 66 21 50 B0 51 00 1B 30 40
10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
E0 70 36 00 40 84 63 00 00 1E 00 00 00 00 00 00 00
20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 C4
30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58
40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40
# HDMI 1(C/S : 9F F6) - HDMI UHD Deep off case
50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
EDID Block 0, Bytes 0-127 [00H-7FH]
60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC
0 1 2 3 4 5 6 7 8 9 A B C D E F
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F
00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
EDID Block 1, Bytes 128-255 [80H-FFH] 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
0 1 2 3 4 5 6 7 8 9 A B C D E F
30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58
80 02 03 48 F1 58 61 60 10 1F 04 13 05 14 03 02 12
40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40
90 20 21 22 15 01 5D 5E 5F 65 66 62 63 64 26 15 07
50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
A0 50 09 57 07 6E 03 0C 00 30 00 B8 3C 20 00 80 01
60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC
B0 02 03 04 67 D8 5D C4 01 78 80 03 E3 05 C0 00 E4
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F
C0 0F 03 00 18 E3 06 05 01 01 1D 80 18 71 1C 16 20
D0 58 2C 25 00 40 84 63 00 00 9E 66 21 50 B0 51 00
E0 1B 30 40 70 36 00 40 84 63 00 00 1E 00 00 00 00
EDID Block 1, Bytes 128-255 [80H-FFH]
0 1 2 3 4 5 6 7 8 9 A B C D E F
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 32
80 02 03 36 F1 54 5D 10 1F 04 13 05 14 03 02 12 20
90 21 22 15 01 5E 5F 62 63 64 23 09 57 07 6E 03 0C
# HDMI 3(C/S : 9F 64) - HDMI UHD Deep off Case
A0 00 10 00 B8 3C 20 00 80 01 02 03 04 E5 0E 60 61
EDID Block 0, Bytes 0-127 [00H-7FH]
B0 65 66 E3 06 05 01 01 1D 80 18 71 1C 16 20 58 2C
0 1 2 3 4 5 6 7 8 9 A B C D E F C0 25 00 40 84 63 00 00 9E 66 21 50 B0 51 00 1B 30
00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 D0 40 70 36 00 40 84 63 00 00 1E 00 00 00 00 00 00
10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F6
30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58
40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40
50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F
Copyright © LG Electronics. Inc. All rights reserved. - 15 - LGE Internal Use Only
Only for training and service purposes
# HDMI 2(C/S : 9F B4) - HDMI UHD Deep On Case # HDMI 3(C/S : 9F D6) - HDMI UHD Deep off case
EDID Block 0, Bytes 0-127 [00H-7FH] EDID Block 0, Bytes 0-127 [00H-7FH]
0 1 2 3 4 5 6 7 8 9 A B C D E F 0 1 2 3 4 5 6 7 8 9 A B C D E F
00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58
40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40
50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F
EDID Block 1, Bytes 128-255 [80H-FFH] EDID Block 1, Bytes 128-255 [80H-FFH]
0 1 2 3 4 5 6 7 8 9 A B C D E F 0 1 2 3 4 5 6 7 8 9 A B C D E F
80 02 03 45 F1 58 61 60 10 1F 04 13 05 14 03 02 12 80 02 03 36 F1 54 5D 10 1F 04 13 05 14 03 02 12 20
90 20 21 22 15 01 5D 5E 5F 65 66 62 63 64 23 09 57 90 21 22 15 01 5E 5F 62 63 64 23 09 57 07 6E 03 0C
A0 07 6E 03 0C 00 20 00 B8 3C 20 00 80 01 02 03 04 A0 00 30 00 B8 3C 20 00 80 01 02 03 04 E5 0E 60 61
B0 67 D8 5D C4 01 78 80 03 E3 05 C0 00 E4 0F 03 00 B0 65 66 E3 06 05 01 01 1D 80 18 71 1C 16 20 58 2C
C0 18 E3 06 05 01 01 1D 80 18 71 1C 16 20 58 2C 25 C0 25 00 40 84 63 00 00 9E 66 21 50 B0 51 00 1B 30
D0 00 40 84 63 00 00 9E 66 21 50 B0 51 00 1B 30 40 D0 40 70 36 00 40 84 63 00 00 1E 00 00 00 00 00 00
E0 70 36 00 40 84 63 00 00 1E 00 00 00 00 00 00 00 E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 B4 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 D6
# HDMI 2(C/S : 9F E6) - HDMI UHD Deep off case * Checksum(HDMI 1/2/3)
EDID Block 0, Bytes 0-127 [00H-7FH] Input
HDMI Deep Color On HDMI Deep Color Off
FFh (Checksum) FFh (Checksum)
0 1 2 3 4 5 6 7 8 9 A B C D E F
HDMI1 9F C4 9F F6
00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
HDMI2 9F B4 9F E6
10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
HDMI3 9F A4 9F D6
20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58
40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40
50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F
EDID Block 1, Bytes 128-255 [80H-FFH]
0 1 2 3 4 5 6 7 8 9 A B C D E F
80 02 03 36 F1 54 5D 10 1F 04 13 05 14 03 02 12 20
90 21 22 15 01 5E 5F 62 63 64 23 09 57 07 6E 03 0C
A0 00 20 00 B8 3C 20 00 80 01 02 03 04 E5 0E 60 61
B0 65 66 E3 06 05 01 01 1D 80 18 71 1C 16 20 58 2C
C0 25 00 40 84 63 00 00 9E 66 21 50 B0 51 00 1B 30
D0 40 70 36 00 40 84 63 00 00 1E 00 00 00 00 00 00
E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 E6
# HDMI 3(C/S : 9F A2) - HDMI UHD Deep off case
EDID Block 0, Bytes 0-127 [00H-7FH]
0 1 2 3 4 5 6 7 8 9 A B C D E F
00 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80
30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58
40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40
50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F
EDID Block 1, Bytes 128-255 [80H-FFH]
0 1 2 3 4 5 6 7 8 9 A B C D E F
80 02 03 45 F1 58 61 60 10 1F 04 13 05 14 03 02 12
90 20 21 22 15 01 5D 5E 5F 65 66 62 63 64 23 09 57
A0 07 6E 03 0C 00 30 00 B8 3C 20 00 80 01 02 03 04
B0 67 D8 5D C4 01 78 80 03 E3 05 C0 00 E4 0F 03 00
C0 18 E3 06 05 01 01 1D 80 18 71 1C 16 20 58 2C 25
D0 00 40 84 63 00 00 9E 66 21 50 B0 51 00 1B 30 40
E0 70 36 00 40 84 63 00 00 1E 00 00 00 00 00 00 00
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 A4
Copyright © LG Electronics. Inc. All rights reserved. - 16 - LGE Internal Use Only
Only for training and service purposes
4.1.5. Green Eye Inspection Guide 4.2.3. Equipment connection MAP
(Only use Germany and CIS, Spec out
other EU country, but UF690 model only jGh ¡G
for Germany)
wG
yzTYZYjG
jG
Step 1) Turn on the TV set. |ziGGyzTYZYjG
yzTYZYjG
Step 2). Press “EYE” button on the Adjustment remote control. G
wGnG
zGz
pG{}GGGGSGG
4.2.4. Adj. Command (Protocol)
START 6E A 50 A LEN A 03 A CMD A 00 A VAL A CS STOP
- LEN: Number of Data Byte to be sent
- CMD: Command
Step 3) Block the Intelligent Sensor module on the front C/A - VAL: FOS Data value
about 6 seconds. When the “Sensor Data” is lower - CS: Checksum of sent data
than 20, you can see the “OK” message - A: Acknowledge
→ I f it doesn’t show “OK” message, the Sensor Ex) [Send: JA_00_DD] / [Ack: A_00_okDDX]
Module is defected one.
You have to replace that with a good one. ▪ RS-232C Command used during auto-adjustment.
RS-232C COMMAND
Explanation
[CMD ID DATA]
wb 00 00 Begin White Balance adj.
wb 00 10 Gain adj.(internal white pattern)
wb 00 1f Gain adj. completed
wb 00 20 Offset adj.(internal white pattern)
wb 00 2f Offset adj. completed
End White Balance adj.
wb 00 ff
(internal pattern disappears)
Step 4) After check the “OK” message come out, take out Ex) wb 00 00 → Begin white balance auto-adj.
your hand from the Sensor module. wb 00 10 → Gain adj.
→ Check “Backlight” value change from “0” to “100” or ja 00 ff → Adj. data
not. If it doesn’t change the value, the sensor is also jb 00 c0
defected one. You have to replace it. ...
...
wb 00 1f -> Gain adj. complete
4.2. White Balance Adjustment *(wb 00 20(Start), wb 00 2f(end)) → Off-set adj.
4.2.1. Overview wb 00 ff -> End white balance auto-adj.
▪ W/B adj. Objective & How-it-works
(1) Objective: To reduce each Panel's W/B deviation ▪ Adj. Map
(2) How-it-works : When R/G/B gain in the OSD is at 192, it
Adj Command Data Range
means the panel is at its Full Dynamic Range. In order to
(lower caseASCII) (Hex.)
prevent saturation of Full Dynamic range and data, one
of R/G/B is fixed at 192, and the other two is lowered to CMD1 CMD2 MIN MAX
find the desired value. Cool R Gain j g 00 C0
(3) Adjustment condition : normal temperature
1) Surrounding Temperature : 25 °C ± 5 °C G Gain j h 00 C0
2) Warm-up time: About 5 Min B Gain j i 00 C0
3) Surrounding Humidity : 20 % ~ 80 %
Medium R Gain j a 00 C0
4.2.2. Equipment G Gain j b 00 C0
(1) Color Analyzer: CA-210 (LED Module : CH 14) B Gain j c 00 C0
(2) Adjustment Computer(During auto adj., RS-232C protocol
Warm R Gain j d 00 C0
is needed)
(3) Adjustment Remote control G Gain j e 00 C0
(4) Video Signal Generator MSPG-925F 720p/216-Gray B Gain j f 00 C0
(Model: 204, Pattern: 49)
→ Only when internal pattern is not available
• Color Analyzer Matrix should be calibrated using CS-100.
Copyright © LG Electronics. Inc. All rights reserved. - 17 - LGE Internal Use Only
Only for training and service purposes
4.2.5. Adj. method 4.2.6. Reference(White balance adjusmtment coordinate
(1) Auto adj. method and color temperature)
1) Set TV in adj. mode using POWER ON key. ▪ Luminance : 206 Gray
2) Zero calibrate probe then place it on the center of the ▪ Standard color coordinate and temperature using CS-1000
Display. (over 26 inch)
3) Connect Cable.(RS-232C to USB) Coordinate
4) Select mode in adj. Program and begin adj. Mode Temp ∆uv
5) When adj. is complete (OK Sign), check adj. status pre x y
mode.(Warm, Medium, Cool) Cool 0.271 0.270 13000K 0.0000
6) Remove probe and RS-232C cable to complete adj. Medium 0.286 0.289 9300K 0.0000
Warm 0.313 0.329 6500K 0.0000
▪ W/B Adj. must begin as start command “wb 00 00”, and
finish as end command “wb 00 ff”, and Adj. offset if need. ▪ Standard color coordinate and temperature using CA-210(CH 14)
Coordinate
(2) Manual adjustment method Mode Temp ∆uv
x y
1) Set TV in Adj. mode using POWER ON.
2) Zero Calibrate the probe of Color Analyzer, then place it Cool 0.271±0.002 0.270±0.002 13000K 0.0000
on the center of LCD module within 10 cm of the surface. Medium 0.286±0.002 0.289±0.002 9300K 0.0000
3) Press ADJ key → EZ adjust using adj. R/C → 7. White- Warm 0.313±0.002 0.329±0.002 6500K 0.0000
Balance then press the cursor to the right(key ►).
(When right key(►) is pressed 216 Gray internal pattern
will be displayed) 4.2.7. EDGE & IOL LED White balance table
4) One of R Gain / G Gain / B Gain should be fixed at 192, ▪ Apply under the color coordinate table, for compensated
and the rest will be lowered to meet the desired value. aging time.
5) Adjustment is performed in COOL, MEDIUM, WARM 3
modes of color temperature. -gumi & Global
Model : (normal line)LGD
** G-fix adjustment
Aging Cool Medium Warm
Adjust modes (Cool), Fix the G gain to 172 (default data)
and change the others (G/B Gain). time x y x y x y
Adjust two modes(Medium / Warm), Fix the one of R/G/B (Min) 271 270 286 289 313 329
gain to 192 (default data) and decrease the others. 1 0-2 282 289 297 308 324 348
If internal pattern is not available, use RF input. In EZ Adj. 2 3-5 281 287 296 306 323 346
menu 7.White Balance, you can select one of 2 Test- 3 6-9 279 284 294 303 321 343
pattern: ON, OFF. Default is inner(ON). By selecting OFF, 4 10-19 277 280 292 299 319 339
you can adjust using RF signal in 216 Gray pattern.
5 20-35 275 277 290 296 317 336
6 36-49 274 274 289 293 316 333
▪ Adjustment condition and cautionary items
1) Lighting condition in surrounding area 7 50-79 273 272 288 291 315 331
Surrounding lighting should be lower 10 lux. Try to 8 80-119 272 271 287 290 314 330
isolate adj. area into dark surrounding. 9 Over 120 271 270 286 289 313 329
2) Probe location
- PDP: Color Analyzer (CA-100, CA-100+, CA210) probe (*) AUO, INX, Sharp, CSOT, BOE model (Cool spec : 13000K)
should be firmly attached to the Module – 40UH63**-Z*/55UH65**-Z*
- LCD: Color Analyzer (CA-210) probe should be within
10cm and perpendicular of the module surface webOS Cool Medium Warm
(80°~ 100°) x y x y x y
3) Aging time 271 270 285 293 313 329
- After Aging Start, Keep the Power ON status during 5
Minutes. Target 278 280 293 299 320 339
- In case of LCD, Back-light on should be checked using
no signal or Full-white pattern.
Copyright © LG Electronics. Inc. All rights reserved. - 18 - LGE Internal Use Only
Only for training and service purposes

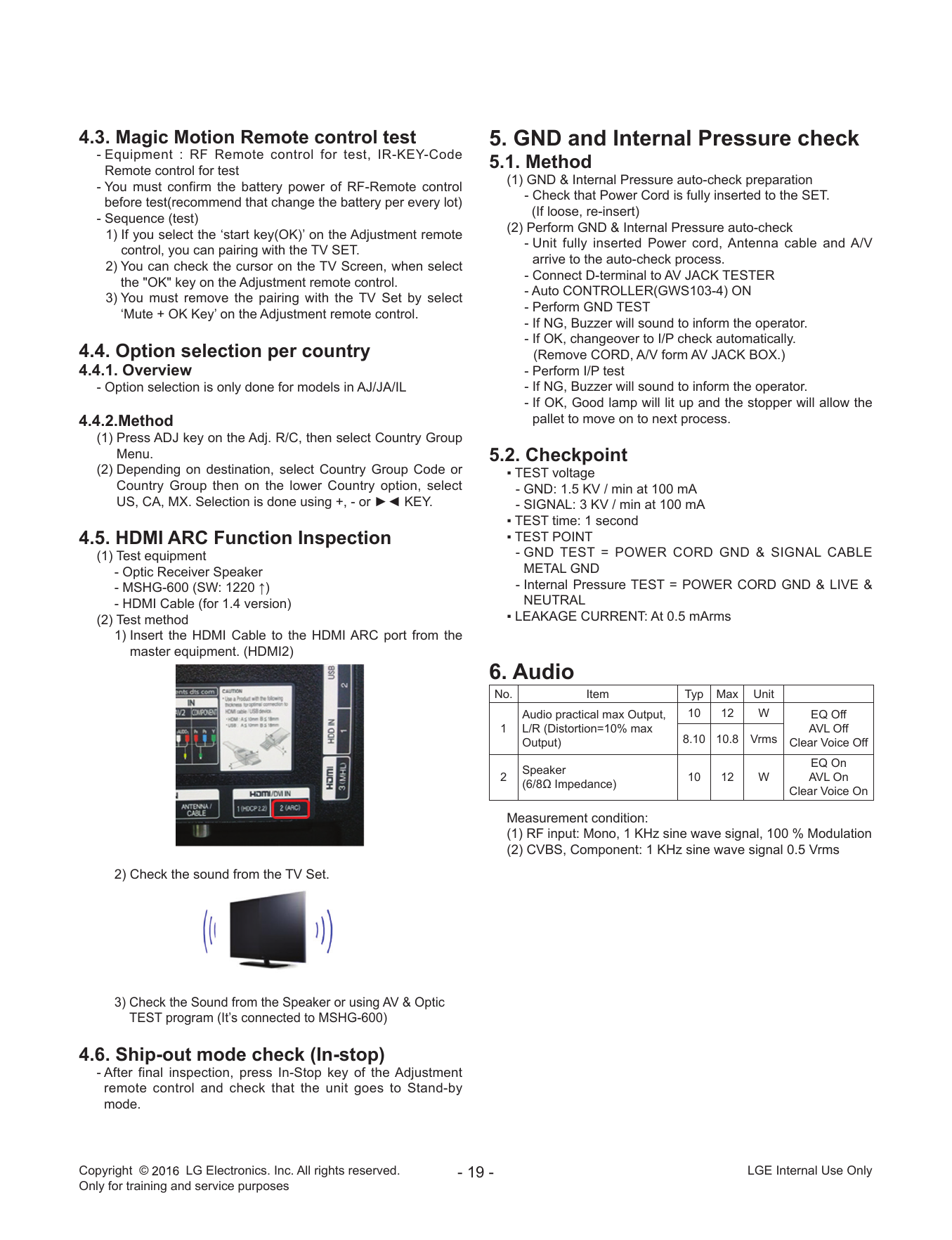

4.3. Magic Motion Remote control test 5. GND and Internal Pressure check
- E quipment : RF Remote control for test, IR-KEY-Code
Remote control for test
5.1. Method
(1) GND & Internal Pressure auto-check preparation
- You must confirm the battery power of RF-Remote control
- Check that Power Cord is fully inserted to the SET.
before test(recommend that change the battery per every lot)
(If loose, re-insert)
- Sequence (test)
(2) Perform GND & Internal Pressure auto-check
1) If you select the ‘start key(OK)’ on the Adjustment remote
- Unit fully inserted Power cord, Antenna cable and A/V
control, you can pairing with the TV SET.
arrive to the auto-check process.
2) You can check the cursor on the TV Screen, when select
- Connect D-terminal to AV JACK TESTER
the "OK" key on the Adjustment remote control.
- Auto CONTROLLER(GWS103-4) ON
3) You must remove the pairing with the TV Set by select
- Perform GND TEST
‘Mute + OK Key’ on the Adjustment remote control.
- If NG, Buzzer will sound to inform the operator.
- If OK, changeover to I/P check automatically.
4.4. Option selection per country (Remove CORD, A/V form AV JACK BOX.)
4.4.1. Overview - Perform I/P test
- Option selection is only done for models in AJ/JA/IL - If NG, Buzzer will sound to inform the operator.
- If OK, Good lamp will lit up and the stopper will allow the
4.4.2.Method pallet to move on to next process.
(1) Press ADJ key on the Adj. R/C, then select Country Group
Menu. 5.2. Checkpoint
(2) Depending on destination, select Country Group Code or ▪ TEST voltage
Country Group then on the lower Country option, select - GND: 1.5 KV / min at 100 mA
US, CA, MX. Selection is done using +, - or ►◄ KEY. - SIGNAL: 3 KV / min at 100 mA
▪ TEST time: 1 second
4.5. HDMI ARC Function Inspection ▪ TEST POINT
(1) Test equipment - GND TEST = POWER CORD GND & SIGNAL CABLE
- Optic Receiver Speaker METAL GND
- MSHG-600 (SW: 1220 ↑) - Internal Pressure TEST = POWER CORD GND & LIVE &
- HDMI Cable (for 1.4 version) NEUTRAL
(2) Test method ▪ LEAKAGE CURRENT: At 0.5 mArms
1) Insert the HDMI Cable to the HDMI ARC port from the
master equipment. (HDMI2)
6. Audio
No. Item Typ Max Unit
Audio practical max Output, 10 12 W EQ Off
1 L/R (Distortion=10% max AVL Off
Output) 8.10 10.8 Vrms Clear Voice Off
EQ On
Speaker
2 10 12 W AVL On
(6/8Ω Impedance)
Clear Voice On
Measurement condition:
(1) RF input: Mono, 1 KHz sine wave signal, 100 % Modulation
(2) CVBS, Component: 1 KHz sine wave signal 0.5 Vrms
2) Check the sound from the TV Set.
3) Check the Sound from the Speaker or using AV & Optic
TEST program (It’s connected to MSHG-600)
4.6. Ship-out mode check (In-stop)
- After final inspection, press In-Stop key of the Adjustment
remote control and check that the unit goes to Stand-by
mode.
Copyright © LG Electronics. Inc. All rights reserved. - 19 - LGE Internal Use Only
Only for training and service purposes

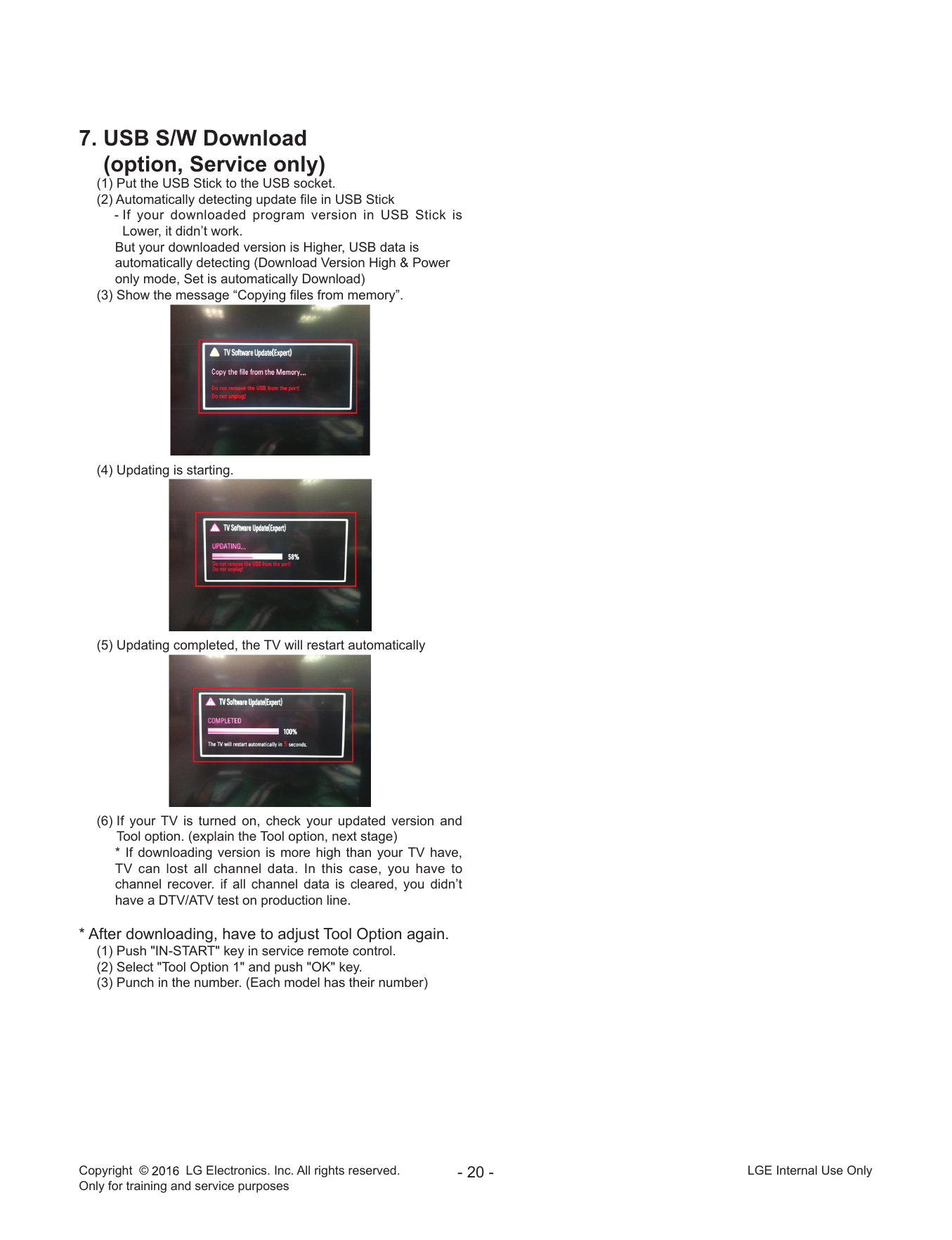

7. USB S/W Download
(option, Service only)
(1) Put the USB Stick to the USB socket.
(2) Automatically detecting update file in USB Stick
- If your downloaded program version in USB Stick is
Lower, it didn’t work.
But your downloaded version is Higher, USB data is
automatically detecting (Download Version High & Power
only mode, Set is automatically Download)
(3) Show the message “Copying files from memory”.
(4) Updating is starting.
(5) Updating completed, the TV will restart automatically
(6) If your TV is turned on, check your updated version and
Tool option. (explain the Tool option, next stage)
* If downloading version is more high than your TV have,
TV can lost all channel data. In this case, you have to
channel recover. if all channel data is cleared, you didn’t
have a DTV/ATV test on production line.
* After downloading, have to adjust Tool Option again.
(1) Push "IN-START" key in service remote control.
(2) Select "Tool Option 1" and push "OK" key.
(3) Punch in the number. (Each model has their number)
Copyright © LG Electronics. Inc. All rights reserved. - 20 - LGE Internal Use Only
Only for training and service purposes
BLOCK DIAGRAM
1. K2Lp
Copyright © LG Electronics. Inc. All rights reserved. - 21 - LGE Internal Use Only
Only for training and service purposes
2. K2Lp (Internal)
Copyright © LG Electronics. Inc. All rights reserved. - 22 - LGE Internal Use Only
Only for training and service purposes

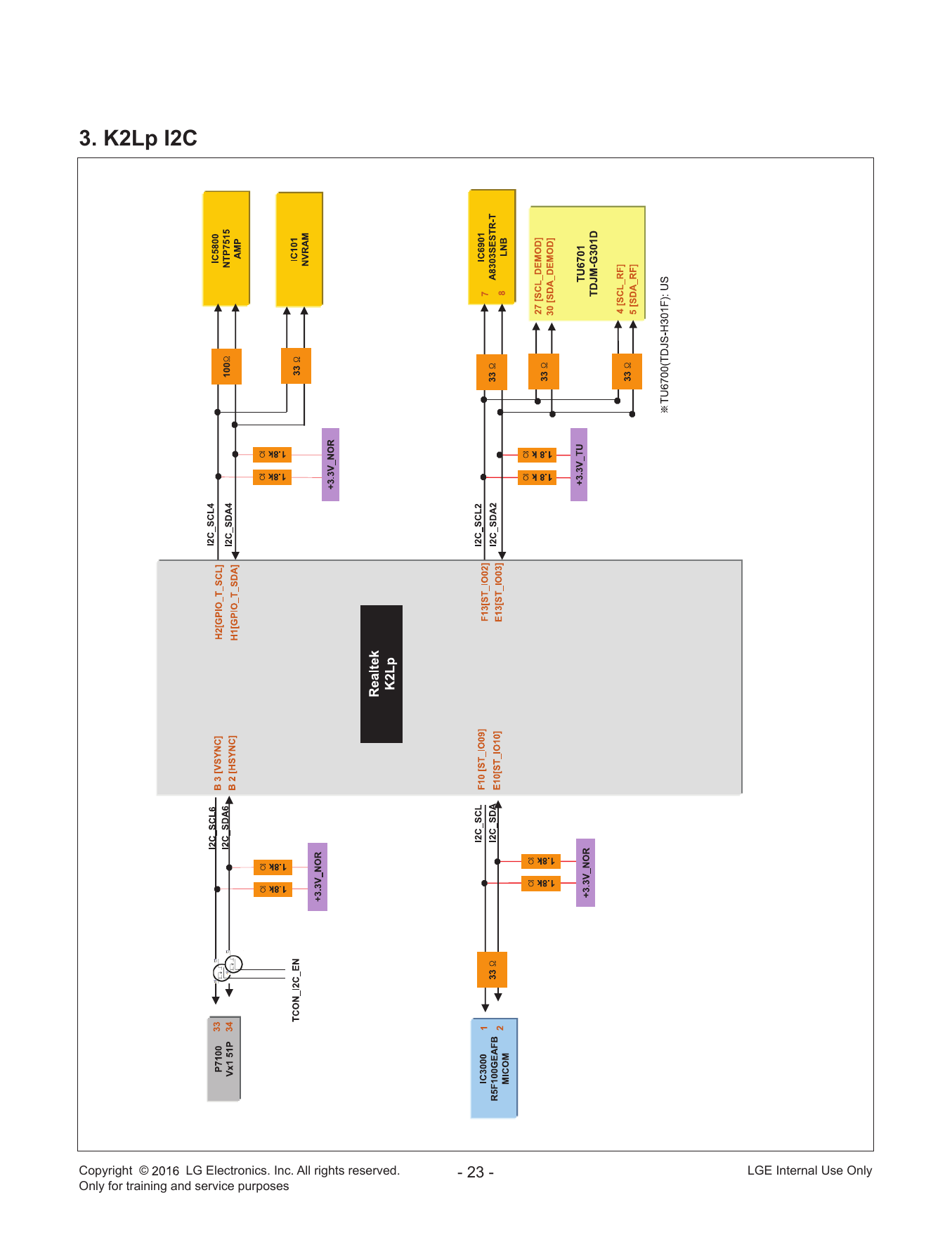

3. K2Lp I2C
Copyright © LG Electronics. Inc. All rights reserved. - 23 - LGE Internal Use Only
Only for training and service purposes

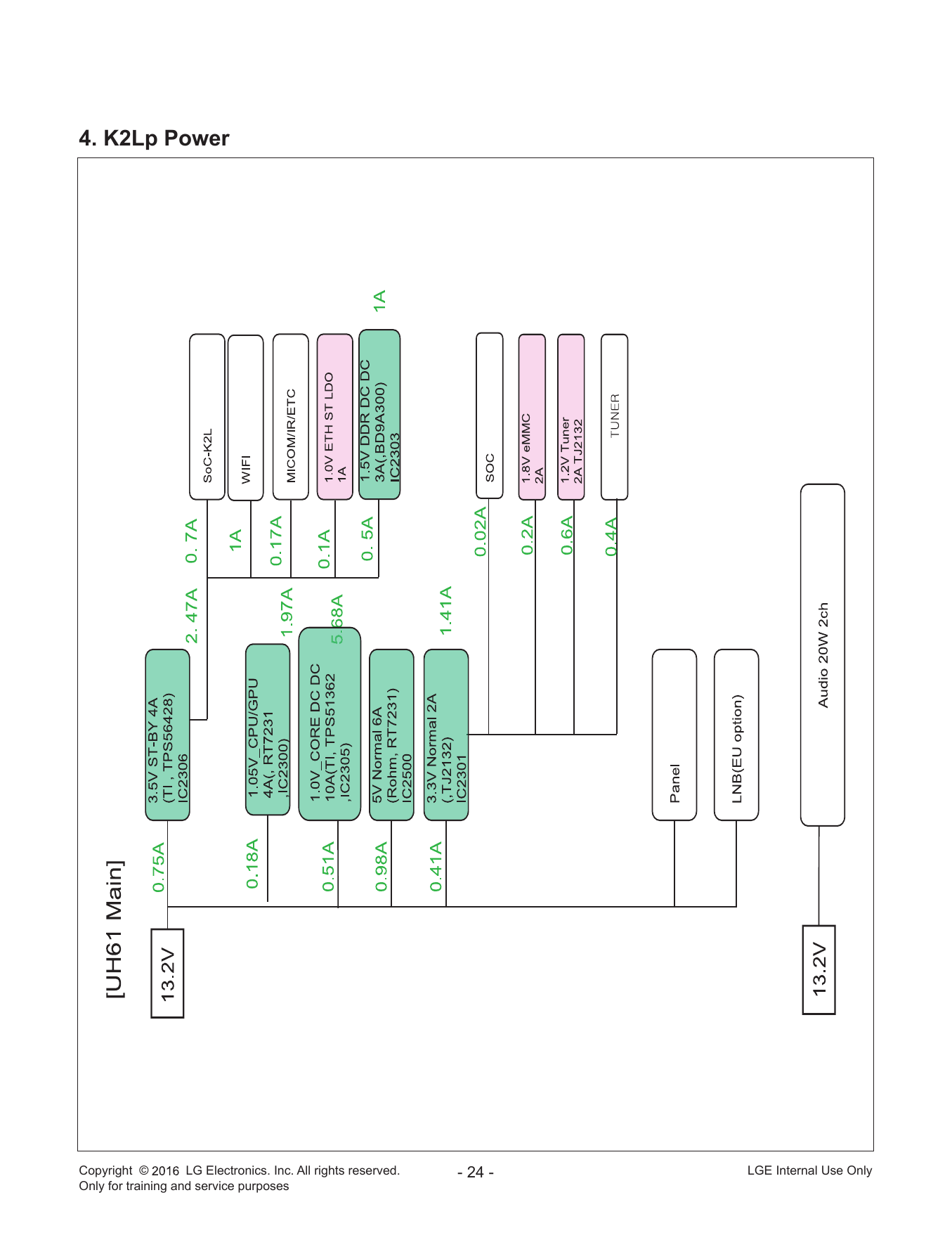

4. K2Lp Power
Copyright © LG Electronics. Inc. All rights reserved. - 24 - LGE Internal Use Only
Only for training and service purposes

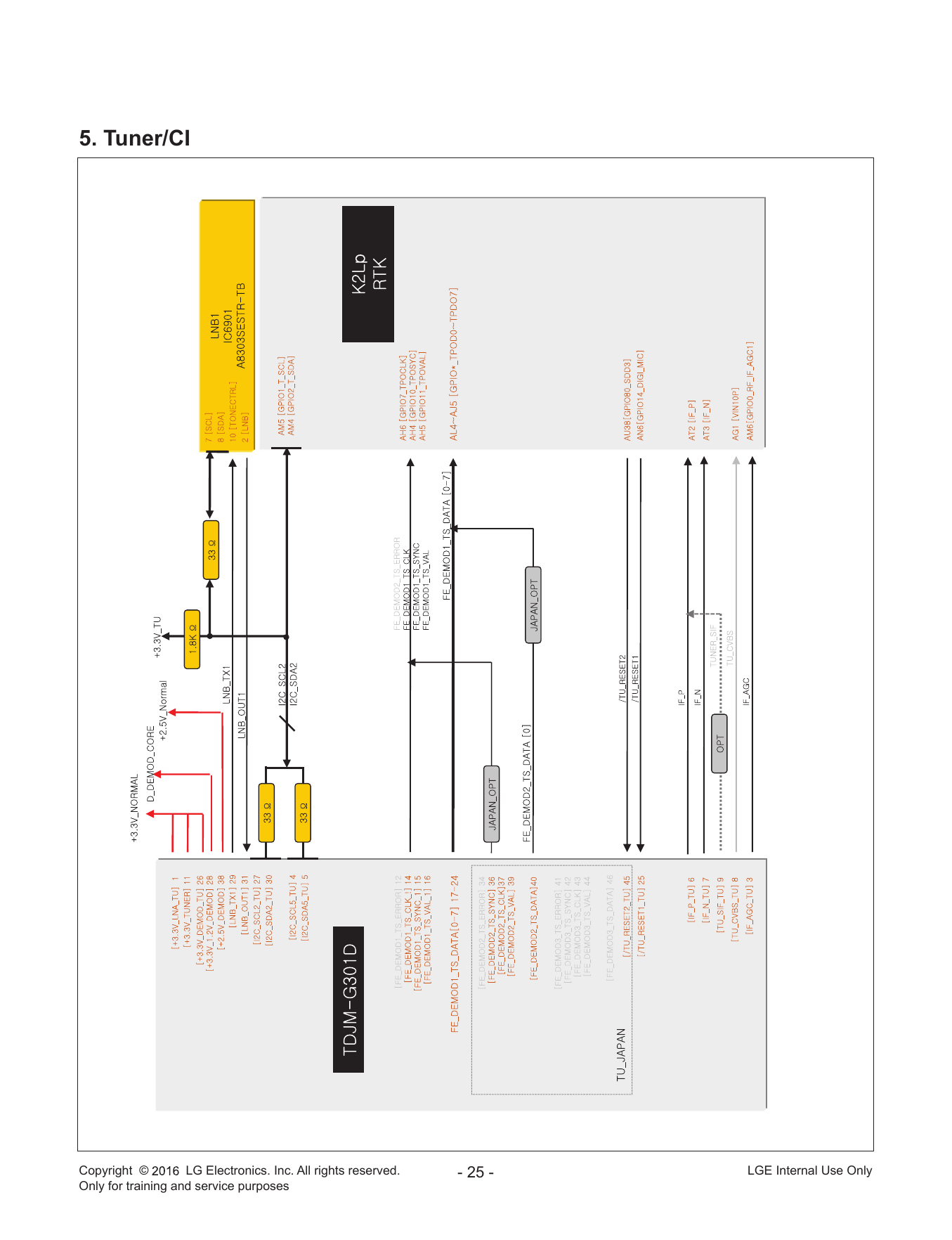

5. Tuner/CI
Copyright © LG Electronics. Inc. All rights reserved. - 25 - LGE Internal Use Only
Only for training and service purposes
6. Video/Audio In
Copyright © LG Electronics. Inc. All rights reserved. - 26 - LGE Internal Use Only
Only for training and service purposes

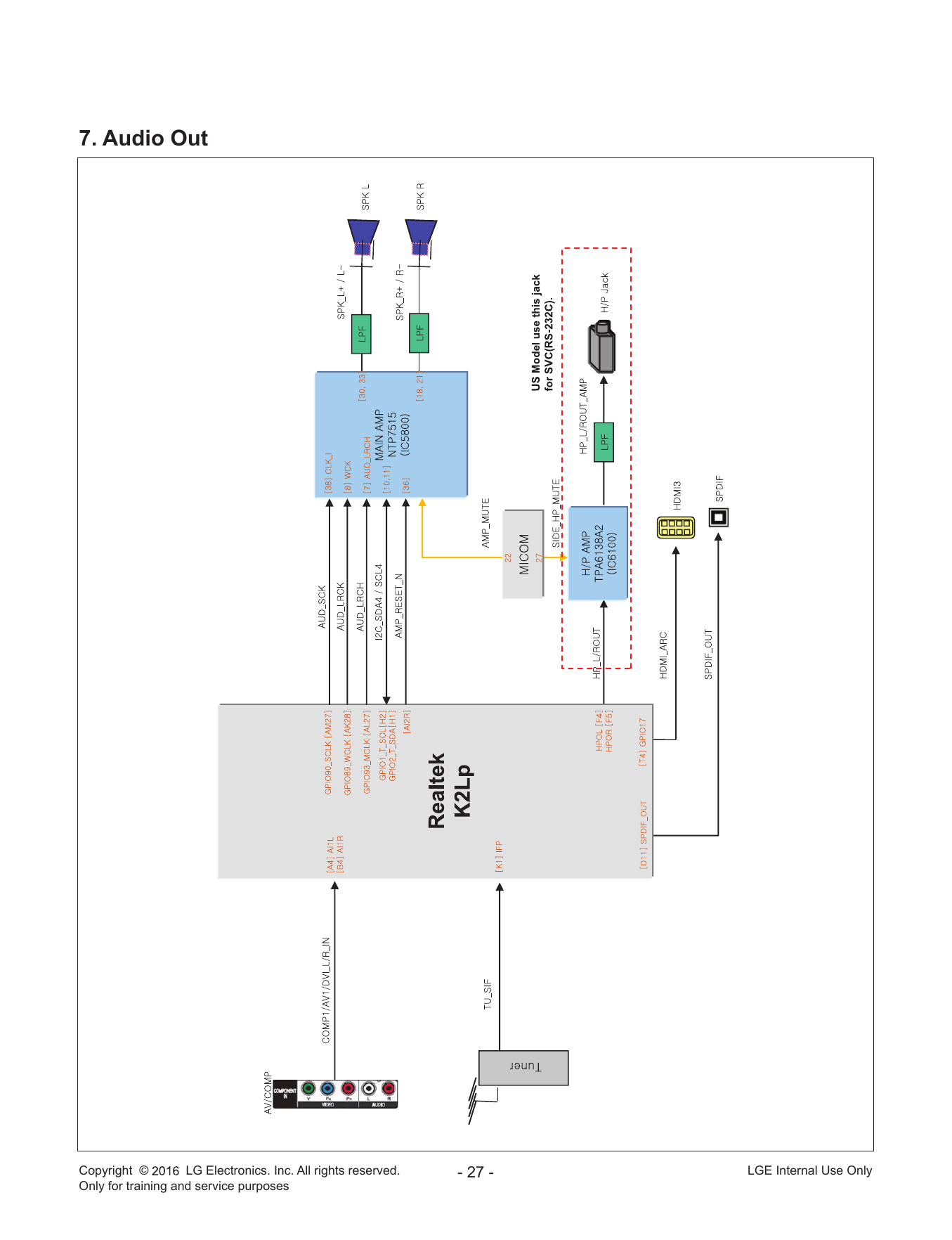

7. Audio Out
Copyright © LG Electronics. Inc. All rights reserved. - 27 - LGE Internal Use Only
Only for training and service purposes
8. HDMI
Copyright © LG Electronics. Inc. All rights reserved. - 28 - LGE Internal Use Only
Only for training and service purposes
9. USB / WIFI / UART
Copyright © LG Electronics. Inc. All rights reserved. - 29 - LGE Internal Use Only
Only for training and service purposes
10. WOL
Copyright © LG Electronics. Inc. All rights reserved. - 30 - LGE Internal Use Only
Only for training and service purposes
EXPLODED VIEW
IMPORTANT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
901
911
900
400
902
912
800
570
571
120
521
540
121
530
500
700
820
LV1
200T
Set + Stand
A10
(LGD Module Only)
* LED Array Ass'y
200A
Stand Base
Stand Body
A9
+
200
A2
Copyright © LG Electronics. Inc. All rights reserved. - 31 - LGE Internal Use Only
Only for training and service purposes
DISASSEMBLY
1. Disassembly of Back cover
(1) Remove screw in the set (2) Check both right/left hole
(3) Attach tape to ‘Long nose pliers’ (4) Put ‘long nose’ into the hole
(5) Open B/C with push/pulling long (6) Disassemble Back cover
nose to upper and lower sides. * Disassemble it from left to right for top side hook on
Back cover
Copyright © LG Electronics. Inc. All rights reserved. - 32 - LGE Internal Use Only
Only for training and service purposes
2. Back cover hole size & Long nose spec
B/C Hole size Tool spec
- w : 4.6 mm - Long nose pliers
- t : 3.5 mm - Needle nose pliers
Y
V : PP
Y
W PP
V
Copyright © LG Electronics. Inc. All rights reserved. - 33 - LGE Internal Use Only
Only for training and service purposes
TROUBLE SHOOTING GUIDE
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Contents of Standard Repair Process
No. Error symptom (High category) Error symptom (Mid category) Page Remarks
1 No video/Normal audio 1
2 No video/No audio 2
3 A. Video error Picture broken/ Freezing 3
4 Color error 4
Vertical/Horizontal bar, residual image,
5 5
light spot, external device color error
6 No power 6
B. Power error Off when on, off while viewing, power
7 7
auto on/off
8 No audio/Normal video 8
C. Audio error
9 Wrecked audio/discontinuation/noise 9
10 Remote control & Local switch checking 10
MR15 operating checking 11 Not used
11
12 D. Function error Wifi operating checking 12
13 Camera operating checking 13 Not used
14 External device recognition error 14
15 E. Noise Circuit noise, mechanical noise 15
16 F. Exterior error Exterior defect 16
First of all, Check whether there is SVC Bulletin in GSCS System for these model.
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error A. Video error date
symptom
No video/ Normal audio Revised date 1/16
First of all, Check whether all of cables between board is inserted properly or not.
(Main B/D↔ Power B/D, VX1 Cable, Speaker Cable, IR B/D Cable,,,)
☞A1 ☞A18
No video Normal Y Check Back Light Y Check Power Normal Y Replace T-con/Main
Normal audio On Board or module
audio On with naked eye Board +13V voltage
And Adjust VCOM
N N N
Move to No Panel Vcc (12V) output Repair Power
☞A18
video/No audio Board or parts
Replace Inverter
Normal Y
or module
voltage
End
N
Repair Power
Board or parts
※Precaution ☞A4 & A2
Always check & record S/W Version and White
Replace Main Board Re-enter White Balance value
Balance value before replacing the Main Board
1
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error A. Video error date
symptom
No video/ No audio Revised date 2/16
☞A18
Check various Check and
Y
No Video/ voltages of Power Normal
replace
No audio Board ( 13V) voltage?
MAIN B/D
N End
Replace Power
Board and repair
parts
2
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error A. Video error date
symptom
Picture broken/ Freezing Revised date 3/16
. By using Digital signal level meter
☞ A3
. By using Diagnostics menu on OSD
Check RF Signal level ( All Settings→ Channels→ Channel Tuning→ Manual Tuning → Signal Strength, Signal Quality)
- Signal strength (Normal : over 50%)
- Signal Quality (Normal: over 50%)
Y Check whether other equipments have problem or not.
Normal
(By connecting RF Cable at other equipment)
Signal?
→ DVD Player ,Set-Top-Box, Different maker TV etc`
N
☞ A4
Check RF Cable
Normal Y Check SVC N Check Y
Connection Close
1. Reconnection Picture? S/W Version Bulletin? Tuner soldering
2. Install Booster N
Y
N
S/W Upgrade
N Contact with signal distributor
Normal
Picture? or broadcaster (Cable or Air)
Normal N
Y Picture? Replace
Main B/D
Y
Close
Close
3
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error A. Video error date
symptom
Color error Revised date 4/16
☞A6 ☞ A7
※ Check
Check color by input
and replace
-External Input Y Y
Color Link Cable Color Y Color
-COMPONENT Replace Main B/D Replace module
error? (V by one) error? error?
-AV
and contact
-HDMI N N N
condition
Check error End
color input
mode
☞A8 Check
External Input/ External device Y
external
Check Test pattern Component /Cable Replace Main/T-con B/D
device and
error normal
cable
N
Request repair
for external
device/cable
N
Check external External device Y
HDMI device and /Cable Replace Main/T-con B/D
error cable normal
4
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
A. Video error Established
Error date
symptom Vertical / Horizontal bar, residual image,
light spot, external device color error Revised date 5/16
Vertical/Horizontal bar, residual image, light spot Replace
Module
☞A6
☞ A7 N
Check color condition by input Check external
Check and
-External Input Screen Y device Y Screen N Screen
-Component Normal? replace Link Replace Main/T-con B/D
normal? connection normal? (adjust VCOM) normal?
-HDMI Cable
condition
N N For LGD panel Y
Y
Replace Main B/D
Replace Request repair End End
module for external
☞A8 device
Check Test pattern
For other panel
External device screen error-Color error
Check screen
condition by input
-External Input External
Check S/W Version Check N
-Component Input Connect other external
version
-HDMI error device and cable Screen N Replace
(Check normal operation of normal? Main/T-con
Y External Input, Component, B/D
Component and HDMI by connecting Y
S/W Upgrade error Jig, pattern Generator ,Set-
top Box etc.
Request repair for
external device
Connect other external Y
Normal N HDMI/
device and cable
screen? DVI
(Check normal operation of Screen N Replace
External Input, Component, normal? Main /T-con
Y and HDMI by connecting Jig, B/D
pattern Generator ,Set-top
Box etc.
End
5
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error B. Power error date
symptom
No power Revised date 6/16
☞A17 ☞A18
DC Power on Replace
Check Power LED Y Normal N Check Power Y
by pressing Power Key OK? Power
Logo LED On? operation? On ‘”High”
On Remote control B/D
. Stand-By: Red or Turn On
N Y
. Operating: Turn Off
Check Power cord Replace Main B/D
was inserted properly
☞A18
N Measure voltage of each output of Power B/D
Normal?
Y
Y Y
※ Normal
voltage?
Replace Main B/D
Close Normal
Check ST-BY 3.5V
Y
voltage? N
☞A18 Replace Power B/D
N
Replace Power
B/D
6
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error B. Power error date
symptom
Off when on, off while viewing, power auto on/off Revised date 7/16
Check outlet
☞A19
N Y
Check A/C cord Error? Check Power Off CPU
Replace Main B/D Normal? End
Mode Abnormal
N
Check for all 3- phase
power out Y Abnormal Replace Power B/D
1
Fix A/C cord & Outlet ☞A18
and check each 3
(If Power Off mode
phase out
is not displayed) Normal Y
Replace Main B/D
Check Power B/D voltage?
voltage
N
※ Caution
Check and fix exterior Replace Power B/D
of Power B/D Part
* Please refer to the all cases which Status Power off List Explanation
"POWEROFF_REMOTEKEY" Power off by REMOTE CONTROL
can be displayed on power off mode.
"POWEROFF_OFFTIMER" Power off by OFF TIMER
"POWEROFF_SLEEPTIMER" Power off by SLEEP TIMER
"POWEROFF_INSTOP" Power off by INSTOP KEY
"POWEROFF_AUTOOFF" Power off by AUTO OFF
Normal "POWEROFF_ONTIMER" Power off by ON TIMER
"POWEROFF_RS232C" Power off by RS232C
"POWEROFF_RESREC" Power off by Reservated Record
"POWEROFF_RECEND" Power off by End of Recording
"POWEROFF_SWDOWN" Power off by S/W Download
"POWEROFF_UNKNOWN" Power off by unknown status except listed case
"POWEROFF_ABNORMAL1" Power off by abnormal status except CPU trouble
Abnormal
"POWEROFF_CPUABNORMAL" Power off by CPU Abnormal
7
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error C. Audio error date
symptom
No audio/ Normal video Revised date 8/16
☞A20 ☞A21+A18
No audio
Check user N Check audio B+
Normal Y
menu > Off A13V of Power
Screen normal voltage
Speaker off Board
Y N
Cancel OFF Replace Power Board and repair parts
Check N
Disconnection Replace MAIN Board End
Speaker
disconnection
Y
Replace Speaker
8
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error C. Audio error date
symptom
Wrecked audio/ discontinuation/noise Revised date 9/16
→ abnormal audio/discontinuation/noise is same after “Check input signal” compared to No audio
Wrecked audio/
☞A21+A18
Check and replace
Discontinuation/ Check audio
speaker and
Noise for B+ Voltage (A13V)
connector
Check input all audio
signal Y Y
Signal
-RF
normal? Wrecked audio/
-External Input Normal
signal Discontinuation/
N Replace Main B/D voltage?
Noise only
for D-TV
N
Wrecked audio/
Discontinuation/
Replace Power B/D
Noise only
for Analog
(When RF signal is not
received)
Request repair to external Wrecked audio/ Replace Main B/D End
cable/ANT provider Discontinuation/
Noise only
for External Input
(In case of N
External Input Connect and check Normal
signal error) other external audio?
Check and fix device
external device Y
Check and fix external device
9
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
D. Function error Established
Error date
symptom
Remote control & Local switch checking Revised date 10/16
1. Remote control(R/C) operating error Replace
Main B/D
☞A22 ☞A22 ☞A22
Check & Repair N Check B+ Y Y
Check R/C itself Normal Y Normal Normal Check IR Normal
operating? Cable connection operating? 3.5V Voltage? Signal?
Operation Output signal
Connector solder On Main B/D
N
Y N N
☞A18
Check R/C Operating Check & Replace Close Check 3.5v on Power B/D Repair/Replace
When turn off light Baterry of R/C Replace Power B/D or IR B/D
in room Replace Main B/D
(Power B/D don’t have problem)
If R/C operate, Normal Y
operating? Close
Explain the customer
cause is interference
from light in room. N
Replace R/C
10
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
D. Function error Established
Error date
symptom
MR13 operating checking Revised date 11/16
2. MR15(Magic remote control) operating error (UH61 Model doesn`t support Magic remote control)
☞A4
Check the N Check MR15
RF Receiver ver Normal Y Press the Is show ok N Turn off/on the
INSTART menu is “00.00”? itself Operation operating? set and press
wheel message?
the wheel
N
Y
Y
☞A23
Check & Replace Close
Check & Repair Battery of MR15
RF assy
connection
Normal Y
☞A4 operating? Close
Is show ok N Press the back
RF Receiver ver N message? key about 5sec
Close N
is “00.00”?
Y
Replace
MR13
Y Close
Down load the Firmware
* If you conduct the loop at 3times, change the M4.
* INSTART MENU14.RF
remote control Test3.
Firmware download
11
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
D. Function error Established
Error date
symptom
Wifi operating checking Revised date 12/16
3.Wifi operating error
☞A4 ☞A24
Check the Wi-Fi Mac value N Check the Wifi wafer Normal N Replace
INSTART menu is “NG”? Voltage?
1pin Main B/D
Y
☞A24 Y
Check & Repair Close
Wifi cable
connection
☞A4
Wi-Fi Mac value N
is “NG”? Close
Y
Change the Wifi
assy
12
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
D. Function error Established
Error date
symptom
Camera operating checking Revised date 13/16
4.Camera operating error (Camera operation is not support)
☞A4 ☞A25
Check the Camera Ver. N Reconnect the Normal N Replace
INSTART menu is “NULL”? operation?
Camera module Main B/D
Y
Y
Close
Change the
Camera module
13
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error D. Function error date
symptom
External device recognition error Revised date 14/16
Y Check technical
Check External Input and
Signal information Technical N
input Component Replace Main B/D
input? - Fix information information?
Recognition error
signal
- S/W Version
N Y
HDMI/
Check and fix DVI, Optical
Fix in Replace Main B/D
external device/cable Recognition error
accordance
with technical
information
14
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error E. Noise date
symptom
Circuit noise, mechanical noise Revised date 15/16
Identify Check
Circuit
nose location of Replace PSU
noise
type noise
Mechanical Check location of
noise noise
※ When the nose is severe, replace the module
※ Mechanical noise is a natural (For models with fix information, upgrade the
phenomenon, and apply the 1st level S/W or provide the description)
description. When the customer does not OR
agree, apply the process by stage. ※ If there is a “Tak Tak” noise from the
※ Describe the basis of the description cabinet, refer to the KMS fix information and
in “Part related to nose” in the Owner’s then proceed as shown in the solution manual
Manual. (For models without any fix information,
provide the description)
15
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error F. Exterior defect date
symptom
Exterior defect Revised date 16/16
Zoom part with Module
Replace module
exterior damage damage
Cabinet
Replace cabinet
damage
Remote
control Replace remote control
damage
Stand
Replace stand
dent
16
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Contents of Standard Repair Process Detail Technical Manual
No. Error symptom Content Page Remarks
1 A. Video error_ No video/Normal Check LCD back light with naked eye A1
2 audio Check White Balance value A2
TUNER input signal strength checking
4 A3
method
A. Video error_ video error /Video
5 lag/stop Version checking method A4
6 Tuner Checking Part A5
A. Video error _Vertical/Horizontal bar,
7 connection diagram A6
residual image, light spot
Check Link Cable (EPI) reconnection
8 A7
A. Video error_ Color error condition
9 Adjustment Test pattern - ADJ Key A8
10 Exchange Main Board (1) A-1/5
11 Exchange Main Board (2) A-2/5
12 Defected Type caused by T-Con/ Exchange Power Board (PSU) A-3/5
Inverter/ Module
13 Exchange Module (1) A-4/5
14 Exchange Module (2) A-5/5
Continue to the next page
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Contents of Standard Repair Process Detail Technical Manual
Continued from previous page
No. Error symptom Content Page Remarks
16 Check front display LED A17
B. Power error_ No power
17 Check power input Voltage & ST-BY 3.5V A18
B. Power error_Off when on, off
18 POWER OFF MODE checking method A19
while viewing
Checking method in menu when there is
19 A20
C. Audio error_ No audio/Normal no audio
video Voltage and speaker checking method
20 A21
when there is no audio
remote control operation checking
21 D. Function error A22
method
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_No video/Normal audio date
Revised
Content Check LCD back light with naked eye A1
date
<43UH61>
After turning on the power and disassembling the case, check with the naked eye,
whether you can see light from locations.
A1
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_No video/Normal audio date
Revised
Content Check White Balance value A2
date
Entry
Entrymethod
method
1.1.Press
Pressthe
theADJ
ADJbutton
buttonononthe
theremote
remotecontrol
controlforforadjustment.
adjustment.
2.2.Enter
Enterinto
intoWhite
WhiteBalance
Balanceofofitem
item6.13.
3.3.After
Afterrecording
recordingthe
theR,R,G,G,B B(GAIN,
(GAIN,Cut)
Cut)value
valueofofColor
ColorTemp
Temp
(Cool/Medium/Warm),
(Cool/Medium/Warm), re-enter the value after replacingthe
re-enter the value after replacing theMAIN
MAINBOARD.
BOARD.
A2
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_Video error, video lag/stop date
TUNER input signal strength checking method Revised
Content date A3
Advanced Channels Channel Tuning
Manual Tuning
When the signal is strong,
use the attenuator (-10dB, -
15dB, -20dB etc.)
A3
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_Video error, video lag/stop date
Version checking method Revised
Content date A4
1. Checking method for remote control for adjustment
Version
Press the IN-START with the remote
control for adjustment
A4
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom
A. Video error_Video error, video lag/stop
date
Revised
Content TUNER checking part A5
date
Checking method:
1. Check the signal strength or check whether the screen is normal when the external device is connected.
2. After measuring each voltage from power supply, finally replace the MAIN BOARD.
3. If you can`t see the UHD live TV, please connect signal at left side of jack. (Korea model only)
A5
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error A. Video error _Vertical/Horizontal bar, Established
symptom residual image, light spot date
Revised
Content connection diagram (1) date A6
As the part connecting to the external input, check
the screen condition by signal
A6
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_Color error date
Revised
Content Check Link Cable(VX1) reconnection condition date A7
Check the contact condition of the Link Cable, especially dust or mis insertion.
A7
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom
A. Video error_Color error
date
Adjustment Test pattern - ADJ Key Revised
Content date A8
You can view 6 types of patterns using the ADJ Key
Checking item : 1. Defective pixel 2. Residual image 3. MODULE error (ADD-BAR,SCAN BAR..)
4.Video error (Classification of MODULE or Main-B/D!)
A8
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Appendix : Exchange Main Board (1)
Solder defect, CNT Broken Solder defect, CNT Broken Solder defect, CNT Broken
Solder defect, CNT Broken T-Con
T-Con Defect,
Defect,
Solder
T-Con CNT
CNT
defect,CNT
Defect, Broken
Broken
CNTBroken
Broken Abnormal Power Section
Solder defect, Short/Crack Abnormal Power Section Solder defect, Short/Crack
A - 1/5
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Appendix : Exchange Main Board (2)
Abnormal Power Section Abnormal Power Section Solder defect, Short/Crack
Solder defect, Short/Crack Fuse Open, Abnormal power section Abnormal Display
GRADATION Noise GRADATION
A - 2/5
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Appendix : Exchange Power Board (PSU)
No Light Dim Light
Dim Light Dim Light
No picture/Sound Ok
A - 3/5
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Appendix : Exchange the Module (1)
Crosstalk Press damage Crosstalk
Press damage Press damage
Un-repairable Cases
In this case please exchange the module.
A - 4/5
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Appendix : Exchange the Module (2)
Vertical Block Vertical Line Vertical Block
Source TAB IC Defect Source TAB IC Defect Source TAB IC Defect
Horizontal
TAB ICBlock
Horizontal Block Horizontal line
Gate Defect Gate TAB IC Defect
Gate TAB IC Defect Gate TAB IC Defect Gate TAB IC Defect
Un-repairable Cases
In this case please exchange the module.
Horizontal Block
Gate TAB IC Defect
Gate TAB IC Defect
A - 5/5
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom B. Power error _No power date
Revised
Content Check front Power Indicator date A17
<49UH61>
Joystick button
ST-BY condition: On or Off
Power ON condition: Turn Off
North America model doesn`t use lum.sensor
A17
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom
B. Power error _No power
date
Revised
Content Check power input voltage and ST-BY 3.5V A18
date
Check the DC 13.2V
A18
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error
symptom B. Power error _Off when on, off whiling viewing Established
date
Revised
Content POWER OFF MODE checking method date A19
Entry method
1. Press the IN-START button of the remote
control for adjustment
2. Check the entry into adjustment item 3
A19
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom C. Audio error_No audio/Normal video
date
Revised
Content Checking method in menu when there is no audio date A20
Checking method
1. Press the Setting button on the remote control
2. Select the Sound function of the Menu
3. Select the Sound Out
4. Select TV Speaker
A20
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom C. Audio error_No audio/Normal video date
Voltage and speaker checking method Revised
Content date A21
when there is no audio
<49UH61>
②
①
②
③
1 SPK_R-
2 SPK_R+
3 SPK_L-
Checking order when there is no audio
4 SPK_L+
1.Check the contact condition of or 13V connector of Main Board
2. Measure the 13V input voltage supplied from Power Board
(If there is no input voltage, remove and check the connector)
3.Connect the tester RX1 to the speaker terminal and if you hear the Chik Chik sound when you touch the
GND and output terminal, the speaker is normal.
A21
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom D. Function error date
Revised
Content remote control operation checking method date A22
<49UH61>
1 +3.5V_WIFI
① 2 WIFI_DM_JACK
IR & Control Key front 3 WIFI_DP_JACK
4 GND
5 WOL/WIFI_POWER_ON_JACK
6 GND
7 M-Moudle_RESET
8 GND
IR & Control Key Rear 12 EYE_SDA
13 EYE_SCL
14 GND
15 IR
16 LED_R_JACK
17 GND
18 +3.5V_ST
② 19 KEY2_JACK
IR ③ 20 GND
21 GND
Checking order to check remote control
Checking order
1.Check IR cable condition between IR & Main board.( Check picture number① and ②)
2.Check the standby 3.5V on the terminal 18 pin (③)
3.AS checking the Pre-Amp(IR LED light) , the power is in ON condition, an Analog Tester
needle should move slowly, otherwise, it’s defective.
A22
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom D. Function error date
Revised
Content remote control operation checking method date A22
< 49UH61>
1 +3.5V_WIFI
① Wifi Front 2 WIFI_DM_JACK
3 WIFI_DP_JACK
4 GND
5 WOL/WIFI_POWER_ON_JACK
6 GND
7 M-Moudle_RESET
8 GND
12 EYE_SDA
13 EYE_SCL
Wifi Rear 14 GND
15 IR
16 LED_R_JACK
17 GND
③ 18 +3.5V_ST
19 KEY2_JACK
②
20 GND
21 GND
Checking order to check wifi
Checking order
1.Check BT/Wifi cable condition between BT/Wifi assy & Main board.
2.Check the 3.5V on the terminal 1 (+3.5V_WIFI)
A22
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
