LED TV
SERVICE MANUAL
CHASSIS : UD62M
MODEL : 55/65UH950V 55/65UH950V-ZA
CAUTION
BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
P/NO : MFL69498101 (1603-REV00)

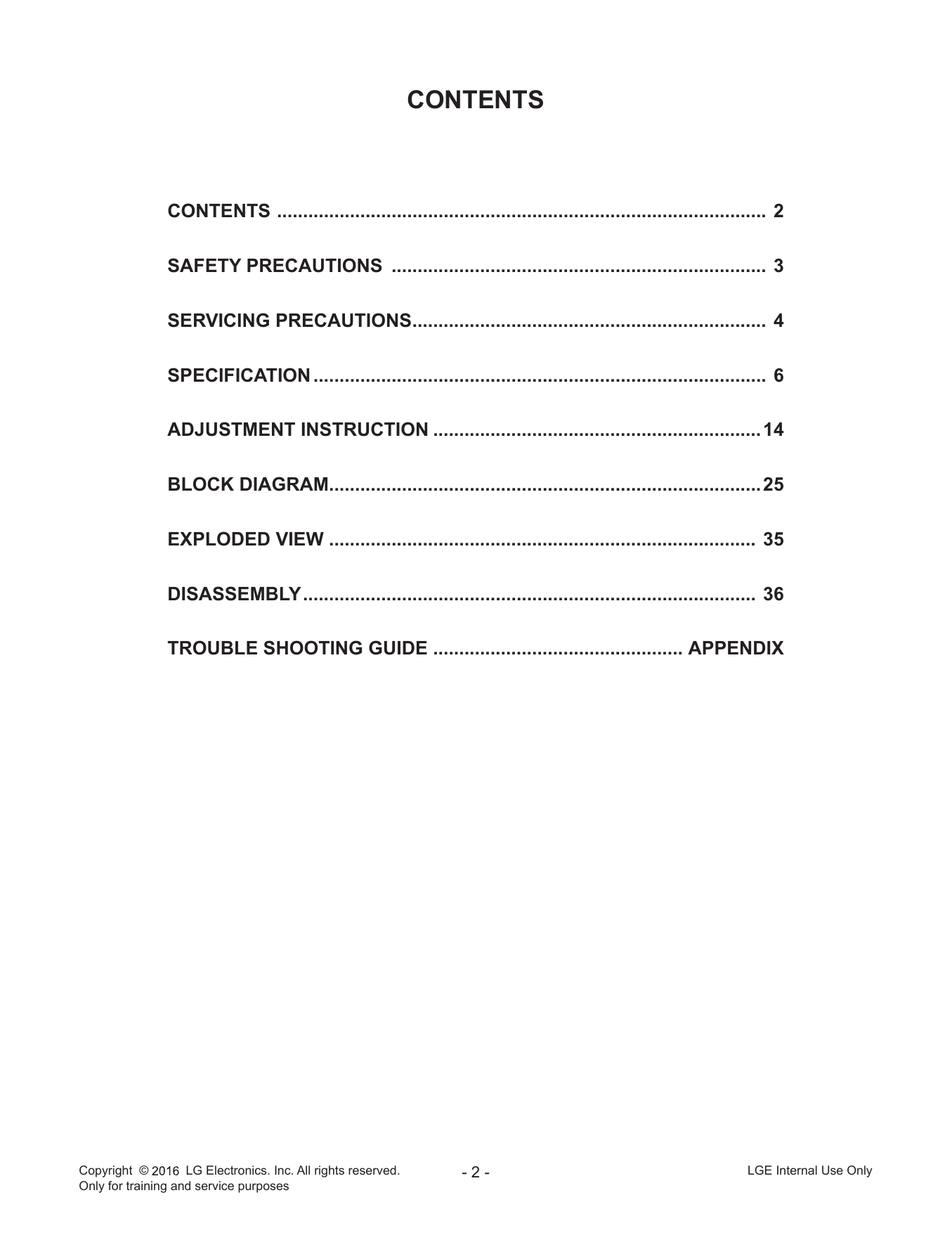

CONTENTS
CONTENTS .............................................................................................. 2
SAFETY PRECAUTIONS ........................................................................ 3
SERVICING PRECAUTIONS.................................................................... 4
SPECIFICATION ....................................................................................... 6
ADJUSTMENT INSTRUCTION ............................................................... 14
BLOCK DIAGRAM................................................................................... 25
EXPLODED VIEW .................................................................................. 35
DISASSEMBLY ....................................................................................... 36
TROUBLE SHOOTING GUIDE ................................................ APPENDIX
Copyright © LG Electronics. Inc. All rights reserved. -2- LGE Internal Use Only
Only for training and service purposes
SAFETY PRECAUTIONS

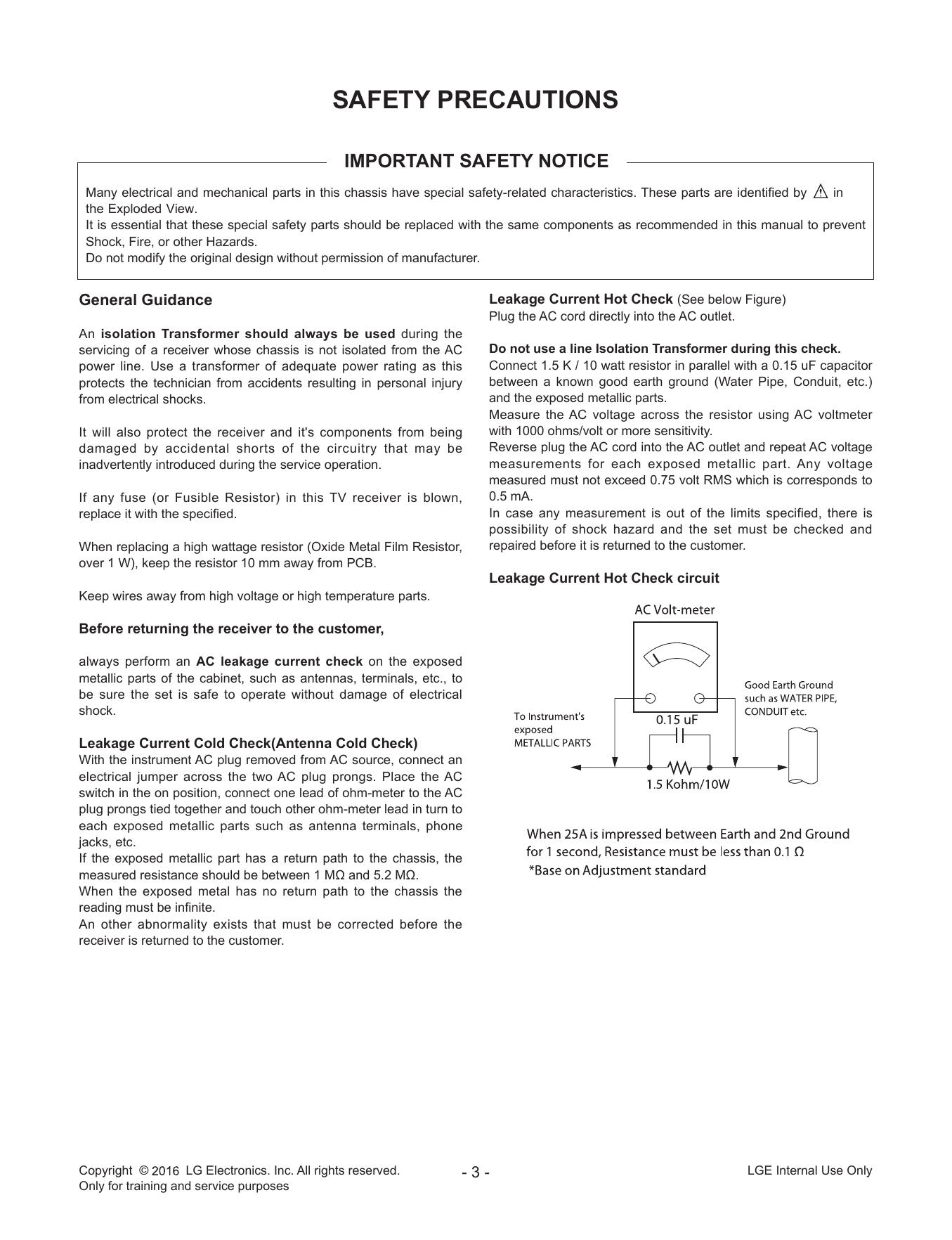

IMPORTANT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in
the Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC Do not use a line Isolation Transformer during this check.
power line. Use a transformer of adequate power rating as this Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
protects the technician from accidents resulting in personal injury between a known good earth ground (Water Pipe, Conduit, etc.)
from electrical shocks. and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
It will also protect the receiver and it's components from being with 1000 ohms/volt or more sensitivity.
damaged by accidental shorts of the circuitry that may be Reverse plug the AC cord into the AC outlet and repeat AC voltage
inadvertently introduced during the service operation. measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
If any fuse (or Fusible Resistor) in this TV receiver is blown, 0.5 mA.
replace it with the specified. In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
When replacing a high wattage resistor (Oxide Metal Film Resistor, repaired before it is returned to the customer.
over 1 W), keep the resistor 10 mm away from PCB.
Leakage Current Hot Check circuit
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Copyright © LG Electronics. Inc. All rights reserved. -3- LGE Internal Use Only
Only for training and service purposes
SERVICING PRECAUTIONS
CAUTION: Before servicing receivers covered by this service 2. After removing an electrical assembly equipped with ES
manual and its supplements and addenda, read and follow the devices, place the assembly on a conductive surface such as
SAFETY PRECAUTIONS on page 3 of this publication. aluminum foil, to prevent electrostatic charge buildup or expo-
NOTE: If unforeseen circumstances create conflict between the sure of the assembly.
following servicing precautions and any of the safety precautions 3. Use only a grounded-tip soldering iron to solder or unsolder
on page 3 of this publication, always follow the safety precau- ES devices.
tions. Remember: Safety First. 4. Use only an anti-static type solder removal device. Some sol-
der removal devices not classified as “anti-static” can generate
General Servicing Precautions electrical charges sufficient to damage ES devices.
1. Always unplug the receiver AC power cord from the AC power 5. Do not use freon-propelled chemicals. These can generate
source before; electrical charges sufficient to damage ES devices.
a. Removing or reinstalling any component, circuit board 6. Do not remove a replacement ES device from its protective
module or any other receiver assembly. package until immediately before you are ready to install it.
b. Disconnecting or reconnecting any receiver electrical plug (Most replacement ES devices are packaged with leads elec-
or other electrical connection. trically shorted together by conductive foam, aluminum foil or
c. Connecting a test substitute in parallel with an electrolytic comparable conductive material).
capacitor in the receiver. 7. Immediately before removing the protective material from the
CAUTION: A wrong part substitution or incorrect polarity leads of a replacement ES device, touch the protective mate-
installation of electrolytic capacitors may result in an explo- rial to the chassis or circuit assembly into which the device will
sion hazard. be installed.
2. Test high voltage only by measuring it with an appropriate CAUTION: Be sure no power is applied to the chassis or cir-
high voltage meter or other voltage measuring device (DVM, cuit, and observe all other safety precautions.
FETVOM, etc) equipped with a suitable high voltage probe. 8. Minimize bodily motions when handling unpackaged replace-
Do not test high voltage by "drawing an arc". ment ES devices. (Otherwise harmless motion such as the
3. Do not spray chemicals on or near this receiver or any of its brushing together of your clothes fabric or the lifting of your
assemblies. foot from a carpeted floor can generate static electricity suf-
4. Unless specified otherwise in this service manual, clean ficient to damage an ES device.)
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable General Soldering Guidelines
non-abrasive applicator; 10 % (by volume) Acetone and 90 % 1. Use a grounded-tip, low-wattage soldering iron and appropri-
(by volume) isopropyl alcohol (90 % - 99 % strength) ate tip size and shape that will maintain tip temperature within
CAUTION: This is a flammable mixture. the range or 500 °F to 600 °F.
Unless specified otherwise in this service manual, lubrication 2. Use an appropriate gauge of RMA resin-core solder composed
of contacts in not required. of 60 parts tin/40 parts lead.
5. Do not defeat any plug/socket B+ voltage interlocks with which 3. Keep the soldering iron tip clean and well tinned.
receivers covered by this service manual might be equipped. 4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
6. Do not apply AC power to this instrument and/or any of its bristle (0.5 inch, or 1.25 cm) brush with a metal handle.
electrical assemblies unless all solid-state device heat sinks Do not use freon-propelled spray-on cleaners.
are correctly installed. 5. Use the following unsoldering technique
7. Always connect the test receiver ground lead to the receiver a. Allow the soldering iron tip to reach normal temperature.
chassis ground before connecting the test receiver positive (500 °F to 600 °F)
lead. b. Heat the component lead until the solder melts.
Always remove the test receiver ground lead last. c. Quickly draw the melted solder with an anti-static, suction-
8. Use with this receiver only the test fixtures specified in this type solder removal device or with solder braid.
service manual. CAUTION: Work quickly to avoid overheating the circuit
CAUTION: Do not connect the test fixture ground strap to any board printed foil.
heat sink in this receiver. 6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
Electrostatically Sensitive (ES) Devices (500 °F to 600 °F)
Some semiconductor (solid-state) devices can be damaged eas- b. First, hold the soldering iron tip and solder the strand
ily by static electricity. Such components commonly are called against the component lead until the solder melts.
Electrostatically Sensitive (ES) Devices. Examples of typical ES c. Quickly move the soldering iron tip to the junction of the
devices are integrated circuits and some field-effect transistors component lead and the printed circuit foil, and hold it there
and semiconductor “chip” components. The following techniques only until the solder flows onto and around both the compo-
should be used to help reduce the incidence of component dam- nent lead and the foil.
age caused by static by static electricity. CAUTION: Work quickly to avoid overheating the circuit
1. Immediately before handling any semiconductor component or board printed foil.
semiconductor-equipped assembly, drain off any electrostatic d. Closely inspect the solder area and remove any excess or
charge on your body by touching a known earth ground. Alter- splashed solder with a small wire-bristle brush.
natively, obtain and wear a commercially available discharg-
ing wrist strap device, which should be removed to prevent
potential shock reasons prior to applying power to the unit
under test.
Copyright © LG Electronics. Inc. All rights reserved. -4- LGE Internal Use Only
Only for training and service purposes
IC Remove/Replacement 3. Solder the connections.
Some chassis circuit boards have slotted holes (oblong) through CAUTION: Maintain original spacing between the replaced
which the IC leads are inserted and then bent flat against the cir- component and adjacent components and the circuit board to
cuit foil. When holes are the slotted type, the following technique prevent excessive component temperatures.
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique Circuit Board Foil Repair
as outlined in paragraphs 5 and 6 above. Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
Removal board causing the foil to separate from or "lift-off" the board. The
1. Desolder and straighten each IC lead in one operation by following guidelines and procedures should be followed when-
gently prying up on the lead with the soldering iron tip as the ever this condition is encountered.
solder melts.
2. Draw away the melted solder with an anti-static suction-type At IC Connections
solder removal device (or with solder braid) before removing To repair a defective copper pattern at IC connections use the
the IC. following procedure to install a jumper wire on the copper pattern
Replacement side of the circuit board. (Use this technique only on IC connec-
1. Carefully insert the replacement IC in the circuit board. tions).
2. Carefully bend each IC lead against the circuit foil pad and
solder it. 1. Carefully remove the damaged copper pattern with a sharp
3. Clean the soldered areas with a small wire-bristle brush. knife. (Remove only as much copper as absolutely necessary).
(It is not necessary to reapply acrylic coating to the areas). 2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
"Small-Signal" Discrete Transistor 3. Bend a small "U" in one end of a small gauge jumper wire and
Removal/Replacement carefully crimp it around the IC pin. Solder the IC connection.
1. Remove the defective transistor by clipping its leads as close 4. Route the jumper wire along the path of the out-away copper
as possible to the component body. pattern and let it overlap the previously scraped end of the
2. Bend into a "U" shape the end of each of three leads remain- good copper pattern. Solder the overlapped area and clip off
ing on the circuit board. any excess jumper wire.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding At Other Connections
leads extending from the circuit board and crimp the "U" with Use the following technique to repair the defective copper pattern
long nose pliers to insure metal to metal contact then solder at connections other than IC Pins. This technique involves the
each connection. installation of a jumper wire on the component side of the circuit
board.
Power Output, Transistor Device
Removal/Replacement 1. Remove the defective copper pattern with a sharp knife.
1. Heat and remove all solder from around the transistor leads. Remove at least 1/4 inch of copper, to ensure that a hazardous
2. Remove the heat sink mounting screw (if so equipped). condition will not exist if the jumper wire opens.
3. Carefully remove the transistor from the heat sink of the circuit 2. Trace along the copper pattern from both sides of the pattern
board. break and locate the nearest component that is directly con-
4. Insert new transistor in the circuit board. nected to the affected copper pattern.
5. Solder each transistor lead, and clip off excess lead. 3. Connect insulated 20-gauge jumper wire from the lead of the
6. Replace heat sink. nearest component on one side of the pattern break to the
lead of the nearest component on the other side.
Diode Removal/Replacement Carefully crimp and solder the connections.
1. Remove defective diode by clipping its leads as close as pos- CAUTION: Be sure the insulated jumper wire is dressed so the
sible to diode body. it does not touch components or sharp edges.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and
if necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
Copyright © LG Electronics. Inc. All rights reserved. -5- LGE Internal Use Only
Only for training and service purposes

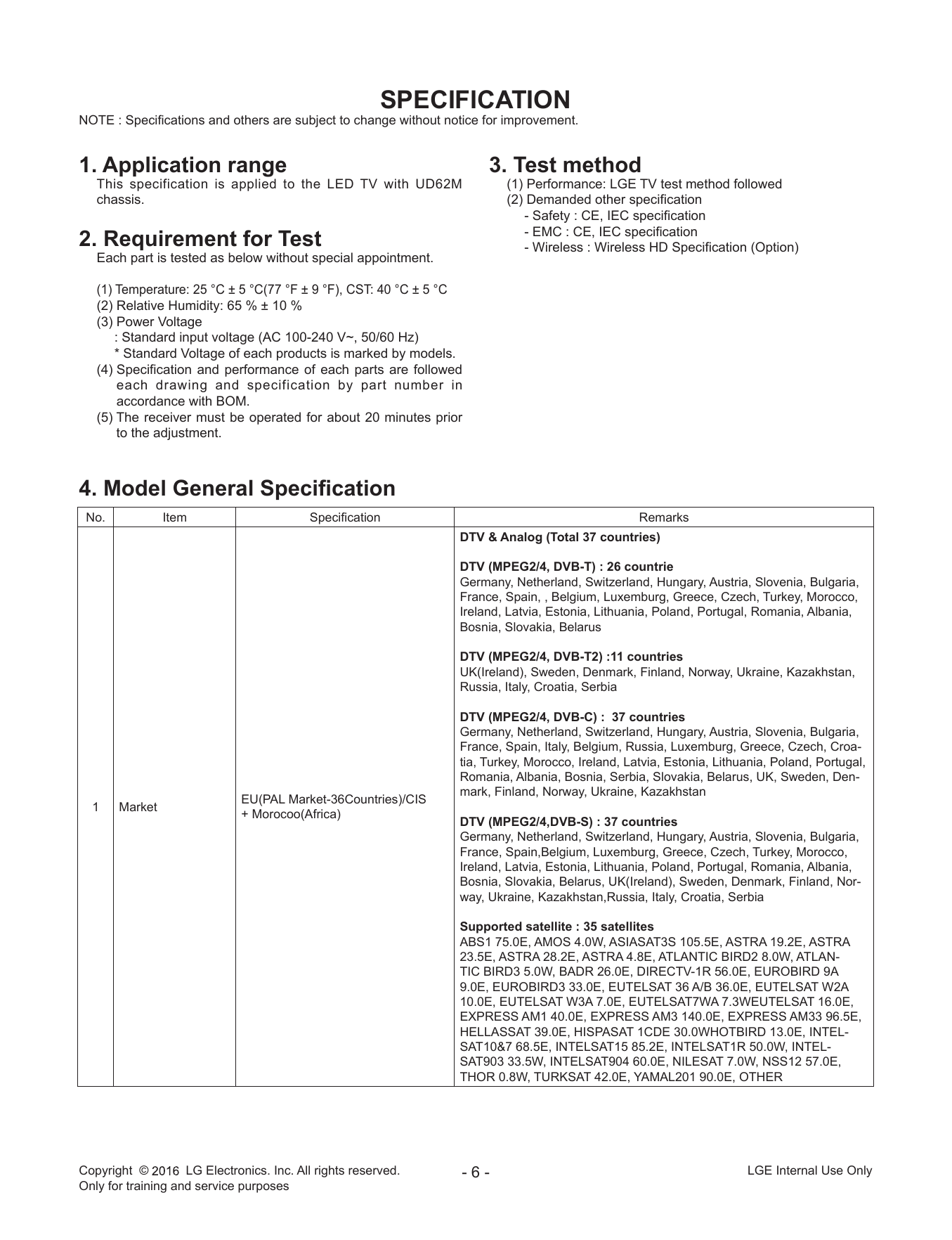

SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement.
1. Application range 3. Test method
This specification is applied to the LED TV with UD62M (1) Performance: LGE TV test method followed
chassis. (2) Demanded other specification
- Safety : CE, IEC specification
- EMC : CE, IEC specification
2. Requirement for Test - Wireless : Wireless HD Specification (Option)
Each part is tested as below without special appointment.
(1) Temperature: 25 °C ± 5 °C(77 °F ± 9 °F), CST: 40 °C ± 5 °C
(2) Relative Humidity: 65 % ± 10 %
(3) Power Voltage
: Standard input voltage (AC 100-240 V~, 50/60 Hz)
* Standard Voltage of each products is marked by models.
(4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
(5) The receiver must be operated for about 20 minutes prior
to the adjustment.
4. Model General Specification
No. Item Specification Remarks
DTV & Analog (Total 37 countries)
DTV (MPEG2/4, DVB-T) : 26 countrie
Germany, Netherland, Switzerland, Hungary, Austria, Slovenia, Bulgaria,
France, Spain, , Belgium, Luxemburg, Greece, Czech, Turkey, Morocco,
Ireland, Latvia, Estonia, Lithuania, Poland, Portugal, Romania, Albania,
Bosnia, Slovakia, Belarus
DTV (MPEG2/4, DVB-T2) :11 countries
UK(Ireland), Sweden, Denmark, Finland, Norway, Ukraine, Kazakhstan,
Russia, Italy, Croatia, Serbia
DTV (MPEG2/4, DVB-C) : 37 countries
Germany, Netherland, Switzerland, Hungary, Austria, Slovenia, Bulgaria,
France, Spain, Italy, Belgium, Russia, Luxemburg, Greece, Czech, Croa-
tia, Turkey, Morocco, Ireland, Latvia, Estonia, Lithuania, Poland, Portugal,
Romania, Albania, Bosnia, Serbia, Slovakia, Belarus, UK, Sweden, Den-
mark, Finland, Norway, Ukraine, Kazakhstan
EU(PAL Market-36Countries)/CIS
1 Market
+ Morocoo(Africa)
DTV (MPEG2/4,DVB-S) : 37 countries
Germany, Netherland, Switzerland, Hungary, Austria, Slovenia, Bulgaria,
France, Spain,Belgium, Luxemburg, Greece, Czech, Turkey, Morocco,
Ireland, Latvia, Estonia, Lithuania, Poland, Portugal, Romania, Albania,
Bosnia, Slovakia, Belarus, UK(Ireland), Sweden, Denmark, Finland, Nor-
way, Ukraine, Kazakhstan,Russia, Italy, Croatia, Serbia
Supported satellite : 35 satellites
ABS1 75.0E, AMOS 4.0W, ASIASAT3S 105.5E, ASTRA 19.2E, ASTRA
23.5E, ASTRA 28.2E, ASTRA 4.8E, ATLANTIC BIRD2 8.0W, ATLAN-
TIC BIRD3 5.0W, BADR 26.0E, DIRECTV-1R 56.0E, EUROBIRD 9A
9.0E, EUROBIRD3 33.0E, EUTELSAT 36 A/B 36.0E, EUTELSAT W2A
10.0E, EUTELSAT W3A 7.0E, EUTELSAT7WA 7.3WEUTELSAT 16.0E,
EXPRESS AM1 40.0E, EXPRESS AM3 140.0E, EXPRESS AM33 96.5E,
HELLASSAT 39.0E, HISPASAT 1CDE 30.0WHOTBIRD 13.0E, INTEL-
SAT10&7 68.5E, INTELSAT15 85.2E, INTELSAT1R 50.0W, INTEL-
SAT903 33.5W, INTELSAT904 60.0E, NILESAT 7.0W, NSS12 57.0E,
THOR 0.8W, TURKSAT 42.0E, YAMAL201 90.0E, OTHER
Copyright © LG Electronics. Inc. All rights reserved. -6- LGE Internal Use Only
Only for training and service purposes

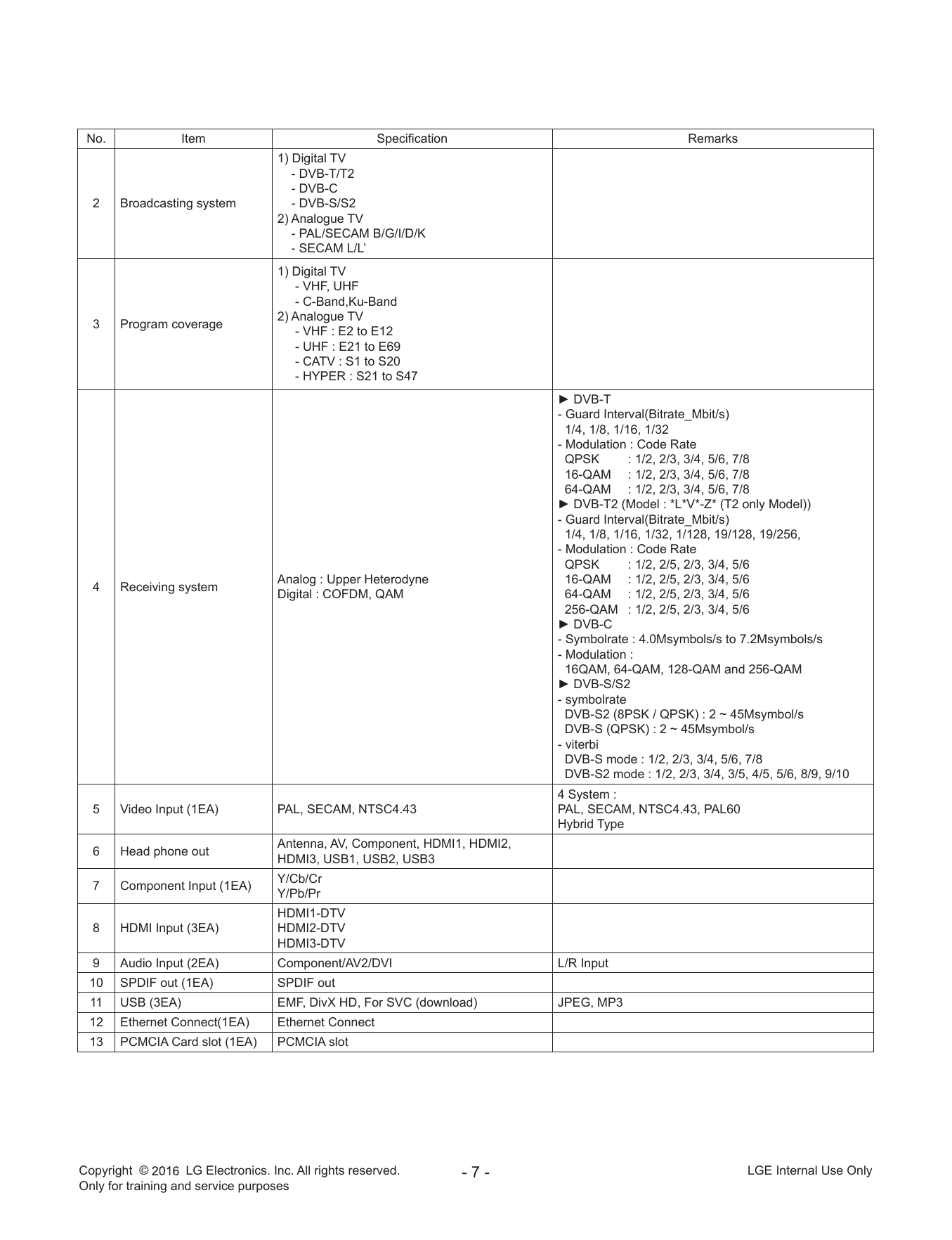

No. Item Specification Remarks
1) Digital TV
- DVB-T/T2
- DVB-C
2 Broadcasting system - DVB-S/S2
2) Analogue TV
- PAL/SECAM B/G/I/D/K
- SECAM L/L’
1) Digital TV
- VHF, UHF
- C-Band,Ku-Band
2) Analogue TV
3 Program coverage
- VHF : E2 to E12
- UHF : E21 to E69
- CATV : S1 to S20
- HYPER : S21 to S47
► DVB-T
- Guard Interval(Bitrate_Mbit/s)
1/4, 1/8, 1/16, 1/32
- Modulation : Code Rate
QPSK : 1/2, 2/3, 3/4, 5/6, 7/8
16-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
64-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
► DVB-T2 (Model : *L*V*-Z* (T2 only Model))
- Guard Interval(Bitrate_Mbit/s)
1/4, 1/8, 1/16, 1/32, 1/128, 19/128, 19/256,
- Modulation : Code Rate
QPSK : 1/2, 2/5, 2/3, 3/4, 5/6
Analog : Upper Heterodyne 16-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
4 Receiving system
Digital : COFDM, QAM 64-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
256-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
► DVB-C
- Symbolrate : 4.0Msymbols/s to 7.2Msymbols/s
- Modulation :
16QAM, 64-QAM, 128-QAM and 256-QAM
► DVB-S/S2
- symbolrate
DVB-S2 (8PSK / QPSK) : 2 ~ 45Msymbol/s
DVB-S (QPSK) : 2 ~ 45Msymbol/s
- viterbi
DVB-S mode : 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2 mode : 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10
4 System :
5 Video Input (1EA) PAL, SECAM, NTSC4.43 PAL, SECAM, NTSC4.43, PAL60
Hybrid Type
Antenna, AV, Component, HDMI1, HDMI2,
6 Head phone out
HDMI3, USB1, USB2, USB3
Y/Cb/Cr
7 Component Input (1EA)
Y/Pb/Pr
HDMI1-DTV
8 HDMI Input (3EA) HDMI2-DTV
HDMI3-DTV
9 Audio Input (2EA) Component/AV2/DVI L/R Input
10 SPDIF out (1EA) SPDIF out
11 USB (3EA) EMF, DivX HD, For SVC (download) JPEG, MP3
12 Ethernet Connect(1EA) Ethernet Connect
13 PCMCIA Card slot (1EA) PCMCIA slot
Copyright © LG Electronics. Inc. All rights reserved. -7- LGE Internal Use Only
Only for training and service purposes

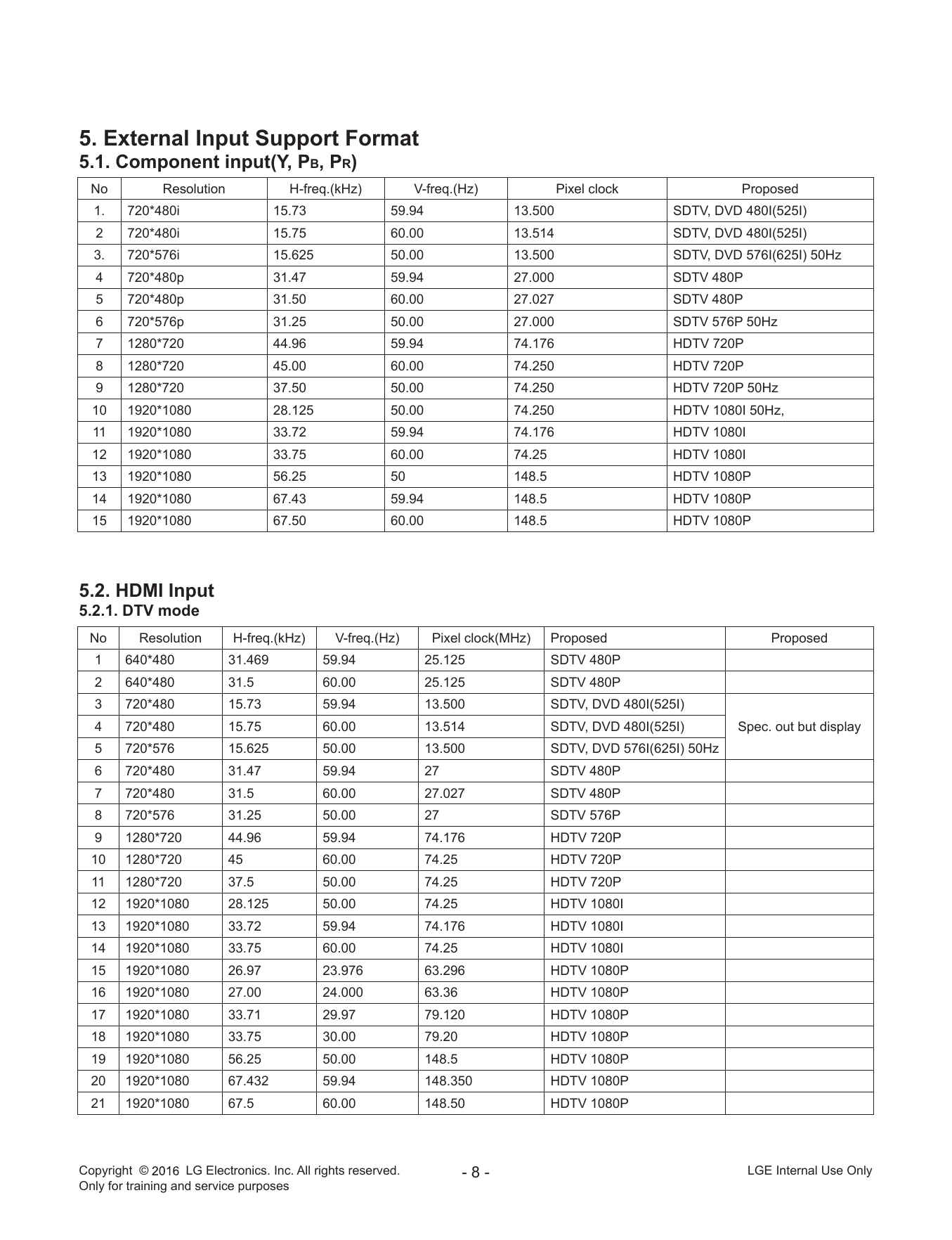

5. External Input Support Format
5.1. Component input(Y, PB, PR)
No Resolution H-freq.(kHz) V-freq.(Hz) Pixel clock Proposed
1. 720*480i 15.73 59.94 13.500 SDTV, DVD 480I(525I)
2 720*480i 15.75 60.00 13.514 SDTV, DVD 480I(525I)
3. 720*576i 15.625 50.00 13.500 SDTV, DVD 576I(625I) 50Hz
4 720*480p 31.47 59.94 27.000 SDTV 480P
5 720*480p 31.50 60.00 27.027 SDTV 480P
6 720*576p 31.25 50.00 27.000 SDTV 576P 50Hz
7 1280*720 44.96 59.94 74.176 HDTV 720P
8 1280*720 45.00 60.00 74.250 HDTV 720P
9 1280*720 37.50 50.00 74.250 HDTV 720P 50Hz
10 1920*1080 28.125 50.00 74.250 HDTV 1080I 50Hz,
11 1920*1080 33.72 59.94 74.176 HDTV 1080I
12 1920*1080 33.75 60.00 74.25 HDTV 1080I
13 1920*1080 56.25 50 148.5 HDTV 1080P
14 1920*1080 67.43 59.94 148.5 HDTV 1080P
15 1920*1080 67.50 60.00 148.5 HDTV 1080P
5.2. HDMI Input
5.2.1. DTV mode
No Resolution H-freq.(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Proposed
1 640*480 31.469 59.94 25.125 SDTV 480P
2 640*480 31.5 60.00 25.125 SDTV 480P
3 720*480 15.73 59.94 13.500 SDTV, DVD 480I(525I)
4 720*480 15.75 60.00 13.514 SDTV, DVD 480I(525I) Spec. out but display
5 720*576 15.625 50.00 13.500 SDTV, DVD 576I(625I) 50Hz
6 720*480 31.47 59.94 27 SDTV 480P
7 720*480 31.5 60.00 27.027 SDTV 480P
8 720*576 31.25 50.00 27 SDTV 576P
9 1280*720 44.96 59.94 74.176 HDTV 720P
10 1280*720 45 60.00 74.25 HDTV 720P
11 1280*720 37.5 50.00 74.25 HDTV 720P
12 1920*1080 28.125 50.00 74.25 HDTV 1080I
13 1920*1080 33.72 59.94 74.176 HDTV 1080I
14 1920*1080 33.75 60.00 74.25 HDTV 1080I
15 1920*1080 26.97 23.976 63.296 HDTV 1080P
16 1920*1080 27.00 24.000 63.36 HDTV 1080P
17 1920*1080 33.71 29.97 79.120 HDTV 1080P
18 1920*1080 33.75 30.00 79.20 HDTV 1080P
19 1920*1080 56.25 50.00 148.5 HDTV 1080P
20 1920*1080 67.432 59.94 148.350 HDTV 1080P
21 1920*1080 67.5 60.00 148.50 HDTV 1080P
Copyright © LG Electronics. Inc. All rights reserved. -8- LGE Internal Use Only
Only for training and service purposes
22 3840*2160 53.95 23.98 296.703 UDTV 2160P
23 3840*2160 54 24.00 297.00 UDTV 2160P
24 3840*2160 56.25 25.00 297.00 UDTV 2160P
25 3840*2160 61.43 29.97 296.703 UDTV 2160P
26 3840*2160 67.5 30.00 297.00 UDTV 2160P
When HDMI1,2,3
27 3840*2160 112.5 50.00 594 UDTV 2160P
UHD DEEP COLOUR ON
When HDMI1,2,3
28 3840*2160 134.865 59.94 593.407 UDTV 2160P
UHD DEEP COLOUR ON
When HDMI1,2,3
29 3840*2160 135 60.00 594 UDTV 2160P
UHD DEEP COLOUR ON
30 4096*2160 53.95 23.98 296.703 UDTV 2160P
31 4096*2160 54 24.00 297 UDTV 2160P
32 4096*2160 56.25 25.00 297 UDTV 2160P
33 4096*2160 61.43 29.97 296.703 UDTV 2160P
34 4096*2160 67.5 30.00 297 UDTV 2160P
When HDMI1,2,3
35 4096*2160 112.5 50.00 594 UDTV 2160P
UHD DEEP COLOUR ON
When HDMI1,2,3
36 4096*2160 134.865 59.94 593.407 UDTV 2160P
UHD DEEP COLOUR ON
When HDMI1,2,3
37 4096*2160 135 60.00 594 UDTV 2160P
UHD DEEP COLOUR ON

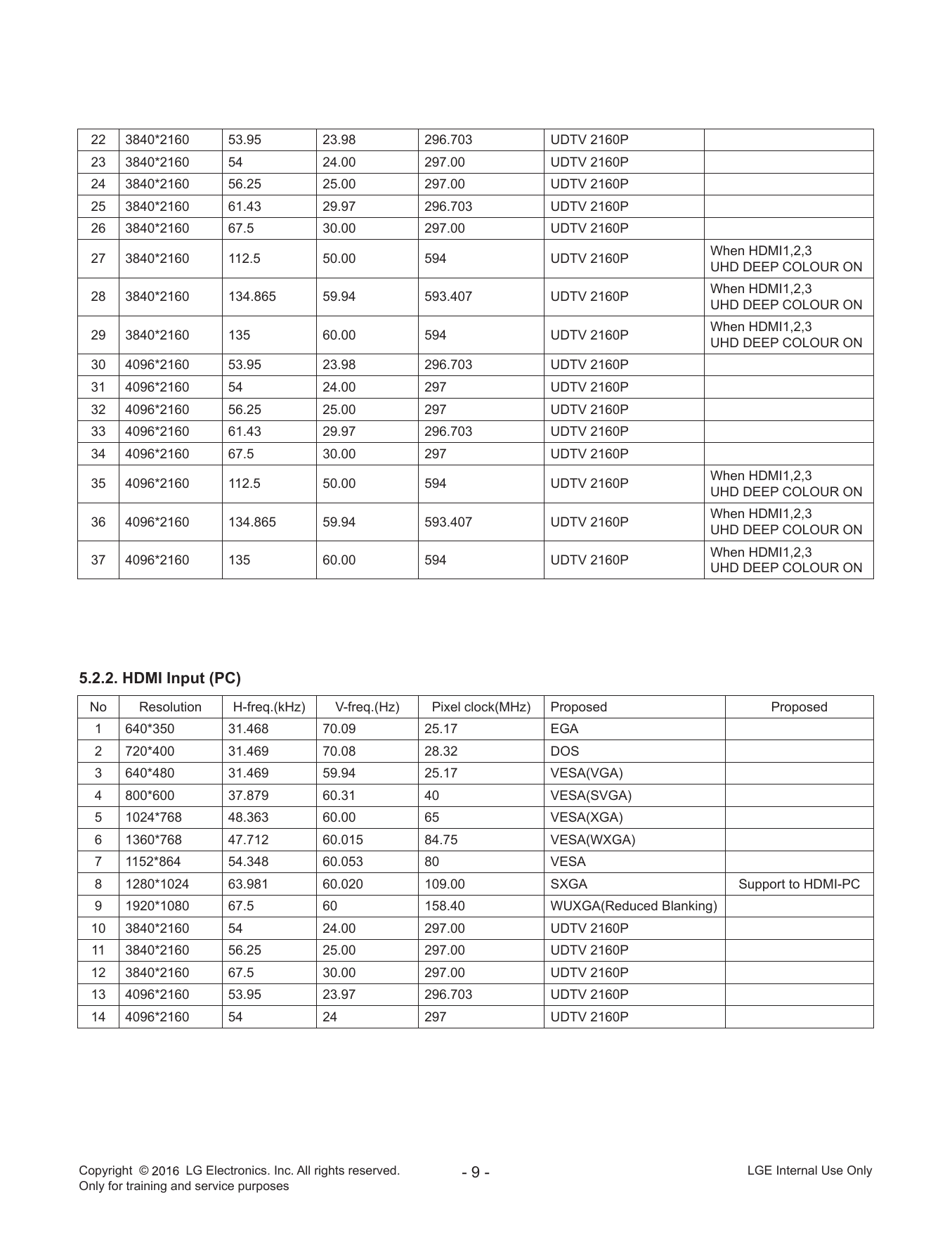

5.2.2. HDMI Input (PC)
No Resolution H-freq.(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Proposed
1 640*350 31.468 70.09 25.17 EGA
2 720*400 31.469 70.08 28.32 DOS
3 640*480 31.469 59.94 25.17 VESA(VGA)
4 800*600 37.879 60.31 40 VESA(SVGA)
5 1024*768 48.363 60.00 65 VESA(XGA)
6 1360*768 47.712 60.015 84.75 VESA(WXGA)
7 1152*864 54.348 60.053 80 VESA
8 1280*1024 63.981 60.020 109.00 SXGA Support to HDMI-PC
9 1920*1080 67.5 60 158.40 WUXGA(Reduced Blanking)
10 3840*2160 54 24.00 297.00 UDTV 2160P
11 3840*2160 56.25 25.00 297.00 UDTV 2160P
12 3840*2160 67.5 30.00 297.00 UDTV 2160P
13 4096*2160 53.95 23.97 296.703 UDTV 2160P
14 4096*2160 54 24 297 UDTV 2160P
Copyright © LG Electronics. Inc. All rights reserved. -9- LGE Internal Use Only
Only for training and service purposes

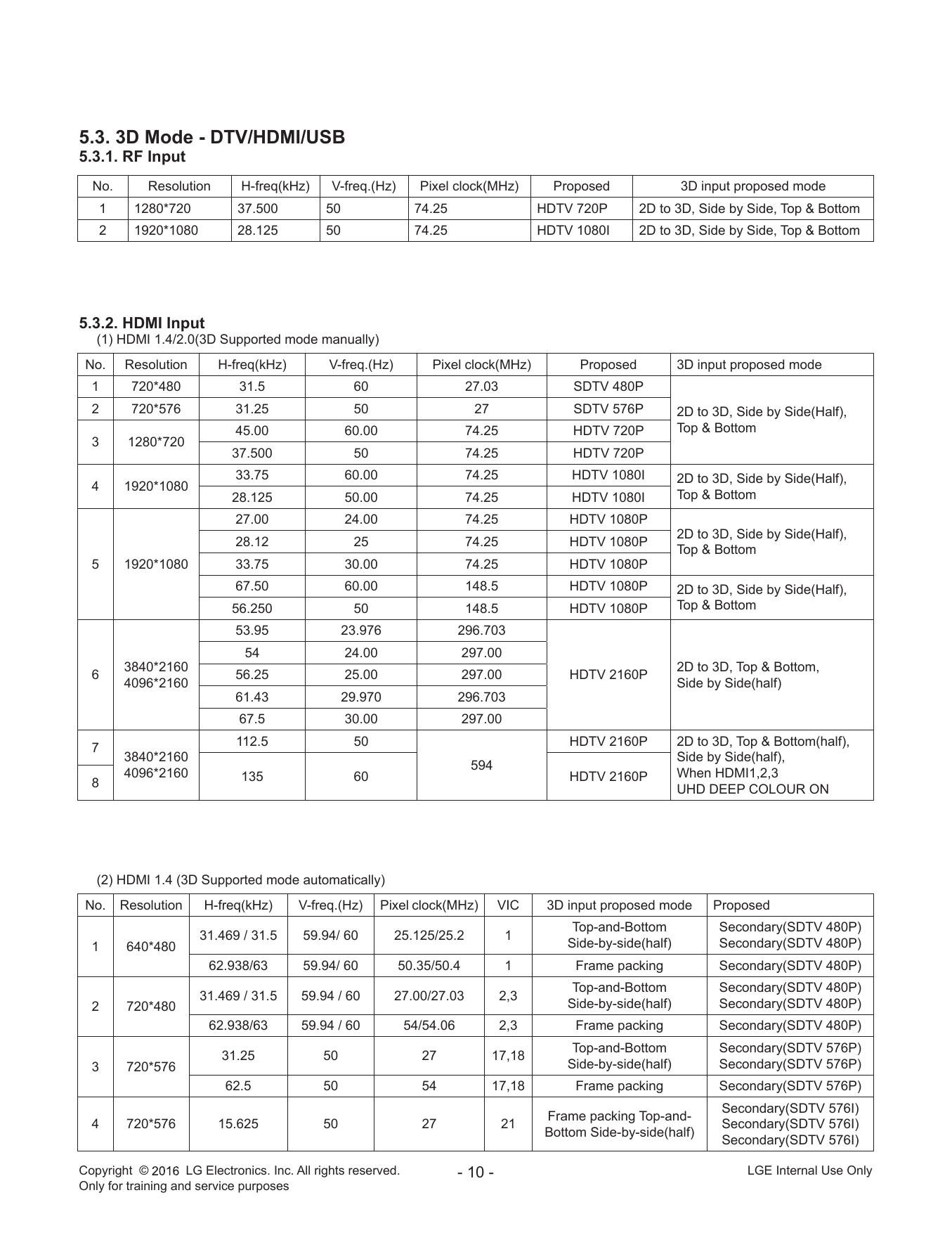

5.3. 3D Mode - DTV/HDMI/USB
5.3.1. RF Input
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode
1 1280*720 37.500 50 74.25 HDTV 720P 2D to 3D, Side by Side, Top & Bottom
2 1920*1080 28.125 50 74.25 HDTV 1080I 2D to 3D, Side by Side, Top & Bottom
5.3.2. HDMI Input
(1) HDMI 1.4/2.0(3D Supported mode manually)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode
1 720*480 31.5 60 27.03 SDTV 480P
2 720*576 31.25 50 27 SDTV 576P 2D to 3D, Side by Side(Half),
45.00 60.00 74.25 HDTV 720P Top & Bottom
3 1280*720
37.500 50 74.25 HDTV 720P
33.75 60.00 74.25 HDTV 1080I 2D to 3D, Side by Side(Half),
4 1920*1080
28.125 50.00 74.25 HDTV 1080I Top & Bottom
27.00 24.00 74.25 HDTV 1080P
2D to 3D, Side by Side(Half),
28.12 25 74.25 HDTV 1080P
Top & Bottom
5 1920*1080 33.75 30.00 74.25 HDTV 1080P
67.50 60.00 148.5 HDTV 1080P 2D to 3D, Side by Side(Half),
56.250 50 148.5 HDTV 1080P Top & Bottom
53.95 23.976 296.703
54 24.00 297.00
3840*2160 2D to 3D, Top & Bottom,
6 56.25 25.00 297.00 HDTV 2160P
4096*2160 Side by Side(half)
61.43 29.970 296.703
67.5 30.00 297.00
7 112.5 50 HDTV 2160P 2D to 3D, Top & Bottom(half),
3840*2160 Side by Side(half),
594
4096*2160 135 60 HDTV 2160P When HDMI1,2,3
8 UHD DEEP COLOUR ON
(2) HDMI 1.4 (3D Supported mode automatically)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) VIC 3D input proposed mode Proposed
Top-and-Bottom Secondary(SDTV 480P)
31.469 / 31.5 59.94/ 60 25.125/25.2 1
1 640*480 Side-by-side(half) Secondary(SDTV 480P)
62.938/63 59.94/ 60 50.35/50.4 1 Frame packing Secondary(SDTV 480P)
Top-and-Bottom Secondary(SDTV 480P)
31.469 / 31.5 59.94 / 60 27.00/27.03 2,3
2 720*480 Side-by-side(half) Secondary(SDTV 480P)
62.938/63 59.94 / 60 54/54.06 2,3 Frame packing Secondary(SDTV 480P)
Top-and-Bottom Secondary(SDTV 576P)
31.25 50 27 17,18
3 720*576 Side-by-side(half) Secondary(SDTV 576P)
62.5 50 54 17,18 Frame packing Secondary(SDTV 576P)
Secondary(SDTV 576I)
Frame packing Top-and-
4 720*576 15.625 50 27 21 Secondary(SDTV 576I)
Bottom Side-by-side(half)
Secondary(SDTV 576I)
Copyright © LG Electronics. Inc. All rights reserved. - 10 - LGE Internal Use Only
Only for training and service purposes
37.500 50 74.25 19 Top-and-Bottom Primary(HDTV 720P)
44.96 / 45 59.94 / 60 74.17/74.25 4 Side-by-side(half) Primary(HDTV 720P)
5 1280*720
75 50 148.5 19
Frame packing Primary(HDTV 720P)
89.91/90 59.94 / 60 148.35/148.5 4
Top-and-Bottom Secondary(HDTV 1080I)
28.125 50.00 74.25 20
Side-by-side(half) Primary(HDTV 1080I)
Top-and-Bottom Secondary(HDTV 1080I)
6 1920*1080 33.72 / 33.75 59.94 / 60 74.17/74.25 5
Side-by-side(half) Primary(HDTV 1080I)
56.25 50.00 148.5 20 Frame packing Primary(HDTV 1080I)
67.432/67.50 59.94 / 60 148.35/148.5 5 Frame packing Primary(HDTV 1080I)
Top-and-Bottom Primary(HDTV 1080P)
26.97 / 27 23.97 / 24 74.17/74.25 32
Side-by-side(half) Primary(HDTV 1080P)
Top-and-Bottom Secondary(HDTV 1080P)
28.125 25 74.25 33
Side-by-side(half) Secondary(HDTV 1080P)
Top-and-Bottom Primary(HDTV 1080P)
33.716 / 33.75 29.976 / 30.00 74.18/74.25 34
Side-by-side(half) Secondary(HDTV 1080P)
7 1920*1080 43.94/54 23.97 / 24 148.35/148.5 32 Frame packing Primary(HDTV 1080P)
56.25 25 148.5 33 Frame packing Secondary(HDTV 1080P)
67.432 / 67.5 29.976 / 30.00 148.35/148.5 34 Frame packing Primary(HDTV 1080P)
Top-and-Bottom Primary(HDTV 1080P)
56.250 50 148.5 31
Side-by-side(half) Secondary(HDTV 1080P)
Top-and-Bottom Primary(HDTV 1080P)
67.43 / 67.5 59.94 / 60 148.35/148.50 16
Side-by-side(half) Secondary(HDTV 1080P)

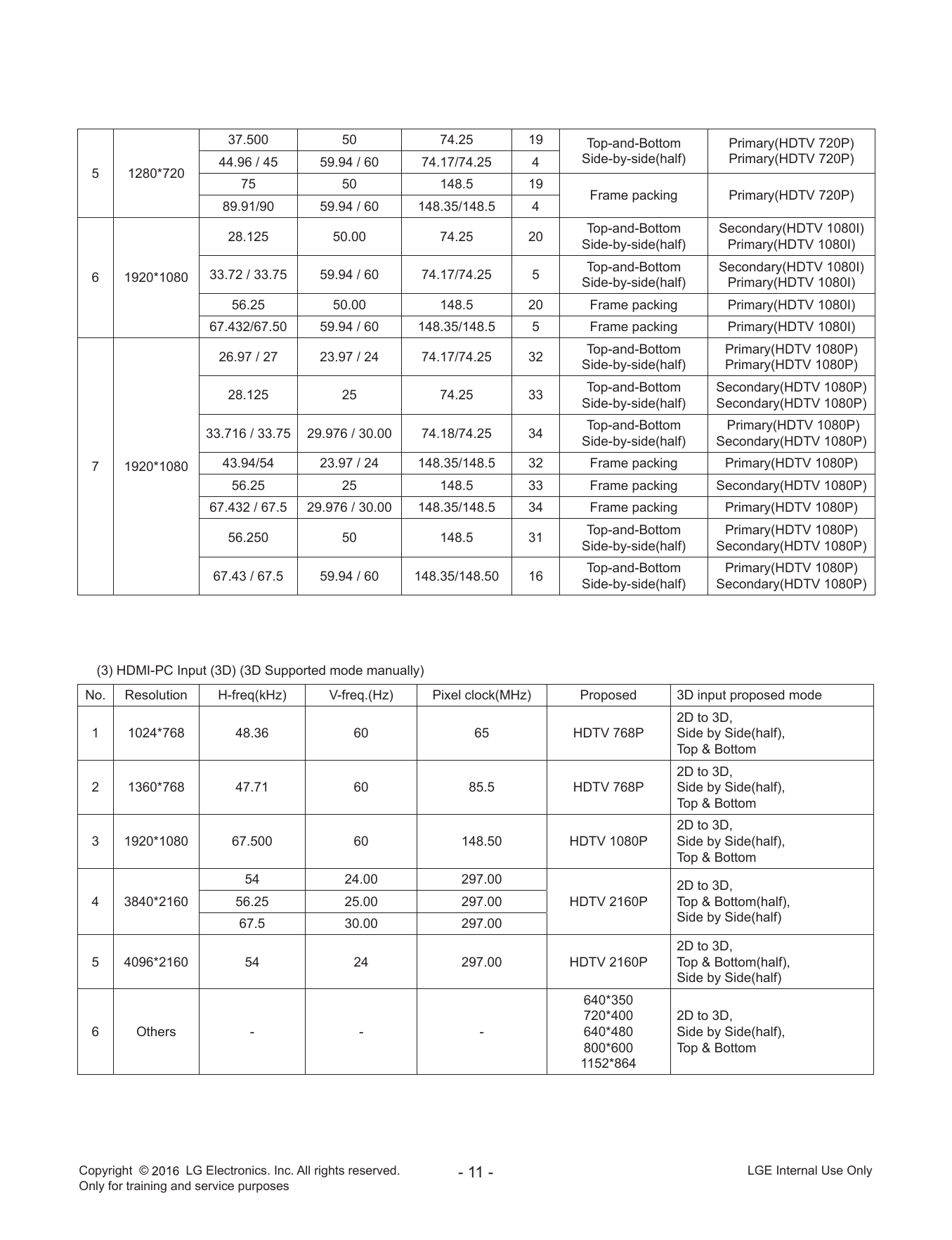

(3) HDMI-PC Input (3D) (3D Supported mode manually)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode
2D to 3D,
1 1024*768 48.36 60 65 HDTV 768P Side by Side(half),
Top & Bottom
2D to 3D,
2 1360*768 47.71 60 85.5 HDTV 768P Side by Side(half),
Top & Bottom
2D to 3D,
3 1920*1080 67.500 60 148.50 HDTV 1080P Side by Side(half),
Top & Bottom
54 24.00 297.00 2D to 3D,
4 3840*2160 56.25 25.00 297.00 HDTV 2160P Top & Bottom(half),
67.5 30.00 297.00 Side by Side(half)
2D to 3D,
5 4096*2160 54 24 297.00 HDTV 2160P Top & Bottom(half),
Side by Side(half)
640*350
720*400 2D to 3D,
6 Others - - - 640*480 Side by Side(half),
800*600 Top & Bottom
1152*864
Copyright © LG Electronics. Inc. All rights reserved. - 11 - LGE Internal Use Only
Only for training and service purposes

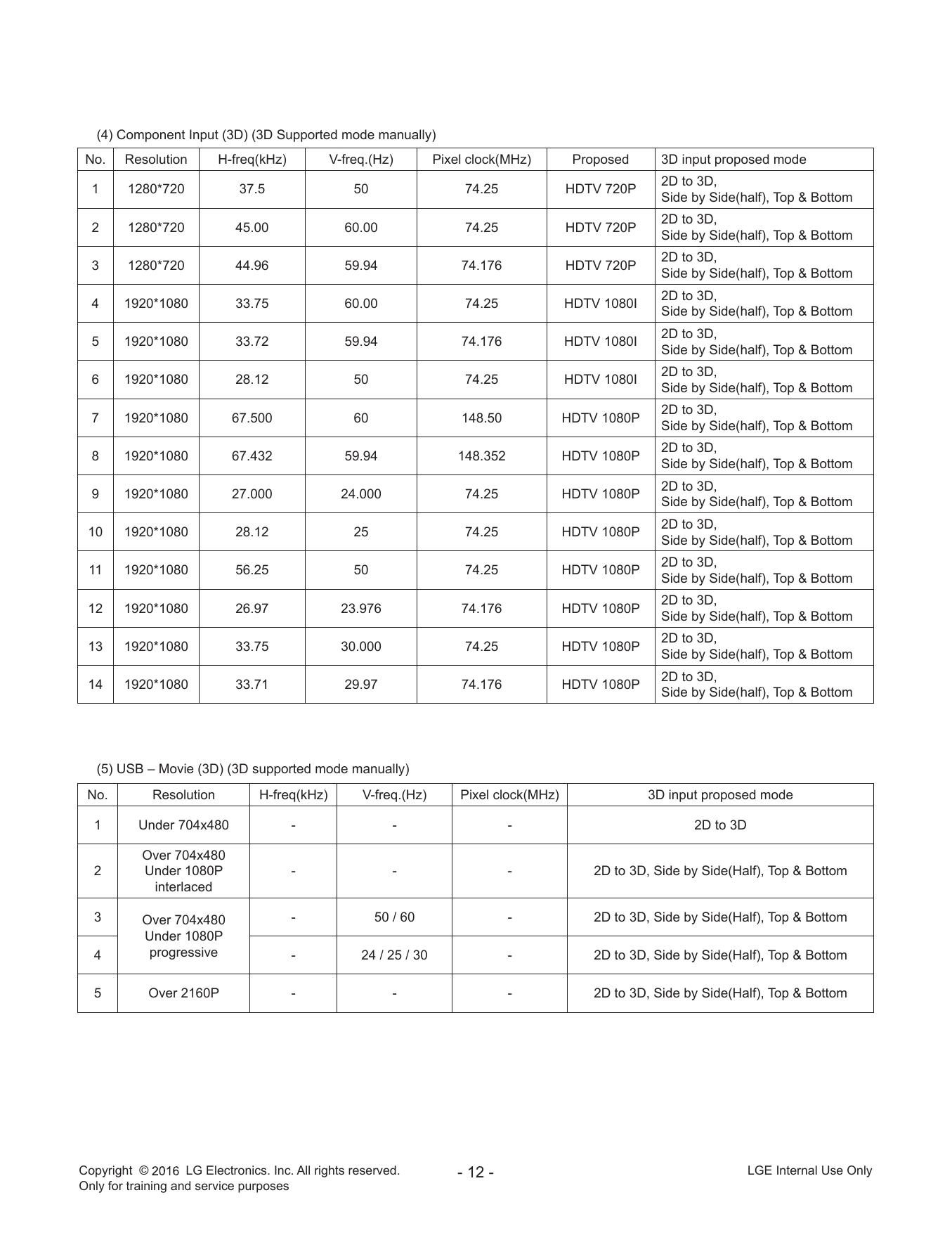

(4) Component Input (3D) (3D Supported mode manually)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode
2D to 3D,
1 1280*720 37.5 50 74.25 HDTV 720P
Side by Side(half), Top & Bottom
2D to 3D,
2 1280*720 45.00 60.00 74.25 HDTV 720P
Side by Side(half), Top & Bottom
2D to 3D,
3 1280*720 44.96 59.94 74.176 HDTV 720P
Side by Side(half), Top & Bottom
2D to 3D,
4 1920*1080 33.75 60.00 74.25 HDTV 1080I
Side by Side(half), Top & Bottom
2D to 3D,
5 1920*1080 33.72 59.94 74.176 HDTV 1080I
Side by Side(half), Top & Bottom
2D to 3D,
6 1920*1080 28.12 50 74.25 HDTV 1080I
Side by Side(half), Top & Bottom
2D to 3D,
7 1920*1080 67.500 60 148.50 HDTV 1080P
Side by Side(half), Top & Bottom
2D to 3D,
8 1920*1080 67.432 59.94 148.352 HDTV 1080P
Side by Side(half), Top & Bottom
2D to 3D,
9 1920*1080 27.000 24.000 74.25 HDTV 1080P
Side by Side(half), Top & Bottom
2D to 3D,
10 1920*1080 28.12 25 74.25 HDTV 1080P
Side by Side(half), Top & Bottom
2D to 3D,
11 1920*1080 56.25 50 74.25 HDTV 1080P
Side by Side(half), Top & Bottom
2D to 3D,
12 1920*1080 26.97 23.976 74.176 HDTV 1080P
Side by Side(half), Top & Bottom
2D to 3D,
13 1920*1080 33.75 30.000 74.25 HDTV 1080P
Side by Side(half), Top & Bottom
2D to 3D,
14 1920*1080 33.71 29.97 74.176 HDTV 1080P
Side by Side(half), Top & Bottom
(5) USB – Movie (3D) (3D supported mode manually)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode
1 Under 704x480 - - - 2D to 3D
Over 704x480
2 Under 1080P - - - 2D to 3D, Side by Side(Half), Top & Bottom
interlaced
3 Over 704x480 - 50 / 60 - 2D to 3D, Side by Side(Half), Top & Bottom
Under 1080P
4 progressive - 24 / 25 / 30 - 2D to 3D, Side by Side(Half), Top & Bottom
5 Over 2160P - - - 2D to 3D, Side by Side(Half), Top & Bottom
Copyright © LG Electronics. Inc. All rights reserved. - 12 - LGE Internal Use Only
Only for training and service purposes
(6) USB -Photo (3D) (3D supported mode manually)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode
1 - - - - 2D to 3D, Side by Side(Half), Top & Bottom
(7) USB (3D) (3D supported mode automatically)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode
1 1080p 33.75 30 74.25 Side by Side(Half), Top & Bottom,
Side by Side(Full), Frame Sequential,
2 2160p 67.5 30 297 MPO(Photo), JPS(Photo)
(8) Miracast, Widi (3D supported mode manually)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode
1 1024*768p - 30/60 -
2 1280*720p - 30/60 - 2D to 3D
3 1920*1080p - 30/60 -
4 Others - - - 2D to 3D

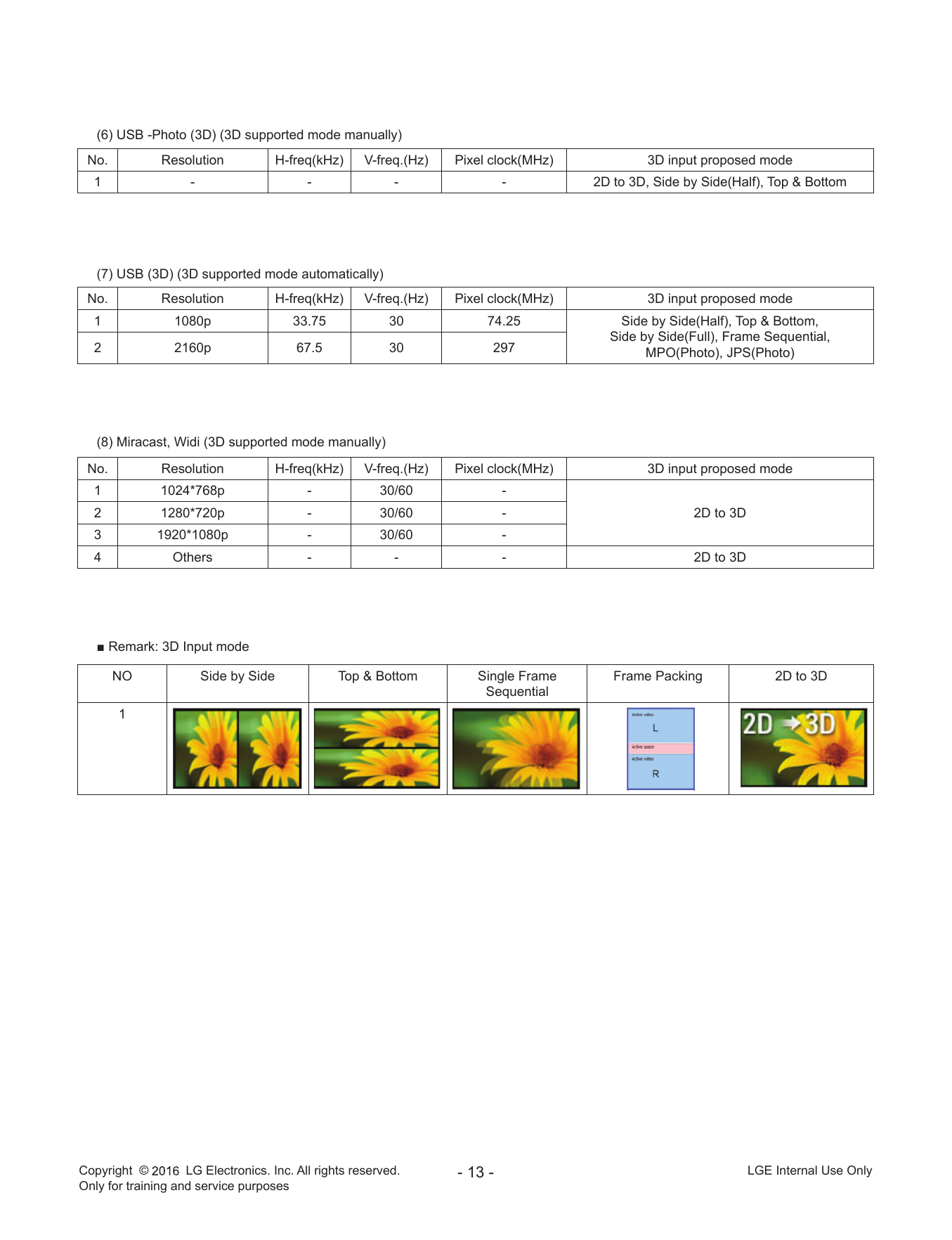

■ Remark: 3D Input mode
NO Side by Side Top & Bottom Single Frame Frame Packing 2D to 3D
Sequential
1
Copyright © LG Electronics. Inc. All rights reserved. - 13 - LGE Internal Use Only
Only for training and service purposes

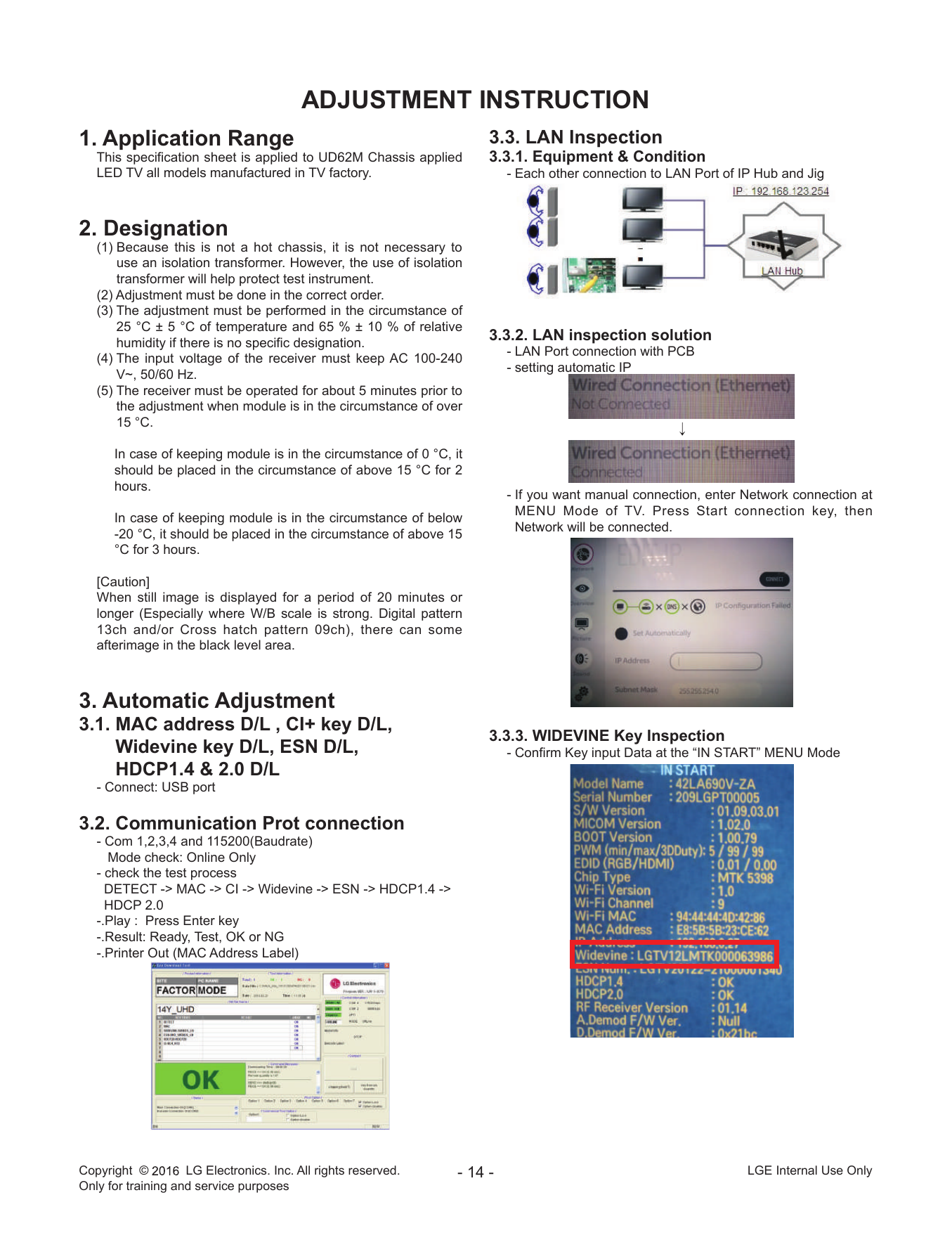

ADJUSTMENT INSTRUCTION
1. Application Range 3.3. LAN Inspection
This specification sheet is applied to UD62M Chassis applied 3.3.1. Equipment & Condition
LED TV all models manufactured in TV factory. - Each other connection to LAN Port of IP Hub and Jig
2. Designation
(1) Because this is not a hot chassis, it is not necessary to
use an isolation transformer. However, the use of isolation
transformer will help protect test instrument.
(2) Adjustment must be done in the correct order.
(3) The adjustment must be performed in the circumstance of
25 °C ± 5 °C of temperature and 65 % ± 10 % of relative
humidity if there is no specific designation.
3.3.2. LAN inspection solution
- LAN Port connection with PCB
(4) The input voltage of the receiver must keep AC 100-240
- setting automatic IP
V~, 50/60 Hz.
(5) The receiver must be operated for about 5 minutes prior to
the adjustment when module is in the circumstance of over
15 °C.
In case of keeping module is in the circumstance of 0 °C, it
should be placed in the circumstance of above 15 °C for 2
hours.
- If you want manual connection, enter Network connection at
MENU Mode of TV. Press Start connection key, then
In case of keeping module is in the circumstance of below
Network will be connected.
-20 °C, it should be placed in the circumstance of above 15
°C for 3 hours.
[Caution]
When still image is displayed for a period of 20 minutes or
longer (Especially where W/B scale is strong. Digital pattern
13ch and/or Cross hatch pattern 09ch), there can some
afterimage in the black level area.
3. Automatic Adjustment
3.1. MAC address D/L , CI+ key D/L,
3.3.3. WIDEVINE Key Inspection
Widevine key D/L, ESN D/L, - Confirm Key input Data at the “IN START” MENU Mode
HDCP1.4 & 2.0 D/L
- Connect: USB port
3.2. Communication Prot connection
- Com 1,2,3,4 and 115200(Baudrate)
Mode check: Online Only
- check the test process
DETECT -> MAC -> CI -> Widevine -> ESN -> HDCP1.4 ->
HDCP 2.0
-.Play : Press Enter key
-.Result: Ready, Test, OK or NG
-.Printer Out (MAC Address Label)
Copyright © LG Electronics. Inc. All rights reserved. - 14 - LGE Internal Use Only
Only for training and service purposes

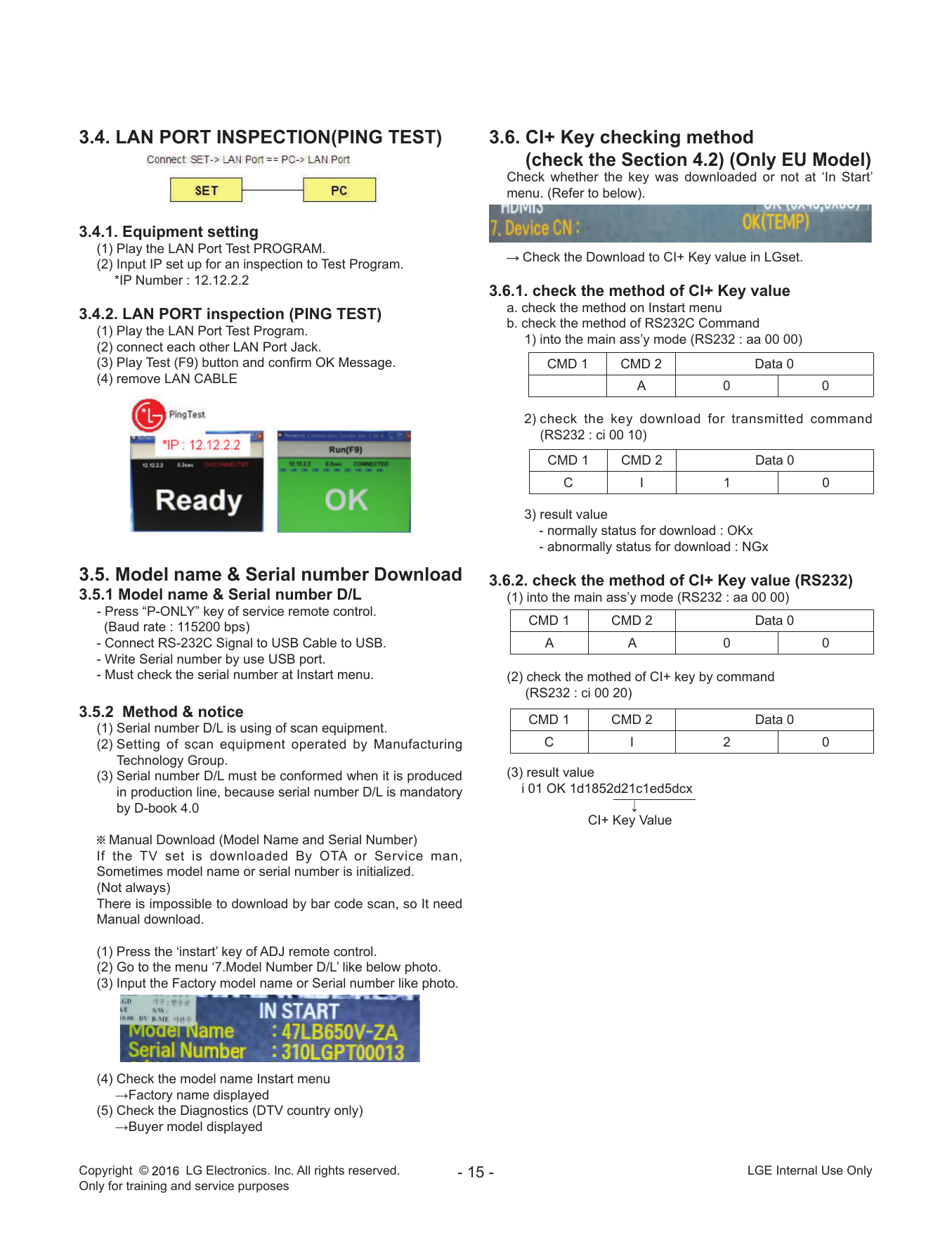

3.4. LAN PORT INSPECTION(PING TEST) 3.6. C
I+ Key checking method
(check the Section 4.2) (Only EU Model)
heck whether the key was downloaded or not at ‘In Start’
C
menu. (Refer to below).
3.4.1. Equipment setting
(1) Play the LAN Port Test PROGRAM.
Check the Download to CI+ Key value in LGset.
(2) Input IP set up for an inspection to Test Program.
*IP Number : 12.12.2.2
3.6.1. check the method of CI+ Key value
a. check the method on Instart menu
3.4.2. LAN PORT inspection (PING TEST)
b. check the method of RS232C Command
(1) Play the LAN Port Test Program.
1) into the main ass’y mode (RS232 : aa 00 00)
(2) connect each other LAN Port Jack.
(3) Play Test (F9) button and confirm OK Message. CMD 1 CMD 2 Data 0
(4) remove LAN CABLE
A 0 0
2) c heck the key download for transmitted command
(RS232 : ci 00 10)
CMD 1 CMD 2 Data 0
C I 1 0
3) result value
- normally status for download : OKx
- abnormally status for download : NGx
3.5. Model name & Serial number Download 3.6.2. check the method of CI+ Key value (RS232)
3.5.1 Model name & Serial number D/L (1) into the main ass’y mode (RS232 : aa 00 00)
- Press “P-ONLY” key of service remote control.
(Baud rate : 115200 bps) CMD 1 CMD 2 Data 0
- Connect RS-232C Signal to USB Cable to USB. A A 0 0
- Write Serial number by use USB port.
- Must check the serial number at Instart menu. (2) check the mothed of CI+ key by command
(RS232 : ci 00 20)
3.5.2 Method & notice CMD 1 CMD 2 Data 0
(1) Serial number D/L is using of scan equipment.
(2) Setting of scan equipment operated by Manufacturing C I 2 0
Technology Group.
(3) Serial number D/L must be conformed when it is produced (3) result value
in production line, because serial number D/L is mandatory i 01 OK 1d1852d21c1ed5dcx
by D-book 4.0
CI+ Key Value
Manual Download (Model Name and Serial Number)
If the TV set is downloaded By OTA or Service man,
Sometimes model name or serial number is initialized.
(Not always)
There is impossible to download by bar code scan, so It need
Manual download.
(1) Press the ‘instart’ key of ADJ remote control.
(2) Go to the menu ‘7.Model Number D/L’ like below photo.
(3) Input the Factory model name or Serial number like photo.
(4) Check the model name Instart menu
→Factory name displayed
(5) Check the Diagnostics (DTV country only)
→Buyer model displayed
Copyright © LG Electronics. Inc. All rights reserved. - 15 - LGE Internal Use Only
Only for training and service purposes
3.7. WIFI MAC ADRESS CHECK ⓐ Product ID
ⓑ Serial No: Controlled on production line.
3.7.1. Using RS232 Command
ⓒ Month, Year: Controlled on production line:
Command Set ACK ex) Monthly : ‘01’ → ‘01’, Year : ‘2016’ → ‘1A’
Transmission [A][l][][Set ID][][20][Cr] [O][K][x] or [N][G] ⓓ Model Name(Hex): LGTV
ⓔ Checksum(LG TV): Changeable by total EDID data.
ⓕ Vendor Specific(HDMI)
3.7.2. check the menu on in-start

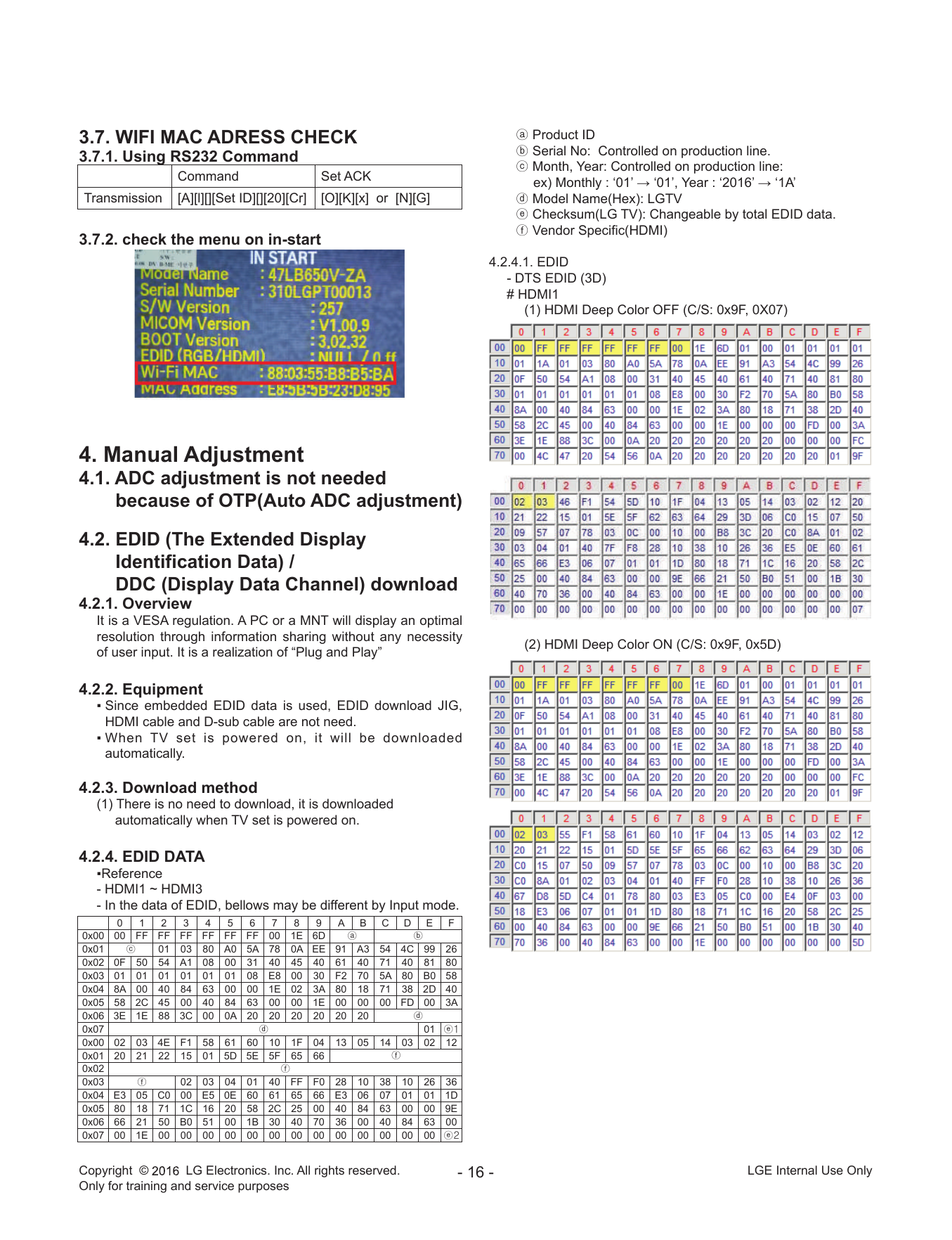

4.2.4.1. EDID
- DTS EDID (3D)
# HDMI1
(1) HDMI Deep Color OFF (C/S: 0x9F, 0X07)
4. Manual Adjustment
4.1. ADC adjustment is not needed
because of OTP(Auto ADC adjustment)
4.2. EDID (The Extended Display
Identification Data) /
DDC (Display Data Channel) download
4.2.1. Overview
It is a VESA regulation. A PC or a MNT will display an optimal
resolution through information sharing without any necessity
(2) HDMI Deep Color ON (C/S: 0x9F, 0x5D)
of user input. It is a realization of “Plug and Play”
4.2.2. Equipment
▪ Since embedded EDID data is used, EDID download JIG,
HDMI cable and D-sub cable are not need.
▪ W hen TV set is powered on, it will be downloaded
automatically.
4.2.3. Download method
(1) There is no need to download, it is downloaded
automatically when TV set is powered on.
4.2.4. EDID DATA
▪Reference
- HDMI1 ~ HDMI3
- In the data of EDID, bellows may be different by Input mode.

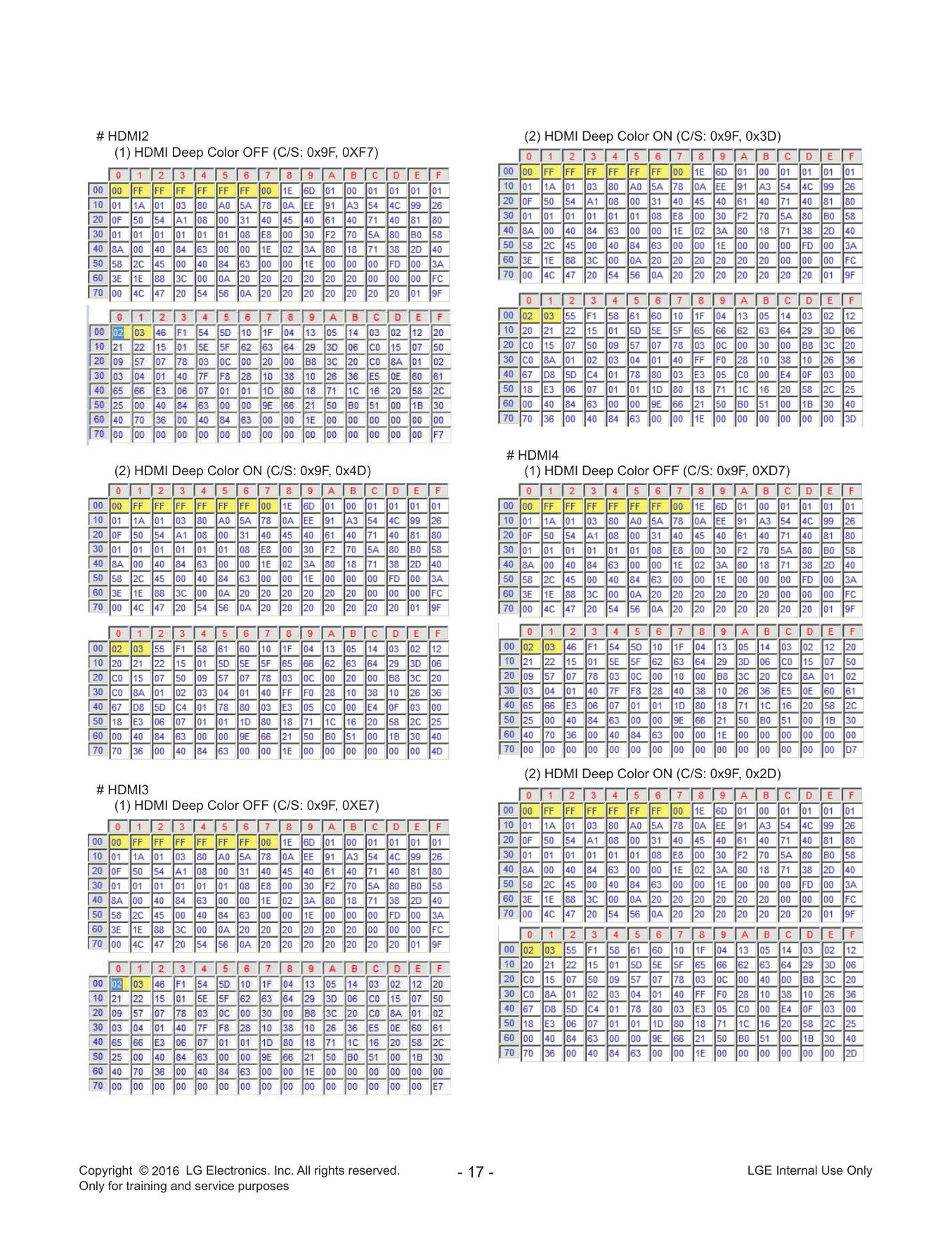

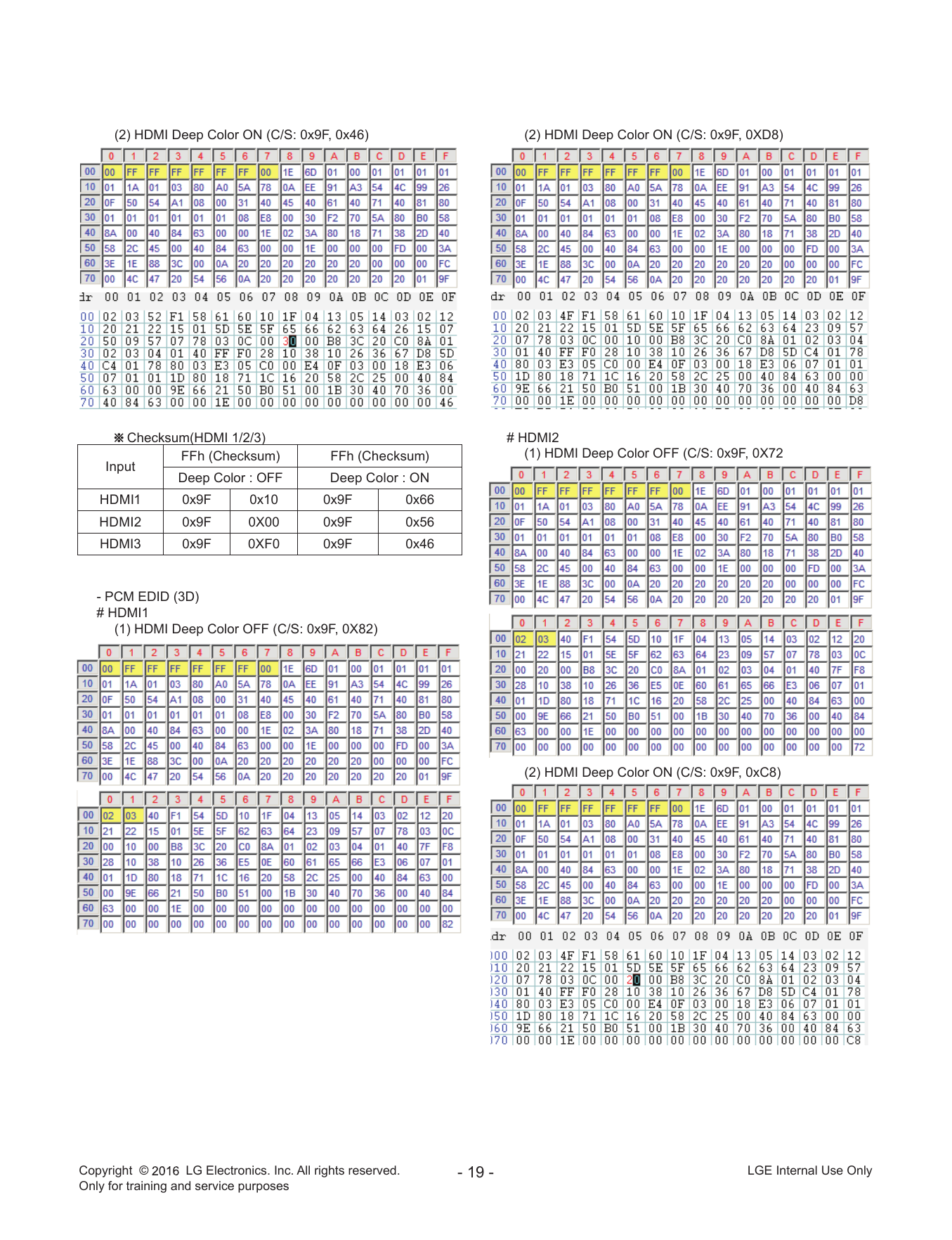

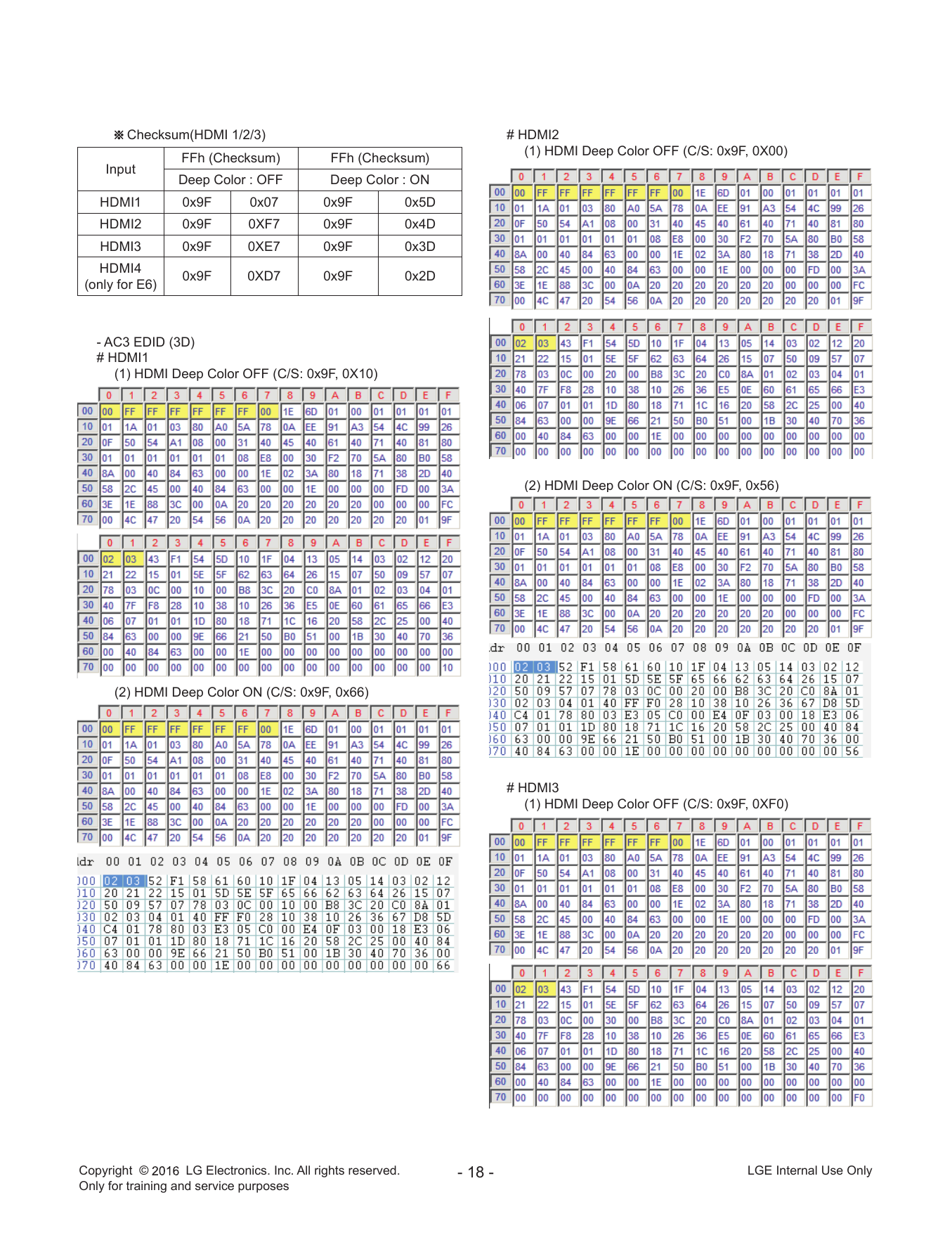

0 1 2 34 5 6 7 8 9 A B C D E F
0x00 00 FF FF FF
FF FF FF 00 1E 6D ⓐ ⓑ
0x01 ⓒ 01 03
80 A0 5A 78 0A EE 91 A3 54 4C 99 26
0x02 0F 50 54 A1
08 00 31 40 45 40 61 40 71 40 81 80
0x03 01 01 01 01
01 01 08 E8 00 30 F2 70 5A 80 B0 58
0x04 8A 00 40 84
63 00 00 1E 02 3A 80 18 71 38 2D 40
0x05 58 2C 45 00
40 84 63 00 00 1E 00 00 00 FD 00 3A
0x06 3E 1E 88 3C
00 0A 20 20 20 20 20 20 ⓓ
0x07 ⓓ 01 ⓔ1
0x00 02 03 4E F1 58 61 60 10 1F 04 13 05 14 03 02 12
0x01 20 21 22 15 01 5D 5E 5F 65 66 ⓕ
0x02 ⓕ
0x03 ⓕ 02 03 04 01 40 FF F0 28 10 38 10 26 36
0x04 E3 05 C0 00 E5 0E 60 61 65 66 E3 06 07 01 01 1D
0x05 80 18 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E
0x06 66 21 50 B0 51 00 1B 30 40 70 36 00 40 84 63 00
0x07 00 1E 00 00 00 00 00 00 00 00 00 00 00 00 00 ⓔ2
Copyright © LG Electronics. Inc. All rights reserved. - 16 - LGE Internal Use Only
Only for training and service purposes
# HDMI2 (2) HDMI Deep Color ON (C/S: 0x9F, 0x3D)
(1) HDMI Deep Color OFF (C/S: 0x9F, 0XF7)
# HDMI4
(2) HDMI Deep Color ON (C/S: 0x9F, 0x4D) (1) HDMI Deep Color OFF (C/S: 0x9F, 0XD7)
(2) HDMI Deep Color ON (C/S: 0x9F, 0x2D)
# HDMI3
(1) HDMI Deep Color OFF (C/S: 0x9F, 0XE7)
Copyright © LG Electronics. Inc. All rights reserved. - 17 - LGE Internal Use Only
Only for training and service purposes
Checksum(HDMI 1/2/3) # HDMI2
(1) HDMI Deep Color OFF (C/S: 0x9F, 0X00)
FFh (Checksum) FFh (Checksum)
Input
Deep Color : OFF Deep Color : ON
HDMI1 0x9F 0x07 0x9F 0x5D
HDMI2 0x9F 0XF7 0x9F 0x4D
HDMI3 0x9F 0XE7 0x9F 0x3D
HDMI4
0x9F 0XD7 0x9F 0x2D
(only for E6)
- AC3 EDID (3D)
# HDMI1
(1) HDMI Deep Color OFF (C/S: 0x9F, 0X10)
(2) HDMI Deep Color ON (C/S: 0x9F, 0x56)
(2) HDMI Deep Color ON (C/S: 0x9F, 0x66)
# HDMI3
(1) HDMI Deep Color OFF (C/S: 0x9F, 0XF0)
Copyright © LG Electronics. Inc. All rights reserved. - 18 - LGE Internal Use Only
Only for training and service purposes
(2) HDMI Deep Color ON (C/S: 0x9F, 0x46) (2) HDMI Deep Color ON (C/S: 0x9F, 0XD8)
Checksum(HDMI 1/2/3) # HDMI2
FFh (Checksum) FFh (Checksum) (1) HDMI Deep Color OFF (C/S: 0x9F, 0X72
Input
Deep Color : OFF Deep Color : ON
HDMI1 0x9F 0x10 0x9F 0x66
HDMI2 0x9F 0X00 0x9F 0x56
HDMI3 0x9F 0XF0 0x9F 0x46
- PCM EDID (3D)
# HDMI1
(1) HDMI Deep Color OFF (C/S: 0x9F, 0X82)
(2) HDMI Deep Color ON (C/S: 0x9F, 0xC8)
Copyright © LG Electronics. Inc. All rights reserved. - 19 - LGE Internal Use Only
Only for training and service purposes
# HDMI3
(1) HDMI Deep Color OFF (C/S: 0x9F, 0X62)

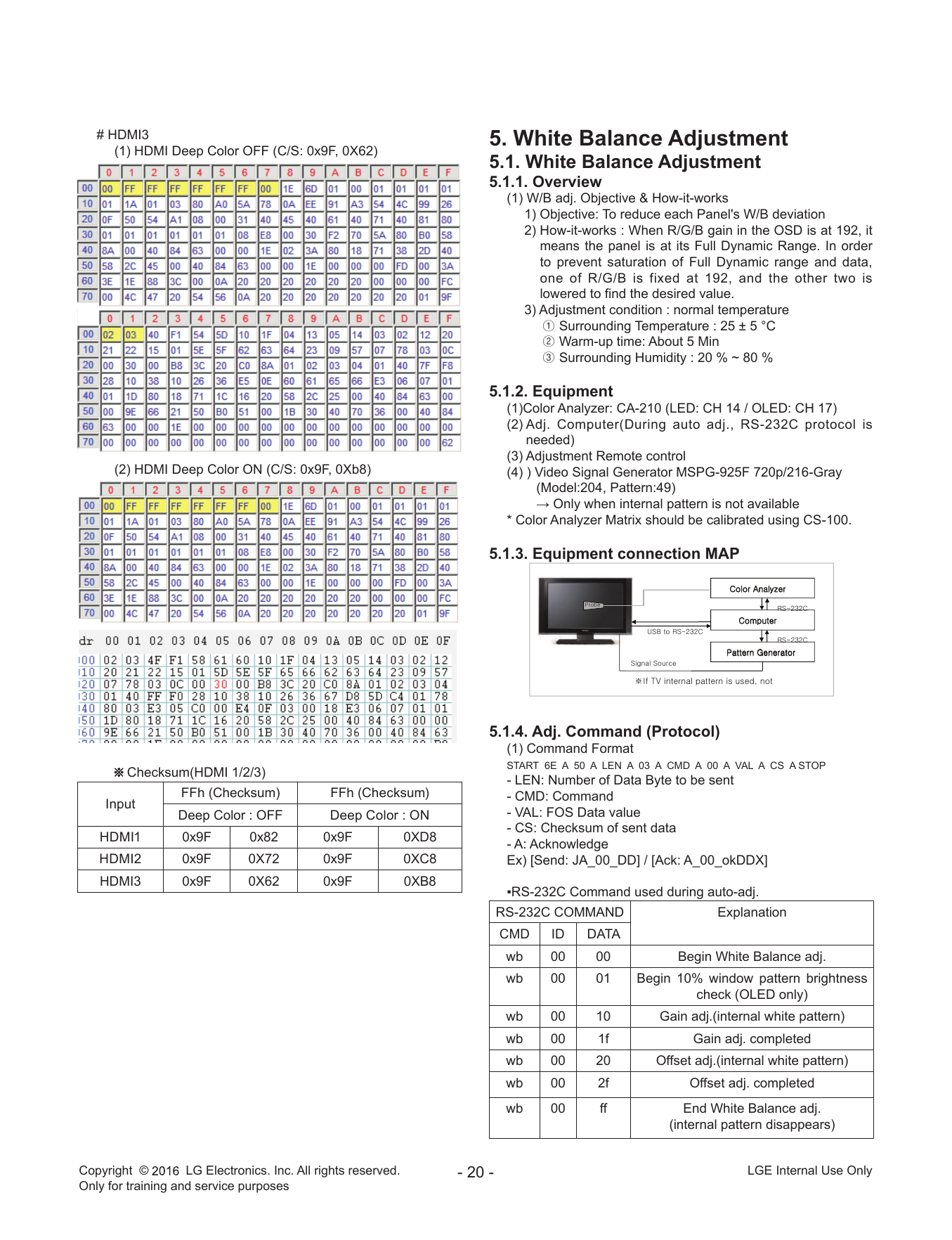

5. White Balance Adjustment
5.1. White Balance Adjustment
5.1.1. Overview
(1) W/B adj. Objective & How-it-works
1) Objective: To reduce each Panel's W/B deviation
2) How-it-works : When R/G/B gain in the OSD is at 192, it
means the panel is at its Full Dynamic Range. In order
to prevent saturation of Full Dynamic range and data,
one of R/G/B is fixed at 192, and the other two is
lowered to find the desired value.
3) Adjustment condition : normal temperature
① Surrounding Temperature : 25 ± 5 °C
② Warm-up time: About 5 Min
③ Surrounding Humidity : 20 % ~ 80 %
5.1.2. Equipment
(1)Color Analyzer: CA-210 (LED: CH 14 / OLED: CH 17)
(2) A dj. Computer(During auto adj., RS-232C protocol is
needed)
(3) Adjustment Remote control
(2) HDMI Deep Color ON (C/S: 0x9F, 0Xb8) (4) ) Video Signal Generator MSPG-925F 720p/216-Gray
(Model:204, Pattern:49)
→ Only when internal pattern is not available
* Color Analyzer Matrix should be calibrated using CS-100.
5.1.3. Equipment connection MAP
jGh ¡G
wG
yzTYZYjG
jG
|ziGGyzTYZYjG
yzTYZYjG
wGnG
zGzG
pG{}GGGGSGG
5.1.4. Adj. Command (Protocol)
(1) Command Format
START 6E A 50 A LEN A 03 A CMD A 00 A VAL A CS A STOP
Checksum(HDMI 1/2/3)
- LEN: Number of Data Byte to be sent
FFh (Checksum) FFh (Checksum) - CMD: Command
Input
Deep Color : OFF Deep Color : ON - VAL: FOS Data value
- CS: Checksum of sent data
HDMI1 0x9F 0x82 0x9F 0XD8
- A: Acknowledge
HDMI2 0x9F 0X72 0x9F 0XC8 Ex) [Send: JA_00_DD] / [Ack: A_00_okDDX]
HDMI3 0x9F 0X62 0x9F 0XB8
▪RS-232C Command used during auto-adj.
RS-232C COMMAND Explanation
CMD ID DATA
wb 00 00 Begin White Balance adj.
wb 00 01 Begin 10% window pattern brightness
check (OLED only)
wb 00 10 Gain adj.(internal white pattern)
wb 00 1f Gain adj. completed
wb 00 20 Offset adj.(internal white pattern)
wb 00 2f Offset adj. completed
wb 00 ff End White Balance adj.
(internal pattern disappears)
Copyright © LG Electronics. Inc. All rights reserved. - 20 - LGE Internal Use Only
Only for training and service purposes

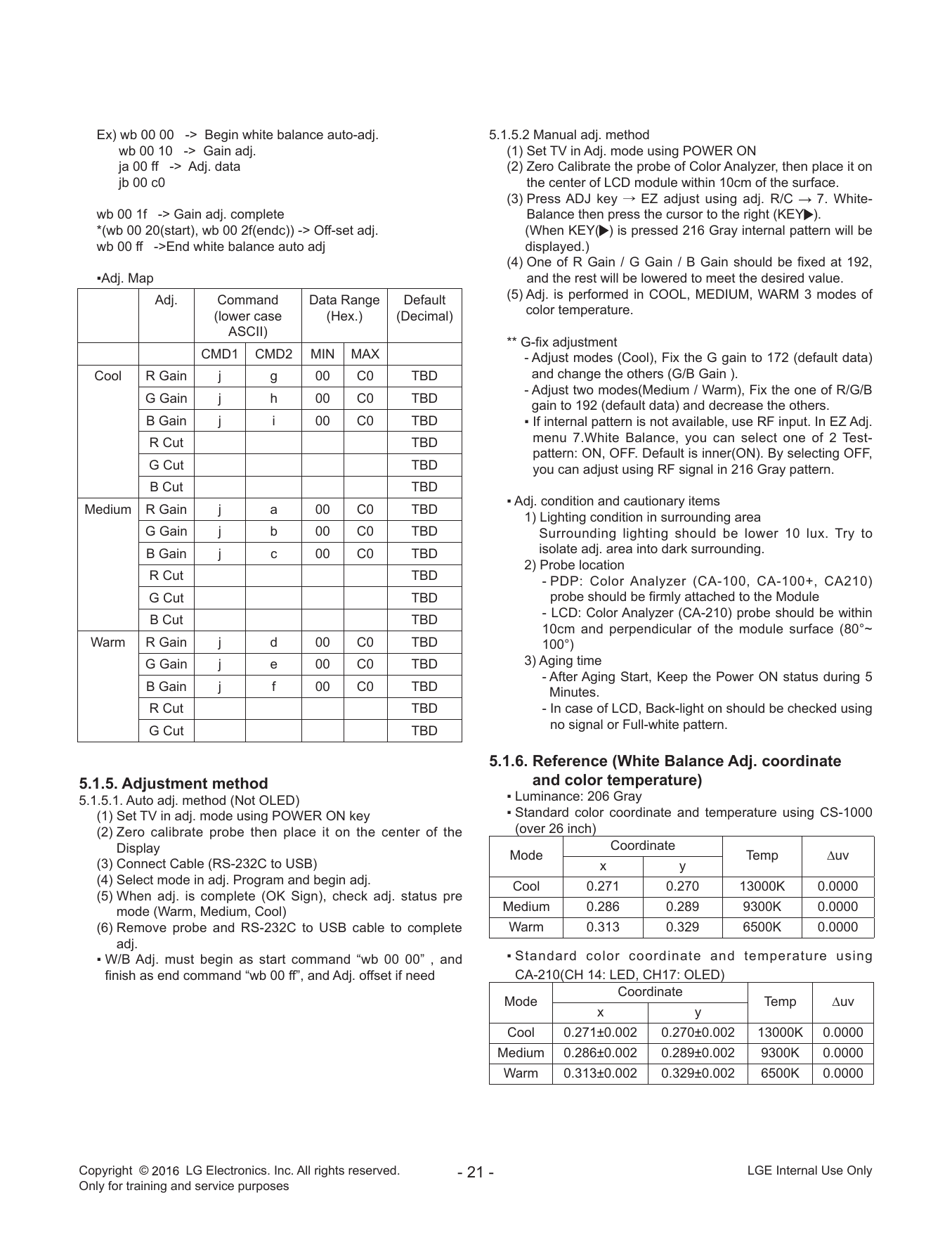

Ex) wb 00 00 -> Begin white balance auto-adj. 5.1.5.2 Manual adj. method
wb 00 10 -> Gain adj. (1) Set TV in Adj. mode using POWER ON
ja 00 ff -> Adj. data (2) Zero Calibrate the probe of Color Analyzer, then place it on
jb 00 c0 the center of LCD module within 10cm of the surface.
(3) Press ADJ key EZ adjust using adj. R/C 7. White-
wb 00 1f -> Gain adj. complete Balance then press the cursor to the right (KEY ).
*(wb 00 20(start), wb 00 2f(endc)) -> Off-set adj. ( When KEY( ) is pressed 216 Gray internal pattern will be
wb 00 ff ->End white balance auto adj displayed.)
(4) One of R Gain / G Gain / B Gain should be fixed at 192,
▪Adj. Map and the rest will be lowered to meet the desired value.
Adj. Command Data Range Default (5) Adj. is performed in COOL, MEDIUM, WARM 3 modes of
(lower case (Hex.) (Decimal) color temperature.
ASCII)
** G-fix adjustment
CMD1 CMD2 MIN MAX - Adjust modes (Cool), Fix the G gain to 172 (default data)
Cool R Gain j g 00 C0 TBD and change the others (G/B Gain ).
- Adjust two modes(Medium / Warm), Fix the one of R/G/B
G Gain j h 00 C0 TBD
gain to 192 (default data) and decrease the others.
B Gain j i 00 C0 TBD ▪ If internal pattern is not available, use RF input. In EZ Adj.
R Cut TBD menu 7.White Balance, you can select one of 2 Test-
pattern: ON, OFF. Default is inner(ON). By selecting OFF,
G Cut TBD you can adjust using RF signal in 216 Gray pattern.
B Cut TBD
▪ Adj. condition and cautionary items
Medium R Gain j a 00 C0 TBD
1) Lighting condition in surrounding area
G Gain j b 00 C0 TBD S urrounding lighting should be lower 10 lux. Try to
B Gain j c 00 C0 TBD isolate adj. area into dark surrounding.
2) Probe location
R Cut TBD - P DP: Color Analyzer (CA-100, CA-100+, CA210)
G Cut TBD probe should be firmly attached to the Module
- LCD: Color Analyzer (CA-210) probe should be within
B Cut TBD
10cm and perpendicular of the module surface (80°~
Warm R Gain j d 00 C0 TBD 100°)
G Gain j e 00 C0 TBD 3) Aging time
- After Aging Start, Keep the Power ON status during 5
B Gain j f 00 C0 TBD Minutes.
R Cut TBD - In case of LCD, Back-light on should be checked using
G Cut TBD no signal or Full-white pattern.
5.1.6. Reference (White Balance Adj. coordinate
5.1.5. Adjustment method and color temperature)
5.1.5.1. Auto adj. method (Not OLED) ▪ Luminance: 206 Gray
(1) Set TV in adj. mode using POWER ON key ▪ Standard color coordinate and temperature using CS-1000
(2) Zero calibrate probe then place it on the center of the (over 26 inch)
Display Coordinate
Mode Temp ∆uv
(3) Connect Cable (RS-232C to USB) x y
(4) Select mode in adj. Program and begin adj. Cool 0.271 0.270 13000K 0.0000
(5) When adj. is complete (OK Sign), check adj. status pre
mode (Warm, Medium, Cool) Medium 0.286 0.289 9300K 0.0000
(6) Remove probe and RS-232C to USB cable to complete Warm 0.313 0.329 6500K 0.0000
adj.
▪ W/B Adj. must begin as start command “wb 00 00” , and ▪ S tandard color coordinate and temperature using
finish as end command “wb 00 ff”, and Adj. offset if need CA-210(CH 14: LED, CH17: OLED)
Coordinate
Mode Temp ∆uv
x y
Cool 0.271±0.002 0.270±0.002 13000K 0.0000
Medium 0.286±0.002 0.289±0.002 9300K 0.0000
Warm 0.313±0.002 0.329±0.002 6500K 0.0000
Copyright © LG Electronics. Inc. All rights reserved. - 21 - LGE Internal Use Only
Only for training and service purposes

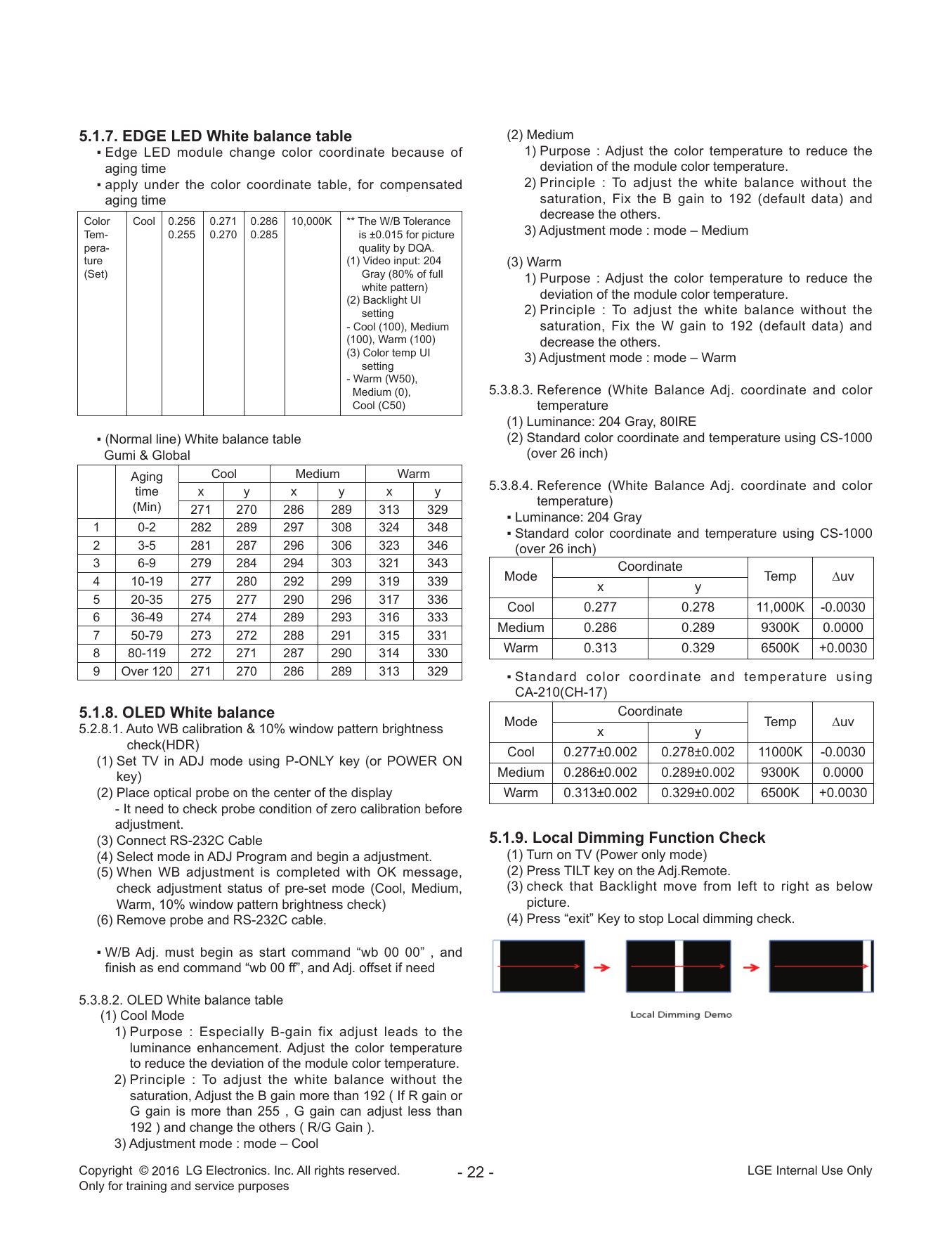

5.1.7. EDGE LED White balance table (2) Medium
▪ E dge LED module change color coordinate because of 1) Purpose : Adjust the color temperature to reduce the
aging time deviation of the module color temperature.
▪ apply under the color coordinate table, for compensated 2) P rinciple : To adjust the white balance without the
aging time saturation, Fix the B gain to 192 (default data) and
Color Cool 0.256 0.271 0.286 10,000K ** The W/B Tolerance
decrease the others.
Tem- 0.255 0.270 0.285 is ±0.015 for picture 3) Adjustment mode : mode – Medium
pera- quality by DQA.
ture (1) Video input: 204 (3) Warm
(Set) Gray (80% of full 1) Purpose : Adjust the color temperature to reduce the
white pattern)
(2) Backlight UI deviation of the module color temperature.
setting 2) P rinciple : To adjust the white balance without the
- Cool (100), Medium saturation, Fix the W gain to 192 (default data) and
(100), Warm (100) decrease the others.
(3) Color temp UI
3) Adjustment mode : mode – Warm
setting
- Warm (W50),
Medium (0), 5.3.8.3. R eference (White Balance Adj. coordinate and color
Cool (C50) temperature
(1) Luminance: 204 Gray, 80IRE
▪ (Normal line) White balance table (2) Standard color coordinate and temperature using CS-1000
Gumi & Global (over 26 inch)
Aging Cool Medium Warm
time x y x y x y 5.3.8.4. R eference (White Balance Adj. coordinate and color
(Min) temperature)
271 270 286 289 313 329
▪ Luminance: 204 Gray
1 0-2 282 289 297 308 324 348 ▪ Standard color coordinate and temperature using CS-1000
2 3-5 281 287 296 306 323 346 (over 26 inch)
3 6-9 279 284 294 303 321 343 Coordinate
4 10-19 277 280 292 299 319 339 Mode Temp ∆uv
x y
5 20-35 275 277 290 296 317 336
Cool 0.277 0.278 11,000K -0.0030
6 36-49 274 274 289 293 316 333
Medium 0.286 0.289 9300K 0.0000
7 50-79 273 272 288 291 315 331
8 80-119 272 271 287 290 314 330 Warm 0.313 0.329 6500K +0.0030
9 Over 120 271 270 286 289 313 329 ▪ S tandard color coordinate and temperature using
CA-210(CH-17)
5.1.8. OLED White balance Coordinate
Mode Temp ∆uv
5.2.8.1. Auto WB calibration & 10% window pattern brightness x y
check(HDR)
Cool 0.277±0.002 0.278±0.002 11000K -0.0030
(1) Set TV in ADJ mode using P-ONLY key (or POWER ON
key) Medium 0.286±0.002 0.289±0.002 9300K 0.0000
(2) Place optical probe on the center of the display Warm 0.313±0.002 0.329±0.002 6500K +0.0030
- It need to check probe condition of zero calibration before
adjustment.
(3) Connect RS-232C Cable 5.1.9. Local Dimming Function Check
(4) Select mode in ADJ Program and begin a adjustment. (1) Turn on TV (Power only mode)
(5) When WB adjustment is completed with OK message, (2) Press TILT key on the Adj.Remote.
check adjustment status of pre-set mode (Cool, Medium, (3) c heck that Backlight move from left to right as below
Warm, 10% window pattern brightness check) picture.
(6) Remove probe and RS-232C cable. (4) Press “exit” Key to stop Local dimming check.
▪ W/B Adj. must begin as start command “wb 00 00” , and
finish as end command “wb 00 ff”, and Adj. offset if need
5.3.8.2. OLED White balance table
(1) Cool Mode
1) P urpose : Especially B-gain fix adjust leads to the
luminance enhancement. Adjust the color temperature
to reduce the deviation of the module color temperature.
2) P rinciple : To adjust the white balance without the
saturation, Adjust the B gain more than 192 ( If R gain or
G gain is more than 255 , G gain can adjust less than
192 ) and change the others ( R/G Gain ).
3) Adjustment mode : mode – Cool
Copyright © LG Electronics. Inc. All rights reserved. - 22 - LGE Internal Use Only
Only for training and service purposes

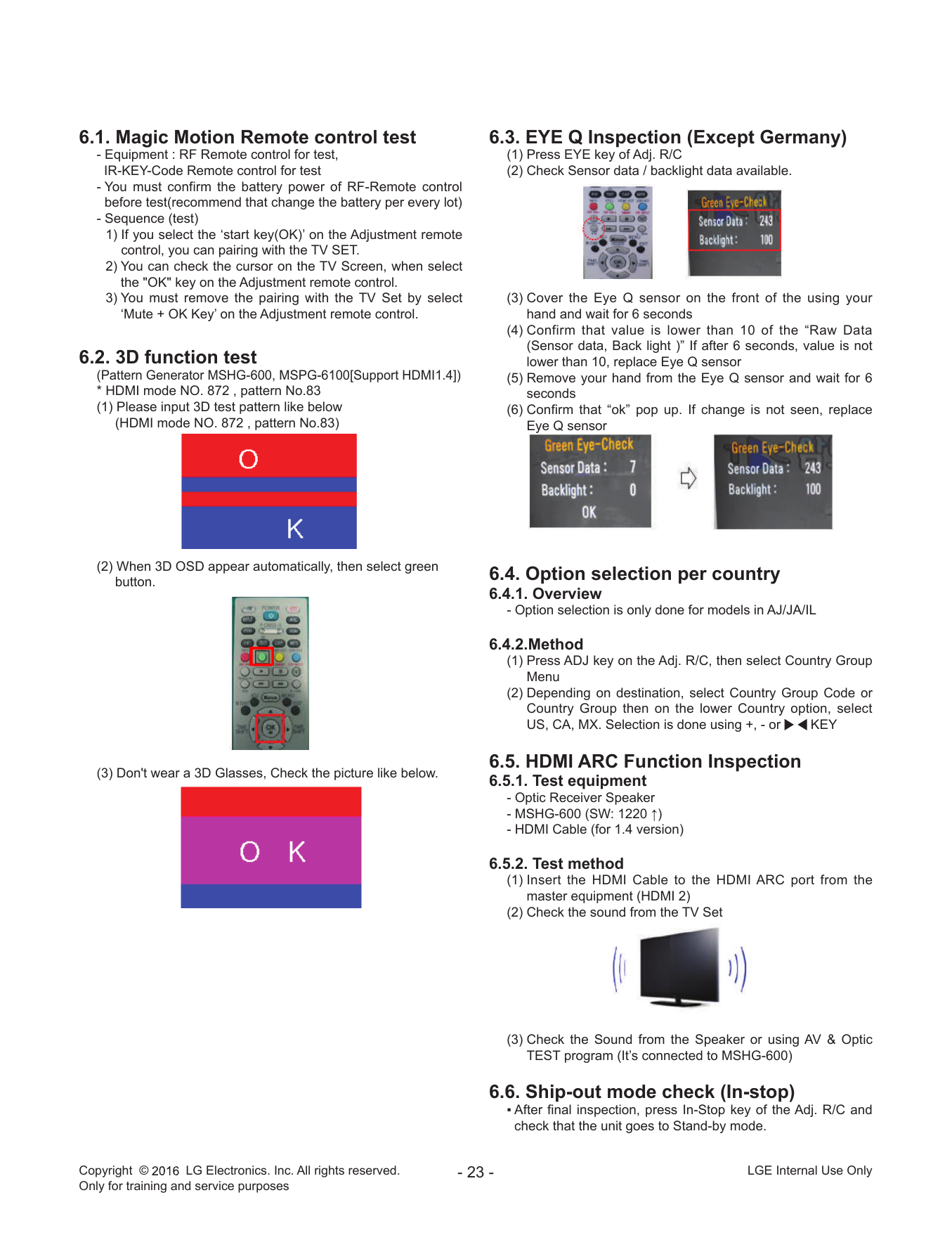

6.1. Magic Motion Remote control test 6.3. EYE Q Inspection (Except Germany)
- Equipment : RF Remote control for test, (1) Press EYE key of Adj. R/C
IR-KEY-Code Remote control for test (2) Check Sensor data / backlight data available.
- You must confirm the battery power of RF-Remote control
before test(recommend that change the battery per every lot)
- Sequence (test)
1) If you select the ‘start key(OK)’ on the Adjustment remote
control, you can pairing with the TV SET.
2) You can check the cursor on the TV Screen, when select
the "OK" key on the Adjustment remote control.
3) You must remove the pairing with the TV Set by select (3) Cover the Eye Q sensor on the front of the using your
‘Mute + OK Key’ on the Adjustment remote control. hand and wait for 6 seconds
(4) Confirm that value is lower than 10 of the “Raw Data
(Sensor data, Back light )” If after 6 seconds, value is not
6.2. 3D function test lower than 10, replace Eye Q sensor
(Pattern Generator MSHG-600, MSPG-6100[Support HDMI1.4]) (5) Remove your hand from the Eye Q sensor and wait for 6
* HDMI mode NO. 872 , pattern No.83 seconds
(1) Please input 3D test pattern like below (6) Confirm that “ok” pop up. If change is not seen, replace
(HDMI mode NO. 872 , pattern No.83) Eye Q sensor
(2) When 3D OSD appear automatically, then select green
button. 6.4. Option selection per country
6.4.1. Overview
- Option selection is only done for models in AJ/JA/IL
6.4.2.Method
(1) Press ADJ key on the Adj. R/C, then select Country Group
Menu
(2) Depending on destination, select Country Group Code or
Country Group then on the lower Country option, select
US, CA, MX. Selection is done using +, - or KEY
6.5. HDMI ARC Function Inspection
(3) Don't wear a 3D Glasses, Check the picture like below.
6.5.1. Test equipment
- Optic Receiver Speaker
- MSHG-600 (SW: 1220 ↑)
- HDMI Cable (for 1.4 version)
6.5.2. Test method
(1) Insert the HDMI Cable to the HDMI ARC port from the
master equipment (HDMI 2)
(2) Check the sound from the TV Set
(3) Check the Sound from the Speaker or using AV & Optic
TEST program (It’s connected to MSHG-600)
6.6. Ship-out mode check (In-stop)
▪ After final inspection, press In-Stop key of the Adj. R/C and
check that the unit goes to Stand-by mode.
Copyright © LG Electronics. Inc. All rights reserved. - 23 - LGE Internal Use Only
Only for training and service purposes

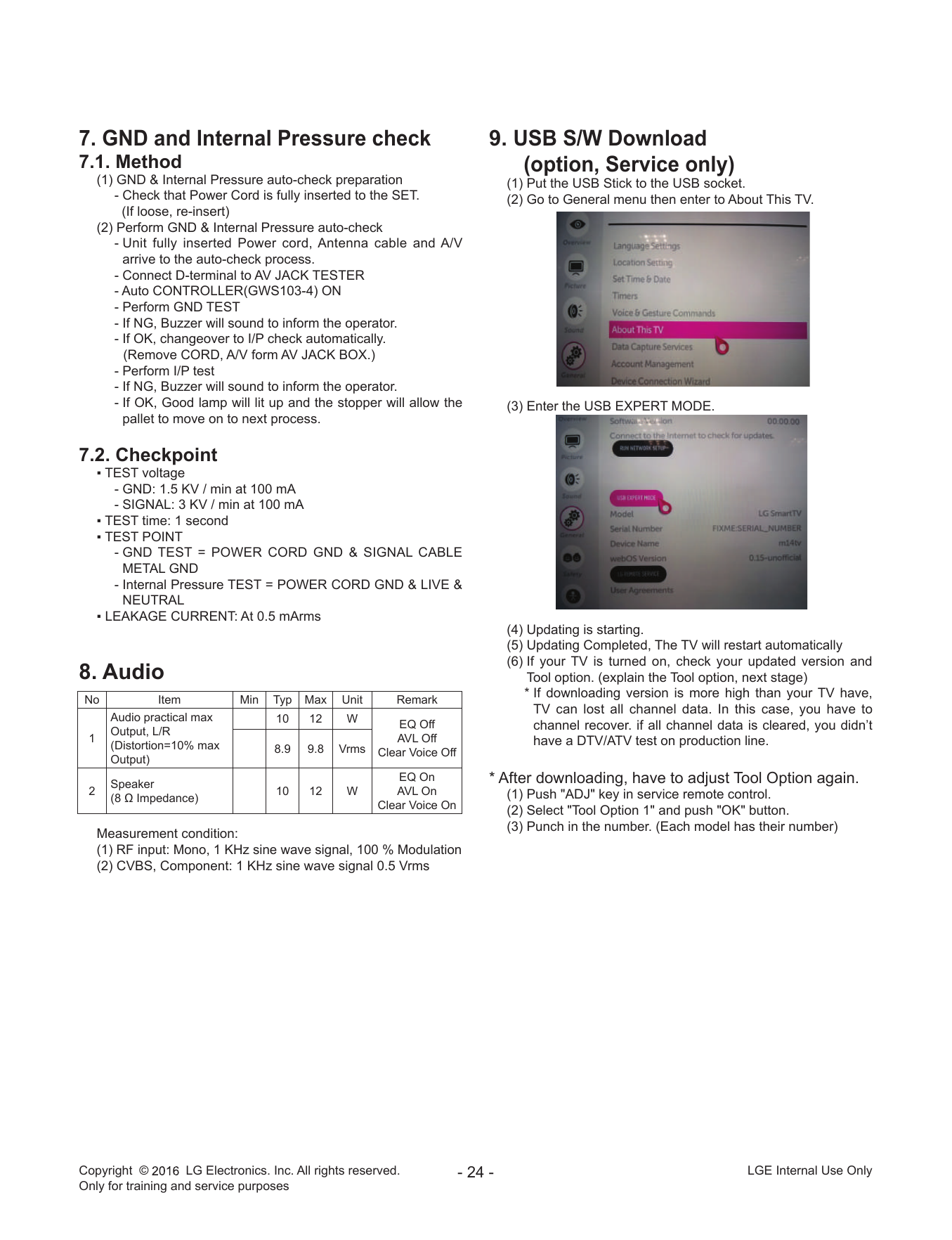

7. GND and Internal Pressure check 9. USB S/W Download
7.1. Method (option, Service only)
(1) GND & Internal Pressure auto-check preparation (1) Put the USB Stick to the USB socket.
- Check that Power Cord is fully inserted to the SET. (2) Go to General menu then enter to About This TV.
(If loose, re-insert)
(2) Perform GND & Internal Pressure auto-check
- Unit fully inserted Power cord, Antenna cable and A/V
arrive to the auto-check process.
- Connect D-terminal to AV JACK TESTER
- Auto CONTROLLER(GWS103-4) ON
- Perform GND TEST
- If NG, Buzzer will sound to inform the operator.
- If OK, changeover to I/P check automatically.
(Remove CORD, A/V form AV JACK BOX.)
- Perform I/P test
- If NG, Buzzer will sound to inform the operator.
- If OK, Good lamp will lit up and the stopper will allow the (3) Enter the USB EXPERT MODE.
pallet to move on to next process.
7.2. Checkpoint
▪ TEST voltage
- GND: 1.5 KV / min at 100 mA
- SIGNAL: 3 KV / min at 100 mA
▪ TEST time: 1 second
▪ TEST POINT
- GND TEST = POWER CORD GND & SIGNAL CABLE
METAL GND
- Internal Pressure TEST = POWER CORD GND & LIVE &
NEUTRAL
▪ LEAKAGE CURRENT: At 0.5 mArms
(4) Updating is starting.
(5) Updating Completed, The TV will restart automatically
(6) If your TV is turned on, check your updated version and
8. Audio Tool option. (explain the Tool option, next stage)
No Item Min Typ Max Unit Remark
* If downloading version is more high than your TV have,
TV can lost all channel data. In this case, you have to
Audio practical max 10 12 W
Output, L/R
EQ Off channel recover. if all channel data is cleared, you didn’t
1 AVL Off have a DTV/ATV test on production line.
(Distortion=10% max 8.9 9.8 Vrms Clear Voice Off
Output)
Speaker
EQ On * After downloading, have to adjust Tool Option again.
2 10 12 W AVL On (1) Push "ADJ" key in service remote control.
(8 Ω Impedance)
Clear Voice On
(2) Select "Tool Option 1" and push "OK" button.
(3) Punch in the number. (Each model has their number)
Measurement condition:
(1) RF input: Mono, 1 KHz sine wave signal, 100 % Modulation
(2) CVBS, Component: 1 KHz sine wave signal 0.5 Vrms
Copyright © LG Electronics. Inc. All rights reserved. - 24 - LGE Internal Use Only
Only for training and service purposes

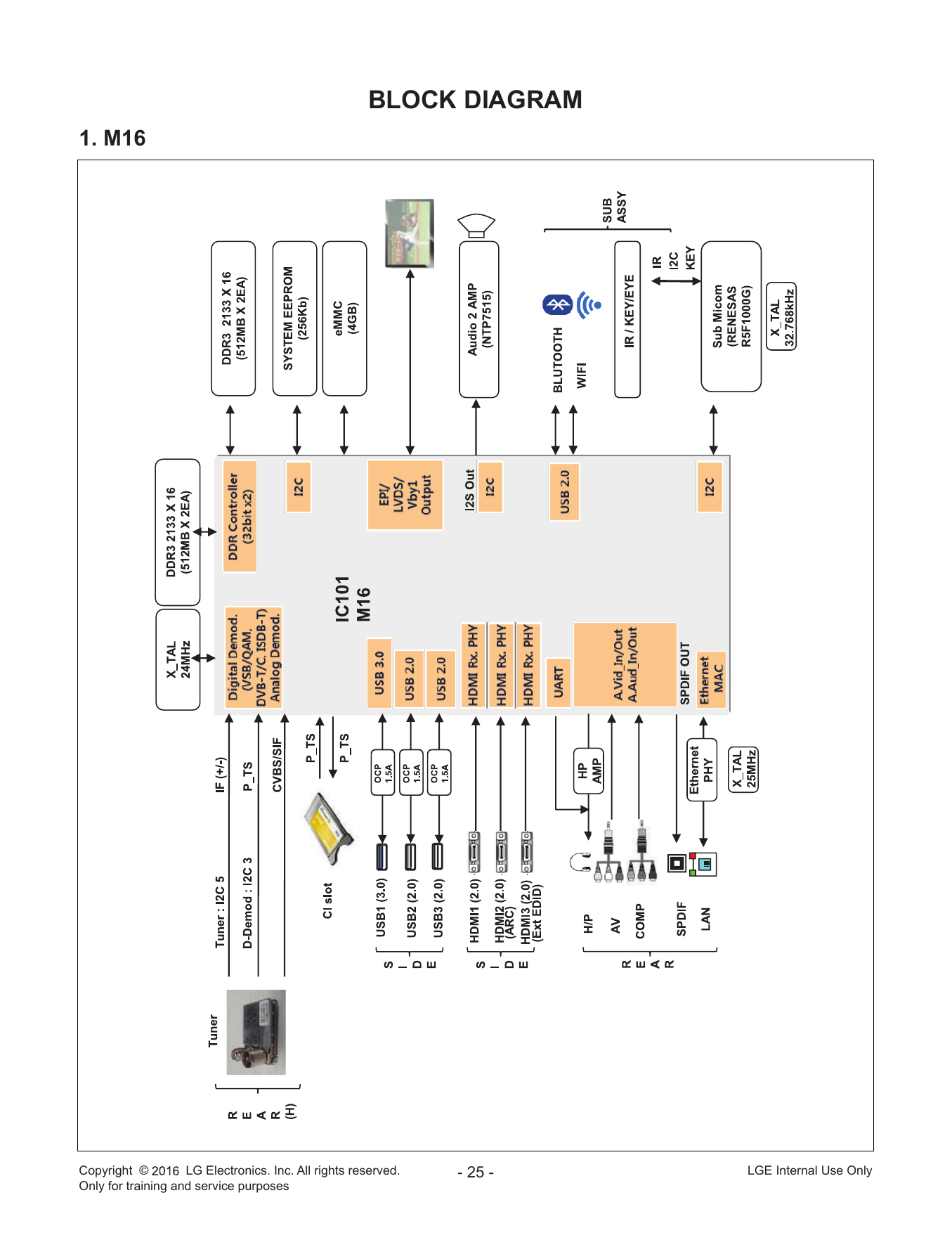

BLOCK DIAGRAM
1. M16
Copyright © LG Electronics. Inc. All rights reserved. - 25 - LGE Internal Use Only
Only for training and service purposes

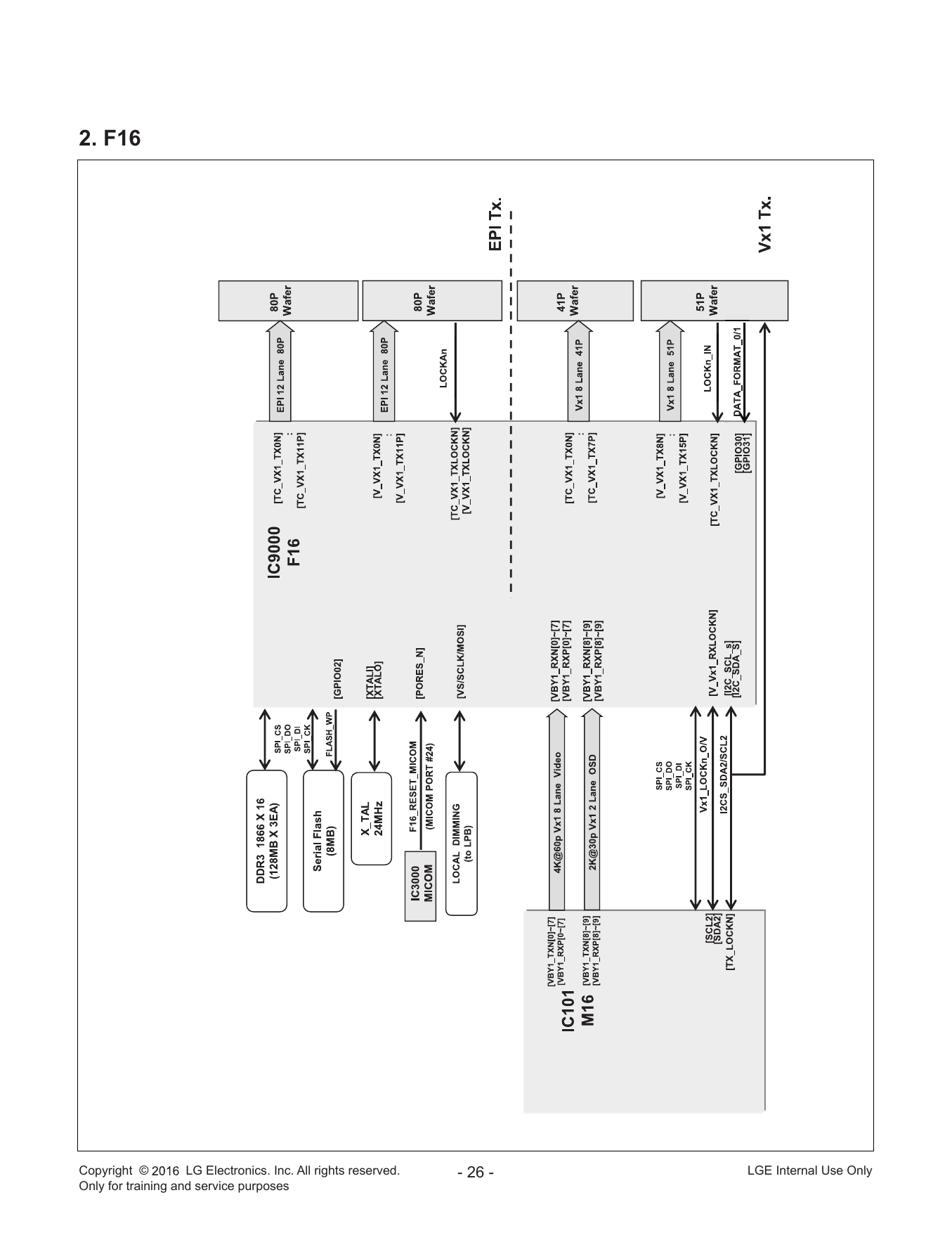

2. F16
Copyright © LG Electronics. Inc. All rights reserved. - 26 - LGE Internal Use Only
Only for training and service purposes

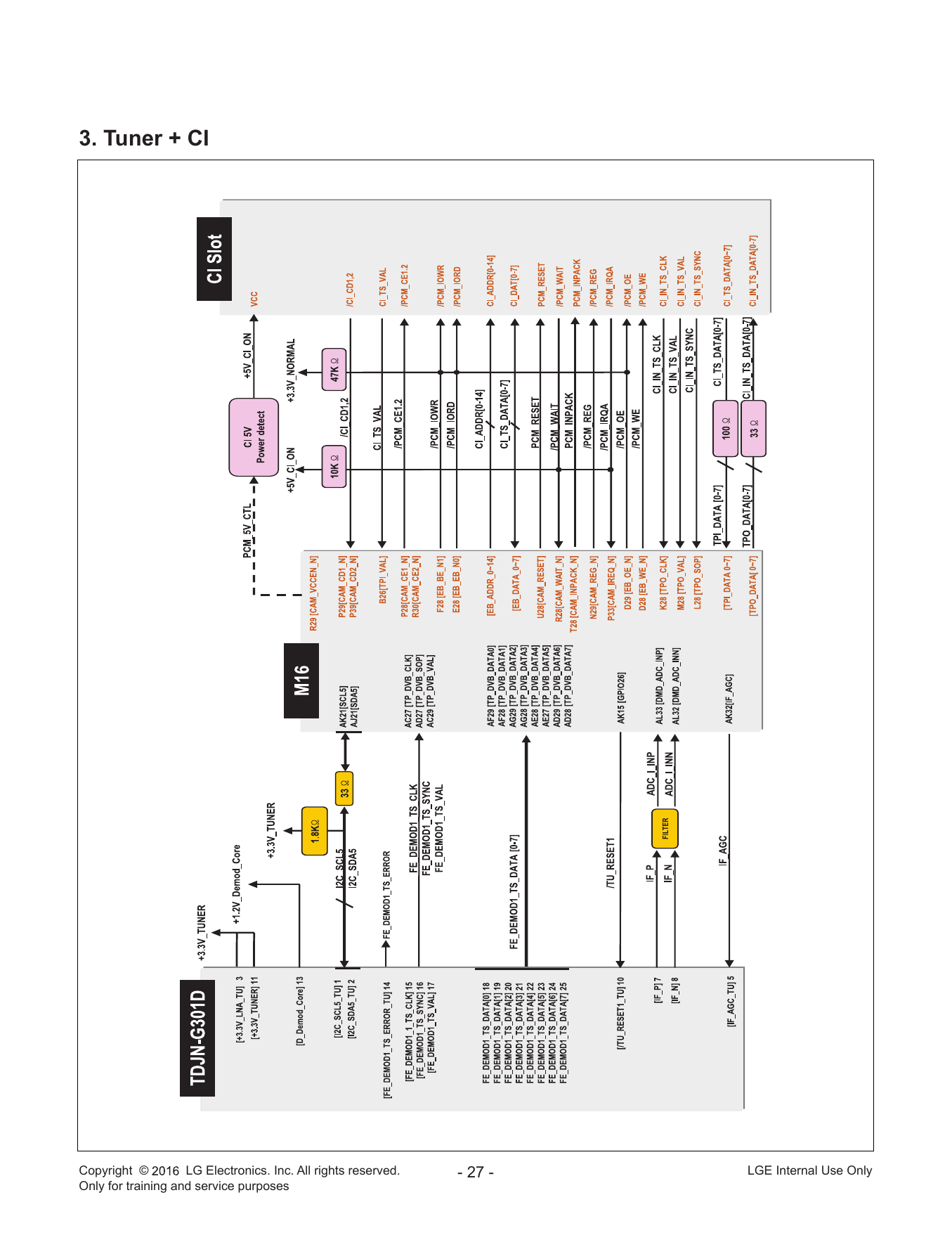

3. Tuner + CI
Copyright © LG Electronics. Inc. All rights reserved. - 27 - LGE Internal Use Only
Only for training and service purposes

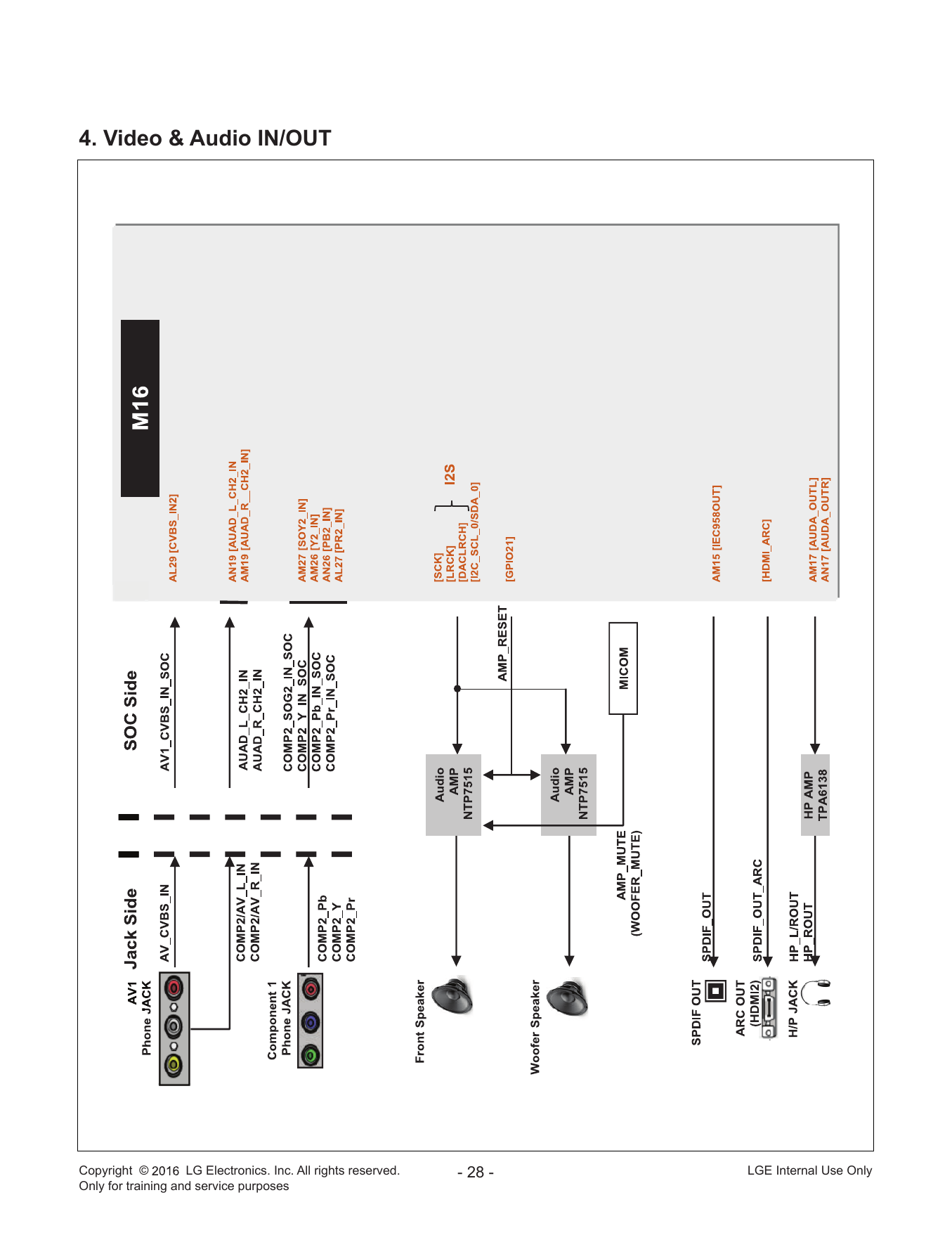

4. Video & Audio IN/OUT
Copyright © LG Electronics. Inc. All rights reserved. - 28 - LGE Internal Use Only
Only for training and service purposes

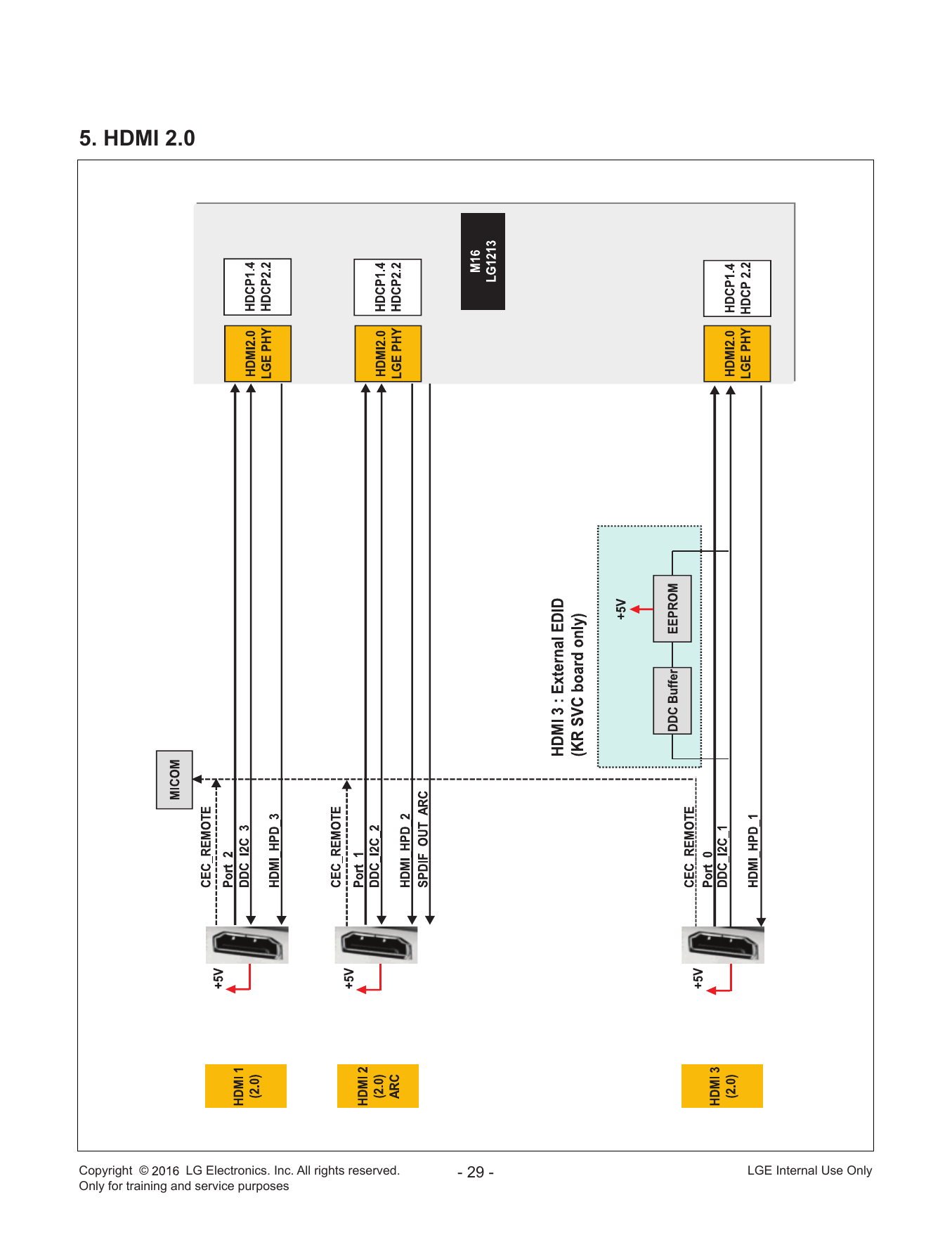

5. HDMI 2.0
Copyright © LG Electronics. Inc. All rights reserved. - 29 - LGE Internal Use Only
Only for training and service purposes

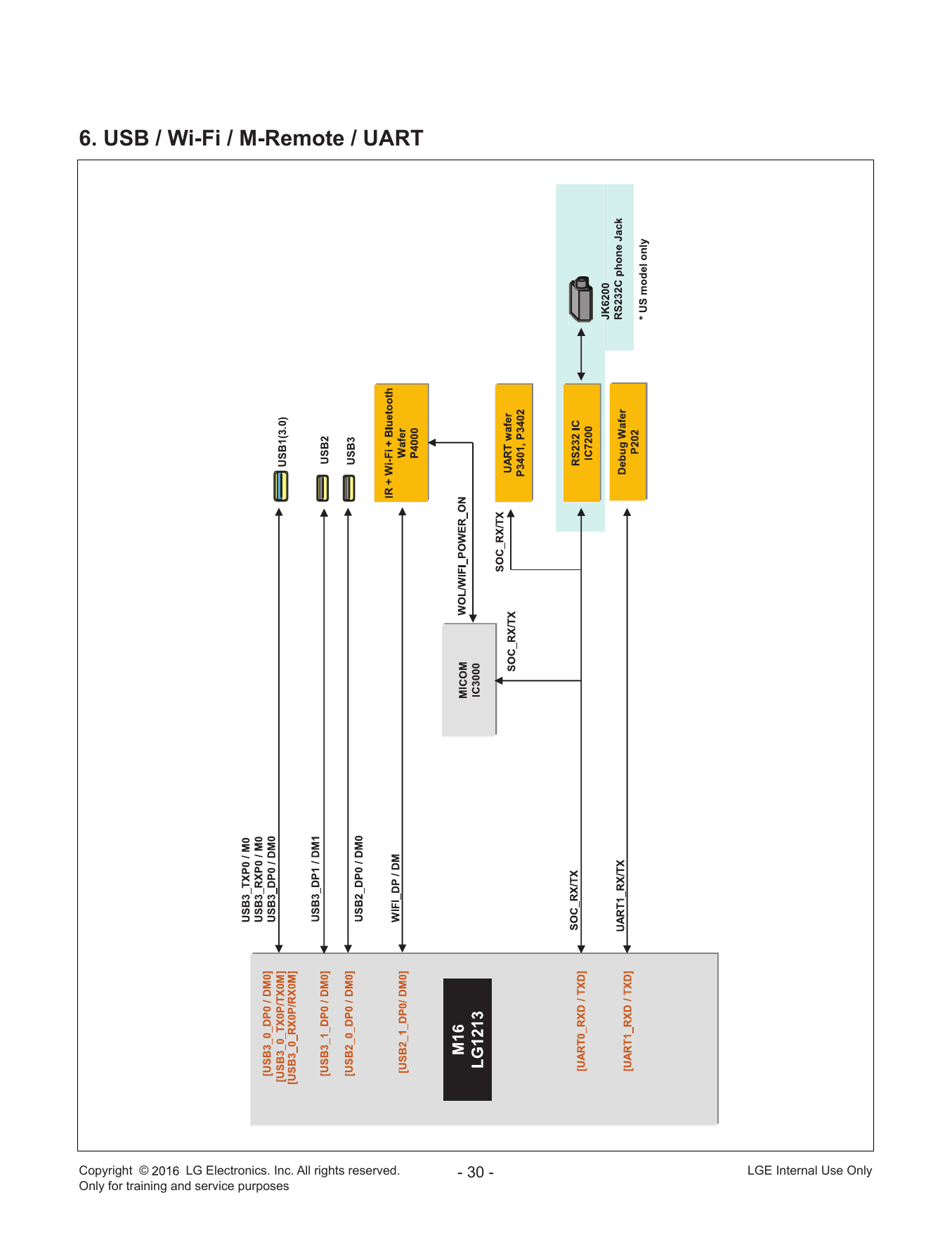

6. USB / Wi-Fi / M-Remote / UART
Copyright © LG Electronics. Inc. All rights reserved. - 30 - LGE Internal Use Only
Only for training and service purposes
7. Power
Copyright © LG Electronics. Inc. All rights reserved. - 31 - LGE Internal Use Only
Only for training and service purposes
8. M16 I2C
Copyright © LG Electronics. Inc. All rights reserved. - 32 - LGE Internal Use Only
Only for training and service purposes
9. SoC clock source & frequency
Copyright © LG Electronics. Inc. All rights reserved. - 33 - LGE Internal Use Only
Only for training and service purposes
10. EPI block (PMIC)
Copyright © LG Electronics. Inc. All rights reserved. - 34 - LGE Internal Use Only
Only for training and service purposes
EXPLODED VIEW
IMPORTANT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety-related characteristics.These
parts are identified by in the EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
500
510
AH1
700
571
570
910
AG1
900
Stand Screw
A10
400
Stand Base
Stand Body
A9
+
710
A22
521
540
LV2
120
(Option)
200T
530
LV1
810
800
300
820
200
Copyright © LG Electronics. Inc. All rights reserved. - 35 - LGE Internal Use Only
Only for training and service purposes
DISASSEMBLY
1. Disassemble Stand
- Disassemble Stand Cover
- Push up Cable Cover and
Pull the Cable Cover
- Disassemble Screw (4EA)
Copyright © LG Electronics. Inc. All rights reserved. - 36 - LGE Internal Use Only
Only for training and service purposes
2. Disassemble B/C Screw
O : M3*5.5 (8EA)
O : M4*10 (1EA)
O : 4 ~ 7Kgf.cm
O : 5~ 7Kgf.cm
3. Disassemble Back Cover
- Pull the Power Cord - Pull the Back Cover
Bracket Holing Power Cable upward with using snap.
- Change Position and Pull up Back Cover
Copyright © LG Electronics. Inc. All rights reserved. - 37 - LGE Internal Use Only
Only for training and service purposes
TROUBLE SHOOTING GUIDE
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Contents of Standard Repair Process
No. Error symptom (High category) Error symptom (Mid category) Page Remarks
1 No video/Normal audio 1
2 No video/No audio 2
3 Picture broken/ Freezing 3
A. Video error
4 Color error 4
Vertical/Horizontal bar, residual image, light
5 5
spot, external device color error
6 No power 6
B. Power error Off when on, off while viewing, power auto
7 7
on/off
8 No audio/Normal video 8
C. Audio error
9 Wrecked audio/discontinuation/noise 9
10 Remote control & Local switch checking 10
11 MR15R operating checking 11
12 D. Function error
Wifi operating checking 12
13 Camera operating checking 13
14 External device recognition error 14
15 E. Noise Circuit noise, mechanical noise 15
16 F. Exterior error Exterior defect 16
First of all, Check whether there is SVC Bulletin in GSCS System for these model.
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error A. Video error date
symptom
No video/ Normal audio Revised date 1/16
First of all, Check whether all of cables between board is inserted properly or not.
(Main B/D↔ Power B/D, Vx1/EPI Cable, Speaker Cable, IR B/D Cable,,,)
☞A1 ☞A18
No video Normal Y Check Back Light Y Check Power Normal Y Replace T-con/Main
Normal audio On Board or module
audio On with naked eye Board voltage
18V, etc.
N N
☞A18 N
Move to No Check Power Board 18V output Repair or Replace
video/No audio Power Board or parts
Replace Inverter
Normal Y
or module
voltage
End
N
Repair Power
Board or parts
※Precaution ☞A4 & A2
Always check & record S/W Version and White
Replace Main Board Re-enter White Balance value
Balance value before replacing the Main Board
1
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error A. Video error date
symptom
No video/ No audio Revised date 2/16
☞A18
Check various Check and
Normal Y
No Video/ voltages of Power replace
No audio Board ( 18V) voltage?
MAIN B/D
N End
Replace Power
Board and repair
parts
2
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error A. Video error date
symptom
Picture broken/ Freezing Revised date 3/16
. By using Digital signal level meter
☞ A3
. By using Diagnostics menu on OSD
Check RF Signal level ( All Settings → Programmes → Programmes Tuning &Settings → Manual Tuning → Check the Signal )
- Signal strength (Normal : over 50%)
- Signal Quality (Normal: over 50%)
Y Check whether other equipments have problem or not.
Normal
(By connecting RF Cable at other equipment)
Signal?
→ DVD Player ,Set-Top-Box, Different maker TV etc`
N
☞ A4
Check RF Cable
Normal Y Check SVC N Check Y
Connection Close
1. Reconnection Picture? S/W Version Bulletin? Tuner soldering
2. Install Booster N
Y
N
S/W Upgrade
N Contact with signal distributor
Normal
Picture? or broadcaster (Cable or Air)
Normal N
Y Picture? Replace
Main B/D
Y
Close
Close
3
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error A. Video error date
symptom
Color error Revised date 4/16
☞A6 ☞ A7
Check color by input ☞A8 ※ Check the V
-External Input Y x1 or EPI Cable Y
-COMPONENT Check Color Color Color Y Replace module
and Connector Replace Main B/D
-AV Test pattern error? error? error? Or T-Con B/D
And Replace
-HDMI N Link Cable N N
Check error End
color input
mode
Check
External Input/ External device Y
external
Component /Cable Replace Main/T-con B/D
device and
error normal
cable
N
Request repair
for external
device/cable
N
HDMI Check external External device
error device and /Cable
cable normal
Y
Check the N
Menu
HDMI ULTRA HD Replace Main/T-con B/D
On?
Deep Color menu
※ All Settings General HDMI ULTRA HD Deep Color On/Off
Y
Menu Off and Re-Check
4
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
A. Video error Established
Error date
symptom Vertical / Horizontal bar, residual image,
light spot, external device color error Revised date 5/16
Replace
Vertical/Horizontal bar, residual image, light spot Module
☞ A7 N
☞A8 Check the Check and
Screen N N Screen N Screen
Check Test pattern lock Signal of Normal? replace Link Replace Main/T-con B/D
normal? normal? (adjust VCOM, If need) normal?
Vx1 or EPI Cable
Y
Y Y Y
Replace Replace module or End End
Main B/D T-con B/D(Vx1)
External device screen error-Color error
Check screen External
Input Connect other external N
condition by
error device and cable Screen Replace
Check S/W Version Check N input
(Check normal operation of normal? Main/T-con
version -External Input
External Input, Component, B/D
-Component
Component RGB and HDMI/DVI by
-HDMI/DVI Y
error connecting Jig, pattern
Y
Generator ,Set-top Box etc.
Request repair for
S/W Upgrade external device
- Connect other external
device and cable Y
HDMI/ (Check normal operation of
DVI External Input, Component, N Replace
Normal N RGB and HDMI/DVI by Screen
Main /T-con
screen? connecting Jig, pattern normal?
B/D
Generator ,Set-top Box etc.
Y
- HDMI ULTRA HD Deep
Color menu off
End
※ All Settings General HDMI ULTRA HD Deep Color On/Off
5
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error B. Power error date
symptom
No power Revised date 6/16
☞A17 ☞A18
Y DC Power on N Y Replace
Check Power LED Normal Check Power
by pressing Power Key OK? Power B/D
Logo LED On? operation? On ‘”High”
On Remote control
. Stand-By: Red or Turn On
N Y
. Operating: Turn Off
Check Power cord Replace Main B/D
was inserted properly
☞A18
Measure the each output
N voltage of Power B/D
Normal?
Y Y
Close
※☞A18 Normal
Normal
voltage?
Y
Replace Main B/D
Check ST-BY Voltage
Y
voltage?
N
N
Replace Power B/D
Replace
Power B/D
6
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error B. Power error date
symptom
Off when on, off while viewing, power auto on/off Revised date 7/16
Check outlet
☞A19
N Y
Check A/C cord Error? Check Power Off CPU Normal? End
Replace Main B/D
Mode Abnormal
N
Check for all 3- phase
power out Y Abnormal Replace Power B/D
1
Fix A/C cord & Outlet ☞A18
and check each 3
(If Power Off mode is
phase out
not displayed) Normal Y
Replace Main B/D
Check Power B/D voltage?
voltage
N
※ Caution
Check and fix exterior Replace Power B/D
of Power B/D Part
* Please refer to the all cases which Status Power off List Explanation
"POWEROFF_REMOTEKEY" Power off by REMOTE CONTROL
can be displayed on power off mode.
"POWEROFF_OFFTIMER" Power off by OFF TIMER
"POWEROFF_SLEEPTIMER" Power off by SLEEP TIMER
"POWEROFF_INSTOP" Power off by INSTOP KEY
"POWEROFF_AUTOOFF" Power off by AUTO OFF
Normal "POWEROFF_ONTIMER" Power off by ON TIMER
"POWEROFF_RS232C" Power off by RS232C
"POWEROFF_RESREC" Power off by Reservated Record
"POWEROFF_RECEND" Power off by End of Recording
"POWEROFF_SWDOWN" Power off by S/W Download
"POWEROFF_UNKNOWN" Power off by unknown status except listed case
"POWEROFF_ABNORMAL1" Power off by abnormal status except CPU trouble
Abnormal
"POWEROFF_CPUABNORMAL" Power off by CPU Abnormal
7
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error C. Audio error date
symptom
No audio/ Normal video Revised date 8/16
☞A20 ☞A21+A18
Check menu > Y Check audio B+ 18V Y
No audio Normal
Sound Out set Correct of Power Board
Screen normal voltage
CORRECT output
N N
Set correct output Replace Power Board and repair parts
Check Speaker N
Disconnection Replace MAIN Board End
disconnection
Y
Replace Speaker
8
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error C. Audio error date
symptom
Wrecked audio/ discontinuation/noise Revised date 9/16
→ abnormal audio/discontinuation/noise is same after “Check input signal” compared to No audio
Wrecked audio/
☞A21+A18
Check and replace
Discontinuation/ Check audio
speaker and
Noise for B+ Voltage (18V)
connector
Check input all audio
signal Y
Signal
-RF
normal? Wrecked audio/
-External Input Normal Y
signal Discontinuation/
N Replace Main B/D voltage?
Noise only
for D-TV
N
Wrecked audio/
Discontinuation/
Replace Power B/D
Noise only
for Analog
(When RF signal is not
received)
Request repair to external Wrecked audio/ Replace Main B/D End
cable/ANT provider Discontinuation/
Noise only
for External Input
(In case of N
External Input Connect and check Normal
signal error) other external audio?
Check and fix device
external device Y
Check and fix external device
9
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
D. Function error Established
Error date
symptom
Remote control & Local switch checking Revised date 10/16
1. Remote control(R/C) operating error Replace
Main B/D
☞A22 ☞A22 ☞A22
Check & Repair N Check Stan-by Y Y
Check R/C itself Normal Y Normal Normal Check IR Normal
operating? Cable connection operating? Voltage On Voltage? Signal?
Operation Output signal
Connector solder Main B/D
N
Y N N
Check R/C Operating Check & Replace ☞A18 Repair/Replace
When turn off light Baterry of R/C IR B/D
Close Check Stan-by voltage on Power B/D
in room
Replace Power B/D or Replace Main B/D
If R/C operate, Normal Y
operating? Close
Explain the customer
cause is interference
from light in room. N
Replace R/C
10
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
D. Function error Established
Error date
symptom
MR15R operating checking Revised date 11/16
2. MR15R(Magic remote control) operating error
☞A4
Check the N Check MR15R
RF Receiver ver Normal Y Press the Is show ok N Turn off/on the set
INSTART menu is “00.00”? itself Operation operating? and press the
wheel message?
wheel
N
Y Y
☞A23
Check & Replace
Check & Repair Battery of MR15R Close
RF assy
connection
Normal Y
☞A4 operating? Close
RF Receiver ver N
Close N
is “00.00”?
Replace
MR15R Is show ok N Press the back key
Y message? about 5sec
Down load the Firmware Y
* INSTART MENU13.RF remote
control Test Firmware download Close
* If you conduct the loop at 3times, change the MR15R.
11
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
D. Function error Established
Error date
symptom
Wifi operating checking Revised date 12/16
3.Wifi operating error
☞A4 ☞A24
Check the Wi-Fi Mac value N Check the Wi-Fi Normal N Replace
INSTART menu is “NG”? Voltage?
Wafer pin Main B/D
Y
☞A24 Y
Check & Repair Close
Wifi cable
connection
☞A4
Wi-Fi Mac value N
is “NG”? Close
Y
Change the Wifi
assy
12
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
D. Function error Established
Error date
symptom
Camera operating checking Revised date 13/16
4.Camera operating error
(Only Camera Build-in model)
☞A4 ☞A25
Check the Camera Ver. N Check the Camera wafer Normal N Replace
INSTART menu is “NULL”? Voltage?
P4200 12,13pin Main B/D
Y
☞A25 Y
Check & Repair
Close
Camera cable
connection
☞A4
Camera Ver. N
is “NULL”? Close
Y
Change the
Camera assy
13
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error D. Function error date
symptom
External device recognition error Revised date 14/16
Y Check technical
Check External Input and
Signal information Technical N
input Component Replace Main B/D
input? - Fix information information?
Recognition error
signal
- S/W Version
N Y
HDMI/
Check and fix DVI, Optical
Fix in Replace Main B/D
external device/cable Recognition error
accordance
with technical
information
14
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error E. Noise date
symptom
Circuit noise, mechanical noise Revised date 15/16
Check
Identify Circuit
location of Replace PSU
noise type noise
noise
Mechanical Check location of
noise noise
※ When the nose is severe, replace the module
※ Mechanical noise is a natural (For models with fix information, upgrade the S/W
phenomenon, and apply the 1st level or provide the description)
description. When the customer does not OR
agree, apply the process by stage. ※ If there is a “Tak Tak” noise from the
※ Describe the basis of the description cabinet, refer to the KMS fix information and
in “Part related to nose” in the Owner’s then proceed as shown in the solution manual
Manual. (For models without any fix information,
provide the description)
15
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error F. Exterior defect date
symptom
Exterior defect Revised date 16/16
Zoom part with Module
Replace module
exterior damage damage
Cabinet
Replace cabinet
damage
Remote
control Replace remote control
damage
Stand
Replace stand
dent
16
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Contents of Standard Repair Process Detail Technical Manual
No. Error symptom Content Page Remarks
1 Check LCD back light with naked eye A1
A. Video error_ No video/Normal audio
2 Check White Balance value A2
4 TUNER input signal strength checking method A3
A. Video error_ video error /Video
5 lag/stop Version checking method A4
6 Tuner Checking Part A5
A. Video error _Vertical/Horizontal bar,
7 connection diagram A6
residual image, light spot
Check Link Cable (EPI) reconnection
8 A7
A. Video error_ Color error condition
9 Adjustment Test pattern - ADJ Key A8
10 Exchange Main Board (1) A-1/5
11 Exchange Main Board (2) A-2/5
12 Defected Type caused by T-Con/ Exchange Power Board (PSU) A-3/5
Inverter/ Module
13 Exchange Module (1) A-4/5
14 Exchange Module (2) A-5/5
Continue to the next page
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Contents of Standard Repair Process Detail Technical Manual
Continued from previous page
No. Error symptom Content Page Remarks
16 Check front display LED A17
B. Power error_ No power
17 Check power input Voltage & ST-BY 3.5V A18
B. Power error_Off when on, off while
18 POWER OFF MODE checking method A19
viewing
Checking method in menu when there is no
19 A20
audio
C. Audio error_ No audio/Normal video
Voltage and speaker checking method when
20 A21
there is no audio
21 remote control operation checking method A22
22 Motion Remote operation checking method A23
D. Function error
23 Wi-Fi operation checking method A24
24 Camera operation checking method A25 Not Used
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_No video/Normal audio date
Revised
Content Check LCD back light with naked eye A1
date
<55/65UH95>
After turning on the power and disassembling the case, check with the naked eye,
whether you can see light from locations.
A1
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_No video/Normal audio date
Revised
Content Check White Balance value A2
date
Entry
Entrymethod
method
1.1.Press
Pressthe ADJ
the ADJbutton
buttonononthe
theremote
remotecontrol
controlfor
foradjustment.
adjustment.
2.2.Enter
Enterinto
intoWhite
WhiteBalance
Balanceofofitem
item6.13.
3.3.
After
Afterrecording
recordingthe
theR,R,G,G,B B(GAIN,
(GAIN,Cut)
Cut)value
valueofofColor
ColorTemp
Temp(Cool/Medium/Warm),
(Cool/Medium/Warm),
re-enter the value after replacing the MAIN BOARD.
re-enter the value after replacing the MAIN BOARD.
A2
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_Video error, video lag/stop date
TUNER input signal strength checking method Revised
Content date A3
All Settings Programmes Programmes Tuning & Settings Manual Tuning Antenna DTV
Signal Strength is too strong : Use attenuator (-10dB, -15dB, -20dB etc.)
Signal Strength is too weak : Use Signal Booster
A3
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_Video error, video lag/stop date
Version checking method Revised
Content date A4
1. Checking method for remote control for adjustment
Version
Press the IN-START with the remote
control for adjustment
A4
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom
A. Video error_Video error, video lag/stop
date
Revised
Content TUNER checking part A5
date
Checking method:
1. Check the signal strength or check whether the screen is normal when the external device is connected.
2. After measuring each voltage from power supply, finally replace the MAIN BOARD.
A5
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error A. Video error _Vertical/Horizontal bar, residual Established
symptom image, light spot date
Revised
Content connection diagram (1) date A6
As the part connecting to the external input, check the
screen condition by signal
A6
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_Color error date
Revised
Content Check Link Cable (LVDS) reconnection condition date A7
Check the contact condition of the Link Cable, especially dust or mis insertion.
A7
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom
A. Video error_Color error
date
Adjustment Test pattern - ADJ Key Revised
Content date A8
You can view 8 types of patterns using the ADJ Key
Checking item : 1. Defective pixel 2. Residual image 3. MODULE error (ADD-BAR,SCAN BAR..)
4.Video error (Classification of MODULE or Main-B/D)
A8
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Appendix : Exchange Main Board (1)
Solder defect, CNT Broken Solder defect, CNT Broken Solder defect, CNT Broken
Solder defect, CNT Broken T-Con
T-Con Defect,
Defect,
Solder
T-Con CNT
defect,
Defect, CNT
CNT
CNT Broken
Broken
Broken
Broken Abnormal Power Section
Solder defect, Short/Crack Abnormal Power Section Solder defect, Short/Crack
A - 1/5
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Appendix : Exchange Main Board (2)
Abnormal Power Section Abnormal Power Section Solder defect, Short/Crack
Solder defect, Short/Crack Fuse Open, Abnormal power section Abnormal Display
GRADATION Noise GRADATION
A - 2/5
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Appendix : Exchange Power Board (PSU)
No Light Dim Light
Dim Light Dim Light
No picture/Sound Ok
A - 3/5
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Appendix : Exchange the Module (1)
Crosstalk Press damage Crosstalk
Press damage Press damage
Un-repairable Cases
In this case please exchange the module.
A - 4/5
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Appendix : Exchange the Module (2)
Vertical Block Vertical Line Vertical Block
Source TAB IC Defect Source TAB IC Defect Source TAB IC Defect
Horizontal
TAB ICBlock
Horizontal Block Horizontal line
Gate Defect Gate TAB IC Defect
Gate TAB IC Defect Gate TAB IC Defect Gate TAB IC Defect
Un-repairable Cases
In this case please exchange the module.
Horizontal Block
Gate TAB IC Defect
Gate TAB IC Defect
A - 5/5
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom B. Power error _No power date
Revised
Content Check front Power Indicator date A17
ST-BY condition: On or Off
Power ON condition: Turn Off
A17
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom
B. Power error _No power
date
Revised
Content Check power input voltage and ST-BY 3.5V A18
date
Check the DC 18V
28Pin map (LPB)
1 18V 2 18V
3 18V 4 18V
5 GND 6 GND
7 18V 8 18V
9 GND 10 GND
11 GND 12 GND
13 PWR-On 14 P-DIM2
15 GND 16 18V
17 18V 18 18V
19 18V 20 18V
21 GND 22 GND
23 DRV-ON 24 P-DIM1
25 GND 26 SCLK
27 VSINC 28 SIN
A18
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom B. Power error _Off when on, off whiling viewing date
Revised
Content POWER OFF MODE checking method date A19
Entry method
1. Press the IN-START button of the remote control
for adjustment
2. Check the entry into adjustment item 3`
A19
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom C. Audio error_No audio/Normal video
date
Revised
Content Checking method in menu when there is no audio date A20
Checking method
1. Press the Setting button on the remote control
2. Select the Sound function of the Menu
3. Select the Sound Out
4. Select TV Speaker
A20
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom C. Audio error_No audio/Normal video date
Voltage and speaker checking method Revised
Content date A21
when there is no audio
<55/65UH95>
② 1 18V 2 18V
3 18V 4 18V
5 GND 6 GND
7 18V 8 18V
9 GND 10 GND
11 GND 12 GND
13 PWR-On 14 P-DIM2
①
15 GND 16 18V
Main B/D Side
17 18V 18 18V
Pin map reversed
19 18V 20 18V
21 GND 22 GND
23 DRV-ON 24 P-DIM1
25 GND 26 SCLK
27 VSINC 28 SIN
③
Checking order when there is no audio 1 SPK_R-_FT 2 SPK_R+_FT
3 SPK_L-_FT 4 SPK_L+_FT
① Check the contact condition of cable or connector 5 SPK_R-_CT 6 SPK_R+_CT
7 SPK_L-_CT 8 SPK_L+_CT
② Measure the 24V input voltage supplied from Power Board
(If there is no input voltage, remove and check the connector)
③ Check the contact condition of cable or connector
A21
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom D. Function error date
Revised
Content remote control operation checking method date A22
<55/65UH95>
P4000 Pin map
1 +3.5V_WIFI 12 EYE_SCL
2 WIFI_DM 13 EYE_SDA
3 WIFI_DP 14 GND
4 GND 15 IR
5 WOL_Power_On 16 LED_R
6 3D_Sync 17 GND
7 BT_Reset 18 +3.5_ST
8 GND 19 KEY2
20 KEY1
21 GND
Checking order
1. Check IR cable condition between IR & Main board.
2. Check the st-by 3.5V on the pin 18
A22
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom D. Function error date
Revised
Content Motion Remote, Wi-Fi operation checking method date A23
<55/65UH95>
P4000 Pin map
1 +3.5V_WIFI 12 EYE_SCL
2 WIFI_DM 13 EYE_SDA
3 WIFI_DP 14 GND
4 GND 15 IR
5 WOL_Power_On 16 LED_R
6 3D_Sync 17 GND
7 BT_Reset 18 +3.5_ST
8 GND 19 KEY2
20 KEY1
21 GND
Checking order
1. Check Motion cable condition between Motion assy & Main board.
2. Check the 3.3V on the pin 1.
A23
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
