OLED TV
SERVICE MANUAL
CHASSIS : ED62C
MODEL : OLED55C6* OLED55C6*-Z
CAUTION
BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
P/NO : MFL69513301 (1602-REV00)

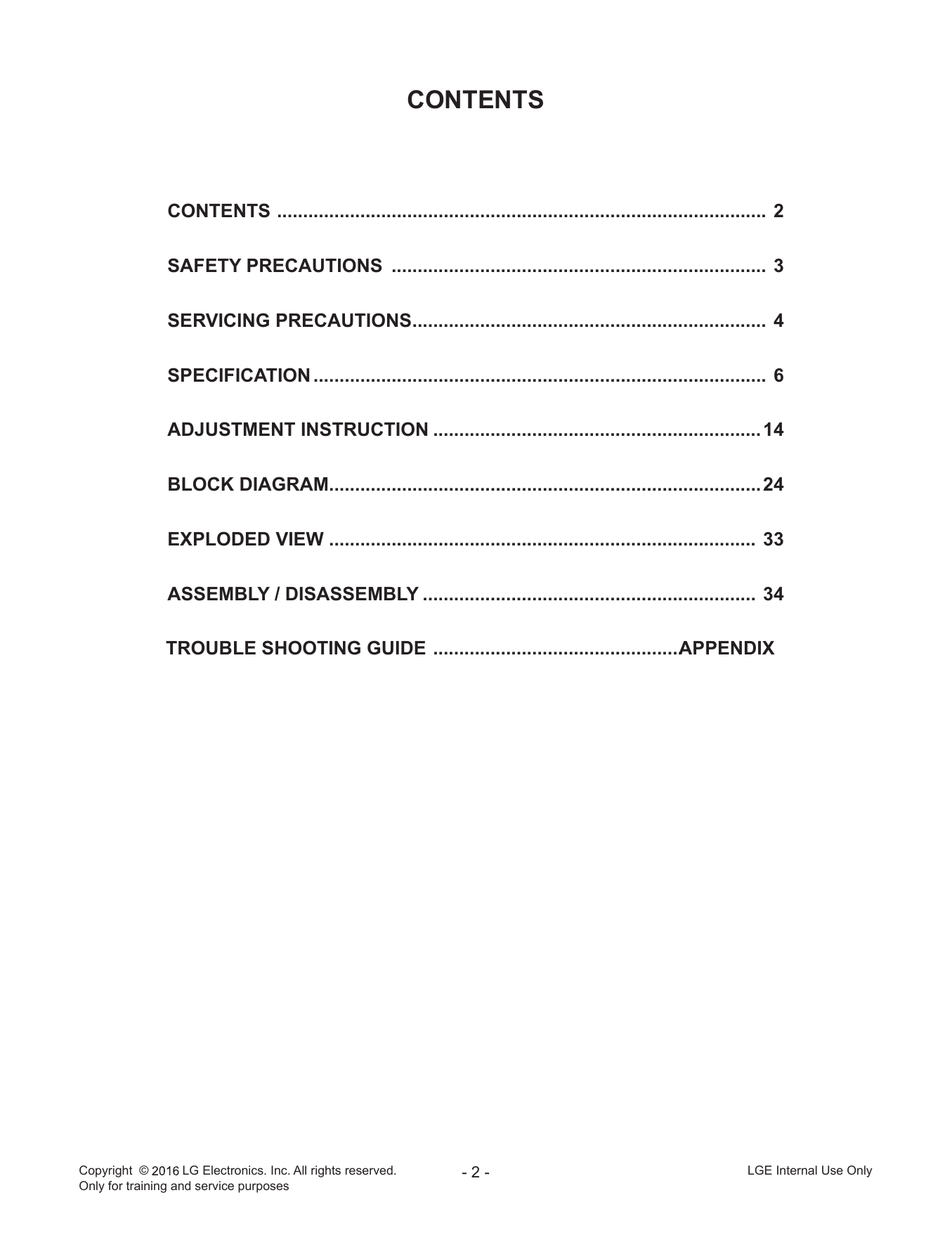

CONTENTS
CONTENTS .............................................................................................. 2
SAFETY PRECAUTIONS ........................................................................ 3
SERVICING PRECAUTIONS.................................................................... 4
SPECIFICATION ....................................................................................... 6
ADJUSTMENT INSTRUCTION ............................................................... 14
BLOCK DIAGRAM................................................................................... 24
EXPLODED VIEW .................................................................................. 33
ASSEMBLY / DISASSEMBLY ................................................................ 34
TROUBLE SHOOTING GUIDE ................................................APPENDIX
Copyright © LG Electronics. Inc. All rights reserved. -2- LGE Internal Use Only
Only for training and service purposes
SAFETY PRECAUTIONS
IMPORTANT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC Do not use a line Isolation Transformer during this check.
power line. Use a transformer of adequate power rating as this Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
protects the technician from accidents resulting in personal injury between a known good earth ground (Water Pipe, Conduit, etc.)
from electrical shocks. and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
It will also protect the receiver and it's components from being with 1000 ohms/volt or more sensitivity.
damaged by accidental shorts of the circuitry that may be Reverse plug the AC cord into the AC outlet and repeat AC voltage
inadvertently introduced during the service operation. measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
If any fuse (or Fusible Resistor) in this TV receiver is blown, 0.5 mA.
replace it with the specified. In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
When replacing a high wattage resistor (Oxide Metal Film Resistor, repaired before it is returned to the customer.
over 1 W), keep the resistor 10 mm away from PCB.
Leakage Current Hot Check circuit
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Copyright © LG Electronics. Inc. All rights reserved. -3- LGE Internal Use Only
Only for training and service purposes
SERVICING PRECAUTIONS
CAUTION: Before servicing receivers covered by this service 2. After removing an electrical assembly equipped with ES
manual and its supplements and addenda, read and follow the devices, place the assembly on a conductive surface such as
SAFETY PRECAUTIONS on page 3 of this publication. aluminum foil, to prevent electrostatic charge buildup or expo-
NOTE: If unforeseen circumstances create conflict between the sure of the assembly.
following servicing precautions and any of the safety precautions 3. Use only a grounded-tip soldering iron to solder or unsolder
on page 3 of this publication, always follow the safety precau- ES devices.
tions. Remember: Safety First. 4. Use only an anti-static type solder removal device. Some sol-
der removal devices not classified as “anti-static” can generate
General Servicing Precautions electrical charges sufficient to damage ES devices.
1. Always unplug the receiver AC power cord from the AC power 5. Do not use freon-propelled chemicals. These can generate
source before; electrical charges sufficient to damage ES devices.
a. Removing or reinstalling any component, circuit board 6. Do not remove a replacement ES device from its protective
module or any other receiver assembly. package until immediately before you are ready to install it.
b. Disconnecting or reconnecting any receiver electrical plug (Most replacement ES devices are packaged with leads elec-
or other electrical connection. trically shorted together by conductive foam, aluminum foil or
c. Connecting a test substitute in parallel with an electrolytic comparable conductive material).
capacitor in the receiver. 7. Immediately before removing the protective material from the
CAUTION: A wrong part substitution or incorrect polarity leads of a replacement ES device, touch the protective mate-
installation of electrolytic capacitors may result in an explo- rial to the chassis or circuit assembly into which the device will
sion hazard. be installed.
2. Test high voltage only by measuring it with an appropriate CAUTION: Be sure no power is applied to the chassis or cir-
high voltage meter or other voltage measuring device (DVM, cuit, and observe all other safety precautions.
FETVOM, etc) equipped with a suitable high voltage probe. 8. Minimize bodily motions when handling unpackaged replace-
Do not test high voltage by "drawing an arc". ment ES devices. (Otherwise harmless motion such as the
3. Do not spray chemicals on or near this receiver or any of its brushing together of your clothes fabric or the lifting of your
assemblies. foot from a carpeted floor can generate static electricity suf-
4. Unless specified otherwise in this service manual, clean ficient to damage an ES device.)
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable General Soldering Guidelines
non-abrasive applicator; 10 % (by volume) Acetone and 90 % 1. Use a grounded-tip, low-wattage soldering iron and appropri-
(by volume) isopropyl alcohol (90 % - 99 % strength) ate tip size and shape that will maintain tip temperature within
CAUTION: This is a flammable mixture. the range or 500 °F to 600 °F.
Unless specified otherwise in this service manual, lubrication 2. Use an appropriate gauge of RMA resin-core solder composed
of contacts in not required. of 60 parts tin/40 parts lead.
5. Do not defeat any plug/socket B+ voltage interlocks with which 3. Keep the soldering iron tip clean and well tinned.
receivers covered by this service manual might be equipped. 4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
6. Do not apply AC power to this instrument and/or any of its bristle (0.5 inch, or 1.25 cm) brush with a metal handle.
electrical assemblies unless all solid-state device heat sinks Do not use freon-propelled spray-on cleaners.
are correctly installed. 5. Use the following unsoldering technique
7. Always connect the test receiver ground lead to the receiver a. Allow the soldering iron tip to reach normal temperature.
chassis ground before connecting the test receiver positive (500 °F to 600 °F)
lead. b. Heat the component lead until the solder melts.
Always remove the test receiver ground lead last. c. Quickly draw the melted solder with an anti-static, suction-
8. Use with this receiver only the test fixtures specified in this type solder removal device or with solder braid.
service manual. CAUTION: Work quickly to avoid overheating the circuit
CAUTION: Do not connect the test fixture ground strap to any board printed foil.
heat sink in this receiver. 6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
Electrostatically Sensitive (ES) Devices (500 °F to 600 °F)
Some semiconductor (solid-state) devices can be damaged eas- b. First, hold the soldering iron tip and solder the strand
ily by static electricity. Such components commonly are called against the component lead until the solder melts.
Electrostatically Sensitive (ES) Devices. Examples of typical ES c. Quickly move the soldering iron tip to the junction of the
devices are integrated circuits and some field-effect transistors component lead and the printed circuit foil, and hold it there
and semiconductor “chip” components. The following techniques only until the solder flows onto and around both the compo-
should be used to help reduce the incidence of component dam- nent lead and the foil.
age caused by static by static electricity. CAUTION: Work quickly to avoid overheating the circuit
1. Immediately before handling any semiconductor component or board printed foil.
semiconductor-equipped assembly, drain off any electrostatic d. Closely inspect the solder area and remove any excess or
charge on your body by touching a known earth ground. Alter- splashed solder with a small wire-bristle brush.
natively, obtain and wear a commercially available discharg-
ing wrist strap device, which should be removed to prevent
potential shock reasons prior to applying power to the unit
under test.
Copyright © LG Electronics. Inc. All rights reserved. -4- LGE Internal Use Only
Only for training and service purposes
IC Remove/Replacement 3. Solder the connections.
Some chassis circuit boards have slotted holes (oblong) through CAUTION: Maintain original spacing between the replaced
which the IC leads are inserted and then bent flat against the cir- component and adjacent components and the circuit board to
cuit foil. When holes are the slotted type, the following technique prevent excessive component temperatures.
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique Circuit Board Foil Repair
as outlined in paragraphs 5 and 6 above. Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
Removal board causing the foil to separate from or "lift-off" the board. The
1. Desolder and straighten each IC lead in one operation by following guidelines and procedures should be followed when-
gently prying up on the lead with the soldering iron tip as the ever this condition is encountered.
solder melts.
2. Draw away the melted solder with an anti-static suction-type At IC Connections
solder removal device (or with solder braid) before removing To repair a defective copper pattern at IC connections use the
the IC. following procedure to install a jumper wire on the copper pattern
Replacement side of the circuit board. (Use this technique only on IC connec-
1. Carefully insert the replacement IC in the circuit board. tions).
2. Carefully bend each IC lead against the circuit foil pad and
solder it. 1. Carefully remove the damaged copper pattern with a sharp
3. Clean the soldered areas with a small wire-bristle brush. knife. (Remove only as much copper as absolutely necessary).
(It is not necessary to reapply acrylic coating to the areas). 2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
"Small-Signal" Discrete Transistor 3. Bend a small "U" in one end of a small gauge jumper wire and
Removal/Replacement carefully crimp it around the IC pin. Solder the IC connection.
1. Remove the defective transistor by clipping its leads as close 4. Route the jumper wire along the path of the out-away copper
as possible to the component body. pattern and let it overlap the previously scraped end of the
2. Bend into a "U" shape the end of each of three leads remain- good copper pattern. Solder the overlapped area and clip off
ing on the circuit board. any excess jumper wire.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding At Other Connections
leads extending from the circuit board and crimp the "U" with Use the following technique to repair the defective copper pattern
long nose pliers to insure metal to metal contact then solder at connections other than IC Pins. This technique involves the
each connection. installation of a jumper wire on the component side of the circuit
board.
Power Output, Transistor Device
Removal/Replacement 1. Remove the defective copper pattern with a sharp knife.
1. Heat and remove all solder from around the transistor leads. Remove at least 1/4 inch of copper, to ensure that a hazardous
2. Remove the heat sink mounting screw (if so equipped). condition will not exist if the jumper wire opens.
3. Carefully remove the transistor from the heat sink of the circuit 2. Trace along the copper pattern from both sides of the pattern
board. break and locate the nearest component that is directly con-
4. Insert new transistor in the circuit board. nected to the affected copper pattern.
5. Solder each transistor lead, and clip off excess lead. 3. Connect insulated 20-gauge jumper wire from the lead of the
6. Replace heat sink. nearest component on one side of the pattern break to the
lead of the nearest component on the other side.
Diode Removal/Replacement Carefully crimp and solder the connections.
1. Remove defective diode by clipping its leads as close as pos- CAUTION: Be sure the insulated jumper wire is dressed so the
sible to diode body. it does not touch components or sharp edges.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and
if necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
Copyright © LG Electronics. Inc. All rights reserved. -5- LGE Internal Use Only
Only for training and service purposes

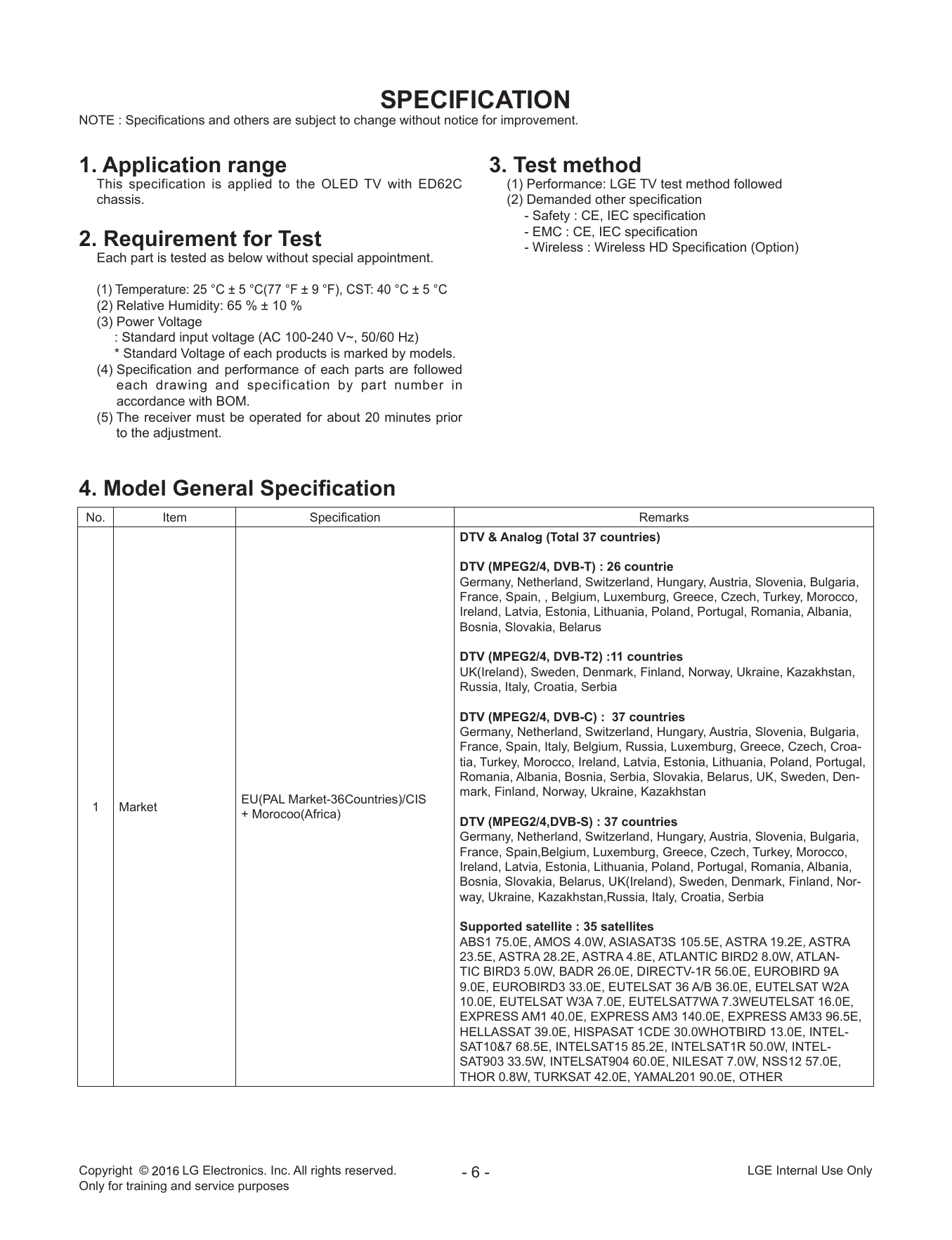

SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement.
1. Application range 3. Test method
This specification is applied to the OLED TV with ED62C (1) Performance: LGE TV test method followed
chassis. (2) Demanded other specification
- Safety : CE, IEC specification
- EMC : CE, IEC specification
2. Requirement for Test - Wireless : Wireless HD Specification (Option)
Each part is tested as below without special appointment.
(1) Temperature: 25 °C ± 5 °C(77 °F ± 9 °F), CST: 40 °C ± 5 °C
(2) Relative Humidity: 65 % ± 10 %
(3) Power Voltage
: Standard input voltage (AC 100-240 V~, 50/60 Hz)
* Standard Voltage of each products is marked by models.
(4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
(5) The receiver must be operated for about 20 minutes prior
to the adjustment.
4. Model General Specification
No. Item Specification Remarks
DTV & Analog (Total 37 countries)
DTV (MPEG2/4, DVB-T) : 26 countrie
Germany, Netherland, Switzerland, Hungary, Austria, Slovenia, Bulgaria,
France, Spain, , Belgium, Luxemburg, Greece, Czech, Turkey, Morocco,
Ireland, Latvia, Estonia, Lithuania, Poland, Portugal, Romania, Albania,
Bosnia, Slovakia, Belarus
DTV (MPEG2/4, DVB-T2) :11 countries
UK(Ireland), Sweden, Denmark, Finland, Norway, Ukraine, Kazakhstan,
Russia, Italy, Croatia, Serbia
DTV (MPEG2/4, DVB-C) : 37 countries
Germany, Netherland, Switzerland, Hungary, Austria, Slovenia, Bulgaria,
France, Spain, Italy, Belgium, Russia, Luxemburg, Greece, Czech, Croa-
tia, Turkey, Morocco, Ireland, Latvia, Estonia, Lithuania, Poland, Portugal,
Romania, Albania, Bosnia, Serbia, Slovakia, Belarus, UK, Sweden, Den-
mark, Finland, Norway, Ukraine, Kazakhstan
EU(PAL Market-36Countries)/CIS
1 Market
+ Morocoo(Africa)
DTV (MPEG2/4,DVB-S) : 37 countries
Germany, Netherland, Switzerland, Hungary, Austria, Slovenia, Bulgaria,
France, Spain,Belgium, Luxemburg, Greece, Czech, Turkey, Morocco,
Ireland, Latvia, Estonia, Lithuania, Poland, Portugal, Romania, Albania,
Bosnia, Slovakia, Belarus, UK(Ireland), Sweden, Denmark, Finland, Nor-
way, Ukraine, Kazakhstan,Russia, Italy, Croatia, Serbia
Supported satellite : 35 satellites
ABS1 75.0E, AMOS 4.0W, ASIASAT3S 105.5E, ASTRA 19.2E, ASTRA
23.5E, ASTRA 28.2E, ASTRA 4.8E, ATLANTIC BIRD2 8.0W, ATLAN-
TIC BIRD3 5.0W, BADR 26.0E, DIRECTV-1R 56.0E, EUROBIRD 9A
9.0E, EUROBIRD3 33.0E, EUTELSAT 36 A/B 36.0E, EUTELSAT W2A
10.0E, EUTELSAT W3A 7.0E, EUTELSAT7WA 7.3WEUTELSAT 16.0E,
EXPRESS AM1 40.0E, EXPRESS AM3 140.0E, EXPRESS AM33 96.5E,
HELLASSAT 39.0E, HISPASAT 1CDE 30.0WHOTBIRD 13.0E, INTEL-
SAT10&7 68.5E, INTELSAT15 85.2E, INTELSAT1R 50.0W, INTEL-
SAT903 33.5W, INTELSAT904 60.0E, NILESAT 7.0W, NSS12 57.0E,
THOR 0.8W, TURKSAT 42.0E, YAMAL201 90.0E, OTHER
Copyright © LG Electronics. Inc. All rights reserved. -6- LGE Internal Use Only
Only for training and service purposes

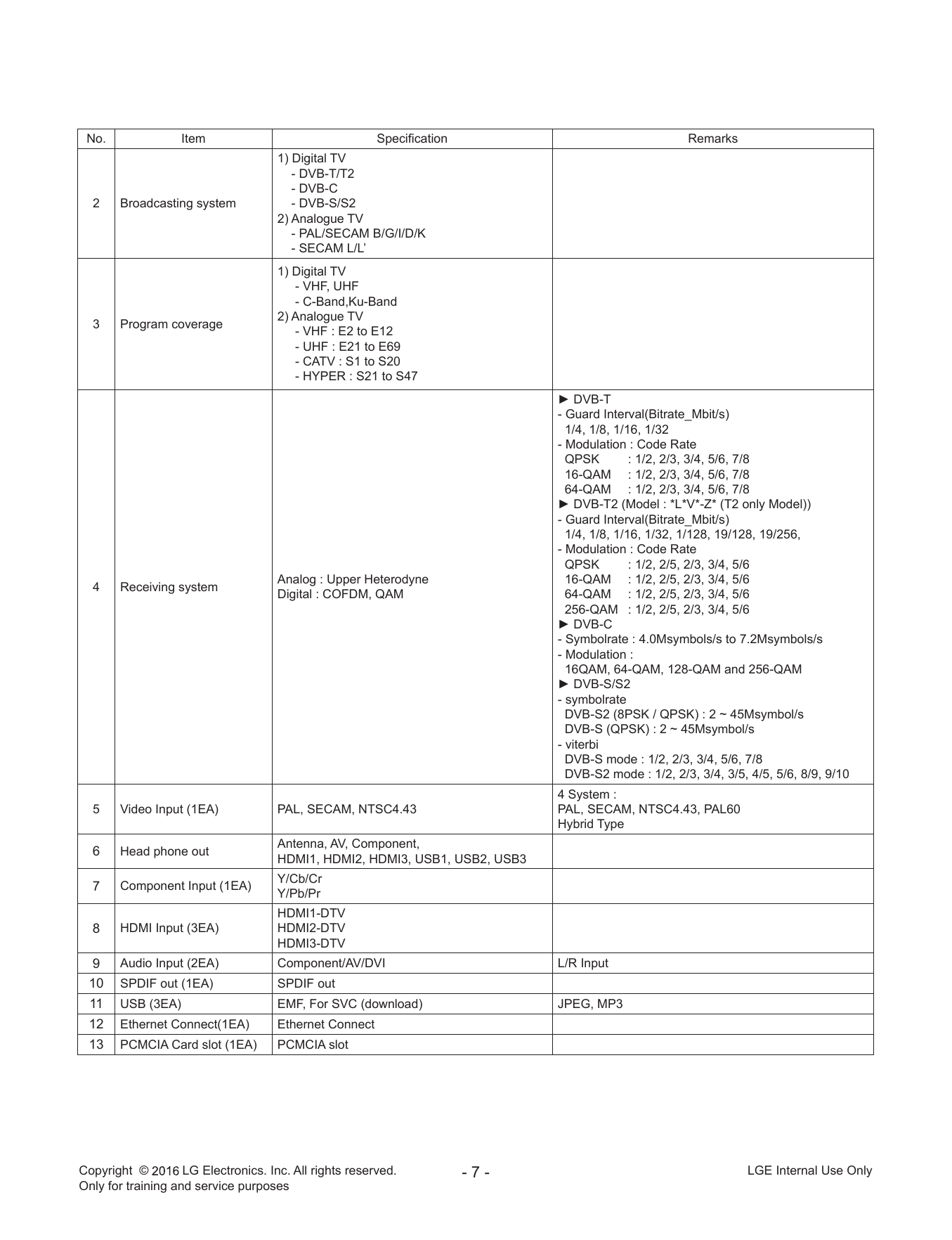

No. Item Specification Remarks
1) Digital TV
- DVB-T/T2
- DVB-C
2 Broadcasting system - DVB-S/S2
2) Analogue TV
- PAL/SECAM B/G/I/D/K
- SECAM L/L’
1) Digital TV
- VHF, UHF
- C-Band,Ku-Band
2) Analogue TV
3 Program coverage
- VHF : E2 to E12
- UHF : E21 to E69
- CATV : S1 to S20
- HYPER : S21 to S47
► DVB-T
- Guard Interval(Bitrate_Mbit/s)
1/4, 1/8, 1/16, 1/32
- Modulation : Code Rate
QPSK : 1/2, 2/3, 3/4, 5/6, 7/8
16-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
64-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
► DVB-T2 (Model : *L*V*-Z* (T2 only Model))
- Guard Interval(Bitrate_Mbit/s)
1/4, 1/8, 1/16, 1/32, 1/128, 19/128, 19/256,
- Modulation : Code Rate
QPSK : 1/2, 2/5, 2/3, 3/4, 5/6
Analog : Upper Heterodyne 16-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
4 Receiving system
Digital : COFDM, QAM 64-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
256-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
► DVB-C
- Symbolrate : 4.0Msymbols/s to 7.2Msymbols/s
- Modulation :
16QAM, 64-QAM, 128-QAM and 256-QAM
► DVB-S/S2
- symbolrate
DVB-S2 (8PSK / QPSK) : 2 ~ 45Msymbol/s
DVB-S (QPSK) : 2 ~ 45Msymbol/s
- viterbi
DVB-S mode : 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2 mode : 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10
4 System :
5 Video Input (1EA) PAL, SECAM, NTSC4.43 PAL, SECAM, NTSC4.43, PAL60
Hybrid Type
Antenna, AV, Component,
6 Head phone out
HDMI1, HDMI2, HDMI3, USB1, USB2, USB3
Y/Cb/Cr
7 Component Input (1EA)
Y/Pb/Pr
HDMI1-DTV
8 HDMI Input (3EA) HDMI2-DTV
HDMI3-DTV
9 Audio Input (2EA) Component/AV/DVI L/R Input
10 SPDIF out (1EA) SPDIF out
11 USB (3EA) EMF, For SVC (download) JPEG, MP3
12 Ethernet Connect(1EA) Ethernet Connect
13 PCMCIA Card slot (1EA) PCMCIA slot
Copyright © LG Electronics. Inc. All rights reserved. -7- LGE Internal Use Only
Only for training and service purposes

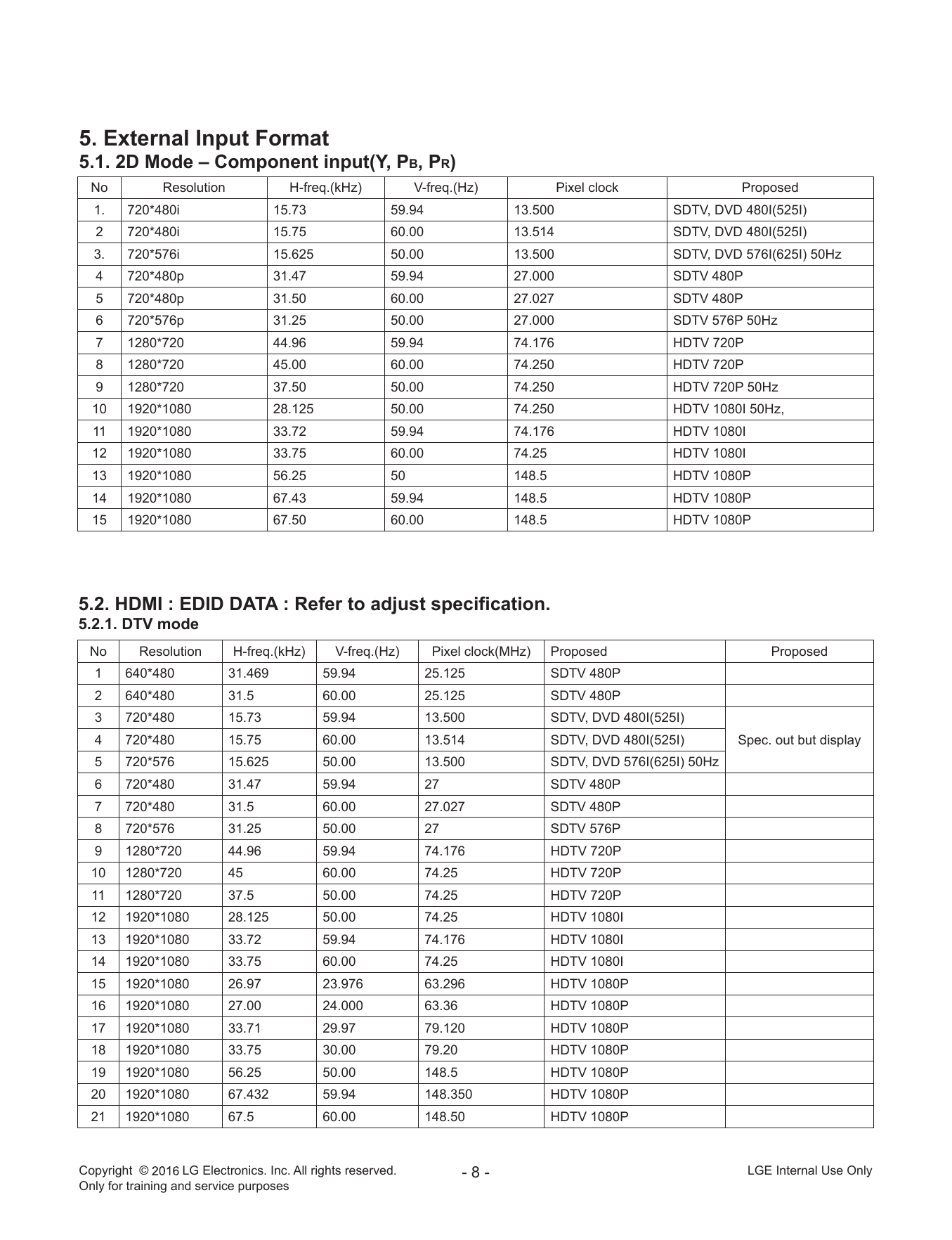

5. External Input Format
5.1. 2D Mode – Component input(Y, PB, PR)
No Resolution H-freq.(kHz) V-freq.(Hz) Pixel clock Proposed
1. 720*480i 15.73 59.94 13.500 SDTV, DVD 480I(525I)
2 720*480i 15.75 60.00 13.514 SDTV, DVD 480I(525I)
3. 720*576i 15.625 50.00 13.500 SDTV, DVD 576I(625I) 50Hz
4 720*480p 31.47 59.94 27.000 SDTV 480P
5 720*480p 31.50 60.00 27.027 SDTV 480P
6 720*576p 31.25 50.00 27.000 SDTV 576P 50Hz
7 1280*720 44.96 59.94 74.176 HDTV 720P
8 1280*720 45.00 60.00 74.250 HDTV 720P
9 1280*720 37.50 50.00 74.250 HDTV 720P 50Hz
10 1920*1080 28.125 50.00 74.250 HDTV 1080I 50Hz,
11 1920*1080 33.72 59.94 74.176 HDTV 1080I
12 1920*1080 33.75 60.00 74.25 HDTV 1080I
13 1920*1080 56.25 50 148.5 HDTV 1080P
14 1920*1080 67.43 59.94 148.5 HDTV 1080P
15 1920*1080 67.50 60.00 148.5 HDTV 1080P
5.2. HDMI : EDID DATA : Refer to adjust specification.
5.2.1. DTV mode
No Resolution H-freq.(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Proposed
1 640*480 31.469 59.94 25.125 SDTV 480P
2 640*480 31.5 60.00 25.125 SDTV 480P
3 720*480 15.73 59.94 13.500 SDTV, DVD 480I(525I)
4 720*480 15.75 60.00 13.514 SDTV, DVD 480I(525I) Spec. out but display
5 720*576 15.625 50.00 13.500 SDTV, DVD 576I(625I) 50Hz
6 720*480 31.47 59.94 27 SDTV 480P
7 720*480 31.5 60.00 27.027 SDTV 480P
8 720*576 31.25 50.00 27 SDTV 576P
9 1280*720 44.96 59.94 74.176 HDTV 720P
10 1280*720 45 60.00 74.25 HDTV 720P
11 1280*720 37.5 50.00 74.25 HDTV 720P
12 1920*1080 28.125 50.00 74.25 HDTV 1080I
13 1920*1080 33.72 59.94 74.176 HDTV 1080I
14 1920*1080 33.75 60.00 74.25 HDTV 1080I
15 1920*1080 26.97 23.976 63.296 HDTV 1080P
16 1920*1080 27.00 24.000 63.36 HDTV 1080P
17 1920*1080 33.71 29.97 79.120 HDTV 1080P
18 1920*1080 33.75 30.00 79.20 HDTV 1080P
19 1920*1080 56.25 50.00 148.5 HDTV 1080P
20 1920*1080 67.432 59.94 148.350 HDTV 1080P
21 1920*1080 67.5 60.00 148.50 HDTV 1080P
Copyright © LG Electronics. Inc. All rights reserved. -8- LGE Internal Use Only
Only for training and service purposes

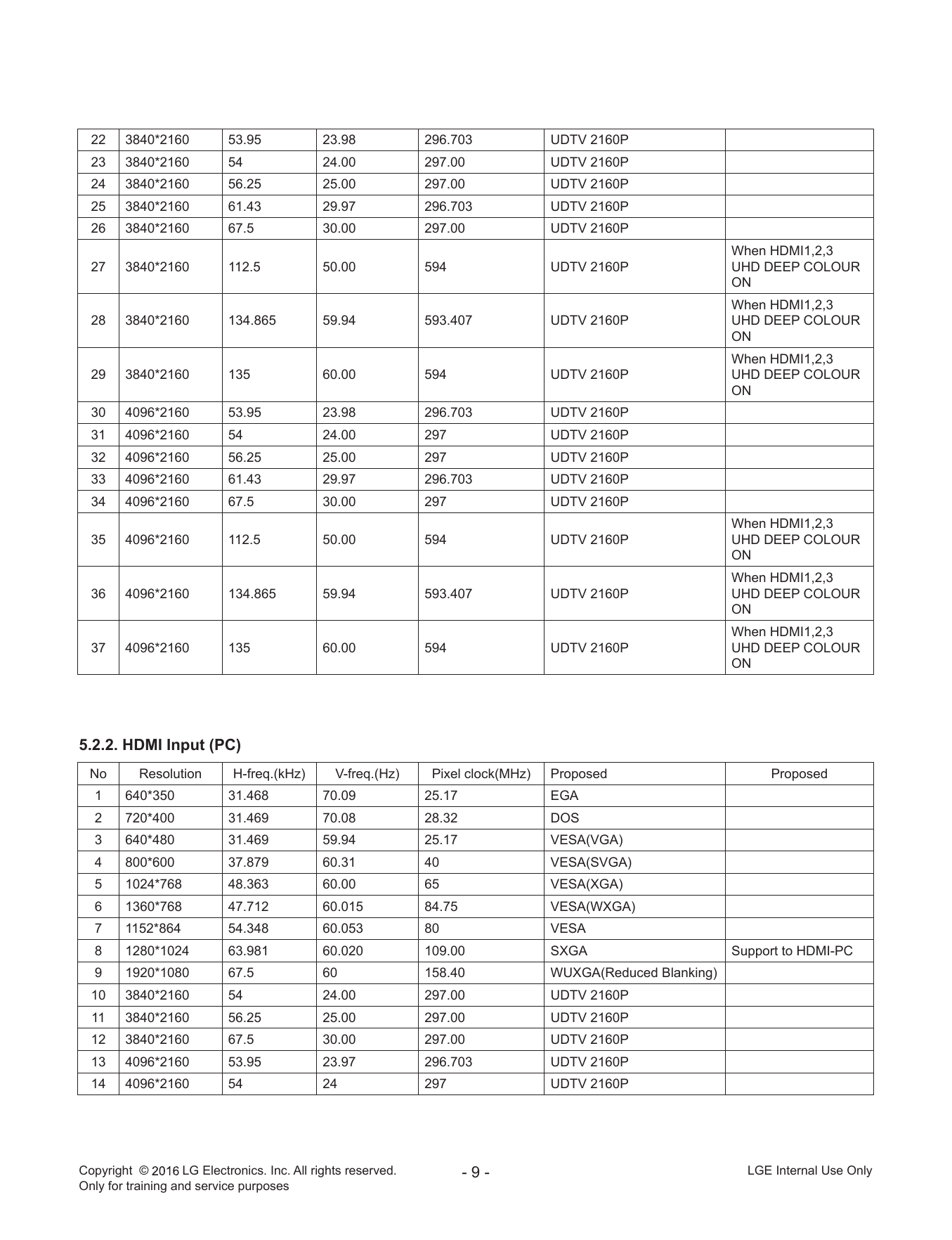

22 3840*2160 53.95 23.98 296.703 UDTV 2160P
23 3840*2160 54 24.00 297.00 UDTV 2160P
24 3840*2160 56.25 25.00 297.00 UDTV 2160P
25 3840*2160 61.43 29.97 296.703 UDTV 2160P
26 3840*2160 67.5 30.00 297.00 UDTV 2160P
When HDMI1,2,3
27 3840*2160 112.5 50.00 594 UDTV 2160P UHD DEEP COLOUR
ON
When HDMI1,2,3
28 3840*2160 134.865 59.94 593.407 UDTV 2160P UHD DEEP COLOUR
ON
When HDMI1,2,3
29 3840*2160 135 60.00 594 UDTV 2160P UHD DEEP COLOUR
ON
30 4096*2160 53.95 23.98 296.703 UDTV 2160P
31 4096*2160 54 24.00 297 UDTV 2160P
32 4096*2160 56.25 25.00 297 UDTV 2160P
33 4096*2160 61.43 29.97 296.703 UDTV 2160P
34 4096*2160 67.5 30.00 297 UDTV 2160P
When HDMI1,2,3
35 4096*2160 112.5 50.00 594 UDTV 2160P UHD DEEP COLOUR
ON
When HDMI1,2,3
36 4096*2160 134.865 59.94 593.407 UDTV 2160P UHD DEEP COLOUR
ON
When HDMI1,2,3
37 4096*2160 135 60.00 594 UDTV 2160P UHD DEEP COLOUR
ON
5.2.2. HDMI Input (PC)
No Resolution H-freq.(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Proposed
1 640*350 31.468 70.09 25.17 EGA
2 720*400 31.469 70.08 28.32 DOS
3 640*480 31.469 59.94 25.17 VESA(VGA)
4 800*600 37.879 60.31 40 VESA(SVGA)
5 1024*768 48.363 60.00 65 VESA(XGA)
6 1360*768 47.712 60.015 84.75 VESA(WXGA)
7 1152*864 54.348 60.053 80 VESA
8 1280*1024 63.981 60.020 109.00 SXGA Support to HDMI-PC
9 1920*1080 67.5 60 158.40 WUXGA(Reduced Blanking)
10 3840*2160 54 24.00 297.00 UDTV 2160P
11 3840*2160 56.25 25.00 297.00 UDTV 2160P
12 3840*2160 67.5 30.00 297.00 UDTV 2160P
13 4096*2160 53.95 23.97 296.703 UDTV 2160P
14 4096*2160 54 24 297 UDTV 2160P
Copyright © LG Electronics. Inc. All rights reserved. -9- LGE Internal Use Only
Only for training and service purposes

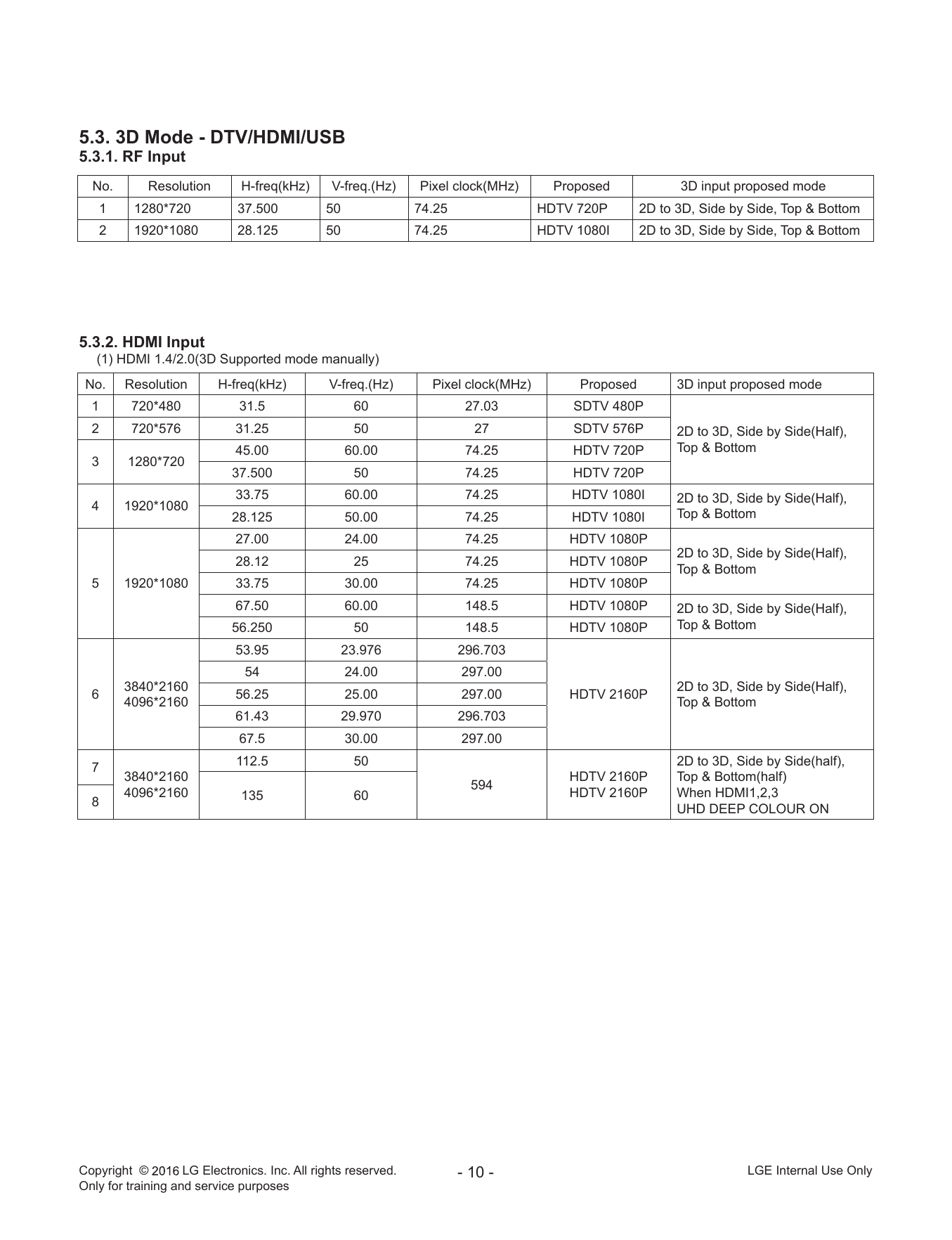

5.3. 3D Mode - DTV/HDMI/USB
5.3.1. RF Input
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode
1 1280*720 37.500 50 74.25 HDTV 720P 2D to 3D, Side by Side, Top & Bottom
2 1920*1080 28.125 50 74.25 HDTV 1080I 2D to 3D, Side by Side, Top & Bottom
5.3.2. HDMI Input
(1) HDMI 1.4/2.0(3D Supported mode manually)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode
1 720*480 31.5 60 27.03 SDTV 480P
2 720*576 31.25 50 27 SDTV 576P 2D to 3D, Side by Side(Half),
45.00 60.00 74.25 HDTV 720P Top & Bottom
3 1280*720
37.500 50 74.25 HDTV 720P
33.75 60.00 74.25 HDTV 1080I 2D to 3D, Side by Side(Half),
4 1920*1080
28.125 50.00 74.25 HDTV 1080I Top & Bottom
27.00 24.00 74.25 HDTV 1080P
2D to 3D, Side by Side(Half),
28.12 25 74.25 HDTV 1080P
Top & Bottom
5 1920*1080 33.75 30.00 74.25 HDTV 1080P
67.50 60.00 148.5 HDTV 1080P 2D to 3D, Side by Side(Half),
56.250 50 148.5 HDTV 1080P Top & Bottom
53.95 23.976 296.703
54 24.00 297.00
3840*2160 2D to 3D, Side by Side(Half),
6 56.25 25.00 297.00 HDTV 2160P
4096*2160 Top & Bottom
61.43 29.970 296.703
67.5 30.00 297.00
7 112.5 50 2D to 3D, Side by Side(half),
3840*2160 HDTV 2160P Top & Bottom(half)
594
4096*2160 135 60 HDTV 2160P When HDMI1,2,3
8 UHD DEEP COLOUR ON
Copyright © LG Electronics. Inc. All rights reserved. - 10 - LGE Internal Use Only
Only for training and service purposes

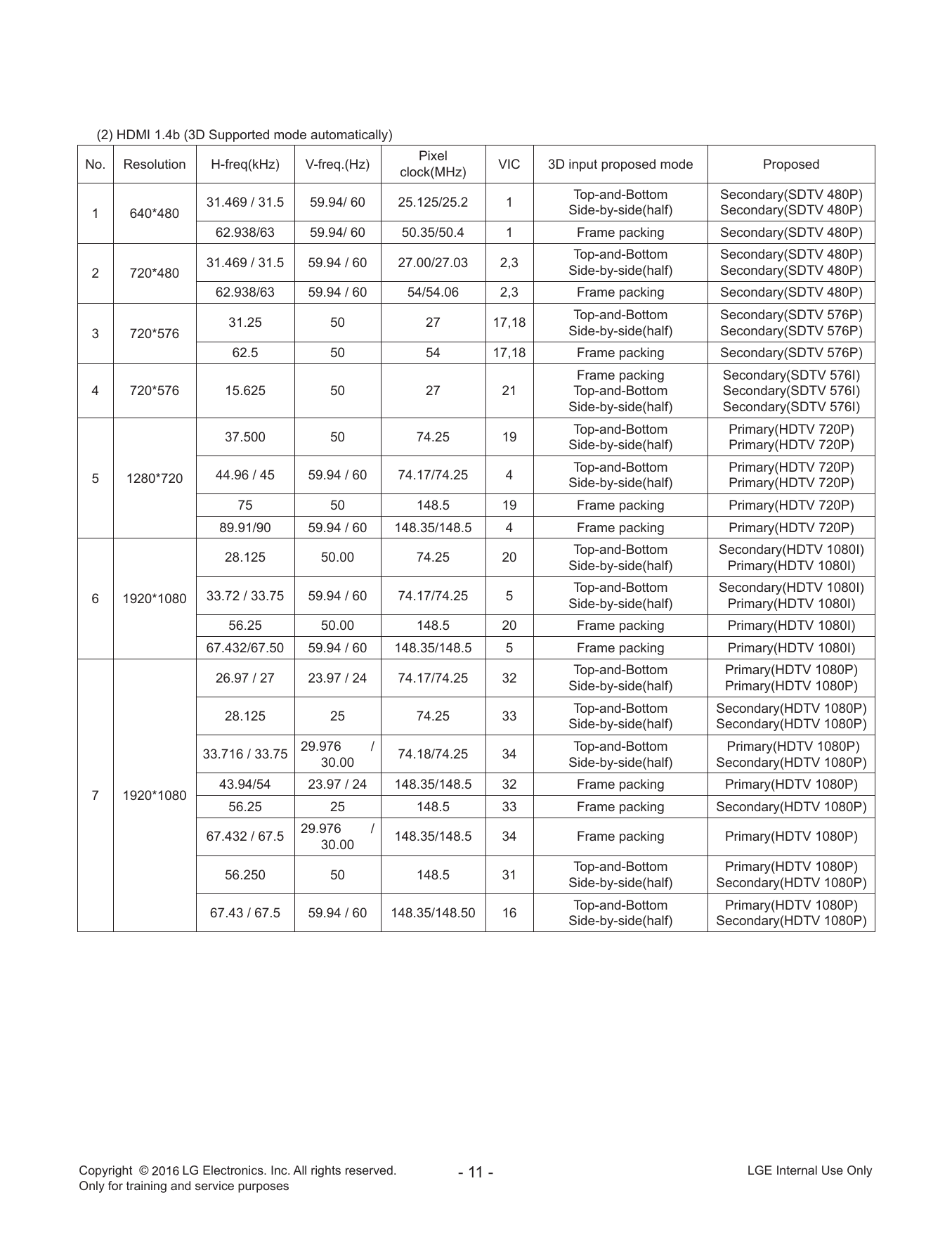

(2) HDMI 1.4b (3D Supported mode automatically)
Pixel
No. Resolution H-freq(kHz) V-freq.(Hz) VIC 3D input proposed mode Proposed
clock(MHz)
Top-and-Bottom Secondary(SDTV 480P)
31.469 / 31.5 59.94/ 60 25.125/25.2 1
1 640*480 Side-by-side(half) Secondary(SDTV 480P)
62.938/63 59.94/ 60 50.35/50.4 1 Frame packing Secondary(SDTV 480P)
Top-and-Bottom Secondary(SDTV 480P)
31.469 / 31.5 59.94 / 60 27.00/27.03 2,3
2 720*480 Side-by-side(half) Secondary(SDTV 480P)
62.938/63 59.94 / 60 54/54.06 2,3 Frame packing Secondary(SDTV 480P)
Top-and-Bottom Secondary(SDTV 576P)
31.25 50 27 17,18
3 720*576 Side-by-side(half) Secondary(SDTV 576P)
62.5 50 54 17,18 Frame packing Secondary(SDTV 576P)
Frame packing Secondary(SDTV 576I)
4 720*576 15.625 50 27 21 Top-and-Bottom Secondary(SDTV 576I)
Side-by-side(half) Secondary(SDTV 576I)
Top-and-Bottom Primary(HDTV 720P)
37.500 50 74.25 19
Side-by-side(half) Primary(HDTV 720P)
Top-and-Bottom Primary(HDTV 720P)
5 1280*720 44.96 / 45 59.94 / 60 74.17/74.25 4
Side-by-side(half) Primary(HDTV 720P)
75 50 148.5 19 Frame packing Primary(HDTV 720P)
89.91/90 59.94 / 60 148.35/148.5 4 Frame packing Primary(HDTV 720P)
Top-and-Bottom Secondary(HDTV 1080I)
28.125 50.00 74.25 20
Side-by-side(half) Primary(HDTV 1080I)
Top-and-Bottom Secondary(HDTV 1080I)
6 1920*1080 33.72 / 33.75 59.94 / 60 74.17/74.25 5
Side-by-side(half) Primary(HDTV 1080I)
56.25 50.00 148.5 20 Frame packing Primary(HDTV 1080I)
67.432/67.50 59.94 / 60 148.35/148.5 5 Frame packing Primary(HDTV 1080I)
Top-and-Bottom Primary(HDTV 1080P)
26.97 / 27 23.97 / 24 74.17/74.25 32
Side-by-side(half) Primary(HDTV 1080P)
Top-and-Bottom Secondary(HDTV 1080P)
28.125 25 74.25 33
Side-by-side(half) Secondary(HDTV 1080P)
29.976 / Top-and-Bottom Primary(HDTV 1080P)
33.716 / 33.75 74.18/74.25 34
30.00 Side-by-side(half) Secondary(HDTV 1080P)
43.94/54 23.97 / 24 148.35/148.5 32 Frame packing Primary(HDTV 1080P)
7 1920*1080
56.25 25 148.5 33 Frame packing Secondary(HDTV 1080P)
29.976 /
67.432 / 67.5 148.35/148.5 34 Frame packing Primary(HDTV 1080P)
30.00
Top-and-Bottom Primary(HDTV 1080P)
56.250 50 148.5 31
Side-by-side(half) Secondary(HDTV 1080P)
Top-and-Bottom Primary(HDTV 1080P)
67.43 / 67.5 59.94 / 60 148.35/148.50 16
Side-by-side(half) Secondary(HDTV 1080P)
Copyright © LG Electronics. Inc. All rights reserved. - 11 - LGE Internal Use Only
Only for training and service purposes

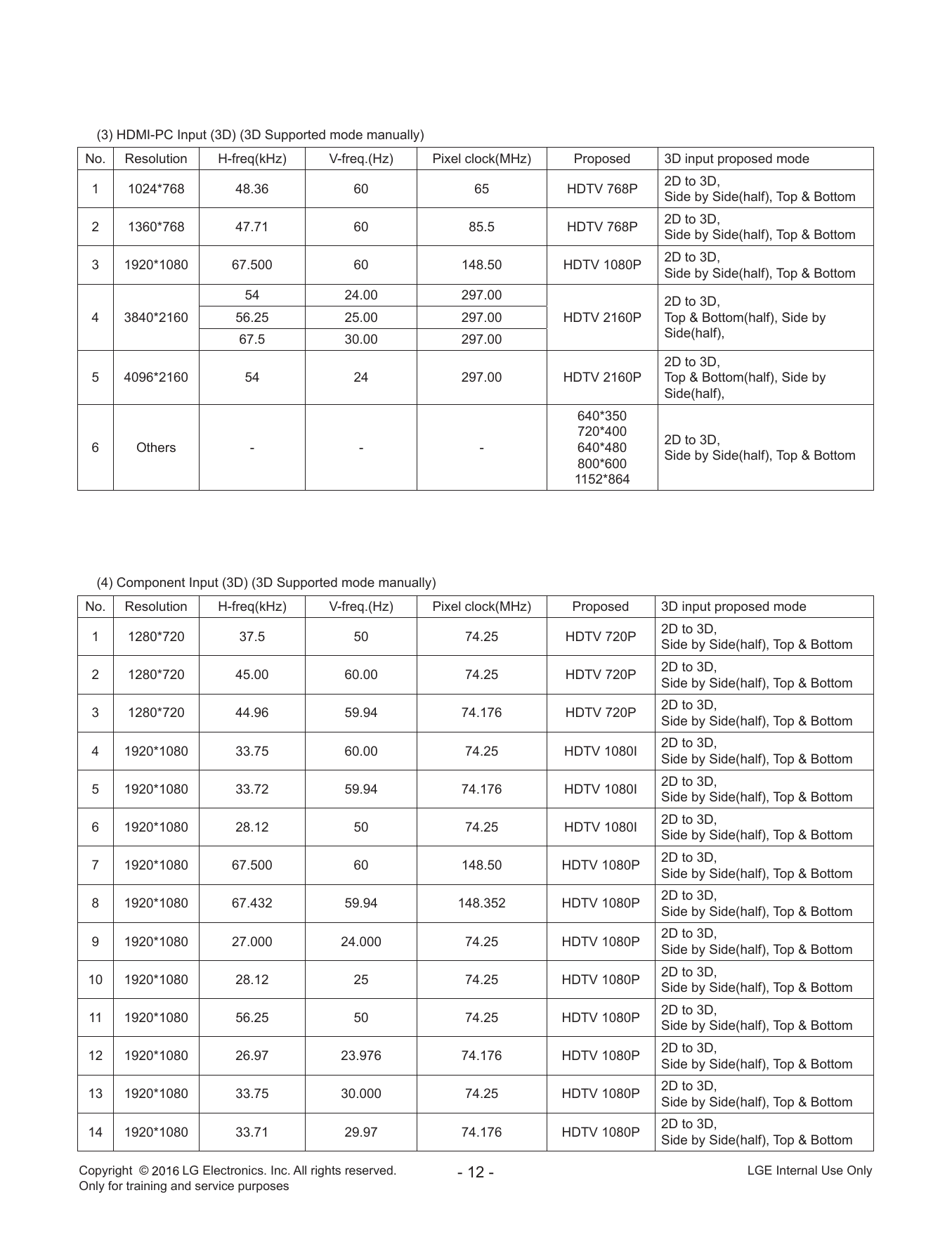

(3) HDMI-PC Input (3D) (3D Supported mode manually)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode
2D to 3D,
1 1024*768 48.36 60 65 HDTV 768P
Side by Side(half), Top & Bottom
2D to 3D,
2 1360*768 47.71 60 85.5 HDTV 768P
Side by Side(half), Top & Bottom
2D to 3D,
3 1920*1080 67.500 60 148.50 HDTV 1080P
Side by Side(half), Top & Bottom
54 24.00 297.00 2D to 3D,
4 3840*2160 56.25 25.00 297.00 HDTV 2160P Top & Bottom(half), Side by
67.5 30.00 297.00 Side(half),
2D to 3D,
5 4096*2160 54 24 297.00 HDTV 2160P Top & Bottom(half), Side by
Side(half),
640*350
720*400
2D to 3D,
6 Others - - - 640*480
Side by Side(half), Top & Bottom
800*600
1152*864
(4) Component Input (3D) (3D Supported mode manually)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode
2D to 3D,
1 1280*720 37.5 50 74.25 HDTV 720P
Side by Side(half), Top & Bottom
2D to 3D,
2 1280*720 45.00 60.00 74.25 HDTV 720P
Side by Side(half), Top & Bottom
2D to 3D,
3 1280*720 44.96 59.94 74.176 HDTV 720P
Side by Side(half), Top & Bottom
2D to 3D,
4 1920*1080 33.75 60.00 74.25 HDTV 1080I
Side by Side(half), Top & Bottom
2D to 3D,
5 1920*1080 33.72 59.94 74.176 HDTV 1080I
Side by Side(half), Top & Bottom
2D to 3D,
6 1920*1080 28.12 50 74.25 HDTV 1080I
Side by Side(half), Top & Bottom
2D to 3D,
7 1920*1080 67.500 60 148.50 HDTV 1080P
Side by Side(half), Top & Bottom
2D to 3D,
8 1920*1080 67.432 59.94 148.352 HDTV 1080P
Side by Side(half), Top & Bottom
2D to 3D,
9 1920*1080 27.000 24.000 74.25 HDTV 1080P
Side by Side(half), Top & Bottom
2D to 3D,
10 1920*1080 28.12 25 74.25 HDTV 1080P
Side by Side(half), Top & Bottom
2D to 3D,
11 1920*1080 56.25 50 74.25 HDTV 1080P
Side by Side(half), Top & Bottom
2D to 3D,
12 1920*1080 26.97 23.976 74.176 HDTV 1080P
Side by Side(half), Top & Bottom
2D to 3D,
13 1920*1080 33.75 30.000 74.25 HDTV 1080P
Side by Side(half), Top & Bottom
2D to 3D,
14 1920*1080 33.71 29.97 74.176 HDTV 1080P
Side by Side(half), Top & Bottom
Copyright © LG Electronics. Inc. All rights reserved. - 12 - LGE Internal Use Only
Only for training and service purposes

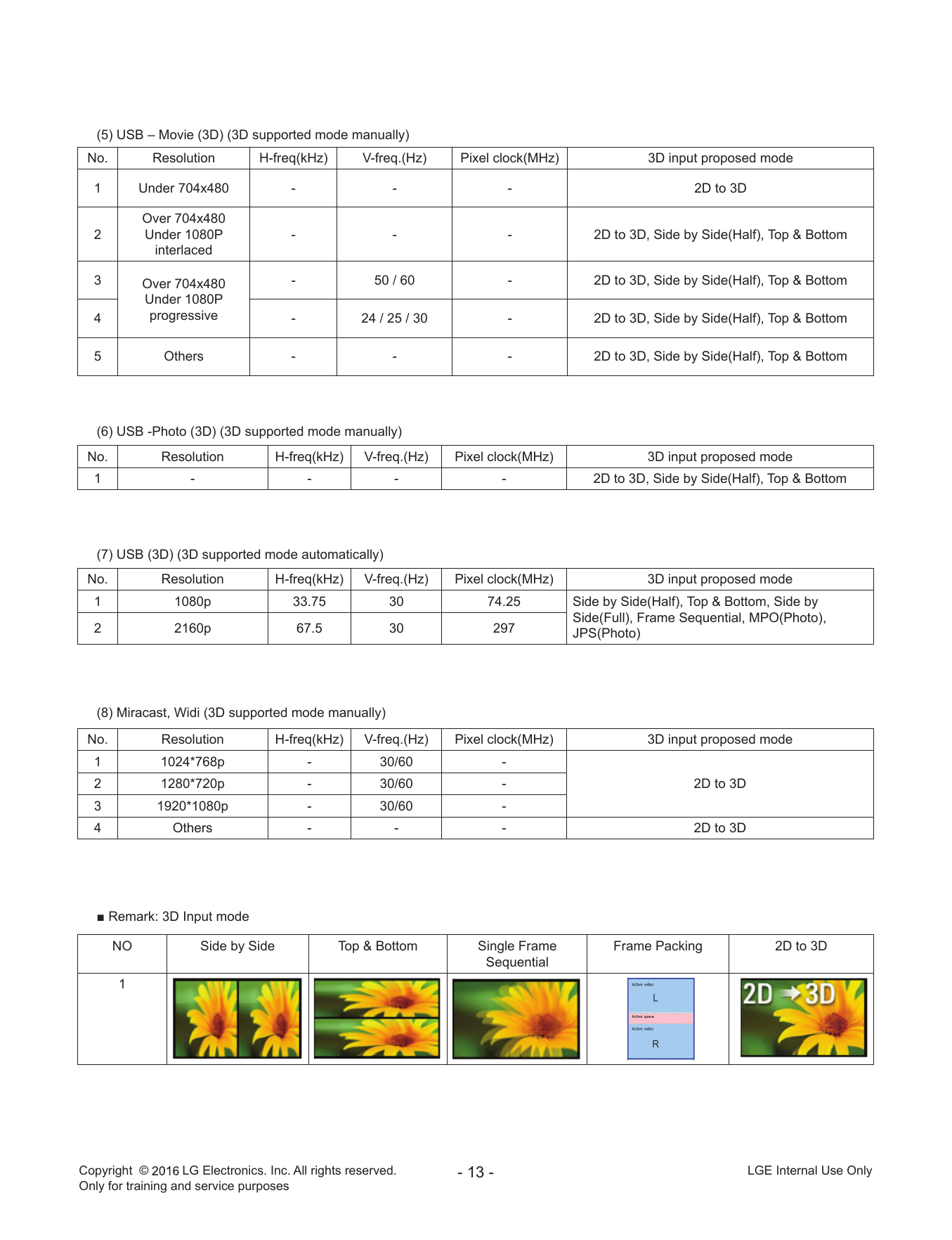

(5) USB – Movie (3D) (3D supported mode manually)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode
1 Under 704x480 - - - 2D to 3D
Over 704x480
2 Under 1080P - - - 2D to 3D, Side by Side(Half), Top & Bottom
interlaced
3 Over 704x480 - 50 / 60 - 2D to 3D, Side by Side(Half), Top & Bottom
Under 1080P
4 progressive - 24 / 25 / 30 - 2D to 3D, Side by Side(Half), Top & Bottom
5 Others - - - 2D to 3D, Side by Side(Half), Top & Bottom
(6) USB -Photo (3D) (3D supported mode manually)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode
1 - - - - 2D to 3D, Side by Side(Half), Top & Bottom
(7) USB (3D) (3D supported mode automatically)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode
1 1080p 33.75 30 74.25 Side by Side(Half), Top & Bottom, Side by
Side(Full), Frame Sequential, MPO(Photo),
2 2160p 67.5 30 297 JPS(Photo)
(8) Miracast, Widi (3D supported mode manually)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode
1 1024*768p - 30/60 -
2 1280*720p - 30/60 - 2D to 3D
3 1920*1080p - 30/60 -
4 Others - - - 2D to 3D
■ Remark: 3D Input mode
NO Side by Side Top & Bottom Single Frame Frame Packing 2D to 3D
Sequential
1
Copyright © LG Electronics. Inc. All rights reserved. - 13 - LGE Internal Use Only
Only for training and service purposes

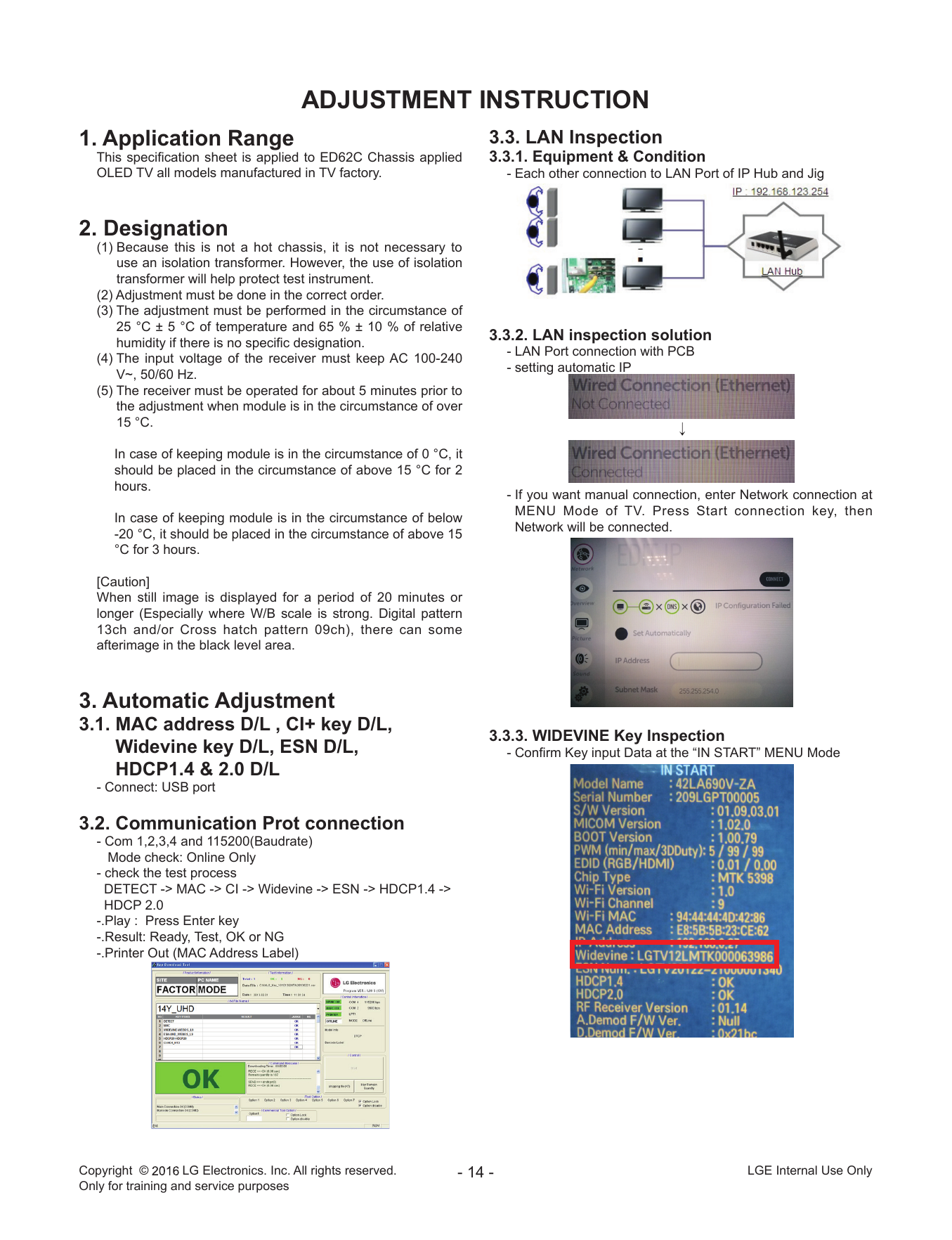

ADJUSTMENT INSTRUCTION
1. Application Range 3.3. LAN Inspection
This specification sheet is applied to ED62C Chassis applied 3.3.1. Equipment & Condition
OLED TV all models manufactured in TV factory. - Each other connection to LAN Port of IP Hub and Jig
2. Designation
(1) Because this is not a hot chassis, it is not necessary to
use an isolation transformer. However, the use of isolation
transformer will help protect test instrument.
(2) Adjustment must be done in the correct order.
(3) The adjustment must be performed in the circumstance of
25 °C ± 5 °C of temperature and 65 % ± 10 % of relative
humidity if there is no specific designation.
3.3.2. LAN inspection solution
- LAN Port connection with PCB
(4) The input voltage of the receiver must keep AC 100-240
- setting automatic IP
V~, 50/60 Hz.
(5) The receiver must be operated for about 5 minutes prior to
the adjustment when module is in the circumstance of over
15 °C.
In case of keeping module is in the circumstance of 0 °C, it
should be placed in the circumstance of above 15 °C for 2
hours.
- If you want manual connection, enter Network connection at
MENU Mode of TV. Press Start connection key, then
In case of keeping module is in the circumstance of below
Network will be connected.
-20 °C, it should be placed in the circumstance of above 15
°C for 3 hours.
[Caution]
When still image is displayed for a period of 20 minutes or
longer (Especially where W/B scale is strong. Digital pattern
13ch and/or Cross hatch pattern 09ch), there can some
afterimage in the black level area.
3. Automatic Adjustment
3.1. MAC address D/L , CI+ key D/L,
3.3.3. WIDEVINE Key Inspection
Widevine key D/L, ESN D/L, - Confirm Key input Data at the “IN START” MENU Mode
HDCP1.4 & 2.0 D/L
- Connect: USB port
3.2. Communication Prot connection
- Com 1,2,3,4 and 115200(Baudrate)
Mode check: Online Only
- check the test process
DETECT -> MAC -> CI -> Widevine -> ESN -> HDCP1.4 ->
HDCP 2.0
-.Play : Press Enter key
-.Result: Ready, Test, OK or NG
-.Printer Out (MAC Address Label)
Copyright © LG Electronics. Inc. All rights reserved. - 14 - LGE Internal Use Only
Only for training and service purposes

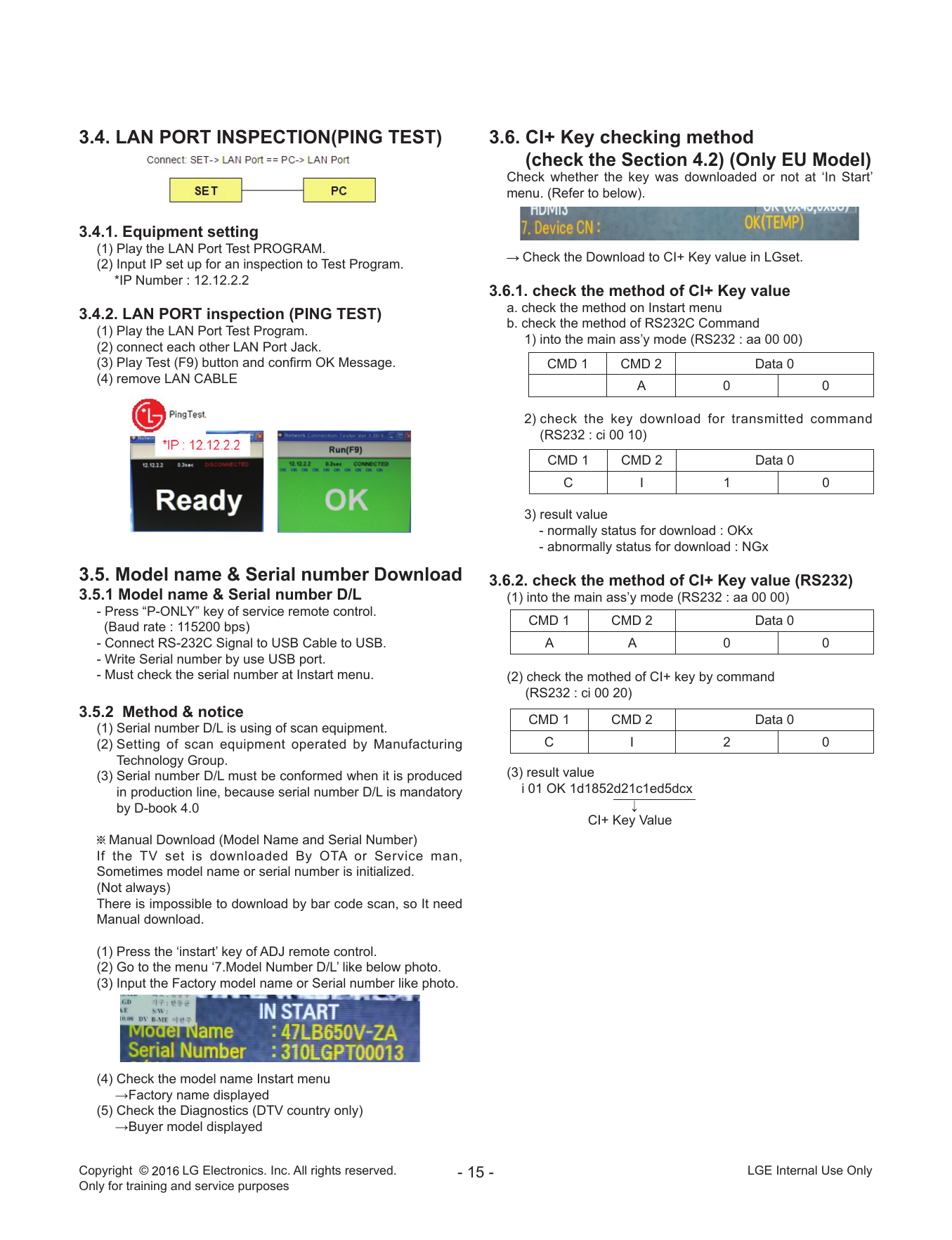

3.4. LAN PORT INSPECTION(PING TEST) 3.6. C
I+ Key checking method
(check the Section 4.2) (Only EU Model)
heck whether the key was downloaded or not at ‘In Start’
C
menu. (Refer to below).
3.4.1. Equipment setting
(1) Play the LAN Port Test PROGRAM.
Check the Download to CI+ Key value in LGset.
(2) Input IP set up for an inspection to Test Program.
*IP Number : 12.12.2.2
3.6.1. check the method of CI+ Key value
a. check the method on Instart menu
3.4.2. LAN PORT inspection (PING TEST)
b. check the method of RS232C Command
(1) Play the LAN Port Test Program.
1) into the main ass’y mode (RS232 : aa 00 00)
(2) connect each other LAN Port Jack.
(3) Play Test (F9) button and confirm OK Message. CMD 1 CMD 2 Data 0
(4) remove LAN CABLE
A 0 0
2) c heck the key download for transmitted command
(RS232 : ci 00 10)
CMD 1 CMD 2 Data 0
C I 1 0
3) result value
- normally status for download : OKx
- abnormally status for download : NGx
3.5. Model name & Serial number Download 3.6.2. check the method of CI+ Key value (RS232)
3.5.1 Model name & Serial number D/L (1) into the main ass’y mode (RS232 : aa 00 00)
- Press “P-ONLY” key of service remote control.
(Baud rate : 115200 bps) CMD 1 CMD 2 Data 0
- Connect RS-232C Signal to USB Cable to USB. A A 0 0
- Write Serial number by use USB port.
- Must check the serial number at Instart menu. (2) check the mothed of CI+ key by command
(RS232 : ci 00 20)
3.5.2 Method & notice CMD 1 CMD 2 Data 0
(1) Serial number D/L is using of scan equipment.
(2) Setting of scan equipment operated by Manufacturing C I 2 0
Technology Group.
(3) Serial number D/L must be conformed when it is produced (3) result value
in production line, because serial number D/L is mandatory i 01 OK 1d1852d21c1ed5dcx
by D-book 4.0
CI+ Key Value
Manual Download (Model Name and Serial Number)
If the TV set is downloaded By OTA or Service man,
Sometimes model name or serial number is initialized.
(Not always)
There is impossible to download by bar code scan, so It need
Manual download.
(1) Press the ‘instart’ key of ADJ remote control.
(2) Go to the menu ‘7.Model Number D/L’ like below photo.
(3) Input the Factory model name or Serial number like photo.
(4) Check the model name Instart menu
→Factory name displayed
(5) Check the Diagnostics (DTV country only)
→Buyer model displayed
Copyright © LG Electronics. Inc. All rights reserved. - 15 - LGE Internal Use Only
Only for training and service purposes

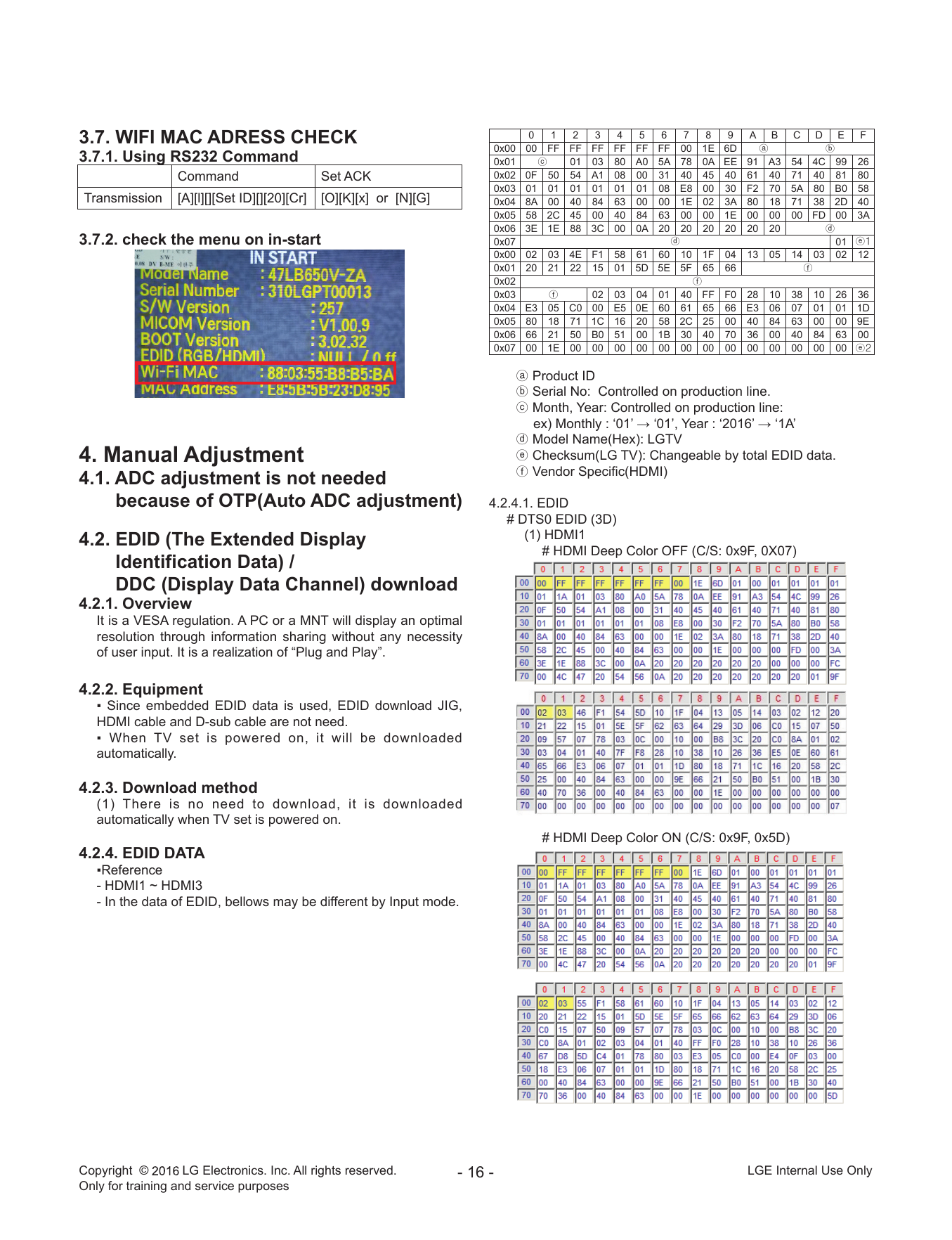

3.7. WIFI MAC ADRESS CHECK 0x00
0
00
1
FF
2 3
4
FF FF
5 6 7
FF FF FF 00 1E
8 9
6D
A
ⓐ
B C D E
ⓑ
F
3.7.1. Using RS232 Command 0x01 ⓒ 01 03
80 A0 5A 78 0A EE 91 A3 54 4C 99 26
Command Set ACK 0x02 0F 50 54 A1
08 00 31 40 45 40 61 40 71 40 81 80
0x03 01 01 01 01
01 01 08 E8 00 30 F2 70 5A 80 B0 58
Transmission [A][l][][Set ID][][20][Cr] [O][K][x] or [N][G] 0x04 8A 00 40 84
63 00 00 1E 02 3A 80 18 71 38 2D 40
0x05 58 2C 45 00
40 84 63 00 00 1E 00 00 00 FD 00 3A
0x06 3E 1E 88 3C
00 0A 20 20 20 20 20 20 ⓓ
3.7.2. check the menu on in-start 0x07 ⓓ 01 ⓔ1
0x00 02 03 4E F1 58 61 60 10 1F 04 13 05 14 03 02 12
0x01 20 21 22 15 01 5D 5E 5F 65 66 ⓕ
0x02 ⓕ
0x03 ⓕ 02 03 04 01 40 FF F0 28 10 38 10 26 36
0x04 E3 05 C0 00 E5 0E 60 61 65 66 E3 06 07 01 01 1D
0x05 80 18 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E
0x06 66 21 50 B0 51 00 1B 30 40 70 36 00 40 84 63 00
0x07 00 1E 00 00 00 00 00 00 00 00 00 00 00 00 00 ⓔ2
ⓐ Product ID
ⓑ Serial No: Controlled on production line.
ⓒ Month, Year: Controlled on production line:
ex) Monthly : ‘01’ → ‘01’, Year : ‘2016’ → ‘1A’
ⓓ Model Name(Hex): LGTV
4. Manual Adjustment ⓔ Checksum(LG TV): Changeable by total EDID data.
ⓕ Vendor Specific(HDMI)
4.1. ADC adjustment is not needed
because of OTP(Auto ADC adjustment) 4.2.4.1. EDID
# DTS0 EDID (3D)
4.2. EDID (The Extended Display (1) HDMI1
# HDMI Deep Color OFF (C/S: 0x9F, 0X07)
Identification Data) /
DDC (Display Data Channel) download
4.2.1. Overview
It is a VESA regulation. A PC or a MNT will display an optimal
resolution through information sharing without any necessity
of user input. It is a realization of “Plug and Play”.
4.2.2. Equipment
▪ Since embedded EDID data is used, EDID download JIG,
HDMI cable and D-sub cable are not need.
▪ When TV set is powered on, it will be downloaded
automatically.
4.2.3. Download method
(1) There is no need to download, it is downloaded
automatically when TV set is powered on.
# HDMI Deep Color ON (C/S: 0x9F, 0x5D)
4.2.4. EDID DATA
▪Reference
- HDMI1 ~ HDMI3
- In the data of EDID, bellows may be different by Input mode.
Copyright © LG Electronics. Inc. All rights reserved. - 16 - LGE Internal Use Only
Only for training and service purposes

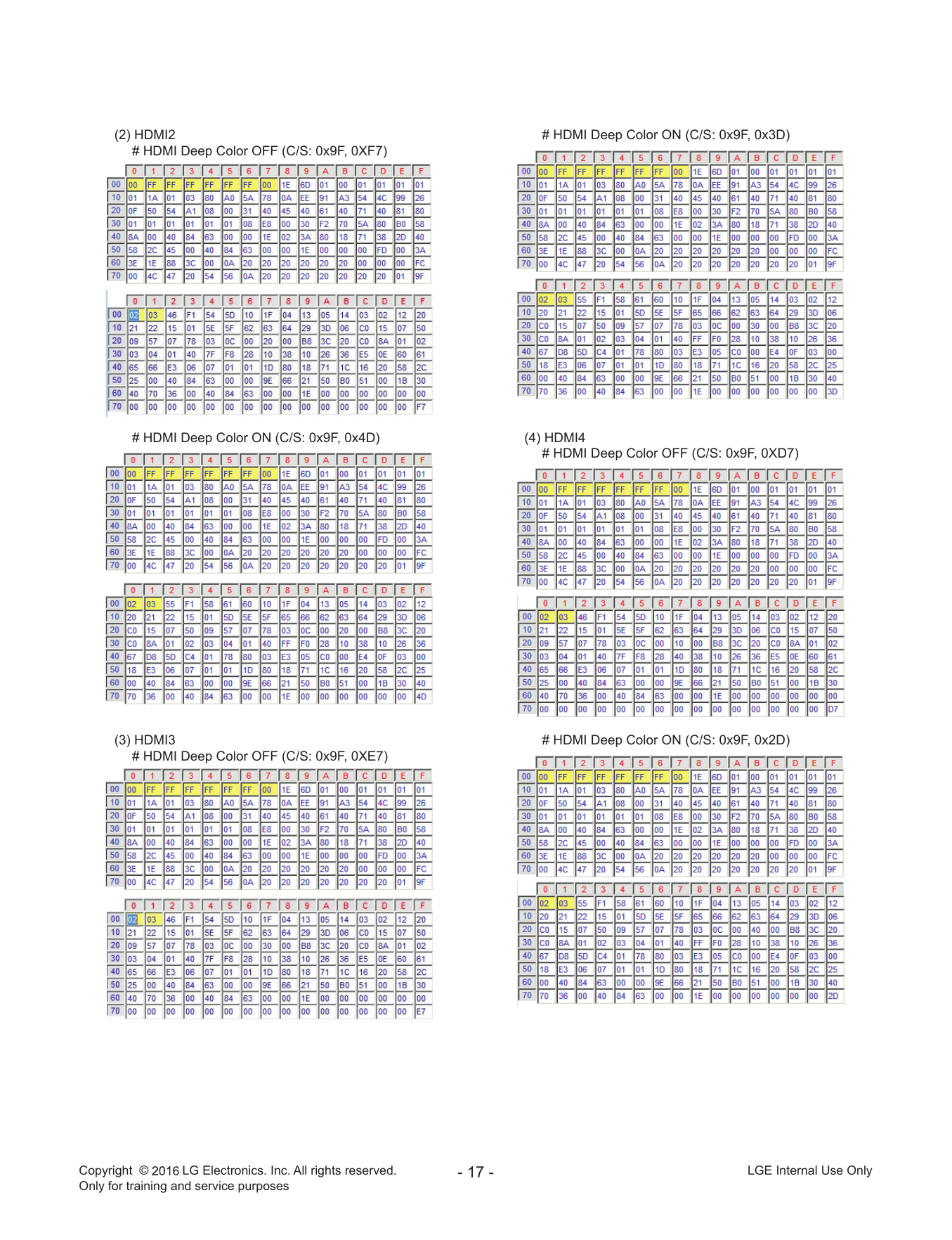

(2) HDMI2 # HDMI Deep Color ON (C/S: 0x9F, 0x3D)
# HDMI Deep Color OFF (C/S: 0x9F, 0XF7)
# HDMI Deep Color ON (C/S: 0x9F, 0x4D) (4) HDMI4
# HDMI Deep Color OFF (C/S: 0x9F, 0XD7)
(3) HDMI3 # HDMI Deep Color ON (C/S: 0x9F, 0x2D)
# HDMI Deep Color OFF (C/S: 0x9F, 0XE7)
Copyright © LG Electronics. Inc. All rights reserved. - 17 - LGE Internal Use Only
Only for training and service purposes

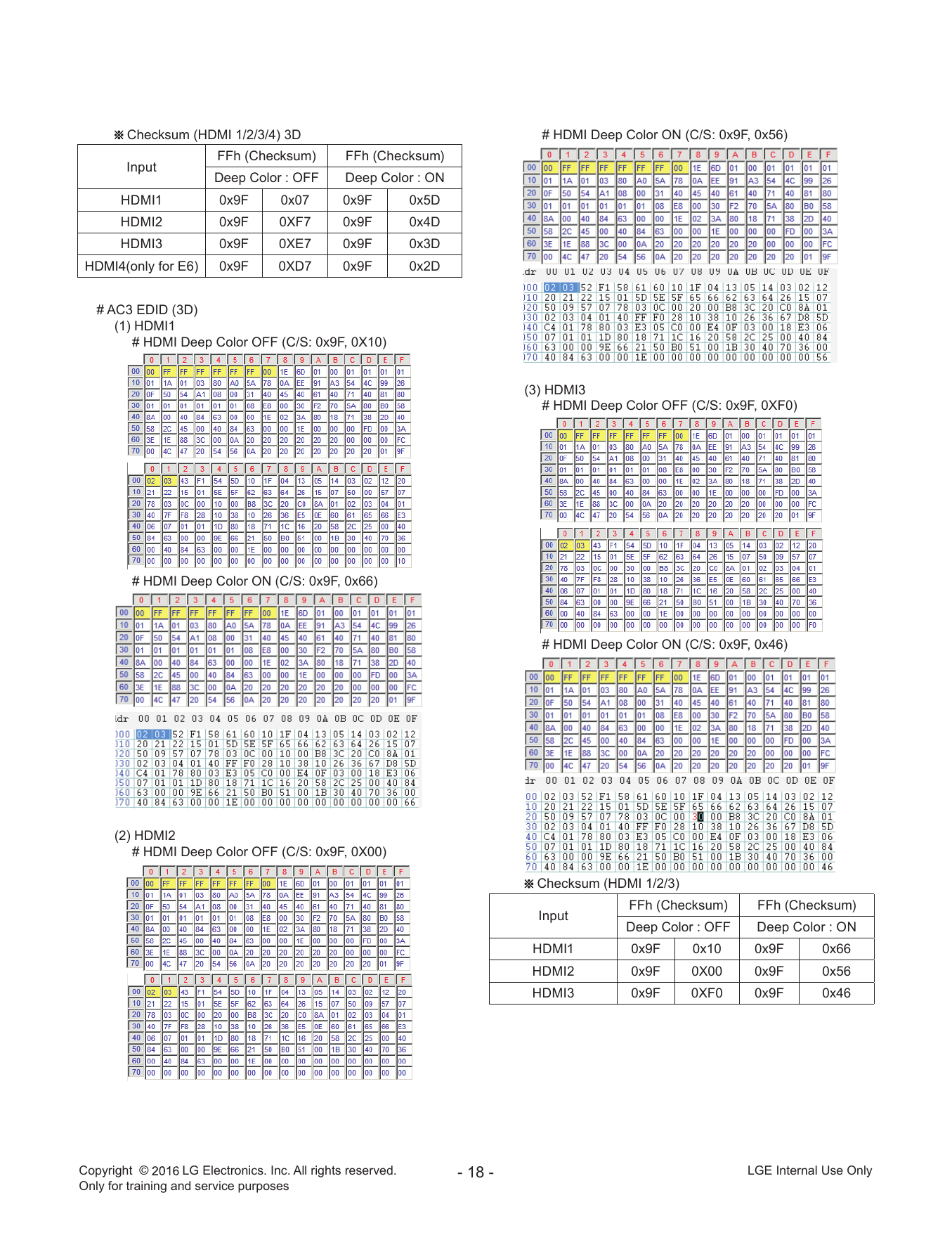

Checksum (HDMI 1/2/3/4) 3D # HDMI Deep Color ON (C/S: 0x9F, 0x56)
FFh (Checksum) FFh (Checksum)
Input
Deep Color : OFF Deep Color : ON
HDMI1 0x9F 0x07 0x9F 0x5D
HDMI2 0x9F 0XF7 0x9F 0x4D
HDMI3 0x9F 0XE7 0x9F 0x3D
HDMI4(only for E6) 0x9F 0XD7 0x9F 0x2D
# AC3 EDID (3D)
(1) HDMI1
# HDMI Deep Color OFF (C/S: 0x9F, 0X10)
(3) HDMI3
# HDMI Deep Color OFF (C/S: 0x9F, 0XF0)
# HDMI Deep Color ON (C/S: 0x9F, 0x66)
# HDMI Deep Color ON (C/S: 0x9F, 0x46)
(2) HDMI2
# HDMI Deep Color OFF (C/S: 0x9F, 0X00)
Checksum (HDMI 1/2/3)
FFh (Checksum) FFh (Checksum)
Input
Deep Color : OFF Deep Color : ON
HDMI1 0x9F 0x10 0x9F 0x66
HDMI2 0x9F 0X00 0x9F 0x56
HDMI3 0x9F 0XF0 0x9F 0x46
Copyright © LG Electronics. Inc. All rights reserved. - 18 - LGE Internal Use Only
Only for training and service purposes

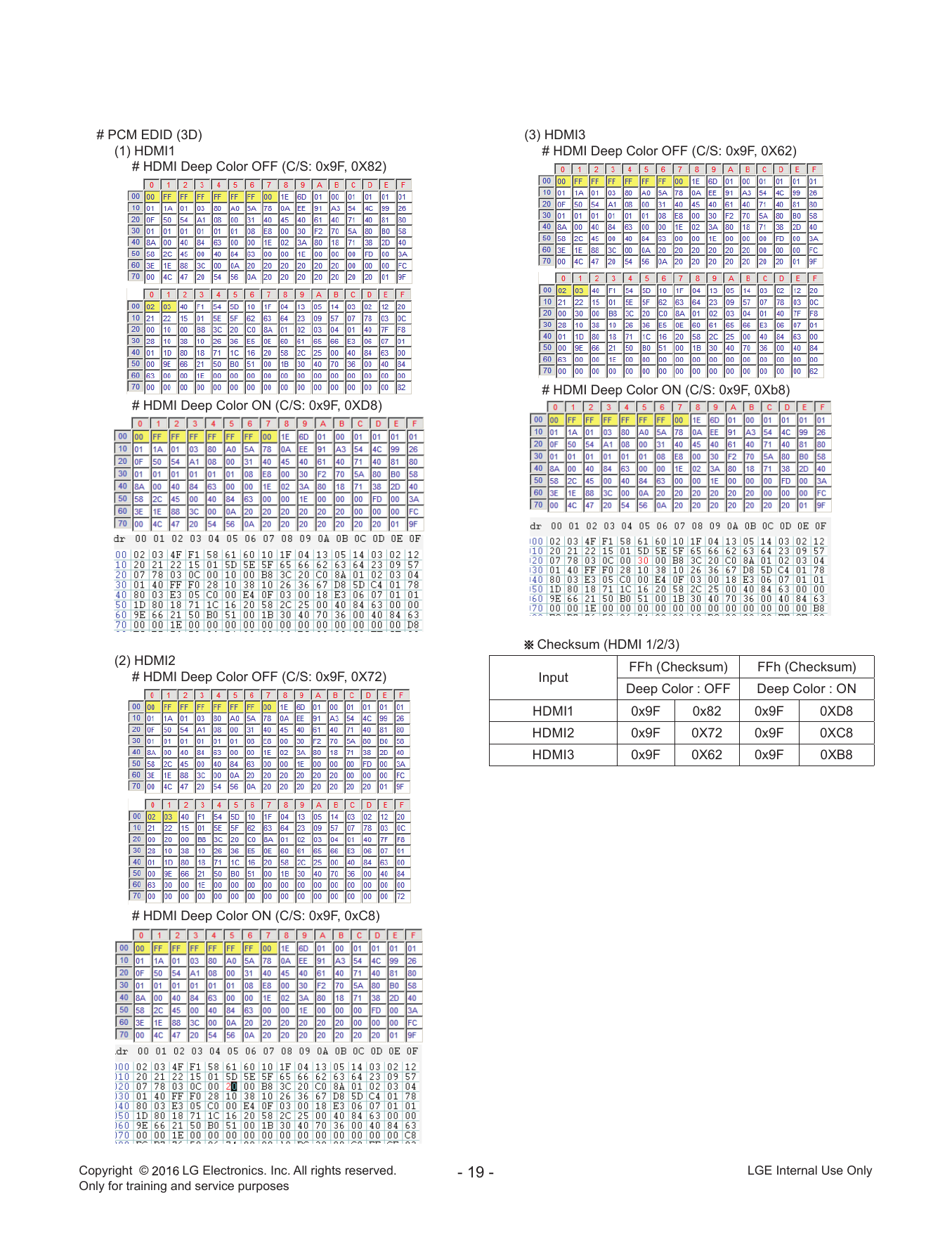

# PCM EDID (3D) (3) HDMI3
(1) HDMI1 # HDMI Deep Color OFF (C/S: 0x9F, 0X62)
# HDMI Deep Color OFF (C/S: 0x9F, 0X82)
# HDMI Deep Color ON (C/S: 0x9F, 0Xb8)
# HDMI Deep Color ON (C/S: 0x9F, 0XD8)
Checksum (HDMI 1/2/3)
(2) HDMI2 FFh (Checksum) FFh (Checksum)
# HDMI Deep Color OFF (C/S: 0x9F, 0X72) Input
Deep Color : OFF Deep Color : ON
HDMI1 0x9F 0x82 0x9F 0XD8
HDMI2 0x9F 0X72 0x9F 0XC8
HDMI3 0x9F 0X62 0x9F 0XB8
# HDMI Deep Color ON (C/S: 0x9F, 0xC8)
Copyright © LG Electronics. Inc. All rights reserved. - 19 - LGE Internal Use Only
Only for training and service purposes

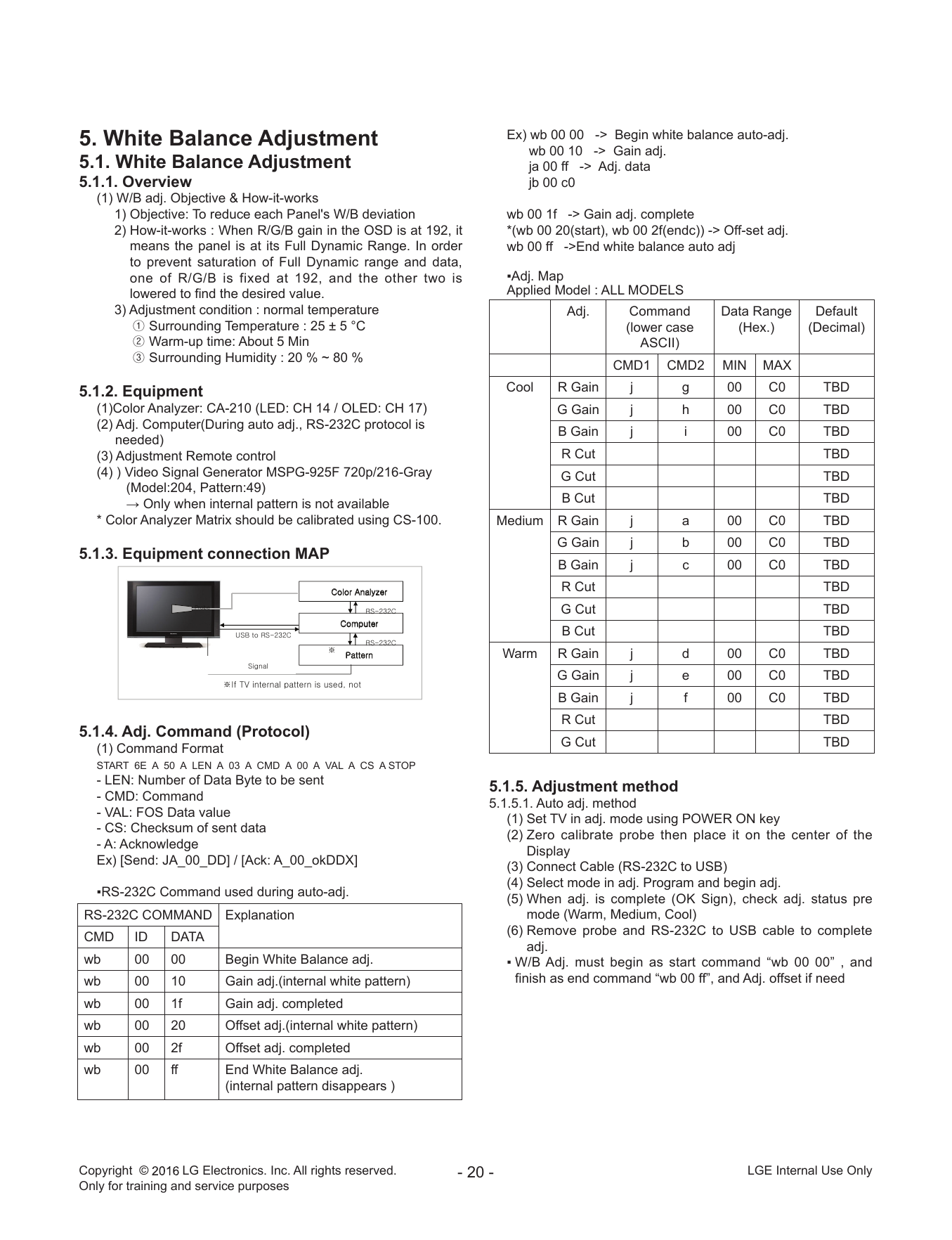

5. White Balance Adjustment Ex) wb 00 00 -> Begin white balance auto-adj.
wb 00 10 -> Gain adj.
5.1. White Balance Adjustment ja 00 ff -> Adj. data
5.1.1. Overview jb 00 c0
(1) W/B adj. Objective & How-it-works
1) Objective: To reduce each Panel's W/B deviation wb 00 1f -> Gain adj. complete
2) How-it-works : When R/G/B gain in the OSD is at 192, it *(wb 00 20(start), wb 00 2f(endc)) -> Off-set adj.
means the panel is at its Full Dynamic Range. In order wb 00 ff ->End white balance auto adj
to prevent saturation of Full Dynamic range and data,
one of R/G/B is fixed at 192, and the other two is ▪Adj. Map
lowered to find the desired value. Applied Model : ALL MODELS
3) Adjustment condition : normal temperature Adj. Command Data Range Default
① Surrounding Temperature : 25 ± 5 °C (lower case (Hex.) (Decimal)
② Warm-up time: About 5 Min ASCII)
③ Surrounding Humidity : 20 % ~ 80 %
CMD1 CMD2 MIN MAX
5.1.2. Equipment Cool R Gain j g 00 C0 TBD
(1)Color Analyzer: CA-210 (LED: CH 14 / OLED: CH 17) G Gain j h 00 C0 TBD
(2) Adj. Computer(During auto adj., RS-232C protocol is
B Gain j i 00 C0 TBD
needed)
(3) Adjustment Remote control R Cut TBD
(4) ) Video Signal Generator MSPG-925F 720p/216-Gray G Cut TBD
(Model:204, Pattern:49)
→ Only when internal pattern is not available B Cut TBD
* Color Analyzer Matrix should be calibrated using CS-100. Medium R Gain j a 00 C0 TBD
G Gain j b 00 C0 TBD
5.1.3. Equipment connection MAP
B Gain j c 00 C0 TBD
jGh ¡G R Cut TBD
wG
yzTYZYjG G Cut TBD
jG
|ziGGyzTYZYjG B Cut TBD
yzTYZYjG
G
wG Warm R Gain j d 00 C0 TBD
zG
G Gain j e 00 C0 TBD
pG{}GGGGSGG
B Gain j f 00 C0 TBD
R Cut TBD
5.1.4. Adj. Command (Protocol)
(1) Command Format G Cut TBD
START 6E A 50 A LEN A 03 A CMD A 00 A VAL A CS A STOP
- LEN: Number of Data Byte to be sent
5.1.5. Adjustment method
- CMD: Command
5.1.5.1. Auto adj. method
- VAL: FOS Data value
(1) Set TV in adj. mode using POWER ON key
- CS: Checksum of sent data
(2) Zero calibrate probe then place it on the center of the
- A: Acknowledge
Display
Ex) [Send: JA_00_DD] / [Ack: A_00_okDDX]
(3) Connect Cable (RS-232C to USB)
(4) Select mode in adj. Program and begin adj.
▪RS-232C Command used during auto-adj.
(5) When adj. is complete (OK Sign), check adj. status pre
RS-232C COMMAND Explanation mode (Warm, Medium, Cool)
CMD ID DATA (6) Remove probe and RS-232C to USB cable to complete
adj.
wb 00 00 Begin White Balance adj. ▪ W/B Adj. must begin as start command “wb 00 00” , and
wb 00 10 Gain adj.(internal white pattern) finish as end command “wb 00 ff”, and Adj. offset if need
wb 00 1f Gain adj. completed
wb 00 20 Offset adj.(internal white pattern)
wb 00 2f Offset adj. completed
wb 00 ff End White Balance adj.
(internal pattern disappears )
Copyright © LG Electronics. Inc. All rights reserved. - 20 - LGE Internal Use Only
Only for training and service purposes

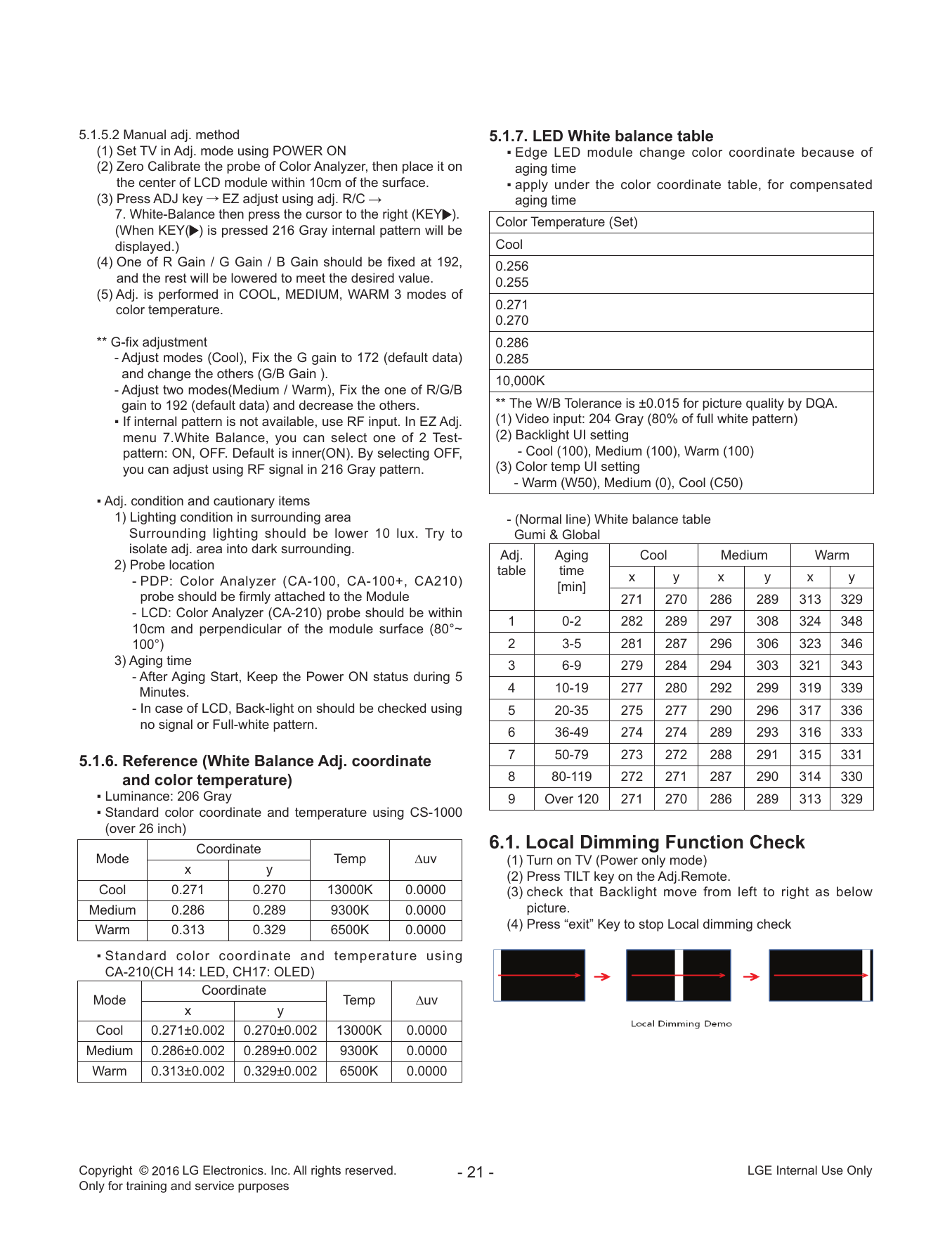

5.1.5.2 Manual adj. method 5.1.7. LED White balance table
(1) Set TV in Adj. mode using POWER ON ▪ E dge LED module change color coordinate because of
(2) Zero Calibrate the probe of Color Analyzer, then place it on aging time
the center of LCD module within 10cm of the surface. ▪ apply under the color coordinate table, for compensated
(3) Press ADJ key EZ adjust using adj. R/C aging time
7. White-Balance then press the cursor to the right (KEY ).
Color Temperature (Set)
( When KEY( ) is pressed 216 Gray internal pattern will be
displayed.) Cool
(4) One of R Gain / G Gain / B Gain should be fixed at 192, 0.256
and the rest will be lowered to meet the desired value. 0.255
(5) Adj. is performed in COOL, MEDIUM, WARM 3 modes of
color temperature. 0.271
0.270
** G-fix adjustment 0.286
- Adjust modes (Cool), Fix the G gain to 172 (default data) 0.285
and change the others (G/B Gain ).
10,000K
- Adjust two modes(Medium / Warm), Fix the one of R/G/B
gain to 192 (default data) and decrease the others. ** The W/B Tolerance is ±0.015 for picture quality by DQA.
▪ If internal pattern is not available, use RF input. In EZ Adj. (1) Video input: 204 Gray (80% of full white pattern)
menu 7.White Balance, you can select one of 2 Test- (2) Backlight UI setting
pattern: ON, OFF. Default is inner(ON). By selecting OFF, - Cool (100), Medium (100), Warm (100)
you can adjust using RF signal in 216 Gray pattern. (3) Color temp UI setting
- Warm (W50), Medium (0), Cool (C50)
▪ Adj. condition and cautionary items
1) Lighting condition in surrounding area - (Normal line) White balance table
S urrounding lighting should be lower 10 lux. Try to Gumi & Global
isolate adj. area into dark surrounding. Adj. Aging Cool Medium Warm
2) Probe location table time
- P DP: Color Analyzer (CA-100, CA-100+, CA210) x y x y x y
[min]
probe should be firmly attached to the Module 271 270 286 289 313 329
- LCD: Color Analyzer (CA-210) probe should be within
1 0-2 282 289 297 308 324 348
10cm and perpendicular of the module surface (80°~
100°) 2 3-5 281 287 296 306 323 346
3) Aging time 3 6-9 279 284 294 303 321 343
- After Aging Start, Keep the Power ON status during 5
Minutes. 4 10-19 277 280 292 299 319 339
- In case of LCD, Back-light on should be checked using 5 20-35 275 277 290 296 317 336
no signal or Full-white pattern.
6 36-49 274 274 289 293 316 333
7 50-79 273 272 288 291 315 331
5.1.6. Reference (White Balance Adj. coordinate
and color temperature) 8 80-119 272 271 287 290 314 330
▪ Luminance: 206 Gray 9 Over 120 271 270 286 289 313 329
▪ Standard color coordinate and temperature using CS-1000
(over 26 inch)
Coordinate 6.1. Local Dimming Function Check
Mode Temp ∆uv (1) Turn on TV (Power only mode)
x y
(2) Press TILT key on the Adj.Remote.
Cool 0.271 0.270 13000K 0.0000 (3) c heck that Backlight move from left to right as below
Medium 0.286 0.289 9300K 0.0000 picture.
Warm 0.313 0.329 6500K 0.0000 (4) Press “exit” Key to stop Local dimming check
▪ S tandard color coordinate and temperature using
CA-210(CH 14: LED, CH17: OLED)
Coordinate
Mode Temp ∆uv
x y
Cool 0.271±0.002 0.270±0.002 13000K 0.0000
Medium 0.286±0.002 0.289±0.002 9300K 0.0000
Warm 0.313±0.002 0.329±0.002 6500K 0.0000
Copyright © LG Electronics. Inc. All rights reserved. - 21 - LGE Internal Use Only
Only for training and service purposes

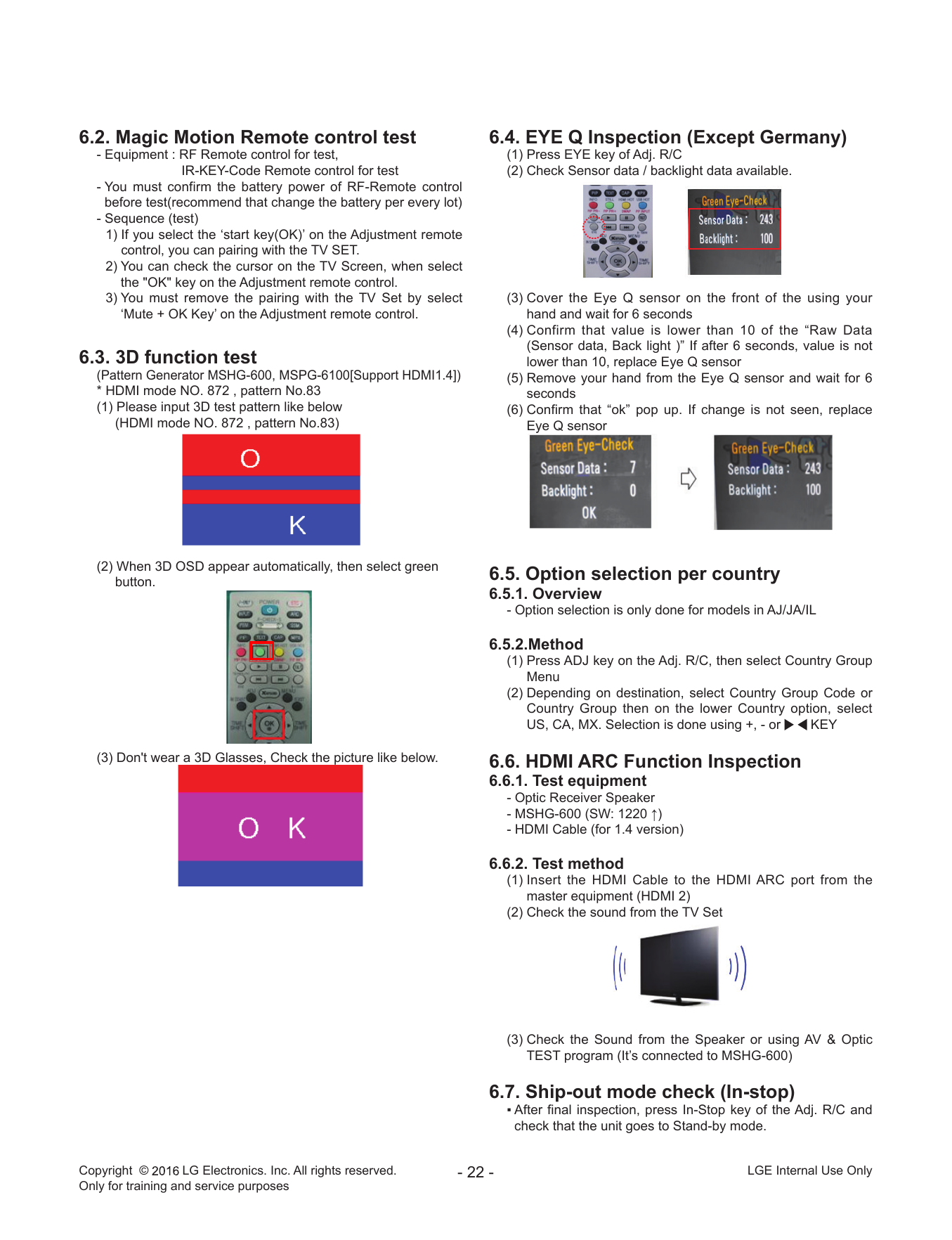

6.2. Magic Motion Remote control test 6.4. EYE Q Inspection (Except Germany)
- Equipment : RF Remote control for test, (1) Press EYE key of Adj. R/C
IR-KEY-Code Remote control for test (2) Check Sensor data / backlight data available.
- You must confirm the battery power of RF-Remote control
before test(recommend that change the battery per every lot)
- Sequence (test)
1) If you select the ‘start key(OK)’ on the Adjustment remote
control, you can pairing with the TV SET.
2) You can check the cursor on the TV Screen, when select
the "OK" key on the Adjustment remote control.
3) You must remove the pairing with the TV Set by select (3) Cover the Eye Q sensor on the front of the using your
‘Mute + OK Key’ on the Adjustment remote control. hand and wait for 6 seconds
(4) Confirm that value is lower than 10 of the “Raw Data
(Sensor data, Back light )” If after 6 seconds, value is not
6.3. 3D function test lower than 10, replace Eye Q sensor
(Pattern Generator MSHG-600, MSPG-6100[Support HDMI1.4]) (5) Remove your hand from the Eye Q sensor and wait for 6
* HDMI mode NO. 872 , pattern No.83 seconds
(1) Please input 3D test pattern like below (6) Confirm that “ok” pop up. If change is not seen, replace
(HDMI mode NO. 872 , pattern No.83) Eye Q sensor
(2) When 3D OSD appear automatically, then select green
button. 6.5. Option selection per country
6.5.1. Overview
- Option selection is only done for models in AJ/JA/IL
6.5.2.Method
(1) Press ADJ key on the Adj. R/C, then select Country Group
Menu
(2) Depending on destination, select Country Group Code or
Country Group then on the lower Country option, select
US, CA, MX. Selection is done using +, - or KEY
(3) Don't wear a 3D Glasses, Check the picture like below. 6.6. HDMI ARC Function Inspection
6.6.1. Test equipment
- Optic Receiver Speaker
- MSHG-600 (SW: 1220 ↑)
- HDMI Cable (for 1.4 version)
6.6.2. Test method
(1) Insert the HDMI Cable to the HDMI ARC port from the
master equipment (HDMI 2)
(2) Check the sound from the TV Set
(3) Check the Sound from the Speaker or using AV & Optic
TEST program (It’s connected to MSHG-600)
6.7. Ship-out mode check (In-stop)
▪ After final inspection, press In-Stop key of the Adj. R/C and
check that the unit goes to Stand-by mode.
Copyright © LG Electronics. Inc. All rights reserved. - 22 - LGE Internal Use Only
Only for training and service purposes

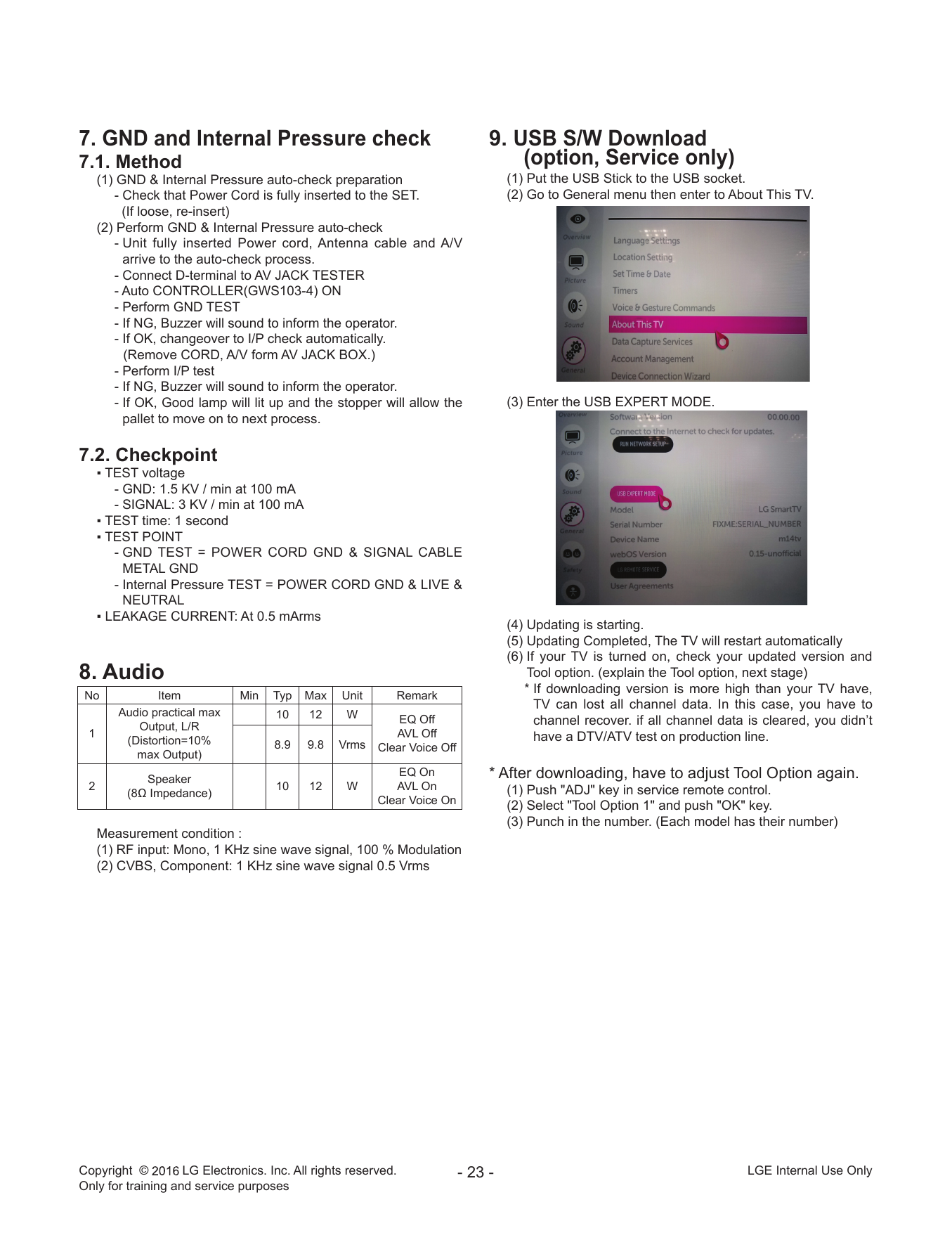

7. GND and Internal Pressure check 9. USB S/W Download
7.1. Method (option, Service only)
(1) GND & Internal Pressure auto-check preparation (1) Put the USB Stick to the USB socket.
- Check that Power Cord is fully inserted to the SET. (2) Go to General menu then enter to About This TV.
(If loose, re-insert)
(2) Perform GND & Internal Pressure auto-check
- Unit fully inserted Power cord, Antenna cable and A/V
arrive to the auto-check process.
- Connect D-terminal to AV JACK TESTER
- Auto CONTROLLER(GWS103-4) ON
- Perform GND TEST
- If NG, Buzzer will sound to inform the operator.
- If OK, changeover to I/P check automatically.
(Remove CORD, A/V form AV JACK BOX.)
- Perform I/P test
- If NG, Buzzer will sound to inform the operator.
- If OK, Good lamp will lit up and the stopper will allow the (3) Enter the USB EXPERT MODE.
pallet to move on to next process.
7.2. Checkpoint
▪ TEST voltage
- GND: 1.5 KV / min at 100 mA
- SIGNAL: 3 KV / min at 100 mA
▪ TEST time: 1 second
▪ TEST POINT
- GND TEST = POWER CORD GND & SIGNAL CABLE
METAL GND
- Internal Pressure TEST = POWER CORD GND & LIVE &
NEUTRAL
▪ LEAKAGE CURRENT: At 0.5 mArms
(4) Updating is starting.
(5) Updating Completed, The TV will restart automatically
(6) If your TV is turned on, check your updated version and
8. Audio Tool option. (explain the Tool option, next stage)
No Item Min Typ Max Unit Remark
* If downloading version is more high than your TV have,
TV can lost all channel data. In this case, you have to
Audio practical max 10 12 W
Output, L/R
EQ Off channel recover. if all channel data is cleared, you didn’t
1 AVL Off have a DTV/ATV test on production line.
(Distortion=10% 8.9 9.8 Vrms Clear Voice Off
max Output)
Speaker
EQ On * After downloading, have to adjust Tool Option again.
2 10 12 W AVL On (1) Push "ADJ" key in service remote control.
(8Ω Impedance)
Clear Voice On (2) Select "Tool Option 1" and push "OK" key.
(3) Punch in the number. (Each model has their number)
Measurement condition :
(1) RF input: Mono, 1 KHz sine wave signal, 100 % Modulation
(2) CVBS, Component: 1 KHz sine wave signal 0.5 Vrms
Copyright © LG Electronics. Inc. All rights reserved. - 23 - LGE Internal Use Only
Only for training and service purposes

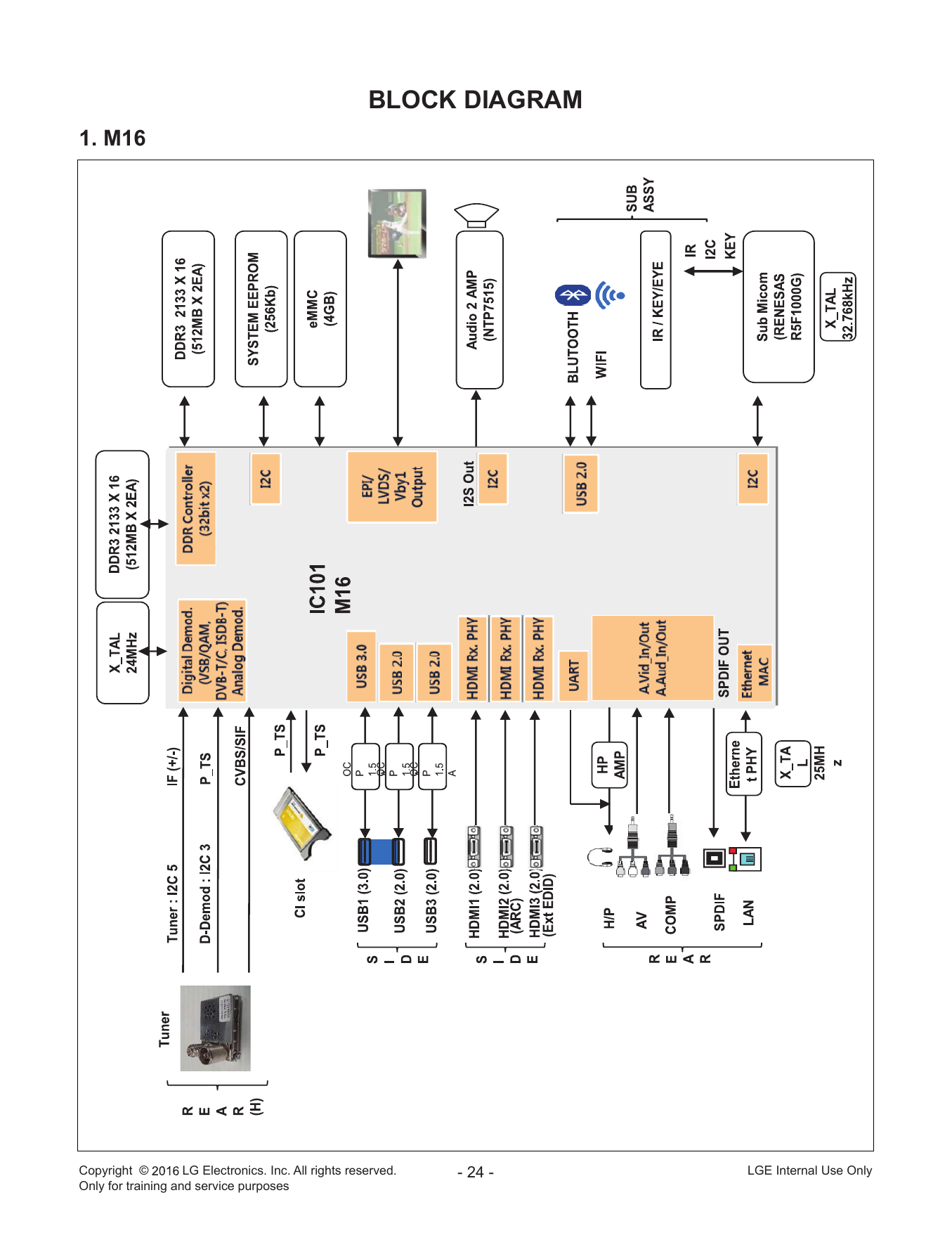

BLOCK DIAGRAM
1. M16
Copyright © LG Electronics. Inc. All rights reserved. - 24 - LGE Internal Use Only
Only for training and service purposes

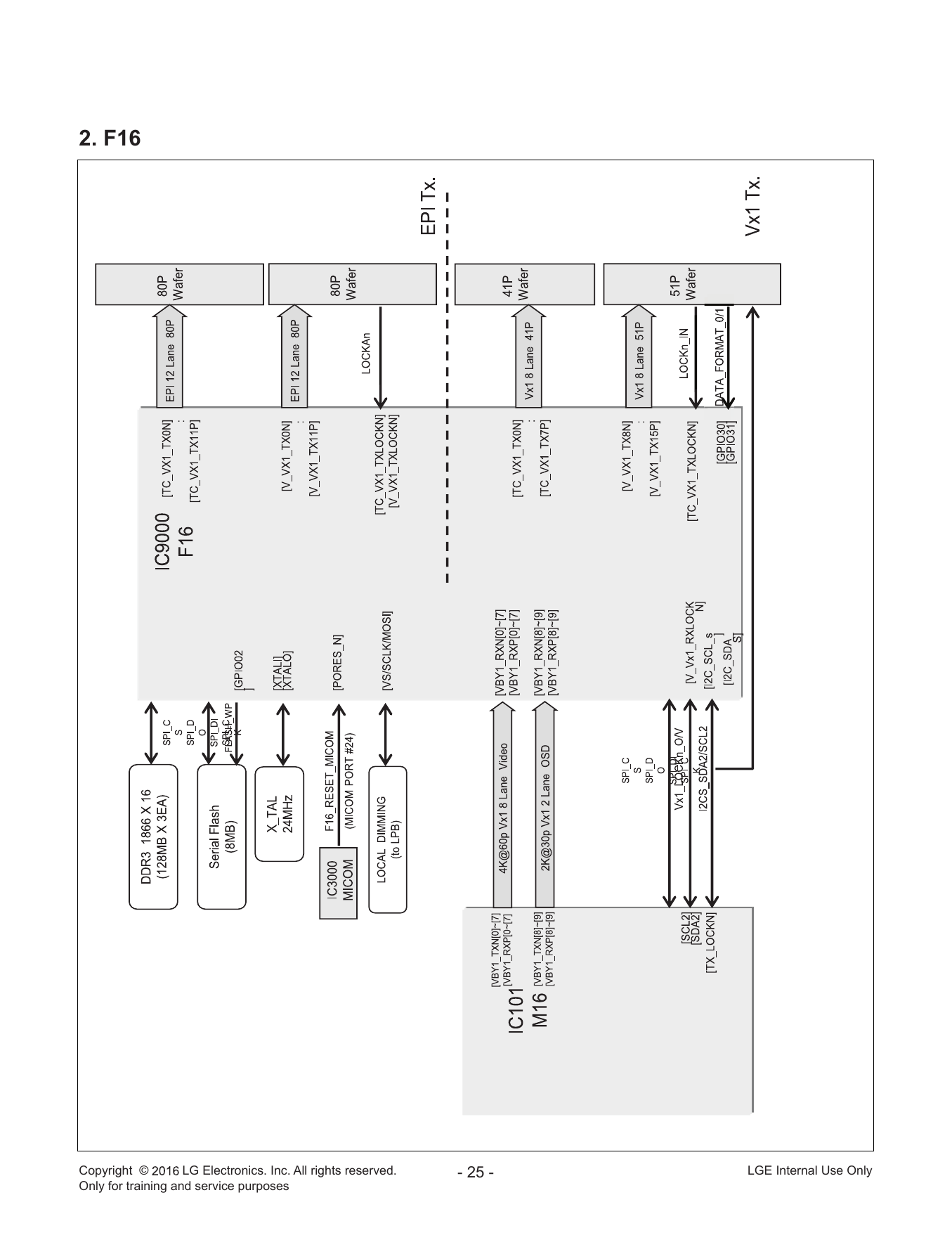

2. F16
Copyright © LG Electronics. Inc. All rights reserved. - 25 - LGE Internal Use Only
Only for training and service purposes

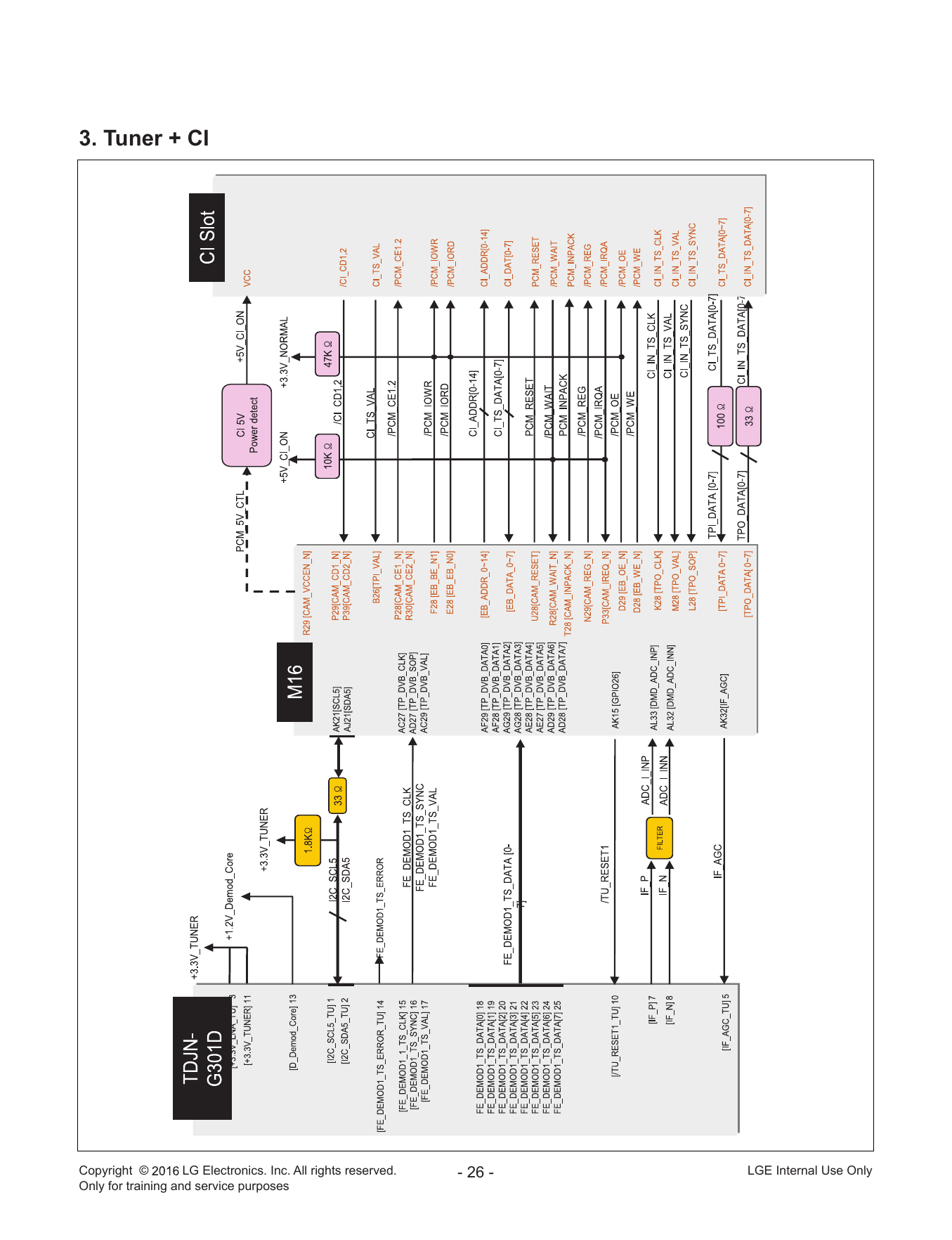

3. Tuner + CI
Copyright © LG Electronics. Inc. All rights reserved. - 26 - LGE Internal Use Only
Only for training and service purposes

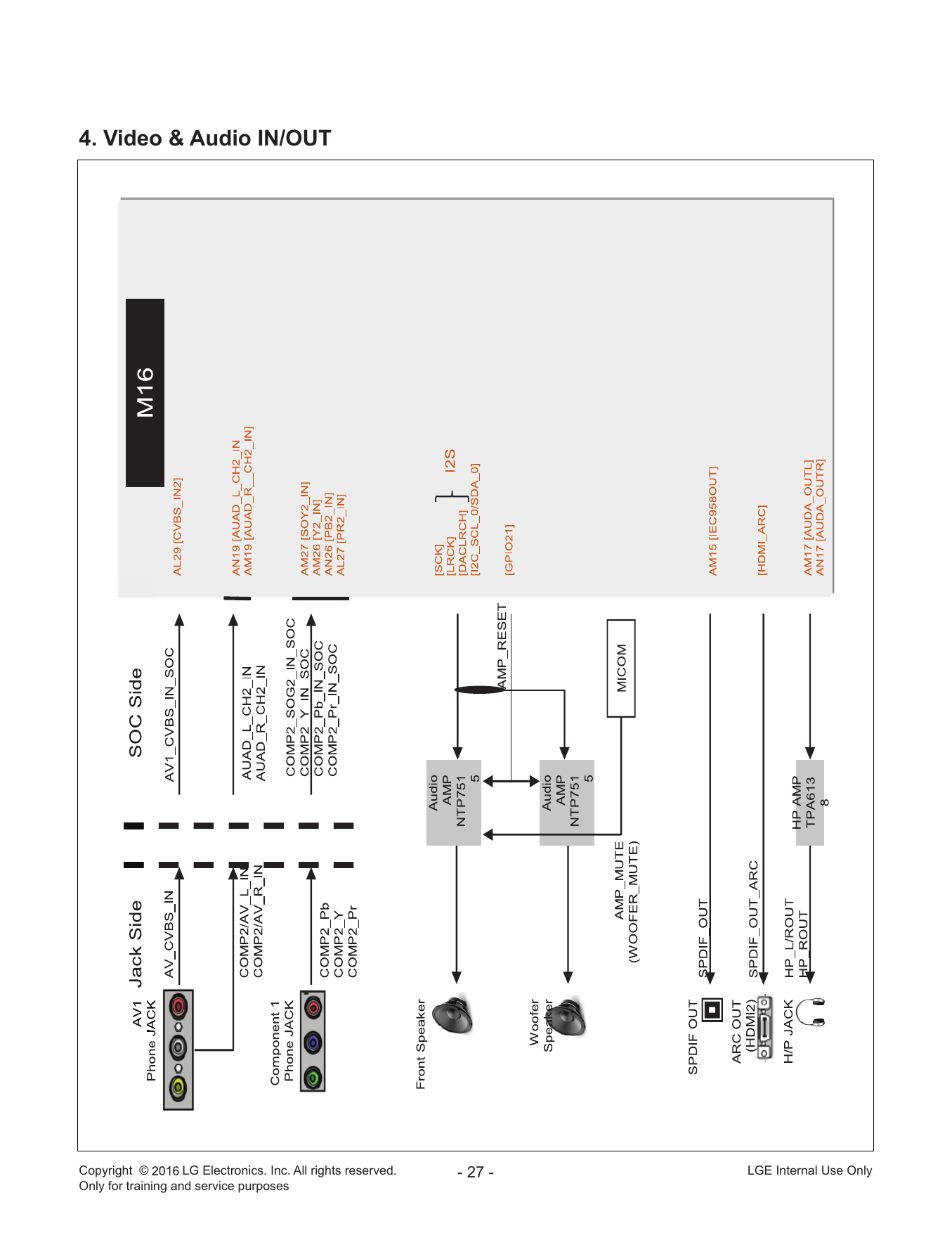

4. Video & Audio IN/OUT
Copyright © LG Electronics. Inc. All rights reserved. - 27 - LGE Internal Use Only
Only for training and service purposes

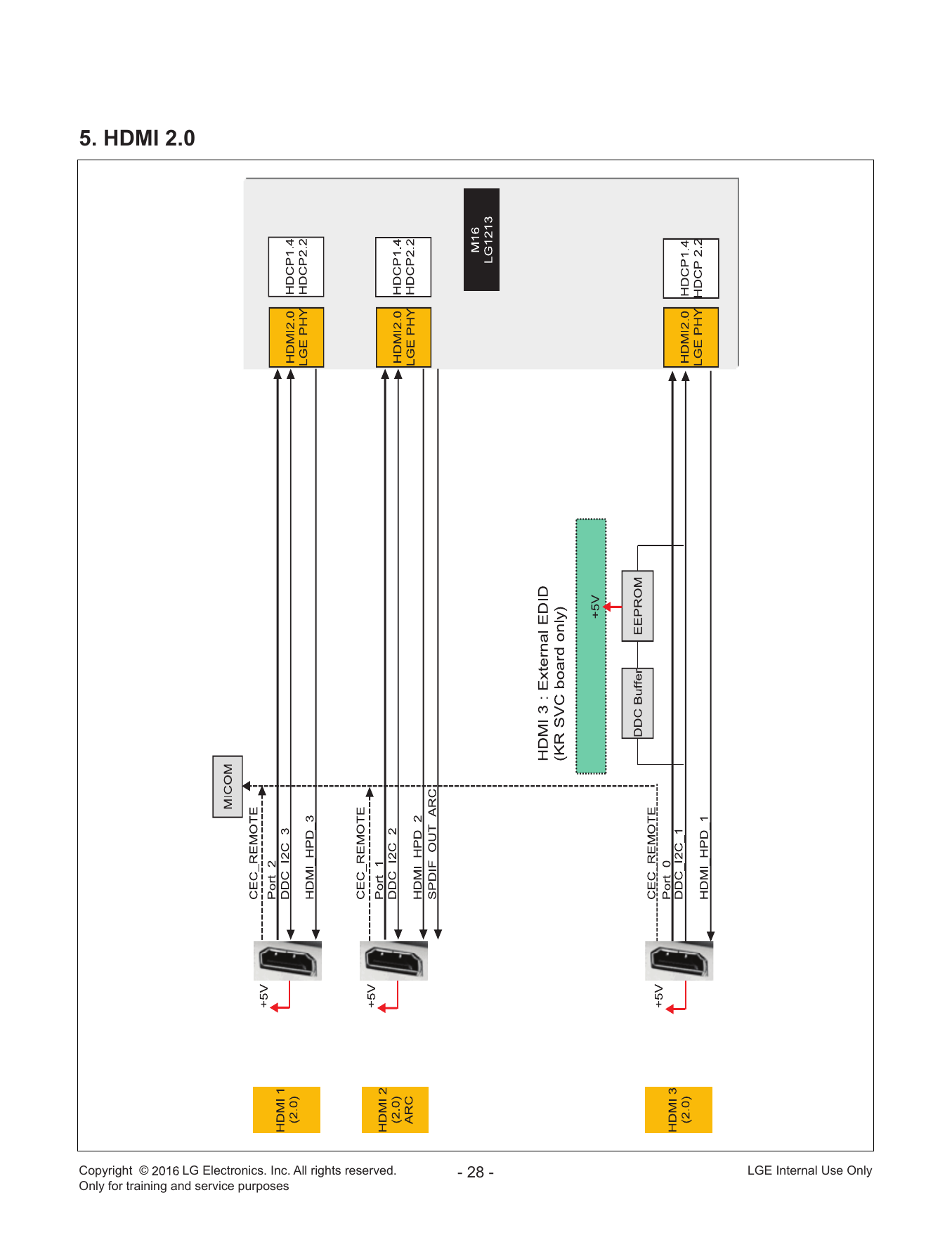

5. HDMI 2.0
Copyright © LG Electronics. Inc. All rights reserved. - 28 - LGE Internal Use Only
Only for training and service purposes

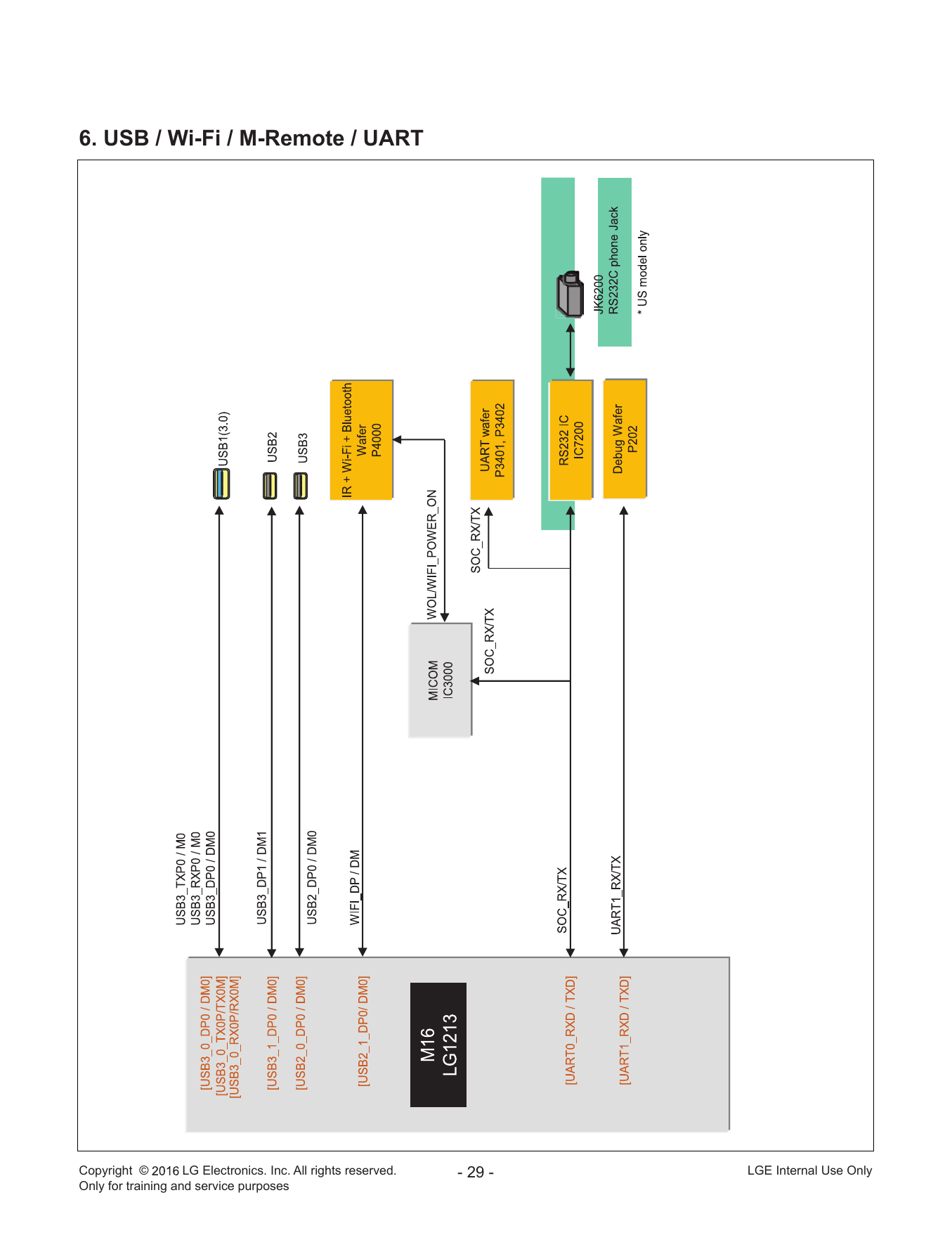

6. USB / Wi-Fi / M-Remote / UART
Copyright © LG Electronics. Inc. All rights reserved. - 29 - LGE Internal Use Only
Only for training and service purposes
̨f „ª̨Æ ¹f
Copyright ©
qyty ¸· „ ⁄ f f＼�wvwf
ffffff

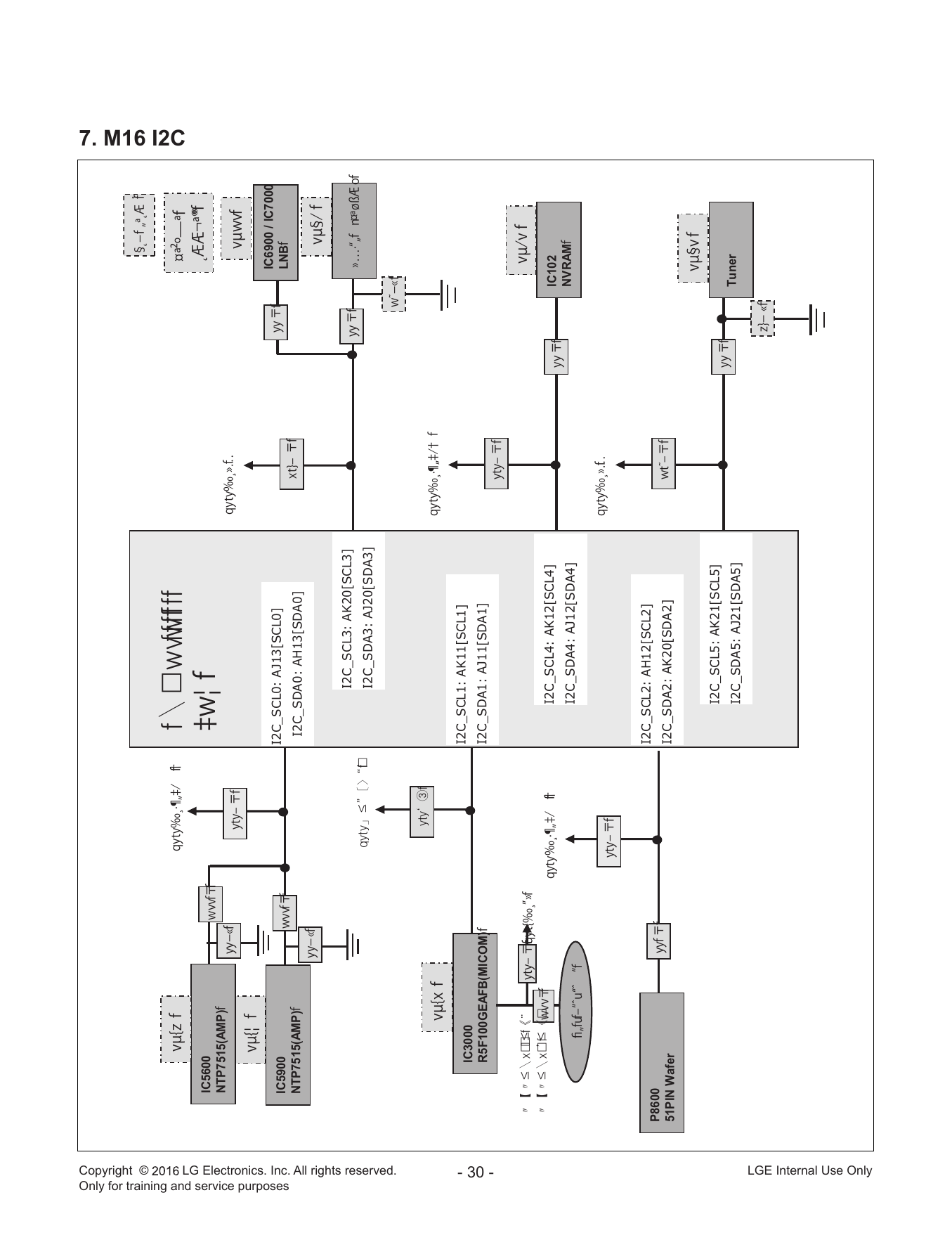

7. M16 I2C
vµ{z f ¤ª²º̶ªf
IC5600
̨ÆƬª®®f
wvvf〒f w¦ f
NTP7515(AMP)f
yy«f qyty ¸» f
yty‒ 〒f vµwvf
vµ{¦ f
IC6900 / IC7000
I2C_SCL0: AJ13[SCL0] yy 〒f
Only for training and service purposes
IC5900 wvvf〒f LNBf
NTP7515(AMP)f I2C_SDA0: AH13[SDA0] xt}‒ 〒f
yy«f
vµ ⁄ f
I2C_SCL3: AK20[SCL3] yy 〒f » ·“„f n¤ªøßÆ of
qyty」≤”〔〉“�
f’ I2C_SDA3: AJ20[SDA3]
LG Electronics. Inc. All rights reserved.
w˜«f
yty‘ ③f
vµ{x f qyty ¸· „ ⁄ f
I2C_SCL1: AK11[SCL1]
IC3000
R5F100GEAFB(MICOM)f I2C_SDA1: AJ11[SDA1]
- 30 -
yty‒ 〒f
〃【〃≤＼x�≤《¨
�f yty‒ 〒fqyt{ ¸”»f vµ⁄v f
〃【〃≤＼x�≤《�
’ f wvv〒f
qyty ¸· „ ⁄ f I2C_SCL4: AK12[SCL4] IC102
yy 〒f
I2C_SDA4: AJ12[SDA4] NVRAMf
fi„fuf‒“ˆu“ˆ “f
qyty ¸» f
yty‒ 〒f
I2C_SCL2: AH12[SCL2]
P8600 yyf 〒f
51PIN Wafer I2C_SDA2: AK20[SDA2] wt˜‒〒f
vµ v f
I2C_SCL5: AK21[SCL5]
yy 〒f
I2C_SDA5: AJ21[SDA5] Tuner
z} «f
LGE Internal Use Only
8. Power
Copyright © LG Electronics. Inc. All rights reserved. - 31 - LGE Internal Use Only
Only for training and service purposes
9. M16 Clock source & frequency
Copyright © LG Electronics. Inc. All rights reserved. - 32 - LGE Internal Use Only
Only for training and service purposes
EXPLODED VIEW
IMPORTANT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
710
410
400
900
522
521
570
540
571
120
531
121
530
820
LV2
800
LV1
500
810
700
AG1
A10
200
A22
Copyright © LG Electronics. Inc. All rights reserved. - 33 - LGE Internal Use Only
Only for training and service purposes
ASSEMBLY / DISASSEMBLY
1. OLED55C6 Assembly Guide
(1) Put Module on JIG.
(2) Arrange and Assemble Rear Cover by using holder (9points).
Arrange rear cover and push holder point as above.
(3) Assemble power cord bracket.
Arrange Power cord Bracket Ass’y
Copyright © LG Electronics. Inc. All rights reserved. - 34 - LGE Internal Use Only
Only for training and service purposes
(4) Fasten Back Cover Screw.
FAB32418703 (M3*5.5mm, Gray) 7EA
FAB31843211 (M3*5.5mm, Black) 3EA
FAB32838807 (M6*10mm, VESA) 4EA
(5) Fasten Stand Screw.
FAB30016122 (M4*20mm), 5EA
Copyright © LG Electronics. Inc. All rights reserved. - 35 - LGE Internal Use Only
Only for training and service purposes
(6) Assemble Rear Small Cover
2. OLED55C6 Disassembly Guide
(1) Repose on the curved Jig of the Set.
Copyright © LG Electronics. Inc. All rights reserved. - 36 - LGE Internal Use Only
Only for training and service purposes
(2) Disassemble Rear Small Cover.
Remove Rear Small Cover from bottom to up.
(3) Remove Stand Screw, Disassemble Stand.
FAB30016122 (M4*20mm), 5EA
Disassemble Stand after Remove Screw 5EA
Copyright © LG Electronics. Inc. All rights reserved. - 37 - LGE Internal Use Only
Only for training and service purposes
(4) Remove Back Cover Screw.
FAB32418703 (M3*5.5mm, Gray) 7EA
FAB31843211 (M3*5.5mm, Black) 3EA
FAB32838807 (M6*10mm, VESA) 4EA
(5) Disassemble PowerCord Bracket.
Lift the Power Cord, if the Bracket is removed to separate the Power Board and Cord.
Copyright © LG Electronics. Inc. All rights reserved. - 38 - LGE Internal Use Only
Only for training and service purposes
(6) Disassemble Back Cover.
Disassemble Back Cover, lift from bottom to up Back Cover.
Copyright © LG Electronics. Inc. All rights reserved. - 39 - LGE Internal Use Only
Only for training and service purposes
TROUBLE SHOOTING GUIDE
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Contents of Standard Repair Process
No. Error symptom (High category) Error symptom (Mid category) Page Remarks
1 No video/Normal audio 1
2 No video/No audio 2
3 A. Video error Picture broken/ Freezing 3
4 Color error 4
Vertical/Horizontal bar, residual image,
5 5
light spot, external device color error
6 No power 6
B. Power error Off when on, off while viewing, power
7 7
auto on/off
8 No audio/Normal video 8
C. Audio error
9 Wrecked audio/discontinuation/noise 9
10 Remote control & Local switch checking 10
11 MR15R operating checking 11
D. Function error
12 Wifi operating checking 12
13 External device recognition error 13
14 E. Noise Circuit noise, mechanical noise 14
15 F. Exterior error Exterior defect 15
First of all, Check whether there is SVC Bulletin in GSCS System for these model.
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error A. Video error date
symptom
No video/ Normal audio Revised date 1/16
First of all, Check whether all of cables between board is inserted properly or not.
(Main B/D↔ Power B/D, LVDS Cable, Speaker Cable, IR B/D Cable,,,)
☞A1 ☞A9
No video Normal Y Check Back Light Y Check Power Normal Y Replace T-con/Main
Normal audio On Board or module
audio On with naked eye Board voltage
24V, 12V,3.5V etc. And Adjust VCOM
N N N
Move to No Check Power Board 24V output Repair Power
☞A9
video/No audio Board or parts
Replace Inverter
Normal Y
or module
voltage
End
N
Repair Power
Board or parts
※Precaution ☞A4 & A2
Always check & record S/W Version and White
Replace Main Board Re-enter White Balance value
Balance value before replacing the Main Board
1
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error A. Video error date
symptom
No video/ No audio Revised date 2/16
☞A9
Check various Check and
Y
No Video/ voltages of Power Normal
replace
No audio Board ( 3.5V,12V,20V voltage?
MAIN B/D
or 24V…)
N End
Replace Power
Board and repair
parts
2
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error A. Video error date
symptom
Picture broken/ Freezing Revised date 3/16
. By using Digital signal level meter
☞ A3
. By using Diagnostics menu on OSD
Check RF Signal level ( All Settings→ Channels → Channel Tuning → Manual Tuning → Check the Signal )
- Signal strength (Normal : over 50%)
- Signal Quality (Normal: over 50%)
Y Check whether other equipments have problem or not.
Normal
(By connecting RF Cable at other equipment)
Signal?
→ DVD Player ,Set-Top-Box, Different maker TV etc`
N
☞ A4
Check RF Cable
Normal Y Check SVC N Check Y
Connection Close
1. Reconnection Picture? S/W Version Bulletin? Tuner soldering
2. Install Booster N
Y
N
S/W Upgrade
N Contact with signal distributor
Normal
Picture? or broadcaster (Cable or Air)
Normal N
Y Picture? Replace
Main B/D
Y
Close
Close
3
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error A. Video error date
symptom
Color error Revised date 4/16
☞A6 ☞ A7
※ Check
Check color by input
and replace
-External Input Y Y Y
Color Link Cable Color Color
-COMPONENT Replace Main B/D Replace module
error? (V by one) error? error?
-AV
and contact
-HDMI N N N
condition
Check error End
color input
mode
Check
External Input/ External device Y
external
Component /Cable Replace Main/T-con B/D
device and
error normal
cable
N
Request repair
for external
device/cable
N
Check external External device Y
HDMI
device and /Cable Replace Main/T-con B/D
error
cable normal
4
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
A. Video error Established
Error date
symptom Vertical / Horizontal bar, residual image,
light spot, external device color error Revised date 5/16
Vertical/Horizontal bar, residual image, light spot Replace
Module
☞A6
☞ A7 N
Check color condition by input Check external
Check and
-External Input Screen Y device Y Screen N Screen
-Component Normal? replace Link Replace Main/T-con B/D
normal? connection normal? (adjust VCOM) normal?
-HDMI Cable
condition
N N For LGD panel Y
Y
Replace Main B/D
Replace Request repair End End
module for external
device
For other panel
External device screen error-Color error
Check screen
condition by input
-External Input External
Check S/W Version Check N
-Component Input Connect other external N
version
-HDMI/DVI error device and cable Screen Replace
(Check normal operation of normal? Main/T-con
Y External Input, Component, B/D
Component RGB and HDMI/DVI by
Y
S/W Upgrade error connecting Jig, pattern
Generator ,Set-top Box etc.
Request repair for
external device
Y
Connect other external
Normal N HDMI/
device and cable N
screen? DVI
(Check normal operation of Screen Replace
External Input, Component, normal? Main /T-con
Y RGB and HDMI/DVI by B/D
connecting Jig, pattern
Generator ,Set-top Box etc.
End
5
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error B. Power error date
symptom
No power Revised date 6/16
☞A8 ☞A9
DC Power on Replace
Check Power LED Y Normal N Check Power Y
by pressing Power Key OK? Power
Logo LED On? operation? On ‘”High”
On Remote control B/D
. Stand-By: Red or Turn On
N Y
. Operating: Turn Off
Check Power cord Replace Main B/D
was inserted properly
☞A9
N Measure voltage of each output of Power B/D
Normal?
Y
Y Y
※ Normal
voltage?
Replace Main B/D
Close Normal
Check ST-BY 3.5V
Y
voltage? N
☞A9 Replace Power B/D
N
Replace Power
B/D
6
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error B. Power error date
symptom
Off when on, off while viewing, power auto on/off Revised date 7/16
Check outlet
☞A10
N Y
Check A/C cord Error? Check Power Off CPU
Replace Main B/D Normal? End
Mode Abnormal
N
Check for all 3- phase
power out Y Abnormal Replace Power B/D
1
Fix A/C cord & Outlet ☞A9
and check each 3
(If Power Off mode
phase out
is not displayed) Normal Y
Replace Main B/D
Check Power B/D voltage?
voltage
N
※ Caution
Check and fix exterior Replace Power B/D
of Power B/D Part
* Please refer to the all cases which Status Power off List Explanation
"POWER_OFF_BY_REMOTE_KEY" Power off by REMOTE CONTROL
can be displayed on power off mode.
"POWER_OFF_BY_OFF_TIMER" Power off by OFF TIMER
"POWER_OFF_BY_SLEEP_TIMER" Power off by SLEEP TIMER
"POWER_OFF_BY_INSTOP" Power off by INSTOP KEY
"POWER_OFF_BY_AUTO_OFF" Power off by AUTO OFF
Normal "POWER_OFF_BY_ON_TIMER" Power off by ON TIMER
"POWER_OFF_BY_RS232C" Power off by RS232C
"POWER_OFF_BY_RESREC" Power off by Reservated Record
"POWER_OFF_BY_RECEND" Power off by End of Recording
"POWER_OFF_BY_SW_DW" Power off by S/W Download
"POWER_OFF_BY_UNKNOWN" Power off by unknown status except listed case
Abnormal "POWER_OFF_BY_CPU_ABN" Power off by CPU Abnormal
7
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error C. Audio error date
symptom
No audio/ Normal video Revised date 8/16
☞A11 ☞A12+A9
No audio
Check user N Check audio B+
Normal Y
menu > Off 24V of Power
Screen normal voltage
Speaker off Board
Y N
Cancel OFF Replace Power Board and repair parts
Check N
Disconnection Replace MAIN Board End
Speaker
disconnection
Y
Replace Speaker
8
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error C. Audio error date
symptom
Wrecked audio/ discontinuation/noise Revised date 9/16
→ abnormal audio/discontinuation/noise is same after “Check input signal” compared to No audio
Wrecked audio/
☞A12+A9
Check and replace
Discontinuation/ Check audio
speaker and
Noise for B+ Voltage (24V)
connector
Check input all audio
signal Y Y
Signal
-RF
normal? Wrecked audio/
-External Input Normal
signal Discontinuation/
N Replace Main B/D voltage?
Noise only
for D-TV
N
Wrecked audio/
Discontinuation/
Replace Power B/D
Noise only
for Analog
(When RF signal is not
received)
Request repair to external Wrecked audio/ Replace Main B/D End
cable/ANT provider Discontinuation/
Noise only
for External Input
(In case of N
External Input Connect and check Normal
signal error) other external audio?
Check and fix device
external device Y
Check and fix external device
9
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
D. Function error Established
Error date
symptom
Remote control & Local switch checking Revised date 10/16
1. Remote control(R/C) operating error Replace
Main B/D
☞A13 ☞A13 ☞A13
Check & Repair N Check B+ Y Y
Check R/C itself Normal Y Normal Normal Check IR Normal
operating? Cable connection operating? 3.5V Voltage? Signal?
Operation Output signal
Connector solder On Main B/D
N Y N N
☞A9
Check R/C Operating Check & Replace Check 3.5v on Power B/D Repair/Replace
When turn off light Baterry of R/C Close Replace Power B/D or IR B/D
in room Replace Main B/D
(Power B/D don’t have problem)
If R/C operate, Normal Y
operating? Close
Explain the customer
cause is interference
from light in room. N
Replace R/C
10
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
D. Function error Established
Error date
symptom
MR15R operating checking Revised date 11/15
2. MR15R (Magic remote control) operating error
☞A4
Check the N Check MR15R
RF Receiver ver Normal Y Press the Is show ok N Turn off/on the
INSTART menu is “00.00”? itself Operation operating? set and press
wheel message?
the wheel
N
Y
Y
☞A14
Check & Replace
Check & Repair Battery of MR15R Close
RF assy
connection
Normal Y
☞A4 operating? Close
Is show ok N Press the back
RF Receiver ver N message? key about 5sec
Close N
is “00.00”?
Y
Replace
MR15R
Y Close
Down load the Firmware
•If you conduct the loop at 3times,
* INSTART MENU12.RF change the MR15R.
remote control Test3.
Firmware download
11
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
D. Function error Established
Error date
symptom
Wifi operating checking Revised date 12/16
3.Wifi operating error
☞A4 ☞A15
Check the Wi-Fi Mac value N Check the Wifi wafer Normal N Replace
INSTART menu is “NG”? Voltage?
1pin Main B/D
Y
☞A15 Y
Check & Repair Close
Wifi cable
connection
☞A4
Wi-Fi Mac value N
is “NG”? Close
Y
Change the Wifi
assy
12
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error D. Function error date
symptom
External device recognition error Revised date 14/16
Y Check technical
Check External Input and
Signal information Technical N
input Component Replace Main B/D
input? - Fix information information?
Recognition error
signal
- S/W Version
N Y
HDMI/
Check and fix DVI, Optical
Fix in Replace Main B/D
external device/cable Recognition error
accordance
with technical
information
13
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error E. Noise date
symptom
Circuit noise, mechanical noise Revised date 15/16
Identify Check
nose Circuit
location of Replace PSU
type noise
noise
Mechanical Check location of
noise noise
※ When the nose is severe, replace the module
※ Mechanical noise is a natural (For models with fix information, upgrade the
phenomenon, and apply the 1st level S/W or provide the description)
description. When the customer does not OR
agree, apply the process by stage. ※ If there is a “Tak Tak” noise from the
※ Describe the basis of the description cabinet, refer to the KMS fix information and
in “Part related to nose” in the Owner’s then proceed as shown in the solution manual
Manual. (For models without any fix information,
provide the description)
14
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error F. Exterior defect date
symptom
Exterior defect Revised date 16/16
Zoom part with Module
Replace module
exterior damage damage
Cabinet
Replace cabinet
damage
Remote
control Replace remote control
damage
Stand
Replace stand
dent
15
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Contents of Standard Repair Process Detail Technical Manual
No. Error symptom Content Page Remarks
1 A. Video error_ No video/Normal Check LCD back light with naked eye A1
2 audio Check White Balance value A2
TUNER input signal strength checking
3 A3
method
A. Video error_ video error /Video
4 lag/stop Version checking method A4
5 Tuner Checking Part A5
A. Video error _Vertical/Horizontal bar,
6 connection diagram A6
residual image, light spot
Check Link Cable (EPI) reconnection
7 A. Video error_ Color error A7
condition
Exchange Module (1) A-1/2
8 Defected Type caused by T-Con/
Inverter/ Module Exchange Module (2) A-2/2
Continue to the next page
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Contents of Standard Repair Process Detail Technical Manual
Continued from previous page
No. Error symptom Content Page Remarks
9 Check front display Logo A8
B. Power error_ No power
10 Check power input Voltage & ST-BY 3.5V A9
B. Power error_Off when on, off
11 POWER OFF MODE checking method A10
while viewing
Checking method in menu when there is
12 A11
C. Audio error_ No audio/Normal no audio
video Voltage and speaker checking method
13 A12
when there is no audio
remote control operation checking
14 A13
method
D. Function error Motion Remote operation checking
15 A14
method
16 Wifi operation checking method A15
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_No video/Normal audio date
Revised
Content Check LCD back light with naked eye A1
date
After Remove the Rear Cover, turning on the power and check with the naked eye,
Whether you can see video
A1
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_No video/Normal audio date
Revised
Content Check White Balance value A2
date
Entry method
1. Press the ADJ button on the remote control for adjustment.
2. Enter into White Balance of item 12.
3. After recording the R, G, B (GAIN, Cut) value of Color Temp
(Cool/Medium/Warm), re-enter the value after replacing the MAIN BOARD.
A2
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_Video error, video lag/stop date
TUNER input signal strength checking method Revised
Content date A3
All Settings Channels Channel Tuning
When the signal is strong, use the
attenuator (-10dB, -15dB, -20dB etc.)
A3
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_Video error, video lag/stop date
Version checking method Revised
Content date A4
1. Checking method for remote control for adjustment
Version
Press the IN-START with the remote
control for adjustment
A4
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom
A. Video error_Video error, video lag/stop
date
Revised
Content TUNER checking part A5
date
Checking method:
1. Check the signal strength or check whether the screen is normal when the external device is connected.
2. After measuring each voltage from power supply, finally replace the MAIN BOARD.
A5
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error A. Video error _Vertical/Horizontal bar, Established
symptom residual image, light spot date
Revised
Content connection diagram date A6
As the part connecting to the external input, check
the screen condition by signal
A6
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_Color error date
Revised
Content Check Link Cable (EPI) reconnection condition date A7
Check the contact condition of the Link Cable, especially dust or mis insertion.
A7
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Appendix : Exchange the Module (1)
Vertical abnormal display Brightness difference Line Dim
Crosstalk Press damage Crosstalk
Un-repairable Cases
In this case please exchange the module.
Burnt
A – 1/2
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Appendix : Exchange the Module (2)
Angle view Color difference Brightness dot noise Half dead
Brightness difference
Green Noise on power on/off time Line Defect
Un-repairable Cases
In this case please exchange the module.
Mura
A – 2/2
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom B. Power error _No power date
Revised
Content Check front display Logo date A8
ST-BY condition: On or Off
Power ON condition: Turn Off
A8
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom
B. Power error _No power
date
Revised
Content Check power input voltage and ST-BY 3.5V A9
date
Check the DC 24V, 12V, 3.5V.
24Pin(Power Board ↔ Main Board)
1 PWR ON 2 INV CTL
3 DPC 4 PDIM#2
5 3.5V 6 GND
7 3.5V 8 3.5V
9 GND 10 GND
11 12V 12 12V
13 12V 14 12V
15 12V 16 GND
17 GND 18 12V_ON
19 24V 20 24V
21 24V 22 24V
23 GND 24 GND
A9
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error
symptom B. Power error _Off when on, off whiling viewing Established
date
Revised
Content POWER OFF MODE checking method date A10
Entry method
1. Press the IN-START button of the remote control for adjustment
2. Check the entry into adjustment item 3(power On/Off Status)
A10
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom C. Audio error_No audio/Normal video
date
Revised
Content Checking method in menu when there is no audio date A11
Checking method
1. Press the Setting button on the remote control
2. Select the Sound function of the Menu
3. Select the Sound Out
4. Select TV Speaker
A11
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom C. Audio error_No audio/Normal video date
Voltage and speaker checking method Revised
Content date A12
when there is no audio
24Pin(Power Board ↔ Main Board)
1 GND 2 GND
3 24V 4 24V ①
5 24V 6 24V
② 7 GND 8 12V_ON
② 9 12V 10 GND
11 12V 12 12V ③
13 12V 14 12V
15 GND 16 GND
17 3.5V 18 3.5V
19 3.5V 20 GND
21 PDIM#1 22 PDIM#2
23 PWR ON 24 INV CTL 1 SPK_R-_FT 2 SPK_R+_FT
3 SPK_L-_FT 4 SPK_L+_FT
5 SPK_R-_CT 6 SPK_R+_CT
Checking order when there is no audio
7 SPK_L-_CT 8 SPK_L+_CT
① Check the contact condition of or 24V connector of Main Board
② Measure the 24V input voltage supplied from Power Board
(If there is no input voltage, remove and check the connector)
③ Connect the tester RX1 to the speaker terminal and if you hear the Chik Chik sound when you touch the
GND and output terminal, the speaker is normal.
A12
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom D. Function error date
Revised
Content remote control operation checking method date A13
③ P4001
1 GND
2 KEY1
3 KEY2
4 3.5V_ST
5 GND
6 LOGO_LIGHT
7 IR
8 GND
9 EYE_SCL
10 EYE_SDA
① ②
Checking order
1, 2. Check IR cable condition between IR & Main board.
3. Check the st-by 3.5V on the terminal 4
A13
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom D. Function error date
Revised
Content Motion Remote operation checking method date A14
P4001
1 GND
2 KEY1
③ 3 KEY2
4 3.5V_ST
5 GND
6 LOGO_LIGHT
7 IR
8 GND
9 EYE_SCL
10 EYE_SDA
① ② P4000
1 GND
2 BT_RESET
3 3D_SYNC_RF
4 WOL/WIFI_POWER_ON
5 GND
③ 6 WIFI_DP
7 WIFI_DM
8 3.5V_WIFI
Checking order
1. Check IR cable condition between IR & Main board.
2. Check WIFI Combo cable condition between WIFI Combo Assy & Main board.
3. Check the st-by 3.5V P001 on the terminal 4
4. Check the 3.5V_WIFI P4000 on the terminal 8
A14
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom D. Function error date
Revised
Content Wifi operation checking method date A15
P4000
1 GND
2 M_RFModule_RESET
3 NOT USE
4 WOL/WIFI_POWER_ON
5 GND
6 WIFI_DP
① ③ 7 WIFI_DM
8 3.5V_WIFI
②
Checking order
1, 2. Check Wifi cable condition between Wifi assy & Main board.
3. Check the 3.3V on the terminal 8.
A15
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
