Internal Use Only
OLED TV
SERVICE MANUAL
CHASSIS : ED61G
MODEL : OLED65G6* OLED65G6*-Z
CAUTION
BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
P/NO : MFL69450101 (1605-REV01)

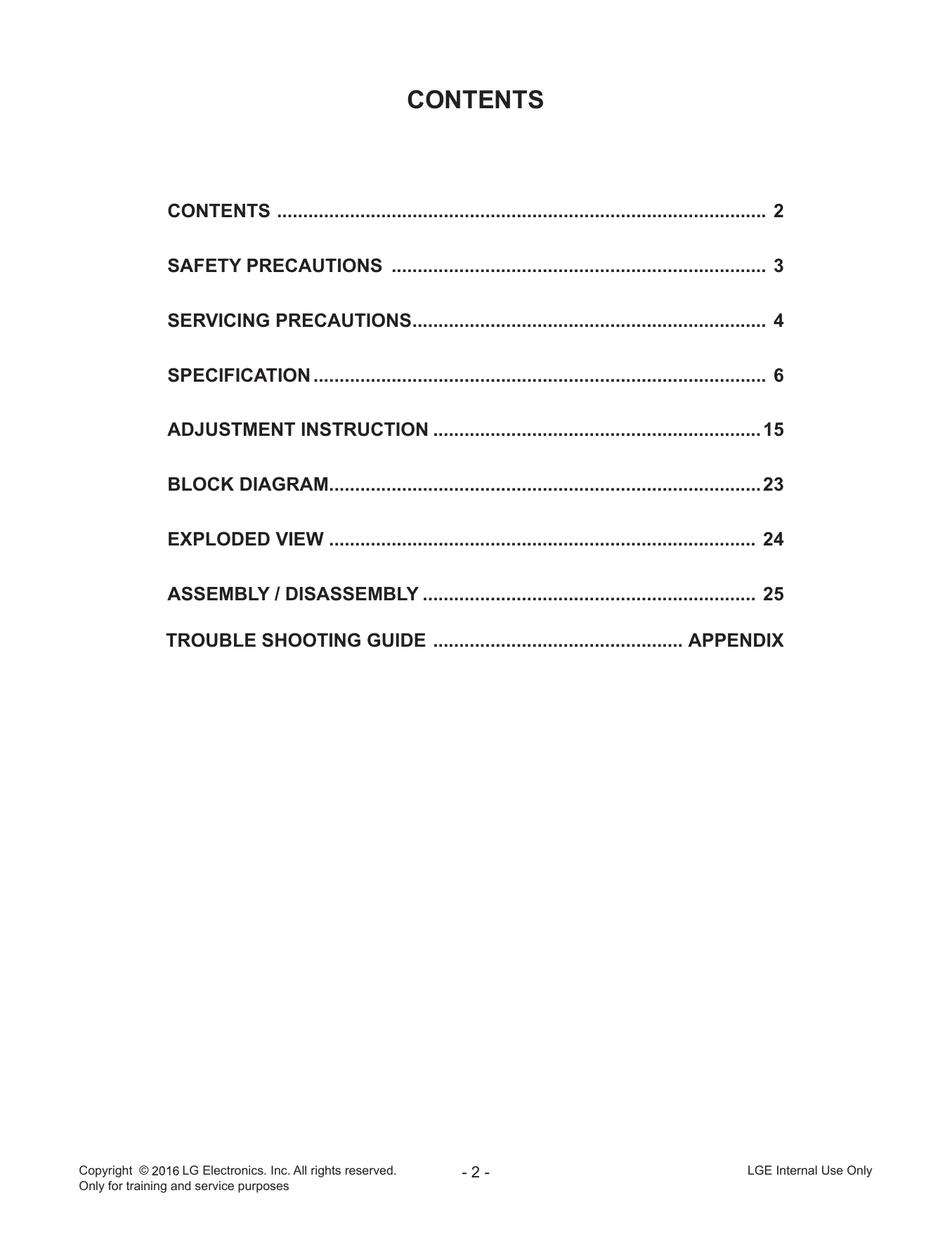

CONTENTS
CONTENTS .............................................................................................. 2
SAFETY PRECAUTIONS ........................................................................ 3
SERVICING PRECAUTIONS.................................................................... 4

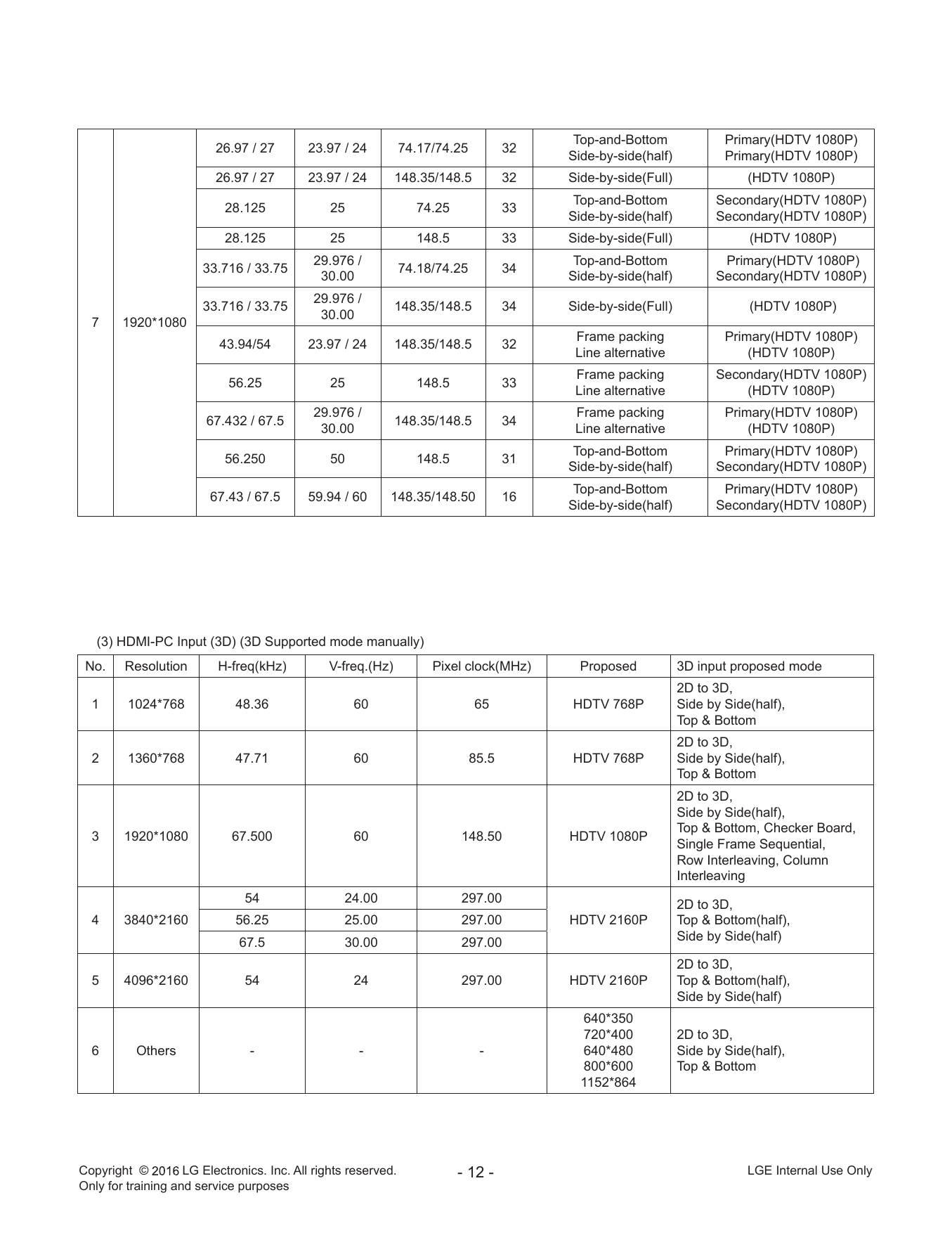

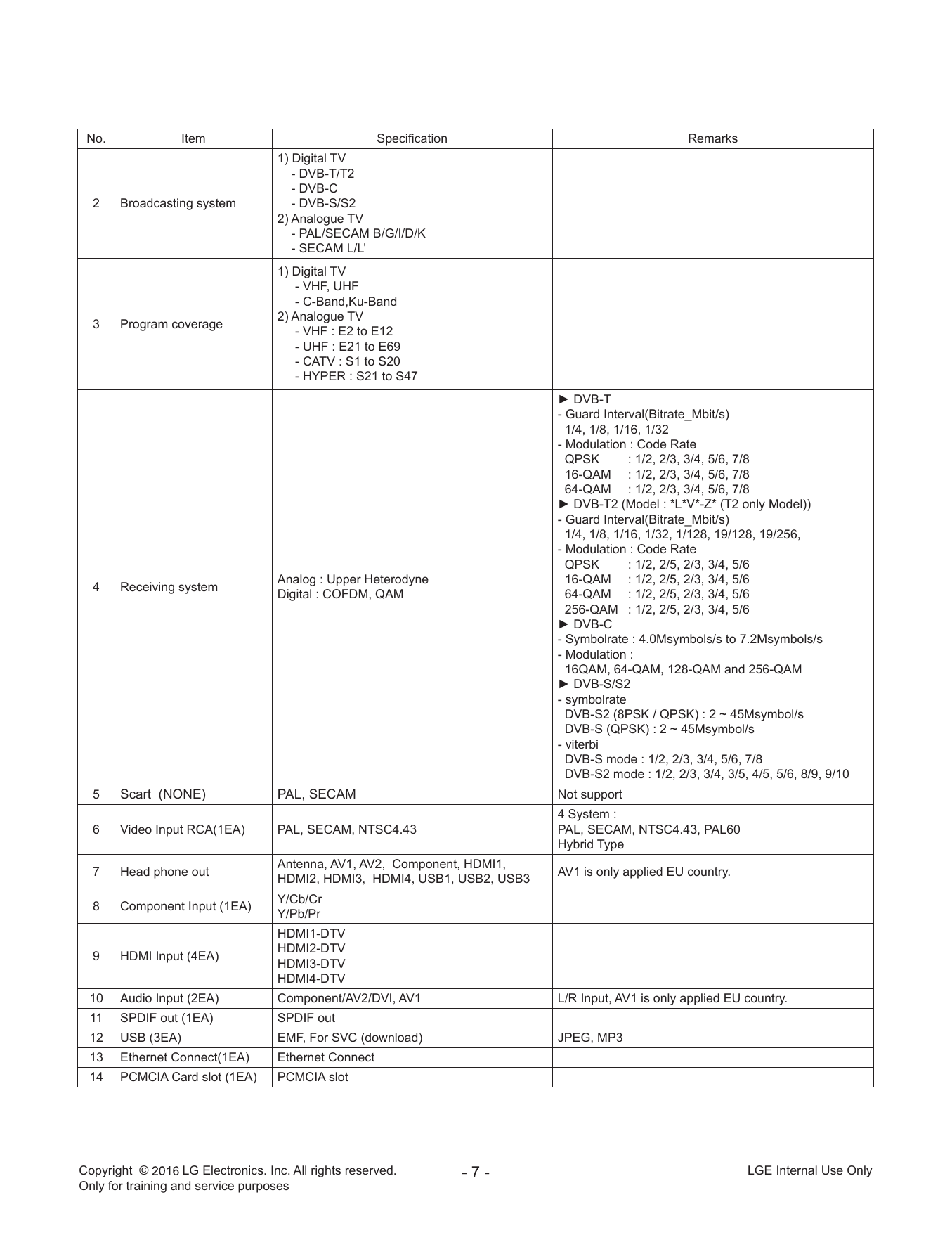

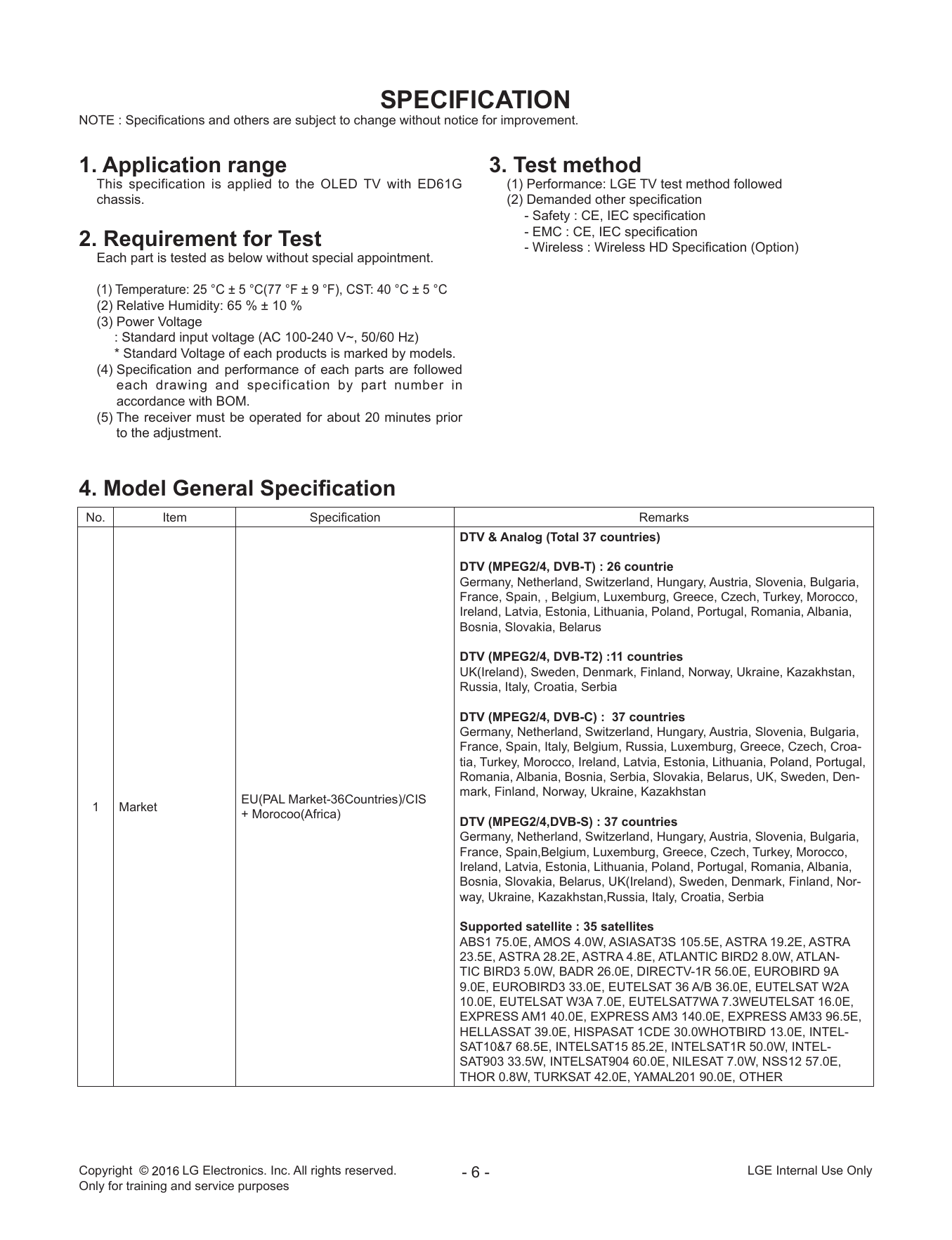

SPECIFICATION ....................................................................................... 6

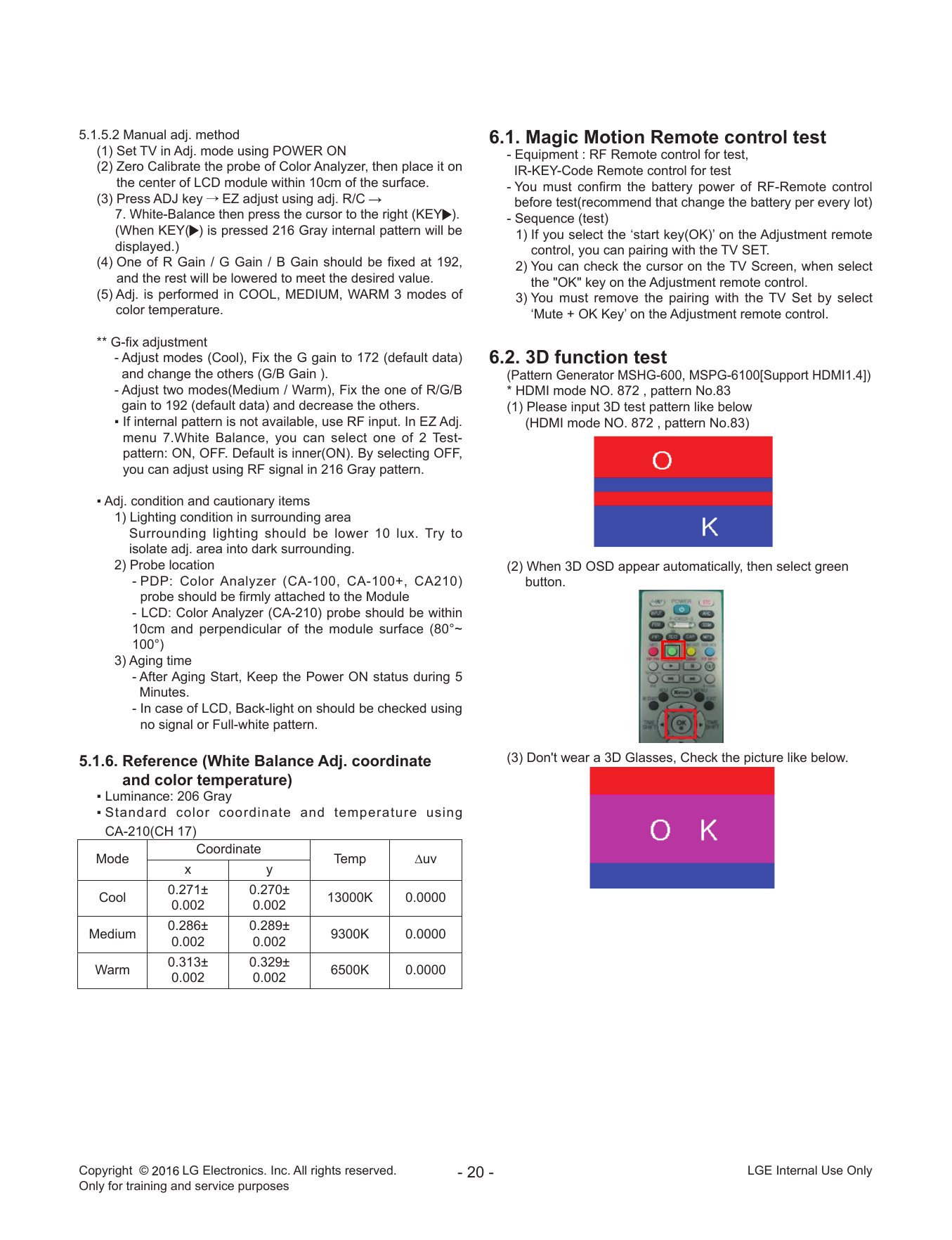

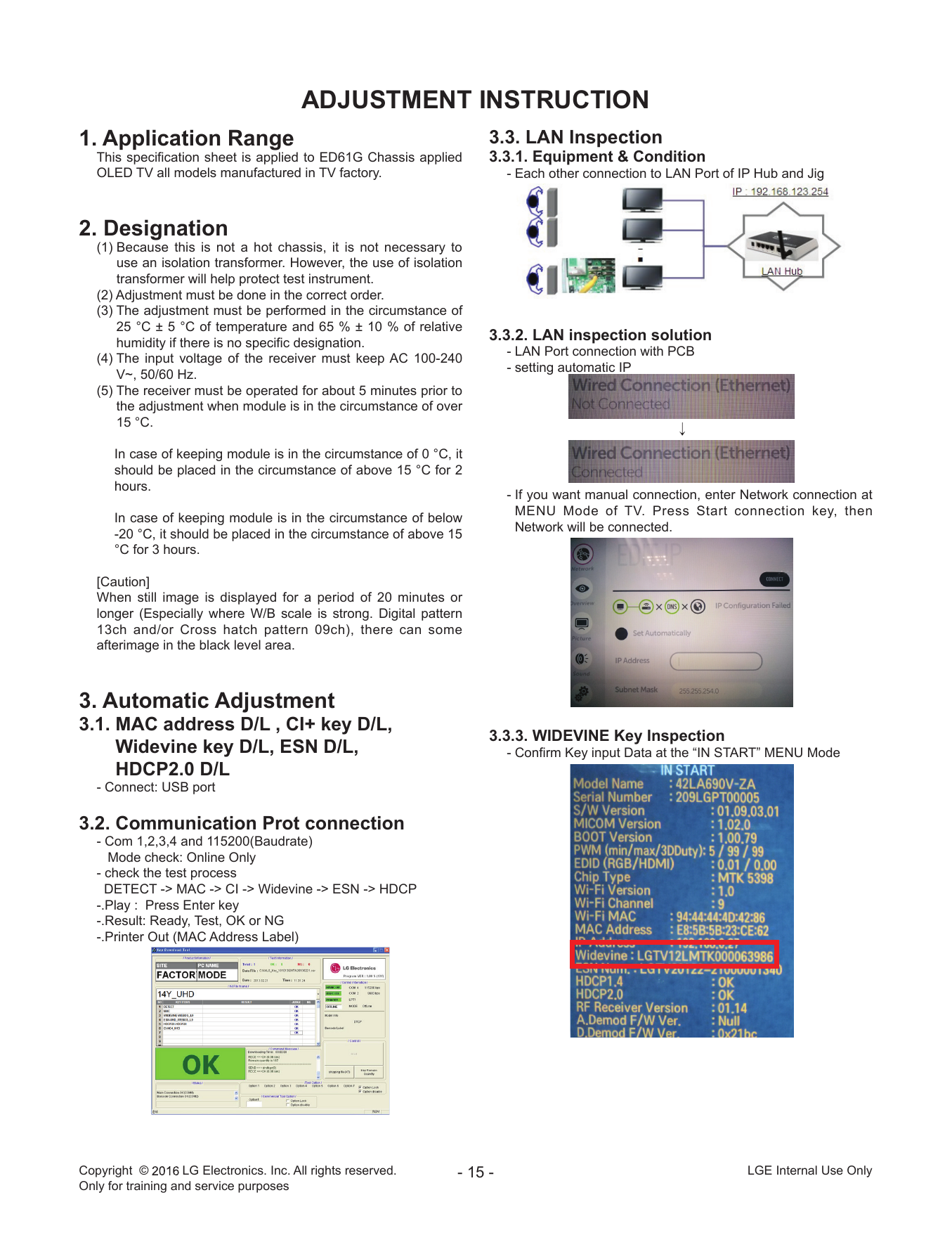

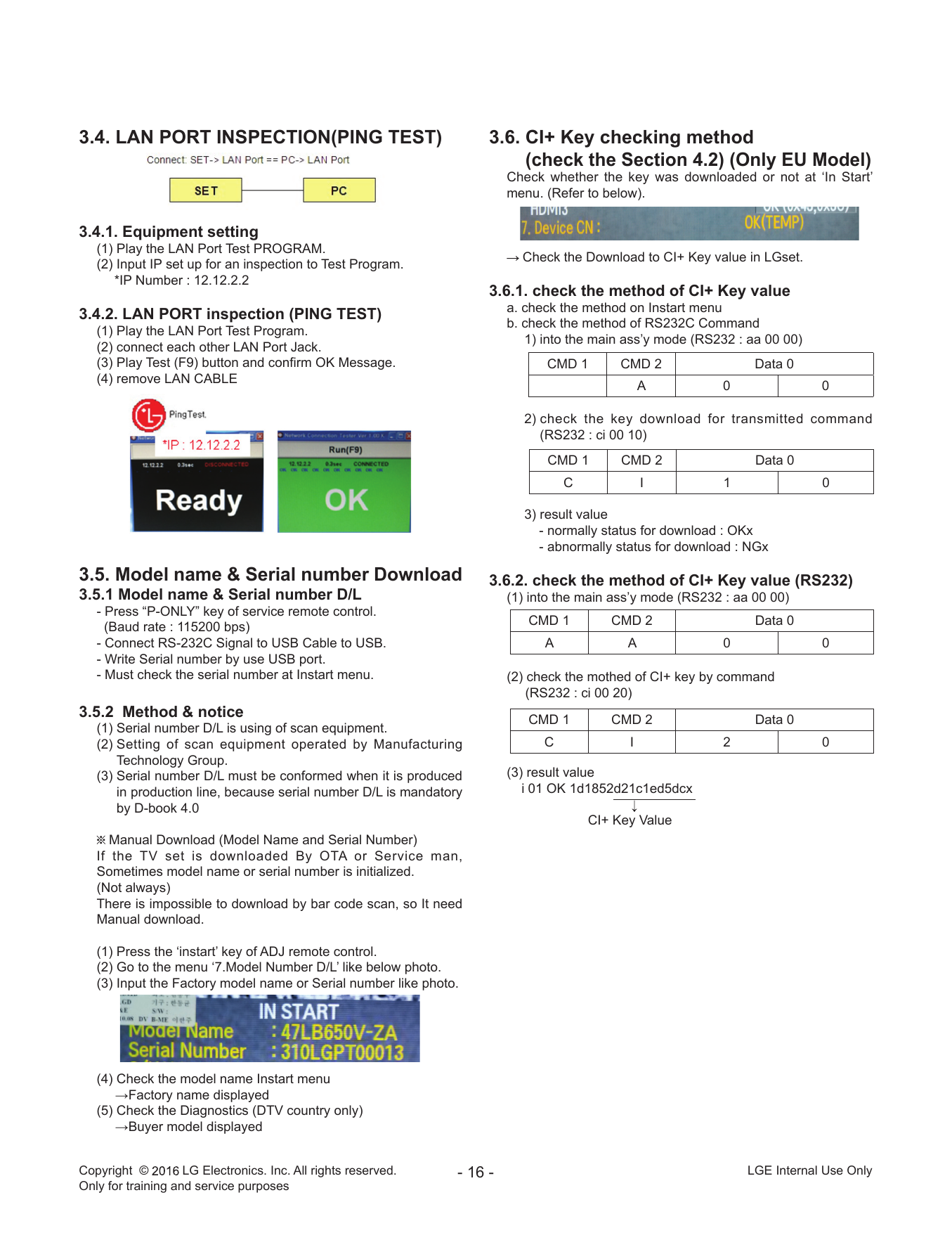

ADJUSTMENT INSTRUCTION ............................................................... 15

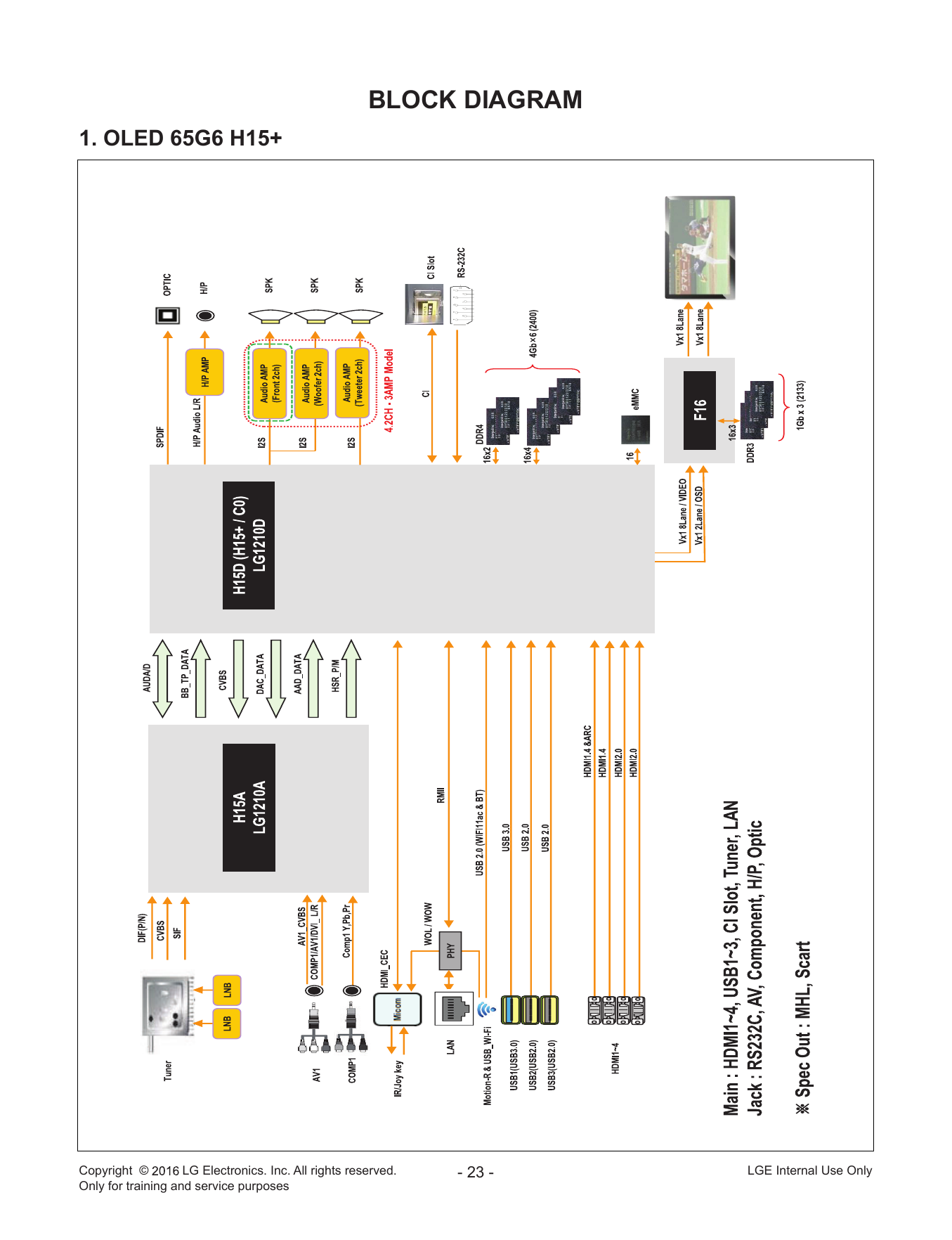

BLOCK DIAGRAM................................................................................... 23

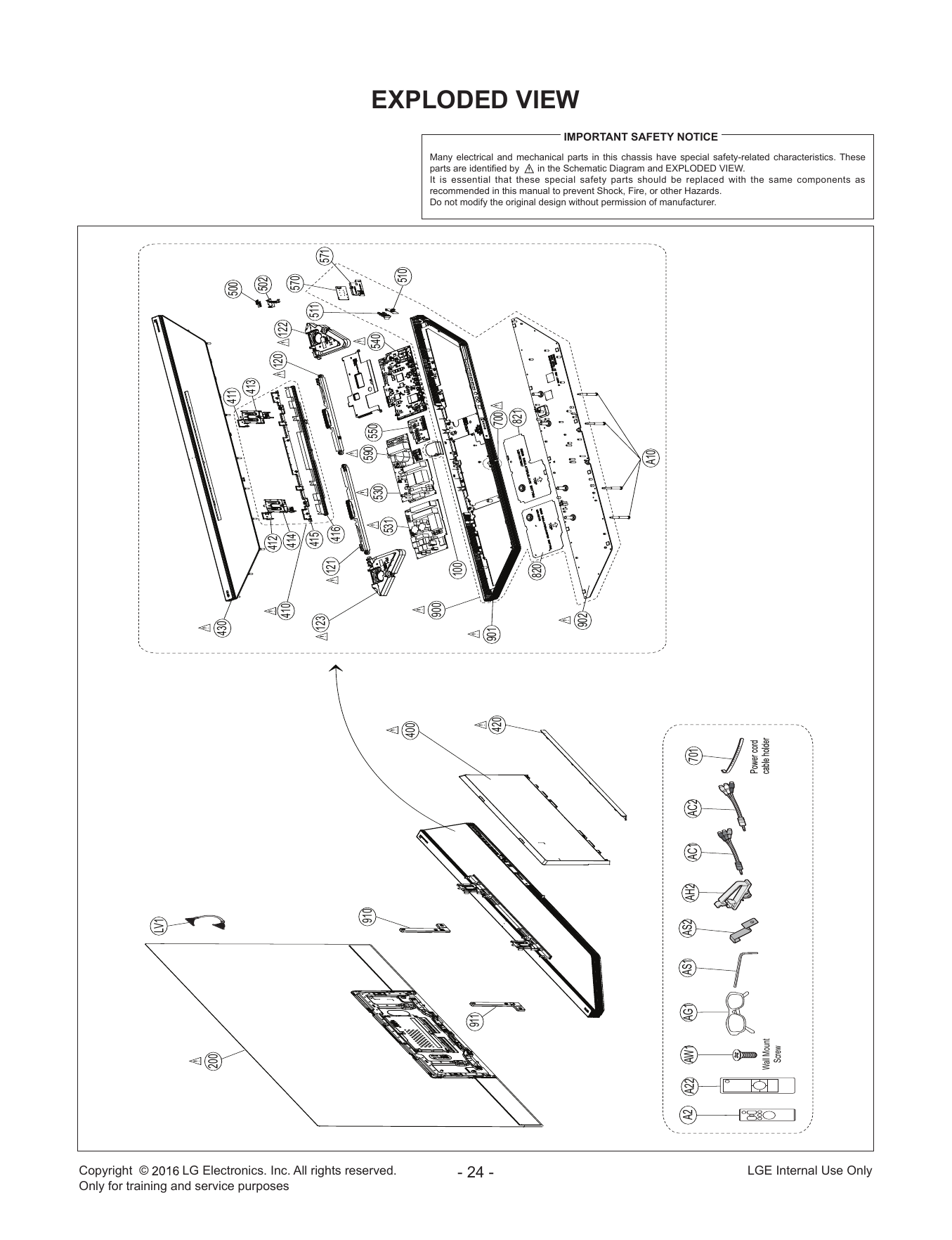

EXPLODED VIEW .................................................................................. 24

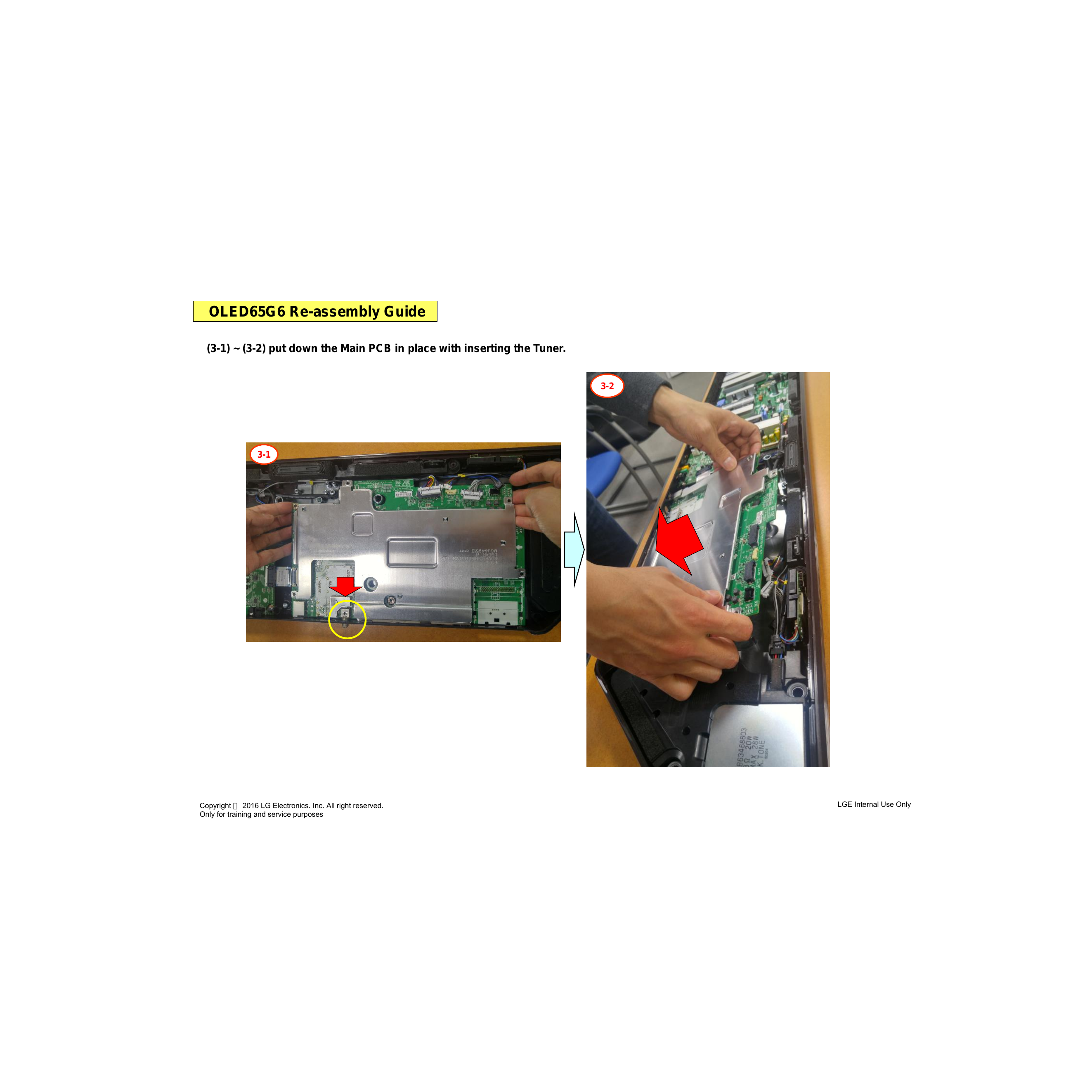

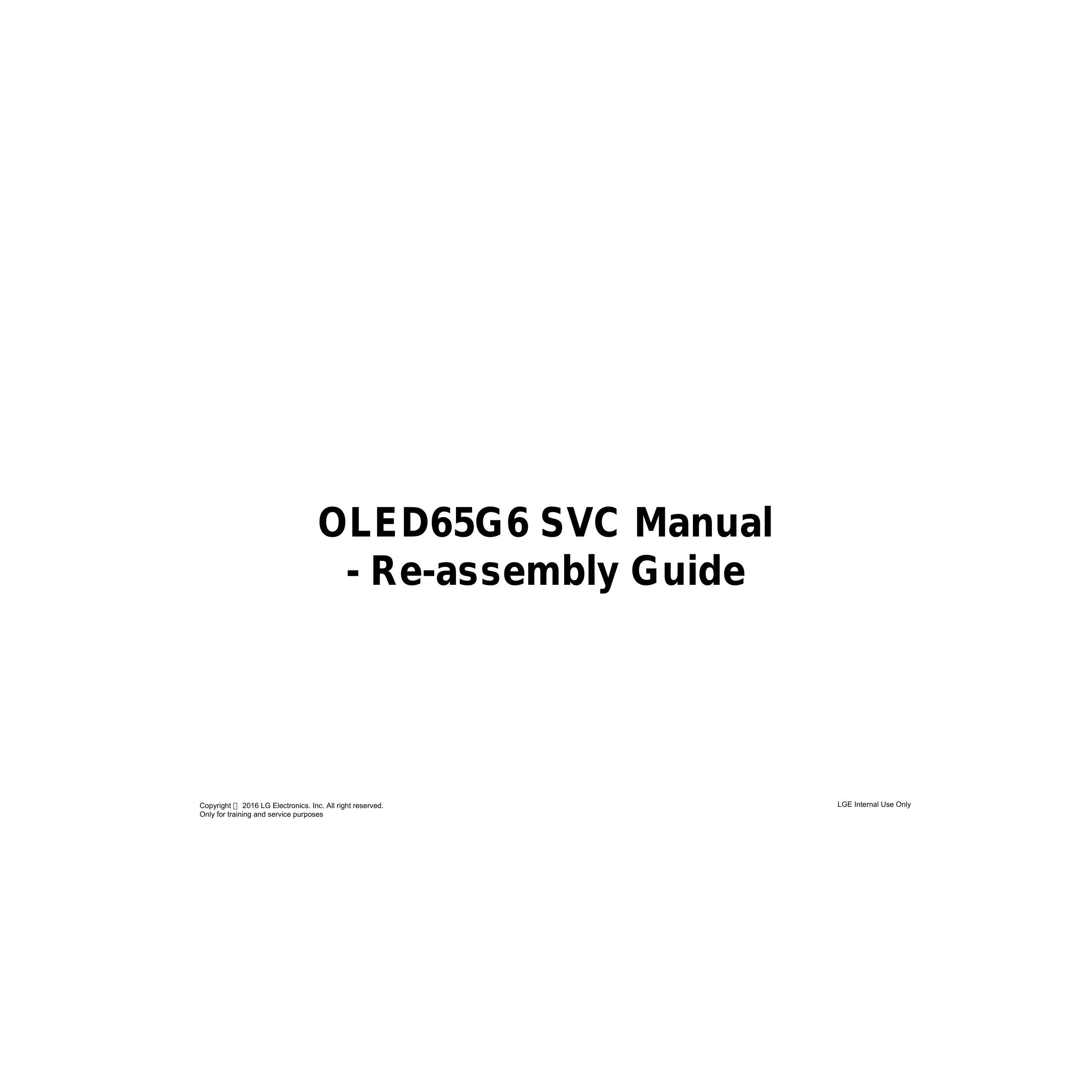

ASSEMBLY / DISASSEMBLY ................................................................ 25
TROUBLE SHOOTING GUIDE ................................................ APPENDIX
Copyright © LG Electronics. Inc. All rights reserved. -2- LGE Internal Use Only
Only for training and service purposes
SAFETY PRECAUTIONS
IMPORTANT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC Do not use a line Isolation Transformer during this check.
power line. Use a transformer of adequate power rating as this Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
protects the technician from accidents resulting in personal injury between a known good earth ground (Water Pipe, Conduit, etc.)
from electrical shocks. and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
It will also protect the receiver and it's components from being with 1000 ohms/volt or more sensitivity.
damaged by accidental shorts of the circuitry that may be Reverse plug the AC cord into the AC outlet and repeat AC voltage
inadvertently introduced during the service operation. measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
If any fuse (or Fusible Resistor) in this TV receiver is blown, 0.5 mA.
replace it with the specified. In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
When replacing a high wattage resistor (Oxide Metal Film Resistor, repaired before it is returned to the customer.
over 1 W), keep the resistor 10 mm away from PCB.
Leakage Current Hot Check circuit
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Copyright © LG Electronics. Inc. All rights reserved. -3- LGE Internal Use Only
Only for training and service purposes
SERVICING PRECAUTIONS
CAUTION: Before servicing receivers covered by this service 2. After removing an electrical assembly equipped with ES
manual and its supplements and addenda, read and follow the devices, place the assembly on a conductive surface such as
SAFETY PRECAUTIONS on page 3 of this publication. aluminum foil, to prevent electrostatic charge buildup or expo-
NOTE: If unforeseen circumstances create conflict between the sure of the assembly.
following servicing precautions and any of the safety precautions 3. Use only a grounded-tip soldering iron to solder or unsolder
on page 3 of this publication, always follow the safety precau- ES devices.
tions. Remember: Safety First. 4. Use only an anti-static type solder removal device. Some sol-
der removal devices not classified as “anti-static” can generate
General Servicing Precautions electrical charges sufficient to damage ES devices.
1. Always unplug the receiver AC power cord from the AC power 5. Do not use freon-propelled chemicals. These can generate
source before; electrical charges sufficient to damage ES devices.
a. Removing or reinstalling any component, circuit board 6. Do not remove a replacement ES device from its protective
module or any other receiver assembly. package until immediately before you are ready to install it.
b. Disconnecting or reconnecting any receiver electrical plug (Most replacement ES devices are packaged with leads elec-
or other electrical connection. trically shorted together by conductive foam, aluminum foil or
c. Connecting a test substitute in parallel with an electrolytic comparable conductive material).
capacitor in the receiver. 7. Immediately before removing the protective material from the
CAUTION: A wrong part substitution or incorrect polarity leads of a replacement ES device, touch the protective mate-
installation of electrolytic capacitors may result in an explo- rial to the chassis or circuit assembly into which the device will
sion hazard. be installed.
2. Test high voltage only by measuring it with an appropriate CAUTION: Be sure no power is applied to the chassis or cir-
high voltage meter or other voltage measuring device (DVM, cuit, and observe all other safety precautions.
FETVOM, etc) equipped with a suitable high voltage probe. 8. Minimize bodily motions when handling unpackaged replace-
Do not test high voltage by "drawing an arc". ment ES devices. (Otherwise harmless motion such as the
3. Do not spray chemicals on or near this receiver or any of its brushing together of your clothes fabric or the lifting of your
assemblies. foot from a carpeted floor can generate static electricity suf-
4. Unless specified otherwise in this service manual, clean ficient to damage an ES device.)
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable General Soldering Guidelines
non-abrasive applicator; 10 % (by volume) Acetone and 90 % 1. Use a grounded-tip, low-wattage soldering iron and appropri-
(by volume) isopropyl alcohol (90 % - 99 % strength) ate tip size and shape that will maintain tip temperature within
CAUTION: This is a flammable mixture. the range or 500 °F to 600 °F.
Unless specified otherwise in this service manual, lubrication 2. Use an appropriate gauge of RMA resin-core solder composed
of contacts in not required. of 60 parts tin/40 parts lead.
5. Do not defeat any plug/socket B+ voltage interlocks with which 3. Keep the soldering iron tip clean and well tinned.
receivers covered by this service manual might be equipped. 4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
6. Do not apply AC power to this instrument and/or any of its bristle (0.5 inch, or 1.25 cm) brush with a metal handle.
electrical assemblies unless all solid-state device heat sinks Do not use freon-propelled spray-on cleaners.
are correctly installed. 5. Use the following unsoldering technique
7. Always connect the test receiver ground lead to the receiver a. Allow the soldering iron tip to reach normal temperature.
chassis ground before connecting the test receiver positive (500 °F to 600 °F)
lead. b. Heat the component lead until the solder melts.
Always remove the test receiver ground lead last. c. Quickly draw the melted solder with an anti-static, suction-
8. Use with this receiver only the test fixtures specified in this type solder removal device or with solder braid.
service manual. CAUTION: Work quickly to avoid overheating the circuit
CAUTION: Do not connect the test fixture ground strap to any board printed foil.
heat sink in this receiver. 6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
Electrostatically Sensitive (ES) Devices (500 °F to 600 °F)
Some semiconductor (solid-state) devices can be damaged eas- b. First, hold the soldering iron tip and solder the strand
ily by static electricity. Such components commonly are called against the component lead until the solder melts.
Electrostatically Sensitive (ES) Devices. Examples of typical ES c. Quickly move the soldering iron tip to the junction of the
devices are integrated circuits and some field-effect transistors component lead and the printed circuit foil, and hold it there
and semiconductor “chip” components. The following techniques only until the solder flows onto and around both the compo-
should be used to help reduce the incidence of component dam- nent lead and the foil.
age caused by static by static electricity. CAUTION: Work quickly to avoid overheating the circuit
1. Immediately before handling any semiconductor component or board printed foil.
semiconductor-equipped assembly, drain off any electrostatic d. Closely inspect the solder area and remove any excess or
charge on your body by touching a known earth ground. Alter- splashed solder with a small wire-bristle brush.
natively, obtain and wear a commercially available discharg-
ing wrist strap device, which should be removed to prevent
potential shock reasons prior to applying power to the unit
under test.
Copyright © LG Electronics. Inc. All rights reserved. -4- LGE Internal Use Only
Only for training and service purposes
IC Remove/Replacement 3. Solder the connections.
Some chassis circuit boards have slotted holes (oblong) through CAUTION: Maintain original spacing between the replaced
which the IC leads are inserted and then bent flat against the cir- component and adjacent components and the circuit board to
cuit foil. When holes are the slotted type, the following technique prevent excessive component temperatures.
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique Circuit Board Foil Repair
as outlined in paragraphs 5 and 6 above. Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
Removal board causing the foil to separate from or "lift-off" the board. The
1. Desolder and straighten each IC lead in one operation by following guidelines and procedures should be followed when-
gently prying up on the lead with the soldering iron tip as the ever this condition is encountered.
solder melts.
2. Draw away the melted solder with an anti-static suction-type At IC Connections
solder removal device (or with solder braid) before removing To repair a defective copper pattern at IC connections use the
the IC. following procedure to install a jumper wire on the copper pattern
Replacement side of the circuit board. (Use this technique only on IC connec-
1. Carefully insert the replacement IC in the circuit board. tions).
2. Carefully bend each IC lead against the circuit foil pad and
solder it. 1. Carefully remove the damaged copper pattern with a sharp
3. Clean the soldered areas with a small wire-bristle brush. knife. (Remove only as much copper as absolutely necessary).
(It is not necessary to reapply acrylic coating to the areas). 2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
"Small-Signal" Discrete Transistor 3. Bend a small "U" in one end of a small gauge jumper wire and
Removal/Replacement carefully crimp it around the IC pin. Solder the IC connection.
1. Remove the defective transistor by clipping its leads as close 4. Route the jumper wire along the path of the out-away copper
as possible to the component body. pattern and let it overlap the previously scraped end of the
2. Bend into a "U" shape the end of each of three leads remain- good copper pattern. Solder the overlapped area and clip off
ing on the circuit board. any excess jumper wire.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding At Other Connections
leads extending from the circuit board and crimp the "U" with Use the following technique to repair the defective copper pattern
long nose pliers to insure metal to metal contact then solder at connections other than IC Pins. This technique involves the
each connection. installation of a jumper wire on the component side of the circuit
board.
Power Output, Transistor Device
Removal/Replacement 1. Remove the defective copper pattern with a sharp knife.
1. Heat and remove all solder from around the transistor leads. Remove at least 1/4 inch of copper, to ensure that a hazardous
2. Remove the heat sink mounting screw (if so equipped). condition will not exist if the jumper wire opens.
3. Carefully remove the transistor from the heat sink of the circuit 2. Trace along the copper pattern from both sides of the pattern
board. break and locate the nearest component that is directly con-
4. Insert new transistor in the circuit board. nected to the affected copper pattern.
5. Solder each transistor lead, and clip off excess lead. 3. Connect insulated 20-gauge jumper wire from the lead of the
6. Replace heat sink. nearest component on one side of the pattern break to the
lead of the nearest component on the other side.
Diode Removal/Replacement Carefully crimp and solder the connections.
1. Remove defective diode by clipping its leads as close as pos- CAUTION: Be sure the insulated jumper wire is dressed so the
sible to diode body. it does not touch components or sharp edges.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and
if necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
Copyright © LG Electronics. Inc. All rights reserved. -5- LGE Internal Use Only
Only for training and service purposes
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement.
1. Application range 3. Test method
This specification is applied to the OLED TV with ED61G (1) Performance: LGE TV test method followed
chassis. (2) Demanded other specification
- Safety : CE, IEC specification
- EMC : CE, IEC specification
2. Requirement for Test - Wireless : Wireless HD Specification (Option)
Each part is tested as below without special appointment.
(1) Temperature: 25 °C ± 5 °C(77 °F ± 9 °F), CST: 40 °C ± 5 °C
(2) Relative Humidity: 65 % ± 10 %
(3) Power Voltage
: Standard input voltage (AC 100-240 V~, 50/60 Hz)
* Standard Voltage of each products is marked by models.
(4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
(5) The receiver must be operated for about 20 minutes prior
to the adjustment.
4. Model General Specification
No. Item Specification Remarks
DTV & Analog (Total 37 countries)
DTV (MPEG2/4, DVB-T) : 26 countrie
Germany, Netherland, Switzerland, Hungary, Austria, Slovenia, Bulgaria,
France, Spain, , Belgium, Luxemburg, Greece, Czech, Turkey, Morocco,
Ireland, Latvia, Estonia, Lithuania, Poland, Portugal, Romania, Albania,
Bosnia, Slovakia, Belarus
DTV (MPEG2/4, DVB-T2) :11 countries
UK(Ireland), Sweden, Denmark, Finland, Norway, Ukraine, Kazakhstan,
Russia, Italy, Croatia, Serbia
DTV (MPEG2/4, DVB-C) : 37 countries
Germany, Netherland, Switzerland, Hungary, Austria, Slovenia, Bulgaria,
France, Spain, Italy, Belgium, Russia, Luxemburg, Greece, Czech, Croa-
tia, Turkey, Morocco, Ireland, Latvia, Estonia, Lithuania, Poland, Portugal,
Romania, Albania, Bosnia, Serbia, Slovakia, Belarus, UK, Sweden, Den-
mark, Finland, Norway, Ukraine, Kazakhstan
EU(PAL Market-36Countries)/CIS
1 Market
+ Morocoo(Africa)
DTV (MPEG2/4,DVB-S) : 37 countries
Germany, Netherland, Switzerland, Hungary, Austria, Slovenia, Bulgaria,
France, Spain,Belgium, Luxemburg, Greece, Czech, Turkey, Morocco,
Ireland, Latvia, Estonia, Lithuania, Poland, Portugal, Romania, Albania,
Bosnia, Slovakia, Belarus, UK(Ireland), Sweden, Denmark, Finland, Nor-
way, Ukraine, Kazakhstan,Russia, Italy, Croatia, Serbia
Supported satellite : 35 satellites
ABS1 75.0E, AMOS 4.0W, ASIASAT3S 105.5E, ASTRA 19.2E, ASTRA
23.5E, ASTRA 28.2E, ASTRA 4.8E, ATLANTIC BIRD2 8.0W, ATLAN-
TIC BIRD3 5.0W, BADR 26.0E, DIRECTV-1R 56.0E, EUROBIRD 9A
9.0E, EUROBIRD3 33.0E, EUTELSAT 36 A/B 36.0E, EUTELSAT W2A
10.0E, EUTELSAT W3A 7.0E, EUTELSAT7WA 7.3WEUTELSAT 16.0E,
EXPRESS AM1 40.0E, EXPRESS AM3 140.0E, EXPRESS AM33 96.5E,
HELLASSAT 39.0E, HISPASAT 1CDE 30.0WHOTBIRD 13.0E, INTEL-
SAT10&7 68.5E, INTELSAT15 85.2E, INTELSAT1R 50.0W, INTEL-
SAT903 33.5W, INTELSAT904 60.0E, NILESAT 7.0W, NSS12 57.0E,
THOR 0.8W, TURKSAT 42.0E, YAMAL201 90.0E, OTHER
Copyright © LG Electronics. Inc. All rights reserved. -6- LGE Internal Use Only
Only for training and service purposes
No. Item Specification Remarks
1) Digital TV
- DVB-T/T2
- DVB-C
2 Broadcasting system - DVB-S/S2
2) Analogue TV
- PAL/SECAM B/G/I/D/K
- SECAM L/L’
1) Digital TV
- VHF, UHF
- C-Band,Ku-Band
2) Analogue TV
3 Program coverage
- VHF : E2 to E12
- UHF : E21 to E69
- CATV : S1 to S20
- HYPER : S21 to S47
► DVB-T
- Guard Interval(Bitrate_Mbit/s)
1/4, 1/8, 1/16, 1/32
- Modulation : Code Rate
QPSK : 1/2, 2/3, 3/4, 5/6, 7/8
16-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
64-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
► DVB-T2 (Model : *L*V*-Z* (T2 only Model))
- Guard Interval(Bitrate_Mbit/s)
1/4, 1/8, 1/16, 1/32, 1/128, 19/128, 19/256,
- Modulation : Code Rate
QPSK : 1/2, 2/5, 2/3, 3/4, 5/6
Analog : Upper Heterodyne 16-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
4 Receiving system
Digital : COFDM, QAM 64-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
256-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
► DVB-C
- Symbolrate : 4.0Msymbols/s to 7.2Msymbols/s
- Modulation :
16QAM, 64-QAM, 128-QAM and 256-QAM
► DVB-S/S2
- symbolrate
DVB-S2 (8PSK / QPSK) : 2 ~ 45Msymbol/s
DVB-S (QPSK) : 2 ~ 45Msymbol/s
- viterbi
DVB-S mode : 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2 mode : 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10
5 Scart (NONE) PAL, SECAM Not support
4 System :
6 Video Input RCA(1EA) PAL, SECAM, NTSC4.43 PAL, SECAM, NTSC4.43, PAL60
Hybrid Type
Antenna, AV1, AV2, Component, HDMI1,
7 Head phone out AV1 is only applied EU country.
HDMI2, HDMI3, HDMI4, USB1, USB2, USB3
Y/Cb/Cr
8 Component Input (1EA)
Y/Pb/Pr
HDMI1-DTV
HDMI2-DTV
9 HDMI Input (4EA)
HDMI3-DTV
HDMI4-DTV
10 Audio Input (2EA) Component/AV2/DVI, AV1 L/R Input, AV1 is only applied EU country.
11 SPDIF out (1EA) SPDIF out
12 USB (3EA) EMF, For SVC (download) JPEG, MP3
13 Ethernet Connect(1EA) Ethernet Connect
14 PCMCIA Card slot (1EA) PCMCIA slot
Copyright © LG Electronics. Inc. All rights reserved. -7- LGE Internal Use Only
Only for training and service purposes

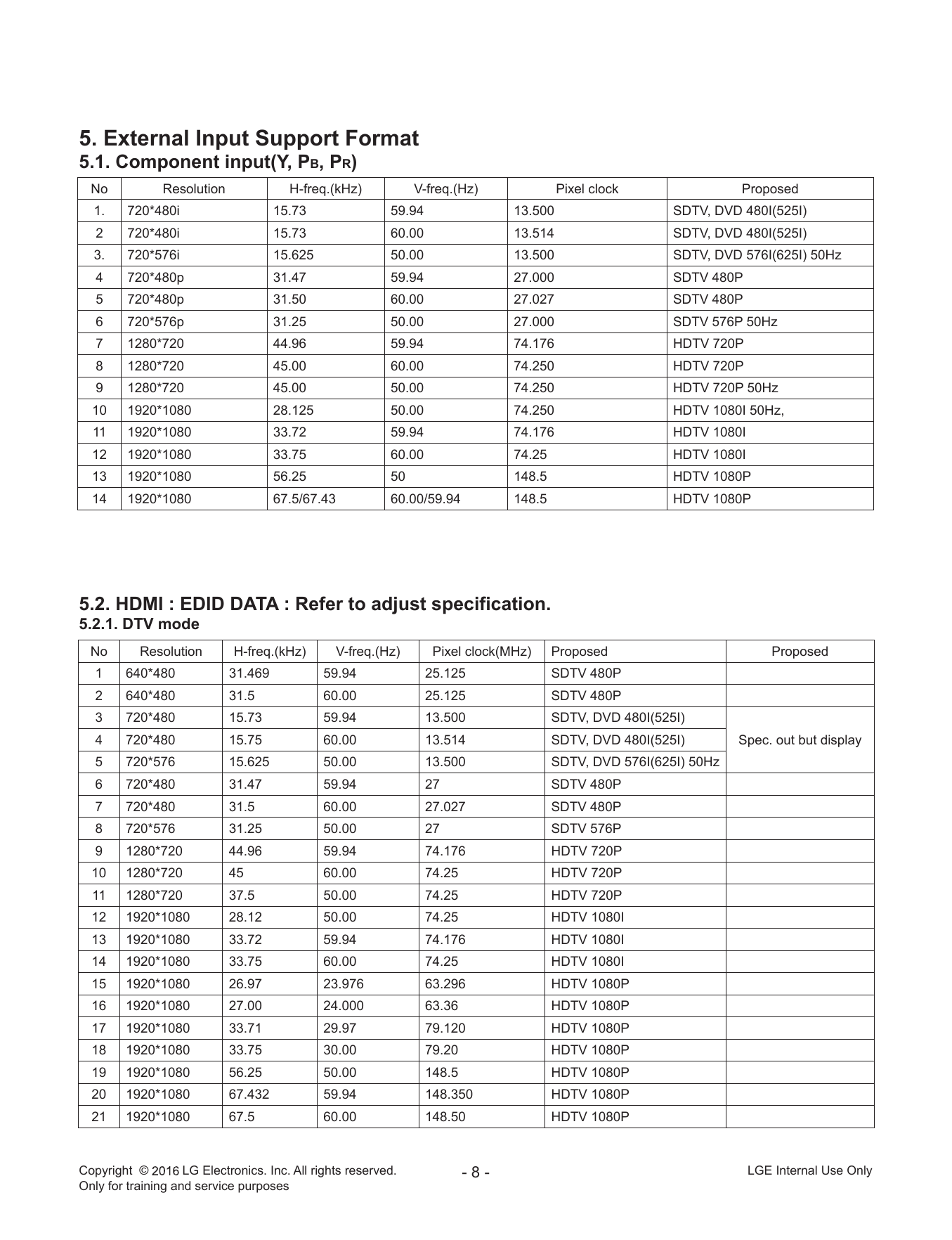

5. External Input Support Format
5.1. Component input(Y, PB, PR)
No Resolution H-freq.(kHz) V-freq.(Hz) Pixel clock Proposed
1. 720*480i 15.73 59.94 13.500 SDTV, DVD 480I(525I)
2 720*480i 15.73 60.00 13.514 SDTV, DVD 480I(525I)
3. 720*576i 15.625 50.00 13.500 SDTV, DVD 576I(625I) 50Hz
4 720*480p 31.47 59.94 27.000 SDTV 480P
5 720*480p 31.50 60.00 27.027 SDTV 480P
6 720*576p 31.25 50.00 27.000 SDTV 576P 50Hz
7 1280*720 44.96 59.94 74.176 HDTV 720P
8 1280*720 45.00 60.00 74.250 HDTV 720P
9 1280*720 45.00 50.00 74.250 HDTV 720P 50Hz
10 1920*1080 28.125 50.00 74.250 HDTV 1080I 50Hz,
11 1920*1080 33.72 59.94 74.176 HDTV 1080I
12 1920*1080 33.75 60.00 74.25 HDTV 1080I
13 1920*1080 56.25 50 148.5 HDTV 1080P
14 1920*1080 67.5/67.43 60.00/59.94 148.5 HDTV 1080P
5.2. HDMI : EDID DATA : Refer to adjust specification.
5.2.1. DTV mode
No Resolution H-freq.(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Proposed
1 640*480 31.469 59.94 25.125 SDTV 480P
2 640*480 31.5 60.00 25.125 SDTV 480P
3 720*480 15.73 59.94 13.500 SDTV, DVD 480I(525I)
4 720*480 15.75 60.00 13.514 SDTV, DVD 480I(525I) Spec. out but display
5 720*576 15.625 50.00 13.500 SDTV, DVD 576I(625I) 50Hz
6 720*480 31.47 59.94 27 SDTV 480P
7 720*480 31.5 60.00 27.027 SDTV 480P
8 720*576 31.25 50.00 27 SDTV 576P
9 1280*720 44.96 59.94 74.176 HDTV 720P
10 1280*720 45 60.00 74.25 HDTV 720P
11 1280*720 37.5 50.00 74.25 HDTV 720P
12 1920*1080 28.12 50.00 74.25 HDTV 1080I
13 1920*1080 33.72 59.94 74.176 HDTV 1080I
14 1920*1080 33.75 60.00 74.25 HDTV 1080I
15 1920*1080 26.97 23.976 63.296 HDTV 1080P
16 1920*1080 27.00 24.000 63.36 HDTV 1080P
17 1920*1080 33.71 29.97 79.120 HDTV 1080P
18 1920*1080 33.75 30.00 79.20 HDTV 1080P
19 1920*1080 56.25 50.00 148.5 HDTV 1080P
20 1920*1080 67.432 59.94 148.350 HDTV 1080P
21 1920*1080 67.5 60.00 148.50 HDTV 1080P
Copyright © LG Electronics. Inc. All rights reserved. -8- LGE Internal Use Only
Only for training and service purposes

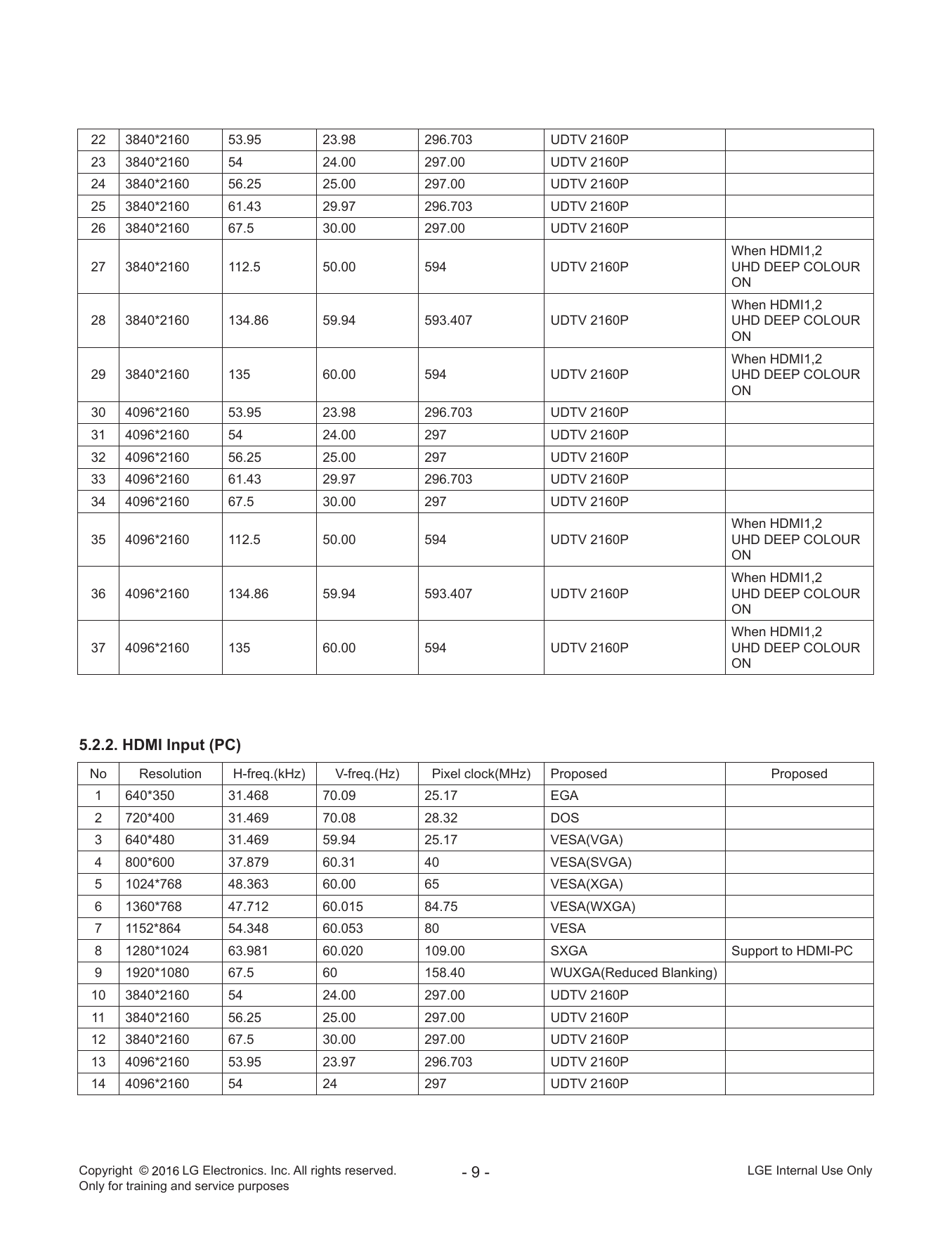

22 3840*2160 53.95 23.98 296.703 UDTV 2160P
23 3840*2160 54 24.00 297.00 UDTV 2160P
24 3840*2160 56.25 25.00 297.00 UDTV 2160P
25 3840*2160 61.43 29.97 296.703 UDTV 2160P
26 3840*2160 67.5 30.00 297.00 UDTV 2160P
When HDMI1,2
27 3840*2160 112.5 50.00 594 UDTV 2160P UHD DEEP COLOUR
ON
When HDMI1,2
28 3840*2160 134.86 59.94 593.407 UDTV 2160P UHD DEEP COLOUR
ON
When HDMI1,2
29 3840*2160 135 60.00 594 UDTV 2160P UHD DEEP COLOUR
ON
30 4096*2160 53.95 23.98 296.703 UDTV 2160P
31 4096*2160 54 24.00 297 UDTV 2160P
32 4096*2160 56.25 25.00 297 UDTV 2160P
33 4096*2160 61.43 29.97 296.703 UDTV 2160P
34 4096*2160 67.5 30.00 297 UDTV 2160P
When HDMI1,2
35 4096*2160 112.5 50.00 594 UDTV 2160P UHD DEEP COLOUR
ON
When HDMI1,2
36 4096*2160 134.86 59.94 593.407 UDTV 2160P UHD DEEP COLOUR
ON
When HDMI1,2
37 4096*2160 135 60.00 594 UDTV 2160P UHD DEEP COLOUR
ON
5.2.2. HDMI Input (PC)
No Resolution H-freq.(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Proposed
1 640*350 31.468 70.09 25.17 EGA
2 720*400 31.469 70.08 28.32 DOS
3 640*480 31.469 59.94 25.17 VESA(VGA)
4 800*600 37.879 60.31 40 VESA(SVGA)
5 1024*768 48.363 60.00 65 VESA(XGA)
6 1360*768 47.712 60.015 84.75 VESA(WXGA)
7 1152*864 54.348 60.053 80 VESA
8 1280*1024 63.981 60.020 109.00 SXGA Support to HDMI-PC
9 1920*1080 67.5 60 158.40 WUXGA(Reduced Blanking)
10 3840*2160 54 24.00 297.00 UDTV 2160P
11 3840*2160 56.25 25.00 297.00 UDTV 2160P
12 3840*2160 67.5 30.00 297.00 UDTV 2160P
13 4096*2160 53.95 23.97 296.703 UDTV 2160P
14 4096*2160 54 24 297 UDTV 2160P
Copyright © LG Electronics. Inc. All rights reserved. -9- LGE Internal Use Only
Only for training and service purposes

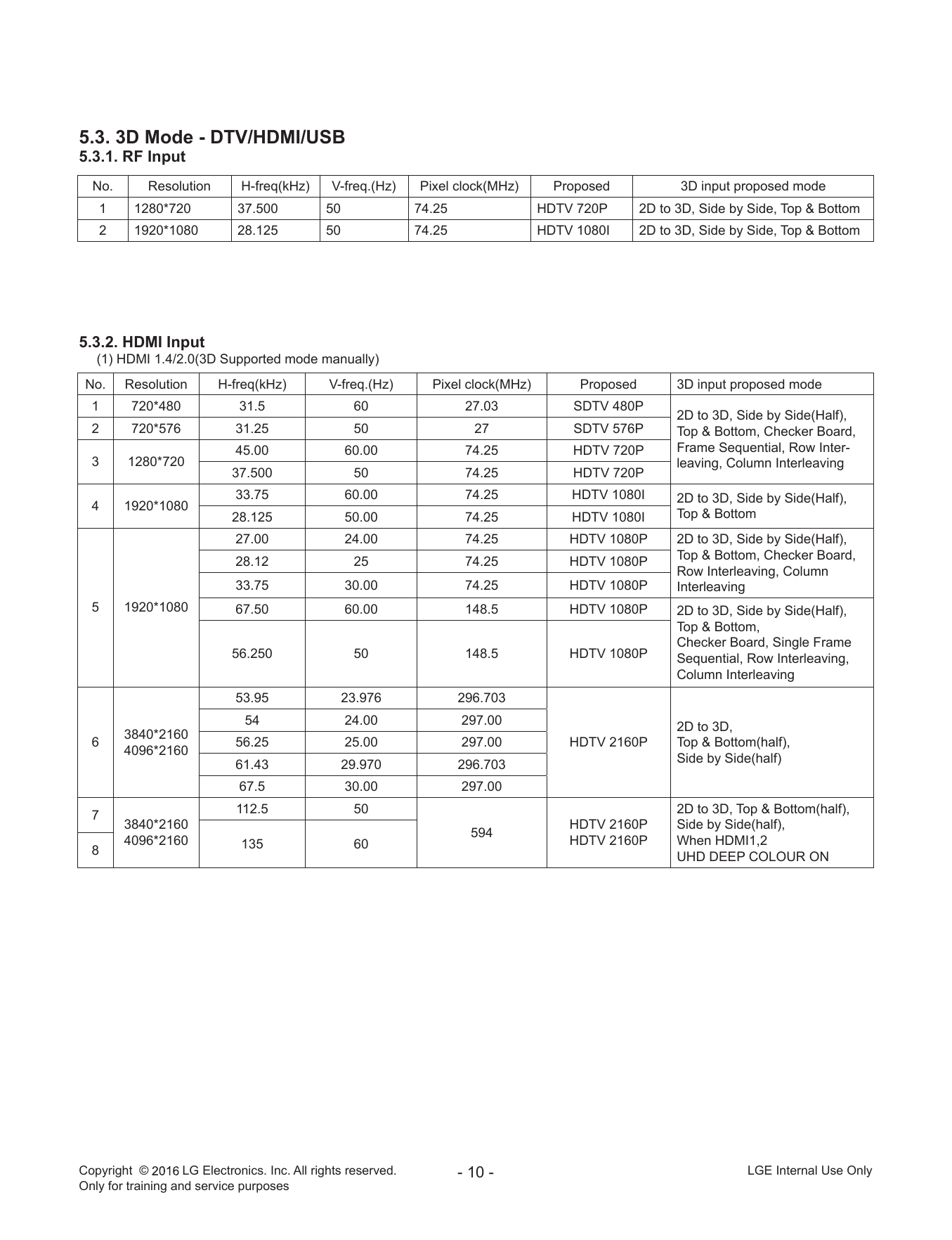

5.3. 3D Mode - DTV/HDMI/USB
5.3.1. RF Input
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode
1 1280*720 37.500 50 74.25 HDTV 720P 2D to 3D, Side by Side, Top & Bottom
2 1920*1080 28.125 50 74.25 HDTV 1080I 2D to 3D, Side by Side, Top & Bottom
5.3.2. HDMI Input
(1) HDMI 1.4/2.0(3D Supported mode manually)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode
1 720*480 31.5 60 27.03 SDTV 480P
2D to 3D, Side by Side(Half),
2 720*576 31.25 50 27 SDTV 576P Top & Bottom, Checker Board,
45.00 60.00 74.25 HDTV 720P Frame Sequential, Row Inter-
3 1280*720 leaving, Column Interleaving
37.500 50 74.25 HDTV 720P
33.75 60.00 74.25 HDTV 1080I 2D to 3D, Side by Side(Half),
4 1920*1080
28.125 50.00 74.25 HDTV 1080I Top & Bottom
27.00 24.00 74.25 HDTV 1080P 2D to 3D, Side by Side(Half),
28.12 25 74.25 HDTV 1080P Top & Bottom, Checker Board,
Row Interleaving, Column
33.75 30.00 74.25 HDTV 1080P Interleaving
5 1920*1080 67.50 60.00 148.5 HDTV 1080P 2D to 3D, Side by Side(Half),
Top & Bottom,
Checker Board, Single Frame
56.250 50 148.5 HDTV 1080P Sequential, Row Interleaving,
Column Interleaving
53.95 23.976 296.703
54 24.00 297.00 2D to 3D,
3840*2160
6 56.25 25.00 297.00 HDTV 2160P Top & Bottom(half),
4096*2160
61.43 29.970 296.703 Side by Side(half)
67.5 30.00 297.00
7 112.5 50 2D to 3D, Top & Bottom(half),
3840*2160 HDTV 2160P Side by Side(half),
594
4096*2160 135 60 HDTV 2160P When HDMI1,2
8 UHD DEEP COLOUR ON
Copyright © LG Electronics. Inc. All rights reserved. - 10 - LGE Internal Use Only
Only for training and service purposes

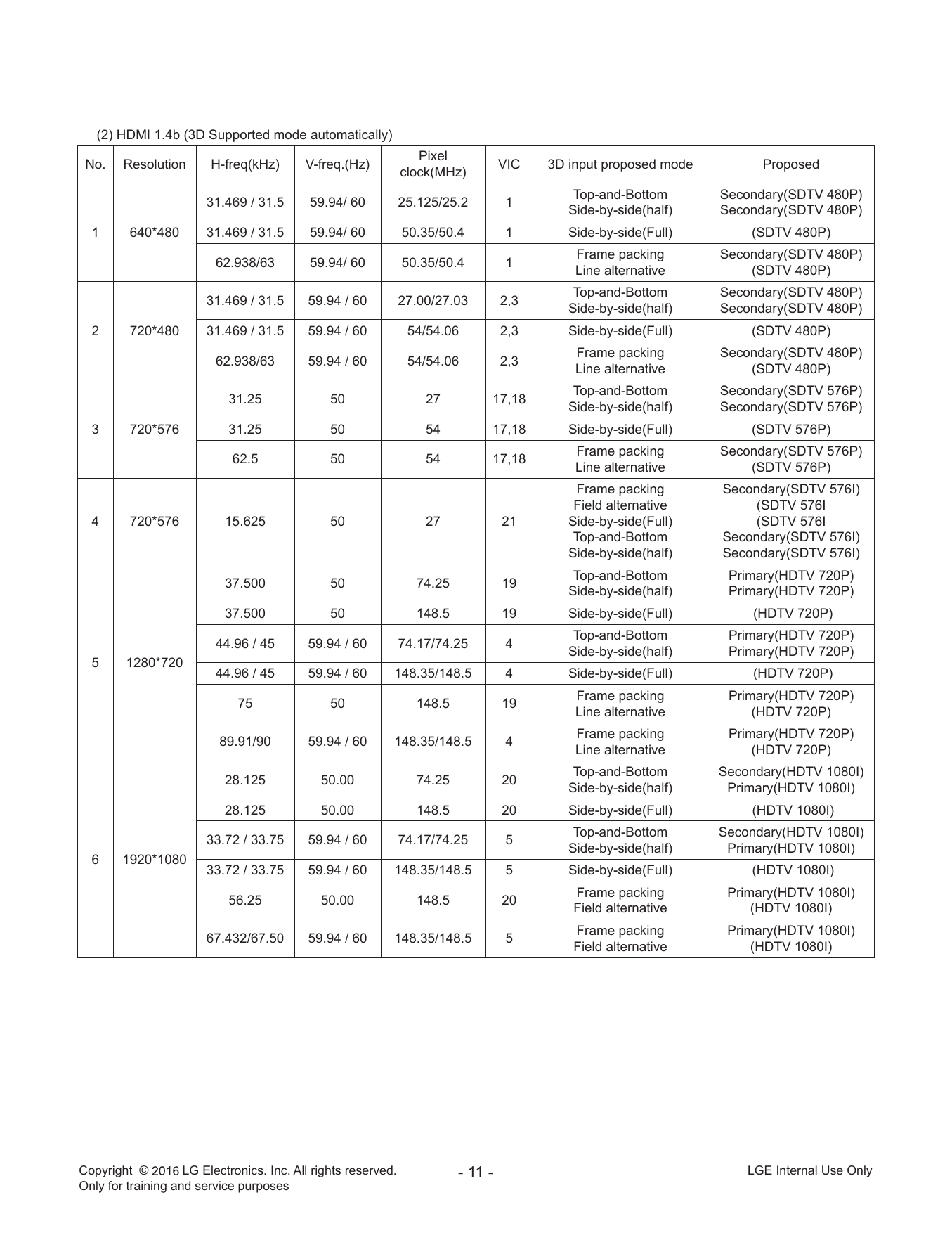

(2) HDMI 1.4b (3D Supported mode automatically)
Pixel
No. Resolution H-freq(kHz) V-freq.(Hz) VIC 3D input proposed mode Proposed
clock(MHz)
Top-and-Bottom Secondary(SDTV 480P)
31.469 / 31.5 59.94/ 60 25.125/25.2 1
Side-by-side(half) Secondary(SDTV 480P)
1 640*480 31.469 / 31.5 59.94/ 60 50.35/50.4 1 Side-by-side(Full) (SDTV 480P)
Frame packing Secondary(SDTV 480P)
62.938/63 59.94/ 60 50.35/50.4 1
Line alternative (SDTV 480P)
Top-and-Bottom Secondary(SDTV 480P)
31.469 / 31.5 59.94 / 60 27.00/27.03 2,3
Side-by-side(half) Secondary(SDTV 480P)
2 720*480 31.469 / 31.5 59.94 / 60 54/54.06 2,3 Side-by-side(Full) (SDTV 480P)
Frame packing Secondary(SDTV 480P)
62.938/63 59.94 / 60 54/54.06 2,3
Line alternative (SDTV 480P)
Top-and-Bottom Secondary(SDTV 576P)
31.25 50 27 17,18
Side-by-side(half) Secondary(SDTV 576P)
3 720*576 31.25 50 54 17,18 Side-by-side(Full) (SDTV 576P)
Frame packing Secondary(SDTV 576P)
62.5 50 54 17,18
Line alternative (SDTV 576P)
Frame packing Secondary(SDTV 576I)
Field alternative (SDTV 576I
4 720*576 15.625 50 27 21 Side-by-side(Full) (SDTV 576I
Top-and-Bottom Secondary(SDTV 576I)
Side-by-side(half) Secondary(SDTV 576I)
Top-and-Bottom Primary(HDTV 720P)
37.500 50 74.25 19
Side-by-side(half) Primary(HDTV 720P)
37.500 50 148.5 19 Side-by-side(Full) (HDTV 720P)
Top-and-Bottom Primary(HDTV 720P)
44.96 / 45 59.94 / 60 74.17/74.25 4
Side-by-side(half) Primary(HDTV 720P)
5 1280*720
44.96 / 45 59.94 / 60 148.35/148.5 4 Side-by-side(Full) (HDTV 720P)
Frame packing Primary(HDTV 720P)
75 50 148.5 19
Line alternative (HDTV 720P)
Frame packing Primary(HDTV 720P)
89.91/90 59.94 / 60 148.35/148.5 4
Line alternative (HDTV 720P)
Top-and-Bottom Secondary(HDTV 1080I)
28.125 50.00 74.25 20
Side-by-side(half) Primary(HDTV 1080I)
28.125 50.00 148.5 20 Side-by-side(Full) (HDTV 1080I)
Top-and-Bottom Secondary(HDTV 1080I)
33.72 / 33.75 59.94 / 60 74.17/74.25 5
Side-by-side(half) Primary(HDTV 1080I)
6 1920*1080
33.72 / 33.75 59.94 / 60 148.35/148.5 5 Side-by-side(Full) (HDTV 1080I)
Frame packing Primary(HDTV 1080I)
56.25 50.00 148.5 20
Field alternative (HDTV 1080I)
Frame packing Primary(HDTV 1080I)
67.432/67.50 59.94 / 60 148.35/148.5 5
Field alternative (HDTV 1080I)
Copyright © LG Electronics. Inc. All rights reserved. - 11 - LGE Internal Use Only
Only for training and service purposes
Top-and-Bottom Primary(HDTV 1080P)
26.97 / 27 23.97 / 24 74.17/74.25 32
Side-by-side(half) Primary(HDTV 1080P)
26.97 / 27 23.97 / 24 148.35/148.5 32 Side-by-side(Full) (HDTV 1080P)
Top-and-Bottom Secondary(HDTV 1080P)
28.125 25 74.25 33
Side-by-side(half) Secondary(HDTV 1080P)
28.125 25 148.5 33 Side-by-side(Full) (HDTV 1080P)
29.976 / Top-and-Bottom Primary(HDTV 1080P)
33.716 / 33.75 74.18/74.25 34
30.00 Side-by-side(half) Secondary(HDTV 1080P)
29.976 /
33.716 / 33.75 148.35/148.5 34 Side-by-side(Full) (HDTV 1080P)
30.00
7 1920*1080
Frame packing Primary(HDTV 1080P)
43.94/54 23.97 / 24 148.35/148.5 32
Line alternative (HDTV 1080P)
Frame packing Secondary(HDTV 1080P)
56.25 25 148.5 33
Line alternative (HDTV 1080P)
29.976 / Frame packing Primary(HDTV 1080P)
67.432 / 67.5 148.35/148.5 34
30.00 Line alternative (HDTV 1080P)
Top-and-Bottom Primary(HDTV 1080P)
56.250 50 148.5 31
Side-by-side(half) Secondary(HDTV 1080P)
Top-and-Bottom Primary(HDTV 1080P)
67.43 / 67.5 59.94 / 60 148.35/148.50 16
Side-by-side(half) Secondary(HDTV 1080P)
(3) HDMI-PC Input (3D) (3D Supported mode manually)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode
2D to 3D,
1 1024*768 48.36 60 65 HDTV 768P Side by Side(half),
Top & Bottom
2D to 3D,
2 1360*768 47.71 60 85.5 HDTV 768P Side by Side(half),
Top & Bottom
2D to 3D,
Side by Side(half),
Top & Bottom, Checker Board,
3 1920*1080 67.500 60 148.50 HDTV 1080P
Single Frame Sequential,
Row Interleaving, Column
Interleaving
54 24.00 297.00 2D to 3D,
4 3840*2160 56.25 25.00 297.00 HDTV 2160P Top & Bottom(half),
67.5 30.00 297.00 Side by Side(half)
2D to 3D,
5 4096*2160 54 24 297.00 HDTV 2160P Top & Bottom(half),
Side by Side(half)
640*350
720*400 2D to 3D,
6 Others - - - 640*480 Side by Side(half),
800*600 Top & Bottom
1152*864
Copyright © LG Electronics. Inc. All rights reserved. - 12 - LGE Internal Use Only
Only for training and service purposes

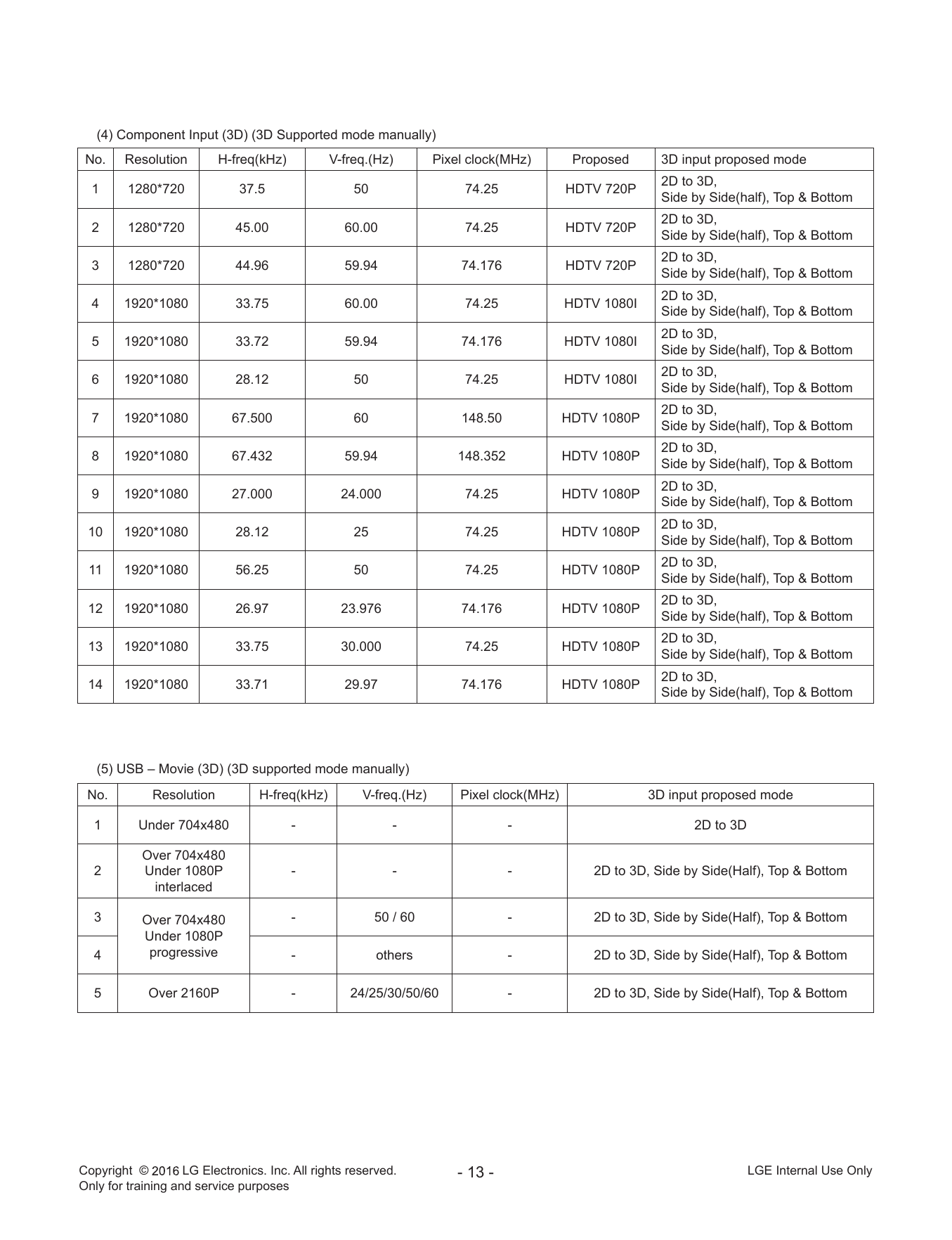

(4) Component Input (3D) (3D Supported mode manually)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode
2D to 3D,
1 1280*720 37.5 50 74.25 HDTV 720P
Side by Side(half), Top & Bottom
2D to 3D,
2 1280*720 45.00 60.00 74.25 HDTV 720P
Side by Side(half), Top & Bottom
2D to 3D,
3 1280*720 44.96 59.94 74.176 HDTV 720P
Side by Side(half), Top & Bottom
2D to 3D,
4 1920*1080 33.75 60.00 74.25 HDTV 1080I
Side by Side(half), Top & Bottom
2D to 3D,
5 1920*1080 33.72 59.94 74.176 HDTV 1080I
Side by Side(half), Top & Bottom
2D to 3D,
6 1920*1080 28.12 50 74.25 HDTV 1080I
Side by Side(half), Top & Bottom
2D to 3D,
7 1920*1080 67.500 60 148.50 HDTV 1080P
Side by Side(half), Top & Bottom
2D to 3D,
8 1920*1080 67.432 59.94 148.352 HDTV 1080P
Side by Side(half), Top & Bottom
2D to 3D,
9 1920*1080 27.000 24.000 74.25 HDTV 1080P
Side by Side(half), Top & Bottom
2D to 3D,
10 1920*1080 28.12 25 74.25 HDTV 1080P
Side by Side(half), Top & Bottom
2D to 3D,
11 1920*1080 56.25 50 74.25 HDTV 1080P
Side by Side(half), Top & Bottom
2D to 3D,
12 1920*1080 26.97 23.976 74.176 HDTV 1080P
Side by Side(half), Top & Bottom
2D to 3D,
13 1920*1080 33.75 30.000 74.25 HDTV 1080P
Side by Side(half), Top & Bottom
2D to 3D,
14 1920*1080 33.71 29.97 74.176 HDTV 1080P
Side by Side(half), Top & Bottom
(5) USB – Movie (3D) (3D supported mode manually)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode
1 Under 704x480 - - - 2D to 3D
Over 704x480
2 Under 1080P - - - 2D to 3D, Side by Side(Half), Top & Bottom
interlaced
3 Over 704x480 - 50 / 60 - 2D to 3D, Side by Side(Half), Top & Bottom
Under 1080P
4 progressive - others - 2D to 3D, Side by Side(Half), Top & Bottom
5 Over 2160P - 24/25/30/50/60 - 2D to 3D, Side by Side(Half), Top & Bottom
Copyright © LG Electronics. Inc. All rights reserved. - 13 - LGE Internal Use Only
Only for training and service purposes

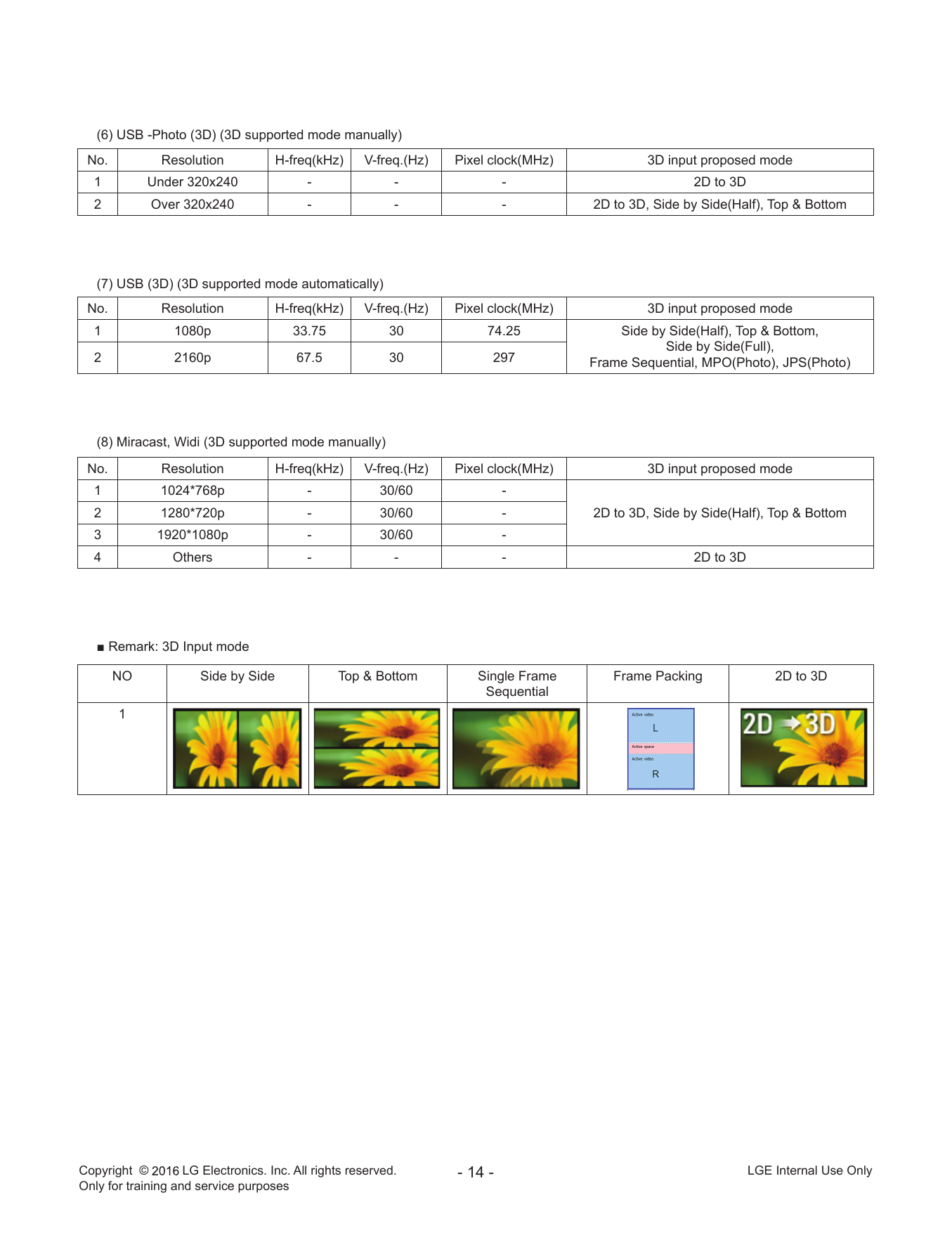

(6) USB -Photo (3D) (3D supported mode manually)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode
1 Under 320x240 - - - 2D to 3D
2 Over 320x240 - - - 2D to 3D, Side by Side(Half), Top & Bottom
(7) USB (3D) (3D supported mode automatically)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode
1 1080p 33.75 30 74.25 Side by Side(Half), Top & Bottom,
Side by Side(Full),
2 2160p 67.5 30 297 Frame Sequential, MPO(Photo), JPS(Photo)
(8) Miracast, Widi (3D supported mode manually)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode
1 1024*768p - 30/60 -
2 1280*720p - 30/60 - 2D to 3D, Side by Side(Half), Top & Bottom
3 1920*1080p - 30/60 -
4 Others - - - 2D to 3D
■ Remark: 3D Input mode
NO Side by Side Top & Bottom Single Frame Frame Packing 2D to 3D
Sequential
1
Copyright © LG Electronics. Inc. All rights reserved. - 14 - LGE Internal Use Only
Only for training and service purposes
ADJUSTMENT INSTRUCTION
1. Application Range 3.3. LAN Inspection
This specification sheet is applied to ED61G Chassis applied 3.3.1. Equipment & Condition
OLED TV all models manufactured in TV factory. - Each other connection to LAN Port of IP Hub and Jig
2. Designation
(1) Because this is not a hot chassis, it is not necessary to
use an isolation transformer. However, the use of isolation
transformer will help protect test instrument.
(2) Adjustment must be done in the correct order.
(3) The adjustment must be performed in the circumstance of
25 °C ± 5 °C of temperature and 65 % ± 10 % of relative
humidity if there is no specific designation.
3.3.2. LAN inspection solution
- LAN Port connection with PCB
(4) The input voltage of the receiver must keep AC 100-240
- setting automatic IP
V~, 50/60 Hz.
(5) The receiver must be operated for about 5 minutes prior to
the adjustment when module is in the circumstance of over
15 °C.
In case of keeping module is in the circumstance of 0 °C, it
should be placed in the circumstance of above 15 °C for 2
hours.
- If you want manual connection, enter Network connection at
MENU Mode of TV. Press Start connection key, then
In case of keeping module is in the circumstance of below
Network will be connected.
-20 °C, it should be placed in the circumstance of above 15
°C for 3 hours.
[Caution]
When still image is displayed for a period of 20 minutes or
longer (Especially where W/B scale is strong. Digital pattern
13ch and/or Cross hatch pattern 09ch), there can some
afterimage in the black level area.
3. Automatic Adjustment
3.1. MAC address D/L , CI+ key D/L,
3.3.3. WIDEVINE Key Inspection
Widevine key D/L, ESN D/L, - Confirm Key input Data at the “IN START” MENU Mode
HDCP2.0 D/L
- Connect: USB port
3.2. Communication Prot connection
- Com 1,2,3,4 and 115200(Baudrate)
Mode check: Online Only
- check the test process
DETECT -> MAC -> CI -> Widevine -> ESN -> HDCP
-.Play : Press Enter key
-.Result: Ready, Test, OK or NG
-.Printer Out (MAC Address Label)
Copyright © LG Electronics. Inc. All rights reserved. - 15 - LGE Internal Use Only
Only for training and service purposes
3.4. LAN PORT INSPECTION(PING TEST) 3.6. C
I+ Key checking method
(check the Section 4.2) (Only EU Model)
heck whether the key was downloaded or not at ‘In Start’
C
menu. (Refer to below).
3.4.1. Equipment setting
(1) Play the LAN Port Test PROGRAM.
Check the Download to CI+ Key value in LGset.
(2) Input IP set up for an inspection to Test Program.
*IP Number : 12.12.2.2
3.6.1. check the method of CI+ Key value
a. check the method on Instart menu
3.4.2. LAN PORT inspection (PING TEST)
b. check the method of RS232C Command
(1) Play the LAN Port Test Program.
1) into the main ass’y mode (RS232 : aa 00 00)
(2) connect each other LAN Port Jack.
(3) Play Test (F9) button and confirm OK Message. CMD 1 CMD 2 Data 0
(4) remove LAN CABLE
A 0 0
2) c heck the key download for transmitted command
(RS232 : ci 00 10)
CMD 1 CMD 2 Data 0
C I 1 0
3) result value
- normally status for download : OKx
- abnormally status for download : NGx
3.5. Model name & Serial number Download 3.6.2. check the method of CI+ Key value (RS232)
3.5.1 Model name & Serial number D/L (1) into the main ass’y mode (RS232 : aa 00 00)
- Press “P-ONLY” key of service remote control.
(Baud rate : 115200 bps) CMD 1 CMD 2 Data 0
- Connect RS-232C Signal to USB Cable to USB. A A 0 0
- Write Serial number by use USB port.
- Must check the serial number at Instart menu. (2) check the mothed of CI+ key by command
(RS232 : ci 00 20)
3.5.2 Method & notice CMD 1 CMD 2 Data 0
(1) Serial number D/L is using of scan equipment.
(2) Setting of scan equipment operated by Manufacturing C I 2 0
Technology Group.
(3) Serial number D/L must be conformed when it is produced (3) result value
in production line, because serial number D/L is mandatory i 01 OK 1d1852d21c1ed5dcx
by D-book 4.0
CI+ Key Value
Manual Download (Model Name and Serial Number)
If the TV set is downloaded By OTA or Service man,
Sometimes model name or serial number is initialized.
(Not always)
There is impossible to download by bar code scan, so It need
Manual download.
(1) Press the ‘instart’ key of ADJ remote control.
(2) Go to the menu ‘7.Model Number D/L’ like below photo.
(3) Input the Factory model name or Serial number like photo.
(4) Check the model name Instart menu
→Factory name displayed
(5) Check the Diagnostics (DTV country only)
→Buyer model displayed
Copyright © LG Electronics. Inc. All rights reserved. - 16 - LGE Internal Use Only
Only for training and service purposes

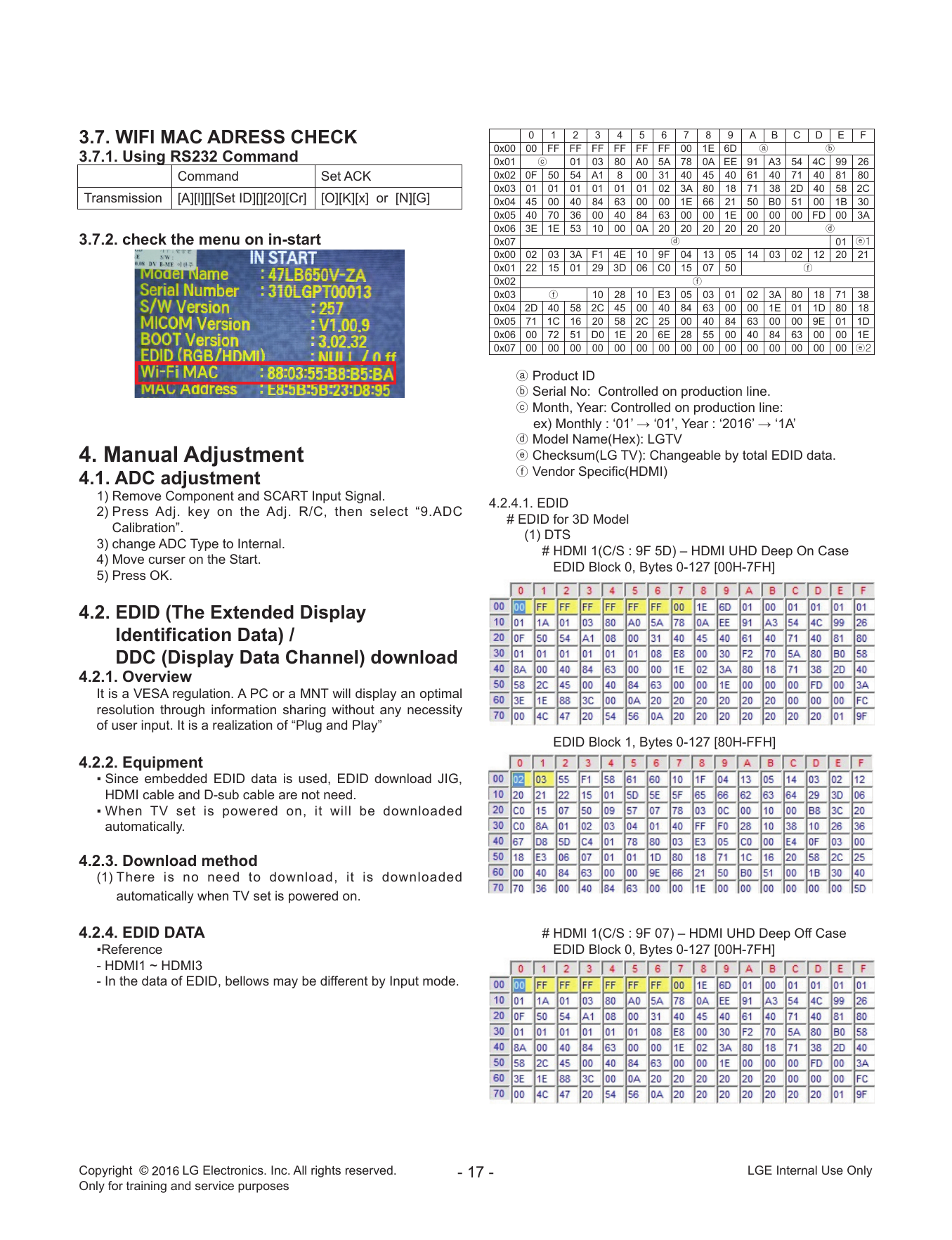

3.7. WIFI MAC ADRESS CHECK 0x00
0
00
1 2 3 4 5
FF FF FF FF FF
6 7
FF 00 1E
8 9
6D
A
ⓐ
B C D E
ⓑ
F
3.7.1. Using RS232 Command 0x01 ⓒ 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
Command Set ACK 0x02 0F 50 54 A1 8 00 31 40 45 40 61 40 71 40 81 80
0x03 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
Transmission [A][l][][Set ID][][20][Cr] [O][K][x] or [N][G] 0x04 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30
0x05 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
0x06 3E 1E 53 10 00 0A 20 20 20 20 20 20 ⓓ
3.7.2. check the menu on in-start 0x07 ⓓ 01 ⓔ1
0x00 02 03 3A F1 4E 10 9F 04 13 05 14 03 02 12 20 21
0x01 22 15 01 29 3D 06 C0 15 07 50 ⓕ
0x02 ⓕ
0x03 ⓕ 10 28 10 E3 05 03 01 02 3A 80 18 71 38
0x04 2D 40 58 2C 45 00 40 84 63 00 00 1E 01 1D 80 18
0x05 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 01 1D
0x06 00 72 51 D0 1E 20 6E 28 55 00 40 84 63 00 00 1E
0x07 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ⓔ2
ⓐ Product ID
ⓑ Serial No: Controlled on production line.
ⓒ Month, Year: Controlled on production line:
ex) Monthly : ‘01’ → ‘01’, Year : ‘2016’ → ‘1A’
ⓓ Model Name(Hex): LGTV
4. Manual Adjustment ⓔ Checksum(LG TV): Changeable by total EDID data.
ⓕ Vendor Specific(HDMI)
4.1. ADC adjustment
1) Remove Component and SCART Input Signal.
4.2.4.1. EDID
2) P ress Adj. key on the Adj. R/C, then select “9.ADC
# EDID for 3D Model
Calibration”.
(1) DTS
3) change ADC Type to Internal.
# HDMI 1(C/S : 9F 5D) – HDMI UHD Deep On Case
4) Move curser on the Start.
EDID Block 0, Bytes 0-127 [00H-7FH]
5) Press OK.
4.2. EDID (The Extended Display
Identification Data) /
DDC (Display Data Channel) download
4.2.1. Overview
It is a VESA regulation. A PC or a MNT will display an optimal
resolution through information sharing without any necessity
of user input. It is a realization of “Plug and Play”
EDID Block 1, Bytes 0-127 [80H-FFH]
4.2.2. Equipment
▪ Since embedded EDID data is used, EDID download JIG,
HDMI cable and D-sub cable are not need.
▪ W hen TV set is powered on, it will be downloaded
automatically.
4.2.3. Download method
(1)
T here is no need to download, it is downloaded
automatically when TV set is powered on.
4.2.4. EDID DATA # HDMI 1(C/S : 9F 07) – HDMI UHD Deep Off Case
▪Reference EDID Block 0, Bytes 0-127 [00H-7FH]
- HDMI1 ~ HDMI3
- In the data of EDID, bellows may be different by Input mode.
Copyright © LG Electronics. Inc. All rights reserved. - 17 - LGE Internal Use Only
Only for training and service purposes

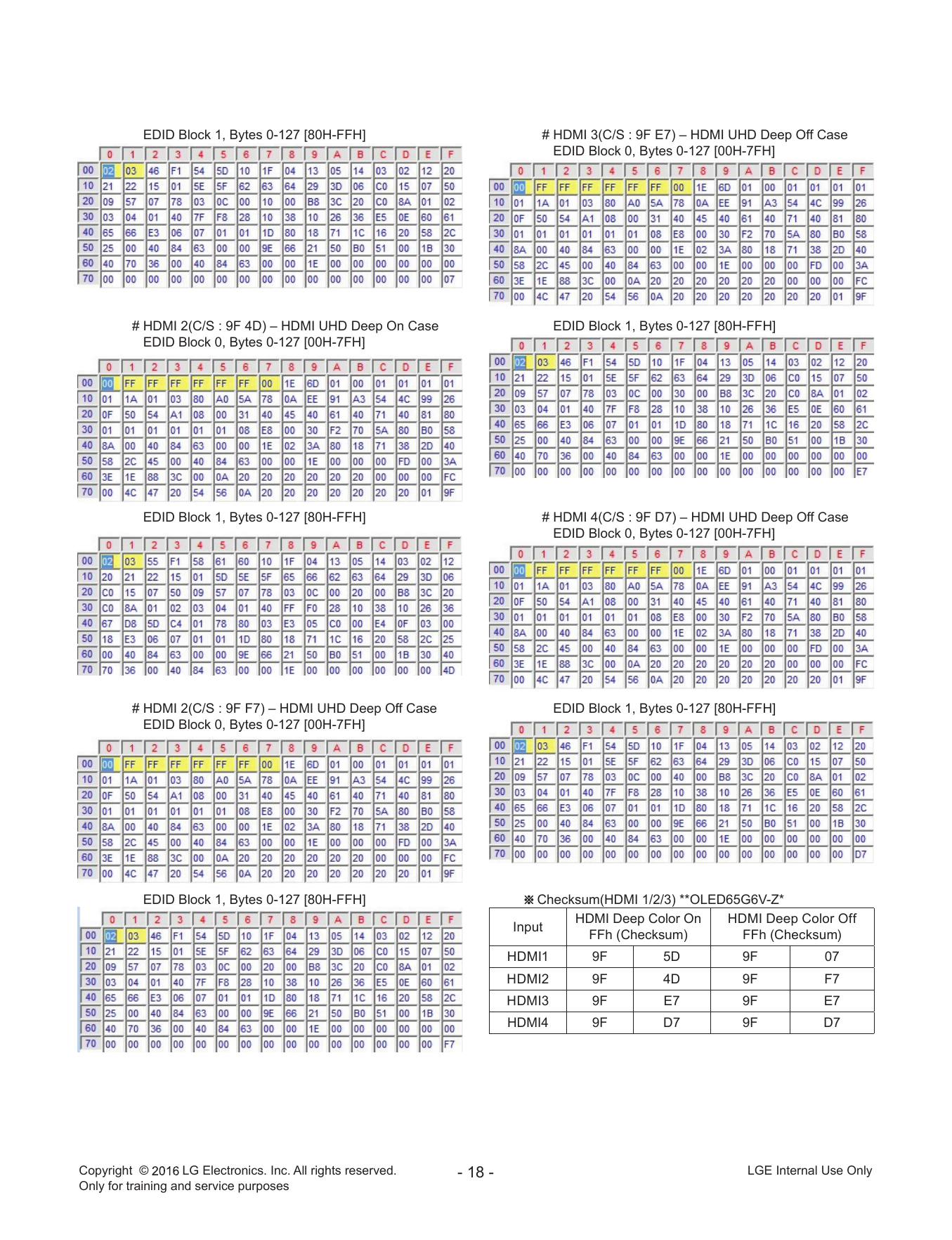

EDID Block 1, Bytes 0-127 [80H-FFH] # HDMI 3(C/S : 9F E7) – HDMI UHD Deep Off Case
EDID Block 0, Bytes 0-127 [00H-7FH]
# HDMI 2(C/S : 9F 4D) – HDMI UHD Deep On Case EDID Block 1, Bytes 0-127 [80H-FFH]
EDID Block 0, Bytes 0-127 [00H-7FH]
EDID Block 1, Bytes 0-127 [80H-FFH] # HDMI 4(C/S : 9F D7) – HDMI UHD Deep Off Case
EDID Block 0, Bytes 0-127 [00H-7FH]
# HDMI 2(C/S : 9F F7) – HDMI UHD Deep Off Case EDID Block 1, Bytes 0-127 [80H-FFH]
EDID Block 0, Bytes 0-127 [00H-7FH]
EDID Block 1, Bytes 0-127 [80H-FFH] Checksum(HDMI 1/2/3) **OLED65G6V-Z*
HDMI Deep Color On HDMI Deep Color Off
Input
FFh (Checksum) FFh (Checksum)
HDMI1 9F 5D 9F 07
HDMI2 9F 4D 9F F7
HDMI3 9F E7 9F E7
HDMI4 9F D7 9F D7
Copyright © LG Electronics. Inc. All rights reserved. - 18 - LGE Internal Use Only
Only for training and service purposes

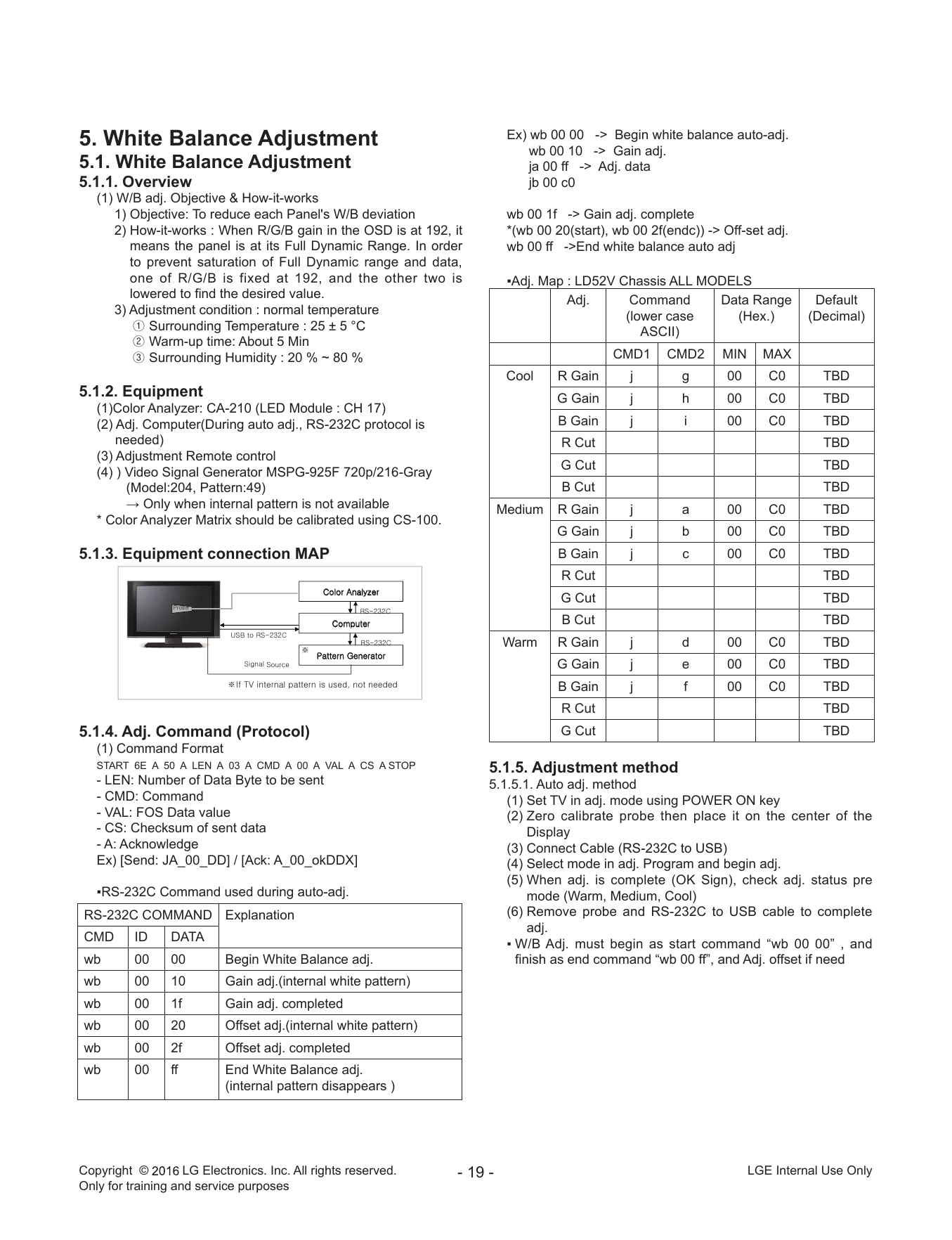

5. White Balance Adjustment Ex) wb 00 00 -> Begin white balance auto-adj.
wb 00 10 -> Gain adj.
5.1. White Balance Adjustment ja 00 ff -> Adj. data
5.1.1. Overview jb 00 c0
(1) W/B adj. Objective & How-it-works
1) Objective: To reduce each Panel's W/B deviation wb 00 1f -> Gain adj. complete
2) How-it-works : When R/G/B gain in the OSD is at 192, it *(wb 00 20(start), wb 00 2f(endc)) -> Off-set adj.
means the panel is at its Full Dynamic Range. In order wb 00 ff ->End white balance auto adj
to prevent saturation of Full Dynamic range and data,
one of R/G/B is fixed at 192, and the other two is ▪Adj. Map : LD52V Chassis ALL MODELS
lowered to find the desired value. Adj. Command Data Range Default
3) Adjustment condition : normal temperature (lower case (Hex.) (Decimal)
① Surrounding Temperature : 25 ± 5 °C ASCII)
② Warm-up time: About 5 Min
③ Surrounding Humidity : 20 % ~ 80 % CMD1 CMD2 MIN MAX
Cool R Gain j g 00 C0 TBD
5.1.2. Equipment G Gain j h 00 C0 TBD
(1)Color Analyzer: CA-210 (LED Module : CH 17)
(2) Adj. Computer(During auto adj., RS-232C protocol is B Gain j i 00 C0 TBD
needed) R Cut TBD
(3) Adjustment Remote control
G Cut TBD
(4) ) Video Signal Generator MSPG-925F 720p/216-Gray
(Model:204, Pattern:49) B Cut TBD
→ Only when internal pattern is not available Medium R Gain j a 00 C0 TBD
* Color Analyzer Matrix should be calibrated using CS-100.
G Gain j b 00 C0 TBD
5.1.3. Equipment connection MAP B Gain j c 00 C0 TBD
R Cut TBD
jGh ¡G
G Cut TBD
wG
yzTYZYjG
jG B Cut TBD
|ziGGyzTYZYjG
yzTYZYjG Warm R Gain j d 00 C0 TBD
G
wGnG
zGz G Gain j e 00 C0 TBD
pG{}GGGGSGG B Gain j f 00 C0 TBD
R Cut TBD
5.1.4. Adj. Command (Protocol) G Cut TBD
(1) Command Format
START 6E A 50 A LEN A 03 A CMD A 00 A VAL A CS A STOP 5.1.5. Adjustment method
- LEN: Number of Data Byte to be sent 5.1.5.1. Auto adj. method
- CMD: Command (1) Set TV in adj. mode using POWER ON key
- VAL: FOS Data value (2) Zero calibrate probe then place it on the center of the
- CS: Checksum of sent data Display
- A: Acknowledge (3) Connect Cable (RS-232C to USB)
Ex) [Send: JA_00_DD] / [Ack: A_00_okDDX] (4) Select mode in adj. Program and begin adj.
(5) When adj. is complete (OK Sign), check adj. status pre
▪RS-232C Command used during auto-adj. mode (Warm, Medium, Cool)
RS-232C COMMAND Explanation (6) Remove probe and RS-232C to USB cable to complete
adj.
CMD ID DATA
▪ W/B Adj. must begin as start command “wb 00 00” , and
wb 00 00 Begin White Balance adj. finish as end command “wb 00 ff”, and Adj. offset if need
wb 00 10 Gain adj.(internal white pattern)
wb 00 1f Gain adj. completed
wb 00 20 Offset adj.(internal white pattern)
wb 00 2f Offset adj. completed
wb 00 ff End White Balance adj.
(internal pattern disappears )
Copyright © LG Electronics. Inc. All rights reserved. - 19 - LGE Internal Use Only
Only for training and service purposes
5.1.5.2 Manual adj. method 6.1. Magic Motion Remote control test
(1) Set TV in Adj. mode using POWER ON - Equipment : RF Remote control for test,
(2) Zero Calibrate the probe of Color Analyzer, then place it on IR-KEY-Code Remote control for test
the center of LCD module within 10cm of the surface. - You must confirm the battery power of RF-Remote control
(3) Press ADJ key EZ adjust using adj. R/C before test(recommend that change the battery per every lot)
7. White-Balance then press the cursor to the right (KEY ). - Sequence (test)
( When KEY( ) is pressed 216 Gray internal pattern will be 1) If you select the ‘start key(OK)’ on the Adjustment remote
displayed.) control, you can pairing with the TV SET.
(4) One of R Gain / G Gain / B Gain should be fixed at 192, 2) You can check the cursor on the TV Screen, when select
and the rest will be lowered to meet the desired value. the "OK" key on the Adjustment remote control.
(5) Adj. is performed in COOL, MEDIUM, WARM 3 modes of 3) You must remove the pairing with the TV Set by select
color temperature. ‘Mute + OK Key’ on the Adjustment remote control.
** G-fix adjustment
- Adjust modes (Cool), Fix the G gain to 172 (default data) 6.2. 3D function test
and change the others (G/B Gain ). (Pattern Generator MSHG-600, MSPG-6100[Support HDMI1.4])
- Adjust two modes(Medium / Warm), Fix the one of R/G/B * HDMI mode NO. 872 , pattern No.83
gain to 192 (default data) and decrease the others. (1) Please input 3D test pattern like below
▪ If internal pattern is not available, use RF input. In EZ Adj. (HDMI mode NO. 872 , pattern No.83)
menu 7.White Balance, you can select one of 2 Test-
pattern: ON, OFF. Default is inner(ON). By selecting OFF,
you can adjust using RF signal in 216 Gray pattern.
▪ Adj. condition and cautionary items
1) Lighting condition in surrounding area
S urrounding lighting should be lower 10 lux. Try to
isolate adj. area into dark surrounding.
2) Probe location (2) When 3D OSD appear automatically, then select green
- P DP: Color Analyzer (CA-100, CA-100+, CA210) button.
probe should be firmly attached to the Module
- LCD: Color Analyzer (CA-210) probe should be within
10cm and perpendicular of the module surface (80°~
100°)
3) Aging time
- After Aging Start, Keep the Power ON status during 5
Minutes.
- In case of LCD, Back-light on should be checked using
no signal or Full-white pattern.
5.1.6. Reference (White Balance Adj. coordinate (3) Don't wear a 3D Glasses, Check the picture like below.
and color temperature)
▪ Luminance: 206 Gray
▪ S tandard color coordinate and temperature using
CA-210(CH 17)
Coordinate
Mode Temp ∆uv
x y
0.271± 0.270±
Cool 13000K 0.0000
0.002 0.002
0.286± 0.289±
Medium 9300K 0.0000
0.002 0.002
0.313± 0.329±
Warm 6500K 0.0000
0.002 0.002
Copyright © LG Electronics. Inc. All rights reserved. - 20 - LGE Internal Use Only
Only for training and service purposes

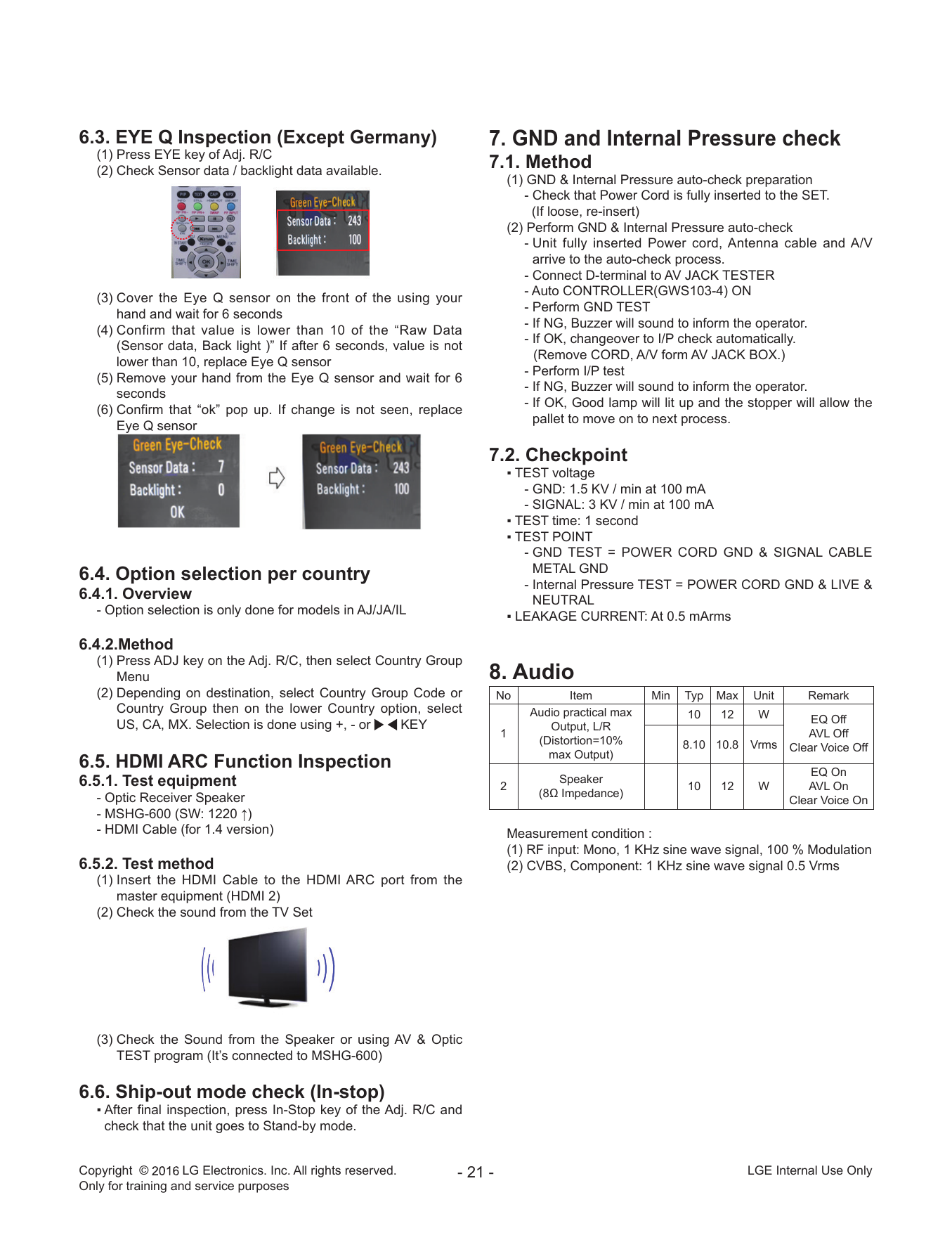

6.3. EYE Q Inspection (Except Germany) 7. GND and Internal Pressure check
(1) Press EYE key of Adj. R/C
(2) Check Sensor data / backlight data available.
7.1. Method
(1) GND & Internal Pressure auto-check preparation
- Check that Power Cord is fully inserted to the SET.
(If loose, re-insert)
(2) Perform GND & Internal Pressure auto-check
- Unit fully inserted Power cord, Antenna cable and A/V
arrive to the auto-check process.
- Connect D-terminal to AV JACK TESTER
- Auto CONTROLLER(GWS103-4) ON
(3) Cover the Eye Q sensor on the front of the using your
- Perform GND TEST
hand and wait for 6 seconds
- If NG, Buzzer will sound to inform the operator.
(4) Confirm that value is lower than 10 of the “Raw Data
- If OK, changeover to I/P check automatically.
(Sensor data, Back light )” If after 6 seconds, value is not
(Remove CORD, A/V form AV JACK BOX.)
lower than 10, replace Eye Q sensor
- Perform I/P test
(5) Remove your hand from the Eye Q sensor and wait for 6
- If NG, Buzzer will sound to inform the operator.
seconds
- If OK, Good lamp will lit up and the stopper will allow the
(6) Confirm that “ok” pop up. If change is not seen, replace
pallet to move on to next process.
Eye Q sensor
7.2. Checkpoint
▪ TEST voltage
- GND: 1.5 KV / min at 100 mA
- SIGNAL: 3 KV / min at 100 mA
▪ TEST time: 1 second
▪ TEST POINT
- GND TEST = POWER CORD GND & SIGNAL CABLE
METAL GND
6.4. Option selection per country - Internal Pressure TEST = POWER CORD GND & LIVE &
6.4.1. Overview NEUTRAL
- Option selection is only done for models in AJ/JA/IL ▪ LEAKAGE CURRENT: At 0.5 mArms
6.4.2.Method
(1) Press ADJ key on the Adj. R/C, then select Country Group
Menu 8. Audio
(2) Depending on destination, select Country Group Code or No Item Min Typ Max Unit Remark
Country Group then on the lower Country option, select Audio practical max 10 12 W
US, CA, MX. Selection is done using +, - or KEY EQ Off
Output, L/R
1 AVL Off
(Distortion=10% 8.10 10.8 Vrms Clear Voice Off
max Output)
6.5. HDMI ARC Function Inspection EQ On
6.5.1. Test equipment 2
Speaker
10 12 W AVL On
- Optic Receiver Speaker (8Ω Impedance)
Clear Voice On
- MSHG-600 (SW: 1220 ↑)
- HDMI Cable (for 1.4 version) Measurement condition :
(1) RF input: Mono, 1 KHz sine wave signal, 100 % Modulation
6.5.2. Test method (2) CVBS, Component: 1 KHz sine wave signal 0.5 Vrms
(1) Insert the HDMI Cable to the HDMI ARC port from the
master equipment (HDMI 2)
(2) Check the sound from the TV Set
(3) Check the Sound from the Speaker or using AV & Optic
TEST program (It’s connected to MSHG-600)
6.6. Ship-out mode check (In-stop)
▪ After final inspection, press In-Stop key of the Adj. R/C and
check that the unit goes to Stand-by mode.
Copyright © LG Electronics. Inc. All rights reserved. - 21 - LGE Internal Use Only
Only for training and service purposes

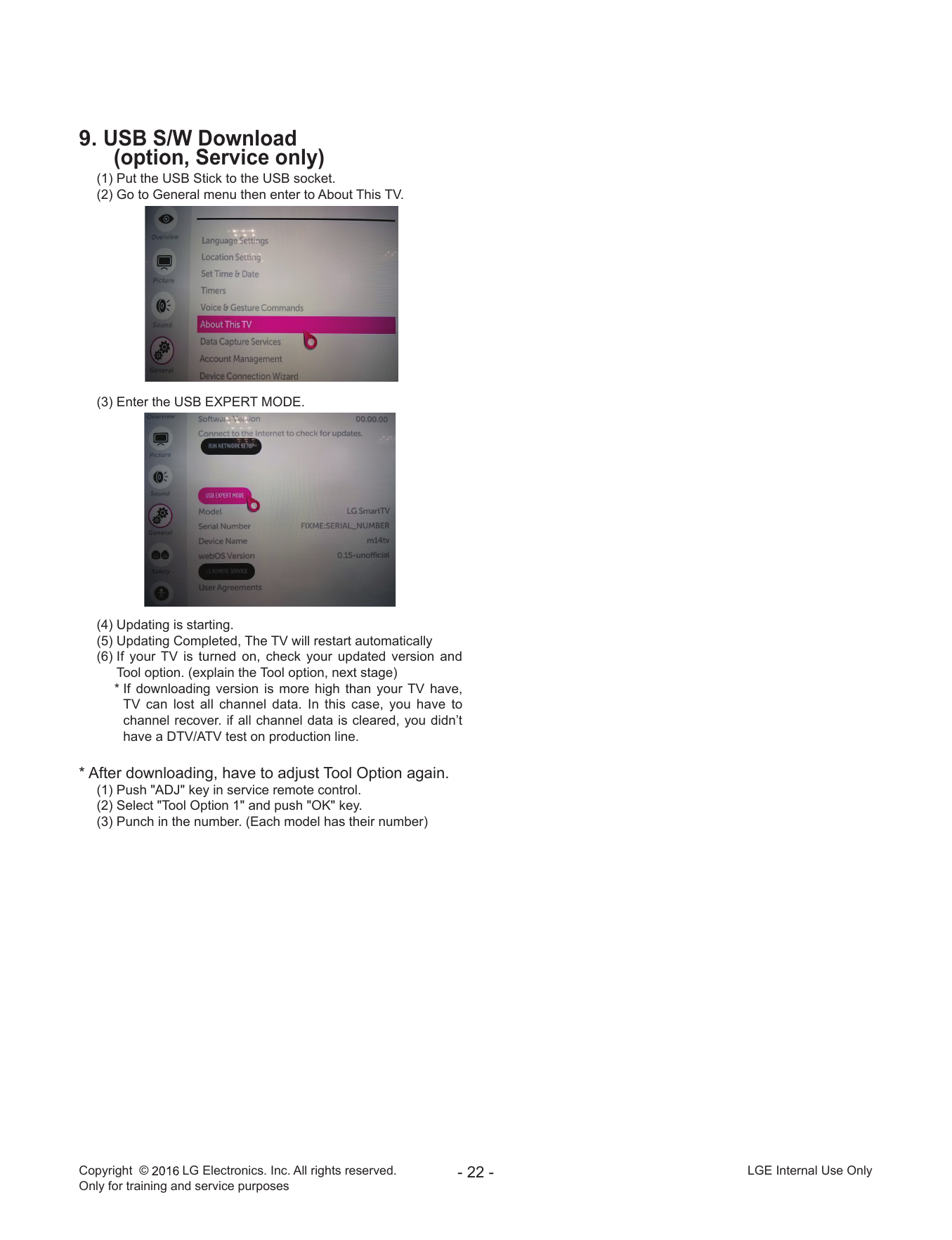

9. USB S/W Download
(option, Service only)
(1) Put the USB Stick to the USB socket.
(2) Go to General menu then enter to About This TV.
(3) Enter the USB EXPERT MODE.
(4) Updating is starting.
(5) Updating Completed, The TV will restart automatically
(6) If your TV is turned on, check your updated version and
Tool option. (explain the Tool option, next stage)
* If downloading version is more high than your TV have,
TV can lost all channel data. In this case, you have to
channel recover. if all channel data is cleared, you didn’t
have a DTV/ATV test on production line.
* After downloading, have to adjust Tool Option again.
(1) Push "ADJ" key in service remote control.
(2) Select "Tool Option 1" and push "OK" key.
(3) Punch in the number. (Each model has their number)
Copyright © LG Electronics. Inc. All rights reserved. - 22 - LGE Internal Use Only
Only for training and service purposes
BLOCK DIAGRAM
1. OLED 65G6 H15+
Copyright © LG Electronics. Inc. All rights reserved. - 23 - LGE Internal Use Only
Only for training and service purposes
EXPLODED VIEW
IMPORTANT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
571
510
570
502
500
511
122
540
120
413
411
821
700
590 550
A10
530
531
416
415
414
412
121
100
820
900
410
902
123
430
901
420
400
701
AC2
AC1
AH2
910
LV1
AS2
AS1
AG1
911
Wall Mount
AW1
Screw
200
A22
A2
Copyright © LG Electronics. Inc. All rights reserved. - 24 - LGE Internal Use Only
Only for training and service purposes
OLED65G6 SVC Manual
- Re-assembly Guide
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
OLED65G6 Re-assembly Guide

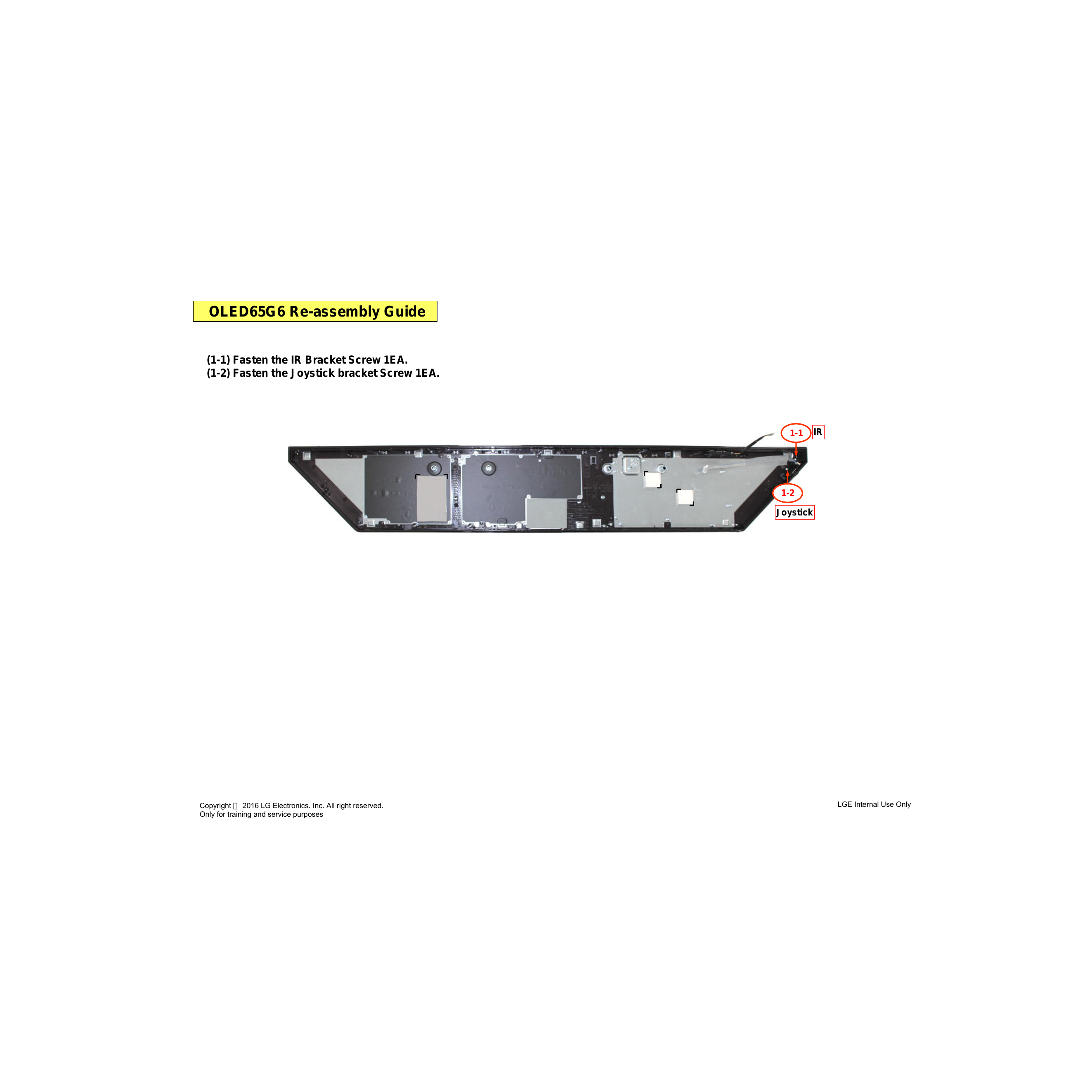

(1-1) Fasten the IR Bracket Screw 1EA.
(1-2) Fasten the Joystick bracket Screw 1EA.
1-1 IR
1-2
Joystick
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
OLED65G6 Re-assembly Guide

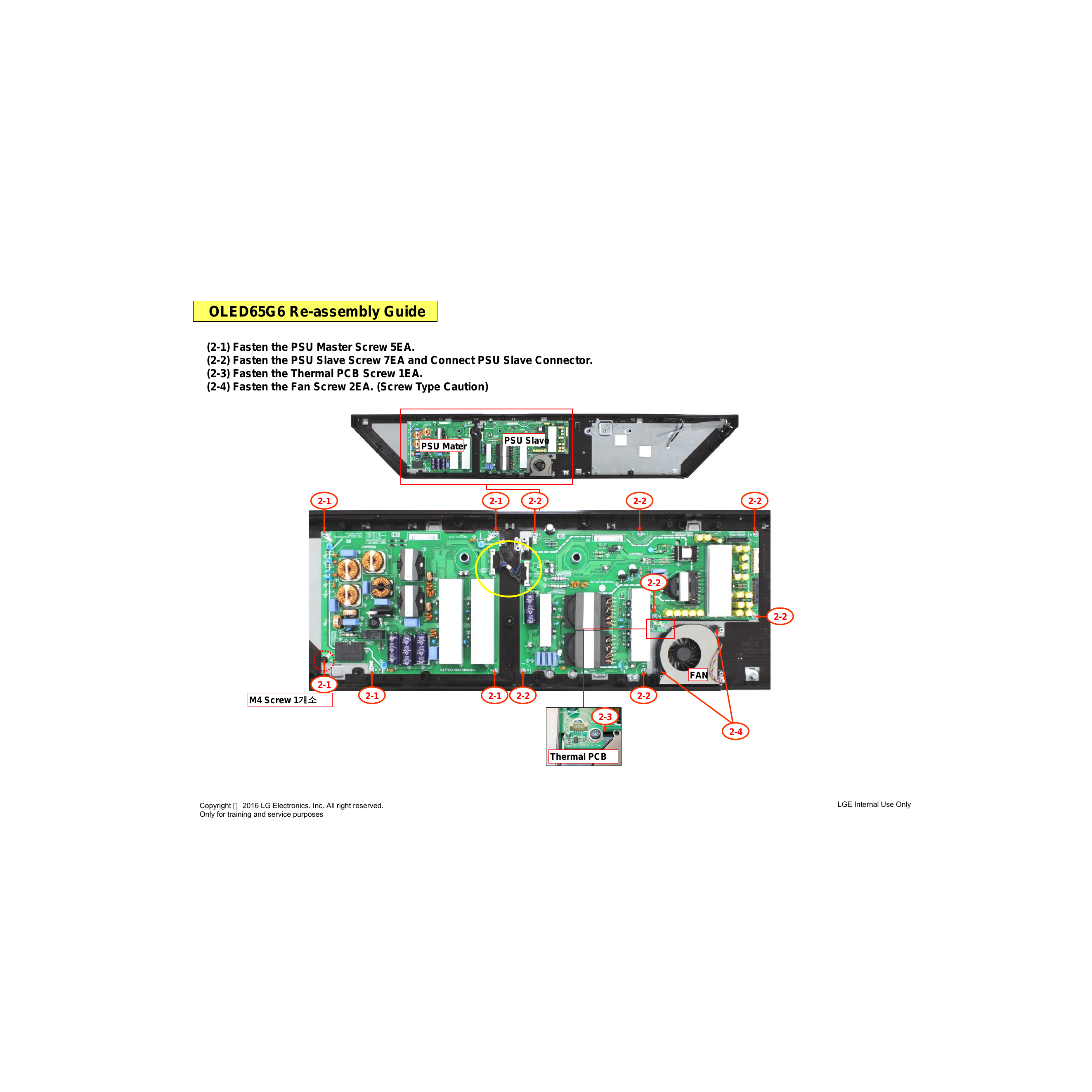

(2-1) Fasten the PSU Master Screw 5EA.
(2-2) Fasten the PSU Slave Screw 7EA and Connect PSU Slave Connector.
(2-3) Fasten the Thermal PCB Screw 1EA.
(2-4) Fasten the Fan Screw 2EA. (Screw Type Caution)
PSU Slave
PSU Mater
2-1 2-1 2-2 2-2 2-2
2-2
2-2
FAN
2-1
M4 Screw 1개소 2-1 2-1 2-2 2-2
2-3
2-4
Thermal PCB
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
OLED65G6 Re-assembly Guide
(3-1) ~ (3-2) put down the Main PCB in place with inserting the Tuner.
3-2
3-1
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
OLED65G6 Re-assembly Guide

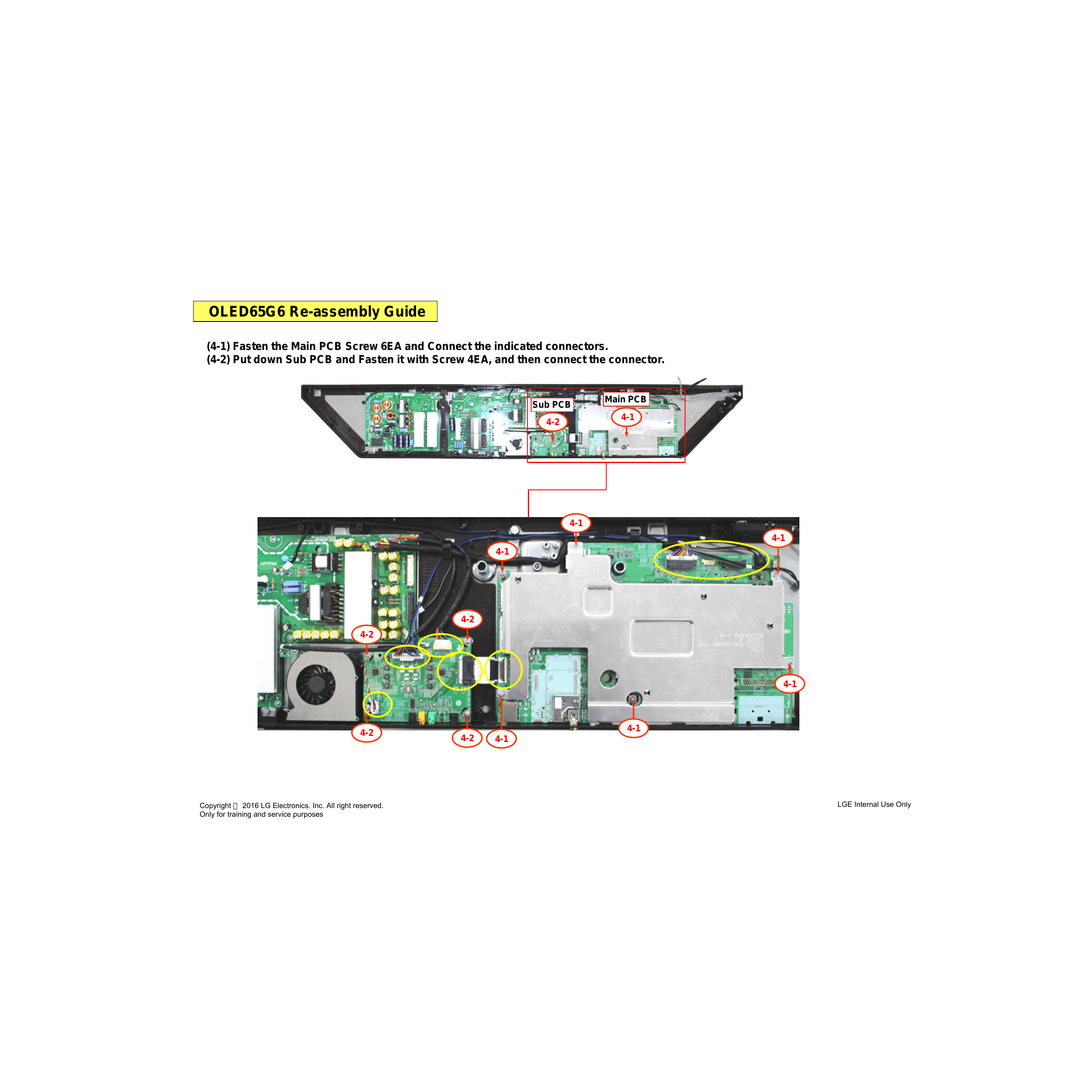

(4-1) Fasten the Main PCB Screw 6EA and Connect the indicated connectors.
(4-2) Put down Sub PCB and Fasten it with Screw 4EA, and then connect the connector.
Main PCB
Sub PCB
4-1
4-2
4-1
4-1
4-1
4-2
4-2
4-1
4-2 4-1
4-2 4-1
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
OLED65G6 Re-assembly Guide

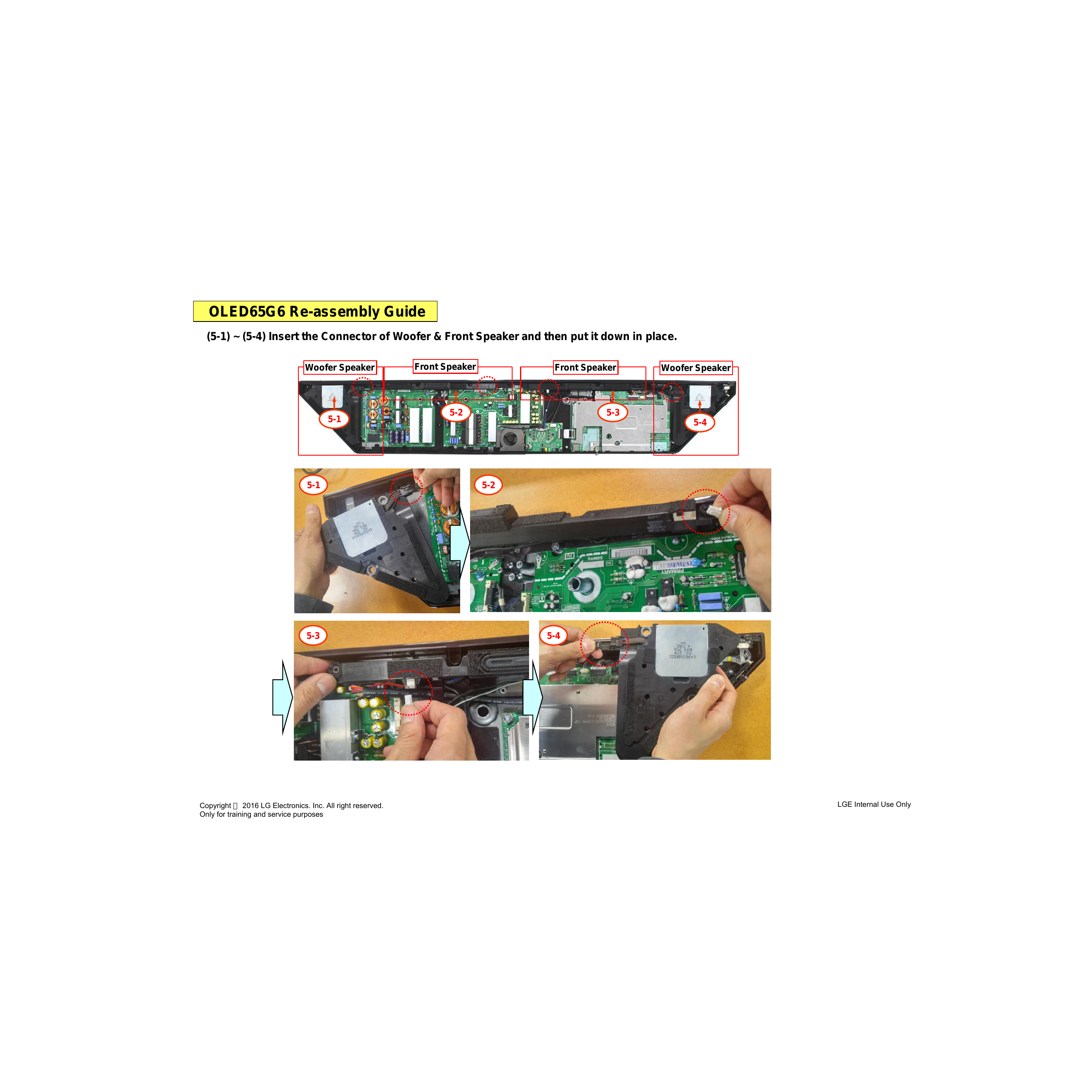

(5-1) ~ (5-4) Insert the Connector of Woofer & Front Speaker and then put it down in place.
Woofer Speaker Front Speaker Front Speaker Woofer Speaker
5-2 5-3
5-1 5-4
5-1 5-2
5-3 5-4
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
OLED65G6 Re-assembly Guide
(6-1) Connect the Power Cable Connector 2EA from the Bottom of Hinge Cable Assy.
(6-2) Connect the VX1 Cable Connector 2EA from the Bottom of Hinge Cable Assy.
6-1 6-2
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
OLED65G6 Re-assembly Guide
(7-1) ~ (7-2) Fasten Screw 2EA at each side. (Total 4EA)
7-1 7-2
7-1 7-2
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
OLED65G6 Re-assembly Guide
(8-1) Connect a Power Cord.
(8-2) Arrange the Cable in rib shapes at Bottom Bracket. (Refer to the Picture)
8-1
Arrange like this
8-2
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
OLED65G6 Re-assembly Guide
(9-1) Take out the power Cable 2EA from Bottom Box to upside passing the hole.
(9-2) Take out the VX1 Cable 2EA from Bottom Box to upside passing the hole.
(9-3) Arrange and assemble the Cover Ass’y, AV Box to Bottom Box.
9-3
9-1 9-2
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
OLED65G6 Re-assembly Guide
(10-1) ~ (10-5) Cover and Push evenly Cover Ass’y, AV Box with checking assembly status.
(10-6) Check latches indicated the picture whether it is assembled well or not.
10-1 10-2
10-3 10-4
10-5
10-6
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
OLED65G6 Re-assembly Guide
(11-1) Turn and put down the AV BOX like a picture. Before that, cover the table with a cotton sheet or something like that.
(11-2) To be assembled tightly, Fasten the Screw 17EA holding rear side by the other hand.
11-2
11-1
11-2 11-2 11-2 11-2 11-2 11-2
11-2 11-2
11-2 11-2 11-2 11-2 11-2 11-2 11-2 11-2 11-2
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
OLED65G6 Re-assembly Guide
[Extra Guide] Working Guide to replace a Module.
(a) Remove the protection film for Module.
(b) Re-attach the Gap Pad 2EA at marked locations.
(c) Assemble Locking Brackets and Fasten Screw 6EA.
a
MODULE Front
Remove the protection b
film for Module.
c Attach at
c
Marked Area
c c
c b c
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
OLED65G6 Re-assembly Guide
(12-1) Lift up AV Box like the picture and Insert the Temporary-Fixing structure of Hinge Assy AV BOX
to Module T-Con Plate with care.
(12-2) At this time, be careful the crash between AV Box and Glass.
12-1
12-2
Insert
Caution !
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
OLED65G6 Re-assembly Guide
(13-1) Fasten M4 Screw 6EA.
(13-2) Connect the Power Cable 2EA.
(13-3) Connect the VX1 Cable 2EA.
(13-4) Attach the Cable management Tape 2EA.
13-2
13-3
13-2 13-3
13-1 13-1
13-4
13-4
13-1 13-1 13-1 13-1
Manage the Cable like this picture.
13-2 13-3
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
OLED65G6 Re-assembly Guide
(14-1) To assemble the latches well, Set the right position of Rear Cover and Push the Up-side and Bottom-side.
(14-2) Fasten the Screw 4EA at the bottom of Rear Cover.
14-1
14-2
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
OLED65G6 Re-assembly Guide
(15-1) Fasten the Shaft, Fixing Screw 4EA using Wrench.
(15-2) Make the TV SET stand up by two or more people.
(15-3) Attach the Hinge Outer Cover by Magnet force.
(15-4) Re-assembly Complete.
15-1 15-2 15-3 15-4
☞ Re-assembly Complete
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
※Extra Guide : OLED65G6 Hinge Cable Cover Assy Disassembly/Re-assembly Guide
(a-1) Unfasten Screw 2EA and Separate the Hinge Cable Cover Assy from AV BOX.
(a-2) Unfasten Screw 4EA at Hinge Cable Cover Front & Rear
a-1
a-2
a-2 a-2 a-2 a-2
a-1 a-1
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
※Extra Guide : OLED65G6 Hinge Cable Cover Assy Disassembly/Re-assembly Guide
(b-1) ~(b-5) Holding each surface of Hinge Cable Cover Front & Rear, Separate Latches in both Parts sequentially like below pictures.
b-1 b-2 b-3
b-4 b-5
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
※Extra Guide : OLED65G6 Hinge Cable Cover Assy Disassembly/Re-assembly Guide
(c-1)~(c-2) Separate the Cables from Cover, Hinge Cable Rear.
Disassembly Complete.
c-1 c-2
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
※Extra Guide : OLED65G6 Hinge Cable Cover Assy Disassembly/Re-assembly Guide
(d-1) Gather the taping point of Power Cable 2 types.
(d-2) Arrange the Cables like below picture. You have to keep the point which are gathered by taping and follow the cable management guide.
d-1
d-2
y
x y
x
length : y>x
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
※Extra Guide : OLED65G6 Hinge Cable Cover Assy Disassembly/Re-assembly Guide
(e-1) Gather the taping point of VX1 Cable 2 types.
(e-2) Arrange the Cables like below picture. You have to keep the point which are gathered by taping and follow the cable management guide.
The Connectors which was attached a Label must be headed bottom-direction.
e-1
x
y
e-2
y
These Connectors which
was attached label
should be in AV BOX.
y
x
x
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
※Extra Guide : OLED65G6 Hinge Cable Cover Assy Disassembly/Re-assembly Guide
(f-1) Assemble the Latch structures between Cover, Hinge Cable Rear & Front.
(f-2) Fasten Screw 4EA.
f-1
f-2
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
※Extra Guide : OLED65G6 Hinge Cable Cover Assy Disassembly/Re-assembly Guide
(g-1) Put down Hinge Assy L/R like below picture and fasten Screw 2EA.
(g-2) Re-assembly Complete.
g-1
g-2
g-1 g-1
☞ Disassembly/Re-assembly Complete.
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
OLED65G6 SVC Manual
- Disassembly Guide
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
OLED65G6 Disassembly Guide
※ You must follow the step of this Manual. (1-1, 1-2, 2-1, 2-2, ... )
(1-1) Lay the TV SET on the flat surface table after covering a cotton sheet.
(1-2) Unfasten Shaft, Fixing Screw by wrench.
1-1 1-2
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
OLED65G6 Disassembly Guide
(2-1) Detach the Hinge Outer Cover below the Rear Cover by a finger.
(2-2) Unfasten the Screw 4EA at the Bottom area of Rear Cover.
2-1
2-2 2-2 2-2 2-2
2-1 2-2
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
OLED65G6 Disassembly Guide
(3-1) Insert the ‘Plastic scraper’ on the indicated side area of Rear Cover.
(3-2) If you push the ‘Plastic scraper’ , the holder from Rear Cover will be detach.
And then you can see the gap at the bottom of Rear Cover.
(3-3) ~ (3-4) Hold the on the right-bottom area and pull up the bottom of rear cover slowly.
(3-5) ~ (3-6) If you pulled up all bottom area of Rear Cover, hold the each side-bottom area by both hands and then push up it with a little shaking.
Plastic scraper
3-2
TOK!
Rear Cover
3-1 GAP
3-3 3-4 3-5 3-6
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
OLED65G6 Disassembly Guide
(4-1) Unfasten Screw 6EA.
(4-2) Disconnect Power Cable 2EA.
(4-3) Disconnect VX1 Cable 2EA.
(4-4) Detach the Tape 2EA.
4-2
4-3
4-2 4-3
4-1 4-1
4-4
4-4
4-1 4-1 4-1 4-1
Caution!
4-2 4-3
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
OLED65G6 Disassembly Guide
(5-1) ~ (5-2) Unhook the cable from Bottom Supporter during cable disconnection.
(5-3) Pull with raising up the AV BOX like a picture to separate the hinge hooks.
5-3
5-2
5-1
Separate
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
OLED65G6 Disassembly Guide
(6-1) Turn and put down the AV BOX like a picture. Before that, cover the table with a cotton sheet or something like that.
(6-2) Unfasten the [A] Screw 17EA and Do not unfasten [b] Screw 4EA.
You need to check the arrow. If there are arrow marked screws, Do not unfasten that.
6-1 6-2
※ Do not unfasten
arrow marked
screws
[A] [B]
6-2 6-2 6-2 6-2 6-2 6-2
6-2 ※ Do not unfasten 6-2
these screws
6-2 6-2 6-2 6-2 6-2 6-2 6-2 6-2 6-2
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
OLED65G6 Disassembly Guide
(7-1) Turn the AV BOX like this guide.
Turn the AV Box
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
OLED65G6 Disassembly Guide
(8-1) ~ (8-4) Separate the inside latches of AV BOX Cover following the steps.
8-1 8-2 8-3 8-4
8-2
8-1
8-4
8-3
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
OLED65G6 Disassembly Guide
(9-1) grip the third lane in the front side and grip the first lane in the rear side like the picture,
and then lift up having a little power, you can separate the latches middle area of AV BOX Cover.
(9-2) Do the same working at Opposite side to separate middle area of AV BOX Cover.
9-1 9-2
You have to separate these
inside latches.
9-1
Latch separation
9-2
Latch separation
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
OLED65G6 Disassembly Guide
(10-1) ~ (10-2) Put the ‘Cover Ass’y, AV Box’ up like the picture, and lay down on the table.
10-1
10-2
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
OLED65G6 Disassembly Guide
(11-1) Disconnect a Power Cord.
11-1
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
OLED65G6 Disassembly Guide
(12-1) ~ (12-2) Unfasten each 2 Screws. (Total 4EA)
12-1 12-2
12-1 12-2
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
OLED65G6 Disassembly Guide
(13-1) Disconnect the connector 2EA of Power Cables.
(13-2) Disconnect the connector 2EA of VX1 Cables.
(13-3) Separate the Hinge Cable Assy and then put down it on the table.
(※ If you change these cables, refer to the extra guide at final pages.)
13-1 13-2
13-3
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
OLED65G6 Disassembly Guide
(14-1) ~ (14-4) Disconnect and separate Woofer Speakers and Front Speakers.
Woofer Speaker Front Speaker Front Speaker Woofer Speaker
14-2 14-3
14-1 14-4
14-1 14-2
14-3 14-4
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
OLED65G6 Disassembly Guide
(15-1) Unfasten the Screw 4EA from Sub PCB and Disconnect indicated connectors.
(15-2) Unfasten the Screw 6EA from Main PCB and Disconnect indicated connectors.
Main PCB
Sub PCB
15-2
15-1
15-2
15-2
15-2
15-1
15-1
15-2
15-1 15-2
15-1 15-2
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
OLED65G6 Disassembly Guide
(16-1) ~ (16-3) Pull and raise up the Main PCB using both hands like below pictures.
Be care the tuner not to damage it.
When you separate the PCB, you need a little power because gap pads were stuck at the bottom of PCB.
16-1 16-2
16-3
※ you need a little power because
gap pads were stuck at the bottom of PCB.
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
OLED65G6 Disassembly Guide
(17-1) Disconnect the Connector and unfasten the Screw 5EA at PSU Master PCB.
When you separate the PCB, you need a little power because gap pads were stuck at the bottom of PCB.
(17-2) Unfasten PSU Slave Screw 7EA.
(17-3) Unfasten Thermal PCB Screw 1EA.
(17-4) Unfasten Fan Screw 2EA.
PSU Slave
PSU Mater
17-1 17-1 17-2 17-2 17-2
17-2
17-2
FAN
17-1
17-1 17-1 17-2 17-2
17-3
17-4
17-1
Thermal PCB
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
OLED65G6 Disassembly Guide
(18-1) Unfasten IR Bracket Screw 1EA.
(18-2) Unfasten Joystick bracket Screw 1EA.
(18-3) Detach Gap Pad 4EA
(18-4) Detach Cable Management Tape
18-3 18-4
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
OLED65G6 Disassembly Guide
(19-1) Unfasten the Screw 6EA at Locking Bracket.
(19-2) Disassemble Locking Brackets.
(19-3) Detach indicated Gap Pad 2EA.
19-3
19-1 19-1
19-3
19-1 19-1
19-1 19-1
19-2 19-2
☞ Disassembly Complete
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Trouble Shooting Guide
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Contents of Standard Repair Process
No. Error symptom (High category) Error symptom (Mid category) Page Remarks
1 No video/Normal audio 1
2 No video/No audio 2
3 A. Video error Picture broken/ Freezing 3
4 Color error 4
Vertical/Horizontal bar, residual image,
5 5
light spot, external device color error
6 No power 6
B. Power error Off when on, off while viewing, power
7 7
auto on/off
8 No audio/Normal video 8
C. Audio error
9 Wrecked audio/discontinuation/noise 9
10 Remote control & Local switch checking 10
11 MR15R operating checking 11
D. Function error
12 Wifi operating checking 12
13 External device recognition error 13
14 E. Noise Circuit noise, mechanical noise 14
15 F. Exterior error Exterior defect 15
First of all, Check whether there is SVC Bulletin in GSCS System for these model.
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error A. Video error date
OLED TV symptom
No video/ Normal audio Revised date 1/16
First of all, Check whether all of cables between board is inserted properly or not.
(Main B/D↔ Power B/D, Vx1 Cable, Speaker Cable, IR B/D Cable,,,)
☞A1 ☞A9
No video Normal Y Check Back Light Y Check Power Normal Y Replace T-con/Main
Normal audio On Board or module
audio On with naked eye Board voltage
24V, 12V,3.5V etc. And Adjust VCOM
N N N
Move to No Check Power Board 24V output Repair Power
☞A9
video/No audio Board or parts
Replace Inverter
Normal Y
or module
voltage
End
N
Repair Power
Board or parts
※Precaution ☞A4 & A2
Always check & record S/W Version and White
Replace Main Board Re-enter White Balance value
Balance value before replacing the Main Board
1
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error A. Video error date
OLED TV symptom
No video/ No audio Revised date 2/16
☞A9
Check various Check and
Y
No Video/ voltages of Power Normal
replace
No audio Board ( 3.5V,12V,20V voltage?
MAIN B/D
or 24V…)
N End
Replace Power
Board and repair
parts
2
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error A. Video error date
OLED TV symptom
Picture broken/ Freezing Revised date 3/16
. By using Digital signal level meter
☞ A3
. By using Diagnostics menu on OSD
Check RF Signal level ( All Settings→ Channels → Channel Tuning → Manual Tuning → Check the Signal )
- Signal strength (Normal : over 50%)
- Signal Quality (Normal: over 50%)
Y Check whether other equipments have problem or not.
Normal
(By connecting RF Cable at other equipment)
Signal?
→ DVD Player ,Set-Top-Box, Different maker TV etc`
N
☞ A4
Check RF Cable
Normal Y Check SVC N Check Y
Connection Close
1. Reconnection Picture? S/W Version Bulletin? Tuner soldering
2. Install Booster N
Y
N
S/W Upgrade
N Contact with signal distributor
Normal
Picture? or broadcaster (Cable or Air)
Normal N
Y Picture? Replace
Main B/D
Y
Close
Close
3
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error A. Video error date
OLED TV symptom
Color error Revised date 4/16
☞A6 ☞ A7
※ Check
Check color by input
and replace Y
-External Input Y Y
Color Link Cable Color Color
-COMPONENT Replace Main B/D Replace module
error? (V by one) error? error?
-AV
and contact
-HDMI N N N
condition
Check error End
color input
mode
Check
External Input/ External device Y
external
Component /Cable Replace Main/T-con B/D
device and
error normal
cable
N
Request repair
for external
device/cable
N
Check external External device Y
HDMI
device and /Cable Replace Main/T-con B/D
error
cable normal
4
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
A. Video error Established
Error date
OLED TV symptom Vertical / Horizontal bar, residual image,
light spot, external device color error Revised date 5/16
Vertical/Horizontal bar, residual image, light spot Replace
Module
☞A6
☞ A7 N
Check color condition by input Check external
Check and
-External Input Screen Y device Y Screen N Screen
-Component Normal? replace Link Replace Main/T-con B/D
normal? connection normal? (adjust VCOM) normal?
-HDMI Cable
condition
N N For LGD panel Y
Y
Replace Main B/D
Replace Request repair End End
module for external
device
For other panel
External device screen error-Color error
Check screen
condition by input
-External Input External
Check S/W Version Check N
-Component Input Connect other external N
version
-HDMI/DVI error device and cable Screen Replace
(Check normal operation of normal? Main/T-con
Y External Input, Component, B/D
Component RGB and HDMI/DVI by
Y
S/W Upgrade error connecting Jig, pattern
Generator ,Set-top Box etc.
Request repair for
external device
Y
Connect other external
Normal N HDMI/
device and cable N
screen? DVI
(Check normal operation of Screen Replace
External Input, Component, normal? Main /T-con
Y RGB and HDMI/DVI by B/D
connecting Jig, pattern
Generator ,Set-top Box etc.
End
5
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error B. Power error date
OLED TV symptom
No power Revised date 6/16
☞A8 ☞A9
DC Power on Replace
Check Power LED Y Normal N Check Power Y
by pressing Power Key OK? Power
Logo LED On? operation? On ‘”High”
On Remote control B/D
. Stand-By: Red or Turn On
N Y
. Operating: Turn Off
Check Power cord Replace Main B/D
was inserted properly
☞A9
N Measure voltage of each output of Power B/D
Normal?
Y
Y Y
※ Normal
voltage?
Replace Main B/D
Close Normal
Check ST-BY 3.5V
Y
voltage? N
☞A9 Replace Power B/D
N
Replace Power
B/D
6
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error B. Power error date
OLED TV symptom
Off when on, off while viewing, power auto on/off Revised date 7/16
Check outlet
☞A10
N Y
Check A/C cord Error? Check Power Off CPU
Replace Main B/D Normal? End
Mode Abnormal
N
Check for all 3- phase
power out Y Abnormal Replace Power B/D
1
Fix A/C cord & Outlet ☞A9
and check each 3
(If Power Off mode
phase out
is not displayed) Normal Y
Replace Main B/D
Check Power B/D voltage?
voltage
N
※ Caution
Check and fix exterior Replace Power B/D
of Power B/D Part
* Please refer to the all cases which Status Power off List Explanation
"POWER_OFF_BY_REMOTE_KEY" Power off by REMOTE CONTROL
can be displayed on power off mode.
"POWER_OFF_BY_OFF_TIMER" Power off by OFF TIMER
"POWER_OFF_BY_SLEEP_TIMER" Power off by SLEEP TIMER
"POWER_OFF_BY_INSTOP" Power off by INSTOP KEY
"POWER_OFF_BY_AUTO_OFF" Power off by AUTO OFF
Normal "POWER_OFF_BY_ON_TIMER" Power off by ON TIMER
"POWER_OFF_BY_RS232C" Power off by RS232C
"POWER_OFF_BY_RESREC" Power off by Reservated Record
"POWER_OFF_BY_RECEND" Power off by End of Recording
"POWER_OFF_BY_SW_DW" Power off by S/W Download
"POWER_OFF_BY_UNKNOWN" Power off by unknown status except listed case
Abnormal "POWER_OFF_BY_CPU_ABN" Power off by CPU Abnormal
7
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error C. Audio error date
OLED TV symptom
No audio/ Normal video Revised date 8/16
☞A11 ☞A12+A9
No audio
Check user N Check audio B+
Normal Y
menu > Off 24V of Power
Screen normal voltage
Speaker off Board
Y N
Cancel OFF Replace Power Board and repair parts
Check N
Disconnection Replace MAIN Board End
Speaker
disconnection
Y
Replace Speaker
8
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error C. Audio error date
OLED TV symptom
Wrecked audio/ discontinuation/noise Revised date 9/16
→ abnormal audio/discontinuation/noise is same after “Check input signal” compared to No audio
Wrecked audio/
☞A12+A9
Check and replace
Discontinuation/ Check audio
speaker and
Noise for B+ Voltage (24V)
connector
Check input all audio
signal Y
Signal Y
-RF
normal? Wrecked audio/
-External Input Normal
signal Discontinuation/
N Replace Main B/D voltage?
Noise only
for D-TV
N
Wrecked audio/
Discontinuation/
Replace Power B/D
Noise only
for Analog
(When RF signal is not
received)
Request repair to external Wrecked audio/ Replace Main B/D End
cable/ANT provider Discontinuation/
Noise only
for External Input
(In case of N
External Input Connect and check Normal
signal error) other external audio?
Check and fix device
external device Y
Check and fix external device
9
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
D. Function error Established
Error date
OLED TV symptom
Remote control & Local switch checking Revised date 10/16
1. Remote control(R/C) operating error Replace
Main B/D
☞A13 ☞A13 ☞A13
Check & Repair N Check B+ Y Y
Check R/C itself Normal Y Normal Normal Check IR Normal
operating? Cable connection operating? 3.5V Voltage? Signal?
Operation Output signal
Connector solder On Main B/D
N
Y N N
☞A9
Check R/C Operating Check & Replace Close Check 3.5v on Power B/D Repair/Replace
When turn off light Baterry of R/C Replace Power B/D or IR B/D
in room Replace Main B/D
(Power B/D don’t have problem)
If R/C operate, Normal Y
operating? Close
Explain the customer
cause is interference
from light in room. N
Replace R/C
10
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
D. Function error Established
Error date
OLED TV symptom
MR15R operating checking Revised date 11/15
2. SP16 (Magic remote control) operating error
☞A4
Check the N Check MR15R
RF Receiver ver Normal Y Press the Is show ok N Turn off/on the
INSTART menu is “00.00”? itself Operation operating? set and press
wheel message?
the wheel
N
Y Y
☞A14
Check & Replace
Check & Repair Battery of MR15R Close
RF assy
connection
Normal Y
☞A4 operating? Close
Is show ok N Press the back
RF Receiver ver N message? key about 5sec
Close N
is “00.00”?
Y
Replace
MR15R
Y Close
Down load the Firmware
•If you conduct the loop at 3times,
* INSTART MENU12.RF change the MR15R.
remote control Test3.
Firmware download
11
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
D. Function error Established
Error date
OLED TV symptom
Wifi operating checking Revised date 12/16
3.Wifi operating error
☞A4 ☞A15
Check the Wi-Fi Mac value N Check the Wifi wafer Normal N Replace
INSTART menu is “NG”? Voltage?
1pin Main B/D
Y
☞A15 Y
Check & Repair Close
Wifi cable
connection
☞A4
Wi-Fi Mac value N
is “NG”? Close
Y
Change the Wifi
assy
12
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error D. Function error date
OLED TV symptom
External device recognition error Revised date 14/16
Y Check technical
Check External Input and
Signal information Technical N
input Component Replace Main B/D
input? - Fix information information?
Recognition error
signal
- S/W Version
N Y
HDMI/
Check and fix DVI, Optical
Fix in Replace Main B/D
external device/cable Recognition error
accordance
with technical
information
13
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error E. Noise date
OLED TV symptom
Circuit noise, mechanical noise Revised date 15/16
Identify Check
Circuit
nose location of Replace PSU
noise
type noise
Mechanical Check location of
noise noise
※ When the nose is severe, replace the module
※ Mechanical noise is a natural (For models with fix information, upgrade the
phenomenon, and apply the 1st level S/W or provide the description)
description. When the customer does not OR
agree, apply the process by stage. ※ If there is a “Tak Tak” noise from the
※ Describe the basis of the description cabinet, refer to the KMS fix information and
in “Part related to nose” in the Owner’s then proceed as shown in the solution manual
Manual. (For models without any fix information,
provide the description)
14
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error F. Exterior defect date
OLED TV symptom
Exterior defect Revised date 16/16
Zoom part with Module
Replace module
exterior damage damage
Cabinet
Replace cabinet
damage
Remote
control Replace remote control
damage
Stand
Replace stand
dent
15
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Contents of Standard Repair Process Detail Technical Manual
No. Error symptom Content Page Remarks
1 A. Video error_ No video/Normal Check LCD back light with naked eye A1
2 audio Check White Balance value A2
TUNER input signal strength checking
3 A3
method
A. Video error_ video error /Video
4 lag/stop Version checking method A4
5 Tuner Checking Part A5
A. Video error _Vertical/Horizontal bar,
6 connection diagram A6
residual image, light spot
Check Link Cable (EPI) reconnection
7 A. Video error_ Color error A7
condition
Exchange Module (1) A-1/2
8 Defected Type caused by T-Con/
Inverter/ Module Exchange Module (2) A-2/2
Continue to the next page
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Contents of Standard Repair Process Detail Technical Manual
Continued from previous page
No. Error symptom Content Page Remarks
9 Check front display Logo A8
B. Power error_ No power
10 Check power input Voltage & ST-BY 3.5V A9
B. Power error_Off when on, off
11 POWER OFF MODE checking method A10
while viewing
Checking method in menu when there is
12 A11
C. Audio error_ No audio/Normal no audio
video Voltage and speaker checking method
13 A12
when there is no audio
remote control operation checking
14 A13
method
D. Function error Motion Remote operation checking
15 A14
method
16 Wifi operation checking method A15
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_No video/Normal audio date
OLED TV
Revised
Content Check LCD back light with naked eye A1
date
After Remove the Rear Cover, turning on the power and check with the naked eye,
Whether you can see video
A1
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_No video/Normal audio date
OLED TV
Revised
Content Check White Balance value A2
date
Entry method
1. Press the ADJ button on the remote control for adjustment.
2. Enter into White Balance of item 12.
3. After recording the R, G, B (GAIN, Cut) value of Color Temp
(Cool/Medium/Warm), re-enter the value after replacing the MAIN BOARD.
A2
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_Video error, video lag/stop date
OLED TV
TUNER input signal strength checking method Revised
Content date A3
All Settings Channels Channel Tuning
When the signal is strong, use the
attenuator (-10dB, -15dB, -20dB etc.)
A3
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_Video error, video lag/stop date
OLED TV
Version checking method Revised
Content date A4
1. Checking method for remote control for adjustment
Version
Press the IN-START with the remote
control for adjustment
A4
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom
A. Video error_Video error, video lag/stop
OLED TV date
Revised
Content TUNER checking part A5
date
Checking method:
1. Check the signal strength or check whether the screen is normal when the external device is connected.
2. After measuring each voltage from power supply, finally replace the MAIN BOARD.
A5
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error A. Video error _Vertical/Horizontal bar, Established
OLED TV symptom residual image, light spot date
Revised
Content connection diagram date A6
As the part connecting to the external input, check
the screen condition by signal
A6
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_Color error date
OLED TV
Revised
Content Check Link Cable (EPI) reconnection condition date A7
Check the contact condition of the Link Cable, especially dust or mis insertion.
A7
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Appendix : Exchange the Module (1)
Vertical abnormal display Brightness difference Line Dim
Crosstalk Press damage Crosstalk
Un-repairable Cases
In this case please exchange the module.
Burnt
A – 1/2
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Appendix : Exchange the Module (2)
Angle view Color difference Brightness dot noise Half dead
Brightness difference
Green Noise on power on/off time Line Defect
Un-repairable Cases
In this case please exchange the module.
Mura
A – 2/2
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom B. Power error _No power date
OLED TV
Revised
Content Check front display Logo date A8
ST-BY condition: On or Off
Power ON condition: Turn Off
A8
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom
B. Power error _No power
OLED TV date
Revised
Content Check power input voltage and ST-BY 3.5V A9
date
Check the DC 24V, 12V, 3.5V.
24Pin(Power Board ↔ Main Board) 4Pin(Power Board ↔
Analog Board)
1 GND 2 GND
1 24V
3 24V 4 24V
2 24V
5 24V 6 24V
3 24V
7 GND 8 12V_ON
4 GND
9 12V 10 GND
5 GND
11 12V 12 12V
6 GND
13 12V 14 12V
7 12V
15 GND 16 GND
8 GND
17 3.5V 18 3.5V
19 3.5V 20 GND
21 DPC 22 AC_DET
23 RL_ON 24 INV_CTL
A9
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error
symptom B. Power error _Off when on, off whiling viewing Established
date
OLED TV
Revised
Content POWER OFF MODE checking method date A10
Entry method
1. Press the IN-START button of the remote control for adjustment
2. Check the entry into adjustment item 3(power On/Off Status)
A10
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom C. Audio error_No audio/Normal video
OLED TV date
Revised
Content Checking method in menu when there is no audio date A11
Checking method
1. Press the Setting button on the remote control
2. Select the Sound function of the Menu
3. Select the Sound Out
4. Select TV Speaker
A11
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom C. Audio error_No audio/Normal video date
OLED TV
Voltage and speaker checking method Revised
Content date A12
when there is no audio
② 1 SPK_R-_F 2 SPK_R+_F
3 SPK_L-_F 4 SPK_L+_F
1 SPK_R-_SR 2 SPK_R+_SR
3 SPK_L-_SR 4 SPK_L+_SR
5 SPK_R-WF2 6 SPK_R+WF2
7 SPK_L-WF2 8 SPK_L+WF2
9 SPK_R-WF1 10 SPK_R+WF1
11 SPK_L-WF1 12 SPK_L+WF1
① ③
③ ①
Checking order when there is no audio
① Check the contact condition of or 24V connector of Main Board
② Measure the 24V input voltage supplied from Power Board
(If there is no input voltage, remove and check the connector)
③ Connect the tester RX1 to the speaker terminal and if you hear the Chik Chik sound when you touch the
GND and output terminal, the speaker is normal.
A12
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom D. Function error date
OLED TV
Revised
Content remote control operation checking method date A13
③ P4000
②
1 GND
2 3.3V_Normal
3 3.3V_Normal
4 3.5V_ST
5 Eye_SDA_Wall
6 Accel
7 Eye_SCL_Wall
8 GND
9 Eye_SDA_Stand
10 GND
11 Eye_SCL_Stand
12 KEY1
13 GND
① 14 KEY2
15 IR
16 3.5V_ST
Checking order 17 Light
18 GND
1, 2. Check IR cable condition between IR & Main board.
3. Check the st-by 3.5V on the terminal 4
A13
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom D. Function error date
OLED TV
Revised
Content Motion Remote operation checking method date A14
② ①
③
P4001
1 GND
2 BT_RESET
3 3D_SYNC_RF
4 WOL/WIFI_POWER_ON
5 GND
6 WIFI_DP
7 WIFI_DM
③ 8 3.5V_WIFI
Checking order
1. Check IR cable condition between IR & Main board.
2. Check WIFI Combo cable condition between WIFI Combo Assy & Main board.
3. Check the st-by 3.5V P4000 on the terminal 4
4. Check the 3.5V_WIFI P4001 on the terminal 8
A14
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom D. Function error date
OLED TV
Revised
Content Wifi operation checking method date A15
②
①
P4001
1 GND
2 BT_RESET
3 3D_SYNC_RF
4 WOL/WIFI_POWER_ON
5 GND
6 WIFI_DP
7 WIFI_DM
③ 8 3.5V_WIFI
Checking order
1, 2. Check Wifi cable condition between Wifi assy & Main board.
3. Check the 3.3V on the terminal 8.
A15
Copyright ⓒ 2016 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
