LED TV
SERVICE MANUAL
CHASSIS : LD75H
MODEL : 55LJ615V 55LJ615V-ZA
CAUTION
BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
P/NO : MFL69841002 (1702-REV00)

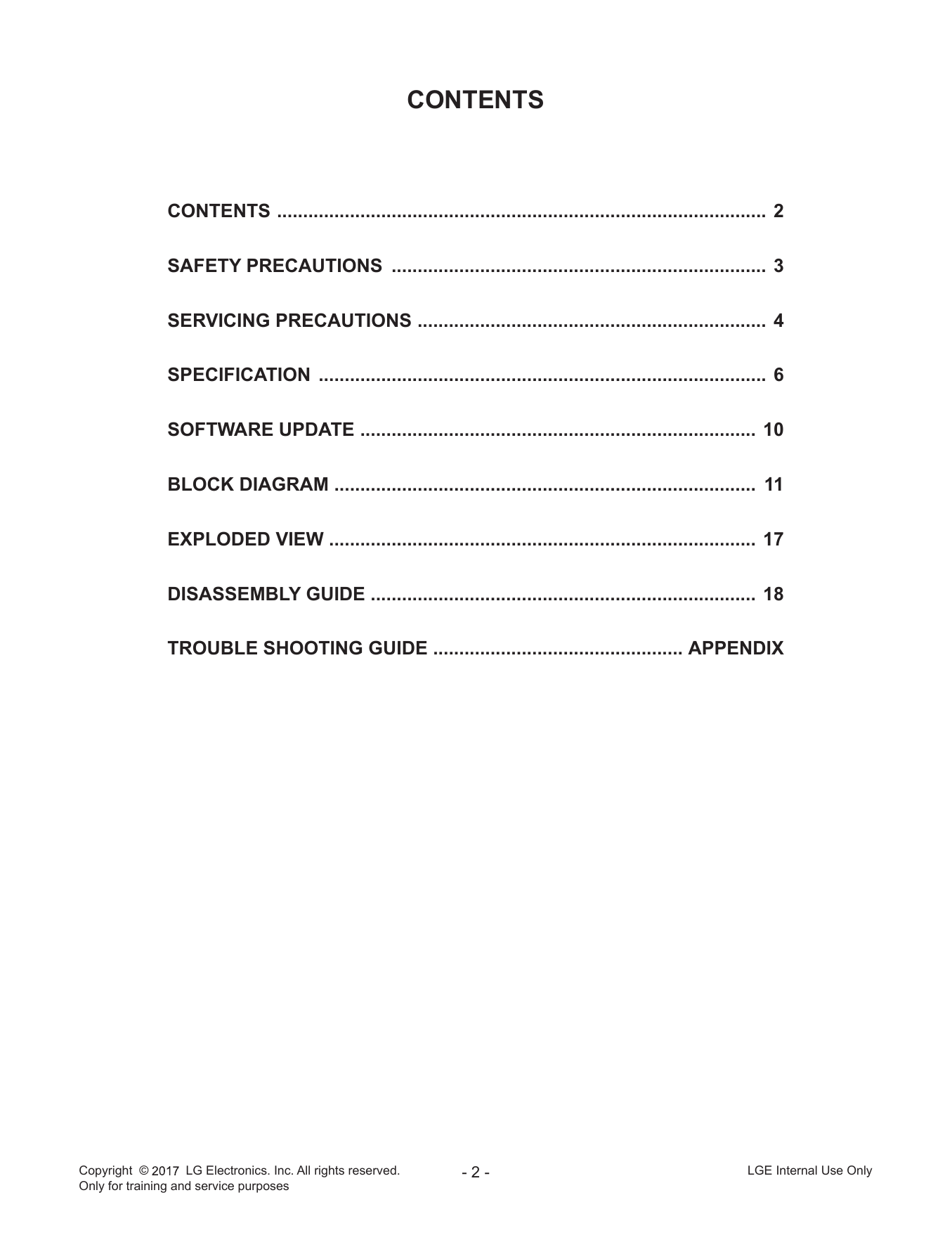

CONTENTS
CONTENTS ............................................................................................... 2
SAFETY PRECAUTIONS ......................................................................... 3
SERVICING PRECAUTIONS .................................................................... 4
SPECIFICATION ....................................................................................... 6
SOFTWARE UPDATE ............................................................................. 10
BLOCK DIAGRAM .................................................................................. 11
EXPLODED VIEW ................................................................................... 17
DISASSEMBLY GUIDE .......................................................................... 18
TROUBLE SHOOTING GUIDE ................................................. APPENDIX
Copyright © LG Electronics. Inc. All rights reserved. -2- LGE Internal Use Only
Only for training and service purposes

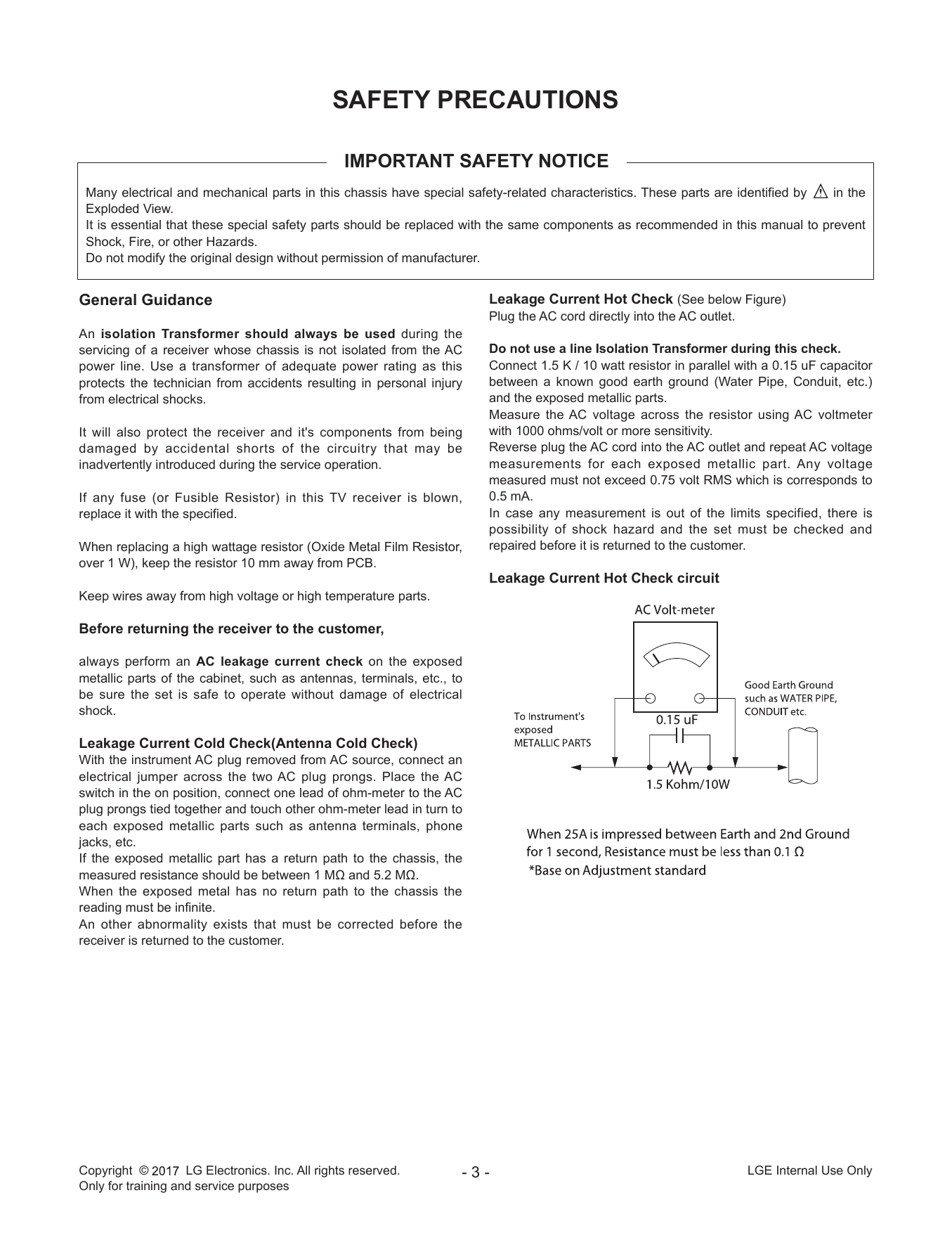

SAFETY PRECAUTIONS
IMPORTANT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC Do not use a line Isolation Transformer during this check.
power line. Use a transformer of adequate power rating as this Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
protects the technician from accidents resulting in personal injury between a known good earth ground (Water Pipe, Conduit, etc.)
from electrical shocks. and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
It will also protect the receiver and it's components from being with 1000 ohms/volt or more sensitivity.
damaged by accidental shorts of the circuitry that may be Reverse plug the AC cord into the AC outlet and repeat AC voltage
inadvertently introduced during the service operation. measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
If any fuse (or Fusible Resistor) in this TV receiver is blown, 0.5 mA.
replace it with the specified. In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
When replacing a high wattage resistor (Oxide Metal Film Resistor, repaired before it is returned to the customer.
over 1 W), keep the resistor 10 mm away from PCB.
Leakage Current Hot Check circuit
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Copyright © LG Electronics. Inc. All rights reserved. -3- LGE Internal Use Only
Only for training and service purposes
SERVICING PRECAUTIONS
CAUTION: Before servicing receivers covered by this service 2. After removing an electrical assembly equipped with ES
manual and its supplements and addenda, read and follow the devices, place the assembly on a conductive surface such as
SAFETY PRECAUTIONS on page 3 of this publication. aluminum foil, to prevent electrostatic charge buildup or expo-
NOTE: If unforeseen circumstances create conflict between the sure of the assembly.
following servicing precautions and any of the safety precautions 3. Use only a grounded-tip soldering iron to solder or unsolder
on page 3 of this publication, always follow the safety precau- ES devices.
tions. Remember: Safety First. 4. Use only an anti-static type solder removal device. Some sol-
der removal devices not classified as “anti-static” can generate
General Servicing Precautions electrical charges sufficient to damage ES devices.
1. Always unplug the receiver AC power cord from the AC power 5. Do not use freon-propelled chemicals. These can generate
source before; electrical charges sufficient to damage ES devices.
a. Removing or reinstalling any component, circuit board 6. Do not remove a replacement ES device from its protective
module or any other receiver assembly. package until immediately before you are ready to install it.
b. Disconnecting or reconnecting any receiver electrical plug (Most replacement ES devices are packaged with leads elec-
or other electrical connection. trically shorted together by conductive foam, aluminum foil or
c. Connecting a test substitute in parallel with an electrolytic comparable conductive material).
capacitor in the receiver. 7. Immediately before removing the protective material from the
CAUTION: A wrong part substitution or incorrect polarity leads of a replacement ES device, touch the protective mate-
installation of electrolytic capacitors may result in an explo- rial to the chassis or circuit assembly into which the device will
sion hazard. be installed.
2. Test high voltage only by measuring it with an appropriate CAUTION: Be sure no power is applied to the chassis or cir-
high voltage meter or other voltage measuring device (DVM, cuit, and observe all other safety precautions.
FETVOM, etc) equipped with a suitable high voltage probe. 8. Minimize bodily motions when handling unpackaged replace-
Do not test high voltage by "drawing an arc". ment ES devices. (Otherwise harmless motion such as the
3. Do not spray chemicals on or near this receiver or any of its brushing together of your clothes fabric or the lifting of your
assemblies. foot from a carpeted floor can generate static electricity suf-
4. Unless specified otherwise in this service manual, clean ficient to damage an ES device.)
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable General Soldering Guidelines
non-abrasive applicator; 10 % (by volume) Acetone and 90 % 1. Use a grounded-tip, low-wattage soldering iron and appropri-
(by volume) isopropyl alcohol (90 % - 99 % strength) ate tip size and shape that will maintain tip temperature within
CAUTION: This is a flammable mixture. the range or 500 °F to 600 °F.
Unless specified otherwise in this service manual, lubrication 2. Use an appropriate gauge of RMA resin-core solder composed
of contacts in not required. of 60 parts tin/40 parts lead.
5. Do not defeat any plug/socket B+ voltage interlocks with which 3. Keep the soldering iron tip clean and well tinned.
receivers covered by this service manual might be equipped. 4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
6. Do not apply AC power to this instrument and/or any of its bristle (0.5 inch, or 1.25 cm) brush with a metal handle.
electrical assemblies unless all solid-state device heat sinks Do not use freon-propelled spray-on cleaners.
are correctly installed. 5. Use the following unsoldering technique
7. Always connect the test receiver ground lead to the receiver a. Allow the soldering iron tip to reach normal temperature.
chassis ground before connecting the test receiver positive (500 °F to 600 °F)
lead. b. Heat the component lead until the solder melts.
Always remove the test receiver ground lead last. c. Quickly draw the melted solder with an anti-static, suction-
8. Use with this receiver only the test fixtures specified in this type solder removal device or with solder braid.
service manual. CAUTION: Work quickly to avoid overheating the circuit
CAUTION: Do not connect the test fixture ground strap to any board printed foil.
heat sink in this receiver. 6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
Electrostatically Sensitive (ES) Devices (500 °F to 600 °F)
Some semiconductor (solid-state) devices can be damaged eas- b. First, hold the soldering iron tip and solder the strand
ily by static electricity. Such components commonly are called against the component lead until the solder melts.
Electrostatically Sensitive (ES) Devices. Examples of typical ES c. Quickly move the soldering iron tip to the junction of the
devices are integrated circuits and some field-effect transistors component lead and the printed circuit foil, and hold it there
and semiconductor “chip” components. The following techniques only until the solder flows onto and around both the compo-
should be used to help reduce the incidence of component dam- nent lead and the foil.
age caused by static by static electricity. CAUTION: Work quickly to avoid overheating the circuit
1. Immediately before handling any semiconductor component or board printed foil.
semiconductor-equipped assembly, drain off any electrostatic d. Closely inspect the solder area and remove any excess or
charge on your body by touching a known earth ground. Alter- splashed solder with a small wire-bristle brush.
natively, obtain and wear a commercially available discharg-
ing wrist strap device, which should be removed to prevent
potential shock reasons prior to applying power to the unit
under test.
Copyright © LG Electronics. Inc. All rights reserved. -4- LGE Internal Use Only
Only for training and service purposes
IC Remove/Replacement 3. Solder the connections.
Some chassis circuit boards have slotted holes (oblong) through CAUTION: Maintain original spacing between the replaced
which the IC leads are inserted and then bent flat against the cir- component and adjacent components and the circuit board to
cuit foil. When holes are the slotted type, the following technique prevent excessive component temperatures.
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique Circuit Board Foil Repair
as outlined in paragraphs 5 and 6 above. Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
Removal board causing the foil to separate from or "lift-off" the board. The
1. Desolder and straighten each IC lead in one operation by following guidelines and procedures should be followed when-
gently prying up on the lead with the soldering iron tip as the ever this condition is encountered.
solder melts.
2. Draw away the melted solder with an anti-static suction-type At IC Connections
solder removal device (or with solder braid) before removing To repair a defective copper pattern at IC connections use the
the IC. following procedure to install a jumper wire on the copper pattern
Replacement side of the circuit board. (Use this technique only on IC connec-
1. Carefully insert the replacement IC in the circuit board. tions).
2. Carefully bend each IC lead against the circuit foil pad and
solder it. 1. Carefully remove the damaged copper pattern with a sharp
3. Clean the soldered areas with a small wire-bristle brush. knife. (Remove only as much copper as absolutely necessary).
(It is not necessary to reapply acrylic coating to the areas). 2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
"Small-Signal" Discrete Transistor 3. Bend a small "U" in one end of a small gauge jumper wire and
Removal/Replacement carefully crimp it around the IC pin. Solder the IC connection.
1. Remove the defective transistor by clipping its leads as close 4. Route the jumper wire along the path of the out-away copper
as possible to the component body. pattern and let it overlap the previously scraped end of the
2. Bend into a "U" shape the end of each of three leads remain- good copper pattern. Solder the overlapped area and clip off
ing on the circuit board. any excess jumper wire.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding At Other Connections
leads extending from the circuit board and crimp the "U" with Use the following technique to repair the defective copper pattern
long nose pliers to insure metal to metal contact then solder at connections other than IC Pins. This technique involves the
each connection. installation of a jumper wire on the component side of the circuit
board.
Power Output, Transistor Device
Removal/Replacement 1. Remove the defective copper pattern with a sharp knife.
1. Heat and remove all solder from around the transistor leads. Remove at least 1/4 inch of copper, to ensure that a hazardous
2. Remove the heat sink mounting screw (if so equipped). condition will not exist if the jumper wire opens.
3. Carefully remove the transistor from the heat sink of the circuit 2. Trace along the copper pattern from both sides of the pattern
board. break and locate the nearest component that is directly con-
4. Insert new transistor in the circuit board. nected to the affected copper pattern.
5. Solder each transistor lead, and clip off excess lead. 3. Connect insulated 20-gauge jumper wire from the lead of the
6. Replace heat sink. nearest component on one side of the pattern break to the
lead of the nearest component on the other side.
Diode Removal/Replacement Carefully crimp and solder the connections.
1. Remove defective diode by clipping its leads as close as pos- CAUTION: Be sure the insulated jumper wire is dressed so the
sible to diode body. it does not touch components or sharp edges.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and
if necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
Copyright © LG Electronics. Inc. All rights reserved. -5- LGE Internal Use Only
Only for training and service purposes

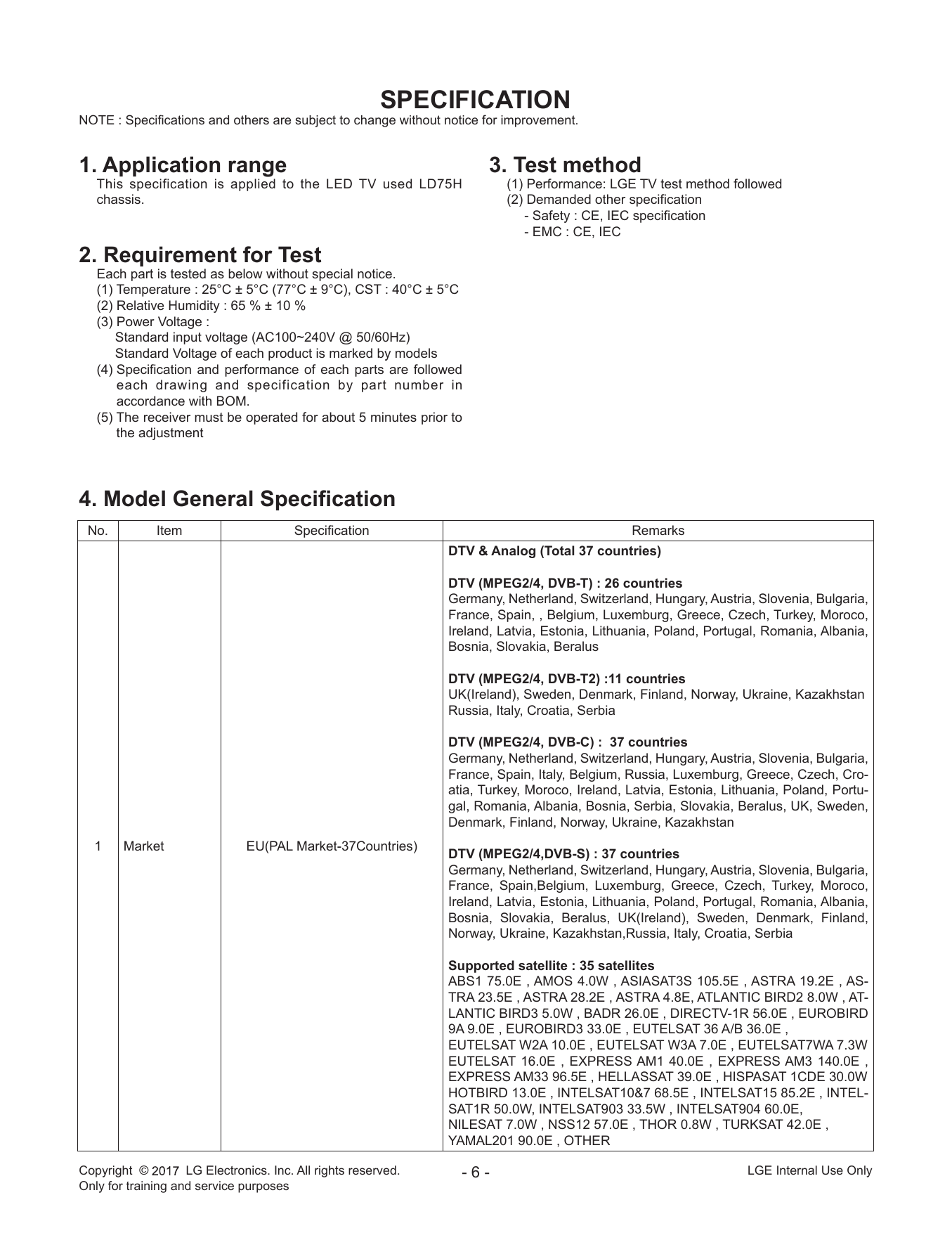

SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement.
1. Application range 3. Test method
This specification is applied to the LED TV used LD75H (1) Performance: LGE TV test method followed
chassis. (2) Demanded other specification
- Safety : CE, IEC specification
- EMC : CE, IEC
2. Requirement for Test
Each part is tested as below without special notice.
(1) Temperature : 25°C ± 5°C (77°C ± 9°C), CST : 40°C ± 5°C
(2) Relative Humidity : 65 % ± 10 %
(3) Power Voltage :
Standard input voltage (AC100~240V @ 50/60Hz)
Standard Voltage of each product is marked by models
(4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
(5) The receiver must be operated for about 5 minutes prior to
the adjustment
4. Model General Specification
No. Item Specification Remarks
DTV & Analog (Total 37 countries)
DTV (MPEG2/4, DVB-T) : 26 countries
Germany, Netherland, Switzerland, Hungary, Austria, Slovenia, Bulgaria,
France, Spain, , Belgium, Luxemburg, Greece, Czech, Turkey, Moroco,
Ireland, Latvia, Estonia, Lithuania, Poland, Portugal, Romania, Albania,
Bosnia, Slovakia, Beralus
DTV (MPEG2/4, DVB-T2) :11 countries
UK(Ireland), Sweden, Denmark, Finland, Norway, Ukraine, Kazakhstan
Russia, Italy, Croatia, Serbia
DTV (MPEG2/4, DVB-C) : 37 countries
Germany, Netherland, Switzerland, Hungary, Austria, Slovenia, Bulgaria,
France, Spain, Italy, Belgium, Russia, Luxemburg, Greece, Czech, Cro-
atia, Turkey, Moroco, Ireland, Latvia, Estonia, Lithuania, Poland, Portu-
gal, Romania, Albania, Bosnia, Serbia, Slovakia, Beralus, UK, Sweden,
Denmark, Finland, Norway, Ukraine, Kazakhstan
1 Market EU(PAL Market-37Countries)
DTV (MPEG2/4,DVB-S) : 37 countries
Germany, Netherland, Switzerland, Hungary, Austria, Slovenia, Bulgaria,
France, Spain,Belgium, Luxemburg, Greece, Czech, Turkey, Moroco,
Ireland, Latvia, Estonia, Lithuania, Poland, Portugal, Romania, Albania,
Bosnia, Slovakia, Beralus, UK(Ireland), Sweden, Denmark, Finland,
Norway, Ukraine, Kazakhstan,Russia, Italy, Croatia, Serbia
Supported satellite : 35 satellites
ABS1 75.0E , AMOS 4.0W , ASIASAT3S 105.5E , ASTRA 19.2E , AS-
TRA 23.5E , ASTRA 28.2E , ASTRA 4.8E, ATLANTIC BIRD2 8.0W , AT-
LANTIC BIRD3 5.0W , BADR 26.0E , DIRECTV-1R 56.0E , EUROBIRD
9A 9.0E , EUROBIRD3 33.0E , EUTELSAT 36 A/B 36.0E ,
EUTELSAT W2A 10.0E , EUTELSAT W3A 7.0E , EUTELSAT7WA 7.3W
EUTELSAT 16.0E , EXPRESS AM1 40.0E , EXPRESS AM3 140.0E ,
EXPRESS AM33 96.5E , HELLASSAT 39.0E , HISPASAT 1CDE 30.0W
HOTBIRD 13.0E , INTELSAT10&7 68.5E , INTELSAT15 85.2E , INTEL-
SAT1R 50.0W, INTELSAT903 33.5W , INTELSAT904 60.0E,
NILESAT 7.0W , NSS12 57.0E , THOR 0.8W , TURKSAT 42.0E ,
YAMAL201 90.0E , OTHER
Copyright © LG Electronics. Inc. All rights reserved. -6- LGE Internal Use Only
Only for training and service purposes

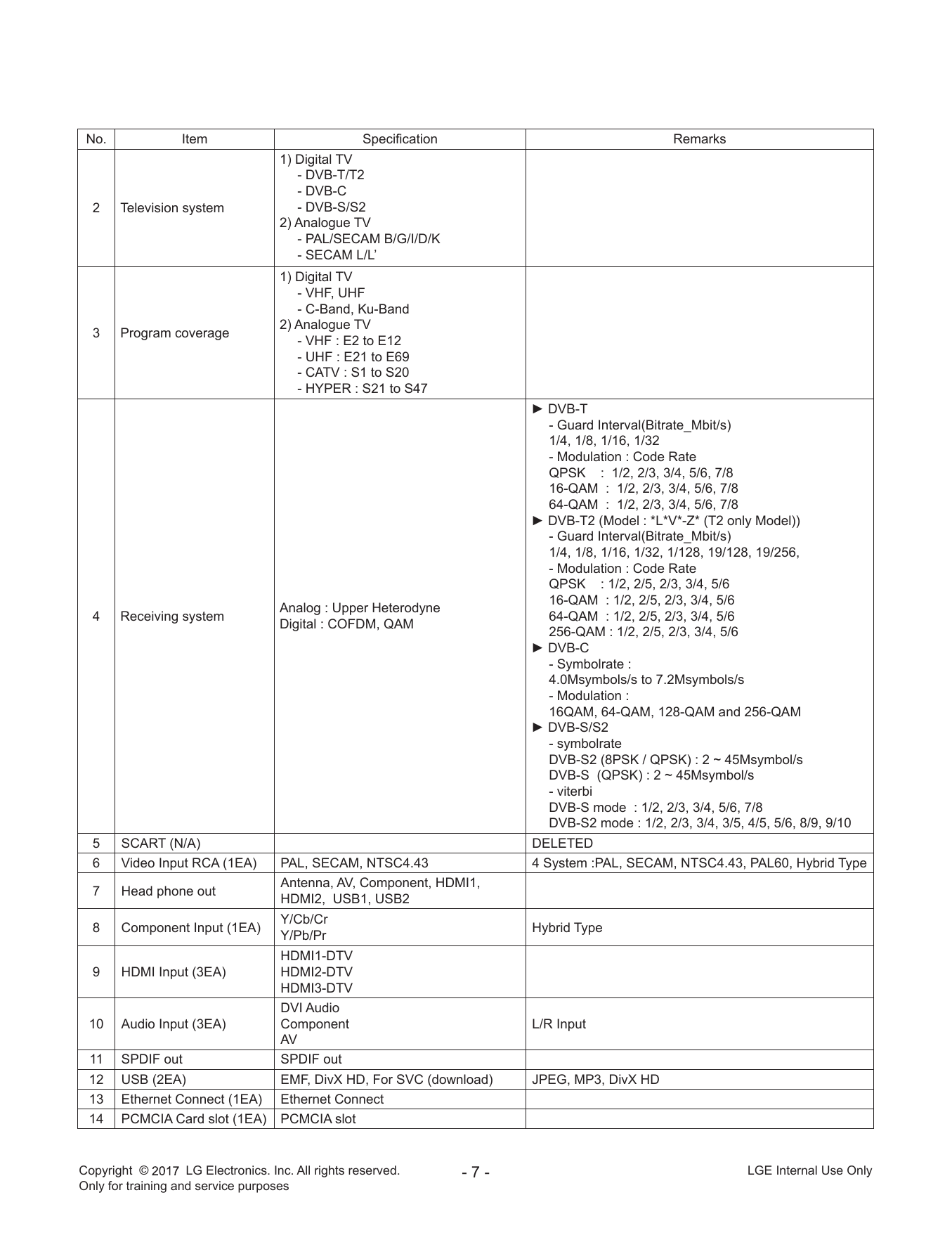

No. Item Specification Remarks
1) Digital TV
- DVB-T/T2
- DVB-C
2 Television system - DVB-S/S2
2) Analogue TV
- PAL/SECAM B/G/I/D/K
- SECAM L/L’
1) Digital TV
- VHF, UHF
- C-Band, Ku-Band
2) Analogue TV
3 Program coverage
- VHF : E2 to E12
- UHF : E21 to E69
- CATV : S1 to S20
- HYPER : S21 to S47
► DVB-T
- Guard Interval(Bitrate_Mbit/s)
1/4, 1/8, 1/16, 1/32
- Modulation : Code Rate
QPSK : 1/2, 2/3, 3/4, 5/6, 7/8
16-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
64-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
► DVB-T2 (Model : *L*V*-Z* (T2 only Model))
- Guard Interval(Bitrate_Mbit/s)
1/4, 1/8, 1/16, 1/32, 1/128, 19/128, 19/256,
- Modulation : Code Rate
QPSK : 1/2, 2/5, 2/3, 3/4, 5/6
16-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
Analog : Upper Heterodyne
4 Receiving system 64-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
Digital : COFDM, QAM
256-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
► DVB-C
- Symbolrate :
4.0Msymbols/s to 7.2Msymbols/s
- Modulation :
16QAM, 64-QAM, 128-QAM and 256-QAM
► DVB-S/S2
- symbolrate
DVB-S2 (8PSK / QPSK) : 2 ~ 45Msymbol/s
DVB-S (QPSK) : 2 ~ 45Msymbol/s
- viterbi
DVB-S mode : 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2 mode : 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10
5 SCART (N/A) DELETED
6 Video Input RCA (1EA) PAL, SECAM, NTSC4.43 4 System :PAL, SECAM, NTSC4.43, PAL60, Hybrid Type
Antenna, AV, Component, HDMI1,
7 Head phone out
HDMI2, USB1, USB2
Y/Cb/Cr
8 Component Input (1EA) Hybrid Type
Y/Pb/Pr
HDMI1-DTV
9 HDMI Input (3EA) HDMI2-DTV
HDMI3-DTV
DVI Audio
10 Audio Input (3EA) Component L/R Input
AV
11 SPDIF out SPDIF out
12 USB (2EA) EMF, DivX HD, For SVC (download) JPEG, MP3, DivX HD
13 Ethernet Connect (1EA) Ethernet Connect
14 PCMCIA Card slot (1EA) PCMCIA slot
Copyright © LG Electronics. Inc. All rights reserved. -7- LGE Internal Use Only
Only for training and service purposes

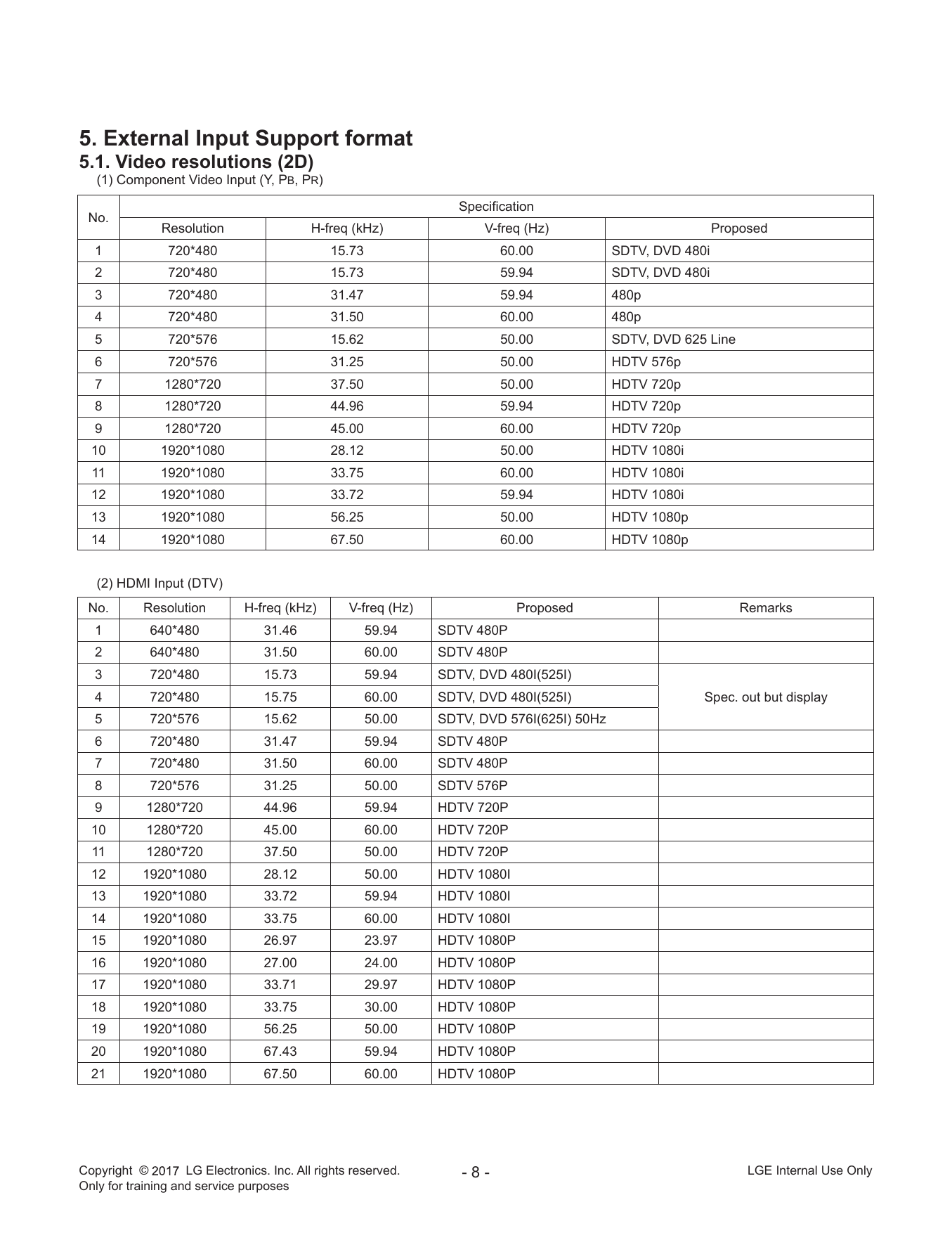

5. External Input Support format
5.1. Video resolutions (2D)
(1) Component Video Input (Y, PB, PR)
Specification
No.
Resolution H-freq (kHz) V-freq (Hz) Proposed
1 720*480 15.73 60.00 SDTV, DVD 480i
2 720*480 15.73 59.94 SDTV, DVD 480i
3 720*480 31.47 59.94 480p
4 720*480 31.50 60.00 480p
5 720*576 15.62 50.00 SDTV, DVD 625 Line
6 720*576 31.25 50.00 HDTV 576p
7 1280*720 37.50 50.00 HDTV 720p
8 1280*720 44.96 59.94 HDTV 720p
9 1280*720 45.00 60.00 HDTV 720p
10 1920*1080 28.12 50.00 HDTV 1080i
11 1920*1080 33.75 60.00 HDTV 1080i
12 1920*1080 33.72 59.94 HDTV 1080i
13 1920*1080 56.25 50.00 HDTV 1080p
14 1920*1080 67.50 60.00 HDTV 1080p
(2) HDMI Input (DTV)
No. Resolution H-freq (kHz) V-freq (Hz) Proposed Remarks
1 640*480 31.46 59.94 SDTV 480P
2 640*480 31.50 60.00 SDTV 480P
3 720*480 15.73 59.94 SDTV, DVD 480I(525I)
4 720*480 15.75 60.00 SDTV, DVD 480I(525I) Spec. out but display
5 720*576 15.62 50.00 SDTV, DVD 576I(625I) 50Hz
6 720*480 31.47 59.94 SDTV 480P
7 720*480 31.50 60.00 SDTV 480P
8 720*576 31.25 50.00 SDTV 576P
9 1280*720 44.96 59.94 HDTV 720P
10 1280*720 45.00 60.00 HDTV 720P
11 1280*720 37.50 50.00 HDTV 720P
12 1920*1080 28.12 50.00 HDTV 1080I
13 1920*1080 33.72 59.94 HDTV 1080I
14 1920*1080 33.75 60.00 HDTV 1080I
15 1920*1080 26.97 23.97 HDTV 1080P
16 1920*1080 27.00 24.00 HDTV 1080P
17 1920*1080 33.71 29.97 HDTV 1080P
18 1920*1080 33.75 30.00 HDTV 1080P
19 1920*1080 56.25 50.00 HDTV 1080P
20 1920*1080 67.43 59.94 HDTV 1080P
21 1920*1080 67.50 60.00 HDTV 1080P
Copyright © LG Electronics. Inc. All rights reserved. -8- LGE Internal Use Only
Only for training and service purposes

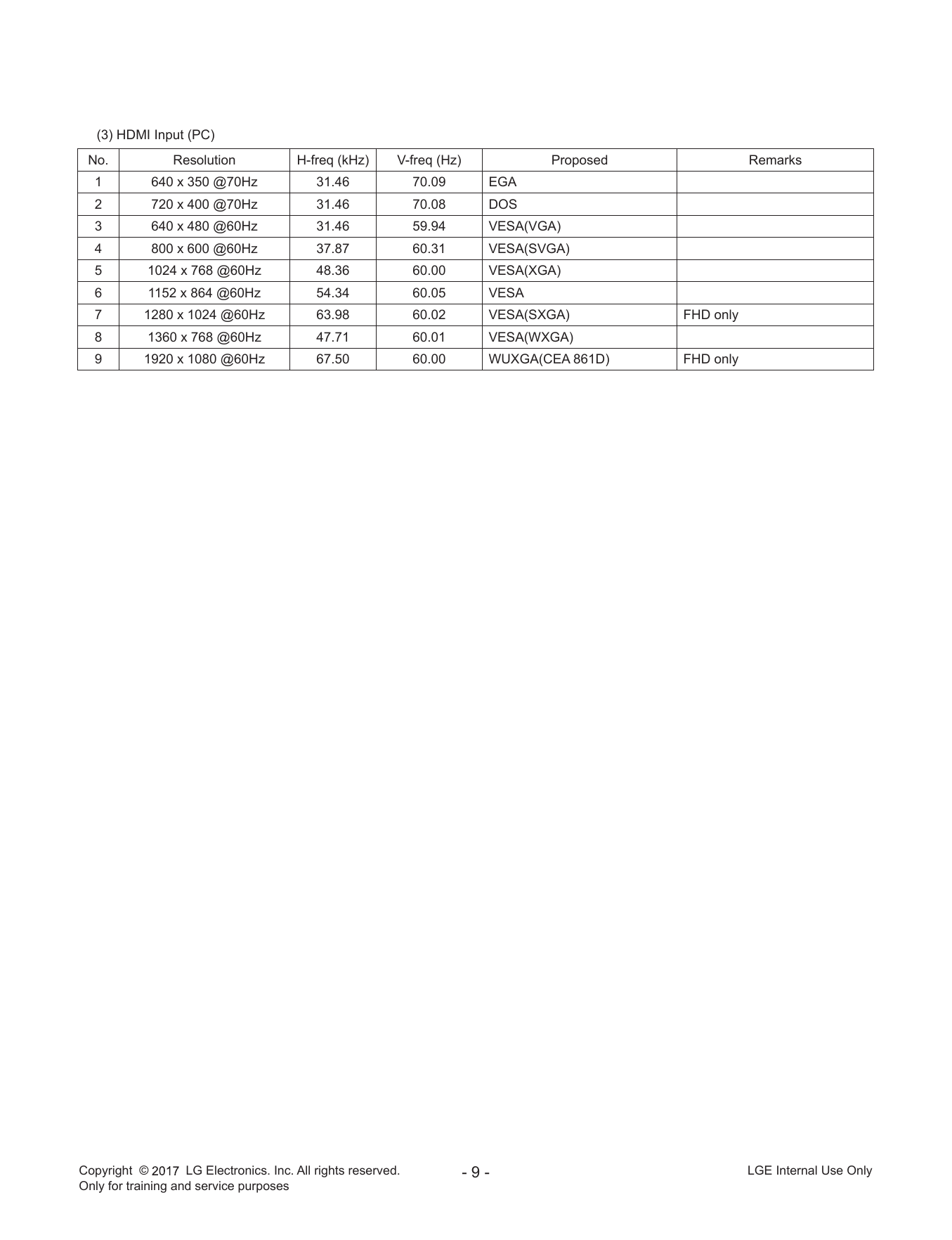

(3) HDMI Input (PC)
No. Resolution H-freq (kHz) V-freq (Hz) Proposed Remarks
1 640 x 350 @70Hz 31.46 70.09 EGA
2 720 x 400 @70Hz 31.46 70.08 DOS
3 640 x 480 @60Hz 31.46 59.94 VESA(VGA)
4 800 x 600 @60Hz 37.87 60.31 VESA(SVGA)
5 1024 x 768 @60Hz 48.36 60.00 VESA(XGA)
6 1152 x 864 @60Hz 54.34 60.05 VESA
7 1280 x 1024 @60Hz 63.98 60.02 VESA(SXGA) FHD only
8 1360 x 768 @60Hz 47.71 60.01 VESA(WXGA)
9 1920 x 1080 @60Hz 67.50 60.00 WUXGA(CEA 861D) FHD only
Copyright © LG Electronics. Inc. All rights reserved. -9- LGE Internal Use Only
Only for training and service purposes

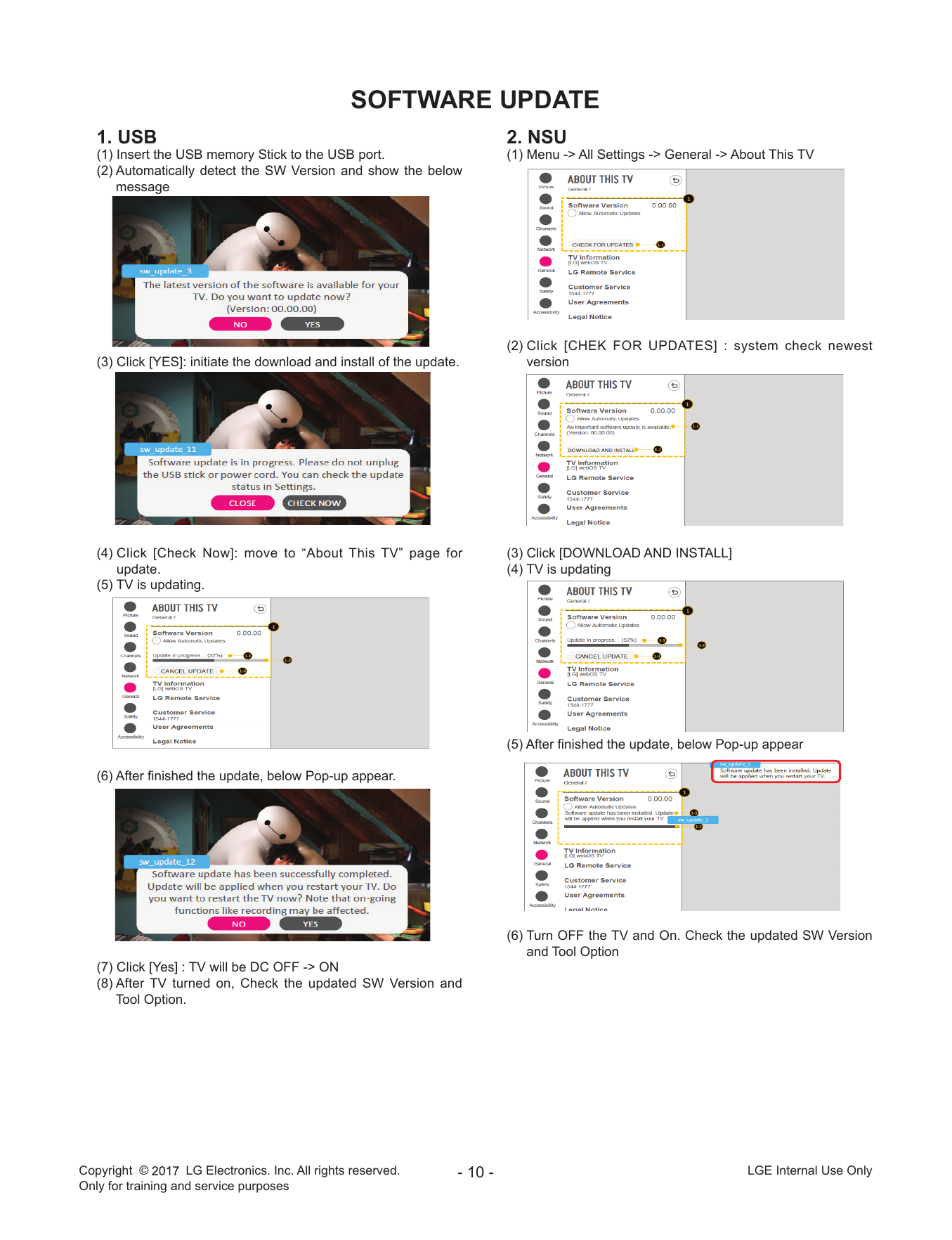

SOFTWARE UPDATE
1. USB 2. NSU
(1) Insert the USB memory Stick to the USB port. (1) Menu -> All Settings -> General -> About This TV
(2) Automatically detect the SW Version and show the below
message
(2) C lick [CHEK FOR UPDATES] : system check newest
(3) Click [YES]: initiate the download and install of the update. version
(4) Click [Check Now]: move to “About This TV” page for (3) Click [DOWNLOAD AND INSTALL]
update. (4) TV is updating
(5) TV is updating.
(5) After finished the update, below Pop-up appear
(6) After finished the update, below Pop-up appear.
(6) Turn OFF the TV and On. Check the updated SW Version
and Tool Option
(7) Click [Yes] : TV will be DC OFF -> ON
(8) After TV turned on, Check the updated SW Version and
Tool Option.
Copyright © LG Electronics. Inc. All rights reserved. - 10 - LGE Internal Use Only
Only for training and service purposes
X_TAL
Copyright ©
24MHz
CI slot
P_TS
P_TS DDR3 2133 4Gb x16
DDR3 2133 4Gb x16
IF (+/-)
Only for training and service purposes
Digital Demod
REAR Tuner
Analog Demod
I2C EEPROM (256Kb)

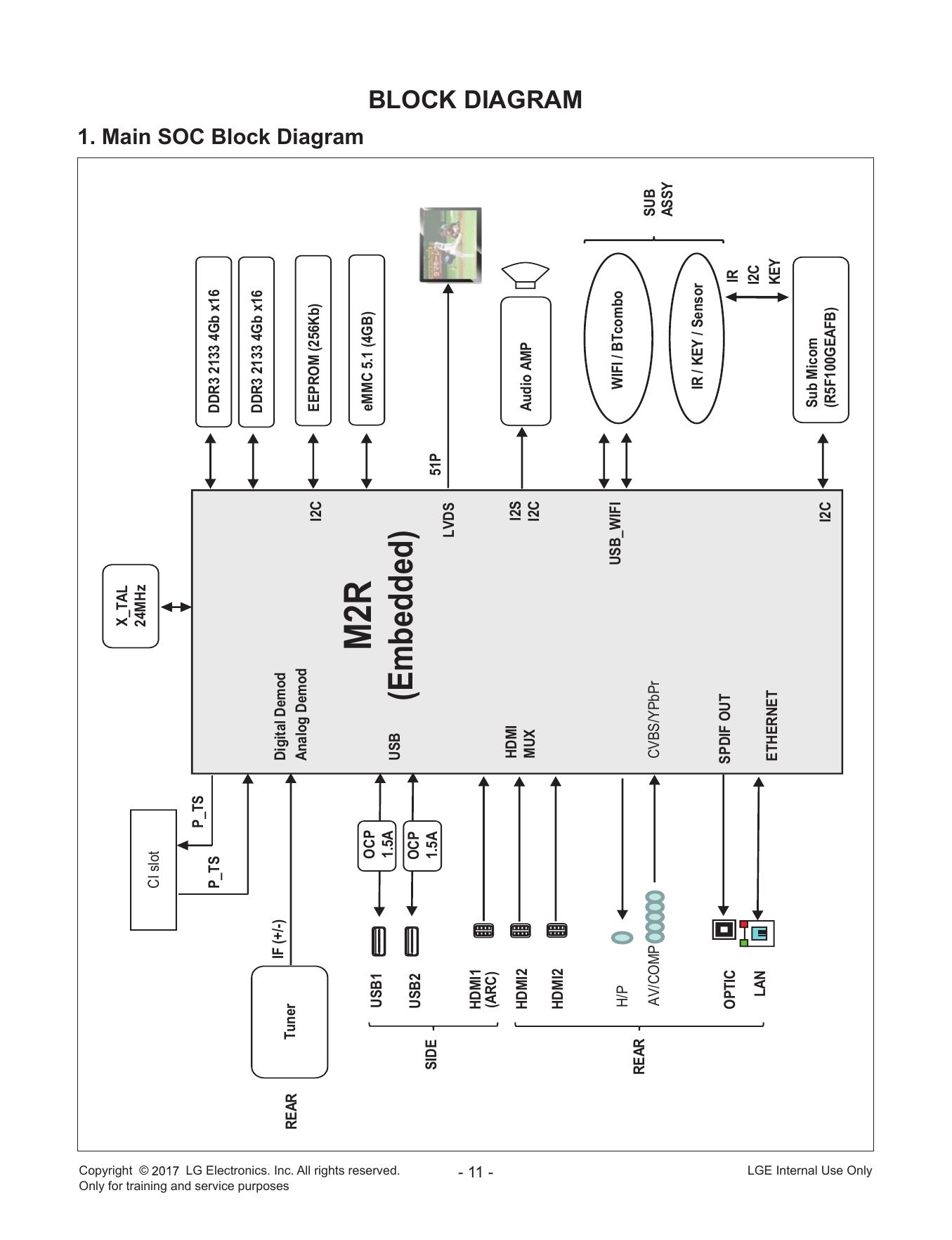

1. Main SOC Block Diagram
OCP M2R eMMC 5.1 (4GB)
USB1
1.5A
LG Electronics. Inc. All rights reserved.
USB
USB2 OCP (Embedded)
SIDE 1.5A 51P
LVDS
HDMI1
- 11 -
(ARC)
HDMI I2S
HDMI2 Audio AMP
MUX I2C
HDMI2
BLOCK DIAGRAM
H/P USB_WIFI WIFI / BTcombo
REAR
AV/COMP CVBS/YPbPr SUB
ASSY
IR / KEY / Sensor
OPTIC SPDIF OUT IR
LAN I2C
ETHERNET KEY
Sub Micom
I2C (R5F100GEAFB)
LGE Internal Use Only
Copyright ©

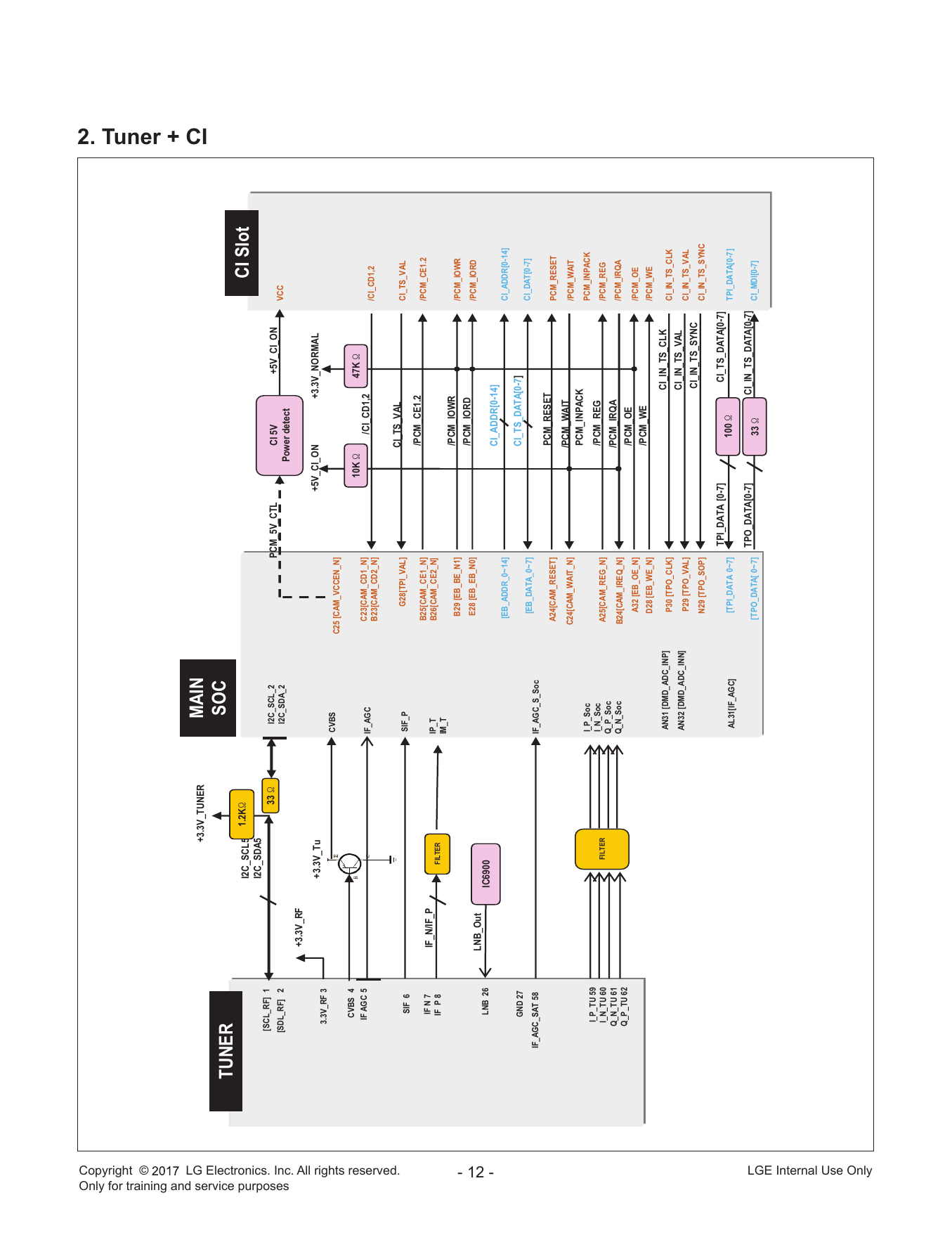

2. Tuner + CI
+3.3V_TUNER MAIN
TUNER SOC
I2C_SCL5 1.2Kȳ CI Slot
I2C_SDA5
[SCL_RF] 1
33 ȳ I2C_SCL_2 PCM_5V_CTL CI 5V +5V_CI_ON
[SDL_RF] 2 I2C_SDA_2 VCC
Only for training and service purposes
Power detect
+3.3V_RF
+3.3V_Tu +5V_CI_ON +3.3V_NORMAL
3.3V_RF 3
CVBS C25 [CAM_VCCEN_N]
CVBS 4
10K ȳ 47K ȳ
IF AGC 5 IF_AGC C23[CAM_CD1_N] /CI_CD1,2
B23[CAM_CD2_N] /CI_CD1,2
LG Electronics. Inc. All rights reserved.
G28[TPI_VAL]
CI_TS_VAL CI_TS_VAL
SIF 6 SIF_P
/PCM_CE1.2
IF N 7 B25[CAM_CE1_N] /PCM_CE1.2
IF_N/IF_P IP_T B26[CAM_CE2_N]
IF P 8 FILTER
IM_T
/PCM_IOWR
B29 [EB_BE_N1] /PCM_IOWR
E28 [EB_EB_N0]
/PCM_IORD
/PCM_IORD
LNB_Out
LNB 26 IC6900
- 12 -
CI_ADDR[0-14]
[EB_ADDR_0~14] CI_ADDR[0-14]
GND 27 CI_TS_DATA[0-7]
[EB_DATA_0~7] CI_DAT[0-7]
IF_AGC_SAT 58 IF_AGC_S_Soc
A24[CAM_RESET]
PCM_RESET
PCM_RESET
C24[CAM_WAIT_N] /PCM_WAIT /PCM_WAIT
PCM_INPACK
I_P_Soc PCM_INPACK
I_P_TU 59
I_N_Soc /PCM_REG
I_N_TU 60 FILTER A25[CAM_REG_N] /PCM_REG
Q_P_Soc
Q_N_TU 61 /PCM_IRQA /PCM_IRQA
Q_N_Soc B24[CAM_IREQ_N]
Q_P_TU 62
/PCM_OE
A32 [EB_OE_N] /PCM_OE
/PCM_WE
D28 [EB_WE_N] /PCM_WE
AN31 [DMD_ADC_INP] CI_IN_TS_CLK
P30 [TPO_CLK] CI_IN_TS_CLK
AN32 [DMD_ADC_INN] CI_IN_TS_VAL
P29 [TPO_VAL] CI_IN_TS_VAL
CI_IN_TS_SYNC
N29 [TPO_SOP] CI_IN_TS_SYNC
TPI_DATA [0-7] CI_TS_DATA[0-7]
AL31[IF_AGC] [TPI_DATA 0~7] 100 ȳ TPI_DATA[0-7]
TPO_DATA[0-7] CI_IN_TS_DATA[0-7]
[TPO_DATA[ 0~7] 33 ȳ CI_MDI[0-7]
LGE Internal Use Only
Copyright ©
AV1
A Jack Side SOC Side
JA
ACK
ACK
Phone JACK MAIN SOC
AV_CVBS_IN AV1_CVBS_IN_SOC
AM24 [CVBS_IN2]
AL18 [AUAD_L_CH2_IN
COMP2/AV_L_IN AUAD_L_CH2_IN AM18 [AUAD_R_CH2_IN]
COMP2/AV_R_IN AUAD_R_CH2_IN
Only for training and service purposes
COMP2_SOG2_IN_SOC
COMP2_Y_IN_SOC AM20 [SOY1_IN]
AN20 [Y1_IN]

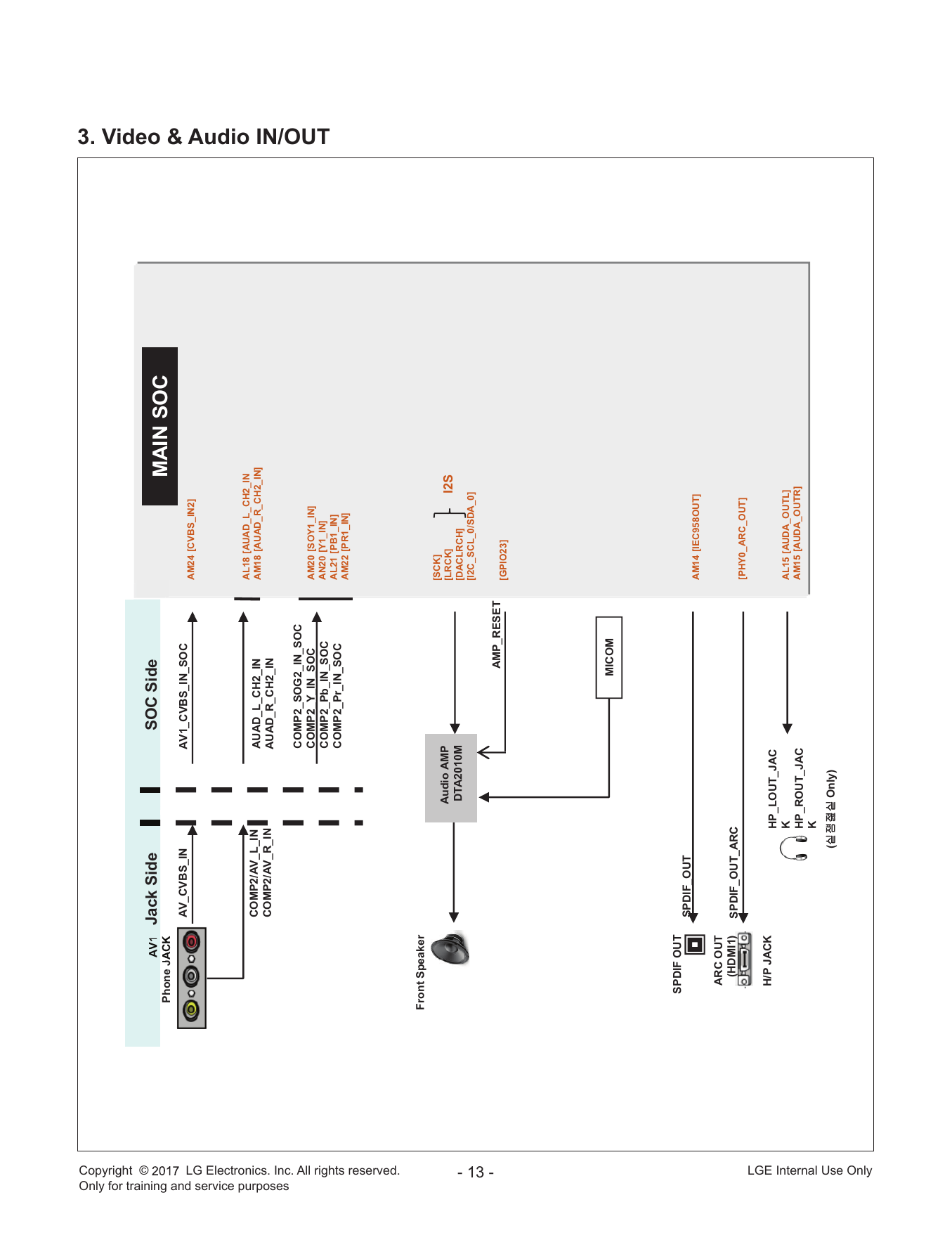

3. Video & Audio IN/OUT
COMP2_Pb_IN_SOC
COMP2_Pr_IN_SOC AL21 [PB1_IN]
AM22 [PR1_IN]
LG Electronics. Inc. All rights reserved.
Front Speaker
[SCK]
Audio AMP [LRCK] I2S
DTA2010M [DACLRCH]
[I2C_SCL_0/SDA_0]
- 13 -
AMP_RESET
[GPIO23]
MICOM
SPDIF OUT
SPDIF_OUT
AM14 [IEC958OUT]
ARC OUT
(HDMI1) SPDIF_OUT_ARC
[PHY0_ARC_OUT]
H/P JACK HP_LOUT_JAC
K AL15 [AUDA_OUTL]
HP_ROUT_JAC AM15 [AUDA_OUTR]
K
(싵쟴젎싵 Only)
LGE Internal Use Only
Copyright ©

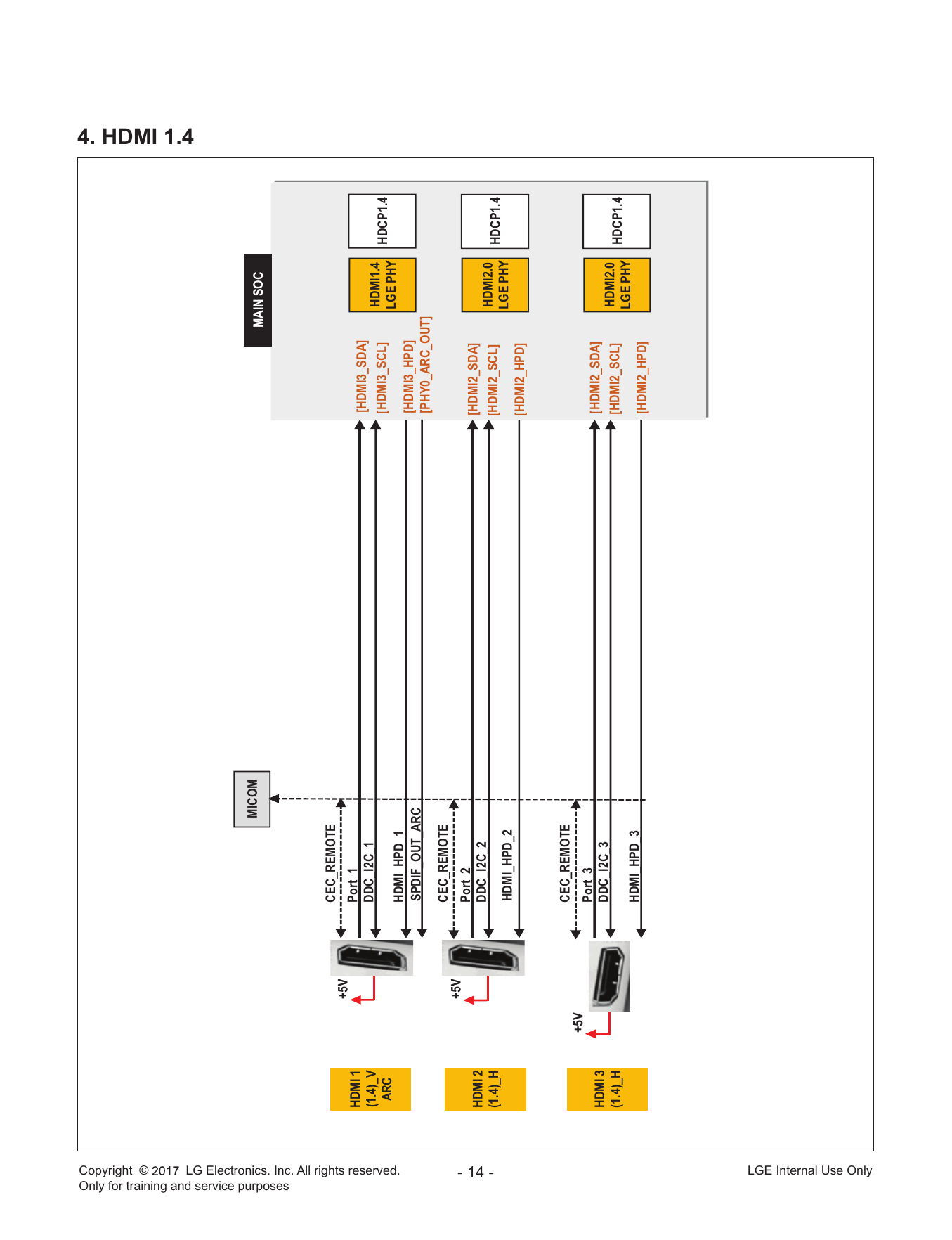

4. HDMI 1.4
MICOM MAIN SOC
Only for training and service purposes
CEC_REMOTE
+5V
HDMI 1 Port_1
[HDMI3_SDA]
(1.4)_V DDC_I2C_1 HDMI1.4
ARC [HDMI3_SCL] HDCP1.4
LG Electronics. Inc. All rights reserved.
LGE PHY
HDMI_HPD_1
[HDMI3_HPD]
SPDIF_OUT_ARC
[PHY0_ARC_OUT]
CEC_REMOTE
+5V
Port_2
HDMI 2 [HDMI2_SDA]
DDC_I2C_2
- 14 -
(1.4)_H [HDMI2_SCL] HDMI2.0
HDCP1.4
HDMI_HPD_2 LGE PHY
[HDMI2_HPD]
CEC_REMOTE
+5V
Port_3
HDMI 3 [HDMI2_SDA]
DDC_I2C_3 HDMI2.0
(1.4)_H [HDMI2_SCL] HDCP1.4
LGE PHY
HDMI_HPD_3
[HDMI2_HPD]
LGE Internal Use Only
Copyright ©
MAN SOC
USB2.0_1_TX_DP0 / DM0
USB2.0_1_RX_DP0 / DM0
USB2.0_1_DP0 / DM0 +5V_USB_1 USB 1
[USB2.0_2_DP0 / DM0]
(2.0)_H
USB_CTL1
OCP
Only for training and service purposes
USB2.0_2_DP1 / DM1 +5V_USB_2 USB 2
[USB2.0_1_DP0 / DM0]
USB_CTL2 (2.0)_H
OCP
LG Electronics. Inc. All rights reserved.

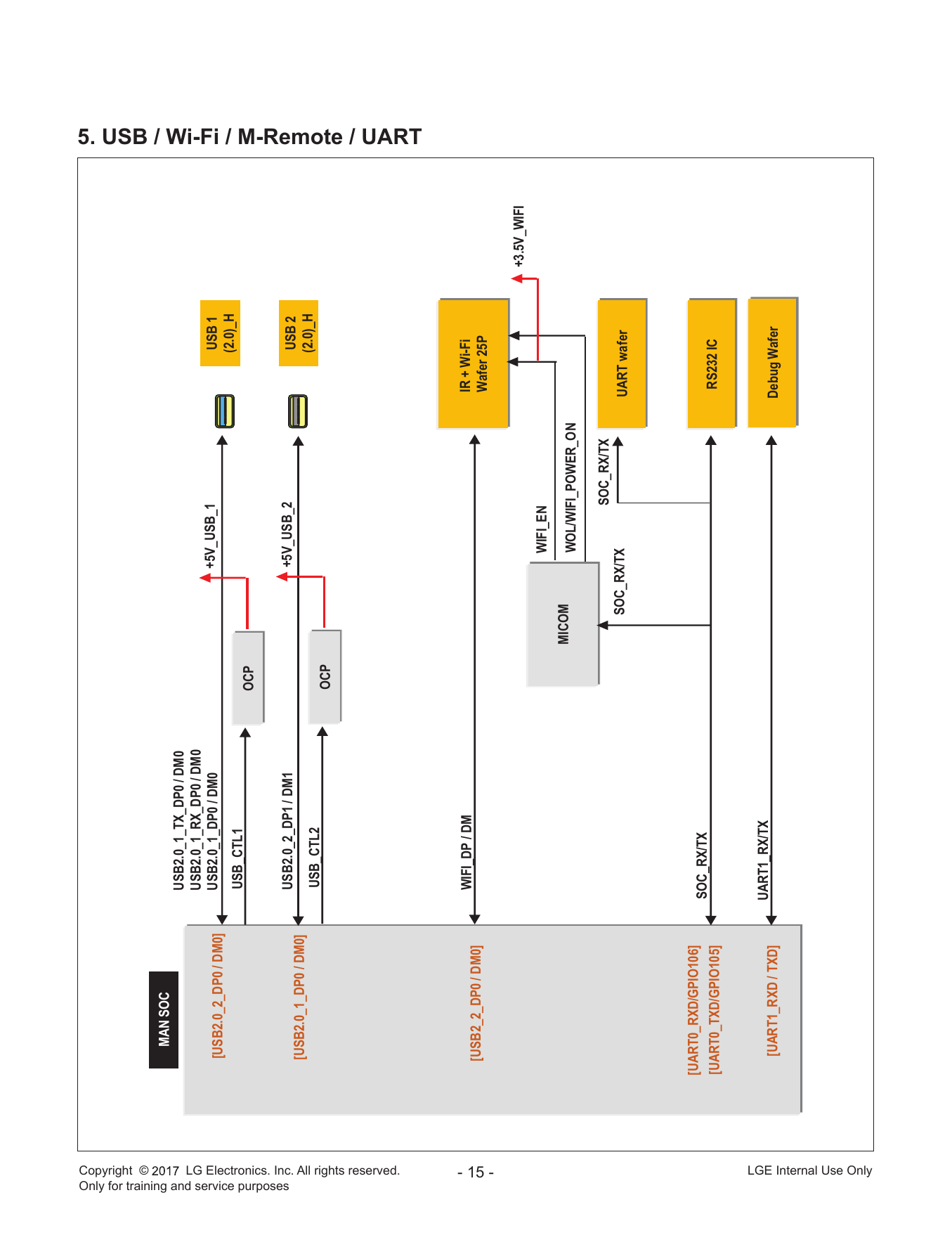

5. USB / Wi-Fi / M-Remote / UART
WIFI_DP / DM IR + Wi-Fi
[USB2_2_DP0 / DM0] Wafer 25P
- 15 -
+3.5V_WIFI
WIFI_EN
MICOM
WOL/WIFI_POWER_ON
SOC_RX/TX
SOC_RX/TX UART wafer
[UART0_RXD/GPIO106]
SOC_RX/TX
[UART0_TXD/GPIO105] RS232 IC
UART1_RX/TX
[UART1_RXD / TXD] Debug Wafer
LGE Internal Use Only
Copyright ©
+3.3V_NORMAL
MAIN SOC

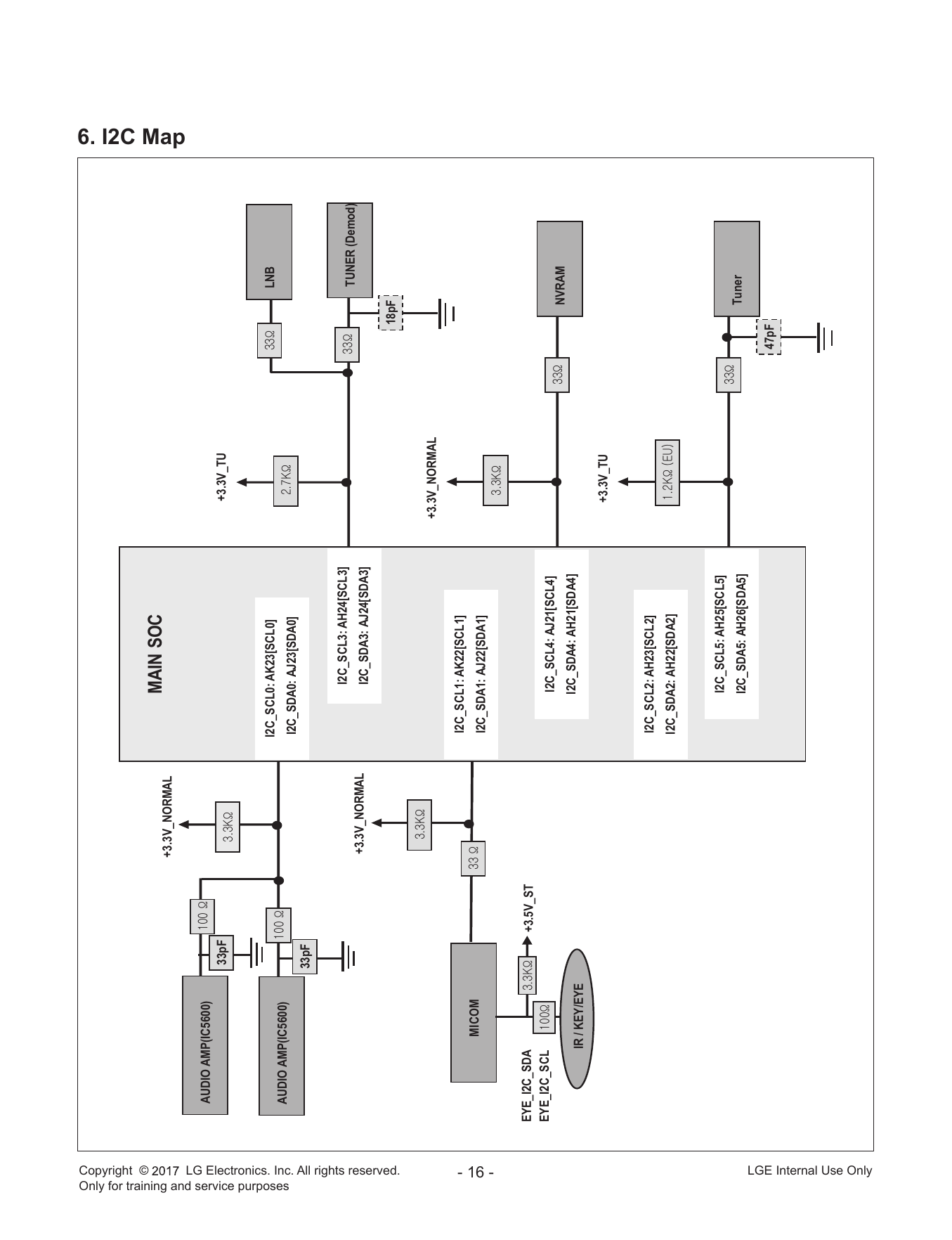

6. I2C Map
AUDIO AMP(IC5600) XWWG˟
33pF +3.3V_TU
ZUZr˟
I2C_SCL0: AK23[SCL0] ZZ˟ LNB
XWWG˟
Only for training and service purposes
AUDIO AMP(IC5600) YU^r˟
I2C_SDA0: AJ23[SDA0]
33pF
I2C_SCL3: AH24[SCL3] ZZ˟ TUNER (Demod)
+3.3V_NORMAL I2C_SDA3: AJ24[SDA3]
18pF
LG Electronics. Inc. All rights reserved.
ZUZr˟
+3.3V_NORMAL
I2C_SCL1: AK22[SCL1]
MICOM ZZG˟
I2C_SDA1: AJ22[SDA1]
- 16 -
ZUZr˟
EYE_I2C_SDA ZUZr˟ +3.5V_ST
EYE_I2C_SCL XWW˟ I2C_SCL4: AJ21[SCL4]
ZZ˟ NVRAM
I2C_SDA4: AH21[SDA4]
IR / KEY/EYE
+3.3V_TU
I2C_SCL2: AH23[SCL2]
I2C_SDA2: AH22[SDA2] XUYr˟GOl|P
I2C_SCL5: AH25[SCL5]
ZZ˟
I2C_SDA5: AH26[SDA5] Tuner
47pF
LGE Internal Use Only

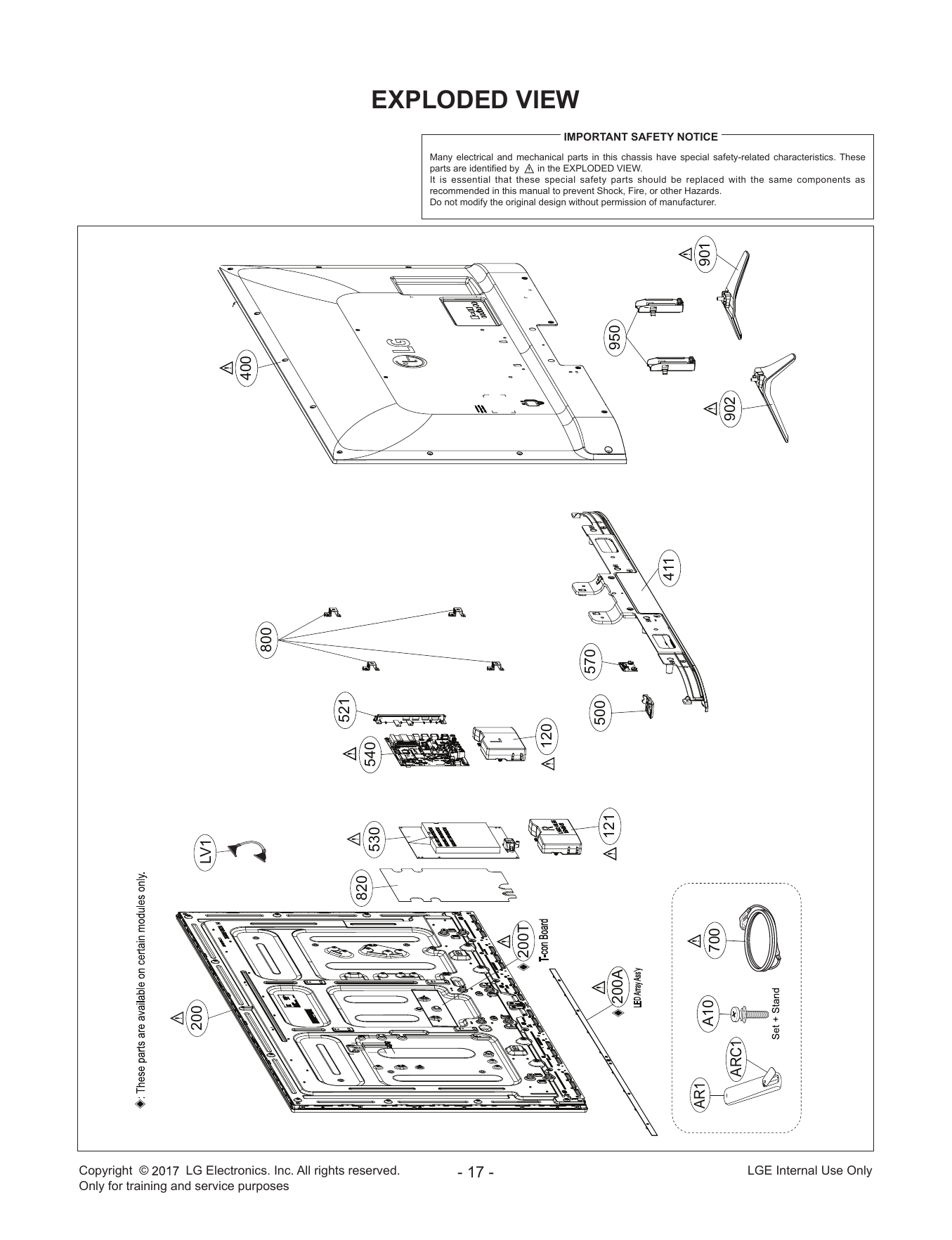

EXPLODED VIEW
IMPORTANT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
901
950
400
902
411
800
570
521
500
120
540
121
530
LV1
820
200T
700
200A
A10
200
ARC1
AR1
Copyright © LG Electronics. Inc. All rights reserved. - 17 - LGE Internal Use Only
Only for training and service purposes

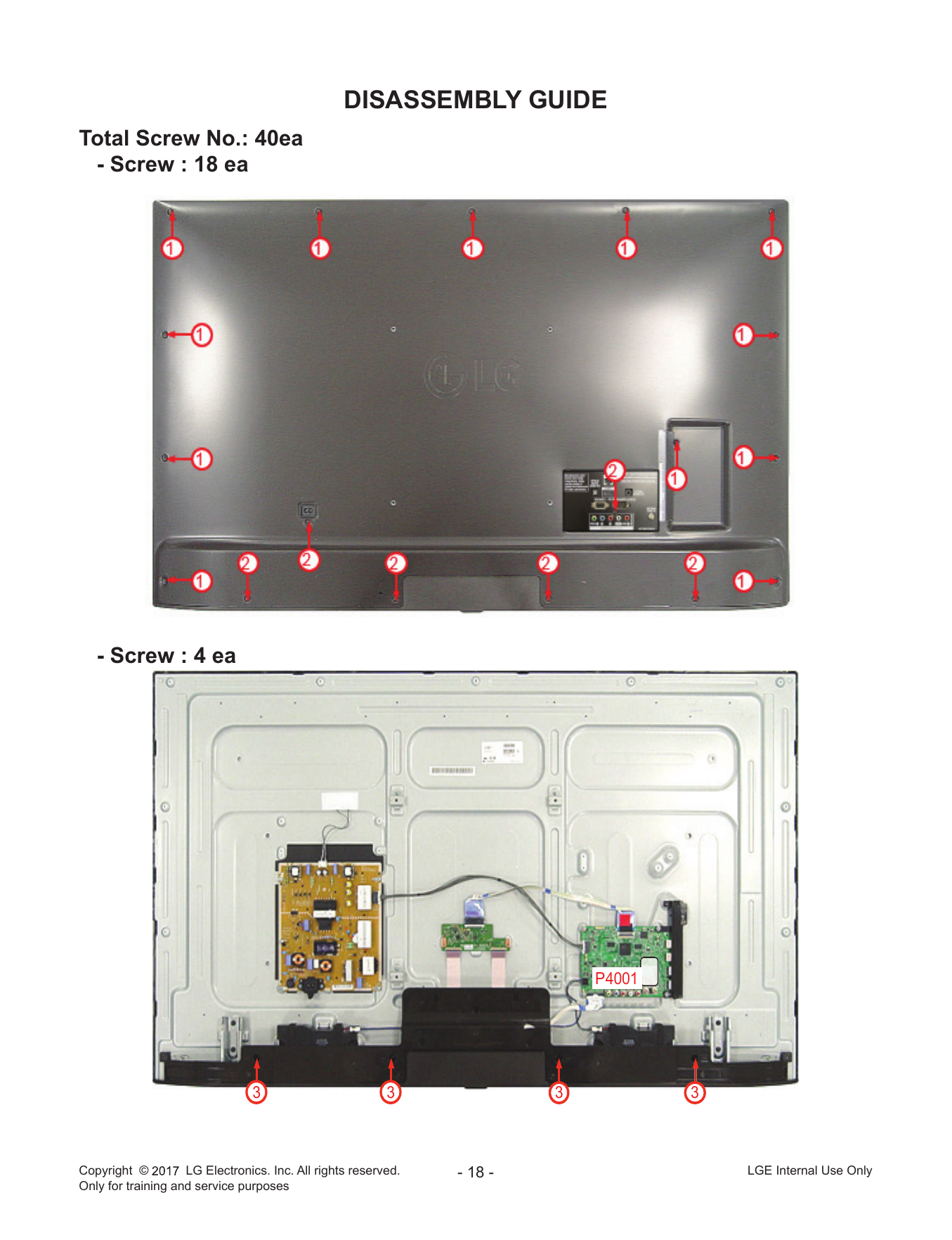

DISASSEMBLY GUIDE
Total Screw No.: 40ea
- Screw : 18 ea
- Screw : 4 ea
P4001
3 3 3 3
Copyright © LG Electronics. Inc. All rights reserved. - 18 - LGE Internal Use Only
Only for training and service purposes

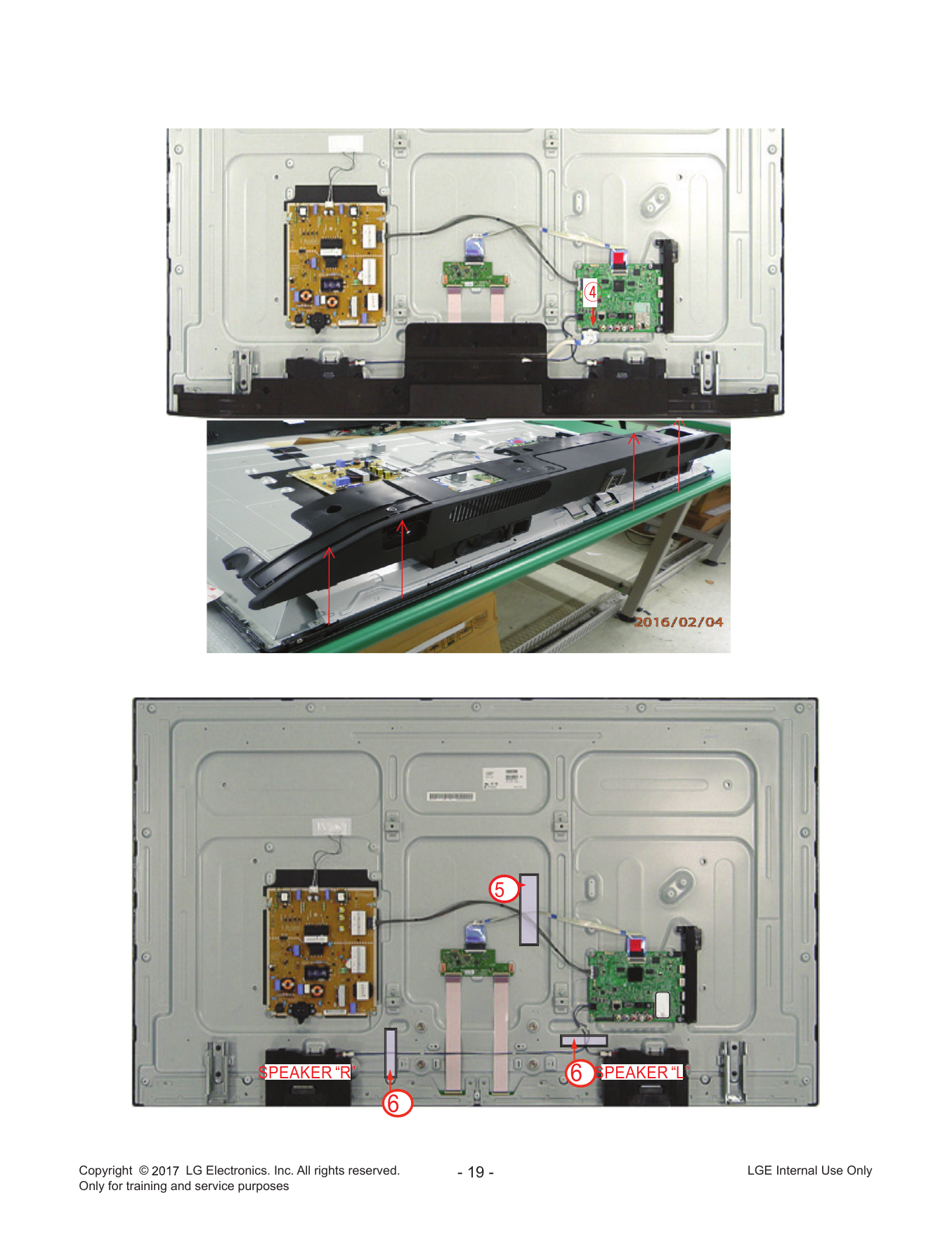

ᐰ
5
SPEAKER “R” 6 SPEAKER “L”
6
Copyright © LG Electronics. Inc. All rights reserved. - 19 - LGE Internal Use Only
Only for training and service purposes
7
7
7
8
8 8

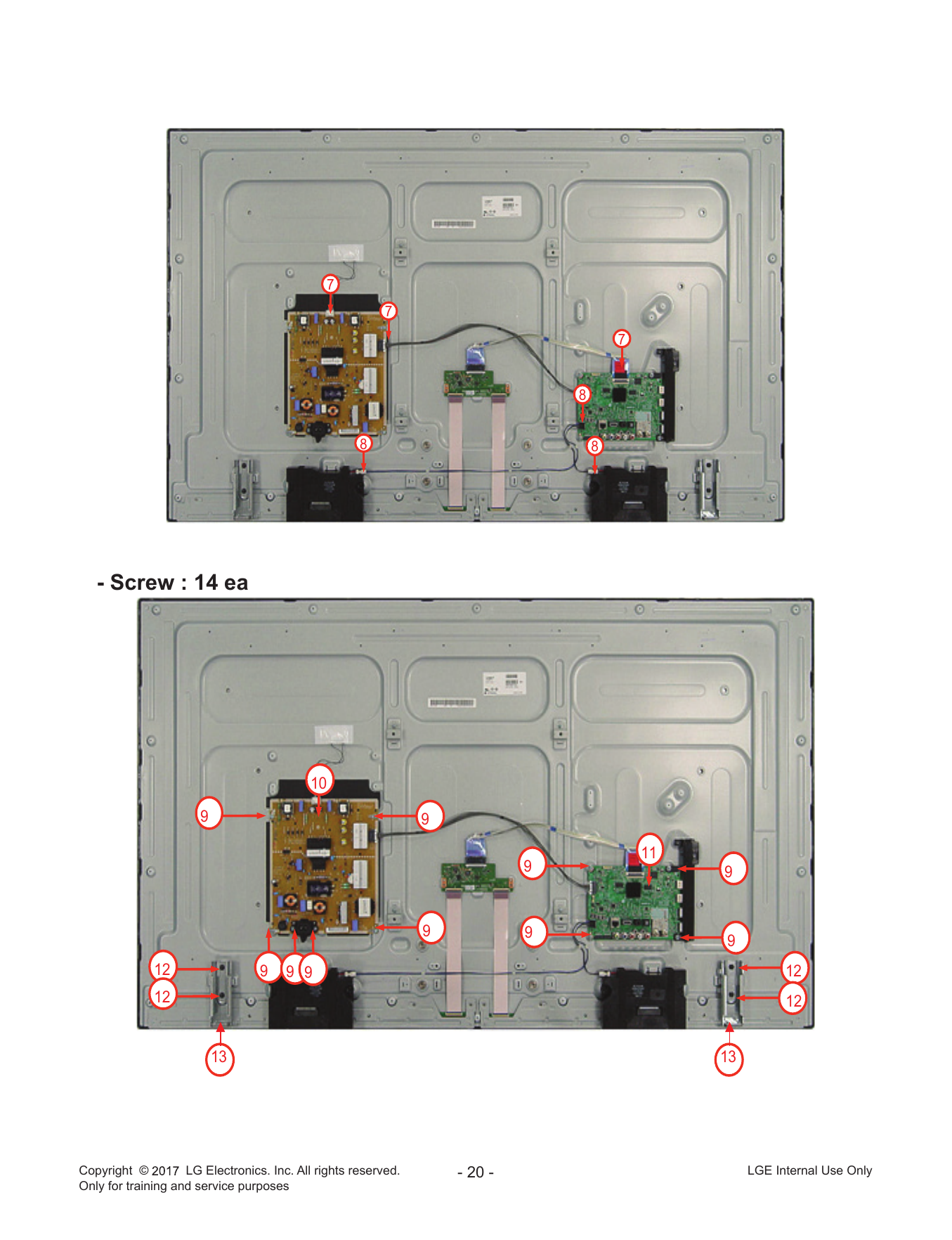

- Screw : 14 ea
10
9 9
11
9 9
9 9
9
12 9 9 9 12
12 12
13 13
Copyright © LG Electronics. Inc. All rights reserved. - 20 - LGE Internal Use Only
Only for training and service purposes
14 14
a a
b b b b
a a
b b b b

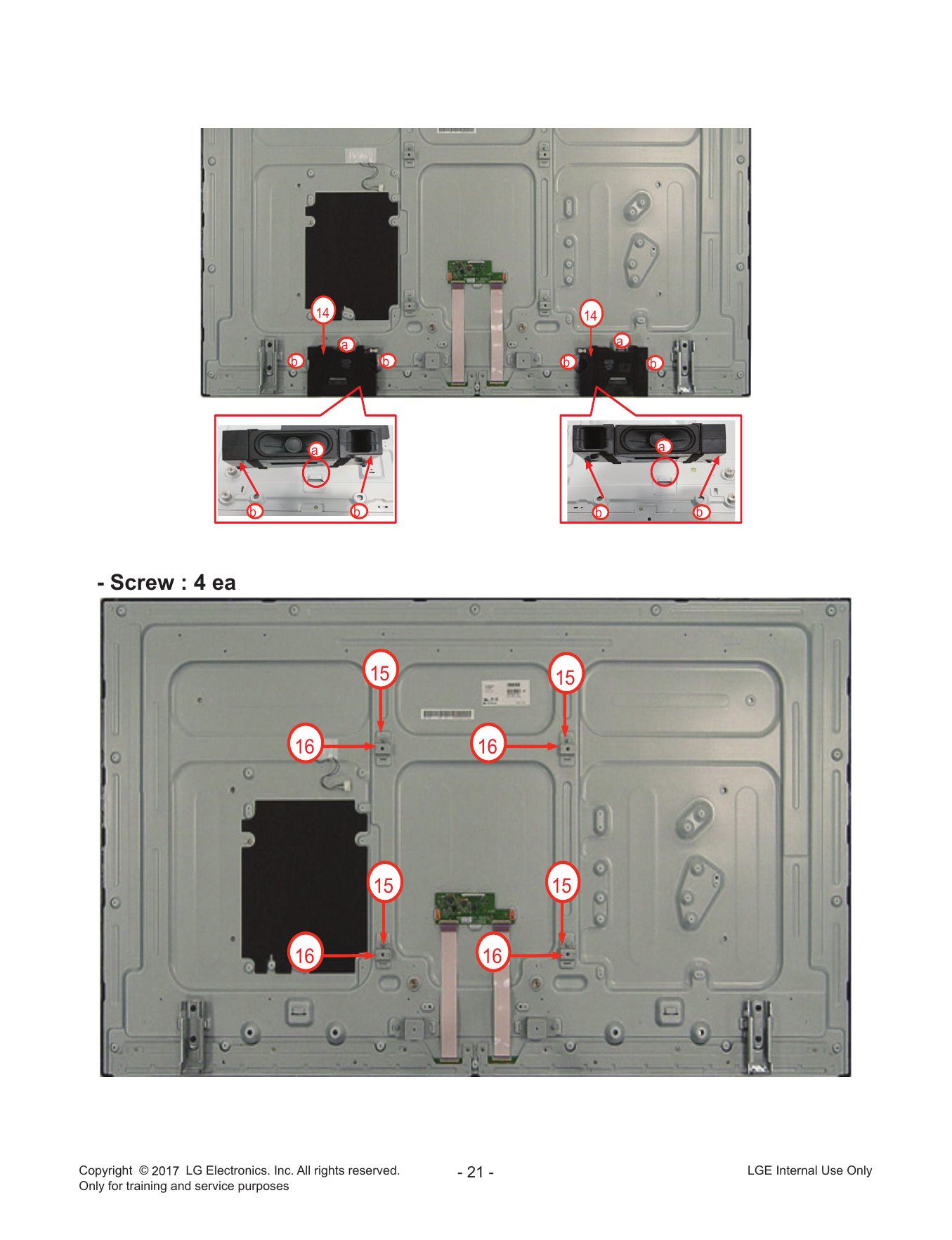

- Screw : 4 ea
15 15
16 16
15 15
16 16
Copyright © LG Electronics. Inc. All rights reserved. - 21 - LGE Internal Use Only
Only for training and service purposes

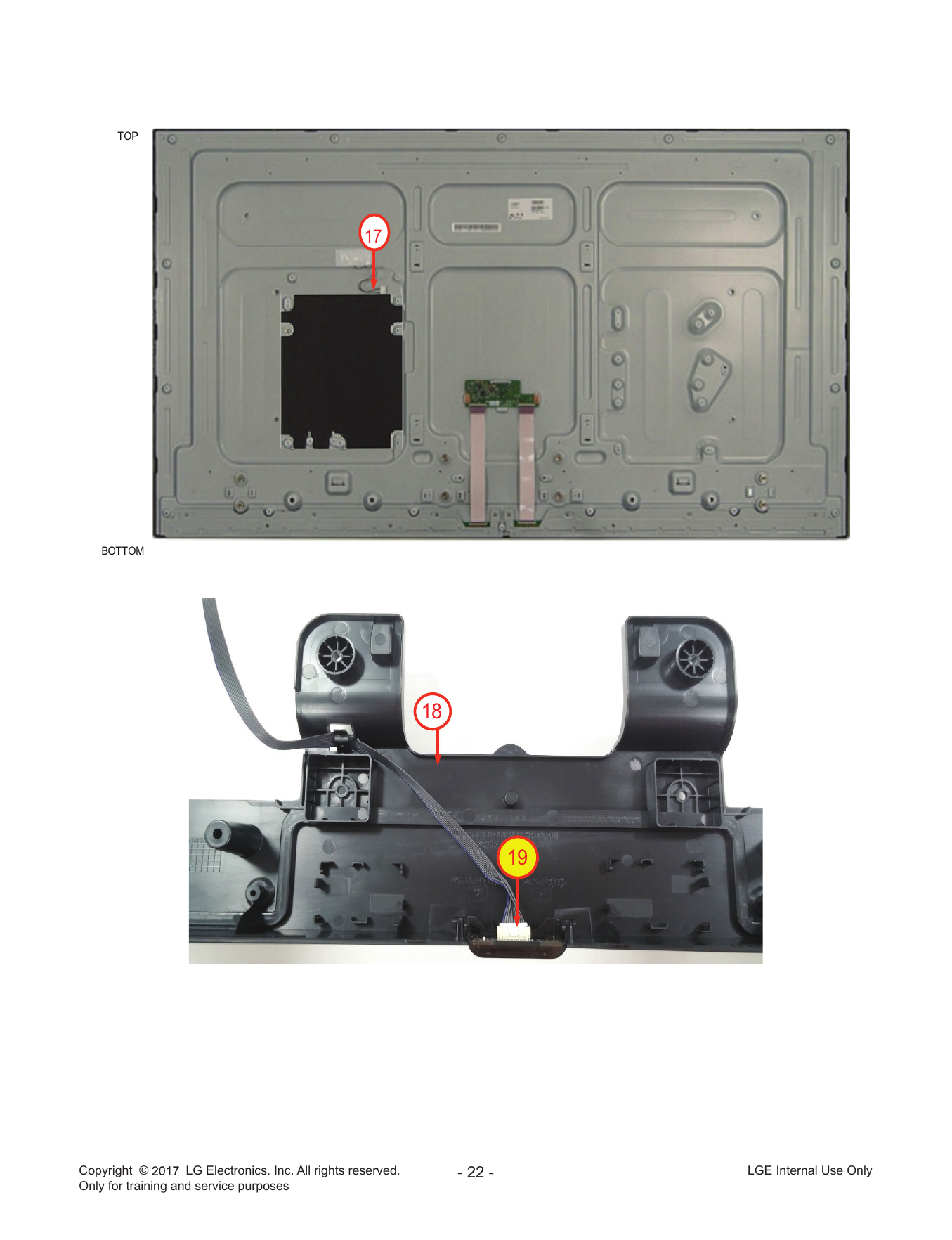

TOP
17
BOTTOM
18
19
Copyright © LG Electronics. Inc. All rights reserved. - 22 - LGE Internal Use Only
Only for training and service purposes
TROUBLE SHOOTING GUIDE
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes

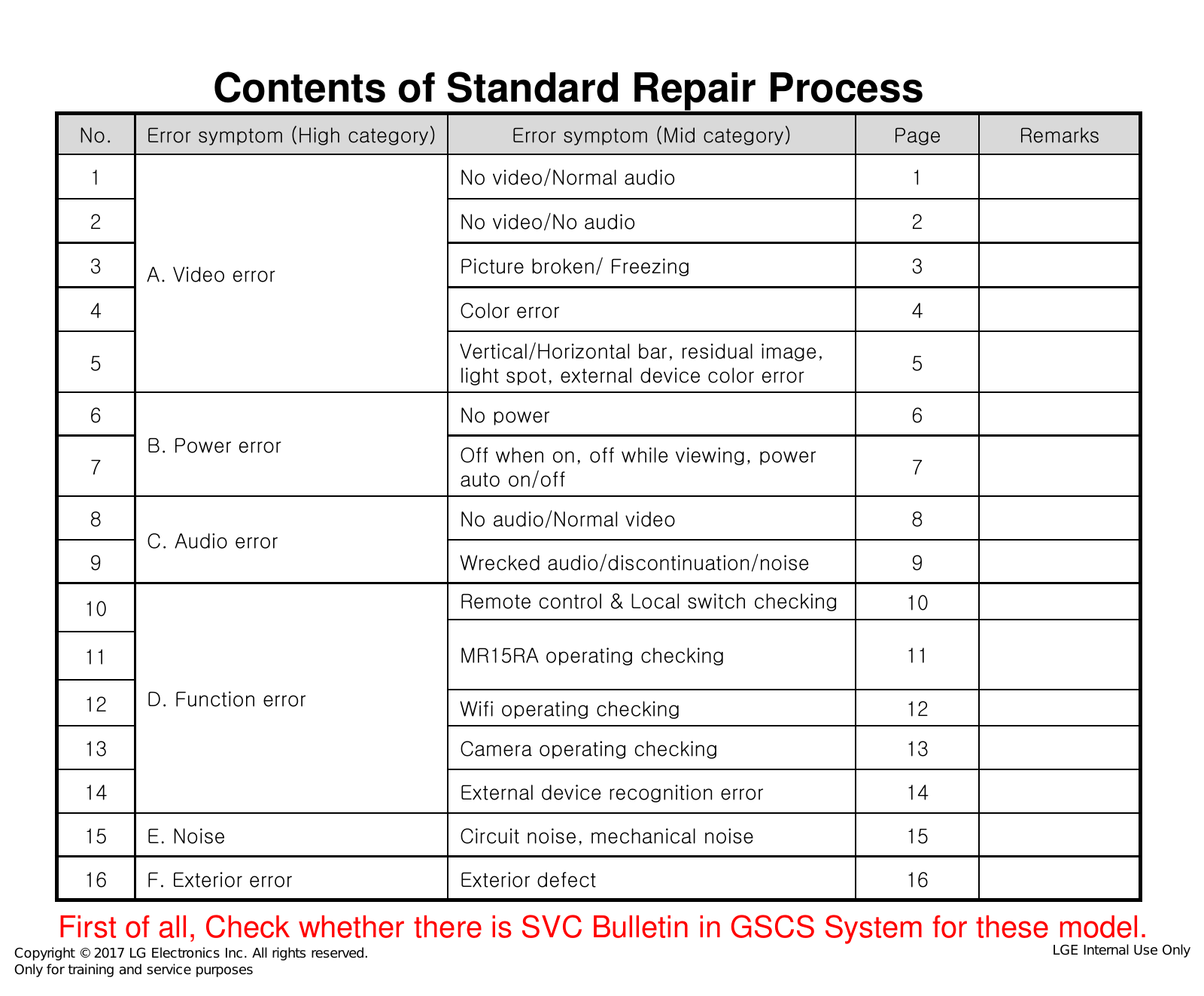

Contents of Standard Repair Process
No. Error symptom (High category) Error symptom (Mid category) Page Remarks
1 No video/Normal audio 1
2 No video/No audio 2
3 A. Video error Picture broken/ Freezing 3
4 Color error 4
Vertical/Horizontal bar, residual image,
5 5
light spot, external device color error
6 No power 6
B. Power error Off when on, off while viewing, power
7 7
auto on/off
8 No audio/Normal video 8
C. Audio error
9 Wrecked audio/discontinuation/noise 9
10 Remote control & Local switch checking 10
11 MR15RA operating checking 11
12 D. Function error Wifi operating checking 12
13 Camera operating checking 13
14 External device recognition error 14
15 E. Noise Circuit noise, mechanical noise 15
16 F. Exterior error Exterior defect 16
First of all, Check whether there is SVC Bulletin in GSCS System for these model.
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error A. Video error date
symptom

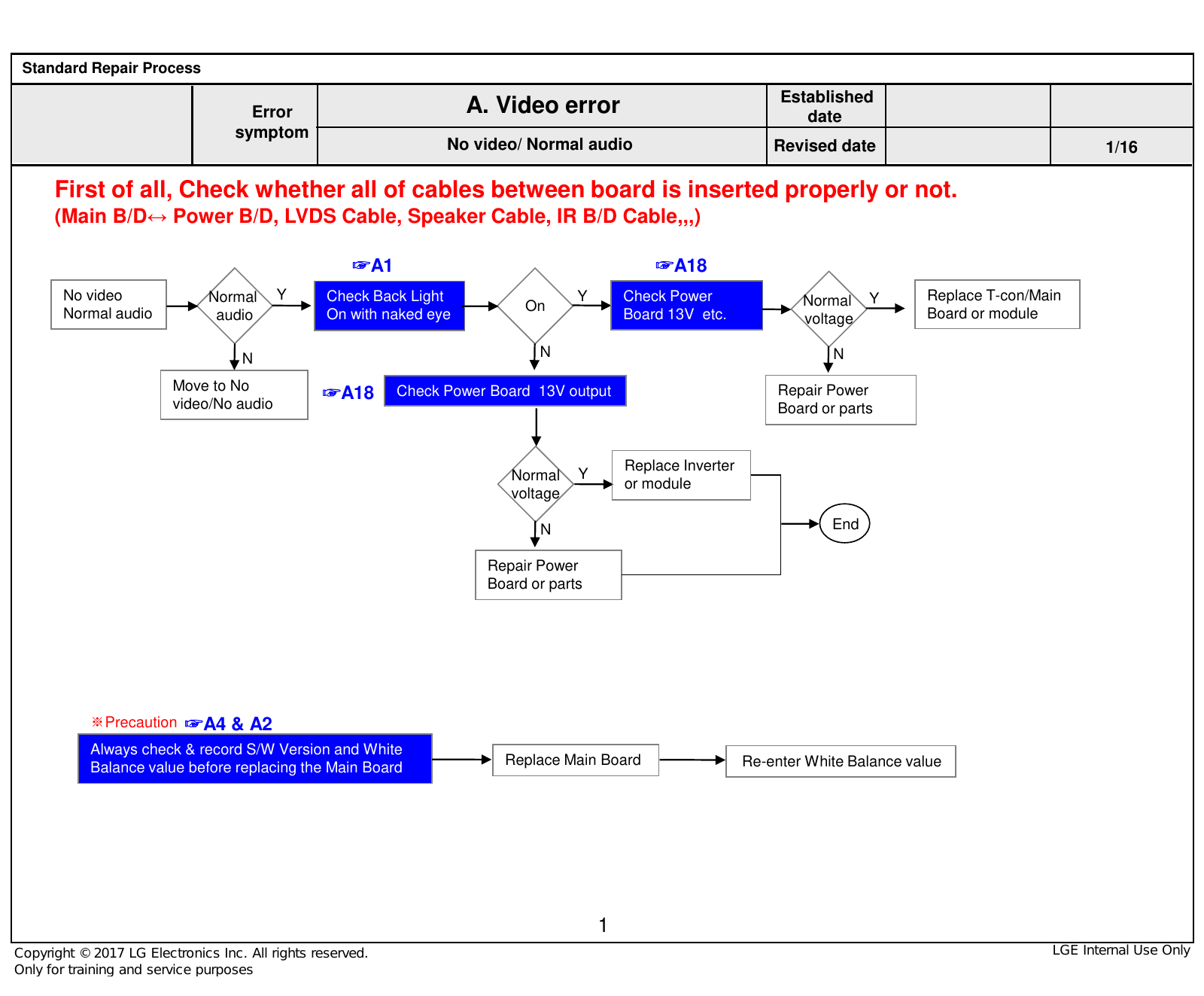

No video/ Normal audio Revised date 1/16
First of all, Check whether all of cables between board is inserted properly or not.
(Main B/D↔ Power B/D, LVDS Cable, Speaker Cable, IR B/D Cable,,,)
☞A1 ☞A18
No video Normal Y Check Back Light Y Check Power Normal Y Replace T-con/Main
Normal audio On Board or module
audio On with naked eye Board 13V etc. voltage
N N N
Move to No
☞A18 Check Power Board 13V output Repair Power
video/No audio Board or parts
Replace Inverter
Normal Y
or module
voltage
N End
Repair Power
Board or parts
※Precaution ☞A4 & A2
Always check & record S/W Version and White
Replace Main Board Re-enter White Balance value
Balance value before replacing the Main Board
1
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error A. Video error date
symptom

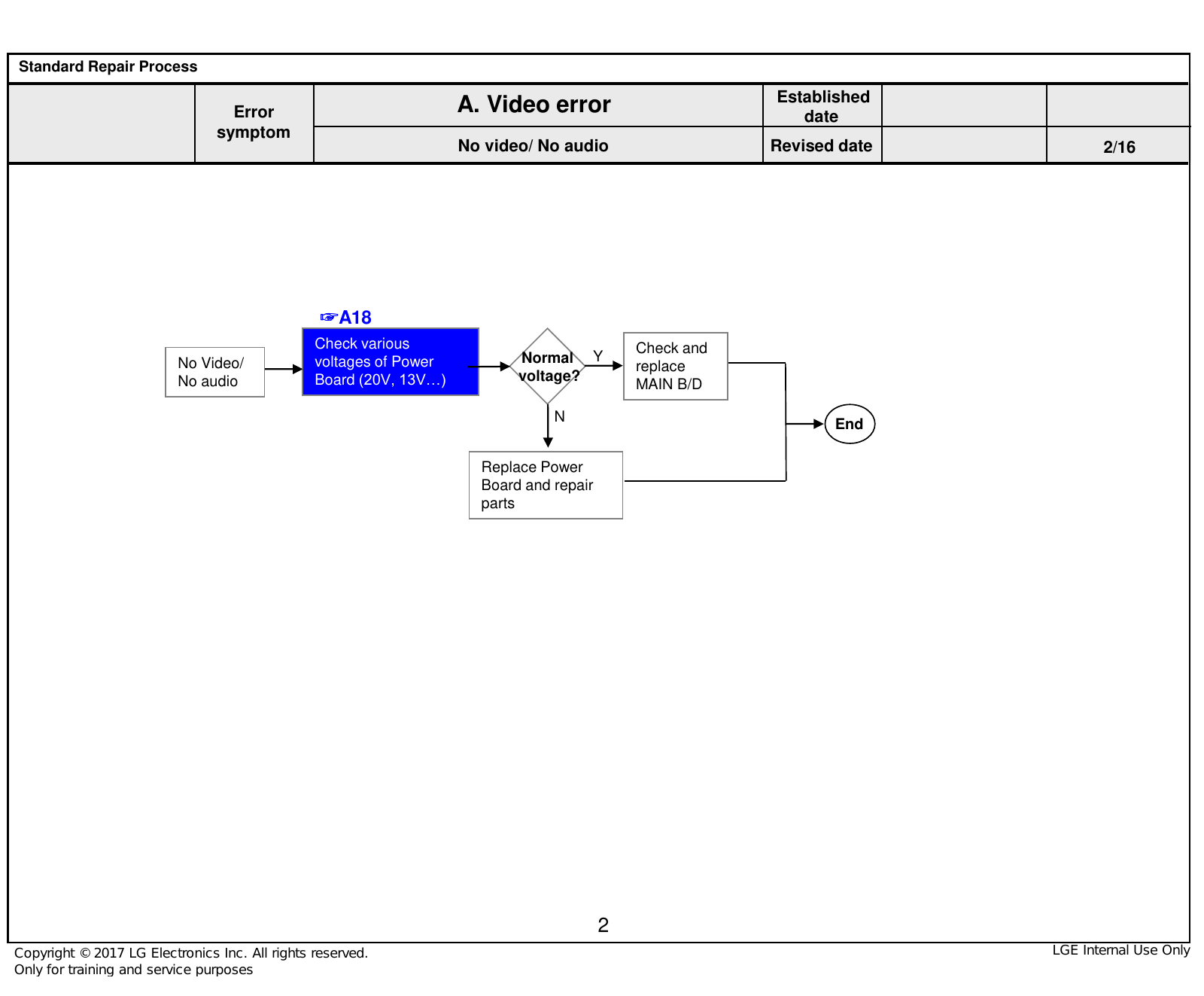

No video/ No audio Revised date 2/16
☞A18
Check various Check and
No Video/ voltages of Power Normal Y
replace
No audio Board (20V, 13V…) voltage?
MAIN B/D
N End
Replace Power
Board and repair
parts
2
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error A. Video error date
symptom

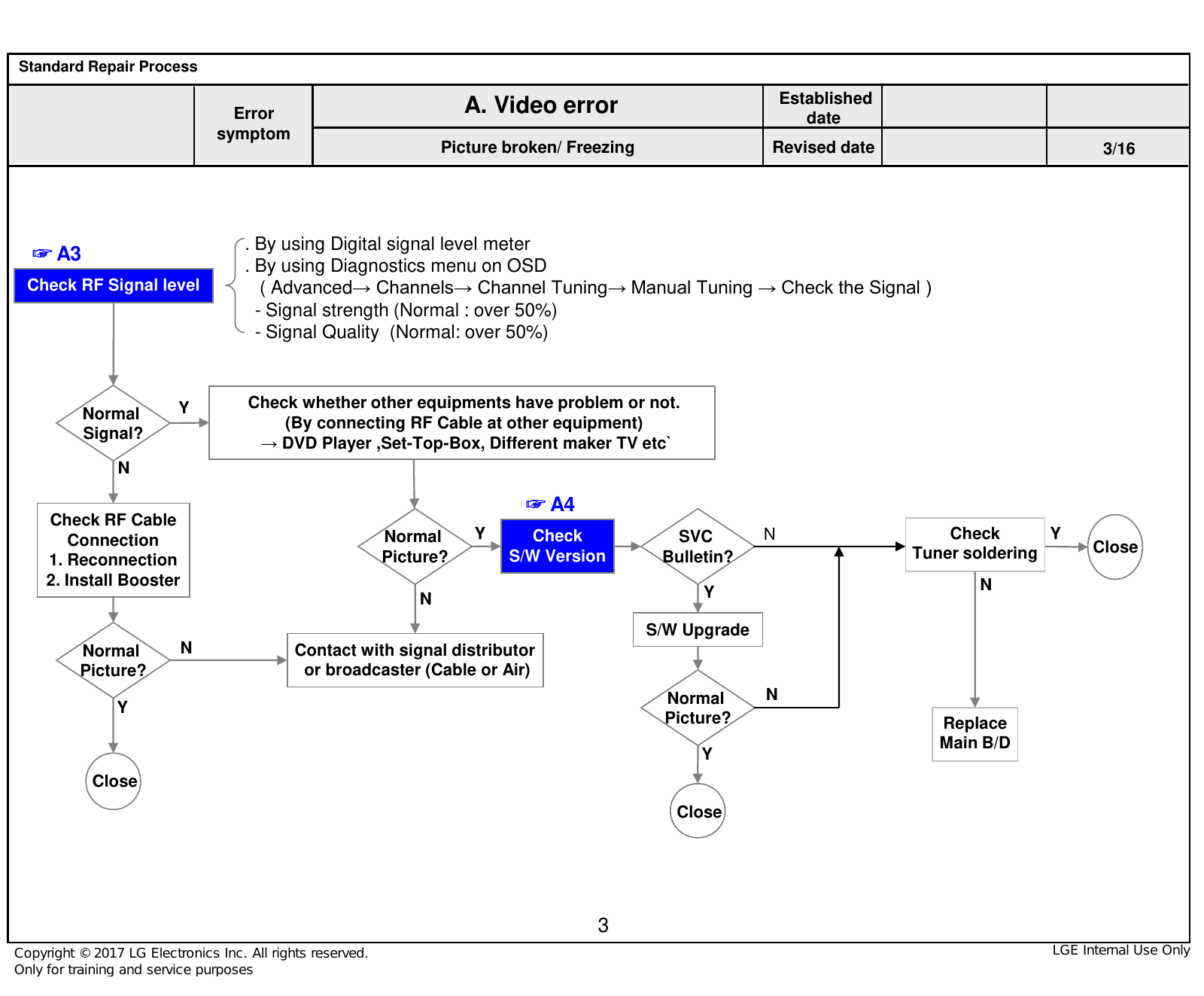

Picture broken/ Freezing Revised date 3/16
. By using Digital signal level meter
☞ A3
. By using Diagnostics menu on OSD
Check RF Signal level ( Advanced→ Channels→ Channel Tuning→ Manual Tuning → Check the Signal )
- Signal strength (Normal : over 50%)
- Signal Quality (Normal: over 50%)
Y Check whether other equipments have problem or not.
Normal
(By connecting RF Cable at other equipment)
Signal?
→ DVD Player ,Set-Top-Box, Different maker TV etc`
N
☞ A4
Check RF Cable
Connection Normal Y Check SVC N Check Y
Tuner soldering Close
1. Reconnection Picture? S/W Version Bulletin?
2. Install Booster N
N Y
S/W Upgrade
Normal N Contact with signal distributor
Picture? or broadcaster (Cable or Air)
Normal N
Y
Picture? Replace
Main B/D
Y
Close
Close
3
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error A. Video error date
symptom

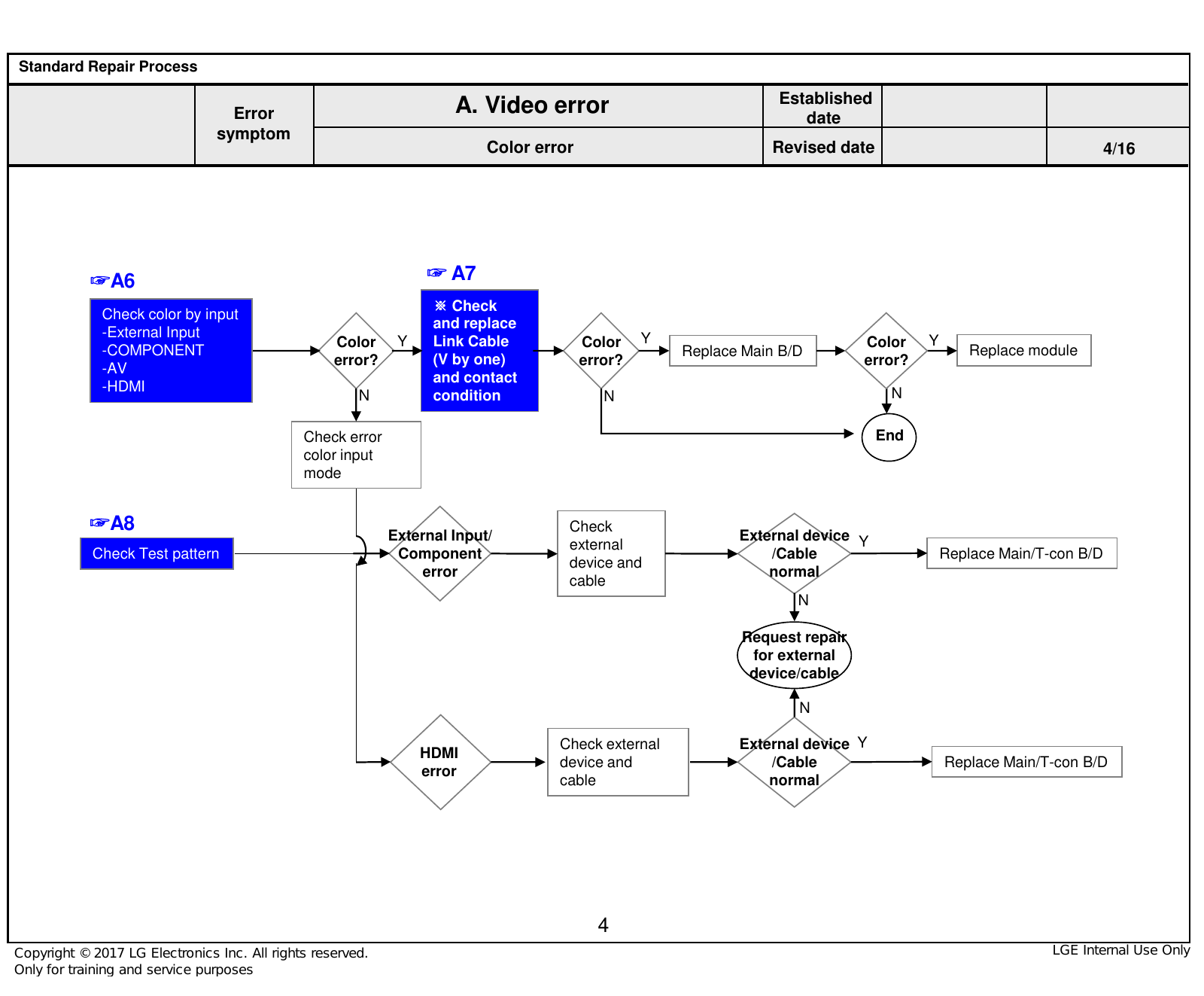

Color error Revised date 4/16
☞A6 ☞ A7
※ Check
Check color by input
and replace
-External Input Y
Color Y Link Cable Color Color Y
-COMPONENT Replace Main B/D Replace module
error? (V by one) error? error?
-AV
and contact
-HDMI N
N condition N
Check error End
color input
mode
☞A8 Check
External Input/ External device Y
external
Check Test pattern Component /Cable Replace Main/T-con B/D
device and
error normal
cable
N
Request repair
for external
device/cable
N
Check external External device Y
HDMI
device and /Cable Replace Main/T-con B/D
error
cable normal
4
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
A. Video error Established
Error date
symptom Vertical / Horizontal bar, residual image,

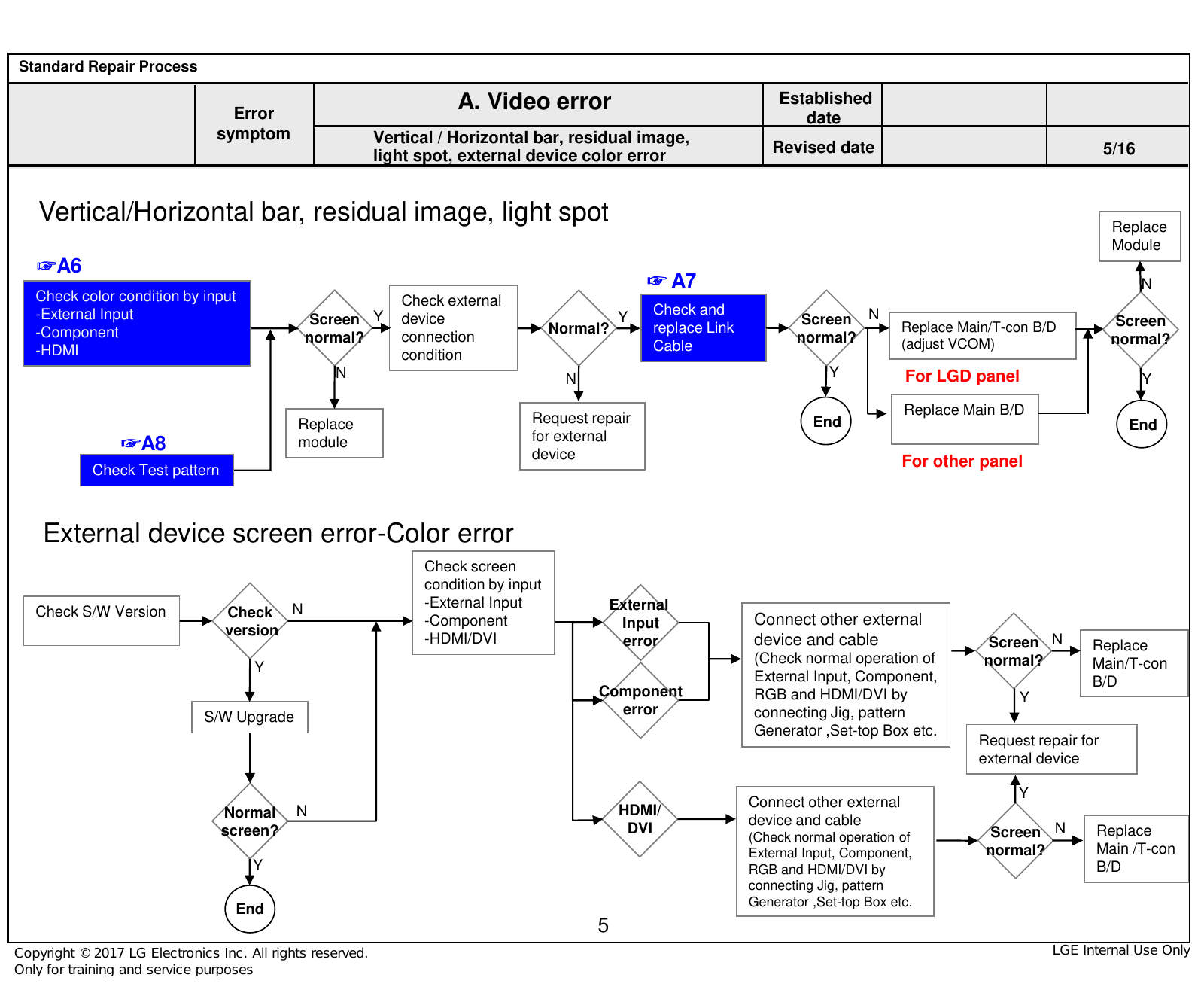

light spot, external device color error Revised date 5/16
Vertical/Horizontal bar, residual image, light spot Replace
Module
☞A6
☞ A7 N
Check color condition by input Check external
-External Input Check and
Screen Y device Y Screen N Screen
-Component Normal? replace Link Replace Main/T-con B/D
normal? connection normal? (adjust VCOM) normal?
-HDMI Cable
condition
N N Y For LGD panel Y
Replace Main B/D
Replace Request repair End End
for external
☞A8 module
device
Check Test pattern
For other panel
External device screen error-Color error
Check screen
condition by input
-External Input External
Check S/W Version Check N
-Component Input Connect other external
version
-HDMI/DVI error device and cable Screen N Replace
(Check normal operation of normal? Main/T-con
Y
External Input, Component, B/D
Component RGB and HDMI/DVI by Y
S/W Upgrade error connecting Jig, pattern
Generator ,Set-top Box etc.
Request repair for
external device
Y
Connect other external
Normal N HDMI/
device and cable
screen? DVI
(Check normal operation of Screen N Replace
External Input, Component, normal? Main /T-con
Y RGB and HDMI/DVI by B/D
connecting Jig, pattern
Generator ,Set-top Box etc.
End
5
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error B. Power error date
symptom

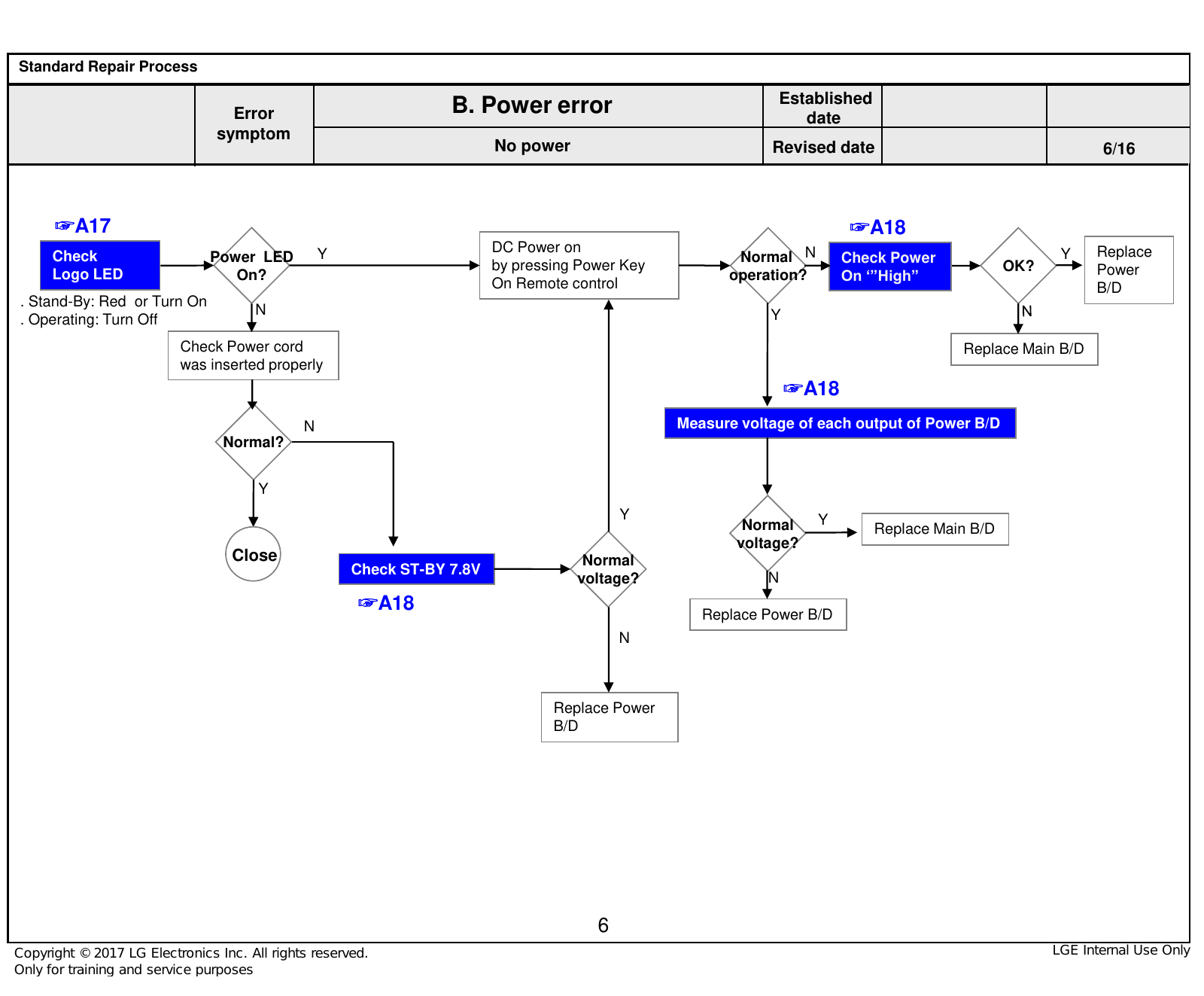

No power Revised date 6/16
☞A17 ☞A18
DC Power on Replace
Check Power LED Y Normal N Check Power Y
by pressing Power Key OK? Power
Logo LED On? operation? On ‘”High”
On Remote control B/D
. Stand-By: Red or Turn On
N Y
. Operating: Turn Off
Check Power cord Replace Main B/D
was inserted properly
☞A18
N Measure voltage of each output of Power B/D
Normal?
Y
Y Y
Normal Replace Main B/D
voltage?
Close Normal
Check ST-BY 7.8V
Y
voltage? N
☞A18 Replace Power B/D
N
Replace Power
B/D
6
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error B. Power error date
symptom
Off when on, off while viewing, power auto on/off Revised date 7/16
Check outlet
☞A19
N Y
Check A/C cord Error? Check Power Off CPU Normal? End
Replace Main B/D
Mode Abnormal
N
Check for all 3- phase
power out Y Abnormal Replace Power B/D
1
Fix A/C cord & Outlet ☞A18
and check each 3
(If Power Off mode
phase out
is not displayed) Normal Y
Replace Main B/D
Check Power B/D voltage?
voltage
N
※ Caution
Check and fix exterior Replace Power B/D
of Power B/D Part
* Please refer to the all cases which Status Power off List Explanation
"POWEROFF_REMOTEKEY" Power off by REMOTE CONTROL
can be displayed on power off mode.
"POWEROFF_OFFTIMER" Power off by OFF TIMER
"POWEROFF_SLEEPTIMER" Power off by SLEEP TIMER
"POWEROFF_INSTOP" Power off by INSTOP KEY
"POWEROFF_AUTOOFF" Power off by AUTO OFF
Normal "POWEROFF_ONTIMER" Power off by ON TIMER
"POWEROFF_RS232C" Power off by RS232C
"POWEROFF_RESREC" Power off by Reservated Record
"POWEROFF_RECEND" Power off by End of Recording
"POWEROFF_SWDOWN" Power off by S/W Download
"POWEROFF_UNKNOWN" Power off by unknown status except listed case
"POWEROFF_ABNORMAL1" Power off by abnormal status except CPU trouble
Abnormal
"POWEROFF_CPUABNORMAL" Power off by CPU Abnormal
7
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error C. Audio error date
symptom
No audio/ Normal video Revised date 8/16
☞A20 ☞A21+A18
Check user N Check Main B+ Y
No audio Normal
menu > Off 13V of Power
Screen normal voltage
Speaker off Board
Y N
Cancel OFF Replace Power Board and repair parts
Check N
Disconnection Replace MAIN Board End
Speaker
disconnection
Y
Replace Speaker
8
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error C. Audio error date
symptom
Wrecked audio/ discontinuation/noise Revised date 9/16
→ abnormal audio/discontinuation/noise is same after “Check input signal” compared to No audio
Wrecked audio/
☞A21+A18
Check and replace
Discontinuation/ Check audio
speaker and
Noise for B+ Voltage (13V)
connector
Check input all audio
signal
Signal Y
-RF
normal? Wrecked audio/
-External Input Normal Y
signal Discontinuation/
Replace Main B/D voltage?
Noise only
N for D-TV
N
Wrecked audio/
Discontinuation/
Replace Power B/D
Noise only
for Analog
(When RF signal is not
received)
Request repair to external Wrecked audio/ Replace Main B/D End
cable/ANT provider Discontinuation/
Noise only
for External Input
(In case of
External Input Connect and check Normal N
signal error) other external audio?
Check and fix device
external device Y
Check and fix external device
9
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Error
D. Function error Established
date
symptom
Remote control & Local switch checking Revised date 10/16
1. Remote control(R/C) operating error Replace
Main B/D
☞A22 ☞A22 ☞A22
Check & Repair N Y Y
Check R/C itself Normal Y Normal Check B+ 13V Normal Check IR Normal
operating? Cable connection operating? Voltage? Signal?
Operation On Main B/D Output signal
Connector solder
N Y N N
☞A18
Check R/C Operating Check & Replace Close Check 13v on Power B/D Repair/Replace
When turn off light Baterry of R/C Replace Power B/D or IR B/D
in room Replace Main B/D
(Power B/D don’t have problem)
If R/C operate, Normal Y
operating? Close
Explain the customer
cause is interference
from light in room. N
Replace R/C
10
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
D. Function error Established
Error date
symptom
MR15A operating checking Revised date 11/16
2. MR15RA(Magic Remocon) operating error (only BT applied model)
☞A4
Check the RF Receiver ver N Check MR15 RA Normal Y Turn off/on the
Press the Is show ok N
INSTART menu is “00.00”? itself Operation operating? set and press
wheel message?
the wheel
N Y
Y
☞A23
Check & Replace Close
Check & Repair Battery of MR15RA
RF assy
connection
Normal Y
☞A4 operating? Close
Is show ok N Press the back
RF Receiver ver N N message? key about 5sec
is “00.00”? Close
Y
Replace
Y MR15RA
Close
Down load the Firmware
* If you conduct the loop at 3times, change the M4.
* INSTART MENU14.RF
Remocon Test3. Firmware
download
11
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
D. Function error Established
Error date
symptom
Wifi operating checking Revised date 12/16
3.Wifi operating error
☞A4 ☞A24
Check the Wi-Fi Mac value N Check the Wifi wafer Normal N Replace
INSTART menu is “NG”? Voltage?
1pin Main B/D
Y
Y
☞A24
Close
Check & Repair
Wifi cable
connection
☞A4
Wi-Fi Mac value N
is “NG”? Close
Y
Change the Wifi
assy
12
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
D. Function error Established
Error date
symptom
Camera operating checking Revised date 13/16
4.Camera operating error
☞A4 ☞A25
Check the Camera Ver. N Reconnect the Normal N Replace
INSTART menu is “NULL”? operation?
Camera module Main B/D
Y
Y
Close
Change the
Camera module
13
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error D. Function error date
symptom
External device recognition error Revised date 14/16
Check technical
Check External Input and
Signal Y information Technical N
input Component Replace Main B/D
input? - Fix information information?
Recognition error
signal
- S/W Version
N Y
HDMI/
Check and fix DVI, Optical
Fix in Replace Main B/D
external device/cable Recognition error
accordance
with technical
information
14
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error E. Noise date
symptom
Circuit noise, mechanical noise Revised date 15/16
Identify Check
Circuit
nose location of Replace PSU
noise
type noise
Mechanical Check location of
noise noise
※ When the nose is severe, replace the module
(For models with fix information, upgrade the
S/W or provide the description)
※ Mechanical noise is a natural
phenomenon, and apply the 1st level ※ If there is a “Tak Tak” noise from the
description. When the customer does not OR
cabinet, refer to the KMS fix information and
agree, apply the process by stage. then proceed as shown in the solution manual
※ Describe the basis of the description (For models without any fix information,
in “Part related to nose” in the Owner’s provide the description)
Manual.
15
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process
Established
Error F. Exterior defect date
symptom
Exterior defect Revised date 16/16
Zoom part with Module
Replace module
exterior damage damage
Cabinet
Replace cabinet
damage
Remote
control Replace remote control
damage
Stand
Replace stand
dent
16
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Contents of Standard Repair Process Detail Technical Manual
No. Error symptom Content Page Remarks
1 A. Video error_ No video/Normal Check LCD back light with naked eye A1
2 audio Check White Balance value A2
TUNER input signal strength checking
3 A3
method
A. Video error_ video error /Video
4 lag/stop Version checking method A4
5 Tuner Checking Part A5
A. Video error _Vertical/Horizontal bar,
6 Connection diagram A6
residual image, light spot
Check Link Cable (EPI) reconnection
7 A7
A. Video error_ Color error condition
8 Adjustment Test pattern - ADJ Key A8
9 Exchange Main Board (1) A-1/5
10 Exchange Main Board (2) A-2/5
11 Defected Type caused by T-Con/ Exchange Power Board (PSU) A-3/5
Inverter/ Module
12 Exchange Module (1) A-4/5
13 Exchange Module (2) A-5/5
Continue to the next page
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Contents of Standard Repair Process Detail Technical Manual
Continued from previous page
No. Error symptom Content Page Remarks
14 Check front display LED A9
B. Power error_ No power
15 Check power input Voltage & ST-BY 3.5V A10
B. Power error_Off when on, off
16 POWER OFF MODE checking method A11
while viewing
Checking method in menu when there is
17 A12
C. Audio error_ No audio/Normal no audio
video Voltage and speaker checking method
18 A13
when there is no audio
Remote control operation checking
19 A14
method
D. Function error
Motion Remote operation checking
20 A15
method
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_No video/Normal audio date
Revised
Content Check LCD back light with naked eye A1
date
<55LJ610V-ZD>
After turning on the power and disassembling the case, check with the naked eye,
whether you can see light from locations.
A1
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_No video/Normal audio date
Revised
Content Check White Balance value A2
date
Entry method
1. Press the ADJ button on the remote control for adjustment.
2. Enter into White Balance menu.
3. After recording the R, G, B (GAIN, Cut) value of Color Temp
(Cool/Medium/Warm), re-enter the value after replacing the MAIN BOARD.
A2
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_Video error, video lag/stop date
Revised
Content TUNER input signal strength checking method A3
date
Advanced Channels Channel Tuning
Manual Tuning
When the signal is strong,
use the attenuator (-10dB, -
15dB, -20dB etc.)
A3
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_Video error, video lag/stop date
Version checking method Revised
Content date A4
1. Checking method for remote control for adjustment
Version
v
Press the IN-START with the remote
control for adjustment
A4
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom
A. Video error_Video error, video lag/stop
date
Revised
Content TUNER checking part A5
date
Checking method:
1. Check the signal strength or check whether the screen is normal when the external device is connected.
2. After measuring each voltage from power supply, finally replace the MAIN BOARD.
A5
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error A. Video error _Vertical/Horizontal bar, Established
symptom residual image, light spot date
Revised
Content Connection diagram (1) date A6
As the part connecting to the external input, check
the screen condition by signal
A6
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_Color error date
Revised
Content Check Link Cable(VX1) reconnection condition date A7
Check the contact condition of the Link Cable, especially dust or mis insertion.
A7
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom
A. Video error_Color error
date
Adjustment Test pattern - ADJ Key Revised
Content date A8
You can view 6 types of patterns using the ADJ Key
Checking item : 1. Defective pixel 2. Residual image 3. MODULE error (ADD-BAR,SCAN BAR..)
4.Video error (Classification of MODULE or Main-B/D!)
A8
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Appendix : Exchange Main Board (1)
Solder defect, CNT Broken Solder defect, CNT Broken Solder defect, CNT Broken
Solder defect, CNT Broken T-Con
T-Con Defect,
Defect,
Solder
T-Con CNT
CNT
defect,CNT
Defect, Broken
Broken
CNTBroken
Broken Abnormal Power Section
Solder defect, Short/Crack Abnormal Power Section Solder defect, Short/Crack
A - 1/5
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Appendix : Exchange Main Board (2)
Abnormal Power Section Abnormal Power Section Solder defect, Short/Crack
Solder defect, Short/Crack Fuse Open, Abnormal power section Abnormal Display
GRADATION Noise GRADATION
A - 2/5
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Appendix : Exchange Power Board (PSU)
No Light Dim Light
Dim Light Dim Light
No picture/Sound Ok
A - 3/5
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Appendix : Exchange the Module (1)
Press damage Press damage Press damage
Crosstalk Crosstalk
Un-repairable Cases
In this case please exchange the module.
A - 4/5
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Appendix : Exchange the Module (2)
Vertical Block Vertical Line Vertical Block
Source TAB IC Defect Source TAB IC Defect Source TAB IC Defect
Horizontal
TAB ICBlock
Horizontal Block Horizontal line
Gate Defect Gate TAB IC Defect
Gate TAB IC Defect Gate TAB IC Defect Gate TAB IC Defect
Un-repairable Cases
In this case please exchange the module.
Horizontal Block
Gate TAB IC Defect
Gate TAB IC Defect
A - 5/5
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom B. Power error _No power date
Revised
Content Check front Power Indicator date A9
ST-BY condition: On or Off
Power ON condition: Turn Off
A9
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom
B. Power error _No power
date
Revised
Content Check power input voltage and ST-BY 3.5V A10
date
Pin No. Assignment
1 LED+
Check the DC 13.2V.
2~7 Shorted(Combined)
8 LED-
A10
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error
symptom B. Power error _Off when on, off whiling viewing Established
date
Revised
Content POWER OFF MODE checking method date A11
Entry method
1. Press the IN-START button of the remote control for adjustment
2. Check the entry into adjustment item 3
A11
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom C. Audio error_No audio/Normal video
date
Revised
Content Checking method in menu when there is no audio date A12
Checking method
1. Press the Setting button on the remote control
2. Select the Sound function of the Menu
3. Select the Sound Out
4. Select TV Speaker
A12
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom C. Audio error_No audio/Normal video date
Voltage and speaker checking method Revised
Content date A13
when there is no audio
Pin No. Assignment
1 LED+
2~7 Shorted(Combined)
8 LED-
①
1 SPK_R-
2 SPK_R+
3 SPK_L-
4 SPK_L+
Checking order when there is no audio
1.Check the contact condition of or 13.2V connector of Main Board
2. Measure the 13.2V input voltage supplied from Power Board
(If there is no input voltage, remove and check the connector)
3.Connect the tester RX1 to the speaker terminal and if you hear the Chik Chik sound when you touch the
GND and output terminal, the speaker is normal.
A13
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom D. Function error date
Remote control operation checking method Revised
Content date A14
Pin Pin name
1 3.4V_VCC
① 2 Wifi_DM
IR & EYE Sensor 3 Wifi_DP
4 GND
5 WOL/WIFI_Power_ON
6 3.4V_VCC
7 COMBO_RESET
8 GND
9 BT_WAKEUP_DEVICE
10 BT_WAKEUP_HOST
IR & LOGO light Rear 11 GND
12 GND
13 NC
14 NC
15 NC
16 EYE_SDA
IR LED Eye 17 EYE_SCL
18 GND
③
19 IR
20 LED_R
② 21 GND
Checking order to check remote control 22 3.4V_VCC
23 KEY2
Checking order 24 KEY1
25 GND
1.Check IR cable condition between IR & Main board.( Check picture number① and ②)
2.Check the standby 3.5V on the terminal 16 pin (③)
3.AS checking the Pre-Amp(IR LED light) , the power is in ON condition, an Analog Tester
needle should move slowly, otherwise, it’s defective.
A14
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom D. Function error date
Revised
Content Remote control operation checking method date A15
<55LJ610V-ZD> : Wifi Only 모델 Pin Pin name
1 3.4V_VCC
① Wifi Assy Front 2 Wifi_DM
3 Wifi_DP
4 GND
5 WOL/WIFI_Power_ON
6 3.4V_VCC
7 COMBO_RESET
8 GND
9 BT_WAKEUP_DEVICE
10 BT_WAKEUP_HOST
11 GND
Wifi Assy Rear 12 GND
13 NC
14 NC
15 NC
16 EYE_SDA
17 EYE_SCL
③ 18 GND
19 IR
20 LED_R
② 21 GND
22 3.4V_VCC
Checking order to check motion remote/wifi 23 KEY2
24 KEY1
Checking order 25 GND
1.Check BT/Wifi cable condition between BT/Wifi assy & Main board.
2.Check the 3.5V on the terminal 22
A15
Copyright © 2017 LG Electronics Inc. All rights reserved. LGE Internal Use Only
Only for training and service purposes
