CONFIDENTIAL
OLED TV
SERVICE MANUAL
CHASSIS : EA82B
MODEL : OLED55B8PUA
MODEL : OLED65B8PUA
CAUTION
BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
P/NO : MFL70444215 (1804-REV00)
Any reproduction, duplication, distribution (including by way of email, facsimile or other electronic means),
publication, modification, copying or transmission of this Service Manual is STRICTLY PROHIBITED unless you
have obtained the prior written consent of the LG Electronics entity from which you received this Service Manual.
The material covered by this prohibition includes, without limitation, any text, graphics or logos in this Service
Manual.
Copyright © 2018 LG Electronics Inc. All rights reserved. Only training and service purposes.
CONTENTS
CONTENTS ............................................................................................... 2
SAFETY PRECAUTIONS ......................................................................... 3
SERVICING PRECAUTIONS .................................................................... 4

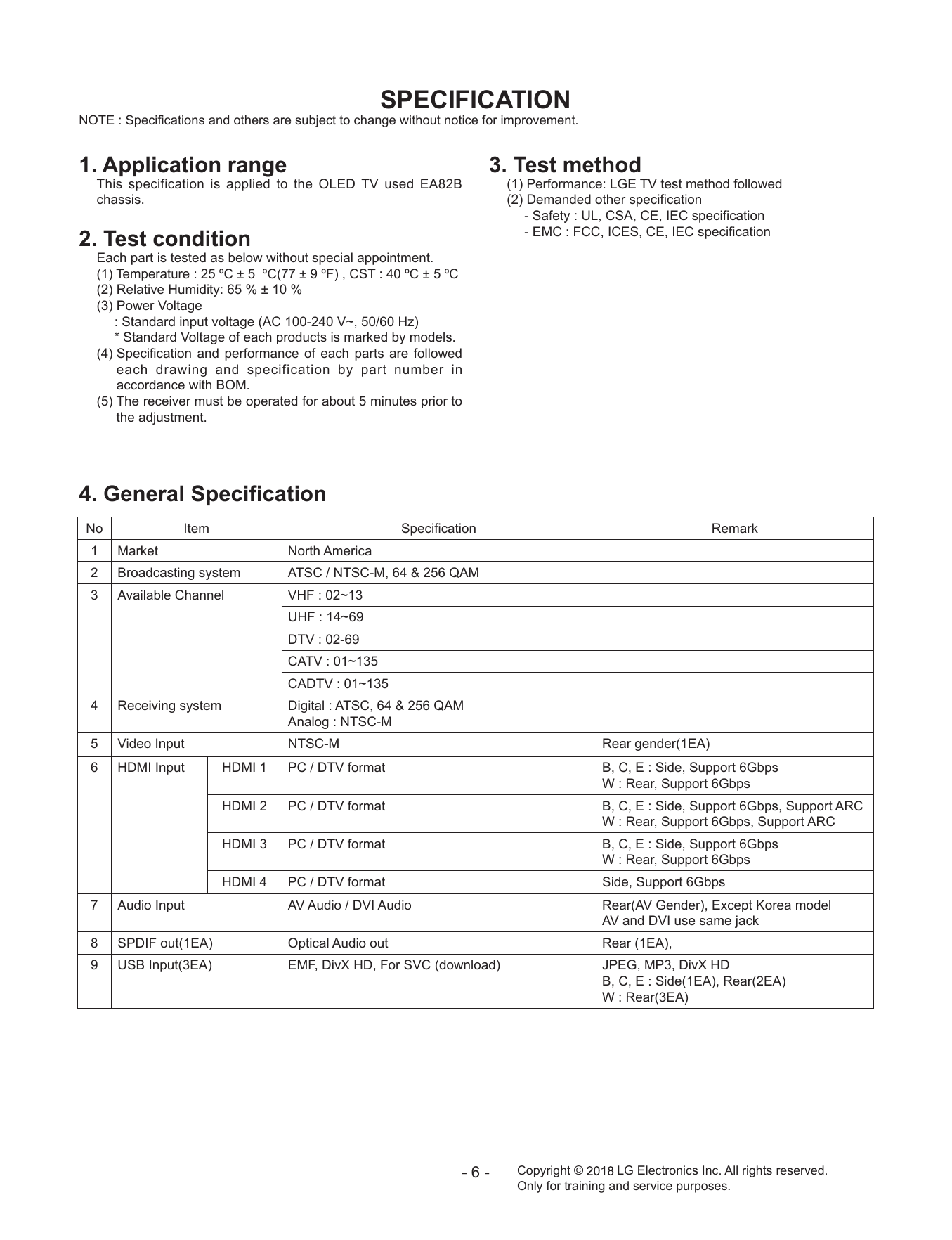

SPECIFICATION ........................................................................................ 6

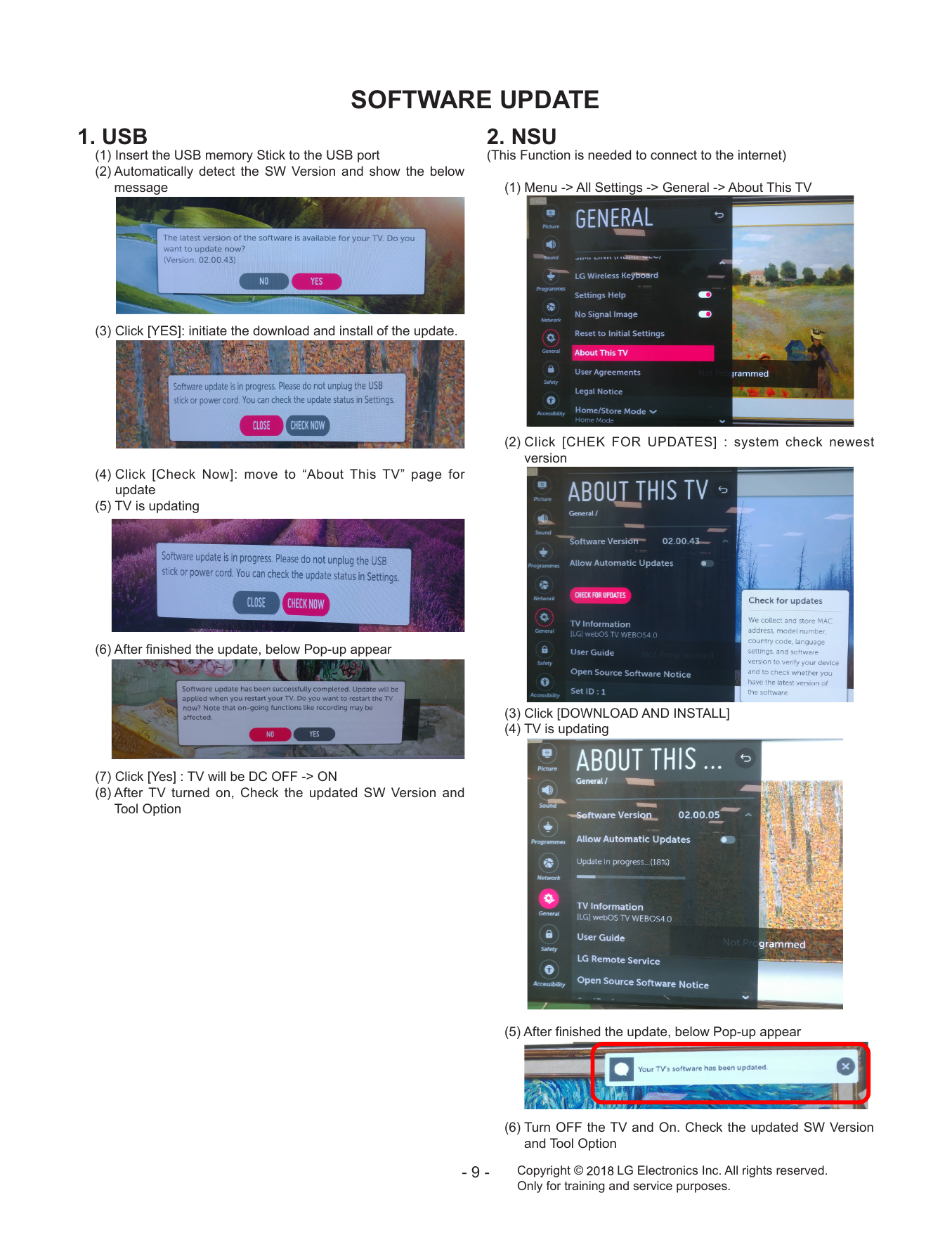

SOFTWARE UPDATE ............................................................................... 9
BLOCK DIAGRAM .................................................................................. 10

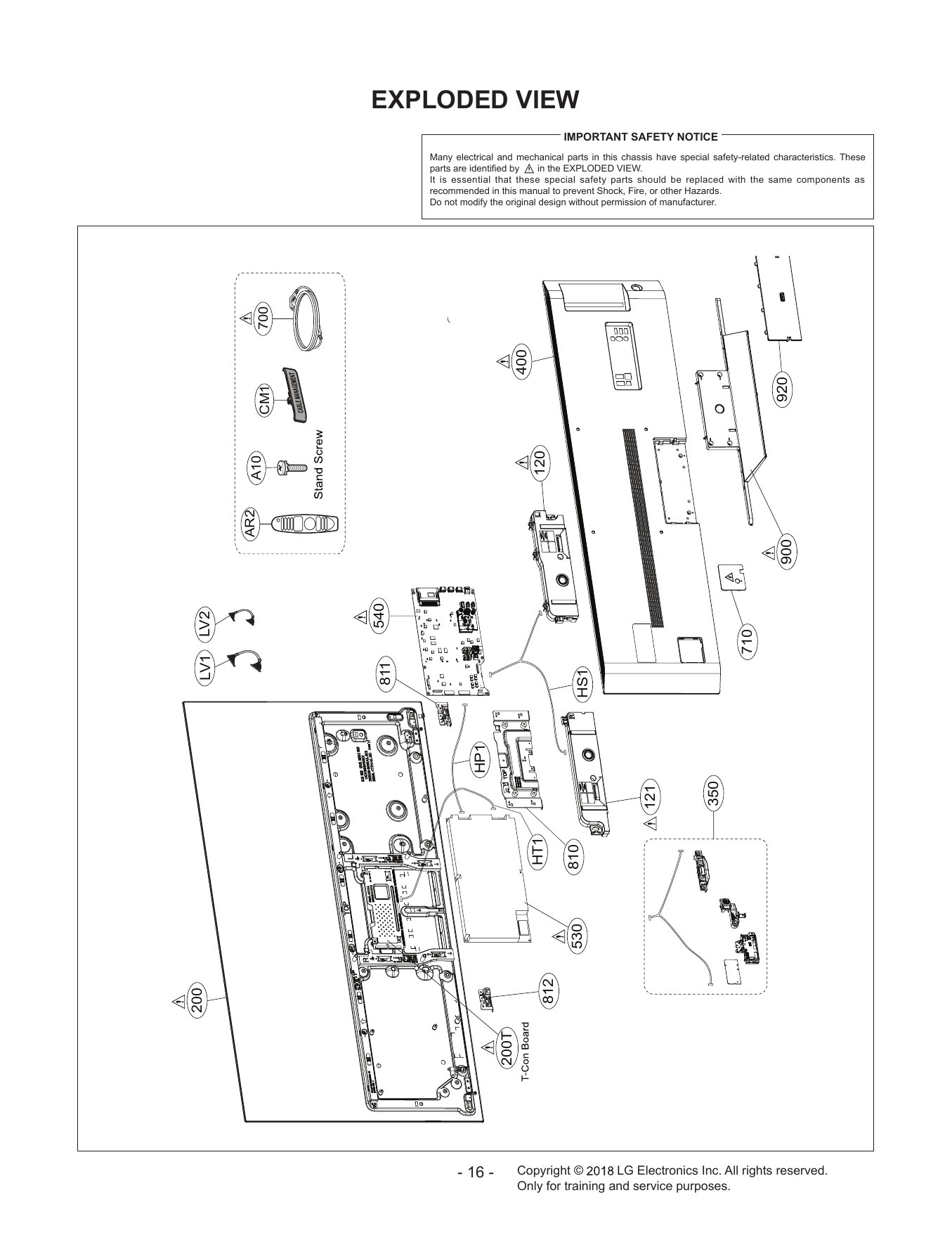

EXPLODED VIEW ................................................................................... 16
DISASSEMBLY GUIDE .......................................................................... 17
TROUBLE SHOOTING GUIDE ................................................. APPENDIX
-2- Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
SAFETY PRECAUTIONS
IMPORTANT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC Do not use a line Isolation Transformer during this check.
power line. Use a transformer of adequate power rating as this Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
protects the technician from accidents resulting in personal injury between a known good earth ground (Water Pipe, Conduit, etc.)
from electrical shocks. and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
It will also protect the receiver and it's components from being with 1000 ohms/volt or more sensitivity.
damaged by accidental shorts of the circuitry that may be Reverse plug the AC cord into the AC outlet and repeat AC voltage
inadvertently introduced during the service operation. measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
If any fuse (or Fusible Resistor) in this TV receiver is blown, 0.5 mA.
replace it with the specified. In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
When replacing a high wattage resistor (Oxide Metal Film Resistor, repaired before it is returned to the customer.
over 1 W), keep the resistor 10 mm away from PCB.
Leakage Current Hot Check circuit
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
-3- Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
SERVICING PRECAUTIONS
CAUTION: Before servicing receivers covered by this service 2. After removing an electrical assembly equipped with ES
manual and its supplements and addenda, read and follow the devices, place the assembly on a conductive surface such as
SAFETY PRECAUTIONS on page 3 of this publication. aluminum foil, to prevent electrostatic charge buildup or expo-
NOTE: If unforeseen circumstances create conflict between the sure of the assembly.
following servicing precautions and any of the safety precautions 3. Use only a grounded-tip soldering iron to solder or unsolder ES
on page 3 of this publication, always follow the safety precautions. devices.
Remember: Safety First. 4. Use only an anti-static type solder removal device. Some solder
removal devices not classified as “anti-static” can generate
General Servicing Precautions electrical charges sufficient to damage ES devices.
1. Always unplug the receiver AC power cord from the AC power 5. Do not use freon-propelled chemicals. These can generate
source before; electrical charges sufficient to damage ES devices.
a. Removing or reinstalling any component, circuit board mod- 6. Do not remove a replacement ES device from its protective
ule or any other receiver assembly. package until immediately before you are ready to install it.
b. Disconnecting or reconnecting any receiver electrical plug or (Most replacement ES devices are packaged with leads electri-
other electrical connection. cally shorted together by conductive foam, aluminum foil or
c. Connecting a test substitute in parallel with an electrolytic comparable conductive material).
capacitor in the receiver. 7. Immediately before removing the protective material from the
CAUTION: A wrong part substitution or incorrect polarity leads of a replacement ES device, touch the protective material
installation of electrolytic capacitors may result in an explo- to the chassis or circuit assembly into which the device will be
sion hazard. installed.
2. Test high voltage only by measuring it with an appropriate CAUTION: Be sure no power is applied to the chassis or circuit,
high voltage meter or other voltage measuring device (DVM, and observe all other safety precautions.
FETVOM, etc) equipped with a suitable high voltage probe. 8. Minimize bodily motions when handling unpackaged replace-
Do not test high voltage by "drawing an arc". ment ES devices. (Otherwise harmless motion such as the
3. Do not spray chemicals on or near this receiver or any of its brushing together of your clothes fabric or the lifting of your
assemblies. foot from a carpeted floor can generate static electricity suf-
4. Unless specified otherwise in this service manual, clean ficient to damage an ES device.)
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable General Soldering Guidelines
non-abrasive applicator; 10 % (by volume) Acetone and 90 % 1. Use a grounded-tip, low-wattage soldering iron and appropriate
(by volume) isopropyl alcohol (90 % - 99 % strength) tip size and shape that will maintain tip temperature within the
CAUTION: This is a flammable mixture. range or 500 °F to 600 °F.
Unless specified otherwise in this service manual, lubrication of 2. Use an appropriate gauge of RMA resin-core solder composed
contacts in not required. of 60 parts tin/40 parts lead.
5. Do not defeat any plug/socket B+ voltage interlocks with which 3. Keep the soldering iron tip clean and well tinned.
receivers covered by this service manual might be equipped. 4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
6. Do not apply AC power to this instrument and/or any of its bristle (0.5 inch, or 1.25 cm) brush with a metal handle.
electrical assemblies unless all solid-state device heat sinks are Do not use freon-propelled spray-on cleaners.
correctly installed. 5. Use the following unsoldering technique
7. Always connect the test receiver ground lead to the receiver a. Allow the soldering iron tip to reach normal temperature.
chassis ground before connecting the test receiver positive (500 °F to 600 °F)
lead. b. Heat the component lead until the solder melts.
Always remove the test receiver ground lead last. c. Quickly draw the melted solder with an anti-static, suction-
8. Use with this receiver only the test fixtures specified in this type solder removal device or with solder braid.
service manual. CAUTION: Work quickly to avoid overheating the circuit
CAUTION: Do not connect the test fixture ground strap to any board printed foil.
heat sink in this receiver. 6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
Electrostatically Sensitive (ES) Devices (500 °F to 600 °F)
Some semiconductor (solid-state) devices can be damaged eas- b. First, hold the soldering iron tip and solder the strand against
ily by static electricity. Such components commonly are called the component lead until the solder melts.
Electrostatically Sensitive (ES) Devices. Examples of typical ES c. Quickly move the soldering iron tip to the junction of the
devices are integrated circuits and some field-effect transistors component lead and the printed circuit foil, and hold it there
and semiconductor “chip” components. The following techniques only until the solder flows onto and around both the compo-
should be used to help reduce the incidence of component dam- nent lead and the foil.
age caused by static by static electricity. CAUTION: Work quickly to avoid overheating the circuit
1. Immediately before handling any semiconductor component or board printed foil.
semiconductor-equipped assembly, drain off any electrostatic d. Closely inspect the solder area and remove any excess or
charge on your body by touching a known earth ground. Alter- splashed solder with a small wire-bristle brush.
natively, obtain and wear a commercially available discharging
wrist strap device, which should be removed to prevent poten-
tial shock reasons prior to applying power to the unit under test.
-4- Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
IC Remove/Replacement 3. Solder the connections.
Some chassis circuit boards have slotted holes (oblong) through CAUTION: Maintain original spacing between the replaced
which the IC leads are inserted and then bent flat against the cir- component and adjacent components and the circuit board to
cuit foil. When holes are the slotted type, the following technique prevent excessive component temperatures.
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique Circuit Board Foil Repair
as outlined in paragraphs 5 and 6 above. Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
Removal board causing the foil to separate from or "lift-off" the board. The
1. Desolder and straighten each IC lead in one operation by following guidelines and procedures should be followed whenever
gently prying up on the lead with the soldering iron tip as the this condition is encountered.
solder melts.
2. Draw away the melted solder with an anti-static suction-type At IC Connections
solder removal device (or with solder braid) before removing To repair a defective copper pattern at IC connections use the
the IC. following procedure to install a jumper wire on the copper pattern
Replacement side of the circuit board. (Use this technique only on IC connec-
1. Carefully insert the replacement IC in the circuit board. tions).
2. Carefully bend each IC lead against the circuit foil pad and
solder it. 1. Carefully remove the damaged copper pattern with a sharp
3. Clean the soldered areas with a small wire-bristle brush. knife. (Remove only as much copper as absolutely necessary).
(It is not necessary to reapply acrylic coating to the areas). 2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
"Small-Signal" Discrete Transistor 3. Bend a small "U" in one end of a small gauge jumper wire and
Removal/Replacement carefully crimp it around the IC pin. Solder the IC connection.
1. Remove the defective transistor by clipping its leads as close 4. Route the jumper wire along the path of the out-away copper
as possible to the component body. pattern and let it overlap the previously scraped end of the
2. Bend into a "U" shape the end of each of three leads remaining good copper pattern. Solder the overlapped area and clip off
on the circuit board. any excess jumper wire.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding At Other Connections
leads extending from the circuit board and crimp the "U" with Use the following technique to repair the defective copper pattern
long nose pliers to insure metal to metal contact then solder at connections other than IC Pins. This technique involves the
each connection. installation of a jumper wire on the component side of the circuit
board.
Power Output, Transistor Device
Removal/Replacement 1. Remove the defective copper pattern with a sharp knife.
1. Heat and remove all solder from around the transistor leads. Remove at least 1/4 inch of copper, to ensure that a hazardous
2. Remove the heat sink mounting screw (if so equipped). condition will not exist if the jumper wire opens.
3. Carefully remove the transistor from the heat sink of the circuit 2. Trace along the copper pattern from both sides of the pattern
board. break and locate the nearest component that is directly con-
4. Insert new transistor in the circuit board. nected to the affected copper pattern.
5. Solder each transistor lead, and clip off excess lead. 3. Connect insulated 20-gauge jumper wire from the lead of the
6. Replace heat sink. nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Diode Removal/Replacement Carefully crimp and solder the connections.
1. Remove defective diode by clipping its leads as close as pos- CAUTION: Be sure the insulated jumper wire is dressed so the
sible to diode body. it does not touch components or sharp edges.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
-5- Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement.
1. Application range 3. Test method
This specification is applied to the OLED TV used EA82B (1) Performance: LGE TV test method followed
chassis. (2) Demanded other specification
- Safety : UL, CSA, CE, IEC specification
- EMC : FCC, ICES, CE, IEC specification
2. Test condition
Each part is tested as below without special appointment.
(1) Temperature : 25 ºC ± 5 ºC(77 ± 9 ºF) , CST : 40 ºC ± 5 ºC
(2) Relative Humidity: 65 % ± 10 %
(3) Power Voltage
: Standard input voltage (AC 100-240 V~, 50/60 Hz)
* Standard Voltage of each products is marked by models.
(4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
(5) The receiver must be operated for about 5 minutes prior to
the adjustment.
4. General Specification
No Item Specification Remark
1 Market North America
2 Broadcasting system ATSC / NTSC-M, 64 & 256 QAM
3 Available Channel VHF : 02~13
UHF : 14~69
DTV : 02-69
CATV : 01~135
CADTV : 01~135
4 Receiving system Digital : ATSC, 64 & 256 QAM
Analog : NTSC-M
5 Video Input NTSC-M Rear gender(1EA)
6 HDMI Input HDMI 1 PC / DTV format B, C, E : Side, Support 6Gbps
W : Rear, Support 6Gbps
HDMI 2 PC / DTV format B, C, E : Side, Support 6Gbps, Support ARC
W : Rear, Support 6Gbps, Support ARC
HDMI 3 PC / DTV format B, C, E : Side, Support 6Gbps
W : Rear, Support 6Gbps
HDMI 4 PC / DTV format Side, Support 6Gbps
7 Audio Input AV Audio / DVI Audio Rear(AV Gender), Except Korea model
AV and DVI use same jack
8 SPDIF out(1EA) Optical Audio out Rear (1EA),
9 USB Input(3EA) EMF, DivX HD, For SVC (download) JPEG, MP3, DivX HD
B, C, E : Side(1EA), Rear(2EA)
W : Rear(3EA)
-6- Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
5. External Input Support Format

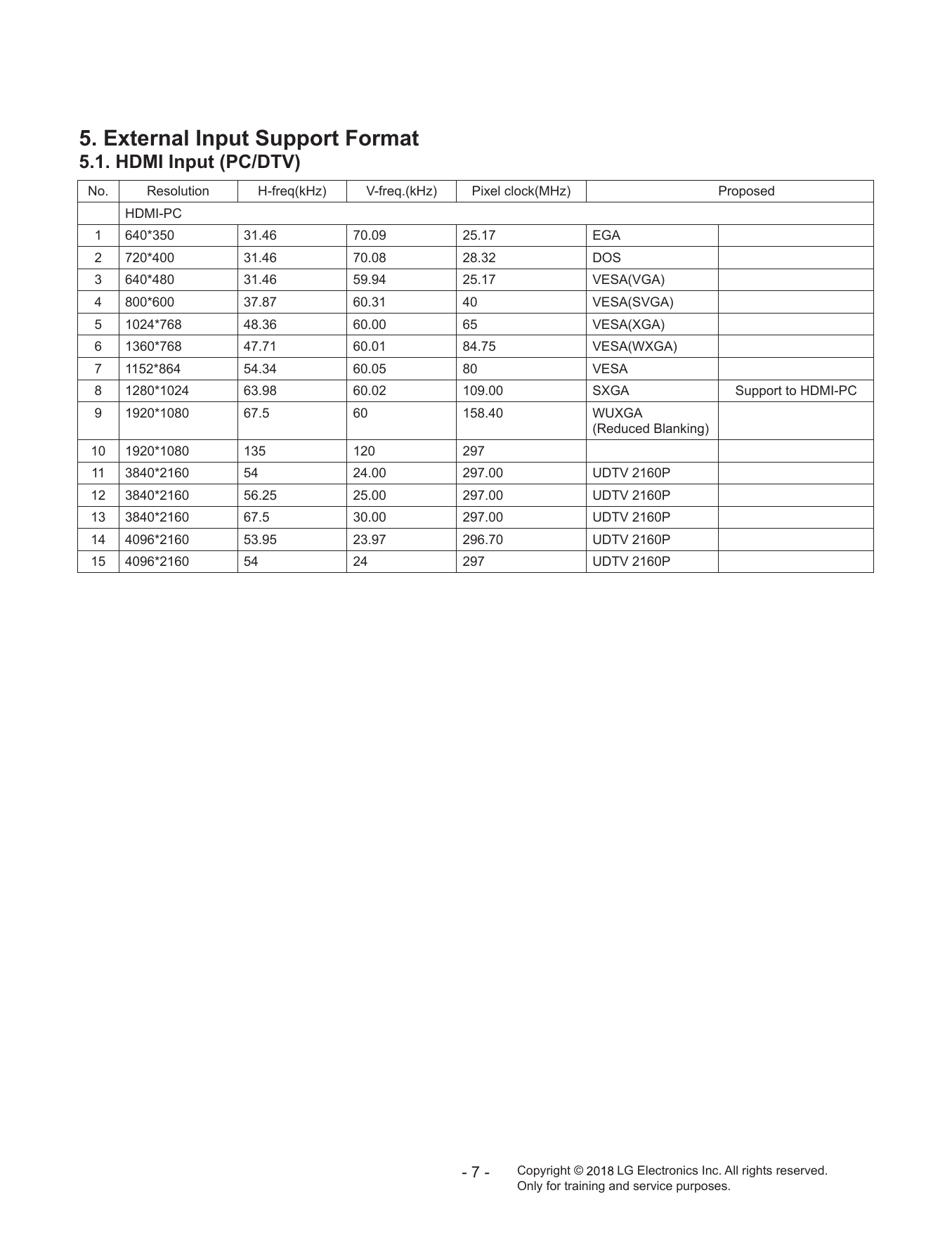

5.1. HDMI Input (PC/DTV)
No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed
HDMI-PC
1 640*350 31.46 70.09 25.17 EGA
2 720*400 31.46 70.08 28.32 DOS
3 640*480 31.46 59.94 25.17 VESA(VGA)
4 800*600 37.87 60.31 40 VESA(SVGA)
5 1024*768 48.36 60.00 65 VESA(XGA)
6 1360*768 47.71 60.01 84.75 VESA(WXGA)
7 1152*864 54.34 60.05 80 VESA
8 1280*1024 63.98 60.02 109.00 SXGA Support to HDMI-PC
9 1920*1080 67.5 60 158.40 WUXGA
(Reduced Blanking)
10 1920*1080 135 120 297
11 3840*2160 54 24.00 297.00 UDTV 2160P
12 3840*2160 56.25 25.00 297.00 UDTV 2160P
13 3840*2160 67.5 30.00 297.00 UDTV 2160P
14 4096*2160 53.95 23.97 296.70 UDTV 2160P
15 4096*2160 54 24 297 UDTV 2160P
-7- Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.

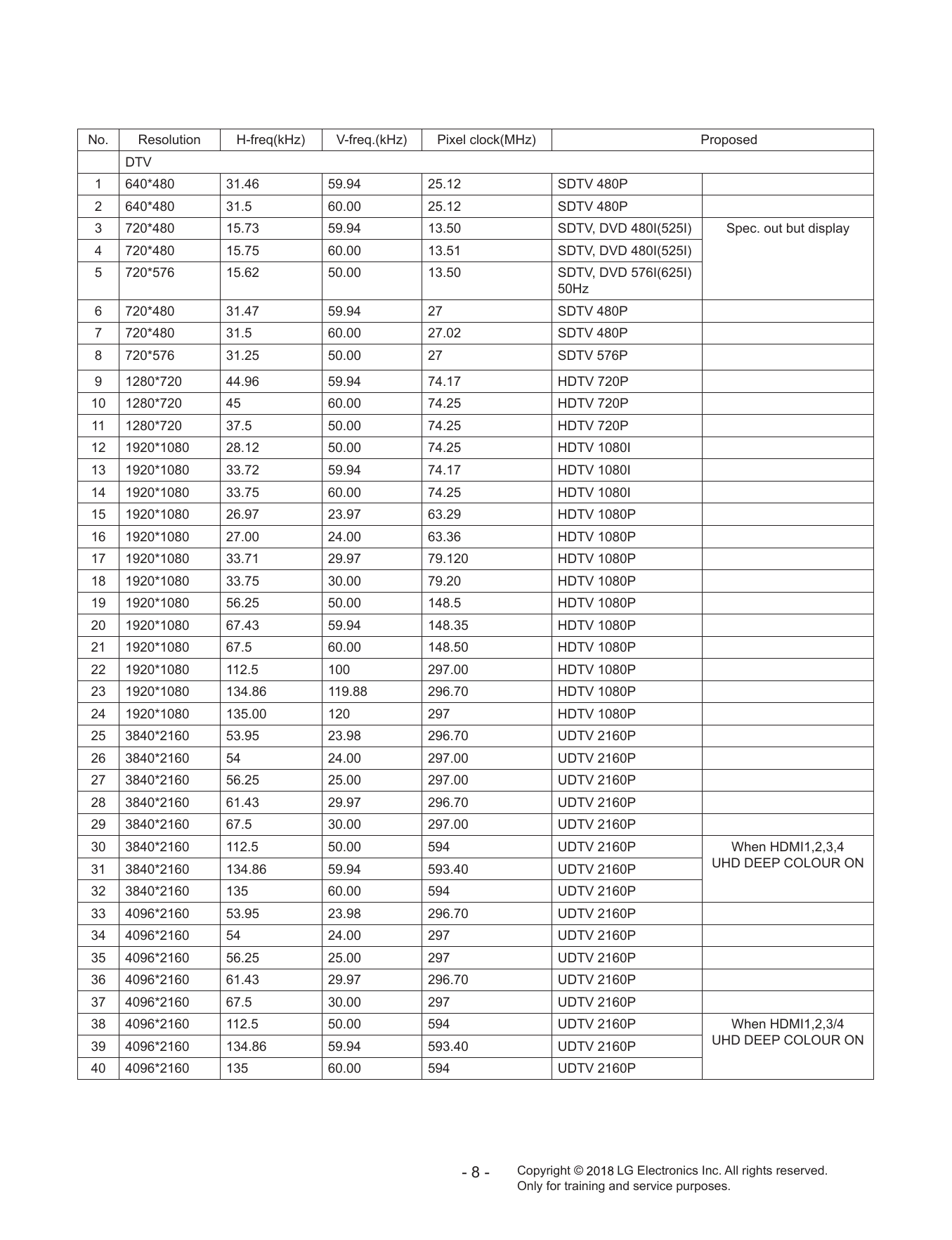

No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed
DTV
1 640*480 31.46 59.94 25.12 SDTV 480P
2 640*480 31.5 60.00 25.12 SDTV 480P
3 720*480 15.73 59.94 13.50 SDTV, DVD 480I(525I) Spec. out but display
4 720*480 15.75 60.00 13.51 SDTV, DVD 480I(525I)
5 720*576 15.62 50.00 13.50 SDTV, DVD 576I(625I)
50Hz
6 720*480 31.47 59.94 27 SDTV 480P
7 720*480 31.5 60.00 27.02 SDTV 480P
8 720*576 31.25 50.00 27 SDTV 576P
9 1280*720 44.96 59.94 74.17 HDTV 720P
10 1280*720 45 60.00 74.25 HDTV 720P
11 1280*720 37.5 50.00 74.25 HDTV 720P
12 1920*1080 28.12 50.00 74.25 HDTV 1080I
13 1920*1080 33.72 59.94 74.17 HDTV 1080I
14 1920*1080 33.75 60.00 74.25 HDTV 1080I
15 1920*1080 26.97 23.97 63.29 HDTV 1080P
16 1920*1080 27.00 24.00 63.36 HDTV 1080P
17 1920*1080 33.71 29.97 79.120 HDTV 1080P
18 1920*1080 33.75 30.00 79.20 HDTV 1080P
19 1920*1080 56.25 50.00 148.5 HDTV 1080P
20 1920*1080 67.43 59.94 148.35 HDTV 1080P
21 1920*1080 67.5 60.00 148.50 HDTV 1080P
22 1920*1080 112.5 100 297.00 HDTV 1080P
23 1920*1080 134.86 119.88 296.70 HDTV 1080P
24 1920*1080 135.00 120 297 HDTV 1080P
25 3840*2160 53.95 23.98 296.70 UDTV 2160P
26 3840*2160 54 24.00 297.00 UDTV 2160P
27 3840*2160 56.25 25.00 297.00 UDTV 2160P
28 3840*2160 61.43 29.97 296.70 UDTV 2160P
29 3840*2160 67.5 30.00 297.00 UDTV 2160P
30 3840*2160 112.5 50.00 594 UDTV 2160P When HDMI1,2,3,4
31 3840*2160 134.86 59.94 593.40 UDTV 2160P UHD DEEP COLOUR ON
32 3840*2160 135 60.00 594 UDTV 2160P
33 4096*2160 53.95 23.98 296.70 UDTV 2160P
34 4096*2160 54 24.00 297 UDTV 2160P
35 4096*2160 56.25 25.00 297 UDTV 2160P
36 4096*2160 61.43 29.97 296.70 UDTV 2160P
37 4096*2160 67.5 30.00 297 UDTV 2160P
38 4096*2160 112.5 50.00 594 UDTV 2160P When HDMI1,2,3/4
39 4096*2160 134.86 59.94 593.40 UDTV 2160P UHD DEEP COLOUR ON
40 4096*2160 135 60.00 594 UDTV 2160P
-8- Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
SOFTWARE UPDATE
1. USB 2. NSU
(1) Insert the USB memory Stick to the USB port (This Function is needed to connect to the internet)
(2) Automatically detect the SW Version and show the below
message (1) Menu -> All Settings -> General -> About This TV
(3) Click [YES]: initiate the download and install of the update.
(2) C lick [CHEK FOR UPDATES] : system check newest
version
(4) C lick [Check Now]: move to “About This TV” page for
update
(5) TV is updating
(6) After finished the update, below Pop-up appear
(3) Click [DOWNLOAD AND INSTALL]
(4) TV is updating
(7) Click [Yes] : TV will be DC OFF -> ON
(8) After TV turned on, Check the updated SW Version and
Tool Option
(5) After finished the update, below Pop-up appear
(6) Turn OFF the TV and On. Check the updated SW Version
and Tool Option
-9- Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
DDR3 1. Main
X_TAL
(512MB X 2EA)
Tuner
DDR4
R (512MB X 2EA)
DDR Controller
E
A CVBS/SIF
R P_TS
(H) Main IC
SYSTEM EEPROM
HDMI1 (2.0)
eMMC
HDMI2 (2.0)
S (ARC)
I HDMI3 (2.0)
D
E OCP
USB1 (2.0 )
1.5A
I2S Out
Audio 2 AMP
- 10 -
OCP
USB2 (2.0) 1.5A
OCP
USB3 (2.0) 1.5A
HDMI4 (2.0)
BLUTOOTH
R
Copyright ©

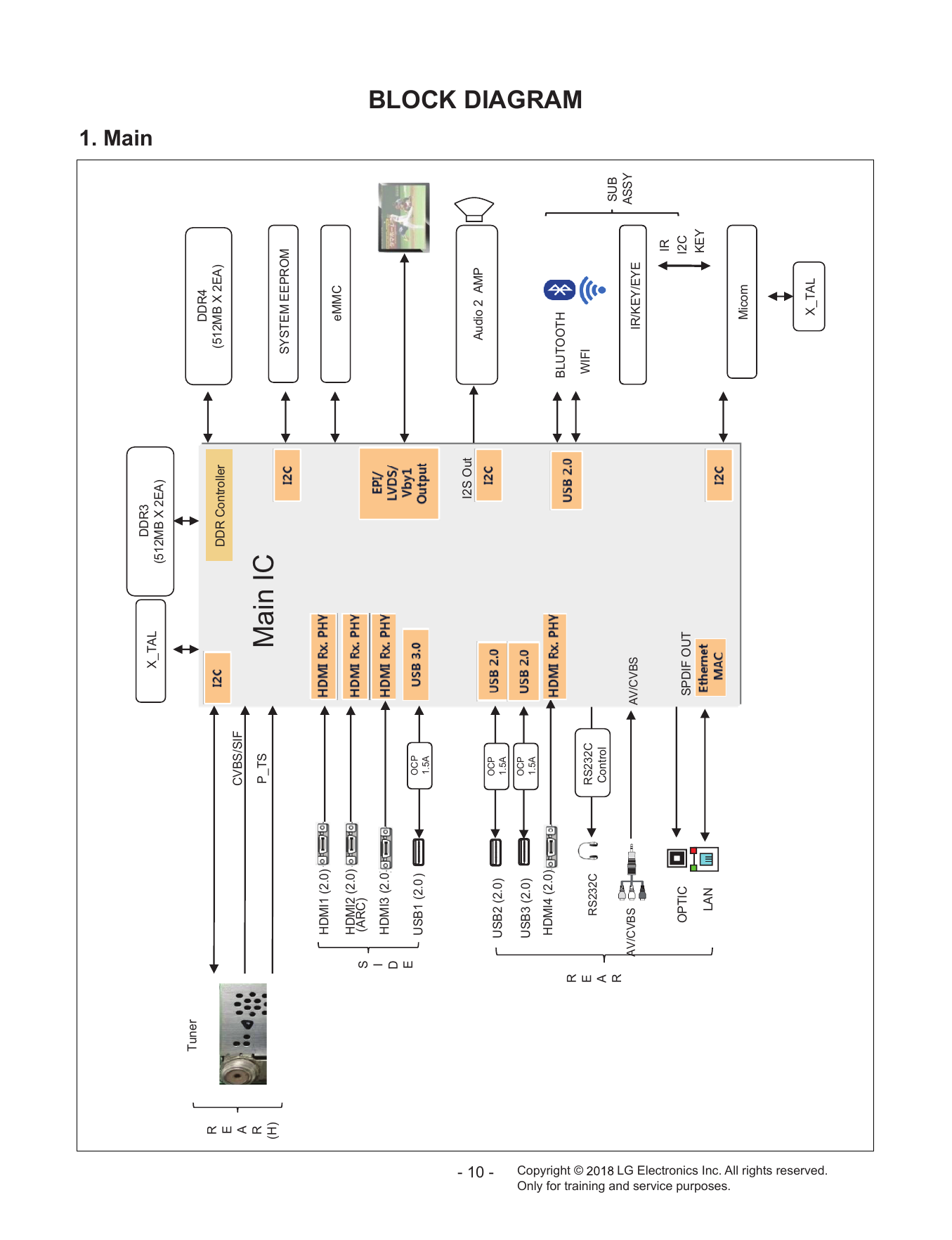

BLOCK DIAGRAM
E RS232C WIFI
RS232C
A Control
R SUB
AV/CVBS AV/CVBS ASSY
IR/KEY/EYE
IR
OPTIC SPDIF OUT I2C
KEY
LAN
Only for training and service purposes.
Micom
X_TAL
LG Electronics Inc. All rights reserved.

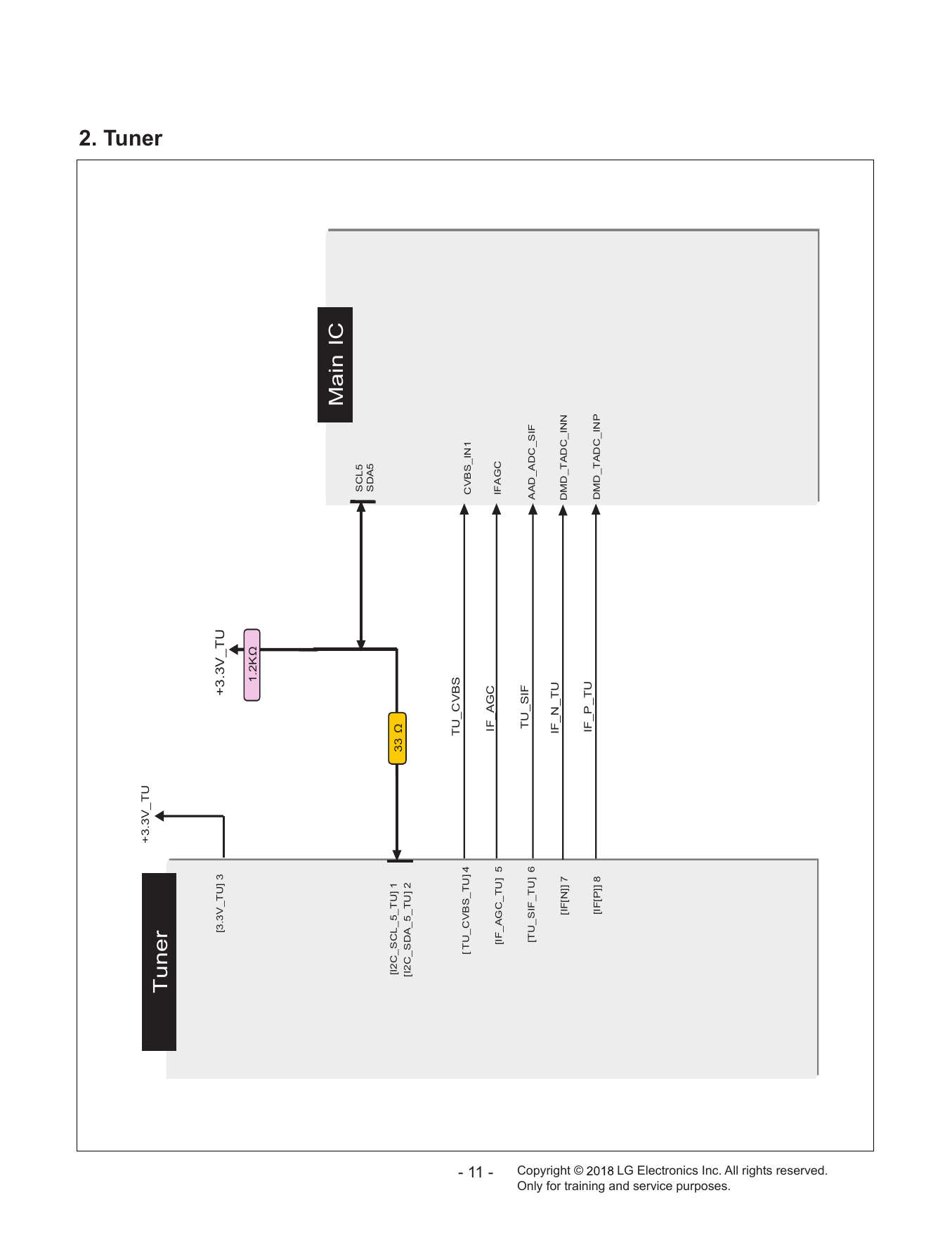

+3.3V_TU 2. Tuner
Tuner
[3.3V_TU] 3 +3.3V_TU
1.2KΩ
Main IC
SCL5
SDA5
[I2C_SCL_5_TU] 1
33 Ω
[I2C_SDA_5_TU] 2
TU_CVBS
[ TU_CVBS_TU] 4 CVBS_IN1
- 11 -
IF_AGC
[IF_AGC_TU] 5 IFAGC
TU_SIF
[TU_SIF_TU] 6 AAD_ADC_SIF
IF_N_TU
[IF[N]] 7 DMD_TADC_INN
Copyright ©
IF_P_TU
[IF[P]] 8 DMD_TADC_INP
Only for training and service purposes.
LG Electronics Inc. All rights reserved.
A
AV
AV11 Jack Side IC Side
JACK
Phone JACK Main IC
AV_CVBS_IN AV1_CVBS_IN_IC
AR15 [CVBS_IN2]
AR10 [AUAD_L_CH2_IN
COMP2/AV_L_IN AUAD_L_CH2_IN AT10 [AUAD_R_CH2_IN]
COMP2/AV_R_IN
_ _ AUAD_R_CH2_IN
Component 1
Phone JACK COMP2_SOG2_IN_IC

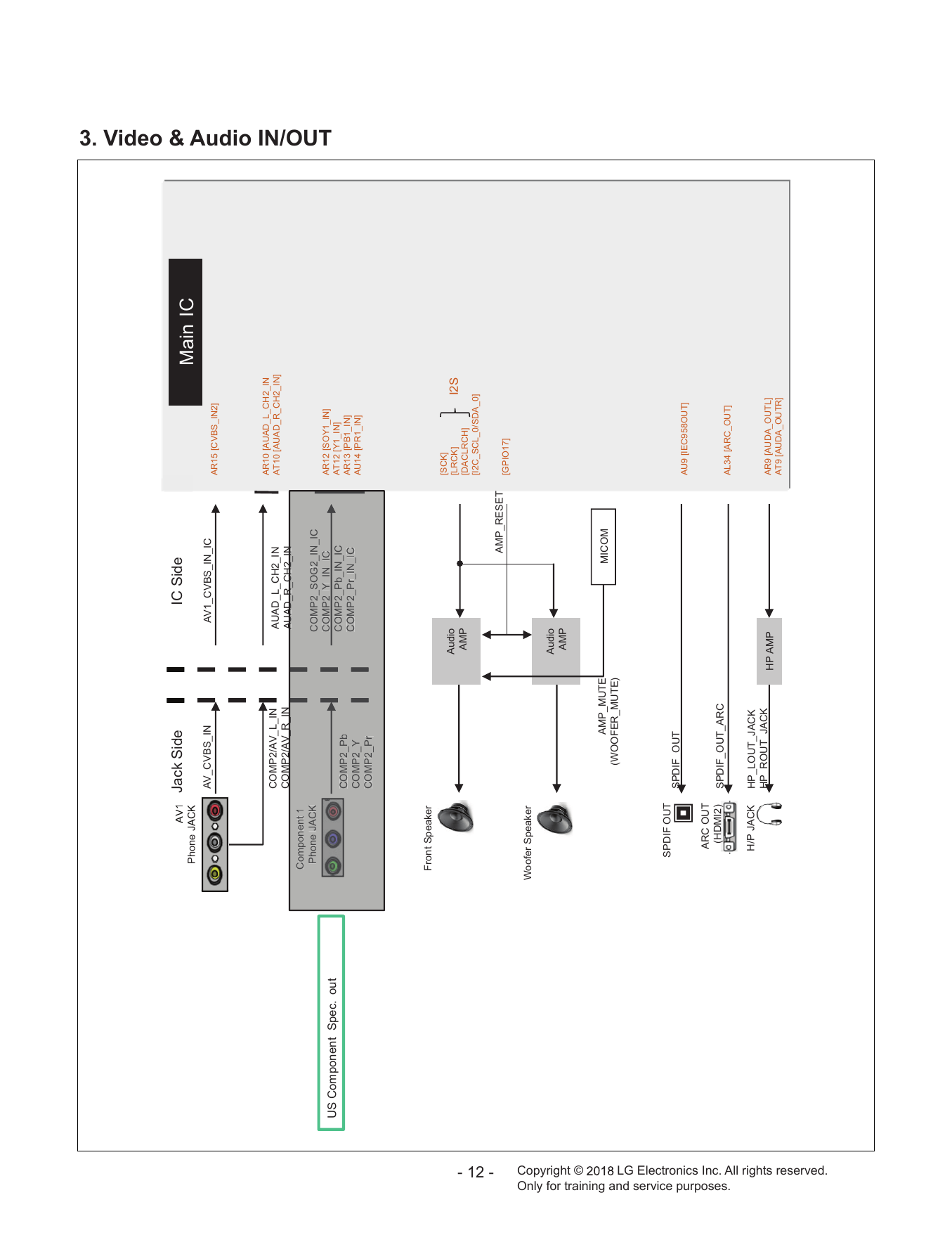

3. Video & Audio IN/OUT
COMP2 Y IN IC
COMP2_Y_IN_IC AR12 [SOY1_IN]
US Component Spec. out COMP2_Pb_IN_IC AT12 [Y1_IN]
COMP2_Pb AR13 [PB1_IN]
COMP2_Pr_IN_IC
COMP2_Y AU14 [PR1_IN]
COMP2_Pr
Front Speaker
[SCK]
Audio [LRCK] I2S
AMP [DACLRCH]
[I2C_SCL_0/SDA_0]
- 12 -
AMP_RESET
[GPIO17]
Woofer Speaker
Audio
AMP
Copyright ©
AMP_MUTE MICOM
(WOOFER_MUTE)
SPDIF OUT
SPDIF_OUT
AU9 [IEC958OUT]
ARC OUT
(HDMI2) SPDIF_OUT_ARC
Only for training and service purposes.
AL34 [ARC_OUT]
H/P JACK HP_LOUT_JACK
HP_ROUT_JACK AR9 [AUDA_OUTL]
HP AMP
AT9 [AUDA_OUTR]
LG Electronics Inc. All rights reserved.

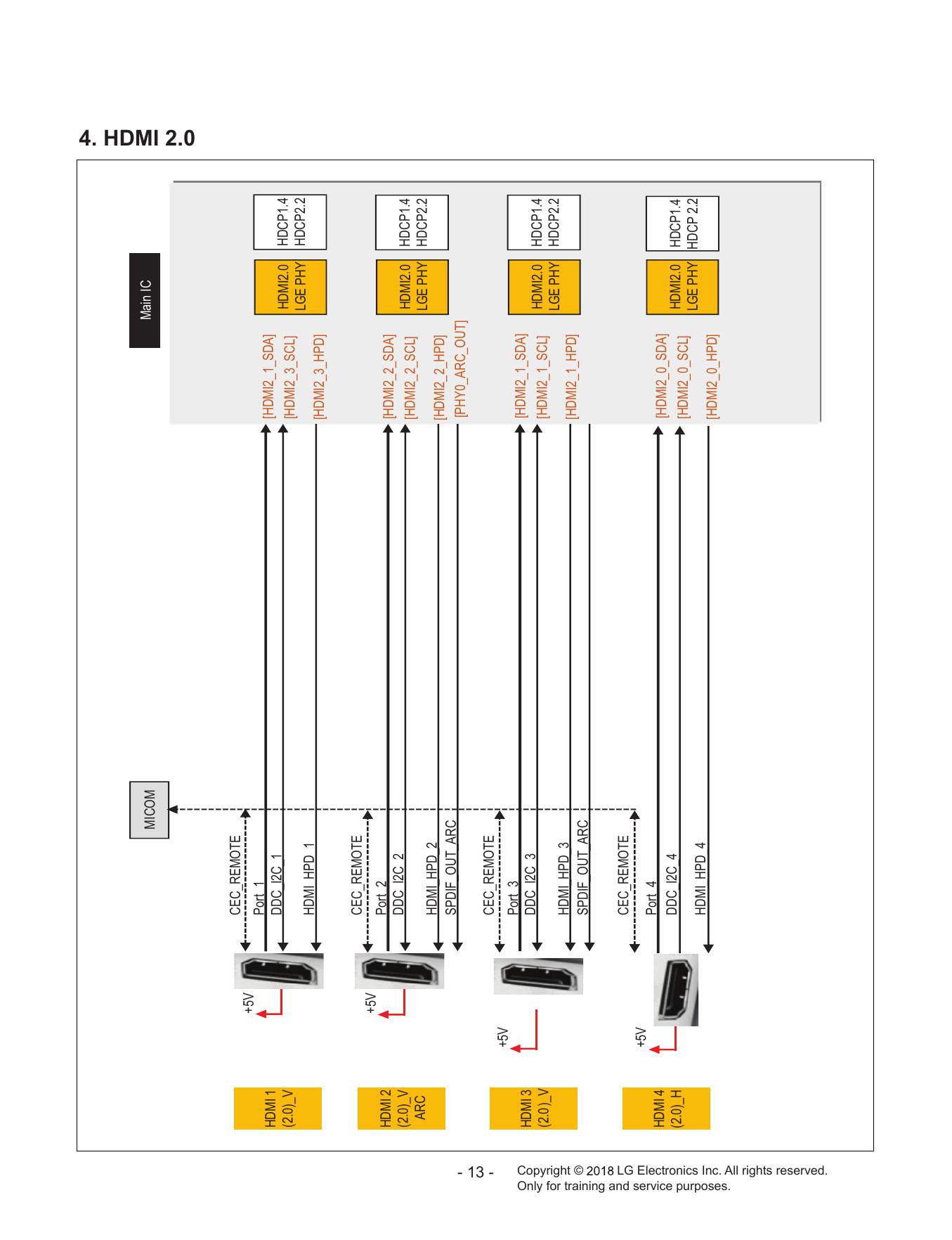

MICOM Main IC 4. HDMI 2.0
CEC_REMOTE
+5V
Port_1
HDMI 1 [HDMI2_1_SDA]
DDC_I2C_1 HDMI2.0 HDCP1.4
(2.0)_V [HDMI2_3_SCL]
LGE PHY HDCP2.2
HDMI_HPD_1
[HDMI2_3_HPD]
CEC_REMOTE
+5V
HDMI 2 Port_2
[HDMI2_2_SDA]
(2.0)_V DDC_I2C_2 HDMI2.0 HDCP1.4
[HDMI2_2_SCL]
ARC LGE PHY HDCP2.2
HDMI_HPD_2
[HDMI2_2_HPD]
SPDIF_OUT_ARC
[PHY0_ARC_OUT]
- 13 -
CEC_REMOTE
+5V
Port_3
HDMI 3 [HDMI2_1_SDA]
DDC_I2C_3 HDMI2.0 HDCP1.4
(2.0)_V [HDMI2_1_SCL]
LGE PHY HDCP2.2
HDMI_HPD_3
[HDMI2_1_HPD]
Copyright ©
SPDIF_OUT_ARC
CEC_REMOTE
+5V
Port_4
HDMI 4 [HDMI2_0_SDA]
(2.0)_H DDC_I2C_4 HDMI2.0 HDCP1.4
[HDMI2_0_SCL]
LGE PHY HDCP 2.2
HDMI_HPD_4
[HDMI2_0_HPD]
Only for training and service purposes.
LG Electronics Inc. All rights reserved.
Main IC
USB2.0_1_DM0/DP1 +5V_USB_1 USB 2
[USB3_0_DP0/DM0] (2.0)_V
USB_CTL1
[EB_CS0] OCP
USB2.0_2_DP1 / DM1 +5V_USB_2 USB 2
[USB2_1_DP0 / DM0]
USB_CTL2 (2.0)_H
[GPIO95] OCP
USB2.0_3_DP0 / DM0 +5V_USB_3
[USB2_0_DP0 / DM0] USB 3
USB_CTL3 (2.0)_H
[SPI_DO1] OCP

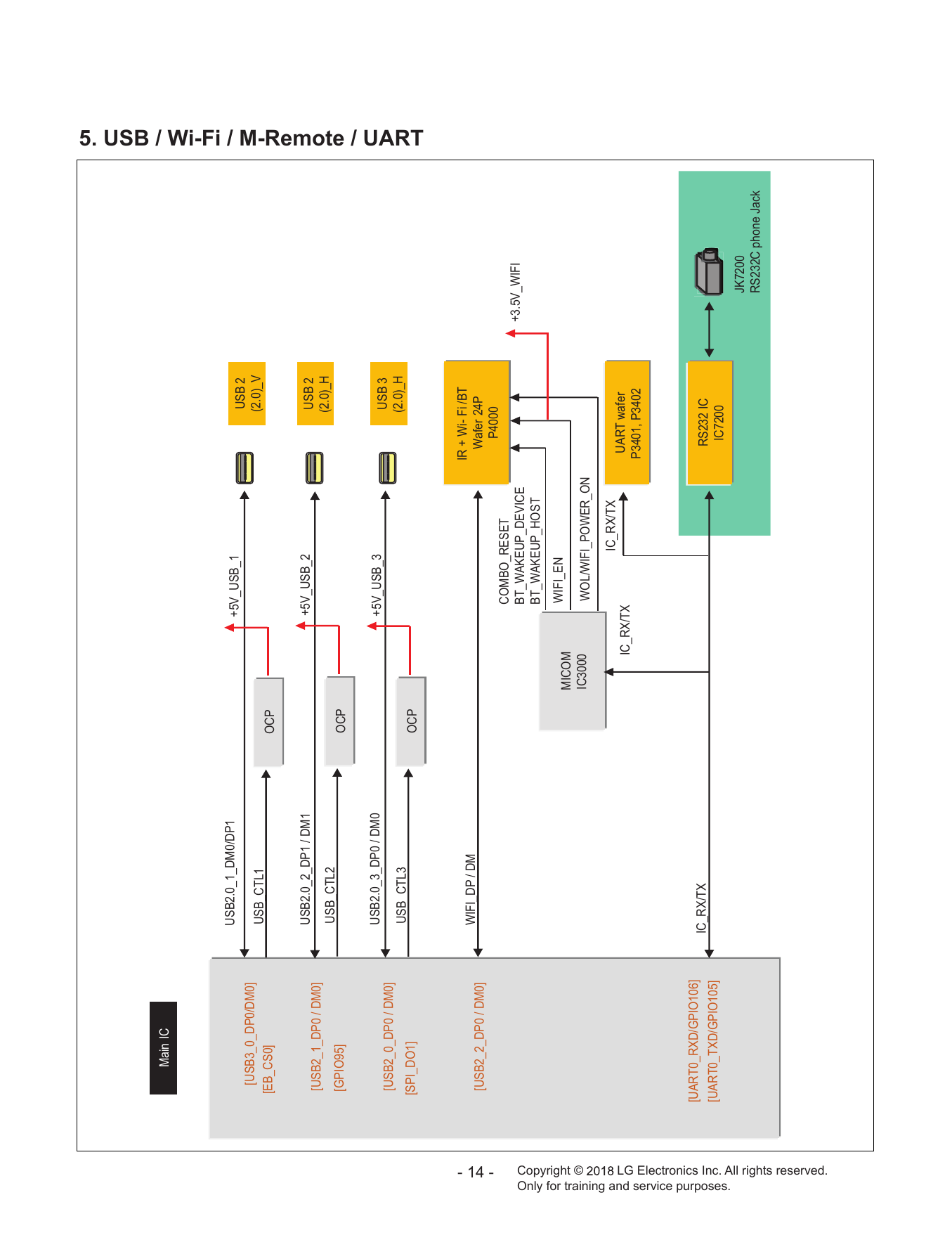

5. USB / Wi-Fi / M-Remote / UART
IR + Wi- Fi /BT
WIFI_DP / DM
[USB2_2_DP0 / DM0] Wafer 24P
- 14 -
P4000
COMBO_RESET
BT_WAKEUP_DEVICE +3.5V_WIFI
BT_WAKEUP_HOST
WIFI_EN
MICOM
Copyright ©
IC3000 WOL/WIFI_POWER_ON
IC_RX/TX
IC_RX/TX UART wafer
P3401, P3402
[UART0_RXD/GPIO106]
IC_RX/TX RS232 IC
[UART0_TXD/GPIO105] IC7200
Only for training and service purposes.
JK7200
RS232C phone Jack
LG Electronics Inc. All rights reserved.
0x54 +3.3V_NORMAL Cap Ready
IC5300 100 Ω Device

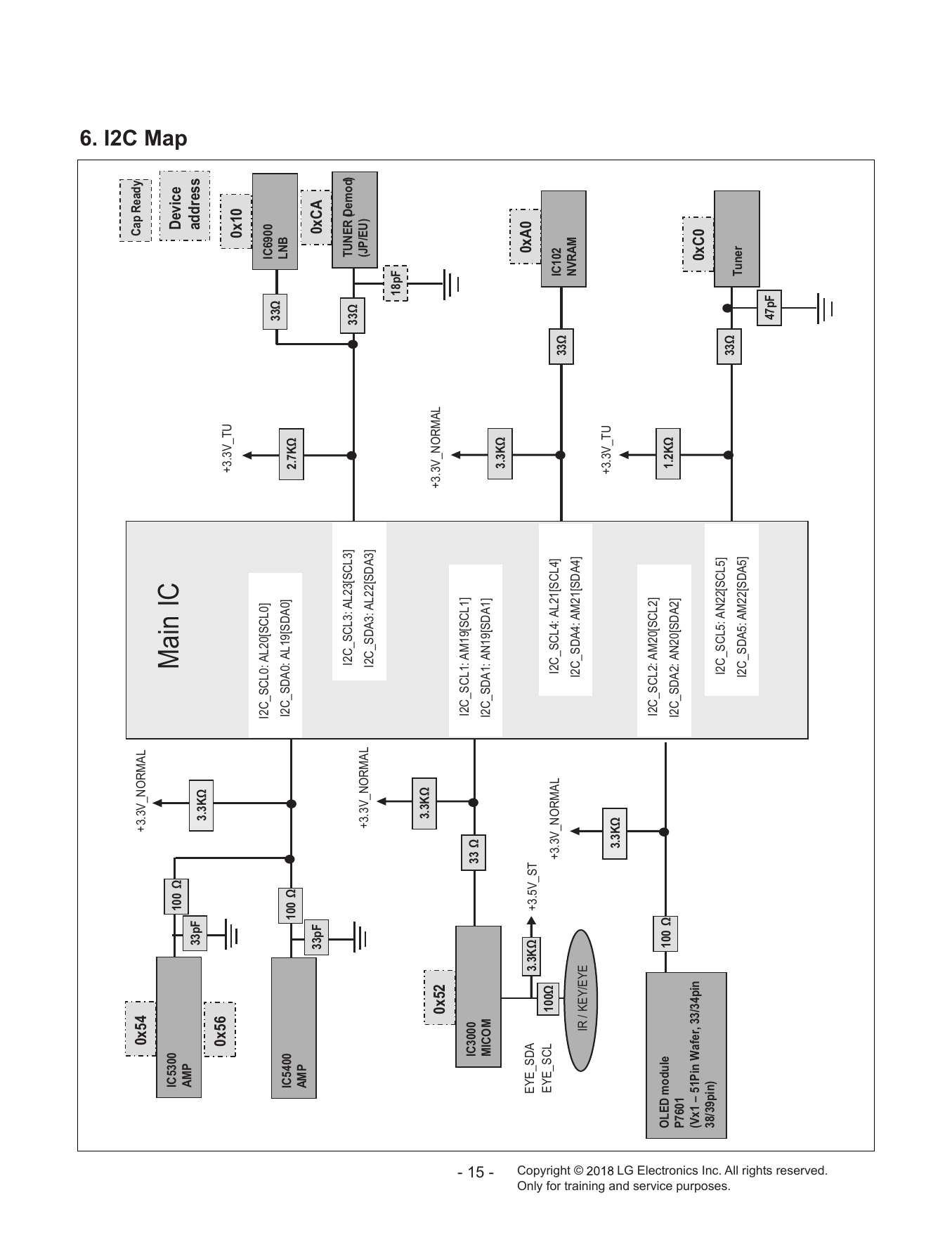

6. I2C Map
AMP
Main IC
33pF 3.3KΩ address
0x56 +3.3V_TU
0x10
I2C_SCL0: AL20[SCL0] IC6900
33Ω
IC5400 I2C_SDA0: AL19[SDA0] LNB
100 Ω 2.7KΩ
AMP
33pF 0xCA
I2C_SCL3: AL23[SCL3] 33Ω TUNER (Demod)
+3.3V_NORMAL I2C_SDA3: AL22[SDA3] (JP/EU)
18pF
3.3KΩ
0x52 +3.3V_NORMAL
I2C_SCL1: AM19[SCL1]
IC3000 33 Ω
- 15 -
MICOM I2C_SDA1: AN19[SDA1]
3.3KΩ
EYE_SDA 3.3KΩ +3.5V_ST 0xA0
EYE_SCL 100Ω +3.3V_NORMAL I2C_SCL4: AL21[SCL4] IC102
33Ω
NVRAM
Copyright ©
I2C_SDA4: AM21[SDA4]
IR / KEY/EYE
+3.3V_TU
3.3KΩ
I2C_SCL2: AM20[SCL2]
OLED module 100 Ω 1.2KΩ
P7601 I2C_SDA2: AN20[SDA2]
(Vx1 – 51Pin Wafer, 33/34pin 0xC0
38/39pin)
I2C_SCL5: AN22[SCL5]
Only for training and service purposes.
33Ω
I2C_SDA5: AM22[SDA5] Tuner
47pF
LG Electronics Inc. All rights reserved.
EXPLODED VIEW
IMPORTANT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
700
400
920
CM1
120
A10
AR2
900
540
LV2
710
LV1
811
HS1
HP1
350
121
HT1
810
530
812
200
200T
- 16 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.

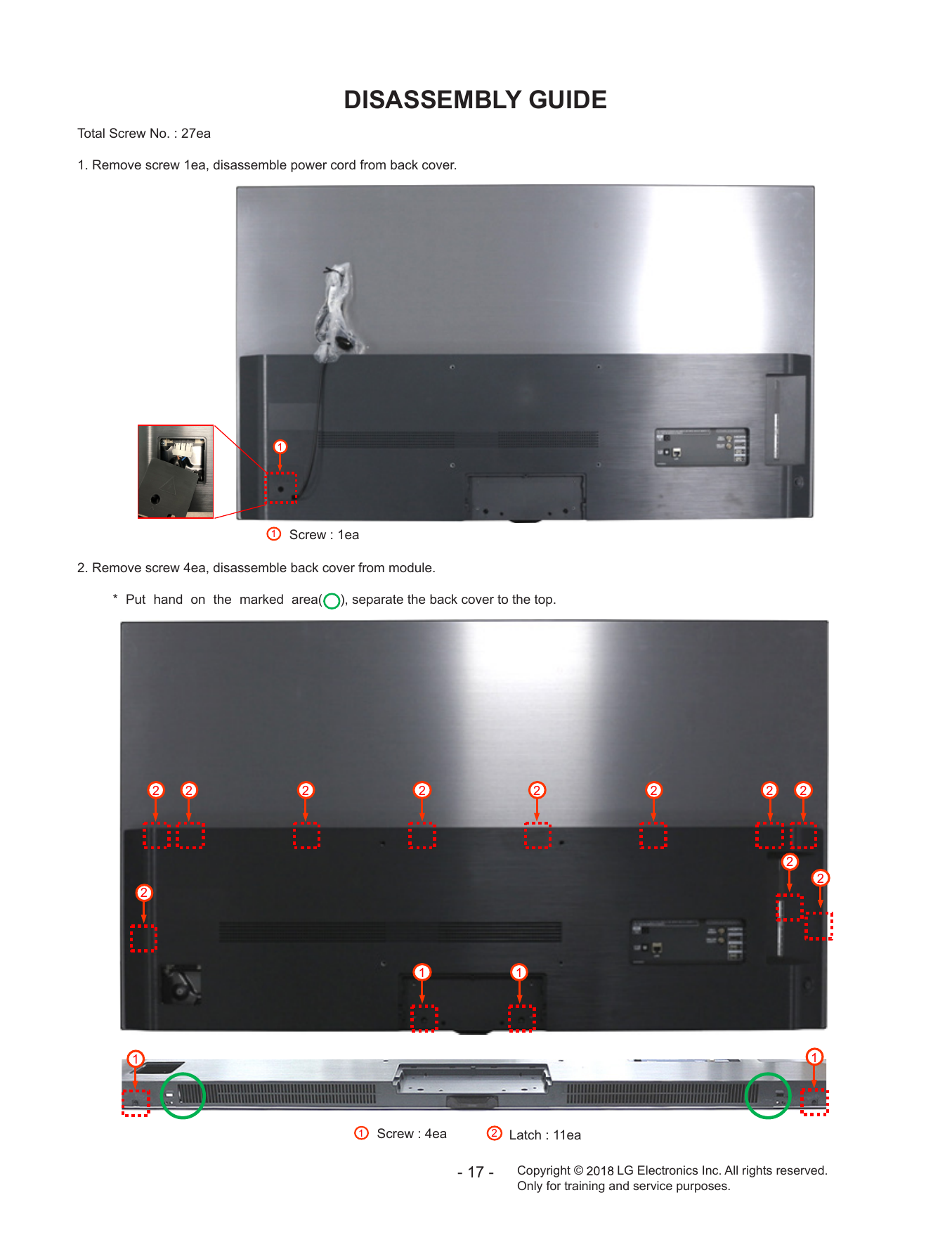

DISASSEMBLY GUIDE
Total Screw No. : 27ea
1. Remove screw 1ea, disassemble power cord from back cover.
1
1 Screw : 1ea
2. Remove screw 4ea, disassemble back cover from module.
* Put hand on the marked area( ), separate the back cover to the top.
2 2 2 2 2 2 2 2
2
2
2
1 1
1 1
1 Screw : 4ea 2 Latch : 11ea
- 17 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.

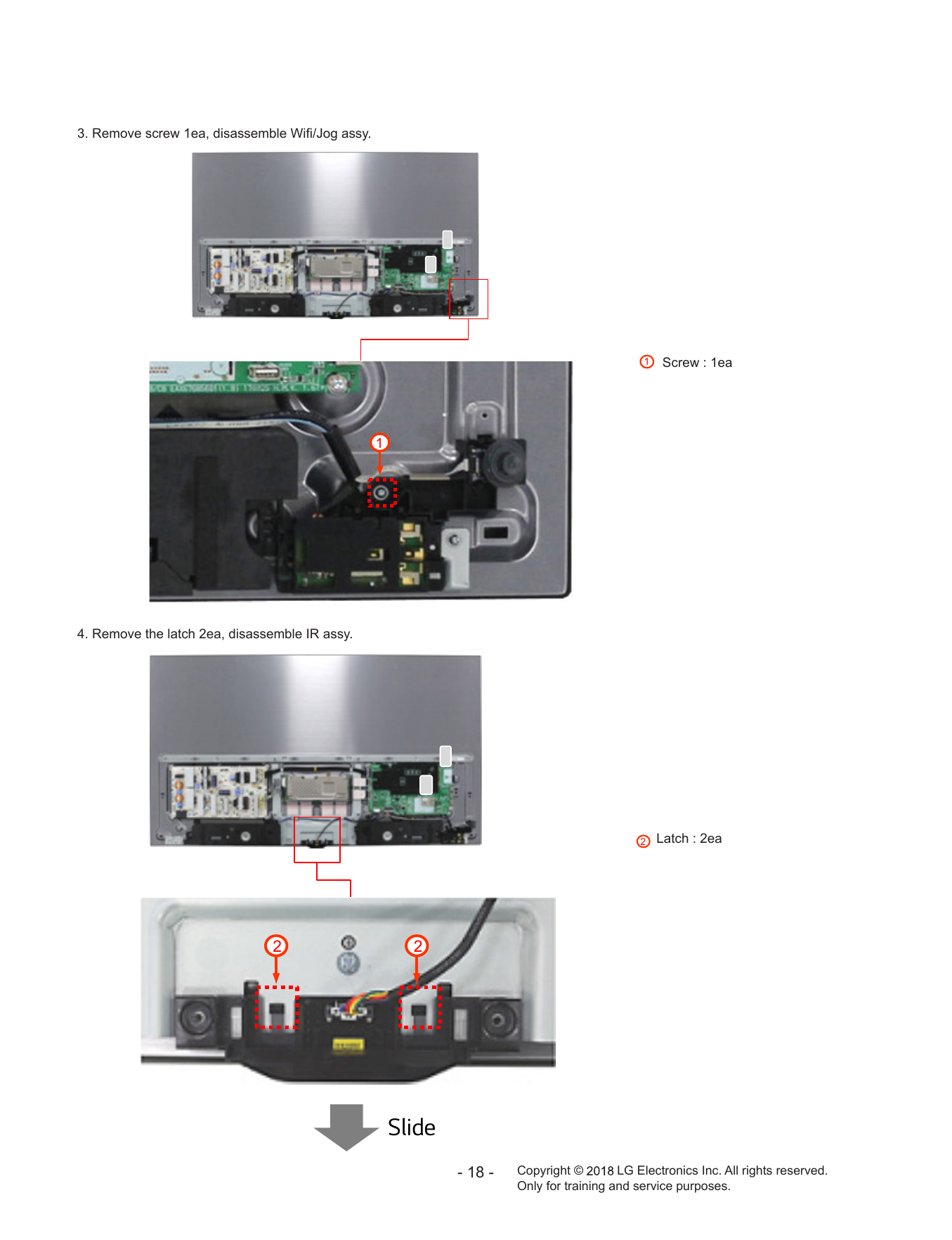

3. Remove screw 1ea, disassemble Wifi/Jog assy.
1 Screw : 1ea
1
4. Remove the latch 2ea, disassemble IR assy.
2 Latch : 2ea
2 2
Slide
- 18 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.

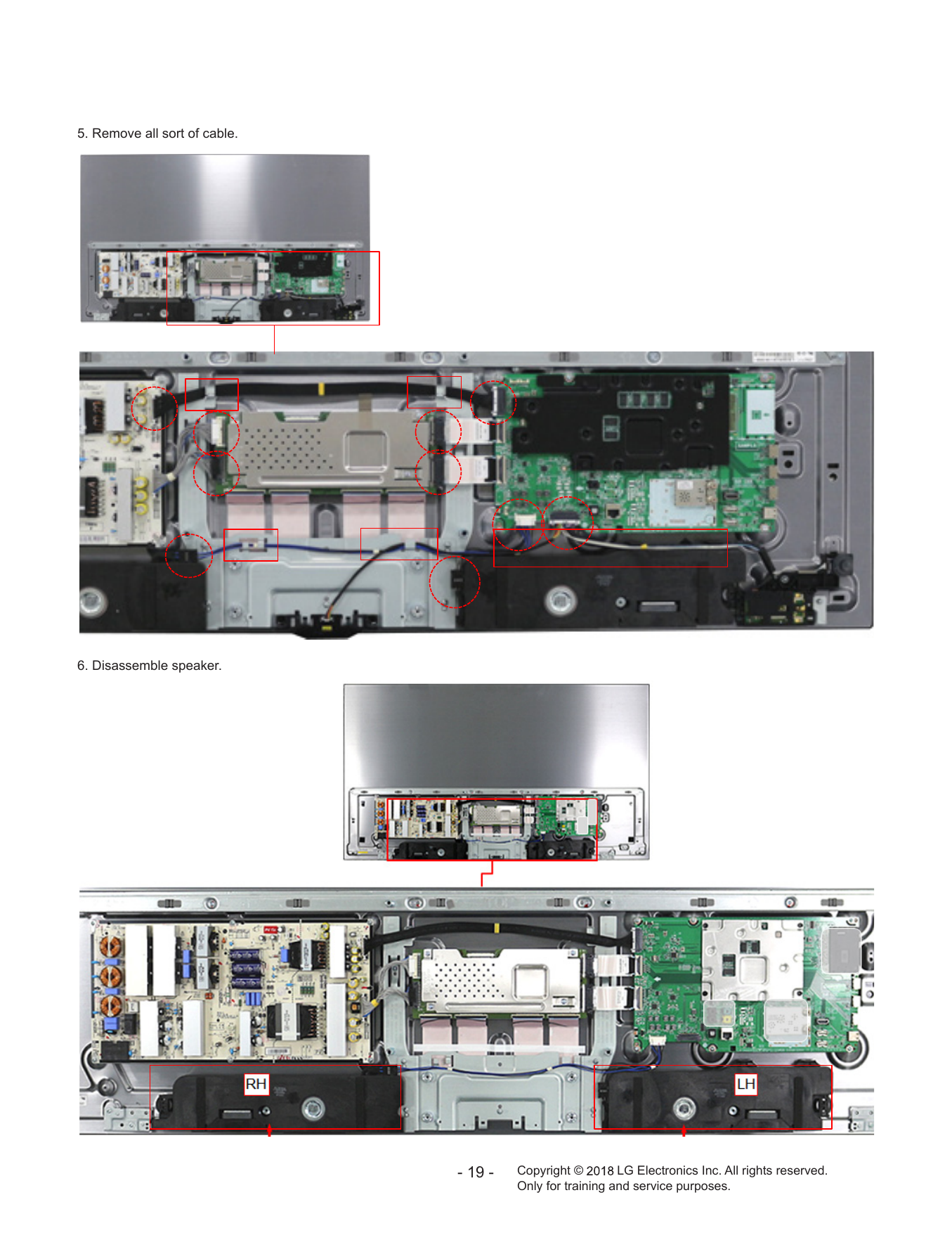

5. Remove all sort of cable.
6. Disassemble speaker.
- 19 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.

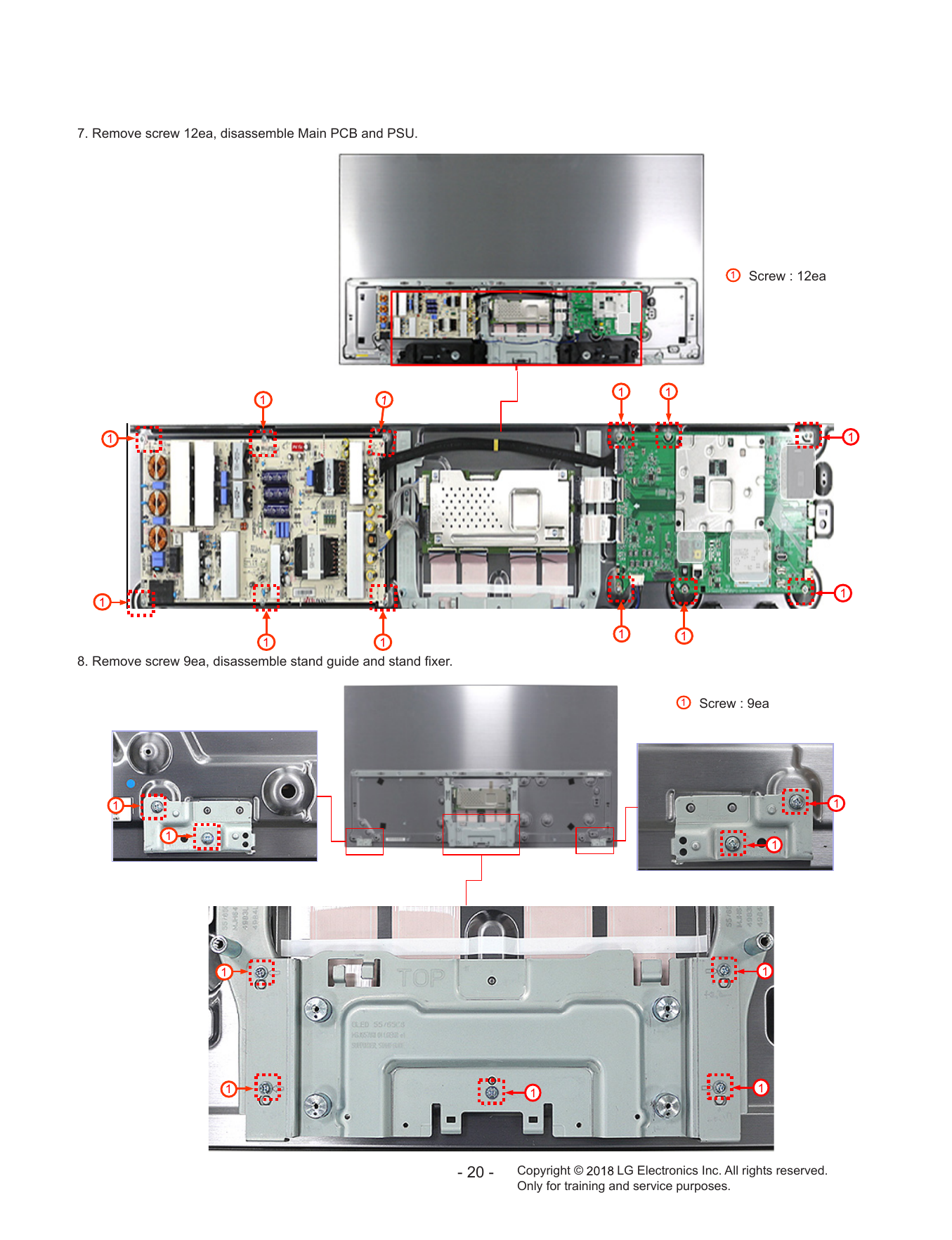

7. Remove screw 12ea, disassemble Main PCB and PSU.
1 Screw : 12ea
1 1
1
1 1
1
1
1 1
1 1
8. Remove screw 9ea, disassemble stand guide and stand fixer.
1 Screw : 9ea
1 1
1
1
1 1
1 1 1
- 20 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.

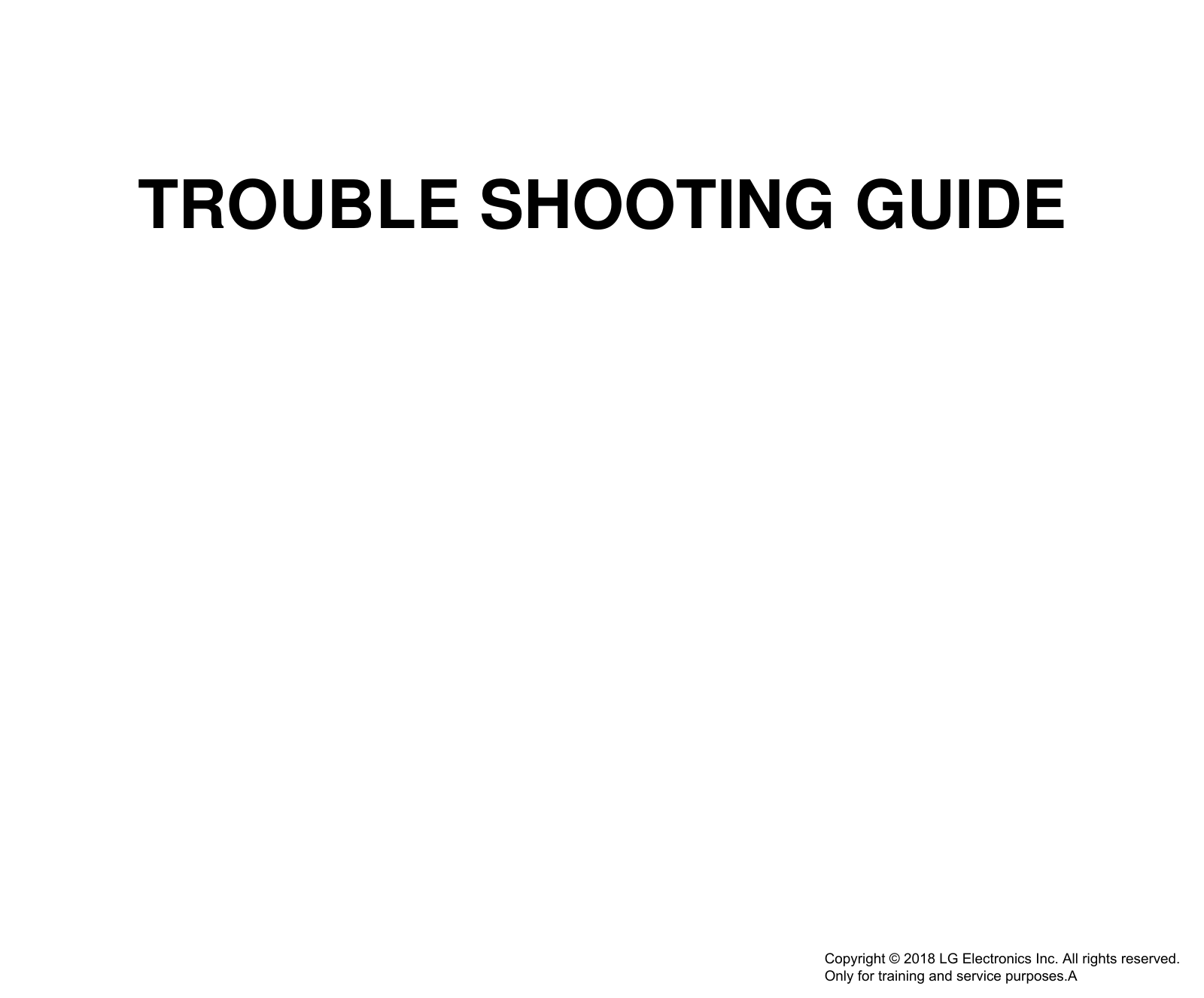

TROUBLE SHOOTING GUIDE
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A

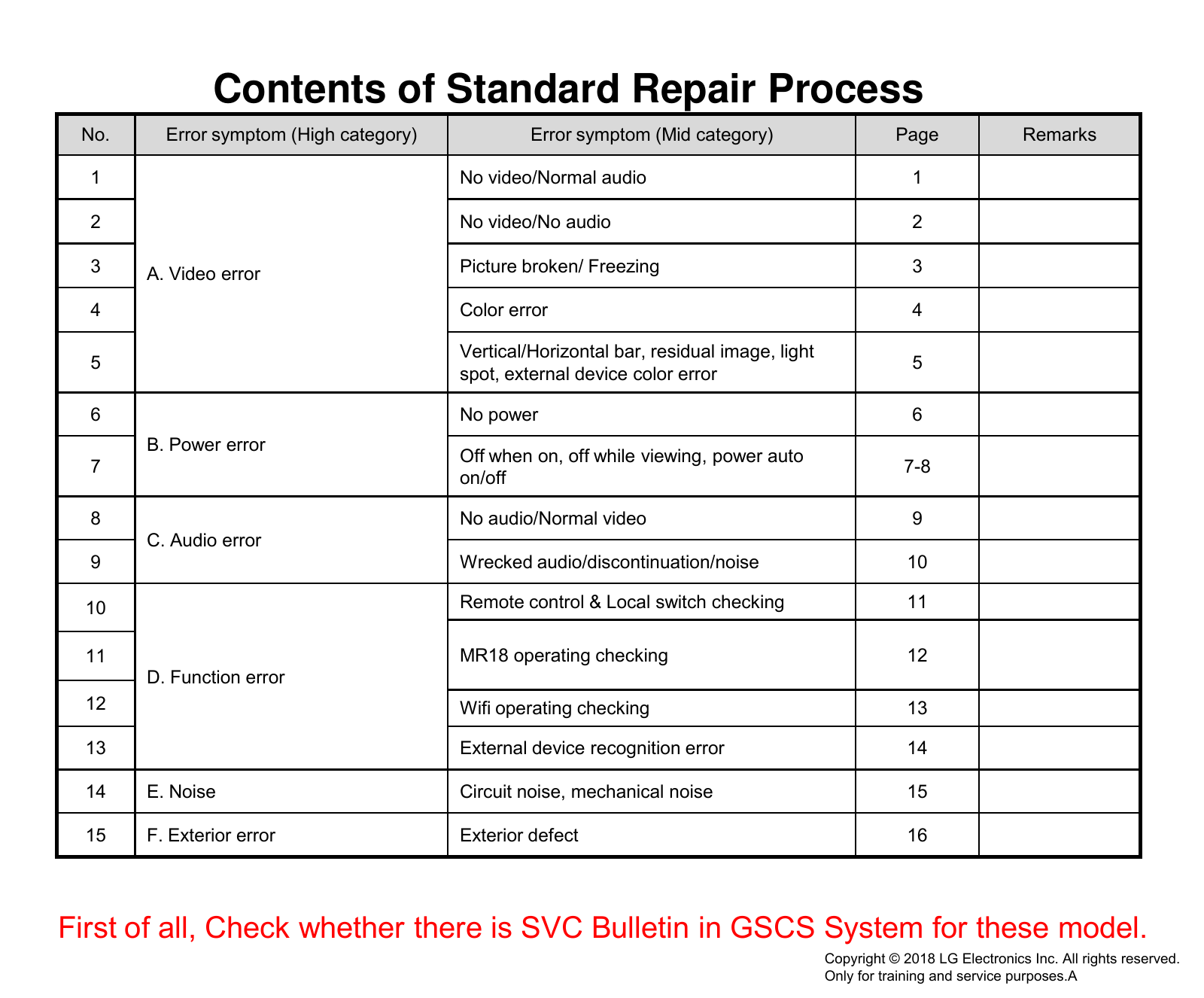

Contents of Standard Repair Process
No. Error symptom (High category) Error symptom (Mid category) Page Remarks
1 No video/Normal audio 1
2 No video/No audio 2
3 A. Video error Picture broken/ Freezing 3
4 Color error 4
Vertical/Horizontal bar, residual image, light
5 5
spot, external device color error
6 No power 6
B. Power error
Off when on, off while viewing, power auto
7 7-8
on/off
8 No audio/Normal video 9
C. Audio error
9 Wrecked audio/discontinuation/noise 10
10 Remote control & Local switch checking 11
11 MR18 operating checking 12
D. Function error
12 Wifi operating checking 13
13 External device recognition error 14
14 E. Noise Circuit noise, mechanical noise 15
15 F. Exterior error Exterior defect 16
First of all, Check whether there is SVC Bulletin in GSCS System for these model.
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Standard Repair Process
Established
Error A. Video error date
symptom

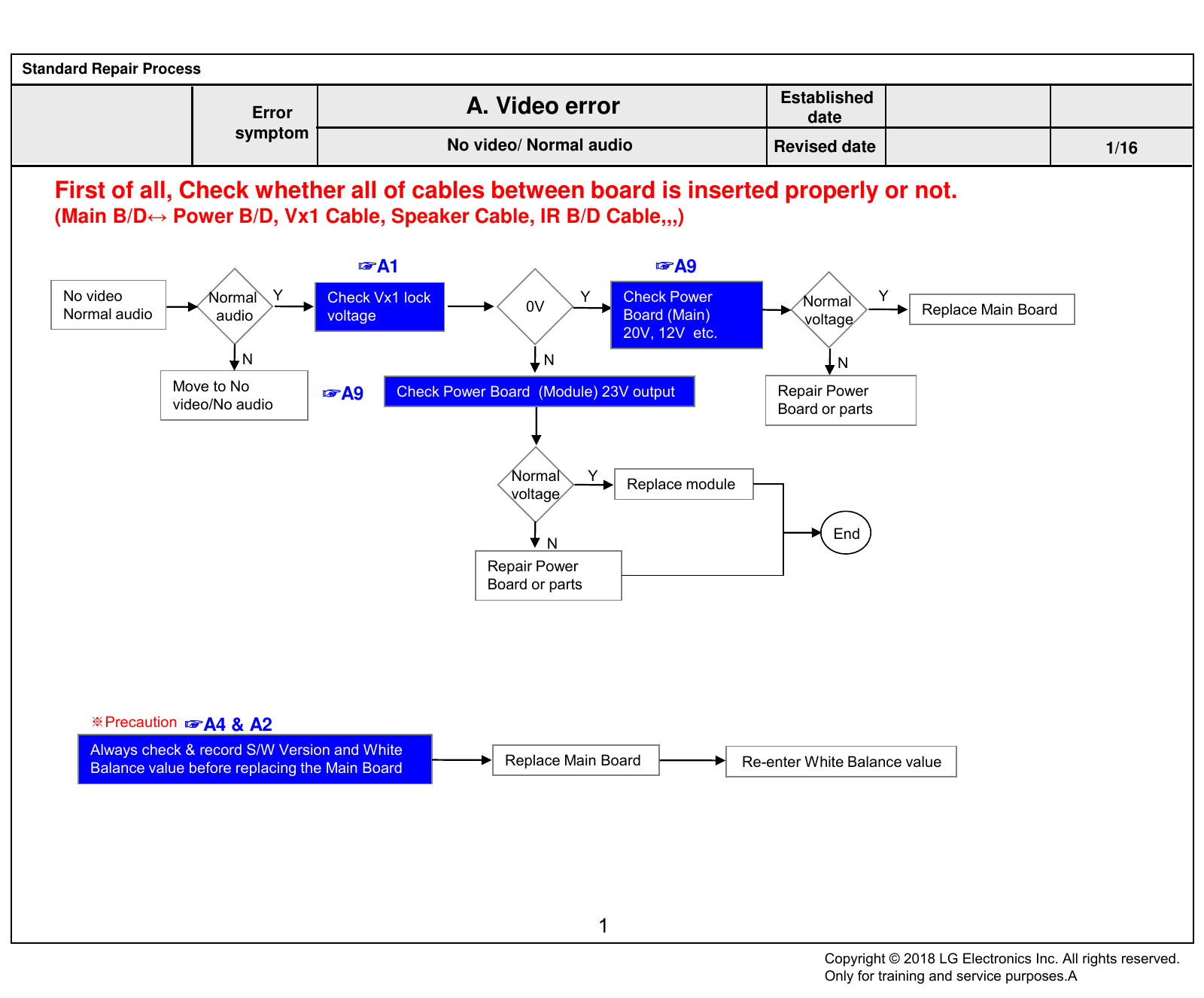

No video/ Normal audio Revised date 1/16
First of all, Check whether all of cables between board is inserted properly or not.
(Main B/D↔ Power B/D, Vx1 Cable, Speaker Cable, IR B/D Cable,,,)
☞A1 ☞A9
No video Normal Y Check Vx1 lock Y Check Power Normal Y
Normal audio 0V Replace Main Board
audio voltage Board (Main) voltage
20V, 12V etc.
N N N
Move to No Check Power Board (Module) 23V output Repair Power
☞A9
video/No audio Board or parts
Normal Y
Replace module
voltage
End
N
Repair Power
Board or parts
※Precaution ☞A4 & A2
Always check & record S/W Version and White
Replace Main Board Re-enter White Balance value
Balance value before replacing the Main Board
1
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Standard Repair Process
Established
Error A. Video error date
symptom

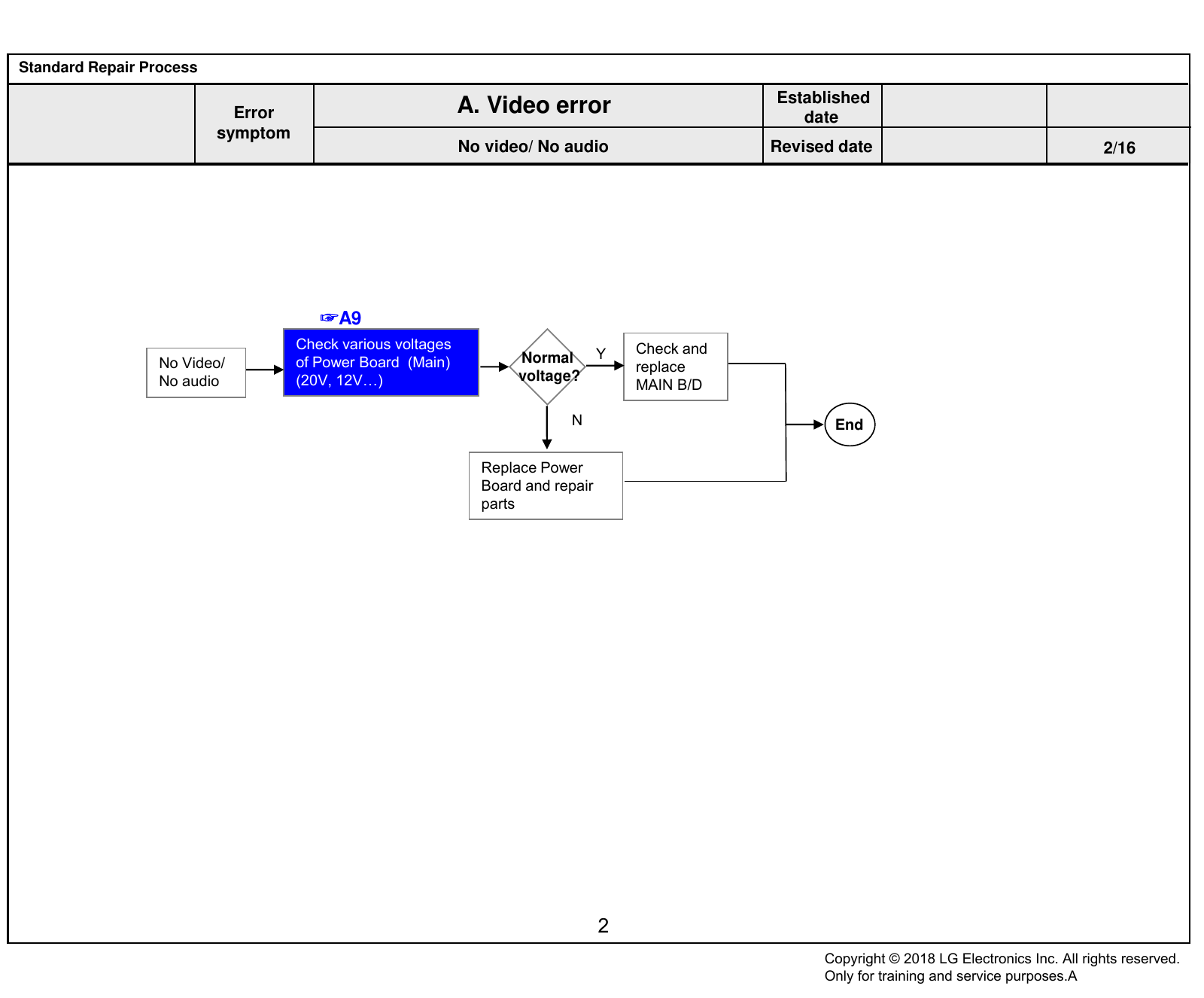

No video/ No audio Revised date 2/16
☞A9
Check various voltages Check and
Y
No Video/ of Power Board (Main) Normal
replace
No audio (20V, 12V…) voltage?
MAIN B/D
N End
Replace Power
Board and repair
parts
2
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Standard Repair Process
Established
Error A. Video error date
symptom

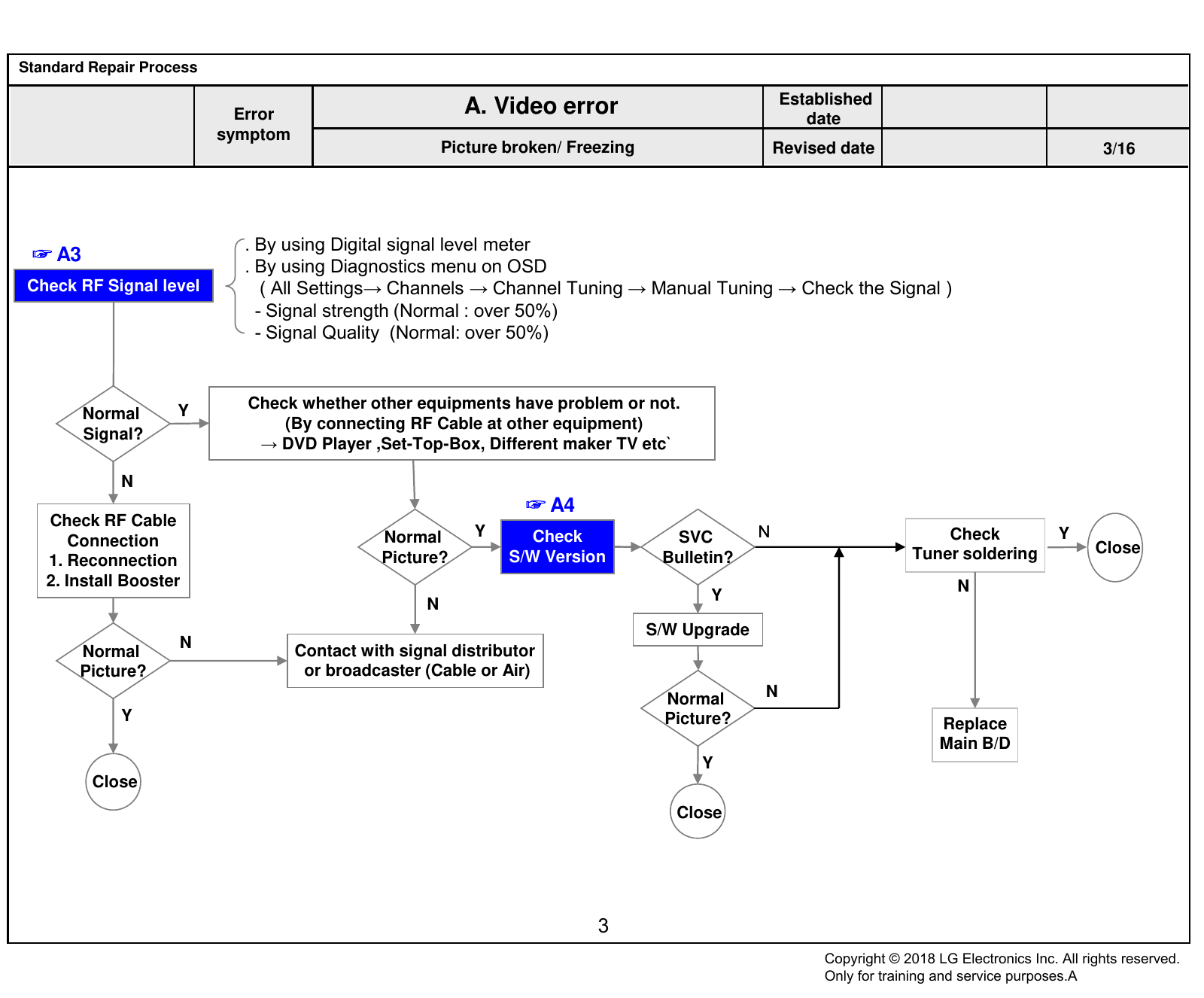

Picture broken/ Freezing Revised date 3/16
. By using Digital signal level meter
☞ A3
. By using Diagnostics menu on OSD
Check RF Signal level ( All Settings→ Channels → Channel Tuning → Manual Tuning → Check the Signal )
- Signal strength (Normal : over 50%)
- Signal Quality (Normal: over 50%)
Y Check whether other equipments have problem or not.
Normal
(By connecting RF Cable at other equipment)
Signal?
→ DVD Player ,Set-Top-Box, Different maker TV etc`
N
☞ A4
Check RF Cable
Normal Y Check SVC N Check Y
Connection Close
1. Reconnection Picture? S/W Version Bulletin? Tuner soldering
2. Install Booster N
Y
N
S/W Upgrade
N Contact with signal distributor
Normal
Picture? or broadcaster (Cable or Air)
Normal N
Y Picture? Replace
Main B/D
Y
Close
Close
3
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Standard Repair Process
Established
Error A. Video error date
symptom

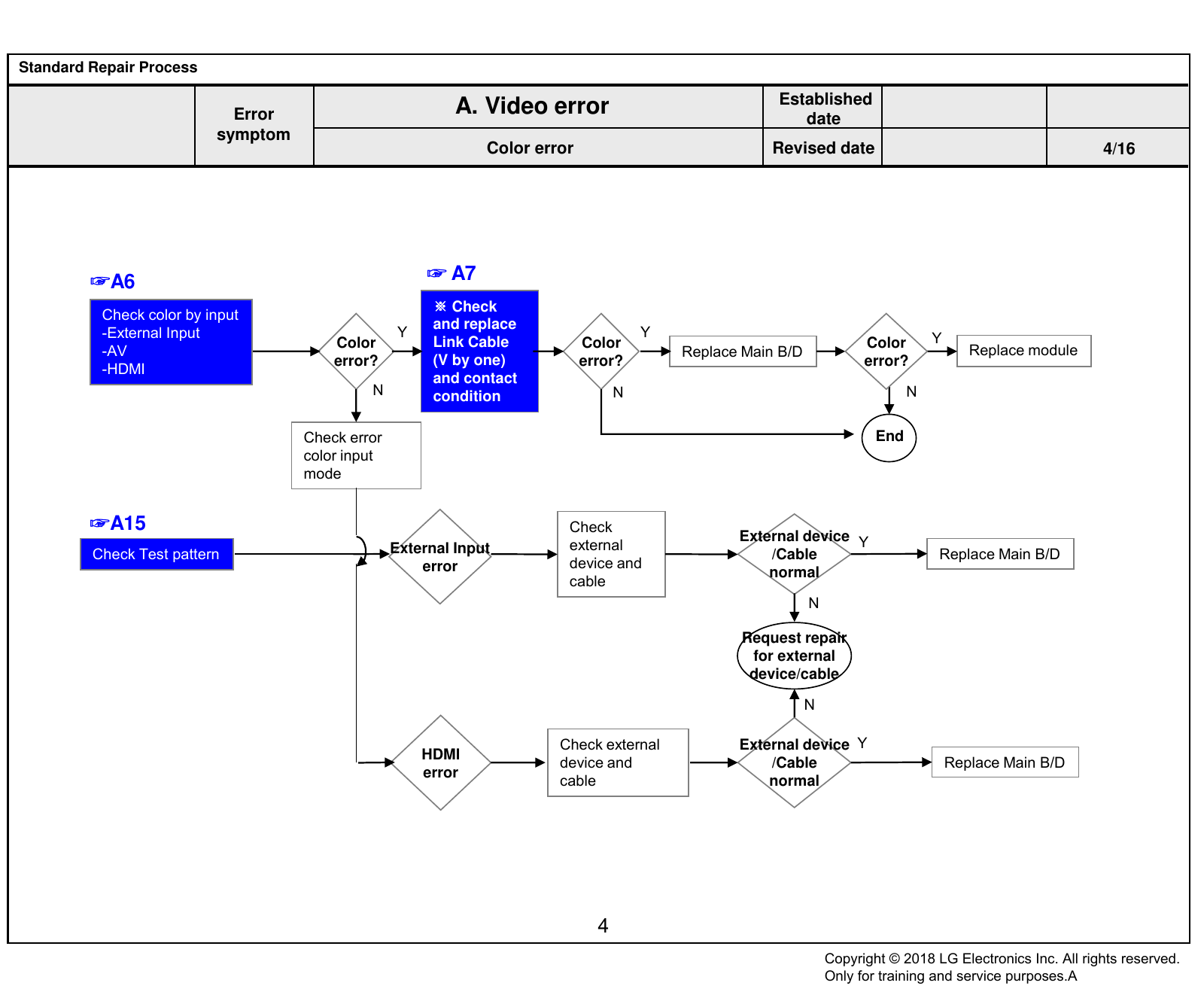

Color error Revised date 4/16
☞A6 ☞ A7
※ Check
Check color by input
and replace
-External Input Y Y Y
Color Link Cable Color Color
-AV Replace Main B/D Replace module
error? (V by one) error? error?
-HDMI
and contact
N condition N N
Check error End
color input
mode
☞A15 Check
External device Y
External Input external
Check Test pattern /Cable Replace Main B/D
error device and
normal
cable
N
Request repair
for external
device/cable
N
Check external External device Y
HDMI
device and /Cable Replace Main B/D
error
cable normal
4
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Standard Repair Process
A. Video error Established
Error date
symptom Vertical / Horizontal bar, residual image,

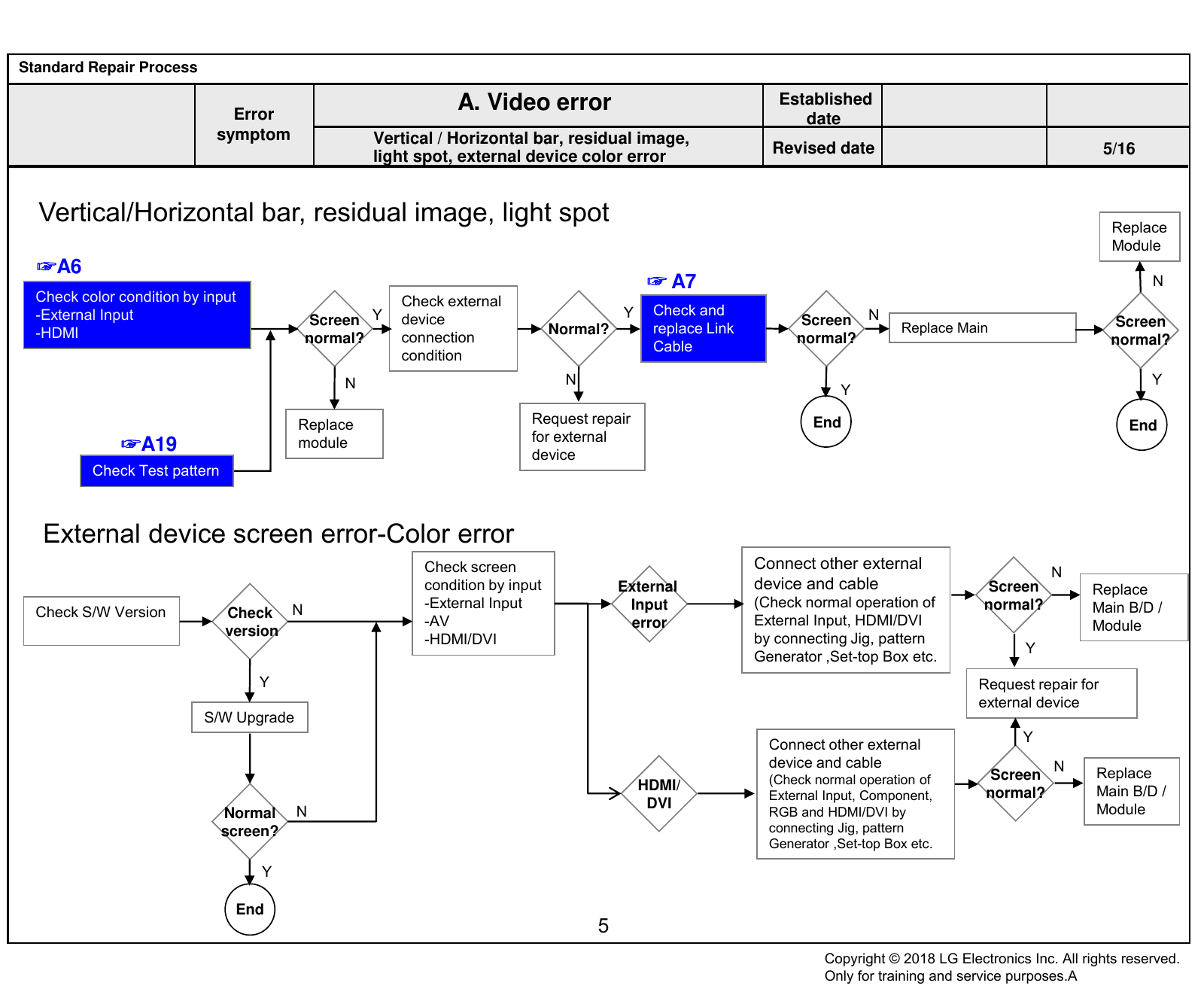

light spot, external device color error Revised date 5/16
Vertical/Horizontal bar, residual image, light spot Replace
Module
☞A6
☞ A7 N
Check color condition by input Check external
Y Check and
-External Input Screen Y device Screen N Screen
-HDMI Normal? replace Link Replace Main
normal? connection normal? normal?
Cable
condition
N N Y
Y
Replace Request repair End End
module for external
☞A19 device
Check Test pattern
External device screen error-Color error
Check screen Connect other external N
condition by input External device and cable Screen Replace
N -External Input Input (Check normal operation of normal? Main B/D /
Check S/W Version Check
-AV error External Input, HDMI/DVI Module
version
-HDMI/DVI by connecting Jig, pattern
Y
Generator ,Set-top Box etc.
Y Request repair for
external device
S/W Upgrade
Y
Connect other external
device and cable N
(Check normal operation of Screen Replace
HDMI/ Main B/D /
External Input, Component, normal?
DVI Module
Normal N RGB and HDMI/DVI by
screen? connecting Jig, pattern
Generator ,Set-top Box etc.
Y
End
5
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Standard Repair Process
Established
Error B. Power error date
symptom

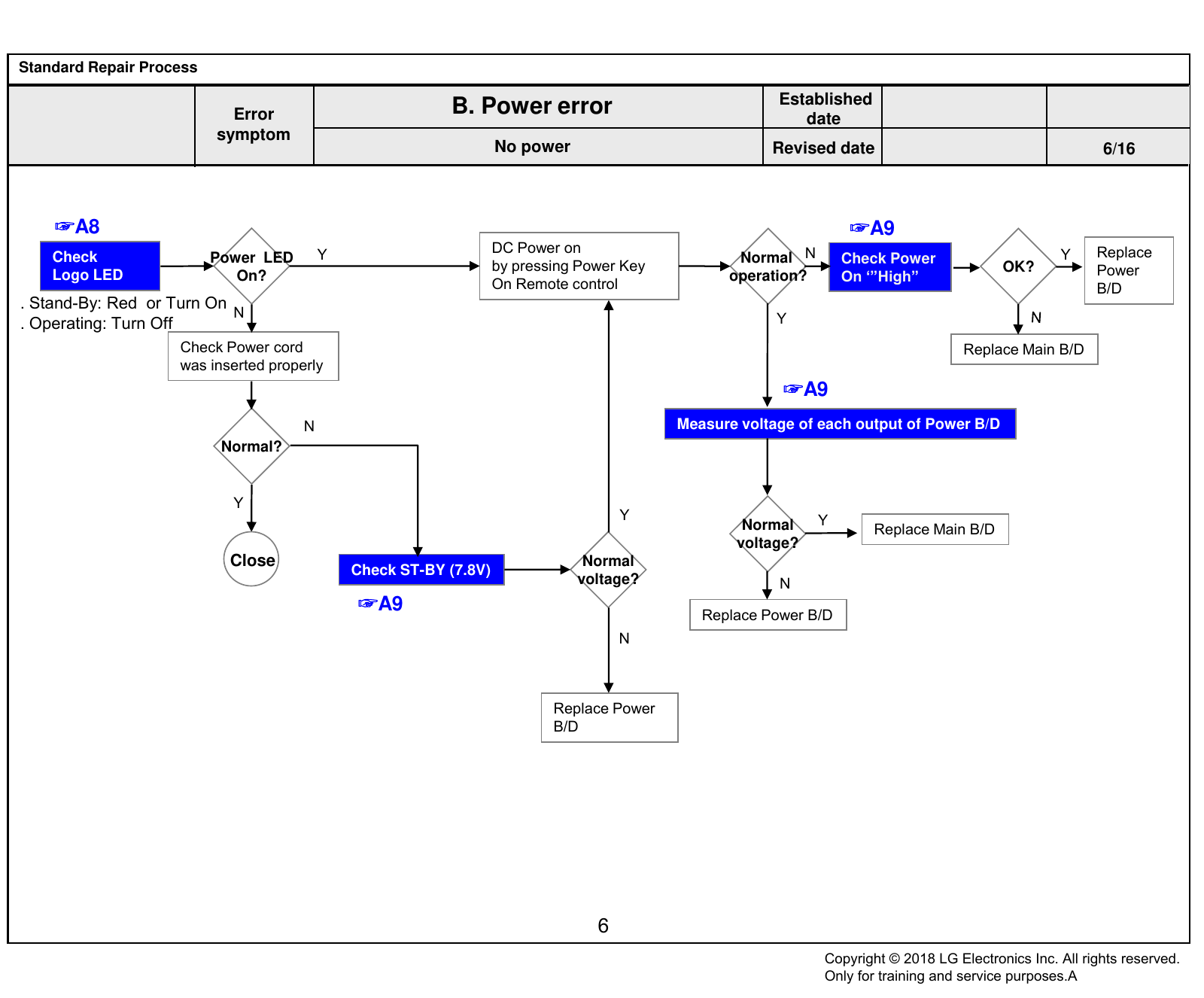

No power Revised date 6/16
☞A8 ☞A9
DC Power on Replace
Check Power LED Y Normal N Check Power Y
by pressing Power Key OK? Power
Logo LED On? operation? On ‘”High”
On Remote control B/D
. Stand-By: Red or Turn On
N Y
. Operating: Turn Off
Check Power cord Replace Main B/D
was inserted properly
☞A9
N Measure voltage of each output of Power B/D
Normal?
Y
Y Y
Normal Replace Main B/D
voltage?
Close Normal
Check ST-BY (7.8V)
Y
voltage? N
☞A9 Replace Power B/D
N
Replace Power
B/D
6
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Standard Repair Process
Established
Error B. Power error date
symptom

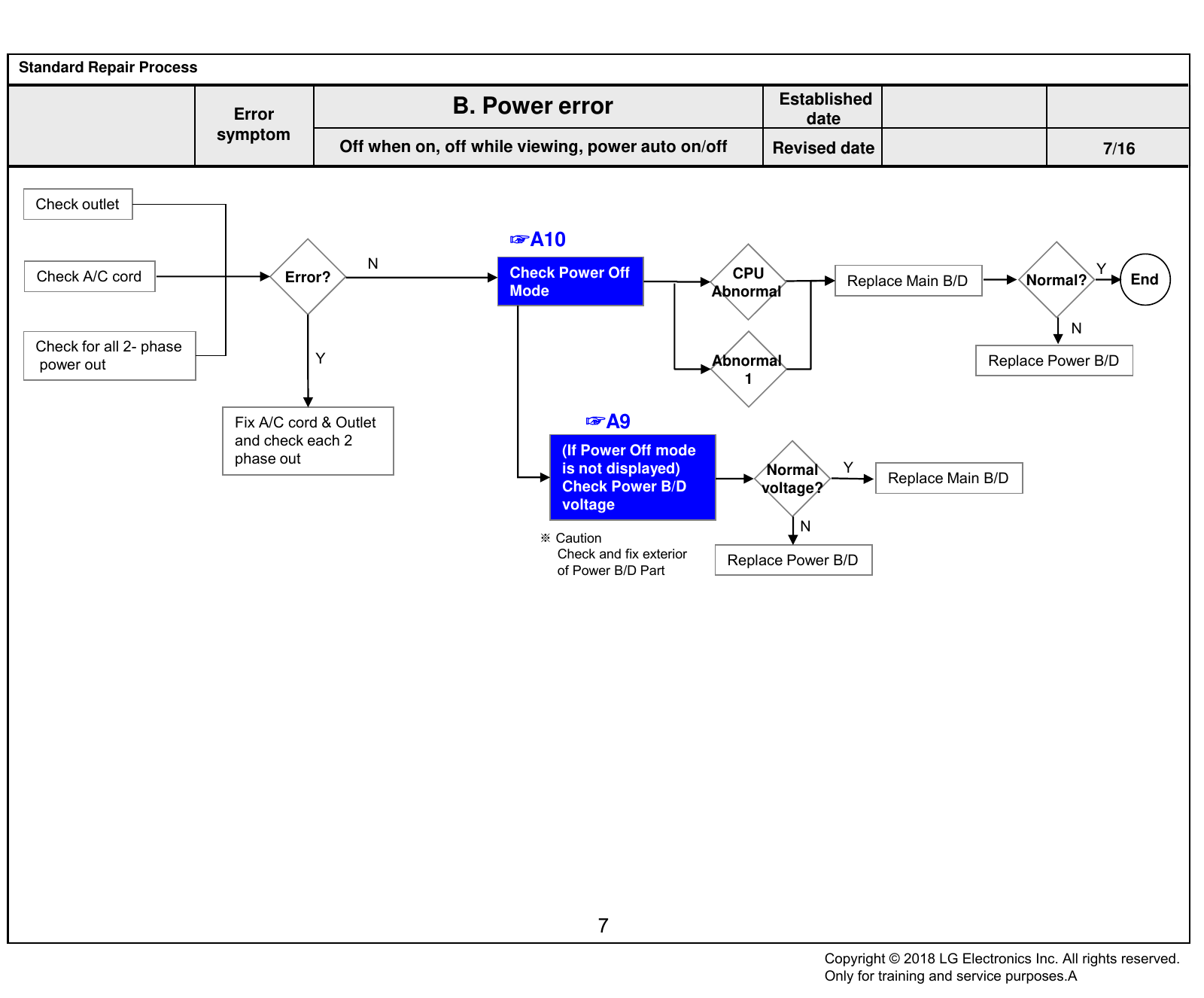

Off when on, off while viewing, power auto on/off Revised date 7/16
Check outlet
☞A10
N Y
Check A/C cord Error? Check Power Off CPU
Replace Main B/D Normal? End
Mode Abnormal
N
Check for all 2- phase
power out Y Abnormal Replace Power B/D
1
Fix A/C cord & Outlet ☞A9
and check each 2
(If Power Off mode
phase out
is not displayed) Normal Y
Replace Main B/D
Check Power B/D voltage?
voltage
N
※ Caution
Check and fix exterior Replace Power B/D
of Power B/D Part
7
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Standard Repair Process
Established
Error B. Power error date
symptom
Off when on, off while viewing, power auto on/off Revised date 8/16

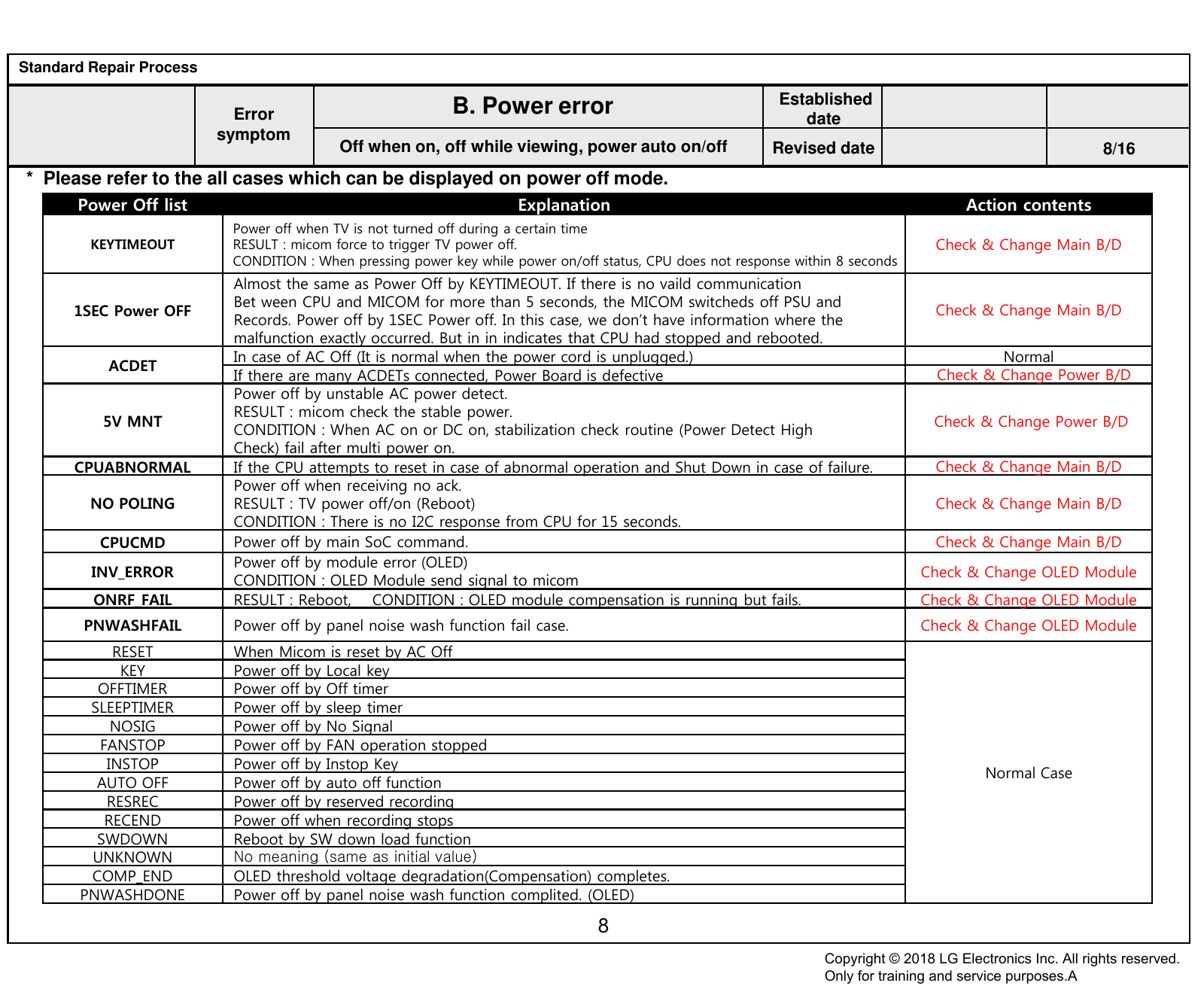

* Please refer to the all cases which can be displayed on power off mode.
Power Off list Explanation Action contents
Power off when TV is not turned off during a certain time
KEYTIMEOUT RESULT : micom force to trigger TV power off. Check & Change Main B/D
CONDITION : When pressing power key while power on/off status, CPU does not response within 8 seconds
Almost the same as Power Off by KEYTIMEOUT. If there is no vaild communication
Bet ween CPU and MICOM for more than 5 seconds, the MICOM switcheds off PSU and
1SEC Power OFF Check & Change Main B/D
Records. Power off by 1SEC Power off. In this case, we don’t have information where the
malfunction exactly occurred. But in in indicates that CPU had stopped and rebooted.
In case of AC Off (It is normal when the power cord is unplugged.) Normal
ACDET
If there are many ACDETs connected, Power Board is defective Check & Change Power B/D
Power off by unstable AC power detect.
RESULT : micom check the stable power.
5V MNT Check & Change Power B/D
CONDITION : When AC on or DC on, stabilization check routine (Power Detect High
Check) fail after multi power on.
CPUABNORMAL If the CPU attempts to reset in case of abnormal operation and Shut Down in case of failure. Check & Change Main B/D
Power off when receiving no ack.
NO POLING RESULT : TV power off/on (Reboot) Check & Change Main B/D
CONDITION : There is no I2C response from CPU for 15 seconds.
CPUCMD Power off by main SoC command. Check & Change Main B/D
Power off by module error (OLED)
INV_ERROR Check & Change OLED Module
CONDITION : OLED Module send signal to micom
ONRF_FAIL RESULT : Reboot, CONDITION : OLED module compensation is running but fails. Check & Change OLED Module
PNWASHFAIL Power off by panel noise wash function fail case. Check & Change OLED Module
RESET When Micom is reset by AC Off
KEY Power off by Local key
OFFTIMER Power off by Off timer
SLEEPTIMER Power off by sleep timer
NOSIG Power off by No Signal
FANSTOP Power off by FAN operation stopped
INSTOP Power off by Instop Key
Normal Case
AUTO OFF Power off by auto off function
RESREC Power off by reserved recording
RECEND Power off when recording stops
SWDOWN Reboot by SW down load function
UNKNOWN No meaning (same as initial value)
COMP_END OLED threshold voltage degradation(Compensation) completes.
PNWASHDONE Power off by panel noise wash function complited. (OLED)
8
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Standard Repair Process
Established
Error C. Audio error date
symptom
No audio/ Normal video Revised date 9/16
☞A11 ☞A12+A9
No audio
Check user N Check audio B+
Normal Y
menu > Off 20V of Power
Screen normal voltage
Speaker off Board
Y N
Cancel OFF Replace Power Board and repair parts
Check N
Disconnection Replace MAIN Board End
Speaker
disconnection
Y
connecting Speaker
9
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Standard Repair Process
Established
Error C. Audio error date
symptom
Wrecked audio/ discontinuation/noise Revised date 10/16
→ abnormal audio/discontinuation/noise is same after “Check input signal” compared to No audio
Wrecked audio/
☞A12+A9
Check and replace
Discontinuation/ Check audio
speaker and
Noise for B+ Voltage (20V)
connector
Check input all audio
signal Y Y
Signal
-RF
normal? Wrecked audio/
-External Input Normal
signal Discontinuation/
N Replace Main B/D voltage?
Noise only
for D-TV
N
Wrecked audio/
Discontinuation/
Replace Power B/D
Noise only
for Analog
(When RF signal is not
received)
Request repair to external Wrecked audio/ Replace Main B/D End
cable/ANT provider Discontinuation/
Noise only
for External Input
(In case of N
External Input Connect and check Normal
signal error) other external audio?
Check and fix device
external device Y
Check and fix external device
10
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Standard Repair Process
D. Function error Established
Error date
symptom
Remote control & Local switch checking Revised date 11/16
1. Remote control(R/C) operating error Replace
Main B/D
☞A13 ☞A13 ☞A13
Check & Repair N Check B+ Y Y
Check R/C itself Normal Y Normal Normal Check IR Normal
operating? Cable connection operating? 3.5V Voltage? Signal?
Operation Output signal
Connector solder On Main B/D
N Y N N
☞A9
Check R/C Operating Check & Replace Check 7.8V on Power B/D Repair/Replace
Close
When turn off light Baterry of R/C Replace Power B/D or IR B/D
in room Replace Main B/D
(Power B/D don’t have problem)
If R/C operate, Normal Y
operating? Close
Explain the customer
cause is interference
from light in room. N
Replace R/C
11
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Standard Repair Process
D. Function error Established
Error date
symptom
MR18 operating checking Revised date 12/16
2. MR18 (Magic Remocon) operating error
☞A4
Check the N Check MR18
RF Receiver ver Normal Y Press the Is show ok N Turn off/on the
INSTART menu is “00.00”? itself Operation operating? wheel message? set and press
the wheel
N Y
Y
☞A14
Check & Replace
Check & Repair Battery of MR18 Close
RF assy
connection
Normal Y
☞A4 operating? Close
Is show ok N Press the back
RF Receiver ver N message? key about 5sec
Close N
is “00.00”?
Y
Replace
MR18
Y
Close
Down load the Firmware
* INSTART MENU12.RF •If you conduct the loop at 3times,
Remocon Test Receiver change the MR18.
Firmware download
12
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Standard Repair Process
D. Function error Established
Error date
symptom
Wifi operating checking Revised date 13/16
3.Wifi operating error
☞A4 ☞A14
Check the Wi-Fi Mac value N Check the Wifi wafer Normal N Replace
INSTART menu is “NG”? 1pin Voltage? Main B/D
Y
☞A14 Y
Check & Repair Close
Wifi cable
connection
☞A4
Wi-Fi Mac value N
is “NG”? Close
Y
Change the Wifi
assy
13
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Standard Repair Process
Established
Error D. Function error date
symptom
External device recognition error Revised date 13/15
Y Check technical
Check
Signal information Technical N External Input
input Replace Main B/D
input? - Fix information information? Recognition error
signal
- S/W Version
N Y
HDMI/
Check and fix DVI, Optical
Fix in Replace Main B/D
external device/cable Recognition error
accordance
with technical
information
14
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Standard Repair Process
Established
Error E. Noise date
symptom
Circuit noise, mechanical noise Revised date 15/16
Identify Check
Circuit
nose location of Replace PSU
noise
type noise
Mechanical Check location of
noise noise
※ When the nose is severe, replace the module
※ Mechanical noise is a natural (For models with fix information, upgrade the
phenomenon, and apply the 1st level S/W or provide the description)
description. When the customer does not OR
agree, apply the process by stage. ※ If there is a “Tak Tak” noise from the
※ Describe the basis of the description cabinet, refer to the KMS fix information and
in “Part related to nose” in the Owner’s then proceed as shown in the solution manual
Manual. (For models without any fix information,
provide the description)
15
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Standard Repair Process
Established
Error F. Exterior defect date
symptom
Exterior defect Revised date 16/16
Zoom part with Module
Replace module
exterior damage damage
Cabinet
Replace cabinet
damage
Remote
control Replace remote control
damage
Stand
Replace stand
dent
16
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Contents of Standard Repair Process Detail Technical Manual
No. Error symptom Content Page Remarks
1 Check Vx1 lock A1
A. Video error_ No video/Normal audio
2 Check White Balance value A2
TUNER input signal strength checking
3 A3
method
A. Video error_ video error /Video
4 lag/stop Version checking method A4
5 Tuner Checking Part A5
A. Video error _Vertical/Horizontal bar,
6 Connection diagram A6
residual image, light spot
Check Link Cable (Vx1) reconnection
7 A7
condition
A. Video error_ Color error
8 Adjustment Test pattern - ADJ Key A15
Exchange Main Board (1) A-1/5
Exchange Main Board (2) A-2/5
9 Defected Type caused by T-Con/ Power Exchange Power Board (PSU) A-3/5
/ Module
Exchange Module (1) A-4/5
Exchange Module (2) A-5/5
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Contents of Standard Repair Process Detail Technical Manual
Continued from previous page
No. Error symptom Content Page Remarks
10 Check front display LED A8
B. Power error_ No power
11 Check power input Voltage & ST-BY 3.5V A9
B. Power error_Off when on, off while
12 POWER OFF MODE checking method A10
viewing
Checking method in menu when there is no
13 A11
audio
C. Audio error_ No audio/Normal video
Voltage and speaker checking method when
14 A12
there is no audio
15 Remote control operation checking method A13
16 D. Function error Motion Remote operation checking method A14
17 Wifi operation checking method A14
18 How to use the Service remote control A15-A17
19 Check items after Main B/D replacement A18
E. Etc
20 Adjustment Test pattern A19
How to use JIG
21 A20
(Power B/D Diagnostic Smart Jig Multi Gender)
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_No video/Normal audio date
Revised
Content Check Vx1 lock A1
date
R7624 : 0[V]
Check a voltage of R7624 after turn on the TV.
If the voltage is low, Vx1 is locked.(OK)
A1
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_No video/Normal audio date
Revised
Content Check White Balance value A2
date
Entry method
1. Press the ADJ button on the remote control for adjustment.
2. Enter into White Balance of item 12.
3. After recording the R, G, B (GAIN, Cut) value of Color Temp
(Cool/Medium/Warm), re-enter the value after replacing the MAIN BOARD.
A2
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_Video error, video lag/stop date
TUNER input signal strength checking method Revised
Content date A3
All Settings Programmes Programme Tuning & setting When the signal is strong, use the
Manual Tuning Antenna DTV attenuator (-10dB, -15dB, -20dB etc.)
A3
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_Video error, video lag/stop date
OLED TV Version checking method Revised
Content date A4
1. Checking method for remote control for adjustment
Version
Press the IN-START with the remote
control for adjustment
A4
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Standard Repair Process Detail Technical Manual
Error Established
symptom
A. Video error_Video error, video lag/stop
date
Revised
Content TUNER checking part A5
date
Checking method:
1. Check the signal strength or check whether the screen is normal when the external device is connected.
2. After measuring each voltage from power supply, finally replace the MAIN BOARD.
A5
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Standard Repair Process Detail Technical Manual
Error A. Video error _Vertical/Horizontal bar, Established
symptom residual image, light spot date
Revised
Content OLED TV Connection diagram date A6
As the part connecting to the external input, check
the screen condition by signal
A6
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_Color error date
Revised
Content Check Link Cable (Vx1) reconnection condition date A7
Check the contact condition of the Link Cable, especially dust or mis insertion.
A7
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Appendix. Examples of Symptoms(Image error) Check for poor cable contact
Symptom
Item Cause Symptom Image
Name
Pin 단선
CABLE Color smear Poor broken pin of FFC cable
Color is Excessive due to FFC Cable
CABLE R Color Excessive
Contact.
screen is dark due to poor contact due
CABLE Screen darkness to disconnection of the FFC cable pin.
G color transient due to poor FFC cable
CABLE G Color Excessive connection
A - 1/10
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Appendix. Examples of Symptoms(Image error) Check for poor cable contact
Symptom
Item Cause Symptom Image
Name
CABLE Color spread LVDS cable connection problem
CABLE Color spread LVDS cable connection problem
CABLE Color spread LVDS cable connection problem
Due to foreign substance withi nLVDS
CABLE Screen stop cable PIN
A - 2/10
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Appendix. Examples of Symptoms(Main) Check parts by symptom
Symptom
Item Cause Symptom Image
Name
Main Screen noise Bit noise from horizontal screen
Broken screen due to
Main Screen noise
Main IC problem
Main Dark picture Dark left-side screen
Top/bottom screen part
Main Broken picture
Picture problem due to tuner
Inner side quality problem
A - 3/10
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Appendix. Examples of Symptoms(Main) Check parts by symptom
Symptom
Item Cause Symptom Image
Name
Main Broken screen Broken screen in a horizontal manner
Main Screen spread Screen corner appears blurry
Main Color Spread Color spread on the screen
Main Blurry Screen Blurry picture on the screen
A - 4/10
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Appendix. Examples of Symptoms(Main) Check parts by symptom
Symptom
Item Cause Symptom Image
Name
No problem at the initial stage,
Main Broken picture G-color spread after 10 minutes
Right-side
Main
Screen Right-side screen problem
problem
LG logo
Main Screen picture spread problem
Screen problem
No problem at the initial stage.
Right-side
Main During Heat run, right-side picture
picture problem
problem
A - 5/10
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Appendix. Examples of Symptoms(Module) Check parts by symptom
Symptom
Item Cause Symptom Image
Name
Un-repairable Cases
Module Vertical bar
In this case please exchange the module
Module image broken Source Driver issue
Module White dot White dot cause by panel issue
Module Line Dim Vertical Line cause by source drive IC
A - 6/10
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Appendix. Examples of Symptoms(Module) Check parts by symptom
Symptom
Item Cause Symptom Image
Name
Module Burnt Module burnt
Module Horizon line Module has damaged
Module has damaged
Module Line Defect
Un-repairable Cases
Module Press damage
In this case please exchange the module
A - 7/10
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Appendix. Examples of Symptoms(Module) Check parts by symptom
Symptom
Item Cause Symptom Image
Name
Module Vertical bar Vertical Bar cause by source drive IC
Vertical Noise Un-repairable Cases
Module Brightness
In this case please exchange the module
difference
Module Green light Compensation error when Power On/off
Color difference between screen cause
Module Color difference by compensation error
A - 8/10
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Appendix. Examples of Symptoms(Module) Check parts by symptom
Symptom
Item Cause Symptom Image
Name
Module has damaged
Module No image
(Can’t fix it)
Burnt
Module Burnt
(Can’t fix it)
Screen Mura
Module Mura
(Can’t fix it)
A - 9/10
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Appendix : Exchange Power Board (PSU)
No Light No picture/Sound Ok
A – 10/10
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Standard Repair Process Detail Technical Manual
Error Established
symptom B. Power error _No power date
Revised
Content Check front Power Indicator date A8
ST-BY condition: On or Off
Power ON condition: Turn Off
A8
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Standard Repair Process Detail Technical Manual
Error Established
symptom
B. Power error _No power
date
Revised
Content Check power input voltage and ST-BY 3.5V A9
date
Check the DC 12VT line for ST-BY Voltage Power To Main B’d
(ST-BY : 7.8V, Normal : 12V)
P201
P251
Power To Module
A9
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Standard Repair Process Detail Technical Manual
Error
symptom B. Power error _Off when on, off whiling viewing Established
date
Revised
Content POWER OFF MODE checking method date A10
Entry method
1. Press the IN-START button of the remote control for adjustment
2. Check the entry into adjustment item 3 (Power On/Off Status)
A10
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Standard Repair Process Detail Technical Manual
Error Established
symptom C. Audio error_No audio/Normal video
date
Revised
Content Checking method in menu when there is no audio date A11
Checking method
1. Press the Setting button on the remote control
2. Select the Sound function of the Menu
3. Select the Sound Out
4. Select TV Speaker
A11
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Standard Repair Process Detail Technical Manual
Error Established
symptom C. Audio error_No audio/Normal video date
Voltage and speaker checking method Revised
Content date A12
when there is no audio
P201
② ①
C8 Series E8 Series
1 SPK_R-_FT 2 SPK_R+_FT 1 SPK_R-_FT 2 SPK_R+_FT
3 SPK_L-_FT 4 SPK_L+_FT 3 SPK_L-_FT 4 SPK_L+_FT
5 SPK_R-_CT 6 SPK_R+_CT 5 SPK_R-_CT 6 SPK_R+_CT
7 SPK_L-_CT 8 SPK_L+_CT 7 SPK_L-_CT 8 SPK_L+_CT
9 SPK_R-_TW 10 SPK_R+_TW
Checking order when there is no audio
11 SPK_L-_TW 12 SPK_L+_TW
① Check the contact condition of or 20V connector of Main Board
② Measure the 20V input voltage supplied from Power Board
(If there is no input voltage, remove and check the connector)
③ Connect the tester RX1 to the speaker terminal and if you hear the Chik Chik sound when you touch the
GND and output terminal, the speaker is normal.
A12
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Standard Repair Process Detail Technical Manual
Error Established
symptom D. Function error date
Revised
Content Remote control operation checking method date A13
① IR & EYE Sensor
C8 Series E8 Series
Pin Pin name
1 LED_R
2 GND
3 IR
③ 4 3.5V_ST
5 GND
6 GND
7 EYE_SCL
IR 8 KEY2
9 EYE_SDA
LED
Eye 10 KEY1
11 n.c
Eye LED IR 12 n.c
13 GND
14 GND
WAKEUP_DEVIC
15
E
BT_WAKEUP_HO
16
ST
WOL/WIFI_POWE
17
R_ON
18 GND
19 3.5V_WIFI
20 WIFI_DP
Checking order to check remote control ② 21 COMBO_RESET
1. Check IR cable condition between IR & Main board.( Check picture number① and ②) 22 WIFI_DM
2. Check the standby 3.5V on the terminal 4 pin (③) 23 GND
3. AS checking the Pre-Amp(IR LED light) , the power is in ON condition, an Analog Tester 24 3.5V_WiIFI
needle should move slowly, otherwise, it’s defective. 25 GND
A13
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Standard Repair Process Detail Technical Manual
Error Established
symptom D. Function error date
Revised
Content Motion Remote operation checking method date A14
① Wifi & BT Front
Pin Pin name
1 LED_R
2 GND
3 IR
4 3.5V_ST
5 GND
6 GND
7 EYE_SCL
8 KEY2
9 EYE_SDA
10 KEY1
Wifi & BT Rear 11 n.c
12 n.c
13 GND
14 GND
WAKEUP_DEVIC
15
② ③ E
BT_WAKEUP_HO
16
ST
WOL/WIFI_POWE
17
R_ON
18 GND
19 3.5V_WIFI
20 WIFI_DP
Checking order to check motion remote/wifi 21 COMBO_RESET
Checking order 22 WIFI_DM
23 GND
1.Check BT/Wifi cable condition between BT/Wifi assy & Main board. 24 3.5V_WiIFI
2.Check the 3.5V on the terminal 19
25 GND
A14
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Standard Repair Process Detail Technical Manual
Error Established
symptom D. Function error date
Revised
Content How to use the Service remote control date A15
1. How to access the remote control
0 4 1 3
0 4 1 3
A15
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Standard Repair Process Detail Technical Manual
Error Established
symptom D. Function error date
Revised
Content How to use the Service remote control date A16
2. Remote control part definition
POWER Power On/Off
[ETC] Each time pressing the KEY button, Mode gets changed to ETC and P-ONLY each time
ETC (Added Function) All KEY function [PIP PR-][PIP PR+][SWAP]
[PIP INPUT][DVI] KEY Function
Changed to factory mode
P-ONLY (Added
Function)
All KEY function &[INFO][STILL][HDMI HOT][USB HOT][HDMI4] KEY Action
INPUT Change to the external device mode
ARC Change in the order of 16:9=>Zoom1=>Zoom2=>Cinema Zoom=>Aucto Screen=>4:3=>16:9
Changes in the order of Bright Picture=>Easy Picture=>Cinema=>Spots=>Game=>
PSM
Custom PIcture1=>Custom Picture2=>Bright Picture
SSM (Added Function) Standard(user)=>music=>cinema=>sports=>game=>standard(user)
PIP Picture In Picture is activated
TEXT Access to the Power Only mode
CAP Broadcasting caption(on/off)
MPX Stereo mode (mono, stereo, foreign language) access
Used when in factory mode
Simplink (Added
Access to the Simplink-connected device
Function)
Digital EYE function ON/OFF
EYE
For some Model, access to the Test Pattern
TILT Used for screen tilting change (Access to the old PDP control mode)
A16
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Standard Repair Process Detail Technical Manual
Error Established
symptom D. Function error date
Revised
Content How to use the Service remote control date A17
B-TOOTH
Connected to Blue-Tooth
(Added function)
Model Nam ex) 42PG60D-NA Current Model Name S/W Version ex)
IN-START V03.11.0 Current S/W version
MICOM Version ex) V3.05.0 current Mi-Com version UTT ex) User TV total usage time
POWER OFF STATUS ex) Shows power-off status
ADJ
Test Pattern (Off=>White=>Red=>Green=>Blue=>Black=>Pattern=>Off) Change
X-STUDIO (Added function) HDD,USB, external device’s HDD screen is activated
MENU User function gets activated
EXIT Exit from the current mode
TIME SHIFT (Added
Moves forward/backward of recorded contents
function)
MUTE Mute function (0 Volume)
IN-STOP SET to factory mode
VOL + - Volume Up/Down
CH + - Channel Up/Down
AV1,2,3 (Added function) Connects to external input 1,2,3
COMP1,2 (Added function) Connects to Component 1,2
HDMI1,2,3,4
Connects to HDMI 1,2,3,4
(Add function)
DVI (Add function) Connects to DVI
A17
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Standard Repair Process Detail Technical Manual
Error Established
symptom D. Function error date
Revised
Content Check items after Main B/D replacement date A18
Check items afer Main B/D(Model Number D/L, White Balance)
1. Press the Service remote control instart Key.
No.7 Select Model Number D/L
- Key in the model name and serial number
after checking the ID label on the back cover.
2. Press the Service remote control ADJ Key.
No.13 Select White Balance
- Record the R, G, B (GAIN, Cut) value of the
color temperature before main board
replacement.
A14 After replacing the main board, key in the
recorded value.
A18
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Standard Repair Process Detail Technical Manual
Error Established
symptom
A. Video error_Color error
date
Adjustment Test pattern Revised
Content date A19
1
2
3
Press the P-ONLY HDMI HOT CH + or -
You can view 11 types of patterns using the CH+ or - key
Checking item : 1. Defective pixel 2. Residual image 3. MODULE error (ADD-BAR,SCAN BAR..)
4.Video error (Classification of MODULE or Main-B/D!)
A19
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.A
Smart JIG Power Diagnosis
Muitl Gender Guide
(P/N : RAD32507801) (P/N : RAD33187801)
A20
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Power Board Muitl Gender JIG Diagram (P/N: RAD33187801)
15Y 16Y 15Y
(LF/UF Series) (OLED B6) (OLED)
28Pin 24Pin 24Pin 24Pin NC
18 Marking check 24Pin
18Pin 16Y
New JIG (OLED)
24Pin
13Y/14Y 28Pin
No Marking
OLD JIG
17/18Y
W7 17Y/18Y
B8 (OLED)
24Pin 12Y C8
E8 24Pin
18Y
G8
LK57,32/43/49LK54
W8
18Y 32LK61/32LK62
18Y UK63/UK64 43/49LK61
SK80/UK89 UK65/UK68
SK85/SK96 UK7050
SK95/SK99 16Y/17Y/18Y
18Pin (UH/UJ/UK
18Y SK)
24 Marking Check 28Pin UK74
28Pin 12Pin 12Pin 28Pin
UK75
Cable Connection UK77
Includes 49UJ63 UK78
17Y/18Y 16/18Y 16Y/17Y/18Y 16Y/17Y 16Y SK79
(SJ/UJ/UK/SK) (UH/UK) (LH/LJ/LK) (UH/SJ) (UH)
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Power Board Muitl Gender JIG Diagnostic model List
Existing 12Y, 13Y, 14Y, 15Y LED models included
15Y, 16Y, 17Y/18Y OLED, 16/17/18 Y LED model Power diagnosis function newly added
<15Y/16Y/17Y/18Y OLED Model, 16Y/17Y/18Y LED Model>
Year Product Model
EG92/EG93/EG94
‘15 OLED EG96
EF95
B6, C6
OLED
E6, G6
UH95/UH96
‘16 UH85/UH93
UH77/UH87
LED
UH75/UH76
UH65/UH68
LH68, LH66, LH60,LH54
B7, C7
‘17 OLED E7, G7
W7
SJ95/UJ98
SJ85/UJ94
SJ80, UJ77
UJ75/UJ78
’17 LED
UJ65/UJ68
UJ63/UJ67
LJ61/LJ68
LJ55/LJ58
SK80/SK85/SK95
UK78/UK75/UK77/SK79
‘18 LED
UK63/UK64/UK65/UK68/UK7050
LK57, 32/43/49LK54, 32LK61/62, 43/49LK61
B8, C8, E8
‘18 OLED
G8, W8
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Power Board Muitl Gender How to Connect
1
▶ Power Board Muitl Gender JIG
2
“A: 2013 LCD POWER”
2014
▶ Connect the Muiti Gender to the connector (black)
as shown in picture 2 of the Smart JIG.
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Smart Jig Voltage Setting
1 2
▶ Switch the product S/W in JIG to LCD.
▶ LCD MODEL Check the power voltage
▶ Check power board voltage. and switch to the correct voltage.
※ Note on set up
(The correct power diagnosis can be made only if it is set correctly.)
- 24V Power Board : Change the switch to 24V of Smart Jig Voltage
- 20V Power Board : Change the switch to 24V of Smart Jig Voltage
- 13.2V/18V Power Board : Change the switch to 24V of Smart Jig Voltage
Power B/D Smart Jig Voltage Switch
24V 24V
20V 20V
13.2V/18V 24V
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
`15Y OLED(EG96,EF95,EG92,EG93,EG94) Power Board Diagnostic method (1)
1 2
▶ Switch the product S/W in JIG to LCD.
▶ LCD MODEL Check the power voltage
and switch(24V) to the correct voltage.
▶ Check power board voltage. ▶ Fix the LCD MODEL switch to 24V.(Smart JIG)
3 4
▶ Disconnect the Main Board 24Pin Power Cable connector. ▶ Connect the 24Pin Power Cable connector to the Muitl
Gender JIG 24Pin connector
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
`15Y OLED(EG96,EF95,EG92,EG93,EG94) Power Board Diagnostic method (2)
5 6
▶ When the OK LED(24V,12V) turns on, Power Board is normal.
▶ When the NG LED turns on, the Power Board
can be judged as defective.
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
`16Y OLED(B6) Power Board Diagnostic method
1 2
▶ Switch the LCD MODEL S/W to 24V by checking
the power voltage.
▶ Fix the LCD MODEL switch to 24V.(Smart JIG)
▶ Connect the 24Pin Power Cable connector
to the Multi gender JIG 24Pin connector.
3
▶ When the OK LED(24V,12V) turns on, Power Board is normal.
▶ When the NG LED turns on, the Power Board
can be judged as defective.
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
`16Y OLED(C6) Power Board Diagnostic method
1 2
▶ Check power board voltage. ▶ Disconnect the Main Board 24Pin Power Cable connector.
▶ Smart JIG: Fix the LCD MODEL switch to 24V.(Smart JIG)
3 4
▶ Connect the 24Pin Power Cable connector ▶ When the OK LED(24V,12V) turns on, Power Board is normal.
to the Muitl Gender JIG 24Pin connector
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
`16Y OLED(E6) Power Board Diagnostic method
1 2
▶ Check power board voltage. ▶ Disconnect the Main Board 24Pin Power Cable connector.
▶ Fix the LCD MODEL switch to 24V.(Smart JIG)
3 4
▶ Connect the 24Pin Power Cable connector ▶ When the OK LED(24V,12V) turns on, Power Board is normal.
to the Muitl Gender JIG 24Pin connector ▶ When the NG LED turns on, the Power Board
can be judged as defective.
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
`16Y OLED(G6) Power Board Diagnostic method
1 2
▶ Check power board voltage. ▶ Disconnect the Main Board 24Pin Power Cable connector.
▶ Fix the LCD MODEL switch to 24V.(Smart JIG)
3 4
▶ Connect the 24Pin Power Cable connector ▶ When the OK LED(24V,12V) turns on, Power Board is normal.
to the Muitl Gender JIG 24Pin connector ▶ When the NG LED turns on, the Power Board
can be judged as defective.
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
`17Y OLED(B7/C7/E7/G7) Power Board Diagnostic method
1 2
▶ Disconnect the Main Board 28Pin Power Cable connector. ▶ Connect the 28Pin Power Cable connector
to the Muitl Gender JIG 28Pin connector
3 4
▶ Switch the LCD MODEL S/W to 20V by checking ▶ When the OK LED(24V,12V) turns on, Power Board is normal.
the power voltage.
▶ When the NG LED turns on, the Power Board
▶ Fix the LCD MODEL switch to 20V.(Smart JIG)
can be judged as defective.
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
`17Y OLED(W7) Power Board Diagnostic method
1 2
▶ Disconnect the Main Board 24Pin Power Cable connector. ▶ Connect the 24Pin Power Cable connector
to the Muitl Gender JIG 28Pin connector
3 4
▶ Switch the LCD MODEL S/W to 20V by checking ▶ When the OK LED(24V,12V) turns on, Power Board is normal.
the power voltage.
▶ When the NG LED turns on, the Power Board
▶ Fix the LCD MODEL switch to 20V.(Smart JIG)
can be judged as defective.
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
`16Y/`17Y LED 18Pin Power Board Diagnostic method
1 2
▶ Check power board voltage.
▶ Disconnect the Main Board 18Pin Power Cable connector.
▶ Fix the LCD MODEL switch to 24V.(Smart JIG)
3 4
▶ Connect the 18Pin Power Cable connector ▶ When the OK LED(24V,12V) turns on, Power Board is normal.
to the Muitl Gender JIG 24Pin connector ▶ When the NG LED turns on, the Power Board
can be judged as defective.
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
`16Y LED(UH95/UH96) Power Board Diagnostic method
1 2
▶ Check power board voltage. ▶ Disconnect the Main Board 28Pin Power Cable connector.
▶ Fix the LCD MODEL switch to 24V.(Smart JIG)
3 4
▶ Connect the 28Pin Power Cable connector ▶ When the OK(24V,12V) LED turns on, Power Board is normal.
to the Muitl Gender JIG 28Pin connector ▶ When the NG LED turns on, the Power Board
can be judged as defective.
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
`16Y/`17Y LED(UH85/UH93) Power Board Diagnostic method
1 2
▶ Check power board voltage. ▶ Disconnect the Main Board 28Pin Power Cable connector.
▶ Fix the LCD MODEL switch to 24V.(Smart JIG)
3 4
▶ Connect the 28Pin Power Cable connector ▶ When the OK LED(24V,12V) turns on, Power Board is normal.
to the Muitl Gender JIG 28Pin connector ▶ When the NG LED turns on, the Power Board
can be judged as defective.
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
`16Y/`17Y LED 12Pin Power Board Diagnostic method
1 2
▶ Check power board voltage.
▶ Disconnect the Main Board 12Pin Power Cable connector.
▶ Fix the LCD MODEL switch to 24V.(Smart JIG)
3 4
▶ Connect the 12Pin Power Cable connector ▶ When the OK LED(24V,12V) turns on, Power Board is normal.
to the Muitl Gender JIG 12Pin connector ▶ When the NG LED turns on, the Power Board
can be judged as defective.
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
`16Y LED 12Pin Power Board Diagnostic method
1 2
▶ Check power board voltage.
▶ Disconnect the Main Board 12Pin Power Cable connector.
▶ Fix the LCD MODEL switch to 24V.(Smart JIG)
3 4
▶ Connect the 12Pin Power Cable connector ▶ When the OK LED(24V,12V) turns on, Power Board is normal.
to the Muitl Gender JIG 24Pin connector ▶ When the NG LED turns on, the Power Board
can be judged as defective.
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
`17Y LED 28Pin Power Board Diagnostic method
1 2
▶ Check power board voltage.
▶ Disconnect the Main Board 28Pin Power Cable connector.
▶ Fix the LCD MODEL switch to 20V.(Smart JIG)
3 4
▶ Connect the 28Pin Power Cable connector ▶ When the OK LED(24V,12V) turns on, Power Board is normal.
to the Muitl Gender JIG 28Pin connector ▶ When the NG LED turns on, the Power Board
can be judged as defective.
Copyright © 2018 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
