CONFIDENTIAL
LED TV
SERVICE MANUAL
CHASSIS : UB93U
MODEL : 43UM7600PTA
CAUTION
BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
P/NO : MFL71443406 (1903-REV00)
Copyright © 2019 LG Electronics Inc. All rights reserved. Only training and service purposes.

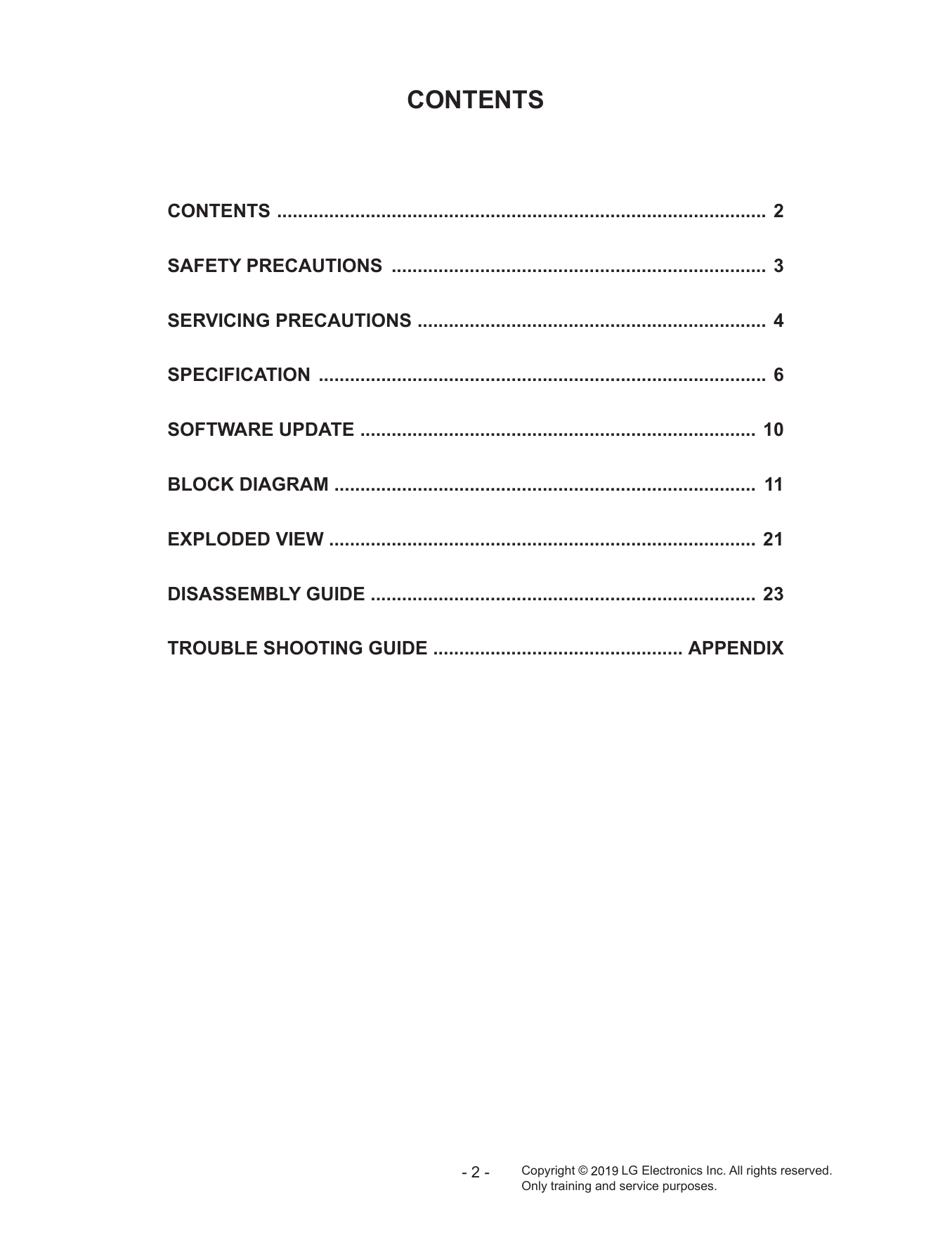

CONTENTS
CONTENTS ............................................................................................... 2
SAFETY PRECAUTIONS ......................................................................... 3
SERVICING PRECAUTIONS .................................................................... 4

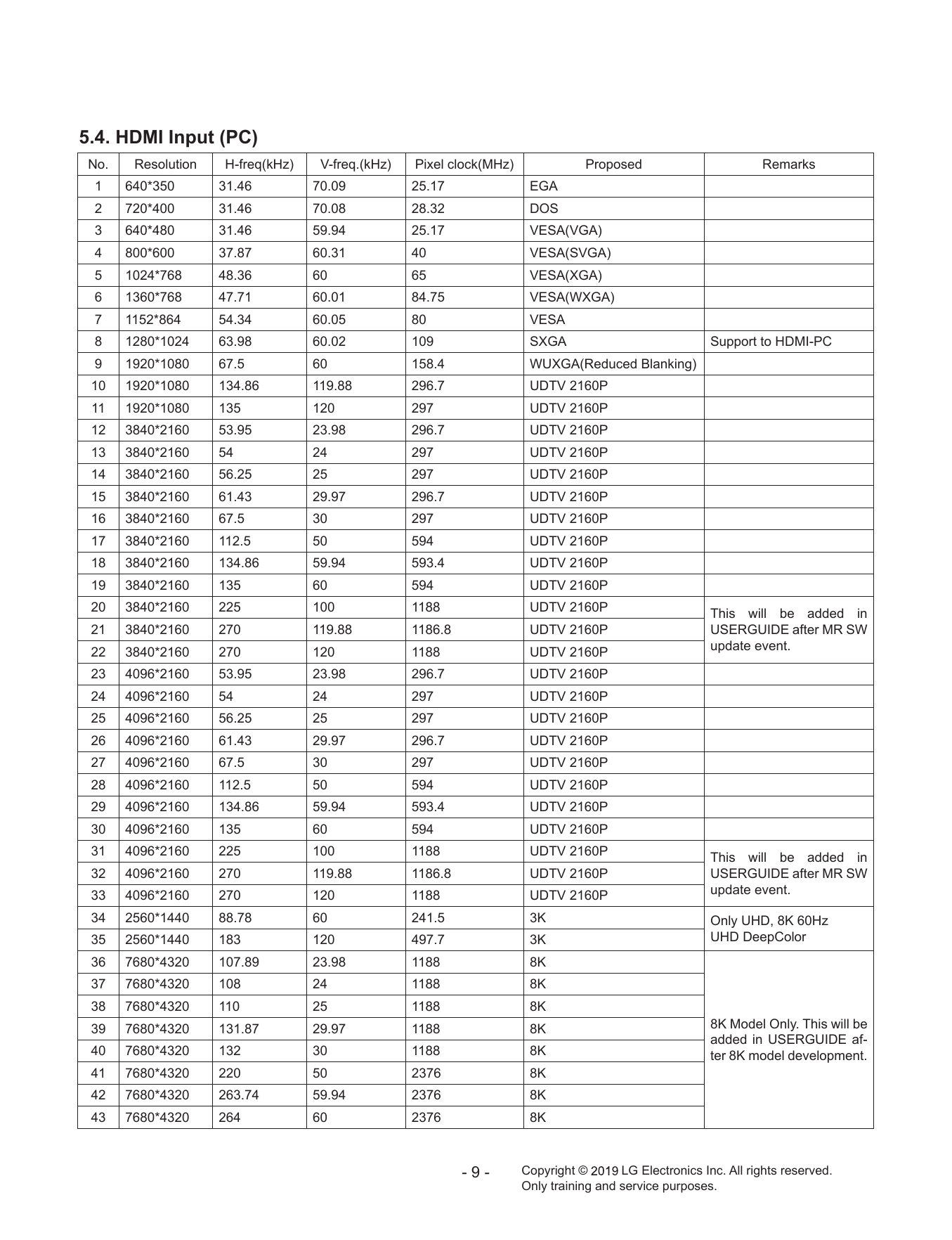

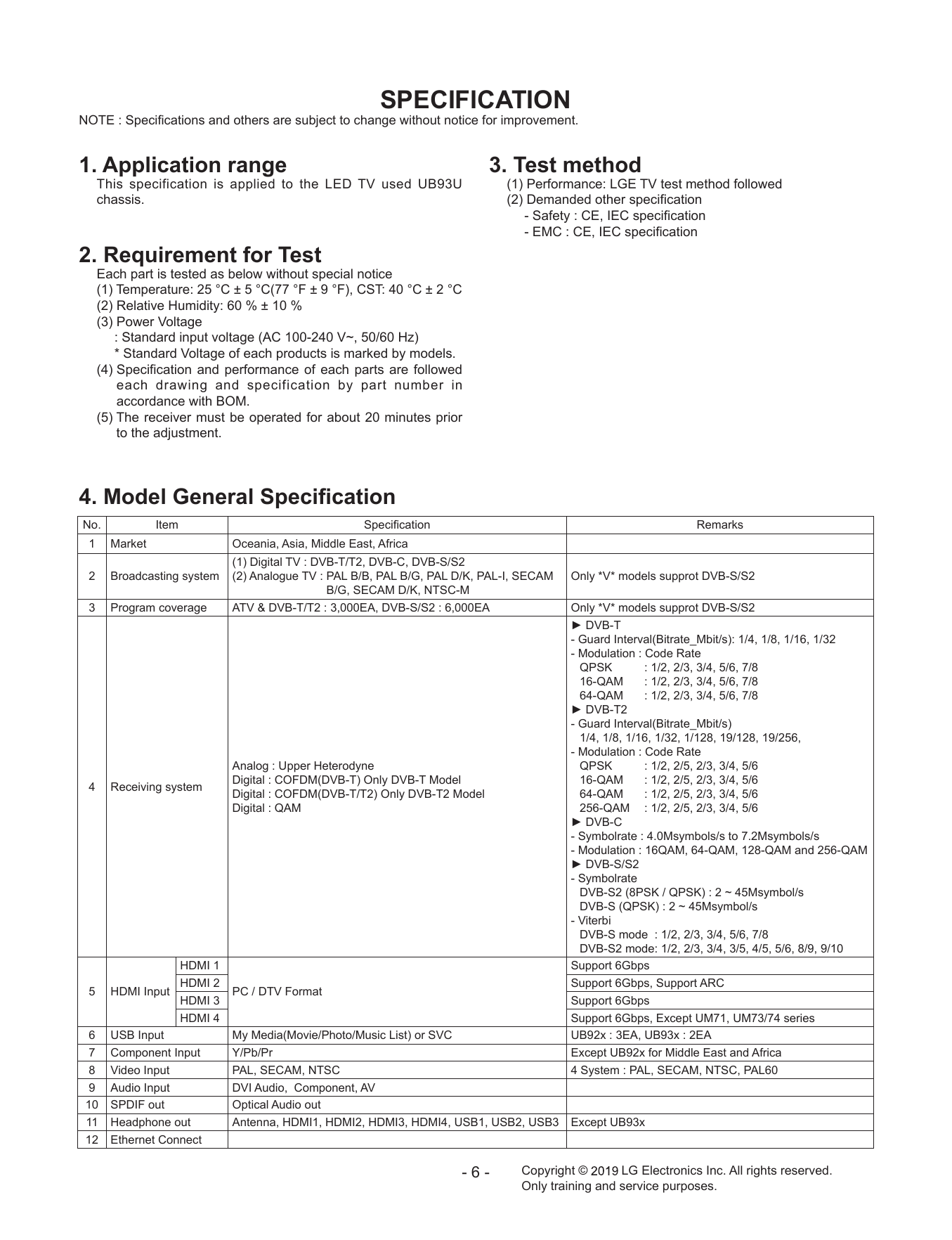

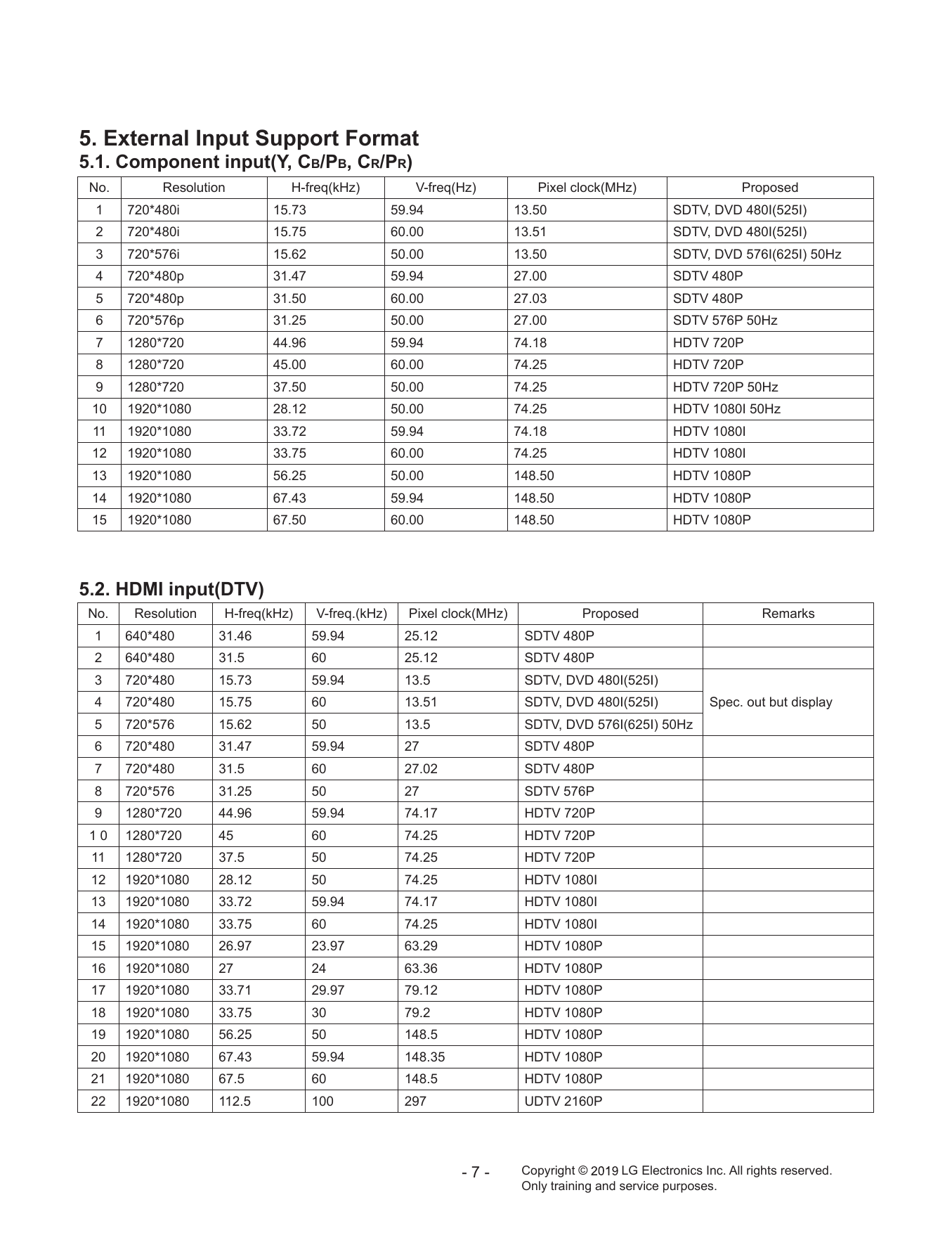

SPECIFICATION ....................................................................................... 6

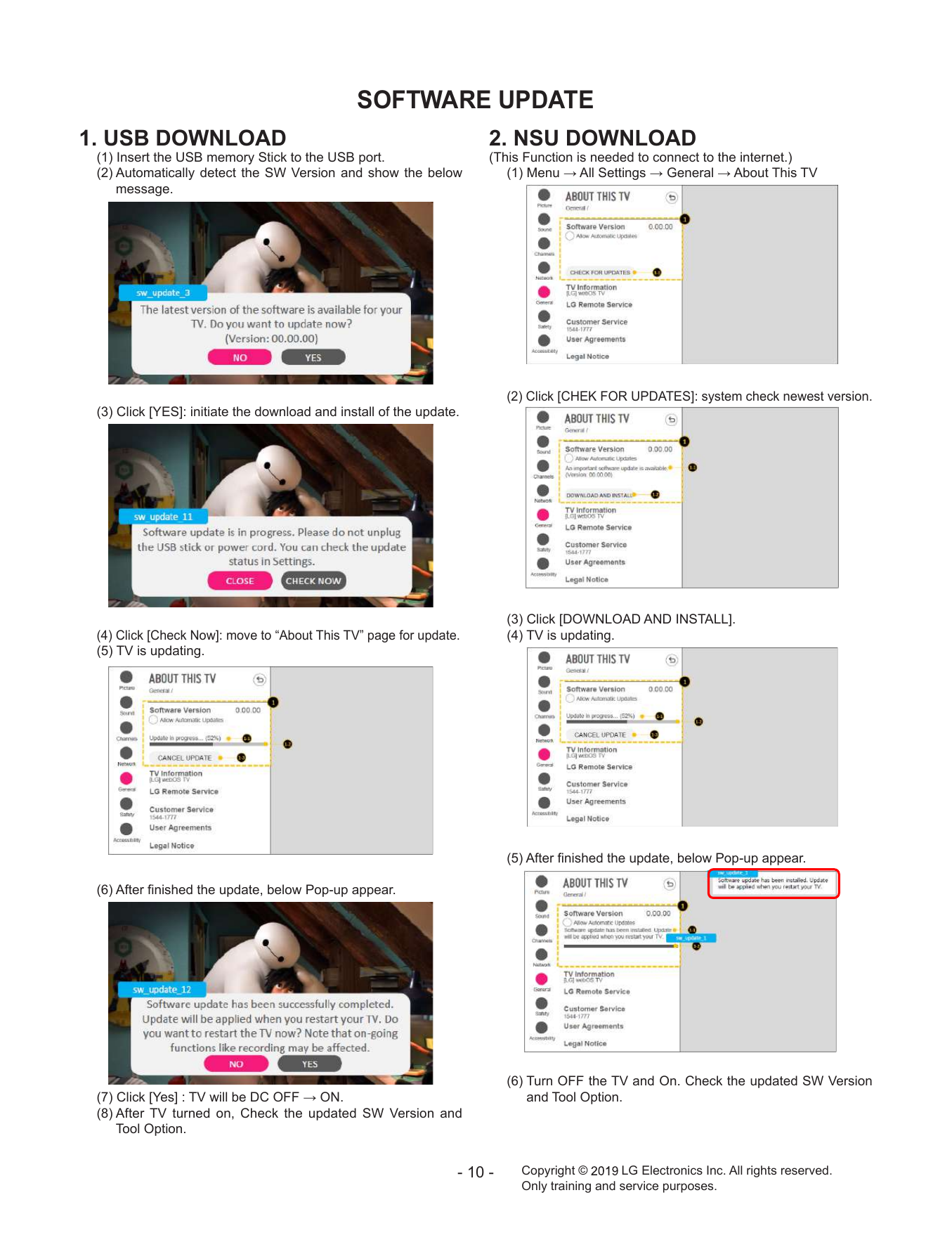

SOFTWARE UPDATE ............................................................................. 10

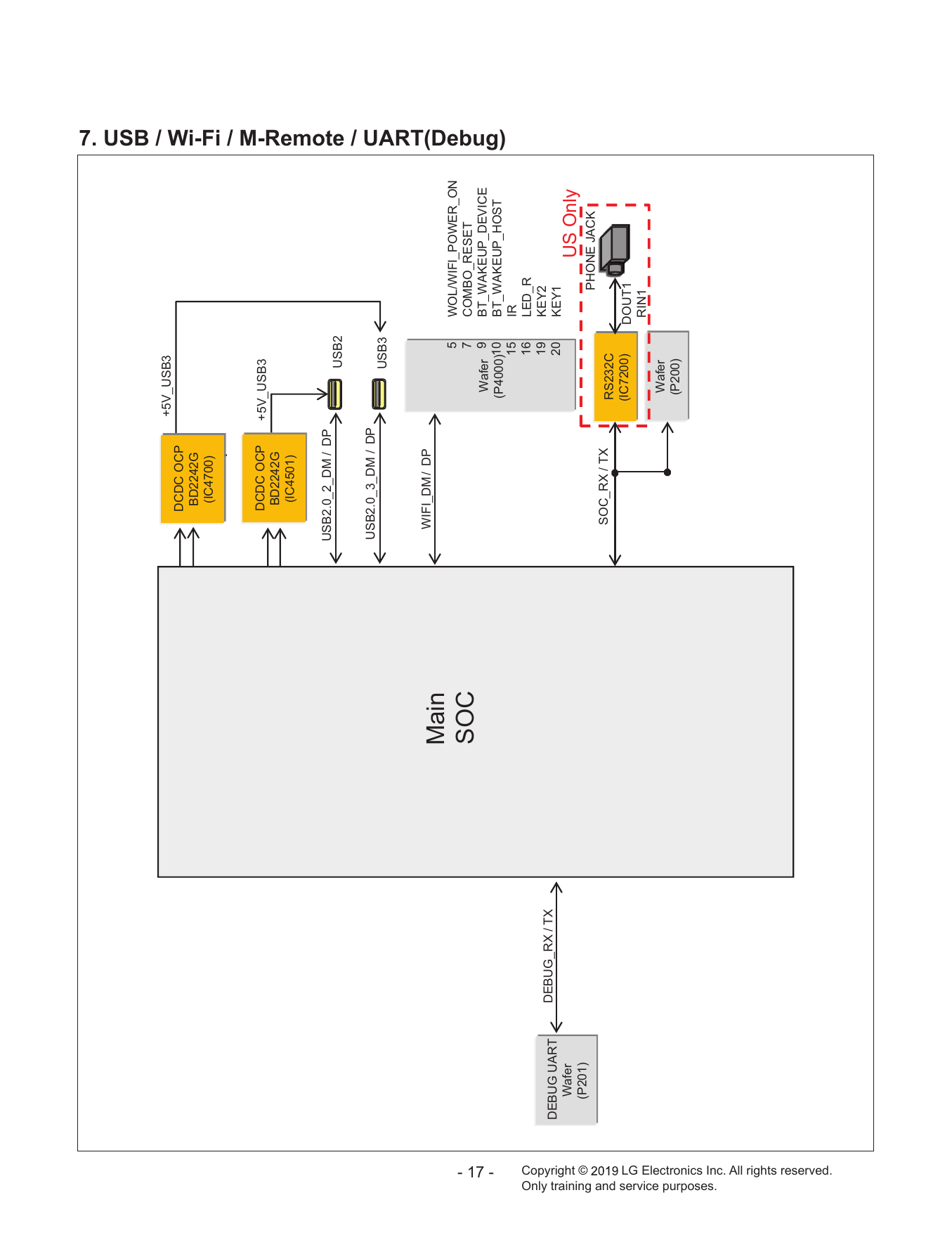

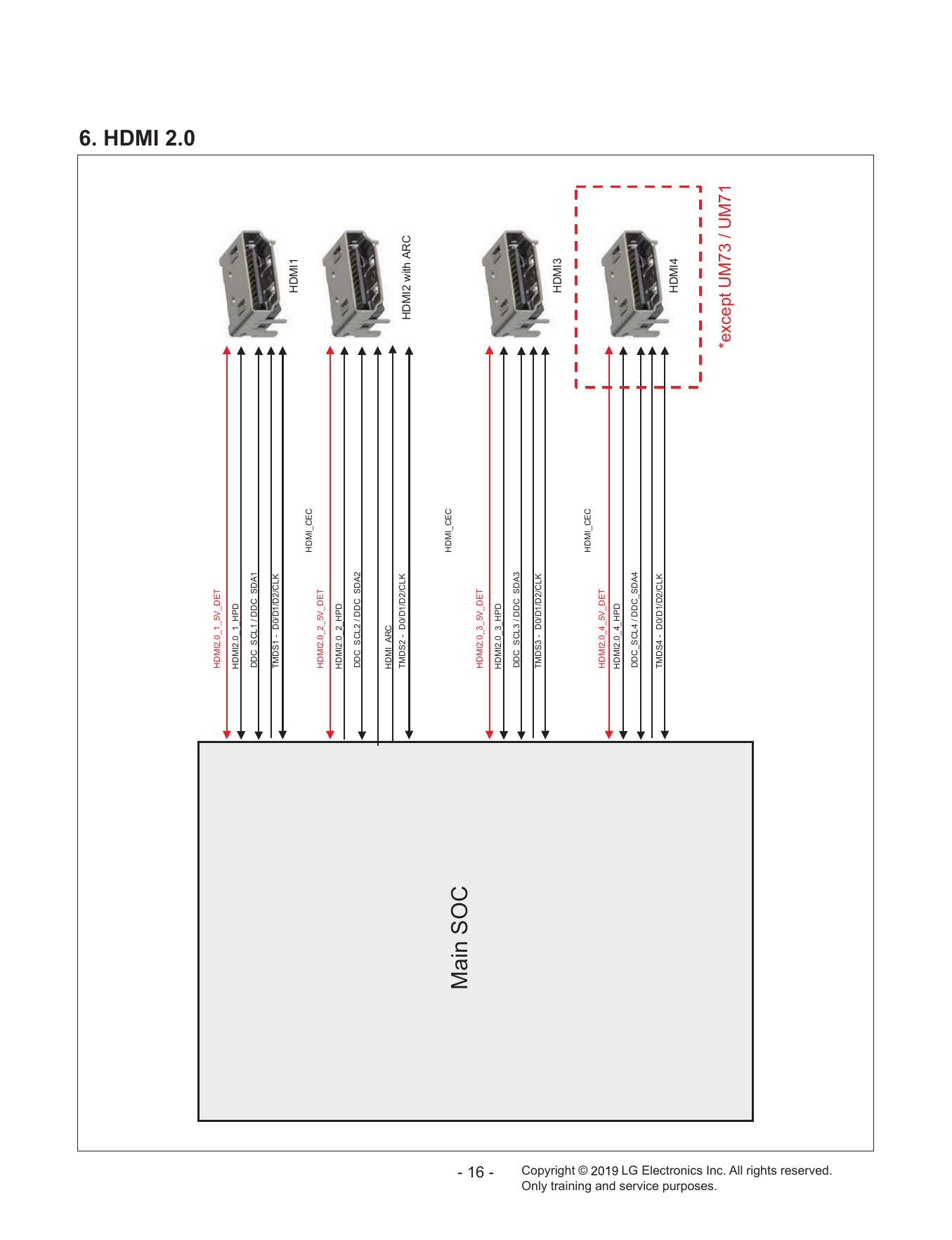

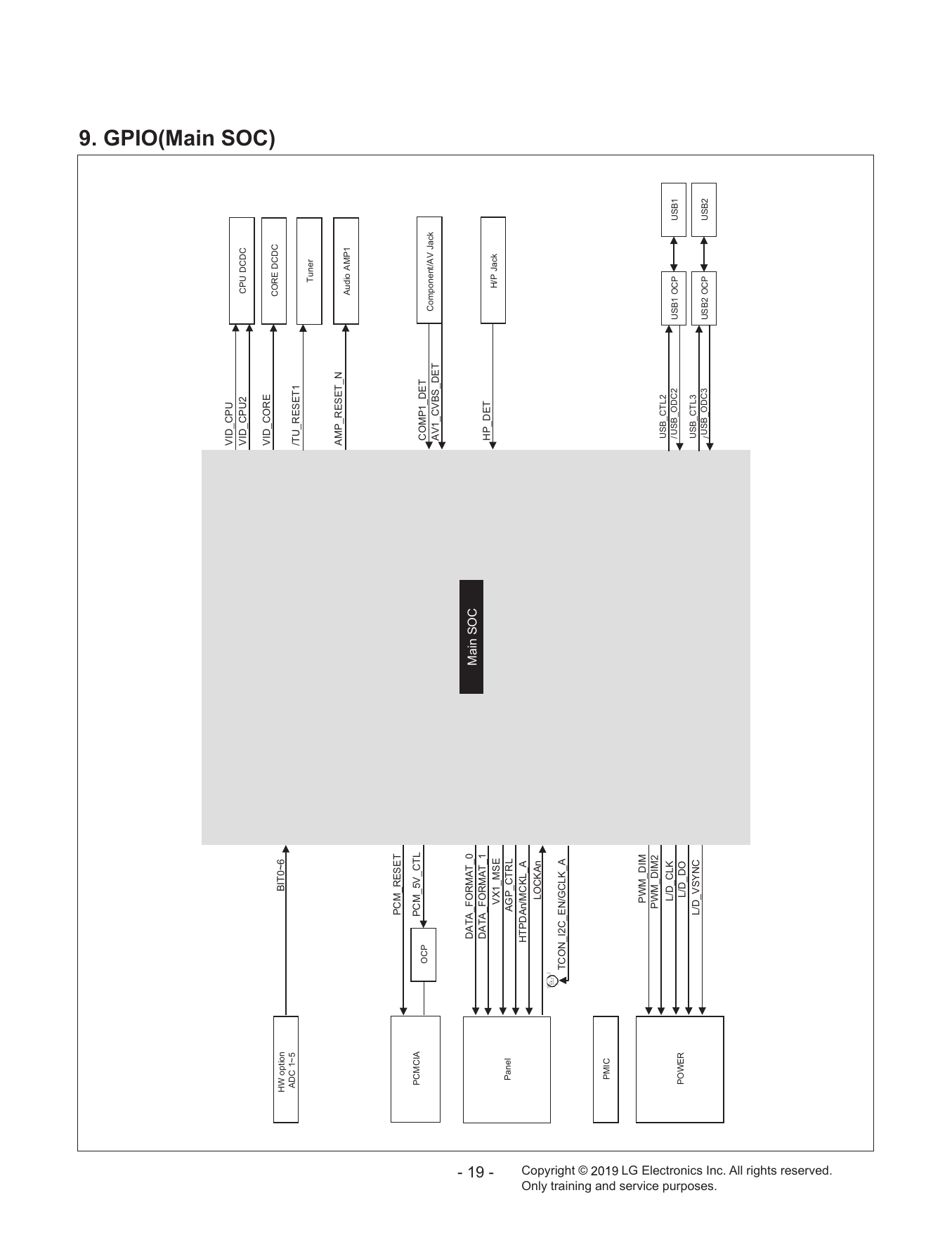

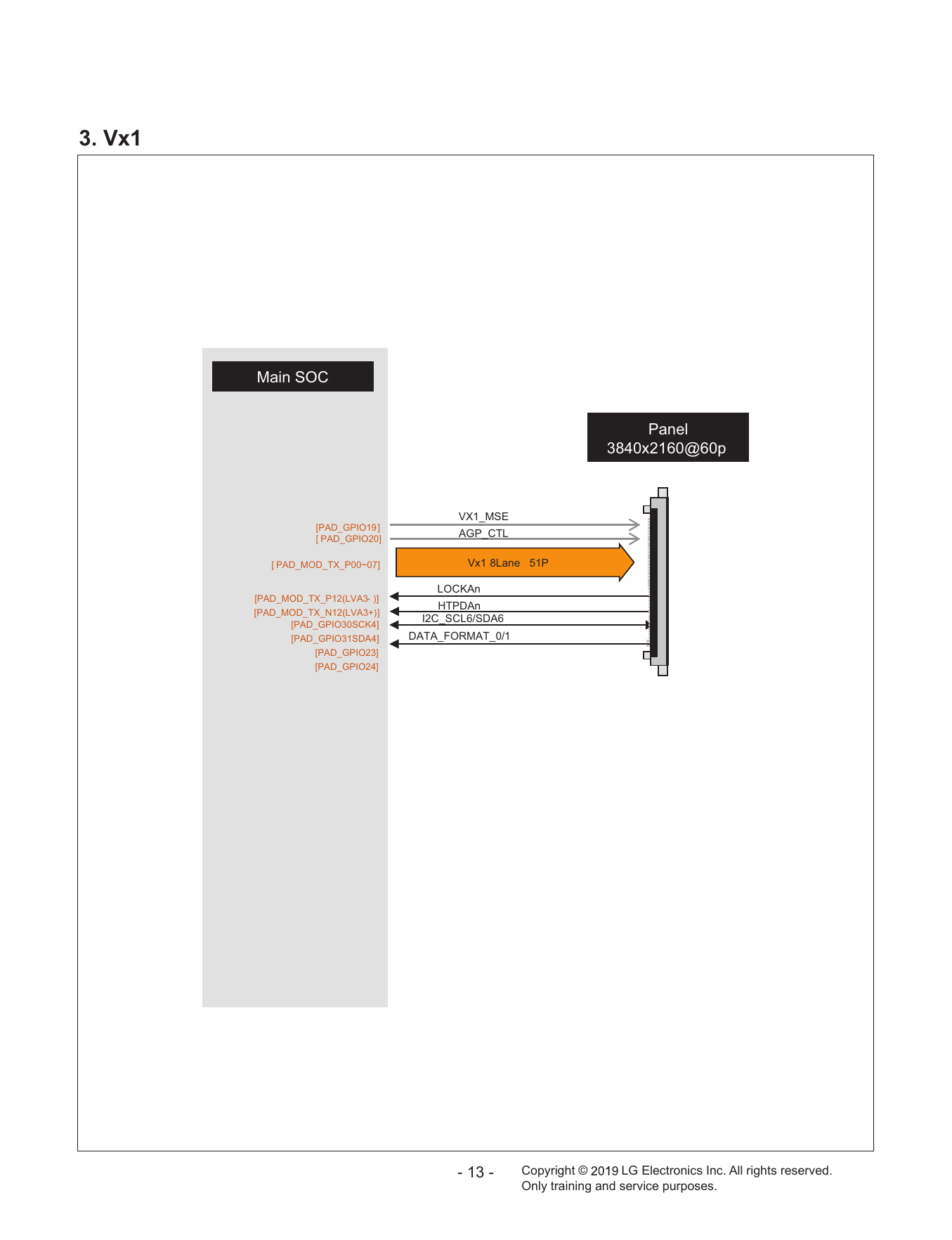

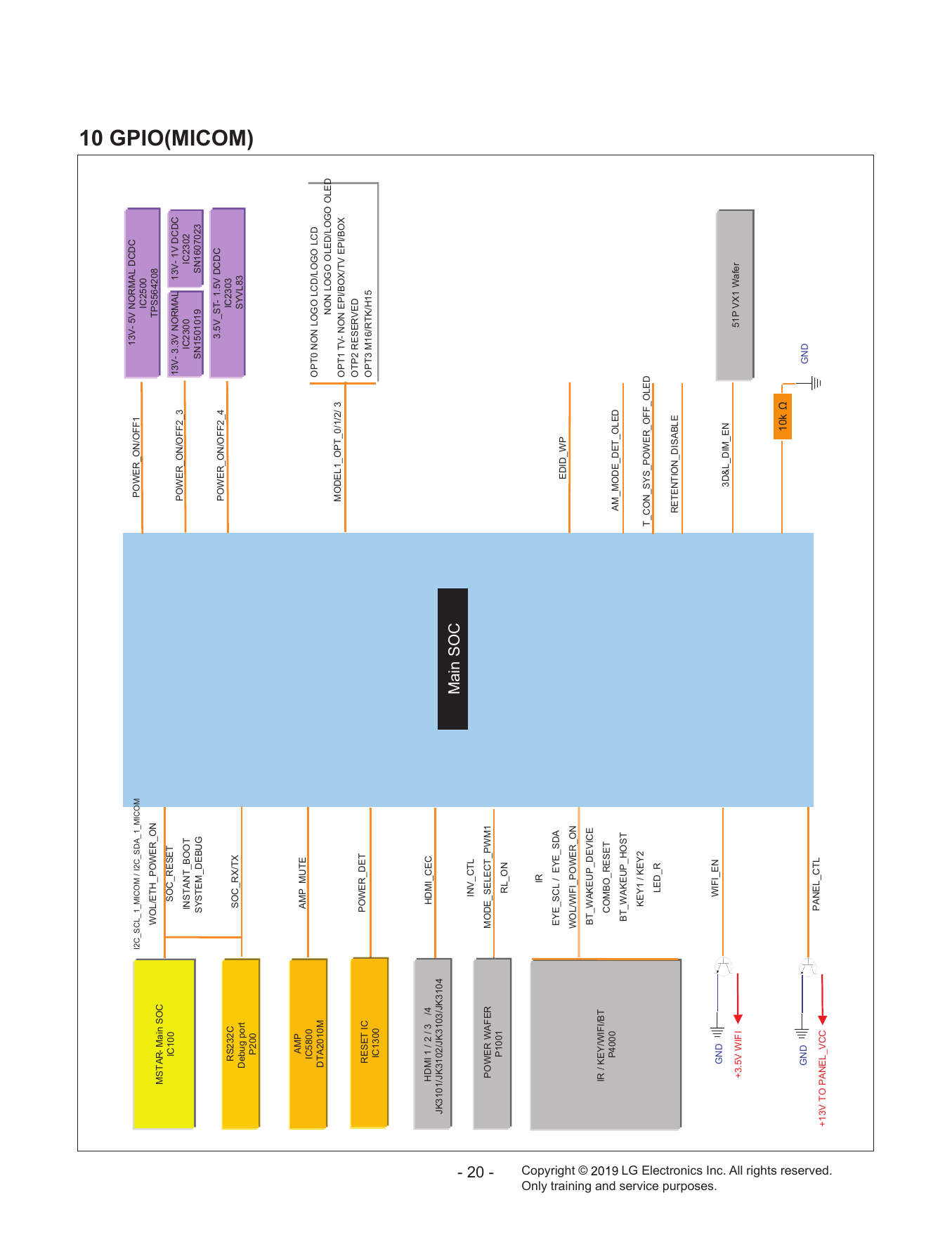

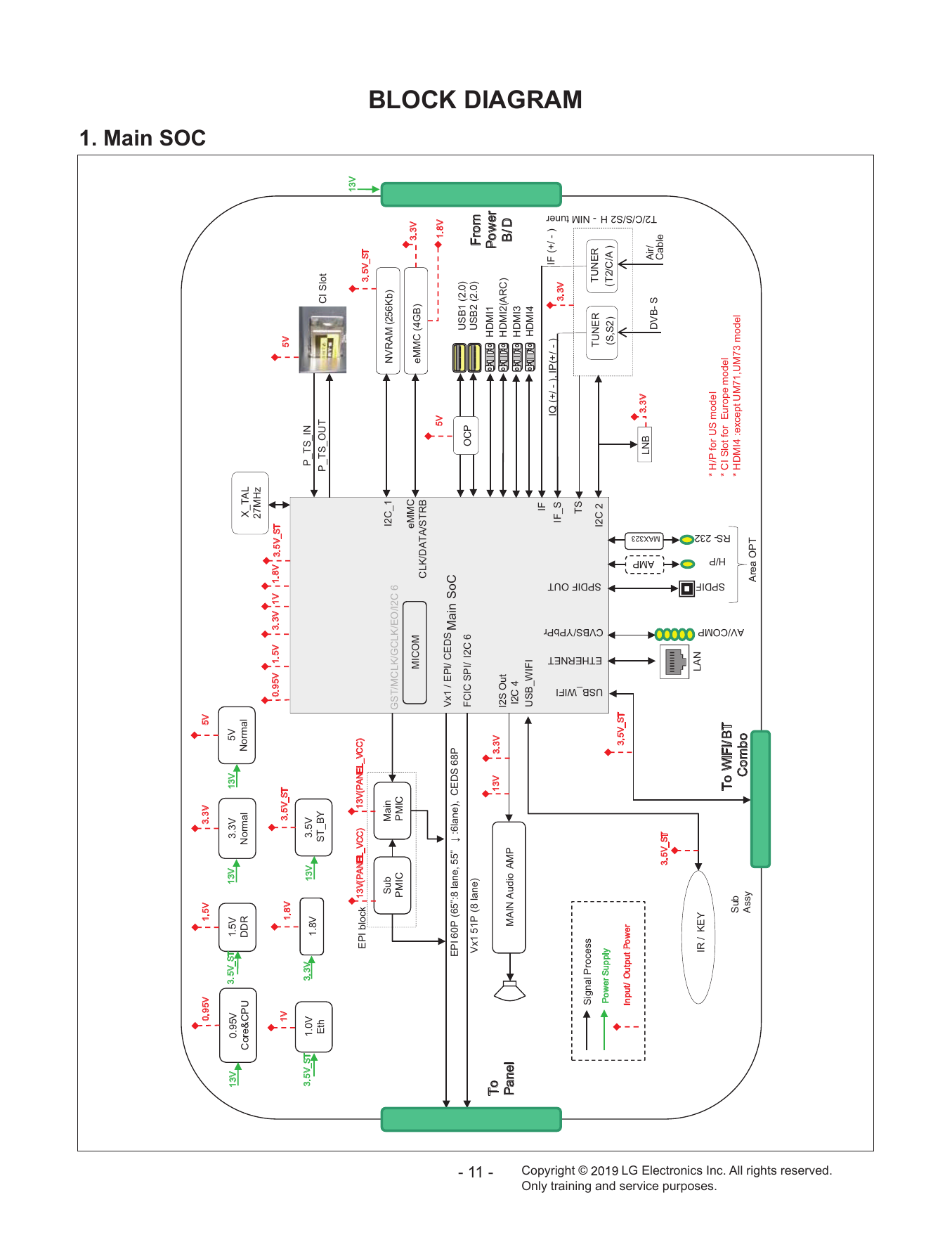

BLOCK DIAGRAM .................................................................................. 11

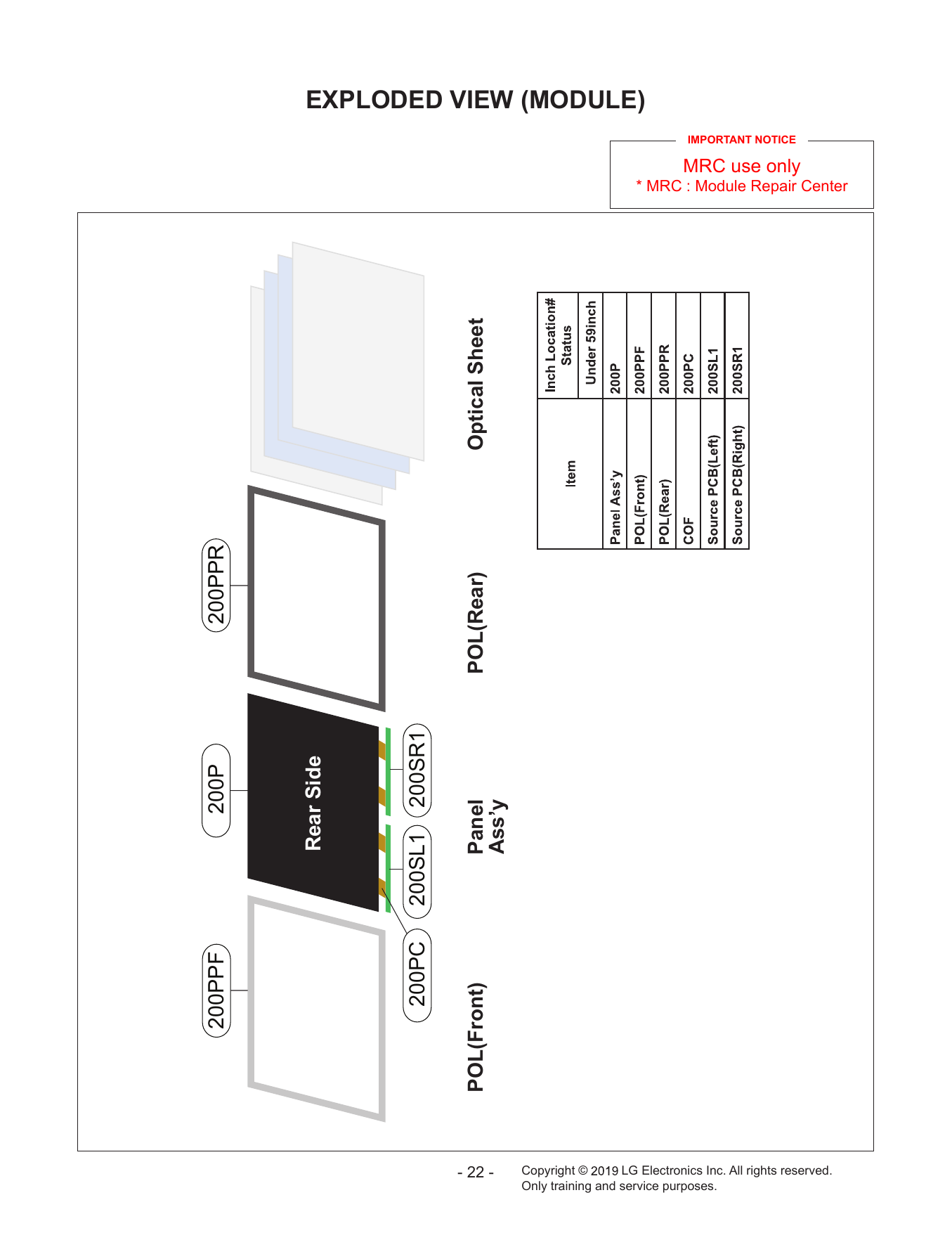

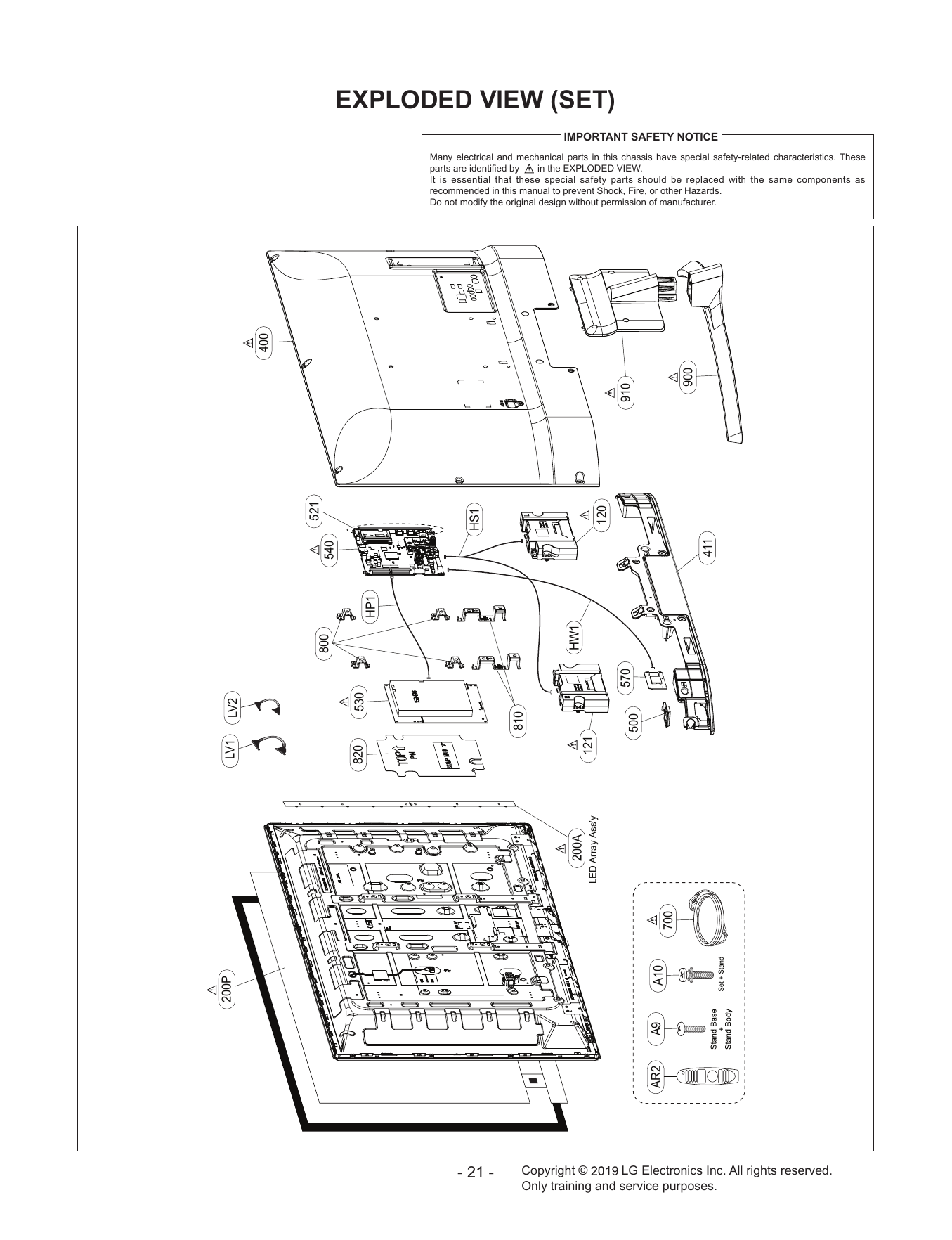

EXPLODED VIEW ................................................................................... 21

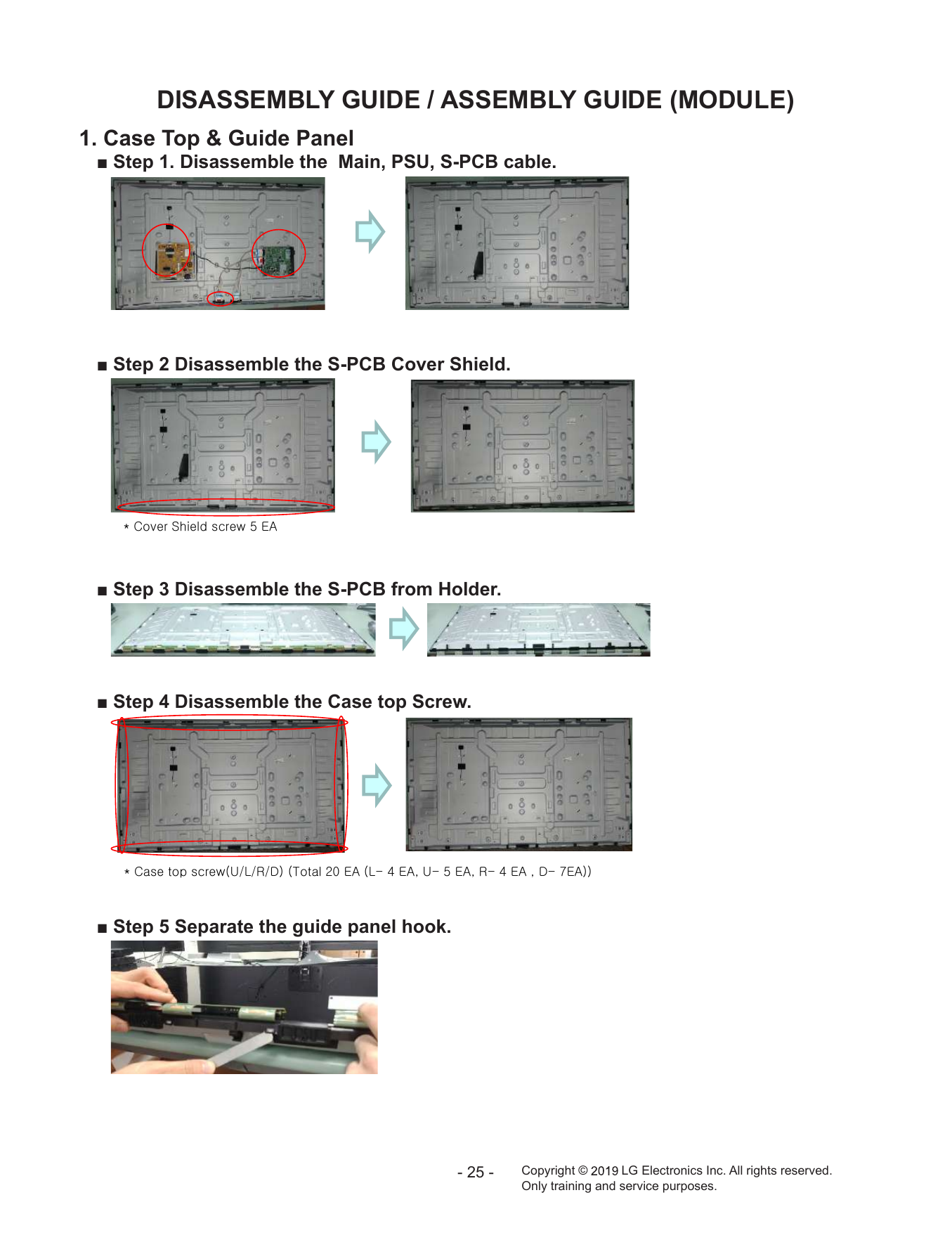

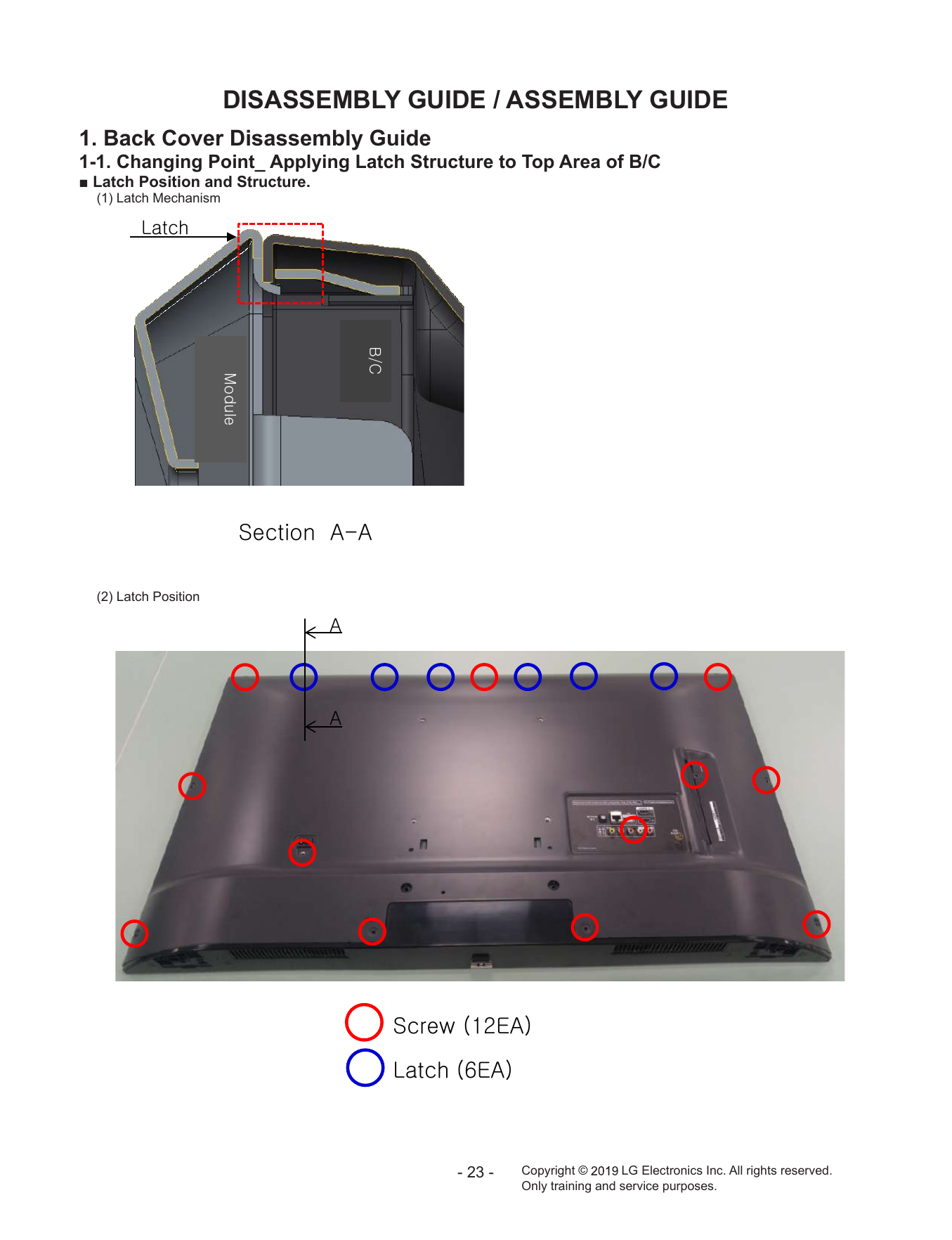

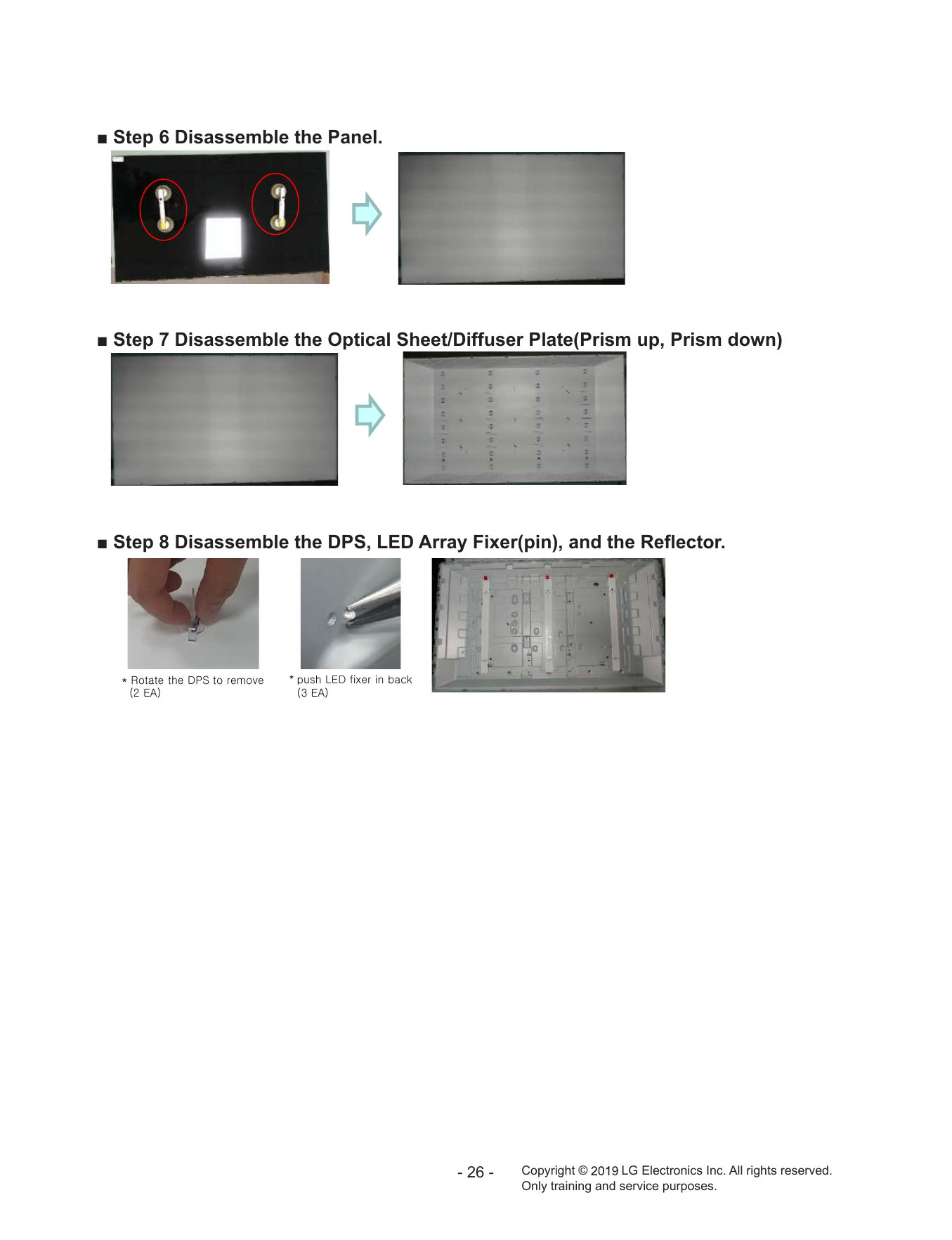

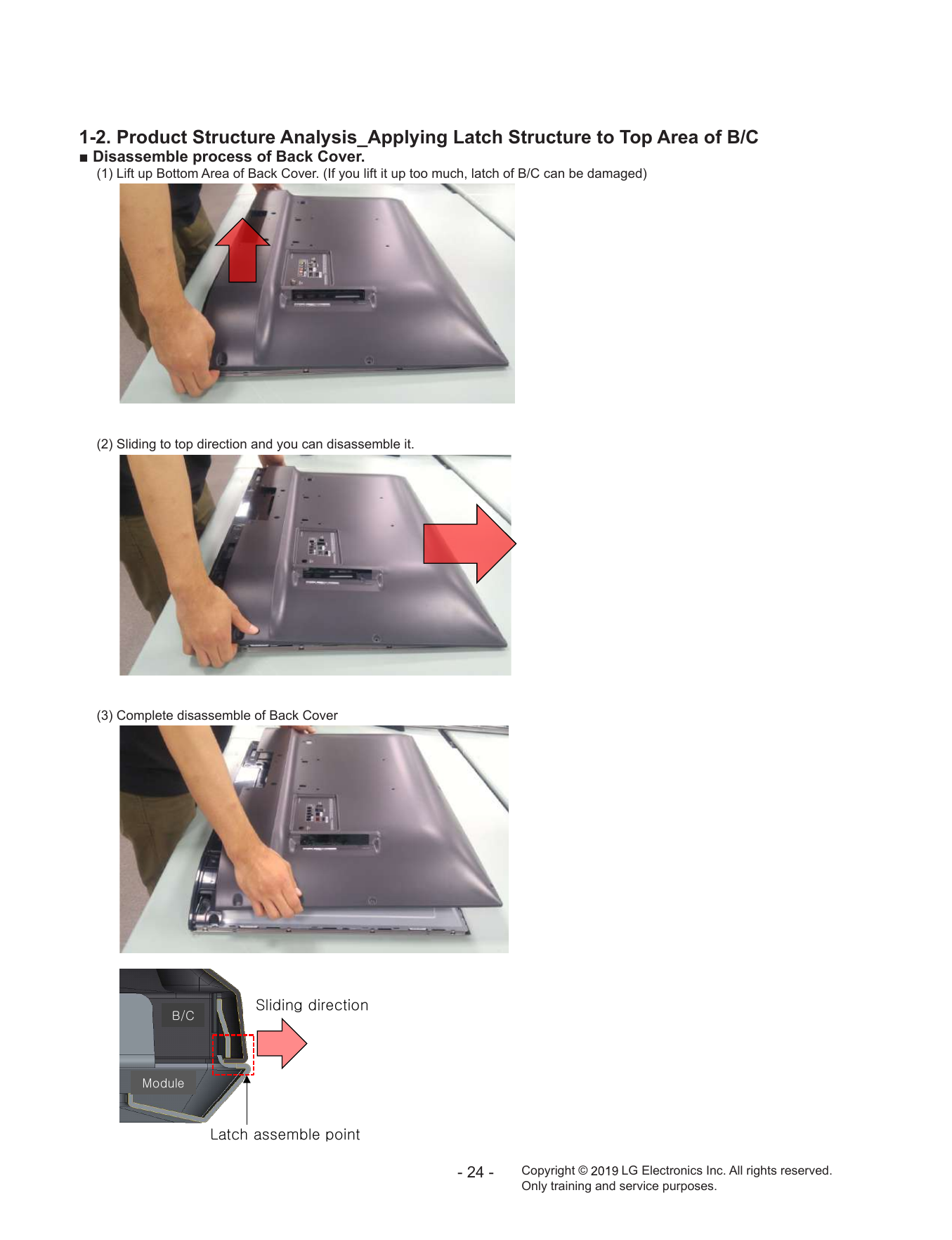

DISASSEMBLY GUIDE .......................................................................... 23

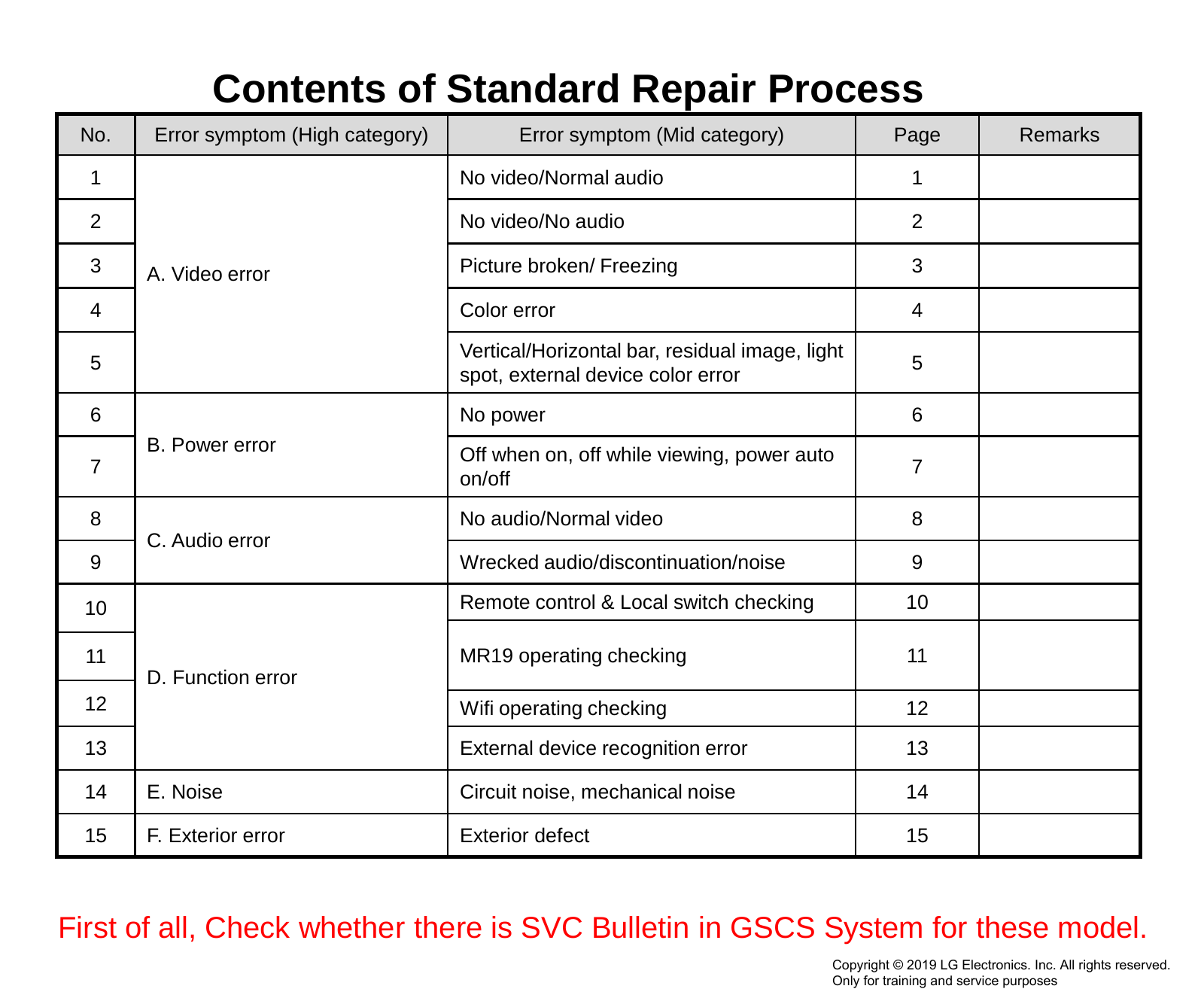

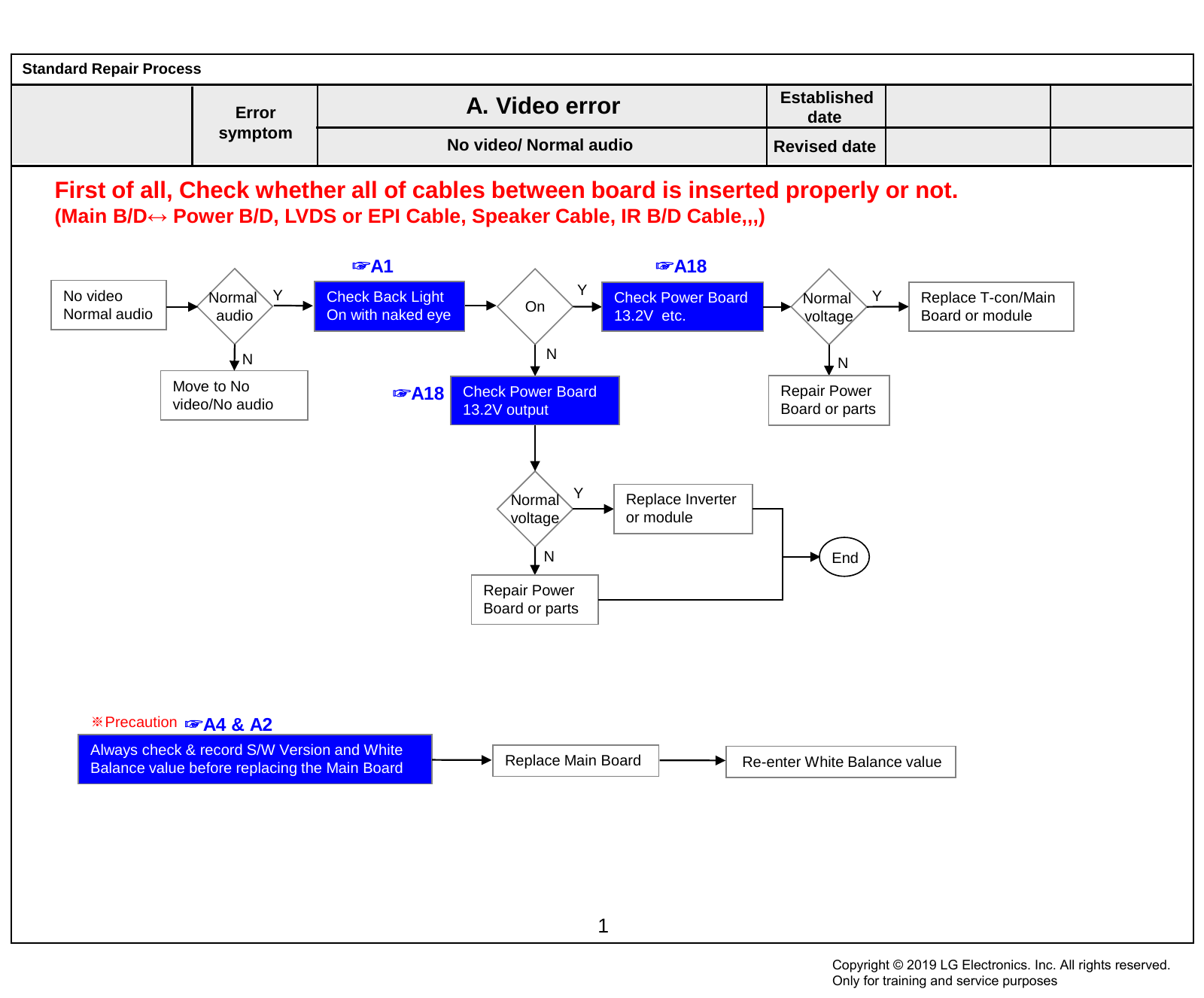

TROUBLE SHOOTING GUIDE ................................................. APPENDIX
-2- Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
SAFETY PRECAUTIONS
IMPORTANT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC Do not use a line Isolation Transformer during this check.
power line. Use a transformer of adequate power rating as this Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
protects the technician from accidents resulting in personal injury between a known good earth ground (Water Pipe, Conduit, etc.)
from electrical shocks. and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
It will also protect the receiver and it's components from being with 1000 ohms/volt or more sensitivity.
damaged by accidental shorts of the circuitry that may be Reverse plug the AC cord into the AC outlet and repeat AC voltage
inadvertently introduced during the service operation. measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
If any fuse (or Fusible Resistor) in this TV receiver is blown, 0.5 mA.
replace it with the specified. In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
When replacing a high wattage resistor (Oxide Metal Film Resistor, repaired before it is returned to the customer.
over 1 W), keep the resistor 10 mm away from PCB.
Leakage Current Hot Check circuit
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
-3- Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
SERVICING PRECAUTIONS
CAUTION: Before servicing receivers covered by this service 2. After removing an electrical assembly equipped with ES
manual and its supplements and addenda, read and follow the devices, place the assembly on a conductive surface such as
SAFETY PRECAUTIONS on page 3 of this publication. aluminum foil, to prevent electrostatic charge buildup or expo-
NOTE: If unforeseen circumstances create conflict between the sure of the assembly.
following servicing precautions and any of the safety precautions 3. Use only a grounded-tip soldering iron to solder or unsolder
on page 3 of this publication, always follow the safety precau- ES devices.
tions. Remember: Safety First. 4. Use only an anti-static type solder removal device. Some sol-
der removal devices not classified as “anti-static” can generate
General Servicing Precautions electrical charges sufficient to damage ES devices.
1. Always unplug the receiver AC power cord from the AC power 5. Do not use freon-propelled chemicals. These can generate
source before; electrical charges sufficient to damage ES devices.
a. Removing or reinstalling any component, circuit board 6. Do not remove a replacement ES device from its protective
module or any other receiver assembly. package until immediately before you are ready to install it.
b. Disconnecting or reconnecting any receiver electrical plug (Most replacement ES devices are packaged with leads elec-
or other electrical connection. trically shorted together by conductive foam, aluminum foil or
c. Connecting a test substitute in parallel with an electrolytic comparable conductive material).
capacitor in the receiver. 7. Immediately before removing the protective material from the
CAUTION: A wrong part substitution or incorrect polarity leads of a replacement ES device, touch the protective mate-
installation of electrolytic capacitors may result in an explo- rial to the chassis or circuit assembly into which the device will
sion hazard. be installed.
2. Test high voltage only by measuring it with an appropriate CAUTION: Be sure no power is applied to the chassis or cir-
high voltage meter or other voltage measuring device (DVM, cuit, and observe all other safety precautions.
FETVOM, etc) equipped with a suitable high voltage probe. 8. Minimize bodily motions when handling unpackaged replace-
Do not test high voltage by "drawing an arc". ment ES devices. (Otherwise harmless motion such as the
3. Do not spray chemicals on or near this receiver or any of its brushing together of your clothes fabric or the lifting of your
assemblies. foot from a carpeted floor can generate static electricity suf-
4. Unless specified otherwise in this service manual, clean ficient to damage an ES device.)
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable General Soldering Guidelines
non-abrasive applicator; 10 % (by volume) Acetone and 90 % 1. Use a grounded-tip, low-wattage soldering iron and appropri-
(by volume) isopropyl alcohol (90 % - 99 % strength) ate tip size and shape that will maintain tip temperature within
CAUTION: This is a flammable mixture. the range or 500 °F to 600 °F.
Unless specified otherwise in this service manual, lubrication 2. Use an appropriate gauge of RMA resin-core solder composed
of contacts in not required. of 60 parts tin/40 parts lead.
5. Do not defeat any plug/socket B+ voltage interlocks with which 3. Keep the soldering iron tip clean and well tinned.
receivers covered by this service manual might be equipped. 4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
6. Do not apply AC power to this instrument and/or any of its bristle (0.5 inch, or 1.25 cm) brush with a metal handle.
electrical assemblies unless all solid-state device heat sinks Do not use freon-propelled spray-on cleaners.
are correctly installed. 5. Use the following unsoldering technique
7. Always connect the test receiver ground lead to the receiver a. Allow the soldering iron tip to reach normal temperature.
chassis ground before connecting the test receiver positive (500 °F to 600 °F)
lead. b. Heat the component lead until the solder melts.
Always remove the test receiver ground lead last. c. Quickly draw the melted solder with an anti-static, suction-
8. Use with this receiver only the test fixtures specified in this type solder removal device or with solder braid.
service manual. CAUTION: Work quickly to avoid overheating the circuit
CAUTION: Do not connect the test fixture ground strap to any board printed foil.
heat sink in this receiver. 6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
Electrostatically Sensitive (ES) Devices (500 °F to 600 °F)
Some semiconductor (solid-state) devices can be damaged eas- b. First, hold the soldering iron tip and solder the strand
ily by static electricity. Such components commonly are called against the component lead until the solder melts.
Electrostatically Sensitive (ES) Devices. Examples of typical ES c. Quickly move the soldering iron tip to the junction of the
devices are integrated circuits and some field-effect transistors component lead and the printed circuit foil, and hold it there
and semiconductor “chip” components. The following techniques only until the solder flows onto and around both the compo-
should be used to help reduce the incidence of component dam- nent lead and the foil.
age caused by static by static electricity. CAUTION: Work quickly to avoid overheating the circuit
1. Immediately before handling any semiconductor component or board printed foil.
semiconductor-equipped assembly, drain off any electrostatic d. Closely inspect the solder area and remove any excess or
charge on your body by touching a known earth ground. Alter- splashed solder with a small wire-bristle brush.
natively, obtain and wear a commercially available discharg-
ing wrist strap device, which should be removed to prevent
potential shock reasons prior to applying power to the unit
under test.
-4- Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
IC Remove/Replacement 3. Solder the connections.
Some chassis circuit boards have slotted holes (oblong) through CAUTION: Maintain original spacing between the replaced
which the IC leads are inserted and then bent flat against the cir- component and adjacent components and the circuit board to
cuit foil. When holes are the slotted type, the following technique prevent excessive component temperatures.
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique Circuit Board Foil Repair
as outlined in paragraphs 5 and 6 above. Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
Removal board causing the foil to separate from or "lift-off" the board. The
1. Desolder and straighten each IC lead in one operation by following guidelines and procedures should be followed when-
gently prying up on the lead with the soldering iron tip as the ever this condition is encountered.
solder melts.
2. Draw away the melted solder with an anti-static suction-type At IC Connections
solder removal device (or with solder braid) before removing To repair a defective copper pattern at IC connections use the
the IC. following procedure to install a jumper wire on the copper pattern
Replacement side of the circuit board. (Use this technique only on IC connec-
1. Carefully insert the replacement IC in the circuit board. tions).
2. Carefully bend each IC lead against the circuit foil pad and
solder it. 1. Carefully remove the damaged copper pattern with a sharp
3. Clean the soldered areas with a small wire-bristle brush. knife. (Remove only as much copper as absolutely necessary).
(It is not necessary to reapply acrylic coating to the areas). 2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
"Small-Signal" Discrete Transistor 3. Bend a small "U" in one end of a small gauge jumper wire and
Removal/Replacement carefully crimp it around the IC pin. Solder the IC connection.
1. Remove the defective transistor by clipping its leads as close 4. Route the jumper wire along the path of the out-away copper
as possible to the component body. pattern and let it overlap the previously scraped end of the
2. Bend into a "U" shape the end of each of three leads remain- good copper pattern. Solder the overlapped area and clip off
ing on the circuit board. any excess jumper wire.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding At Other Connections
leads extending from the circuit board and crimp the "U" with Use the following technique to repair the defective copper pattern
long nose pliers to insure metal to metal contact then solder at connections other than IC Pins. This technique involves the
each connection. installation of a jumper wire on the component side of the circuit
board.
Power Output, Transistor Device
Removal/Replacement 1. Remove the defective copper pattern with a sharp knife.
1. Heat and remove all solder from around the transistor leads. Remove at least 1/4 inch of copper, to ensure that a hazardous
2. Remove the heat sink mounting screw (if so equipped). condition will not exist if the jumper wire opens.
3. Carefully remove the transistor from the heat sink of the circuit 2. Trace along the copper pattern from both sides of the pattern
board. break and locate the nearest component that is directly con-
4. Insert new transistor in the circuit board. nected to the affected copper pattern.
5. Solder each transistor lead, and clip off excess lead. 3. Connect insulated 20-gauge jumper wire from the lead of the
6. Replace heat sink. nearest component on one side of the pattern break to the
lead of the nearest component on the other side.
Diode Removal/Replacement Carefully crimp and solder the connections.
1. Remove defective diode by clipping its leads as close as pos- CAUTION: Be sure the insulated jumper wire is dressed so the
sible to diode body. it does not touch components or sharp edges.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and
if necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
-5- Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement.
1. Application range 3. Test method
This specification is applied to the LED TV used UB93U (1) Performance: LGE TV test method followed
chassis. (2) Demanded other specification
- Safety : CE, IEC specification
- EMC : CE, IEC specification
2. Requirement for Test
Each part is tested as below without special notice
(1) Temperature: 25 °C ± 5 °C(77 °F ± 9 °F), CST: 40 °C ± 2 °C
(2) Relative Humidity: 60 % ± 10 %
(3) Power Voltage
: Standard input voltage (AC 100-240 V~, 50/60 Hz)
* Standard Voltage of each products is marked by models.
(4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
(5) The receiver must be operated for about 20 minutes prior
to the adjustment.
4. Model General Specification
No. Item Specification Remarks
1 Market Oceania, Asia, Middle East, Africa
(1) Digital TV : DVB-T/T2, DVB-C, DVB-S/S2
2 Broadcasting system (2) Analogue TV : P AL B/B, PAL B/G, PAL D/K, PAL-I, SECAM Only *V* models supprot DVB-S/S2
B/G, SECAM D/K, NTSC-M
3 Program coverage ATV & DVB-T/T2 : 3,000EA, DVB-S/S2 : 6,000EA Only *V* models supprot DVB-S/S2
► DVB-T
- Guard Interval(Bitrate_Mbit/s): 1/4, 1/8, 1/16, 1/32
- Modulation : Code Rate
QPSK : 1/2, 2/3, 3/4, 5/6, 7/8
16-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
64-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
► DVB-T2
- Guard Interval(Bitrate_Mbit/s)
1/4, 1/8, 1/16, 1/32, 1/128, 19/128, 19/256,
- Modulation : Code Rate
Analog : Upper Heterodyne QPSK : 1/2, 2/5, 2/3, 3/4, 5/6
Digital : COFDM(DVB-T) Only DVB-T Model 16-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
4 Receiving system
Digital : COFDM(DVB-T/T2) Only DVB-T2 Model 64-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
Digital : QAM 256-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
► DVB-C
- Symbolrate : 4.0Msymbols/s to 7.2Msymbols/s
- Modulation : 16QAM, 64-QAM, 128-QAM and 256-QAM
► DVB-S/S2
- Symbolrate
DVB-S2 (8PSK / QPSK) : 2 ~ 45Msymbol/s
DVB-S (QPSK) : 2 ~ 45Msymbol/s
- Viterbi
DVB-S mode : 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2 mode: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10
HDMI 1 Support 6Gbps
HDMI 2 Support 6Gbps, Support ARC
5 HDMI Input PC / DTV Format
HDMI 3 Support 6Gbps
HDMI 4 Support 6Gbps, Except UM71, UM73/74 series
6 USB Input My Media(Movie/Photo/Music List) or SVC UB92x : 3EA, UB93x : 2EA
7 Component Input Y/Pb/Pr Except UB92x for Middle East and Africa
8 Video Input PAL, SECAM, NTSC 4 System : PAL, SECAM, NTSC, PAL60
9 Audio Input DVI Audio, Component, AV
10 SPDIF out Optical Audio out
11 Headphone out Antenna, HDMI1, HDMI2, HDMI3, HDMI4, USB1, USB2, USB3 Except UB93x
12 Ethernet Connect
-6- Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
5. External Input Support Format
5.1. Component input(Y, CB/PB, CR/PR)
No. Resolution H-freq(kHz) V-freq(Hz) Pixel clock(MHz) Proposed
1 720*480i 15.73 59.94 13.50 SDTV, DVD 480I(525I)
2 720*480i 15.75 60.00 13.51 SDTV, DVD 480I(525I)
3 720*576i 15.62 50.00 13.50 SDTV, DVD 576I(625I) 50Hz
4 720*480p 31.47 59.94 27.00 SDTV 480P
5 720*480p 31.50 60.00 27.03 SDTV 480P
6 720*576p 31.25 50.00 27.00 SDTV 576P 50Hz
7 1280*720 44.96 59.94 74.18 HDTV 720P
8 1280*720 45.00 60.00 74.25 HDTV 720P
9 1280*720 37.50 50.00 74.25 HDTV 720P 50Hz
10 1920*1080 28.12 50.00 74.25 HDTV 1080I 50Hz
11 1920*1080 33.72 59.94 74.18 HDTV 1080I
12 1920*1080 33.75 60.00 74.25 HDTV 1080I
13 1920*1080 56.25 50.00 148.50 HDTV 1080P
14 1920*1080 67.43 59.94 148.50 HDTV 1080P
15 1920*1080 67.50 60.00 148.50 HDTV 1080P
5.2. HDMI input(DTV)
No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed Remarks
1 640*480 31.46 59.94 25.12 SDTV 480P
2 640*480 31.5 60 25.12 SDTV 480P
3 720*480 15.73 59.94 13.5 SDTV, DVD 480I(525I)
4 720*480 15.75 60 13.51 SDTV, DVD 480I(525I) Spec. out but display
5 720*576 15.62 50 13.5 SDTV, DVD 576I(625I) 50Hz
6 720*480 31.47 59.94 27 SDTV 480P
7 720*480 31.5 60 27.02 SDTV 480P
8 720*576 31.25 50 27 SDTV 576P
9 1280*720 44.96 59.94 74.17 HDTV 720P
10 1280*720 45 60 74.25 HDTV 720P
11 1280*720 37.5 50 74.25 HDTV 720P
12 1920*1080 28.12 50 74.25 HDTV 1080I
13 1920*1080 33.72 59.94 74.17 HDTV 1080I
14 1920*1080 33.75 60 74.25 HDTV 1080I
15 1920*1080 26.97 23.97 63.29 HDTV 1080P
16 1920*1080 27 24 63.36 HDTV 1080P
17 1920*1080 33.71 29.97 79.12 HDTV 1080P
18 1920*1080 33.75 30 79.2 HDTV 1080P
19 1920*1080 56.25 50 148.5 HDTV 1080P
20 1920*1080 67.43 59.94 148.35 HDTV 1080P
21 1920*1080 67.5 60 148.5 HDTV 1080P
22 1920*1080 112.5 100 297 UDTV 2160P
-7- Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.

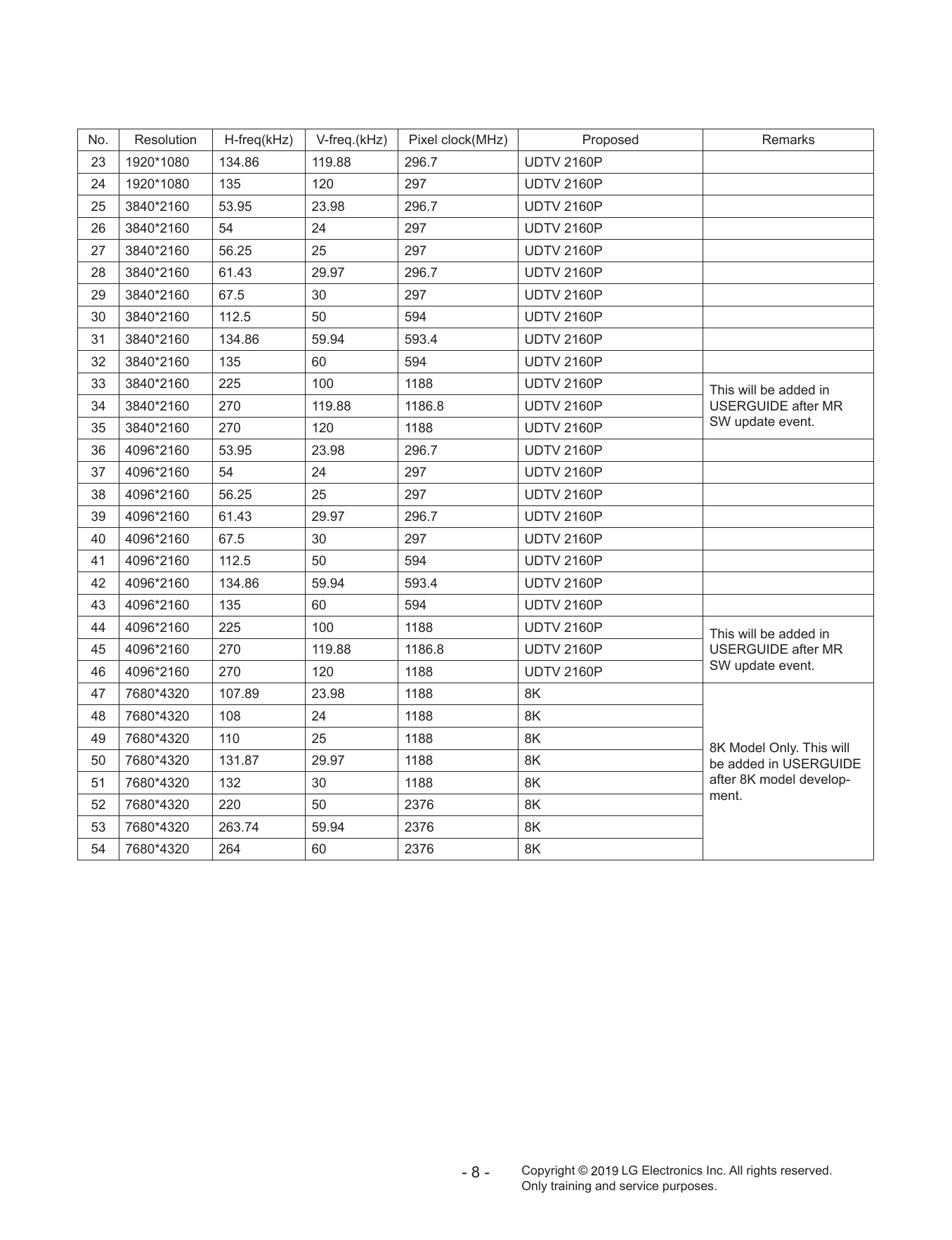

No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed Remarks
23 1920*1080 134.86 119.88 296.7 UDTV 2160P
24 1920*1080 135 120 297 UDTV 2160P
25 3840*2160 53.95 23.98 296.7 UDTV 2160P
26 3840*2160 54 24 297 UDTV 2160P
27 3840*2160 56.25 25 297 UDTV 2160P
28 3840*2160 61.43 29.97 296.7 UDTV 2160P
29 3840*2160 67.5 30 297 UDTV 2160P
30 3840*2160 112.5 50 594 UDTV 2160P
31 3840*2160 134.86 59.94 593.4 UDTV 2160P
32 3840*2160 135 60 594 UDTV 2160P
33 3840*2160 225 100 1188 UDTV 2160P This will be added in
34 3840*2160 270 119.88 1186.8 UDTV 2160P USERGUIDE after MR
35 3840*2160 270 120 1188 UDTV 2160P SW update event.
36 4096*2160 53.95 23.98 296.7 UDTV 2160P
37 4096*2160 54 24 297 UDTV 2160P
38 4096*2160 56.25 25 297 UDTV 2160P
39 4096*2160 61.43 29.97 296.7 UDTV 2160P
40 4096*2160 67.5 30 297 UDTV 2160P
41 4096*2160 112.5 50 594 UDTV 2160P
42 4096*2160 134.86 59.94 593.4 UDTV 2160P
43 4096*2160 135 60 594 UDTV 2160P
44 4096*2160 225 100 1188 UDTV 2160P This will be added in
45 4096*2160 270 119.88 1186.8 UDTV 2160P USERGUIDE after MR
46 4096*2160 270 120 1188 UDTV 2160P SW update event.
47 7680*4320 107.89 23.98 1188 8K
48 7680*4320 108 24 1188 8K
49 7680*4320 110 25 1188 8K
8K Model Only. This will
50 7680*4320 131.87 29.97 1188 8K be added in USERGUIDE
51 7680*4320 132 30 1188 8K after 8K model develop-
ment.
52 7680*4320 220 50 2376 8K
53 7680*4320 263.74 59.94 2376 8K
54 7680*4320 264 60 2376 8K
-8- Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
5.4. HDMI Input (PC)
No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed Remarks
1 640*350 31.46 70.09 25.17 EGA
2 720*400 31.46 70.08 28.32 DOS
3 640*480 31.46 59.94 25.17 VESA(VGA)
4 800*600 37.87 60.31 40 VESA(SVGA)
5 1024*768 48.36 60 65 VESA(XGA)
6 1360*768 47.71 60.01 84.75 VESA(WXGA)
7 1152*864 54.34 60.05 80 VESA
8 1280*1024 63.98 60.02 109 SXGA Support to HDMI-PC
9 1920*1080 67.5 60 158.4 WUXGA(Reduced Blanking)
10 1920*1080 134.86 119.88 296.7 UDTV 2160P
11 1920*1080 135 120 297 UDTV 2160P
12 3840*2160 53.95 23.98 296.7 UDTV 2160P
13 3840*2160 54 24 297 UDTV 2160P
14 3840*2160 56.25 25 297 UDTV 2160P
15 3840*2160 61.43 29.97 296.7 UDTV 2160P
16 3840*2160 67.5 30 297 UDTV 2160P
17 3840*2160 112.5 50 594 UDTV 2160P
18 3840*2160 134.86 59.94 593.4 UDTV 2160P
19 3840*2160 135 60 594 UDTV 2160P
20 3840*2160 225 100 1188 UDTV 2160P This will be added in
21 3840*2160 270 119.88 1186.8 UDTV 2160P USERGUIDE after MR SW
22 3840*2160 270 120 1188 UDTV 2160P update event.
23 4096*2160 53.95 23.98 296.7 UDTV 2160P
24 4096*2160 54 24 297 UDTV 2160P
25 4096*2160 56.25 25 297 UDTV 2160P
26 4096*2160 61.43 29.97 296.7 UDTV 2160P
27 4096*2160 67.5 30 297 UDTV 2160P
28 4096*2160 112.5 50 594 UDTV 2160P
29 4096*2160 134.86 59.94 593.4 UDTV 2160P
30 4096*2160 135 60 594 UDTV 2160P
31 4096*2160 225 100 1188 UDTV 2160P This will be added in
32 4096*2160 270 119.88 1186.8 UDTV 2160P USERGUIDE after MR SW
33 4096*2160 270 120 1188 UDTV 2160P update event.
34 2560*1440 88.78 60 241.5 3K Only UHD, 8K 60Hz
35 2560*1440 183 120 497.7 3K UHD DeepColor
36 7680*4320 107.89 23.98 1188 8K
37 7680*4320 108 24 1188 8K
38 7680*4320 110 25 1188 8K
39 7680*4320 131.87 29.97 1188 8K 8K Model Only. This will be
added in USERGUIDE af-
40 7680*4320 132 30 1188 8K ter 8K model development.
41 7680*4320 220 50 2376 8K
42 7680*4320 263.74 59.94 2376 8K
43 7680*4320 264 60 2376 8K
-9- Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
SOFTWARE UPDATE
1. USB DOWNLOAD 2. NSU DOWNLOAD
(1) Insert the USB memory Stick to the USB port. (This Function is needed to connect to the internet.)
(2) Automatically detect the SW Version and show the below (1) Menu → All Settings → General → About This TV
message.
(2) Click [CHEK FOR UPDATES]: system check newest version.
(3) Click [YES]: initiate the download and install of the update.
(3) Click [DOWNLOAD AND INSTALL].
(4) Click [Check Now]: move to “About This TV” page for update. (4) TV is updating.
(5) TV is updating.
(5) After finished the update, below Pop-up appear.
(6) After finished the update, below Pop-up appear.
(6) Turn OFF the TV and On. Check the updated SW Version
(7) Click [Yes] : TV will be DC OFF → ON. and Tool Option.
(8) After TV turned on, Check the updated SW Version and
Tool Option.
- 10 - Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
1. Main SOC
0.95V 1.5V 3.3V 5V
13V 0.95V 3.5V_ST 1.5V 13V 3.3V 13V 5V
Core&CPU DDR Normal Normal X_TAL
27MHz
0.95V 1.5V 3.3V 1V 1.8V 3.5V_ST
1V 1.8V 3.5V_ST 5V
3.5V_ST 1.0V 3.3V 13V 3.5V P_TS_IN
1.8V
Eth ST_BY P_TS_OUT CI Slot
13V
EPI block 13V(PANEL_VCC) 13V(PANEL_VCC)
3.5V_ST
Sub Main I2C_1 NVRAM (256Kb)
PMIC PMIC GST/MCLK/GCLK/EO/I2C 6
MICOM eMMC 3.3V
eMMC (4GB)
CLK/DATA/STRB
5V 1.8V
Vx1 / EPI/ CEDS Main SoC
EPI 60P (65”:8 lane, 55” ↓ :6lane), CEDS 68P
USB1 (2.0)
FCIC SPI/ I2C 6 OCP
Vx1 51P (8 lane) USB2 (2.0) From
- 11 -
HDMI1 Power
To 13V 3.3V
I2S Out HDMI2(ARC)
Panel MAIN Audio AMP I2C 4
B/ D
HDMI3
USB_WIFI HDMI4
IF
IQ (+/ - ), IP(+/ - ) IF (+/ - )
IF_S 3.3V
BLOCK DIAGRAM
TS
Copyright ©
Signal Process
SPDIF OUT
TUNER
ETHERNET
TUNER
USB_WIFI
CVBS/YPbPr
I2C 2
Power Supply (T2/C/A )
(S,S2)
3.5V_ST
Input/ Output Power
LNB 3.3V
AMP
Air/
T2/C/S/S2 H - NIM tuner
MAX323
DVB- S
3.5V_ST Cable
IR / KEY LAN
Only training and service purposes.
* H/P for US model
SPDIF
H/P
RS- 232
To WIFI/ BT * CI Slot for Europe model
Sub * HDMI4 :except UM71,UM73 model
AV/COMP
Assy Combo
Area OPT
LG Electronics Inc. All rights reserved.
BOE Panel LGD Panel
Main SoC 3840x2160@60p 3840x2160@60p
1.5Gbps 3Gbps(55” ↓ ) /2Gbps(65”)

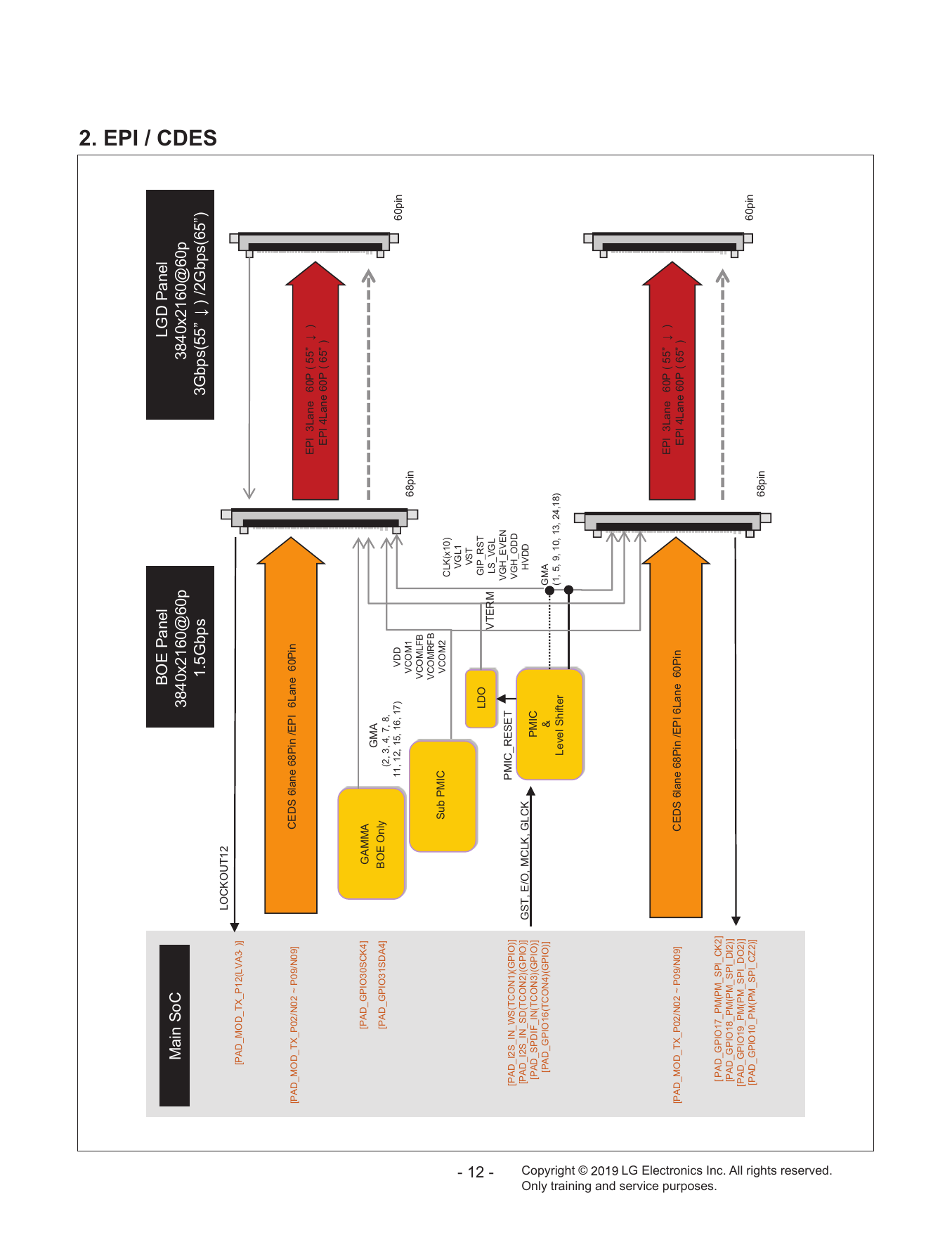

2. EPI / CDES
LOCKOUT12
[PAD_MOD_TX_P12(LVA3- )]
[PAD_MOD_TX_P02/N02 ~ P09/N09] CEDS 6lane 68Pin /EPI 6Lane 60Pin
EPI 3Lane 60P ( 55” ↓ )
EPI 4Lane 60P ( 65” )
[PAD_GPIO30SCK4] GAMMA
GMA
[PAD_GPIO31SDA4] BOE Only (2, 3, 4, 7, 8,
11, 12, 15, 16, 17) VDD 60pin
VCOM1 68pin
VCOMLFB
VCOMRFB
Sub PMIC VCOM2
CLK(x10)
VGL1
VST
LDO GIP_RST
- 12 -
VTERM LS_VGL
VGH_EVEN
[PAD_I2S_IN_WS(TCON1)(GPIO)] PMIC_RESET
VGH_ODD
[PAD_I2S_IN_SD(TCON2)(GPIO)] GST, E/O, MCLK, GLCK HVDD
[PAD_SPDIF_IN(TCON3)(GPIO)] PMIC
[PAD_GPIO16(TCON4)(GPIO)] & GMA
Level Shifter (1, 5, 9, 10, 13, 24,18)
Copyright ©
EPI 3Lane 60P ( 55” ↓ )
[PAD_MOD_TX_P02/N02 ~ P09/N09] CEDS 6lane 68Pin /EPI 6Lane 60Pin EPI 4Lane 60P ( 65” )
Only training and service purposes.
[ PAD_GPIO17_PM(PM_SPI_CK2]
[PAD_GPIO18_PM(PM_SPI_DI2)]
[PAD_GPIO19_PM(PM_SPI_DO2)]
[PAD_GPIO10_PM(PM_SPI_CZ2)] 60pin
68pin
LG Electronics Inc. All rights reserved.
3. Vx1
Main SOC
Panel
3840x2160@60p
VX1_MSE
[PAD_GPIO19]
[ PAD_GPIO20]
AGP_CTL
[ PAD_MOD_TX_P00~07] Vx1 8Lane 51P
LOCKAn
[PAD_MOD_TX_P12(LVA3- )]
HTPDAn
[PAD_MOD_TX_N12(LVA3+)]
[PAD_GPIO30SCK4]
I2C_SCL6/SDA6
[PAD_GPIO31SDA4] DATA_FORMAT_0/1
[PAD_GPIO23]
[PAD_GPIO24]
- 13 - Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
+3.3V_NORMAL
+ D_Demod_Core +3.3V_NORMAL

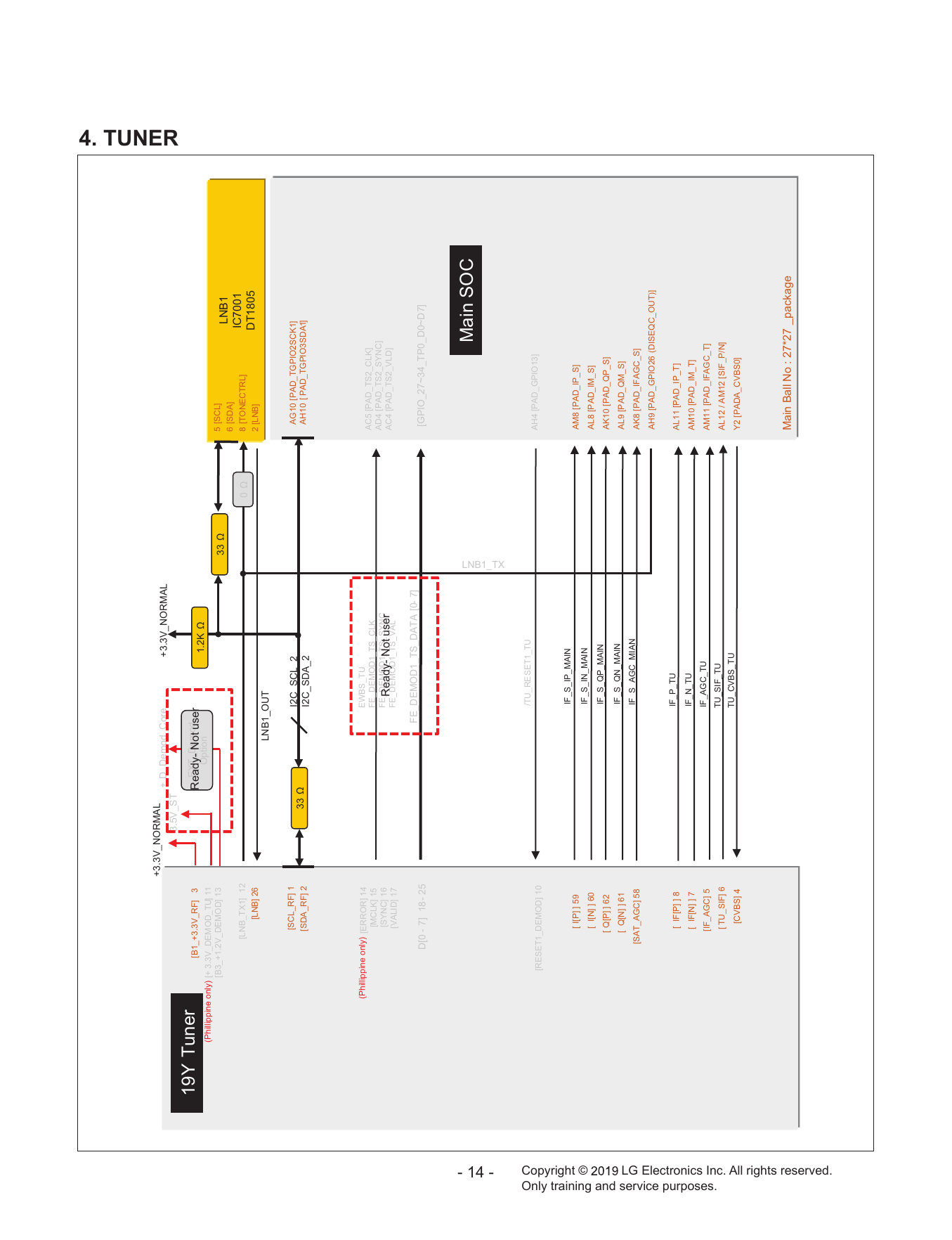

4. TUNER
3.5V_ST
19Y Tuner [B1_+3.3V_RF] 3 EXT_Demod
Ready- Not user
Option 1.2K Ω
(Phillippine only) [+ 3.3V_DEMOD_TU] 11
[B3_+1.2V_DEMOD] 13 33 Ω 5 [SCL]
6 [SDA]
LNB1
[LNB_TX1] 12 8 [TONECTRL]
IC7001
0Ω
[LNB] 26 2 [LNB] DT1805
LNB1_OUT
[SCL_RF] 1 I2C_SCL_2 AG10 [PAD_TGPIO2SCK1]
[SDA_RF] 2 33 Ω AH10 [ PAD_TGPIO3SDA1]
I2C_SDA_2
(Phillippine only) [ERROR] 14 EWBS_TU
FE_DEMOD1_TS_CLK AC5 [PAD_TS2_CLK]
[MCLK] 15
FE_DEMOD1_TS_SYNC AD4 [PAD_TS2_SYNC]
[SYNC] 16 Ready- Not user
FE_DEMOD1_TS_VAL AC4 [PAD_TS2_VLD]
[VALID] 17
FE_DEMOD1_TS_DATA [0- 7]
D[0 - 7] 18- 25 [GPIO_27~34_TP0_D0~D7]
Main SOC
- 14 -
LNB1_TX
/TU_RESET1_TU
[RESET1_DEMOD] 10 AH4 [PAD_GPIO13]
IF_S_IP_MAIN
[ I[P] ] 59 AM8 [PAD_IP_S]
Copyright ©
IF_S_IN_MAIN
[ I[N] ] 60 AL8 [PAD_IM_S]
IF_S_QP_MAIN
[ Q[P] ] 62 AK10 [PAD_QP_S]
[ Q[N] ] 61 IF_S_QN_MAIN AL9 [PAD_QM_S]
IF_S_AGC_MIAN
[SAT_AGC] 58 AK8 [PAD_IFAGC_S]
AH9 [PAD_GPIO26 (DISEQC_OUT)]
[ IF[P] ] 8 IF_P_TU AL11 [PAD_IP_T]
[ IF[N] ] 7 IF_N_TU AM10 [PAD_IM_T]
[IF_AGC] 5 IF_AGC_TU AM11 [PAD_IFAGC_T]
Only training and service purposes.
[ TU_SIF] 6 TU_SIF_TU AL12 / AM12 [SIF_P/N]
TU_CVBS_TU
[CVBS] 4 Y2 [PADA_CVBS0]
Main Ball No : 27*27 _package
LG Electronics Inc. All rights reserved.
AV/COMP COMP1_Y/CVBS [V2]PADA_GIN1P / [Y1] PADA_CVBS1
AV1_CVBS_DET [ D3]PAD_I2S_OUT_SD2(GPIO)
COMP1_Pb / COMP1_Pr / COMP1_DET [ W2]PADA_RIN1P / [v3]PADA_BIN1P / [C1] PAD_I2S_OUT_SD1
COMP1/AV1/DVI_L_IN [ L2]PAD_LINEIN_L0
COMP1/AV1/DVI_R_IN [ L1]PAD_LINEIN_R0
[ E5]PAD_SPDIF_OUT SPDIF_OUT
SPDIF

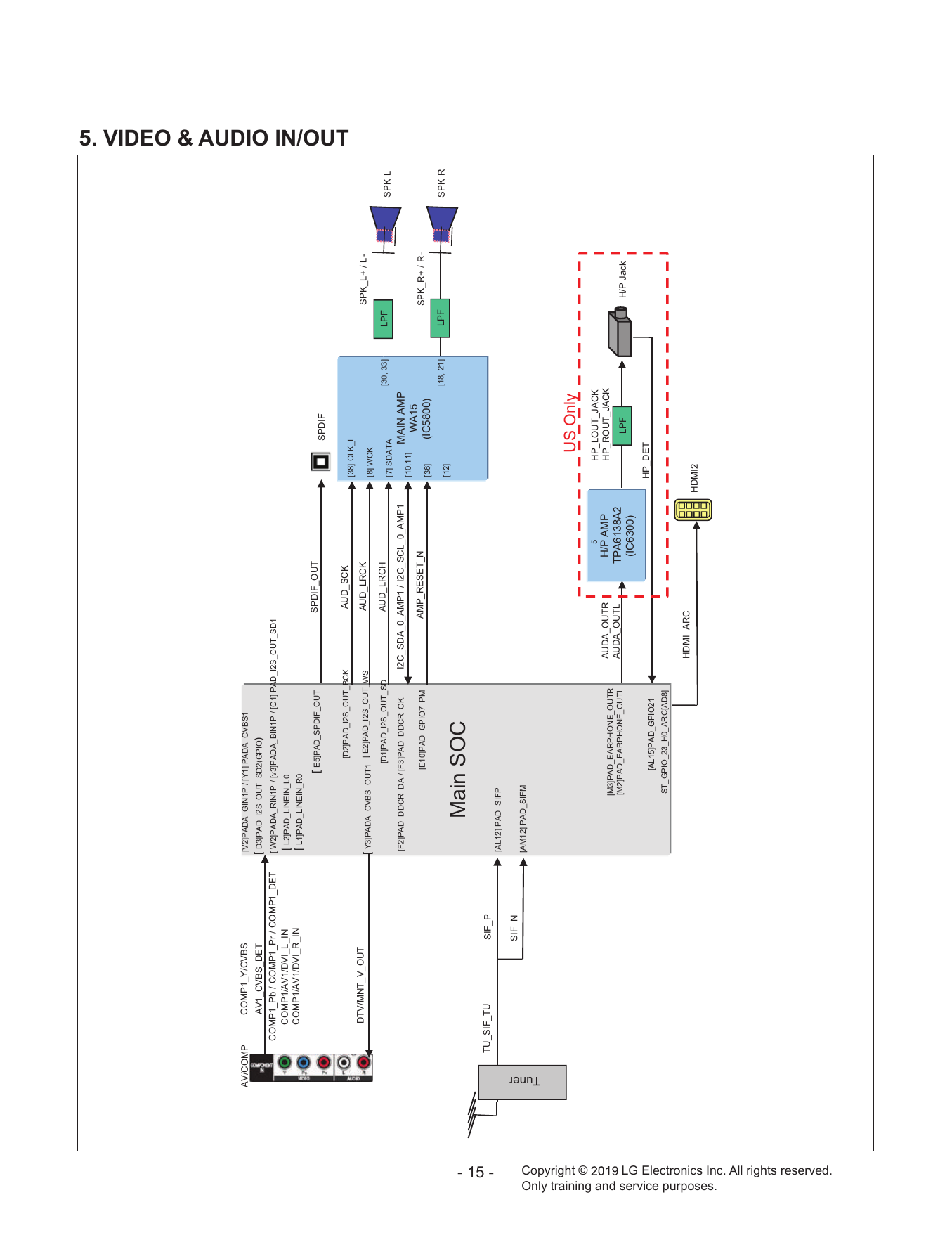

5. VIDEO & AUDIO IN/OUT
[D2]PAD_I2S_OUT_BCK AUD_SCK
[38] CLK_I
DTV/MNT_V_OUT AUD_LRCK SPK_L+ / L -
[ Y3]PADA_CVBS_OUT1 [ E2]PAD_I2S_OUT_WS [8] WCK
[D1]PAD_I2S_OUT_SD AUD_LRCH [30, 33] LPF
[7] SDATA SPK L
[F2]PAD_DDCR_DA / [F3]PAD_DDCR_CK I2C_SDA_0_AMP1 / I2C_SCL_0_AMP1 MAIN AMP
[10,11]
WA15
[E10]PAD_GPIO7_PM AMP_RESET_N SPK_R+ / R-
[36] (IC5800)
[18, 21] LPF SPK R
[12]
Main SOC
TU_SIF_TU SIF_P
- 15 -
[AL12] PAD_SIFP
SIF_N
[AM12] PAD_SIFM
Tuner
US Only
Copyright ©
5 HP_LOUT_JACK
[M3]PAD_EARPHONE_OUTR
AUDA_OUTR H/P AMP HP_ROUT_JACK
[M2]PAD_EARPHONE_OUTL AUDA_OUTL TPA6138A2 LPF H/P Jack
(IC6300)
HP_DET
[AL15]PAD_GPIO21
ST_GPIO_23_H0_ARC[AD8]
HDMI_ARC
HDMI2
Only training and service purposes.
LG Electronics Inc. All rights reserved.
6. HDMI 2.0
HDMI2.0_1_5V_DET
HDMI2.0_1_HPD
DDC_SCL1 / DDC_SDA1
TMDS1 - D0/D1/D2/CLK
HDMI1
HDMI_CEC
HDMI2.0_2_5V_DET
HDMI2.0_2_HPD
DDC_SCL2 / DDC_SDA2
HDMI_ARC
TMDS2 - D0/D1/D2/CLK
HDMI2 with ARC
HDMI_CEC
Main SOC
HDMI2.0_3_5V_DET
- 16 -
HDMI2.0_3_HPD
DDC_SCL3 / DDC_SDA3
TMDS3 - D0/D1/D2/CLK
HDMI3
Copyright ©
HDMI_CEC
HDMI2.0_4_5V_DET
HDMI2.0_4_HPD
DDC_SCL4 / DDC_SDA4
TMDS4 - D0/D1/D2/CLK
HDMI4
Only training and service purposes.
*except UM73 / UM71
LG Electronics Inc. All rights reserved.
+5V_USB3
DCDC OCP
BD2242G
(IC4700)
DCDC OCP +5V_USB3
BD2242G
(IC4501)
USB2.0_2_DM / DP
USB2
USB2.0_3_DM / DP
USB3
WIFI_DM / DP
Main 5 WOL/WIFI_POWER_ON
SOC 7 COMBO_RESET
Wafer 9 BT_WAKEUP_DEVICE
- 17 -
BT_WAKEUP_HOST
7. USB / Wi-Fi / M-Remote / UART(Debug)
(P4000)10
15 IR
16 LED_R
19 KEY2
DEBUG UART DEBUG_RX / TX
20 KEY1
Wafer US Only
Copyright ©
(P201)
PHONE JACK
SOC_RX / TX RS232C
(IC7200) DOUT1
RIN1
Wafer
(P200)
Only training and service purposes.
LG Electronics Inc. All rights reserved.

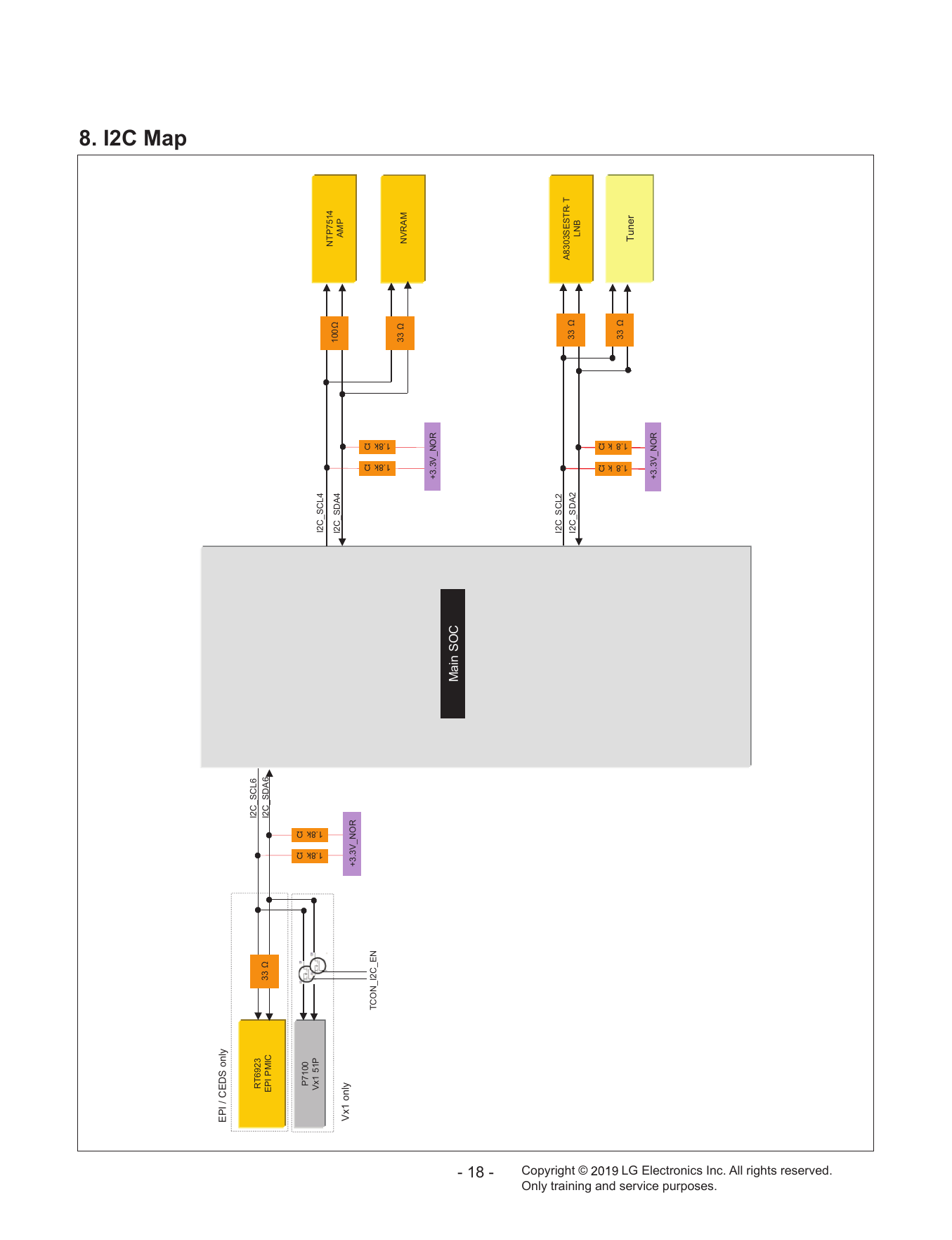

8. I2C Map
EPI / CEDS only
RT6923 I2C_SCL6
EPI PMIC 33 Ω I2C_SDA6
P7100
Vx1 51P
1.8k Ω
1.8k Ω
I2C_SCL4
NTP7514
I2C_SDA4 100Ω
AMP
Vx1 only
+3.3V_NOR
TCON_I2C_EN
1.8k Ω
1.8k Ω
33 Ω NVRAM
+3.3V_NOR
Main SOC
- 18 -
I2C_SCL2
A8303SESTR- T
I2C_SDA2 33 Ω
LNB
Copyright ©
33 Ω
1.8 k Ω
1.8 k Ω
Tuner
+3.3V_NOR
Only training and service purposes.
LG Electronics Inc. All rights reserved.
VID_CPU
VID_CPU2 CPU DCDC
VID_CORE
9. GPIO(Main SOC)
CORE DCDC
HW option BIT0~6
ADC 1~5
/TU_RESET1
Tuner
AMP_RESET_N
Audio AMP1
PCM_RESET
PCMCIA PCM_5V_CTL
OCP COMP1_DET
Component/AV Jack
AV1_CVBS_DET
DATA_FORMAT_0 Main SOC
DATA_FORMAT_1 HP_DET
- 19 -
VX1_MSE H/P Jack
Panel AGP_CTRL
HTPDAn/MCKL_A
LOCKAn
TCON_I2C_EN/GCLK_A
Copyright ©
PMIC
PWM_DIM
PWM_DIM2
USB_CTL2
L/D_CLK / USB_ODC2 USB1 OCP USB1
POWER L/D_DO
L/D_VSYNC USB_CTL3
/ USB_ODC3 USB2 OCP USB2
Only training and service purposes.
LG Electronics Inc. All rights reserved.
I2C_SCL_1_MICOM / I2C_SDA_1_MICOM POWER_ON/OFF1 13V- 5V NORMAL DCDC
IC2500
WOL/ETH_POWER_ON TPS564208
MSTAR- Main SOC
IC100 SOC_RESET
POWER_ON/OFF2_3 13V- 3.3V NORMAL 13V- 1V DCDC
INSTANT_BOOT IC2300 IC2302
SYSTEM_DEBUG SN1501019 SN1607023
POWER_ON/OFF2_4 3.5V_ST- 1.5V DCDC
RS232C IC2303
SOC_RX/TX SYVL83
Debug port
10 GPIO(MICOM)
P200
AMP
AMP_MUTE
IC5800
OPT0 NON LOGO LCD/LOGO LCD
DTA2010M
NON LOGO OLED/LOGO OLED
MODEL1_OPT_0/1/2/ 3 OPT1 TV- NON EPI/BOX/TV EPI/BOX
OTP2 RESERVED
RESET IC POWER_DET
OPT3 M16/RTK/H15
IC1300
HDMI 1 / 2 / 3 /4 HDMI_CEC
JK3101/JK3102/JK3103/JK3104
Main SOC
INV_CTL
POWER WAFER MODE_SELECT_PWM1
- 20 -
P1001
RL_ON
IR
EYE_SCL / EYE_SDA
EDID_WP
WOL/WIFI_POWER_ON
Copyright ©
BT_WAKEUP_DEVICE
IR / KEY/WIFI/BT
COMBO_RESET
P4000 AM_MODE_DET_OLED
BT_WAKEUP_HOST
KEY1 / KEY2
T_CON_SYS_POWER_OFF_OLED
LED_R
RETENTION_DISABLE
Only training and service purposes.
GND WIFI_EN
3D&L_DIM_EN
+3.5V WIFI 51P VX1 Wafer
10k Ω
GND GND
PANEL_CTL
+13V TO PANEL_VCC
LG Electronics Inc. All rights reserved.
EXPLODED VIEW (SET)
IMPORTANT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
400
900
910
521
120
HS1
411
540
HP1
HW1
800
570
530
LV2
810
500
121
LV1
820
LED Array Ass’y
200A
700
A10
200P
A9
AR2
- 21 - Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
EXPLODED VIEW (MODULE)
IMPORTANT NOTICE
MRC use only
* MRC : Module Repair Center
Optical Sheet
200PPR
POL(Rear)
200SR1
Rear Side
200P
Ass’y
Panel
200SL1
200PC
200PPF
POL(Front)
- 22 - Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
DISASSEMBLY GUIDE / ASSEMBLY GUIDE
1. Back Cover Disassembly Guide
1-1. Changing Point_ Applying Latch Structure to Top Area of B/C
■ Latch Position and Structure.
(1) Latch Mechanism
Latch
B/C
Module
Section A-A
(2) Latch Position
A
A
Screw (12EA)
Latch (6EA)
- 23 - Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
1-2. P
roduct Structure Analysis_Applying Latch Structure to Top Area of B/C
■ Disassemble process of Back Cover.
(1) Lift up Bottom Area of Back Cover. (If you lift it up too much, latch of B/C can be damaged)
(2) Sliding to top direction and you can disassemble it.
(3) Complete disassemble of Back Cover
Sliding direction
B/C
Module
Latch assemble point
- 24 - Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
DISASSEMBLY GUIDE / ASSEMBLY GUIDE (MODULE)
1. Case Top & Guide Panel
■ Step 1. Disassemble the Main, PSU, S-PCB cable.
■ Step 2 Disassemble the S-PCB Cover Shield.
* Cover Shield screw 5 EA
■ Step 3 Disassemble the S-PCB from Holder.
■ Step 4 Disassemble the Case top Screw.
* Case top screw(U/L/R/D) (Total 20 EA (L- 4 EA, U- 5 EA, R- 4 EA , D- 7EA))
■ Step 5 Separate the guide panel hook.
- 25 - Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
■ Step 6 Disassemble the Panel.
■ Step 7 Disassemble the Optical Sheet/Diffuser Plate(Prism up, Prism down)
■ Step 8 Disassemble the DPS, LED Array Fixer(pin), and the Reflector.
* Rotate the DPS to remove * push LED fixer in back
(2 EA) (3 EA)
- 26 - Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.

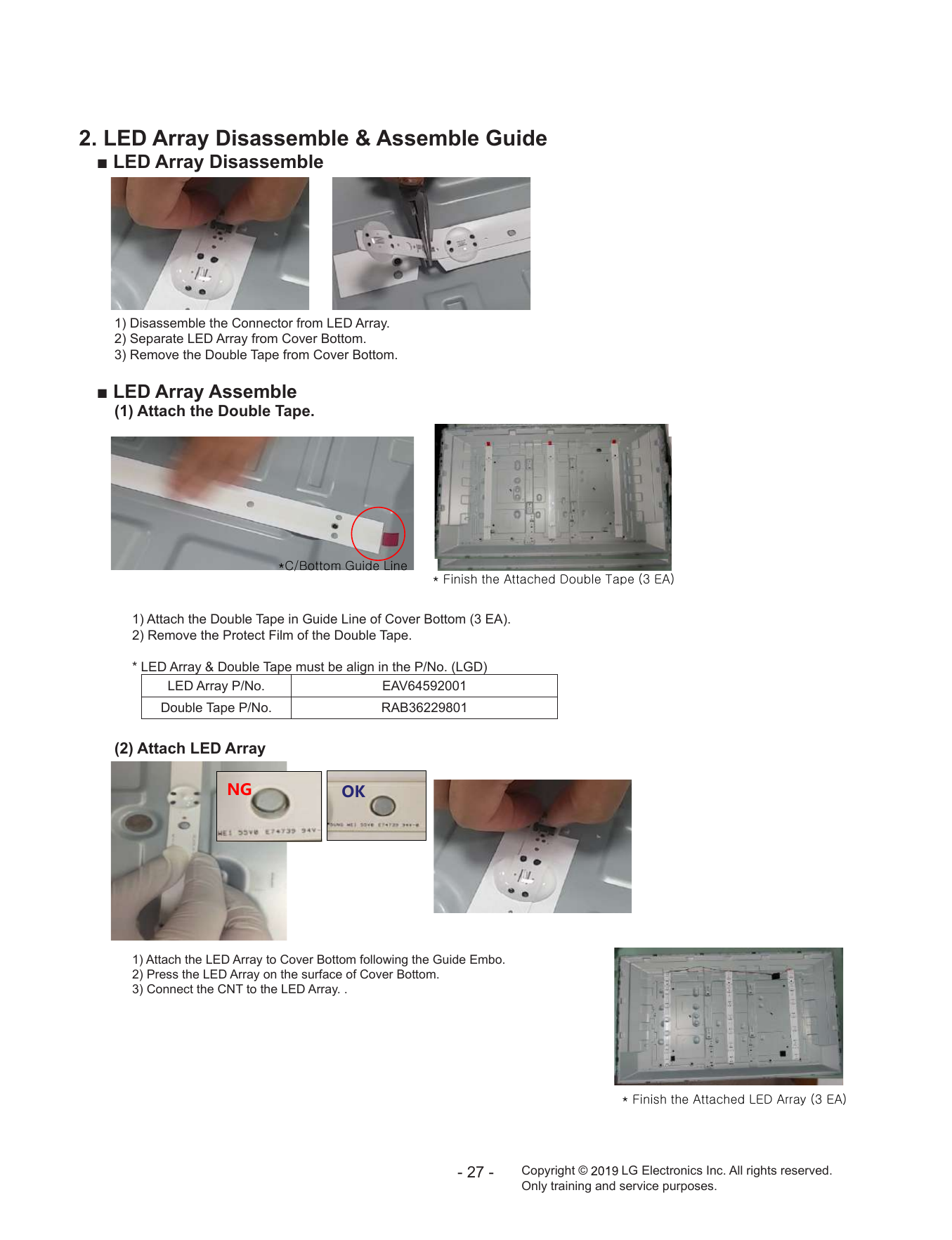

2. LED Array Disassemble & Assemble Guide
■ LED Array Disassemble
1) Disassemble the Connector from LED Array.
2) Separate LED Array from Cover Bottom.
3) Remove the Double Tape from Cover Bottom.
■ LED Array Assemble
(1) Attach the Double Tape.
*C/Bottom Guide Line
* Finish the Attached Double Tape (3 EA)
1) Attach the Double Tape in Guide Line of Cover Bottom (3 EA).
2) Remove the Protect Film of the Double Tape.
* LED Array & Double Tape must be align in the P/No. (LGD)
LED Array P/No. EAV64592001
Double Tape P/No. RAB36229801
(2) Attach LED Array
NG OK
1) Attach the LED Array to Cover Bottom following the Guide Embo.
2) Press the LED Array on the surface of Cover Bottom.
3) Connect the CNT to the LED Array. .
* Finish the Attached LED Array (3 EA)
- 27 - Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
TROUBLE SHOOTING GUIDE
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Contents of Standard Repair Process
No. Error symptom (High category) Error symptom (Mid category) Page Remarks
1 No video/Normal audio 1
2 No video/No audio 2
3 A. Video error Picture broken/ Freezing 3
4 Color error 4
Vertical/Horizontal bar, residual image, light
5 5
spot, external device color error
6 No power 6
B. Power error Off when on, off while viewing, power auto
7 7
on/off
8 No audio/Normal video 8
C. Audio error
9 Wrecked audio/discontinuation/noise 9
10 Remote control & Local switch checking 10
11 MR19 operating checking 11
D. Function error
12 Wifi operating checking 12
13 External device recognition error 13
14 E. Noise Circuit noise, mechanical noise 14
15 F. Exterior error Exterior defect 15
First of all, Check whether there is SVC Bulletin in GSCS System for these model.
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process
Established
Error A. Video error date
symptom
No video/ Normal audio Revised date
First of all, Check whether all of cables between board is inserted properly or not.
(Main B/D↔ Power B/D, LVDS or EPI Cable, Speaker Cable, IR B/D Cable,,,)
☞A1 ☞A18
No video Y Check Back Light Y Y
Normal Check Power Board Normal Replace T-con/Main
Normal audio On
audio On with naked eye 13.2V etc. voltage Board or module
N N
N
Move to No
☞A18 Check Power Board Repair Power
video/No audio 13.2V output Board or parts
Normal Y Replace Inverter
voltage or module
N End
Repair Power
Board or parts
※Precaution ☞A4 & A2
Always check & record S/W Version and White
Replace Main Board Re-enter White Balance value
Balance value before replacing the Main Board
1
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process
Established
Error A. Video error date
symptom
No video/ No audio Revised date
☞A18
No Video/ Check various Check and
Normal Y
No audio voltages of Power replace
Board (13.2V…) voltage?
MAIN B/D
N End
Replace Power
Board and repair
parts
2
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process
Established
Error A. Video error date
symptom
Picture broken/ Freezing Revised date
. By using Digital signal level meter
☞ A3
. By using Diagnostics menu on OSD
Check RF Signal level ( Advanced→ Channels→ Channel Tuning→ Manual Tuning → Check the Signal )
- Signal strength (Normal : over 50%)
- Signal Quality (Normal: over 50%)
Check whether other equipments have problem or not.
Normal Y
(By connecting RF Cable at other equipment)
Signal?
→ DVD Player ,Set-Top-Box, Different maker TV etc`
N
☞ A4
Check RF Cable
Normal Y Check SVC N Check Tuner Y
Connection Close
1. Reconnection Picture? S/W Version Bulletin? soldering
2. Install Booster
Y N
N
S/W Upgrade
Normal N Contact with signal distributor
Picture? or broadcaster (Cable or Air)
Normal N
Y Picture? Replace
Main B/D
Y
Close
Close
3
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process
Established
Error A. Video error date
symptom
Color error Revised date
☞ A7
☞A6 ※ Check
and replace
Check color by input
Y Link Cable Y Y
-External Input Color Color Color
(EPI or Vx1 Replace Main B/D Replace module
-AV error? error? error?
Cable) and
-HDMI
N contact N N
condition
Check error End
color input
mode
☞A29
External Input/ Check external External Y
Check Test pattern Component device and device/ Cable Replace Main/T-con B/D
error cable normal
N
Request repair
for external
device/cable
N
Check external External Y
HDMI
device and device/ Cable Replace Main/T-con B/D
error
cable normal
4
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process
A. Video error Established
Error date
symptom Vertical / Horizontal bar, residual image,
light spot, external device color error Revised date
Vertical/Horizontal bar, residual image, light spot Replace
Module
☞A6 ☞ A7 N
Check
Check color condition by input external Check and
Screen Y Y Screen N Screen
-External Input device Normal? replace Link Replace Main/T-con B/D
normal? normal? normal?
-HDMI connection Cable
condition For LGD panel
N N Y
Y
Replace Main B/D
Replace Request repair End End
for external
☞A29 module
device
For other panel
Check Test pattern
External device screen error-Color error
Check screen
N condition by input External Connect other external
Check
Check S/W Version -External Input Input device and cable
version
-Component error (Check normal operation of N Replace
-HDMI/DVI Screen
External Input, Component, Main/T-con
normal?
Y RGB and HDMI/DVI by B/D
Component connecting Jig, pattern
error Y
S/W Upgrade Generator ,Set-top Box etc.
Request repair for
external device
Connect other external Y
Normal N device and cable
Replace
screen? HDMI/ (Check normal operation of Screen N
External Input, Component, Main /T-con
DVI normal?
RGB and HDMI/DVI by B/D
Y connecting Jig, pattern
Generator ,Set-top Box etc.
End
5
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process
Established
Error B. Power error date
symptom
No power Revised date
☞A17 ☞A18
DC Power on Replace
Check Power Y Normal N Check Power Y
by pressing Power Key OK? Power
LED LED On? operation? On ‘”High”
On Remote control B/D
. Stand-By: Red or Turn On
N Y
. Operating: Turn Off
Check Power cord Replace Main B/D
was inserted properly ☞A18
Measure voltage of each
output of Power B/D
N
Normal?
Y Y Y
Normal
Replace Main B/D
voltage?
Normal
Close Check ST-BY 3.5V
Y
voltage? N
☞A18 Replace Power B/D
N
Replace Power
B/D
6
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process
Established
Error B. Power error date
symptom
Off when on, off while viewing, power auto on/off Revised date
Check outlet
N CPU Y
Check A/C cord Error? Replace Main B/D Normal? End
Abnormal
N
Check for all 3- phase
Y Abnormal Replace Power B/D
power out
1
Fix A/C cord & Outlet
and check each 3
phase out
7
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process
Established
Error B. Power error date
symptom
Off when on, off while viewing, power auto on/off Revised date
* Please refer to the all cases which can be displayed on power off mode.
Power Off list Explanation Action contents
Power off when TV is not turned off during a certain time
KEYTIMEOUT RESULT : micom force to trigger TV power off. Check & Change Main B/D
CONDITION : When pressing power key while power on/off status, CPU does not response within 8 seconds
Almost the same as Power Off by KEYTIMEOUT. If there is no vaild communication
Bet ween CPU and MICOM for more than 5 seconds, the MICOM switcheds off PSU and
1SEC Power OFF Check & Change Main B/D
Records. Power off by 1SEC Power off. In this case, we don’t have information where the
malfunction exactly occurred. But in in indicates that CPU had stopped and rebooted.
In case of AC Off (It is normal when the power cord is unplugged.) Normal
ACDET
If there are many ACDETs connected, Power Board is defective Check & Change Power B/D
Power off by unstable AC power detect.
RESULT : micom check the stable power.
5V MNT Check & Change Power B/D
CONDITION : When AC on or DC on, stabilization check routine (Power Detect High
Check) fail after multi power on.
CPUABNORMAL If the CPU attempts to reset in case of abnormal operation and Shut Down in case of failure. Check & Change Main B/D
Power off when receiving no ack.
NO POLING RESULT : TV power off/on (Reboot) Check & Change Main B/D
CONDITION : There is no I2C response from CPU for 15 seconds.
CPUCMD Power off by main SoC command. Check & Change Main B/D
Power off by module error (OLED)
INV_ERROR Check & Change OLED Module
CONDITION : OLED Module send signal to micom
ONRF_FAIL RESULT : Reboot, CONDITION : OLED module compensation is running but fails. Check & Change OLED Module
PNWASHFAIL Power off by panel noise wash function fail case. Check & Change OLED Module
RESET When Micom is reset by AC Off
KEY Power off by Local key
OFFTIMER Power off by Off timer
SLEEPTIMER Power off by sleep timer
NOSIG Power off by No Signal
FANSTOP Power off by FAN operation stopped
INSTOP Power off by Instop Key
Normal Case
AUTO OFF Power off by auto off function
RESREC Power off by reserved recording
RECEND Power off when recording stops
SWDOWN Reboot by SW down load function
UNKNOWN No meaning (same as initial value)
COMP_END OLED threshold voltage degradation(Compensation) completes.
PNWASHDONE Power off by panel noise wash function complited. (OLED)
8
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process
Established
Error C. Audio error date
symptom
No audio/ Normal video Revised date
☞A21 ☞A22+A18
Check user N Check audio Y
No audio Normal
menu > Off 13.2V of Power
Screen normal voltage
Speaker off Board
Y N
Cancel OFF Replace Power Board and repair parts
Check N
Disconnection Replace MAIN Board End
Speaker
disconnection
Y
Replace Speaker
9
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process
Established
Error C. Audio error date
symptom
Wrecked audio/ discontinuation/noise Revised date
→ abnormal audio/discontinuation/noise is same after “Check input signal” compared to No audio
Wrecked audio/
☞A22+A18
Check and replace
Discontinuation/ Check audio
speaker and
Noise for B+ Voltage (13.2V)
connector
Check input all audio
signal Y
Signal
-RF
normal? Wrecked audio/ Y
-External Input Normal
signal Discontinuation/
N Replace Main B/D voltage?
Noise only
for D-TV
N
Wrecked audio/
Discontinuation/
Replace Power B/D
Noise only
for Analog
(When RF signal is not
received)
Request repair to external Wrecked audio/ Replace Main B/D End
cable/ANT provider Discontinuation/
Noise only
for External Input
(In case of N
External Input Connect and check Normal
signal error) other external audio?
Check and fix device
external device Y
Check and fix external device
10
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process
D. Function error Established
Error date
symptom
Remote control & Local switch checking Revised date
1. Remote control(R/C) operating error Replace
Main B/D
☞A22 ☞A22 ☞A23
Check & Repair N Y Y
Check R/C itself Normal Y Normal Check B+3.5V Normal Check IR Normal
operating? Cable connection operating? Voltage? Signal?
Operation On Main B/D Output signal
Connector solder
N
Y N N
☞A18
Check R/C Operating Check & Replace Close Check 3.5v on Power B/D Repair/Replace
When turn off light Baterry of R/C Replace Power B/D or IR B/D
in room Replace Main B/D
(Power B/D don’t have problem)
If R/C operate, Normal Y
operating? Close
Explain the customer
cause is interference
from light in room. N
Replace R/C
11
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process
D. Function error Established
Error date
symptom
MR19 operating checking Revised date
2. MR19(Magic Remote control) operating error
☞A4
Check the RF Receiver ver N Check MR19 Normal Y Press the Is show ok N Turn off/on the
INSTART menu is “00.00”? itself Operation operating? wheel message? set and press
the wheel
N
Y
Y
☞A24
Check & Replace Close
Check & Repair Battery of MR19
RF assy
connection
Normal Y
☞A4 operating? Close
Is show ok N Press the back
RF Receiver ver N message? key about 5sec
Close N
is “00.00”?
Y
Replace
MR19
Y Close
Change the RF Receiver assy
* If you conduct the loop at 3times, change the M4.
12
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process
D. Function error Established
Error date
symptom
Wifi operating checking Revised date
3.Wifi operating error
☞A4 ☞A24
Wi-Fi Mac Check the Wifi wafer
Check the N Normal N Replace
value is 1pin Voltage?
INSTART menu Main B/D
“NG”?
Y
☞A24 Y
Close
Check & Repair
Wifi cable
connection
☞A4
Wi-Fi Mac value N
is “NG”? Close
Y
Change the Wifi
assy
13
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process
Established
Error D. Function error date
symptom
External device recognition error Revised date
Check technical
Check Y External Input
Signal information Technical N
input and Component Replace Main B/D
input? - Fix information information?
Recognition error
signal
- S/W Version
N Y
HDMI/
Check and fix DVI, Optical
Fix in Recognition Replace Main B/D
external device/cable accordance error
with technical
information
15
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process
Established
Error E. Noise date
symptom
Circuit noise, mechanical noise Revised date
Identify Circuit Check location
Replace PSU
nose type noise of noise
Mechanical Check location
noise of noise
※ When the nose is severe, replace the module
※ Mechanical noise is a natural (For models with fix information, upgrade the
phenomenon, and apply the 1st level S/W or provide the description)
description. When the customer does not OR
agree, apply the process by stage.
※ If there is a “Tak Tak” noise from the
※ Describe the basis of the description
cabinet, refer to the KMS fix information and
in “Part related to nose” in the Owner’s
then proceed as shown in the solution manual
Manual.
(For models without any fix information,
provide the description)
16
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process
Established
Error F. Exterior defect date
symptom
Exterior defect Revised date
Zoom part with Module
Replace module
exterior damage damage
Cabinet
Replace cabinet
damage
Remote
control Replace remote control
damage
Stand
Replace stand
dent
17
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Contents of Standard Repair Process Detail Technical Manual
No. Error symptom Content Page Remarks
1 Check LCD back light with naked eye A1
A. Video error_ No video/Normal audio
2 Check White Balance value A2
TUNER input signal strength checking
3 A3
method
A. Video error_ video error /Video
4 lag/stop Version checking method A4
5 Tuner Checking Part A5
A. Video error _Vertical/Horizontal bar,
6 Connection diagram A6
residual image, light spot
Check Link Cable (Vx1/EPI) reconnection
7 A. Video error_ Color error A7
condition
A-1/11
8 Check Cable (1) ~ (2)
A-2/11
A-3/11 ~
9 Exchange Main Board (1) ~ (3)
A-5/11
Defected Type caused by T-Con/ A-6/11 ~
10 Exchange Module (1) ~ (3)
Inverter/ Module A-8/11
A-9/11 ~ Only using
11 Exchange T-Con (1) ~ (2)
A-10/11 T-con model
12 Exchange Power Board(PSU) A-11/11
Continue to the next page
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Contents of Standard Repair Process Detail Technical Manual
Continued from previous page
No. Error symptom Content Page Remarks
13 Check front display LED A17
B. Power error_ No power
14 Check power input Voltage & ST-BY 3.5V A18
B. Power error_Off when on, off
15 POWER OFF MODE checking method A19
while viewing
Checking method in menu when there is no
16 A20
C. Audio error_ No audio/Normal audio
video Voltage and speaker checking method when
17 A21
there is no audio
18 Remote control operation checking method A22
D. Function error
19 Motion Remote operation checking method A23
20 How to use the Service remote control A24-A26
21 Check items after Main B/D replacement A27
E. Etc
22 Adjustment Test pattern - ADJ Key A28
How to use JIG
23 A29
(Power B/D Diagnostic Smart Jig Multi Gender)
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_No video/Normal audio date
Revised
Content Check LCD back light with naked eye A1
date
After turning on the power and disassembling the case, check with the naked eye,
whether you can see light from locations.
A1
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_No video/Normal audio date
Revised
Content Check White Balance value A2
date
Entry method
1. Press the ADJ button on the remote control for adjustment.
2. Enter into White Balance.
3. After recording the R, G, B (GAIN, Cut) value of Color Temp (Cool/Medium/Warm),
re-enter the value after replacing the MAIN BOARD.
A2
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_Video error, video lag/stop date
TUNER input signal strength checking method Revised
Content date A3
All Setting Programmes
Programme Tuning & Settings Manual Tuning
All Settings
When the signal is strong,
use the attenuator (-10dB, -
15dB, -20dB etc.)
A3
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_Video error, video lag/stop date
Version checking method Revised
Content date A4
1. Checking method for remote control for adjustment
Version
Press the IN-START with the remote
control for adjustment
A4
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom
A. Video error_Video error, video lag/stop
date
Revised
Content TUNER checking part A5
date
Checking method:
1. Check the signal strength or check whether the screen is normal when the external device is connected.
2. After measuring each voltage from power supply, finally replace the MAIN BOARD.
A5
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error A. Video error _Vertical/Horizontal bar, Established
symptom residual image, light spot date
Revised
Content connection diagram (1) date A6
As the part connecting to the external input, check
the screen condition by signal
A6
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_Color error date
Revised
Content Check Link Cable(EPI) reconnection condition date A7
Check the contact condition of the Link Cable, especially dust or mis insertion.
A7
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Appendix. Examples of Symptoms(Image error) Check for poor cable contact
Symptom
Item Cause Symptom Image
Name
CABLE Color smear Poor broken pin of FFC cable
Color is Excessive due to FFC Cable
CABLE R Color Excessive
Contact.
screen is dark due to poor contact due
CABLE Screen darkness to disconnection of the FFC cable pin.
G color transient due to poor FFC cable
CABLE G Color Excessive connection
A - 1/11
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Appendix. Examples of Symptoms(Image error) Check for poor cable contact
Symptom
Item Cause Symptom Image
Name
CABLE Color spread FFC connection problem
CABLE Color spread FFC connection problem
CABLE Color spread FFC connection problem
Due to foreign substance within
CABLE Screen stop FFC PIN
A - 2/11
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Appendix. Examples of Symptoms(Main) Check parts by symptom
Symptom
Item Cause Symptom Image
Name
Main Screen noise Bit noise from horizontal screen
Broken screen due to
Main Screen noise
Main IC problem
Main Dark picture Dark left-side screen
Top/bottom screen part
Main Broken picture Picture problem due to tuner
Inner side quality problem
A - 3/11
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Appendix. Examples of Symptoms(Main) Check parts by symptom
Symptom
Item Cause Symptom Image
Name
Main Broken screen Broken screen in a horizontal manner
Main Screen spread Screen corner appears blurry
Main Color Spread Color spread on the screen
Main Blurry Screen Blurry picture on the screen
A - 4/11
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Appendix. Examples of Symptoms(Main) Check parts by symptom
Symptom
Item Cause Symptom Image
Name
No problem at the initial stage,
Main Broken picture G-color spread after 10 minutes
Right-side
Main
Screen Right-side screen problem
problem
LG logo
Main Screen picture spread problem
Screen problem
No problem at the initial stage.
Right-side
Main During Heat run, right-side picture
picture problem
problem
A - 5/11
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Appendix. Examples of Symptoms(Module) Check parts by symptom
Symptom
Item Cause Symptom Image
Name
Isometric Isometric horizontal bars occur
MODULE
Horizontal Bar throughout the screen
MODULE Internal matter BLU internal foreign matter inflow
MODULE Image broken 6 block image broken
MODULE Image broken Screen sync signal broken
A - 6/11
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Appendix. Examples of Symptoms(Module) Check parts by symptom
Symptom
Item Cause Symptom Image
Name
Internal damage and image breakage
MODULE Image broken
due to external impact
Bend on the Bending due to lateral external impact
MODULE
screen and internal bending of BLU
Vertical spreading on cube screen in no
MODULE Vertical smear
signal
MODULE Over color Screen contour part brightly Over color
A - 7/11
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Appendix. Examples of Symptoms(Module) Check parts by symptom
Symptom
Item Cause Symptom Image
Name
MODULE Vertical bar Center Vertical Bar
MODULE Screen darkness Center of the screen 1 block dark
MODULE Vertical bar Center Vertical Bar
Darkness at the
MODULE bottom of the MODULE internal BLU breakage
screen
A - 8/11
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Appendix. Examples of Symptoms(Only if using T-con Board) Check parts by symptom
Symptom
Item Cause Symptom Image
Name
screen lower T-Con is defective and the picture below
T-CON
image broken the screen is broken
screen lower T-Con is defective and the picture below
T-CON
image broken the screen is broken
screen lower T-Con is defective and the picture below
T-CON
image broken the screen is broken
screen lower T-Con is defective and the picture below
T-CON
image broken the screen is broken
A - 9/11
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Appendix. Examples of Symptoms((Only if using T-con Board) )Check parts by symptom
Symptom
Item Cause Symptom Image
Name
T-CON Wafer Locking The strength is
T-CON Image Broken
weak and cable contact failure occurs
Darkness at the Initial normal operation,
T-CON
top of the screen upper darkness during heat run
The entire screen is dark and bit noise
T-CON Image Broken
occurs
The entire screen is dark and bit noise
T-CON Image Broken
occurs
A - 10/11
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Appendix : Exchange Power Board (PSU)
No Light No picture/Sound Ok
A - 11/11
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom B. Power error _No power date
Revised
Content Check front Power Indicator date A17
ST-BY condition: On or Off
Power ON condition: Turn Off
A17
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom
B. Power error _No power
date
Revised
Content Check power input voltage and ST-BY 7.8V A18
date
SET Model Power P/N, Name
43UM73/74/76 EAY65170101, LGP43T-19U1 Power Board Voltage / Current
MS
Power Check Sequence
P201
1. AC input Check : SK100 (100~240Vac) P801
2. PWR-ON Check : Check Hole
- SET On : above 3V
- SET St-by : 0V
3. 13.2V DC Check : D201 center Pin
- SET On : 13.2V PWR-ON
- SET St-by : 7.8V
4. MS Level Check : MS
MS Level Range [V] LED On/Off
MS (0V) 0 ~ 0.25 Off D201 (13.2V)
- Center Pin
MS (2V) 1.75 ~ 2.25 On (Home mode)
MS (3V) 2.75 ~ 3.25 On (Store Mode)
※ Home mode : General Customer
Store mode : use Store
5. LED voltage Check : P801, Pin 1-7
Picture Condition : VIVID (Back light 100)
Min Max
114 V 139 V
SK100 (AC input)
all condition meets, Power Board OK. A18
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error
symptom B. Power error _Off when on, off whiling viewing Established
date
Revised
Content POWER OFF MODE checking method date A19
Entry method
1. Press the IN-START button of the remote control for adjustment.
2. Check the entry into adjustment item 3.
A19
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom C. Audio error_No audio/Normal video
date
Revised
Content Checking method in menu when there is no audio date A20
Checking method
1. Press the Setting button on the remote control
2. Select the Sound function of the Menu
3. Select the Sound Out
4. Select TV Speaker
A20
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom C. Audio error_No audio/Normal video date
Voltage and speaker checking method Revised
Content date A21
when there is no audio
②
①
③ 1 SPK_R-FT
2 SPK_R+FT
3 SPK_L-FT
4 SPK_L+FT
Checking order when there is no audio
1. Check the contact condition of or 13.2V connector of Main Board.
2. Measure the 13.2V input voltage supplied from Power Board.
(If there is no input voltage, remove and check the connector.)
3. Connect the tester RX1 to the speaker terminal and if you hear the Chik Chik
sound when you touch the GND and output terminal, the speaker is normal.
A21
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom D. Function error date
Revised
Content Remote control operation checking method date A22
Pin Pin name
1 VCC
① 2 USB_DM
IR & EYE Sensor 3 USB_DP
4 GND
5 WOL/WIFI_ON
6 VCC
7 WIFI_Suspend/Resume
8 GND
9 Combo_Reset
10 BT_WAKEUP_HOST
11 GND
12 VCC
13
14
15
③ 16 EYE_SDA
17 EYE_SCL
18 GND
19 IR
20 LED_R
21 GND
Checking order to check remote control ② 22 VCC
23 KEY2
24 KEY1
Checking order 25 GND
1. Check IR cable condition between IR & Main board.(Check picture number① and ②)
2. Check the standby 3.5V on the terminal 6 pin. (③)
3. AS checking the Pre-Amp(IR LED light), the power is in ON condition, an Analog Tester
needle should move slowly, otherwise, it’s defective.
A22
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom D. Function error date
Revised
Content Remote control operation checking method date A23
Pin Pin name
1 VCC
① Wifi & BT Front 2 USB_DM
③ 3 USB_DP
4 GND
5 WOL/WIFI_ON
6 VCC
7 WIFI_Suspend/Resume
8 GND
9 Combo_Reset
10 BT_WAKEUP_HOST
11 GND
Wifi & BT Rear 12 VCC
13
14
15
16 EYE_SDA
17 EYE_SCL
18 GND
19 IR
20 LED_R
21 GND
② 22 VCC
Checking order to check motion remote/wifi 23 KEY2
24 KEY1
Checking order 25 GND
1. Check BT/Wifi cable condition between BT/Wifi assy & Main board.
2. Check the 3.5V on the terminal 22.
A23
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom E. Etc date
Revised
Content How to use the Service remote control date A24
1. How to access the remote control
0 4 1 3
0 4 1 3
A24
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom E. Etc date
Revised
Content How to use the Service remote control date A25
2. Remote control part definition
POWER Power On/Off
[ETC] Each time pressing the KEY button, Mode gets changed to ETC and P-ONLY each time
ETC (Added Function) All KEY function [PIP PR-][PIP PR+][SWAP]
[PIP INPUT][DVI] KEY Function
Changed to factory mode
P-ONLY (Added
Function)
All KEY function &[INFO][STILL][HDMI HOT][USB HOT][HDMI4] KEY Action
INPUT Change to the external device mode
ARC Change in the order of 16:9=>Zoom1=>Zoom2=>Cinema Zoom=>Aucto Screen=>4:3=>16:9
Changes in the order of Bright Picture=>Easy Picture=>Cinema=>Spots=>Game=>
PSM
Custom PIcture1=>Custom Picture2=>Bright Picture
SSM (Added Function) Standard(user)=>music=>cinema=>sports=>game=>standard(user)
PIP Picture In Picture is activated
TEXT Access to the Power Only mode
CAP Broadcasting caption(on/off)
MPX Stereo mode (mono, stereo, foreign language) access
Used when in factory mode
Simplink (Added
Access to the Simplink-connected device
Function)
Digital EYE function ON/OFF
EYE
For some Model, access to the Test Pattern
TILT Used for screen tilting change (Access to the old PDP control mode)
A25
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom E. Etc date
Revised
Content How to use the Service remote control date A26
B-TOOTH
Connected to Blue-Tooth
(Added function)
Model Nam ex) 42PG60D-NA Current Model Name S/W Version ex)
IN-START V03.11.0 Current S/W version
MICOM Version ex) V3.05.0 current Mi-Com version UTT ex) User TV total usage time
POWER OFF STATUS ex) Shows power-off status
ADJ
Test Pattern (Off=>White=>Red=>Green=>Blue=>Black=>Pattern=>Off) Change
X-STUDIO (Added function) HDD,USB, external device’s HDD screen is activated
MENU User function gets activated
EXIT Exit from the current mode
TIME SHIFT (Added
Moves forward/backward of recorded contents
function)
MUTE Mute function (0 Volume)
IN-STOP SET to factory mode
VOL + - Volume Up/Down
CH + - Channel Up/Down
AV1,2,3 (Added function) Connects to external input 1,2,3
COMP1,2 (Added function) Connects to Component 1,2
HDMI1,2,3,4
Connects to HDMI 1,2,3,4
(Add function)
DVI (Add function) Connects to DVI
A26
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom E. Etc date
Revised
Content Check items after Main B/D replacement date A27
Check items afer Main B/D(Model Number D/L, White Balance)
1. Press the Service remote control instart Key.
No.7 Select Model Number D/L
- Key in the model name and serial number
after checking the ID label on the back cover.
2. Press the Service remote control ADJ Key.
No.11 Select White Balance
- Record the R, G, B (GAIN, Cut) value of the
color temperature before main board
replacement.
After replacing the main board, key in the
recorded value.
A27
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom
E. Etc
date
Adjustment Test pattern - ADJ Key Revised
Content date A28
You can view 9 types of patterns using the ADJ Key
Checking item : 1. Defective pixel 2. Residual image 3. MODULE error (ADD-BAR,SCAN BAR..)
4.Video error (Classification of MODULE or Main-B/D!)
A28
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Smart JIG Power Diagnosis
Muitl Gender Guide
(P/N : RAD32507801) (P/N : RAD33187801)
A 29 (1/19)
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Power Board Muitl Gender JIG Diagram (P/N: RAD33187801)
15Y 16Y 15Y
(LF/UF Series) (OLED B6) (OLED)
28Pin 24Pin 24Pin 24Pin NC
18 Marking check 24Pin
18Pin 16Y
New JIG (OLED)
24Pin
13Y/14Y 28Pin
No Marking
OLD JIG
17/18Y
/19Y
17Y/18Y/19Y
W7 (OLED)
24Pin 12Y 18Y/19Y
LK57,32/43/49LK54
B8, C8
E8, G8 24Pin
18Y/19Y 32LK61/32LK62 W8
UK63/UK64 43/49LK61 C9/E9
UK65/UK68 LM63
18Y UK7050
SK80/UK89 UM73/UM74
SK85/SK96 UM76/UM79
16Y/17Y/18Y/19Y
SK95/SK99
(UH/UJ/UK/SK/
18Pin /SM
18Y/19Y
24 Marking Check 28Pin UK74,UK75
28Pin 12Pin 12Pin 28Pin
UK77,UK78
Cable Connection SK79
Includes 49UJ63 SM86
17Y/18Y 16/18Y/19Y 16Y/17Y 16Y
16Y/17Y/18Y/19Y (UH)
(SJ/UJ/UK/SK) (UH/UK/UM) (UH/SJ) A29 (2/19)
(LH/LJ/LK/LM)
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Power Board Muitl Gender JIG Diagnostic model List
<15Y/16Y/17Y/18Y/19Y OLED Model, 16Y/17Y/18Y/19Y LED Model>
Year Product Model
EG92/EG93/EG94
‘15 OLED EG96
EF95
B6, C6
OLED
E6, G6
‘16 UH95/UH96, UH85/UH93
LED UH77/UH87, UH75/UH76
UH65/UH68, LH68, LH66, LH60,LH54
‘17 OLED B7, C7, E7, G7, W7
SJ95/UJ98, SJ85/UJ94
SJ80, UJ77, UJ75/UJ78
’17 LED
UJ65/UJ68, UJ63/UJ67
LJ61/LJ68, LJ55/LJ58
SK80/SK85/SK95
UK78/UK75/UK77/SK79
‘18 LED
UK63/UK64/UK65/UK68/UK7050
LK57, 32/43/49LK54, 32LK61/62, 43/49LK61
‘18 OLED B8, C8, E8, G8, W8
SM86
‘19 LED UM73/UM74/UM76/UM79
LM63
‘19 OLED C9/E9
A29 (3/19)
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Power Board Muitl Gender How to Connect
1
▶ Power Board Muitl Gender JIG
2
“A: 2013 LCD POWER”
2014
▶ Connect the Muiti Gender to the connector (black)
as shown in picture 2 of the Smart JIG.
A29 (4/19)
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Smart Jig Voltage Setting
1 2
▶ Switch the product S/W in JIG to LCD.
▶ LCD MODEL Check the power voltage
▶ Check power board voltage. and switch to the correct voltage.
※ Note on set up
(The correct power diagnosis can be made only if it is set correctly.)
- 24V Power Board : Change the switch to 24V of Smart Jig Voltage
- 20V Power Board : Change the switch to 24V of Smart Jig Voltage
- 13.2V/18V Power Board : Change the switch to 24V of Smart Jig Voltage
Power B/D Smart Jig Voltage Switch
24V 24V
20V 20V
13.2V/18V 24V
A29 (5/19)
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
`15Y OLED(EG96,EF95,EG92,EG93,EG94) Power Board Diagnostic method (1)
1 2
▶ Switch the product S/W in JIG to LCD.
▶ LCD MODEL Check the power voltage
and switch(24V) to the correct voltage.
▶ Check power board voltage. ▶ Fix the LCD MODEL switch to 24V.(Smart JIG)
3 4
▶ Disconnect the Main Board 24Pin Power Cable connector. ▶ Connect the 24Pin Power Cable connector to the Muitl
Gender JIG 24Pin connector
A29 (6/19)
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
`15Y OLED(EG96,EF95,EG92,EG93,EG94) Power Board Diagnostic method (2)
5 6
▶ When the OK LED(24V,12V) turns on, Power Board is normal.
▶ When the NG LED turns on, the Power Board
can be judged as defective.
A29 (7/19)
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
`16Y OLED(B6) Power Board Diagnostic method
1 2
▶ Switch the LCD MODEL S/W to 24V by checking
the power voltage.
▶ Fix the LCD MODEL switch to 24V.(Smart JIG)
▶ Connect the 24Pin Power Cable connector
to the Multi gender JIG 24Pin connector.
3
▶ When the OK LED(24V,12V) turns on, Power Board is normal.
▶ When the NG LED turns on, the Power Board
can be judged as defective.
A29 (8/19)
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
`16Y OLED(C6) Power Board Diagnostic method
1 2
▶ Check power board voltage. ▶ Disconnect the Main Board 24Pin Power Cable connector.
▶ Smart JIG: Fix the LCD MODEL switch to 24V.(Smart JIG)
3 4
▶ Connect the 24Pin Power Cable connector ▶ When the OK LED(24V,12V) turns on, Power Board is normal.
to the Muitl Gender JIG 24Pin connector
A29 (9/19)
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
`16Y OLED(E6) Power Board Diagnostic method
1 2
▶ Check power board voltage. ▶ Disconnect the Main Board 24Pin Power Cable connector.
▶ Fix the LCD MODEL switch to 24V.(Smart JIG)
3 4
▶ Connect the 24Pin Power Cable connector ▶ When the OK LED(24V,12V) turns on, Power Board is normal.
to the Muitl Gender JIG 24Pin connector ▶ When the NG LED turns on, the Power Board
A29 (10/19) can be judged as defective.
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
`16Y OLED(G6) Power Board Diagnostic method
1 2
▶ Check power board voltage. ▶ Disconnect the Main Board 24Pin Power Cable connector.
▶ Fix the LCD MODEL switch to 24V.(Smart JIG)
3 4
▶ Connect the 24Pin Power Cable connector ▶ When the OK LED(24V,12V) turns on, Power Board is normal.
to the Muitl Gender JIG 24Pin connector ▶ When the NG LED turns on, the Power Board
A29 (11/19) can be judged as defective.
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
`17Y OLED(B7/C7/E7/G7) Power Board Diagnostic method
1 2
▶ Disconnect the Main Board 28Pin Power Cable connector. ▶ Connect the 28Pin Power Cable connector
to the Muitl Gender JIG 28Pin connector
3 4
▶ Switch the LCD MODEL S/W to 20V by checking ▶ When the OK LED(24V,12V) turns on, Power Board is normal.
the power voltage.
▶ When the NG LED turns on, the Power Board
▶ Fix the LCD MODEL switch to 20V.(Smart JIG) A29 (12/19)
can be judged as defective.
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
`17Y OLED(W7) Power Board Diagnostic method
1 2
▶ Disconnect the Main Board 24Pin Power Cable connector. ▶ Connect the 24Pin Power Cable connector
to the Muitl Gender JIG 28Pin connector
3 4
▶ Switch the LCD MODEL S/W to 20V by checking ▶ When the OK LED(24V,12V) turns on, Power Board is normal.
the power voltage.
▶ When the NG LED turns on, the Power Board
▶ Fix the LCD MODEL switch to 20V.(Smart JIG) A29 (13/19) can be judged as defective.
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
`16Y/`17Y LED 18Pin Power Board Diagnostic method
1 2
▶ Check power board voltage.
▶ Disconnect the Main Board 18Pin Power Cable connector.
▶ Fix the LCD MODEL switch to 24V.(Smart JIG)
3 4
▶ Connect the 18Pin Power Cable connector ▶ When the OK LED(24V,12V) turns on, Power Board is normal.
to the Muitl Gender JIG 24Pin connector ▶ When the NG LED turns on, the Power Board
A29 (14/19) can be judged as defective.
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
`16Y LED(UH95/UH96) Power Board Diagnostic method
1 2
▶ Check power board voltage. ▶ Disconnect the Main Board 28Pin Power Cable connector.
▶ Fix the LCD MODEL switch to 24V.(Smart JIG)
3 4
▶ Connect the 28Pin Power Cable connector ▶ When the OK(24V,12V) LED turns on, Power Board is normal.
to the Muitl Gender JIG 28Pin connector ▶ When the NG LED turns on, the Power Board
A29 (15/19) can be judged as defective.
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
`16Y/`17Y LED(UH85/UH93) Power Board Diagnostic method
1 2
▶ Check power board voltage. ▶ Disconnect the Main Board 28Pin Power Cable connector.
▶ Fix the LCD MODEL switch to 24V.(Smart JIG)
3 4
▶ Connect the 28Pin Power Cable connector ▶ When the OK LED(24V,12V) turns on, Power Board is normal.
to the Muitl Gender JIG 28Pin connector ▶ When the NG LED turns on, the Power Board
A29 (16/19) can be judged as defective.
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
`16Y/`17Y LED 12Pin Power Board Diagnostic method
1 2
▶ Check power board voltage.
▶ Disconnect the Main Board 12Pin Power Cable connector.
▶ Fix the LCD MODEL switch to 24V.(Smart JIG)
3 4
▶ Connect the 12Pin Power Cable connector ▶ When the OK LED(24V,12V) turns on, Power Board is normal.
to the Muitl Gender JIG 12Pin connector ▶ When the NG LED turns on, the Power Board
A29 (17/19) can be judged as defective.
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
`16Y LED 12Pin Power Board Diagnostic method
1 2
▶ Check power board voltage.
▶ Disconnect the Main Board 12Pin Power Cable connector.
▶ Fix the LCD MODEL switch to 24V.(Smart JIG)
3 4
▶ Connect the 12Pin Power Cable connector ▶ When the OK LED(24V,12V) turns on, Power Board is normal.
to the Muitl Gender JIG 24Pin connector ▶ When the NG LED turns on, the Power Board
A29 (18/19) can be judged as defective.
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
`17Y LED 28Pin Power Board Diagnostic method
1 2
▶ Check power board voltage.
▶ Disconnect the Main Board 28Pin Power Cable connector.
▶ Fix the LCD MODEL switch to 20V.(Smart JIG)
3 4
▶ Connect the 28Pin Power Cable connector ▶ When the OK LED(24V,12V) turns on, Power Board is normal.
to the Muitl Gender JIG 28Pin connector ▶ When the NG LED turns on, the Power Board
A29 (19/19) can be judged as defective.
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
