CONFIDENTIAL
LED TV
SERVICE MANUAL
CHASSIS : LB94M
MODEL : 43LM5700PTC
43LM5760PTC
CAUTION
BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
P/NO : MFL71448404 (1903-REV00)
Copyright © 2019 LG Electronics Inc. All rights reserved. Only training and service purposes.

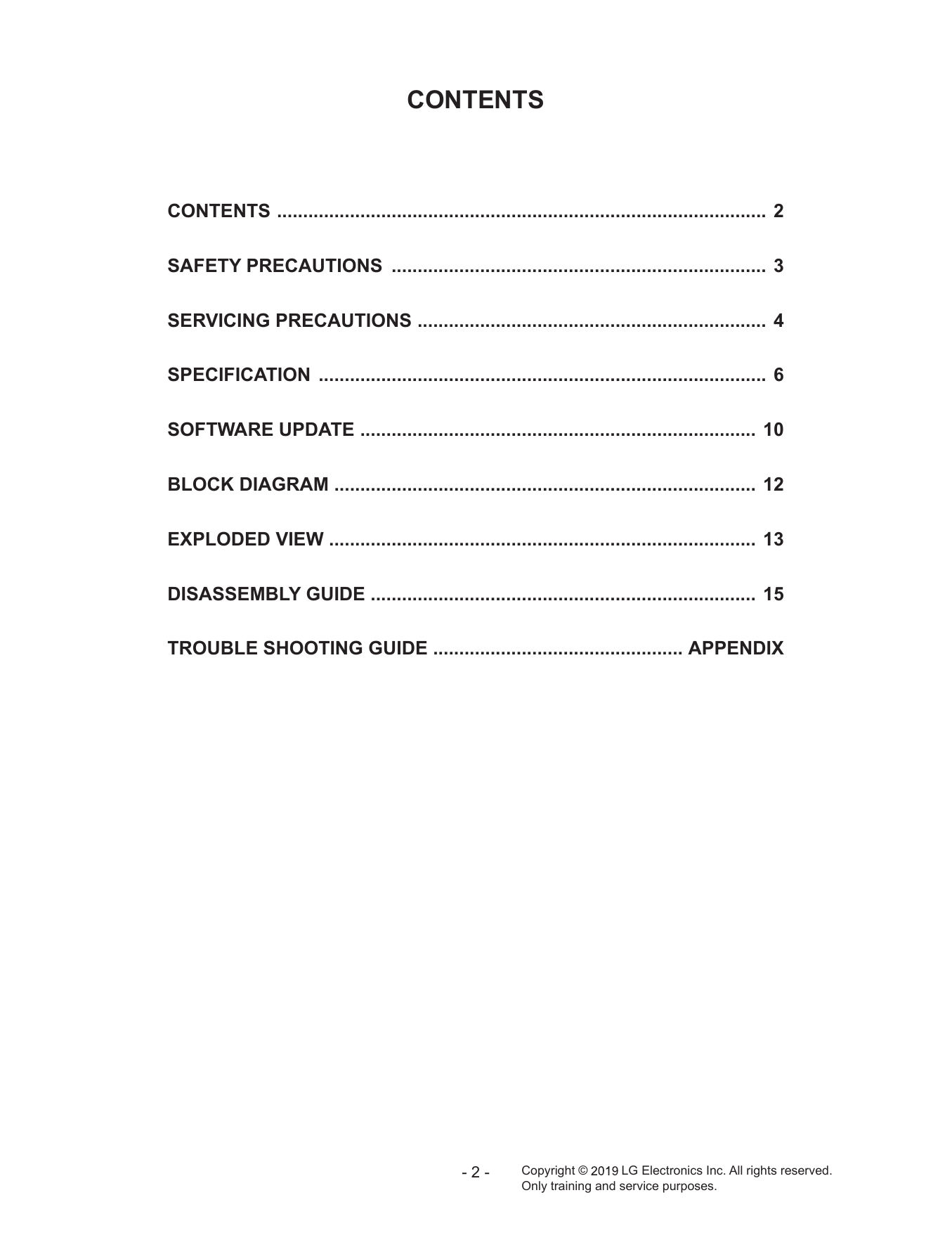

CONTENTS
CONTENTS ............................................................................................... 2
SAFETY PRECAUTIONS ......................................................................... 3
SERVICING PRECAUTIONS .................................................................... 4

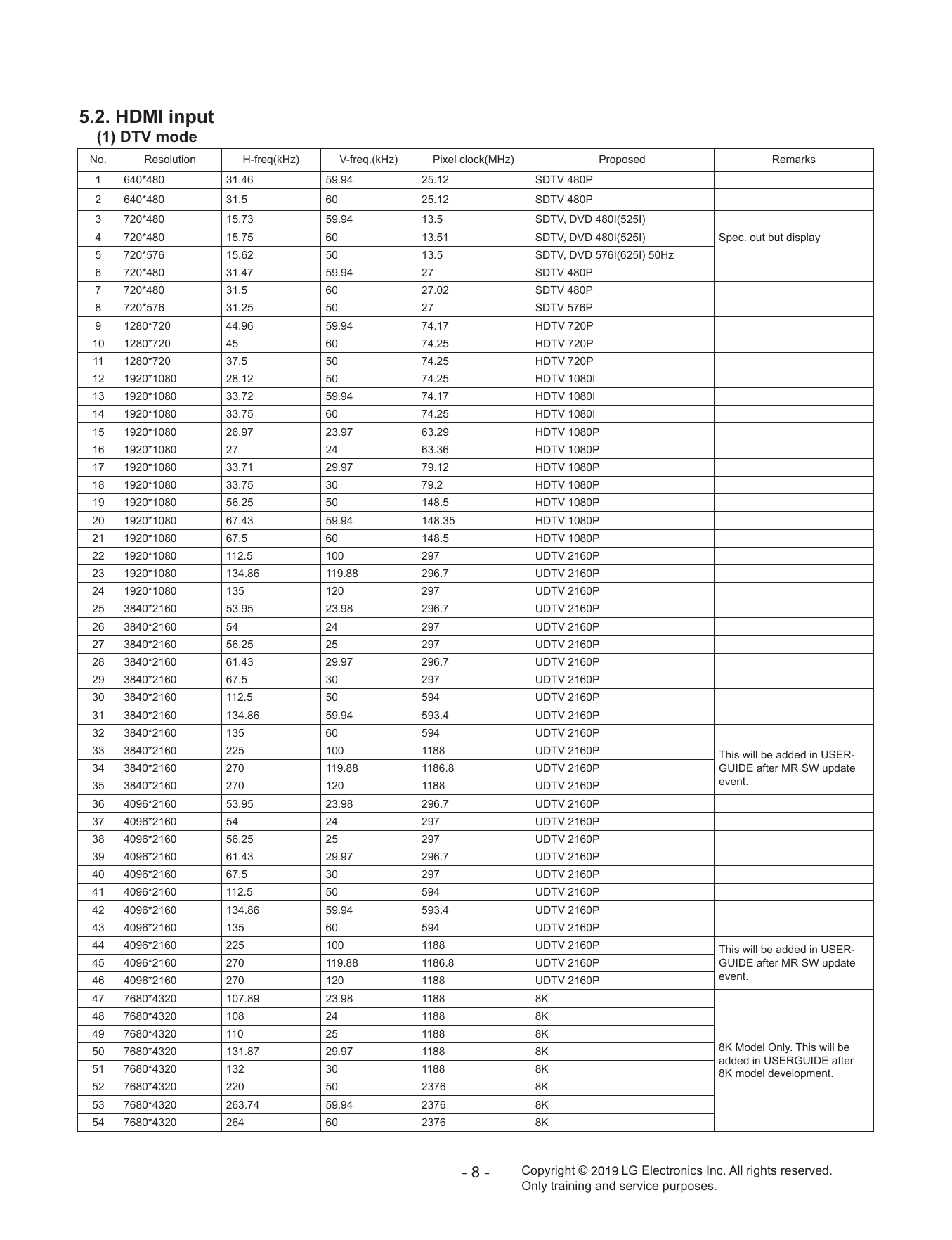

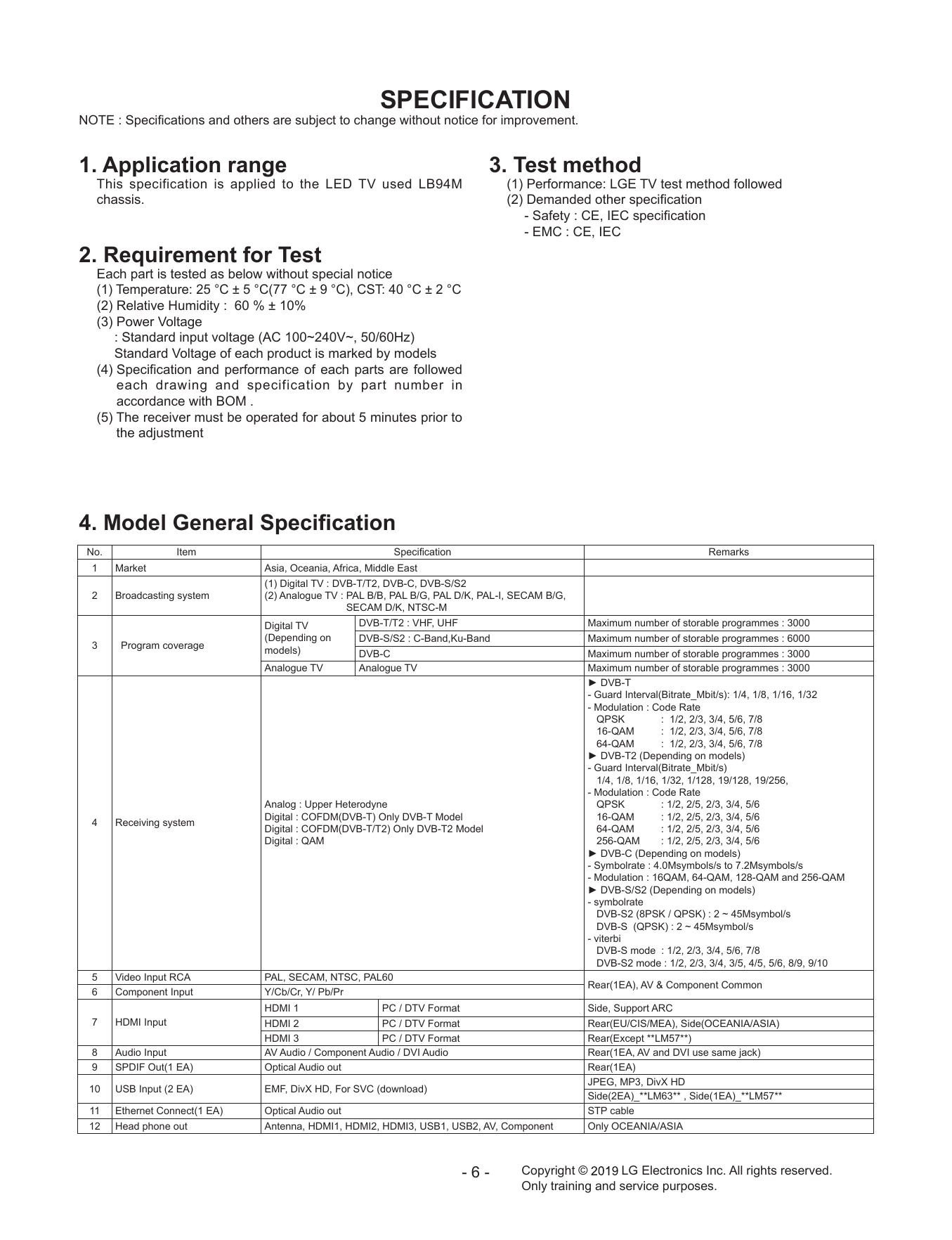

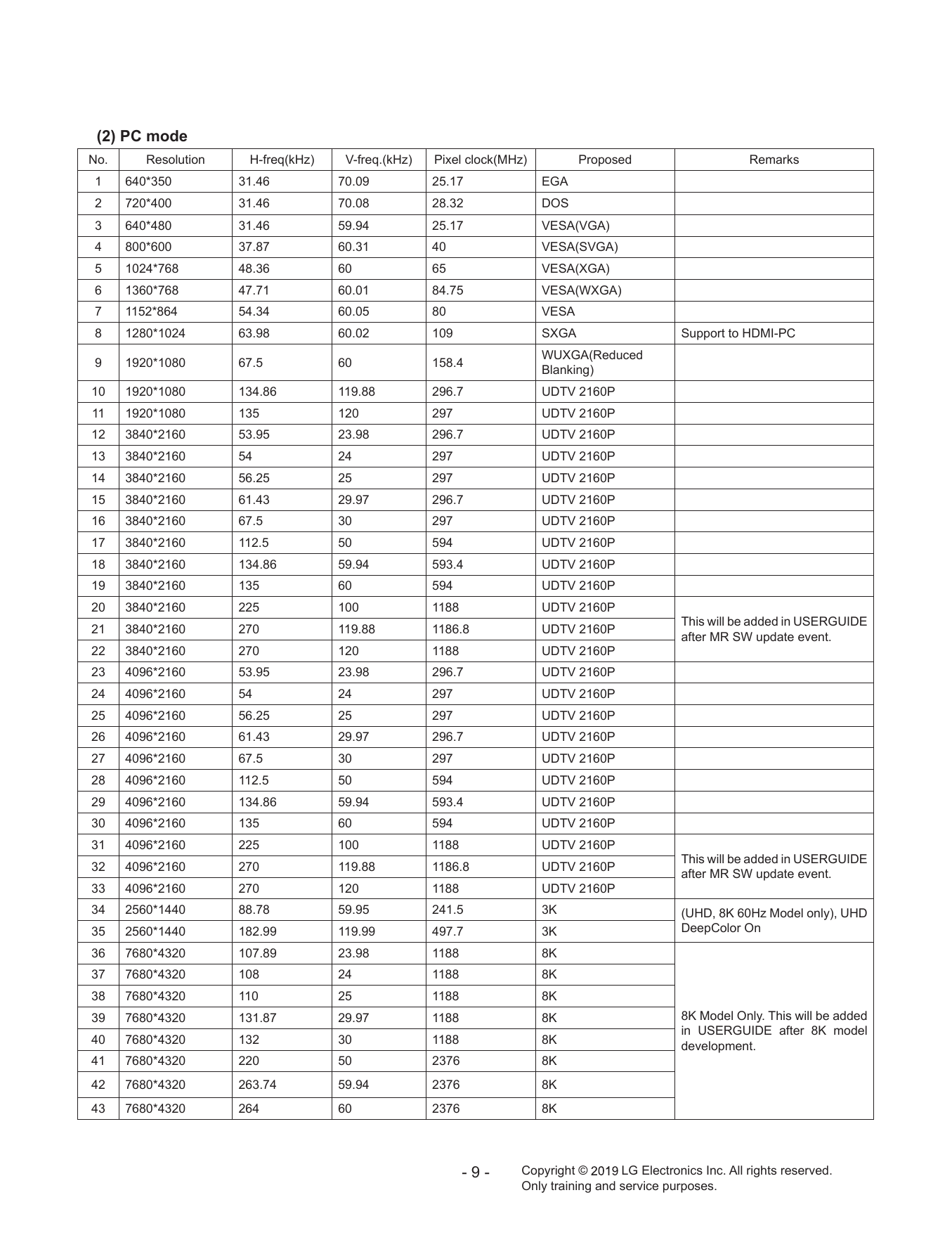

SPECIFICATION ....................................................................................... 6

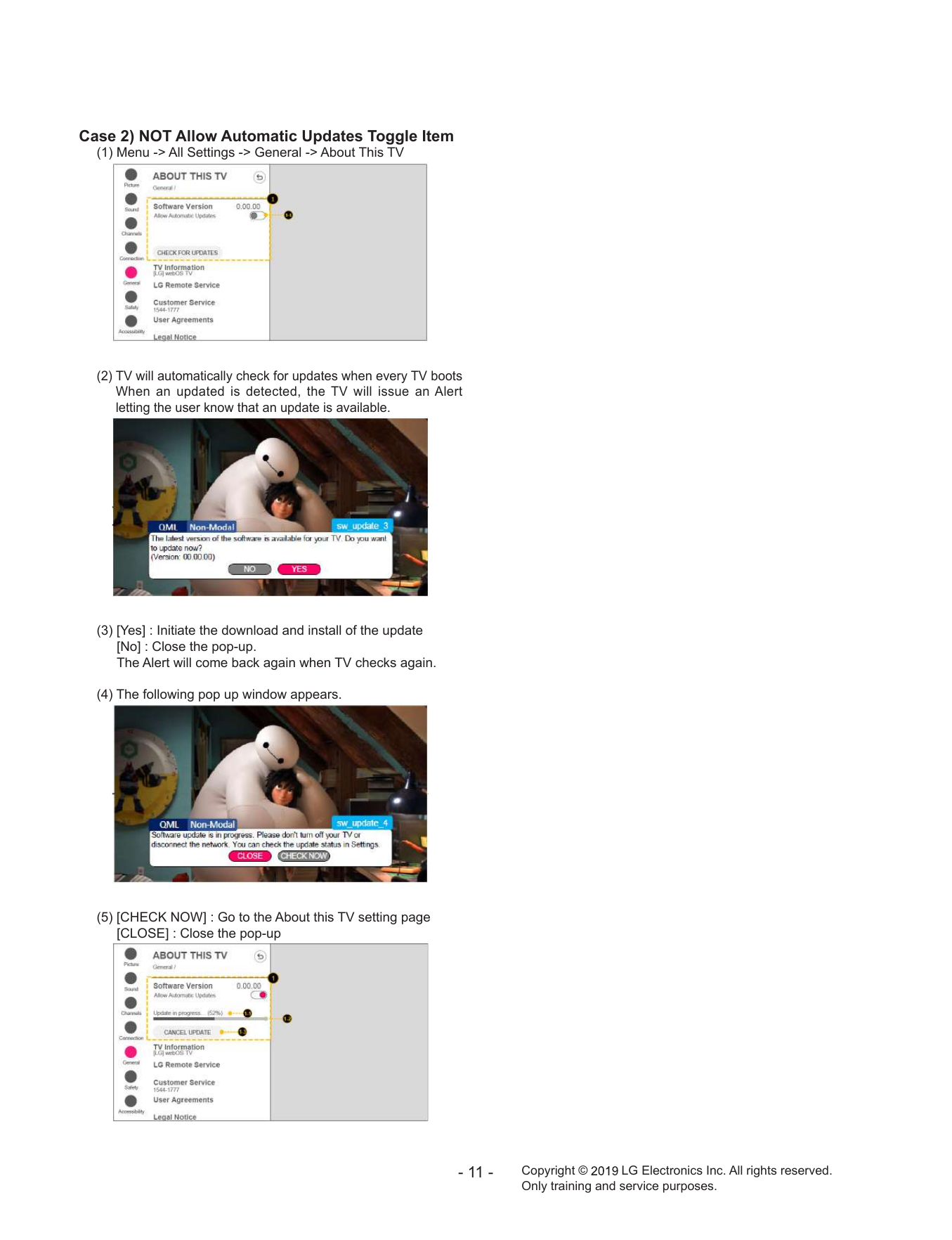

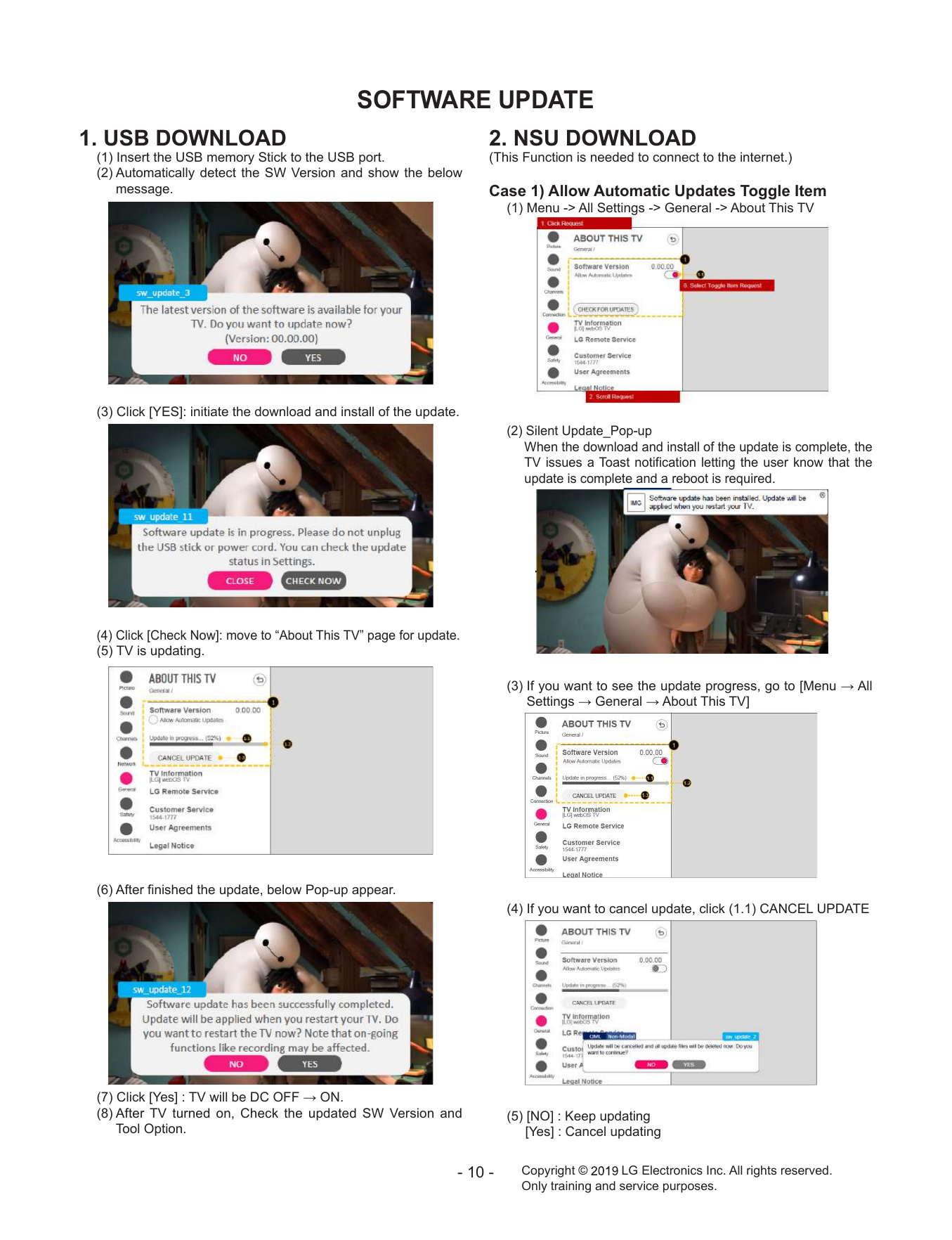

SOFTWARE UPDATE ............................................................................. 10

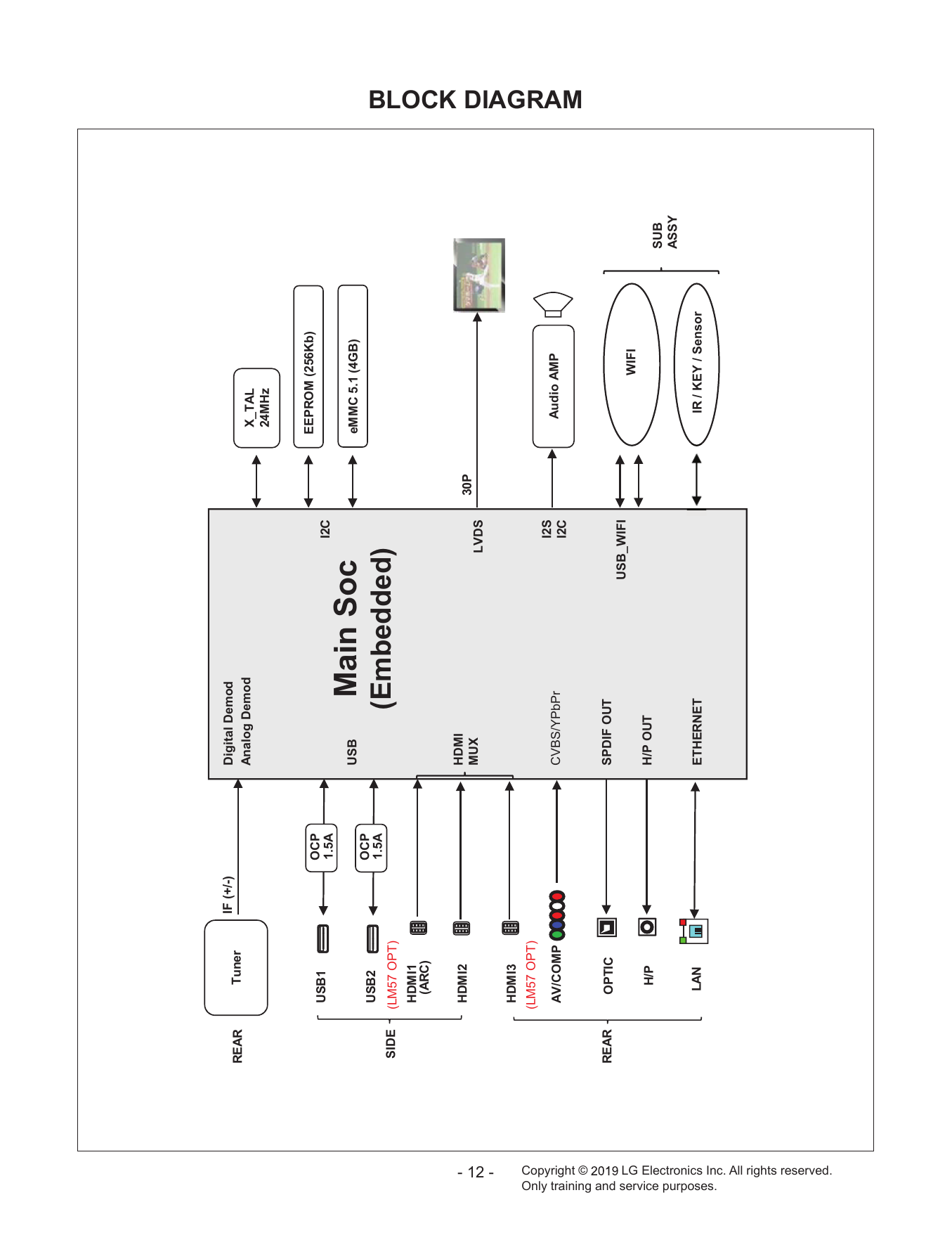

BLOCK DIAGRAM .................................................................................. 12

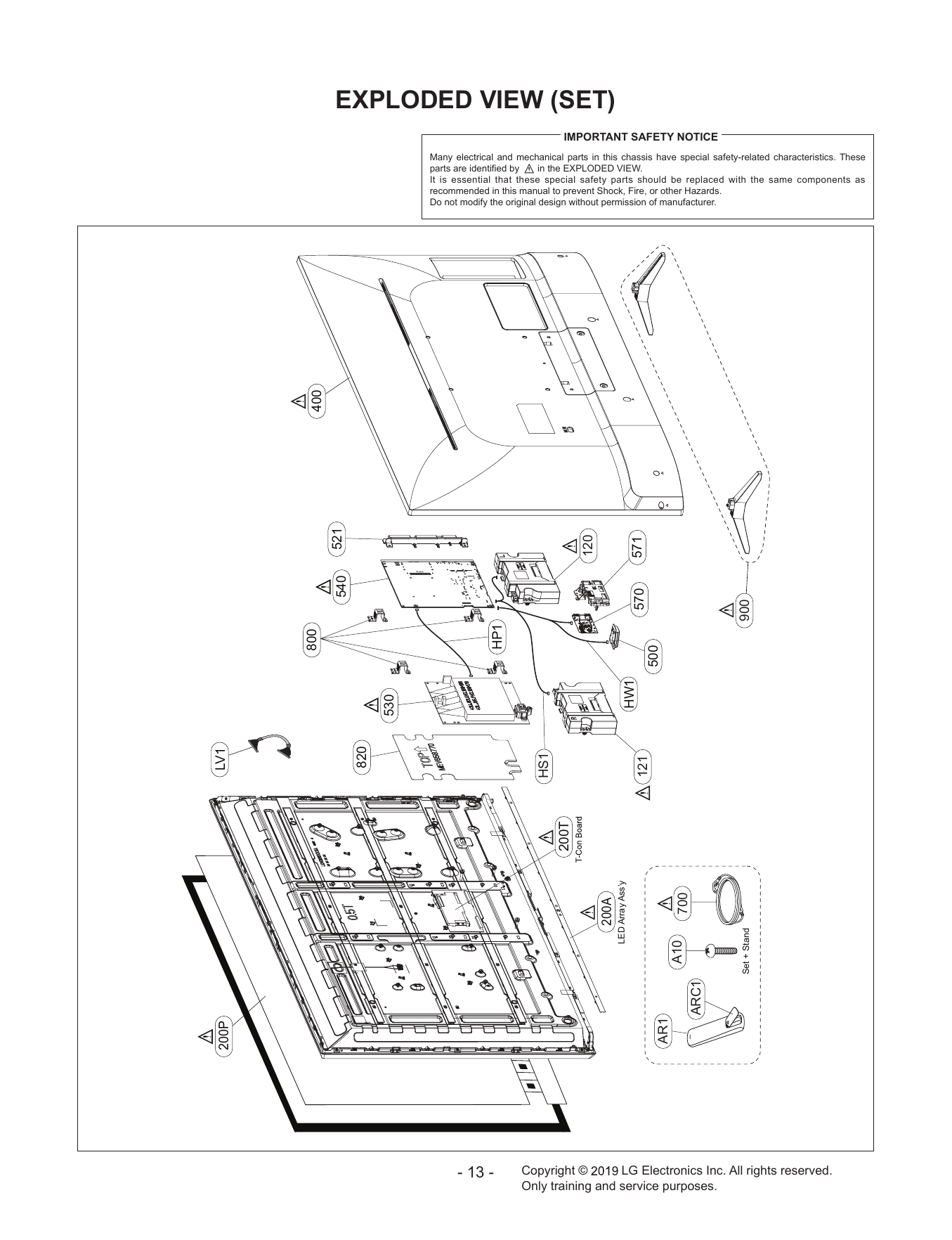

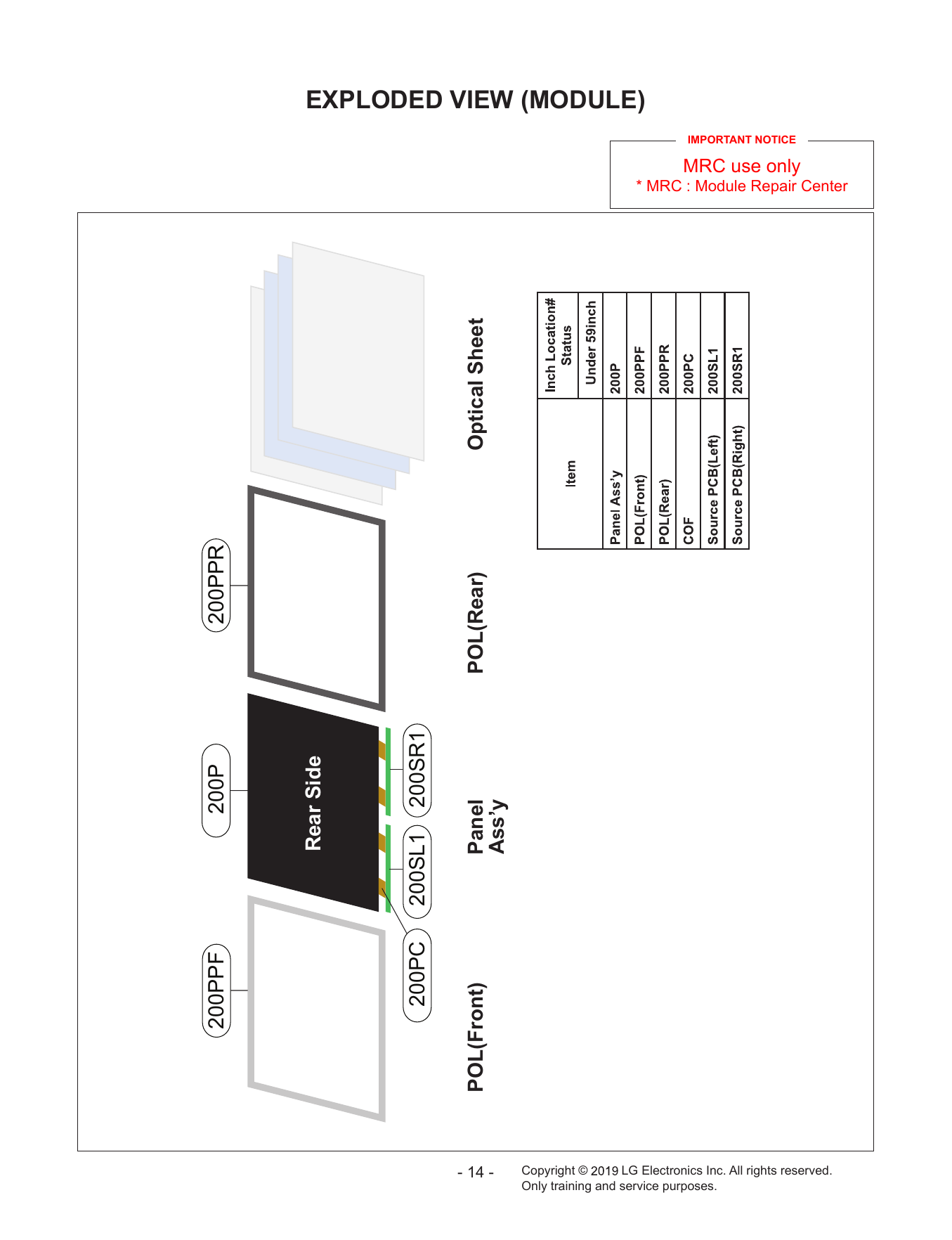

EXPLODED VIEW ................................................................................... 13

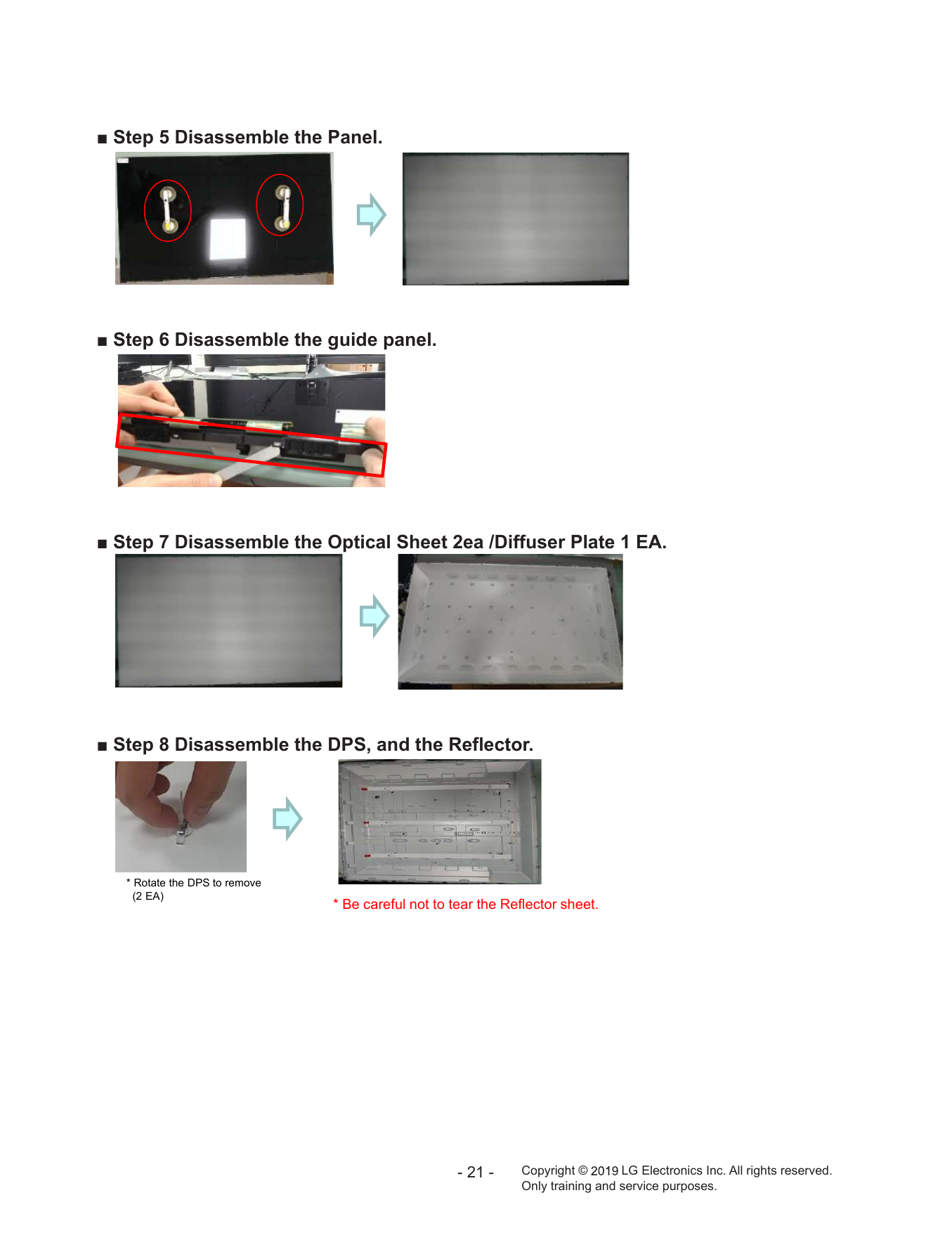

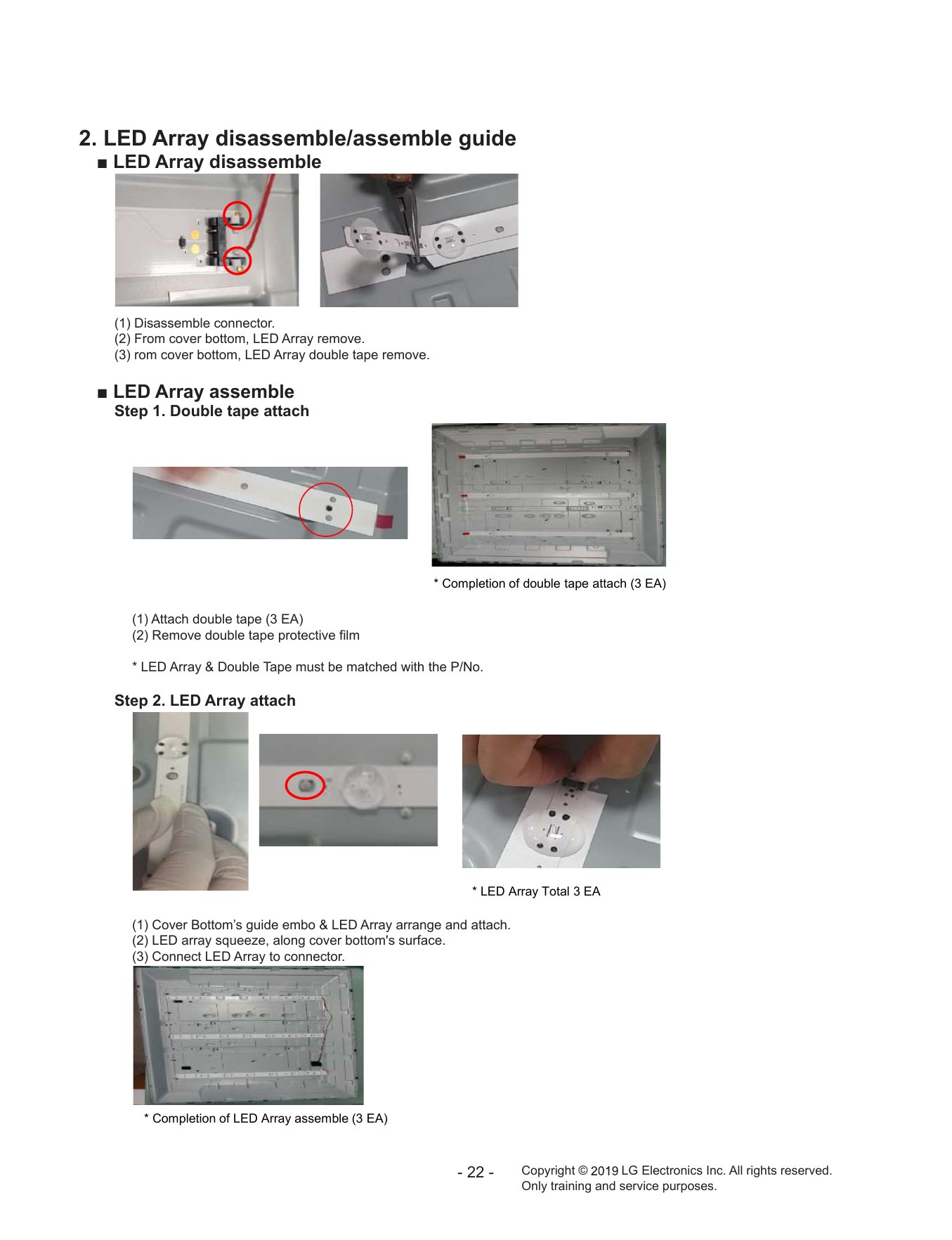

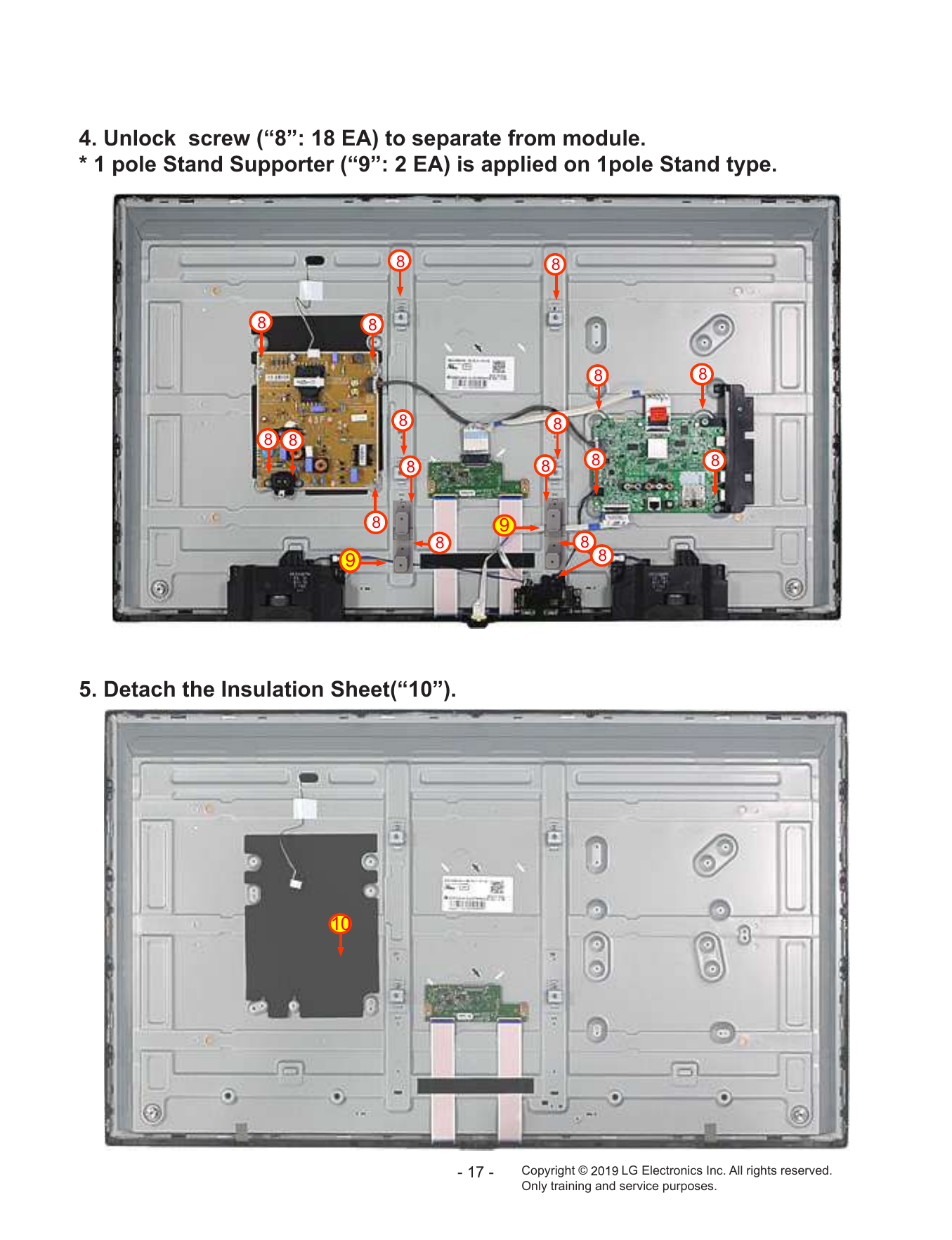

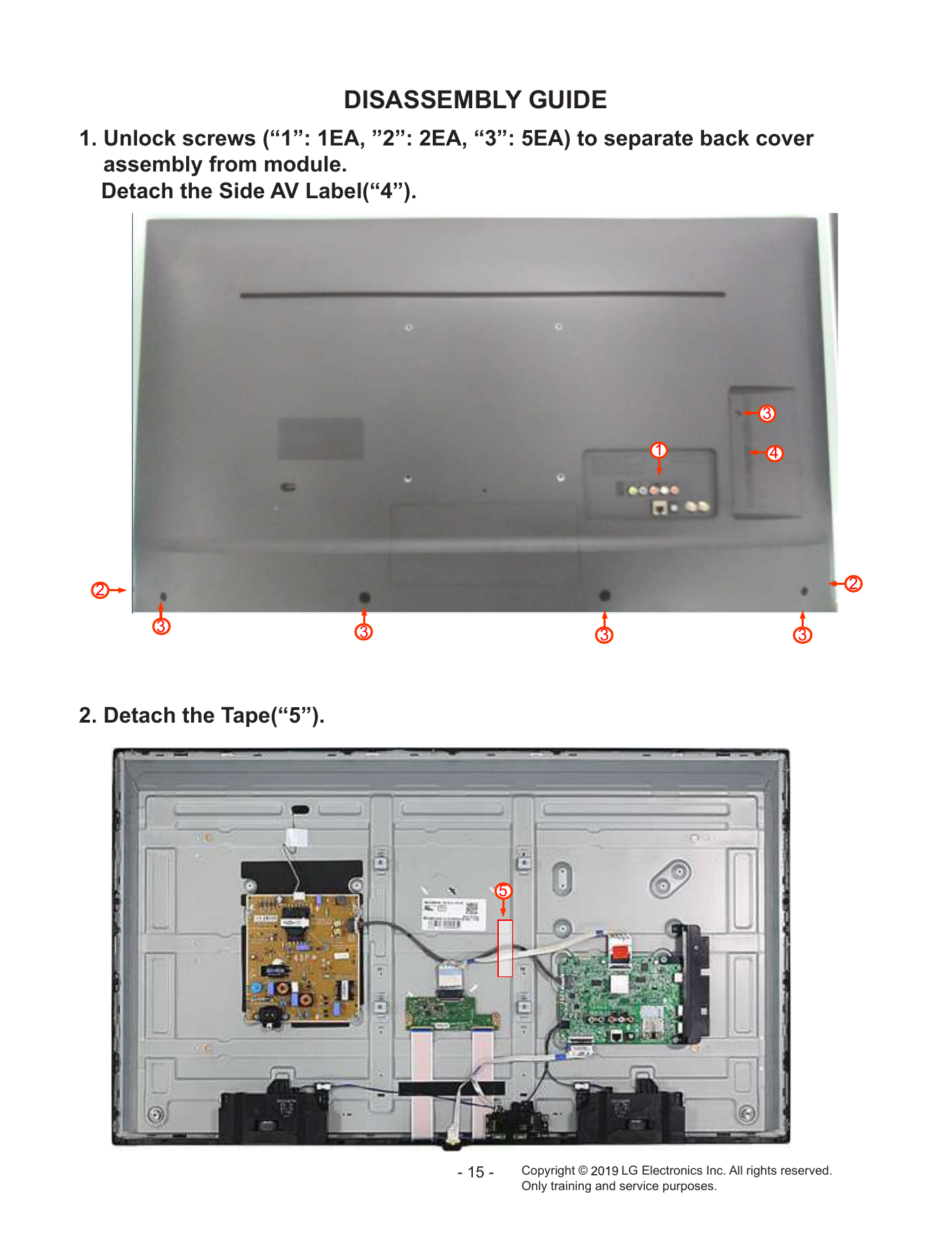

DISASSEMBLY GUIDE .......................................................................... 15

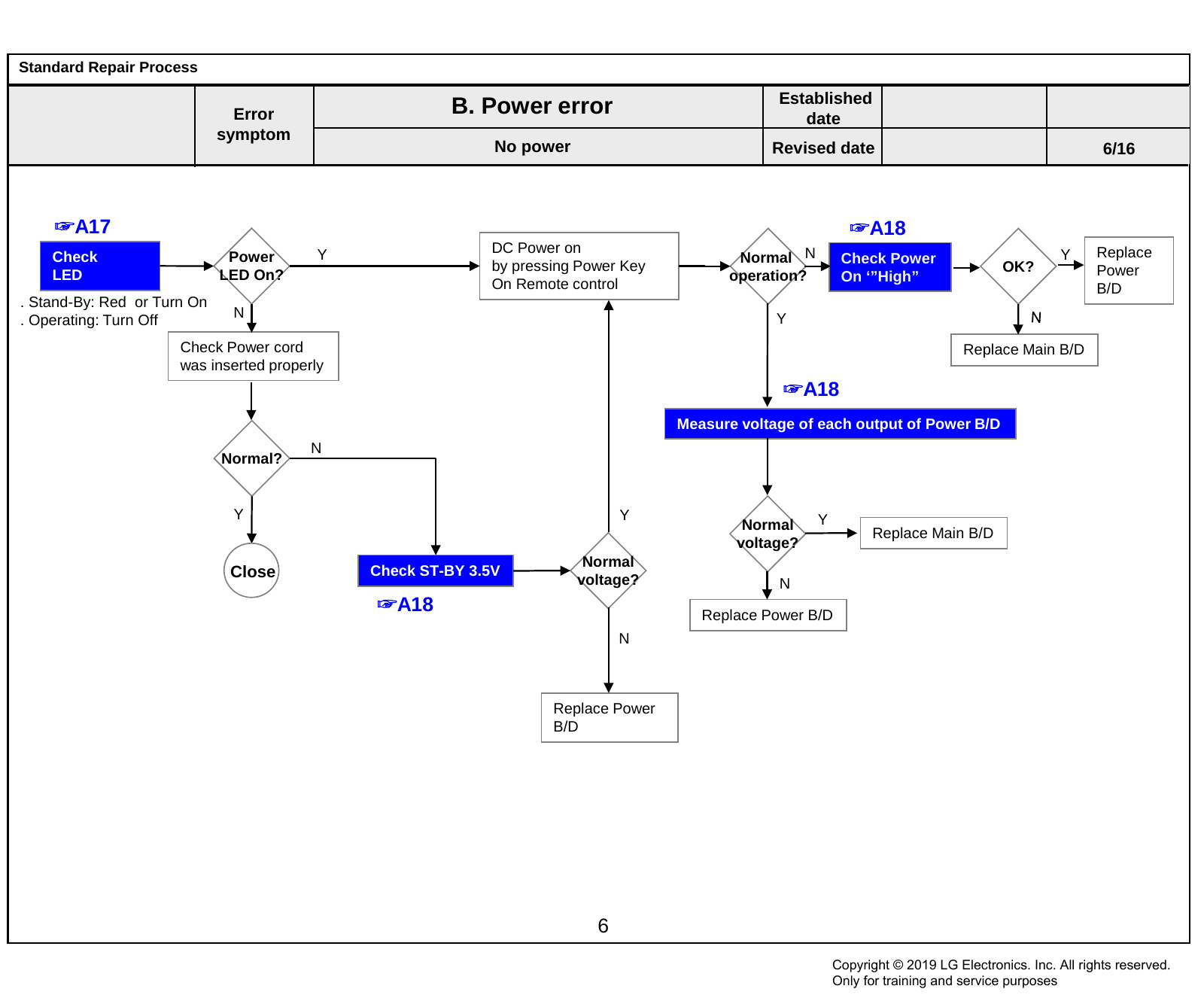

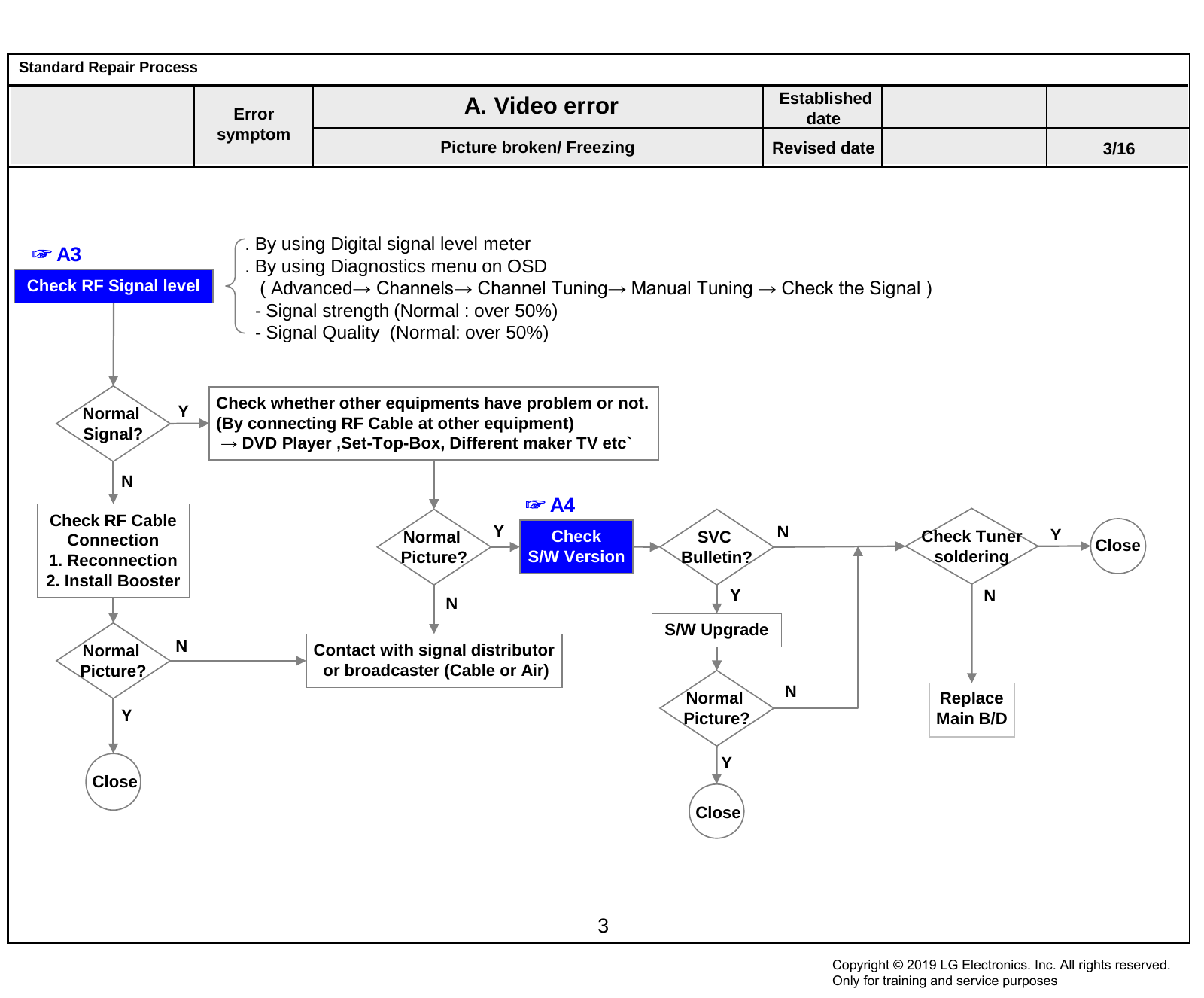

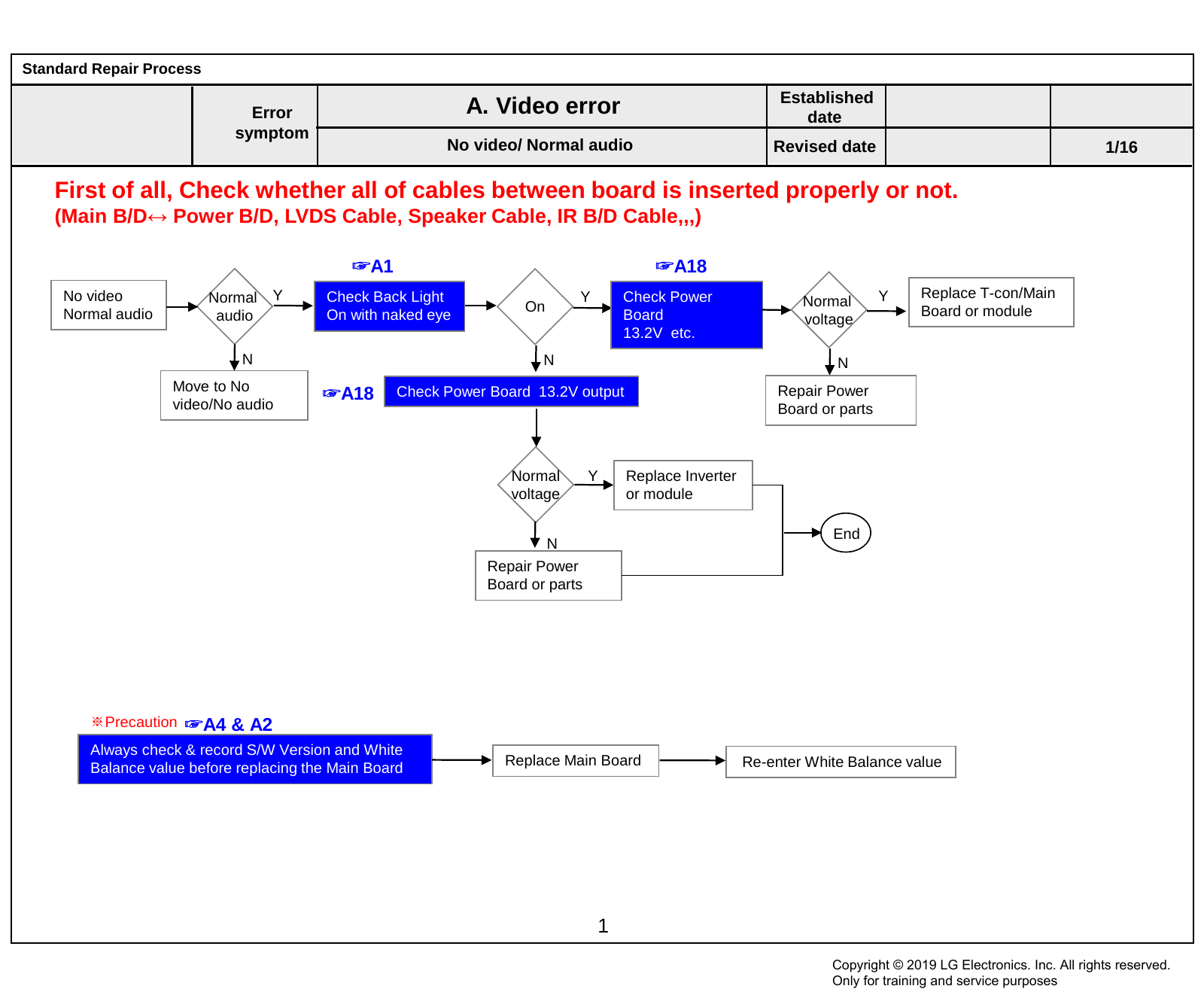

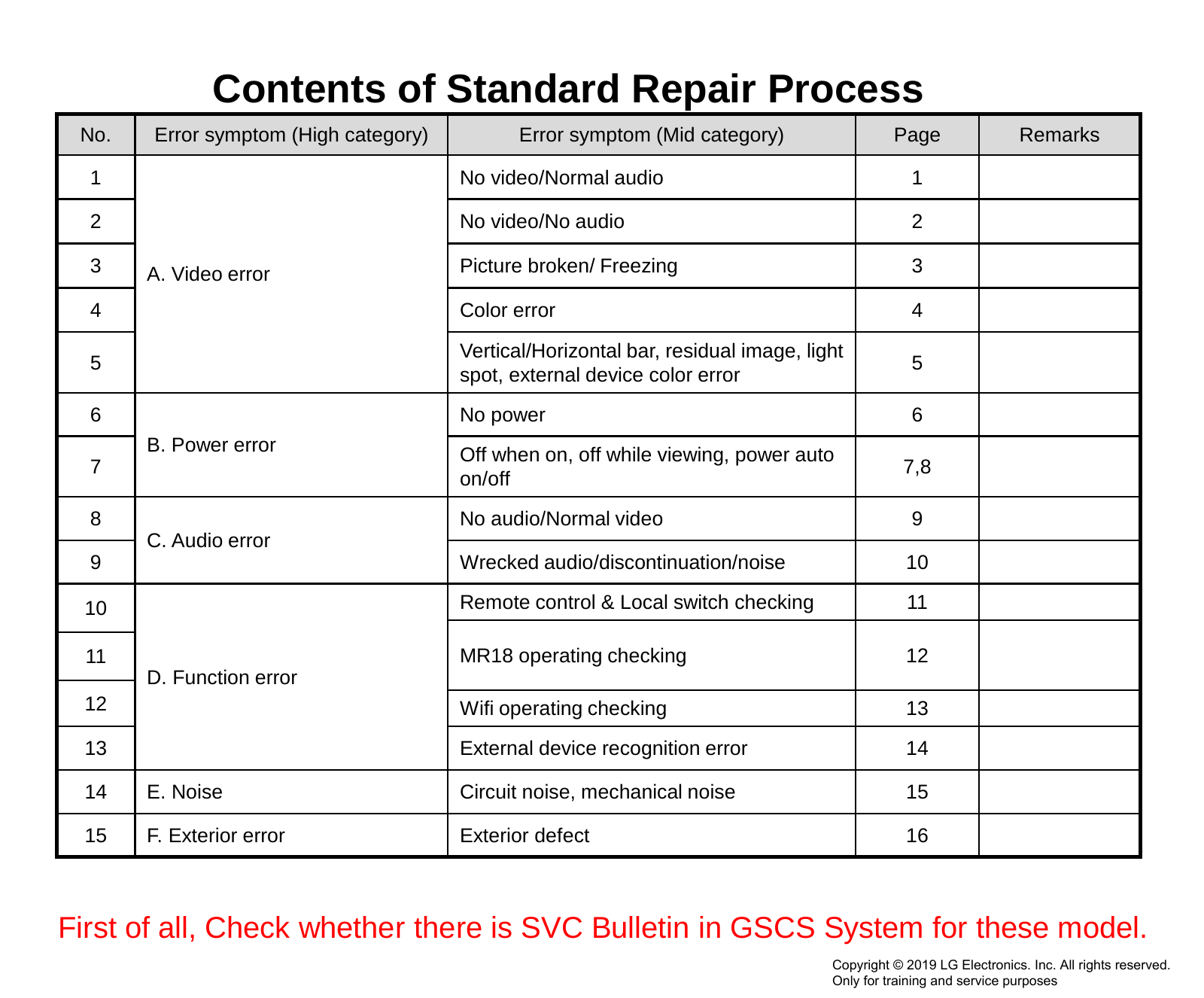

TROUBLE SHOOTING GUIDE ................................................. APPENDIX
-2- Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
SAFETY PRECAUTIONS
IMPORTANT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC Do not use a line Isolation Transformer during this check.
power line. Use a transformer of adequate power rating as this Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
protects the technician from accidents resulting in personal injury between a known good earth ground (Water Pipe, Conduit, etc.)
from electrical shocks. and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
It will also protect the receiver and it's components from being with 1000 ohms/volt or more sensitivity.
damaged by accidental shorts of the circuitry that may be Reverse plug the AC cord into the AC outlet and repeat AC voltage
inadvertently introduced during the service operation. measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
If any fuse (or Fusible Resistor) in this TV receiver is blown, 0.5 mA.
replace it with the specified. In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
When replacing a high wattage resistor (Oxide Metal Film Resistor, repaired before it is returned to the customer.
over 1 W), keep the resistor 10 mm away from PCB.
Leakage Current Hot Check circuit
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
-3- Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
SERVICING PRECAUTIONS
CAUTION: Before servicing receivers covered by this service 2. After removing an electrical assembly equipped with ES
manual and its supplements and addenda, read and follow the devices, place the assembly on a conductive surface such as
SAFETY PRECAUTIONS on page 3 of this publication. aluminum foil, to prevent electrostatic charge buildup or expo-
NOTE: If unforeseen circumstances create conflict between the sure of the assembly.
following servicing precautions and any of the safety precautions 3. Use only a grounded-tip soldering iron to solder or unsolder
on page 3 of this publication, always follow the safety precau- ES devices.
tions. Remember: Safety First. 4. Use only an anti-static type solder removal device. Some sol-
der removal devices not classified as “anti-static” can generate
General Servicing Precautions electrical charges sufficient to damage ES devices.
1. Always unplug the receiver AC power cord from the AC power 5. Do not use freon-propelled chemicals. These can generate
source before; electrical charges sufficient to damage ES devices.
a. Removing or reinstalling any component, circuit board 6. Do not remove a replacement ES device from its protective
module or any other receiver assembly. package until immediately before you are ready to install it.
b. Disconnecting or reconnecting any receiver electrical plug (Most replacement ES devices are packaged with leads elec-
or other electrical connection. trically shorted together by conductive foam, aluminum foil or
c. Connecting a test substitute in parallel with an electrolytic comparable conductive material).
capacitor in the receiver. 7. Immediately before removing the protective material from the
CAUTION: A wrong part substitution or incorrect polarity leads of a replacement ES device, touch the protective mate-
installation of electrolytic capacitors may result in an explo- rial to the chassis or circuit assembly into which the device will
sion hazard. be installed.
2. Test high voltage only by measuring it with an appropriate CAUTION: Be sure no power is applied to the chassis or cir-
high voltage meter or other voltage measuring device (DVM, cuit, and observe all other safety precautions.
FETVOM, etc) equipped with a suitable high voltage probe. 8. Minimize bodily motions when handling unpackaged replace-
Do not test high voltage by "drawing an arc". ment ES devices. (Otherwise harmless motion such as the
3. Do not spray chemicals on or near this receiver or any of its brushing together of your clothes fabric or the lifting of your
assemblies. foot from a carpeted floor can generate static electricity suf-
4. Unless specified otherwise in this service manual, clean ficient to damage an ES device.)
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable General Soldering Guidelines
non-abrasive applicator; 10 % (by volume) Acetone and 90 % 1. Use a grounded-tip, low-wattage soldering iron and appropri-
(by volume) isopropyl alcohol (90 % - 99 % strength) ate tip size and shape that will maintain tip temperature within
CAUTION: This is a flammable mixture. the range or 500 °F to 600 °F.
Unless specified otherwise in this service manual, lubrication 2. Use an appropriate gauge of RMA resin-core solder composed
of contacts in not required. of 60 parts tin/40 parts lead.
5. Do not defeat any plug/socket B+ voltage interlocks with which 3. Keep the soldering iron tip clean and well tinned.
receivers covered by this service manual might be equipped. 4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
6. Do not apply AC power to this instrument and/or any of its bristle (0.5 inch, or 1.25 cm) brush with a metal handle.
electrical assemblies unless all solid-state device heat sinks Do not use freon-propelled spray-on cleaners.
are correctly installed. 5. Use the following unsoldering technique
7. Always connect the test receiver ground lead to the receiver a. Allow the soldering iron tip to reach normal temperature.
chassis ground before connecting the test receiver positive (500 °F to 600 °F)
lead. b. Heat the component lead until the solder melts.
Always remove the test receiver ground lead last. c. Quickly draw the melted solder with an anti-static, suction-
8. Use with this receiver only the test fixtures specified in this type solder removal device or with solder braid.
service manual. CAUTION: Work quickly to avoid overheating the circuit
CAUTION: Do not connect the test fixture ground strap to any board printed foil.
heat sink in this receiver. 6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
Electrostatically Sensitive (ES) Devices (500 °F to 600 °F)
Some semiconductor (solid-state) devices can be damaged eas- b. First, hold the soldering iron tip and solder the strand
ily by static electricity. Such components commonly are called against the component lead until the solder melts.
Electrostatically Sensitive (ES) Devices. Examples of typical ES c. Quickly move the soldering iron tip to the junction of the
devices are integrated circuits and some field-effect transistors component lead and the printed circuit foil, and hold it there
and semiconductor “chip” components. The following techniques only until the solder flows onto and around both the compo-
should be used to help reduce the incidence of component dam- nent lead and the foil.
age caused by static by static electricity. CAUTION: Work quickly to avoid overheating the circuit
1. Immediately before handling any semiconductor component or board printed foil.
semiconductor-equipped assembly, drain off any electrostatic d. Closely inspect the solder area and remove any excess or
charge on your body by touching a known earth ground. Alter- splashed solder with a small wire-bristle brush.
natively, obtain and wear a commercially available discharg-
ing wrist strap device, which should be removed to prevent
potential shock reasons prior to applying power to the unit
under test.
-4- Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
IC Remove/Replacement 3. Solder the connections.
Some chassis circuit boards have slotted holes (oblong) through CAUTION: Maintain original spacing between the replaced
which the IC leads are inserted and then bent flat against the cir- component and adjacent components and the circuit board to
cuit foil. When holes are the slotted type, the following technique prevent excessive component temperatures.
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique Circuit Board Foil Repair
as outlined in paragraphs 5 and 6 above. Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
Removal board causing the foil to separate from or "lift-off" the board. The
1. Desolder and straighten each IC lead in one operation by following guidelines and procedures should be followed when-
gently prying up on the lead with the soldering iron tip as the ever this condition is encountered.
solder melts.
2. Draw away the melted solder with an anti-static suction-type At IC Connections
solder removal device (or with solder braid) before removing To repair a defective copper pattern at IC connections use the
the IC. following procedure to install a jumper wire on the copper pattern
Replacement side of the circuit board. (Use this technique only on IC connec-
1. Carefully insert the replacement IC in the circuit board. tions).
2. Carefully bend each IC lead against the circuit foil pad and
solder it. 1. Carefully remove the damaged copper pattern with a sharp
3. Clean the soldered areas with a small wire-bristle brush. knife. (Remove only as much copper as absolutely necessary).
(It is not necessary to reapply acrylic coating to the areas). 2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
"Small-Signal" Discrete Transistor 3. Bend a small "U" in one end of a small gauge jumper wire and
Removal/Replacement carefully crimp it around the IC pin. Solder the IC connection.
1. Remove the defective transistor by clipping its leads as close 4. Route the jumper wire along the path of the out-away copper
as possible to the component body. pattern and let it overlap the previously scraped end of the
2. Bend into a "U" shape the end of each of three leads remain- good copper pattern. Solder the overlapped area and clip off
ing on the circuit board. any excess jumper wire.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding At Other Connections
leads extending from the circuit board and crimp the "U" with Use the following technique to repair the defective copper pattern
long nose pliers to insure metal to metal contact then solder at connections other than IC Pins. This technique involves the
each connection. installation of a jumper wire on the component side of the circuit
board.
Power Output, Transistor Device
Removal/Replacement 1. Remove the defective copper pattern with a sharp knife.
1. Heat and remove all solder from around the transistor leads. Remove at least 1/4 inch of copper, to ensure that a hazardous
2. Remove the heat sink mounting screw (if so equipped). condition will not exist if the jumper wire opens.
3. Carefully remove the transistor from the heat sink of the circuit 2. Trace along the copper pattern from both sides of the pattern
board. break and locate the nearest component that is directly con-
4. Insert new transistor in the circuit board. nected to the affected copper pattern.
5. Solder each transistor lead, and clip off excess lead. 3. Connect insulated 20-gauge jumper wire from the lead of the
6. Replace heat sink. nearest component on one side of the pattern break to the
lead of the nearest component on the other side.
Diode Removal/Replacement Carefully crimp and solder the connections.
1. Remove defective diode by clipping its leads as close as pos- CAUTION: Be sure the insulated jumper wire is dressed so the
sible to diode body. it does not touch components or sharp edges.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and
if necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
-5- Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement.
1. Application range 3. Test method
This specification is applied to the LED TV used LB94M (1) Performance: LGE TV test method followed
chassis. (2) Demanded other specification
- Safety : CE, IEC specification
- EMC : CE, IEC
2. Requirement for Test
Each part is tested as below without special notice
(1) Temperature: 25 °C ± 5 °C(77 °C ± 9 °C), CST: 40 °C ± 2 °C
(2) Relative Humidity : 60 % ± 10%
(3) Power Voltage
: Standard input voltage (AC 100~240V~, 50/60Hz)
Standard Voltage of each product is marked by models
(4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM .
(5) The receiver must be operated for about 5 minutes prior to
the adjustment
4. Model General Specification
No. Item Specification Remarks
1 Market Asia, Oceania, Africa, Middle East
(1) Digital TV : DVB-T/T2, DVB-C, DVB-S/S2
2 Broadcasting system (2) Analogue TV : P AL B/B, PAL B/G, PAL D/K, PAL-I, SECAM B/G,
SECAM D/K, NTSC-M
Digital TV DVB-T/T2 : VHF, UHF Maximum number of storable programmes : 3000
(Depending on DVB-S/S2 : C-Band,Ku-Band Maximum number of storable programmes : 6000
3 Program coverage models) DVB-C Maximum number of storable programmes : 3000
Analogue TV Analogue TV Maximum number of storable programmes : 3000
► DVB-T
- Guard Interval(Bitrate_Mbit/s): 1/4, 1/8, 1/16, 1/32
- Modulation : Code Rate
QPSK : 1/2, 2/3, 3/4, 5/6, 7/8
16-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
64-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
► DVB-T2 (Depending on models)
- Guard Interval(Bitrate_Mbit/s)
1/4, 1/8, 1/16, 1/32, 1/128, 19/128, 19/256,
- Modulation : Code Rate
Analog : Upper Heterodyne QPSK : 1/2, 2/5, 2/3, 3/4, 5/6
Digital : COFDM(DVB-T) Only DVB-T Model 16-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
4 Receiving system
Digital : COFDM(DVB-T/T2) Only DVB-T2 Model 64-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
Digital : QAM 256-QAM : 1/2, 2/5, 2/3, 3/4, 5/6
► DVB-C (Depending on models)
- Symbolrate : 4.0Msymbols/s to 7.2Msymbols/s
- Modulation : 16QAM, 64-QAM, 128-QAM and 256-QAM
► DVB-S/S2 (Depending on models)
- symbolrate
DVB-S2 (8PSK / QPSK) : 2 ~ 45Msymbol/s
DVB-S (QPSK) : 2 ~ 45Msymbol/s
- viterbi
DVB-S mode : 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2 mode : 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10
5 Video Input RCA PAL, SECAM, NTSC, PAL60
Rear(1EA), AV & Component Common
6 Component Input Y/Cb/Cr, Y/ Pb/Pr
HDMI 1 PC / DTV Format Side, Support ARC
7 HDMI Input HDMI 2 PC / DTV Format Rear(EU/CIS/MEA), Side(OCEANIA/ASIA)
HDMI 3 PC / DTV Format Rear(Except **LM57**)
8 Audio Input AV Audio / Component Audio / DVI Audio Rear(1EA, AV and DVI use same jack)
9 SPDIF Out(1 EA) Optical Audio out Rear(1EA)
JPEG, MP3, DivX HD
10 USB Input (2 EA) EMF, DivX HD, For SVC (download)
Side(2EA)_**LM63** , Side(1EA)_**LM57**
11 Ethernet Connect(1 EA) Optical Audio out STP cable
12 Head phone out Antenna, HDMI1, HDMI2, HDMI3, USB1, USB2, AV, Component Only OCEANIA/ASIA
-6- Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.

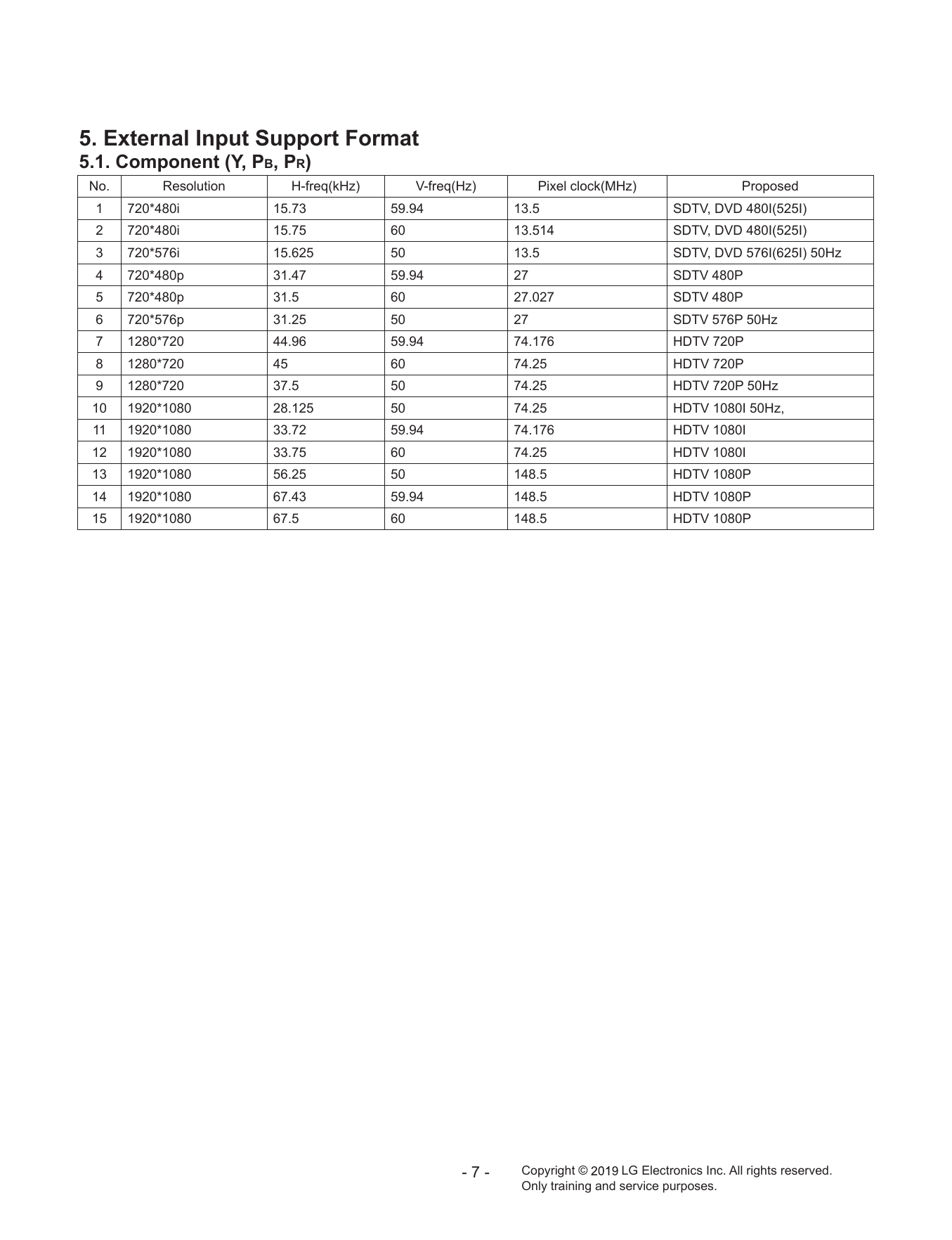

5. External Input Support Format
5.1. Component (Y, PB, PR)
No. Resolution H-freq(kHz) V-freq(Hz) Pixel clock(MHz) Proposed
1 720*480i 15.73 59.94 13.5 SDTV, DVD 480I(525I)
2 720*480i 15.75 60 13.514 SDTV, DVD 480I(525I)
3 720*576i 15.625 50 13.5 SDTV, DVD 576I(625I) 50Hz
4 720*480p 31.47 59.94 27 SDTV 480P
5 720*480p 31.5 60 27.027 SDTV 480P
6 720*576p 31.25 50 27 SDTV 576P 50Hz
7 1280*720 44.96 59.94 74.176 HDTV 720P
8 1280*720 45 60 74.25 HDTV 720P
9 1280*720 37.5 50 74.25 HDTV 720P 50Hz
10 1920*1080 28.125 50 74.25 HDTV 1080I 50Hz,
11 1920*1080 33.72 59.94 74.176 HDTV 1080I
12 1920*1080 33.75 60 74.25 HDTV 1080I
13 1920*1080 56.25 50 148.5 HDTV 1080P
14 1920*1080 67.43 59.94 148.5 HDTV 1080P
15 1920*1080 67.5 60 148.5 HDTV 1080P
-7- Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
5.2. HDMI input
(1) DTV mode
No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed Remarks
1 640*480 31.46 59.94 25.12 SDTV 480P
2 640*480 31.5 60 25.12 SDTV 480P
3 720*480 15.73 59.94 13.5 SDTV, DVD 480I(525I)
4 720*480 15.75 60 13.51 SDTV, DVD 480I(525I) Spec. out but display
5 720*576 15.62 50 13.5 SDTV, DVD 576I(625I) 50Hz
6 720*480 31.47 59.94 27 SDTV 480P
7 720*480 31.5 60 27.02 SDTV 480P
8 720*576 31.25 50 27 SDTV 576P
9 1280*720 44.96 59.94 74.17 HDTV 720P
10 1280*720 45 60 74.25 HDTV 720P
11 1280*720 37.5 50 74.25 HDTV 720P
12 1920*1080 28.12 50 74.25 HDTV 1080I
13 1920*1080 33.72 59.94 74.17 HDTV 1080I
14 1920*1080 33.75 60 74.25 HDTV 1080I
15 1920*1080 26.97 23.97 63.29 HDTV 1080P
16 1920*1080 27 24 63.36 HDTV 1080P
17 1920*1080 33.71 29.97 79.12 HDTV 1080P
18 1920*1080 33.75 30 79.2 HDTV 1080P
19 1920*1080 56.25 50 148.5 HDTV 1080P
20 1920*1080 67.43 59.94 148.35 HDTV 1080P
21 1920*1080 67.5 60 148.5 HDTV 1080P
22 1920*1080 112.5 100 297 UDTV 2160P
23 1920*1080 134.86 119.88 296.7 UDTV 2160P
24 1920*1080 135 120 297 UDTV 2160P
25 3840*2160 53.95 23.98 296.7 UDTV 2160P
26 3840*2160 54 24 297 UDTV 2160P
27 3840*2160 56.25 25 297 UDTV 2160P
28 3840*2160 61.43 29.97 296.7 UDTV 2160P
29 3840*2160 67.5 30 297 UDTV 2160P
30 3840*2160 112.5 50 594 UDTV 2160P
31 3840*2160 134.86 59.94 593.4 UDTV 2160P
32 3840*2160 135 60 594 UDTV 2160P
33 3840*2160 225 100 1188 UDTV 2160P This will be added in USER-
34 3840*2160 270 119.88 1186.8 UDTV 2160P GUIDE after MR SW update
35 3840*2160 270 120 1188 UDTV 2160P event.
36 4096*2160 53.95 23.98 296.7 UDTV 2160P
37 4096*2160 54 24 297 UDTV 2160P
38 4096*2160 56.25 25 297 UDTV 2160P
39 4096*2160 61.43 29.97 296.7 UDTV 2160P
40 4096*2160 67.5 30 297 UDTV 2160P
41 4096*2160 112.5 50 594 UDTV 2160P
42 4096*2160 134.86 59.94 593.4 UDTV 2160P
43 4096*2160 135 60 594 UDTV 2160P
44 4096*2160 225 100 1188 UDTV 2160P This will be added in USER-
45 4096*2160 270 119.88 1186.8 UDTV 2160P GUIDE after MR SW update
46 4096*2160 270 120 1188 UDTV 2160P event.
47 7680*4320 107.89 23.98 1188 8K
48 7680*4320 108 24 1188 8K
49 7680*4320 110 25 1188 8K
50 7680*4320 131.87 29.97 1188 8K 8K Model Only. This will be
added in USERGUIDE after
51 7680*4320 132 30 1188 8K 8K model development.
52 7680*4320 220 50 2376 8K
53 7680*4320 263.74 59.94 2376 8K
54 7680*4320 264 60 2376 8K
-8- Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
(2) PC mode
No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed Remarks
1 640*350 31.46 70.09 25.17 EGA
2 720*400 31.46 70.08 28.32 DOS
3 640*480 31.46 59.94 25.17 VESA(VGA)
4 800*600 37.87 60.31 40 VESA(SVGA)
5 1024*768 48.36 60 65 VESA(XGA)
6 1360*768 47.71 60.01 84.75 VESA(WXGA)
7 1152*864 54.34 60.05 80 VESA
8 1280*1024 63.98 60.02 109 SXGA Support to HDMI-PC
WUXGA(Reduced
9 1920*1080 67.5 60 158.4
Blanking)
10 1920*1080 134.86 119.88 296.7 UDTV 2160P
11 1920*1080 135 120 297 UDTV 2160P
12 3840*2160 53.95 23.98 296.7 UDTV 2160P
13 3840*2160 54 24 297 UDTV 2160P
14 3840*2160 56.25 25 297 UDTV 2160P
15 3840*2160 61.43 29.97 296.7 UDTV 2160P
16 3840*2160 67.5 30 297 UDTV 2160P
17 3840*2160 112.5 50 594 UDTV 2160P
18 3840*2160 134.86 59.94 593.4 UDTV 2160P
19 3840*2160 135 60 594 UDTV 2160P
20 3840*2160 225 100 1188 UDTV 2160P
This will be added in USERGUIDE
21 3840*2160 270 119.88 1186.8 UDTV 2160P
after MR SW update event.
22 3840*2160 270 120 1188 UDTV 2160P
23 4096*2160 53.95 23.98 296.7 UDTV 2160P
24 4096*2160 54 24 297 UDTV 2160P
25 4096*2160 56.25 25 297 UDTV 2160P
26 4096*2160 61.43 29.97 296.7 UDTV 2160P
27 4096*2160 67.5 30 297 UDTV 2160P
28 4096*2160 112.5 50 594 UDTV 2160P
29 4096*2160 134.86 59.94 593.4 UDTV 2160P
30 4096*2160 135 60 594 UDTV 2160P
31 4096*2160 225 100 1188 UDTV 2160P
This will be added in USERGUIDE
32 4096*2160 270 119.88 1186.8 UDTV 2160P
after MR SW update event.
33 4096*2160 270 120 1188 UDTV 2160P
34 2560*1440 88.78 59.95 241.5 3K (UHD, 8K 60Hz Model only), UHD
35 2560*1440 182.99 119.99 497.7 3K DeepColor On
36 7680*4320 107.89 23.98 1188 8K
37 7680*4320 108 24 1188 8K
38 7680*4320 110 25 1188 8K
39 7680*4320 131.87 29.97 1188 8K 8K Model Only. This will be added
in USERGUIDE after 8K model
40 7680*4320 132 30 1188 8K
development.
41 7680*4320 220 50 2376 8K
42 7680*4320 263.74 59.94 2376 8K
43 7680*4320 264 60 2376 8K
-9- Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
SOFTWARE UPDATE
1. USB DOWNLOAD 2. NSU DOWNLOAD
(1) Insert the USB memory Stick to the USB port. (This Function is needed to connect to the internet.)
(2) Automatically detect the SW Version and show the below
message. Case 1) Allow Automatic Updates Toggle Item
(1) Menu -> All Settings -> General -> About This TV
(3) Click [YES]: initiate the download and install of the update.
(2) Silent Update_Pop-up
When the download and install of the update is complete, the
TV issues a Toast notification letting the user know that the
update is complete and a reboot is required.
(4) Click [Check Now]: move to “About This TV” page for update.
(5) TV is updating.
(3) If you want to see the update progress, go to [Menu → All
Settings → General → About This TV]
(6) After finished the update, below Pop-up appear.
(4) If you want to cancel update, click (1.1) CANCEL UPDATE
(7) Click [Yes] : TV will be DC OFF → ON.
(8) After TV turned on, Check the updated SW Version and (5) [NO] : Keep updating
Tool Option. [Yes] : Cancel updating
- 10 - Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
Case 2) NOT Allow Automatic Updates Toggle Item
(1) Menu -> All Settings -> General -> About This TV
(2) TV will automatically check for updates when every TV boots
When an updated is detected, the TV will issue an Alert
letting the user know that an update is available.
(3) [Yes] : Initiate the download and install of the update
[No] : Close the pop-up.
The Alert will come back again when TV checks again.
(4) The following pop up window appears.
(5) [CHECK NOW] : Go to the About this TV setting page
[CLOSE] : Close the pop-up
- 11 - Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
IF (+/-) Digital Demod
REAR Tuner
Analog Demod X_TAL
24MHz
OCP EEPROM (256Kb)
USB1 I2C
1.5A
USB Main Soc eMMC 5.1 (4GB)
USB2 OCP
1.5A
SIDE (LM57 OPT) (Embedded)
HDMI1
(ARC)
HDMI2 HDMI
30P
MUX LVDS
- 12 -
HDMI3
(LM57 OPT)
I2S
AV/COMP CVBS/YPbPr Audio AMP
I2C
BLOCK DIAGRAM
Copyright ©
REAR OPTIC SPDIF OUT
USB_WIFI
WIFI
H/P H/P OUT
SUB
ASSY
LAN ETHERNET IR / KEY / Sensor
Only training and service purposes.
LG Electronics Inc. All rights reserved.
EXPLODED VIEW (SET)
IMPORTANT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
400
521
120
571
540
570
900
HP1
800
500
HW1
530
820
LV1
HS1
121
200T
LED Array Ass’y
700
200A
Set + Stand
A10
ARC1
AR1
200P
- 13 - Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
EXPLODED VIEW (MODULE)
IMPORTANT NOTICE
MRC use only
* MRC : Module Repair Center
Optical Sheet
200PPR
POL(Rear)
200SR1
Rear Side
200P
Ass’y
Panel
200SL1
200PC
200PPF
POL(Front)
- 14 - Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
DISASSEMBLY GUIDE
1. Unlock screws (“1”: 1EA, ”2”: 2EA, “3”: 5EA) to separate back cover
assembly from module.
Detach the Side AV Label(“4”).
3
1 4
2 2
3 3 3 3
2. Detach the Tape(“5”).
5
- 15 - Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.

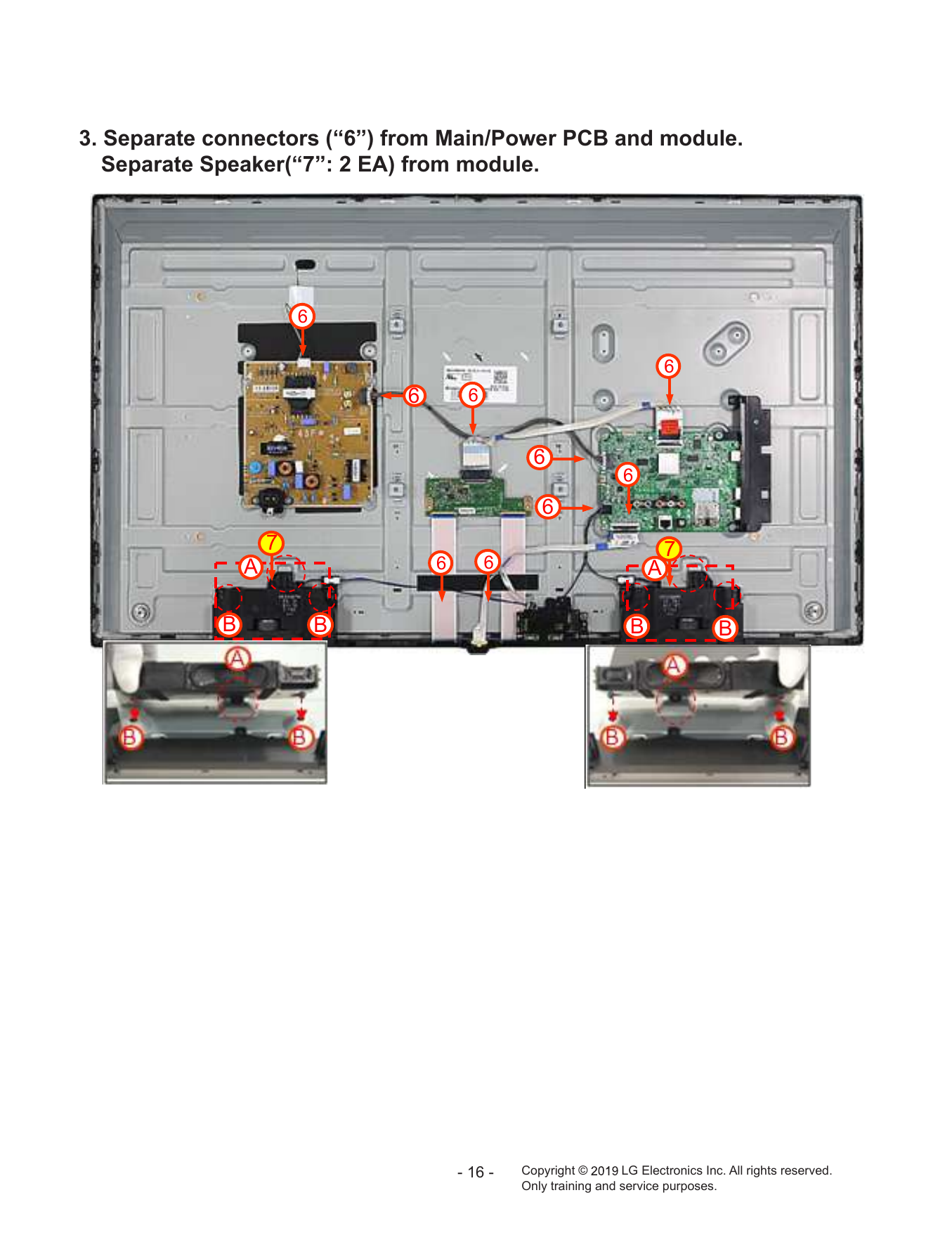

3. Separate connectors (“6”) from Main/Power PCB and module.
Separate Speaker(“7”: 2 EA) from module.
6
6
6 6
6
6
6
7 7
A 6 6 A
B B B B
- 16 - Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
4. Unlock screw (“8”: 18 EA) to separate from module.
* 1 pole Stand Supporter (“9”: 2 EA) is applied on 1pole Stand type.
8 8
8 8
8 8
8 8
8 8
8 8 8 8
8 9
8 8
9 8
5. Detach the Insulation Sheet(“10”).
10
- 17 - Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.

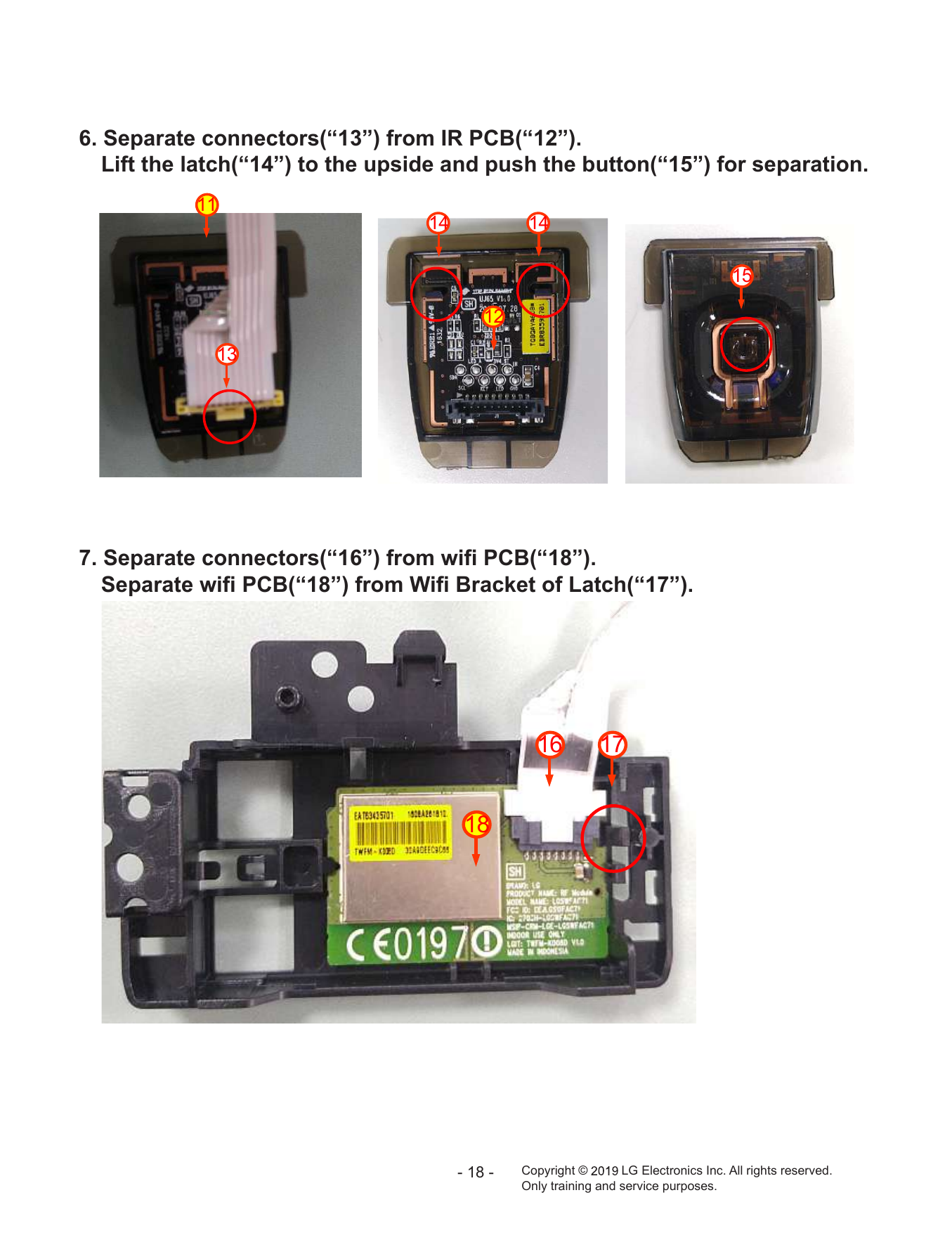

6. Separate connectors(“13”) from IR PCB(“12”).
Lift the latch(“14”) to the upside and push the button(“15”) for separation.
11
14 14
15
12
13
7. Separate connectors(“16”) from wifi PCB(“18”).
Separate wifi PCB(“18”) from Wifi Bracket of Latch(“17”).
16 17
18
- 18 - Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.

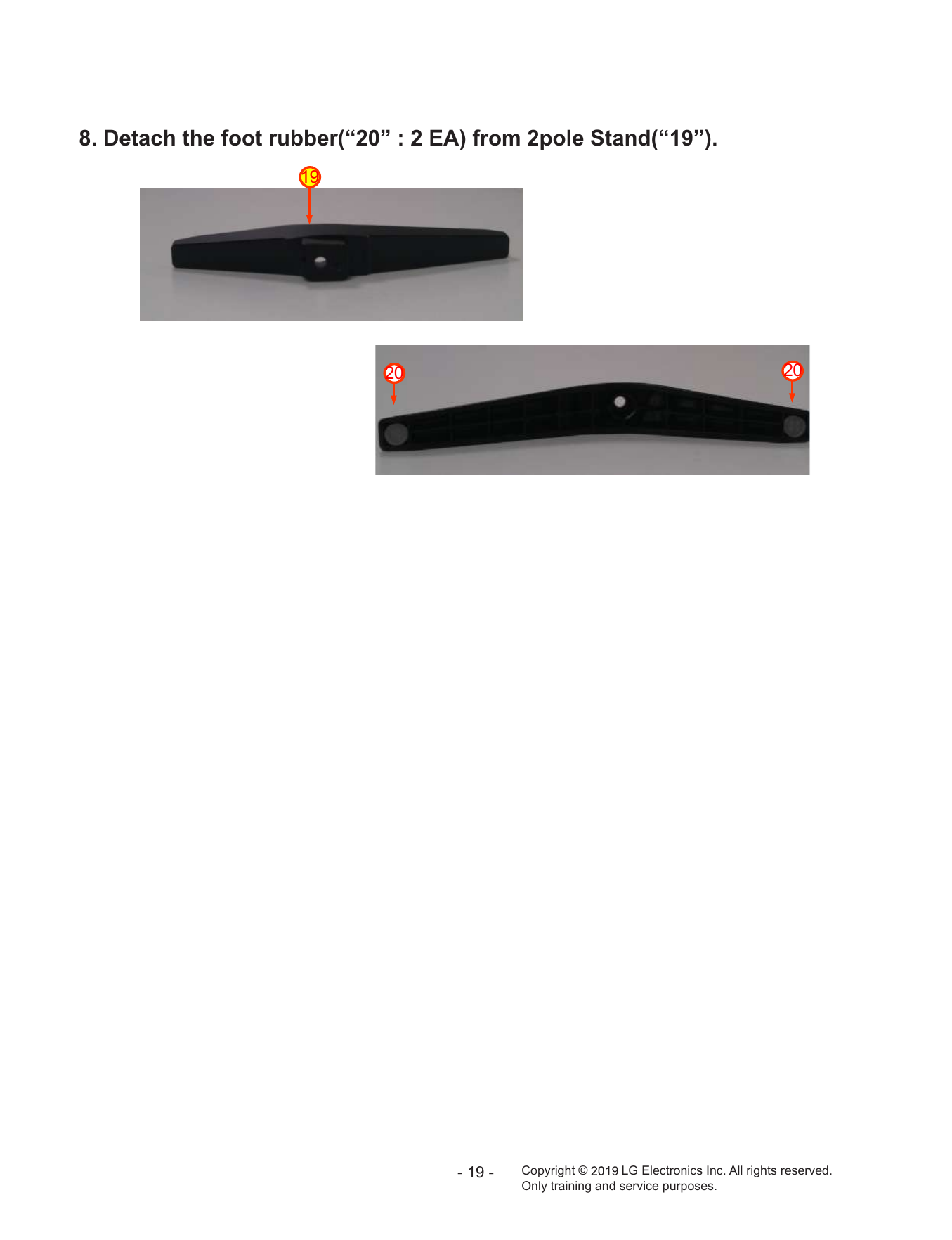

8. Detach the foot rubber(“20” : 2 EA) from 2pole Stand(“19”).
19
20 20
- 19 - Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.

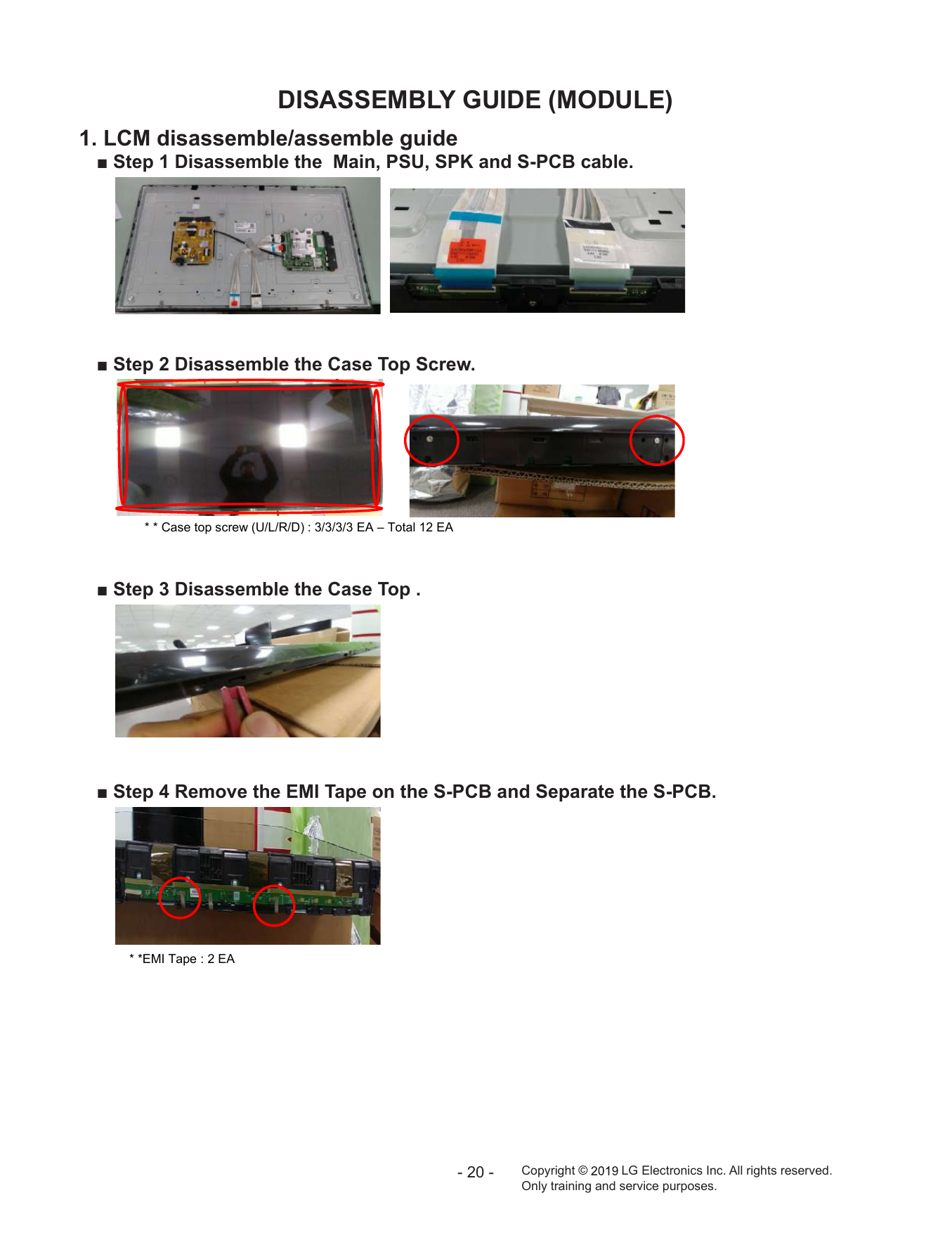

DISASSEMBLY GUIDE (MODULE)
1. LCM disassemble/assemble guide
■ Step 1 Disassemble the Main, PSU, SPK and S-PCB cable.
■ Step 2 Disassemble the Case Top Screw.
* * Case top screw (U/L/R/D) : 3/3/3/3 EA – Total 12 EA
■ Step 3 Disassemble the Case Top .
■ Step 4 Remove the EMI Tape on the S-PCB and Separate the S-PCB.
* *EMI Tape : 2 EA
- 20 - Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
■ Step 5 Disassemble the Panel.
■ Step 6 Disassemble the guide panel.
■ Step 7 Disassemble the Optical Sheet 2ea /Diffuser Plate 1 EA.
■ Step 8 Disassemble the DPS, and the Reflector.
* Rotate the DPS to remove
(2 EA)
* Be careful not to tear the Reflector sheet.
- 21 - Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
2. LED Array disassemble/assemble guide
■ LED Array disassemble
(1) Disassemble connector.
(2) From cover bottom, LED Array remove.
(3) rom cover bottom, LED Array double tape remove.
■ LED Array assemble
Step 1. Double tape attach
* Completion of double tape attach (3 EA)
(1) Attach double tape (3 EA)
(2) Remove double tape protective film
* LED Array & Double Tape must be matched with the P/No.
Step 2. LED Array attach
* LED Array Total 3 EA
(1) Cover Bottom’s guide embo & LED Array arrange and attach.
(2) LED array squeeze, along cover bottom's surface.
(3) Connect LED Array to connector.
* Completion of LED Array assemble (3 EA)
- 22 - Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
TROUBLE SHOOTING GUIDE
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Contents of Standard Repair Process
No. Error symptom (High category) Error symptom (Mid category) Page Remarks
1 No video/Normal audio 1
2 No video/No audio 2
3 A. Video error Picture broken/ Freezing 3
4 Color error 4
Vertical/Horizontal bar, residual image, light
5 5
spot, external device color error
6 No power 6
B. Power error Off when on, off while viewing, power auto
7 7,8
on/off
8 No audio/Normal video 9
C. Audio error
9 Wrecked audio/discontinuation/noise 10
10 Remote control & Local switch checking 11
11 MR18 operating checking 12
D. Function error
12 Wifi operating checking 13
13 External device recognition error 14
14 E. Noise Circuit noise, mechanical noise 15
15 F. Exterior error Exterior defect 16
First of all, Check whether there is SVC Bulletin in GSCS System for these model.
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process
Established
Error A. Video error date
symptom
No video/ Normal audio Revised date 1/16
First of all, Check whether all of cables between board is inserted properly or not.
(Main B/D↔ Power B/D, LVDS Cable, Speaker Cable, IR B/D Cable,,,)
☞A1 ☞A18
No video Normal Y Check Back Light Y Check Power Y Replace T-con/Main
On Normal
Normal audio audio On with naked eye Board Board or module
voltage
13.2V etc.
N N N
Move to No
☞A18 Check Power Board 13.2V output Repair Power
video/No audio Board or parts
Normal Y Replace Inverter
voltage or module
End
N
Repair Power
Board or parts
※Precaution ☞A4 & A2
Always check & record S/W Version and White
Replace Main Board Re-enter White Balance value
Balance value before replacing the Main Board
1
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process
Established
Error A. Video error date
symptom

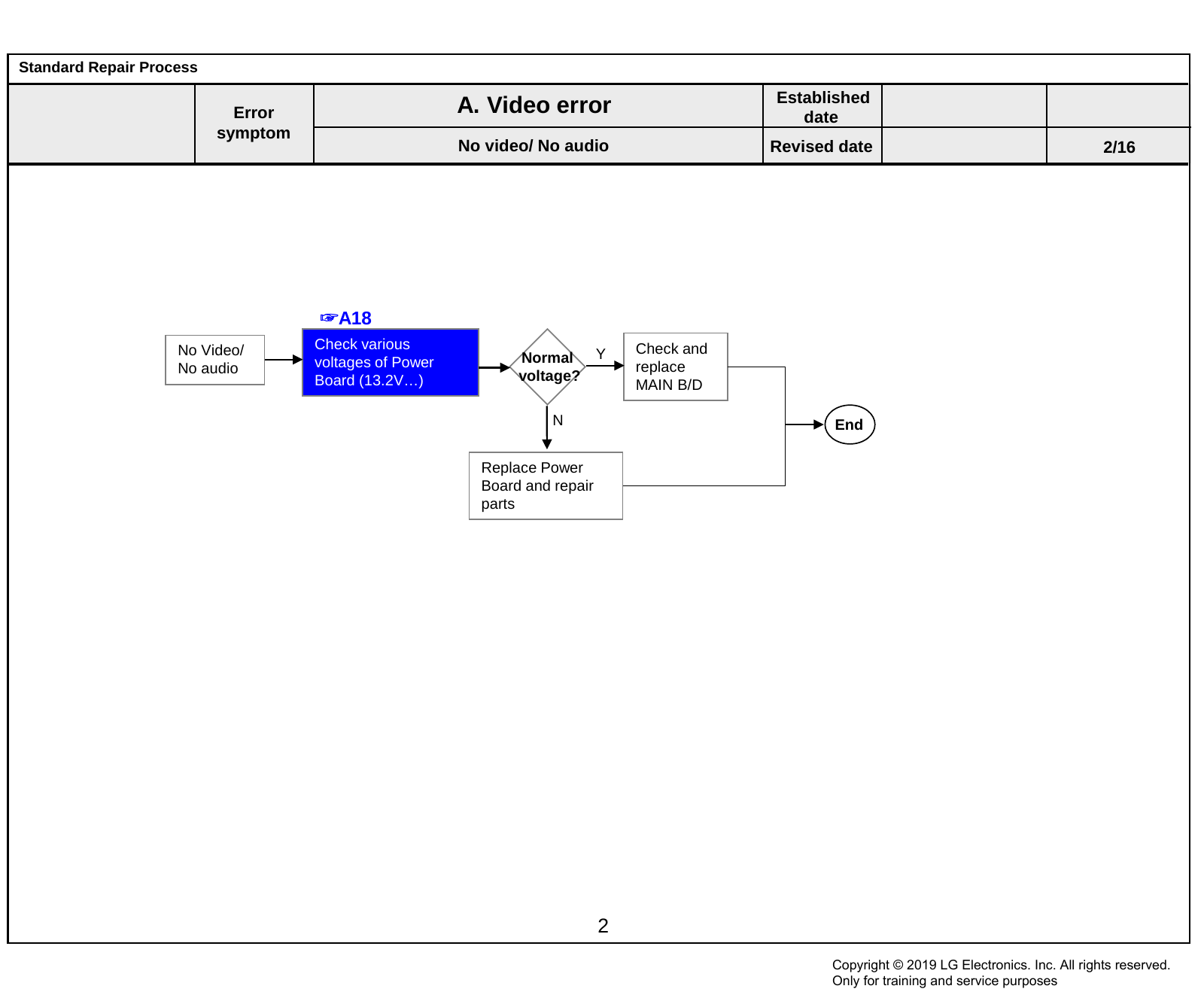

No video/ No audio Revised date 2/16
☞A18
No Video/ Check various Check and
Normal Y
No audio voltages of Power replace
Board (13.2V…) voltage?
MAIN B/D
N End
Replace Power
Board and repair
parts
2
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process
Established
Error A. Video error date
symptom
Picture broken/ Freezing Revised date 3/16
. By using Digital signal level meter
☞ A3
. By using Diagnostics menu on OSD
Check RF Signal level ( Advanced→ Channels→ Channel Tuning→ Manual Tuning → Check the Signal )
- Signal strength (Normal : over 50%)
- Signal Quality (Normal: over 50%)
Check whether other equipments have problem or not.
Normal Y
(By connecting RF Cable at other equipment)
Signal?
→ DVD Player ,Set-Top-Box, Different maker TV etc`
N
☞ A4
Check RF Cable
Normal Y Check SVC N Check Tuner Y
Connection Close
1. Reconnection Picture? S/W Version Bulletin? soldering
2. Install Booster
Y N
N
S/W Upgrade
Normal N Contact with signal distributor
Picture? or broadcaster (Cable or Air)
Normal N Replace
Y Picture? Main B/D
Y
Close
Close
3
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process
Established
Error A. Video error date
symptom

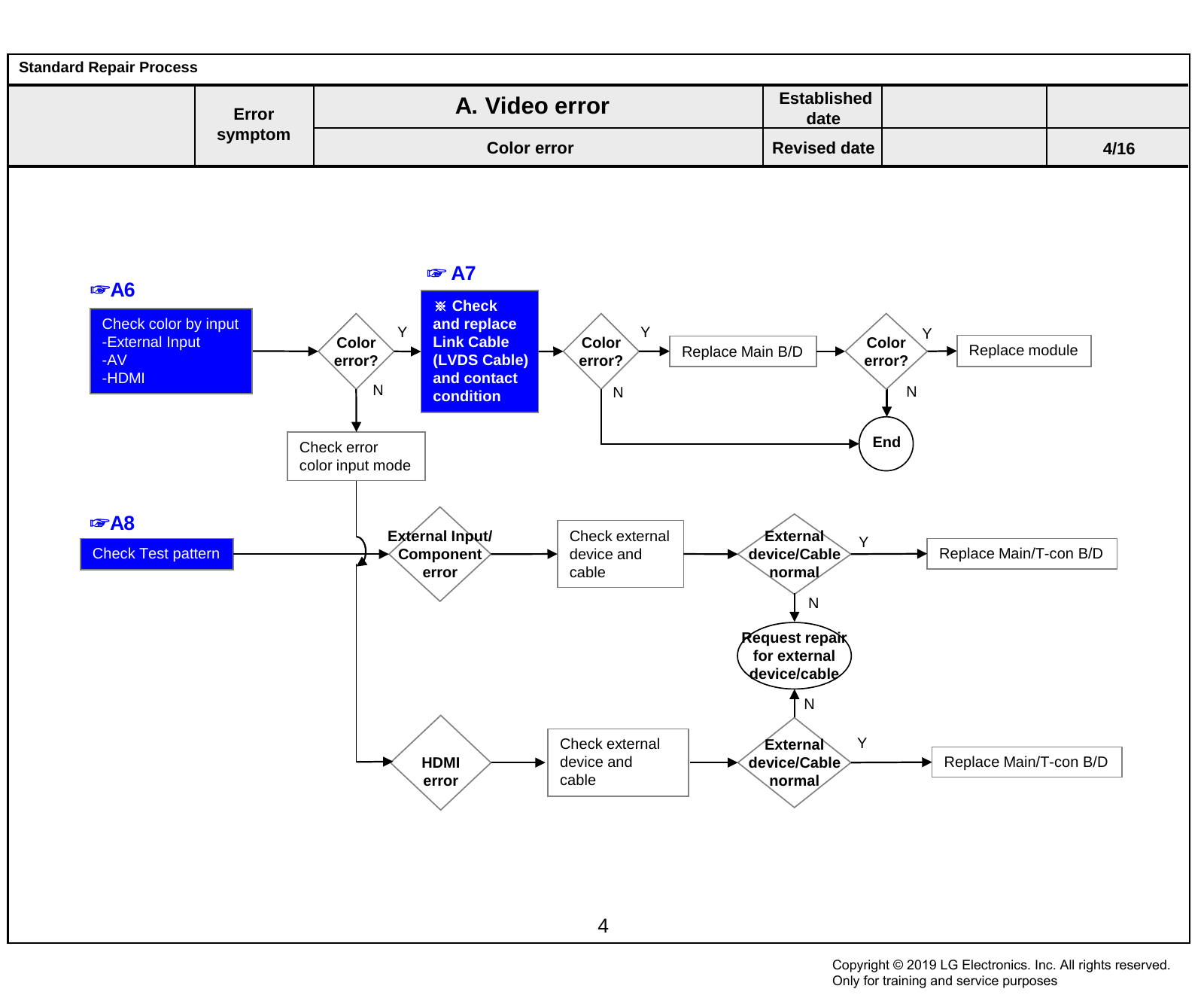

Color error Revised date 4/16
☞ A7
☞A6
※ Check
Check color by input and replace
Y Y Y
-External Input Color Link Cable Color Color
Replace Main B/D Replace module
-AV error? (LVDS Cable) error? error?
-HDMI and contact
N condition N N
Check error End
color input mode
☞A8
External Input/ Check external External Y
Check Test pattern Component device and device/Cable Replace Main/T-con B/D
error cable normal
N
Request repair
for external
device/cable
N
Check external External Y
HDMI device and device/Cable Replace Main/T-con B/D
error cable normal
4
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process
A. Video error Established
Error date

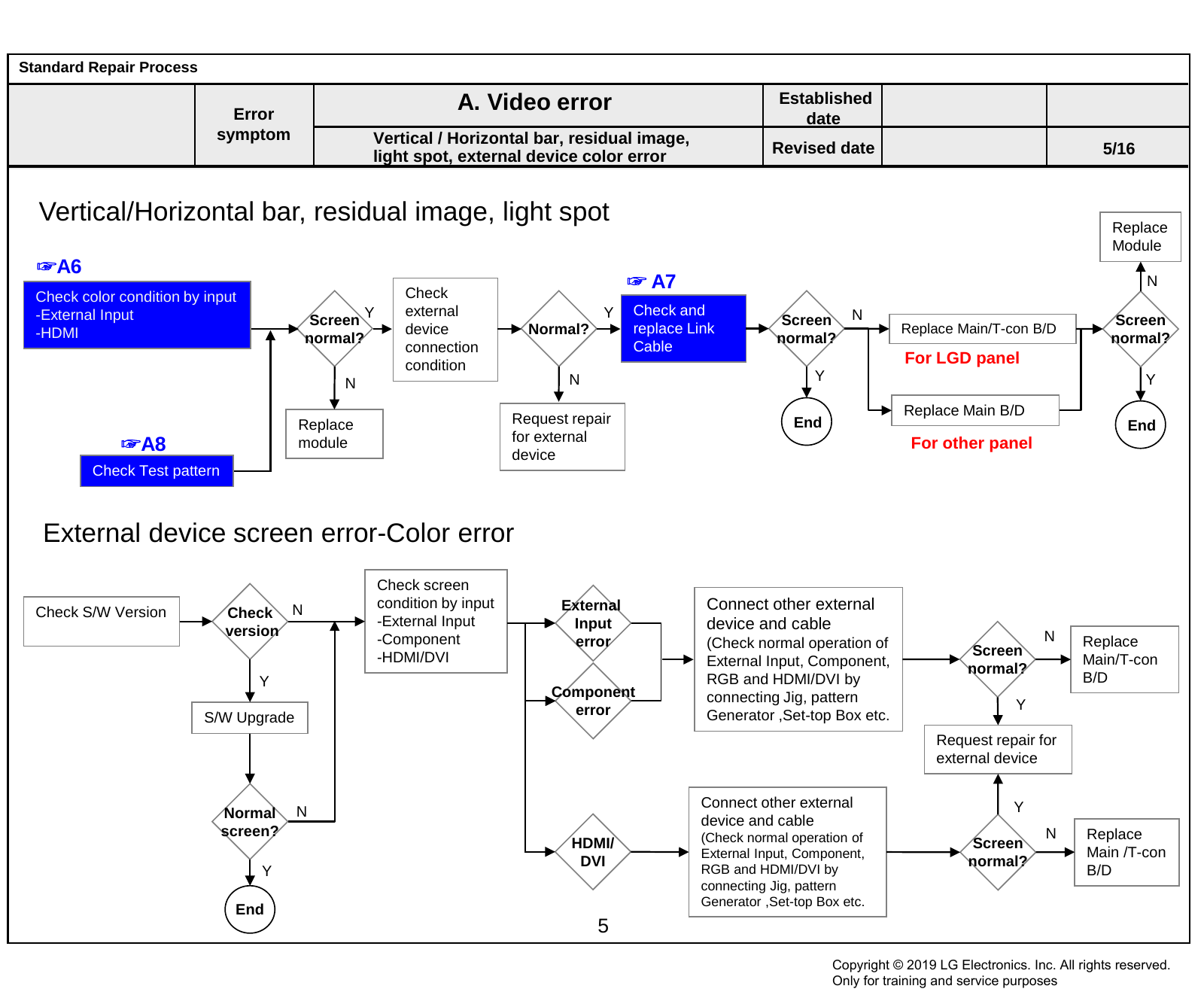

symptom Vertical / Horizontal bar, residual image,
light spot, external device color error Revised date 5/16
Vertical/Horizontal bar, residual image, light spot Replace
Module
☞A6
☞ A7 N
Check color condition by input Check
external Check and
-External Input Screen Y Y Screen N Screen
-HDMI device Normal? replace Link Replace Main/T-con B/D
normal? normal? normal?
connection Cable
condition For LGD panel
N Y Y
N
Replace Main B/D
Replace Request repair End End
for external
☞A8 module
device
For other panel
Check Test pattern
External device screen error-Color error
Check screen
N condition by input External Connect other external
Check S/W Version Check
-External Input Input device and cable
version N
-Component error (Check normal operation of Replace
-HDMI/DVI Screen
External Input, Component, Main/T-con
normal?
Y RGB and HDMI/DVI by B/D
Component connecting Jig, pattern
error Y
S/W Upgrade Generator ,Set-top Box etc.
Request repair for
external device
Connect other external Y
Normal N
device and cable
screen? (Check normal operation of N Replace
HDMI/ Screen
External Input, Component, Main /T-con
DVI normal?
Y RGB and HDMI/DVI by B/D
connecting Jig, pattern
Generator ,Set-top Box etc.
End
5
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process
Established
Error B. Power error date
symptom
No power Revised date 6/16
☞A17 ☞A18
DC Power on Replace
Check Power Y Normal N Check Power Y
by pressing Power Key OK? Power
LED LED On? operation? On ‘”High”
On Remote control B/D
. Stand-By: Red or Turn On
N Y
. Operating: Turn Off
Check Power cord Replace Main B/D
was inserted properly
☞A18
Measure voltage of each output of Power B/D
N
Normal?
Y Y Y
Normal
Replace Main B/D
voltage?
Normal
Close Check ST-BY 3.5V Y
voltage? N
☞A18 Replace Power B/D
N
Replace Power
B/D
6
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process
Established
Error B. Power error date
symptom
Off when on, off while viewing, power auto on/off Revised date 7/16
Check outlet
☞A19
N Y
Check A/C cord Error? Check Power Off CPU End
Replace Main B/D Normal?
Mode Abnormal
N
Check for all 3- phase
power out Y Abnormal Replace Power B/D
1
Fix A/C cord & Outlet ☞A18
and check each 3
(If Power Off mode
phase out
is not displayed) Normal Y
Replace Main B/D
Check Power B/D voltage?
voltage
N
※ Caution
Check and fix exterior Replace Power B/D
of Power B/D Part
7
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process
Established
Error B. Power error date
symptom
Off when on, off while viewing, power auto on/off Revised date 8/16
* Please refer to the all cases which can be displayed on power off mode.
Power Off list Explanation Action contents
Power off when TV is not turned off during a certain time
KEYTIMEOUT RESULT : micom force to trigger TV power off. Check & Change Main B/D
CONDITION : When pressing power key while power on/off status, CPU does not response within 8 seconds
Almost the same as Power Off by KEYTIMEOUT. If there is no vaild communication
Bet ween CPU and MICOM for more than 5 seconds, the MICOM switcheds off PSU and
1SEC Power OFF Check & Change Main B/D
Records. Power off by 1SEC Power off. In this case, we don’t have information where the
malfunction exactly occurred. But in in indicates that CPU had stopped and rebooted.
In case of AC Off (It is normal when the power cord is unplugged.) Normal
ACDET
If there are many ACDETs connected, Power Board is defective Check & Change Power B/D
Power off by unstable AC power detect.
RESULT : micom check the stable power.
5V MNT Check & Change Power B/D
CONDITION : When AC on or DC on, stabilization check routine (Power Detect High
Check) fail after multi power on.
CPUABNORMAL If the CPU attempts to reset in case of abnormal operation and Shut Down in case of failure. Check & Change Main B/D
Power off when receiving no ack.
NO POLING RESULT : TV power off/on (Reboot) Check & Change Main B/D
CONDITION : There is no I2C response from CPU for 15 seconds.
CPUCMD Power off by main SoC command. Check & Change Main B/D
Power off by module error (OLED)
INV_ERROR Check & Change OLED Module
CONDITION : OLED Module send signal to micom
ONRF_FAIL RESULT : Reboot, CONDITION : OLED module compensation is running but fails. Check & Change OLED Module
PNWASHFAIL Power off by panel noise wash function fail case. Check & Change OLED Module
RESET When Micom is reset by AC Off
KEY Power off by Local key
OFFTIMER Power off by Off timer
SLEEPTIMER Power off by sleep timer
NOSIG Power off by No Signal
FANSTOP Power off by FAN operation stopped
INSTOP Power off by Instop Key
Normal Case
AUTO OFF Power off by auto off function
RESREC Power off by reserved recording
RECEND Power off when recording stops
SWDOWN Reboot by SW down load function
UNKNOWN No meaning (same as initial value)
COMP_END OLED threshold voltage degradation(Compensation) completes.
PNWASHDONE Power off by panel noise wash function complited. (OLED)
8
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process
Established
Error C. Audio error date
symptom
No audio/ Normal video Revised date 9/16
☞A20 ☞A21+A18
Check user N Check audio Y
No audio Normal
menu > Off 13.2V of Power
Screen normal voltage
Speaker off Board
Y N
Cancel OFF Replace Power Board and repair parts
Check Speaker N
Disconnection Replace MAIN Board End
disconnection
Y
Replace Speaker
9
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process
Established
Error C. Audio error date
symptom
Wrecked audio/ discontinuation/noise Revised date 10/16
→ abnormal audio/discontinuation/noise is same after “Check input signal” compared to No audio
Wrecked audio/
☞A21+A18
Check and replace
Discontinuation/ Check audio
speaker and
Noise for B+ Voltage (13.2V)
connector
Check input all audio
signal Y
Signal
-RF
normal? Wrecked audio/ Y
-External Input Normal
signal Discontinuation/
N Replace Main B/D voltage?
Noise only
for D-TV
N
Wrecked audio/
Discontinuation/
Replace Power B/D
Noise only
for Analog
(When RF signal is not
received)
Request repair to external Wrecked audio/ Replace Main B/D End
cable/ANT provider Discontinuation/
Noise only
for External Input
(In case of N
External Input Connect and check Normal
signal error) other external audio?
Check and fix device
external device Y
Check and fix external device
10
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process
D. Function error Established
Error date
symptom
Remote control & Local switch checking Revised date 11/16
1. Remote control(R/C) operating error Replace
Main B/D
☞A22 ☞A22 ☞A22
Check & Repair N Y Y
Check R/C itself Normal Y Normal Check B+3.5V Normal Check IR Normal
operating? Cable connection operating? Voltage? Signal?
Operation On Main B/D Output signal
Connector solder
N Y N N
☞A18
Check R/C Operating Check & Replace Close Check 13.2v on Power B/D Repair/Replace
When turn off light Baterry of R/C Replace Power B/D or IR B/D
in room Replace Main B/D
(Power B/D don’t have problem)
If R/C operate, Normal Y
operating? Close
Explain the customer
cause is interference
from light in room. N
Replace R/C
11
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process
D. Function error Established
Error date
symptom
MR18 operating checking Revised date 12/16
*Depending on country
2. MR18(Magic Remocon) operating error
☞A4
Check the RF Receiver ver N Check MR18 Normal Y Press the Is show ok N Turn off/on the
INSTART menu is “00.00”? itself Operation operating? wheel message? set and press
the wheel
N
Y
Y
☞A23
Check & Replace Close
Check & Repair Battery of MR18
RF assy
connection
Normal Y
☞A4 Close
operating?
Is show ok N Press the back
RF Receiver ver N message? key about 5sec
Close N
is “00.00”?
Y
Replace
MR18
Y Close
Down load the Firmware
* If you conduct the loop at 3times, change the M4.
* INSTART MENU14.RF
Remocon Test3. Firmware
download
12
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process
D. Function error Established
Error date
symptom
Wifi operating checking Revised date 13/16
3.Wifi operating error
☞A4 ☞A24
Check the Wi-Fi Mac value N Check the Wifi wafer Normal N Replace
INSTART menu is “NG”? 1pin Voltage? Main B/D
Y
☞A24 Y
Close
Check & Repair
Wifi cable
connection
☞A4
Wi-Fi Mac value N
Close
is “NG”?
Y
Change the Wifi
assy
13
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process
Established
Error D. Function error date
symptom
External device recognition error Revised date 14/16
Check technical
Check Y External Input
Signal information Technical N
input and Component Replace Main B/D
input? - Fix information information?
Recognition error
signal
- S/W Version
N Y
HDMI/
Check and fix DVI, Optical
Fix in
Recognition Replace Main B/D
external device/cable accordance
error
with technical
information
14
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process
Established
Error E. Noise date
symptom
Circuit noise, mechanical noise Revised date 15/16
Identify Check
Circuit
nose location of Replace PSU
noise
type noise
Mechanical Check location of
noise noise
※ When the nose is severe, replace the module
※ Mechanical noise is a natural (For models with fix information, upgrade the
phenomenon, and apply the 1st level S/W or provide the description)
description. When the customer does not OR
agree, apply the process by stage.
※ If there is a “Tak Tak” noise from the
※ Describe the basis of the description
cabinet, refer to the KMS fix information and
in “Part related to nose” in the Owner’s
then proceed as shown in the solution manual
Manual.
(For models without any fix information,
provide the description)
15
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process
Established
Error F. Exterior defect date
symptom
Exterior defect Revised date 16/16
Zoom part with Module
Replace module
exterior damage damage
Cabinet
Replace cabinet
damage
Remote
control Replace remote control
damage
Stand
Replace stand
dent
16
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Contents of Standard Repair Process Detail Technical Manual
No. Error symptom Content Page Remarks
1 Check EPI Lock A1
A. Video error_ No video/Normal audio
2 Check White Balance value A2
TUNER input signal strength checking
3 A3
method
A. Video error_ video error /Video
4 lag/stop Version checking method A4
5 Tuner Checking Part A5
A. Video error _Vertical/Horizontal bar,
6 Connection diagram A6
residual image, light spot
Check Link Cable (Vx1/EPI) reconnection
7 A. Video error_ Color error A7
condition
A-1/11
Check Cable (1) ~ (2)
A-2/11
Exchange Main Board (1) ~ (3) A-3/11 ~ A-5/11
8 Defected Type caused by T-Con/
Inverter/ Module Exchange Module (1) ~ (3) A-6/11 ~ A-8/11
Exchange T-Con (1) ~ (2) A-9/11 ~ A-10/11
Exchange Power Board(PSU) A-11/11
Continue to the next page
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Contents of Standard Repair Process Detail Technical Manual
Continued from previous page
No. Error symptom Content Page Remarks
10 Check front display LED A8
11 B. Power error_ No power Check power input Voltage & ST-BY 3.5V A9
12 Error check by LED Indicator A10
B. Power error_Off
13 POWER OFF MODE checking method A11
(when on/off, while viewing)
14 Checking method in menu when there is no audio A12
C. Audio error_ No audio/Normal
video Voltage and speaker checking method when there is
15 A13
no audio
16 Remote control operation checking method A14
D. Function error
17 Motion Remote operation checking method A15
18 How to use the Service remote control A16-A18
19 Check items after Main B/D replacement A19
E. Etc
20 Adjustment Test pattern – ADJ Key A20
How to use JIG
21 A21
(Power B/D Diagnostic Smart Jig Multi Gender)
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_No video/Normal audio date
Revised
Content Check LVDS A1
date
C2333: 13V (Normal)
No Video/Normal audio
Reassemble
After turning on the power and disassembling the case, check C2233 Voltage 13V
A1
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_No video/Normal audio date
Revised
Content Check White Balance value A2
date
Entry method
1. Press the ADJ button on the remote control for adjustment.
2. Enter into White Balance.
3. After recording the R, G, B (GAIN, Cut) value of Color Temp (Cool/Medium/Warm),
re-enter the value after replacing the MAIN BOARD.
A2
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_Video error, video lag/stop date
TUNER input signal strength checking method Revised
Content date A3
All Settings Programmes Programme Tuning&Settings
Manual Tuning
When the signal is strong,
use the attenuator
(-10dB, -15dB, -20dB etc.)
A3
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_Video error, video lag/stop date
Version checking method Revised
Content date A4
1. Checking method for remote control for adjustment
Version
Press the IN-START with the remote
control for adjustment
A4
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom
A. Video error_Video error, video lag/stop
date
Revised
Content TUNER checking part A5
date
Checking method:
1. Check the signal strength or check whether the screen is normal when the external device is connected.
2. After measuring each voltage from power supply, finally replace the MAIN BOARD.
A5
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error A. Video error _Vertical/Horizontal bar, Established
symptom residual image, light spot date
Revised
Content connection diagram date A6
As the part connecting to the external input, check
the screen condition by signal
A6
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_Color error date
Revised
Content Check Link Cable(LVDS) reconnection condition date A7
Check the contact condition of the Link Cable, especially dust or mis insertion.
A7
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Appendix. Examples of Symptoms(Image error) Check for poor cable contact
Symptom
Item Cause Symptom Image
Name
CABLE Color smear Poor broken pin of FFC cable
Color is Excessive due to FFC Cable
CABLE R Color Excessive
Contact.
screen is dark due to poor contact due
CABLE Screen darkness to disconnection of the FFC cable pin.
G color transient due to poor FFC cable
CABLE G Color Excessive connection
A - 1/11
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Appendix. Examples of Symptoms(Image error) Check for poor cable contact
Symptom
Item Cause Symptom Image
Name
CABLE Color spread LVDS cable connection problem
CABLE Color spread LVDS cable connection problem
CABLE Color spread LVDS cable connection problem
Due to foreign substance withi nLVDS
CABLE Screen stop cable PIN
A - 2/11
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Appendix. Examples of Symptoms(Main) Check parts by symptom
Symptom
Item Cause Symptom Image
Name
Main Screen noise Bit noise from horizontal screen
Broken screen due to
Main Screen noise
Main IC problem
Main Dark picture Dark left-side screen
Top/bottom screen part
Main Broken picture
Picture problem due to tuner
Inner side quality problem
A - 3/11
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Appendix. Examples of Symptoms(Main) Check parts by symptom
Symptom
Item Cause Symptom Image
Name
Main Broken screen Broken screen in a horizontal manner
Main Screen spread Screen corner appears blurry
Main Color Spread Color spread on the screen
Main Blurry Screen Blurry picture on the screen
A - 4/11
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Appendix. Examples of Symptoms(Main) Check parts by symptom
Symptom
Item Cause Symptom Image
Name
No problem at the initial stage,
Main Broken picture G-color spread after 10 minutes
Right-side
Main
Screen Right-side screen problem
problem
LG logo
Main Screen picture spread problem
Screen problem
No problem at the initial stage.
Right-side
Main During Heat run, right-side picture
picture problem
problem
A - 5/11
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Appendix. Examples of Symptoms(Module) Check parts by symptom
Symptom
Item Cause Symptom Image
Name
Isometric Isometric horizontal bars occur
MODULE
Horizontal Bar throughout the screen
MODULE Internal matter BLU internal foreign matter inflow
MODULE Image broken 6 block image broken
MODULE Image broken Screen sync signal broken
A - 6/11
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Appendix. Examples of Symptoms(Module) Check parts by symptom
Symptom
Item Cause Symptom Image
Name
Internal damage and image breakage
MODULE Image broken
due to external impact
Bend on the Bending due to lateral external impact
MODULE
screen and internal bending of BLU
Vertical spreading on cube screen in no
MODULE Vertical smear
signal
MODULE Over color Screen contour part brightly Over color
A - 7/11
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Appendix. Examples of Symptoms(Module) Check parts by symptom
Symptom
Item Cause Symptom Image
Name
MODULE Vertical bar Center Vertical Bar
MODULE Screen darkness Center of the screen 1 block dark
MODULE Vertical bar Center Vertical Bar
Darkness at the
MODULE bottom of the MODULE internal BLU breakage
screen
A - 8/11
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Appendix. Examples of Symptoms(T-Con) Check parts by symptom
Symptom
Item Cause Symptom Image
Name
screen lower T-Con is defective and the picture below
T-CON
image broken the screen is broken
screen lower T-Con is defective and the picture below
T-CON
image broken the screen is broken
screen lower T-Con is defective and the picture below
T-CON
image broken the screen is broken
screen lower T-Con is defective and the picture below
T-CON
image broken the screen is broken
A - 9/11
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Appendix. Examples of Symptoms(T-Con) Check parts by symptom
Symptom
Item Cause Symptom Image
Name
T-CON Wafer Locking The strength is
T-CON Image Broken
weak and cable contact failure occurs
Darkness at the Initial normal operation,
T-CON
top of the screen upper darkness during heat run
The entire screen is dark and bit noise
T-CON Image Broken
occurs
The entire screen is dark and bit noise
T-CON Image Broken
occurs
A - 10/11
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Appendix : Exchange Power Board (PSU)
No Light No picture/Sound Ok
A - 11/11
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom B. Power error _No power date
Revised
Content Check front Power Indicator date A8
ST-BY condition: On or Off
Power ON condition: Turn Off
A8
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom
B. Power error _No power
date
Revised
Check power input voltage and ST-BY 3.5V A9
date
Check the VLED
Check the DC 13.2V/20V
A9
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error
symptom B. Power error _Off when on, off whiling viewing Established
date
Revised
Content POWER OFF MODE checking method date A11
Entry method
1. Press the IN-START button of the remote control for adjustment
2. Check the entry into adjustment item 3
A11
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom C. Audio error_No audio/Normal video
date
Revised
Content Checking method in menu when there is no audio date A12
Checking method
1. Press the Setting button on the remote control
2. Select the Sound function of the Menu
3. Select the Sound Out
4. Select TV Speaker
A12
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom C. Audio error_No audio/Normal video date
Voltage and speaker checking method Revised
Content date A13
when there is no audio
①
②
③
Speaker
1 SPK R-
2 SPK R+
3 SPK L-
4 SPK L+
Checking order when there is no audio
1.Check the contact condition of or 13.2V, 20V connector of Main Board
2. Measure the 13.2V input voltage supplied from Power Board
(If there is no input voltage, remove and check the connector)
3.Connect the tester P5600 to the speaker terminal and if you hear the ‘Chik~ Chik~’ sound when you
touch the GND and output terminal, the speaker is normal.
A13
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom D. Function error date
Revised
Content Remote control operation checking method date A14
Pin Pin name
1 +3.4V_WIFI
① 2 WIFI_DM
IR & EYE Sensor 3 WIFI_DP
4 GND
5 WOL/WIFI_PWR_ON
6 +3.4V_WIFI
7 WIFI_SUSPEND/RESUME
8 GND
9 COMBO_RESET
10 BT_WAKE_UP_HOST
11 GND
12 +3.4V_WIFI
13 NC
14 NC
15 NC
16 EYE_SDA
IR ②
LED Eye 17 EYE_SCL
③ 18 GND
19 IR
20 LED_R
21 GND
Checking order to check remote control 22 +3.4V_ST
23 KEY2
24 GND
Checking order 25 GND
1. Check IR cable condition between IR & Main board.( Check picture number① and ②)
2. Check the standby 3.5V on the terminal (③)
3. AS checking the Pre-Amp(IR LED light) , the power is in ON condition, an Analog Tester
needle should move slowly, otherwise, it’s defective.
A14
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom D. Function error date
Revised
Content Magic Remote/WiFi operation checking method date A15
Pin Pin name
1 +3.4V_WIFI
① Wifi & BT Front 2 WIFI_DM
3 WIFI_DP
4 GND
5 WOL/WIFI_PWR_ON
6 +3.4V_WIFI
7 WIFI_SUSPEND/RESUME
8 GND
9 COMBO_RESET
10 BT_WAKE_UP_HOST
11 GND
Wifi & BT Rear 12 +3.4V_WIFI
13 NC
14 NC
15 NC
16 EYE_SDA
17 EYE_SCL
② ③ 18 GND
19 IR
20 LED_R
21 GND
22 +3.4V_ST
Checking order to check motion remote/wifi 23 KEY2
24 GND
Checking order 25 GND
1. Check BT/Wifi cable condition between BT/Wifi assy & Main board.
2. Check the 3.5V on the terminal 1 pin
A15
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom D. Function error date
Revised
Content How to use the Service remote control date A16
1. How to access the remote control
0 4 1 3
0 4 1 3
A16
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom D. Function error date
Revised
Content How to use the Service remote control date A17
2. Remote control part definition
POWER Power On/Off
[ETC] Each time pressing the KEY button, Mode gets changed to ETC and P-ONLY each time
ETC (Added Function) All KEY function [PIP PR-][PIP PR+][SWAP]
[PIP INPUT][DVI] KEY Function
Changed to factory mode
P-ONLY (Added
Function)
All KEY function &[INFO][STILL][HDMI HOT][USB HOT][HDMI4] KEY Action
INPUT Change to the external device mode
ARC Change in the order of 16:9=>Zoom1=>Zoom2=>Cinema Zoom=>Aucto Screen=>4:3=>16:9
Changes in the order of Bright Picture=>Easy Picture=>Cinema=>Spots=>Game=>
PSM
Custom PIcture1=>Custom Picture2=>Bright Picture
SSM (Added Function) Standard(user)=>music=>cinema=>sports=>game=>standard(user)
PIP Picture In Picture is activated
TEXT Access to the Power Only mode
CAP Broadcasting caption(on/off)
MPX Stereo mode (mono, stereo, foreign language) access
Used when in factory mode
Simplink (Added
Access to the Simplink-connected device
Function)
Digital EYE function ON/OFF
EYE
For some Model, access to the Test Pattern
TILT Used for screen tilting change (Access to the old PDP control mode)
A17
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom D. Function error date
Revised
Content How to use the Service remote control date A18
B-TOOTH
Connected to Blue-Tooth
(Added function)
Model Nam ex) 42PG60D-NA Current Model Name S/W Version ex)
IN-START V03.11.0 Current S/W version
MICOM Version ex) V3.05.0 current Mi-Com version UTT ex) User TV total usage time
POWER OFF STATUS ex) Shows power-off status
ADJ
Test Pattern (Off=>White=>Red=>Green=>Blue=>Black=>Pattern=>Off) Change
X-STUDIO (Added function) HDD,USB, external device’s HDD screen is activated
MENU User function gets activated
EXIT Exit from the current mode
TIME SHIFT (Added
Moves forward/backward of recorded contents
function)
MUTE Mute function (0 Volume)
IN-STOP SET to factory mode
VOL + - Volume Up/Down
CH + - Channel Up/Down
AV1,2,3 (Added function) Connects to external input 1,2,3
COMP1,2 (Added function) Connects to Component 1,2
HDMI1,2,3,4
Connects to HDMI 1,2,3,4
(Add function)
DVI (Add function) Connects to DVI
A18
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom D. Function error date
Revised
Content Check items after Main B/D replacement date A19
Check items afer Main B/D(Model Number D/L, White Balance)
1. Press the Service remote control instart Key.
No.7 Select Model Number D/L
- Key in the model name and serial number
after checking the ID label on the back cover.
2. Press the Service remote control ADJ Key.
No.13 Select White Balance
- Record the R, G, B (GAIN, Cut) value of the
color temperature before main board
replacement.
A14 After replacing the main board, key in the
recorded value.
A19
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Standard Repair Process Detail Technical Manual
Error Established
symptom
A. Video error_Color error
date
Adjustment Test pattern - ADJ Key Revised
Content date A20
P-ONLY HDMI HOT(Yellow button) CH ‘+’ or ‘-’
You can view 11 types of patterns using the ADJ Key
Checking item :
1. Defective pixel
2. Residual image
3. MODULE error (ADD-BAR,SCAN BAR..)
4. Video error (Classification of MODULE or Main-B/D!)
A20
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Smart JIG Power Diagnosis
Muitl Gender Guide
(P/N : RAD32507801) (P/N : RAD33187801)
A 21 (1/19)
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Power Board Muitl Gender JIG Diagram (P/N: RAD33187801)
15Y 16Y 15Y
(LF/UF Series) (OLED B6) (OLED)
28Pin 24Pin 24Pin 24Pin NC
18 Marking check 24Pin
18Pin 16Y
New JIG (OLED)
24Pin
13Y/14Y 28Pin
No Marking
OLD JIG
17Y
(OLED)
24Pin 12Y
28Pin
SK85/SK96
SK95/SK99 UK64/UK65
19Y 16Y/17Y
LM63/LM57/LM55 18Pin (UH/UJ/SK)
24 Marking Check 28Pin
28Pin 12Pin 12Pin 28Pin
Cable Connection
Includes 49UJ63
17Y/18Y 16Y 16Y/17Y/18Y/19Y 16Y/17Y 16Y
(SJ/UJ/SK) (UH) (LH/LJ/LK/LM) (UH/SJ) (UH) A21 (2/19)
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Power Board Muitl Gender JIG Diagnostic model List
Existing 12Y, 13Y, 14Y, 15Y LED models included
15Y, 16Y, 17Y/18Y OLED, 16/17/18Y/19Y LED model Power diagnosis function newly added
<15Y/16Y/17Y OLED Model, 16Y/17Y/18Y/19Y LED Model>
Year Product Model
EG92/EG93/EG94
‘15 OLED EG96
EF95
B6
C6
OLED
E6
G6
‘16 UH95/UH96
UH85/UH93
UH77/UH87
LED
UH75/UH76
UH65/UH68
LH68, LH66, LH60,LH54
‘17 OLED B7 / C7 / E7 / G7 / W7
SJ95/UJ98
SJ85/UJ94
SJ80, UJ77
UJ75/UJ78
’17 LED
UJ65/UJ68
UJ63/UJ67
LJ61/LJ68
LJ55/LJ58
SK95/SK85
SK81/SK80
‘18 LED
UK64/UK65
LK61/LK57/LK54
’19 LED LM63/LM57/LM55
A21 (3/19)
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Power Board Muitl Gender How to Connect
1
▶ Power Board Muitl Gender JIG
2
“A: 2013 LCD POWER”
2014
▶ Connect the Muiti Gender to the connector (black)
as shown in picture 2 of the Smart JIG.
A21 (4/19)
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Smart Jig Voltage Setting
1 2
▶ Switch the product S/W in JIG to LCD.
▶ LCD MODEL Check the power voltage
▶ Check power board voltage. and switch to the correct voltage.
※ Note on set up
(The correct power diagnosis can be made only if it is set correctly.)
- 24V Power Board : Change the switch to 24V of Smart Jig Voltage
- 20V Power Board : Change the switch to 24V of Smart Jig Voltage
- 13.2V/18V Power Board : Change the switch to 24V of Smart Jig Voltage
Power B/D Smart Jig Voltage Switch
24V 24V
20V 20V
13.2V/18V 24V
A21 (5/19)
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
`16Y/`17Y/’18Y/’19Y LED 12Pin Power Board Diagnostic method
1 2
▶ Check power board voltage.
▶ Disconnect the Main Board 12Pin Power Cable connector.
▶ Fix the LCD MODEL switch to 24V.(Smart JIG)
3 4
▶ Connect the 12Pin Power Cable connector ▶ When the OK LED(24V,12V) turns on, Power Board is normal.
to the Muitl Gender JIG 12Pin connector ▶ When the NG LED turns on, the Power Board
A30 (17/19) can be judged as defective.
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
