OLED TV
SERVICE MANUAL
CHASSIS : EAX2B
MODEL : OLED55/65BXPUA
MODEL : OLED55/65BXAUA
CAUTION
BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
P/NO : MFL71717401 (2003-REV00)
Any reproduction, duplication, distribution (including by way of email, facsimile or other electronic means),
publication, modification, copying or transmission of this Service Manual is STRICTLY PROHIBITED unless you
have obtained the prior written consent of the LG Electronics entity from which you received this Service Manual.
The material covered by this prohibition includes, without limitation, any text, graphics or logos in this Service
Manual.
Copyright © 2020 LG Electronics Inc. All rights reserved. Only training and service purposes.
CONTENTS
CONTENTS ............................................................................................... 2
SAFETY PRECAUTIONS ......................................................................... 3
SERVICING PRECAUTIONS .................................................................... 4

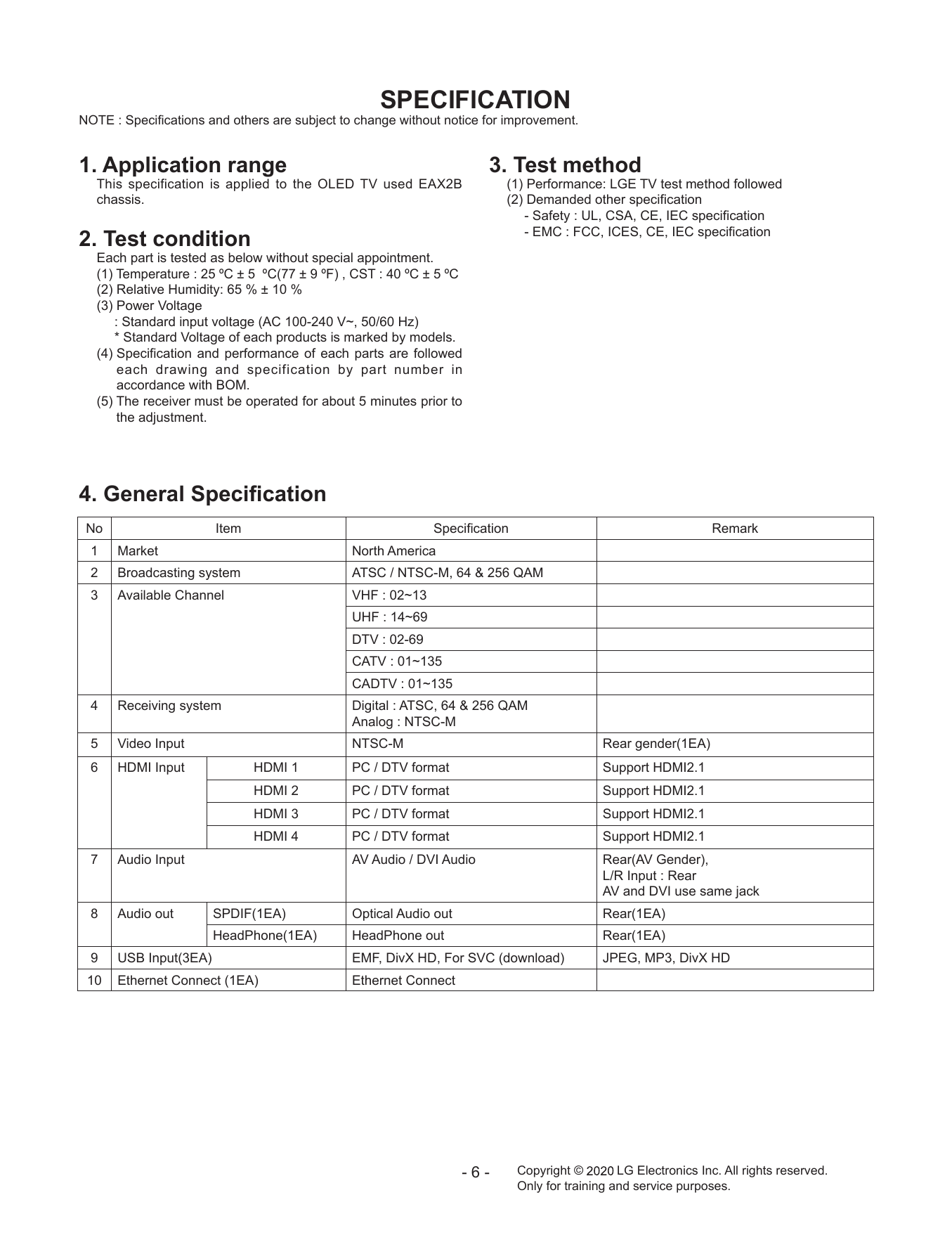

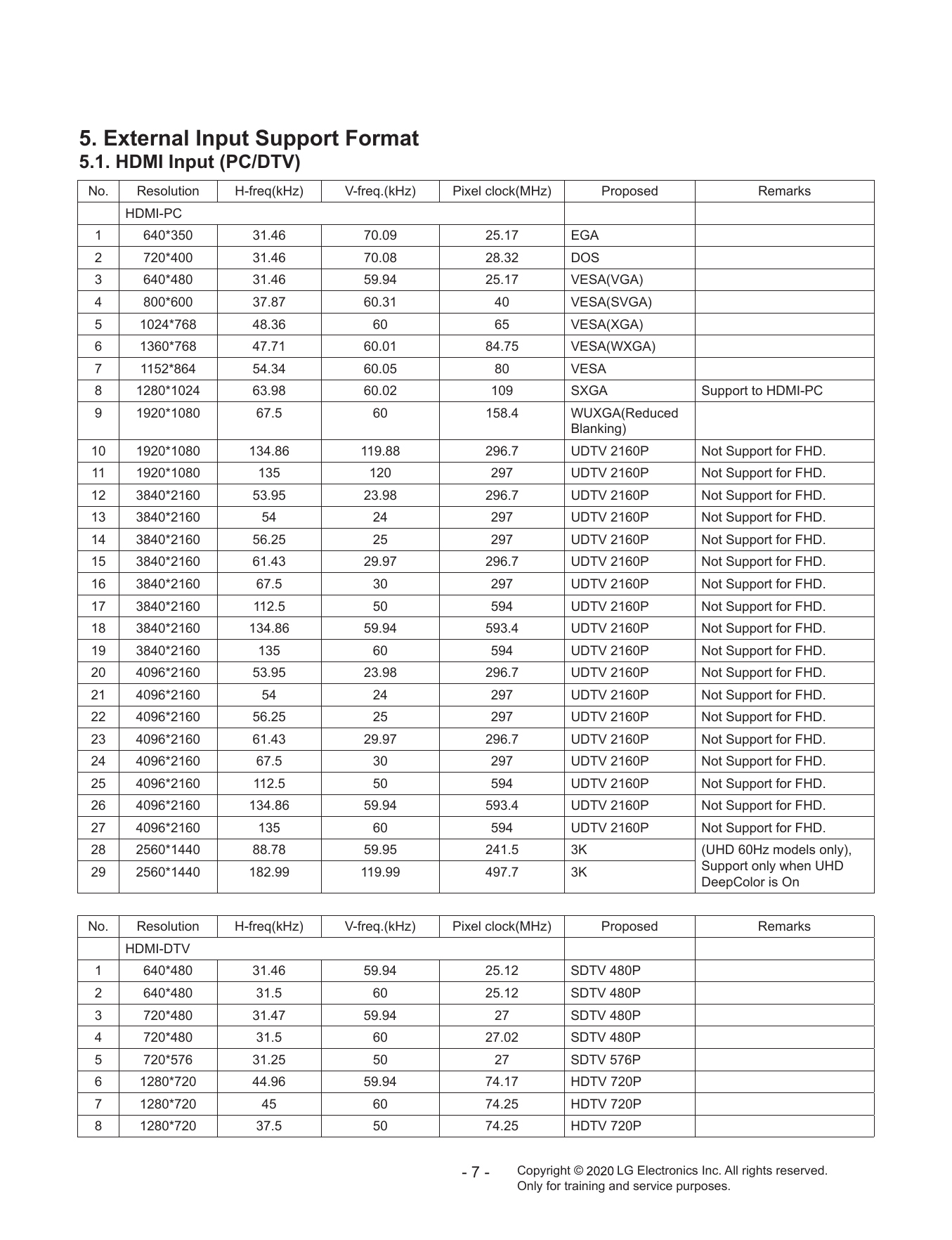

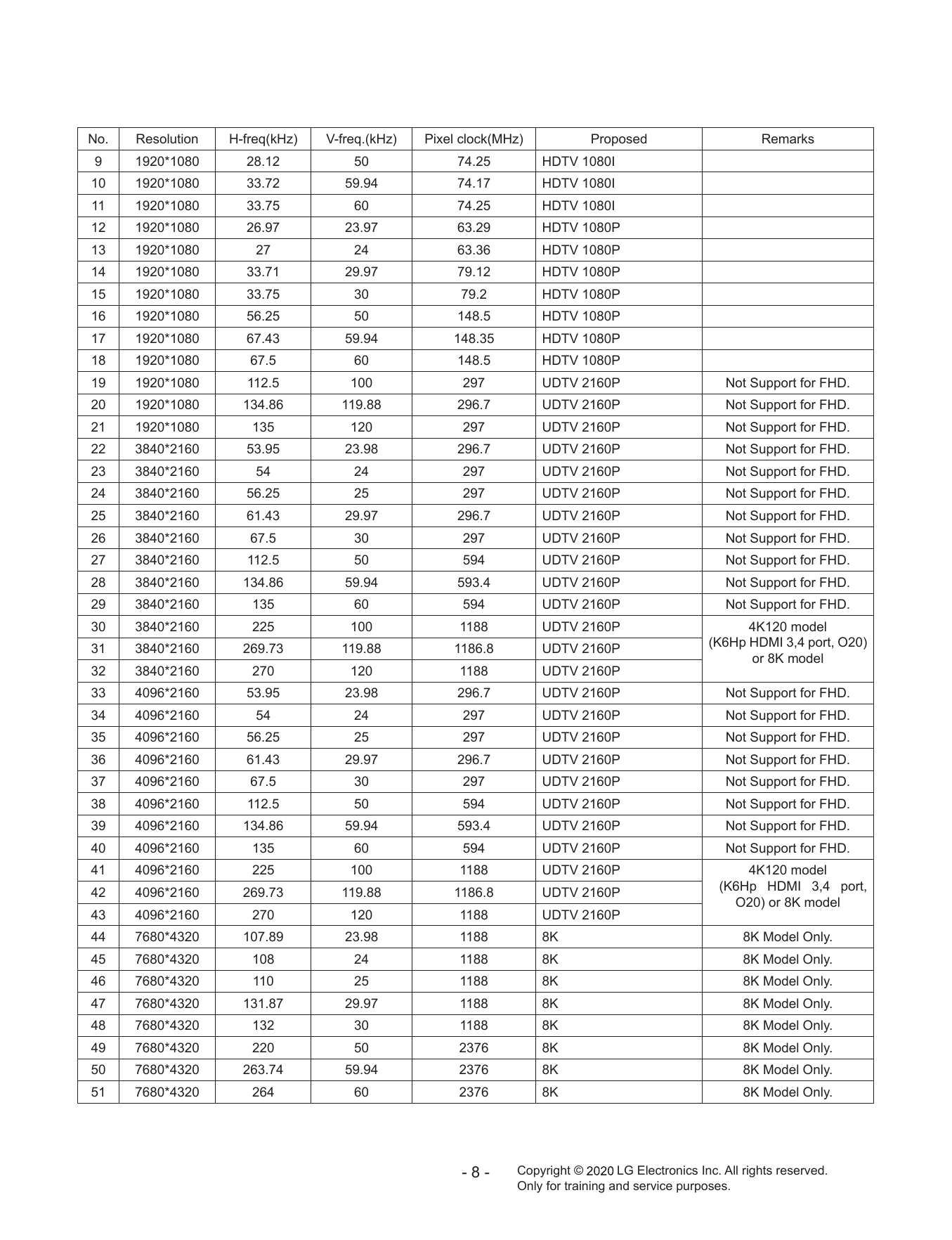

SPECIFICATION ........................................................................................ 6

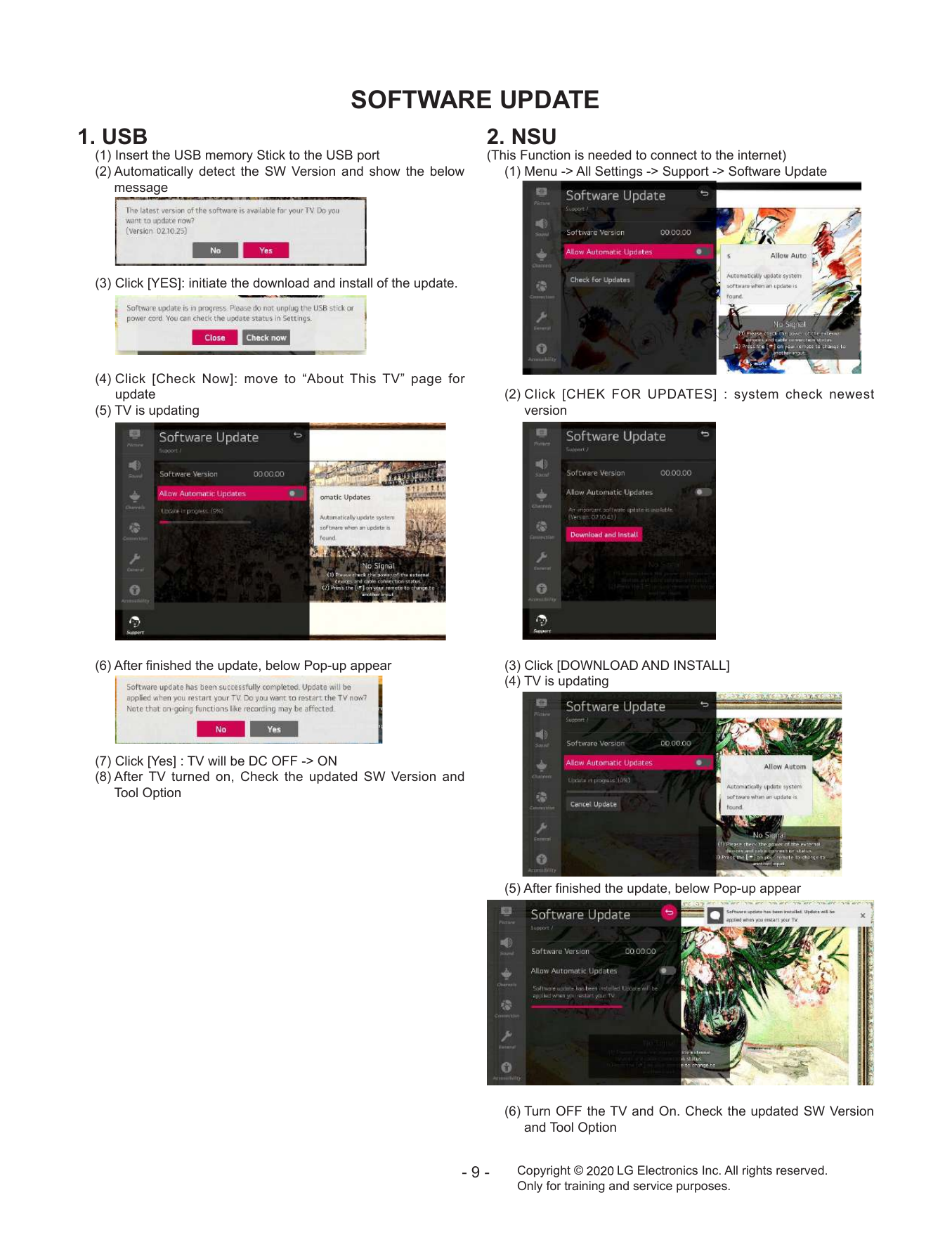

SOFTWARE UPDATE ............................................................................... 9

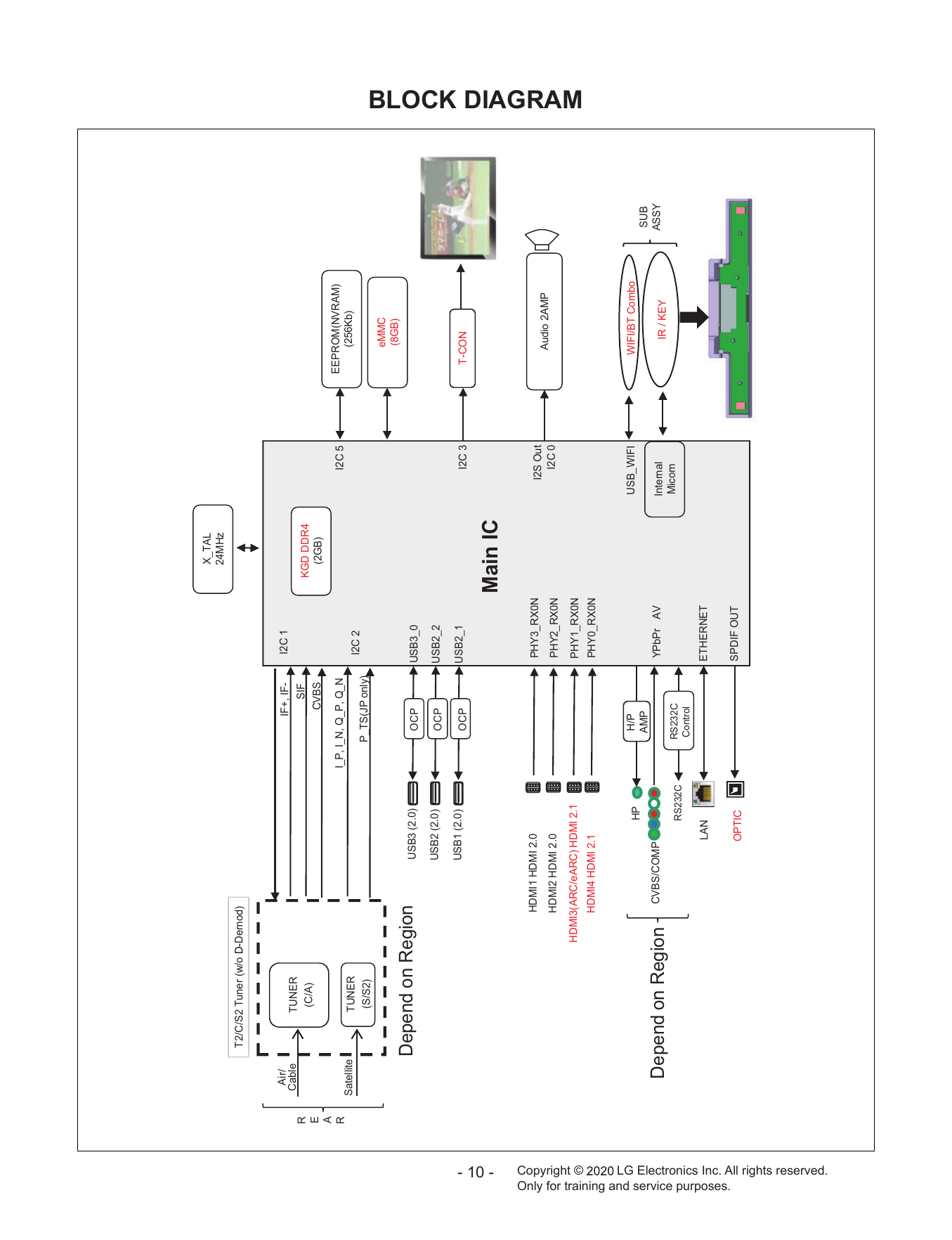

BLOCK DIAGRAM .................................................................................. 10

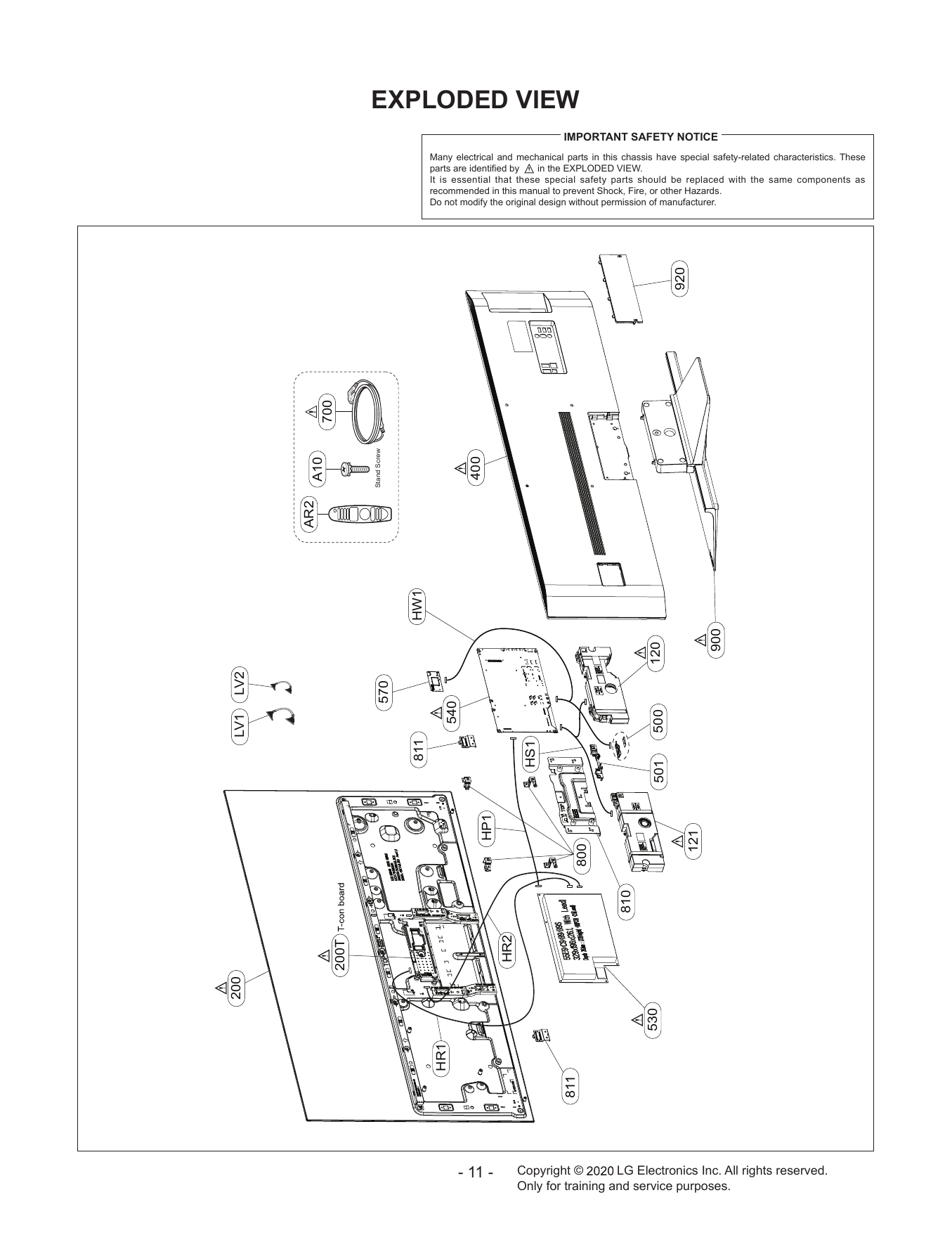

EXPLODED VIEW ................................................................................... 11

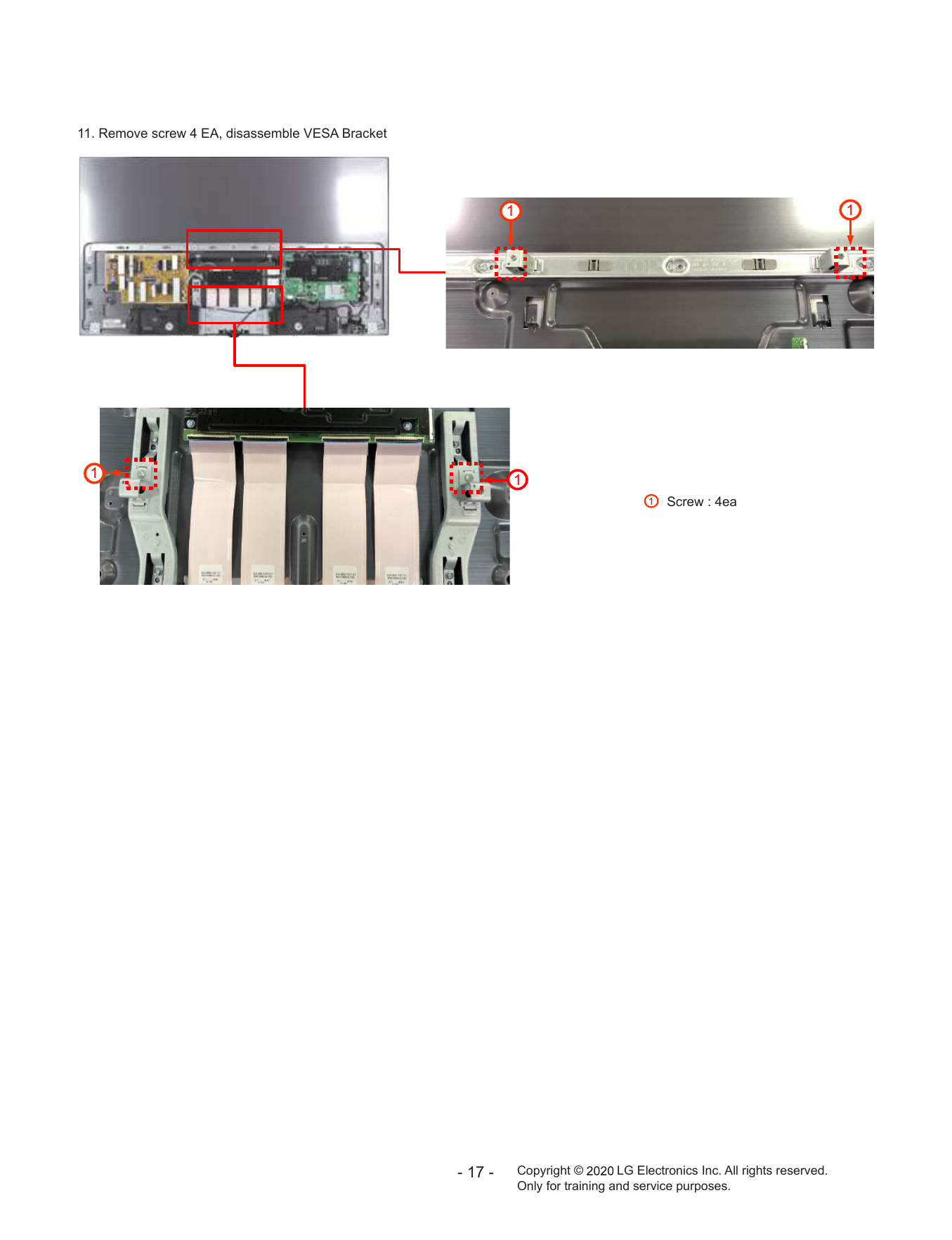

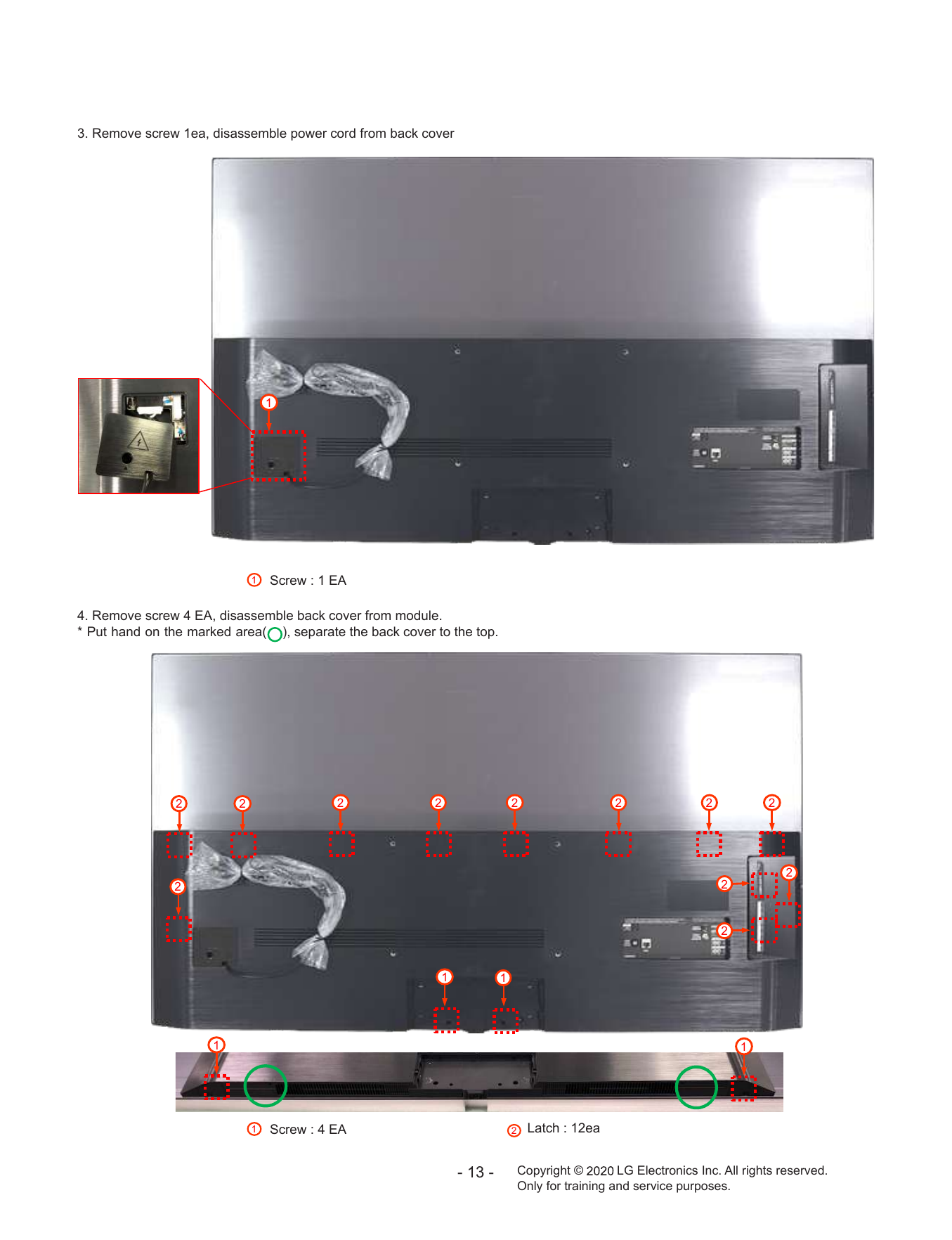

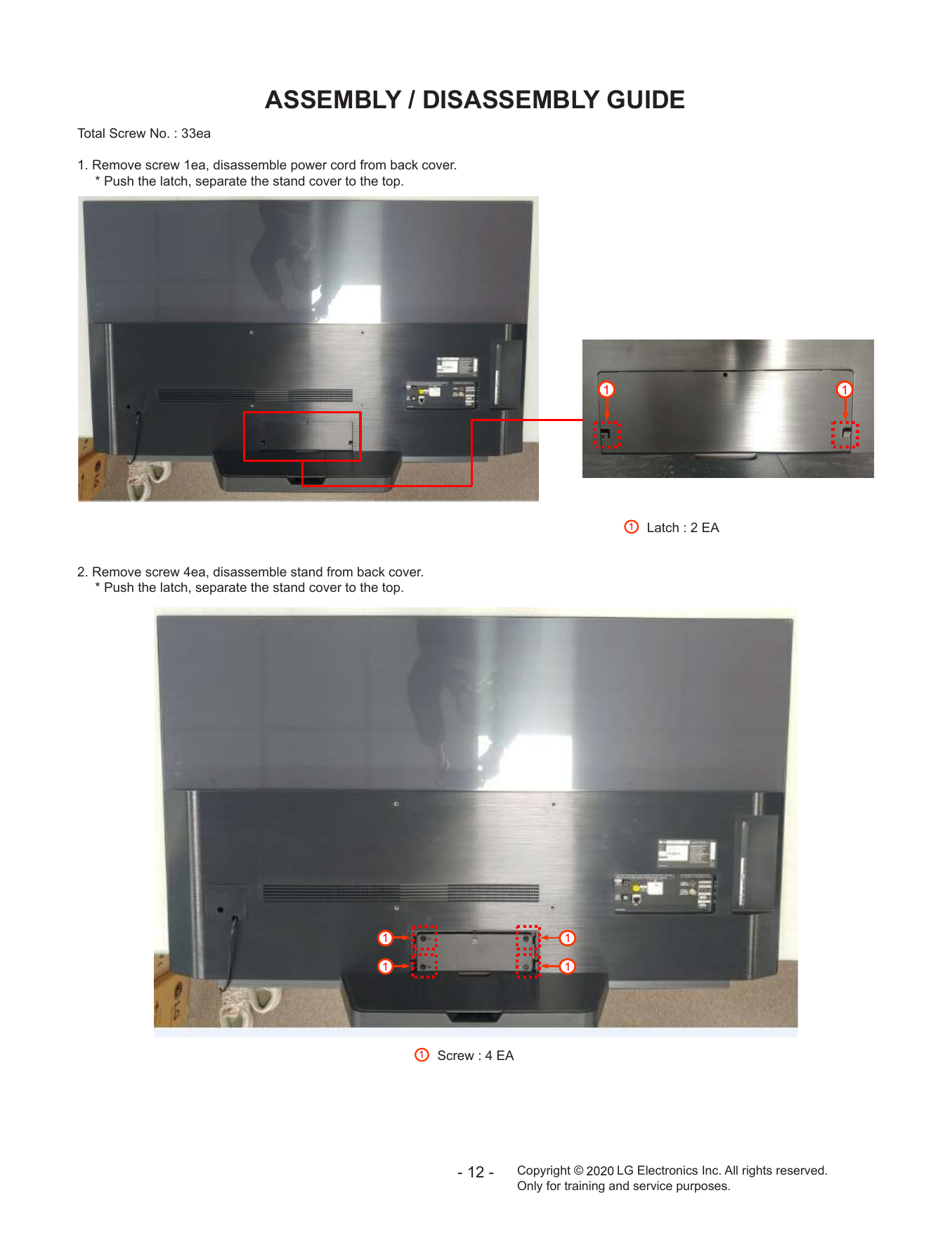

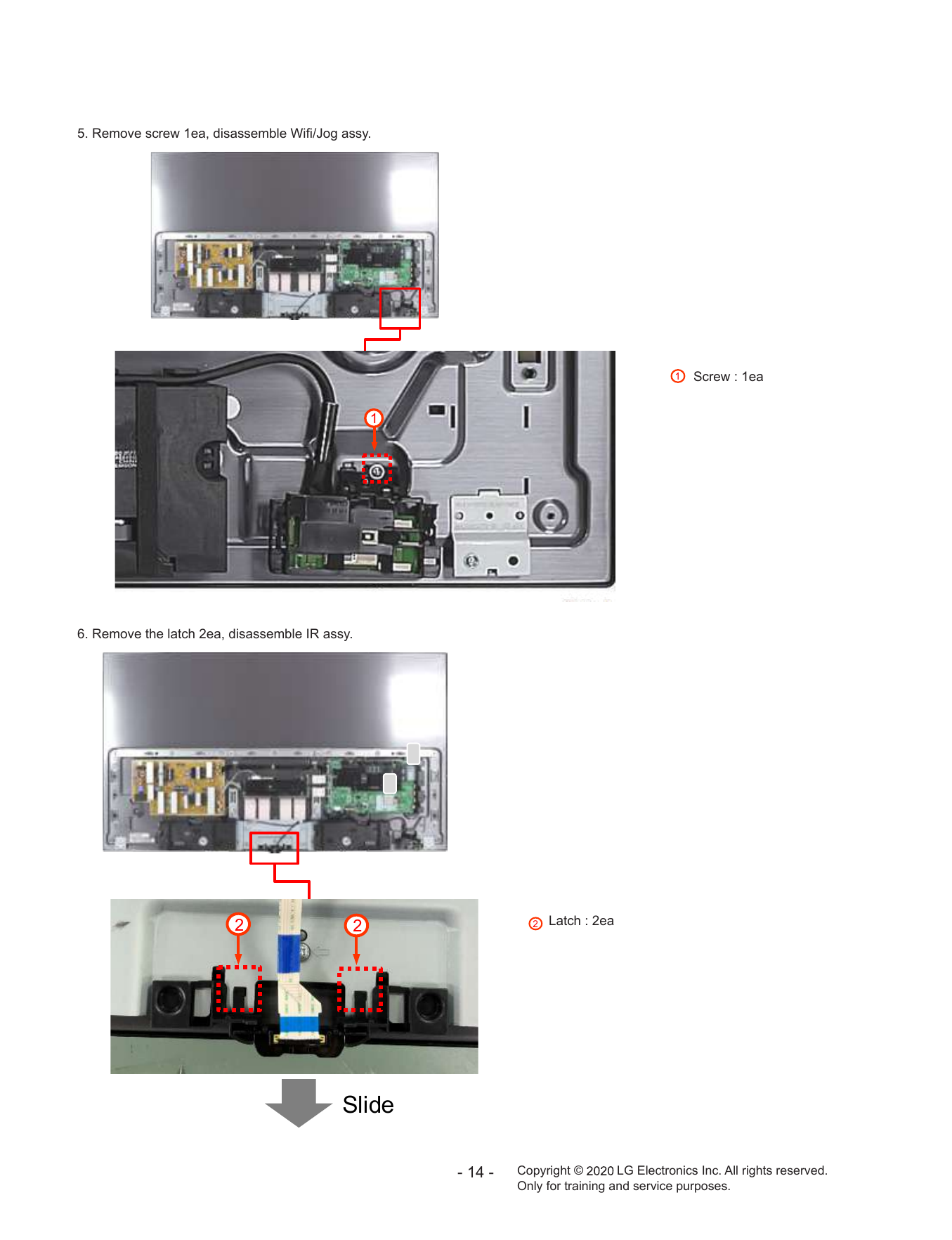

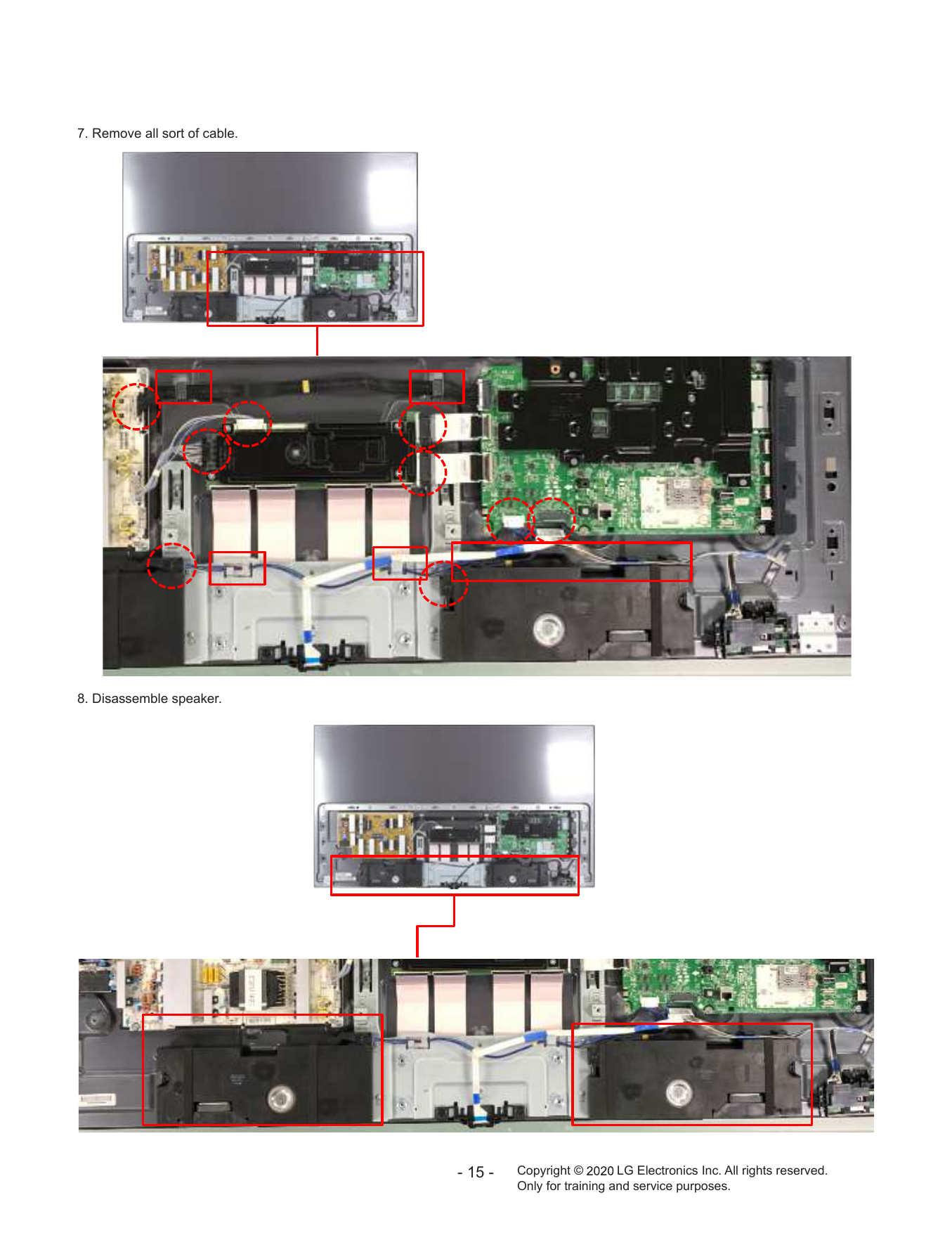

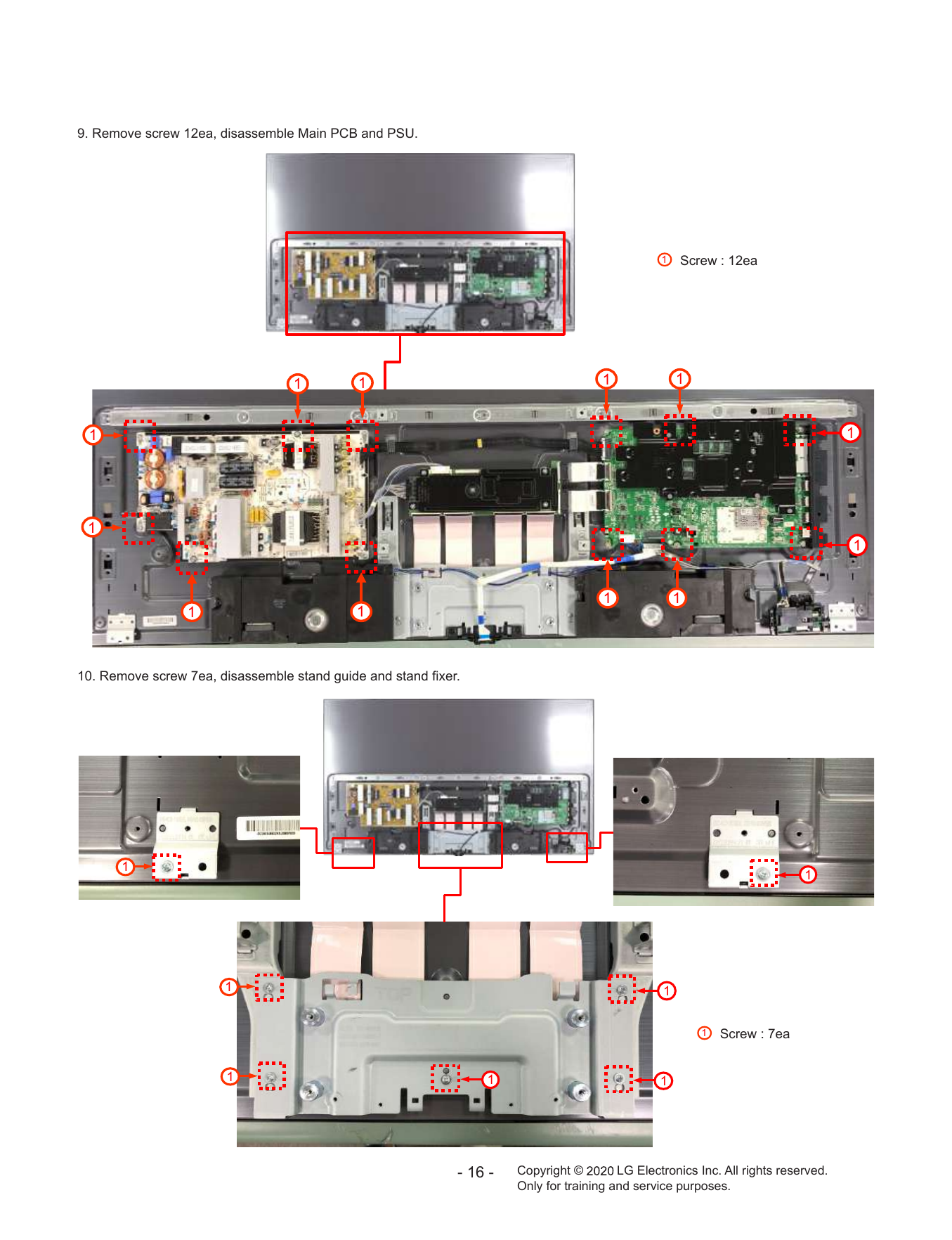

ASSEMBLY / DISASSEMBLY GUIDE .................................................... 12

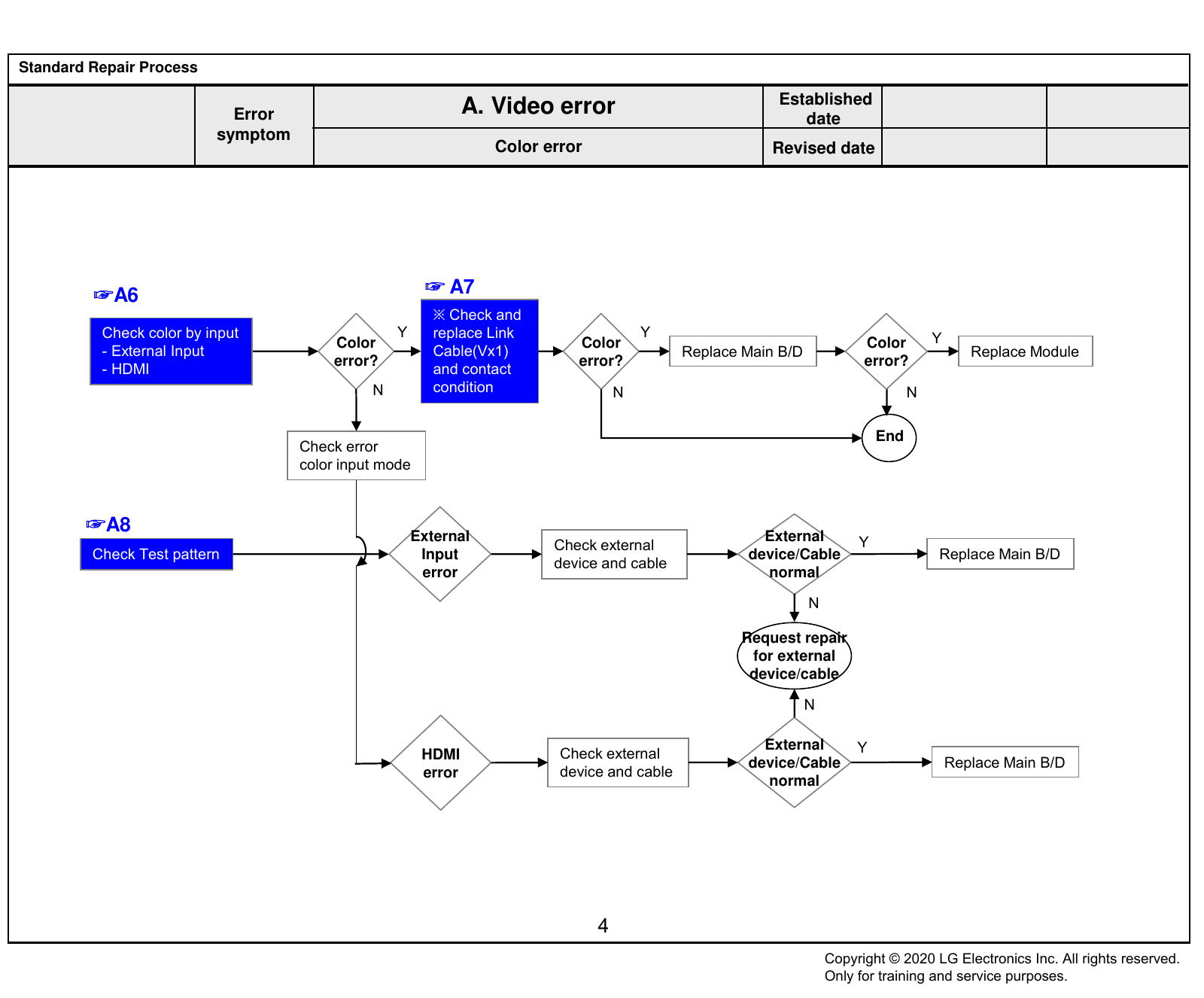

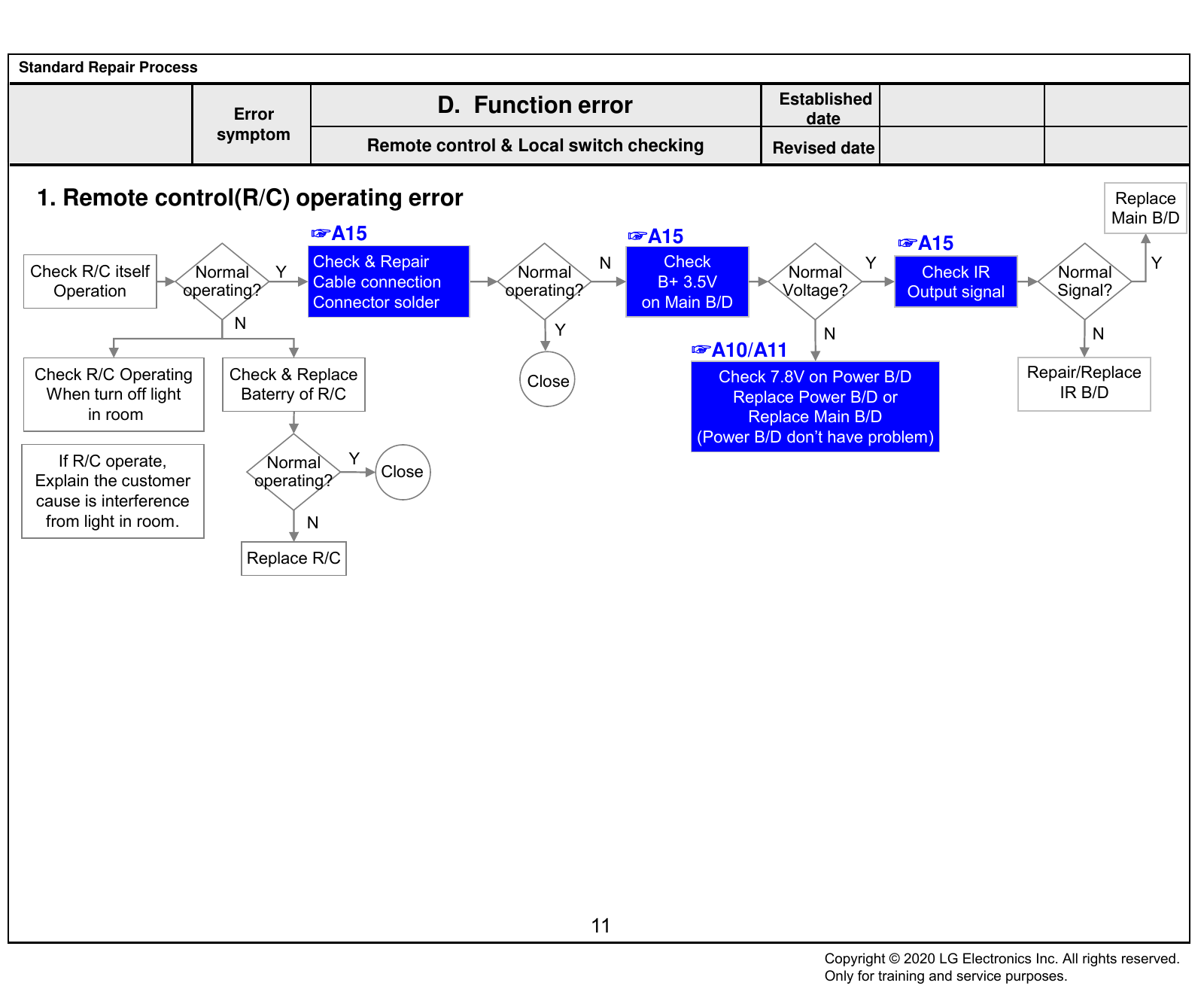

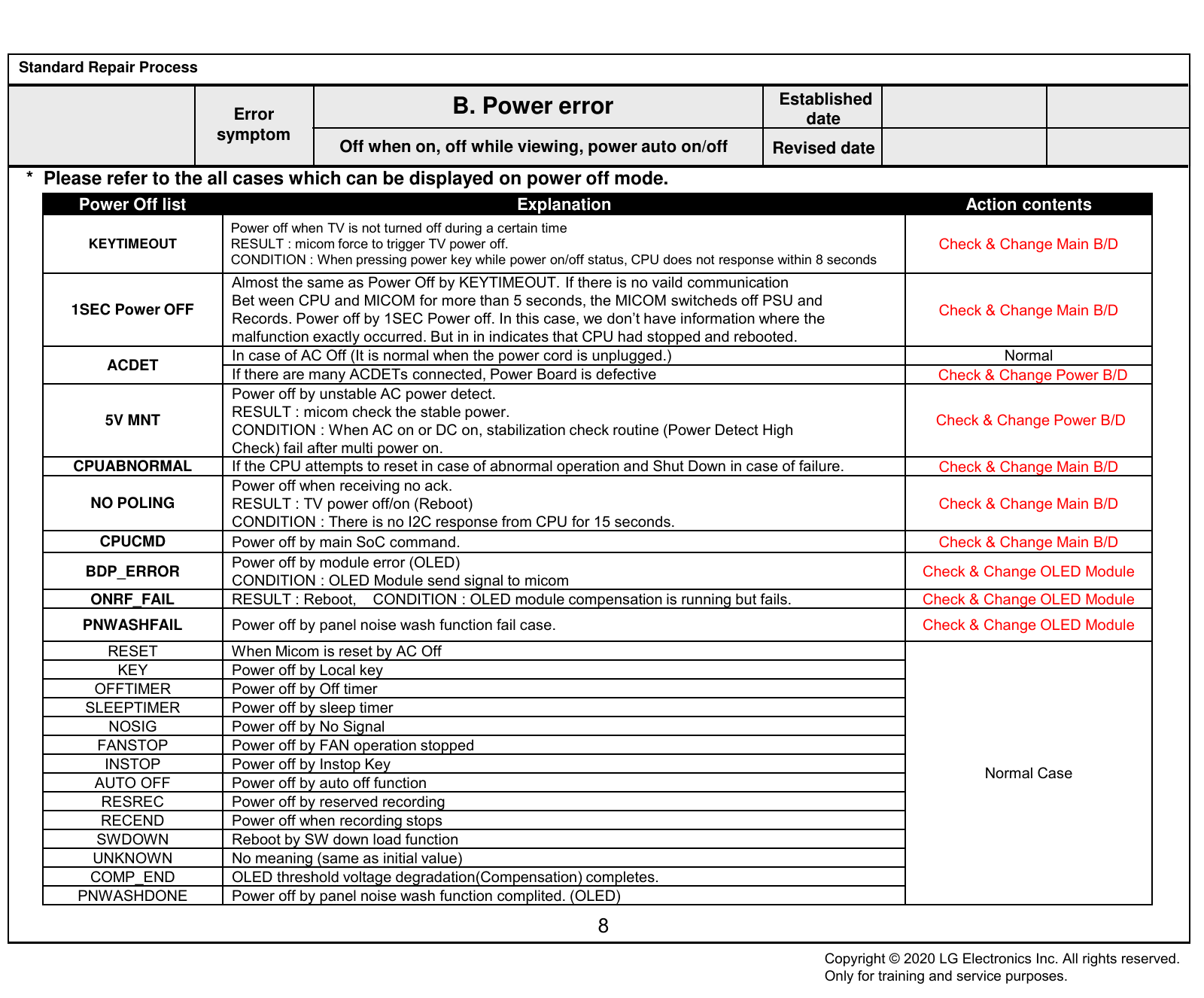

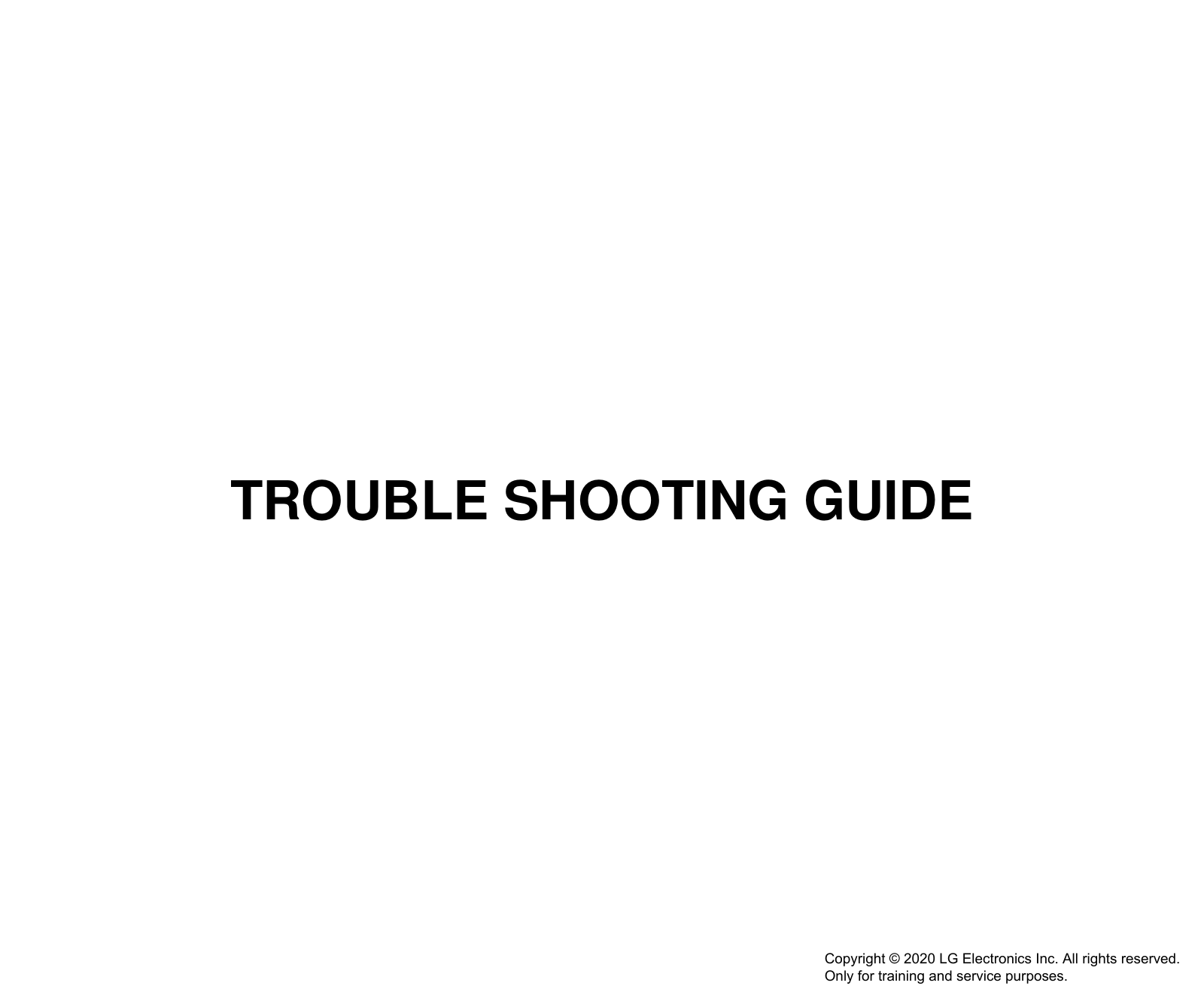

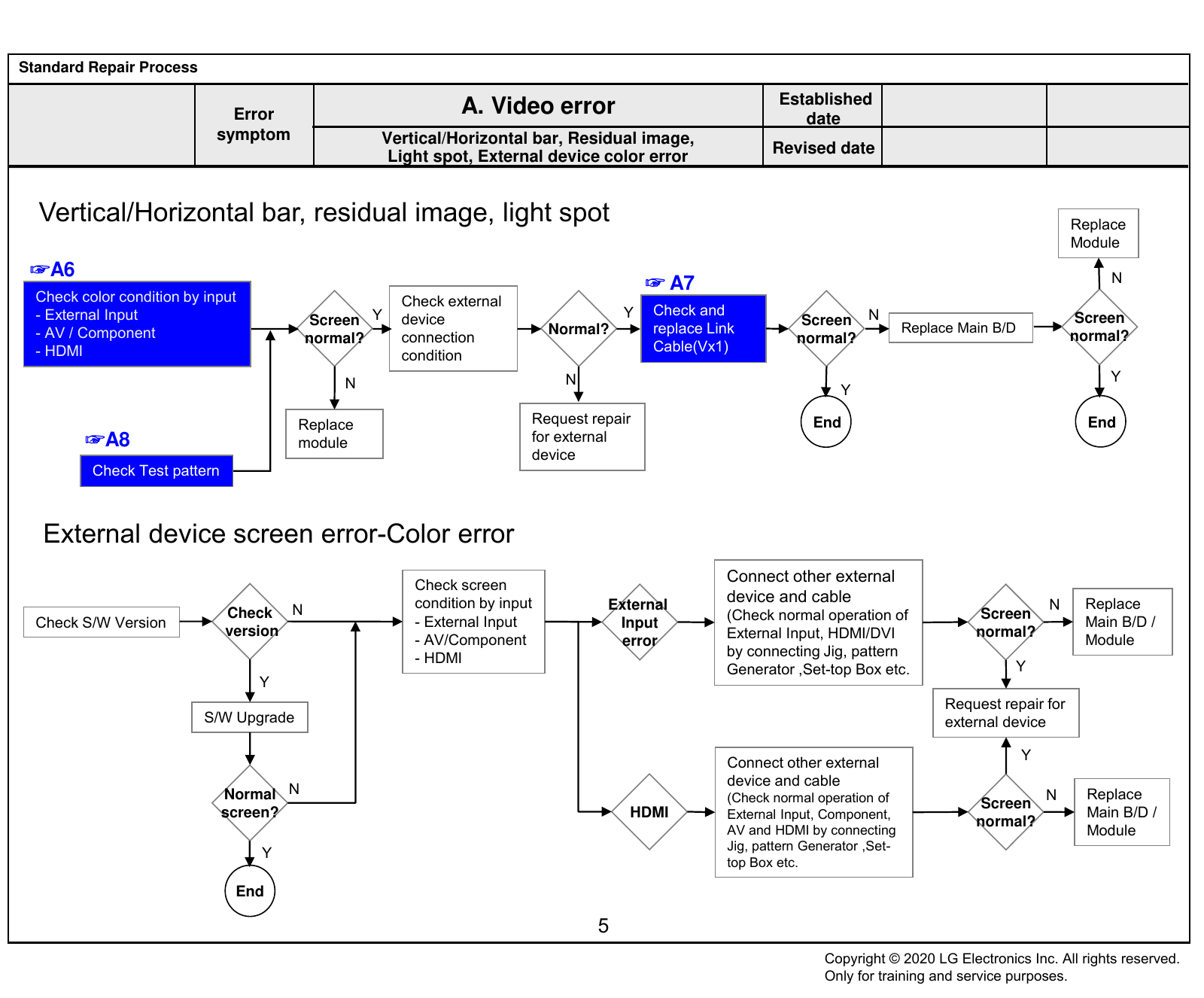

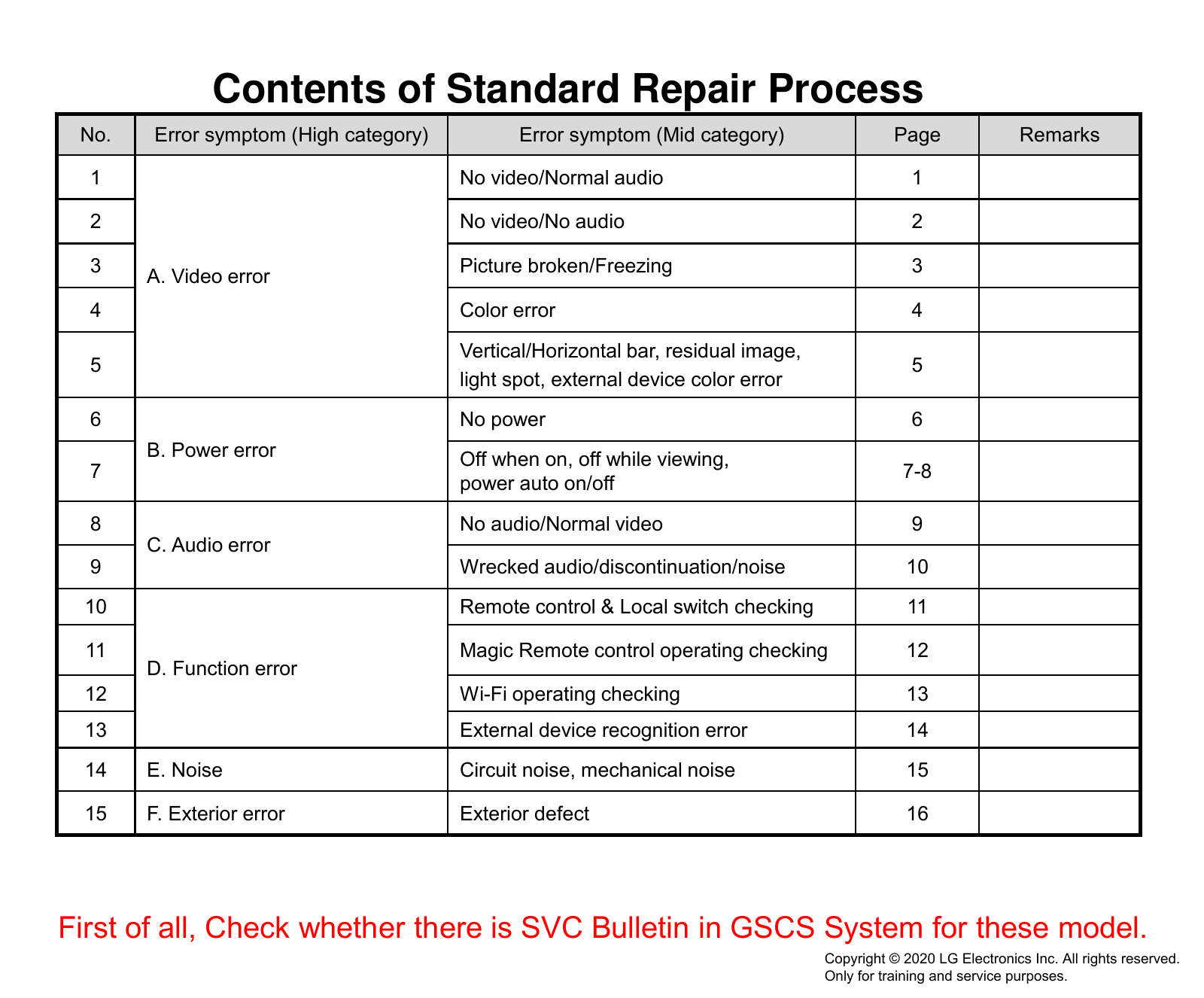

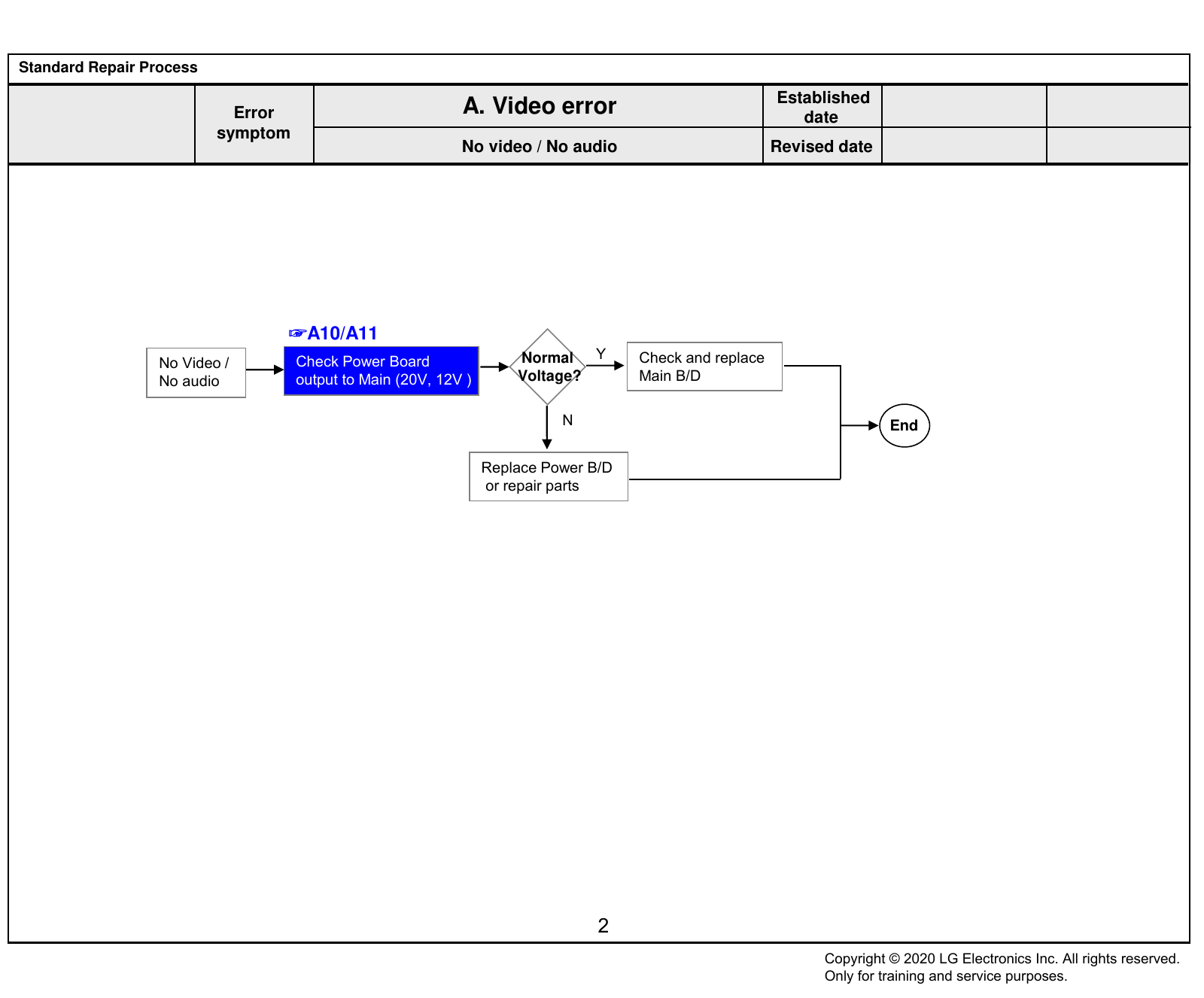

TROUBLE SHOOTING GUIDE ................................................. APPENDIX
-2- Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
SAFETY PRECAUTIONS
IMPORTANT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC Do not use a line Isolation Transformer during this check.
power line. Use a transformer of adequate power rating as this Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
protects the technician from accidents resulting in personal injury between a known good earth ground (Water Pipe, Conduit, etc.)
from electrical shocks. and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
It will also protect the receiver and it's components from being with 1000 ohms/volt or more sensitivity.
damaged by accidental shorts of the circuitry that may be Reverse plug the AC cord into the AC outlet and repeat AC voltage
inadvertently introduced during the service operation. measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
If any fuse (or Fusible Resistor) in this TV receiver is blown, 0.5 mA.
replace it with the specified. In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
When replacing a high wattage resistor (Oxide Metal Film Resistor, repaired before it is returned to the customer.
over 1 W), keep the resistor 10 mm away from PCB.
Leakage Current Hot Check circuit
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
-3- Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
SERVICING PRECAUTIONS
CAUTION: Before servicing receivers covered by this service 2. After removing an electrical assembly equipped with ES
manual and its supplements and addenda, read and follow the devices, place the assembly on a conductive surface such as
SAFETY PRECAUTIONS on page 3 of this publication. aluminum foil, to prevent electrostatic charge buildup or expo-
NOTE: If unforeseen circumstances create conflict between the sure of the assembly.
following servicing precautions and any of the safety precautions 3. Use only a grounded-tip soldering iron to solder or unsolder ES
on page 3 of this publication, always follow the safety precautions. devices.
Remember: Safety First. 4. Use only an anti-static type solder removal device. Some solder
removal devices not classified as “anti-static” can generate
General Servicing Precautions electrical charges sufficient to damage ES devices.
1. Always unplug the receiver AC power cord from the AC power 5. Do not use freon-propelled chemicals. These can generate
source before; electrical charges sufficient to damage ES devices.
a. Removing or reinstalling any component, circuit board mod- 6. Do not remove a replacement ES device from its protective
ule or any other receiver assembly. package until immediately before you are ready to install it.
b. Disconnecting or reconnecting any receiver electrical plug or (Most replacement ES devices are packaged with leads electri-
other electrical connection. cally shorted together by conductive foam, aluminum foil or
c. Connecting a test substitute in parallel with an electrolytic comparable conductive material).
capacitor in the receiver. 7. Immediately before removing the protective material from the
CAUTION: A wrong part substitution or incorrect polarity leads of a replacement ES device, touch the protective material
installation of electrolytic capacitors may result in an explo- to the chassis or circuit assembly into which the device will be
sion hazard. installed.
2. Test high voltage only by measuring it with an appropriate CAUTION: Be sure no power is applied to the chassis or circuit,
high voltage meter or other voltage measuring device (DVM, and observe all other safety precautions.
FETVOM, etc) equipped with a suitable high voltage probe. 8. Minimize bodily motions when handling unpackaged replace-
Do not test high voltage by "drawing an arc". ment ES devices. (Otherwise harmless motion such as the
3. Do not spray chemicals on or near this receiver or any of its brushing together of your clothes fabric or the lifting of your
assemblies. foot from a carpeted floor can generate static electricity suf-
4. Unless specified otherwise in this service manual, clean ficient to damage an ES device.)
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable General Soldering Guidelines
non-abrasive applicator; 10 % (by volume) Acetone and 90 % 1. Use a grounded-tip, low-wattage soldering iron and appropriate
(by volume) isopropyl alcohol (90 % - 99 % strength) tip size and shape that will maintain tip temperature within the
CAUTION: This is a flammable mixture. range or 500 °F to 600 °F.
Unless specified otherwise in this service manual, lubrication of 2. Use an appropriate gauge of RMA resin-core solder composed
contacts in not required. of 60 parts tin/40 parts lead.
5. Do not defeat any plug/socket B+ voltage interlocks with which 3. Keep the soldering iron tip clean and well tinned.
receivers covered by this service manual might be equipped. 4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
6. Do not apply AC power to this instrument and/or any of its bristle (0.5 inch, or 1.25 cm) brush with a metal handle.
electrical assemblies unless all solid-state device heat sinks are Do not use freon-propelled spray-on cleaners.
correctly installed. 5. Use the following unsoldering technique
7. Always connect the test receiver ground lead to the receiver a. Allow the soldering iron tip to reach normal temperature.
chassis ground before connecting the test receiver positive (500 °F to 600 °F)
lead. b. Heat the component lead until the solder melts.
Always remove the test receiver ground lead last. c. Quickly draw the melted solder with an anti-static, suction-
8. Use with this receiver only the test fixtures specified in this type solder removal device or with solder braid.
service manual. CAUTION: Work quickly to avoid overheating the circuit
CAUTION: Do not connect the test fixture ground strap to any board printed foil.
heat sink in this receiver. 6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
Electrostatically Sensitive (ES) Devices (500 °F to 600 °F)
Some semiconductor (solid-state) devices can be damaged eas- b. First, hold the soldering iron tip and solder the strand against
ily by static electricity. Such components commonly are called the component lead until the solder melts.
Electrostatically Sensitive (ES) Devices. Examples of typical ES c. Quickly move the soldering iron tip to the junction of the
devices are integrated circuits and some field-effect transistors component lead and the printed circuit foil, and hold it there
and semiconductor “chip” components. The following techniques only until the solder flows onto and around both the compo-
should be used to help reduce the incidence of component dam- nent lead and the foil.
age caused by static by static electricity. CAUTION: Work quickly to avoid overheating the circuit
1. Immediately before handling any semiconductor component or board printed foil.
semiconductor-equipped assembly, drain off any electrostatic d. Closely inspect the solder area and remove any excess or
charge on your body by touching a known earth ground. Alter- splashed solder with a small wire-bristle brush.
natively, obtain and wear a commercially available discharging
wrist strap device, which should be removed to prevent poten-
tial shock reasons prior to applying power to the unit under test.
-4- Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
IC Remove/Replacement 3. Solder the connections.
Some chassis circuit boards have slotted holes (oblong) through CAUTION: Maintain original spacing between the replaced
which the IC leads are inserted and then bent flat against the cir- component and adjacent components and the circuit board to
cuit foil. When holes are the slotted type, the following technique prevent excessive component temperatures.
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique Circuit Board Foil Repair
as outlined in paragraphs 5 and 6 above. Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
Removal board causing the foil to separate from or "lift-off" the board. The
1. Desolder and straighten each IC lead in one operation by following guidelines and procedures should be followed whenever
gently prying up on the lead with the soldering iron tip as the this condition is encountered.
solder melts.
2. Draw away the melted solder with an anti-static suction-type At IC Connections
solder removal device (or with solder braid) before removing To repair a defective copper pattern at IC connections use the
the IC. following procedure to install a jumper wire on the copper pattern
Replacement side of the circuit board. (Use this technique only on IC connec-
1. Carefully insert the replacement IC in the circuit board. tions).
2. Carefully bend each IC lead against the circuit foil pad and
solder it. 1. Carefully remove the damaged copper pattern with a sharp
3. Clean the soldered areas with a small wire-bristle brush. knife. (Remove only as much copper as absolutely necessary).
(It is not necessary to reapply acrylic coating to the areas). 2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
"Small-Signal" Discrete Transistor 3. Bend a small "U" in one end of a small gauge jumper wire and
Removal/Replacement carefully crimp it around the IC pin. Solder the IC connection.
1. Remove the defective transistor by clipping its leads as close 4. Route the jumper wire along the path of the out-away copper
as possible to the component body. pattern and let it overlap the previously scraped end of the
2. Bend into a "U" shape the end of each of three leads remaining good copper pattern. Solder the overlapped area and clip off
on the circuit board. any excess jumper wire.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding At Other Connections
leads extending from the circuit board and crimp the "U" with Use the following technique to repair the defective copper pattern
long nose pliers to insure metal to metal contact then solder at connections other than IC Pins. This technique involves the
each connection. installation of a jumper wire on the component side of the circuit
board.
Power Output, Transistor Device
Removal/Replacement 1. Remove the defective copper pattern with a sharp knife.
1. Heat and remove all solder from around the transistor leads. Remove at least 1/4 inch of copper, to ensure that a hazardous
2. Remove the heat sink mounting screw (if so equipped). condition will not exist if the jumper wire opens.
3. Carefully remove the transistor from the heat sink of the circuit 2. Trace along the copper pattern from both sides of the pattern
board. break and locate the nearest component that is directly con-
4. Insert new transistor in the circuit board. nected to the affected copper pattern.
5. Solder each transistor lead, and clip off excess lead. 3. Connect insulated 20-gauge jumper wire from the lead of the
6. Replace heat sink. nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Diode Removal/Replacement Carefully crimp and solder the connections.
1. Remove defective diode by clipping its leads as close as pos- CAUTION: Be sure the insulated jumper wire is dressed so the
sible to diode body. it does not touch components or sharp edges.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
-5- Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement.
1. Application range 3. Test method
This specification is applied to the OLED TV used EAX2B (1) Performance: LGE TV test method followed
chassis. (2) Demanded other specification
- Safety : UL, CSA, CE, IEC specification
- EMC : FCC, ICES, CE, IEC specification
2. Test condition
Each part is tested as below without special appointment.
(1) Temperature : 25 ºC ± 5 ºC(77 ± 9 ºF) , CST : 40 ºC ± 5 ºC
(2) Relative Humidity: 65 % ± 10 %
(3) Power Voltage
: Standard input voltage (AC 100-240 V~, 50/60 Hz)
* Standard Voltage of each products is marked by models.
(4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
(5) The receiver must be operated for about 5 minutes prior to
the adjustment.
4. General Specification
No Item Specification Remark
1 Market North America
2 Broadcasting system ATSC / NTSC-M, 64 & 256 QAM
3 Available Channel VHF : 02~13
UHF : 14~69
DTV : 02-69
CATV : 01~135
CADTV : 01~135
4 Receiving system Digital : ATSC, 64 & 256 QAM
Analog : NTSC-M
5 Video Input NTSC-M Rear gender(1EA)
6 HDMI Input HDMI 1 PC / DTV format Support HDMI2.1
HDMI 2 PC / DTV format Support HDMI2.1
HDMI 3 PC / DTV format Support HDMI2.1
HDMI 4 PC / DTV format Support HDMI2.1
7 Audio Input AV Audio / DVI Audio Rear(AV Gender),
L/R Input : Rear
AV and DVI use same jack
8 Audio out SPDIF(1EA) Optical Audio out Rear(1EA)
HeadPhone(1EA) HeadPhone out Rear(1EA)
9 USB Input(3EA) EMF, DivX HD, For SVC (download) JPEG, MP3, DivX HD
10 Ethernet Connect (1EA) Ethernet Connect
-6- Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
5. External Input Support Format
5.1. HDMI Input (PC/DTV)
No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed Remarks
HDMI-PC
1 640*350 31.46 70.09 25.17 EGA
2 720*400 31.46 70.08 28.32 DOS
3 640*480 31.46 59.94 25.17 VESA(VGA)
4 800*600 37.87 60.31 40 VESA(SVGA)
5 1024*768 48.36 60 65 VESA(XGA)
6 1360*768 47.71 60.01 84.75 VESA(WXGA)
7 1152*864 54.34 60.05 80 VESA
8 1280*1024 63.98 60.02 109 SXGA Support to HDMI-PC
9 1920*1080 67.5 60 158.4 WUXGA(Reduced
Blanking)
10 1920*1080 134.86 119.88 296.7 UDTV 2160P Not Support for FHD.
11 1920*1080 135 120 297 UDTV 2160P Not Support for FHD.
12 3840*2160 53.95 23.98 296.7 UDTV 2160P Not Support for FHD.
13 3840*2160 54 24 297 UDTV 2160P Not Support for FHD.
14 3840*2160 56.25 25 297 UDTV 2160P Not Support for FHD.
15 3840*2160 61.43 29.97 296.7 UDTV 2160P Not Support for FHD.
16 3840*2160 67.5 30 297 UDTV 2160P Not Support for FHD.
17 3840*2160 112.5 50 594 UDTV 2160P Not Support for FHD.
18 3840*2160 134.86 59.94 593.4 UDTV 2160P Not Support for FHD.
19 3840*2160 135 60 594 UDTV 2160P Not Support for FHD.
20 4096*2160 53.95 23.98 296.7 UDTV 2160P Not Support for FHD.
21 4096*2160 54 24 297 UDTV 2160P Not Support for FHD.
22 4096*2160 56.25 25 297 UDTV 2160P Not Support for FHD.
23 4096*2160 61.43 29.97 296.7 UDTV 2160P Not Support for FHD.
24 4096*2160 67.5 30 297 UDTV 2160P Not Support for FHD.
25 4096*2160 112.5 50 594 UDTV 2160P Not Support for FHD.
26 4096*2160 134.86 59.94 593.4 UDTV 2160P Not Support for FHD.
27 4096*2160 135 60 594 UDTV 2160P Not Support for FHD.
28 2560*1440 88.78 59.95 241.5 3K (UHD 60Hz models only),
29 2560*1440 182.99 119.99 497.7 3K Support only when UHD
DeepColor is On
No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed Remarks
HDMI-DTV
1 640*480 31.46 59.94 25.12 SDTV 480P
2 640*480 31.5 60 25.12 SDTV 480P
3 720*480 31.47 59.94 27 SDTV 480P
4 720*480 31.5 60 27.02 SDTV 480P
5 720*576 31.25 50 27 SDTV 576P
6 1280*720 44.96 59.94 74.17 HDTV 720P
7 1280*720 45 60 74.25 HDTV 720P
8 1280*720 37.5 50 74.25 HDTV 720P
-7- Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed Remarks
9 1920*1080 28.12 50 74.25 HDTV 1080I
10 1920*1080 33.72 59.94 74.17 HDTV 1080I
11 1920*1080 33.75 60 74.25 HDTV 1080I
12 1920*1080 26.97 23.97 63.29 HDTV 1080P
13 1920*1080 27 24 63.36 HDTV 1080P
14 1920*1080 33.71 29.97 79.12 HDTV 1080P
15 1920*1080 33.75 30 79.2 HDTV 1080P
16 1920*1080 56.25 50 148.5 HDTV 1080P
17 1920*1080 67.43 59.94 148.35 HDTV 1080P
18 1920*1080 67.5 60 148.5 HDTV 1080P
19 1920*1080 112.5 100 297 UDTV 2160P Not Support for FHD.
20 1920*1080 134.86 119.88 296.7 UDTV 2160P Not Support for FHD.
21 1920*1080 135 120 297 UDTV 2160P Not Support for FHD.
22 3840*2160 53.95 23.98 296.7 UDTV 2160P Not Support for FHD.
23 3840*2160 54 24 297 UDTV 2160P Not Support for FHD.
24 3840*2160 56.25 25 297 UDTV 2160P Not Support for FHD.
25 3840*2160 61.43 29.97 296.7 UDTV 2160P Not Support for FHD.
26 3840*2160 67.5 30 297 UDTV 2160P Not Support for FHD.
27 3840*2160 112.5 50 594 UDTV 2160P Not Support for FHD.
28 3840*2160 134.86 59.94 593.4 UDTV 2160P Not Support for FHD.
29 3840*2160 135 60 594 UDTV 2160P Not Support for FHD.
30 3840*2160 225 100 1188 UDTV 2160P 4K120 model
31 3840*2160 269.73 119.88 1186.8 UDTV 2160P (K6Hp HDMI 3,4 port, O20)
or 8K model
32 3840*2160 270 120 1188 UDTV 2160P
33 4096*2160 53.95 23.98 296.7 UDTV 2160P Not Support for FHD.
34 4096*2160 54 24 297 UDTV 2160P Not Support for FHD.
35 4096*2160 56.25 25 297 UDTV 2160P Not Support for FHD.
36 4096*2160 61.43 29.97 296.7 UDTV 2160P Not Support for FHD.
37 4096*2160 67.5 30 297 UDTV 2160P Not Support for FHD.
38 4096*2160 112.5 50 594 UDTV 2160P Not Support for FHD.
39 4096*2160 134.86 59.94 593.4 UDTV 2160P Not Support for FHD.
40 4096*2160 135 60 594 UDTV 2160P Not Support for FHD.
41 4096*2160 225 100 1188 UDTV 2160P 4K120 model
42 4096*2160 269.73 119.88 1186.8 UDTV 2160P (K6Hp HDMI 3,4 port,
O20) or 8K model
43 4096*2160 270 120 1188 UDTV 2160P
44 7680*4320 107.89 23.98 1188 8K 8K Model Only.
45 7680*4320 108 24 1188 8K 8K Model Only.
46 7680*4320 110 25 1188 8K 8K Model Only.
47 7680*4320 131.87 29.97 1188 8K 8K Model Only.
48 7680*4320 132 30 1188 8K 8K Model Only.
49 7680*4320 220 50 2376 8K 8K Model Only.
50 7680*4320 263.74 59.94 2376 8K 8K Model Only.
51 7680*4320 264 60 2376 8K 8K Model Only.
-8- Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
SOFTWARE UPDATE
1. USB 2. NSU
(1) Insert the USB memory Stick to the USB port (This Function is needed to connect to the internet)
(2) Automatically detect the SW Version and show the below (1) Menu -> All Settings -> Support -> Software Update
message
(3) Click [YES]: initiate the download and install of the update.
(4) C lick [Check Now]: move to “About This TV” page for
update (2) C lick [CHEK FOR UPDATES] : system check newest
(5) TV is updating version
(6) After finished the update, below Pop-up appear (3) Click [DOWNLOAD AND INSTALL]
(4) TV is updating
(7) Click [Yes] : TV will be DC OFF -> ON
(8) After TV turned on, Check the updated SW Version and
Tool Option
(5) After finished the update, below Pop-up appear
(6) Turn OFF the TV and On. Check the updated SW Version
and Tool Option
-9- Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
X_TAL
24MHz
T2/C/S2 Tuner (w/o D-Demod
D- od)
Air/ IF+, IF- I2C 1
Cable TUNER
R SIF KGD DDR4
(C/A)
E CVBS (2GB)
A
R I_P, I_N, Q_P, Q_N I2C 5 EEPROM(NVRAM)
Satellite TUNER (256Kb)
I2C 2
(S/S2) P_TS(JP only)
eMMC
(8GB)
Depend on Region USB3 (2.0) OCP USB3_0
USB2 (2.0) OCP USB2_2
USB1 (2.0) OCP USB2_1 I2C 3 T-CON
- 10 -
Main IC
HDMI1 HDMI 2.0 PHY3_RX0N I2S Out
Audio 2AMP
HDMI2 HDMI 2.0 PHY2_RX0N I2C 0
HDMI3(ARC/eARC) HDMI 2.1 PHY1_RX0N
Copyright ©
BLOCK DIAGRAM
HDMI4 HDMI 2.1 PHY0_RX0N
HP H/P USB_WIFI WIFI/BT Combo
AMP SUB
CVBS/COMP YPbPr AV Internal ASSY
Depend on Region IR / KEY
RS232C Micom
RS232C
Control
LAN ETHERNET
Only for training and service purposes.
OPTIC SPDIF OUT
LG Electronics Inc. All rights reserved.
EXPLODED VIEW
IMPORTANT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
920
700
Stand Screw
400
A10
AR2
HW1
900
120
LV2
570
540
500
LV1
811
HS1
501
HP1
121
800
810
HR2
200T
200
530
HR1
811
- 11 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
ASSEMBLY / DISASSEMBLY GUIDE
Total Screw No. : 33ea
1. Remove screw 1ea, disassemble power cord from back cover.
* Push the latch, separate the stand cover to the top.
1 1
1 Latch : 2 EA
2. Remove screw 4ea, disassemble stand from back cover.
* Push the latch, separate the stand cover to the top.
1 1
1 1
1 Screw : 4 EA
- 12 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
3. Remove screw 1ea, disassemble power cord from back cover
`
1
1 Screw : 1 EA
4. Remove screw 4 EA, disassemble back cover from module.
* Put hand on the marked area( ), separate the back cover to the top.
2 2 2 2 2 2 2 2
2
2 2
2
1 1
1 1
1 Screw : 4 EA 2 Latch : 12ea
- 13 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
5. Remove screw 1ea, disassemble Wifi/Jog assy.
1 Screw : 1ea
1
6. Remove the latch 2ea, disassemble IR assy.
2 2 2 Latch : 2ea
Slide
- 14 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
7. Remove all sort of cable.
8. Disassemble speaker.
- 15 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
9. Remove screw 12ea, disassemble Main PCB and PSU.
1 Screw : 12ea
1 1 1 1
1 1
1
1
1 1
1 1
10. Remove screw 7ea, disassemble stand guide and stand fixer.
1
1
1 1
1 Screw : 7ea
1 1 1
- 16 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
11. Remove screw 4 EA, disassemble VESA Bracket
1 1
1 1
1 Screw : 4ea
- 17 - Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
TROUBLE SHOOTING GUIDE
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.

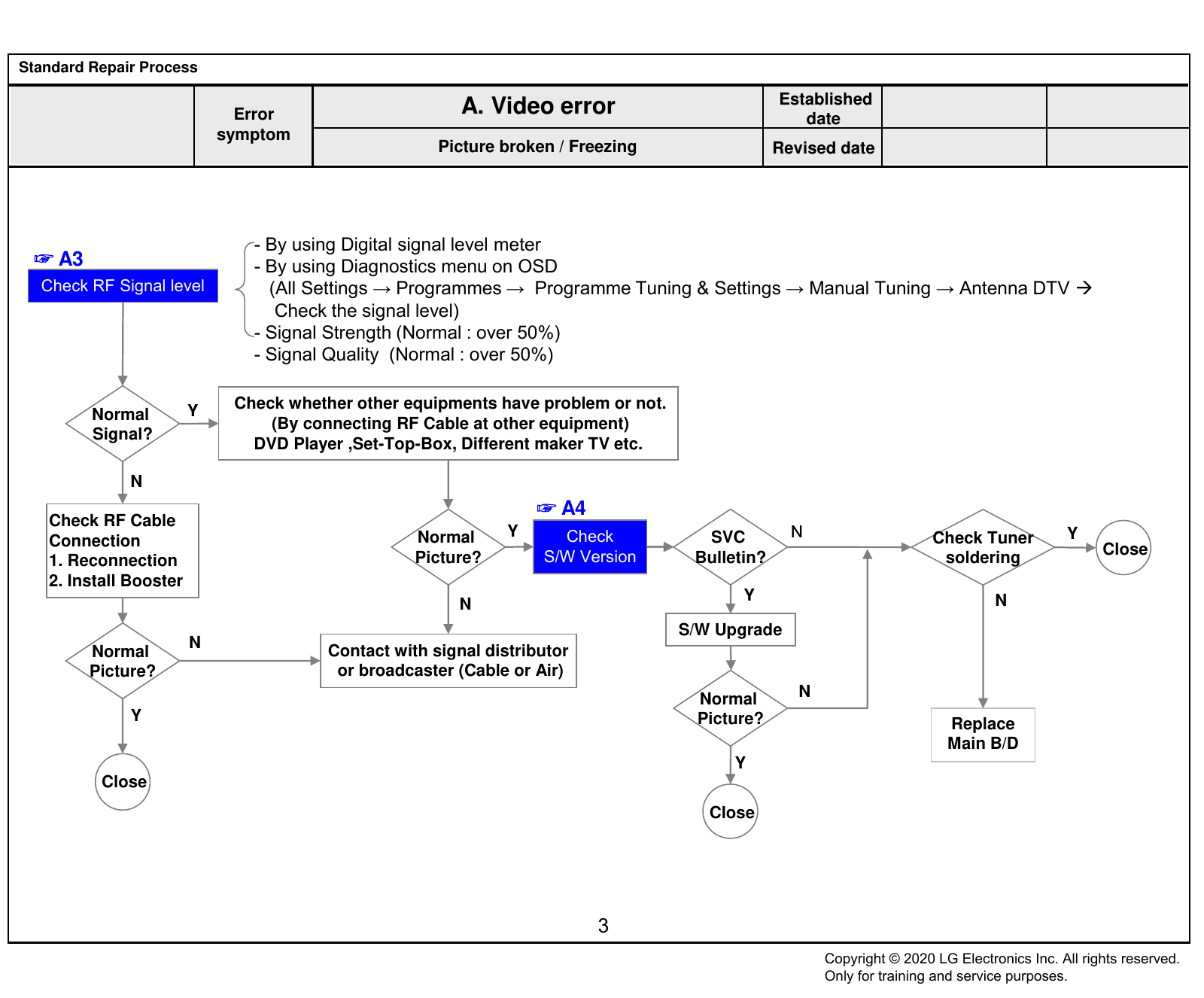

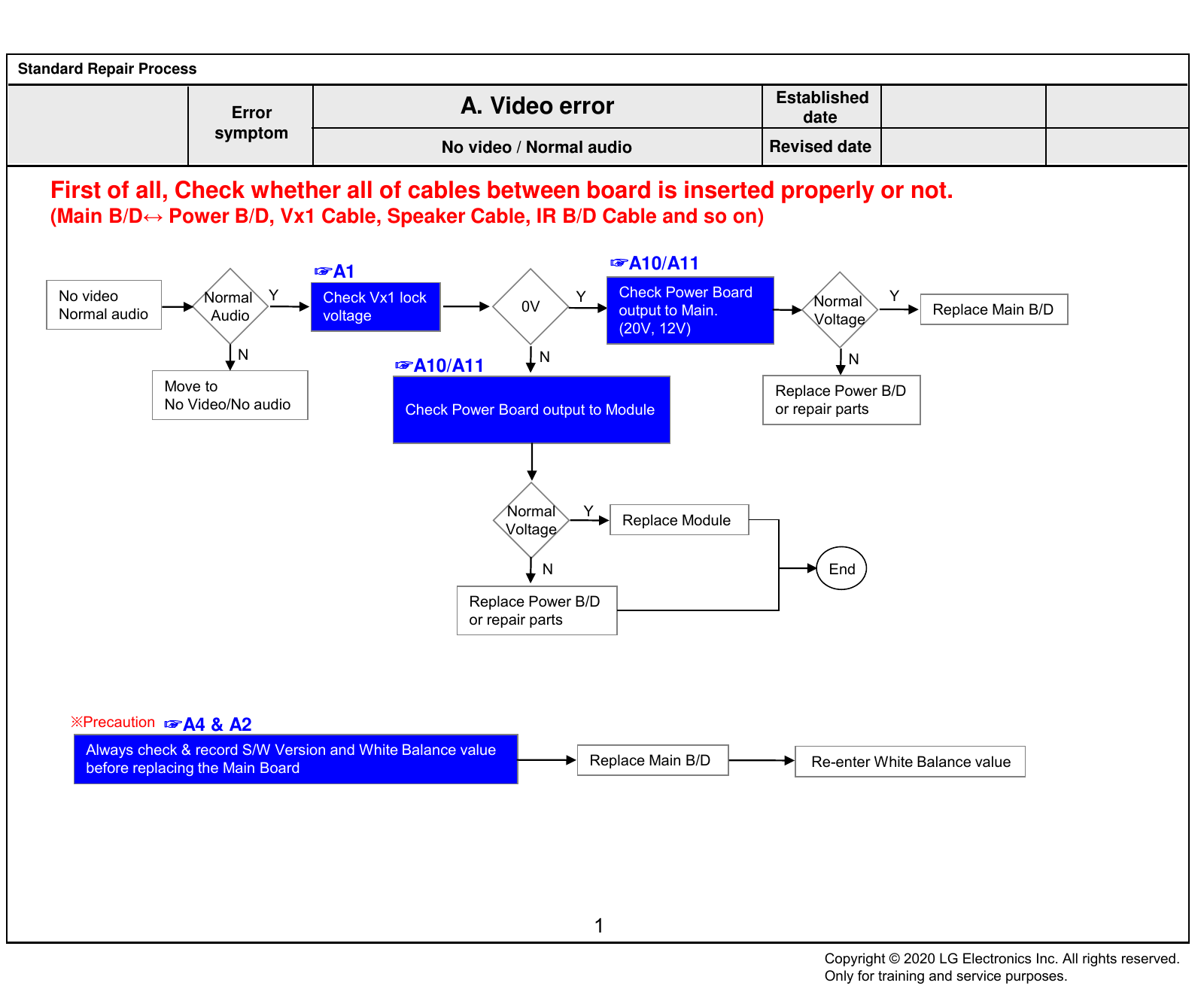

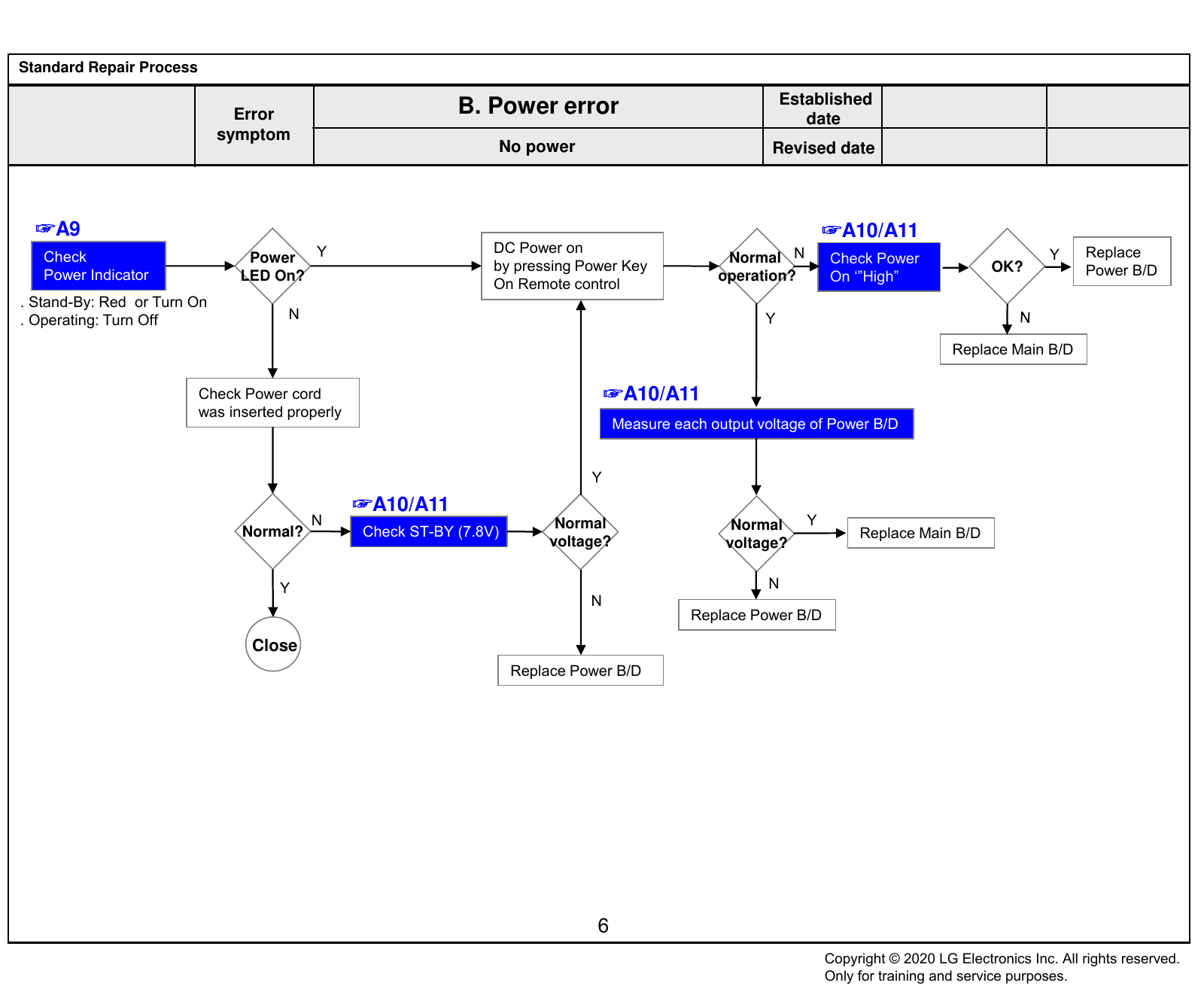

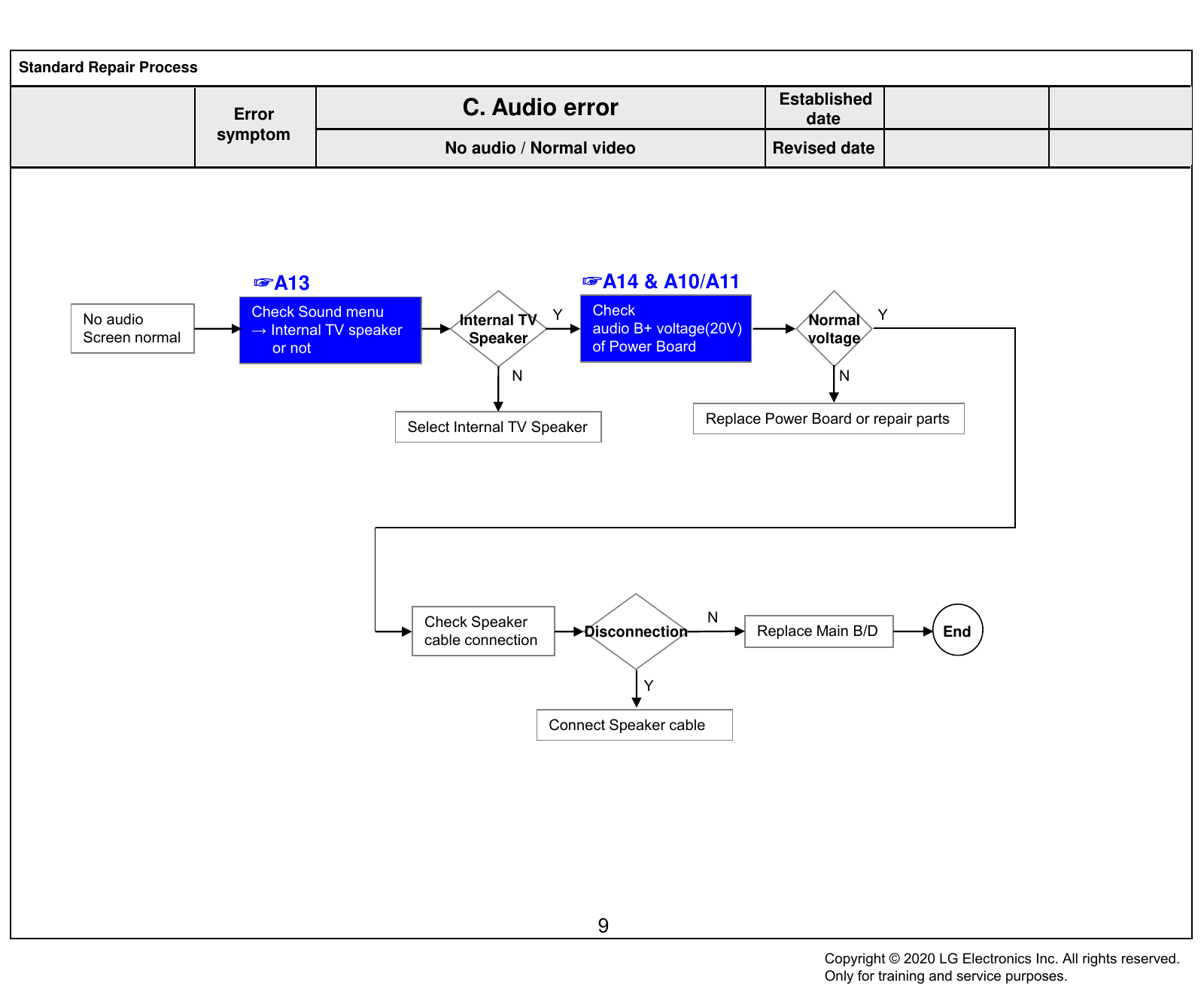

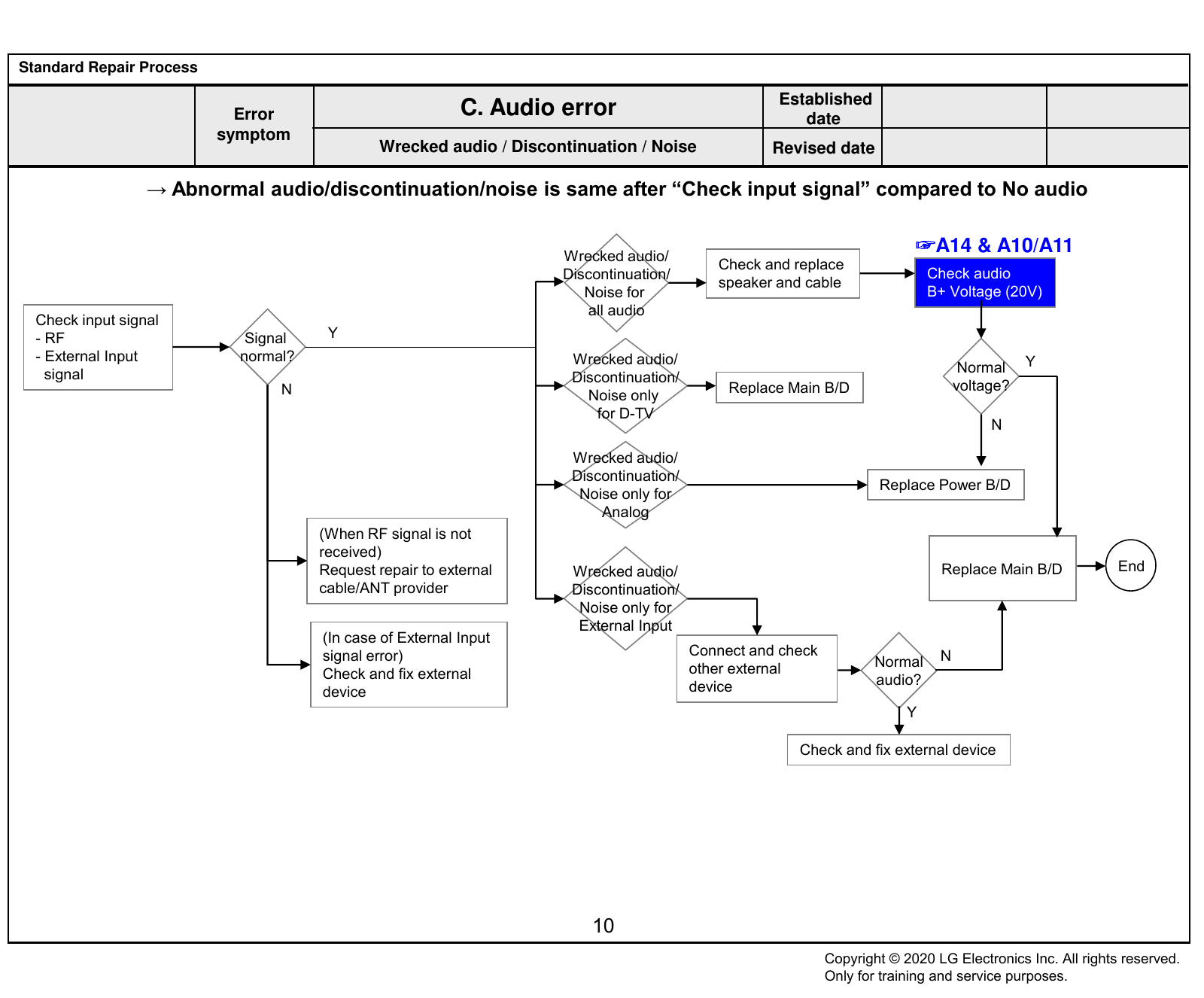

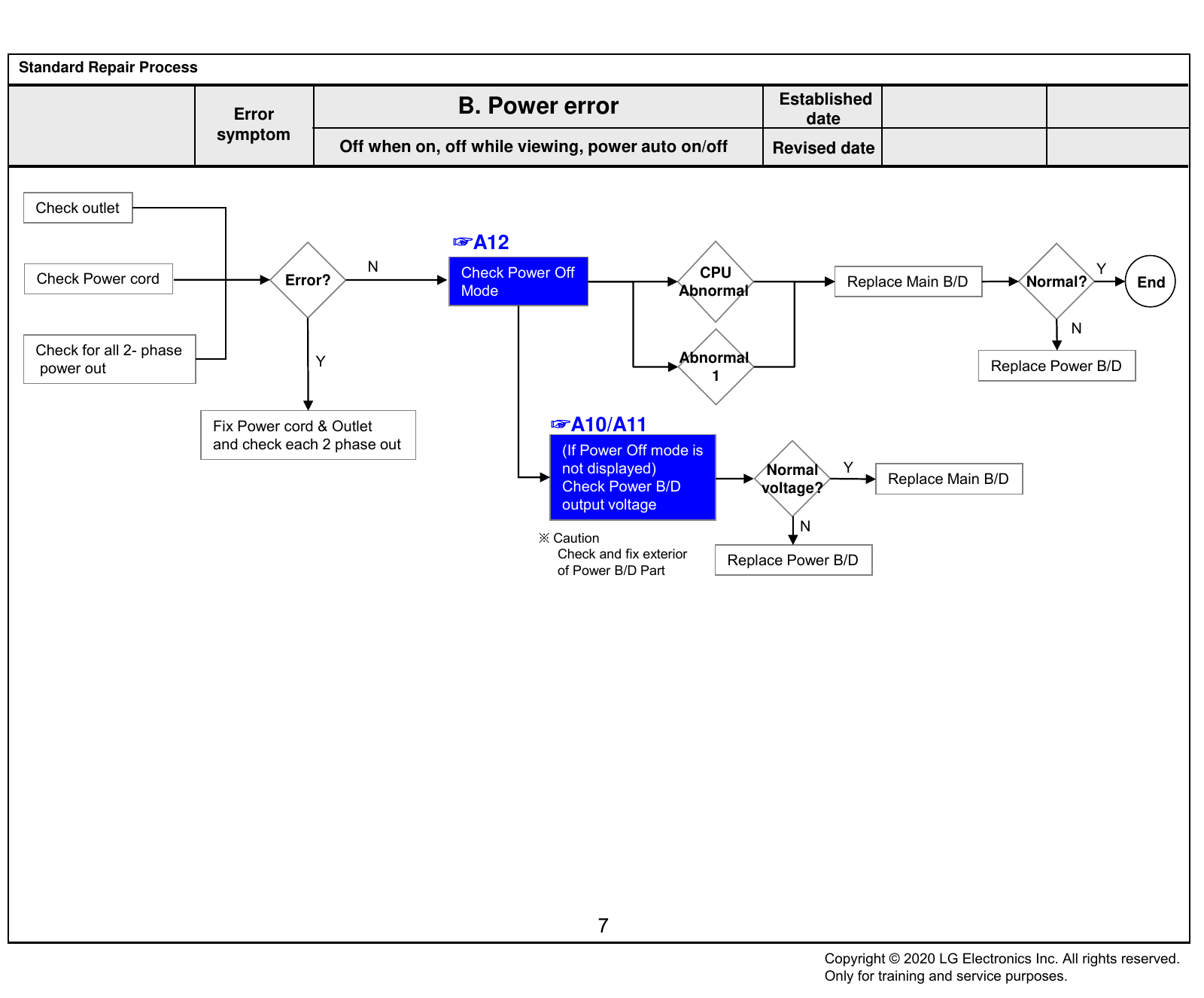

Contents of Standard Repair Process
No. Error symptom (High category) Error symptom (Mid category) Page Remarks
1 No video/Normal audio 1
2 No video/No audio 2
3 Picture broken/Freezing 3
A. Video error
4 Color error 4
Vertical/Horizontal bar, residual image,
5 5
light spot, external device color error
6 No power 6
B. Power error Off when on, off while viewing,
7 7-8
power auto on/off
8 No audio/Normal video 9
C. Audio error
9 Wrecked audio/discontinuation/noise 10
10 Remote control & Local switch checking 11
11 Magic Remote control operating checking 12
D. Function error
12 Wi-Fi operating checking 13
13 External device recognition error 14
14 E. Noise Circuit noise, mechanical noise 15
15 F. Exterior error Exterior defect 16
First of all, Check whether there is SVC Bulletin in GSCS System for these model.
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Standard Repair Process
Established
Error A. Video error date
symptom
No video / Normal audio Revised date
First of all, Check whether all of cables between board is inserted properly or not.
(Main B/D↔ Power B/D, Vx1 Cable, Speaker Cable, IR B/D Cable and so on)
☞A1 ☞A10/A11
No video Normal Y Check Vx1 lock Y Check Power Board Y
0V Normal
Normal audio Audio voltage output to Main. Replace Main B/D
Voltage
(20V, 12V)
N N N
☞A10/A11
Move to Replace Power B/D
No Video/No audio Check Power Board output to Module or repair parts
Normal Y
Replace Module
Voltage
N End
Replace Power B/D
or repair parts
※Precaution ☞A4 & A2
Always check & record S/W Version and White Balance value
Replace Main B/D Re-enter White Balance value
before replacing the Main Board
1
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Standard Repair Process
Established
Error A. Video error date
symptom
No video / No audio Revised date
☞A10/A11
No Video / Check Power Board Normal Y Check and replace
No audio output to Main (20V, 12V ) Voltage? Main B/D
N End
Replace Power B/D
or repair parts
2
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Standard Repair Process
Established
Error A. Video error date
symptom
Picture broken / Freezing Revised date
- By using Digital signal level meter
☞ A3 - By using Diagnostics menu on OSD
Check RF Signal level (All Settings → Programmes → Programme Tuning & Settings → Manual Tuning → Antenna DTV
Check the signal level)
- Signal Strength (Normal : over 50%)
- Signal Quality (Normal : over 50%)
Y Check whether other equipments have problem or not.
Normal
(By connecting RF Cable at other equipment)
Signal?
DVD Player ,Set-Top-Box, Different maker TV etc.
N
☞ A4
Check RF Cable
Normal Y Check SVC N Check Tuner Y
Connection Close
1. Reconnection Picture? S/W Version Bulletin? soldering
2. Install Booster
Y N
N
S/W Upgrade
N Contact with signal distributor
Normal
Picture? or broadcaster (Cable or Air)
Normal N
Y Picture? Replace
Main B/D
Y
Close
Close
3
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Standard Repair Process
Established
Error A. Video error date
symptom
Color error Revised date
☞A6 ☞ A7
※ Check and
Check color by input Y replace Link Y Y
Color Color Color
- External Input Cable(Vx1) Replace Main B/D Replace Module
error? error? error?
- HDMI and contact
N condition N N
End
Check error
color input mode
☞A8
External External Y
Check external
Check Test pattern Input device/Cable Replace Main B/D
device and cable
error normal
N
Request repair
for external
device/cable
N
HDMI Check external
External Y
device/Cable Replace Main B/D
error device and cable
normal
4
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Standard Repair Process
Established
Error A. Video error date
symptom Vertical/Horizontal bar, Residual image,
Light spot, External device color error Revised date
Vertical/Horizontal bar, residual image, light spot Replace
Module
☞A6 N
☞ A7
Check color condition by input Check external
Y Check and
- External Input Screen Y device Screen N Screen
- AV / Component Normal? replace Link Replace Main B/D
normal? connection normal? normal?
- HDMI Cable(Vx1)
condition
N N Y
Y
Replace Request repair End End
☞A8 module for external
device
Check Test pattern
External device screen error-Color error
Connect other external
Check screen
condition by input External device and cable N Replace
Check N (Check normal operation of Screen
Check S/W Version - External Input Input Main B/D /
version
- AV/Component error External Input, HDMI/DVI normal?
Module
- HDMI by connecting Jig, pattern
Generator ,Set-top Box etc. Y
Y
Request repair for
S/W Upgrade external device
Y
Connect other external
device and cable
Normal N (Check normal operation of N Replace
Screen
screen? HDMI External Input, Component, Main B/D /
normal?
AV and HDMI by connecting Module
Jig, pattern Generator ,Set-
Y
top Box etc.
End
5
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Standard Repair Process
Established
Error B. Power error date
symptom
No power Revised date
☞A9 ☞A10/A11
Y DC Power on Replace
Check Power Normal N Check Power Y
by pressing Power Key OK? Power B/D
Power Indicator LED On? operation? On ‘”High”
On Remote control
. Stand-By: Red or Turn On
. Operating: Turn Off N Y
Replace Main B/D
Check Power cord ☞A10/A11
was inserted properly
Measure each output voltage of Power B/D
Y
☞A10/A11
N Normal Normal Y
Normal? Check ST-BY (7.8V) Replace Main B/D
Y
voltage? voltage?
Y N
N
Replace Power B/D
Close
Replace Power B/D
6
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Standard Repair Process
Established
Error B. Power error date
symptom
Off when on, off while viewing, power auto on/off Revised date
Check outlet
☞A12
N Check Power Off CPU Y
Check Power cord Error? Replace Main B/D Normal? End
Mode Abnormal
N
Check for all 2- phase
power out Y Abnormal
Replace Power B/D
1
Fix Power cord & Outlet ☞A10/A11
and check each 2 phase out (If Power Off mode is
not displayed) Normal Y
Check Power B/D Replace Main B/D
voltage?
output voltage
N
※ Caution
Check and fix exterior Replace Power B/D
of Power B/D Part
7
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Standard Repair Process
Established
Error B. Power error date
symptom
Off when on, off while viewing, power auto on/off Revised date
* Please refer to the all cases which can be displayed on power off mode.
Power Off list Explanation Action contents
Power off when TV is not turned off during a certain time
KEYTIMEOUT RESULT : micom force to trigger TV power off. Check & Change Main B/D
CONDITION : When pressing power key while power on/off status, CPU does not response within 8 seconds
Almost the same as Power Off by KEYTIMEOUT. If there is no vaild communication
Bet ween CPU and MICOM for more than 5 seconds, the MICOM switcheds off PSU and
1SEC Power OFF Check & Change Main B/D
Records. Power off by 1SEC Power off. In this case, we don’t have information where the
malfunction exactly occurred. But in in indicates that CPU had stopped and rebooted.
In case of AC Off (It is normal when the power cord is unplugged.) Normal
ACDET
If there are many ACDETs connected, Power Board is defective Check & Change Power B/D
Power off by unstable AC power detect.
RESULT : micom check the stable power.
5V MNT Check & Change Power B/D
CONDITION : When AC on or DC on, stabilization check routine (Power Detect High
Check) fail after multi power on.
CPUABNORMAL If the CPU attempts to reset in case of abnormal operation and Shut Down in case of failure. Check & Change Main B/D
Power off when receiving no ack.
NO POLING RESULT : TV power off/on (Reboot) Check & Change Main B/D
CONDITION : There is no I2C response from CPU for 15 seconds.
CPUCMD Power off by main SoC command. Check & Change Main B/D
Power off by module error (OLED)
BDP_ERROR Check & Change OLED Module
CONDITION : OLED Module send signal to micom
ONRF_FAIL RESULT : Reboot, CONDITION : OLED module compensation is running but fails. Check & Change OLED Module
PNWASHFAIL Power off by panel noise wash function fail case. Check & Change OLED Module
RESET When Micom is reset by AC Off
KEY Power off by Local key
OFFTIMER Power off by Off timer
SLEEPTIMER Power off by sleep timer
NOSIG Power off by No Signal
FANSTOP Power off by FAN operation stopped
INSTOP Power off by Instop Key
Normal Case
AUTO OFF Power off by auto off function
RESREC Power off by reserved recording
RECEND Power off when recording stops
SWDOWN Reboot by SW down load function
UNKNOWN No meaning (same as initial value)
COMP_END OLED threshold voltage degradation(Compensation) completes.
PNWASHDONE Power off by panel noise wash function complited. (OLED)
8
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Standard Repair Process
Established
Error C. Audio error date
symptom
No audio / Normal video Revised date
☞A13 ☞A14 & A10/A11
Check Sound menu Y Check Y
No audio Internal TV Normal
→ Internal TV speaker audio B+ voltage(20V)
Screen normal Speaker voltage
or not of Power Board
N N
Replace Power Board or repair parts
Select Internal TV Speaker
Check Speaker N
Disconnection Replace Main B/D End
cable connection
Y
Connect Speaker cable
9
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Standard Repair Process
Established
Error C. Audio error date
symptom
Wrecked audio / Discontinuation / Noise Revised date
→ Abnormal audio/discontinuation/noise is same after “Check input signal” compared to No audio
Wrecked audio/
☞A14 & A10/A11
Check and replace
Discontinuation/ Check audio
speaker and cable
Noise for B+ Voltage (20V)
all audio
Check input signal
- RF Signal Y
- External Input normal? Wrecked audio/ Y
signal Normal
Discontinuation/
N Replace Main B/D voltage?
Noise only
for D-TV
N
Wrecked audio/
Discontinuation/
Replace Power B/D
Noise only for
Analog
(When RF signal is not
received)
Request repair to external Wrecked audio/ Replace Main B/D End
cable/ANT provider Discontinuation/
Noise only for
External Input
(In case of External Input
signal error) Connect and check N
other external Normal
Check and fix external audio?
device device
Y
Check and fix external device
10
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Standard Repair Process
Established
Error D. Function error date
symptom
Remote control & Local switch checking Revised date
1. Remote control(R/C) operating error Replace
Main B/D
☞A15 ☞A15 ☞A15
Check & Repair N Check Y Y
Check R/C itself Normal Y Normal Normal Check IR Normal
operating? Cable connection operating? B+ 3.5V Voltage? Signal?
Operation Output signal
Connector solder on Main B/D
N Y N N
☞A10/A11
Check R/C Operating Check & Replace Check 7.8V on Power B/D Repair/Replace
Close
When turn off light Baterry of R/C Replace Power B/D or IR B/D
in room Replace Main B/D
(Power B/D don’t have problem)
If R/C operate, Normal Y
Close
Explain the customer operating?
cause is interference
from light in room. N
Replace R/C
11
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Standard Repair Process
Established
Error D. Function error date
symptom
Magic Remote control operating checking Revised date
2. Magic Remote control operating error
☞A4
Check Magic Turn off/on the
Check the RF Receiver ver N Normal Y Press the Is show ok N
is “00.00”? remote control operating? message? set and press
Instart menu wheel
itself Operation the wheel
N Y
Y
☞A16 Check & Replace Battery
Check & Repair Close
of Magic remote control
RF assy
connection
Normal Y
Close
☞A4 operating?
Is show ok N Press the back
RF Receiver ver N message? key about 5sec
Close N
is “00.00”?
Y
Replace
Magic remote
Y control Close
Download the Firmware
•If you conduct the loop at 3times,
Instart Memu
change Magic remote control
12.RF Remote control Test
Receiver Firmware Download
12
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Standard Repair Process
Established
Error D. Function error date
symptom
Wi-Fi operating checking Revised date
3.Wi-Fi operating error
☞A4
☞A16
Check the Wi-Fi MAC N Check the Wi-Fi wafer Normal N Replace
Instart menu is “NG”? pin Voltage? Main B/D
Y
Y
☞A16
Close
Check & Repair
Wi-Fi cable
connection
☞A4
N
Wi-Fi MAC
is “NG”? Close
Y
Replace the Wi-Fi assy
13
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Standard Repair Process
Established
Error D. Function error date
symptom
External device recognition error Revised date
Check technical
Y
Check Signal information Technical N External Input
Replace Main B/D
input signal input? - Fix information information? Recognition error
- S/W Version
N Y
HDMI/DVI,
Check and fix Optical Recognition Replace Main B/D
Fix in
external device/cable error
accordance
with technical
information
14
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Standard Repair Process
Established
Error E. Noise date
symptom
Circuit noise, Mechanical noise Revised date
Identify Circuit Check location
Replace Power B/D
noise type noise of noise
Mechanical Check location
noise of noise
※ When the nose is severe, replace the module
(For models with fix information, upgrade the
※ Mechanical noise is a natural
S/W or provide the description)
phenomenon, and apply the 1st level
OR
description. When the customer does not
agree, apply the process by stage. ※ If there is a “Tak Tak” noise from the
※ Describe the basis of the description in cabinet, refer to the KMS fix information and
“Part related to nose” in the Owner’s then proceed as shown in the solution manual
Manual. (For models without any fix information,
provide the description)
15
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Standard Repair Process
Established
Error F. Exterior defect date
symptom
Exterior defect Revised date
Zoom part with Module
Replace module
exterior damage damage
Cabinet
Replace cabinet
damage
Remote
control Replace remote control
damage
Stand
Replace stand
dent
16
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Contents of Standard Repair Process Detail Technical Manual
No. Error symptom Content Page Remarks
1 Check Vx1 lock A1
A. Video error_ No video/Normal audio
2 Check White Balance value A2
3 Tuner input signal strength checking method A3
4 A. Video error_ video error /Video Version checking method A4
lag/stop
5 Tuner Checking Part A5
A. Video error_Vertical/Horizontal bar,
6 Connection diagram A6
residual image, light spot
Check Link Cable(Vx1) reconnection
7 A. Video error_ Color error A7
condition
Example of Symptom (Image error) A-1/10
Example of Symptom (Image error) A-2/10
Example of Symptom (Main) A-3/10
Example of Symptom (Main) A-4/10
Example of Symptom (Main) A-5/10
8 Defected Type caused by Cable / Main
Board / Module Example of Symptom (Module) A-6/10
Example of Symptom (Module) A-7/10
Example of Symptom (Module) A-8/10
Example of Symptom (Module) A-9/10
Example of Symptom (Power board) A-10/10
Continue to the next page
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Contents of Standard Repair Process Detail Technical Manual
Continued from previous page
No. Error symptom Content Page Remarks
9 Check Power Indicator A9
B. Power error_ No power
10 Check power input Voltage & ST-BY 3.5V A10
B. Power error_Off when on, off
11 POWER OFF MODE checking method A12
while viewing
12 Checking method in menu when there is no audio A13
C. Audio error_ No audio/Normal
video Voltage and speaker checking method when there
13 A14
is no audio
14 Remote control operation checking method A15
D. Function error
15 Wi-Fi/Motion Remote operation checking method A16
16 How to use the Service remote control A17-A19
E. Etc
17 Check items after Main B/D replacement A20
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_No video/Normal audio date
Revised
Content Check Vx1 lock /Check BDP Point A1
date
Check a voltage of R7624(Red) after turn on the TV. Check a voltage of R7632(Blue) after turn on the TV.
If the voltage is low, Vx1 is locked.(OK) If the voltage is high, BDP issue.(NG)
A1
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_No video/Normal audio date
Revised
Content Check White Balance value date A2
1. Press ‘ADJ’ button on Factory Service Remote control.
2. Enter into ‘12.White Balance’
3. After recording the R, G, B (Gain, Cut) value of each Color Temp(Cool/Medium/Warm),
re-enter the value after replacing Main board.
A2
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_Video error, video lag/stop date
Revised
Content Tuner input signal strength checking method date A3
1. Press ‘MENU’ button on Factory Service remote control.
2. Enter into Manual Tuning menu as below.
All Settings Programmes Programme Tuning & Settings
Manual Tuning
3. Check the signal level.
When the signal is strong,
use the attenuator
(-10dB, -15dB, -20dB etc.)
A3
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_Video error, video lag/stop date
Revised
Content Version checking method date A4
Version
1. Press ‘IN START’ button on Factory Service remote control.
2. Check S/W Version
A4
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Standard Repair Process Detail Technical Manual
Error Established
symptom
A. Video error_Video error, video lag/stop
date
Revised
Content Tuner checking part date A5
Checking method:
1. Check the signal strength or check whether the screen is normal when the external device is connected.
2. After measuring each voltage from power supply, finally replace the Main board.
A5
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Standard Repair Process Detail Technical Manual
Error A. Video error _Vertical/Horizontal bar, Established
symptom Residual image, Light spot date
Revised
Content Connection diagram date A6
As the part connecting to the external input, check the
screen condition by signal
A6
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Standard Repair Process Detail Technical Manual
Error Established
symptom A. Video error_Color error date
Revised
Content Check Link Cable(Vx1) reconnection condition date A7
Check the contact condition of the Link Cable, especially dust or mis-insertion.
A7
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Appendix. Examples of Symptoms(Image error) Check for poor cable contact
Symptom
Item Cause Symptom Image
Name
Cable Color smear Poor broken pin of FFC cable
R Color Color is Excessive due to FFC Cable
Cable
Excessive Contact.
screen is dark due to poor contact due
Cable Screen darkness to disconnection of the FFC cable pin.
G Color G color transient due to poor FFC cable
Cable connection
Excessive
A - 1/10
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Appendix. Examples of Symptoms(Image error) Check for poor cable contact
Symptom
Item Cause Symptom Image
Name
Cable Color spread Vx1 cable connection problem
Cable Color spread Vx1 cable connection problem
Cable Color spread Vx1 cable connection problem
Due to foreign substance withi nLVDS
Cable Screen stop cable PIN
A - 2/10
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Appendix. Examples of Symptoms(Main) Check parts by symptom
Symptom
Item Cause Symptom Image
Name
Main Screen noise Bit noise from horizontal screen
Broken screen due to
Main Screen noise
Main IC problem
Main Dark picture Dark left-side screen
Top/bottom screen part
Main Broken picture
Picture problem due to tuner
Inner side quality problem
A - 3/10
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Appendix. Examples of Symptoms(Main) Check parts by symptom
Symptom
Item Cause Symptom Image
Name
Main Broken screen Broken screen in a horizontal manner
Main Screen spread Screen corner appears blurry
Main Color Spread Color spread on the screen
Main Blurry Screen Blurry picture on the screen
A - 4/10
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Appendix. Examples of Symptoms(Main) Check parts by symptom
Symptom
Item Cause Symptom Image
Name
No problem at the initial stage,
Main Broken picture G-color spread after 10 minutes
Right-side
Main
Screen Right-side screen problem
problem
LG logo
Main Screen picture spread problem
Screen problem
No problem at the initial stage.
Right-side
Main During Heat run, right-side picture
picture problem
problem
A - 5/10
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Appendix. Examples of Symptoms(Module) Check parts by symptom
Symptom
Item Cause Symptom Image
Name
Un-repairable Cases
Module Vertical bar
In this case please exchange the module
Module image broken Source Driver issue
Module White dot White dot cause by panel issue
Module Line Dim Vertical Line cause by source drive IC
A - 6/10
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Appendix. Examples of Symptoms(Module) Check parts by symptom
Symptom
Item Cause Symptom Image
Name
Module Burnt Module burnt
Module Horizon line Module has damaged
Module has damaged
Module Line Defect
Un-repairable Cases
Module Press damage
In this case please exchange the module
A - 7/10
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Appendix. Examples of Symptoms(Module) Check parts by symptom
Symptom
Item Cause Symptom Image
Name
Module Vertical bar Vertical Bar cause by source drive IC
Vertical Noise Un-repairable Cases
Module Brightness
In this case please exchange the module
difference
Module Green light Compensation error when Power On/off
Color difference between screen cause
Module Color difference by compensation error
A - 8/10
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Appendix. Examples of Symptoms(Module) Check parts by symptom
Symptom
Item Cause Symptom Image
Name
Module has damaged
Module No image
(Can’t fix it)
Burnt
Module Burnt
(Can’t fix it)
Screen Mura
Module Mura
(Can’t fix it)
A - 9/10
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Appendix : Exchange Power Board (PSU)
No Light No picture/Sound Ok
A - 10/10
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Standard Repair Process Detail Technical Manual
Error Established
symptom B. Power error _No power date
Revised
Content Check Power Indicator date A9
ST-BY condition : On or Off
Power ON condition : Turn Off
A9
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Standard Repair Process Detail Technical Manual
Error Established
symptom B. Power error _No power date
Revised
Content Check power input voltage and ST-BY 3.5V date A10
Check 12VM line for ST-BY Voltage Power To Main B’d
55/65BX ST-BY status : 7.8V, Power on(DC On) status : 12V
P201
P252
P251
Power To Module
A10
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Standard Repair Process Detail Technical Manual
Error
symptom B. Power error_Off when on, off whiling viewing Established
date
Revised
Content POWER OFF MODE checking method date A12
1. Press ‘IN START’ button on Factory Service remote control
2. Check the entry into ‘3. Power On/Off Status’.
A12
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Standard Repair Process Detail Technical Manual
Error Established
symptom
C. Audio error_No audio/Normal video
date
Revised
Content Checking method in menu when there is no audio date A13
Checking method
1. Press the Setting button on the remote control.
2. Select the Sound function of the Menu.
3. Select the Sound Out.
4. Select TV Speaker.
A13
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Standard Repair Process Detail Technical Manual
Error Established
symptom C. Audio error_No audio/Normal video date
Voltage and speaker checking method Revised
Content date A14
when there is no audio
P201
② ①
1 SPK_R-_CT 2 SPK_R-_FT
3 SPK_R+_CT 4 SPK_R+_FT
5 SPK_L-_CT 6 SPK_L-_FT
7 SPK_L+_CT 8 SPK_L+_FT
Checking order when there is no audio
1.Check the contact condition of or 13.2V connector of Main Board.
2. Measure 20V input voltage for Audio AMP supplied from Power board.
(If there is no input voltage, remove and check the harness)
3. Connect the tester RX1 to the speaker terminal and if you hear the Chik Chik
sound when you touch the GND and output terminal, the speaker is normal.
A14
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Standard Repair Process Detail Technical Manual
Error Established
symptom D. Function error date
Revised
Content Remote control operation checking method date A15
①
②
③
1. Check IR cable condition between IR & Main board.
2. Check +3.5V_ST on pin 4(③)
3. AS checking the Pre-Amp of IR B/D(③) , the power is in ON condition, an Analog Tester
needle should move slowly, otherwise, it’s defective.
A15
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Standard Repair Process Detail Technical Manual
Error Established
symptom D. Function error date
Revised
Content Wi-Fi / Motion Remote operation checking method date A16
①
③
②
Checking order
1. Check BT/Wifi cable condition between BT/Wifi assy & Main board.
2. Check the 3.5V on the terminal 1, 6.
A16
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Standard Repair Process Detail Technical Manual
Error Established
symptom
E.Etc
date
Revised
Content How to use the Service remote control date A17
1. How to access the remote control
0 4 1 3
0 4 1 3
A17
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Standard Repair Process Detail Technical Manual
Error Established
symptom
E.Etc
date
Revised
Content How to use the Service remote control date A18
2. Remote control part definition
POWER Power On/Off
[ETC] Each time pressing the KEY button, Mode gets changed to ETC and P-ONLY each time
ETC (Added Function) All KEY function [PIP PR-][PIP PR+][SWAP]
[PIP INPUT][DVI] KEY Function
Changed to factory mode
P-ONLY (Added
Function)
All KEY function &[INFO][STILL][HDMI HOT][USB HOT][HDMI4] KEY Action
INPUT Change to the external device mode
ARC Change in the order of 16:9=>Zoom1=>Zoom2=>Cinema Zoom=>Aucto Screen=>4:3=>16:9
Changes in the order of Bright Picture=>Easy Picture=>Cinema=>Spots=>Game=>
PSM
Custom PIcture1=>Custom Picture2=>Bright Picture
SSM (Added Function) Standard(user)=>music=>cinema=>sports=>game=>standard(user)
PIP Picture In Picture is activated
TEXT Access to the Power Only mode
CAP Broadcasting caption(on/off)
MPX Stereo mode (mono, stereo, foreign language) access
Used when in factory mode
Simplink (Added
Access to the Simplink-connected device
Function)
Digital EYE function ON/OFF
EYE
For some Model, access to the Test Pattern
TILT Used for screen tilting change (Access to the old PDP control mode)
A18
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Standard Repair Process Detail Technical Manual
Error Established
symptom
E.Etc
date
Revised
Content How to use the Service remote control date A19
B-TOOTH
Connected to Blue-Tooth
(Added function)
Model Nam ex) 42PG60D-NA Current Model Name S/W Version ex)
IN-START V03.11.0 Current S/W version
MICOM Version ex) V3.05.0 current Mi-Com version UTT ex) User TV total usage time
POWER OFF STATUS ex) Shows power-off status
ADJ
Test Pattern (Off=>White=>Red=>Green=>Blue=>Black=>Pattern=>Off) Change
X-STUDIO (Added function) HDD,USB, external device’s HDD screen is activated
MENU User function gets activated
EXIT Exit from the current mode
TIME SHIFT (Added
Moves forward/backward of recorded contents
function)
MUTE Mute function (0 Volume)
IN-STOP SET to factory mode
VOL + - Volume Up/Down
CH + - Channel Up/Down
AV1,2,3 (Added function) Connects to external input 1,2,3
COMP1,2 (Added function) Connects to Component 1,2
HDMI1,2,3,4
Connects to HDMI 1,2,3,4
(Add function)
DVI (Add function) Connects to DVI
A19
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
Standard Repair Process Detail Technical Manual
Error Established
symptom
E.Etc
date
Revised
Content Check items after Main B/D replacement date A20
Check items afer Main B/D(Model Number D/L, White Balance)
1. Press the Service remote control instart Key.
No.7 Select Model Number D/L
- Key in the model name and serial number
after checking the ID label on the back cover.
2. Press the Service remote control ADJ Key.
No.13 Select White Balance
- Record the R, G, B (GAIN, Cut) value of the
color temperature before main board
replacement.
A14 After replacing the main board, key in the
recorded value.
A20
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
